Seiko Epson FBJ26H006 11n+BT Combo Module User Manual rev
Seiko Epson Corporation 11n+BT Combo Module Users Manual rev
Users Manual rev
COMPANY CONFIDENTIAL
1
FuGui Precision Industrial (Nanning) Co., LTD.
No.51, Tongle Boulevard, Shajing, Jiangnan District, Nanning, P. R. CHINA
Tel: 86-0771-2168888 Ext:30726
FAX: 86-0771-2168888 Ext:64886
Function 802.11b/g/n(1x1) WiFi+ Bluetooth 2.1/4.2 Combo
Project Name 11n+BT Combo Module
Part No. J26H006
Delivery Specification Rev. 1.1
Prepared by Reviewed by Approved by
J26H006 Delivery Specification
COMPANY CONFIDENTIAL
2
Content
0. REVISION HISTORY ........................................................................ 3
1. INTRODUCTION ........................................................................... 4
1.1 SCOPE ................................................................................... 4
1.2 FUNCTION ................................................................................ 4
1.3 SPECIFICATION BY MODEL ................................................................... 4
1.4 MODULE WEIGHT .......................................................................... 4
1.5 PRODUCT REGULATORY ..................................................................... 5
2. MECHANICAL SPECIFICATION ............................................................. 5
2.1 MODULE MECHANICAL DRAWING .............................................................. 5
2.2 USB CONNECTOR .......................................................................... 7
2.3 RF SWITCH CONNECTOR .................................................................... 9
3.USB CONNECTOR PIN-OUT ................................................................. 9
5. ELECTRICAL SPECIFICATION ............................................................. 10
5.1 RECOMMENDED OPERATING CONDITION ....................................................... 10
5.2 RF CHARACTERISTICS ..................................................................... 10
5.3 CURRENT CONSUMPTION ................................................................... 11
5.4 EFUSE CONTENT .......................................................................... 12

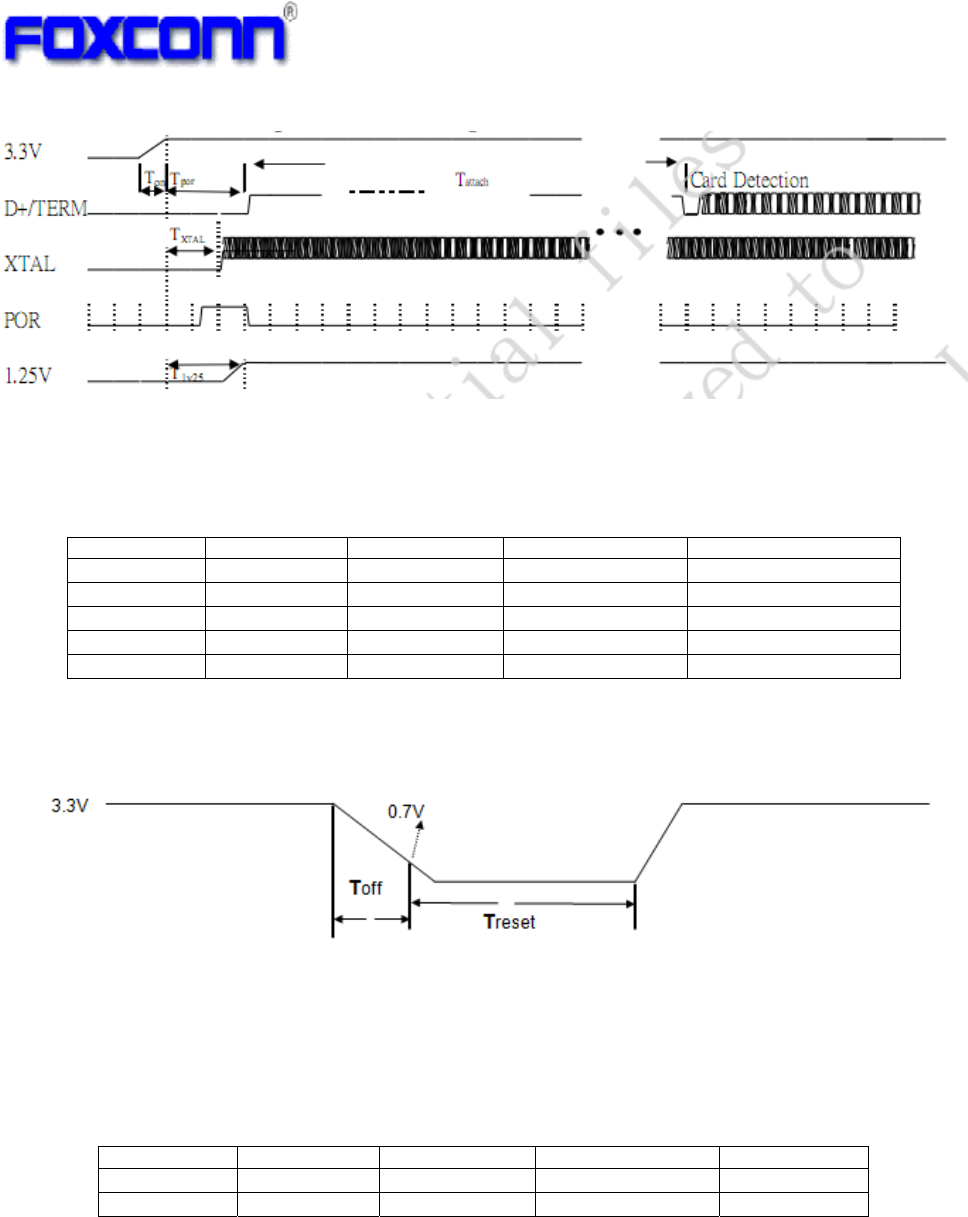

5.5 POWER ON/OFF SEQUENCE ................................................................. 14

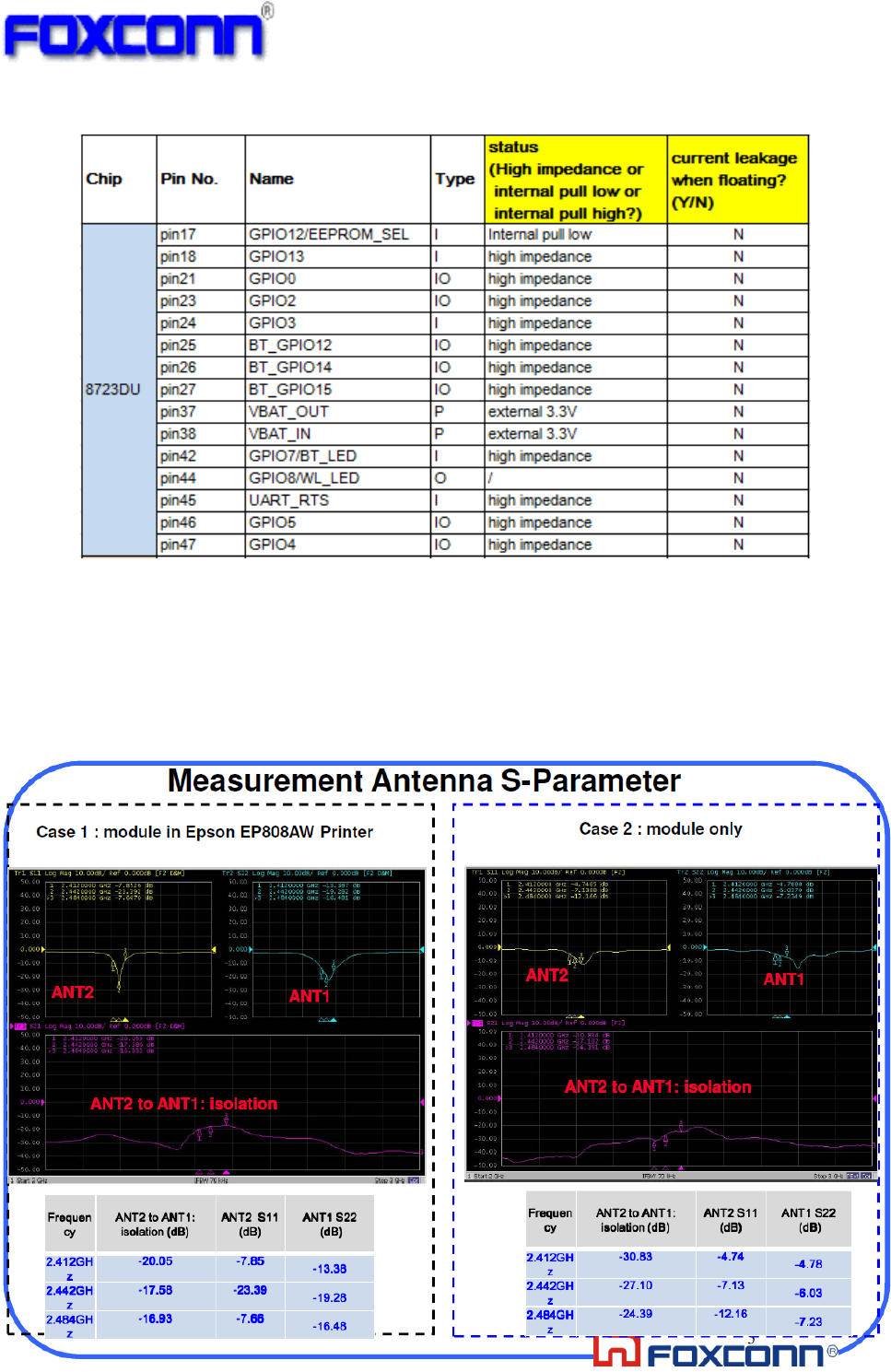

5.6 FLOATING PIN STATUS ...................................................................... 16

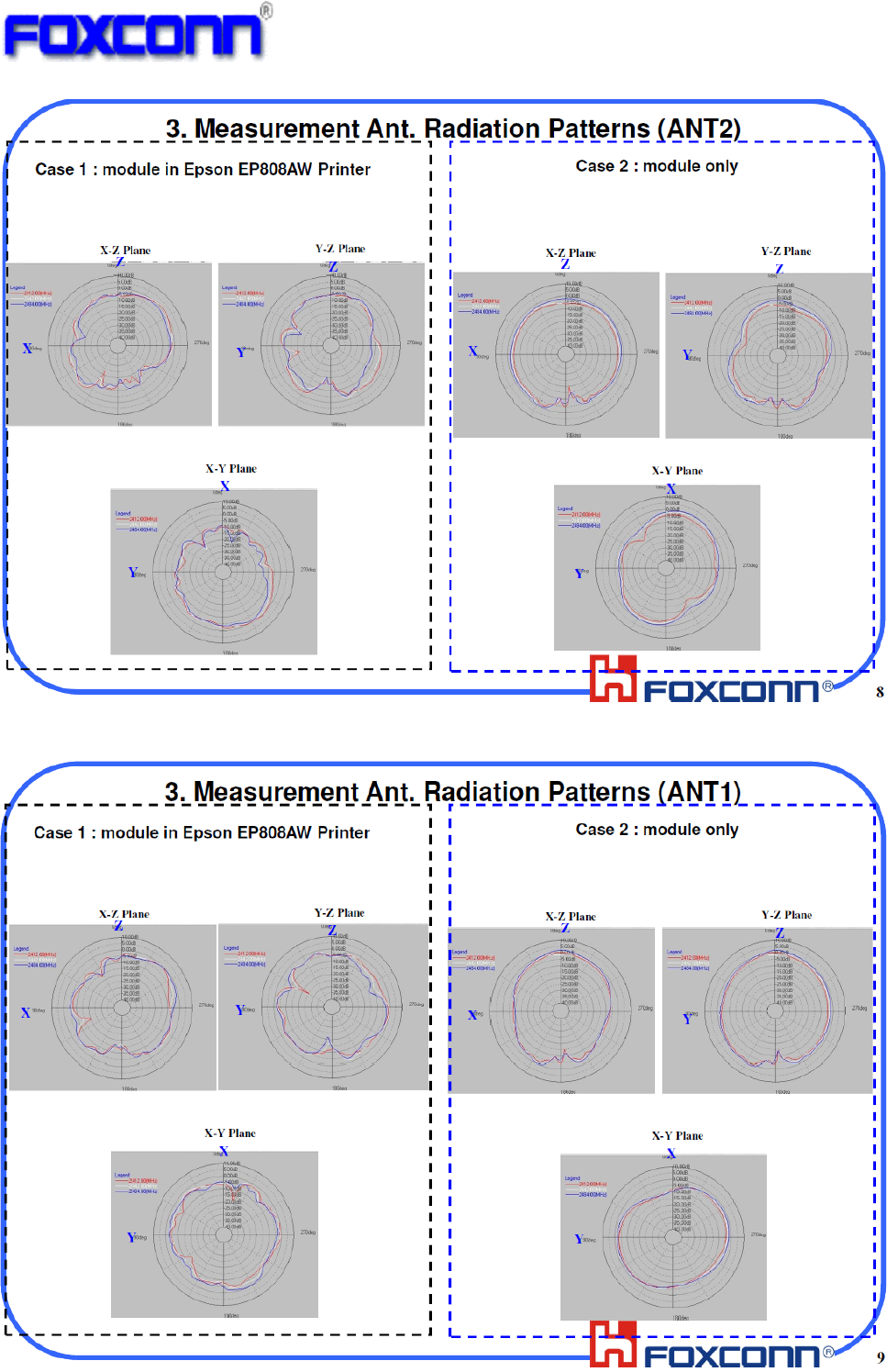

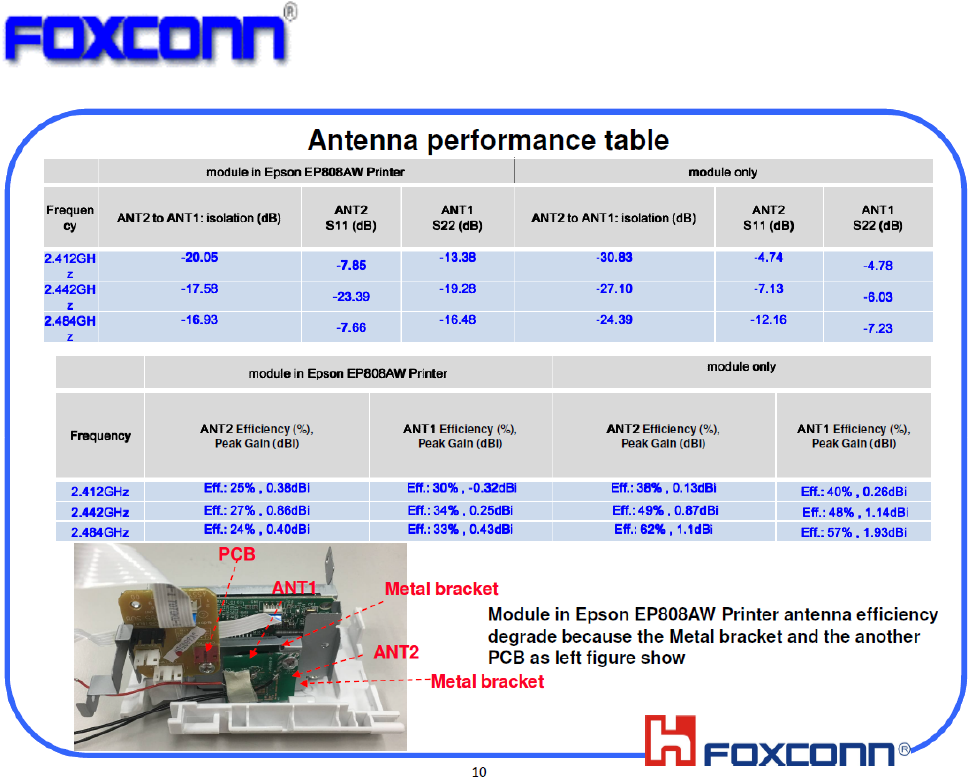

5.7 ANTENNA SPECIFICATION ................................................................... 16
5.8 OPERATING SYSTEM SUPPORT .............................................................. 18
6. LABEL INFORMATION .................................................................... 19

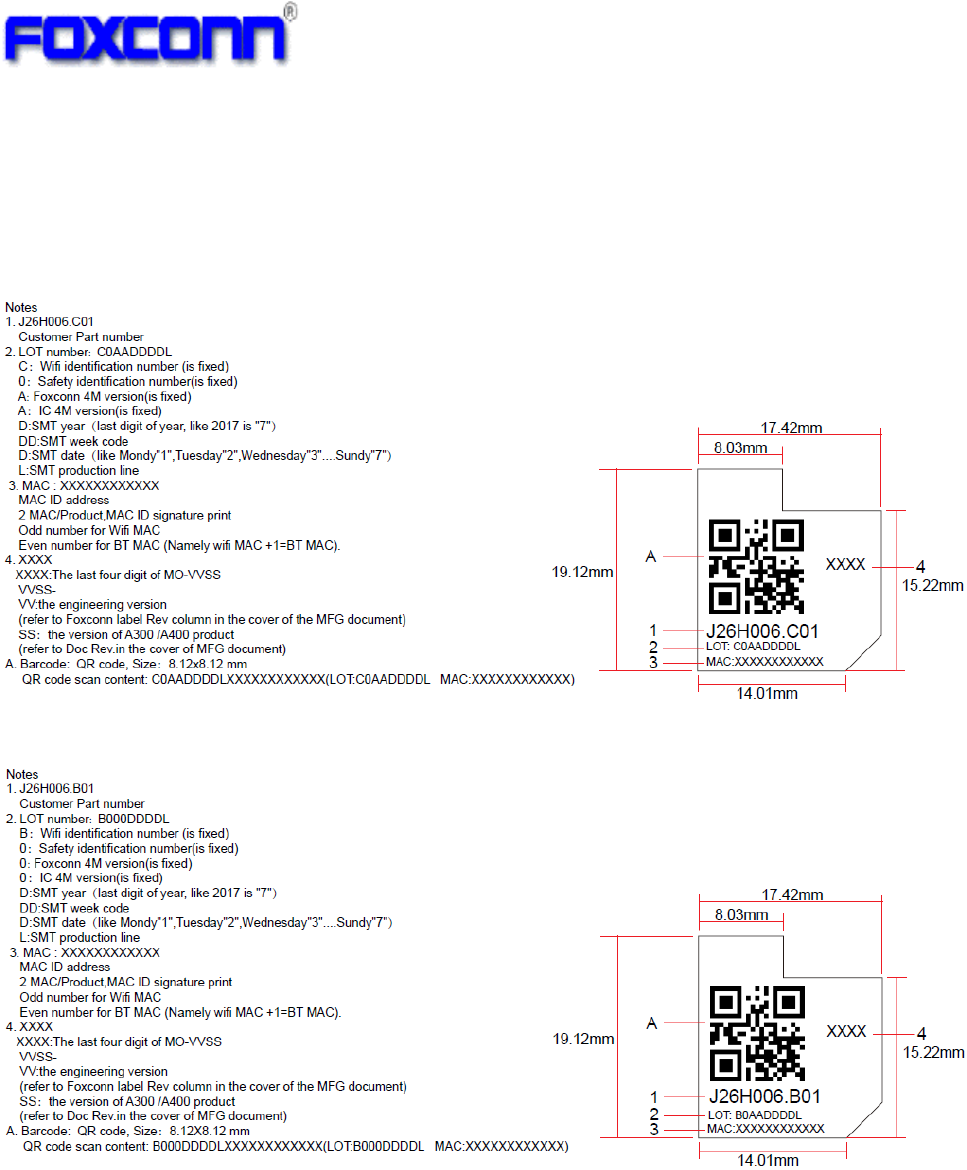

6.1 MAC-ID LABEL LASER MARKING ............................................................. 19
6.2 REGULATORY LABEL ....................................................................... 20

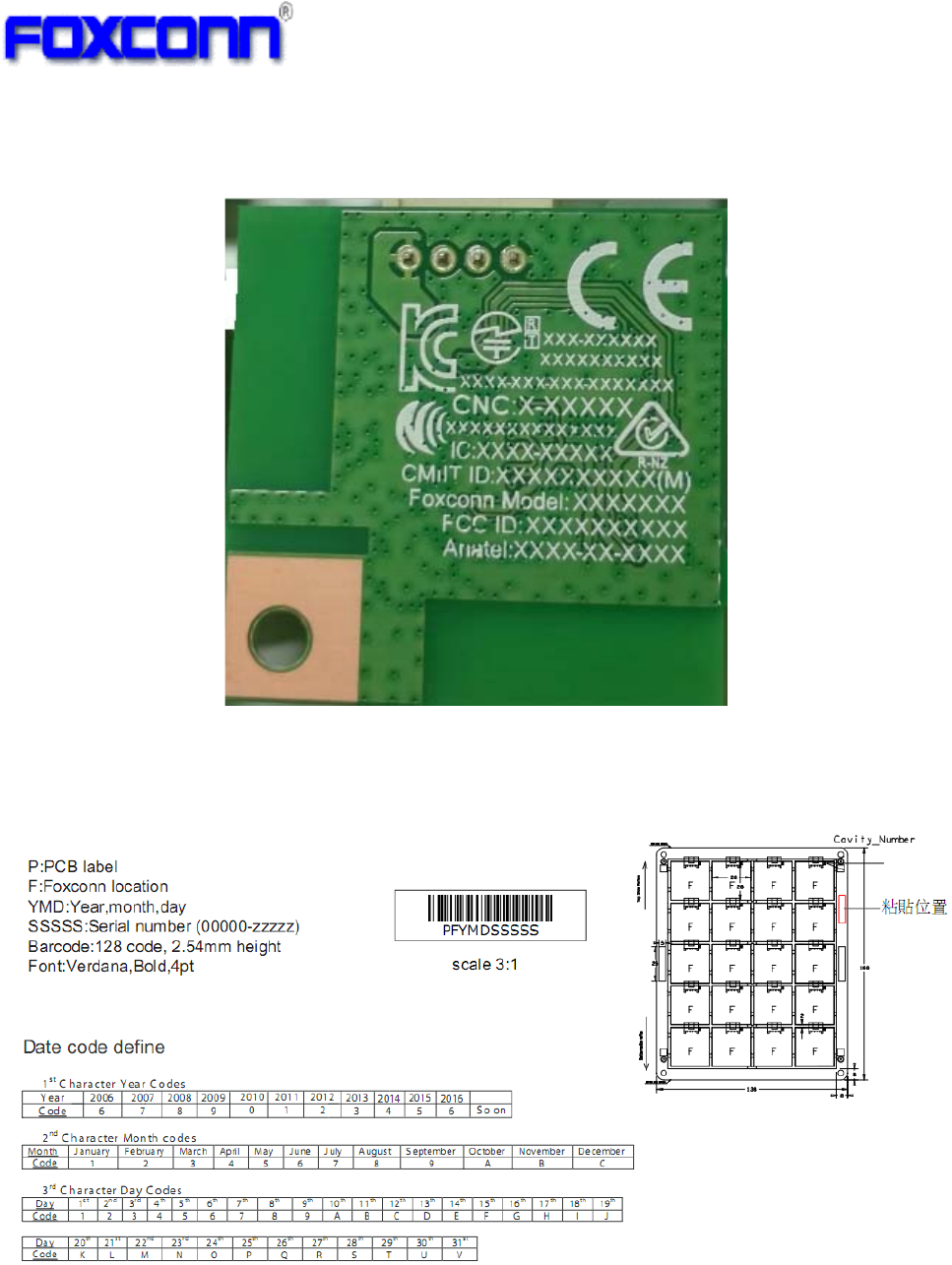

6.3 PANEL LABEL ............................................................................. 20

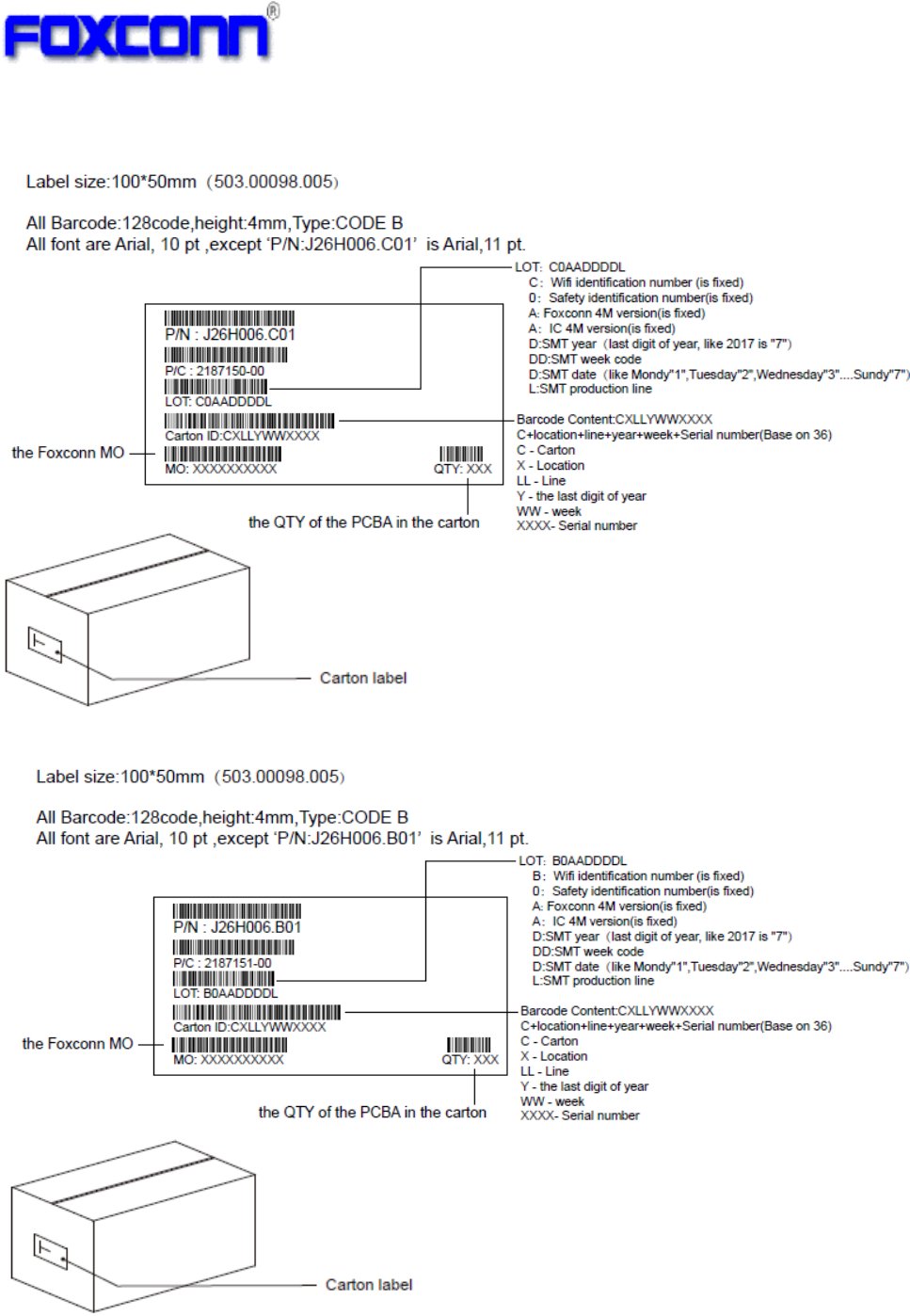

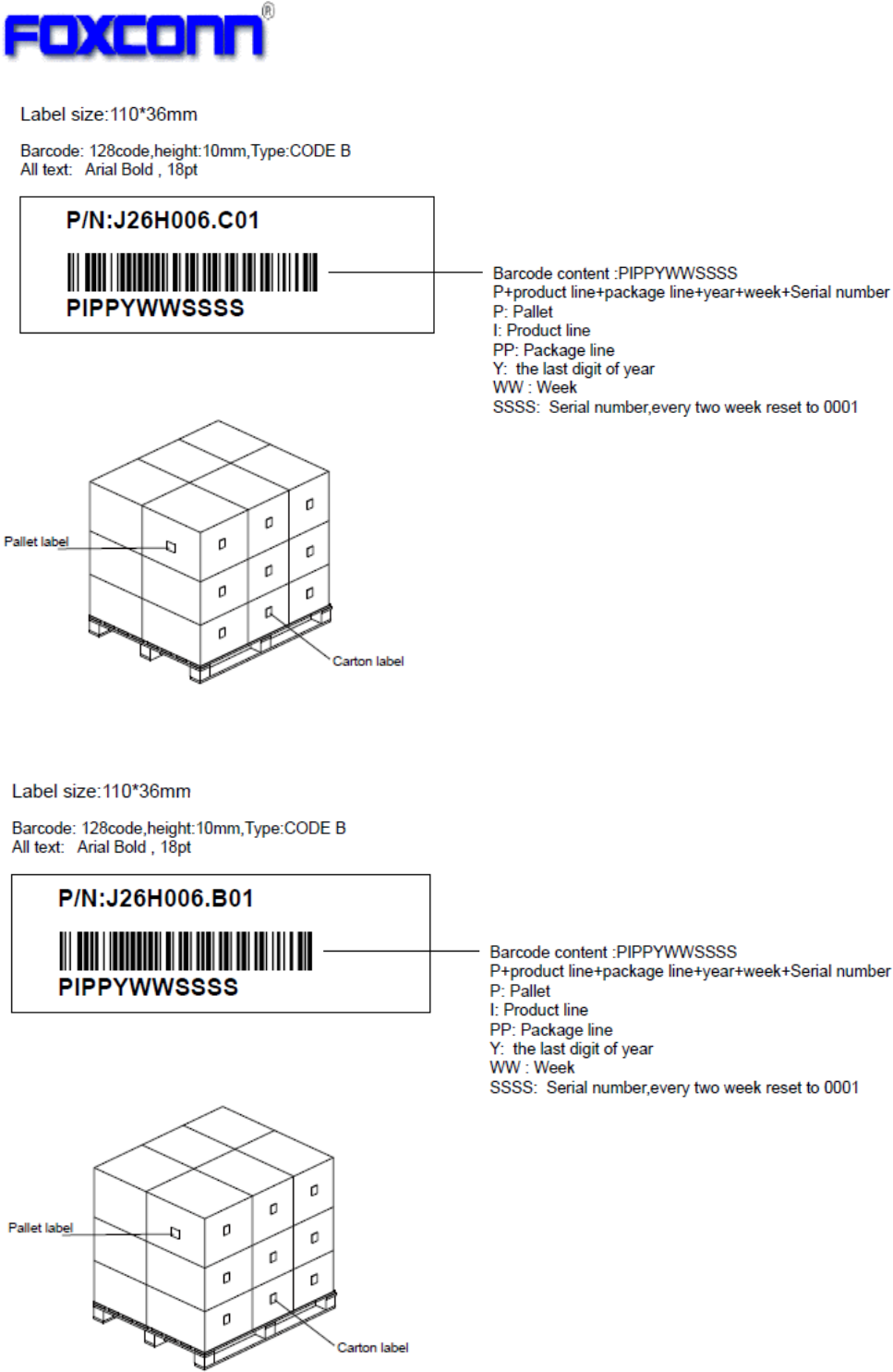

6.4 CARTON LABEL ........................................................................... 21
6.5 PALLET LABEL ............................................................................ 21

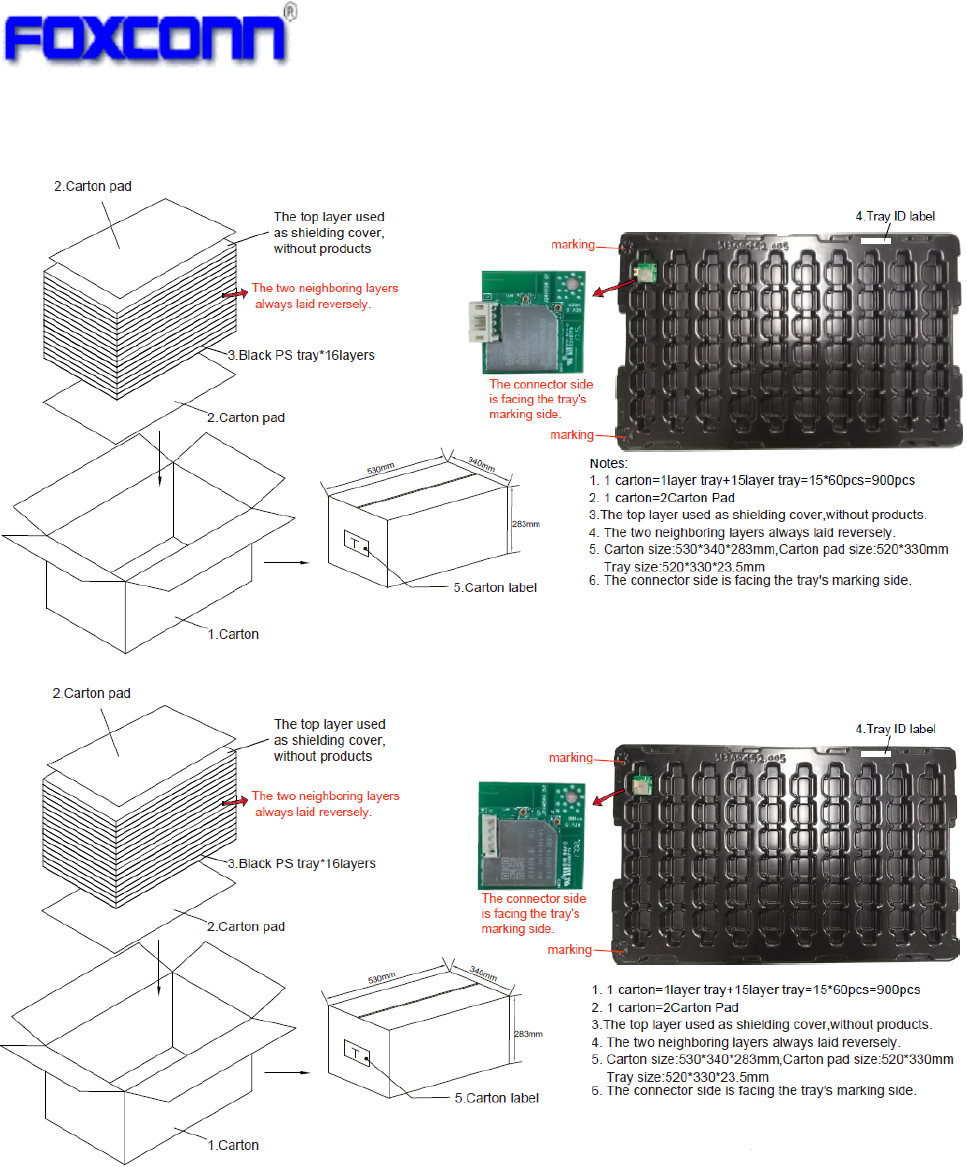

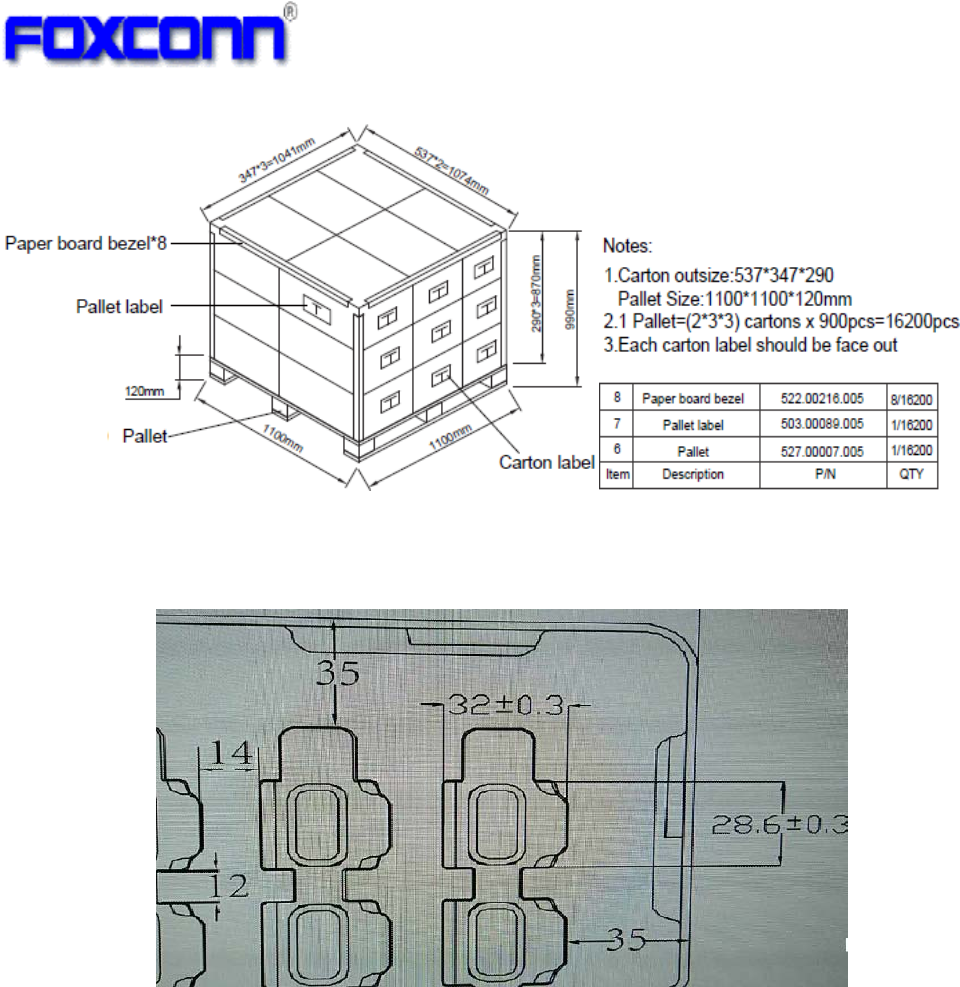

7. PACKING INFORMATION .................................................................. 23
7.1 MODULE SCAN GUIDE ...................................................................... 25

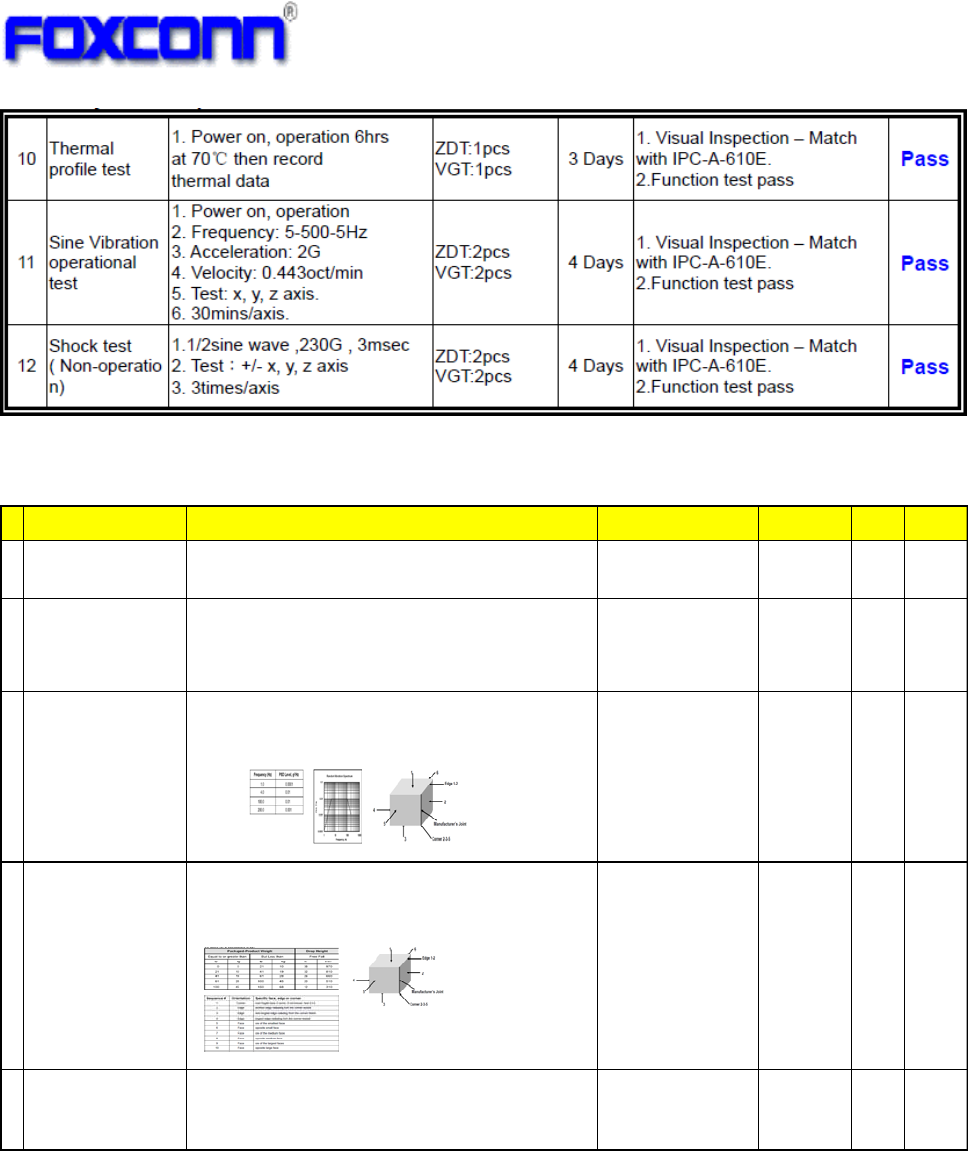

8. RELIABILITY ............................................................................. 26

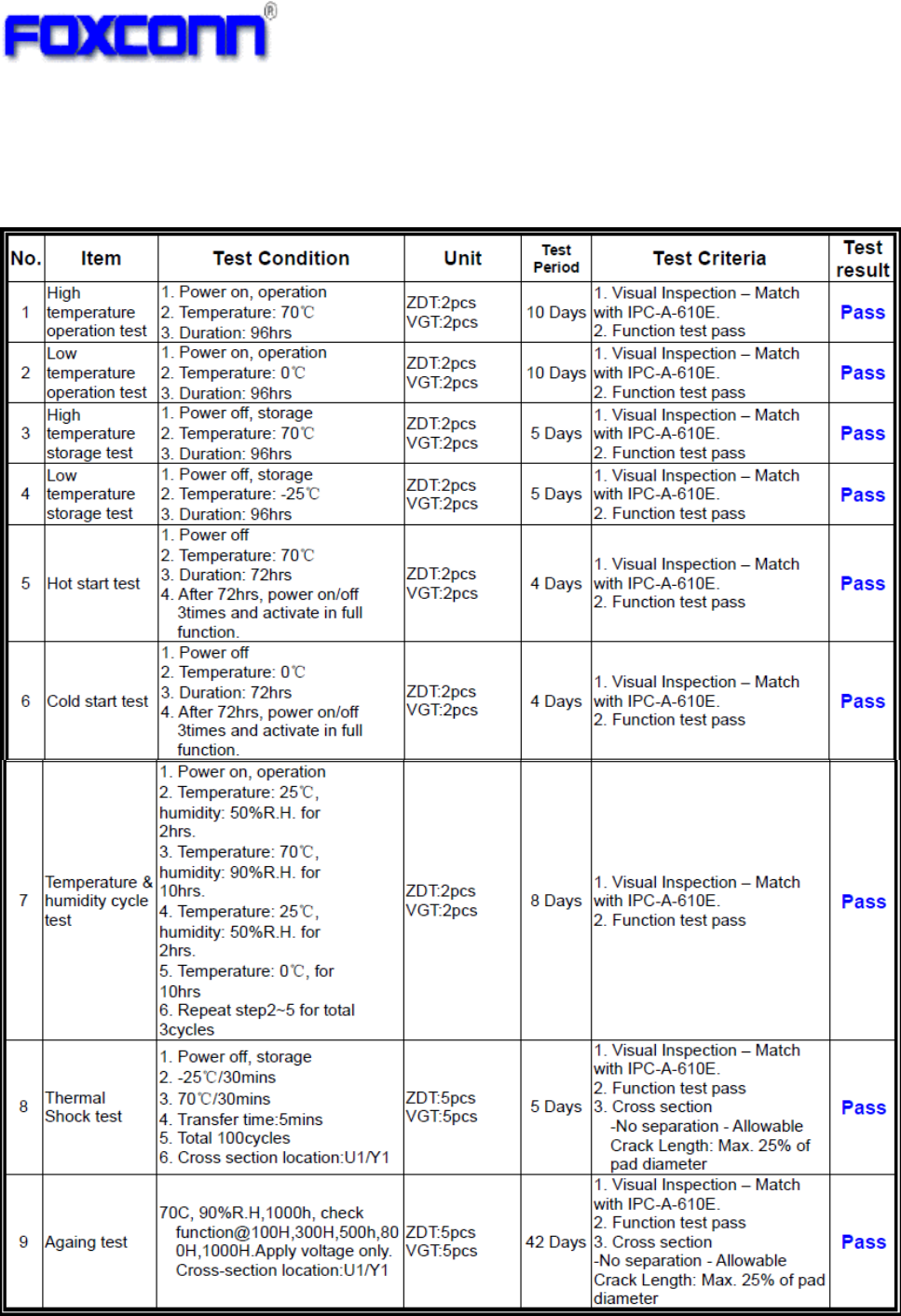

8.1 HARDWARE RELIABILITY TEST ............................................................... 26
8.2 PACKAGE RELIABILITY TEST (TBD) ........................................................... 27
9. QUALITY ................................................................................. 27

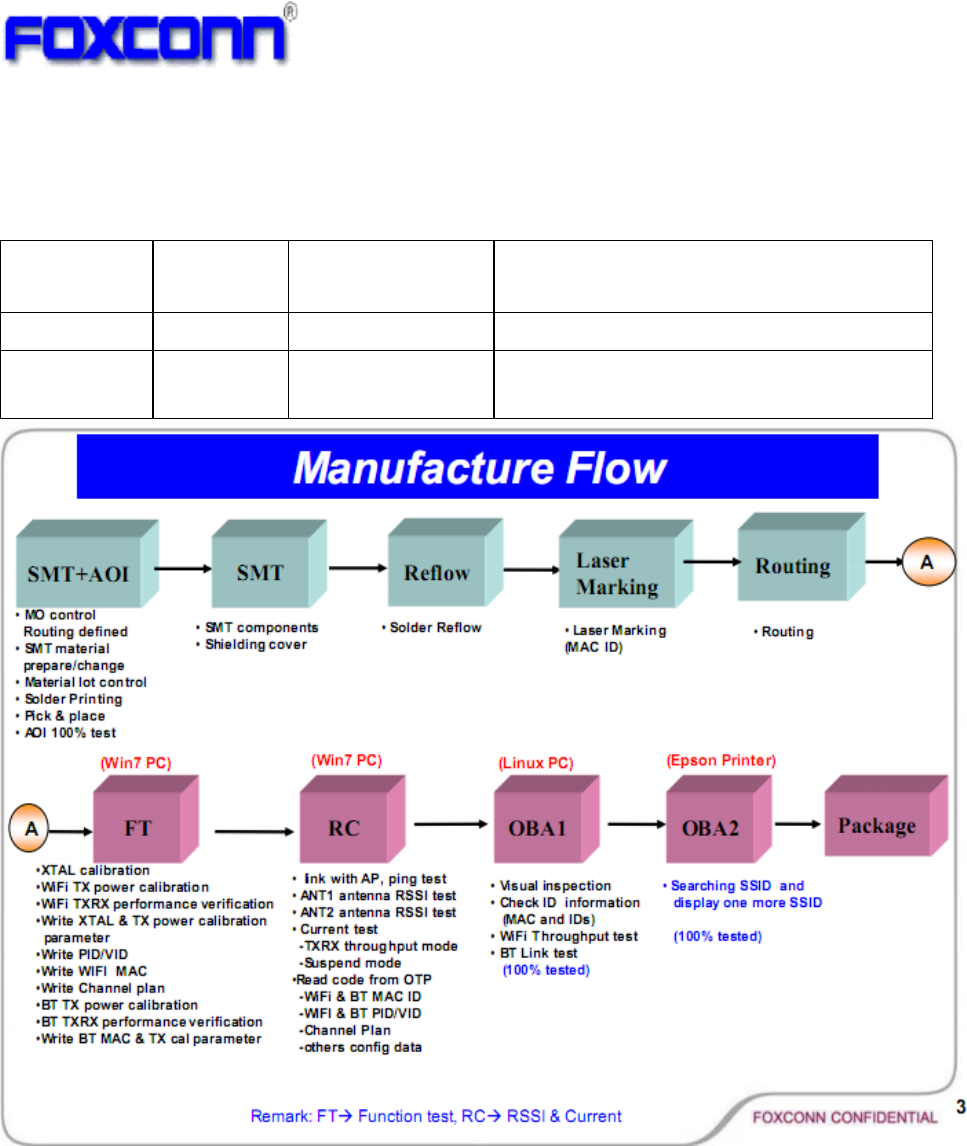

9.1 QC FLOW CHART ......................................................................... 27
9.2 VISUAL INSPECTION STANDARD .............................................................. 28

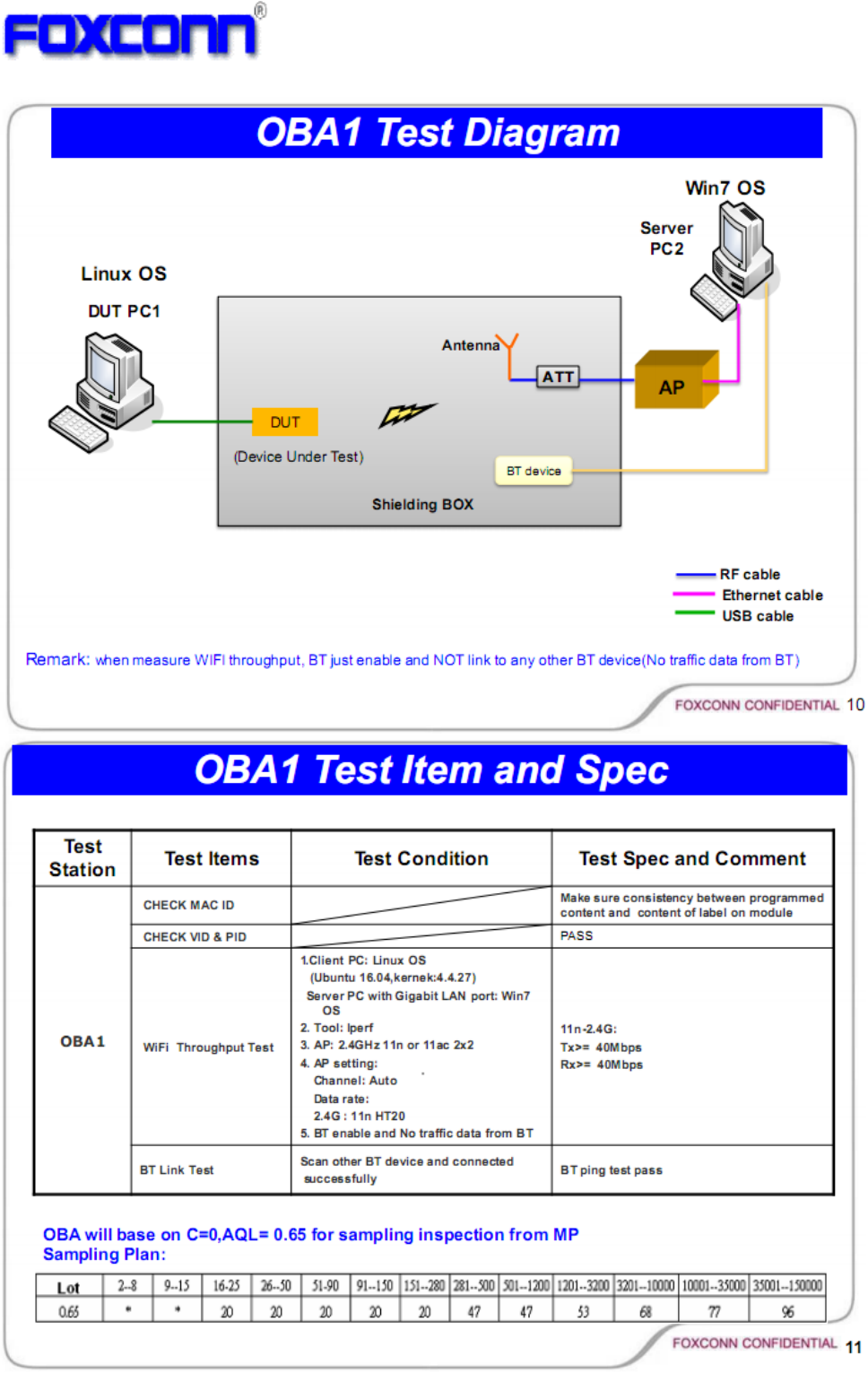

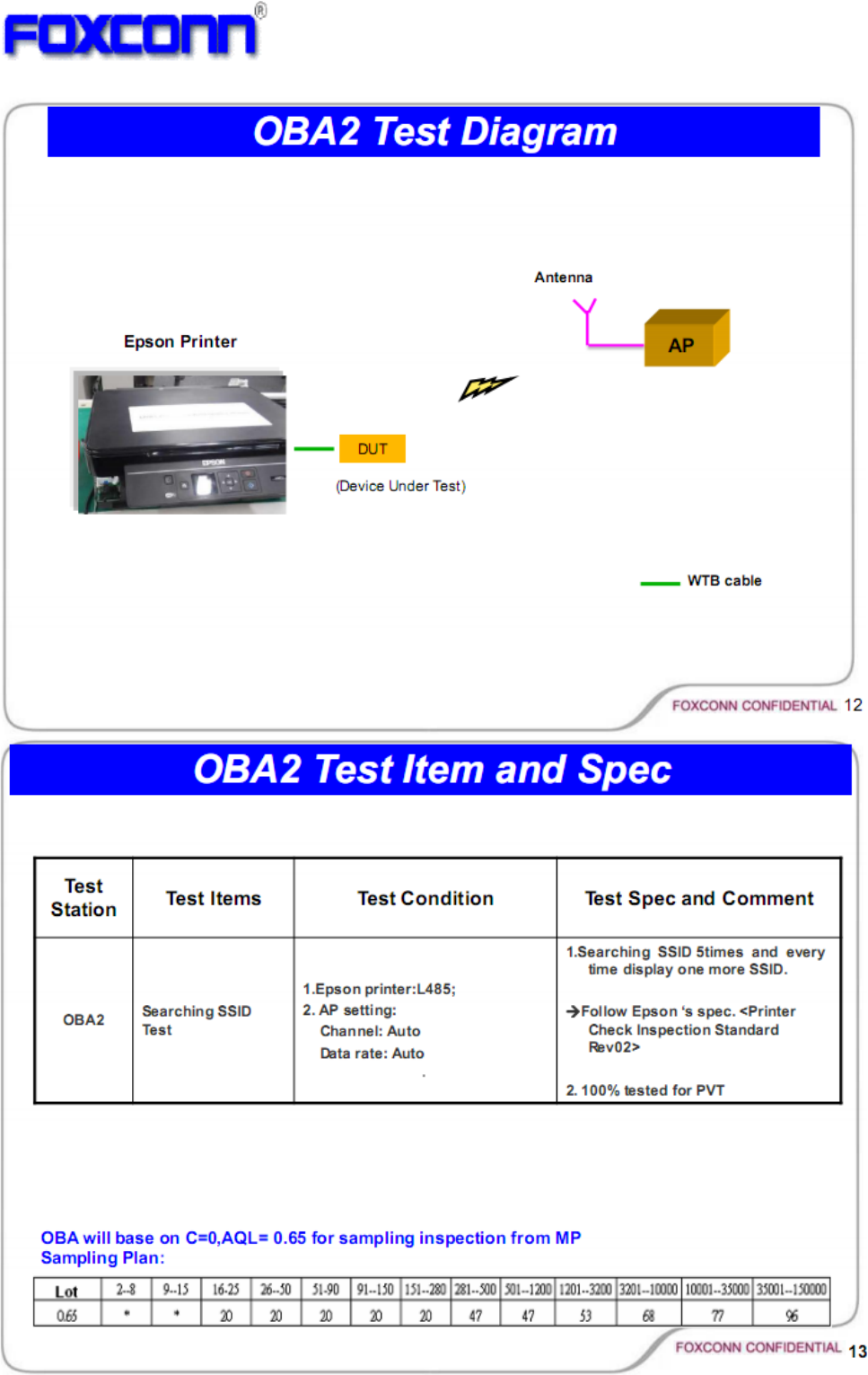

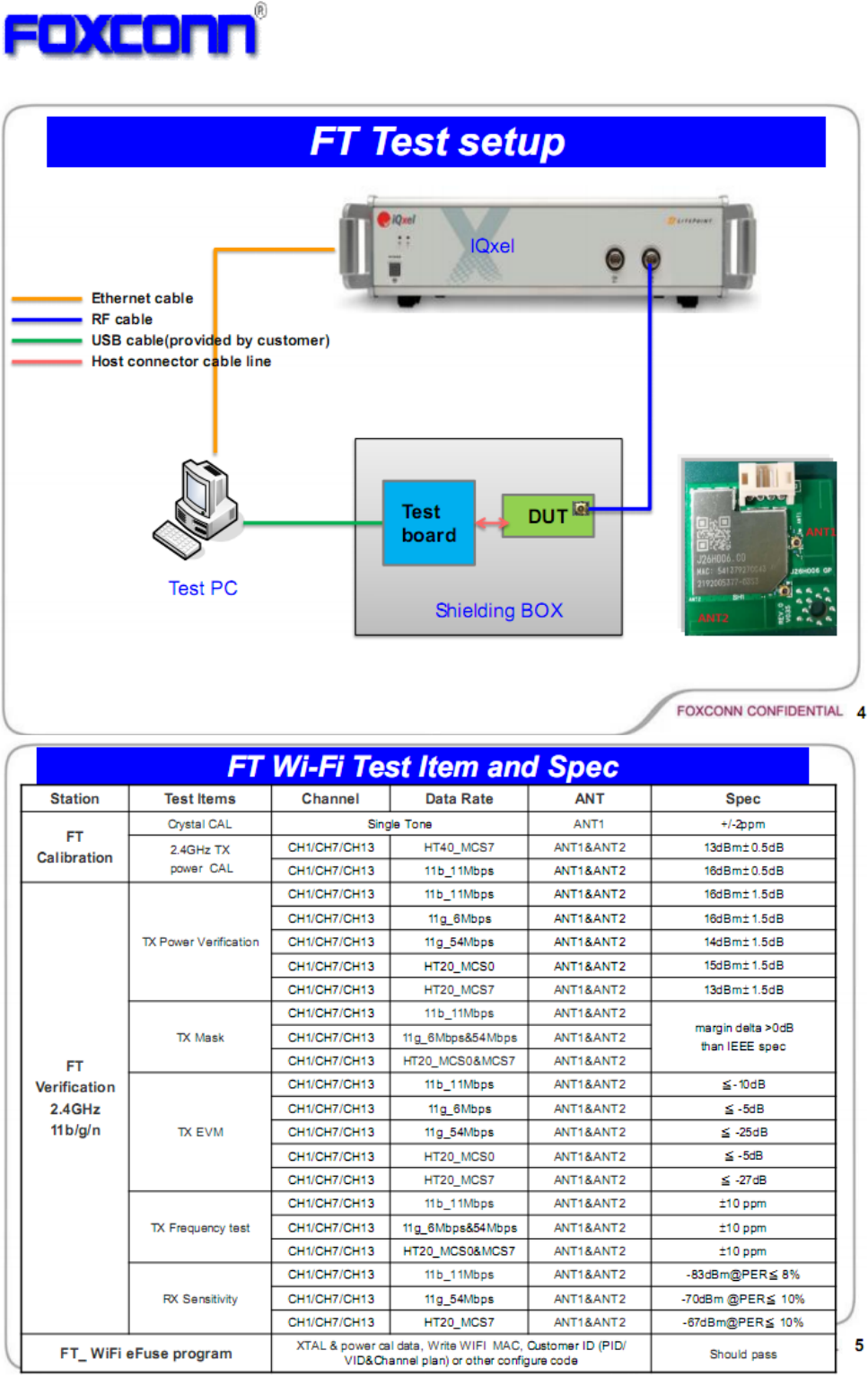

9.3 PVT MFG. TEST PLAN ..................................................................... 28
COMPANY CONFIDENTIAL
3
0. Revision History
Date Document
revision
Version Author Change Description
2017/08/25 1.0 NA Fly Huang
Initial released
2017/9/20 1.1 NA Fly Huang Update 4.1 Schematic Part
COMPANY CONFIDENTIAL
4
1. Introduction
Project Name: J26H006
This documentation describes the engineering requirements specification of RTL8723DU
11n+BT Combo Module. It is a confidential document of Foxconn.
1.1 Scope
This module design is based on Realtek RTL8723DU chipset .The RTL8723DU is a
highly integrated single-chip 802.11b/g/n 1T1R WLAN, and an integrated Bluetooth
2.1/4.2 single chip with USB 2.0 multi-function. It provides a complete solution for a high
performance integrated wireless LAN and Bluetooth controller. The RTL8723DU WLAN
baseband implements Orthogonal Frequency Division Multiplexing (OFDM) with 1
transmit and 1 receive path and is compatible with the 802.11n specification. Features
include one spatial stream transmission, spatial spreading, and transmission over 20MHz
bandwidth. This module support antenna diversity for better coverage
This specification is applied at the product to deliver to Seiko Epson group (including
an overseas subsidiary),and EMS, the outsourcer to utilize in the company.
1.2 Function
z USB2.0 interface for WLAN and BT.
z Support single-band WLAN 20MHz at 2.4GHz
z Support BT4.2+HS , BLE and be backwards compatible with BT1.x,2.x+EDR.
z Support BT-WLAN coexistence.
z Support Antenna diversity.
z GP compliance
In accordance with SEIKO EPSON Group's requirements specified by the latest
“Green Purchasing Standard for Production Materials", all production materials shall
conform to SEIKO Epson’s policy about chemical substances already banned or to be
eliminated and shall be controlled by "4M Variation Management".
1.3 Specification by Model
LOT No.
EPSON
Parts Name
EPSON
Parts Code
Foxconn
Parts Name Connecter Regulatory
countries US W I Remark
J26H006.C01 2187150-00 J26H006.00 WTB
(Right Angle) None C 0 A A PVT
J26H006.B01 2187151-00 J26H006.02 BTB
(Vertical) None B 0 A A PVT
1.4 Module Weight
COMPANY CONFIDENTIAL
5
Module Weight
Model J26H006.C01 J26H006.B01
Sample 1 2.6g 2.6g
Sample 2 2.6g 2.6g
Sample 3 2.6g 2.6g
1.5 Product Regulatory
Regulatory countries/IDs
Country Approval Certification Certification No. Remark
USA NO FCC TBD
Canada NO IC TBD
EU NO CE TBD
Japan NO TELEC TBD
….
2. Mechanical Specification
2.1 Module Mechanical Drawing

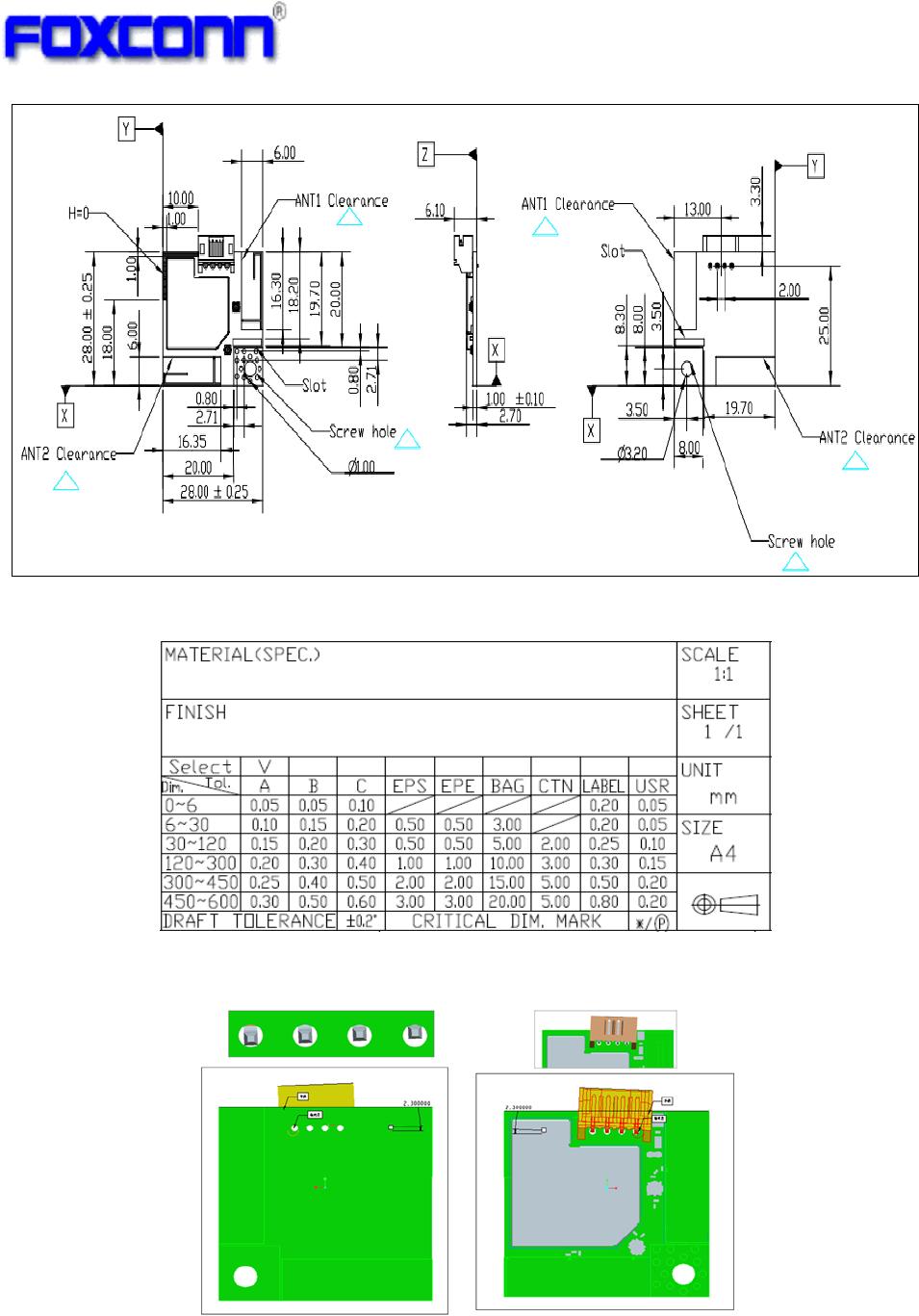

Ⅰ.For J26H006.C01: Typical module dimension (W x L) is 28mmx28mm.
COMPANY CONFIDENTIAL
6
Unit: mm
The tolerance for each mechanical dimension
Note1: The max shift degree of WTB connector is 2.3degree.

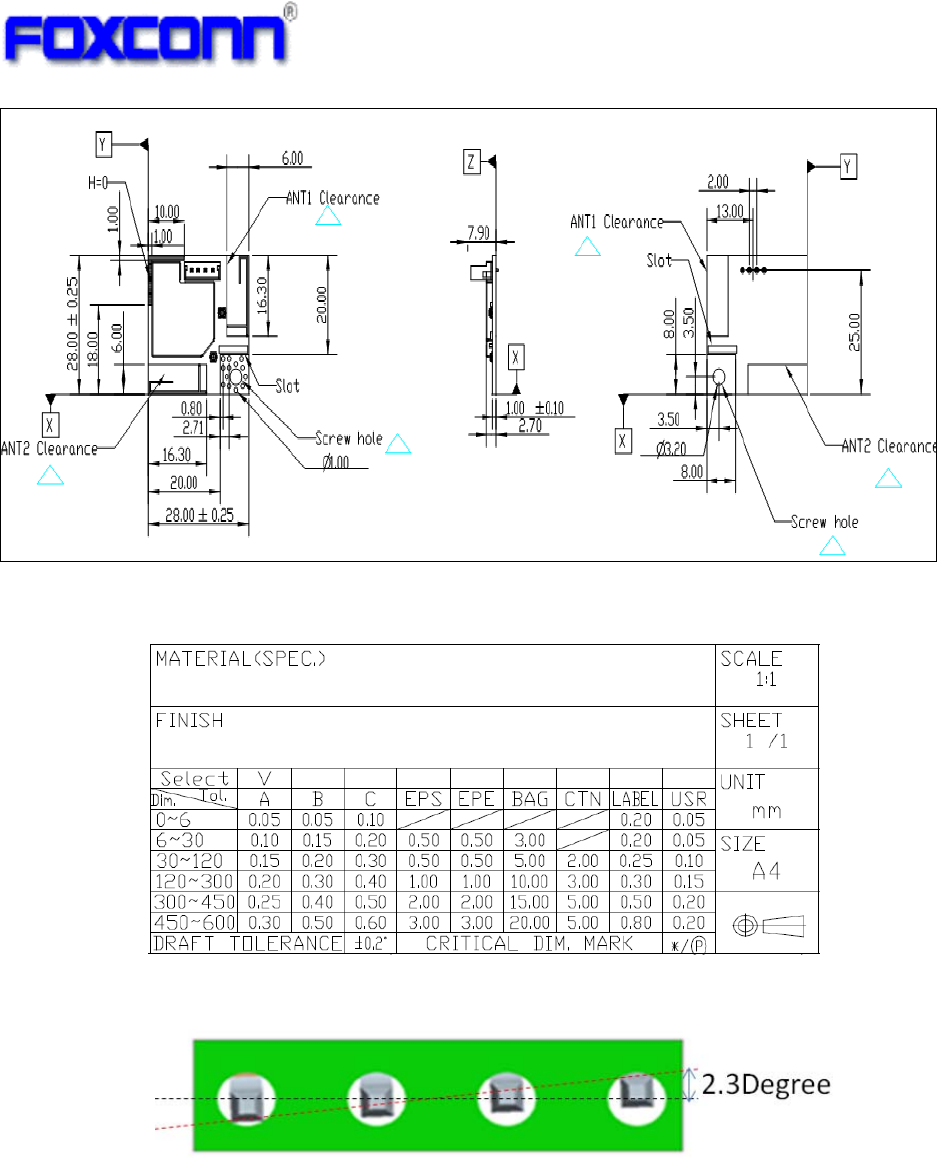

Ⅱ. For J26H006.B01: Typical module dimension (W x L) is 28mmx28mm.
COMPANY CONFIDENTIAL
7
Unit: mm
The tolerance for each mechanical dimension
Note2: The max shift degree of BTB connector is 2.3degree.
2.2 USB Connector

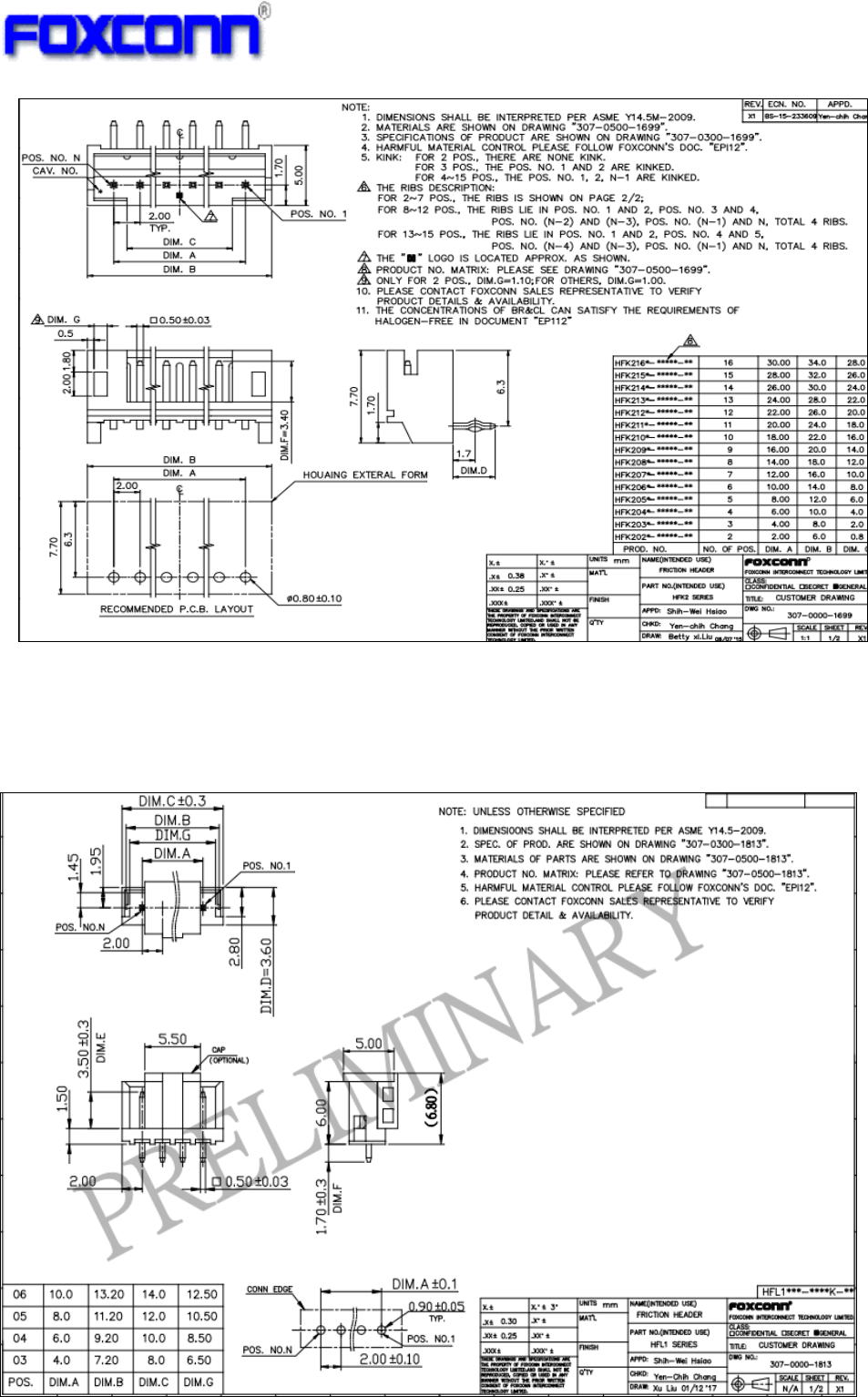

Ⅰ.For J26H006.C01:WTB Connector
¾ 4pin, 2.0mm pitch, Right angle type
¾ Part number: HFK2040-G1C3K-8F
¾ Vendor: Foxconn FIT
¾ High temperature plastic PA9T which meet SMT reflow profile(PIP)
COMPANY CONFIDENTIAL
8
Ⅱ. For J26H006.B01: BTB Connector
¾ 4pin, 2.0mm pitch, Vertical type
¾ Part number: HFL1040-G1C3K-9F
¾ Vendor: Foxconn FIT
¾ High temperature plastic PA9T which meet SMT reflow profile(PIP)
COMPANY CONFIDENTIAL
9

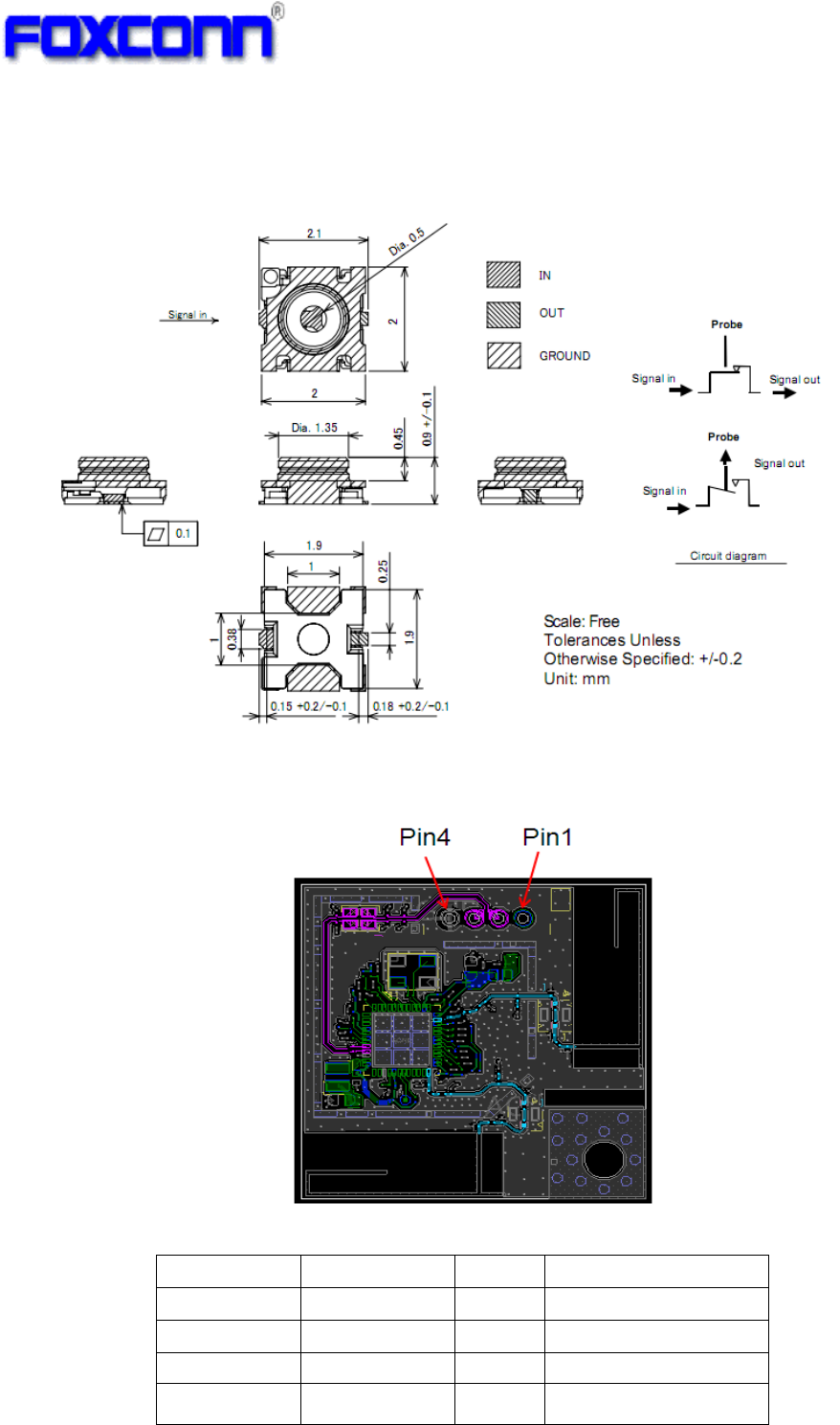

2.3 RF Switch Connector
¾ Part number: MM8030-2610RJ3
¾ Vendor: Murata
3.USB Connector Pin-out
Pin Number Pin Name I/O Description
1 VDD33 I DC 3.3V source input
2 USB_DN I/O USB D- Signal
3 USB_DP I/O USB D+ Signal
4 GND -- Ground
COMPANY CONFIDENTIAL
10
5. Electrical Specification
5.1 Recommended Operating Condition
Symbol Condition Min. Typ. Max Unit
3.3v(VDD33) Respect to GND 3.0 3.3 3.6 V
Max Ripple on Supplied Voltage 3.3V @full loading 95 330 mVpp
DC current @3.3V at full loading
(WiFi @TX and BT @ TX) - 257 500 mA
USB Suspend current -- 3.6 6 mA
Operating Temperature 0 +25 +70 ℃
Storage Temperature -25 25 +85 ℃
Operating Humidity 30~50% 90% RH
ESD HBM(contact) Standard:MIL-STD-883H +/-1.5 KV
ESD (indirect) Standard:EN61000-4-2 +/-4 KV
Function operation is not guaranteed outside of this limit, and operation outside of this limit for extended
period can adversely affect long-term reliability of the device.
5.2 RF Characteristics
All typical performance specification are measured at RF connector port operating in +25℃@3.3V
Note3: The target power table is just defined for board level.
Note4: Power is compliance with EVM IEEE spec based-on the parameter “disable full packet”
WiFi
Standard IEEE802.11b/g/n
Data Rate
802.11b: 11, 5.5, 2, 1 Mbps;
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
HT20 mode: MCS0~MCS7,up to 72.2Mbp
Bandwidth 20MHz for 2.4GHz,
Modulation Techniques
802.11b: CCK, DQPSK, DBPSK
802.11g: 64QAM,16QAM, QPSK, BPSK
802.11n: 64QAM,16QAM, QPSK, BPSK
Operating Frequency 2.412GHz~2.462GHz,
Media Access Control CSMA/CA with ACK
Transmit Output Power
11b CCK_11Mbps: 23dBm+/-1.5dB
11g 54Mbps: 25dBm+/-1.5dB
11n HT20_MCS7: 25dBm+/-1.5dB
Frequency error +/-10ppm
Receiver Sensitivity
11b 11Mbps: -83dBm@PER<=8%
11g 54Mbps: -70dBm@PER<=10%
11n HT20 MCS7: -67dBm@PER<=10%
Radio Modulation FHSS
Operating Frequency 2.402GHz ~ 2.480GHz
Channel Numbers 79 channels with 1MHz BW
BDR Transmitter Output
Power
0~+14dBm
BDR Power Control 2dB≤Power Control Step≤8dB
BDR Initial Carrier Freq.
Tolerance
≤ ± 75 kHz
COMPANY CONFIDENTIAL
11
BT
BDR Carrier Frequency
Drift
Drift Rate/50us <±20kHz
DH1: +/- 25kHz,DH3: +/- 40kHz,DH5: +/- 40kHz
BDR Modulation
Characteristics
140kHz ≤ ∆f1avg ≤175kHz
∆f2max ≥115kHz
∆f2avg/∆f1avg ≥0.8
BDR Maximum Receiver
Signal
-20dBm@ BER <= 0.1% at 1Mbps
BDR Sensitivity -85dBm @ BER <= 0.1% at 1Mbps
EDR Relative Power P[GFSK]-4dB<P[DPSK]< P[GFSK]+1dB
EDR Stability and Mod
Accuracy
-75 kHz <ωi < 75 kHz
-10kHz<ω0 <10kHz
RMS DEVM<=0.13 for all 8DPSK @3Mbps
Peak DEVM<=0.25 for all 8DPSK @3Mbps
99% DEVM<=0.2 for 99% 8DPSK @3Mbps
BDR Frequency Range FL>2.4GHz,FH<2.4835GHz
EDR Sensitivity -80dBm@BER <= 0.01% at 2Mbps
-80dBm@BER <= 0.01% at 3Mbps
BDR TX Output Spectrum
-20dB Bandwidth
≤1MHz
LE Output Power 0~+14dBm
LE Modulation
Characteristics
225kHz ≤ ∆f1avg ≤275kHz;
∆f2max ≥185kHz for at least 99.9% test packets;
∆f2avg/∆f1avg ≥0.8
LE Carrier frequency
offset and drift
Carrier frequency offset: ±150kHz
Carrier Drift: ≤50kHz
Drift rate: ≤20kHz/50us
LE Receiver Sensitivity -90dBm@PER <= 30.8%,GFSK,1Mbps
5.3 Current consumption

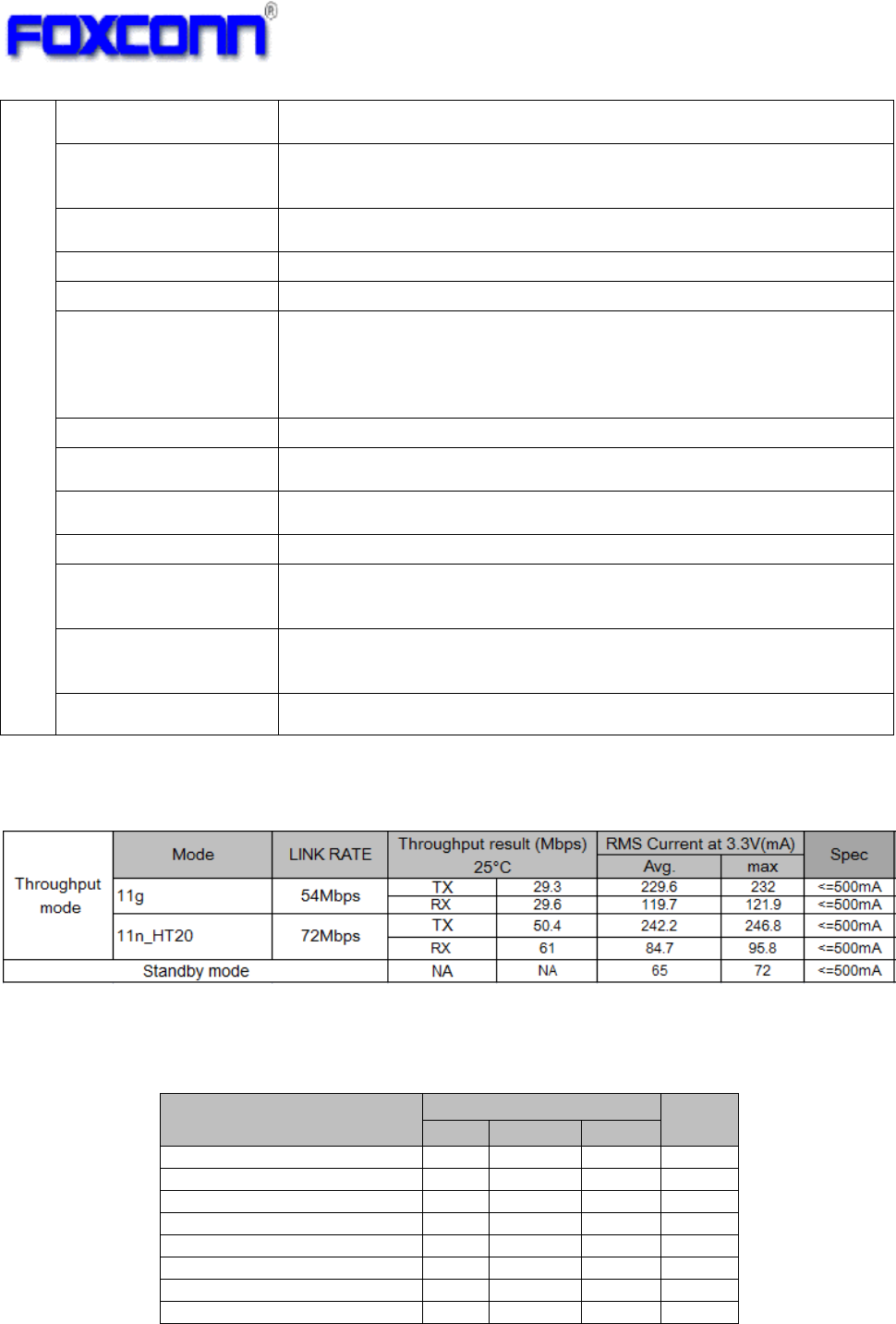

5.3.1 WiFi current consumption
Remark: Base-on Win7 OS to do WiFi only throughput tests. The Standby mode means “module connect to
AP only, and don’t transfer the data.”
5.3.2 Bluetooth current consumption
Test Condition
Avg. Current at 3.3V
Unit
Min Typ. Max
Idle mode( power on only) 63.7 mA
BT BDR 1DH5 TX@6dBm 115 mA
BT BDR 1DH5 Rx 87 mA
BT EDR 2DH5 TX@6dBm 116 mA
BT EDR 2DH5 Rx 87 mA
BLE TX@6dBm 78 mA
BLE Rx 87 mA
Standby mode* 69 mA
Remark: The result is base-on Win7 driver.
The Idle mode means “ module power on only, don’t open any testing tool”
The standby mode means “module connect to BT device only, and don’t transfer the data”
COMPANY CONFIDENTIAL
12
5.4 eFuse Content
5.4.1 WiFi eFuse
Revision Note
EEPROM Version Chang Lists Owner Date Remark
address Value for WiFi Efuse address 0xC4, change
value from 0x00 to 0x01
Fly. Huang 2017/08/11 PVT
0xC4 0x01
eFuse for WiFi eFuse address
address 0 1 2 3 4 5 6 7 8 9 A B C D E F Path A cck TX calibration power index
0 29 81007C01880700A0 04 EC3512C0A2D8
1 161413121212191817 16 1602FFFFFFFF Path A 11n HT40 mcs7 TX calibration
2 FF FFFFFFFFFFFFFF FF FF FFFFFFFFFFFF
3 FF FFFFFFFFFFFFFFFF FF141414131212 0x1B Path A power diff index (offset) fixed value
4 17 171716 1502FFFFFF FF FFFFFFFFFFFF
5 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Path B cck TX power calibration index
6 FF FFFFFFFFFFFFFF FF FF FFFFFFFFFFFF
7 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Path B 11n HT40 mcs7 TX calibration power index
8 FF FFFFFFFFFFFFFF FF FF FFFFFFFFFFFF
9 FF FFFFFFFFFFFFFF FF FF FFFFFFFFFFFF 0x45 Path B power diff index(offset) fixed value
A FF FFFFFF FFFFFFFF FF FF FFFFFFFFFFFF
B FFFFFFFFFFFFFFFF20 1F1A000000FFFF 0xB8 channel plan:0x20 fixed value
C FF292050010000FF00 FF11FFFFFFFFFF
D FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF 0xB9 Crystal calibration data
E FF FFFFFFFFFFFFFF FF FF FFFFFFFFFFFF
F FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF 0xBA Thermal meter
10 DA 0B 23 D7 E7 46 07 D8 0F 99 16 57 F3 09 03 52
11 65 61 6C 74 65 6B 16 03 38 30 32 2E 31 31 6E 20 0xC3 Antanna setting fixed value
12 57 4C 41 4E 20 41 64 61 70 74 65 72 00 FF FF FF
13 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xC4 EEPROM version: 0x01 fixed value
14 FF FF FF FF FF FF FF 0F FF FF FF FF FF FF FF FF
15 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x100~0x101 VID:0x0BDA fixed value
16 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
17 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x102~0x103 PID:0xD723 fixed value
18 FF FF FF FF FF FF FF FF 6B 41 22 DD 53 59 86 D1
19 70 8F 00 00 10 16 40 00 FC 8C 00 11 9B 00 00 0A 0x107~0x10
C
WiFi MAC: D80F991657F3 consistency
1A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x00~0x0F other config fixed vuale
1C FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xBB~0xBD
1D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xC1~0xC2
1E FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xC4~0xC6
1F FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xC8~0xCa
0x104~0x12C
0x147
0x188~0x19F
Note:
USB Vendor ID (VID): 0x0BDA
USB Product ID (PID): 0xD723
COMPANY CONFIDENTIAL
13
5.4.2 BT eFuse
COMPANY CONFIDENTIAL
14
eFuse for BT
address 0 1 2 3 4 5 6 7 8 9 A B C D E F Efuse address description Value
0 FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF
1 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x44~0x49 BT MAC address F8DA0C5D2618 Not fixed value
2 FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF
3 FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF 0xDA~0xDB default value from IC 10,D8 Fixed value
4 FFFFFFFF18 265D0CDAF8 FFFF FFFFFFFF 0x1F4~0x1F7 default value from IC 94,80,06,00 Fixed value
5 FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF
6 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x15B~0x15E BT TX power calibration index Not fixed value
7 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x15B 1M power index 1E
8 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x15C 2M power index 1F
9 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x15D 3M power index 1F
A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x15E LE power index 1F
B FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF
C FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF 0x15F BT Tx gain step 01 Fixed value
D FFFFFFFF FFFFFF FF FF FF 10D8FFFFFFFF
E FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x188~0x189 BT Thermal value index 00,1F Not fixed value
F FFFFFFFFFFFFFF FF FF FF FF FF FFFFFFFF
10 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x1CE~0x1CF BT Antenna info F7,3E Fixed value
11 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
12 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x1E4~0x1E5 BT Modem tx gain compensatio
n
33,33 Not fixed value
13 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
14 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x1E6 BT Xtal cap 1E Not fixed value
15 FF FF FF FF FF FF FF FF FF FF 27 1E 1F 1F 1F 01
16 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
17 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
18 FF FF FF FF FF FF FF FF 00 1F FF FF FF FF FF FF
19 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1C FF FF FF FF FF FF FF FF FF FF FF FF FF FF F7 3E
1D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1E FF FF FF FF 33 33 1E FF FF FF FF FF FF FF FF FF
1F FF FF FF FF 94 80 06 00 FF FF FF FF FF FF FF FF
20 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
21 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
22 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
23 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
24 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
25 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
26 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
27 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
28 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
29 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2C FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2E FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2F FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
30 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
31 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
32 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
33 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
31 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
35 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
36 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
37 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
38 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
39 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
40 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
41 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
42 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
43 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
44 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
45 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
5.5 Power On/Off Sequence
5.5.1 Power On Sequence
COMPANY CONFIDENTIAL
15
Ton: The main power ramp up duration
Tpor: The power on reset releases and power management unit executes power on tasks
Tattach: USB attach state
Item Min. Typ. Max Uint
Ton 0.2 1.5 5 ms
Tpor -- 2 10 ms
Txtal -- 1.5 8 ms
Tattach 100 250 -- ms
T1v25 -- 2 5 ms
5.5.2 Power Off Sequence
Toff: The main power ramp down duration (from 3.3V fall to 0.7V).
VDD33(3.3V) is coming from system, different DC power supply’s load cap value may cause the
different discharge time.
Treset: To assert Chip reset, keep the VDD33 under 0.7V for 100ms
Item Min. Typ. Max Unit
Toff -- 16 1000 ms
Treset 100 -- -- ms
COMPANY CONFIDENTIAL
16
5.6 Floating pin status
5.7 Antenna Specification
COMPANY CONFIDENTIAL
17
COMPANY CONFIDENTIAL
18
5.8 Operating System Support
Support the Win7, Win8.1, Win10, Linux operating system on normal driver
COMPANY CONFIDENTIAL
19
6. Label Information
6.1 MAC-ID Label Laser Marking
All content is engraved by laser into shielding cover.
Ⅰ.For J26H006.C01
Ⅱ. For J26H006.B01
COMPANY CONFIDENTIAL
20
6.2 Regulatory Label
Regulatory label was printed on PCB Bottom side for PVT, it will be updated after get the
official regulatory ID.
6.3 Panel Label
COMPANY CONFIDENTIAL
21
6.4 Carton Label
Ⅰ.For J26H006.C01
Ⅱ. For J26H006.B01
6.5 Pallet Label
Ⅰ.For J26H006.C01
COMPANY CONFIDENTIAL
22
Ⅱ.For J26H006.B01
COMPANY CONFIDENTIAL
23
7. Packing Information
I:For J26H006.C01
II:For J26H006.B01
COMPANY CONFIDENTIAL
24
The detailed dimension of the tray
z The hollow length and side value
z The distance between module and module, and between module and outline of tray
COMPANY CONFIDENTIAL
25

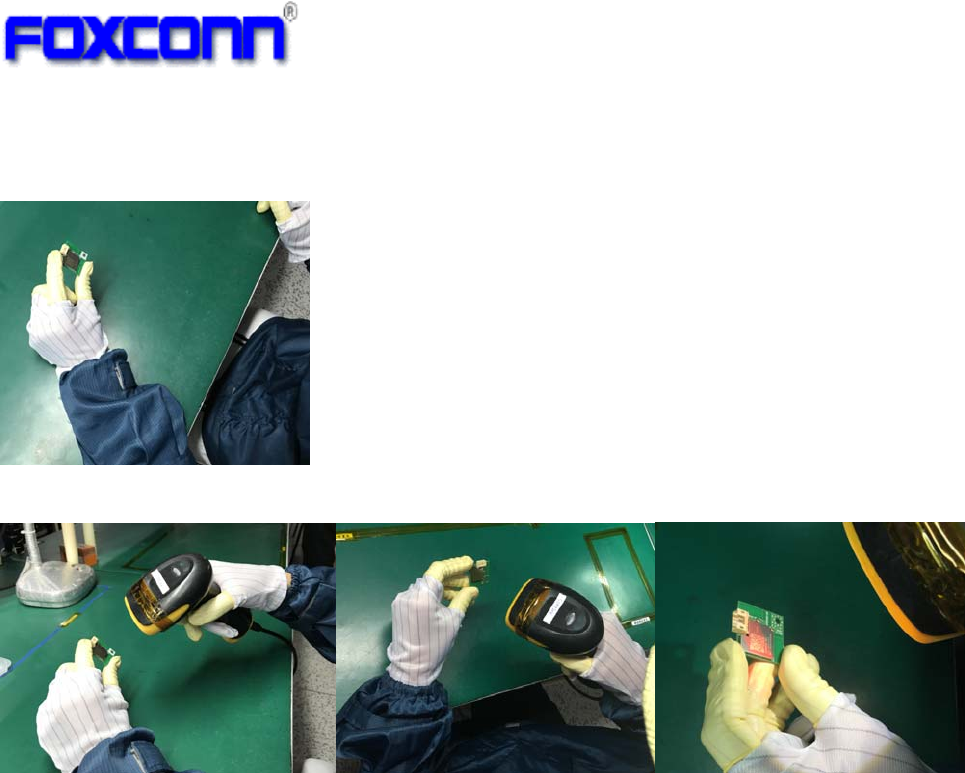

7.1 Module Scan Guide
1. Taking the module in declining way about 45° to prevent the shielding reflecting
the lightness;
2. Taking the scanner and turning right in 45° angle；
Note: The distance between scanner and module is about 5-8cm
COMPANY CONFIDENTIAL
26
8. Reliability
8.1 Hardware Reliability Test
COMPANY CONFIDENTIAL
27
8.2 Package Reliability Test (TBD)
The product shall pass below package reliability test plan.
No Test Items Description Test Criteria Reference Qty' Result
1 Atmospheric Conditioning Test Temlpearture: 38℃
Test humidity: 85%R.H.
Dwell time: 72hours
No obvious visible damage
on boxes after temperature
and humidity test. ISTA-2A 1carton TBD
2 Static Compression Test
Units are packaged
Compression load=Wt x (S - 1) x F
Wt:Total weitht of the packaged-procuct
S:Total number of packaged-products in a stack
1:Represents the bottom container in a Stack
Compression Test duration:1hour
No obvious visible damage
on boxes after static
compression test. ISTA-2A 1carton TBD
3 Random Vibration Test
The following breakpoints shall be programmed into the vibration
controller to produce the acceleration versus frequency profile (spectrum)
below with an overall Grm s level of 1.15.
Face 3: 30mins, Face1: 10mins, Face 2 or 4: 10mins, Face 5 or 6: 10mins No obvious visible damage
on boxes after random
vibration test. ISTA-2A 1carton TBD
4Package drop test
The test drop height varies with the weight of the packaged-product.
Find the weight of the packaged-product in the following chart to
determine a drop height or an equivalent impact velocity to
be used for a substituted drop:
No obvious visible damage
on boxes after packaged
drop test. ISTA-2A 1carton TBD
5 Fix displacement Test
Displacement:25mm
Duration:14200times No obvious visible damage
on boxes after fixed
displacement test. ISTA-2A 1carton TBD
9. Quality
The product quality must be followed-up by Foxconn factory quality control system.
In accordance with SEIKO EPSON Group's requirements specified by the latest “Electronic
Component Quality Requirements Standard" and "WiFi+BT Combo Module Quality
Requirements Specification Rev.B" , the product shall be managed Quality control.
9.1 QC Flow Chart
COMPANY CONFIDENTIAL
28
9.2 Visual Inspection Standard

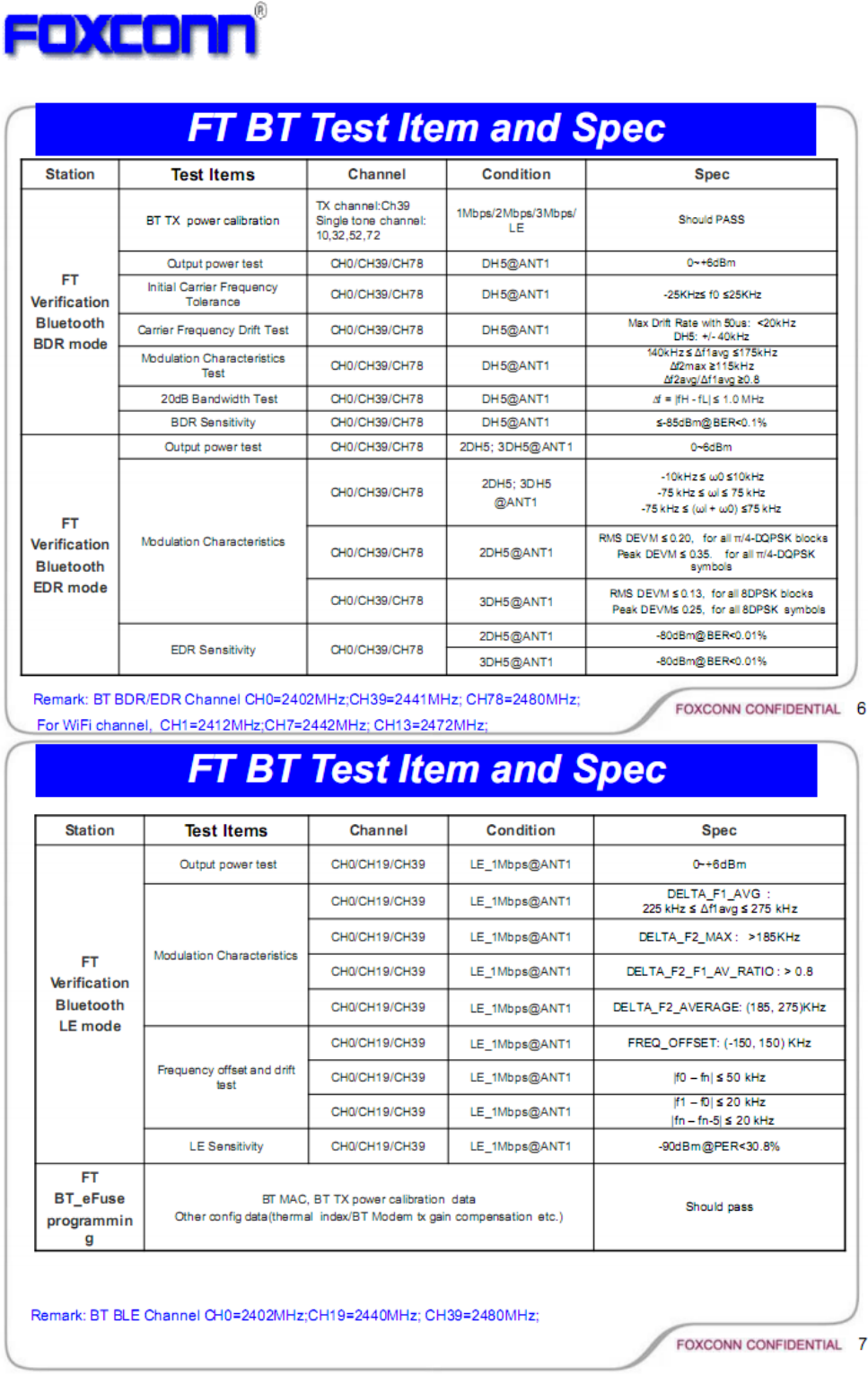

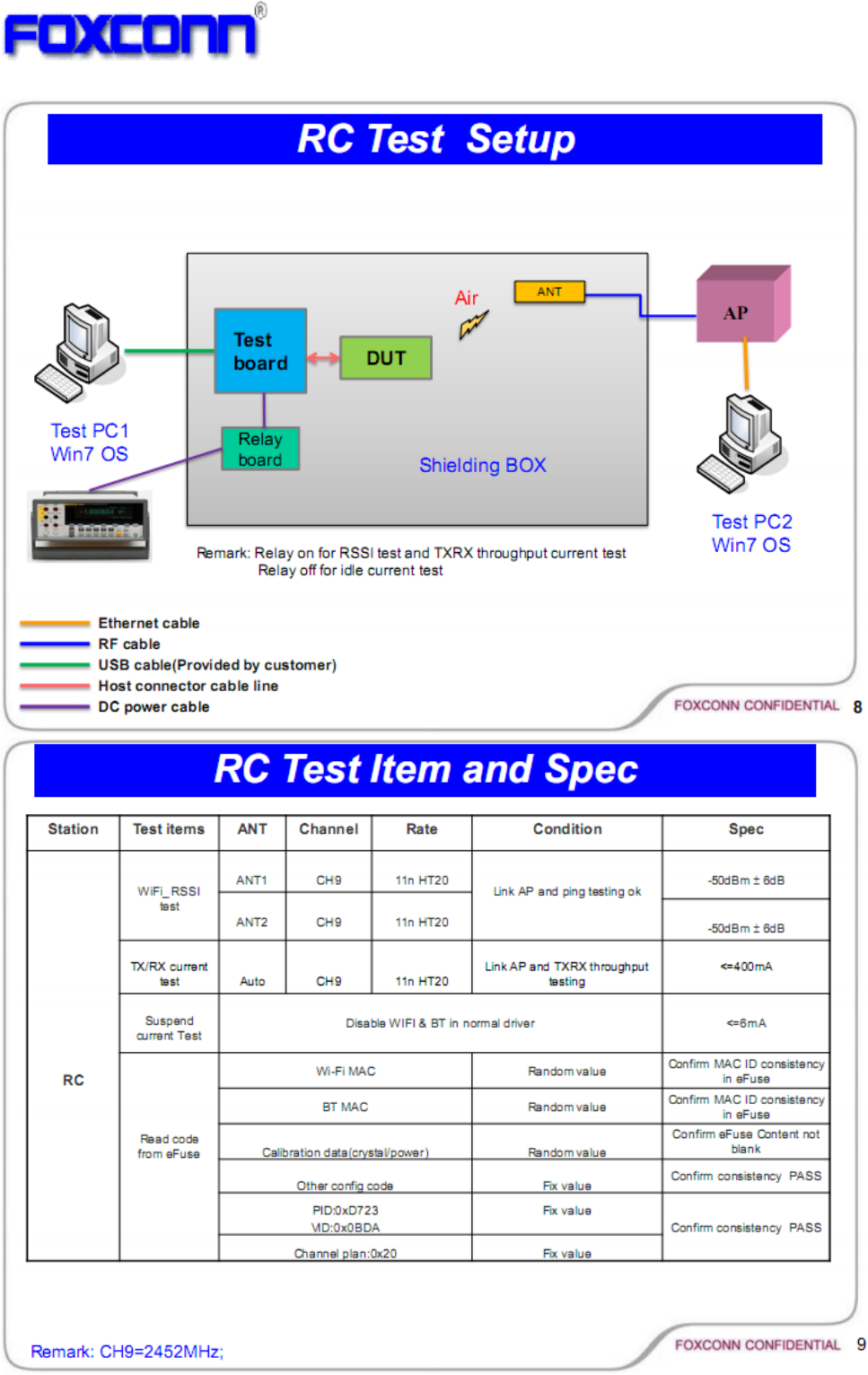

9.3 PVT Mfg. Test Plan
Date
Version Author Change Description
2017/08/3 V1.7 Fly Huang
Initial released
COMPANY CONFIDENTIAL
29
COMPANY CONFIDENTIAL
30
COMPANY CONFIDENTIAL
31
COMPANY CONFIDENTIAL
32
COMPANY CONFIDENTIAL
33
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 2 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 20 cm may be maintained between the antenna
and users. The final end product must be labeled in a visible area with the
following: “Contains FCC ID: BKMFBJ26H006”. The grantee's FCC ID can be
used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module.
The end user manual shall include all required regulatory information/warning
as show in this manual.
Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit
accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
This device is intended only for OEM integrators under the following conditions:
(For module device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les
conditions suivantes: (Pour utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée
entre l'antenne et les utilisateurs, et 2) Le module émetteur peut ne pas être
coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur
l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours
responsable des essais sur son produit final pour toutes exigences de conformité
supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the Canada authorization
is no longer considered valid and the IC ID can not be used on the final product. In
these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre
émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne
peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM
sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une
autorisation distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20 cm may be maintained between the antenna and users. The
final end product must be labeled in a visible area with the following: “Contains IC:
1052C-J26H006”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où
l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être
maintenue entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un
endroit visible avec l'inscription suivante: "Contient des IC: 1052C-J26H006".
低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者
均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機
設備之干擾。
模組認證：
1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤。
2. 系統廠商應於平台上標示「本產品內含射頻模組： XXXyyyLPDzzzz-x」
字樣。
「電磁波曝露量MPE標準值1mW/cm2，本產品使用時建議應距離人體 20
cm」
