Semtech TBSP100 LoRaWAN Sensor User Manual TBDW100

TrackNet, Inc LoRaWAN Sensor Users Manual TBDW100

Users Manual_TBDW100

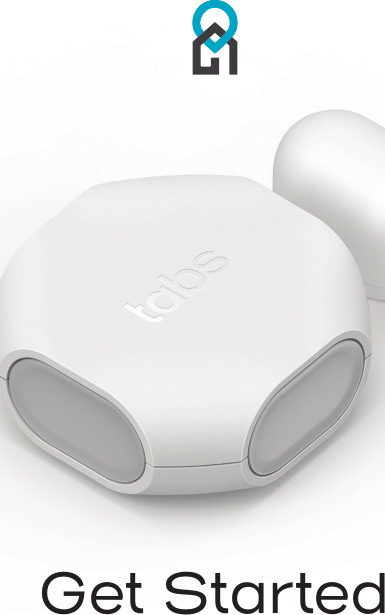

Get Started

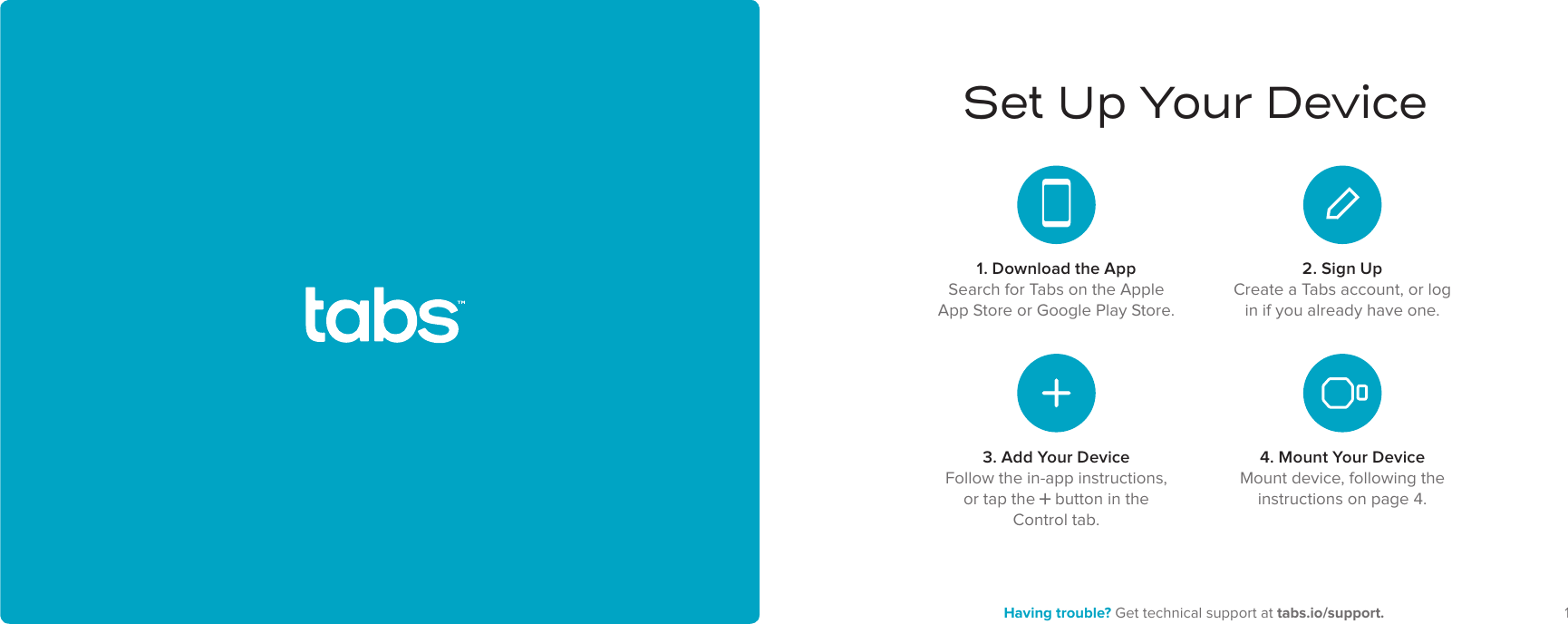

1Having trouble? Get technical support at tabs.io/support.2Set Up Your Device1. Download the AppSearch for Tabs on the Apple App Store or Google Play Store.2. Sign UpCreate a Tabs account, or log in if you already have one.4. Mount Your DeviceMount device, following the instructions on page 4.3. Add Your DeviceFollow the in-app instructions, or tap the button in the Control tab.
3Having trouble? Get technical support at tabs.io/support.2Custom AlertsGet notified by the app when important events occur.Alert ForwardingEasily forward your alerts to friends and family while you’re away.Home SecurityBe alerted instantly if an intruder gains entry while you’re away. Long-Lasting BatteriesDon’t worry about replacing the batteries for a year or more.Door &Window SensorWhat’s in the BoxDoor & Window SensorAdhesive Mounting PadsRequirementsTabs Hub or Mini Hub Internet Connection iOS 9+ or Android 4.1+Door & Window Sensor MagnetKnow that your home is secure. The Tabs app pairs with the Door & Window Sensor to let you know when a family member arrives home, or if an intruder gains entry while you’re away.

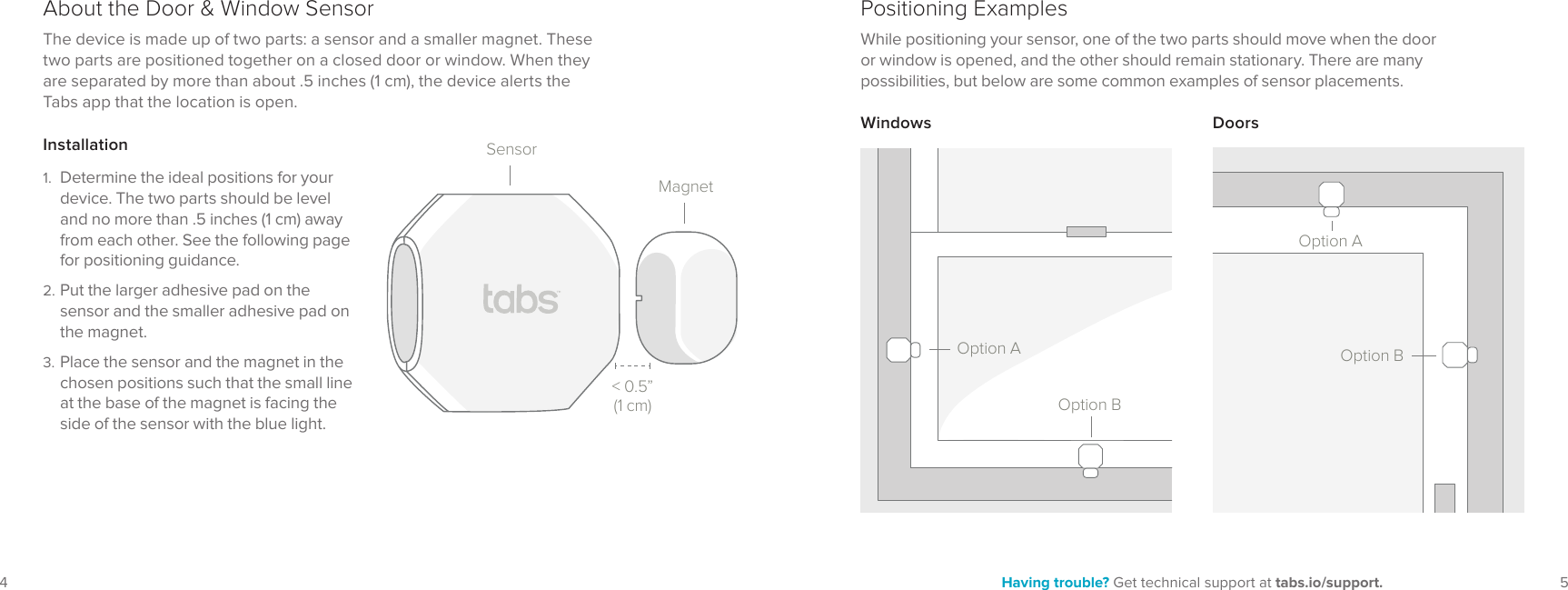

5Having trouble? Get technical support at tabs.io/support.4SensorMagnetAbout the Door & Window Sensor Positioning ExamplesDoorsWhile positioning your sensor, one of the two parts should move when the door or window is opened, and the other should remain stationary. There are many possibilities, but below are some common examples of sensor placements.1. Determine the ideal positions for your device. The two parts should be level and no more than .5 inches (1 cm) away from each other. See the following page for positioning guidance.2. Put the larger adhesive pad on the sensor and the smaller adhesive pad on the magnet.3. Place the sensor and the magnet in the chosen positions such that the small line at the base of the magnet is facing the side of the sensor with the blue light.The device is made up of two parts: a sensor and a smaller magnet. These two parts are positioned together on a closed door or window. When they are separated by more than about .5 inches (1 cm), the device alerts the Tabs app that the location is open.InstallationWindows< 0.5” (1 cm)Option AOption BOption AOption B

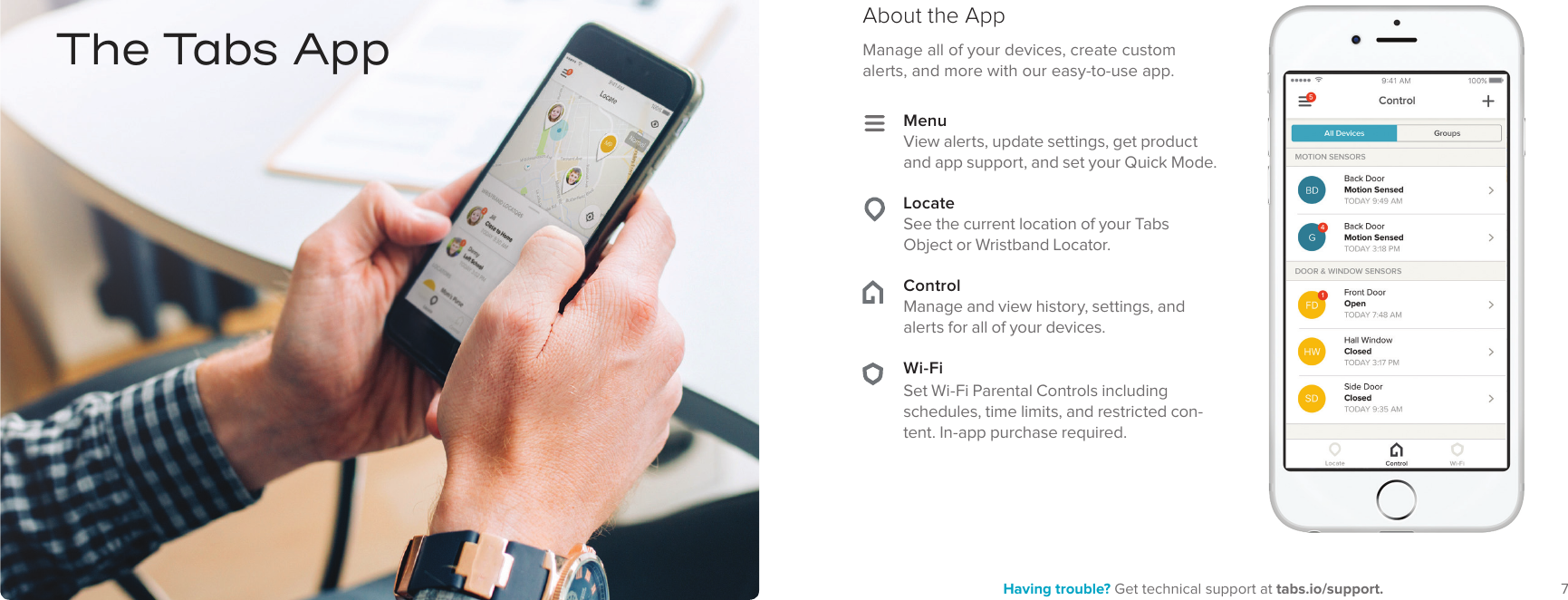

7Having trouble? Get technical support at tabs.io/support.6Manage all of your devices, create custom alerts, and more with our easy-to-use app.About the AppThe Tabs AppMenuView alerts, update settings, get product and app support, and set your Quick Mode. LocateSee the current location of your Tabs Object or Wristband Locator. ControlManage and view history, settings, and alerts for all of your devices. Wi-FiSet Wi-Fi Parental Controls including schedules, time limits, and restricted con-tent. In-app purchase required.

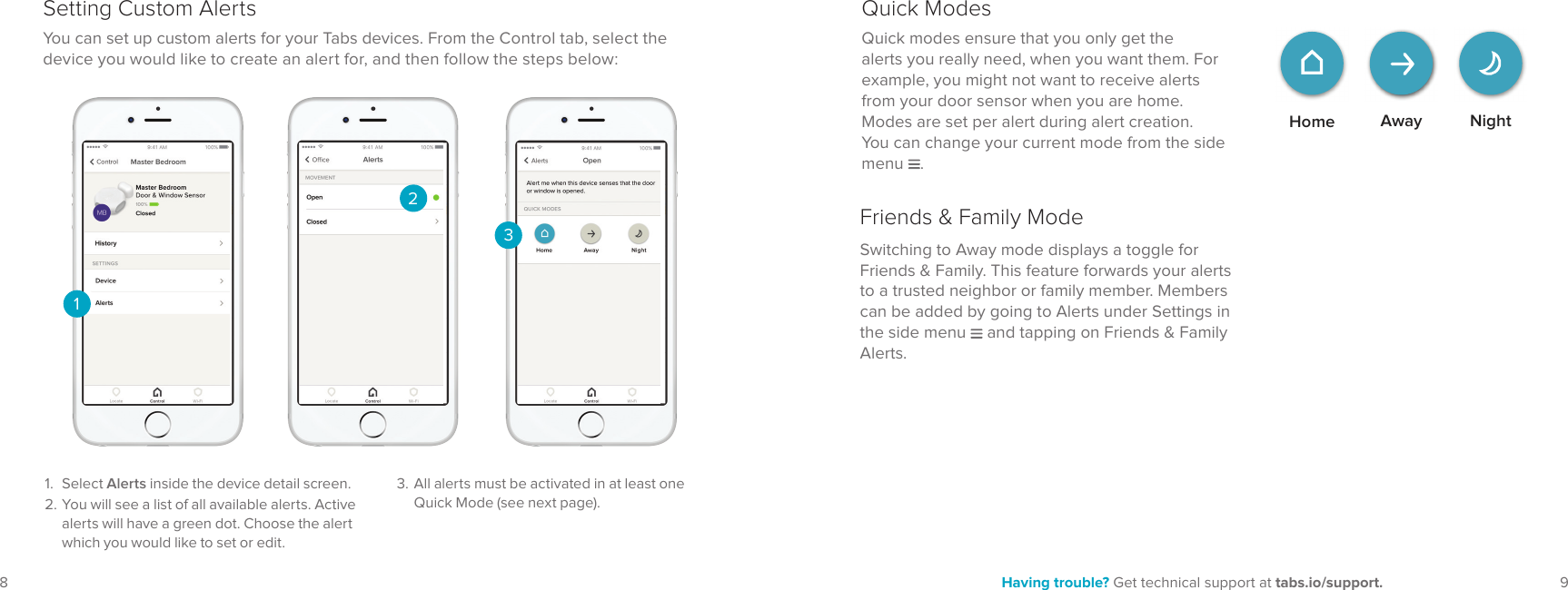

9Having trouble? Get technical support at tabs.io/support.8You can set up custom alerts for your Tabs devices. From the Control tab, select the device you would like to create an alert for, and then follow the steps below:231. Select Alerts inside the device detail screen.2. You will see a list of all available alerts. Active alerts will have a green dot. Choose the alert which you would like to set or edit.Setting Custom Alerts13. All alerts must be activated in at least one Quick Mode (see next page). Home NightAwayQuick modes ensure that you only get the alerts you really need, when you want them. For example, you might not want to receive alerts from your door sensor when you are home. Modes are set per alert during alert creation. You can change your current mode from the side menu .Quick ModesSwitching to Away mode displays a toggle for Friends & Family. This feature forwards your alerts to a trusted neighbor or family member. Members can be added by going to Alerts under Settings in the side menu and tapping on Friends & Family Alerts.Friends & Family Mode

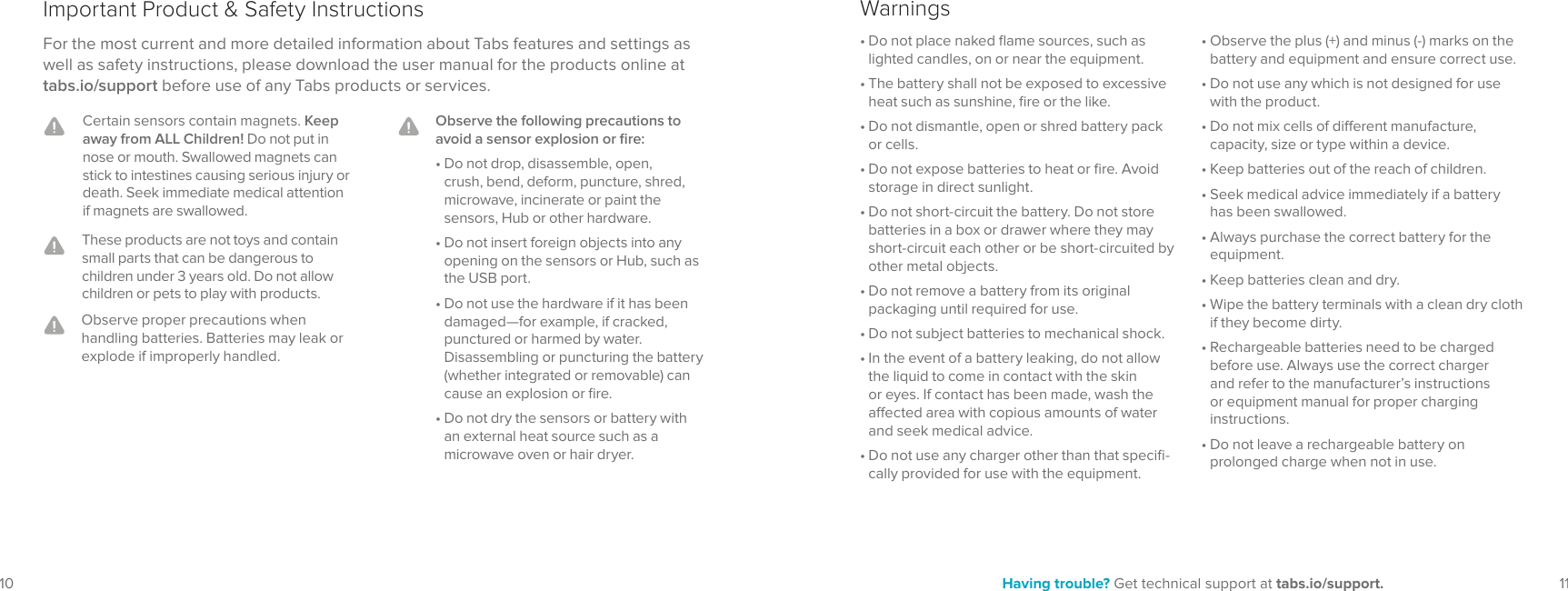

11Having trouble? Get technical support at tabs.io/support.10Important Product & Safety InstructionsFor the most current and more detailed information about Tabs features and settings as well as safety instructions, please download the user manual for the products online at tabs.io/support before use of any Tabs products or services.Certain sensors contain magnets. Keep away from ALL Children! Do not put in nose or mouth. Swallowed magnets can stick to intestines causing serious injury or death. Seek immediate medical attention if magnets are swallowed.These products are not toys and contain small parts that can be dangerous to children under 3 years old. Do not allow children or pets to play with products. Observe proper precautions when handling batteries. Batteries may leak or explode if improperly handled. Observe the following precautions to avoid a sensor explosion or fire:• Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate or paint the sensors, Hub or other hardware.• Do not insert foreign objects into any opening on the sensors or Hub, such as the USB port. • Do not use the hardware if it has been damaged—for example, if cracked, punctured or harmed by water. Disassembling or puncturing the battery (whether integrated or removable) can cause an explosion or fire. • Do not dry the sensors or battery with an external heat source such as a microwave oven or hair dryer. Warnings• Do not place naked flame sources, such as lighted candles, on or near the equipment.• The battery shall not be exposed to excessive heat such as sunshine, fire or the like.• Do not dismantle, open or shred battery pack or cells.• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.• Do not short-circuit the battery. Do not store batteries in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.• Do not remove a battery from its original packaging until required for use. • Do not subject batteries to mechanical shock.• In the event of a battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the aected area with copious amounts of water and seek medical advice.• Do not use any charger other than that specifi-cally provided for use with the equipment.• Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.• Do not use any which is not designed for use with the product.• Do not mix cells of dierent manufacture, capacity, size or type within a device.• Keep batteries out of the reach of children.• Seek medical advice immediately if a battery has been swallowed.• Always purchase the correct battery for the equipment.• Keep batteries clean and dry.• Wipe the battery terminals with a clean dry cloth if they become dirty.• Rechargeable batteries need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions.• Do not leave a rechargeable battery on prolonged charge when not in use.

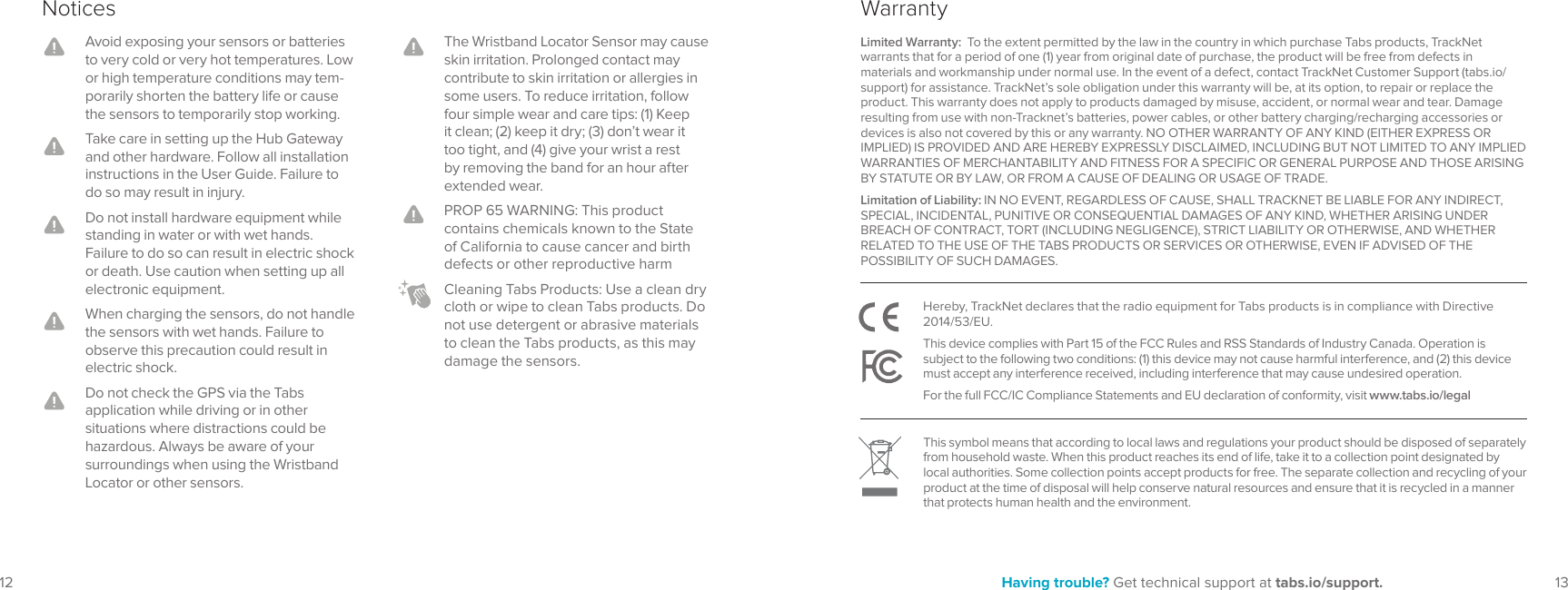

13Having trouble? Get technical support at tabs.io/support.12NoticesAvoid exposing your sensors or batteries to very cold or very hot temperatures. Low or high temperature conditions may tem-porarily shorten the battery life or cause the sensors to temporarily stop working.Take care in setting up the Hub Gateway and other hardware. Follow all installation instructions in the User Guide. Failure to do so may result in injury.Do not install hardware equipment while standing in water or with wet hands. Failure to do so can result in electric shock or death. Use caution when setting up all electronic equipment. When charging the sensors, do not handle the sensors with wet hands. Failure to observe this precaution could result in electric shock.Do not check the GPS via the Tabs application while driving or in other situations where distractions could be hazardous. Always be aware of your surroundings when using the Wristband Locator or other sensors.The Wristband Locator Sensor may cause skin irritation. Prolonged contact may contribute to skin irritation or allergies in some users. To reduce irritation, follow four simple wear and care tips: (1) Keep it clean; (2) keep it dry; (3) don’t wear it too tight, and (4) give your wrist a rest by removing the band for an hour after extended wear.PROP 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harmCleaning Tabs Products: Use a clean dry cloth or wipe to clean Tabs products. Do not use detergent or abrasive materials to clean the Tabs products, as this may damage the sensors.Hereby, TrackNet declares that the radio equipment for Tabs products is in compliance with Directive 2014/53/EU.This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For the full FCC/IC Compliance Statements and EU declaration of conformity, visit www.tabs.io/legalWarrantyLimited Warranty: To the extent permitted by the law in the country in which purchase Tabs products, TrackNet warrants that for a period of one (1) year from original date of purchase, the product will be free from defects in materials and workmanship under normal use. In the event of a defect, contact TrackNet Customer Support (tabs.io/support) for assistance. TrackNet’s sole obligation under this warranty will be, at its option, to repair or replace the product. This warranty does not apply to products damaged by misuse, accident, or normal wear and tear. Damage resulting from use with non-Tracknet’s batteries, power cables, or other battery charging/recharging accessories or devices is also not covered by this or any warranty. NO OTHER WARRANTY OF ANY KIND (EITHER EXPRESS OR IMPLIED) IS PROVIDED AND ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A SPECIFIC OR GENERAL PURPOSE AND THOSE ARISING BY STATUTE OR BY LAW, OR FROM A CAUSE OF DEALING OR USAGE OF TRADE.Limitation of Liability: IN NO EVENT, REGARDLESS OF CAUSE, SHALL TRACKNET BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, AND WHETHER RELATED TO THE USE OF THE TABS PRODUCTS OR SERVICES OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.This symbol means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
14TBUG100-DW1 Rev. A© 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved. Manufactured by Trackio GmbH Engelhölzlistrasse 7A, 8645 Rapperswil-Jona SG, Switzerland
