Senao Co SI-7800H WIRELESS IP PHONE User Manual SI 7800H User s Manual V1 1
Senao International Co Ltd WIRELESS IP PHONE SI 7800H User s Manual V1 1
Senao Co >
Users Manual
User’s Manual
SENAO
WIRELESS SOLUTIONS PROVIDER
SI-7800H WiFi Phone
Version 1.1
May 18, 2004
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
2
Table of Contents
Chapter 1 Overview of the SI-7800H ........................ 5
1.1 Front Panel and Keypad ............................................ 5
1.2 Removing and Installing the Battery .......................... 7
1.3 Charging the SI-7800H .............................................. 8
1.3.1 Charging the SI-7800H by using the Travel Charger....8
1.3.2 Charging the SI-7800H by using the Desktop Charger 8
1.4 Powering the SI-7800H On and Off ........................... 9

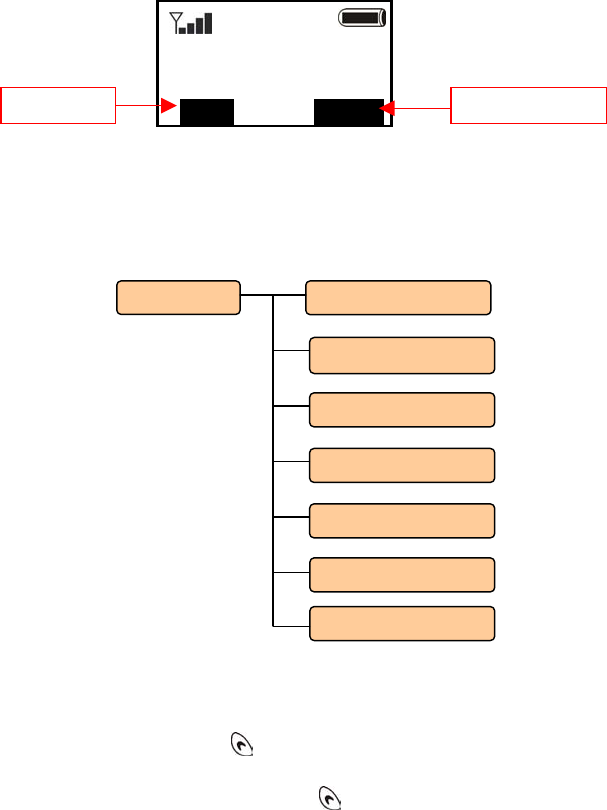

1.5 Main Screen............................................................... 9

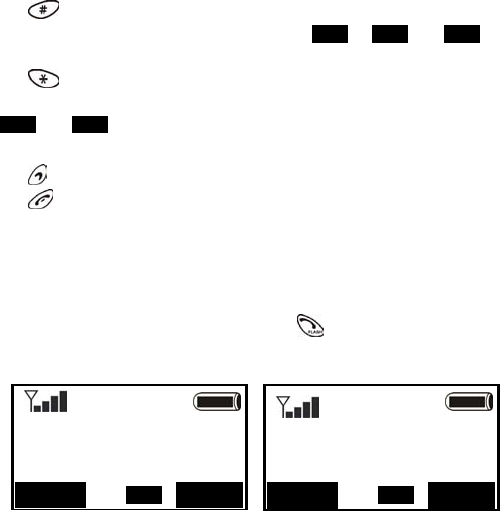

1.6 Entering and Editing text.......................................... 10
1.7 Making a Phone Call................................................ 10
1.7.1 Enter the phone number manually..............................10
1.7.2 Using the Phonebook..................................................10
1.7.3 Using the Call History..................................................10
1.7.4 Redial a number..........................................................11
1.8 Answering a Call ...................................................... 11
1.9 Hangup a Call .......................................................... 11
Chapter 2 Menu Architecture.................................. 12
Chapter 3 Phonebook.............................................. 14
3.1 Browse the Phonebook............................................ 14
3.2 Create a new record................................................. 15
3.3 Review ..................................................................... 15
Chapter 4 Call History ............................................. 16
4.1 Outgoing Calls.......................................................... 16
4.2 Incoming Calls.......................................................... 17
4.3 Missed Calls............................................................. 17
4.4 Erase Record ........................................................... 17
Chapter 5 Phone Settings....................................... 18
5.1 Ringer Melody.......................................................... 19
5.2 Melody Select........................................................... 19
5.3 Key Tone.................................................................. 19
5.4 Vibrator..................................................................... 19
5.5 Speaker Volume....................................................... 19
5.6 Restore Default ........................................................ 19
Chapter 6 SIP Settings ............................................ 20
6.1 Display Name........................................................... 21
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
3
6.2 SIP User Name ........................................................ 21
6.3 Realm name............................................................. 21
6.4 Authentication Name................................................ 21
6.5 Password ................................................................. 21
6.6 Registrar................................................................... 21
6.7 Registrar Status ....................................................... 21
6.8 Registration Time (sec)............................................ 21
6.9 Proxy........................................................................ 22
6.10 Proxy Status........................................................... 22
6.11 Outbound Proxy ..................................................... 22
6.12 Out. Proxy Status................................................... 22
6.13 Codec Order........................................................... 22
6.14 VAD Status............................................................. 22
Chapter 7 IP Settings............................................... 23
7.1 DHCP....................................................................... 24
7.2 System name ........................................................... 24
7.3 Static IP Address...................................................... 24
7.4 Subnet Mask ............................................................ 24
7.5 Default Gateway....................................................... 24
7.6 DNS Server Pri......................................................... 24
7.7 DNS Server Sec....................................................... 24
7.8 DNS Domain ............................................................ 24
7.9 NetBIOS Server ....................................................... 24
Chapter 8 WLAN Settings ....................................... 25
8.1 SSID......................................................................... 26
8.2 Channel.................................................................... 26
8.3 Tx Rate..................................................................... 26
8.4 Mode ........................................................................ 26
8.5 Site Survey............................................................... 26
8.6 Roaming Setup ........................................................ 26
8.7 Encryption ................................................................ 26
8.7.1 Authentication Type ....................................................27
8.7.2 Encryption ...................................................................27
8.7.3 Used Key.....................................................................27
8.7.4 WEP Key Settings.......................................................27
8.8 QoS.......................................................................... 27
Chapter 9 System Time........................................... 28
9.1 Time Setting............................................................. 28
9.2 SNTP Setting ........................................................... 29
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
4
9.2.1 Time Zone Setting.......................................................29
9.2.2 SNTP Status................................................................29
9.2.3 Polling Time.................................................................29
9.2.4 SNTP Server 1 to 4.....................................................29
Chapter 10 Information ........................................... 30
10.1 SIP Information ...................................................... 30
10.2 Network Information............................................... 31
10.3 System Information ................................................ 31
Chapter 11 Profile.................................................... 32
11.1 Key Lock ................................................................ 32
11.2 Speed Dial.............................................................. 33
11.3 Ringer Melody........................................................ 33
11.4 Vibrator................................................................... 33
11.5 Speaker Volume..................................................... 33
Chapter 12 Web-based Management Interface ..... 34

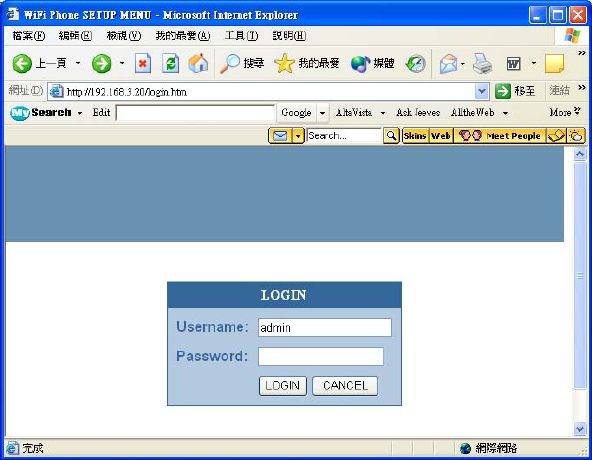

12.1 Login the Management Interface ........................... 34
12.2 Main Page of the Management Interface............... 34

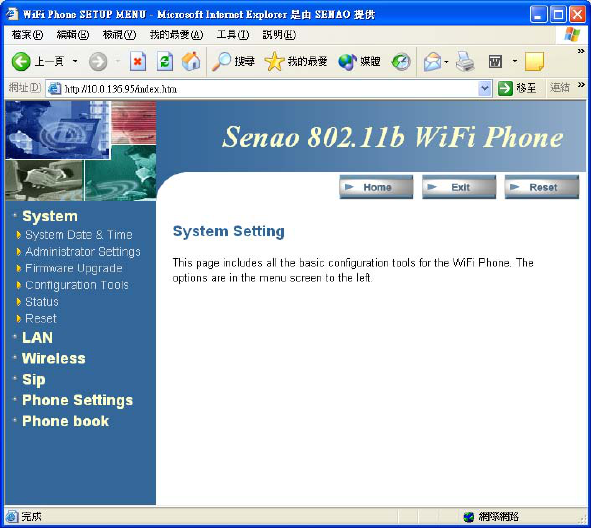

12.3 System Setting....................................................... 35
12.3.1 System Date & Time .................................................36
12.3.2 Administrator Settings...............................................36

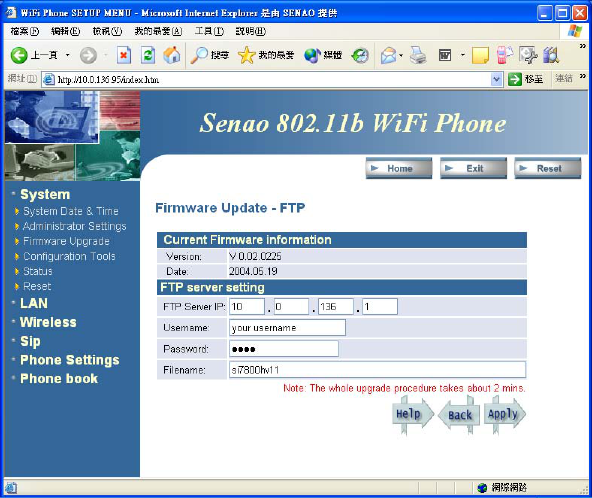

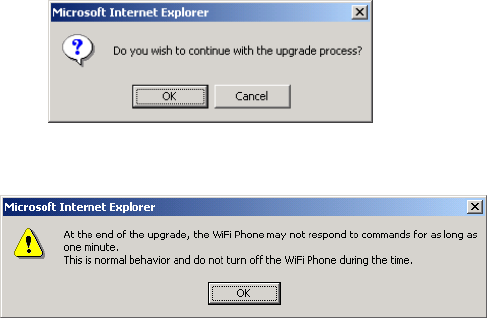

12.3.3 Firmware Upgrade ....................................................37
12.3.4 Configuration Tools...................................................38
12.3.5 Status ........................................................................38
12.3.6 Reset.........................................................................38
12.4 LAN Setting............................................................ 38
12.4.1 Dynamic IP................................................................39
12.4.2 Static IP.....................................................................39
12.4.3 DNS...........................................................................39

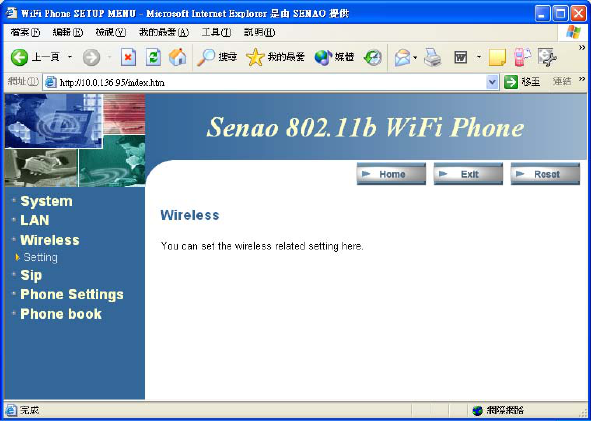

12.5 Wireless Setting ..................................................... 39
12.5.1 Setting .......................................................................40

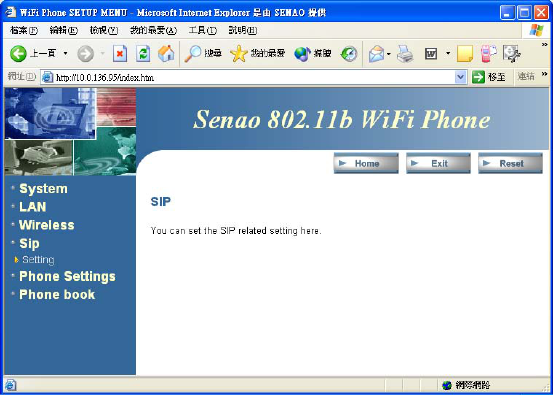

12.6 SIP Setting ............................................................. 40
12.6.1 Setting .......................................................................41

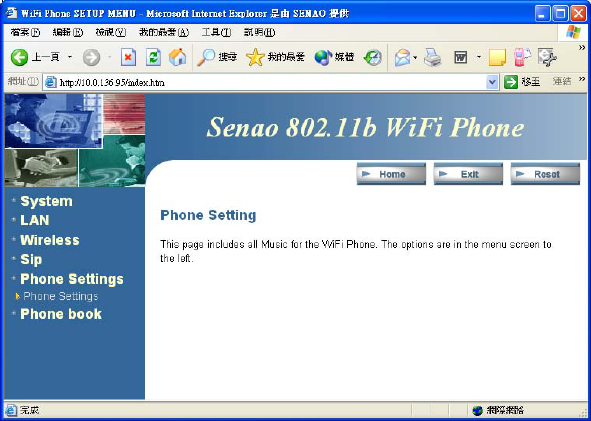

12.7 Phone Settings....................................................... 41
12.7.1 Phone Settings..........................................................42
12.8 Phone Book............................................................ 42
12.8.1 Phone Book Edit .......................................................43
12.8.2 Call History................................................................43
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
5
Chapter 1 Overview of the SI-7800H
Senao WiFi phones (SI-7800H) are compliant to IEEE 802.11b standard
and IETF Session Initiation Protocol (SIP). As long as users are in the
coverage of APs (Access Point), they can use SI-7800H to make VoIP
phone calls over WLAN. The SI-7800Hs enhance productivity and bring
mobility to people at home, in hot spots, offices, hospitals, warehouses,
retail stores, universities, hotels, resorts and other environments.
The easy-to-use SI-7800H can be configured by keypad and LCD display.

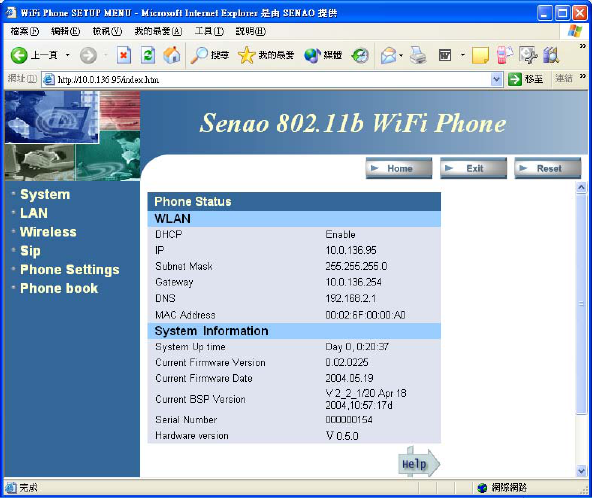

A Web-based management interface is also provided for configuration
and firmware upgrade.
1.1 Front Panel and Keypad
Figure 1.1.1 SENAO WiFi Phone SI-7800H
Powe
r
On/Off Ke
y
Ear
p
hone Jac
k
Gra
p
hic LCD Dis
p
la
y
9
2
8
3
1
6
5
7
4
Micro
p
hone
Receive
r
LED indicato
r
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
6
LED Indicator:
ON – When the SI-7800H is in wake up mode, WLAN packets can be
transmitted or received by the SI-7800H.
OFF – When the SI-7800H is in sleep mode, no WLAN packets can be
transmitted or received by the SI-7800H.

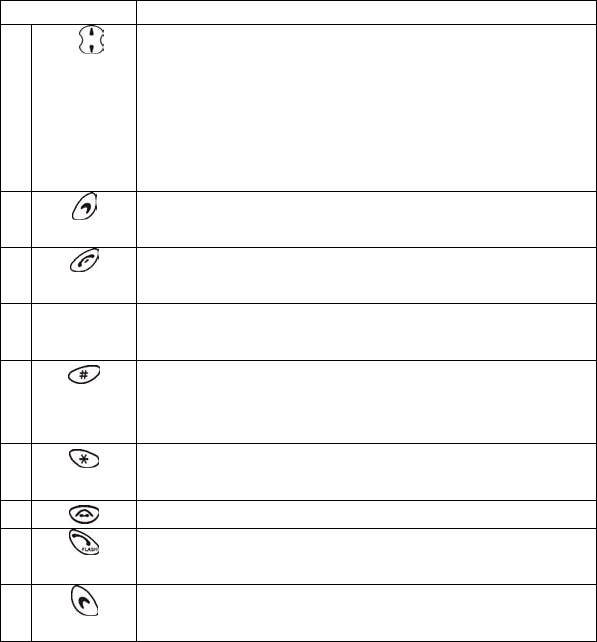

Key Description
1 Arrow key: Used to navigate from one
function to another, move the cursor in entry
mode and adjust volume when talking. At
standby mode, press ▲ to get status
information and press▼ to access the list of
placed calls.
2 Right soft key: Used to perform functions
displayed in the tab shown above it.
3 End key: Used to end or reject a call or
return to standby mode.
4 0-9 Number key: Used to enter numbers and
characters.
5 Pound key: In entry mode, use the pound key
to select among number, upper or lower case
character.
6 Asterisk key: In entry mode, use the asterisk
key to enter ‘.’, ‘@’ and ‘:’.
7 Hot key to the Profile menu.
8 Answer/Send key: Used to answer a call or
dial a number.
9 Left soft key: Used to perform functions
displayed in the tab shown above it.
Table 1.1.1: Keypad function description
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
7

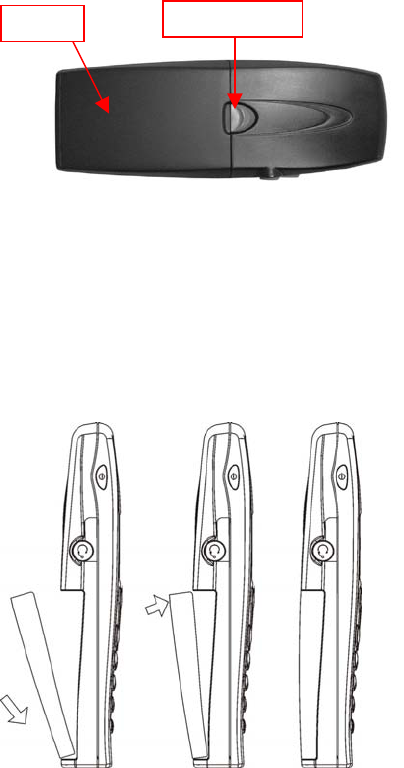

1.2 Removing and Installing the Battery
To remove the battery:
Turn the handset face down and locate the battery release button at the
middle of the handset.
Push the release button and lift the battery up to remove it. Please refer to
Figure 1.2.1.
Figure 1.2.1 Remove the battery
To install the battery:
First carefully slide the bottom battery pack tabs into open slot at the
back of the phone as shown in Figure 1.2.2. The bottom of the battery
pack should lock into the back of the handset. Press down on the top of
the battery pack into the handset and you should hear a “click” which
signifies the battery securing into place on the handset.
Figure 1.2.2 Install the battery
Release Butto
n
Batter
y
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
8

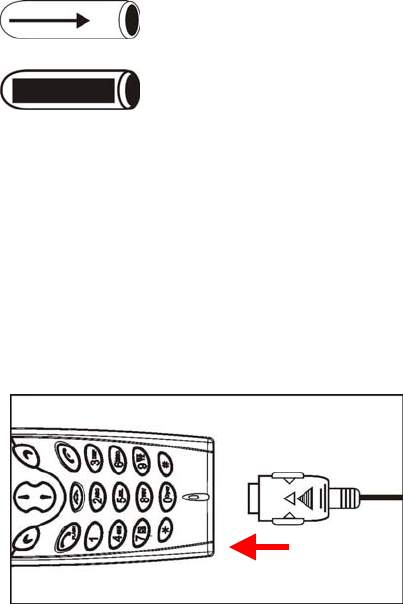

1.3 Charging the SI-7800H
Before the first time use of the SI-7800H, please charge it for at least
six hours.
The battery icon on the LCD display will show the charging status.
Please refer to figure 1.3.1.
Charging in progress
Fully charged
Figure 1.3.1 Battery icon as a charging status indicator
1.3.1 Charging the SI-7800H by using the Travel Charger
The travel charger is a standard accessory of SI-7800H. Use the
following steps to charge the SI-7800H.
(1) Plug the travel charger to a wall outlet.
(2) Plug the travel charger’s connector to the jack at the bottom of the
SI-7800H to start charging. Please refer to Figure 1.3.1.1.
Figure 1.3.1.1 Plug the travel charger’s connector to SI-7800H
1.3.2 Charging the SI-7800H by using the Desktop Charger
The desktop charger is an optional accessory of SI-7800H. Use the
following steps to charge the SI-7800H.
(1) Connect the power adaptor to the desktop charger’s DC IN jack at
the bottom of the charger.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
9
(2) Plug the power adapter to a wall outlet.
(3) Put the SI-7800H on the desktop charger to start charging. Please
refer to Figure 1.3.2.1.
Figure 1.3.2.1 SI-7800H on the desktop charger
1.4 Powering the SI-7800H On and Off
Press and hold the Power On/Off key for approximately 2.5 seconds to
turn the SI-7800H on or off.
1.5 Main Screen
After powering on, the phone enters standby mode, with the main screen
displayed, as shown in Figure 1.4.1
Figure 1.4.1 Main Screen at Standby mode
1 Battery icon
2 User name
3 Right soft key tab
4 Left soft key tab
5 Entering/Information line:
i) Entering phone number/SIP URL here or
ii) showing information at standby mode, using ▲ to switch between
WLAN SSID and current IP address information
6 Signal strength icon
R 08:30
user
WLAN Ready
Menu PhBook
4
5
2
3
6
1
7
8
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
10
7 Registration status indicator: when SIP registration is enabled, the
capital R indicates SI-7800H has registered to the SIP Registrar
successfully. If SI-7800H fails to register to the SIP Registrar, a capital
U will appear. A cross sign (X) means the user name or password is
incorrect. A rotating line indicates the registration is in progress.
8 Time
1.6 Entering and Editing text
In many situations you need to enter numbers and characters in an
entering field. Please refer to the following guidelines:
• Press to switch between upper case character, lower case
character and numeric mode, with the icon , or
shown at the middle of the bottom of LCD screen respectively.
• Press to enter ‘.’, ‘@’ or ‘:’ by pressing it once, twice or three
times respectively.
• In or mode, press numeric key ‘1’ to enter a space.
• Press ▲ or ▼ to move the cursor.
• Press to clear the number/character that the cursor points to.
• Press to abort the editing.
1.7 Making a Phone Call
1.7.1 Enter the phone number manually
You can enter phone number (needing SIP Proxy Server and Registrar) or
SIP URL at the entering line. Then press to make a phone call.
Please refer to Figure 1.7.1.1.
Figure 1.7.1.1 Enter the phone number/SIP URL manually to
make a phone call
1.7.2 Using the Phonebook
You can search the Phonebook by name to get the phone number/SIP
URL and make a call. Please refer to Chapter 3 Phonebook.
1.7.3 Using the Call History
You can find the phone number/SIP URL from the Call History to make a
phone call. Please refer to Chapter 4 Call History.
R 08:50
user
6660123
Call Clear
08:55
user
tina@192.168.2.5
Call Clear
abc
ABC 123
ABC abc
123 123
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
11
1.7.4 Redial a number
At the standby mode, press ▼. The list of placed calls is displayed.
The latest dialed number is highlighted, so you can redial this number
directly by pressing the left soft key.
1.8 Answering a Call
To answer a call, press . When talking you can use ▲ and ▼ to
adjust the volume.
To reject a call, press .
Please refer to Figure 1.8.1
Figure 1.8.1 Answer or reject a call
1.9 Hangup a Call
When talking, press to hang up the call.
Please refer to Figure 1.9.1.
Figure 1.9.1 Hangup a call
08:55
Accept Refuse
08:55
Han
g
u
p
Incoming Call
tina@192.168.2.5
Talking
tina@192.168.2.5
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
12
Chapter 2 Menu Architecture
In the standby mode, you can press the right soft key to select the
Phonebook menu or press the left soft key to select the main Menu.
Figure 2.0.1 Selecting main Menu and Phonebook Menu
The Phonebook menu will be discussed in Chapter 3 Phonebook.
The main Menu architecture is shown below and will be discussed
through Chapter 4 to Chapter 10.
Figure 2.0.2 Main Menu Architecture
In standby mode, press to select the main Menu. The main menu is
displayed, as shown in Figure 2.0.3. Then you can use ▲ or ▼ to scroll
through its submenu list and press to select the submenu.
08:55
user
WLAN Ready
Menu PhBook Phonebook men
u
Main Men
u
Menu
IP Settings
SIP Settings
Phone Settings
Call History
Information
WLAN Settings
System Time
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
13
Figure 2.0.3 Main Menu
1. Call History
2. Phone Settings
3. SIP Settings
Select Back
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
14

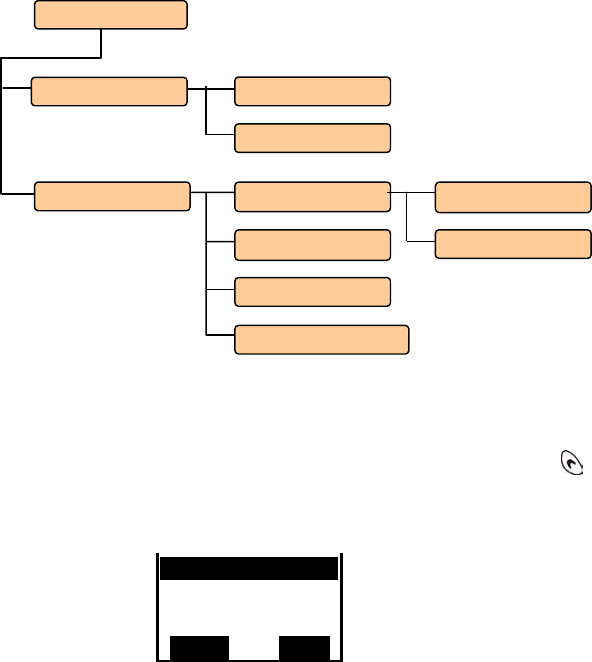

Chapter 3 Phonebook
This chapter provides information about accessing the Phonebook menu
and using its features. Figure 3.0.1 shows the architecture of the
Phonebook menu.
Figure 3.0.1 Phonebook menu architecture
In standby mode, press . The Phonebook menu is displayed, as
shown in Figure 3.0.2
Figure 3.0.2 Phonebook menu
3.1 Browse the Phonebook
1. In the Phonebook menu, press ▲ or ▼ to scroll to Browse. Then press
1. Browse
2. Create
3. Review
Select Back
Phonebook
Review
Create User Name
Delete
Browse View
Edit
SIP URL
Apply
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
15
to select it.
2. Press ▲ or ▼ to scroll to the name you want to browse. Then press
to select it.
3. Now you can view, edit or delete this record.
4. When viewing one record, you can recall the phone number/SIP URL
of that record by pressing the left soft key and then make a call. Please
refer to Figure 3.1.1
Figure 3.1.1 Recall a phone number/SIP URL from Phonebook
3.2 Create a new record
1. In the Phonebook menu, press ▲ or ▼ to scroll to Create. Then press
to select it.
2. Now you can enter the user name and its phone number/SIP URL to
the phonebook.
3.3 Review
1. In the Phonebook menu, press ▲ or ▼ to scroll to Review. Then press
to select it.
2. Now you can see how many records are in the phonebook.
My best friend
tom@192.168.1.50
Recall Back
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
16

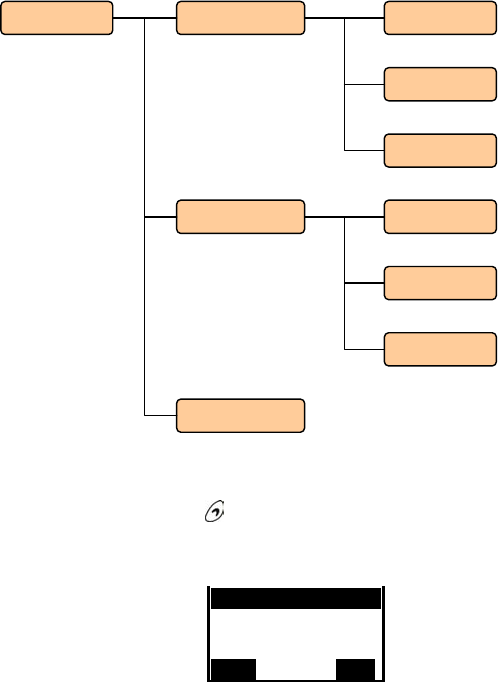

Chapter 4 Call History
This chapter provides information about accessing the Call History menu
and using its features. Figure 4.0.1 shows the architecture of the Call
History menu.
Figure 4.0.1 Call History menu architecture
In the main Menu, press ▲ or ▼ to scroll to Call History. Then press
to select it. The Call History menu is displayed, as shown in Figure
4.0.2
Figure 4.0.2 Call History menu
4.1 Outgoing Calls
In the Call History menu, select Outgoing Calls. The Outgoing Calls
menu is displayed, as shown in Figure 4.1.1.
Figure 4.1.1 Outgoing Calls menu
1. Outgoing Calls
2. Incoming Calls
3. Missed Calls
Select Back
John@192.168.1.20
101@192.168.1.50
102@192.168.1.60
Call Cancel
Call History
Incoming
Outgoing
Erase Record
Missed Calls
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
17

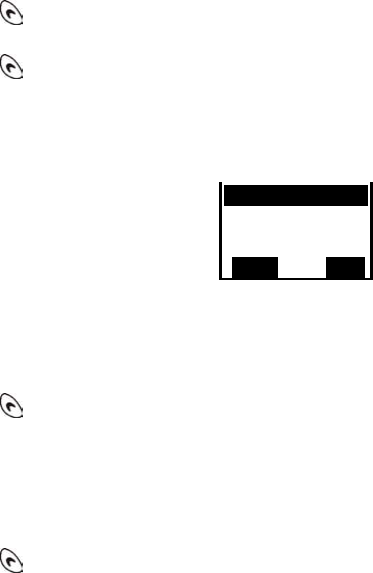

You can press ▲ or ▼ to scroll through the last 10 phone numbers dialed,
and press to make a call of that number.
4.2 Incoming Calls
In the Call History menu, select Incoming Calls. The Incoming Calls
menu is displayed, as shown in Figure 4.2.1.
Figure 4.2.1 Incoming Calls menu
You can press ▲ or ▼ to scroll through the last 10 incoming phone
numbers and press to make a call of that number.
4.3 Missed Calls
In the Call History menu, select Missed Calls. The Missed Calls menu is
displayed.
You can press ▲ or ▼ to scroll through the last 10 missed phone
numbers and press to make a call of that number.
4.4 Erase Record
In the Call History menu, select Erase Record. The Erase Record menu
is displayed.
You can press ▲ or ▼ to select which call history you want to delete.
Then press to delete it.
Jack@192.168.1.210
101@192.168.1.50
102@192.168.1.60
Call Cancel
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
18
Chapter 5 Phone Settings
This chapter provides information about accessing the Phone Settings
menu and using its features. Figure 5.0.1 shows the architecture of the
Phone Settings menu.
Figure 5.0.1 Phone Settings menu architecture
In the main Menu, press ▲ or ▼ to scroll to Phone Settings and press
to select it. The Phone Settings menu is displayed, as shown in Figure
5.0.2
Figure 5.0.2 Phone Settings menu
1. Ringer Melody
2. Melody Select
3. Key Tone
Select Back
Phone Settings
Restore Default
Speaker Volume
Vibrator
Melody Select
Ringer Melody
Off/on
Volume 1 to 5
No/Yes
Off/on
Melody 1 to 11
Key Tone Disable/Enable
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
19
5.1 Ringer Melody
The ringer can be turned on or off for incoming calls.
5.2 Melody Select
You can select ringer melody from Melody 1 to Melody 11. Then you can
play the melody and set it active.
5.3 Key Tone
This feature allows users to decide if there is key tone when keypad is
pressed.
5.4 Vibrator
Vibrator can be turned on or off for incoming calls.
5.5 Speaker Volume
Speaker/Receiver volume can be adjusted by choosing from Volume 1
(lowest volume) to Volume 5 (highest volume).
5.6 Restore Default
Restore the phone settings to the factory default settings.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
20
Chapter 6 SIP Settings
This chapter provides information about accessing the SIP Settings menu
and using its features. Figure 6.0.1 shows the architecture of the SIP
Settings menu.
Figure 6.0.1 SIP Settings menu architecture
SIP Settings
Proxy
Registrar Status
Password
Realmname
Display Name
Codec Order
Outbound Proxy
SIP User Name
Auth. Name
Registrar
Disable/Enable
Proxy Status
Outbound Status
Reg. Time(sec)
Disable/Enable
Disable/Enable
G.729
G.711(PCMU)
G.711(PCMA)
G.723
G.726-16
G.726-24
G.726-32
G.726-40
VAD Status
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
21
In the main Menu, press ▲ or ▼ to scroll to SIP Settings. Then press
to select it. The SIP Settings menu is displayed, as shown in Figure
6.0.2
Figure 6.0.2 SIP Settings menu
6.1 Display Name
Enter the display name here.
6.2 SIP User Name
Enter the SIP user name/phone number here.
6.3 Realm name
Enter the realm name here.
6.4 Authentication Name
Enter the authentication name here.
6.5 Password
Enter the password here.
6.6 Registrar
Enter the Registrar’s IP address and port number here. For example,
160.23.12.5:5060
6.7 Registrar Status
You can enable or disable the SI-7800H to register to a registrar.
6.8 Registration Time (sec)
Enter the registration time here. The SI-7800H will re-start registering to
a registrar at the period of the registration time.
1. Display Name
2. SIP User Name
3. Realmname
Select Back
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
22
6.9 Proxy
Enter the SIP proxy server’s IP address and port number here. For
example, 160.23.12.5:5060
6.10 Proxy Status
You can enable or disable the SI-7800H to use the SIP proxy server.
6.11 Outbound Proxy
The outbound proxy is used to do NAT/Firewall traversal for users
sitting behind NAT/Firewall equipments. Enter the outbound proxy
server’s IP address and port number here. For example, 160.23.12.8:9090
6.12 Out. Proxy Status
You can enable or disable the SI-7800H to use the outbound proxy server.
6.13 Codec Order
You can choose the codec you prefer to use from the audio codec list.
6.14 VAD Status
You can disable or enable the VAD (Voice Activity Detection) function
here.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
23
Chapter 7 IP Settings
This chapter provides information about accessing the IP Settings menu
and using its features. Figure 7.0.1 shows the architecture of the IP
Settings menu.
Figure 7.0.1 IP Settings menu architecture
In the main Menu, press ▲ or ▼ to scroll to IP Settings and press to
select it. The IP Settings menu is displayed, as shown in Figure 7.0.2
Figure 7.0.2 IP Settings menu
1. DHCP
2. System Name
3.Static IP Address
Select Back
IP Settings
Default Gateway
Subnet Mask
Static IP Address
System Name
DHCP
DNS Server Sec.
DNS Server Pri.
Disable/Enable
DNS Domain
NetBIOS Server
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
24
Note 1: After any modification of settings in this IP settings menu, you
need to reboot the WiFi Phone to make the new settings effective.
Note 2: Please don’t use the following subnets on the SI-7800H-
192.168.1.x and 192.168.99.x.
7.1 DHCP
You can get the dynamic IP address, default gateway and DNS server IP
address from a DHCP server if you enable the DHCP function. If you
want to configure these settings manually, please disable this DHCP
function.
7.2 System name
Enter the system name here.
7.3 Static IP Address
If you disable the DHCP function, please enter the static IP address here.
7.4 Subnet Mask
Enter the subnet mask of the static IP address here.
7.5 Default Gateway
Enter the default gateway IP address here.
7.6 DNS Server Pri.
Enter the primary DNS server IP address here.
7.7 DNS Server Sec.
Enter the secondary DNS server IP address here.
7.8 DNS Domain
Enter the DNS domain here.
7.9 NetBIOS Server
Enter the NetBIOS server IP address here.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
25
Chapter 8 WLAN Settings
This chapter provides information about accessing the WLAN Settings
menu and using its features. Figure 8.0.1 shows the architecture of the
WLAN Settings menu.
Figure 8.0.1 WLAN Settings menu architecture
WLAN Settings
Auth. Type
Roaming
Site Survey
Tx Rate
SSID
QoS
WEP Key Settings
Channel
Mode
Roaming Setup
SSID 1 to SSID 5
Encryption Type
Encryption
Used Key
1/2/5.5/11Mbps/Auto
Disable/Enable
Open System/Shared Key
Disable/64 /128 Bits
Key #1 to Key #4
Set 64/128 Bit Key 1/2/3/4
Disable/Enable
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
26
In the main Menu, press ▲ or ▼ to scroll to WLAN Settings. Then
press to select it. The WLAN Settings menu is displayed, as shown
in Figure 8.0.2
Figure 8.0.2 WLAN Settings menu
Note: After any modification of settings in this WLAN settings menu,
you need to reboot the WiFi Phone to make the new settings effective.
8.1 SSID
Enter the WLAN SSID here. You can enter ‘any’ to allow the SI-7800H
to associate with any AP.
8.2 Channel
Get the current channel number information.
8.3 Tx Rate
Select WLAN Tx rate here.
8.4 Mode
Only infrastructure mode is available.
8.5 Site Survey
This SI-7800H can do WLAN site survey. You can browse the AP list of
all APs found by SI-7800H and choose to join an AP in the list.
8.6 Roaming Setup
You can disable or enable the roaming function. If you enable the
roaming function, the SI-7800H can roam among APs with SSID
matching anyone in the list from SSID 1 to SSID 5.
8.7 Encryption
You can choose authentication type, disable or enable encryption, choose
key number and set those 64 or 128 bit keys in this submenu.
1. SSID
2. Channel
3. Tx Rate
Select Back
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
27
8.7.1 Authentication Type
You can choose open system or shared key as the authentication type.
8.7.2 Encryption
You can disable it or you can enable it with 64 or 128 bit key.
8.7.3 Used Key
You can choose any key from key 1 to key 4 for WEP encryption.
8.7.4 WEP Key Settings
You can set the WEP key here.
8.8 QoS
You can disable or enable the QoS function here.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
28
Chapter 9 System Time
This chapter provides information about accessing the System Time
menu and using its features. Figure 9.0.1 shows the architecture of the
System Time menu.
Figure 9.0.1 System Time menu architecture
In the main Menu, press ▲ or ▼ to scroll to System Time and press
to select it. The System Time menu is displayed, as shown in Figure 9.0.2
Figure 9.0.2 System Time menu
9.1 Time Setting
You can set time and date in this submenu. The time can be set in the
24-hour or 12-hour format. The date can be set in the YYYY.MM.DD,
MM.DD.YYYY or DD.MM.YYYY format.
1. Time Setting
2. SNTP Setting
Select Back
System Time
Clock Settings
Daylight Saving
Time Zone
TimeZone Setting
Time Setting
Date Settings
SNTP Setting
Polling Time
SNTP Status
SNTP Server 1 to 4
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
29
9.2 SNTP Setting
9.2.1 Time Zone Setting
This submenu includes Time Zone and Daylight Saving configuration.
You can select the time zone in which you are located from the time zone
list. You can disable or enable the daylight saving function. If you want
to use daylight saving function, you also need to set the daylight saving
duration, from the start month/date to the end month/date, in this
submenu.
9.2.2 SNTP Status
You can disable or enable the function of synchronizing SI-7800H’s time
to SNTP servers.
9.2.3 Polling Time
You can set the polling time of the SI-7800H for how often to get time
information from SNTP servers.
9.2.4 SNTP Server 1 to 4
You can set the IP addresses of SNTP server 1 to server 4 here.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
30
Chapter 10 Information
This chapter provides information about accessing the Information menu
and using its features. Figure 10.0.1 shows the architecture of the
Information menu.
Figure 10.0.1 Information menu architecture
In the main Menu, press ▲ or ▼ to scroll to Information. Then press
to select it. The Information menu is displayed, as shown in Figure
10.0.2
Figure 10.0.2 Information menu
10.1 SIP Information
You can get SIP Registrar and Proxy status here.
1. SIP
2. Network
3. System
Select Back
Information
Network
SIP
System
Registrar Status
Proxy Status
Current IP Addr
WLAN Status
Current SSID
MAC Address
Channel
Tx Rate
Mode
Firmware Version
Serial Number
Hardware Version
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
31
10.2 Network Information
Network and WLAN status can be shown here.
10.3 System Information
You can get information about the Firmware Version, Serial Number and
Hardware Version here.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
32
Chapter 11 Profile
This chapter provides information about accessing the Profile menu and
using its features. In standby mode, you can press the hot key ‘ ’ to
access the Profile menu. Figure 11.0.1 shows the architecture of the
Profile menu.
Figure 11.0.1 Profile menu architecture
In the main Menu, press ▲ or ▼ to scroll to Profile and press to
select it. The Profile menu is displayed, as shown in Figure 11.0.2
Figure 11.0.2 Profile menu
11.1 Key Lock
In the Profile menu, select Key Lock. The key-locked screen is shown as
in Figure 11.1.1.
1. Key Lock
2. Speed Dial
3. Ringer Melody
Select Back
Profile
Speaker Volume
Vibrator
Ringer Melody
Speed Dial
Key Lock
Off/on
Off/on
Volume 1 to 5
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
33
Figure 11.1.1 Key-locked screen
You can unlock it by pressing twice. The phone will go to standby
mode.
11.2 Speed Dial
The Speed Dial menu allows users to dial a number from the list of
placed calls.
11.3 Ringer Melody
This menu allows users to turn on or off the ringer.
11.4 Vibrator
This menu allows users to turn on or off the vibrator.
11.5 Speaker Volume
Speaker/Receiver volume can be adjusted by choosing from Volume 1
(lowest volume) to Volume 5 (highest volume).
WiFi
Phone
Unlock
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
34
Chapter 12 Web-based Management
Interface
Senao SI-7800H has a Web-based management interface to provide users
an easier way to configure SI-7800H. Some advanced configurations,
like firmware upgrade, are only available by using this interface.
12.1 Login the Management Interface
Start the IE (or other browsers) to navigate SI-7800H web management
interface by entering the IP address (192.168.3.20 in the below example)
of the SI-7800H in the browser’s URL field. The LOGIN window will
display Username and Password as shown in Figure 12.1.1. The default
Username is “admin” and no password is needed for the first time login.
Figure 12.1.1 Login the Management Interface
12.2 Main Page of the Management Interface
After you login the management interface, the main page will show as in
Figure 12.2.1. The main page displays phone status, including WLAN
status and system information. On the left side of the main page, there
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
35
are six configuration items: System, LAN, Wireless, SIP, Phone Settings
and Phonebook. All of these configuration items will be described in the
following sections.
Figure 12.2.1 Main Page of the Management Interface
12.3 System Setting
Clicking the System item on the left side of the main page will bring you
to the System Setting page as shown in Figure 12.3.0.1. There are six
options under the system item: System Date & Time, Administrator
Settings, Firmware Upgrade, Configuration Tools, Status and Reset.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
36
Figure 12.3.0.1 System Setting Page
12.3.1 System Date & Time
Clicking the System Date & Time option will bring you to the System
Date & Time page. You can set date, time, time zone, enable or disable
daylight saving function and using SNTP servers to get time information.
After finishing the configuration, click the Apply icon at the bottom of
this page to active the settings or click the Cancel icon to cancel the
settings.
12.3.2 Administrator Settings
Clicking the Administrator Settings option will bring you to the
Administrator Settings page. You can change password, change idle time
out duration and enable/disable remote control function. After finishing
the configuration, click the Apply icon at the bottom of this page to
active the settings or click the Cancel icon to cancel the settings.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
37
12.3.3 Firmware Upgrade
Clicking the Firmware Upgrade option will bring you to the Firmware
Upgrade page as shown in Figure 12.3.3.1. You can upgrade the firmware
of SI-7800H by using a FTP server. Please enter FTP server’s IP address,
user name, password and the file name of the new firmware. After
finishing the configuration, click the Apply icon at the bottom of this
page to start the firmware upgrading. A confirmation window (Figure
12.3.3.2) will pop up asking “Do you wish to continue with the upgrade
process?” You can click ‘OK’ to continue or ‘Cancel’ to abort. If the
‘OK’ is chosen, a warning window (Figure 12.3.3.3) will pop up. Please
follow the instruction in the warning window to successfully upgrade the
firmware.
After the firmware is upgraded successfully, the Login page will appear.
You need t o turn the SI-7800H off and then turn it on to make the new
firmware effective.
Figure 12.3.3.1 Firmware Upgrade page
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
38
Figure 12.3.3.2 Confirmation Window
Figure 12.3.3.3 Warning Window
12.3.4 Configuration Tools
Clicking the Configuration Tools option will bring you to the
Configuration Tools page. You can set SI-7800H back to its factory
default settings in this option.
12.3.5 Status
Clicking the Status option will bring you to the Status page. This page
shows current status of the SI-7800H.
12.3.6 Reset
Clicking the Reset option will reset the SI-7800H.
12.4 LAN Setting
Clicking the LAN item on the left side of the main page will bring you to
the LAN Setting page as shown in Figure 12.4.0.1. There are three
options under the LAN item: Dynamic IP, Static IP and DNS.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
39
Figure 12.4.0.1 LAN Setting page
12.4.1 Dynamic IP
Clicking the Dynamic IP option will bring you to the Dynamic IP page.
This option allows you to enable the DHCP client function of the
SI-7800H.
12.4.2 Static IP
Clicking the Static IP option will bring you to the Static IP page. This
option allows you to set the static IP address, subnet mask and default
gateway of the SI-7800H.
12.4.3 DNS
Clicking the DNS option will bring you to the DNS page. This option
allows you to set the primary and secondary DNS Server’s IP address
used by the SI-7800H.
12.5 Wireless Setting
Clicking the Wireless item on the left side of the main page will bring
you to the Wireless Setting page as shown in Figure 12.5.0.1. There is
one option under the Wireless item: Setting.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
40
Figure 12.5.0.1 Wireless Setting page
12.5.1 Setting
Clicking the Setting option will bring you to the Wireless Settings page.
This option allows you to set all the WLAN related settings, including
General, Advanced Settings, Authentication and 802.1x, of the SI-7800H.
12.6 SIP Setting
Clicking the SIP item on the left side of the main page will bring you to
the SIP Setting page as shown in Figure 12.6.0.1. There is one option
under the SIP item: Setting.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
41
Figure 12.6.0.1 SIP Setting page
12.6.1 Setting
Clicking the Setting option will bring you to the SIP Settings page. This
option allows you to set all the SIP related settings, including User
Information, Proxy Server, Outbound Proxy, Registrar and codec used by
the SI-7800H.
12.7 Phone Settings
Clicking the Phone Settings item on the left side of the main page will
bring you to the Phone Setting page as shown in Figure 12.7.0.1. There is
one option under the Phone Settings item: Phone Settings.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
42
Figure 12.7.0.1 Phone Settings page
12.7.1 Phone Settings
Clicking the Phone Setting option will bring you to the Phone Settings
page. This option allows you to set all the phone related settings,
including Ringer Melody, Melody Select, Key Tone, Vibrator and
Speaker Volume.
12.8 Phone Book
Clicking the Phone Book item on the left side of the main page will
bring you to the Phone Book page as shown in Figure 12.8.0.1. There are
two options under the Phone Book item: Phone Book Edit and Call
History.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
43
Figure 12.8.0.1 Phone Book page
12.8.1 Phone Book Edit
Clicking the Phbook Edit option will bring you to the Phone Book Edit
page. This option allows you to create, delete and browse items in the
phone book.
12.8.2 Call History
Clicking the Call History option will bring you to the Call History page.
This option allows you to view outgoing, incoming and missed calls.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
44
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
FCC Radiation Exposure Statement:
This device complies with FCC RF Exposure limits set forth for an
uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2).
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
This EUT is incompliance with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in
accordance with the measurement methods and procedures specified in
OET Bulletin 65 Supplement C.
SENAO SI-7800H User’s Manual
SENAO INTERNATIONAL CO., LTD.
45
Wireless Solution Provider
Contact us:
E-mail: sales@senao.com.tw
http://www.senao.com
