Contents

Manual revised 3

User Manual
WIRELESS SOLUTIONS PROVIDER
DuraFon 1X
Digital Long Range Cordless Phone
EnGenius Customer Service
United States: 1-888-735-7888
Canada: 1-888-397-2788
~
2
~
Table of Contents
Safety Instructions........................................................................... 4
General Safety Instructions ....................................................... 4
Product Safety Instructions ........................................................ 4
Battery Safety Instructions......................................................... 6
Regulatory Information................................................................... 7
Equipment Checklist ....................................................................... 8

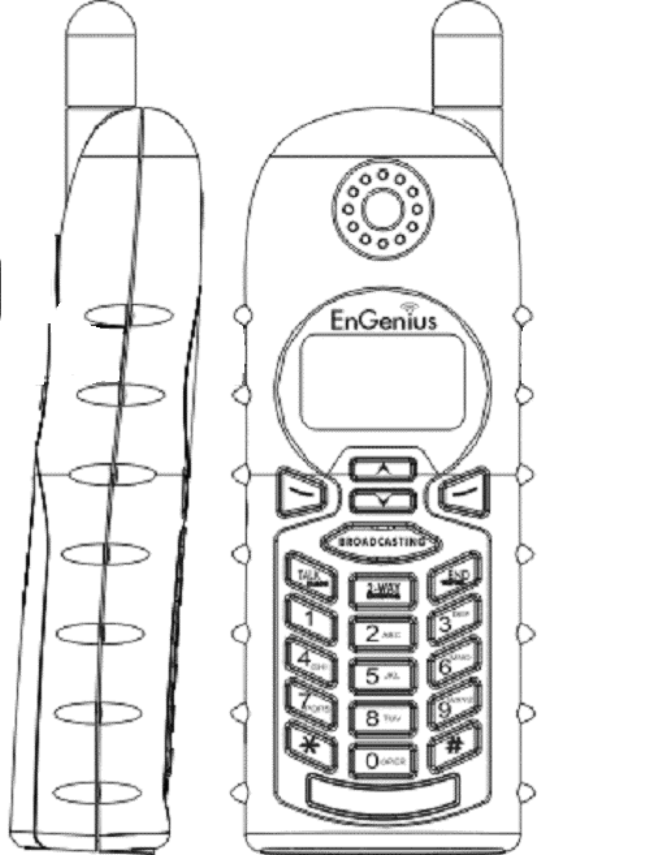

Handset Illustration......................................................................... 9
Basic Handset Features...........................................................10
Additional Handset Features ...................................................11
Administrator Features .............................................................13

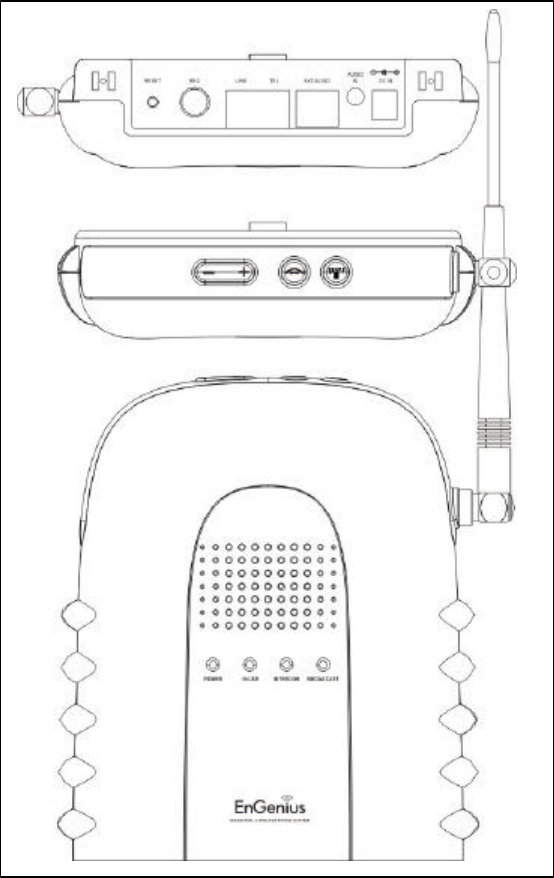

Base Illustration.............................................................................15
Basic Base Station Features ...................................................16

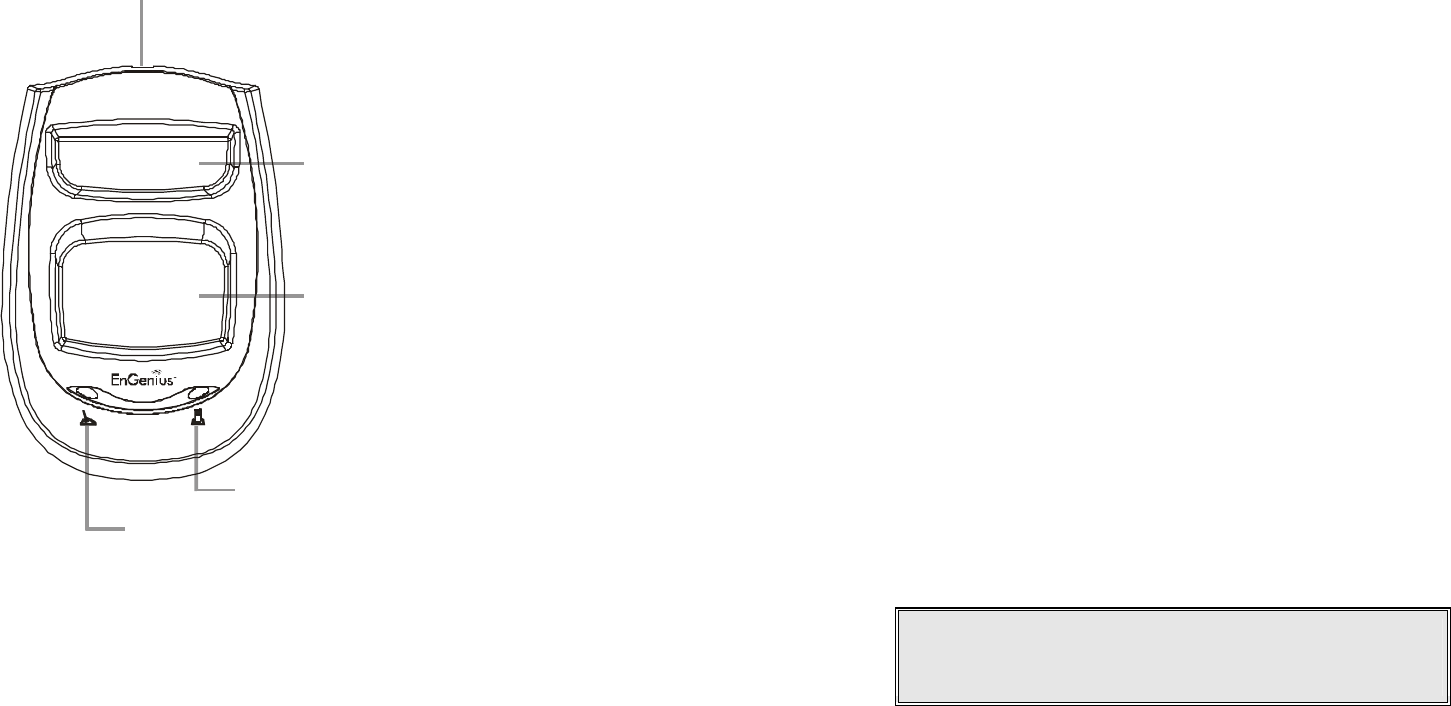

Charger Illustration........................................................................16
Charger Features ..........................................................................18
Base Station Installation...........................................................19
Handset and Charger Installation...........................................20
Basic Operations ...........................................................................21
Operation Modes.......................................................................21
A. Base Operation Modes....................................................21
B. Handset Operation Modes ..............................................21
Making a Telephone Call .........................................................22
Making an 2-Way/ Intercom Call.............................................23
A. Handset to Handset Calls...............................................23
B. Intercom/2-Way from Base to Handset.........................23
C. Intercom/2-Way from Handset to Base........................24
Making a Broadcast..................................................................24
A. Handset to Handset Calls...............................................24
B. Broadcasting from Base to Handset..............................25
C. Broadcasting from Handset to Base .............................25
Redial ..........................................................................................25
Receiving a Telephone Call.....................................................25
Receiving an Intercom Call......................................................26
Ending a Call..............................................................................26
Adjusting Receiver (Earpiece) Voice Volume.......................26
~
3
~
Placing a Call On Hold .............................................................27
Mute.............................................................................................27
Do Not Disturb (Silent Ring)....................................................27
Key Guard ..................................................................................28
Battery Recharge and Replacement......................................28
Advanced Operations ...................................................................29
Handset Registration................................................................29
Handset Group Subscription...................................................30
Call Transfer...............................................................................30
Call Manager..............................................................................31
Change System Settings by Administrator............................32
Phonebook Operations .............................................................33
Call barring .................................................................................35
Text Messaging .........................................................................36
Menu Operations ...........................................................................38
Technical Specifications...............................................................42
~
4
~
Safety Instructions
Caution: Your wireless telephone gives you freedom and flexibility to stay
in touch while you move around. However, when using your phone
equipment, safety instructions should be followed to avoid the risks of fire,
electric shock, injury to person, and damage to property.
General Safety Instructions
1. When using your wireless phone, ensure your safety and the safety of
others:
a. Always watch where you are walking and standing.
b. Don’t let a phone call distract you from working safely.
2. In an emergency:
a. If an emergency occurs, dial the emergency phone number.
Remember: if you are in an area where your phone does not have a
clear signal from the base, it is highly probable that the call may not
go through. Locate the nearest landline telephone or other
communications device to call for help.
b. Emergency calls may not automatically provide emergency
personnel with your name, phone number or location.
3. Notice to Hearing Aid Users: This phone system is compatible with
inductively coupled hearing aids.
4. Notice to Cardiac Pacemaker Users: Preliminary studies done by the US
FDA and others have shown that, although interference to the implanted
cardiac pacemaker may occur when operating very closely, wireless
telephones “do not seem to pose a significant problem for pacemaker
wearers.” However, until more is known, FDA suggests that people with
pacemakers may want to take precautions when using a wireless
telephone to ensure that there is ample distance between the telephone
and the pacemaker. Do not carry the handset in a breast pocket. If you
have any reason to suspect that interference is taking place, turn off your
handset immediately.
Product Safety Instructions
1. Read and understand all instructions.
2. Follow all warnings and instructions including those marked on the
product.
~
5
~
3. Changes or modifications to this product not expressively approved by
the manufacturer will void the warranty and the FCC authorization to
operate the equipment. Use only manufacturer provided accessories.
4. Do not use the telephone near water. Never spill liquid of any kind on
this product. à revisit this line when we test out the water proof level
5. Unplug the product from the wall telephone jack and power outlet before
cleaning. Do not use liquid or aerosol cleaners. Use damp cloth for
cleaning.
6. Do not place this product on an unstable cart, stand, or table. The
product may fall and cause personal injury or damage to the product or
other property.
7. Power Outage: In the event of a power outage, your handset charger will
not recharge the handset battery, and the base station will not allow you
to make an outgoing call or take an incoming call. Both the charger and
the base station require electricity for operation. You should have a
telephone that does not require electricity available for use during power
outage, or have a temporary backup power supply.
8. Slots or openings in the product’s housing are provided for ventilation.
These openings must not be blocked or covered. Placing the product on
a bed, carpeting, or other similar surface may block these openings and
should be avoided. This product should never be placed near or over a
radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
9. Never push objects of any kind into this product through housing
slots/openings as they may damage the product, touch dangerous
voltage points or short out parts that could result in fire, electric shock, or
injury.
10. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
11. Do not overload wall power outlets and extension cords as this may
result in fire or electric shock.
12. To avoid electric shock or burn, do not disassemble this product. Send
this product to an authorized service center when service or repair work
is required. Call Customer Service for locations near you. Opening or
removing covers may expose you to dangerous voltages, electrical
currents or other risks. Incorrect reassembling of the product may cause
electric shock when the product is subsequently used.
13. Avoid using the product during a storm. There may be a risk of electric
shock from lightning.
14. Do not place the product where persons can step, trip, or fall on it.
~
6
~
15. Do not place conductive objects over or near the antenna.
16. Do not use the product to report a gas leak while in the vicinity of the
leak.
17. Do not install the base station or the handset charger near microwave
ovens, radios, TV sets, speakers, or other electrical equipment. These
appliances may cause interference to the product or experience
interference from the product.
18. Unplug the base station or the charger adaptor from the power outlet and
refer to an authorized service center under the following conditions:
a. If liquid had been spilled into the product.
b. When the power supply cord or plug is damaged or frayed.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions.
e. If the product has been dropped or housing has been damaged.
f. If the product shows a distinct change in performance.
Battery Safety Instructions
1. Use only manufacturer approved Li-ion rechargeable batteries and
charger. Do not use other types of rechargeable batteries or non-
rechargeable batteries. The batteries could short-circuit, and the battery
enclosure may be damaged causing a hazardous condition.
2. Follow the charging instruction in this manual and instruction labels and
markings in the handset and charger compartments.
3. Battery must be recycled or disposed of properly. Do not dispose the
battery in a fire. The cells may explode.
4. Do not dispose of the battery in municipal waste. Check with local codes
for disposal instructions.
5. Exercise care in handling the batteries in order not to short-circuit the
battery with conductive materials such as rings, bracelets, keys,
pocketknife, and coins. The battery or conductive material may overheat
and cause burn or fire.
6. Do not expose batteries to rain or water.
7. Do not open or mutilate the battery. Released electrolyte is corrosive
and may cause injury to eyes or skin. The electrolyte may be toxic if
swallowed.
8. During charging, the battery heats up. This is normal and is not
dangerous.
~
7
~
Regulatory Information
DuraFon 1X
FCC ID: NNA-XXXXXX
IC: ______________
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including
interference that may cause undesired operation.
1. The term “IC:” before the radio certification number only signifies that Industry of Canada
technical specifications were met.
2. This telephone system complies with rules of the FCC Part 68 and Canadian IC/DOC CS -
03. On the bottom of the base station is a label that contains, among other information, the
FCC Registration Number, Ringer Equivalence Number (REN) and the Universal Service
Order Code, which is RJ-11C in the U.S. or CA -11A in Canada. Your telephone company
may ask you for this information.
3. The REN is useful to determine the quantity of devices you may connect to your telephone
line and still have all devices ring when your telephone number is called. In most, but not
all, areas the sum of the REN’s of all devices connected to one line should not exceed 5.0.
To be certain of the number of devices you may connect to your phone line, you should
contact you local telephone company for the maximum REN in your area.
4. If your telephone equipment causes problems to the telephone network, the telephone
company may ask you to disconnect your phone system from the line until the problem has
been corrected. Consult with your local phone company for your rights if this happens.
5. Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect the proper functioning of your telephone system. Consult with
your local phone company for your rights if this happens.
6. This telephone system may not be used on coin service provided by the telephone
company. Connection to party lines is subject to state tariffs.
7. This telephone system has been tested and found to comply with the limits for Class B
digital devices, pursuant to Part 15 of the FCC Rules and RSS210 of the DOC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a general public installation. Operations of these devices may still encounter interference
from/to nearby TV’s, VCR’s, radios, computers, or other electronic devices. To minimize or
prevent such interference, the telephone system should not be placed or operated near
other electronic devices.
8. However, there is no guarantee that interference will not occur in a particular installation. If
this telephone system does cause interference to other electronic devices, which can be
determined by turning the system off and on, the user is encouraged to try to correct the
interference by one or several of the following measures:
a. We recommend at least 20 feet between the system and other electronic devices.
b. Connect the base station to a power outlet on a circuit separate from that used by the
device experiencing interference. Consult the dealer or an experienced electronic
technician for help.
~
8
~
Equipment Checklist
1.
In a Base + Handset package, please find the following components:
a.
Base Station x 1
b.
Base Antenna x 1
c.
Base AC/DC Adaptor x 1
d.
Handset x 1
e.
Handset Antenna x 1
f.
1700mA Li-ion Battery Pack x 1
g.
Charger x 1
h.
Charger AC/DC Adaptor x 1
i.
Telephone Cord x 1
j.
User’s Manual, Quick Guide, and Warranty Card
2.
In a Handset package, please find the following components:
a.
Handset x 1
b.
Handset Antenna x 1
c.
1700mA Li-ion Battery Pack x 1
d.
Charger x 1
e.
Charger AC/DC Adaptor x 1
f.
Quick Guide, and Warranty Card
3.
Optional Accessory
a.
Spare Battery
b.
Headset
~
9
~
Handset Illustration
~
10
~
Handset Features
Basic Handset Features
1. 4-line LCD (Liquid Crystal Display)
a.
The LCD display has LED (Light Emitting Diode) for backlighting.
b.
The 1st line of LCD consists of icons.
c.
Icons explanation from left to right
(1)
RSSI (Receive Signal Strength Indicator)
During a call, the number of bars is proportional to the radio signal
strength received.
(2)
Call in-progress (ON/OFF-Hook)
Indicates if phone line mode is active
(3)
Intercom in-progress
Indicates if Intercom mode is active
(4)
Handset ID
Displays a handset icon and a 2-digit Handset ID
(5)
Two-Digit Address Index
Shows address index when viewing contents of the call logs.
(6)
Line Indicator
Indicates the number of the line being accessed by the handset.
(7)
Battery Strength
l Number of bars is proportional to the amount of battery time
remaining.
l Indicates charging when in charger cradle.
d.
The 2nd and 3rd lines of the LCD, maximum 14 characters each,
display status, message, menu selections, or user-editable
alphanumerical characters.
e The last line displays the left and right soft keys.
2. Ringer
a.
Rings to an incoming call.
b.
Distinctive alert sounds indicating various events:
(1)
Single Beep: successful key entry
(2)
Double beep: failed operation or invalid key entry, also indicates power
on/off
(3)
Periodic 1-Long-2-Short Beep (every 1 minute): low battery warning
(4)
Periodic Long Series of Beeps (repeat every 30 seconds): indicates a
call is on-hold
3. TALK/FLASH
a.
Places or answers a telephone or intercom call
b.
Sends a Flash signal to phone line to retrieve a dial tone after the
call ends, or to perform
the call waiting feature provided by local
~
11
~
phone companies during a call.
4. 2-WAY/INTERCOM
a.
Places an intercom call to another handset ID or a group ID (group
paging).
b.
Intercom calls are digital, full duplex, and are conducted without the
assistance from the base.
5. BROADCAST
a.
Half duplex broadcasting to handsets for immediate announcement
b.
Half duplex broadcasting to base stations
[please refer to page 24 for detail operation]
6. Left/Right Soft Keys
a.
Make menu selection.
7. Up(Ù) /Down(Ú) Scrolling Keys
a.
Scroll through records and menu selections.
b.
Adjust receiver voice volume when in Talk mode.
8. END; On/Off Key
a.
Ends a call.
b.
Leaves current menu operation, up one level.
c.
Press for 3 seconds to off the power
Additional Handset Features
1. Multiple handsets registration
a.
Up to 9 handsets can be registered to a base station; up to 36
handsets can be accommodated to the system
b.
ID 10-99: individual Handset IDs. ID 10 and 11 are the first two ID’s
assigned by the base and are designated “administrators” who can
change base settings such as greeting message and other base
administrative functions.
c.
ID 01-09: Group IDs. Handsets can “subscribe” from the handset
menu to group(s) and be paged when a landline caller or an intercom
caller enters a Group ID.
2. Ringer Vibrator
a.
Five-level ringer volume selections (high/ low/ vibrate/ vibrate-then-
ring/ off)
b.
Four ringer type selections
~
12
~
3. Caller ID
a.
Displays incoming call phone number and name on the LCD (needs
Caller ID service from local telephone company)
4. Call waiting with caller ID
a.
Displays 2nd incoming call information on the same phone line when
1st call is in progress (needs Call Waiting with Caller ID service from
local telephone company)
5. Name tagging with caller ID
a.
Match the caller ID with the phone book entries; once matched, the
LCD screen will display the name or nickname instead of pure caller
ID info (needs Call Waiting with Caller ID service from local
telephone company)
6. DND (Do Not Disturb, i.e., Silent Ring)
7. Three Call Logs
a.
Called Log: Stores 10 phone numbers (up to 28 digits each) dialed
most recently. Can perform last-number redial on all 10 numbers.
b.
Received Call Log: 10 entries (14-digit phone number, 14-character
names, and time stamp), needs Caller ID service from local
telephone company.
c.
Missed Call Log: 10 entries (14-digit phone number, 14-character
names, and time stamp), needs Caller ID service from local
telephone company.
d.
Phone numbers and names can be saved into phonebook while in
display.
8. Call barring
a.
Block the users from dialing the long distance calls or international
calls
b.
Up to 5 digits of each call barring setting; up to 4 entries allowed
c.
If you need to dial a specific number to retrieve the dial tone, you
need to key in that number while setting the call barring
[Note] you need to key in the accurate user ID and password to perform
this feature. The default password is 0000
9. Any Key Answer (except END, Silent Soft Key)
10.
Key-guard
~
13
~
11.
Dialing Prefix
a.
Up to 14 digits, including pause(s), one access code can be pre-
programmed to be added automatically in front of the dialed number
when dialing from call logs, phonebook, and dial-and-send dialing.
12.
Call Hold
a.
Places call on hold
b.
Battery Hot Swap: Change battery while call is on hold.
13.
Mute
14.
Phonebook
a.
30 entries, each stores a phone number or handset ID (up to 28-
digit) and name (up to14-character)
b.
Alphabetically sorted display and search
c.
Dial from display
d.
During the stand-by mode, you can enter the phone book by
pressing ÙorÚ scrolling key
15.
Key tone
a.
Three-level key-tone volume selections (high/low/off)
b.
Four key-tone type selections
16.
Call timers
a.
Display call time duration for current call during and immediately
after the call
17.
Text Messaging:
a.
Editing Message: from a handset, users can edit the short text
message for up to 50 characters. Up to 5 messages can be edited
and stored.
b.
Sending Message: In view mode, handset can send a message to
another handset or a group of handsets.
c.
Incoming Message: A distinctive tone alerts an incoming message.
The message will stay on LCD display for 8 seconds and then is
saved in memory. A total of 5 incoming messages can be saved.
Administrator Features
Handsets 11 and 12 are designated administrators. Both have the same
authority to perform base station administrative functions from their handset
menu selections. No password is required and to remember.
~
14
~
1. Supports both DTMF and Pulse dialing
a. From an administrator handset (Handset 11), press MENU-9-1 to
select Tone or Pulse dialing mode.
b. Default is Tone dialing.
2. Administrator programmable Flash key timing
a.
From an administrator handset (Handset 10 or 11), press MENU-9-2-
4 to select flash key timing
b.
9-level (100 ms - 900 ms) timing selections, default= 600 ms.
c.
The default value (600 ms) works in most areas. Changing this
setting may cause Flash key not working. Change only when you
are certain of the new value would work.
3. Call transfer to PBX extension
a.
When install the DuraFon 1X behind the PBX system, you can pre-
program the feature code of call transfer function
b.
Need to adjust the Flash time to match your PBX setting
~
15
~
Base Illustration
~
16
~
Base Features
Basic Base Station Features
1. Antenna
The antenna port has a reverse thread connector; to remove
antenna or cable, turn clockwise; to install, turn counterclockwise.
Improper installation may damage the connector
2. LED
a.
Power: it indicates base station has power.
b.
In-Use: it indicates an active telephone line.
c.
Intercom: it indicates “Intercom” taking place.
d.
Broadcast: it indicates “Broadcast” taking place.
3. Reset Button
a.
Restores base station to factory settings
b.
Reset button is indented to prevent accidental system reset.
c.
All handsets (including administrator) and additional base(s) need to
be re-registered after a base station reset.
4. Registration Key (REG)
Enters registration mode along with handset, assigns handset ID (10-99).
5. Line
Standard RJ-11C/CA-11A connector to plug in the telephone line
6. Telephone:
Another RJ-11C to plug in the optional answering machine
7. Ext. Audio
The optional RJ -45 connector to plug in the speaker or call box for
broadcasting purpose
8. Audio-in Jack (3.5mm)
9. DC In: to plug in the power adaptor
10
Voice Volume
Charger Illustration
~
17
~
1. DC In
2. Handset Charging Slot
3. Spare Battery Charging Slot
4. Handset Charging Indicator
5. Spare Battery Charging Indicator
~
18
~
Charger Features
1. DC In
Connects to Charger AC Adaptor.
2. Handset Charging Slot
a.
Charge handset battery when handset is placed in cradle. 150
minute fast charge from empty.
b.
Refer to the handset LCD for charging status
(1)
Charging: battery status bar is running and the LCD screen showed:
Charging
(2)
Fully Charged: battery status bar stands still and the LCD screen would
display “Fully Charged”
(3)
Charge Fail: Should there be any error occurred during charging mode,
the LCD screen would display “Charge Fail”
3. Spare Battery Charging Slot
a.
Charge spare battery when battery is placed in slot. 90 minute fast
charge from empty
b.
LED as the spare battery charging indicator
(1)
Slot is empty and the power is on: LED is Green light
(2)
Charging: LED is Orange light
(3)
Fully Charged: LED returns to Green light
4. It is impossible to overcharge the battery using this charger.
Notes:
1. Fully charge battery packs before first use.
2. Both handset and spare batteries can be charged at the same
time.
~
19
~
Getting Started
Base Station Installation
There are three possible base station setups:
l
Base station alone
l
Base station plus telephone answering device
l
Base station plus standard telephone
For best performance, maintain at least a distance of 1 meter (about 3 feet)
between the base station and other electronic devices (e.g., TV, computer,
stereo, fax machine, answer machine, cordless phone, etc.)
1. Install base station antenna.
The base station’s antenna port has a
reverse-thread connector; to install
antenna or cable, turn counter-
clockwise; to remove, turn clockwise.
Improper installation may damage the
connector.
2. Plug the transformer end of the base
station AC/DC adaptor into a standard
AC electrical power outlet, plug the
other end into the “DC In” jack on the
back of the base station.
a.
The base adaptor’s DC plug is
larger in dimension than the
charger’s DC plug. The charger
adaptor’s DC plug will not fit into
the base’s DC In jack.
b.
The base station’s power supply
(DC Adaptor) and telephone line
should be plugged into a surge
protector with phone line protection.
3. Plug phone cord into the “LINE” Jack
4. A standard telephone or answering machine can be plugged into the
adjacent receptacle on the bottom of the base station marked TEL
5. To use the Music/Message-On-Hold feature: Connect one end of a
standard audio cable into a radio or audio player, and plug the other (3.5
~
20
~
mm) end into the MOH jack on back of the base.
Handset and Charger Installation
1. Plug the transformer end of the Charger AC/DC adaptor into a standard
AC electric power outlet, plug the other end into the “DC In” jack on the
back of the Charger.
2. Install battery pack onto the handset.
3. Install handset antenna.
4. Place handset onto the charger front slot.
5. The phone system is now ready to perform basic functions such as
making and receiving phone calls and intercom calls. No base station or
handset programming is needed for basic operations.
Note:
1. Handset(s) packaged along with a Base Station are pre-
registered at the factory. If you have a new handset, you will
need to register the handset with the base station in order to be
recognized as a member handset by the base(s) and by other
handsets. See Handset Registration.
2. Fully charge battery packs before the first usage.
~
21
~
Basic Operations
Operation Modes
Both the base station and handset have levels of operation at which time
only certain procedures of functions can be performed.
A. Base Operation Modes
1. IDLE mode- this is the default mode. The intercom, broadcast, and
volume keys are active in IDLE mode.
2. TALK mode- the base operates in this mode during phone call,
intercom, and broadcast operation. The “In Use”, “Intercom”, and
“Broadcast” LED will light up respectively.
3. REGISTRATION mode- the base enters this mode by pressing the
REG button for three seconds. There are no active base unit keys once
this mode has been entered. Four LEDs will be lighted up in
Registration mode.
B. Handset Operation Modes
1. IDLE mode- this is the default mode.
a.
If there is no on-going activity, the handset
automatically goes into SLEEP/IDLE mode to
save battery power.
b.
The handset can be turned off completely by
holding down the END key for 3 seconds.
c.
The idle screen display (custom name) can be
edited.
d.
The 2-dight number represents the handset ID
2. Menu mode
a.
Press the Right soft function key to activate
MENU mode.
b.
In MENU mode, the handset settings and
information contained in memory can be
changed.
c.
The functions available through the MENU
selection are covered in greater detail from
page 38.
d.
The MENU structure display as below:
(
Ë
11
Welcome!
REDIAL M
ENU
(
Ë
11
Main Menu: áâ
1.KeyGuard
2.PhoneBook
~
22
~
Making a Telephone Call
1. Press TALK, wait for dial tone, and then enter phone number.
2. Alternatively, you can enter phone number first then press TALK key.
When using this method, you can use the Clear (Left) and Delete (Right)
soft keys to edit the number entered. “Delete” erases the last digit
entered. “Clear” erases the entire line but remains in the dialing mode.
3. Speed dial by access the entries in the phone book
a.
Press ÙorÚ scrolling key to enter the phone
book
b.
Press TALK to dial out the number
4. To abort dialing, press END key.
Main menu
Sub-menu
1.KeyGuard
2.PhoneBook
1.Dialed
2.Received
3.Missed
1.Ring Volume
2.Ring Tone
3.Key Volume
4.Key Tone
1.Dial Prefix
2.Group Select
3.Language
4.Clear
5.Custom Name
6.Contrast
7.Backlight
8.Call Barring
9.Name Tag
6.Registration
7.Text Message
5.Settings
4.Sound
3.Call Logs
8.Call Manager
1.Tone
2.Flash
3.Xfter PBX
9.System
(
Ë
11
EnGenius
8884328668
ADD
OPTION
~
23
~
Notes:
1. If the line is occupied, the LCD shows “No Line Available”
and handset returns to standby mode.
2. If a link cannot be established, the LCD will show “No Base”
after a 12-second time out.
3. A call duration timer will start displaying the length of the call
after link is established.
Making an 2-Way/ Intercom Call
The EnGenius Industrial Cordless Phone System offers private, Intercom/ 2-
way radio calls independence of base station. Intercom/ 2-way
communication can be placed from or to base stations and handsets.
A. Handset to Handset Calls
1. Press Intercom key followed by a two-digit handset
ID or Group ID.
2. Press END key to end the call.
Notes:
1. Intercom calls can be made regardless if the Base Station is
present.
2. If a Group ID is entered, the first handset (belonging to that
group) that answers will establish a link with the caller. See
Handset Group Subscription.
3. If a link cannot be established, the LCD shows “No
Connection” after a 12-second time out.
B. Intercom/2-Way from Base to Handset
1. Press Intercom key on the base station to intercom
all registered handsets. The first handset to answer
will establish a voice link with the base.
2. The INTERCOM LED will flash until a handset
responds.
3. The base unit will page for 15 seconds, then terminate the page if no
handset responds.
4. Before a handset answers, the INTERCOM can be cancelled from the
base by pressing INTERCOM again. However, once a handset answers,
only the answering handset can end the call.
(
Ë
11
Please enter
Ext. #: 12
(
Ë
11
Intercom from
Base 1
SLIENT
~
24
~
C. Intercom/2-Way from Handset to Base
1. Press Intercom key followed by a two-digit base ID
[Note: Base 1 ID as 10, Base 2 ID as 20, Base 3 ID
as 30, and Base 4 ID as 40]
2. The base will ring once, then automatically connect
the intercom call from a handset.
Making a Broadcast
A. Handset to Handset Calls
1. Broadcasting all handsets
a.
Press “BROADCAST” key from one handset
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage
c.
Start to speak the message to be broadcasted
once you hear the “beep” sound; the
speakerphone of destination handsets will be
opened up
d.
Press END key to end the broadcasting
2. Broadcasting a group of handsets
a.
Enter the Group ID and then press
“BROADCAST” key
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage
c.
Start to speak the message to be broadcasted
once you hear the “beep” sound; the
speakerphone of destination handsets will be
opened up
d.
Press END key to end the broadcasting
3. Broadcasting an individual handset
a.
Enter the Handset ID and then press
“BROADCAST” key
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage
c.
Start to speak the message to be broadcasted
once you hear the “beep” sound; the
speakerphone of
destination
handsets will be
(
Ë
11
Please enter
Ext. #: 10
(
Ë
11
PA paging
to all…
(
Ë
11
PA paging
to Ext. # 02
(
Ë
11
PA paging
to Ext. # 12
~
25
~
opened up
d.
Press END key to end the broadcasting
B. Broadcasting from Base to Handset
1. Broadcast to all handsets
a.
Press Broadcast key on the base station to
intercom all registered handsets.
b.
Hear bi-bi-beep while the initiating handset
broadcast all handsets within communication
coverage.
c.
The Broadcast LED will light up
d.
Press the Broadcast key again and return to
IDLE mode
C. Broadcasting from Handset to Base
1. Broadcast to the base station
a.
Enter the Base ID and then press
“BROADCAST” key
b.
Hear bi-bi-beep while the initiating handset
broadcast the base stations.
c.
Start to speak the message to be broadcasted
once you hear the “beep” sound; the
speakerphone of the base will be opened up
d.
Press the END key again and return to IDLE
mode
Redial
1. Press REDIAL (Left) soft key.
2. The LCD shows the last phone number dialed. To dial this number,
press DIAL (Left) soft key.
3. Use Up or Down Arrow Key to scroll through the last 10 phone numbers
dialed. Select and press DIAL soft key.
[Note] Intercom numbers (Handset ID) are not stored in the last 10
numbers dialed log.
Receiving a Telephone Call
1. When an incoming call arrives, the ringer will ring or vibrate unless the
ringer has been turned off.
(
Ë
11
PA paging from
Base 1
SLIENT
(
Ë
11
PA paging
to Ext. # 10
~
26
~
2. If the handset is on the charger cradle (ringer will be temporarily
switched to “Ring” if it has been set to “Vibrate”), lift the handset and
start conversation.
3. If the handset is not on the cradle, press any key (except END, and the
Silent soft key) to answer.
Notes:
1. You can press SILENT (Left) soft key if you choose to ignore
the call. Unlike turning off the ringer (from the handset menu),
the SILENT key operation is valid only for the current call.
2. If Caller ID service is available, the LCD will display the
incoming call information. If the LCD shows “Private” or
“Unknown”, the caller’s information may have been blocked by
the caller or the originating phone company.
Receiving an Intercom Call
1. When an intercom call arrives, the ringer will ring or vibrate unless the
ringer has been turned off. Press TALK to answer the intercom call.
2. If the handset is on the charger cradle (ringer will be temporarily
switched to “Ring” if it has been set to “Vibrate”), lift the handset and
start conversation.
3. If the handset is not on the cradle, press any key (except PWR, END,
and the SILENT soft key) to answer.
Notes:
1. The LCD displays the caller’s Handset ID.
2. You can press the SILENT (Left) soft key if you choose to ignore
the call. Unlike turning off the ringer the SILENT key operation is
valid only for the current call.
Ending a Call
To end a telephone or intercom call, press END key or place handset into
charger cradle.
Adjusting Receiver (Earpiece) Voice Volume
1. Voice volume can only be adjusted during a call.
2.
There are 6 levels of volume selections. Default =
(
Ë
11
00:00:10
Volume:4
MUTE HOLD
~
27
~
4. Use ÙandÚ arrow key to adjust
3. The new setting remains effective for all future calls
until changed.
Placing a Call On Hold
1. When a call is in progress, it can be put on hold by
pressing the Hold (Right) soft key.
2. To return to the conversation, press “Unhold”
Notes:
1. The call being placed on hold can only be “un-hold” by the
handset that puts it on hold.
2. Handset LCD displays a call is being on hold. An alert tone
(double beep) every 30 seconds will remind the handset that a
call is being on hold.
3. If the operation (e.g., call transfer) after putting a call on-hold
fails, the held call may be dropped.
4. You can power off the handset (e.g., change battery) while call
is on hold. After power on again, you can continue the call by
pressing UNHOLD (Left) soft key or select “3” from the Option
menu to terminate the hold state.
Mute
1. After a link is established, you can press Mute (Left) soft key to mute the
handset microphone.
2. When mute is active, the other end will not hear your voice, but still can
speak to you.
3. To leave the mute state, press “Unmute” (Left) soft key. Mute is effective
only for the current call.
Do Not Disturb (Silent Ring)
1. Enter the key sequence MENU – Sounds – Ring
Volume, then select “Off”. Press SAVE to confirm
your choice. This will turn off the ringer until it is turn
on again from the menu.
(
Ë
11
You have a
Call on hold
UNHOLD
OPTION
(
Ë
11
Sounds: áâ
1. Ring Volume
2. Ring Tone
~
28
~
2. For temporary silencing the ringer when an incoming
call arrives, press Silent (Left) soft key.
Key Guard
1. To prevent accidental dialing, you can press Menu
(Right) soft key, then press “1” to select KeyGuard
option. The handset keypad is locked. No key entry
is accepted except the power on/off key.
2. To unlock the keypad, press “Unlock” (Left) soft key,
then, within 2 seconds, press the digit “1” to unlock.
3. Key Guard is in effect until unlocked or powered off.
Battery Recharge and Replacement
1. Charge the battery when one or several of the following happen:
a.
Phone beeps twice every two seconds.
b.
Battery icon is empty.
c.
Phone does not respond when a key is pressed.
d.
LCD and backlighting become dim.
e.
Talk range shortfall is experienced.
2. You can replace the handset battery after placing the call-in-progress on
hold.
3. Battery talk time and standby time vary depending on the talk/standby
pattern and the operating distance. Putting the handset back to charger
cradle as often as possible is recommended for best performance. Use
only manufacturer provided battery and charger!
(
Ë
11
Ring Volume: áâ
Off
SAVE
(
Ë
11
Welcome!
UNLOCK
(
Ë
11
Press 1 to
confirm
unlock
~
29
~
Advanced Operations
Handset Registration
1. If your handset(s) is purchased as part of a system, it has been pre-
registered with the base station at the factory.
2. If Handset ID as “00,” that means it is a new handset or the ID has been
erased. You need to register the handset with the base station.
3. Registration:
a.
Press MENU-6 to enter the registration mode
b.
Press and hold the base’s Registration (REG)
button for 2 seconds until 4 LEDs light up.
c.
Press handset key “1”, this completes the
registration process. The base station will assign
a handset ID between 12 and 19. The assigned
ID will be displayed on the handset LCD,
indicating successful registration.
d.
Repeat above steps for all additional handsets.
e.
The first two handsets registered will be given ID
11 and 12, which gives them administrator
privileges.
4. De-registration:
a.
You can de-register a handset from a base. De-registration will
reset the Handset ID to 00, erase the system security code, and free
up the old ID for future registration.
b.
After deregistration, the handset will not be able to use the base to
make or receive phone calls, nor can it intercom other handsets.
c.
Press handset Menu (Right) soft key.
d.
Press the handset number key “6”, this will enter the handset
registration menu.
e.
Press and hold the base’s REG button for 2 seconds until 4 LEDs
come on.
f. Press the handset number key “2”, this completes the de-
registration process. Upon successful de-registration, the handset
will show ID “00”.
Notes:
1. The base has a 30 second registration timeout starting from
pressing the REG button. The handset has a 12 second
registration timeout starting from the registration or de
-
(
Ë
11
Main Menu: áâ
5. Settings
6. Registration
(
Ë
11
Registration: áâ
1. Register
2. Deregister
~
30
~
registration option has been selected. The base and handset
will automatically exit registration mode after timeout.
2. Repeat registration or de-registration process if unsuccessful.
Handset Group Subscription
1. Up to nine handset groups (01-09) can be defined and handsets can
decide which group(s) they want to be in.
2. For example, Group 1 represents the Customer Service Group, Group 2
represents the Sales Group, and Group 3 is the Marketing Group.
Suppose that Handset 11 wants to receive incoming rings for all Sales
and Marketing related calls. Then handset 10 will need to “subscribe” to
Group 2 and Group 3.
3. Group Selections:
a.
Press handset Menu-5 to enter the handset
setting menu
b.
Press number “2”, handset enters group select
menu.
c.
Press ADD soft key and enter two-digit group
number (01-09) to add membership in a group.
d.
Repeat for all desired groups.
e.
Delete group selections by pressing DELETE key
and enter group number.
Notes:
1. The handset can change group affiliations at any time.
2. The base (administrator) is not responsible for group
assignments. Consequently, it cannot de-subscribe a handset
from a group.
3. When an outside line or an intercom caller enters a group ID, all
handsets subscribed to this group will ring. The first handset to
answer will establish a link with the caller. Afterward, it is a one-
to-one call, not a one-to-many call.
4. When AA is turned off, only handsets subscribed to a particular
group can access a specific line that is dedicated to this group for
outgoing calls.
Call Transfer
1. While a telephone call is in progress, you can place call on hold and
transfer the call.
(
Ë
11
Settings: áâ
1. Dial Prefix
2. Group Selection
(
Ë
11
Groups
ADD DELETE
~
31
~
2. Press HOLD (Right) soft key to put call on hold.
3. Press OPTION (Right) soft key to enter selection
menu.
4. Three types of transfer method:
a.
Transfer PBX
(1)
When DuraFon 1X is adjunct to the PBX system,
you can transfer the call to an assigned PBX
extension.
(2)
Normally, each propritory PBX system acquire a
specific feature code to execute “call transfer”
function
(3)
You can pre-program that feature code by
entering the “System” mode (Menu-9); you need
to enter the base ID to link to the base station
(4)
Press 3 and then enter the specific “call transfer”
feature code
b.
Un-announced Call Transfer:
Press “END” before the destination handset
answers, the call is automatically transferred to
the destination handset.
c.
Announced Call Transfer:
(1)
Speak to the destination handset.
(2)
Press XFER (Right) soft key or the END to end
announcement. The call is transferred to the
destination handset.
Notes: If the destination handset does not answer after handset
paging timeout, the call is routed back to the originating handset.
Call Manager
“Call Manager” feature allows the handset to be set to receive all incoming,
transferred, and 2-Way/Intercom calls OR just transferred and 2-Way/
Intercom calls. The option is selectable by base 1 to base 4.
1. Press menu 8 to enter the Call Manager function. The screen will
display:
(
Ë
11
You have a
Call on hold
UNHOLD
OPTION
(
Ë
11
1.Transfer PBX
2.UnancdXfer HS
3.AncdXfer HS
(
Ë
11
System: áâ
2. Flash
3. Xfter PBX
~
32
~
2. Use Ù and Ú Scrolling keys to select a base from
base 1 to base 4.
3. Then press the àYES NO key to switch between Yes
and No, then press SAVE key to confirm the setting.
4.
Repeat the process until all base stations from which
calls are to be accepted have been selected for the
handset.
Change System Settings by Administrator
There are three types of system setting that can be adjusted by Administrator.
1. Tone
a.
Press Menu-9 and enter the two-digit base ID to
enter the System mode.
b.
Press 1 to enter Tone selection
c.
You can adjust the dial mode between Tone and
Pulse. The default setting is Tone.
d.
The default setting is Tone.
2. Flash
a.
Press Menu-9 and enter the two-digit base ID to
enter the System mode.
b.
Press 2 to enter Flash selection
c.
You can adjust the flash time from 100ms to 900
ms (9 levels to choose from.) For example, press
“2” if the desired flash time is 200ms. You will see
“DONE” once you finish the setting.
d.
The default setting is 600ms.
Notes: If the base station is adjunct to a PBX system, it is
recommended to adjust the flash time of DuraFon 1X to match the
PBX spec.
3. Xfter PBX
a.
This function is useful if the base station attached
to the PBX system through either the analog port
or the Digital Adaptor. Press Menu-9 and enter
the two-digit base ID to enter the System mode.
b.
Press 3 to enter Xfter PBX setting mode
c.
Use
Ù
or
Ú
scrolling key to switch between ON
(
Ë
11
Receive Calls
From base 1: áâ
SAVE àYES NO
(
Ë
11
System: áâ
1. Tone
2. Flash
(
Ë
11
Main Menu: áâ
8. Call Manager
9. System
(
Ë
11
Flash(msec): áâ
1. 100
2. 200
(
Ë
11
DONE
(
Ë
11
Xfer PBX: áâ
On
SAVE
(
Ë
11
System: áâ
2. Flash
3. Xfter PBX
~
33
~
and OFF. The default setting is OFF.
d.
Select ON and press SAVE key
e.
You can key in the specific “call transfer” feature
code and press OK to confirm the setting. For
example, if your PBX is N brand, you need to key
in “Flash”+”*”+”70” as the call transfer code.
f. You will see a “DONE” confirmation.
Notes: Since the base station is adjunct to a PBX system, you need
to adjust the flash time of DuraFon 1X to match the PBX spec and
then program the “call transfer” code.
Phonebook Operations
1. You can store up to 30 entries in the phonebook.
Each entry can contain a phone number or handset
ID (up to 28 digits) and a name (up to14 characters).
2. To access the phonebook, press menu follow by “2”
or Ùor Ú scrolling key while the handset is in standby
mode.
3. To add a new entry:
a.
Press ADD (Left) soft key.
b.
Enter a phone number when LCD prompts
“Number?” Use DELETE (Right) soft key to
delete the last digit entered. When completed,
press SAVE (Left) soft key to save.
c.
You will then be prompted to enter a name for the
phone number just entered.
(1)
Press the SAVE key to enter a phone number
without a name. All records without naming will be
placed on top of the list, in the order they are
entered.
(2)
To enter the name, press the corresponding
keypad number one or more times according to the
order of the character on the key. See table below
for a list of available characters and their orders.
For example, press “2” once for the character “A”,
twice for “B”, etc.
(3)
Use DELETE (Right) soft key to delete the last
character entered. When completed, press SAVE
(Left) soft key to save.
(
Ë
11
Xfer Code: áâ
Flash*70
O K DELETE
(
Ë
11
Main Menu: áâ
1. KeyGuard
2. PhoneBook
(
Ë
11
ADD OPTION
(
Ë
11
Number?
SAVE DELETE
(
Ë
11
Name?
Caps = *
SAVE DELETE
~
34
~
Notes:
1. When enter a phone number, the cursor automatically advances to
the next digit field. Use Ùor Ú scrolling key to move the cursor
backward or forward to insert or delete (the digit above the cursor, or
left of the cursor if cursor is on the right of the last digit).
2. When entering a name, the cursor automatically advances to the
next character field if you press a different key for the next character.
If you need to enter consecutive characters from the same key, you
can wait for the cursor to advance or use Ùor Ú scrolling key to
move the cursor backward or forward manually. Also use Ùor Ú to
move the cursor to insert (to the left of the cursor) or delete (the
character above the cursor, or left of the cursor if cursor is on the
right of the last character).
3. By default, all letters are entered in the upper case. Use the * key to
toggle between upper and lower cases.
4. A “Pause” entry represents a 2.8 second delay in dialing the
following digits, which is useful when calling a sequence of
segmented numbers (e.g., access code, credit card number, auto-
attendant entries, etc.) Pause is entered by pressing the * key twice
(LCD displays P). Entering pause twice (PP) will result in 5.6
seconds pause in the dialing.
5. Character Table:
Key Characters and Orders
1 ‘ + , . * ( ) & 1
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 0
* Toggle case when in character editing
* P (Pause) when in number editing
# Space – when in character editing
# when in number editing
4. The entries are alphabetically sorted and stored as a list in an ascending
order (A to Z) from the top of the list.
a.
If the phonebook is entered from the menu, the first entry displayed
is the top of the list.
b.
If the phonebook is entered using the Úarrow, the first entry
displayed is the top of the list.
c.
If the phonebook is entered using the
Ù
arrow, the first entry
~
35
~
displayed is the bottom of the list.
5. The first line of LCD display shows name and the 2nd line shows the
phone number. If the phone number is longer than 14 digits, press
OPTION (Right) soft key and select Option 3 to view the complete
number.
6. To search for a record:
a.
Use ÙorÚ scrolling key to enter the Phone Book mode.
b.
Press a key that corresponds to the first character of the name you
are looking for.
c.
For example, you are looking for “EnGenius”, and then press the
number “3” once.
d.
Use ÙorÚ scrolling key to locate the exact record you are looking
for.
7. To erase phonebook:
a.
Use ÙorÚ scrolling key or the alphabetical
search method to locate the record to be erased
or edited.
b.
Press OPTION (Right) soft key to enter editing
menu.
c.
Press “1” to erase the desinated phone entry.
d.
LCD shown “Are you sure?” Press YES to double
confirm your change.
8. To edit phonebook:
a.
Use ÙorÚ scrolling key or the alphabetical
search method to locate the record to be erased
or edited.
b.
Press OPTION (Right) soft key to enter editing
menu.
c.
Press “2 to edit the desinated phone entry.
9. Dial from display:
a.
Press TALK or Intercom to dial the phone number or Handset ID
displayed.
Call barring
1. Block the users from dialing the long distance calls or international calls.
You need the password to enter the setting. The default PW is “0000”.
(
Ë
11
EnGenius
7144328668
ADD OPTION
(
Ë
11
Option: áâ
1. Erase
2. Edit
(
Ë
11
Are you sure?
YES 12 OPTINO
~
36
~
2. Use ÙorÚ scrolling key to switch between On and Off
of this setting. The default is “Off”. Press SAVE to
confirm your selection.
3. To edit the Call barring code
a.
Once turn on the call barring feature, you can key
in the “call barring” code.
(1)
Up to 5 digit can be edit to be call barring code. For
example, if you want to block all call dialing to
Manhanttan, NY area, you can enter 1212 as the
call barring code.
(2)
If you base station is adjuct to a PBX system,
please also include that specific number to retrieve
the PSTN tone.
b.
Press OPTION to erase or edit the call barring
codes.
b.
Up to 5 set of call barring codes can be
programmed.
Text Messaging
1. Short text messages, up to 50 characters each, can be sent from a
handset to another handset or a group of handsets.
2. Up to 5 outgoing messages can be edited, stored and sent. They are
stored in the “Outbox” in the order they are entered, with Message 01
being the most recent entry. The message counter on the upper right
corner of the LCD display shows the message ID.
3. Up to 5 received messages can be stored for later reference. They are
stored in the “Inbox” in the order they are received, with Message 01
being the most recently received. The message counter on the upper
right corner of the LCD display shows the message ID.
4. Viewing and editing outgoing text messages:
a.
Press Menu (Right) soft key while the handset is
in standby.
b.
Press “7” following by “2” to enter Outbox menu.
c.
Press ADD (Left) soft key to enter a new text
message.
(1)
Enter characters using the Character Table and
method discussed in the Phonebook section.
(2)
Use ÙorÚ scrolling key to move the cursor
(
Ë
11
Tex Message
1. Inbox
2. Outbox
(
Ë
11
Meeting now
SAVE12 ODELETE
(
Ë
11
Call Barring áâ
On
SAVE SET PW
(
Ë
11
Option: áâ
1. Erase
2. Edit
(
Ë
11
Call Barring:
1212
ADD OPTION
PW
~
37
~
backward or forward to insert character or delete
the character. For example, you are editing the
message 1 as “Meeting now.”
(3)
When finished, press SAVE (Left) soft key to save
change. You will see the Text Message ID as 01
on the upper right corner of the LCD screen.
5. Sending a text message:
a.
While viewing the message, press Intercom key
followed by a Handset ID or a Group ID (01-09).
b.
The current message is sent.
c.
There will be no acknowledgement returned.
6. To erase or edit the current messages:
a.
Press Menu-7-2 to enter outbox text message.
b.
Press OPTION (Right) soft key to erase or edit
the current message:
(1)
Press “1” and confirm to erase message.
Subsequent messages will be moved up in the
Outbox.
(2)
Press “2” to edit message. Follow the instructions
above for entering a new message.
7. Receiving a text message:
a.
When a message arrives, a double beep alerts the arrival of a text
message.
b.
The text message remains on the LCD display for 8 seconds and
then is automatically stored in the Inbox.
8. Viewing received text messages:
a.
Press Menu-7-1 to enter Inbox menu
b.
The LCD displays Message 01, the most recent received message.
Use Ùor Ú to view previous messages. The LCD displays Empty if
there is no inbound text message.
c.
Press SAVE (Left) soft key to return the message to Inbox.
d.
Press DELETE (Right) soft key and confirm to delete the current
message. Subsequent messages will be moved up in the Inbox.
(
Ë
11 01
Meeting now
ADD12 OOPTION
(
Ë
11 01
Please enter
Ext. #: 02
Send this
message to
Group 02
(
Ë
11 01
Sending…
~
38
~
Menu Operations
1. Press MENU (Right) soft key while the phone is in standby.
2. Press “1” to lock keypad (see Key Guard operation on page ____).
3. Press “2” to view, search, delete, and edit the phonebook (see
Phonebook instruction on page ____).
4. Press “3” to view the last 10 numbers called, received, or missed.
Records can be erased or edit/save into the phonebook.
a.
Press “1” to view the last 10 phone numbers dialed, starting from the
most recent one. Use ÙorÚto scroll through the list. Press OPTION
for options.
(1)
Erase: press “1” and confirm to erase the current record.
(2)
Save: press “2” to edit and save or save without editing into the
phonebook.
(3)
View Number: press “3” to view the complete number if the phone
number is longer than 14 digits.
Main menu
Sub-menu
1.KeyGuard
2.PhoneBook
1.Dialed
2.Received
3.Missed
1.Ring Volume
2.Ring Tone
3.Key Volume
4.Key Tone
1.Dial Prefix
2.Group Select
3.Language
4.Clear
5.Custom Name
6.Contrast
7.Backlight
8.Call Barring
9.Name Tag
6.Registration
7.Text Message
5.Settings
4.Sound
3.Call Logs
8.Call Manager
1.Tone
2.Flash
3.Xfter PBX
9.System
~
39
~
b.
Press “2” to view the last 10 phone numbers received, starting from
the most recent one. Use ÙorÚ to scroll through the list. Press
OPTION for options.
(1)
Erase: press “1” and confirm to erase the current record.
(2)
Save: press “2” to edit and save or save without editing into the
phonebook.
(3)
View Number: press “3” to view the complete number if the phone
number is longer than 14 digits.
(4)
No entries: the LCD displays “No entries” if there is no “Received call
logs”. Please note that you need to subsribe the Caller ID service from
your local teleco to facilitate this function.
c.
Press “3” to view the last 10 phone numbers received but didn’t
answer, starting from the most recent one. Use ÙorÚ to scroll
through the list. Press OPTION for options.
(1)
Erase: press “1” and confirm to erase the current record.
(2)
Save: press “2” to edit and save or save without editing into the
phonebook.
(3)
View Number: press “3” to view the complete number if the phone
number is longer than 14 digits.
(4)
No entries: the LCD displays “No entries” if there is no “Missed call
logs”. Please note that you need to subsribe the Caller ID service from
your local teleco to facilitate this function.
d.
While viewing any of the three call logs, press DIAL to dial the
phone number.
Notes:
1. Only phone numbers are stored in the three call logs. Intercom calls
are not recorded.
2. Caller ID service is required from your local phone company in order
to receive phone numbers, names and time stamps on incoming
calls. The Received and Missed Call Logs will register no incoming
calls if Caller ID service is not available.
5. Press “4” to set sound-related settings:
a.
Press “1” to select ringer volume: use ÙorÚ to scroll through 5
options: Low, Vibrate, Off, High-then-Vibrate, and High. Press
SAVE to save selection. Default = High.
b.
Press “2” to select ringer tone: use the ÙorÚ to scroll through 4
options: 0, 1, 2, and 3. Press SAVE to save selection. Default = 0.
c.
Press “3” to select key volume when a key is pressed: use ÙorÚ to
scroll through 3 options: High, Low, and Off. Press SAVE to save
selection. Default = Low.
d.
Press “4
” to select key tone: use the
Ù
or
Ú
to
scroll through 4
~
40
~
options: 0, 1, 2, and 3. Press SAVE to save selection. Default = 0.
5. Press “5” to change handset settings:
a.
Press “1” to set dialing prefix:
(1)
Use ÙorÚto scroll and select to turn on or off the dialing prefix feature.
Default = Off.
(2)
If “On” is selected, the handset is prompted to enter a prefix, up to 14
digits.
(3)
Use Delete and ÙorÚ scrolling key to edit prefix.
(4)
When this feature is turned on, the LCD will prompt the user on each
outgoing phone call except during redial or dialing by pressing the
TALK key first whether to use the dialing prefix. The current prefix is
also displayed. Press Yes or No soft key to add the prefix to the
beginning of the number.
(5)
This feature is useful for access code, calling card, and credit card
calls, etc.
b.
Press “2” to Group Select: see Handset Group Subscription on page
____.
c.
Press “3” to select language
(1)
Use ÙorÚ to select English, French, or Spanish. The default setting is
English.
(2)
Press SAVE to confirm your selection.
d.
Press “4” to clear call logs and phonebook:
(1)
Press ‘1” and confirm to delete the entire phonebook.
(2)
Press “2” and confirm to clear the three call logs (Called,
Received, and Missed).
e.
Press “5” to change the power-up LCD display to show, e.g.,
customer name or other greeting message:
(1)
Use ÙorÚ to move the cursor backward or forward to insert (to the left
of the cursor) or delete (the character above the cursor, or left of the
cursor if cursor is on the right of the last character).
(2)
Enter characters using the Character Table and method discussed in
the Phonebook section.
(3)
When finished; press SAVE to save change.
f. Press “6” to change LCD display contrast:
(1)
Use ÙorÚ to scroll through values 1 to 16. Pick one that is most
suitable to you. Default = 10.
(2)
When finished; press SAVE to save change.
g.
Press “7” to change the LCD backlight:
(1)
Use ÙorÚ to scroll through options: On, Off, and 8 Seconds. Default =
8 seconds, meaning that the backlight will turn off the backlight after 8
seconds of inactivity.
(2)
When finished; press SAVE to save change.
~
41
~
h.
Call barring
(1)
Need to Enter Password to edit the call barring code to be executed.
The default PW is “0000.”
(2)
Please refer to page 12 for detail operation.
i. Name tag
(1)
Use ÙorÚ to switch between On and Off. The default setting is Off.
(1)
When finished; press SAVE to save change.
6. Press “6” to register or de-register handset: See the detail instructions
on page 29.
7. Press “7” to view inbox text message(s) or edit outbox text message(s).
See the detail instructions on page 35.
8. Press “8” to enter Cal Manager setting. See the detail instructions on
page 31.
9. Press “9” following by entering a base ID to enter System setting. See
the detail instructions on page 32.
1.
~
42
~
Technical Specifications
Electrical Specifications
Base Station Portable Handset
Frequency 902-928 MHz 902-928 MHz
RF Power Peak: 708 mW
Average: 76 mW Peak: 708 mW
Average: 76 mW
Modulation MSK MSK
Multiple Access Frequency Hopping TDMA
Frequency Hopping TDMA
Frequency Hopping
Rate 100 per second 100 per second
TDMA Frame Length 10 ms 10 ms
Number of Slot s/Frame
8 8
Receiver Sensitivity < -108 dBm (@ BER 10-2)
< -108 dBm (@ BER 10-2)
Antenna Connector Reverse TNC Non-standard
Antenna Gain 2 dBi 0 dBi (short antenna)
TX Power Control
Range
NA 100-708 mW
Telephone Interface RJ11 x 1 NA
Speech Coding 8 kbps G.729A 8 kbps G.729A
Channel Coding 8 kbps Convolutional +
CRC 8 kbps Convolutional +
CRC
Transmission Data Rate
170.667 kbps 170.667 kbps
User Data Rate 128 kbps duplex 128 kbps duplex
Duplex Time Division Duplex
(TDD) Time Division Duplex
(TDD)
Voice Quality TIA/EIA-470B TIA/EIA-470B
No. of System ID 65,536 65,536
Ring Signal 20-50 Hz, 12-90 Vrms NA
Auto-Attendant Coding
8 kbps G.729 8 kbps G.729
Flash Time 100-900 ms
programmable NA
Power Source 120V/12V AC/DC Adapter
3.7V, 1700 mAh Li-ion
Charger Current NA 400 mA
Charge Time NA 240 minutes (from empty)
Regulation Compliance
FCC Part 15, Part 68
CAN/DOC RSS210, CS03
FCC Part 15, Part 68
CAN/DOC RSS210, CS03
Hearing Aid Compatible
Operating Temperature
-10 – 60 °C -10 – 60 °C
Storage Temperature -10 – 70 °C -10 – 70 °C
Humidity 20 – 75 % 20 – 75 %
Dimension without
antenna
Weight
Notes:
1. NA = Not Applicable.
2. The manufacturer reserves the right to change designs and specifications
without notice.
~
43
~
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The highest SAR test Value: 0.430 W / kg
For body worn operation, this phone has been tested and meets FCC RF
exposure guidelines when used with an accessory that contains no metal and that
positions the handset a minimum of 1.5 cm from the body.
Use of other accessories may not ensure compliance with FCC RF exposure
guidelines.
~
44
~
IC Radiation Exposure Statement:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding.
(Equipment (or its transmit antenna) that is installed outdoors is subject to licensing).

Navigation menu
