11N Multi-Function Access Point
EAP350
11N Multi-Function Access Point
V1.0
1
Table of Contents
1 Introduction ....................................................................................................................................................................... 4
1.1 Features and Benefits ..................................................................................................................................................................................... 4
1.2 Package Contents ............................................................................................................................................................................................ 5
1.3 System Requirements ..................................................................................................................................................................................... 6
1.4 Applications ....................................................................................................................................................................................................... 6
2 Before you Begin ............................................................................................................................................................... 8
2.1 Considerations for Wireless Installation .................................................................................................................................................. 8
2.2 Computer Settings (Windows XP/Windows 7) ...................................................................................................................................... 9
2.3 Apple Mac X OS ............................................................................................................................................................................................. 12
2.4 Hardware Installation ................................................................................................................................................................................... 13
3 Configuring Your Access Point ...................................................................................................................................... 15
3.1 Default Settings ............................................................................................................................................................................................. 15
3.2 Web Configuration ....................................................................................................................................................................................... 16
4 Status ................................................................................................................................................................................ 18
4.1 Save/Reload .................................................................................................................................................................................................... 18
4.2 Main ................................................................................................................................................................................................................... 19
4.3 Wireless Client List ........................................................................................................................................................................................ 21
4.4 System Log ...................................................................................................................................................................................................... 22
5 System .............................................................................................................................................................................. 23
5.1 Operation Mode ............................................................................................................................................................................................ 23
5.2 IP Settings ........................................................................................................................................................................................................ 24

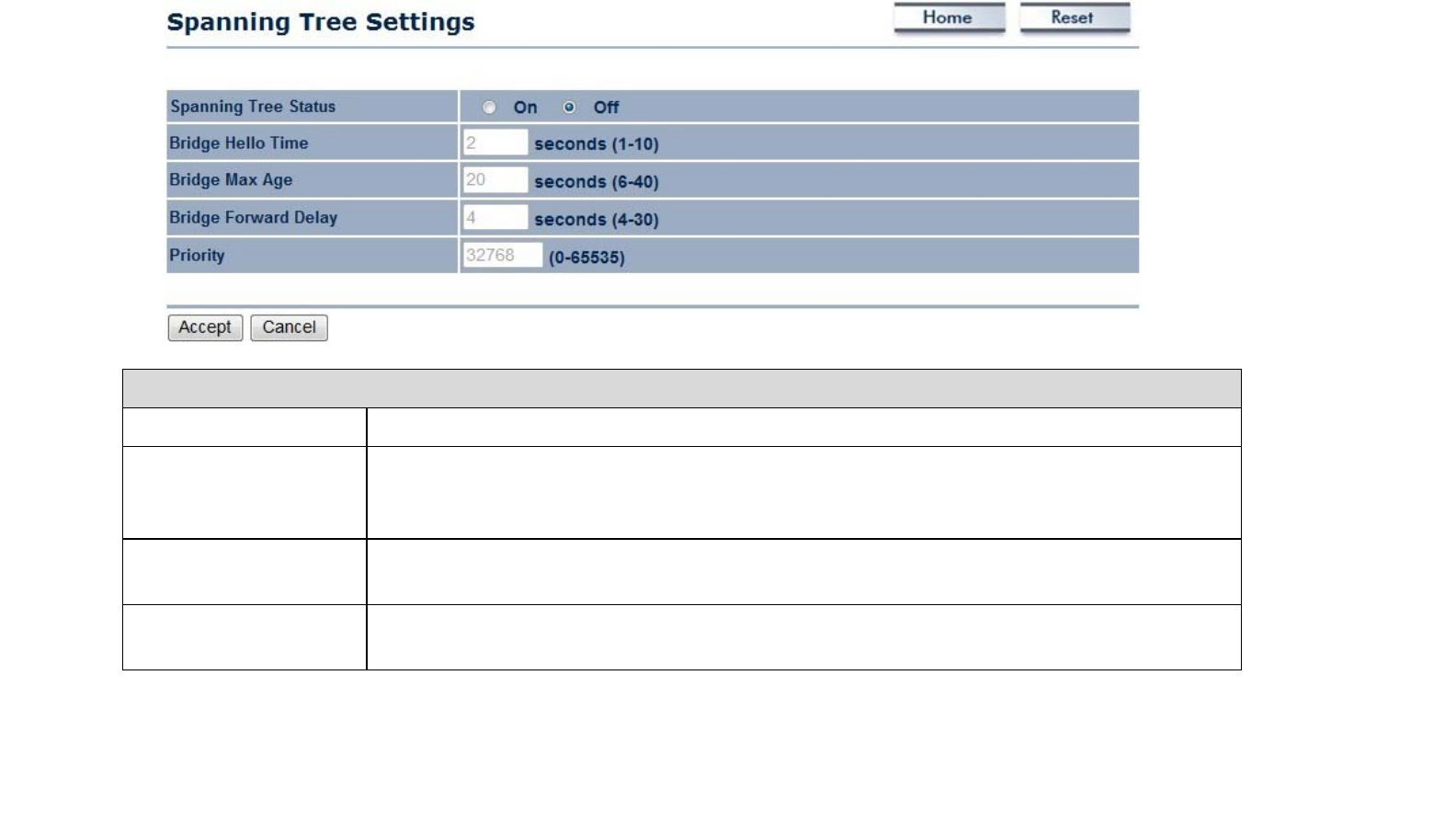

5.3 Spanning Tree Setting ................................................................................................................................................................................. 26
2
6 Wireless ............................................................................................................................................................................ 28
6.1 Wireless Network .......................................................................................................................................................................................... 28
6.2 Wireless Security ........................................................................................................................................................................................... 31
6.3 Wireless MAC Filter ...................................................................................................................................................................................... 35
6.4 Wireless Advanced ....................................................................................................................................................................................... 36
6.5 WPS (Wi-Fi Protected Setup) .................................................................................................................................................................... 38

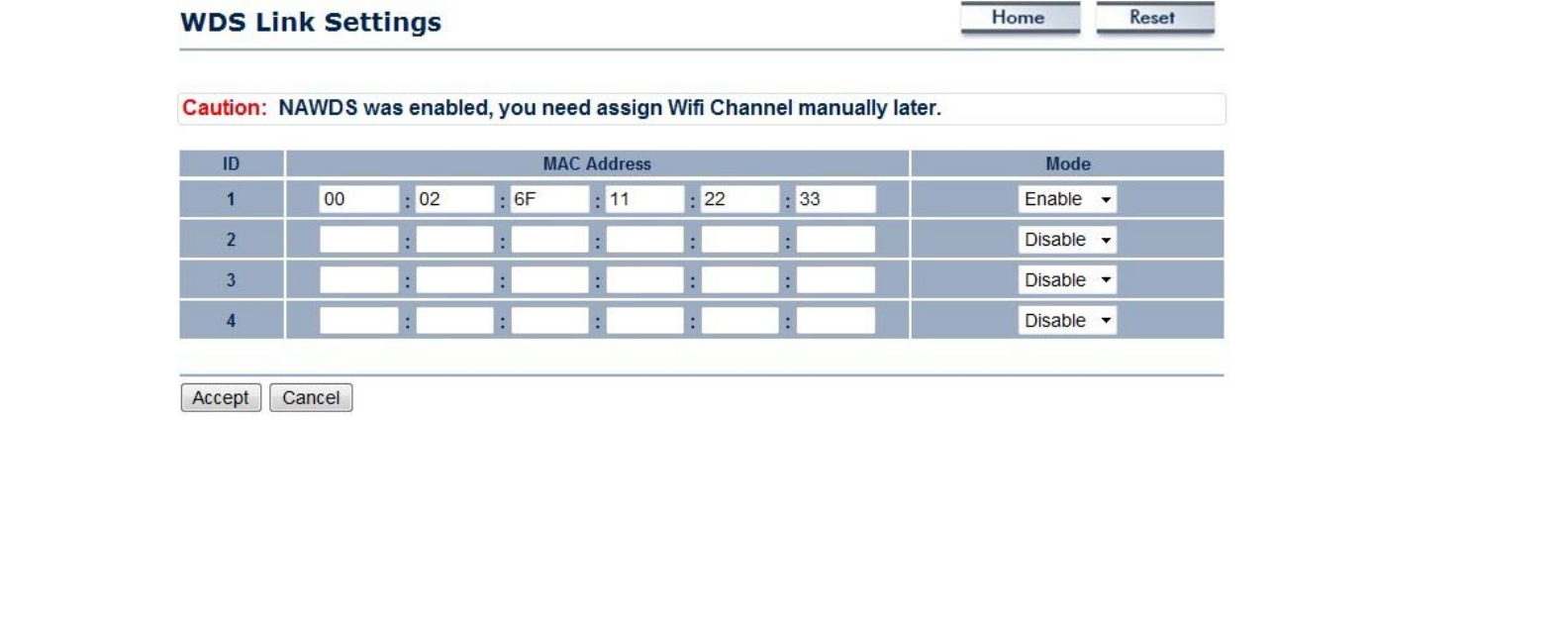

6.6 WDS Link Settings ......................................................................................................................................................................................... 40
7 Management .................................................................................................................................................................... 42

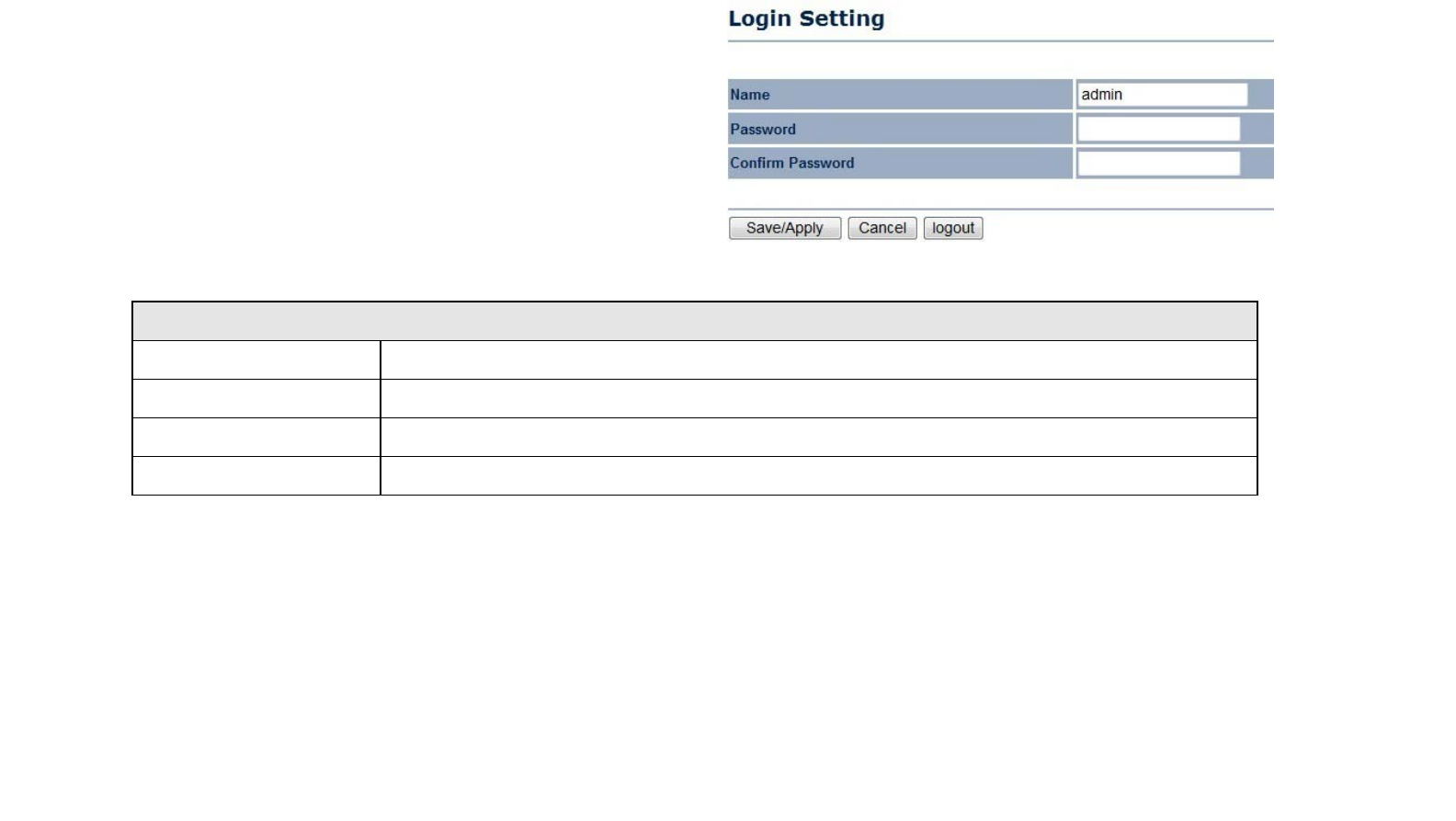

7.1 Administration ................................................................................................................................................................................................ 42
7.2 Management VLAN ...................................................................................................................................................................................... 43
7.3 SNMP ................................................................................................................................................................................................................. 44
7.4 Backup/Restore .............................................................................................................................................................................................. 46
7.5 Firmware Upgrade ........................................................................................................................................................................................ 47
7.6 Time Setting .................................................................................................................................................................................................... 48
7.7 Log ...................................................................................................................................................................................................................... 49

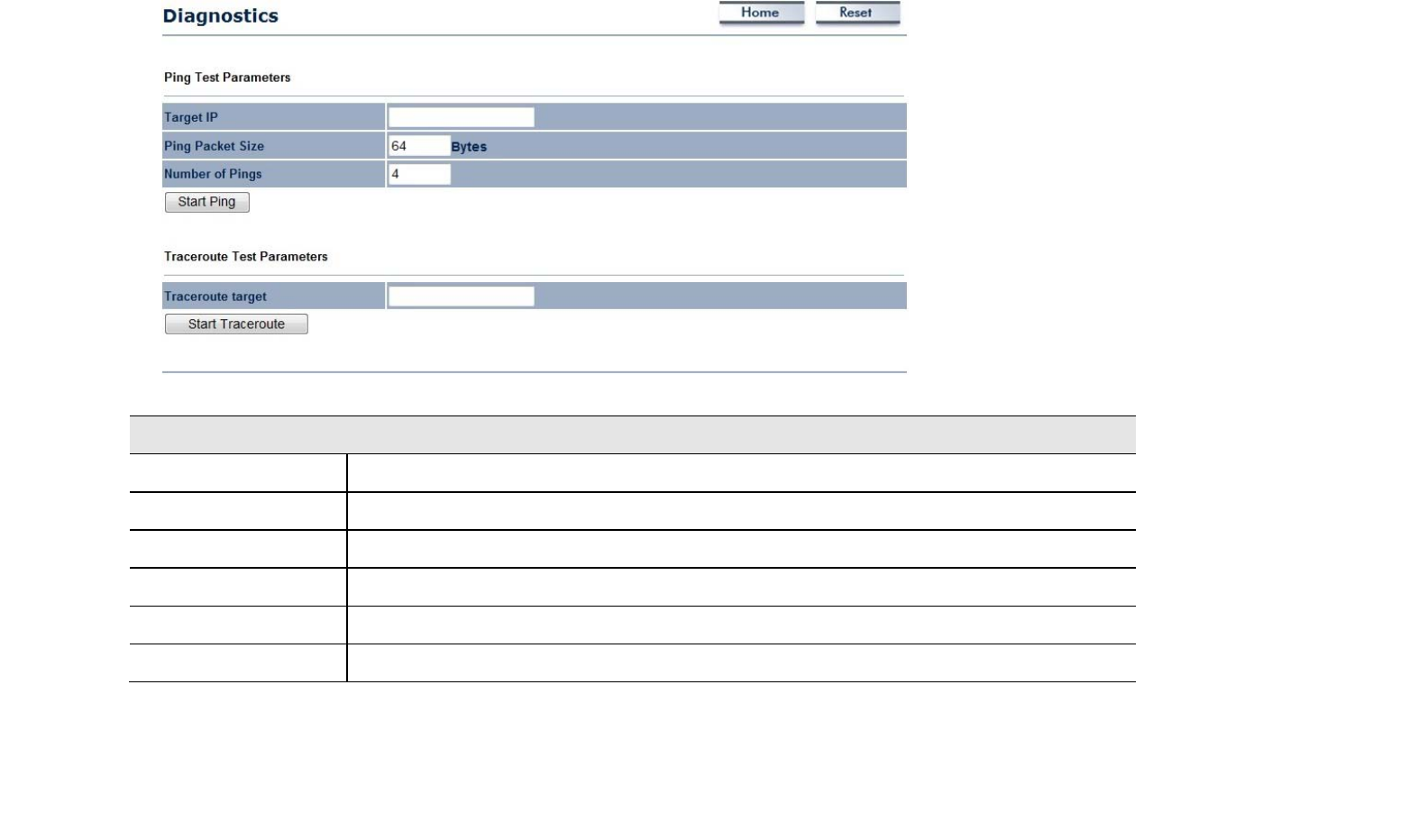

7.8 Diagnosis .......................................................................................................................................................................................................... 50
7.9 LED Control ..................................................................................................................................................................................................... 51

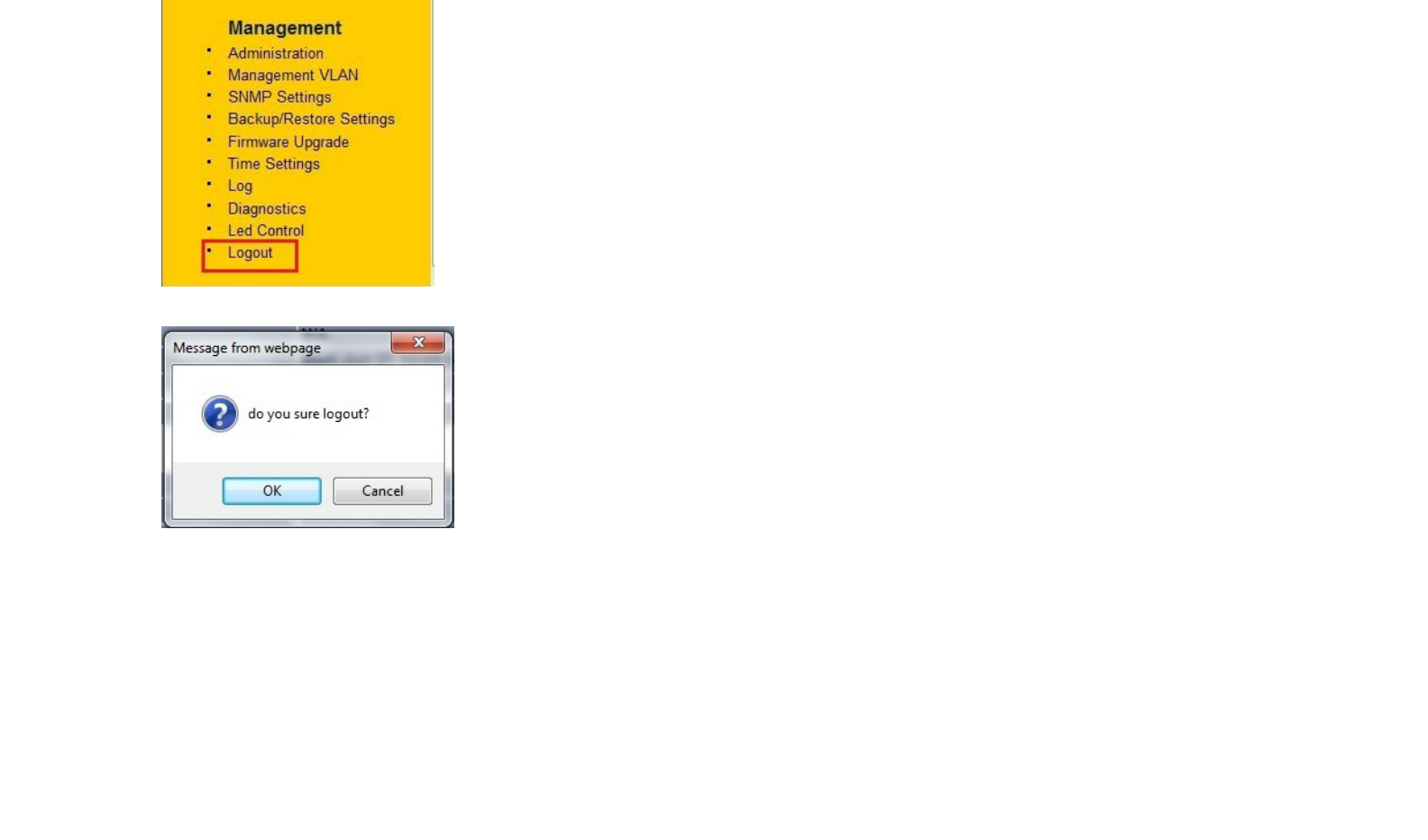

7.10 Logout ............................................................................................................................................................................................................... 52
7.11 Reset .................................................................................................................................................................................................................. 53
8 Building a Wireless Network ......................................................................................................................................... 54
8.1 Access Point Mode ....................................................................................................................................................................................... 54
8.2 Access Point Mode with WDS Function (WDS AP mode) .............................................................................................................. 55
8.3 WDS Bridge Mode ........................................................................................................................................................................................ 56
Appendix A – FCC Interference Statement .......................................................................................................................... 57
3
Revision History
Version Date Notes
1.0 2011/07/22 First Release
4
1 Introduction
EAP350 is a multi-functioned 11n product with 3 major multi-functions, is designed to operate in every working
environment for enterprises.
EAP350 is a Wireless Network device that delivers up to 6x faster speeds and 7x extended coverage than 802.11b/g
devices. EAP350 supports home network with superior throughput, performance and unparalleled wireless range.
To protect data during wireless transmissions, EAP350 encrypts all wireless transmissions through WEP data encryption
and supports WPA/WPA2. Its MAC address filter allows users to select stations with access to connect network. In
addition, the function of user isolation protects private network between client users. EAP350 thus is the best product to
ensure network safety for enterprises.
1.1 Features and Benefits
Features Benefits
High Speed Data Rate Up to 300Mbps Capable of handling heavy data payloads such as MPEG video
streaming.
10/100/1000 Fast Ethernet Support up to 1Gbps networking speed.
IEEE 802.11n draft Compliant and backward
compatible with 802.11b/g
Fully compatible with IEEE 802.11b/g/n devices.
Multi-Function, 3 functions Allowing users to select AP, WDS AP or WDS Bridge mode in various
applications.
Point-to-point, Point-to-multipoint Wireless
Connectivity
Allowing to transfer data from buildings to buildings.
5
Support Multi-SSID function (4 SSID) in AP
mode
Allowing clients to access different networks through a single access
point and to assign different policies and functions for each SSID by
manager.
WPA2/WPA/ IEEE 802.1x support Powerful data security.
MAC address filtering in AP mode Ensuring secure network connection.
User isolation support (AP mode) Protecting the private network between client users.
Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and saving cost.
Keep personal setting Keeping the latest setting when firmware upgrade.
SNMP Remote Configuration Management Helping administrators to remotely configure or manage the Access
Point easily.
QoS (WMM) support Enhancing user performance and density.
1.2 Package Contents
The package contains the following items. In case of return, please keep the original box set, and the complete box set
must be included for full refund.
• EAP350
• 12V/1A 100V~240V Power Adapter
• RJ-45 Ethernet LAN Cable
• CD-ROM with User's Manual
• Quick Guide
6
1.3 System Requirements
The following are the minimum system requirements in order configure the device.
• Computer with an Ethernet interface or Wireless Network function.
• Windows, Mac OS or Linux based operating systems
• Internet Explorer or Firefox or Safari Web-Browser Software
1.4 Applications
The wireless LAN products are easy to install and highly efficient. The following list describes some of the many
applications made possible through the power and flexibility of wireless LANs:
a) Difficult-to-wire environments
There are many situations where wires cannot be laid easily. Historic buildings, older buildings, open areas
and across busy streets make the installation of LANs either impossible or very expensive.
b) Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers, disaster-recovery, temporary offices and
construction sites where one wants a temporary WLAN established and removed.
c) The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while
dealing with patients, serving customers and processing information.
d) Frequently changed environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently rearrange the
workplace.
7
e) Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy and quick installation of a small network.
f) Wireless extensions to Ethernet networks
Network managers in dynamic environments can minimize the overhead caused by moves, extensions to
networks, and other changes with wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup for mission-critical applications running on
wired networks.
h) Training/Educational facilities
Training sites at corporations and students at universities use wireless connectivity to ease access to
information, information exchanges, and learning.
8
2 Before you Begin
This section will guide you through the installation process. Placement of the ENGENIUS EAP350 is very important to
avoid poor signal reception and performance. Avoid placing the device in enclosed spaces such as a closet, cabinet or
wardrobe.
2.1 Considerations for Wireless Installation
The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the
environment that the device is deployed. These could be the number, thickness and location of walls, ceilings or other
objects that the wireless signals must pass through. Here are some key guidelines to ensure that you have the optimal
wireless range.
• Keep the number of walls and ceilings between the EnGenius access point and other network devices to a minimum.
Each wall or ceiling can reduce the signal strength; the degradation depends on the building’s material.
• Building materials makes a difference. A solid metal door or aluminum stubs may have a significant negative effect on
range. Locate your wireless devices carefully so the signal can pass through a drywall or open doorways. Materials such
as glass, steel, metal, concrete, water (fish tanks), mirrors, file cabinets and brick will also degrade your wireless signal.
• Interferences can also come from your other electrical devices or appliances that generate RF noise. The most usual
types are microwaves, or cordless phones.
9
2.2 Computer Settings (Windows XP/Windows 7)
This device can be configured as an Access Point, WDS AP or WDS Bridge. The default IP address of the device is
192.168.1.1 (In Access Point Mode as default). In order to log into this device, you must first configure the TCP/IP
settings of your PC/Notebook.

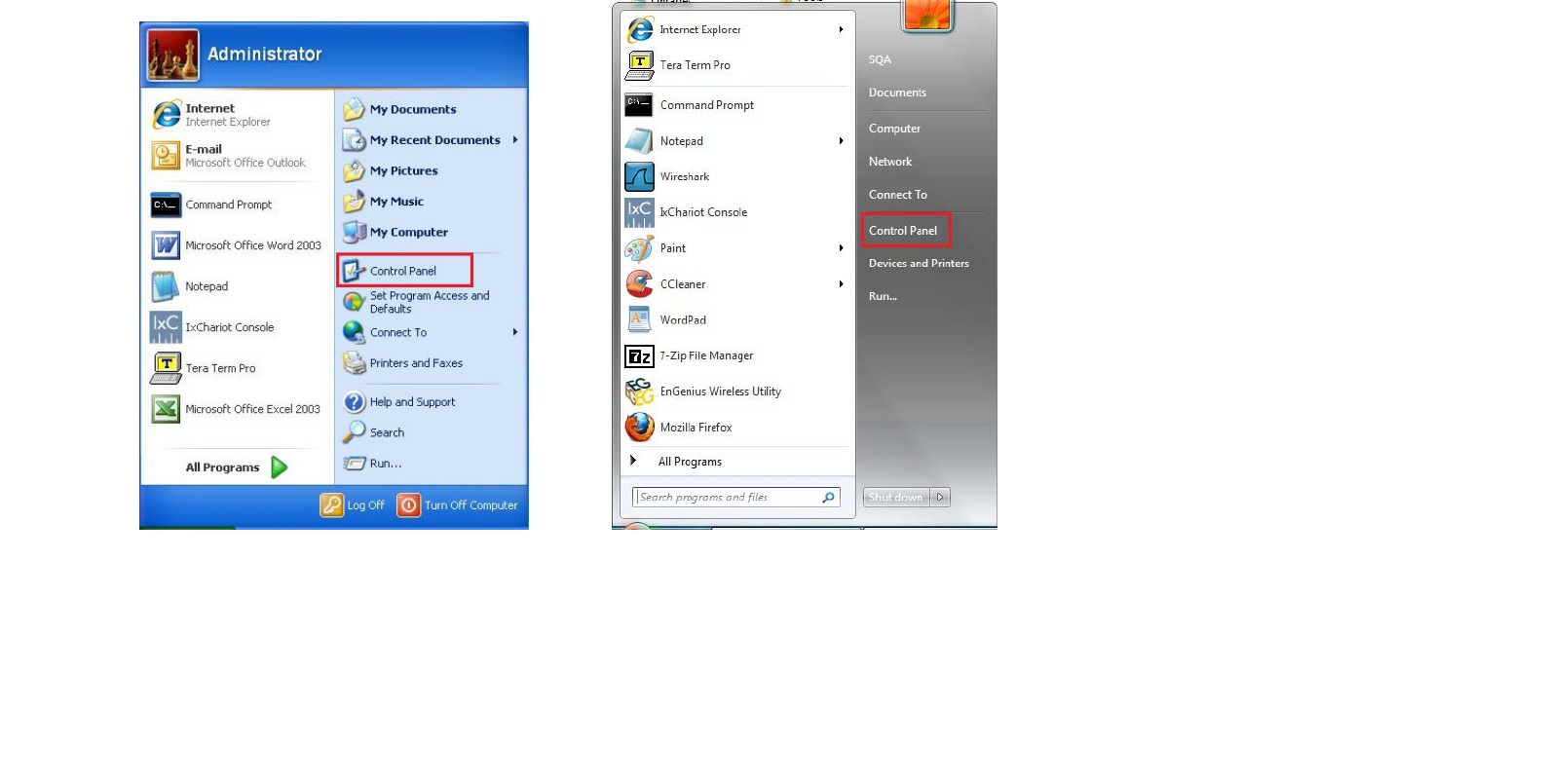

• Click Start button and open Control Panel.
Windows XP Windows 7
10

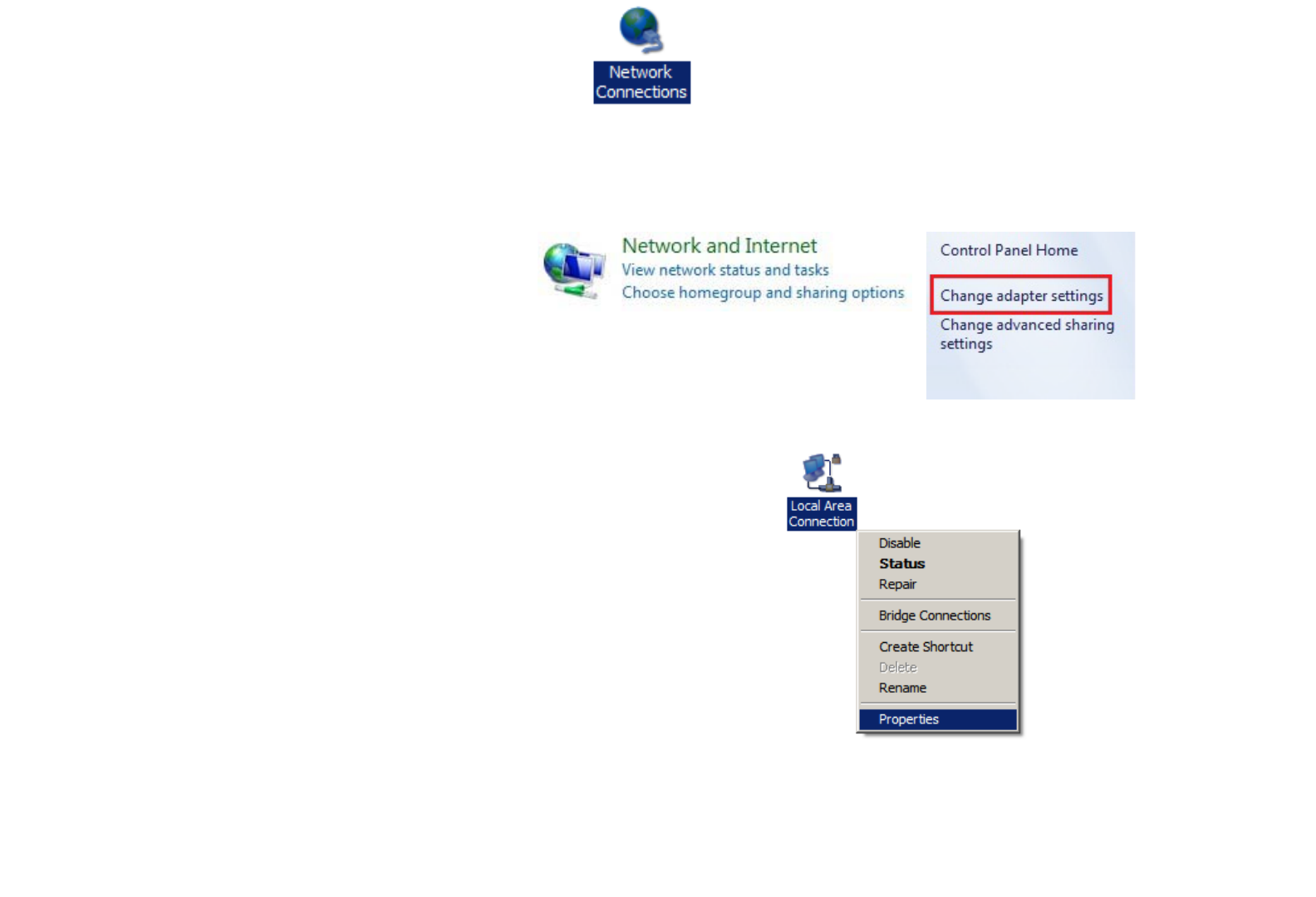

• Windows XP, click [Network Connection]
• Windows 7, click [View Network Status and Tasks] then [Change adapter settings]
• Right click on [Local Area Connection] and select [Properties].
11

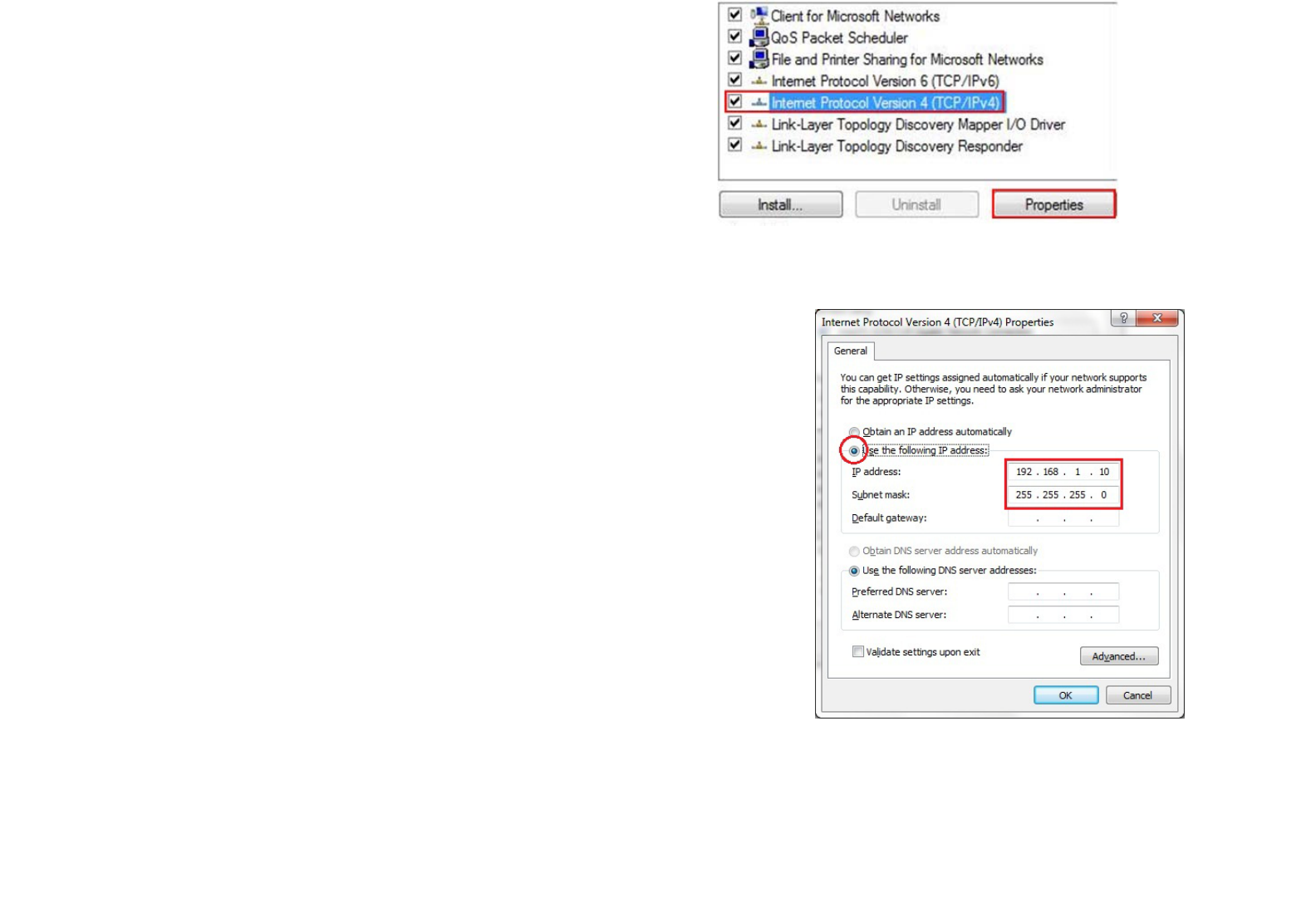

• Select “Internet Protocol (TCP/IP)” and click [Properties]
• Select “Use the following IP address” and enter IP address and subnet
mask then click [OK].
Note: Ensure that the IP address and subnet mask are on the same subnet as
the device.
For example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.10
PC subnet mask: 255.255.255.0
12

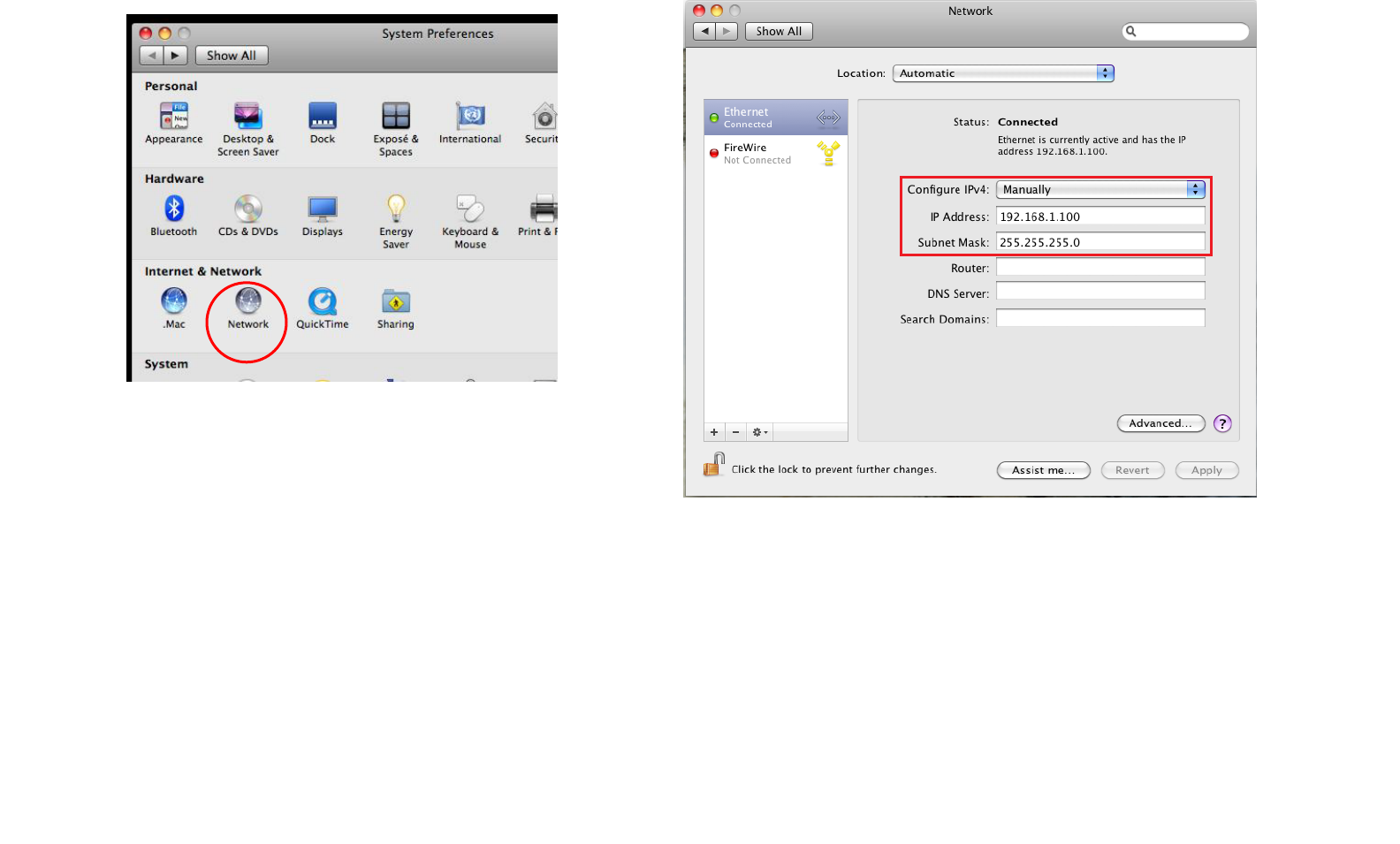

2.3 Apple Mac X OS
• Go to System Preferences > Network
• Under Network setting, select “Manually” and enter
IP address and subnet mask.
• Click Apply when done.
13
2.4 Hardware Installation
1. Place the unit in an appropriate location after conducting a site survey.
2. Plug one end of the Ethernet cable into the Ethernet port of the device and another end into your PC/Notebook.
3. Insert the DC-inlet of the power adapter into the port labeled “DC-IN” and the other end into the power socket on
the wall.

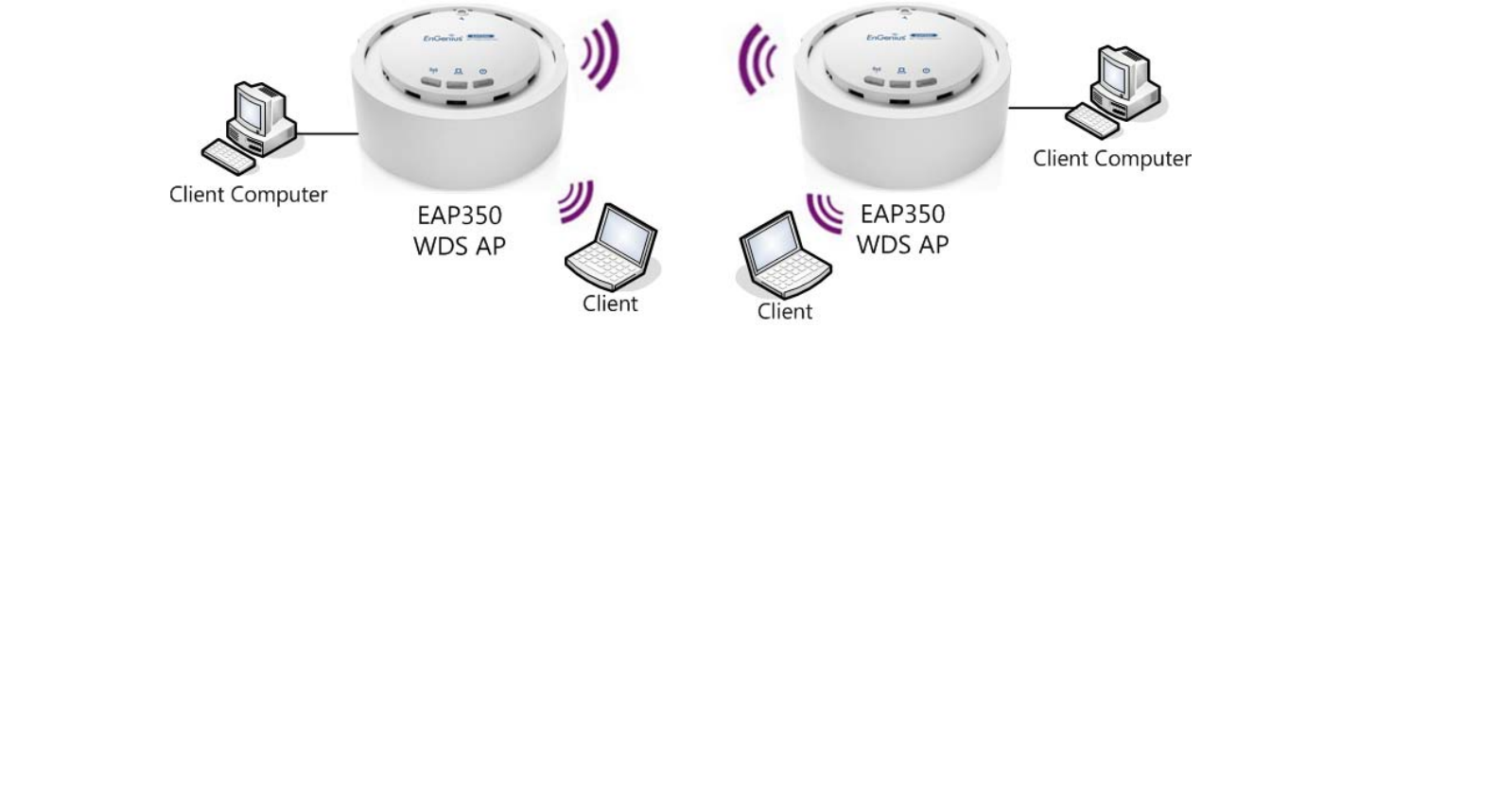

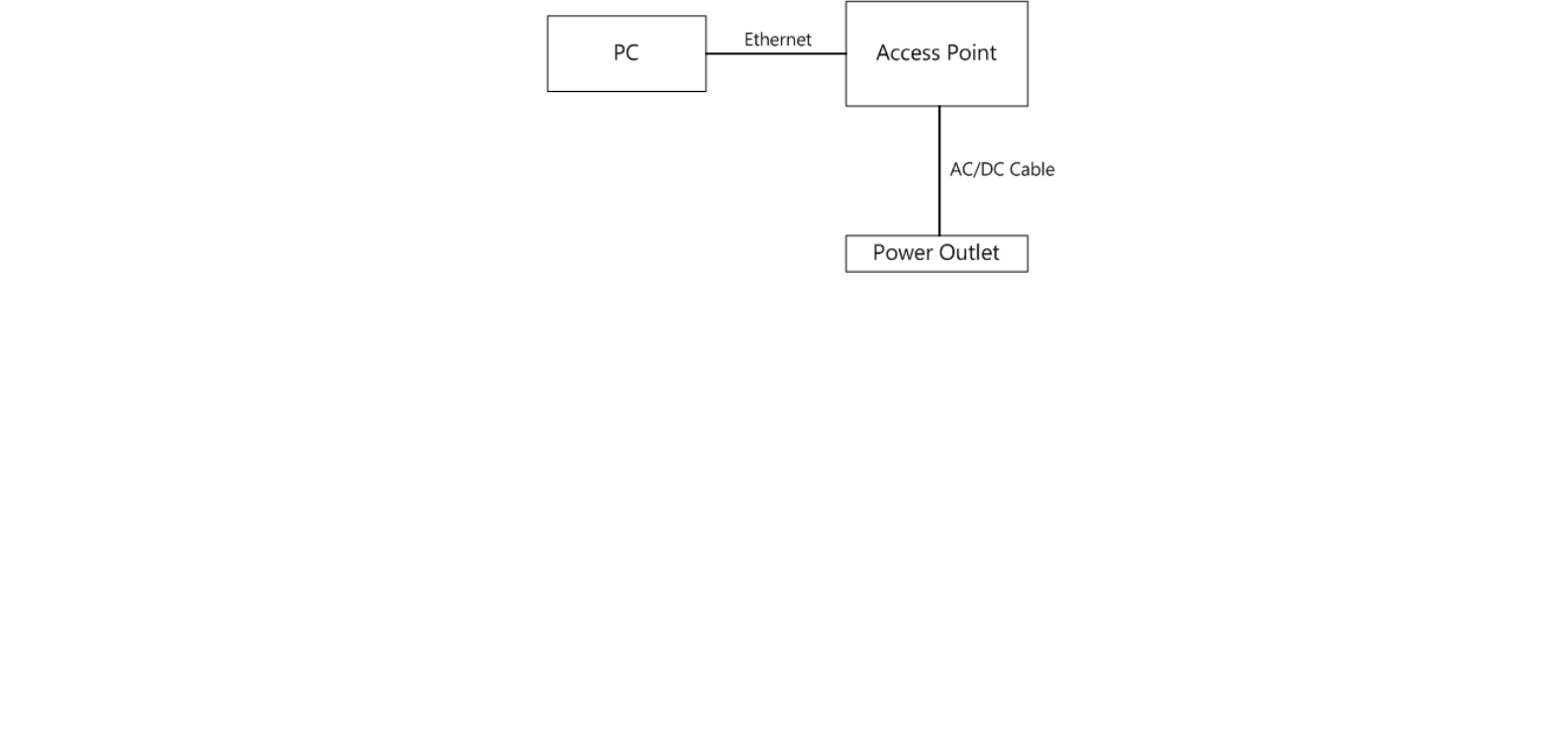

This diagram depicts the hardware configuration.
14

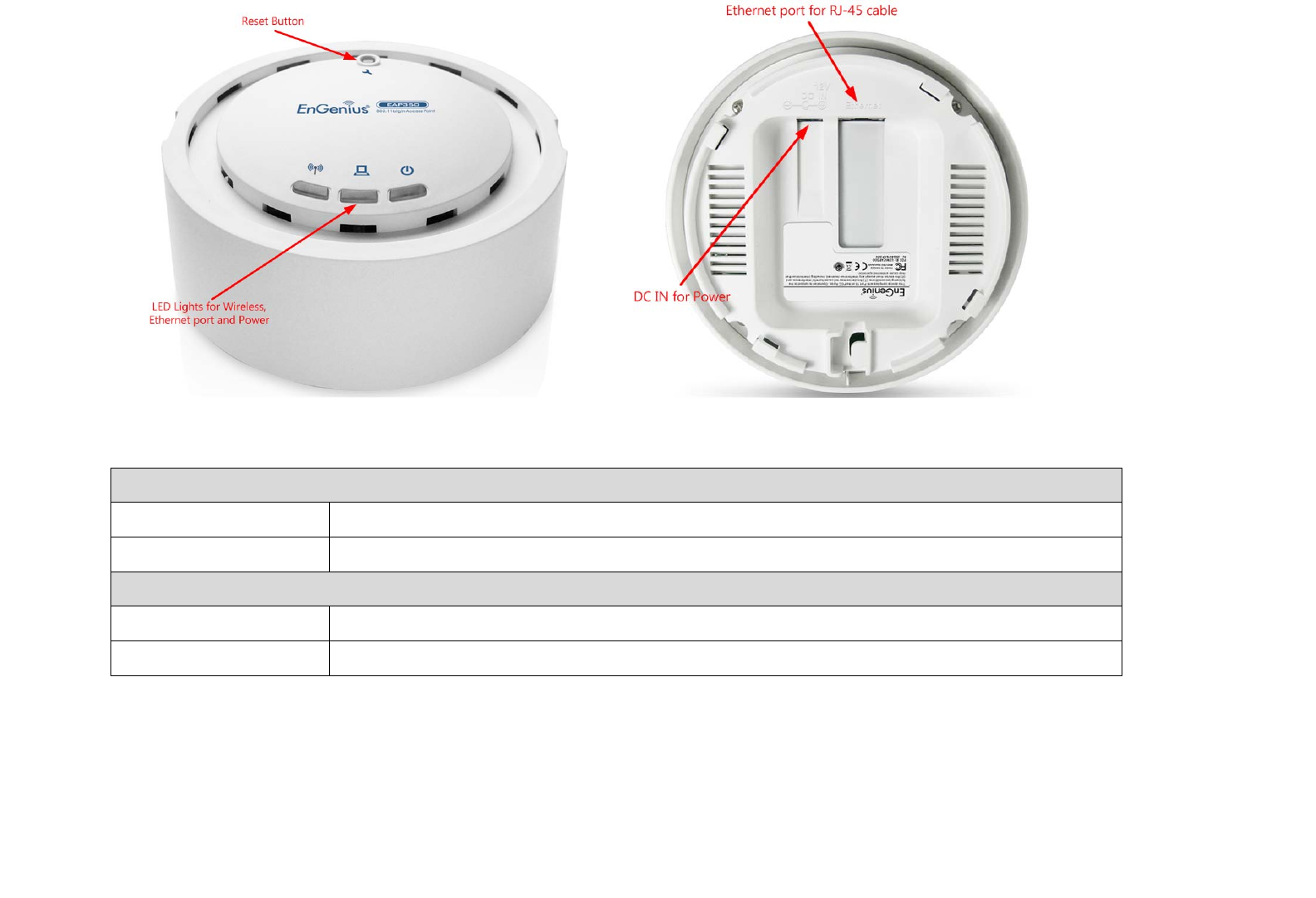

Front Panel Rear Panel
Front Panel
Reset Button
One click for reset the device. Press over 10 seconds for reset to factory default.
LED Lights LED lights for Wireless, Ethernet port and Power.
Rear Panel
DC IN DC IN for Power.
Ethernet Port Ethernet port for RJ-45 cable.
15
3 Configuring Your Access Point
This section will show you how to configure the device using the web-based configuration interface.
3.1 Default Settings
Please use your Ethernet port or wireless network adapter to connect the Access Point.
Default Settings
IP Address 192.168.1.1
Username / Password admin / admin
Operation Mode Access Point
Wireless SSID EnGeniusxxxxxx
Wireless Security None
Note: xxxxxx represented in the wireless SSID above is the last 6 characters of your device MAC Address. This can be found on the device body
label and is unique for each device.
16
3.2 Web Configuration

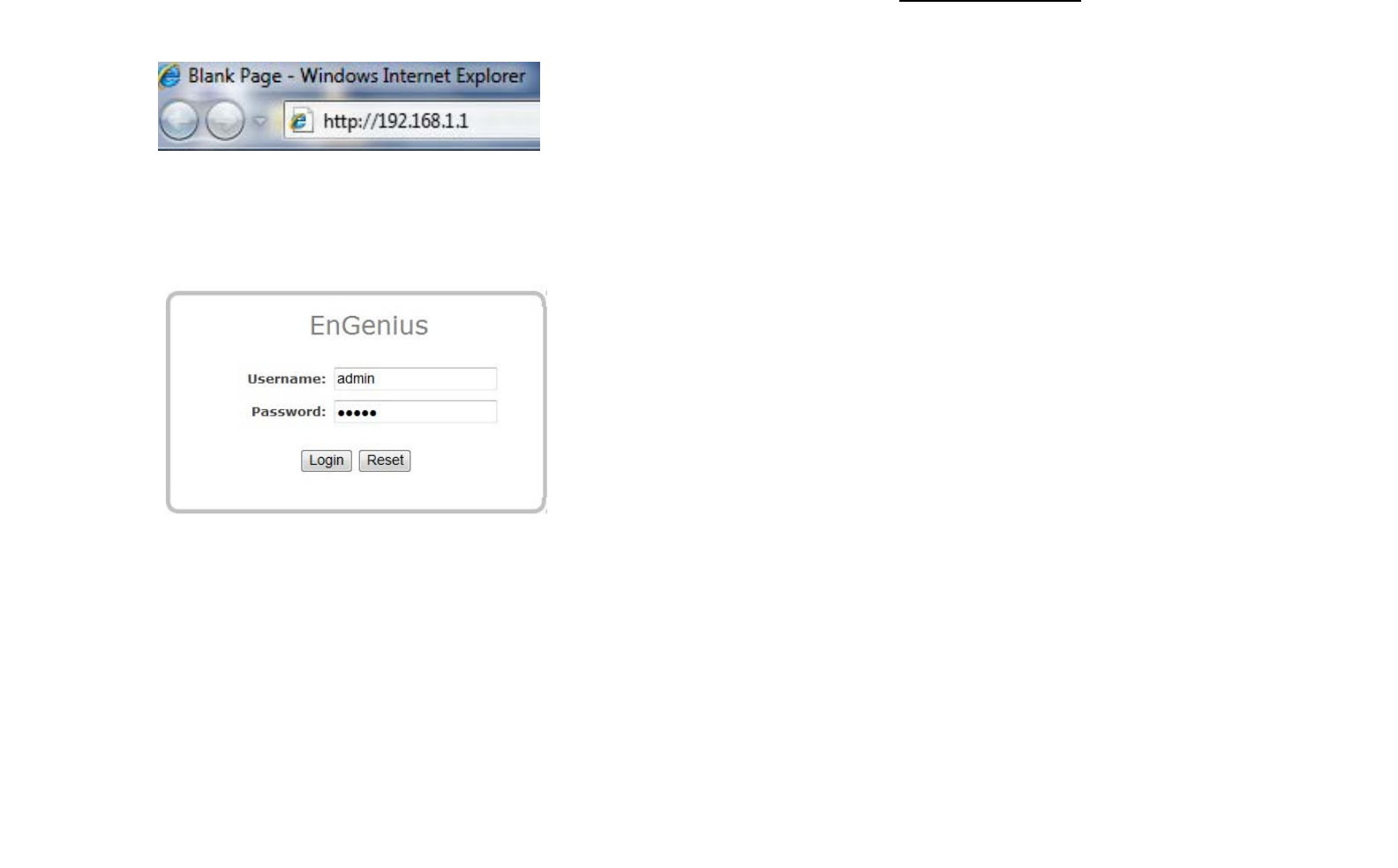

• Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address
Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.
http://192.168.1.1
• The default username and password are admin. Once you have entered the correct username and password, click the
Login button to open the web-base configuration page.
17

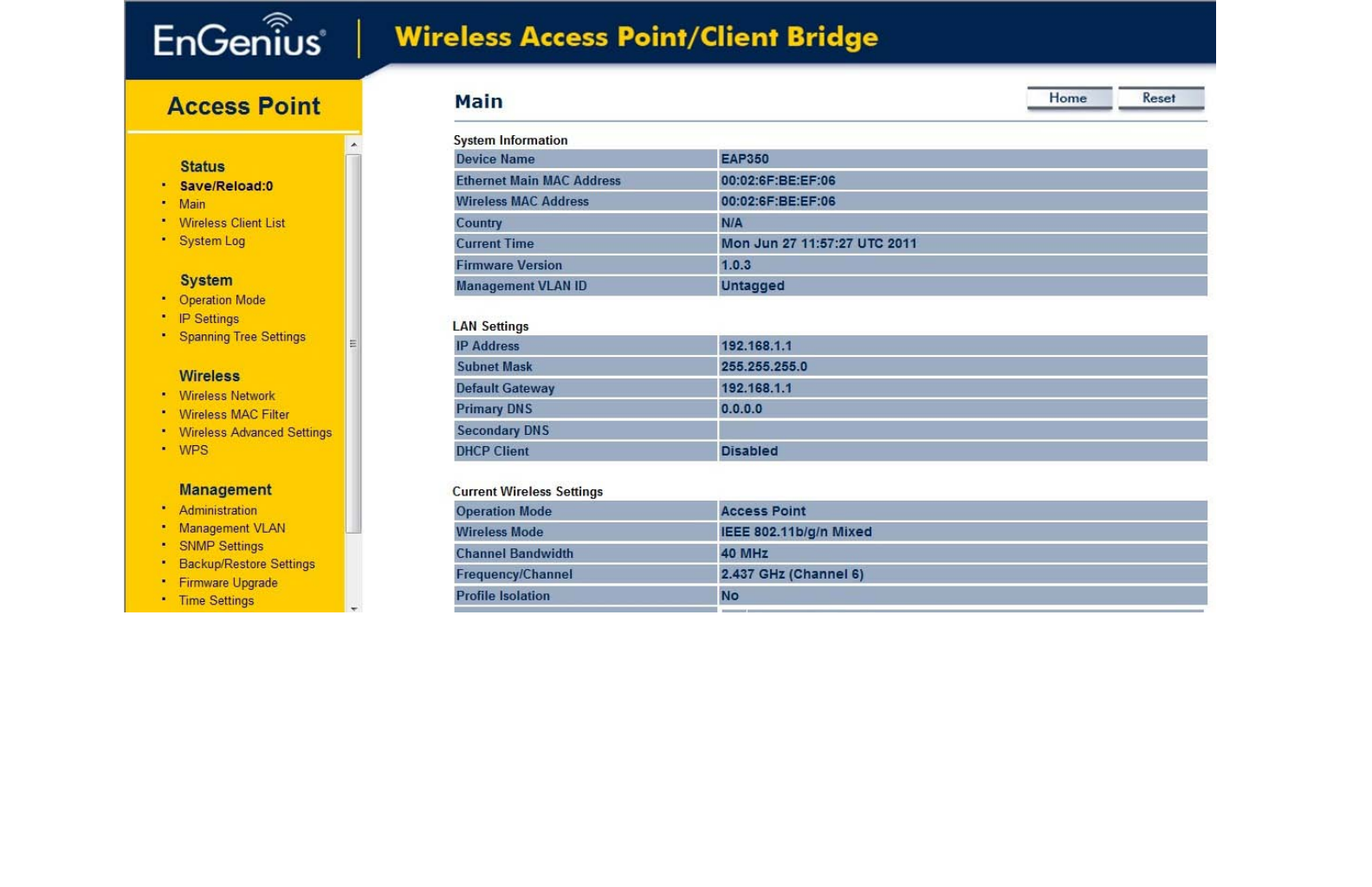

• You will see the following webpage if login successfully.
18
4 Status
The Status section contains the following options: Main, Wireless Client List and System Log.
The following sections describe these options.

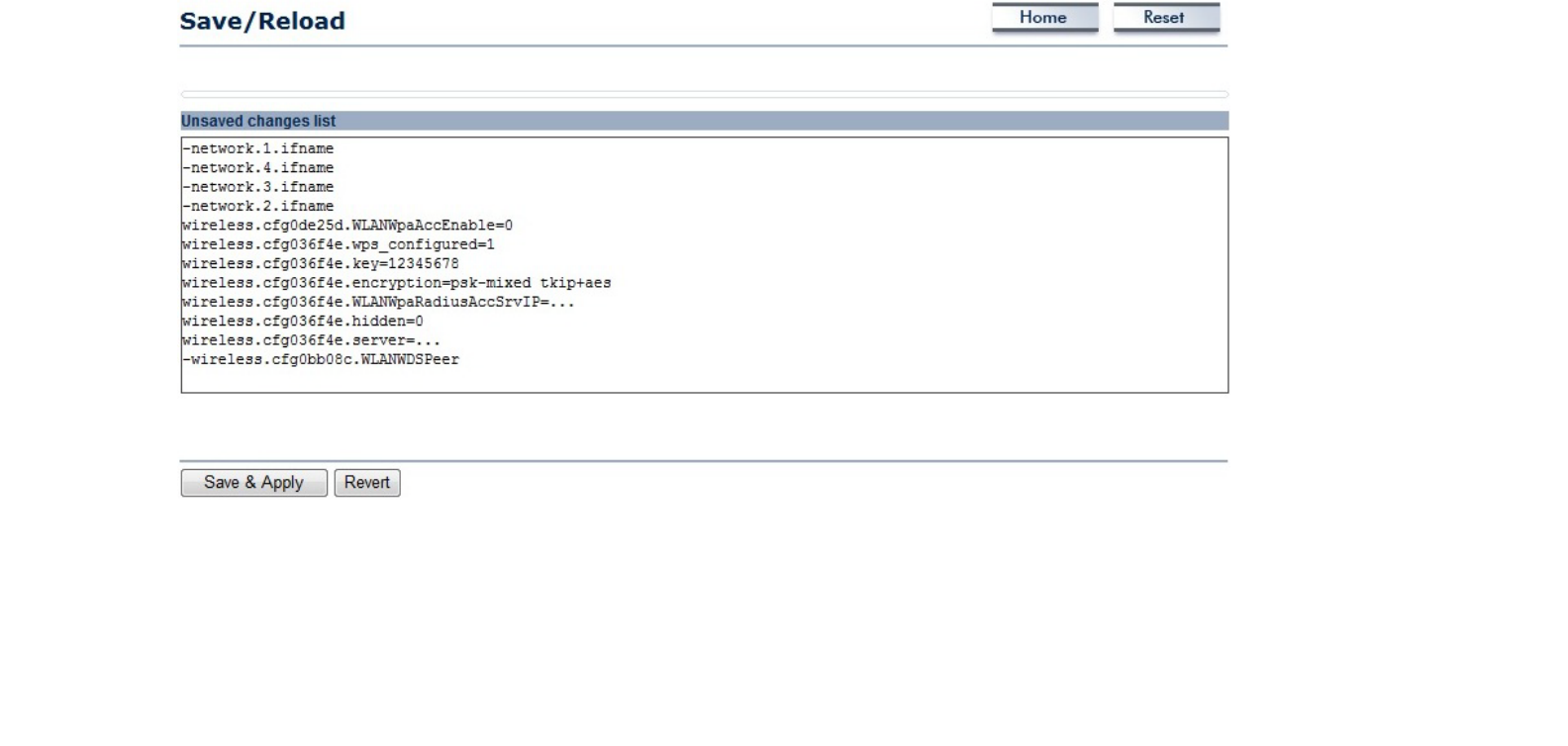

4.1 Save/Reload
This page lets you save and apply the settings shown under Unsaved changes list, or cancel the unsaved changes and
revert to the previous settings that were in effect.
19
4.2 Main
Clicking the Main link under the Status menu or clicking Home at the top-right of the Web Configurator shows status
information about the current operating mode.
- The System Information section shows general system information such as device name, MAC address, current time,
firmware version and management VLAN ID.
- The LAN Settings section shows Local Area Network setting such as the LAN IP address, subnet mask, and DNS
address.
20

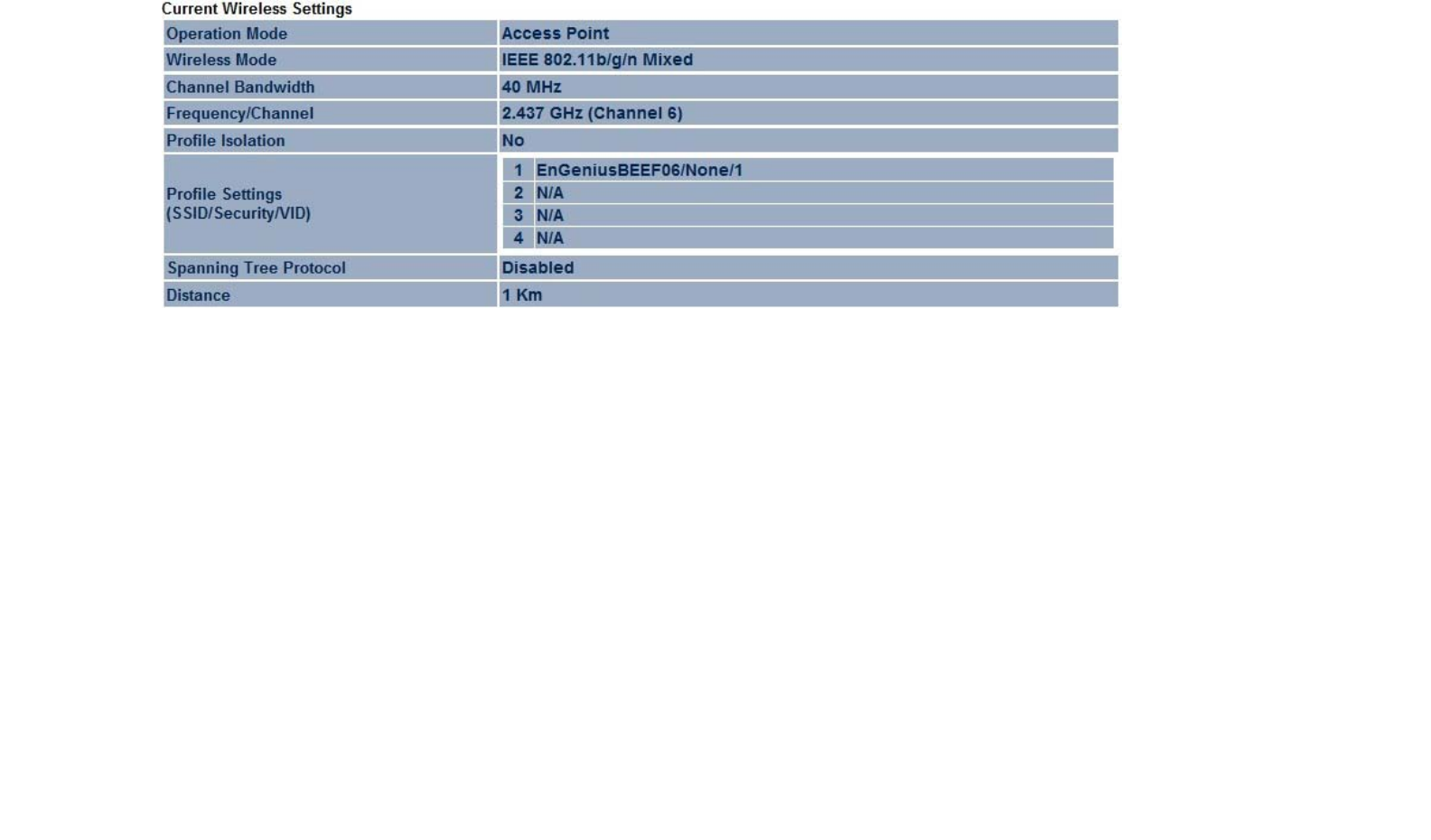

- The Current Wireless Settings section shows wireless information such as operating mode, frequency and channel.
Since the EAP350 supports multiple-SSIDs, information about each SSID, such as its ESSID and security settings, are
displayed.
21
4.3 Wireless Client List
Clicking the Wireless Client List link under the Status menu displays the list of clients associated to the EAP350, along
with the MAC addresses and signal strength for each client. Clicking the [Refresh] button updates (refreshes) the client
list.
Note: Only in Access Point and WDS AP mode.
22
4.4 System Log

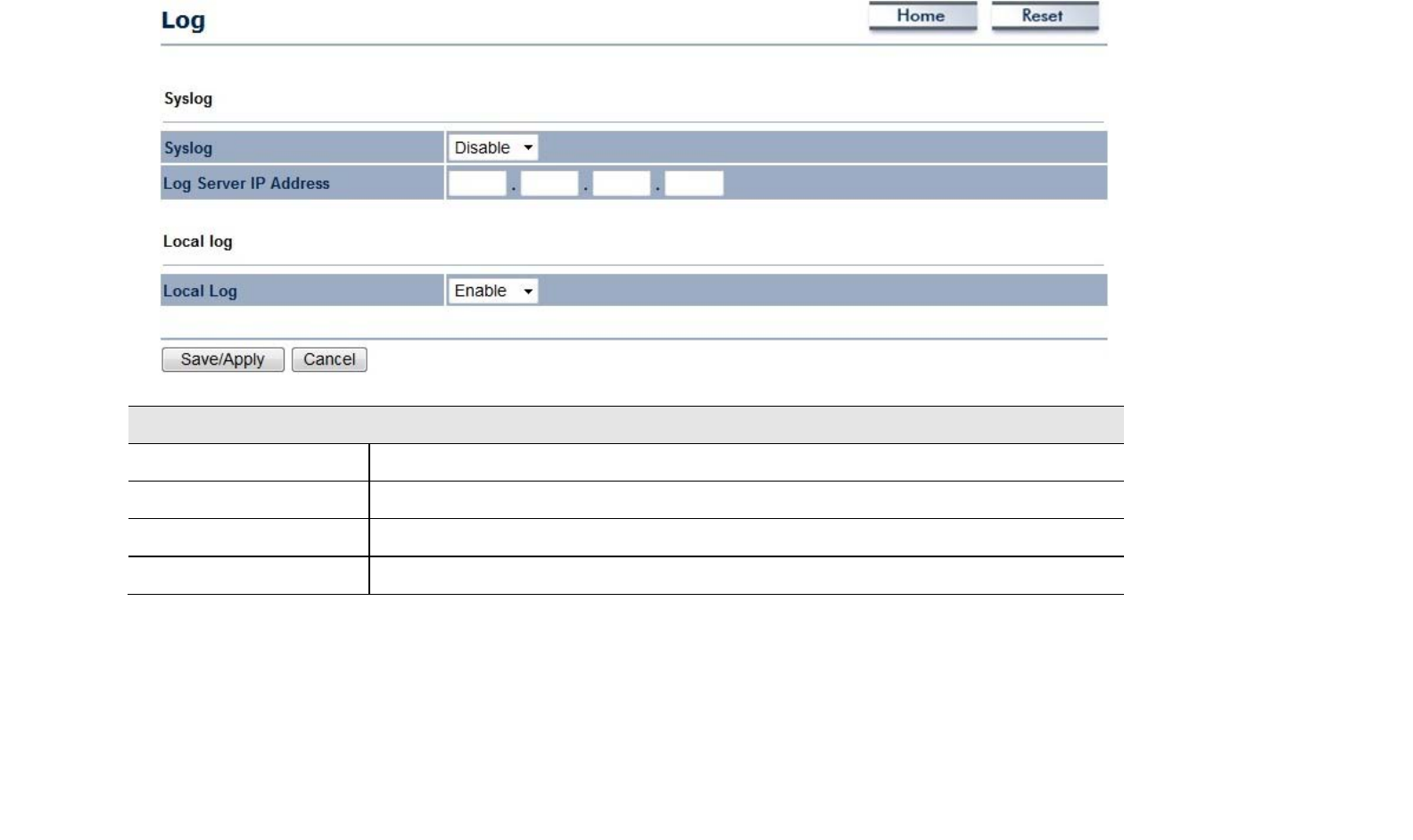

The EAP350 automatically logs (records) events of possible interest in its internal memory. To view the logged
information, click the System Log link under the Status menu. If there is not enough internal memory to log all events,
older events are deleted from the log. When powered down or rebooted, the log will be cleared.
System Log
Refresh Update the log.
Clear Clear the log.
23
5 System
5.1 Operation Mode

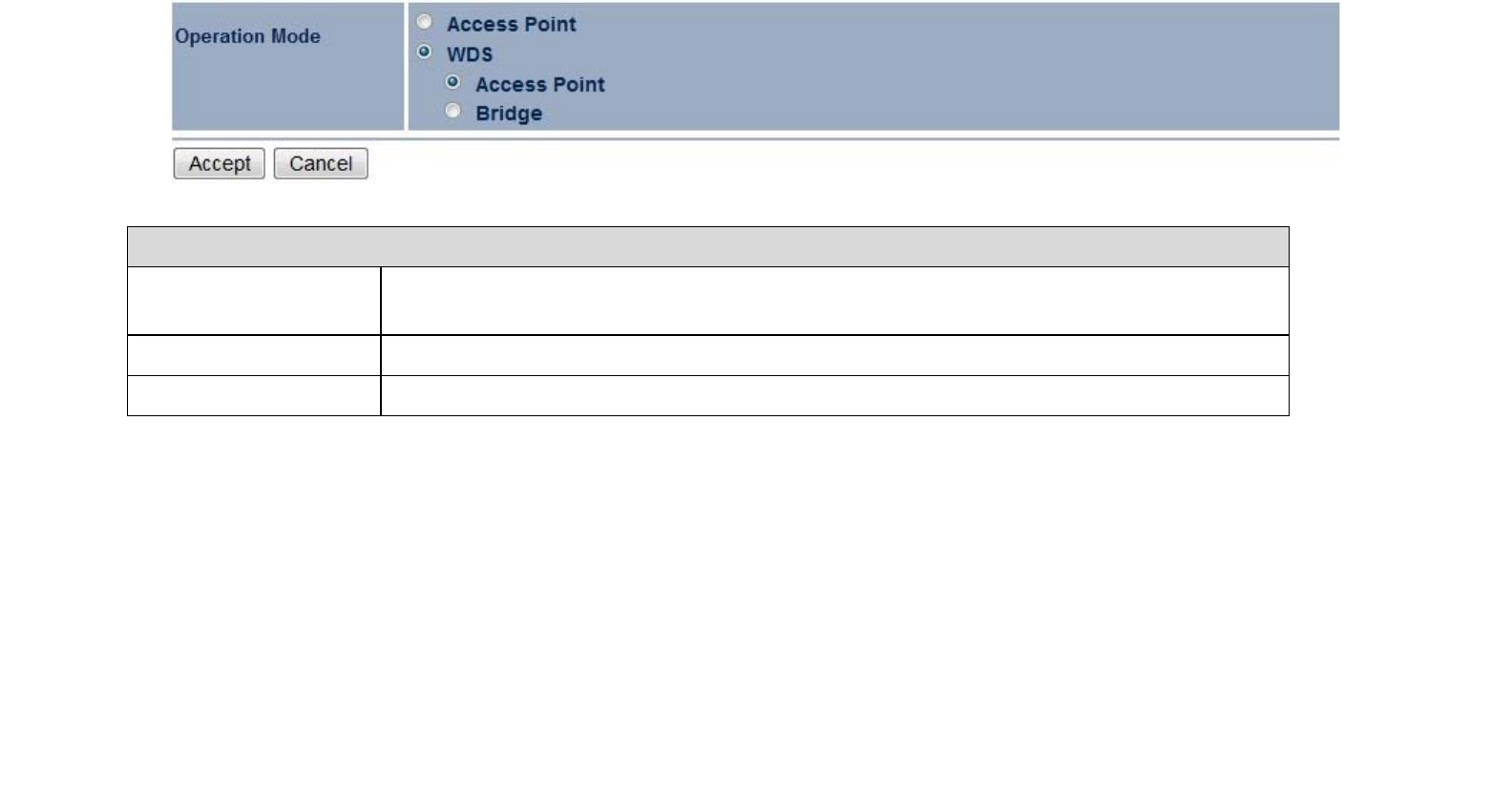

The EAP350 supports three operating modes: Access Point, WDS Access Point and WDS Bridge.
System Properties
Device Name Enter a name for the device. The name you type appears in SNMP management. This name is
not the SSID and is not broadcast to other devices.
Operation Mode Use the radio button to select an operating mode.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
24
5.2 IP Settings
This page allows you to modify the device's IP settings.

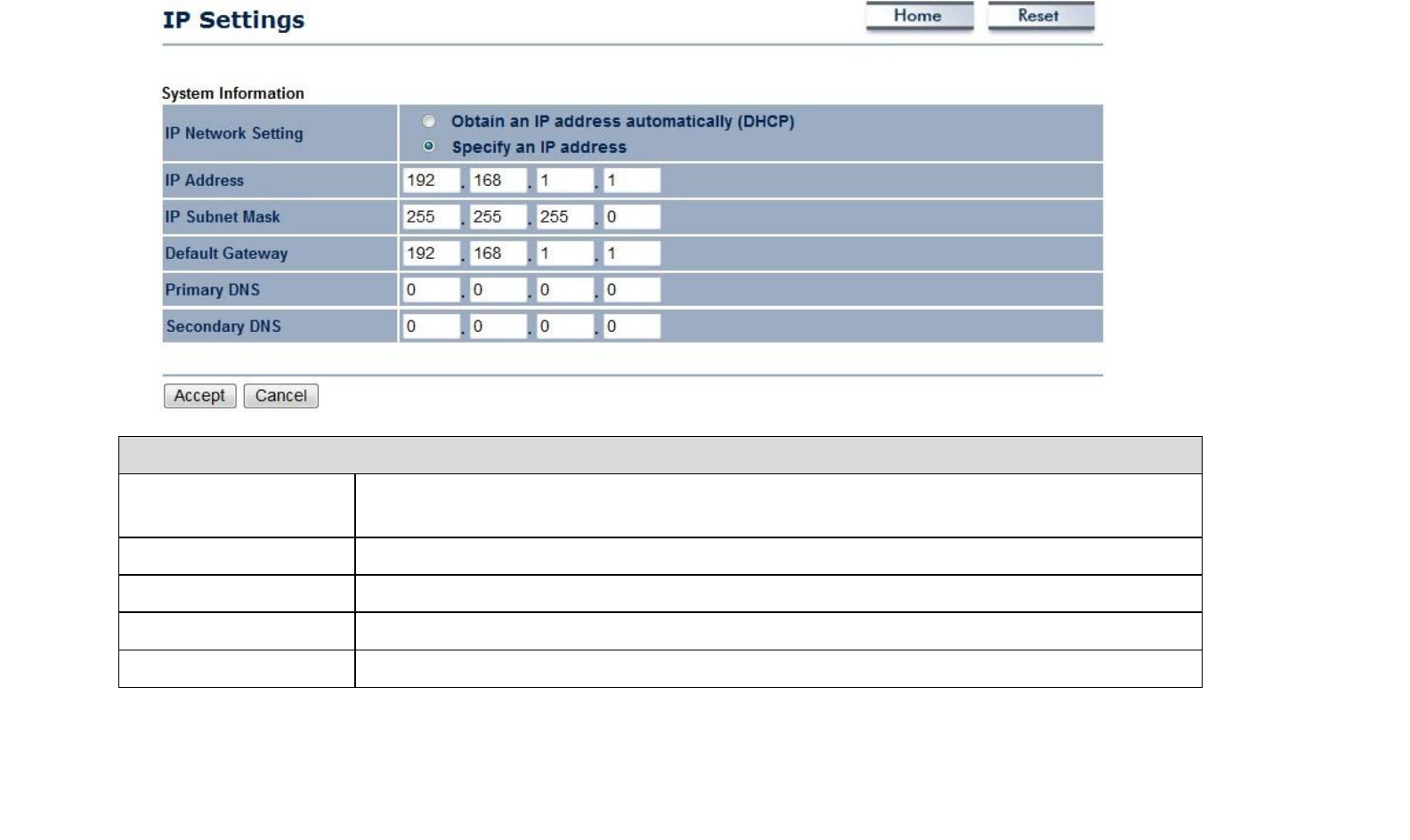

IP Settings
IP Network Setting Select whether the device IP address will use the static IP address specified in the IP Address
field or be obtained automatically when the device connects to a DHCP server.
IP Address The IP Address of this device.
IP Subnet Mask The IP Subnet Mask of this device.
Default Gateway The Default Gateway of this device. Leave it blank if you are unsure of this setting.
Primary / Secondary The primary / secondary DNS address for this device.
25
DNS
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
26
5.3 Spanning Tree Setting
This page allows you to modify the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops
in your LAN network.
Spanning Tree
Spanning Tree Status Enable or disable the Spanning Tree function.
Bridge Hello Time
Specify Bridge Hello Time, in seconds. This value determines how often the device sends hello
packets to communicate information about the topology throughout the entire Bridged Local
Area Network.
Bridge Max Age Specify Bridge Max Age, in seconds. If another bridge in the spanning tree does not send a
hello packet for a long period of time, it is assumed to be dead.
Bridge Forward Delay
Specify Bridge Forward Delay, in seconds. Forwarding delay time is the time spent in each of
the Listening and Learning states before the Forwarding state is entered. This delay is provided
27
so that when a new bridge comes onto a busy network, it looks at some traffic before
participating.
Priority
Specify the Priority number. Smaller number has greater priority.
Accept / Cancel
Click [
Accept
] to confirm the changes or [
Cancel
] to cancel and return previous settings.
28
6 Wireless
6.1 Wireless Network
This page shows the current status of the device's Wireless settings.
29
Wireless Network
Wireless Mode Wireless mode supports 802.11b/g/n mixed mode.
Channel HT Mode
The default channel bandwidth is 40 MHz. The larger the channel, the better the transmission
quality and speed.
Extension Channel Select upper or lower channel. Your selection may affect the Auto channel function.
Channel / Frequency Select the channel and frequency appropriate for your country’s regulation.
Auto Check this option to enable auto-channel selection.
AP Detection AP Detection can select the best channel to use by scanning nearby areas for Access Points.
Current Profile Configure up to four different SSIDs. If many client devices will be accessing the network, you
can arrange the devices into SSID groups. Click [Edit] to configure the profile and check
whether you want to enable extra SSID.
Profile Isolation Restricted client to communicate with different VID by selecting the radio button.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
30

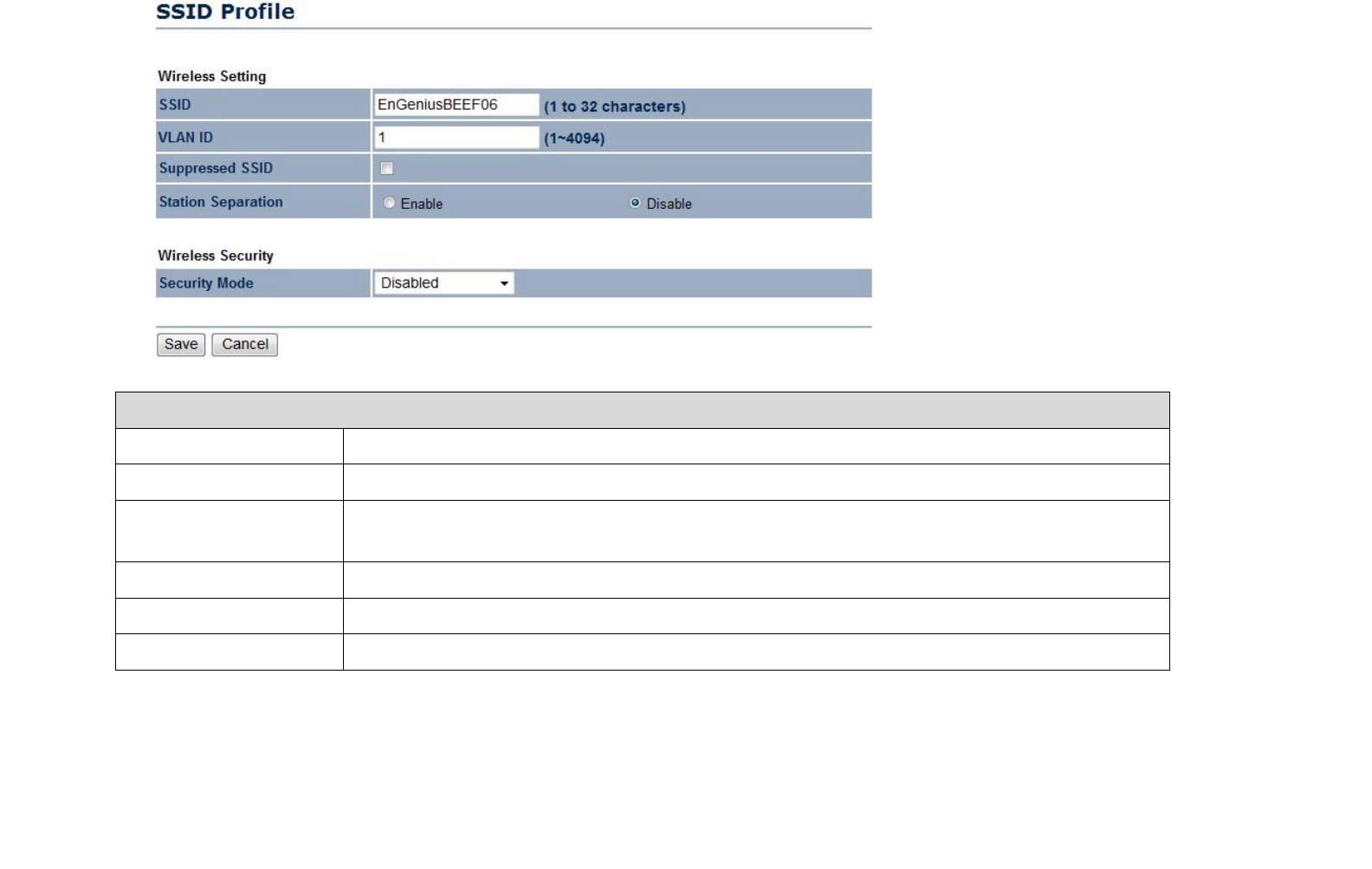

SSID Profile
SSID Profile
SSID Specify the SSID for the current profile.
VLAN ID Specify the VLAN tag for the current profile.
Suppressed SSID Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site
survey.
Station Separation Click the appropriate radio button to allow or prevent communication between client devices.
Wireless Security See the Wireless Security section.
Save / Cancel Click [Save] to accept the changes or [Cancel] to cancel and return previous settings.
31
6.2 Wireless Security
The Wireless Security section lets you configure the EAP350's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK
Mixed, WPA, WPA2, and WPA Mixed. We strongly recommend you use WPA2-PSK.
Note: Only in Access Point and WDS AP mode.

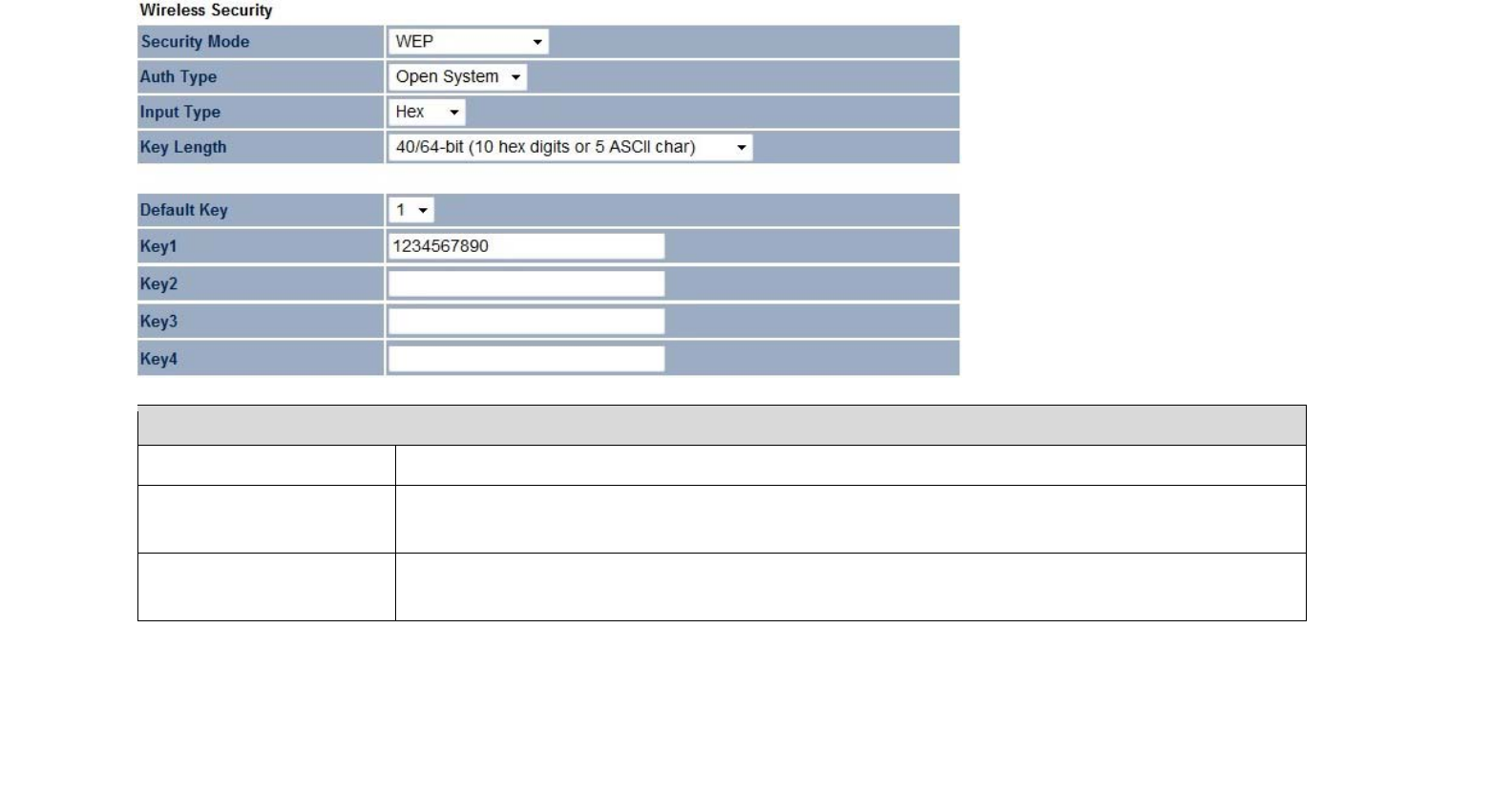

WEP Encryption:
WEP Encryption
Auth Type Select Open System or Shared Key.
Input type ASCII: regular text (recommended)
HEX: for advanced users
Key Length Select the desired option, and ensure the wireless clients use the same setting.
Choices are 64, 128, 152-bit password lengths.
32
Default Key Select the key you wish to be the default. Transmitted data is ALWAYS encrypted using the
Default Key; the other Keys are for decryption only.
You must enter a Key Value for the Default Key.
Encryption Key # Enter the key value or values you wish to use. Only the Key selected as Default is required. The
others are optional.
33

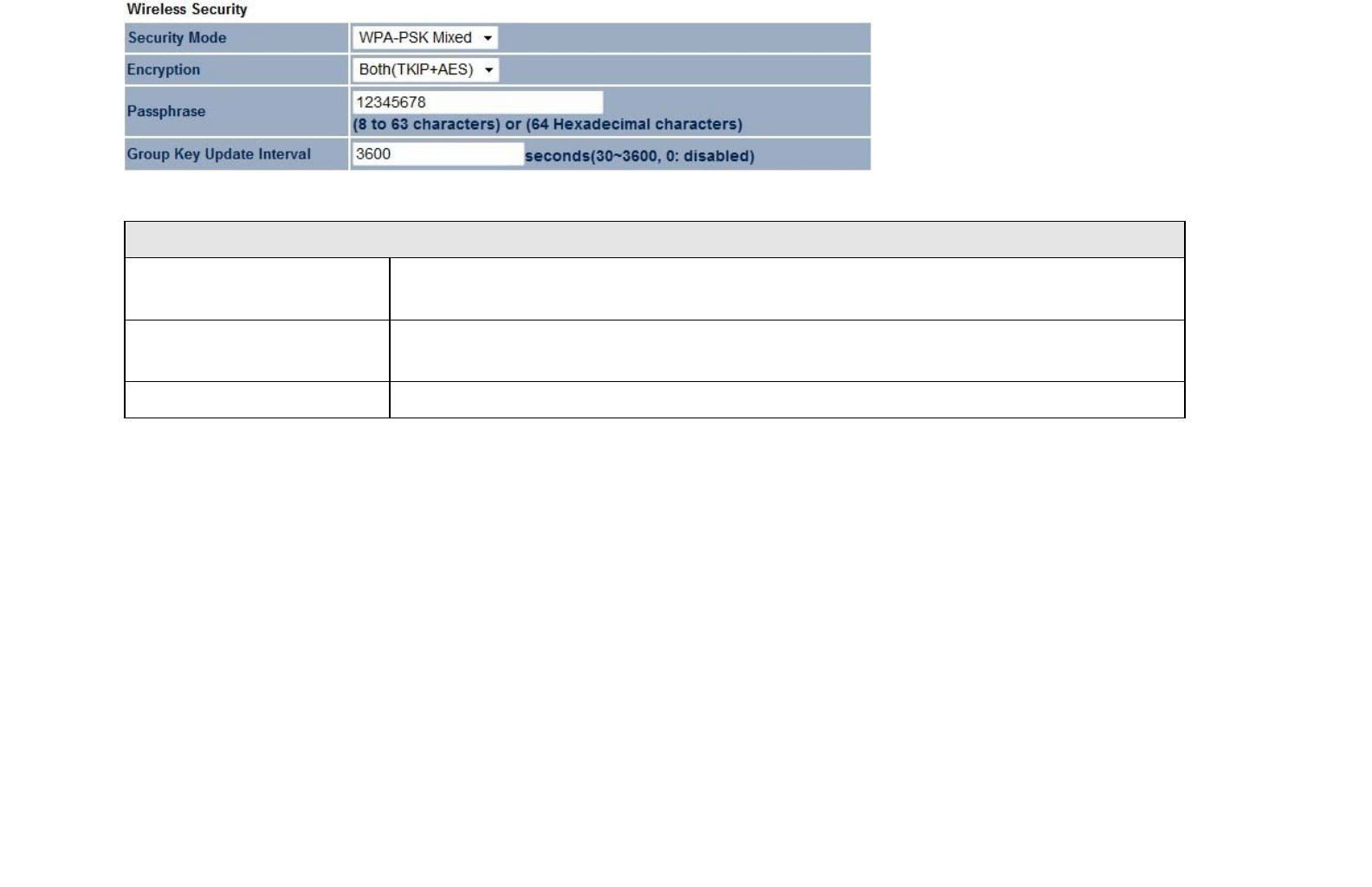

WPA-PSK (WPA Pre-Shared Key) Encryption:
WPA-PSK (WPA Pre-Shared Key) Encryption
Encryption
Select the WPA encryption you would like.
Please ensure that your wireless clients use the same settings.
Passphrase
Wireless clients must use the same key to associate the device.
If using passphrase format, the Key must be from 8 to 63 characters in length.
Group Key Update Interval Specify how often, in seconds, the group key changes.
34

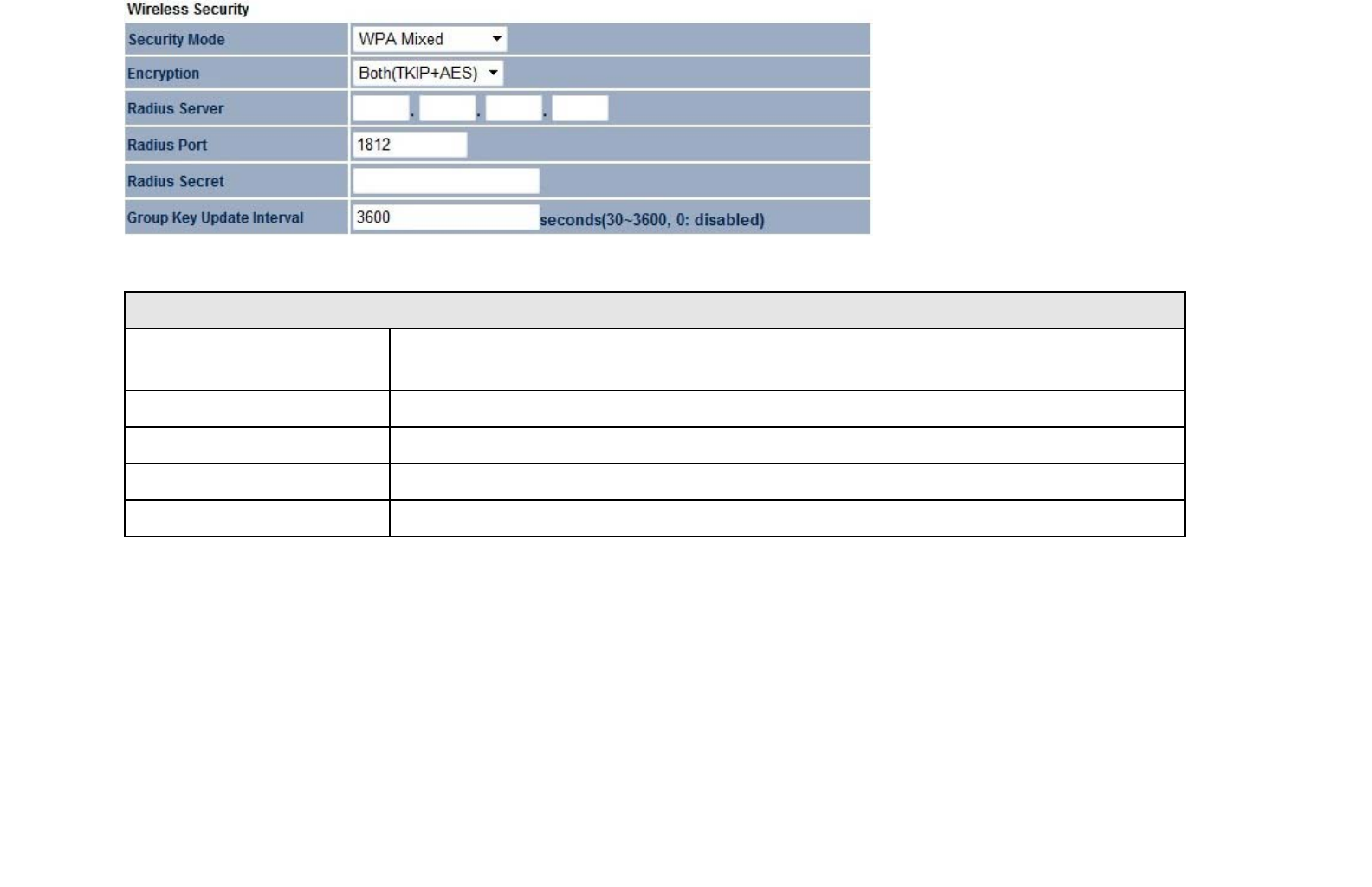

WPA Encryption:
WPA Encryption
Encryption Select the WPA encryption you would like.
Please ensure that your wireless clients use the same settings.
Radius Server Enter the IP address of the Radius Server
Radius Port Enter the port number used for connections to the Radius server.
Radius Secret Enter the secret required to connect to the Radius server.
Group Key Update Interval Specify how often, in seconds, the group key changes.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The connection mode will change from 802.11n to
802.11g.
35

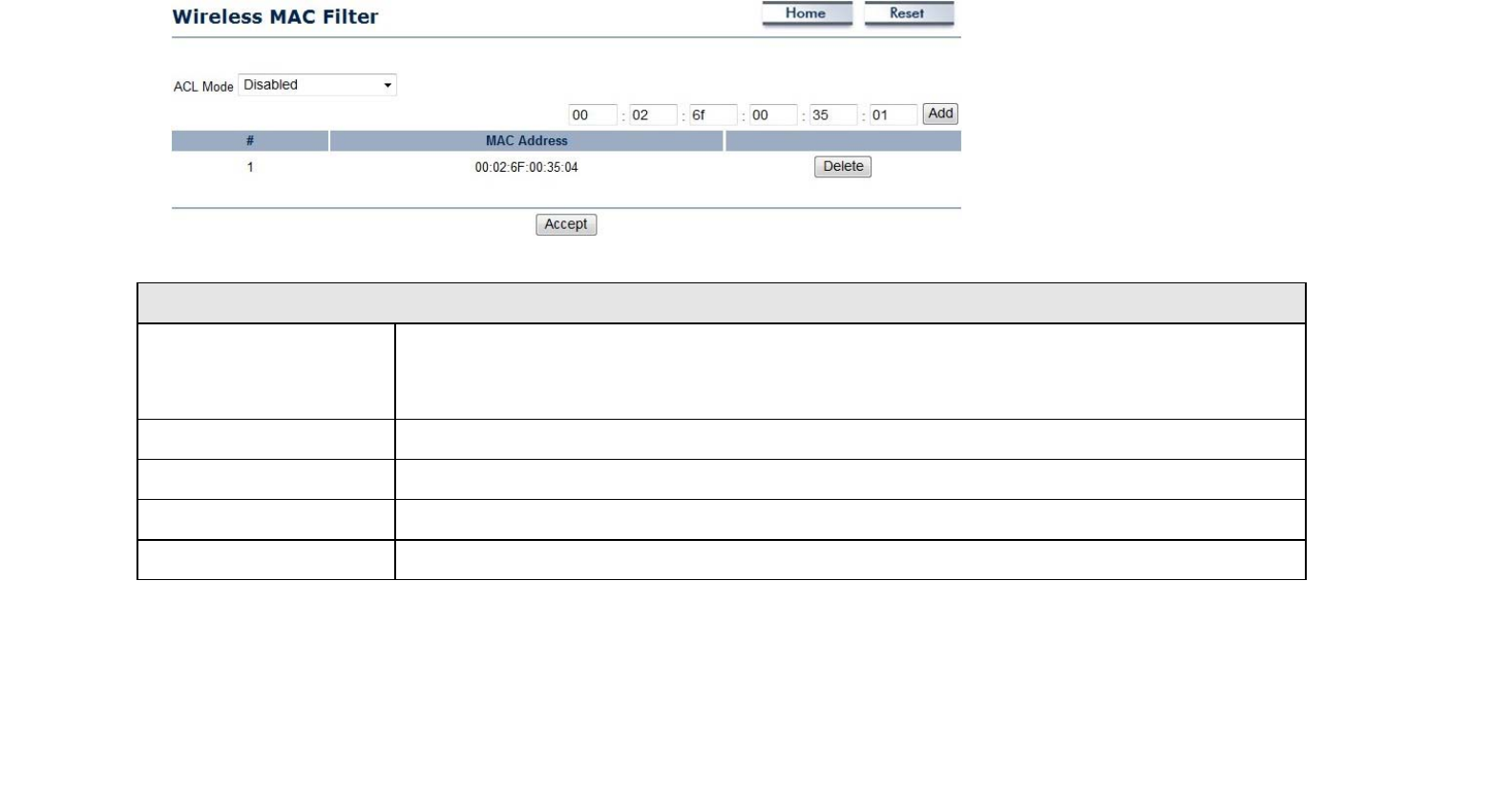

6.3 Wireless MAC Filter
Wireless MAC Filters are used to allow or deny network access to wireless clients according to their MAC addresses.
You can manually add a MAC address to restrict the permission to access EAP350. The default setting is Disable
Wireless MAC Filter.
Note: Only in Access Point and WDS AP mode.
Wireless Filter (Access Point / WDS AP mode)
ACL Mode Determines whether network access is granted or denied to clients whose MAC addresses
appear in the MAC Address table on this page. Choices are Disable, Deny MAC in the list, or
Allow MAC in the list.
MAC Address Enter the MAC address of the wireless client.
Add
Click
Add
to add the MAC address to the
MAC Address
table.
Delete
Delete the selected entries.
Apply Click Apply to apply the changes.
36
6.4 Wireless Advanced
This page allows you to configure wireless advance settings. It is recommended the default settings are used unless the
user has experience with these functions.
37

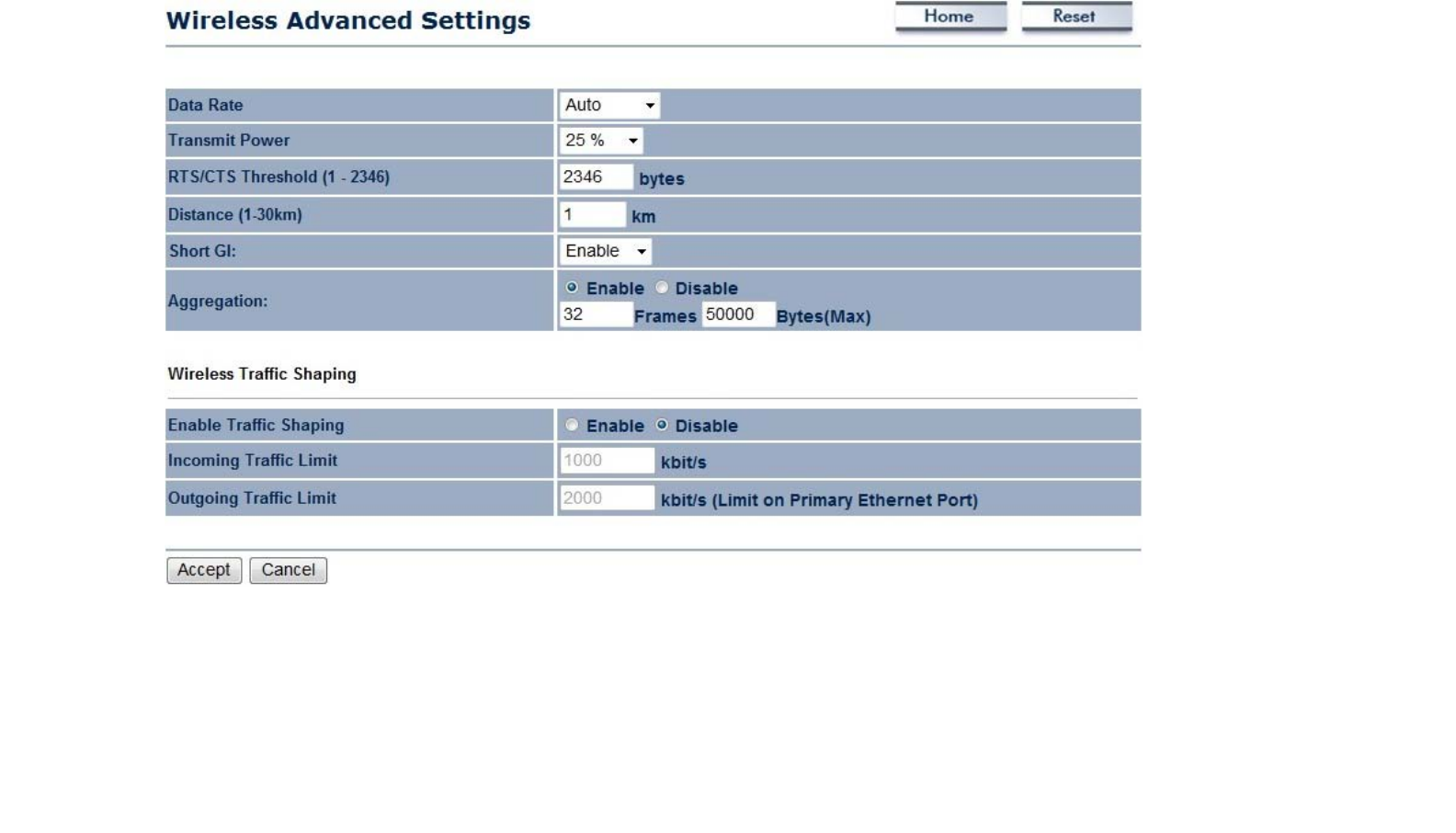

Wireless Advanced
Data Rate Select a data rate from the drop-down list. The data rate affects throughput. If you select a low
data rate value, for example, the throughput is reduced but the transmission distance increases.
Transmit Power Set the power output of the wireless signal.
RTS/CTS Threshold Specify the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Distance Specify the distance between Access Points and clients. Longer distances may drop high-speed
connections.
Short GI Sets the time that the receiver waits for RF reflections to settle out before sampling data. Using a
short (400ns) guard interval can increase throughput, but can also increase error rate in some
installations due to increased sensitivity to radio-frequency reflections. Select the option that
works best for your installation.
Aggregation
Merges data packets into one packet. This option reduces the number of packets, but increases
packet sizes.
Wireless Traffic
Shaping
Check this option to enable wireless traffic shaping. Traffic shaping regulates the flow of packets
leaving an interface to deliver improved Quality of Service.
Incoming Traffic Limit
Specify the wireless transmission speed used for downloading.
Outgoing Traffic Limit Specify the wireless transmission speed used for uploading.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
38
6.5 WPS (Wi-Fi Protected Setup)
WPS feature is following the Wi-Fi Alliance WPS standard and it eases the set up of security-enabled Wi-Fi networks in
the home and small office environment.
It reduces the user steps required to configure a network and supports two methods that are familiar to most
consumers to configure a network and enable security.
Note: Only in Access Point and WDS AP mode.
39

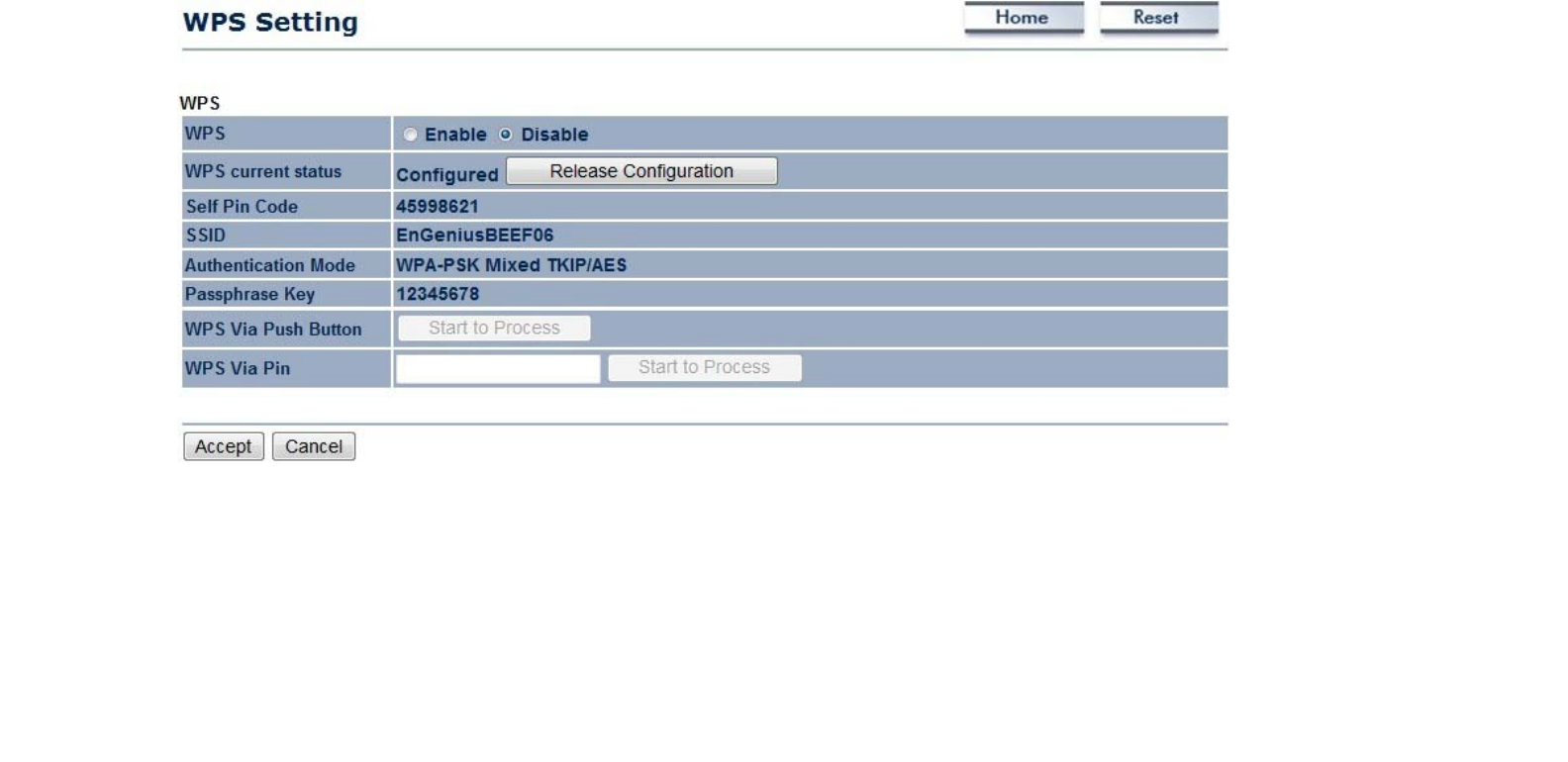

Wi-Fi Protected Setup (WPS)
WPS Select Enable or Disable the WPS feature.
WPS Current Status Shows whether the WPS function is Configured or unConfigured.
Configured means that WPS has been used to authorize connection between the device and
wireless clients.
Self Pin Code The PIN code of this device.
SSID The SSID (wireless network name) used when connecting using WPS.
Authentication Mode Shows the encryption method used by the WPS process.
Passphrase Key This is the passphrase key that is randomly generated during the WPS process. It is required if
wireless clients that do not support WPS attempts to connect to the wireless network.
WPS Via Push Button Click this button to initialize WPS feature using the push button method.
WPS Via PIN Enter the PIN code of the wireless device and click this button to initialize WPS feature using the
PIN method.
40
6.6 WDS Link Settings
Using WDS (Wireless Distribution System) to connect Access Point wirelessly, and in doing so extend a wired
infrastructure to locations where cabling is not possible or inefficient to implement.
Note that compatibility between different brands and models is not guaranteed. It is recommended that the WDS
network be created using the same models for maximum compatibility.
Also note that all Access Points in the WDS network needs to use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS. There
can be a maximum of four access points.
Note: Only in WDS AP and WDS Bridge mode.
41
WDS Link Settings
MAC Address Enter the Access Point’s MAC address to which you want to extend the wireless area.
Mode Select Disable or Enable from the drop-down list.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
42
7 Management
7.1 Administration
This page allows you to change the system password
and to configure remote management. By default, the
user name is admin and the password is: admin.
Password can contain 0 to 12 alphanumeric characters
and are case sensitive.
Change Password
Name Enter a new username for logging in to the Web Configurator.
Password
Enter a new password for logging in to the Web Configurator.
Confirm Password
Re-enter the new password for confirmation.
Save/Apply / Cancel
Click
Save/Apply
to apply the changes or
Cancel
to return previous settings.
43

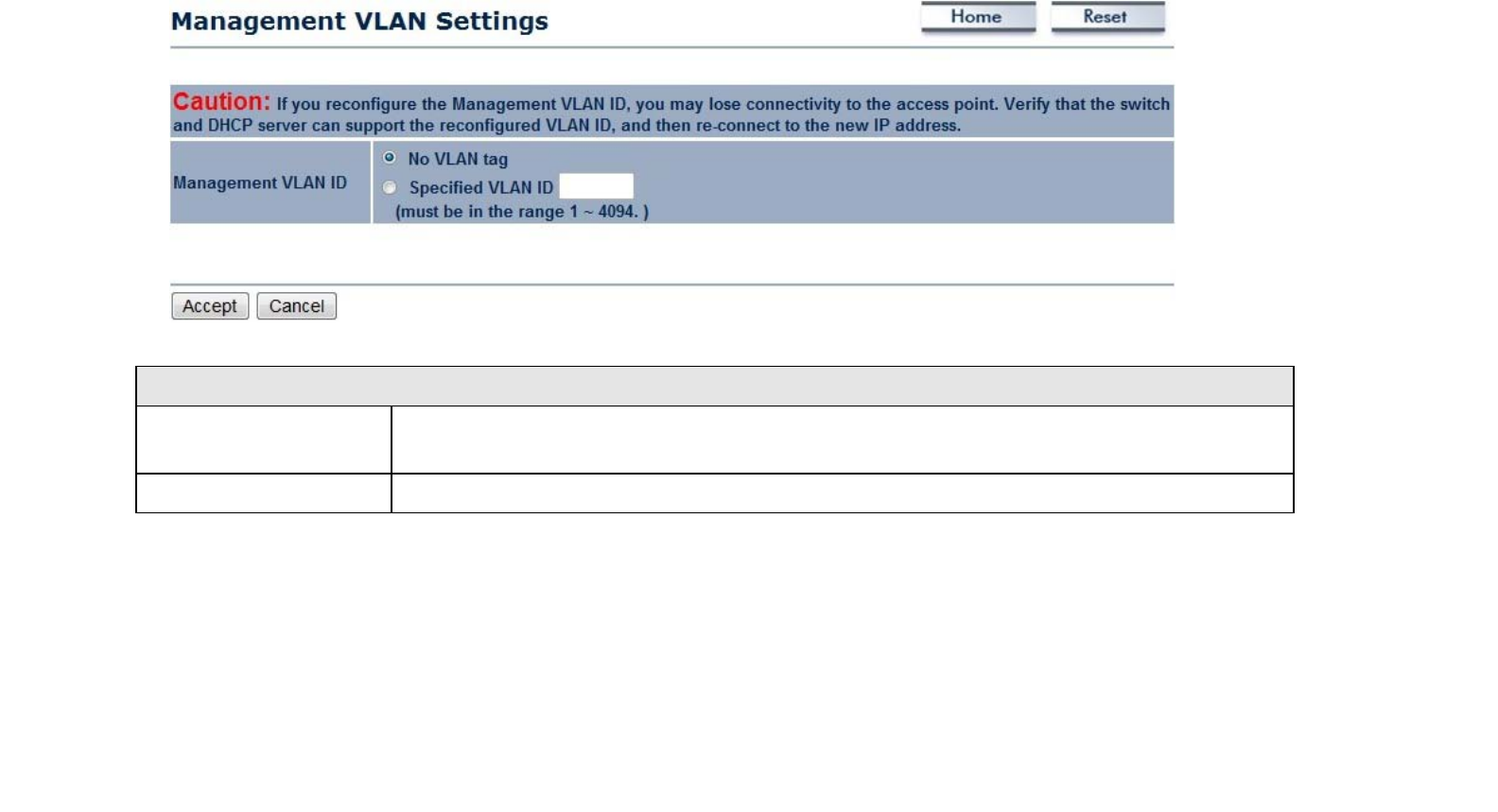

7.2 Management VLAN
This page allows you to assign a VLAN tag to the packets. A VLAN is a group of computers on a network whose
software has been configured so that they behave as if they were on a separate Local Area Network (LAN). Computers
on VLAN do not have to be physically located next to one another on the LAN.
Management VLAN
Management VLAN ID If your network includes VLANs and if tagged packets need to pass through the Access Point,
enter the VLAN ID. Otherwise, click No VLAN tag.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
Note:
1. If you reconfigure the Management VLAN ID, you may lose your connection to the EAP350. Verify that the DHCP server supports the
reconfigured VLAN ID and then reconnect to the EAP350 using the new IP address.
2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see section 4.1).
44
7.3 SNMP
This page allows you to assign the contact details, location, community name and trap settings for SNMP. This is a
networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol
data units) to be sent to various parts of a network. Upon receiving these messages, SNMP-compatible devices (called
agents) return data stored in their Management Information Bases.

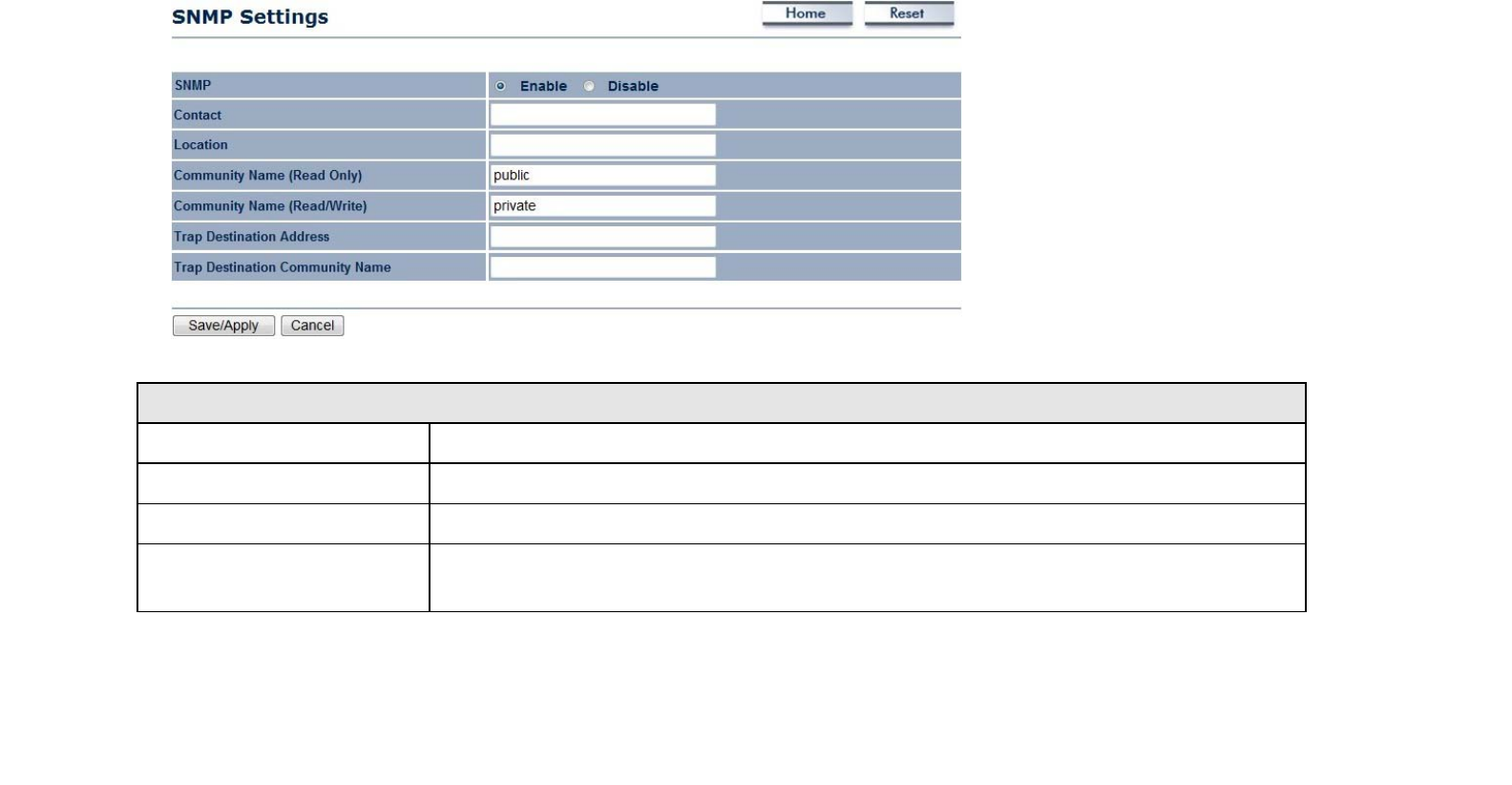

SNMP
SNMP Enable/Disable Enable or disable SNMP feature.
Contact Specify the contact details of the device
Location Specify the location of the device.
Community Name (Read
Only)
Specify the password for access the SNMP community for read only access.
45
Community Name
(Read/Write)
Specify the password for access to the SNMP community with read/write access.
Trap
Trap Destination Address Specify the IP address of the computer that will receive the SNMP traps.
Trap Destination
Community Name
Specify the password for the SNMP trap community.
46
7.4 Backup/Restore
This page allows you to save the current device configurations. When you save the configurations, you also can re-load
the saved configurations into the device through the [Restore Saved Settings from A File]. If extreme problems occur
you can use the [Revert to Factory Default Settings] to set all configurations to its original default settings.
Backup/Restore
Save A Copy of Current
Settings

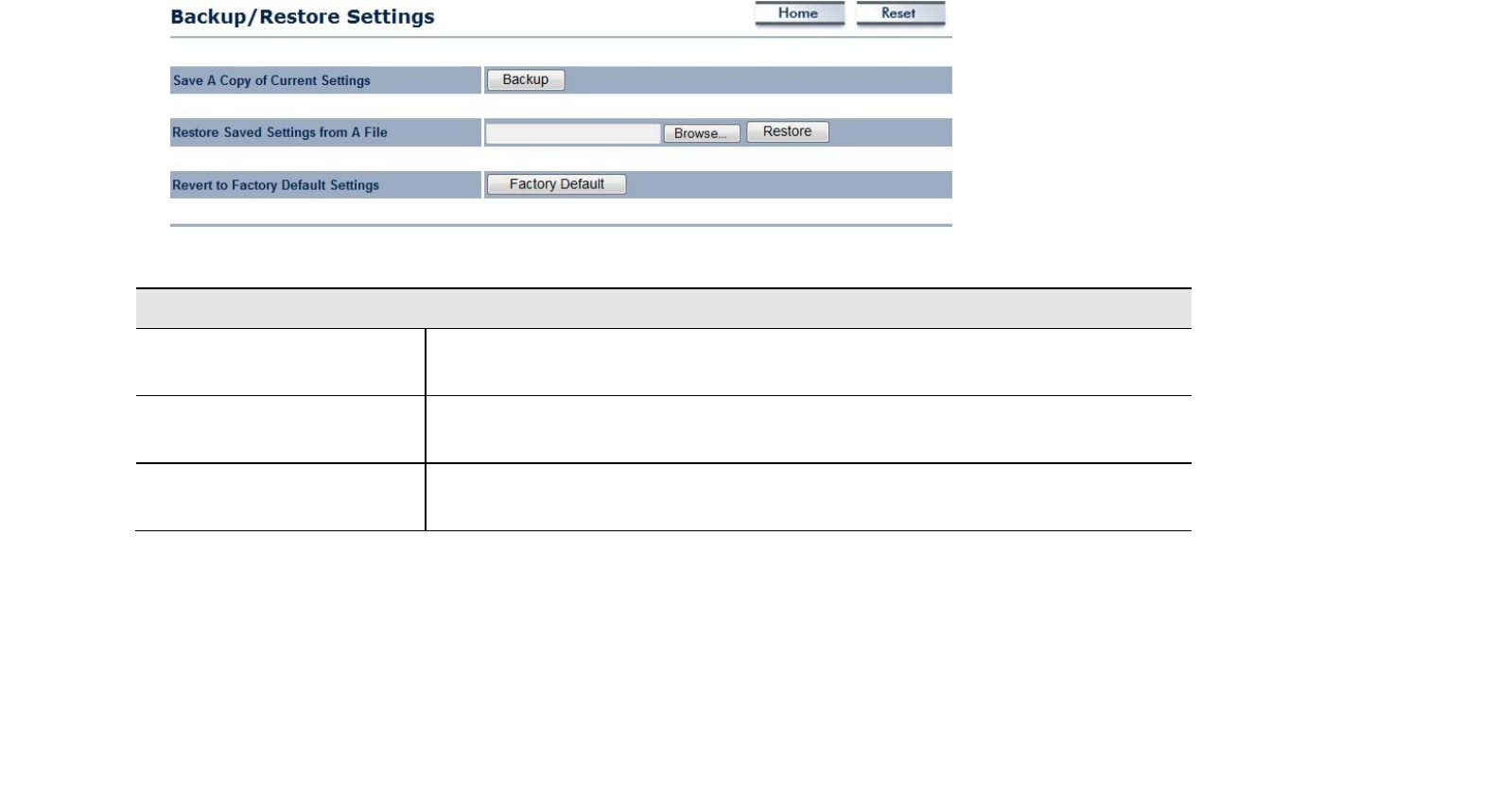

Click [Backup] to save the current configured settings.
Restore Saved Settings
from A File
To restore settings that have been previously backed up, click [
Browse
], select
the file, and click [Restore].
Revert to Factory Default
Settings
Click [Factory Default] button to restore the EAP350 to its factory default
settings.
47
7.5 Firmware Upgrade
This page allows you to upgrade the device's firmware.
To perform the Firmware Upgrade:

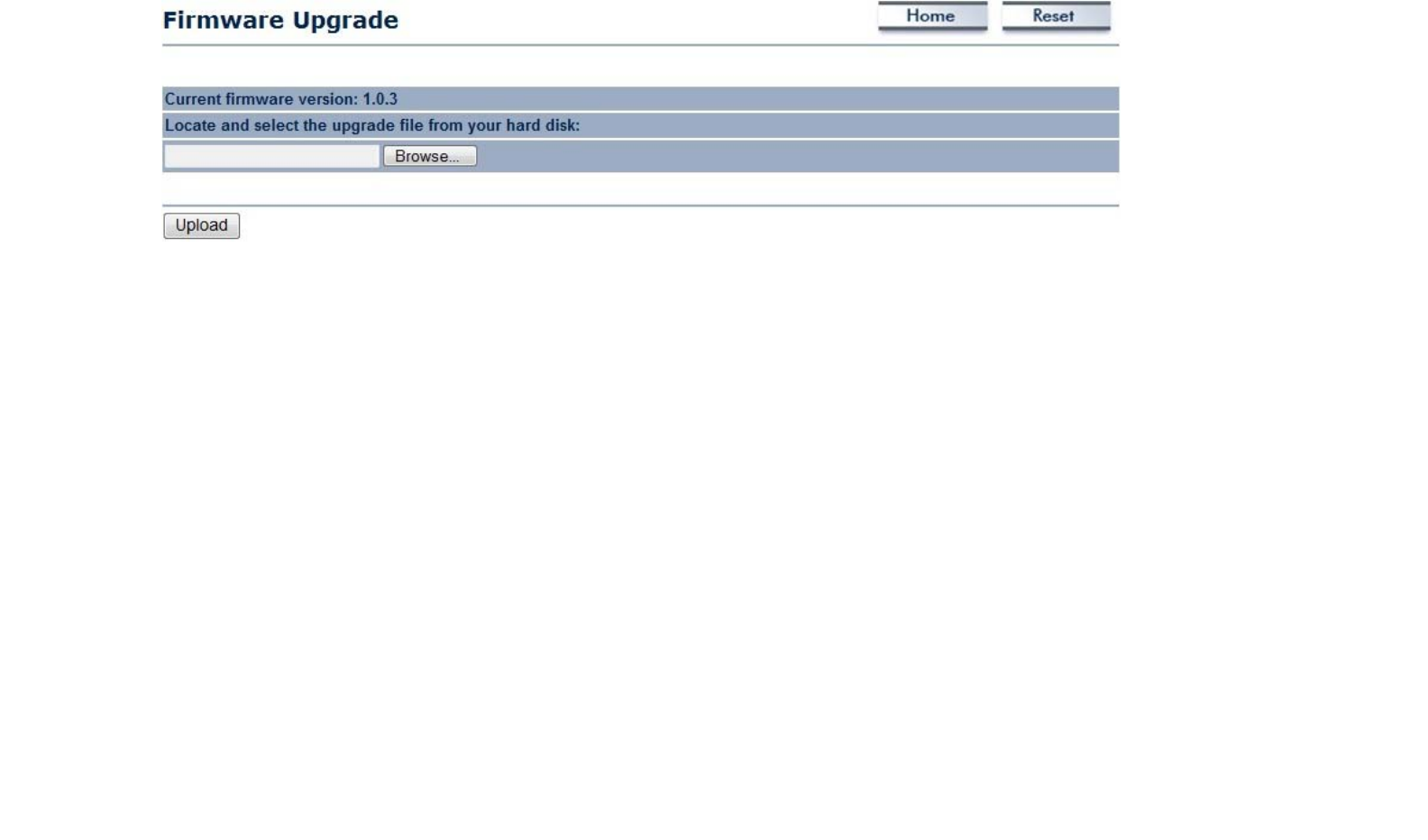

1. Click the [Browse] button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. Click the [Upload] button to commence the firmware upgrade.
Note: The device is unavailable during the upgrade process, and must restart when the upgrade is completed. Any connections to or through the
device will be lost.
48
7.6 Time Setting
This page allows you to set the system time.
Time

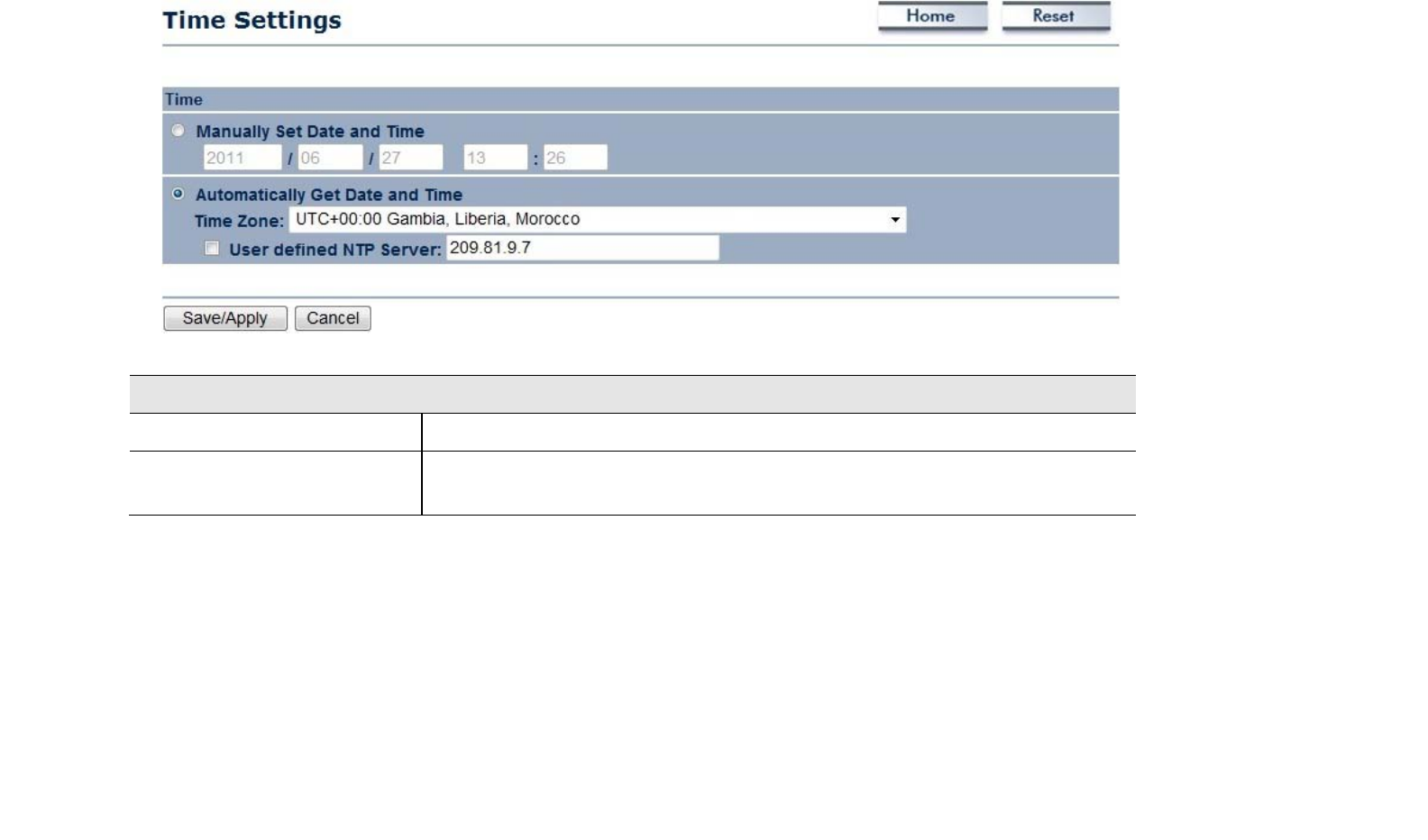

Manually Set Date and Time Manually specify the date and time.
Automatically Get Date and
Time
Select a time zone from the drop-down list and check whether you want to
enter the IP address of an NTP server or use the default NTP server.
49
7.7 Log
This page allows you to setup Syslog and local log functions.
Log
Syslog
Enable or disable the syslog function.
Log Server IP Address
Enter the IP address of the log server.
Local Log
Enable or disable the local log service.
Save/Apply / Cancel Click Save/Apply to apply the changes or Cancel to return previous settings.
50
7.8 Diagnosis
This page allows you to ascertain connection quality and trace the routing table to the target.
Diagnosis
Target IP
Enter the IP address you would like to search.
Ping Packet Size Enter the packet size of each ping.
Number of Pings Enter the number of times you want to ping.
Start Ping Click [Start Ping] to begin pinging.
Traceroute Target Enter an IP address or domain name you want to trace.
Start Traceroute Click [Start Traceroute] to begin the trace route operation.
51
7.9 LED Control

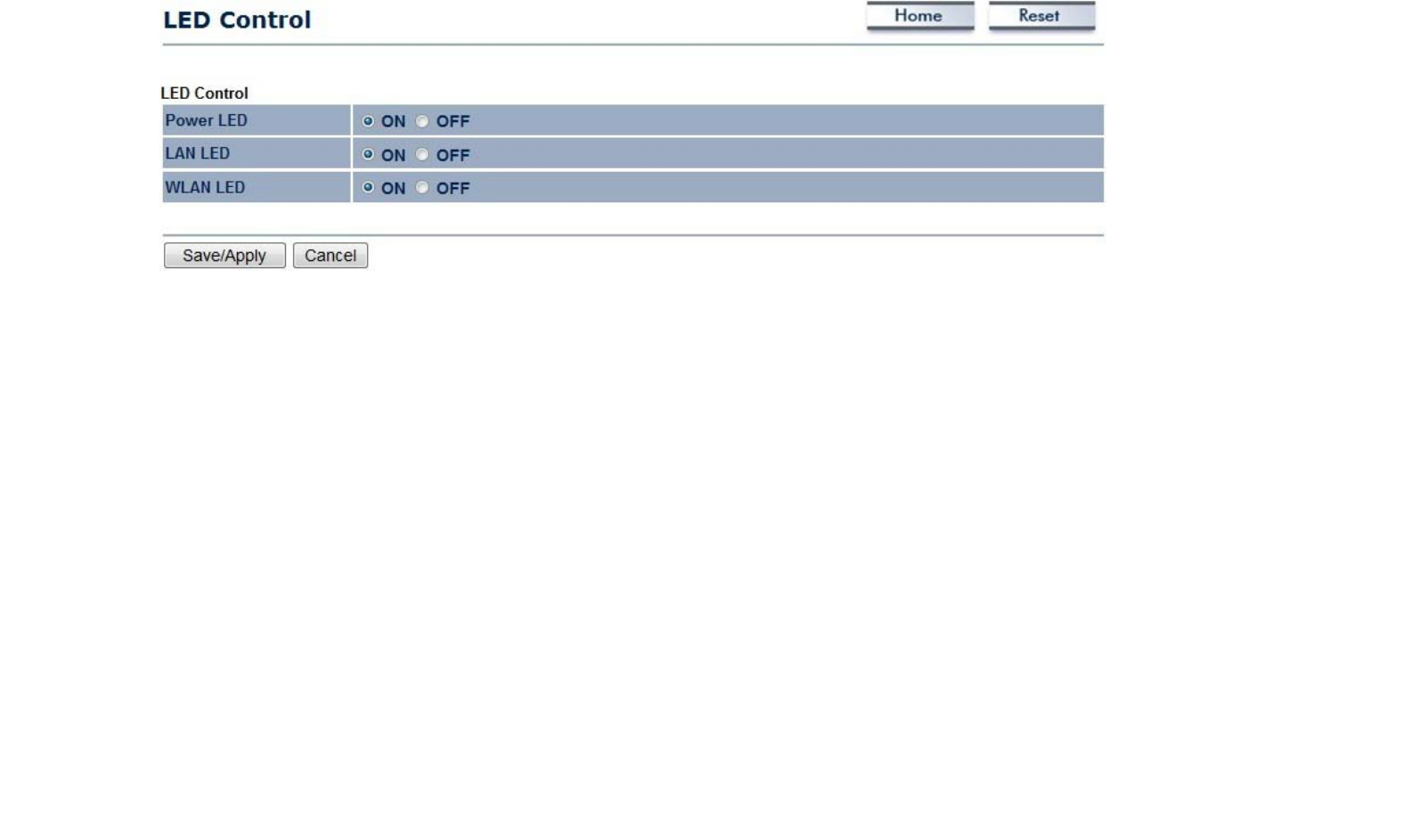

This page allows you to control LED on/off for Power, LAN interface and WLAN interface.
52
7.10 Logout
Click [Logout] in Management menu to logout.
53
7.11 Reset
In some circumstances it may be required to force the device to reboot. Click on [Reboot the Device] to reboot.
54
8 Building a Wireless Network
With its ability to operate in various operating modes, your EAP350 is the ideal device around which you can build your
WLAN. This appendix describes how to build a WLAN around your EAP350 using he device’s operating modes.
8.1 Access Point Mode

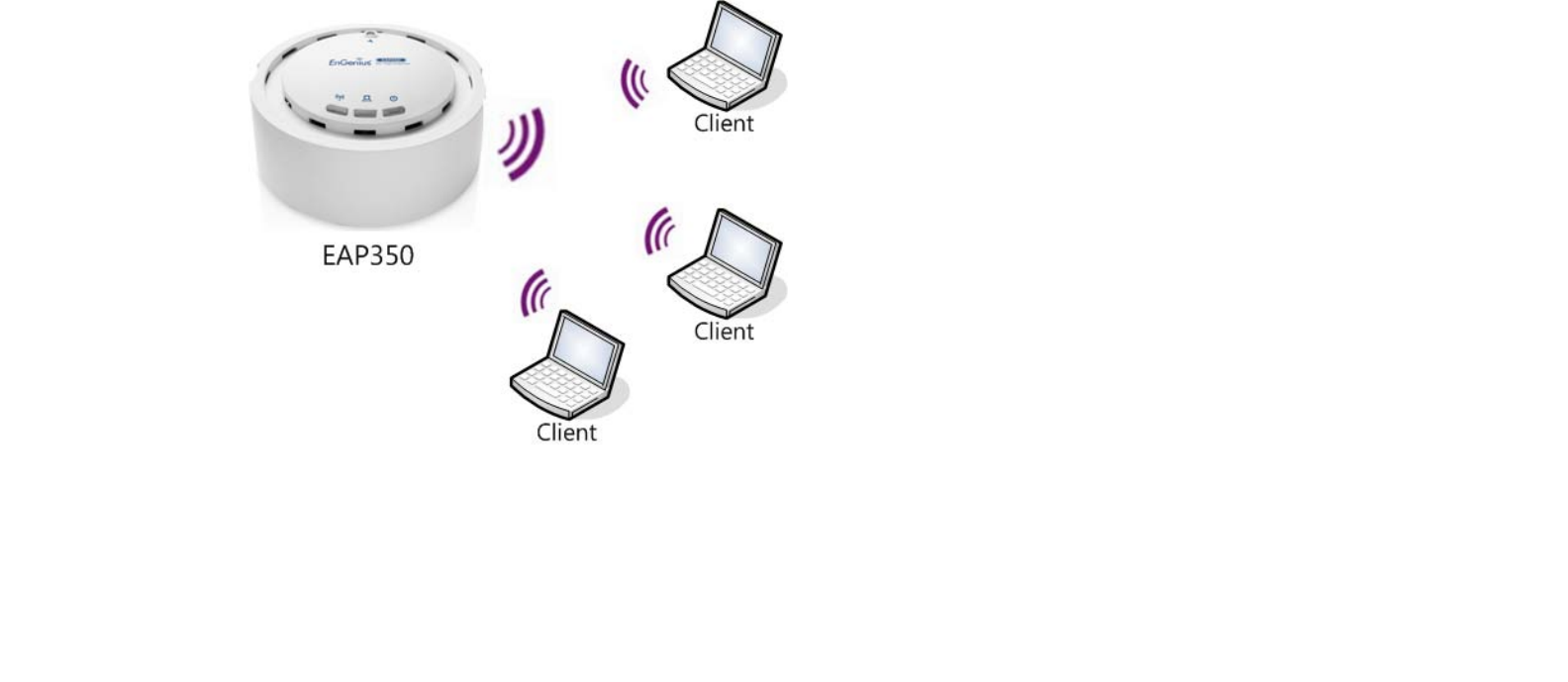

In Access Point Mode, EAP350 behaves likes a central connection for stations or clients that support IEEE 802.11b/g/n
networks. Stations and client must be configured to use the same SSID and security password to associate with the
EAP350. The EAP350 supports four SSIDs at the same time for secure guest access.
55
8.2 Access Point Mode with WDS Function (WDS AP mode)
The EAP350 also supports WDS AP mode. This operating mode allows wireless connections to the EAP350 using WDS
technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling
WDS Link settings. WDS supports four AP MAC addresses.
56
8.3 WDS Bridge Mode
In WDS Bridge Mode, the EAP350 can wirelessly connect different LANs by configuring the MAC address and security
settings of each EAP350 device. Use this mode when two wired LANs located a small distance apart want to
communicate with each other. The best solution is to use the EAP350 to wirelessly connect two wired LANs, as shown

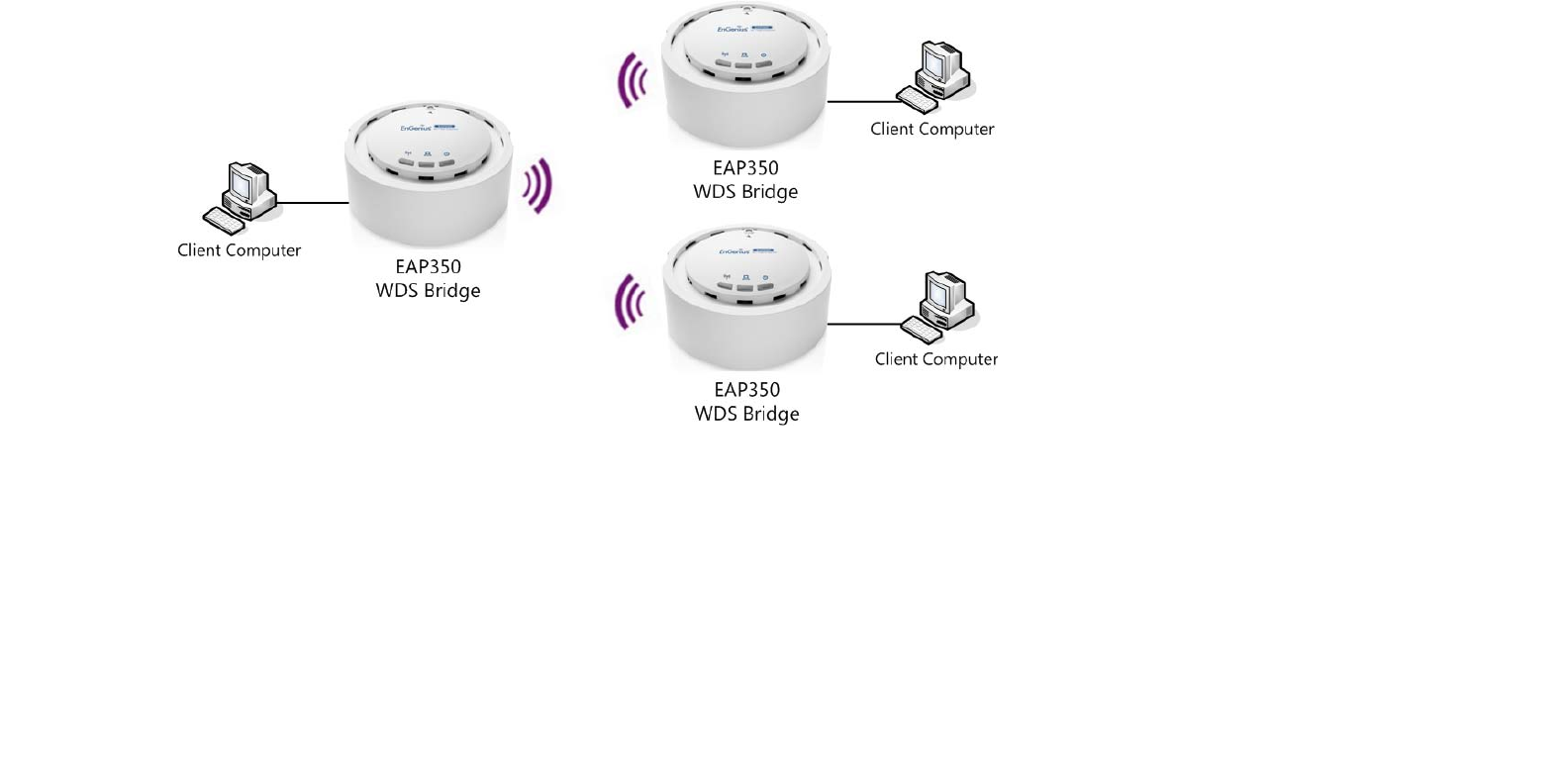

in the following figure.
WDS Bridge Mode can establish four WDS links, creating a star-like network.
Note: WDS Bridge Mode is unlike Access Point. Access Points linked by WDS are using the same frequency channel,
more Access Points connected together may lower throughput. Please be aware to avoid loop in your wireless
connection, otherwise enable Spanning Tree Function.
2006/8/16 v1.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
The following test methods have been applied in order to prove presumption of
conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN60950-1:2006 A11:2009+A1:2010
Safety of Information Technology Equipment
- EN50385 : 2002
- Generic standard to demonstrate the compliance of electronic and electrical
apparatus with the basic restrictions related to human exposure to electromagnetic
fields (0 Hz - 300 GHz)
- EN 300 328 V1.7.1: 2006-10
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using spread spectrum modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
-
EN 301 489-1 V1.8.1: 2008-04
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements
- EN 301 489-17 V2.1.1 2009-05
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use
in all EU member states and EFTA countries, except in France and Italy where
restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in
order to obtain authorization to use the device for setting up outdoor radio links and/or
for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some
areas the RF output power may be limited to 10 mW EIRP in the frequency range of
2454 – 2483.5 MHz. For detailed information the end-user should contact the national
spectrum authority in France.
0560
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie
1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante]
declara que este
[tipo de equipamento]
está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un
brouillage susceptible de provoquer un fonctionnement indésirable.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
