Senao Networks OC36600802 ZoneFlex 2741 802.11b/g Outdoor Access Point User Manual Manual
Senao Networks, Inc. ZoneFlex 2741 802.11b/g Outdoor Access Point Manual
Manual
Ruckus Wireless®
ZoneFlex® 2741 802.11g
Outdoor Access Point
Getting Started Guide
www.ruckuswireless.com
1
1About This Getting Started Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Using ZoneDirector or FlexMaster to Manage the Access Point . . . . . . . . . . . . . . . . . . 1
2Unpacking the ZoneFlex Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mounting Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Bottom Cover and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Prepare the Required Hardware and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Get to Know the Access Point Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LED Colors and What They Mean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

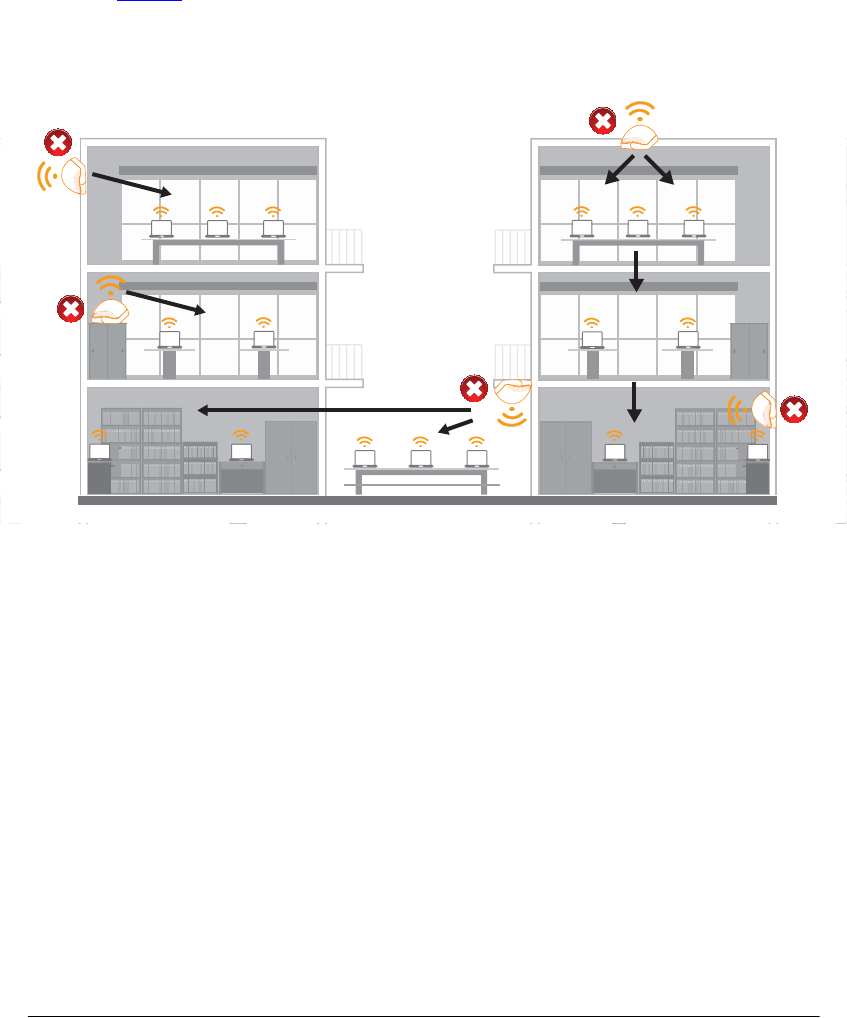

Perform a Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Determine the Optimal Mounting Location and Orientation . . . . . . . . . . . . . . . . . . . . . 9
Become Familiar with the Installation Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4Configuring the Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Configuring for Management by ZoneDirector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Configuring for Standalone Operation or for Management by FlexMaster . . . . . . . . 14
What You Will Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

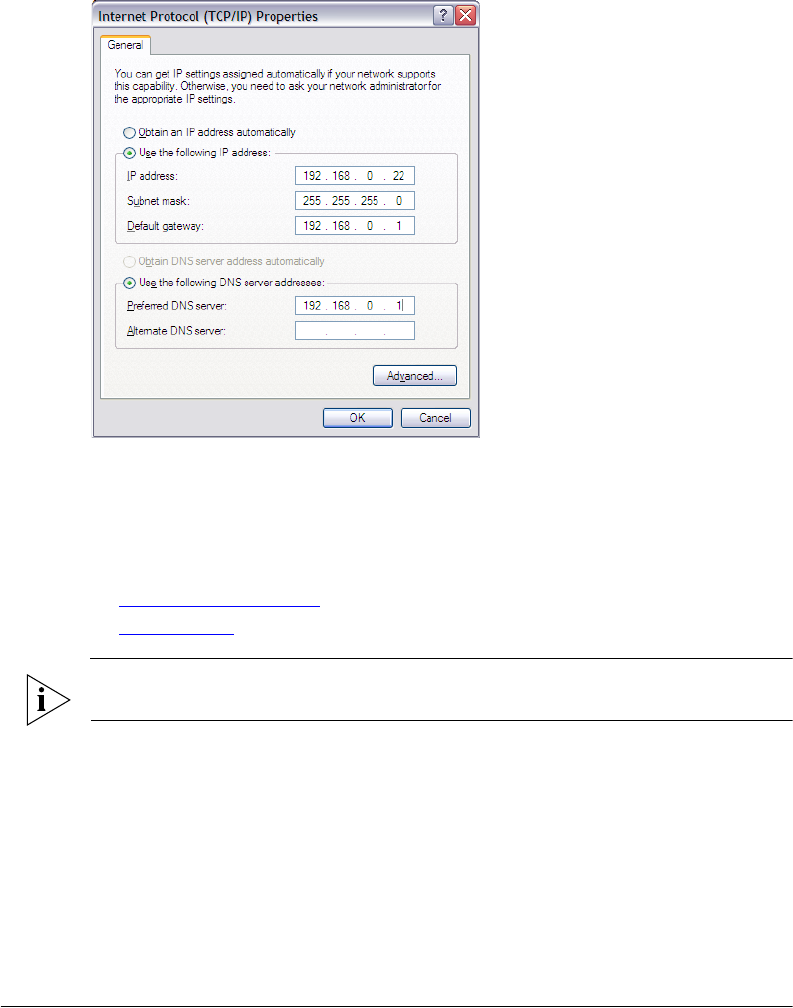

Step 1: Prepare the Administrative Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

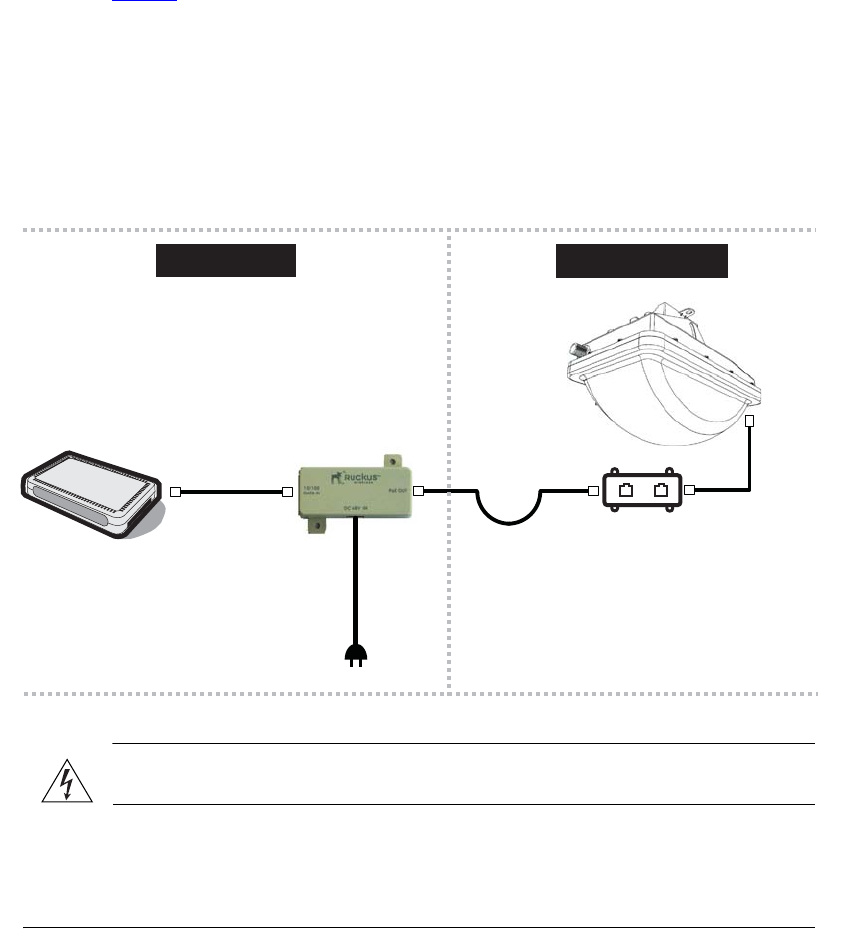

Step 2: Connect the Access Point to the Administrative Computer . . . . . . . . . . . . . 16

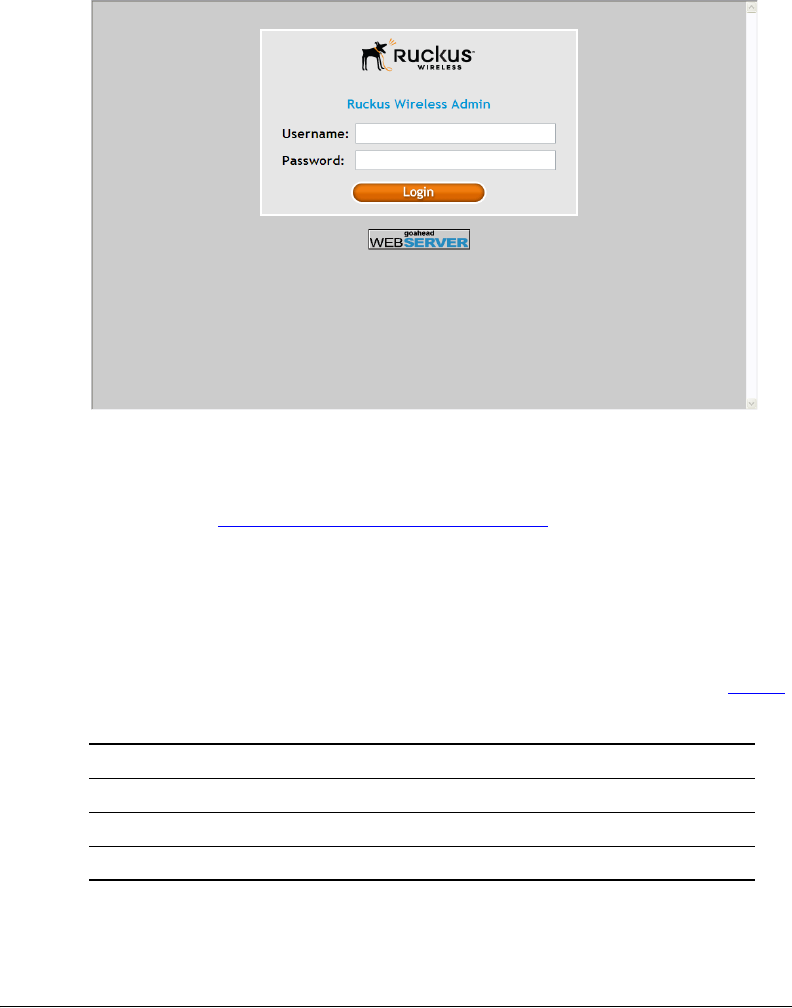

Step 3: Log Into the Access Point’s Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

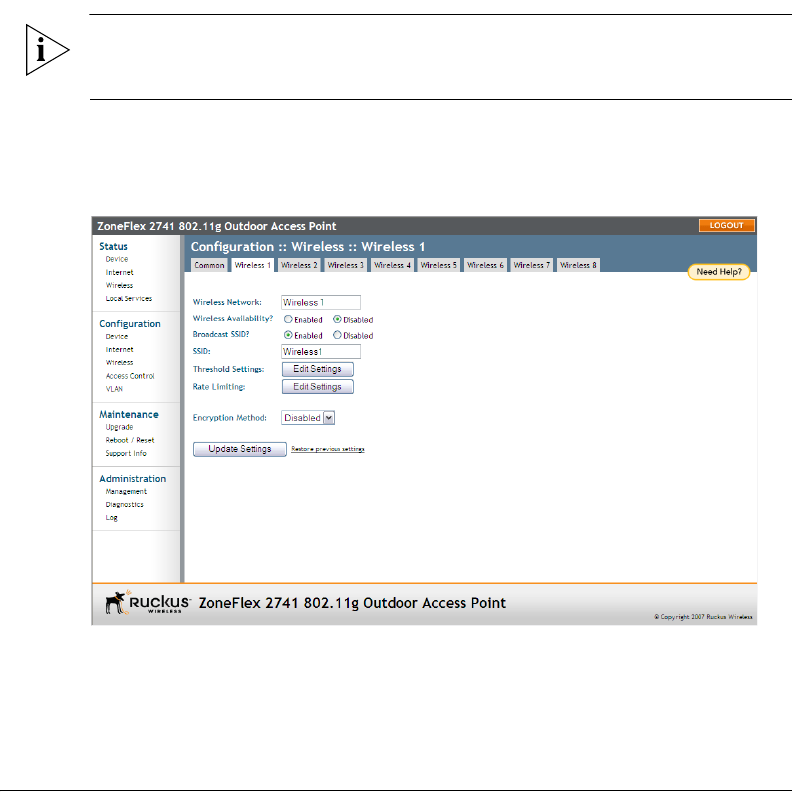

Step 4: Configure the Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Step 5: Disconnect the Access Point from the Administrative Computer . . . . . . . . . 23
Step 6: Restore the Administrative Computer’s Network Settings . . . . . . . . . . . . . . 23
5Attaching the Mounting Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
What You Will Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents
2

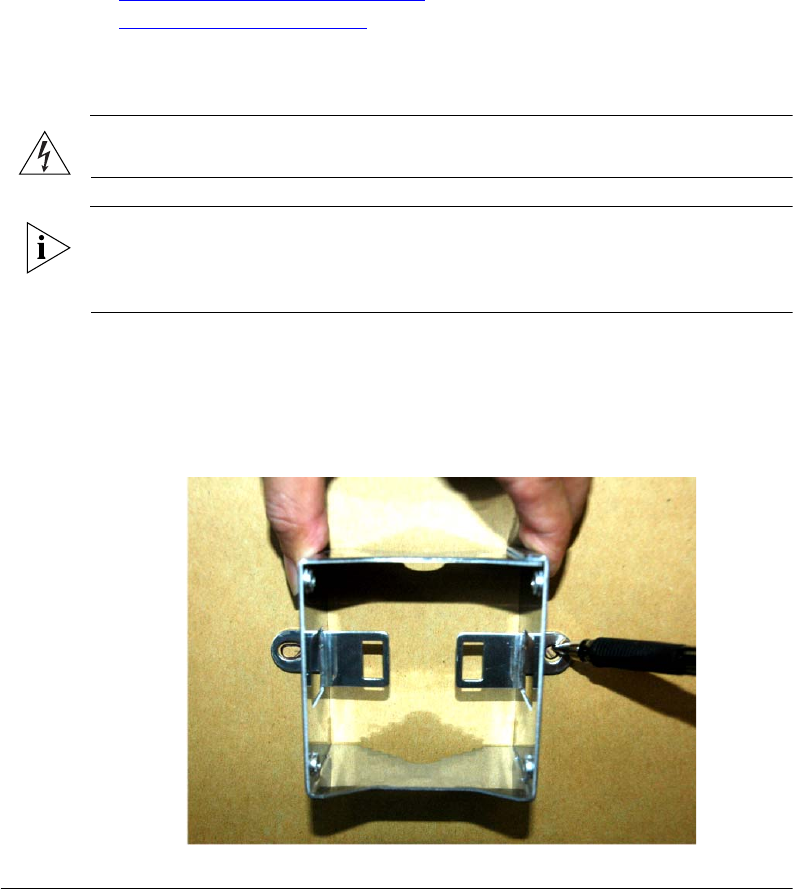

Step 1: Attach the Static Bracket to the Mounting Surface . . . . . . . . . . . . . . . . . . . . . 26
Attaching the Bracket to a Flat Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

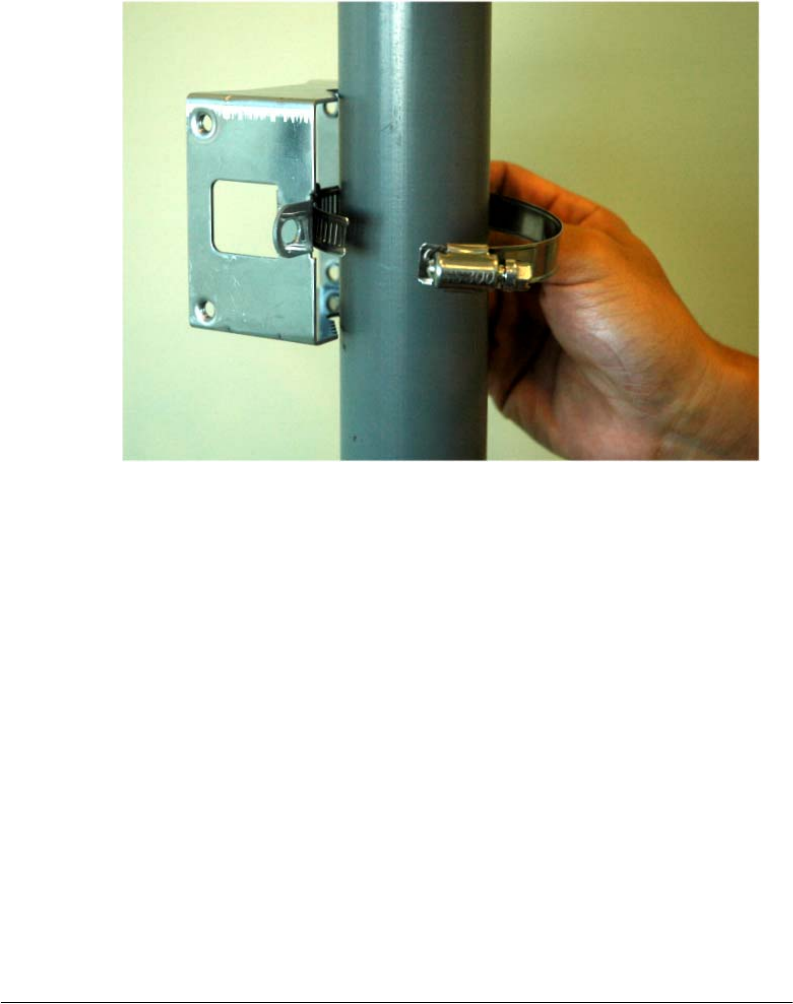

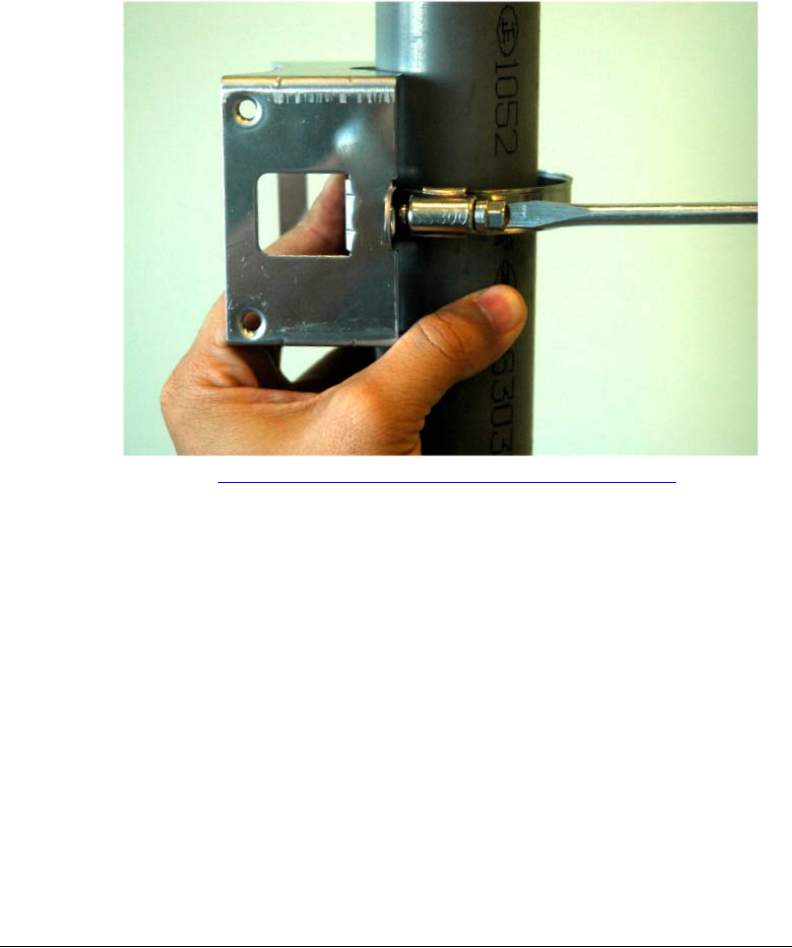

Attaching the Bracket to a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

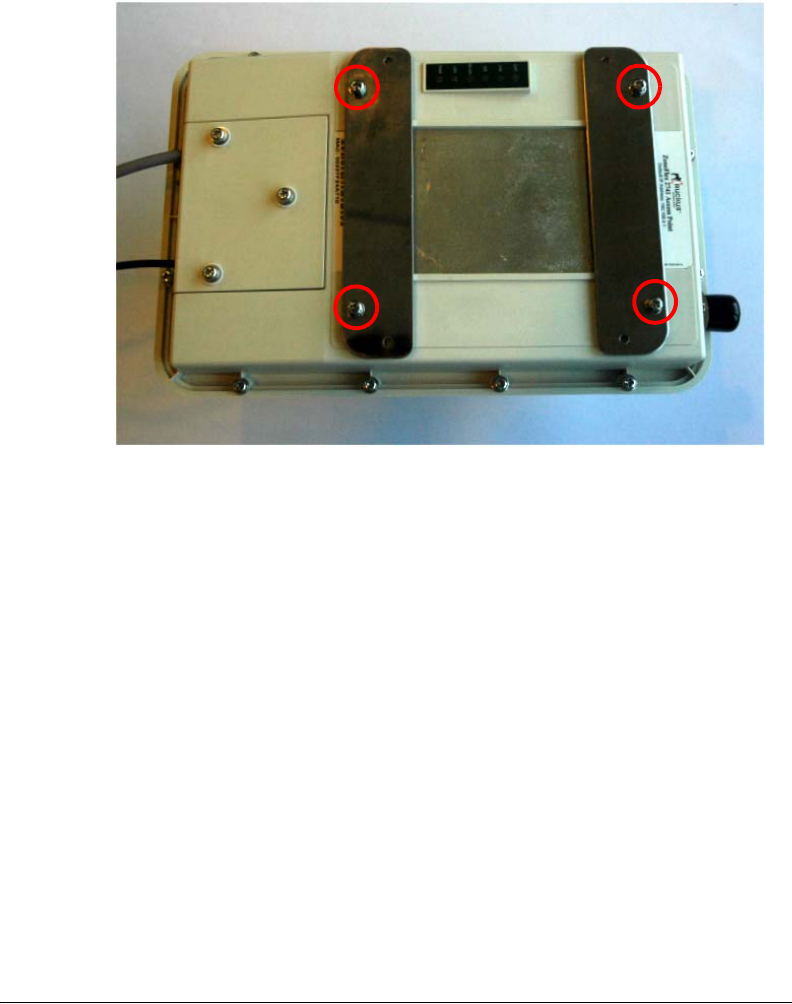

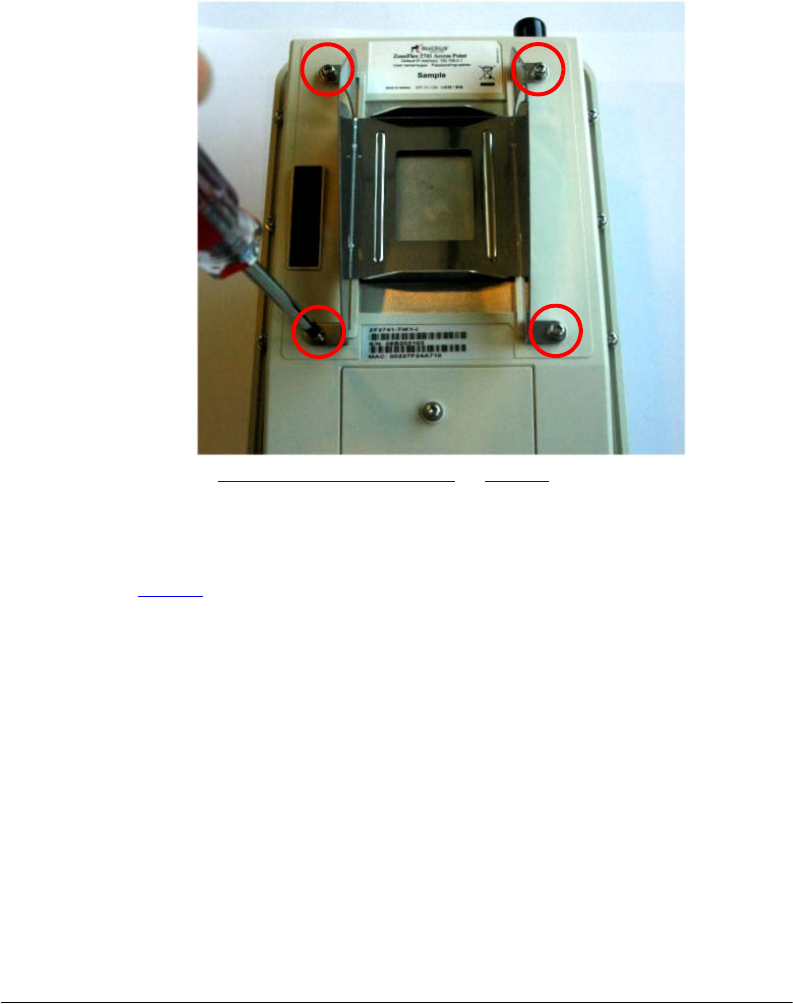

Step 2: Attach the Dynamic Bracket to the Access Point . . . . . . . . . . . . . . . . . . . . . . . 31
Mounting on a Flat Surface or Vertical Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

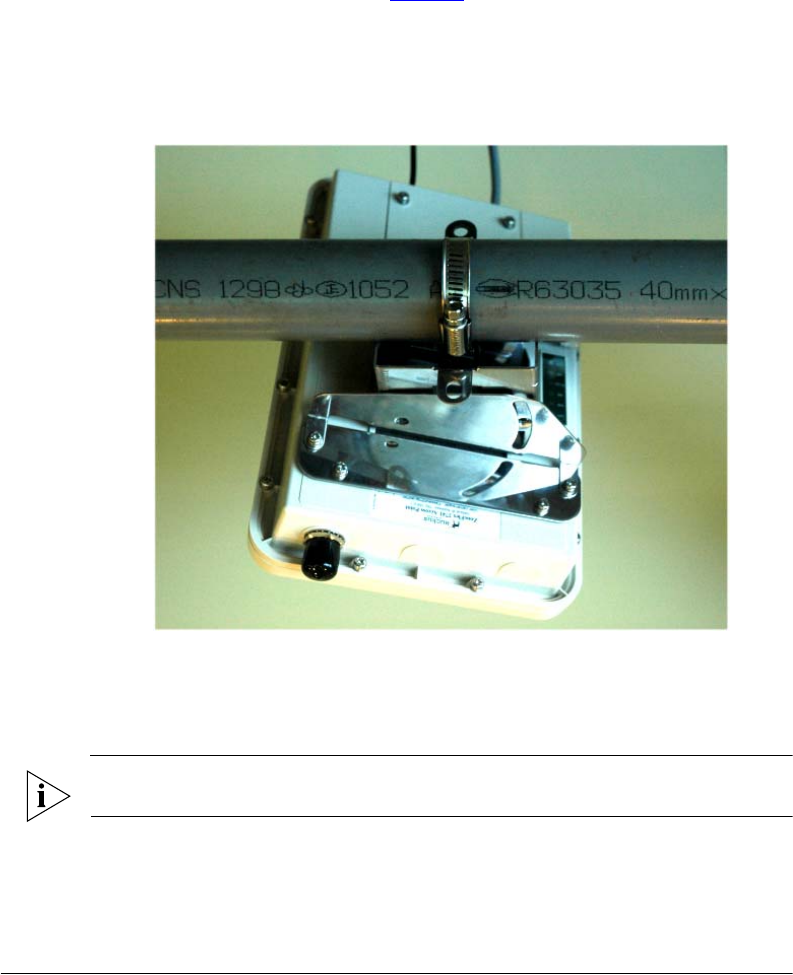

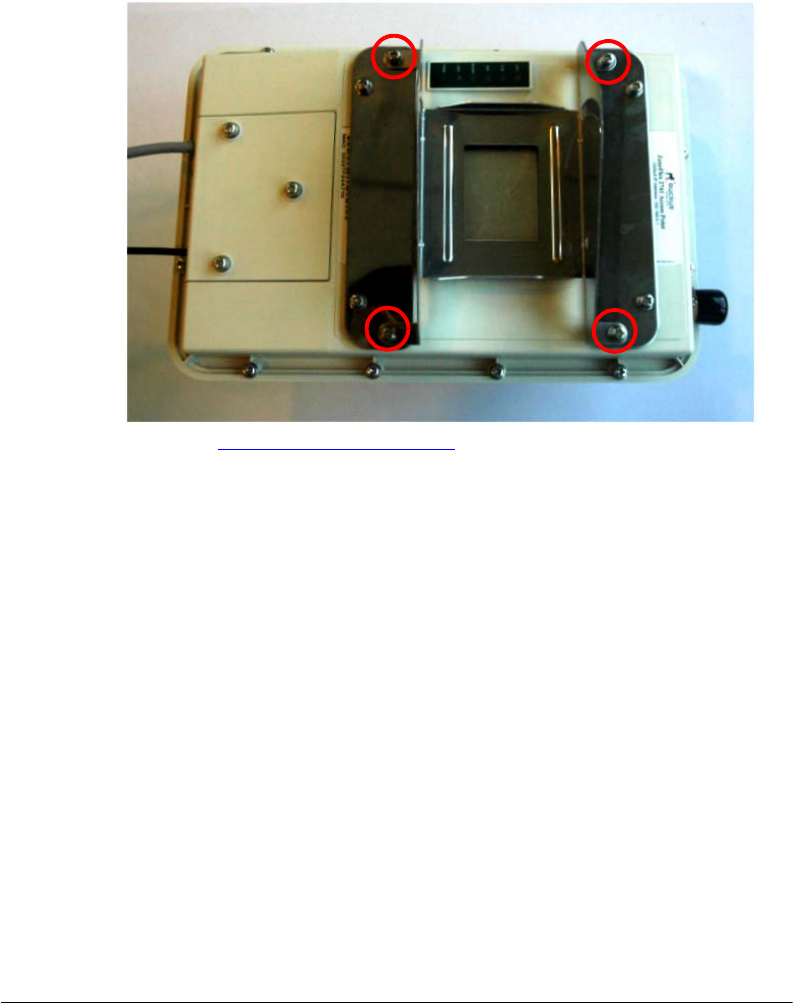

Mounting on a Horizontal Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6Connecting to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7Verifying the Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Associate a Wireless Client with the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Check the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Check the TR069 Status (FlexMaster Management Only) . . . . . . . . . . . . . . . . . . . . . . . 41
8Joining the Mounting Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
What You Will Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Mounting on a Flat Surface or Vertical Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Mounting on a Horizontal Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9(Optional) Mounting and Connecting the External Antenna . . . . . . . . . . . . . . . . . . . . . . 46
10 What to Do Next. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Change the Administrative Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Configure the Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Read Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11 Professional Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Personal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
External Entenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
1
1About This Getting Started Guide
This Getting Started Guide provides information on how to set up the Ruckus Wireless
ZoneFlex 2741 802.11g Outdoor Access Point on your network. Topics covered in this
guide include installation, basic configuration, and device mounting.
This guide is intended for use by those responsible for installing and setting up network
equipment. Consequently, it assumes a basic working knowledge of local area networking,
wireless networking, and wireless devices.
Related Documentation
In addition to this guide, each Ruckus Wireless ZoneFlex 2741 802.11g Outdoor Access
Point documentation set includes the following:
■User Guide: Provides detailed information on how to configure the Access Point. The
User Guide is available for download on the Ruckus Wireless Support Web site at:
http://support.ruckuswireless.com/documents
■Release Notes: Provides late-breaking information about the current software release,
including new features, enhancements, and known issues. If the information in the
Release Notes differs from the information in this guide, follow the instructions in the
Release Notes.
■Online Help: Accessible from the ZoneFlex Web interface, the Online Help provides
information that helps you configure the Access Point using the Web interface.
Using ZoneDirector or FlexMaster to Manage the
Access Point
If you are planning to use either Ruckus Wireless FlexMaster or Ruckus Wireless ZoneDi-
rector to manage the Access Point, this guide describes the required steps that will enable
the Access Point to report to and communicate with FlexMaster or ZoneDirector success-
fully.

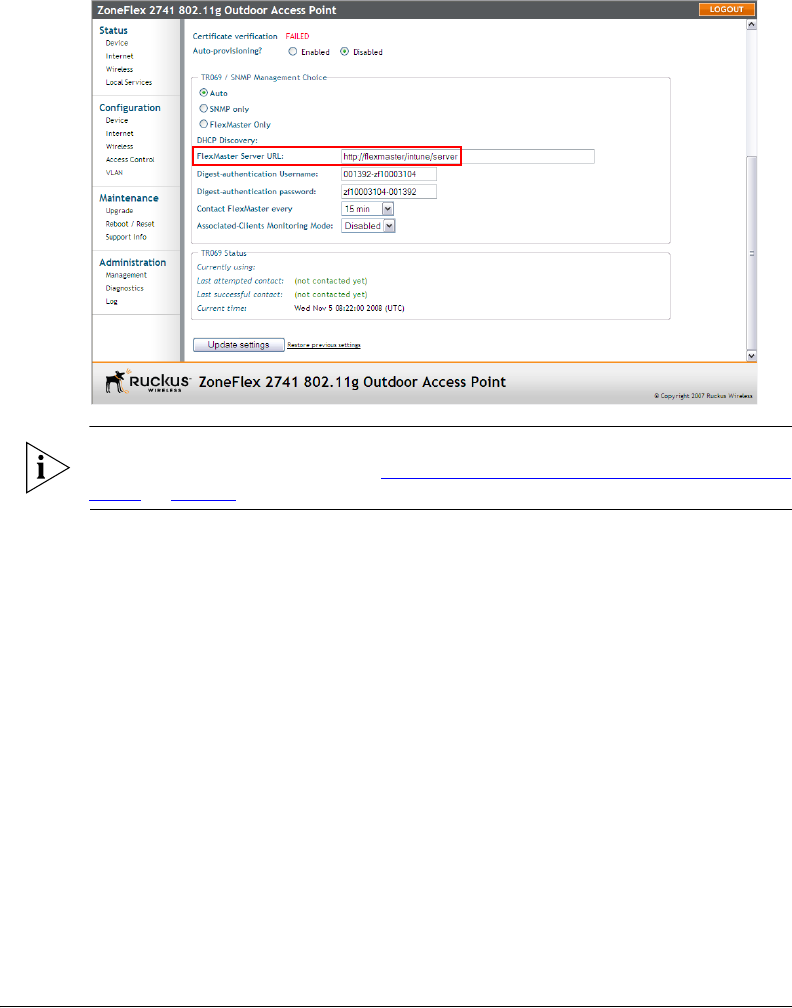

■To set up the Access Point for management by FlexMaster, refer to “(Optional) Set the
FlexMaster Server Address” on page 22.
■To set up the Access Point for management by ZoneDirector, refer to “Configuring for
Management by ZoneDirector” on page 12
2
Unpacking the ZoneFlex Access Point
Package Contents
2Unpacking the ZoneFlex Access Point
1. Open the Access Point package, and then carefully remove the contents.
2. Return all packing materials to the shipping box, and put the box away in a dry location.
3. Verify that all items listed in Package Contents below are included in the package.
Check each item for damage. If any item is damaged or missing, notify your authorized
Ruckus Wireless sales representative.
Package Contents
A complete Access Point package contains all of the items listed below:
■ZoneFlex 2741 Outdoor Access Point

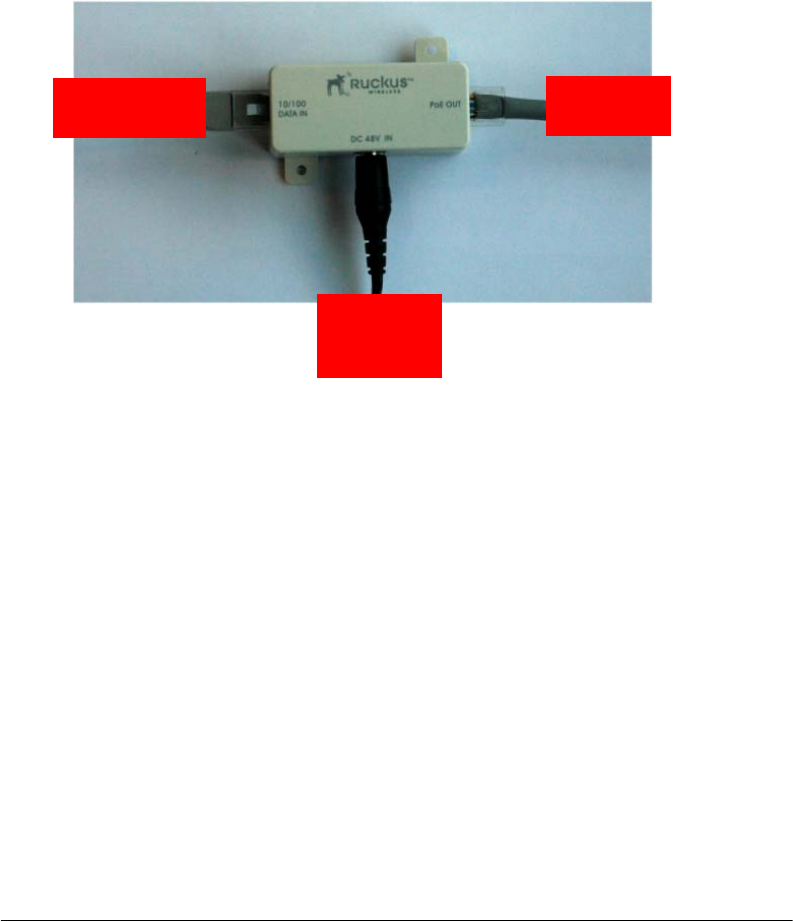

■Box containing the PoE injector (not included in some SKUs)
■Box containing the power adapter (not included in some SKUs)
■Two-prong plug adapter (for three-prong wall outlet)
■Mounting kit (see “Mounting Kit Contents” for details)
■Bag containing bottom Access Point cover and related accessories (see “Bottom Cover
and Accessories” for details)
■Service Level Agreement / Limited Warranty Statement
■Regulatory Statement
■This Getting Started Guide
WARNING: The Ruckus Wireless PoE injector and power adapter (if supplied with your
Access Point) is for indoor use only. Never mount the PoE injector and power adapter
outdoor with the Access Point.
Mounting Kit Contents

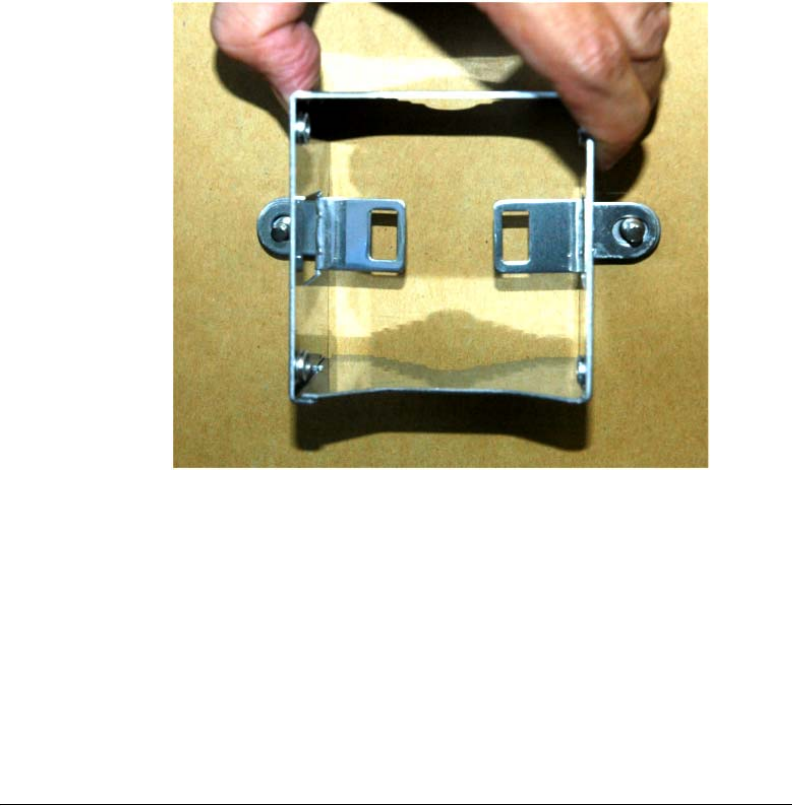

■Dynamic bracket
■Static bracket
■Metal plates (2 pieces)
■Steel clamp
■Wall anchors (2 pieces)
■Hex bolts (4 pieces)
■Machine screws (8 pieces)
■Split lock washers (4 pieces)
■Fender washers (4 pieces)
3
Before You Begin
Prepare the Required Hardware and Tools
Bottom Cover and Accessories

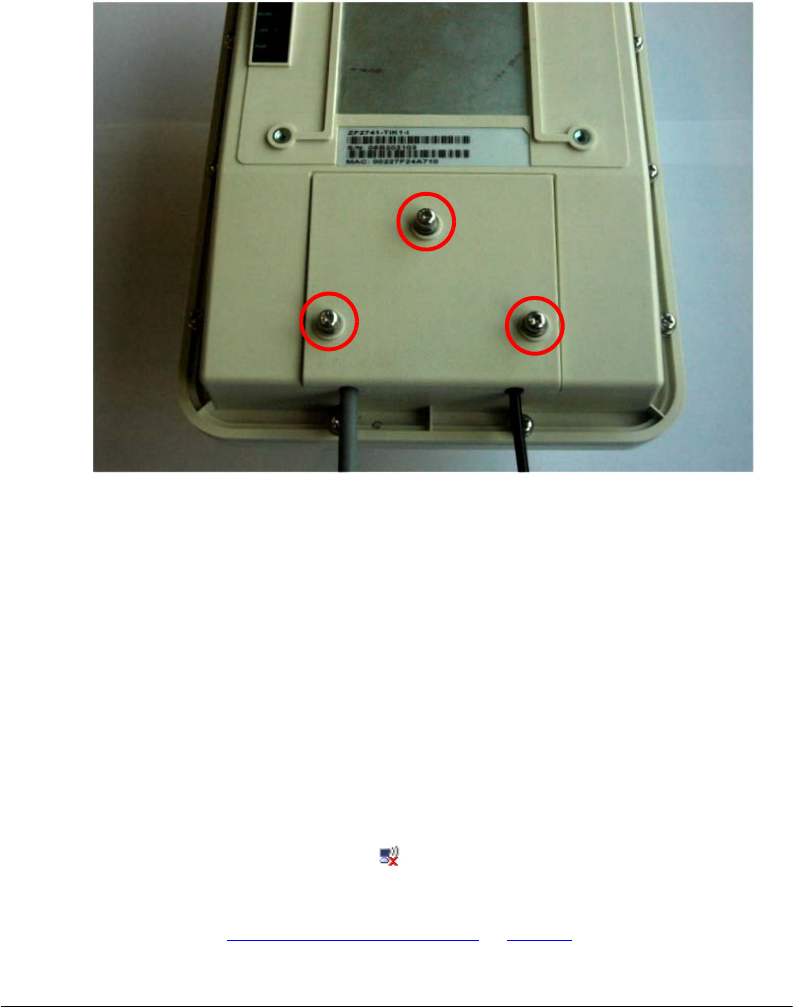

■Bottom cover of the Access Point
■DC terminal block
■Black solid rubber stoppers (2 pieces)
■Black rubber O-ring
■Green rubber O-ring
■White P-clip cable clamp (2 pieces)
■Machine screws (2 pieces)
■Machine screws with washers (3 pieces)
3Before You Begin
Before installing and setting up the Access Point, Ruckus Wireless recommends that you
first complete the following pre-installation tasks.
Prepare the Required Hardware and Tools
You must supply the following tools and equipment:
■A notebook computer running on Windows XP/2000 and installed with one wireless
802.11b/g network card and one Ethernet card
■6mm flathead screwdriver
■6mm Phillips screwdriver
■10mm ratchet wrench
■3mm Phillips screwdriver (if you will be using DC power)
■Electric drill with 8mm drill bit (if mounting on a flat surface)
NOTE: At the beginning of each procedure, this guide lists the specific tools, accessories,
and equipment that you will need to complete the procedure.
4
Before You Begin
Get to Know the Access Point Features
Get to Know the Access Point Features
Figure 1 and Figure 2 identify the Access Point features that are relevant to the installation
and mounting instructions that this guide provides. Before you begin the installation
process, Ruckus Wireless recommends that you become familiar with these features.

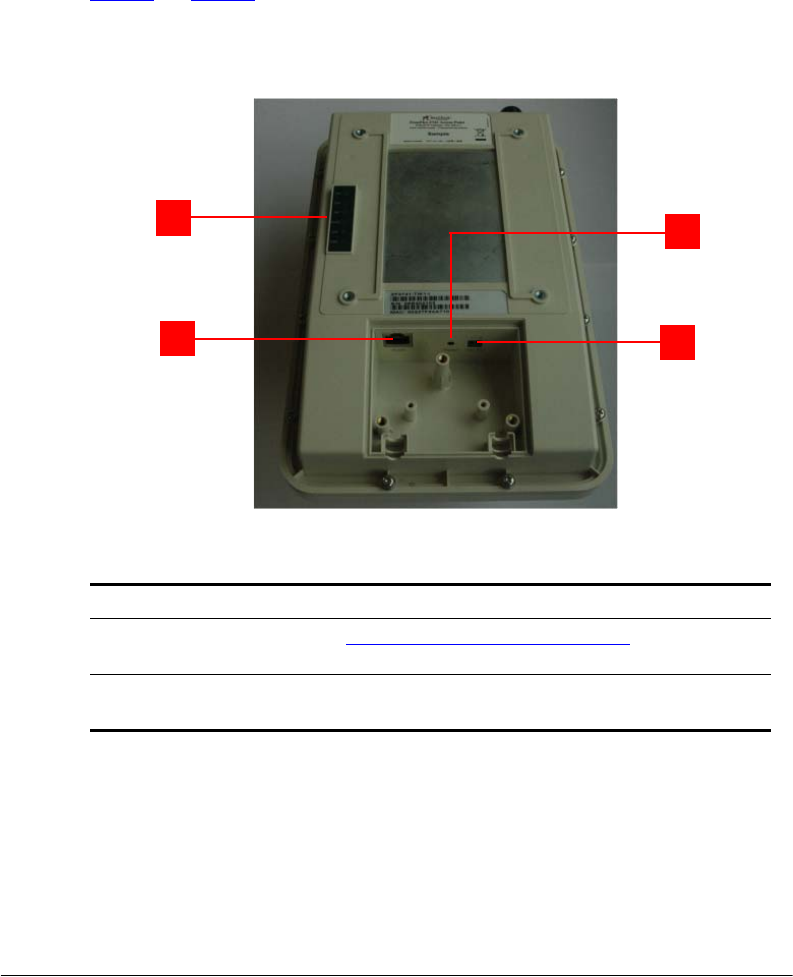

Figure 1. Access Point LEDs and bottom connectors
Table 1. LEDs and bottom panel connectors
No Label Description
1 LEDs See “LED Colors and What They Mean” below for more
information.
2 RJ45 LAN port that supports Power over Ethernet (PoE) and 10/
100Mbps network connections
1
2
3
4
5
Before You Begin
Get to Know the Access Point Features
LED Colors and What They Mean
Refer to Tab le 2 below for all possible LED states and what they indicate.
3 Reset Using a pointed object (for example, a pen), press this
button to restart the Access Point or to restore it to factory
default settings:
• To restart the Access Point, press the Reset button once.
• To restore the Access Point to factory default, press the
Reset button for six (6) seconds.
WARNING: Restoring the Access Point to factory default
settings removes all configuration changes that you have
made. These include the IP address, password, access
control list, and wireless settings. Returning the
configuration of these features to their factory default
settings may result in network connectivity issues.

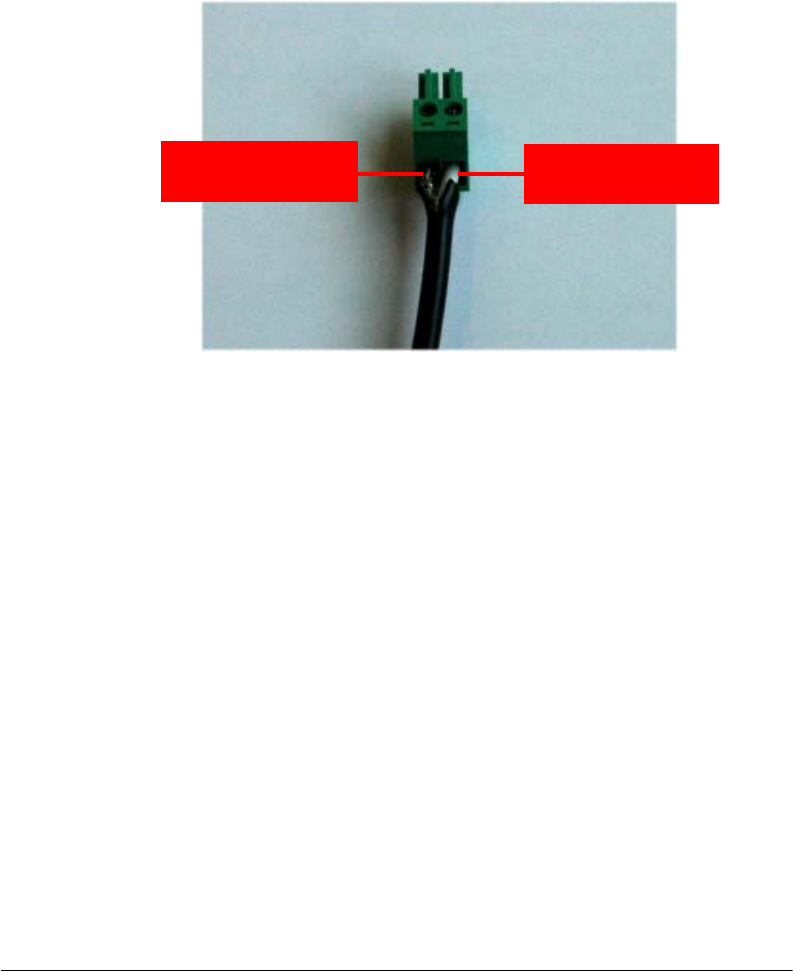

4 12V DC In addition to PoE, you can also use direct current or DC
(from a battery, for example) to supply power to the Access
Point.
Table 2. LED states and behaviors
LED Meaning
OPT Not used in this model
DIR • Off: The Access Point is not being managed by
ZoneDirector (standalone mode).
•Green: The Access Point is being managed by
ZoneDirector.
•Flashing green: The Access Point is being managed
by ZoneDirector, but is currently unable to
communicate with ZoneDirector.
Table 1. LEDs and bottom panel connectors
No Label Description
6
Before You Begin
Get to Know the Access Point Features
AIR • Green: The Access Point is functioning as a mesh
AP (MAP) and the wireless signal to its uplink MAP
is good (> 24dbm).
•Fast flashing green (two flashes every second): The
Access Point is functioning as a mesh AP (MAP) and
the wireless signal to its uplink MAP is poor (<
24dbm).
•Slow flashing green (one flash every two seconds):
Mesh networking is enabled, but the Access Point
cannot find a mesh uplink.
•Off: The Access Point is operating in standalone
mode or, if mesh networking is enabled, the Access
Point is functioning as a root AP (RAP).
WLAN • Green: The wireless LAN (WLAN) service is up and
at least one wireless client is associated with it. If
mesh networking is enabled, there are no downlink
MAPs connected to this Access Point.
•Fast flashing green (two flashes every second): The
WLAN service is up and at least one wireless client
is associated with it. Mesh networking is enabled
and at least one downlink MAP is connected to this
Access Point.
•Slow flashing green (one flash every two seconds):
The WLAN service is up, but no wireless clients are
currently associated with it. Mesh networking is
enabled and at least one downlink MAP is
connected to this Access Point.
•Off: Either the WLAN is down, or it is up but no
wireless clients are currently associated with it. If
mesh networking is enabled, there are no downlink
MAPs connected to this Access Point.
LAN • Green: The LAN port is connected to a 10/100Mbps
device.
•Flashing green: Traffic is passing through the LAN
port.
•Off: The LAN port is not connected to any network
device.
Table 2. LED states and behaviors
LED Meaning
7
Before You Begin
Get to Know the Access Point Features

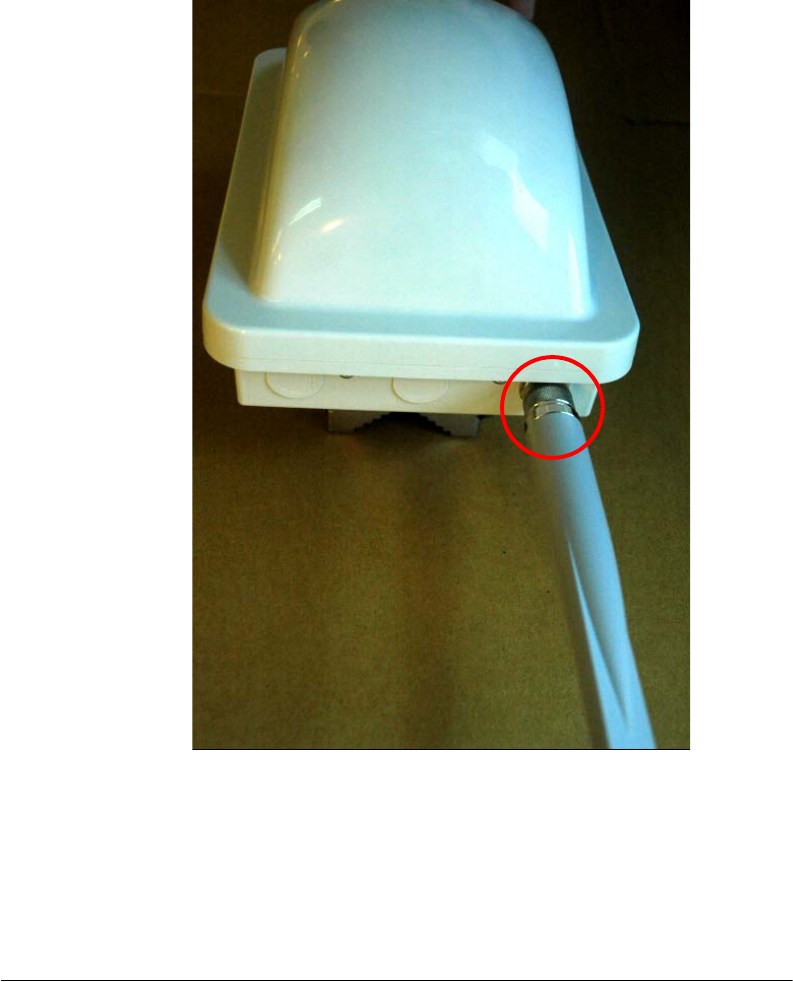

If you want to extend the range of your wireless network, you can connect an external high
gain antenna to the standard N-type radio frequency (RF) antenna connector on the top
panel of the Access Point. The antenna must have a gain of less than 9dBi to comply with
FCC and CE regulations. If you are connecting an external antenna to the Access Point,
refer to “(Optional) Mounting and Connecting the External Antenna” on page 46 for more
information.

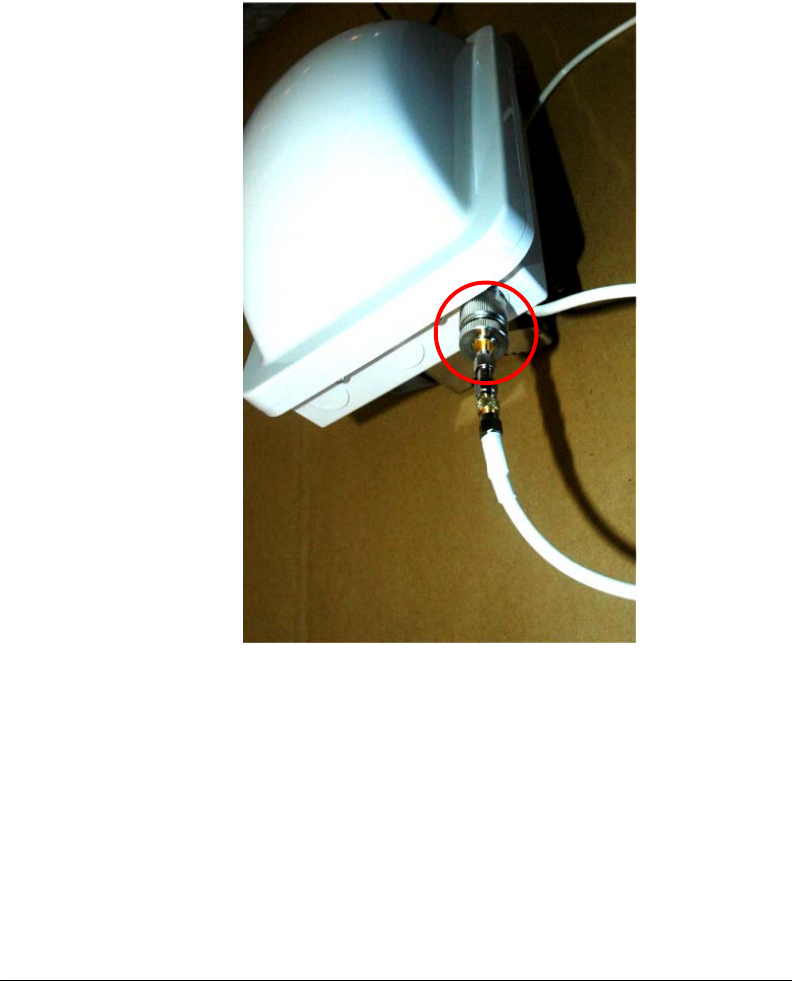

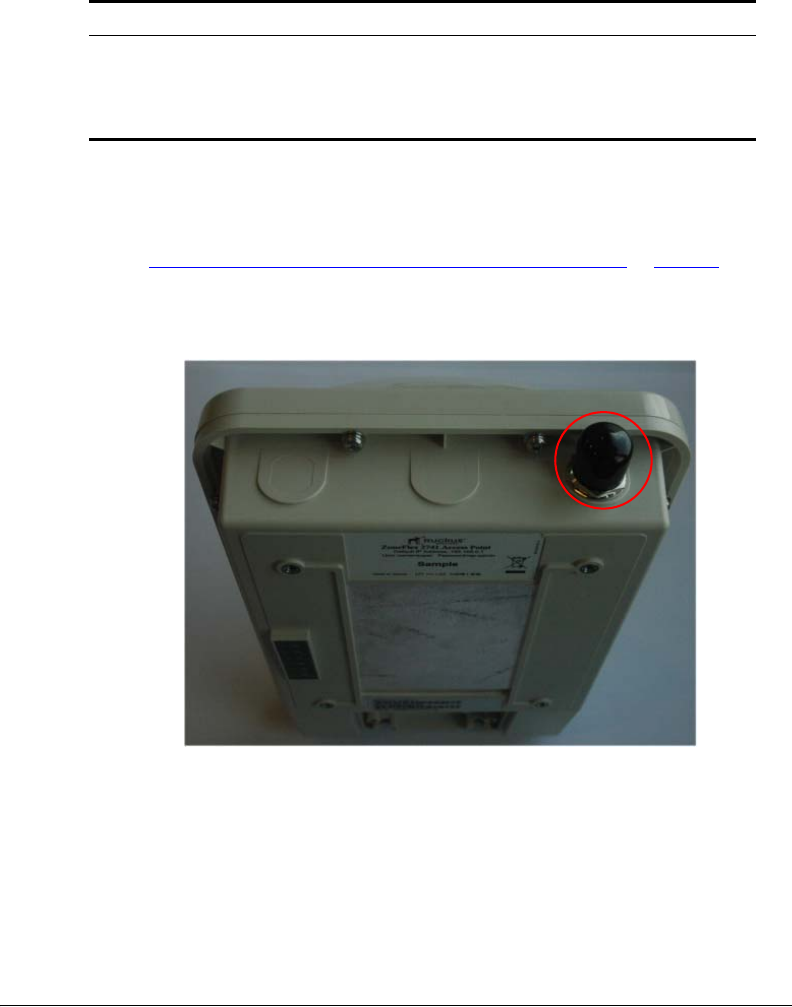

Figure 2. The antenna connector is protected by a black waterproof antenna
connector cover
PWR • Green: The Access Point is connected to a power
source.
•Off: No power is available, or the Access Point is not
connected to a power source.
Table 2. LED states and behaviors
LED Meaning
8
Before You Begin
Perform a Site Survey
Perform a Site Survey
Before installing the Access Point, perform a site survey to determine the optimal Access
Point placement or maximum range, coverage, and network performance. When
performing a site survey, consider the following factors:
■Data rates: Range is generally inversely proportional to data rates. The maximum radio
range is achieved at the lowest workable data rate. Higher data rates will generally be
achieved at closer distances.
■Antenna type and placement: Proper antenna configuration is a critical factor in
maximizing radio range. As a general rule, radio range is increased by mounting the
radio higher off of the ground with the Access Point oriented so that the dome is facing
down (for recommended orientation examples, refer to Figure 3 on page 9). If you are
connecting an external antenna to the Access Point, mount the Access Point so that
the external antenna is pointing down.
■Physical environment: Clear or open areas provide better radio range than closed or
filled areas. The less cluttered the operating environment, the greater the wireless
range.
■Obstructions, building materials, and sources of interference: Physical obstructions,
such as concrete pillars, steel beams, filing cabinets, buildings, or trees, can block or
hinder wireless communication. Avoid installing the Access Point in a location where
there is an obstruction between sending and receiving devices. A number of machines
and electronic devices that emit radio waves – cranes, wireless phones, microwave
ovens, satellite dishes – interfere with and block wireless signals. Building materials
used in construction also influence radio signal penetration. For example, drywall
construction permits greater range than concrete blocks.
For more Access Point placement guidelines, refer to “Determine the Optimal
Mounting Location and Orientation”.
9
Before You Begin
Determine the Optimal Mounting Location and Orientation
Determine the Optimal Mounting Location and
Orientation
The location and orientation that you choose for the Access Point play a critical role in the
performance of your wireless network. In general, Ruckus Wireless recommends installing
the Access Point away from obstructions and sources of interference and ensuring that the
Access Point’s dome is pointing to the general direction of its wireless clients.

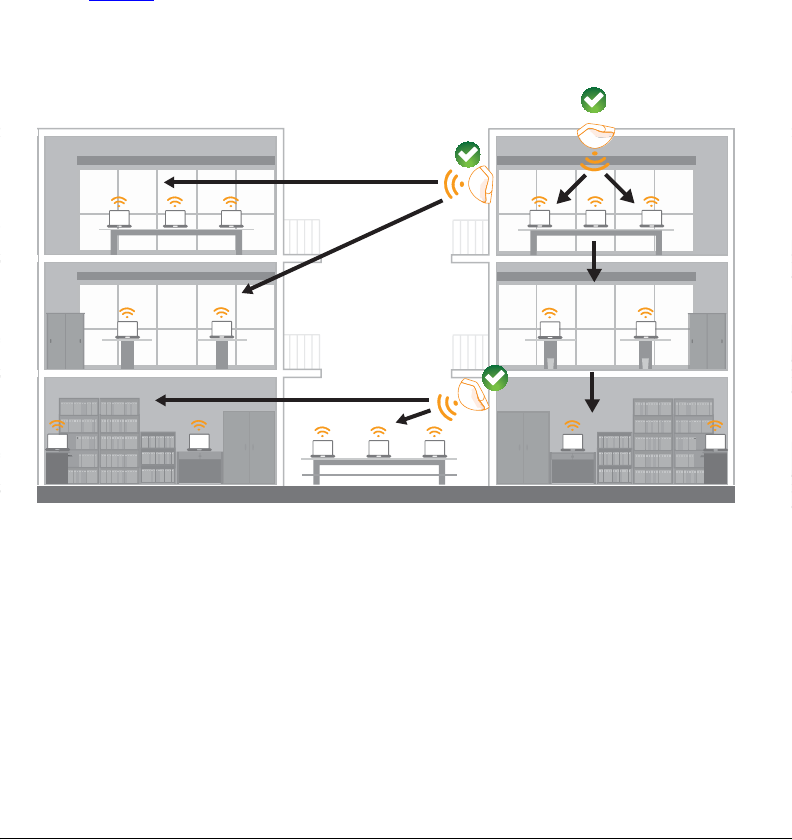

Figure 3 illustrates mounting locations and access point orientations Ruckus Wireless
recommends.
Figure 3. Recommended mounting locations and orientations
10
Before You Begin
Determine the Optimal Mounting Location and Orientation
Figure 4 illustrates mounting locations and access point orientations that should be
avoided.
Figure 4. Not recommended mounting locations and orientations
11
Before You Begin
Become Familiar with the Installation Components
Become Familiar with the Installation Components
The Access Point can be installed in an indoor or outdoor environment, such as an interior
wall or ceiling or the exterior roof overhang of a building or a streetlight pole. Refer to
Figure 5 for the installation components involved in a typical installation.
Take note of the components that must be installed indoor and outdoor. The PoE injector
and power adapter that are shipped with the Access Point are for indoor use only. Ruckus
Wireless also strongly recommends that you form a drip loop on any cable that is
connected to devices that are installed outdoor (for example, the Access Point and the
Ethernet surge protector).
Figure 5. Typical installation components using PoE as the only power source
WARNING: Only trained and qualified personnel should be allowed to install, replace,
or service this equipment.
OUTDOOR
INDOOR
Access Point
Ethernet Surge
Protector
PoE Injector
Router or Switch
Power Adapter
Drip Loop
12
Configuring the Access Point
Configuring for Management by ZoneDirector
WARNING: Installation of the equipment must comply with local and national electrical
codes.
CAUTION: Make sure that you form a 3”-5” drip loop in any cable that is attached to the
Access Point and Ethernet surge protector. This will prevent water from running along the
cables and entering the Access Point, Ethernet surge protector, or the building where the
cables terminate.
CAUTION: Be sure that grounding is available and that it meets local and national
electrical codes. For additional lightning protection, use lightning rods, lightning arrestors,
or surge suppressors.
.
WARNING: The Ruckus Wireless PoE injector (if supplied with your Access Point) is for
indoor use only. Never mount the PoE injector outdoor with the Access Point.
NOTE: If the power outlet in your installation environment is three-pronged, use the two-
prong plug adapter that is shipped with the Access Point.
4Configuring the Access Point
The procedure for completing the Access Point’s essential configuration depends on
whether you want it to be managed by either ZoneDirector or FlexMaster or to operate
as a standalone access point. Refer to the section that is relevant to your deployment:
■Configuring for Management by ZoneDirector
■Configuring for Standalone Operation or for Management by FlexMaster
Configuring for Management by ZoneDirector
If ZoneDirector is installed on the network, you can configure the Access Point for
management by ZoneDirector. Simply connect the Access Point to same Layer 2 subnet
as ZoneDirector. When the Access Point starts up, it will discover and register with
ZoneDirector automatically.
13
Configuring the Access Point
Configuring for Management by ZoneDirector
NOTE: In addition to using Layer 2 auto discovery to enable the Access Point to register
with ZoneDirector, you can also use DHCP Option 43 or DNS. For more information, refer
to the ZoneDirector User Guide.
CAUTION: If you use this method, make sure that you do not change the IP address of
ZoneDirector after the AP discovers and registers with it. If you change the ZoneDirector
IP address, the AP will no longer be able to communicate with it and will be unable to
rediscover it.
Before starting this procedure, check the back panel of the Access Point (above the recess
where the bottom connectors are located), and then write down the MAC address of the
Access Point. You will need the MAC address to identify the Access Point on the ZoneDi-
rector Web interface.
1. Connect the Access Point to the same Layer 2 subnet as ZoneDirector. The same Layer
2 subnet means that there should not be any router between the Access Point and
ZoneDirector.
2. Power on the Access Point.
3. Log into ZoneDirector, and then go to the Monitor > Access Points page.
4. Look for the MAC address of the Access Point, and then check its Status column.
• If automatic approval is enabled, the Status column should show Connected.
• If automatic approval is disabled, click the Allow link that is on the same row as the
Access Point’s MAC address. This allows the Access Point to register with ZoneDi-
rector.
When the Status column shows Connected, this indicates that the Access Point has
successfully registered with ZoneDirector and that it can now be moved to its destina-
tion Layer 2 or Layer 3 network.
5. Continue to “Attaching the Mounting Brackets” on page 25.
14
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Configuring for Standalone Operation or for
Management by FlexMaster
What You Will Need
Before starting with the configuration task, make sure that you have the following require-
ments ready:
■An administrative computer (notebook computer) running on Microsoft Windows
Vista/XP/2000
■Mozilla Firefox 2.0 (or later) or Microsoft Internet Explorer 6.0 (or later) installed on the
administrative computer
■One Cat5e UTP (outdoor-rated) solid cable
■One Ethernet cable
■PoE injector (if not supplied with the Access Point, you can purchase a third party
802.3af-compliant PoE injector or switch)
■6mm Phillips screwdriver
If you are planning to power the Access Point using a 12v DC connection, you will also
need the following:
■UL1185 (80°, 300V) single shielded DC cable
■12v DC, 1A DC power source (for example, a battery)
■3mm Phillips screwdriver
Step 1: Prepare the Administrative Computer
NOTE: The following procedure is applicable if the administrative computer is running
on Windows XP or Windows 2000. If you are using a different operating system, refer to
the documentation that was shipped with your operating system for information on how
to modify the computer’s IP address settings.
1. On your Windows XP or Windows 2000 computer, open the Network Connections (or
Network and Dial-up Connections) control panel according to how the Start menu is
set up:
• On Windows XP, click Start > Control Panel > Network Connections.
• On Windows 2000, click Start > Settings > Network Connections.
2. When the Network Connections window appears, right-click the icon for Local Area
Connection, and then click Properties.
15
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
NOTE: Make sure that you configure the Local Area Connection properties, not the
Wireless Network Connection properties.
3. When the Local Area Connection Properties dialog box appears, select Internet
Protocol (TCP/IP) from the scrolling list, and then click Properties. The Internet
Protocol (TCP/IP) Properties dialog box appears.
4. Write down all of the currently active network settings. You will need this information
later when you restore your computer to its current network configuration.
5. Click Use the following IP address, and then configure the IP address settings with
the values listed in Tabl e 3. For a sample configuration, refer to Figure 6.
You can leave the Alternate DNS server box blank.
6. Click OK to save your changes and close the TCP/IP Properties dialog box.
7. Click OK again to close the Local Area Connection Properties dialog box.
Windows saves the IP address settings that you have configured.
Table 3. Configure your computer’s IP address settings
IP address 192.168.0.22 (or any address in the 192.168.0.x
network—with the exception of 192.168.0.1, which
is already used by the Access Point)
Subnet mask 255.255.255.0
Default gateway 192.168.0.1
Preferred DNS server 192.168.0.1
16
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Figure 6. Sample configuration in the Internet Protocol (TCP/IP) Properties dialog box
Step 2: Connect the Access Point to the Administrative
Computer
The procedure for connecting the Access Point to the administrative computer depends
on the power source that you will be using. You can do one of the following:
■Use Power Over Ethernet
■Use DC Power
NOTE: You only need to connect one type of power source at this point, even if you are
planning to use both PoE and DC power in your final deployment.
Use Power Over Ethernet
1. Take out the PoE injector and the power adapter from the Access Point package.
2. Connect one end of an Ethernet cable to the 10/100 DATA IN port on the PoE injector,
and then connect the other end to the administrative computer’s Ethernet port.
3. Connect one end of the other Ethernet cable to the PoE Out port on the PoE injector,
and then connect the other end to the RJ45 port on the Access Point.
17
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
4. Connect the power jack to the DC 48V IN connector on the PoE injector, and then
plug the power adapter to a power source. Verify that the PWR LED on the back of the
Access Point is steady green.
NOTE: If the power outlet in your installation environment is three-pronged, use the two-
prong plug adapter that is shipped with the Access Point.
Figure 7. Connect the Ethernet cables and power adapter to the PoE injector
You have completed connecting the Access Point to the administrative computer and to
a PoE power source.
Use DC Power
To use DC to power the Access Point, you need to connect a DC cable (not supplied with
the Access Point) to the DC terminal block.
1. Connect one end of an Ethernet cable to the RJ45 port on the Access Point, and then
connect the other end to the administrative computer’s Ethernet port.
2. Take out the DC terminal block from the small plastic bag that contains the bottom
cover of the Access Point.
3. Connect the DC cable’s ground wire to V- terminal. If you are looking at the terminal
block with the wiring terminal screws on top, the V- terminal is on the left side.
4. Connect the DC cable’s +12v DC wire to the V+ terminal. If you are looking at the
terminal block with the wiring terminal screws on top, the V+ terminal is on the right
side.
To A C
Power
Source
To Access
Point
To Admin
Computer
18
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Figure 8. Connect the ground wire to the V- terminal and the +12v DC wire to the V+
terminal
5. Using a 3mm Phillips screw, tighten the wiring terminal screws.
6. Connect the DC terminal block to the 12V DC port on the Access Point.
7. Connect the DC cable to a DC power source (for example, a battery).
You have completed connecting the Access Point to the administrative computer and to
a DC power source.
Step 3: Log Into the Access Point’s Web Interface
1. On the administrative computer, open a Web browser window.
2. In the address or location bar, type the following address:
https://192.168.0.1
3. Press <Enter> on the keyboard to connect to the Access Point’s Web interface. A
security alert message appears.
4. Click Yes or OK (depending on the browser) to continue. The Access Point’s login page
appears.
Ground Wire to
V- Terminal 12V DC Wire to
V+ Terminal
19
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Figure 9. The ZoneFlex Access Point login page
5. In User name, type super.
6. In Password, type sp-admin.
7. Click Log In. The Web interface appears, displaying the Device page.
8. Continue to “Step 4: Configure the Wireless Settings” below.
Step 4: Configure the Wireless Settings
To complete this step, you will need to configure the settings on the Common tab and at
least one Wireless # tab. These are the essential wireless settings that will enable wireless
devices on the network to associate with the Access Point.
For your reference, the default wireless settings on the Access Point are listed in Tab l e 4.
Table 4. Default wireless settings
Setting Default Value
SSID (network name) Wireless 1 to Wireless 8 (8 WLANs)
Encryption (security) Disabled on all WLANs
Default management IP address 192.168.0.1
20
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Configure Common Wireless Settings
1. On the left menu of the Web interface, click Configuration > Wireless. The Common
page appears.
2. Verify that the common wireless settings are configured as listed in Table 5.
3. If you made any changes to the Common tab, click Update Settings.
4. Continue to “Configure Wireless # Settings” below.

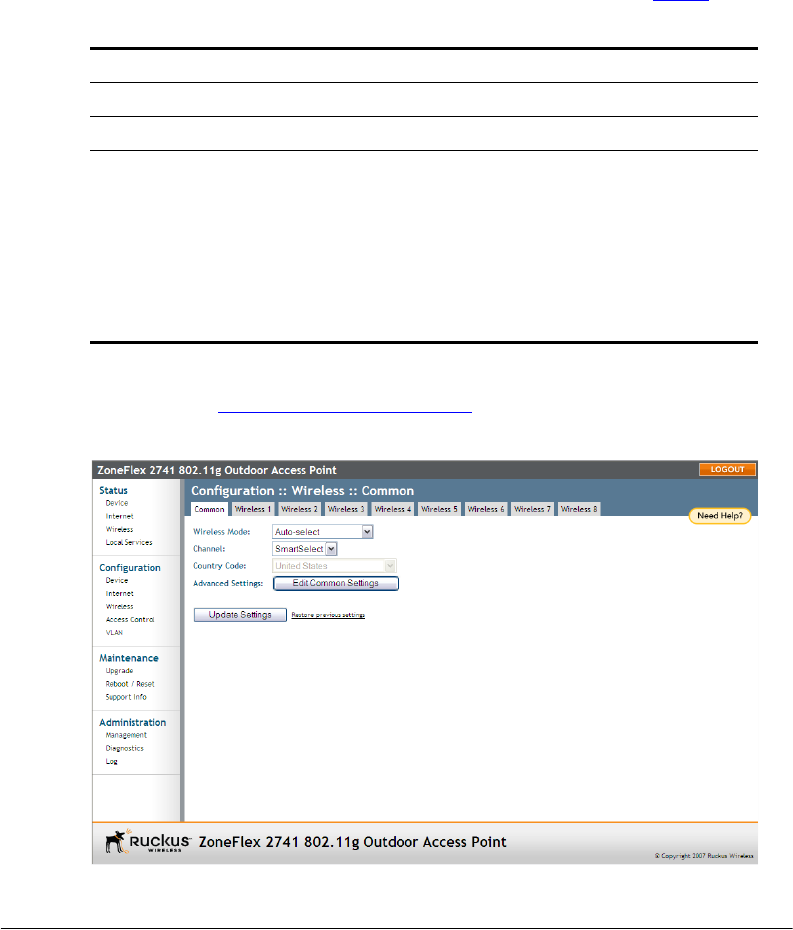

Figure 10. The Configuration > Wireless > Common tab
Table 5. Common wireless configuration
Setting Recommended Value
Wireless Mode Auto-select
Channel SmartSelect
Country Code • If you purchased the Access Point in the United
States, this value is fixed to United States at the
factory and is not user configurable.
• If you purchased the Access Point outside the
United States, verify that the value is set to your
country or region. Selecting the correct country
code ensures that the Access Point uses only the
radio channels allowed in your country or region.
21
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Configure Wireless # Settings
1. Click one of the Wireless # tabs.
2. In Wireless Availability, click Enabled.
3. In Broadcast SSID, click Enabled.
4. Clear the SSID box, and then type a unique and descriptive name that you want to call
this wireless network.
For example, you can type Ruckus Wireless AP. This SSID is the name that will
help users identify this wireless network in their wireless network connection applica-
tion.
NOTE: You may also configure other wireless settings on this and other Wireless # tabs
(in addition to the settings described above), although it is not necessary for completing
the Access Point installation.
5. Click Update Settings.
You have completed configuring the basic wireless settings of the Access Point.
Figure 11. The Configuration > Wireless > Wireless 1 tab
22
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
(Optional) Set the FlexMaster Server Address
If you have a FlexMaster server installed on the network and you intend to use FlexMaster
to manage the Access Point, you can set the FlexMaster server address at this point. Before
starting this procedure, make sure you obtain the correct FlexMaster server URL.
NOTE: In addition to setting the FlexMaster server URL manually on the Access Point,
you can also use DHCP Option 43 or DNS to point the Access Point to the FlexMaster
server. For more information, refer to the FlexMaster User Guide.
1. On the menu, click Administration > Management.
2. Scroll down the page to the TR069 / SNMP Management Choice section.
3. Verify that the Auto option is selected.
4. In FlexMaster Server URL, type the URL of the FlexMaster server on the network. You
can use either http or https to connect to the URL and include either the host name
or IP address of the FlexMaster server in the URL. The following are examples of valid
FlexMaster server URLs:
http://flexmaster/intune/server
https://flexmaster/intune/server
http://192.168.20.1/intune/server
https://192.168.20.1/intune/server
5. Click Update Settings to save your changes.
You have completed setting the FlexMaster server address on the Access Point.
23
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
Figure 12. Type the FlexMaster server URL
NOTE: Instructions on how to verify that the Access Point and FlexMaster can communi-
cate with each other are provided in “Check the TR069 Status (FlexMaster Management
Only)” on page 41.
Step 5: Disconnect the Access Point from the
Administrative Computer
You are now ready to attach the mounting brackets to the mounting surface and to the
Access Point. Before continuing, make sure that you disconnect the Access Point from the
power source and from the administrative computer.
1. Disconnect the power adapter of the PoE injector from the power source.
2. Verify that the PWR LED on the back of the Access Point is off.
3. Disconnect the Ethernet cable from the administrative computer’s Ethernet port.
Step 6: Restore the Administrative Computer’s Network
Settings
1. On your Windows XP or Windows 2000 computer, open the Network Connections (or
Network and Dial-up Connections) control panel according to how the Start menu is
set up:
• On Windows XP, click Start > Control Panel > Network Connections.
24
Configuring the Access Point
Configuring for Standalone Operation or for Management by FlexMaster
• On Windows 2000, click Start > Settings > Network Connections.
2. When the Network Connections window appears, right-click the icon for Local Area
Connection, and then click Properties.
3. When the Local Area Connection Properties dialog box appears, select Internet
Protocol (TCP/IP) from the scrolling list, and then click Properties. The TCP/IP
Properties dialog box appears.
4. Restore the computer’s network settings by typing the original IP address settings in
the TCP/IP Properties dialog box.
5. On the TCP/IP Properties dialog box, click OK to close it.
6. Click OK again to close the Local Area Connection Properties dialog box.
25
Attaching the Mounting Brackets
What You Will Need
5Attaching the Mounting Brackets
What You Will Need
To complete this procedure, you will need the following items:
■Static bracket
■Dynamic bracket
■Wall anchors
■Fender washers
■Hex nuts
■10mm ratchet wrench
If you are mounting the Access Point on a flat surface, you will also need an electric drill
with an 8mm drill bit.
If you are mounting the Access Point on a pipe or pole, you will also need the following:
■A 30mm to 60 mm (1.18 in. to 2.36 in.) pipe or pole
■Steel clamp
■10mm flathead screwdriver
For mounting on a horizontal pole, you will need the two metal bars that are supplied with
the Access Point.
NOTE: Do not mount the Access Point after you finish attaching the mounting brackets.
Ruckus Wireless strongly recommends that you first connect the Access Point to the
network, and then test it first before finally mounting it to your desired location.
26
Attaching the Mounting Brackets
Step 1: Attach the Static Bracket to the Mounting Surface
Step 1: Attach the Static Bracket to the Mounting
Surface
The procedure for attaching the bracket to the mounting surface depends on whether you
are mounting the Access Point to a flat surface or a pole.
■Attaching the Bracket to a Flat Surface
■Attaching the Bracket to a Pole
Attaching the Bracket to a Flat Surface
WARNING: Ruckus Wireless strongly recommends that you wear eye protection before
drilling holes on the mounting surface.
NOTE: The wall anchors that are supplied with the Access Point are for mounting on solid
masonry walls only. If you are mounting the Access Point on other materials (for example,
drywall, wood, or hollow cinder block), you will need the appropriate types of wall anchors.
Check your local hardware store for options.
1. Place the static bracket at the exact location on the mounting surface where you want
to mount it.
2. Use the static bracket as a template to mark the locations of the mounting holes on
the two mounting tabs.
Figure 13. Mark the locations of the mounting holes
o
27
Attaching the Mounting Brackets
Step 1: Attach the Static Bracket to the Mounting Surface
3. Remove the static bracket from the mounting surface.
4. Drill an 8mm-diameter hole with a depth of 36mm-38mm into each of the markings
that you made on the mounting surface.
5. Insert a wall anchor (with the unthreaded part first) into each of the holes that you
drilled.
6. Place a fender washer on each screw.
7. Align the two screw holes on the bracket with the wall anchors that you inserted earlier.
Figure 14. Align the screw holes on the bracket with the wall anchors
8. Use two hex nuts to attach the bracket to the mounting surface.
28
Attaching the Mounting Brackets
Step 1: Attach the Static Bracket to the Mounting Surface
Figure 15. Use hex nuts to attach the bracket to the surface
9. Using a 10mm open-end wrench, tighten the nuts to secure the bracket to the
mounting surface. As you tighten the nuts, the metal cones that are built into the wall
anchors will expand and lock the wall anchors into place.
10. Continue to “Step 2: Attach the Dynamic Bracket to the Access Point”.

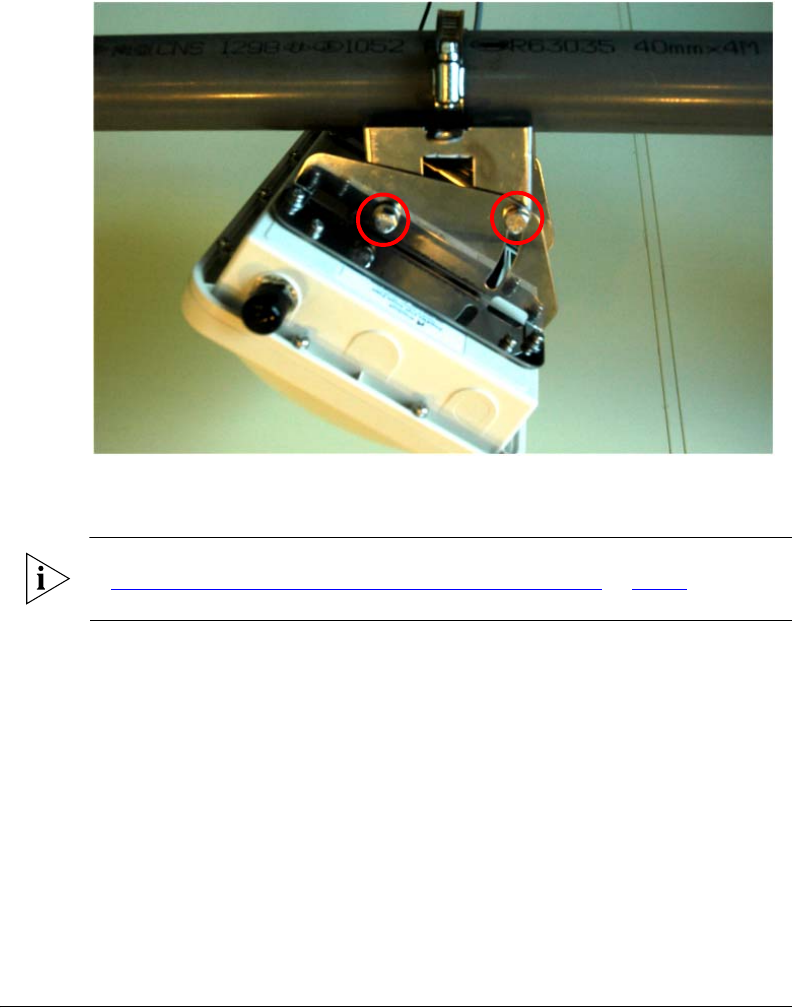

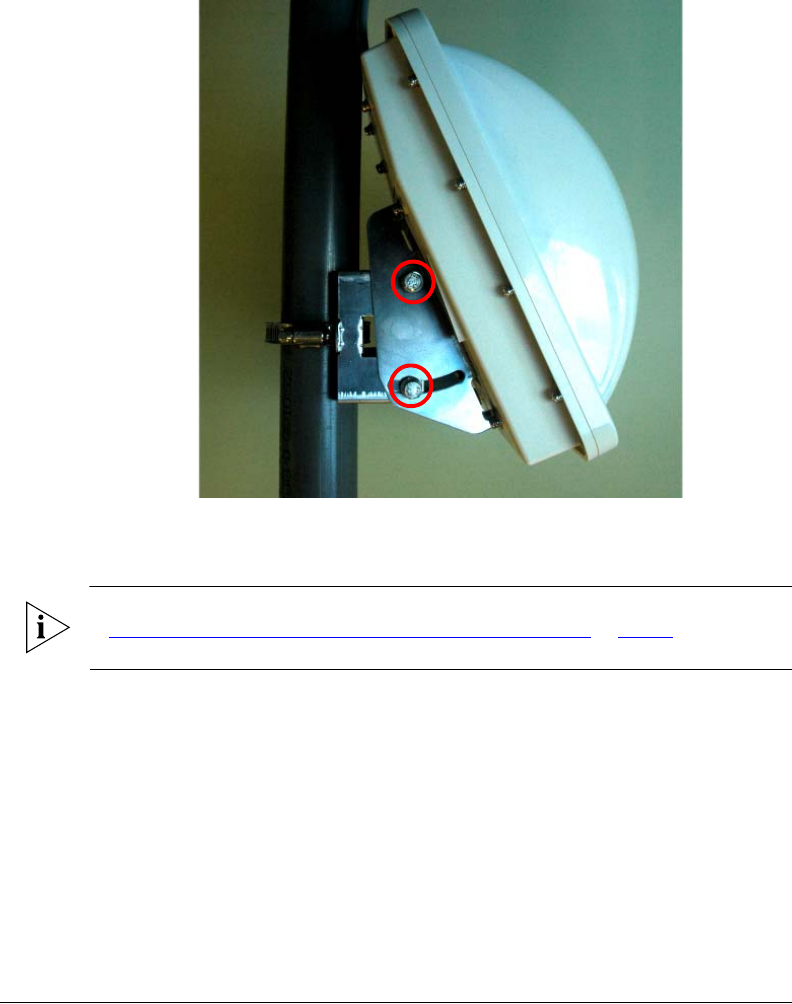

Attaching the Bracket to a Pole
The Access Point can be mounted vertically or horizontally on a 30mm to 60mm (1.18 in.
to 2.36 in.) pole.
1. Insert the open end of the steel clamp into the two tabs on the bracket.
29
Attaching the Mounting Brackets
Step 1: Attach the Static Bracket to the Mounting Surface

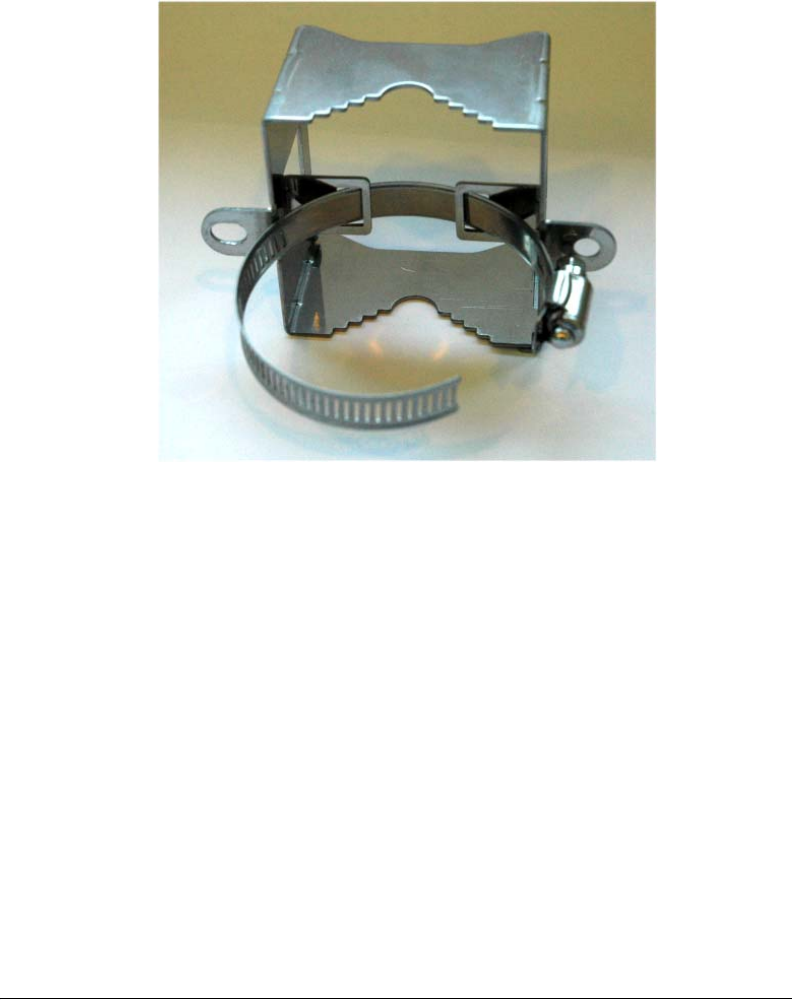

Figure 16. Insert the steel clamp into the tabs on the bracket
2. Use the clamp to attach the bracket to the pole.
30
Attaching the Mounting Brackets
Step 1: Attach the Static Bracket to the Mounting Surface

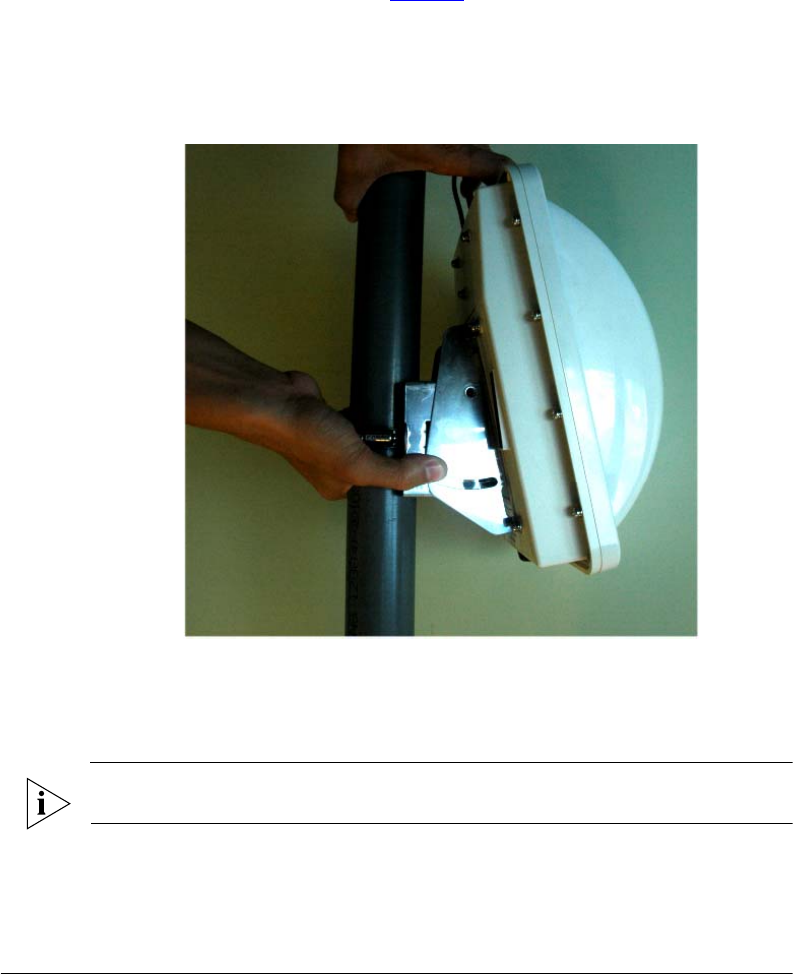

Figure 17. Use the clamp to attach the bracket to the pole
31
Attaching the Mounting Brackets
Step 2: Attach the Dynamic Bracket to the Access Point
3. Using a 10mm flathead screwdriver, tighten the clamp lock to secure the bracket to the
pole.
Figure 18. Tighten the clamp lock to secure the bracket
4. Continue to “Step 2: Attach the Dynamic Bracket to the Access Point”.
Step 2: Attach the Dynamic Bracket to the Access
Point
The procedure for attaching the dynamic bracket to the Access Point depends on whether
you are mounting the Access Point on a flat surface/vertical pole or on a horizontal pole.
If you are mounting the Access Point on a horizontal pole, you will need to install the two
metal bars that are supplied with the Access Point.
Mounting on a Flat Surface or Vertical Pole
1. Place the dynamic bracket onto the flat side of the Access Point so that the four screw
holes on the bracket align with the four screw holes on the Access Point. Make sure
that the shorter end of the mounting bracket is on the same side as the antenna
connector.
2. Insert four machine screws (supplied with the Access Point) into the screw holes.
3. Tighten the four machine screws using a 6mm Phillips screwdriver.
32
Attaching the Mounting Brackets
Step 2: Attach the Dynamic Bracket to the Access Point

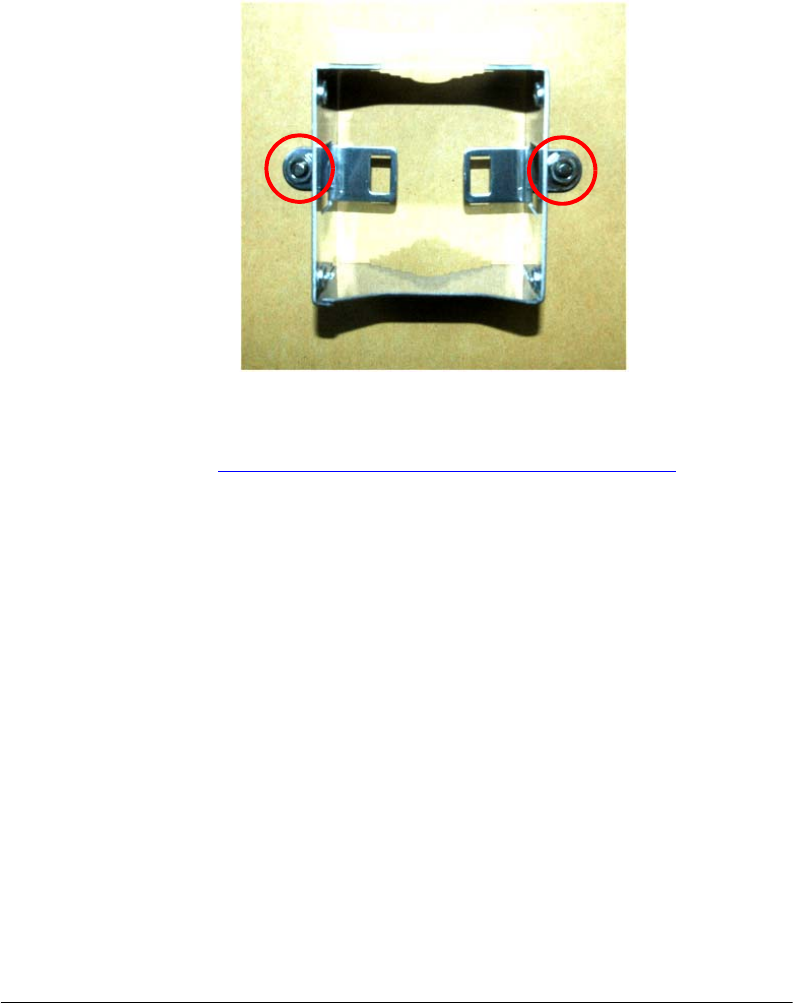

Figure 19. Tighten the four machine screws to fasten the bracket to the Access Point
4. Continue to “Connecting to the Network” on page 35.
Mounting on a Horizontal Pole
1. Place the two metal plates horizontally on the flat side of the Access Point, as shown
in Figure 1. Make sure that the screw holes on the metal plates align with the screw
holes on the Access Point.
2. Insert and fasten a machine screw (supplied) into each of the four screw holes.
33
Attaching the Mounting Brackets
Step 2: Attach the Dynamic Bracket to the Access Point
Figure 20. Position and fasten the metal plates to the Access Point
3. Place the dynamic bracket on top of the metal plates. Make sure that:
• The screw holes on the bracket align with the remaining screw holes on the metal
plates.
• The curved mounting hole is on the same side as the LEDs.
4. Insert and fasten a machine screw (supplied) into each of the four screw holes.
35
Connecting to the Network
Step 2: Attach the Dynamic Bracket to the Access Point
6Connecting to the Network
For guidance on the connections required for typical installations, refer to Figure 22.
Figure 22. Typical installation components using PoE as the only power source
WARNING: Do not apply power to the Access Point until you finish connecting all other
components.
1. Verify that the RJ45 port on the AP is connected to the PoE OUT port on the PoE
injector.
2. Connect the Ethernet cable from the 10/100 DATA IN port on PoE injector to your
network router or switch.
3. Apply power to the Access Point.
4. Continue to “Attaching the Mounting Brackets”.
5. Connect one end of the other Ethernet cable to the PoE OUT port on the PoE injector,
and then connect the other end to the RJ45 port on the Access Point.
OUTDOOR
INDOOR
Access Point
Ethernet Surge
Protector
PoE Injector
Router or Switch
Power Adapter
Drip Loop
36
Connecting to the Network
Step 2: Attach the Dynamic Bracket to the Access Point
6. Connect the power jack to the DC 48V IN connector on the PoE injector, and then
plug the power adapter to a power source. Verify that the PWR LED on the back of the
Access Point is steady green.
Figure 23. Connect the Ethernet cables and power adapter to the PoE injector
7. Wrap the white P-clip cable clamp around the Ethernet cable, and then fasten it to the
Access Point chassis using one of the short machine screws supplied with the Access
Point.
8. Wrap the black rubber O-ring around the Ethernet cable, and then place the wrapped
section into the left cable groove. The black rubber O-ring can support 5.6mm to
6.0mm cable.
To A C
Power
Source
To Access
Point
To Admin
Computer
37
Connecting to the Network
Step 2: Attach the Dynamic Bracket to the Access Point
Figure 24. Install the white P-clip clamp and the black rubber O-ring
9. (Optional) Connect a DC cable (not supplied with the Access Point) into the DC
terminal block.
WARNING: Do not connect the DC cable to the DC power source at this point. You will
connect it later after you finish mounting the Access Point.
a. Take out the DC terminal block from the small plastic bag that contains the bottom
cover of the Access Point.
b. Connect the ground wire to V- terminal. If you are looking at the terminal block with
the wiring terminal screws on top, the V- terminal is on the left side.
c. Connect the +12v DC wire to the V+ terminal. If you are looking at the terminal
block with the wiring terminal screws on top, the V+ terminal is on the right side.
Rubber
O-ring
P-clip Cable
Clamp
38
Connecting to the Network
Step 2: Attach the Dynamic Bracket to the Access Point
Figure 25. Connect the ground wire to the V- terminal and the +12v DC wire to the V+
terminal
d. Using a 3mm Phillips screw, tighten the wiring terminal screws.
e. Wrap the white P-clip cable around the DC cable, and then fasten it to the Access
Point chassis using one of the short machine screws supplied with the Access Point.
f. Wrap the green rubber O-ring around the DC cable, and then place the wrapped
section into the right cable groove.
Ground Wire to
V- Terminal 12V DC Wire to
V+ Terminal
39
Connecting to the Network
Step 2: Attach the Dynamic Bracket to the Access Point
Figure 26. Install the white P-clip clamp and the black rubber O-ring
CAUTION: If you are not connecting the DC cable to the DC terminal block, make sure
you cover the right cable groove with one of the supplied solid rubber stoppers.
10. Place the bottom cover of the Access Point onto the bottom section, and then fasten
it using the three machine screws that are supplied with the Access Point.
CAUTION: Before installing the bottom cover, verify that the perimeter rubber gasket on
the underside of the cover is clear of debris.
Rubber
O-ring
P-clip Cable
Clamp
40
Verifying the Installation
Associate a Wireless Client with the Access Point
Figure 27. Fasten the bottom cover using three machine screws
You have completed connecting the Access Point to the administrative computer and a
power source.
7Verifying the Installation
Ruckus Wireless strongly recommends that you verify that the Access Point is operating
correctly and that wireless clients are able to associate with it before you mount the unit.
Perform the following tasks to verify the installation.
Associate a Wireless Client with the Access Point
1. On the administrative computer, verify that the wireless interface is enabled. On
Windows XP, click All Programs > Connect To > Wireless Network Connection to
enable the wireless interface.
2. In the system tray, right-click the (Wireless Network Connection) icon, and then
click View Available Wireless Networks.
3. In the list of available wireless network, click the network with the same SSID as you
configured in “Configure Wireless # Settings” on page 21. For example, if you set the
SSID to Ruckus Wireless AP, click the wireless network named Ruckus Wireless AP.
41
Joining the Mounting Brackets
Check the LEDs
4. Click Connect.
Your wireless client connects to the wireless network. After the wireless client connects to
the wireless network successfully, the wireless client icon in the system tray changes to .
Check the LEDs
Perform a spot-check using the LEDs to verify that the Access Point is operating normally.
If the Access Point is operating normally and your wireless client was able to associate with
it:
■The PWR LED is green.
■The LAN LED is green, and if traffic if passing through, it flashes green. Open a Web
browser window, type www.ruckuswireless.com in the address bar, and then press
<Enter>. The LAN LED should flash green as your wireless client connects to the
Ruckus Wireless Web site through the Access Point.
■The WLAN LED is green. This indicates that at least one wireless client is connected
to the Access Point’s WLAN service.
■If you do not have Ruckus Wireless ZoneDirector on the network, the DIR LED is off.
This indicates that the Access Point is operating in standalone mode. If there is a
ZoneDirector device on the network, the DIR LED is green.
Check the TR069 Status (FlexMaster Management
Only)
If you configured the Access Point to report to a FlexMaster server on the network, make
sure you verify that it can successfully communicate with the FlexMaster server. You can
do this by checking the TR069 status on the Access Point’s Web interface.
1. Log in to the Access Point’s Web interface.
2. Go to the Administration > Management page.
3. Scroll down to the TR069 Status section.
4. Check the value for Last successful contact. If it shows a date in green, this indicates
that the Access Point was able successfully communicate with FlexMaster.
8Joining the Mounting Brackets
What You Will Need
■Hex bolts
■10mm ratchet wrench
42
Joining the Mounting Brackets
Mounting on a Flat Surface or Vertical Pole
Mounting on a Flat Surface or Vertical Pole
1. Join the two brackets as shown in Figure 28. Make sure that:
• The dynamic bracket (attached to the Access Point) encloses the static bracket
(attached to the mounting surface).
• The side of the Access Point with the antenna connector is at the bottom, especially
if you are planning to install an external antenna.
Figure 28. Join the two brackets
2. Align the mounting holes on the dynamic bracket with the mounting holes on the static
bracket.
3. Place a split lock washer, and then a flat washer onto a hex bolt. Then insert the hex
bolt into one of the mounting holes.
NOTE: Make sure the screw-washer assembly is in correct order. The split-lock washer
should be in the middle and the flat washer should touch the bracket.
4. Repeat Step 3 for each of the mounting holes. There are four mounting holes on the
bracket – two on each side.
43
Joining the Mounting Brackets
Mounting on a Flat Surface or Vertical Pole
Figure 29. Insert hex bolts into the mounting holes
5. Finger tighten the hex bolts.
6. Adjust the Access Point to your desired orientation.
NOTE: If you have not yet determined the optimal orientation for your Access Point, refer
to “Determine the Optimal Mounting Location and Orientation” on page 9 for orientation
guidelines.
7. Using a 10mm ratchet wrench, tighten the hex bolts to fix the Access Point’s orientation.
You have completed mounting the Access Point on a flat surface or vertical pole.
44
Joining the Mounting Brackets
Mounting on a Horizontal Pole
Mounting on a Horizontal Pole
1. Join the two brackets as shown in Figure 30. Make sure that:
• The dynamic bracket (attached to the Access Point) encloses the static bracket
(attached to the mounting surface).
• The side of the Access Point with the antenna connector is at the bottom, especially
if you are planning to install an external antenna.
Figure 30. Join the two brackets
2. Align the mounting holes on the dynamic bracket with the mounting holes on the static
bracket.
3. Place a split lock washer, and then a flat washer onto a hex bolt. Then insert the hex
bolt into one of the mounting holes.
NOTE: Make sure the screw-washer assembly is in correct order. The split-lock washer
should be in the middle and the flat washer should touch the bracket.
4. Repeat Step 3 for each of the mounting holes. There are four mounting holes on the
bracket – two on each side.
45
Joining the Mounting Brackets
Mounting on a Horizontal Pole
Figure 31. Insert hex bolts into the mounting holes
5. Finger tighten the hex bolts.
6. Adjust the Access Point to your desired orientation.
NOTE: If you have not yet determined the optimal orientation for your Access Point, refer
to “Determine the Optimal Mounting Location and Orientation” on page 9 for a list of
guidelines.
7. Using a 10mm ratchet wrench, tighten the hex bolts to fix the Access Point’s orientation.
You have completed mounting the Access Point on a horizontal pole.
46
(Optional) Mounting and Connecting the External Antenna
Mounting on a Horizontal Pole
9(Optional) Mounting and Connecting the
External Antenna
If you want to extend the range of your wireless network, you can connect a 2.4GHz-5GHz,
9dBi (or lower) external antenna to the standard N-type female connector on the Access
Point.
WARNING: Only trained and qualified personnel should be allowed to install, replace,
or service this equipment.
WARNING: Before connecting the antenna to the Access Point, make sure that you
disconnect the Access Point from the power source.
1. Disconnect the Access Point from the power source.
2. Remove the black waterproof antenna cover from the antenna connector. Put the
antenna cover in a safe place, in case you need it later.
3. Connect the antenna to the standard N-type female antenna connector.
If the antenna comes with an RF coaxial cable (for example, a patch antenna), do the
following:
a. Physically mount the antenna on your desired location, preferably on the same
supporting mounting structure as the Access Point.
b. Connect the RF coaxial cable to the standard N-type female connector on the
Access Point.
47
(Optional) Mounting and Connecting the External Antenna
Mounting on a Horizontal Pole
Figure 32. Connect the RF coaxial cable to the standard N-type female connector on
the Access Point.
If the antenna comes with a standard N-type male connector for direct connection (for
example, an omnidirectional antenna), connect the standard N-type male connector
to the standard N-type female connector on the Access Point.
48
(Optional) Mounting and Connecting the External Antenna
Mounting on a Horizontal Pole
Figure 33. Connect the standard N-type male connector to the standard N-type
female connector on the Access Point
4. Apply weatherproofing tape to the antenna connector to help prevent water from
entering the connector.
5. Reconnect the Access Point to the power source.
49
What to Do Next
Change the Administrative Password
CAUTION: If you are not connecting an external antenna to the standard N-type antenna
interface on the Access Point, make sure that the waterproof antenna cover remains
installed to protect the interface from elements, such as water or dirt.
You have completed connecting the external antenna to the Access Point.
10 What to Do Next
The following are some of the post-installation tasks that Ruckus Wireless recommends.
Refer to the ZoneFlex 2741 802.11g Outdoor Access Point User Guide for more information
on configuring and managing the Access Point.
Change the Administrative Password
Management access to the Web interface of the Access Point is controlled through
administrative user name and password. Make sure you change the default administrative
user name and password as soon as you complete the Access Point setup. This will help
prevent unauthorized users from logging in to the Access Point’s Web interface and
changing the access point settings to compromise your network.
Configure the Security Settings
Unlike wired networks, anyone with a compatible wireless adapter can receive wireless
data transmissions from your network well beyond your walls. To prevent unauthorized
users from entering your wireless network and accessing your computers and files, Ruckus
Wireless strongly recommends enabling and configuring wireless security on the Access
Point. The Access Point supports several types of encryption and authentication methods
to help prevent unauthorized access to your wireless network.
Read Related Documentation
If you are using FlexMaster or ZoneDirector to manage the Access Point, make sure you
read the accompanying documentation to learn how to configure and manage the Access
Point from the FlexMaster and ZoneDirector Web interface.
The latest versions of Ruckus Wireless product documentation are available for download
on the Ruckus Wireless Support Web site at:
http://support.ruckuswireless.com/documents
50
Professional Installation Instructions
Personal Installation
11 Professional Installation Instructions
Personal Installation
This product is designed for specific application and needs to be installed by a qualified
personal who has RF and related rule knowledge. The general user shall not attempt to
install or change the setting.
Installation Location
The product shall be installed at a location where the radiating antenna can be kept 20
cm from nearby person in normal operation condition to meet regulatory RF exposure
requirement.
External Entenna
Use only the antennas which have been approved by Ruckus Wireless. The non-approved
antenna(s) may produce unwanted spurious or excessive RF transmitting power which may
lead to the violation of FCC limit and is prohibited.
Installation Procedures
Please refer to user’s manual for the detail.
Warning
Please carefully select the installation position and make sure that the final output power
does not exceed the limit set force in US Rule CFR 47 part 15 section 15.247 & 15.407. The
violation of the rule could lead to serious federal penalty.
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator and your body. This equipment shall not be colocated with any other transmitter.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment.
External Antenna
This device has been designed to operate with a patch antenna, and having a maximum gain of 9 dBi. Other antennatypes or having a gain greater than 9 dBi are strictly
prohibited for use with this device. The required antenna impedance is 50 ohms.
Industry Canada Statement
This device complies with Industry Canada ICES-003 and RSS210 rules. Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme aux normes NMB003 et RSS210 d'Industrie Canada. Le fonctionnement est soumis aux conditions suivantes :
1. Ce périphérique ne doit pas causer d'interférences;
2. Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent d'entraîner un fonctionnement indésirable.
Australia Statement
This device complies with the ACMA requirements for a Wi-Fi device namely Radio Communications (Low Impact Potential Devices) Class Licence 2000 Amd. 1:2007 and
Radiocommunications (Compliance Labelling – Electromagnetic Radiation) Notice 2003. The equipment complies with the ACMA requirements for radiation exposure for a
"general user/non-aware user". This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This equipment
complies with the Australian safety requirements and should only used with the specified power adapter carrying a C-tick N136 and Electrical Approval Number V06649.
European Union Notices
Compliance Information for 2.4-GHz Wireless Products
The following standards were applied during the assessment of the product against the requirements of the Directive 1999/5/EC:
• Radio: EN 300 328
• EMC: EN 301 489-1, EN 301 489-17
• Safety: EN 60950, EN 50385
National Restrictions
This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune limitation, excepté pour les pays
mentionnés ci-dessous:
Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive EU 1999/5/EC) senza nessuna limitazione, eccetto per i paesii menzionati
di seguito:
Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der EU Direktive 1999/5/CE folgen) mit Außnahme der
folgenden aufgeführten Staaten:
France
In case the product is used outdoors, the output power is restricted in some parts of the band. See the table below or check http://www.arcep.fr/ for more details.
Dans la cas d’une utilisation en extérieur, la puissance de sortie est limitée pour certaines parties de la bande. Reportezvous à la table 1 ou visitez http://www.arcep.fr/ pour
de plus amples détails.
Location Frequency Range (MHz) Power (EIRP)
Indoor (No restrictions) 2400-2483.5 100 mW (20 dBm)
Outdoor 2400-2454 [2454-2483.5] 100 mW (20 dBm) [10 mW(10 dBm)]
Italy
This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless operating within the boundaries
of the owner’s property, the use of this 2.4 GHz Wireless LAN product requires a ‘general authorization’. Please check with http://www.comunicazioni.it/ for more details.
Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato
all’interno del proprio fondo, l’utilizzo di prodotti Wireless LAN a 2.4 GHz richiede una "Autorizzazione Generale". Consultare http://www.comunicazioni.it/ per maggiori
dettagli.
Belgium
The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Please check
http://www.bipt.be for more details.
Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch Instituut voor postdiensten en
telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens.
Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des services Postaux et des
Télécommunications (IBPT). Visitez http://www.ibpt.be pour de plus amples détails.
Taiwan Statement
The control, adjustment and on/off operation of this device does not violate the “Administrative regulations on low power radio waves radiated devices”. Any adjustments to
the device should be carried out or be monitored by a specialist who has expertise on radio frequency devices. Replacement of components which may lead to the violation
to the regulations is not allowed. Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power
or alter original characteristic as well as performance to an approved low power radio-frequency devices. The low power radio-frequency device shall not influence aircraft
security and interfere with legal communications; if found, the user shall cease operating immediately until no interference is achieved. The said legal communications
means radio communications is operated in compliance with the Telecommunications Act. The low power radio-frequency devices must not be susceptible with the
interference from legal communications or ISM radio wave radiated devices.
Thailand Statement
The output power is restricted to 100 mW (20 dBm) EIRP.
Česky
[Czech]
Ruckus Wireless tímto prohlašuje, že tento Radio LAN je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Ruckus Wireless erklærer herved, at følgende udstyr Radio LAN overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Ruckus Wireless, dass sich das Gerät Radio LAN in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Ruckus Wireless seadme Radio LAN vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Ruckus Wireless declares that this Radio LAN is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Ruckus Wireless declara que el Radio LAN cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ruckus Wireless ΔΗΛΩΝΕΙ ΟΤΙ Radio LAN ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Ruckus Wireless déclare que l'appareil Radio LAN est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Ruckus Wireless dichiara che questo Radio LAN è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Ruckus Wireless deklarē, ka Radio LAN atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Ruckus Wireless deklaruoja, kad šis Radio LAN atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Ruckus Wireless dat het toestel Radio LAN in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Ruckus Wireless, jiddikjara li dan Radio LAN jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn
relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Ruckus Wireless nyilatkozom, hogy a Radio LAN megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym Ruckus Wireless oświadcza, że Radio LAN jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
Ruckus Wireless declara que este Radio LAN está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Slovensko
[Slovenian]
Ruckus Wireless izjavlja, da je ta Radio LAN v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky
[Slovak]
Ruckus Wireless týmto vyhlasuje, že Radio LAN spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi
[Finnish]
Ruckus Wireless vakuuttaa täten että Radio LAN tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Ruckus Wireless att denna Radio LAN står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska
[Icelandic]
Hér með lýsir Ruckus Wireless yfir því að Radio LAN er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í
tilskipun 1999/5/EC.
Norsk
[Norwegian]
Ruckus Wireless erklærer herved at utstyret Radio LAN er i samsvar med de grunnleggende krav og øvrige relevante
krav i direktiv 1999/5/EF.
800-70197-001-A
