Senao Networks SP922PRO 4-Line Cordless Phone System User Manual 6709A0243140 SP 922PRO V3

Digital

Long Range Industrial Cordless

Phone Systems

DuraFon PRO & DuraWalkie

User's Manual

1

Safety Instructions..................................................4

General Safety Instructions............................................4

Product Safety Instructions.............................................5

Battery Safety Instructions................................................7

Regulatory Information............................................8

Congratulations.....................................................10

Equipment Checklist...............................................11

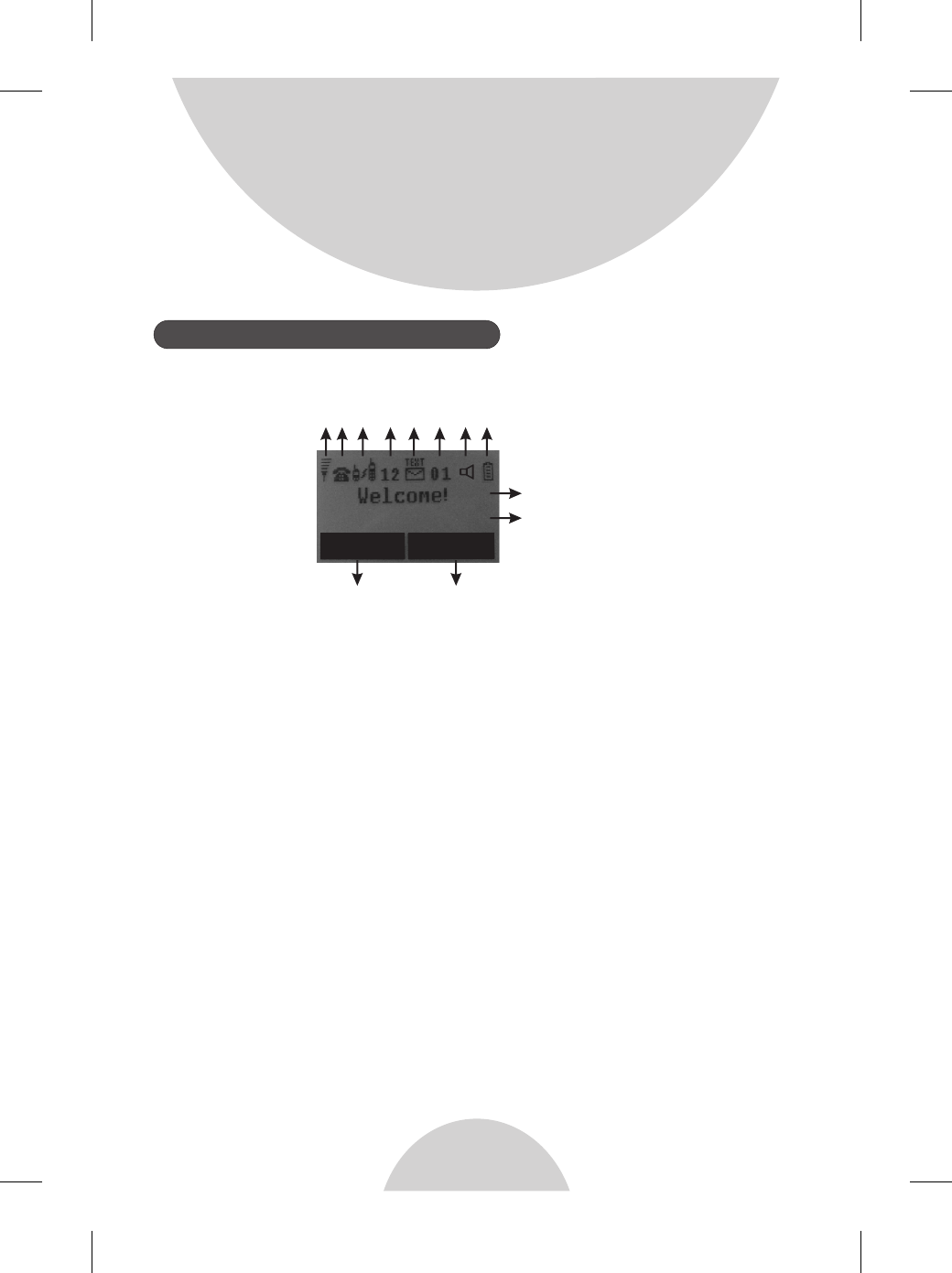

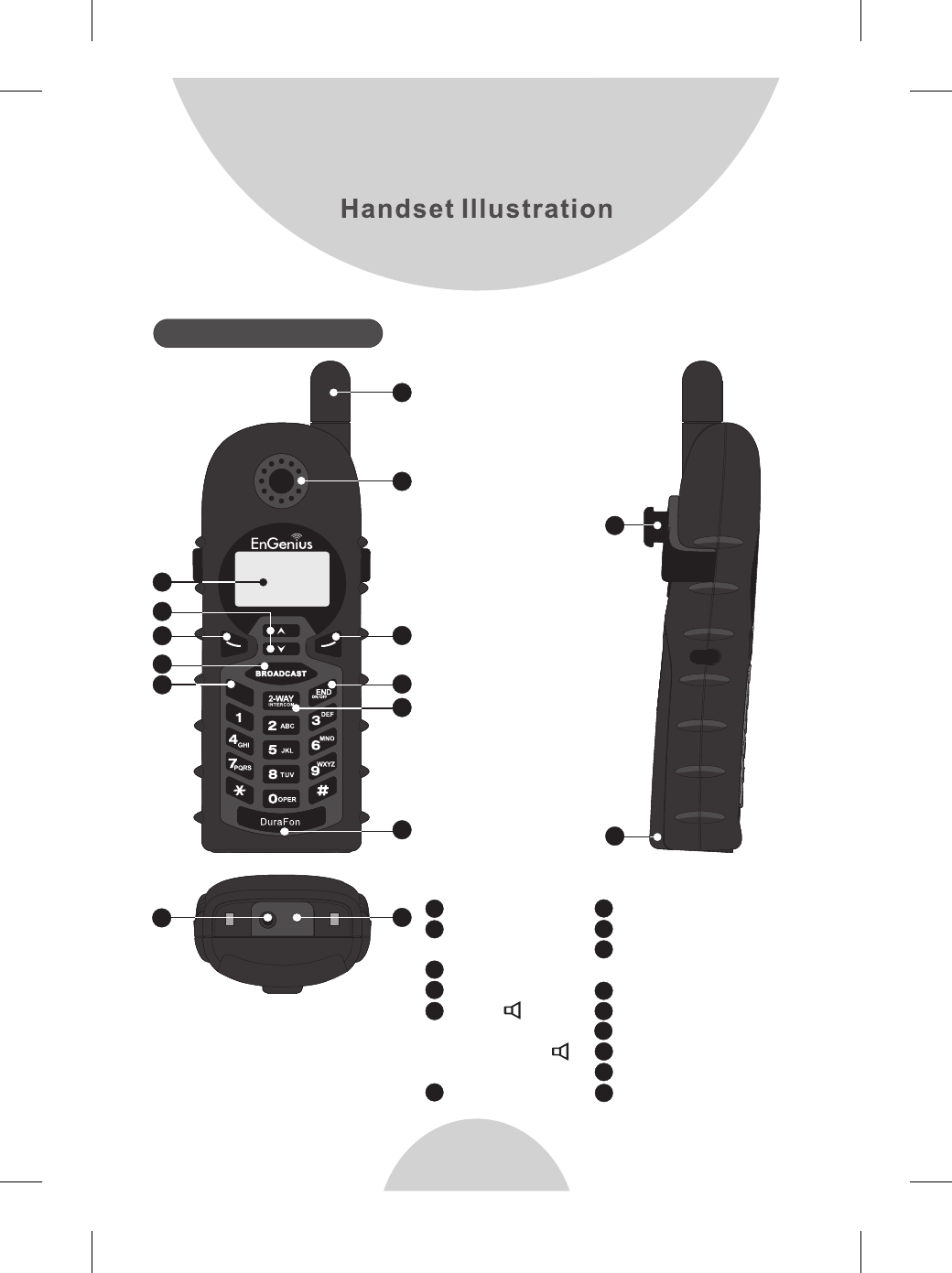

Handset Illustration................................................13

Handset Features...................................................14

Basic Handset Features..................................................14

Additional Handset Features..........................................16

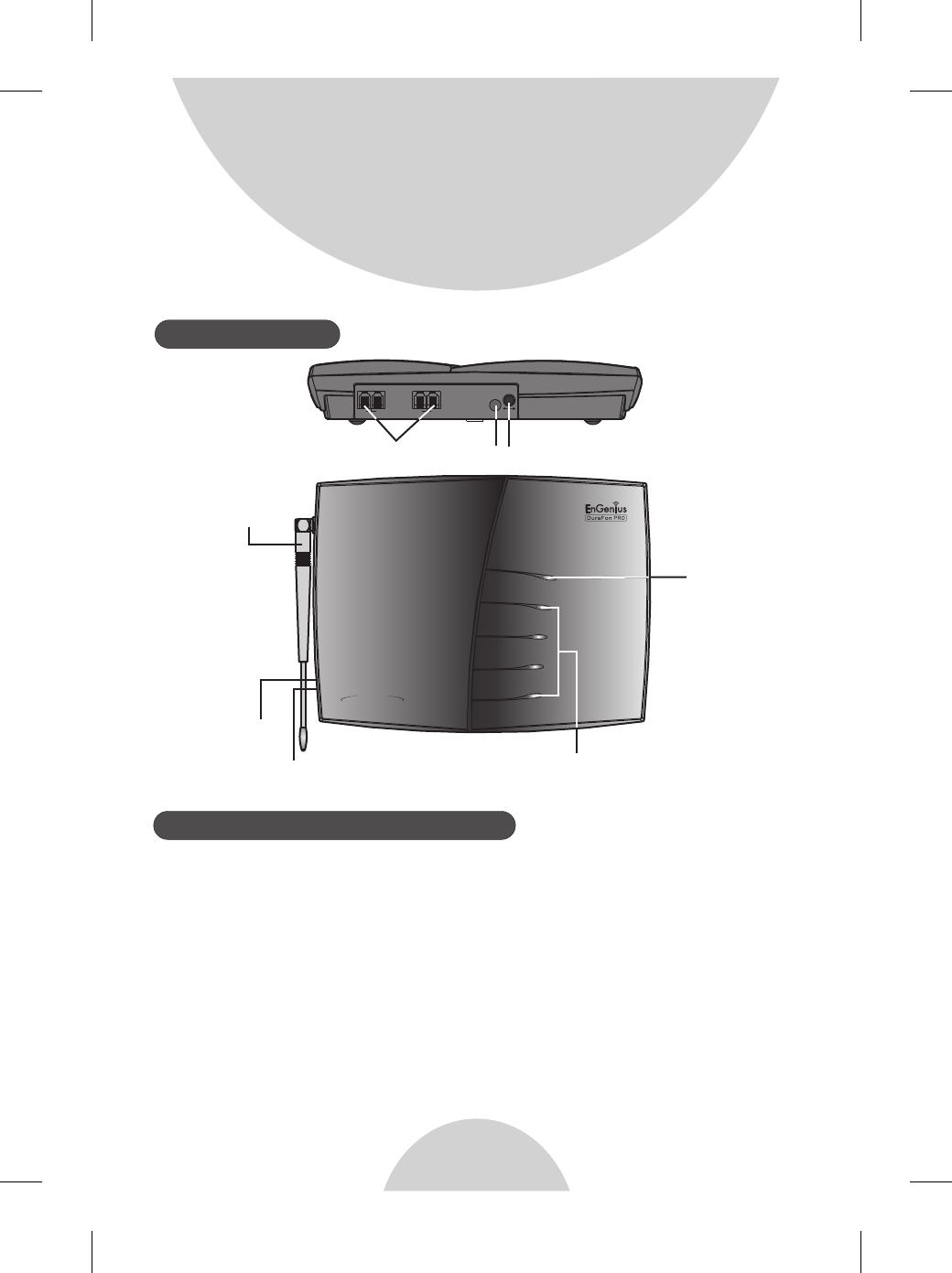

Base Illustration....................................................21

Base Features...........................................................21

Basic Base Station Features............................................21

Additional Base Station Features....................................22

Administrator Features....................................................22

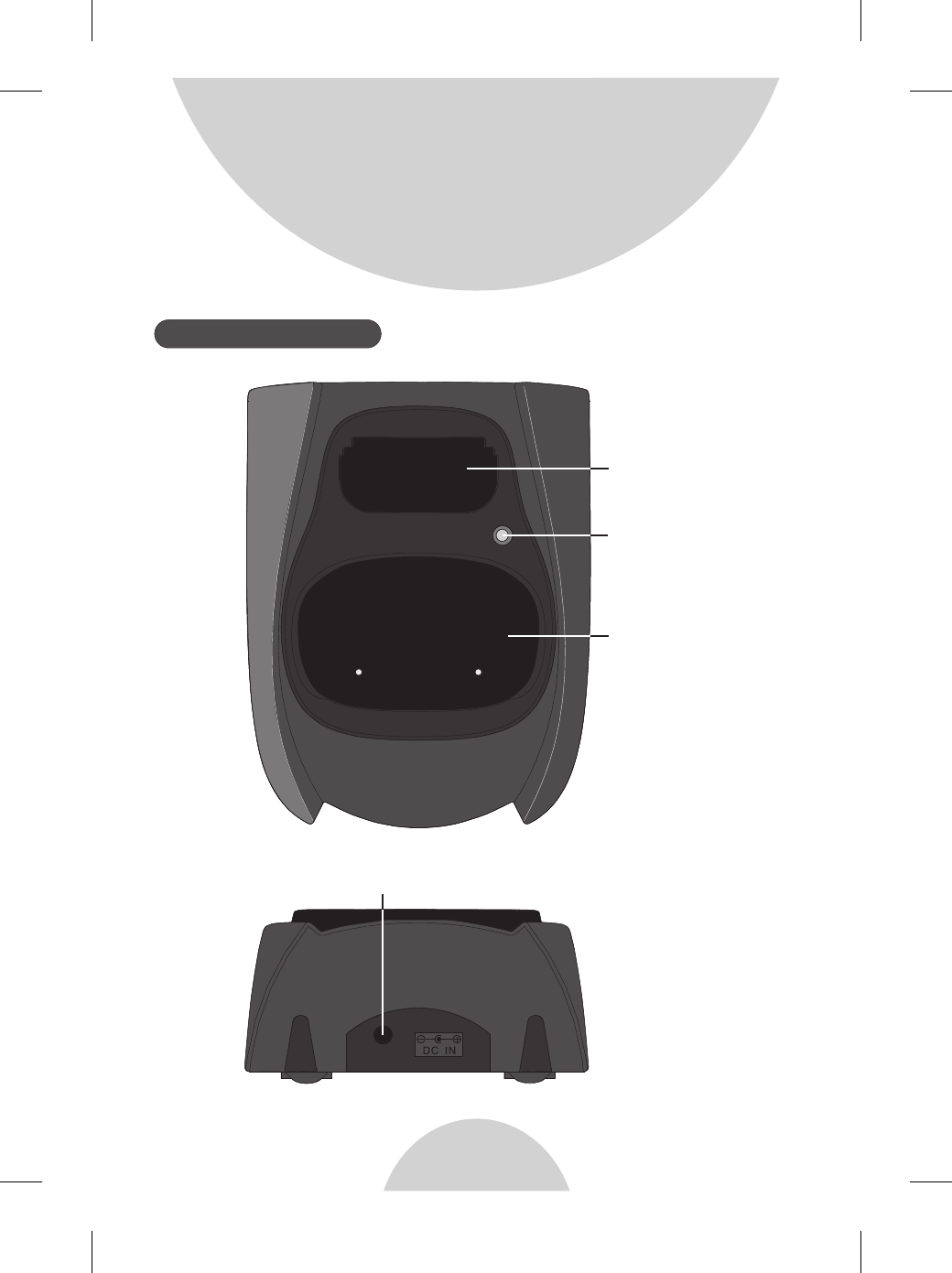

Charger Illustration................................................24

Charger Features..................................................24

Getting Started.......................................................26

Base Station Installation....................................................26

2

Handset and Charger Installation..............................29

Basic Operations.......................................................30

Operation Modes.....................................................30

Making a Telephone Call(For DuraFon PRO only).......34

Making a 2-Way/ Intercom Call..................................34

Making a Broadcast.................................................35

Redial(For DuraFon PRO only).................................36

Receiving a Telephone Call(For DuraFon PRO only). . . 3 6

Receiving an Intercom Call.......................................37

Ending a Call...........................................................38

Adjusting Receiver (Earpiece) Voice Volume..............38

Placing a Call On Hold(For DuraFon PRO only).......... 38

Mute.......................................................................39

Do Not Disturb (Silent Ring)......................................39

Key Guard...............................................................39

To View Missed Call(s) (For DuraFon PRO only).........39

To Call back from Call Log (For DuraFon PRO only).....40

Battery Recharge and Replacement..........................40

Advanced Operations................................................41

Handset Registration................................................41

3

Advanced Registration.... .....................................42

Handset Group Subscription.....................................43

Call Transfer(For DuraFon PRO only)........................44

3-Way Conferencing(For DuraFon PRO only).............45

Base Select (For DuraFon PRO only)..................... ..45

Call Waiting(For DuraFon PRO only).........................46

Auto-Attendant(AA)................................................47

AA Configuration by Administrator............................48

Change AA Parameters...........................................48

Line Dedication.......................................................50

Outbound Line Selection (For DuraFon PRO only)......50

Change System Settings by Administrator..................51

Phonebook Operations............................................52

Broadcast through PBX............................................55

Menu Operations.....................................................57

Technical Specifications...........................................66

....

4

1. When using your wireless phone, ensure your safety and the safety of

others:

a. Always watch where you are walking and standing.

b. Don't let a phone call distract you from working safely.

2. In an emergency:

a. If an emergency occurs, dial the emergency phone number.

Remember: If you are in an area where your phone does not have a

clear signal from the base, it is highly probable that the call may not

go through. Locate the nearest telephone or other

communications device to call for help.

b. Emergency calls may not automatically provide emergency

personnel with your name, phone number or location. Tell the

operator

i) Your name and phone number.

ii) The nature of the emergency.

iii) Whether police, fire, or medical assistance is needed.

iv) The exact location of the emergency, including address, cross

streets, mileposts or landmarks.

3. Notice to Hearing Aid Users: This phone system is compatible with

inductively coupled hearing aids.

4. Notice to Cardiac Pacemaker Users: Preliminary studies done by the

US FDA and others have shown that, although interference to the

implanted cardiac pacemaker may occur when operating very closely,

wireless telephones do not seem to pose a significant problem for

General Safety Instructions

landline

Caution: Your wireless telephone gives you freedom and flexibility

to stay in touch while you move around. However, the safe and

responsible use of the phone depends entirely on you.

When using your phone equipment, safety instructions should be

followed to avoid the risks of fire, electric shock, injury to person,

and damage to property.

''

5

pacemaker wearers .

However, until more is known, FDA suggests that people with

pacemakers may want to take precautions when using or carrying a

wireless telephone to ensure that there is ample distance between the

telephone and the pacemaker. Do not carry the handset in a breast

pocket. If you have any reason to suspect that interference is taking

place, turn off your handset immediately.

1. Read and understand all instructions.

2. Follow all warnings and instructions including those marked on the

product.

3. Changes or modifications to this product not expressively approved by

the manufacturer will void the warranty and the FCC authorization to

operate the equipment. Use only manufacturer provided accessories.

4. Do not use the telephone near water. Never spill liquid of any kind on

this product.

5. Unplug the product from the wall telephone jack and power outlet

before cleaning. Do not use liquid or aerosol cleaners. Use damp cloth

for cleaning.

6. Do not place this product on an unstable cart, stand or table. The

product may fall and cause personal injury or damage to the product or

other property. Place the base station and the charger on hard, flat

surfaces.

7. Power Outage:

In the event of a power outage, your handset charger will not recharge

the handset battery, and the base station will not allow you to make an

outgoing call or take an incoming call. Both the charger and the base

station require electricity for operation.

You should have a telephone, that does not require electricity,

available for use during power outage, or have a temporary backup.

Product Safety Instructions

''

6

8. Slots or openings in the product's housing are provided for ventilation.

These openings must not be blocked or covered. Placing the product

on a bed, carpeting, or other similar surface may block these openings

and should be avoided. This product should never be placed near or

over a radiator or heat register, or in a built-in installation unless proper

ventilation is provided.

9. Never push objects of any kind into this product through housing slots/

openings as they may damage the product, touch dangerous

points or short out parts that could result in fire, electric shock, or injury.

10. This product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power

supply to your home, consult your dealer or local power company.

11. Do not overload wall power outlets and extension cords as this may

result in fire or electric shock.

12. To avoid electric shock or burn, do not disassemble this product. Send

this product to an authorized service center when service or repair

work is required. Call Customer Service for locations near you.

Opening or removing covers may expose you to dangerous voltages,

electrical currents or other risks. Incorrect reassembling of the product

may cause electric shock when the product is subsequently used.

13. Avoid using the product during a storm. There may be a risk of electric

shock from lightning.

14. Do not place the product where persons can step, trip, or fall on the

product.

15. Do not place conductive objects over or near the antenna.

16. Do not use the product to report a gas leak while in the vicinity of the

leak.

power supply.

voltage

7

17. Do not install the base station or the handset charger near microwave

ovens, radios, TV sets, speakers, or other electrical equipment.

These appliances may cause interference to the product or

experience interference from the product.

18. Unplug the base station or the charger adaptor from the wall power

outlet and refer servicing to an authorized service center under the

following conditions:

a. If liquid had been spilled into the product.

b. When the power supply cord or plug is damaged or frayed.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating

instructions.

e. If the product has been dropped or housing has been damaged.

f. If the product shows a distinct change in performance.

1. Use only manufacturer approved Lithium-Ion (Li-Ion) rechargeable

batteries and charger. Do not use other types of rechargeable batteries

or non-rechargeable batteries. The batteries could short-circuit, and

the battery enclosure may be damaged causing a hazardous condition.

2. Follow the charging instruction in this manual and instruction labels

and markings in the handset and charger compartments.

3. Battery must be recycled or disposed of properly. Do not dispose the

battery in a fire. The cells may explode.

4. Do not dispose of the battery in municipal waste. Check with local

codes for disposal instructions.

5. Exercise care in handling the batteries in order not to short-circuit the

battery with conductive materials such as rings, bracelets, keys,

pocketknife, and coins. The battery or conductive material may

overheat and cause burn or fire.

6. Do not expose batteries to rain or water.

7. Do not open or mutilate the battery. Released electrolyte is corrosive

and may cause injury to eyes or skin. The electrolyte may be toxic if

swallowed.

8. During charging, the battery heats up. This is normal and is not

dangerous.

Battery Safety Instructions

8

DuraFon PRO & DuraWalkie

FCC ID: U2M-SP922PRO

IC: 3616C-SP922PRO

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including

interference that may cause undesired operation.

Privacy of communications may not be ensured when using this

phone.

1. The term “IC”: before the radio certification number only signifies that

Industry of Canada technical specifications were met.

2. This telephone system complies with rules of the FCC Part 68 and

Canadian IC/DOC CS-03. On the bottom of the base station is a label

that contains, among other information, the FCC Registration Number,

Ringer Equivalence Number (REN) and the Universal Service Order

Code, which is RJ-11C in the U.S. or CA-11A in Canada. Your

telephone company may ask you for this information.

3. The REN is useful to determine the quantity of devices you may

connect to your telephone line and still have all devices ring when your

telephone number is called. In most, but not all, areas the sum of the

REN's of all devices connected to one line should not exceed 5.0. To be

certain of the number of devices you may connect to your phone line,

you should contact your local telephone company for the maximum

REN in your area.

4. If your telephone equipment causes problems to the telephone

network, the telephone company may ask you to disconnect your

phone system from the line until the problem has been corrected.

Consult with your local phone company for your rights if this happens.

9

5. Your telephone company may make changes in its facilities, equipment,

operations, or procedures that could affect the proper functioning of

your telephone system. Consult with your local phone company for

your rights if this happens.

6. This telephone system may not be used on coin service provided by

the telephone company. Connection to party lines is subject to state

tariffs.

7. This telephone system has been tested and found to comply with the

limits for Class B digital devices, pursuant to Part 15 of the FCC Rules

and RSS210 of the DOC Rules. These limits are designed to provide

reasonable protection against harmful interference in a general public

installation. Operations of these devices may still encounter

interference from/to nearby TV's, VCR's, radios, computers, or other

electronic devices. To minimize or prevent such interference, the

telephone system should not be placed or operated near other

electronic devices. If interference occurs, moving the base station and

the handset farther away from them will often reduce or eliminate the

interference.

8. However, there is no guarantee that interference will not occur in a

particular installation. If this telephone system does cause

interference to other electronic devices, which can be determined by

turning the system off and on, the user is encouraged to try to correct

the interference by one or several of the following measures:

a. Increase the space separation between the handset or base station

and the device that is experiencing interference. We recommend at

least 1 meter (about 3 feet) between the system and other electronic

devices.

b. Connect the base station to a power outlet on a circuit separate from

that used by the device experiencing interference.

c. Consult the dealer or an experienced electronic technician for help.

10

You have purchased an exceptional business communications tool from a

leading telephone system manufacturer.

The EnGenius DuraFon PRO 4-port Industrial Cordless Telephone

System is ideal for the users in various business settings. The DuraFon

PRO is the longest range, multi-base, multi-line telephone and 2-way

radio communications system providing users unparallel mobility and

flexibility. The EnGenius DuraWalkie handset provides long range 2-way

intercom and broadcast communication, without telephone capability.

With sophisticated digital signal processing and high quality hardware

designs, the DuraFon PRO provides long-range telephone connections,

multi-base installation and 2-way handset-to-handset communications in

a wide variety of business settings from multi-level office buildings,

factories, hotels/resorts, convention facilities, warehouses, farms,

business complexes, construction sites, school, car dealerships, grocery,

retail stores and other demanding business environments.

The unique 2-way radio feature allows handsets to communicate with

each other as digital, full-duplex 2-way radios. Members of work group(s)

can be in contact with their co-workers while leaving phone lines available

for incoming and outgoing calls. Handsets that are within range of each

other can use the 2-way feature even while out of range of the base station.

DuraFon PRO can support up to 90 handsets.

Important Warranty Note:

U.S. customers: This EnGenius product has NO manufacturer's warranty

unless purchased from an EnGenius Authorized Reseller. To verify a

reseller is authorized, please visit our website at:

or contact us at 714-432-8668.

www.engeniustech.com

11

1. In a Base + Handset package(DuraFon PRO), please find the

following components:

a. Base Station x 1

b. Base Antenna x 1

c. Base AC/DC Adaptor x 1

d. Handset x 1

e. Low Profile Handset Antenna x 1

f . Optimal Performance Handset Antenna x 1

g. 1700mA Li-ion Battery Pack x 1

h. Charger x 1

i . Charger AC/DC Adaptor x 1

j . Telephone Cord x 4

k. Audio-in Cable x 1

l . Belt Clip x 1

m. User's Manual, Quick Guide, and Warranty Card

2. In a Handset package(DuraFon PRO HC or DuraWalkie), please

find the following components:

a. Handset x 1

b. Low Profile Handset Antenna x 1

c. Optimal Performance Handset Antenna x 1

d. 1700mA Li-ion Battery Pack x 1

e. Charger x 1

f . Charger AC/DC Adaptor x 1

g. Belt Clip x 1

h. Quick Guide, and Warranty Card

3. In a Base package(DuraFon PRO BU), please find the following

components:

a. Base Station x 1

b. Base Antenna x 1

c. Base AC/DC Adaptor x 1

d. Telephone Cord x 4

e. Warranty Card

f . Audio-in Cable x 1

Equipment Checklist

f. 1700mA Li-ion Battery Pack x 1

g. Charger x 1

h. Charger AC/DC Adaptor x 1

i . Telephone Cord x 4

j . Belt Clip x 1

k. User's Manual, Quick Guide, and Warranty Card

c. 1700mA Li-ion Battery Pack x 1

d. Charger x 1

e. Charger AC/DC Adaptor x 1

f . Belt Clip x 1

g. Quick Guide, and Warranty Card

12

4. Optional Accessories

a. Outdoor Antenna Kit (including antenna and cable)

b. Lightning Protection Kit (including cable)

c. DuraPouch

d. Belt Clip

e. Spare Battery

f . Low Profile Handset Antenna

g. Optimal Performance Handset Antenna

h. Antenna Splitter (including cable)

Equipment Checklist

Receiver

Right soft key

END &

Power ON/OFF

2-WAY//Intercom

Microphone

Travel/charger jack

Headset jack(2.5mm)

Belt Clip holder

Battery pack

4-Line LCD

Volume control/

Scrolling

Left soft key

BROADCAST

TALK/

(For PRO)

KEY LOCK/

(For Walkie)

Antenna

13

Handset Features

1

2

3

4

5

6

7

8

9

10

11

12

13

15

14

Handset Features

Basic Handset Features

1. 4-line LCD (Liquid Crystal Display)

a. The LCD display has LED (Light Emitting Diode) for backlighting.

st

b. The 1 line of LCD consists of icons.

c. Icons explanation from left to right.

(1) RSSI (Receive Signal Strength Indicator)

During a call, the number of bars is proportional to the radio signal

strength received.

(2) Call in-progress (ON/OFF-Hook)

Indicates if phone line mode is active.

(3) Intercom in-progress

Indicates if Intercom mode is active.

(4) Handset ID

Displays a handset icon and a 2-digit Handset ID.

(5) Text Envelope

Indicates if there is new text message.

(6) Two-Digit Address Index

Shows address index when viewing contents of the call logs,

text messages or phonebook.

(7) Line Indicator

Indicates the number of the line being accessed by the handset.

(8) Speaker phone

Indicates if speaker phone is active.

(9) Battery Strength

* Number of bars is proportional to the amount of battery time

remaining.

* Indicates charging when in charger cradle.

MENUREDIAL

(1) (2) (3) (4) (5)

(6)

(7) (8) (9)

d

ee

◎

15

nd rd

d. The 2 and 3 lines of the LCD, maximum 14 characters each,

display status, message, menu selections, or user-editable

alphanumerical characters.

e. The last line displays the left and right soft keys.

Re: There is only right soft key in idle mode of DuraWalkie.

Note: “◎” means only shown on DuraFon PRO handset.

2. Ringer

a. Rings to an incoming call.

b. Distinctive alert sounds indicating various events:

i. Single Beep: successful key entry.

ii. Double beep: failed operation or invalid key entry, also indicates

power on/off.

iii. Periodic 1-Long-2-Short Beeps (repeat every 10 seconds):

low battery warning.

iv. Periodic 1-Long-2-Short Beeps (repeat every 30 seconds):

indicates a call is on-hold.

( )

3. TALK/ SPEAKERPHONE (For DuraFon PRO only)

a. Places or answers a telephone or intercom call.

b. Sends a Flash signal to phone line to retrieve a dial tone after the

call ends, or to perform the call waiting feature provided by local

phone companies during a call.

c. Press and hold the key for one second to enable/disable

speakerphone.

4. KEYLOCK( ) (For DuraWalkie only)

a. In Idle mode, press to lock up the keypad.

b. In 2-Way/Intercom mode, press and hold to enable/disable

speakerphone.

5. 2-WAY/INTERCOM( )

a. Places an intercom call to another handset ID or a group ID.

b. Intercom calls are digital, full duplex, and are conducted without the

assistance from the base.

c. Press and hold for one second to enable/disable

speakerphone.

Handset Features

16

Handset Features

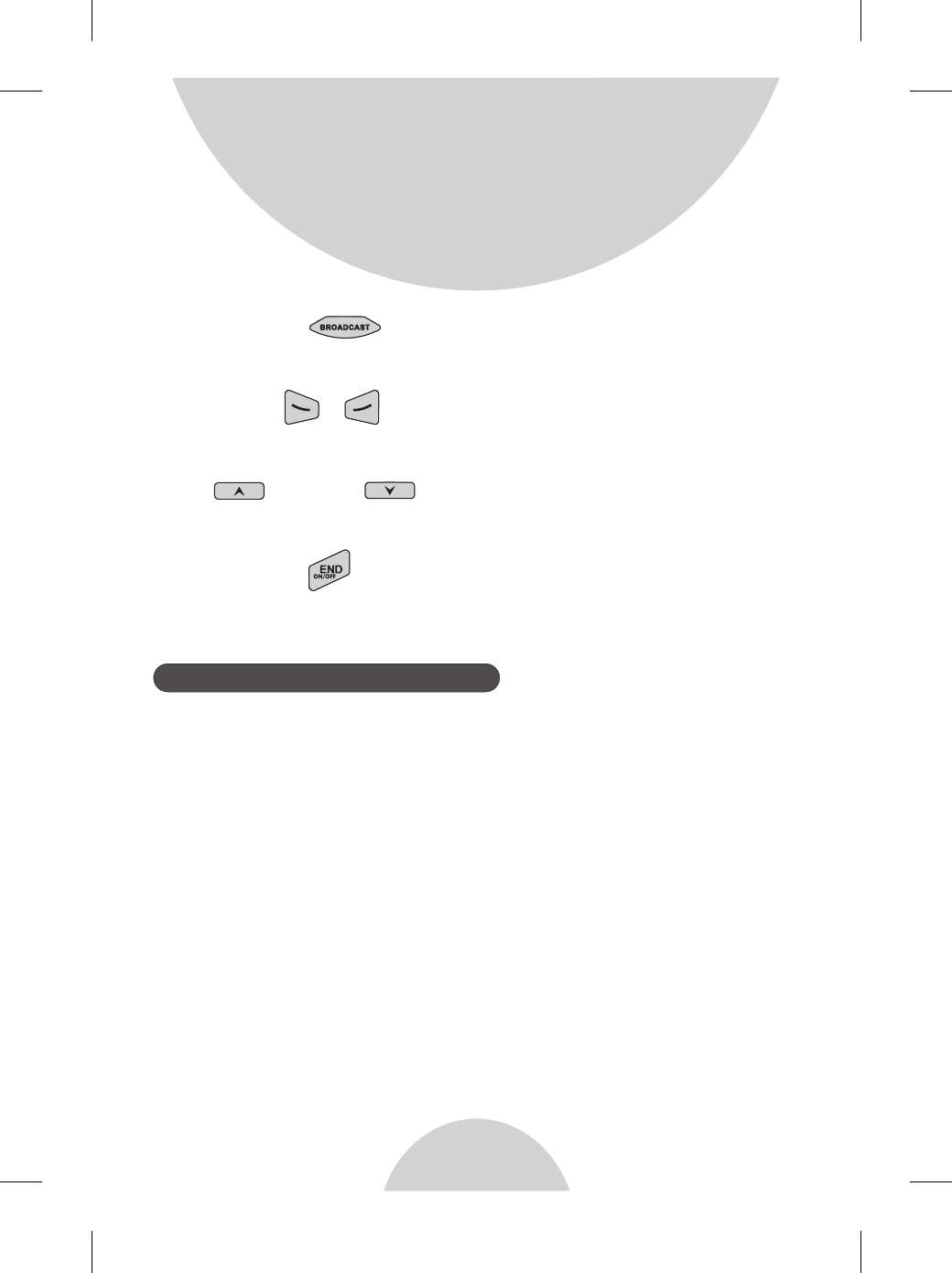

6. BROADCAST( )

a. Half duplex broadcasting to handsets for immediate announcement.

Note: Unless necessary, it is better not to assign ID 10 and 11 to

DuraWakie handsets.

landline

7. Left/Right ( / ) Softkeys

a. Make menu selection.

8. Up( ) /Down( ) Scrolling Keys

a. Scroll through records and menu selections.

b. Adjust receiver voice volume when in Talk mode.

9. END; On/Off ( )Key

a. Ends a call.

b. Leaves current menu operation, up one level.

c. Press for 3 seconds to off the power.

1. Multiple handsets registration

a. Up to 90 handsets.

b. ID 10 and 11 are the first two ID's assigned by the base and are

designated “administrators” who can change base settings such as

greeting message and other base administrative functions.

c. ID 01-07: Group IDs. Handsets can “subscribe” from the handset

menu to group(s) and be paged when a caller or an intercom

caller enters a Group ID.

2. Ringer / Vibrator

a. Six ringer volume selections

(high/medium/low/vibrate/vibrate-and-ring/off).

b. Four ringer type selections.

Additional Handset Features

17

Handset Features

3. Caller ID(For DuraFon PRO

a. Displays incoming call phone number and name on the LCD(needs

Caller ID service from local telephone company).

Note: If behind a PBX or Key system, Caller ID information will only

be recognized if the PBX or Key system passes that

information through the analog ports.

Note: If behind a PBX or Key system, Caller ID information will only

be recognized if the PBX or Key system passes that

information through the analog ports.

Note: If behind a PBX or Key system, Caller ID information will only

be recognized if the PBX or Key system passes that

information through the analog ports.

Note: If behind a PBX or Key system, Caller ID information will only

be recognized if the PBX or Key system passes that

information through the analog ports.

only)

4. Call Waiting with Caller ID(For DuraFon PRO only)

nd

a. Displays 2 incoming call information on the same phone line when

st

1 call is in progress (needs Call Waiting with Caller ID service from

local telephone company).

5. Name Tagging with Caller ID(For DuraFon PRO only)

a. Matches the Caller ID with the phone book entries; once matched,

the LCD screen will display the name or nickname instead of pure

Caller ID info (needs Call Waiting with Caller ID service from local

telephone company).

6. DND (Do Not Disturb, i.e., Silent Ring)

Silences the incoming call ring for current call only.

7. Three Call Logs(For DuraFon PRO )

only

a. Called Log: Stores 10 phone numbers (up to 28 digits each) dialed

most recently. Can perform last-number redial on all 10 numbers.

b. Received Call Log: 10 entries (14-digit phone number, 14-character

names, and time stamp), needs Caller ID service from local

telephone company.

18

Handset Features

c. Missed Call Log: 10 entries (14-digit phone number, 14-character

names, and time stamp), needs Caller ID service from local

telephone company.

d. Phone numbers and names can be saved into phonebook while in

display.

8. Any Key Answer (except END, Silent Soft Key)

9. Key-guard

10. Dialing Prefix(For DuraFon PRO only)

a. Up to 14 digits, including pause(s), one access code can be pre-

programmed to be added automatically in front of the dialed

number when dialing from call logs, phonebook, and dial-and-send

dialing.

11. Call Hold(For DuraFon PRO only)

a. Places call on hold.

b. Battery Hot Swap: Change battery while call is on hold.

12. Mute

13. Phonebook

a. 90 entries, each stores a phone number or handset ID (up to 28-

digit) and name (up to 14-character).

b. Alphabetically sorted display and searched by letter.

c. Dial from display.

d. During the stand-by mode, you can enter the phonebook by

pressing or scrolling key.

e. Phone book transfer via wireless link.

i. Transfer specific phonebook to one handset or all registered

handsets.

ii. Transfer all phonebooks to one handset or all registered

handsets.

Re: For DuraWalkie, it can only store 2-digit handset ID(or Group

ID).

Note: If behind a PBX or Key system, Caller ID information will only

be recognized if the PBX or Key system passes that

information through the analog ports.

19

Handset Features

14. Key Tone

a. Three key-tone volume selections (high/low/off).

b. Four key-tone type selections.

15. Call Timer(For DuraFon PRO only)

a. Display call time duration for current call during and immediately

after the call.

16. Call Transfer

a. Direct Transfer: transfer a telephone call to another handset

without announcement.

b. Announced Transfer a telephone call to another handset before

transferring a telephone call.

17. Call Conferencing(For DuraFon PRO only)

a. 2-handset and 1-line conferencing.

b. 1-handset and 2-line conferencing.

18. Line Selection(For DuraFon PRO only)

a. When enabled from the handset menu, a handset user will be

prompted to select from a list of available lines before making an

outgoing call.

19. PBX option transfer(For DuraFon PRO only)

a. PBX options transfer via wireless link.

b. Transfer specific PBX option to one handset or all registered

handsets.

c. Transfer all PBX options to one handset or all registered handsets.

20. Base Selection(For DuraFon PRO only)

When enable from the handset menu, a handset user can manually

select the base which is the nearest one with user before making

an outgoing call.

21

Base Illustration

1. Antenna

a. The antenna port has a reverse thread connector; to remove

antenna or cable, turn clockwise; to install, turn counterclockwise.

Improper installation may damage the connector.

b. When using an outdoor antenna, locate the antenna (not the base

station itself) as high as possible for a clear transmission path.

2. LED

a. Power: Indicates base station has power.

b. In-Use: Indicates an active telephone line.

Basic Base Station Features

Base Features

Antenna

REG Button

POWER

LINE 1

LINE 2

LINE 3

LINE 4

Wireless Telephone System

Digital 4-Line

Reset Button Line Status LED's

Power LED

Line in Audio in DC IN

AUDIO

L4 L2 DC IN

L3 L1

22

Base Illustration

3. Reset Button

a. Restores base station to factory settings.

b. Reset button is indented to prevent accidental system reset.

c. All handsets (including administrator) and additional base(s)

need to be re-registered after a base station reset.

4. Registration Key (REG)

Enters registration mode along with handset, assigns handset ID

(10-99).

5. L1~L4

Standard RJ-11C/CA-11A connector to plug in the telephone line.

6. Audio-in Jack (3.5mm)

7. DC In: to plug in the power adaptor

1. 4-channel Auto-Attendant

a. 4 Auto-Attendant can be active at the same time in case of 4

simultaneous incoming calls.

b. Allows private paging to a single handset (with individual

Handset ID) or group paging to a group of handsets (with Group

ID).

c. Per line AA enable/disable by administrator.

When disabled for a line, the administrator can set all handsets

to ring with an incoming call on that line, or a particular

Handset/Group ID (either one; not simultaneously) can be

assigned to have both incoming and outgoing call privileges

on that line. See AA Configuration by Administrator.

d. Up to 128 seconds customizable main greeting message.

e. Default of 4 lines AA is OFF.

Additional Base Station Features

23

9 1 2 to select flash key timing.

b. 9-level (100 ms - 900 ms) timing selections, default= 600 ms.

c. The default value (600 ms) works in most areas. Changing this

setting may result in Flash function not working. Change only when

you are certain the new value will work.

3. Call Transfer to PBX Extension(For DuraFon PRO only)

a. When the DuraFon PRO is installed behind a PBX system, you can

pre-program the feature code of call transfer function.

b. The Flash time is set at 600ms, by default, and may be changed to

match PBX settings.

Re:If loosing administrator handsets (handset 10 and 11), all settings

must be reset (reset the base and re-register all handsets).

Base Illustration

2. Optional Outdoor Antenna Kit with cable

Administrator Features

Handsets 10 and 11 are designated administrators. Both have the same

authority to perform base station administrative functions from their

handset menu selections. No password is required.

1. Supports both DTMF and Pulse dialing (For DuraFon PRO only)

a. From an administrator handset (Handset 10 or 11 ), press

enter base ID(00 – 07) to select Tone or Pulse

dialing mode.

b. Default is Tone dialing.

2. Administrator programmable Flash key timing (For DuraFon PRO

only)

a. From an administrator handset (Handset 10 or 11), press

MENU

9 1 1

MENU

24

Charger Illustration

DC IN

Spare Battery

Charging Slot

Spare Battery

Charging Indicator

Handset Charging

Slot

Charger Features

25

1. DC In

Connects to Charger AC Adaptor.

2. Handset Charging Slot

a. Charge handset battery when handset is placed in cradle.

b. Refer to the handset LCD for charging status.

i. Charging: LCD screen showed “Charging”.

ii. Fully Charged: battery status bar stands still and the LCD screen

would display “Fully Charged”.

iii. Charge Fail: Should an error occur during charging mode, the

LCD screen would display “Charge Fail”.

3. Spare Battery Charging Slot

a. Charge spare battery when battery is placed in slot.

B. LED as the spare battery charging indicator.

i. Slot is empty and the power is on: LED is Green light.

ii. Charging: LED is Orange light.

iii. Fully Charged: LED returns to Green light.

4. It is impossible to overcharge the battery using this charger.

5. The AC adapter can be used as a travel charger and plugged directly

into the handset’s DC port (located next to the headset port).

However, you can not turn off the power while charging with

the travel charger. A Warning message: “Unplug Travel Charger then

OFF” will be shown on the LCD display.

Notes:

1. Fully charge battery packs before first use.

2. Both handset and spare batteries can be charged at the same time.

3. Handset will be “power on” automatically when placing on the

charging slot.

4. However, if you run down the battery, it will take around one

minute for handset to auto power on.

5. Removing a ringing handset from the charging cradle will auto

answer the call.

Charger Features

26

Getting Started

Base Station Installation

For best performance, maintain a distance of at least 1 meter (about 3

feet) between the base station and other electronic devices (e.g., TV,

computer, stereo, fax machine, answer machine, cordless phone, etc.).

1. Install base station antenna.

The base station's antenna port has a reverse-thread connector; to

install antenna or cable, turn counter-clockwise; to remove, turn

clockwise. Improper installation may damage the connector.

2. Plug the transformer end of the base station AC/DC adaptor into a

standard AC electrical power outlet, plug the other end into the “DC In”

jack on the back of the base station.

a. The base adaptor's DC plug is larger in dimension than the charger's

DC plug. The charger adaptor's DC plug will not fit into the base's

DC In jack.

b. The base station's power supply (DC Adaptor) and telephone line

should be plugged into a surge protector with phone line protection.

3. Plug one end of the phone cord into one of the 4 phone jacks marked L1

~ L4 and plug the other end into the telephone outlet. Since DuraFon

PRO has the built-in “line detection” feature, it is okay to plug in the

phone jacks in random order.

4. Connect an external telephone answering device by following the

instructions that come with the answering device. An exemplary

configuration: install the external answering device in-between the

wall phone jack(s) and the Base Station. Either a multiple of single-

line answering devices or a multiple-line answering device can be

used.

27

5. To use the Music/Message-On-Hold feature: Connect one end of a

standard audio cable into a radio or audio player, and plug the other

(3.5 mm) end into the MOH jack on back of the base.

Notes:

Recommended phone line features from the local phone company:

Multiple phone lines hunt group” is a useful feature and works well

with this phone system. This feature “ties” multiple phone lines to a

single phone number. When an outside caller calls this common

phone number, the phone company automatically finds a free line.

In a hunt group, the Call Waiting and the Caller ID with Call Waiting

nd

(or called Type II Caller ID) features are unnecessary because a 2

call will come in on a separate line, rather than on the same line. For

nd

a 2 call coming in on a separate line, the phone system's built-in

Call Waiting feature will alert the user and allow the user to toggle

between 2 lines.

Multi-base setups:

EnGenius DuraFon PRO has the capability to expand the coverage or

capacity.

Re: For best performance, maintain a distance of at least 10 meters

(about 30 feet) between any two base stations.

* Expanding coverage :

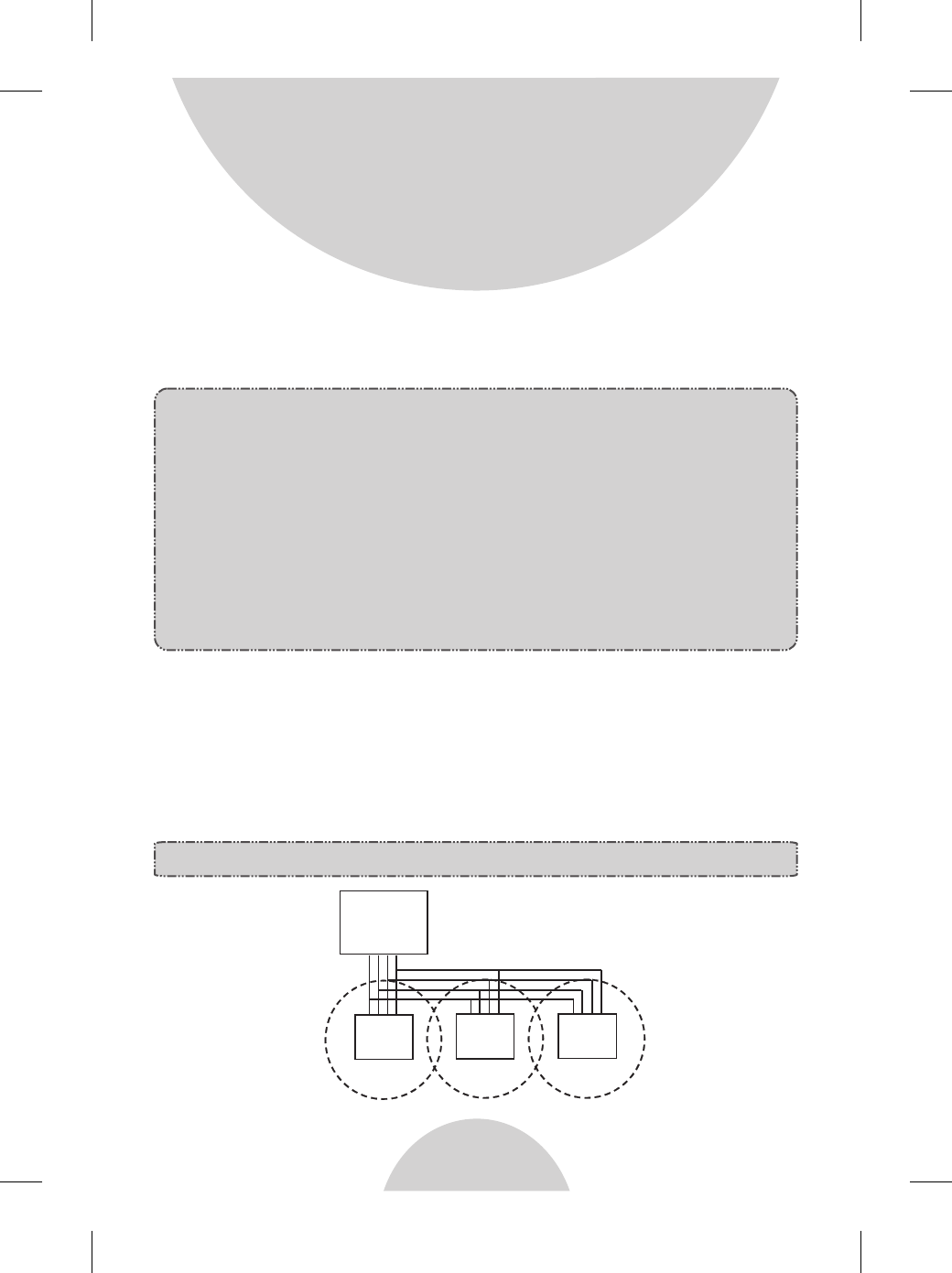

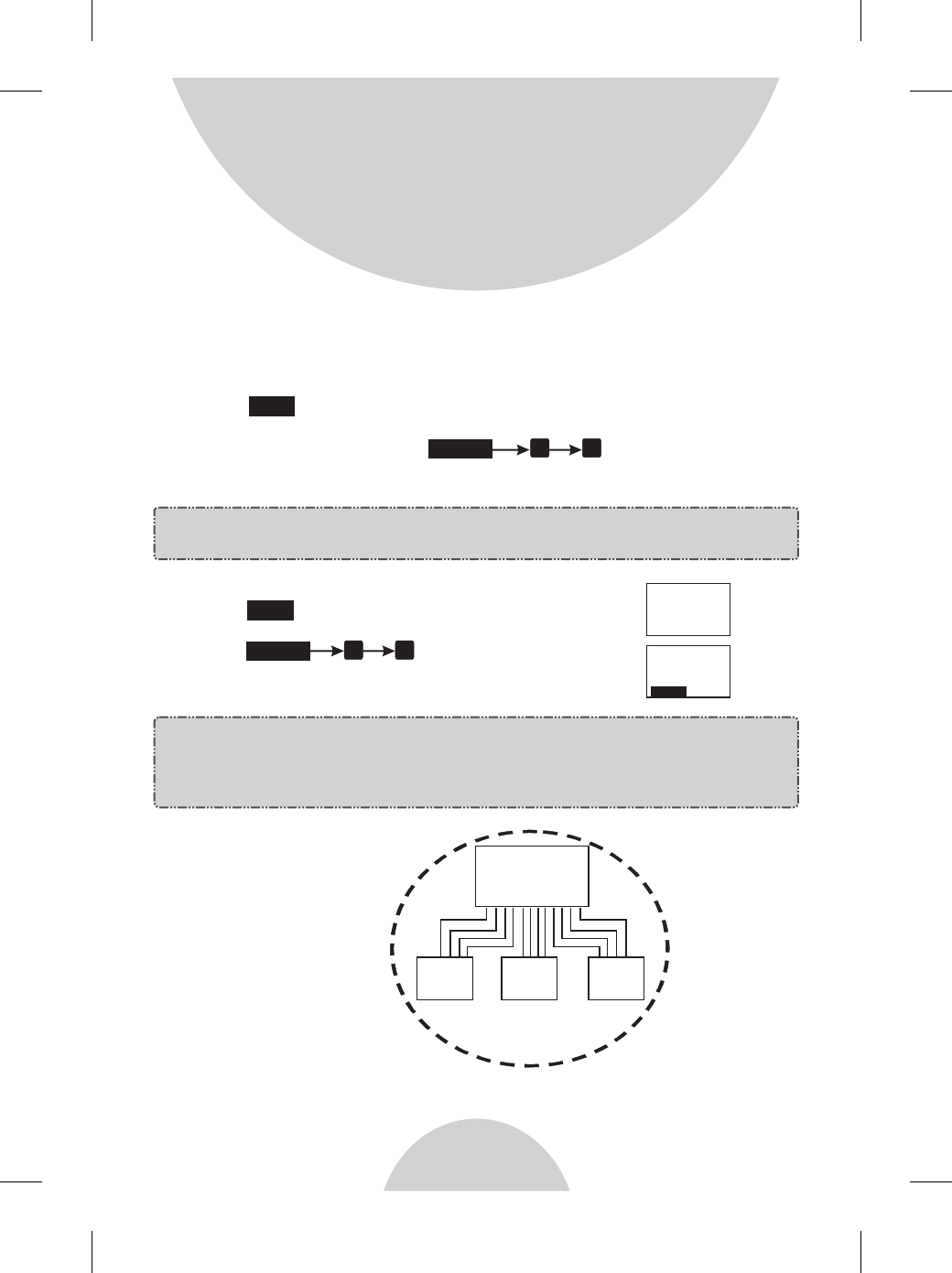

Parallel connects all L1/L2/L3/L4 in each base as below schematic

(up to 8 bases), the use coverage will be several times increased.

Note: Telephone calls cannot be handed off between base units.

“

Legacy

PBX

1234 1234 1234

Base-1 Base-2 Base-3

Getting Started

28

Legacy

PBX

Base-1 Base-2 Base-3

1234

Getting Started

10

(

Select Mode

1.Add Base

Ë

10

(

Added Base

Number: **

CANCEL

Re : when a call is coming in from L1, any handset can pick up the

call, as long as the handset are in the coverage of base1~3.

1. Handset Registration.

a. Press button on Base “00” (default), four LEDs will light up in

setting mode.

b. Handset operation: Press (It will complete the

registration process).

c. Repeat, as needed, to add handsets.

Note: Additional handsets should be added to the system before

adding additional base units.

2. Establishing additional Base Units:

a. Press button on new Base.

b. Use Handset 10 or 11 to add base :

Press .

c. Enter 01~07 (Base ID).

d. Repeat, as needed, to add base units.

Notes:

1. Only Handset 10, 11 can assign Base ID.

2. Base ”00” is a primary base. All handsets must register only on

Base “00”.

*Expanding capacity:

User capacity can be

increased by adding

additional base units.

Up to 8 base units can

be supported.

REG

MENU 6 1

MENU 8 1

10

(

Select Mode

1.Add Base

Ë

10

(

Added Base

Number: **

CANCEL

29

Getting Started

Re : Handsets can answer calls from any port or line, unless port is

dedicated to a specific handset or group.

1. Handset Registration.

a. Press button on Base “00” (default), four LEDs will light up in

setting mode.

b. Handset operation: Press .

(It will complete the registration process).

c. Repeat, as needed, to add handsets.

2. Establishing additional Base Units:

a. Press button on new Base.

b. Use Handset 10 or 11 to Add base :

Press

c. Enter 01~07 (Base ID).

d. Repeat, as needed, to add base units.

Notes:

1. Only Handset 10, 11 can assign Base ID.

2. Base“00” is a primary base. All handset must register only on Base

“00”.

3. To avoid interference, the interval between any two bases should

be at least 10 meters (about 30 feet).

1. Plug the transformer end of the Charger AC/DC adaptor into a standard

AC electric power outlet, plug the other end into the “DC In” jack on the

back of the Charger.

2. Install battery pack onto the handset.

3. Install handset antenna.

4. Place handset onto the charger front slot.

5. The phone system is now ready to perform basic functions such as

making and receiving phone calls and intercom calls. No base station

handset programming is needed for basic operations.

REG

MENU 6 1

MENU 8 1

.

Handset and Charger Installation

30

Basic Operations

Operation Modes

Both the base station and handset have levels of operation at which time

only certain procedures of functions can be performed.

Re: The main difference between DuraFon PRO and DuraWalkie is the

handset of DuraFon PRO has the capability to make telephone calls,

and the handset of DuraWalkie does not.

A. Base Operation Modes

1. IDLE mode- this is the default mode. The “Intercom”, “Broadcast”, and

“Volume keys” are active in IDLE mode.

2. TALK mode- the base operates in this mode during a phone call,

intercom use, and broadcast operation. The “In Use” , “Intercom”, and

“Broadcast” LED will light up respectively.

3. REGISTRATION mode- the base enters this mode by pressing the

button for three seconds. There are no active base unit keys once this

mode has been entered. Four LEDs will light up in Registration mode.

B. Handset Operation Modes

1. IDLE mode- this is the default mode.

a. If there is no on-going activity, the handset automatically goes into

SLEEP/IDLE mode to save battery power.

b. The handset can be turned off completely by holding down the

key for 3 seconds.

c. The idle screen display (custom name) can be edited.

d. The 2-digit number represents the handset ID.

2. Menu mode

REG

END

a. Press the (Right softkey) function key to activate MENU mode.

b. In MENU mode, the handset settings and information contained in

memory can be changed.

c. The functions available through the MENU selection are covered in

greater detail from page 53.

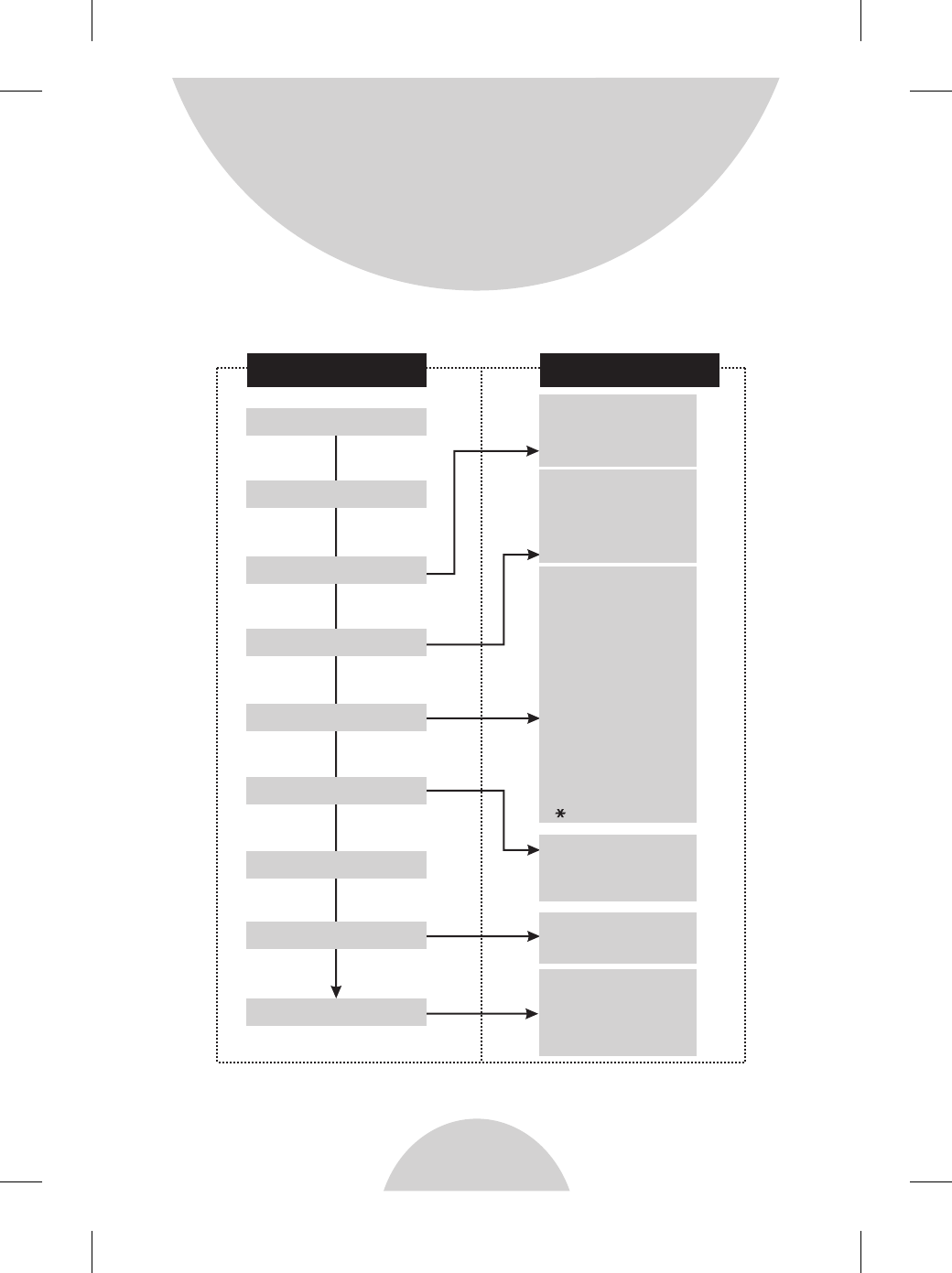

d. The MENU structure display as below:

“ ”

used for support under the cradle to avoid breaking mounting slots.

An “L” bracket is not included, but can be purchased from a local home

center.

Note:

1. The handset packaged along with a Base Station is pre-registered

at the factory. If you have a new handset, you will need to register

the handset with the base station in order to be recognized as a

member handset by the base and by other handsets. See Handset

Registration.

2. Fully charge battery packs before the first usage.

6. Charging cradle may be wall mounted, but an L bracket should be

31

Basic Operations

DuraFon PRO

32

Main menu

1.KeyGuard

2.PhoneBook

3.Call Logs

4.Sound

5.Settings

6.Registration

7.Unused

8.Multi-base

9.Admin

Sub-menu

1.Dialed

2.Received

3.Missed

1.Ring Volume

2.Ring Tone

3.Key Volume

4.Key Tone

1.Dial Prefix

2.Group Select

3.Base Select

4.Clear

5.Naming

6.Contrast

7.Backlight

8.Line Select

9.PBX Options

0.Language

#.PA On/Off

.Phone Reset

Select Mode:

1.Add Base

Admin:

1.System

2.Line Setting

3.Auto Attndnt

Basic Operations

1.Register

2.Deregister

3. Remote REG

DuraWalkie

33

Main menu Sub-menu

1.Ring Volume

2.Key Volume

3.Key Tone

1.Group Select

2.Clear

3.Naming

4.Contrast

5.Backlight

6.Language

#. PA On/Off

. Phone Reset

Admin:

1.System

2.Line Setting

3.Auto Attndnt

Basic Operations

1.KeyGuard

2.PhoneBook

3.Unused

4.Sound

5.Settings

6.Registration

7.Unused

8.Multi-base

9.Admin

1.Register

2.Deregister

3.Remote REG

Select Mode:

1.Add Base

34

1. Press , wait for dial tone, and then enter phone number.

2. Alternatively, you can enter phone number first then press Key.

When using this method, you can use the (Left) and

(Right softkeys) to edit the number entered. “Delete” erases the last

digit entered. “Clear” erases the entire line but remains in the dialing

mode.

3. Speed dial by access the entries in the phone book.

a. Press or scrolling key to enter the phone book.

b. Press to dial the number.

4. To abort dialing, press key.

5. During the call, press and hold the Key to activate the

speakerphone.

Notes:

1. After a link is established, the Base ID will appear on the upper-

right corner.

If no Base ID shows up, it implies that you are approaching the

boundary of the coverage.

2. If the line is occupied, the LCD shows “No Line Available” and

handset returns to standby mode.

3. If a link cannot be established, the LCD will show “No Connection”

after a 12-second time out.

4. A call duration timer will start displaying the length of the call after

link is established.

The EnGenius Industrial Cordless Phone System offers private,

Intercom/2-way radio calls independent of the base station.

Intercom/2-way communication can be placed from handset to handset.

Handset to Handset Calls.

Making a Telephone Call (For DuraFon PRO only)

Making a 2-Way/ Intercom Call

TALK

CLEAR DELETE

TALK

END

TALK

Basic Operations

1. Press key followed by a two-digit handset ID or Group ID.

2. Press key to end the call.

3. During the call, press and hold the Key, the speakerphone is

active.

Notes:

1. Intercom calls can be made regardless if the Base Station is

present.

2. If a Group ID is entered, the first handset (belonging to that group)

that answer will establish a link with the caller. See Handset

Group Subscription.

3. If a link cannot be established, the LCD shows “No Connection”

after a 12-second time out.

1. Broadcasting all handsets.

a. Press & hold key from one handset.

b. A series of beeps will indicate initiation of handset broadcast to all

handsets within communication coverage.

c. Begin speaking after the series of beeps has ended.

d. Release key to end the broadcasting.

2. Broadcasting a group of handsets.

a. Enter the Group ID and then press & hold key.

b. A series of beeps will indicate initiation of handset broadcast to all

handsets within communication coverage.

c. Begin speaking after the series of beeps has ended.

d. Release key to end the broadcasting.

3. Broadcasting an individual handset.

a. Enter the Handset ID and then press & hold key.

b. A series of beeps will indicate initiation of handset broadcast to all

handsets within communication coverage.

Re: When the handset is in use with a call or put a call on hold, it can’t

be enabled with broadcast.

INTERCOM

END

TALK

BROADCAST

Making a Broadcast

35

Basic Operations

36

Basic Operations

Notes:

1. You need to continuously press key when doing

broadcast. The broadcast will be over once user release the key.

2. You need to notice that there is no bi-bi-beep sound when

receiving a broadcast.

3. You can press the (Left softkey) if you choose to ignore

the call. The key operation is valid only for the current

call. You can silent all broadcast by turning off the ringer to set

auto-silence from the handset menu.

1. Press (Left softkey).

2. The LCD shows the last phone number dialed. To dial this number,

press (Left softkey).

3. Use Up or Down Arrow Key to scroll through the last 10 phone numbers

dialed. Select and press key.

Note:

Intercom numbers (Handset ID) are not stored in the last 10 numbers

dialed log.

1. When an incoming call arrives, the handset will ring or vibrate unless

the ringer has been turned off.

2. If the handset is on the charger cradle (ringer will be temporarily

switched to “Ring” if it has been set to “Vibrate” ), lift the handset and

start the conversation.

3. If the handset is not on the cradle, press any key (except , and the

softkey) to answer.

4. During the call, press and hold the Key, the speakerphone is active.

Re:DuraWalkie handset can’t receive a telephone call directly, but it can

receive a transferred telephone call from PRO handset.

BROADCAST

SILENT

REDIAL

DIAL

END

SILENT

TALK

Redial (For DuraFon PRO only)

Receiving a Telephone Call (For DuraFon PRO only)

37

Basic Operations

Notes:

1. You can press (Left softkey) if you choose to ignore the

call.

Unlike turning off the ringer (from the handset menu), the

key operation is valid only for the current call.

2. If Caller ID service is available, the LCD will display the incoming

call information. If the LCD shows “Private” or “Unknown” , the

caller's information may have been blocked by the caller or the

originating phone company.

1. When an intercom call arrives, the handset will ring or vibrate unless

the ringer has been turned off. Press key to answer the intercom

call.

2. If the handset is on the charger cradle (ringer will be temporarily

switched to “Ring” if it has been set to “Vibrate” ), lift the handset and

start the conversation.

3. If the handset is not on the cradle, press any key (except and the

softkey) to answer.

4. During the call, press and hold the Key, the speakerphone is

active.

Notes:

1. The LCD displays the caller's Handset ID.

2. You can press the if you choose to ignore the call. Unlike

turning off the ringer the key operation is valid only for

the current call.

SILENT

TALK

END

SILENT

TALK

SILENT

Receiving an Intercom Call

Also it can transfer the same telephone call to other DuraWalkie or

PRO handset. (Details refer to call transfer)

38

Basic Operations

To end a telephone or intercom call, press key or place handset into

charging cradle.

1. Voice volume can only be adjusted during a call.

2. There are 6 levels of volume selections. Default as volume 4. Use

and scrolling key to adjust.

3. The new setting remains effective for all future calls until changed

or handset is power down.

1. For calls held at DuraFon PRO Base only

2. When a call is in progress, it can be put on hold by pressing the

(Right softkey).

3. To return to the conversation, press .

Notes:

1. The call being placed on hold can only be removed from by

the handset that puts it on hold.

2. Handset LCD displays a call is being on hold. An alert tone (double

beep) every 30 seconds will remind the handset that a call is being

on hold.

3. If the operation (e.g., call transfer) after putting a call on-hold fails,

the held call may be dropped.

4. You can power off the handset (e.g., change battery) while call is

on hold.

5. After power on again, you can continue the call by pressing

(Left softkey) or select from the Option menu to

terminate the hold state. You can only unhold the call when within

Ending a Call

Adjusting Receiver (Earpiece) Voice Volume

Placing a Call On Hold (For DuraFon PRO only)

END

HOLD

UNHOLD

HOLD

UNHOLD 3

39

Basic Operations

1. After a link is established, you can press (Left softkey) and

press to mute the handset microphone.

2. When mute is active, the other party will not hear your voice, but you

can still hear the other party.

3. To end the mute, press (Left softkey) and press to unmute

the handset microphone.

Re: If established an intercom call, when end the mute, press

(Left softkey).

1. Enter the key sequence , then

select “Off” . Press to confirm your choice. This will turn off the

ringer until it is turned on again from the menu.

2. For temporary silencing the ringer when an incoming call arrives, press

(Left softkey).

1. To prevent accidental dialing, you can press (Right softkey),

then press to select KeyGuard option. The handset keypad is

locked. No key entry is accepted except the power on/off key.

2. To unlock the keypad, press (Left softkey) then within 2

seconds, press the digit to unlock.

3. Key Guard is in effect until unlocked or powered off.

1. Whenever you have missed incoming call(s), you can press

softkey to enter the call logs information.

Mute

Do Not Disturb (Silent Ring)

Key Guard

To View Missed Call(s) (For DuraFon PRO only)

OPTION

0

OPTION 0

UNMUTE

MENU Sounds Ring Volume

SAVE

SILENT

MENU

1

UNLOCK

1

VIEW

the coverage area of the base. Once you're out of the base

coverage, you can return to stand-by using “Clear hold” function

in the “OPTION” list item #3.

1. When you review missed incoming call(s), you can directly call back by

pressing Key.

2. The displayed CID number in most cases will be a 10-digit number with

the 3-digit area code followed by the 7-digit telephone number. If the

area code is unnecessary for calling back, you can follow below rule to

adjust the calling back number:

a. Press key once, the 3-digit area code will be removed.

b. Press key twice, “1” will be added in front of the displayed

number.

c. Press key three times, it will loop back original displayed

number.

Re: The CID default is 10 digits, when press key, it will be

7-digit 11-digit 10-digit in circle.

3. After the displayed number chosen, press the key to call back.

To Call back from Call Log (For DuraFon PRO only)

Battery Recharge and Replacement

TALK

FORMAT

TALK

1. Charge the battery when one or several of the following happen:

a. Phone beeps twice every two seconds.

b. Battery icon is empty.

c. Phone does not respond when a key is pressed.

d. LCD and backlighting become dim.

e. A decrease in coverage is experienced.

2. You can replace the handset battery after placing the call-in-progress

on hold.

3. Battery talk time and standby time vary depending on the talk/standby

pattern and the operating distance. Returning the handset back to the

charging cradle as often as possible is recommended for best

performance. Use only manufacturer provided battery and charger!

40

Basic Operations

2. You need to subscribe the caller ID service from local telephone

company to retrieve this data.

41

Advanced Operations

Handset Registration

1. If your handset is purchased as part of a system, it has been pre-

registered with the base station at the factory.

2. If the Handset ID reads “00”, that means it is a new handset or the ID

has been erased. You need to register the handset with the base

station. In certain situations, you may want to change a handset's ID.

For example, you want to change a particular handset from a user to an

administrator (ID 10 or 11), or vice versa. Or in some rare occasions,

you find another handset having the same Handset ID.

3. Registration:

a. Press -6 to enter the registration mode

b. Press and hold the base's Registration button for 2 seconds

until the L1, L2, L3, and L4 LED come on.

c. Press handset key , this completes the registration process.

The base station will assign a handset ID between 10 and 99. The

assigned ID will be displayed on the handset LCD, indicating

successful registration.

d. Repeat above steps for all additional handsets.

e. The first two handsets registered will be given ID 10 and 11, which

gives them administrator privileges.

Re : Base “00” is a primary base. All handsets must register to

Base “00”.

4. De-registration:

a. You can de-register a handset from a base. De-registration will reset

the Handset ID to 00, erase the system security code, and free up the

old ID for future registration.

b. After deregistration, the handset will not be able to use the base to

make or receive phone calls, nor can it use the intercom to reach

other handsets.

c. Press handset (Right softkey).

MENU

REG

1

MENU

d. Press the handset number key , this will enter the handset

registration menu.

e. Press and hold the base's button for 2 seconds until L1, L2, L3,

and L4 LED come on.

6

REG

42

Advanced Operations

f. Press the handset number key , this completes the de-registration

process. Upon successful de-registration, the handset will show ID “00”.

Notes:

1. The base has a 30 second registration timeout starting from

pressing the button. The handset has a 12 second registration

timeout starting from the time registration or de-registration option

has been selected. The base and handset will automatically exit

registration mode after timeout.

2. Repeat registration or de-registration process if unsuccessful.

1. Advanced registration functions can be performed by administrator

handsets (ID 10 and 11) only.

2. Administrator handsets can perform advanced registration function

as long as it is within range with the base station. The base station

does not need to be in registration mode.

3. De-register a Handset ID by administrator:

a. Make sure that the administrator handset is within the coverage

range of the base station.

b. Press administrator handset (Right softkey).

c. Press number , this will enter the handset administration menu.

d. Press number , handset enters system setting menu.

e. Press number , and enter the two-digit Handset ID to be cleared.

f. Upon successful operation, the handset LCD will display “Done”,

otherwise it will show “Message not received, try again”.

4. Obtain a Specific Handset ID:

a. If a particular Handset ID is preferred over sequentially assigned ID,

the administrator can “tel” the base in advance what the next ID

assignment should be.

b. Press administrator handset (Right softkey).

c. Press the number , this will enter the handset administration menu.

d. Press number , handset enters system setting menu.

e. Press number , and enter the two-digit Handset ID to be assigned

next by the base.

f. Upon successful operation, the handset LCD will display “Done” ,

otherwise it will show “Message not received, try again”.

2

MENU

9

1

2

MENU

9

1

5

REG

Advanced Registration

43

Advanced Operations

g. If the handset ID is already in use by another handset, the

administrator will be alerted. In that case, the administrator can

choose another ID or asks the handset having the desired ID to

vacate by de-registering with the base.

h. Perform registration immediately afterward for the handset desiring

a specific ID to ensure that the ID is not taken by another handset.

5. Remotely register Handset:

a. If base install in ceil or higher location, administrator handsets can

perform remote registration.

b. Press administrator handset (Right softkey).

c. Press the number , this will enter registration mode.

d. Press the number , this will replace the procedures to press & hold

the base button until the L1, L2, L3 and L4 LED come on.

e. Proceeding the handset registration process for new handsets.

MENU

6

3

REG

Notes:

1. De-registration by the administrator will disable a handset's ability

to use the base station to make or receive phone calls. This also

frees up the ID for future registration.

2. Handsets de-registered by the administrator can still perform

intercom to other handsets.

1. Up to seven handset groups (01-07) can be defined and handsets can

decide which group(s) they want to be in.

2. For example, Group 1 represents the Customer Service Group, Group

2 represents the Sales Group, and Group 3 is the Marketing Group.

Suppose that Handset 11 wants to receive incoming rings for all Sales

and Marketing related calls. Then handset 11 will need to “subscribe”

to Group 2 and Group 3.

Handset Group Subscription

Advanced Operations

44

1. While a telephone call is in progress, you can place it on hold and

transfer the call.

2. Press softkey to put call on hold.

3. Press softkey to enter feature list for selection.

4. Press number and enter a two-digit Handset ID to call another

handset extension.

a. Un-announced Call Transfer:

Press before the destination handset answers, the call is

automatically transferred to the destination handset.

b. Announced Call Transfer:

(1) Speak to the destination handset.

(2) Press softkey or the to end announcement. The call

is transferred to the destination handset.

Notes:

1. If the destination handset does not answer after handset paging

timeout, the call is routed back to the originating handset.

2. Above described “Call Transfer” is for DuraFon PRO handset-to-

handset call transfers.

Call Transfer (For DuraFon PRO only)

HOLD

OPTION

2

XFER END

END

3. Group Selections:

a. Press handset to enter the handset setting menu

b. Press number , handset enters group select menu.

c. Press softkey and enter two-digit group number (01~07) to

add membership in a group.

d. Repeat for all desired groups.

e. Delete group selections by pressing (Right softkey) and

enter group number.

Notes:

1. The handset can change group affiliations at any time.

2. The base (administrator) is not responsible for group assignments.

Consequently, it cannot unsubscribe a handset from a group.

MENU 5

2

ADD

DELETE

45

Advanced Operations

3-Way Conferencing (For DuraFon PRO)

Base Select (For DuraFon PRO only)

1. While a telephone call is in progress, you can place call on hold and

bring in another phone line or another handset for a 3-way conference.

2. Press (Right softkey) to put the current call on hold.

3. Press (Right softkey) to enter selection menu.

(

5. 3-Way Conferencing with a Second Phone Line:

a. Press number and enter a phone number to call another phone

line.

b. After the second line answers, press the (Left softkey).

c. One handset and two phone lines can now talk simultaneously.

i. If one phone line hangs up, the handset continues talking to the

remaining phone line.

ii. If the handset presses key, the 2nd phone line will be

dropped.

The handset and the first phone line continue conversation.

Notes:

1. 3-way conferencing between 3 handsets is not supported.

2. Unlike 3-way conferencing provided by the phone company, 3-way

conferencing involving 2 phone lines will take up two physical lines,

leaving only two lines left available for other handsets.

The handset must have access to a second line.

HOLD

OPTION

2

CONF

1

CONF

END

4. 3-Way Conferencing with a Second Handset:

a. Press number and enter a two-digit Handset ID to call another

handset extension.

b. After the second handset answers, press the Left softkey).

c. Two handsets and one phone line can now talk simultaneously.

Any one party can drop out of the 3-way conferencing, leaving the

remaining two parties still connected.

1. A handset can manually select the desired base station before access

outbound line.

2. Press handset (Right softkey).

3. Press the number , this will enter the handset setting menu.

MENU

5

46

Advanced Operations

3

5

functions on two separate phone lines.

rd

2. This feature only works for 2 lines, if a 3 phone call comes for the

same handset, the call will not be routed to the handset.

Call Waiting (For DuraFon PRO only)

1. A handset, while talking on one phone line, can be informed of the

arrival of a new incoming phone call.

2. For example, suppose that Handset 15 is talking on Line 1. When a

new call comes in on Line 4 and the caller enters extension number

*15* when prompted by the AA, or if the call is set to be routed to

Handset 15 when AA is disabled.

. The base station recognizes that Handset

15 is busy. Instead of announcing to Line 4 that Handset 15 is busy, the

base sends an alert to Handset 15.

. Upon receiving the alert, the handset sounds an audible double beep

4

alert and LCD displays “New call on Line 4”.

. Handset 15 can:

a. Ignore the new call; continue talking to Line 1.

b. Press key to switch to Line 4.

c. Subsequent pressing of key will toggle between Line 1 and

Line 4.

d. Press key while talking to a line will terminate that particular

call and automatically switch back to talking to the remaining line.

Notes:

1. This built-in call waiting is separate from the Call Waiting feature

available from the local phone company. The phone company

provided Call Waiting functions on the same phone line, while the

DuraFon Call Waiting

Switch

FLASH

END

4. Press number , handset enters Base Select setting mode.

5. Use or arrow to scroll up and down the selection (On/Off)

6. Make a selection (default =off), and press (Left softkey).

Re: When turns on the Base Select, you must enter 2-digit Base

ID after press the key.

3

SAVE

TALK

Notes:

1. Because this setting allows handset manually select the base

station, the handset must be in range with the desired base station.

47

Advanced Operations

1. When enabled by the administrator, an automated attendant would

greet a telephone line incoming call.

2. The caller will be prompted by the greeting message to enter a two-digit

extension number (Handset ID) or press for operator.

3. The greeting message is user programmable. The Handset ID that is

designated as the operator is also user programmable.

i. Default greeting message (Main OGM): “Please enter the extension

number or press for the operator”.

ii. Default operator: Handset 10.

4. AA will ask for another handset ID if the first entry is invalid (no

registered handset with that ID) with the announcement (OGM2): “The

extension you entered is invalid, please try another extension or press

for the operator”.

5. If there is no entry time out, AA will announce (OGM3): “Please hold,

your call is being transferred to the operator”. And automatically ring

the operator handset.

6. If the destination handset does not answer (busy, power off, or out of

range) after handset paging time out, the AA prompts the caller for

another extension number by announcing (OGM5): “The extension

you’ve entered is busy or not available. Please enter another extension

number or press for the operator”.

nd

7. If the 2 try is still not successful, AA will announce (OGM4): “Sorry,

nobody can answer your call right now. Please try again later, goodby”.

Then drops the call.

8. When the DURAFON PRO base station is connected to wired PBX

extension lines, calls addressed/routed to the AA operator can be sent

back to the operator of the wired PBX system. From an administrator

handset, up to 10 keys/digits are allowed to program a specific code in

order to transfer the calls back to the wired PBX. This feature can only

be enabled and pre-programmed by an administrator handset (Handset

ID 10 or 11). Consult with the wired PBX manual for operation instructions

and correct key sequence for transfer calls to the operator from an

extension.

0

Auto-Attendant (AA)

3. It is recommended to order from the local phone company Hunt

Group feature for all your lines and not subscribe to the Call Waiting

feature.

48

Advanced Operations

Notes:

1. Intercom calls are not routed by Auto-Attendant.

2. Routing messages OGM2,3,4 and 5 are not user programmable.

3. The timeout is 5 seconds for entering extension number.

4. The calls can be routed to either a Handset ID or an extension

number of the wired PBX system, There can be only one operator

for the AA, which is either an DURAFON PRO handset or the wired

PBX operator.

st nd

5. Call routing is at most 2 hops. That is, if both the 1 and th 2

handsets do not answer, the call will be terminated if the operator

does not answer.

AA Configuration by Administrator

Change AA Parameters:

1. Administrator can change the following AA settings:

a. Record/playback new main greeting message.

b. Set number of rings before AA picks up a call.

c. Turn on/off the AA line-by-line.

d. Set Designated Handset ID for AA disabled line(s). Either the

Designated Handset ID or the Group ID can use that particular line

for incoming and outgoing calls. Which means this specific line(s)

will be dedicated to a particular handset (Handset ID 10-99) or a

calling group (Group ID 01-07).

e. Designate an operator, the handset which would answer un-routable

calls or when the caller chooses “Operator” when prompted.

a. From an administrator handset (Handset 10 or 11), press

(Right softkey).

b. Press number , this will enter administration menu.

c. Press , handset enters AA setting menu.

i. Press and follow instruction to record new greeting message.

ii. Press to playback the current greeting message.

iii. Press to set number of rings before the AA picks up a call. Use

Up/Down arrow to choose between 2 and 9 rings.

Menu

9

3

1

2

3

Notes:

1. Only administrator can change AA settings.

2. Because AA setting is stored on the base station, the handset must

be in range with the base to make changes.

3. The maximum recording time for the greeting message is 128

seconds.

4. Allowing each line’s AA to be turned on or off separately is useful if

different lines are used for different purposes.

5. When AA is disabled, the line can be dedicated to either an

individual Handset ID or a Group ID.

6. The operator can be any individual handset or a group; it doesn’t

need to be an administrator handset (Handsets 10 and 11).

7. The minimum number of rings before the AA picks up cannot be

lower than two for the purpose of receiving the Caller ID message.

49

Advanced Operations

iv. Press to turn AA On/Off. This can be done separately for each

phone line by using Up/Down arrows to scroll through Line 1 to

Line 4, and press or softkey to turn AA On/Off.If turning

off the AA may be useful when:

The line is not used by a group of people.

External answering machine is to be attacked to the line.

v. Press and select from the following two options to set Operator

for AA:

“Handset” : assign a specific handset as operator by entering a

two-digit handset ID (default=Handset 10) as operator for all

calls addressed to the operator when AA is on, or

“PBX” : transfer calls to be answered by the operator back to the

designated wired PBX operator. System administrators must

know the proper programming and “call transfer” feature code

(available from the user manual of the wired PBX system) in

order to perform this function correctly.

The following example is the instruction to route a call back to

the brand N’s PBX system by pressing “Flash-7-0-1-8-3-0”,

where a Flash key is pressed followed by the call transfer code

“70”, then enter the extension number “1830” immediately.

Confirm the set up by press using the (Left softkey).

4

On Off

5

SAVE

50

Advanced Operations

1. Line dedication function can be performed by administrator handsets

(ID 10 and 11) only.

2. By default all incoming calls will ring all handsets .

3. With the administrative handset, press for

Line Dedication setting.

4. It will first show Line 1 and status. If you wish to dedicate line 1 to a

specific handset or group, you need to press . To dedicate lines 2-4

use or scrolling key on the keypad.

5. After choosing a line, it will show and , when choosing

, you need to enter the handset ID or group ID for extension

number. If you choose , it will go back to Line setting menu.

Notes:

1. When entering Line Dedication setting, it will show line and status.

If line is already dedicated to a specific handset or group, it will

show the handset or group ID behind the line. If line isn't dedicated

to a specific handset yet, it will show “ALL HS” behind the line.

2. When setting Line Dedication, make sure the handset or group ID

is correct to avoid losing calls sents to an DuraWakie handset or

invalid ID.

3.Handsets dedicated to a port will also receive calls from non-

dedicated line as well as the handset’s dedicated line. Use Line

Dedication for a group on other lines to further manage calls.

1. Press while the phone is in standby to enter Line

Select menu.

2. Use or to switch between On and Off, default = Off.

3. If set to On, when pressing or entering a phone number followed

by pressing Key, the handset LCD display will show “Select Line”

followed by available lines (1~4). Select from one of the available lines

i.e. press to select line 1 and press to select line 2.

4. This feature is also supported when selecting a second line during call

conferencing.

Line Dedication

Outbound Line Selection (For DuraFon PRO only)

MENU 9 2 2

OK

YES NO

YES

NO

MENU 5 8

TALK

1 2

TALK

51

Advanced Operations

1. There are two system parameters that can be changed by the

administrator: clear (de-register) handset ID and set the next handset

ID to be assigned by the base.

2. From an administrator handset (Handset 10 or 11), press

(Right softkey).

3. Press number , this will enter the administration menu.

4. Press number , handset enters System setting menu.

a. Dial tone:

Press to set up the dial tone to be either “Tone” or “Pulse” . Press

to choose “Tone” or press to choose “Pulse”.

b. Flash time:

Press to set up the flash time from 100ms, 200ms, to 900ms (9

levels to choose from.) For example, press if the desired flash

time is 200ms. Default flash is 600ms.

c. Line Detect:

Press to set up the line detect to be either “On” or “Off” Press

to choose “On” or press to choose “OFF”. Default is ON .

d. Clear Handset ID:

Press and enter a two-digit Handset ID when prompted to clear

this ID for later assignment.

e. Set next Handset ID to be assigned:

Press and enter a two-digit Handset ID when prompted. This is

the ID that will be given out by the base to the next handset

registering with the base.

5. Press number , handset enters Line Setting menu.

a. Enter Base ID(00~07) to access base.

b. Press to enter Broadcast setting.

i. Press or to select L3 or L4 (the status of setting will be

displayed on LCD)

ii. Press to enter the setting mode, and the base ID will be

displayed on LCD.

iii. Press (Left softkey) to enable the broadcast function. Press

(Right softkey) to disable the broadcast function.

Change System and Line Settings by Administrator

MENU

9

1

1 2

2

3

4

5

2

1

2

CHANGE

ON

OFF

1. You can store up to 90 entries in the phonebook. Each entry can

contain a phone number or handset ID (up to 28 digits) and a name

(up to 14 characters).

Re: For DuraWalkie, each entry can store 2 digits handset ID or Group

ID.

2. To access phonebook, press followed by or or

scrolling key when handset in standby mode.

3. To add a new entry:

a. Press softkey.

b. Enter a phone number when LCD prompts “Number?” Use

softkey to delete the last digit entered. Press when

completed.

c. You will then be prompted to enter a name for the phone number just

entered.

Phonebook Operations

MENU 2

ADD

DELETE

SAVE

52

Advanced Operations

Re: L3 and L4 can be setting as two broadcast lines, repeated

nd

above items for setting 2 broadcast line.

Notes:

1. De-registration by the administrator will disable a handset's ability

to use the base station to make or receive phone calls. This also

frees up the ID for future registration.

c. Press to enter Line dedication setting.

i. Select base's line and press handset (Right softkey).

ii. Line Dedicate confirm:

Press (Right softkey) to go back Line Setting Menu.

Press (Left softkey) then enter extension number.

2

OK

NO

YES

(1) Press softkey to enter a phone number without a name.

All records without a name will be placed on top of the list, in the

order they are entered.

(2) To enter the name, press the corresponding keypad number one

or more times according to the order of the character on the key.

(3) Use softkey to delete the last character entered. When

completed, press softkey to confirm your selection.

SAVE

DELETE

SAVE

iv. After setting broadcast, press (Left softkey) to enable the AA.

Press (Right softkey) to disable the AA.

ON

OFF

53

Advanced Operations

4. The entries are alphabetically sorted and stored as a list in an

ascending order (A to Z) from the top of the list.

a. If the phonebook is entered from the menu, the first entry displayed

is from the top of the list.

b. If the phonebook is entered using the arrow, the first entry

displayed is from the top of the list.

c. If the phonebook is entered using the arrow, the first entry

displayed is from the bottom of the list.

nd

5. The first line of LCD display shows name and the 2 line shows the

phone number. If the phone number is longer than 14 digits, press

softkey and select Option 3 to view the complete number.

6. To search for a record:

a. Use or scrolling key to enter the Phone Book mode.

b. Press a key that corresponds to the first character of the name you

are looking for.

OPTION

Notes:

1. When entering a phone number, the cursor automatically advances

to the next digit field. Use or scrolling key to move the

cursor backward or forward to insert or delete.

2. When entering a name, the cursor automatically advances to the

next character field if you press a different key for the next

character. If you need to enter consecutive characters from the

same key, you can wait for the cursor to advance or use or

scrolling key to move the cursor backward or forward manually.

Also use or to move the cursor to insert or delete.

3. By default, all letters are entered in the upper case. Use the key

to toggle between upper and lower cases.

4. A “Pause” entry represents a 2.8 second delay in dialing the

following digits, which is useful when calling a sequence of

segmented numbers (e.g., access code, credit card number, auto-

attendant entries, etc.) Pause is entered by pressing the ＊ key

twice (LCD displays P).

Entering pause twice (PP) will result in 5.6 seconds pause in the

dialing.

54

Advanced Operations

8. To edit phonebook entry:

a. Use or scrolling key or the alphabetical search method to

locate the record to be edited.

b. Press softkey to enter editing menu.

c. Press to edit the designated phone entry.

9. Dial from display:

a. Press or Intercom to dial the phone number or Handset ID

displayed.

OPTION

2

TALK

OPTION 4

1

TX ALL

TX ONE

10. To transfer (cloning) phonebook:

To transfer phonebook, both parties have to enter the phonebook

transfer mode firstly by following below:

a. Press follow by or or scrolling key when

handset in phonebook mode.

b. For phone sending party, press to enter sending mode.

i. Either press (Left softkey) to transfer all phonebook

entries to another handset(s).

ii. Or press (Right softkey) to transfer one entry to another

handset(s).

iii. Press 2-digit handset ID or group ID, then select all phonebook

entries or one entry to be transferred.

Re : “00” means all handsets

iv. During phonebook transferring, LCD shows “Sending” and 2-

digit countdown on the LCD to indicate the phonebook numbers

which are waiting for sending.

c. For example, you are looking for “EnGenius”, and then press the

number once.

d. Use or scrolling key to locate the exact record you are

looking for .

3

7. To erase phonebook entry:

a. Use or scrolling key or the alphabetical search method to

located the record to be erased.

b. Press softkey to enter editing menu.

c. Press to erase the designated phone entry.

d. LCD shown “Are you sure?” Press Yes to double confirm your change.

OPTION

1

c. For phonebook receiving party, press to enter receiving mode.

i. When entering the receiving mode, LCD shows “Ready”.

ii. Start to receive phonebook, LCD shows “Get phonebook from

Ext. # : xx” .

iii. A beep emitted when receiving each phonebook.

iv. When the phonebook receiving, 2-digit countdown on the LCD

to indicate the phonebook numbers which are waiting for

receiving.

Re: The phonebook transfer through the wireless interface, it

may partially miss transmission by interference.

2

55

Advanced Operations

1. DuraFon PRO and DuraWalkie both have the broadcast function, each

can broadcast another handset without going through the base station,

as long as the handsets are connecting. However, when setting up the

multi-base, the broadcast feature may not be available due to the

coverage range. In that case, you can use the function of “Broadcast

through PBX” to broadcast.

2. From an administrator handset (Handset 10 or 11), press

(Right softkey).

3. Press number , this will enter administration menu.

Broadcast through PBX

MENU

9

Notes:

Character Table:

Key

1

3

5

8

0

#

Key

*

2

4

7

9

Characters and Orders

＊' + , . ( ) & 1

DEF3

JKL5

TUV8

0

Characters and Orders

A B C 2

GHI4

PQRS7

WXYZ9

Toggle case when in

character editing

* P (Pause) when in

number editing

Space when in

character editing

# when in number

editing

56

a. The greeting message: “Please enter the extension number” .

b. If there is no entry after 5 seconds, the broadcast will be enabled to

all handsets.

Note:

1. Line 3 and or 4 can be reserved for broadcast function.

2. For a single broadcast port; reserve Line 3 for broadcast and

line dedicate (see pg. 46) Line 4 to a non-existent handset (ie:

99).

3. A base unit configured with a single broadcast port Lines 1 and

2 may be used as standard telephone ports or lines.

4. For dual broadcast ports; reserve Line 3 and 4 for broadcast and

line dedicate Lines 1 and 2 to a non-existent handset (ie: 99)

5. Broadcast is limited to 30 seconds.

Advanced Operations

4. Press number , handset enters Line setting menu.

a. Enter Base ID (00~07) to access base.

b. Press to enter Broadcast setting.

5. When calling through the line 3 or 4, the caller will be prompt ed by the

greeting message to enter a two-digit extension number ( “01” ~ “07”

for Group ID: “10” ~ “99” for Handset ID: “00” for all).

2

1

i. Press or to select L3 or L4 (the status of setting will be

displayed on LCD)

ii. Press to enter the setting mode, and the base ID will be

displayed on LCD.

iii. Press (Left softkey) to enable the broadcast function. Press

(Right softkey) to disable the broadcast function.

iv. After setting broadcast, press (Left softkey) to enable the AA.

Press (Right softkey) to disable the AA.

Re: L3 and L4 can be setting as two broadcast lines, repeated

nd

above items for setting 2 broadcast line.

CHANGE

ON

OFF

ON

OFF

Menu Operations

DuraFon PRO

57

Main menu

1.KeyGuard

2.PhoneBook

3.Call Logs

4.Sound

5.Settings

6.Registration

7.Unused

8.Multi-base

9.Admin

Sub-menu

1.Dialed

2.Received

3.Missed

1.Ring Volume

2.Ring Tone

3.Key Volume

4.Key Tone

1.Dial Prefix

2.Group Select

3.Base Select

4.Clear

5.Naming

6.Contrast

7.Backlight

8.Line Select

9.PBX Options

0.Language

#.PA On/Off

.Phone Reset

Select Mode:

1.Add Base

Admin:

1.System

2.Line Setting

3.Auto Attndnt

Advanced Operations

1.Register

2.Deregister

3.Remote REG

58

1. Press (Right softkey) while the phone is in standby.

2. Press to lock keypad (see Key Guard).

3. Press to view, search, erase, edit and transfer the phonebook

(see Phonebook).

4. Press to view the last 10 numbers called, received, or missed.

Records can be erased or edit/save into the phonebook.

a. Press to view the last 10 phone numbers dialed, starting from the

most recent one. Use or to scroll through the list.

i. Press (Right softkey) for options.

* Press and confirm to erase the current record.

* Press to edit and save or save without editing into the

phonebook.

* Press to view the complete number if the phone number is

longer than 14 digits.

b. Press to view the last 10 phone numbers received, starting from

the most recent one. Use or to scroll through the list.

i. Press (Right softkey) for options.

* Press and confirm to erase current record.

* Press to view the arrival date and time of the call.

* Press to edit and save or save without editing into the phonebook.

c. Press to view the last 10 phone numbers received but not

answered, starting from the most recent one. Use or to

scroll through the list.

i. Press (Right softkey) for options.

* Press and confirm to erase current record.

* Press to view the arrival date and time of the call.

* Press to edit and save or save without editing into the phonebook.

d. The two-digit index on the upper right corner of the LCD display

shows the location in ascending order, with 01 being the most recent

call.

e. While viewing any of the three call logs, press (Left softkey) to

dial the phone number.

MENU

1

2

3

1

OPTION

1

2

3

2

OPTION

1

2

3

1

2

3

DIAL

OPTION

Notes:

1. Only phone numbers are stored in the three call logs. Intercom

calls are not recorded.

Advanced Operations

5. Press to set sound-related settings:

a. Press to select ringer volume: Use or to scroll through 6

options: Low, Medium, High, Vibrate, Vib and Ring, Off. Press

(Left softkey) to save selection. Default = High.

b. Press to select ringer tone: Use or to scroll through 4

options: 0, 1, 2, and 3. Press (Left softkey) to save selection.

Default = 0.

c. Press to select key volume when a key is pressed: Use or

to scroll through 3 options: High, Low, and Off. Press

(Left softkey) to save selection. Default = Low.

d. Press to select key tone: Use or to scroll through 4

options: 0, 1, 2, and 3. Press (Left softkey) to save selection.

Default = 0.

6. Press to change handset settings:

a. Press to set dialing prefix:

i. Use or to scroll and select to turn on or off the dialing

prefix feature. Default = Off.

ii. If “On” is selected, the handset is prompted to enter a prefix, up to

14 digits.

iii. Use (Right softkey) and or to edit prefix.

iv. When this feature is turned on, the LCD will prompt the user on

each outgoing phone call except during redial or dialing by

pressing the key first whether to use the dialing prefix. The

current prefix is also displayed. Press (Left softkey) or

(Right softkey) to add the prefix to the beginning of the number.

v. This feature is useful for access code, calling card, and credit

card calls, etc.

b. Press to Group Select: see Handset Group Subscription.

c. Press to set or turn Base Select on or off. Default = Off.

See Base Select.

2. Caller ID service is required from your local phone company in

order to receive phone numbers, names and time stamps on

incoming calls. The Received and Missed Call Logs will register

no incoming calls if Caller ID service is not available.

3. The Caller ID feature may not be supported by all PBX or Key

systems’ analog ports, check with your equipment provider.

4

1

SAVE

2

3

SAVE

4

SAVE

5

1

DELETE

TALK

YES NO

2

3

SAVE

59

Advanced Operations

d. Press to clear call logs and phonebook:

i. Press and confirm to delete the entire phonebook.

ii. Press and confirm to clear the three call logs (Called,

Received, and Missed).

e. Press to edit the name of Custom or Line:

e-1. Press to change the power-up LCD display to show, e.g.,

customer name or other greeting message:

e-2 Press to change the name of line, when calls coming, it will

indicate the calls came from which line.

i. Use or to move the cursor backward or forward to insert

(to the left of the cursor) or delete (the character above the cursor,

or left of the cursor if cursor is on the right of the last character).

ii. Enter characters using the Character Table and method discussed

in the Phonebook section.

iii. When finished, press (Left softkey) to save change.

f. Press to change LCD display contrast:

i. Use or to scroll through values 1 to 12. Pick one that is

most suitable to you. Default = 10.

ii. Press (Left softkey) to save setting.

g. Press to change the LCD backlight:

i. Use or to scroll through options: On, Off, and 8 Seconds.

Default = 8 seconds, meaning that the backlight is always on.

The 8-second option will turn off the backlight after 8 seconds of

inactivity.

ii. Press (Left softkey) to save setting.

h . Press to change the Line selection:

i. Use or to scroll through options: On or Off. Default = Off,

meaning that you can not select the other available lines to dial.

ii.Press (Left softkey) to save setting.

i. Press 9 to change the PBX options:

i. Press soft key to edit a PBX feature to be memorized and key

in the name of the PBX features just like editing a phonebook entry.

ii. Press (Left softkey) to save setting.

iii. Press and following by entering PBX options mode,

you can erase the PBX option.

iv. Press and following by entering PBX options mode,

you can edit the PBX option.

v. Press and following by entering PBX options mode,

4

1

2

5

1

2

SAVE

6

SAVE

7

SAVE

8

ADD

OPTION 1

OPTION 2

OPTION 3

SAVE

60

Advanced Operations

61

Advanced Operations

Re: To transfer PBX options, both parties have to enter the PBX

option mode firstly by following bellow:

For sending party, press to enter sending mode.

* Either press (Left softkey) to transfer all PBX

options to another handset(s).

* Or press (Right softkey) to transfer a specific entry

to another handset(s).

* Press 2-digit handset ID or group ID, then select all PBX

options or a specific entry to be transferred ( “00” means all

handsets)

* During PBX options transferring, LCD shows “Sending” , and

2-digit countdown on the LCD to indicate the numbers of PBX

options which are waiting for sending.

For receiving party, press to enter receiving mode.

* When entering the receiving mode, LCD shows “Ready” .

* Start to receive PBX options, LCD shows “Get PBX options

from Exit. #: x mm x” .

* When the PBX options is receiving, 2-digit countdown on the

LCD indicates the number of PBX options which are waiting to

be received.

Note:

1. Different PBX makers use different analog codes to control PBX

function, like call transfer, call park, etc.; Please refer to your PBX

maker’s manual for this information.

2. Errors may occur in PBX options and phonebook entries transferred

wirelessly due to interference. Please re-enter entry manually if

problems occur with a entry.

J. Press to change Language:

i. Use or to scroll through options: English, Spanish, and

French. Default = English, meaning the LCD display shows in

English.

ii. Press (Left softkey) to save setting.

1

TX ALL

TX ONE

2

0

SAVE

you can transfer the PBX options to other handset(s).

62

Advanced Operations

K. Press to turn Broadcast On/Off.

i. Press (Left softkey) to turn on the broadcast function

(including the broadcast of handset to handset and base

to handset).

ii. Press (Left softkey) to turn off the broadcast function

Re: When broadcast setting “Off”, there is an icon indicated

in the display, side of the battery icon.

I. Press to make phone Reset.

i. Press to clear all setting and return to default (all phonebooks,

CID logs, handset registration will be cleared).

ii. Press to clear all setting but keep handset registration as will.

7. Press to register or de-register handset: See Handset Registration.

8. Press to add new bases:

From an administration handset (Handset 10 or 11) to set new Base 01

~07.

Maximum bases is up to 8. Before adding a new base, the Handset must

be registered in master base (Base ID=00).

A. Press button on new Base.

B. Use Handset 10 or 11 to Add base: Press

c. Enter 01~07 (Base ID).

9. Press to change system and Line setting: See System setting and

Line Setting.

#

ON

OFF

1

2

6

8

REG

MENU 8 1

9

63

DuraWalkie

Advanced Operations

Main menu Sub-menu

1.Ring Volume

2.Key Volume

3.Key Tone

Select Mode:

1.Add Base

Admin:

1.System

2.Line Setting

3.Auto Attndnt

1.KeyGuard

2.PhoneBook

3.Unused

4.Sound

5.Settings

6.Registration

7.Unused

8.Multi-base

9.Admin

1.Group Select

2.Clear

3.Naming

4.Contrast

5.Backlight

6.Language

#.PA On/Off

.Reset Phone

1.Register

2.Deregister

3.Remote REG

64

1. Press (Right softkey) while the phone is in standby.

2. Press to lock keypad (see Key Guard).

3. Press to view, search, erase, edit and transfer and edit the

phonebook (see Phonebook).

4. Press to set sound-related settings:

a. Press to select ringer volume: Use or to scroll through

6 options: Low, Medium, High, Vibrate, Vib and Ring, Off. Press

(Left soft key) to save selection. Default = High.

b. Press to select ringer tone: Use or to scroll through 4

options: 0, 1, 2, and 3. Press (Left softkey) to save selection.

Default = 0.

c. Press to select key volume when a key is pressed: Use or

to scroll through 3 options: High, Low, and Off. Press

(Left softkey) to save selection. Default = Low.

d. Press to select key tone: Use or to scroll through 4

options: 0, 1, 2, and 3. Press (Left softkey) to save selection.

Default = 0.

5. Press to change handset settings:

a. Press to Group Select: see Handset Group Subscription.

b. Press to clear phonebook:

i. Press and confirm to delete the entire phonebook.

c. Press to change the power-up LCD display to show, e.g.,

customer name or other greeting message:

i. Use or to move the cursor backward or forward to insert

(to the left of the cursor) or delete (the character above the cursor,

or left of the cursor if cursor is on the right of the last character).

ii. Enter characters using the Character Table and method discussed

in the Phonebook section.

iii. When finished, press (Left softkey) to save change.

d. Press to change LCD display contrast:

i. Use or to scroll through values 1 to 12. Pick one that

is most suitable to you. Default = 10.

ii. Press (Left softkey) to save setting.

MENU

1

2

1

SAVE

2

SAVE

3

SAVE

4

SAVE

1

2

1

3

SAVE

4

SAVE

4

5

Advanced Operations

65

Advanced Operations

e. Press to change the LCD backlight:

i. Use or to scroll through options: On, Off, and 8 Seconds.

Default = 8 seconds, meaning that the backlight is always on.

The 8-second option will turn off the backlight after 8 seconds of

inactivity.

ii. Press (Left softkey) to save setting.

f. Press to change Language:

i. Use or to scroll through options: English, Spanish, and

French. Default = English, meaning the LCD display shows in

English.

ii. Press (Left softkey) to save setting.

g. Press to turn Broadcast On/Off:

i. Press (Left softkey) to turn on the broadcast function

(including the broadcast of handset to handset and base to

handset).

ii. Press (Right softkey) to turn off the broadcast function.

Re: When broadcast setting “Off ”, there is an icon indicated in

the display, side of the battery icon.

h. Press to make Reset Phone:

i. Press to clear all setting and return to default (all phonebooks,

CID logs, handset registration will be cleared).

ii. Press to clear all setting but keep handset registration as well.

6. Press to register or de-register handset: See Handset Registration.

. Press to add new bases:

7

From an administrator handset (Handset 10 or 11) to set new Base 01~

07. Maximum additional bases is up to 8. Before adding a new base,

the Handset must be registered in master base (Base ID =00).

a. Press button on new Base.

b. Use Handset 10 or 11 to Add base: Press

c. Enter 01~07 (Base ID).

. Press to change system and Line setting: See system setting and

8

Line Setting.

5

SAVE

6

SAVE

ON

OFF

1

2

MENU 8 1

#

6

8

REG

9

Technical Specifications

Notes:

1. NA = Not Applicable.

2. The manufacturer reserves the right to change designs and

specifications without notice.

Electrical Specifications

Frequency

RF Power

Channel Spacing

Number of Channels

Modulation

Multiple Access

Frequency Hopping Rate

TDMA Frame Length

Number of Slots/Frame

Number of Users/Carrier

Receiver Sensitivity

Antenna Connector

Antenna Gain

TX Power Control Range

Telephone Interface

Speech Coding

Channel Coding

Transmission Data Rate

User Data Rate

Duplex

Voice Quality

No. of System ID

Ring Signal

Auto-Attendant Coding

Flash Time

Power Source

Charger Current

Charge Time

Regulation Compliance

Operating Temperature

Storage Temperature

Humidity

Dimension without antenna

Weight

Base Station

902-928 MHz

Peak: 708 mW

Average: 304 mW

200 kHz

128

GMSK

Frequency Hopping TDMA

100 per second

10 ms

8

4

-2

< -108 dBm (@ BER 10 )

Reverse TNC

2 dBi

dBi External (optional)

NA

RJ11 x 4

8 kbps G.729A

8 kbps Convolutional + CRC

170.678 kbps

128 kbps duplex

Time Division Duplex (TDD)

TIA/EIA-470B

65,536

20-50 Hz, 12-90 Vrms

8 kbps G.729

100-900 ms programmable

120V/7V AC/DC Adapter

NA

FCC Part 15, Part 68

-10 ~ 60 C

-10 ~ 70 C

20 75 %

280 x 215 x 53 mm

8.5 x 11.0 x 2.1 inch

907 grams

Portable Handset

902-928 MHz

Peak: 708 mW

Average: 76 mW

200 kHz

128

GMSK

Frequency Hopping TDMA

100 per second

10 ms

8

4

-2

< -108 dBm (@ BER 10 )

Non-standard

2 dBi (Long)

0.5 dBi (Short)

100-708 mW

NA

8 kbps G.729A

8 kbps Convolutional + CRC

176.678 kbps

128 kbps duplex

Time Division Duplex (TDD)

TIA/EIA-470B

65,536

NA

8 kbps G.729

NA

3.6V, 1700 mAh Li-ion

Battery

500 mA

4 hours (from empty)

FCC Part 15, Part 68

-10 ~ 60 C

-10 ~ 70 C

20 75 %

161 x 58 x 31 mm

6.3

175 grams

x 2.2 x 1.2 inch

6

66

2 dBi

1.5 dBi

Index

67

2-WAY/INTERCOM, 13, 15,19, 34

3

3-Way Conferencing, 44, 45

A

Adjusting Receiver (Earpiece) Voice

Volume, 38

Administrator Features, 22

Audio-in Jack, 22

Auto Attendant, 47,48,49

B

Base Select, 45

Base Station Features, 21, 22

Base Station Installation, 26

Battery, 5, 7, 11, 12, 13, 14, 15, 18, 25,

29, 30, 31, 38, 40, 59, 63, 65

Battery Recharge and Replacement, 40

Battery Strength, 14

BROADCAST, 13, 16, 30, 35, 36, 48, 49,

52, 53, 58, 59, 63

Broadcast through PBX, 52

Broadcasting a group of handsets, 35

Broadcasting all handsets, 35

Broadcasting an individual handset, 35

C

Call Conferencing, 20, 48

Call Forwarding, 19, 45, 46, 56

Call Hold, 18

Call in-progress, 14, 40

Call Timer, 19

Call Transfer, 19, 23, 38, 44, 58

Call Waiting, 15, 17, 27, 46, 47

2Call Waiting with Caller ID, 17

Caller ID, 17, 18, 27, 37, 40, 56

Cardiac Pacemaker, 4

Charger Features, 24, 25

D

DC In: Jack, 22

De-registration, 41, 42, 43, 49

Dialing Prefix, 18, 56

DND, 17

Do Not Disturb (Silent Ring), 39

E

emergency, 4

Ending a Call, 38

Equipment Checklist, 11, 12

Expanding coverage, 27

Expanding capacity, 28

External telephone answering

device, 26

F

FCC, 5, 8, 9, 65

FDA, 4, 5

G

Group ID, 15, 16, 19, 35, 47,

51, 53, 58, 59, 64

H

Handset and Charger

Installation, 29

Handset Charging Slot, 24, 25

Handset Features, 13, 14, 15,

16, 17, 18, 19, 20

Handset Group Subscription,

43, 56, 62

Index

68

Handset ID, 14, 15, 18, 19, 22,

30, 35, 36, 37, 41, 42, 43, 44,

45, 49, 51, 53, 58, 59, 64

Handset Registration, 28, 29,

41, 59, 63

Handset to Handset Calls, 34

Headset Jack, 13

Hearing Aid Users, 4

I

IC, 8

IDLE mode, 15, 30

Intercom in-progress, 14

interference, 4, 5, 7, 8, 9, 29, 52, 58

K

Key Guard, 39, 55, 62

Key-guard, 18

L

Line Dedication, 47, 49

Line Indicator, 14

Line Selection, 20, 47, 57

Lithium-Ion (Li-Ion), 7

M

Making a 2-Way/ Intercom Call, 34

Making a Broadcast, 35

Making a Telephone Call, 34

MENU mode, 30

Multi-base setups, 27

Multiple handsets registration, 16

Mute, 18, 39

N

Name Tagging, 17

O

outdoor antenna, 12, 21, 22

P

PBX option, 20, 57, 58

PBX option transfer, 20

Phonebook, 14, 18, 49, 50, 51,

52, 55, 57, 59, 62, 63

Placing a Call On Hold, 38

Power Outage, 5

R

Receiving a Telephone Call, 36

Receiving an Intercom Call, 37

Redial, 17, 36, 56

Registration, 8, 22, 28, 29, 30,

31, 41, 42, 43, 49, 59, 63

Registration Key, 22

REGISTRATION mode, 22, 30,

41, 42

Regulatory Information, 8

REN, 8

Reset Button, 22

Restores base station to factory

settings, 22

Reverse thread connector, 21

Ringer / Vibrator, 15, 16, 36, 37,

39, 56, 62

RSSI, 14

S

Safety Instructions, 4, 5, 7

Spare Battery Charging Slot,

24, 25

Speaker phone, 14, 15, 34,

35, 37

Speed dial, 34

T

TALK mode, 16, 30

TALK/SPEAKERPHONE, 15

Technical Specifications, 65

Text Envelope, 14

Text Messaging, 14, 19, 59, 60, 63, 64

Three Call Logs, 17, 55, 57

To Call back from Call Log, 40

To View Missed Call(s), 39

Transformer, 26, 29

Two-Digit Address Index, 14, 55

V

Vibrator, 16

Volume, 16, 19, 30, 38, 39, 59, 60, 64

W

Wall mounted, 31

Index

69

P/N:6709A0243140

Literature order number: 120-0009-01
