Users Manual Revised

A
Outdoor
Wireless Access Point
User’s Manual
Before operating the unit, please read this manual thoroughly, and
retain it for future reference.
i
■ Contents
CHAPTER 1. HARDWARE INSTALLATION.........................................1
1.1 BEFORE YOU START ........................................................................1
1.2 LOCATE THE ACCESS POINT AND INLINE POWER INJECTOR PORTS ............2
1.3 INSTALLING THE ANTENNAS................................................................4
1.4 INSTALLING THE CONSOLE PORT CABLE...............................................5
1.5 CONNECTING THE POWER SUPPLY AND ETHERNET CABLE ........................5
1.6 OUTDOOR INSTALLATION....................................................................6
CHAPTER 2. NETWORK TOPOLOGIES .............................................7
2.1 CONFIGURATION EXAMPLES...............................................................8
2.1.1 Wireless Access Bridge ...........................................................8
2.1.2 Wireless Access Router with PPPoE Ethernet connection.........9
2.1.3 Wireless Access Router with dynamic IP Ethernet connection.10
2.1.4 Wireless Access Router with static IP Ethernet connection .....11
CHAPTER 3. INITIAL CONFIGURATION............................................12
3.1 CONFIGURE REQUIREMENTS ............................................................12
3.2 CONFIGURE THE AP.......................................................................14
3.2.1 Configure the AP as a Bridge ..................................................15
3.2.2 Configure the AP as a Router with PPPoE Ethernet connection 16
3.2.3 Configure the AP as a Router with dynamic IP address Ethernet
.............................................................................................21
3.2.4 Configure the AP as a Router with static IP address Ethernet ..22
3.3 CONFIGURE WIRELESS RELATED PARAMETERS ...................................24
3.4 SECURITY.....................................................................................25
3.4.1 WEP encryption.....................................................................25
3.4.2 Hide the SSID........................................................................25
3.4.3 Deny ‘ANY’ client station ........................................................25

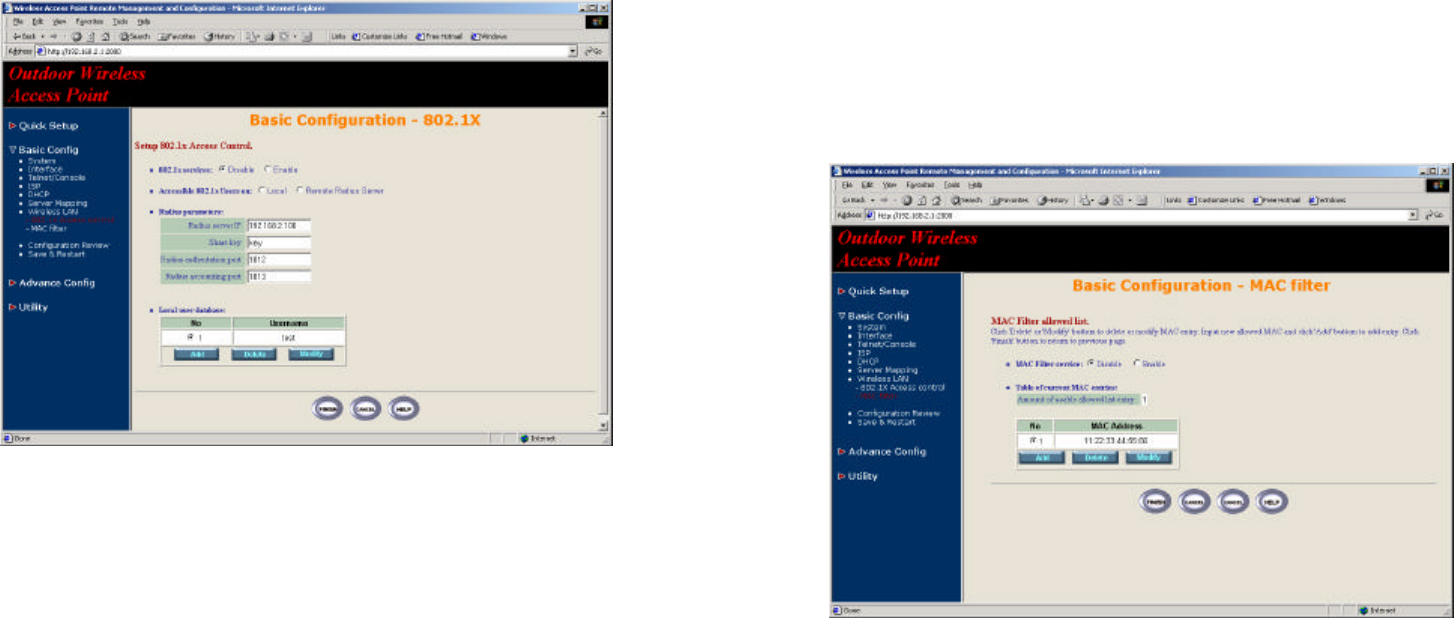

3.4.4 IEEE 802.1x Access Control ..................................................26
3.4.5 MAC based Access Control....................................................27
3.5 CONFIGURE DHCP SERVER............................................................28

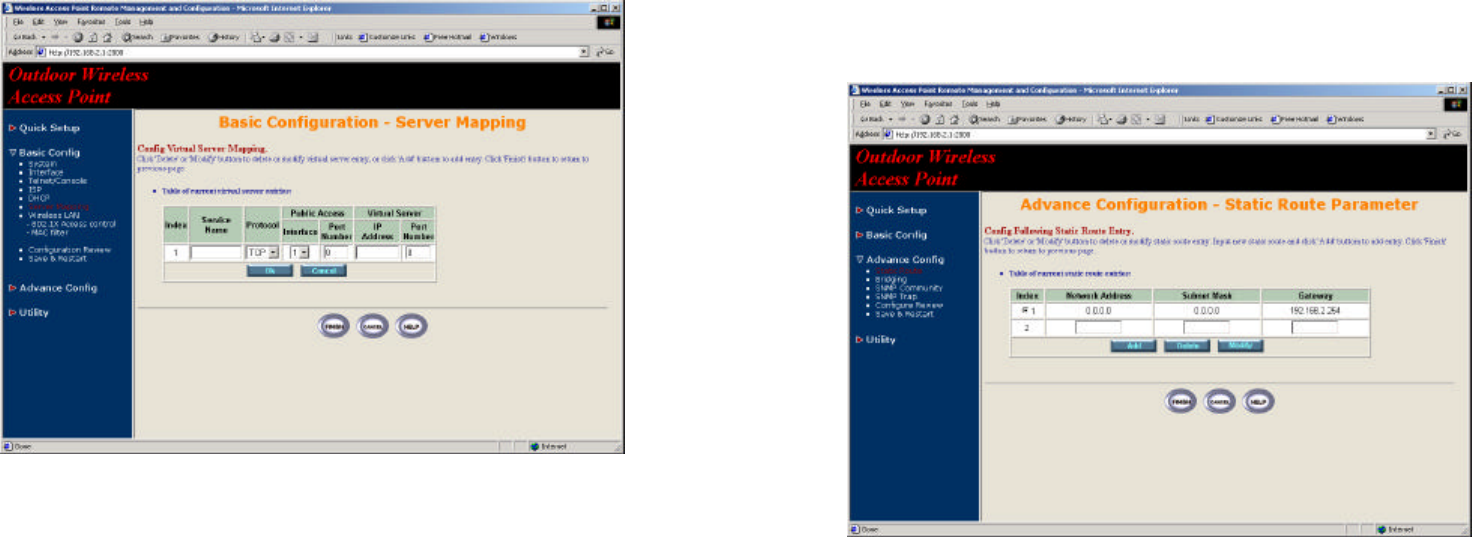

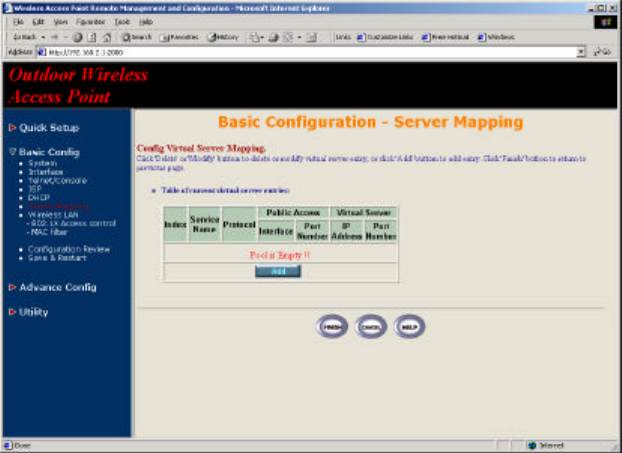

3.6 CONFIGURE VIRTUAL SERVER..........................................................29
3.7 CONFIGURE ROUTING TABLE ............................................................31
3.8 CONFIGURE BRIDGE.......................................................................32
3.9 CONFIGURE SNMP ........................................................................33

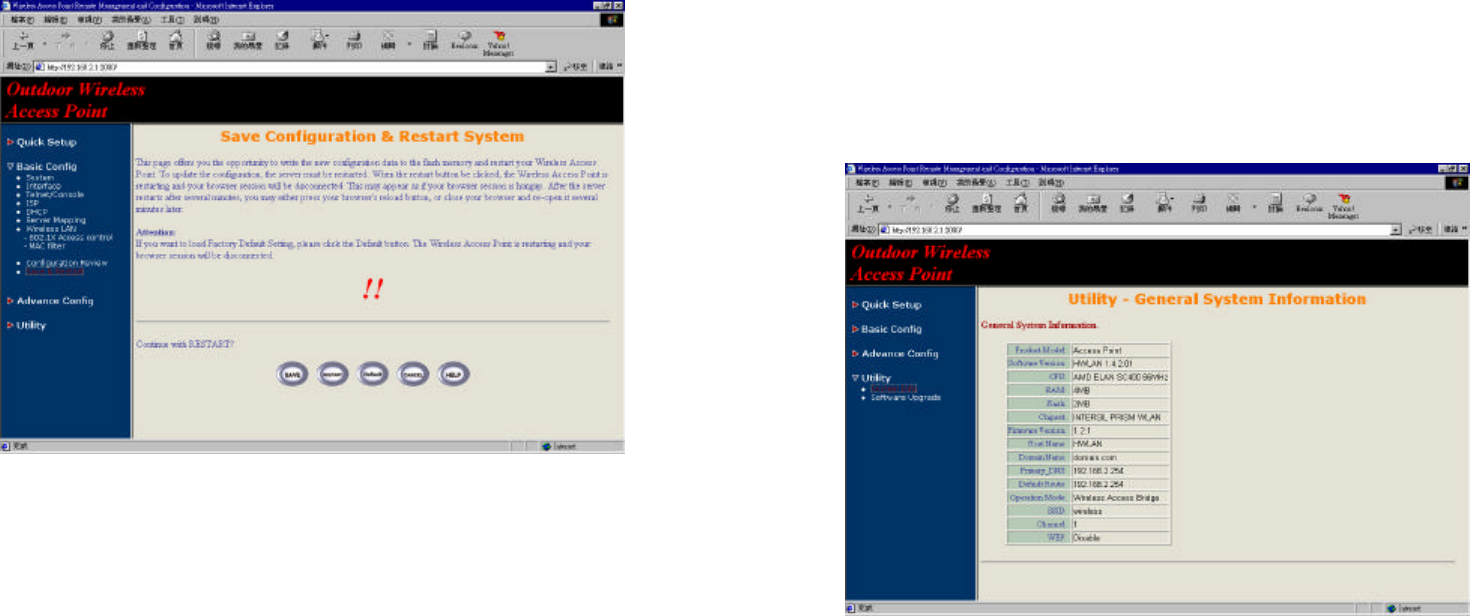

3.10 CONFIGURATION REVIEW AND APPLY THE NEW SETTINGS......................35
ii
3.11 UTILITY ........................................................................................37
3.11.1 System Info...........................................................................37

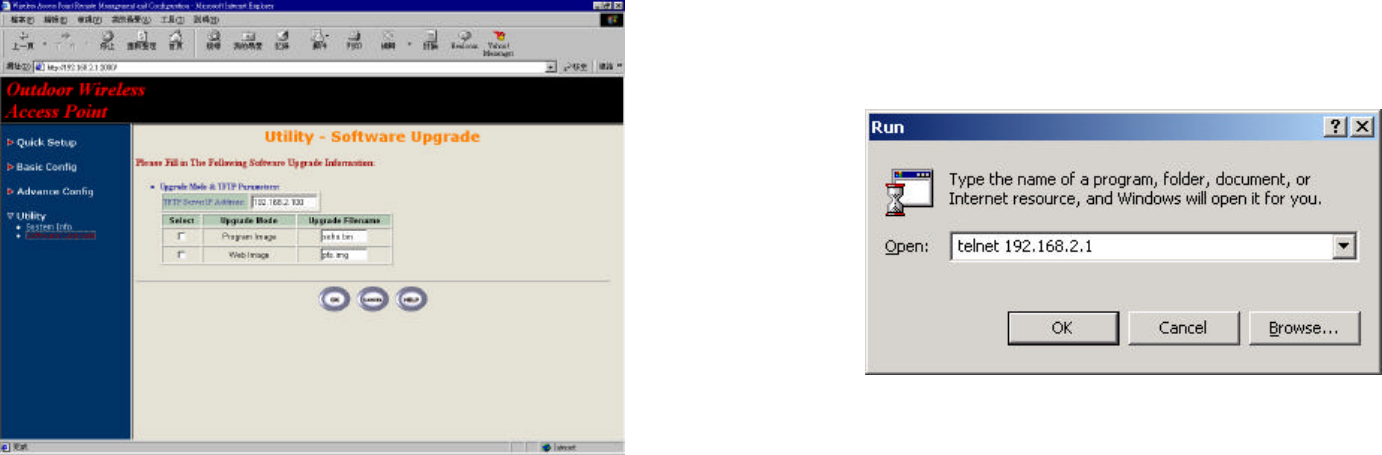

3.11.2 Software Upgrade ..................................................................38

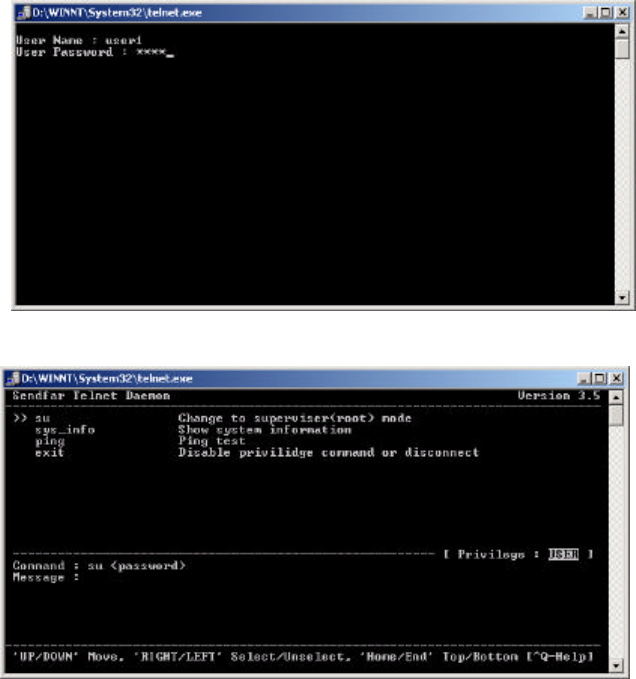

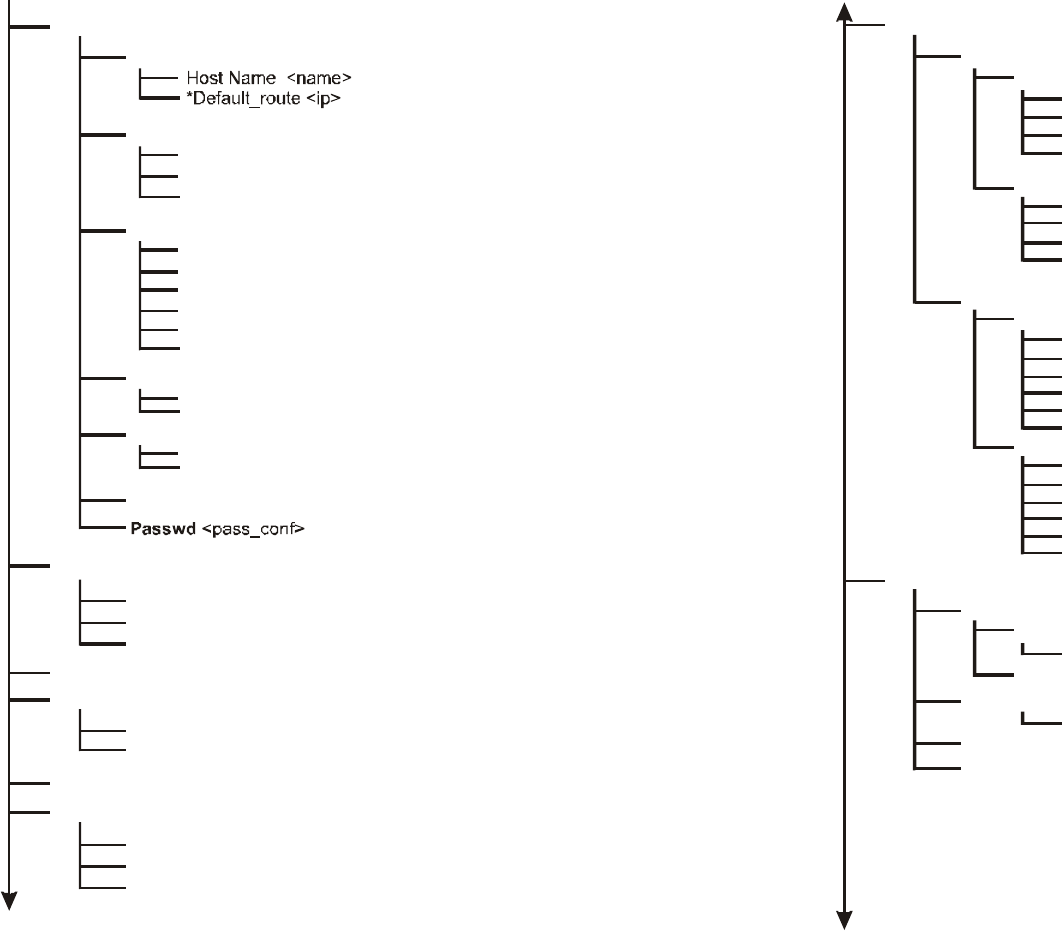

CHAPTER 4. TELNET CONFIGURATION ..........................................39
CHAPTER 5. SPECIFICATIONS ........................................................48
CHAPTER 6. DEFAULT SETTINGS...................................................49
CHAPTER 7. REGULATORY COMPLIANCE INFORMATION ..............59
1
Chapter 1. Hardware Installation
This chapter describes the procedures for installing the SendFar Outdoor
Access Point.

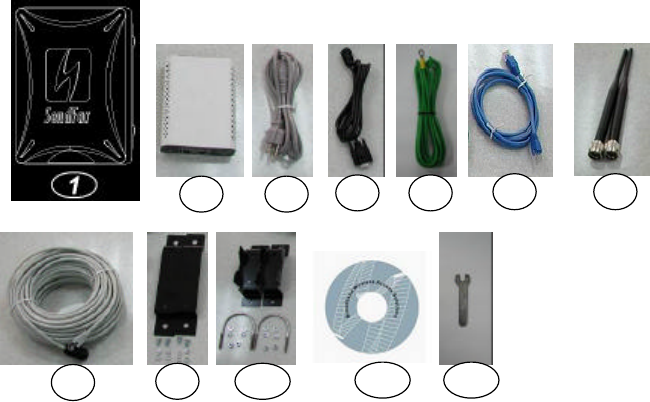

1.1 Before You Start
After unpacking the system, make sure the following items are present and in
good condition.
1. Access Point
2. Inline Power Injector
3. AC Power Cord
4. MIL-C-5015 style RS232 Console Port Cable
5. Grounding Wire
6. Cross over Ethernet Cable
7. Two rubber dipole antenna
7. 30M MIL-C-5015 style Ethernet Cable
8. Mast Mounting Kit
10. Wall Mounting Kit
11. User’s Manual Disk
12. Simple Spanner
2
3
4
5
6
8
9
10
11
12
7
2

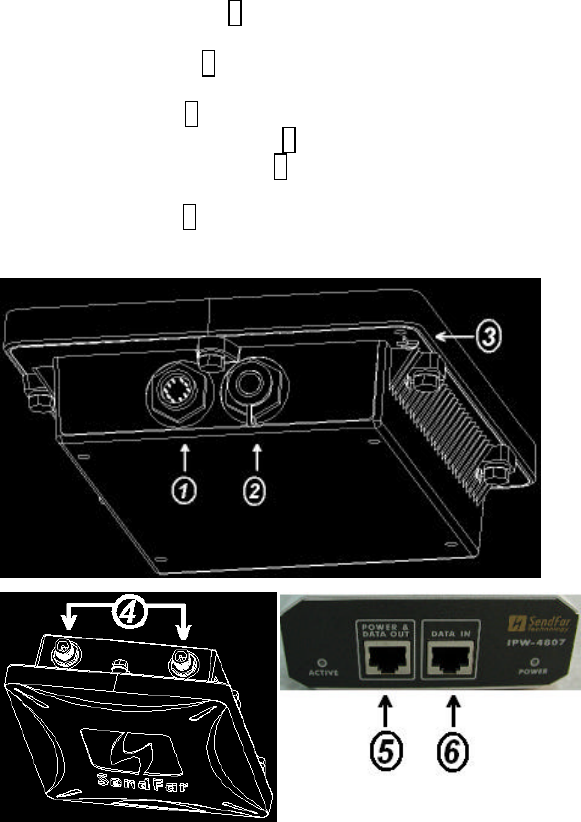

1.2 Locate the Access Point and Inline Power
Injector Ports
l Special Ethernet port 1 for connecting the MIL-C-5015 style Ethernet
Cable
l Special serial port 2 for connecting the MIL-C-5015 style RS-232
console port cable
l Grounding port 3.
l Special N-Type connector 4 for connecting the antenna or RF cable.
l Power & Data output port 5 for connecting the other of the MIL-C-5015
style Ethernet Cable
l Data input port 6 for connecting the Ethernet Cable to a Hub Switch
Router or a PC.
3
4
1.3 Installing the Antennas
Step 1: With the unit powered off, attach the dipole antenna to the antenna
connector as shown in Figure 1.3.
NOTE: Do not over-tighten; finger tight is sufficient. Position the antenna
vertically for best omni-directional signal reception.
Figure 1.3.
Before installing your WLAN system, we recommend that you test the
Access Point using the dipole antenna included in your package. Once
testing is completed, install your Access Point for use with the appropriate
antenna for your application.
5
1.4 Installing the Console Port Cable
Step 2: Attach the Console Port cable to the Serial Port. Attach the other
cable end to the Serial Port on a PC running a terminal emulation program,
and set the terminal to 115200 Baud, No-Parity, 8 data bits, 1 Stop bit, and
ANSI compatible.
NOTE: This connection is required for setting up initial configuration
information.
After configuration is completed, this cable may be removed until additional
configuration is required via the Serial Port.

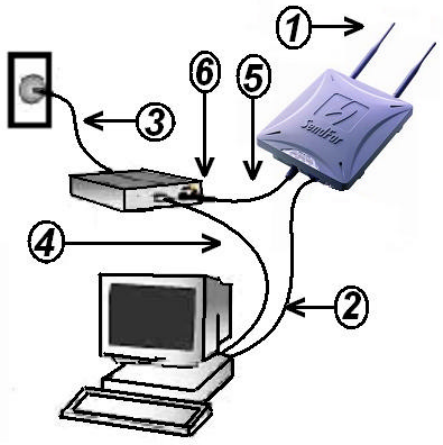

1.5 Connecting the power supply and Ethernet
cable
Step 3 Plug the female end of the power cord into the Inline Power Injector,
and then plug the male end of the power cord into a power outlet or power
strip. The Power LED on the front of the Inline Power Injector will light up.
Step 4 Run the cross over Ethernet cable (included in your package) from
Data Input Port (on the front of the Inline Power Injector) to the Ethernet Port
on the PC we mentioned above.
NOTE: This connection is required for setting up initial configuration
information. After configuration is completed, this cable will be removed, and
then you should run an Ethernet cable from Data Input Port (on the front of
the Inline Power Injector) to the LAN connection (such as a hub or
concentrator).
Step 5 Plug the MIL-C-5015 style Ethernet connector into the Special
Ethernet port on the back of the access point.
Step 6 Plug the RJ-45 Ethernet connector (the other end of the Special
Ethernet cable) into the Power & Data Output Port on the front of the Inline
Power Injector. When the Access Point receives power over the Ethernet
cable, the Access Point will start its boot sequence and the Active LED on
the front of the Inline Power Injector will light up.
6
1.6 Outdoor Installation
Outdoor Access Point device can be mounted on the side of a building
or mounted to an mast as shown in following:
A wall (side) mount allows for mounting the Outdoor AP on the side of
a building. This will provide a convenient mounting location when the
roof overhang is not excessive and/or the location is high enough to
provide a clear line of sight.
Grounding
A safety grounding system is necessary to protect your outdoor
installation from lightning strikes and the build-up of static electricity.
So direct grounding of the antenna mast, Outdoor AP and
Surge Arrester is very important. And so mounting the Outdoor AP on
the antenna mast, you have to connect the Outdoor AP to the same
grounding system with the AC wall outlet.
The grounding system must comply with the National Electrical Code
and safety standards that apply in your country. Always check with a
qualified electrician if you are in doubt as to whether your outdoor
installation is properly grounded.
7
Chapter 2. Network Topologies
This chapter describes several main types of installations commonly
implemented using the Outdoor Wireless Access Point (AP). This is by no
means intended to be an exhaustive list of all possible configurations, but
rather shows examples of some of the more common implementations (as
shown in Figure 2-1).
Figure 2-1
The outdoor wireless AP can perform in router or bridge modes. In a
wireless topology, all communication between network stations is done
through a centralized Access Point. To show some possibilities of wireless
topologies, the following examples are provided:
1. Wireless Access Bridge
2. Wireless Access Router with PPPoE Ethernet connection
3. Wireless Access Router with dynamic IP address Ethernet
4. Wireless Access Router with static IP address Ethernet
8
2.1 Configuration Examples

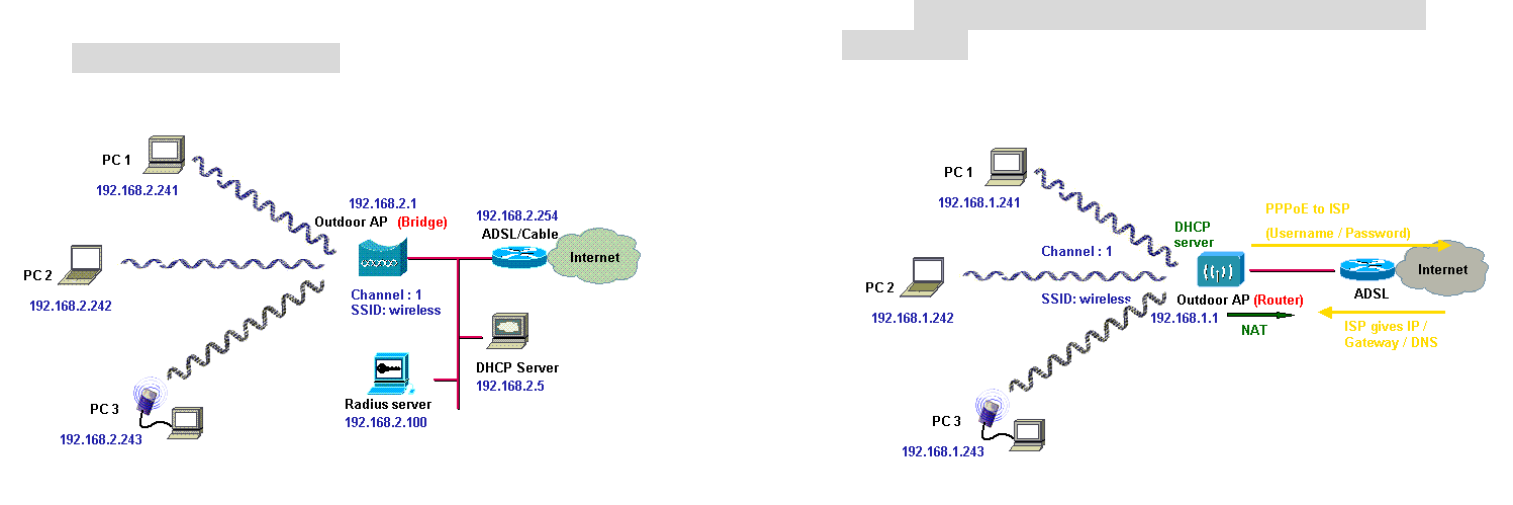

2.1.1 Wireless Access Bridge
1. Set the Outdoor AP as a bridge (bridge IP address is 192.168.2.1).
2. Set Wireless parameters on Outdoor AP: Channel (1) and SSID
(wireless)
3. Set Wireless parameters on client stations PC1, PC2 and PC3:
SSID (wireless).
4. Left side stations are transparent to the right side network.
5. DHCP server assigns IP address to PC1, PC2 and PC3.
9
2.1.2 Wireless Access Router with PPPoE Ethernet
connection
1. Set the Outdoor AP as a Router (Wireless Interface IP is
192.168.1.1, Ethernet Interface IP is 192.168.2.1, must turn on NAT on
Ethernet Interface and turn off NAT on Wireless interface, default route
is 0.0.0.0).

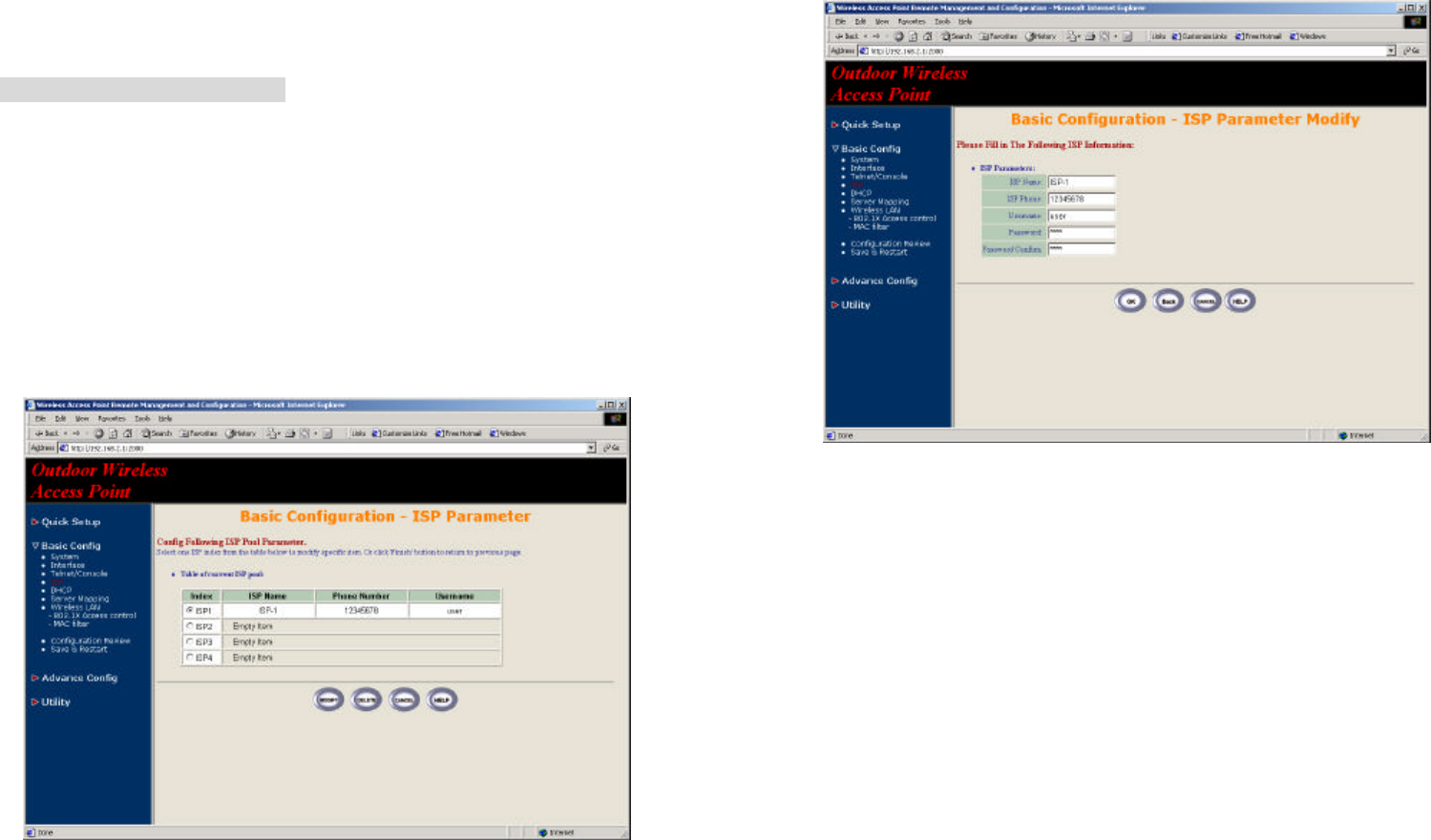

2. Turn on PPPoE Interface (Interface NO.3) and specify that your
personal ISP provided PPPoE Username and PPPoE Password to
enable ADSL broadband access.
3. Set Wireless parameters on Outdoor AP: Channel (1) and SSID
(wireless)
4. Turn on DHCP server on the Outdoor AP and assign IP address to
PC1, PC2 and PC3.
5. Set Wireless parameters on client stations PC1, PC2 and PC3:
SSID (wireless).
10

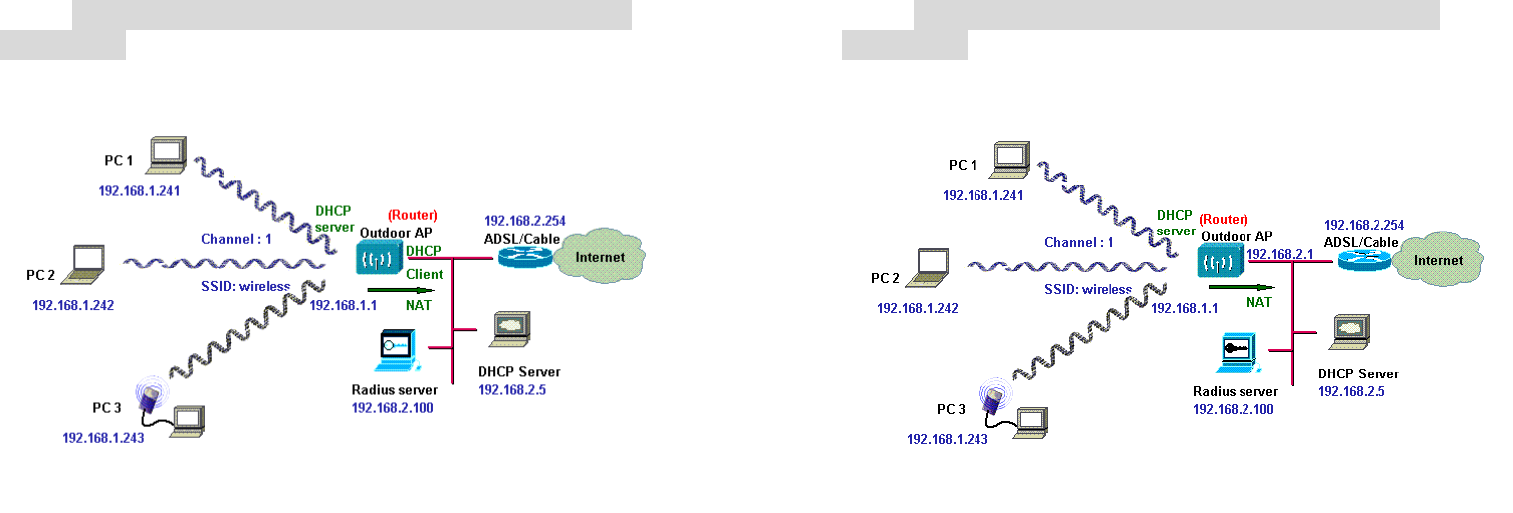

2.1.3 Wireless Access Router with dynamic IP Ethernet
connection
1. Set the Outdoor AP as a Router (Wireless Interface IP is
192.168.1.1, must turn on NAT on Ethernet Interface and turn off NAT
on Wireless interface).
2. Enable DHCP client on the Ethernet Interface of the Outdoor AP
(This AP will got IP / Gateway / DNS from the DHCP server).
3. Set Wireless parameters on the Outdoor AP: Channel (1) and SSID
(wireless)
4. Turn on DHCP server on the Outdoor AP and assign IP address to
PC1, PC2 and PC3.
6. Set Wireless parameters on client stations PC1, PC2 and PC3:
SSID (wireless).
11
2.1.4 Wireless Access Router with static IP Ethernet
connection
1. Set the Outdoor AP as a Router (Wireless Interface IP is
192.168.1.1, Ethernet Interface IP is 192.168.2.1, must turn on NAT on
Ethernet Interface and turn off NAT on Wireless interface, default route
is 192.168.2.254).
2. Set Wireless parameters on Outdoor AP: Channel (1) and SSID
(wireless)
3. Turn on DHCP server on the Outdoor AP and assign IP address to
PC1, PC2 and PC3.
4. Set Wireless parameters on client stations PC1, PC2 and PC3:
SSID (wireless).
12
Chapter 3. Initial Configuration
This chapter describes how to easy setup and configure the Wireless
Broadband Access Point (AP) initially. The AP can be configured into a
bridge and a broadband wireless router to meet different applications. Users

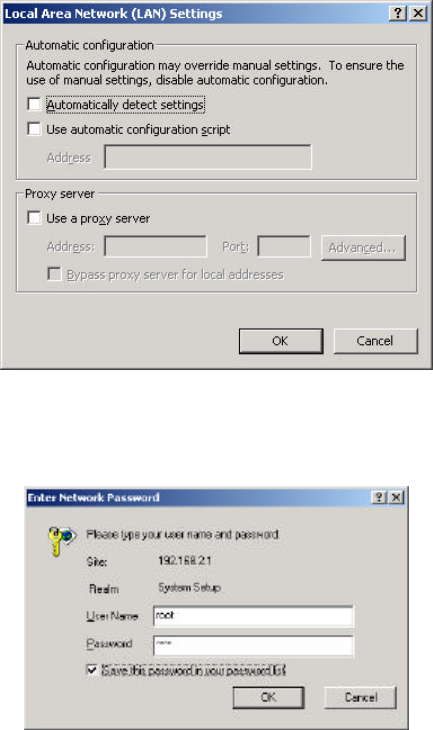

can use a wired LAN-attached computer to configure the AP through a web
browser or a telnet session on a LAN computer.
In this chapter, we only describe how to quickly configure the AP with a web
browser. For detailed descriptions of the many configuration parameters and
network configuration, refer to Chapter 4.
3.1 Configure Requirements
The AP is shipped with configuration that can be utilized right out of the box.
Default configuration is as a bridge between an Ethernet and wireless
network. Users simply need to attach the AP to your wired LAN. If users
would like to configure the AP, please refer to the following procedures.
Before setup, we must install AP first
1. Connect power adaptor and power on the AP
2. Connect the Ethernet cable for connecting the AP to the network
3. Connect a computer to the same network with this AP
4. Start your Microsoft Internet Explorer web browser program from a LAN-
attached computer. To access the web interface of the AP, you have to
disable Access the Internet using a proxy server function in Windows
2000 [Control Panel / Internet Options / Connections/LAN Settings] as
shown in Figure 3-1.
5. Type the IP address and HTTP port of the AP (default port is 2000, IP
is 192.168.2.1) in the address field (http://192.168.2.1:2000/) and press
Enter. Make sure that the IP addresses of AP and your computer are in
the same subnet.
6. After the connection is established, you will see the user identification
window as shown in Figure3-2, and key-in the proper User Name and
Password to see the web user interface of the AP. The default user
name and password is root and root, respectively
13
Figure 3-1
Figure 3-2
14
3.2 Configure the AP
The AP can be configured into four operation modes:
1. Outdoor Wireless Bridge
2. Outdoor Wireless Router with PPPoE Ethernet connection
3. Outdoor Wireless Router with dynamic IP address Ethernet
4. Outdoor Wireless Router with static IP address Ethernet
The AP is shipped with default configuration is as a bridge between an
Ethernet and wireless network. Users simply need to attach the AP to your
wired LAN. If users would like to configure the AP, please refer to the
following procedures.

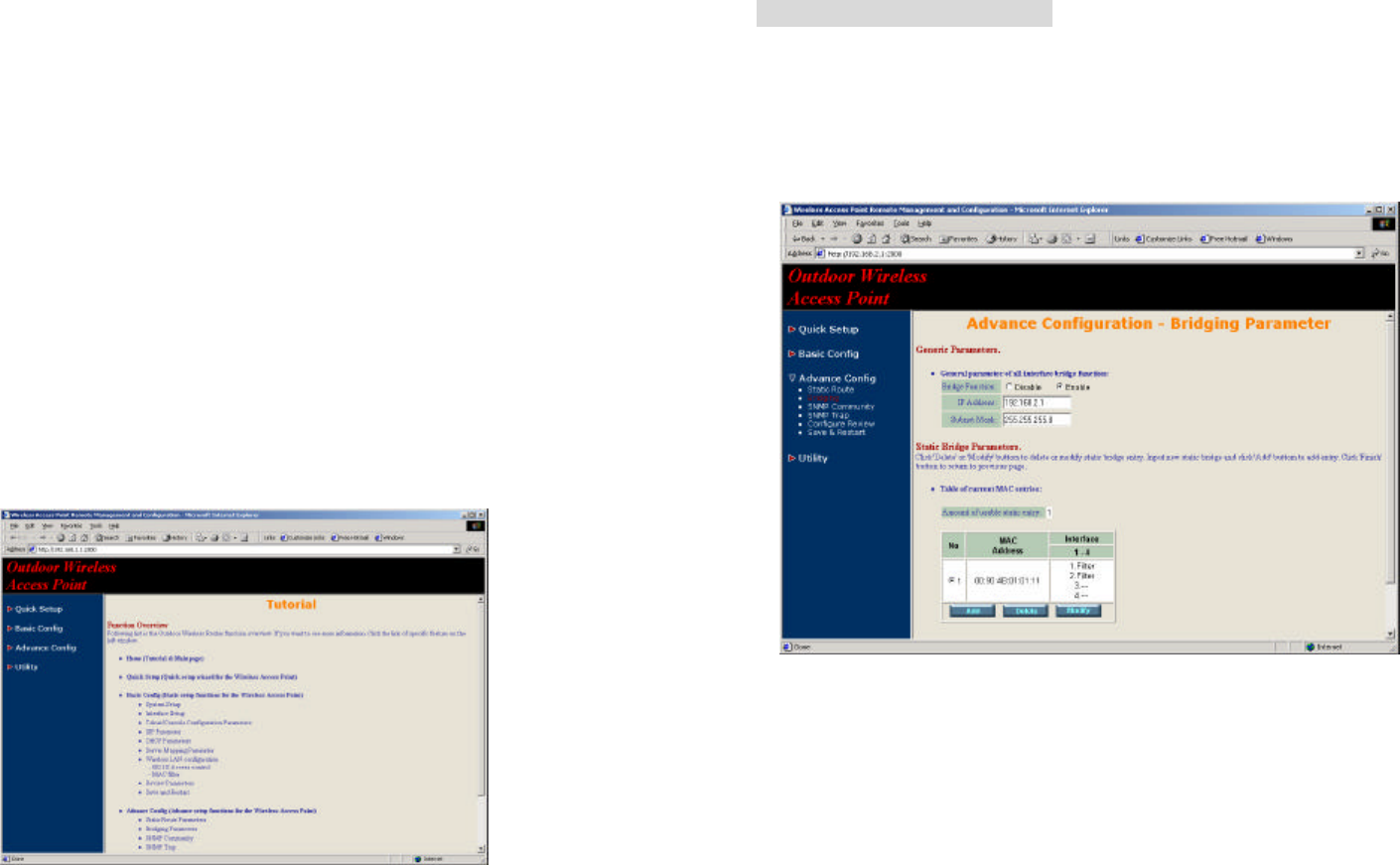

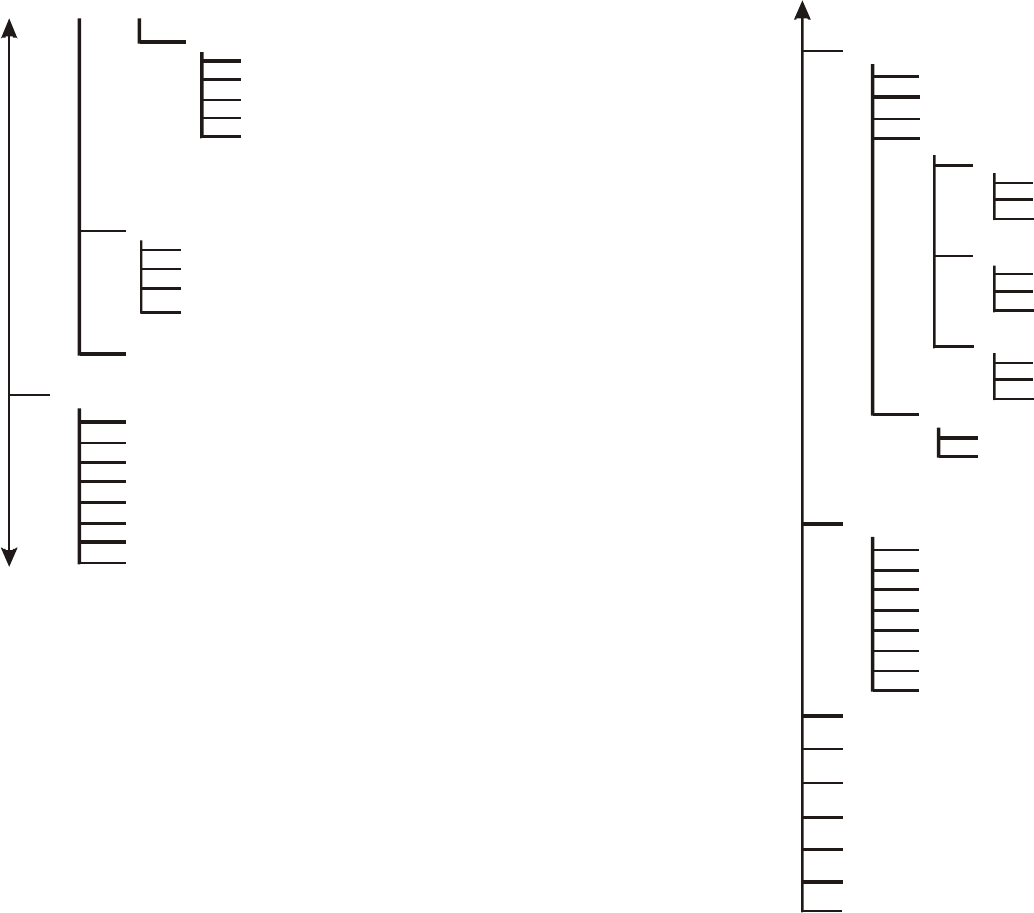

The web user interface can be grouped into Quick setup, Basic
Configuration, Advanced Configuration and Utility as shown in Figure 3-3.
The left frame contains, in a tree structure, the contents of the AP web
configuration interface. Move through the tree by clicking on an icon to
expand or collapse the tree. The nodes on the tree represent web pages that
allow you to view and modify the parameters of the AP.
If users want to connect multiple wireless computers to a broadband (ADSL
or Cable) modem or an Ethernet switch to surf the Internet, you need to
configure the AP as a broadband wireless router to share a single IP
address with the multiple wireless computers as described as follows.
Figure 3-3
15
3.2.1 Configure the AP as a Bridge
Configure TCP/IP parameters
1. Click Advanced Config, select Bridging, and then click Enable for
Bridge Function as shown in Figure 3-4. In the Bridging Parameter
window, enter the IP Address (default is 192.168.2.1) and Subnet
Mask (default is 255.255.255.0) that are suitable for your network
domain. After that, click FINISH at the bottom of this page to complete
the modification of this page.
Figure 3-4
16
3.2.2 Configure the AP as a Router with PPPoE Ethernet
connection
Configure TCP/IP parameters
1. Click Advanced Config, select Bridging, and then click Disable for
Bridge Function as shown in Figure 3-4. After that, click FINISH at the
bottom of this page to complete the modification of this page.
2. If you are an ADSL subscriber, you need specify that your personal ISP
PPPoE username and password to enable ADSL broadband access, in
here, click Basic Config, select ISP (as shown in Figure 3-5), In this
page, enter MODIFY button to setup the correct ISP parameters: ISP
Name, ISP Phone, PPPoE Username and PPPoE Password to (as
shown in Figure 3-6).
Hint: Ask your ISP for the correct settings.
Figure 3-5
17
Figure 3-6

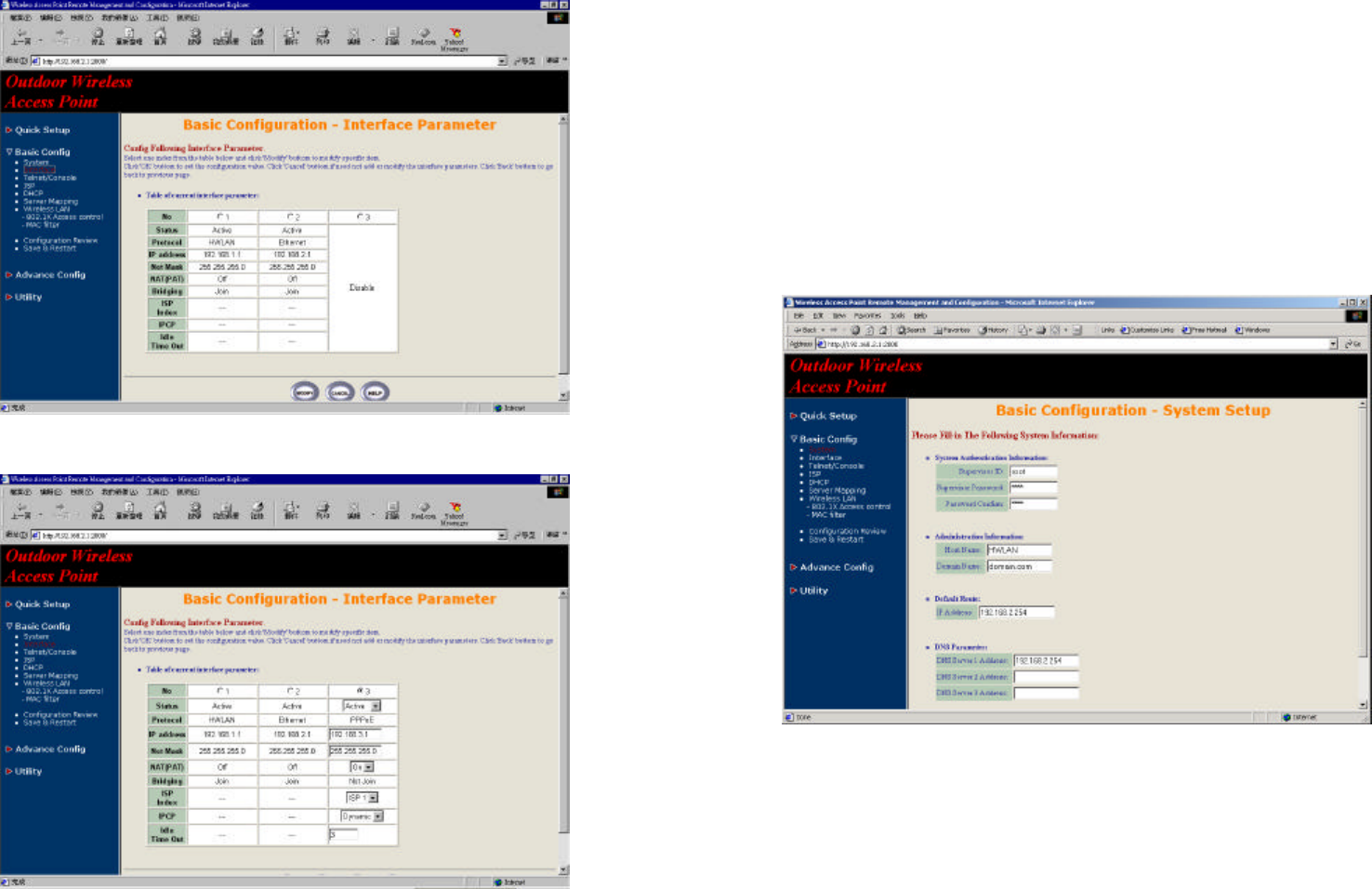

3. Click Basic Config, select Interface (as shown in Figure 3-7) and in
this page, you can click radio button and enter MODIFY to choice which
one that you want to change it (as shown in Figure 3-8).
In interface 1, Make sure this wireless interface status is Active, enter
the Wireless interface IP (default is 192.168.1.1) and Wireless
interface Net Mask (default is 255.255.255.0) that are suitable for your
wireless network.
In interface 2, Make sure this Ethernet interface status is Active, and
specify the Ethernet IP address (default is 192.168.2.1) and Ethernet
Net Mask (default is 255.255.255.0) of the Ethernet interface.
In interface 3, Make sure this PPPoE interface status is Active, and
specify the Ethernet IP address (default is 192.168.3.1) and Ethernet
Net Mask (default is 255.255.255.0), choice the ISP index that your are
configured in step 1. After that, follow the default setting and Click the OK
button to return to the Interface Parameter window. Finally, you need to
click FINISH at the bottom of this page to complete the modification of
this page.
18
Figure 3-7
Figure 3-8
19
Hint1: Make sure interface 4 within status Disable.
Hint2: Choice the NAT (PAT) in every interfaces to enable NAT
service. For example, make sure PPPoE interface within NAT
(PAT) On and others are Off, it means that every
communications through the PPPoE interface needs NAT
transfer.
4. The AP supports PPPoE auto dial-up, please make sure your default
route is zero. In here, click Basic Config, and then select System as
shown in Figure 3-9. In the System Setup page, specify the Default
Route (Default is 192.168.2.254) is 0.0.0.0 and then click FINISH
button at the bottom of this page to complete the modification of this
page.
Figure 3-9
5. Click Basic Config, select DHCP (as shown in Figure 3-10) and make
sure the DHCP client service is in Disable. After that, click FINISH at
the bottom of this page to complete the modification of this page.
20
Figure 3-10
21
3.2.3 Configure the AP as a Router with dynamic IP
address Ethernet
Configure TCP/IP parameters
1. Click Advanced Config, select Bridging, and then click Disable for
Bridge Function as shown in Figure 3-4. After that, click FINISH at the
bottom of this page to complete the modification of this page.
2. Click Basic Config, select Interface (as shown in Figure 3-7), in this
page, you can click radio button and enter MODIFY to choice which
interface that you want to change it (as shown in Figure 3-8).
In interface 1, Make sure this wireless interface status is Active, enter
the Wireless interface IP (default is 192.168.1.1) and Wireless
interface Net Mask (default is 255.255.255.0) that are suitable for your
wireless network.
In interface 2, Make sure this Ethernet interface status is Active, and
other parameters will obtain automatically by DHCP from your network
environment.
Click the OK button to return to the Interface Parameter window.
Finally, you need to click FINISH at the bottom of this page to complete
the modification of this page.
Hint1: Make sure interface 3 and 4 within status: Disable.
Hint2: In order to enable NAT service, choice the NAT (PAT) in the
interface Wireless and Ethernet. For example, make sure
Ethernet interface within NAT (PAT) On and Wireless
interface is NAT (PAT) Off, it means that every
communication through the Ethernet interface needs to do
NAT transfer.
3. Click Basic Config, select DHCP (as shown in Figure 3-10) and apply
the DHCP client service running on interface 2 (Ethernet interface),
After that, click FINISH at the bottom of this page to complete the
modification of this page.
22
3.2.4 Configure the AP as a Router with static IP address
Ethernet
Configure TCP/IP parameters
1. Click Advanced Config, select Bridging, and then click Disable for
Bridge Function as shown in Figure 3-4. After that, click FINISH at the
bottom of this page to complete the modification of this page.
2. Click Basic Config, select DHCP (as shown in Figure 3-10) and make
sure the DHCP client service is Disable. After that, click FINISH at the
bottom of this page to complete the modification of this page.
3. Click Basic Config, select Interface (as shown in Figure 3-7), In this
page, you can click radio button and enter MODIFY to choice which
interface that you want to change it(as shown in Figure 3-8).
In interface 1, Make sure this wireless interface status is Active, enter
the Wireless interface IP (default is 192.168.1.1) and Wireless
interface Net Mask (default is 255.255.255.0) that are suitable for your
wireless network.
In interface 2, Make sure this Ethernet interface status is Active, and
specify the Ethernet IP address (default is 192.168.2.1) and Ethernet
Net Mask (default is 255.255.255.0) of the Ethernet interface.
Click the OK button to return to the Interface Parameter window.
Finally, you need to click FINISH at the bottom of this page to complete
the modification of this page.
Hint1: Make sure interface 3 and 4 within status: Disable.
Hint2: In order to enable NAT service, choice the NAT (PAT) in the
interface Wireless and Ethernet. For example, make sure
Ethernet interface within NAT (PAT) On and Wireless
interface is NAT (PAT) Off, it means that every
communication through the Ethernet interface needs to do
NAT transfer.
4. Click Basic Config, and then select System as shown in Figure 3-9. In
the System Setup page, specify the Default Route (Default is
192.168.2.254) as the IP Address of the ADSL/Cable modem connected
to the AP or the IP Address of the Gateway in your LAN environment,
and Specify at least one IP address of the DNS parameter (Default
DNS server 1 is 192.168.2.254) provided by your ISP in the DNS
23
server parameter and then click FINISH button at the bottom of this page
to complete the modification of this page.
24
3.3 Configure Wireless related parameters
Configure IEEE 802.11b WLAN parameters (as shown in Figure 3-11)
Click Basic Config, select Wireless LAN page. In here, enter the Channel
(default is 1), rts Threshold (default is 250), frag Threshold (default is
1600), SSID (default is wireless) and Station Name (default is ap) that are
suitable for your radio network and then you can clicked radio button to
disable WEP or enable 64/128 bit WEP services (default is disable), if
WEP is enabled, you must input corresponded Default Key index and WEP
Key. After that, click FINISH at the bottom of this page to complete the
modification of this page.

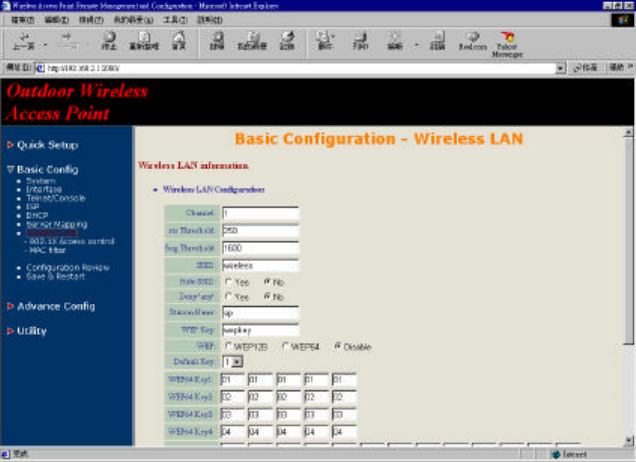

Figure 3-11
25
3.4 Security
3.4.1 WEP encryption
1. Click Basic Config, select Wireless LAN page, and configure it to
disable or enable 64/128 bit WEP services (default is Disable) as
shown in Figure 3-11.
2. Key-in the WEP Key and specify which WEP Key id you want to use it.
After that, click FINISH at the bottom of this page to generate the real
WEP key complete the modification of this page.
Hint: If you enable WEP services on AP, all of the communication
between stations to AP will be encrypted. You must make sure all
wireless clients with the same WEP key.
3.4.2 Hide the SSID
Click Basic Config, select Wireless LAN page, and click Yes or No to
choose enable/disable the Hide SSID function on this wireless page (default
is No), as shown in Figure 3-11.
Hint: If you enable Hide SSID on AP, all of the client stations must to
specify the SSID of this AP, otherwise your client stations can’t see
(survey) this AP if using any Site Survey tools.
3.4.3 Deny ‘ANY’ client station
Click Basic Config, select Wireless LAN page, and click Yes or No to
choose enable/disable the Deny ‘ANY’ function on this wireless page
(default is No), as shown in Figure 3-11.
Hint: If you enable Deny ANY on AP, all of the client stations can’t use
the well define SSID keyword ‘ANY’ or ‘any’.
26
3.4.4 IEEE 802.1x Access Control
You can configure Authenticator on AP:
1. Click Basic Config, select 802.1x Access Control page, and choice
the IEEE 802.1x services is Enable or Disable (as shown in Figure 3-
12).
Figure 3-12
2. The AP supporting authentication which based on two kinds of user
information base, Local User Database or Remote Radius Servers.
You can specify which user database you want to use.
3. You can specify the username/password of an accessible 802.1x user.
All user information entries in the Local User Database are permitted to
connect to the AP. You can also click ADD, DELETE, MODIFY button
to maintain this User Information table.
4. Some Radius server implements EAP authentication, like Microsoft
Windows 2000 server or Cisco ACS. To set up the Radius server and
AP for authentication, you must specify the Radius server IP address,
Share key between AP and Radius server, authentication port and
accounting port on this Radius server.
27
5. Click FINISH at the bottom of this page to complete the modification of
this page.
3.4.5 MAC based Access Control
1. Click Basic Config, select MAC Filter page, and choice the MAC Filter
services is Enable or Disable (as shown in Figure 3-13).
2. You can specify the MAC address of a wireless client station. All MAC
entries in the MAC address table are permitted to connect to the AP.
You can also click ADD, DELETE, MODIFY button to maintain this MAC
address table. After that, click FINISH at the bottom of this page to
complete the modification of this page.
Figure 3-13
28
3.5 Configure DHCP server
Sometimes, the operator want to managing a large TCP/IP network requires
maintaining accurate and up-to-date IP address and domain name
information. In this situation, it needs manually configure and enable the
DHCP server service.
1. Click Basic Config, select DHCP (as shown in Figure 3-10) and Enable
the DHCP server service (Default is Disable).
2. Specify the DHCP server parameters (Assign Gateway, Assign
Subnet Mask, Assign DNS server, DHCP Start IP address, DHCP
End IP address and Apply Interface) to allow any DHCP client to
acquire the IP information.
Assign Gateway: Configure the default router for the client.
Assign Subnet Mask: Configure the subnet for the client.
Assign DNS Server: Configure the DNS servers IP for the client.
DHCP Start IP address, DHCP End IP address: Configure the DHCP
IP address pool for the client.
Apply Interface: Enable DHCP server service on Wireless or Ethernet
interface.
3. After that, click FINISH at the bottom of this page to complete the
modification of this page.
Hint: The operator must to configure correct network settings in
Gateway and DNS server of your wireless stations / Ethernet clients to
surf the Internet.
29
3.6 Configure Virtual Server
Sometimes, the operator can expose the internal servers on the local intranet
to the public Internet. For this, you must create the Virtual Server Mapping
for these invisible internal servers.
1. Click Basic Config, select Server Mapping (as shown in Figure 3-14)
and click ADD, DELETE or MODIFY button to change to configure
Virtual Server Mapping page (as shown in Figure 3-15). In this page,
you can maintain this Virtual Server Mapping pool (Default Virtual
Server Mapping pool is empty) to enable the internal servers.
Figure 3-14
2. In configure Virtual Server Mapping page, you must specify some
parameters (Service Name, Protocol, Public Access Interface, Public
Access Port number, Virtual Server IP address and Virtual Server
Port Number) to allow Internet user to access the Internal servers.
Service Name: Alias name of this internal server, such as FTP.
30
Access Interface: Indicate the translation occurs on which interface
(Wireless interface, NO. 1/Ethernet interface, NO. 2), such as NO. 2.
Protocol: Indicate which protocol (TCP/UDP) you want to translate from
outside to internal server, such as TCP.
Public Access Port number: Indicate which socket port (1 ~ 65535)
you want to translate from outside to internal server, such as 21.
Virtual Server IP address: Specify the private IP address of the internal
server, such as 192.168.1.100.
Virtual Server Port number: Specify the socket port (1 ~ 65535) of the
internal server, such as 21.
3. After that, click FINISH at the bottom of PAT page to complete the
modification for the Virtual Server Mapping.
Figure 3-15
31
3.7 Configure Routing Table
1. Click Advence Config and select the Static Route page. This page (as
shown in Figure 3-16) will present the current configuration for the
routing table. You can also click ADD, DELETE or MODIFY button to
maintain the Static Routing table (Default Routing table only contain
single routing entry: Default Route entry).
2. Every Route entry contains three parameters: Network Address,
Subnet Mask and Gateway.
Network Address and Subnet Mask: Specify the destination network.
Gateway: Indicate the forward gateway.
3. After that, click FINISH at the bottom of this page to complete the
modification of this page.
Hint: The operator must to configure correct routing settings following
the network infrastructure.
Figure 3-16
32
3.8 Configure Bridge
1. Click Advence Config and select the Bridging, and then click Enable
for Bridge Function as shown in Figure 3-4. In the Bridging Parameter
window, enter the IP Address (default is 192.168.2.1) and Subnet Mask
(default is 255.255.255.0) that are suitable for your network domain.
2. You can specify the MAC address of a Wireless/Ethernet client. All MAC
entries in the MAC address table are Permitted/Blocked/Learning to
connect to the AP. In here, you can also click ADD, DELETE, MODIFY
button to maintain this MAC address table.
3. After that, click FINISH at the bottom of this page to complete the
modification of this page.
33
3.9 Configure SNMP

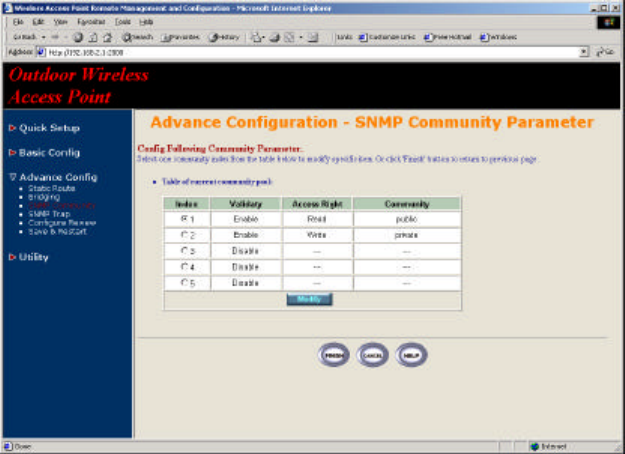

1. Click Advence Config and select the SNMP Community page. This
page (as shown in Figure 3-17) will present the current accessible
SNMP communities and correspond Read/Write privilege. After that,
click FINISH at the bottom of this page to complete the modification of
this page.
Figure 3-17

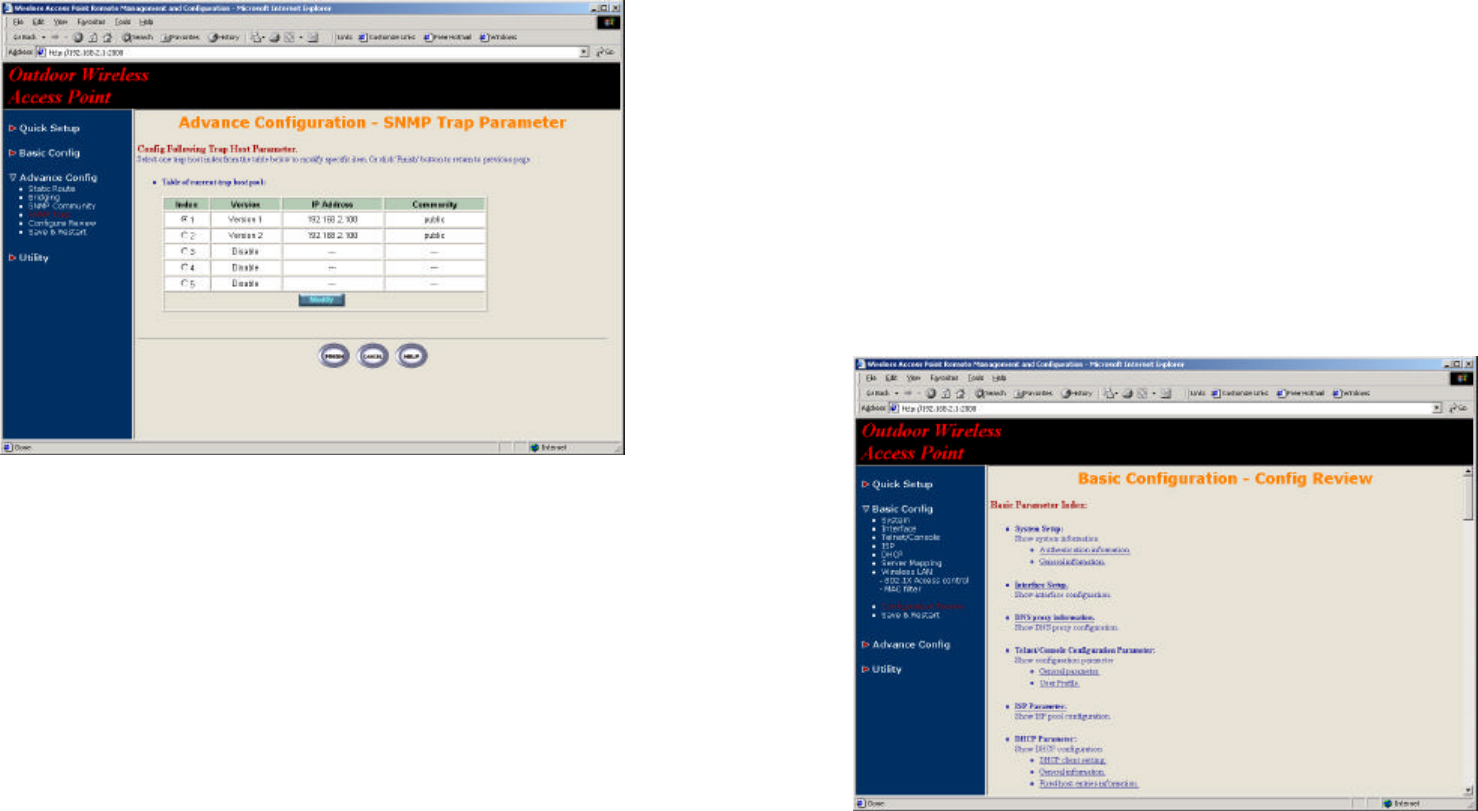

2. Click Advence Config and select the SNMP Trap page (as shown in
Figure 3-18). In this page, you can specify the SNMP Trap host and
correspond SNMP Trap Community in this page. After that, click
FINISH at the bottom of this page to complete the modification of this
page.
34
Figure 3-18
35
3.10 Configuration Review and Apply the New
Settings
1. Click Basic Config or Advence Config and select the Configuration
Review page. This page (as shown in Figure 3-19) will present the
current configuration settings the operator has made.
2. Click Basic Config or Advence Config and select the Save & Restart
page. In this page (as shown in Figure 3-20), you can click the SAVE
button to apply the new configuration settings and click the Restart
button to take effect the previous configuration changes.
Hint: It needs to take about 10 seconds for the AP to complete the
restart process.
Figure 3-19
36
Figure 3-20
37
3.11 Utility
3.11.1 System Info
Click Utility, select System Info page (as shown in Figure 3-21), you can
view some system information on this, such as Model Name, Software
Version, CPU and RAM, …etc.
Figure 3-21
38
3.11.2 Software Upgrade
1. Click Utility, select Software Upgrade page (as shown in Figure 3-22),
and then you can use TFTP to upgrade your AP. In here, you must
specify the TFTP server IP and select which file you want to upgrade it
(Program image, Web image), then click OK button to start the TFTP
upgrade process.
2. If the upgrade process is success, the AP will apply the new settings and
start rebooting right away.
Hint: You must set up a TFTP server and this server must contain one
newest image.
Figure 3-22
39
Chapter 4. Telnet Configuration
The AP is designed to operate as shipped from the factory without any
special set-up. However, it has many options and parameters that can be
changed if users have special requirements. Most of the management
functions can be accessed using TCP/IP protocol, it also configured by
Telnet/Console.
The operator can have to configure the AP through using a Telnet
session on a wired LAN attached computer. To use the Telnet session,
you can simply open a Telnet window using the IP address that has
been assigned to the AP.
1. Click Start button, select Run to open the Run dialog box. Enter telnet
192.168.2. 1(default terminal type of Telnet is VT100, default IP address
of the AP is 192.168.2.1). Then click OK as shown in Figure 4-1.
Figure 4-1.
40
2. In the Telnet window, enter the User Name and User Password as
shown in Figure 4-2 (default User Name and User Password is user1
and test) to see the main screen of Telnet user interface as shown in
Figure 4-3.
Figure 4-2
Figure 4-3
41

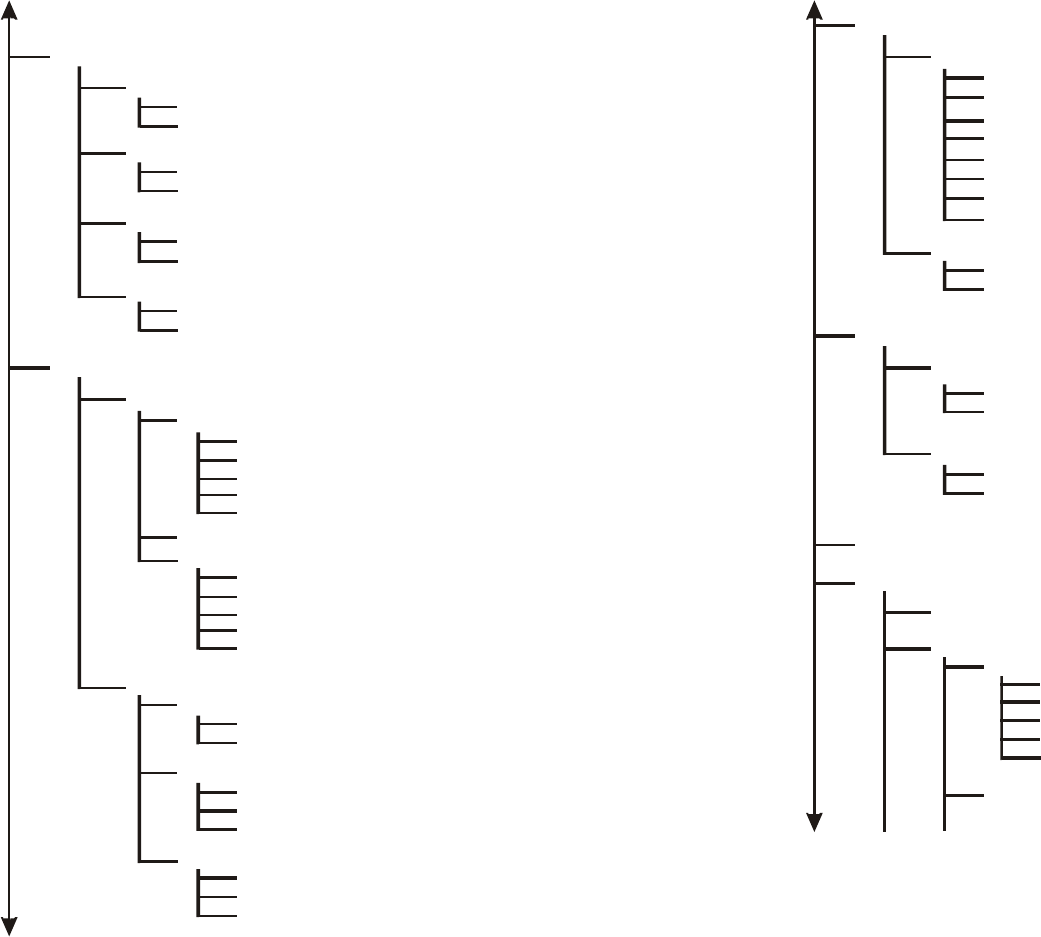

3. The structure of menu tree is shown in Figure 4-4. Users can use the
following keys to select the parameter you want to change or add. The
definition of the parameters is described in Table 4-1 to Table 4-14.
l Up/Down or i/k key: move the cursor up/down to the specific
item.
l Right or l or Enter key: select the item or enter to sub-menu.
l Left or j key: return to previous menu page.
l Home or Ctrl-A: move the cursor to the first item of the menu
page.
l End or Ctrl-E: move the cursor to the last item of the menu page.
l Ctrl-Q or F1: Show the help page.
Hint 1: * denote the function is displayed after enable configuration
mode is enabled.
Hint 2: In item su, type default password root to enter the supervisor
configuration mode.
42
Figure 4-4
Su
Setup
System
Ian
Address <ip> <netmask>
Attrib <Enable | Disable> <Global | Virtual>
Bridge <Enable | Disable>
Wan
Address <ip> <netmask>
link - Type <Disable | Ethernet | PPP >
Attrib < | PPPoE
Enable | Disable> <Global | Virtual>
ether_interface <interface>
Bridge <Enable | Disable>
ISP <ISP Index> <idle disconnect time> <Dial priority>
ISP
*ISP_ profile <ISP name> <ISP destination>
*account - profile <Access account> <Passwd>
Configuration
<name> <pass_conf> <ip>
Upgrade
webimage
bootstrap 2
<ip> <file>
<ip> <file>
<ip> <file>
*Enable
Monitor
Wan
Config_access [Generic| Profile | Pool]
(CR)
Passwd <
pass_conf>
*System
OP _ mode <Router | Bridge | Host>
hostname <name>
default _ route <ip>
PPP
Peer_address <ip>
User_profile <name> <pass_set0>
43
Figure 4-4
*Interface
1
address <ip> <netmask>
link type <Disable | Ethernet>
attrib <Disable | Enable> <Global | Virtual>
bridge <Disable | Enable>
2
address <ip> <netmask>
link type <Disable | Ethernet>
attrib <Disable | Enable> <Global | Virtual>
bridge <Disable | Enable>
lan
wan
1
address <ip> <netmask>
link type <Disable | Ethernet | PPP | PPPoE>
attrib <Disable | Enable> <Global | Virtual>
bridge <Disable | Enable>
ether_interface <interface>
ISP <ISP Index> <dialup timeout> <Dial priority>
2
address <ip> <netmask>
link type <Disable | Ethernet | PPP | PPPoE>
attrib <Disable | Enable> <Global | Virtual>
bridge <Disable | Enable>
ISP <ISP Index> <Idle disconnect time> <Dial priority>
ether_interface <interface>
*PPP
User_edit
modify (5)
profile <name> <pass_set0>
delete
address_pool
ip_pool <ip> <1~127>
authenticate
<Userpool | RADIUS> <Userpool | RADIUS>
assign_address
<Address_Pool | RADIUS> <Address_Pool | RADIUS>
44
Figure 4-4
*IP _ share
add
protocol
<TCPIUDP>
port <1~65534>
interface <1~2>
server <ip> <1~65534>
name <name>
pat
dalete
<1~10>
modify (10)
protocol <TCPIUDP>
port <1~65534>
interface <1~2>
server <ip> <1~65534>
name <name>
nat
local
range <1~5> <ip> <1~253>
delete <1~5>
global
range <1~5> <ip> <1~253>
interface <1~5> <1~5>
delete <1~5>
fixed
modify <1~128> <ip> <ip>
interface <1~128> <1~5>
delete <1~128>
*ISP
1
isp - profile (ISP name) (destination string)
account - profile (name) (pass - set 1)
2
isp - profile (ISP name) (destination string)
account - profile (name) (pass - set 1)
3
isp - profile (ISP name) (destination string)
account - profile (name) (pass - set 1)
4
isp - profile (ISP name) (destination string)
account - profile (name) (pass - set 1)
45
Figure 4-4
*dhcp
service <Disable | Enable>
interface <1~2>
gateway <ip>
netmask <netmask>
ip range <ip> <number>
name server 1 <ip>
name server 2 <ip>
name server 3 <ip>
generic
fixed
add <mac> <ip>
delete
*snmp
community (5)
edit <Disable | Enable> <string> <Read_Only | Read_Write | Denied>
delete
trap (5)
edit <Disble | 1 | 2> <ip> <string>
delete
*tftp
<ip> <file>
*bridge
generic
<Disable | Enable> <ip> <netmask>
static
mac _ address <mac>
lan1_ port <Filter | Forward | Dynamic>
lan2 _ port <Filter | Forward | Dynamic>
wan 1 _ port <Filter | Forward | Dynamic>
wan 2 _ port <Filter | Forward | Dynamic>
add
delete (1~20)
46
Figure 4-4
modify (20)
mac _ address <mac>
lan1_ port <Filter | Forward | Dynamic>
lan2 _ port <Filter | Forward | Dynamic>
wan 1 _ port <Filter | Forward | Dynamic>
wan 2 _ port <Filter | Forward | Dynamic>
stp
module <Disable | Enable>
bridge <number>
lan _ port <1~2> <Disable | Enable> <number>
wan _ port <1~2> <Disable | Enable> <number>
activate _ stp
<CR>
WLAN
channel <1~14>
weprequired <Disable | Enable>
rts Threshold <0~3000>
frag Threshold <256^2346>
SSID <string>
station Name <string>
defaultkeyId <1~4>
defaultkeys <1~4> <hex>
47
Figure 4-4
*Show: Show the current configuration values
interface
PPP
ip _ share
dhcp
snmp
bridge
isp
run
*reset - default
write
reboot
su
sys info
Ping <ip> [1~65534| - t] [1~1999]
exit
configuration
max _ user <1~5>
telnet_port <1~65534>
console _ port <com 1 | com 2 >
user _ profile
add
attrib <13~30><command | Menu><VT100 | ANSI | LINUX | XTerm>
source <-1~10>
profile <name> <pass _ conf> <Level 1 | Level 2 | Level 3 | Unlimited>
delete (1~5)
attrib <13~30><command | Menu><VT100 | ANSI | LINUX | XTerm>
source <-1~10>
profile <name> <pass _ conf> <Level 1 | Level 2 | Level 3 | Unlimited>
legal - address
modify <1~10> <ip>
delete <1~10>
modify
attrib <13~30><command | Menu><VT100 | ANSI | LINUX | XTerm>
source <-1~10>
profile <name> <pass _ conf> <Level 1 | Level 2 | Level 3 | Unlimited>
48
Chapter 5. Specifications
General
Compatibility Fully interoperable with IEEE802.11b
compliant products
Regulation Certifications FCC Part 15, ETSI 300/328
Power Supply Output: –
48 VDC/0.7A (power over
Ethernet)
Input: 100/240 VAC; 50/60 Hz
Temperature Range -20 to 70 ℃ (operating)
-40 to 80 ℃ (storage)
Humidity (non-condensing) 5% to 95% typical
Surge Arrester
20KA Surge Current
Radio
Frequency Band 2.4 – 2.484 GHz
Radio Type Direct Sequence Spread Spectrum
(DSSS)
Modulation CCK (11, 5.5Mbps)
DQPSK (2Mbps)
DBPSK (1Mbps)
Operation Channels 11 for North America, 14 for Japan,
13 for Europe, 2 for Spain, 4 for France
RF Output Power 28dBm typically
RF Connector Proprietary N-type (Reverse Polarity)
Network Information
Ethernet Interface 10-Base T (RJ45)
IP Sharing Supports NAT
Roaming Seamless roaming (IEEE802.11b
compliant)
Security 64/128-bit WEP data encryption
Management
Local Configuration RS-232 serial port
Remote Configuration HTTP, Telnet, SNMP
Firmware Upgrade Upgrade via Serial Interface or TFTP
IP Auto-configuration Supports DHCP server
Physical Specifications
Dimensions 245(L) mm x 200(W) mm x 70(H) mm
Weight 2100 g
49
Chapter 6. Default Settings
B-1 Basic Configuration
B-1-1 System (as shown in Table B-1)
Parameter Description Default Value
Supervisor ID Supervisor’s identity code root
Supervisor Password Supervisor’s password root
Password Confirm Confirm the password again root
Host Name Host name for the AP HWLAN
Domain Name Domain name for the AP domain.com
Default Route IP
Address
IP address of the gateway for
default route when TCP/IP
filtering
192.168.2.254
DNS Server Parameter
DNS Server 1 Address
DNS Server 2 Address
DNS Server 3 Address
IP addresses of the DNS Servers
of your Local ISP 192.168.2.254
Table B-1
B-1-2 Interface (as shown in Table B-2)
Parameter Description Default Value
Interface No.
No.1 Wireless Interface
No.2 Ethernet Interface
No.3 PPPoE Interface
No.4 PPP Interface
Note:
1. No.3 is effective
only when No.2 is
Active.
2. Default No.3 &
No. 4 is Disable
Status Enable or disable the
Corresponding interface Active
IP address
IP address of the corresponding
interface. The user can use a
LAN attached (wired or wireless)
computer to configure the AP
No.1: 192.168.1.1
No.2: 192.168.2.1
No.3: 192.168.3.1
No.4: 192.168.4.1
50
through using a web browser
or telnet program on a LAN
attached computer.
Net Mask
Consists of four sets of digits
that help divide a network into
sub-networks and simplify
routing and data transmission
No.1:255.255.255.0
No.2:255.255.255.0
No.3:255.255.255.0
No.4:255.255.255.0
NAT(PAT)
Select the network type for NAT
function.
OFF <-> ON: NAT enable
ON <-> ON: NAT disable
OFF <-> OFF: NAT disable
No.1: OFF
No.2: OFF
No.3: ON
No.4: OFF
Bridging
Shows the corresponding
interface that joins to form a
bridge
No.1: Not Join
No.2: Not Join
No.3: Not Join
No.4: Not Join
ISP Index Select the ISP index given in
the ISP pool ISP1
IPCP
Select IP Control Protocol
(Static or dynamic) for
PPP/PPPoE interface
Dynamic
Idle Time Out (min) Cancel the dial if not connected
within this period 3min
Dial Priority Set the dial-up priority of the
corresponding interface
PPPoE: 3
PPP: 2
Dial-in
Enable or disable the dial-in
function of the corresponding
interface
Disable
Dial-in Authentication
Selects the authentication
protocol for the corresponding
dial-in interface
None
Table B-2
51
B-1-3 Telnet/Console (as shown in Table B-3)
Parameter Description Default Value
Maximum User
Set the maximum number of
the users that can login the AP
through Telnet session at the
same time
2
Telnet Port The port number for Telnet
Program 23
Console Port The communication port that is
used to login the AP COM1
ID Number Index for Telnet users 1
User Name User name for Telnet session user1
Privilege Select the user’s privilege level
for Telnet session Unlimited
Max. Screen Line Set the maximum number of
lines displayed on the screen 24
Show Mode
Select the type of display for
Telnet session
(Command/Menu mode)
Menu
Keyboard Type Select the type of the keyboard
for Telnet session VT100
Table B-3
B-1-4 Telnet/Console (as shown in Table B-4)
Parameter Description Default Value
ISP Name Name of Internet Service
Provider ISP-1
Phone Number
The phone number that is used
to dial up your ISP
Note: The phone number must
enter direct line phone number
12345678
Username The user name used to login ISP
user
52
Password The password used to login ISP pass
Table B-4
B-1-5 DHCP (as shown in Table B-5)
Parameter Description Default Value
DHCP Client Setting
Enable or disable the specified
interface to obtain an IP address
automatically
Disable
Trigger DHCP Service
Enable or disable automatic IP
address assignment to wireless
stations
Disable
Default Gateway
IP address of the gateway for
default route when TCP/IP
filtering
192.168.1.1
Net Mask
Consists of four sets of digits
that help divide a network into
sub-networks and simplify
routing and data transmission
255.255.255.0
Name Server IP address of the DNS host 192.168.2.254
DHCP Start IP IP starting address 192.168.1.240
DHCP End IP IP ending address 192.168.1.254
Interface Select the interface to provide
DHCP service HWLAN
Fixed Host Entry
Define a fixed Ethernet-to-IP
address mapping to limit the
client station with the Ethernet
address to get the IP address
Table B-5
B-1-6 Virtual Server Mapping (as shown in Table B-6)
Parameter Description Default Value
Service Name Specify the service for public NULL
53
access
Protocol Select a protocol for public
access NULL
Public Access –
Interface
Select an interface for public
access NULL
Public Access – Port
Number
Specify the port number of the
interface for public access NULL
Virtual Server – IP
Address
Specify the IP address of the
virtual server NULL
Virtual Server – Port
Number
Specify the port number of
internal virtual server NULL
Table B-6
B-1-7 NAT (Network Address Translation) (as shown in Table B-7)
Parameter Description Default Value
Local IP Address
Pool – Base IP Address
IP starting address of local IP
address NULL
Local IP Address
Pool –Count Number of local IP address NULL
Global IP Address
Pool – Base IP Address
IP starting address of global IP
address NULL
Global IP Address
Pool – Count Number of global IP address NULL
Global IP Address
Pool – Interface
Specify the interface as global
IP address NULL
Fixed IP Address
Mapping – Local/Global
IP Address
Define a local and global IP
address pair for network
address translation
NULL
Fixed IP Address
Mapping – Interface
Specify the interface for
network address translation NULL
Table B-7
54
55
B-1-8 Wireless LAN (as shown in Table B-8)
Parameter Description Default Value
Regulatory Domain Define the regulatory domain to
Which this NIC may be deployed
1
Channel The operating radio frequency
channel for the AP 11
RTS Threshold Set RTS (Request To Send)
threshold value 250
Fragmentation
Threshold
Set fragmentation threshold
value 1600
SSID
Wireless LAN service area
identifier of the AP (case
sensitive)
wireless
Station Name Shows the name of the AP ap
WEP
Enable or disable 64-bit WEP
(Wired Equivalent Privacy) key
to encrypt data
Disable
Default Key
Select a WEP key to encrypt
each frame transmitted from
the radio using one the of the
Keys from the Key Panel
1
Key Panel
When you use WEP to
communicate with the other
wireless clients, all the wireless
devices in this network must
have the same encryption key
or pass phrase.
Note: each key must consist
of hex digits, it means that
only digit 0 -9 and letters A-F
are valid entries. If entered
incorrectly, program will not
write keys to a driver.
Table B-8
56
B-1-9 Bridging (as shown in Table B-9)
Parameter Description Default Value
Bridging Function Enable or disable bridging
Function
Enable
IP Address
IP Address of the AP when in
Bridging mode. The user can
use a LAN attached (wired or
wireless) computer to configure
the AP through using a web
browser or telnet program on a
LAN attached computer.
192.168.2.1
Subnet Mask
Consists of four sets of digits
that help divide a network into
sub-networks and simplify
routing and data transmission
255.255.255.0
Operation mode
Enable or disable the operation
mode
Enable
Enable
Disable
Disable
MAC Address MAC address to be considered
in forward/filter policy
00-00-00-00-00-00
Interface
Select Filter(always block the
frames), Forward(always
forward the frames) or
Dynamic(forward the frames if
the MAC address exists) to the
corresponding interface
1. Filter
2. Filter
3. ---
4. ---
Table B-9
57
B-1-10 SNMP Community (as shown in Table B-10)
Parameter Description Default Value
Validity
Enable or disable the function
of the corresponding community
index
Enable
Access Right
Select the access right
(Deny/Read/Write/Create) for
SNMP Manager
Read
Community
Specify the type of community
(public or private) for SNMP
Manager
Public
Table B-10
B-1-11 SNMP Trap (as shown in Table B-11)
Parameter Description Default Value
Index Enable or disable the activity of
the corresponding community
Enable
Version
Select or disable the SNMP
Version
Version 1: MIB1
Version 2: MIB2
Version1
IP Address
Specify the IP address of the
SNMP Manager for SNMP Trap
Report
192.168.2.100
Community
Specify the type of community
(public or private) for SNMP
Manager
Public
Table B-11
58
B-1-12 Software Upgrade (as shown in Table B-12)
Parameter Description Default Value
TFTP Server IP
Address
Specify the IP address of the
TFTP server to upgrade the
firmware of the AP
192.168.2.100
Upgrade Filename
Specify the filename of
requested firmware
stored in TFTP server
soho.bin
Table B-12
59
Chapter 7. Regulatory Compliance Information
Radio Frequency Interference Requirements
This device complies with Part 15 of FCC Rules and Canada RSS-210.
Operation is subject to the following conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20 cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna of transmitter.
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules and Regulation.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to
nearby TV’s, VCR’s, radio, computers, or other electronic devices. To
minimize or prevent such interference, this equipment should not be placed
or operated near these devices. If interference is experienced, moving the
equipment away from them will often reduce or eliminate the interference.
However, there is no guarantee that interference will not occur in a particular
installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
60
Information to User
The user manual or instruction manual for an intentional or unintentional
radiator shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment
complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or
transmitter.
61

Navigation menu
