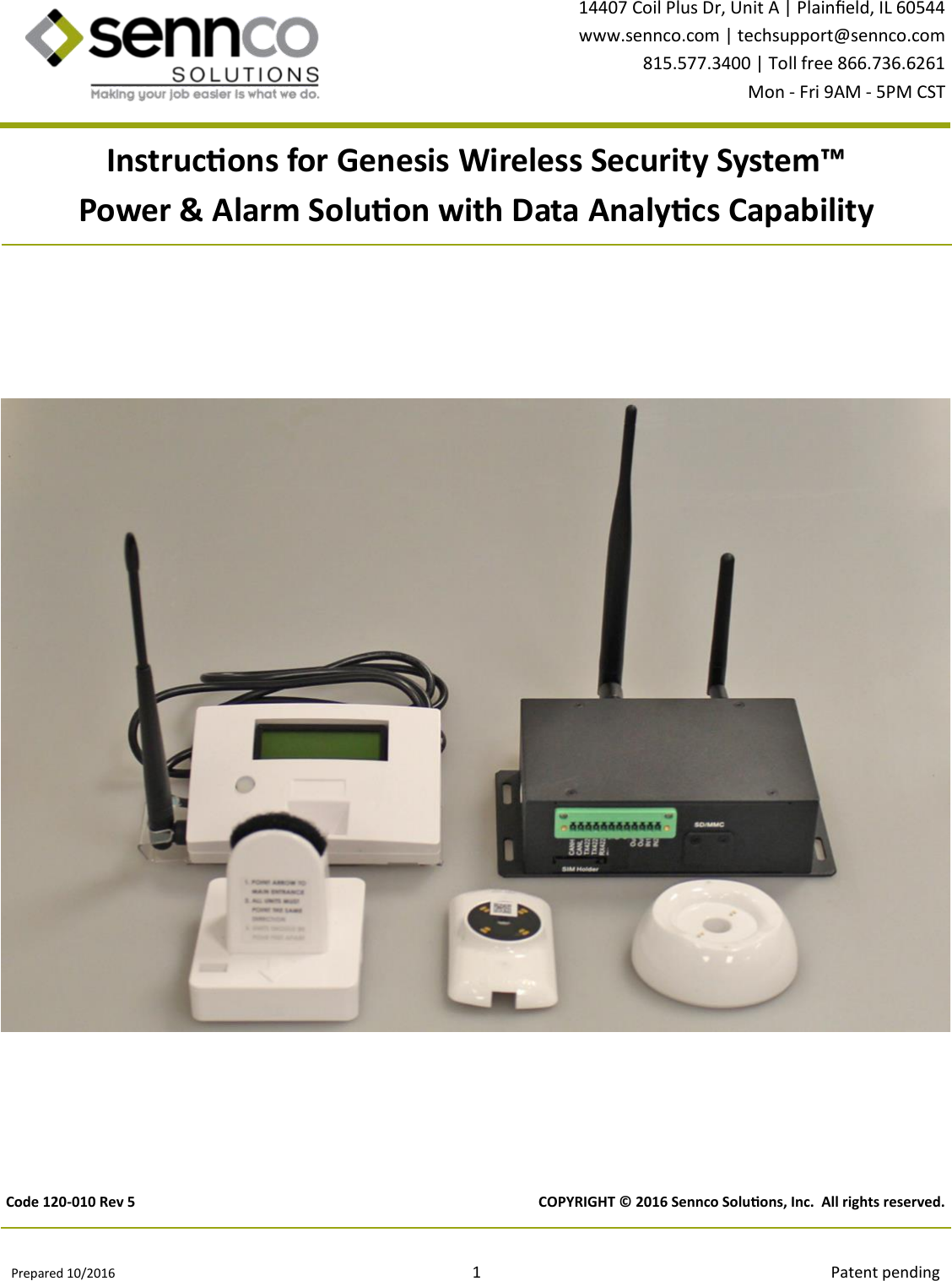

Prepared 10/2016 1 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Instrucons for Genesis Wireless Security System™ Power & Alarm Soluon with Data Analycs Capability Code 120-010 Rev 5 COPYRIGHT © 2016 Sennco Soluons, Inc. All rights reserved.
Prepared 10/2016 2 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Nocaons Any changes/modicaons to this equipment not approved by Sennco Soluons Inc. could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operaon is subject to the following two condions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operaon of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitaon est autorisée aux deux condions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepble d'en compromere le fonconnement. Patents: Patent No.: US 8,279,077 B1 Patent No.: US 9,019,113 Patent No.: US 7,154,039 Patent No.: US 8,558,714 B1 Patent No.: US 9,303,809 Sennco Soluons, Inc. is not held liable for any rmware or soware changes implemented by the displayed product’s manufacturer, distributor, or reseller. Warning: System components should only be powered by the provided power supplies. Use of other power supplies can result in a risk of electrical re and shock hazard. Component Model FCC ID IC ID Rang Main alarm+Data monitor Model: 160001 COI-160001 20574-160001 24V 2.71A Cradle Model: 150002 N/A N/A 5V 3A Sensor head Model: 150003 COI-150003 20574-150003 5V 2A max Security Perimeter Dome Model: 150005 COI-150005 20574-150005 24V 2.71A Cauon: DO NOT connect devices that draw more than 2A.

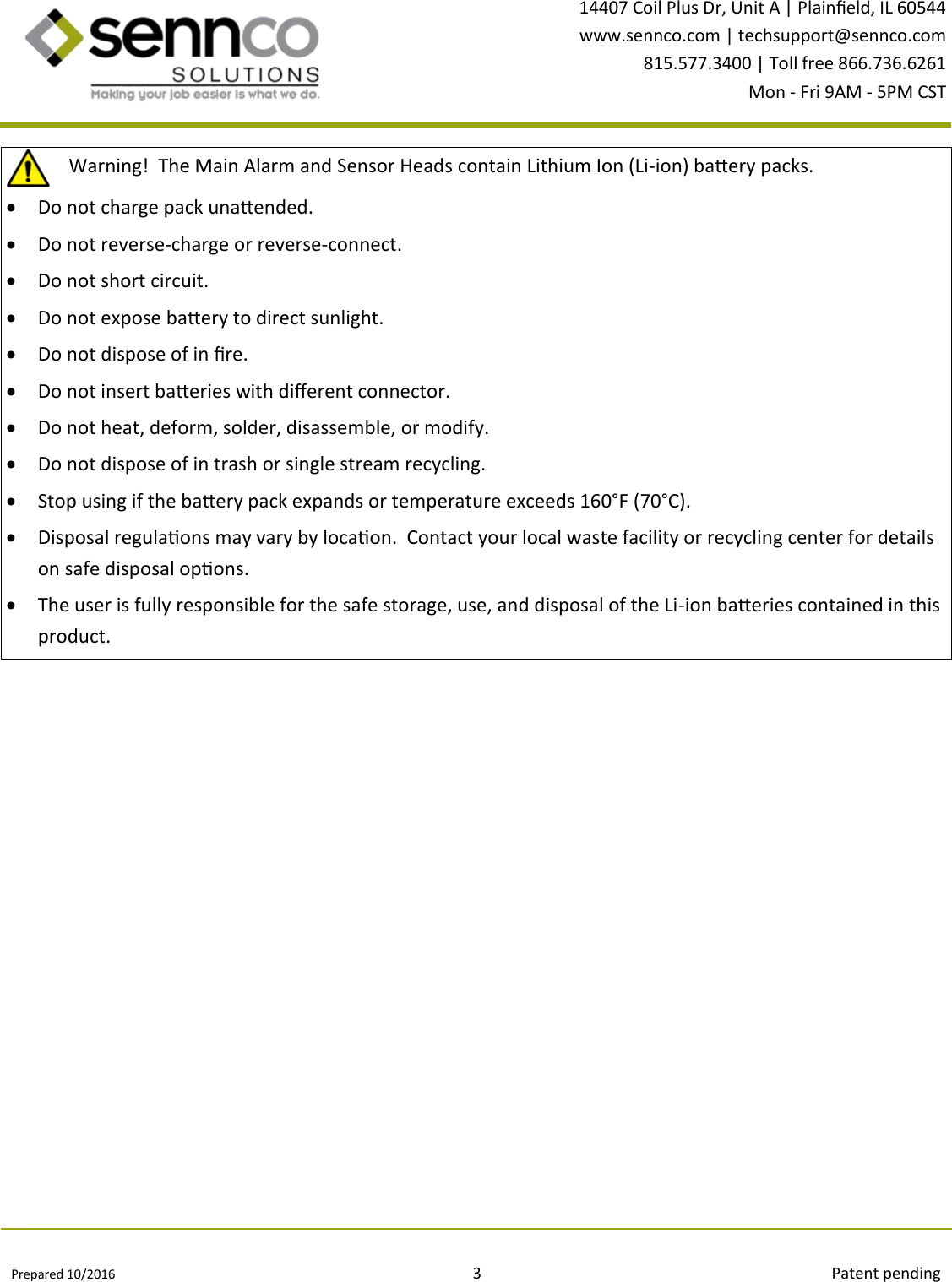

Prepared 10/2016 3 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Warning! The Main Alarm and Sensor Heads contain Lithium Ion (Li-ion) baery packs.  Do not charge pack unaended.  Do not reverse-charge or reverse-connect.  Do not short circuit.  Do not expose baery to direct sunlight.  Do not dispose of in re.  Do not insert baeries with dierent connector.  Do not heat, deform, solder, disassemble, or modify.  Do not dispose of in trash or single stream recycling.  Stop using if the baery pack expands or temperature exceeds 160°F (70°C).  Disposal regulaons may vary by locaon. Contact your local waste facility or recycling center for details on safe disposal opons.  The user is fully responsible for the safe storage, use, and disposal of the Li-ion baeries contained in this product.

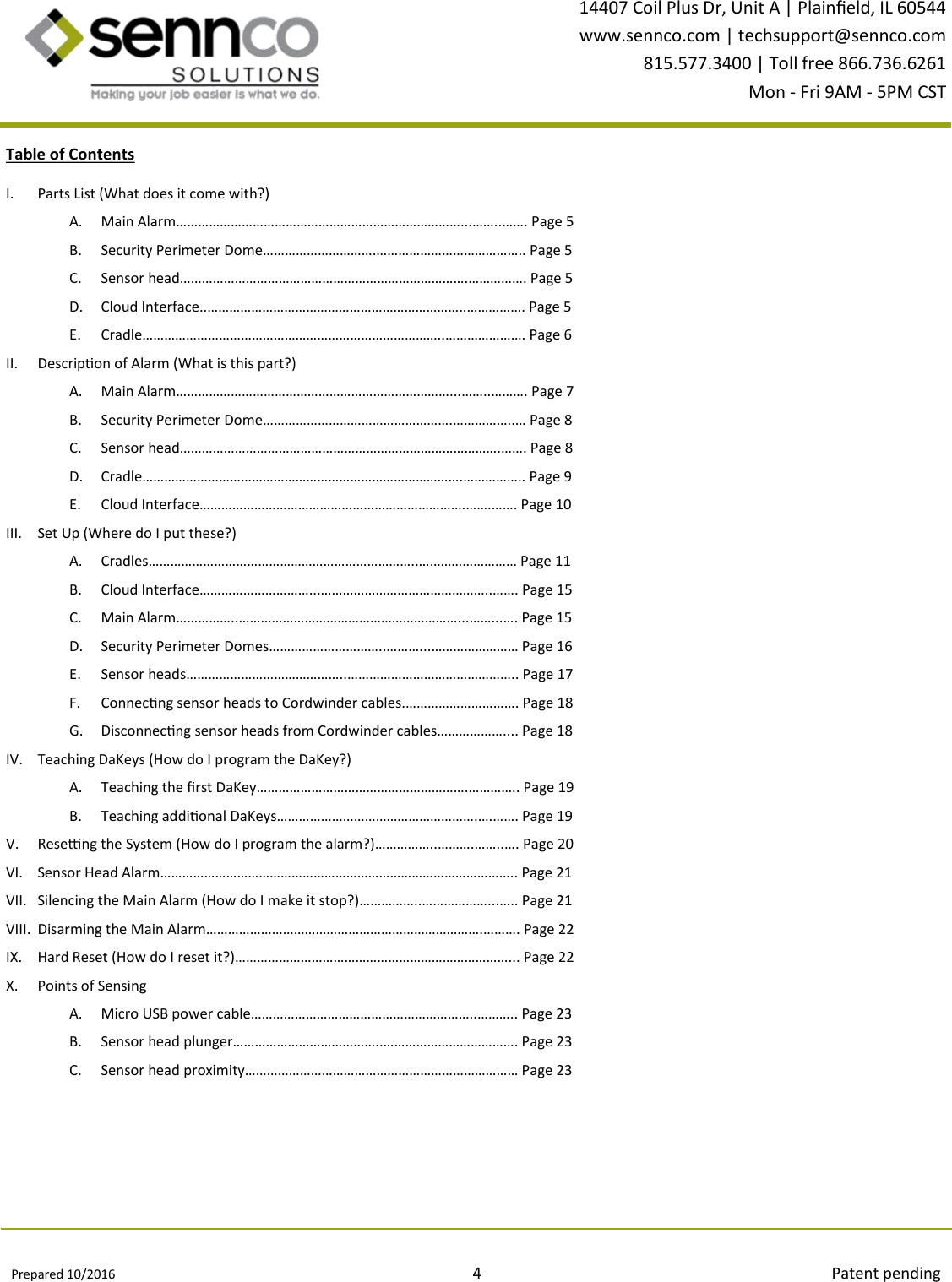

Prepared 10/2016 4 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Table of Contents I. Parts List (What does it come with?) A. Main Alarm……………………………………………………………………...……..……. Page 5 B. Security Perimeter Dome………………………….………………………………….. Page 5 C. Sensor head…………………………………………………………………….……………. Page 5 D. Cloud Interface..……………………………………………………………..……………. Page 5 E. Cradle………………………………………………………………………..…………………. Page 6 II. Descripon of Alarm (What is this part?) A. Main Alarm…………………………………………………………………...……..………. Page 7 B. Security Perimeter Dome…………………………………………….……………..… Page 8 C. Sensor head…………………………………………………………………………….……. Page 8 D. Cradle…………………………………………………………………………….…………….. Page 9 E. Cloud Interface……………………………………………………………….…….……. Page 10 III. Set Up (Where do I put these?) A. Cradles………………………………………………………………..……………………… Page 11 B. Cloud Interface…………………………...………………………………………..……. Page 15 C. Main Alarm……………..……………………………………………………...……...…. Page 15 D. Security Perimeter Domes…………………………..………...…………………… Page 16 E. Sensor heads……………………………………..……………………………………….. Page 17 F. Connecng sensor heads to Cordwinder cables.…………………………. Page 18 G. Disconnecng sensor heads from Cordwinder cables……………….... Page 18 IV. Teaching DaKeys (How do I program the DaKey?) A. Teaching the rst DaKey………………………………………………….………….. Page 19 B. Teaching addional DaKeys……………………………………………….….……. Page 19 V. Reseng the System (How do I program the alarm?)……………..……….……..…. Page 20 VI. Sensor Head Alarm…………………………………………………………………………………….. Page 21 VII. Silencing the Main Alarm (How do I make it stop?)……………..………………...….. Page 21 VIII. Disarming the Main Alarm………………………………………………………………….………. Page 22 IX. Hard Reset (How do I reset it?)…………………………………………………………………... Page 22 X. Points of Sensing A. Micro USB power cable……………………………………………………..……….. Page 23 B. Sensor head plunger…………………………………..………………………………. Page 23 C. Sensor head proximity………………………………………………………………… Page 23
Prepared 10/2016 5 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST I. Parts List Main alarm unit A. Main alarm Security Perimeter Dome AC power cable for Security Perimeter Dome B. Security Perimeter Dome D. Cloud Interface C. Sensor head DaKey Sensor head shielding Sensor head Sensor head adhesive WPWR cable Tether Disconnect Key AC power cable for Main Alarm *Actual cable may dier from image. *Actual cable may dier from image. Cloud Interface AC power cable Cloud Interface antennas WLAN 3G/GPRS *Actual cable may dier from image.

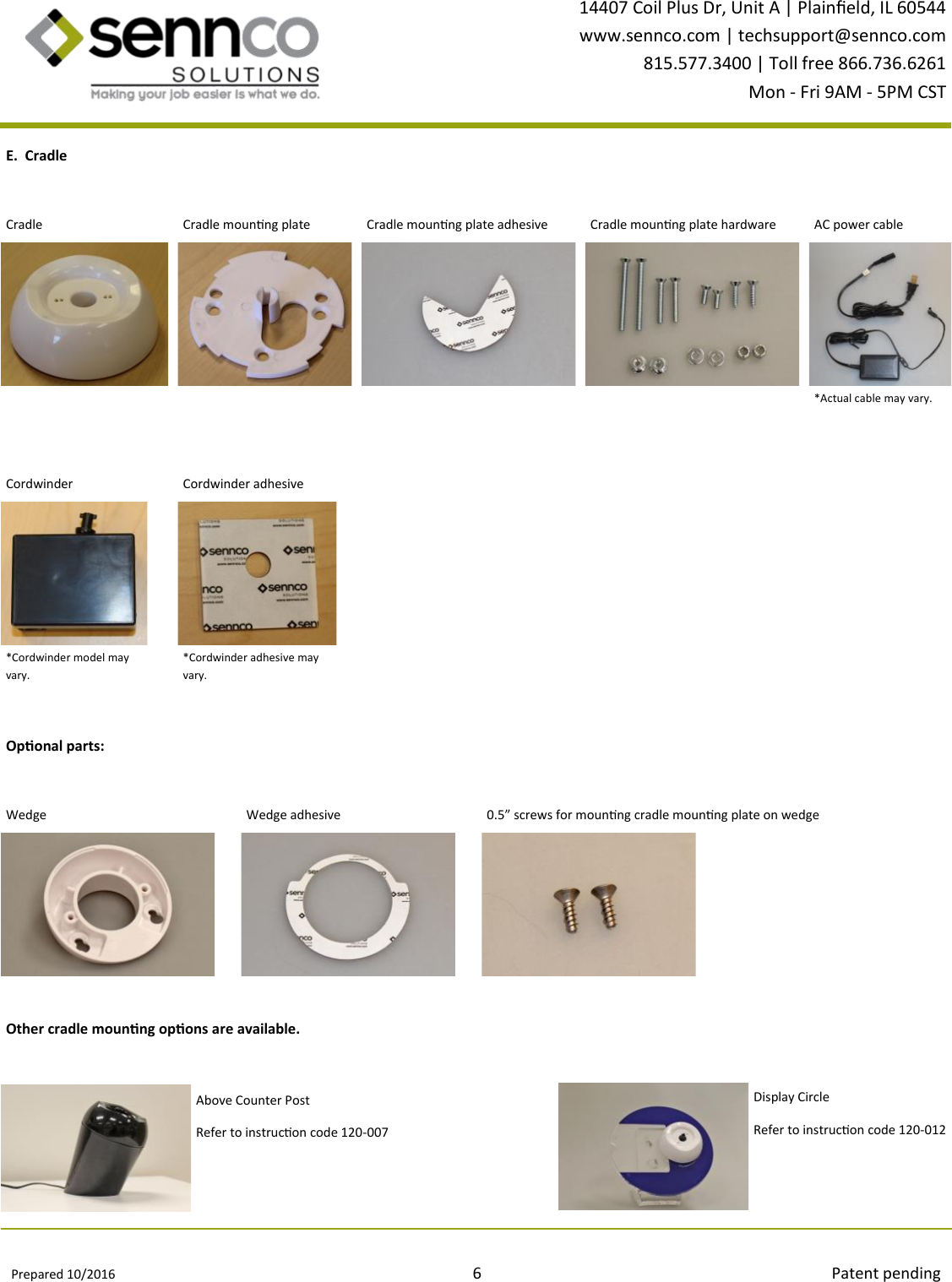

Prepared 10/2016 6 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST E. Cradle Other cradle mounng opons are available. Cordwinder Cordwinder adhesive *Cordwinder model may vary. *Cordwinder adhesive may vary. Above Counter Post Refer to instrucon code 120-007 Display Circle Refer to instrucon code 120-012 Cradle mounng plate Cradle AC power cable Cradle mounng plate adhesive *Actual cable may vary. Cradle mounng plate hardware Oponal parts: 0.5” screws for mounng cradle mounng plate on wedge Wedge adhesive Wedge

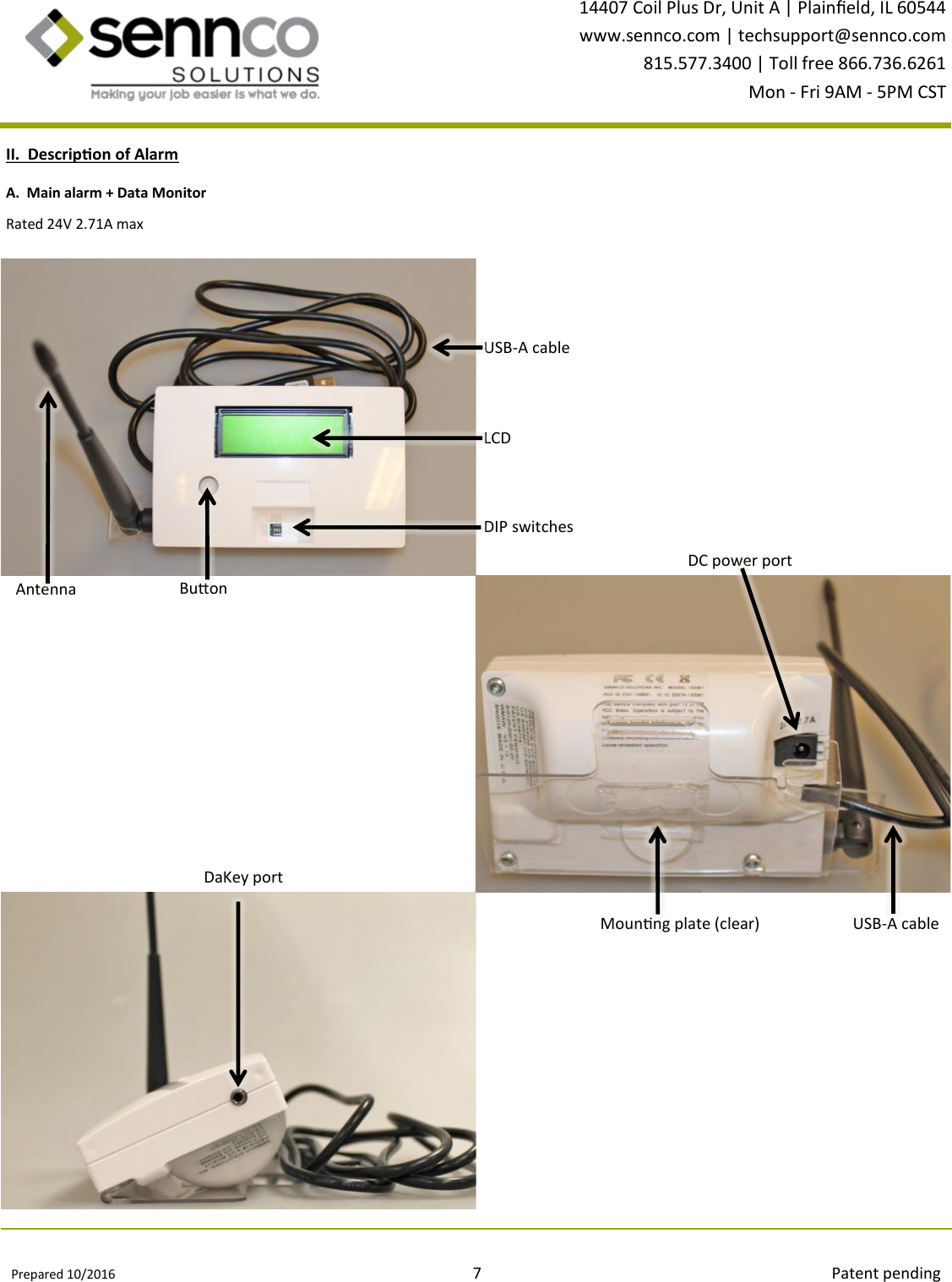

Prepared 10/2016 7 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST II. Descripon of Alarm Buon LCD DIP switches Antenna DC power port DaKey port A. Main alarm + Data Monitor Rated 24V 2.71A max USB-A cable USB-A cable Mounng plate (clear)

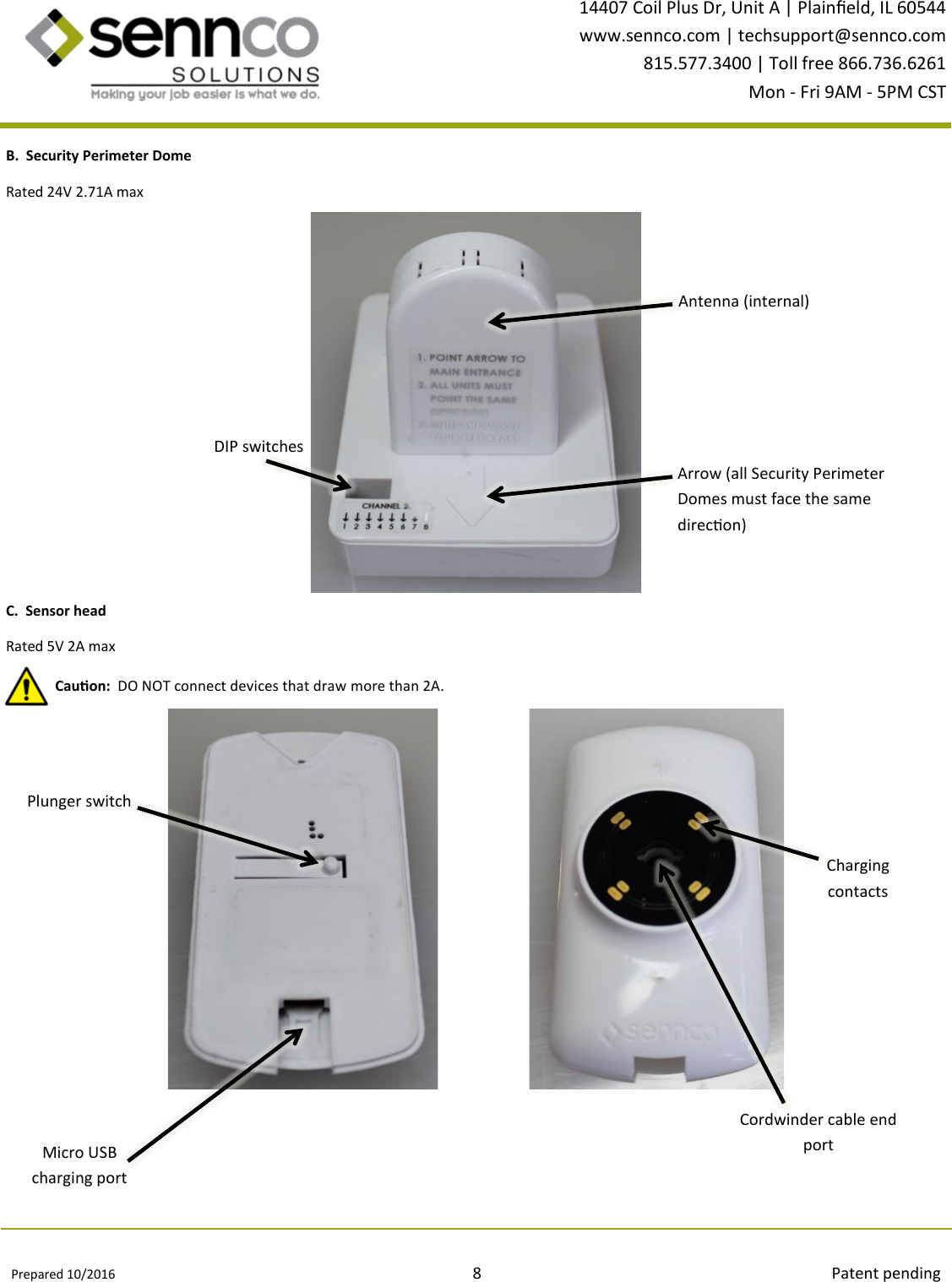

Prepared 10/2016 8 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Antenna B. Security Perimeter Dome DIP switches Antenna (internal) Arrow (all Security Perimeter Domes must face the same direcon) C. Sensor head Plunger switch Micro USB charging port Cordwinder cable end port Charging contacts Rated 24V 2.71A max Cauon: DO NOT connect devices that draw more than 2A. Rated 5V 2A max

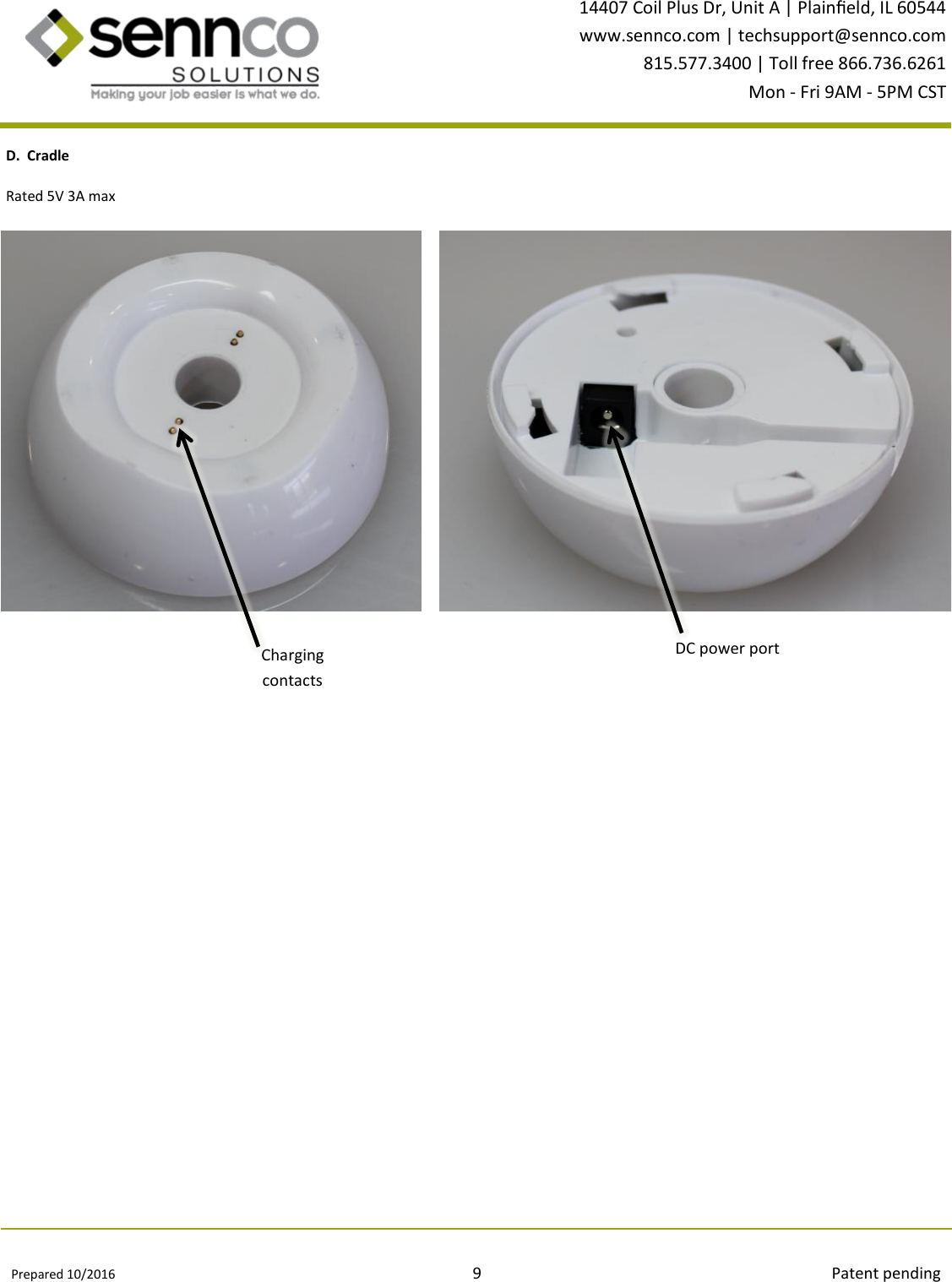

Prepared 10/2016 9 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST D. Cradle Charging contacts DC power port Rated 5V 3A max

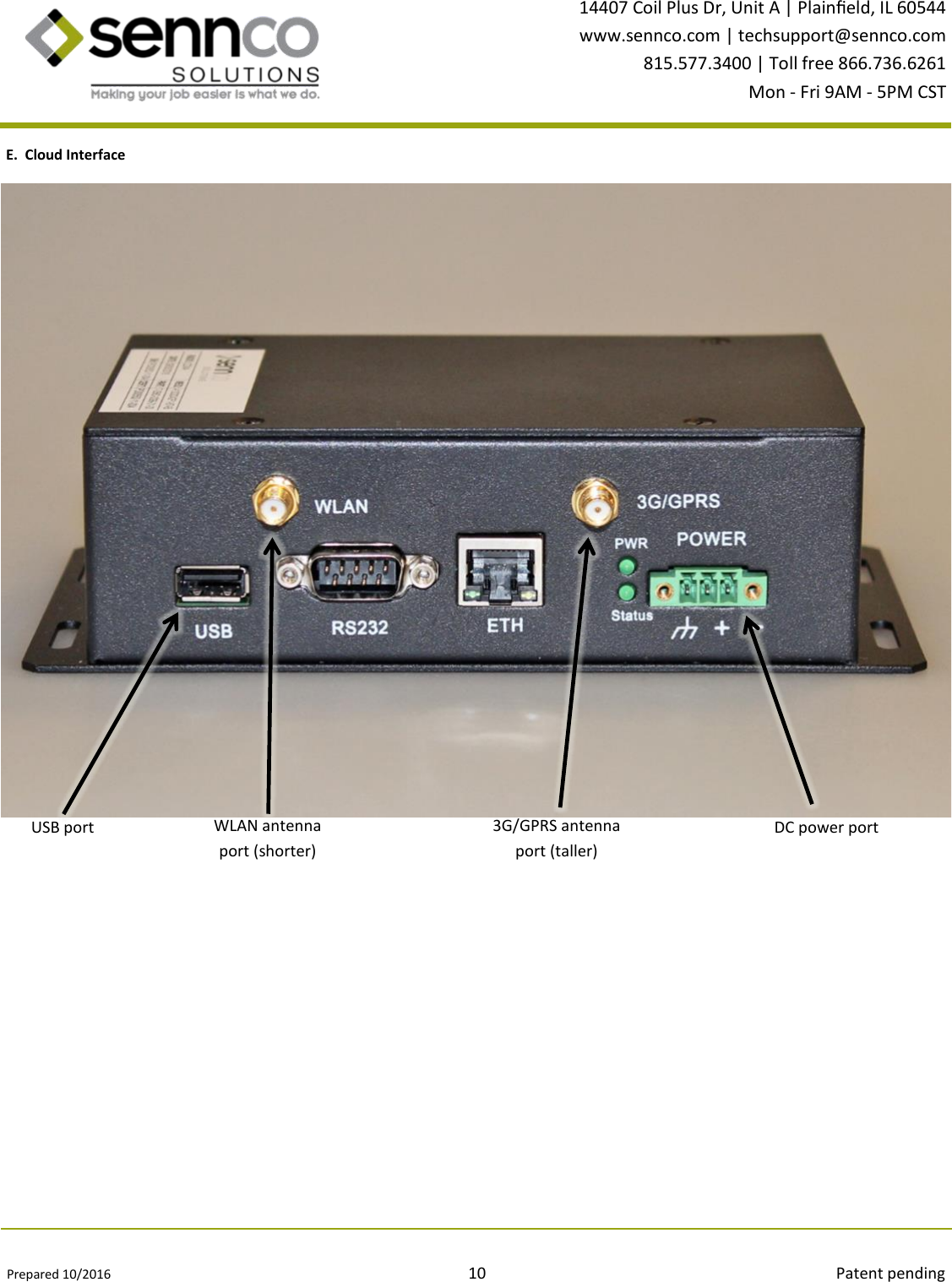

Prepared 10/2016 10 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST E. Cloud Interface USB port WLAN antenna port (shorter) DC power port 3G/GPRS antenna port (taller)

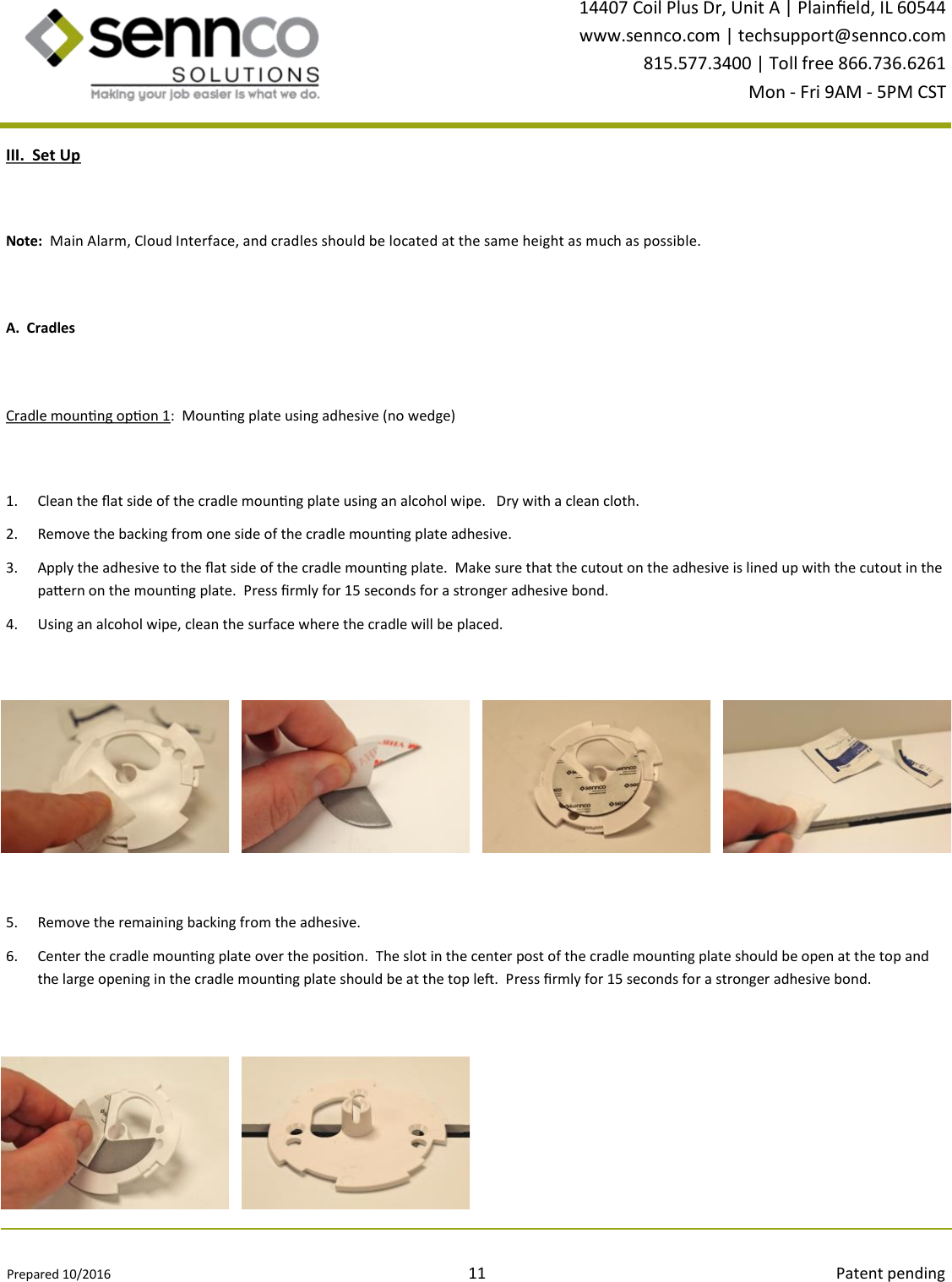

Prepared 10/2016 11 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST III. Set Up A. Cradles Note: Main Alarm, Cloud Interface, and cradles should be located at the same height as much as possible. 1. Clean the at side of the cradle mounng plate using an alcohol wipe. Dry with a clean cloth. 2. Remove the backing from one side of the cradle mounng plate adhesive. 3. Apply the adhesive to the at side of the cradle mounng plate. Make sure that the cutout on the adhesive is lined up with the cutout in the paern on the mounng plate. Press rmly for 15 seconds for a stronger adhesive bond. 4. Using an alcohol wipe, clean the surface where the cradle will be placed. Cradle mounng opon 1: Mounng plate using adhesive (no wedge) 5. Remove the remaining backing from the adhesive. 6. Center the cradle mounng plate over the posion. The slot in the center post of the cradle mounng plate should be open at the top and the large opening in the cradle mounng plate should be at the top le. Press rmly for 15 seconds for a stronger adhesive bond.

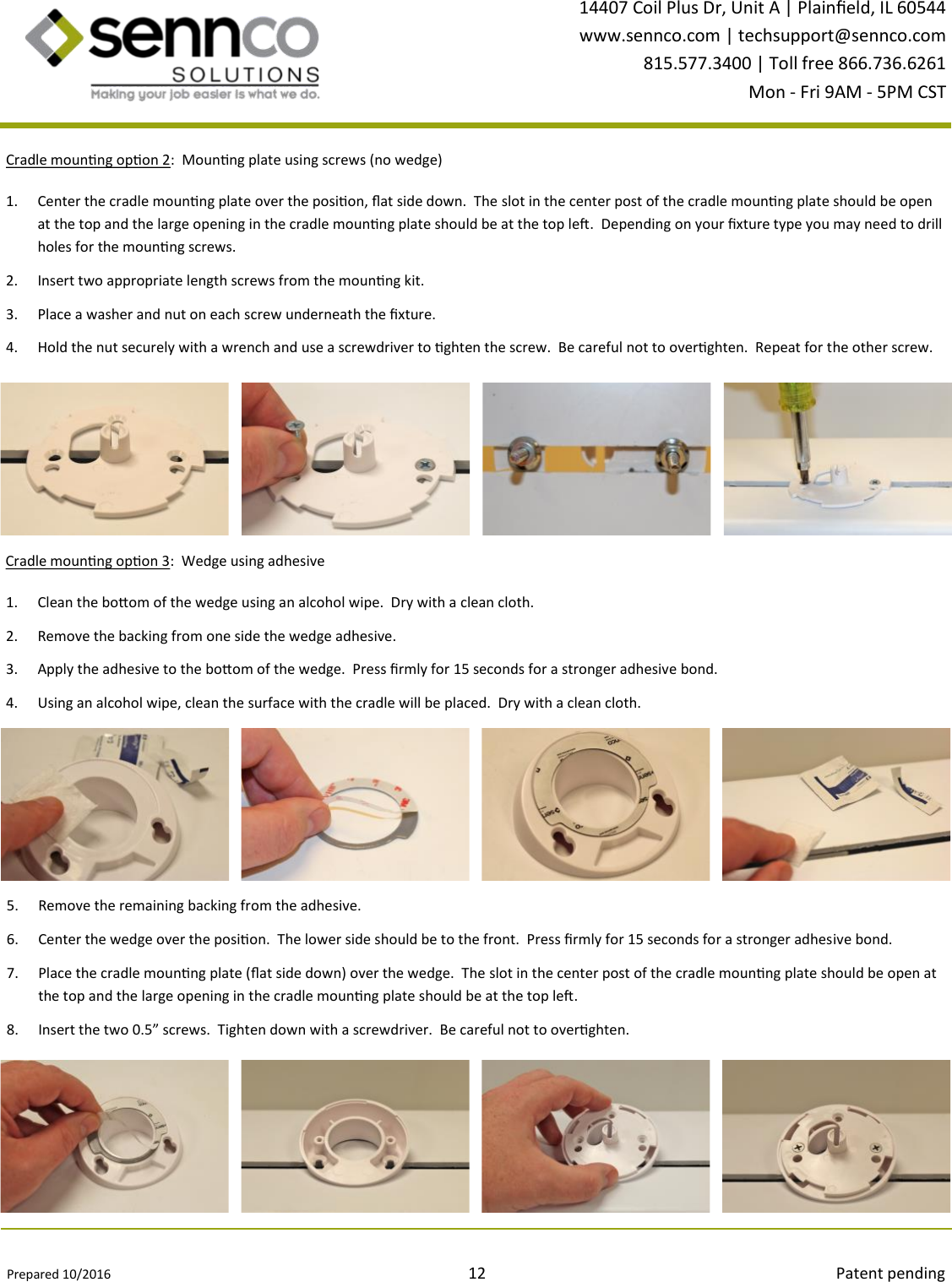

Prepared 10/2016 12 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Cradle mounng opon 2: Mounng plate using screws (no wedge) 1. Center the cradle mounng plate over the posion, at side down. The slot in the center post of the cradle mounng plate should be open at the top and the large opening in the cradle mounng plate should be at the top le. Depending on your xture type you may need to drill holes for the mounng screws. 2. Insert two appropriate length screws from the mounng kit. 3. Place a washer and nut on each screw underneath the xture. 4. Hold the nut securely with a wrench and use a screwdriver to ghten the screw. Be careful not to overghten. Repeat for the other screw. Cradle mounng opon 3: Wedge using adhesive 1. Clean the boom of the wedge using an alcohol wipe. Dry with a clean cloth. 2. Remove the backing from one side the wedge adhesive. 3. Apply the adhesive to the boom of the wedge. Press rmly for 15 seconds for a stronger adhesive bond. 4. Using an alcohol wipe, clean the surface with the cradle will be placed. Dry with a clean cloth. 5. Remove the remaining backing from the adhesive. 6. Center the wedge over the posion. The lower side should be to the front. Press rmly for 15 seconds for a stronger adhesive bond. 7. Place the cradle mounng plate (at side down) over the wedge. The slot in the center post of the cradle mounng plate should be open at the top and the large opening in the cradle mounng plate should be at the top le. 8. Insert the two 0.5” screws. Tighten down with a screwdriver. Be careful not to overghten.

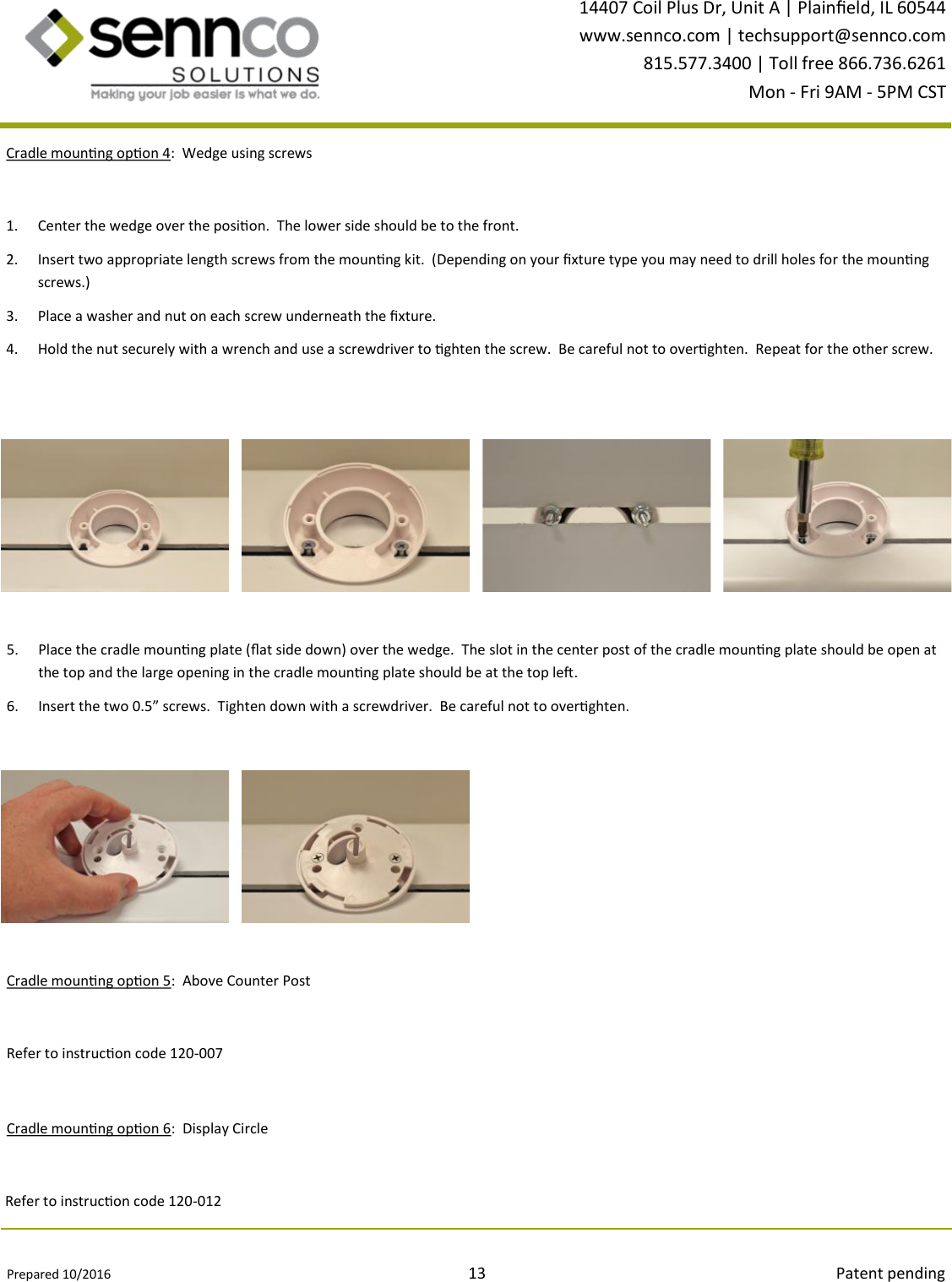

Prepared 10/2016 13 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Cradle mounng opon 4: Wedge using screws 1. Center the wedge over the posion. The lower side should be to the front. 2. Insert two appropriate length screws from the mounng kit. (Depending on your xture type you may need to drill holes for the mounng screws.) 3. Place a washer and nut on each screw underneath the xture. 4. Hold the nut securely with a wrench and use a screwdriver to ghten the screw. Be careful not to overghten. Repeat for the other screw. 5. Place the cradle mounng plate (at side down) over the wedge. The slot in the center post of the cradle mounng plate should be open at the top and the large opening in the cradle mounng plate should be at the top le. 6. Insert the two 0.5” screws. Tighten down with a screwdriver. Be careful not to overghten. Cradle mounng opon 5: Above Counter Post Cradle mounng opon 6: Display Circle Refer to instrucon code 120-007 Refer to instrucon code 120-012

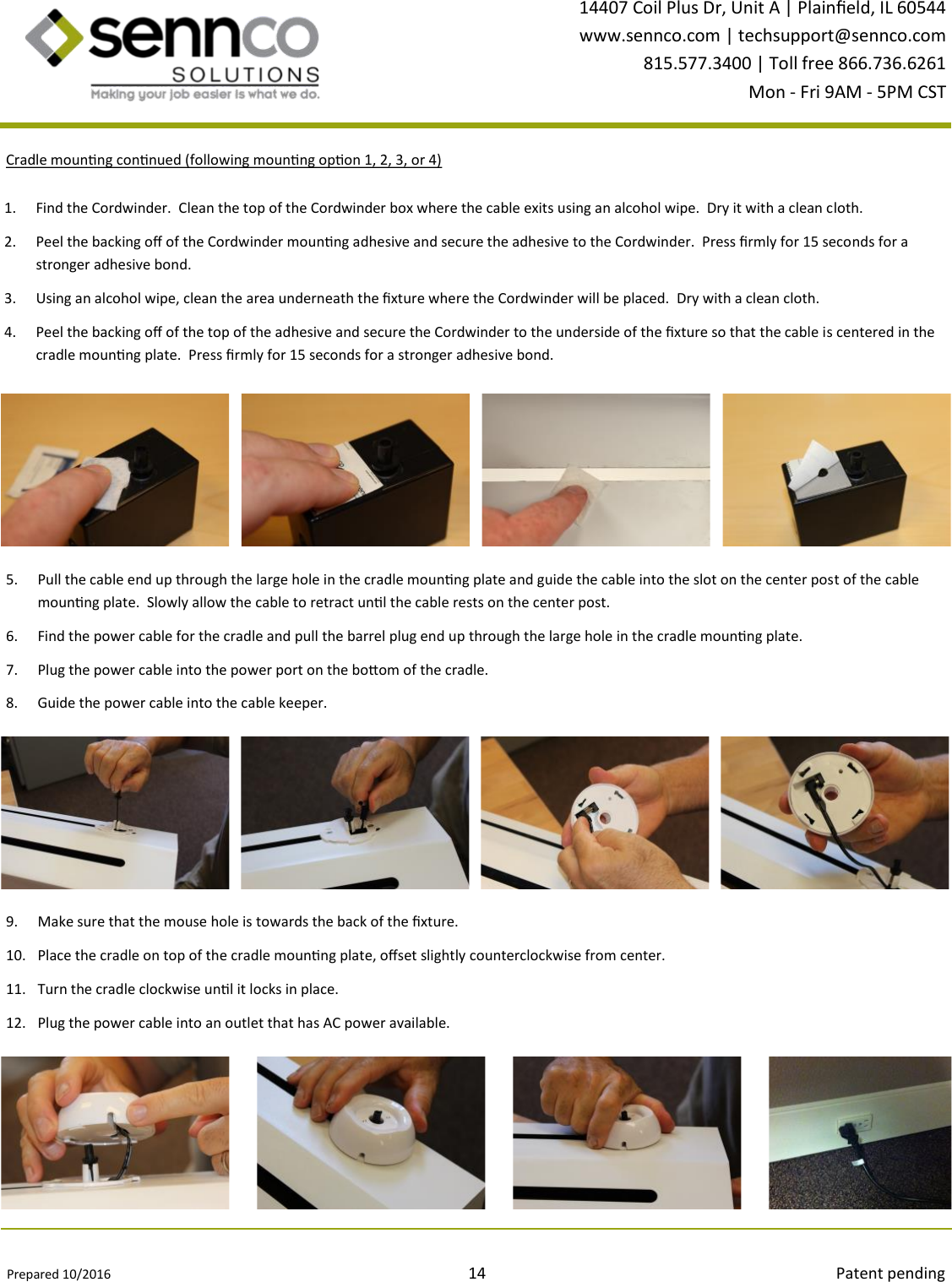

Prepared 10/2016 14 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST 1. Find the Cordwinder. Clean the top of the Cordwinder box where the cable exits using an alcohol wipe. Dry it with a clean cloth. 2. Peel the backing o of the Cordwinder mounng adhesive and secure the adhesive to the Cordwinder. Press rmly for 15 seconds for a stronger adhesive bond. 3. Using an alcohol wipe, clean the area underneath the xture where the Cordwinder will be placed. Dry with a clean cloth. 4. Peel the backing o of the top of the adhesive and secure the Cordwinder to the underside of the xture so that the cable is centered in the cradle mounng plate. Press rmly for 15 seconds for a stronger adhesive bond. 5. Pull the cable end up through the large hole in the cradle mounng plate and guide the cable into the slot on the center post of the cable mounng plate. Slowly allow the cable to retract unl the cable rests on the center post. 6. Find the power cable for the cradle and pull the barrel plug end up through the large hole in the cradle mounng plate. 7. Plug the power cable into the power port on the boom of the cradle. 8. Guide the power cable into the cable keeper. 9. Make sure that the mouse hole is towards the back of the xture. 10. Place the cradle on top of the cradle mounng plate, oset slightly counterclockwise from center. 11. Turn the cradle clockwise unl it locks in place. 12. Plug the power cable into an outlet that has AC power available. Cradle mounng connued (following mounng opon 1, 2, 3, or 4)
Prepared 10/2016 15 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST 1. Place the Main Alarm unit in clear line of sight within 50 feet of the display xtures and Security Perimeter Domes. Avoid mounng near the oor or with large metal objects, metal cabinets, other equipment, etc. in close proximity to the Main Alarm or between the Main Alarm and the display xtures. The Main Alarm should be at least 2 feet away from the nearest sensor head, and its antenna should be posioned vercally 90°. 2. The Main Alarm’s USB-A cable should already be plugged into the Cloud Interface and the Cloud Interface should have beeped twice aer being connected to AC power. (See secon B above.) 3. Plug the barrel plug end of the power cable into the power port on the Main Alarm. 4. Plug the power cable into an outlet that has AC power available. 1. Screw the shorter antenna into the le posion labeled WLAN and the taller antenna into the right posion labeled 3G/GPRS. Posion both antennas vercally. 2. Plug the USB-A cable from the Main Alarm into the USB port on the Cloud Interface. 3. Plug the barrel plug end of the power cable into the power port on the Cloud Interface. 4. Plug the power cable into an outlet that has AC power available. Listen and conrm Cloud Interface beeps twice. 5. Place the Cloud Interface within reach of the Main Alarm USB-A cable, but make sure the Main Alarm and Cloud Interface antennas are spaced at least one foot apart. Avoid placing the Cloud Interface inside of cabinets, near the oor or near metal. C. Main Alarm 13. There is a red LED on the boom of the cradle which will be lit when the cradle is receiving power. This LED is not visible when the cradle is on the cradle mounng plate. 14. Repeat as necessary for addional cradles. B. Cloud Interface

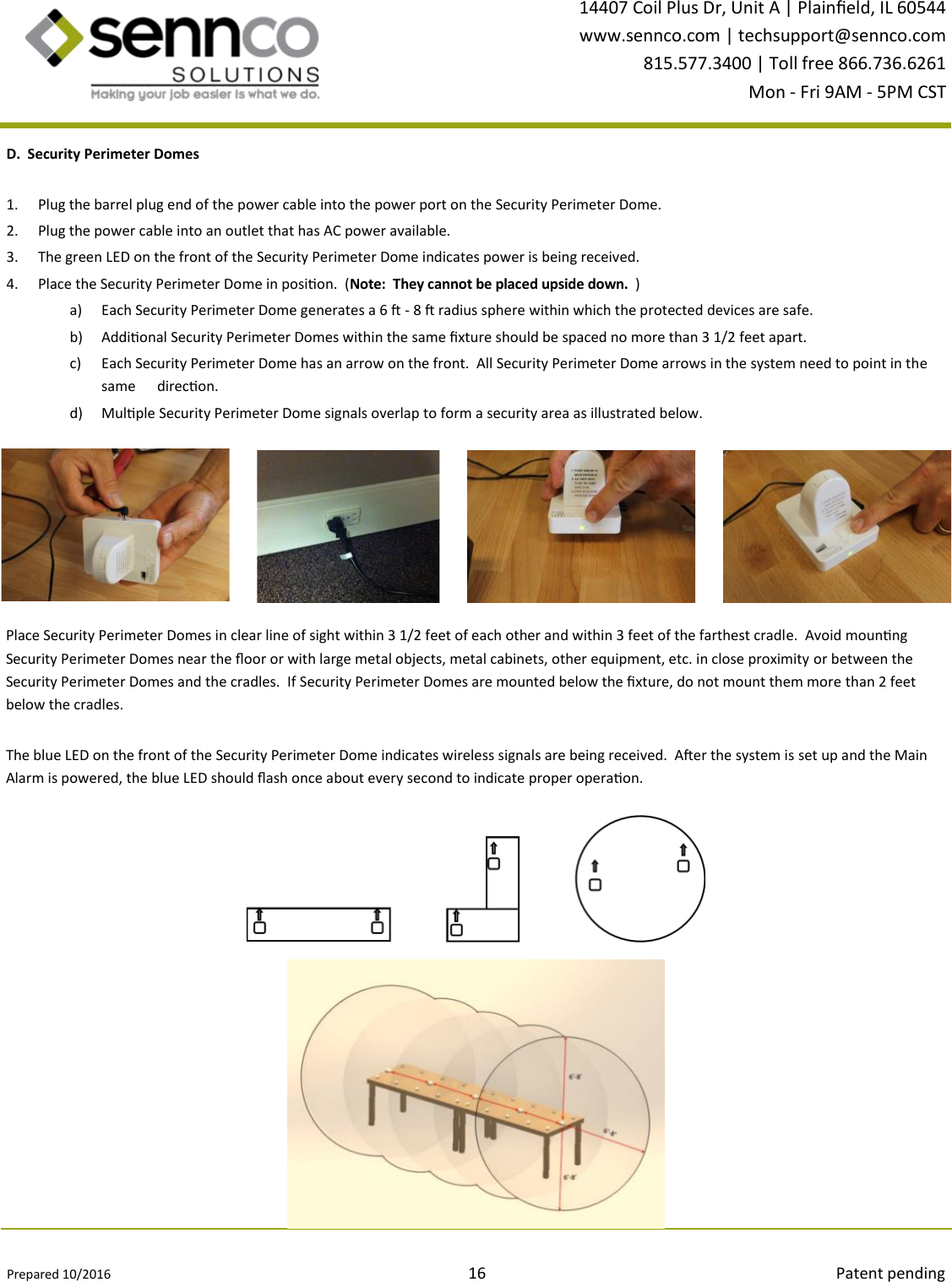

Prepared 10/2016 16 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST D. Security Perimeter Domes 1. Plug the barrel plug end of the power cable into the power port on the Security Perimeter Dome. 2. Plug the power cable into an outlet that has AC power available. 3. The green LED on the front of the Security Perimeter Dome indicates power is being received. 4. Place the Security Perimeter Dome in posion. (Note: They cannot be placed upside down. ) a) Each Security Perimeter Dome generates a 6  - 8  radius sphere within which the protected devices are safe. b) Addional Security Perimeter Domes within the same xture should be spaced no more than 3 1/2 feet apart. c) Each Security Perimeter Dome has an arrow on the front. All Security Perimeter Dome arrows in the system need to point in the same direcon. d) Mulple Security Perimeter Dome signals overlap to form a security area as illustrated below. Place Security Perimeter Domes in clear line of sight within 3 1/2 feet of each other and within 3 feet of the farthest cradle. Avoid mounng Security Perimeter Domes near the oor or with large metal objects, metal cabinets, other equipment, etc. in close proximity or between the Security Perimeter Domes and the cradles. If Security Perimeter Domes are mounted below the xture, do not mount them more than 2 feet below the cradles. The blue LED on the front of the Security Perimeter Dome indicates wireless signals are being received. Aer the system is set up and the Main Alarm is powered, the blue LED should ash once about every second to indicate proper operaon.

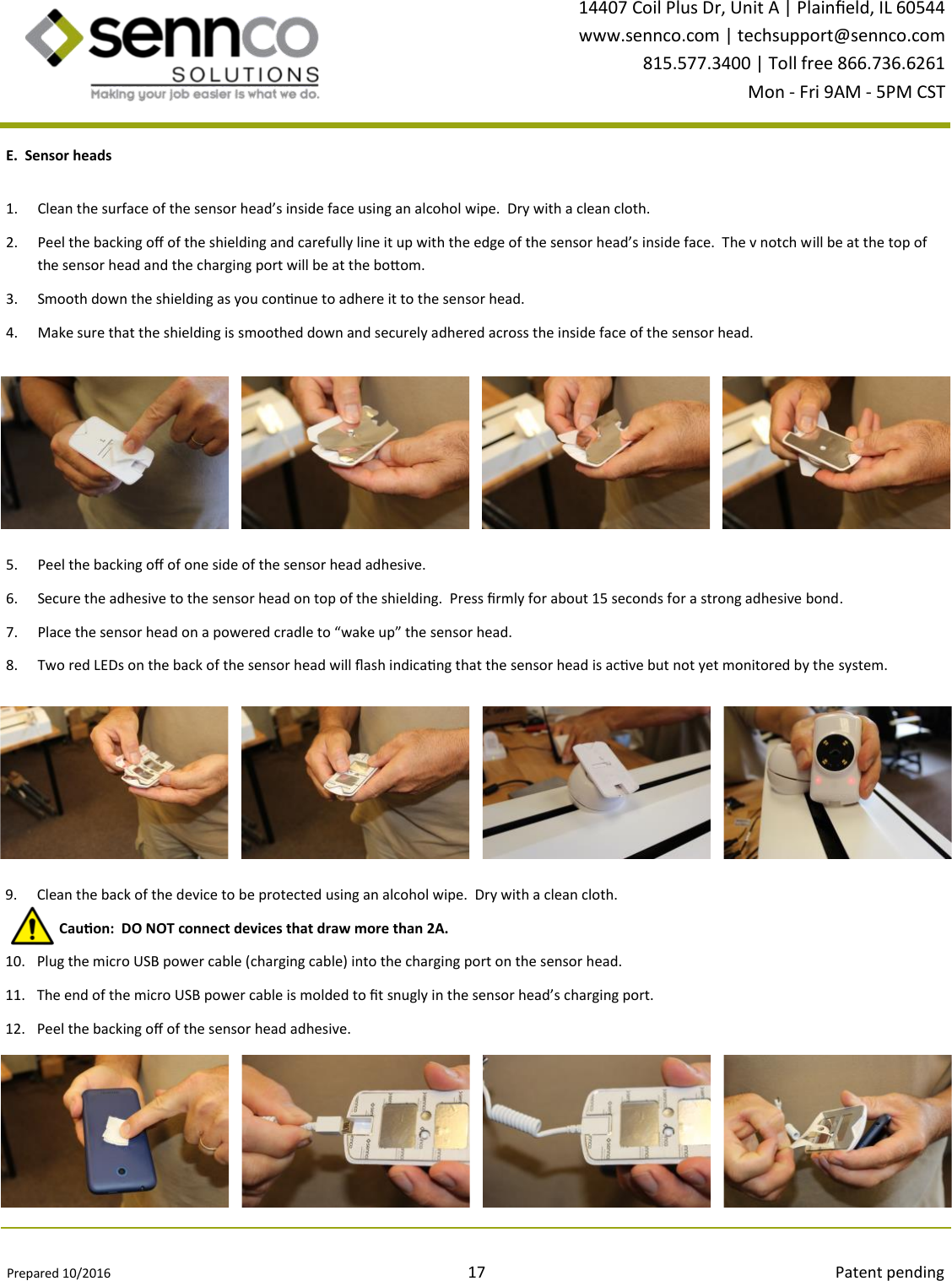

Prepared 10/2016 17 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST 1. Clean the surface of the sensor head’s inside face using an alcohol wipe. Dry with a clean cloth. 2. Peel the backing o of the shielding and carefully line it up with the edge of the sensor head’s inside face. The v notch will be at the top of the sensor head and the charging port will be at the boom. 3. Smooth down the shielding as you connue to adhere it to the sensor head. 4. Make sure that the shielding is smoothed down and securely adhered across the inside face of the sensor head. E. Sensor heads 5. Peel the backing o of one side of the sensor head adhesive. 6. Secure the adhesive to the sensor head on top of the shielding. Press rmly for about 15 seconds for a strong adhesive bond. 7. Place the sensor head on a powered cradle to “wake up” the sensor head. 8. Two red LEDs on the back of the sensor head will ash indicang that the sensor head is acve but not yet monitored by the system. 9. Clean the back of the device to be protected using an alcohol wipe. Dry with a clean cloth. Cauon: DO NOT connect devices that draw more than 2A. 10. Plug the micro USB power cable (charging cable) into the charging port on the sensor head. 11. The end of the micro USB power cable is molded to t snugly in the sensor head’s charging port. 12. Peel the backing o of the sensor head adhesive.

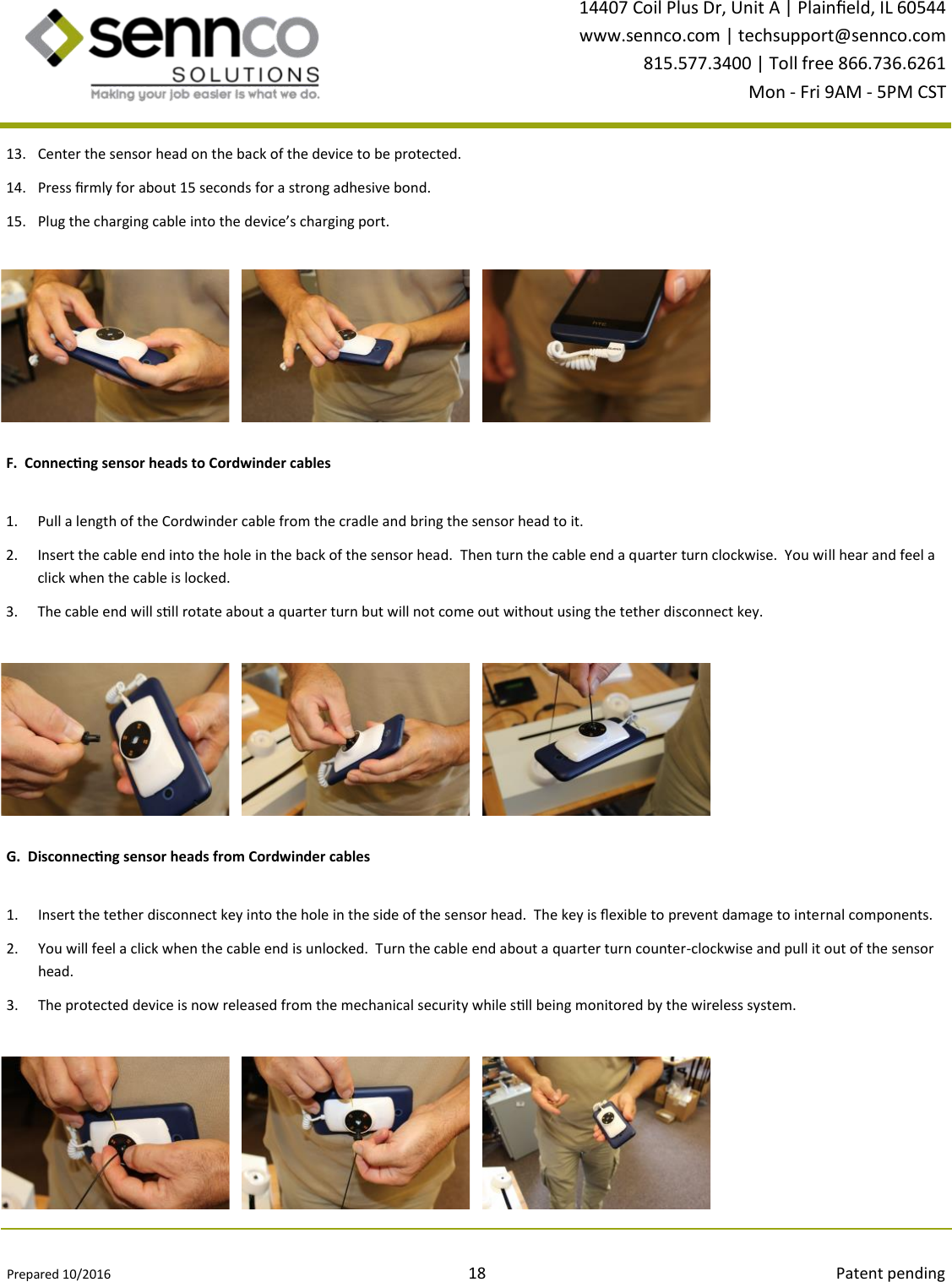

Prepared 10/2016 18 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST 13. Center the sensor head on the back of the device to be protected. 14. Press rmly for about 15 seconds for a strong adhesive bond. 15. Plug the charging cable into the device’s charging port. F. Connecng sensor heads to Cordwinder cables 1. Pull a length of the Cordwinder cable from the cradle and bring the sensor head to it. 2. Insert the cable end into the hole in the back of the sensor head. Then turn the cable end a quarter turn clockwise. You will hear and feel a click when the cable is locked. 3. The cable end will sll rotate about a quarter turn but will not come out without using the tether disconnect key. G. Disconnecng sensor heads from Cordwinder cables 1. Insert the tether disconnect key into the hole in the side of the sensor head. The key is exible to prevent damage to internal components. 2. You will feel a click when the cable end is unlocked. Turn the cable end about a quarter turn counter-clockwise and pull it out of the sensor head. 3. The protected device is now released from the mechanical security while sll being monitored by the wireless system.

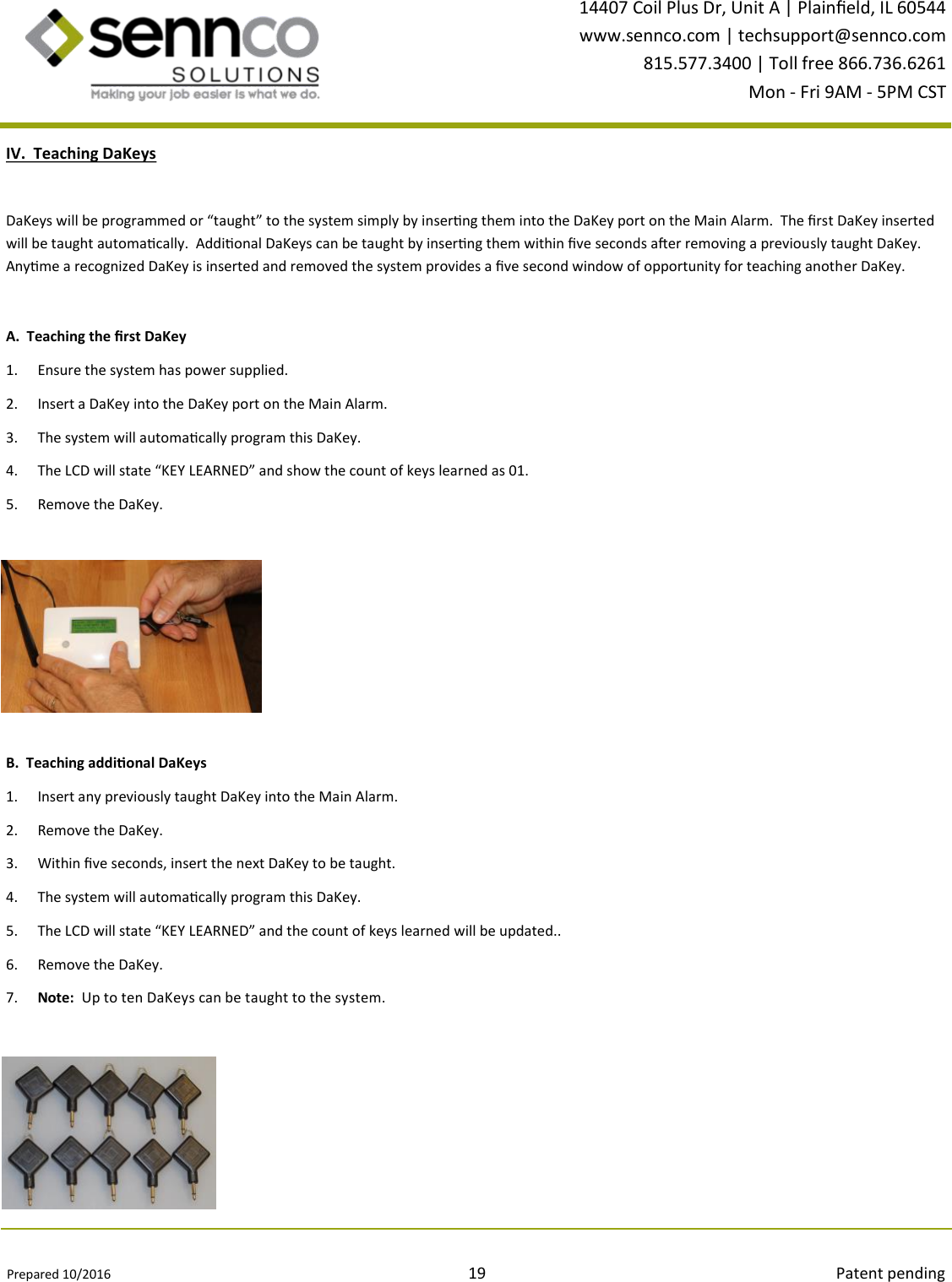

Prepared 10/2016 19 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST B. Teaching addional DaKeys 1. Insert any previously taught DaKey into the Main Alarm. 2. Remove the DaKey. 3. Within ve seconds, insert the next DaKey to be taught. 4. The system will automacally program this DaKey. 5. The LCD will state “KEY LEARNED” and the count of keys learned will be updated.. 6. Remove the DaKey. 7. Note: Up to ten DaKeys can be taught to the system. IV. Teaching DaKeys DaKeys will be programmed or “taught” to the system simply by inserng them into the DaKey port on the Main Alarm. The rst DaKey inserted will be taught automacally. Addional DaKeys can be taught by inserng them within ve seconds aer removing a previously taught DaKey. Anyme a recognized DaKey is inserted and removed the system provides a ve second window of opportunity for teaching another DaKey. A. Teaching the rst DaKey 1. Ensure the system has power supplied. 2. Insert a DaKey into the DaKey port on the Main Alarm. 3. The system will automacally program this DaKey. 4. The LCD will state “KEY LEARNED” and show the count of keys learned as 01. 5. Remove the DaKey.

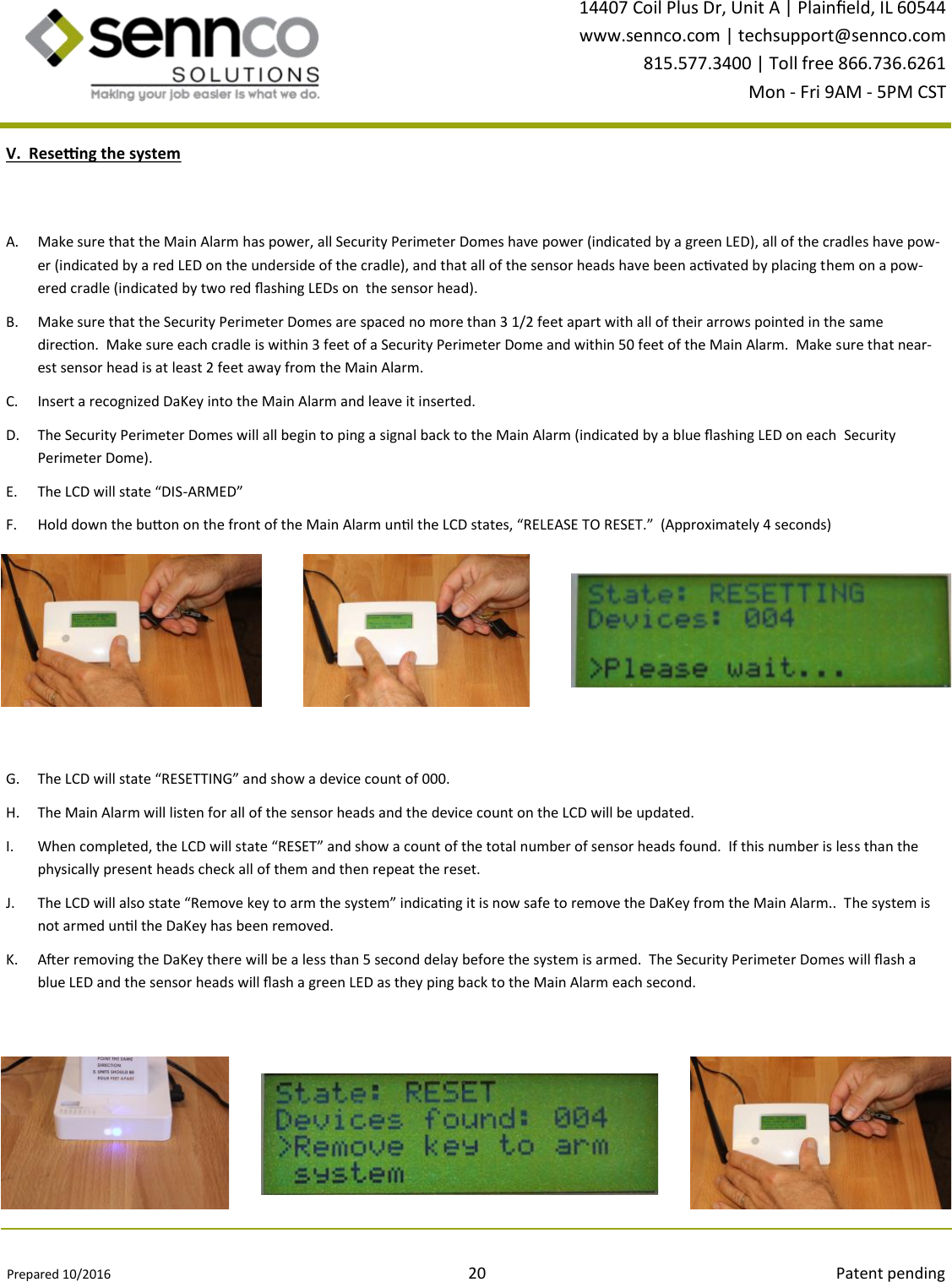

Prepared 10/2016 20 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST V. Reseng the system A. Make sure that the Main Alarm has power, all Security Perimeter Domes have power (indicated by a green LED), all of the cradles have pow-er (indicated by a red LED on the underside of the cradle), and that all of the sensor heads have been acvated by placing them on a pow-ered cradle (indicated by two red ashing LEDs on the sensor head). B. Make sure that the Security Perimeter Domes are spaced no more than 3 1/2 feet apart with all of their arrows pointed in the same direcon. Make sure each cradle is within 3 feet of a Security Perimeter Dome and within 50 feet of the Main Alarm. Make sure that near-est sensor head is at least 2 feet away from the Main Alarm. C. Insert a recognized DaKey into the Main Alarm and leave it inserted. D. The Security Perimeter Domes will all begin to ping a signal back to the Main Alarm (indicated by a blue ashing LED on each Security Perimeter Dome). E. The LCD will state “DIS-ARMED” F. Hold down the buon on the front of the Main Alarm unl the LCD states, “RELEASE TO RESET.” (Approximately 4 seconds) G. The LCD will state “RESETTING” and show a device count of 000. H. The Main Alarm will listen for all of the sensor heads and the device count on the LCD will be updated. I. When completed, the LCD will state “RESET” and show a count of the total number of sensor heads found. If this number is less than the physically present heads check all of them and then repeat the reset. J. The LCD will also state “Remove key to arm the system” indicang it is now safe to remove the DaKey from the Main Alarm.. The system is not armed unl the DaKey has been removed. K. Aer removing the DaKey there will be a less than 5 second delay before the system is armed. The Security Perimeter Domes will ash a blue LED and the sensor heads will ash a green LED as they ping back to the Main Alarm each second.

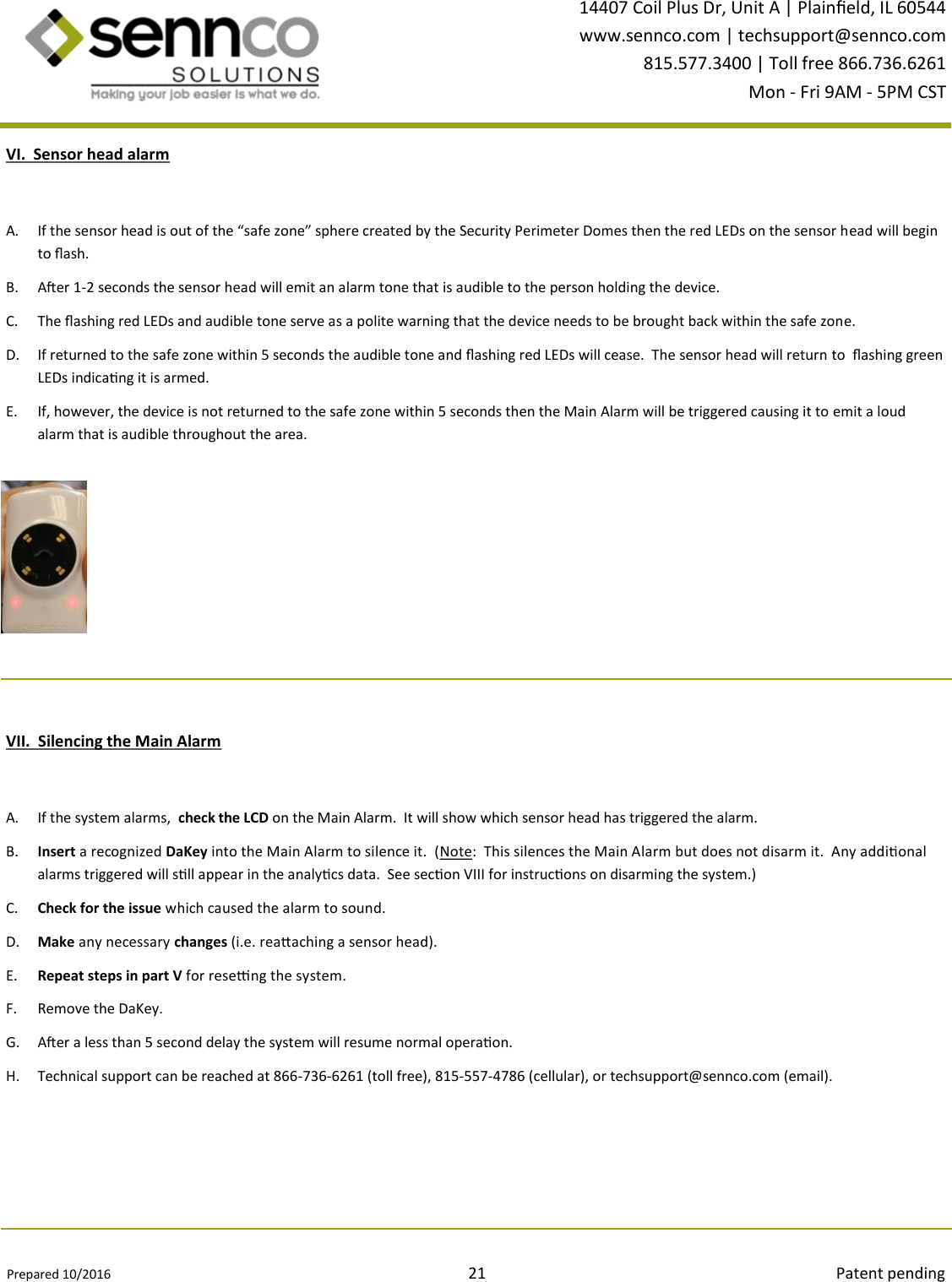

Prepared 10/2016 21 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST VI. Sensor head alarm A. If the sensor head is out of the “safe zone” sphere created by the Security Perimeter Domes then the red LEDs on the sensor head will begin to ash. B. Aer 1-2 seconds the sensor head will emit an alarm tone that is audible to the person holding the device. C. The ashing red LEDs and audible tone serve as a polite warning that the device needs to be brought back within the safe zone. D. If returned to the safe zone within 5 seconds the audible tone and ashing red LEDs will cease. The sensor head will return to ashing green LEDs indicang it is armed. E. If, however, the device is not returned to the safe zone within 5 seconds then the Main Alarm will be triggered causing it to emit a loud alarm that is audible throughout the area. VII. Silencing the Main Alarm A. If the system alarms, check the LCD on the Main Alarm. It will show which sensor head has triggered the alarm. B. Insert a recognized DaKey into the Main Alarm to silence it. (Note: This silences the Main Alarm but does not disarm it. Any addional alarms triggered will sll appear in the analycs data. See secon VIII for instrucons on disarming the system.) C. Check for the issue which caused the alarm to sound. D. Make any necessary changes (i.e. reaaching a sensor head). E. Repeat steps in part V for reseng the system. F. Remove the DaKey. G. Aer a less than 5 second delay the system will resume normal operaon. H. Technical support can be reached at 866-736-6261 (toll free), 815-557-4786 (cellular), or techsupport@sennco.com (email).

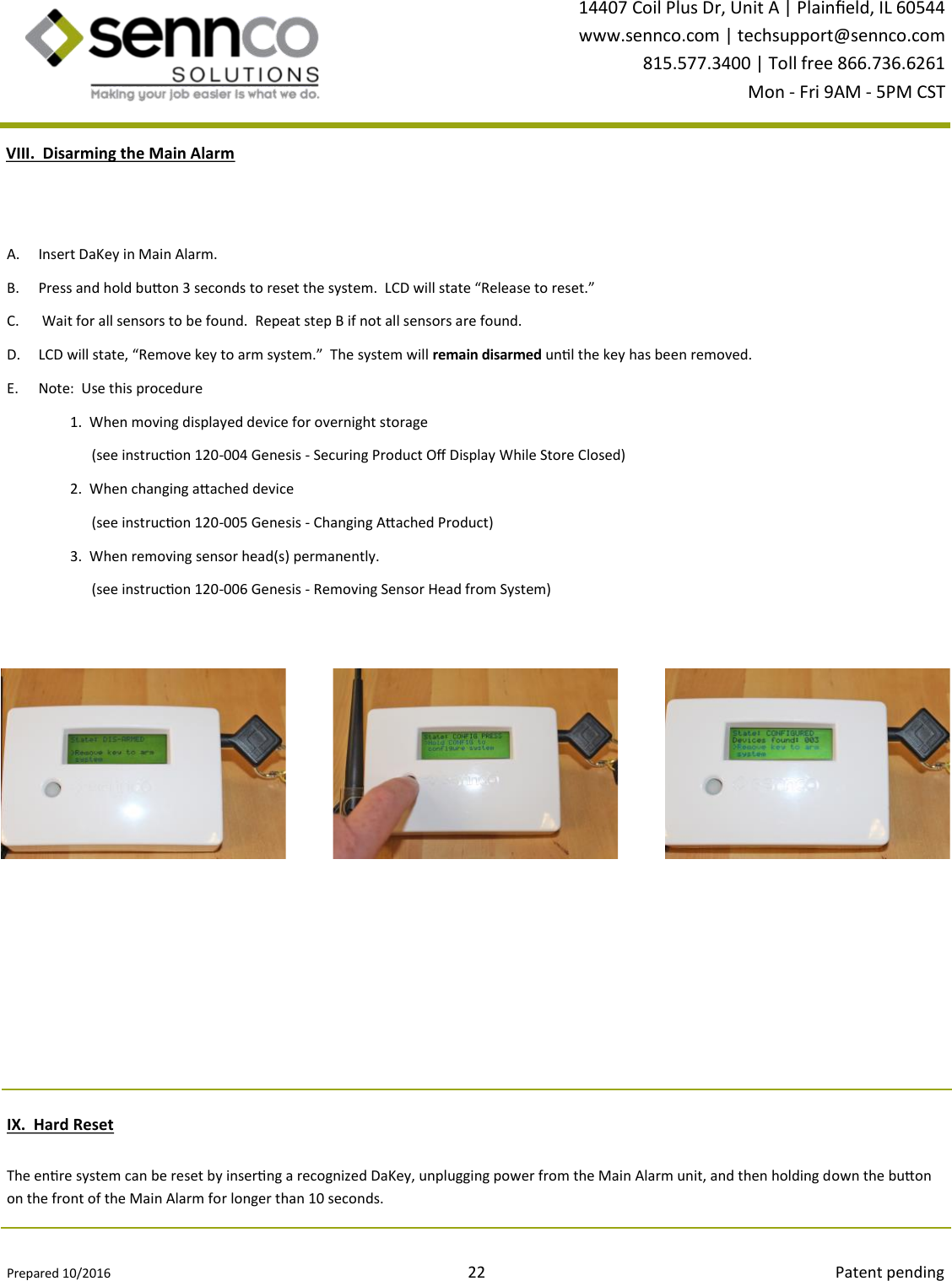

Prepared 10/2016 22 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST VIII. Disarming the Main Alarm A. Insert DaKey in Main Alarm. B. Press and hold buon 3 seconds to reset the system. LCD will state “Release to reset.” C. Wait for all sensors to be found. Repeat step B if not all sensors are found. D. LCD will state, “Remove key to arm system.” The system will remain disarmed unl the key has been removed. E. Note: Use this procedure 1. When moving displayed device for overnight storage (see instrucon 120-004 Genesis - Securing Product O Display While Store Closed) 2. When changing aached device (see instrucon 120-005 Genesis - Changing Aached Product) 3. When removing sensor head(s) permanently. (see instrucon 120-006 Genesis - Removing Sensor Head from System) IX. Hard Reset The enre system can be reset by inserng a recognized DaKey, unplugging power from the Main Alarm unit, and then holding down the buon on the front of the Main Alarm for longer than 10 seconds.
Prepared 10/2016 23 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST X. Points of Sensing B. Sensor head plunger C. Sensor head proximity A. Micro USB power cable If the Micro USB power cable (charging cable) is unplugged from the protected device or from the sensor head or if it is cut, then both the Main Alarm and the specic sensor head will immediately siren. If the sensor head is removed from the back of the protected device then both the Main Alarm and the specic sensor head will immediately siren. If the sensor head is outside of the “safe zone” created by the Security Perimeter Domes for more than 5 seconds then both the Main Alarm and the specic sensor head will immediately siren.

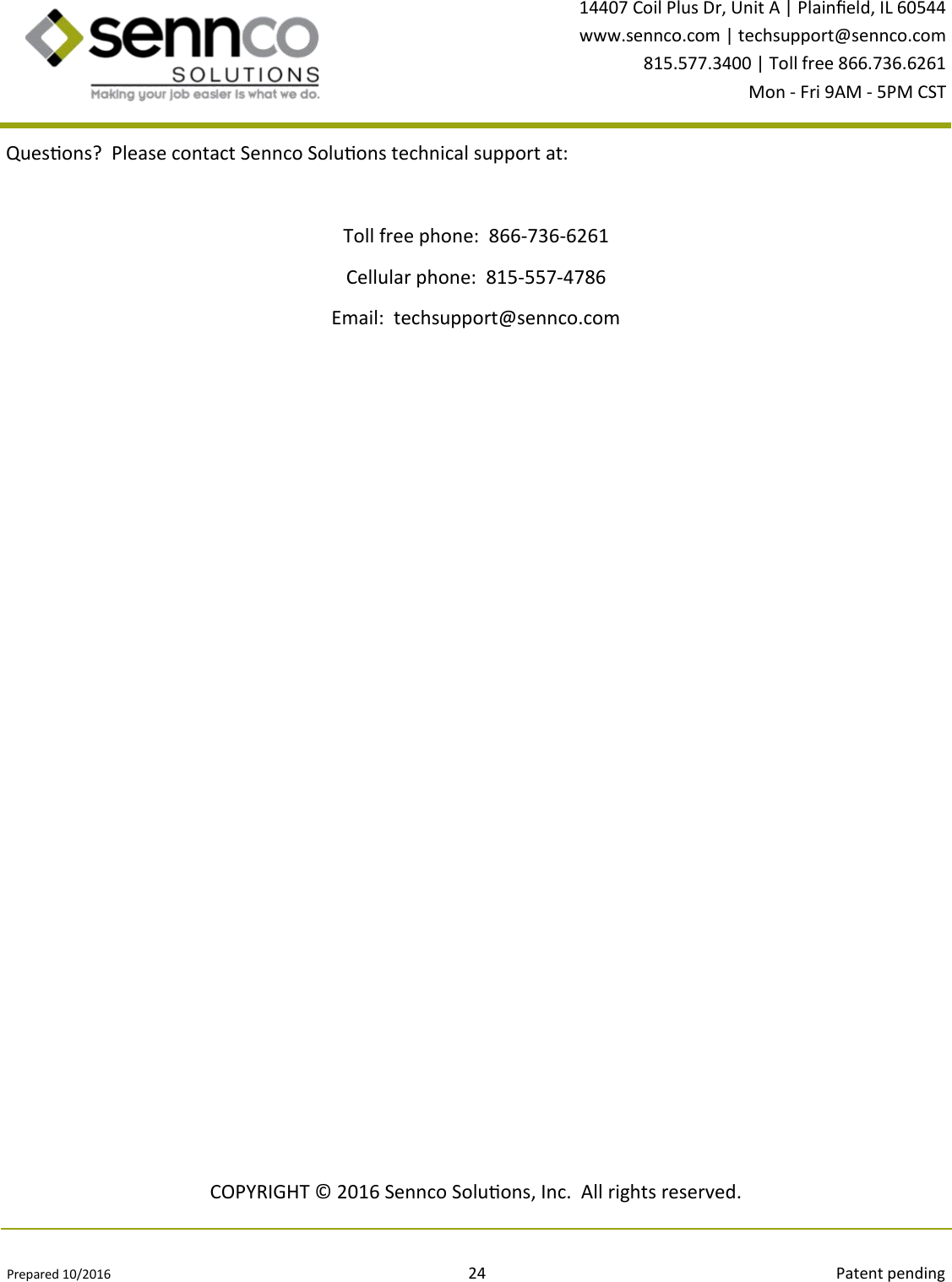

Prepared 10/2016 24 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Quesons? Please contact Sennco Soluons technical support at: Toll free phone: 866-736-6261 Cellular phone: 815-557-4786 Email: techsupport@sennco.com COPYRIGHT © 2016 Sennco Soluons, Inc. All rights reserved.
Prepared 10/2016 25 Patent pending 14407 Coil Plus Dr, Unit A | Plaineld, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST This page intenonally le blank.
