The Tools That Turn Information Into Power
TempTale®Manager Software Data Management Services
TempTale®4 Monitor TagAlert™Monitor
Millions Depend on the Integrity of Your Product.
Sensitech’s Mission is to Ensure that Integrity.
For more information, contact our client services
group at 800-843-8367.
RF Monitoring
TempTale®4 Probe Monitor
FCC ID SRMT11012177
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2)this device must accept any
interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved
by Sensitech could avoid the user’s authority to
operate the equipment.
![](/img.php?id=1326551&img=bg2.png)
Alarma
Cuando el TempTale RF está fuera del límite bajo o alto del tiempo
programado, un icon de alarma aparecerá a la derecha en la parte baja de
la pantalla.
Parar el TempTale RF
Presione y libere (1 a 3 segundos) el botón de parar “Stop” hasta que el icon de
“Stop” aparezca a la derecha en la parte superior de la pantalla.

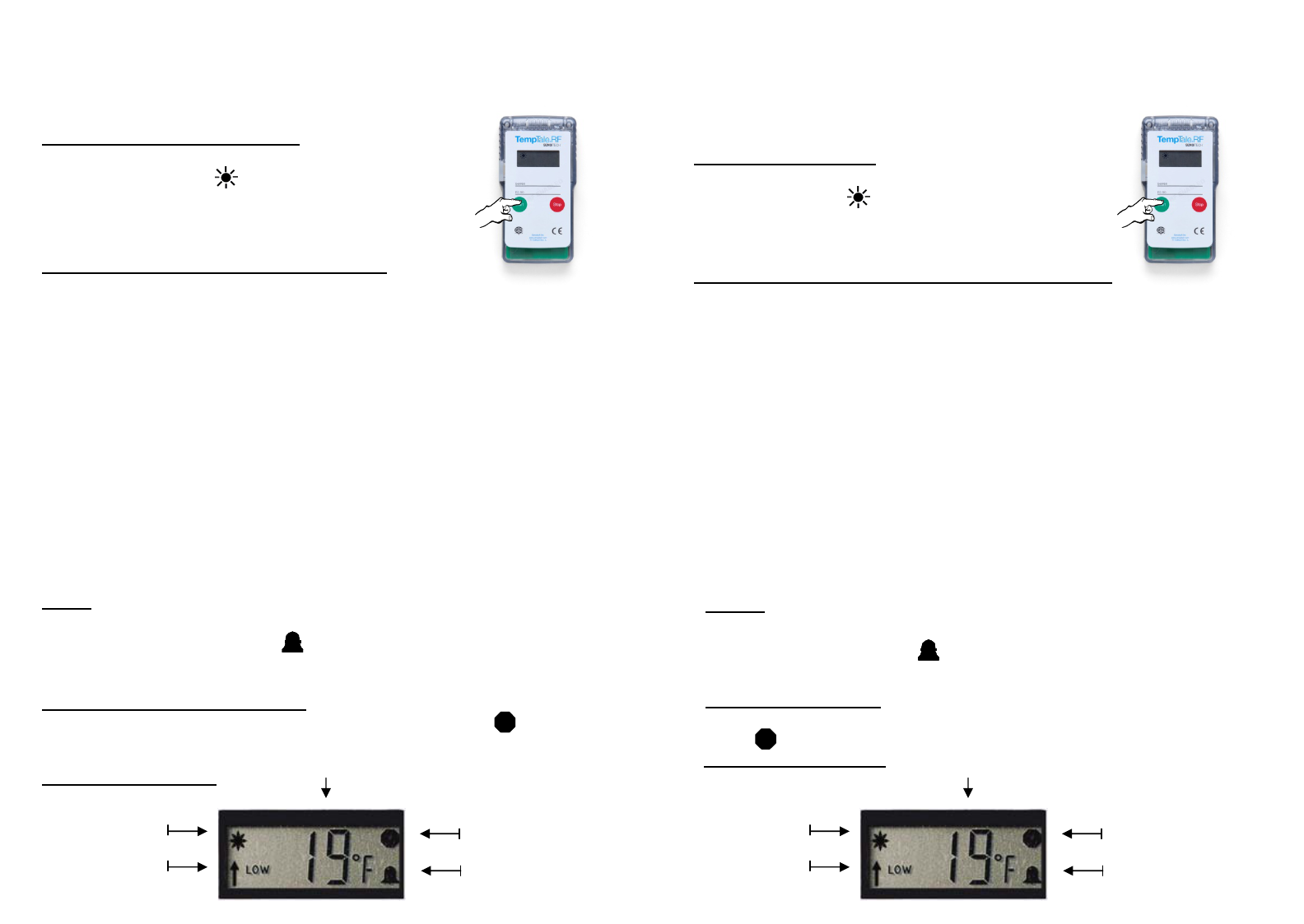

Alarm
When the TempTale RF is exposed to a temperature outside a pre-programmed limit
and time threshold, an “Alarm bell” will appear in the lower right corner of the
LCD display.
Stopping a TempTale RF Monitor
Press and hold (1 to 3 seconds) the Stop button until the “Stop sign” icon
appears in the upper right corner of the LCD display.
Starting a TempTale RF Monitor
• Press and release the Start button.
• The “Sunshine” icon appears in the upper left corner of
the display.
• The TempTale RF will begin to record data after the start-up
delay has passed.
Iniciar el TempTale RF
• Presione y libere el botón de inicio “Start”.
• El icon del “Sol” aparecerá a la izquierda en la parte
superior de la pantalla.
• El TempTale RF grabará despúes del tiempo de demura.
All TempTale®RF Monitors can be programmed with a custom Start-up
delay, measurement interval and alarm settings which have been pre-
determined by the customer.
To mark an important event (“Date Stamp”)
• TempTale RF monitors provide an option to “Date Stamp” or mark an important
event at any time during the monitoring cycle that will be visible when viewing
the data. The mark is displayed as an arrow when viewing the graph and shown
in italics when viewing the tabular data.
• To mark a graph while the monitor is recording, press and release the “Start”
button.
• The “arrow” icon will appear temporarily in the lower left corner and the
temperature history will appear on the display. Data appears as follows:
1. Average temperature of Primary (Ambient) Sensor Readings
2. Highest temperature recorded at Primary Sensor
3. Total time above high temperature limit of Primary Sensor
4. Lowest temperature recorded at Primary Sensor
5. Total time below low temperature limit of Primary Sensor
6. Highest RH value recorded at Secondary (RH) Sensor
7. Lowest RH value recorded at Secondary (RH) Sensor
Stopped
recording
Limits
exceeded
Marked
Point
Recording
Displayed Information Temperature data
Para marcar un evento importante (Estampa de fecha)
• Los TempTale RF monitores tienen la opción de marcar un evento
importante que occura durante el envio. Se puede ver esta marca cuando
se baja la información. La marca aparecerá como una flecha en el grafíco
y en italico en el tabular.
• Para marcar el evento durante el envio, presione y libere el botón de
inicio “Start”.
• Una flecha aparecerá en la pantalla y la información de temperatura
aparecerá en el siguente orden:
1. Temperatura media de las lecturas (ambiente) primarias del sensor
2. La temperatura más alta registrada en el sensor primario
3. Tiempo total sobre límite de alta temperatura del sensor primario
4. La temperatura más baja registrada en el sensor primario
5. Tiempo total debajo del límite de la baja temperatura del sensor primario
6. El valor más alto de la RH registrado en el sensor secundario (RH)
7. El valor más bajo de la RH registrado en el sensor secundario (RH)
Pantalla del Monitor:
Parado
Alarma
Marca de
evento
Iniciado
Información de temperatura
Los monitores de TempTale®RF están programado con uno tiempo de
demura, intervalo y limites de temperatura y tiempo que fueron requierido
por el cliente.
![](/img.php?id=1326551&img=bg3.png)
RADIO AND TELEVISION INTERFERENCE
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
