User Manual.pdf
Overview
α Base Station User Manual
α Base Station is designed and built for outdoor IoT application scenes that require low power-
consumption,long range and low throughput, hence capable of handling the data communication
of a large-scale sensing network.
It supports multiple communication modes to servers (3G, Ethernet etc.) for flexibility to adapt to
various
scenes; multi-network hot backup is also available to improve
reliability and stability in data communication.

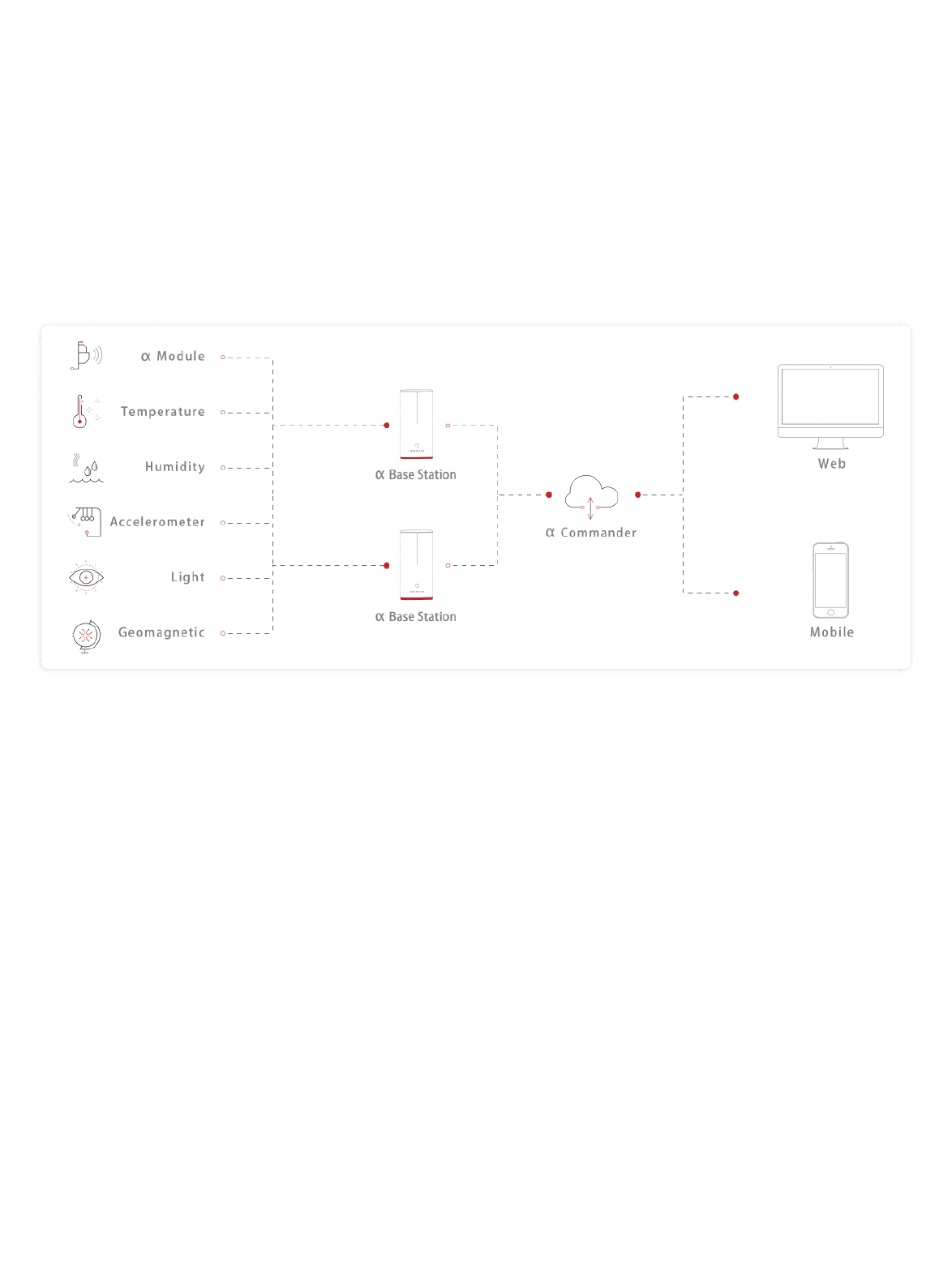

Operating Principles
PoE Power Supply
Specifications
Property Specifications
Dimensions 120mm x 120mm x 260mm
Weight 2.5kg
Material Al 6063T
Interface RJ45 x 1̵Console x 1̵Antenna N-Type Female Connector x 4
LED 1
Network 3G̵Ethernet
Power Power over Ethernet (PoE) (802.3af) <13W
Operating
Environment
-40°Cӗ+65°C 5%RHӗ90%RH -60mӗ3000mҁBut the POE Adapter
only use for 0°Cӗ+40°C҂
Storage
Environment -40°Cӗ+80°C 5%RHӗ90%RH
IP Grade IP67
Wind resistance 165MPH
Atmospheric
pressure 53kPaӗ106kPa
The socket-outlet shall be installed near the equipment and shall be easily accessible. The
product is designed for IT power distribution system with phase-to-phase voltage 230V.
α Commander
http://iot.sensoro.com .

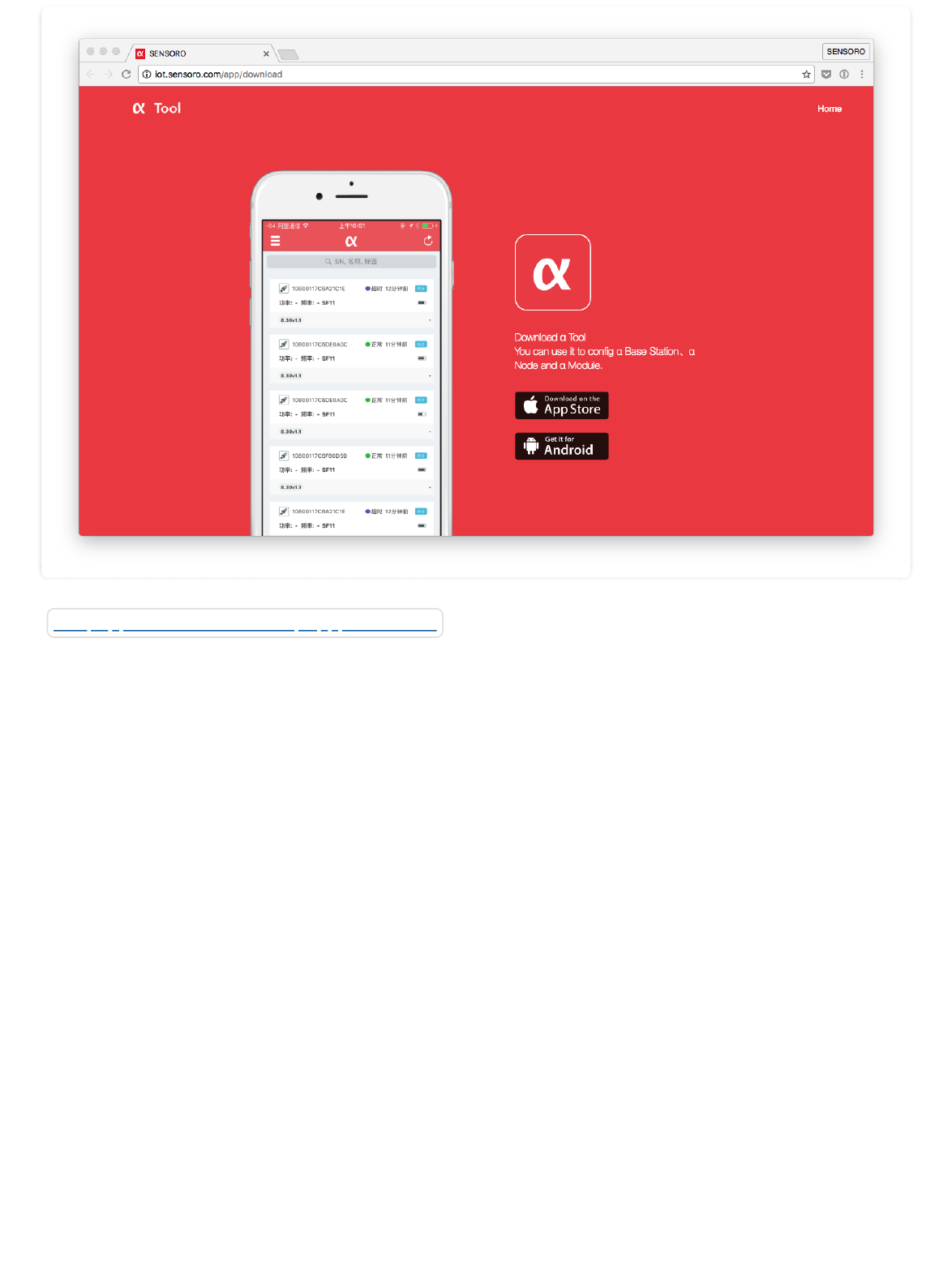

α Tool
http://docs.sensoro.com .
Base Station Status
LED Status What an you do
Breathing Station Starting Waiting for about 2 mins
White Working Properly Nothing to do
Yellow Something Error Restart
Red No Internet Connection Check the 3G҈LAN
Contact Us
US Headquarters
Seattle, United States
E-mail: seattle@sensoro.com
Phone: +1 (425) 802-4936
Address: 500 YALE AVENUE NORTH SEATTLE WA 98109
Beijing Headquarters
Customer Service Tel: 400-686-3180
Working Hours: Monday to Friday 10:00 am to 7:00 pm
E-mail: beijing@sensoro.com
Developers’ QQ group: 385 456 618
Address: T1-B-2807, Wangjing SOHO, Chaoyang District, Beijing, China
Customer Service
Tell ғ+86 010-8416 1077
Email ғseattle@sensoro.com
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

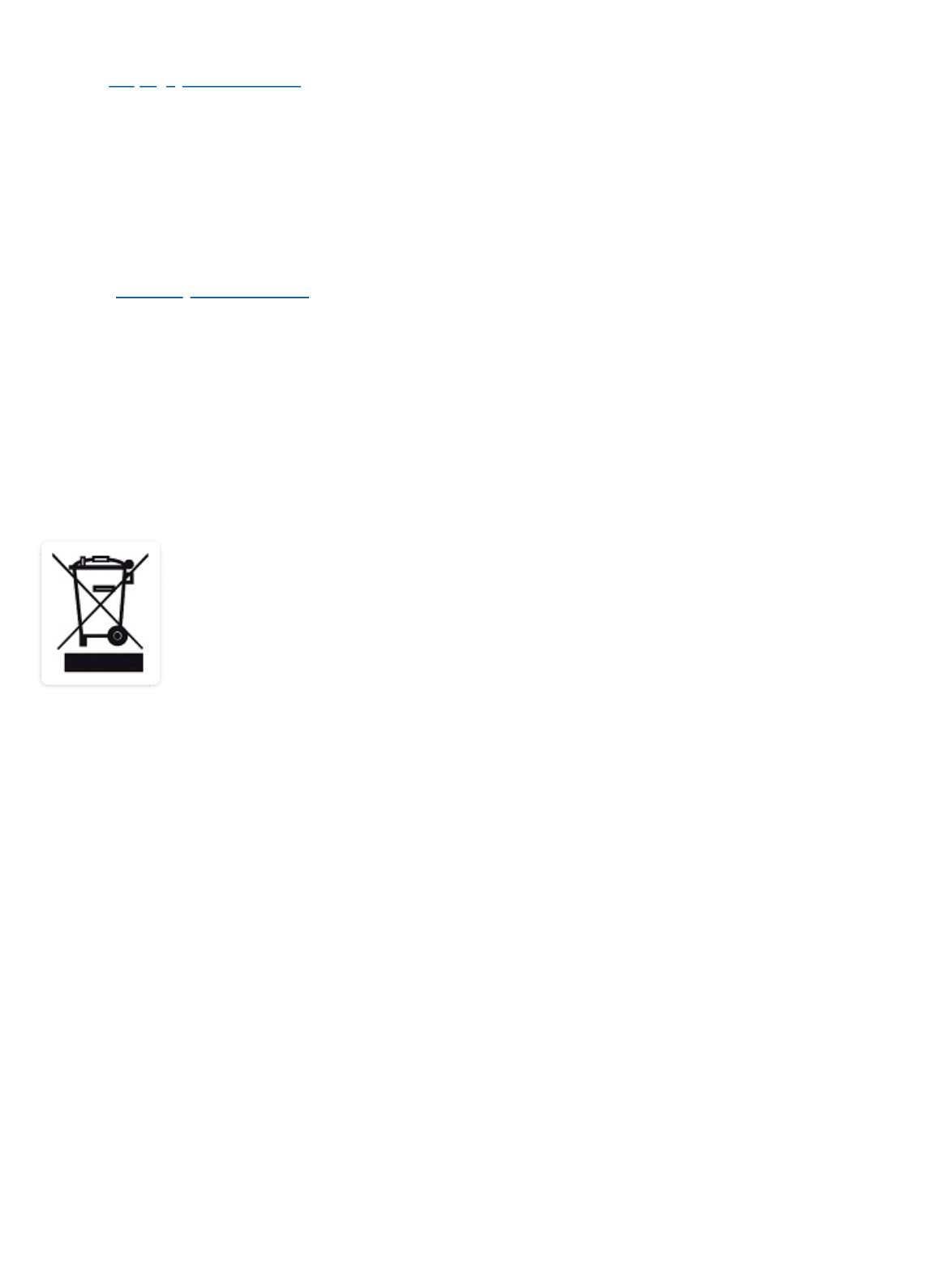

RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment
(WEEE). This means that this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer
when he buys an new electrical or electronic equipment.
Warning
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
☐ Reorient or relocate the receiving antenna.
☐ Increase the separation between the equipment and receiver.
☐ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
☐ Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement:
FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF
exposure guidelines, place the product at least 20cm from nearby persons. The device must not
be co-located or operating in conjunction with any other antenna or transmitter.
