Sensys Networks FLEXSPP Traffic Sensor System User Manual Quick Start Guide

Sensys Networks, Inc. Traffic Sensor System Quick Start Guide

Contents

Quick Start Guide

1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264

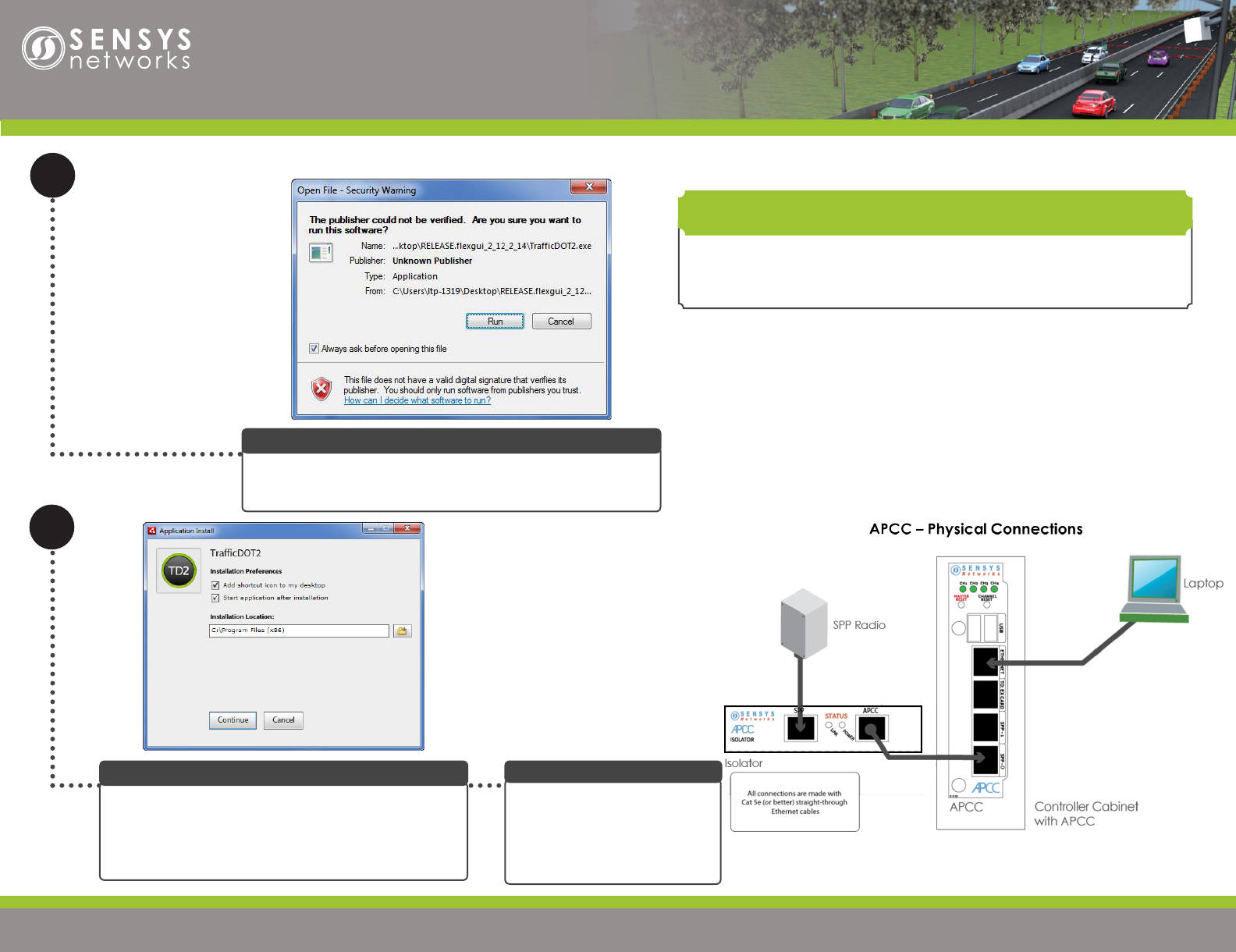

Quick Start Guide: Access Point Controller Card (APCC)
Set Up
1
Download the installation package from the Sensys Networks
website: http://www.sensysnetworks.com/products/trafcdot.
Double-click on TrafcDOT2.exe and click Run.
Download & Install Software
Cable the devices together with
Cat5 cables. Turn on controller.
Note: Until Master Mode is on,
the Power and Link light will
be off.
Connect Cables
• Internet access is required to download TrafcDOT2 and Adobe Air, or you
need an ofine version of Adobe Air and TrafcDOT2 same subnet as
AP/APCC.
• You must be able to change network setting of your laptop.
Recommendations
Click the checkboxes to select desired preferences. Click
Continue to accept the default installation location.
Note: Click the folder icon to select another location for
TrafcDOT installation.
Select Installation Preferences
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264

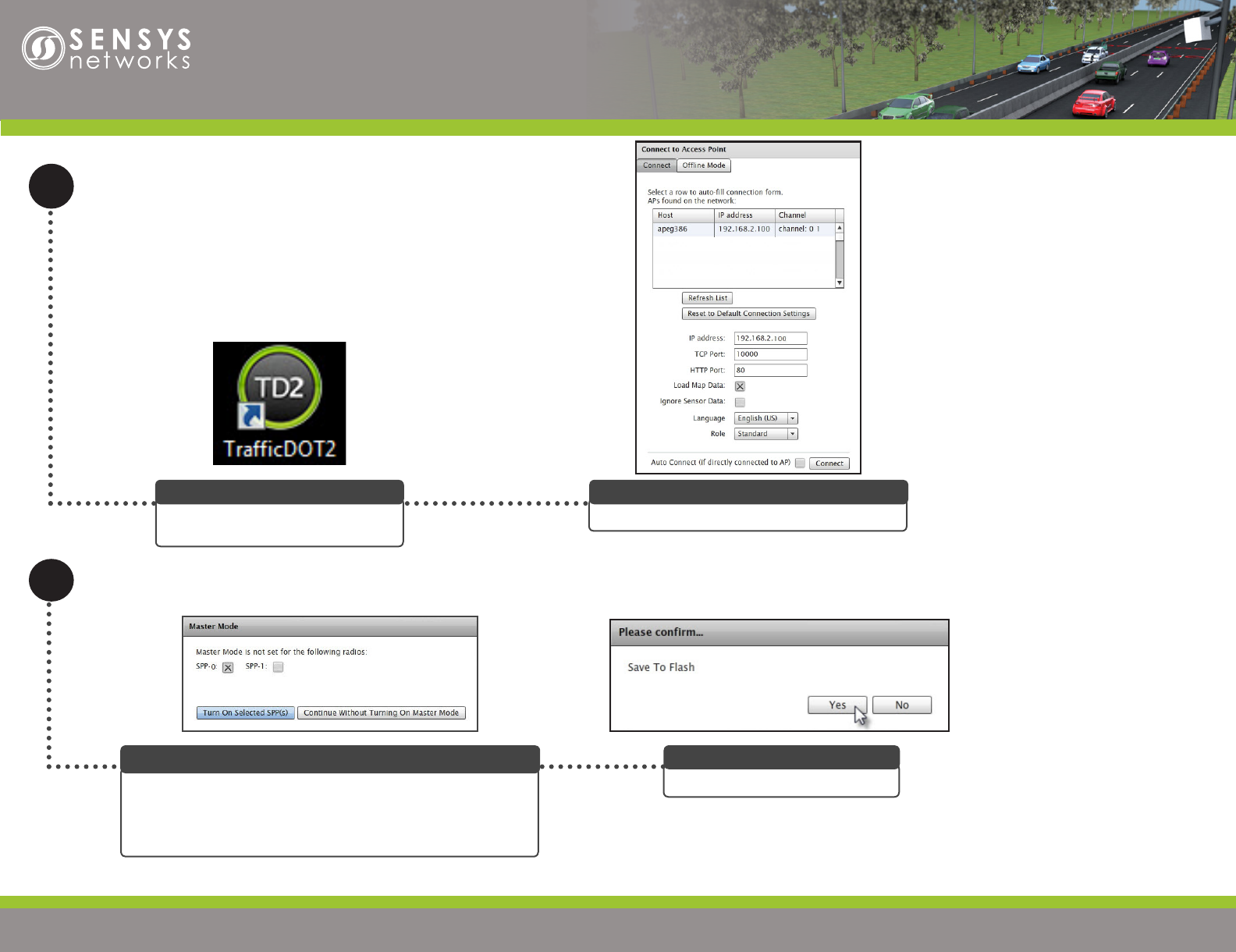

Connect
Click the TrafcDOT icon to start the
conguration program.
Run TrafcDOT
Quick Start Guide: Access Point Controller Card (APCC)
2
Select an APCC IP Address and click Connect.
Type in IP Address
Check Master Mode for each installed SPP radio and then click
Turn On Selected SPP(s).
Note: Once Master Mode is on the Power LED on APCC isolator
should be on and the Link light should blink about every second.
Select Master Mode
Click Yes to save to ash memory.
Save Changes
1608 4th Street Suite 200 Berkeley CA 94710| info@sensysnetworks.com | P 510.548.4620 F 510.548.8264
1608 4th Street Suite 200 Berkeley CA 94710 | info@sensysnetworks.com| P 510.548.4620 F 510.548.8264
Run

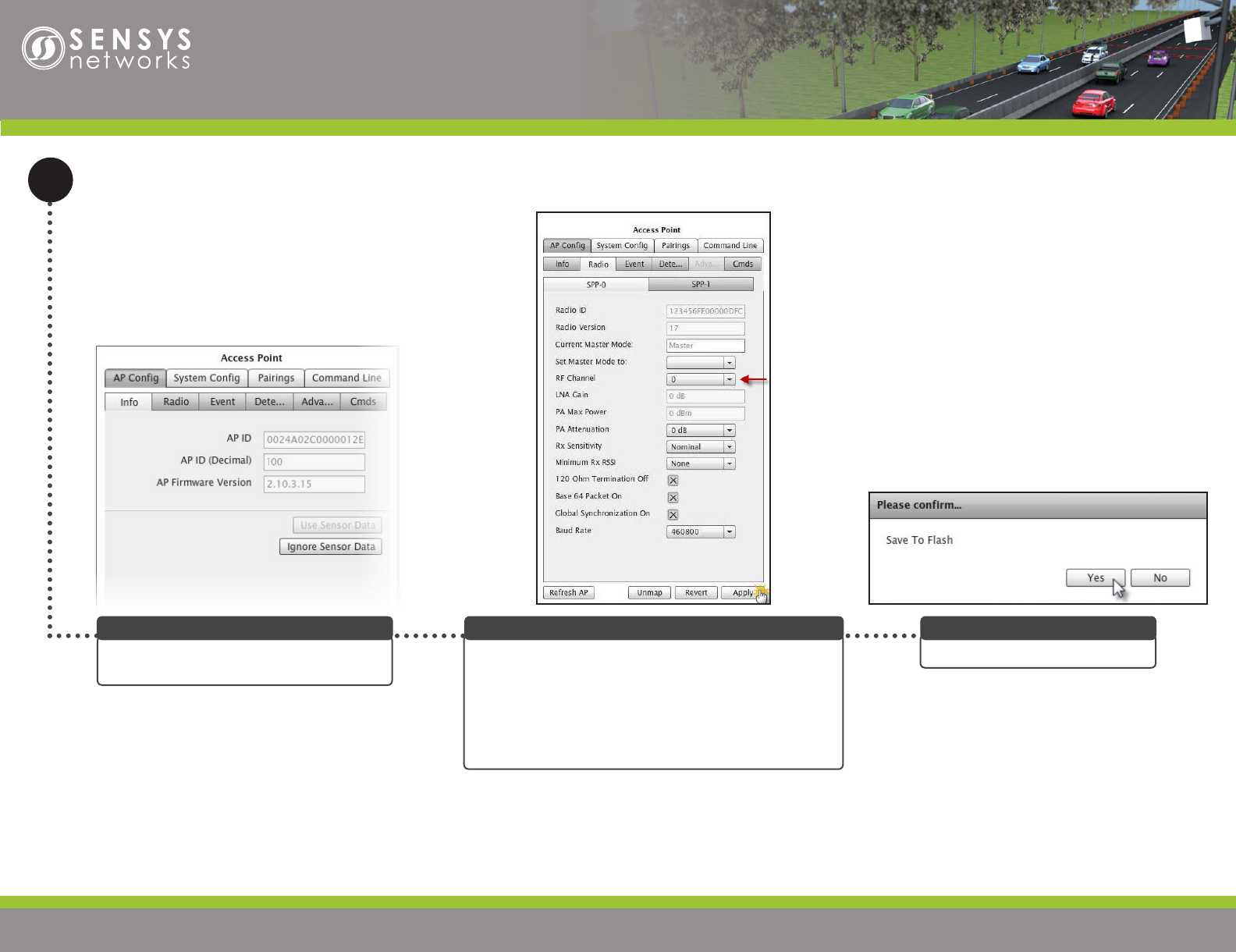

Quick Start Guide: Access Point Controller Card (APCC)
Click the Radio window:
1. Select RF Channel. The entries in the RF Channel
drop-down list correspond to the 16 channels available
for use. Select an entry from the list by clicking it. The
factory default channel is zero.
2. Click Apply.
Set RF Channel
Click on the APCC to open the Access Point
Conguration Panel.
Open AP Cong Panel
3
Click Yes to save to ash memory.
Save Changes
Sensys Networks and the Sensys Networks logo are trademarks of Sensys Networks, Inc. All other trademarks are the property of their respective owners.
Information contained herein is believed to be reliable, but Sensys Networks makes no warranties as to its accuracy or completeness.
Copyright © 2015 Sensys Networks, Inc. • ALL RIGHTS RESERVED • P/N 152-240-030-008 Rev D
Local Distributor

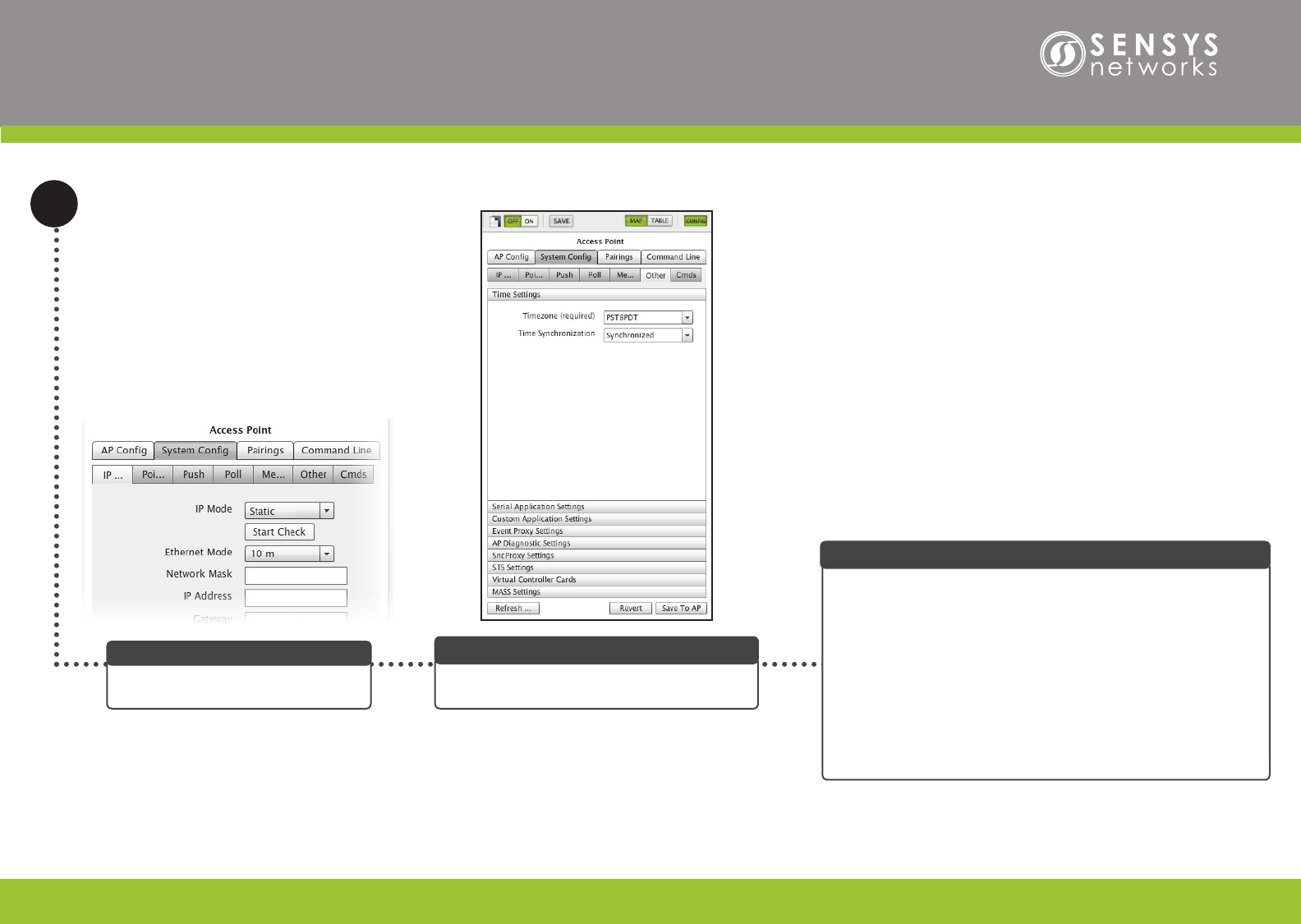

Quick Start Guide: Access Point Controller Card (APCC)
Manage
Click the Other tab (a), specify Time Zone (b),
click Save to AP(c).
Click the System Cong tab to open
the System Conguration Panel.
Open System Cong Panel Start Controller Link & Set Time Zone
• The default radio channel of the access point and sensors is
Channel 0 (zero).
• All sensors or repeaters on the APCC’s channel are found on
the Map View Tray or Table windows. Unassigned devices will
not show up on the map itself.
• Green icons indicate normal, expected operation.
• Use the conguration panel options to further congure the
system.
Note: Refer to the Sensys Networks Wireless Vehicle Detection
TrafcDOT 2 Set Up and Operating Guide for more information
Main Windows
4
