Features and Functions
Relay of radio communications
• To/from wireless sensors (downlink)
• To/from access point (uplink)
• To/from another repeater (uplink or downlink)
Extension of range and coverage of the access point
• Tandem operation – one repeater and its supported
sensors can communicate with another repeater and
then to the access point
• Maximum single-hop range of ~2000 feet (610 meters)
from supporting access point or repeater with the Long
Range External Antenna
• Maximum single-hop range of ~300 feet (91 meters)
from sensors with Long Range External Antenna
Radio signal quality measurements (of each link to
wireless sensors or tandem repeater)
• Receive Signal Strength Indicator (RSSI, in dBm)
•Link Quality Index (LQI, gure of merit 40-99)
Enclosure
• Robust protection against the environment
Simple installation
• Any roadside location that provides adequate height
and line of sight to sensors and the access point or
repeater
• Direct connection to the power source
No calibration or adjustment required
Firmware upgrades over-the-air from access point

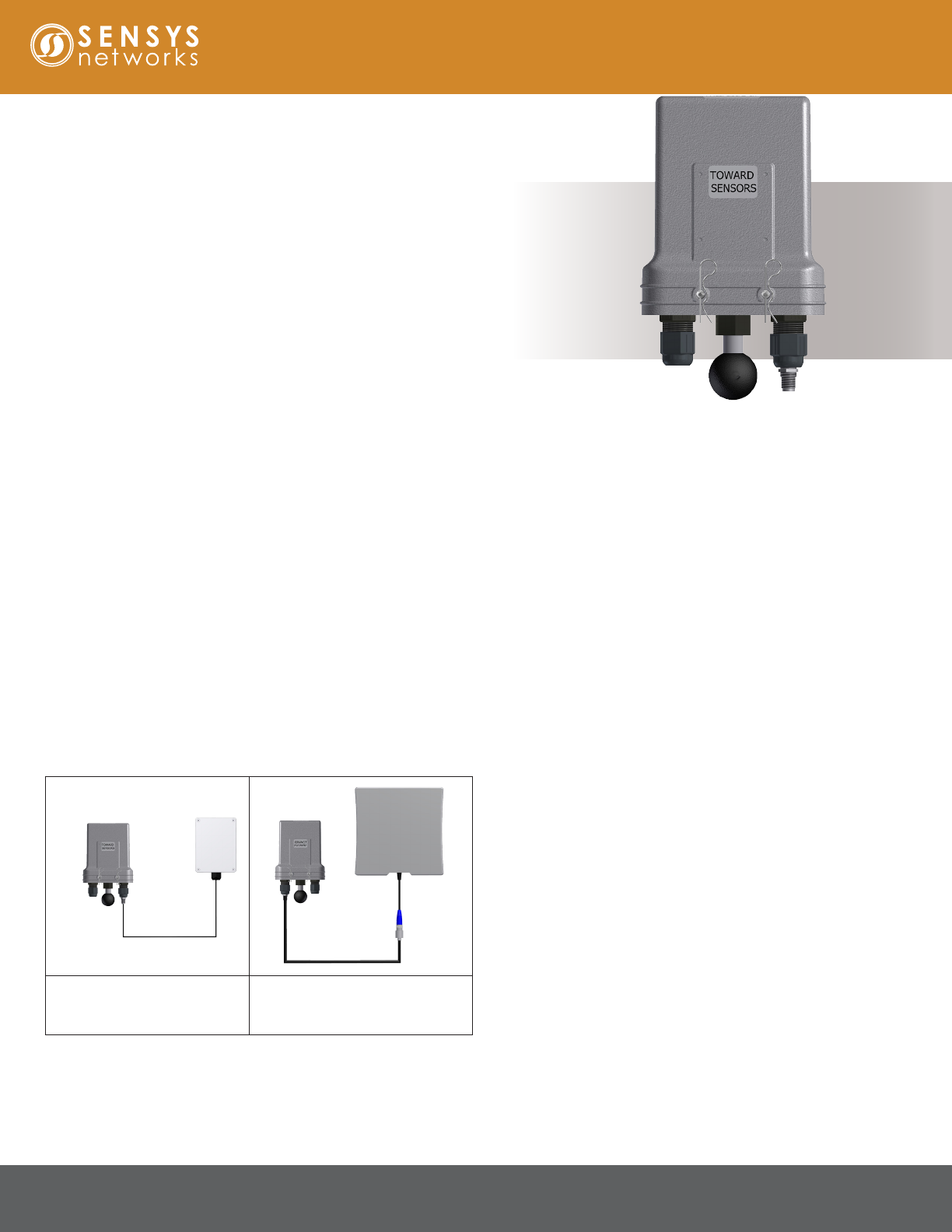

FlexNode Line Powered Radio (NA)
The Sensys Networks Repeater. In cases where installed
Sensys Networks wireless sensors are out of range of the nearest
access point, one or more Sensys Networks repeaters can be used
to provide a two-way relay between the out of range sensors and
the access point. A repeater is pole mounted by the roadside and
is positioned so that both the sensors and the tandem repeater or
access point are within view and within range.
The Sensys Networks FlexNode Line Powered Radio is
a single pole-mounted unit. The FlexNode Line Powered Radio
includes no battery and is powered by a continuous 12-24 VDC
power source. The FlexNode Line Powered Radio is housed in a
robust enclosure that provides excellent protection against
outside environment.
The FlexNode Line Powered Radio has a connector for an
external antenna to provide for greater flexibility in providing a
two-way relay between sensors and the access point.
Antenna options. The optional external antenna connects to
the FlexNode Line Powered Radio via a coaxial cable. The
external antenna allows the repeater to be aimed in two
directions simultaneously utilizing a pole located between the
sensor and access point.
Two types of external antenna are supported: (i) the FLEX-
ANT-1 with the same RF range as the internal antenna and (ii)
the FLEX-ANT-2 with Long Range RF range. The FlexNode
Line Powered Radio can also operate without an external
antenna.
FlexNode Line Powered
with Standard External
Antenna
FlexNode Line Powered
with Long Range External
Antenna
Sensys Networks and the Sensys Networks logo are trademarks of Sensys Networks, Inc. All other trademarks are the property of their respective owners.
Information contained herein is believed to be reliable, but Sensys Networks makes no warranties as to its accuracy or completeness.
Copyright © 2017 Sensys Networks, Inc. • ALL RIGHTS RESERVED • CONTENT SUBJECT TO CHANGE
Local Distributor
FlexNode Line Powered Radio (NA)
EMC •FCC: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
•FCC: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
•IC: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
•IC: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
•IC : Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
•IC: Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être
maintenue entre l'antenne de cet appareil ettoutes les personnes.
interfaces
•to/from sensors via 802.15.4 PHY radio
•to/from repeaters via 802.15.4 PHY radio
•to/from access point via 802.15.4 PHY
radio
over-the-air
protocol
Sensys Networks NanoPower (SNP) protocol
(TDMA)
physical layer
protocol IEEE 802.15.4 PHY
modulation
Direct Sequence Spread Spectrum Oset
Quadrature Phase-Shift Keying (DSSS
O-QPSK)
transmit/receive bit
rate 250 kbps
frequency band 2400 to 2483.5 MHz (ISM unlicensed band)
frequency channels 16
channel bandwidth 2 MHz
internal antenna
type
ceramic patch antenna (behind front face
panel)
internal antenna
eld of view ±60° (azimuth & elevation)
nominal output
power +3 dBm
spurious emissions
•30 - 1000 MHz: < -36 dBm
•1 - 12.75 GHz: < -30 dBm
•1.8 - 1.9 GHz: < -47 dBm
•5.15 - 5.3 GHz: < -47 dBm
typical receive
sensitivity -101 dBm (PER ≤ 1%)
saturation
(max input level) ≥ 10 dBm
Functional Specications Power, Physical, & Environmental
power supply •12- 24 VDC line powered
(wire 24-12 stranded/solid AWG)
power consumption •0.5 W
dimensions
•FLEX-NODE-LPDC:
9.5” x 5.59” x 4.32”
(24.13 cm x 14.19 cm x 10.97 cm)
•FLEX-ANT-1: 5.65” x 3.54” x
4.80” (14.4 cm x 9 cm x 12.2 cm)
•FLEX-ANT-2: 9.5” x 9.5” x 4.38” (24.10
cm x 24.10 cm x 11.10 cm)
weight
•FLEX-NODE-LPDC: 1.25 lbs (0.56 kg)
•FLEX-ANT-1: 0.94 lb ( 0.43 kg)
• FLEX-ANT-2: 2.2 lb (1 kg)
environmental • designed for weatherproof, outdoor
operation
operating temp -40ºF to +176ºF / -40ºC to +80ºC
Order Codes Description
FLEX-NODE-LPDC FFlexNode Line Powered Radio
(NA)
FLEX-ANT-1 Standard External Antenna
FLEX-ANT-2 Long Range External Antenna
Available Products
Compliance
EMC •Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning
•the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•—Reorient or relocate the receiving antenna.
•—Increase the separation between the equipment and receiver.
•—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•—Consult the dealer or an experienced radio/TV technician for help.
