Sentilla SENARM01 Zigbee wireless transmitter User Manual OEMModule

Sentilla Corporation Zigbee wireless transmitter OEMModule

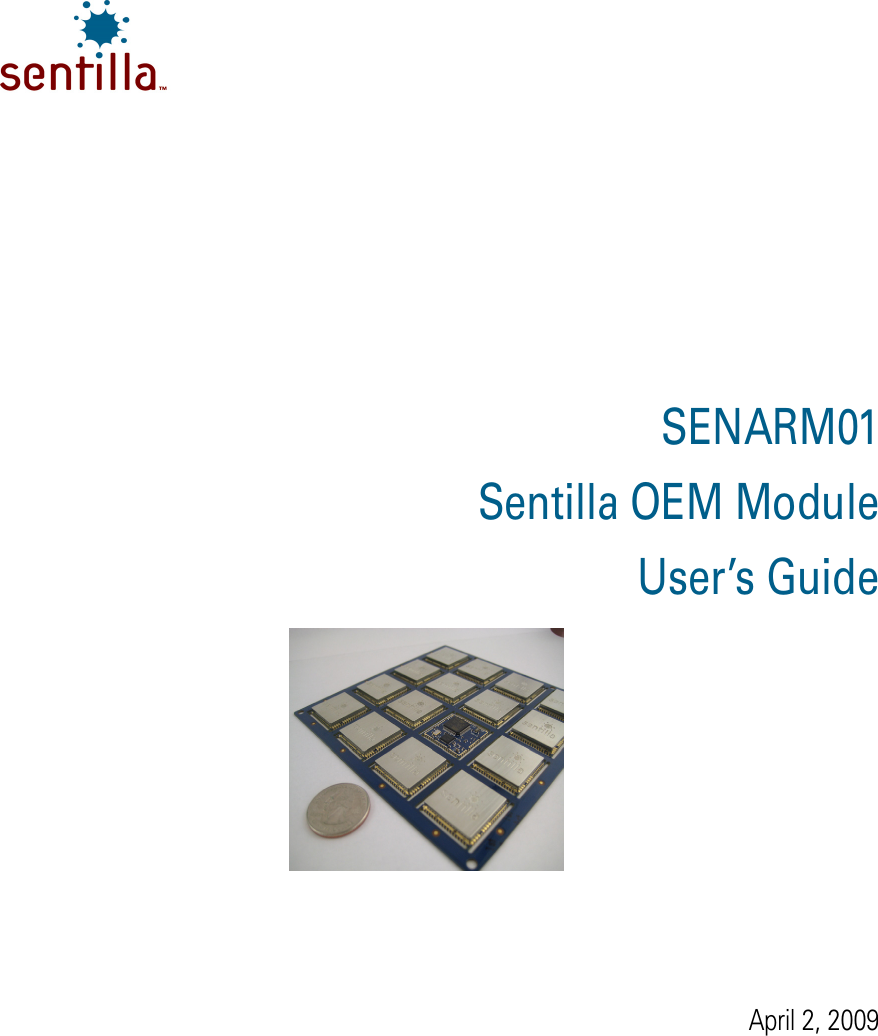

User Manual

SENARM01
Sentilla OEM Module
User’s Guide
April 2, 2009
ii
•
•
•
•
•
•

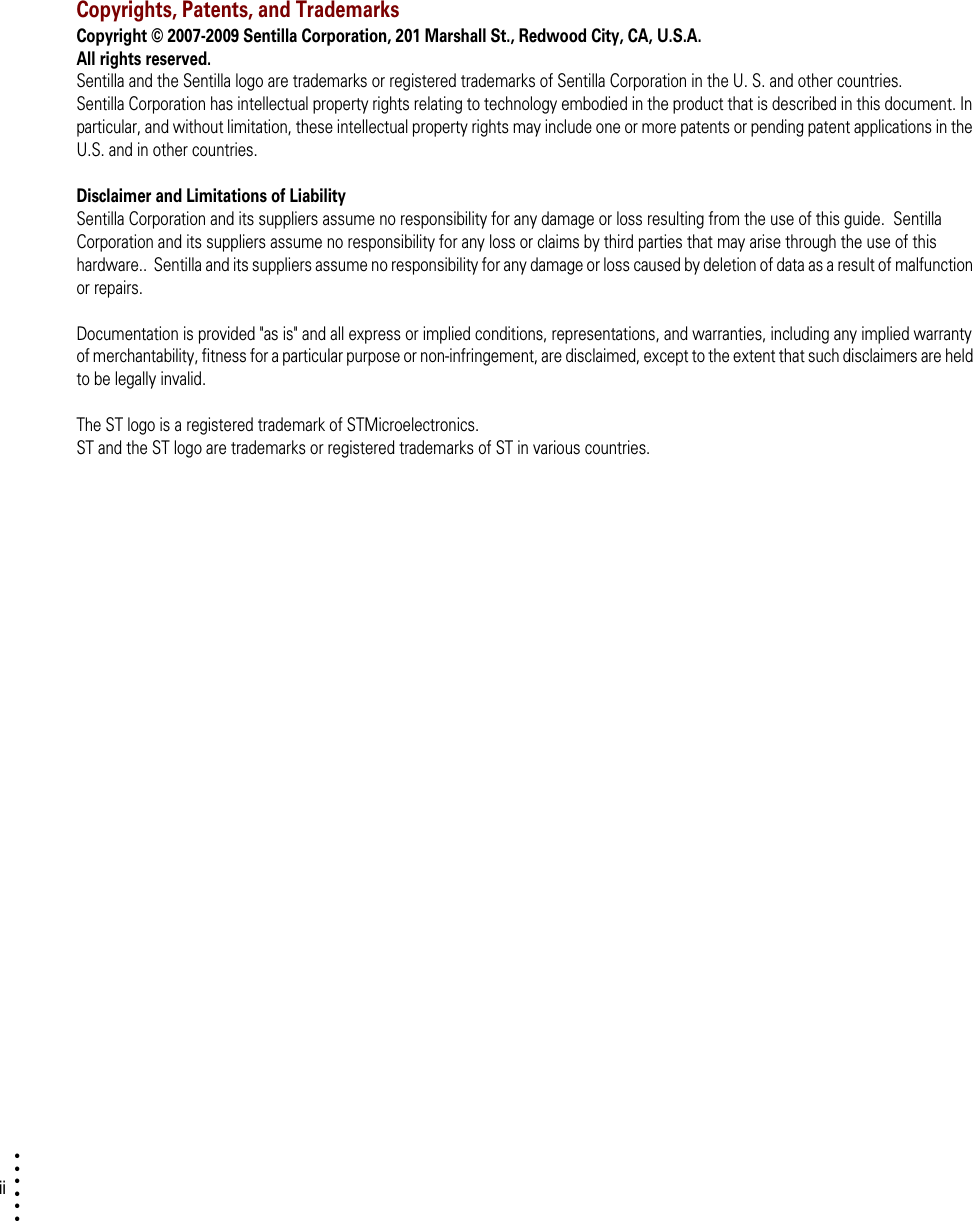

Copyrights, Patents, and Trademarks
Copyright © 2007-2009 Sentilla Corporation, 201 Marshall St., Redwood City, CA, U.S.A.
All rights reserved.
Sentilla and the Sentilla logo are trademarks or registered trademarks of Sentilla Corporation in the U. S. and other countries.
Sentilla Corporation has intellectual property rights relating to technology embodied in the product that is described in this document. In
particular, and without limitation, these intellectual property rights may include one or more patents or pending patent applications in the
U.S. and in other countries.
Disclaimer and Limitations of Liability
Sentilla Corporation and its suppliers assume no responsibility for any damage or loss resulting from the use of this guide. Sentilla
Corporation and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of this
hardware.. Sentilla and its suppliers assume no responsibility for any damage or loss caused by deletion of data as a result of malfunction
or repairs.
Documentation is provided "as is" and all express or implied conditions, representations, and warranties, including any implied warranty
of merchantability, fitness for a particular purpose or non-infringement, are disclaimed, except to the extent that such disclaimers are held
to be legally invalid.
The ST logo is a registered trademark of STMicroelectronics.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Contents iii
•
•
•
•
•
•
• • • • • •

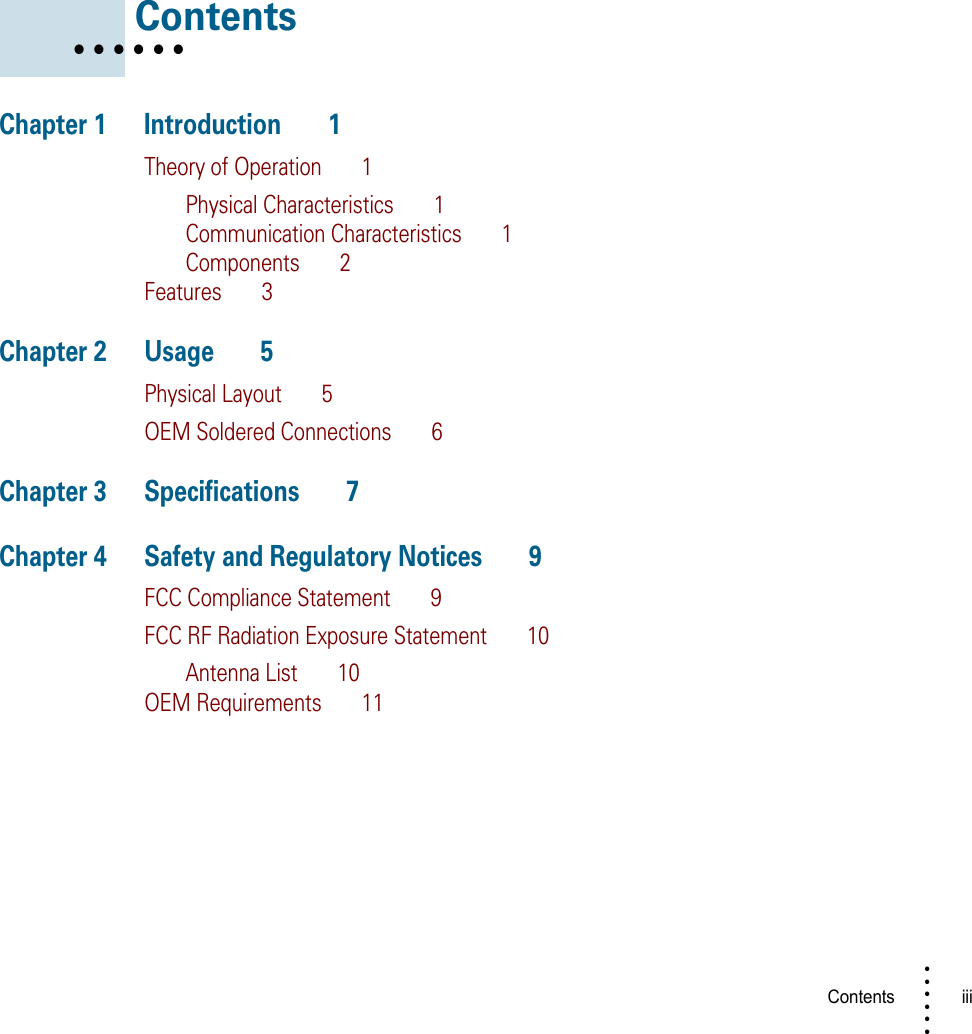

Contents
Chapter 1 Introduction 1
Theory of Operation 1
Physical Characteristics 1
Communication Characteristics 1
Components 2
Features 3
Chapter 2 Usage 5
Physical Layout 5
OEM Soldered Connections 6
Chapter 3 Specifications 7
Chapter 4 Safety and Regulatory Notices 9
FCC Compliance Statement 9
FCC RF Radiation Exposure Statement 10
Antenna List 10
OEM Requirements 11
iv Contents
•
•
•
•
•
•
Contents v
•
•
•
•
•
•
• • • • • •

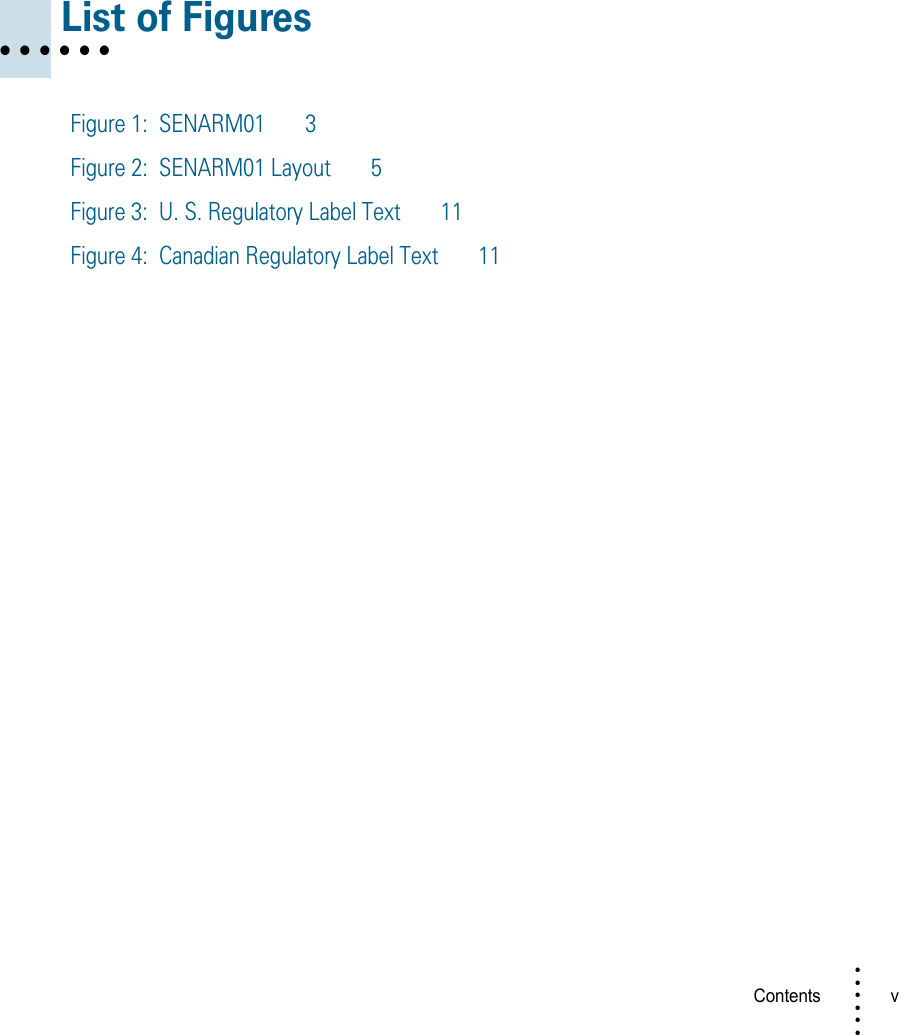

List of Figures
Figure 1: SENARM01 3
Figure 2: SENARM01 Layout 5
Figure 3: U. S. Regulatory Label Text 11
Figure 4: Canadian Regulatory Label Text 11
vi Contents
•
•
•
•
•
•
Contents vii
•
•
•
•
•
•
• • • • • •

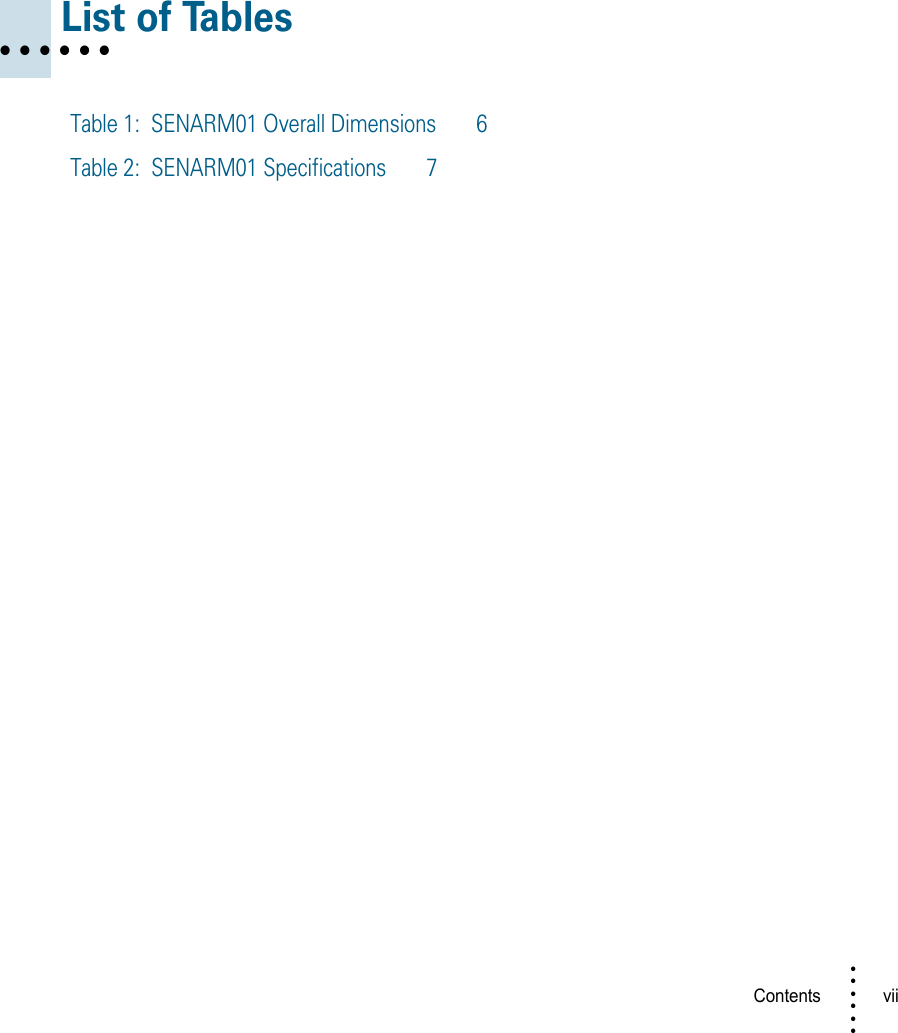

List of Tables
Table 1: SENARM01 Overall Dimensions 6
Table 2: SENARM01 Specifications 7
viii Contents
•
•
•
•
•
•
Sentilla Confidential Chapter 1 1
•
•
•
•
•
•

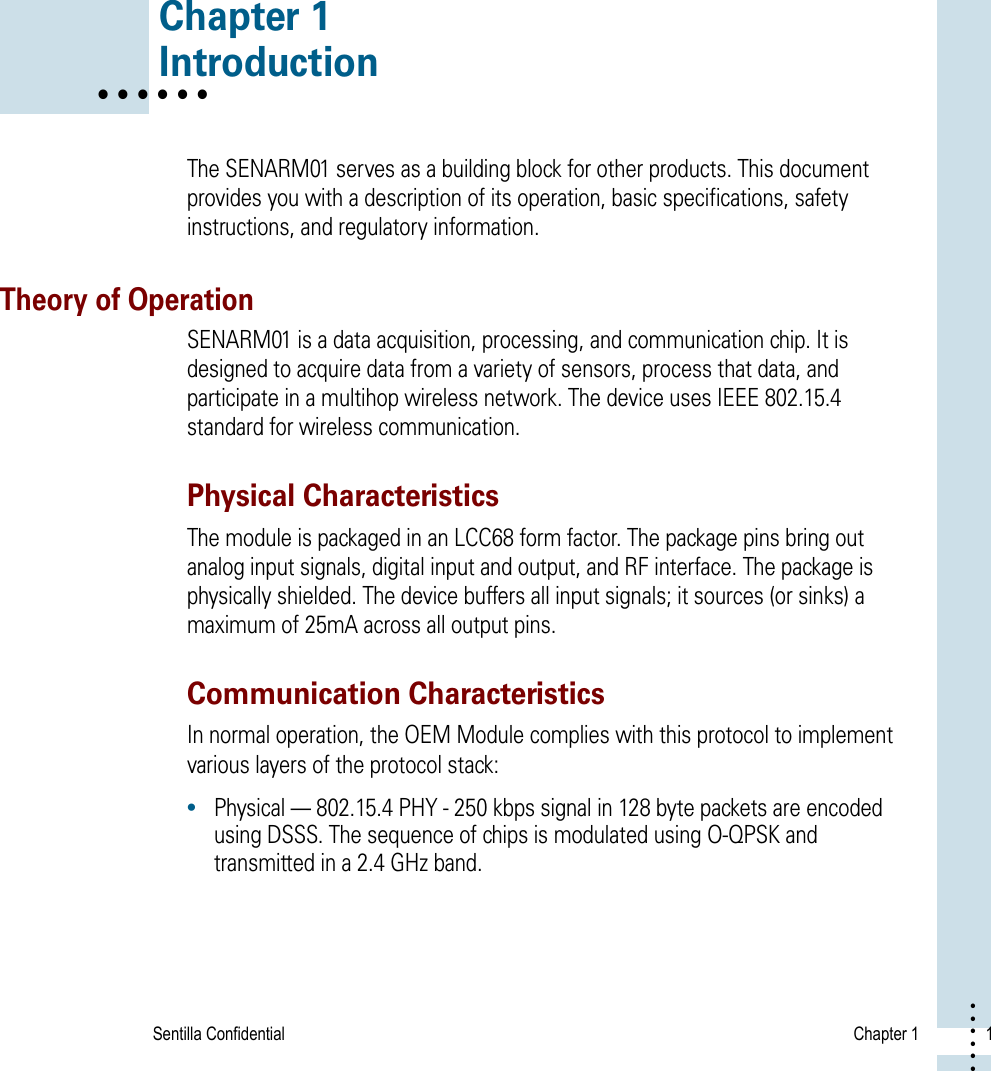

Chapter 1
• • • • • •
Introduction
The SENARM01 serves as a building block for other products. This document
provides you with a description of its operation, basic specifications, safety
instructions, and regulatory information.
Theory of Operation
SENARM01 is a data acquisition, processing, and communication chip. It is
designed to acquire data from a variety of sensors, process that data, and
participate in a multihop wireless network. The device uses IEEE 802.15.4
standard for wireless communication.
Physical Characteristics
The module is packaged in an LCC68 form factor. The package pins bring out
analog input signals, digital input and output, and RF interface. The package is
physically shielded. The device buffers all input signals; it sources (or sinks) a
maximum of 25mA across all output pins.
Communication Characteristics
In normal operation, the OEM Module complies with this protocol to implement
various layers of the protocol stack:
•
Physical — 802.15.4 PHY - 250 kbps signal in 128 byte packets are encoded
using DSSS. The sequence of chips is modulated using O-QPSK and
transmitted in a 2.4 GHz band.
2 Chapter 1 Sentilla Confidential
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide

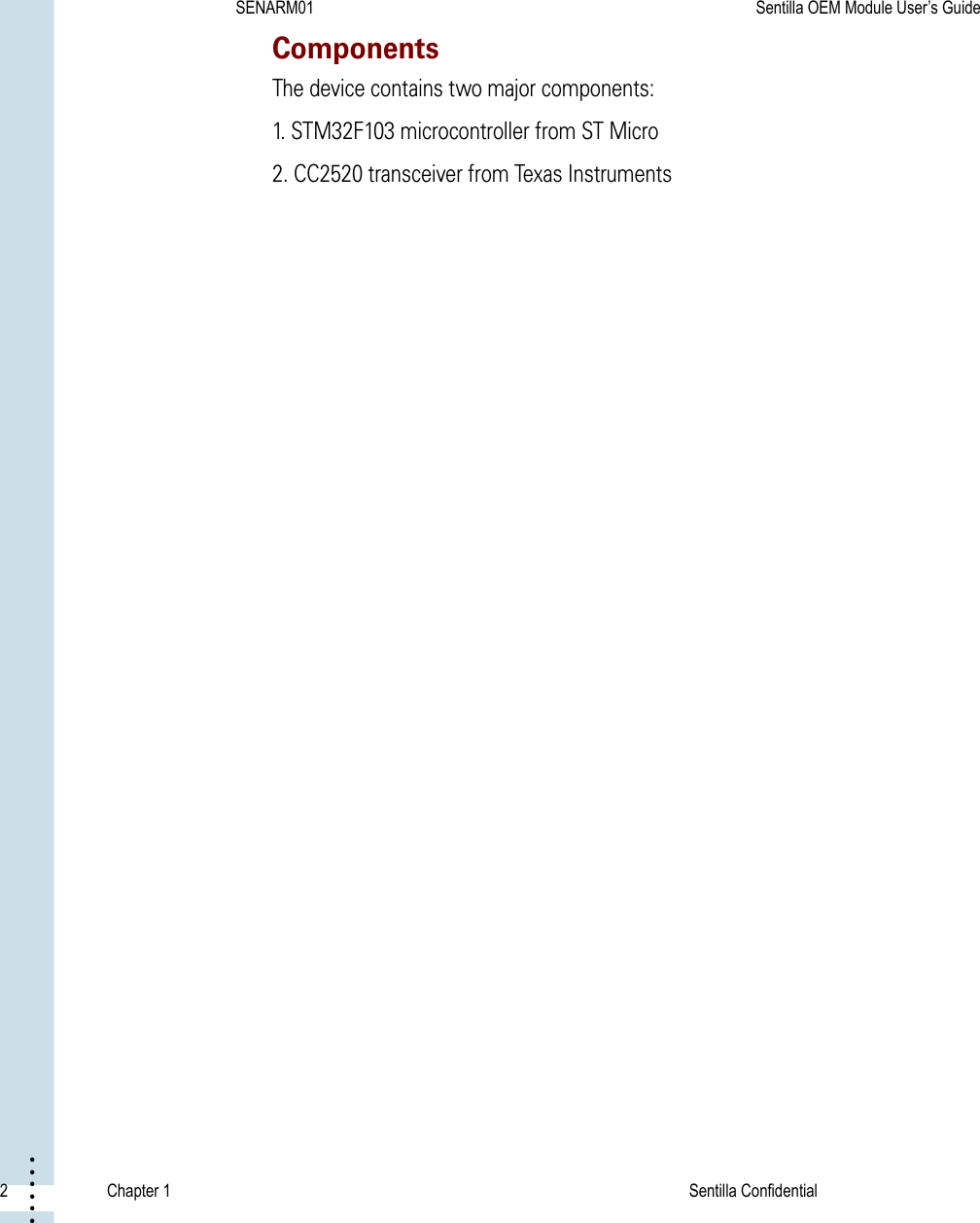

Components
The device contains two major components:
1. STM32F103 microcontroller from ST Micro
2. CC2520 transceiver from Texas Instruments
Sentilla Confidential Introduction 3
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide

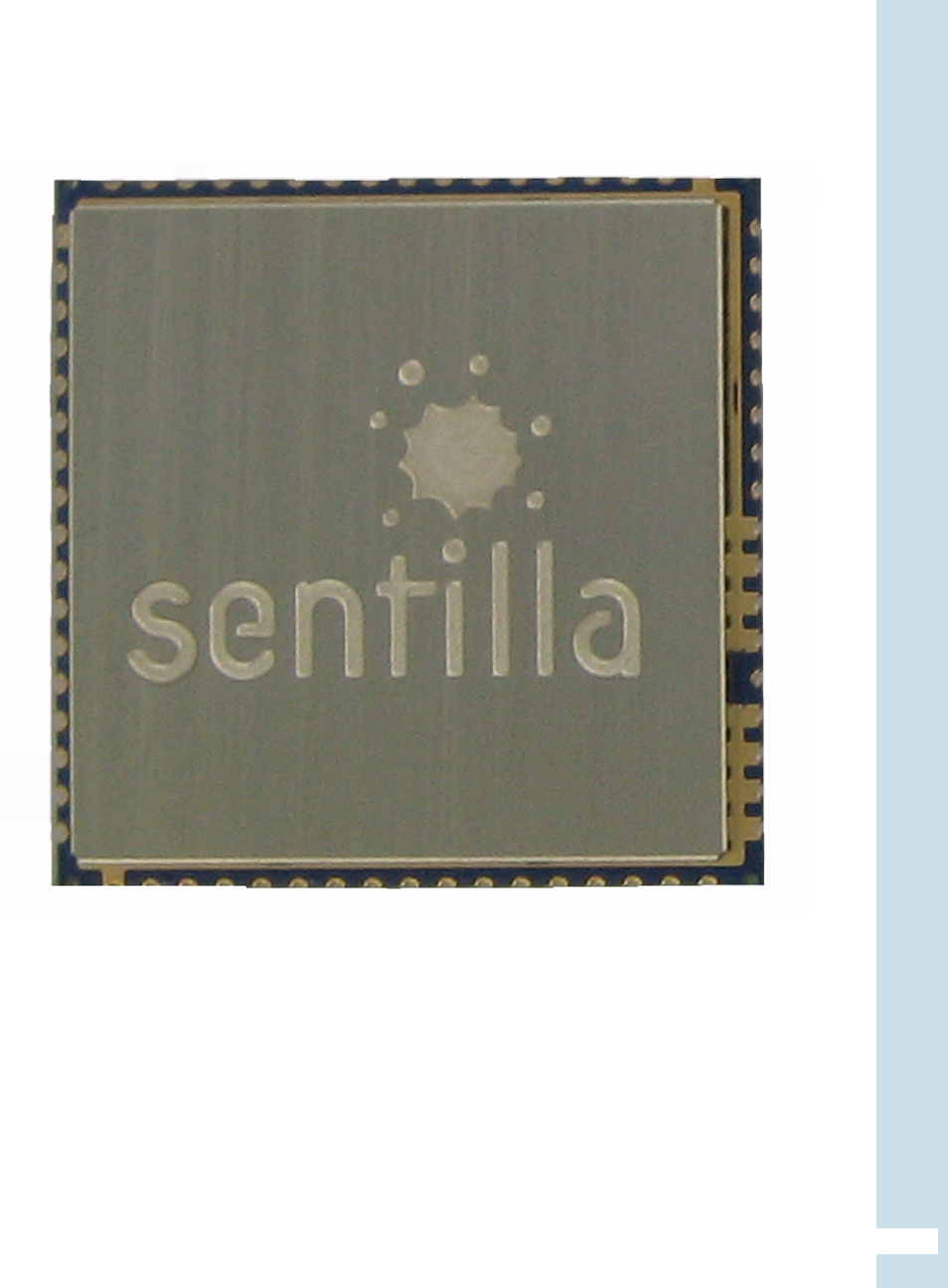

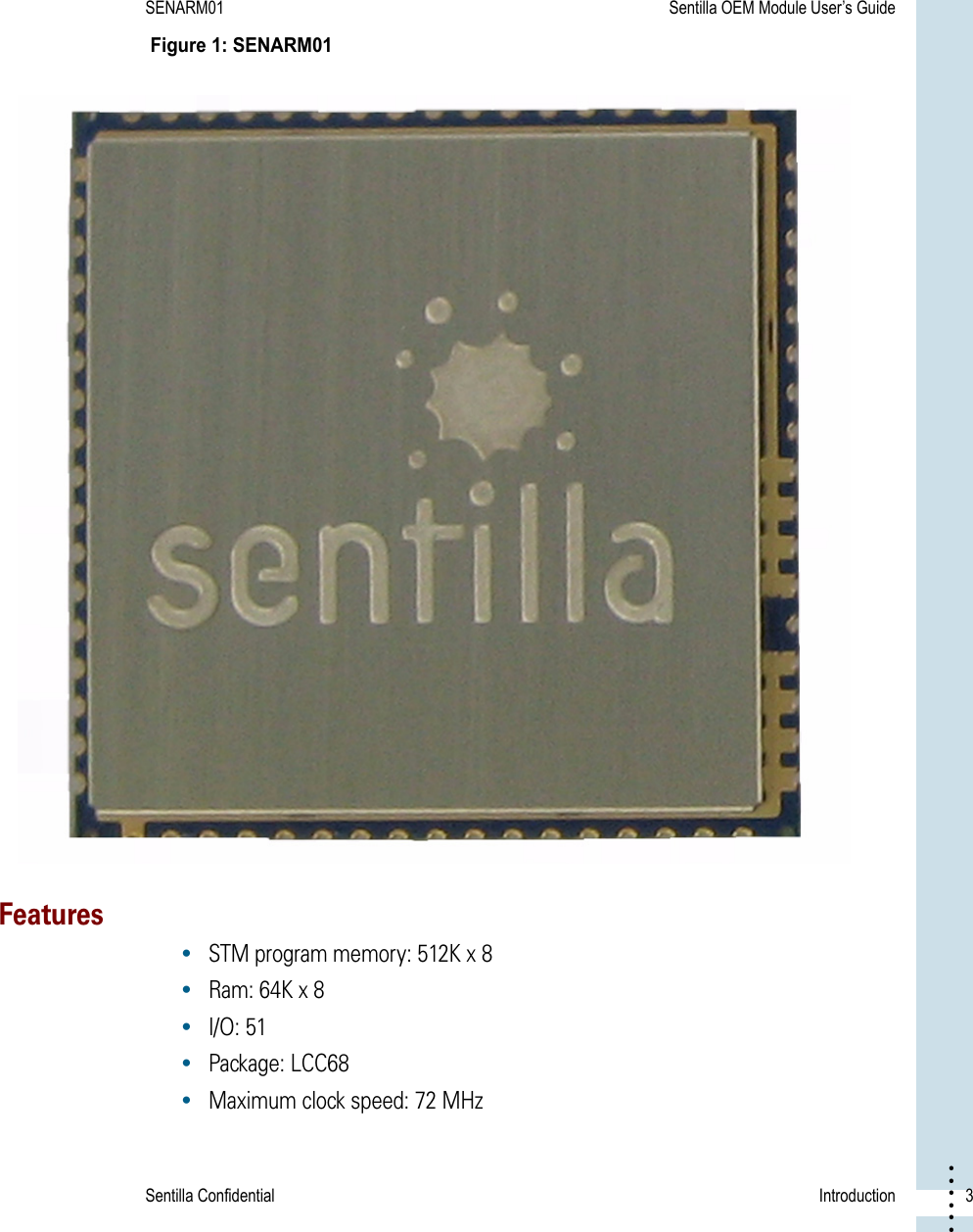

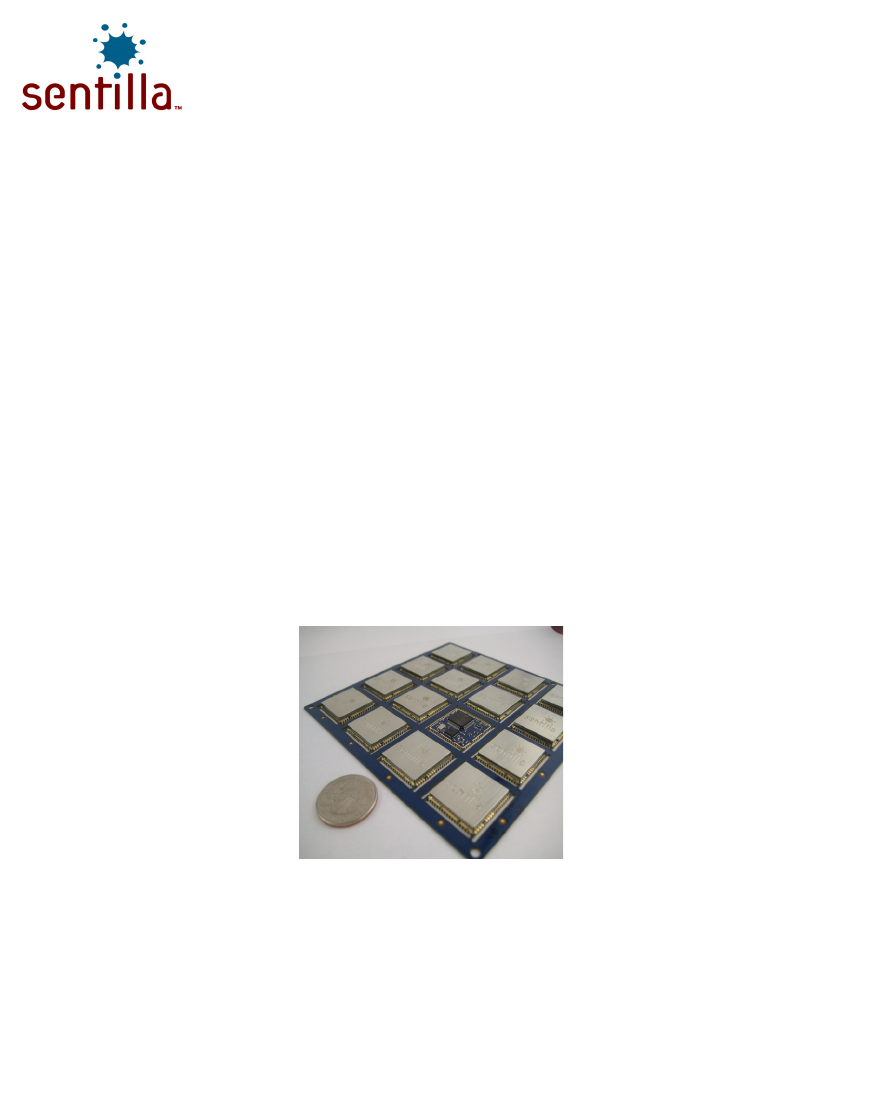

Figure 1: SENARM01
Features
•
STM program memory: 512K x 8
•
Ram: 64K x 8
•
I/O: 51
•
Package: LCC68
•
Maximum clock speed: 72 MHz
4 Chapter 1 Sentilla Confidential
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide
•

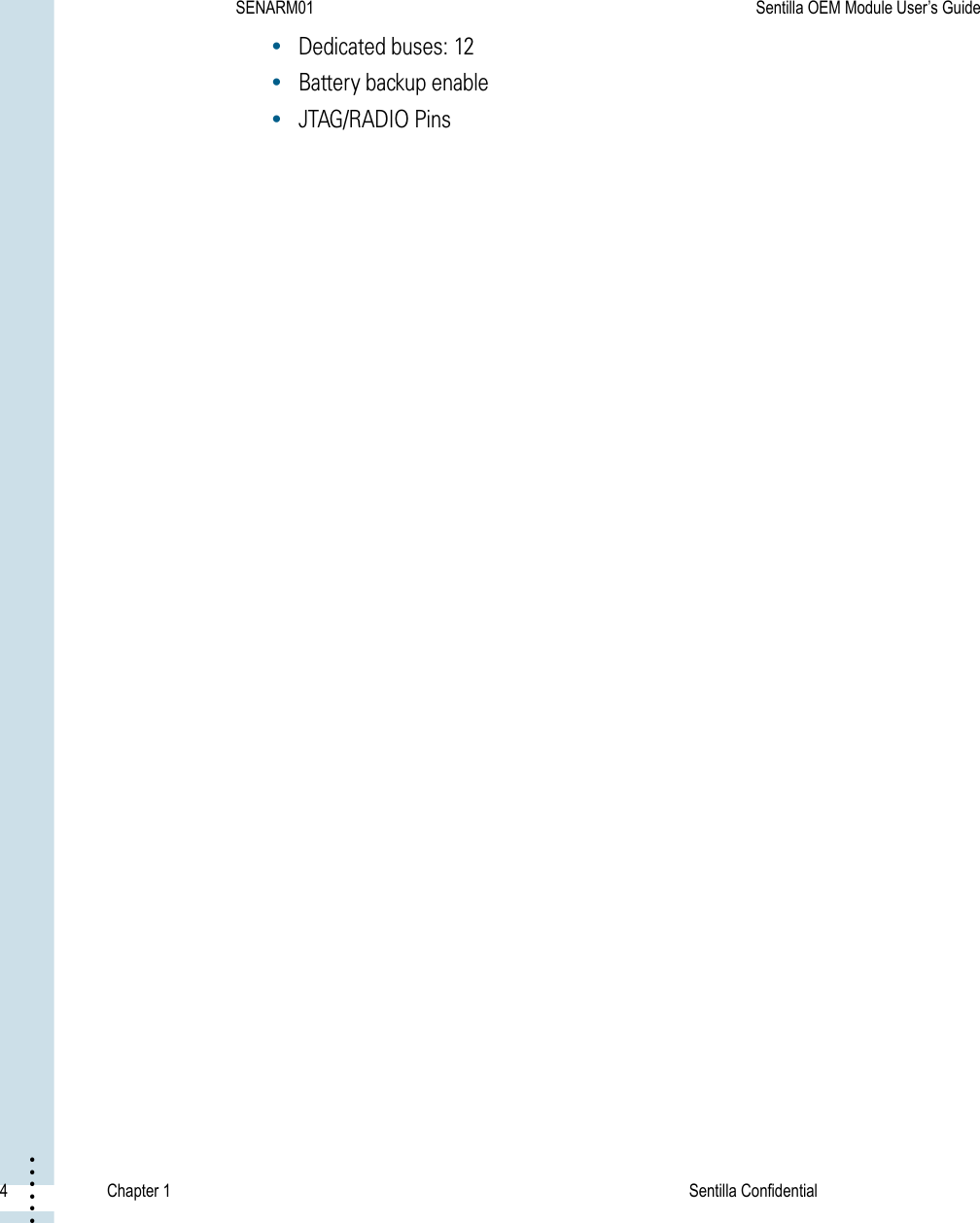

Dedicated buses: 12
•
Battery backup enable
•
JTAG/RADIO Pins
Sentilla Confidential Chapter 2 5
•
•
•
•
•
•
Chapter 2
• • • • • •
Usage

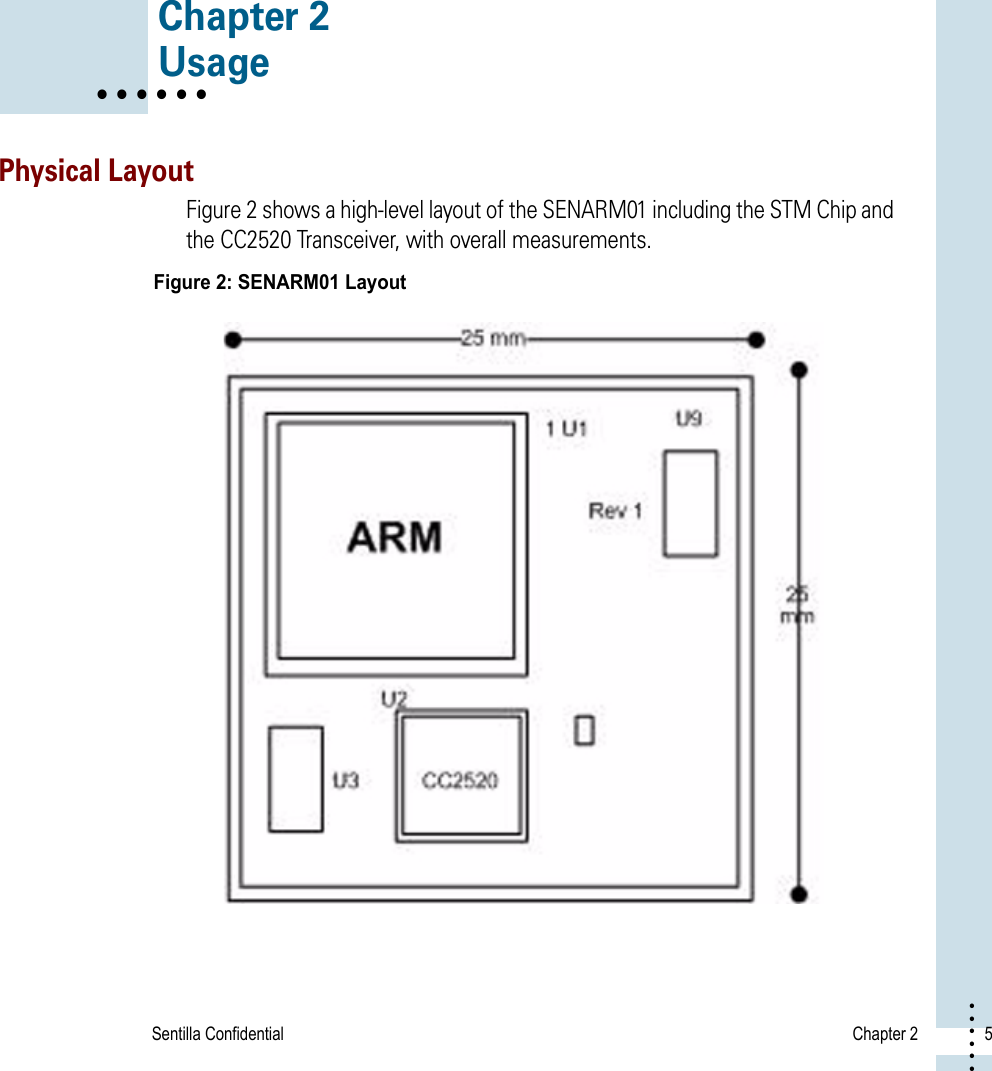

Physical Layout

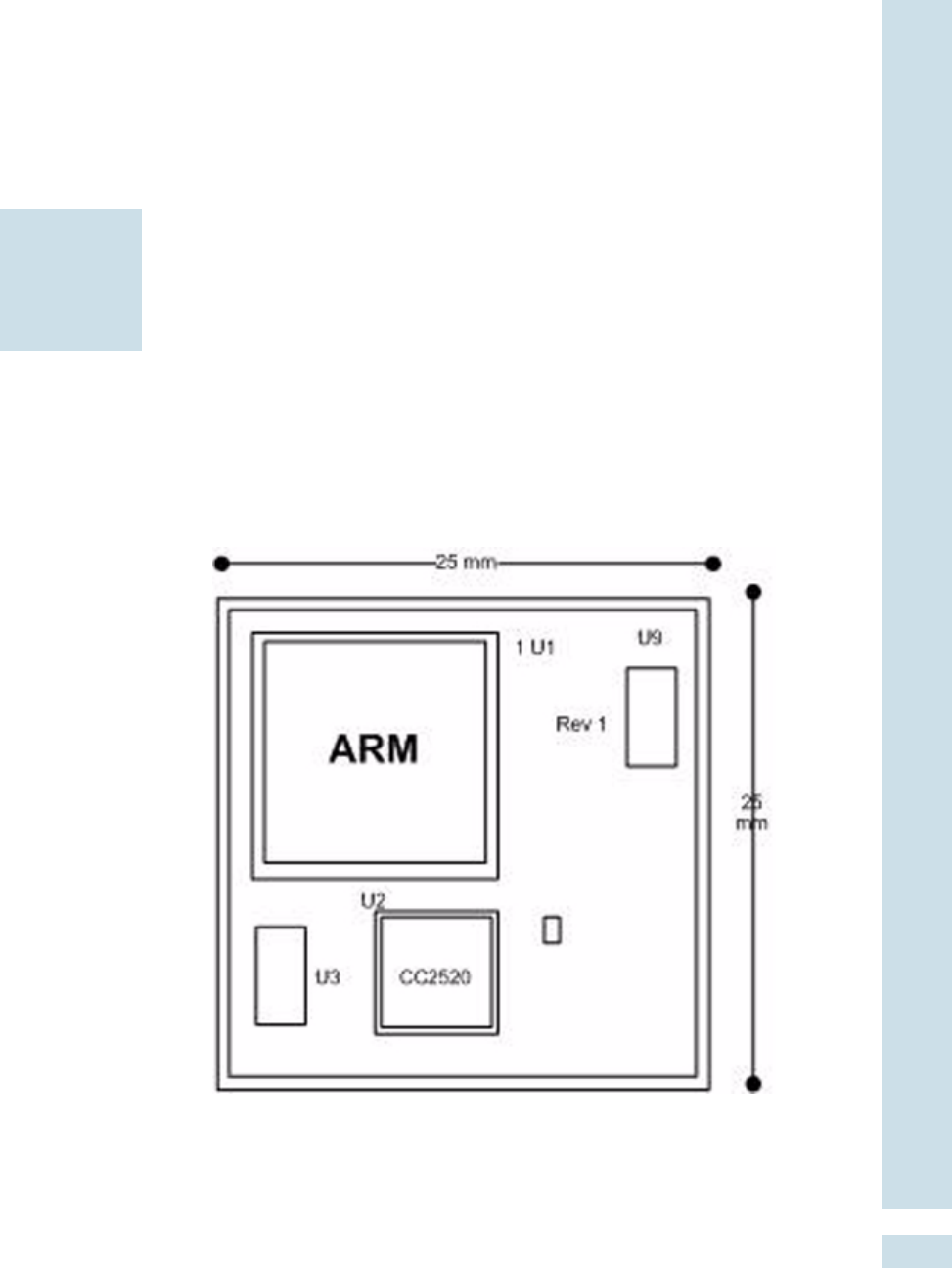

Figure 2 shows a high-level layout of the SENARM01 including the STM Chip and
the CC2520 Transceiver, with overall measurements.
Figure 2: SENARM01 Layout
6 Chapter 2 Sentilla Confidential
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide

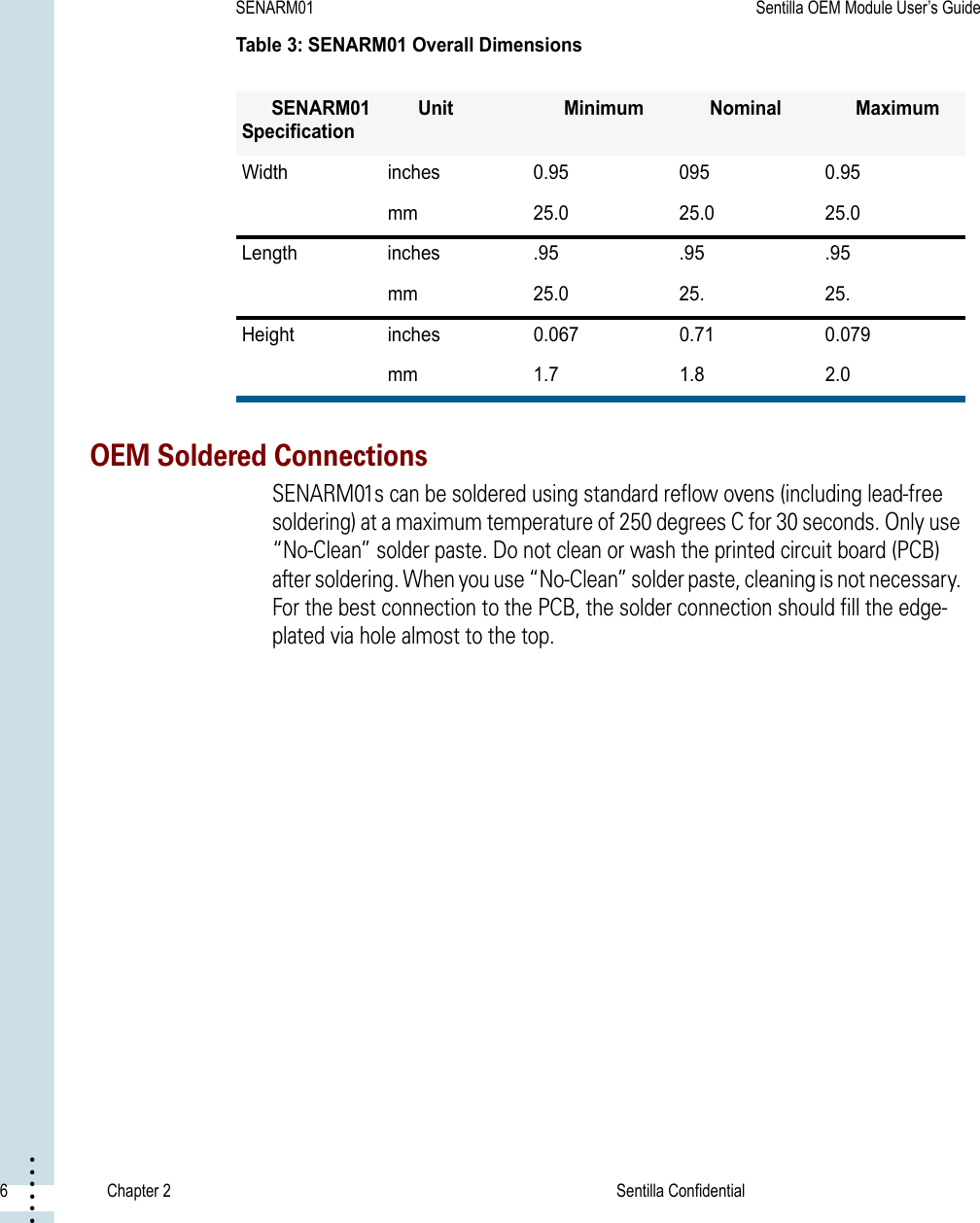

Table 3: SENARM01 Overall Dimensions
OEM Soldered Connections
SENARM01s can be soldered using standard reflow ovens (including lead-free
soldering) at a maximum temperature of 250 degrees C for 30 seconds. Only use
“No-Clean” solder paste. Do not clean or wash the printed circuit board (PCB)
after soldering. When you use “No-Clean” solder paste, cleaning is not necessary.
For the best connection to the PCB, the solder connection should fill the edge-
plated via hole almost to the top.
SENARM01
Specification
Unit Minimum Nominal Maximum
Width inches 0.95 095 0.95
mm 25.0 25.0 25.0
Length inches .95 .95 .95
mm 25.0 25. 25.
Height inches 0.067 0.71 0.079
mm 1.7 1.8 2.0
Sentilla Confidential Chapter 3
7
•
•
•
•
•
•

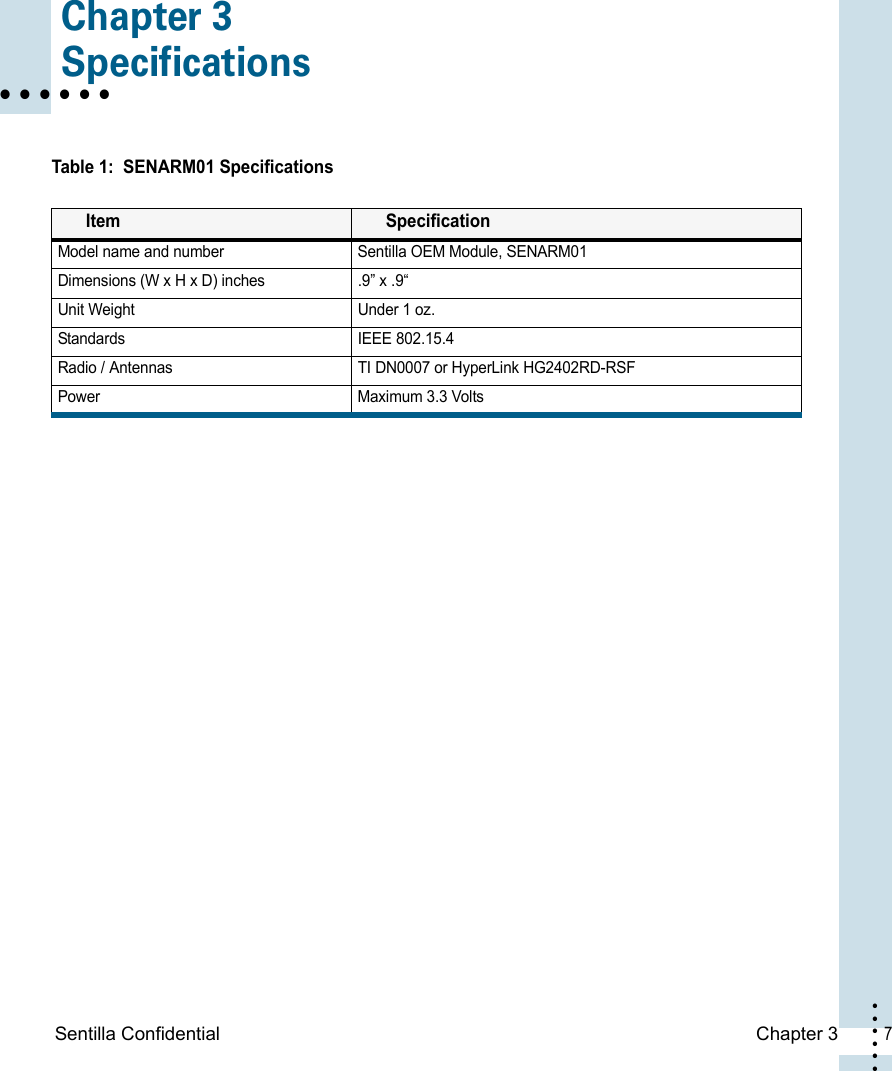

Chapter 3
• • • • • •
Specifications
Table 1: SENARM01 Specifications
Item Specification
Model name and number Sentilla OEM Module, SENARM01
Dimensions (W x H x D) inches .9” x .9“
Unit Weight Under 1 oz.
Standards IEEE 802.15.4
Radio / Antennas TI DN0007 or HyperLink HG2402RD-RSF
Power Maximum 3.3 Volts
8 Chapter 3 Sentilla Confidential
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide
Sentilla Confidential Chapter 4
9
•
•
•
•
•
•

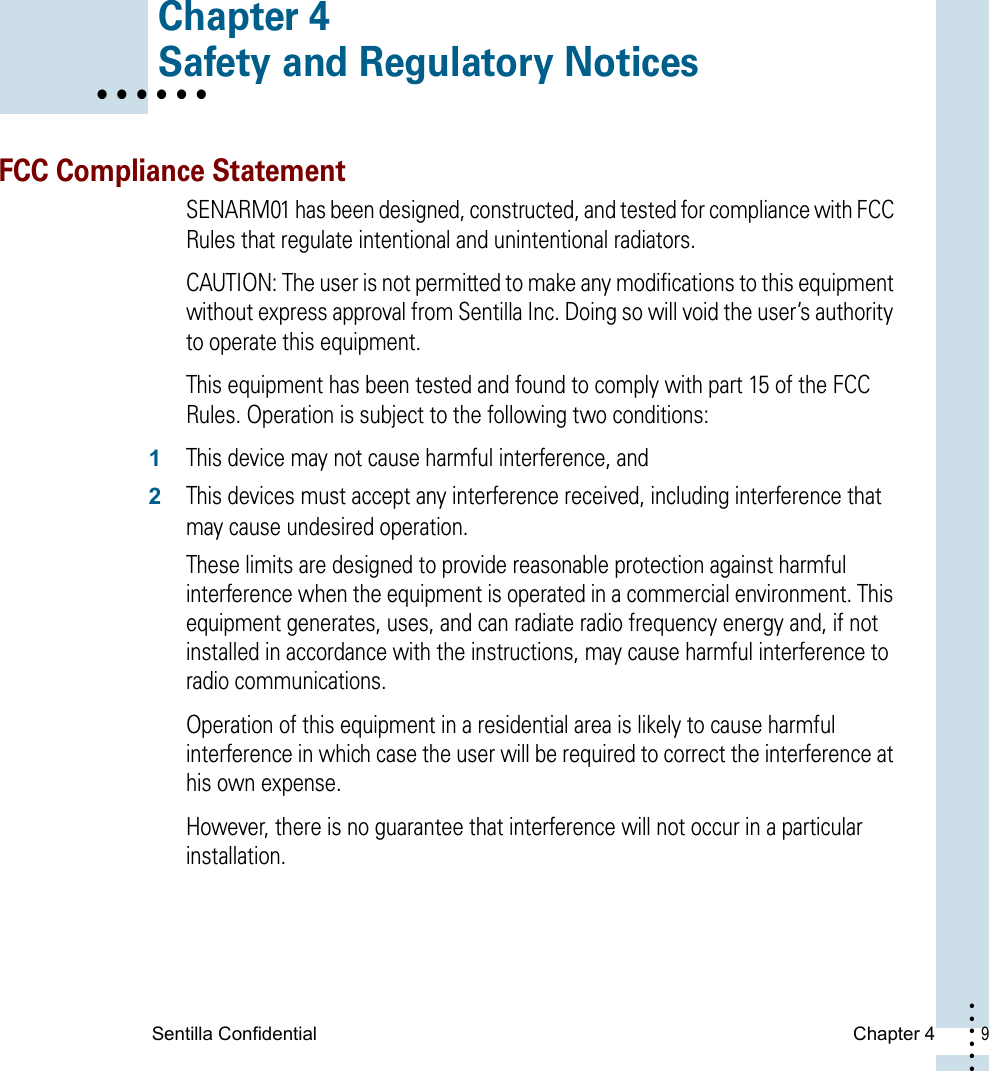

Chapter 4
• • • • • •
Safety and Regulatory Notices
FCC Compliance Statement
SENARM01 has been designed, constructed, and tested for compliance with FCC
Rules that regulate intentional and unintentional radiators.
CAUTION: The user is not permitted to make any modifications to this equipment
without express approval from Sentilla Inc. Doing so will void the user’s authority
to operate this equipment.
This equipment has been tested and found to comply with part 15 of the FCC
Rules. Operation is subject to the following two conditions:
1
This device may not cause harmful interference, and
2
This devices must accept any interference received, including interference that
may cause undesired operation.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed in accordance with the instructions, may cause harmful interference to
radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
However, there is no guarantee that interference will not occur in a particular
installation.
10 Chapter 4 Sentilla Confidential
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide

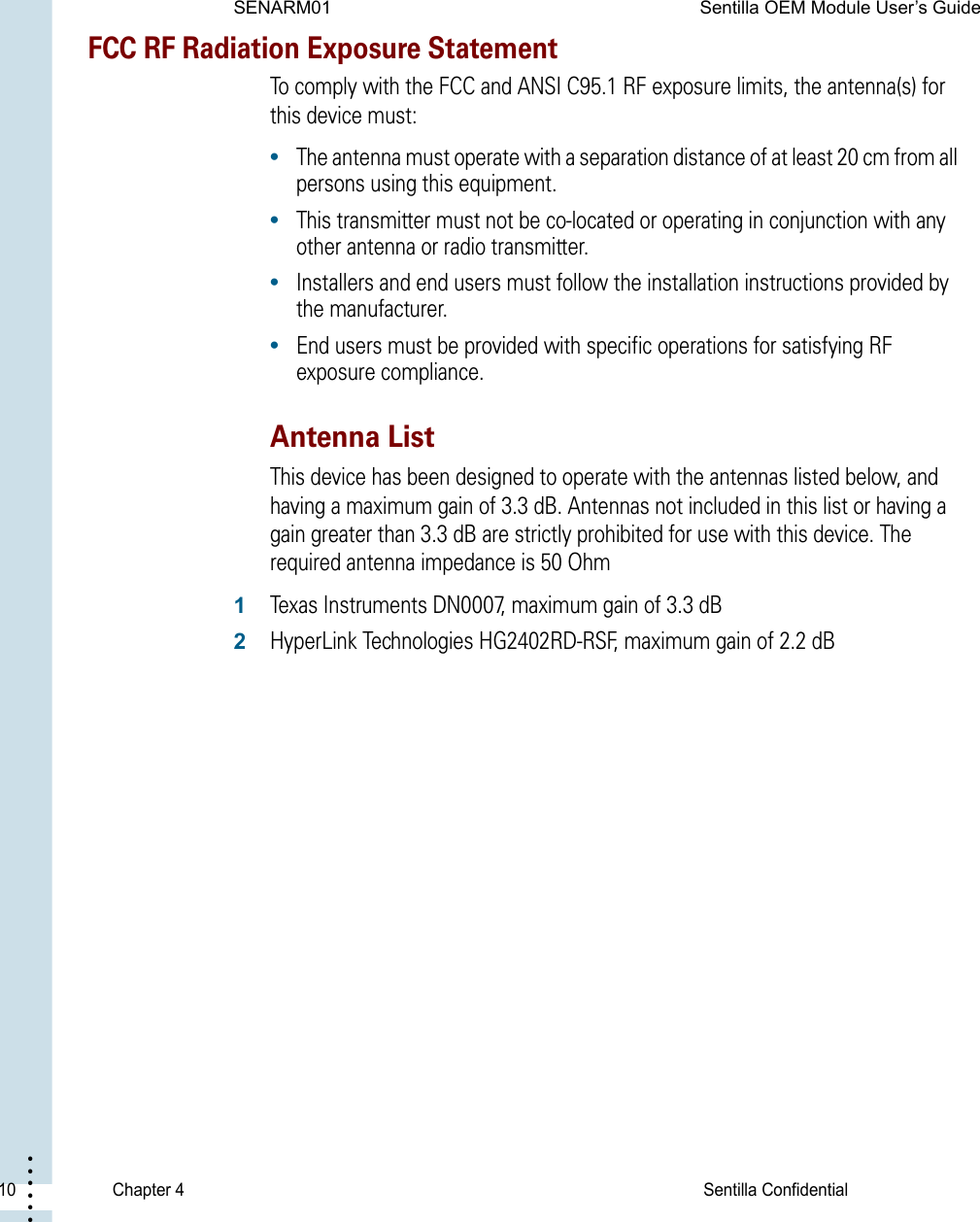

FCC RF Radiation Exposure Statement
To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for
this device must:
•
The antenna must operate with a separation distance of at least 20 cm from all
persons using this equipment.
•
This transmitter must not be co-located or operating in conjunction with any
other antenna or radio transmitter.
•
Installers and end users must follow the installation instructions provided by
the manufacturer.
•
End users must be provided with specific operations for satisfying RF
exposure compliance.
Antenna List
This device has been designed to operate with the antennas listed below, and
having a maximum gain of 3.3 dB. Antennas not included in this list or having a
gain greater than 3.3 dB are strictly prohibited for use with this device. The
required antenna impedance is 50 Ohm
1
Texas Instruments DN0007, maximum gain of 3.3 dB
2
HyperLink Technologies HG2402RD-RSF, maximum gain of 2.2 dB
Sentilla Confidential Safety and Regulatory Notices
11
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide

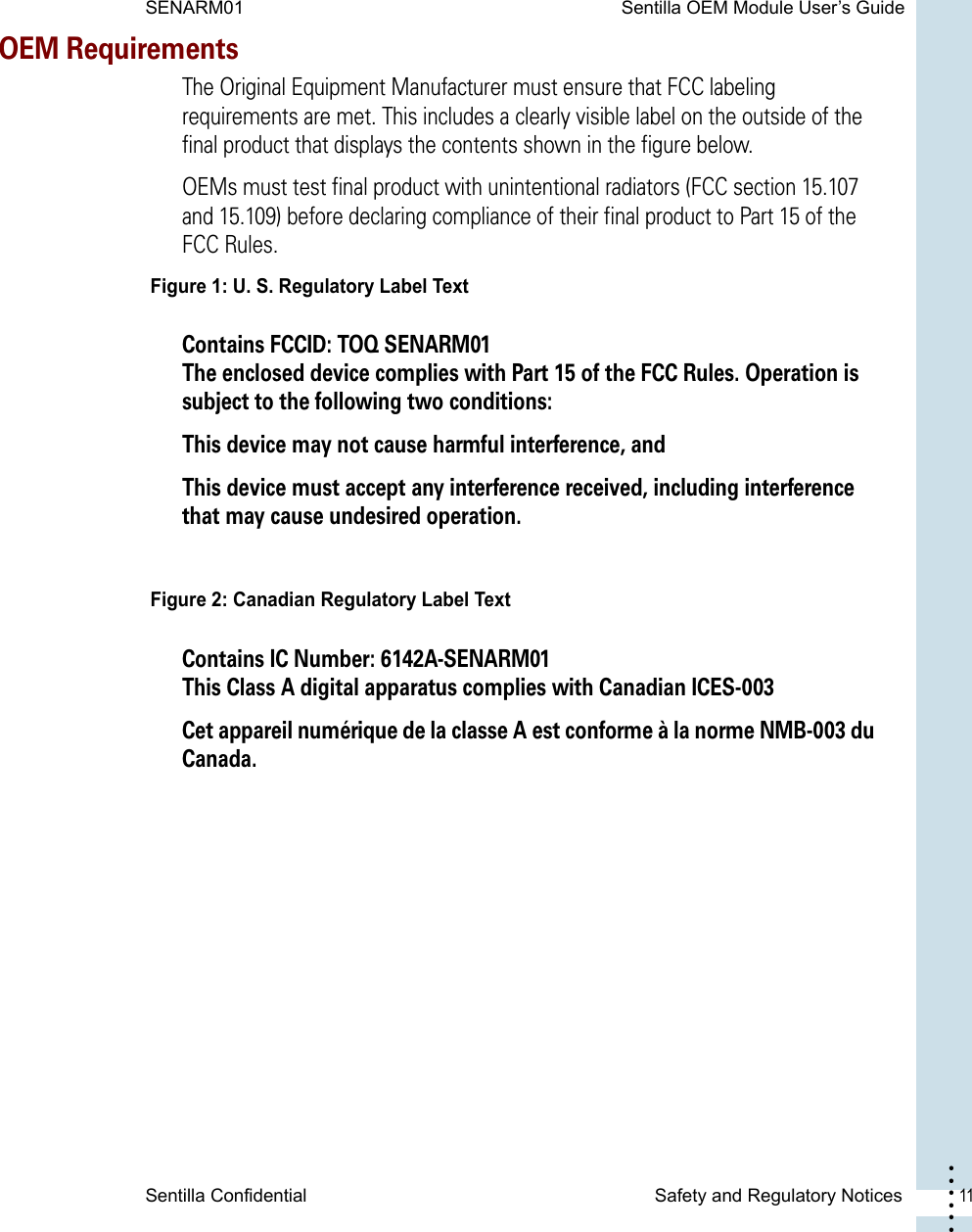

OEM Requirements
The Original Equipment Manufacturer must ensure that FCC labeling
requirements are met. This includes a clearly visible label on the outside of the
final product that displays the contents shown in the figure below.
OEMs must test final product with unintentional radiators (FCC section 15.107
and 15.109) before declaring compliance of their final product to Part 15 of the
FCC Rules.
Figure 1: U. S. Regulatory Label Text
Contains FCCID: TOQ SENARM01
The enclosed device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference
that may cause undesired operation.
Figure 2: Canadian Regulatory Label Text
Contains IC Number: 6142A-SENARM01
This Class A digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
12 Chapter 4 Sentilla Confidential
•
•
•
•
•
•
SENARM01 Sentilla OEM Module User’s Guide
