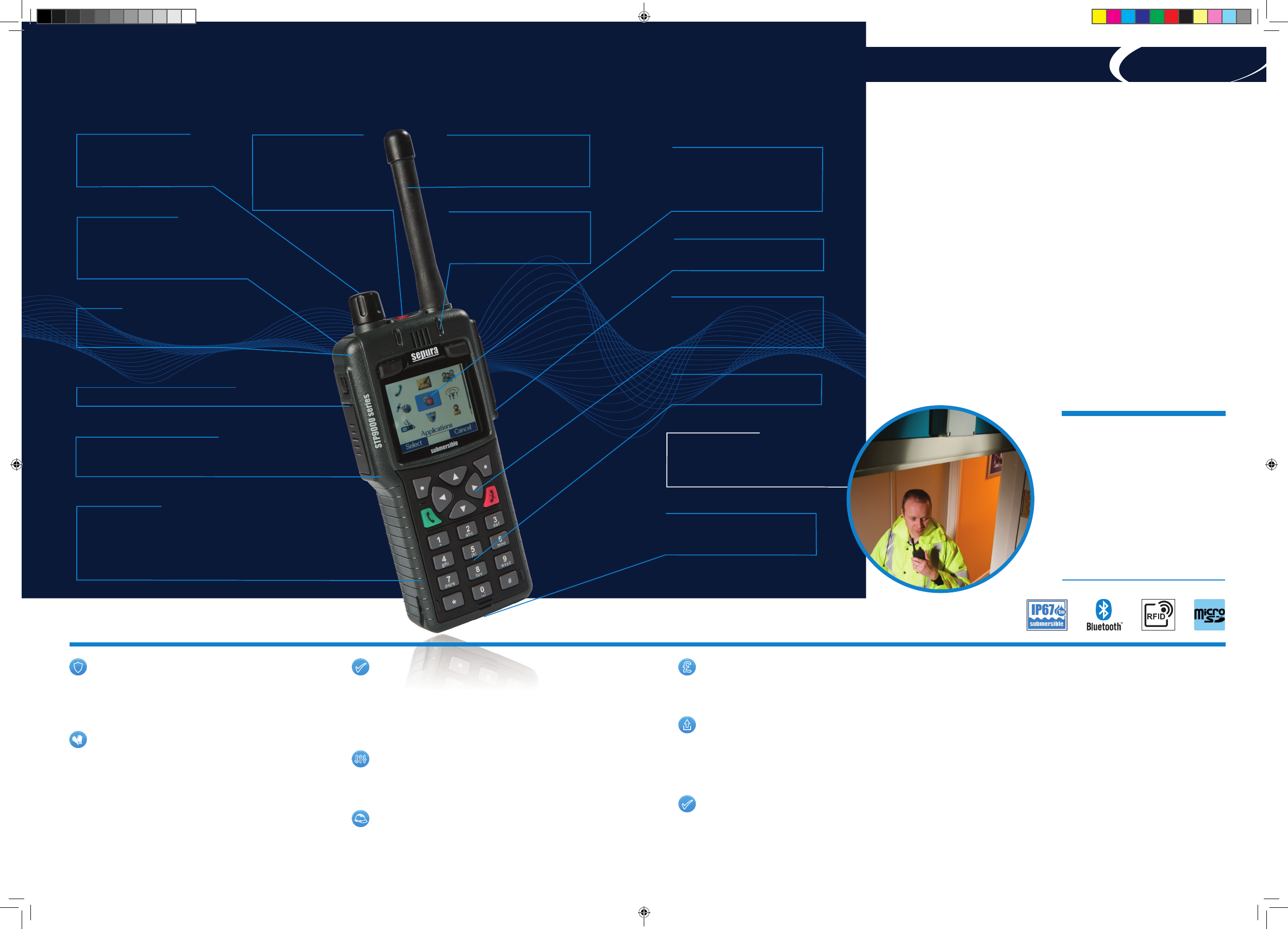

TETRA DATASHEET 9000 SERIES
The STP9000 is the agship of a highly innovative series
of TETRA hand-portable radios, designed for users who
want the best. Waterproof, submersible, dust-proof and
marine-hardened, the IP67-rated STP9000 provides the
latest smart technology in a ‘go anywhere’ package.
Going further in critical communications
STP9000
HAND-PORTABLE
STP9000
HAND-PORTABLE
1 – As dened in ETSI EN300 019-2-1 and EN300 019-2-2.
2 – Availability is subject to export licence.
3 – The Man-Down Alarm should in no way be regarded as a substitute for compliance with appropriate risk assessment and other safety procedures and practices.
To enable Man-Down a Software License is also required.
4 – Operating at temperature extremes may limit some aspects of operational performance.
5 – ‘Connector protector’ must be enabled in customisation. An antenna, a battery and either an accessory or the STP9000 series RAC cover must be tted. Lightly rinse in fresh water after salt
exposure to prevent salt crystal build-up
6 – Bluetooth and STProtect hardware options cannot both be tted at the same time.
Sepura’s policy is to continually improve its products and services. The features and facilities described in this document were correct at publication, but are subject to change without notice.
RFID PERFORMANCE:
Internal tag – HITAG S2048, short range, 125KHz,
ISO11784 and ISO11785 compliant
Range: 1 cm from back of individual
radio box pack
User accessible storage – 512 bits, passive
technology pre programmed (user can overwrite):
32 bit unique identier
Serial number
Hardware code
TEI
PRODUCT PERFORMANCE
Audio Power – >1 Watt
Operational Temperature (Conformance tested)
-20°C to +60°C
Operational Temperature (Min/Max)
-30°C to +70°C4
Storage Temperature -40°C to +85°C1
Dust & Water Protection to both IP67 and IP65
(waterproof, submersible, sprayproof and dustproof)
plus tested for complete 8hr shifts “in the pouring rain”
Shock, drop & vibration ETS 300 019
Salt fog: MIL810E 509.4(l); duration 24hr salt5
Salt water: submersion, rated at 1m depth for
30 minutes5
RF PERFORMANCE
RF Power – MS Power Class 3L (1.8 Watts)
RF Power – customisable for:
TMO/DMO/Repeater
Adaptive Power Control Supported
Receiver Class – A and B
Receiver Static Sensitivity – 112dBm
( – 115dBm typical)
Receiver Dynamic Sensitivity – 103dBm
(106dBm typical)
POWER SUPPLY
7.4V (nominal) Lithium Polymer Battery Packs
Intelligent Reporting Batteries
1160mAh Standard Battery
1400mAh Mid Capacity Battery
1880mAh High Capacity Battery
344-400MHz – STP9035
380-430MHz – STP9038
407-473MHz – STP9040
806-870MHz – STP9080
FREQUENCY BANDS
WEIGHT
With Standard Battery: 250g
With High Capacity Battery: 275g
DIMENSIONS
Height: 133mm
Width: 61mm (54mm)
Depth: 32mm (Standard Battery)
Depth: 37.5mm (High Capacity Battery)
DATA SERVICES AND APPLICATIONS
Status messaging (in TMO & DMO)
SDS Messaging (in TMO & DMO)
Auto – capitalisation on SDS text entry
Concatenated SDS messaging
Multi-slot packet data
Circuit mode data
TETRA paging and call out
WAP browsing
WAP shortcuts in SDS
WAP sites can be stored on Micro SD card
Battery status advised immediately on start-up
VOICE SERVICES
Full Duplex Calls (to MS and PABX/PSTN)
Half Duplex Calls (Individual and Group)
Priority Call
Emergency Call (Pre-emptive Priority)
Intelligent Alarm Reporting
Talking Party Identity
Calling Line Identity Presentation
DTMF Dialling
MSISDN Dialling
Abbreviated Dialling
Dynamic Group Number Assignment
Background (hidden) Groups
Ambience listening
Privacy mode
Whisper mode
Group focus
DMO Individual Call
DMO Group Call
DMO Emergency Call
DMO Intelligent Emergency Call
Independent Volume Control
Gateway pairing
DISPLAY AND USER INTERFACE
Large 30x38mm Active LCD Area
Hi-Resolution display (176 x 220 pixels)
Transective TFT Display, 262K colours
Normal, Large & Very Large Mode Text
16 Congurable Feature Activation Keys
Vibrate Call/message
Call History
Phone Book (2000 entries)
9900 Talkgroups in TMO/DMO
5000 Multi-Level Talkgroup Folders
Intelligent Search Facility
Quick Groups
Transmit Inhibit with on/o Status Messaging
Fixed & denable Scan Lists
Remaining Charge Time Indication
Missed Call Indicator
Intuitively-enhanced user interface
Choice of three user interface presentation styles
(Compatibility mode, Grid mode and List mode)
Haptic technology to enhance key tactility when
used with heavy gloves
Twist and zoom portrait image viewer
Auto-capitalisation during SDS text entry
Two context keys
Wake On Alarm
GPS
Bluetooth6
Man-Down Alarm3
DMO Repeater Type 1A
Air Interface Encryption Options
End to End Encryption Options
Wide Range of Languages supported
Micro SD card
Coloured bezels
STProtect – in-building tracking solution6
Smart card support
PRODUCT OPTIONS
LOCATION BASED SERVICES
GPS integrated option -192dBw (-162dBm) tracking
sensitivity
Over-The-Air GPS reporting using the following protocols
• ETSI location standard reporting (LIP)
• NMEA & Sepura compact messaging
GPS-based compass
Enhanced indoor start-up and acquire through
‘predictive ephemeris’
Bluetooth Location System compliant
STProtect
RFID tag equipped
SECURITY SERVICES
Authentication
Class 1, 2 and 3 and 3G TETRA Security
Air Interface Encryption
TEA1/2/3/4 Supported2
Smart Card E2E Encryption Support2
Embedded E2E Encryption Support2
In-Country E2E Encryption Algorithm Support2
Multiple E2E Algorithm Support2
DMO REPEATER SERVICES (LICENCE REQUIRED)
DMO Voice Repeated
DMO Tone Signalling Repeated
Group Status & SDS Repeated
Type 1A ecient operation over one RF Channel
Presence Signal Support
Emergency Call
Monitoring & Participation in Calls
CONNECTIVITY
TETRA voice and data
Bluetooth support for voice and data (PEI)
ETSI Bluetooth PTT extension command compliant
Bluetooth trusted device, auto re-connect and master
pairing
PEI Data via RS232,USB data cables or Bluetooth
Accessory connections via Rugged Accessory
Connector (RAC)
High speed interface for feature-rich audio accessories
Audio and data connection via facility connector
MicroSD card slot (4GB max)
Passive 125KHz RFID tag
STProtect
ACCESSORIES
Personal Charger
Vehicle DC Charger
1+1 Desktop Charger
6+6 Desktop Charger
12 and 24 Way Battery only Chargers
Wide Range of Antennas
Stud and Belt Attachments
Rugged Belt Clip
Rugged and Soft Leather Cases
Basic IP55 Remote Speaker Microphone
Advanced IP55 Remote Speaker Microphone
(with and without RF Antenna)
Hands-Free Kit
Personal Ear Pieces
Public Order Accessories
Semi-Covert Accessories
Feature-rich and basic car kits
Serial and USB Data Leads
4 & 8 Way Programming Pods
Two-way, battery-only, charger for vehicles
© Sepura plc. For more information visit sepura.com 0003_0414_V1_English
Short Data Applications (SDAs)
WAP sites, images, maps and text stored on MicroSD
card via Radio Manager2
Lone-Worker feature
Missed event application
User-expandable up to 4GB via Micro SD card
0003_0414_V1 - Datasheet Tetra STP9000_English.indd 1-2 15/05/2014 15:50:19
Robustness – The STP9000 boasts an IP67 (submersible, waterproof and
dustproof) environmental protection rating, which means that it will still
function after having been submerged in up to 1m of water for up to
30 minutes. In addition, new Connector Protector technology provides
marine-hardened protection against the corrosive damage that salt
water and salt fog can cause to exposed connectors.
Improved ease of use – The STP9000 provides an enhanced user
interface, which oers three dierent presentation styles, which users
can select according to their personal preference:
- Compatibility mode allows existing Sepura users to be immediately
familiar with the STP9000.
- Grid and List modes will appear familiar to new users who may
be accustomed to user interfaces on smartphones or other GSM
devices, rather than a radio.
These new presentation styles lower training costs for both new and
existing Sepura users.
Smart keypad and display technology – Following detailed user
feedback, Sepura has added ‘haptic’ technology to the STP9000. Haptics
produce a physical movement of the radio, felt through the hand, which
conrms to gloved users that the key press has been successful. In
addition, the ‘Twist and Zoom’ feature uses smartphone technology to
allow a portrait image to be zoomed to full-screen size, enabling the user
to see full detail of an image, such as a missing person, as they rotate the
radio. The feature also enables access to details concerning the image.
Resource and information management – Tracking radios, particularly
in a pooled system, can be dicult, so the STP9000’s built-in RFID tag
will be of considerable benet to many users. In addition, the micro SD
card slot makes it easy to store and manage data, such as photos, maps,
missing person information and hazardous chemical data.
Enhanced user safety – The STP9000 features a wide range of features
to enhance user safety. In addition to lone-worker, Man-Down, enhanced
GPS and STProtect capability, the Wake-On-Alarm feature, which enables
the STP9000 to be switched on and make an emergency call by simply
pressing the emergency button, also helps to protect users.
› Robust, ‘tough technology’ inherited
from state-of-the-art development for
the STP8X ATEX/IECEX radio
› Market-leading IP67 (submersible,
waterproof and dustproof) rating
› High power RF and audio, with
improved full-duplex audio experience
› Intuitive, enhanced UI, with 3
presentation styles (Grid, List and
Compatibility modes)
› Integral RFID tag allows rapid asset
tracking of pool-issued radios
› Fully integrated Bluetooth™ option
› Enhanced key tactility through
haptic-based technology
› Man-Down
automatically summons assistance
EMERGENCY OPERATION
Easy to locate, protected from
accidental operation, but simple
to activate in a real emergency.
Now with a “wake-on-alarm” feature
allowing users to summons assistance
even if the STP is switched o.
RFID TAG
Facilitates access control solutions, tracking
of pool-issued radios and potential for
integration with back-end systems.
NAVIKNOB™ OPERATION
In combination with the mode key, provides
simple and quick access to talkgroups, user
prole selection and status
messaging as
well as simply adjusting the volume.
PRODUCT DESIGN
The STP9000 leverages the tough
technology developed for Sepura’s
STP8X Intrinsically-Safe series to deliver
a market-leading IP67 package, proven
to perform in the most demanding
operational environments.
LARGE TACTILE PRESSTOTALK KEY
Large, easy to nd and glove-friendly.
STP9000 is a rugged TETRA HAND-PORTABLE
MANDOWN PERSONAL SAFETY
Multi-dimensional motion sensing technology
automatically provides man-down detection
and summons assistance.
Reduced cost of ownership – The STP9000 is compatible not only with
all audio accessories, batteries and chargers from Sepura’s STP8000
hand-portable range, but also with its market-leading Radio Manager 2
eet management tool and CMC encryption management suite - all factors
which help organisations to maximise the value of existing investments.
Indoor location capability – An STProtect module can be optionally
tted within the radio. This is a key element of the STProtect complete
indoor location and lone worker protection solution. In areas where GPS
signals cannot penetrate, it allows organisations such as prisons, airports
and industrial sites to track and protect lone workers, locate employees,
control access to restricted areas and ensure pre-dened security patrol
routes are being adhered to.
Smart Technology – Sepura has provided a host of “smart” features
which allow organisations to maximise their eciency and enhance their
operations. These include:
Bluetooth functionality - by adding trusted device and master pairing
features, the potential uses of Bluetooth have been widened considerably.
Implementation of the ETSI PTT Bluetooth command as an extension of
› Wake-On-Alarm activation
› Micro-SD memory card slot
› End-to-End encryption option
› DMO Repeater ready (frequency ecient
Type 1A option) with Call Participation
› “Smart” building blocks - adding
advanced WAP and MicroSD card
functionality allows users to “build” smart
solutions to meet operational challenges
›
A wide range of market-leading
accessories, designed for a wide range of
public safety, industrial and other users
› Supported by Sepura’s market-
leading
software tools, including
Radio Manager 2 which helps
organisations to lower cost of ownership
by making eet re-programming easier
HAND-PORTABLE 9000 SERIES
Highly innovative,
designed for critical
communication
users who demand
the very best
TETRA radios
the headset prole enables use of the newly-emerging range of rugged,
professional, wireless accessories.
Short Data Applications - Short Data Applications (SDAs) allow the user
to simply and intelligently interact with a back-end IT system. Built and
deployed on Radio Manager 2, SDAs allow the automation of work ows,
job allocation and remote control capabilities. They also allow the user
to rapidly access a remote database. SDAs have been demonstrated to
improve the eectiveness of users, thus saving organisations valuable time
and money.
MicroSD card - Complete WAP sites can now be encrypted and stored on
the MicroSD card conveniently and quickly via Radio Manager 2 (RM2). For
the rst time users can access up to 4GB of data, images and text, organised
into a convenient and intuitive WAP site.
SDS text messages can now contain URL shortcuts that takes the user
directly to data on the local WAP site stored on the SD card, or to a back-
end WAP site accessed via TETRA. These powerful features allow the rapid
dissemination of data to targeted users, such as missing person information.
LARGE, SUNLIGHTVISIBLE,
COLOUR DISPLAY
Featuring an enhanced user interface,
which oers three presentation
styles to suit user preferences. Dual
illumination technology ensures screen
clarity under all light conditions.
BOTTOM CONNECTOR
Featuring Connector ProtectorTM
technology to provide protection from
corrosive salt water and salt fog.
ERGONOMIC KEYPAD
Large, well-spaced keys, enhanced by
haptic technology, which allows the
user to feel a key press, even through
thick gloves.
POWERFUL AUDIO
Large loudspeaker delivers outstanding
audio, even in the noisiest environments.
STPROTECT MODULE
An option which enables use of Sepura’s
STProtect indoor location and lone worker
solution. Facilitates indoor tracking where
GPS-based tracking is not possible.
RUGGED ACCESSORY CONNECTOR
Ensures a reliable connection with a
wide range of audio accessories.
SMA ANTENNA CONNECTOR
Delivers 1.8 watts of RF power in TMO,
DMO and Repeater Modes. Increases
range, thus extending network and
direct mode coverage.
MISSED EVENT INDICATOR
A blue LED indicates that a call /
message has been missed. The soft key
next to the LED can be congured to
display a list of missed calls / messages.
BLUETOOTH MODULE
Allows interaction with a wide range of
wireless accessories. Conforms with ETSI PTT
command as extension of headset prole,
thus allowing use of newly emerging rugged,
professional Bluetooth-enabled accessories.
0003_0414_V1 - Datasheet Tetra STP9000_English.indd 3-4 15/05/2014 15:50:42

Navigation menu
