Sercomm 9962MCI 9962 Multi-Standard AP, Metro Cell Indoor User Manual

Title page

Alcatel-Lucent 9962

Multi-standard Enterprise Cell v1 | LR14 SCM

Hardware Installation and Commissioning

3MN-02001-0002-RJZZA

Issue 0.02 | January 2015

D

RAFT

D

RAFT

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

D

RAFT

D

RAFT

Contents

About this document

Purpose ............................................................................................................................................................................................ viivii

Intended audience ....................................................................................................................................................................... viivii

Supported systems ...................................................................................................................................................................... viivii

How to use this document ........................................................................................................................................................ viivii

Safety information ...................................................................................................................................................................... viivii

Conventions used ....................................................................................................................................................................... viiiviii

Related information ................................................................................................................................................................... viiiviii

Document support ...................................................................................................................................................................... viiiviii

Technical support .......................................................................................................................................................................... ixix

How to comment ........................................................................................................................................................................... ixix

1Safety and general information

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-11-1

General hazard statements ..................................................................................................................................................... 1-31-3

Basic safety aspects .................................................................................................................................................................. 1-71-7

2Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 installation

Overview ...................................................................................................................................................................................... 2-12-1

Pre-installation information .................................................................................................................................................. 2-12-1

Mounting guidelines ................................................................................................................................................................ 2-42-4

Cabling ....................................................................................................................................................................................... 2-102-10

3Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 commissioning

Overview ...................................................................................................................................................................................... 3-13-1

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

iii

D

RAFT

D

RAFT

Commissioning process .......................................................................................................................................................... 3-23-2

4Post-installation activities

Overview ...................................................................................................................................................................................... 4-14-1

Post-installation information ................................................................................................................................................ 4-24-2

AProduct conformance statements

Overview ..................................................................................................................................................................................... A-1A-1

United States .............................................................................................................................................................................. A-1A-1

Environmental requirements ................................................................................................................................................ A-2A-2

Glossary

Index

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

List of figures

2-1 9962 MSEC v1.0 antenna ....................................................................................................................................... 2-52-5

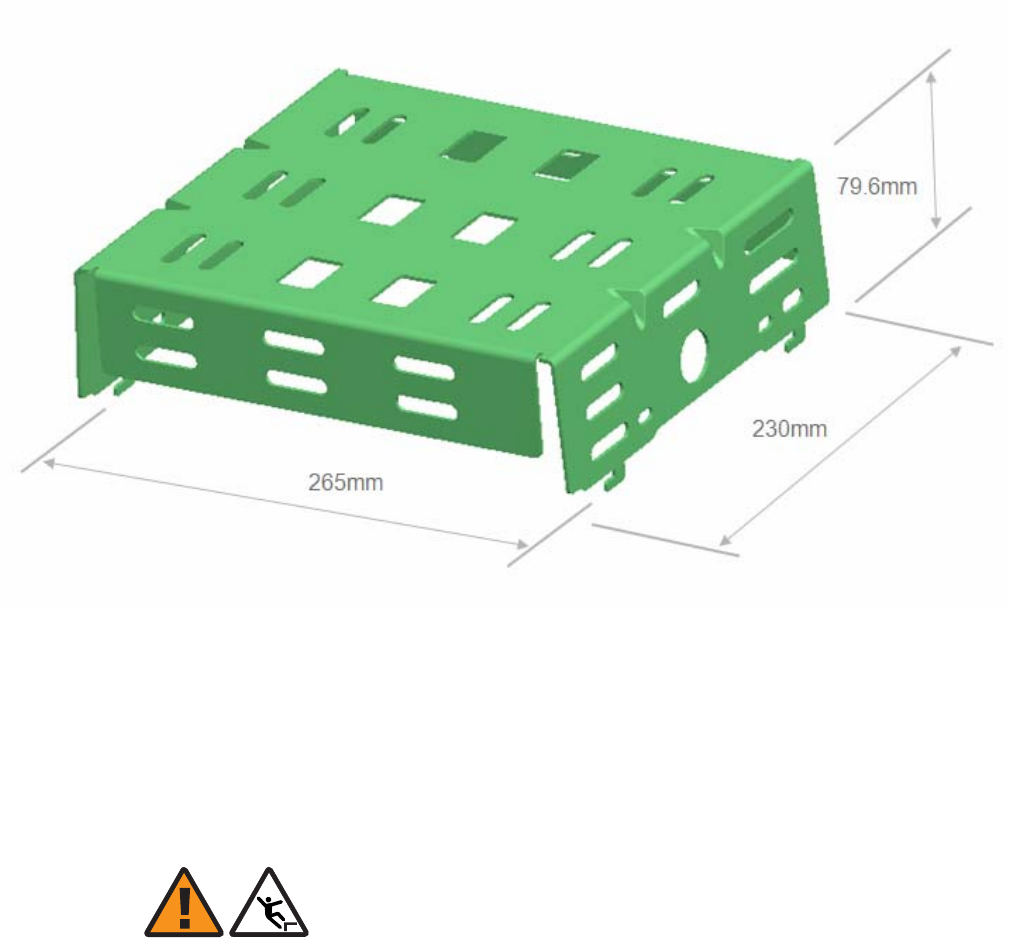

2-2 9962 MSEC v1.0 mounting plate ........................................................................................................................ 2-62-6

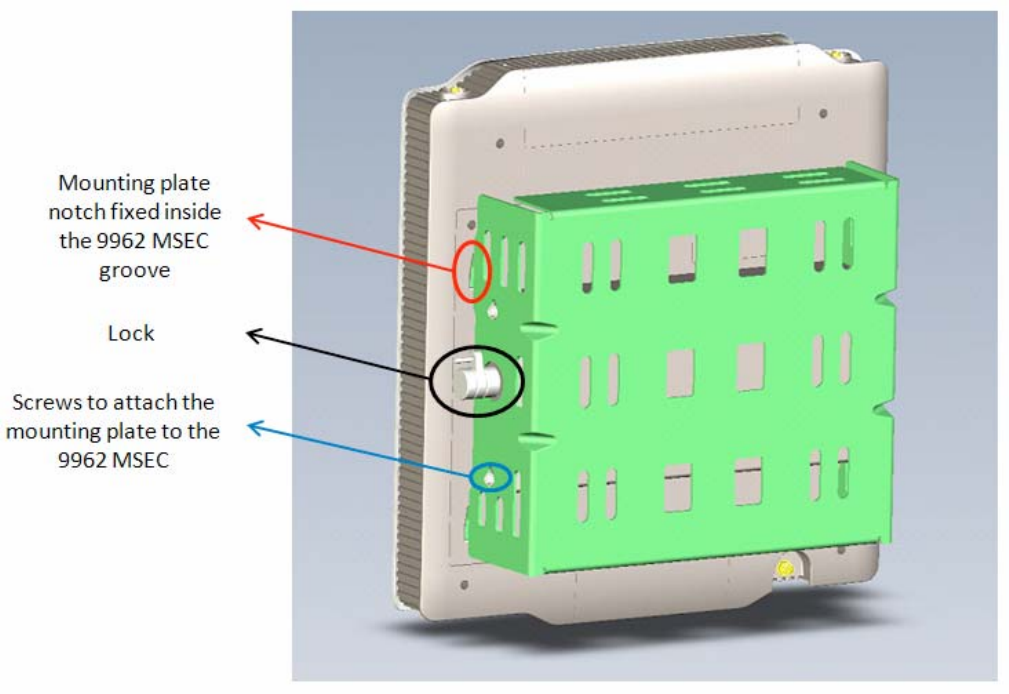

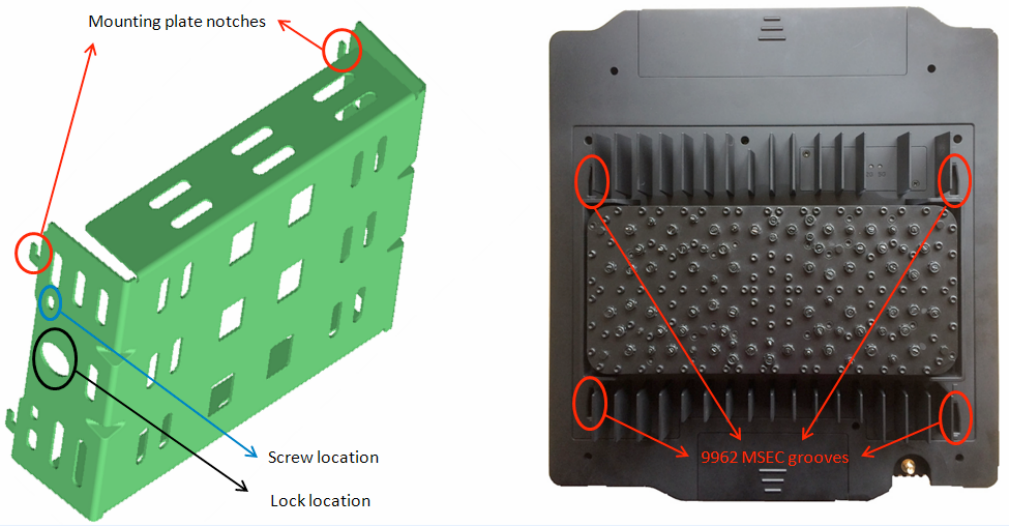

2-3 Notch, groove and lock locations ........................................................................................................................ 2-82-8

2-4 Mounting plate on the 9962 MSEC v1.0 access point ................................................................................. 2-92-9

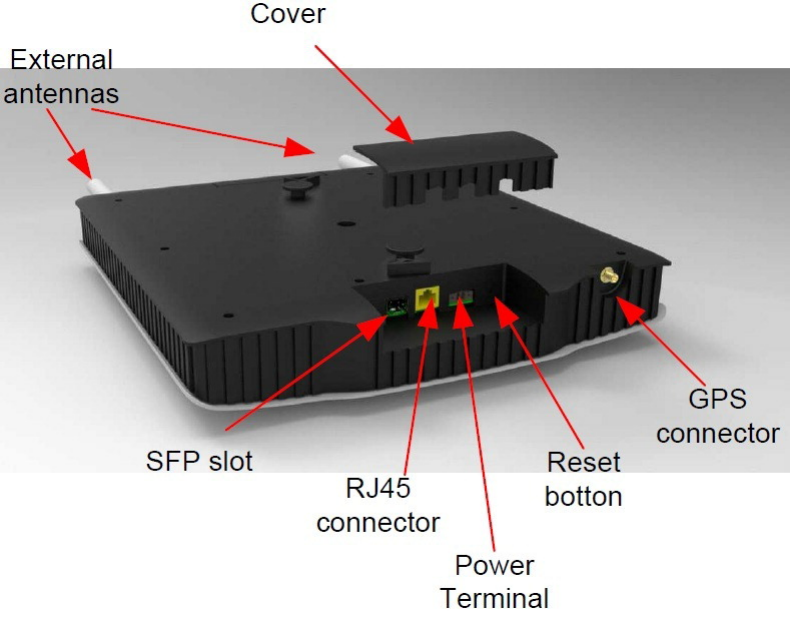

2-5 9962 MSEC v1.0 connectors and antennas ................................................................................................... 2-102-10

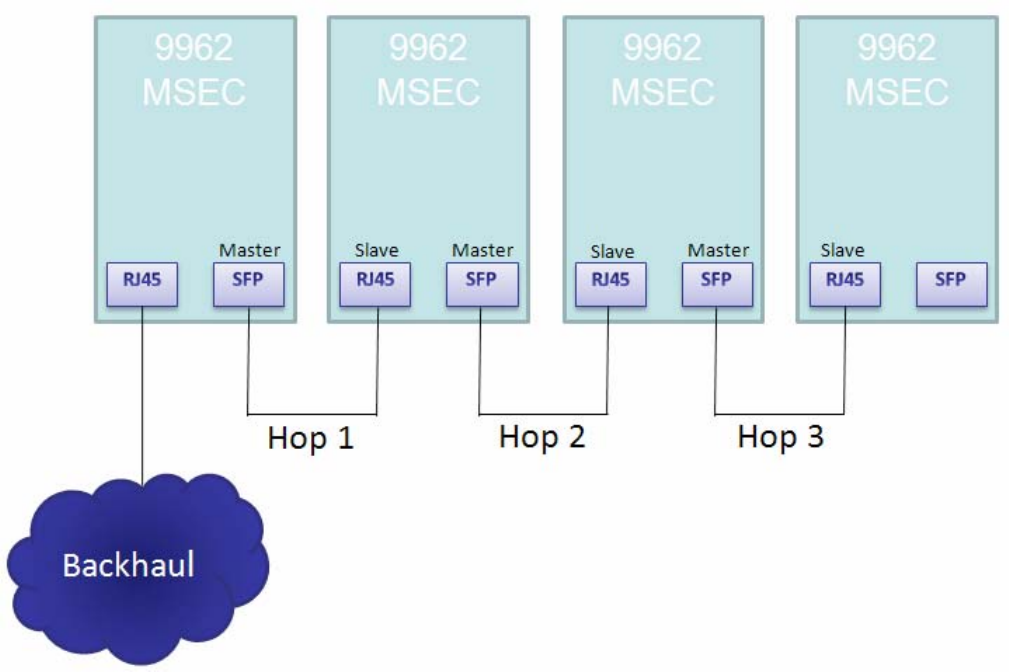

2-6 Example of 4 9962 MSEC v1.0 daisy chain ................................................................................................. 2-142-14

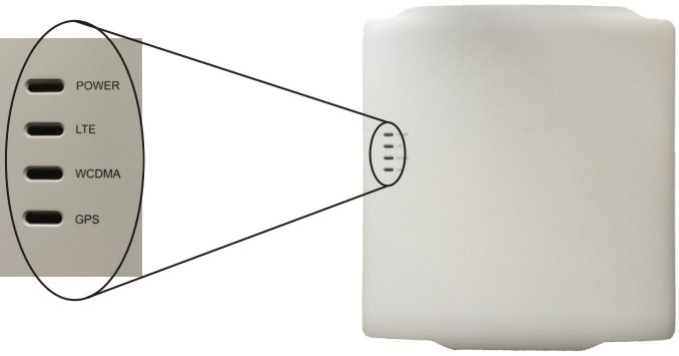

3-1 9962 MSEC v1.0 front LEDs ................................................................................................................................ 3-33-3

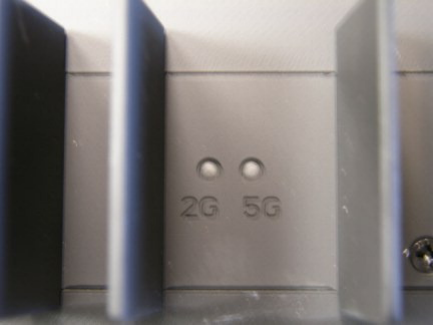

3-2 9962 MSEC v1.0 WiFi LEDs ............................................................................................................................... 3-53-5

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

v

D

RAFT

D

RAFT

List of figures

....................................................................................................................................................................................................................................

vi Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

About this documentAbout this document

Purpose

The purpose of this document is to provide hardware installation instructions for the

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 Small Cell access point.

Procedures are provided for product handling, placement, powering on and off, and

cabling.

Intended audience

The audience for this document is installation personnel.

Supported systems

This document applies to the Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

access point.

How to use this document

Start with the first chapter and work through the manual to the end. Once you have done

this, you will have carried out the hardware installation completely and in the proper

sequence. Before installing the product, the installer should be familiar with the safety

precautions, warnings, and product conformance statements.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

vii

D

RAFT

D

RAFT

Conventions used

Naming Conventions

The full product name, Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1, is referred

to as one of the following throughout this manual:

•Alcatel-Lucent 9962 MSEC

•9962 MSEC v1.0

•MSEC

Typographical conventions

The following typographical convention is used in this document:

Appearance Description

Document reference, reference number Related document that is referenced in the document

Related information

For information on subjects related to the content of this document, refer to the

documents listed in the following table:

Refer to this document At this location For more information on

Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 - Technical

Description,

3MN-02001-0003-DEZZA

http://www.alcatel-lucent.com/ The 9962 MSEC v1.0:

•Basic characteristics

•Hardware description

•Troubleshooting

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

the following telephone numbers.

From United States

•If you are using a landline, a cellular phone or VoIP, dial this number: 1-888-582-3688

From other countries

•If you are using a cellular phone or VoIP, dial this number: +1-630-224-2485

•If you are using a landline (phone without a plus [+] character), replace the plus sign

with your country's exit code. Dial this number: Exit code for the country of origin:

1-630-224-2485. See the country-specific exit codes listed here.

About this document

....................................................................................................................................................................................................................................

viii Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

These numbers apply for document support only. Please see the section “Technical

support” for details about product hardware, software, and technical support.

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

How to comment

Note to reviewers: The following "How to comment" text will appear in the final

document when it is published. However, the feedback method described below is for use

only on final documents. Please send your review comments to the author using the

process you were given when you received this draft document.

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

ix

D

RAFT

D

RAFT

About this document

....................................................................................................................................................................................................................................

xAlcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

11Safety and general

information

Overview

Purpose

This chapter provides a generic overview of the standard hazard symbols and statements

that are currently used in Alcatel-Lucent documentation, and which may appear in this

document.

Contents

Structure of safety statements 1-1

General hazard statements 1-3

Basic safety aspects 1-7

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

Safety statements include the following structural elements:

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

1-1

D

RAFT

D

RAFT

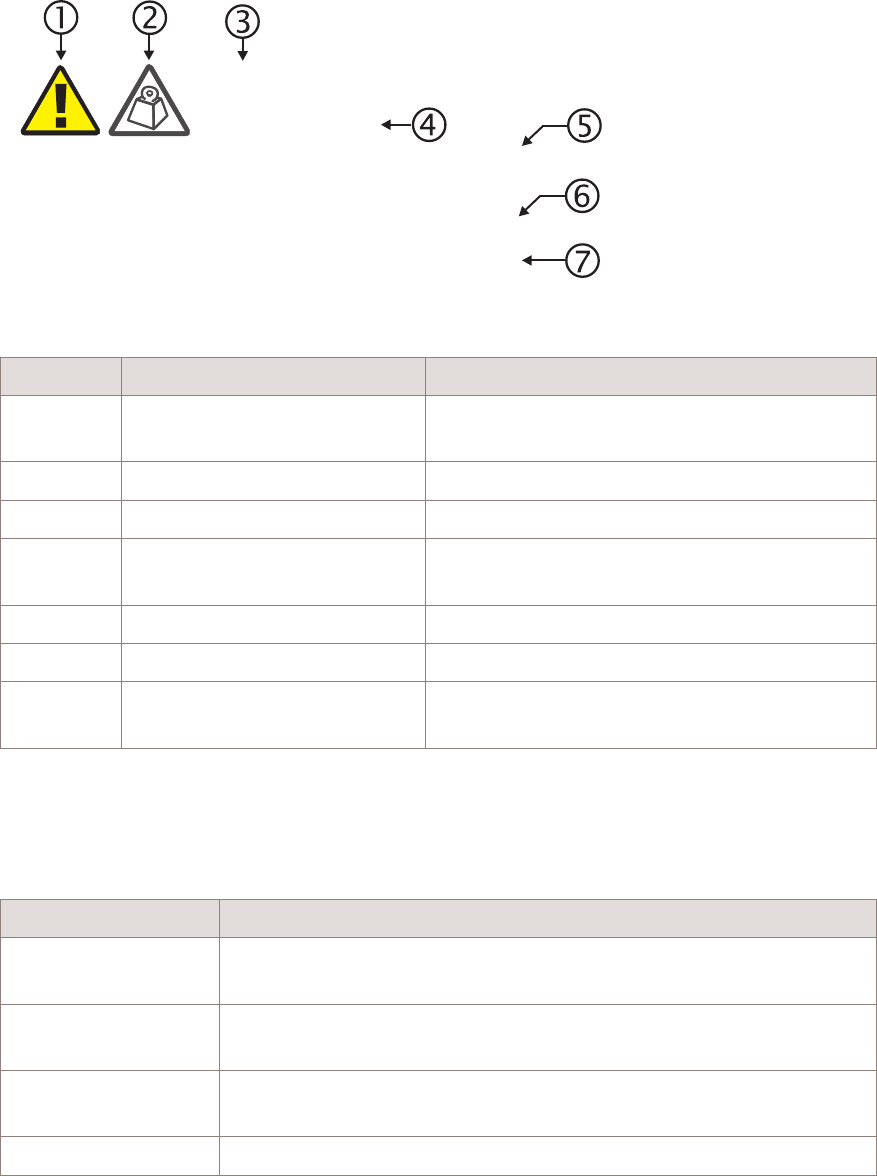

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

SAMPLE

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety and general information Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

General hazard statements

Purpose

Provides information on general hazard statements that may arise in the course of your

work, but are not necessarily related to a specific procedure.

DANGER

Electric-shock hazard

This equipment generates high leakage current. This can lead to high voltages with

respect to ground for accessible parts of the installation. Contact with these parts can

cause serious health effects, possibly including death, even hours after the event.

This equipment is only suited for permanent connection. Before connecting the power

supply, establish a grounding connection.

WARNING

Electric-shock hazard

Contact with energized parts can cause serious injury.

At least one other trained person must be in attendance, who can immediately and safely

disconnect the system if necessary.

This second person must be trained in first aid for emergency purposes.

WARNING

Electric-shock hazard

There is a danger of electric shock if the grounding system is inadequate.

You must comply with the grounding requirements for the grounding system.

WARNING

Electric-shock hazard

Contact with energized parts can cause serious injury.

Work on energized equipment is only permitted if you are using insulated connection

terminals, are adequately trained and follow safe work practices.

Safety and general information General hazard statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

1-3

D

RAFT

D

RAFT

WARNING

Electric-shock hazard

Contact with energized parts can cause serious personal injury.

Seal off the installation area (warning tape, signs) to prevent untrained or unauthorized

persons from entering.

Follow safe work practices and lockout/tagout procedures.

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to follow safe work

practices and the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 or EN 60215 + A1 or in the National Electrical Code or in ANSI/NFPA No.

10) may install or service the installation.

WARNING

Laser hazard

The light from laser and high-radiance LED’s may cause eye damage if absorbed by the

retina.

In the US consult ANSI Z136.2, in Europe consult IEC-60825 Safety of laser products, for

guidance on the safe use of optical fiber communication systems in the workplace.

WARNING

Falling-object hazard

Cabinet may tip when it is moved if an obstacle or a downward step is encountered.

Do not use dolly wheels if the installation location has an uneven surface, steps etc.

WARNING

Overhead-load hazard

Cabinet eyebolts can break, severely damaging the cabinet, if a crane is used to lift the

cabinet into an upright position.

Ensure that the cabinet is in an upright position before transportation by crane.

Safety and general information General hazard statements

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

WARNING

Inhalation hazard

Inhalation of asbestos fibers can result in serious illness or death.

Buildings constructed before 1980 MAY contain asbestos. Buildings constructed before

1970 OFTEN contain asbestos. Potential exposure could occur during routing of cable or

wires, removing cables, removing transite or asbestos cement boards, drilling wallboard,

transite panels, or floor tiles, removing sprayed-on fireproofing, moving or removing

ceiling tiles, installing cable hangers.

Do not disturb asbestos. If asbestos is present, ensure potential expose is controlled by

adhering to local asbestos management regulations and follow safe work practices.

NOTICE

Service-disruption hazard

Condensation can occur in the network element during transport, especially on moving

from outside to closed rooms. Condensation can cause malfunctioning of the circuit

packs.

Ensure that circuit packs and shelves have reached room temperature and are dry before

taking them into operation.

NOTICE

Service-disruption hazard

Tools left in the work area can cause short circuits during operation which can lead to the

destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

CAUTION

Lifting hazard

Lifting this equipment by yourself can result in injury due to the size and weight of the

equipment.

Always use three people or a lifting device to transport and position this equipment.

Safety and general information General hazard statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

1-5

D

RAFT

D

RAFT

NOTICE

Flammable-material hazard

The heat vent (grill) at the top of the cabinet can become obstructed, preventing

ventilation of the cabinet.

Make sure that the airvent is not obstructed and remains clear at all times.

NOTICE

ESD hazard

Semiconductor components can be damaged by static discharges.

The following rules must be followed when handling any module containing

semiconductor components:

•Wear conductive or antistatic working clothes (for example, a coat made of 100%

cotton).

•Wear the grounded wrist strap.

•Wear shoes with conductive soles on a conductive floor surface or conductive work

mat.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

packaging before removing, unpacking, or packing a module.

•Hold the module only by the grip without touching the connection pins, tracks, or

components.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

Safety and general information General hazard statements

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Basic safety aspects

General safety requirements

In order to keep the technically unavoidable residual risk to a minimum, it is imperative

to observe the following rules:

•DO NOT CONNECT CABLES TO WORKING/LIVE EQUIPMENT. This

activity should only be performed by the services/delivery team during

integration.

•Transport, storage, installation, and operation of the system must be under specified

permissible conditions only. See accompanying documentation and information on the

system.

•Installation, configuration, and disassembly must be carried out only by suitably

qualified personnel and with reference to the respective documentation. Due to the

complexity of the system, personnel require special training.

•Identify potential hazards prior to starting the installation.

•The system must be operated by trained and authorized users only. The user must only

operate the system after having read and understood the chapter on safety and the

parts of the documentation relevant to operation. For complex systems, additional

training is recommended. Any obligatory training for operating and service personnel

must be carried out and documented.

•Follow all instructions marked on the product, including both general instructions and

the stated methods for avoiding hazards.

•The system must not be operated unless safety is guaranteed. Any faults and errors

that might affect safety must be reported immediately by the user to a person in

responsibility.

•The system must only be operated under the environmental conditions and with the

connections, described in the documentation.

•Modifications to any part of the system (including software) must be carried out by

Alcatel-Lucent or by trained and qualified personnel authorized by Alcatel-Lucent.

Unauthorized modifications will lead to a complete exemption from liability. Only

components recommended by the manufacturer and listed in the procurement

documents should be used.

•The use of non-system software is not recommended. The use/installation of

non-system software can adversely affect the normal functioning of the system.

•Only use tested and virus-free data carriers (for example, floppy disks and streamer

tapes).

•The removal or disabling of safety facilities, fault clearance, and maintenance of

equipment must be carried out by trained and qualified personnel only and in

conjunction with the respective documentation. Only approved measuring and test

equipment must be used.

Safety and general information Basic safety aspects

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

1-7

D

RAFT

D

RAFT

•Calibrations, special tests after repairs, and regular safety checks must be carried out,

documented, and archived.

•Follow applicable hazardous waste, electronic scrap, and take-back disposal

procedures.

Other important safety instructions

Observe the following safety instructions, they are of particular importance for your

safety:

•Be familiar with evacuation plans and emergency telephone numbers.

•Ensure first-aid kits are available.

•Wear appropriate personal protective equipment (PPE) such as safety glasses, hard

hats, gloves, and fall protection.

•Never wear jewelry (rings, bracelets, watches, etc.) when working on or near

energized equipment.

Summary of equipment safety instructions

Observe the following safety instructions while working with the equipment:

•This product is to be installed only in restricted access areas.

•This product should be only operated from the type of power source indicated on the

marking label.

•This product must be provided with a readily accessible disconnect device as part of

the building installation.

•Installation must include an independent frame ground drop to the building ground.

Refer to the Hardware Installation Guide.

•For information on correct mounting instruction, refer to the Hardware Installation

Guide.

•Install only equipment identified in the Hardware Installation Guide provided with

this product. Use of other equipment may result in improper connection of circuitry

leading to fire or injury to persons.

•To reduce the risk of electrical shock, do not disassemble this product. Only trained

personnel should install and service this product. Opening or removing covers and/or

circuit boards may expose you to dangerous voltages or other risks. Incorrect

reassembly can cause electrical shock when the unit is subsequently used.

•Slots and openings in this product are provided for ventilation. To protect the product

from overheating, these openings must not be blocked or covered. This product

should not be placed in a built-in installation unless proper ventilation is provided

Safety and general information Basic safety aspects

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

•Never push objects of any kind into this product through slots as they may touch

dangerous voltage points or short-out parts that could result in risk of fire or electrical

shock. Never spill liquids of any kind on the product. Any telecommunication

interfaces should not leave the building premises unless connected to

telecommunication devices providing primary and secondary protection, as

applicable.

•Use caution when installing or modifying telecommunication lines.

•Never install telecommunication wiring during a lightning storm.

•Never install telecommunication connections in wet locations.

•Never touch non insulated telecommunication wires or terminals unless the

telecommunication line has been disconnected at the interface.

Safety and general information Basic safety aspects

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

1-9

D

RAFT

D

RAFT

Safety and general information Basic safety aspects

....................................................................................................................................................................................................................................

1-10 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

22Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 installation

Overview

Purpose

This chapter describes the installation procedure for the 9962 MSEC v1.0 access point.

Contents

Pre-installation information 2-1

Mounting guidelines 2-4

Cabling 2-10

Pre-installation information

Introduction

The Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1, or 9962 MSEC v1.0, is a

wireless access point using licensed spectrum delivering improved network reach and

increased capacity while offloading traffic from the macro network.

The 9962 MSEC v1.0 supports simultaneous transmission of three different air interface

technologies:

•LTE

•WCDMA

•WiFi

As part of the Alcatel-Lucent 9360 Small Cell Solution, it can be deployed in a network

supporting a mix of Home and Enterprise cells.

Refer to the Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 - Technical

Description, 3MN-02001-0003-DEZZA for complete technical details on the 9962 MSEC

v1.0 access point.

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-1

D

RAFT

D

RAFT

Device placement

The Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 has been designed to be

deployed in any (and only) indoor environment :

•either in private places such as business offices, warehouses etc,

•either in public places such as supermarkets, shopping malls, airports etc.

The access point and all its components (including cables and power adaptor) have to be

placed in a dry area and be kept away from any wet or damp environments; such as

lavatories or any other areas with exposure to moisture, sprays, drips, or running water.

For the safety of stored data, it must not be placed near magnetic devices such as audio or

video tapes.

The 9962 MSEC v1.0 emits a radio signal. The quality of coverage achieved therefore

depends upon where the device is placed.

For best results it should be located:

•In a central place within the area in which the product is intended to operate,

•As high as possible, for example, on high shelving, or mounted on a wall.

To improve coverage, avoid installing near the following:

•Other radio transmitters

•Other metallic devices or objects

•Windows

Product delivery contents

The 9962 MSEC v1.0 is provided in a standard cardboard box. The contents are as

follows:

•The 9962 MSEC v1.0 access point

•A wall mounting kit

•A quick start guide/user guide

•A GPS antenna with 10m cable length

Ancillary items

In addition to the standard delivered parts the following ancillary items are available but

must be ordered separately if needed:

•SFP transceivers

•Data cables

•4p PoE compliant with PoH standard adapter

•AC to DC power adapter

•Lock

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Pre-installation information

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

•Wall mount stick antenna

•Jumper type N to SMA cables

Installation tools required

The following is a list of the tools that may be used during installation:

•Drill and assorted drill bits

•Screwdrivers (power and/or manual)

•Measuring tape

•Marker, to mark wall mounting holes

•Vacuum cleaner or equivalent (required for clearing debris from wall mounting holes)

•Spirit level

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Pre-installation information

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-3

D

RAFT

D

RAFT

Mounting guidelines

Introduction

The 9962 MSEC v1.0 has been designed for an effective plug & play installation. The

device is based on single hardware core associated with dedicated wall mounting kit.

This topic describes the procedures to be followed when installing the 9962 MSEC v1.0

access point.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the available space and elevated in order to maximize coverage.

Before installation begins you should ensure the following are in place:

•Internet service is available,

•The Ethernet cable has been routed and is in place,

•Site specific fixing materials according to the mounting (wall or ceiling).

Mounting characteristics

Radiated patterns of integrated and attached 9962 MSEC v1.0 antennas are optimized for

wall mounting installation.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Mounting guidelines

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Attention: The access point is only supported in the upright orientation with the

external antennas pointing upward (not downwards or sideways). The external

antennas cannot be flipped. Failure to comply with these requirements would

change and degrade the omnidirectional radio frequency pattern.

The wall mounting installation is easy and fast: it takes benefit of the small footprint of

the 9962 MSEC v1.0 access point by offering a small visible size and making it

inconspicuous.

Important! Various building materials and construction methods dictate that the

device be fastened to the wall with appropriate mounting hardware. It is the

responsibility of the customer to provide any necessary support material and

structures to ensure that the installation will be in compliance with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all local

codes.

Figure 2-1 9962 MSEC v1.0 antenna

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Mounting guidelines

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-5

D

RAFT

D

RAFT

Mounting plate

The 9962 MSEC v1.0 requires a mounting plate to be installed onto the wall.

The following figure illustrates the mounting plate.

Before you begin

Note: Record the 18 digit serial number before mounting the 9962 MSEC v1.0 access

point.

Mount to wall

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Figure 2-2 9962 MSEC v1.0 mounting plate

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Mounting guidelines

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

To mount the device onto a wall, perform the following steps:

...................................................................................................................................................................................................

1At the selected installation location, mark the points on the flat surface for the four (4)

fixing holes, using the holes in the mounting plate as a guide.

Check the horizontal position with a spirit level.

...................................................................................................................................................................................................

2Drill holes at the marked points, and insert wall plugs into the fixing holes.

...................................................................................................................................................................................................

3Attach the mounting plate to the wall using appropriate screw fixings.

Note: Depending on the wall the device must be mounted to, different screw fixings

might be needed. After site survey, these mounting accessories must be procured

locally.

...................................................................................................................................................................................................

4Connect the cables.

...................................................................................................................................................................................................

5Attach the 9962 MSEC v1.0 to the mounting plate as follows:

1. Line up the four grooves in the back of the 9962 MSEC v1.0 with the four notches

protruding from the mounting plate.

The following graphic shows the notches and the lock location on the mounting plate and

the grooves in the back of the 9962 MSEC v1.0:

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Mounting guidelines

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-7

D

RAFT

D

RAFT

2. Push the 9962 MSEC v1.0 downwards to lock it into position.

3. Then screw four (4) screws to attach the 9962 MSEC v1.0 to the mounting plate.

...................................................................................................................................................................................................

6If locks have been ordered by the customer, attach the lock to secure the 9962 MSEC v1.0

from removing of the mounting plate.

The following graphic shows the mounting plate attached to the back of the 9962 MSEC

v1.0:

Figure 2-3 Notch, groove and lock locations

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Mounting guidelines

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Figure 2-4 Mounting plate on the 9962 MSEC v1.0 access point

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Mounting guidelines

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-9

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Cabling

Purpose

This topic describes the procedures to be followed when connecting the 9962 MSEC v1.0

cables.

Cable connectors

The following picture shows the positions of the different physical connectors and

antennas on the 9962 MSEC v1.0 access point:

The 9962 MSEC v1.0 access point provides two GE ports for backhaul and daisy chain

(refer to “Daisy chain” (p. 2-13) for details about the daisy chaining).

One of those ports provides a RJ45 connector and the second port a SFP slot.

If the SFP port is already used, it is possible to use the RJ45 port with an adapted SFP.

Figure 2-5 9962 MSEC v1.0 connectors and antennas

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Cabling

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Power supply and backhaul options

The 9962 MSEC v1.0 access point can be powered through:

•DC input power with an AC-DC power adapter including an appropriate Jack,

•or 4p PoE compliant with PoH standard (following IEEE 802.3 at Power over

Ethernet standard).

If PoE compliant with PoH standard is used to supply the power then a PoE injector

or a PoE capable router can be used.

Data cables

Each 9962 MSEC v1.0 access point requires at least one data cable to connect the

backhaul. In case of daisy chain, an additional data cable is required (refer to “Daisy

chain” (p. 2-13)).

The data cable can be a standard Ethernet cable with RJ45 connector or a fiber cable with

an optical transceiver.

Before you begin

Ensure the 9962 MSEC v1.0 access point has been correctly installed.

Connect the 9962 MSEC v1.0 cables

...................................................................................................................................................................................................

1According to the configuration on site, select the appropriate option in the following

table, and perform the associated procedure:

If you want to... Then ...

Use an AC-DC power adaptor and a standard

router,

Go to “Connect to a standard DSL router”

(p. 2-11) and “Connect the AC-DC power

adapter” (p. 2-12)

Use PoE supplied by a DSL router with PoE

function,

Go to “Connect to a DSL router with PoE

function” (p. 2-12)

Connect to a standard DSL router

To connect the 9962 MSEC v1.0 to a standard DSL router using an Ethernet cable

through which power is not supplied, perform the following steps:

...................................................................................................................................................................................................

1Route the Ethernet cable from the 9962 MSEC v1.0 to a standard DSL router.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Cabling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-11

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Connect one end of the Ethernet cable to the 9962 MSEC v1.0.

...................................................................................................................................................................................................

3Connect the other end of the Ethernet cable to the router.

...................................................................................................................................................................................................

4Finally, secure the Ethernet cable to the wall.

Connect the AC-DC power adapter

If you intend to use an AC-DC power adapter to supply power to the 9962 MSEC v1.0,

perform the following steps:

...................................................................................................................................................................................................

1Route the power supply cable from the 9962 MSEC v1.0 to the supplied AC-DC power

adapter.

...................................................................................................................................................................................................

2Connect the power supply cable to the 9962 MSEC v1.0.

...................................................................................................................................................................................................

3Finally, secure the power supply cable to the wall.

Connect to a DSL router with PoE function

To connect the 9962 MSEC v1.0 to a DSL router with PoE function, perform the

following steps:

...................................................................................................................................................................................................

1Route the Ethernet cable from the 9962 MSEC v1.0 to a DSL router with PoE function.

...................................................................................................................................................................................................

2Connect one end of the Ethernet cable to the 9962 MSEC v1.0.

...................................................................................................................................................................................................

3Connect the other end of Ethernet cable to the router.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Cabling

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

END OF STEPS

...................................................................................................................................................................................................

4Finally, secure the Ethernet cable to the wall.

Connect to the GPS antenna

The GPS antenna is used for synchronization purpose. Perform the following steps to

connect the 9962 MSEC v1.0 to the GPS antenna:

...................................................................................................................................................................................................

1Route the GPS antenna cable to the 9962 MSEC v1.0 access point.

...................................................................................................................................................................................................

2Connect the GPS antenna cable to the dedicated SMA connector in the 9962 MSEC v1.0.

...................................................................................................................................................................................................

3Finally, secure the GPS antenna cable to the wall.

Daisy chain

The 9962 MSEC v1.0 access point can be linked in a daisy chain with up to eight devices.

The daisy chain hop is set by connecting the SFP slot of the “Master” access point to the

RJ45 port of the “Slave” access point. Therefore, the “Master” SFP slot must be equipped

with an appropriate RJ45 SFP .

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Cabling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

2-13

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

END OF STEPS

...................................................................................................................................................................................................

Figure 2-6 Example of 4 9962 MSEC v1.0 daisy chain

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

installation

Cabling

....................................................................................................................................................................................................................................

2-14 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

33Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 commissioning

Overview

Purpose

This chapter describes the 9962 MSEC v1.0 commissioning process. The 9962 MSEC

v1.0 is self commissioning in the case of single device deployments.

Contents

Commissioning process 3-2

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

3-1

D

RAFT

D

RAFT

Commissioning process

Overview

The 9962 MSEC v1.0 supports the following technology combinations:

•One cell of LTE,

•One cell of WCDMA,

•One cell of LTE plus one cell of WCDMA.

In any of these configurations the 9962 MSEC v1.0 simultaneously supports WiFi thanks

to the integrated Motorola WiFi module that supports 802.11n operation.

GPS is the primary frequency reference source and is used whenever satellite signal is

available, fallback is to NTP.

Purpose

This section outlines the 9962 MSEC v1.0 zero-touch commissioning process.

Related information

If any problems occur during the commissioning process refer to the following document

for more details:

•Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 - Technical Description,

3MN-02001-0003-DEZZA

Before you begin

The 9962 MSEC v1.0 is intended to be installed and then left unattended so the LED

pattern activated in the commissioning process is mainly focused on indicating that the

installation and initial network connection have succeeded and that the access point is

properly functioning.

9962 MSEC v1.0 access point commissioning

...................................................................................................................................................................................................

1Power on the 9962 MSEC v1.0 access point. All LEDs (Power, LTE, WCDMA and GPS)

are solid red: if the software fails to start, the LEDs remain in this condition. Otherwise

the LEDs indicate the progress of the initialization of the unit.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

commissioning

Commissioning process

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

...................................................................................................................................................................................................

2After approximately 2 minutes the 9962 MSEC v1.0 access point will initialize and

establish IPsec connectivity. During this operation the Power status indicator will blink

slowly. Only red at the beginning then toggling red/green once the access point attempts

to contact DNS Internal for HDM/SAM address resolution.

...................................................................................................................................................................................................

3After the 9962 MSEC v1.0 access point has established a network connection it will

automatically update its software and configuration database. This process takes

approximately 15 minutes. During this operation the Power indicator will blink green.

...................................................................................................................................................................................................

4Once the software update has completed the 9962 MSEC v1.0 access point will carry out

an automatic reboot. During reboot the Power indicator will still be blinking green.

...................................................................................................................................................................................................

5The access point is ready to enable applications and the Power indicator is solid green.

...................................................................................................................................................................................................

6The 9962 MSEC v1.0 access point starts looking for a GPS signal: the GPS LED is

blinking red.

Important! If GPS signal is not available, the GPS LED turns off.

...................................................................................................................................................................................................

7A soon as the GPS signal is acquired, the GPS LED goes solid green.

Figure 3-1 9962 MSEC v1.0 front LEDs

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

commissioning

Commissioning process

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

3-3

D

RAFT

D

RAFT

...................................................................................................................................................................................................

8If the access point configuration ... Then ...

supports one LTE cell go to “LTE commissioning” (p. 3-4)

supports one WCDMA cell go to “WCDMA commissioning” (p. 3-4)

supports WiFi go to “WiFi commissioning” (p. 3-5)

...................................................................................................................................................................................................

9After the 9962 MSEC v1.0 access point has been in a normal system state for fifteen

minutes, all the non-WiFi LEDs are turned off to avoid bringing attention to the unit.

They remain off until one of them changes to an Off-Normal state. As the WiFi LEDs are

managed by the WiFi module they are not included in this procedure but turned off in a

separate procedure after thirty minutes in the same state.

LTE commissioning

...................................................................................................................................................................................................

1The 9962 MSEC v1.0 access point starts its LTE auto-configuration and self optimisation

of the radio access. During this operation the LTE status indicator will blink red/green

until the service is operational marked by a solid green LTE status indicator.

Important! In case the configuration supports only one LTE cell, the WCDMA LED

is off. If the configuration enables LTE and WCDMA concurrent operation, the LTE

and WCDMA commissioning proceed simultaneously.

...................................................................................................................................................................................................

2Return to the Step 8.

WCDMA commissioning

...................................................................................................................................................................................................

1The 9962 MSEC v1.0 access point starts its WCDMA auto-configuration and self

optimisation of the radio access. During this operation the WCDMA status indicator will

blink red/green until the WCDMA service is operational marked by a solid green

WCDMA status indicator.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

commissioning

Commissioning process

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

END OF STEPS

...................................................................................................................................................................................................

Important! In case the configuration supports only one WCDMA cell, the LTE LED

is off. If the configuration enables WCDMA and LTE concurrent operation, the

WCDMA and LTE commissioning proceed simultaneously.

...................................................................................................................................................................................................

2Return to the Step 8.

WiFi commissioning

The 9962 MSEC v1.0 integrated WiFi module manages the WiFi LEDs located at the rear

of the access point.

...................................................................................................................................................................................................

1As soon as the access point is powered on, the 9962 MSEC v1.0 starts booting and the

WiFi LEDs are solid on.

...................................................................................................................................................................................................

2Then the 9962 MSEC v1.0 tries to get adopted by the controller and the 5GHz LED starts

blinking slowly. The 2GHz LED related to the 2.4GHz frequency is off.

...................................................................................................................................................................................................

3The controller pushes the configuration. During this operation the both WiFi LEDs will

blink quickly until the service is operational marked by a slow blinking WiFi status

indicator.

The WiFi service may be operational on a single frequency (2.4GHz or 5GHz) or

simultaneously on the both frequencies.

Figure 3-2 9962 MSEC v1.0 WiFi LEDs

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

commissioning

Commissioning process

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

3-5

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

4Return to the Step 9.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1

commissioning

Commissioning process

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

44Post-installation activities

Overview

Purpose

This chapter describes the post-installation activities and checks.

Contents

Post-installation information 4-2

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

4-1

D

RAFT

D

RAFT

Post-installation information

Final installation checks

Before leaving the installation site, carry out the following:

...................................................................................................................................................................................................

1Secure all cables along their routes.

...................................................................................................................................................................................................

2Verify that all the exterior conduit and cable connections are secure.

...................................................................................................................................................................................................

3Inspect the site and remove all loose tools, materials, and parts.

Post-installation activities Post-installation information

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Appendix A: Product

conformance statements

Overview

Purpose

This appendix provides the product conformance statements relating to the Alcatel-Lucent

9962 MSEC v1.0.

Contents

United States A-1

Environmental requirements A-2

United States

Introduction

The statements that follow are the product conformance and eco-environmental

statements that apply to the 9962 MSEC v1.0 when deployed in the United States.

Federal Communications Commission

Important! Changes or modifications not expressly approved by Alcatel-Lucent, Inc.

could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

•This device may not cause harmful interference

•This device must accept any interference received, including interference that may

cause undesired operation.

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

A-1

D

RAFT

D

RAFT

Packaging collection recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, please contact the Alcatel-Lucent Field Services /

Installation - Environmental Health and Safety organization.

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site http://www.alcatel-lucent.com/support/ for contact

information.

Environmental requirements

Environmental factors

The installation location requires the following environmental factors to be controlled:

•Temperature

•Humidity

•Ventilation

Environmental limits

The atmosphere in the room that houses the device must be maintained within the

following limits:

Environmen-

tal factor

Requirement Range

Operating

temperature

Normal Operation -5°C to 50°C (23°F to 122°F)

•Telcordia GR-63-CORE

•Telcordia GR-3108-CORE

•ANSI ATIS-0600010.2007

Cold start-up

Operating

relative

humidity

Condensing 5% to 90%

•Telcordia GR-63-CORE

•Telcordia GR-3108-CORE

•ANSI ATIS-0600010.2007

Product conformance statements United States

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Environmen-

tal factor

Requirement Range

Ingress protection NEMA Level 1

IP2X of IEC 60529

Operating

altitude

0 to 4000m (13 000ft)

Vibration NAR Telcordia GR-63-CORE sections

4.4.4 & 5.4.2

Earthquake Richter scale 7

Product conformance statements Environmental requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

A-3

D

RAFT

D

RAFT

Product conformance statements Environmental requirements

....................................................................................................................................................................................................................................

A-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Glossary

...................................................................................................................................................................................................................................

Numerics

4p PoE

4 pair Power over Ethernet

...................................................................................................................................................................................................................................

AAC

Alternative Current

...................................................................................................................................................................................................................................

DDC

Direct Current

DNS

Domain Name Server

DSL

Digital Subscriber Line

...................................................................................................................................................................................................................................

EEU

European Union

...................................................................................................................................................................................................................................

GGE

Giga Ethernet

GPS

Global Positioning System

...................................................................................................................................................................................................................................

H HDM

Home Device Manager

...................................................................................................................................................................................................................................

IIP

Internet Protocol

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

GL-1

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

LLTE

Long Term Evolution - 4G

...................................................................................................................................................................................................................................

N NAR

North America

NTP

Network Time Protocol

...................................................................................................................................................................................................................................

P PoE+

Power over Ethernet

PoH

Power-on Hours

...................................................................................................................................................................................................................................

R RNC

Radio Network Controller

...................................................................................................................................................................................................................................

S SAM

Service Activation Manager

SFP

Small form-factor pluggable

...................................................................................................................................................................................................................................

W WCDMA

Wideband Code Division Multiple Access

WiFi

Wireless Fidelity (IEEE 802.11b wireless networking)

Glossary

....................................................................................................................................................................................................................................

GL-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Index

Numerics

9962 MSEC v1.0 installation, 2-1

.............................................................

AAlcatel-Lucent 9962

Multi-standard Enterprise Cell v1

cabling, 2-10

commissioning, 3-2

mounting guidelines, 2-4

.............................................................

Ddocument support, viii

.............................................................

Eenvironmental requirements, A-2

.............................................................

GGeneral hazard statements, 1-3

.............................................................

Pphone numbers

for document support, viii

Post-installation, 4-2

Pre-installation information, 2-1

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

IN-1

D

RAFT

D

RAFT

Index

....................................................................................................................................................................................................................................

IN-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0002-RJZZA LR14 SCM

Issue 0.02 January 2015

D

RAFT

D

RAFT

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

-Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

Note: The country code selection is for non-US model only and is not available to all US

model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation

channels only.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.
