About this documentAbout this document

Purpose

The purpose of this document is to present a functional and technical description of the

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 and its components, as well as

basic trouble-shooting techniques. It is part of the Small Cells product group, and is

designed for commercial use. The short name for the product is 9962 MSEC v1.0.

Intended audience

This document presents an integral overview of the 9962 MSEC v1.0 system, and is

intended for all audiences.

Supported systems

This document applies to the Alcatel-Lucent system for use with W-CDMA and LTE

carriers.

Conventions used

The full product name, Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1, is also

referred to interchangeably as any of the following throughout this document:

•Alcatel-Lucent 9962 MSEC v1.0

•9962 MSEC v1.0

Related information

For information on subjects related to the content of this document, refer to the

documents listed in the following table:

Refer to this document At this location For information on

Alcatel-Lucent Small Cell

WiFi AP Technical

Description,

3MN-1840-0004-DEZZA

http://support.alcatel-

lucent.com

Descriptions of the WiFi

Access Point's functionality,

physical attributes and

architecture.

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

ix

Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 - Site Preparation,

3MN-02001-0001-RJZZA

http://support.alcatel-

lucent.com

Site preparation before

installation for the 9962

MSEC v1.0 system.

Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 - Hardware

Installation,

3MN-02001-0002-RJZZA

http://support.alcatel-

lucent.com

Installation and

commissioning processes

according to the product

configuration for the 9962

MSEC v1.0 system.

Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 - Troubleshooting,

3MN-02001-0004-REZZA

http://support.alcatel-

lucent.com

Trouble-shooting guide for

the 9962 MSEC v1.0 system.

Alcatel-Lucent W-CDMA

Radio Access Network,

Terminology Overview,

3MN-01111-0001-

TQZZA0003-TQZZA

http://support.alcatel-

lucent.com

A glossary of terms and

abbreviations used for

W-CDMA networks.

Alcatel-Lucent 9400 LTE

Radio Access Network,

Terminology Overview,

9YZ-04152-0003-TQZZA

http://support.alcatel-

lucent.com

A glossary of terms and

abbreviations used for LTE

networks.

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

one of the following telephone numbers:

+1-888-582-3688 (for the United States)

+1-630-224-2485 (for all other countries)

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

How to order

To order Alcatel-Lucent documents, contact your local sales representative or use Online

Customer Support (OLCS) (http://support.alcatel-lucent.com)

About this document

....................................................................................................................................................................................................................................

xAlcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

xi

About this document

....................................................................................................................................................................................................................................

xii Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

11Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 : Overview

Overview

Purpose

This chapter provides an overview of the Alcatel-Lucent Small Cells solution, and in

particular the Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 product.

Contents

9962 MSEC v1.0 : Product Overview 1-2

Small Cells System Architecture 1-6

9962 MSEC v1.0 : Physical characteristics 1-7

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

1-1

9962 MSEC v1.0 : Product Overview

Introduction

The Alcatel-Lucent 9962 Multi-Standard Enterprise Cell, or 9962 MSEC, is a wireless

access point using licensed spectrum delivering improved network reach and increased

capacity while off-loading traffic from the macro network.

It is part of Alcatel-Lucent’s family of Small Cell Solutions.

Note: The stick antennas, as pictured, are used only for wall-mount (vertical)

installation - not for ceiling mount (horizontal) installation - and are available

separately from the standard product package.

The 9962 MSEC leverages the latest innovations to provide an indoor small cell that

supports 3G W-CDMA and 4G LTE Radio Access Technology carriers, (using a single

System on Chip, SoC) operating in multiple bands, coupled with an integrated Wi-Fi

Access Point (Wi-Fi AP) functionality.

Its Software Defined Radio (SDR) capability provides the flexibility not only to evolve

from 3G to 4G technology in a given band but also to assign any of the multiple

supported bands to either technology. These software-only changes eliminate the need to

visit the site, thus simplifying maintenance and reducing operating costs.

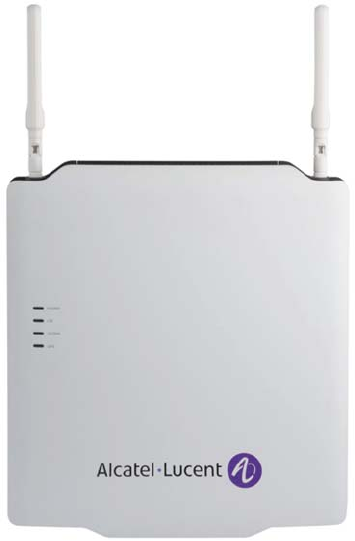

Figure 1-1 9962 MSEC - Standard model, front view

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

9962 MSEC v1.0 : Product Overview

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Integrated omni-directional antennas and optional external antennas are used to extend

coverage, add capacity and improve end-user experience in small, medium and large

indoor environments in a secure, cost effective and easily deployable manner.

Note: Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Product Capabilities

The 9962 MSEC has sophisticated capabilities developed by Bell Labs to ensure

zero-touch configuration in the case of a single deployment.

The 9962 MSEC has several unique capabilities:

•Designed to blend into most business, office, or warehouse environments.

•It has 2 simultaneous carriers: one LTE and one W-CDMA, or 2 LTE carriers with

Carrier Aggregation;

•It has a capacity up to 64 LTE and 32 W-CDMA active simultaneous users (128 users

in LTE only mode);

•Ithas2x2MIMO configuration with transmit and receive diversity for LTE, and 1 x

2 receive diversity for W-CDMA;

•It uses a single cable for power with 4p PoE (Power over HD Base-T) and backhaul;

•It has a common backhaul across 3G/4G/Wi-Fi via one RJ45 and one SFP Port.

It has 7 integrated omni-directional antennas and 2 attached dipole antennas :

•4 antennas are dedicated to RAN access, one is used for sniffing RAN frequency

bands, 4 are dedicated to WiFi

•The Multi-Standard Enterprise Cell can support a set of external antennas.

•The internal or external antenna configuration is performed during hardware

installation (and is reversible).

•The two configurations allow flexible installation and indoor coverage optimization.

For specific solutions, the customer may use their own antennas (directional,

omni-directional) but must ensure that the necessary certifications are valid.

The 9962 Multi-Standard Enterprise Cell has also Wi-Fi capabilities:

•The Wi-Fi version module is Wi-Fi Certified™ ;

•IEEE 802.11n with dual-band dual-concurrent communication;

•Integrated antennas optimized for 2x2 MIMO, and up to 125/100 mW Tx power per

path;

•20/40 MHz bandwidth

•Maximum physical data throughput of 2x300Mbps;

•Supports up to 256 connected users;

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

9962 MSEC v1.0 : Product Overview

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

1-3

•32 SSIDs (16 per frequency band).

•The Wi-Fi internal antennas typical peak gain values are: 2.4GHz band: 5.4 dBi;

5GHz band 5.2 dBi.

Refer to the Alcatel-Lucent Small Cell Wi-Fi AP Technical Description,

3MN-01840-0004-DEZZA, for more information regarding the Wi-Fi Access Point

functionality.

Technical Performance

Table 1-1 9962 MSEC Maximum Key Hardward Performances (based on Software

used)

Maximal Performance

Capacities:

LTE W-CDMA

Maximum transmit power : 2 x 250 mW (2 x 24dBm) 250 mW (24 dBm)

Number of users: Up to 32 Up to 32

Peak data rate: DL: up to 75 Mbps

UL: up to 37 Mbps

DL: up to 21 Mbps

UL: up to 5.7 Mbps

Technical Specifications Summary

Wi-Fi Capability

•Carrier grade Wi-Fi

•Dual-Band: Simultaneous support of 2.4/5GHz

•802.11 n

•2x2 MIMO

•Tx Power up to 19dBm in 2.4 GHz and 18dBm in 5GHz

•Integrated antenna in the module and external antenna option.

Interfaces

•GPS antenna

•External Antenna Connectors

•RJ45 and SFP

•48 V DC Input

Power Supply

•Power over HD Base-T (4p POE)

•48V DC

•Typical power consumption at ambient temperature: ~48W

•AC/DC convertor provided to power the unit via AC

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

9962 MSEC v1.0 : Product Overview

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Certifications and standards

•FCC Part 15 Subpart B Class B

•Safety: CSA-C22.2 No. 60950-1-07/UL 60950-1

•IPX2 certified

Environmental parameters

•Temperature range: 0°C to +50°C

•Relative humidity: Up to 93%

•Passive Cooling

Synchronization and Timing

•GPS

•NTP

Radio Characteristics

•Operating bands:

–W-CDMA (3G): B2 (PCS/1900MHz), B5 (850 MHz)

–LTE (4G): B2 (PCS/1900MHz) , B4 (AWS), B12 (700 MHz);

•2x2 MIMO configuration with 2 transmit and 2 path receive diversity for LTE, and

1x2 W-CDMA

•Maximum transmission power: LTE 2x250 mW (24dBm) per path, W-CDMA 1x250

mW (24 dBm)

•Up to 64 LTE and 32 W-CDMA active simultaneous users (up to 128 users in

LTE-only mode)

•LTE Peak rate support (75Mb/s down link and 37 Mb/s uplink at 10 MHz, 150Mb/s

down link and 75 Mb/s uplink at 20 MHz)

•Network sniffing

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

9962 MSEC v1.0 : Product Overview

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

1-5

Small Cells System Architecture

Overview

The Alcatel-Lucent Small Cell unit uses 3GPP interfaces to connect to neighboring

eNodeBs and other existing mobile core network nodes, while offering a 3GPP-compliant

air interface. The architecture integrates seamlessly into existing LTE and UMTS

networks, including interfaces to other components, as well as to existing management

systems, and therefore integrates with existing applications, portals, and services through

standard interfaces.

The Small Cell unit interconnects with the core network elements with the addition of a

Security Gateway (SeGW), a 3G Small Cell GW (HNB-GW) and optionally a HeNB-GW

between the unit and the 3G/LTE core elements.

It supports S1-MME and S1-U interfaces based on 3GPP specifications as per macro

eNodeB. The unit has connectivity to all MMEs/SGWs (located in the core network) in

the pool/serving area. The S1-flex function and requirements for the unit differ from those

for the macro eNodeB, as it is on the HeNB-GW, instead of on the unit itself.

The Serving Gateway (SGW) selection function selects an available SGW to serve a UE.

The SGW selection function is performed by the MME and does not require any changes

to support the unit.

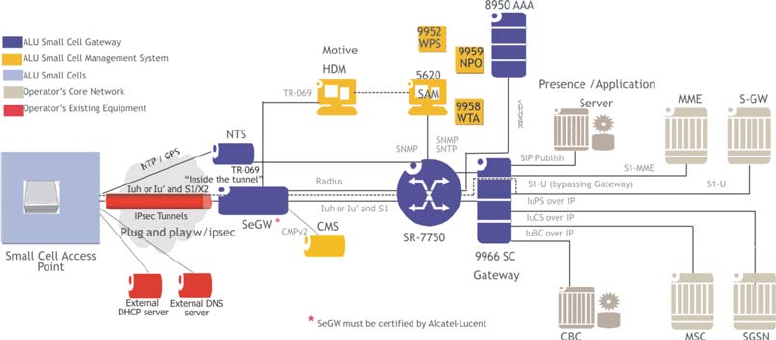

Figure 1-2 Small Cell Solution Architecture

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

Small Cells System Architecture

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

9962 MSEC v1.0 : Physical characteristics

Overview

The following are the physical characteristics of the Alcatel-Lucent 9962 Multi-standard

Enterprise Cell v1.

The physical dimensions of the system are estimated as follows :

•Height : 355 mm

•Width : 326 mm

•Depth : 56 mm to 96 mm

Weight

•5.8 kg

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

9962 MSEC v1.0 : Physical characteristics

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

1-7

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Overview

9962 MSEC v1.0 : Physical characteristics

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

22Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 : Functional

Description

Overview

Purpose

This chapter presents a functional description and use cases of the 9962 MSEC v1.0.

Contents

Advantages and Functional Description 2-2

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

2-1

Advantages and Functional Description

Use Cases

The Alcatel-Lucent 9962 Multi-Standard Enterprise Cell is designed for deployment in an

indoor environment with its associated environmental and physical constraints. Therefore,

it can be installed in many indoor private places such as business offices or warehouses,

as well as in numerous indoor public places (supermarkets, shopping malls, airports…)

The 9962 MSEC installation will depend on local or national laws in the country where

the product is deployed.

Product Benefits

Since the 9962 MSEC can be installed in a wide variety of indoor places, it can offer

many benefits to customers using those spaces.

If installed in business offices, new sources of revenue from corporate applications can

be enabled by the enhanced indoor coverage and corporate networking possibilities. For

instance, with the presence location API feature, the users can be connected to the Small

Cell Access Points to take advantage of enterprise services. For example, workers can be

connected to the company anytime, anywhere through a mobile application. They can

make and receive their business calls as if they were in their office, thanks to a “One

Number” capability.

Options such as call history, visual voice mails, corporate directory, and call routing are

available on this kind of mobile application.

If installed in indoor public places, the 9962 MSEC can be deployed in areas formerly

covered by microcells or picocells, but can also be used in many more cases, instead of

macrocells, since they are very easy to install and are less subject to regulatory constraints

with their low emission power.

With its high capacity, the Enterprise Cell is ideal for high user-density places where

additional capacity is required or even in areas where cell phone coverage is needed on

short notice. This deployment also allows new, innovative applications such as location,

Quality of Service (QoS) and trusted security for application development.

Enterprise Cells also allow the operator to propose bundled offers and to include an entire

group of employees into a single agreement. This leads to a reduction of customer churn,

and allows higher revenue per user.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Functional Description

Advantages and Functional Description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Auto-configuration and self-optimisation

The Network Listening feature is used for auto-configuration and self-optimisation of

the radio. It allows the 9962 Multi-Standard Enterprise Cell to act as a UE and receive

transmission from neighboring base stations. It is used to automatically identify, measure

and record its neighbor cells, reducing the need for operator-provisioned neighbor cell

lists.

The information is then used by the 9962 Multi-Standard Enterprise Cell to automatically

select:

•its Physical Cell id (PCI) and to create and update a list of neighbor cells before UE

measurements are received

•its primary scrambling code and power levels to transmit, and to create and update a

list of UMTS neighbor cells

Those neighbor cell lists are used by the 9962 Multi-Standard Enterprise Cell for

identification of the target cell for hand-over and for rebroadcasting of the system

information messages, in support of re-selection by the UE.

The Wi-Fi part is a dual-band dual-concurrent module, supporting:

•Frequency bands: 2.4 and 5 GHz.

•Bandwidths: 20 and 40 MHz.

Security

The 9962 Multi-Standard Enterprise Cell security solution offers robust and mature

security features to protect the Small Cell system against increasing security risks

resulting from exposure to untrusted areas.

This security solution is based on a long security hardening experience from W-CDMA

Small Cell, LTE wireless security knowledge and customer feedback and lessons learned

in this area, such as:

•IPsec tunnel for traffic integrity protection and encryption for OAM, control plane,

user plane

•Certificate-based authentication and security with Secure boot, Trusted Environment

to ensure the confidentiality and integrity of sensitive information on the Enterprise

Cell, and Authentication of the Enterprise Cell to the SeGW by Certificate as per

3GPP TS33.320.

•Security hardening of the 9962 Multi-Standard Enterprise Cell

•Tamper Alarm

•Evolved Packet System

Forced opening of the casing causes permanent disablement of the unit. In this case, the

repair process is not applicable, as irreversible damage is caused to the printed circuit

board and a new one must be provided.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Functional Description

Advantages and Functional Description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

2-3

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Functional Description

Advantages and Functional Description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

33Alcatel-Lucent 9962

Multi-standard Enterprise

Cell v1 : Hardware

Overview

Purpose

This chapter presents the hardware of the 9962 MSEC v1.0.

Contents

9962 MSEC : Hardware Description 3-2

Technical Requirements 3-8

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

3-1

9962 MSEC : Hardware Description

Product Characteristics

Deployment Scenario : The Alcatel-Lucent 9962 Multi-Standard Enterprise Cell is

designed for use in an indoor environment, to be installed vertically, using the optional

wall bracket, or horizontally.

Customization options

The 9962 MSEC case has a number of customization options. Below are pictures of the

standard enclosure, front and back view:

Note: The stick antennas, as pictured, are used only for wall-mount (vertical)

installation - not for ceiling mount (horizontal) installation - and are available

separately from the standard product package.

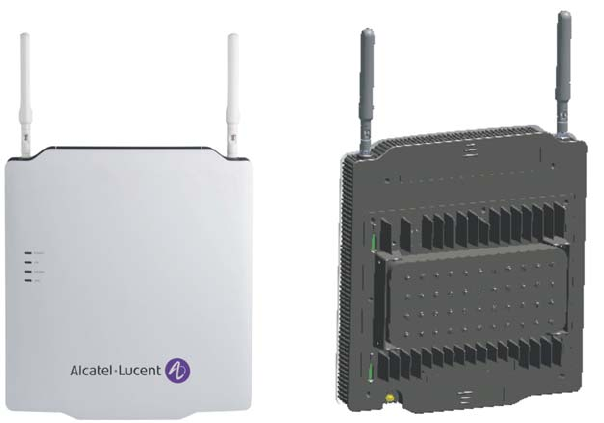

Figure 3-1 9962 MSEC - Front and rear view

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

9962 MSEC : Hardware Description

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Product delivery contents

The standard 9962 MSEC v1.0 is provided in a cardboard box with the following

contents:

•The 9962 MSEC v1.0 access point,

•A mounting kit (wall or ceiling) including M5 steel screws to be used with N°2 driver,

•A quick start guide/user guide.

The standard package can be customized on demand.

The custom-tailoring process allows the option of adding the following items to the

standard package :

•one GPS antenna with 10m cable length included,

•two RF stick antennas in case of wall-mounted installation.

The GPS antenna acquisition sensitivity is:

•-160dBm/Hz with AGPS server assistance and 2.5dB NF,

•-158dBm/Hz, unassisted.

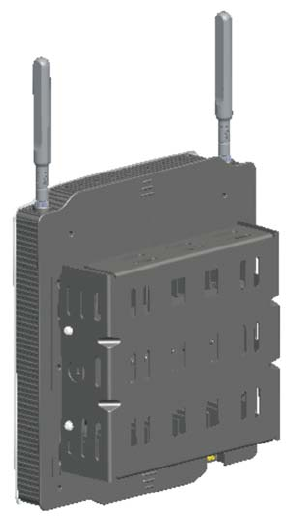

Figure 3-2 9962 MSEC - Rear view, with wall mount plate

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

9962 MSEC : Hardware Description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

3-3

Ancillary items

In addition to the standard delivered parts, the following ancillary items may be required.

They may be purchased separately from Alcatel-Lucent, or purchased locally :

•two RF stick antennas for use in wall-mounted installation,

•SFP transceiver,

•Ethernet and/or fiber cable,

•4p PoE compliant with PoH standard adapter,

•AC to DC power adapter,

•Lock,

•RF antenna jumper,

•GPS extension cable.

Connectors and Interfaces

The following connectors and interfaces are part of the 9962 MSEC solution :

•1 Gigabit Ethernet connector (1000Base-T RJ-45) for backhauling or daisy-chaining.

If 4p PoE is used to supply the power, this connector is to be connected to a 4p PoE

capable router or a 4p PoE injector when the DC power connector is not used.

•1 SFP interface for backhauling or daisy-chaining which supports a 1000base-X GbE

optical transceiver or 100/1000Base-T electrical transceiver

•Jack connector for power supply. When the AC/DC power adaptor is used to supply

the power, the PoE capable router is not used

•1 SMA-type connector for the GPS antenna

•9 SMA-type connectors for the external antenna version

•A lock slot

•6 bi-color LEDs to provide the status of the unit

•A re-set button

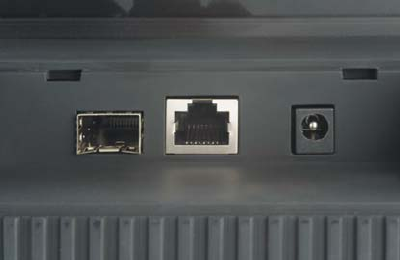

Figure 3-3 Power and Input/Output Ports

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

9962 MSEC : Hardware Description

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Antennas

The 9962 Multi-Standard Enterprise Cell supports 4 polarized antennas configured for

2x2 MIMO with 2 transmit and 2 receive paths diversity for LTE, and 1x2 MIMO with 1

transmit and 2 receive paths diversity for W-CDMA.

Two internal omnidirectional W-CDMA and LTE antennas are included in the 9962

MSEC for B2/B5:

•Typical peak gain for internal antennas at B2 frequency: 3.2 dBi.

•Typical peak gain for internal antennas at B5 frequency: 1.8 dBi.

Two external omnidirectional “stick” antennas are available for B4/B12 frequencies :

•Typical peak gain for RAN attached dipole antenna at B4 frequency: 1.8 dBi

•Typical peak gain for RAN attached dipole antenna at B12 frequency: 2.3 dBi

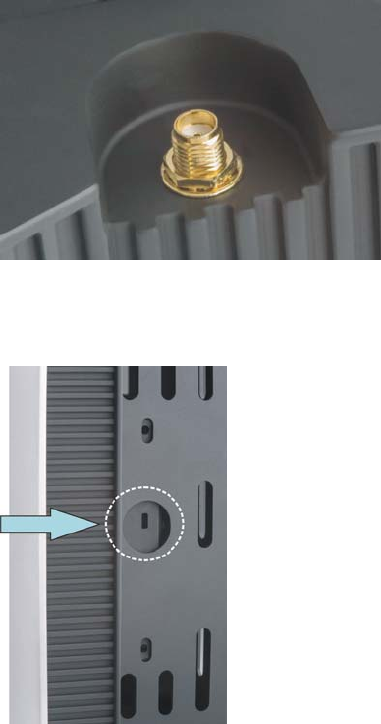

Figure 3-4 GPS Connector - detailed view

Figure 3-5 Lock slot - detailed view

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

9962 MSEC : Hardware Description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

3-5

A version with external, omni-directional antennas is available. The average gain of the

given antennas is the same as the internal ones, but offers a better coverage with a

superior peak gain :

•Typical peak gain for external antenna at B4 or B12 frequency: up to 5 dBi

(depending on the design)

•Typical peak gain for external antenna at B2 and B5 frequency: up to 5 dBi

(depending on the design)

For specific solutions, the customer may use their own antennas (directional,

omni-directional…) but must ensure that the necessary certifications are valid.

The minimum value is 10 dBm (10mW).

Wi-Fi Parameters

The Wi-Fi module supports 4 integrated antennas optimized for 2x2 MIMO with up to 2

spatial streams. It uses advanced antenna design to support IEEE standard 802.11n,

providing optimized MIMO performance and coverage.

The Wi-Fi internal antennas peak gain values are:

•2.4GHz band: 5.4dBi

•5GHz band 5.2 dBi

For a detailed description of the internal Wi-Fi Access Point attenas, refer to the

Alcatel-Lucent Small Cell Wi-Fi AP Technical Description, 3MN-01840-0004-DEZZA, .

5620 Service Aware Manager (SAM)

The Alcatel-Lucent 5620 Service Aware Manager, or 5620 SAM, enables end-to-end

network and service management of Alcatel-Lucent NEs, and limited management of

third-party NEs. Third-party NEs are referred to as generic NEs, or GNEs.

Figure 3-6 9962 MSEC Antenna Placement

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

9962 MSEC : Hardware Description

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

The 5620 SAM performs the following tasks :

•It provisions a network with fast and easy configuration and multi-vendor scripting

workflows that reduce the risk of error and shorten network deployment time.

•It accelerates set-up for integrated IP/optical performance and SLA monitoring with

service-aware diagnostics that validate end-to-end services and IP/optical paths.

•It prevents service degradation through end-to-end power control, monitoring, tracing,

and fault localization.

•It correlates faults to identify whether the problem resides in the IP or optical layer,

and the root cause. This function simplifies troubleshooting and isolates problems

before services are affected.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

9962 MSEC : Hardware Description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

3-7

Technical Requirements

Power Supply

The power supply requirements and consumption are as follows :

•If a Power supply over 4p PoE is used to supply the power, a 4p PoE injector can be

used while the AC/DC power connector is not used. Otherwise, a 4p PoE capable

router can also be used. 4p PoE capable router and 4p PoE injector are not part of the

standard product delivery.

•Power supply with AC/DC power adaptor : The Multi-standard Enterprise Cell v1

requires a 48V DC power feed. In this case, power injector is not used but a AC/DC

power adaptor is needed.

•Power consumption : The maximum power consumption of the Enterprise Cell

depends on the transmit power.

The power consumption on the 250 mW variant is approximately 48 W.

Frequency Bands

The Alcatel-Lucent Enterprise Cell Multi-Standard supports 5, 10, 15 and 20 MHz carrier

bandwidths for LTE and 5 MHz carrier bandwidth for W-CDMA applications.

Supported band and frequencies are provided in the table below:

Table 3-1 Frequency bands

Operating

Band for LTE

Frequency

Band

Common

Name

UL

Frequencies

DL

Frequencies

II 1900 PCS 1850 – 1910

MHz

1930 – 1990

MHz

IV 1700 AWS 1710 – 1755

MHz

2110 – 2155

MHz

XII 700 LMSH A/B/C 699 – 716 MHz 729 – 746 MHz

Operating

Band for UMTS

Operation

Frequency

Band

Common

Name

UL

Frequencies

DL

Frequencies

II 1900 PCS 1850 – 1910

MHz

1930 – 1990

MHz

V 850 CLR 824 - 849 MHz 869 - 894 MHz

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

Technical Requirements

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Operating

Band for

Network

Listening

Frequency

Band

Common Name UL Frequencies DL Frequencies

II 1900 PCS - 1930 – 1990

MHz

LTE and 3G

Network

Listening

IV 1700 AWS - 2110 – 2155

MHz

LTE

Network

Listening

V 850 CLR - 869 - 894 MHz

3G Network

Listening

XII 700 LMSH A/B/C - 729 – 746 MHz

LTE

Network

Listening

Transmission Power

The Multi-standard Enterprise Cell v1 is capable of output power up to 2x250 mW

(250mW at each antenna connector). Due to its transmit power, the 9962 MSEC v1.0 is

part of the 3GPP Local Area BS classification. It is configurable in 1 dB steps from

minimum to maximum configuration.

The minimum value is 10 dBm (10mW).

The Wi-Fi transmit power has a minimum conducted TX power per chain of

21dBm/20dBm for 2,4/5GHz band and is configurable in 1 dB steps from minimum to

maximum configuration.

Table 3-2 Transmit Power

Radio Access

Technology

W-CDMA, LTE W-CDMA, LTE WiFi

Frequency band: 1900 /1700 MHz 850/700 MHz 2.4 GHz 5 GHz

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

Technical Requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

3-9

Table 3-2 Transmit Power (continued)

Radio Access

Technology

W-CDMA, LTE W-CDMA, LTE WiFi

Max conducted

power per chain

(dBm):

23 24 FCC : 19

ETSI : 11

FCC:18

ETSI : 18

Typical Max

EIRP (dBm) per

band:

Depending on antenna gain FCC : 28

ETSI : 20

FCC:26

ETSI : 26

Radio Parameters

The Enterprise Cell Multi-Standard is designed according to the following parameters in

3GPP TS 25.104 and 3GPP TS 36.104 specifications.

Table 3-3 Radio Parameters

Parameter W-CDMA Value 3GPP 25.104

requirement

LTE Value 3GPP 36.104

requirement

Sensitivity : -116.5 dBm - 107 dBm (or

less)

-94.5 -93.5

QPSK EVM 17.5% 17.5% (or less) 17.5% 17.5%

16QAM EVM 12.5% 12.5% (or less) 12.5% 12.5%

64QAM EVM 7% - 7% 8%

ACLR 5MHz 45 dB 45 dB (or

greater)

45 dB 45 dB

ACLR 10MHz 50 dB 50 dB (or

greater)

45 dB 45 dB

Reliability

The MTBF (Mean Time Between Failures) is calculated based on Telcordia SR-332 Issue

2, September 2006.

The MTBF of the Enterprise Cell Multi-Standard v1.0 at 25°C on a stand position is

356,000 hours.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

Technical Requirements

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Status Indicators

Six bi-color LEDs provide indication for the system:

•Power

•LTE

•W-CDMA

•GPS status

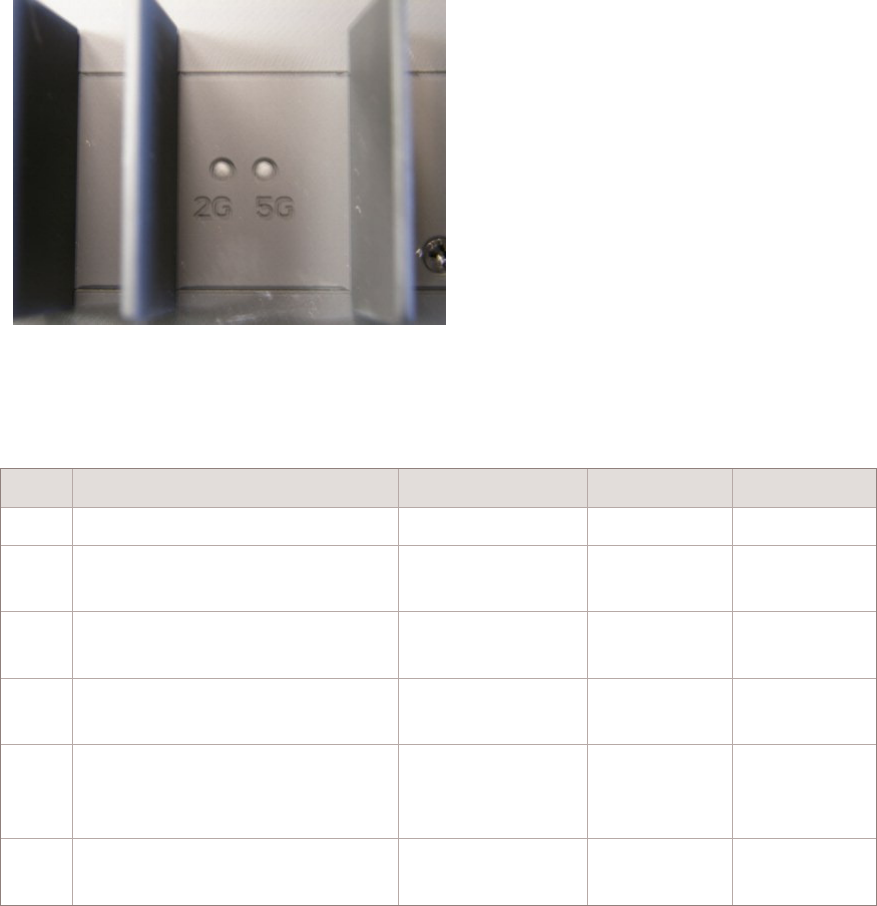

•2 rear LEDs indicate Wi-Fi status, labelled 2G and 5G

When the system is fully working for 15 minutes, the LEDs are extinguished.

Assuming the service functions normally, the system status LED color is green. In

addition, it is possible to monitor different status elements following a LED sequence

described later in this user guide, in the chapter on Troubleshooting.

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

Technical Requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

3-11

Alcatel-Lucent 9962 Multi-standard Enterprise Cell v1 :

Hardware

Technical Requirements

....................................................................................................................................................................................................................................

3-12 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

44Troubleshooting using the

LED states

Overview

Purpose

This chapter details LED status and their meaning for the 9962 MSEC v1.0 product and

troubleshooting.

Contents

LED states for the 3G and 3G/4G 9962 MSEC v1.0 4-2

...................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

4-1

LED states for the 3G and 3G/4G 9962 MSEC v1.0

Overview

This topic describes the states of the LEDs on the 9962 MSEC v1.0 device.

There are two variants of the 9962 MSEC v1.0:

•3G only

•3G and 4G (LTE)

There are six red/green bicolored LEDs that indicate the status:

•Power

•LTE cells: only on the 3G/4G variant

•W-CDMA cell

•GPS receiver

•2 WiFi module status indicators on the rear of the unit, labelled 2G and 5G.

The LEDs can take these states:

•Off

•flashing green

•solid green

•flashing red

•solid red

•toggling between red and green

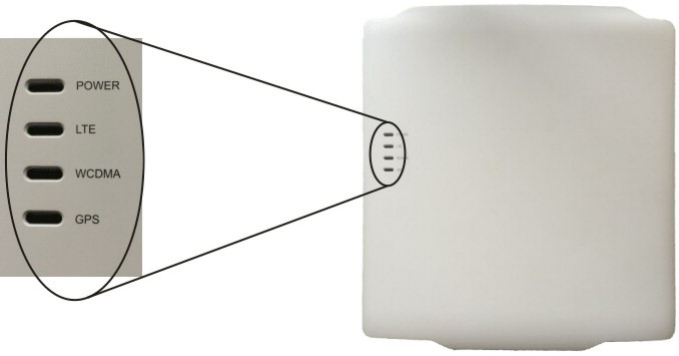

Figure 4-1 9962 MSEC v1.0 LEDs

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

LED interpretation

When the 9962 MSEC v1.0 is powered on, all LEDs are solid red: if the software fails to

start, the LEDs remain in this condition. Otherwise the LEDs indicate the progress of the

initialization of the unit.

After the four LEDs, excluding the WiFi LEDs, have been in a normal state for fifteen

minutes, these four LEDs are all turned off to avoid bringing attention to the unit. If an

event occurs that changes an LED state, then the four LEDs are turned on. After the LEDs

have returned to normal state for fifteen minutes, all LEDs are turned off again.

The WiFi status LEDs act independently of this management.

Power LED

The system initialization and fault states are represented by a single bicolored red/green

LED.

Table 4-1 Power LED initialization

System state LED state Description

Power off OFF Power is off

Boot Red Power is applied or the system is reset.

During this phase the BLST is performed, DHCP access

is made and the IP address is assigned.

The system remains in this state if the boot fails or

BLST fails.

Network attach flashing red The system attempts to establish contact with the DNS

external server.

The system negotiates with the Security Gateway and

establishes an OAM IPSec tunnel.

EMS connect Toggling

red/green

Attempt to contact DNS Internal for HDM/SAM address

resolution

Download and

configuration

flashing green The system is verifying the 9962 MSEC v1.0 software

and database.

It updates if necessary, followed by a reset.

System stable Green Software and database are current, and the system is

ready to enable applications

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

4-3

In the case where a fault is detected, the LED turns red.

Table 4-2 Power LED fault indication

LED state Description Comment

Red Hardware fault is detected such that

no service can be provided or service

is degraded

The LTE and WCDMA LEDs

indicate whether service is still

active.

If either is not active, see Table 4-3,

“Faults that set the Power LED

hardware failure” (p. 4-4) for faults

that set this LED.

The LED fault state clears when the

fault clears or the unit is reset

Red 9962 MSEC v1.0 temperature is

outside of the supported range.

Service may be affected by extreme

temperature conditions.

The LED fault state clears when the

fault clears or the unit is reset

Table 4-3 Faults that set the Power LED hardware failure

Hardware Fault Comment

Ethernet switch May prevent backhaul communication

RF transceiver Blocks or degrades air interface operation

Oscillator module failure Affects all clock and frequency generation

Network listen receiver Affects network listen function

LTE LED

The LTE start-up sequence and fault state are indicated by a single bicolored red/green

LED. This LED is only managed in the 3G/4G variant.

Table 4-4 LTE LED startup

State LED state Description

Power off OFF Power off

Booting and

BLST

Red Power on or restart

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

4-4 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Table 4-4 LTE LED startup (continued)

State LED state Description

System

initializing

(timing, RF,

cell) and begin

location check

Toggling

red/green

Establishing resources needed by the LTE cell. The 9962

MSEC v1.0 may leave this state before the location

check completes if

passiveGPS

is True.

Otherwise it remains in this state until the location check

completes.

Location check

failure

flashing red The 9962 MSEC v1.0 remains in this state if the location

check or movement check fails and

showLocationCheck

is True

Unit reset is required to clear the state.

Boot complete Off LED comes on initially but is turned off once the

software starts and

operatingMode

is WCDMA-only.

Cell unlocked

and ready for

service (LTE cell

AST Unlocked

and OST

Enabled)

Green Location check may be running in the background or no

location check to be performed

In the case where a fault is detected, the LED indicates the fault.

Table 4-5 LTE LED fault conditions

LED state Description Comment

flashing green Cell blocked.

LTE cell AST set to

Locked, or OST is

Disabled due to ongoing

Network Listen activity

Cell successfully configured but not

transmitting

The LED fault state clears when the cell is

unlocked or Network Listen completes and

OST is now Enabled.

Red Cell failure

LTE cell OST is Disabled

for any reason other than

ongoing Network Listen

activity

cell configuration failure, cell operational

failure reported by 3G application, WCDMA

tunnel down, SCTP association failure or

another fault.

The LED fault state clears when the cell is

reconfigured and unblocked.

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

4-5

WCDMA LED

The WCDMA start-up sequence and fault state are indicated by a single bicolored

red/green LED.

Table 4-6 WCDMA LED startup

State LED state Description

Power off OFF Power off

Booting and

BLST

Red Power on or restart

System

initializing

(timing, RF,

cell) and begin

location check

Toggling

red/green

Establishing resources needed by the LTE cell. The 9962

MSEC v1.0 may leave this state before location check

completes if

passiveGPS

is True.

Otherwise it remains in this state until the location check

completes.

Location failure flashing red The 9962 MSEC v1.0 remains in this state if location

check or movement check fails and

showLocationCheck

is True

Unit reset is required to clear this state.

Cell unlocked

and ready for

service (LTE cell

AST Unlocked

and OST

Enabled)

Green Location check may be running in the background or no

location check to be performed

In the case where a fault is detected, the LED indicates the fault.

Table 4-7 WCDMA LED fault condition

LED state Description Comment

flashing green Cell blocked.

LTE cell AST is set to

Locked, or OST is

Disabled due to ongoing

Network Listen activity

Cell successfully configured but not

transmitting

The LED fault state clears when the cell is

unlocked or Network Listen completes and

OST is now Enabled.

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

4-6 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Table 4-7 WCDMA LED fault condition (continued)

LED state Description Comment

Red Cell failure cell configuration failure, cell operational

failure reported by 3G application, WCDMA

tunnel down, SCTP association failure or

another fault.

The LED fault state clears when the LTE cell

OST is Enabled, WCDMA tunnel is ready

GPS LED

The status and fault condition of the GPS are represented by a single bicolored red/green

LED.

Table 4-8 GPS LED

State LED state Description

Power off OFF Power off

Boot and BLST

in progress

Red Unit will remain in this state if BLST fails or the

software does not successfully boot

GPS off Off LED will come on at startup but turn off again once the

database is validated and GPS is not required

(syncReferenceSource

does not include GPS and

enableGPSLocationCheck

is False)

Acquiring GPS flashing red Looking for a GPS signal

If it stays in this condition, the antenna may be bad or

mounted in a poor location

Lost GPS flashing green The GPS signal has been lost

GPS lock Green A GPS signal has been acquired

In the case where a fault is detected, the LED indicates the fault.

Table 4-9 GPS LED fault condition

LED state Description Comment

flashing green Satellite lost Satellite lock must have been previously attained.

This may be a temporary outage due to marginal satellite

visibility, or a long-term outage due to a failed antenna.

Red Hardware

Failure

GPS receiver has failed.

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

4-7

WiFi LEDs

These LEDs indicate the state of the WiFi module. They are driven directly from the WiFi

module itself and not by the Multi-Standard Small Cell OAM software. Expected LED

states are documented below.

The WiFi LEDs are extinguished during normal activity like the other LEDs.

The WiFi LEDs are located on the WiFi module on the rear of the 9962 MSEC v1.0

hardware. The 2G label corresponds with the 2.4 GHz segment while the 5G label

corresponds with the 5 GHz segment.

The table describes the initialization steps of the 2G and 5G WiFi LEDs.

Table 4-10 WiFi Status LED initialization states

Step Description State 5G LED 2G LED

1 Power-up or reload BOOTING Solid On Solid On

2 AP tries to get adopted by

controller

ADOPTING Slow

blinking

Off

3 (optional) controller pushes a

software upgrade

UPGRADING Off Slow

blinking

4 The controller pushes the AP

configuration

CONFIGURING Fast blinking Fast blinking

5 WLAN are mapped to radios:

normal service

OPERATIONAL 5GHz

service: Slow

blinking

2.4GHz

service: Slow

blinking

6 After 301minutes in the same

state

HIDING Off Off

Figure 4-2 WiFi LEDs

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

4-8 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Notes:

1. configurable from 15 to 1440 minutes.

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

4-9

Troubleshooting using the LED states LED states for the 3G and 3G/4G 9962 MSEC v1.0

....................................................................................................................................................................................................................................

4-10 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Index

AAlcatel-Lucent 9962

Multi-Standard Enterprise Cell

Functional Description, 2-2

Hardware Description, 3-2

Physical characteristics, 1-7

Product Overview, 1-2

Alcatel-Lucent Small Cells

Solutions - general

System Architecture, 1-6

Antennas, 3-5

.............................................................

CConnectors and Interfaces, 3-4

Customization options, 3-2

.............................................................

LLED

GPS, 4-7

LTE, 4-4

Power, 4-3

WCDMA, 4-6

WiFi, 4-8

LEDs, 4-2

.............................................................

OOrderable items, 3-4

.............................................................

PProduct box content, 3-3

.............................................................

SService Aware Manager (SAM),

3-6

.............................................................

WWi-Fi Parameters, 3-6

....................................................................................................................................................................................................................................

Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

IN-1

Index

....................................................................................................................................................................................................................................

IN-2 Alcatel-Lucent 9962 MSEC v1.0

3MN-02001-0003-DEZZA

Issue 3 November 2015

Sercomm 9962MSEC 9962 Multi-Standard AP Metro Cell Indoor User Manual Technical Description

Sercomm Corporation 9962 Multi-Standard AP Metro Cell Indoor Technical Description

Contents

User Manual (Technical Description).pdf

Navigation menu

Namespaces

Views

Navigation
