Sercomm AP51GA Wireless Internet Access Server Applicance User Manual 802 11b 802 11 g 802 1x Wireless Access Point

Sercomm Corporation Wireless Internet Access Server Applicance 802 11b 802 11 g 802 1x Wireless Access Point

Contents

UserMan rev

802.11g / 802.11b / WPA
Wireless Access Point
User's Guide
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION .............................................................................................1
Features of your Wireless Access Point...........................................................................1
Package Contents ..............................................................................................................4
Physical Details..................................................................................................................4
CHAPTER 2 INSTALLATION...............................................................................................6
Requirements.....................................................................................................................6
Procedure...........................................................................................................................6
CHAPTER 3 ACCESS POINT SETUP..................................................................................9
Overview ............................................................................................................................9

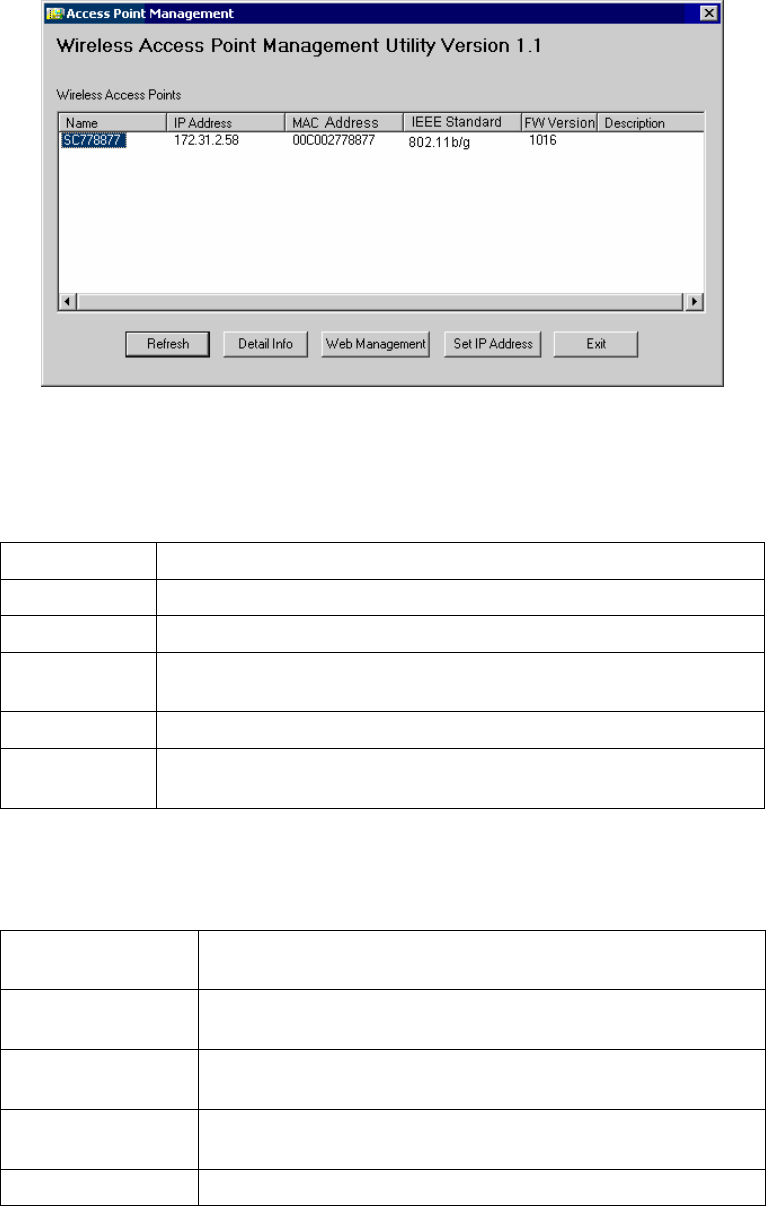

Setup using the Windows Utility......................................................................................9
Setup using a Web Browser............................................................................................12

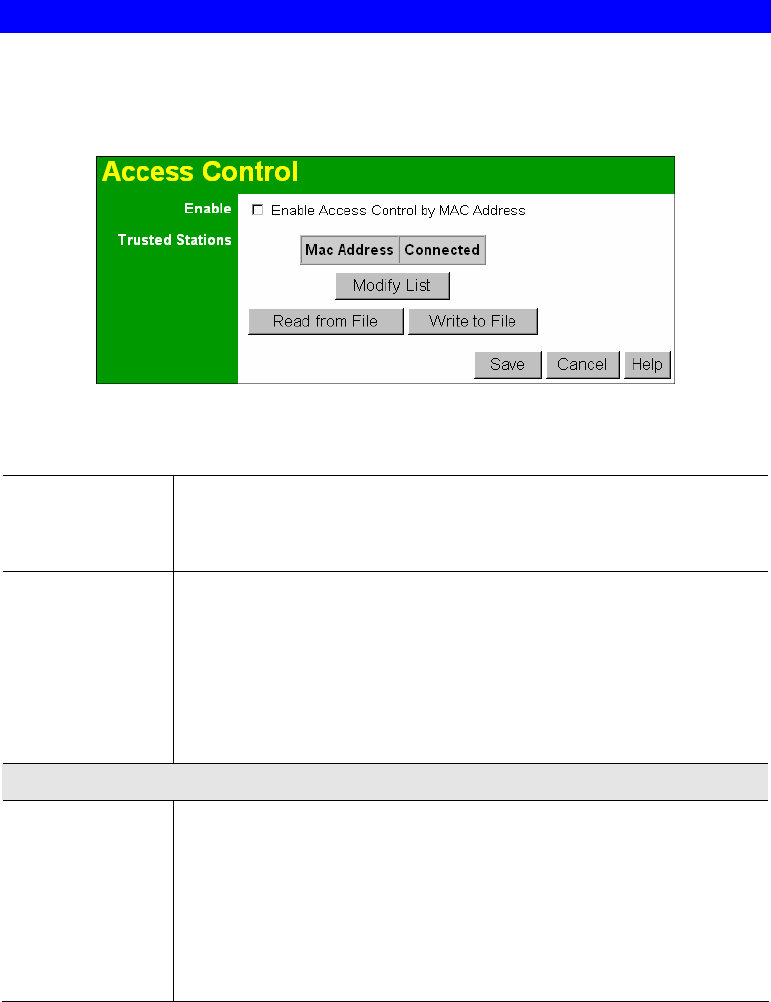

Access Control .................................................................................................................14

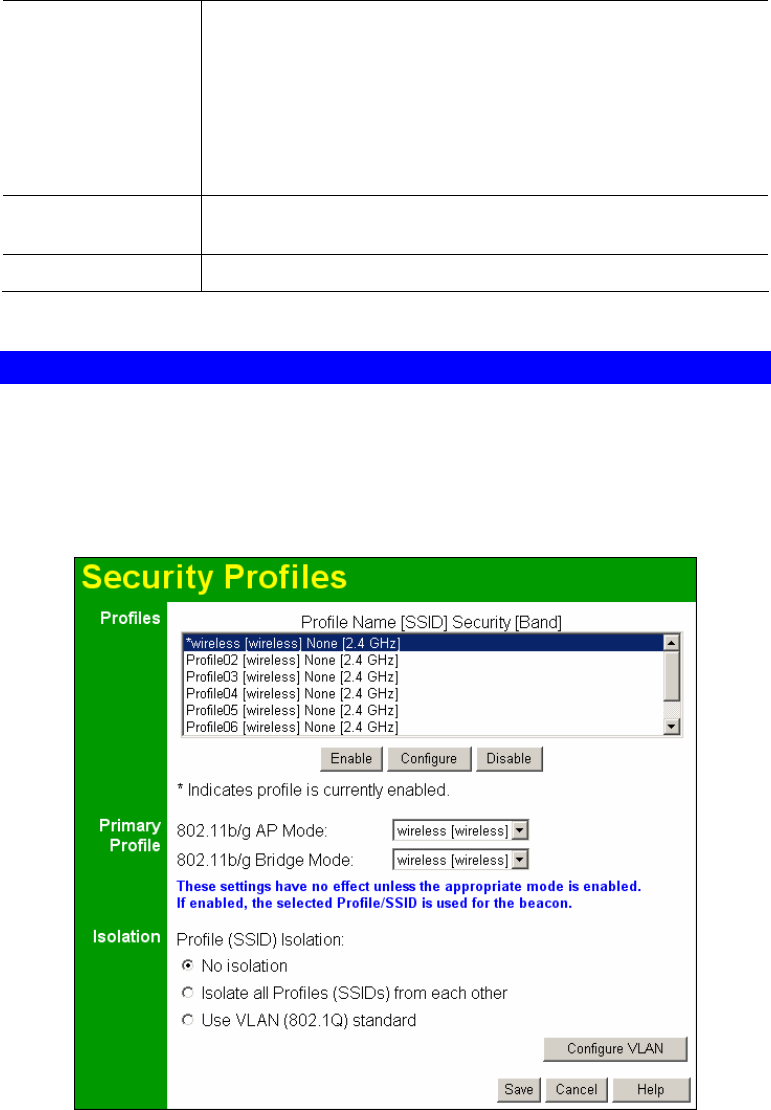

Security Profiles...............................................................................................................16

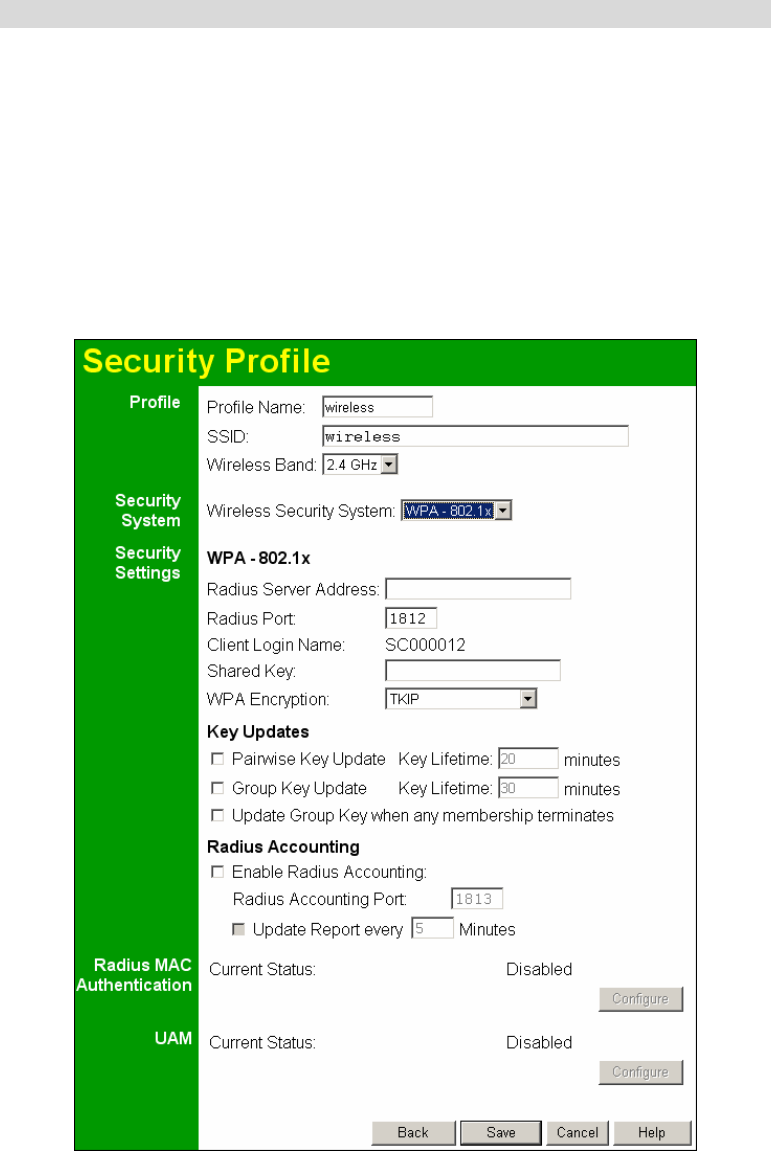

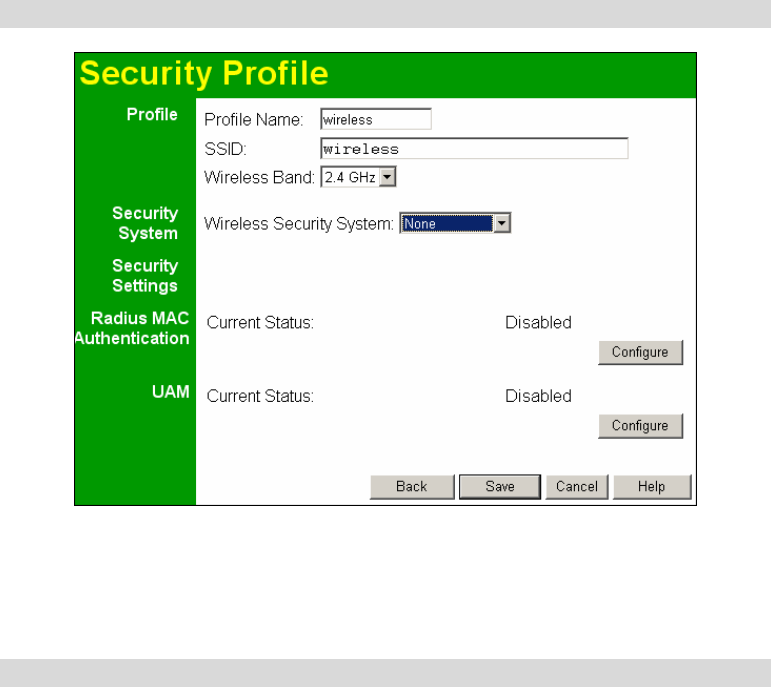

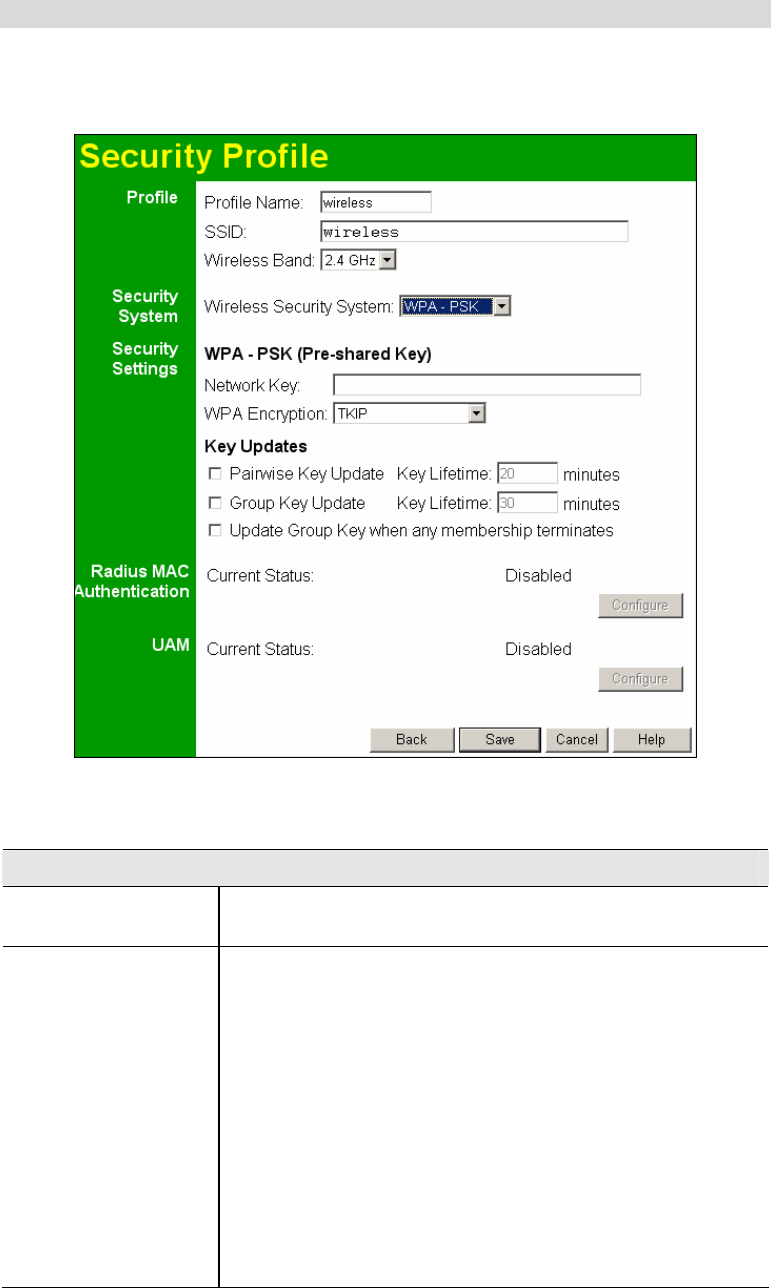

Security Profile Screen....................................................................................................19
System Screen..................................................................................................................35
Wireless Screens ..............................................................................................................37
Basic Settings Screen.......................................................................................................37
Advanced Settings ...........................................................................................................40
CHAPTER 4 PC AND SERVER CONFIGURATION .......................................................42
Overview ..........................................................................................................................42
Using WEP.......................................................................................................................42
Using WPA-PSK..............................................................................................................43
Using WPA-802.1x ..........................................................................................................44

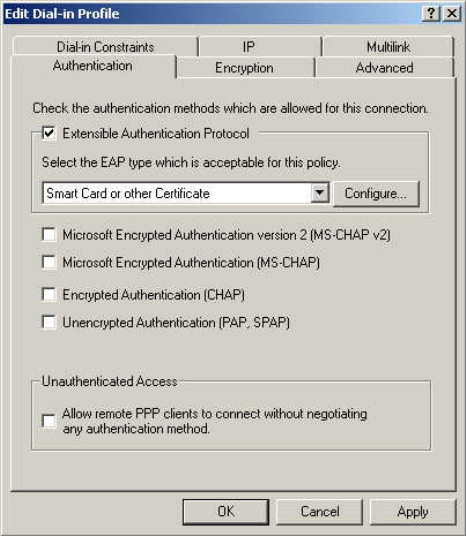

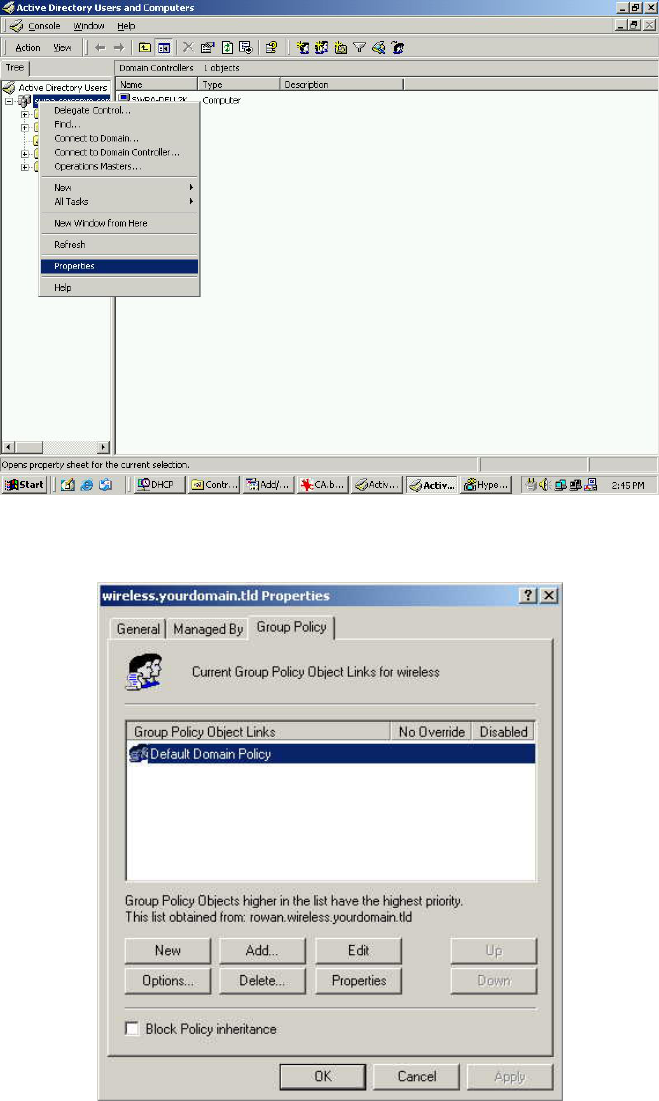

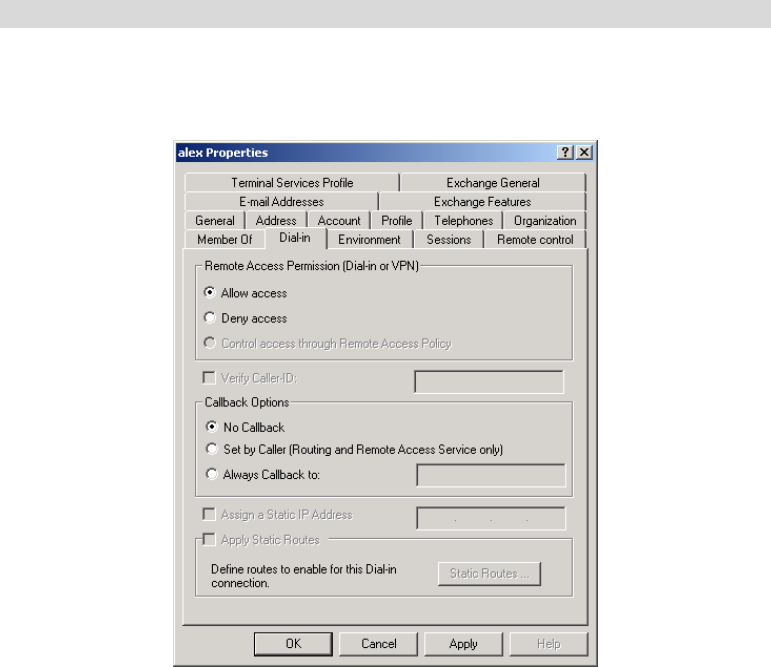

802.1x Server Setup (Windows 2000 Server)................................................................45

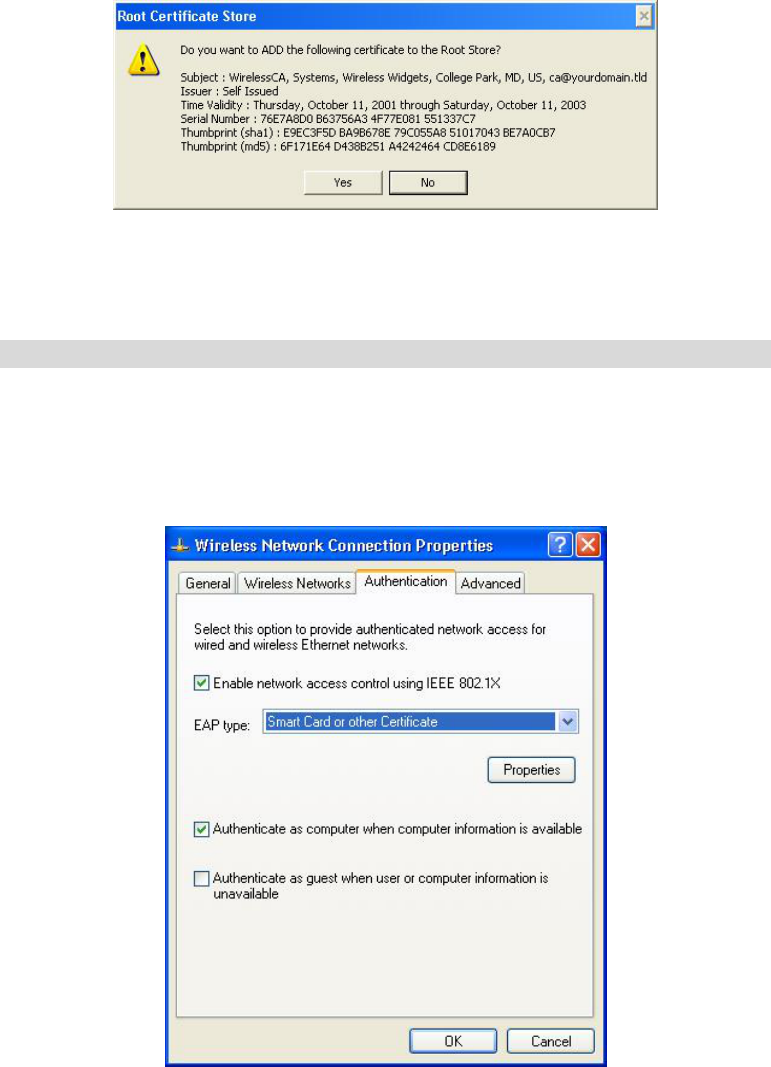

802.1x Client Setup on Windows XP .............................................................................55
Using 802.1x Mode (without WPA) ...............................................................................61
CHAPTER 5 OPERATION AND STATUS.........................................................................62
Operation .........................................................................................................................62

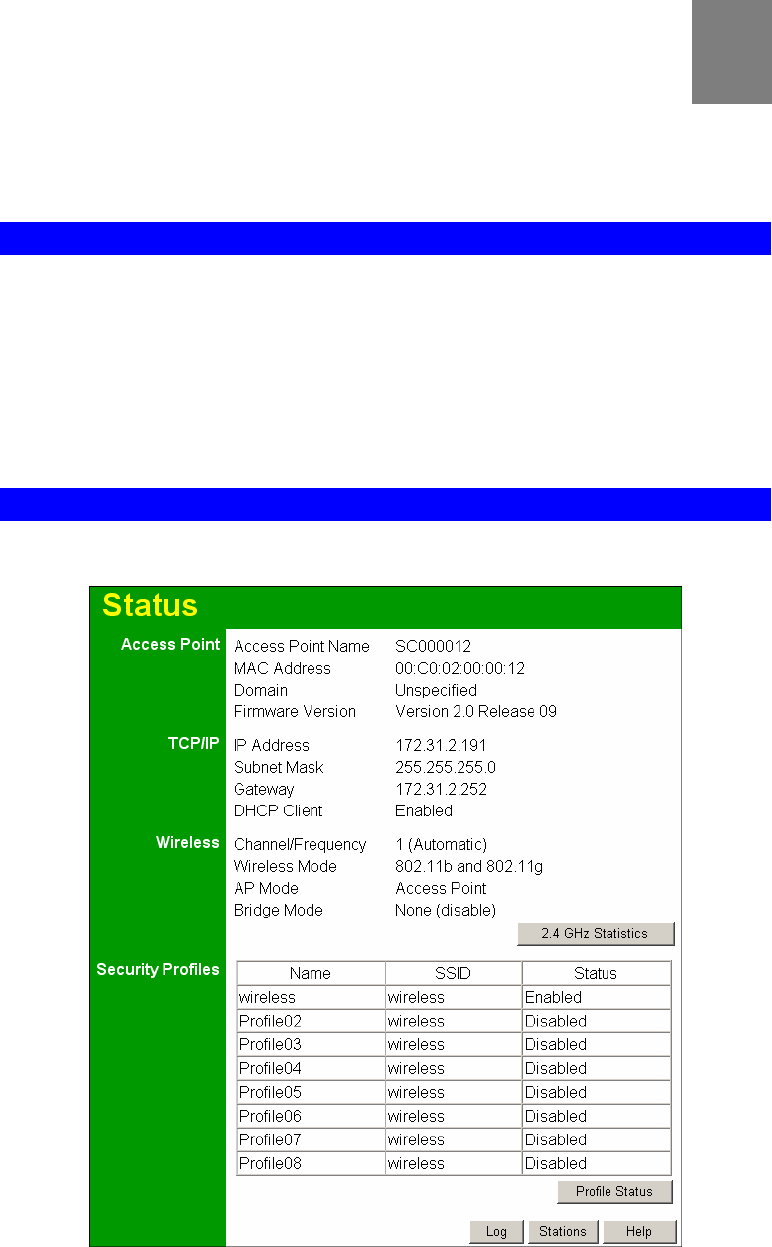

Status Screen....................................................................................................................62
CHAPTER 6 ACCESS POINT MANAGEMENT...............................................................69
Overview ..........................................................................................................................69

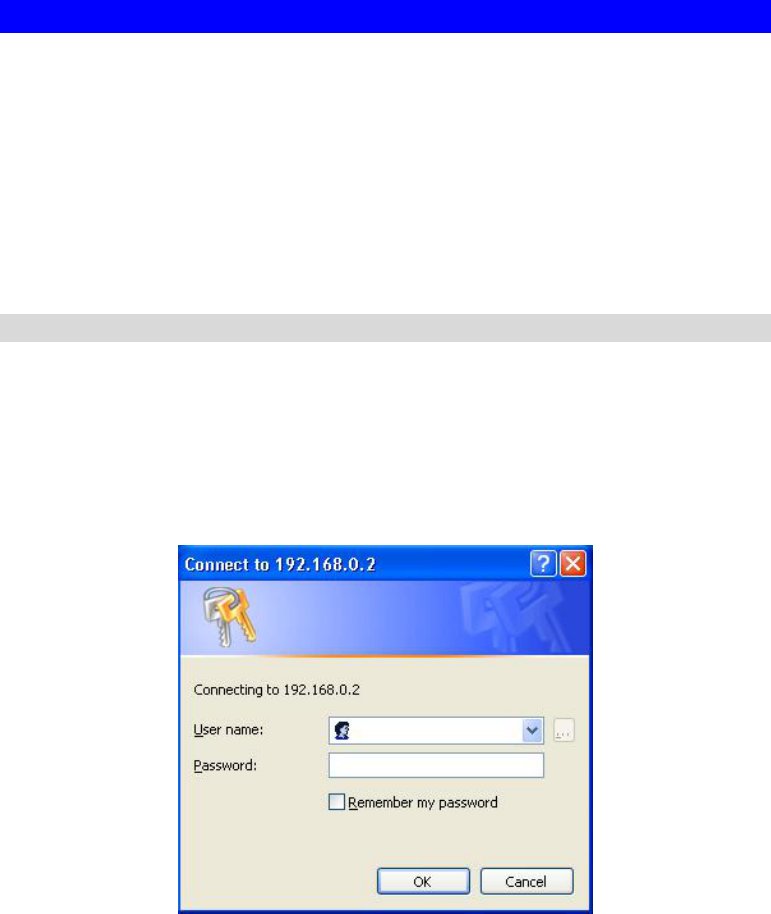

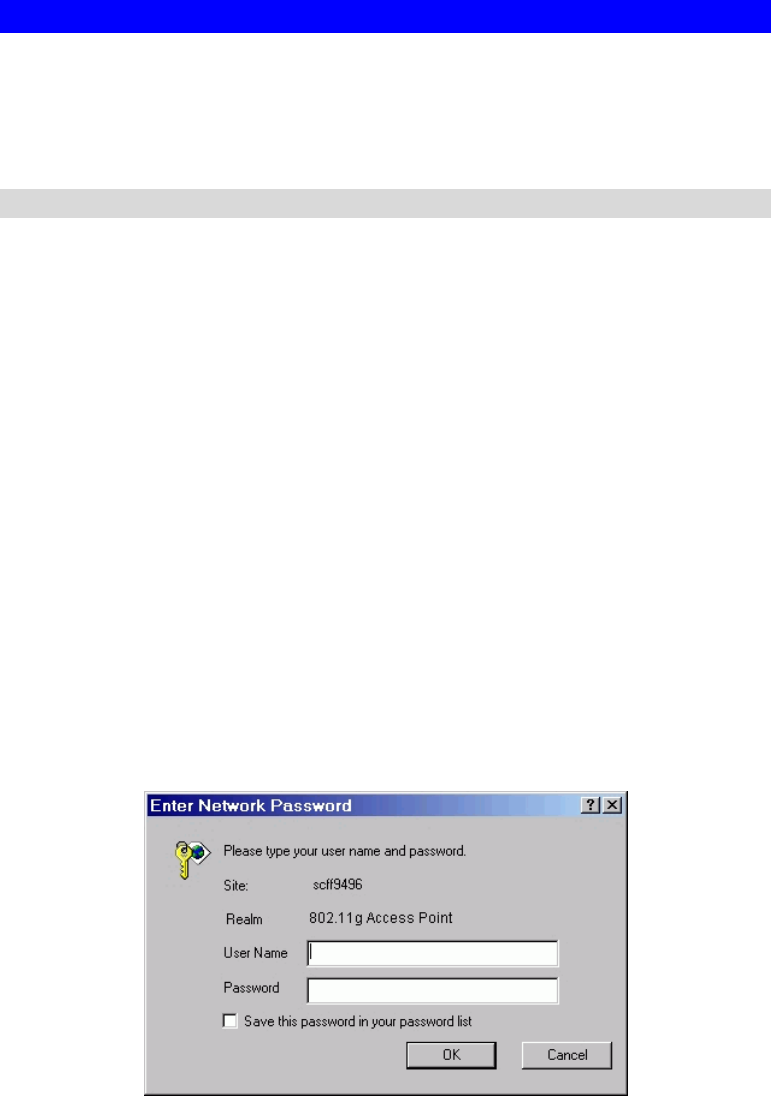

Admin Login Screen........................................................................................................69
Auto Config/Update ........................................................................................................71
Config File........................................................................................................................73

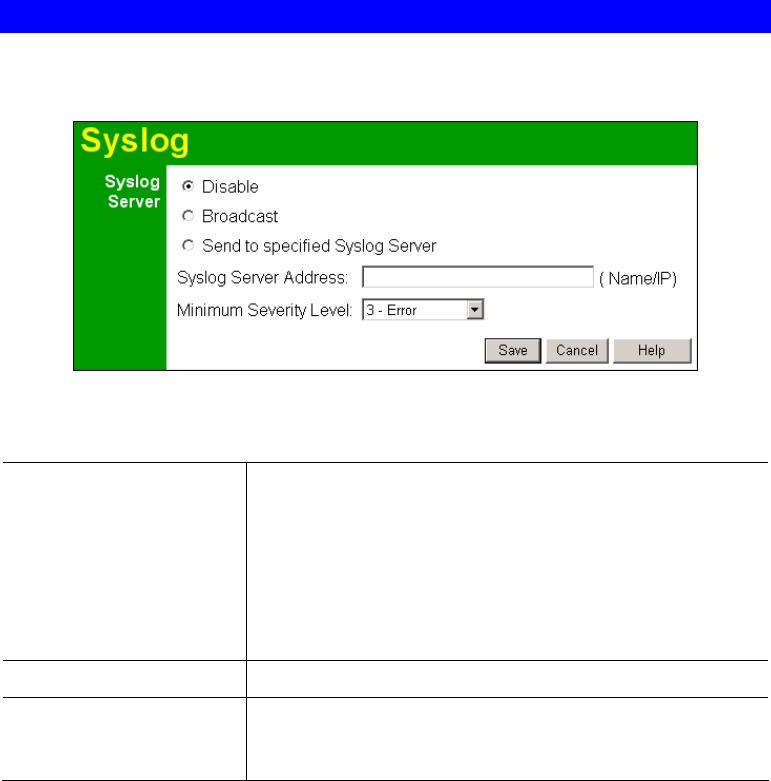

Log Settings (Syslog).......................................................................................................75
Rogue APs........................................................................................................................76
SNMP ...............................................................................................................................77

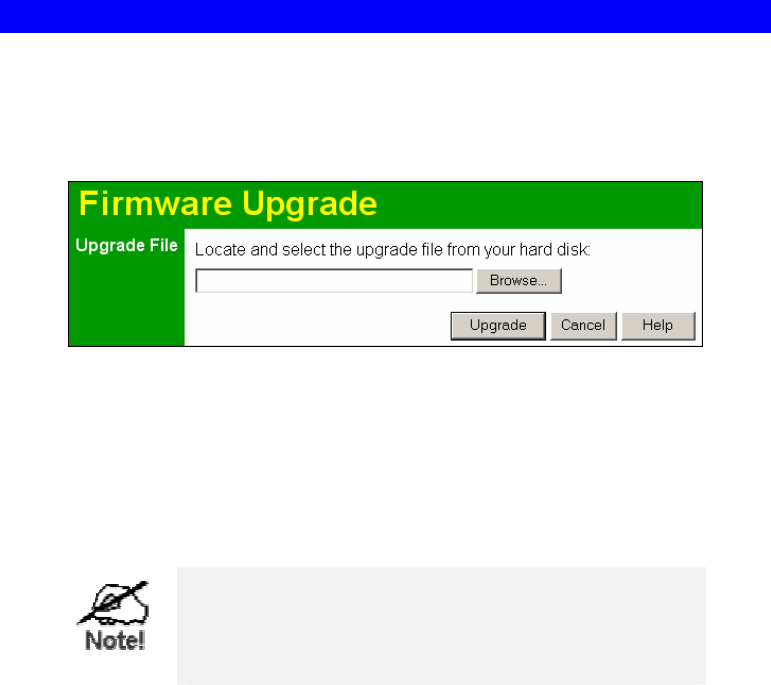

Upgrade Firmware..........................................................................................................78
i
APPENDIX A SPECIFICATIONS .......................................................................................79
Wireless Access Point......................................................................................................79
APPENDIX B TROUBLESHOOTING ................................................................................83
Overview ..........................................................................................................................83
General Problems............................................................................................................83
APPENDIX C WINDOWS TCP/IP.......................................................................................85
Overview ..........................................................................................................................85
Checking TCP/IP Settings - Windows 9x/ME:............................................................. 85
Checking TCP/IP Settings - Windows NT4.0 ...............................................................87
Checking TCP/IP Settings - Windows 2000..................................................................89
Checking TCP/IP Settings - Windows XP ....................................................................91
APPENDIX D ABOUT WIRELESS LANS..........................................................................93
Overview ..........................................................................................................................93
Wireless LAN Terminology............................................................................................93
APPENDIX E COMMAND LINE INTERFACE................................................................96
Overview ..........................................................................................................................96
Command Reference.......................................................................................................97
P/N: 9560N90101
Copyright © 2005. All Rights Reserved.
Document Version: 1.34
All trademarks and trade names are the properties of their respective owners.
ii
1
Chapter 1
Introduction
This Chapter provides an overview of the Wireless Access Point's features
and capabilities.
Congratulations on the purchase of your new Wireless Access Point. The Wireless Access
Point links your 802.11g or 802.11b Wireless Stations to your wired LAN. The Wireless
stations and devices on the wired LAN are then on the same network, and can communicate
with each other without regard for whether they are connected to the network via a Wireless or
wired connection.

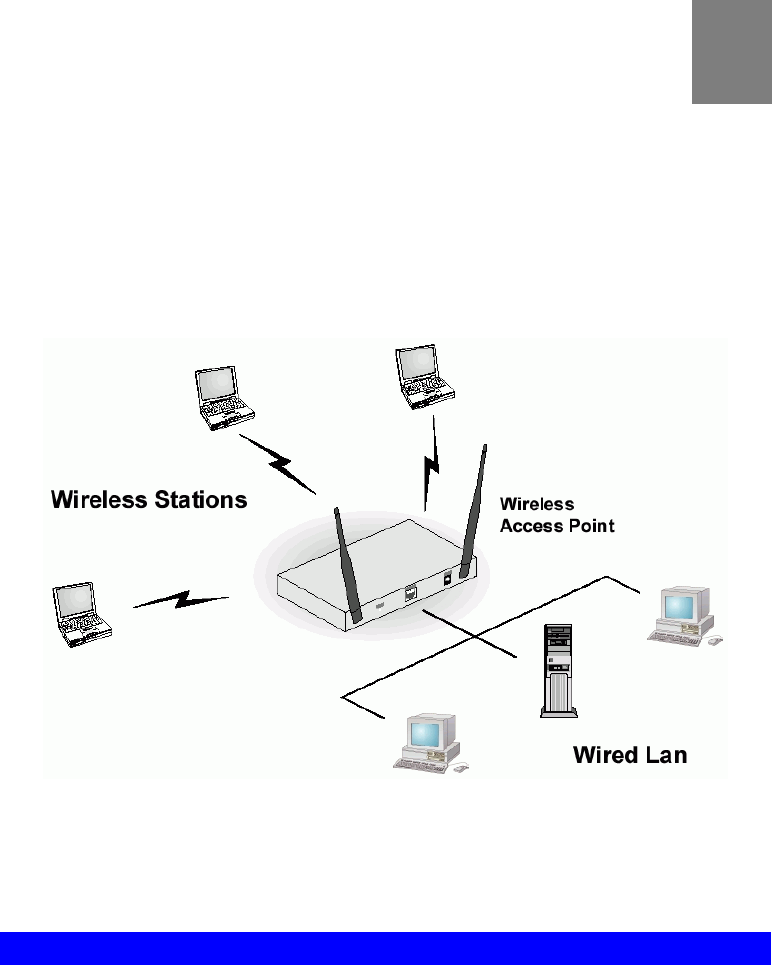

Figure 1: Wireless Access Point
The auto-sensing capability of the Wireless Access Point allows packet transmission up to
54Mbps for maximum throughput, or automatic speed reduction to lower speeds when the
environment does not permit maximum throughput.
Features of your Wireless Access Point
The Wireless Access Point incorporates many advanced features, carefully designed to provide
sophisticated functions while being easy to use.
•
Standards Compliant. The Wireless Router complies with the IEEE802.11g (DSSS)
specifications for Wireless LANs.
• Supports both 802.11b and 802.11g Wireless Stations. The 802.11g standard
provides for backward compatibility with the 802.11b standard, so both 802.11b and
802.11g Wireless stations can be used simultaneously.
• 108Mbps Wireless Connections. On both the 2.4GHz (802.11b & 802.11g) and 5GHz
(802.11a) bands, 108Mbps connections are available to compatible clients.
• Bridge Mode Support. The Wireless Access Point can operate in Bridge Mode, con-
necting to another Access Point. Both PTP (Point to Point) and PTMP (Point to Multi-
1
Wireless Access Point User Guide
Point) Bridge modes are supported.
And you can even use both Bridge Mode and Access Point Mode simultaneously!
• Client/Repeater Access Point. The Wireless Access Point can operate as a Client or
Repeater Access Point, sending all traffic received to another Access Point.
• Simple Configuration. If the default settings are unsuitable, they can be changed
quickly and easily.
• DHCP Client Support. Dynamic Host Configuration Protocol provides a dynamic IP
address to PCs and other devices upon request. The Wireless Access Point can act as a
DHCP Client, and obtain an IP address and related information from your existing DHPC
Server.
• Upgradeable Firmware. Firmware is stored in a flash memory and can be upgraded
easily, using only your Web Browser.
Security Features
• Security Profiles. For maximum flexibility, wireless security settings are stored in
Security Profiles. Up to 8 Security profiles can be defined, and up to 4 used as any time.
• Multiple SSIDs. Because each Security Profile has it own SSID, and up to 4 Security
Profiles can be active simultaneously, multiple SSIDs are supported. Different clients can
connect to the Wireless Access Point using different SSIDs, with different security set-
tings.
• Multiple SSID Isolation. If desired, PCs and devices connecting using different SSIDs
can be isolated from each other.

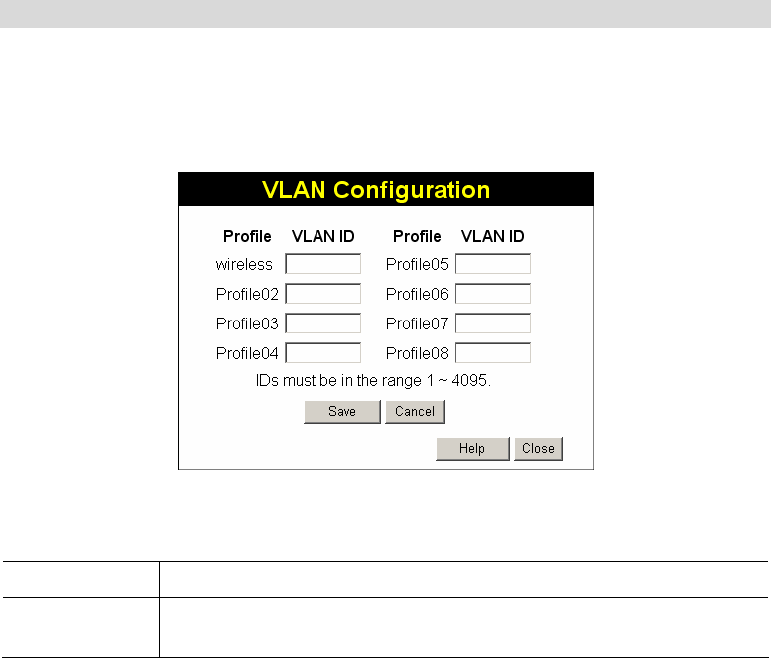

• VLAN Support. The 802.1Q VLAN standard is supported, allowing traffic from differ-
ent sources to be segmented. Combined with the multiple SSID feature, this provides a
powerful tool to control access to your LAN.
• WEP support. Support for WEP (Wired Equivalent Privacy) is included. Both 64 Bit
and 128 Bit keys are supported.
• WPA support. Support for WPA is included. WPA is more secure than WEP, and
should be used if possible. Both TKIP and AES encryption methods are supported.
• 802.1x Support. Support for 802.1x mode is included, providing for the industrial-
strength wireless security of 802.1x authentication and authorization.
• Radius Client Support. The Wireless Access Point can login to your existing Radius
Server (as a Radius client).
• Radius MAC Authentication. You can centralize the checking of Wireless Station
MAC addresses by using a Radius Server.
• Rogue AP Detection. The Wireless Access Point can detect unauthorized (Rouge)
Access Points on your LAN.
• Access Control. The Access Control feature can check the MAC address of Wireless
clients to ensure that only trusted Wireless Stations can use the Wireless Access Point to
gain access to your LAN.
• Password - protected Configuration. Optional password protection is provided to
prevent unauthorized users from modifying the configuration data and settings.
Advanced Features
• Auto Configuration. The Wireless Access Point can perform self-configuration by
copying the configuration data from another Access Point. This feature is enabled by de-
fault.
2
Introduction
• Auto Update. The Wireless Access Point can automatically update its firmware, by
downloading and installing new firmware from your FTP server.
• Command Line Interface. If desired, the command line interface (CLI) can be used for
configuration. This provides the possibility of creating scripts to perform common con-
figuration changes.
• NetBIOS & WINS Support. Support for both NetBIOS broadcast and WINS (Win-
dows Internet Naming Service) allows the Wireless Access Point to easily fit into your
existing Windows network.
• Radius Accounting Support. If you have a Radius Server, you can use it to provide
accounting data on Wireless clients.
• Syslog Support. If you have a Syslog Server, the Wireless Access Point can send its log
data to your Syslog Server.
• SNMP Support. SNMP (Simple Network Management Protocol) is supported, allowing
you to use a SNMP program to manage the Wireless Access Point.

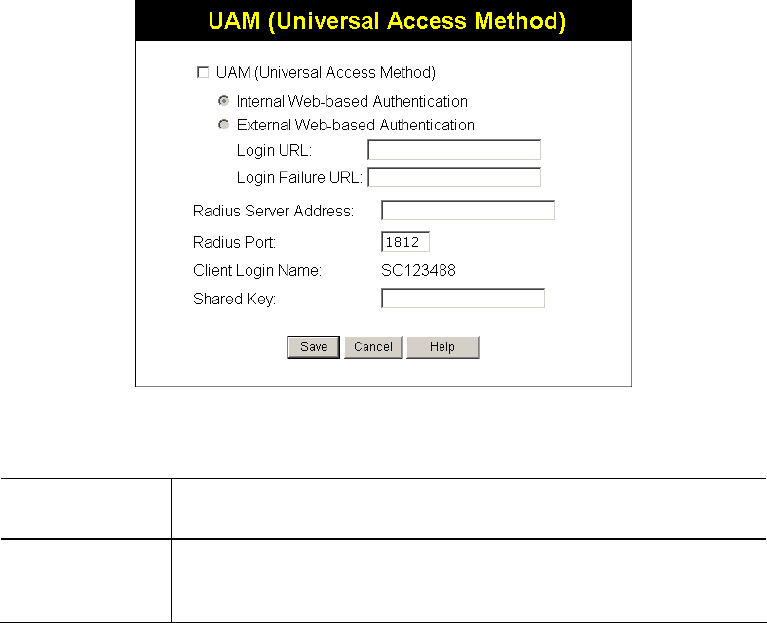

• UAM Support. The Wireless Access Point supports UAM (Universal Access Method),
making it suitable for use in Internet cafes and other sites where user access time must be
accounted for.
• WDS Support. Support for WDS (Wireless Distribution System) allows the Wireless
Access Point to act as a Wireless Bridge. Both Point-to-Point and Multi-Point Bridge
modes are supported.
3
Wireless Access Point User Guide
Package Contents
The following items should be included:
• Wireless Access Point
• Power Adapter
• Quick Start Guide
• CD-ROM containing the on-line manual and setup utility.
If any of the above items are damaged or missing, please contact your dealer immediately.
Physical Details
Front Panel LEDs

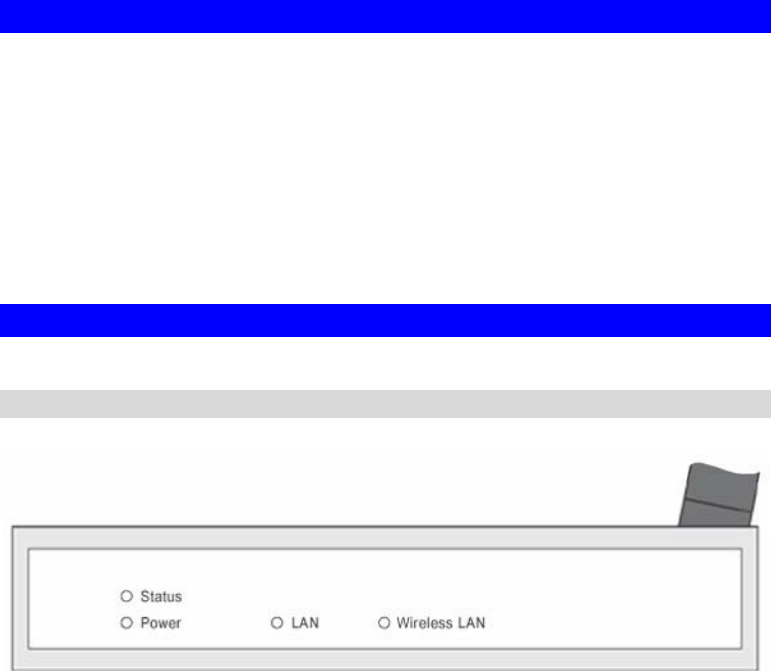

Figure 2: Front Panel
Status On - Error condition.
Off - Normal operation.
Blinking - During start up, and when the Firmware is being upgraded.
Power On - Normal operation.
Off - No power
LAN On - The LAN (Ethernet) port is active.
Off - No active connection on the LAN (Ethernet) port.
Flashing - Data is being transmitted or received via the corresponding
LAN (Ethernet) port.
Wireless
LAN On -
Idle
Off - Error- Wireless connection is not available.
Flashing - Data is being transmitted or received via the Wireless access
point. Data includes "network traffic" as well as user data.
4
Introduction

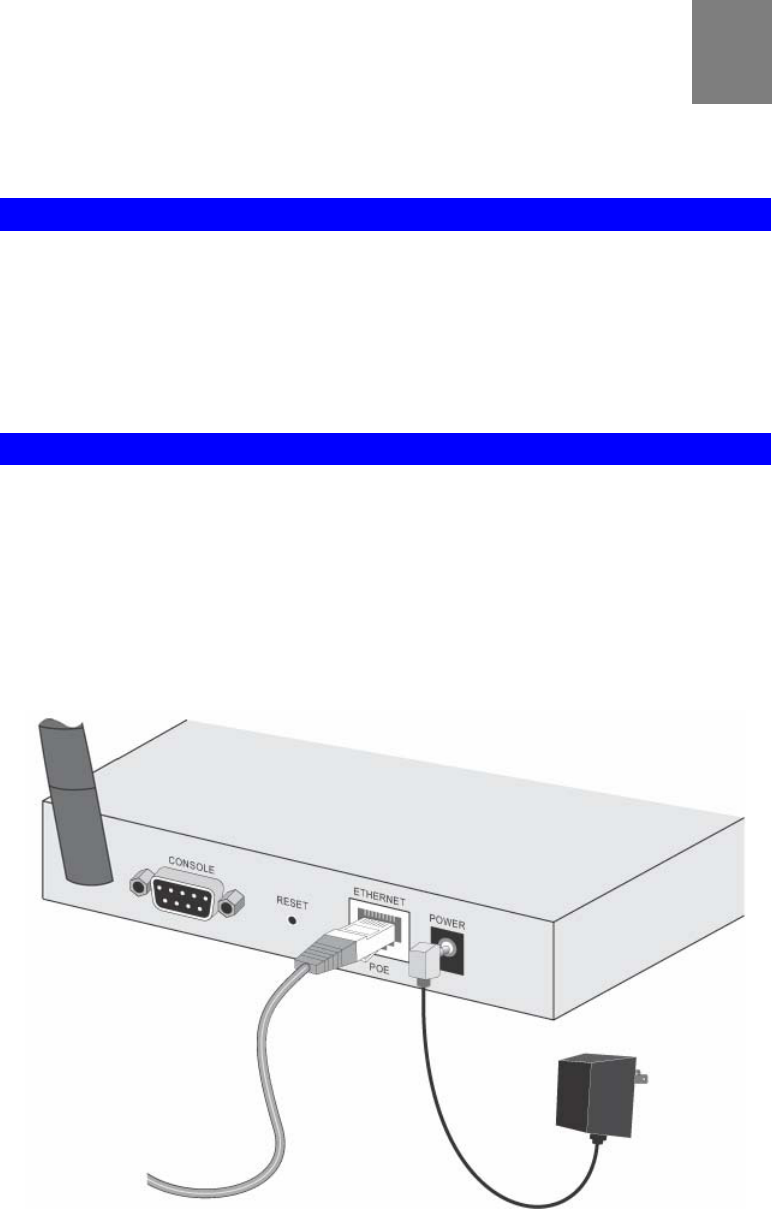

Rear Panel
Figure 3 Rear Panel
Antenna One antenna (aerial) is supplied. Best results are usually obtained with
the antenna in a vertical position.
Console port DB9 female RS232 port.
Reset Button This button has two (2) functions:
• Reboot. When pressed and released, the Wireless Access Point
will reboot (restart).
• Reset to Factory Defaults. This button can also be used to clear
ALL data and restore ALL settings to the factory default values.
To Clear All Data and restore the factory default values:
1. Power Off the Access Point
2. Hold the Reset Button down while you Power On the Access
Point.
3. Continue holding the Reset Button until the Status (Red) LED
blinks TWICE.
4. Release the Reset Button.
The factory default configuration has now been restored, and the
Access Point is ready for use.
Ethernet Use a standard LAN cable (RJ45 connectors) to connect this port to a
10BaseT or 100BaseT hub on your LAN.
Power port Connect the supplied power adapter here.
5
2
Chapter 2
Installation
This Chapter covers the physical installation of the Wireless Access Point.
Requirements
Requirements:
• TCP/IP network
• Ethernet cable with RJ-45 connectors
• Installed Wireless network adapter for each PC that will be wirelessly connected to the
network
Procedure
1. Select a suitable location for the installation of your Wireless Access Point. To maximize
reliability and performance, follow these guidelines:
• Use an elevated location, such as wall mounted or on the top of a cubicle.
• Place the Wireless Access Point near the center of your wireless coverage area.
• If possible, ensure there are no thick walls or metal shielding between the Wireless
Access Point and Wireless stations. Under ideal conditions, the Wireless Access Point
has a range of around 150 meters (450 feet). The range is reduced, and transmission
speed is lower, if there are any obstructions between Wireless devices.
Figure 4: Installation Diagram
2. Use a standard LAN cable to connect the “Ethernet” port on the Wireless Access Point to
a 10/100BaseT hub on your LAN.
6
Installation
3. Connect the supplied power adapter to the Wireless Access Point and a convenient power
outlet, and power up.
NOTE: If you wish to use PoE (Power over Ethernet), refer to the following section.
4. Check the LEDs:
• The Status LED should flash, then turn OFF.
• The Power, Wireless LAN, and LAN LEDs should be ON.
For more information, refer to Front Panel LEDs in Chapter 1.
Using PoE (Power over Ethernet)
The Wireless Access Point supports PoE (Power over Ethernet). To use PoE:
1. Do not connect the supplied power adapter to the Wireless Access Point.
2. Connect one end of a standard (category 5) LAN cable to the Ethernet port on the Wire-
less Access Point.
3. Connect the other end of the LAN cable to the powered Ethernet port on a suitable PoE
Adapter. (24V DC, 500mA)
4. Connect the unpowered Ethernet port on the PoE adapter to your Hub or switch.
5. Connect the power supply to the PoE adapter and power up.
6. Check the LEDs on the Wireless Access Point to see it is drawing power via the Ethernet
connection.
Figure 5: Using PoE (Power over Ethernet)
7
3
Chapter 3
Access Point Setup
This Chapter provides details of the Setup process for Basic Operation of
your Wireless Access Point.
Overview
This chapter describes the setup procedure to make the Wireless Access Point a valid device
on your LAN, and to function as an Access Point for your Wireless Stations.
Wireless Stations may also require configuration. For details, see Chapter 4 - Wireless Station
Configuration.
The Wireless Access Point can be configured using either the supplied Windows utility or your
Web Browser
Setup using the Windows Utility
A simple Windows setup utility is supplied on the CD-ROM. This utility can be used to assign
a suitable IP address to the Wireless Access Point. Using this utility is recommended, because
it can locate the Wireless Access Point even if it has an invalid IP address.
Installation
1. Insert the supplied CD-ROM in your drive.
2. If the utility does not start automatically, run the SETUP program in the root folder.
3. Follow the prompts to complete the installation.
Main Screen
• Start the program by using the icon created by the setup program.
• When run, the program searches the network for all active Wireless Access Points, then
lists them on screen, as shown by the example below.
9
Wireless Access Point User Guide
Figure 6: Management utility Screen
Wireless Access Points
The main panel displays a list of all Wireless Access Points found on the network. For each
Access Point, the following data is shown:
Server Name The Server Name is shown on a sticker on the base of the device.
IP address The IP address for the Wireless Access Point.
MAC Address The hardware or physical address of the Wireless Access Point.
IEEE Standard The wireless standard or standards used by the Wireless Access Point
(e.g. 802.11b, 802.11g)
FW Version The current Firmware version installed in the Wireless Access Point.
Description Any extra information for the Wireless Access Point, entered by the
administrator.
Note: If the desired Wireless Access Point is not listed, check that the device is installed and
ON, then update the list by clicking the Refresh button.
Buttons
Refresh Click this button to update the Wireless Access Point device listing
after changing the name or IP Address.
Detail Info When clicked, additional information about the selected Access
Point will be displayed.
Web Management Use this button to connect to the Wireless Access Point's Web-
based management interface.
Set IP Address Click this button if you want to change the IP Address of the
Wireless Access Point.
Exit Exit the Management utility program by clicking this button.
10
Setup
Setup Procedure
1. Select the desired Wireless Access Point.
2. Click the Set IP Address button.
3. If prompted, enter the user name and password. The default values are admin for the
User Name, and password for the Password.
4. Ensure the IP address, Network Mask, and Gateway are correct for your LAN. Save any
changes.
5. Click the Web Management button to connect to the selected Wireless Access Point using
your Web Browser. If prompted, enter the User Name and Password again.
6. Check the following screens, and configure as necessary for your environment. Use the
on-line help if necessary.
The later sections in this Chapter also provides more details about each of these screens.
• Access Control - MAC level access control.
• Security Profiles - Wireless security.
• System - Identification, location, and Network settings
• Wireless - Basic & Advanced
7. You may also wish to set the admin password and administration connection options.
These are on the Admin Login screen accessed from the Management menu. See Chapter
6 for details of the screens and features available on the Management menu.
8. Use the Apply/Restart button on the menu to apply your changes and restart the Wireless
Access Point.
Setup is now complete.
Wireless stations must now be set to match the Wireless Access Point. See Chapter 4 for
details.
11
Wireless Access Point User Guide
Setup using a Web Browser
Your Browser must support JavaScript. The configuration program has been tested on the
following browsers:
• Netscape V4.08 or later
• Internet Explorer V4 or later
Setup Procedure
Before commencing, install the Wireless Access Point in your LAN, as described previously.
1. Check the Wireless Access Point to determine its Default Name. This is shown on a label
on the base or rear, and is in the following format:
SCxxxxxx
Where xxxxxx is a set of 6 Hex characters ( 0 ~ 9, and A ~ F ).
2. Use a PC which is already connected to your LAN, either by a wired connection or an-
other Access Point.
• Until the Wireless Access Point is configured, establishing a Wireless connection to it
may be not possible.
• If your LAN contains a Router or Routers, ensure the PC used for configuration is on
the same LAN segment as the Wireless Access Point.
3. Start your Web browser.
4. In the Address box, enter "HTTP://" and the Default Name of the Wireless Access Point
e.g.
HTTP://SC2D631A
5. You should then see a login prompt, which will ask for a User Name and Password.
Enter admin for the User Name, and password for the Password.
These are the default values. The password can and should be changed. Always enter the
current user name and password, as set on the Admin Login screen.
Figure 7: Password Dialog
6. You will then see the Status screen, which displays the current settings and status. No data
input is possible on this screen. See Chapter 5 for details of the Status screen.
12
Setup
7. From the menu, check the following screens, and configure as necessary for your envi-
ronment. Details of these screens and settings are described in the following sections of
this chapter.
• Access Control - MAC level access control.
• Security Profiles - Wireless security.
• System - Identification, location, and Network settings
• Wireless - Basic & Advanced
8. You may also wish to set the admin password and administration connection options.
These are on the Admin Login screen accessed from the Management menu. See Chapter
6 for details of the screens and features available on the Management menu.
9. Use the Apply/Restart button on the menu to apply your changes and restart the Wireless
Access Point.
Setup is now complete.
Wireless stations must now be set to match the Wireless Access Point. See Chapter 4 for
details.
If you can't connect:
It is likely that your PC’s IP address is incompatible with the Wireless Access
Point’s IP address. This can happen if your LAN does not have a DHCP Server.
The default IP address of the Wireless Access Point is 192.168.0.228, with a
Network Mask of 255.255.255.0.
If your PC’s IP address is not compatible with this, you must change your PC’s IP
address to an unused value in the range 192.168.0.1 ~ 192.168.0.254, with a

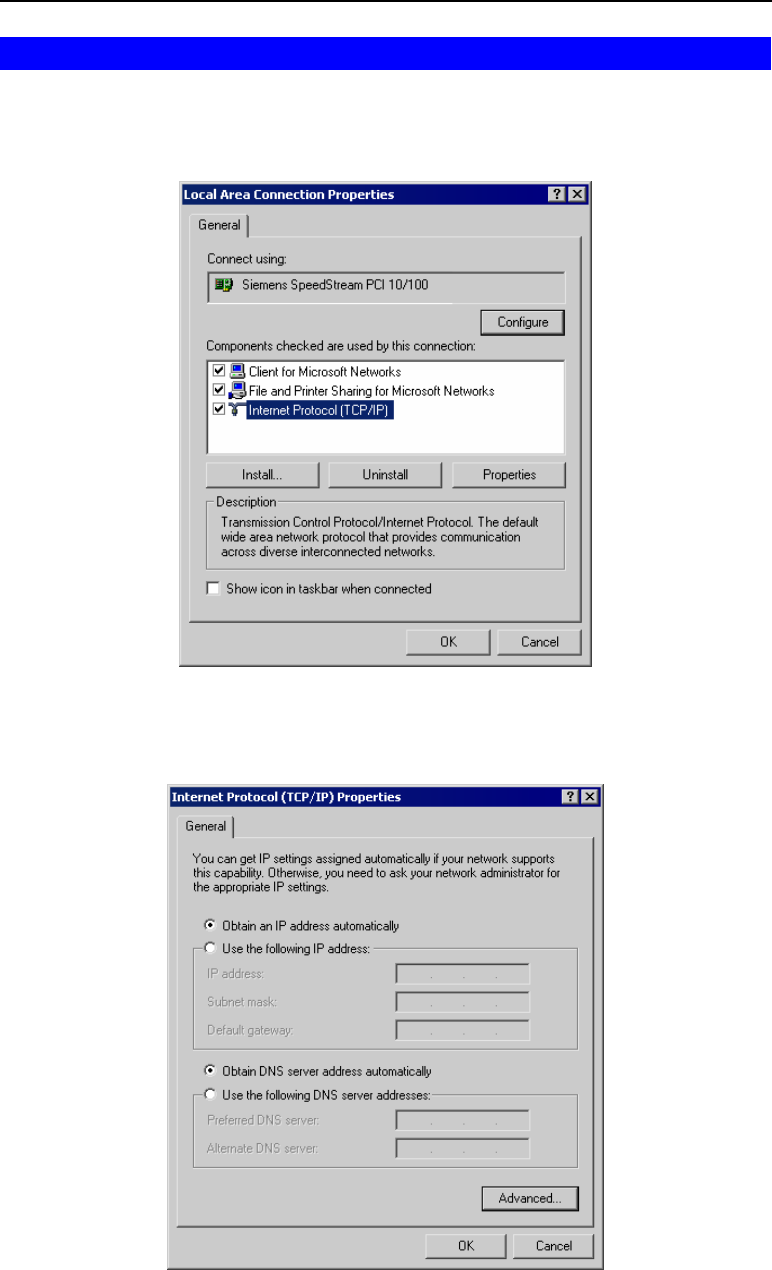

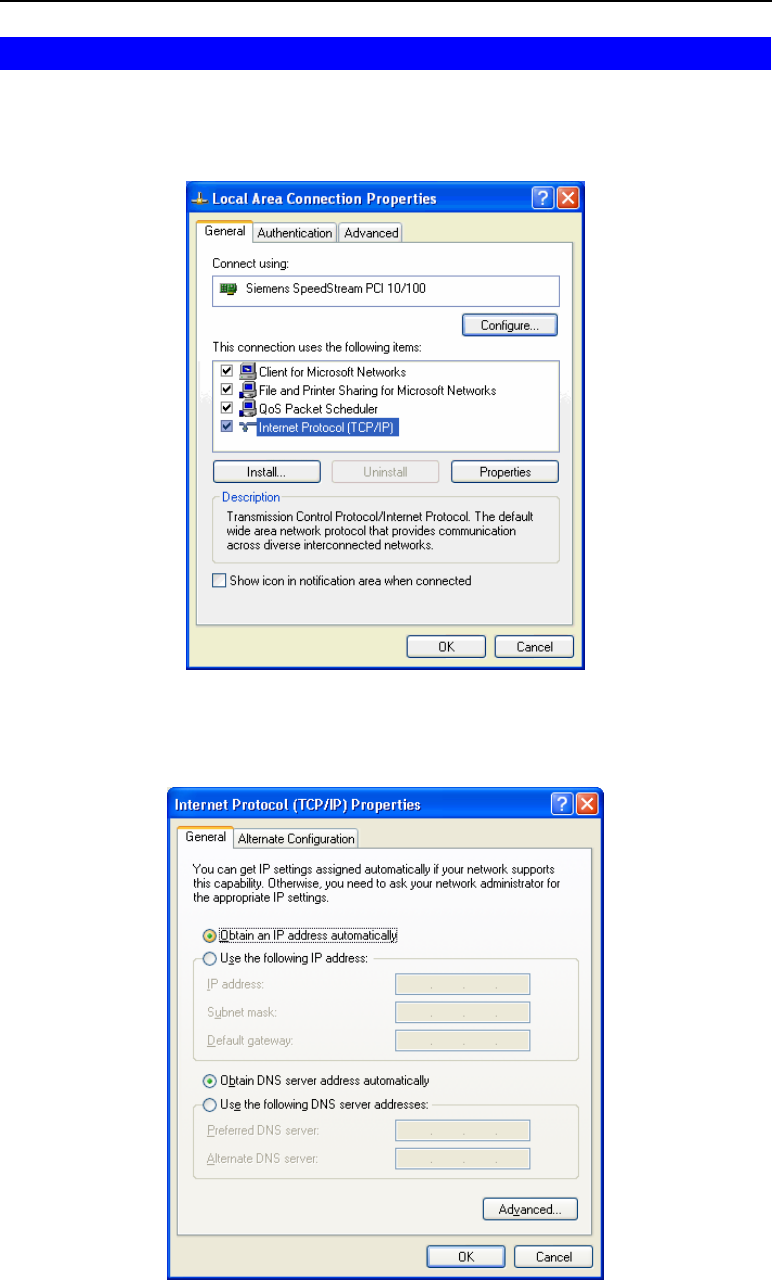

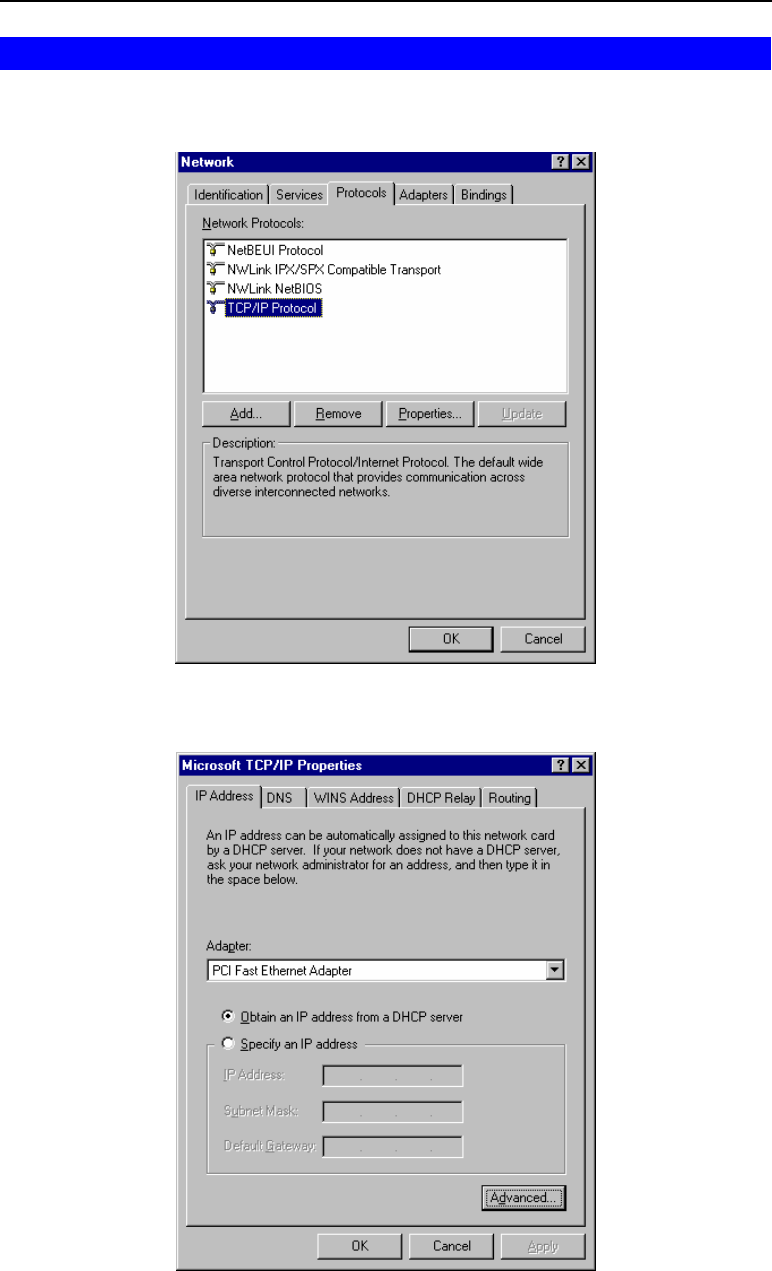

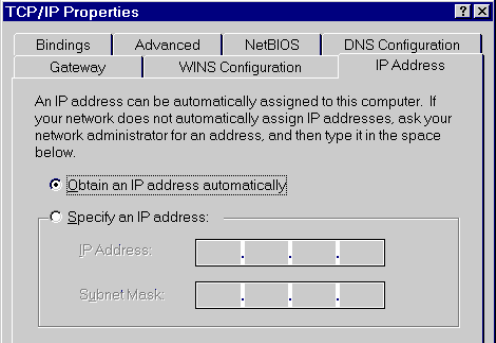

Network Mask of 255.255.255.0. See Appendix C - Windows TCP/IP for details
for this procedure.
13
Wireless Access Point User Guide
Access Control
This feature can be used to block access to your LAN by unknown or untrusted wireless
stations.
Click Access Control on the menu to view a screen like the following.
Figure 8: Access Control Screen
Data - Access Control Screen
Enable Use this checkbox to Enable or Disable this feature as desired.
Warning ! Ensure your own PC is in the "Trusted Wireless Stations"
list before enabling this feature.
Trusted Stations This table lists any Wireless Stations you have designated as
"Trusted". If you have not added any stations, this table will be empty.
For each Wireless station, the following data is displayed:
• MAC Address - the MAC or physical address of each Wire-
less station.
• Connected - this indicates whether or not the Wireless station
is currently associates with this Access Point.
Buttons
Modify List To change the list of Trusted Stations (Add, Edit, or Delete a Wireless
Station or Stations), click this button. You will then see the Trusted
Wireless Stations screen, described below.
Read from File To upload a list of Trusted Stations from a file on your PC, click this
button.
Write to File To download the current list of Trusted Stations from the Access Point
to a file on your PC, click this button.
14
Setup
Trusted Wireless Stations
To change the list of trusted wireless stations, use the Modify List button on the Access Control
screen. You will see a screen like the sample below.
Figure 9: Trusted Wireless Stations
Data - Trusted Wireless Stations
Trusted Wireless
Stations This lists any Wireless Stations which you have designated as
“Trusted”.
Other Wireless
Stations This list any Wireless Stations detected by the Access Point, which
you have not designated as "Trusted".
Name The name assigned to the Trusted Wireless Station. Use this when
adding or editing a Trusted Station.
Address The MAC (physical) address of the Trusted Wireless Station. Use
this when adding or editing a Trusted Station.
Buttons
<< Add a Trusted Wireless Station to the list (move from the "Other
Stations" list).
• Select an entry (or entries) in the "Other Stations" list, and
click the " << " button.
• Enter the Address (MAC or physical address) of the wireless
station, and click the "Add " button.
>> Delete a Trusted Wireless Station from the list (move to the "Other
Stations" list).
• Select an entry (or entries) in the "Trusted Stations" list.
• Click the " >> " button.
Select All Select all of the Stations listed in the "Other Stations" list.
Select None De-select any Stations currently selected in the "Other Stations"
list.
15
Wireless Access Point User Guide
Edit To change an existing entry in the "Trusted Stations" list, select it
and click this button.
1. Select the Station in the "Trusted Station" list.
2. Click the "Edit" button. The address will be copied to the
"Address" field, and the "Add" button will change to "Update".
3. Edit the address (MAC or physical address) as required.
4. Click "Update" to save your changes.
Add To add a Trusted Station which is not in the "Other Wireless
Stations" list, enter the required data and click this button.
Clear Clear the Name and Address fields.
Security Profiles
Security Profiles contain the SSID and all the security settings for Wireless connections to this
Access Point.
• Up to eight (8) Security Profiles can be defined.
• Up to four (4) Security Profiles can be enabled at one time, allowing up to 4 different
SSIDs to be used simultaneously.
Figure 10: Security Profiles Screen
16
Setup
Data - Security Profiles Screen
Profile
Profile List All available profiles are listed. For each profile, the following data
is displayed:
• *
If displayed before the name of the profile, this indicates the
profile is currently enabled. If not displayed, the profile is cur-
rently disabled.
• Profile Name
The current profile name is displayed.
• [SSID]
The current SSID associated with this profile.
• Security System
The current security system (e.g. WPA-PSK ) is displayed.
• [Band]
The Wireless Band (2.4 GHz, 5GHz) for this profile is dis-
played. Profiles may be assigned to either or both Wireless
Bands.
Buttons • Enable - Enable the selected profile.
• Configure - Change the settings for the selected profile.
• Disable - Disable the selected profile.
Primary Profile
802.11b/g AP Mode Select the primary profile for 802.11b and 802.11g (2.4 GHz band)
AP mode. Only enabled profiles are listed. The SSID associated
with this profile will be broadcast if the "Broadcast SSID" setting
on the Basic screen is enabled.
802.11b/g Bridge
Mode Select the primary profile for 802.11b and 802.11g (2.4 GHz band)
Bridge Mode. This setting determines the SSID and security
settings used for the Bridge connection to the remote AP.
Isolation
None If this option is selected, wireless clients using different profiles
(different SSIDs) are not isolated from each other, so they will be
able to communicate with each other.
Isolate all If this option is selected, wireless clients using different profiles
(different SSIDs) are isolated from each other, so they will NOT be
able to communicate with each other. They will still be able to
communicate with other clients using the same profile, unless the
"Wireless Separation" setting on the "Advanced" screen has been
enabled.
Use VLAN This option is only useful if the hubs/switches on your LAN sup-
port the VLAN (802.1Q) standard.
When VLAN is used, you must select the desired VLAN for each
security profile when configuring the profile. (If VLAN is not
selected, the VLAN setting for each profile is ignored.)
Click the Configure VLAN button to configure the IDs used by each
VLAN. See below for further details.
17
Wireless Access Point User Guide
VLAN Configuration Screen
This screen is accessed via the Configure VLAN button on the Security Profiles screen.
• The settings on this screen will be ignored unless the Use VLAN option on the Security
Profiles screen is selected.
• If using the VLAN option, these setting determine which VLAN traffic is assigned to.
Figure 11: VLAN Configuration
Data - VLAN Configuation Screen
Profile Each profile is listed by name.
VLAN ID Enter the ID for the required VLAN. All traffic using this profile will be
assigned to this VLAN.
18
Setup
Security Profile Screen
This screen is displayed when you select a Profile on the Security Profiles screen, and click the
Configure button.

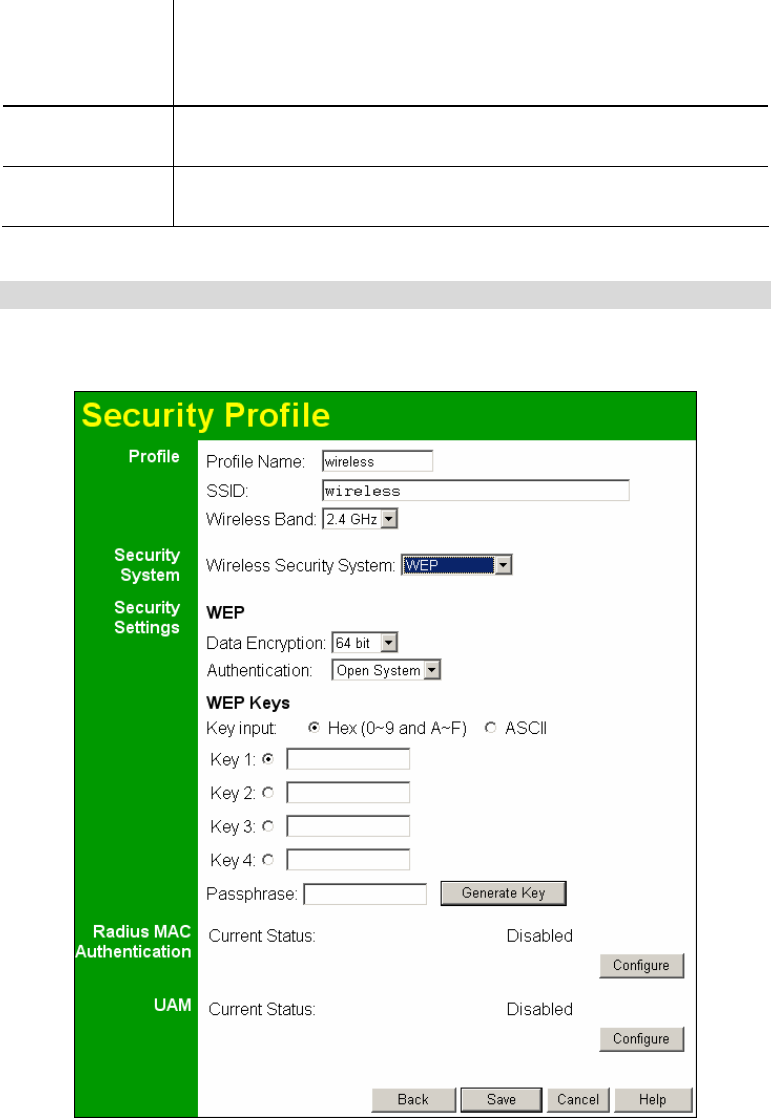

Figure 12: Security Profile Screen
Profile Data
Enter the desired settings for each of the following:
Profile Name Enter a suitable name for this profile.
SSID Enter the desired SSID. Each profile must have a unique SSID.
Wireless Band Select the wireless band or bands for this profile. If your Wireless
Access Point only has a single band, then only 1 option is available.
Security Settings
Select the desired option, and then enter the settings for the selected method.
The available options are:
• None - No security is used. Anyone using the correct SSID can connect to your network.
• WEP - The 802.11b standard. Data is encrypted before transmission, but the encryption
system is not very strong.
• WPA-PSK - Like WEP, data is encrypted before transmission. WPA is more secure than
WEP, and should be used if possible. The PSK (Pre-shared Key) must be entered on each
Wireless station. The 256Bit encryption key is derived from the PSK, and changes fre-
quently.
• WPA-802.1x - This version of WPA requires a Radius Server on your LAN to provide the
client authentication according to the 802.1x standard. Data transmissions are encrypted
using the WPA standard.
If this option is selected:
19
Wireless Access Point User Guide
• This Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server.
• Each user's wireless client must support 802.1x and provide the login data when re-
quired.
• All data transmission is encrypted using the WPA standard. Keys are automatically
generated, so no key input is required.
• 802.1x - This uses the 802.1x standard for client authentication, and WEP for data encryp-
tion. If possible, you should use WPA-802.1x instead, because WPA encryption is much
stronger than WEP encryption.
If this option is selected:
• This Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server.
• Each user's wireless client must support 802.1x and provide the login data when re-
quired.
• All data transmission is encrypted using the WEP standard. You only have to select
the WEP key size; the WEP key is automatically generated.
20
Setup
Security Settings - None
Figure 13: Wireless Security - None
No security is used. Anyone using the correct SSID can connect to your network.
The only settings available from this screen are Radius MAC Authentication and UAM
(Universal Access Method).
Radius MAC Authentication
Radius MAC Authentication provides for MAC address checking which is centralized on your
Radius server. If you don't have a Radius Server, you cannot use this feature.
Using MAC authentication
1. Ensure the Wireless Access Point can login to your Radius Server.
• Add a RADIUS client on the RADIUS server, using the IP address or name of the
Wireless Access Point, and the same shared key as entered on the Wireless Access
Point.
• Ensure the Wireless Access Point has the correct address, port number, and shared
key for login to your Radius Server. These parameters are entered either on the
Security page, or the Radius-based MAC authentication sub-screen, depending on
the security method used.
• On the Access Point, enable the Radius-based MAC authentication feature on the
screen below.
2. Add Users on the Radius server as required. The username must be the MAC address of
the Wireless client you wish to allow, and the password must be blank.
3. When clients try to associate with the Access Point, their MAC address is passed to the
Radius Server for authentication.
• If successful, “
xx:xx:xx:xx:xx:xx MAC authentication
” is entered in the log,
and client station status would show as “authenticated” on the station list table;
• If not successful, “
xx:xx:xx:xx:xx:xx MAC authentication failed
” is en-
tered in the log,, and station status is shown as “authenticating” on the station list
table.
21
Wireless Access Point User Guide
Radius-based MAC authentication Screen
This screen will look different depending on the current security setting. If you have already
provided the address of your Radius server, you won't be prompted for it again. Otherwise,
you must enter the details of your Radius Server on this screen.
Figure 14: Radius-based MAC Authentication Screen
Data - Radius-based MAC Authentication Screen
Enable ... Enable this if you wish to Radius-based MAC authentication.
Radius Server
Address If this field is visible, enter the name or IP address of the Radius
Server on your network.
Radius Port If this field is visible, enter the port number used for connections to
the Radius Server.
Client Login Name If this field is visible, it displays the name used for the Client Login
on the Radius Server. This Login name must be created on the
Radius Server.
Shared Key If this field is visible, it is used for the Client Login on the Radius
Server. Enter the key value to match the value on the Radius Server.
WEP Key If this field is visible, it is for the WEP key used to encrypt data
transmissions to the Radius Server. Enter the desired key value in
HEX, and ensure the Radius Server has the same value.
WEP Key Index If this field is visible, select the desired key index. Any value can be
used, provided it matches the value on the Radius Server.
22
Setup
UAM
UAM (Universal Access Method) is intended for use in Internet cafes, Hot Spots, and other
sites where the Access Point is used to provide Internet Access.
If enabled, then HTTP (TCP, port 80) connections are checked. (UAM only works on HTTP
connections; all other traffic is ignored.) If the user has not been authenticated, Internet access
is blocked, and the user is re-directed to another web page. Typically, this web page is on your
Web server, and explains how to pay for and obtain Internet access.
To use UAM, you need a Radius Server for Authentication. The "Radius Server Setup" must
be completed before you can use UAM. The required setup depends on whether you are using
“Internal” or “External” authentication.
• Internal authentication uses the web page built into the Wireless Access Point.
• External authentication uses a web page on your Web server. Generally, you should use
External authentication, as this allows you to provide relevant and helpful information to
users.
UAM authentication - Internal
1. Ensure the Wireless Access Point can login to your Radius Server.
• Add a RADIUS client on RADIUS server, using the IP address or name of the Wire-
less Access Point, and the same shared key as entered on the Wireless Access Point.
• Ensure the Wireless Access Point has the correct address, port number, and shared
key for login to your Radius Server. These parameters are entered either on the Secu-
rity page, or the UAM sub-screen, depending on the security method used.
2. Add users on your RADIUS server as required, and allow access by these users.
3. Client PCs must have the correct Wireless settings in order to associate with the Wireles
Access Point.
4. When an associated client tries to use HTTP (TCP, port 80) connections, they will be re-
directed to a user login page.
5. The client (user) must then enter the user name and password, as defined on the Radius
Server. (You must provide some system to let users know the correct name and password
to use.)
6. If the user name and password is correct, Internet access is allowed.
Otherwise, the user remains on the login page.
• Clients which pass the authentication are listed as “
xx:xx:xx:xx:xx:xx WEB au-
thentication
” in the log table, and station status would show as “Authenticated”
on the station list table.
• If a client fails authentication, “
xx:xx:xx:xx:xx:xx WEB authentication
failed
” shown in the log, and station status is shown as “Authenticating” on the sta-
tion list table.
UAM authentication - External
1. Ensure the Wireless Access Point can login to your Radius Server.
• Add a RADIUS client on RADIUS server, using the IP address or name of the Wire-
less Access Point, and the same shared key as entered on the Wireless Access Point.
• Ensure the Wireless Access Point has the correct address, port number, and shared
key for login to your Radius Server. These parameters are entered either on the Secu-
rity page, or the UAM sub-screen, depending on the security method used.
2. On your Web Server, create a suitable welcome page.
The welcome page must have a link or button to allow the user to input their user
name and password on the uamlogon.htm page on the Access Point.
23
Wireless Access Point User Guide
3. On the Access Point’s UAM screen, select External Web-based Authentication, and
enter the URL for the welcome page on your Web server.
4. Add users on your RADIUS server as required, and allow access by these users.
5. Client PCs must have the correct Wireless settings in order to associate with the Wireless
Access Point.
6. When an associated client tries to use HTTP (TCP, port 80) connections, they will be re-
directed to the welcome page on your Web Server. They must then click the link or button
in order to reach the Access Point’s login page.
7. The client (user) must then enter the user name and password, as defined on the Radius
Server. (You must provide some system to let users know the correct name and password
to use.)
8. If the user name and password is correct, Internet access is allowed.
Otherwise, the user remains on the login page.
• Clients which pass the authentication are listed as “
xx:xx:xx:xx:xx:xx WEB au-
thentication
” in the log table, and station status would show as “Authenticated”
on the station list table.
• If a client fails authentication, “
xx:xx:xx:xx:xx:xx WEB authentication
failed
” is shown in the log, and station status is shown as “Authenticating” on the
station list table.
UAM Screen
The UAM screen will look different depending on the current security setting. If you have
already provided the address of your Radius server, you won't be prompted for it again.
Figure 15: UAM Screen
Data - UAM Screen
Enable Enable this if you wish to use this feature. See the section above for
details of using UAM.
Internal
Web-based
Authentication
If selected, then when a user first tries to access the Internet, they will
be blocked, and re-directed to the built-in login page. The logon data is
then sent to the Radius Server for authentication.
24
Setup
External
Web-based
Authentication
If selected, then when a user first tries to access the Internet, they will
be blocked, and re-directed to the URL below. This needs to be on
your own local Web Server. The page must also link back to the built-
in login page on this device to complete the login procedure.
Login URL Enter the URL of the page on your local Web Server you wish users to
see when they attempt to access the Internet, but are not logged in.
Login Failure
URL Enter the URL of the page on your local Web Server you wish users to
see if their login fails. (This may be the same URL as the Login URL).
Security Settings - WEP
This is the 802.11b standard. Data is encrypted before transmission, but the encryption system
is not very strong.
Figure 16: WEP Wireless Security
25
Wireless Access Point User Guide
Data - WEP Screen
WEP
Data
Encryption Select the desired option, and ensure your Wireless stations have the
same setting:
• 64 Bit Encryption - Keys are 10 Hex (5 ASCII) characters.
• 128 Bit Encryption - Keys are 26 Hex (13 ASCII) characters.
• 152 Bit Encryption - Keys are 32 Hex (16 ASCII) characters.
Authentication Normally, you can leave this at “Automatic”, so that Wireless Stations
can use either method ("Open System" or "Shared Key".).
If you wish to use a particular method, select the appropriate value -
"Open System" or "Shared Key". All Wireless stations must then be set
to use the same method.
Key Input Select "Hex" or "ASCII" depending on your input method. (All keys
are converted to Hex, ASCII input is only for convenience.)
Key Value Enter the key values you wish to use. The default key, selected by the
radio button, is required. The other keys are optional. Other stations
must have matching key values.
Passphrase Use this to generate a key or keys, instead of entering them directly.
Enter a word or group of printable characters in the Passphrase box
and click the "Generate Key" button to automatically configure the
WEP Key(s).
Radius MAC
Authentication The current status is displayed.
Click the "Configure" button to configure this feature if required.
UAM The current status is displayed.
Click the "Configure" button to configure this feature if required.
26
Setup
Security Settings - WPA-PSK
Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should
be used if possible. The PSK (Pre-shared Key) must be entered on each Wireless station. The
256Bit encryption key is derived from the PSK, and changes frequently.
Figure 17: WPA-PSK Wireless Security
Data - WPA-PSK Screen
WPA-PSK
Network Key Enter the key value. Data is encrypted using a 256Bit key derived
from this key. Other Wireless Stations must use the same key.
WPA Encryption Select the desired option. Other Wireless Stations must use the
same method.
• TKIP - Unicast (point-to-point) transmissions are encrypted
using TKIP, and multicast (broadcast) transmissions are not
encrypted.
• TKIP + 64 bit WEP - Unicast (point-to-point) transmissions
are encrypted using TKIP, and multicast (broadcast) trans-
missions are encrypted using 64 bit WEP.
• TKIP + 128 bit WEP - Unicast (point-to-point) transmis-
sions are encrypted using TKIP, and multicast (broadcast)
transmissions are encrypted using 128 bit WEP.
• AES - CCMP - CCMP is the most common sub-type of
AES (Advanced Encryption System). Most systems will
27
Wireless Access Point User Guide
simply say "AES". If selected, both Unicast (point-to-point)
and multicast (broadcast) transmissions are encrypted using
AES.
• AES - TKIP - If selected, Unicast (point-to-point) uses
AES-CCMP and multicast (broadcast) transmissions are en-
crypted using TKIP.
Pairwise Key Update This refers to the key used for point-to-point transmissions.
Enable this if you want the keys to be updated regularly.
Key Lifetime This field determines how often Pairwise keys are dynamically
updated. Enter the desired value.
Group Key Update This refers to the key used for broadcast transmissions. Enable
this if you want the keys to be updated regularly.
Key Lifetime This field determines how often the Group key is dynamically
updated. Enter the desired value.
Update Group key
when any membership
terminates
If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.
Radius MAC
Authentication The current status is displayed. This will always be "Disabled",
because Radius MAC Authentication is not available with WPA-
PSK. The Configure button for this feature will also be disabled.
UAM The current status is displayed. This will always be "Disabled",
because UAM is not available with WPA-PSK. The Configure
button for this feature will also be disabled.
28
Setup
Security Settings - WPA-802.1x
This version of WPA requires a Radius Server on your LAN to provide the client authentica-
tion according to the 802.1x standard. Data transmissions are encrypted using the WPA
standard.
If this option is selected:
• This Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server. Normally, a Certificate is used to
authenticate each user. See Chapter4 for details of user configuration.
• Each user's wireless client must support 802.1x.
• All data transmission is encrypted using the WPA standard. Keys are automatically
generated, so no key input is required.
Figure 18: WPA-802.1x Wireless Security
29
Wireless Access Point User Guide
Data - WPA-802.1x Screen
WPA-802.1x
Radius Server
Address Enter the name or IP address of the Radius Server on your network.
Radius Port Enter the port number used for connections to the Radius Server.
Client Login Name This read-only field displays the current login name, which is the
same as the name of the Access Point. The Radius Server must be
configured to accept this login.
Shared Key This is used for the Client Login on the Radius Server. Enter the
key value to match the Radius Server.
WPA Encryption Select the desired option. Other Wireless Stations must use the
same method.
• TKIP - Unicast (point-to-point) transmissions are encrypted
using TKIP, and multicast (broadcast) transmissions are not
encrypted.
• TKIP + 64 bit WEP - Unicast (point-to-point) transmissions
are encrypted using TKIP, and multicast (broadcast) transmis-
sions are encrypted using 64 bit WEP.
• TKIP + 128 bit WEP - Unicast (point-to-point) transmissions
are encrypted using TKIP, and multicast (broadcast) transmis-
sions are encrypted using 128 bit WEP.
• AES - CCMP - CCMP is the most common sub-type of AES
(Advanced Encryption System). Most systems will simply say
"AES". If selected, both Unicast (point-to-point) and multicast
(broadcast) transmissions are encrypted using AES.
• AES - TKIP - If selected, Unicast (point-to-point) uses AES-
CCMP and multicast (broadcast) transmissions are encrypted
using TKIP.
Pairwise Key
Update This refers to the key used for point-to-point transmissions. Enable
this if you want the keys to be updated regularly.
Key Lifetime This field determines how often Pairwise keys are dynamically
updated. Enter the desired value.
Group Key Update This refers to the key used for broadcast transmissions. Enable this
if you want the keys to be updated regularly.
Key Lifetime This field determines how often the Group key is dynamically
updated. Enter the desired value.
Update Group key
when any member-
ship terminates
If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.
Radius Accounting Enable this if you want this Access Point to send accounting data to
the Radius Server.
If enabled, the port used by your Radius Server must be entered in
the Radius Accounting Port" field.
30
Setup
Update Report
every ... If Radius accounting is enabled, you can enable this and enter the
desired update interval. This Access Point will then send updates
according to the specified time period.
Radius MAC
Authentication The current status is displayed. This will always be "Disabled",
because Radius MAC Authentication is not available with WPA-
802.1x. The Configure button for this feature will also be disabled.
UAM The current status is displayed. This will always be "Disabled",
because UAM is not available with WPA-802.1x. The Configure
button for this feature will also be disabled.
31
Wireless Access Point User Guide
Security Settings - 802.1x
This uses the 802.1x standard for client authentication, and WEP for data encryption. If possi-
ble, you should use WPA-802.1x instead, because WPA encryption is much stronger than
WEP encryption.
If this option is selected:
• This Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server. Normally, a Certificate is used to
authenticate each user. See Chapter4 for details of user configuration.
• Each user's wireless client must support 802.1x.
• All data transmission is encrypted using the WEP standard. You only have to select the
WEP key size; the WEP key is automatically generated.
Figure 19: 802.1x Wireless Security
32
Setup
Data - 802.1x Screen
802.1x
Radius Server Address Enter the name or IP address of the Radius Server on your
network.
Radius Port Enter the port number used for connections to the Radius
Server.
Client Login Name This read-only field displays the current login name, which is
the same as the name of the Access Point. The Radius Server
must be configured to accept this login.
Shared Key This is used for the Client Login on the Radius Server. Enter the
key value to match the Radius Server.
WEP Key Size Select the desired option:
• 64 Bit - Keys are 10 Hex (5 ASCII) characters.
• 128 Bit - Keys are 26 Hex (13 ASCII) characters.
• 152 Bit - Keys are 32 Hex (16 ASCII) characters.
Dynamic WEP Key Click this if you want the WEP keys to be automatically gener-
ated.
• The key exchange will be negotiated. The most widely
supported protocol is EAP-TLS.
• The following Key Exchange setting determines how often
the keys are changed.
• Both Dynamic and Static keys can be used simultaneously,
allowing clients using either method to use the Access
Point.
Key Exchange This setting if only available if using Dynamic WEP Keys. If
you want the Dynamic WEP keys to be updated regularly,
enable this and enter the desired lifetime (in minutes).
Static WEP Key
(EAP-MD5) Enable this if some wireless clients use a fixed (static) WEP
key, using EAP-MD5.
Note that both Dynamic and Static keys can be used simultane-
ously, allowing clients using either method to use the Access
Point.
WEP Key Enter the WEP key according to the WEP Key Size setting
above. Wireless stations must use the same key.
WEP Key Index Select the desired index value. Wireless stations must use the
same key index.
Radius Accounting Enable this if you want this Access Point to send accounting
data to the Radius Server.
If enabled, the port used by your Radius Server must be entered
in the Radius Accounting Port field.
Update Report every ... If Radius accounting is enabled, you can enable this and enter
the desired update interval. This Access Point will then send
updates according to the specified time period.
33
Wireless Access Point User Guide
Radius MAC
Authentication The current status is displayed.
Click the Configure button to configure this feature if required.
UAM The current status is displayed.
Click the Configure button to configure this feature if required.
34
Setup
System Screen
Click System on the menu to view a screen like the following.
Figure 20: System Screen
Data - System Screen
Identification
Access Point
Name Enter a suitable name for this Access Point.
Description If desired, you can enter a description for the Access Point.
Country Domain Select the country or domain matching your current location.
IP Address
DHCP Client Select this option if you have a DHCP Server on your LAN, and you
wish the Access Point to obtain an IP address automatically.
Fixed If selected, the following data must be entered.
• IP Address - The IP Address of this device. Enter an unused IP
address from the address range on your LAN.
• Subnet Mask - The Network Mask associated with the IP Address
above. Enter the value used by other devices on your LAN.
• Gateway - The IP Address of your Gateway or Router. Enter the
value used by other devices on your LAN.
• DNS - Enter the DNS (Domain Name Server) used by PCs on
your LAN.
WINS
Enable WINS If your LAN has a WINS server, you can enable this to have this AP
register with the WINS server.
35
Wireless Access Point User Guide
WINS Server
Name/IP Address Enter the name or IP address of your WINS server.
36
Setup
Wireless Screens
There are two (2) configuration screens available:
• Basic Settings
• Advanced
Basic Settings Screen
The settings on this screen must match the settings used by Wireless Stations.
Click Basic on the menu to view a screen like the following.
Figure 21: Basic Settings Screen
Data - Basic Settings Screen
Operation
Wireless Mode Select the desired option:
• Disable - select this if for some reason you do not this AP to
transmit or receive at all.
• 802.11b and 802.11g - this is the default, and will allow connec-
tions by both 802.11b and 802.1g wireless stations.
• 802.11b - if selected, only 802.11b connections are allowed.
802.11g wireless stations will only be able to connect if they are
fully backward-compatible with the 802.11b standard.
• 802.11g - only 802.11g connections are allowed. If you only have
802.11g, selecting this option may provide a performance im-
provement over using the default setting.
• Dynamic Super 802.11g (108Mbps) - This uses Packet Bursting,
FastFrame, Compression, and Channel Bonding (using 2 chan-
nels) to increase throughput. Only clients supporting the "Atheros
Super G" mode can connect at 108Mbps, and they will only use
37
Wireless Access Point User Guide
this speed when necessary. However, this option is backward-
compatible with 802.11b and (standard) 802.11g.
• Static Super 802.11g (108Mbps) - This uses Packet Bursting,
FastFrame, Compression, and Channel Bonding (using 2 chan-
nels) to increase throughput.
Because "Channel Bonding" is always used, this method is
NOT compatible with 802.11b and (standard) 802.11g.
Only clients supporting the "Atheros Super G" mode can connect
at 108Mbps; they will always connect at this speed. Select this op-
tion only if all wireless stations support this "Atheros Super G"
mode.
AP Mode Both Bridge mode and AP mode can be used simultaneously, unless
AP mode is "Client/Repeater". Select the desired AP mode:
• None (disable) - Disable AP mode. Use this if you want to act a
Bridge only.
• Access Point - operate as a normal Access Point
• Client/Repeater - act as a client or repeater for another Access
Point. If selected, you must provide the address (MAC address) of
the other AP in the Repeater AP MAC Address field. In this
mode, all traffic is sent to the specified AP.
Note: If using Client/Repeater mode, you cannot use Bridge Mode.
Repeater AP
MAC Address This is not required unless the AP Mode is "Client/Repeater". In this
mode, you must provide the MAC address of the other AP in this field.
You can either enter the MAC address directly, or, if the other AP is
on-line and broadcasting its SSID, you can click the "Select AP"
button and select from a list of available APs.
Broadcast SSID If Disabled, no SSID is broadcast.
If enabled, you must select the security profile whose SSID is to be
broadcast. This can be done the "Security Profiles" screen. The SSID
will then be broadcast to all Wireless Stations. Stations which have no
SSID (or a "null" value) can then adopt the correct SSID for connec-
tions to this Access Point.
38
Setup
Bridge Mode Both Bridge mode and AP mode can be used simultaneously, unless
AP mode is "Client/Repeater". Select the desired Bridge mode:
• None (disable) - Disable Bridge mode. Use this if you want to act
a AP only.
• Point-to-Point Bridge (PTP) - Bridge to a single AP. You must
provide the MAC address of the other AP in the PTP Bridge AP
MAC Address field.
• Point-to-Multi-Point Bridge (PTMP) - Select this only if this AP
is the "Master" for a group of Bridge-mode APs. The other
Bridge-mode APs must be set to Point-to-Point Bridge mode, us-
ing this AP's MAC address. They then send all traffic to this
"Master".
If required, you can specify the MAC addresses of the APs which are
allowed to connect to this AP in PTMP mode. To specify the allowed
APs:
1. Enable the checkbox "In PTMP mode, only allow specified APs".
2. Click the button "Set PTMP APs".
3. On the resulting sub-screen, enter the MAC addresses of the
allowed APs.
PTP Bridge AP
MAC Address This is not required unless the Bridge Mode is "Point-to-Point Bridge
(PTP)". In this case, you must enter the MAC address of the other AP
in this field.
In PTMP mode,
only allow
specified APs
This is only functional if using Point-to-Multi-Point Bridge (PTMP)
mode. If enabled, you can specify the MAC addresses of the APs
which are allowed to connect to this AP. To specify the allowed APs:
1. Enable this checkbox
2. Click the button "Set PTMP APs".
3. On the resulting sub-screen, enter the MAC addresses of the
allowed APs.
Set PTMP APs Use this to open a sub-window where you can specify the MAC
addresses of the APs which are allowed to connect to this AP. This is
only functional if using Point-to-Multi-Point Bridge (PTMP) mode and
you have enabled the checkbox "In PTMP mode, only allow specified
APs".
Parameters
Channel No • If "Automatic" is selected, the Access Point will select the best
available Channel.
• If you experience interference (shown by lost connections and/or
slow data transfers) you may need to experiment with manually
setting different channels to see which is the best.
Current Channel
No. This displays the current channel used by the Access Point.
39
Wireless Access Point User Guide
Advanced Settings
Clicking the Advanced link on the menu will result in a screen like the following.
Figure 22: Advanced Settings
Data - Advanced Settings Screen
Basic Rate
Basic Rate The Basic Rate is used for broadcasting. It does not determine
the data transmission rate, which is determined by the "Mode"
setting on the Basic screen.
Select the desired option.
Do NOT select the "802.11g" or "ODFM" options unless ALL
of your wireless clients support this. 802.11b clients will not be
able to connect to the Access Point if either of these modes is
selected.
Options
Wireless Separation If enabled, then each Wireless station using the Access Point is
invisible to other Wireless stations. In most business situations,
this setting should be Disabled.
Worldwide Mode
(802.11d) Enable this setting if you wish to use this mode, and your
Wireless stations support this mode.
40
Setup
Parameters
Disassociated Timeout This determines how quickly a Wireless Station will be consid-
ered "Disassociated" with this AP, when no traffic is received.
Enter the desired time period.
Fragmentation Enter the preferred setting between 256 and 2346. Normally,
this can be left at the default value.
Beacon Interval Enter the preferred setting between 20 and 1000. Normally, this
can be left at the default value.
RTS/CTS Threshold Enter the preferred setting between 256 and 2346. Normally,
this can be left at the default value.
Preamble Type Select the desired option. The default is "Long". The "Short"
setting takes less time when used in a good environment.
Output Power Level Select the desired power output. Higher levels will give a
greater range, but are also more likely to cause interference with
other devices.
Antenna Selection If your Access Point has only 1 antenna, there is only 1 option
available. If your Access Point has 2 antennae, select the option
which gives the best results in your location.
802.11b
Protection Type Select the desired option. The default is CTS-only.
Short Slot Time Enable or disable this setting as required.
Protection Mode The Protection system is intended to prevent older 802.11b
devices from interfering with 802.11g transmissions. (Older
802.11b devices may not be able to detect that a 802.11g
transmission is in progress.) Normally, this should be left at
"Auto".
Protection Rate Select the desired option. The default is 11 Mbps.
41
4
Chapter 4
PC and Server Configuration
This Chapter details the PC Configuration required for each PC on the local
LAN.
Overview
All Wireless Stations need to have settings which match the Wireless Access Point. These
settings depend on the mode in which the Access Point is being used.
• If using WEP or WPA-PSK, it is only necessary to ensure that each Wireless station's
settings match those of the Wireless Access Point, as described below.
• For WPA-802.1x and 802.1x modes, configuration is much more complex. The Radius
Server must be configured correctly, and setup of each Wireless station is also more com-
plex.
Using WEP
For each of the following items, each Wireless Station must have the same settings as the
Wireless Access Point.
Mode On each PC, the mode must be set to Infrastructure.
SSID (ESSID) This must match the value used on the Wireless Access Point.
The default value is wireless
Note! The SSID is case sensitive.
Wireless
Security
• Each Wireless station must be set to use WEP data encryption.
• The Key size (64 bit, 128 bit, 152 bit) must be set to match the
Access Point.
• The keys values on the PC must match the key values on the Access
Point.
Note:
On some systems, the key sizes may be shown as 40bit, 104bit, and
128bit instead of 64 bit, 128 bit and 152bit. This difference arises be-
cause the key input by the user is 24 bits less than the key size used for
encryption.
42
PC and Server Configuration
Using WPA-PSK
For each of the following items, each Wireless Station must have the same settings as the
Wireless Access Point.
Mode On each PC, the mode must be set to Infrastructure.
SSID (ESSID) This must match the value used on the Wireless Access Point.
The default value is wireless
Note! The SSID is case sensitive.
Wireless
Security On each client, Wireless security must be set to WPA-PSK.
• The Pre-shared Key entered on the Access Point must also be
entered on each Wireless client.
• The Encryption method (e.g. TKIP, AES) must be set to match the
Access Point.
43
Wireless Access Point User Guide
Using WPA-802.1x
This is the most secure and most complex system.
802.1x mode provides greater security and centralized management, but it is more complex to
configure.
Wireless Station Configuration
For each of the following items, each Wireless Station must have the same settings as the
Wireless Access Point.
Mode On each PC, the mode must be set to Infrastructure.
SSID (ESSID) This must match the value used on the Wireless Access Point.
The default value is wireless
Note! The SSID is case sensitive.
802.1x
Authentication Each client must obtain a Certificate which is used for authentication for
the Radius Server.
802.1x
Encryption Typically, EAP-TLS is used. This is a dynamic key system, so keys do
NOT have to be entered on each Wireless station.
However, you can also use a static WEP key (EAP-MD5); the Wireless
Access Point supports both methods simultaneously.
Radius Server Configuration
If using WPA-802.1x mode, the Radius Server on your network must be configured as follow:
• It must provide and accept Certificates for user authentication.
• There must be a Client Login for the Wireless Access Point itself.
• The Wireless Access Point will use its Default Name as its Client Login name. (How-
ever, your Radius server may ignore this and use the IP address instead.)
• The Shared Key, set on the Security Screen of the Access Point, must match the
Shared Secret value on the Radius Server.
• Encryption settings must be correct.
44
PC and Server Configuration
802.1x Server Setup (Windows 2000 Server)
This section describes using Microsoft Internet Authentication Server as the Radius Server,
since it is the most common Radius Server available that supports the EAP-TLS authentication
method.
The following services on the Windows 2000 Domain Controller (PDC) are also required:
• dhcpd
• dns
• rras
• webserver (IIS)
• Radius Server (Internet Authentication Service)
• Certificate Authority
Windows 2000 Domain Controller Setup
1. Run dcpromo.exe from the command prompt.
2. Follow all of the default prompts, ensure that DNS is installed and enabled during installa-
tion.
Services Installation
1. Select the Control Panel - Add/Remove Programs.
2. Click Add/Remove Windows Components from the left side.
3. Ensure that the following components are activated (selected):
• Certificate Services. After enabling this, you will see a warning that the computer
cannot be renamed and joined after installing certificate services. Select Yes to select
certificate services and continue
• World Wide Web Server. Select World Wide Web Server on the Internet Information
Services (IIS) component.
• From the Networking Services category, select Dynamic Host Configuration Protocol
(DHCP), and Internet Authentication Service (DNS should already be selected and in-
stalled).
45
Wireless Access Point User Guide
Figure 23: Components Screen
4. Click Next.
5. Select the Enterprise root CA, and click Next.
Figure 24: Certification Screen
6. Enter the information for the Certificate Authority, and click Next.
46
PC and Server Configuration
Figure 25: CA Screen
7. Click Next if you don't want to change the CA's configuration data.
8. Installation will warn you that Internet Information Services are running, and must be
stopped before continuing. Click Ok, then Finish.
DHCP server configuration
1. Click on the Start - Programs - Administrative Tools - DHCP
2. Right-click on the server entry as shown, and select New Scope.
Figure 26: DHCP Screen
3. Click Next when the New Scope Wizard Begins.
4. Enter the name and description for the scope, click Next.
5. Define the IP address range. Change the subnet mask if necessary. Click Next.
47
Wireless Access Point User Guide

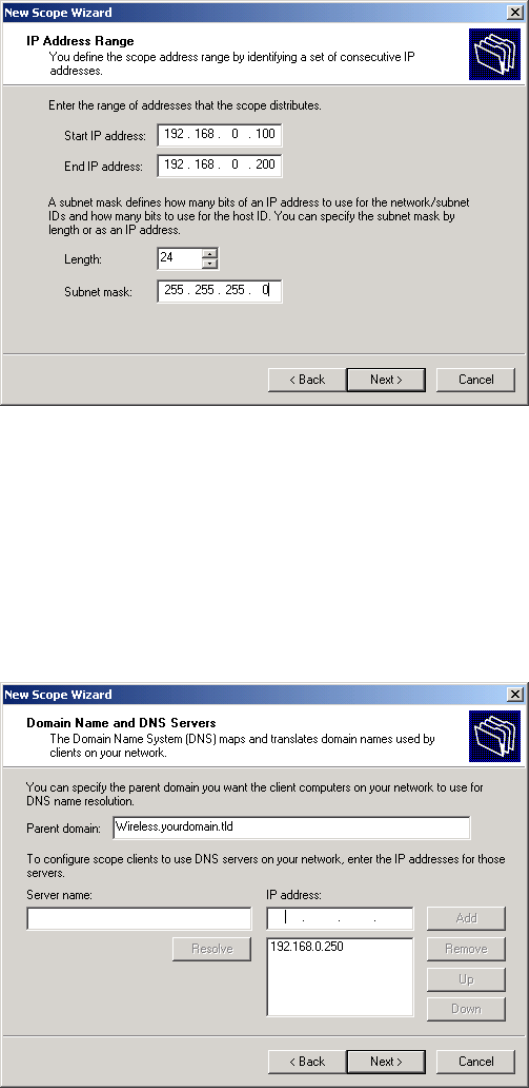

Figure 27:IP Address Screen
6. Add exclusions in the address fields if required. If no exclusions are required, leave it
blank. Click Next.
7. Change the Lease Duration time if preferred. Click Next.
8. Select Yes, I want to configure these options now, and click Next.
9. Enter the router address for the current subnet. The router address may be left blank if
there is no router. Click Next.
10. For the Parent domain, enter the domain you specified for the domain controller setup, and
enter the server's address for the IP address. Click Next.
Figure 28: DNS Screen
11. If you don't want a WINS server, just click Next.
12. Select Yes, I want to activate this scope now. Click Next, then Finish.
13. Right-click on the server, and select Authorize. It may take a few minutes to complete.
48
PC and Server Configuration
Certificate Authority Setup
1. Select Start - Programs - Administrative Tools - Certification Authority.
2. Right-click Policy Settings, and select New - Certificate to Issue.
Figure 29: Certificate Authority Screen
3. Select Authenticated Session and Smartcard Logon (select more than one by holding down
the Ctrl key). Click OK.
Figure 30: Template Screen
4. Select Start - Programs - Administrative Tools - Active Directory Users and Computers.
5. Right-click on your active directory domain, and select Properties.
49
Wireless Access Point User Guide
Figure 31: Active Directory Screen
6. Select the Group Policy tab, choose Default Domain Policy then click Edit.
Figure 32: Group Policy Tab
7. Select Computer Configuration - Windows Settings - Security Settings - Public Key
Policies, right-click Automatic Certificate Request Settings - New - Automatic Certificate
Request.
50
PC and Server Configuration

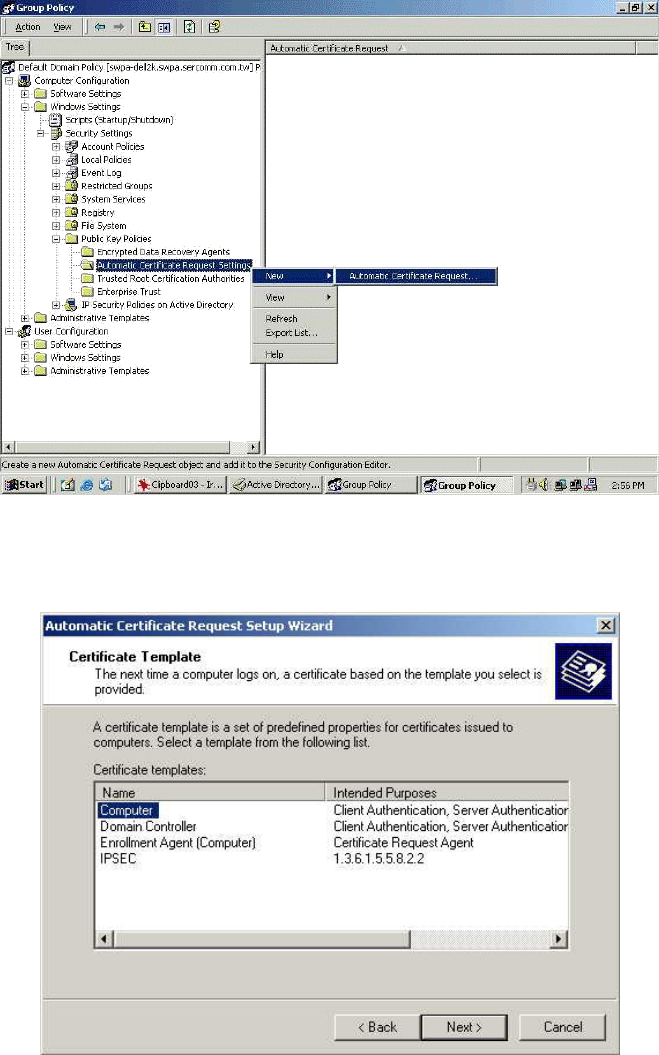

Figure 33: Group Policy Screen
8. When the Certificate Request Wizard appears, click Next.
9. Select Computer, then click Next.
Figure 34: Certificate Template Screen
10. Ensure that your certificate authority is checked, then click Next.
11. Review the policy change information and click Finish.
12. Click Start - Run, type cmd and press enter.
Enter secedit /refreshpolicy machine_policy
This command may take a few minutes to take effect.
51
Wireless Access Point User Guide
Internet Authentication Service (Radius) Setup
1. Select Start - Programs - Administrative Tools - Internet Authentication Service
2. Right-click on Clients, and select New Client.

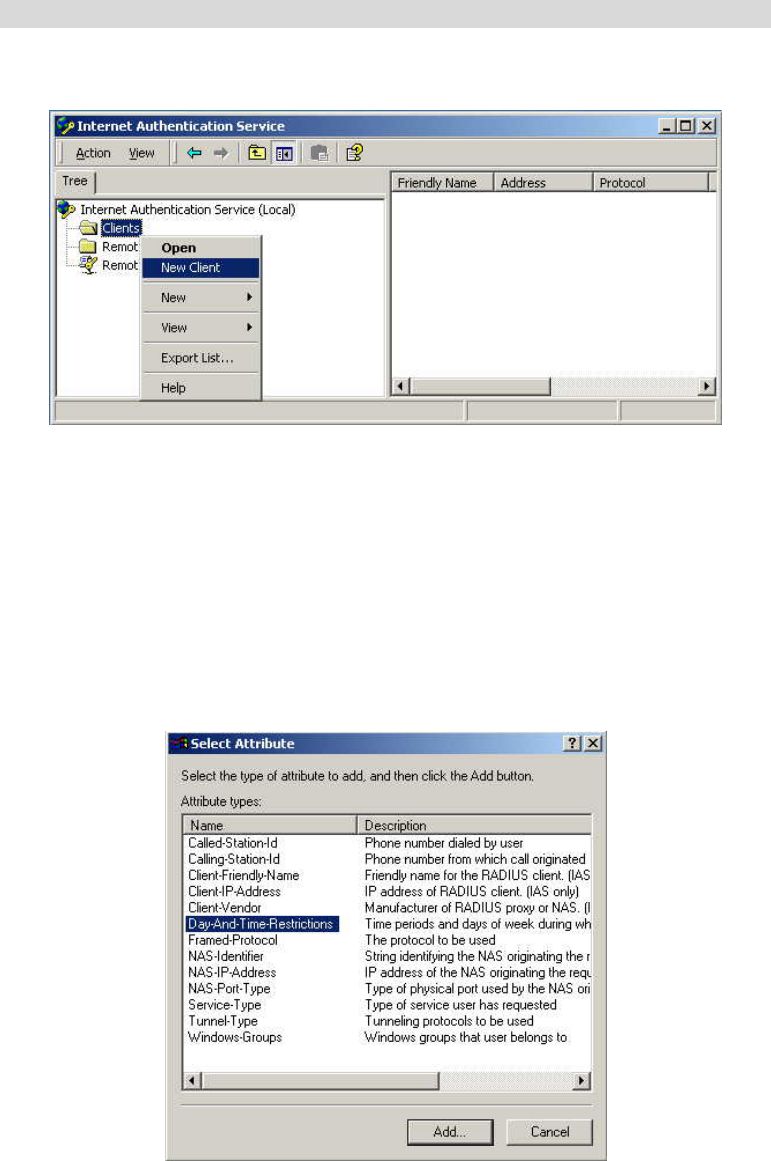

Figure 35: Service Screen
3. Enter a name for the access point, click Next.
4. Enter the address or name of the Wireless Access Point, and set the shared secret, as
entered on the Security Settings of the Wireless Access Point.
5. Click Finish.
6. Right-click on Remote Access Policies, select New Remote Access Policy.
7. Assuming you are using EAP-TLS, name the policy eap-tls, and click Next.
8. Click Add...
If you don't want to set any restrictions and a condition is required, select Day-And-Time-
Restrictions, and click Add...
Figure 36: Attribute Screen
9. Click Permitted, then OK. Select Next.
10. Select Grant remote access permission. Click Next.
52
PC and Server Configuration
11. Click Edit Profile... and select the Authentication tab. Enable Extensible Authentication
Protocol, and select Smart Card or other Certificate. Deselect other authentication meth-
ods listed. Click OK.
Figure 37: Authentication Screen
12. Select No if you don't want to view the help for EAP. Click Finish.
53
Wireless Access Point User Guide
Remote Access Login for Users
1. Select Start - Programs - Administrative Tools- Active Directory Users and Computers.
2. Double click on the user who you want to enable.
3. Select the Dial-in tab, and enable Allow access. Click OK.
Figure 38: Dial-in Screen
54
PC and Server Configuration
802.1x Client Setup on Windows XP
Windows XP ships with a complete 802.1x client implementation. If using Windows 2000,
you can install SP3 (Service Pack 3) to gain the same functionality.
If you don't have either of these systems, you must use the 802.1x client software provided
with your wireless adapter. Refer to your vendor's documentation for setup instructions.
The following instructions assume that:
• You are using Windows XP
• You are connecting to a Windows 2000 server for authentication.
• You already have a login (User name and password) on the Windows 2000 server.
Client Certificate Setup
1. Connect to a network which doesn't require port authentication.
2. Start your Web Browser. In the Address box, enter the IP address of the Windows 2000
Server, followed by /certsrv
e.g
http://192.168.0.2/certsrv
3. You will be prompted for a user name and password. Enter the User name and Password
assigned to you by your network administrator, and click OK.
Figure 39: Connect Screen
4. On the first screen (below), select Request a certificate, click Next.
55
Wireless Access Point User Guide

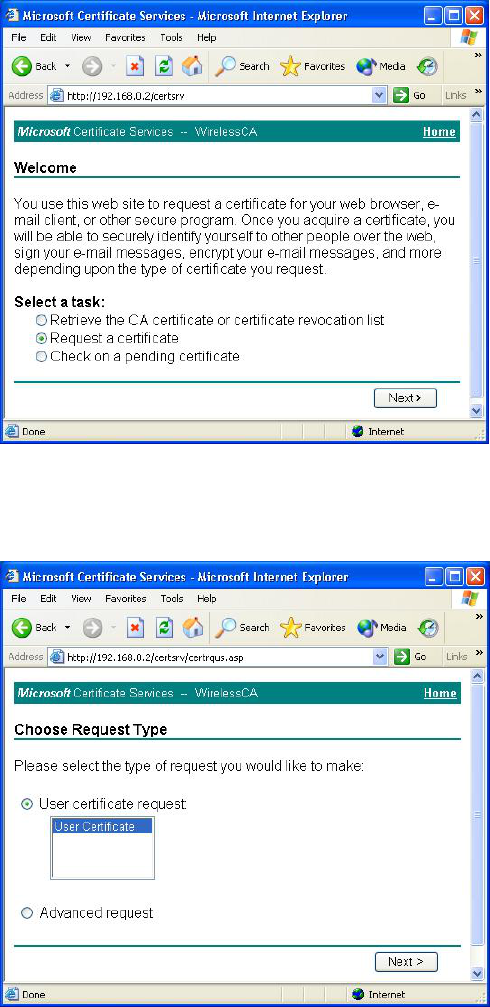

Figure 40: Wireless CA Screen
5. Select User certificate request and select User Certificate, the click Next.
Figure 41: Request Type Screen
6. Click Submit.
56
PC and Server Configuration
Figure 42: Identifying Information Screen
7. A message will be displayed, then the certificate will be returned to you.
Click Install this certificate.
Figure 43:Certificate Issued Screen
8. . You will receive a confirmation message. Click Yes.
57
Wireless Access Point User Guide
Figure 44: Root Certificate Screen
9. Certificate setup is now complete.
802.1x Authentication Setup
1. Open the properties for the wireless connection, by selecting Start - Control Panel -
Network Connections.
2. Right Click on the Wireless Network Connection, and select Properties.
3. Select the Authentication Tab, and ensure that Enable network access control using IEEE
802.1X is selected, and Smart Card or other Certificate is selected from the EAP type.
Figure 45: Authentication Tab
Encryption Settings
The Encryption settings must match the APs (Access Points) on the Wireless network you
wish to join.
• Windows XP will detect any available Wireless networks, and allow you to configure
each network independently.
58
PC and Server Configuration
• Your network administrator can advise you of the correct settings for each network.
802.1x networks typically use EAP-TLS. This is a dynamic key system, so there is no
need to enter key values.
Enabling Encryption
To enable encryption for a wireless network, follow this procedure:
1. Click on the Wireless Networks tab.

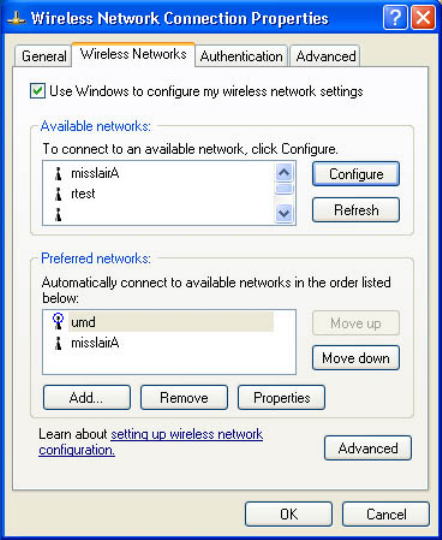

Figure 46: Wireless Networks Screen
2. Select the wireless network from the Available Networks list, and click Configure.
3. Select and enter the correct values, as advised by your Network Administrator.
For example, to use EAP-TLS, you would enable Data encryption, and click the checkbox
for the setting The key is provided for me automatically, as shown below.
59
Wireless Access Point User Guide

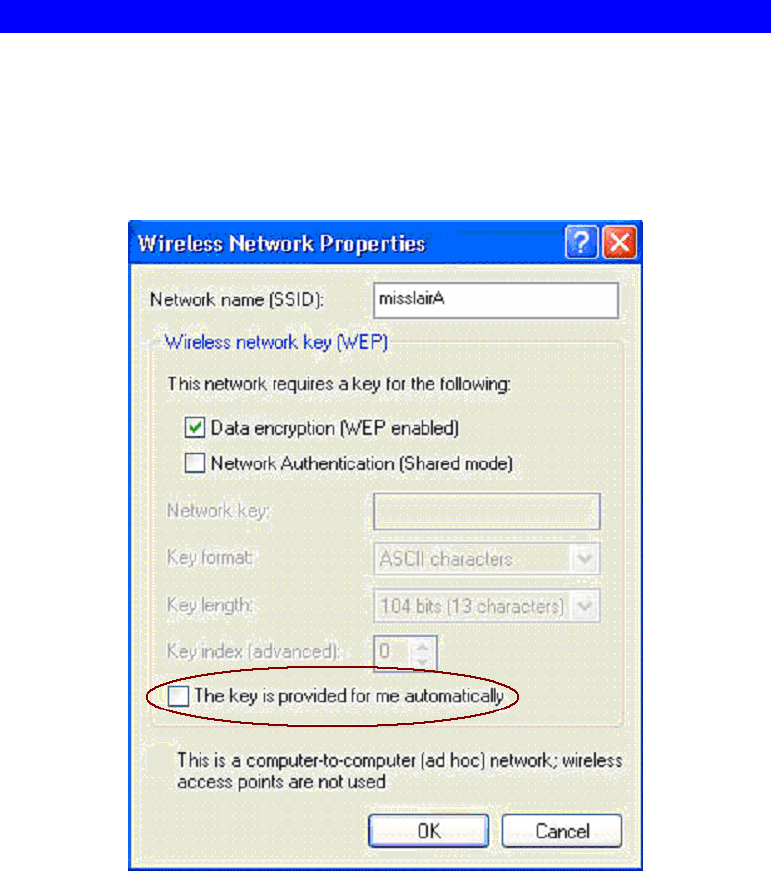

Figure 47: Properties Screen
Setup for Windows XP and 802.1x client is now complete.
60
PC and Server Configuration
Using 802.1x Mode (without WPA)
This is very similar to using WPA-802.1x.
The only difference is that on your client, you must NOT enable the setting The key is pro-
vided for me automatically.
Instead, you must enter the WEP key manually, ensuring it matches the WEP key used on the
Access Point.
Figure 48: Properties Screen
Note:
On some systems, the "64 bit" WEP key is shown as "40 bit" and the "128 bit" WEP key is
shown as "104 bit". This difference arises because the key input by the user is 24 bits less than
the key size used for encryption.
61
5
Chapter 5
Operation and Status
This Chapter details the operation of the Wireless Access Point and the status
screens.
Operation
Once both the Wireless Access Point and the PCs are configured, operation is automatic.
However, you may need to perform the following operations on a regular basis.
• If using the Access Control feature, update the Trusted PC database as required. (See
Access Control in Chapter 3 for details.)
• If using 802.1x mode, update the User Login data on the Windows 2000 Server, and
configure the client PCs, as required.
Status Screen
Use the Status link on the main menu to view this screen.
Figure 49: Status Screen
62
Operation and Status
Data - Status Screen
Access Point
Access Point Name The current name will be displayed.
MAC Address The MAC (physical) address of the Wireless Access Point.
Domain The region or domain, as selected on the System screen.
Firmware Version The version of the firmware currently installed.
TCP/IP
IP Address The IP Address of the Wireless Access Point.
Subnet Mask The Network Mask (Subnet Mask) for the IP Address above.
Gateway Enter the Gateway for the LAN segment to which the Wireless
Access Point is attached (the same value as the PCs on that LAN
segment).
DHCP Client This indicates whether the current IP address was obtained from a
DHCP Server on your network.
It will display "Enabled" or "Disabled".
Wireless
Channel/Frequency The Channel currently in use is displayed.
Wireless Mode The current mode (e.g. 802.11g) is displayed.
AP Mode The current Access Point mode is displayed.
Bridge Mode The current Bridge mode is displayed.
Security Profiles
Name This displays the current name of each security profile.
SSID This displays the SSID associated with the profile.
Status This indicates whether or not the profile is enabled.
Buttons
Statistics Click this to open a sub-window where you can view Statistics on
data transmitted or received by the Access Point.
Profile Status Click this to open a sub-window which displays further details
about each security profile.
Log Click this to open a sub-window where you can view the activity
log.
Stations Click this to open a sub-window where you can view the list of
all current Wireless Stations using the Access Point.
63
Wireless Access Point User Guide
Statistics Screen
This screen is displayed when the 2.4GHz Statistics button on the Status screen is clicked. It
shows details of the traffic flowing through the Wireless Access Point.
Figure 50: Statistics Screen
Data - Statistics Screen
System Up Time
System Up Time This indicates how long the system has been running since the last
restart or reboot.
2.4GHz Wireless
Authentication The number of "Authentication" packets received. Authentication
is the process of identification between the AP and the client.
Deauthentication The number of "Deauthentication" packets received. Deauthentica-
tion is the process of ending an existing authentication relationship.
Association The number of "Association" packets received. Association creates
a connection between the AP and the client. Usually, clients associ-
ate with only one (1) AP at any time.
Disassociation The number of "Disassociation" packets received. Disassociation
breaks the existing connection between the AP and the client.
Reassociation The number of "Reassociation" packets received. Reassociation is
the service that enables an established association (between AP and
client) to be transferred from one AP to another (or the same) AP.
Wireless
MSDU Number of valid Data packets transmitted to or received from
Wireless Stations, at application level.
Data Number of valid Data packets transmitted to or received from
Wireless Stations, at driver level.
64
Operation and Status
Multicast Packets Number of Broadcast packets transmitted to or received from
Wireless Stations, using Multicast transmission.
Management Number of Management packets transmitted to or received from
Wireless Stations.
Control Number of Control packets transmitted to or received from Wire-
less Stations.
65
Wireless Access Point User Guide
Profile Status
The Profile Status screen is displayed when the Profile Status button on the Status screen is
clicked.

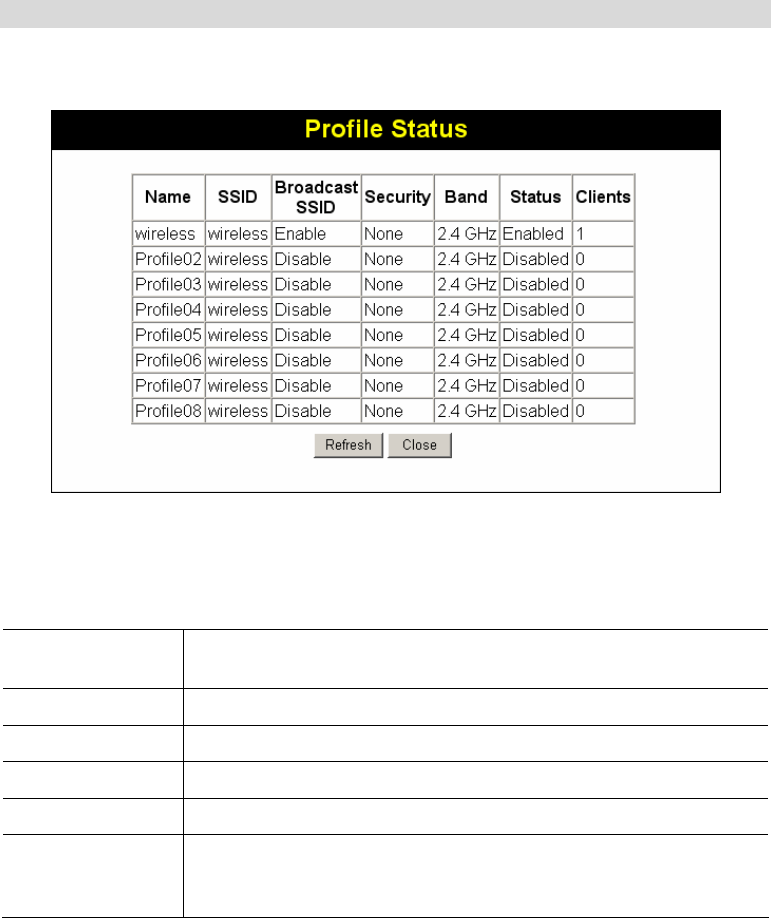

Figure 51: Profile Screen
For each profile, the following data is displayed:
Name The name you gave to this profile; if you didn't change the name, the
default name is used.
SSID The SSID assigned to this profile.
Broadcast SSID Indicates whether or not the SSID is broadcast.
Band The Wireless band ( 2.4 GHz or 5 GHz ) used by this profile.
Status Indicates whether or not this profile is enabled or currently used.
Clients The number of wireless stations currently using accessing this Access
Point using this profile.
If the profile is disabled, this will always be zero.
66
Operation and Status
Activity Log
This screen is displayed when the Log button on the Status screen is clicked.
Figure 52: Activity Log Screen
Data - Activity Log
Data
Current Time The system date and time is displayed.
Log The Log shows details of the connections to the Wireless Access
Point.
Buttons
Refresh Update the data on screen.
Save to file Save the log to a file on your pc.
Clear Log This will delete all data currently in the Log. This will make it
easier to read new messages.
67
Wireless Access Point User Guide
Station List
This screen is displayed when the Stations button on the Status screen is clicked.

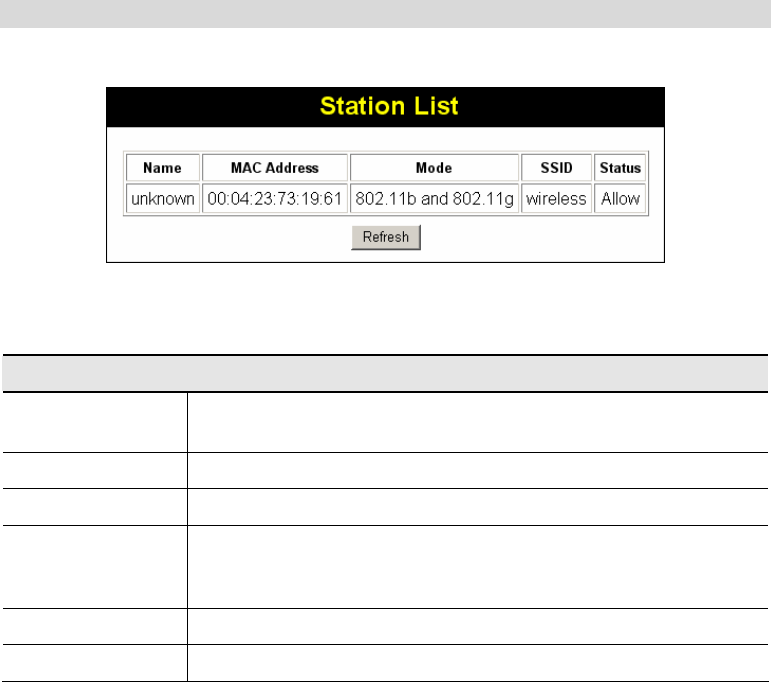

Figure 53 Station List Screen
Data - Station List Screen
Station List
Name The name of each Wireless Station is displayed. If the name is not
know, "unknown" is displayed for the name.
MAC Address The MAC (physical) address of each Wireless Station is displayed.
Mode The mode of each Wireless Station.
SSID This displays the SSID used the Wireless station. Because the Wire-
less Access Point supports multiple SSIDs, different PCs could
connect using different SSIDs.
Status This indicates the current status of each Wireless Station.
Refresh Button Update the data on screen.
68
Chapter 6
Access Point Management
This Chapter explains when and how to use the Wireless Access Point's
"Management" Features.
Overview
This Chapter covers the following features, available on the Wireless Access Point’s Man-
agement menu.
• Admin Login
• Auto Config/Update
• Config File
• Log Settings
• Rogue APs
• SNMP
• Upgrade Firmware
Admin Login Screen
The Admin Login screen allows you to assign a password to the Wireless Access Point. This
password limits access to the configuration interface. The default password is password. It is
recommended that this be changed, using this screen.
Figure 54: Admin Login Screen
Data - Admin Login Screen
Login
User Name Enter the login name for the Administrator.
6
69
Wireless Access Point User Guide
Change Admin Password If you wish to change the Admin password, check this field
and enter the new login password in the fields below.
New Password Enter the desired login password.
Repeat New Password Re-enter the desired login password.
Admin Connections
Allow Admin connections
via wired Ethernet only If checked, then Admin connections via the Wireless interface
will not be accepted.
Enable HTTP Enable this to allow admin connections via HTTP. If enabled,
you must provide a port number in the field below. Either
HTTP or HTTPS must be enabled.
HTTP Port Number Enter the port number to be used for HTTP connections to this
device. The default value is 80.
Enable HTTPS Enable this to allow admin connections via HTTPS (secure
HTTP). If enabled, you must provide a port number in the
field below. Either HTTP or HTTPS must be enabled.
HTTPS Port Number Enter the port number to be used for HTTPS connections to
this device. The default value is 443.
Enable Telnet If desired, you can enable this option. If enabled, you will able
to connect to this AP using a Telnet client. You will have to
provide the same login data (user name, password) as for a
HTTP (Web) connection.
70
Other Settings & Features
Auto Config/Update
The Auto Config/Update screen provides two (2) features:
• Auto Config - The Access Point will configure itself by copying data from another
(compatible) Access Point.
• Auto Update - The Access Point will update it Firmware by downloading the Firmware
file from your FTP Server.

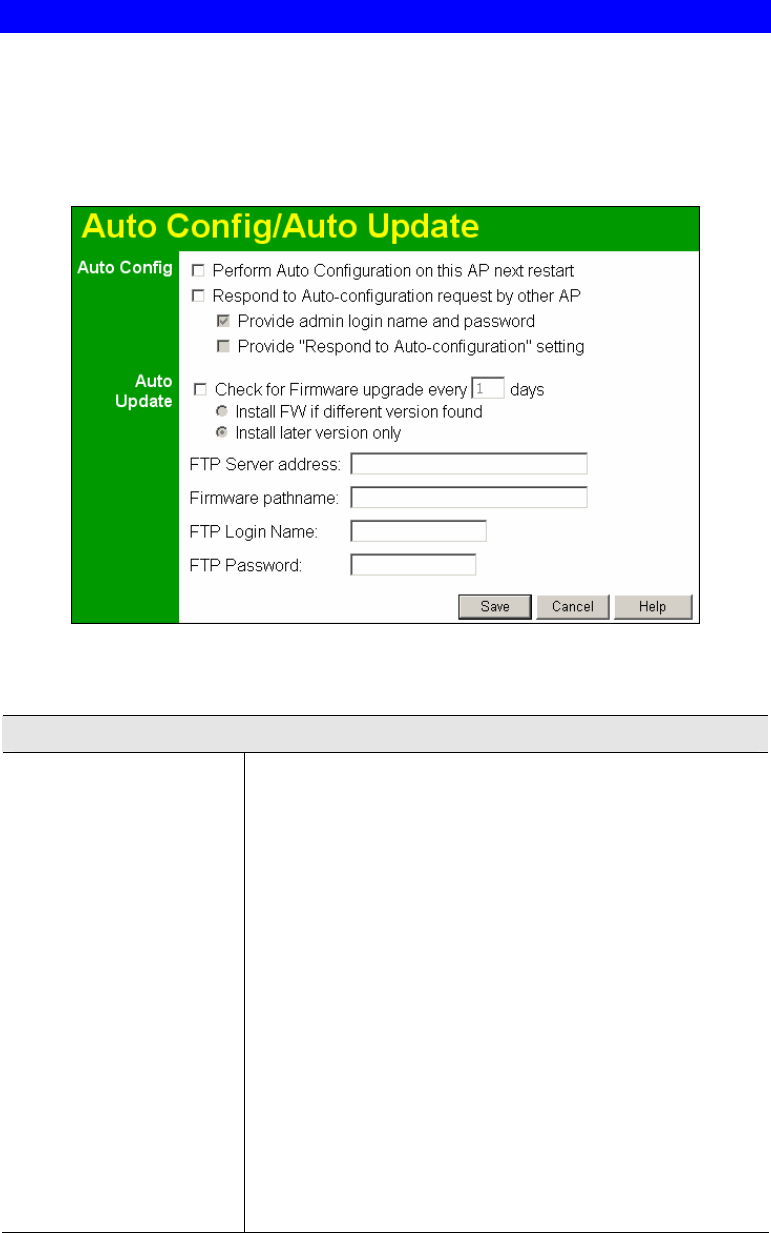

Figure 55: Auto Config/Update Screen
Data - Auto Config/Update Screen
Admin Connections
Perform Auto Configu-
ration on this AP next
restart
If checked, this AP will perform Auto Configuration the next
time it restarts.
• The wired LAN (NOT the Wireless LAN) will be
searched for compatible APs.
• If a compatible AP is found, its configuration is cop-
ied. If more than one compatible AP exists, the first
one found is used.
• Some data cannot be copied:
o The IP address is not copied, and will not
change.
o The operating mode ( Repeater, Bridge, etc)
is not copied, and will not change.
Note: This checkbox is automatically disabled, so the Auto-
configuration is only performed once.
71
Wireless Access Point User Guide
Respond to Auto-
configuration request by
other AP
If checked, this AP will respond to "Auto Configuration"
requests it receives. If not checked, "Auto Configuration"
requests will be ignored.
Provide login name and
password If enabled, the login name and password on this AP is sup-
plied the the AP making the Auto-configuration request. If
disabled, the AP making the Auto-configuration request will
keep its existing login name and password.
Provide "Respond to
Auto-configuration"
setting
If enabled, the "Respond to Auto-configuration" setting on
this AP is supplied the the AP making the Auto-configuration
request. If disabled, the AP making the Auto-configuration
request will keep its existing setting.
Auto Update
Check for Firmware
upgrade If enabled, this AP will check to see if a Firmware (FW)
upgrade is available on the specified FTP Server. If enabled:
• Enter the desired time interval (in days) between checks.
• Select the desired option for installation (see next item).
• Provide the FTP server information.
Install... Select the desired option:
• Install FW if different version found
If selected, then if the firmware file at the specified loca-
tion is different to the current installed version, the FW
will be installed. This allows "Downgrades" - installing
an older version of the FW to replace the current version.
• Install later version only
If selected, then the firmware file at the specified location
will only be installed if it is a later version.
FTP Server address Enter the address (domain name or IP address) of the FTP
Server.
Firmware pathname Enter the full path (including the FW filename) to the the FW
file on the FTP Server.
FTP Login Name Enter the login name required to gain access to the FTP
Server.
FTP Password Enter the password for the login name above.
72
Other Settings & Features
Config File
This screen allows you to Backup (download) the configuration file, and to restore (upload) a
previously-saved configuration file.
You can also set the Wireless Access Point back to its factory default settings.
To reach this screen, select Config File in the Management section of the menu.
Figure 56: Config File Screen
Data - Config File Screen
Backup
Save a copy of cur-
rent settings Once you have the Access Point working properly, you should
back up the settings to a file on your computer. You can later
restore the Access Point's settings from this file, if necessary.
To create a backup file of the current settings:
• Click Back Up.
• If you don't have your browser set up to save downloaded
files automatically, locate where you want to save the file,
rename it if you like, and click Save.
Restore
Restore saved settings
from a file To restore settings from a backup file:
1. Click Browse.
2. Locate and select the previously saved backup file.
3. Click Restore
73
Wireless Access Point User Guide
Defaults
Revert to factory
default settings To erase the current settings and restore the original factory
default settings, click Set to Defaults button.
Note!
• This will terminate the current connection. The Access Point
will be unavailable until it has restarted.
• By default, the Access Point will act as a DHCP client, and
automatically obtain an IP address. You will need to deter-
mine its new IP address in order to re-connect.
74
Other Settings & Features
Log Settings (Syslog)
If you have a Syslog Server on your LAN, this screen allows you to configure the Access Point
to send log data to your Syslog Server.
Figure 57: Log Settings (Syslog) Screen
Data - Log Settings Screen
Syslog Server Select the desired Option:
• Disable - Syslog server is not used.
• Broadcast - Syslog data is broadcast. Use this option if
different PCs act as the Syslog server at different times.
• Send to specified Syslog Server - Select this if the same
PC is always used as the Syslog server. If selected, you
must enter the server address in the field provided.
Syslog Server Address Enter the name or IP address of your Syslog Server.
Minimum Severity Level Select the desired severity level. Events with a severtiy level
equal to or higher (i.e. lower number) than the selected level
will be logged.
75
Wireless Access Point User Guide
Rogue APs
A "Rouge AP" is an Access Point which should not be in use, and so can be considered to be
providing unauthorized access to your LAN.
This Access Point can assist to locate 2 types of Rogue APs:
• APs which have Wireless security disabled.
• APs which are not in the list of valid APs which you have provided.
When a Rogue AP is located, it is recorded in the log. If using SNMP, you can also choose to
have detection of a Rogue AP generate an SNMP trap.
Figure 58: Rogue AP Detection Screen
Data - Rogue AP Screen
Enable Detection
Enable Detection To use this feature, enable the "Enable Rogue AP Detection"
checkbox, and select the desired wireless band and time
interval.
Scan Select the desired Wireless band to scan to Rogue APs and
enter the desired time interval between each scan.
Detection generates
SNMP Trap If using SNMP, checking this option will cause a SNMP trap
to be generated whenever a Rogue AP is detected. If not using
SNMP, do not enable this option.
Rogue Detection
No Security If checked, then any AP operating with security disabled is
considered to be a Rogue AP.
Not in Legal AP List If checked, then any AP not listed in the "Legal AP List" is
considered to be a Rogue AP. If checked, you must maintain
the Legal AP List.
Define Legal AP List Click this button to open a sub-screen where you can modify
the "Legal AP List". This list must contain all known APs, so
must be kept up to date.
76
Other Settings & Features
SNMP
SNMP (Simple Network Management Protocol) is only useful if you have a SNMP program
on your PC. To reach this screen, select SNMP in the Management section of the menu.
Figure 59: SNMP Screen
Data - SNMP Screen
General
Enable SNMP Use this to enable or disable SNMP as required
Community Enter the community string, usually either "Public" or "Private".
Access Rights Select the desired option:
• Read-only - Data can be read, but not changed.
• Read/Write - Data can be read, and setting changed.
Managers
Any Station The IP address of the manager station is not checked.
Only this station The IP address is checked, and must match the address you enter in
the IP address field provided.
If selected, you must enter the IP address of the required station.
Traps
Disable Traps are not used.
Broadcast Select this to have Traps broadcast on your network. This makes
them available to any PC.
Send to Select this to have Trap messages sent to the specified PC only. If
selected, you must enter the IP Address of the desired PC.
Trap version Select the desired option, as supported by your SNMP Management
program.
77
Wireless Access Point User Guide
Upgrade Firmware
The firmware (software) in the Wireless Access Point can be upgraded using your Web
Browser.
You must first download the upgrade file, and then select Upgrade Firmware in the Manage-
ment section of the menu. You will see a screen like the following.
Figure 60: Firmware Upgrade Screen
To perform the Firmware Upgrade:
1. Click the Browse button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. Click the Upgrade button to commence the firmware upgrade.
The Wireless Access Point is unavailable during the
upgrade process, and must restart when the up-
grade is completed. Any connections to or through
the Wireless Access Point will be lost.
78
Appendix A
Specifications
Wireless Access Point
Hardware Specifications
CPU AR2312
Radio-on-Chip AR2112
DRAM 8 Mbytes
Flash ROM 2 Mbytes
LAN port 1 x Auto-MDIX RJ 45 for 10/100Mbps Ethernet
Embedded Atheros solution
Network Standard IEEE 802.11b (Wi-Fi™) and IEEE
802.11g compliance
OFDM; 802.11b: CCK (11 Mbps, 5.5 Mbps), DQPSK (2
Mbps), DBPSK (1 Mbps)
Operating Frequencies 2.412.2.497 GHz
Wireless Interface
Operating Channels
802.11g: 11 for North America, 13 for Europe (ETSI),
14 for Japan
802.11b: 11 for North America, 13 for Europe (ETSI),
14 for Japan
Operating temperature 0° C to 40° C
Storage temperature -20° C to 70° C
Power Adapter 24VDC 500ma
Dimensions 141mm (W) x 100mm (D) x 27mm (H)
Wireless Specifications
Receive Sensitivity at 11Mbps min. -85dBm
Receive Sensitivity at 5.5Mbps min. -89dBm
Receive Sensitivity at 2Mbps min. -90dBm
Receive Sensitivity at 1Mbps min. -93dBm
Maximum Receive Level min. -5dBm
Transmit Power 18 dBm
Modulation Direct Sequence Spread Spectrum BPSK / QPSK / CCK
Throughput Up to 19 Mbps
A
79
Wireless Access Point User Guide
Operating Range 802.11b
Indoors:
• 30 Meters (100ft.) @ 11Mbps
• 50 Meters (165ft.) @ 5.5Mbps
• 70 Meters (230ft.) @ 2Mbps
• 9 1Meters (300ft.) @ 1Mbps
Outdoors:
• 152 Meters (500ft.) @ 11Mbps
• 270 Meters (885ft.) @ 5.5Mbps
• 396 Meters (1300ft.) @ 2 Mbps
• 457 Meters (1500ft.) @ 1 Mbps
802.11g
Indoors:
• 30 Meters (98ft.) @ 54Mbps
• 33 Meters (108ft.) @ 48Mbps
• 37 Meters (121ft.) @ 36Mbps
• 46 Meters (151ft.) @ 24Mbps
• 62 Meters (203ft.) @ 18Mbps
• 68 Meters (223ft.) @ 12Mbps
• 78 Meters (256ft.) @ 9Mbps
• 92 Meters (302ft.) @ 6Mbps
Outdoors:
• 100 Meters (328ft.) @ 54Mbps
• 295 Meters (968ft.) @ 11Mbps
• 420 Meters (1378ft.) @ 6 Mbps
Software Specifications
Feature Details
Wireless • Access point support
• Roaming supported
• IEEE 802.11g/11b compliance
• Super G (up to 108Mbps)
• Auto Sensing Open System / Share Key authentication
• Wireless Channels Support
• Automatic Wireless Channel Selection
• Antenna selection
• Tx Power Adjustment
• Country Selection
• Preamble Type: long or short support
• RTS Threshold Adjustment
• Fragmentation Threshold Adjustment
80
Appendix A - Specifications
• Beacon Interval Adjustment
• SSID assignment
Operation Mode • Common AP, Client/Repeater AP
• Peer-to-Peer Bridge, Point-to-Multi-Point Bridge
Bridge mode can be used simultaneously with Common AP mode.
Security • Open, shared, WPA, and WPA-PSK authentication
• 802.1x support
• EAP-TLS, EAP-TTLS, PEAP
• Block inter-wireless station communication
• Block SSID broadcast
Management • Web based configuration
• RADIUS Accounting
• RADIUS-On feature
• RADIUS Accounting update
• CLI
• Message Log
• Access Control list file support
• Configuration file Backup/Restore
• Statistics support
• Device discovery program
• Windows Utility
Other Features • DHCP client
• WINS client
• Rogue AP detection
• Auto-config
• Auto firmware update
Firmware Upgrade HTTP, FTP network protocol download
81
Wireless Access Point User Guide
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to computer or peripheral
devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
82
B
Appendix B
Troubleshooting
Overview
This chapter covers some common problems that may be encountered while using the Wireless
Access Point and some possible solutions to them. If you follow the suggested steps and the
Wireless Access Point still does not function properly, contact your dealer for further advice.
General Problems
Problem 1: Can't connect to the Wireless Access Point to configure it.
Solution 1: Check the following:
• The Wireless Access Point is properly installed, LAN connections are
OK, and it is powered ON. Check the LEDs for port status.
• Ensure that your PC and the Wireless Access Point are on the same
network segment. (If you don't have a router, this must be the case.)
• If your PC is set to "Obtain an IP Address automatically" (DHCP
client), restart it.
• You can use the following method to determine the IP address of the
Wireless Access Point, and then try to connect using the IP address, in-
stead of the name.
To Find the Access Point's IP Address
1. Open a MS-DOS Prompt or Command Prompt Window.
2. Use the Ping command to “ping” the Wireless Access Point. Enter
ping followed by the Default Name of the Wireless Access Point.
e.g. ping SC003318
3. Check the output of the ping command to determine the IP address of
the Wireless Access Point, as shown below.

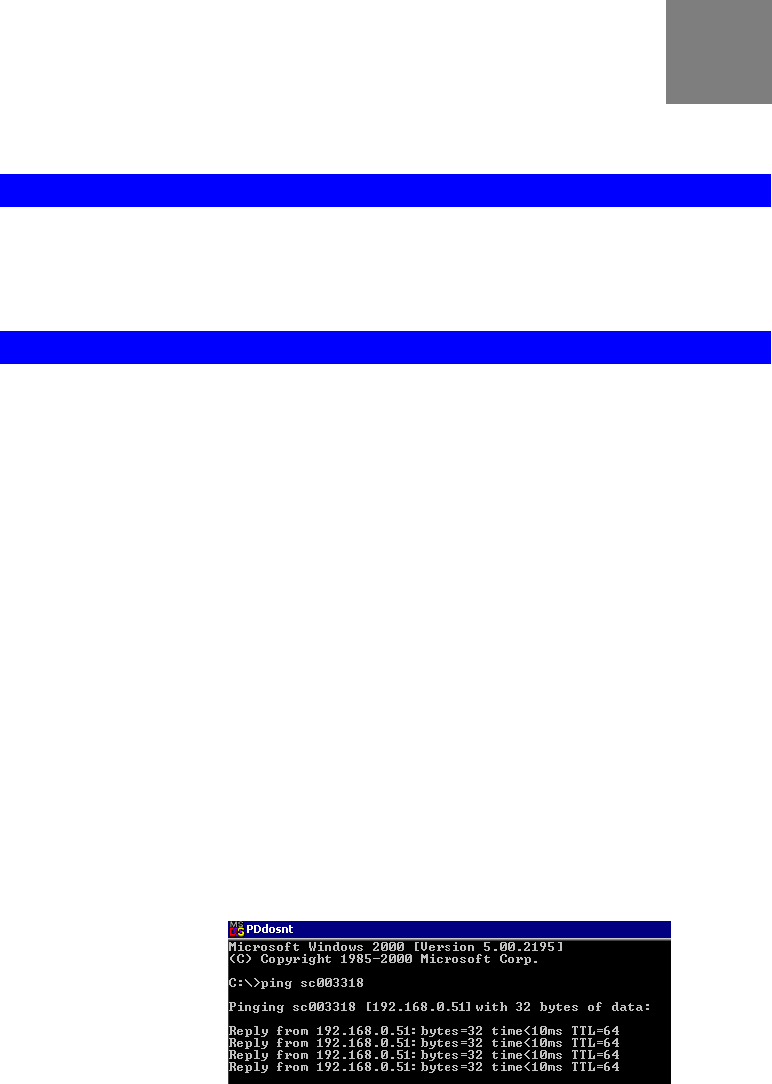

Figure 61: Ping
If your PC uses a Fixed (Static) IP address, ensure that it is using an IP
Address which is compatible with the Wireless Access Point. (If no DHCP
Server is found, the Wireless Access Point will default to an IP Address and
Mask of 192.168.0.228 and 255.255.255.0.) On Windows PCs, you can use
Control Panel-Network to check the Properties for the TCP/IP protocol.
Problem 2: My PC can't connect to the LAN via the Wireless Access Point.
83
Wireless Access Point User Guide
Solution 2 Check the following:
• The SSID and WEP settings on the PC match the settings on the Wire-
less Access Point.
• On the PC, the wireless mode is set to "Infrastructure"
• If using the Access Control feature, the PC's name and address is in the
Trusted Stations list.
• If using 802.1x mode, ensure the PC's 802.1x software is configured
correctly. See Chapter 4 for details of setup for the Windows XP 802.1x
client. If using a different client, refer to the vendor's documentation.
84
C
Appendix C
Windows TCP/IP
Overview
Normally, no changes need to be made.
• By default, the Wireless Access Point will act as a DHCP client, automatically obtaining a
suitable IP Address (and related information) from your DHCP Server.
• If using Fixed (specified) IP addresses on your LAN (instead of a DHCP Server), there is
no need to change the TCP/IP of each PC. Just configure the Wireless Access Point to
match your existing LAN.
The following sections provide details about checking the TCP/IP settings for various types of
Windows, should that be necessary.
Checking TCP/IP Settings - Windows 9x/ME:
1. Select Control Panel - Network. You should see a screen like the following:
Figure 62: Network Configuration
2. Select the TCP/IP protocol for your network card.
3. Click on the Properties button. You should then see a screen like the following.
85
Wireless Access Point User Guide
Figure 63: IP Address (Win 95)
Ensure your TCP/IP settings are correct, as follows:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows settings. To work correctly, you need a DHCP server on your LAN.
Using "Specify an IP Address"
If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from
the same address range used on the PCs.)
86
Appendix B - Troubleshooting
Checking TCP/IP Settings - Windows NT4.0
1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as
shown below.
Figure 64: Windows NT4.0 - TCP/IP
2. Click the Properties button to see a screen like the one below.
Figure 65: Windows NT4.0 - IP Address
87
Wireless Access Point User Guide
3. Select the network card for your LAN.
4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify
an IP Address, as explained below.
Obtain an IP address from a DHCP Server
This is the default Windows setting. This is the default Windows settings. To work correctly,
you need a DHCP server on your LAN.
Using "Specify an IP Address"
If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from
the same address range used on the PCs.)
88
Appendix B - Troubleshooting
Checking TCP/IP Settings - Windows 2000
1. Select Control Panel - Network and Dial-up Connection.
2. Right click the Local Area Connection icon and select Properties. You should see a screen
like the following:
Figure 66: Network Configuration (Win 2000)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
Figure 67: TCP/IP Properties (Win 2000)
89
Wireless Access Point User Guide
5. Ensure your TCP/IP settings are correct:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. This is the default Windows settings. To work correctly, you need a DHCP
server on your LAN.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from
the same address range used on the PCs.)
90
Appendix B - Troubleshooting
Checking TCP/IP Settings - Windows XP
1. Select Control Panel - Network Connection.
2. Right click the Local Area Connection and choose Properties. You should see a screen
like the following:
Figure 68: Network Configuration (Windows XP)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
Figure 69: TCP/IP Properties (Windows XP)
91
Wireless Access Point User Guide
5. Ensure your TCP/IP settings are correct.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. To work correctly, you need a DHCP server on your LAN.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from
the same address range used on the PCs.)
92
D
Appendix D
About Wireless LANs
Overview
Wireless networks have their own terms and jargon. It is necessary to understand many of
these terms in order to configure and operate a Wireless LAN.
Wireless LAN Terminology
Modes
Wireless LANs can work in either of two (2) modes:
• Ad-hoc
• Infrastructure
Ad-hoc Mode
Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless Sta-
tions (e.g. notebook PCs with wireless cards) communicate directly with each other.
Infrastructure Mode
In Infrastructure Mode, one or more Access Points are used to connect Wireless Stations
(e.g. Notebook PCs with wireless cards) to a wired (Ethernet) LAN. The Wireless Stations
can then access all LAN resources.
Access Points can only function in "Infrastructure" mode,
and can communicate only with Wireless Stations which are
set to "Infrastructure" mode.
SSID/ESSID
BSS/SSID
A group of Wireless Stations and a single Access Point, all using the same ID (SSID),
form a Basic Service Set (BSS).
Using the same SSID is essential. Devices with different SSIDs are unable to communi-
cate with each other. However, some Access Points allow connections from Wireless
Stations which have their SSID set to “any” or whose SSID is blank ( null ).
ESS/ESSID
A group of Wireless Stations, and multiple Access Points, all using the same ID (ESSID),
form an Extended Service Set (ESS).
Different Access Points within an ESS can use different Channels. To reduce interference,
it is recommended that adjacent Access Points SHOULD use different channels.
93
Wireless Access Point User Guide
As Wireless Stations are physically moved through the area covered by an ESS, they will
automatically change to the Access Point which has the least interference or best perform-
ance. This capability is called Roaming. (Access Points do not have or require Roaming
capabilities.)
Channels
The Wireless Channel sets the radio frequency used for communication.
• Access Points use a fixed Channel. You can select the Channel used. This allows you to
choose a Channel which provides the least interference and best performance.
• If using multiple Access Points, it is better if adjacent Access Points use different Chan-
nels to reduce interference. The recommended Channel spacing between adjacent Access
Points is 5 Channels (e.g. use Channels 1 and 6, or 6 and 11).
• In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an
Access Point. If more than one Access Point can be used, the one with the strongest signal
is used. (This can only happen within an ESS.)
• If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the
same Channel. However, most Wireless stations will still scan all Channels to see if there
is an existing "Ad-hoc" group they can join.
WEP
WEP (Wired Equivalent Privacy) is a standard for encrypting data before it is transmitted. This
is desirable because it is impossible to prevent snoopers from receiving any data which is
transmitted by your Wireless Stations. But if the data is encrypted, then it is meaningless
unless the receiver can decrypt it.
If WEP is used, the Wireless Stations and the Wireless Access Point must have the same
settings.
WPA-PSK
Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should
be used if possible. The PSK (Pre-shared Key) must be entered on each Wireless station. The
256Bit encryption key is derived from the PSK, and changes frequently.
WPA-802.1x
WPA-802.1x - This version of WPA requires a Radius Server on your LAN to provide the
client authentication according to the 802.1x standard. Data transmissions are encrypted using
the WPA standard.
If this option is used:
• The Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server.
• Each user's wireless client must support 802.1x and provide the authentication data when
required. This is normally done via a digital certificate, so no user action is required.
• All data transmission is encrypted using the WPA standard. Keys are automatically
generated, so no key input is required.
94
Appendix B - Troubleshooting
802.1x
This uses the 802.1x standard for client authentication, and WEP for data encryption. If possi-
ble, you should use WPA-802.1x instead, because WPA encryption is much stronger than
WEP encryption.
If this option is used:
• The Access Point must have a "client login" on the Radius Server.
• Each user must have a "user login" on the Radius Server.
• Each user's wireless client must support 802.1x and provide the login data when required.
• All data transmission is encrypted using the WEP standard. You only have to select the
WEP key size; the WEP key is automatically generated.
95
E
Appendix E
Command Line Interface
Overview
If desired, the Command Line Interface (CLI) can be used for configuration. This creates the
possibility of creating scripts to perform common configuration changes. The CLI requires
either a Telnet connection or a physical connection from your PC to the serial port (RS232 port)
on the Wireless Access Point.
Using the CLI - Telnet
1. Start your Telnet client, and establish a connection to the Access Point.
e.g.
Telnet 192.168.0.228
2. You will be prompted for the user name and password. Enter the same login name and
password as used for the HTTP (Web) interface.
The default values are admin for the User Name, and password for the Password.
3. Once connected, you can use any of the commands listed in the following Command
Reference.
Using the CLI - Serial Port
1. Use a standard serial port cable to connect your PC to the serial (RS232) port on the
Wireless Access point.
2. Start your communications program. For example, in Windows, use HyperTerminal. (This
program may not be installed. If so, you can install it using Start - Settings - Control Panel
- Add or Remove Programs. Then select Windows Setup or Add/Remove Windows Com-
ponents, depending on your version of Windows.)
3. Configure the connection properties:
• Name - use a suitable name, such as “AP”
• “Port” or “Connect Using” - Select the Serial Port that the cable is connected to.
(Do not select your modem.)
• Port Settings - Use 9600, N, 8, 1, with hardware flow control, as shown below.
96
Appendix C - Windows TCP/IP
Figure 70: CLI Port Settings
4. Use the “Connect” command to start the connection.
5. You will be prompted for a user name and password.
Enter the current user name and password for the AP you are connecting to.
The default values are admin for the User Name, and password for the Password.
6. You will then see the prompt, and can then use any of the commands listed in the follow-
ing Command Reference.
Command Reference
The following commands are available.
? Display CLI Command List
admin Temporary factory admin
config wlan config wlanX
config profile config profile
del acl Delete Access Control List
del key Delete Encryption key
find bss Find BSS
find channel Find Available Channel
find all Find All BSS
format Format flash filesytem
bootrom Update boot rom image
ftp Software update via FTP
97
Wireless Access Point User Guide
get 11gonly Display 11g Only Allowed
get 11goptimize Display 11g Optimization Level
get 11goverlapbss Display Overlapping BSS Protection
get acl Display Access Control List
get aging Display Aging Interval
get antenna Display Antenna Diversity
get association Display Association Table
get authentication Display Authentication Type
get autochannelselect Display Auto Channel Select
get basic11b Display Basic 11b Rates
get basic11g Display Basic 11g Rates
get beaconinterval Display Beacon Interval
get burstSeqThreshold Display Max Number of frames in a Burst
get burstTime Display Burst Time
get calibration Display Noise And Offset Calibration Mode
get cckTrigHigh Display Higher Trigger Threshold for CCK Phy Errors for ANI Control
get cckTrigLow Display Lower Trigger Threshold for CCK Phy Errors for ANI Control
get cckWeakSigThr Display ANI Parameter for CCK Weak Signal Detection Threshold
get channel Display Radio Channel
get cipher Display Encryption cipher
get compproc Display Compression scheme
get compwinsize Display Compression Window Size
get config Display Current AP Configuration
get countrycode Display Country Code
get ctsmode Display CTS mode
get ctsrate Display CTS rate
get ctstype Display CTS type
get domainsuffix Display Domain Name Server suffix
get dtim Display Data Beacon Rate (DTIM)
get enableANI Display Adaptive Noise Immunity Control On/Off
get encryption Display Encryption Mode
get extendedchanmode Display Extended Channel Mode
98
Appendix C - Windows TCP/IP
get firStepLvl Display ANI Parameter for FirStepLevel
get fragmentthreshold Display Fragment Threshold
get frequency Display Radio Frequency (MHz)
get gateway Display Gateway IP Address
get gbeaconrate Display 11g Beacon Rate
get gdraft5 Display 11g Draft 5.0 compatibility
get groupkeyupdate Display Group Key Update Interval (in Seconds)
get hardware Display Hardware Revisions
get hostipaddr Display Host IP Address
get ipaddr Display IP Address
get ipmask Display IP Subnet Mask
get keyentrymethod Display Encryption Key Entry Method
get keysource Display Source Of Encryption Keys
get login Display Login User Name
get minimumrate Display Minimum Rate
get nameaddr Display IP address of name server
get nf Display Noise Floor
get noiseImmunityLvl Display ANI Parameter for Noise Immunity Level
get ofdmTrigHigh Display Higher Trigger Threshold for OFDM Phy Errors for ANI Control
get ofdmTrigLow Display Lower Trigger Threshold for OFDM Phy Errors for ANI Control
get ofdmWeakSigDet Display ANI Parameter for OFDM Weak Signal Detection
get overRidetxpower Display Tx power override
get operationMode Display Operation Mode
get power Display Transmit Power Setting
get quietAckCtsAllow Display if Ack/Cts frames are allowed during quiet period
get quietDuration Display Duration of quiet period
get quietOffset Display Offset of quiet period into the beacon period
get radiusname Display RADIUS server name or IP address
get radiusport Display RADIUS port number
get rate Display Data Rate
get remoteAp Display Remote Ap's Mac Address
get hwtxretries Display HW Transmit Retry Limit
99
Wireless Access Point User Guide
get swtxretries Display SW Transmit Retry Limit
get rtsthreshold Display RTS/CTS Threshold
get shortpreamble Display Short Preamble Usage
get shortslottime Display Short Slot Time Usage
get sntpserver Display SNTP/NTP Server IP Address
get softwareretry Display Software Retry
get spurImmunityLvl Display ANI Parameter for Spur Immunity Level
get ssid Display Service Set ID
get ssidsuppress Display SSID Suppress Mode
get station Display Station Status
get SuperG Display SuperG Feature Status
get systemname Display Access Point System Name
get telnet Display Telnet Mode
get timeout Display Telnet Timeout
get tzone Display Time Zone Setting
get updateparam Display Vendor Default Firmware Update Params
get uptime Display UpTime
get watchdog Display Watchdog Mode
get wds Display WDS Mode
get wep Display Encryption Mode
get wirelessmode Display Wireless LAN Mode
get 80211d Display 802.11d mode
get http Display http Enable/Disable
get HttpPort Display http port number
get https Display https Enable/Disable
get HttpsPort Display https port number
get syslog Display syslog Disable/Broadcast/Unicast
get syslogSeverity Display syslog Severity level
get syslogServer Display unicast syslog server IP/name
get manageOnlyLan Display Management only via LAN Enable/Disable
get roguedetect Display Rogue AP Detection Enable/Disable
get rogueinteval Display Minutes of every Rogue AP Detection(Range: 3 ~ 99)
100
Appendix C - Windows TCP/IP
get rogueband Display Rogue AP Detection band(s)
get roguetype Display Rogue AP definition
get roguesnmp Display Rogue AP Detection SNMP Trap Enable/Disable
get roguelegal Display Legal AP List of Rogue AP
get autoConfig Display Auto Config Enable/Disable
get autoResponse Display Respond to Auto Config request Enable/Disable
get autoChangeName Display Provide admin login name and password Enable/Disable
get autoSetResp Display Provide respond to Auto Config request Enable/Disable
get autoUpdate Display Auto Update Enable/Disable
get autoUpgradeOnly Display Install later version only Enable/Disable
get autoUpdateInterval Display Auto Update Interval(1~31days)
get ftpServer Display FTP Server address
get fwPathname Display Firmware Pathname
get ftpLogin Display FTP Login Name
get ftpPassword Display FTP Password
get activeCurrentProfile Display active Current Profile
get profileName Display Profile Name
get profileVlanId Display Profile VLAN ID
get APPrimaryProfile Display AP Primary Profile
get WDSPrimaryProfile Display WDS Primary Profile
get securityMode Display Security Mode
get Accounting Display Accounting Enable/Disable
get Accountingport Display Accounting port number
get keyValue Display Encryption Key Value
get keyLength Display Encryption Key Length
get keyIndex Display Encryption Key Index
get UAM Display UAM Authentication Enable/Disable
get UAMMethod Display UAM Authentication Method
get UAMLoginURL Display UAM Authentication Login URL
get UAMLoginFailURL Display UAM Authentication Login Fail URL
get macAuth Display Mac Authentication Enable/Disable
get snmpMode Display SNMP Mode
101
Wireless Access Point User Guide
get snmpCommunity Display SNMP Community Name
get snmpAccessRight Display SNMP Access Right
get snmpAnyStaMode Display SNMP Any Station Mode
get snmpStationIPAddr Display SNMP Station Addr
get trapMode Display Trap Mode
get trapVersion Display Trap Version
get trapSendMode Display Trap Send Mode
get trapRecvIp Display Trap Receiver IP
get wdsMacList Display WDS Mac Address List
get enableWirelessClient Display Wireless Client Enable/Disable
get isolationType Display Isolation Type
get winsEnable Display WINS Server Enable/Disable
get winsserveraddr Display IP address of WINS server
get wirelessSeparate Display wireless seprate Mode
get description Display Access Point Description
get dhcpmode Display dhcp mode
get wlanstate Display wlan state
help Display CLI Command List
Lebradeb Disable reboot during radar detection
ls list directory
mem system memory statistics
np Network Performance
ns Network Performance Server
ping Ping
radar! Simulate radar detection on current channel
reboot Reboot Access Point
rm Remove file
run Run command file
quit Logoff
set 11gonly Set 11g Only Allowed
set 11goptimize Set 11g Optimization Level
set 11goverlapbss Set Overlapping BSS Protection
102
Appendix C - Windows TCP/IP
set acl Set Access Control List
set aging Set Aging Interval
set antenna Set Antenna
set authentication Set Authentication Type
set autochannelselect Set Auto Channel Selection
set basic11b Set Use of Basic 11b Rates
set basic11g Set Use of Basic 11g Rates
set beaconinterval Modify Beacon Interval
set burstSeqThreshold Set Max Number of frames in a Burst
set burstTime Set Burst Time
set calibration Set Calibration Period
set cckTrigHigh Set Higher Trigger Threshold for CCK Phy Errors For ANI Control
set cckTrigLow Set Lower Trigger Threshold for CCK Phy Errors For ANI Control
set cckWeakSigThr Set ANI Parameter for CCK Weak Signal Detection Threshold
set channel Set Radio Channel
set cipher Set Cipher
set compproc Set Compression Scheme
set compwinsize Set Compression Window Size
set countrycode Set Country Code
set ctsmode Set CTS Mode
set ctsrate Set CTS Rate
set ctstype Set CTS Type
set domainsuffix Set Domain Name Server Suffix
set dtim Set Data Beacon Rate (DTIM)
set enableANI Turn Adaptive Noise Immunity Control On/Off
set encryption Set Encryption Mode
set extendedchanmode Set Extended Channel Mode
set factorydefault Restore to Default Factory Settings
set firStepLvl Set ANI Parameter for FirStepLevel
set fragmentthreshold Set Fragment Threshold
set frequency Set Radio Frequency (MHz)
set gateway Set Gateway IP Address
103
Wireless Access Point User Guide
set gbeaconrate Set 11g Beacon Rate
set groupkeyupdate Set Group Key Update Interval (in Seconds)
set gdraft5 Set 11g Draft 5.0 compatibility
set hostipaddr Set Host IP address
set ipaddr Set IP Address
set ipmask Set IP Subnet Mask
set keyentrymethod Select Encryption Key Entry Method
set keysource Select Source Of Encryption Keys
set login Modify Login User Name
set minimumrate Set Minimum Rate
set nameaddress Set Name Server IP address
set noiseImmunityLvl Set ANI Parameter for Noise Immunity Level
set ofdmTrigHigh Set Higher Trigger Threshold for OFDM Phy Errors for ANI Control
set ofdmTrigLow Set Lower Trigger Threshold for OFDM Phy Errors for ANI Control
set ofdmWeakSigDet Set ANI Parameter for OFDM Weak Signal Detection
set overRidetxpower Set Tx power override
set operationMode Set operation Mode
set password Modify Password
set passphrase Modify Passphrase
set power Set Transmit Power
set quietAckCtsAllow Allow Ack/Cts frames during quiet period
set quietDuration Duration of quiet period
set quietOffset Offset of quiet period into the beacon period
set radiusname Set RADIUS name or IP address
set radiusport Set RADIUS port number
set radiussecret Set RADIUS shared secret
set rate Set Data Rate
set rate Set Data Rate
set rate Set Data Rate
set rate Set Data Rate
set rate Set Data Rate
set regulatorydomain Set Regulatory Domain
104
Appendix C - Windows TCP/IP
set remoteAP Set Remote AP's Mac Address
set hwtxretries Set HW Transmit Retry Limit
set swtxretries Set SW Transmit Retry Limit
set rtsthreshold Set RTS/CTS Threshold
set shortpreamble Set Short Preamble
set shortslottime Set Short Slot Time
set sntpserver Set SNTP/NTP Server IP Address
set softwareretry Set Software Retry
set spurImmunityLvl Set ANI Parameter for Spur Immunity Level
set ssid Set Service Set ID
set ssidsuppress Set SSID Suppress Mode
set SuperG Super G Features
set systemname Set Access Point System Name
set telnet Set Telnet Mode
set timeout Set Telnet Timeout
set tzone Set Time Zone Setting
set updateparam Set Vendor Default Firmware Update Parameters
set watchdog Set Watchdog Mode
set wds Set WDS Mode
set wep Set Encryption Mode
set wlanstate Set wlan state
set wirelessmode Set Wireless LAN Mode
set 80211d Set 802.11d mode
set http Set http Enable/Disable
set HttpPort Set http port number
set https Set https Enable/Disable
set HttpsPort Set https port number
set syslog Set syslog Disable/Broadcast/Unicast
set syslogSeverity Set syslog Severity level
set syslogServer Set unicast syslog server IP/name
set manageOnlyLan Set Management only via LAN Enable/Disable
set roguedetect Set Rogue AP Detection Enable/Disable
105
Wireless Access Point User Guide
set rogueinteval Set Minutes of every Rogue AP Detection(Range: 3 ~ 99)
set rogueband Set Rogue AP Detection band(s)
set roguetype Set Rogue AP definition
set roguesnmp Set Rogue AP Detection SNMP Trap Enable/Disable
set roguelegal Add/Delete one AP MAC/OUI into/from Rogue AP Legal List
set autoConfig Set Auto Config Enable/Disable
set autoResponse Set Respond to Auto Config request Enable/Disable
set autoChangeName Set provide admin login name and password Enable/Disable
set autoSetResp Set Provide respond to Auto Config request Enable/Disable
set autoUpdate Set Auto Update Enable/Disable
set autoUpgradeOnly Set Install later version only Enable/Disable
set autoUpdateInterval Set Auto Update Interval(1~31days)
set ftpServer Set FTP Server address
set fwPathname Set Firmware Pathname
set ftpLogin Set FTP Login Name
set ftpPassword Set FTP Password
set activeCurrentProfile Set active Current Profile
set profileName Set Profile Name
set profileVlanId Set Profile Vlan Id
set APPrimaryProfile Set AP's Primary Profile
set WDSPrimaryProfile Set WDS's Primary Profile
set securityMode Set Security Mode
set Accounting Set Accounting Enable/Disable
set Accountingport Set Accounting port number
set keyValue Set Encryption Key Value
set keyLength Set Encryption Key Length
set keyIndex Set Encryption Key Index
set UAM Set UAM Authentication Enable/Disable
set UAMMethod Set UAM Authentication Method
set UAMLoginURL Set UAM Authentication Login URL
set UAMLoginFailURL Set UAM Authentication Login Fail URL
set macAuth Set Mac Authentication Enable/Disable
106
Appendix C - Windows TCP/IP
set snmpMode Set SNMP Mode
set snmpCommunity Set SNMP Community Name
set snmpAccessRight Set SNMP Access Right
set snmpAnyStaMode Set SNMP Any Station Mode
set snmpStationIPAddr Set SNMP Station Address
set trapMode Set Trap Mode
set trapVersion Set Trap Version
set trapSendMode Set Trap Send Mode
set trapRecvIp Set Trap Receiver IP
set description Set Access Point Description
set dhcpMode Set Dhcp Mode
set wdsMacList Set WDS Mac Address List
set enableWirelessClient Set Wireless Client Enable/Disable
set isolationType Set Isolation Type
set winsEnable Set WINS Server Enable/Disable
set winsServerAddr Set WINS Server IP address
set wirelessSeparate Set wireless separate Mode
set sdSet Set debug level
set sdAdd Add debug level
set sdDel Del debug level
start wlan Start the current wlan
stop wlan Stop the current wlan
timeofday Display Current Time of Day
version Software version
107

Navigation menu
