Sercomm DRG600WIFI Wireless Router User Manual DRG600 Wifi User Guide
Sercomm Corporation Wireless Router DRG600 Wifi User Guide
Sercomm >
User manual
DRG600-WIFI
USER GUIDE
Page 2 of 104
P/N: DFB601CW
Copyright © 2008. All Rights Reserved.
Printed May 15, 2008
All trademarks and trade names are the properties of their respective owners.
Page 3 of 104
Contents
INTRODUCTION ...................................................................................................................................... 10
DRG600 WIFI FEATURES ................. ..... ..... ..... ..... ..... ..... ..... ... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... .................. ... 10
Internet Access Features .......................................................................................................................... ............... ............. 10
Advanced Internet Functions ..................................................................................................................... .................. ........ 11
Wireless Features ............................................................................................................................ .................. ................. . 11
LAN Features .................................................................................................................................... .................. ............. 11
Configuration & Management .................................................................................................................. .................. ........ 12
Security Features ........................................................................................................................... ................. .................. ... 12
PACKAGE CONTENTS ............................................................................................................................................ ............. 13

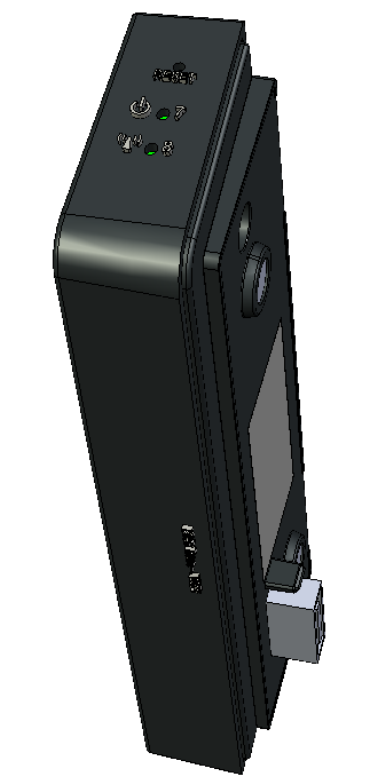

PHYSICAL DETAILS ........................................................................................................................................... ................. . 14

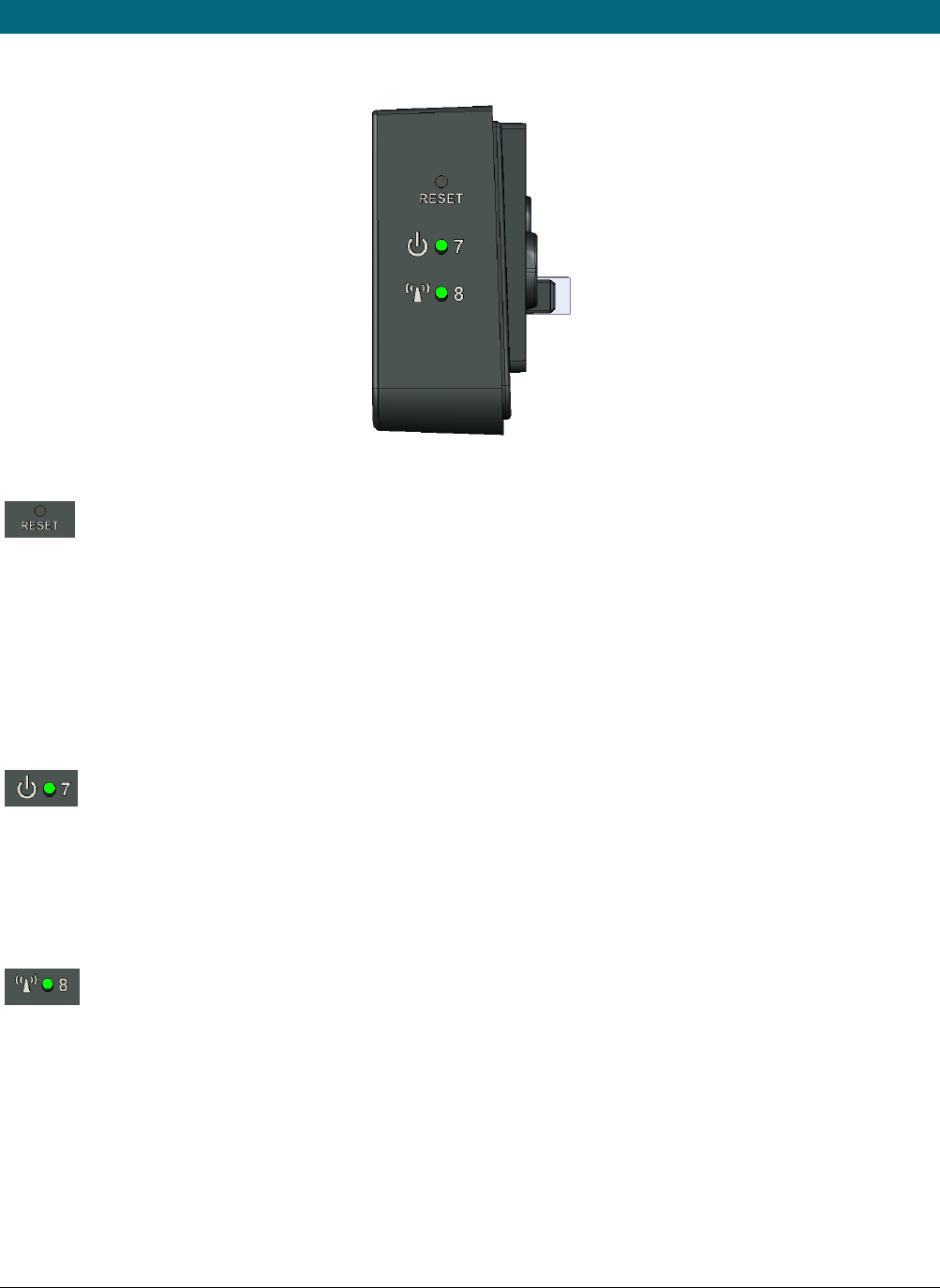

Top mounted LEDs .......................................................................................................................... ................. ................ 14
Bottom Panel ................................................................................................................................ ................. .................. ... 15
INSTALLATION
................................................................................................................................................. 16
REQUIREMENTS .............. ................. .................. .................. ............... ................. .................. ....................... ............... ........ 16

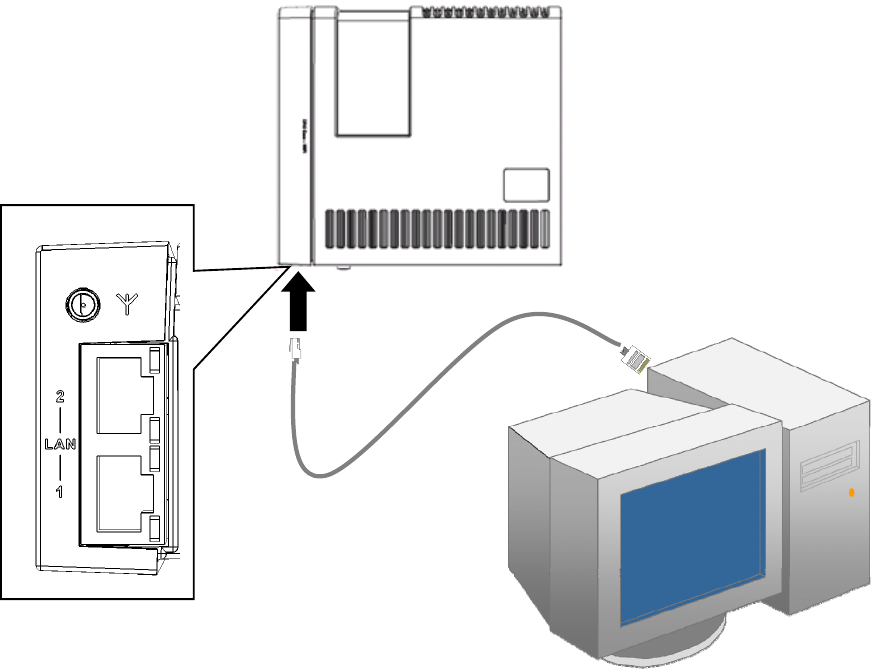

INSTALLATION PROCEDURE ..... .................. .................... .................... .................... ..................... .................... .................. 16
SETUP
............................................................................................................................................................. 18
OVERVIEW ................................................................................................................................................. ............... ........... 18
CONFIGURATION PROGRAM .......................................................................................................................................... ... 19
Preparation ................................................................................................................................... ................. .................. ... 19
Using UPnP ....................................................................................................................................... .................. ............. 19

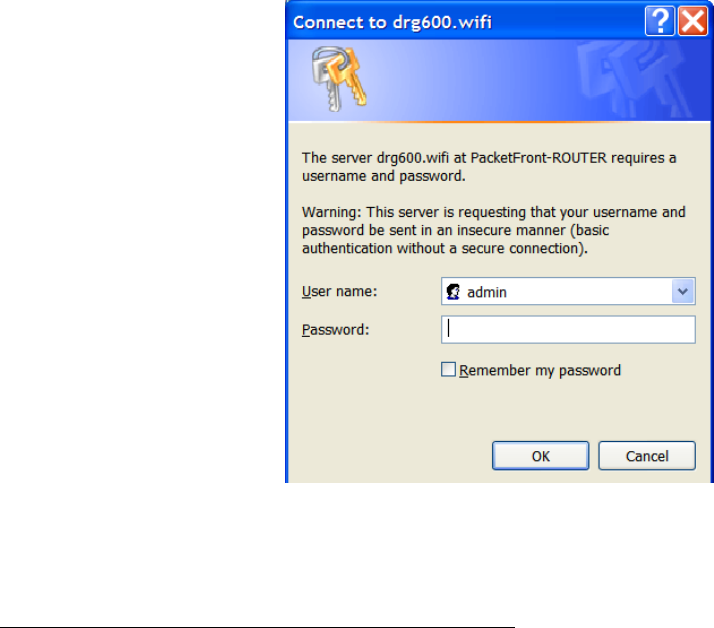

Using your Web Browser ........................................................................................................................... .................. ........ 19

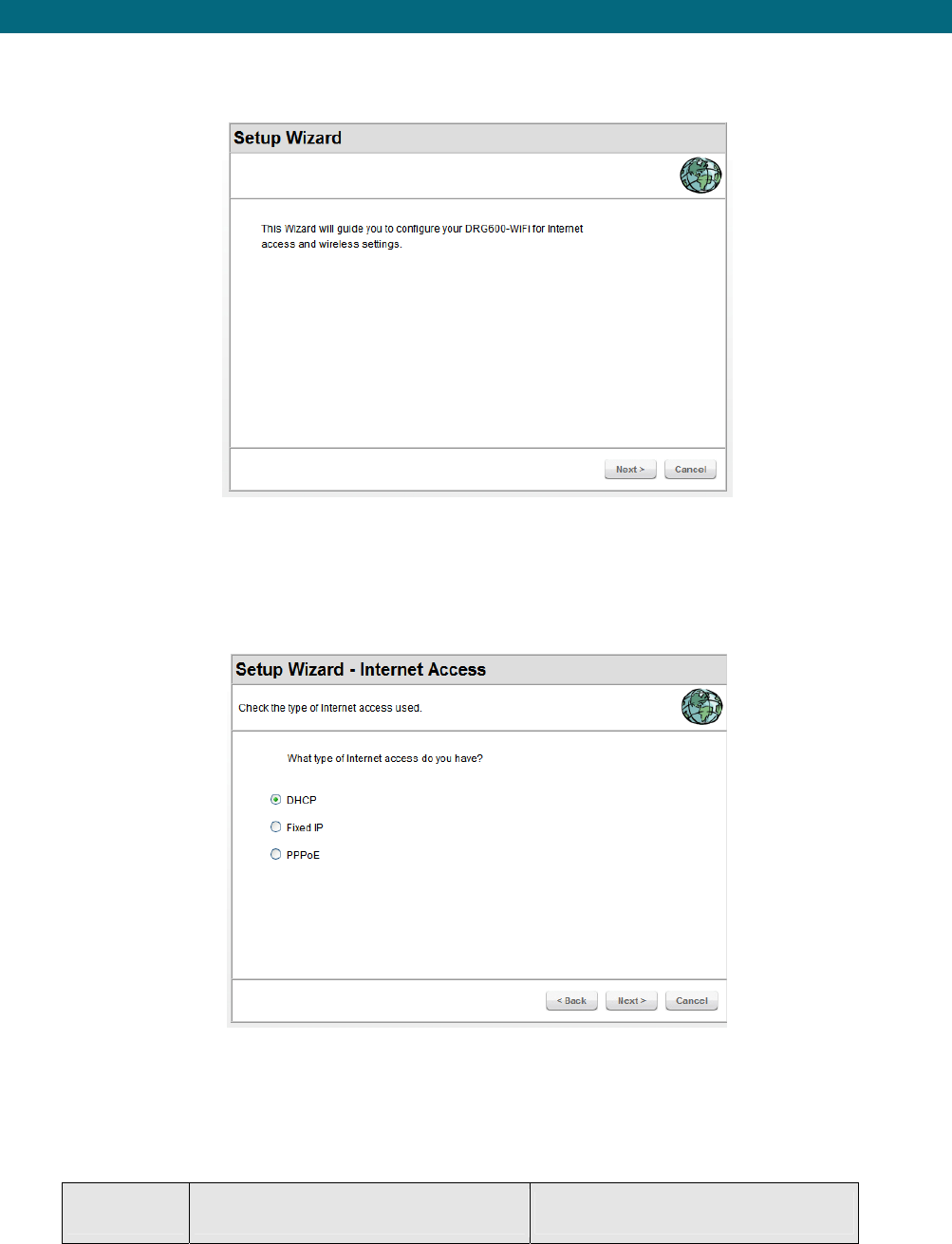

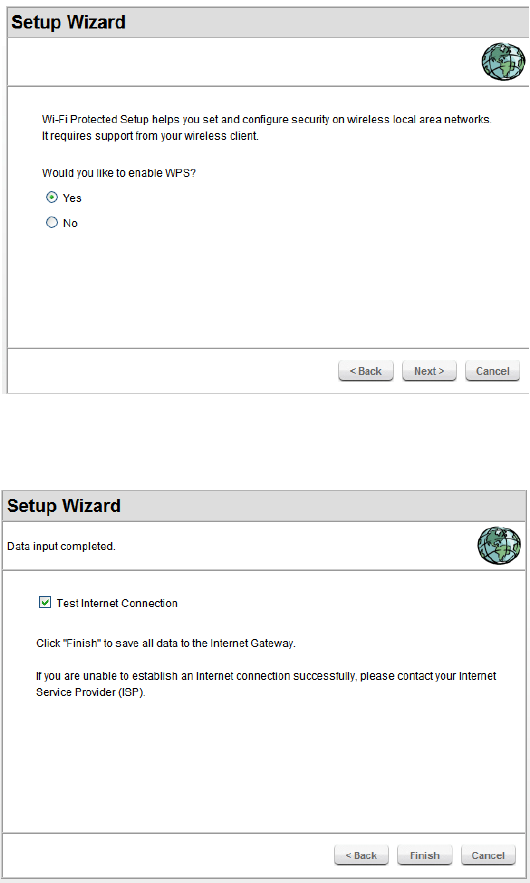

SETUP WIZARD .................................................................................................................................................. ................. . 21
STATUS SCREEN ......... ...................... ........................................................ ...................... .................................... ................. . 24
Navigation & Data Input ................................................................................................................. ................. ................ 25
LAN SCREEN ................................................................................................................................................ ................. ...... 26
TCP/IP ......... .. ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ...... ..... ..... ..... ..... ..... ..... ..... ..... ..... .................. ................. .................. ... 26
DHCP ........................................................................................................................................ ............... ................. ........... 27
Page 4 of 104
What DHCP Does .................................................................................................................................. .................. ........ 27
Using the DRG600-WiFi DHCP Server .......................................................................................................... ................ 27
Using another DHCP Server .................................................................................................................... .................. ........ 27
PC Database .................................................................................................................................. .................. ................. . 28

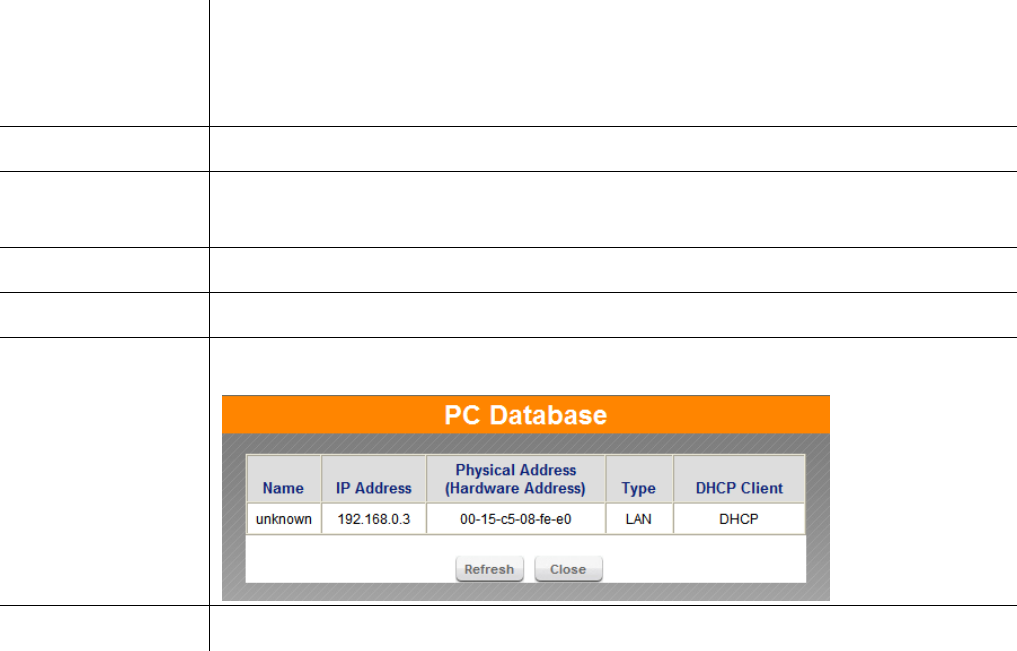

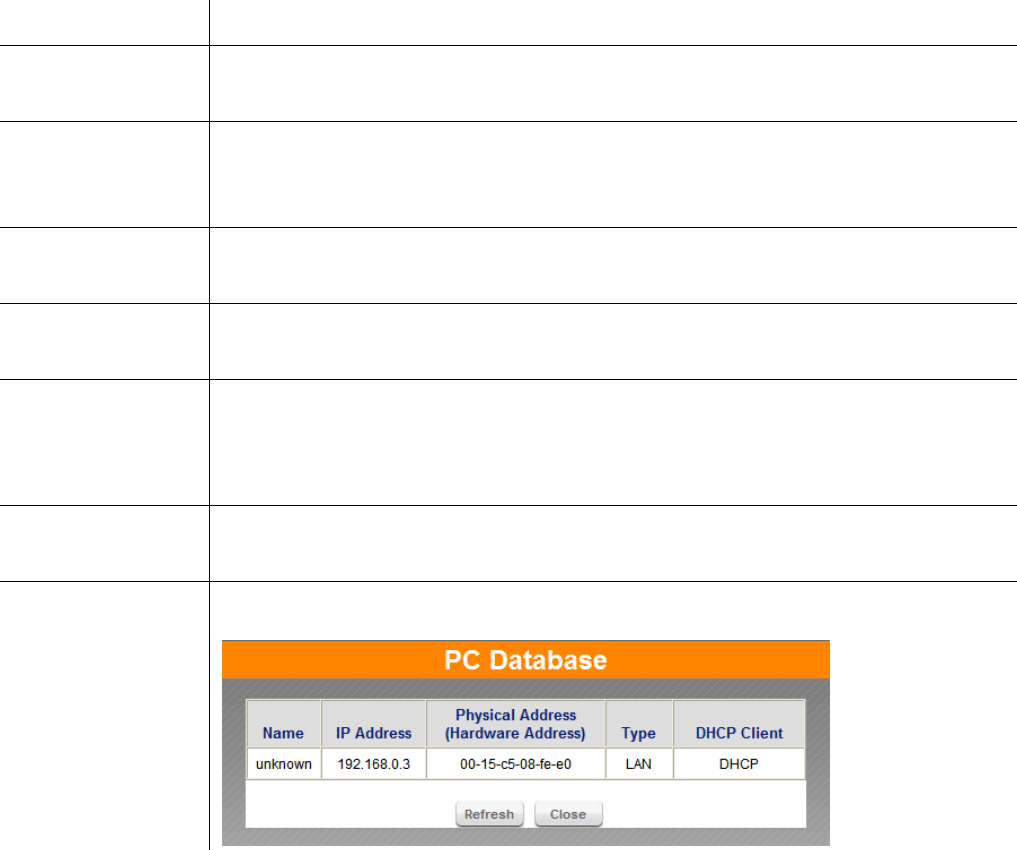

PC DATABASE SCREEN ............................................................................................................................................ ........... 29
PC Properties ................................................................................................................................. ............... .................. ... 29
WIRELESS ............................................................................................................................................ ................. ................ 31
Identification ................................................................................................................................... .................. ................. . 31
Options ........ ............... ............. ............... ............... ............... ............... ............... ..................... ............... ................. ........... 32
Wireless Security ........................................................................................................................ .................. ................. ...... 32
Access point .................................................................................................................................... .................. ................. . 32
WIRELESS SECURITY SCREEN ......................................................................................................................................... ... 34

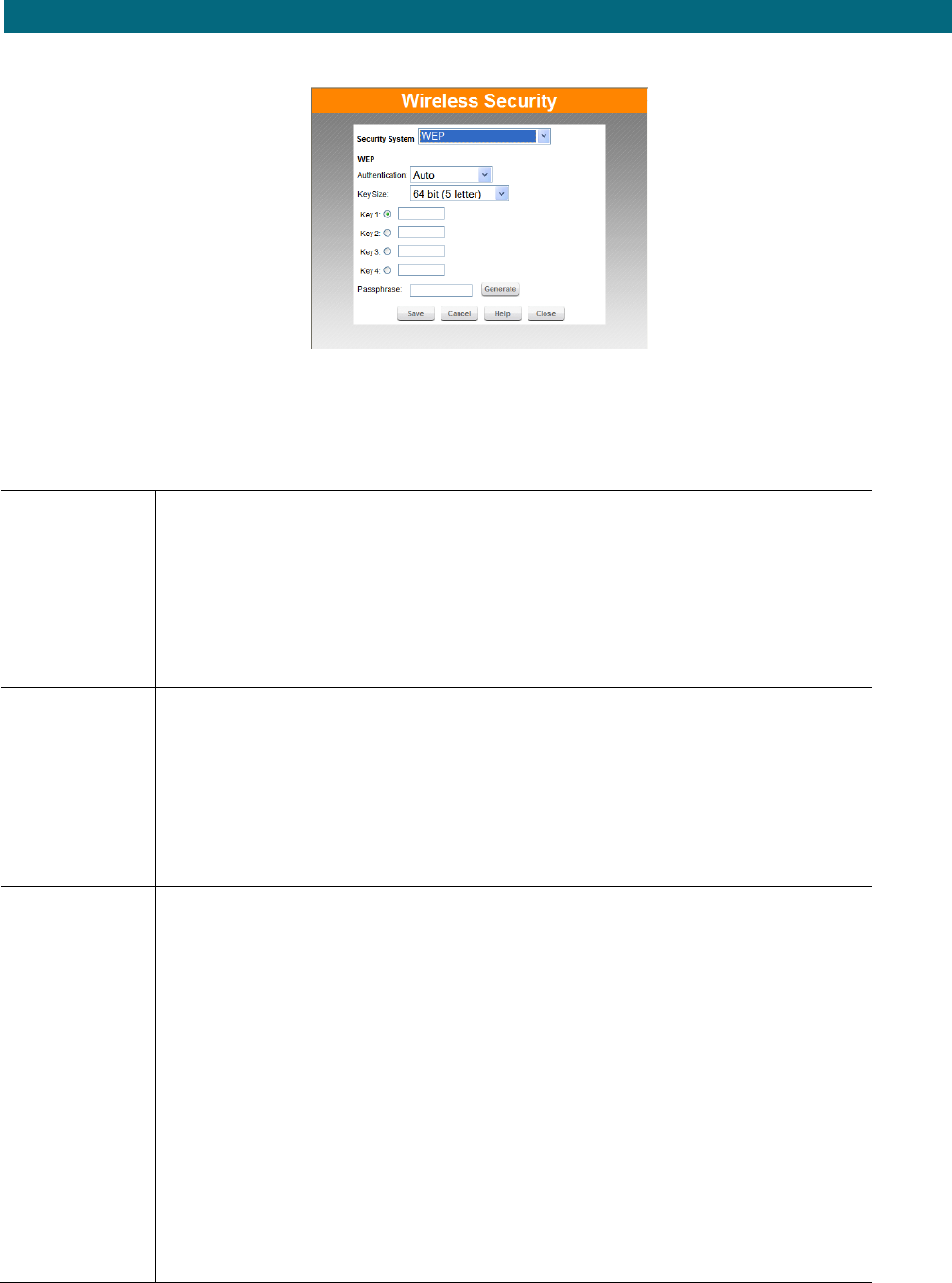

WIRELESS SECURITY - WEP ............................................................................................................................................. . 35
WEP ........................................................................................................................................ .................. ................. ...... 35

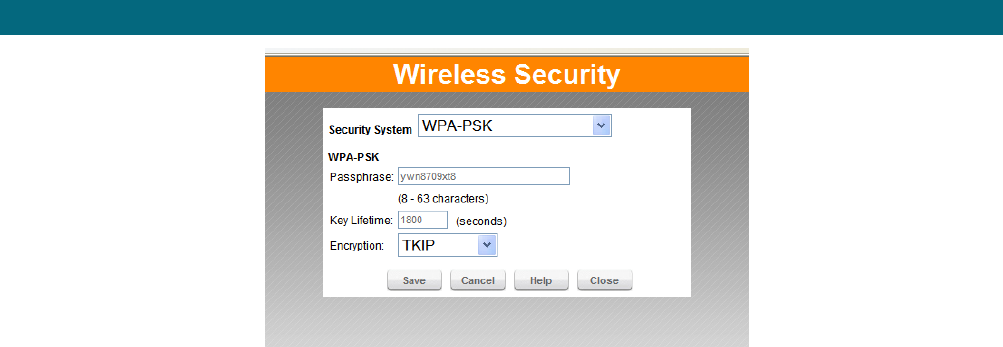

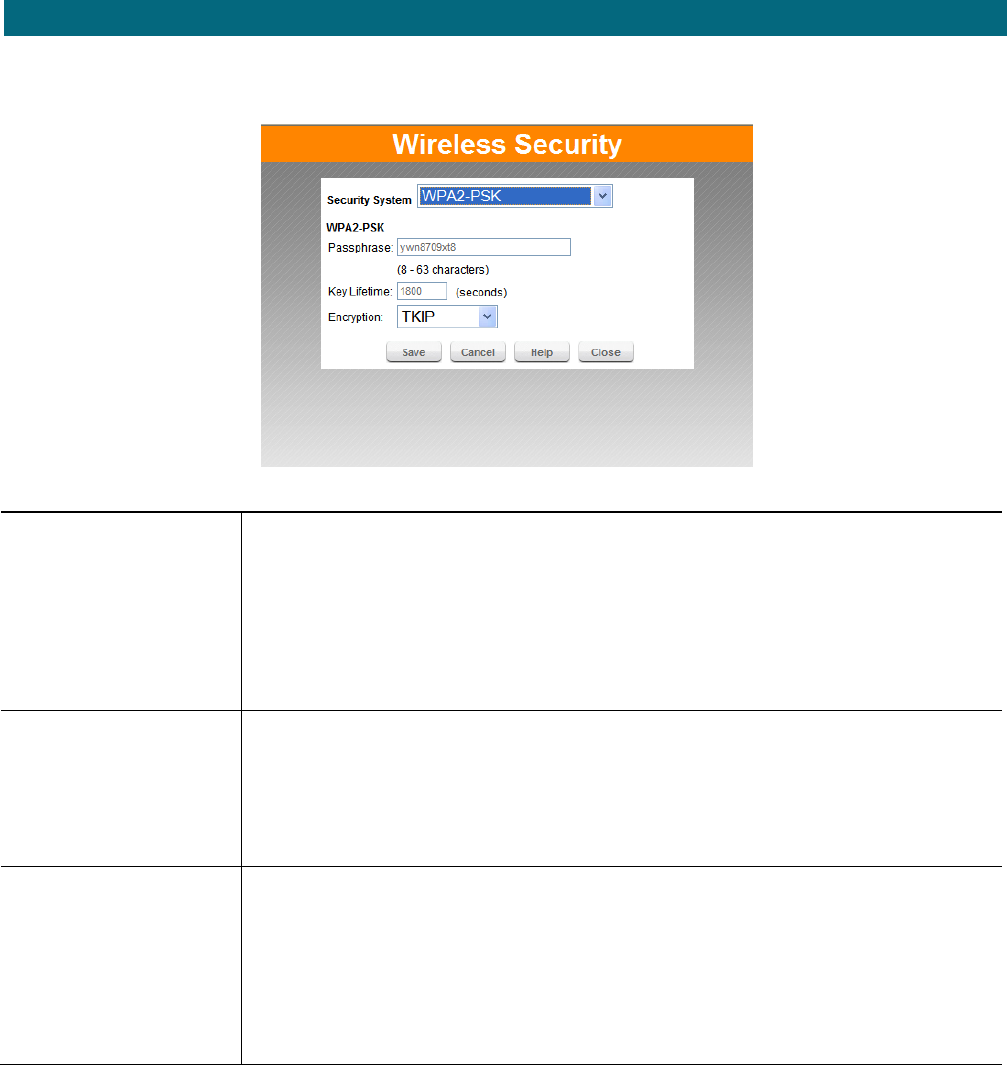

WIRELESS SECURITY - WPA-PSK/WPA2-PSK/WPA-PSK+WPA2-PSK ............................................................... 36
WI-FI PROTECTED SETUP ............ ................. .................. ............... .................. .................. ................. ............................... 37
What is WPS (Wi-Fi Protected Setup)? ............................................................................................................. ................ 37
WPS ......................................................................................................................................... .................. ................. ...... 37
Status ...................................................................................................................................... ................. .................. ........ 37
PBC ............................................................................................................................................. ................. .................. ... 37
Wireless Access Point .................................................................................................................... ................. .................. ... 37

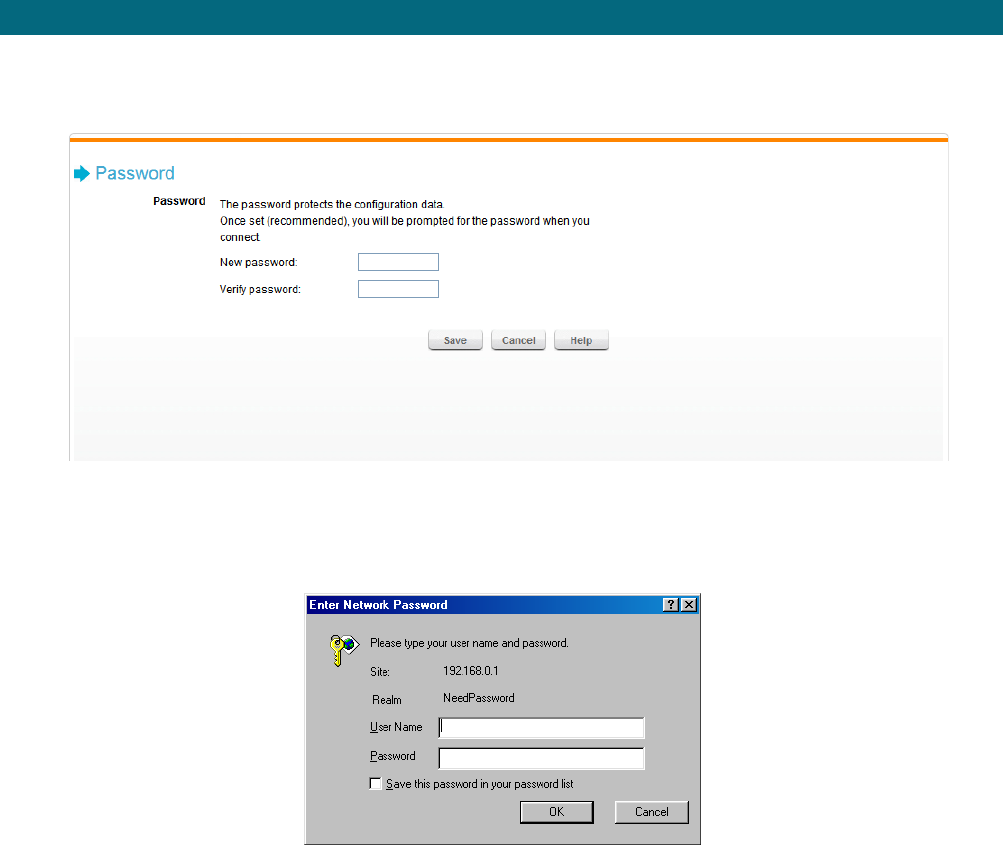

PASSWORD SCREEN ....................... .......... .......... ........ .......... .......... .......... .......... .......... .......... .......... ......................... ........... 39
PC CONFIGURATION ............................................................................................................................. 40
OVERVIEW ................................................................................................................................................. ............... ........... 40
TCP/IP SETTINGS - OVERVIEW ....................................................................................................................................... 40
Checking TCP/IP Settings - Windows 9x/ME: ............................................................................................... ................ 41
Using “IP Address” (DHCP) ......................................................................................................................... ................. . 41
Using "Specify an IP Address" .......................................................................................................... ................. ................ 42

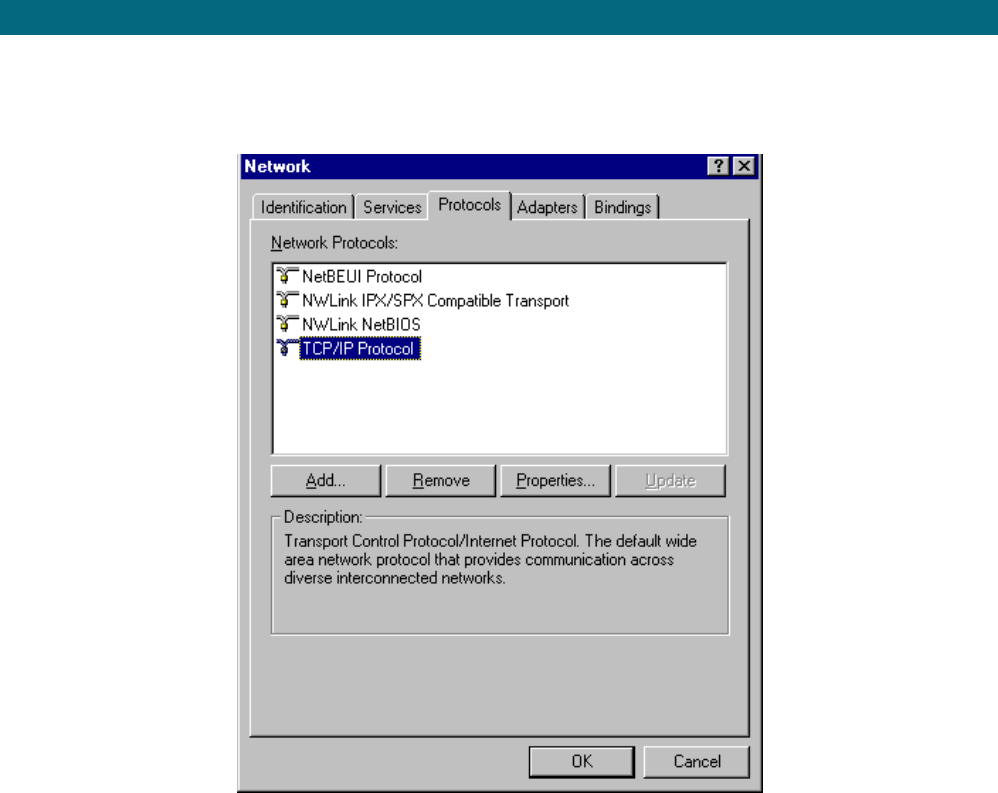

CHECKING TCP/IP SETTINGS - WINDOWS NT4.0 ....................................................................................................... 43

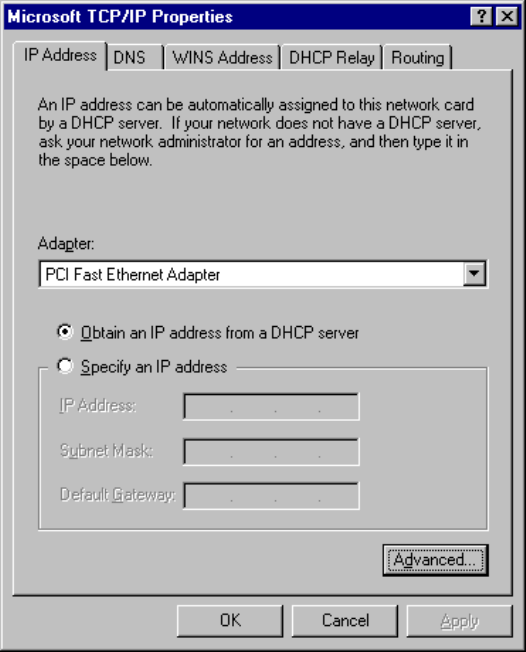

Obtain an IP address from a DHCP Server ................................................................................................ ................. ...... 44
Page 5 of 104
Specify an IP Address ................................................................................................................... ................. .................. ... 45
CHECKING TCP/IP SETTINGS - WINDOWS 2000: ......................................................................................................... 47
Obtain an IP Address automatically ....................................................................................................... ................. ........... 48
Use the following IP Address .................................................................................................................... .................. ........ 48

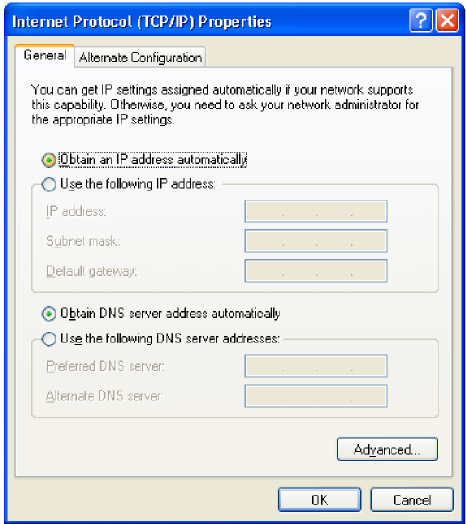

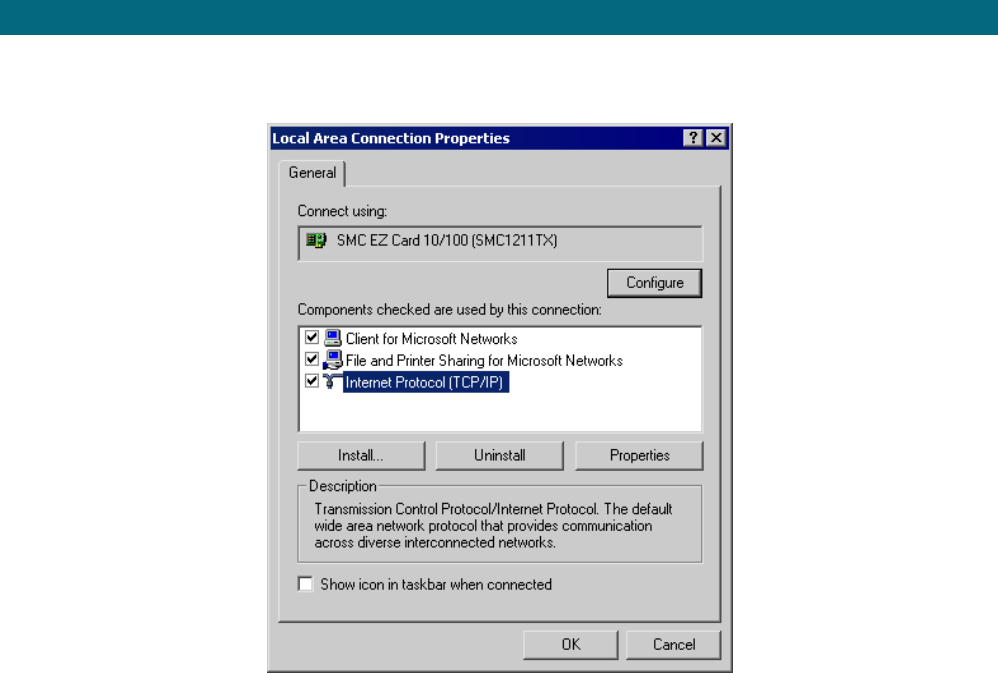

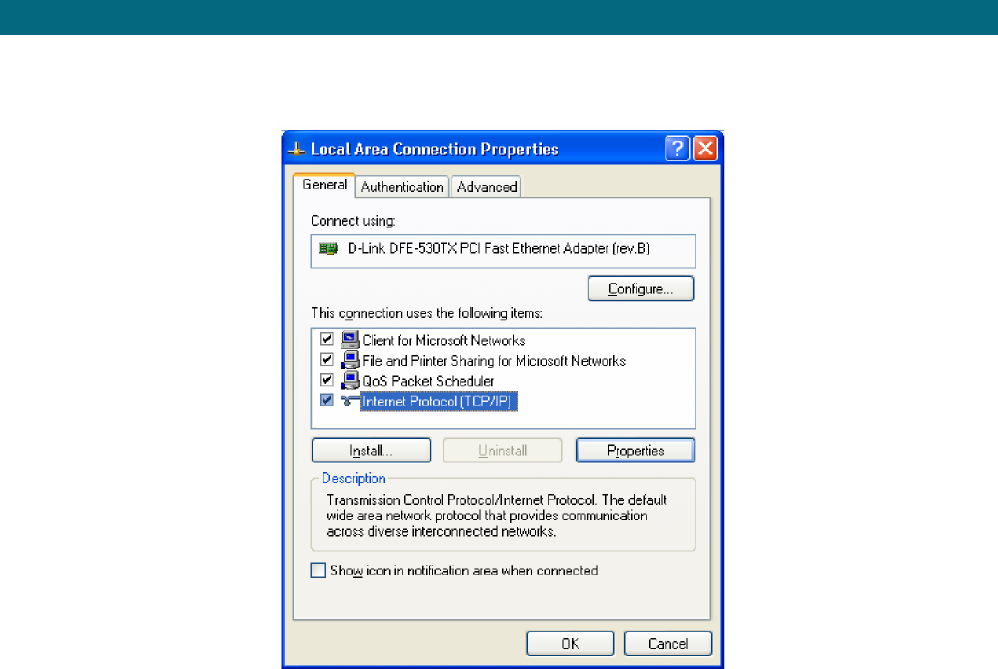

CHECKING TCP/IP SETTINGS - WINDOWS XP ............................................................................................................. 49
Using DHCP ................................................................................................................................... ................. ............... . 50
Using a fixed IP address .................................................................................................................... ................. ............... . 50
INTERNET ACCESS ............................................................................................................................................ ................. . 51
For Windows 9x/ME/2000 ................................................................................................................ ................. ........... 51
For Windows XP ................................................................................................................................... ................. ........... 51
Macintosh Clients ........................................................................................................................... ............... .................. ... 51
Linux Clients ............................................................................................................................... ................. .................. ... 52
Fixed IP Address ................................................................................................................................ ................. ...... 52
To act as a DHCP Client (recommended) ............................................................................................................ . 52
Other Unix Systems .......................................................................................................................... ............... ................. . 52
WIRELESS STATION CONFIGURATION ............................................................................................................................. 53
STATUS
....................................................................................................................................................... 54

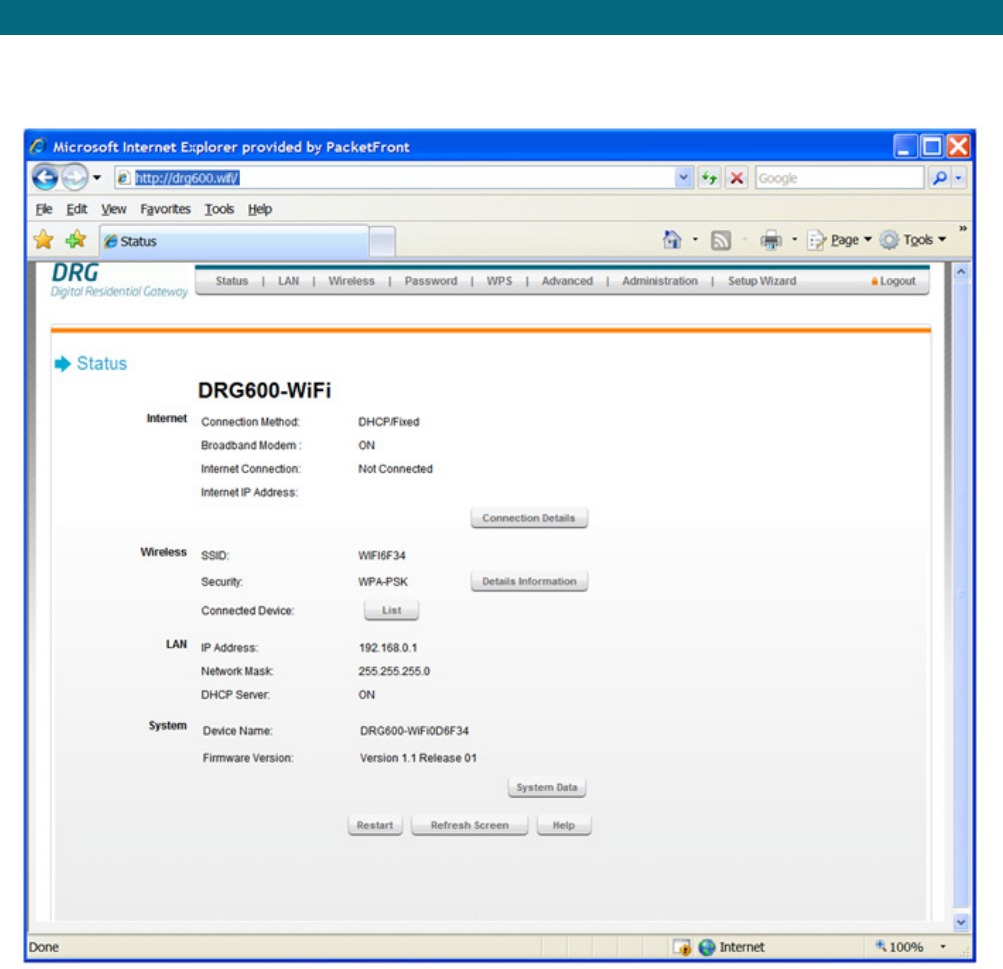

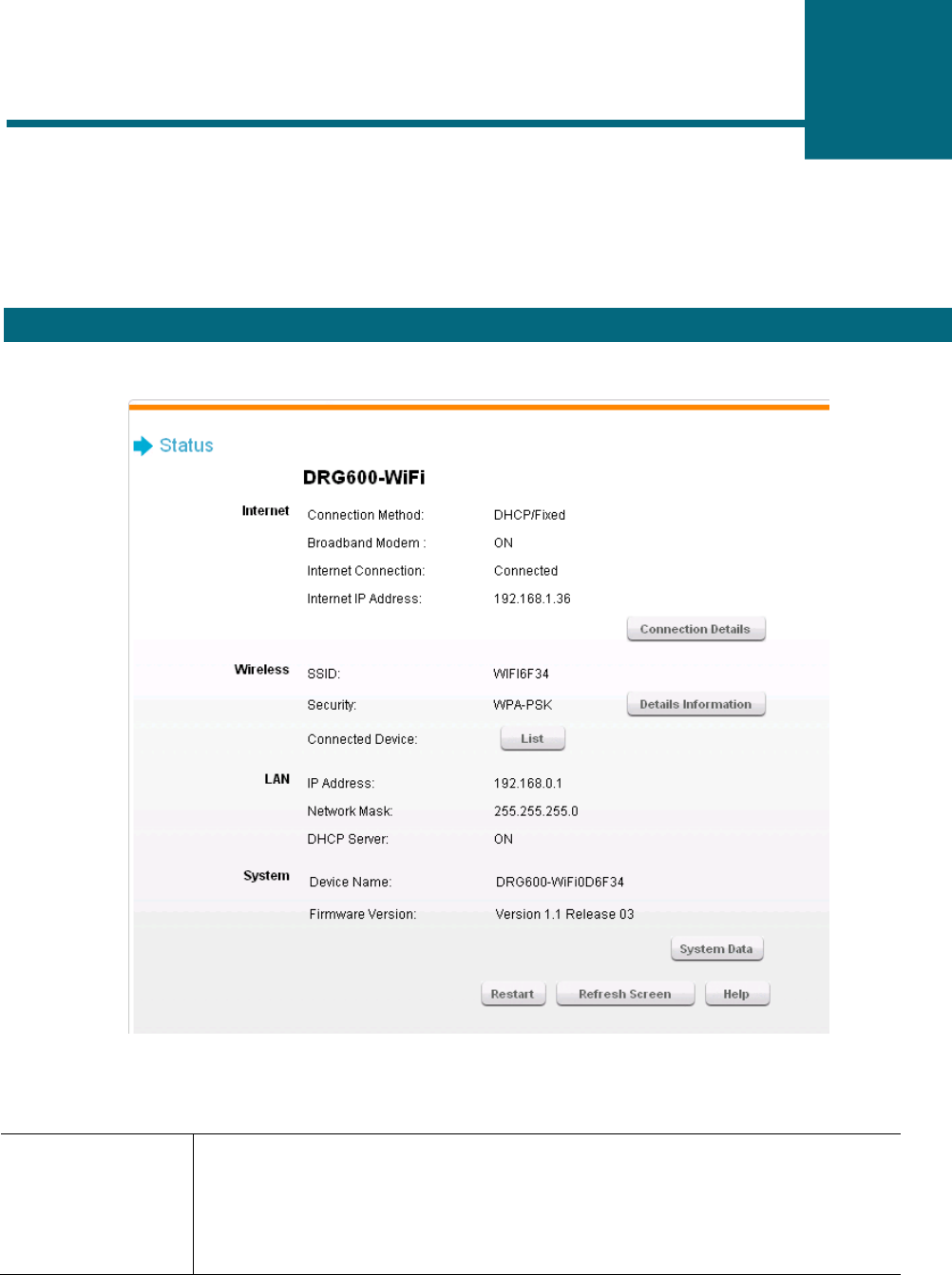

STATUS SCREEN ......... ...................... ........................................................ ...................... .................................... ................. . 54
Internet ...................................................................................................................................... .................. ................. ...... 54
Wireless .................................................................................................................................. .................. .................. ........ 55
LAN ........................................................................................................................................... ................. ............... ...... 56
System ....................................................................................................................................... .................. ................. ...... 56
CONNECTION STATUS - PPPOE ....................................................................................................................................... 57
Connection ................................................................................................................................. ............... .................. ........ 57
Connection Log .......................................................................................................................... .................. ................. ...... 58
Buttons ......................................................................................................................................... ................. ............... ...... 58
Connection Log Messages .......................................................................................................................... .................. ........ 58

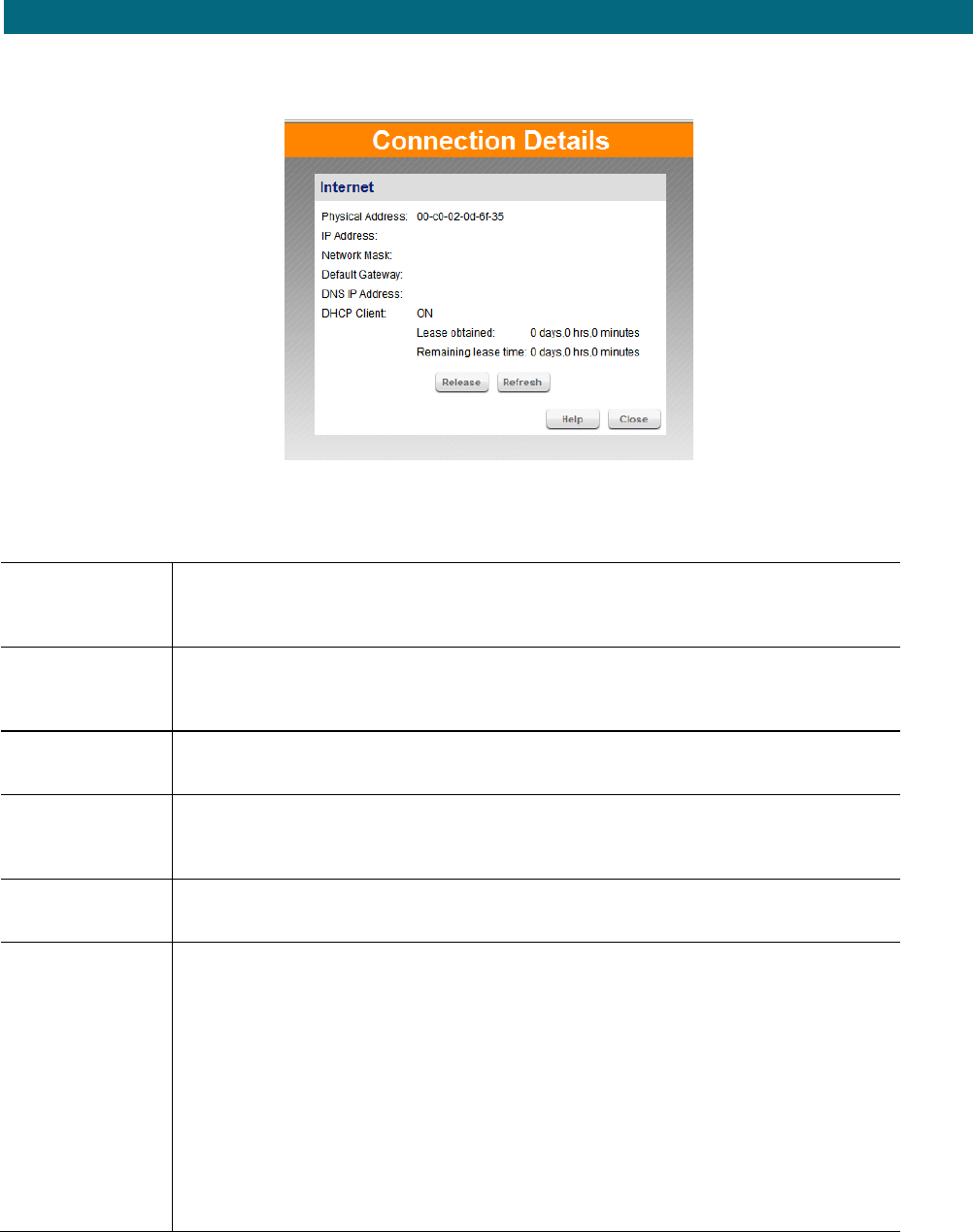

CONNECTION DETAILS - FIXED/DYNAMIC IP ADDRESS ............................................................................................ 60
Internet ...................................................................................................................................... .................. ................. ...... 60
ADVANCED FEATURES
............................................................................................................................. 62
Page 6 of 104
OVERVIEW ................................................................................................................................................. ............... ........... 62
ACCESS CONTROL ............................................................................................................................................. ................. . 63

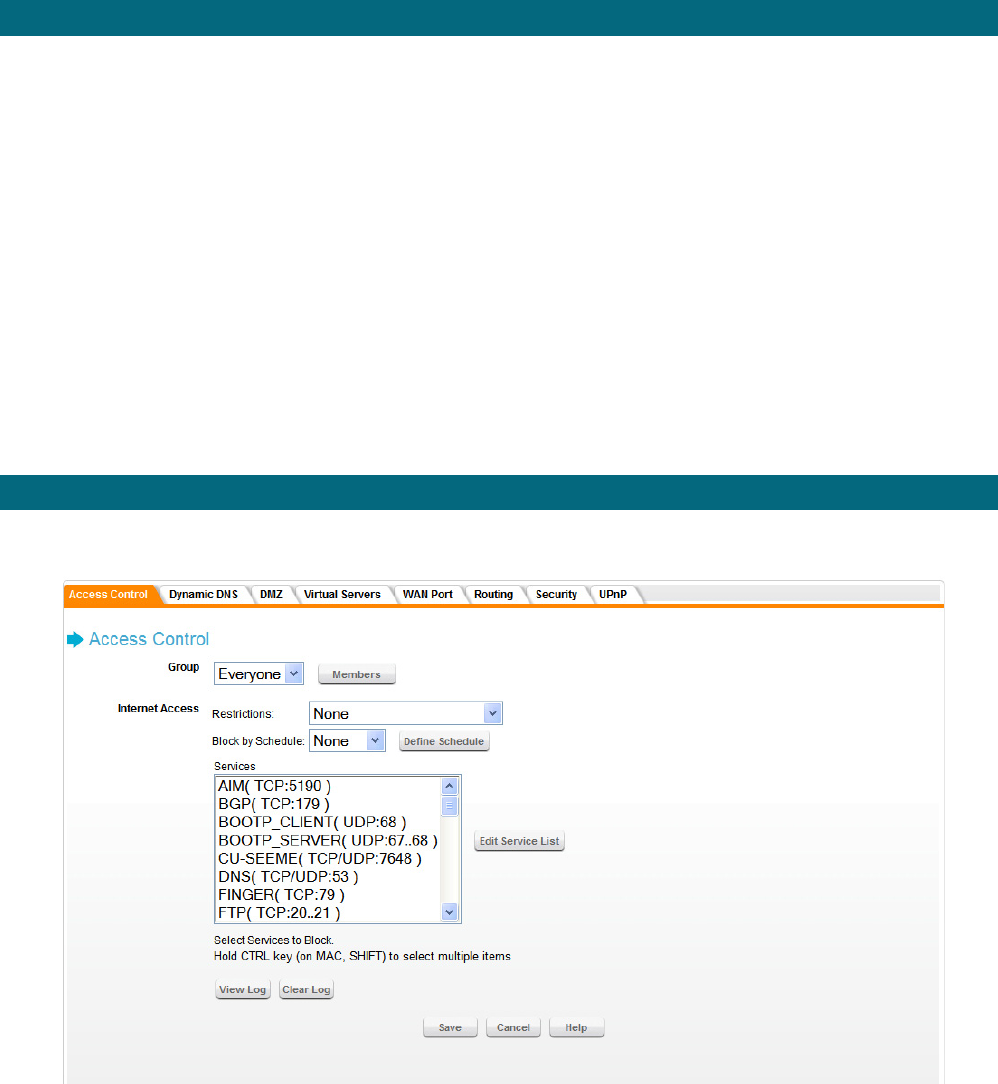

ACCESS CONTROL SCREEN ................................................................................................................................................ 63
Group ............. ............ ............. ............ ............. ............. ............ ............. ............ .......................... ................. .................. ... 63
Internet Access ................................................................................................................................ .................. ................. . 64
Define Schedule .......................................................................................................................... .................. ................. ...... 64
View Log ..................................................................................................................................... ................. .................. ... 64
Clear Log ................................................................................................................................ ................. .................. ........ 64

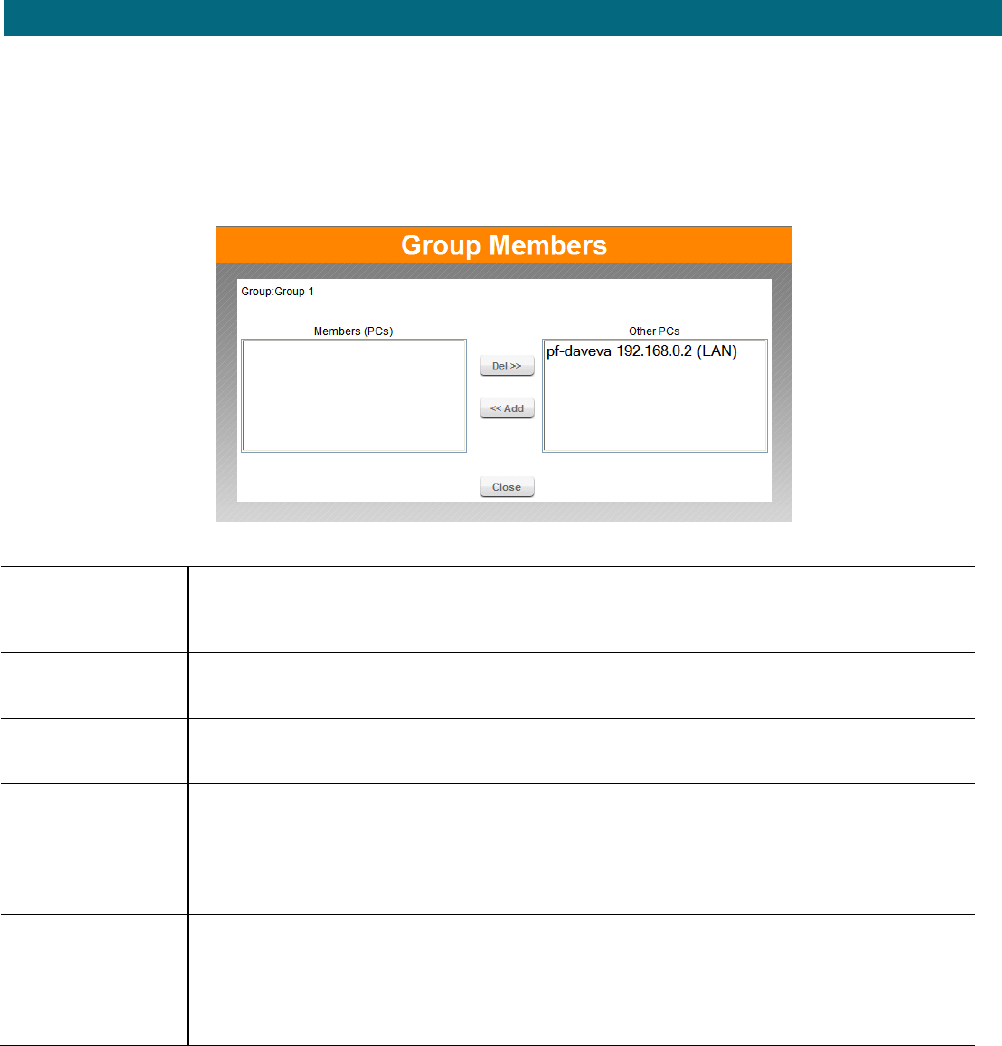

MEMBERS SCREEN ............................................................................................................................................ ................. . 65

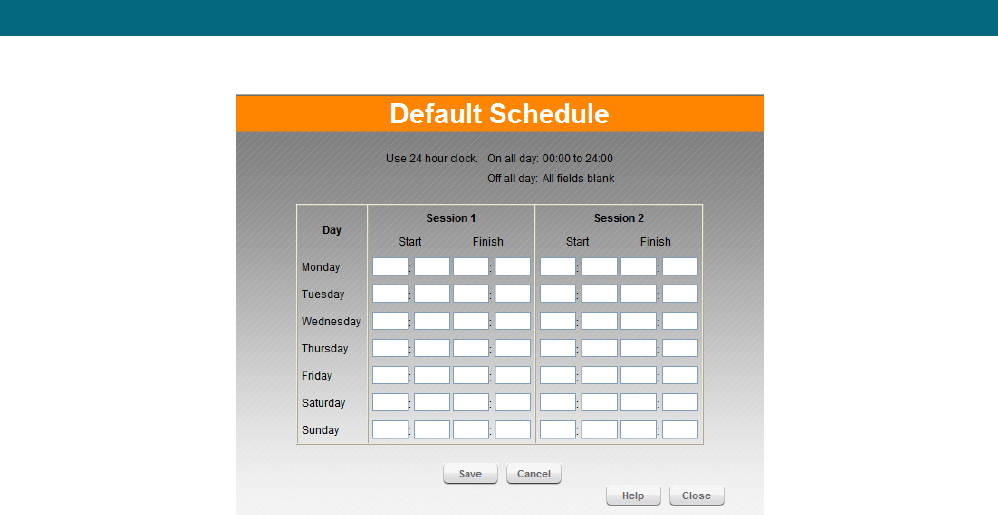

DEFINE SCHEDULE ............... ............... ............. ............... ............... ............... ................ ............... ........................... ........... 66

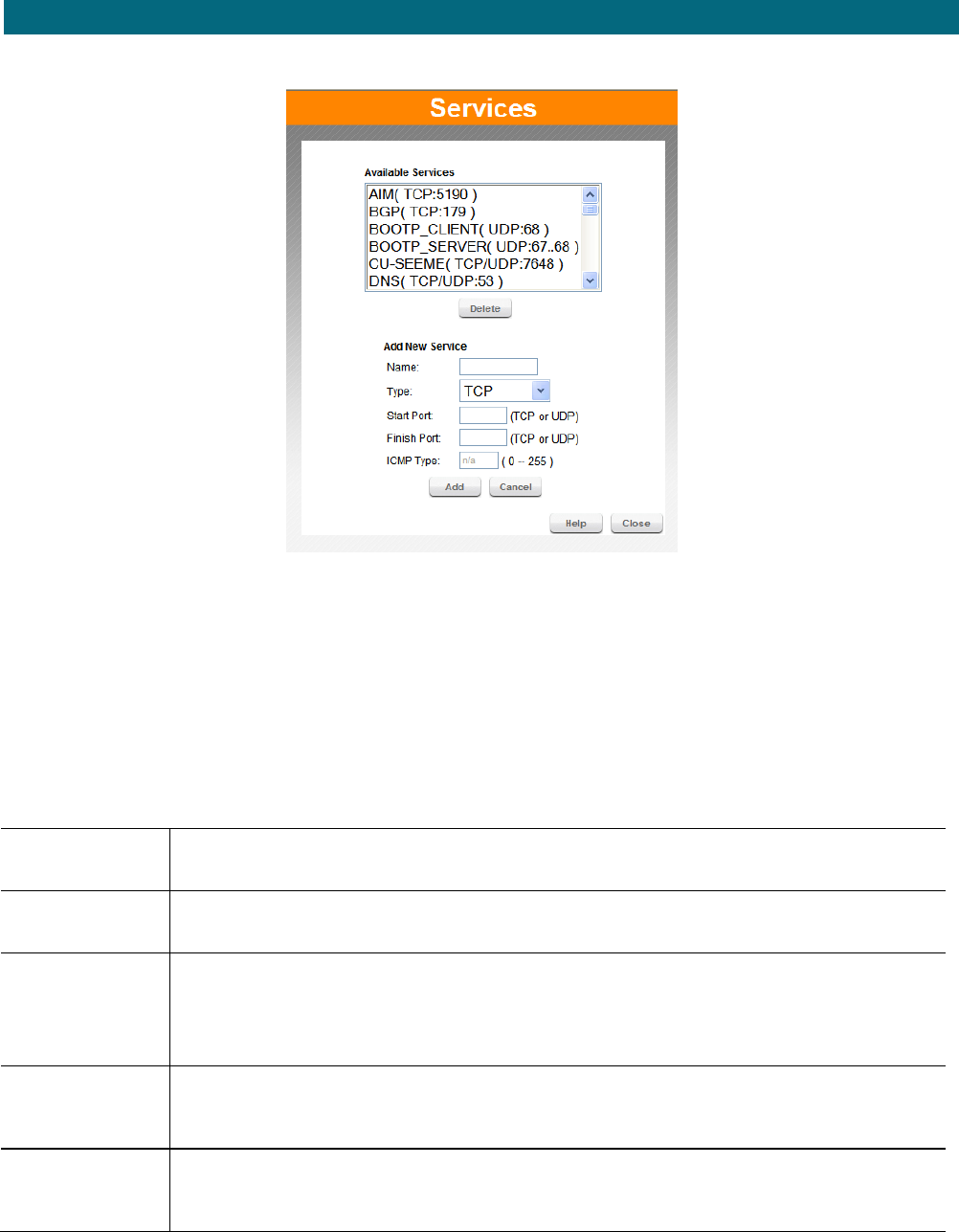

SERVICES SCREEN .................................................................................................................................................. ............. 67
Available Services .............................................................................................................................. ................. ................ 67
Add New Service ............................................................................................................................... ............... ................. . 67
DYNAMIC DNS (DOMAIN NAME SERVER) ..................................................................................................................... 68

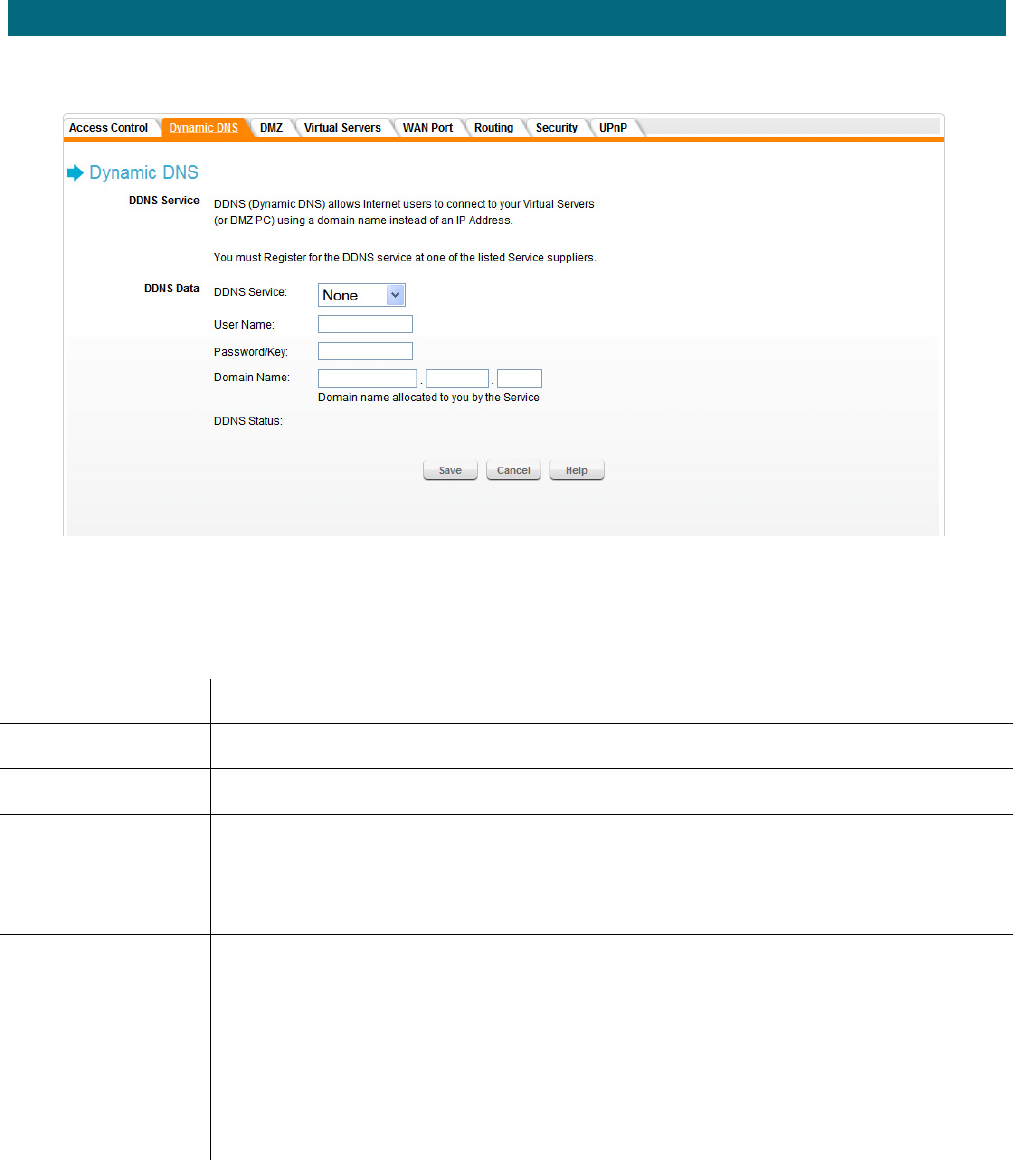

DYNAMIC DNS SCREEN ................................................................................................................................................. ... 69
DDNS Data .................................................................................................................................... ................. ................ 69

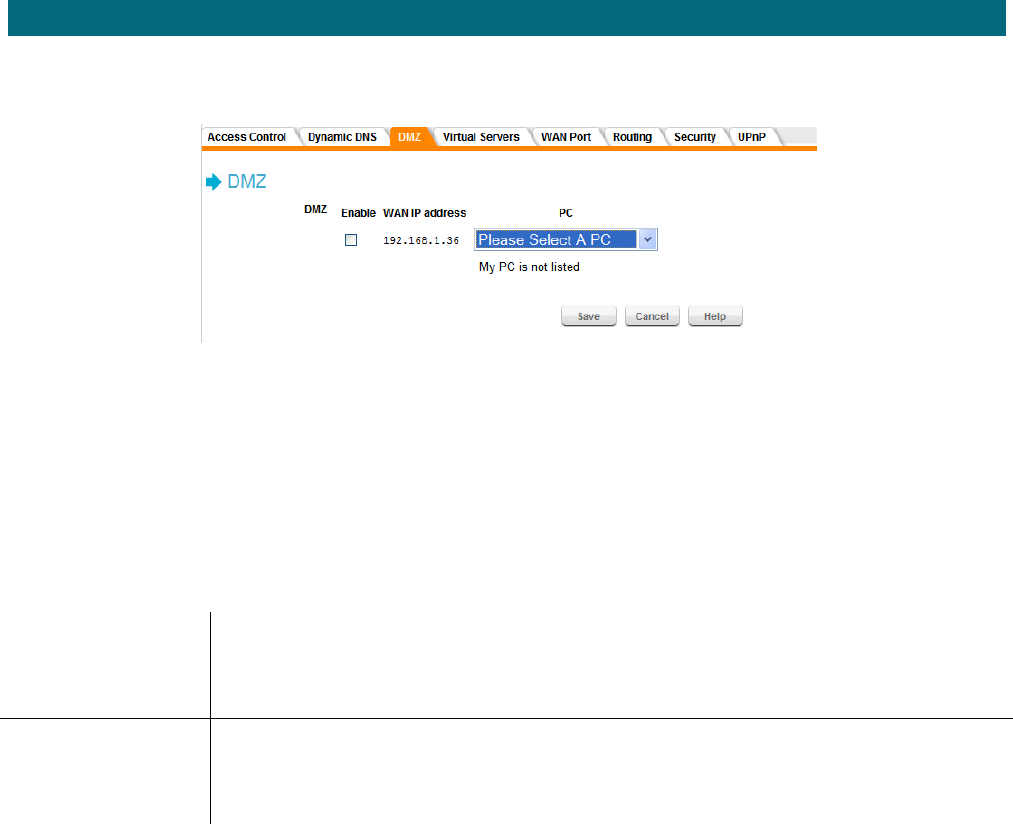

DMZ .......................................................................................................................................... ................. .................. ........ 70
VIRTUAL SERVERS ............................................................................................................................................... ................ 71

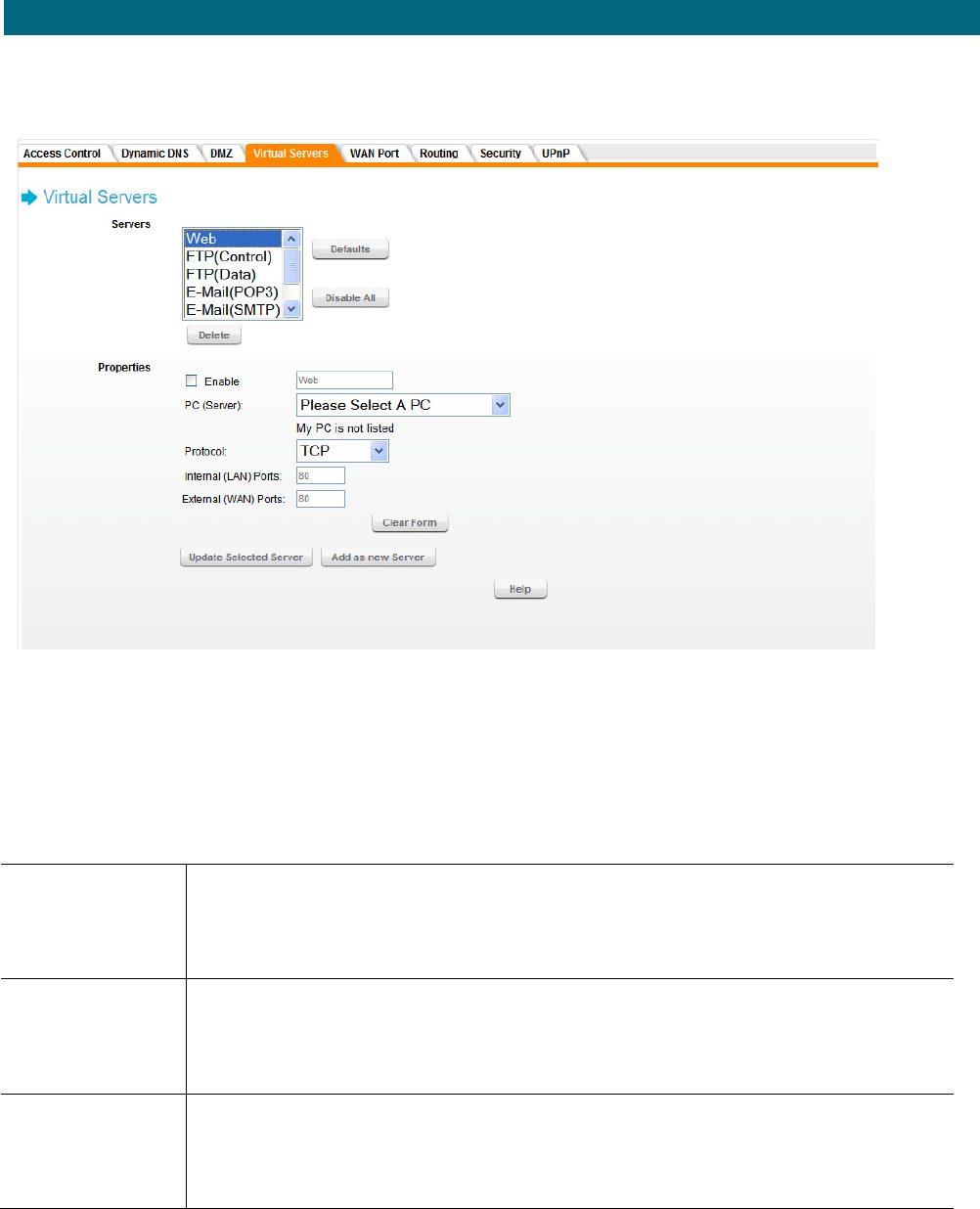

VIRTUAL SERVERS SCREEN ............................................................................................................................................. ... 72
Servers .......................................................................................................................................... ................. .................. ... 72
Properties .............................................................................................................................. .................. ................. ........... 73
DEFINING YOUR OWN VIRTUAL SERVERS .................... ............... ............... ................ ............... ............ ............... ........... 74
Create a new Server: ........................................................................................................................... ................. ................ 74
Modify (Edit) a Server: ................................................................................................................... .................. ................. . 74
Delete a Server: ............................................................................................................................... .................. ............... ... 74
Connecting to the Virtual Servers ............................................................................................................ ................. ........... 74

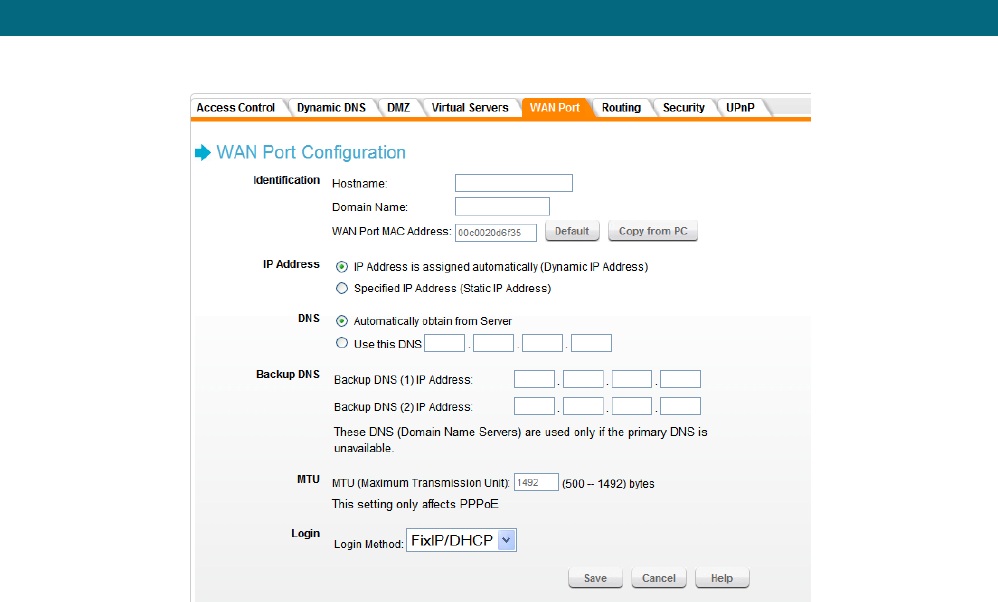

WAN PORT CONFIGURATION SCREEN ........................................................................................................................... 75
Identification ................................................................................................................................... .................. ................. . 75
IP Address ................................................................................................................................... ................. .................. ... 75
DNS ........................................................................................................................................ .................. ................. ...... 76
Page 7 of 104
Backup DNS ......................................................................................................................................... ................. ........... 76
MTU ........................................................................................................................................ .................. ................. ...... 76
Login ........ ............. ............... ............... ............... ................ ............... ............... ............................ ................. ............... ...... 76
ROUTING ............................................................................................................................................... .................. ............. 78

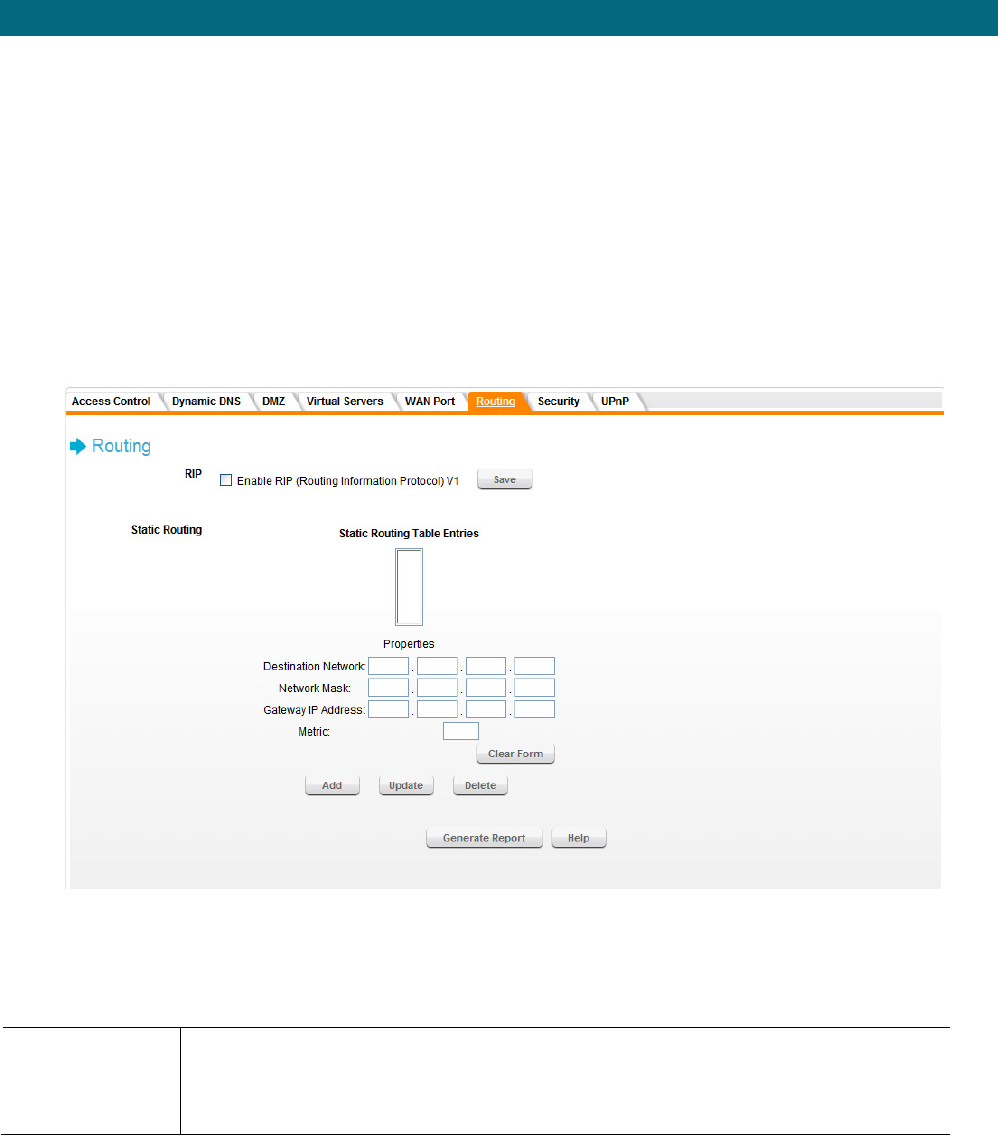

ROUTING SCREEN ............................................................................................................................................... ................ 79
Static Routing Table ............................................................................................................................ ............... ................ 79
RIP .............................................................................................................................................. ................. .................. ... 79
Static Routing ............................................................................................................................ .................. ................. ...... 79
Properties .............................................................................................................................. .................. ................. ........... 80
Generate Report ................................................................................................................................... .................. ............. 80
CONFIGURING OTHER ROUTERS ON YOUR LAN .......................................................................................................... 80
Local Router .............................................................................................................................. .................. ............... ........ 80
Other Routers on the Local LAN .................................................................................................................... ................. . 81

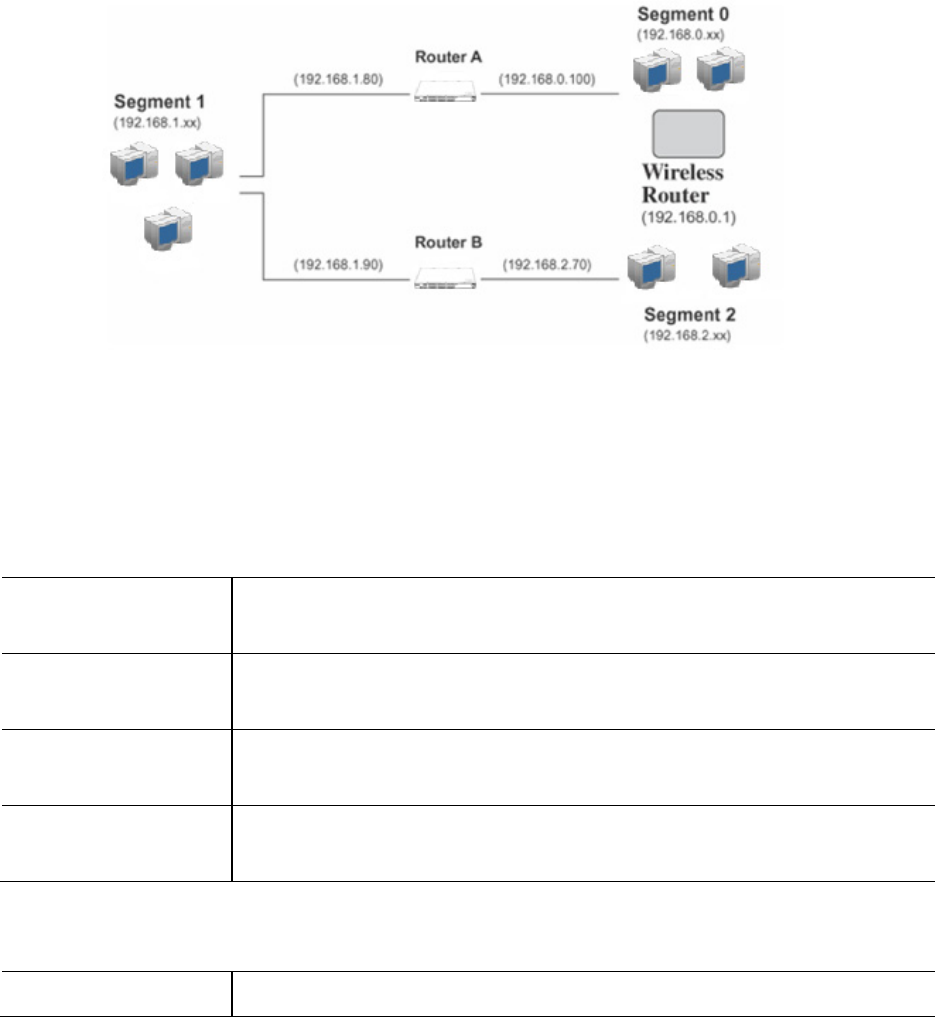

Static Routing - Example ......................................................................................................................... .................. ........ 81
DRG600-WiFi Routing Table ......................................................................................................................... ........ 81
Router A Default Route .................................................................................................................. .................. ........ 82
Router B Default Route ............................................................................................................................ ................ 82
SECURITY ............... .................... .................... .................... .................... .................... ....................... .................. ................. . 83
Firewall ........................................................................................................................................ ............... ................. ...... 83
URL Filter .................................................................................................................................. ................. .................. ... 83
Options ........ ............... ............. ............... ............... ............... ............... ............... ..................... ............... ................. ........... 84

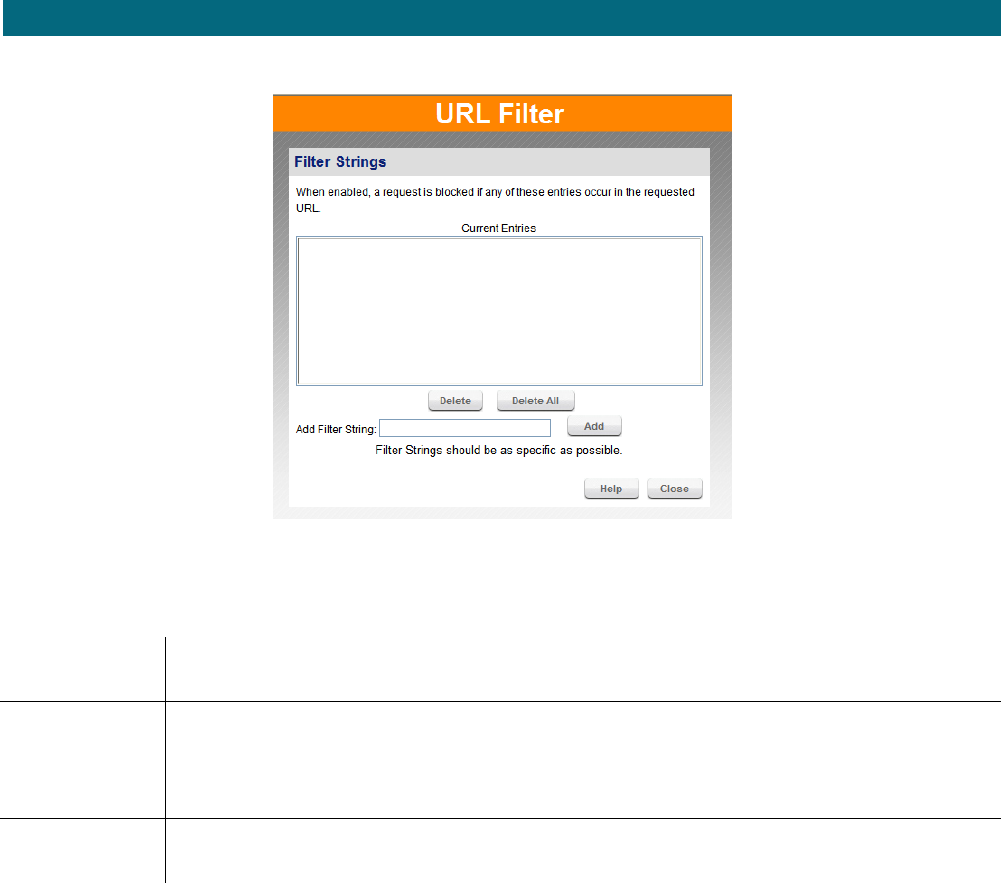

URL FILTER SCREEN ............................................................................................................................................... ........... 85
Filter Strings ................................................................................................................................ ................. .................. ... 85
Add Filter String ......................................................................................................................... ................. .................. ... 85

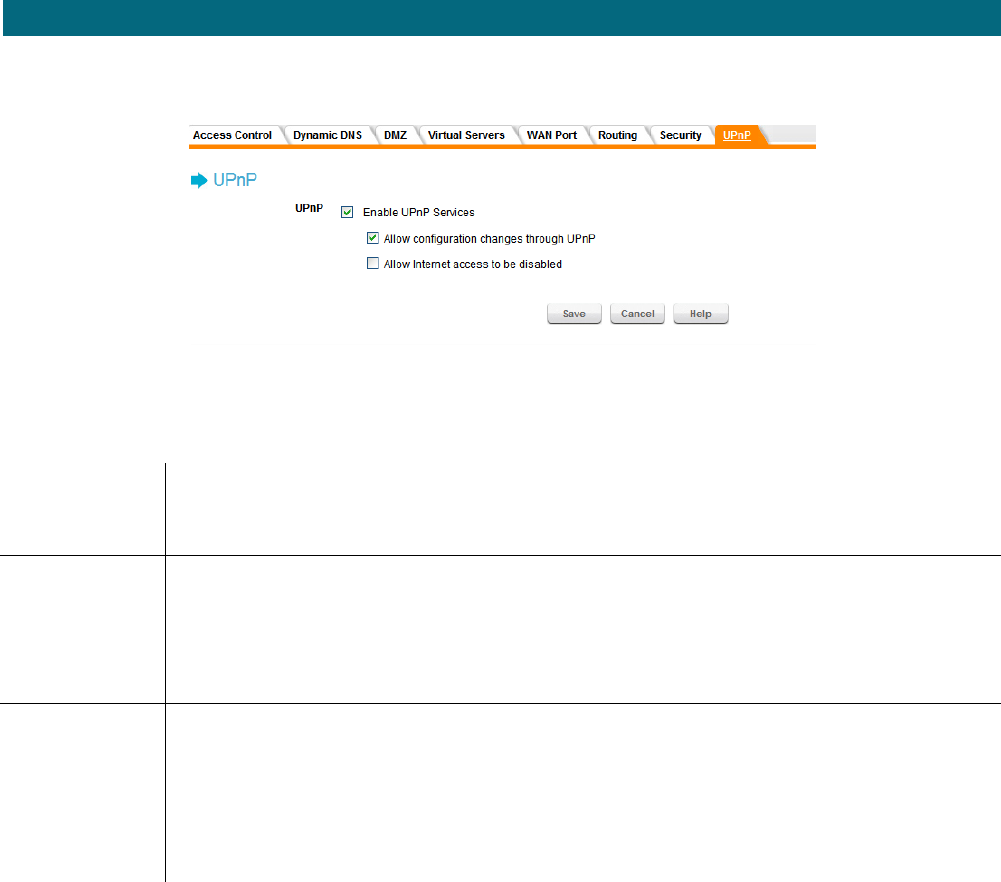

UPNP ......................................................................................................................................... ................. .................. ........ 86
UPnP ........ ....... ........ ....... ........ ....... ........ ....... ........ ........ ....... ........ ....... ........ ....... ........ .................... .................. ................. . 86
ADMINISTRATION
..................................................................................................................................... 87
OVERVIEW ................................................................................................................................................. ............... ........... 87

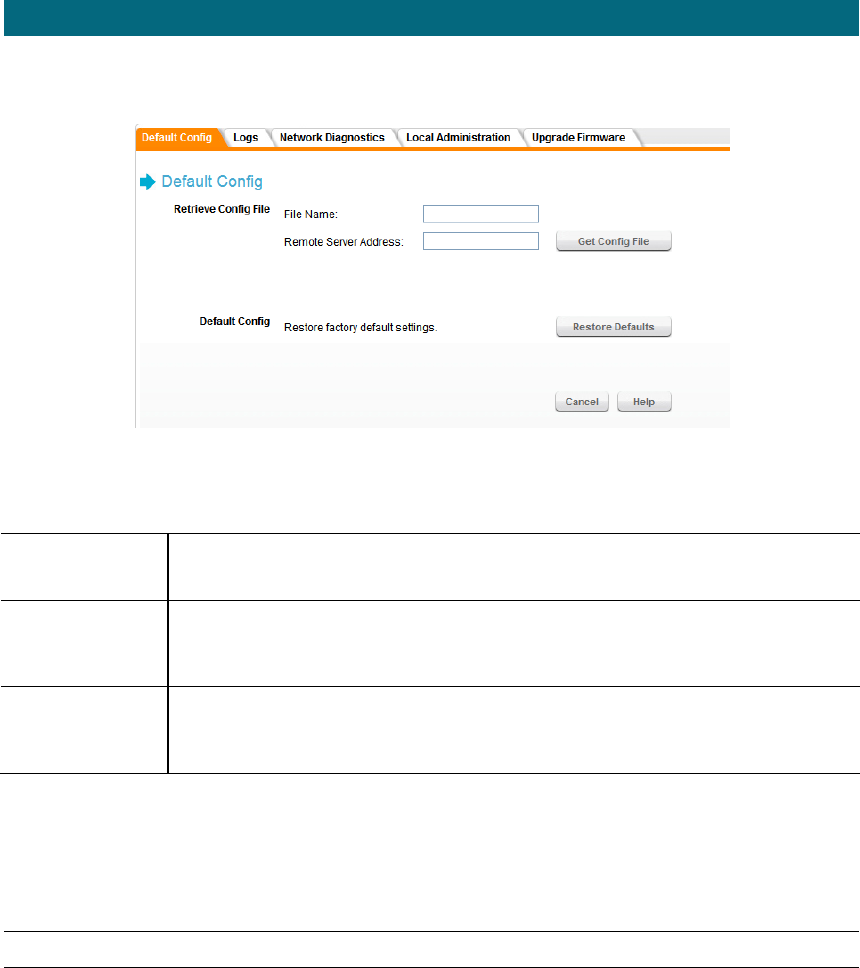

DEFAULT CONFIG SCREEN ............................................................................................................................................... . 88
Retrieve Config file ............................................................................................................................. ................. ................ 88
Page 8 of 104
Default Config ................................................................................................................................... ................. ................ 88

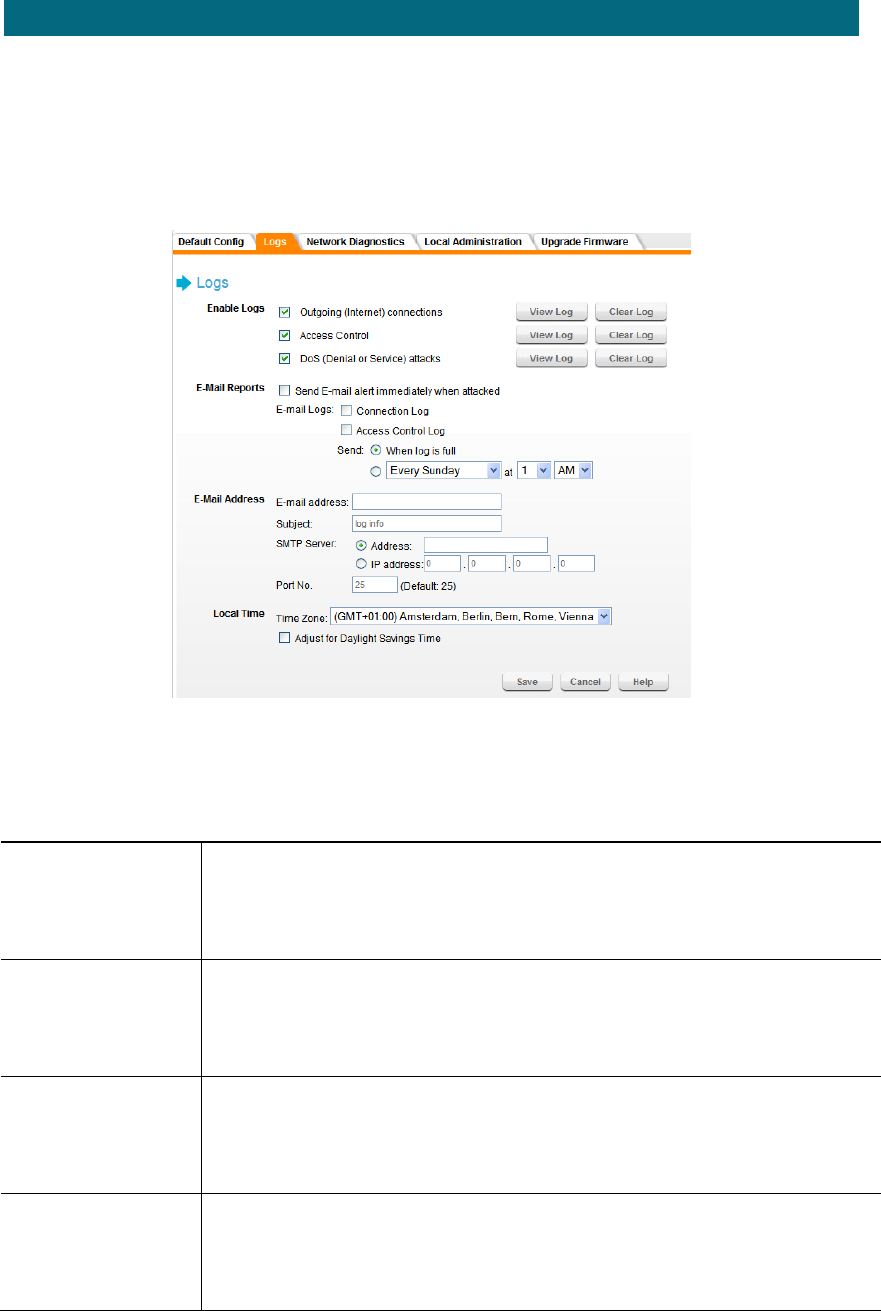

LOGS SCREEN ........ .......... .......... .......... .......... .......... .......... .......... .......... .......... .......... .......... ....................... .................. ........ 89
Enable Logs ................................................................................................................................. ................. .................. ... 89
E-Mail Reports ................................................................................................................................. ................. ................ 90
E-Mail Address ..................................................................................................................................... ................. ........... 90
Local Time ................................................................................................................................... ................. .................. ... 91
NETWORK DIAGNOSTICS SCREEN .................................................................................................................................... 92
Ping ......................................................................................................................................... ................. .................. ........ 92
DNS Lookup ..................................................................................................................................... ............... ................ 92

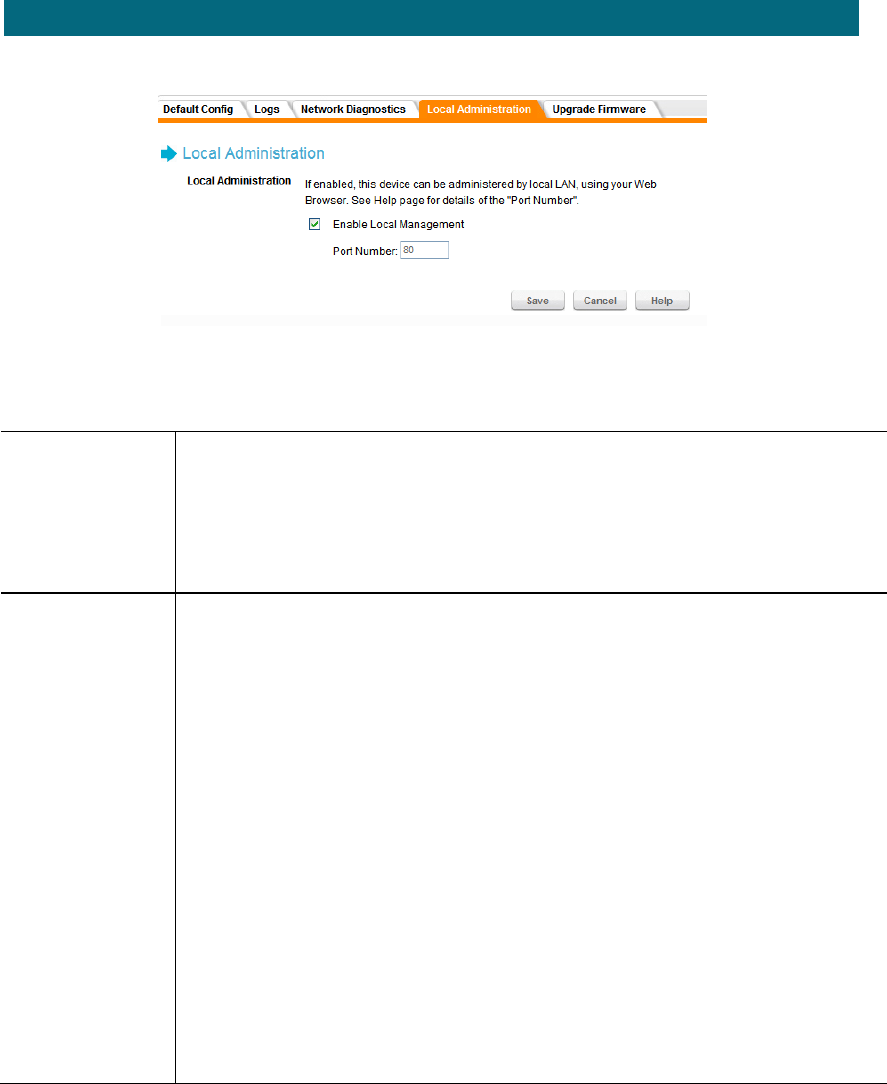

LOCAL ADMINISTRATION SCREEN ............... ..... ..... ...... ..... ..... ..... ..... ..... .. ..... ..... ..... ..... ..... ...... ..... ..... ..... ..... ..... ..... ..... ........ 93
Local Administration ............................................................................................................................... .................. ........ 93

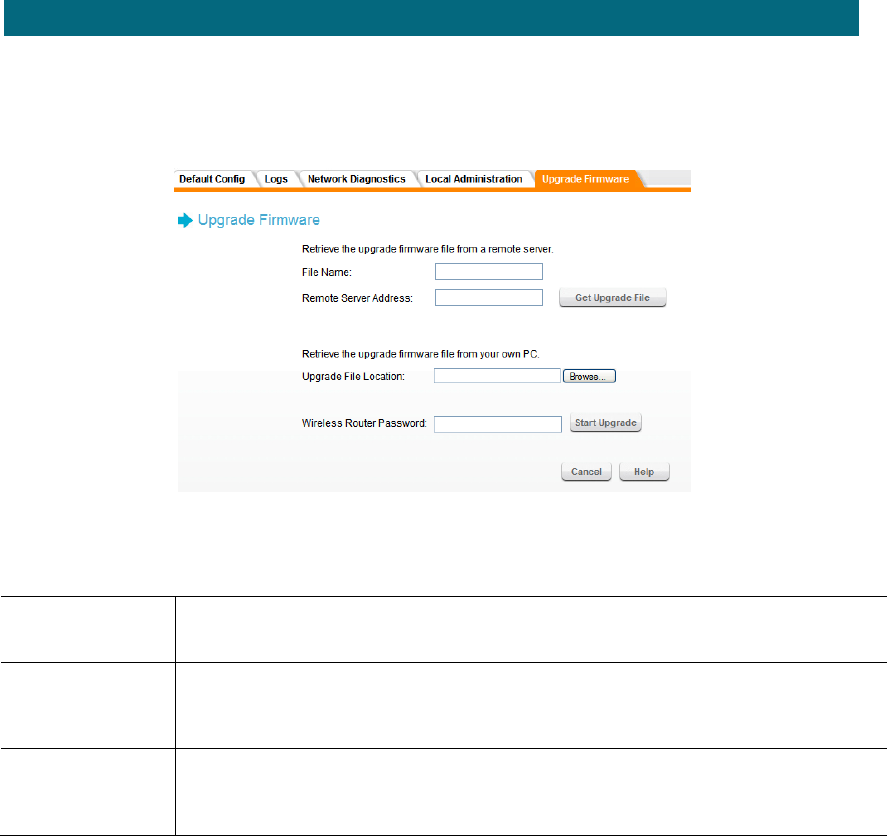

UPGRADE FIRMWARE SCREEN .......................................................................................................................................... 95
Upgrade Firmware .......................................................................................................................... .................. ................. . 95
TROUBLESHOOTING
................................................................................................................................ 96
OVERVIEW ................................................................................................................................................. ............... ........... 96
General Problems ............................................................................................................................ .................. ................. . 96
Internet Access ................................................................................................................................ .................. ................. . 96
Wireless Access ............................................................................................................................... .................. ................. . 97
ABOUT WIRELESS LANS
............................................................................................................................ 98
MODES ...... .................... .................... .................... ..................... .................... ................. ........... ............... ................. ........... 98
Ad-hoc Mode .................................................................................................................................. .................. ................. . 98
Infrastructure Mode ................................................................................................................................. ............... ............. 98
BSS/ESS .................................................................................................................................. .................. .................. ........ 98
BSS ............. ... .. ... .. ............. .. ... .. ... .. ... .. ... .. ... .. ... ... .. ... .. ... .. ... .. ... .. ... .. ............. .. ... .. ... .. ................ ................. .................. ........ 98
ESS .......................................................................................................................................... .................. ................. ...... 98
CHANNELS .......................................................................................................................................... ................. ................ 99
WEP ............. .......... ....... .......... .......... .......... .......... .......... ........... .......... .......... .......... ....................... ................. .................. ... 99
WPA-PSK ................................................................................................................................... ... .. ... .. ............. .. ... .. ... .. ... . 1 00
WPA2-PSK ...................................................................................................................................... ... .. ... .. ............. .. ... .. ... . 1 00
WIRELESS LAN CONFIGURATION ............. ....... ........ ........ ....... ........ ....... ........ ....... ........ ........ ....... ........ ....... ..... ........ ...... 101
Page 9 of 104
Mode ....................................................................................................................................... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... . 1 01
SSID (ESSID) ................................................................................................................................ .. ... .. ... .. ... .. ... .. ... .. ... . 1 01
Security ...................................................................................................................................... ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... . 1 01
SPECIFICATIONS
...................................................................................................................................... 102
MULTI-FUNCTION DRG600-WIFI ................................................................................................................................. 102
Wireless Interface .......................................................................................................................... .. ... .. ... .. ... .. ... .. ... .. ... .. ... . 1 03
REGULATORY APPROVALS ............................................................................................................................................... 103
Page 10 of 104
Introduction
1
This Chapter provides an overview of the DRG600 WiFi features and capabilities.
Congratulations on the purchase of your new DRG600 WiFi wireless router The DRG600-WiFi is a multi-
function device providing the following services:
• Broadband router for all LAN users.
•
2-Port Fast Ethernet Switch
for 10BaseT or 100BaseT connections.
•
Wireless Access Point
for 802.11b and 802.11g Wireless Stations.

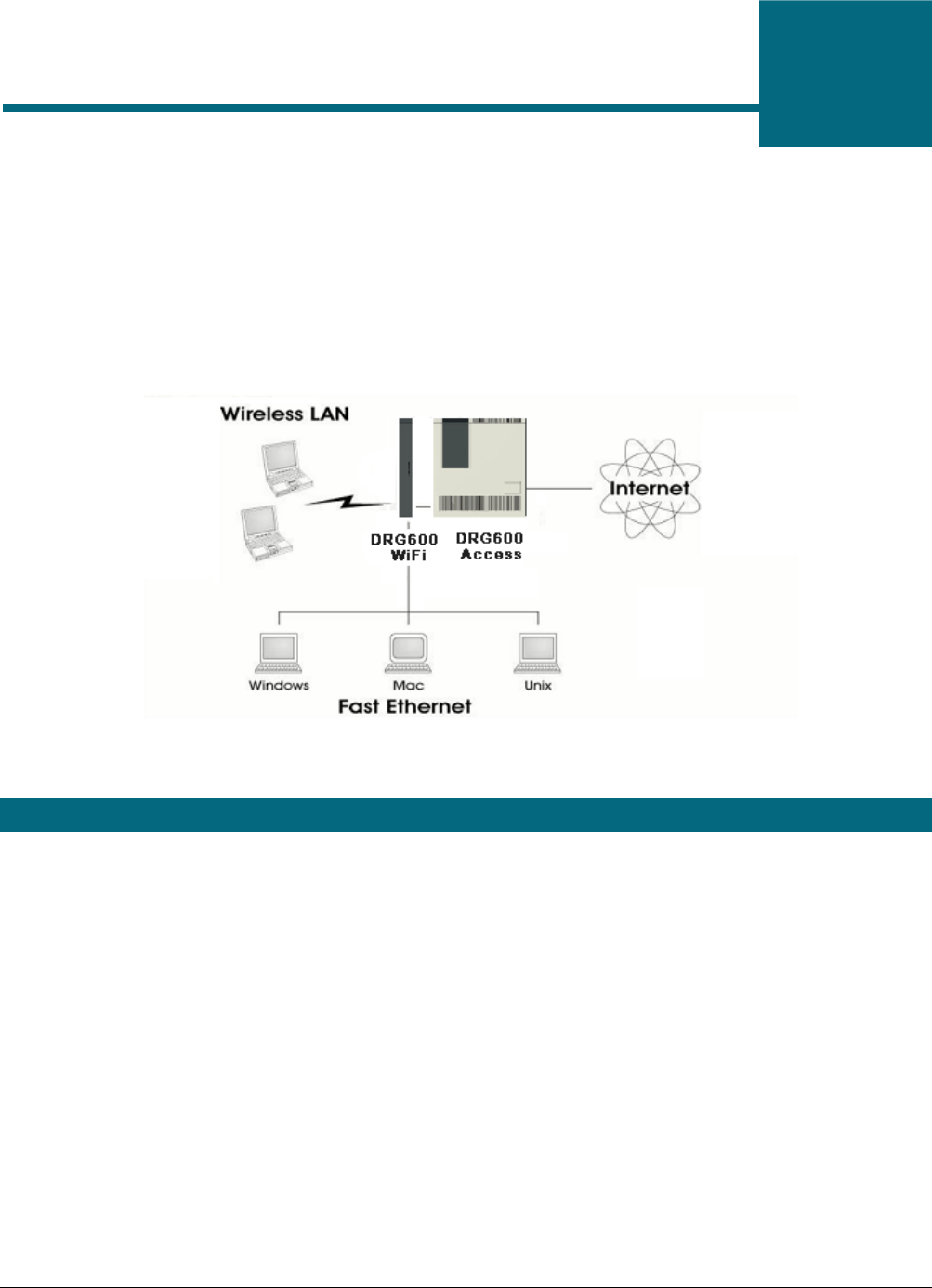

Figure 1. DRG600 in the broadband network
DRG600 WiFi Features
The DRG600-WiFi incorporates many advanced features, carefully designed to provide sophisticated functions
while being easy to use.
Internet Access Features
•
Shared Internet Access.
All users on the LAN or WLAN can access the Internet through the DRG600-
WiFi, using only a single external IP Address. The local (invalid) IP Addresses are hidden from external
sources. This process is called NAT (Network Address Translation)
•
Fixed or Dynamic IP Address.
On the Internet connection, the DRG600-WiFi supports both Dynamic IP
Address (IP Address is allocated on connection) and Fixed IP Address.
•
PPPoE support.
Connecting to the Internet using Point to Point Protocol over Ethernet (PPPoE) is also
supported.
DRG600WiFi User Guide Introduction
Page 11 of 104
Advanced Internet Functions
•
Virtual Servers.
This feature allows Internet users to access Internet servers on your LAN. The required
setup is quick and easy.
•
DDNS Support.
DDNS (Dynamic DNS) allows Internet users to connect to Virtual
Servers on your LAN using a domain name, even if your IP address is not fixed.
•
DMZ.
One (1) PC on your local LAN can be configured to allow unrestricted 2-way communication with
Servers or individual users on the Internet. This provides the ability to run programs which are in-
compatible with Firewalls.
•
URL Filter.
Use the URL Filter to block access to undesirable Web sites by LAN users.
•
Internet Access Log.
See which Internet connections have been made.
•
Access Control.
Using the Access Control feature, you can assign LAN users to different groups, and
determine which Internet services are available to each group.
•
VPN Pass through Support.
PCs with VPN (Virtual Private Networking) software using PPTP, L2TP and
IPSec are transparently supported - no configuration is required.
Wireless Features
•
Standards Compliant.
The DRG600-WiFi complies with the IEEE802.11 b/g specifications for Wireless
LANs.
•
Supports both 802.11b and 802. 11g Wireless Stations.
The 802.11g standard provides for backward
compatibility with the 802.11b standard, so both 802.11b and 802.11g Wireless stations can be used
simultaneously.
•
Speeds up to 54Mbps.
All speeds up to the 802.11g maximum of 54Mbps are supported.
•
WEP support.
Support for WEP (Wired Equivalent Privacy) is included. Key sizes of 64 Bit and 128 Bit
are supported.
•
WPA support.
Support for WPA is included. WPA is more secure than WEP, and should be used if
possible.
•
WPA2 support.
Support for WPA2 is also included. WPA2 uses the extremely secure AES encryption
method.
•
Wireless MAC Access Control.
The Wireless Access Control feature can check the MAC address (hardware
address) of Wireless stations to ensure that only trusted Wireless Stations can access your LAN.
•
Simple Configuration.
If the default settings are unsuitable, they can be changed quickly and easily.
•
WPS Support.
WPS (Wi-Fi Protected Setup) can simplify the process of connecting any compatible device
to the wireless network by using the push button configuration (PBC) on the Wireless Access Point, or
entering a 8-digit PIN code.
LAN Features
•
2-Port Fast ethernet switch.
The DRG600-WiFi incorporates a 2-port 10/100BaseT fast ethernet switch,
making it easy to create or extend your LAN.
•
DHCP Server Support.
Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and
other devices upon request. The DRG600-WiFi can act as a DHCP Server for devices on your local
DRG600WiFi User Guide Introduction
Page 12 of 104
LAN and WLAN.
•
Multi Segment LAN Support.
LANs containing one or more segments are supported, via the DRG600-
WiFi's RIP (Routing Information Protocol) support and built-in static routing table.
Configuration & Management
•
Easy Setup.
Use your WEB browser from anywhere on the LAN or WLAN for configuration (if
permitted by service provider).
•
Network Diagnostics.
You can use the DRG600-WiFi to perform a Ping or DNS lookup.
•
UPnP Support.
UPnP (Universal Plug and Play) allows automatic discovery and configuration of the NAT
service on DRG600-WiFi. UPnP is by supported by Windows ME, XP, or later.
Security Features
•
Password - protected Configuration.
Optional password protection is provided to prevent unauthorized
users from modifying the configuration data and settings.
•
Wireless LAN Security.
WEP, WPA and WPA2 data encryption protocols are supported, as well as wireless
access control, to prevent unknown wireless stations from accessing your LAN.
•
NAT Protection.
An intrinsic side effect of NAT (Network Address Translation) technology is that by
allowing all LAN users to share a single IP address, the location and even the existence of each PC is
hidden. From the external viewpoint, there is no network, only a single device - the DRG600-WiFi.
•
Stateful Inspection Firewall.
All incoming data packets are monitored and all incoming server requests are
filtered, thus protecting your network from malicious attacks from external sources.
•
Protection against DoS attacks.
DoS (Denial of Service) attacks can flood your Internet connection
with invalid packets and connection requests, using so much bandwidth and so many resources that
Internet access becomes unavailable. The DRG600-WiFi incorporates protection against DoS attacks.
DRG600WiFi User Guide Introduction
Page 13 of 104
Package Contents
The following items are included in your DRG600-WiFi package:
• DRG600-WiFi Unit
• TP LAN cable
• Quick Guide leaflet
• CD-ROM containing this online manual
If any of the above items are damaged or missing, please contact your vendor immediately.
DRG600WiFi User Guide Introduction
Page 14 of 104
Physical Details
Top mounted LEDs
Figure 2. Top mounted LEDs
This button has two (2) functions:
Reset. When this button is pressed and released, the DRG600-WiFi DRG600-WiFi will reboot
(restart).
Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the
factory default values. To clear all data and restore the factory default values, press this button for 8
seconds and then release it.
. OFF- Power OFF.
GREEN - Power ON. If flashing, the module is still starting up. When the DRG600-WiFi is
operating correctly, it is constantly lit.
RED.- WAN error. If this LED is lit, then it means that there is an irreparable operating error.
Contact your ISP (Internet Service Provider).
ON – WLAN connection is available. If blinking, WLAN connection is ACTIVE.
OFF- WLAN is OFF.
DRG600WiFi User Guide Introduction
Page 15 of 104

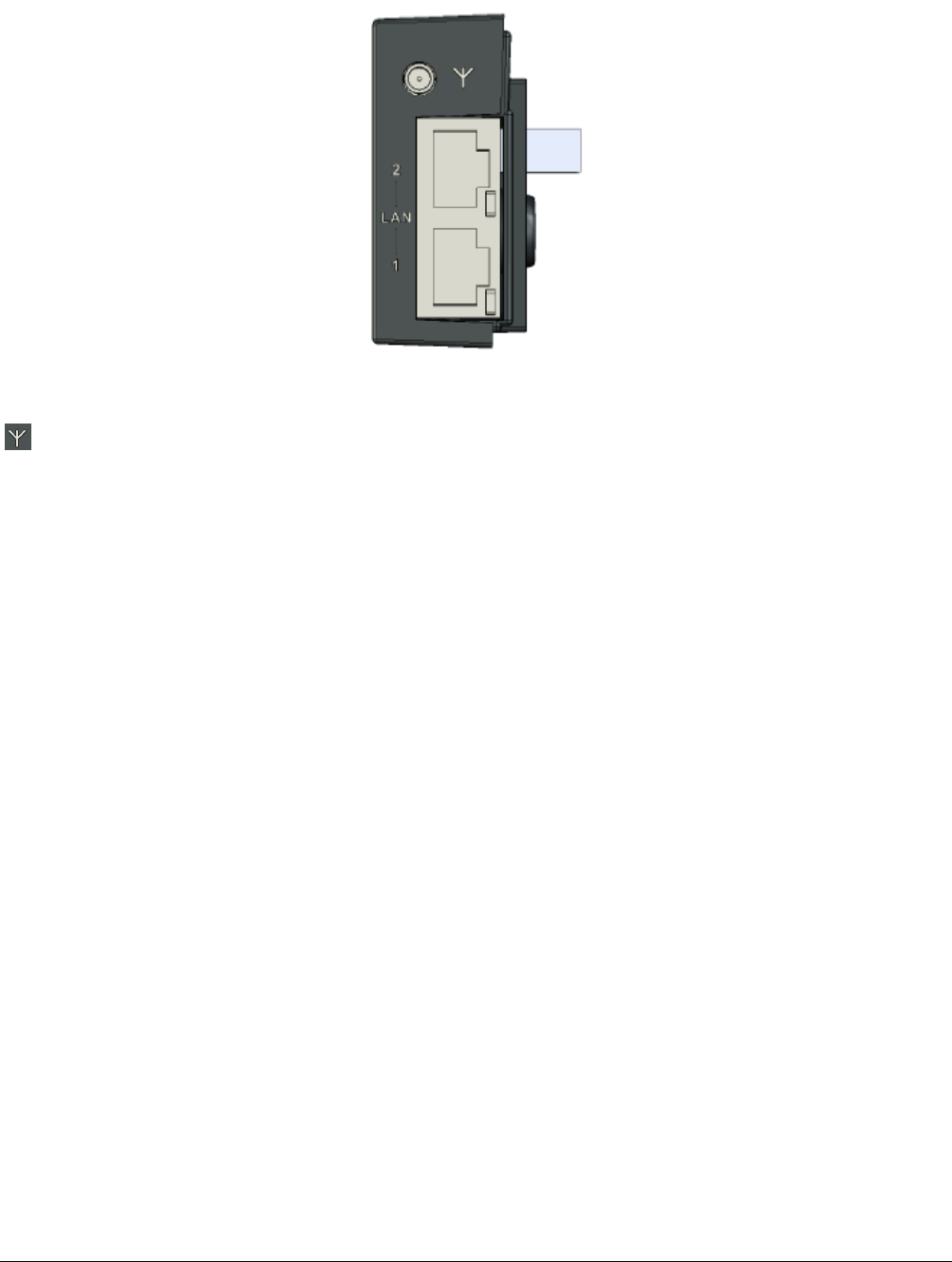

Bottom Panel
Figure 3. Bottom Panel
Antenna External antenna socket
LAN 1-2 Local Area Network (LAN) device ports. Use standard LAN cables (RJ45 connectors) to connect
your LAN devices to these ports.
DRG600WiFi User Guide Installation
Installation
2
This chapter describes the physical installation of the DRG600 WiFi.
Requirements
• Network cable. Use standard 10/100BaseT network (UTP) cables with RJ45 connector.
• DRG600-Access with a valid Internet subscription must be available.
• All wireless devices must be compliant with the IEEE802.11b or IEEE802.11g specifications.
Installation Procedure
1. Locate the docking socket for the DRG600-WiFi on the DRG600-Access internet access module
installed in your home.
DRG600WiFi User Guide Installation
2. Connect LAN Cable
Use the supplied standard LAN cable to connect a PC to one of the LAN ports on the bottom of the
DRG600-WiFi.
If required, connect any port to a normal port on another Hub, using a standard LAN cable. Any
LAN port on the DRG600-WiFi will automatically function as an "Uplink" port when required.
3. Check the LEDs
• The Power LED should be GREEN. (If it is RED, then the Internet connection is not
available, you can still run the configuration software as this is stored on the device itself).
• The WLAN LED should be GREEN
• For each LAN (PC) connection, the LAN Link/Act LED should be ON (provided the PC is
also ON.)
For more information, refer to Top-mounted LEDs in Chapter 1.
Page 18 of 104
Setup
3
This Chapter provides details.on how to setup your network with the DRG600WiFi.
Overview
This chapter describes the setup procedure for:
• Internet Access
• Wireless setup
• LAN configuration
• Assigning a Password to protect the configuration data.
PCs on your local LAN may also require configuration. For details, see PC Configuration on page 40.
Other configuration may also be required, depending on which features and functions of the DRG600-WiFi you
wish to use. Use the table below to locate detailed instructions for the required functions.
To Do this: Refer to:
Configure PCs on your LAN. PC Configuration on page 40
Check DRG600-WiFi operation and Status. Operation and Status on page Error!
Bookmark not defined.
Use any of the following Advanced features:
• Access Control
• Dynamic DNS
• DMZ
• Routing (RIP and Static Routing)
• Security
• UPnP
• Virtual Servers (Port Forwarding)
• WAN Port
Advanced Features on page 62
Use any of the following Administration Configuration settings or
features:
Administration on page 87
DRG600WiFi User Guide Setup
Page 19 of 104
• Default Config
• Logs
• Network Diagnostics (Ping, DNS Lookup)
• Local Administration
• Upgrade Firmware
Configuration Program
The DRG600-WiFi contains an HTTP server. This enables you to connect to the server and configure the device
using your web browser. Your browser must support Javascript.
The configuration program has been tested on the following browsers:
• Safari version 1.2 or later
• Firefox version 2.0 or later
• Internet Explorer version 6.0 or later
Preparation
Before attempting to configure the DRG600-WiFi, please ensure that:
Your PC can establish a physical connection to the DRG600-WiFi. The PC and the DRG600-WiFi must be
directly connected (using the LAN ports on the DRG600-WiFi) or on the same LAN segment.
The DRG600-WiFi must be installed and powered ON.
Using UPnP
If your Windows system supports UPnP, an icon for the DRG600-WiFi will appear in the system tray, notifying
you that a new network device has been found, and offering to create a new desktop shortcut to the newly-
discovered device.
Unless you intend to change the IP Address of the DRG600-WiFi, you can accept the desktop shortcut.
Whether you accept the desktop shortcut or not, you can always find UPnP devices in My Network Places
(previously called Network Neighborhood).
Double-click the icon for the DRG600-WiFi (either on the Desktop, or in My Network Places) to start the
configuration. Refer to the following section Setup Wizard for details of the initial configuration process.
Using your Web Browser
To establish a connection from your PC to the DRG600-WiFi:
1. After installing the DRG600-WiFi and any LAN devices, start your PC. If your PC is already
running, restart it.
2. Start your WEB browser.
3. Go to http://drg600.wifi or use the DRG600-WiFi IP Address: http://192.168.0.1
The Login screen will appear.
DRG600WiFi User Guide Setup
Page 20 of 104
4. To connect to the DRG600-WiFi, logon with the user name admin. There is no password by
default. Click OK.
If you cannot connect to the DRG600WiFi setup webpage
If the DRG600-WiFi does not respond, check the following:
• The DRG600-WiFi is properly attached,WLAN/LAN and Power LEDs are ON.
• You can test the connection by using the "Ping" command. To do this:
1. Open the MS-DOS window or command prompt window.
2. Enter the command: ping 192.168.0.1
If no response is received, either the connection is not working, or your PC IP address is not compatible
with the DRG600-WiFi IP Address. (See next item.)
3. If your PC is using a fixed IP Address, its IP Address must be within the range 192.168.0.2 to
192.168.0.254 to be compatible with the DRG600-WiFi default IP Address of 192.168.0.1. Also, the
Network Mask must be set to 255.255.255.0. See PC Configuration on page 40 for details on checking
your PC TCP/IP settings.
• Ensure that your PC and the DRG600-WiFi are on the same network segment. (If you don't have a router,
this must be the case.)
• Ensure you are using the wired LAN interface.
DRG600WiFi User Guide Setup
Page 21 of 104
Setup Wizard
It is recommended to use the Setup Wizard link on the main menu. This Wizard guides you through
configuration of the DRG600-WiFi for Internet access and wireless settings.
Figure 4. Setup Wizard start screen
1. Click Next to proceed to the Internet Access screen.
(If DRG600-WiFi has successfully established WAN connection using DHCP, this step will be
skipped and you will go directly to the Wireless Settings screen described in step 3)
Figure 5. Setup Wizard for Internet Access
2. You need to know the type of Internet connection service used by your ISP. The common connection
types are explained in the table below.
Type Details ISP Data required
DRG600WiFi User Guide Setup
Page 22 of 104
DHCP
Your IP Address is allocated
automatically, when you connect to
your ISP.
None.
Static (Fixed)
IP Address
Your ISP allocates a permanent IP
Address to you.
Assigned IP address and netmask, IP
addresses of the default gateway and
DNS server(s).
Some ISP's may also require you to
use a particular Host-name, Domain
name, or MAC (physical) address.
PPPoE
You connect to the ISP only when
required. The IP address is usually
allocated automatically.
User name and password.
3. If your connection is already setup, then you will go directly to the wireless configuration:
4. If you want to deactivate WPS for any reason, then you will get a chance to do so:
DRG600WiFi User Guide Setup
Page 23 of 104
5. Finally, you can test that your Internet connection is working properly (the test takes about 25
seconds):
If the connection test fails:
• Check your data, the Access LEDs, and all connections.
• Check that you have entered all data correctly.
• Your ISP may have recorded the MAC (physical) address of your PC. Go to Advanced, and on the WAN
Port screen, use the Copy from PC button to copy the MAC address from your PC to the DRG600-WiFi.
DRG600WiFi User Guide Setup
Page 24 of 104
Status Screen
After finishing the Setup Wizard, you will see the DRG600-WiFi home page. Hereafter, you will see this screen
whenever you connect. An example of the home page is shown below.
Figure 6. DRG600-WiFi home page
DRG600WiFi User Guide Setup
Page 25 of 104
Navigation & Data Input
Use the menu bar at the top of the screen for navigation.
Changing to another screen without clicking Save does NOT save any changes you may have made. You must
use Save before changing screens, or your changes will be discarded.
On each screen, clicking the Help button will display help for that screen.
DRG600WiFi User Guide Setup
Page 26 of 104
LAN Screen
Use the LAN link on the main menu to reach the LAN screen. An example screen is shown below.
Figure 7. LAN Screen
TCP/IP
IP Address
IP address for the DRG600-WiFi, as seen from the local LAN. Use the default value
unless the address is already in use or your LAN is using a different IP address range. In
the latter case, enter an unused IP Address from within the range used by your LAN.
Subnet mask
The default value 255.255.255.0 is standard for small (class "C") networks. For other
networks, use the Network Mask for the LAN segment to which the DRG600-WiFi is
attached. i.e. the same value as the PCs on that LAN segment.
DHCP Server
If Enabled, the DRG600-WiFi will allocate IP Addresses to PCs (DHCP clients) on your
LAN when they start up. The default (and recommended) value is Enabled.
If you are already using a DHCP Server, this setting must be Disabled, and the existing
DHCP server must be re-configured to treat the DRG600-WiFi as the default Gateway.
See the following section for further details.
The Start IP Address and Finish IP Address fields set the values used by the DHCP
server when allocating IP Addresses to DHCP clients. This range also determines the
number of DHCP clients supported.
See the following section for further details on using DHCP.
Save This button saves any changes you have made. Note that if you change the DRG600-
DRG600WiFi User Guide Setup
Page 27 of 104
WiFi's IP address, your connection will be lost. You will have to reconnect using the new
IP address (or the URL http://drg600.wifi).
Cancel The Cancel button will discard any data you have entered and reload the file from the
DRG600-WiFi.
DHCP
What DHCP Does
A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a DHCP Client (PC or
device) upon request.
The client request is made when the client device starts up (boots).
The DHCP Server provides the Gateway and DNS addresses to the client, as well as allocating an IP Address.
The DRG600-WiFi can act as a DHCP server.
Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP client. This is the default
Windows setting for the TCP/IP network protocol. However, Windows uses the term Obtain an IP Address
automatically instead of "DHCP Client".
You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your LAN does not have
other Routers, this means there must only be one (1) DHCP Server on your LAN.)
Using the DRG600WiFi DHCP Server
This is the default setting. The DHCP Server settings are on the
LAN
screen. On this screen, you can:
Enable or Disable the DRG600-WiFi's DHCP Server function.
Set the range of IP Addresses allocated to PCs by the DHCP Server function.
Y
ou can assign Fixed IP Addresses to some devices while using DHCP, provided that the
Fixed IP Addresses are NOT within the range used by the DHCP Server.
Using another DHCP Server
You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP Server, rather than
the DRG600-WiFi's, the following procedure is required.
1. Disable the DHCP Server feature in the DRG600-WiFi. This setting is on the LAN screen.
2. Configure the DHCP Server to provide the DRG600-WiFi's IP Address as the Default Gateway.
3. Configure your PCs to use DHCP
This is the default setting for TCP/IP under Windows 95/98/ME.
DRG600WiFi User Guide Setup
Page 28 of 104
PC Database
The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC). For most users, it eliminates
the need to enter IP addresses, and also prevents errors.
However, if you need to configure the Wireless Router BEFORE installation, you must use this functionality.
Known PCs This lists all current entries (PCs or network devices).
Name If adding a new PC to the list, enter its name here. It is best if this matches the PC
"hostname".
IP Address
If adding a new PC to the list, enter the IP Address of the PC here. The PC will be sent a
"ping" to determine its hardware address. If the PC is not available (not connected, or not
powered On) you will not be able to add it.
Add Use this button to add the PC to the list. The data for the selected PC will then be shown
while it is selected. (Click "Refresh" to reload the current data.)
Advanced
Administration
Use this button to see more details. You will be taken to the PC Database screen where
you can edit more properties. See “PC Database screen” on page 29.
Delete
Delete the selected PC from the list. This should be done in 2 situations:
• The PC has been removed from your LAN.
• The entry is incorrect.
Refresh Updates the fields in this screen. Any new clients discovered will be displayed in the
Known PCs field
Generate Report
This opens the report window and displays details for all PCs in the PC Database:
DRG600WiFi User Guide Setup
Page 29 of 104
PC Database screen
This screen is displayed if the "Advanced Administration" button in the LAN screen is clicked. It provides more
configuration options than the standard PC Database fields in the LAN screen.
PC Properties
Name Enter the name for the PC here. It is best if this matches the PC "hostname".
IP Address
Select the appropriate option:
• Automatic - The PC is set to be a DHCP client (Windows: "Obtain an IP address
automatically"). The Wireless Router will allocate an IP address to this PC when
requested to do so. The IP address could change, but normally won't.
• DHCP Client - Reserved IP Address - Select this if the PC is set to be a DCHP
client, and you wish to guarantee that the Wireless Router will always allocate the
same IP Address to this PC. Enter the required IP address. Only the last field is
required; the other fields must match the Wireless Router's IP address.
• Fixed IP Address - Select this if the PC is using a Fixed (Static) IP address. Enter
the IP address allocated to the PC. (The PC must be configured to use this IP
address.)
MAC Address
Select the appropriate option
• Automatic discovery - Select this to have the Wireless Router contact the PC and find
its MAC address. This is only possible if the PC is connected to the LAN and
powered On.
DRG600WiFi User Guide Setup
Page 30 of 104
• MAC address is - Enter the MAC address on the PC. The MAC address is also
called the "Hardware Address", "Physical Address", or "Network Adapter
Address". The Wireless Router uses this to provide a unique identifier for each
PC. Because of this, the MAC address can NOT be left blank.
Add as New Entry This button add a new PC to the list, using the data in the "PC Properties" box.
Update Selected
PC This button updates the selected PC with the data in the fields.
Clear Form This button clears the "Properties" box to data for a new PC.
Refresh This button updates the data on the screen.
Generate Report
This opens a report window and displays details for all PCs in the PC Database.
Back Click this button to go back to the "LAN" screen.
DRG600WiFi User Guide Setup
Page 31 of 104
Wireless
The DRG600-WiFi settings must match the other Wireless stations.
By default, the DRG600-WiFi will automatically accept both 802.11b and 802.11g connections,
and no configuration is required for this feature.
To change the DRG600-WiFi's default settings for the Wireless Access Point feature, use the Wireless link on the
main menu to reach the
Wireless
screen. An example screen is shown below.

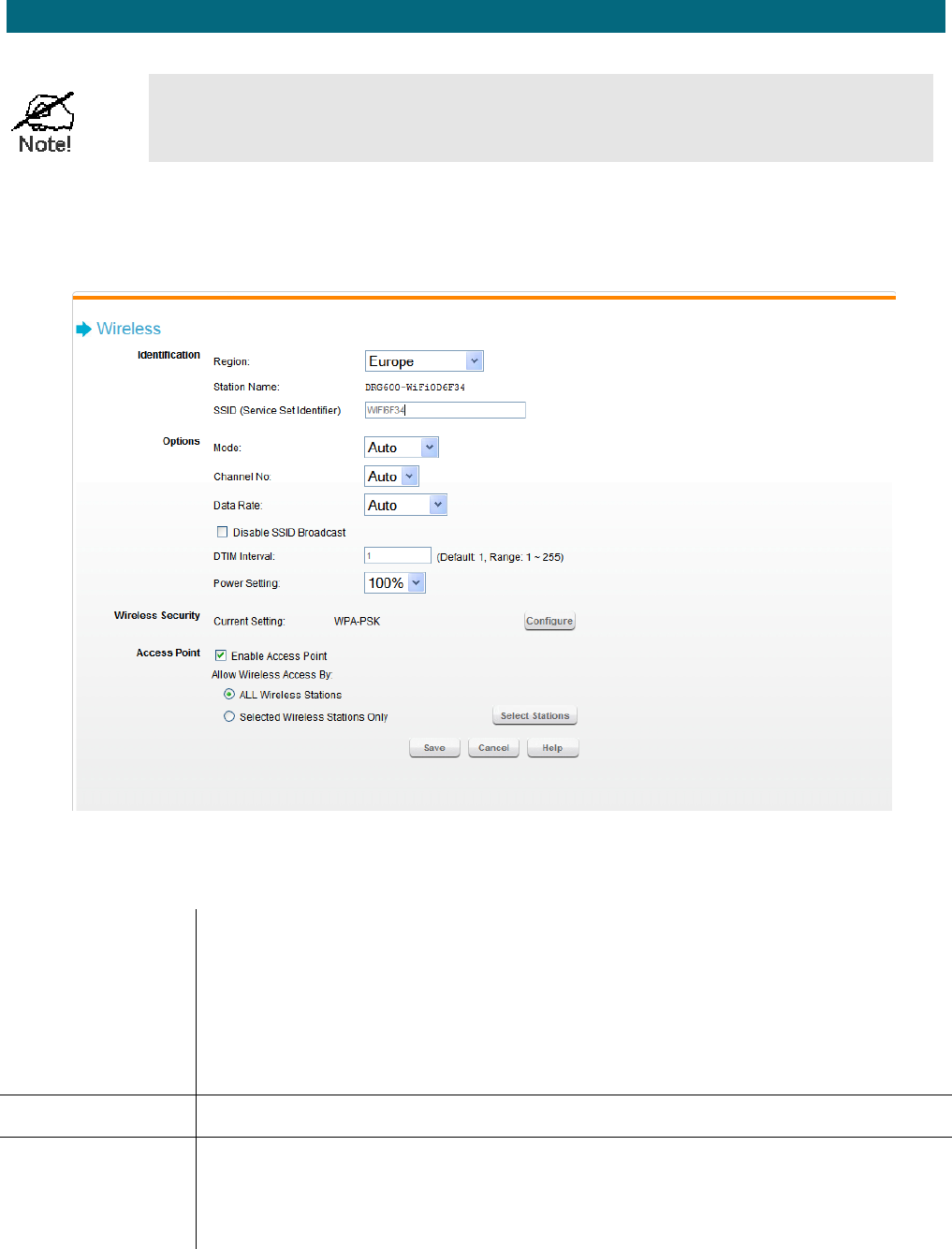

Figure 8. Wireless Screen
Identification
Region
Select your region from the drop-down list. This field displays the region of operation
for which the wireless interface is intended. It may not be legal to operate the router in
a region other than the region shown here. If your country or region is not listed, please
check with your local government agency for more information on which channels you
are allowed to use, and select a region which allows those channels. (The channel list
changes according to the selected region.)
Station Name The device name is displayed (cannot be changed).
SSID
On your PC, some Wireless status screens may display this name as the Access Point in
use.
If using an ESS (Extended Service Set, with multiple access points) this ID is called an
DRG600WiFi User Guide Setup
Page 32 of 104
ESSID (Extended Service Set Identifier).
To communicate, all Wireless stations should use the same SSID/ESSID.
Options
Mode
Auto - This is the default, and should normally be used. Both 802.11b and 802.11g
wireless stations can use the wireless network..
802.11g - Only 802.1 1g Wireless stations can use the Wireless
Router.
802.11b - Only 802.11b connections are available. 802.11g
Wireless Stations will only be able to use the DRG600-WiFi if they are fully backward-
compatible with the 802.1 1b standard.
Channel No.
This field determines which operating frequency will be used. It should not be necessary
to change the wireless channel unless you notice interference problems with another
nearby access point. The default is Auto.
Broadcast SSID
If Enabled, the SSID will broadcast its name to all Wireless Stations. Stations which have
no SSID (or a "null" value) can then adopt the correct SSID for connections to this
Access Point..
DTIM Interval (Advanced feature) Increasing DTIM interval allows wireless clients to conserve power
more effectively but may increase delays in reception of multicast traffic.
Power setting
Adjusts the power strength of the wireless signal. Reduce the power strength may reduce
the wireless coverage.
Wireless Security
Current Setting
The current wireless security encryption method is displayed.
Default value is WPA-PSK. Click the “Configure” button to to access the Wireless
security sub-screen, and modify the security settings as required. See “Wireless Security
Screen” on page 34 for more details.
Access point
Enable Access When this setting is selected, traffic is allowed to pass according to the following:
DRG600WiFi User Guide Setup
Page 33 of 104
Point
• All Wireless stations – when checked, Internet access is allowed for all
connected wireless clients. Otherwise, all traffic is blocked.
• Selected Wireless stations only – Only selected wireless stations use the access
point to access the Internet. To select the required wireless stations, click the
"Select Stations" button.
Save This button saves the data displayed on the screen.
Cancel This button will discard any data you have entered since the last “Save” operation.
DRG600WiFi User Guide Setup
Page 34 of 104
Wireless Security Screen
´
Figure 9. Wireless Security Screen
This screen is accessed by clicking the Configure button on the Wireless screen. There are five options for Wireless
security:
• None - no data encryption is used.
• WEP - data is encrypted using the WEP standard.
• WPA -PSK - data is encrypted using the WPA standard. This is a later standard than WEP, and provides
much better security than WEP.
• WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security.
• WPA-PSK + WPA2-PSK - This method, sometimes called "Mixed Mode", allows clients to use EITHER
WPA-PSK OR WPA2- PSK.
DRG600WiFi User Guide Setup
Page 35 of 104
Wireless Security WEP
Figure 10. Figure 8: WEP Screen
WEP
Authentication
Normally this can be left at the default value of "Auto". If that fails, select the
appropriate value - "Open System" or "Shared Key." Check your wireless card's
documentation to see what method to use.
Key Size
Select the WEP Encryption level:
• 64-bit (sometimes called 40-bit) encryption
• 128-bit encryption
Passphrase
Enter a word or group of printable characters in the Passphrase box and click the
"Generate " button to automatically configure the WEP Key(s). If encryption
strength is set to 64 bit, then each of the four key fields will be populated with key
values. If encryption strength is set to 128 bit, then only the selected WEP key
field will be given a key value.
Key 1-4
Use the radio buttons to select the default key.
Enter the key value you wish to use. Other stations must have the same key values.
Keys must be entered in Hex. Hex characters are the digits (0 ~ 9) and the letters A
~ F.
DRG600WiFi User Guide Setup
Wireless Security WPAPSK/WPA2PSK/WPAPSK+WPA2PSK
If WPA-PSK, WPA2-PSK, or WPA-PSK+WPA2-PSK is selected, the screen will look like the following
example:
Figure 11. WPA/WPA2-PSK screen
Passphrase (PSK)
Enter the Network key value. Data is encrypted using a key derived from the network
key. Other Wireless Stations must use the same network key. The PSK must be from
8 to 63 characters in length.
Key Lifetime This determines how often the encryption key is changed. Enter the desired value.
Encryption Select the desired option. Wireless Stations must use the same method.
DRG600WiFi User Guide Setup
Page 37 of 104
WiFi Protected Setup
What is WPS (WiFi Protected Setup)?
WPS (Wi-Fi Protected Setup) was introduced and developed by the Wi-Fi Alliance (http://www.wi-fi.org/) to
help standardize and simplify ways of setting up and configuring security on a wireless network. WPS simplifies
the wireless network security configuration so that it can be done by simply typing a short PIN (numeric code) or
by pushing a button (Push-Button Configuration).
Click Wi-Fi Protected Setup on the Wireless screen to view a screen like the following.
Figure 12. Wi-Fi Protected Setup Screen
WPS
Select “enable” or “disable”.
Status
Displays the WPS status. Press “Clear” to reset.
PBC
Click WPS to configure WPS certified devices with Push Button Configuration (PBC).
Wireless Access Point
Enrollee’s PIN Enter the PIN code and click Add Client to AP to add the client device.
Device PIN Displays the current device PIN
DRG600WiFi User Guide Setup
Page 38 of 104
Generate PIN Click the Generate PIN button to have the new pin code displayed in the field. Set
Default PIN reloads the factory settings for WPS.
DRG600WiFi User Guide Setup
Page 39 of 104
Password Screen
To prevent unauthorized persons changing the DRG600-WiFi settings, the password screen allows you to assign
a password to the DRG600-WiFi configuration.
Figure 13. Password Screen
Once you have assigned a password to the DRG600-WiFi (on the Password screen above), you will be prompted for
the password the next time you connect to the setup program, as shown below.
Figure 14. Password Dialog
To start the setup program, do the following:
1. Enter default user name, admin.
2. Enter the password for the DRG600-WiFi, as set in the Password screen above.
Page 40 of 104
PC Configuration 4
This Chapter details the PC Configuration required on the local ("Internal") LAN.
Overview
For each PC, the following may need to be configured:
• TCP/IP network settings
• Internet Access configuration
• Wireless configuration
• Windows Clients
This section describes how to configure Windows clients for Internet access via the DRG600-WiFi.
The first step is to check the PC's TCP/IP settings.
The DRG600-WiFi uses the TCP/IP network protocol for all functions, so it is essential that the TCP/IP
protocol be installed and configured on each PC.
TCP/IP Settings Overview
If using the default DRG600-WiFi settings, and the default Windows TCP/IP settings, no changes need to be
made.
By default, the DRG600-WiFi will act as a DHCP Server, automatically providing a suitable IP Address (and
related information) to each PC when the PC boots.
For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP client.
If using a Fixed (specified) IP address, the following changes are required.
The Gateway must be set to the IP address of the DRG600-WiFi
The DNS should be set to the IP address of the DRG600-WiFi and/or the address provided by your ISP.
If your LAN has a Router, the LAN Administrator must reconfigure the Router itself. Refer to
theAdvanced Setup chapter for details.
DRG600WiFi User Guide PC Configuration
Page 41 of 104
Checking TCP/IP Settings Windows 9x/ME:
1. Select Control Panel - Network. You should see a screen like the following:
Figure 15. Network Configuration
2. Select the TCP/IP protocol for your network card.
3. Click on the Properties button. You should then see a screen like the following.
Figure 16. IP Address (Win 95)
Ensure your TCP/IP settings are correct, as described in the following sections:
Using “IP Address” (DHCP)
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting.
Using this is recommended. By default, the DRG600-WiFi will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the DRG600-WiFi.
DRG600WiFi User Guide PC Configuration
Page 42 of 104
Using "Specify an IP Address"
If your PC is already configured, check with your network administrator before making the following changes:
1. On the Gateway tab, enter the DRG600-WiFi's IP address in the New Gateway field and click Add, as
shown below. Your LAN administrator can advise you of the IP Address they assigned to the
DRG600-WiFi.
Figure 17. Gateway Tab (Win 95/98)
2. On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search Order list is empty,
enter the the IP address of DRG600-WiFi or the DNS address provided by your ISP in the fields beside
the Add button, then click Add.
Figure 18. DNS Tab (Win 95/98)
DRG600WiFi User Guide PC Configuration
Page 43 of 104
Checking TCP/IP Settings Windows NT4.0
1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown
below:
Figure 19. Windows NT4.0 - TCP/IP
DRG600WiFi User Guide PC Configuration
Page 44 of 104
2. Click the Properties button to see a screen like the one below.
Figure 20. Windows NT4.0 - IP Address
3. Select the network card for your LAN.
4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify an IP
Address, as explained below.
Obtain an IP address from a DHCP Server
This is the default Windows setting. Using this is recommended. By default, the DRG600-WiFi will act as a
DHCP Server.
Restart your PC to ensure it obtains an IP Address from the DRG600-WiFi.
DRG600WiFi User Guide PC Configuration
Page 45 of 104
Specify an IP Address
If your PC is already configured, check with your network administrator before making the following changes.
The Default Gateway must be set to the IP address of the DRG600-WiFi. To set this:
1. Click the Advanced button on the screen above.
2. On the following screen, click the Add button in the Gateways panel, and enter the DRG600-WiFi's IP
address, as shown in Figure 19 below.
3. If necessary, use the Up button to make the DRG600-WiFi the first entry in the Gateways list.

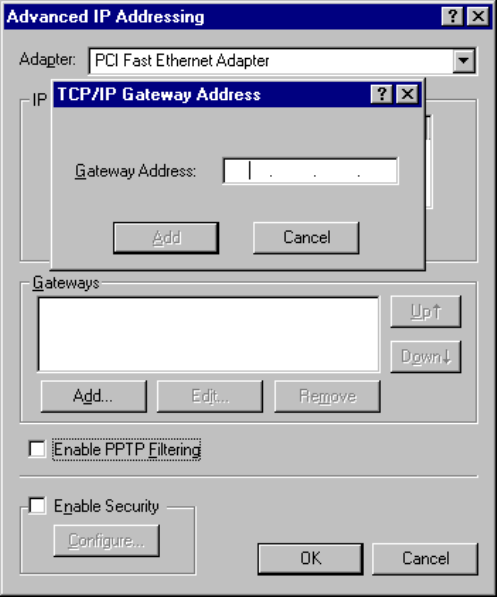

Figure 21. Windows NT4.0 - Add Gateway
DRG600WiFi User Guide PC Configuration
Page 46 of 104
The DNS should be set to the address provided by your ISP, as follows:
1. Click the DNS tab.
2. On the DNS screen, shown below, click the Add button (under DNS Service Search Order), and enter the IP
address of DRG600-WiFi or the DNS provided by your ISP.

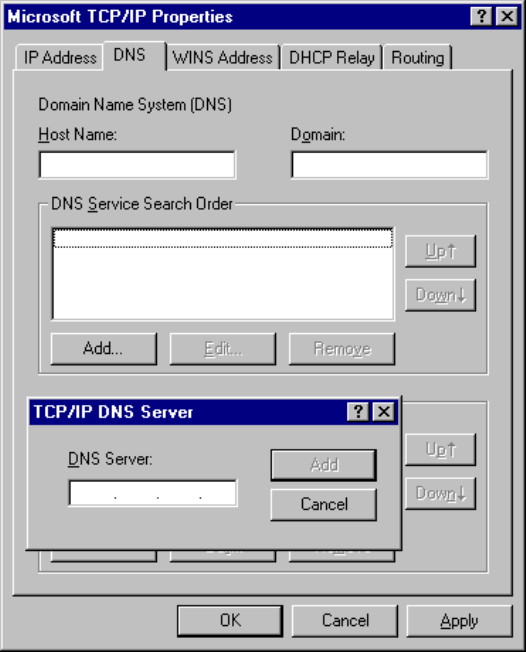

Figure 22. Windows NT4.0 – DNS
DRG600WiFi User Guide PC Configuration
Page 47 of 104
Checking TCP/IP Settings Windows 2000:
1. Select Control Panel - Network and Dial-up Connection.
2. Right - click the Local Area Connection icon and select Properties. You should see a screen like the following:
Figure 23. Network Configuration (Win 2000)
3. Select the TCP/IP protocol for your network card.
DRG600WiFi User Guide PC Configuration
Page 48 of 104
4. Click on the Properties button. You should then see a screen like the following.
Figure 24. TCP/IP Properties (Win 2000)
5. Ensure your TCP/IP settings are correct, as described below.
Obtain an IP Address automatically
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting.
Using this setting is recommended. By default, the DRG600-WiFi will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the DRG600-WiFi.
Use the following IP Address
If your PC is already configured with a fixed IP address, select the radio button Use the following IP address:.
Check with your network administrator before making the following changes.
1. Enter the DRG600-WiFi's IP address in the Default gateway field and click OK.
2. If the DNS Server fields are empty, select Use the following DNS server addresses, and enter the the IP address
of DRG600-WiFi or the DNS address provided by your ISP, then click OK.
DRG600WiFi User Guide PC Configuration
Page 49 of 104
Checking TCP/IP Settings Windows XP
1. Select Control Panel - Network Connection.
2. Right click the Local Area Connection and choose Properties. You should see a screen like the following:
Figure 25. Network Configuration (Windows XP)
3. Select the TCP/IP protocol for your network card.
DRG600WiFi User Guide PC Configuration
Page 50 of 104
4. Click on the Properties button. You should then see a screen like the following.
Figure 26. TCP/IP Properties (Windows XP)
5. Ensure your TCP/IP settings are correct.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting.
Using this is recommended. By default, the DRG600-WiFi will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the DRG600-WiFi.
Using a fixed IP address
If your PC is already configured with a fixed IP address, select the radio button Use the following IP address:.
Check with your network administrator before making the following changes.
1. In the Default gateway field, enter the DRG600-WiFi's IP address and click OK.
2. If the DNS Server fields are empty, select Use the following DNS server addresses, and enter the DNS address
or addresses provided by your ISP, then click OK.
DRG600WiFi User Guide PC Configuration
Page 51 of 104
Internet Access
To configure your PCs to use the DRG600-WiFi for Internet access:
• Ensure that the DRG600-Access module is functioning.
• Use the following procedure to configure your Browser to access the Internet via the LAN, rather than
by a Dial-up connection.
For Windows 9x/ME/2000
1. Select Start Menu - Settings - Control Panel - Internet Options.
2. Select the Connection tab, and click the Setup button.
3. Select "I want to set up my Internet connection manually, or I want to connect through a local area
network (LAN)" and click Next.
4. Select "I connect through a local area network (LAN)" and click Next.
5. Ensure all of the boxes on the following Local area network Internet Configuration screen are
unchecked.
6. Check the "No" option when prompted "Do you want to set up an Internet mail account now?".
7. Click Finish to close the Internet Connection Wizard. Setup is now completed.
For Windows XP
1. Select Start Menu - Control Panel - Network and Internet Connections.
2. Select Set up or change your Internet Connection.
3. Select the Connection tab, and click the Setup button.
4. Cancel the pop-up "Location Information" screen.
5. Click Next on the "New Connection Wizard" screen.
6. Select "Connect to the Internet" and click Next.
7. Select "Set up my connection manually" and click Next.
8. Check "Connect using a broadband connection that is always on" and click Next.
9. Click Finish to close the New Connection Wizard. Setup is now completed.
Macintosh Clients
From your Macintosh, you can access the Internet via the DRG600-WiFi. The procedure is as follows.
1. Open the TCP/IP Control Panel.
2. Select Ethernet from the Connect via pop-up menu.
3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field can be left blank.
4. Close the TCP/IP panel, saving your settings.
Note:
If you are using manually assigned IP addresses instead of DHCP, the required changes are:
• Set the Router Address field to the DRG600-WiFi's IP Address.
• Ensure your DNS settings are correct.
DRG600WiFi User Guide PC Configuration
Page 52 of 104
Linux Clients
To access the Internet via the DRG600-WiFi, it is only necessary to set the DRG600-WiFi as the "Gateway".
Ensure you are logged in as "root" before attempting any changes.
Fixed IP Address
By default, most Unix installations use a fixed IP Address. If you wish to continue using a fixed IP Address,
make the following changes to your configuration.
1. Set your "Default Gateway" to the IP Address of the DRG600-WiFi.
2. Ensure your DNS (Name server) settings are correct.
To act as a DHCP Client (recommended)
The procedure below may vary according to your version of Linux and X -windows shell.
1. Start your X Windows client.
2. Select Control Panel - Network
3. Select the "Interface" entry for your Network card. Normally, this will be called "eth0".
4. Click the Edit button, set the "protocol" to "DHCP", and save this data.
To apply your changes
• Use the "Deactivate" and "Activate" buttons, if available.
• OR, restart your system.
Other Unix Systems
To access the Internet via the DRG600-WiFi:
• Ensure the "Gateway" field for your network card is set to the IP Address of the DRG600-WiFi.
• Ensure your DNS (Name Server) settings are correct.
DRG600WiFi User Guide PC Configuration
Page 53 of 104
Wireless Station Configuration
This section applies to all Wireless stations wishing to use the DRG600-WiFi's Access Point, regardless of the
operating system which is used on the client.
To use the Wireless Access Point in the DRG600-WiFi, each Wireless Station must have compatible settings, as
follows:
Mode The mode must be set to Infrastructure.
SSID (ESSID) This must match the value used on the DRG600-WiFi. The default value is printed
on a label on the DRG600-WiFi.
Note! The SSID is case sensitive.
Wireless By default, Wireless security on the DRG600-WiFi is enabled with WPA-PSK and
the passphrase is printed on a label on the DRG600-WiFi.
Security If Wireless security is disabled on the DRG600-WiFi, all stations must have wireless
security disabled.
If Wireless security is enabled on the DRG600-WiFi, each station must use the same
settings as the DRG600-WiFi.
.
Page 54 of 104
Status
5
This Chapter describes the status screens of the DRG600WiFi
Status Screen
Select Status on the main menu to view this screen.
Figure 27. Status Screen
Internet
Connection Method This indicates the current connection method, as set in the Setup Wizard or WAN
Port screen.
DRG600WiFi User Guide Status
Page 55 of 104
Broadband Modem This shows the status of the connection from the DRG600-WiFi to the Broadband
Modem.
Internet Connection
This shows the current connection status.
If there is an error, you can click the "Connection Details" button to find out more
information.
Internet IP Address This IP Address is allocated by the ISP (Internet Service Provider). If there is no
current connection, this will be blank or
0.0.0.0.
"Connection Details"
Button Click this button to open a sub-window and view a detailed description of the
current connection. Depending on the type of connection, a "Connection Log"
may also be available.
Wireless
SSID The name of the wireless network.
Security This indicates the Wireless security system currently used. Click the “Details
Information” to see more details.
Connected Device This lists the connected devices. Click “List” to generate a current list of all
connected devices.
Details Information Click this button to open a window that displays current wireless information..
DRG600WiFi User Guide Status
Page 56 of 104
LAN
IP Address The IP Address of the DRG600-WiFi.
Network Mask The Network Mask (Subnet Mask) for the IP Address.
DHCP Server This shows the status of the DHCP Server function - either "Enabled" or
"Disabled".
For additional information about the PCs on your LAN, and the IP addresses allocated to them, use the PC
Database option on the LAN menu.
System
Device Name This displays the current name of the DRG600-WiFi.
Firmware version The current version of the firmware installed in the DRG600-WiFi. Click the
“System Data” button to display all system information in a sub-window
Restart Clicking this button will restart (reboot) the DRG600-WiFi. All existing connections
through the DRG600-WiFi will be lost.
Refresh Screen Update the data displayed on screen
DRG600WiFi User Guide Status
Page 57 of 104
Connection Status PPPoE
If using PPPoE (PPP over Ethernet), a screen like the following example will be displayed when the "Connection
Details" button is clicked.
Figure 28. PPPoE Status Screen
Connection
Physical Address The hardware address of this device, as seen by remote devices on the Internet.
(This is different to the hardware address seen by devices on the local LAN.)
IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your
ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
DRG600WiFi User Guide Status
Page 58 of 104
PPPoE Link Status
This indicates whether or not the connection is currently established.
If the connection does not exist, the "Connect" button can be used to establish a
connection.
If the connection currently exists, the "Disconnect" button can be used to break the
connection.
Connection Log
Connection Log
The Connection Log shows status messages relating to the existing connection.
The most common messages are listed in the table below.
The "Clear Log" button will restart the Log, while the Re-
fresh button will update the messages shown on screen.
Buttons
Connect If not connected, establish a connection to your ISP.
Disconnect If connected to your ISP, hang up the connection.
Clear Log Delete all data currently in the Log. This will make it easier to read new messages.
Refresh Update the data on screen.
Connection Log Messages
Message Description
Connect on Demand Connection attempt has been triggered by the "Connect automatically, as
required" setting.
Manual connection Connection attempt started by the "Connect" button.
Reset physical connection Preparing line for connection attempt.
DRG600WiFi User Guide Status
Page 59 of 104
Connecting to remote server Attempting to connect to the ISP's server.
Remote Server located ISP's Server has responded to connection attempt.
Start PPP Attempting to login to ISP's Server and establish a PPP connection.
PPP up successfully Able to login to ISP's Server and establish a PPP connection.
Idle time-out reached The connection has been idle for the time period specified in the "Idle
Time-out" field. The connection will now be terminated.
.
Disconnecting The current connection is being terminated, due to either the "Idle
Time-out" above, or "Disconnect" button being clicked.
Error: Remote Server not found ISP's Server did not respond. This could be a Server problem, or a
problem with the link to the Server.
Error: PPP Connection failed Unable to establish a PPP connection with the ISP's Server. This could
be a login problem (name or password) or a Server problem.
Error: Connection to Server lost The existing connection has been lost. This could be caused by a power
failure, a link failure, or Server failure.
Error: Invalid or unknown packet
type
The data received from the ISP's Server could not be processed. This
could be caused by data corruption (from a bad link), or the Server using
a protocol which is not supported by this device.
DRG600WiFi User Guide Status
Page 60 of 104
Connection Details Fixed/Dynamic IP Address
If your access method is "Direct" (no login), a screen like the following example will be displayed when the
"Connection Details" button is clicked.
Figure 29. Connection Details Screen
Internet
Physical Address The hardware address of this device, as seen by remote devices on the Internet.
(This is different to the hardware address seen by devices on the local LAN.)
IP Address The IP Address of this device, as seen by Internet users. This address is allocated by
your ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
Default Gateway The IP Address of the remote Gateway or Router associated with the IP Address
above.
DNS IP Address The IP Address of the Domain Name Server which is currently used.
DHCP Client
This will show "Enabled" or "Disabled".
If "Enabled", the Internet IP Address from your ISP is allocated
automatically upon connection. (Dynamic IP Address). In this case the "Lease
obtained" and "Remaining lease time" fields provide additional information. Note
that the lease is automatically renewed on expiry; use the "Renew" button if you wish
to manually renew the lease immediately.
If "Disabled", the Internet IP Address from your ISP is Fixed or
Static. In this case, the "Release/Renew" button is not operational.
The Renew button is only useful if the IP address shown above is allocated automatically on connection. (Dynamic
DRG600WiFi User Guide Status
Page 61 of 104
IP address). Otherwise, it has no effect.
If the DRG600-WiFi is currently using an IP Address allocated by the ISP's DHCP Server., clicking the Release
button will release the IP Address and break the connection.
If the button says "Release", this indicates that the ISP's DHCP Server has not allocated an IP Address for the
DRG600-WiFi. Clicking the "Renew" button will re-establish the connection and obtain an IP Address from the
ISP's DHCP Server.
Refresh updates the data shown on screen.
DRG600WiFi User Guide Advanced Features
Page 62 of 104
Advanced Features
6
This Chapter explains when and how to use the DRG600WiFi "Advanced" Features.
Overview
The following advanced features are provided under the Advanced menu
• Access Control
• Dynamic DNS
• DMZ
• Virtual Servers
• WAN Port
• Routing
• Security
- URL Filter
• UPnP
DRG600WiFi User Guide Advanced Features
Page 63 of 104
Access Control
This feature is accessed by the Access Control link on the Advanced menu.
The Access Control feature allows administrators to restrict the level of Internet Access available to PCs on your
LAN. With the default settings, everyone has unrestricted Internet access.
To use this feature:
1. Set the desired restrictions on the "Everyone" group. All PCs are in the "Everyone" group unless
explicitly moved to another group.
2. Set the desired restrictions on the other groups ("Group 1", "Group 2", "Group 3" and "Group 4") as
needed.
3. Assign PC to the groups as required.
Restrictions are imposed by blocking "Services", or types of connections. All common Services are pre-
defined. If required, you can also define your own Services.
Access Control Screen
To view this screen, select the Access Control tab of the Advanced menu.
Figure 30. Access Control Screen
Group
Select the desired user group. Groups are named "Everyone", "Group 1", "Group 2", "Group 3" and "Group
4", and cannot be renamed. Click the Members button to see the details for the selected group.
DRG600WiFi User Guide Advanced Features
Page 64 of 104
Internet Access
Select the desired options for the current group:
Restrictions
None - Nothing is blocked. Use this to create the least restrictive group.
Block all Internet access - All traffic via the WAN port is
blocked. Use this to create the most restrictive group.
Block selected Services - You can select which Services are to block. Use this to gain
fine control over the Internet access for a group.
Block by Schedule
If Internet access is being blocked, you can choose to apply the blocking only during
scheduled times. (If access is not blocked, no Scheduling is possible, and this setting has
no effect.)
Services
This lists all defined Services. Select the Services you wish to block. To select multiple
services, hold the CTRL key while selecting. (On the Macintosh, hold the SHIFT key
rather than CTRL.)
Edit Service List
Button
If you wish to define additional Services, or manage the Service list, click this button to
open the "Services" screen.
Define Schedule
Click this to open the Schedule sub-window where you can define the schedule for access control to be applied.
View Log
Click this to open a sub-window where you can view the "Access Control" log. This log shows attempted Internet
accesses which have been blocked by the Access Control feature.
Clear Log
Click this to clear and restart the "Access Control" log, making new entries easier to read.
DRG600WiFi User Guide Advanced Features
Page 65 of 104
Members Screen
This screen is selected by clicking the Members button in the Access Control screen.
Groups are pre-named "Everyone", "Group 1", "Group 2", "Group 3" and "Group 4", and cannot be renamed.
All PCs are in the "Everyone" group, unless moved to another group.
A PC can be a member of 1 group only.
Figure 31. Group Members Screen
Group Select the desired Group. The screen will update to display the PCs for the selected
Group.
Members This lists all PCs, which are currently members of the selected group.
Other PCs This lists all other PCs – those, which are not currently members of the selected group.
Del >>
Use this button to remove members from the current Group.
Select the members you wish to delete from this group, and click this button. (Members
can not be deleted from the "Everyone" group.)
<< Add
Use this button to add members to the current Group.
In the "Other PCs" list, select the members you wish to add to this group, and click
this button. The PCs will be moved from their existing group to the current group.
PCs not assigned to any group will be in the "Everyone" group. PCs deleted from any other Group will be added
to the "Everyone" group.
DRG600WiFi User Guide Advanced Features
Page 66 of 104
Define Schedule
The schedule can be used for the Access Control and URL Filter features.
Figure 32. Default Schedule Screen
Two (2) separate sessions or periods can be defined.
Times must be entered using a 24 hr clock.
If the time for a particular day is blank, no action will be performed.
DRG600WiFi User Guide Advanced Features
Page 67 of 104
Services Screen
This screen is displayed when the Edit Service List button on the Access Control screen is clicked.
Figure 33. Access Control, Services Screen
Available Services
This lists all the available services.
Use the Delete button to delete the selected Service from the list.
Add New Service
Name Enter a descriptive name to identify this service.
Type Select the correct type for this Service.
Start Port
If the "Type" (above) is TCP, UDP, or TCP/UDP, enter the port number for this
Service. If a port range is required, enter the beginning of the range here, and the end of
the range in the "Finish Port" field.
Finish Port If the "Type" (above) is TCP, UDP, or TCP/UDP, this field can be used to enter the
end of range of port numbers. This can be left blank if not required.
ICMP Type If the "Type" (above) is ICMP, enter the ICMP type here. Otherwise, this field should be
left blank.
DRG600WiFi User Guide Advanced Features
Page 68 of 104
Dynamic DNS (Domain Name Server)
This free service is very useful when combined with the Virtual Server feature. It allows Internet users to connect
to your Virtual Servers using a URL, rather than an IP Address.
This also solves the problem of having a dynamic IP address. With a dynamic IP address, your IP address may
change whenever you connect, which makes it difficult to connect to you.
The Service works as follows:
1. You must register for the service at one of the listed DDNS Service Providers.
2. After registration, follow the service provider's procedure to request a Domain Name and have it
allocated to you.
3. Enter your DDNS data on the DRG600-WiFi's DDNS screen.
4. The DRG600-WiFi will then automatically ensure that your current IP Address is recorded at the DDNS
server.
5. If the DDNS Service provides software to perform this "IP address update"; you should disable the
"Update" function, or not use the software at all.
6. From the Internet, users will be able to connect to your Virtual Servers (or DMZ PC) using your Domain
Name.
DRG600WiFi User Guide Advanced Features
Page 69 of 104
Dynamic DNS Screen
Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following:
Figure 34. Dynamic DNS Screen
DDNS Data
DDNS Service Select the desired DDNS Service. To disable DDNS, select "None".
User Name Enter your Username for the DDNS Service.
Password/Key Enter your current password for the DDNS Service.
Domain Name Enter the domain name allocated to you by the DDNS Service.
If you have more than one domain name, enter the name you wish to use. This device
supports one name only.
DDNS Status This message is returned by the DDNS Server.
Normally, this message should be something like "Update successful" (current IP address
was updated on the DDNS server).
If the message is "No host", this indicates the host name entered
was not allocated to you. If you see this, or some other error message, you need to
contact the DDNS Service and correct the problem.
DRG600WiFi User Guide Advanced Features
Page 70 of 104
DMZ
This screen allows you to configure the LAN PCs as a “DMZ”. The DMZ PC will receive the same IP address
as the WAN.
Figure 35. DDNS Screen Data - Dynamic DNS Screen
A DMZ allows a single computer on your LAN to expose ALL of its ports to the Internet. When doing this, the
exposed computer is no longer ‘behind’ the firewall.
The "DMZ" PC will receive all "Unknown" connections and data. This feature is normally used with applications
which do not usually work when behind a Firewall.
Note that the DMZ PC is effectively outside the Firewall, making it more vulnerable to attacks. For this reason,
you should only enable the DMZ feature when required.
Enable WAN IP
address
DMZ uses the default WAN IP address so no input is required. If known, the current
WAN IP address is displayed. If you are using a dynamic IP address and there is no
Internet connection, the WAN IP address is unknown.
PC For each DMZ, you must select a PC from the list. If the DMZ PC uses a fixed IP
address and is not in the list, you can add it using the “PC Database” option in the LAN
screen.
DRG600WiFi User Guide Advanced Features
Page 71 of 104
Virtual Servers
This feature, sometimes called Port Forwarding, allows you to make Servers on your LAN accessible to Internet
users. Normally, Internet users would not be able to access a server on your LAN because:
Your Server does not have a valid external IP Address.
Attempts to connect to devices on your LAN are blocked by the firewall in this device.
The "Virtual Server" feature solves these problems and allows Internet users to connect to your servers, as
illustrated below.
Figure 36. Virtual Servers
Note that, in this illustration, both Internet users are connecting to the same IP Address, but using different
protocols.
To Internet users, all virtual Servers on your LAN have the same IP Address. This IP Address is allocated by
your ISP.
This address should be static, rather than dynamic, to make it easier for Internet users to connect to your Servers.
However, you can use the DDNS (Dynamic DNS) feature to allow users to connect to your Virtual Servers using a
URL, instead of an IP Address.
DRG600WiFi User Guide Advanced Features
Page 72 of 104
Virtual Servers Screen
The Virtual Servers screen is reached by the Virtual Servers tab on the Advanced screen. An example screen is
shown below.
Figure 37. Virtual Servers Screen
Servers
This lists a number of pre-defined Servers, plus any Servers you have defined. Details of the selected Server are
shown in the "Properties" fields.
Defaults This will delete any Servers you have defined, and set the predefined Servers to use their
default port numbers.
Disable All This will cause the "Enable" setting of all Virtual Servers to be set OFF.
Delete This remove the selected server from the list. Note that the pre-defined Servers cannot
be deleted. Only Servers you have defined yourself can be deleted
DRG600WiFi User Guide Advanced Features
Page 73 of 104
Properties
Enable Use this to Enable or Disable support for this Server, as required.
PC (Server) Select the PC for this Server. The PC must be running the appropriate Server software.
Protocol Select the protocol (TCP or UDP) used by the Server.
Internal (LAN) Ports Enter the range of port numbers which the Server software is configured to use.
External (WAN) Ports
Traffic from the Internet using this range of port numbers will be sent to the Server.
This is normally the same as the Internal Port Numbers. If it is different, this device will
perform a "mapping" or "translation" function, allowing the server to use a different port
range to the clients.
Clear Form Clear all data from the "Properties" area, ready for input of a new Virtual Server entry.
Update Selected
Server
Update the current Virtual Server entry, using the data shown in the "Properties" area on
screen.
Add as new Server Add a new entry to the Virtual Server list, using the data shown in the "Properties" area
on screen. The entry selected in the list is ignored, and has no effect.
For each entry, the PC must be running the appropriate Server software.
DRG600WiFi User Guide Advanced Features
Page 74 of 104
Defining your own Virtual Servers
If the type of Server you wish to use is not listed on the Virtual Servers screen, you can define and manage your
own Servers:
Create a new Server:
1. Click "Clear Form".
2. Enter the required data, as described above.
3. Click "Add".
4. The new Server will now appear in the list.
Modify (Edit) a Server:
1. Select the desired Server from the list
2. Make any desired changes (for example, change the Enable/Disable setting).
3. Click "Update" to save changes to the selected Server.
Delete a Server:
1. Select the entry from the list.
2. Click "Delete".
Connecting to the Virtual Servers
Once configured, anyone on the Internet can connect to your Virtual Servers. They must use the Internet IP
Address (the IP Address allocated to you by your ISP) e.g.
http://203.70.212.52
ftp://203.70.212.52
It is more convenient if you are using a Fixed IP Address from your ISP, rather than Dynamic. However, you
can use the Dynamic DNS feature, described on page 68, to allow users to connect to your Virtual Servers using a
URL, rather than an IP Address.
Y
ou can only delete Servers you have defined. Pre-defined Server cannot be deleted.
From the Internet, ALL Virtual Servers have the IP Address allocated by your ISP
DRG600WiFi User Guide Advanced Features
Page 75 of 104
WAN Port Configuration screen
Select the WAN Port tab.
Figure 38. WAN Port Screen
Identification
Normally, there is no need to change the default name, but if your ISP requests that you use a particular
Hostname, enter it here.
If your ISP provided a Domain Name, enter it here. Otherwise, this may be left blank.
The WAN Port MAC address is a low-level identifier, as seen from the WAN port. Normally there is no need to
change this, but some ISPs require a particular value, often that of the PC initially used for Internet access.
You can use the Copy from PC button to copy your PC's address into this field, the Default button to insert the
default value, or enter a value directly.
IP Address
The Dynamic IP Address is the default setting, and the most common. Leave this selected if your ISP allocates an
IP Address to the DRG600-WiFi upon connection.
The Static IP Address is to be selected if your ISP has allocated you a fixed IP Address. If this option is selected, the
following data must be entered.
• IP Address: The IP Address allocated by the ISP.
• Network Mask: This is also supplied by your ISP. It must be compatible with the IP Address above.
• Gateway IP Address: The address of the router or gateway, as supplied by your ISP. This information is
also supplied by your ISP. It must be compatible with the IP Address above.
DRG600WiFi User Guide Advanced Features
Page 76 of 104
DNS
If the radio button Automatically obtain from server is selected, the DNS (Domain Name Server) address will be
obtained automatically from your ISP server.
To use a fixed IP address, select Use this DNS and enter the IP address of the DNS (Domain Name Server) you
wish to use.
Backup DNS
If the DNS is unavailable, the "Backup DNS" servers configured here will be used.
MTU
MTU (Maximum Transmission Unit) value should only be changed if advised to do so by Technical Support.
Enter a value between 500 and 1492.
This device will still auto-negotiate with the remote server, to set the MTU size. The smaller of the 2 values (auto-
negotiated, or entered here) will be used.
For direct connections (FixIP/DHCP), the MTU used is always 1500.
Login
Login Method
If your ISP does not use a login method (username, password) for Internet access, leave this
at the default value FixIP/DHCP. Otherwise, check the documentation from your ISP,
select the login method used, and enter the required data.
PPPoE - this is the most common login method, widely used with DSL modems. Normally,
your ISP will have provided some software to connect and login. This software is no
longer required, and should not be used.
Login User Name The User Name (or account name) provided by your ISP.
Login Password Enter the password for the login name above.
Connection
Behavior
Select the desired option:
• Keep alive (maintain connection) The connection will never be disconnected by
this device. If disconnected by your ISP, the connection will be re-established
immediately. (However, this does not ensure that your Internet IP address will
remain unchanged.)
• Automatic Connect/Disconnect An Internet connection is automatically made
when required, and disconnected when idle for the time period specified by the
"Auto-disconnect Idle Time-out".
• Manual Connect/Disconnect You must manually establish and terminate the
connection.
DRG600WiFi User Guide Advanced Features
Page 77 of 104
Auto-disconnect
Idle Time-out
This field has no effect unless using the Automatic Connect/Disconnect setting.
If using this setting, enter the desired idle time-out period (in minutes). After the connection
to your ISP has been idle for this time period, the connection will be terminated.
DRG600WiFi User Guide Advanced Features
Page 78 of 104
Routing
• If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing" page
completely.
• If the DRG600-WiFi is only acting as a Gateway for the local LAN segment, ignore the "Routing" page
even if your LAN has other Routers.
• If your LAN has a standard Router on your LAN, and the DRG600-WiFi is to act as a Gateway for all
LAN segments, enable RIP (Routing Information Protocol) and ignore the Static Routing table.
• If your LAN has other Gateways and Routers, and you wish to control which LAN segments use each
Gateway, do NOT enable RIP (Routing Information Protocol). Configure the Static Routing table
instead. (You also need to configure the other Routers.)
• If you are using Windows 2000 Data center Server as a software Router, you must enable RIP on the
Wireless Router, and ensure the following Windows 2000 settings are correct:
o Open Routing and Remote Access
o In the console tree, select Routing and Remote Access , [server name], IP Routing, RIP
o In the "Details" pane, right-click the interface you want to configure for RIP version 2, and then
click "Properties".
o On the "General" tab, set Outgoing packet protocol to "RIP version 2 broadcast", and
Incoming packet protocol to "RIP version 1 and 2".
DRG600WiFi User Guide Advanced Features
Page 79 of 104
Routing Screen
The routing table is accessed by the Routing tab of the Advanced menu.
Generally, you will use either RIP (Routing Information Protocol) OR the Static Routing Table, as explained
above, although it is possible to use both methods simultaneously.
Static Routing Table
If RIP is not used, an entry in the routing table is required for each LAN segment on your Network, other than
the segment to which this device is attached.
The other Routers must also be configured. See Configuring Other Routers on your LAN later in this chapter for
further details and an example.
Figure 39. Routing Screen
RIP
Enable RIP v1
Check this to enable the RIP (Routing Information Protocol) feature of the DRG600-
W
iFi. The DRG600-WiFi supports RIP 1 only. Click the “Save” button to save this
RIP setting. This has no effect on the Static Routing Table.
Static Routing
This list shows all entries in the Routing Table. Details for the selected item in the list will be displayed in the
Properties fields.
DRG600WiFi User Guide Advanced Features
Page 80 of 104
Properties
Change any the properties as required, then click Update to save the changes to the selected entry. Click Add to
enter a new routing table entry. Click Delete to remove a selected entry. Click Clear Form to clear all data from the
"Properties" area, ready for input of a new entry for the Static Routing table.
Destination Network - The network address of the remote LAN segment. For standard class "C" LANs, the
network address is the first 3 fields of the Destination IP Address. The 4th (last) field can be left at 0.
Network Mask - The Network Mask for the remote LAN segment. For class "C" networks, the default mask is
255.255.255.0
Gateway IP Address - The IP Address of the Gateway or Router which the DRG600-WiFi must use to
communicate with the destination above. (NOT the router attached to the remote segment.)
Metric - The number of "hops" (routers) to pass through to reach the remote LAN segment. The shortest path
will be used. The default value is 2.
Generate Report
This button generates a list of all the entries in the routing table.
Configuring Other Routers on your LAN
It is essential that all IP packets for devices not on the local LAN be passed to the DRG600-WiFi, so that they
can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to
use the DRG600-WiFi as the Default Route or Default Gateway.
Local Router
The local router is the Router installed on the same LAN segment as the DRG600-WiFi. This router requires that
the Default Route is the DRG600-WiFi itself. Typically, routers have a special entry for the Default Route. It should
be configured as follows.
Destination IP Address Normally 0.0.0.0, but check your router documentation.
Network Mask Normally 0.0.0.0, but check your router documentation.
Gateway IP Address The IP Address of the DRG600-WiFi.
Metric 1
DRG600WiFi User Guide Advanced Features
Page 81 of 104
Other Routers on the Local LAN
Other routers on the local LAN must use the DRG600-WiFi's Local Router as the Default Route. The entries will
be the same as the DRG600-WiFi's local router, with the exception of the Gateway IP Address.
For a router with a direct connection to the DRG600-WiFi's local Router, the Gateway IP Address is the address of
the DRG600-WiFi's local router.
For routers which must forward packets to another router before reaching the DRG600-WiFi's local router, the
Gateway IP Address is the address of the intermediate router.
Static Routing Example
Figure 40. Routing Example
DRG600-WiFi Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the DRG600-WiFi requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100 (DRG600-WiFi's local Router)
Metric 2
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
DRG600WiFi User Guide Advanced Features
Page 82 of 104
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100
Metric 3
Router A Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.0.1 (DRG600-WiFi IP Address)
Router B Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.1.80 (DRG600-WiFi's local router)
DRG600WiFi User Guide Advanced Features
Page 83 of 104
Security
Figure 41. Security Screen
Firewall
URL Filter
You can filter out webpages by specifying which URLs to block. Click URL Filter to access the URL Filter
screen. See “URL Filter Screen” on page 85 for more details.
Enable DoS
Firewall
If enabled, DoS (Denial of Service) attacks will be detected and blocked. The default is
enabled. It is strongly recommended that this setting be left enabled..
Note:
A DoS attack does not attempt to steal data or damage your PCs, but overloads your Internet
connection so you can not use it - the service is unavailable.
This device uses "Stateful Inspection" technology. This system can detect situations where
individual TCP/IP packets are valid, but collectively they become a DoS attack.
Threshold
This setting affects the number of "half-open" connections allowed.
A "half-open" connection arises when a remote client contacts the Server with a connection
request, but then does not reply to the Server response.
Threshold is the optimum number of "half-open" connections allowed and it depends on
many factors. The most important factor is the available bandwidth of your Internet
connection.
Select the setting to match the bandwidth of your Internet connection.
DRG600WiFi User Guide Advanced Features
Page 84 of 104
Options
Respond to
IGMP (ping) on
WAN interface
The ICMP protocol is used by the "ping" and "traceroute" programs, and by network
monitoring and diagnostic programs.
If checked, the DRG600-WiFi will respond to ICMP packets received from the
Internet.
If not checked, ICMP packets from the Internet will be ignored.
Disabling this option provides a slight increase in security.
Allow IPSec
Pass through
The IPSec protocol is used to establish a secure connection, and is widely used by
VPN (Virtual Private Networking) programs.
If checked, IPSec connections are allowed.
If not checked, IPSec connections are blocked.
Note: IPSec sessions must NOT use AH (Authentication Header).
Packets using AH cannot be routed correctly.
Allow PPTP
Pass through
The PPTP protocol is used to establish a secure connection, and is widely used by
VPN (Virtual Private Networking) programs.
If checked, PPTP connections are allowed.
If not checked, PPTP connections are blocked.
Allow L2TP
Pass through
The L2TP protocol is used to establish a secure connection, and is widely used by
VPN (Virtual Private Networking) programs.
If checked, L2TP connections are allowed.
If not checked, L2TP connections are blocked.
Allow PPPoE
Pass through
If checked, it allows LAN PCs to establish PPPoE connection through DRG600-WiFi
to your ISP. LAN PC will have a valid IP Address.
DRG600WiFi User Guide Advanced Features
Page 85 of 104
URL Filter Screen
Figure 42. URL Filter Screen
Filter Strings
Add Filter String
To add an entry to the list, enter it here, and click the "Add" button. An entry may be a Domain name (e.g.
www.trash.com) or simply a string (e.g. ads/ )
Any URL which contains ANY entry ANYWHERE in the URL will be blocked.
Click the "Add" button to add the entry in the Filter String list above.
Current Entries This field lists any existing entries. If you have not entered any values, this list will be empty.
Delete
Use this to delete the selected entry or entries, as required. Multiple entries can be selected by
holding down the CTRL key while selecting. (On the Macintosh, hold the SHIFT key while
selecting.)
Delete All Use this button to delete all entries, if required.
DRG600WiFi User Guide Advanced Features
Page 86 of 104
UPnP
UPnP (Universal Plug and Play) allows automatic discovery and configuration of equipment attached to your
LAN. UPnP is by supported by Windows ME, XP, or later.
Figure 43. UPnP screen
UPnP
.
Enable UPnP
Services
• If Enabled, this device will be visible via UPnP
• If Disabled, this device will not be visible via UPnP .
Allow
configuration
changes through
UPnP
• If checked, then UPnP users can change the configuration.
• If Disabled, UPnP users can only view the configuration. But currently, this restriction
only applies to users running Windows XP, who access the Properties via UPnP. (e.g.
Right - click the DRG600-WiFi in My Network Places, and select Properties)
Allow Internet
access to be
disabled
• If checked, then UPnP users can disable Internet access via this device.
• If Disabled, UPnP users can NOT disable Internet access via this device. But
currently, this restriction only applies to users running Windows XP, who access the
Properties via UPnP. (e.g. Right - click the DRG600-WiFi in My Network Places, and
select Properties)
Page 87 of 104
Administration
7
This Chapter explains the settings available via the "Administration" section of the menu.
Overview
Normally, it is not necessary to use these screens, or change any settings. These screens and
settings are provided to deal with non-standard situations, or to provide additional options for
advanced users.
The available settings and features are:
• Default Config. Reset the DRG600-WiFi to its factory default settings.
• Logs. View or clear all logs, set E-Mailing of log files.
• Network Diagnostics. Ping, DNS Lookup.
• Local Administration. Allow settings to be changed from local LAN.
• Upgrade Firmware. Upgrade the Firmware (software) installed in DRG600-WiFi.
DRG600WiFi User Guide
A
dministrati
o
Page 88 of 104
Default Config screen
This screen allows you to set the DRG600-WiFi back to its factory default configuration. Any
existing settings will be deleted.
Figure 44. Default Config screen
Retrieve Config file
File name Enter the file name of configuration that you want from Remote Server.
Remote Server
Address Enter the IP Address of Remote Server which stores the configuration file.
Get Config File Click this button, DRG600-WiFi will get the configuration file from a remote
server and use it after rebooting.
Default Config
Clicking the Restore Defaults button will reset the DRG600-WiFi to its factory default settings.
WARNING! This will delete ALL of the existing settings.
DRG600WiFi User Guide
A
dministrati
o
Page 89 of 104
Logs screen
The Logs record various types of activity on the DRG600-WiFi. This data is useful for
troubleshooting, but enabling all logs will generate a large amount of data and adversely affect
performance.
Since only a limited amount of log data can be stored in the DRG600-WiFi, log data can also be
e-mailed to your PC.
Figure 45. Logs Screen
Enable Logs
Outgoing
If selected, outgoing Internet connections are logged. Normally, the
(Internet) "Destination" will be shown as an IP address. But if the "URL
Filter" is enabled, the "Destination" will be shown as a URL.
Access Control If enabled, the log will include attempted outgoing connections which have
been blocked by the "Access Control" feature.
DoS Attacks If enabled, this log will show details of DoS (Denial of Service) attacks
which have been blocked by the built-in Firewall.
View Log button Use this to view each log, as required.
DRG600WiFi User Guide
A
dministrati
o
Page 90 of 104
Clear Log button Use this to restart the required log. This makes it easier to read the latest
entries.
EMail Reports
Send E-mail alert
immediately when
attacked
If enabled, an E-mail will be sent immediately if a DoS (Denial of Service)
attack is detected. Note that if this is enabled, the E-mail address
information must be provided.
E-mail logs
Enable the logs you wish to send:
Connection log - If selected, Outgoing Connection log will be sent.
Access Control log - If selected, Access Control log will be sent.
If no checkboxes are enabled, no logs will be sent.
EMail Address
E-mail Address Enter the E-mail address the Log is to be sent to. The E-mail will also
show this address as the Sender's address.
Subject Text to be added to subject field in email message.
SMTP Server Enter the address (domain name) or IP address of the SMTP (Simple
Mail Transport Protocol) Server you use for outgoing Email.
Port No. Enter the port number used to connect to the SMTP Server. The default
value is 25.
DRG600WiFi User Guide
A
dministrati
o
Page 91 of 104
Local Time
Timezone Select the correct Timezone for your location. This is required for the
date/time shown on the logs to be correct.
Daylight Savings
Time
If your region uses Daylight Savings Time, you must manually check
"Adjust for Daylight Savings Time" at the beginning of the adjustment
period, and uncheck it at the end of the Daylight Savings period.
DRG600WiFi User Guide
A
dministrati
o
Page 92 of 104
Network Diagnostics screen
This screen allows you to perform a "Ping" or a "DNS lookup". These activities can be useful in
solving network problems.
Figure 46. Network Diagnostics Screen
Ping
Enter the IP address you wish to ping. The IP address can be on your LAN, or on the Internet.
Note that if the address is on the Internet, and no connection currently exists, you could get
a "Timeout" error. In that case, wait a few seconds and try again.
After entering the IP address, click the “Ping” button to start the ping procedure. The results will
be displayed in the Ping Results field.
DNS Lookup
Enter the Domain name or URL for which you want a DNS (Domain Name Server) lookup.
Note that if the address in on the Internet, and no connection currently exists, you could get a
"Timeout" error. In that case, wait a few seconds and try again.
After entering the Domain name/URL, click Lookup to start the "DNS Lookup" procedure. The
results will be displayed in the DNS Lookup Results pane.
DRG600WiFi User Guide
A
dministrati
o
Page 93 of 104
Local Administration screen
This feature allows you to manage the DRG600-WiFi via the LAN port.
Figure 47. Local Administration Screen
Local Administration
Enable Local
Management
Check to allow adminstration/management via local LAN. (To connect, see
“Port Number” below).
If Disabled, this device will ignore Administration connection attempts from
local LAN.
Port Number
Enter a port number between 1024 and 65535. The default value is 80. .
The port number must be specified in your Browser when you have changed it.
To specify the port number :
1. Start your Browser.
2. In the "Address" or "Location" field, enter the IP address of this
device, followed by the port number, as follows:
http://ip_address:port_number
where:
ip_address is the IP address of this device.
port_number is the port number assigned on this screen.
You should then be prompted for the password for this device. (You
must assign a password!)
DRG600WiFi User Guide
A
dministrati
o
Page 94 of 104
If Local Administration is disabled, you will not be able to manage this device via local LAN by
using web browser. Unless you reset device to factory default by reset button.
DRG600WiFi User Guide
A
dministrati
o
Page 95 of 104
Upgrade Firmware screen
The firmware (software) in the DRG600-WiFi can be upgraded using your Web Browser.
You must first download the upgrade file, then select Upgrade Firmware on the Administration
menu. You will see a screen like the following.
Figure 48. Upgrade firmware screen
Upgrade Firmware
File Name Enter the file name of firmware that you want from Remote Server.
Remote Server
Address Enter the IP Address of Remote Server which stores the firmware file.
Get Upgrade
File
Click this button, DRG600-WiFi will get firmware file from remote
server and use it to operate by reboot.
To perform the Firmware Upgrade:
1. Click the Browse button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. If you have set a configuration password, enter it. If not, leave the field blank.
4. Click the Start Upgrade button to commence the firmware upgrade.
The DRG600-WiFi is unavailable during the upgrade process, and must restart when the
upgrade is completed. Any connections to, or through, the DRG600-WiFi will be lost.
DRG600WiFi User Guide Troubleshooting
Page 96 of 104
Troubleshooting
8
This chapter covers the most likely problems and their solutions.
Overview
This chapter covers some common problems that may be encountered while using the DRG600-WiFi and some
possible solutions to them. If you follow the suggested steps and the DRG600-WiFi still does not function
properly, contact your dealer for further advice.
General Problems
Problem: Can't connect to the DRG600-WiFi to configure it.
Solution: Check the following:
• The DRG600-WiFi is properly installed, LAN connections are OK, and it is powered ON.
• Ensure that your PC and the DRG600-WiFi are on the same network segment. (If you don't have a
router, this must be the case.)
• If your PC is set to "Obtain an IP Address automatically" (DHCP client), restart it.
• If your PC uses a Fixed (Static) IP address, ensure that it is using an IP Address within the range
192.168.0.2 to 192.168.0.254 and thus compatible with the DRG600-WiFi's default IP Address of
192.168.0.1. Also, the Network Mask should be set to 255.255.255.0 to match the DRG600-WiFi.
In Windows, you can check these settings by using Control Panel, Network to check the Properties for the
TCP/IP protocol.
Internet Access
Problem 1: When I enter a URL or IP address I get a time out error.
Solution 1: A number of things could be causing this. Try the following troubleshooting steps:
• Check if other PCs work. If they do, ensure that your PCs IP settings are correct. If using a Fixed (Static)
IP Address, check the Network Mask, Default gateway and DNS as well as the IP Address.
• If the PCs are configured correctly, but still not working, check the DRG600-WiFi. Ensure that it is
connected and ON. Connect to it and check its settings. (If you can't connect to it, check the LAN and
power connections.)
• If the DRG600-WiFi is configured correctly, check your Internet connection (DSL/Cable modem etc) to
see that it is working correctly.
Problem 2: Some applications do not run properly when using the DRG600-WiFi.
Solution 2: The DRG600-WiFi processes the data passing through it, so it is not transparent.
Use the DMZ function. This should work with almost every application.
DRG600WiFi User Guide Troubleshooting
Page 97 of 104
This should work with almost every application, but it is a security risk, since the firewall is disabled.
Only one (1) PC can use this feature.
Wireless Access
Problem 1: My PC can't locate the Wireless Access Point.
Solution 1: Check the following:
• Your PC is set to Infrastructure Mode. (Access Points are always in Infrastructure Mode)
• The SSID on your PC and the Wireless Access Point are the same. Remember that the SSID is case-
sensitive. So, for example "Workgroup" does NOT match "workgroup".
• Both your PC and the DRG600-WiFi must have the same setting for wireless security. The default setting
for the DRG600-WiFi is WPA-PSK, so your wireless station should also have WPA-PSK enabled, and
the key must match.
• If the DRG600-WiFi's Wireless screen is set to Allow Wireless Access by Wireless Stations only, then each of your
Wireless stations must have been selected, or access will be blocked.
• To see if radio interference is causing a problem, see if connection is possible when close to the DRG600-
WiFi.
• Remember that the connection range can be as little as 100 feet in poor environments.
Problem 2: Wireless connection speed is very slow.
Solution 2: The wireless system will connect at the highest possible speed, depending on the distance and the
environment. To obtain the highest possible connection speed, you can experiment with the following:
• DRG600-WiFi location:
Try adjusting the location and orientation of the DRG600-WiFi.
• Wireless Channel:
If interference is the problem, changing to another channel may show a marked improvement.
• Radio Interference:
Other devices may be causing interference. You can experiment by switching other devices Off, and see if
this helps. Any "noisy" devices should be shielded or relocated.
• RF Shielding:
Your environment may tend to block transmission between the wireless stations. This will mean high access
speed is only possible when close to the DRG600-WiFi.
Page 98 of 104
About Wireless LANs
9
This chapter provides some background information about using Wireless LANs (WLANs).
Modes
Wireless LANs can work in either of two (2) modes:
• Ad-hoc
• Infrastructure
Adhoc Mode
Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless Stations (e.g. notebook PCs
with wireless cards) communicate directly with each other.
Infrastructure Mode
In Infrastructure Mode, one or more Access Points are used to connect Wireless Stations (e.g. Notebook PCs
with wireless cards) to a wired (Ethernet) LAN. The Wireless Stations can then access all LAN resources.
A
ccess Points can only function in "Infrastructure" mode, and can communicate only with
W
ireless Stations which are set to "Infrastructure" mode.
BSS/ESS
BSS
A group of Wireless Stations and a single Access Point, all using the same ID (SSID), form a Basic Service Set
(BSS).
Using the same SSID is essential. Devices with different SSIDs are unable to communicate with each other.
ESS
A group of Wireless Stations, and multiple Access Points, all using the same ID (ESSID), form an Extended
Service Set (ESS).
Different Access Points within an ESS can use different Channels. In fact, to reduce interference, it is
recommended that adjacent Access Points SHOULD use different channels.
As Wireless Stations are physically moved through the area covered by an ESS, they will automatically change to the
Access Point which has the least interference or best performance. This capability is called Roaming. (Access
Page 99 of 104
Points do not have or require Roaming capabilities.)
Channels
The Wireless Channel sets the radio frequency used for communication.
Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which
provides the least interference and best performance. In the USA and Canada, 11 channels are available. If using
multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference.
In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than
one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.)
If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However,
most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join.
WEP
WEP (Wired Equivalent Privacy) is a standard for encrypting data before it is transmitted.
This is desirable because it is impossible to prevent snoopers from receiving any data which is transmitted by
your Wireless Stations. But if the data is encrypted, then it is meaningless unless the receiver can decrypt it.
If WEP is used, the Wireless Stations and the Access Point must have the same settings for each of the following:
WEP Off, 64 Bit, 128 Bit
Key For 64 Bit encryption, the Key value must match. For 128 Bit encryption,
the Key value must match
WEP Authentication Open System or Shared Key.
Page 100 of 104
WPAPSK
WPA-PSK is another standard for encrypting data before it is transmitted. This is a later standard than WEP
(Wired Equivalent Privacy), and provides greater security for your data. Data is encrypted using a 256Bit key
which is automatically generated and changed often.
If all your Wireless stations support WPA-PSK, you should use this instead of WEP.
If WPA-PSK is used, the Wireless Stations and the Access Point must have the same settings for each of the
following:
WPA PSK (Pre-
shared Key)
Enter the same value on every station and the AP. The PSK must be from 8 to
63 characters in length. The 256Bit key used for the actual encryption is
derived from this key.
Encryption The same encryption method must be used. The most common encryption
method is TKIP. Another widely-supported method is AES.
WPA2PSK
This is a later version of WPA (WPA-PSK). The major change is the use of AES (Advanced Encryption System)
for protecting data. AES is very secure, considered to be unbreakable. The PSK (Pre-shared Key) must be entered
on each Wireless station.
If WPA2-PSK is used, the Wireless Stations and the Access Point must have the same settings for each of the
following:
WPA2 PSK (Pre-
shared Key)
Enter the same value on every station and the AP. The PSK must be from 8 to
63 characters in length. The 256Bit key used for the actual encryption is
Encryption The same encryption method must be used. The most common encryption
method is AES.
Page 101 of 104
Wireless LAN Configuration
To allow Wireless Stations to use the Access Point, the Wireless Stations and the Access Point must use the same
settings, as follows:
Mode
On client Wireless Stations, the mode must be set to "Infrastructure". (The Access Point is always in
"Infrastructure" mode.)
Most Wireless stations will set the correct mode automatically.
SSID (ESSID)
Wireless Stations should use the same SSID (ESSID) as the Access Point they wish to connect to.
Alternatively, the SSID can be set to "any" or null (blank) to allow connection to any Access Point.
Security
The Wireless Stations and the Access Point must use the same settings for Wireless security.
(Off, WEP, WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK).
WEP If WEP is used, the Key size (64Bit, 128Bit), Key value, and Authentication settings must be the same on
the Wireless Stations and the Access Point.
WPA-PSK: If WPA is used, all Wireless Stations must be set to use WPA-PSK, and have the same Pre-shared
Key and encryption system.
WPA2-PSK: If WPA2 is used, all Wireless Stations must be set to use WPA2-PSK, and have the same Pre-shared
Key and encryption system.
WPA-PSK +WPA2-PSK: If WPA-PSK +WPA2-PSK is used, all Wireless Stations must be set to use WPA-
PSK +WPA2-PSK, and have the same Pre-shared Key and encryption system.
For Ad-hoc networks (no Access Point), all Wireless stations must use the same security settings.
Page 102 of 104
Specifications
10
MultiFunction DRG600WiFi
Model DRG600-
W
iFi
Dimensions 34mm
(W)
×166mm
(
H
)
×53mm
(
D
)
Operating
Temperature/
Humidity
0°C to 40°C (32°F to 104°F)
5% to 95% Non-Condensing
Storage
Temperature/
Humidity
–
10°C to 70°C (14°F to 158°F)
5% to 95% Non-Condensing
N
et
w
ork Protocol:
T
CP
/
IP
Network Interface:
2
FastEthernet:
LAN: two 10/100Base TX RJ-45 ports
one connector for WAN
LEDs Power, WLAN, LAN (1, 2)
Power Adapter 12V±10% (10.8V to 13.2V), DC 0.5A, Magnetics center-tap power taken from the
A
ccess module
Page 103 of 104
Wireless Interface
Standards IEEE 802.11b/g compliance
Frequency 2.4 to 2.4835GHz (Industrial Scientific Medical Band )
Channels Maximum 11 Channels, depending on regulatory authorities
Modulation DSSS BPSK/QPSK/CCK, OFDM/CCK
Data Rate Up to 54 Mbps
Coverage Area Indoors: 15m @54Mbps, 120m @6Mbps or lower
Outdoors: 40m @54Mbps, 300m @6Mbps or lower
Encryption
W
EP, WPA, WPA-PSK, and WPA2-PSK authentication
Output Power IEEE 802.11b: 18.62 dBm, IEEE 802.11g: 19.76 dBm (typical)
Receiver Sensitivit
y
-70dBm Min.
Regulatory Approvals
Health and safety CE Marking
Safety ETL Mark
Safety CB certified
Safety IEC/EN/UL 60950
Safety IEC/EN/UL 60825
Emission FCC Part 15 Subpart B
Emission EN 55022 (CISPR 22)
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
Immunity EN 55024 (IEC61000-4-2,3,4,5,6,8,11)
Page 104 of 104
Harmonics EN 61000-3-2
Flicker EN 61000-3-3
Radio EN 5360, EN50385, EN300328, EN 301489-1,
EN301489-17, FCC Part 15 subpart C
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
REMARK
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
