Sercomm FP16204 Access Point User Manual

Sercomm Corporation Access Point

UserManual.wiki >

Sercomm >

FP16204 User Manual

user manual



UserManual

FP16204Femtocell

3GAccessPointforOffices&IndoorSpaces



Contents

1Introduction....................................................................................................................... 3

2Gettingstarted .................................................................................................................. 4

2.1Checkwhat’sinthebox............................................................................................. 4

2.2Location ..................................................................................................................... 4

2.3Configurationandpowerup ..................................................................................... 5

3UsingyourFemtocell......................................................................................................... 6

3.1Howitworks.............................................................................................................. 6

3.2Broadbandconnection .............................................................................................. 6

3.3IndicatorLights .......................................................................................................... 6

3.4Privacy ....................................................................................................................... 7

3.5Emergencycalls ......................................................................................................... 7

4Troubleshooting ................................................................................................................ 8

5SafetyandProductcare .................................................................................................... 9

6Specifications................................................................................................................... 10

7Conformanceinformation............................................................................................... 11

8Glossary ........................................................................................................................... 13



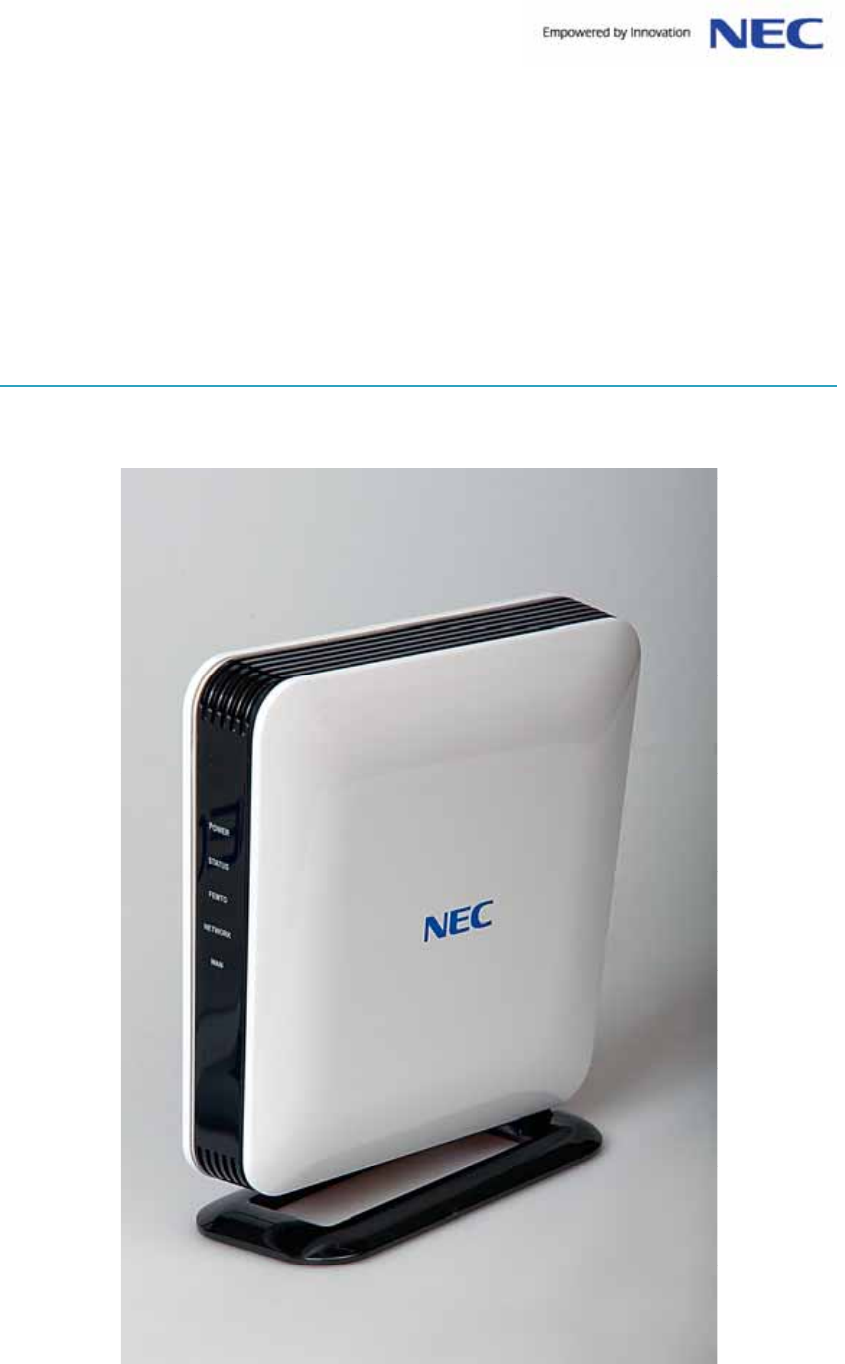

1Introduction



TheFP16204FemtocellAccessPointfromNECisoneofthemosttechnicallyadvanced3G

accesspoints,yetinstallationissimpleandstraightforward.

Pluggingthecompactunitintoyourbroadbandrouterorcablemodemwillgrantyour

existing3Gphoneordata‐cardexclusiveaccesstoitsown3Gaccesspoint.TheFemtocellis

likealow‐power3GequivalentofaWi‐Fihotspotthatworkswithallyour3Gdevices.Itcan

beconfiguredtohandlefour,eightorsixteenvoicecallsatthesametime.Thereisnoneed

toworryaboutdroppedcalls,poorvoicequalityorslowdataconnections,dependable

multi‐megabitspeedsarenowarealitywhereascoverageconcernsandnetworkcongestion

arethingsofthepast.

TheFemtocellhasnobuttonstopressandsimplyrequiresapowersourceandbroadband

dataconnectiontooperate.TheFemtocellautomaticallycommunicateswithacentral

managementsystemoverasecureInternetconnection.Ittakeslessthan10minutesto

firstcall.

ItisimportantthatyoureadeachsectionofthismanualbeforeoperatingtheFemtocell.

Pleasegiveparticularattentiontoalloperatinginstructionsandretainthemforfuture

reference.

2Gettingstarted



2.1Checkwhat’sinthebox



Femtocellwithfreestandingmountand

(optional)wallbracket



Ethernetdatacabletoconnectthe

FemtocelltoyourLAN,broadband

routerorcablemodem



Mainspowersupplyadaptorandplug



ExternalGPSantenna



UserGuide



2.2Location



TherangeoftheFemtocelldependsonanumberoffactorsincludingitslocation,

thenumberandtheconstructionofthewalls,andtheproximitytootherFemtocells.

Firstly,locateyournearestLANport,broadbanddatarouterorcablemodem,asthis

willneedtobeconnectedtotheFemtocell.

ItisworthspendingalittletimethinkingaboutwheretoplaceyourFemtocell.

Considerationsshouldincludewhereyouaremostlikelytomakeorreceivecalls:If

youwantedtotalktoeveryoneinyourhomeorofficewithoutshoutingtooloudly

thenwherewouldyoustand?ThatisprobablyagoodlocationfortheFemtocell.



Ideally,placeyourFemtocellsomewherecentralinanelevatedlocationandcloseto

awindow.

Forevenbettercoveragethroughoutthehome,theexternalGPSantennacanbe

connectedandplacedbyawindowtoallowtheFemtocelltobelocatedinamore

centrallocation. 

ToavoidinterferenceitisrecommendedthattheFemtocellisplacedatleast1m

awayfromanycordlessphonebaseunitorwirelessLANrouter.

YourFemtocellwillgenerateasmallamountofheat,soavoidpositioningtheunitin

anenclosedspaceorindirectsunlight.Keepyourdeviceatleast2inches(5cm)

fromwallsandothersurfacestoensureproperairflow.

Theunitcanbefreestandingorwallmounted.

(Theoptionalstandiseitherincludedinyourstandardproductpackagingoritcanbe

orderedasaseparateaccessory)



2.3Configurationandpowerup



1.InserttheSIMcardprovidedbyyourNetworkOperatorwiththeFemtocell

unit.TheSIMcardslotisaccessedthroughthecoveronthesideofthe

device.TheSIMcardisinsertedintheslotunderthecover.Anaudible

“click”willbeheardwhenpushedincorrectly.Pleasereplacethecover

whendone. 

2.ConnectoneendofthedatacabletotheFemtocellEthernetport.

3.ConnecttheotherendofthedatacabletoaspareEthernetportonyour

OfficeLAN,broadbandrouterormodem.

4.ConnecttheexternalGPSantenna(optional).PlacetheexternalGPS

antennahorizontallyonaflatsurfaceasclosetoawindowaspossible.The

antennaworksbestinanopenarea,sodonotcover.DonotplacetheGPS

antennaoutdoors;itisnotweatherproof.

5.PlugthepowersupplyadaptorintoamainssocketandtheFemtocellbefore

switchingonatthemains

6.Leavetheunitforabout10minutestoallowittoconfigureitselfandstartto

provideservice.

7. ThegreenindicatorlightwillstopflashingwhentheFemtocellisreadyto

use.Ifafter30minutestheindicatorlighthasnotstoppedflashingthen

pleaserefertotheTroubleshootingsectionofthisUserManual.

3UsingyourFemtocell



3.1Howitworks

Traditionallyyourmobilephoneprovidesserviceusingalong‐distanceradio

connectionwithamobilephonenetwork.

TheFemtocellisamobileaccesspointthatseamlesslyreplacesthisservicewhen

youareindoors.Itusesyourbroadbandinternetconnectiontocommunicatewith

themobilenetwork,andbecauseitprovidescoverageindoorsitisverylowpower‐

similarorlowerthanthepowerusedbyaregularcordlesshomephone,Wi‐Firouter

orevenyourmobilephone.

Theresultisoutstanding3Gcoverageincludingdependable,high‐speeddata

serviceslikemusicdownloadandvideo.The3Gmobilenetworkdetectswhenyou

aremovingbetweentheoutdoornetworkandyourindoorFemtocellcoveragearea

andautomaticallyshiftsbetweenthetwowithoutanyinterventionrequired.

3.2Broadbandconnection

IncreasesinbroadbanddataspeedsovertelephonelinesandcableTVnowmakeita

viablemeanstotransportotherformsofdataaswellastheInternetandmusic

downloads.

TheFemtocellplugsintoyourbroadbandinterfaceandaccessesyourMobile

Operator’snetworkinasecuremannerjustlikethemobileequipmentyousee

outside.Thisensuresthatitfunctionsinexactlythesameway,offeringyouallthe

latest3Gservices.Aswithanymobileequipment,theFemtocellautomatically

connectstothenetworkwithoutyouhavingtopressanybuttonstocommunicate

withitviaacomputer.

SincetheFemtocellsharesyourbroadbandinterfacewithyourPCInternet

connection,ithastobeabletosupportbothsimultaneously.Ifyoufrequently

downloadlargeamountsofdatasuchasmusicfromtheInternet,werecommend

thatyourbroadbandspeedisbetterthan1Mbpsinthedownlinkdirectionand512

kbpsintheuplinkdirection.Additionallyifyourbroadbandrouteriscapableof

supportingClassofServicedataprioritisationthenyoucanconfigureittoprioritise

yourFemtocelldataandprovideabetterqualityofservicetoyourmobiledevice.



3.3IndicatorLights

TheindicatorlighttellsyouwhattheFemtocellisdoingandwhetherornotitis

experiencinganyproblems.Itcanbeeithergreentoshowitisoperatingproperly,or

redtohighlightaproblem.TheFemtocellcantakeupto10minutestoconfigure

itselfafterswitchingonforthefirsttime.Duringthisperiod,itcarriesoutanumber

ofself‐checksandconfiguresitselftogivebestcoverageinyourhomeoroffice.All

communicationsbetweentheFemtocellandthecentralmanagementsystemare

secureandcarriedoveryourbroadbanddataconnection.

Ifforanyreasontheindicatorlightisredthismeansthatthereisaproblem.Section

4containsinformationaboutthestateoftheindicatorlight,whatitmeans,and

whatactionsneedtobetaken.

3.4Privacy

TheFemtocellensuresyourprivacybynotlogging,recordingorreportingphone

calls,phonenumbers,datafiles,webpagesoranyotherinformationexceptas

requiredbyyourServiceProviderorMobileOperatorasanormalpartofitslegal

commitments.



3.5Emergencycalls

Likeotherphonesthatrequireapowersourcebutdonothaveabatterybackup,the

Femtocellshouldnotberelieduponasanonlymeanstomakea911emergencycall.



4Troubleshooting

TheRedIndicatorlightisusedtosignalaproblemwiththeunit.

IftheRedIndicatorlightisflashingthismeansthatthereisaproblemwhichyoucan

resolveyourself.Thenumberofflashesindicatesthetypeofproblemasshownin

thetablebelow.

IftheRedIndicatorlightisonbutnotflashingthenpleasecontactyourcustomer

carewhowillbeabletoassistyouwiththeproblem.

Numberof

flashes

ProblemResolution

1Noconnectionto

localbroadband

router

Checktheconnectionbetweenthebroadband

routerandtheFemtocell.

2Nointernet

connection

Checkthatthebroadbandrouterisconnectedtothe

Internetandisprovidingservice.

3Interference

problem

Thereisinterfacewithothersystems.Tryplacing

theFemtocellinadifferentplace.Ifthispersists

pleasecontactcustomerservices.

4OverheatingChecktheFemtocellislocatedwherethereisgood

airflow.

5SIMcardproblemChecktoseethattheSIMcardisinsertedcorrectly

andthatitistheoneprovidedwiththeFemtocell.

5 SafetyandProductcare

Allinstructions,warningandcautionstatementsthataccompanythisequipment

mustbestrictlyfollowedatalltimestoensureitssafeuse.Observeallwarningand

cautionsymbolsthatarefixedtothisequipment.

Thiselectricalequipmentisdesignedwiththeutmostcareforthesafetyofthose

whoinstallanduseit.However,whenusingthisdevice,basicsafetyprecautions

shouldalwaysbefollowedtoreducetheriskoffireandinjurytopersons,andthe

dangersofelectricshockandstaticelectricity.

Donotcoverthedeviceorblocktheairflowtothedevicewithanyotherobjects.

Dustoccasionallytokeepairventsclearofdebris.Donotuseliquidcleaners.

Thisproductwasqualifiedundertestconditionsthatincludedtheuseofthe

suppliedcablesbetweensystemcomponents.Tobeincompliancewithregulations,

theusermustusethecablessuppliedwiththeunitandinstallthemproperly.This

includesthepoweradapterthatisprovided.

Operatethisproductonlywiththetypeofpowersourceindicatedonthemarking

label.Ifyouarenotsureofthetypeofpowersuppliedtoyourpropertythenplease

consultyourdealerorlocalelectricitycompany.Donotusethisproductoutdoorsor

donotusethisproductnearwater.Keepthedeviceawayfromexcessiveheatand

humidityandkeepthedevicefreefromvibrationanddust.Wipetheunitwitha

clean,drycloth.Neverusecleaningfluidorsimilarchemicals.Donotspraycleaners

directlyontheunitoruseforcedairtoremovedust.Avoidinstallingorusingthis

productduringanelectricalstorm,theremaybearemoteriskofelectricshockfrom

lightning.Duringanelectricalstorm,foraddedprotectionpleaseunplugtheunit

fromthewalloutletanddisconnectallcables.Thiswillpreventdamagedueto

lightningandpowersurges.Forsafetyreasons,onlyauthorisedservicetechnicians

shouldopenthedevice.Ifthedeviceisopenedthenthewarrantywillbecomevoid.

Thedevicemayaffectmedicalequipmentsopleasetakeaccountofanyassociated

technologyrestrictions.Thisdevice,likeotherradiodevices,emitsradiofrequency

electromagneticenergy,butoperateswithintheguidelinesfoundinradiofrequency

safetystandardsandrecommendations.Itisrecommendedthattheminimum

operatingdistancefromtheinstalledFemtocelltopersonsis20cm.Ensurethe

FemtocellisturnedoffwheninsertingorremovingtheSIMcard.Donotbendor

scratchtheSIMcard.Keepitawayfromstaticelectricity,wateranddirt.

6Specifications



Model FP16204

RadioInterface3GPPWCDMABandϰ

Range 200mmaximum(50minatypicaloffice)

Transmitpower20dBmmaximum

CapacityUpto4,8or16userssimultaneouslyusingamixof

voiceanddataapplications(subjecttosoftware

licence)

PowerSupplyPlugtopACAdaptorwithmainsplugadapter.AC100

～250V,50Hz/60Hz.

PowerConsumption10.5Watts

OperatingTemperature0Cto+40C

StorageTemperature‐5to45C

OperatingHumidity90%non‐condensing



7Conformanceinformation



United States FCC Compliance

ThisdevicehasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstsuchinterferenceinaresidentialinstallation.This

equipmentgenerates,uses,andcanradiateradiofrequencyenergy.Ifnotinstalled

andusedinaccordancewiththeinstructions,itmaycauseharmfulinterferenceto

radiocommunications.However,thereisnoguaranteethatinterferencewillnot

occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterference

toradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

OFFandON,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

Reorientorrelocatethereceivingantenna,ifapplicable.

Increasetheseparationbetweentheequipmentandreceiver.

Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

Consulttheserviceprovideroranexperiencedradio/televisiontechnicianforhelp.

AnychangesormodificationsnotexpresslyapprovedbyNECcouldvoidtheuser’s

authoritytooperatetheequipment.

TheinformationshownintheFCCDeclarationofConformityparagraphbelowisa

requirementoftheFCCandisintendedtosupplyyouwithinformationregarding

theFCCapprovalofthisdevice.

Declaration of Conformity

Description: 3G Femtocell

Model: FP16204

FCC ID: P27-FP16204



ThisdevicecomplieswithPart15ofFCCRules.Operationissubjecttothefollowing

twoconditions:

‐ Thedevicemaynotcauseharmfulinterference.

‐ Thedevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.

Canada EMI Regulation

ThisClassBdigitalapparatuscomplieswithCanadianICES‐003.

CetappareilnumériquedelaclassBestconformeàlanormeNMB‐003duCanada.

ThisdevicecomplieswithRSS‐132andRSS‐133oftheIndustryCanadaRules.

Operationissubjecttothefollowingtwoconditions:

‐ Thisdevicemaynotcauseharmfulinterference.

‐ Thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.

Radiation Exposure Statement

ThisdevicecomplieswithFCC’sRFradiationexposurelimitssetforthforan

uncontrolledenvironmentunderthefollowingconditions:

Thisdeviceshouldbeinstalledandoperatedsuchthataminimumseparation

distanceof8inches(20cm)ismaintainedbetweentheradiator(antenna)andthe

user’sornearbyperson’sbodyatalltimes.

Thistransmittermustnotbeco‐locatedoroperatedinconjunctionwithanyother

antennaortransmitter.

Formoreinformation,seethepublication“FemtocellsandHealth”athttp://

www.femtoforum.orgorvisittheFCCwebsiteathttp://www.fcc.gov

Disclaimer

NECassumesnoresponsibilityforerrorsoromissionsthatmayappearinthisguide.

Wereservetherighttochangethisguideatanytimewithoutnotice.

8Glossary



3G ThirdGenerationmobileradiotechnologyusingWCDMAandthe

successortoGSM.

3GPP ThirdGenerationPartnershipProject.Acollaborationof

telecommunicationassociationsaroundtheworldresponsiblefor

definingthespecificationsforaworldwide3Gmobilenetwork.

Broadband Generictermusedtodescribeawidebandwidthdataconnection

suitableforInternetbrowsinganddownloadingmusic.

Cable

modem

Modulethatprovidesaccesstoadatasignalsentoverthecable

televisionnetwork.

DECT DigitalEnhancedCordlessTelecommunications.Standardfordigital

portablephonesthatareusedinthehomeoroffice.

DSL DigitalSubscriberLine.Abroadbandconnectionoverexisting

telephonelinesthatissuitableforalways‐onInternetbrowsing.

Ethernet Thephysicalconnectionusedincomputernetworks.

Femtocell Anothertermforaminiaturewirelessaccesspointforuseinthe

home.Thetermfemto,denotingafactorof10‐15,istohighlightits

smallsize.

GSM GlobalSystemforMobilecommunications.Themostpopularsecond

generation(2G)mobiletechnologyprimarilydesignedforvoice

communicationsandwidelyusedacrossEuropeandtherestofthe

world.

Hotspot AvenuethatprovideswirelessdataaccessusingWi‐Fi.

HSDPA High‐SpeedDownlinkPacketAccess.Itisanenhancementtothe3G

standardtosupporthigherdataspeedsovertheinterfacebetween

thebasestationandamobiledevice.

HSPA High‐SpeedPacketAccess.ReferstobothHSDPAandHSUPA.

HSUPA High‐SpeedUplinkPacketAccess.Itisanenhancementtothe3G

standardtosupporthigherdataratesbetweenthemobiledeviceand

abasestation.

SIM SubscriberIdentityModule.Removablesmartcardusedinamobile

phoneordatacardtoholdnetworksecuritydata,identifytheowner

andstorepersonalinformation.

UplinkWirelessconnectionbetweenthemobiledeviceandthefixedbase

station.

WCDMAWidebandCodeDivisionMultipleAccess.Fundamentaltechnologyfor

3GnetworksusedinEuropeandtherestoftheworld.

Wi‐FiWirelesstechnologytoprovidealocaldataconnectionbetween

electronicproducts.



NECFP16204FemtocellUserManual

Version1.0

September2011



Otherbrandandproductnamesaretrademarksoftheirrespectiveowners.

Informationissubjecttochangewithoutnotice.



NECEuropeLtd

RegisteredinEnglandNo.2832014

RegisteredOffice:

NECHouse,

1VictoriaRoad,

LondonW36BL

Web:www.nec.com/femtocell

Email:femtocell@eu.nec.com

Tel:+44(0)2089938111



Sercomm FP16204 Access Point User Manual

Sercomm Corporation Access Point

user manual

Navigation menu

Namespaces

Views

Navigation
