User's Guide
Table of Contents
CHAPTER 1 INTRODUCTION .............................................................................................1
Wireless ADSL Router Features......................................................................................1
Package Contents ..............................................................................................................4
Physical Details..................................................................................................................5
CHAPTER 2 INSTALLATION...............................................................................................7
Requirements.....................................................................................................................7
Procedure...........................................................................................................................7
CHAPTER 3 SETUP ................................................................................................................9
Overview ............................................................................................................................9
Configuration Program ..................................................................................................11
Setup Wizard ...................................................................................................................12
Configuring VC2, VC3 and VC4 ...................................................................................14
Home Screen....................................................................................................................16
LAN Screen......................................................................................................................17
Wireless Screen................................................................................................................19
Wireless Security.............................................................................................................22
Trusted Wireless Stations...............................................................................................24
Password Screen..............................................................................................................26
Mode Screen.....................................................................................................................27
CHAPTER 4 PC CONFIGURATION..................................................................................28
Overview ..........................................................................................................................28
Windows Clients..............................................................................................................28
Macintosh Clients............................................................................................................39
Linux Clients....................................................................................................................39
Other Unix Systems.........................................................................................................39
Wireless Station Configuration......................................................................................40
Wireless Configuration on Windows XP.......................................................................40
CHAPTER 5 OPERATION AND STATUS.........................................................................50
Operation - Router Mode ...............................................................................................50
Status Screen....................................................................................................................50
Connection Status - PPPoE & PPPoA...........................................................................54
Connection Details - Dynamic IP Address....................................................................55
Connection Details - Fixed IP Address..........................................................................56
CHAPTER 6 ADVANCED FEATURES..............................................................................57
Overview ..........................................................................................................................57
Internet.............................................................................................................................57
Dynamic DNS (Domain Name Server)..........................................................................61
Firewall Rules..................................................................................................................63
User-defined Services......................................................................................................68
Options .............................................................................................................................70
Schedule............................................................................................................................71
Virtual Servers.................................................................................................................73
VPN Setup........................................................................................................................75
CHAPTER 7 ADVANCED ADMINISTRATION...............................................................83
Overview ..........................................................................................................................83
PC Database.....................................................................................................................84
Config File........................................................................................................................88
Logging.............................................................................................................................89
E-mail ...............................................................................................................................91
Diagnostics .......................................................................................................................93
Remote Administration...................................................................................................94
i
Routing.............................................................................................................................96
Upgrade Firmware........................................................................................................100
CHAPTER 8 MODEM MODE............................................................................................101
Overview ........................................................................................................................101
Management Connections ............................................................................................101
Home Screen..................................................................................................................102
Mode Screen...................................................................................................................103
Operation .......................................................................................................................103
Status Screen..................................................................................................................104
APPENDIX A TROUBLESHOOTING..............................................................................106
Overview ........................................................................................................................106
General Problems..........................................................................................................106
Internet Access...............................................................................................................106
Wireless Access..............................................................................................................107
APPENDIX B ABOUT WIRELESS LANS........................................................................109
Modes .............................................................................................................................109
BSS/ESS..........................................................................................................................109
Channels.........................................................................................................................110
WEP................................................................................................................................110
WPA-PSK ......................................................................................................................110
Wireless LAN Configuration........................................................................................111
APPENDIX C ABOUT VPNS..............................................................................................112
Overview ........................................................................................................................112
Common VPN Situations..............................................................................................114
VPN Example.................................................................................................................115
APPENDIX D SPECIFICATIONS .....................................................................................119
Multi-Function Wireless ADSL Router.......................................................................119
Wireless Interface..........................................................................................................119
Regulatory Approvals...................................................................................................120
P/N: 956YBM0001
Copyright © 2006. All Rights Reserved.
Document Version: 1.0
All trademarks and trade names are the properties of their respective owners.
ii
1
Chapter 1
Introduction
This Chapter provides an overview of the Wireless ADSL Router's features
and capabilities.
Congratulations on the purchase of your new Wireless ADSL Router. The Wireless ADSL
Router is a multi-function device providing the following services:
• ADSL Modem.
• Shared Broadband Internet Access for all LAN users.
• Wireless Access Point for 802.11b and 802.11g Wireless Stations.
• VPN Gateway to allow secure VPN connections over the Internet.
• 4-Port Switching Hub for 10BaseT or 100BaseT connections.

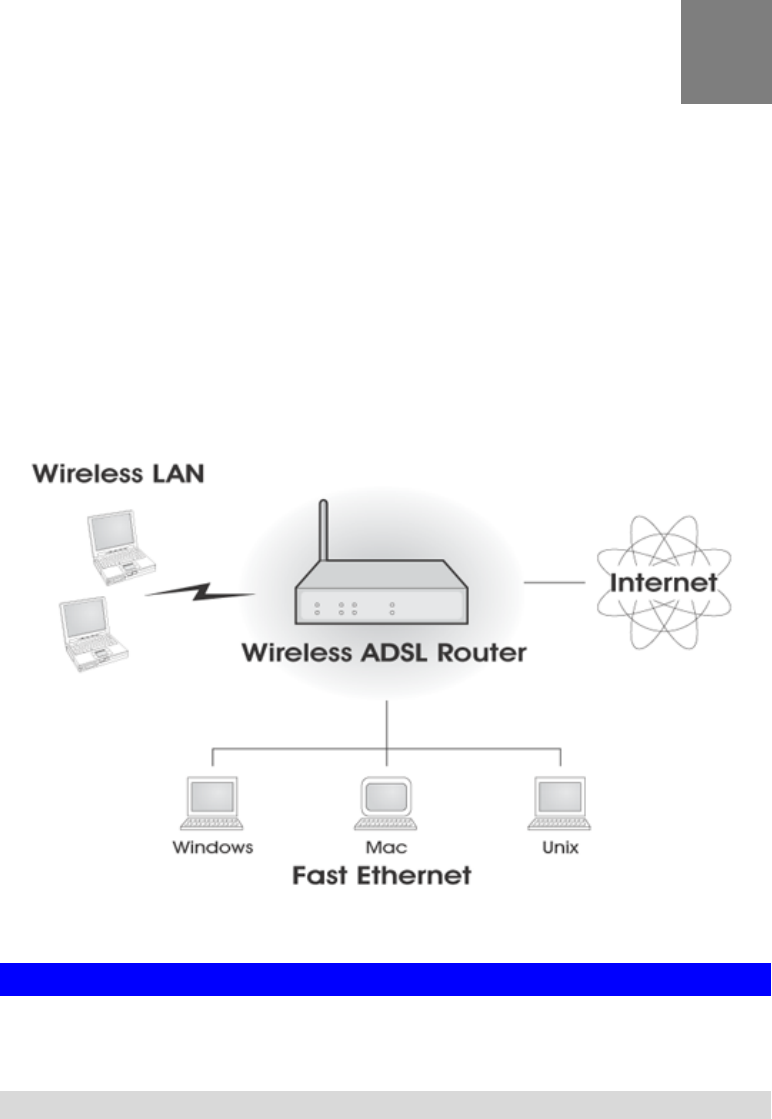

Figure 1: Wireless ADSL Router
Wireless ADSL Router Features
The Wireless ADSL Router incorporates many advanced features, carefully designed to
provide sophisticated functions while being easy to use.
Internet Access Features
• Shared Internet Access. All users on the LAN or WLAN can access the Internet
through the Wireless ADSL Router, using only a single external IP Address. The local
(invalid) IP Addresses are hidden from external sources. This process is called NAT
(Network Address Translation).
• Built-in ADSL Modem. The Wireless ADSL Router has a built-in ADSL modem,
supporting all common ADSL connections.
1
Wireless ADSL Router User Guide
• IPoA, PPPoE, PPPoA, Direct Connection Support. The Wireless ADSL Router
supports all common connection methods.
• Auto-detection of Internet Connection Method. In most situations, the Wireless
ADSL Router can test your ADSL and Internet connection to determine the connection
method used by your ISP.
• Fixed or Dynamic IP Address. On the Internet (ADSL port) connection, the Wireless
ADSL Router supports both Dynamic IP Address (IP Address is allocated on connection)
and Fixed IP Address.
Advanced Internet Functions
• Application Level Gateways (ALGs). Applications which use non-standard
connections or port numbers are normally blocked by the Firewall. The ability to define
and allow such applications is provided, to enable such applications to be used normally.
• Special Applications. This feature, also called Port Triggering, allows you to use
Internet applications which normally do not function when used behind a firewall.
• Virtual Servers. This feature allows Internet users to access Internet servers on your
LAN. The required setup is quick and easy.
• Dynamic DNS Support. DDNS, when used with the Virtual Servers feature, allows
users to connect to Servers on your LAN using a Domain Name, even if you have a
dynamic IP address which changes every time you connect.
• URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users.
• Firewall. As well as the built-in firewall to protect your LAN, you can define Firewall
Rules to determine which incoming and outgoing traffic should be permitted.
• Scheduling. Both the URL Filter and Firewall rules can be scheduled to operate only at
certain times. This provides great flexibility in controlling Internet -bound traffic.
• Logs. Define what data is recorded in the Logs, and optionally send log data to a Syslog
Server. Log data can also be E-mailed to you.
• VPN Pass through Support. PCs with VPN (Virtual Private Networking) software
using PPTP, L2TP and IPSec are transparently supported - no configuration is required.
VPN Features
• IPSec Support. IPSec is the most common protocol.
• Easy Configuration. The configuration required to allow 2 Wireless ADSL Routers to
establish a VPN connection between them is easy accomplished.
Wireless Features
• Standards Compliant. The Wireless ADSL Router complies with the IEEE802.11g
(DSSS) specifications for Wireless LANs.
• Supports both 802.11b and 802.11g Wireless Stations. The 802.11g standard
provides for backward compatibility with the 802.11b standard, so both 802.11b and
802.11g Wireless stations can be used simultaneously.
• Speeds to 54Mbps. All speeds up to the 802.11g maximum of 54Mbps are supported.
• WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key sizes of
64 Bit and 128 Bit are supported. WEP encrypts any data before transmission, providing
protection against snoopers.
• WPA-PSK support. Like WEP, WPA-PSK encrypts any data before transmission,
providing protection against snoopers. The WPA-PSK is a later standard than WEP, and
provides both easier configuration and greater security than WEP.
2
Introduction
• Wireless MAC Access Control. The Wireless Access Control feature can check the
MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless
Stations can access your LAN.
• Simple Configuration. If the default settings are unsuitable, they can be changed
quickly and easily.
LAN Features
• 4-Port Switching Hub. The Wireless ADSL Router incorporates a 4-port 10/100BaseT
switching hub, making it easy to create or extend your LAN.
• DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP
address to PCs and other devices upon request. The Wireless ADSL Router can act as a
DHCP Server for devices on your local LAN and WLAN.
Configuration & Management
• Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for
configuration.
• Configuration File Upload/Download. Save (download) the configuration data from
the Wireless ADSL Router to your PC, and restore (upload) a previously-saved
configuration file to the Wireless ADSL Router.
• Remote Management. The Wireless ADSL Router can be managed from any PC on
your LAN or Wireless LAN. And, if the Internet connection exists, it can also (optionally)
be configured via the Internet.
• Network Diagnostics. You can use the Wireless ADSL Router to perform a Ping or
DNS lookup.
Security Features
• Password - protected Configuration. Password protection is provided to prevent
unauthorized users from modifying the configuration data and settings.
• Wireless LAN Security. WPA-PSK, WEP and Wireless access control by MAC
address are all supported. The MAC-level access control feature can be used to prevent
unknown wireless stations from accessing your LAN.
• NAT Protection. An intrinsic side effect of NAT (Network Address Translation)
technology is that by allowing all LAN users to share a single IP address, the location and
even the existence of each PC is hidden. From the external viewpoint, there is no network,
only a single device - the Wireless ADSL Router.
• Firewall. All incoming data packets are monitored and all incoming server requests are
filtered, thus protecting your network from malicious attacks from external sources.
• Protection against DoS attacks. DoS (Denial of Service) attacks can flood your
Internet connection with invalid packets and connection requests, using so much
bandwidth and so many resources that Internet access becomes unavailable. The Wireless
ADSL Router incorporates protection against DoS attacks.
3
Wireless ADSL Router User Guide
Package Contents
The following items should be included. If any of these items are damaged or missing, please
contact your dealer immediately.
• The Wireless ADSL Router Unit
• 1 Cat-5 Ethernet (LAN) cable (Yellow Color)
• 1 RJ-11 (ADSL) cable (Gray Color)
• 1 RJ-11 to RJ45 cable (Germany only/Gray Color)
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual.
4
Introduction
Physical Details
Front-mounted LEDs

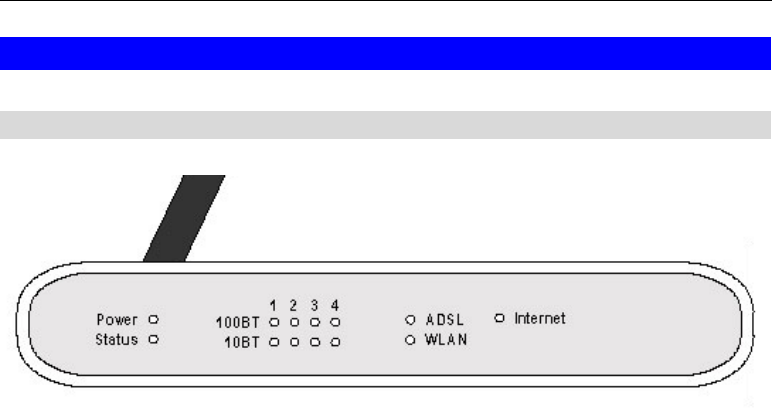

Figure 2: Front Panel
Power LED
(Green) On - Power on.
Off - No power.
Status LED
(Yellow) Off - Normal operation.
Blinking - This LED blinks during start up, and during a Firmware
Upgrade.
LAN For each port, there are 2 LEDs, to indicate the connection speed
(10BaseT or 100BaseT) of each port.
• 100BT - This will be ON if the LAN connection is using 100BaseT,
and Blinking if data is being transferred via the corresponding LAN
port.
• 10BT - This will be ON if the LAN connection is using 10BaseT, and
Blinking if data is being transferred via the corresponding LAN port.
• If neither LED is on, there is no active connection on the
corresponding LAN port.
ADSL On - ADSL connection established.
Off - No ADSL connection currently exists.
Flashing – ADSL is synchronizing.
WLAN On - Wireless enabled.
Off - No Wireless connections currently exist.
Flashing - Data is being transmitted or received via the Wireless access
point. This includes "network traffic" as well as user data.
Internet On - Internet connection is available.
Off - No Internet connection available.
Flashing - Data is being transmitted or received via the ADSL connection.
5
Wireless ADSL Router User Guide
Rear Panel

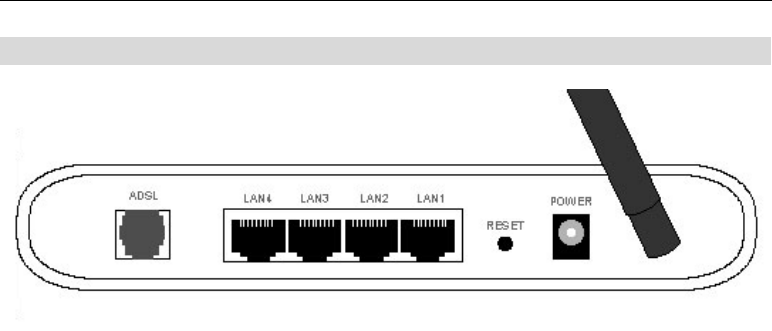

Figure 3: Rear Panel
ADSL port Connect this port to your ADSL line.
10/100BaseT
LAN connections Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
Note:
Any LAN port on the Wireless ADSL Router will automatically
function as an "Uplink" port when required. Just connect any port to
a normal port on the other hub, using a standard LAN cable.
Reset Button
(Reset to Defaults) This button will reset the Wireless ADSL Router to the factory
default settings.
To do this, press and hold the Reset Button for five (5) seconds, until
the Status LED is lit, then release the Reset Button, and wait the
Wireless ADSL Router to restart using the factory default values.
Power port Connect the supplied power adapter here.
6
Chapter 2
Installation
This Chapter covers the physical installation of the Wireless ADSL Router.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
• For Internet Access, an Internet Access account with an ISP, and a DSL connection.
• To use the Wireless Access Point, all Wireless devices must be compliant with the IEEE
802.11g or IEEE 802.11b specifications.
Procedure
Figure 4: Installation Diagram
1. Choose an Installation Site
Select a suitable place on the network to install the Wireless ADSL Router.
For best Wireless reception and performance, the Wireless
ADSL Router should be positioned in a central location with
minimum obstructions between the Wireless ADSL Router
and the PCs.
Also, if using multiple Access Points, adjacent Access
Points should use different Channels.
2
7
Wireless ADSL Router User Guide
2. Connect LAN Cables
Use standard LAN cables to connect PCs to the Switching Hub ports on the Wireless
ADSL Router. Both 10BaseT and 100BaseT connections can be used simultaneously.
If required, connect any port to a normal port on another Hub, using a standard LAN cable.
Any LAN port on the Wireless ADSL Router will automatically function as an "Uplink"
port when required.
3. Connect ADSL Cable
Connect the supplied ADSL cable from to the ADSL port on the Wireless ADSL Router
(the RJ11 connector) to the ADSL terminator provided by your phone company.
4. Power Up
Connect the supplied power adapter to the Wireless ADSL Router. Use only the power
adapter provided. Using a different one may cause hardware damage.
5. Check the LEDs
• The Power LED should be ON.
• The Status LED should flash, then turn Off. If it stays on or blinking after 60 seconds,
there is a hardware error.
• For each LAN (PC) connection, one of the LAN LEDs should be ON (provided the PC is
also ON.)
• The WLAN LED should be ON
• The ADSL LED should be ON if ADSL line is connected.
• The Internet LED may be OFF. After configuration, it should come ON.
For more information, refer to Front-mounted LEDs in Chapter 1.
8
Chapter 3
Setup
This Chapter provides Setup details of the Wireless ADSL Router.
Overview
This chapter describes the setup procedure for:
• Internet Access
• LAN configuration
• Wireless setup
• Assigning a Password to protect the configuration data.
PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC
Configuration.
Other configuration may also be required, depending on which features and functions of the
Wireless ADSL Router you wish to use. Use the table below to locate detailed instructions for
the required functions.
To Do this: Refer to:
Configure PCs on your LAN. Chapter 4:
PC Configuration
Check Wireless ADSL Router operation and Status. Chapter 5:
Operation and Status
Use any of the following Advanced features:
• Internet (DMZ, Special Applications, URL Filter)
• Dynamic DNS
• Firewall Rules
• Firewall Services
• Schedule
• Virtual Servers
• VPN
Chapter 6:
Advanced Features
3
9
Wireless ADSL Router User Guide
Use any of the following Administration Configuration
settings or features:
• PC Database
• Config File
• Logging
• E-mail
• Diagnostics
• Remote Admin
• Routing
• Upgrade Firmware
Chapter 7
Advanced Administration
10
Setup
Configuration Program
The Wireless ADSL Router contains an HTTP server. This enables you to connect to it, and
configure it, using your Web Browser. Your Browser must support JavaScript.
The configuration program has been tested on the following browsers:
• Netscape 7.1 or later.
• Mozilla 1.6 or later
• Internet Explorer V5.5 or later
Preparation
Before attempting to configure the Wireless ADSL Router, please ensure that:
• Your PC can establish a physical connection to the Wireless ADSL Router. The PC and
the Wireless ADSL Router must be directly connected (using the Hub ports on the
Wireless ADSL Router) or on the same LAN segment.
• The Wireless ADSL Router must be installed and powered ON.
• If the Wireless ADSL Router's default IP Address (192.168.0.1) is already used by
another device, the other device must be turned OFF until the Wireless ADSL Router is
allocated a new IP Address during configuration.
Using your Web Browser
To establish a connection from your PC to the Wireless ADSL Router:
1. After installing the Wireless ADSL Router in your LAN, start your PC. If your PC is
already running, restart it.
2. Start your WEB browser.
3. In the Address box, enter "HTTP://" and the IP Address of the Wireless ADSL Router, as
in this example, which uses the Wireless ADSL Router's default IP Address:
HTTP://192.168.0.1
4. When prompted for the User name and Password, enter values as follows:
• User name admin
• Password password
11
Wireless ADSL Router User Guide
If you can't connect
If the Wireless ADSL Router does not respond, check the following:
• The Wireless ADSL Router is properly installed, LAN connection is OK, and
it is powered ON. You can test the connection by using the "Ping" command:
• Open the MS-DOS window or command prompt window.
• Enter the command:
ping 192.168.0.1
If no response is received, either the connection is not working, or your
PC's IP address is not compatible with the Wireless ADSL Router's IP
Address. (See next item.)
• If your PC is using a fixed IP Address, its IP Address must be within the range
192.168.0.2 to 192.168.0.254 to be compatible with the Wireless ADSL
Router's default IP Address of 192.168.0.1. Also, the Network Mask must be
set to 255.255.255.0. See Chapter 4 - PC Configuration for details on
checking your PC's TCP/IP settings.
• Ensure that your PC and the Wireless ADSL Router are on the same network
segment. (If you don't have a router, this must be the case.)
• Ensure you are using the wired LAN interface. The Wireless interface can only
be used if its configuration matches your PC's wireless settings.
Setup Wizard
The first time you connect to the Wireless ADSL Router, you should run the Setup Wizard to
configure the ADSL and Internet Connection.
1. Click the Setup Wizard link on the main menu
2. On the first screen, select VC 1 (Router - Primary Internet Connection), then click "Next"

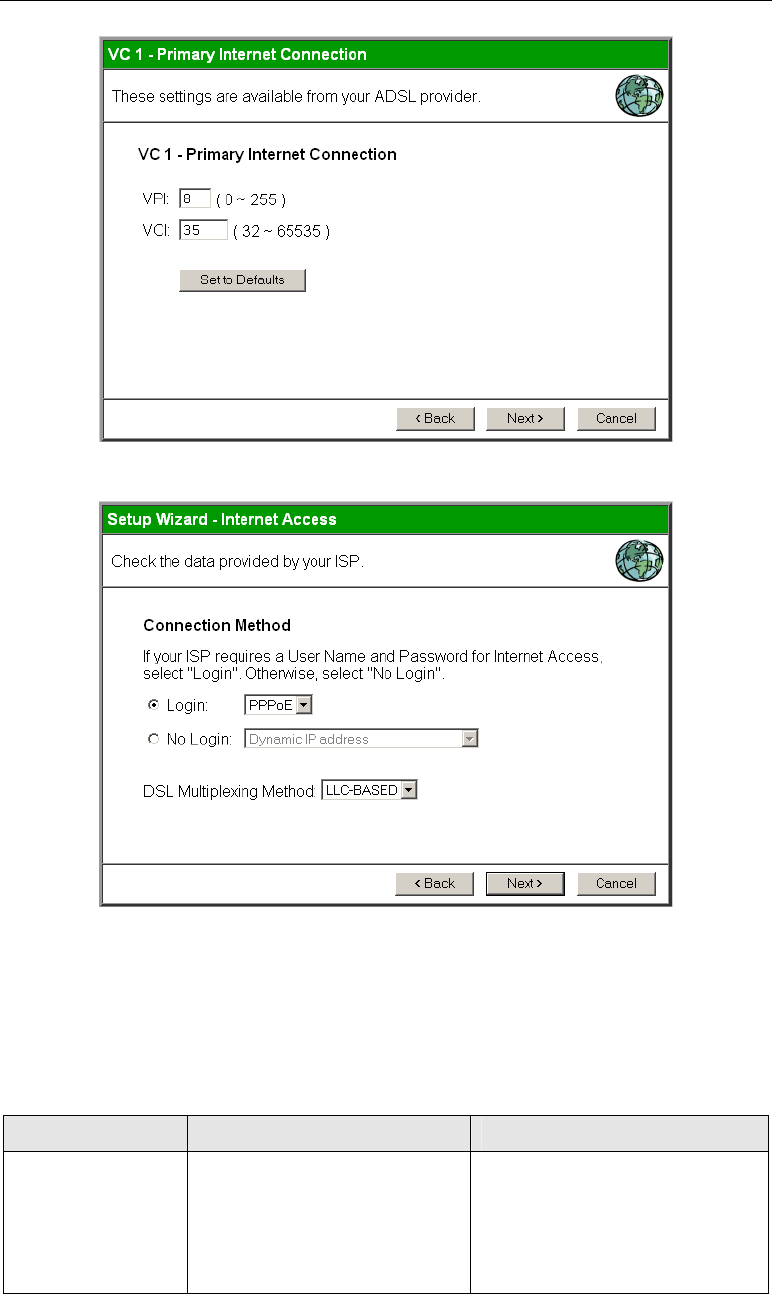

Figure 5: Setup Wizard Home Page
3. On the VC1 screen, shown below, enter the VPI and VCI values provided by your ISP,
then click "Next".
12
Setup
Figure 6: Setup Wizard - VC1
Figure 7: Setup Wizard - Internet Access
4. On the Internet Access Screen, shown above, select the correct connection type, as used
by your ISP. Click "Next" and complete the configuration for your connection method.
• You need the data supplied by your ISP. Your ISP's data will also have the DSL
Multiplexing Method ( LLC or VC )
• The common connection types are explained in the following table..
Connection Type Details ISP Data required
Dynamic
IP Address Your IP Address is allocated
automatically, when you
connect to you ISP.
Often, none.
Some ISP's may require you to
use a particular Hostname or
Domain name, or MAC (physical)
address.
13
Wireless ADSL Router User Guide
Static (Fixed)
IP Address Your ISP allocates a permanent
IP Address to you.
Usually, the connection is
"Always on".
IP Address allocated to you, and
related information, such as
Network Mask, Gateway IP
address, and DNS address.
PPPoE, PPPoA You connect to the ISP only
when required. The IP address
is usually allocated
automatically.
a) User name and password are
always required.
b) If using a Static (Fixed) IP
address, you need the IP address
and related information (Network
Mask, Gateway IP address, and
DNS address)
IPoA
(IP over ATM) Normally, the connection is
"Always on". IP Address allocated to you, and
related information, such as
Network Mask, Gateway IP
address, and DNS address.
5. Step through the Wizard until finished.
6. On the final screen of the Wizard, run the test and check that an Internet connection can be
established.
7. If the connection test fails:
• Check all connections, and the front panel LEDs.
• Check that you have entered all data correctly.

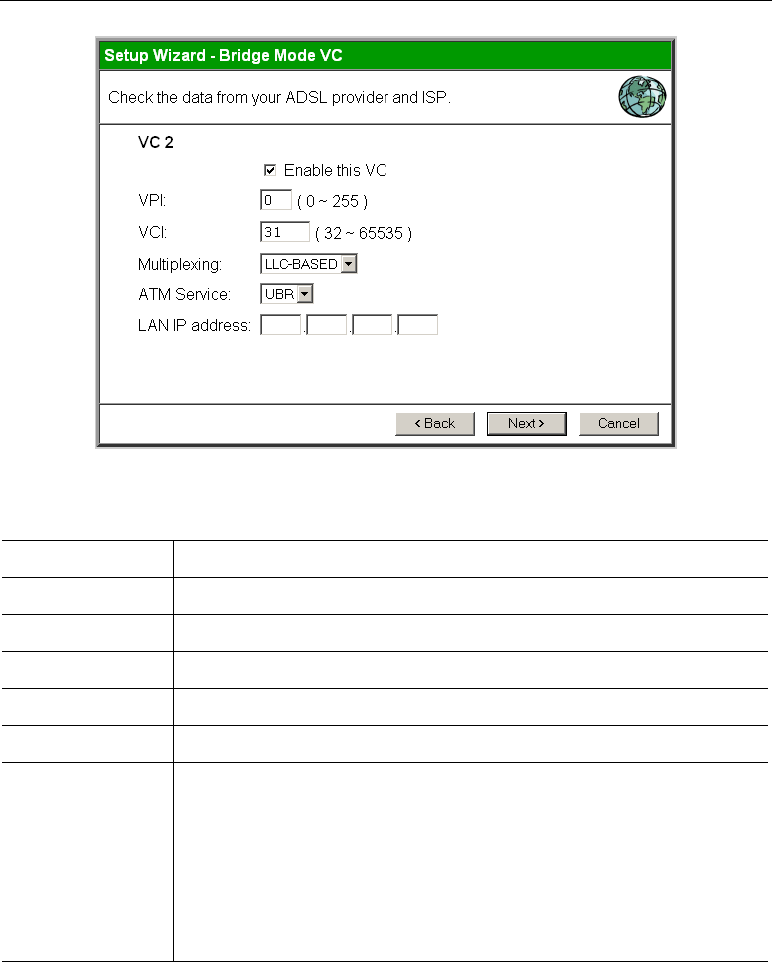

Configuring VC2, VC3 and VC4
The Wireless ADSL Router supports multiple VCs (Virtual Circuits) on the ADSL connection.
VC1 must be used for general-purpose Internet access. The other VCs (VC2, VC3 and VC4)
are available for special purposes, such as Video-on-Demand.
You can only use these VCs if supported by your ISP and ADSL service provider. In that case,
they will provide the necessary configuration data.
Some ISP's allow multiple PPPoE connections. This allows
multiple PCs to connect to the Internet using PPPoE client
software. When using the Wireless ADSL Router, multiple
PPPoE connections are neither necessary nor supported.
To Configure additional VCs
1. Start the Setup Wizard again.
2. On the first screen, select VC2, and click "Next"
3. Configure the VC setup screen as described below, then click "Next".
14
Setup
Figure 8: Setup Wizard - VC2
Setup Wizard VC Screen
VC The VC number is displayed (VC2, VC3, or VC4)
Enable To use this VC, you must enable it by checking this checkbox.
VPI Enter the VPI value provided by your ISP.
VCI Enter the VPI value provided by your ISP.
Multiplexing Select the multiplexing value provided by your ISP.
ATM Service Select the multiplexing value provided by your ISP.
IP Address Enter the IP address of the device on your LAN which will receive the
data on this VC.
• For Video-on-Demand, this would be the IP address of your
SetTop Box.
• For VoIP, this would be the IP address of your VoIP TA.
• Note that this IP address does not have to be in the same IP
address range as other devices on your local LAN.
4. When finished, click "Next" and complete the Wizard.
5. After completing the Wizard, you can check the Status screen to see the VC has been
corrected established.
15
Wireless ADSL Router User Guide
Home Screen
After finishing the Setup Wizard, you will see the Home screen. When you connect in future,
you will see this screen when you connect. An example screen is shown below.

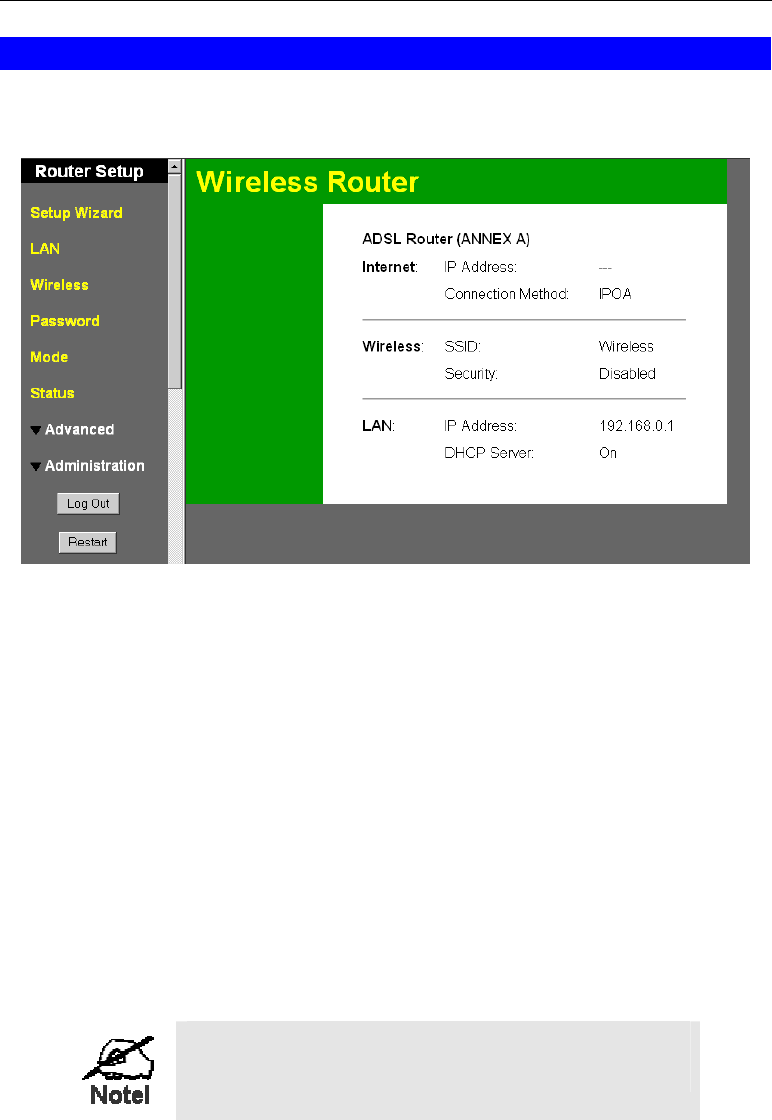

Figure 9: Home Screen
Main Menu
The main menu, on the left, contains links to the most-commonly used screen. To see the links
to the other available screens, click "Advanced" or "Administration".
The main menu also contains two (2) buttons:
• Log Out - When finished, you should click this button to logout.
• Restart - Use this if you wish to restart the Wireless ADSL Router. Note that restarting
the Router will break any existing connections to or through the Router.
Navigation & Data Input
• Use the menu bar on the left of the screen, and the "Back" button on your Browser, for
navigation.
• Changing to another screen without clicking "Save" does NOT save any changes you may
have made. You must "Save" before changing screens or your data will be ignored.
On each screen, clicking the "Help" button will
display help for that screen.
16
Setup
LAN Screen

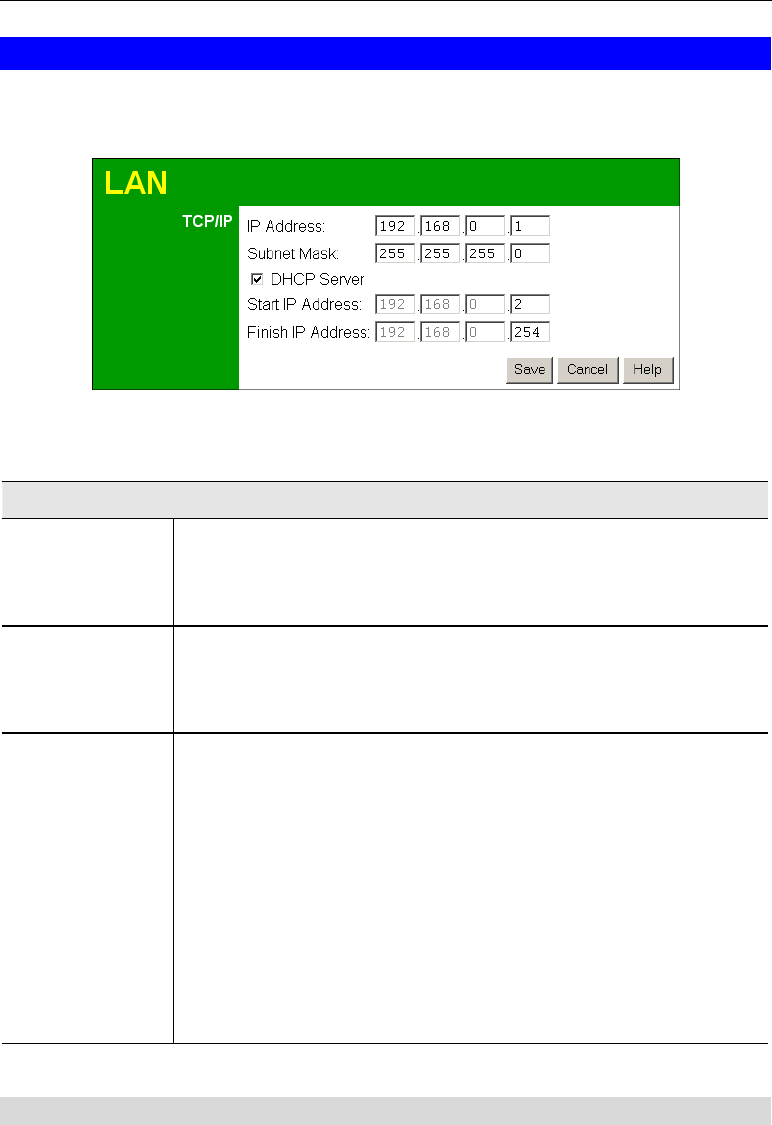

Use the LAN link on the main menu to reach the LAN screen. An example screen is shown
below.
Figure 10: LAN Screen
Data - LAN Screen
TCP/IP
IP Address IP address for the Wireless ADSL Router, as seen from the local LAN.
Use the default value unless the address is already in use or your LAN
is using a different IP address range. In the latter case, enter an unused
IP Address from within the range used by your LAN.
Subnet Mask The default value 255.255.255.0 is standard for small (class "C")
networks. For other networks, use the Subnet Mask for the LAN
segment to which the Wireless ADSL Router is attached (the same
value as the PCs on that LAN segment).
DHCP Server • If Enabled, the Wireless ADSL Router will allocate IP Addresses
to PCs (DHCP clients) on your LAN when they start up. The
default (and recommended) value is Enabled.
• If you are already using a DHCP Server, this setting must be
Disabled, and the existing DHCP server must be re-configured to
treat the Wireless ADSL Router as the default Gateway. See the
following section for further details.
• The Start IP Address and Finish IP Address fields set the values
used by the DHCP server when allocating IP Addresses to DHCP
clients. This range also determines the number of DHCP clients
supported.
See the following section for further details on using DHCP.
DHCP
What DHCP Does
A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a
DHCP Client (PC or device) upon request.
• The client request is made when the client device starts up (boots).
• The DHCP Server provides the Gateway and DNS addresses to the client, as well as
allocating an IP Address.
17
Wireless ADSL Router User Guide
• The Wireless ADSL Router can act as a DHCP server.
• Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP client.
This is the default Windows setting for the TCP/IP network protocol. However, Windows
uses the term Obtain an IP Address automatically instead of "DHCP Client".
• You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your
LAN does not have other Routers, this means there must only be one (1) DHCP Server on
your LAN.)
Using the Wireless ADSL Router's DHCP Server
This is the default setting. The DHCP Server settings are on the LAN screen. On this screen,
you can:
• Enable or Disable the Wireless ADSL Router's DHCP Server function.
• Set the range of IP Addresses allocated to PCs by the DHCP Server function.
You can assign Fixed IP Addresses to some devices
while using DHCP, provided that the Fixed IP Addresses
are NOT within the range used by the DHCP Server.
Using another DHCP Server
You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP
Server, rather than the Wireless ADSL Router's, the following procedure is required.
• Disable the DHCP Server feature in the Wireless ADSL Router. This setting is on the
LAN screen.
• Configure the DHCP Server to provide the Wireless ADSL Router's IP Address as the
Default Gateway.

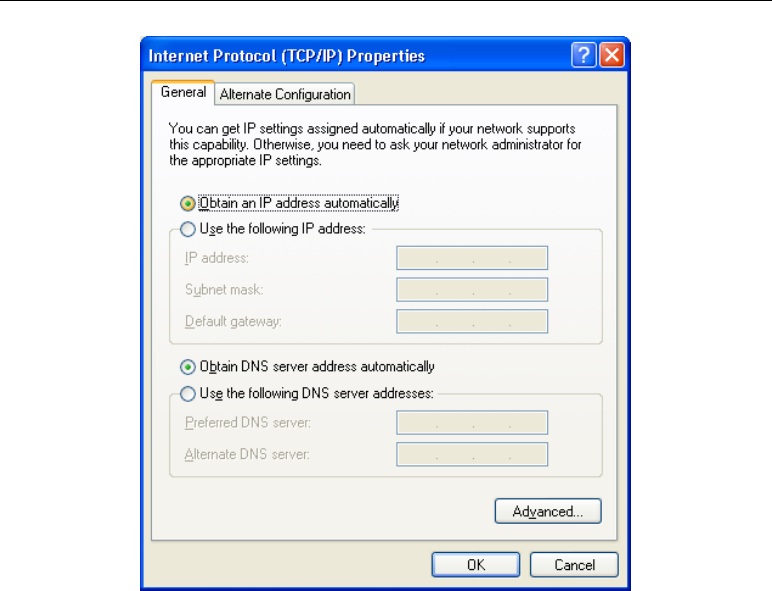

To Configure your PCs to use DHCP
This is the default setting for TCP/IP for all non-Server versions of Windows.
See Chapter 4 - Client Configuration for the procedure to check these settings.
18
Setup
Wireless Screen
The Wireless ADSL Router's settings must match the other Wireless stations.
Note that the Wireless ADSL Router will automatically accept both 802.11b and 802.11g
connections, and no configuration is required for this feature.
To change the Wireless ADSL Router's default settings for the Wireless Access Point feature,
use the Wireless link on the main menu to reach the Wireless screen. An example screen is
shown below.
Figure 11: Wireless Screen
Data - Wireless Screen
Identification
Region Select the correct domain for your location. It is your responsibility to
ensure:
• That the Wireless ADSL Router is only used in domains for which
is licensed.
• That you select the correct domain, so that only the legal channels
for that domain can be selected.
Station name This is the same as the "Device Name" for the Wireless ADSL Router.
SSID This is also called the "Network Name".
• If using an ESS (Extended Service Set, with multiple access
points) this ID is called an ESSID (Extended Service Set
Identifier).
• To communicate, all Wireless stations should use the same
SSID/ESSID.
19
Wireless ADSL Router User Guide
Options
Mode Select the desired mode:
• 802.11G-plus (TI) This allows clients to use any of the following
modes:
• Standard 802.11b
• 802.11B+ (Texas Instruments proprietary enhanced mode)
• Standard 802.11g
• 802.11G-plus (Texas Instruments proprietary enhanced
mode). This mode can increase throughput by up to 50%, but
will only work between compatible TI wireless stations.
• 802.11g & 802.11b - Both 802.11.g and 802.11b Wireless stations
will be able to use the Wireless ADSL Router.
• 802.11g only - Only 802.11g Wireless stations can use the
Wireless ADSL Router.
• 802.11b only - Only 802.11b connections are available. 802.11g
Wireless Stations will only be able to use the Wireless ADSL
Router if they are fully backward-compatible with the 802.11b
standard.
Channel No. Select the Channel you wish to use on your Wireless LAN.
• If you experience interference (shown by lost connections and/or
slow data transfers) you may need to experiment with different
channels to see which is the best.
• If using multiple Access Points, adjacent Access Points should use
different Channels to reduce interference.
Broadcast SSID If enabled, the Wireless ADSL Router will broadcast its SSID. This
allows PCs and other wireless stations to detect this Access Point and
use the correct SSID.
If disabled, PC users will have to manually enter the SSID and other
details of the wireless interface before they can connect to this Access
Point.
Wireless Security
Current Setting The current Wireless security is displayed. The default value is
Disabled.
Configure
Button Click this button to access the Wireless security sub-screen, and view
or change the settings. See the following section for details.
Access Point
Enable Wireless
Access Point
Enable this if you want to use Wireless Access Point function.
If disabled, no Wireless stations can use the Access Point function, and
all connections must be made via the wired LAN.
20
Setup
Allow access
by … Use this feature to determine which Wireless stations can use the
Access Point. The options are:
• All Wireless Stations - All wireless stations can use the access
point, provided they have the correct SSID and security settings.
• Trusted Wireless stations only - Only wireless stations you
designate as "Trusted" can use the Access Point, even if they have
the correct SSID and security settings.
This feature uses the MAC address to identify Wireless stations.
The MAC address is a low-level network identifier which is
unique to each PC or network device.
To define the trusted wireless stations, use the "Set Stations"
button.
Set Stations
Button Click this button to manage the trusted PC database.
21
Wireless ADSL Router User Guide
Wireless Security
This screen is accessed by clicking the "Configure" button on the Wireless screen. There are 3
options for Wireless security:
• Disabled - no data encryption is used.
• WEP - data is encrypted using the WEP standard.
• WPA-PSK - data is encrypted using the WPA-PSK standard. This is a later standard than
WEP, and provides much better security than WEP. If all your Wireless stations support
WPA-PSK, you should use WPA-PSK rather than WEP.
WEP Wireless Security

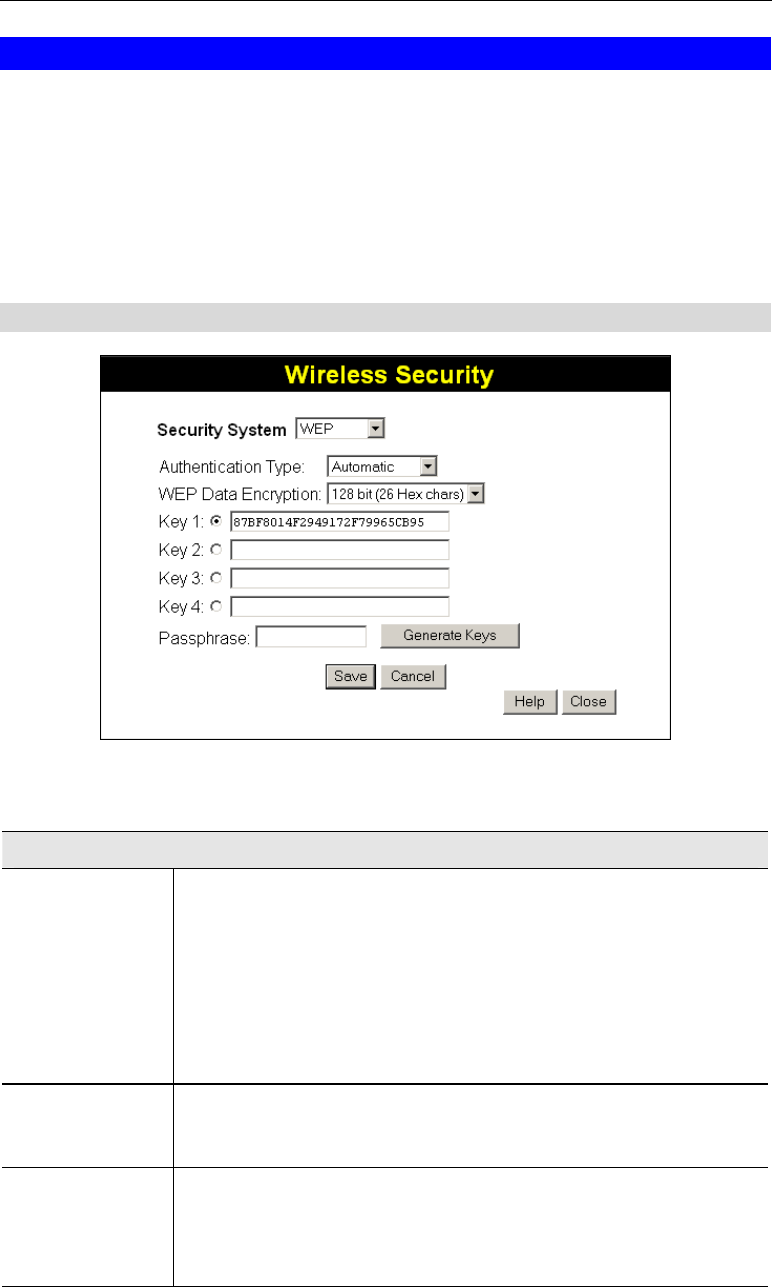

Figure 12: WEP
Data - WEP Screen
WEP Data Encryption
WEP Data
Encryption Select the desired option, and ensure the Wireless Stations use the
same setting.
• 64 Bit - data is encrypted, using the default key, before being
transmitted. You must enter at least the default key. For 64 Bit
Encryption, the key size is 10 chars in HEX (0~9 and A~F).
• 128 Bit - data is encrypted, using the default key, before being
transmitted. You must enter at least the default key. For 128 Bit
Encryption, the key size is 26 chars in HEX (0~9 and A~F).
Authentication
Type Normally, this should be left at the default value of "Automatic". If
changed to "Open System" or "Shared Key", ensure that your Wireless
Stations use the same setting.
Default Key Select the key you wish to be the default. Transmitted data is
ALWAYS encrypted using the Default Key; the other Keys are for
decryption only.
You must enter a Key Value for the Default Key.
22
Setup
Key Value Enter the key value or values you wish to use. The Default Key is
required, the other keys are optional. Other stations must have the
same key.
Passphrase If desired, you can generate a key from a phrase, instead of entering
the key value directly. Enter the desired phrase, and click the
"Generate Keys" button.
WPA-PSK Wireless Security

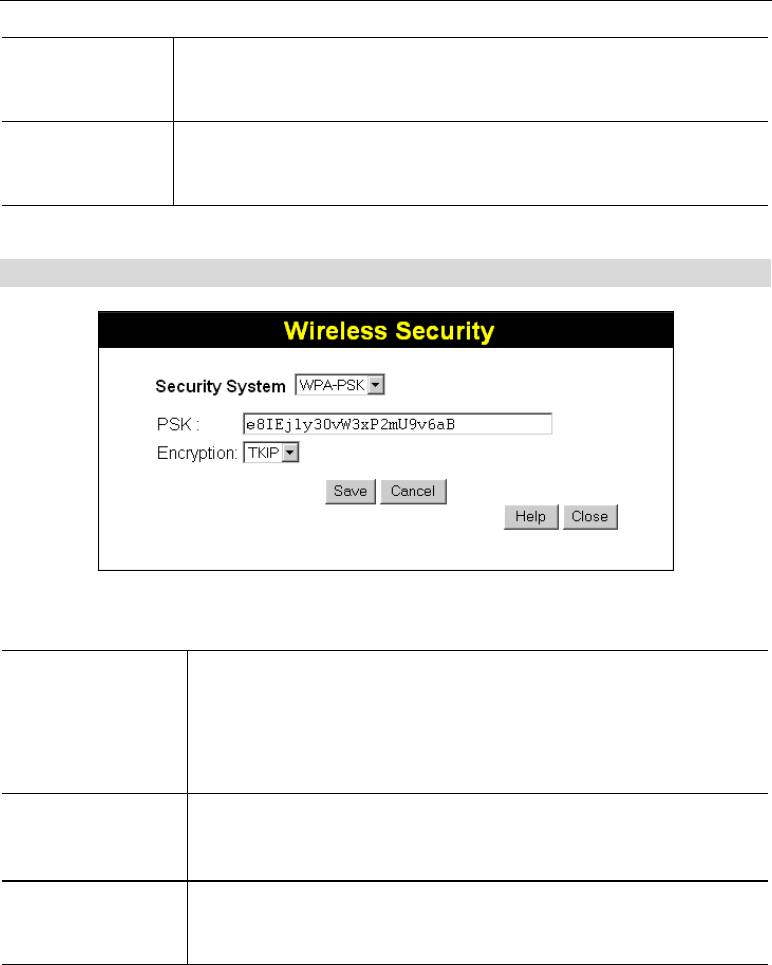

Figure 13: WPA-PSK
Data - WPA-PSK Screen
Security
System WPA-PSK
Like WEP, data is encrypted before transmission. WPA is more
secure than WEP, and should be used if possible. WPA-PSK is the
version of WPA, which does NOT require a Radius Server on your
LAN.
PSK Enter the PSK (network key). Data is encrypted using a key derived
from the network key. Other Wireless Stations must use the same
network key. The PSK must be from 8 to 63 characters in length.
WPA Encryption The WPA-PSK standard allows different encryption methods to be
used. Select the desired option. Wireless Stations must use the same
encryption method.
23
Wireless ADSL Router User Guide
Trusted Wireless Stations
This feature can be used to prevent unknown Wireless stations from using the Access Point.
This list has no effect unless the setting Allow access by trusted stations only is enabled.
To change the list of trusted wireless stations, use the Modify List button on the Access Control
screen. You will see a screen like the sample below.
Figure 14: Trusted Wireless Stations
Data - Trusted Wireless Stations
Trusted Wireless
Stations This lists any Wireless Stations which you have designated as
“Trusted”.
Other Wireless
Stations This list any Wireless Stations detected by the Access Point, which
you have not designated as "Trusted".
Name The name assigned to the Trusted Wireless Station. Use this when
adding or editing a Trusted Station.
Address The MAC (physical) address of the Trusted Wireless Station. Use
this when adding or editing a Trusted Station.
Buttons
<< Add a Trusted Wireless Station to the list (move from the "Other
Stations" list).
• Select an entry (or entries) in the "Other Stations" list, and
click the " << " button.
• Enter the Address (MAC or physical address) of the wireless
station, and click the "Add " button.
>> Delete a Trusted Wireless Station from the list (move to the "Other
Stations" list).
• Select an entry (or entries) in the "Trusted Stations" list.
• Click the " >> " button.
24
Setup
Edit Use this to change an existing entry in the "Trusted Stations" list:
1. Select the Station in the Trusted Station list.
2. Click the Edit button. The address will be copied to the
"Address" field, and the Add button will change to Update.
3. Edit the address (MAC or physical address) as required.
4. Click Update to save your changes.
Add (Update) To add a Trusted Station which is not in the "Other Wireless
Stations" list, enter the required data and click this button.
When editing an existing Wireless Station, this button will change
from Add to Update.
Clear Clear the Name and Address fields.
25
Wireless ADSL Router User Guide
Password Screen
The password screen allows you to assign a password to the Wireless ADSL Router.
Figure 15: Password Screen
Old Password Enter the existing password in this field.
New password Enter the new password here.
Verify password Re-enter the new password here.
You will be prompted for the password when you connect, as shown below.
Figure 16: Password Dialog
• The "User Name" is always admin
• Enter the password for the Wireless ADSL Router, as set on the Password screen above.
26
Setup

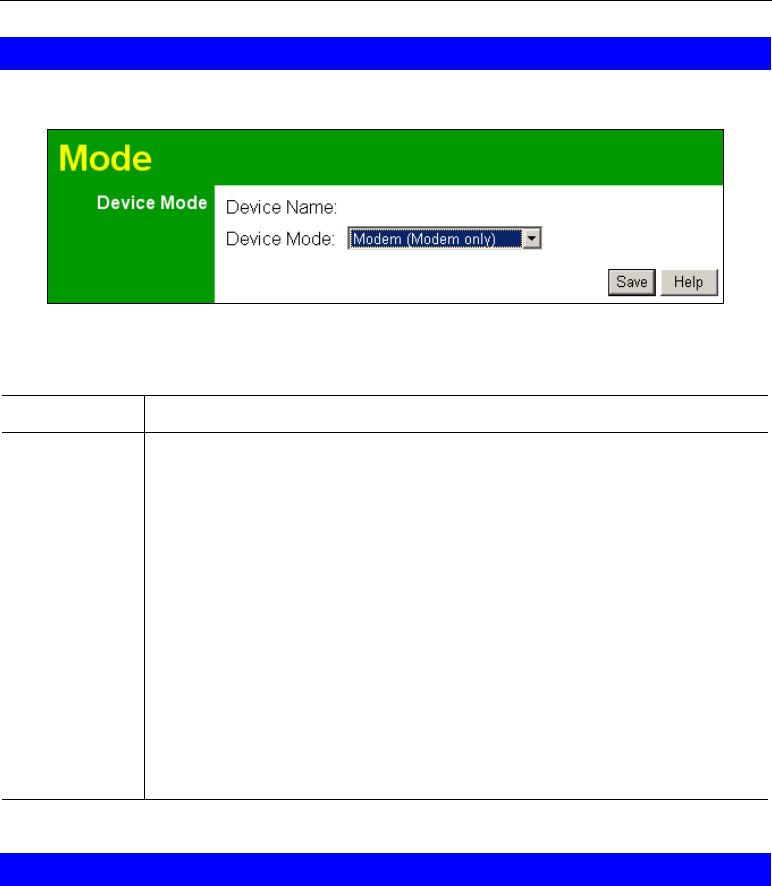

Mode Screen
Use this screen to change the mode between Router mode and Modem (Bridge) mode.
Figure 17: Mode Screen
Select the desired option, and click "Save".
Router Both the ADSL Modem and the Router features are operational. In this
mode, this device can provide shared Internet Access to all your LAN users.
Also, by default, it acts a DHCP Server, providing an IP address and related
information to all Wireless and LAN users.
Modem Only the ADSL Modem component is operational.
• All Router features are disabled. This device is "transparent" - it does
not perform any operations or make any changes to the network traffic
passing through it.
• You need to have a DHCP Server on your LAN to provide IP addresses
to the Wireless clients using this Access Point.
• All traffic received on either the Wireless or LAN interface will be sent
over the ADSL connection.
Notes:
• Generally, you should NOT use modem mode. Only select this mode if you are sure this is
what you want.
• After changing the mode, this device will restart, which will take a few seconds. The
menu will also change, depending on the mode you are in.
• The Wireless Access Point can function in either Router or Modem mode. But generally it
is not a good idea to combine a Modem with an Access Point, because all data received
from the wireless stations will be sent over the modem connection. (Since the modem is
transparent, it does not examine the traffic to determine whether the traffic is for the LAN
or the WAN.)
• For details on using Modem Mode, see Chapter 8.
27
4
Chapter 4
PC Configuration
This Chapter details the PC Configuration required on the local ("Internal")
LAN.
Overview
For each PC, the following may need to be configured:
• TCP/IP network settings
• Internet Access configuration
• Wireless configuration
Windows Clients
This section describes how to configure Windows clients for Internet access via the Wireless
ADSL Router.
The first step is to check the PC's TCP/IP settings.
The Wireless ADSL Router uses the TCP/IP network protocol for all functions, so it is
essential that the TCP/IP protocol be installed and configured on each PC.
TCP/IP Settings - Overview
If using the default Wireless ADSL Router settings, and the default
Windows TCP/IP settings, no changes need to be made.
• By default, the Wireless ADSL Router will act as a DHCP Server, automatically providing
a suitable IP Address (and related information) to each PC when the PC boots.
• For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP
client.
If using a Fixed (specified) IP address, the following changes are
required:
• The Gateway must be set to the IP address of the Wireless ADSL Router
• The DNS should be set to the address provided by your ISP.
If your LAN has a Router, the LAN Administrator must re-
configure the Router itself. Refer to Chapter 8 -
Advanced Setup for details.
28
PC Configuration
Checking TCP/IP Settings - Windows 9x/ME:

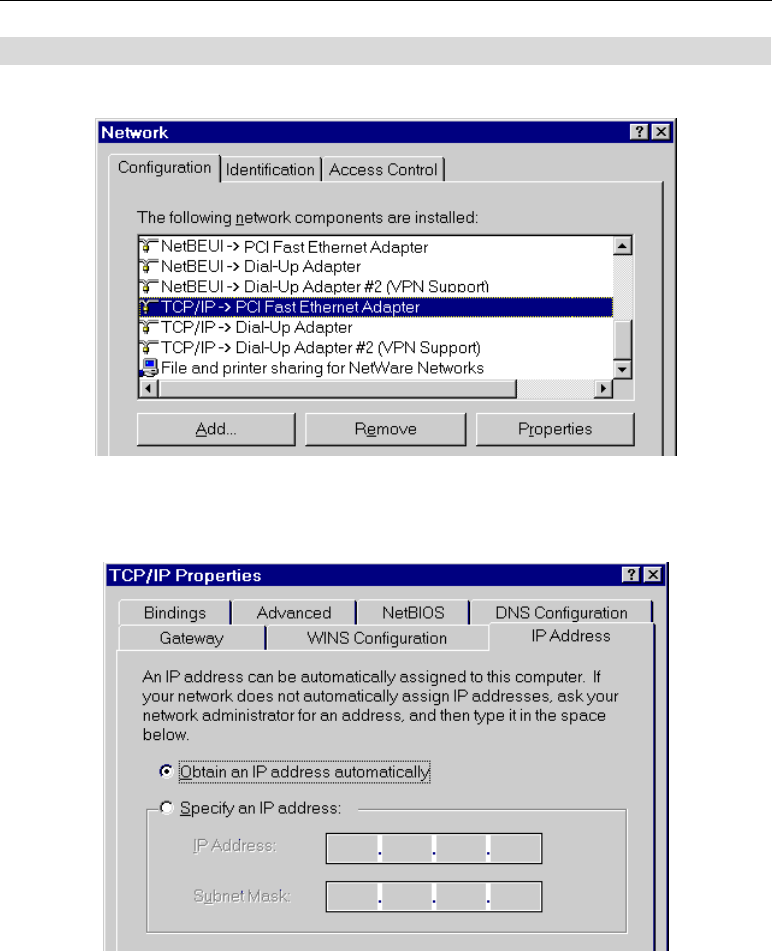

5. Select Control Panel - Network. You should see a screen like the following:
Figure 18: Network Configuration
6. Select the TCP/IP protocol for your network card.
7. Click on the Properties button. You should then see a screen like the following.
Figure 19: IP Address (Win 95)
Ensure your TCP/IP settings are correct, as follows:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the Wireless ADSL Router will act
as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.
Using "Specify an IP Address"
If your PC is already configured, check with your network administrator before making the
following changes:
29
Wireless ADSL Router User Guide
• On the Gateway tab, enter the Wireless ADSL Router's IP address in the New Gateway
field and click Add, as shown below. Your LAN administrator can advise you of the IP
Address they assigned to the Wireless ADSL Router.

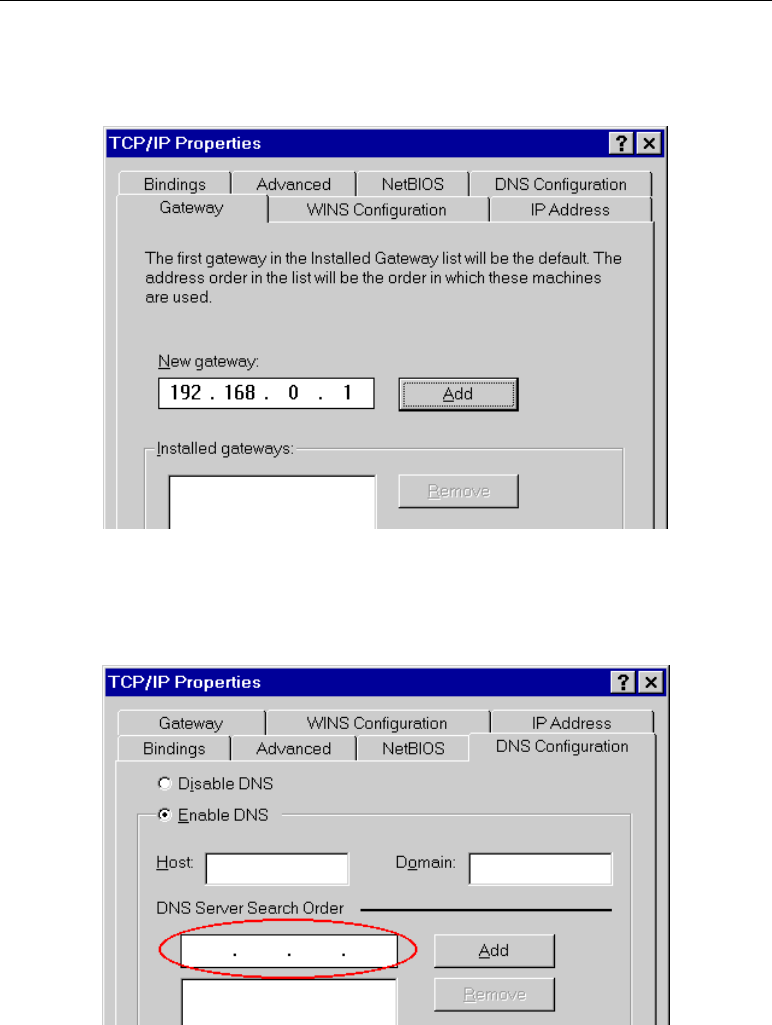

Figure 20: Gateway Tab (Win 95/98)
• On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search
Order list is empty, enter the DNS address provided by your ISP in the fields beside the
Add button, then click Add.
Figure 21: DNS Tab (Win 95/98)
30
PC Configuration

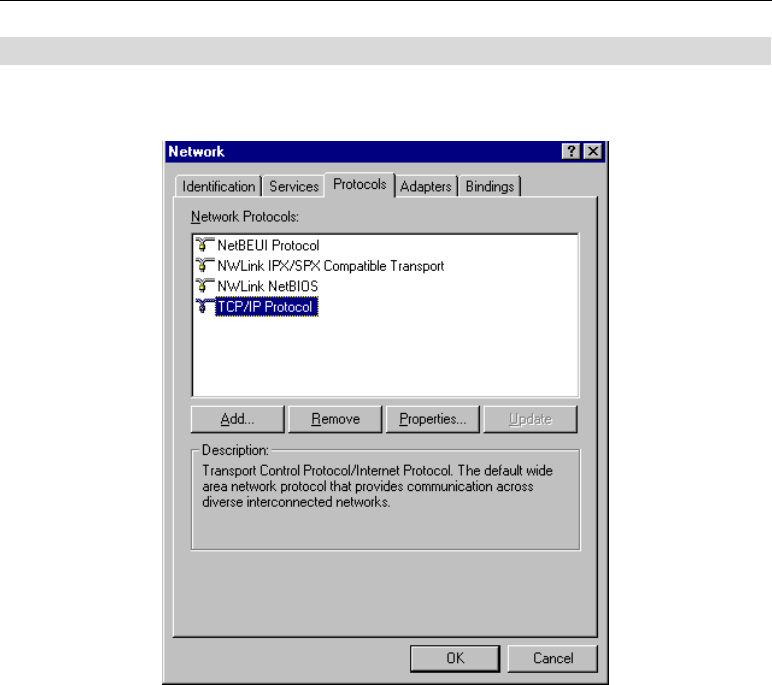

Checking TCP/IP Settings - Windows NT4.0
1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as
shown below.
Figure 22: Windows NT4.0 - TCP/IP
2. Click the Properties button to see a screen like the one below.
31
Wireless ADSL Router User Guide

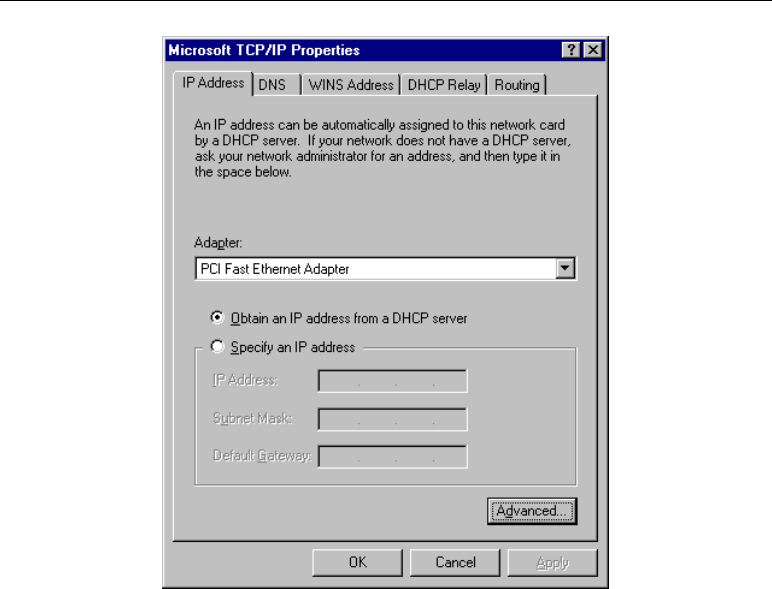

Figure 23: Windows NT4.0 - IP Address
3. Select the network card for your LAN.
4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify
an IP Address, as explained below.
Obtain an IP address from a DHCP Server
This is the default Windows setting. Using this is recommended. By default, the Wireless
ADSL Router will act as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.
Specify an IP Address
If your PC is already configured, check with your network administrator before making the
following changes.
1. The Default Gateway must be set to the IP address of the Wireless ADSL Router. To set
this:
• Click the Advanced button on the screen above.
• On the following screen, click the Add button in the Gateways panel, and enter the
Wireless ADSL Router's IP address, as shown in Figure 24 below.
• If necessary, use the Up button to make the Wireless ADSL Router the first entry in
the Gateways list.
32
PC Configuration

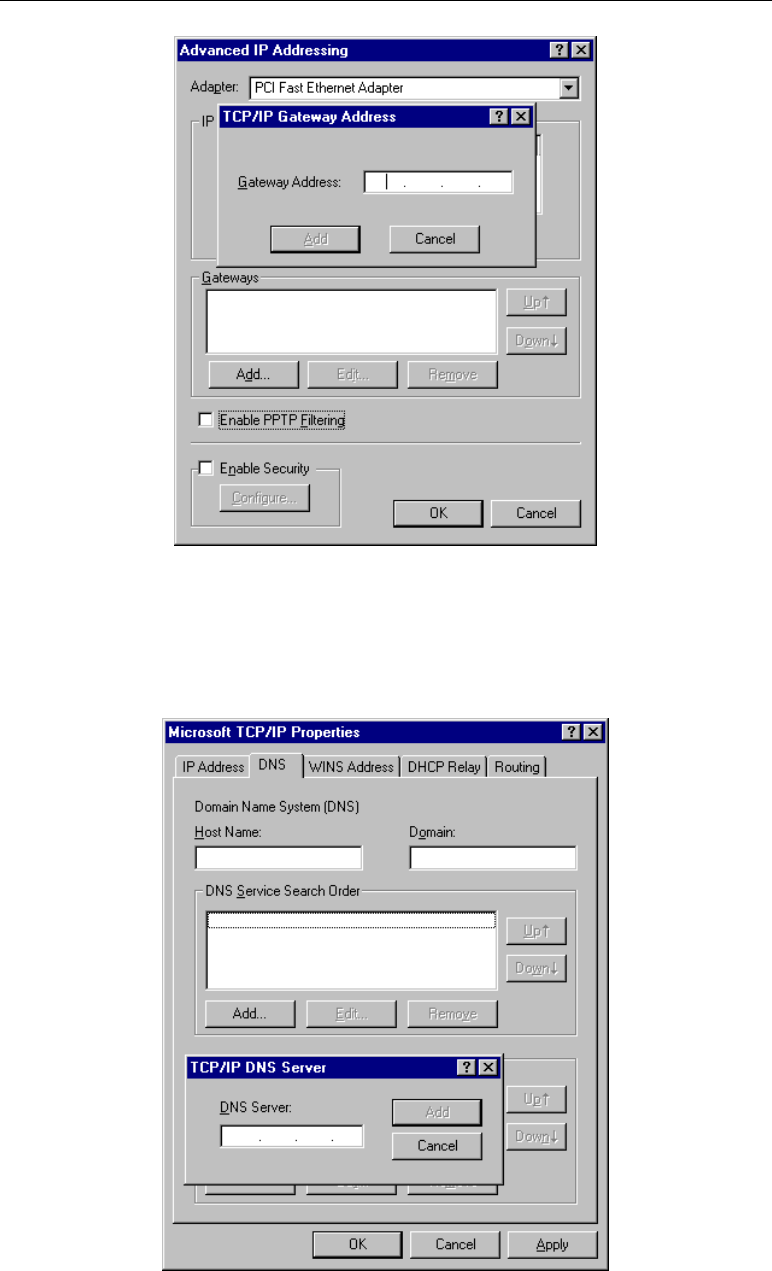

Figure 24 - Windows NT4.0 - Add Gateway
2. The DNS should be set to the address provided by your ISP, as follows:
• Click the DNS tab.
• On the DNS screen, shown below, click the Add button (under DNS Service Search
Order), and enter the DNS provided by your ISP.
Figure 25: Windows NT4.0 - DNS
33
Wireless ADSL Router User Guide
Checking TCP/IP Settings - Windows 2000:
1. Select Control Panel - Network and Dial-up Connection.
2. Right - click the Local Area Connection icon and select Properties. You should see a
screen like the following:

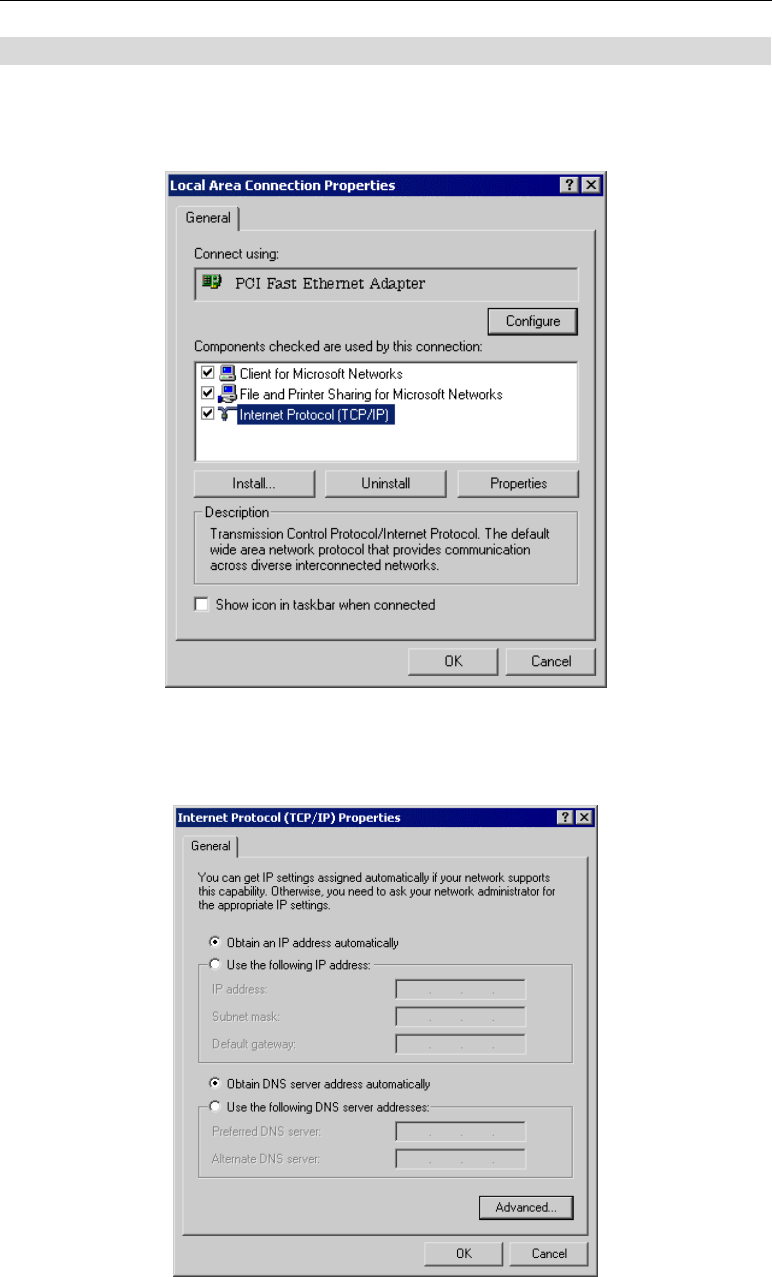

Figure 26: Network Configuration (Win 2000)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
Figure 27: TCP/IP Properties (Win 2000)
34
PC Configuration
5. Ensure your TCP/IP settings are correct, as described below.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the Wireless ADSL Router will act
as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
• Enter the Wireless ADSL Router's IP address in the Default gateway field and click OK.
(Your LAN administrator can advise you of the IP Address they assigned to the Wireless
ADSL Router.)
• If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.
35
Wireless ADSL Router User Guide
Checking TCP/IP Settings - Windows XP
1. Select Control Panel - Network Connection.
2. Right click the Local Area Connection and choose Properties. You should see a screen
like the following:
Figure 28: Network Configuration (Windows XP)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
36
PC Configuration
Figure 29: TCP/IP Properties (Windows XP)
5. Ensure your TCP/IP settings are correct.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the Wireless ADSL Router will act
as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
• In the Default gateway field, enter the Wireless ADSL Router's IP address and click OK.
Your LAN administrator can advise you of the IP Address they assigned to the Wireless
ADSL Router.
• If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.
37
Wireless ADSL Router User Guide
Internet Access
To configure your PCs to use the Wireless ADSL Router for Internet access:
• Ensure that the DSL modem, Cable modem, or other permanent connection is functional.
• Use the following procedure to configure your Browser to access the Internet via the LAN,
rather than by a Dial-up connection.
For Windows 9x/ME/2000
1. Select Start Menu - Settings - Control Panel - Internet Options.
2. Select the Connection tab, and click the Setup button.
3. Select "I want to set up my Internet connection manually, or I want to connect through a
local area network (LAN)" and click Next.
4. Select "I connect through a local area network (LAN)" and click Next.
5. Ensure all of the boxes on the following Local area network Internet Configuration screen
are unchecked.
6. Check the "No" option when prompted "Do you want to set up an Internet mail account
now?".
7. Click Finish to close the Internet Connection Wizard.
Setup is now completed.
For Windows XP
1. Select Start Menu - Control Panel - Network and Internet Connections.
2. Select Set up or change your Internet Connection.
3. Select the Connection tab, and click the Setup button.
4. Cancel the pop-up "Location Information" screen.
5. Click Next on the "New Connection Wizard" screen.
6. Select "Connect to the Internet" and click Next.
7. Select "Set up my connection manually" and click Next.
8. Check "Connect using a broadband connection that is always on" and click Next.
9. Click Finish to close the New Connection Wizard.
Setup is now completed.
Accessing AOL
To access AOL (America On Line) through the Wireless ADSL Router, the AOL for Windows
software must be configured to use TCP/IP network access, rather than a dial-up connection.
The configuration process is as follows:
• Start the AOL for Windows communication software. Ensure that it is Version 2.5, 3.0 or
later. This procedure will not work with earlier versions.
• Click the Setup button.
• Select Create Location, and change the location name from "New Locality" to "Wireless
ADSL Router".
• Click Edit Location. Select TCP/IP for the Network field. (Leave the Phone Number
blank.)
• Click Save, then OK.
Configuration is now complete.
• Before clicking "Sign On", always ensure that you are using the "Wireless ADSL Router"
location.
38
PC Configuration
Macintosh Clients
From your Macintosh, you can access the Internet via the Wireless ADSL Router. The
procedure is as follows.
1. Open the TCP/IP Control Panel.
2. Select Ethernet from the Connect via pop-up menu.
3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field
can be left blank.
4. Close the TCP/IP panel, saving your settings.
Note:
If using manually assigned IP addresses instead of DHCP, the required changes are:
• Set the Router Address field to the Wireless ADSL Router's IP Address.
• Ensure your DNS settings are correct.
Linux Clients
To access the Internet via the Wireless ADSL Router, it is only necessary to set the Wireless
ADSL Router as the "Gateway".
Ensure you are logged in as "root" before attempting any changes.
Fixed IP Address
By default, most Unix installations use a fixed IP Address. If you wish to continue using a
fixed IP Address, make the following changes to your configuration.
• Set your "Default Gateway" to the IP Address of the Wireless ADSL Router.
• Ensure your DNS (Name server) settings are correct.
To act as a DHCP Client (recommended)
The procedure below may vary according to your version of Linux and X -windows shell.
1. Start your X Windows client.
2. Select Control Panel - Network
3. Select the "Interface" entry for your Network card. Normally, this will be called "eth0".
4. Click the Edit button, set the "protocol" to "DHCP", and save this data.
5. To apply your changes
• Use the "Deactivate" and "Activate" buttons, if available.
• OR, restart your system.
Other Unix Systems
To access the Internet via the Wireless ADSL Router:
• Ensure the "Gateway" field for your network card is set to the IP Address of the Wireless
ADSL Router.
• Ensure your DNS (Name Server) settings are correct.
39
Wireless ADSL Router User Guide

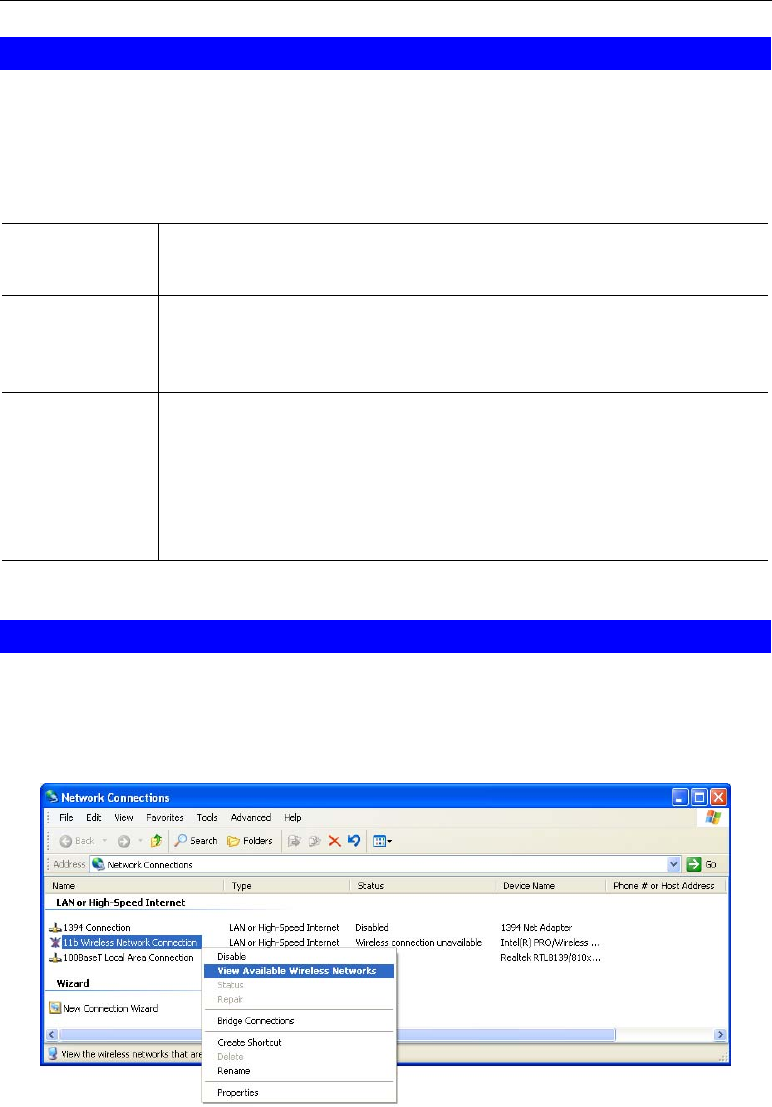

Wireless Station Configuration
This section applies to all Wireless stations wishing to use the Wireless ADSL Router's Access
Point, regardless of the operating system which is used on the client.
To use the Wireless Access Point in the Wireless ADSL Router, each Wireless Station must
have compatible settings, as follows:
Mode The mode must be set to Infrastructure (rather than Ad-hoc)
Access points only operate in Infrastructure mode.
SSID (ESSID) This must match the value used on the Wireless ADSL Router. The
default value is Wireless.
Note! The SSID is case sensitive.
Wireless
Security By default, Wireless security on the Wireless ADSL Router is disabled.
• If Wireless security remains disabled on the Wireless ADSL Router,
all stations must have wireless security disabled.
• If Wireless security is enabled on the Wireless Router (either WEP
or WPA-PSK), each station must use the same settings as the
Wireless ADLS Router.
Wireless Configuration on Windows XP
If using Windows XP to configure the Wireless interface on your PC, the configuration
procedure is as follows:
1. Open the Network Connections folder. (Start - Settings - Network Connections).
Figure 30: Network Connections (Windows XP)
2. Right-click the Wireless Network Connection, check that it is enabled (menu option says
Disable, rather than Enable) and then select View Available Wireless Networks.
3. You will then see a list of wireless networks.
40
PC Configuration

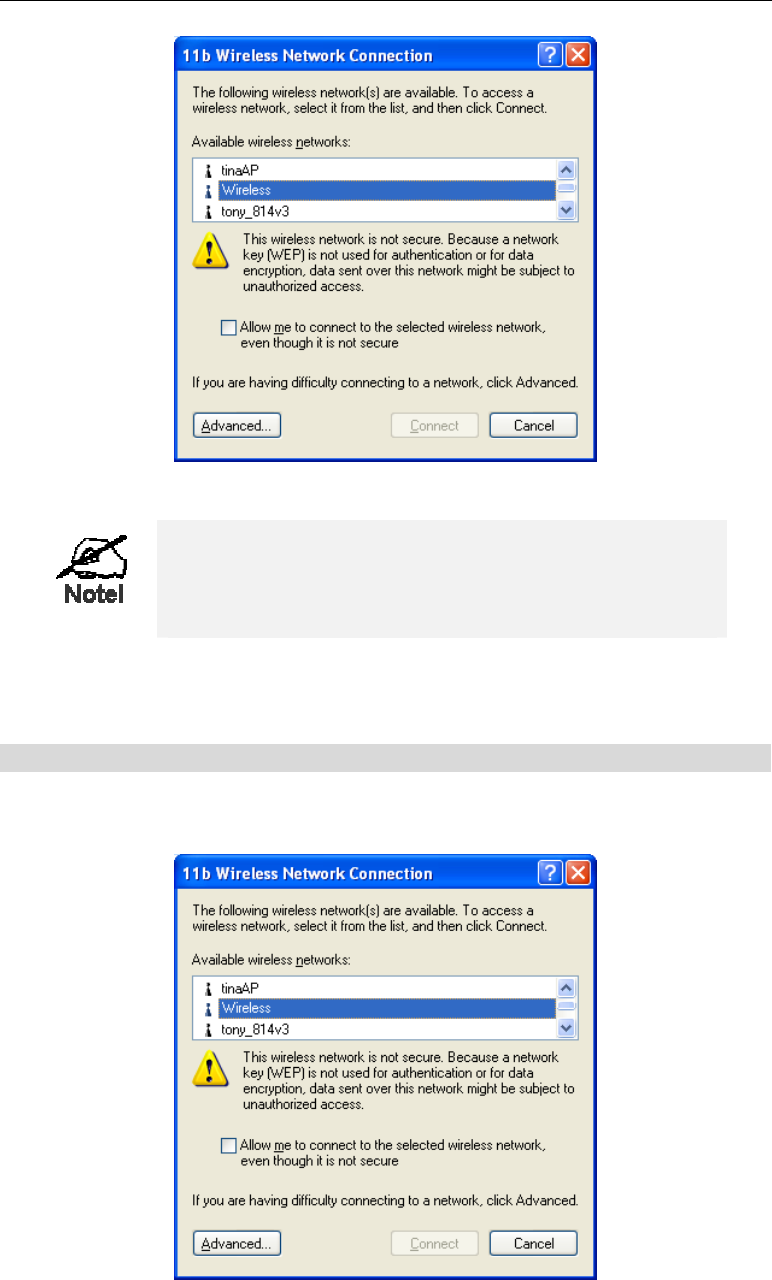

Figure 31 Wireless Networks (Windows XP)
If the "Broadcast SSID" setting on the Wireless ADSL
Router has been disabled, its SSID will NOT be listed.
See the following section "If the SSID is not listed" for
details of dealing with this situation.
4. The next step depends on whether or not Wireless security has been enabled on the
Wireless ADSL Router.
If Wireless Security is Disabled
If Wireless security on the Wireless ADSL Router is disabled, Windows will warn you that the
Wireless network is not secure.
Figure 32 Insecure Wireless Network (Windows XP)
41
Wireless ADSL Router User Guide
To connect:
• Check the checkbox Allow me to connect to the selected wireless network, even though it
is not secure.
• The Connect button will then be available. Click the Connect button, and wait a few
seconds for the connection to be established.
If using WEP Data Encryption
If WEP data encryption has been enabled on the Wireless ADSL Router, Windows will detect
this, and show a screen like the following.

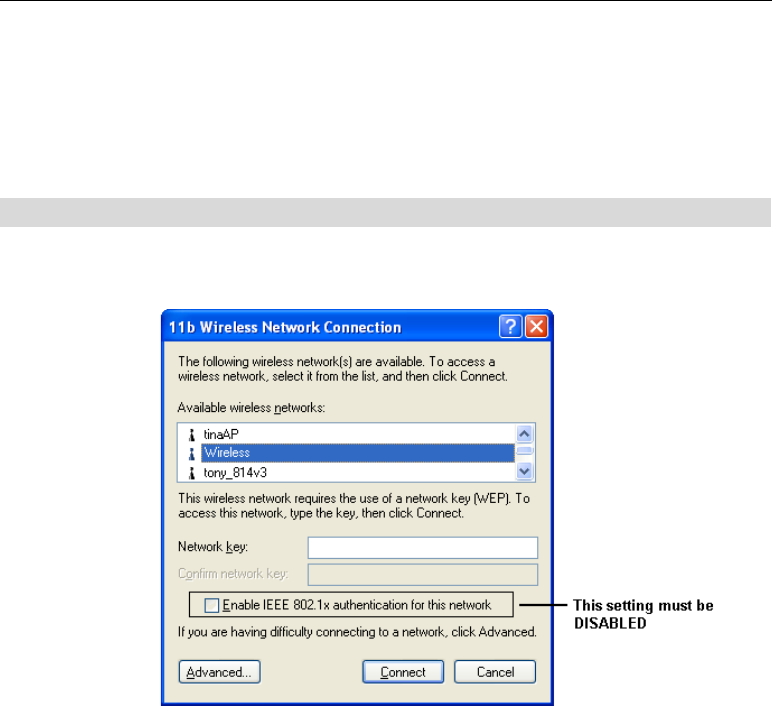

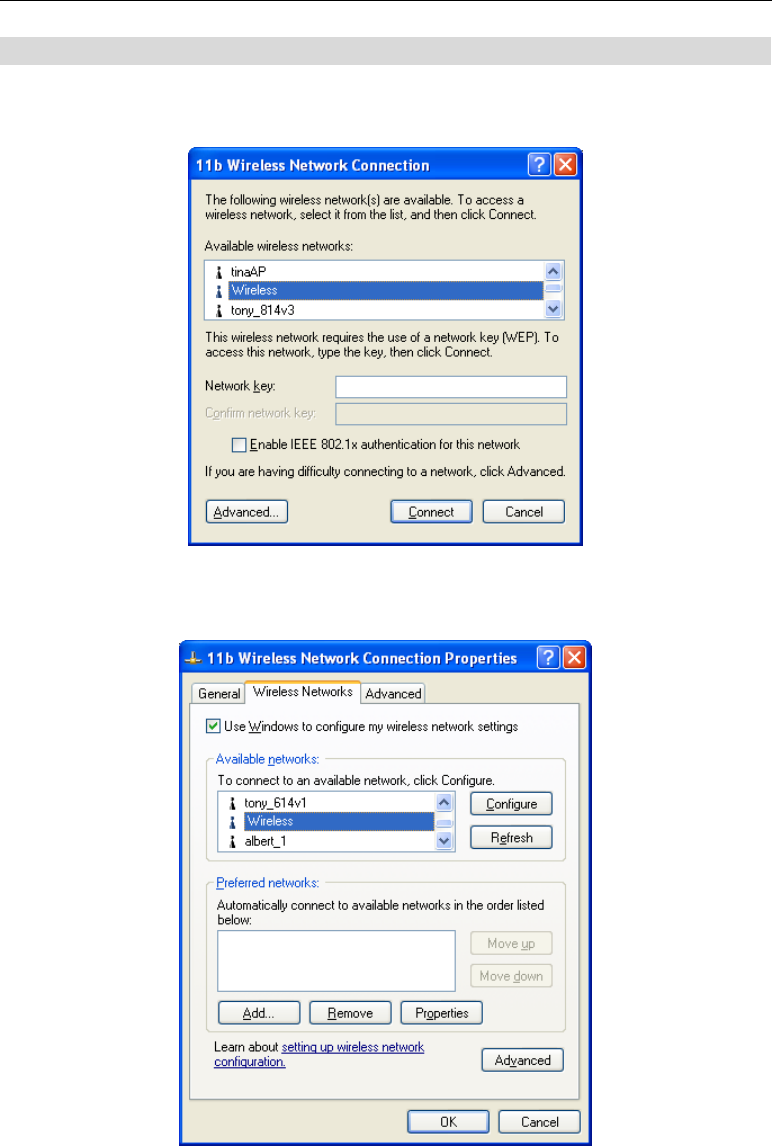

Figure 33: WEP (Windows XP)
To connect:
• Enter the WEP key, as set on the Wireless ADSL Router, in the Network Key field.
• Re-enter the WEP key into the Confirm Network key field.
• Disable the checkbox Enable IEEE 802.1x authentication for this network.
• Click the Connect button.
If this fails, click the Advanced button, to see a screen like the following:
42
PC Configuration

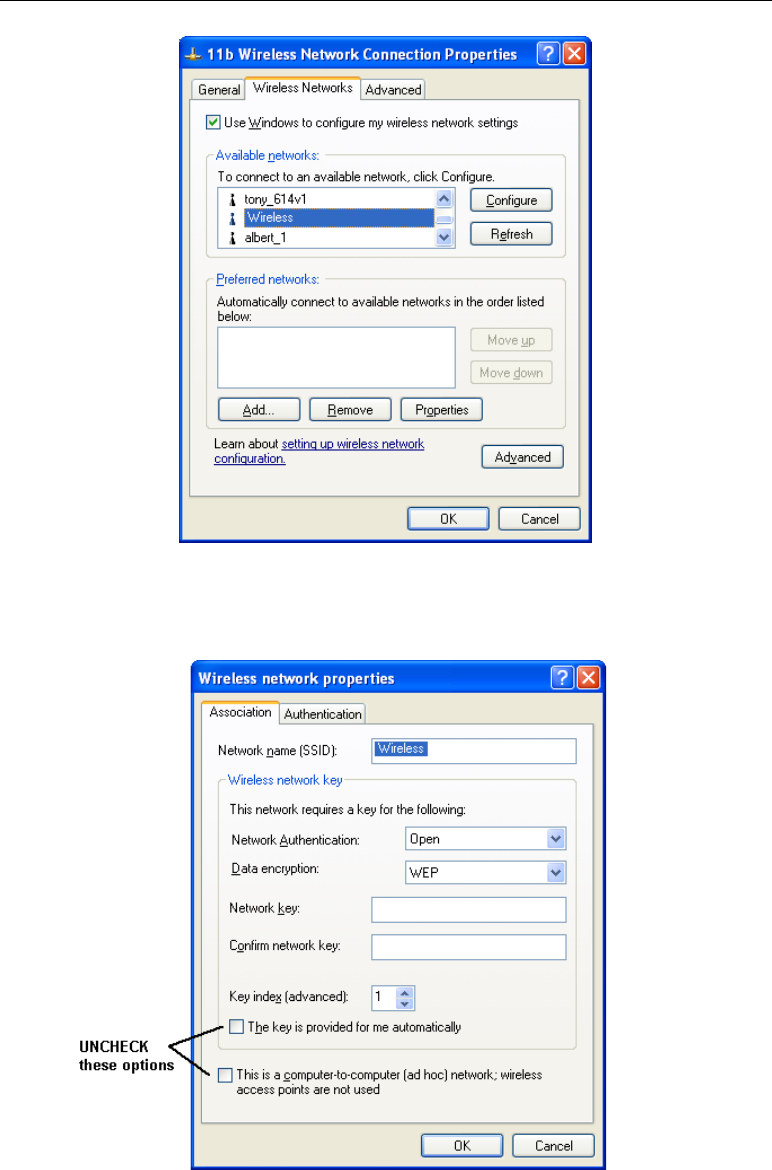

Figure 34: Advanced - Wireless Networks
Select the SSID for the Wireless ADSL Router, and click Configure, to see a screen like the
following:
Figure 35: Wireless Network Properties - WEP
Configure this screen as follows:
• Set Network Authentication to match the Wireless ADSL Router. (If the setting on the
Wireless ADSL Router is "Auto", then either Open or Shared can be used.)
• For Data Encryption, select WEP.
43
Wireless ADSL Router User Guide
• For the Network key and Confirm network key, enter the default key value used on the
Wireless ADSL Router. (Windows will determine if 64bit or 128bit encryption is used.)
• The Key index must match the default key index on the Wireless ADSL Router. The
default value is 1.
• Ensure the options The key is provided for me automatically and This is a computer-to-
computer (ad hoc) network are unchecked.
• Click OK to save and close this dialog.
• This wireless network will now be listed in Preferred Networks on the screen below.

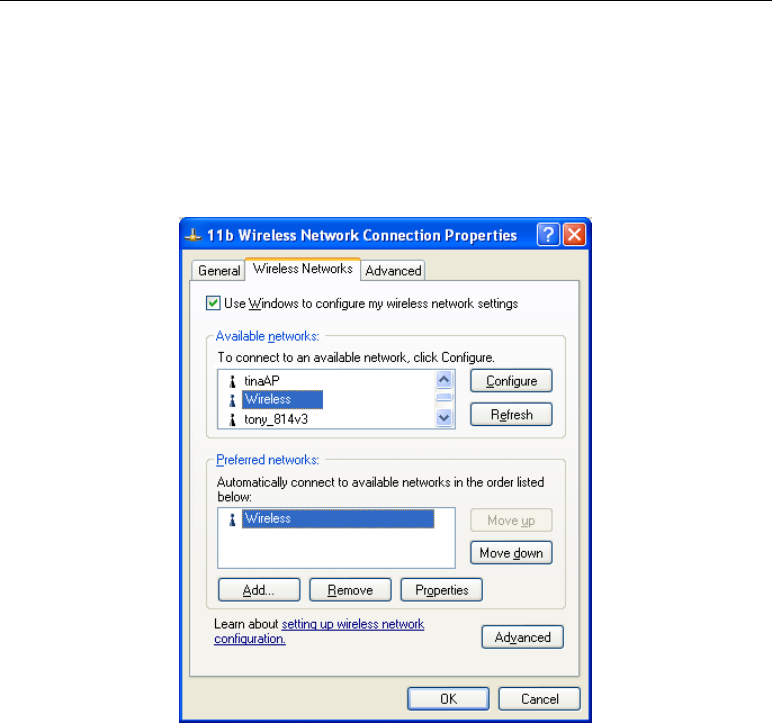

Figure 36: Preferred Networks
Click OK to establish a connection to the Wireless ADSL Router.
44
PC Configuration
If using WPA-PSK Data Encryption
If WPA-PSK data encryption has been enabled on the Wireless ADSL Router, it does not
matter which network is selected on the screen below. Just click the Advanced button.
Figure 37: Wireless Networks (Windows XP)
You will then see a screen like the example below.
Figure 38: Advanced - Wireless Networks
Select the SSID for the Wireless ADSL Router, and click Configure, to see a screen like the
following:
45
Wireless ADSL Router User Guide

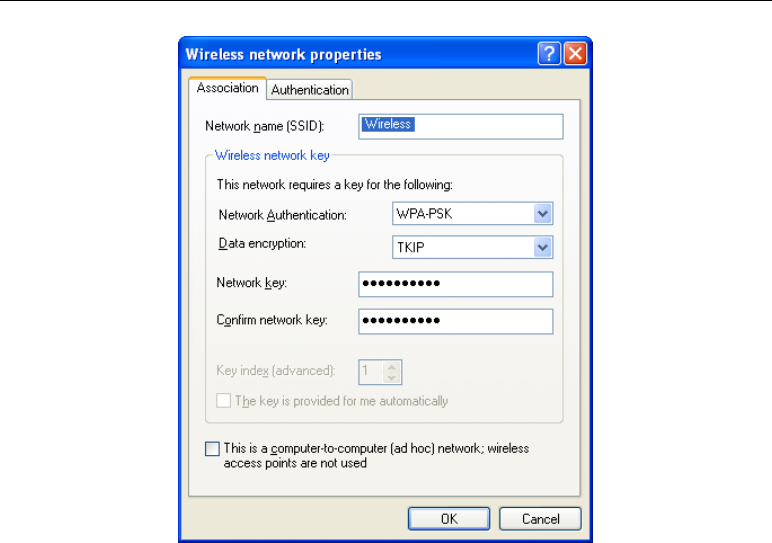

Figure 39: Wireless Network Properties- WPA-PSK
Configure this screen as follows:
• Set Network Authentication to WPA-PSK.
• For Data Encryption, select TKIP.
• For the Network key and Confirm network key, enter the network key (PSK) used on the
Wireless ADSL Router.
• Ensure the option This is a computer-to-computer (ad hoc) network is unchecked.
• Click OK to save and close this dialog.
• This wireless network will now be listed in Preferred Networks on the screen below.
46
PC Configuration
Figure 40: Preferred Networks
Click OK to establish a connection to the Wireless ADSL Router.
If the SSID is not listed
If the "Broadcast SSID" setting on the Wireless ADSL Router has been disabled, its SSID will
NOT be listed on the screen below.
Figure 41: Wireless Networks (Windows XP)
In this situation, you need to obtain the SSID from your network administrator, then follow
this procedure:
47
Wireless ADSL Router User Guide
1. Click the Advanced button to see a screen like the example below.
Figure 42: Unlisted Wireless Network
2. Click the Add button. You will see a screen like the example below.
Figure 43: Add Wireless Network
3. Configure this screen as follows:
• Enter the correct SSID, as used on the Wireless ADSL Router. Remember the SSID is
case-sensitive, so be sure to match the case, not just the spelling.
• Set Network Authentication and Data Encryption to match the Wireless ADSL Router.
48
PC Configuration
• If using data encryption (WEP or WPA-PSK), enter the key used on the Wireless
ADSL Router. See the preceding sections for details of WEP and WPA-PSK.
• Uncheck the options The key is provided for me automatically and This is a
computer-to-computer (ad hoc) network.
• Click OK to save and exit.
4. This wireless network will then be listed in Preferred Networks on the screen below.
Figure 44: Preferred Networks
5. Click OK to establish a connection to the Wireless ADSL Router.
49
5
Chapter 5
Operation and Status
This Chapter details the operation of the Wireless ADSL Router and the
status screens. For Details of operation in Bridge (Modem) mode, see
Chapter 8 - Modem Mode.
Operation - Router Mode
Once both the Wireless ADSL Router and the PCs are configured, operation is automatic.
However, there are some situations where additional Internet configuration may be required.
Refer to Chapter 6 - Advanced Features for further details.
Status Screen
Use the Status link on the main menu to view this screen.
50
Operation and Status
Figure 45: Status Screen
Data - Status Screen
System
Device Name The current name of the Router. This name is also the "hostname"
for users with an "@Home" type connection.
Firmware Version The version of the current firmware installed.
ADSL
Modem Status This indicates the status of the ADSL modem component.
DownStream
Connection Speed Displays the speed for the DownStream Connection.
UpStream
Connection Speed If connected, displays the speed for the Up Stream (upload)
ADSL Connection.
VC 1 Status
VC 2 Status
VC 3 Status
VC 4 Status
For each VC (Virtual Circuit), the current status is displayed.
This will be either "Enabled" or "Disabled".
Note: VC 1 is a standard (Routed) Internet connection. VC 2,
VC 3 and VC 4 are Bridge-mode connections.
51
Wireless ADSL Router User Guide
ADSL
Details Click this button to open a sub-window and view the details of
each VC (Virtual Circuit).
Internet (VC1)
Connection Method Displays the current connection method, as set in the Setup
Wizard.
Connection Status This indicates the current status of the Internet Connection
• Active - Connection exists
• Idle - No current connection, but no error has been detected.
This condition normally arises when an idle connection is
automatically terminated.
• Failed - The connection was terminated abnormally. This
could be caused by Modem failure, or the loss of the
connection to the ISP's server.
If there is an error, you can click the "Connection Details" button
to find out more information.
Internet IP Address This IP Address is allocated by the ISP (Internet Service
Provider). If using a dynamic IP address, and no connection
currently exists, this information is unavailable.
Connection Details Click this button to open a sub-window and view a detailed
description of the current connection. Depending on the type of
connection, a "log" may also be available.
LAN
IP Address The IP Address of the Wireless ADSL Router.
Network Mask The Network Mask (Subnet Mask) for the IP Address above.
DHCP Server This shows the status of the DHCP Server function. The value
will be "Enabled" or "Disabled".
MAC Address This shows the MAC Address for the Wireless ADSL Router, as
seen on the LAN interface.
Wireless
Name (SSID) If using an ESS (Extended Service Set, with multiple access
points) this ID is called an ESSID (Extended Service Set
Identifier).
Region The current region, as set on the Wireless screen.
Channel This shows the Channel currently used, as set on the Wireless
screen.
Wireless AP This indicates whether or not the Wireless Access Point feature is
enabled.
Broadcast Name This indicates whether or not the SSID is Broadcast. This setting
is on the Wireless screen.
Buttons
ADSL Details View the details of each VC (Virtual Circuit).
Connection Details Click this button to open a sub-window and view a detailed
diifh
i
52
Operation and Status
description of the current connection.
Attached Devices This will open a sub-window, showing all LAN and Wireless
devices currently on the network.
VPN Status View details of each current VPN Tunnel is a sub-window. You
also have the option of viewing the VPN Log.
For further details about VPN, see the VPN section in Chapter 6
- Advanced Features.
Refresh Screen Update the data displayed on screen.
53
Wireless ADSL Router User Guide
Connection Status - PPPoE & PPPoA
If using PPPoE (PPP over Ethernet) or PPPoA (PPP over ATM), a screen like the following
example will be displayed when the "Connection Details" button is clicked.

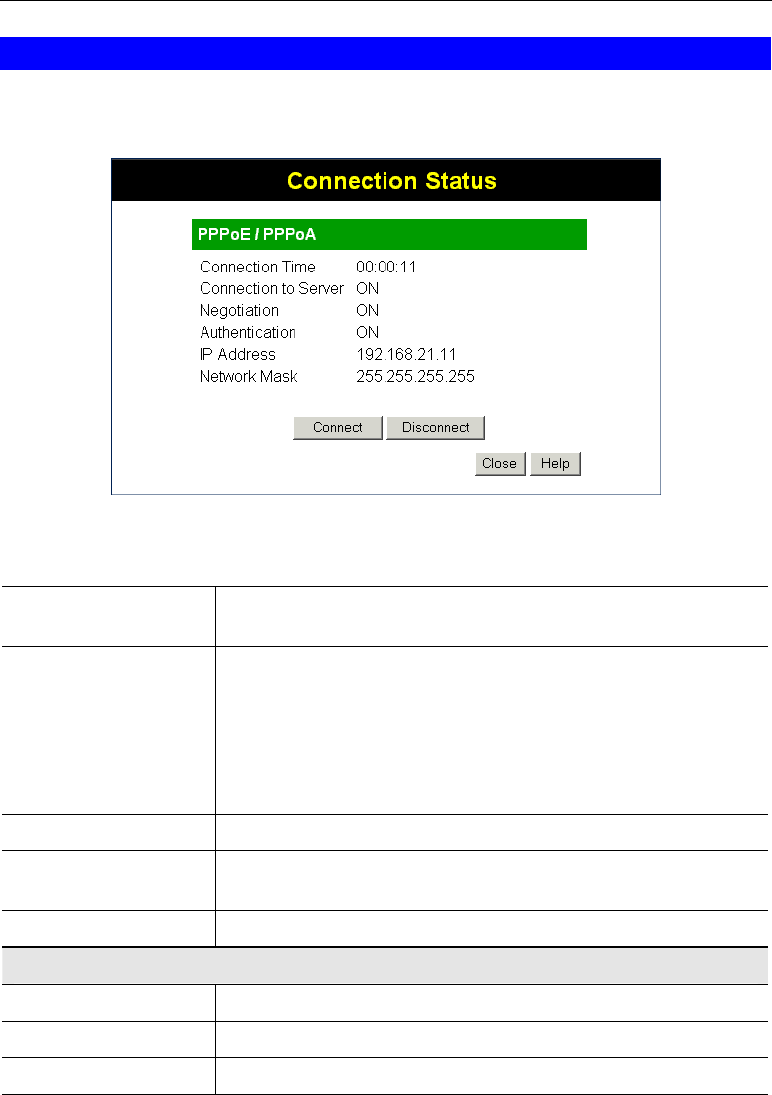

Figure 46: PPPoE Status Screen
Data - PPPoE/PPPoA Screen
Connection Time This indicates how long the current connection has been
established.
PPPoE Link Status This indicates whether or not the connection is currently
established.
• If the connection does not exist, the "Connect" button can be
used to establish a connection.
• If the connection currently exists, the "Disconnect" button
can be used to break the connection.
Negotiation This indicates the status of the PPPoE Server login.
IP Address The IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
Buttons
Connect If not connected, establish a connection to your ISP.
Disconnect If connected to your ISP, hang up the connection.
Close Close this window.
54
Operation and Status
Connection Details - Dynamic IP Address
If your access method is "Direct" (no login), with a Dynamic IP address, a screen like the
following example will be displayed when the "Connection Details" button is clicked.
Figure 47: Connection Details - Fixed/Dynamic IP Address
Data - Dynamic IP address
Internet
IP Address The current IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
Default Gateway The IP address of the remote Gateway or Router associated with the
IP Address above.
DHCP Server The IP address of your ISP's DHCP Server.
DNS Server The IP address of the Domain Name Server which is currently used.
Lease Obtained
Lease Expires This indicates when the current IP address was obtained, and how
long before this IP address allocation (the DCHP lease) expires.
Buttons
Release If an IP Address has been allocated to the Wireless ADSL Router (by
the ISP's DHCP Server, clicking the "Release" button will break the
connection and release the IP Address.
Renew If the ISP's DHCP Server has NOT allocated an IP Address for the
Wireless ADSL Router, clicking the "Renew" button will attempt to
re-establish the connection and obtain an IP Address from the ISP's
DHCP Server.
Close Close this window.
55
Wireless ADSL Router User Guide
Connection Details - Fixed IP Address
If your access method is "Direct" (no login), with a fixed IP address, a screen like the
following example will be displayed when the "Connection Details" button is clicked.

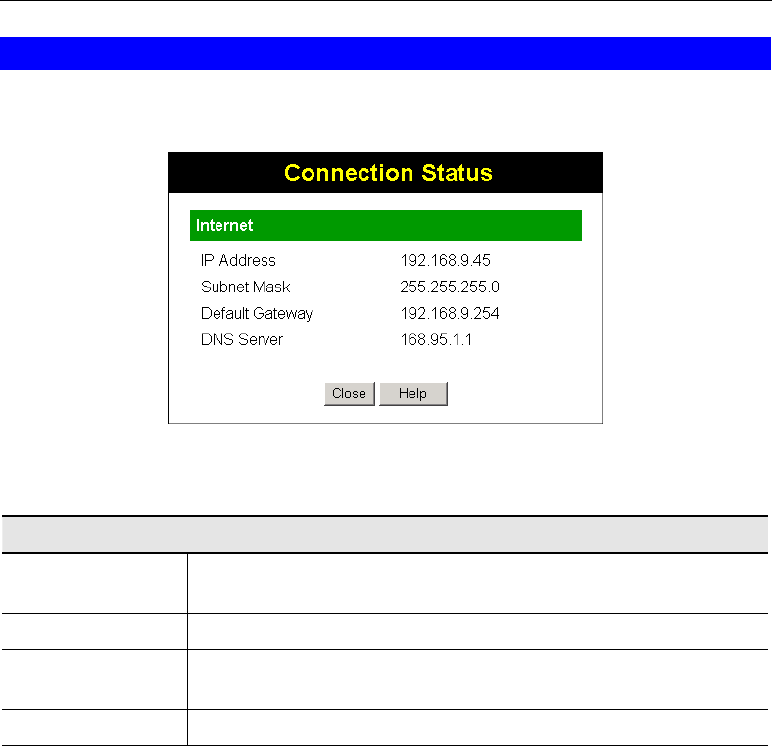

Figure 48: Connection Details - Fixed/Dynamic IP Address
Data - Fixed IP address Screen
Internet
IP Address The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).
Network Mask The Network Mask associated with the IP Address above.
Default Gateway The IP Address of the remote Gateway or Router associated with the
IP Address above.
DNS Server The IP Address of the Domain Name Server which is currently used.
56
6
Chapter 6
Advanced Features
This Chapter explains when and how to use the Wireless ADSL Router's
"Advanced" Features.
Overview
The following advanced features are provided:
• Internet:
• DMZ
• Special Applications
• URL filter
• Dynamic DNS
• Firewall Rules
• Firewall Services
• Schedule
• Virtual Servers
• VPN
Internet
This screen provides access to the DMZ, Special Applications and URL Filter features.
Figure 49: Internet Screen
DMZ
This feature, if enabled, allows the DMZ computer on your LAN to be exposed to all users on
the Internet.
57
Wireless ADSL Router User Guide
• This allows almost any application to be used on the "DMZ PC".
• The "DMZ PC" will receive all "Unknown" connections and data.
• If the DMZ feature is enabled, you must select the PC to be used as the "DMZ PC".
The "DMZ PC" is effectively outside the Firewall,
making it more vulnerable to attacks. For this reason,
you should only enable the DMZ feature when required.
Special Applications
If you use Internet applications which use non-standard connections or port numbers, you may
find that they do not function correctly because they are blocked by the Wireless Router's
firewall. In this case, you can define the application as a "Special Application".
The Special Applications screen can be reached by clicking the Special Applications button on
the Internet screen.
You can then define your Special Applications. You will need detailed information about the
application; this is normally available from the supplier of the application.
Also, note that the terms "Incoming" and "Outgoing" on this screen refer to traffic from the
client (PC) viewpoint

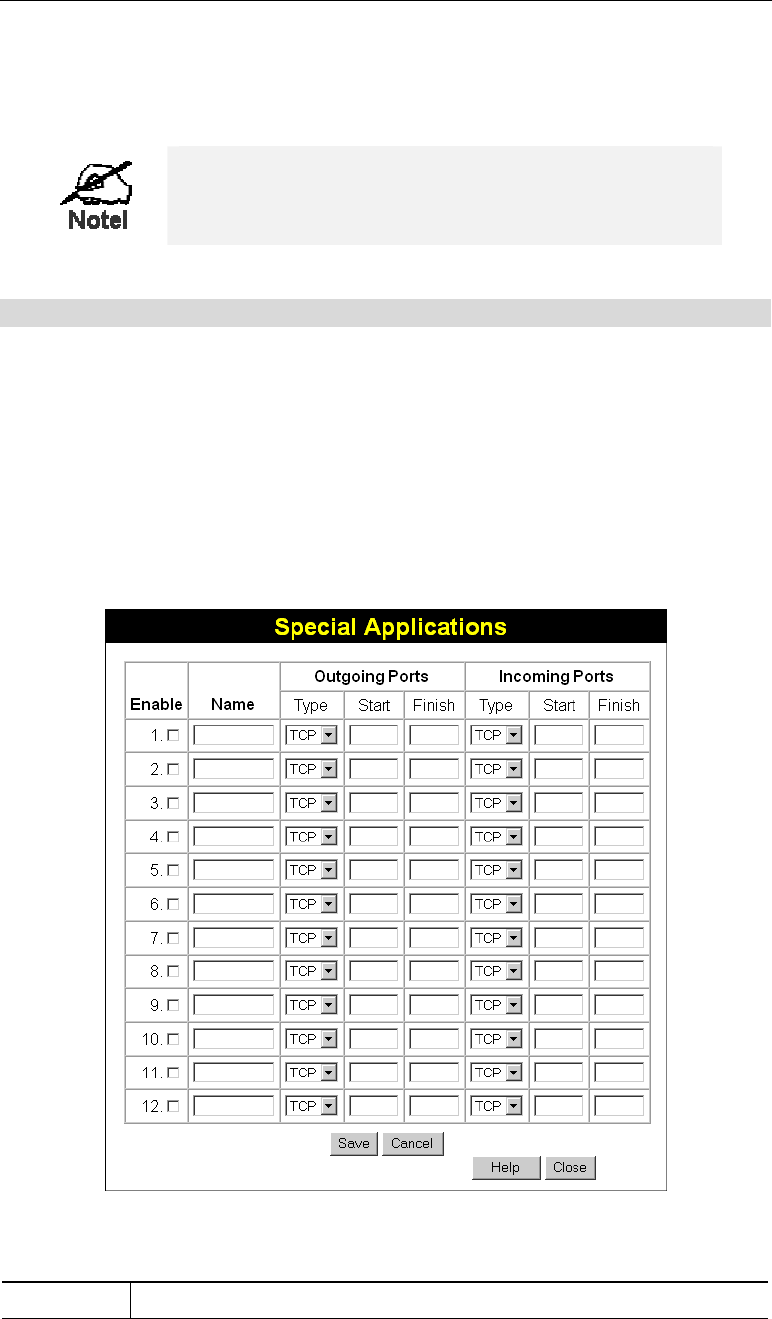

Figure 50: Special Applications Screen
Data - Special Applications Screen
Checkbox Use this to Enable or Disable this Special Application as required.
58
Advanced Features
Name Enter a descriptive name to identify this Special Application.
Incoming
Ports
• Type - Select the protocol (TCP or UDP) used when you receive data
from the special application or service. (Note: Some applications use
different protocols for outgoing and incoming data).
• Start - Enter the beginning of the range of port numbers used by the
application server, for data you receive. If the application uses a single
port number, enter it in both the "Start" and "Finish" fields.
• Finish - Enter the end of the range of port numbers used by the
application server, for data you receive.
Outgoing
Ports
• Type - Select the protocol (TCP or UDP) used when you send data to
the remote system or service.
• Start - Enter the beginning of the range of port numbers used by the
application server, for data you send to it. If the application uses a
single port number, enter it in both the "Start" and "Finish" fields.
• Finish - Enter the end of the range of port numbers used by the
application server, for data you send to it. If the application uses a
single port number, enter it in both the "Start" and "Finish" fields.
Using a Special Application
• Configure the Special Applications screen as required.
• On your PC, use the application normally. Remember that only one (1) PC can use each
Special application at any time. Also, when 1 PC is finished using a particular Special
Application, there may need to be a "Time-out" before another PC can use the same
Special Application. The "Time-out" period may be up to 3 minutes.
URL Filter
If you want to limit access to certain sites on the Internet, you can use this feature. The URL
filter will check each Web site access. If the address, or part of the address, is included in the
block site list, access will be denied.
On the Advanced Internet screen, select the desired setting:
• Disable - disable this feature.
• Block By Schedule - block according to the settings on the Schedule page.
• Block Always - allow blocking all of the time, independent of the Schedule page.
Click the Configure URL Filter button to open the URL Filter screen, allowing you to create
or modify the filter strings which determine which sites will be blocked.
The URL Filter screen is displayed when the Configure URL Filter button on the Advanced
Internet screen is clicked.
59
Wireless ADSL Router User Guide

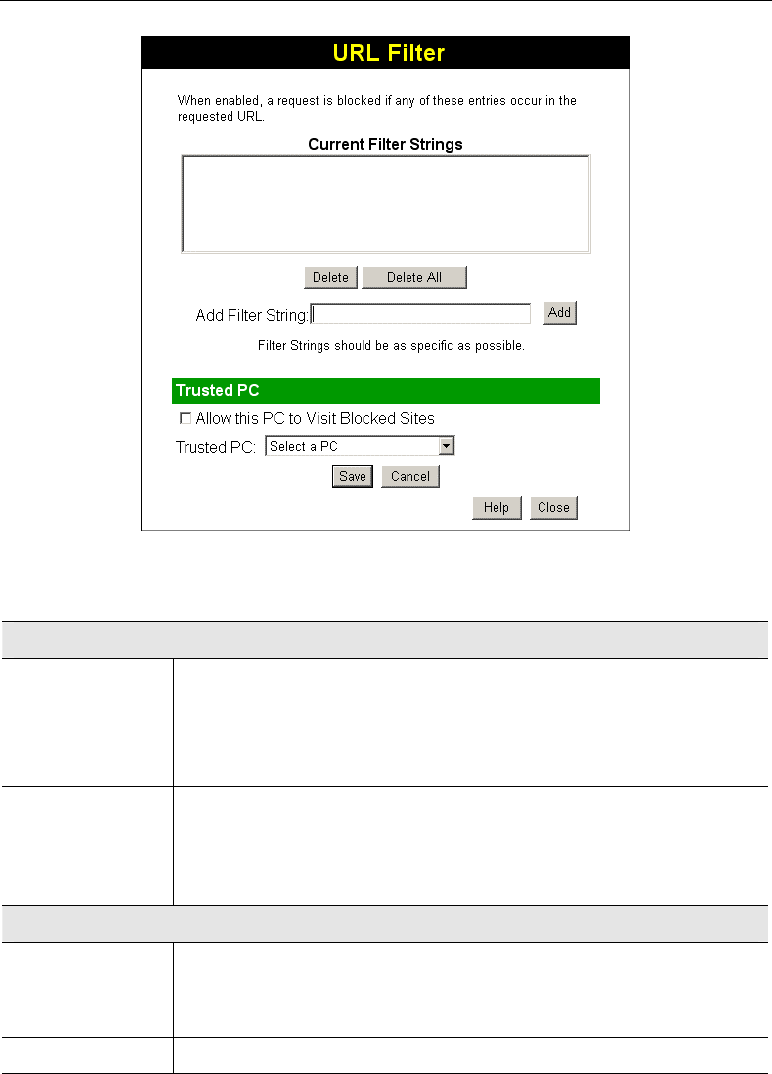

Figure 51: URL Filter Screen
Data - URL Filter Screen
Current Filter Strings
Current Filter
Strings The list contains the current list of items to block.
• To add to the list, use the "Add" option below.
• To delete an entry, select it and click Delete button.
• To delete all entries, click the Delete All button.
Add Filter String To add to the current list, type the word or domain name you want to
block into the field provided, then click the Add button.
Filter strings should be as specific as possible. Otherwise, you may
block access to many more sites than intended.
Trusted PC
Allow Trusted
PC Enable this to allow one computer to have unrestricted access to the
Internet. For this PC, the URL filter will be ignored.
If enabled, you must select the PC to be the trusted PC.
Trusted PC Select the PC to be the Trusted PC.
60
Advanced Features
Dynamic DNS (Domain Name Server)
This free service is very useful when combined with the Virtual Server feature. It allows
Internet users to connect to your Virtual Servers using a URL, rather than an IP Address.
This also solves the problem of having a dynamic IP address. With a dynamic IP address, your
IP address may change whenever you connect, which makes it difficult to connect to you.
DDNS Services work as follows:
1. You must register for the service at one of the listed DDNS Service providers.
2. After registration, use the Service provider's normal procedure to obtain your desired
Domain name.
3. Enter your DDNS data on the Wireless ADSL Router's DDNS screen, and enable the
DDNS feature.
4. The Wireless ADSL Router will then automatically ensure that your current IP Address is
recorded at the DDNS service provider's Domain Name Server.
5. From the Internet, users will be able to connect to your Virtual Servers (or DMZ PC)
using your Domain name, as shown on this screen.
Dynamic DNS Screen
Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following:
Figure 52: DDNS Screen
Data - Dynamic DNS Screen
DDNS Service
Use a Dynamic
DNS Service Use this to enable or disable the DDNS feature as required.
Service Provider Select the desired DDNS Service provider.
Web Site Click this button to open a new window and connect to the Web site
of the selected DDNS service provider.
DDNS Data
Host Name Enter the domain name allocated to you by the DDNS Service. If you
have more than one name, enter the name you wish to use.
61
Wireless ADSL Router User Guide
User Name Enter your Username for the DDNS Service. (TZO.com uses your E-
mail address.)
Password Enter your current password for the DDNS Service. (TZO.com calls
this a key.)
Domain Name Enter the domain name allocated to you by the DDNS Service. If you
have more than one name, enter the name you wish to use.
DDNS Status • This message is returned by the DDNS Server.
• Normally, this message should be "Update successful"
• If the message indicates some problem, you need to connect to
the DDNS Service provider and correct this problem.
62
Advanced Features
Firewall Rules
The Firewall Rules screen allows you to define "Firewall Rules" which can allow or prevent
certain traffic. "Traffic" means incoming connection attempts, not packets.
By default:
• All Outgoing traffic is permitted.
• All Incoming traffic is denied.
Because of this default behavior, any Outgoing rules will generally Block traffic, and
Incoming rules will generally Allow traffic.
Firewall Rules Screen
An example screen is shown below.

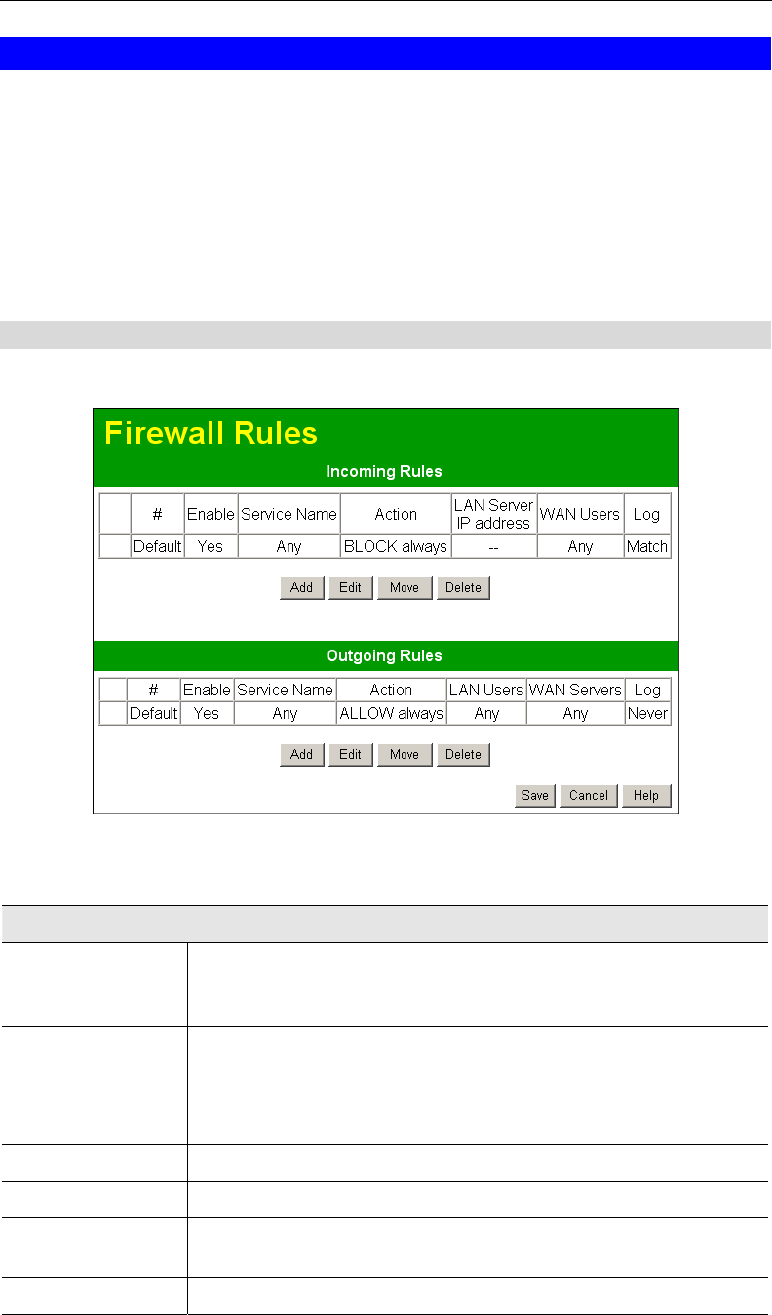

Figure 53 Firewall Screen
Data - Firewall Rules
Incoming Rules
# For the default rule, this will display "Default".
For rules which you create, this will display a radio button which
allows you to select the rule.
Enable Indicates whether or not the rule is currently enabled.
For rules you have added, this column will contain a checkbox,
allowing you to easily enable or disable the rule. (Click "Save" after
making any changes.)
Service Name The Service covered by this rule.
Action The action performed on connections which are covered by this rule.
LAN Server The PC or Server on your LAN to which traffic covered by this rule
will be sent.
WAN Users The WAN IP address or addresses covered by this rule.
63
Wireless ADSL Router User Guide
Log Indicates whether or not connections covered by this rule should be
logged.
Buttons Use the Add button to create a new rule.
The other buttons - Edit, Move, or Delete - require that a rule be
selected first. Use the radio buttons in the left column to select the
desired rule.
Outgoing Rules
# For the default rule, this will display "Default".
For rules which you create, this will display a radio button which
allows you to select the rule.
Enable Indicates whether or not the rule is currently enabled.
For rules you have added, this column will contain a checkbox,
allowing you to easily enable or disable the rule. (Click "Save" after
making any changes.)
Service Name The Service covered by this rule.
Action The action performed on connections which are covered by this rule.
LAN Users The LAN PC or PCs covered by this rule.
WAN Servers The WAN IP address or addresses covered by this rule.
Log Indicates whether or not connections covered by this rule should be
logged.
Buttons Use the Add button to create a new rule.
The other buttons - Edit, Move, or Delete - require that a rule be
selected first. Use the radio buttons in the left column to select the
desired rule.
64
Advanced Features
Incoming Rules (Inbound Services)
This screen is displayed when the "Add" or "Edit" button for Incoming Rules is clicked.

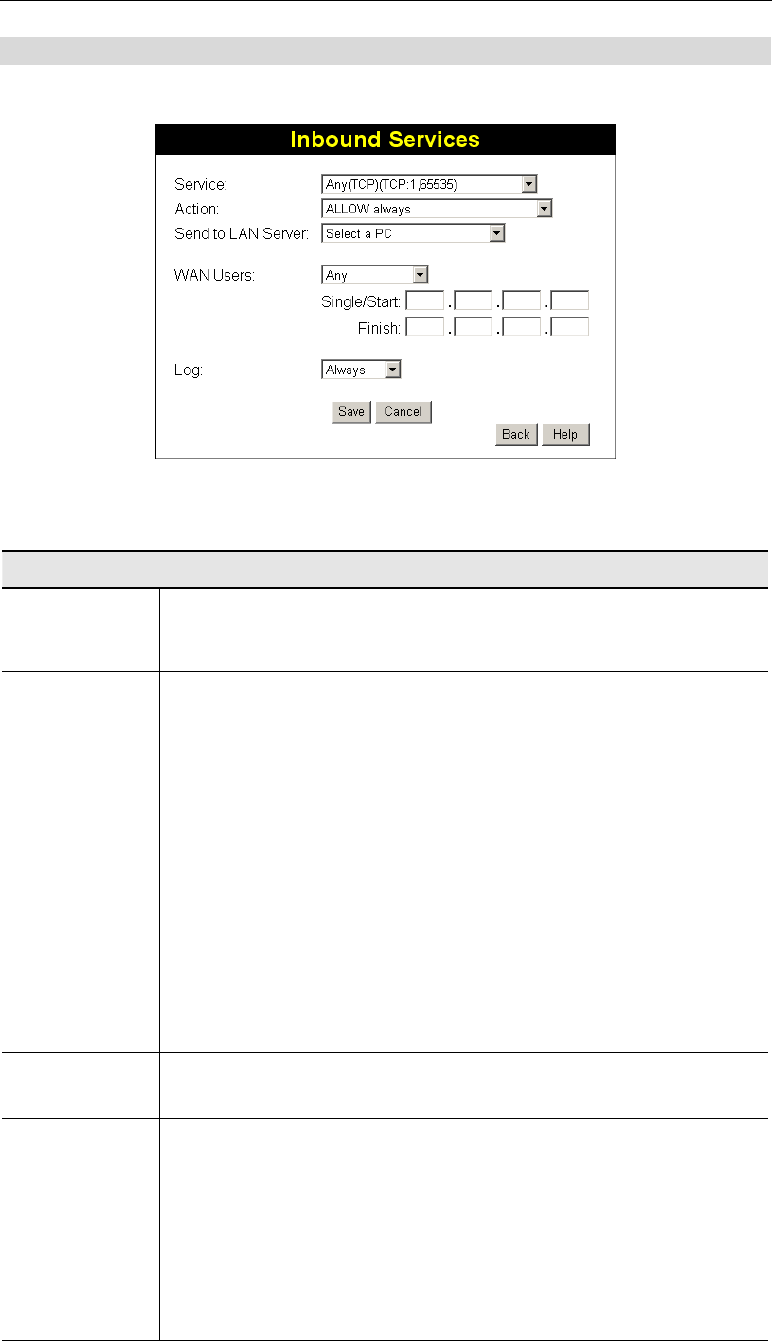

Figure 54: Inbound Services Screen
Data - Incoming Rules Screen
Inbound Services
Service Select the desired Service. This determines which packets are covered by
this rule. If necessary, you can define a new Service on the "Services"
screen, by defining the protocols and port numbers used by the Service.
Action Select the desired action for packets covered by this rule:
• ALLOW always
• ALLOW by schedule, otherwise Block
• BLOCK always
• BLOCK by schedule, otherwise Allow
Note:
• Any inbound traffic which is not allowed by rules you create will be
blocked by the Default rule.
• BLOCK rules are only useful if the traffic is already covered by an
ALLOW rule. (That is, you wish to block a sub-set of traffic which
is currently allowed by another rule.)
• To define the Schedule used in these selections, use the "Schedule"
screen.
Send to
LAN Server
Select the PC or Server on your LAN which will receive the inbound
traffic covered by this rule.
WAN Users These settings determine which packets are covered by the rule, based
on their source (WAN) IP address. Select the desired option:
• Any - All IP addresses are covered by this rule.
• Address range - If this option is selected, you must enter the
desired values in the "Single/Start" and "Finish" fields to determine
the address range.
• Single address - Enter the required address in the "Single/Start"
fields.
65
Wireless ADSL Router User Guide
Log This determines whether packets covered by this rule are logged. Select
the desired action.
• Always - always log traffic considered by this rule, whether it
matches or not. (This is useful when debugging your rules.)
• Never - never log traffic considered by this rule, whether it matches
or not.
• Match - Log traffic only it matches this rule. (The action is
determined by this rule.)
• Not Match - Log traffic which is considered by this rule, but does
not match (The action is NOT determined by this rule.)
Outgoing Rules (Outbound Services)
This screen is displayed when the "Add" or "Edit" button for Outgoing Rules is clicked.

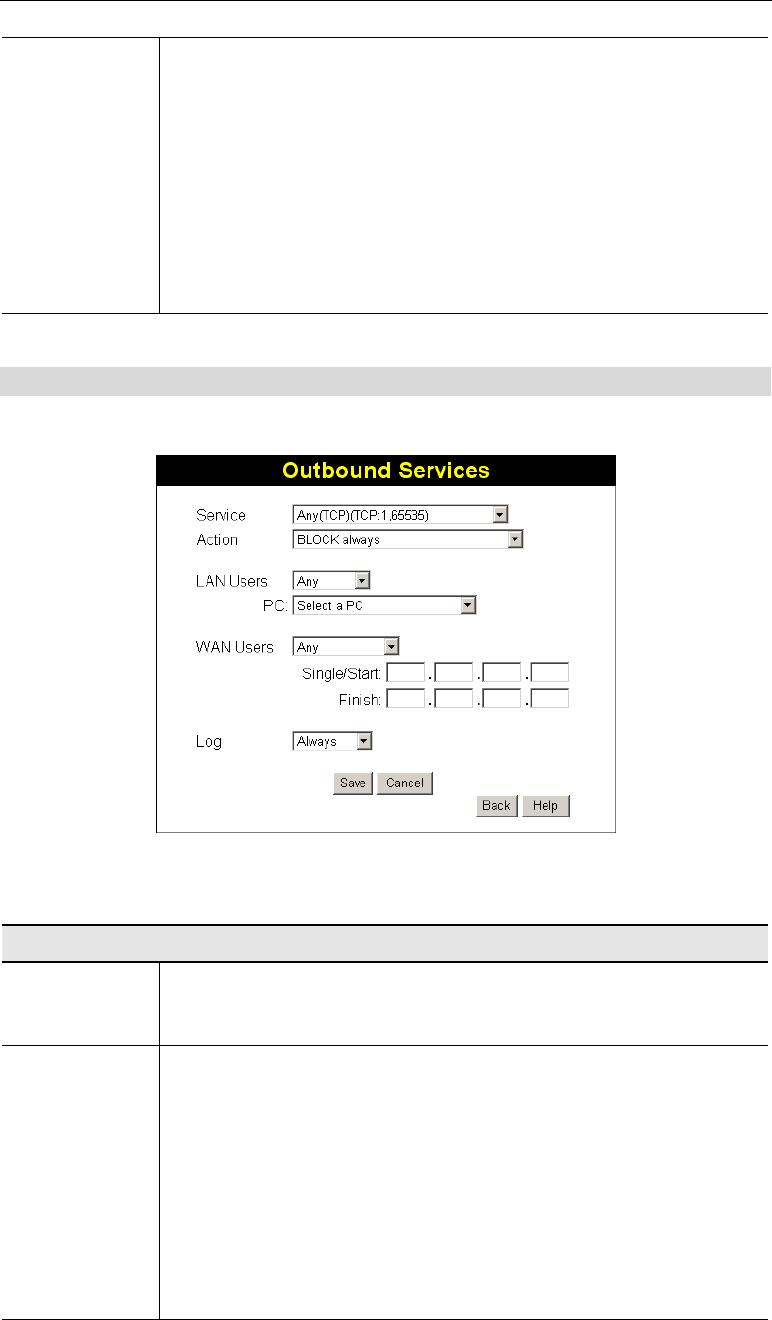

Figure 55: Outbound Services Screen
Data - Outbound Rules Screen
Outbound Services
Service Select the desired Service or application to be covered by this rule. If the
desired service or application does not appear in the list, you must define
it using the "Services" menu option
Action Select the desired action for packets covered by this rule:
• BLOCK always
• BLOCK by schedule, otherwise Allow
• ALLOW always
• ALLOW by schedule, otherwise Block
Note:
• Any outbound traffic which is not blocked by rules you create will
be allowed by the Default rule.
•
ALLOW rules are onl
y
useful if the traffic is alread
y
covered b
y
a
66
Advanced Features
BLOCK rule. (That is, you wish to allow a subset of traffic which is
currently blocked by another rule.)
• To define the Schedule used in these selections, use the "Schedule"
screen.
LAN Users Select the desired option to determine which PCs are covered by this
rule:
• Any - All PCs are covered by this rule.
• Single PC - Only the selected PC is covered by this rule.
If selected, you must select the PC.
PC - If using Single PC above, select the PC or Server on your LAN
which will be covered by this rule.
WAN Users These settings determine which packets are covered by the rule, based
on their source (WAN) IP address. Select the desired option:
• Any - All IP addresses are covered by this rule.
• Address range - If this option is selected, you must enter the "Start"
and "Finish" fields.
• Single address - Enter the required address in the "Single/Start"
fields.
Log This determines whether packets covered by this rule are logged. Select
the desired action.
• Always - always log traffic considered by this rule, whether it
matches or not. (This is useful when debugging your rules.)
• Never - never log traffic considered by this rule, whether it matches
or not.
• Match - Log traffic only it matches this rule. (The action is
determined by this rule.)
• Not Match - Log traffic which is considered by this rule, but does
not match (The action is NOT determined by this rule.)
67
Wireless ADSL Router User Guide
User-defined Services
Services are used when creating Firewall Rules.
If you wish to create a firewall rule, but the required service is not listed in the "Service" list,
you can use this feature to define the required service or services. Once created, these services
will be listed in the "Service" list, and can be used when creating Firewall Rules.

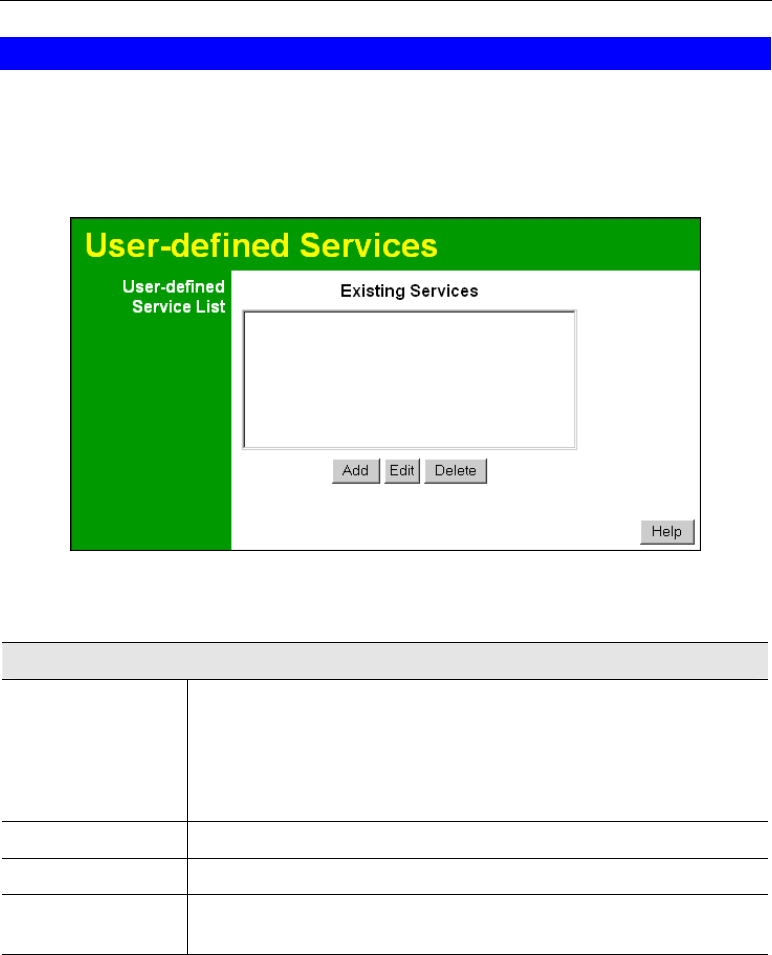

Figure 56: Add Services Screen
Data - User-defined Services
Services
Existing Services This lists any Services you have defined. If you have not defined any
Services, this list will be empty.
Once you define some services, they will be listed here, and also
shown in the Service list used to create Firewall rules. (User-defined
services are at the end of the list, after the pre-defined services.)
Add Use this to open a sub-screen where you can add a new service.
Edit To modify a service, select it, and then click this button.
Delete Use this button to delete the selected service. You can delete any
services you have defined.
68
Advanced Features
Add/Edit Service
This screen is displayed when the Add or Edit button on the Services screen is clicked.
Figure 57 : Add/Edit Service
Data - Add/Edit Service
Services
Name If editing, this shows the current name of the Service.
If adding a new service, this will be blank, and you should enter a
suitable name.
Type Select the protocol used by the Service.
Start Port Enter the beginning of the port range used by the Service.
Finish Port Enter the end of the port range used by the Service.
69
Wireless ADSL Router User Guide
Options
This screen allows advanced users to enter or change a number of settings. For normal
operation, there is no need to use this screen or change any settings.
An example Options screen is shown below.

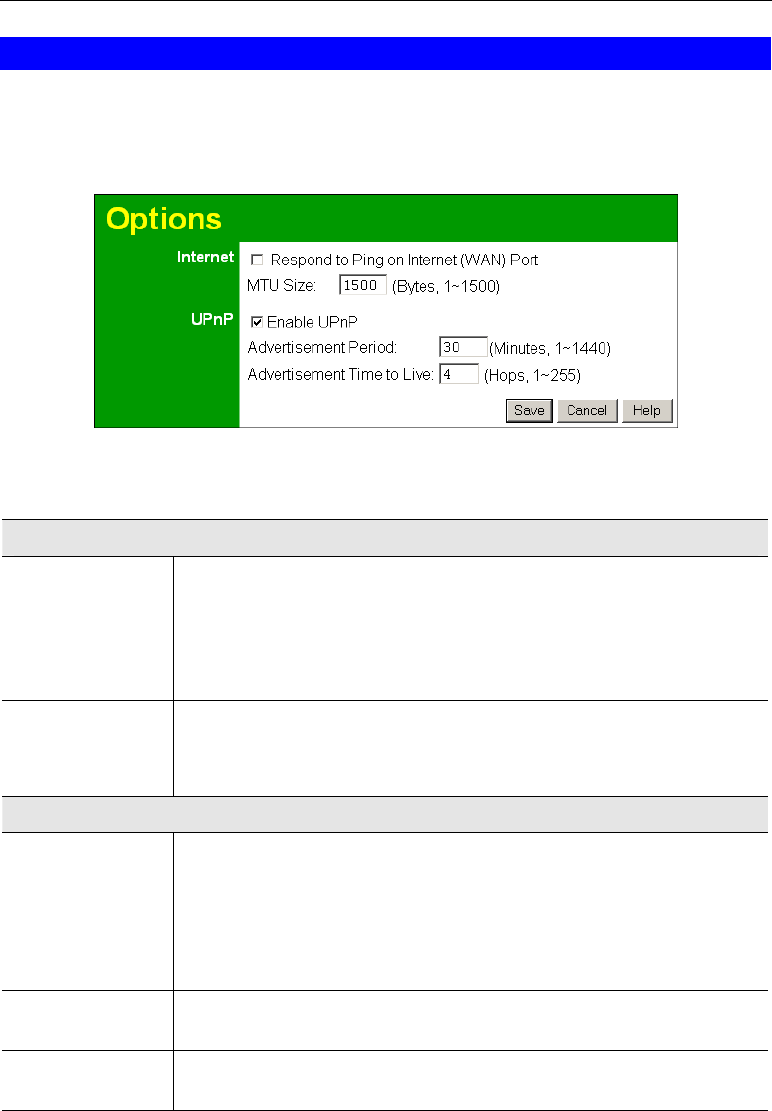

Figure 58: Options Screen
Data - Options Screen
Internet
Respond to Ping • If checked, the Wireless Router will repond to Ping (ICMP)
packets received from the Internet.
• If not checked, Ping (ICMP) packets from the Internet will be
ignored. Disabling this option provides a slight increase in
security.
MTU Size Enter a value between 1 and 1500.
Note: MTU (Maximum Transmission Unit) size should only be
changed if advised to do so by Technical Support.
UPnP
UPnP • UPnP (Universal Plug and Play) allows automatic discovery and
configuration of equipment attached to your LAN. UPnP is by
supported Windows ME, XP, or later.
• If Enabled, this device will be visible via UPnP.
• If Disabled, this device will not be visible via UPnP.
Advertisement
Period Enter the desired value, in minutes. The valid range is from 1 to 1440.
Advertisement
Time to Live Enter the desired value, in hops. The valid range is from 1 to 255.
70
Advanced Features
Schedule
This Schedule can be used for the Firewall Rules and the URL filter.
Figure 59: Schedule Screen
Data - Schedule Screen
Schedule
Day Each day of the week can scheduled independently.
Session 1
Session 2 Two (2) separate sessions or periods can be defined. Session 2 can
be left blank if not required.
Start Time Enter the start using a 24 hr clock.
Finish Time Enter the finish time using a 24 hr clock.
Local Time
Time Zone In order to display your local time correctly, you must select your
"Time Zone" from the list.
Adjust for
Daylight Savings
Time
If your region uses Daylight Savings Time, you must manually
check "Adjust for Daylight Savings Time" at the beginning of the
adjustment period, and uncheck it at the end of the Daylight Savings
period.
71
Wireless ADSL Router User Guide
Use this NTP
Server If you prefer to use a particular NTP server as the primary NTP
server, check the checkbox "Use this NTP Server" and enter the
Server's IP address in the fields provided..
If this setting is not enabled, the default NTP Servers are used.
Current Time This displays the current time on the Wireless ADSL Router, at the
time the page is loaded.
72
Advanced Features
Virtual Servers
This feature, sometimes called Port Forwarding, allows you to make Servers on your LAN
accessible to Internet users. Normally, Internet users would not be able to access a server on
your LAN because:
• Your Server does not have a valid external IP Address.
• Attempts to connect to devices on your LAN are blocked by the firewall in this device.
The "Virtual Server" feature solves these problems and allows Internet users to connect to your
servers, as illustrated below.
Figure 60: Virtual Servers
IP Address seen by Internet Users
Note that, in this illustration, both Internet users are connecting to the same IP Address, but
using different protocols.
To Internet users, all virtual Servers on your LAN have the same IP Address.
This IP Address is allocated by your ISP.
This address should be static, rather than dynamic, to make it easier for Internet users to
connect to your Servers.
However, you can use the DDNS (Dynamic DNS) feature to allow users to connect to your
Virtual Servers using a URL, instead of an IP Address.
Virtual Servers Screen
• The "Virtual Servers" feature allows Internet Users to access PCs on your LAN.
• The PCs must be running the appropriate Server Software.
• For Internet Users, ALL of your Servers have the same IP address. This IP address is
allocated by your ISP.
• To make it easier for Internet users to connect to your Servers, you can use the "DDNS"
feature. This allows Internet users to connect to your Servers with a URL, rather than an
IP address. This technology works even if your ISP allocates dynamic IP addresses (IP
address is allocated upon connection, so it may change each time you connect).
73
Wireless ADSL Router User Guide

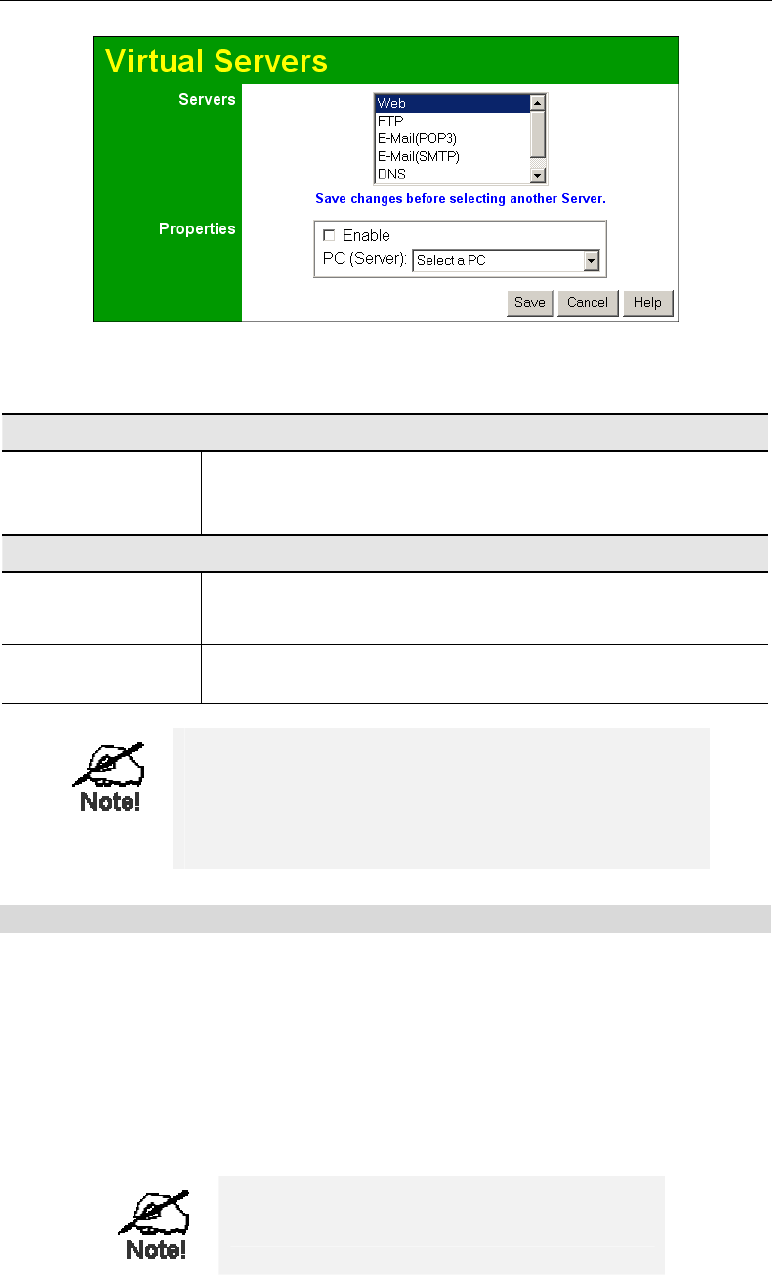

Figure 61: Virtual Servers Screen
Data - Virtual Servers Screen
Servers
Servers This lists a number of common Server types. If the desired Server
type is not listed, you can create a Firewall Rule to achieve the
same effect as the Virtual Server function.
Properties
Enable Use this to Enable or Disable support for this Server, as required.
If Enabled, you must select the PC to which this traffic will be sent.
PC (Server) Select the PC for this Server. The PC must be running the
appropriate Server software.
For each entry, the PC must be running the
appropriate Server software.
If the desired Server type is not listed, you can define
your own Servers, using the Firewall Rules.
Connecting to the Virtual Servers
Once configured, anyone on the Internet can connect to your Virtual Servers. They must use
the Internet IP Address (the IP Address allocated to you by your ISP).
e.g. http://203.70.212.52
ftp://203.70.212.52
It is more convenient if you are using a Fixed IP Address from your ISP, rather than Dynamic.
However, you can use the Dynamic DNS feature to allow users to connect to your Virtual
Servers using a URL, rather than an IP Address.
From the Internet, ALL Virtual Servers have
the IP Address allocated by your ISP
74
Advanced Features
VPN Setup
The VPN (Virtual Private Network) feature in the Wireless ADSL Router allows you to create
a VPN connection between 2 Wireless ADSL Routers, or a remote PC to establish a VPN
connection to the Wireless ADSL Router.
To establish a VPN connection from a remote PC to the Wireless ADSL Router, you need
suitable (IPSec) VPN client software on your PC.
For more information about VPNs, please refer to Appendix C - About VPNs.
VPN Policies
A "VPN Policy" contains all the configuration data for a particular VPN connection. Generally,
you will have to create one policy for each site you wish to connect to. The remote VPN
Gateway (or client) needs to have matching configuration.
• Traffic covered by an enabled policy will automatically be sent via a VPN tunnel. If the
VPN tunnel does not exist, it will be created.
• The VPN tunnel is created according to the parameters in the SA (Security Association).
• The remote VPN Endpoint must have a matching SA, or it will refuse the connection.
There are 2 types of VPN Policies:
• Manual - All settings (including the keys) for the VPN tunnel are manually input at each
end (both VPN Endpoints).
• Auto - Some parameters for the VPN tunnel are generated automatically. This requires
using the IKE (Internet Key Exchange) protocol to perform negotiations between the 2
VPN Endpoints.
75
Wireless ADSL Router User Guide
VPN Policies Screen
This screen is displayed when you select VPN on the Advanced menu. It allows you to create,
modify and manage your VPN Policies.
If you have not created any policies, the Policy Table will be empty.

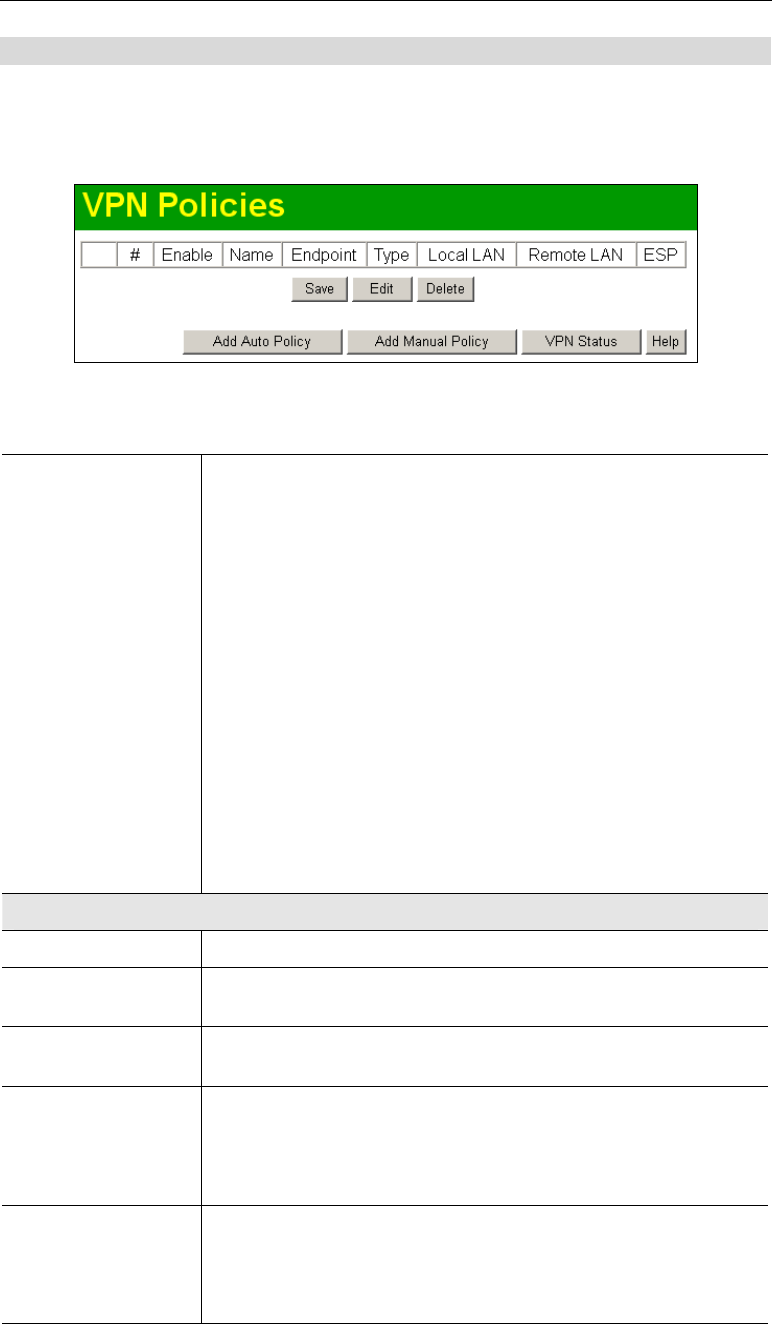

Figure 62: VPN Policies Screen
Data - VPN Policies Screen
Policy Table The Policy Table contains the following data
• Enable - Use this checkbox to Enable or Disable a Policy as
required. Click "Save" after making any changes.
• Name - Each policy is given a unique name to identify it. This
name is not known to the remote VPN endpoint; it is used only
to assist managing your policies.
• Endpoint - The address of the remote VPN endpoint.
• Type - The Type is "Auto" or "Manual" as explained above.
• Local LAN - IP address or subnet on your local LAN. Traffic
must be from (or to) these addresses to be covered by this
policy.
• Remote LAN - IP address or subnet on the remote LAN.
Traffic must be to (or from) these addresses to be covered by
this policy.
• ESP - ESP (Encapsulating Security Payload) encryption
protocol used for the VPN data.
Buttons
Save Save any changes to the "Enable" setting for each policy.
Edit Edit (modify) the selected policy. (Select a policy by clicking on
the radio button.)
Delete Delete the selected policy. (Select a policy by clicking on the radio
button.)
Add Auto Policy Change to the input screen for an "Auto" policy. See the following
section for details.
When the new policy is saved, it will appear in the bottom row of
the Policy Table.
Add Manual Policy Change to the input screen for an "Manual" policy. See the
following section for details.
When the new policy is saved, it will appear in the bottom row of
the Policy Table.
76
Advanced Features
VPN Status View details of each current VPN Tunnel (connection) in a sub-
window. You also have the option of viewing the VPN Log.
VPN Auto Policy Screen
This screen is displayed when you click the Add Auto Policy button on the VPN Policies
screen, or when you edit an existing Auto Policy. It allows you to define or edit an "Auto"
VPN policy.
An "Auto" VPN policy uses the IKE (Internet Key Protocol) to exchange and negotiate
parameters for the IPsec SA (Security Association). Because of this negotiation, it is not
necessary for all settings on this VPN Gateway to match the settings on the remote VPN
endpoint. Where settings must match, this is indicated.

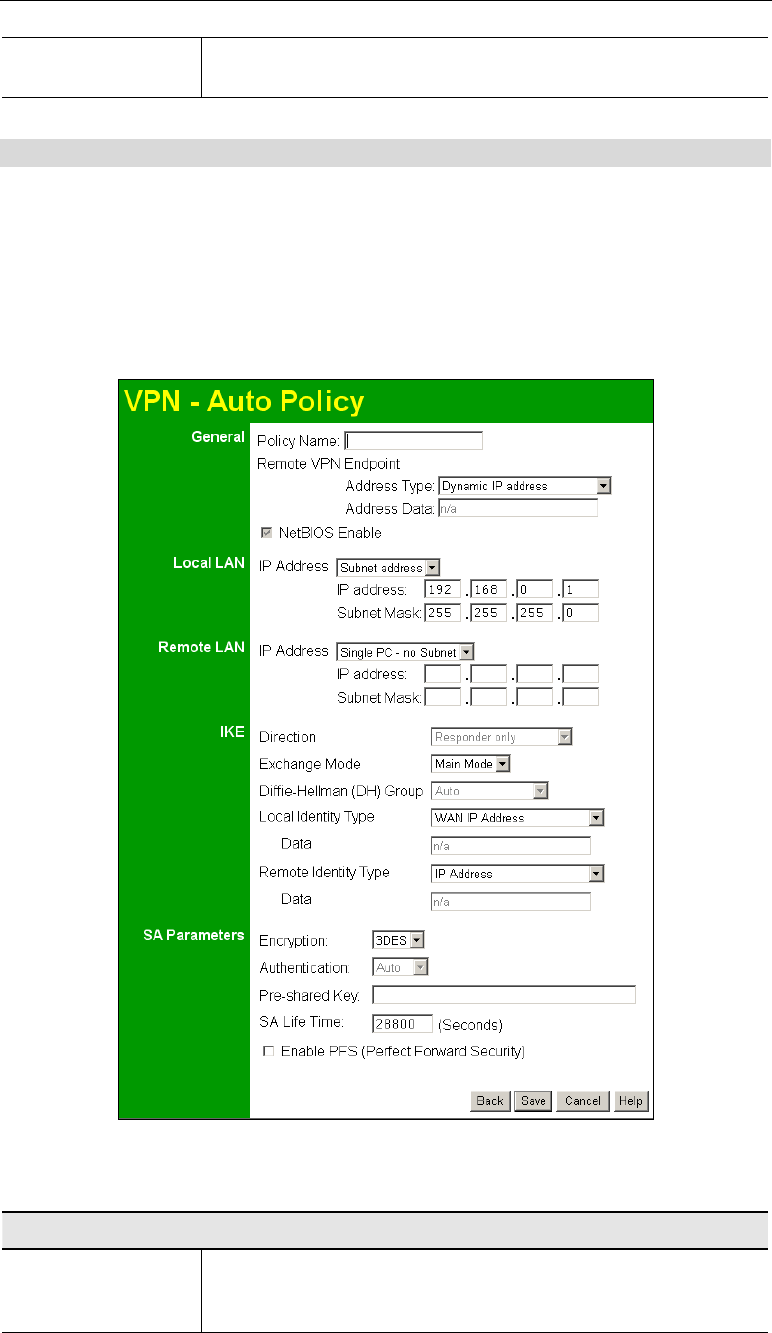

Figure 63: VPN-Auto Policy Screen
Data - VPN-Auto Policy Screen
General
Policy Name Enter a unique name to identify this policy. This name is not
supplied to the remote VPN endpoint. It is used only to help you
manage the policies.
77
Wireless ADSL Router User Guide
Remote VPN
Endpoint If the remote endpoint has a dynamic IP address, select "Dynamic
IP address". No "Address Data" input is required.
Otherwise, select the desired option (IP address or Domain Name)
and enter the address of the remote VPN endpoint you wish to
connect to.
Note: The remote VPN endpoint must have this VPN Gateway's
address entered as its "Remote VPN Endpoint".
NetBIOS Enable Check this if you wish NETBIOS traffic to be forwarded over the
VPN tunnel. The NETBIOS protocol is used by Microsoft
Networking.
Local LAN
Local LAN This identifies which PCs on your LAN are covered by this policy.
For each selection, data must be provided as follows:
• Single address
Enter an IP address in the "IP address" field. Typically, this
setting is used when you wish to make a single Server on your
LAN available to remote users.
• Subnet address
Enter an IP address in the "IP address" field, and the desired
network mask in the "Subnet Mask" field.
The remote VPN endpoint must have these IP addresses entered as
its "Remote" addresses.
Remote LAN
Remote LAN This identifies which PCs on the remote LAN are covered by this
policy. For each selection, data must be provided as follows:
• Single PC - no subnet
Select this option if there is no LAN (only a single PC) at the
remote endpoint. If this option is selected, no additional data is
required.
• Single address
Enter an IP address in the "IP address" field. This must be an
address on the remote LAN. Typically, this setting is used
when you wish to access a server on the remote LAN.
• Subnet address
Enter an IP address in the "IP address" field, and the desired
network mask in the "Subnet Mask" field.
The remote VPN endpoint must have these IP addresses entered as
its "Local" addresses.
IKE
Direction This setting is used when determining if the IKE policy matches the
current traffic. Select the desired option.
• Responder only - Incoming connections are allowed, but
outgoing connections will be blocked.
• Initiator and Responder - Both incoming and outgoing
connections are allowed.
78
Advanced Features
Exchange Mode IPSec has 2 possibilities - "Main Mode" and "Aggressive Mode".
Currently, only "Main Mode" is supported. Ensure the remote VPN
endpoint is set to use "Main Mode".
Diffie-Hellman (DH)
Group The Diffie-Hellman algorithm is used when exchanging keys. The
DH Group setting determines the number of bit size used in the
exchange. This value must match the value used on the remote
VPN Gateway.
Local Identity Type Select the desired option to match the "Remote Identity Type"
setting on the remote VPN endpoint.
• WAN IP Address - your Internet IP address.
• Fully Qualified Domain Name - your domain name.
• Fully Qualified User Name - your name, E-mail address, or
other ID.
Remote Identity
Type Select the desired option to match the "Local Identity Type" setting
on the remote VPN endpoint.
• IP Address - The Internet IP address of the remote VPN
endpoint.
• Fully Qualified Domain Name - the Domain name of the
remote VPN endpoint.
• Fully Qualified User Name - the name, E-mail address, or
other ID of the remote VPN endpoint.
Remote Identity
Data Enter the data for the selection above. (If "IP Address" is selected,
no input is required.)
SA Parameters
Encryption Encryption Algorithm used for both IKE and IPSec. This setting
must match the setting used on the remote VPN Gateway.
Authentication Authentication Algorithm used for both IKE and IPSec. This
setting must match the setting used on the remote VPN Gateway.
Pre-shared Key The key must be entered both here and on the remote VPN
Gateway. This method does not require using a CA (Certificate
Authority).
SA Life Time This determines the time interval before the SA (Security
Association) expires. (It will automatically be re-established if
necessary.) While using a short time period (or data amount)
increases security, it also degrades performance. It is common to
use periods over an hour (3600 seconds) for the SA Life Time. This
setting applies to both IKE and IPSec SAs.
IPSec PFS (Perfect
Forward Secrecy) If enabled, security is enhanced by ensuring that the key is changed
at regular intervals. Also, even if one key is broken, subsequent
keys are no easier to break. (Each key has no relationship to the
previous key.)
This setting applies to both IKE and IPSec SAs. When configuring
the remote endpoint to match this setting, you may have to specify
the "Key Group" used. For this device, the "Key Group" is the
same as the "DH Group" setting in the IKE section.
79
Wireless ADSL Router User Guide
VPN- Manual Policy Screen
This screen is displayed when you click the Add Manual Policy button on the VPN Policies
screen, or when you edit an existing Manual Policy. It allows you to define or edit a "Manual"
VPN policy.
An "Manual" VPN policy requires that you enter all data on both VPN endpoints. There is no
negotiation between the 2 VPN endpoints.

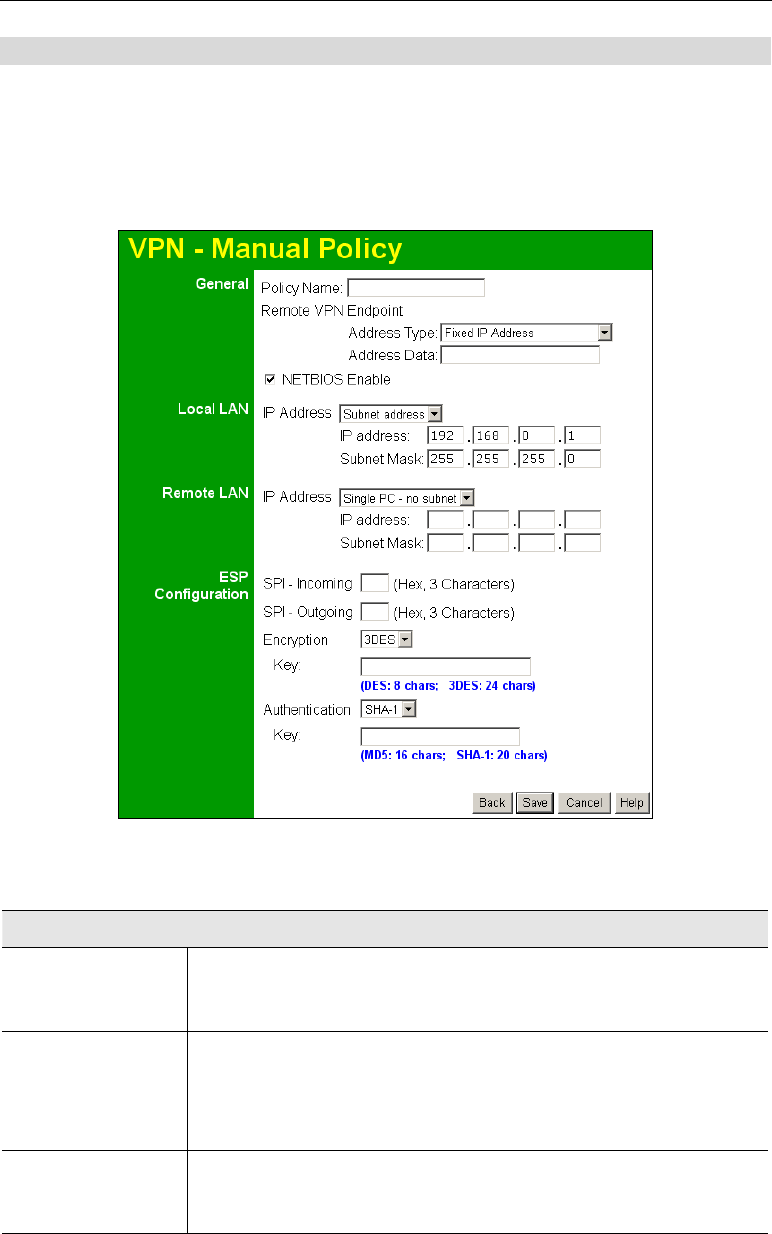

Figure 64: VPN-Manual Policy Screen
Data - VPN-Manual Policy Screen
General
Policy Name Enter a unique name to identify this policy. This name is not supplied
to the remote VPN endpoint. It is used only to help you manage the
policies.
Remote VPN
Endpoint Select the desired option (IP address or Domain Name) and enter the
address of the remote VPN endpoint you wish to connect to.
Note: The remote VPN endpoint must have this VPN Gateway's
address entered as its "Remote VPN Endpoint".
NETBIOS Enable Check this if you wish NETBIOS traffic to be forwarded over the
VPN tunnel. The NETBIOS protocol is used by Microsoft
Networking.
80
Advanced Features
Local LAN
Local LAN This identifies which PCs on your LAN are covered by this policy.
For each selection, data must be provided as follows:
• Single address
Enter an IP address in the "IP address" field. Typically, this
setting is used when you wish to make a single Server on your
LAN available to remote users.
• Subnet address
Enter an IP address in the "IP address" field, and the desired
network mask in the "Subnet Mask" field.
The remote VPN endpoint must have these IP addresses entered as its
"Remote" addresses.
Remote LAN
Remote LAN This identifies which PCs on the remote LAN are covered by this
policy. For each selection, data must be provided as follows:
• Single PC - no subnet
Select this option if there is no LAN (only a single PC) at the
remote endpoint. If this option is selected, no additional data is
required.
• Single address
Enter an IP address in the "IP address" field. This must be an
address on the remote LAN. Typically, this setting is used when
you wish to access a server on the remote LAN.
• Subnet address
Enter an IP address in the "IP address" field, and the desired
network mask in the "Subnet Mask" field.
The remote VPN endpoint must have these IP addresses entered as its
"Local" addresses.
ESP Configuration
SPI Enter the required SPIs. Each policy must have unique SPIs. These
settings must match the remote VPN endpoint. Note that the "in"
setting here must match the "out" setting on the remote VPN
endpoint, and the "out" setting here must match the "in" setting on
the remote VPN endpoint.
Encryption Select the desired Encryption Algorithm, and enter the key in the
field provided.
• For DES, the key should be 8 ASCII characters (16 Hex
characters).
• For 3DES, the key should be 24 ASCII characters (48 Hex
characters).
Authentication Select the desired Authentication Algorithm, and enter the key in the
field provided.
• For MD5, the key should be 16 ASCII characters (32 Hex
characters).
• For SHA-1, the key should be 20 ASCII (40 Hex characters).
81
Wireless ADSL Router User Guide
VPN Status Screen
This screen is displayed when you click the VPN Log button on the VPN Policies screen, or on
the Status screen.
This screen allows you to view details of each current VPN Tunnel (connection). If there are
no current connections, the status table will be empty.

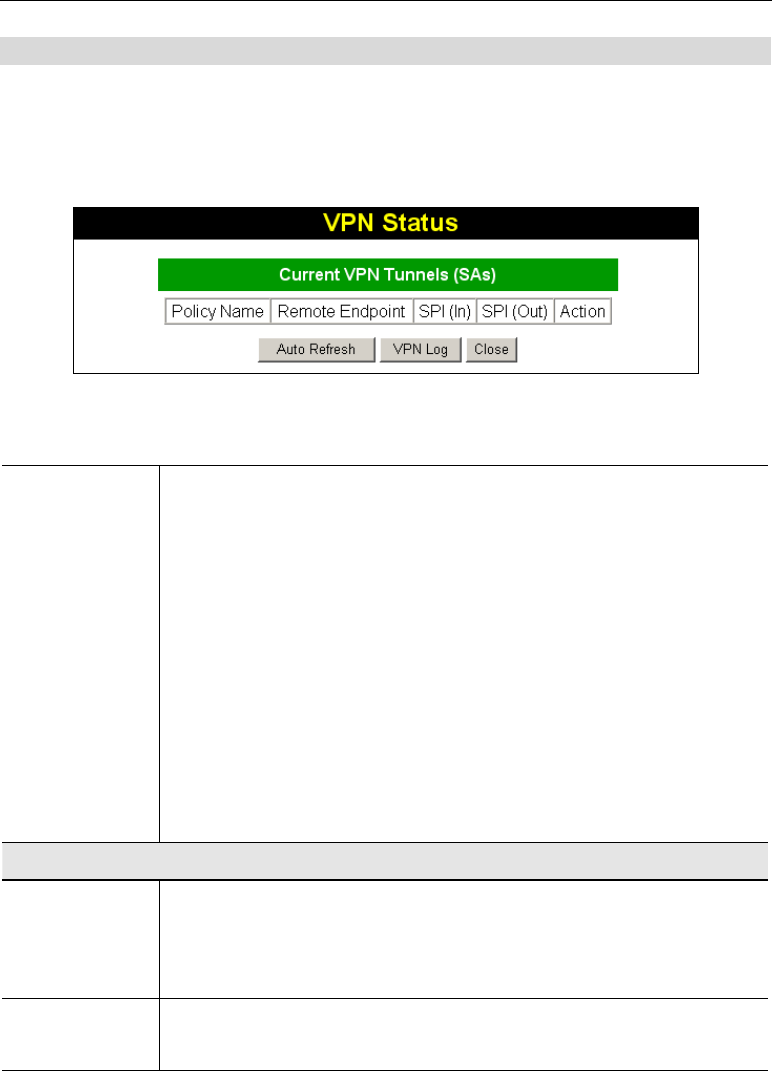

Figure 65: VPN-Status Screen
Data - VPN Status Screen
Tunnel Table This table contains the following data about each current connection.
• Policy Name - The name of the policy. When a policy is created, it
must be given a unique name to identify it.
• Remote Endpoint - The address of the remote VPN endpoint.
• SPI (In) - This is a unique index number to identify the incoming
connection. For "Auto" policies, the SPI is automatically generated.
For "Manual" policies, the SPI must be entered when the policy is
configured.
• SPI (Out) - This is a unique index number to identify the outgoing
connection. For "Auto" policies, the SPI is automatically generated.
For "Manual" policies, the SPI must be entered when the policy is
configured.
• Action - This column will contain a button which allows you to
break (terminate) the current the VPN connection.
Buttons
Auto Refresh Use this to Enable or Disable auto-refresh for this screen. If enabled, the
screen will be updated every few seconds.
The status bar on the bottom on the screen will indicate if auto-refresh is
enabled or disabled.
VPN Log Click this button to switch to the VPN log screen.
The VPN log shows details of each connection as it is created.
82
7
Chapter 7
Advanced Administration
This Chapter explains the settings available via the "Administration" section
of the menu.
Overview
Normally, it is not necessary to use these screens, or change any settings. These screens and
settings are provided to deal with non-standard situations, or to provide additional options for
advanced users.
The available settings and features are:
PC Database This is the list of PCs shown when you select the "DMZ PC" or a
"Virtual Server". This database is maintained automatically, but
you can add and delete entries for PCs which use a Fixed (Static)
IP Address.
Config File Backup or restore the configuration file for the Wireless ADSL
Router. This file contains all the configuration data.
Logging & Email View or clear all logs, set E-Mailing of log files and alerts.
Diagnostics Perform a Ping or DNS Lookup.
Remote Admin Allow settings to be changed from the Internet..
Routing Only required if your LAN has other Routers or Gateways.
Upgrade Firmware Upgrade the Firmware (software) installed in your Wireless
ADSL Router.
83
Wireless ADSL Router User Guide
PC Database
The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC).
• It eliminates the need to enter IP addresses.
• Also, you do not need to use fixed IP addresses on your LAN.
However, if you do use a fixed IP address on some devices on your LAN, you should enter
details of each such device into the PC database, using the PC Database screen.
PC Database Screen
An example PC Database screen is shown below.

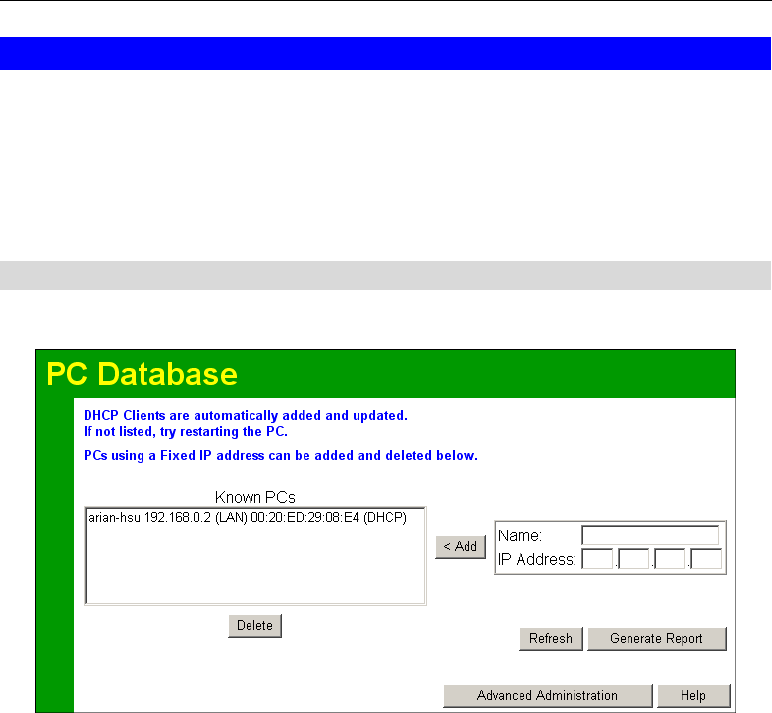

Figure 66: PC Database
• PCs which are "DHCP Clients" are automatically added to the database, and updated as
required.
• By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called
"Obtain an IP Address automatically".
• The Wireless ADSL Router uses the "Hardware Address" to identify each PC, not the
name or IP address. The "Hardware Address" can only change if you change the PC's
network card or adapter.
• This system means you do NOT need to use Fixed (static) IP addresses on your LAN.
However, you can add PCs using Fixed (static) IP Addresses to the PC database if
required.
84
Advanced Features
Data - PC Database Screen
Known PCs This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN.
Name If adding a new PC to the list, enter its name here. It is best if this
matches the PC's "hostname".
IP Address Enter the IP Address of the PC. The PC will be sent a "ping" to
determine its hardware address. If the PC is not available (not
connected, or not powered On) you will not be able to add it.
Buttons
Add This will add the new PC to the list. The PC will be sent a "ping" to
determine its hardware address. If the PC is not available (not
connected, or not powered On) you will not be able to add it.
Delete Delete the selected PC from the list. This should be done in 2
situations:
• The PC has been removed from your LAN.
• The entry is incorrect.
Refresh Update the data on screen.
Generate Report Display a read-only list showing full details of all entries in the PC
database.
Advanced
Administration View the Advanced version of the PC database screen - PC Database
(Admin). See below for details.
85
Wireless ADSL Router User Guide
PC Database - Advanced
This screen is displayed if the "Advanced Administration" button on the PC Database is
clicked. It provides more control than the standard PC Database screen.
Figure 67: PC Database (Admin)
Data - Advanced PC Database
Known PCs This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN.
PC Properties
Name If adding a new PC to the list, enter its name here. It is best if this
matches the PC's "hostname".
IP Address Select the appropriate option:
• Automatic - The PC is set to be a DHCP client (Windows:
"Obtain an IP address automatically"). The Wireless ADSL Router
will allocate an IP address to this PC when requested to do so. The
IP address could change, but normally won't.
• DCHP Client - Reserved IP Address - Select this if the PC is set
to be a DCHP client, and you wish to guarantee that the Wireless
ADSL Router will always allocate the same IP Address to this PC.
Enter the required IP address.
• Fixed IP Address - Select this if the PC is using a Fixed (Static)
IP address. Enter the IP address allocated to the PC. (The PC itself
must be configured to use this IP address.)
86
Advanced Features
MAC Address Select the appropriate option
• Automatic discovery - Select this to have the Wireless ADSL
Router contact the PC and find its MAC address. This is only
possible if the PC is connected to the LAN and powered On.
• MAC address is - Enter the MAC address on the PC. The MAC
address is also called the "Hardware Address", "Physical
Address", or "Network Adapter Address". The Wireless ADSL
Router uses this to provide a unique identifier for each PC.
Because of this, the MAC address can NOT be left blank.
Buttons
Add as New
Entry Add a new PC to the list, using the data in the "Properties" box.
If "Automatic discovery" (for MAC address) is selected, the PC will be
sent a "ping" to determine its hardware address. This will fail unless
the PC is connected to the LAN, and powered on.
Update Selected
PC Update (modify) the selected PC, using the data in the "Properties"
box.
Clear Form Clear the "Properties" box, ready for entering data for a new PC.
Refresh Update the data on screen.
Generate Report Display a read-only list showing full details of all entries in the PC
database.
Standard Screen Click this to view the standard PC Database screen.
87
Wireless ADSL Router User Guide
Config File
This feature allows you to download the current settings from the Wireless ADSL Router, and
save them to a file on your PC.
You can restore a previously-downloaded configuration file to the Wireless ADSL Router, by
uploading it to the Wireless ADSL Router.
This screen also allows you to set the Wireless ADSL Router back to its factory default
configuration. Any existing settings will be deleted.
An example Config File screen is shown below.

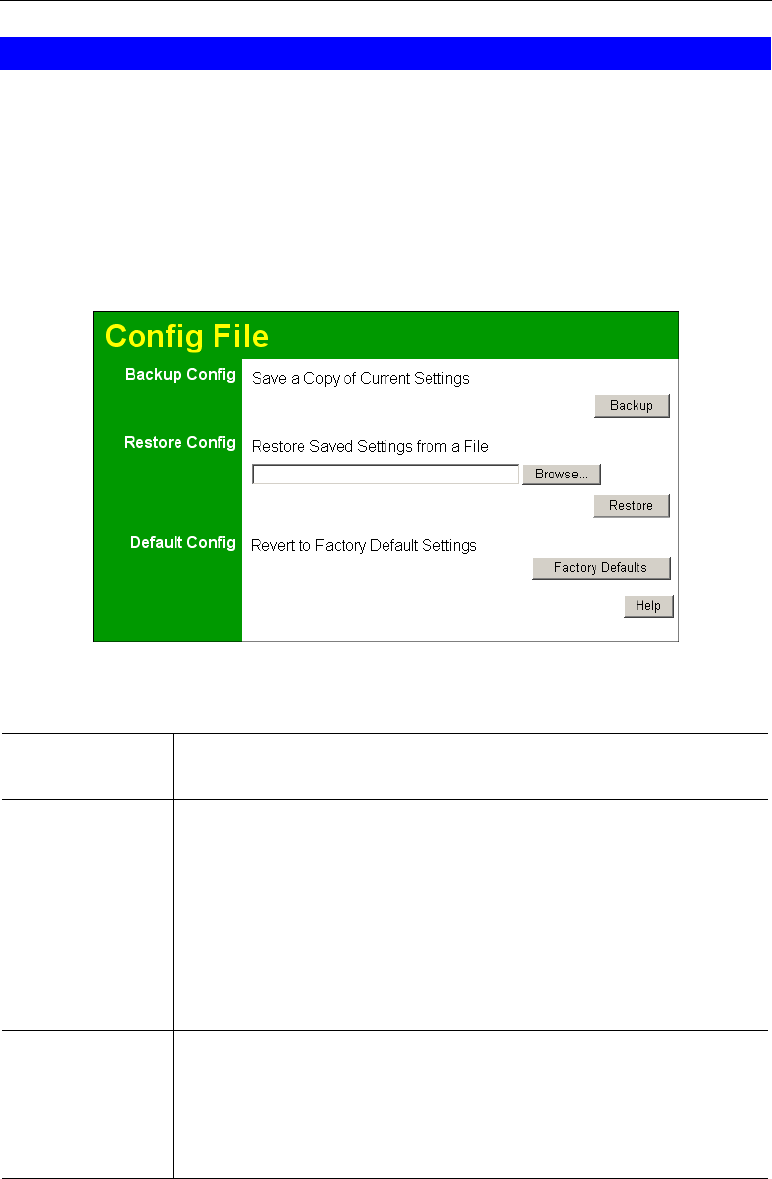

Figure 68: Config File Screen
Data - Config File Screen
Backup Config Use this to download a copy of the current configuration, and store the
file on your PC. Click Download to start the download.
Restore Config This allows you to restore a previously-saved configuration file back to
the Wireless ADSL Router.
Click Browse to select the configuration file, then click Restore to
upload the configuration file.
WARNING !
Uploading a configuration file will destroy (overwrite) ALL of the
existing settings.
Default Config Clicking the Factory Defaults button will reset the Wireless ADSL
Router to its factory default settings.
WARNING !
This will delete ALL of the existing settings.
88
Advanced Features
Logging
The Logs record various types of activity on the Wireless ADSL Router. This data is useful for
troubleshooting, but enabling all logs will generate a large amount of data and adversely affect
performance.
Since only a limited amount of log data can be stored in the Wireless ADSL Router, log data
can also be E-mailed to your PC. Use the E-mail screen to configure this feature.

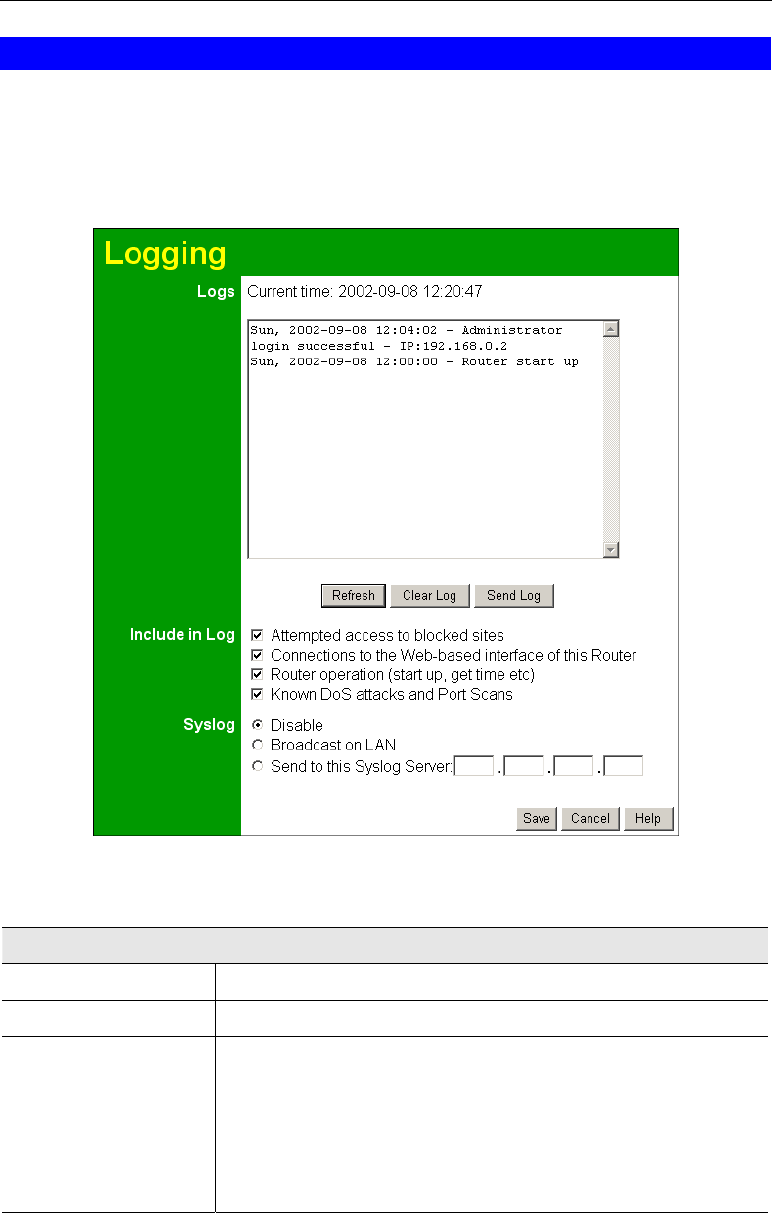

Figure 69: Logging Screen
Data - Logging Screen
Logs
Current Time The current time on the Wireless ADSL Router is displayed.
Log Data Current log data is displayed in this panel.
Buttons There are three (3) buttons
• Refresh - Update the log data.
• Clear Log - Clear the log, and restart it. This makes new
messages easier to read.
• Send Log - E-mail the log immediately. This is only
functional if the E-mail screen has been configured.
89
Wireless ADSL Router User Guide
Logs
Include (Checkboxes) Use these checkboxes to determine which events are included in
the log. Checking all options will increase the size of the log, so it
is good practice to disable any events which are not really
required.
• Attempted access to blocked sites - If checked, attempted
Internet accesses which were blocked are logged.
• Connections to the Web-based interface of this Router - If
checked, this will log connections TO this Router, rather than
through this Router to the Internet.
• Router operation - If checked, other Router operations (not
covered by the selections above) will be logged.
• Known DoS attacks and Port Scans - If checked, Denial of
Service attacks, as well as port scans, will be logged.
Syslog
Disable Data is not sent to a Syslog Server.
Broadcast on LAN The Syslog data is broadcast, rather than sent to a specific Syslog
server. Use this if your Syslog Server does not have a fixed IP
address.
Syslog If your Syslog server has a fixed IP address, select this option,
and enter the IP address of your Syslog server.
90
Advanced Features
E-mail
This screen allows you to E-mail Logs and Alerts. A sample screen is shown below.

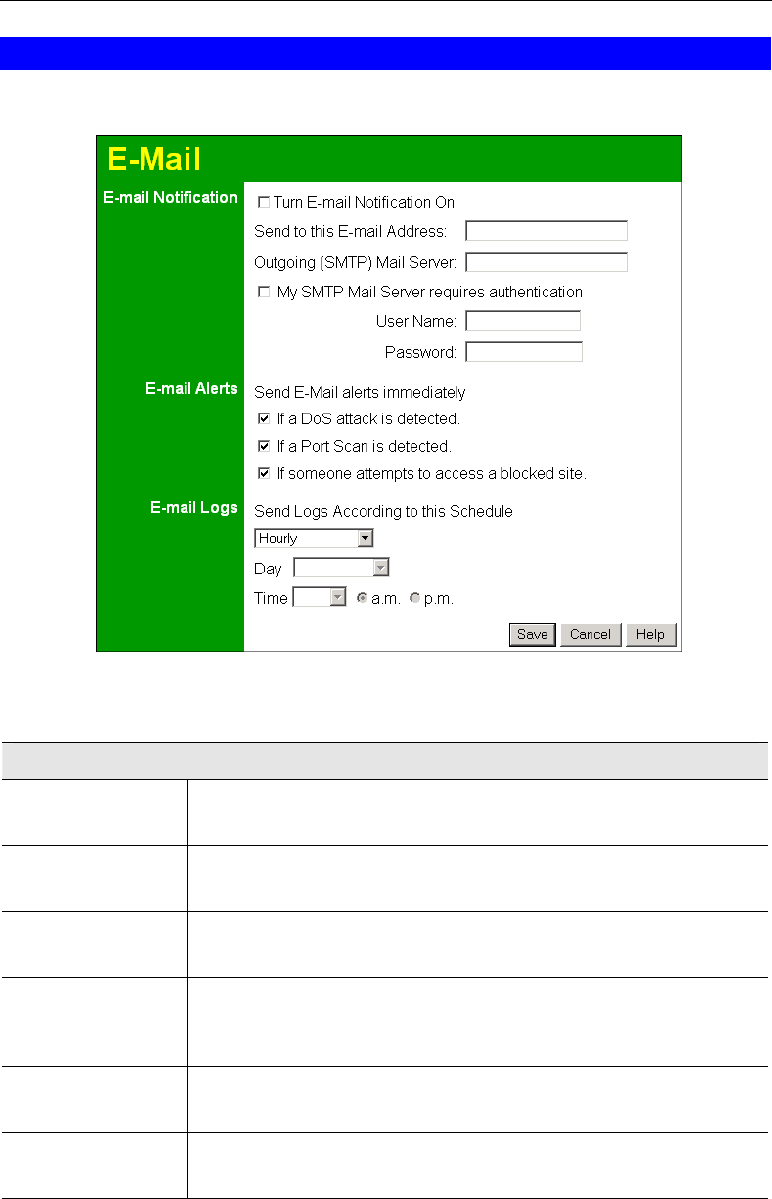

Figure 70: E-mail Screen
Data - E-mail Screen
E-Mail Notification
Turn E-mail
Notification on Check this box to enable this feature. If enabled, the E-mail address
information (below) must be provided.
Send to this E-
mail address Enter the E-mail address the Log is to be sent to. The E-mail will also
show this address as the Sender's address.
Outgoing (SMTP)
Mail Server Enter the address or IP address of the SMTP (Simple Mail Transport
Protocol) Server you use for outgoing E-mail.
My SMTP Mail
Server requires
authentication
To stop spanners, many SMTP mail servers require you to log in to
send mail. In this case, enable this checkbox, and enter the login
information (User name and Password) in the fields below.
User Name If you have enabled "My SMTP Mail Server requires authentication"
above, enter the User Name required to login to your SMTP Server.
Password If you have enabled "My SMTP Mail Server requires authentication"
above, enter the password required to login to your SMTP Server.
91
Wireless ADSL Router User Guide
E-mail Alerts
Send E-mail alerts
immediately You can choose to have alerts E-mailed to you, by checking the
desired checkboxes. The Broadband ADSL Router can send an
immediate alert when it detects a significant security incident such as
• A known hacker attack is directed at your IP address
• A computer on the Internet scans your IP address for open ports
• Someone on your LAN (Local Area Network) tries to visit a
blocked site.
E-mail Logs
Send Logs Select the desired option for sending the log by E-mail.
• Never (default) - This feature is disabled; Logs are not sent.
• When log is full - The time is not fixed. The log will be sent
when the log is full, which will depend on the volume of traffic.
• Hourly, Daily, Weekly... - The log is sent on the interval
specified.
• If Daily is selected, the log is sent at the time specified.
Select the time of day you wish the E-mail to be sent.
• If Weekly is selected, the log is sent once per week, on the
specified day, at the specified time.
Select the day and the time of day you wish the E-mail to be
sent.
Note:
If the log is full before the time specified to send it, it will be sent
regardless of the day and time specified.
92
Advanced Features
Diagnostics
This screen allows you to perform a "Ping" or a "DNS lookup". These activities can be useful
in solving network problems.
An example Network Diagnostics screen is shown below.

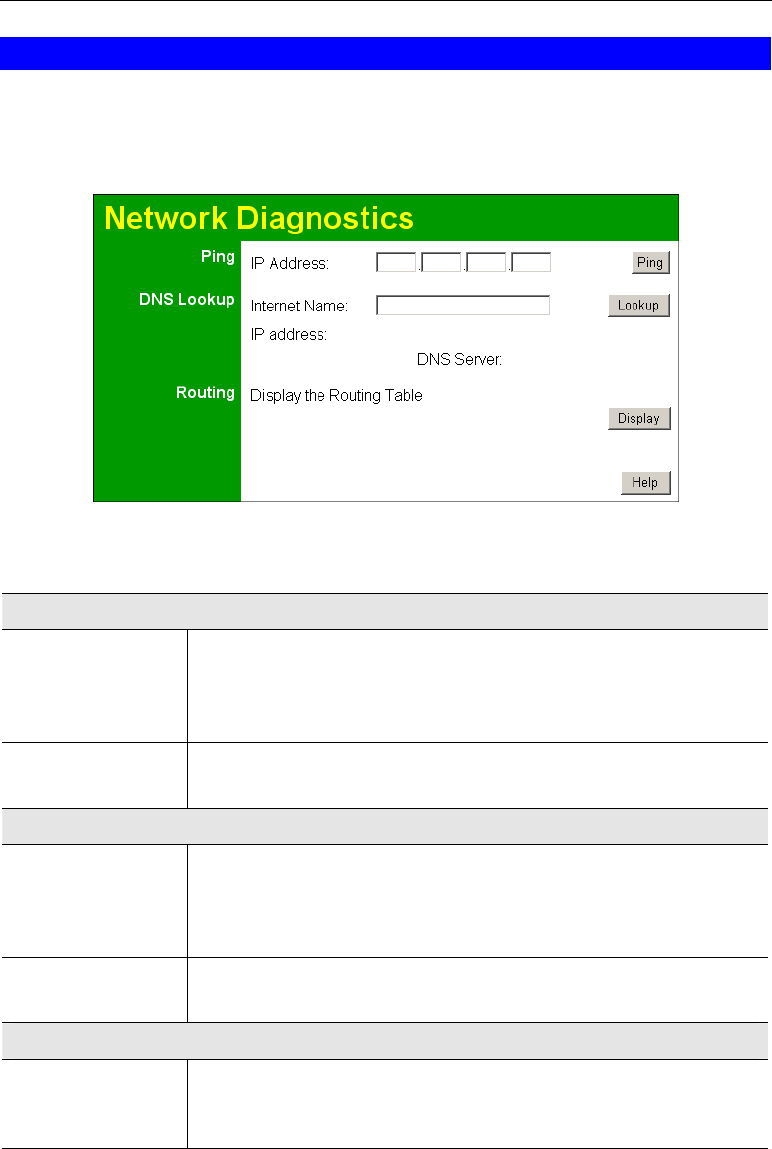

Figure 71: Network Diagnostics Screen
Data - Network Diagnostics Screen
Ping
Ping this
IP Address Enter the IP address you wish to ping. The IP address can be on your
LAN, or on the Internet. Note that if the address is on the Internet,
and no connection currently exists, you could get a "Timeout" error.
In that case, wait a few seconds and try again.
Ping Button After entering the IP address, click this button to start the "Ping"
procedure. The results will be displayed in the Ping Results pane.
DNS Lookup
Internet name Enter the Domain name or URL for which you want a DNS (Domain
Name Server) lookup. Note that if the address in on the Internet, and
no connection currently exists, you could get a "Timeout" error. In
that case, wait a few seconds and try again.
Lookup Button After entering the Domain name/URL, click this button to start the
"DNS Lookup" procedure.
Routing
Display Click this button to display the internal routing table. This
information can be used by Technical Support and other staff who
understand Routing Tables.
93
Wireless ADSL Router User Guide
Remote Administration
If enabled, this feature allows you to manage the Wireless ADSL Router via the Internet.
Figure 72: Remote Administration Screen
Data - Remote Administration Screen
Remote Administration
Enable Remote
Management Check to allow administration/management via the Internet. (To
connect, see below).
If Disabled, this device will ignore Administration connection
attempts from the Internet.
Current
IP Address This is the current address you will use when accessing this device
from the Internet. To connect, see details and an example below.
Port Number Enter a port number between 1 and 65535. The default for HTTP
(Web) connections is port 80, but using port 80 will prevent the use
of a Web "Virtual Server" on your LAN. So using a different port
number is recommended. The default value is 8080.
The port number must be specified in your Browser when you
connect. See the following section for details.
Access Permission
Allow Remote
Access Select the desired option.
• Everyone - allow access by everyone on the Internet.
• Only This Computer - allow access by only one IP address.
Enter the desired IP address.
• IP Address Range - allow access from a range of IP addresses
on the Internet. Enter a beginning and ending IP address to
define the allowed range.
For security, you should restrict access to as few external IP
addresses as practical.
94
Advanced Features
To connect from a remote PC via the Internet
1. Ensure your Internet connection is established, and start your Web Browser.
2. In the "Address" bar, enter "HTTP://" followed by the Internet IP Address of the Wireless
ADSL Router. If the port number is not 80, the port number is also required. (After the IP
Address, enter ":" followed by the port number.)
e.g.
HTTP://123.123.123.123:8080
This example assumes the WAN IP Address is 123.123.123.123, and the port number is
8080.
3. You will then be prompted for the login name and password for this device.
95
Wireless ADSL Router User Guide
Routing
Overview
• If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing"
page completely.
• If the Wireless ADSL Router is only acting as a Gateway for the local LAN segment,
ignore the "Routing" page even if your LAN has other Routers.
• If your LAN has a standard Router (e.g. Cisco) on your LAN, and the Wireless ADSL
Router is to act as a Gateway for all LAN segments, enable RIP (Routing Information
Protocol) and ignore the Static Routing table.
• If your LAN has other Gateways and Routers, and you wish to control which LAN
segments use each Gateway, do NOT enable RIP (Routing Information Protocol).
Configure the Static Routing table instead. (You also need to configure the other Routers.)
• If using Windows 2000 Data center Server as a software Router, enable RIP on the
Wireless ADSL Router, and ensure the following Windows 2000 settings are correct:
• Open Routing and Remote Access
• In the console tree, select Routing and Remote Access , [server name], IP Routing,
RIP
• In the "Details" pane, right-click the interface you want to configure for RIP version 2,
and then click "Properties".
• On the "General" tab, set Outgoing packet protocol to "RIP version 2 broadcast", and
Incoming packet protocol to "RIP version 1 and 2".
Routing Screen
The routing table is accessed by the Routing link on the Administration menu.
Using this Screen
Generally, you will use either RIP (Routing Information Protocol) OR the Static Routing Table,
as explained above, although is it possible to use both methods simultaneously.
Static Routing Table
• If RIP is not used, an entry in the routing table is required for each LAN segment on your
Network, other than the segment to which this device is attached.
• The other Routers must also be configured. See Configuring Other Routers on your LAN
later in this chapter for further details and an example.
96
Advanced Features

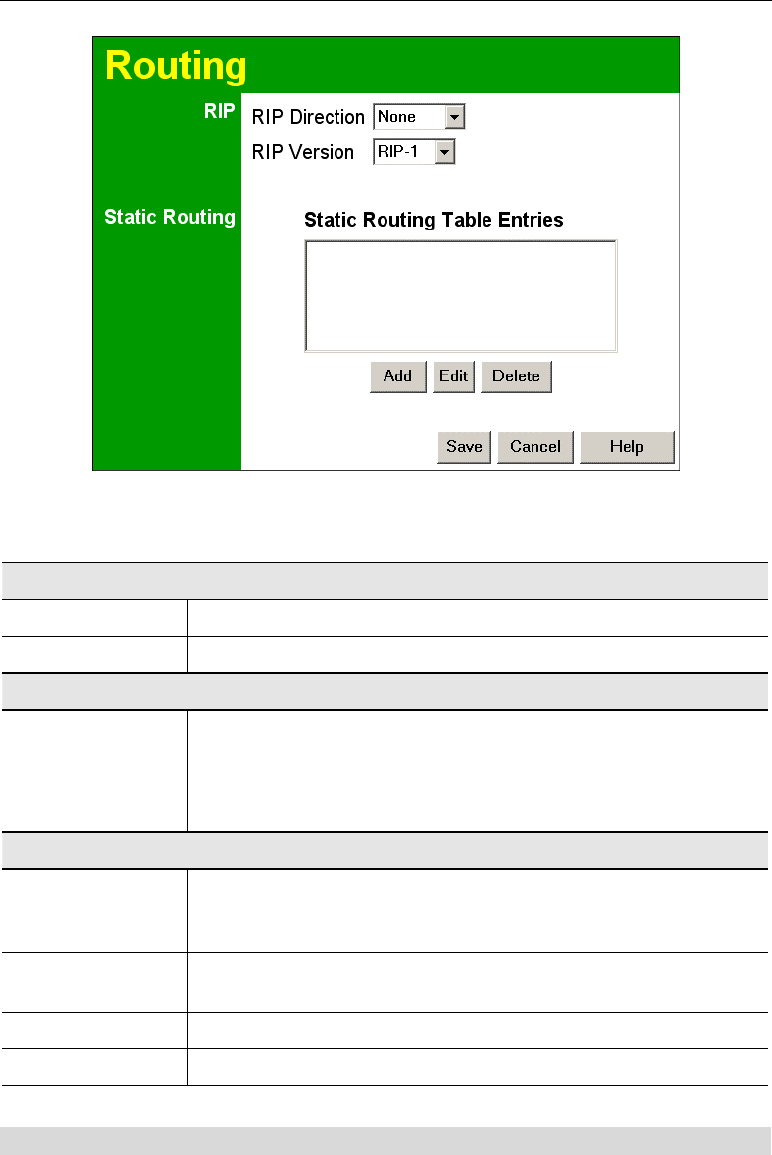

Figure 73: Routing Screen
Data - Routing Screen
RIP
RIP Direction Select the desired RIP Direction.
RIP Version Choose the RIP Version for the Server.
Static Routing
Static Routing
Table Entries This list shows all entries in the Routing Table.
• This area shows details of the selected item in the list.
• Change any the properties as required, then click the "Edit"
button to save the changes to the selected entry.
Buttons
Add Add a new entry to the Static Routing table, using the data shown in
the "Properties" area on screen. The entry selected in the list is
ignored, and has no effect.
Edit Update the current Static Routing Table entry, using the data shown
in the table area on screen.
Delete Delete the current Static Routing Table entry.
Save Save the RIP setting. This has no effect on the Static Routing Table.
Configuring Other Routers on your LAN
It is essential that all IP packets for devices not on the local LAN be passed to the Wireless
ADSL Router, so that they can be forwarded to the external LAN, WAN, or Internet. To
achieve this, the local LAN must be configured to use the Wireless ADSL Router as the
Default Route or Default Gateway.
97
Wireless ADSL Router User Guide
Local Router
The local router is the Router installed on the same LAN segment as the Wireless ADSL
Router. This router requires that the Default Route is the Wireless ADSL Router itself.
Typically, routers have a special entry for the Default Route. It should be configured as follows.
Destination IP Address Normally 0.0.0.0, but check your router documentation.
Network Mask Normally 0.0.0.0, but check your router documentation.
Gateway IP Address The IP Address of the Wireless ADSL Router.
Metric 1
Other Routers on the Local LAN
Other routers on the local LAN must use the Wireless ADSL Router's Local Router as the
Default Route. The entries will be the same as the Wireless ADSL Router's local router, with
the exception of the Gateway IP Address.
• For a router with a direct connection to the Wireless ADSL Router's local Router, the
Gateway IP Address is the address of the Wireless ADSL Router's local router.
• For routers which must forward packets to another router before reaching the Wireless
ADSL Router's local router, the Gateway IP Address is the address of the intermediate
router.
Static Routing - Example

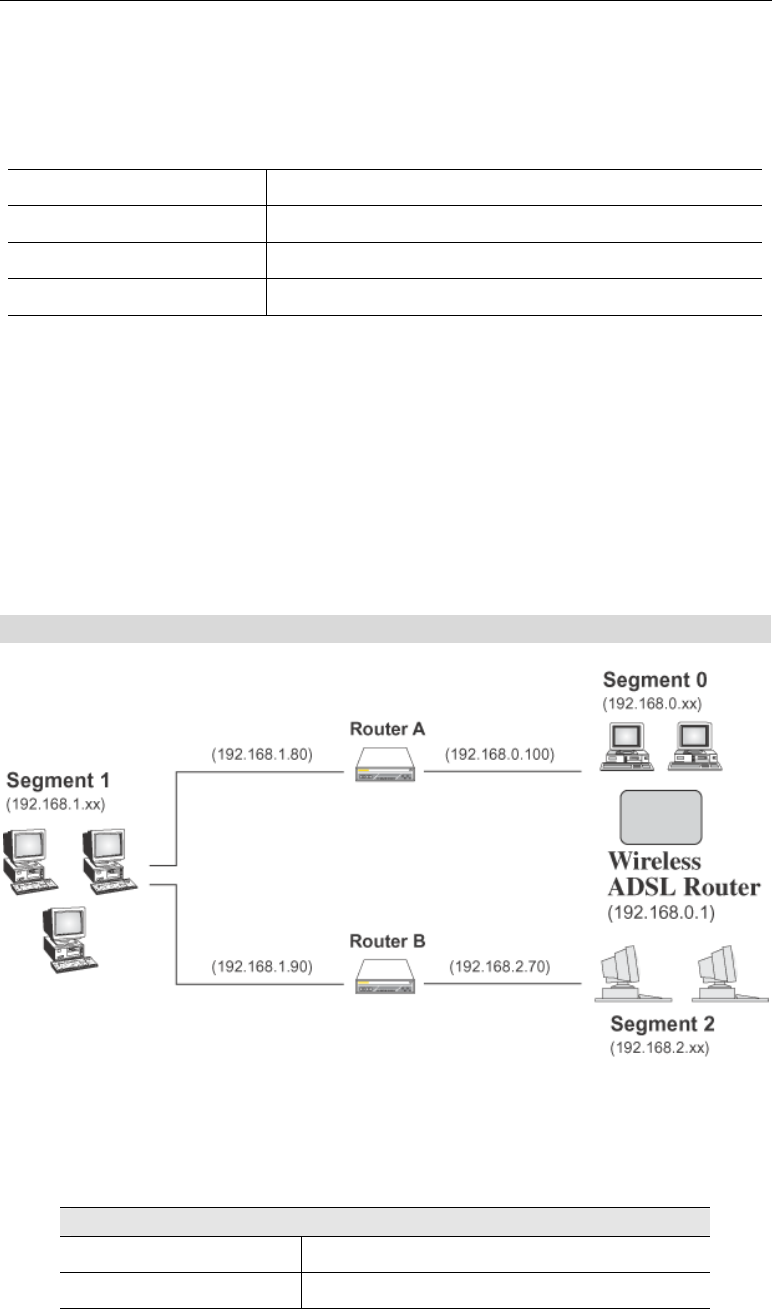

Figure 74: Routing Example
For the Wireless ADSL Router's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the Wireless ADSL Router
requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
98
Advanced Features
Gateway IP Address 192.168.0.100 (Wireless ADSL Router's local
Router)
Metric 2
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100
Metric 3
For Router A's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.0.1 (Wireless ADSL Router's IP
Address)
For Router B's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.1.80 (Wireless ADSL Router's local
router)
99
Wireless ADSL Router User Guide
Upgrade Firmware
The firmware (software) in the Wireless ADSL Router can be upgraded using your Web
Browser.
You must first download the upgrade file, then select Upgrade Firmware on the
Administration menu. You will see a screen like the following.

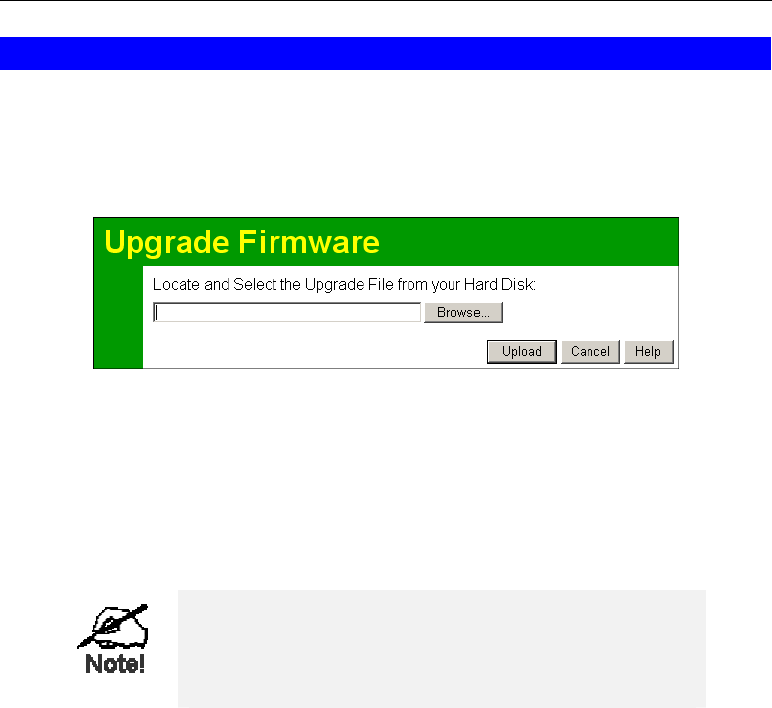

Figure 75: Router Upgrade Screen
To perform the Firmware Upgrade:
1. Click the Browse button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. Click the Upload button to commence the firmware upgrade.
The Wireless ADSL Router is unavailable during the
upgrade process, and must restart when the
upgrade is completed. Any connections to or
through the Wireless ADSL Router will be lost.
100
8
Chapter 8
Modem Mode
This Chapter explains configuration and operation when in "Modem" or
"Bridge" mode..
Overview
There are two modes available on the Mode screen.
• Router - Both the ADSL Modem and the Router features are operational. In this mode,
this device can provide shared Internet Access to all your LAN users. Also, by default, it
acts a DHCP Server, providing an IP address and related information to all Wireless and
LAN users.
• Modem - Only the ADSL Modem component is operational. All Router features are
disabled. This device is "transparent" - it does not perform any operations or make any
changes to the network traffic passing through it. You need to have a DHCP Server on
your LAN to provide IP addresses to the Wireless clients using this Access Point.
This Chapter describes operation while in Modem Mode, also called Bridge Mode.
Management Connections
When this device restarts in Modem mode, the IP address does not change, but the DHCP
server is disabled. However, your PC will usually retain the IP address provided by the DHCP
Server, so the connection will be automatically re-established. You then need to ensure that the
IP address of this modem is suitable for your LAN.
• You need to have a DHCP Server on your LAN to provide IP addresses to the Wireless
clients using this Access Point.
• This Modem/AP must be a valid device on your LAN, to allow management connections.
You must assign a (fixed) IP address which is within the address range used on your LAN,
but not within the address range used by your DHCP server.
When you connect in future, just connect normally, using the IP address you assigned.
1. Start your WEB browser.
2. In the Address box, enter "HTTP://" and the current IP Address of the Wireless ADSL
Modem, as in this example, which uses the Wireless ADSL Modem's default IP Address:
HTTP://192.168.0.1
3. When prompted for the User name and Password, enter admin for the user name, and the
current password, as set on the password screen. (The password is the same regardless of
the mode.)
101
Wireless ADSL Router User Guide
Home Screen
If in Modem mode, the home screen will look like the example below.

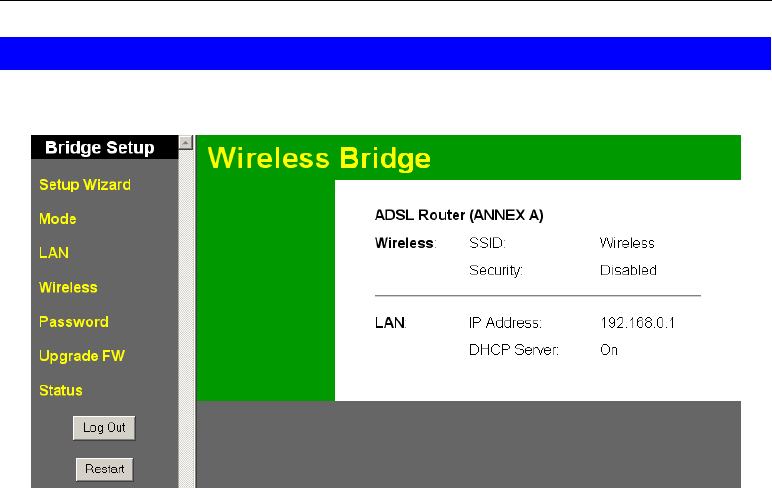

Figure 76: Home Screen - Modem Mode
Note that the menu has changed, many of the options in Router mode are not available. The
screens available are:
• Mode - change back to Router mode, if desired.
• LAN - set IP address, mask and gateway. This is the same as in Router mode, except that
the DHCP server is not available while in Modem mode.
• Wireless - this screen, and related sub-screens, is the same as in Router mode.
• Password - this screen is the same as in Router mode.
• Upgrade Firmware - this screen is the same as in Router mode.
• Status - displays current settings and status. See the following section for details.
102
Advanced Administration
Mode Screen
This screen is change back to Router mode, if desired.
Figure 77: Mode Screen
Data - Mode Screen
Device Name This field displays the current name of this device.
Device Mode Select the desired device mode for the router:
• Router - Both the ADSL Modem and the Router features are
operational. In this mode, this device can provide shared Internet
Access to all your LAN users. Also, by default, it acts a DHCP
Server, providing an IP address and related information to all
Wireless and LAN users.
• Modem - Only the ADSL Modem component is operational. All
Router features are disabled. This device is "transparent" - it does not
perform any operations or make any changes to the network traffic
passing through it. You need to have a DHCP Server on your LAN to
provide IP addresses to the Wireless clients using this Access Point.
This mode is also called Bridge Mode.
After changing the mode, this device will restart, which will take a few
seconds. The menu will also change, depending on the mode you are in.
Operation
Operation is automatic and transparent.
• Wireless clients can connect to the Access Point if they have the correct SSID and security,
but they must obtain an IP address from the DHCP Server on your LAN.
• The modem will act like any other ADSL modem. No routing will be performed, and no
client login will be done. If a client login is required, it must be performed by your
Router/Gateway or by software on your PC.
103
Wireless ADSL Router User Guide
Status Screen
In Modem mode, the Status screen looks like the example below.
Figure 78: Status Screen - Bridge Mode
Data - Status Screen (Bridge Mode)
System
Device Name The current name of the Router. This name is also the "hostname"
for users with an "@Home" type connection.
Firmware Version The version of the current firmware installed.
ADSL
Modem Status This indicates the status of the ADSL modem component.
DownStream
Connection Speed Displays the speed for the DownStream Connection.
UpStream
Connection Speed If connected, displays the speed for the Up Stream (upload)
ADSL Connection.
104
Advanced Administration
VC 1 Status
VC 2 Status
VC 3 Status
VC 4 Status
For each VC (Virtual Circuit), the current status is displayed.
This will be either "Enabled" or "Disabled".
ADSL Details Click this button to open a sub-window and view the details of
each VC (Virtual Circuit).
LAN
IP Address The IP Address of the Wireless ADSL Router.
Network Mask The Network Mask (Subnet Mask) for the IP Address above.
MAC Address This shows the MAC Address for the Wireless ADSL Router, as
seen on the LAN interface.
Wireless
Name (SSID) If using an ESS (Extended Service Set, with multiple access
points) this ID is called an ESSID (Extended Service Set
Identifier).
Region The current region, as set on the Wireless screen.
Channel This shows the Channel currently used, as set on the Wireless
screen.
Wireless AP This indicates whether or not the Wireless Access Point feature is
enabled.
Broadcast Name This indicates whether or not the SSID is Broadcast. This setting
is on the Wireless screen.
Associated
Devices Clicking this will generate a list of all devices currently using the
Access Point.
Buttons
ADSL Details View the details of each VC (Virtual Circuit).
Associated Devices Clicking this will generate a list of all devices currently using the
Access Point.
Refresh Screen Update the data displayed on screen.
105
A
Appendix A
Troubleshooting
This Appendix covers the most likely problems and their solutions.
Overview
This chapter covers some common problems that may be encountered while using the Wireless
ADSL Router and some possible solutions to them. If you follow the suggested steps and the
Wireless ADSL Router still does not function properly, contact your dealer for further advice.
General Problems
Problem 1: Can't connect to the Wireless ADSL Router to configure it.
Solution 1: Check the following:
• The Wireless ADSL Router is properly installed, LAN connections are
OK, and it is powered ON.
• Ensure that your PC and the Wireless ADSL Router are on the same
network segment. (If you don't have a router, this must be the case.)
• If your PC is set to "Obtain an IP Address automatically" (DHCP
client), restart it.
• If your PC uses a Fixed (Static) IP address, ensure that it is using an IP
Address within the range 192.168.0.2 to 192.168.0.254 and thus
compatible with the Wireless ADSL Router's default IP Address of
192.168.0.1.
Also, the Network Mask should be set to 255.255.255.0 to match the
Wireless ADSL Router.
In Windows, you can check these settings by using Control Panel-
Network to check the Properties for the TCP/IP protocol.
Internet Access
Problem 1: When I enter a URL or IP address I get a time out error.
Solution 1: A number of things could be causing this. Try the following troubleshooting
steps.
• Check if other PCs work. If they do, ensure that your PCs IP settings
are correct. If using a Fixed (Static) IP Address, check the Network
Mask, Default gateway and DNS as well as the IP Address.
• If the PCs are configured correctly, but still not working, check the
Wireless ADSL Router. Ensure that it is connected and ON. Connect to
it and check its settings. (If you can't connect to it, check the LAN and
power connections.)
• Check the Wireless ADSL Router's status screen to see if it is working
correctly.
106
Appendix A - Troubleshooting
Problem 2: Some applications do not run properly when using the Wireless ADSL
Router.
Solution 2: The Wireless ADSL Router processes the data passing through it, so it is not
transparent.
For incoming connections, you must use the Virtual Server or Firewall
Rules to specify the PC which will receive the incoming traffic.
You can also use the DMZ function. This should work with almost every
application, but:
• It is a security risk, since the firewall is disabled.
• Only one (1) PC can use this feature.
Wireless Access
Problem 1: My PC can't locate the Wireless Access Point.
Solution 1: Check the following.
• Your PC is set to Infrastructure Mode. (Access Points are always in
Infrastructure Mode)
• The SSID on your PC and the Wireless Access Point are the same.
Remember that the SSID is case-sensitive. So, for example
"Workgroup" does NOT match "workgroup".
• Both your PC and the Wireless ADSL Router must have the same
setting for WEP. The default setting for the Wireless ADSL Router is
disabled, so your wireless station should also have WEP disabled.
• If WEP is enabled on the Wireless ADSL Router, your PC must have
WEP enabled, and the key must match.
• If the Wireless ADSL Router's Wireless screen is set to Allow Trusted
PCs only, then each of your Wireless stations must have been
designated as "Trusted", or the Wireless station will be blocked.
• To see if radio interference is causing a problem, see if connection is
possible when close to the Wireless ADSL Router.
Remember that the connection range can be as little as 100 feet in poor
environments.
Problem 2: Wireless connection speed is very slow.
Solution 2: The wireless system will connect at the highest possible speed, depending
on the distance and the environment. To obtain the highest possible
connection speed, you can experiment with the following:
• Wireless ADSL Router location.
Try adjusting the location and orientation of the Wireless ADSL
Router.
• Wireless Channel
If interference is the problem, changing to another channel may show a
marked improvement.
• Radio Interference
Other devices may be causing interference. You can experiment by
switching other devices Off, and see if this helps. Any "noisy" devices
should be shielded or relocated.
• RF Shielding
107
Wireless ADSL Router User Guide
Your environment may tend to block transmission between the wireless
stations. This will mean high access speed is only possible when close
to the Wireless ADSL Router.
108
B
Appendix B
About Wireless LANs
This Appendix provides some background information about using Wireless
LANs (WLANs).
Modes
Wireless LANs can work in either of two (2) modes:
• Ad-hoc
• Infrastructure
Ad-hoc Mode
Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless
Stations (e.g. notebook PCs with wireless cards) communicate directly with each other.
Infrastructure Mode
In Infrastructure Mode, one or more Access Points are used to connect Wireless Stations
(e.g. Notebook PCs with wireless cards) to a wired (Ethernet) LAN. The Wireless Stations
can then access all LAN resources.
Access Points can only function in "Infrastructure" mode,
and can communicate only with Wireless Stations which are
set to "Infrastructure" mode.
BSS/ESS
BSS
A group of Wireless Stations and a single Access Point, all using the same ID (SSID), form a
Basic Service Set (BSS).
Using the same SSID is essential. Devices with different SSIDs are unable to communicate
with each other.
ESS
A group of Wireless Stations, and multiple Access Points, all using the same ID (ESSID), form
an Extended Service Set (ESS).
Different Access Points within an ESS can use different Channels. In fact, to reduce
interference, it is recommended that adjacent Access Points SHOULD use different channels.
As Wireless Stations are physically moved through the area covered by an ESS, they will
automatically change to the Access Point which has the least interference or best performance.
This capability is called Roaming. (Access Points do not have or require Roaming capabilities.)
109
Wireless ADSL Router User Guide
Channels
The Wireless Channel sets the radio frequency used for communication.
• Access Points use a fixed Channel. You can select the Channel used. This allows you to
choose a Channel which provides the least interference and best performance. In the USA
and Canada, 11 channel are available. If using multiple Access Points, it is better if
adjacent Access Points use different Channels to reduce interference.
• In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an
Access Point. If more than one Access Point can be used, the one with the strongest signal
is used. (This can only happen within an ESS.)
• If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the
same Channel. However, most Wireless stations will still scan all Channels to see if there
is an existing "Ad-hoc" group they can join.
WEP
WEP (Wired Equivalent Privacy) is a standard for encrypting data before it is transmitted.
This is desirable because it is impossible to prevent snoopers from receiving any data which is
transmitted by your Wireless Stations. But if the data is encrypted, then it is meaningless
unless the receiver can decrypt it.
If WEP is used, the Wireless Stations and the Access Point must have the same settings
for each of the following:
WEP Off, 64 Bit, 128 Bit
Key For 64 Bit encryption, the Key value must match.
For 128 Bit encryption, the Key value must match
WEP Authentication Open System or Shared Key.
WPA-PSK
WPA-PSK is another standard for encrypting data before it is transmitted. This is a later
standard than WEP (Wired Equivalent Privacy), and provides greater security for your data.
Data is encrypted using a 256Bit key which is automatically generated and changed often.
If all your Wireless stations support WPA-PSK, you should use this instead of WEP.
If WPA-PSK is used, the Wireless Stations and the Access Point must have the same
settings for each of the following:
WPA PSK
(Pre-shared Key) Enter the same value on every station and the AP. The PSK
must be from 8 to 63 characters in length. The 256Bit key
used for the actual encryption is derived from this key.
Encryption The same encryption method must be used. The most
common encryption method is TKIP. Another widely-
supported method is AES.
110
Appendix B - About Wireless LANs
Wireless LAN Configuration
To allow Wireless Stations to use the Access Point, the Wireless Stations and the Access Point
must use the same settings, as follows:
Mode On client Wireless Stations, the mode must be set to "Infrastructure".
(The Access Point is always in "Infrastructure" mode.)
SSID (ESSID) Wireless Stations should use the same SSID (ESSID) as the Access
Point they wish to connect to. Alternatively, the SSID can be set to
"any" or null (blank) to allow connection to any Access Point.
Wireless
Security The Wireless Stations and the Access Point must use the same settings
for Wireless security. (None, WEP, WPA-PSK).
WEP: If WEP is used, the Key size (64Bit, 128Bit), Key value, and
Authentication settings must be the same on the Wireless Stations and
the Access Point.
WPA-PSK: If WPA-PSK is used, all Wireless Stations must be set to
use WPA-PSK, and have the same Pre-shared Key and encryption
system.
For Ad-hoc networks (no Access Point), all Wireless stations must
use the same security settings.
111
C
Appendix C
About VPNs
Overview
A VPN (Virtual Private Network) provides a secure connection between 2 points, over an
insecure network - typically the Internet. This secure connection is called a VPN Tunnel.
There are many standards and protocols for VPNs. The standard implemented in the Wireless
ADSL Router is IPSec.
IPSec
IPSec is a near-ubiquitous VPN security standard, designed for use with TCP/IP networks. It
works at the packet level, and authenticates and encrypts all packets traveling over the VPN
Tunnel. Thus, it does not matter what applications are used on your PC. Any application can
use the VPN like any other network connection.
IPsec VPNs exchange information through logical connections called SAs (Security
Associations). An SA is simply a definition of the protocols, algorithms and keys used
between the two VPN devices (endpoints).
Each IPsec VPN has two SAs - one in each direction. If IKE (Internet Key Exchange) is used
to generate and exchange keys, there are also SA's for the IKE connection as well as the IPsec
connection.
There are two security modes possible with IPSec:
• Transport Mode - the payload (data) part of the packet is encapsulated through
encryption but the IP header remains in the clear (unchanged).
The Wireless ADSL Router does NOT support Transport Mode.
• Tunnel Mode - everything is encapsulated, including the original IP header, and a new IP
header is generated. Only the new header in the clear (i.e. not protected). This system
provides enhanced security.
The Wireless ADSL Router always uses Tunnel Mode.
IKE
IKE (Internet Key Exchange) is an optional, but widely used, component of IPsec. IKE
provides a method of negotiating and generating the keys and IDs required by IPSec. If using
IKE, only a single key is required to be provided during configuration. Also, IKE supports
using Certificates (provided by CAs - Certification Authorities) to authenticate the identify of
the remote user or gateway.
If IKE is NOT used, then all keys and IDs (SPIs) must be entered manually, and Certificates
can NOT be used. This is called a "Manual Key Exchange".
When using IKE, there are 2 phases to creating the VPN tunnel:
• Phase I is the negotiation and establishment up of the IKE connection.
• Phase II is the negotiation and establishment up of the IPsec connection.
112
Appendix C - VPNs
Because the IKE and IPsec connections are separate, they have different SAs (security
associations).
Policies
VPN configuration settings are stored in Policies.
Note that different vendors use different terms. Generally, the terms "VPN Policy", "IPSec
Policy", and "IPSec Proposal" have the same meaning. However, some vendors separate IKE
Policies (Phase 1 parameters) from IPSec Policies (Phase 2 parameters).
For the Wireless ADSL Router; each VPN policy contains both Phase 1 and Phase 2
parameters (if IKE is used). Each policy defines:
• The address of the remote VPN endpoint
• The traffic which is allowed to use the VPN connection.
• The parameters (settings) for the IPsec SA (Security Association)
• If IKE is used, the parameters (settings) for the IKE SA (Security Association)
Generally, you will need at least one (1) VPN Policy for each remote site for which you wish
to establish VPN connections.
It is possible, and sometimes necessary, to have multiple Policies for the same remote site.
However, you should only Enable one (1) policy at a time.
VPN Configuration
The general rule is that each endpoint must have matching Policies, as follows:
VPN Endpoint
address Each VPN endpoint must be configured to initiate or accept
connections to the remote VPN client or Gateway.
Usually, this requires having a fixed Internet IP address. However, it is
possible for a VPN Gateway to accept incoming connections from a
remote client where the client's IP address is not known in advance.
Local & Remote
LAN definition This determines which outgoing traffic will cause a VPN connection
to be established, and which incoming traffic will be accepted. Each
endpoint must be configured to pass and accept the desired traffic
from the remote endpoint.
If connecting 2 LANs, this requires that:
• Each endpoint must be aware of the IP addresses used on the
other endpoint.
• The 2 LANs MUST use different IP address ranges.
IKE parameters If using IKE (recommended), the IKE parameters must match (except
for the SA lifetime, which can be different).
IPsec parameters The IPsec parameters at each endpoint must match.
113
Wireless ADSL Router User Guide
Common VPN Situations
VPN Pass-through
Figure 79: VPN Pass-through
Here, a PC on the LAN behind the Router/Gateway is using VPN software, but the
Router/Gateway is NOT acting as a VPN endpoint. It is only allowing the VPN connection.
• The PC software can use any VPN protocol supported by the remote VPN.
• The remote VPN Server must support client PCs which are behind a NAT router, and so
have an IP address which is not valid on the Internet.
• The Router/Gateway requires no VPN configuration, since it is not acting as a VPN
endpoint.
Client PC to VPN Gateway
Figure 80: Client PC to VPN Server
In this situation, the PC must run appropriate VPN client software in order to connect, via the
Internet, to the Wireless ADSL Router or other VPN Gateway. Once connected, the client PC
has the same access to LAN resources as PCs on the local LAN (unless restricted by the
network administrator).
• IPsec is not the only protocol which can be used in this situation, but the Wireless ADSL
Router supports IPsec ONLY.
• Windows 2000 and Windows XP include an IPsec VPN client program. However,
configuration of this client program for use with the Wireless ADSL Router is very
complex and beyond the scope of this document.
114
Appendix C - VPNs
Connecting 2 LANs via VPN

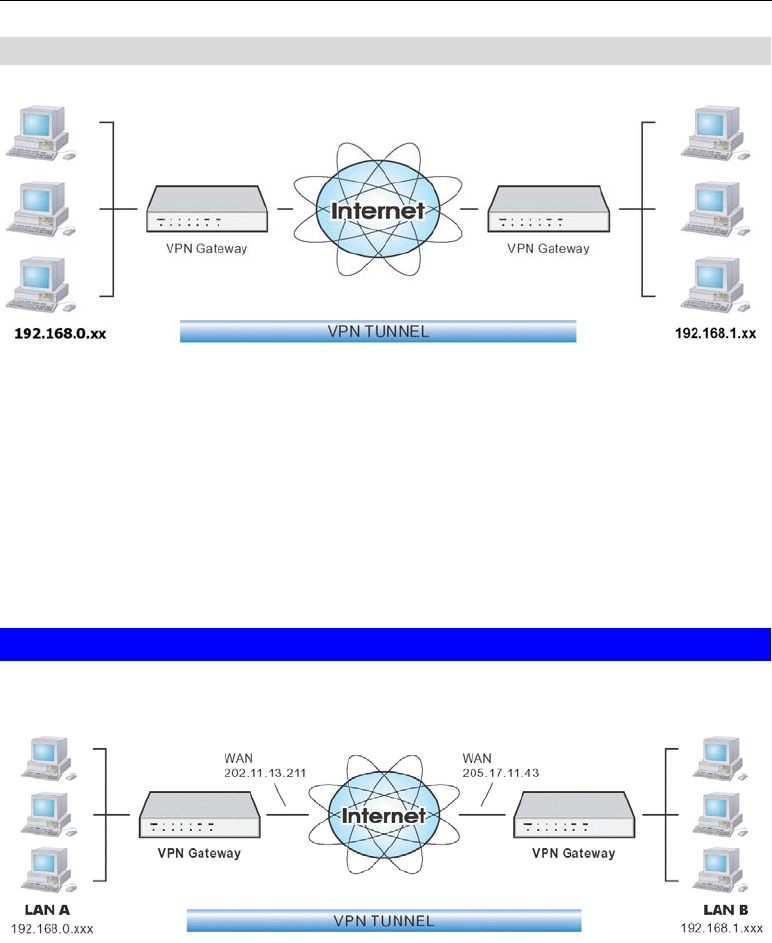

Figure 81: Connecting 2 VPN Gateways
This allows two (2) LANs to be connected. PCs on each endpoint gain secure access to the
remote LAN.
• The 2 LANs MUST use different IP address ranges.
• The VPN Policies at each end determine when a VPN tunnel will be established, and what
systems on the remote LAN can be accessed once the VPN connection is established.
• It is possible to have simultaneous VPN connections to many remote sites.
VPN Example
In this example, 2 LANs are connected via VPN. Each end has a Wireless ADSL Router.
Figure 82: Connecting 2 Wireless ADSL Routers
Note
• The LANs MUST use different IP address ranges.
• Both endpoints have fixed WAN (Internet) IP addresses.
• This example uses an "Auto" policy, using IKE
115
Wireless ADSL Router User Guide
Configuration Settings - Gateway A
Gateway A should be configured as shown below.

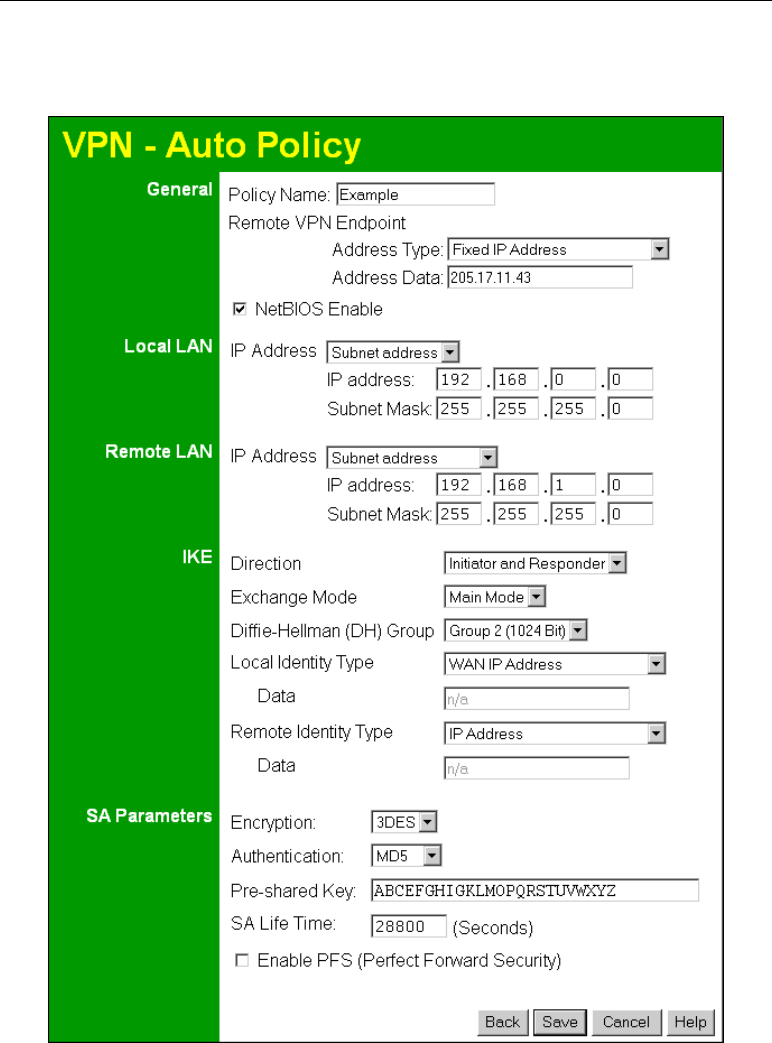

Figure 83: Gateway A Configuration
116
Appendix C - VPNs
Configuration Settings - Gateway B
Gateway B should be configured as shown below.
Figure 84: Gateway B Configuration
Settings
Setting LAN A Gateway LAN B Gateway Notes
Policy Name Example Example Name does not affect
operation. Select a
meaningful name.
Remote VPN
Endpoint Fixed IP Address
205.17.11.43 Fixed IP Address
202.11.13.211 Other endpoint's WAN
(Internet) IP address.
117
Wireless ADSL Router User Guide
NetBIOS Enable Enable Disable if not required.
Local LAN
IP address
Mask
192.168.0.0
255.255.255.0 192.168.1.0
255.255.255.0 Local Address subnet.
Use a more restrictive
definition if possible.
Remote LAN
IP address
Mask
192.168.1.0
255.255.255.0 192.168.0.0
255.255.255.0 Remote Address subnet.
Use a more restrictive
definition if possible.
IKE
Direction Initiator &
responder Initiator &
responder Does not have to match.
Either endpoint can
block 1 direction.
Exchange mode Main Mode Main Mode Must match
DH Group Group 2 (1024 bit) Group 2 (1024 bit) Must match
Local Identity IP address IP address IP address is the most
common ID method
Remote Identity WAN IP address WAN IP address IP address is the most
common ID method
SA Parameters
Encryption 3DES 3DES Must match.
Authentication MD5 MD5 Must match
Pre-shared Key xxxxxxxxx xxxxxxxxxx Must match;
use any string.
SA Life time 28800 28800 Does not have to match.
Shorter period will be
used.
PFS Disabled Disabled Must match
Note:
Some VPN Gateways or programs let you specify the following settings separately for IKE
and IPSec. For this device, the same settings are used for both IKE and IPSec.
• Authentication
• Encryption
• SA Lifetime
Also, IPSec allows for "AH Authentication", using MD5 or SHA-1. For this device, "AH
Authentication" is always DISABLED.
118
D
Appendix D
Specifications
Multi-Function Wireless ADSL Router
Model Wireless ADSL Router
ADSL Interface T1.413, G.DMT, G.lite, multi-mode
Dimensions 175mm(W) * 114mm(D) * 30mm(H)
Operating Temperature 0° C to 40° C
Storage Temperature -10° C to 70° C
Network Protocol: TCP/IP
Network Interface: 4 * 10/100BaseT (RJ45) LAN connection
1 * RJ11 for ADSL line
LEDs 13
Power Adapter 12VDC 1A External
Wireless Interface
Standards IEEE802.11b, IEEE802.11g WLAN, 802.11G-plus (Texas
Instruments proprietary enhanced mode)
Frequency 2.4 to 2.4835GHz (Industrial Scientific Medical Band )
Channels Maximum 14 Channels, depending on regulatory authorities
Modulation CCK, DQPSK, DBPSK, OFDM/CCK
Data Rate Up to 54 Mbps (802.11g)
Security WEP 64Bit, 128Bit, WPA-PSK, MAC address checking
Output Power 13dBm (typical)
Receiver Sensitivity -80dBm Min.
119
Wireless ADSL Router User Guide
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to computer or peripheral
devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
CE Approval
CE Standards
This product complies with the 99/5/EEC directives, including the following safety and EMC
standards:
• EN300328-2
• EN301489-1/-17
• EN60950
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
120
