Waterproof
HD IP Camera
Setup Guide
Document Version: 1.0
Copyright 2017. All Rights Reserved.
All trademarks and trade names are the properties of their respective
owners.
![](/img.php?id=3515333&img=bg2.png)

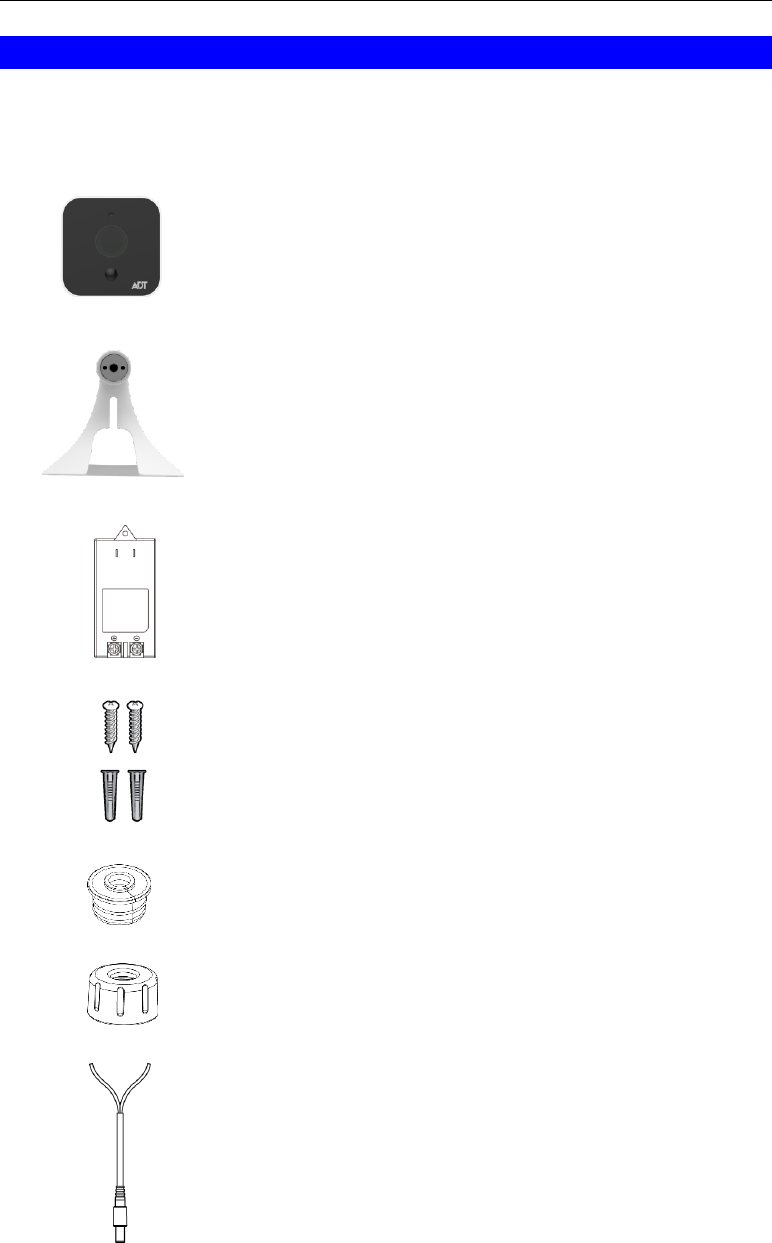

Package Contents
The following items should be included: If any of these items are
damaged or missing, please contact your service provider immediately.
1. Waterproof HD IP Camera x 1
2. Stand x 1
3. Screw Terminal Adapter x 1
4. Screw/Anchor x 2
5. DC In Rubber x 1
6. Rubber Cap x 1
7. DC Barrel Connector with Two Wire Flying Lead x 1
![](/img.php?id=3515333&img=bg3.png)
1
Chapter 1
Introduction
This Chapter provides details of the Waterproof HD IP
Camera's features, components and capabilities.
Overview
The Waterproof HD IP Camera has an Integrated Microcomputer and a
high quality Mega Pixel Omni Vision CMOS Sensor, enabling it to
display high quality live streaming video over your wired LAN, the
Internet, and for the Waterproof HD IP Camera, an 802.11N Wireless
LAN.
Using enhanced H.264 technologies, the Waterproof HD IP Camera is
able to stream high quality video and audio directly to your PC. The
high compression capabilities of H.264 reduce network bandwidth
requirements to amazingly low levels.
This weather-resistant camera, which with the IP66 rated housing and
internal heater, let you keep an eye on your belongings - even in harsh
environments. It is also an all-in-one camera that has automatic and
manual day/night switching, PIR sensor and built-in infrared LEDs,
which can provide illumination around 5 meters long under low light
conditions in a simple, economical manner.

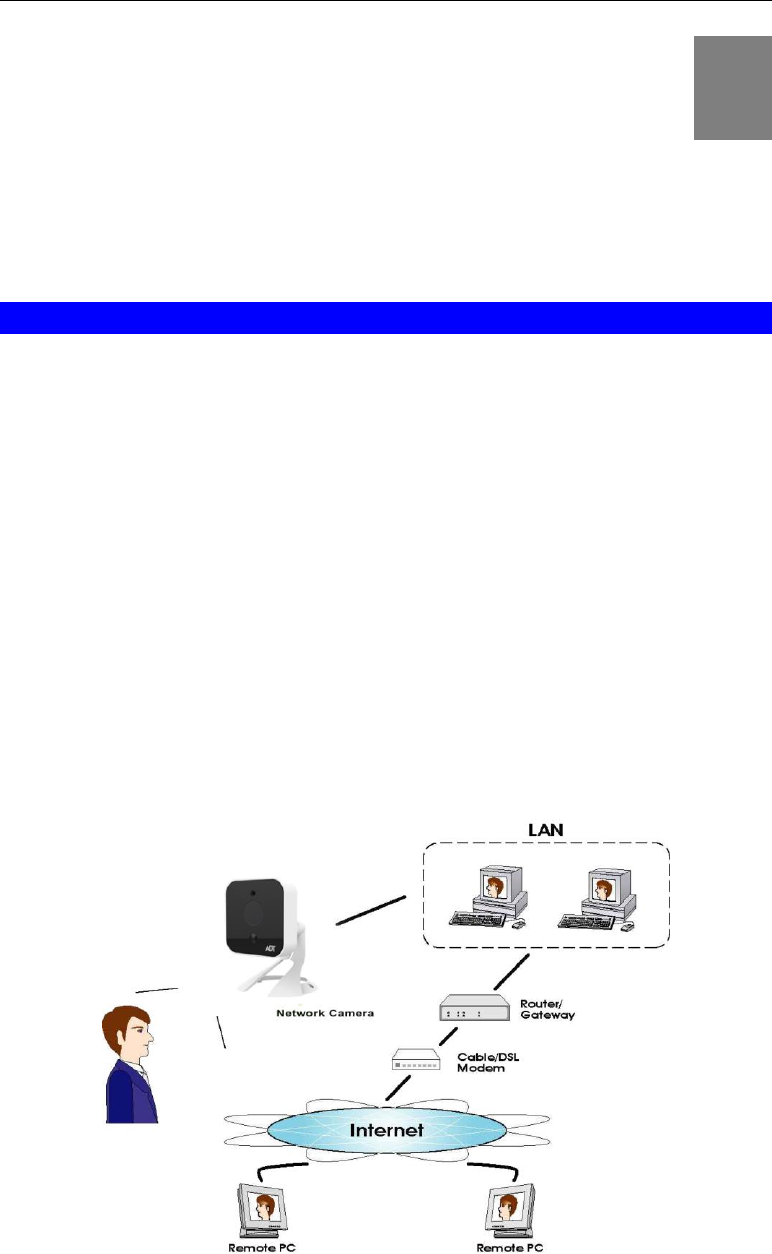

Figure 1: Network Diagram - Waterproof HD IP Camera
1
![](/img.php?id=3515333&img=bg4.png)
2
Features
Standalone Design. The Waterproof HD IP Camera is a
standalone system with built-in CPU and Video encoder. It requires
only a power source and a connection to your LAN or Wireless LAN.
Dual Video Support. The Waterproof HD IP Camera can support
H.264 and MJEPG video for different image compression.
Suitable for Home, Business or Public Facilities. Whether for
Home, Business or Public Facility surveillance, or just for
entertainment and fun, the Waterproof HD IP Camera has the
features you need.
Day/Night Switch: With the day/night switching feature, you are
able to view and record better images even in the dark of night.
IR LEDs Support. Each Waterproof HD IP Camera has two infrared
LEDs. The LEDs can provide illumination around 5 meters long, that
can help to output a better video quality while under low-light
conditions such as on cloudy days, or in the morning or evening.
PIR (Passive Infrared Sensor) Support. The Waterproof HD IP
Camera is embedded with a PIR Sensor, which senses infrared light
radiating from human bodies in its field of view. This feature is very
helpful in enhancing home security systems.
Built-in Heater. The built-in Heater can support the camera to be
used in the extreme cold outdoor climate applications. The heater
should be turn on when temperature is below 6°C.
Micro-SD Card Slot. With the slot, you can insert the Micro-SD card
to store recording files.
Wireless Features
Supports 11n Wireless Stations. The 802.11n standard provides
for backward compatibility with the 802.11b standard, so 802.11n,
802.11b and 802.11g Wireless stations can be used simultaneously.
Wired and Wireless Network Support. The Waterproof HD IP
Camera supports either wired or wireless transmission.
WEP Support. Full WEP support (64/128 Bit) on the Wireless
interface is provided.
WPA/WPA2 Support. The WPA Personal/WPA2 Personal
standard is also supported, allowing advanced encryption of wireless
data.
WPS Support. WPS (Wi-Fi Protected Setup) can simplify the
process of connecting any device to the wireless network by using
the push button configuration (PBC) on the Waterproof HD IP
Camera, or entering a PIN code if there's no button.
![](/img.php?id=3515333&img=bg5.png)
3
Chapter 2
Basic Setup
This Chapter provides details on how to install and
configure the Waterproof HD IP Camera.
System Requirements
To use the Wireless interface on the wireless model, other Wireless
devices must be compliant with the IEEE802.11b, IEEE802.11g, or
IEEE802.11n specifications. All Wireless stations must use
compatible settings.
Physical Details - Waterproof HD IP Camera
Front Panel - Waterproof HD IP Camera

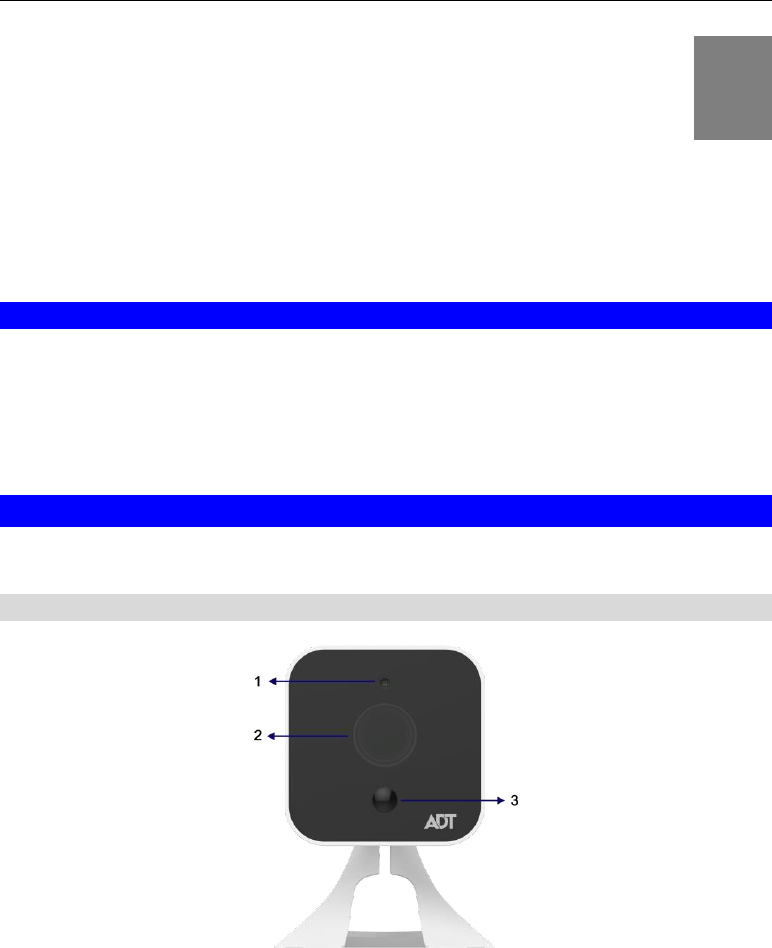

Figure 2: Front Panel
1. Light Sensor
This is hardware sensor to detect LUX.
2. Lens
No physical adjustment is required or possible for
the lens, but you should ensure that the lens
cover remains clean. The image quality is
degraded if the lens cover is dirty or smudged.
3. PIR Sensor
This is hardware sensor to detect motion.
2
![](/img.php?id=3515333&img=bg6.png)
4

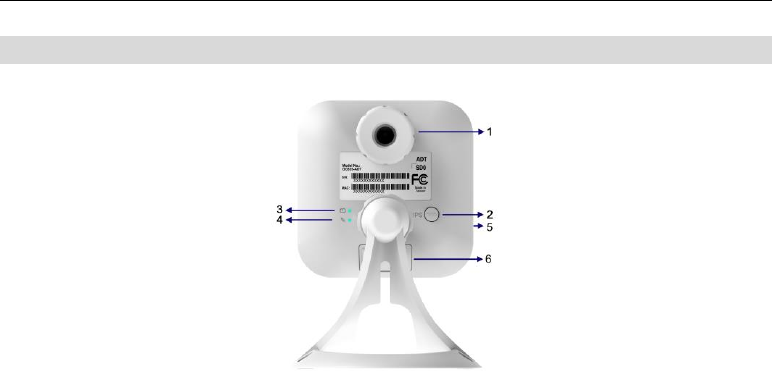

Rear Panel - Waterproof HD IP Camera
Figure 3: Rear Panel
1. DC Power Input
Connect the supplied 12V/1.5A power
adapter here. Do not use other power
adapters; doing so may damage the camera.
2. WPS/Reset Button
This button has two functions:
1. WPS. Push the WPS button on the
device and on your other wireless device
to perform WPS function that easily
creates an encryption-secured wireless
connection automatically.
WPS Pin Code Mode. When pressed
and held for 3-10 seconds, the
Waterproof HD IP Camera will be in
the WPS Pin Code mode.
2. Reset to manufacturer default valued
and reboot. When pressed and held
over 10 seconds, the settings of Network
Camera will be set to their default
values.
3. Power LED
(Green, Amber)
On (Green) - Power on.
Off - No power.
Blinking (Green) - The Power LED will blink
during start up. This will take 55 to 57
seconds.
On (Amber) - Firmware upgrade is failed.
Blinking (Amber) - The firmware is
upgrading.
![](/img.php?id=3515333&img=bg7.png)
5
4. Network/Wireless
LED
(Green, Amber)
On (Green) - Network (Wireless or LAN)
connection is available.
Off - Wireless or LAN is not connected or
camera is not sending/receiving data.
Blinking (Green) - Data is being transmitted
or received via the LAN or Wireless
connection.
On (Amber) - If the LED is on for 5 seconds
and then off, the WPS function is failed.
Blinking (Amber) - WPS function is being
processed.
5. Micro SD Card Slot
Insert the SD card into the slot for additional
storage if needed.
6. LAN port
Use a RJ-45 USB cable (optional) to connect
your camera to a 10/100BaseT hub or
switch.
Note:
Plugging in the RJ-45 USB cable will
disable the Wireless interface. Only 1
interface can be active at any time.
The RJ-45 USB cable should only be
connected or disconnected when the
camera is powered OFF. Attaching or
detaching the RJ-45 USB cable while the
camera is powered on does NOT switch
the interface between wired and wireless.
![](/img.php?id=3515333&img=bg8.png)
6
Set up of Waterproof HD IP Camera

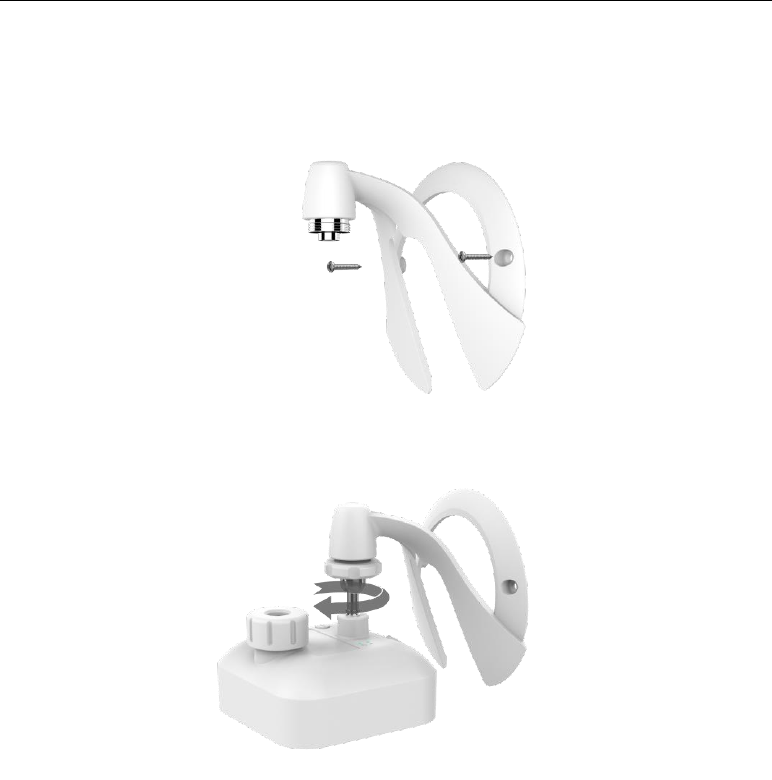

1. Assemble the Camera
Attach the Camera Stand to the camera.
Note: Due to the wide angle IR illumination and over exposure engine algorithm,
please make sure that field of view produced by the camera doesn't cover the
foreground object, such as table top or side wall. It is recommended to place the
camera close to the edge of table top or tilt the camera away from side wall, to get
the best video quality of the target at night.
2. Internet Connection

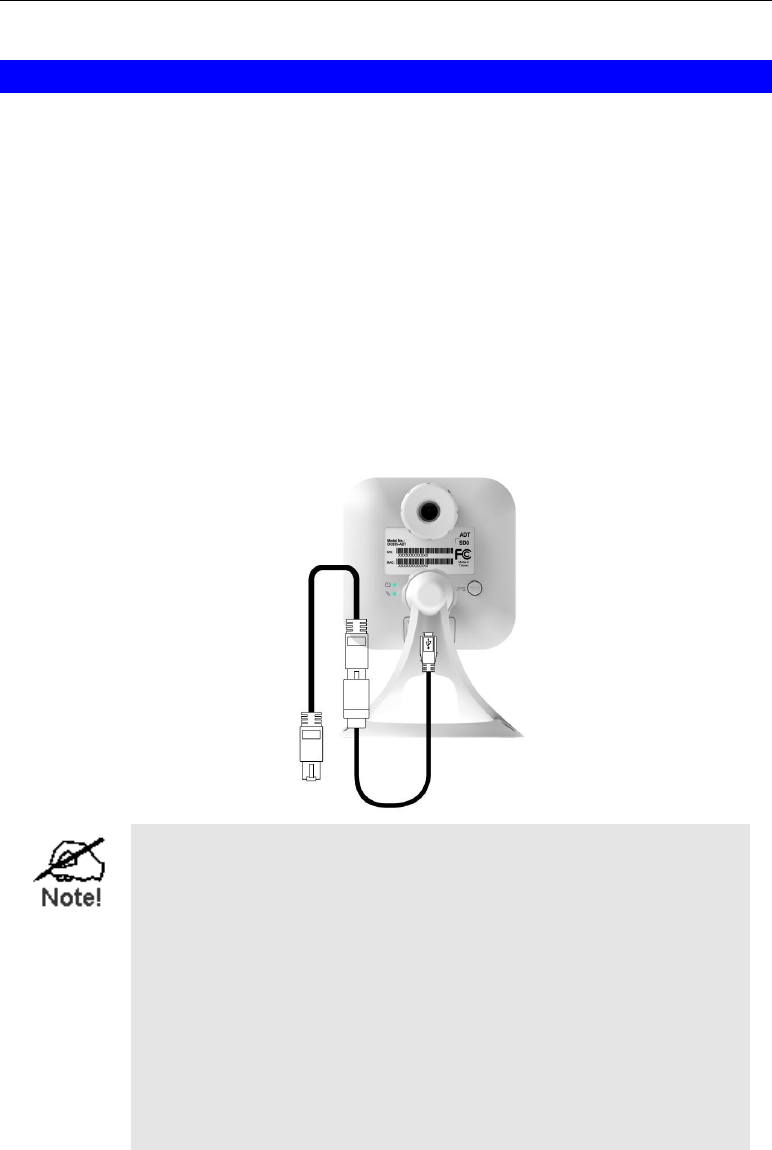

Wire Connection
Connect the Camera to a 10/100BaseT hub or switch, using a RJ-45
USB cable (optional) and a standard LAN cable.
For this Model, it will disable the Wireless Interface. The
Wireless and LAN interfaces cannot be used
simultaneously. Using the LAN interface is
recommended for initial configuration. After the Wireless
settings are correct, the Wireless interface can be used.
The first time you connect to the camera, you should
connect the RJ-45 USB cable and configure the Wireless
IP Camera with appropriate settings. Then you can
unplug the RJ-45 USB cable and power off the camera.
The Wireless IP Camera will be in wireless interface
when you power on the camera again.
![](/img.php?id=3515333&img=bg9.png)
7

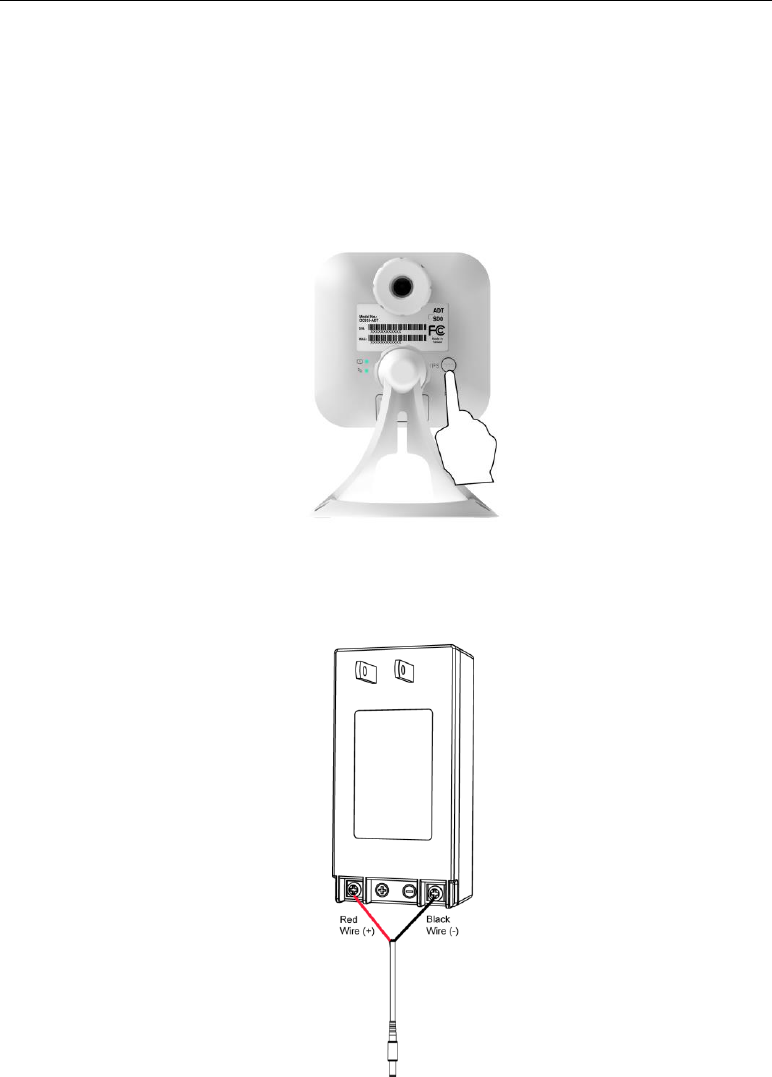

Wireless Connection
Press the WPS button on the camera for 3-5 seconds and on your
other wireless device as well to establish a wireless connection
automatically. The wireless connection is successful when the
Network/WPS LED (green) remains on.
3. Power Up
Use only the power adapter provided. Using a different one may
cause hardware damage.
a. Run the AC Wire to the spice connector.
b. Screw the red wire onto the positive (+) terminal of the terminal
adapter.
c. Screw the black wire onto the negative (-) terminal of the
terminal adapter.
d. Plug the terminal adapter into a power outlet.
![](/img.php?id=3515333&img=bga.png)
8
*Note: The operating temperature of power adapter is 0C to 40C.
Please ensure the power adapter is indoor usage.
4. Check the LEDs
The Power LED will turn on briefly, then start blinking. It will blink
during startup, which will take 55 to 57 seconds. After startup is
completed, the Power LED should remain ON.
The Network/WPS LED should be ON.
Micro SD Card Installation
1. Remove the screw with a proper screwdriver, and then take the SD
card cover out the camera.
2. Insert the micro SD card into the slot.
![](/img.php?id=3515333&img=bgb.png)
9
* Optional: Mounting the Waterproof HD IP Camera
*Note: Please ensure camera is configured and added to the network
before permanent mounting.
Mount the Camera

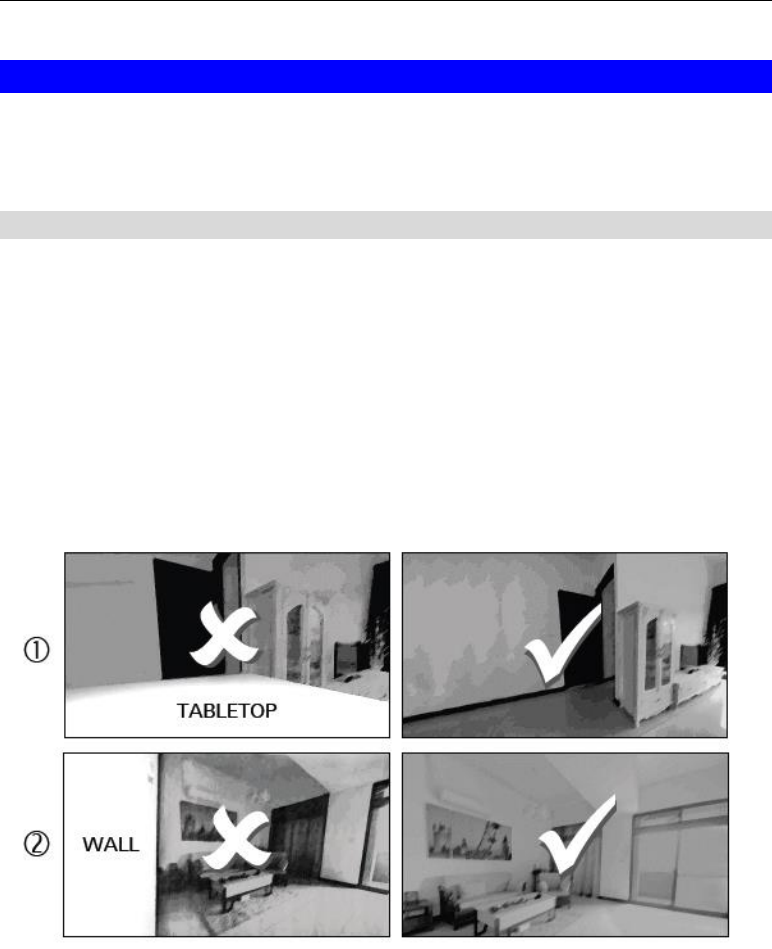

Mounting Suggestion
Place the camera in a location near a power source. For mounting on a
wall, please use the provided mounting plate.
To get the best video quality for targets at night, make sure that the
camera’s field of view does not include a large foreground object, such
as tabletop or side wall. If installing on a tabletop, place the camera as
close to the edge as possible, as demonstrated in the photos in row 1
below. If installing on a wall, angle the camera so that a minimal portion
of the wall is visible, as demonstrated in the photos in row 2 below.
![](/img.php?id=3515333&img=bgc.png)
10

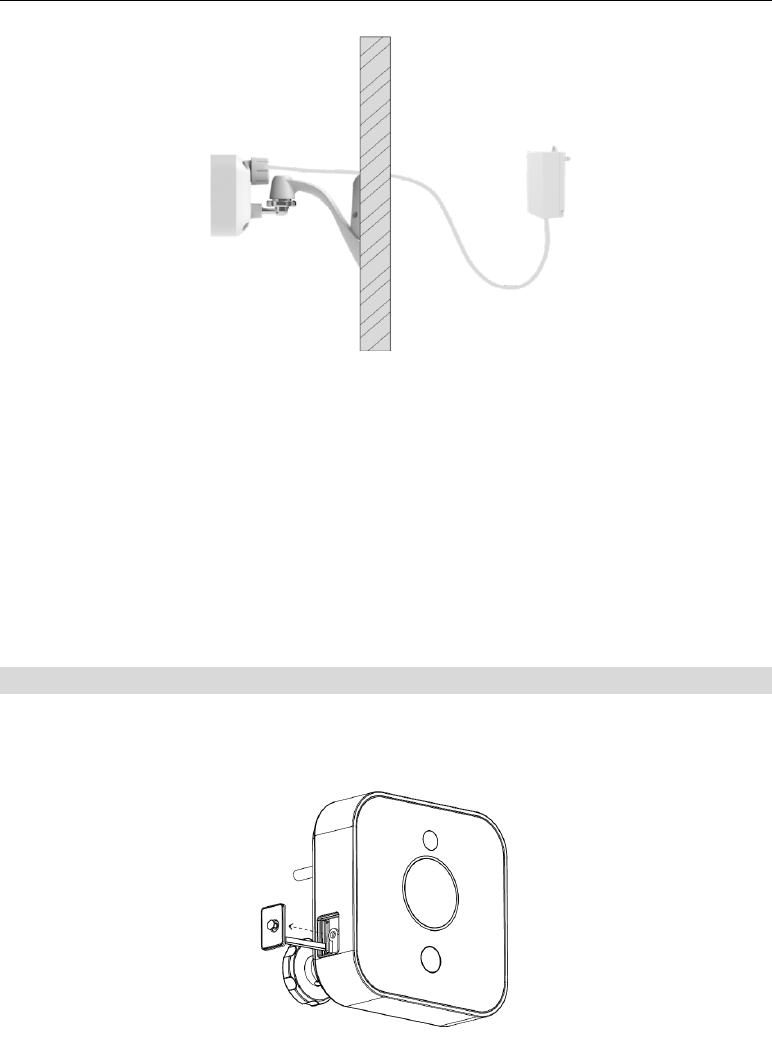

1. Identify the location for mounting the camera.
2. Align the two mounting holes at the bottom of the camera stand with
the two screws, and mount the mounting plate onto the screws.
3. Screw/attach the camera onto the camera stand.
4. There are two methods for Internet connection:
Connect a USB to RJ-45 cable (Optional) to the USB port of
the Wireless IP Camera. Then use a standard LAN cable to
connect an available port on your router.
Press the WPS button on the Wireless IP Camera for 3-5
seconds and on your other wireless device as well to establish a
wireless connection automatically. The wireless connection is
successful when the Network/WPS LED (green) is on.
![](/img.php?id=3515333&img=bgd.png)
11

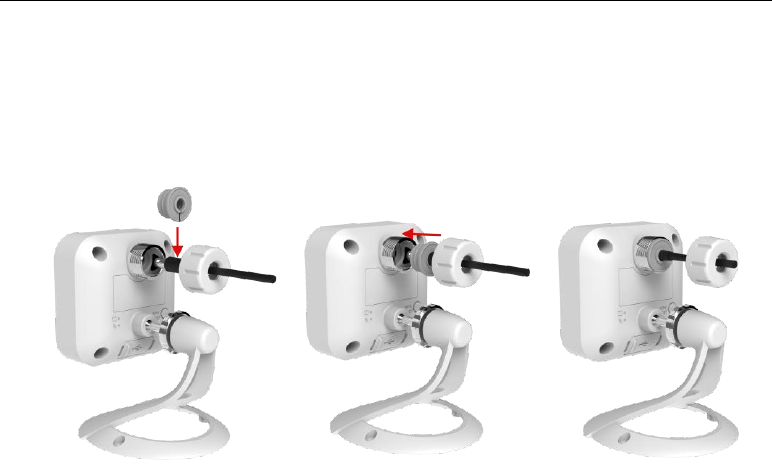

5. Connect the power cable into the back of the camera and then insert
the rubber cap.
Caution: Make sure the rubber cap is attached seamlessly and
well-positioned to the camera so the water will not get into the
camera.
6. Plug the adapter end into a power outlet.
7. Adjust the Wireless IP Camera to a desired position and secure it
firmly.
![](/img.php?id=3515333&img=bge.png)
12
Appendix A
Specifications
Waterproof HD IP Camera
Model

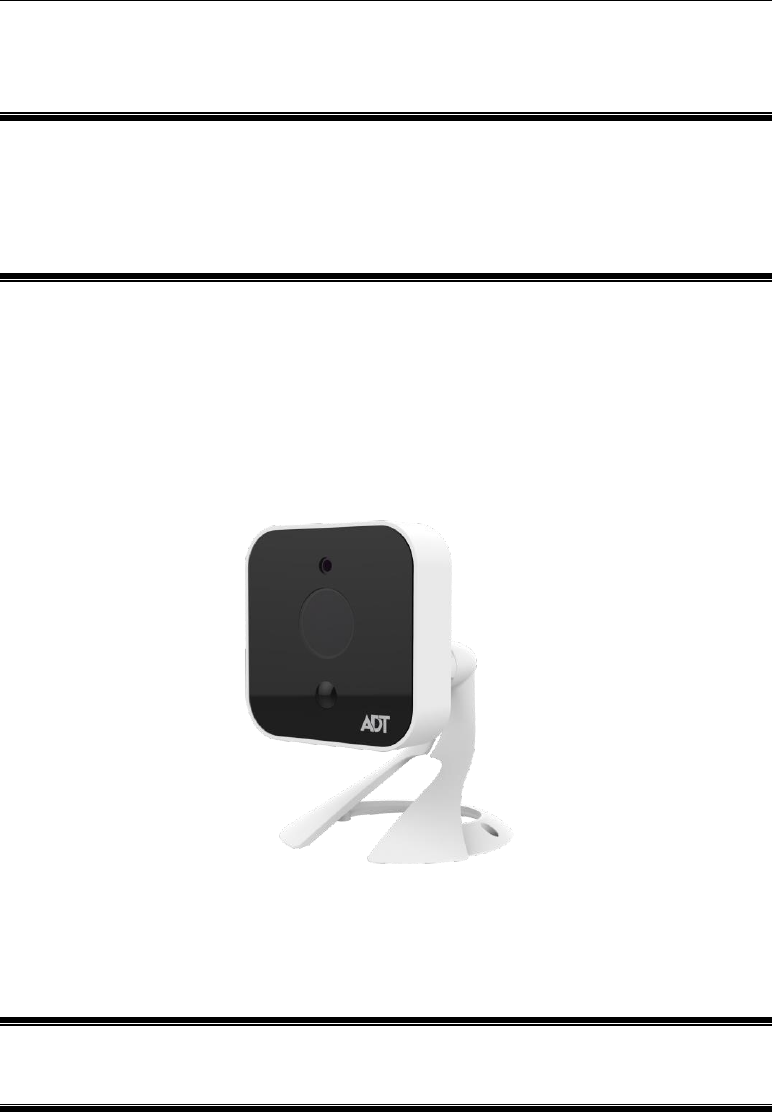

Waterproof HD IP Camera
Dimensions
76mm (W) x 76mm (H) x 48.6mm (D) (without stand)
Operating
Temperature
-40 C to 50 C (Cold Start: -40ºC; Heater mode: -40ºC to
0ºC)
Video compression
H.264 and MJPEG
Image resolution
16:9 720p (1280*720)
4:3 XGA (1024*768), VGA (640*480), QVGA (320*240)
Mixed Mode (720p, VGA, QVGA)
Storage Temperature
-40 C to 70 C
Network Protocols
TCP/IP, HTTP, HTTPS, DHCP, UPnP, NTP, RTCP, DNS
Network Interface
1 RJ-45 USB connector for Ethernet (optional)
Wireless interface
IEEE 802.11n/802.11b/802.11g compatible, WEP 64/128
bit, WPA/WPA2 personal security support
Button
1 WPS/Network Button
LEDs
2
IR LED
2
Power Adapter
12V/1.5A, 100~240V
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
A
![](/img.php?id=3515333&img=bgf.png)
13
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate this equipment. (Example- use only shielded interface cables when
connecting to computer or peripheral devices).
RF Exposure Part
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune
autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une
distance minimum de 20 centimètres entre le radiateur et votre corps.
Exposure:
This device meets the exemption from the routine evaluation limits in section 2.5 of
RSS102 and users can obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section
2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir
l'information canadienne sur l'exposition et la conformité de rf.
