SZ-KFB01 ZigBee Key Fob Manual / Installation Guide
SZ-KFB01 is a professional security token with built-in authentication mechanisms. Just use the Key Fobs
and users can have security control wherever inside or outside of their homes.
Specification
Frequency 2.4GHz 802.15.4 Zigbee system
Battery Type DC3V CR2032 * 1
Communication Range Open Air：100M (Max)
LED Indicator Red / Green x 1
Operating Temperature 0 C to 50 C (32° - 122°F)
Storage Temperature -20 C to 70 C (-4° - 158°F)
Battery Life 2 Years
Keys : Arm All
: Disarm All
: Reserved
: Arm Perimeter
Dimension 56 mm x 38 mm x 16 mm (2.2" x 1.5" x 0.6")
Package Contents
2
LEDs
Power (Red/Green)
On (Red) - When any key is pressed.
Blinking (Red) - The command is being processed (2 times per second).
Blinking (Green):
The LED will blink for 10 seconds when join/leave function is being
processed.
The LED will be on for 2 seconds when join/leave function is succeeded
and then off.
Pre-Intallation
1. Use a Phillips head screwdriver to remove the screw in the back of the device.
2. Remove the back and find the supplied battery.
3. Disassemble the circuit board from the device
3

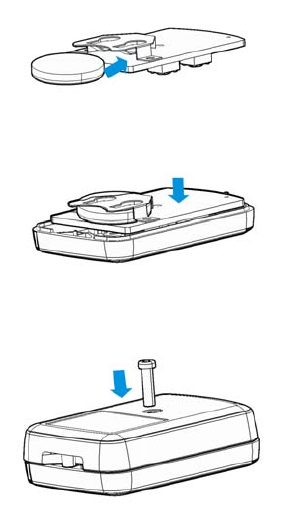

4. Install the supplied battery.
5. Put the circuit board back into the device.
6. Tighten the back and the device with the screw.
7. The device is ready to be added to the ZigBee Coordinator.
4

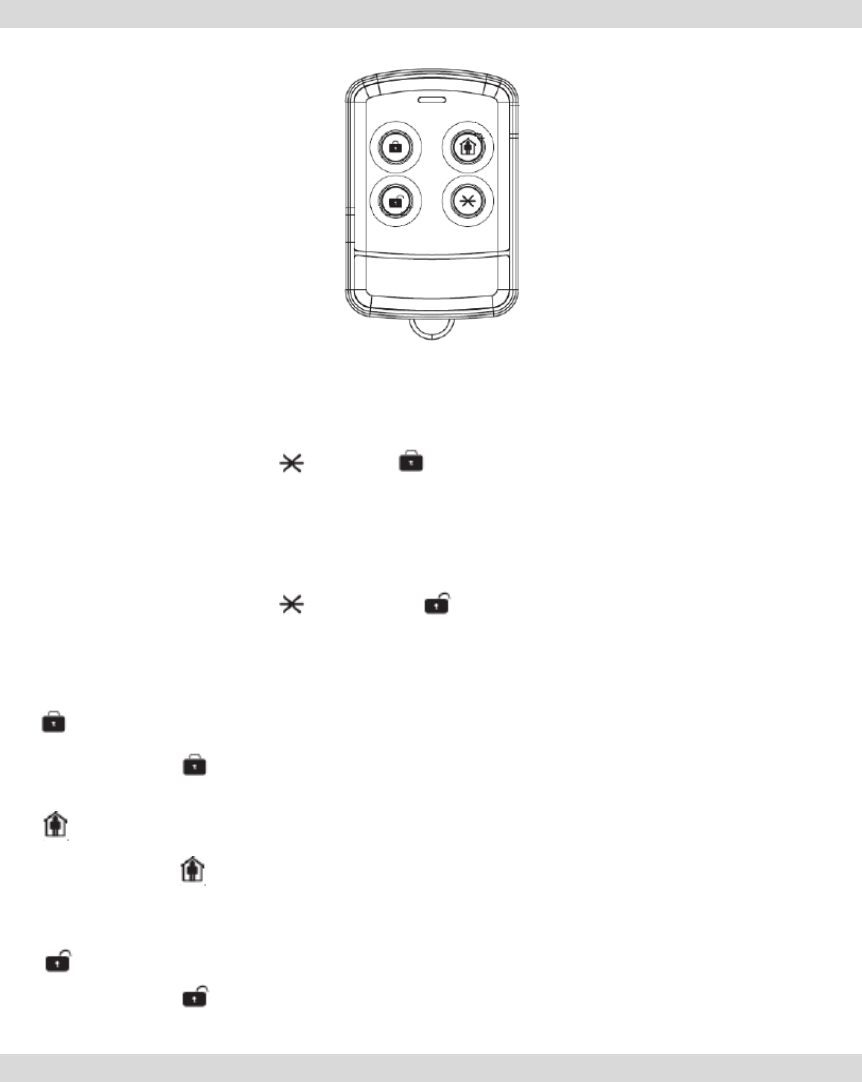

Operation
Join Function
For “Join” a network, please do the following instruction:
Put the ZigBee Coordinator into “Permit-Joining” mode.
Pressed and hold Reserved + Arm All button for 1 second. The LED is flashing while
processing. If the SZ-KFB01 has been joined with the ZigBee Coordinator successfully, the Green
LED will be on for 2 seconds and then off. The Green LED will be off instantly if failed.
Leave Function
For “Leave” a network, please do the following instruction:
Pressed and hold Reserved + Disarm All button for 3 seconds to let the SZ-KFB01 be
deleted from the ZigBee Coordinator. If the key fob has been deleted successfully, the LED will be
on for 1 second and then off.
Functions of Keys
Arm All
Press this button to arm your system in Away mode. Both the interior and exterior zones will be
armed, which allows you to exit the premises.
Arm Perimeter
Press this button to arm your system in Stay mode. All perimeter zones will be armed, such as all
windows and doors. But the interior zones will remain inactive, which allows you to stay in the
premises without setting off an alarm.
Disarm All
Press this button to disarm your system. Do not have to enter the access code when using this key
to disarm the system.
Troubleshooting
If the key fob is not working properly during the process, please make sure the battery is installed
correctly.
5
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the follow-ing two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncon-trolled
environment . This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
CE Approval
CE Standards
This product complies with the 99/5/EEC directives, including the following safety and EMC standards:
EN300328
EN301489
EN55022/24
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
