User Manual
TPM10
www.sercomm.com 1
Cat-M1 Module
Sercomm TPM10 is used to connect to LTE Cat-M1
network, complies with 3GPP Rel-13 LTE Cat-M1
UE specification
TPM10 provides the interconnections between the
Cat-M1 networks and terminals. It receives signals
sent from the networks, processes, and then sends
commands or data to the terminals; and transfers
data, commands to networks when receives data,
commands from the terminals.
Key Features
Multiple bands support
3GPP Rel.13 LTE Cat-M1 air interfaces and
protocols compliant
Maximum RF output power of 23 dBm
LTE eDRX and PSM support. Ultra low power
consumption for longer battery lifetime
Integrated temperature sensor
Interfaces
UART port, Communication port and debug port.
One reserved
USIM port
Antenna port
GPIO
JTAG
Operating Voltage
3.1~4.5V
Power Consumption
Max through UL+DL (23dBm): 222mA@4.2V
PSM: 1.00uA@4.2A
Dimension
LGA 108 pads. 21.35x20.25x1.67mm
Applications
Smart Metering, smart grid
Traffic Management and Monitoring
Asset Tracking
Environmental Monitoring
Ordering
TPM10
Cat-M1 module
FCC ID: P27-TPM10
TPM10
www.sercomm.com 2
Cat-M1 Module
Federal Communication Commission
Interference Statement
This device complies with FCC Rules. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate this
equipment.
This transmitter must not be co-located or
operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20cm
between the radiator & your body.
This device is intended only for OEM integrators
under the following conditions:
1) The antenna must be installed such that 20
cm is maintained between the antenna and users,
and
TPM10
www.sercomm.com 3
Cat-M1 Module
2) The transmitter module may not be
co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further
transmitter test will not be required. However, the
OEM integrator is still responsible for testing their
end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these
conditions can not be met (for example certain
laptop configurations or co-location with another
transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be
used on the final product. In these circumstances,
the OEM integrator will be responsible for
re-evaluating the end product (including the
transmitter) and obtaining a separate FCC
authorization.
End Product Labeling
This transmitter module is authorized only for use
in device where the antenna may be installed such
that 20 cm may be maintained between the
antenna and users. The final end product must be
labeled in a visible area with the following:
“Contains FCC ID: P27-TPM10”. The grantee's FCC
ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to
provide information to the end user regarding how
to install or remove this RF module in the user’s
manual of the end product which integrates this
module. The end user manual shall include all
required regulatory information/warning as show
in this manual.
RF typical circuit
The RF inter-connect called P1 is for example
purposes only. Depending on the antenna,
interfacing system will dictate the RF inter-connect.
Below picture is showing RF typical circuit.
LTE-ANT0 is the primary(main) antenna pin and
carries TX and RX signals. Connect 50 Ohm
transmission lines from this pins to the 50 Ohm
Primary Antenna/Antenna connetors.
The picture RF typical circuit shows, included in
the connection between ANT and the antenna
connectors, T-type network for matching.
TPM10
www.sercomm.com DOC-6696710 2
Cat-M1 Module
TPM10 DATASHEET
Specifications are subject to change without notice and should not be
construed as a commitment by Sercomm Corporation
Copyright 2017 by Sercomm Corporation All rights reserved.
Ver 1.0
TPM10
www.sercomm.com DOC-6696710 3
Cat-M1 Module
Revision History
Rev Date Description
V1.0 04/11/2017 Initial Release V1.0
TPM10
www.sercomm.com DOC-6696710 4
Cat-M1 Module
Table of contents
1. Functional Overview ........................................................................................................................ 5
1.1. Block Circuit Diagram......................................................................................................... 5
1.2. Main Module Components ................................................................................................ 6
1.3. LTE Low Power Modes ....................................................................................................... 7
2. Electrical Characteristics .................................................................................................................. 8
2.1. Power-up Sequence ........................................................................................................... 8
2.2. Reset Cycle ......................................................................................................................... 8
2.3. Power supply ..................................................................................................................... 8
2.4. Performance ...................................................................................................................... 9
3. Pin out and Definitions .................................................................................................................. 10
3.1. I/O Parameters Definition ............................................................................................... 10
3.2. Module Pin Definition ...................................................................................................... 10

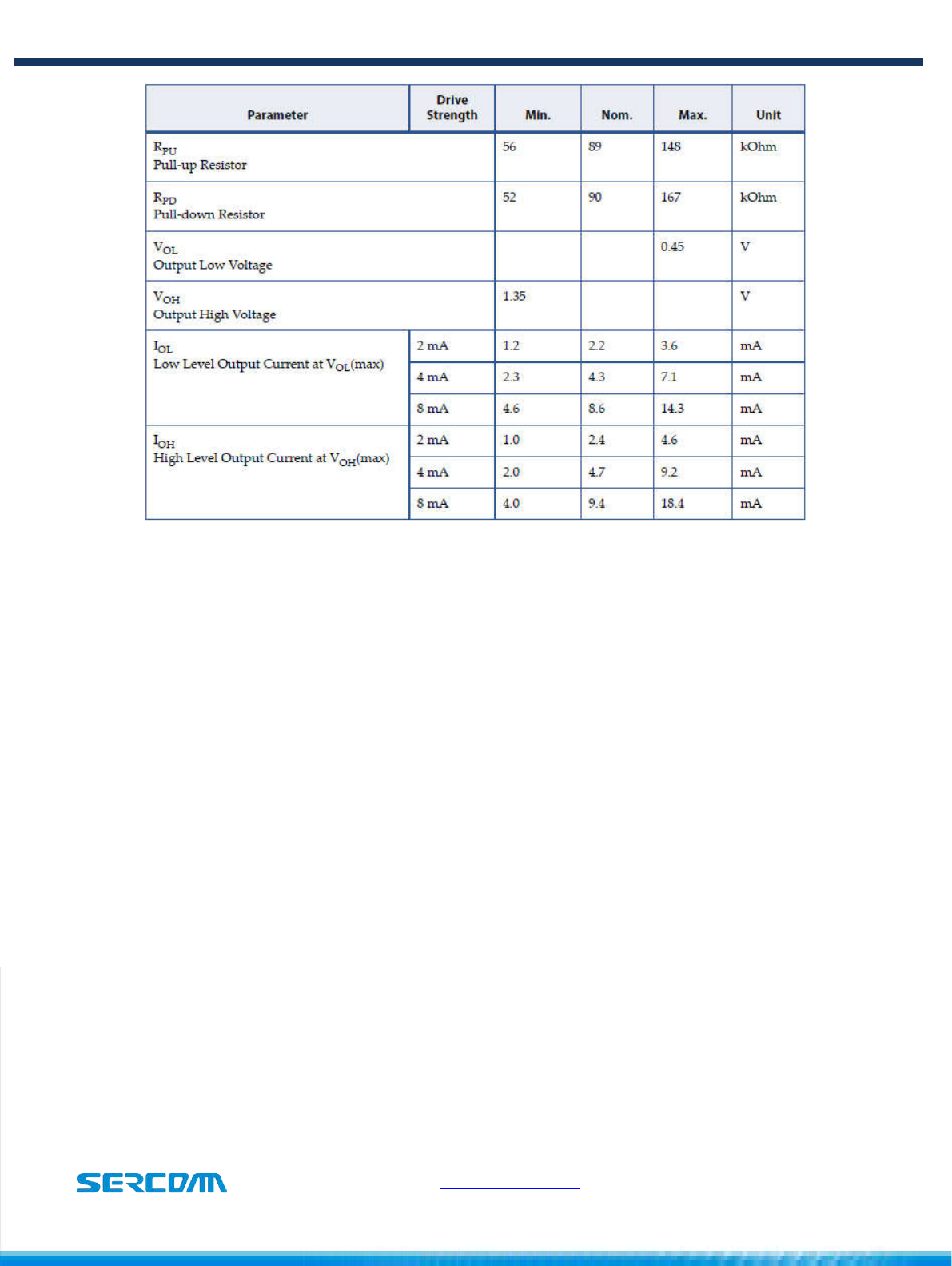

3.3. DC Characteristics ............................................................................................................ 17

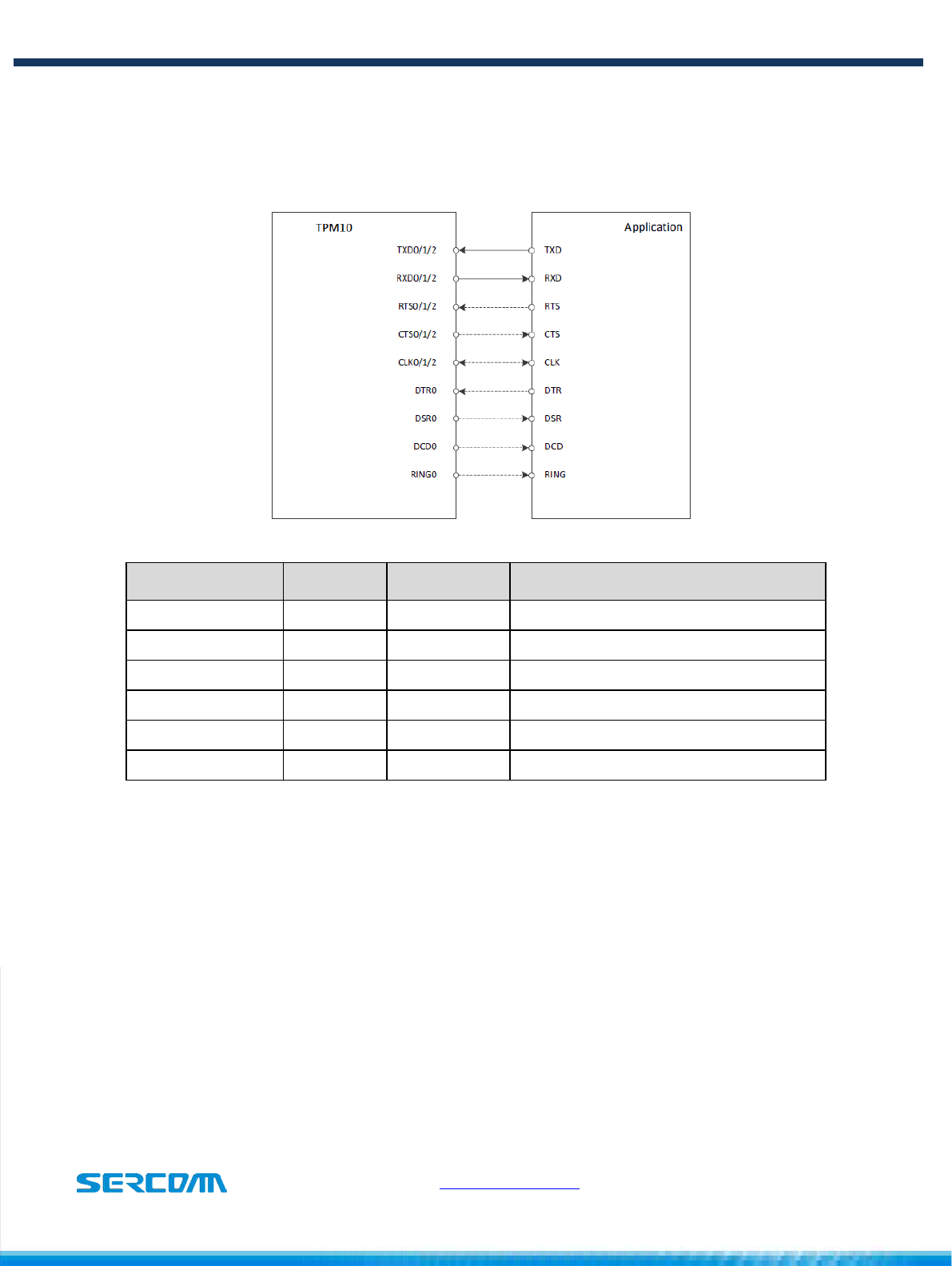

3.4. UART Port ........................................................................................................................ 19
3.5. SIM Port ........................................................................................................................... 20
3.6. Antenna Port ................................................................................................................... 20
4. ESD ................................................................................................................................................. 22
5. EMC ................................................................................................................................................ 23

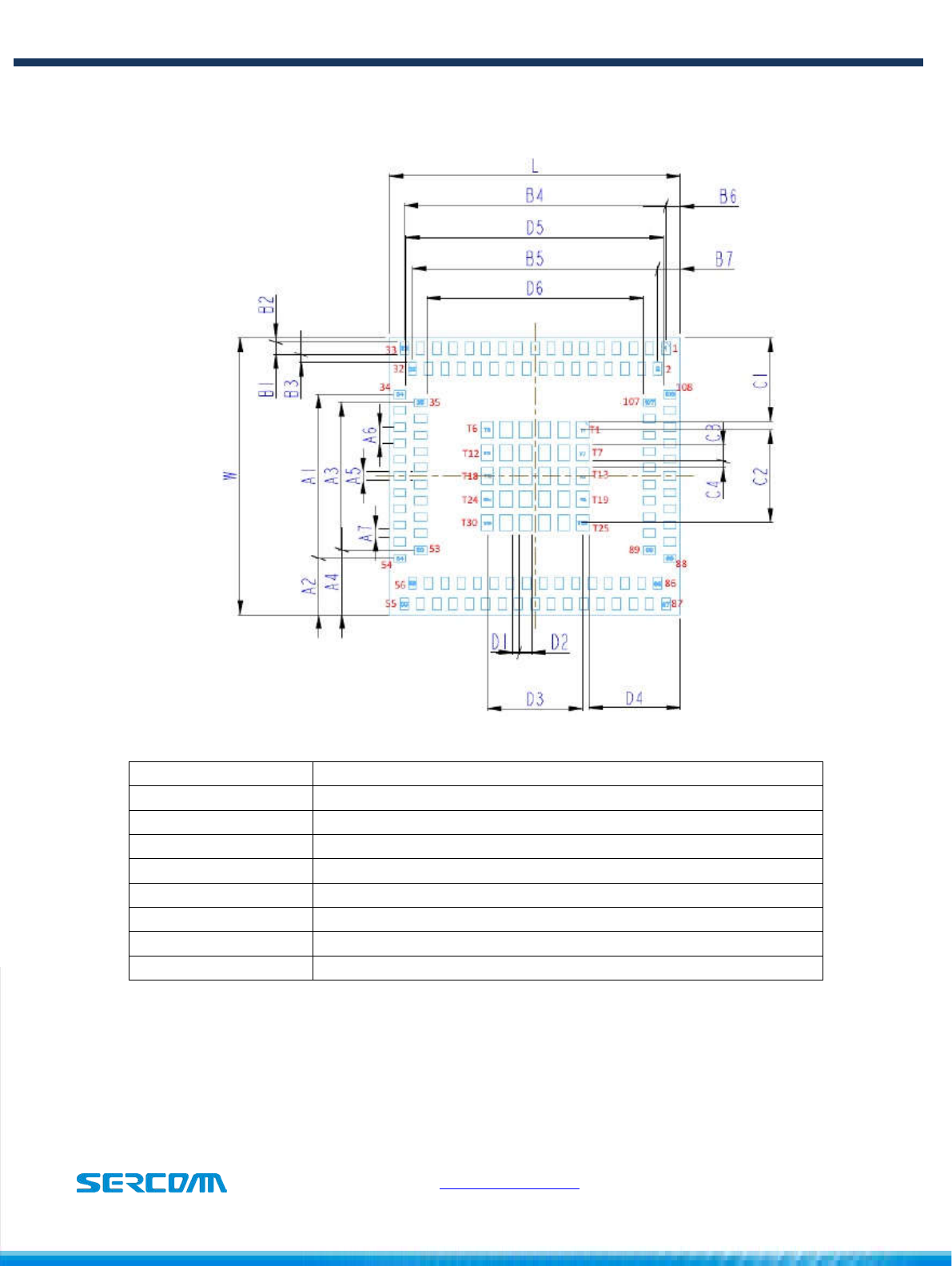

6. Package Description ....................................................................................................................... 24

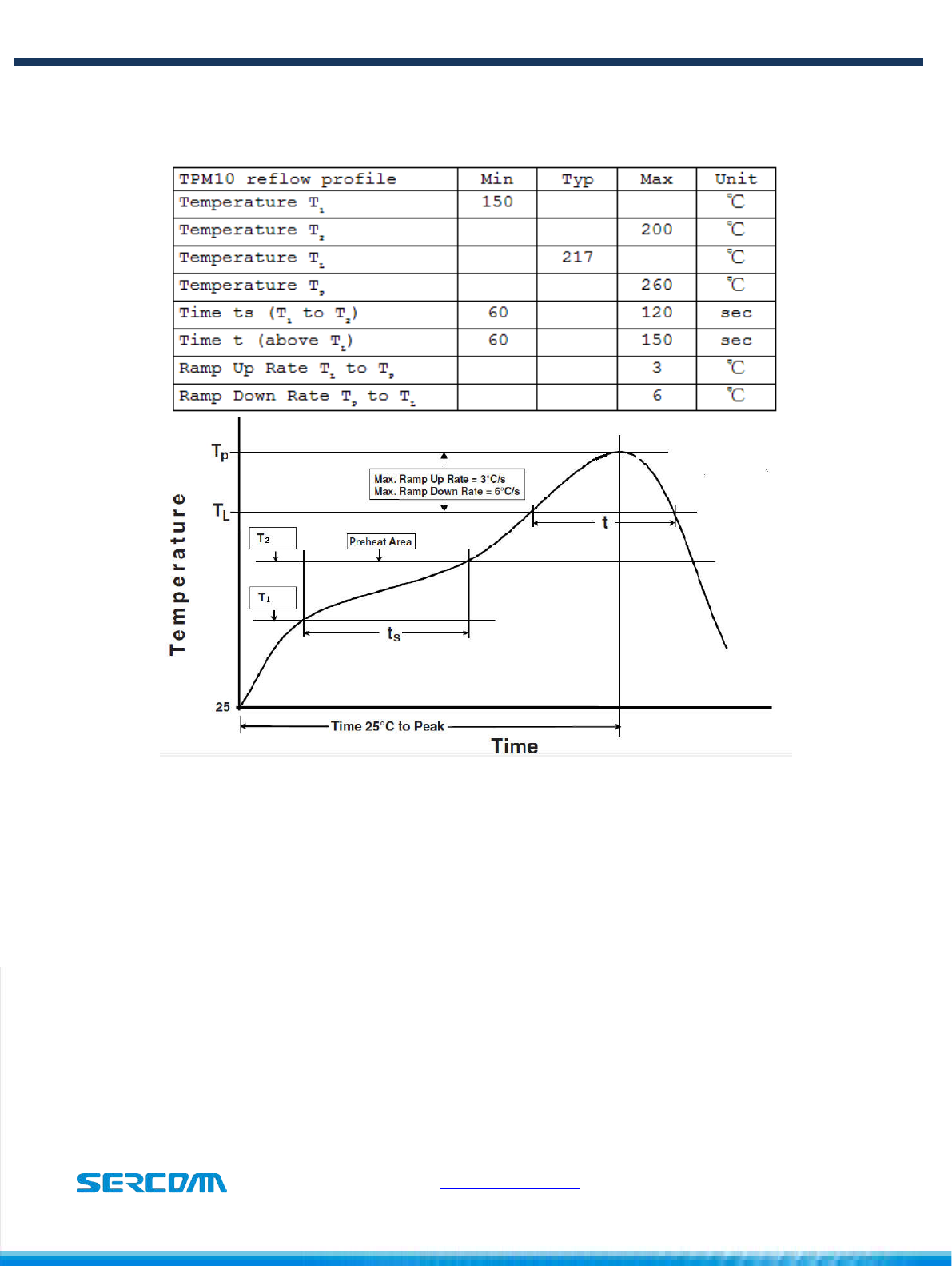

7. Recommend Reflow Profile ........................................................................................................... 26
8. Package and Storage Condition ..................................................................................................... 27
9. Product Information ...................................................................................................................... 28
10. Ordering Information .................................................................................................................... 29
TPM10
www.sercomm.com DOC-6696710 5
Cat-M1 Module
1. Functional Overview
TPM10 module provides the interconnection between Cat-M1 networks and terminals.
Interconnection with Cat-M1
−
TPM10 module receives and processes signals sent from Cat-M1 networks,
and then sends commands or data to terminals for performing the
operation and maintenance (O&M).
−
The module receives data and commands from terminals, transferring
those data and commands to Cat-M1 networks, and then delivers them to
application servers (ASs).
Interconnection with terminals
−
TPM10 module reads and uploads terminal data to the Cat-M1 networks.
−
The module receives commands from the Cat-M1 networks and performs
O&M for terminals.

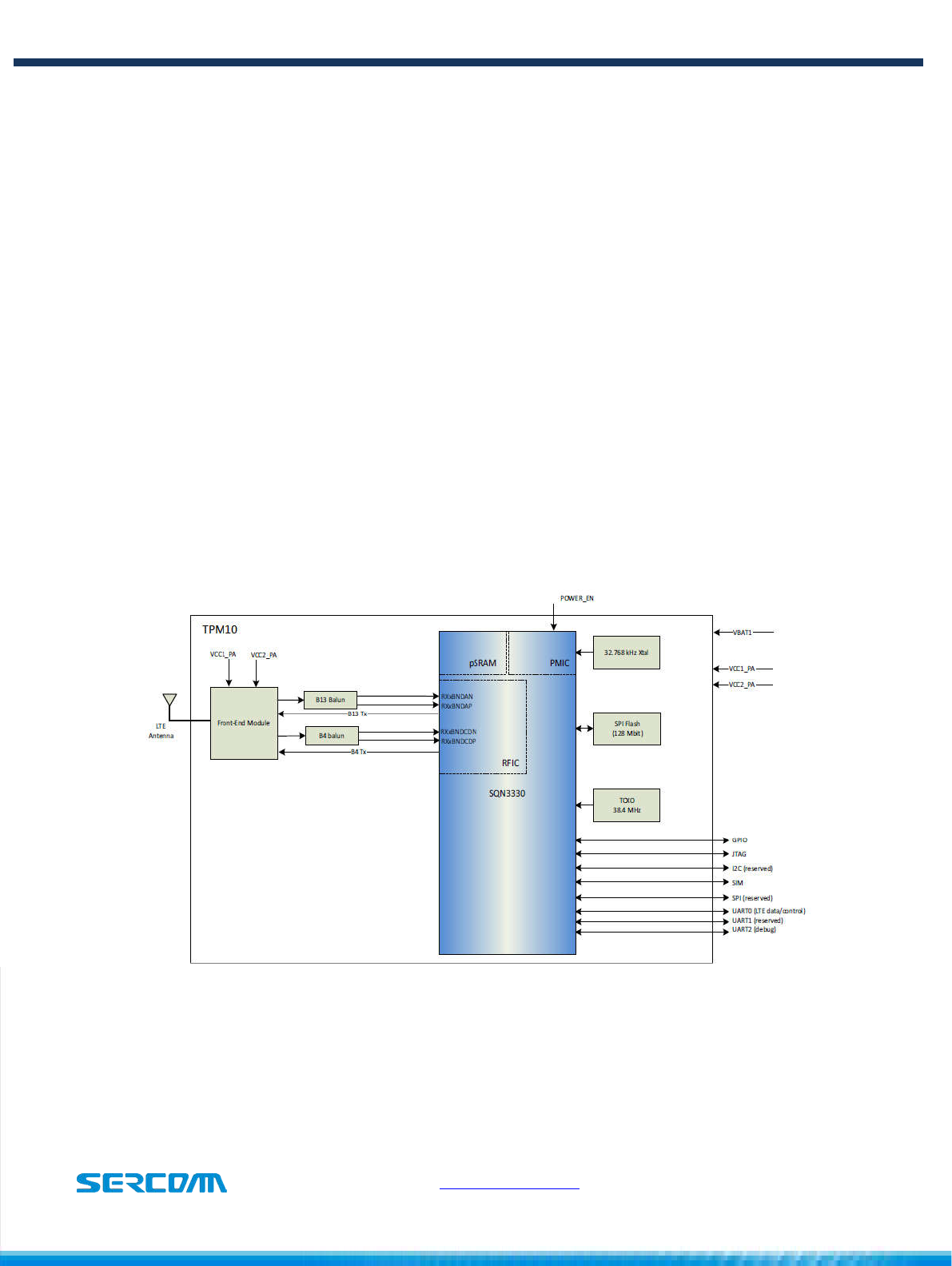

1.1. Block Circuit Diagram
TPM10 module is based on the SQN3330 Cat-M1 baseband and developed for 3GPP E-UTRA
and Wireless LTE Cat-M1 UE specification. The image below shows the module block
diagram:
TPM10
www.sercomm.com DOC-6696710 6
Cat-M1 Module
1.2. Main Module Components
The TPM10 includes the following components.
A. SQN3330
This module includes SQN3330 Cat-1 baseband, a complete dual band RF front end, memory
and required circuitry to meet 3GPP E-UTRA (Long Term Evolution - LTE, Release 13 set of
specifications) and Wireless LTE Cat-M1 UE specifications.
SQN3330 is a single-chip LTE Cat M1 solution, which is designed specifically for narrowband
IoT applications, including sensors, wearables, and other low data, low power M2M and IoT
devices.
B. RF
The RF matching circuit.
C. Power system

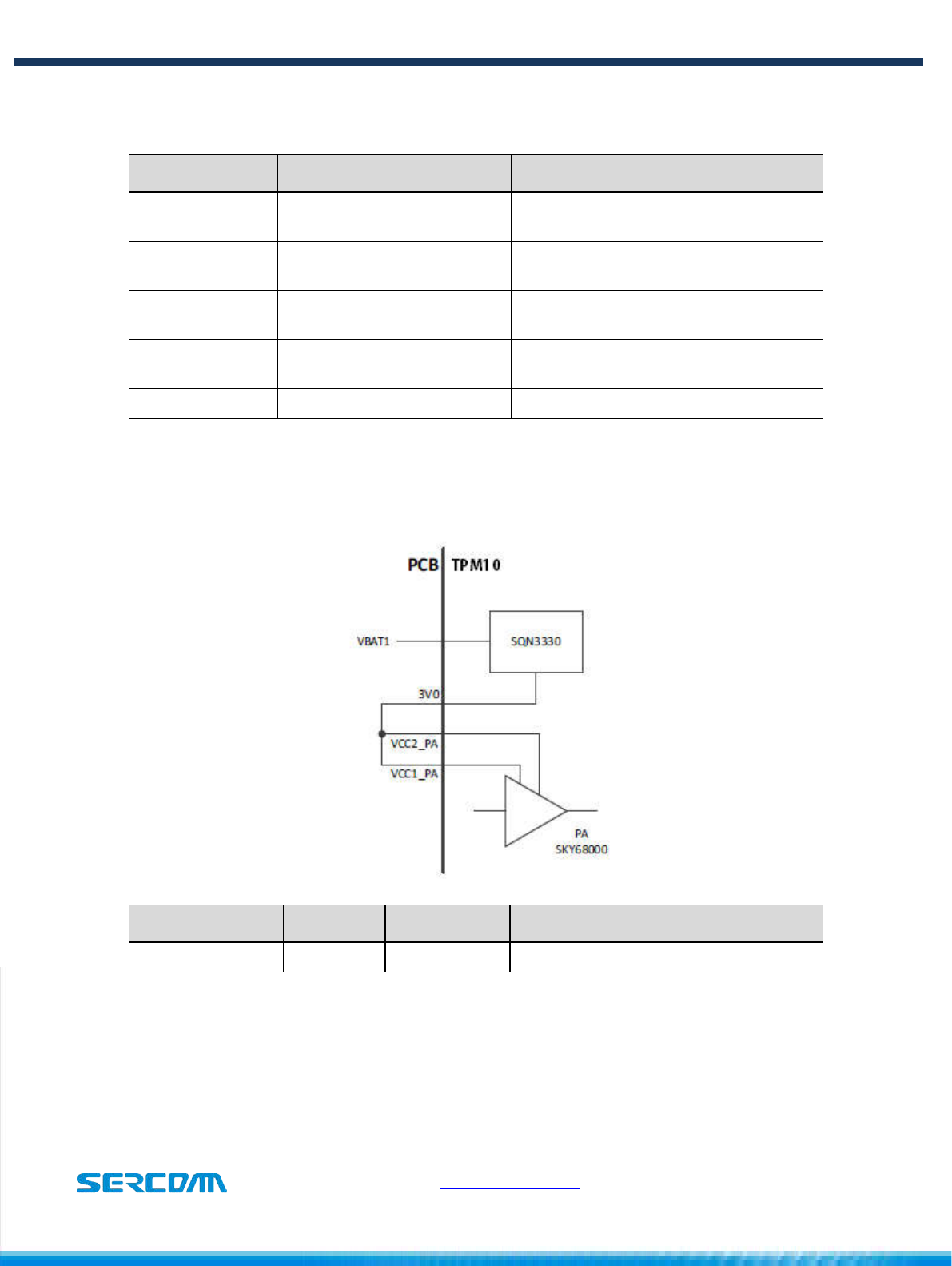

The main power supply is “VBAT1“ and its range is 3.1~4.5V while the “VSIM” power supply
(3.0V) is for external SIM circuit.
D. Clock in system
TPM10 is using 32KHz clock in the module system.
TPM10
www.sercomm.com DOC-6696710 7
Cat-M1 Module
1.3. LTE Low Power Modes
This module will automatically enter in low-power mode. It can be woken from low power
mode by the following external sources:
SIM_DETECT input signal to cope with SIM card insertion into a SIM card connector with
built-in hardware detection. The default configuration to wake-up the module is a
low-to-high transition.
The RTS0 input signal whenever data traffic is initiated by the host connected to the
module UART0 with hardware flow control; The default configuration to wake-up the
module is a high-to-low transition.
Two dedicated input signal WAKE0 and WAKE1; The default configuration to wake-up the
module is on a high-to-low transition. This can be modified by software. As example, these
signals can be used to detect an alarm from an external IC such as a sensor. Software can
disable the wake-up functionality on these signals.
A subset of GPIO input signals: GPIO2, GPIO3, GPIO25, GPIO27, GPIO42; they are not
configured by default as wake-up source but software can configure them for future use.
TPM10
www.sercomm.com DOC-6696710 8
Cat-M1 Module
2. Electrical Characteristics

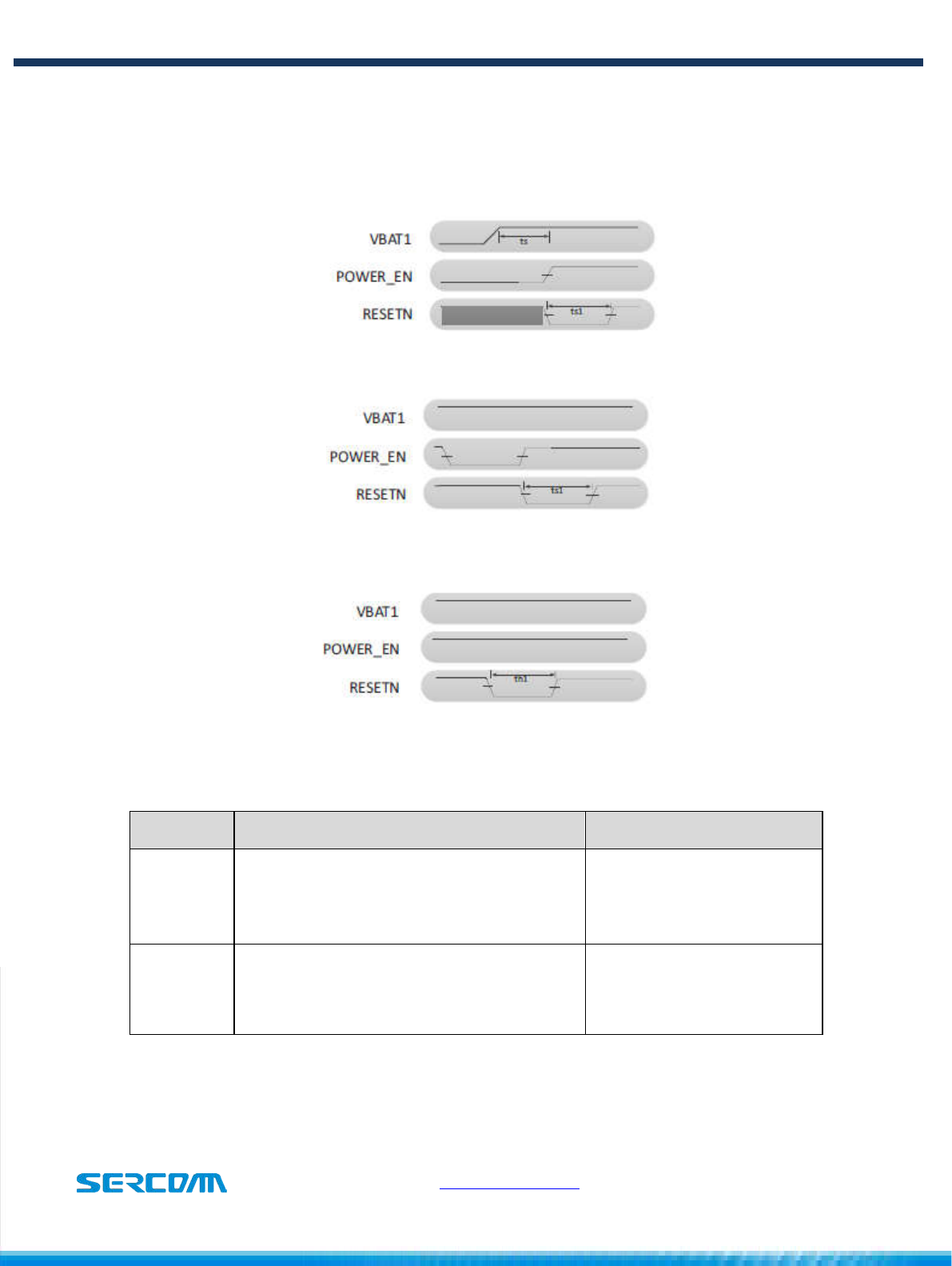

2.1. Power-up Sequence
Cold Start
Warm Start
2.2. Reset Cycle
2.3. Power supply
The main power supply is “VBAT1“ and its range is 3.1~4.5V while the “VSIM” power
supply (3.0V) is for external SIM circuit.
Pad Name Pad # Comment
GND
T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11,
T12, T13, T14, T15, T16, T17, T18, T19, T20,
T21, T22, T23, T24, T25, T26, T27, T28, T29,
T30
T1 to T30 pads are
used as both GND and
thermal drops
GND
1, 20, 22, 24, 26, 28, 30, 31, 32, 33, 34, 42,
43, 45, 46, 53, 55, 62, 63, 64, 65, 66, 68, 69,
70, 71, 72, 73, 74, 86, 87
All GND pads shall be
connected to the same
copper.
TPM10
www.sercomm.com DOC-6696710 9
Cat-M1 Module
Pad Name Pad # Comment
VBAT1 107, 108
Power supply for
Baseband, voltage level
3.1V to 4.5V
2.4. Performance
The Max output power of TPM10 is 23dBm +2/-2.7dBm
The typical sensitivity level of TPM10 is -103 dBm
TPM10
www.sercomm.com DOC-6696710 10
Cat-M1 Module
3. Pin out and Definitions
3.1. I/O Parameters Definition
Type Description
DI
Digital input
DO
Digital output
I/O
Bidirectional input/output
AI
Analog input
AO
Analog output
PO
Power output
PI
Power input
OD
Open drain
3.2. Module Pin Definition
Pad Name Pad No. I/O Type Description
GND 1, 20, 22, 24, 26, 28, 30, 31, 32, 33,
34, 42, 43, 45, 46, 53, 55, 62, 63, 64,
65, 66, 68, 69, 70, 71, 72, 73, 74, 86,
87
N/A All GND pads shall be
connected to the same
copper.
GPIO3/STATUS
_LED
2 IN GPIO or status LED
(STATUS_LED, OUT) in
option with 3 modes:
- Activity based on LTE
connectivity status
(typically: ON when
attached to LTE
network)
- Periodic pulse (Sign
of life signal)
- LED switch off
TPM10
www.sercomm.com DOC-6696710 11
Cat-M1 Module
1V8 3 O
(power)
1.8V reference voltage
for IOs
GNSS_VINB 4 N/A Reserved
RESERVED/FFF
_FFH
5 I/O Reserved pad
GPIO2/POWER
_MON
6 I/O GPIO or Power
monitor
(POWER_MON, OUT)
in option
GPIO19/CLK0 7 I/O GPIO, USART0/CLK in
option
GPIO27/CTS2 8 I/O GPIO (I/O),
USART2/CTS (OUT) in
option
3V0 9, 11 O
(power)
3.0V power supply
GPIO28/RTS2 10 I/O GPIO (I/O),
USART2/RTS (IN) in
option
SIM_RESETN 12 O SIM card interface:
reset output pin for
the SIM card
DNC 13, 15 Do not
connect
Do not connect
SIM_CLK 14 O SIM card interface:
clock output pin for
the SIM card
SIM_DETECT 16 I/O SIM card presence
indication (input)
TPM10
www.sercomm.com DOC-6696710 12
Cat-M1 Module
SIM_IO 17 I/O SIM card bidirectional
data input/output
SIM_VCC 18 O
(power)
SIM card supply
voltage
GNSS_TXD3 19 N/A Reserved
GNSS_RXD3 21 N/A Reserved
GNSS_BOOT0 23 N/A Reserved
GNSS_RSTN 25 N/A Reserved
GNSS_STDBY_
OUT
27 N/A Reserved
GNSS_WAKEU
P
29 N/A Reserved
GNSS_STDBYN 35 N/A Reserved
GNSS_GPIO28 36 N/A Reserved
GNSS_GPIO1_
PPSOUT
37 N/A Reserved
GNSS_GPIO0/
BLANKING
38 N/A Reserved
RFDATA12 39 I/O RF Control, reserved
for future use
RFDATA16 40 I/O RF Control, reserved
for future use
RFDATA17 41 I/O RF Control, reserved
for future use
GNSS_ANT1 44 N/A Reserved
TPM10
www.sercomm.com DOC-6696710 13
Cat-M1 Module
RESETN 47 I Module HW reset
signal
JTAG_TDO 48 O Used for JTAG
interface
JTAG_TRSTN 49 I Used for JTAG
interface
JTAG_TMS 50 I Used for JTAG
interface
JTAG_TDI 51 I Used for JTAG
interface
JTAG_TCK 52 I Used for JTAG
interface
LTE_ANT 54 Analog LTE antenna
RXD2 56 O UART2/RXD (OUT)
ADC 57 Analog Analog Digital
Converter
TXD2 58 I UART2/TXD (IN)
SPI_SDI 59 I/O SPI interface, reserved
for future use
SPI_CSN 60 I/O SPI interface, reserved
for future use
SPI_CLK 61 I/O SPI interface, reserved
for future use
SPI_SDO 67 I/O SPI interface, reserved
for future use
RTS0 75 I UART0/RTS (IN)
TPM10
www.sercomm.com DOC-6696710 14
Cat-M1 Module
CTS0 76 O UART0/CTS (OUT)
TXD0 77 I UART0/TXD (IN)
GPIO14/TXD1 78 I/O GPIO (I/O),
UART1/TXD (IN) in
option
RXD0 79 O UART0/RXD (OUT)
GPIO15/RXD1 80 I/O GPIO (I/O),
UART1/RXD (OUT) in
option
GPIO17/CTS1 81 I/O GPIO (I/O), UART1/CTS
(OUT) in option
GPIO38/CLK1 82 I/O GPIO, UART1/CLK in
option
GPIO16/RTS1 83 I/O GPIO (I/O), UART1/RTS
(IN) in option
GPIO41/DTR0 84 I/O GPIO (I/O),
UART0/DTR (IN) in
option
GPIO39/DSR0 85 I/O GPIO (I/O),
UART0/DSR (OUT) in
option
GPIO24/DCD0 88 I/O GPIO (I/O),
UART0/DCD (OUT) in
option
GPIO25/RING0 89 I/O GPIO (I/O),
UART0/RING (OUT) in
option
GPIO40/EMGC
Y_SHDN
90 I/O GPIO, emergency
power shutdown
signal (EMGCY_SHDN,
IN) in option
TPM10
www.sercomm.com DOC-6696710 15
Cat-M1 Module
GPIO26/CLK2 91 I/O GPIO, USART2/CLK in
option
I2C_SDA 92 I/O I2C/SDA interface.
GPIO in option
GPIO23 93 I/O GPIO
I2C_SCL 94 I/O I2C/SCL interface.
GPIO in option
GPIO21 95 I/O GPIO
WAKE1 96 I/O Wake input (WAKE1).
Module is wake-up on
WAKE1 high to low
signal transition
VCC1_PA 97 I (power) Power supply for LTE
RF front end
VCC2_PA 98, 99 I (power) Power supply for LTE
RF front end
GNSS_VCC1 100 N/A Reserved
GNSS_VCC2 101 N/A Reserved
GNSS_VCC3 102 N/A Reserved
GPIO29/32KHZ
_CLK_OUT
103 O 32KHz (OUT), GPIO
(I/O) in option
WAKE0 104 I Wake input (WAKE0).
Module is wake-up on
WAKE0 high to low
signal transition
GPIO42/SAR_D
ETECT
105 I/O GPIO, SAR detection
signal (SAR_DETECT,
IN, active low) in
option
TPM10
www.sercomm.com DOC-6696710 16
Cat-M1 Module
POWER_EN 106 I (power) See IO Characteristics
for VDD_PWR_EN
VBAT1 107, 108 I Power supply for
Baseband, voltage
level 3.1V to 4.5V
GND T1, T2, T3, T4, T5, T6, T7, T8, T9, T10,
T11, T12, T13, T14, T15, T16, T17,
T18, T19, T20, T21, T22, T23, T24,
T25, T26, T27, T28, T29, T30
N/A T1 to T30 pads are
used as both GND and
thermal drops
TPM10
www.sercomm.com DOC-6696710 17
Cat-M1 Module
3.3. DC Characteristics

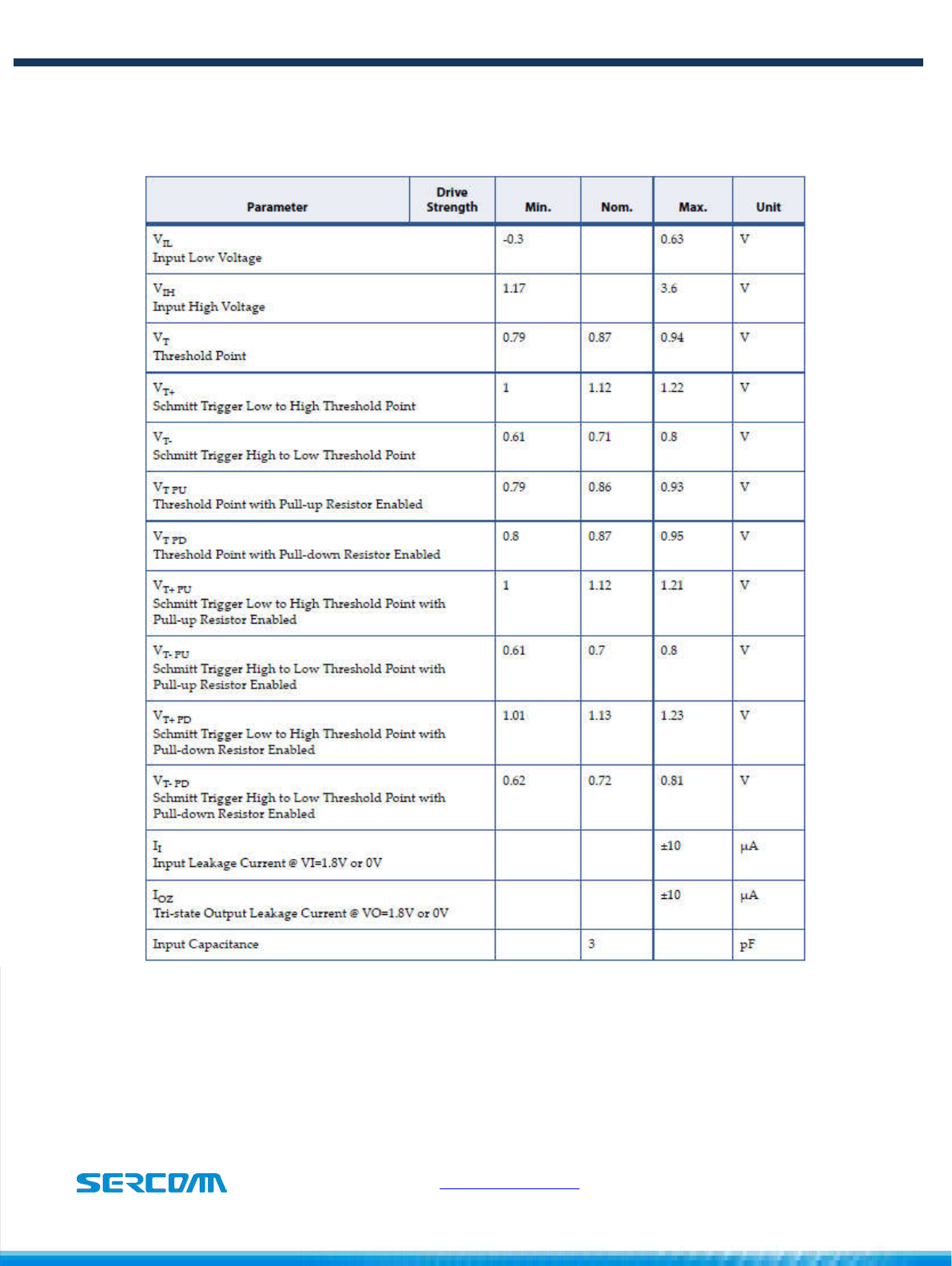

The following table displays the DC characteristics for digital IOs and voltage 1.8 V:
TPM10
www.sercomm.com DOC-6696710 18
Cat-M1 Module
TPM10
www.sercomm.com DOC-6696710 19
Cat-M1 Module
3.4. UART Port
The following image represents the typical implementation for the hardware flow control
for UART0, UART1 and UART2. TDX and RDX signals are mandatory. RTS and CTS are
strongly recommended. The other signals are optional.
UART pin definition:
Pad Name Pad No. I/O Type Description
RXD2
56
O
UART2/RXD (OUT)
TXD2
58
I
UART2/TXD (IN)
RTS0
75
I
UART0/RTS (IN)
CTS0
76
O
UART0/CTS (OUT).
TXD0
77
I
UART0/TXD (IN)
RXD0
79
O
UART0/RXD (OUT)
TPM10
www.sercomm.com DOC-6696710 20
Cat-M1 Module
3.5. SIM Port
Pin definition:
Pad Name Pad No. I/O Type Description
SIM_RESETN
12
O
SIM card interface: reset output
pin for the SIM card
SIM_CLK
14
O
SIM card interface: clock output
pin for the SIM card
SIM_DETECT
16
I/O
SIM card presence indication
(input)
SIM_IO
17
I/O
SIM card bidirectional data
input/output
SIM_VCC
18
O
SIM card supply voltage
3.6. Antenna Port
TPM10 LTE RF front-end power supplies diagram:
Pin definition:
Pad Name Pad No. I/O Type Description
LTE_ANT
54
Analog
LTE antenna
TPM10
www.sercomm.com DOC-6696710 21
Cat-M1 Module
TPM10
www.sercomm.com DOC-6696710 22
Cat-M1 Module
4. ESD
The module has no electro-static discharge (ESD) protection measures, and its sensitive
pins need external ESD protection. Appropriate ESD measures need to be added during
the manufacturing/transporting/operation stages.
The table below shows the ESD requirements for the module.
Pin Contact Discharge Air Discharge Unit
VBAT
±5
±10
KV
ANT
±4
±8
KV
Other ports
±0.5
±1
KV
TPM10
www.sercomm.com DOC-6696710 23
Cat-M1 Module
5. EMC
The signal integrity and power integrity issues caused by electromagnetic compatibility
(EMC) need to be considered when you use the module to design. Below are some
suggestions:
The coupling of the module and other digital chips must be deployed remotely as far as
possible, in order to avoid mutual interference.
The power supply (CSS), clock, high-speed digital signals, EMI components, and RF
simulation parts must be deployed remotely as far as possible.
The CSS, clock, high-speed digital signals, EMI components, and antennas must be
coupled remotely as far as possible in space.
During cabling routing, RF reference ground, digital and analog areas should be
separated, and all cables are routed in compliance with specified requirements to
avoid mutual coupling between lines.
The decoupling capacitor is placed near pins.
TPM10
www.sercomm.com DOC-6696710 24
Cat-M1 Module
6. Package Description
Module dimensions from the bottom:
Mark Dimension and tolerance (mm)
Mark Dimension and tolerance
L 21.35 ± 0.1
W 20.25 ± 0.1
A1 12 ± 1.0
A2 4.125 ± 0.5
A3 10.8 ± 1.0
A4 4.725 ± 0.5
A5 0.6 ± 0.05
A6 1.2 ± 0.1
TPM10
www.sercomm.com DOC-6696710 25
Cat-M1 Module
A7 0.6 ± 0.05
B1 0.9 ± 0.1
B2 0.325 ± 0.05
B3 0.6 ± 0.05
B4 19.2 ± 0.2
B5 18 ± 0.2
B6 1.075 ± 0.1
B7 1.675 ± 0.15
C1 6.125 ± 0.5
C2 6.8 ± 0.5
C3 1.2 ± 0.01
C4 0.5 ± 0.05
D1 0.5 ± 0.05
D2 0.9 ± 0.1
D3 7 ± 0.5
D4 6.725 ± 0.5
D5 18.9 ± 0.2
D6 15.9 ± 0.2
TPM10
www.sercomm.com DOC-6696710 26
Cat-M1 Module
7. Recommend Reflow Profile
TPM10
www.sercomm.com DOC-6696710 27
Cat-M1 Module
8. Package and Storage Condition
Operation and Storage Environment:
Item Minimum
Value
Maximum
Value
Unit
Operating temperature
–40
85
˚C
Storage temperature
–40
85
˚C
Operating Humidity
10
85
%
Storage Humidity
5
85
%
TPM10
www.sercomm.com DOC-6696710 28
Cat-M1 Module

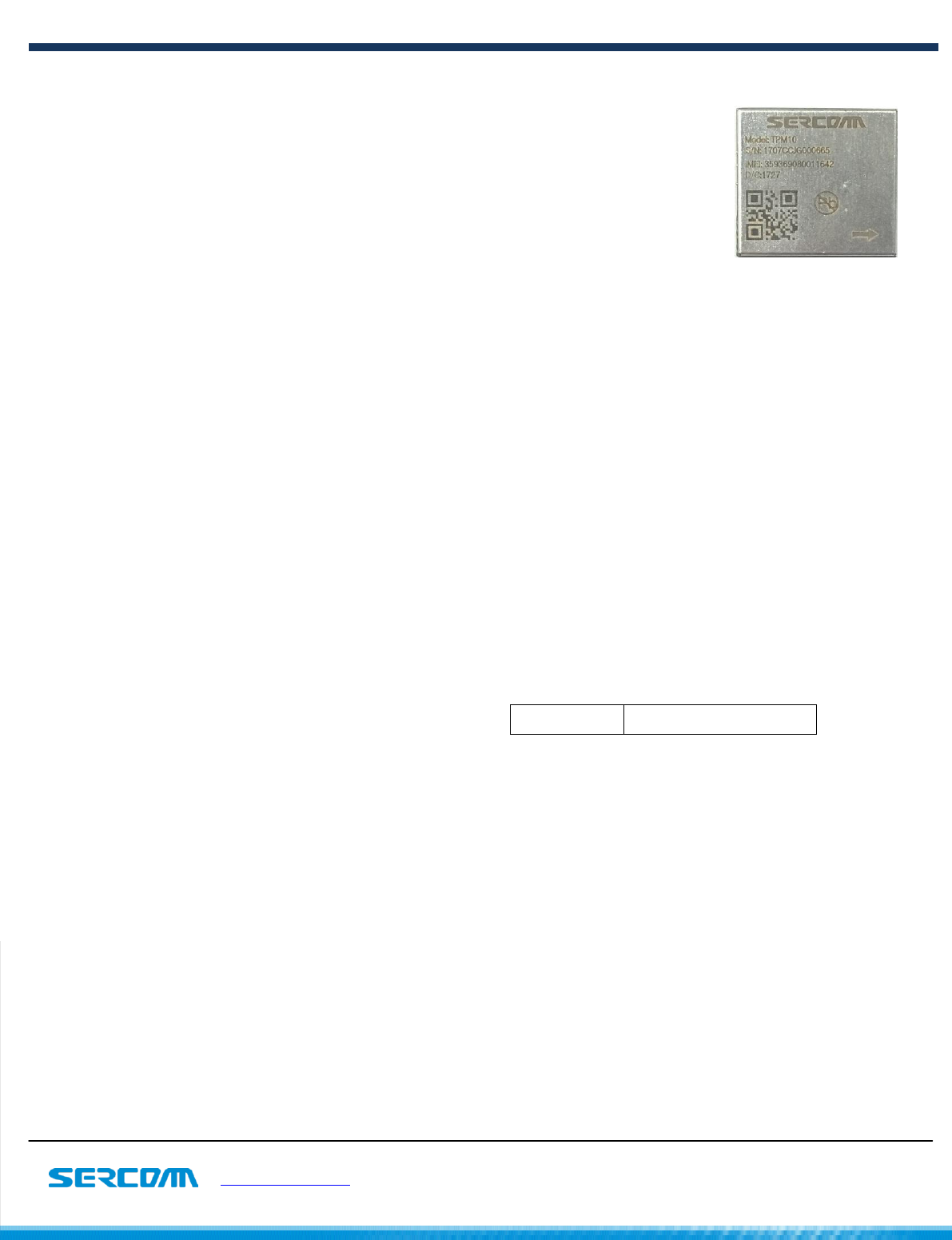

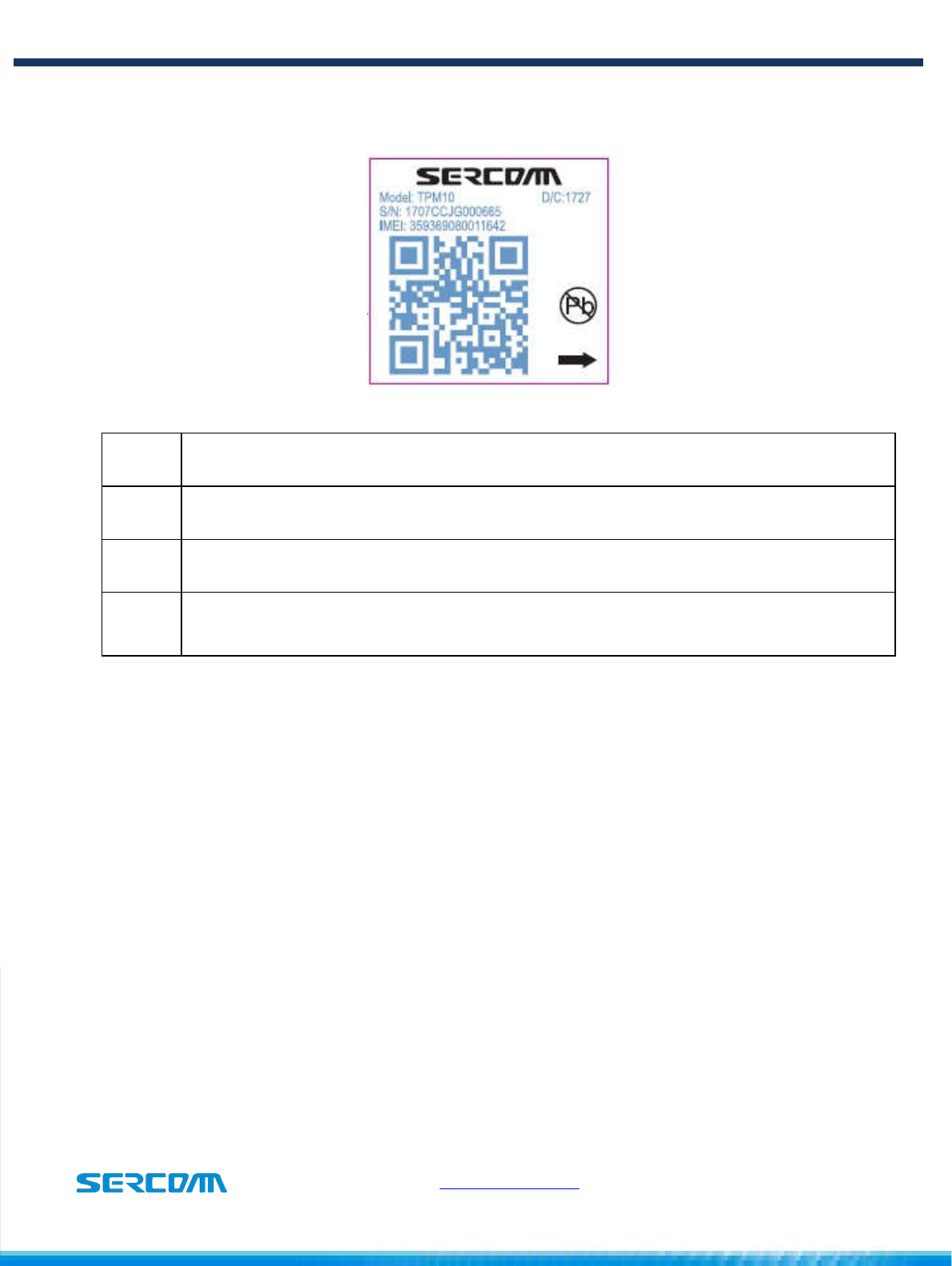

9. Product Information
Model It displays the model name of the device.
SN The serial number of the device.
IMEI The IMEI number is used by a GSM network to identify the device.
D/C It shows the date code that is used to identify when the device is being manufactured.
TPM10
www.sercomm.com DOC-6696710 29
Cat-M1 Module
10. Ordering Information
Part Number Description Package Type Operation Temp.
TPM10 Cat-M1 Module Reel -40~85C
