COVER
TO THE OWNER/OPERATOR/DEALER
PARTS ORDERING GUIDE
PART NAME INDEX
AXLE ASSEMBLY
- AXLE ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT
- AXLE ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

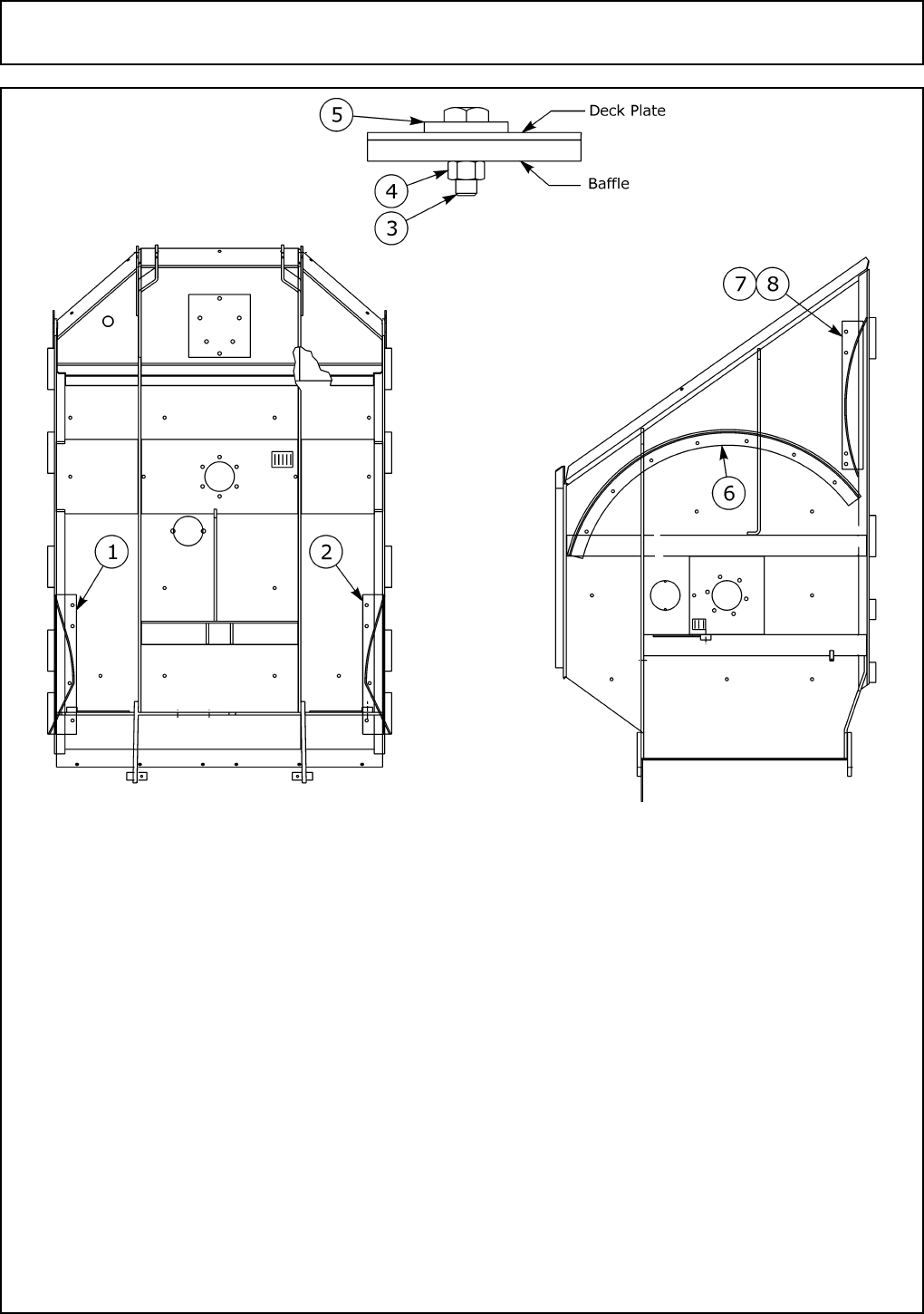

BAFFLE ASSEMBLY

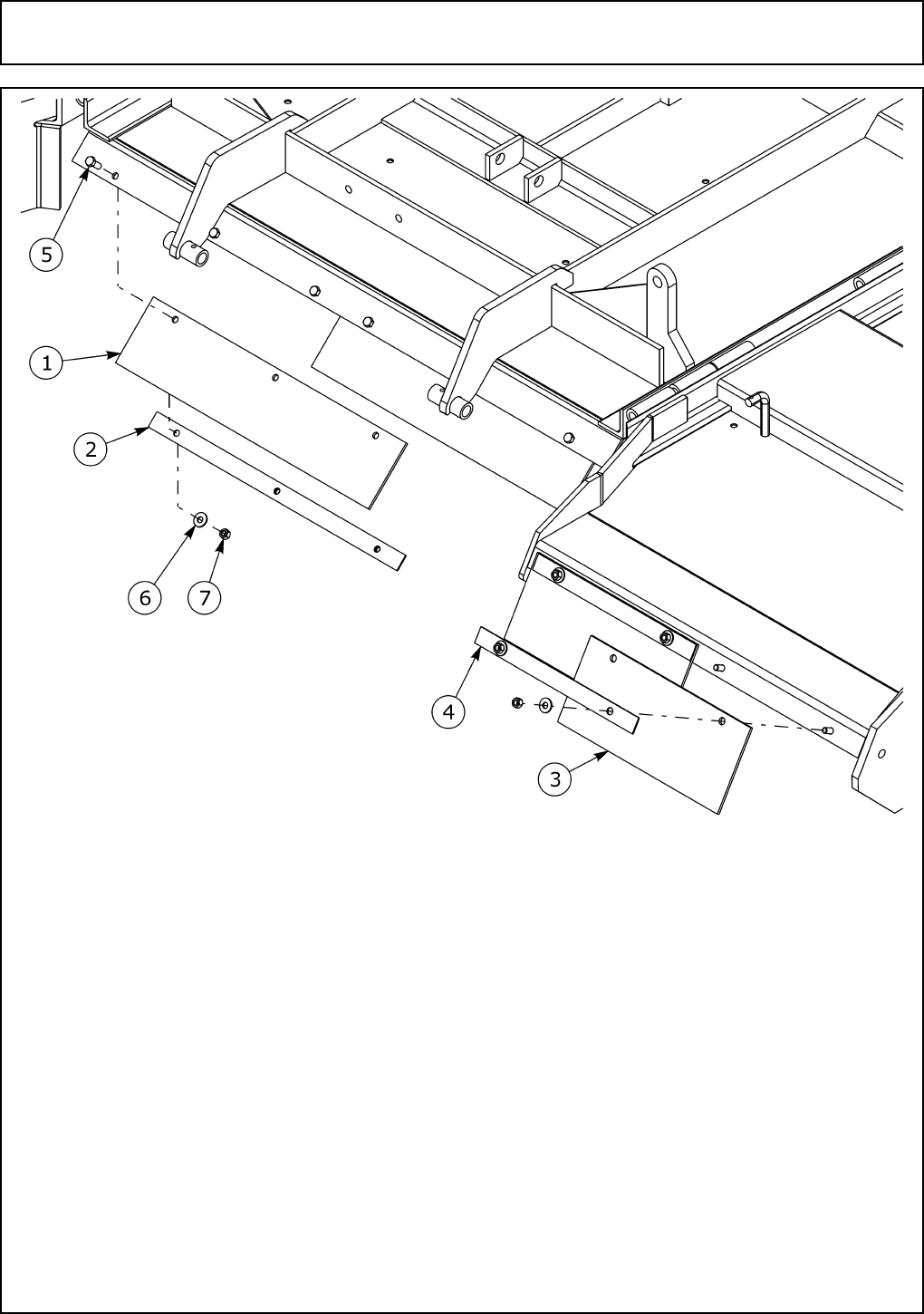

- BAFFLE ASSEMBLY S/N 14812 - CURRENT - AUG 2002 - CURRENT

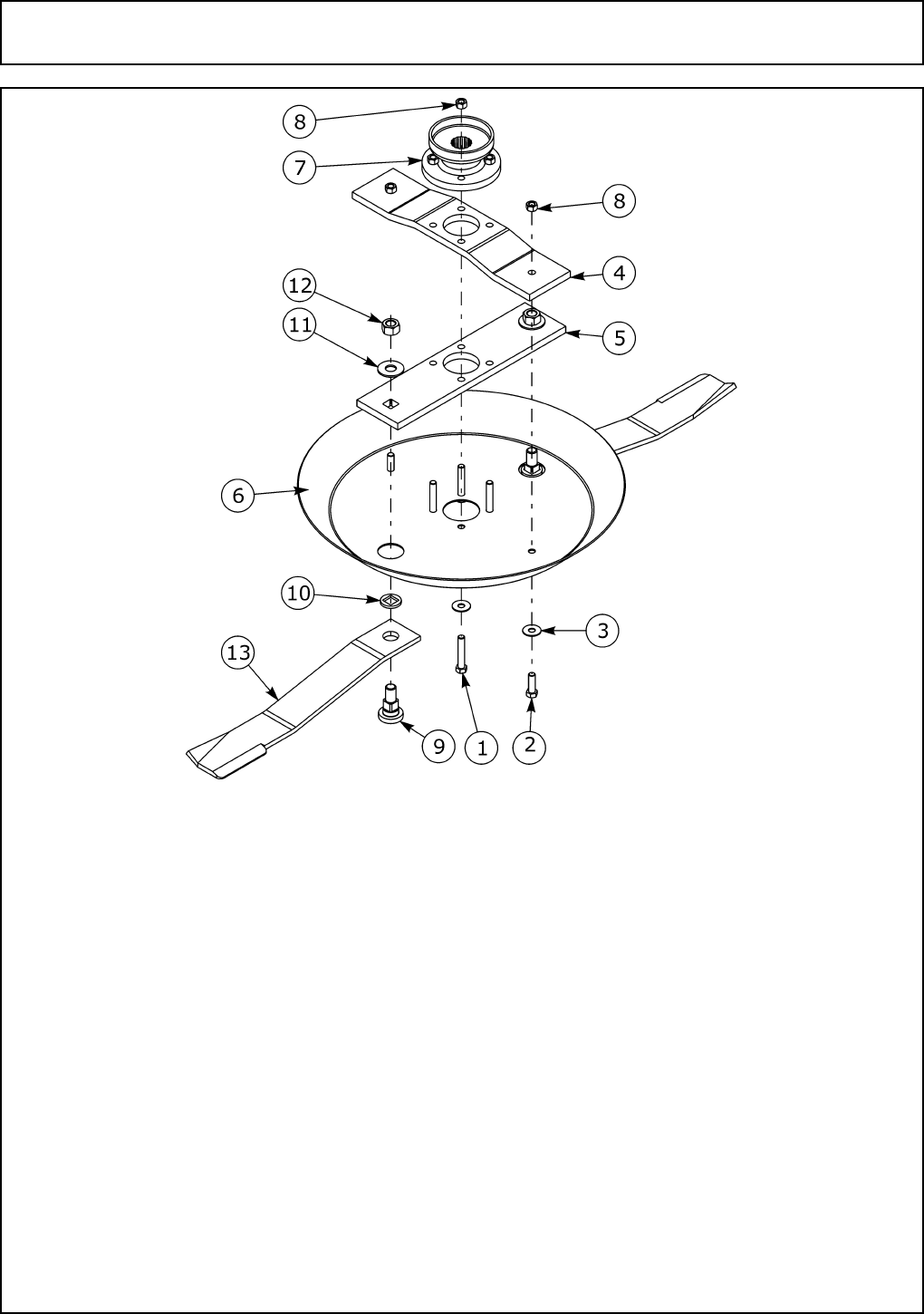

BLADE PAN ASSEMBLY
- BLADE PAN ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT
CHAINGUARD ASSEMBLY
- CHAINGUARD ASSEMBLY - FRONT S/N 14812 - CURRENT AUG 2002 - CURRENT
- CHAINGUARD ASSEMBLY - REAR S/N 14812 - CURRENT AUG 2002 - CURRENT

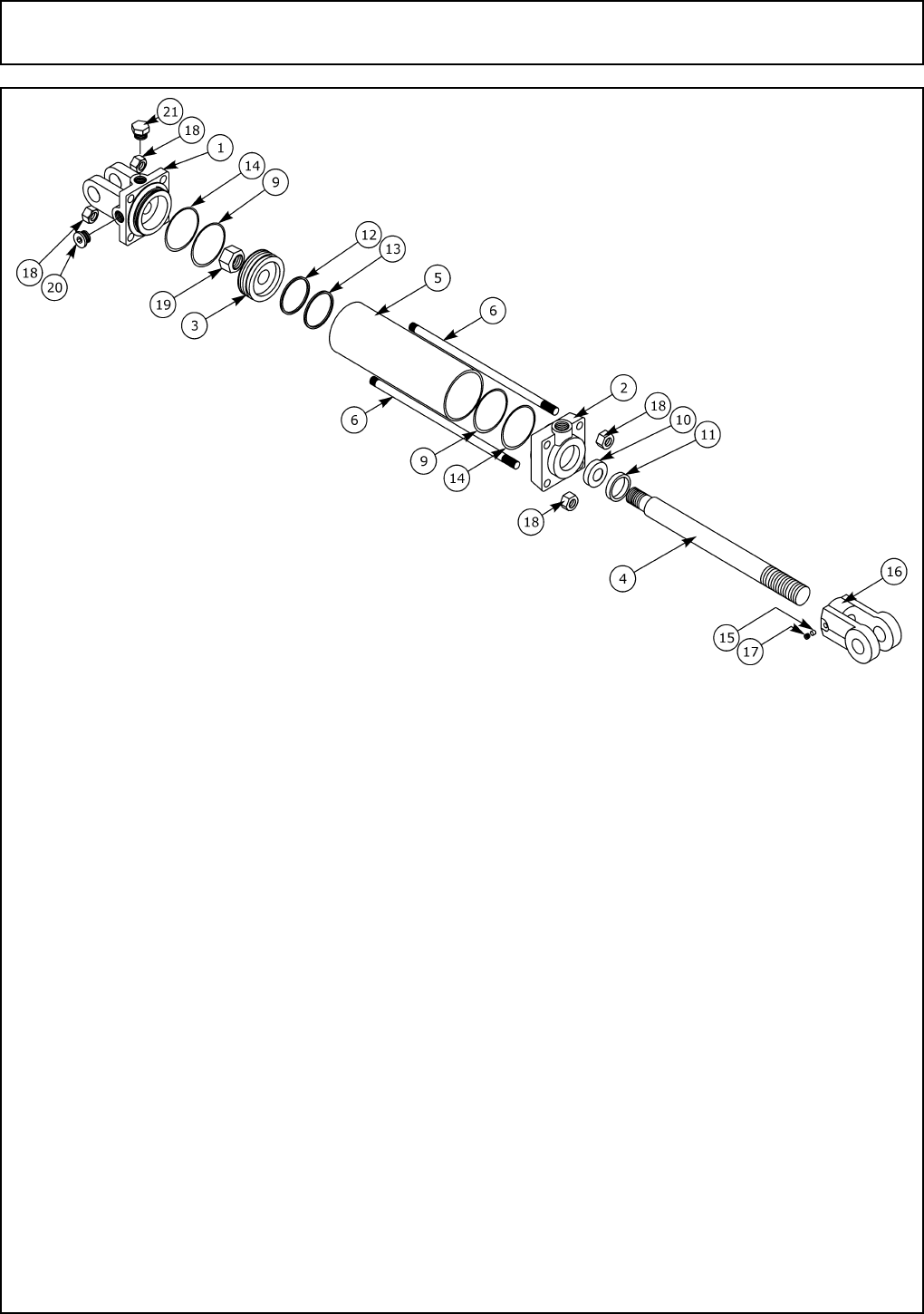

CYLINDER ASSEMBLY
- CYLINDER ASSEMBLY - CENTER S/N 14812 - CURRENT - AUG 2002 - CURRENT
- CYLINDER ASSEMBLY - WING S/N 14812 - CURRENT AUG 2002 - CURRENT
CYLINDER ATTACHMENT
- CYLINDER ATTACHMENT - CENTER S/N 14812 - CURRENT AUG 2002 - CURRENT
- CYLINDER ATTACHMENT - WING S/N 14812 - CURRENT AUG 2002 - CURRENT

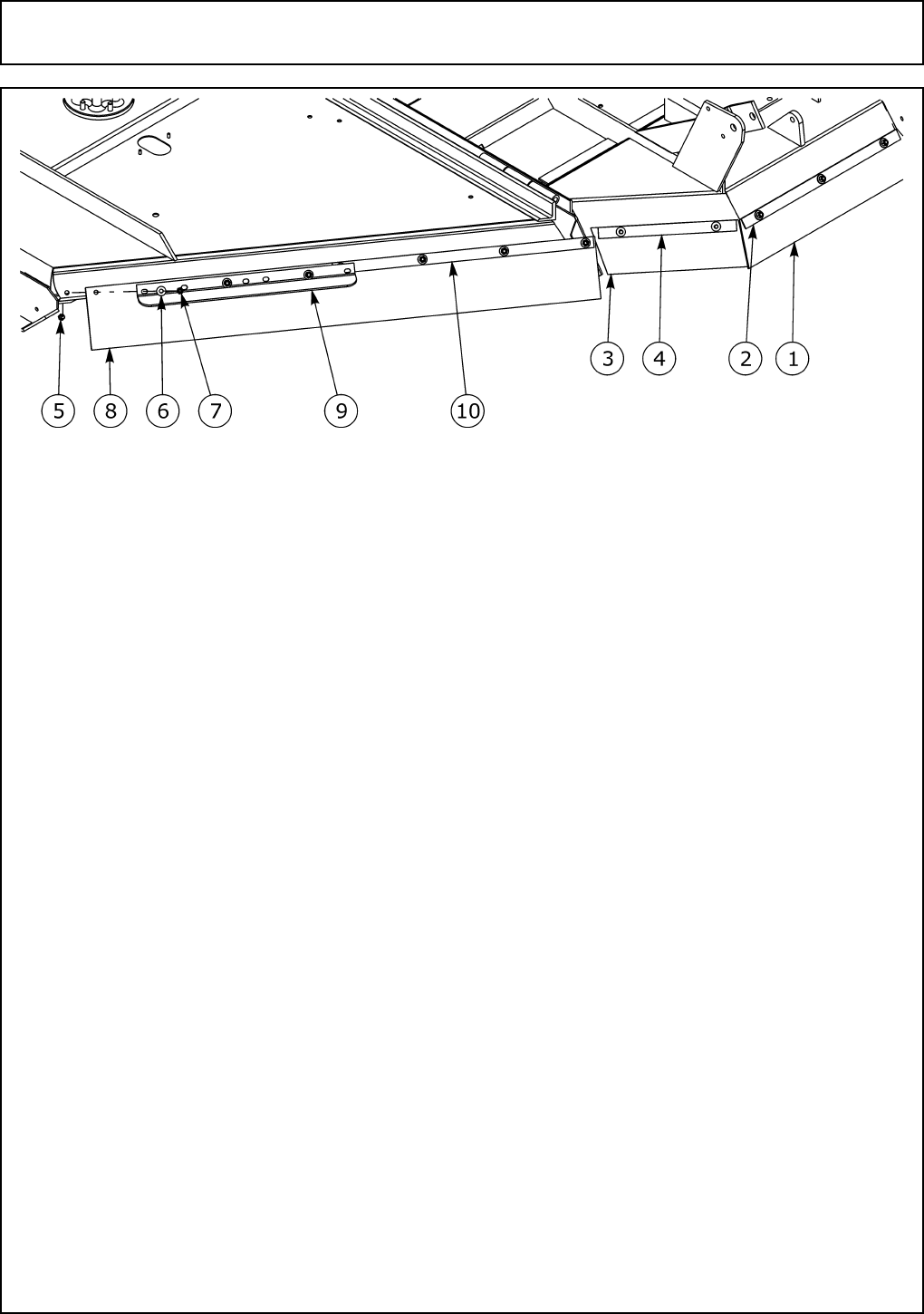

DEFLECTOR ASSEMBLY

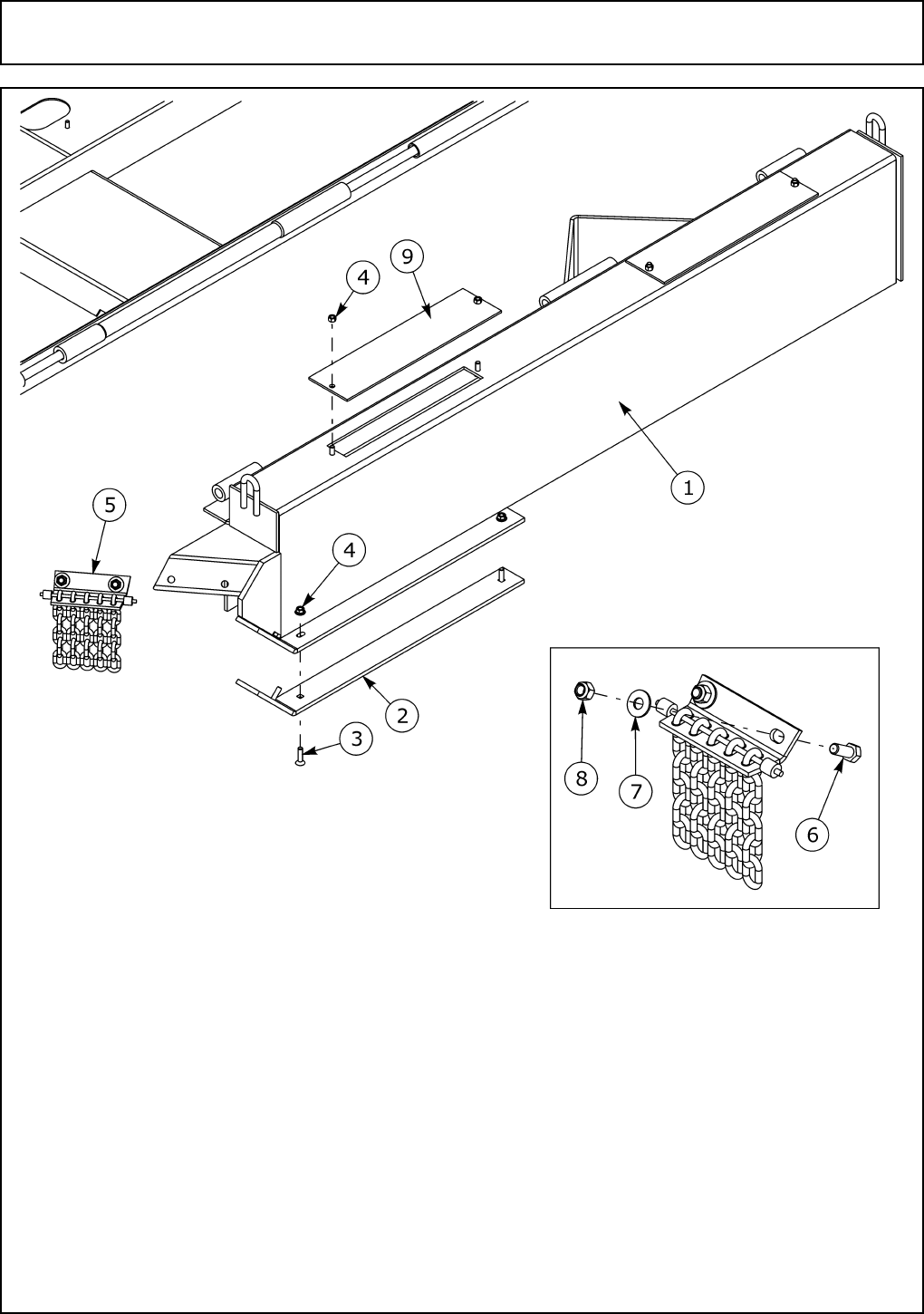

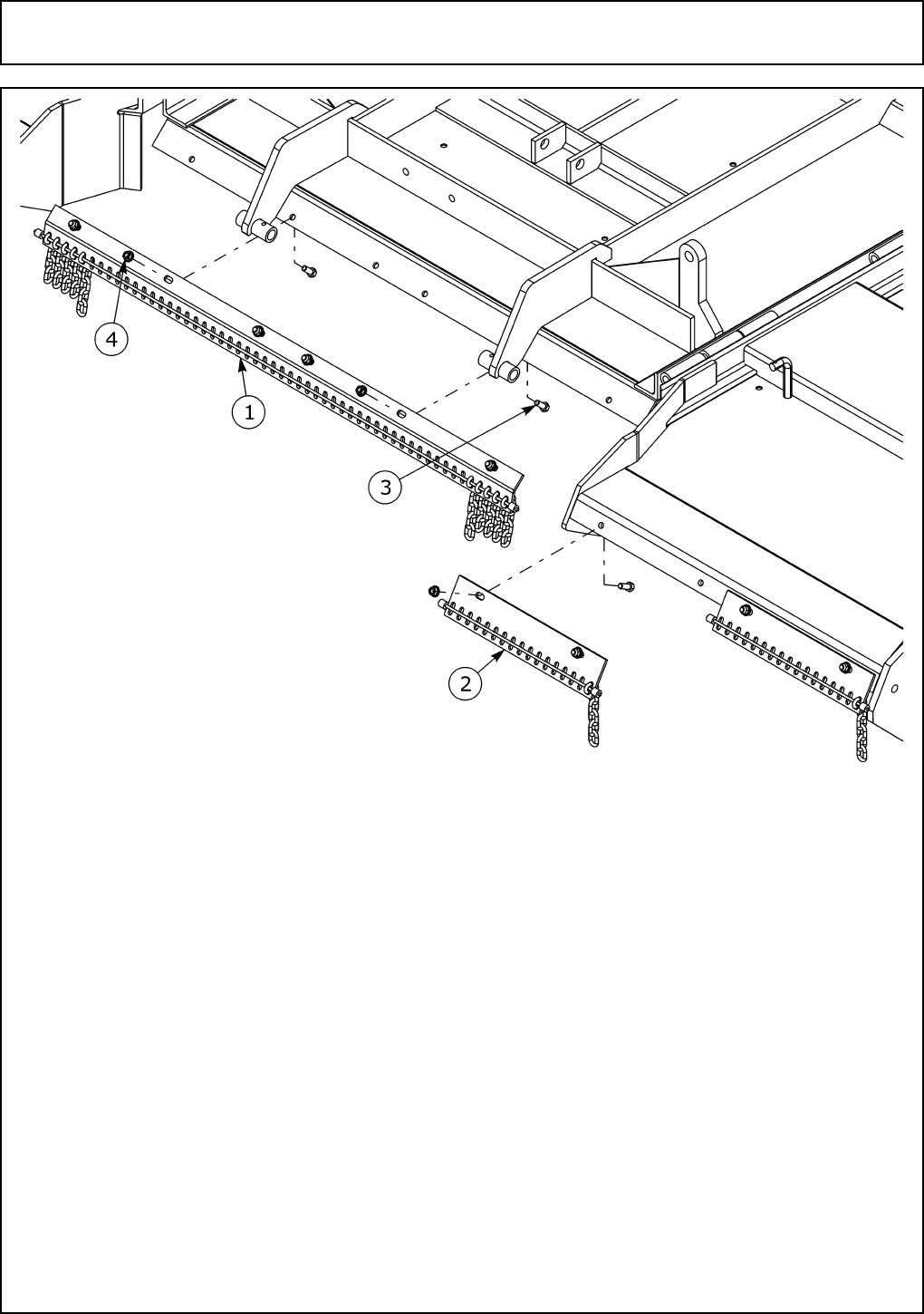

- DEFLECTOR ASSEMBLY - FRONT S/N 14812 - CURRENT AUG 2002 - CURRENT
- DEFLECTOR ASSEMBLY - REAR S/N 14812 - CURRENT AUG 2002 - CURRENT
DRIVELINE ASSEMBLY
- DRIVELINE ASSEMBLY - CV 1-3/8-21 CAT 5 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

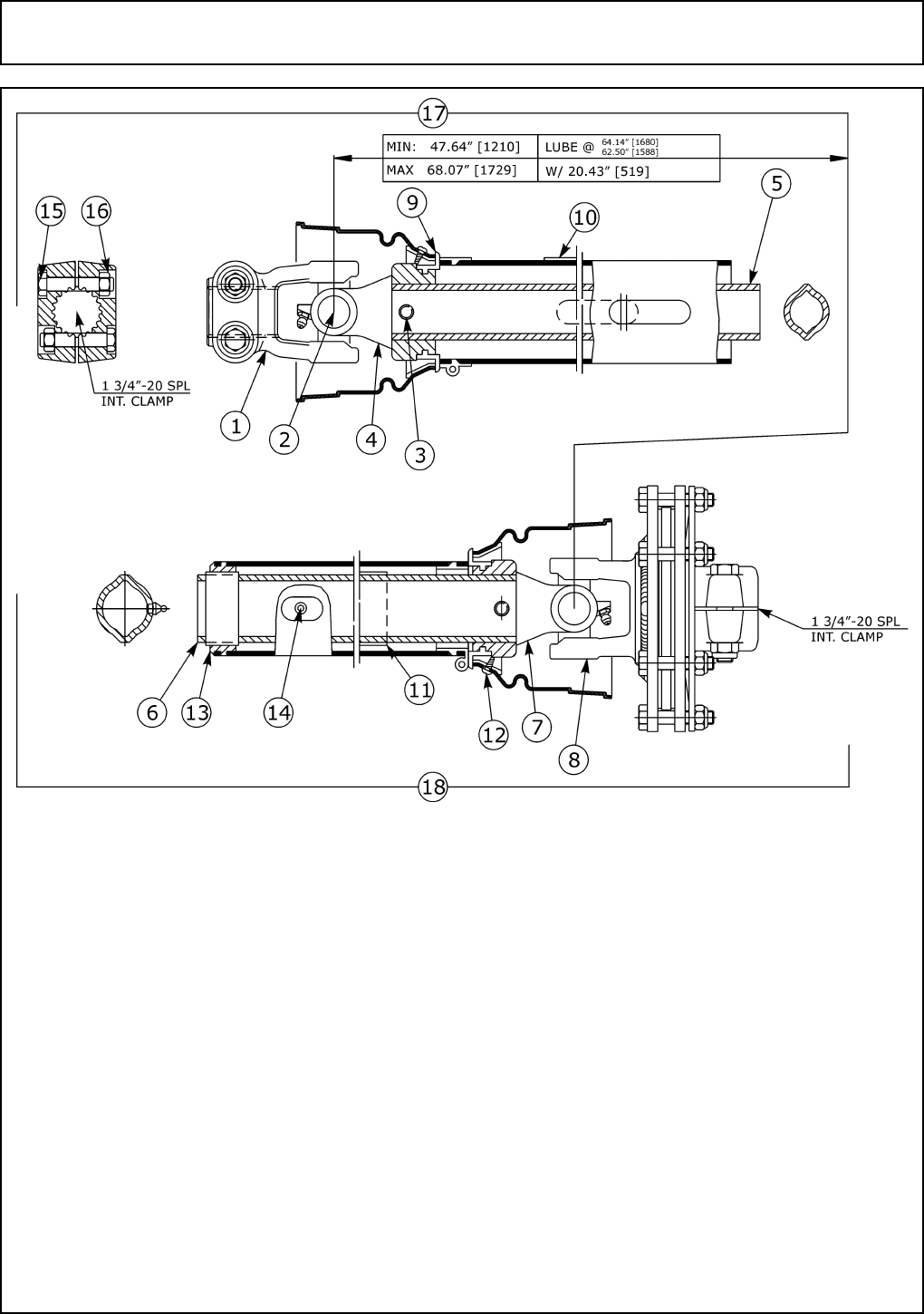

- DRIVELINE ASSEMBLY - CV 1-3/4-20 CAT 5 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT
- DRIVELINE ASSEMBLY - INTERMEDIATE S/N 14812 - CURRENT AUG 2002 - CURRENT

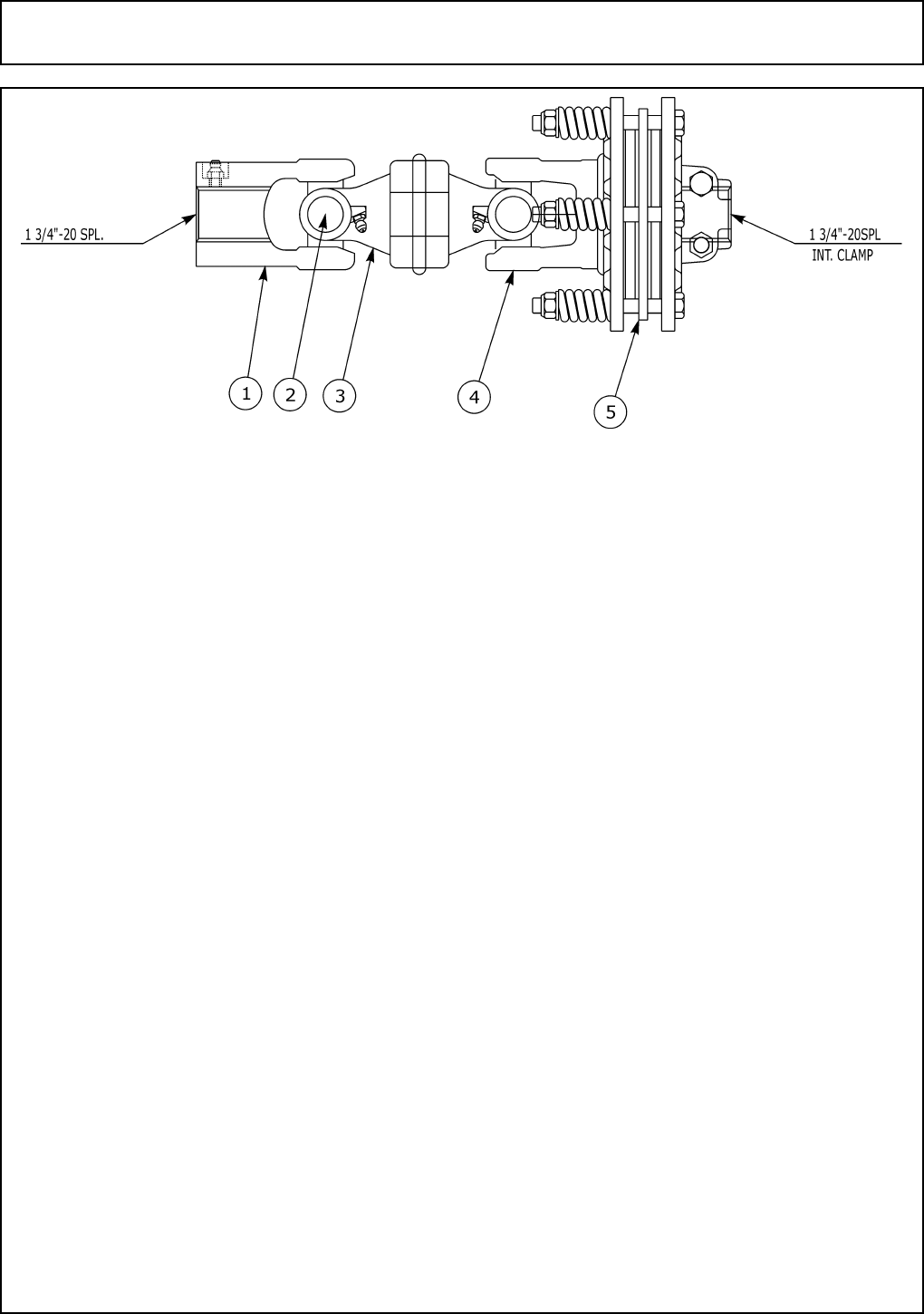

- DRIVELINE ASSEMBLY - WING 1-3/4-20 CAT 4 S/N 14812 - CURRENT AUG 2002 - CURRENT

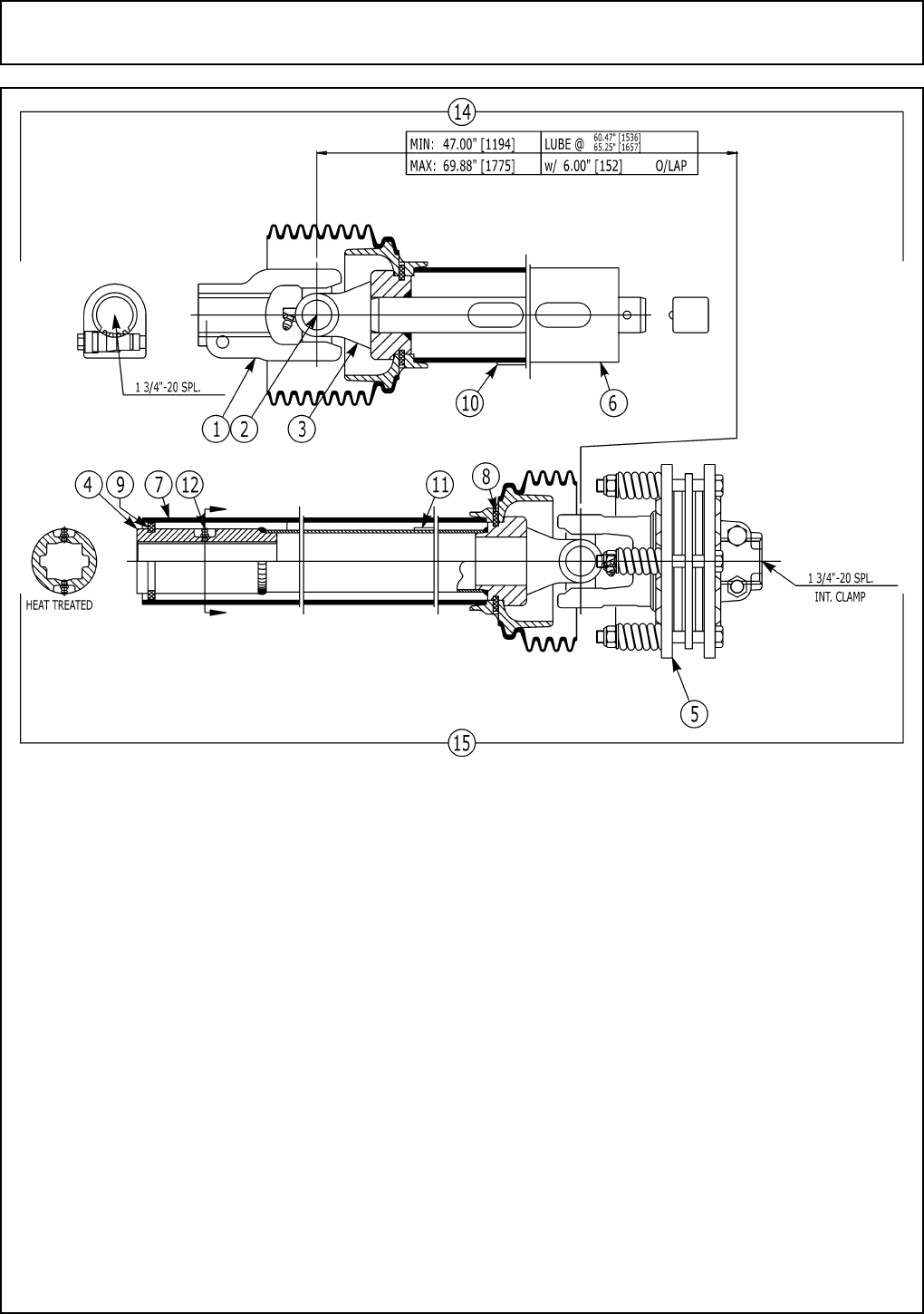

- DRIVELINE ASSEMBLY - WING 1-3/4-20 CAT 5 S/N 14812 - CURRENT AUG 2002 - CURRENT

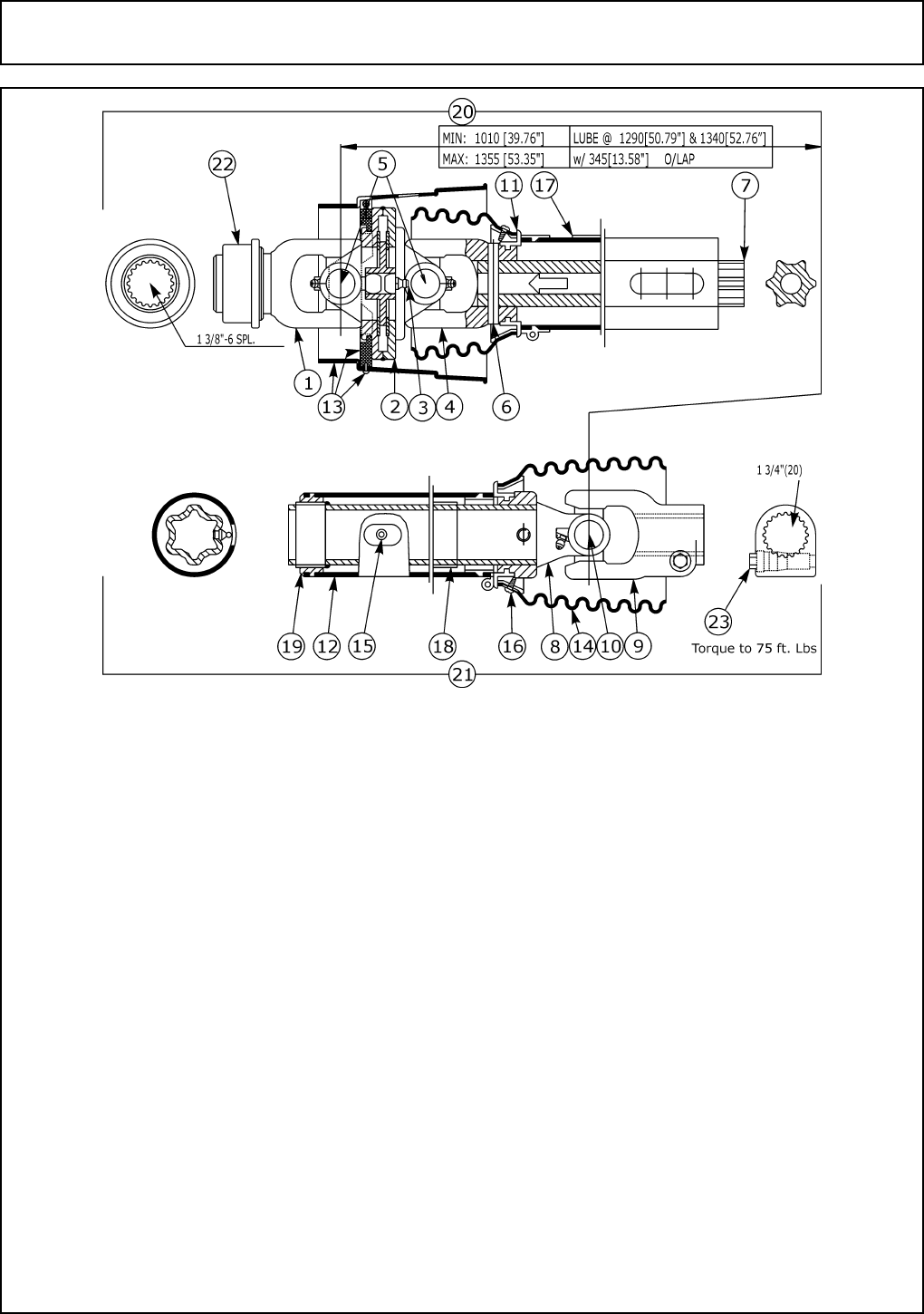

- DRIVELINE ASSEMBLY - CV 1-3/8-6 CAT 5 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

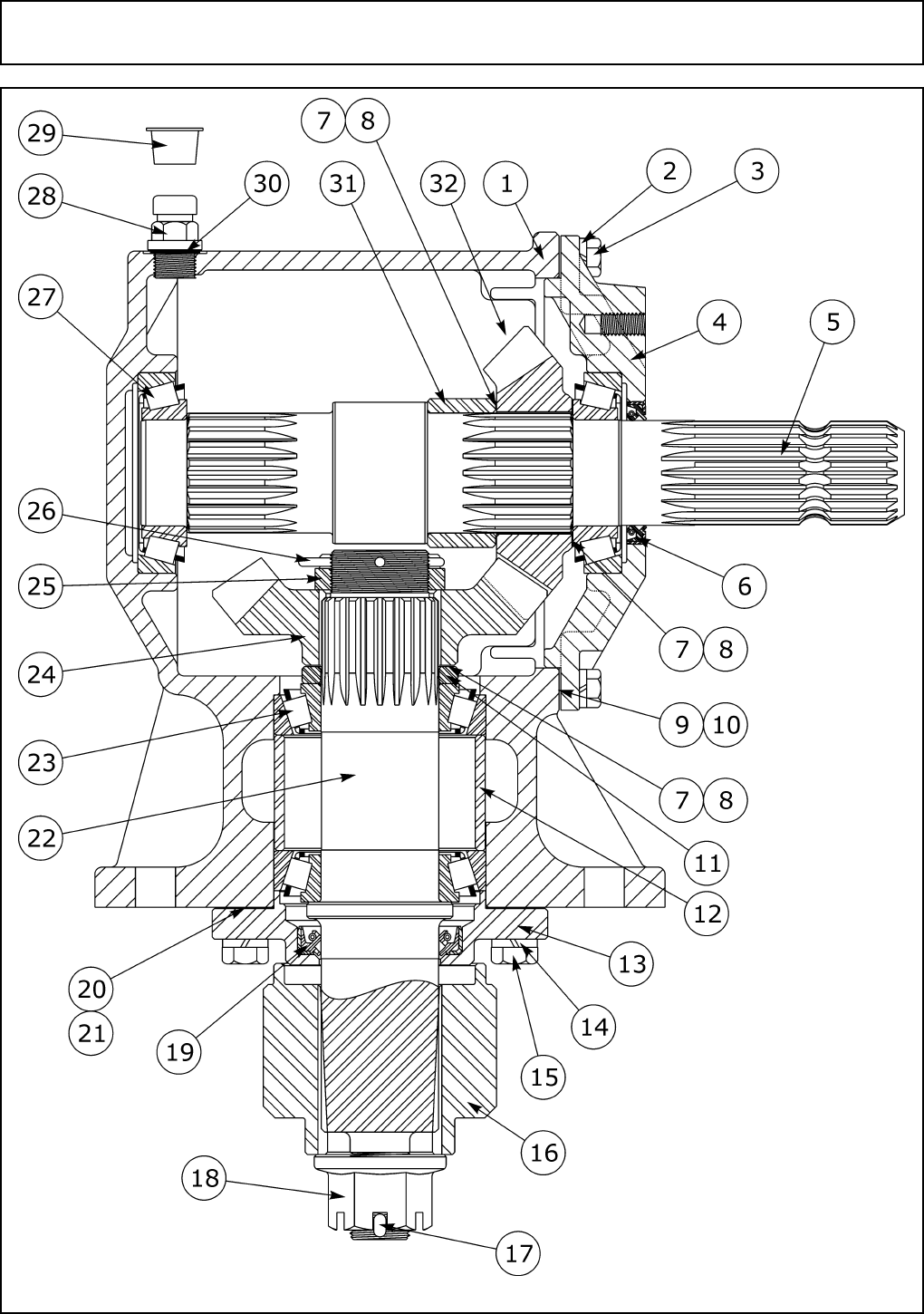

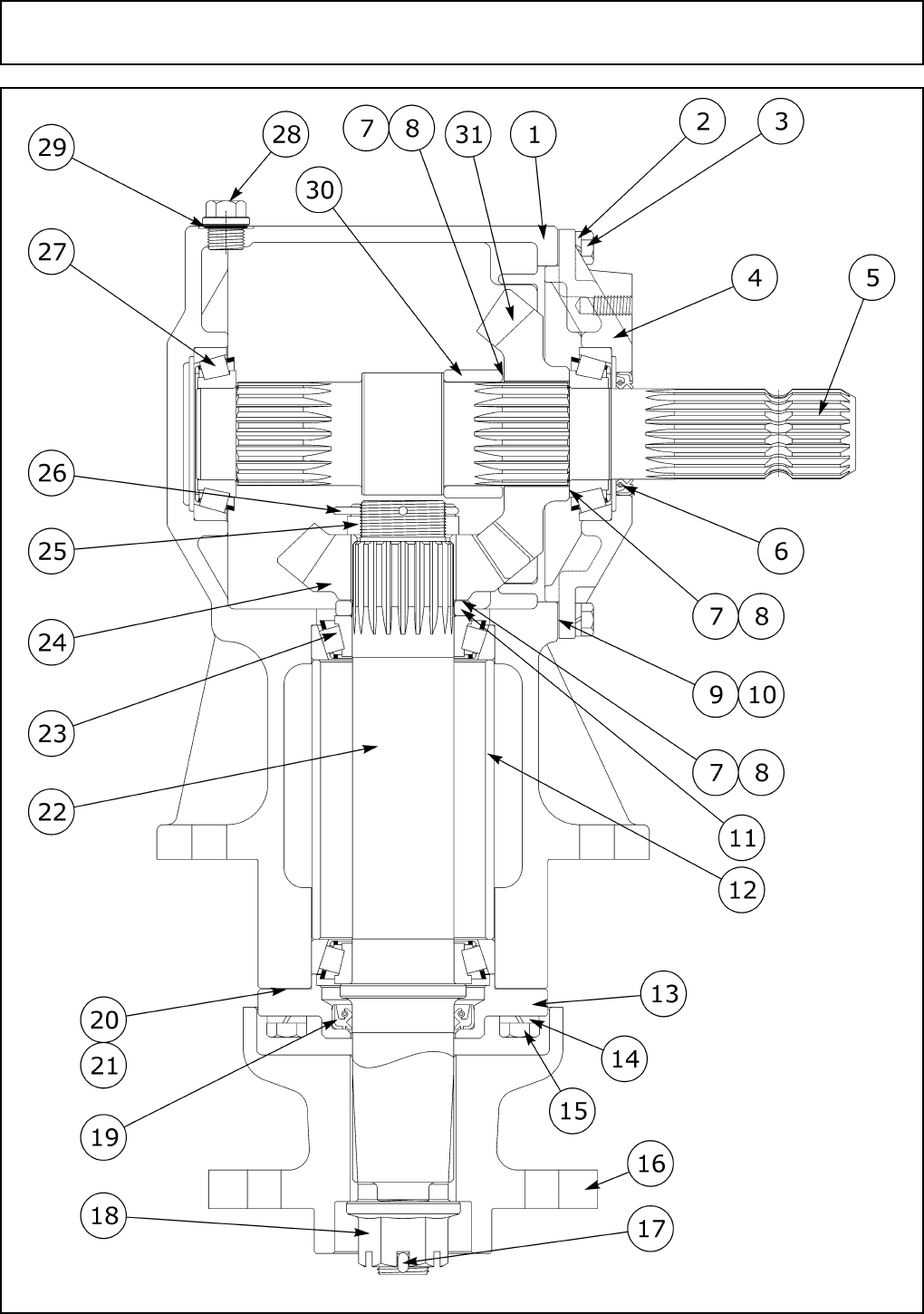

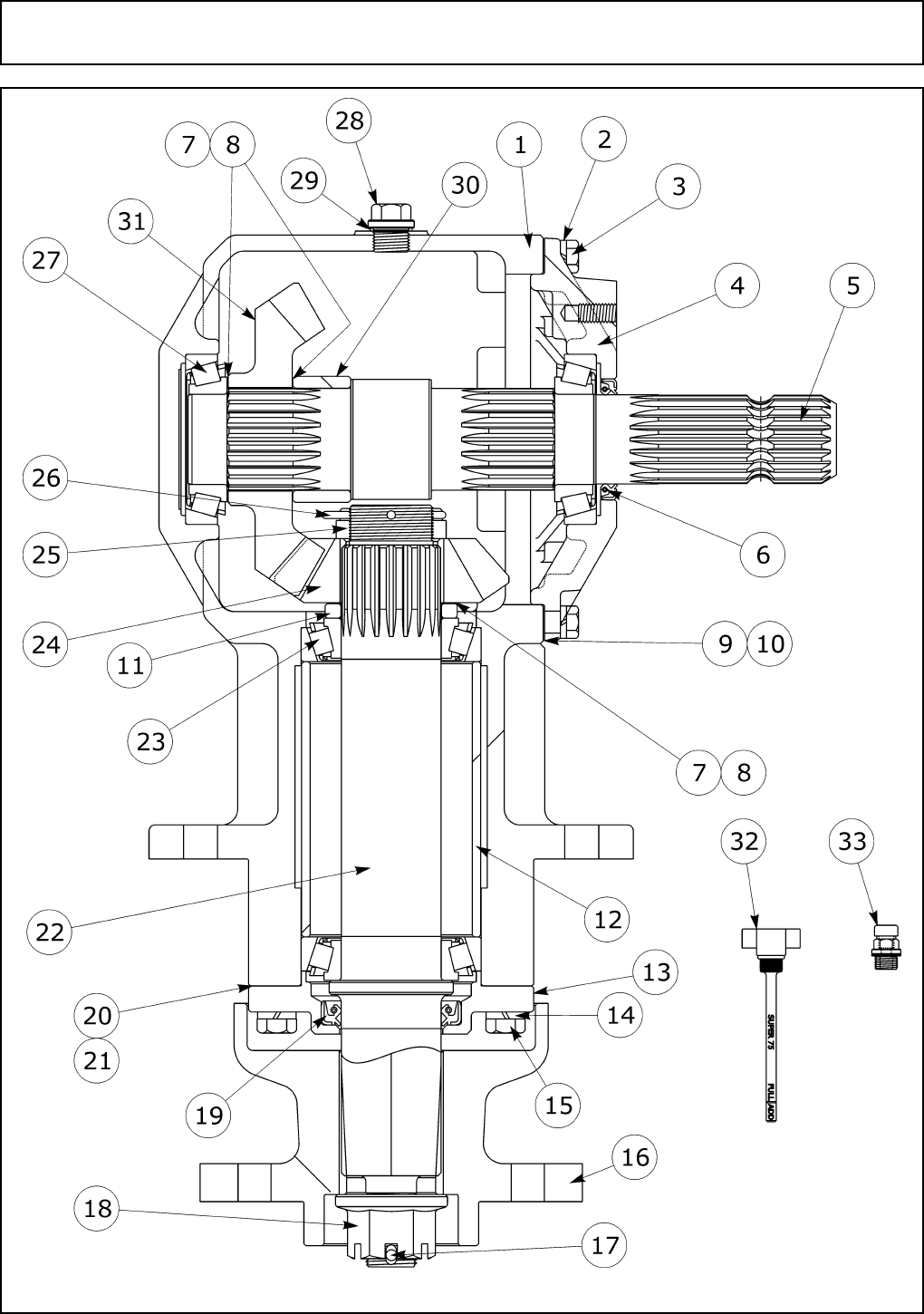

GEARBOX ASSEMBLY

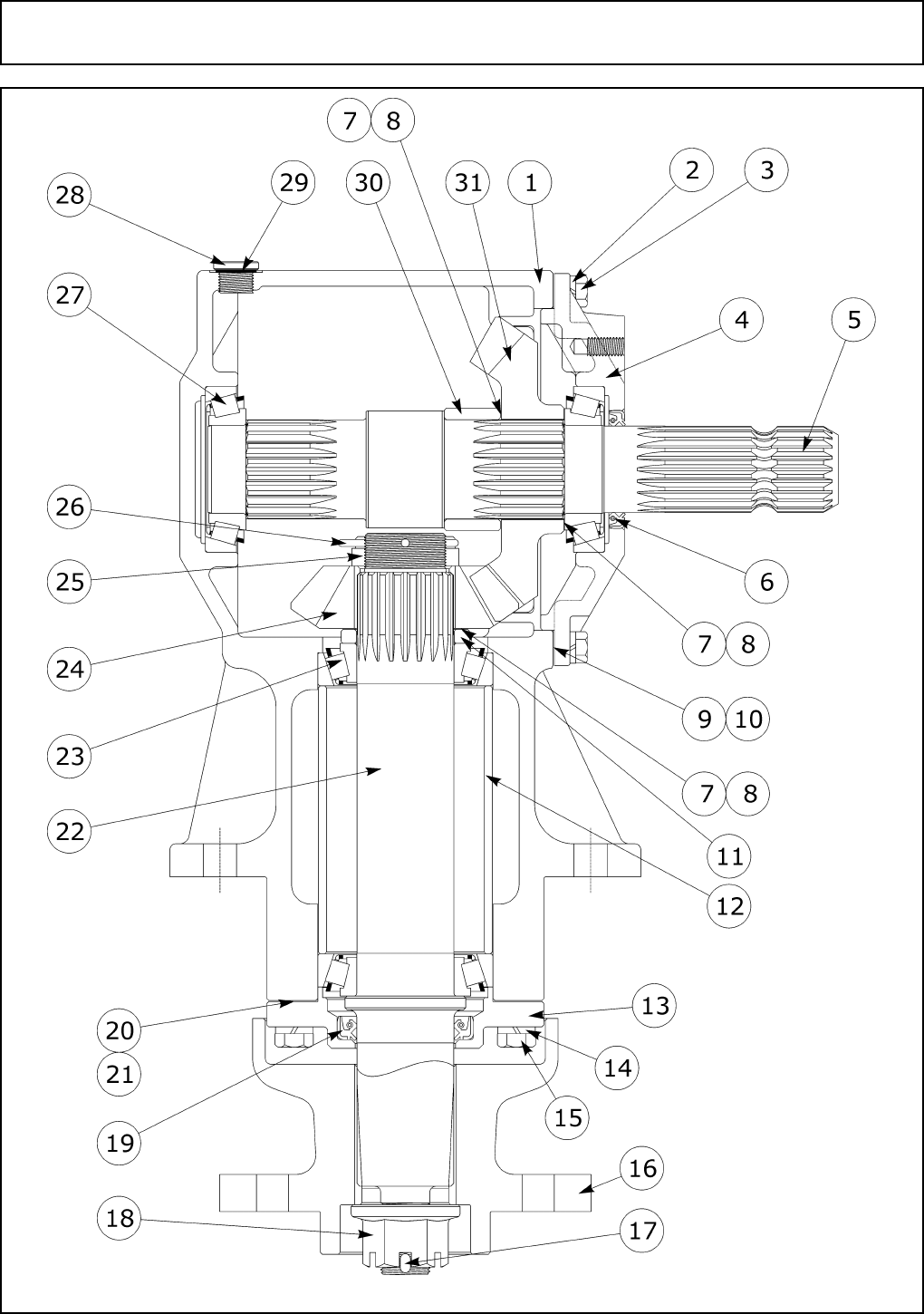

- GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

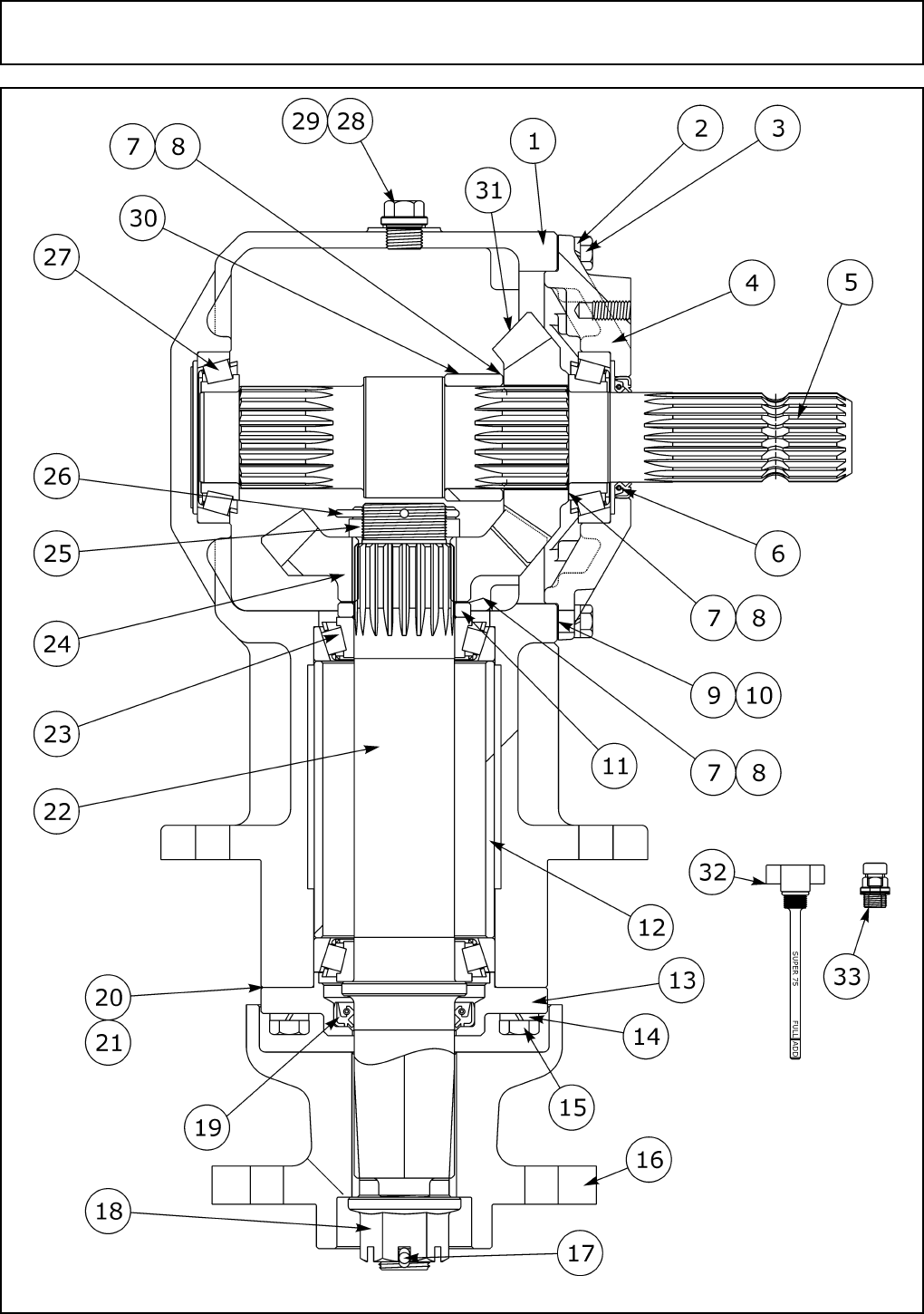

- GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT
- GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005
- GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

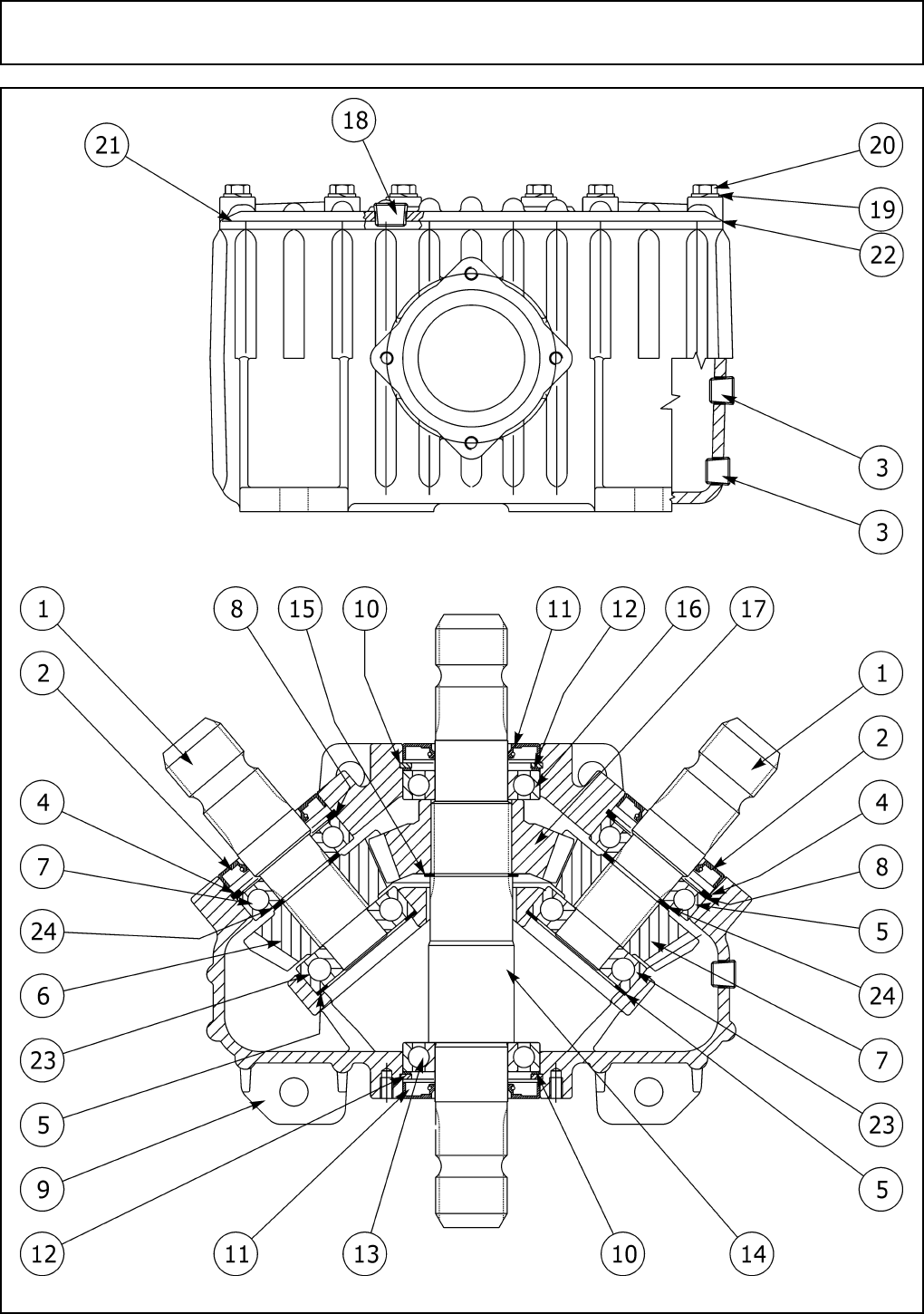

- GEARBOX ASSEMBLY - DIVIDER 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT
- GEARBOX ASSEMBLY - DIVIDER 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT
- GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005
- GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT
- GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005
- GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT
- GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005
- GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT
GEARBOX SHIELD ATTACHMENT

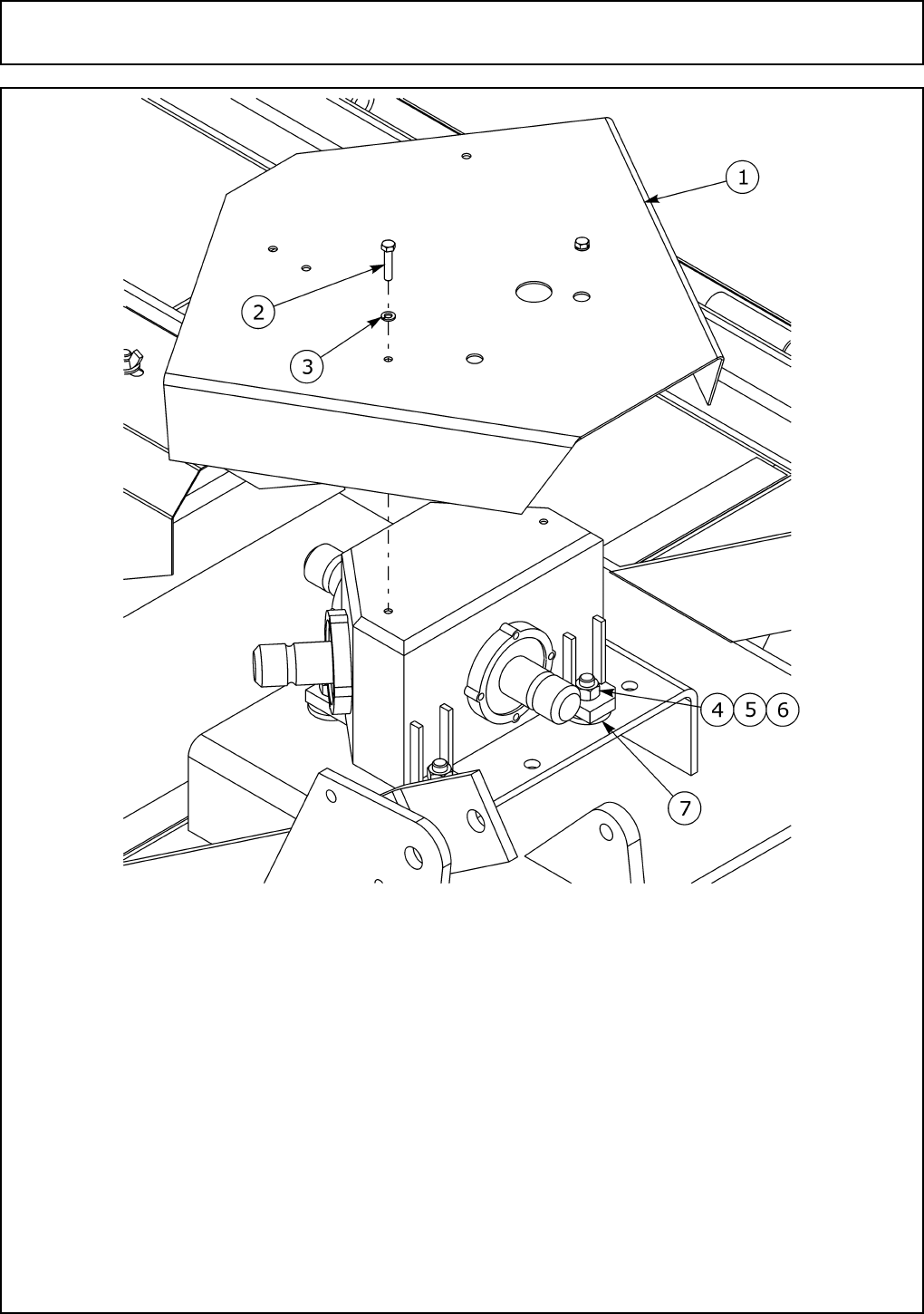

- GEARBOX SHIELD ATTACHMENT - DIVIDER S/N 14812 - CURRENT AUG 2002 - CURRENT

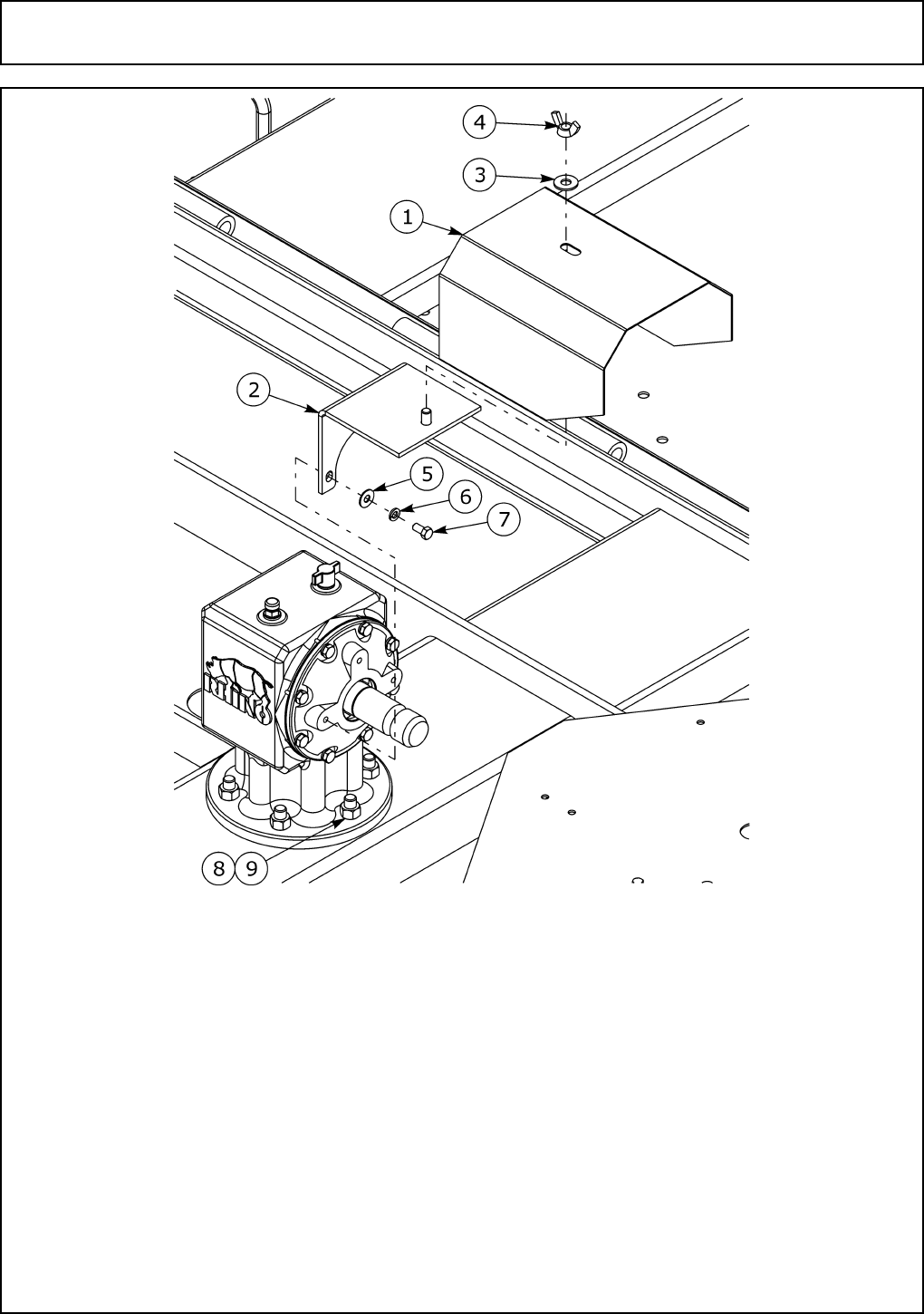

- GEARBOX SHIELD ATTACHMENT - WING & CENTER 14812 - CURRENT AUG 2002 - CURRENT
HITCH

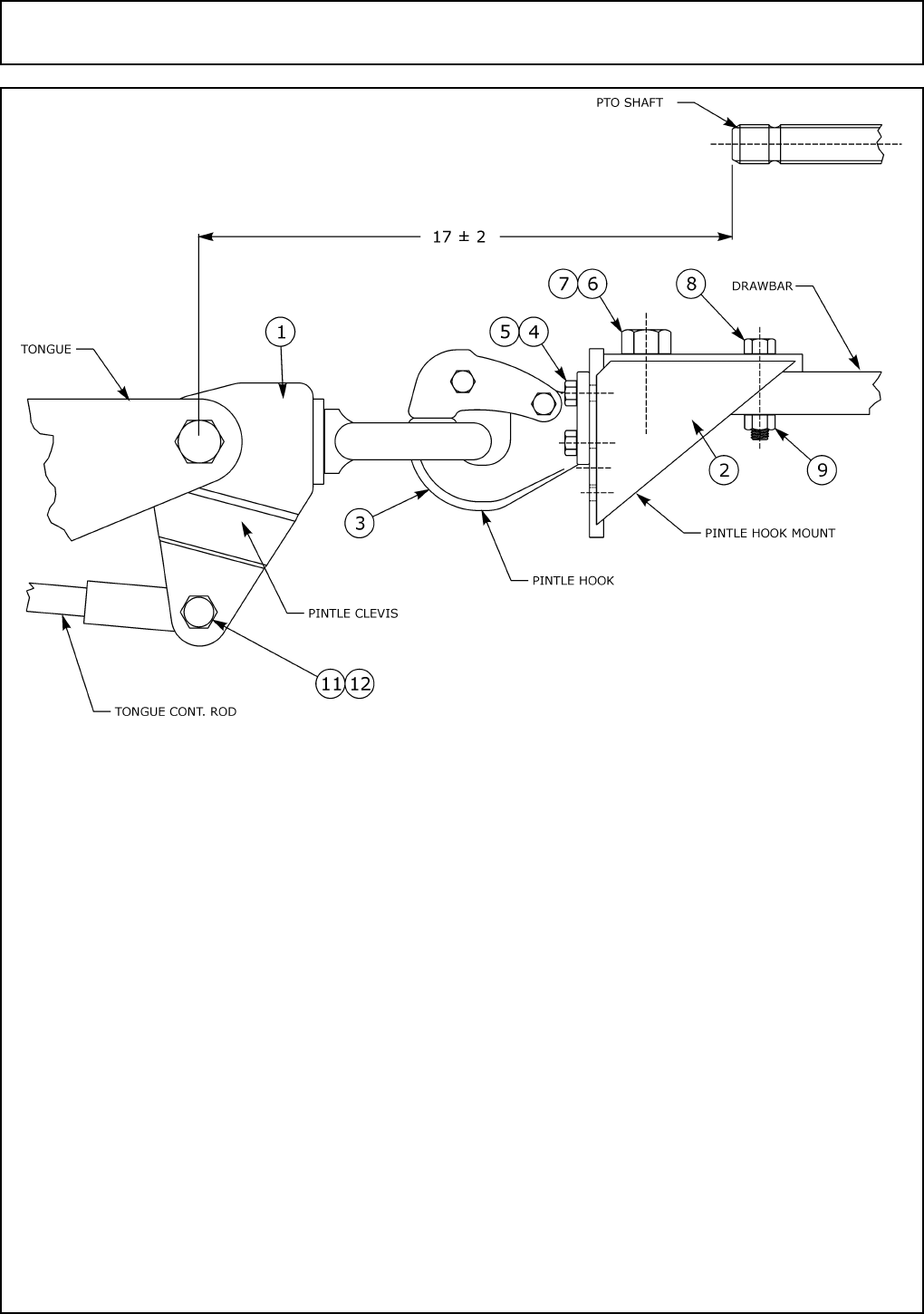

- HITCH - PINTLE HOOK S/N 14812 - CURRENT AUG 2002 - CURRENT
HYDRAULIC CONTROL VALVE

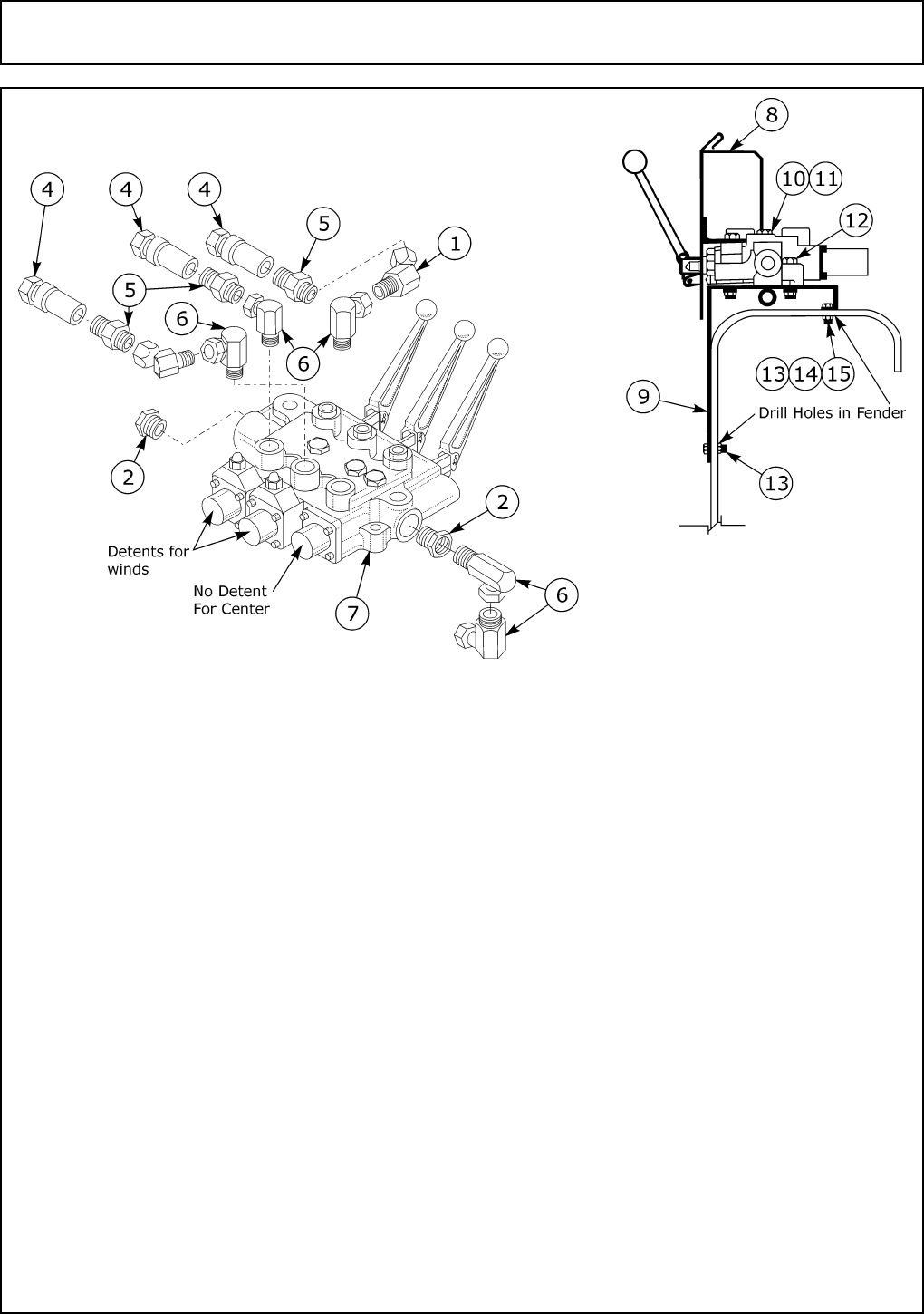

- HYDRAULIC CONTROL VALVE W/MOUNTING KIT S/N 14812 - CURRENT AUG 2002 - CURRENT

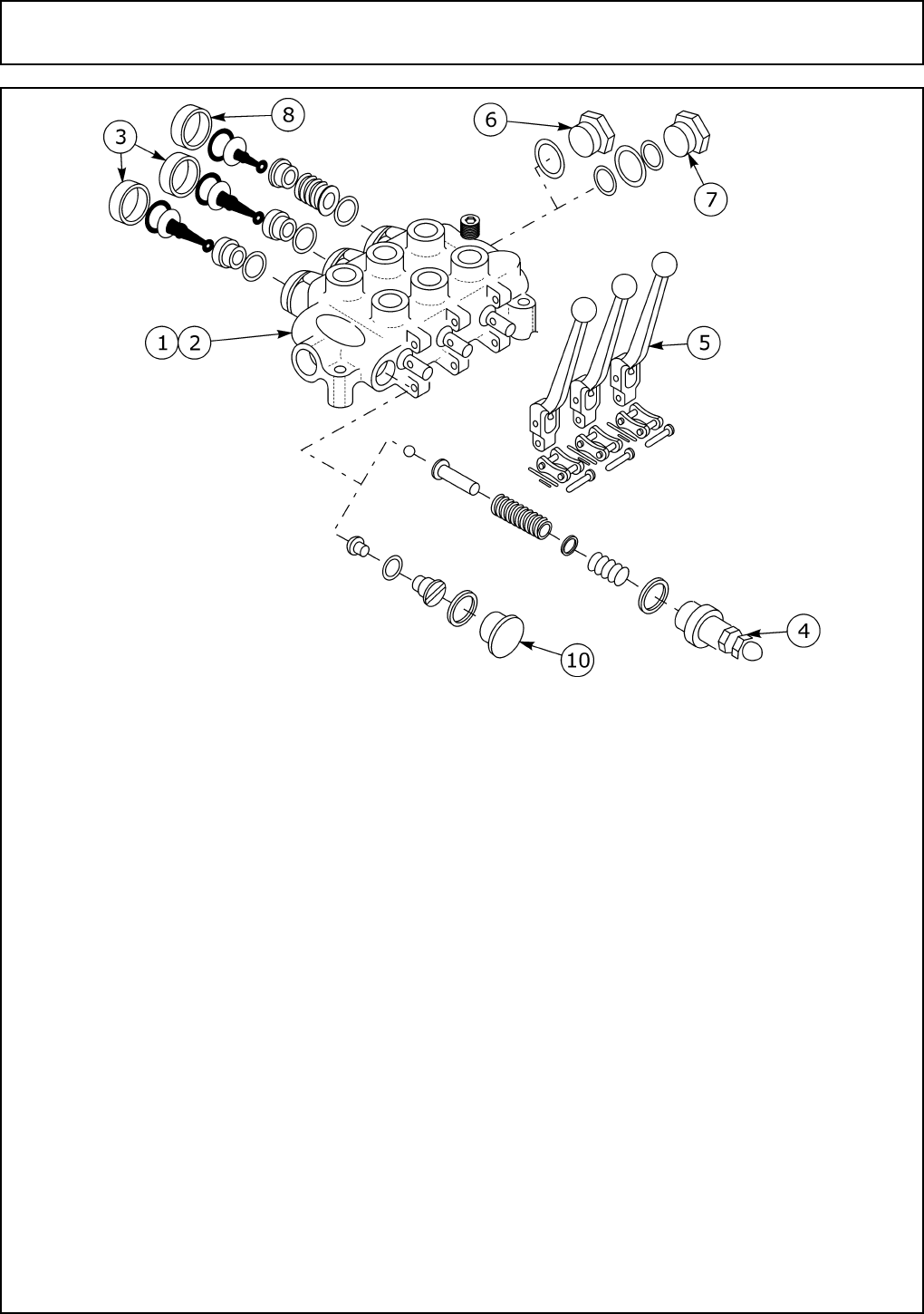

- HYDRAULIC CONTROL VALVE S/N 14812 - CURRENT AUG 2002 - CURRENT

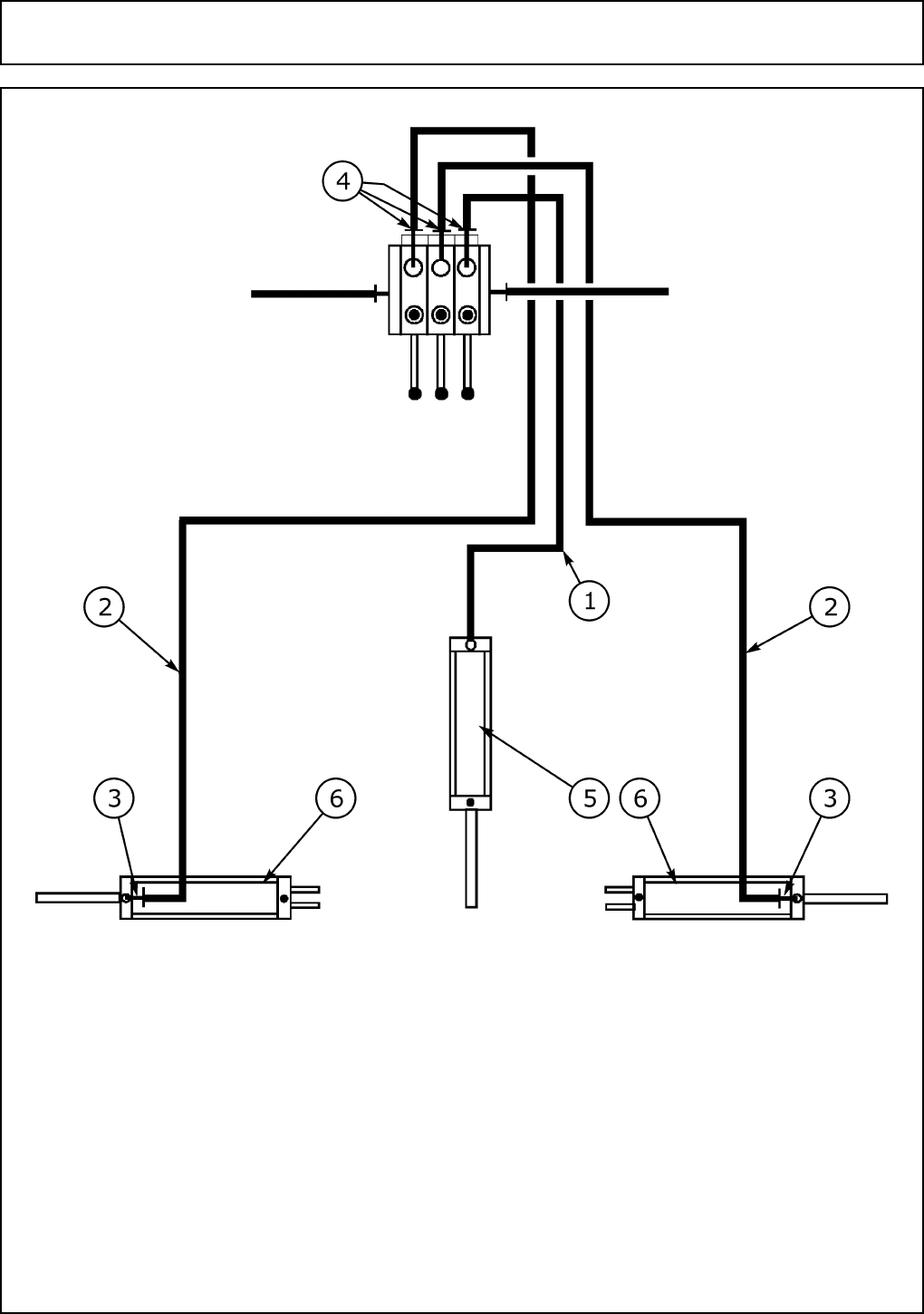

HYDRAULIC SCHEMATIC
- HYDRAULIC SCHEMATIC SN 14812 - CURRENT AUG 2002 - CURRENT
LEVEL ROD ASSEMBLY

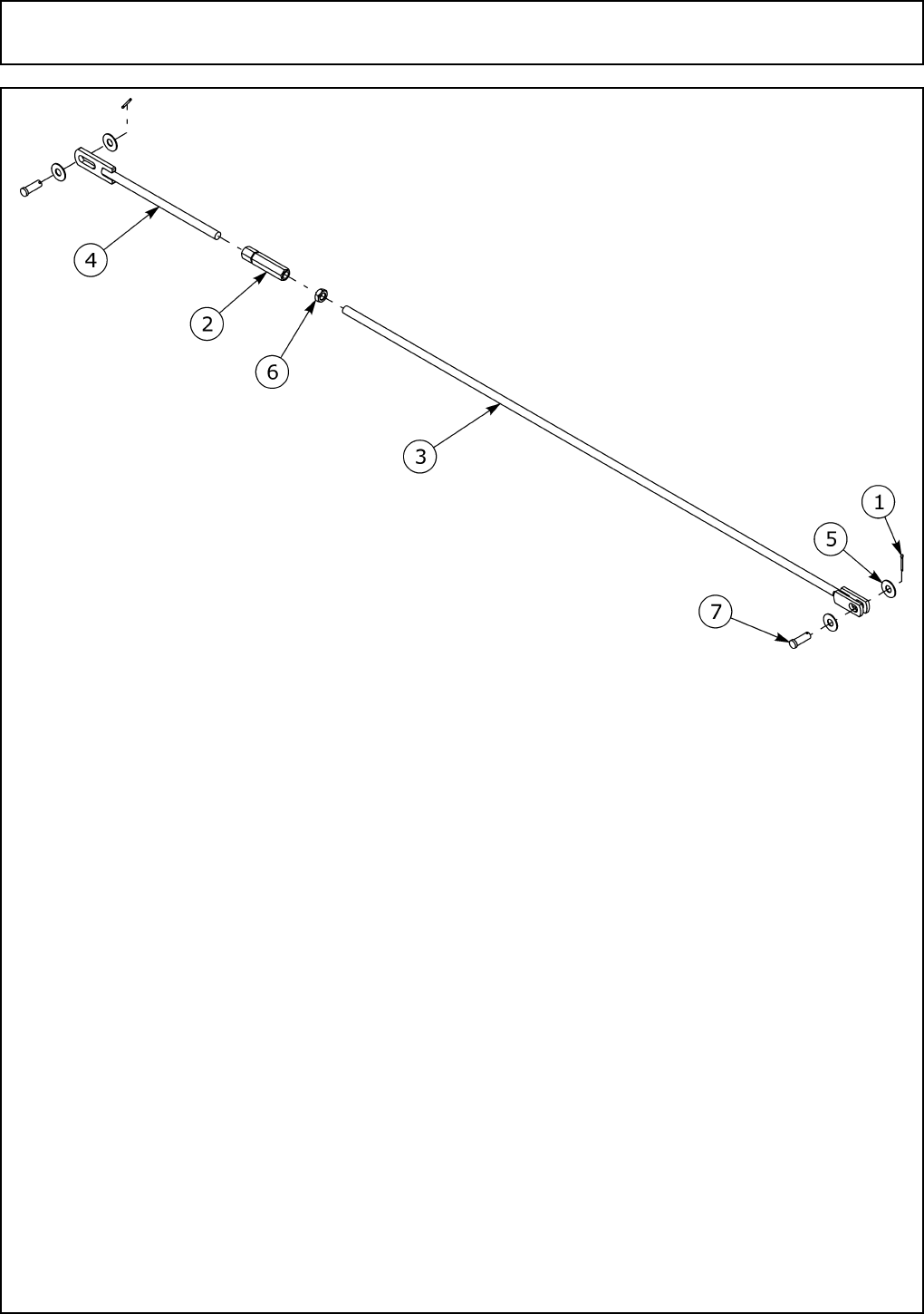

- LEVEL ROD ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT
SKID SHOE ATTACHMENT

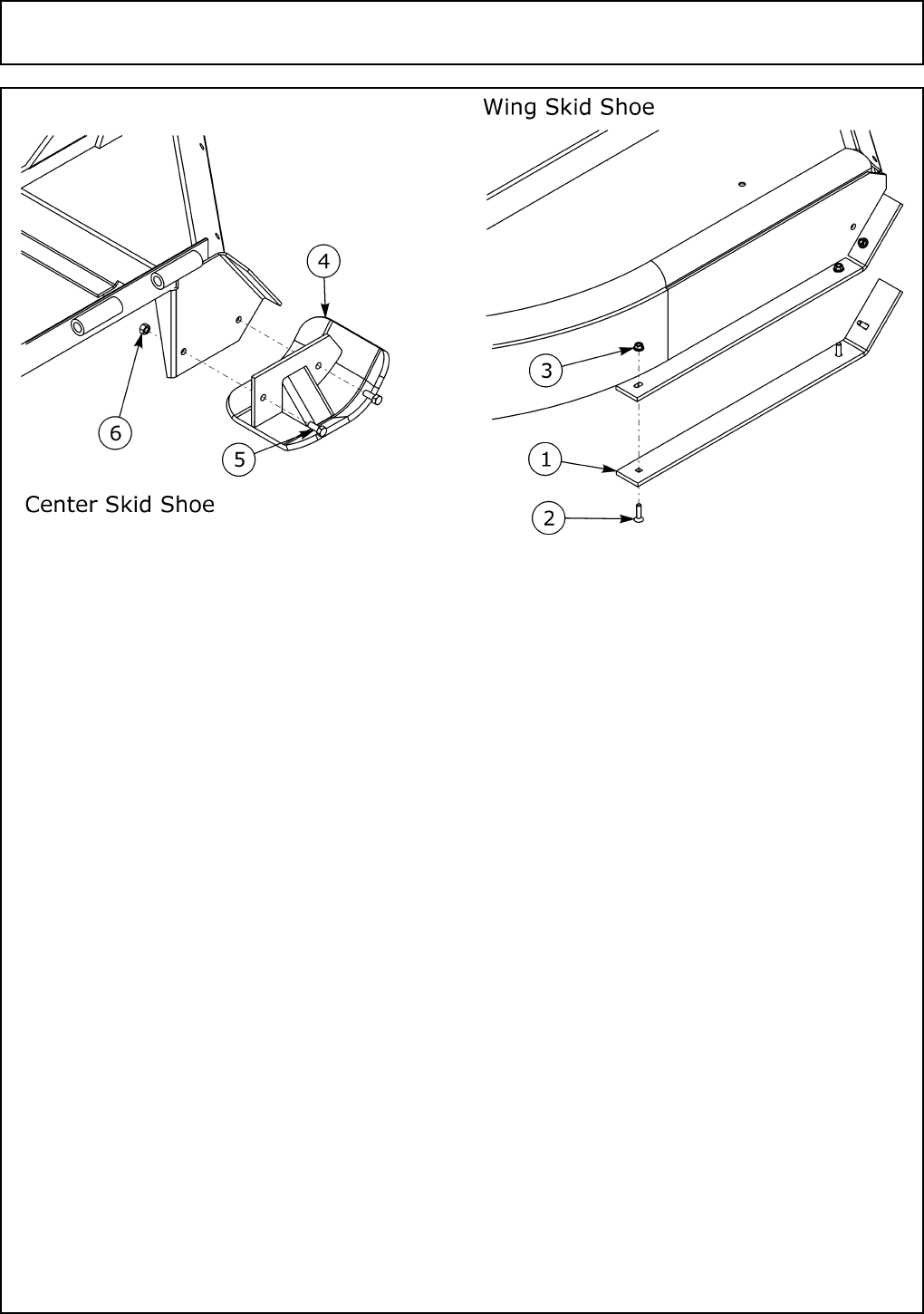

- SKID SHOE ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

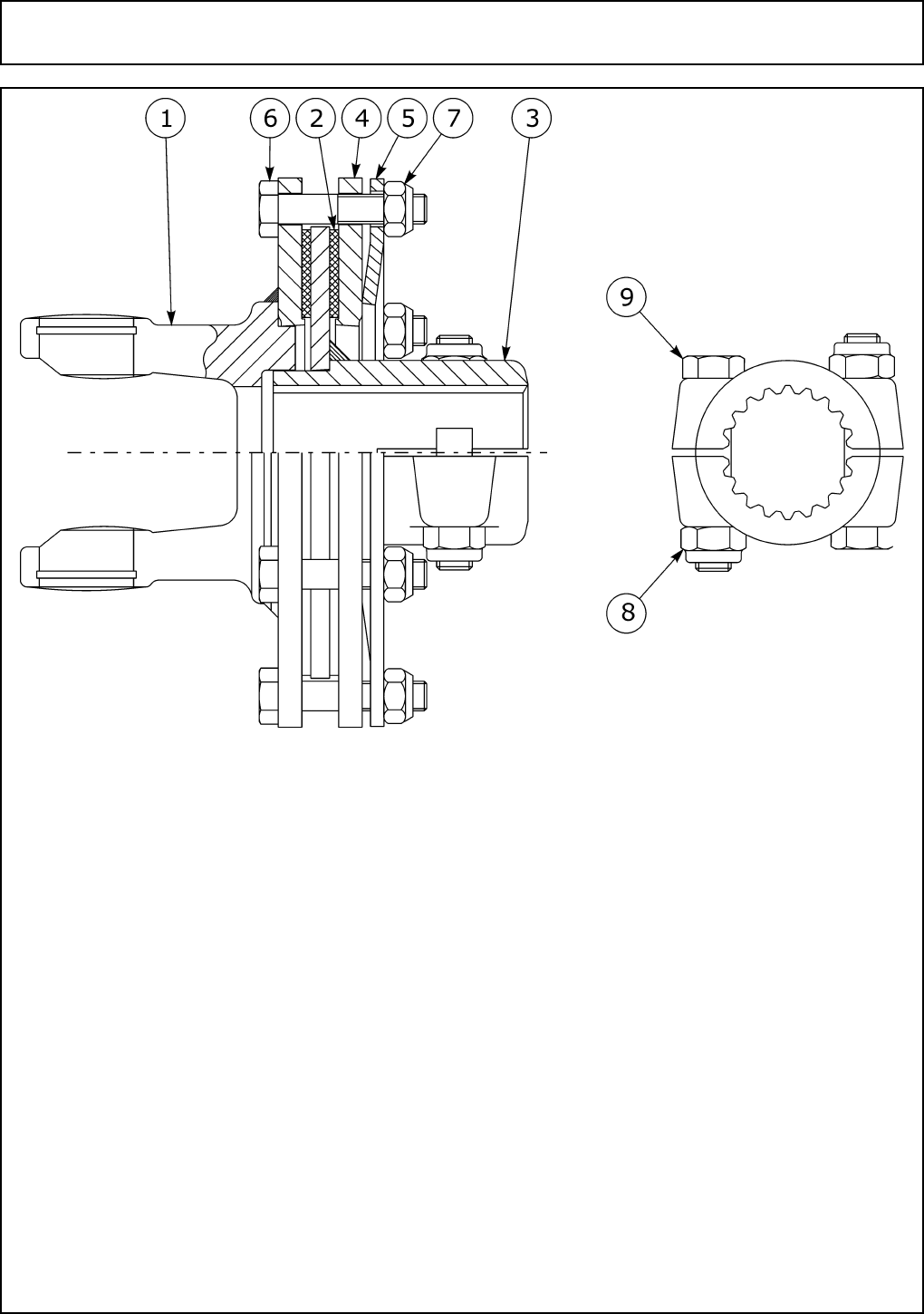

SLIPCLUTCH ASSEMBLY
- SLIPCLUTCH ASSEMBLY - INTERMEDIATE S/N 14812 - CURRENT AUG 2002 - CURRENT
- SLIPCLUTCH ASSEMBLY - WING CAT 4 S/N 14812 - CURRENT AUG 2002 - CURRENT
- SLIPCLUTCH ASSEMBLY - WING CAT 5 S/N 14812 - CURRENT AUG 2002 - CURRENT
SMV SIGN MOUNTING

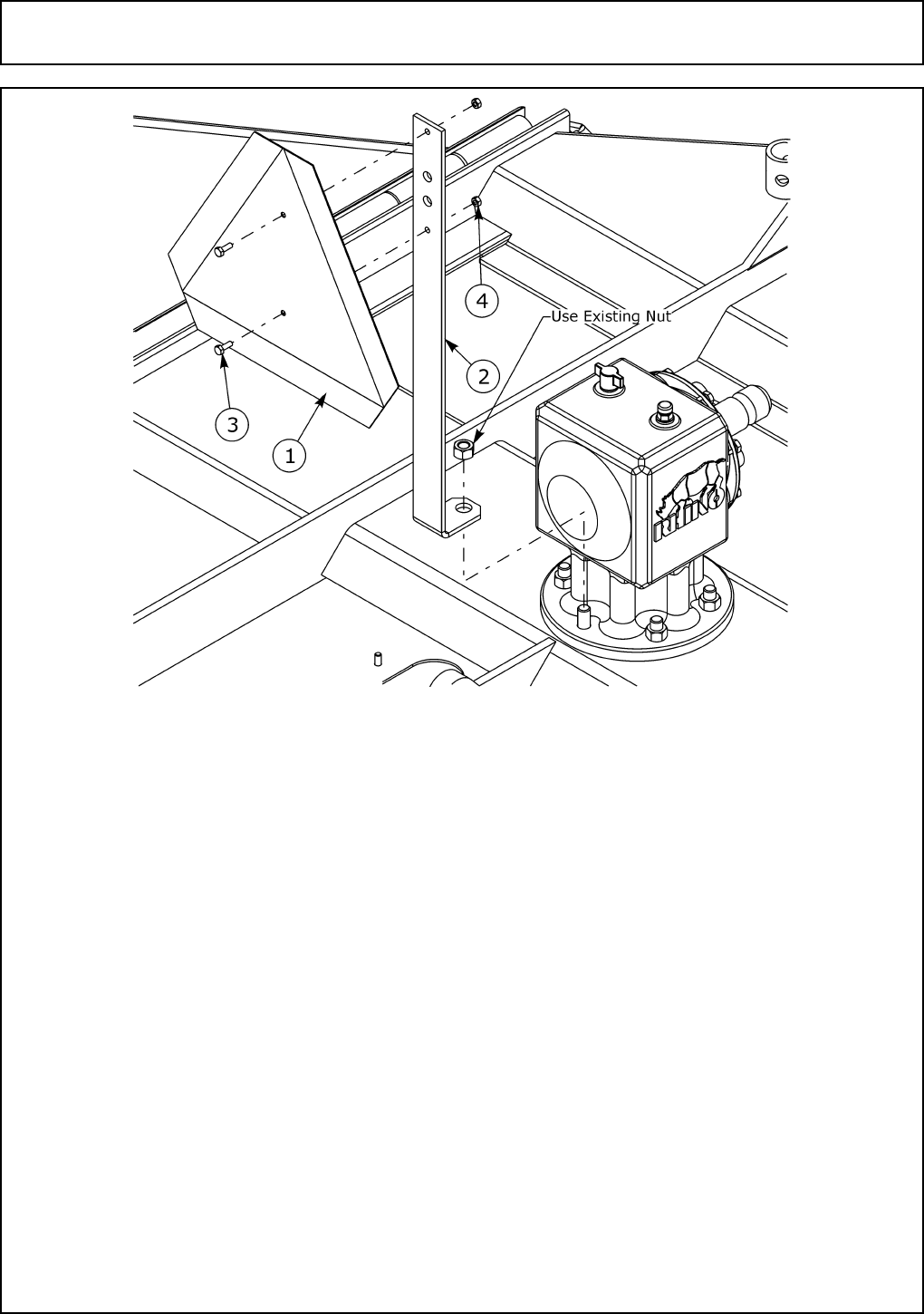

- SMV SIGN MOUNTING S/N 14812 - CURRENT AUG 2002 - CURRENT

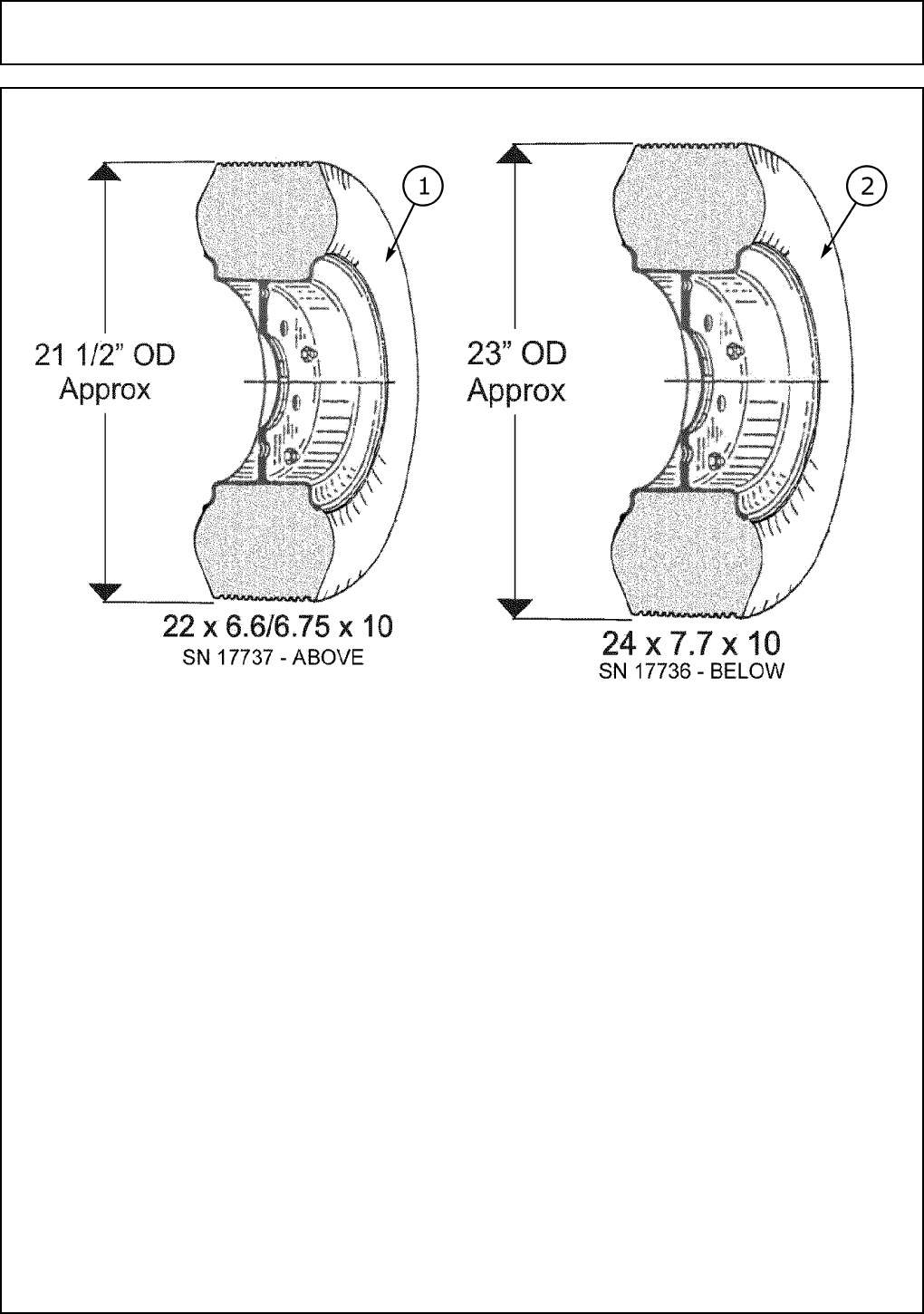

TIRE OPTION
- TIRE OPTION S/N 14812 - CURRENT AUG 2002 - CURRENT

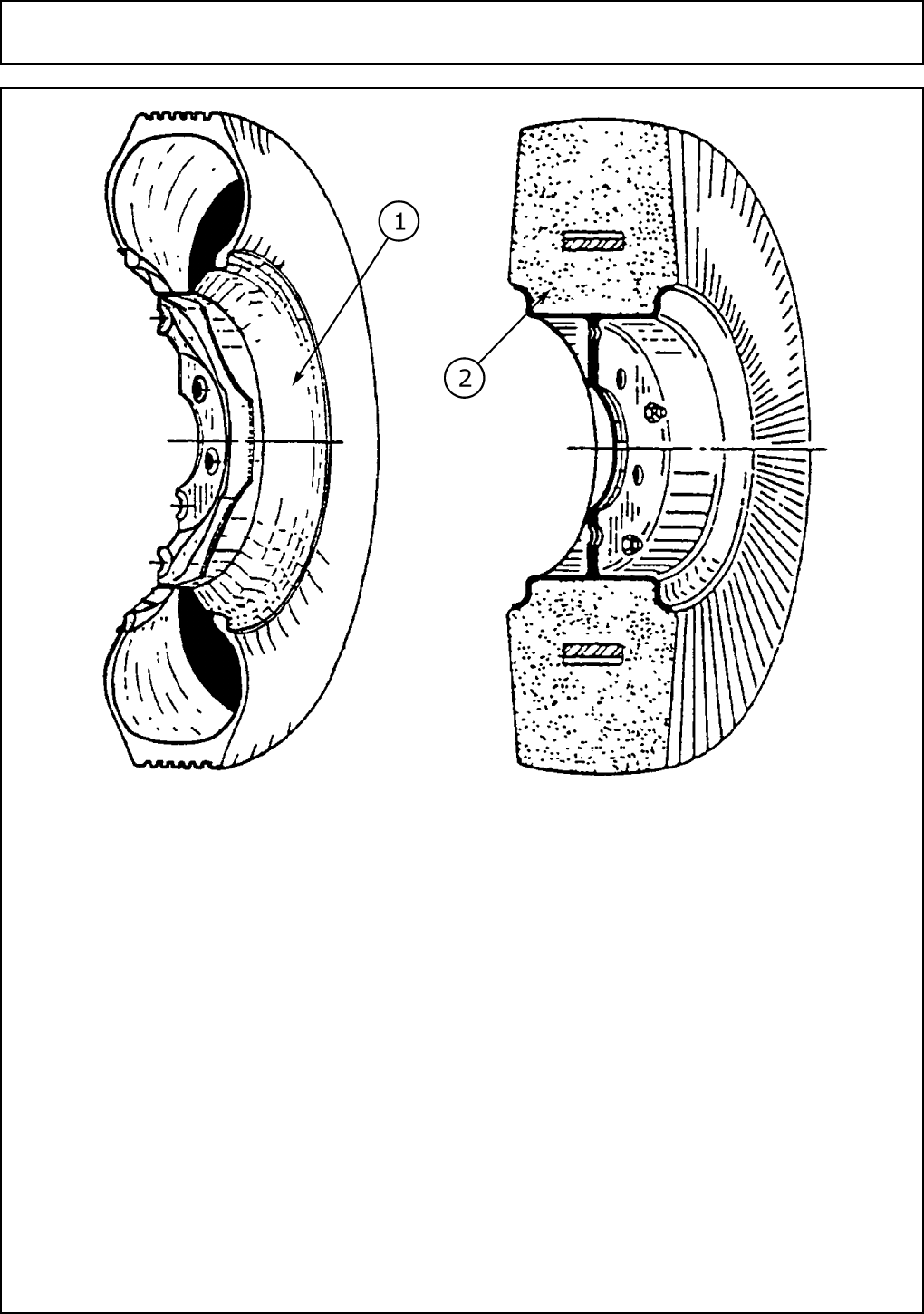

- TIRE OPTION - FOAM FILLED USED AIRCRAFT S/N 14812 - CURRENT AUG 2002 - CURRENT
TONGUE ASSEMBLY

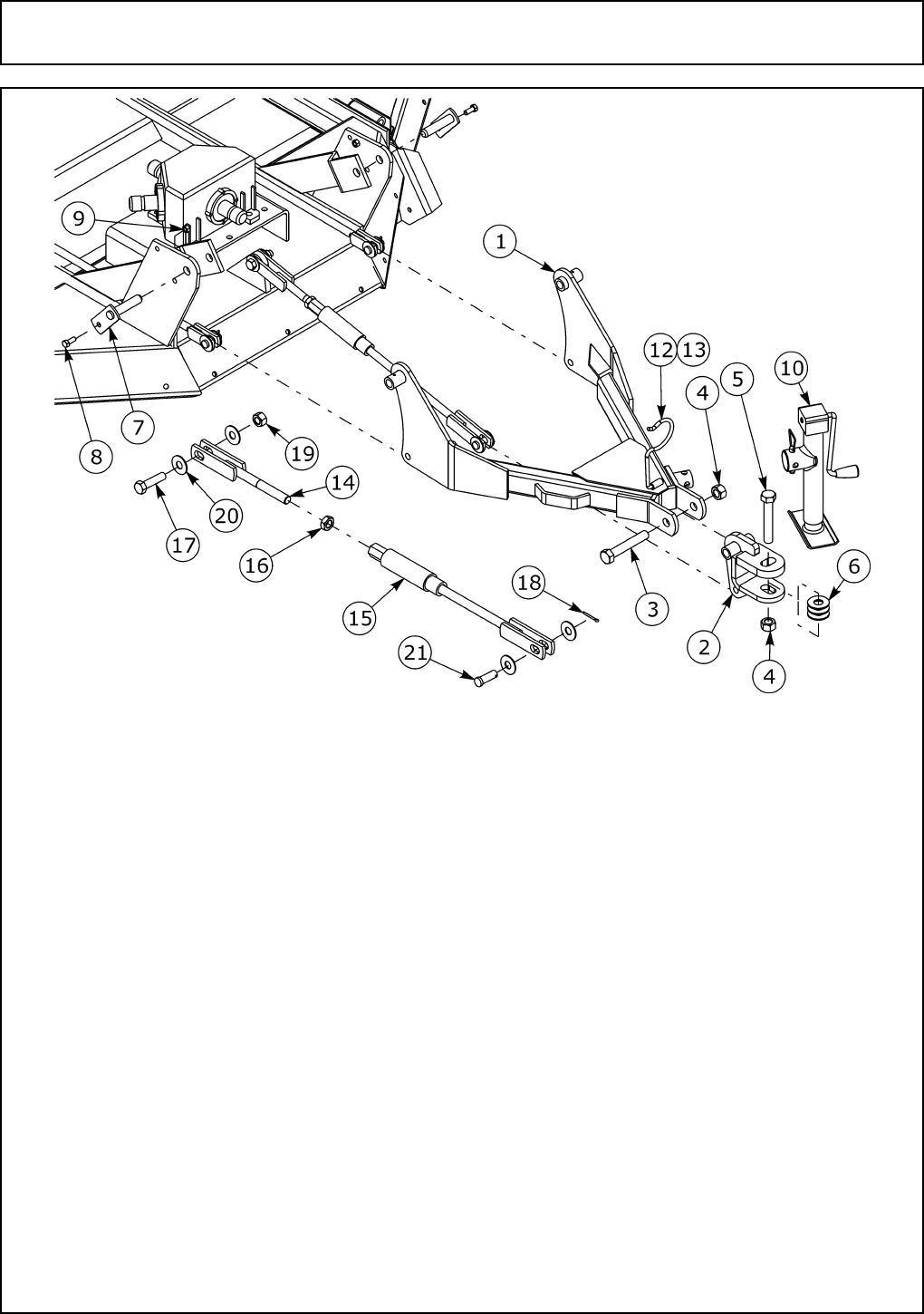

- TONGUE ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT
WEIGHT BOX ATTACHMENT
- WEIGHT BOX ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

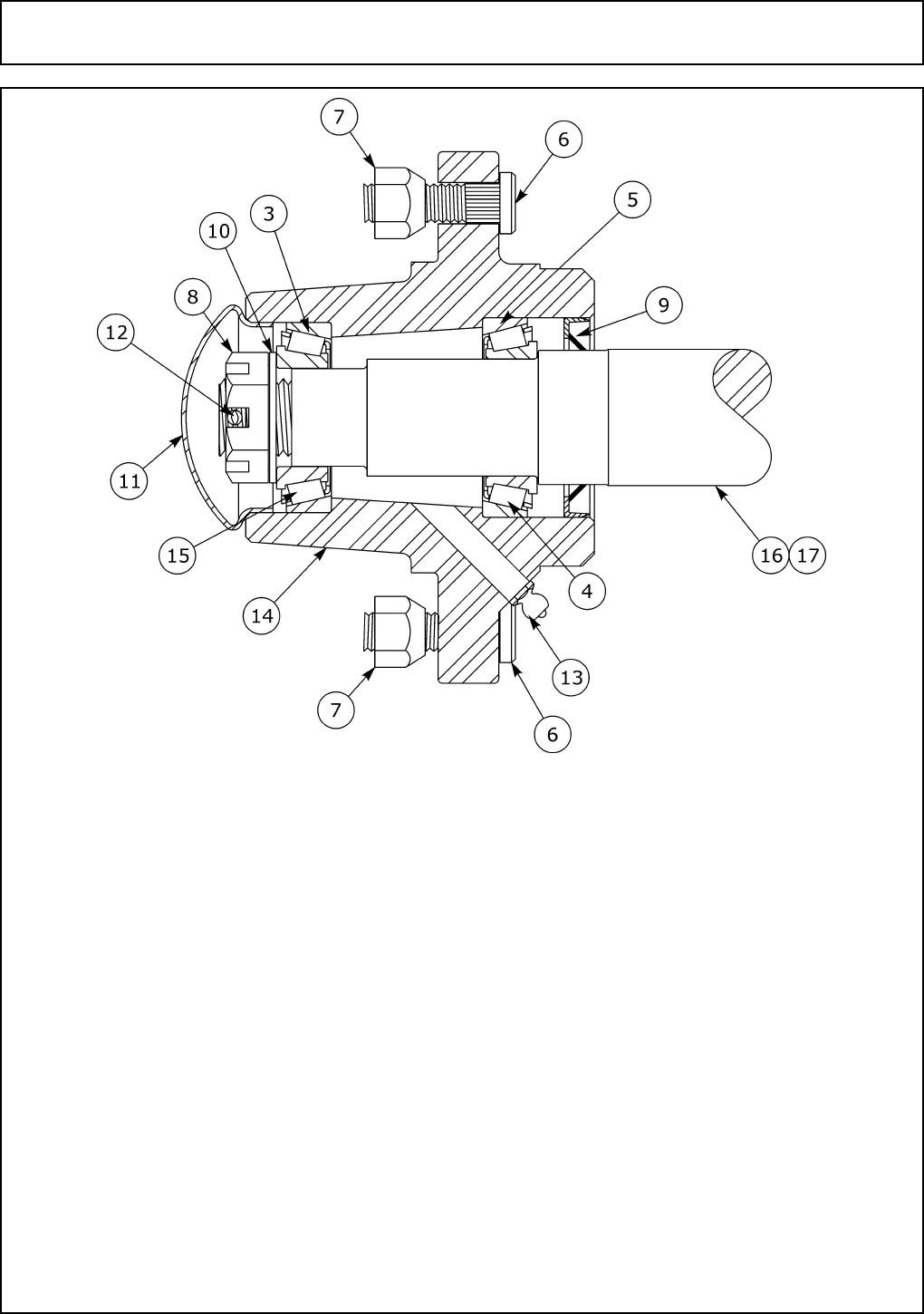

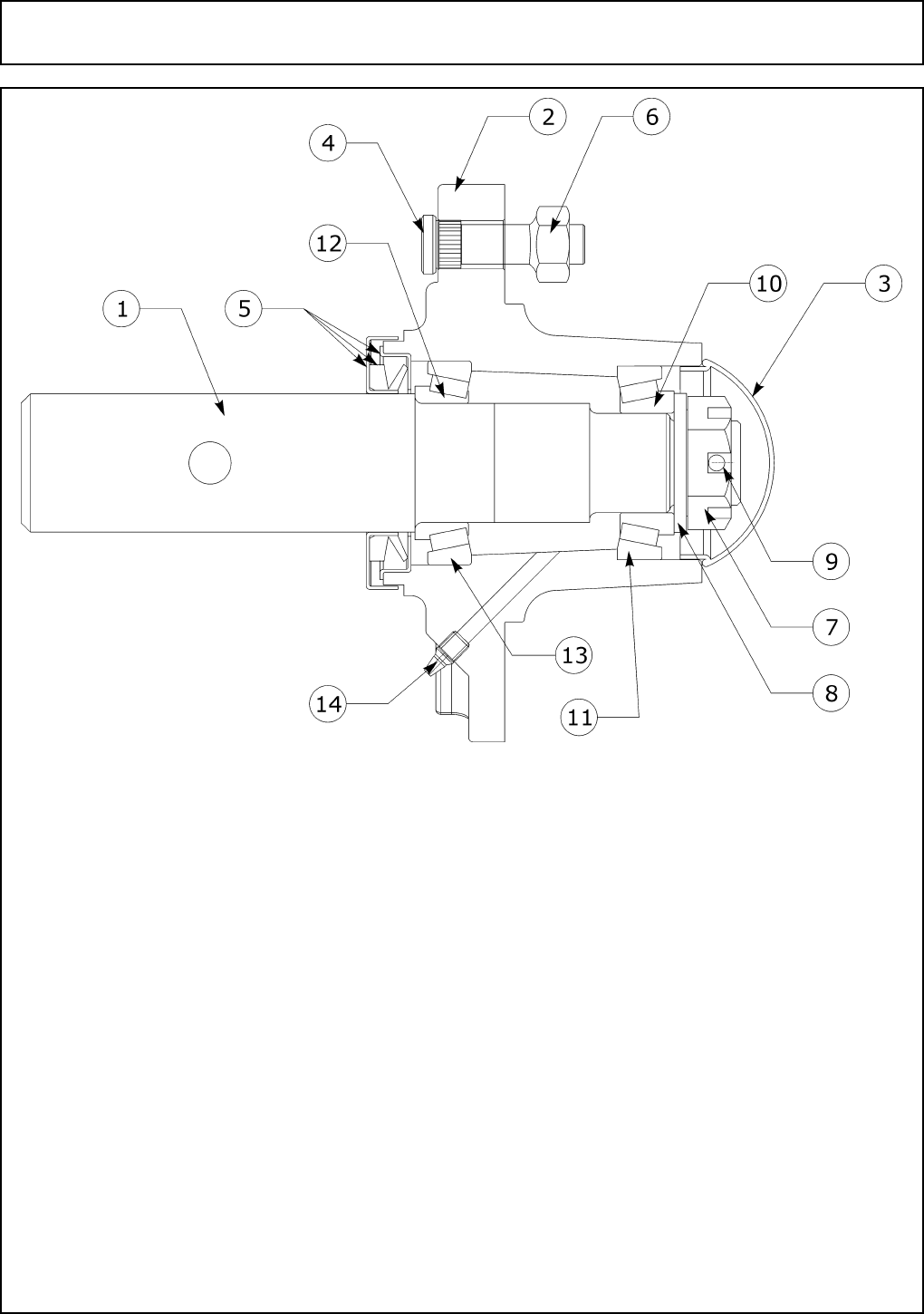

WHEEL HUB ASSEMBLY
- WHEEL HUB ASSEMBLY S/N 14812 - 16663 AUG 2002 - DEC 2004
- WHEEL HUB ASSEMBLY S/N 16664 - CURRENT JAN 2005 - CURRENT
WINCH AND STAND ASSEMBLY
- WINCH AND STAND ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT
WING ATTACHMENT
- WING ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT
LIMITED WARRANTY
TO THE OWNER/OPERATOR/DEALER

SE10-4A/SE15-4A

FLEX-WING MECHANICAL LEVEL

LIFT ROTARY MOWER

MASTER PARTS BOOK

S/N 14812 TO CURRENT

PARTS LISTING

Rhino

An Alamo Group Company

1020 S. Sangamon Ave.

Gibson City, Il 60936

1-800-446-5158

Email: parts@servis-rhino.com

Published 08-06 P/N 00777391MB

TO THE OWNER/OPERATOR/DEALER

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who

recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to

be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.

Observe the rules of safety and common sense!

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form

in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card

and on the Warranty Form that you retain. The use of "will-fit" parts will void your warranty and can cause catastrophic

failure with possible injury or death.

PARTS

SECTION

Parts Section – 1

Parts Section – 2

For maximum safety and to guarantee optimum product reliability, always use

genuine Servis-Rhino Parts. The use of inferior replacement parts may cause

premature or catastrophic failure which could result in serious injury or death.

Direct any questions regarding parts to:

The following instructions are offered to help eliminate needless delay and error in processing

purchase orders for the equipment in this section.

1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the

basic machine featured in this manual. Part Numbers and Descriptions are given to help

locate the parts and quantities required.

2. The Purchase Order must include the name and address of the person or organization

ordering the parts, who should be charged, and if possible, the serial number of the machine

for which the parts are ordered.

3. The Purchase Order must clearly list the quantity of each part, the complete and correct part

number (be sure to include all periods), and the basic name of the part.

4. The Manufacturer reserves the right to substitute parts where applicable.

5. Some parts are unlisted items which are special production items not normally stocked and

are subject to special handling. Request a quotation for such parts before sending a

Purchase Order.

6. The Manufacturer reserves the right to change prices without prior notice.

NOTE: Please refer to The Safety Section in the front of this Manual for the proper

Part Number when ordering Replacement Safety Decals.

PARTS ORDERING GUIDE

RHINORHINO

RHINO®

1020 S. Sangamon Ave.

Gibson City, IL 60936

800-446-5158

Email: parts@servis-rhino.com

PART NAME INDEX

AXLE ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT.................................................................................... 4

AXLE ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT............................................................................... 5

BAFFLE ASSEMBLY S/N 14812 - CURRENT - AUG 2002 - CURRENT............................................................................. 6

BLADE PAN ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT......................................................................... 7

CHAINGUARD ASSEMBLY - FRONT S/N 14812 - CURRENT AUG 2002 - CURRENT..................................................... 8

CHAINGUARD ASSEMBLY - REAR S/N 14812 - CURRENT AUG 2002 - CURRENT ....................................................... 9

CYLINDER ASSEMBLY - CENTER S/N 14812 - CURRENT - AUG 2002 - CURRENT .................................................... 10

CYLINDER ASSEMBLY - WING S/N 14812 - CURRENT AUG 2002 - CURRENT ........................................................... 11

CYLINDER ATTACHMENT - CENTER S/N 14812 - CURRENT AUG 2002 - CURRENT ................................................. 12

CYLINDER ATTACHMENT - WING S/N 14812 - CURRENT AUG 2002 - CURRENT ...................................................... 13

DEFLECTOR ASSEMBLY - FRONT S/N 14812 - CURRENT AUG 2002 - CURRENT .................................................... 14

DEFLECTOR ASSEMBLY - REAR S/N 14812 - CURRENT AUG 2002 - CURRENT........................................................ 15

DRIVELINE ASSEMBLY - CV 1-3/4-20 CAT 5 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT ................... 17

DRIVELINE ASSEMBLY - CV 1-3/8-21 CAT 5 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT ................... 16

DRIVELINE ASSEMBLY - CV 1-3/8-6 CAT 5 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT ....................... 21

DRIVELINE ASSEMBLY - INTERMEDIATE S/N 14812 - CURRENT AUG 2002 - CURRENT.......................................... 18

DRIVELINE ASSEMBLY - WING 1-3/4-20 CAT 4 S/N 14812 - CURRENT AUG 2002 - CURRENT................................. 19

DRIVELINE ASSEMBLY - WING 1-3/4-20 CAT 5 S/N 14812 - CURRENT AUG 2002 - CURRENT................................. 20

GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005................................. 22

GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT ......................... 24

GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005............................................. 26

GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT..................................... 28

GEARBOX ASSEMBLY - DIVIDER 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT..................................... 30

GEARBOX ASSEMBLY - DIVIDER 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT...................................... 32

GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005........................................ 34

GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT................................ 36

GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005 ..................................... 38

GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT.............................. 40

GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005 ....................................... 42

GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT................................ 44

GEARBOX SHIELD ATTACHMENT - DIVIDER S/N 14812 - CURRENT AUG 2002 - CURRENT.................................... 46

GEARBOX SHIELD ATTACHMENT - WING & CENTER 14812 - CURRENT AUG 2002 - CURRENT ............................ 47

HITCH - PINTLE HOOK S/N 14812 - CURRENT AUG 2002 - CURRENT......................................................................... 48

HYDRAULIC CONTROL VALVE S/N 14812 - CURRENT AUG 2002 - CURRENT ........................................................... 49

HYDRAULIC CONTROL VALVE W/MOUNTING KIT S/N 14812 - CURRENT AUG 2002 - CURRENT ........................... 50

HYDRAULIC SCHEMATIC SN 14812 - CURRENT AUG 2002 - CURRENT ..................................................................... 51

LEVEL ROD ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT....................................................................... 52

SKID SHOE ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT.................................................................. 53

SLIPCLUTCH ASSEMBLY - INTERMEDIATE S/N 14812 - CURRENT AUG 2002 - CURRENT ...................................... 54

SLIPCLUTCH ASSEMBLY - WING CAT 4 S/N 14812 - CURRENT AUG 2002 - CURRENT............................................ 55

SLIPCLUTCH ASSEMBLY - WING CAT 5 S/N 14812 - CURRENT AUG 2002 - CURRENT............................................ 56

SMV SIGN MOUNTING S/N 14812 - CURRENT AUG 2002 - CURRENT......................................................................... 57

TIRE OPTION - FOAM FILLED USED AIRCRAFT S/N 14812 - CURRENT AUG 2002 - CURRENT............................... 59

TIRE OPTION S/N 14812 - CURRENT AUG 2002 - CURRENT ........................................................................................ 58

TONGUE ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT............................................................................ 60

WEIGHT BOX ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT............................................................... 61

WHEEL HUB ASSEMBLY S/N 14812 - 16663 AUG 2002 - DEC 2004.............................................................................. 62

WHEEL HUB ASSEMBLY S/N 16664 - CURRENT JAN 2005 - CURRENT ..................................................................... 63

WINCH AND STAND ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT......................................................... 64

WING ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT............................................................................ 65

SE15-4A Master Parts Book (Aug-06)

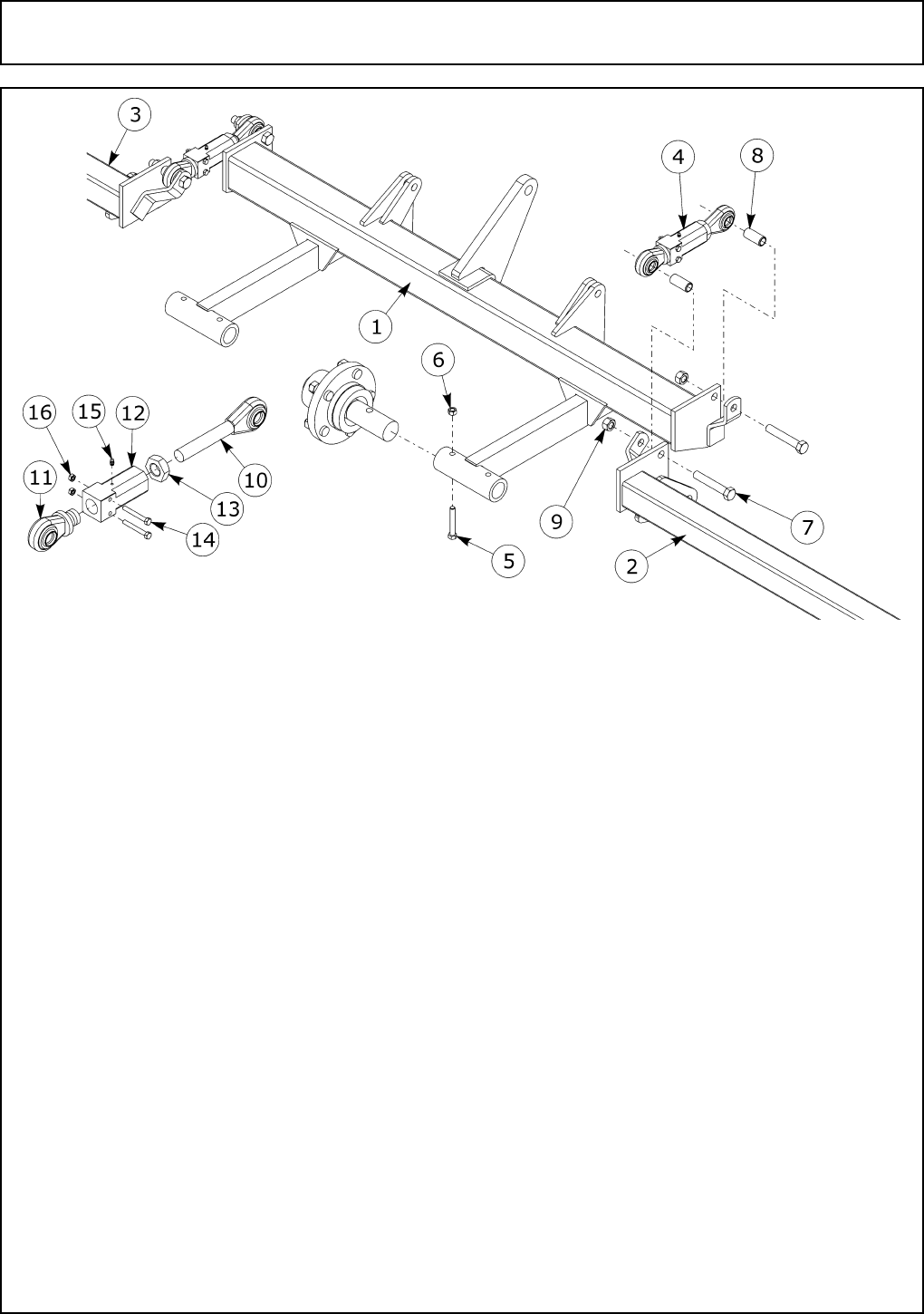

AXLE ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00777183 1 CENTER AXLE WELDMENT

2 00777181 1 RH WING AXLE WELDMT

3 00777182 1 LH WING AXLE WELDMENT

4 00763449 2 ASSY-CONTROL-ROD

5 00764375 4or6 HHCS 1/2NC X 3-1/4 PL5

6 00001800 4or6 LOCKNUT TLM 1/2 NC PLB

7 00009500 4 BOLT-HEX 3/4 NC 4-1/2 PL5

8 00751584 4 SPACER TUBE

9 00037200 4 NUT TOPLOCK 3/4 NC PLC

10 00763447 1 TOP LINK,THREADED

11 00763962 1 WLDMT-TOP LINK

12 00763450A 1 TURNBUCKLE,1-1/8NC THRD 2 HOLE

13 02012200 1 NUT HEX 1-1/8 NC PL

14 02152800 2 HEXB 5/16 NC 2-1/2PL

15 00780848 1 FITTING, GREASE 1/8" BSP, ST

16 00750940 2 NUT TOPLOCK 5/16 NC PLB

SE15-4A Master Parts Book (Aug-06)

AXLE ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 317918H5C 2 HEX CAP 1-8 X 7 1/2 GR.5

2 02030300 2 NUT TOPLOCK 1 NC PLB

3 7AH121022 2 HHCS 3/4-10NC 2-3/4 PL5

4 00002700 8 FLATWASHER 1/2 PL STD

5 511016 2 BUSHING

6 00037200 4 NUT TOPLOCK 3/4 NC PLC

7 00777189 2 AXLE BUSHING

8 02881000 2 HHCS 3/4 NC 3-1/2 PL5

SE15-4A Master Parts Book (Aug-06)

BAFFLE ASSEMBLY S/N 14812 - CURRENT - AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00773850A - BAFFLE, ASY

1 00773805 1 WLDMT BAFFLE CTR WING LF SIDE

2 00773806 1 WLDMT BAFFLE CTR WING RT SIDE

3 00748823 30 HHCS 1/2-13UNC 1-1/2 PL5

4 00001800 30 LOCKNUT TLM 1/2 NC PLB

5 00773990 30 WASHER 9/16X2X1/4

6 00773802 2 WLDMT BAFFLE FOR WING

7 00773798 1 WLDMT BAFFLE WING CTR LF SIDE

8 00773799 1 WLDMT BAFFLE WING CTR RT SIDE

SE15-4A Master Parts Book (Aug-06)

BLADE PAN ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00750311 4 HEXB,5/8NC X 3-1/2,ZP,GRD5

2 00753753 2 HEXB 5/8 NC 2 PL 8

3 00756077 6 WASHER,5/8 HARDENED

4 00775240 1 BAR,BLADE FORMED

5 00775241 1 BAR,BLADE UNFORMED

6 00775242 1 PAN,BLADE

7 00775244 1 HUB BLADE

8 02956948 6 LOCKNUT 5/8 NC PLC

9 8251 2 BLADE BOLT SPECIAL

10 00758579 2 WASHER-BLADE

11 9216 2 WASHER, 1 STRUCTURAL

12 5JRC16140 2 LOCKNUT 1 -14 TLDT GC ZP

13 00775233 1 BLADE,CCW FAN 27-1/2

00775267 1 BLADE,CCW FAN 21-1/2

00776973 1 BLADE, CW FAN 22 1/2

NOTE: Items 1-8 are apart of Blade Pan Assembly (00776428)

SE15-4A Master Parts Book (Aug-06)

CHAINGUARD ASSEMBLY - FRONT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00756986 2 WING CHAIN GUARD ASSY

2 00773024 2 CHAINGUARD, ASY, BLACK

3 00773022 1 CHAINGUARD, ASY, BLACK

4 02030700 21 HHCS 1/2-13UNC 1-1/4 PL5

5 4526 21 NUT LOCK FLG WHIZ 1/2-13 NC PL

--Service Assemblies Only--

SE15-4A Master Parts Book (Aug-06)

CHAINGUARD ASSEMBLY - REAR S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00780200 1 ASSY, REAR CENTER CHAINGUARD

2 00773018 4 CHAINGUARD, ASY, BLACK

3 02030700 14 HHCS 1/2-13UNC 1-1/4 PL5

4 4526 14 NUT LOCK FLG WHIZ 1/2-13 NC PL

--Service Assemblies Only--

SE15-4A Master Parts Book (Aug-06)

CYLINDER ASSEMBLY - CENTER S/N 14812 - CURRENT - AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

8727A - CYLINDER HYD 2-1/2 8

1 00774729 1 CLEVIS CAP 2.5-3/4 ORB-1.00

2 00774734 1 ROD CAP 2.50-1.25-3/4 ORB

3 00774730 1 PISTON 2.5-0.75-S HALL W/RING

4 00774753 1 ROD CYL 1.25-08-0.75-1.25-A

5 3047111 1 CYLINDER TUBE

6 3047112 4 TIE ROD

9 00774760 1 SEAL KIT

15 3047117 1 THREAD LOCK

16 1917140 1 ROD CLEVIS

17 00774740 1 SC SCKT SET 3/8UNCX1/2 KNUR

18 33003H5C 8 HEX NUT 3/8-16 GR.5

19 5JRC12160 1 NUT TOPLOCK 3/4 NF PLC

20 1917132 1 SCKT HD O-RNG PLUG,3/4-16 UNF,

21 2417154 1 BREATHER,CYLINDER #8 ORB

651132 2REF HOSE #6 - 8MP - 8MP - 144LG

94514 2REF ADAPTER, HYD, ELBOW SWIVEL

0652141311 2REF ADP HYD STGHT 8MB - 8FP

8354 2REF PIN-HYD. CYLINDER

00606000 2REF PIN-COTTER 3/16 X 2

--Stroke 8.00 Retracted 20.25 Extended 28.25--

SE15-4A Master Parts Book (Aug-06)

CYLINDER ASSEMBLY - WING S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

8728A - CYLINDER HYD 2-1/2 X 14

1 00774729 1 CLEVIS CAP 2.5-3/4 ORB-1.00

2 00774734 1 ROD CAP 2.50-1.25-3/4 ORB

3 00774730 1 PISTON 2.5-0.75-S HALL W/RING

4 00775728 1 ROD CYL 1.25-14-0.75-1.12

5 00774746 1 TUBE CYL 2.00-14.00

6 00774744 4 TIE ROD 3/8-14

9 00774760 1 SEAL KIT

15 3047117 1 THREAD LOCK

16 1917140 1 ROD CLEVIS

17 00774740 1 SC SCKT SET 3/8UNCX1/2 KNUR

18 33003H5C 8 HEX NUT 3/8-16 GR.5

19 5JRC12160 1 NUT TOPLOCK 3/4 NF PLC

20 1917132 1 SCKT HD O-RNG PLUG,3/4-16 UNF,

21 2417154 1 BREATHER,CYLINDER #8 ORB

651132 2REF HOSE #6 - 8MP - 8MP - 144LG

94514 2REF ADAPTER, HYD, ELBOW SWIVEL

0652141311 2REF ADP HYD STGHT 8MB - 8FP

8354 2REF PIN-HYD. CYLINDER

00606000 2REF PIN-COTTER 3/16 X 2

--Stroke 14.00 Retracted 24.25 Extended 38.25--

SE15-4A Master Parts Book (Aug-06)

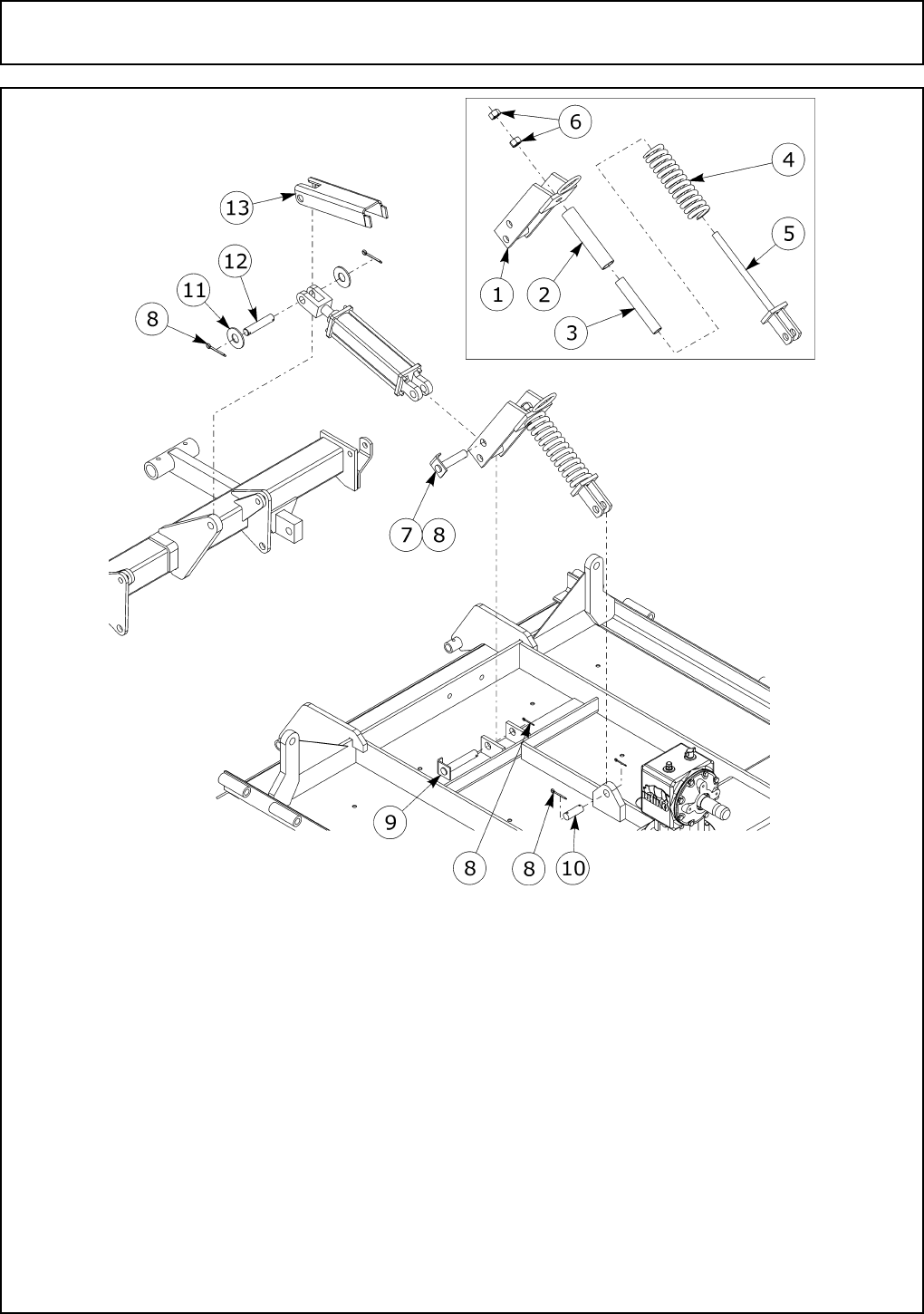

CYLINDER ATTACHMENT - CENTER S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 8325 1 CYL.SPRING ARM ASSEMBLY

2 8336 1 SPRING STOP ASSEMBLY

3 00759668 1 SPRING STOP-INNER

4 8306 1 SPRING COMPRESSION

5 8326 1 SPRING ROD ASSEMBLY

6 00012300 2 NUT, 7/8 NC HEX PL

7 8349 1 PIN ASSEMBLY WELD

8 00606000 6 PIN-COTTER 3/16 X 2

9 8350 1 PIN ASSEMBLY

10 8351 1 PIN

11 9216 2 WASHER, 1 STRUCTURAL

12 103266 1 CYLINDER PIN

13 00777963 1 PLATE, TRANSPORT LOCK

SE15-4A Master Parts Book (Aug-06)

CYLINDER ATTACHMENT - WING S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 8352 4 PIN ASSEMBLY

2 00606000 8 PIN-COTTER 3/16 X 2

3 9216 4 WASHER, 1 STRUCTURAL

4 00761503 4 SPACER 1-1/2 OD X1ID X 1/2LG

5 37107B13 2 CLIP-X HAIR PIN

6 8345 2 TRANSPORT BAR

SE15-4A Master Parts Book (Aug-06)

DEFLECTOR ASSEMBLY - FRONT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00767872 1 SHIELD, FRONT DEFLECTOR

2 00772063 1 FLAT, FRONT DEFLECTOR SUPPORT

3 00767871 2 SHIELD, DEFLECTOR 19

4 00773015 2 BAR SUPPORT DEFLECTOR 19

5 02030700 21 HHCS 1/2-13UNC 1-1/4 PL5

6 00002700 21 FLATWASHER 1/2 PL STD

7 00001800 21 LOCKNUT TLM 1/2 NC PLB

8 00759859 2 SHIELD-DEBRIS DEFLECTOR FRT.

9 00773882 2 PLATE FOOT PROBE GUARD

10 00773883 2 BAR DEFLECTOR SUPPORT

SE15-4A Master Parts Book (Aug-06)

DEFLECTOR ASSEMBLY - REAR S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00772064 2 SHIELD,FRONT DEFLECTOR

2 00772063 2 FLAT, FRONT DEFLECTOR SUPPORT

3 00773014 4 SHIELD DEFLECTOR FRONT 19

4 00773015 4 BAR SUPPORT DEFLECTOR 19

5 02030700 14 HHCS 1/2-13UNC 1-1/4 PL5

6 00002700 14 FLATWASHER 1/2 PL STD

7 00001800 14 LOCKNUT TLM 1/2 NC PLB

SE15-4A Master Parts Book (Aug-06)

DRIVELINE ASSEMBLY - CV 1-3/8-21 CAT 5 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00760453 - DRIVELINE,1000 CV CAT5 1-3/8-

1 8478 1 YOKE 1-3/8 21-SP

2 8482 1 DOUBLE YOKE

3 8382 1 FITTING,GREASE M8 X 1

4 7432 1 YOKE-INBOARD

5 8484 2 CROSS & BEARING KIT

6 8384 2 SPRING PIN 10MM X 90MM

7 00760632 1 PROFILE-INNER SAGA

8 8489 1 INBOARD YOKE

9 00774207 1 YOKE 1-3/4-20 SPLINE

10 8486 1 CROSS & BEARING KIT

11 8393 1 BEARING RING

12 00760641 1 TUBE,INNER SHIELD ROUND

13 7420 1 ASSY-BEARING & CV CONE

14 8949 1 SHIELD CONE

15 00778479 1 GREASE ZERK 1/4"-28 UNF 2A THR

16 1416438 8 SCREW-SC25

17 00756005 1 DECAL-ROTATING DRIVELINE

18 00756004 1 DECAL-SHIELD MISSING

19 8974 1 SUPPORT BEARING

20 00775820 1 OUTER SHIELD HALF

21 00775821 1 INNER SHIELD HALF

22 8391 1 Q.D. COLLAR KIT

23 00774208 1 LOCK ASY CC YOKE

00760665 1 DRIVELINE-TRACTOR HALF PART OF

00760667 1 DRIVELINE IMPLEMENT HALF PART

SE15-4A Master Parts Book (Aug-06)

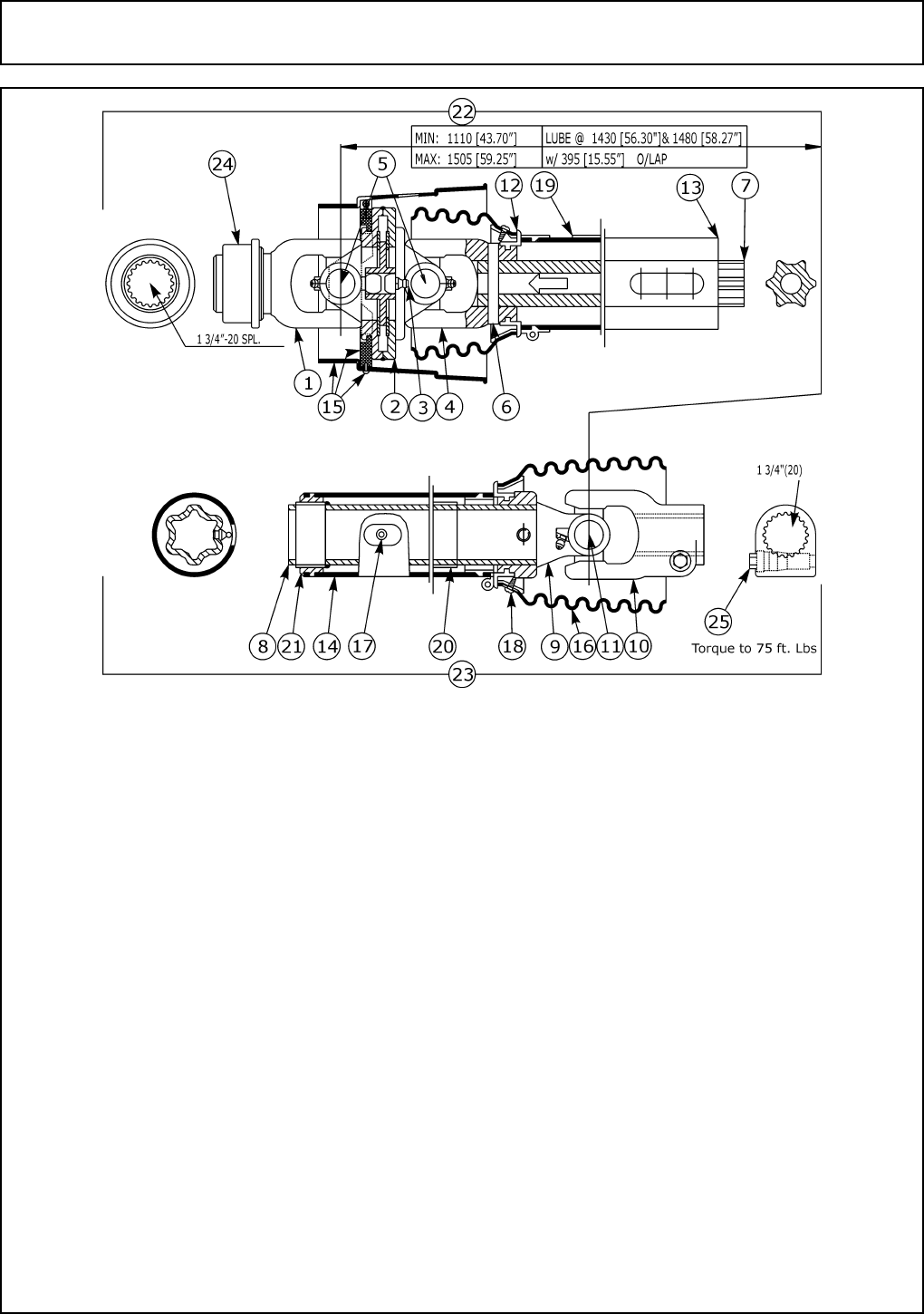

DRIVELINE ASSEMBLY - CV 1-3/4-20 CAT 5 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00763554 - D/L CV 1-3/4-20 SPL (20DB)

1 00761434 1 YOKE-CV QD-1 3/4-20 SPLINE-

2 8482 1 DOUBLE YOKE

3 8382 1 FITTING,GREASE M8 X 1

4 7432 1 YOKE-INBOARD

5 8484 2 CROSS & BEARING KIT

6 8384 2 SPRING PIN 10MM X 90MM

7 00763557 1 PROFILE, STAR INNER

8 00763558 1 PROFILE,STAR OUTER

9 8489 1 INBOARD YOKE

10 00774207 1 YOKE 1-3/4-20 SPLINE

11 8486 1 CROSS & BEARING KIT

12 8393 2 BEARING RING

13 00763560 1 TUBE,OUTER SHIELD

14 00763559 1 TUBE,D/L INNER SHIELD

15 7420 1 ASSY-BEARING & CV CONE

16 8949 1 SHIELD CONE

17 00778479 1 GREASE ZERK 1/4"-28 UNF 2A THR

18 1416438 8 SCREW-SC25

19 00756005 1 DECAL-ROTATING DRIVELINE

20 00756004 1 DECAL-SHIELD MISSING

21 8974 1 SUPPORT BEARING

22 00775824 1 OUTER SHIELD HALF

23 00775825 1 INNER SHIELD HALF

24 00759556 1 KIT, SLIDE COLLAR

25 00774208 1 LOCK ASY CC YOKE

00763555 1 D/L TRACTOR HALF 1-3/4-20 CV

00763556 1 D/L IMPLEMENT HALF 1-3/4-20

SE15-4A Master Parts Book (Aug-06)

DRIVELINE ASSEMBLY - INTERMEDIATE S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00775340 - DRIVESHAFT INTERMEDIATE SE15

1 00775341 1 YOKE 1-3/4-20 SPLINE

2 W279R 2 CROSS REPAIR KIT, CTR

3 00775342 1 DOUBLE YOKE

4 00775333 1 FLANGE YOKE

5 00775331 1 CLUTCH FRICTION

SE15-4A Master Parts Book (Aug-06)

DRIVELINE ASSEMBLY - WING 1-3/4-20 CAT 4 S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00775316 1 YOKE 1-3/4-20 SPL I.C.

2 00189700 2 CROSSKIT

3 00756934 2 PIN,ROLL 10 X 80

4 00775317 1 YOKE INBOARD 1B

5 00775375 1 INNER PROFILE 1B

6 00775376 1 PROFILE & SLEEVE W.A.

7 00775318 1 YOKE INBOARD 2A

8 00775315 1 CLUTCH FRICTION

9 8393 2 BEARING RING

10 00756005 1 DECAL-ROTATING DRIVELINE

11 00756004 1 DECAL-SHIELD MISSING

12 00759217 2 SCREW 1/2 LG END

13 8974 1 SUPPORT BEARING

14 1416601 1 ZERK

15 00775384 2 BOLT P1.75 M12 X 60

16 00775327 1 NUT P1.75 M12

17 00775319 1 SHIELD OUTER HALF

18 00775320 1 SHIELD INNER HALF

00775313 1 DRIVELINE TRACTOR HALF CAT 4

00775314 1 DRIVELINE IMPLEMENT HALF CAT 4

SE15-4A Master Parts Book (Aug-06)

DRIVELINE ASSEMBLY - WING 1-3/4-20 CAT 5 S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00775343 - DRIVELINE WNG CAT5 SC 1-3/4 20

1 00775005 1 YOKE 44R 1-3/4-20 TAPER PIN

2 W840 2 CROSS REPR KIT

3 W816F 1 YOKE & SQ SHFT PAINT BLACK

4 00775344 1 YOKE, I.B. TUBE & SLEEVE W.A.

5 00775382 1 FRICTION CLUTCH

6 00775345 1 OUTER SHIELD TUBE ASSY

7 00775346 1 INNER SHIELD TUBE ASSY

8 00775347 4 SHIELD BEARING

9 00775348 1 SUPPORT BEARING

10 7387 1 DECAL, DECK U-JOINT

11 00756004 1 DECAL-SHIELD MISSING

12 00752670 2 GREASE FITTING 1/4-28 BOLT THD

13 00774208 1 LOCK ASY CC YOKE

14 00775349 1 DRIVELINE WING INNER SHAFT

15 00775350 1 DRIVELINE WING OUTER TUBE

SE15-4A Master Parts Book (Aug-06)

DRIVELINE ASSEMBLY - CV 1-3/8-6 CAT 5 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00760452 - DRIVELINE,540 CV CAT 5 1-3/8-6

1 7431 1 YOKE SLIDE COLLAR

2 8482 1 DOUBLE YOKE

3 8382 1 FITTING,GREASE M8 X 1

4 7432 1 YOKE-INBOARD

5 8484 2 CROSS & BEARING KIT

6 8384 2 SPRING PIN 10MM X 90MM

7 00760632 1 PROFILE-INNER SAGA

8 8489 1 INBOARD YOKE

9 00774207 1 YOKE 1-3/4-20 SPLINE

10 8486 1 CROSS & BEARING KIT

11 8393 2 BEARING RING

12 00760641 1 TUBE,INNER SHIELD ROUND

13 7420 1 ASSY-BEARING & CV CONE

14 8949 1 SHIELD CONE

15 00778479 1 GREASE ZERK 1/4"-28 UNF 2A THR

16 1416438 8 SCREW-SC25

17 00756005 1 DECAL-ROTATING DRIVELINE

18 00756004 1 DECAL-SHIELD MISSING

19 8974 1 SUPPORT BEARING

20 00775820 1 OUTER SHIELD HALF

21 00775821 1 INNER SHIELD HALF

22 8391 1 Q.D. COLLAR KIT

23 00774208 1 LOCK ASY CC YOKE

00760668 1 DRIVELINE TRACTOR HALF PART OF

00760667 1 DRIVELINE IMPLEMENT HALF PART

SE15-4A Master Parts Book (Aug-06)

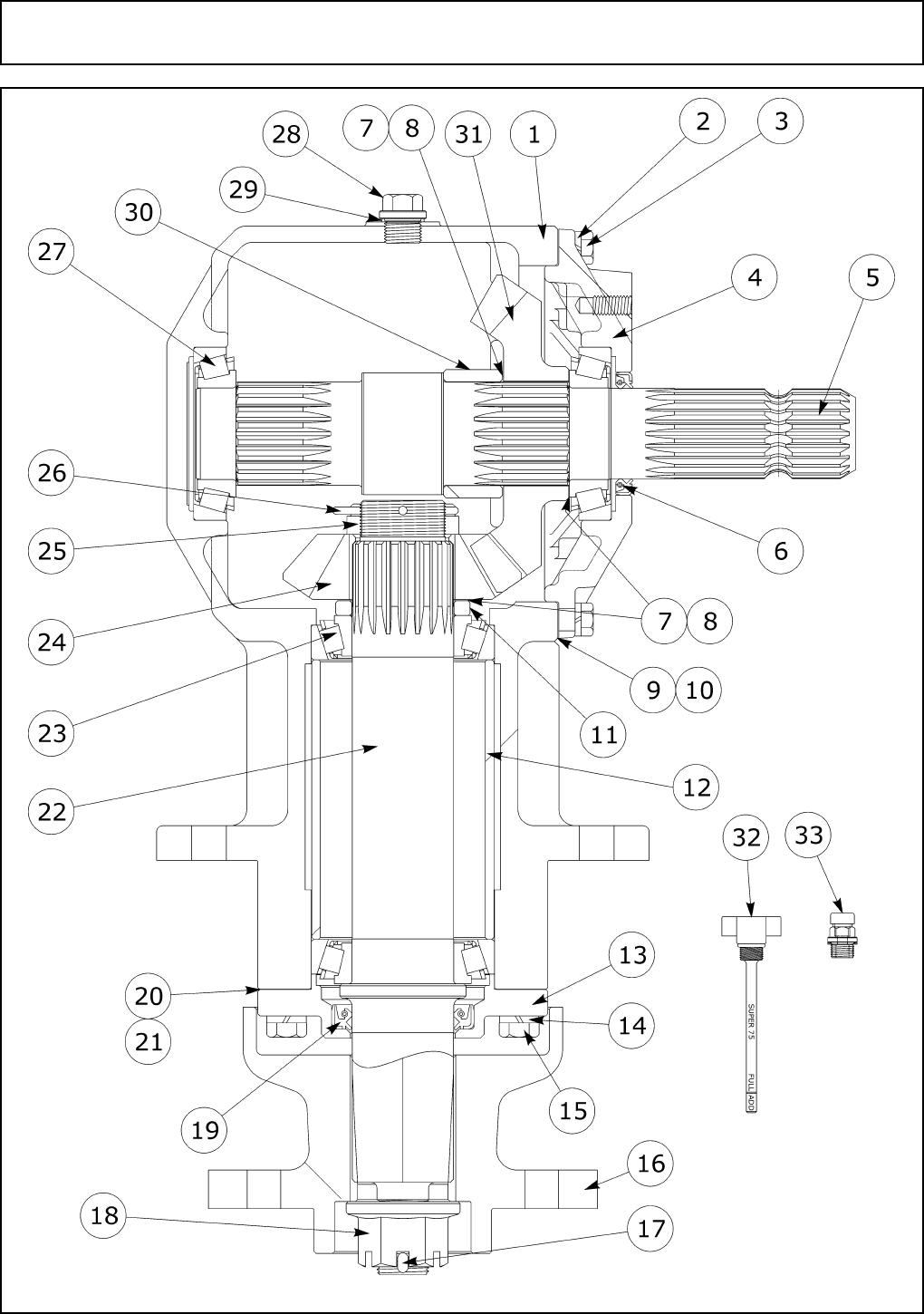

GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

ITEM PART NO. QTY. DESCRIPTION

00775919 - GEARBOX SUPER 75 1:1.46 SU

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00758693 1 GEAR,13 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 3 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00758694 1 GEAR,19 TOOTH

32 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER & LEFT 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00775919A - SUPER AG-75S-1:1.46SU- 1 3/4"-

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

19 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00758693 1 GEAR,13 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 2 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00758694 1 GEAR,19 TOOTH

32 00778907 1 ASSY-DIPSTICK FOR SUPER 75 GBS

33 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

ITEM PART NO. QTY. DESCRIPTION

00776977 - GEARBOX SUPER 75 1.21:1RD

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00759488 1 GEAR, 17 TOOTH

25 00770730 1 BEARING ADJUSTING NUT

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 3 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00759487 1 GEAR, 14 TOOTH

32 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - CENTER 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00776977A - SUPER AG-75S-1.21:1RD- 1 3/4"-

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00759488 1 GEAR, 17 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 2 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00759487 1 GEAR, 14 TOOTH

32 00778907 1 ASSY-DIPSTICK FOR SUPER 75 GBS

33 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

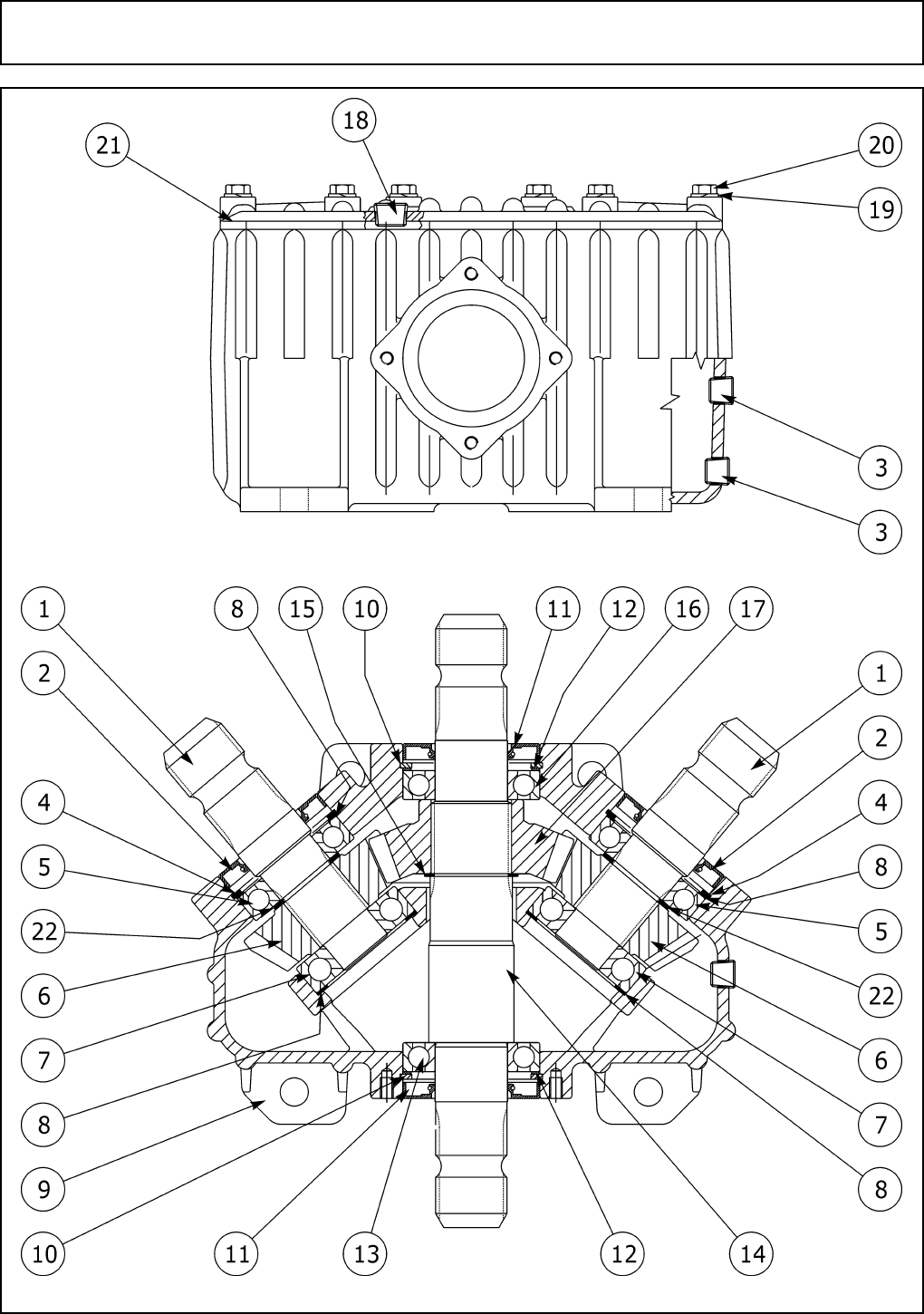

GEARBOX ASSEMBLY - DIVIDER 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - DIVIDER 1000 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00755698 - DIVIDER GEARBOX

1 00756643 2 SHAFT, 1-3/4-20 SPL WG OUTPUT

2 00756644 2 SEAL,OIL 45X80X10

3 00753226 2 PLUG

4 00753224 2 CIRCLIP, INTERNAL

5 00756645 2 SHIM, 69X79.9

6 00755746 2 GEAR, SIDE BEVEL 1000 T25A G/B

7 00756646 2 BEARING, BALL

8 00756647 2 SHIM, 65.3X79.7

9 00753232 1 CASING

10 00753237 2 INTERNAL CIRCLIP

11 00753238 2 OIL SEAL

12 00753235 2 SHIM

13 00753241 1 BEARING

14 00756648 1 SHAFT, 1-3/4-20 CTR SHAFT

15 00755068 1 SHOULDER RING

16 00755070 1 BEARING

17 00755745 1 GEAR, CTR BEVEL, 1000 T25A G/B

18 00753239 1 OIL FILLER PLUG

19 00753231 6 SCHNORR WASHER

20 00753230 6 HEXB METRIC 8-P1.25- 30MM PL5

21 00753240 1 COVER

22 00755069 1 GASKET

23 00753223 2 BEARING

24 00756649 2 SNAP RING 40 UNI7436 .096 THK

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - DIVIDER 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - DIVIDER 540 RPM S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00756604 - DIVIDER GEARBOX, COMER W/1-3/4

1 00756643 2 SHAFT, 1-3/4-20 SPL WG OUTPUT

2 00756644 2 SEAL,OIL 45X80X10

3 00753226 2 PLUG

4 00773224 2 CONVERSION KIT NEW STYLE D4

5 00563700 2 BEARING, BALL

6 00772983 2 GEAR PINION Z20 20 TEETH

7 00753223 2 BEARING

8 00756645 4 SHIM, 69X79.9

9 00753232 1 CASING

10 00753237 2 INTERNAL CIRCLIP

11 00753238 2 OIL SEAL

12 2716406 2 SHIM 84.7

13 00753241 1 BEARING

14 00756648 1 SHAFT, 1-3/4-20 CTR SHAFT

15 00755068 1 SHOULDER RING

16 00753241 1 BEARING

17 00772984 1 GEAR Z24 24 TEETH

18 2716590 1 PLUG,VENT W/DIAPHRAM

19 00753231 6 SCHNORR WASHER

20 00753230 6 HEXB METRIC 8-P1.25- 30MM PL5

21 00753240 1 COVER

22 00756649 2 SNAP RING 40 UNI7436 .096 THK

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

ITEM PART NO. QTY. DESCRIPTION

00776978 - GEARBOX SUPER 75 1:1.21SU

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00759488 1 GEAR, 17 TOOTH

25 00770730 1 BEARING ADJUSTING NUT

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 3 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00759487 1 GEAR, 14 TOOTH

32 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - LEFT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00776978A - SUPER AG-75S-1:1.21SU- 1 3/4"-

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00773640 1 SEAL THRU SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00759487 1 GEAR, 14 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 2 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00759488 1 GEAR, 17 TOOTH

32 00778907 1 ASSY-DIPSTICK FOR SUPER 75 GBS

33 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

ITEM PART NO. QTY. DESCRIPTION

00776979 - GEARBOX SUPER 75 1:1.21SU

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00759488 1 GEAR, 17 TOOTH

25 00770730 1 BEARING ADJUSTING NUT

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 3 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00759487 1 GEAR, 14 TOOTH

32 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 1000 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00776979A - SUPER AG-75R-1:1.21SU 1 3/4"-

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 1 GASKET, .010 OR .25M

22 00775922 2 SHAFT OUTPUT SUPER 75

23 00769938 1 BEARING,TIMKEN 30210

24 00759487 1 GEAR, 14 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00770421 2 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 1 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00759488 1 GEAR, 17 TOOTH

32 00778907 1 ASSY-DIPSTICK FOR SUPER 75 GBS

33 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 14812 - 17107 AUG 2002 - MAR 2005

ITEM PART NO. QTY. DESCRIPTION

00760506 - GEARBOX SPD RD CW/CCW

1 00758661 1 HOUSING,GEARBOX SINGLE INPUT

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00760889 1 SPACER,OUTPUT BEARING

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00758675 1 HUB,2 1/2 BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00760892 1 SHAFT OUTPUT W/SLOTTED NUT

23 00769938 2 BEARING,TIMKEN 30210

24 00759488 1 GEAR, 17 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00606000 1 PIN-COTTER 3/16 X 2

27 00755615 2 BEARING

28 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

29 ------------- 1 PLASTIC CAP PLUG

30 00769321 2 WASHER,SEALING,17.8MX22MX3M

31 00758657 1 SPACER,INPUT SHAFT

32 00759487 1 GEAR, 14 TOOTH

33 00770737 1 LEVEL PLUG M18 X 1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

SE15-4A Master Parts Book (Aug-06)

GEARBOX ASSEMBLY - RIGHT WING 540 RPM S/N 17108 - CURRENT APR 2005 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00776972A - SUPER AG-75R-1:1.46SU 1 3/4"-

1 00775921 1 G/B HOUSING SUPER 75

2 00755954 8 LOCKWASHER M10

3 00758659 8 HHCS, M10X1.5X32

4 00758664 1 CAP,INPUT

5 00758689 1 SHAFT,INPUT

6 00758653 1 SEAL, INPUT SHAFT

7 00758667 VAR SHIM .012

8 00758668 VAR SHIM,0.020

9 00758646 VAR SHIM, ADJUSTMENT .004 OR .1M

10 00758647 VAR SHIM, ADJUSTMENT .010 OR .25M

11 00759977 1 SPACER GEAR MOUNT

12 00775923 1 SPACER OUTPUT SUPER 75

13 00758663 1 CAP, OUTPUT

14 00758672 4 LOCKWASHER,M12

15 02959661 4 HEXB METRIC 12-P1.75-35MMPL8.8

16 00775244 1 HUB BLADE

17 00606000 1 PIN-COTTER 3/16 X 2

18 00758692 1 NUT,1-14 FLANGED HEX SLOTTED

19 00758674 1 SEAL, OUTPUT SHAFT 50X70X10

20 00758676 VAR GASKET, .004 OR .1M

21 00758677 VAR GASKET, .010 OR .25M

22 00775922 1 SHAFT OUTPUT SUPER 75

23 00769938 2 BEARING,TIMKEN 30210

24 00758693 1 GEAR,13 TOOTH

25 00762121 1 NUT,HEX THIN SLOTTED

26 00770421 1 PIN, COTTER 3.6MM x 65MM

27 00755615 2 BEARING

28 00770737 2 LEVEL PLUG M18 X 1.5

29 00769321 2 WASHER,SEALING,17.8MX22MX3M

30 00758657 1 SPACER,INPUT SHAFT

31 00758694 1 GEAR,19 TOOTH

32 00778907 1 ASSY-DIPSTICK FOR SUPER 75 GBS

33 00762114 1 PLUG,VENT W/WASHER 18M-P1.5

SE15-4A Master Parts Book (Aug-06)

GEARBOX SHIELD ATTACHMENT - DIVIDER S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 0656130100 1 SHIELD, PRIMARY GEARBOX

2 613512C8 2 M8X1.25X40 GR.8.8-FT HEX CAPSC

3 00023500 2 FLATWASHER,5/16,TYPE AW,ZP

4 7AH5101118 4 HHCS 5/8NC 2-1/4 NONPLATED 5

5 00756077 4 WASHER,5/8 HARDENED

6 00695100 4 NUT,TOPLOCK 5/8 NC PLB

7 00780201 4 WASHER, SPACER

SE15-4A Master Parts Book (Aug-06)

GEARBOX SHIELD ATTACHMENT - WING & CENTER 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00775571 3 WLDMT SHIELD

2 00775573 3 WLDMT BRKT SHIELD

3 00002700 3 FLATWASHER 1/2 PL STD

4 5F8130 3 1/2 NC WING NUT

5 00011100 9 FLATWASHER 3/8 PL STD

6 00012101 9 LOCKWASHER 3/8 PL HVY

7 00002000 9 HEX CAP 3/8-16 X 3/4 GR.5 ZP

8 7AH5101118 12 HHCS 5/8NC 2-1/4 NONPLATED 5

9 00695100 12 NUT,TOPLOCK 5/8 NC PLB

SE15-4A Master Parts Book (Aug-06)

HITCH - PINTLE HOOK S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00773872 1 WLDMT PINTLE HOOK CLEVIS

2 00752283 1 WLDMT, PINTLE HOOK MOUNTING

3 00752279 1 PINTLE HOOK

4 02891800 1 HHCS 1/2 NC 1-3/4 PL8

5 00001800 4 LOCKNUT TLM 1/2 NC PLB

6 02712500 4 HHCS 1 NC 4 PL8 SPECIAL

7 02030300 1 NUT TOPLOCK 1 NC PLB

8 02845600 1 HEXB 5/8 NC 3 PL5

9 00695100 1 NUT,TOPLOCK 5/8 NC PLB

10 00773870 3 DWG INSTL PINTLE HOOK OPTION

11 00003300 2 HEXB 3/4 NC 4 PL5

12 00037200 1 NUT TOPLOCK 3/4 NC PLC

NOTE: Drawbar length must be modified to obtain dim. "A".use driveline length check procedure in manual, to insure

problem does not occur.

SE15-4A Master Parts Book (Aug-06)

HYDRAULIC CONTROL VALVE S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. CLOSED CENTER QTY OPEN CENTER QTY DESCRIPTION

1 003880200 1 OPEN CENTER VALVE

2 00759833 1 CLOSED CENTER VALVE

3 00751139 3 2 DETENT REPAIR KIT

4 00751140 1 HIGH PRESSURE RELIEF VALVE KIT

5 00751142 3 3 HANDLE ASSEMBLY

6 00751141 1 PLUG (OPEN CENTER)

7 00751002 1 CLOSED CENTER PLUG

8 00751358 1 REPAIR KIT-SPRING RETURN TO CENTER

9 00751556 1 1 SPOOL SEAL KIT FOR ITEM #1 OR #2 (NOT

SHOWN)

10 00752057 1 NON-RELIEF VALVE PLUG (CLOSED CENTER)

SE15-4A Master Parts Book (Aug-06)

HYDRAULIC CONTROL VALVE W/MOUNTING KIT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 000999 2 ADP.PIPE,8MP-8FPX-45 DEG

2 02048800 2 REDUCER 12MP-8FP

3 1347 2 HOSE #8 - 8MP - 8MP - 60LG

4 00275400 3 Q.D, COUPLER #8

5 02960460 3 ST.ADAPTER 8MP-8MP

6 94514 5 ADAPTER, HYD, ELBOW SWIVEL

7 00380200 1 VALVE 3 SPL OPEN CTR

00759833 1 VALVE,3SPOOL CLOSED CENTER

8 00759682 1 ASSY, VALVE CONTROL SHIELD-BLK

9 8166M 1 BRACKET,VALVE MOUNTING FENDER

10 10204000 2 HHCS 3/8 NC 4 PL5

11 7336 2 SPACER, SHIELD 3-SPOOL VALVE

12 00010600 1 HEXB 3/8 NC 2 PL5

13 00011400 4 HHCS 3/8 NC 1 PL5

14 03101646 7 LOCKWASHER,3/8,MEDIUM-ZP

15 00013901 7 NUT HEX 3/8 NC PL

SE15-4A Master Parts Book (Aug-06)

HYDRAULIC SCHEMATIC SN 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00774832 1 HOSE #6 - 8MP - 8MB -204LG

2 00773043 2 HOSE #4 - 6MP - 6MP -240LG

3 00774574 2 ADPT, HYD, ELBOW SWVL w/ORFICE

4 94507 3 ADAPTER, HYD, REDUCER

5 ------------ 1 CENTER CYLINDER

6 ------------ 2 WING CYLINDER

SE15-4A Master Parts Book (Aug-06)

LEVEL ROD ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00773005A 2 CONTROL ROD, ASY, LEVEL

1 00755153 2 PIN-COTTER 3/16 X 1-1/2 PLATED

2 00770485A 1 NUT,EXTENDED ADJUSTMENT

3 00772046 1 WELDMENT LEVEL ROD ,LONG

4 00773118 1 WLDMT LEVEL ROD SHORT

5 15B1200 4 WASHER 3/4 P SAE

6 5C1490 1 HEXNUT 7/8 JAM ZP

7 651102 2 PIN-DRILLED

SE15-4A Master Parts Book (Aug-06)

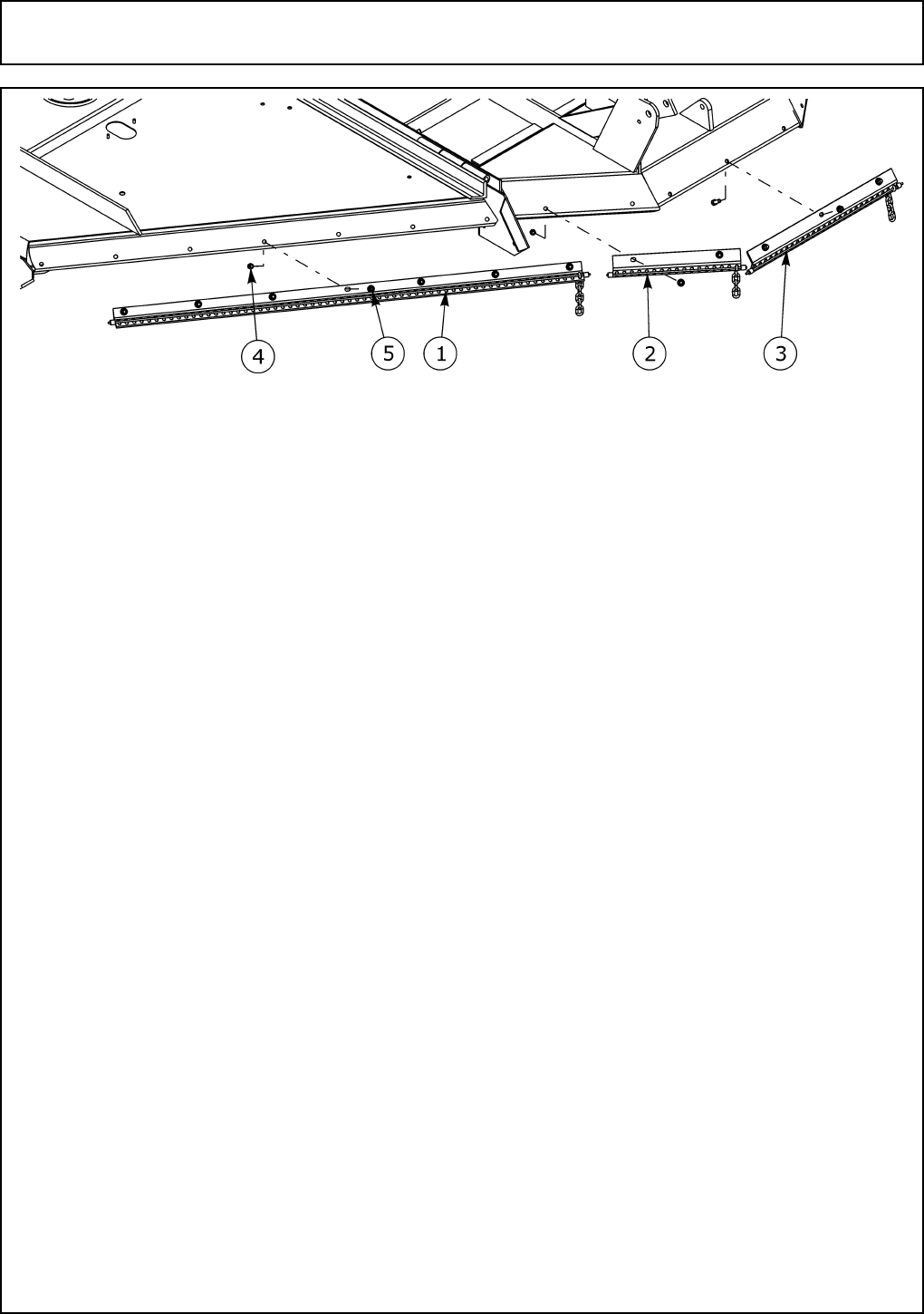

SKID SHOE ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00774704 2 RUNNER, SKID SHOE

2 2A361612 6 PLW-BLT 3/8 X 1 1/2

3 4528 6 NUT, LOCK 3/8-16 FLG WHIZ

4 00763996 1 WLDMT-SKID-RH

00764020 1 WLDMT-SKID-LH

5 02030700 4 HHCS 1/2-13UNC 1-1/4 PL5

6 02716500 4 NUT TOPLOCK 1/2 NF PLB

SE15-4A Master Parts Book (Aug-06)

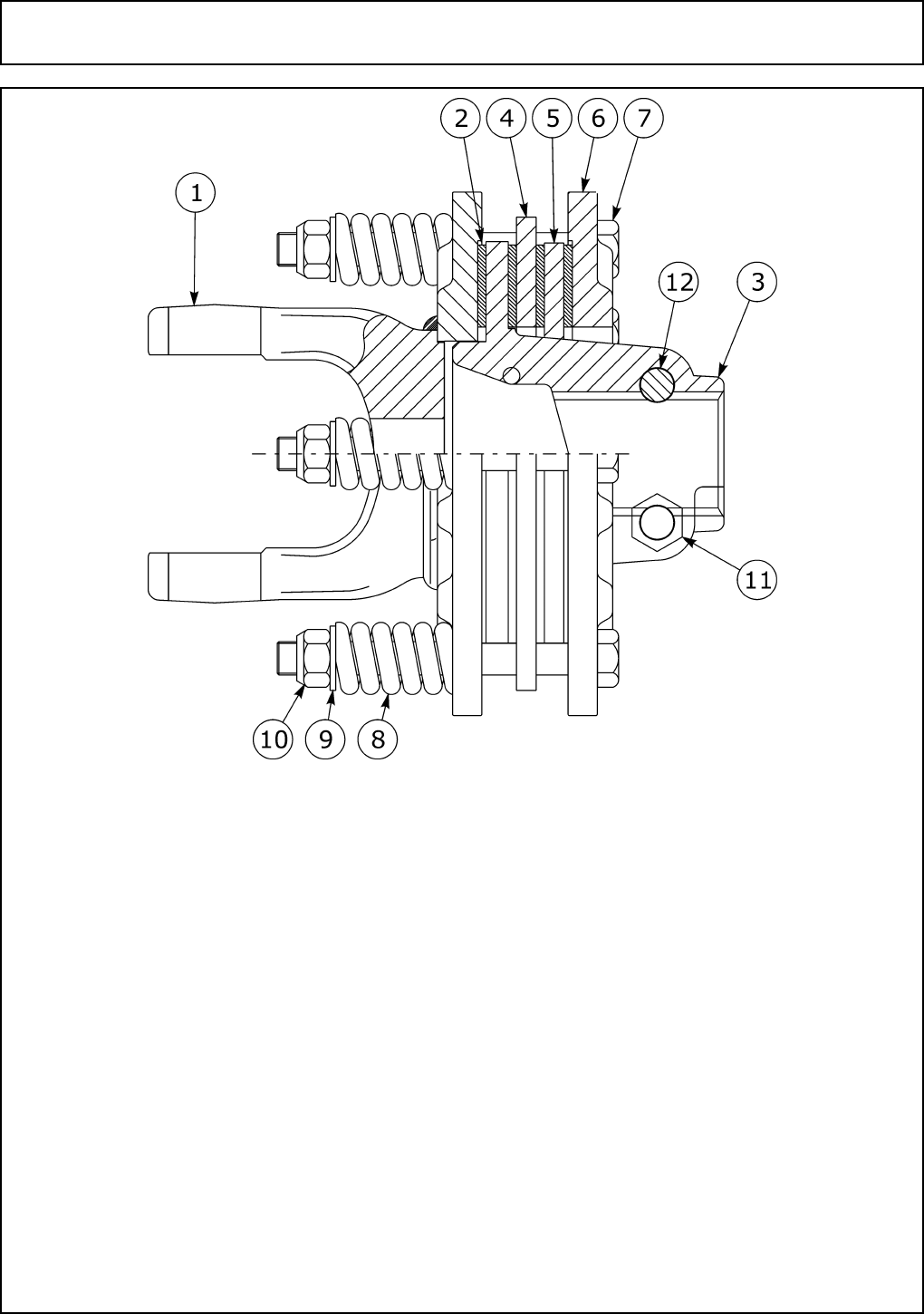

SLIPCLUTCH ASSEMBLY - INTERMEDIATE S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00775331 - CLUTCH FRICTION

1 00775333 1 FLANGE YOKE

2 8366 4 RING,CLUTCH LINING

3 00775334 1 HUB 1-3/4-20 SPLINE

4 00775335 1 DRIVE PLATE

5 00775336 1 DRIVE PLATE

6 00775337 1 THRUST PLATE

7 00775338 6 BOLT HEX M12 X P1.25 X 115M

8 00775339 6 COMPRESSION SPRING

9 00754566 6 LOCKWASHER, 12MM

10 00755881 6 NUT METRIC TLM 12MM-P1.25 PL5

11 00756164 2 NUT METRIC 12MM-P1.75 GR.8.8

12 61076C8 2 M12X1.75X65 GR.8.8 HEX CAPSCRE

SE15-4A Master Parts Book (Aug-06)

SLIPCLUTCH ASSEMBLY - WING CAT 4 S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00775315 - CLUTCH FRICTION

1 00775321 1 YOKE, FLANGE

2 8366 1 RING,CLUTCH LINING

3 00775322 1 HUB 1 3/4-20 I.C.

4 00775323 1 PLATE, THRUST

5 00775324 2 SPRING, BELLEVILLE

6 00775325 1 HEX BOLT M10 X 50

7 00775326 8 HEX LOCKNUT M10

8 00775327 2 NUT P1.75 M12

9 00775328 8 BOLT HEX M12 X 65

SE15-4A Master Parts Book (Aug-06)

SLIPCLUTCH ASSEMBLY - WING CAT 5 S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00775382 - FRICTION CLUTCH

1 00775383 1 YOKE FLANGE

2 8366 4 RING,CLUTCH LINING

3 00775334 1 HUB 1-3/4-20 SPLINE

4 00775335 1 DRIVE PLATE

5 00775336 1 DRIVE PLATE

6 00775337 1 THRUST PLATE

7 00775338 6 BOLT HEX M12 X P1.25 X 115M

8 00775339 6 COMPRESSION SPRING

9 00754566 6 LOCKWASHER, 12MM

10 00755881 6 NUT METRIC TLM 12MM-P1.25 PL5

11 00756164 2 NUT METRIC 12MM-P1.75 GR.8.8

12 61076C8 2 M12X1.75X65 GR.8.8 HEX CAPSCRE

SE15-4A Master Parts Book (Aug-06)

SMV SIGN MOUNTING S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 03200347 1 EMBLEM, SMV

2 00778530 1 SMV BRACKET MOUNT PLATE

3 00021400 2 HEXB 1/4 NC 3/4 PL5

4 02959924 2 NUT TOPLOCK 1/4 NC PLB

SE15-4A Master Parts Book (Aug-06)

TIRE OPTION S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00008700 1 WHEEL, 15 X 5.00 DC (RIM ONLY)

2 00025200 1 LAMINATED PUNCTURE-PROOF TIRE & WHEEL ASSEMBLY (21" OD) 6.00 X 9

3 00771461 1 TIRE,AIRPLANE USED

4 00749698 1 ASSY, WHL/IMPLEMENT TIRE

SE15-4A Master Parts Book (Aug-06)

TIRE OPTION - FOAM FILLED USED AIRCRAFT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00766911 - ASY,AIRCRAFT TIRE & WHEEL (CURRENT PRODUCTION)

2 00766911A - ASY, AIRCRAFT TIRE & WHEEL (OBSOLETE, NOT CURRENT PRODUCTION)

SE15-4A Master Parts Book (Aug-06)

TONGUE ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00776492 1 TONGUE WELDMENT

2 00764540A 1 WELDMENT CLEVIS

3 00755305 1 BOLT 1-8UNC-6 LG GRD 8

4 02030300 2 NUT TOPLOCK 1 NC PLB

5 02712500 1 HHCS 1 NC 4 PL8 SPECIAL

6 00759275 3 WASHER-HITCH CLEVIS

7 00760895 2 WLDMT-TONGUE PIVOT PIN

8 02030700 2 HHCS 1/2-13UNC 1-1/4 PL5

9 00001800 2 LOCKNUT TLM 1/2 NC PLB

10 00772391 1 JACK PARKING 3000LB SIDEWIND

11 00764515 1 CHAIN-SAFETY TOW-6000 LB. CAP.

12 1431565 1 IID SHAFT TRANSPORT SUPPORT

13 40010000 1 PIN COTTER 1/8 X1

14 00764537 1 WLDMT CONTROL ROD THREADED

15 00764536 1 WLDMT-CONTROL ROD, LONG

16 00037200 1 NUT TOPLOCK 3/4 NC PLC

17 03200269 1 HHCS 3/4 NC 3 PL8

18 00755153 1 PIN-COTTER 3/16 X 1-1/2 PLATED

19 00037200 1 NUT TOPLOCK 3/4 NC PLC

20 15B1200 4 WASHER 3/4 P SAE

21 651102 1 PIN-DRILLED

SE15-4A Master Parts Book (Aug-06)

WEIGHT BOX ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

00760055 - ASSY-WEIGHT BOX

1 00760056 1 WLDMT-WEIGHT BOX

2 00774704 1 RUNNER, SKID SHOE

3 2A381312 3 BOLT,PLOW 1/2 NC X 1-1/2 GR.5

4 4528 6 NUT, LOCK 3/8-16 FLG WHIZ

5 00760072 1 ASSY-CHAIN GD WT BOX

6 02030700 2 HHCS 1/2-13UNC 1-1/4 PL5

7 00002700 2 FLATWASHER 1/2 PL STD

8 00001800 2 LOCKNUT TLM 1/2 NC PLB

9 00760995 2 PLATE, COVER- WEIGHT BOX

SE15-4A Master Parts Book (Aug-06)

WHEEL HUB ASSEMBLY S/N 14812 - 16663 AUG 2002 - DEC 2004

ITEM PART NO. QTY. DESCRIPTION

00757241 - WHEEL HUB, PREASSY

1 00756489 1 HUB W/ CUPS & STUBS

2 00756528 1 WHEEL HUB ACCESS. KIT

3 00756576 1 BEARING CUP OUTSIDE

4 00750434 1 BEARING CONE INSIDE

5 00756577 1 BEARING CUP INSIDE

6 00752177 5 BOLT, STUD 1/2-20 NF X 1-7/8

7 00750614 5 NUT 1/2-20NF 90DEG.CONE LUG PL

8 00756490 1 NUT SLOTTED THIN 1 NF PLC

9 02957044 1 OIL SEAL HEAVY DUTY - TK-15

10 00756493 1 WASHER

11 00756492 1 DUST CAP

12 00026200 1 PIN-COTTER 5/32 X 1-1/2

13 00003500 1 ZERK FITTING 1/8 STRAIGHT

14 00756489 1 HUB W/ CUPS & STUBS

15 0371242102 1 BEARING CONE

Note: P/N 00756489 contains items 3, 5, 6, 13, & 14.

P/N 00756528 contains items 4, 7, 8, 9, 10, 11, 12, & 15.

SE15-4A Master Parts Book (Aug-06)

WHEEL HUB ASSEMBLY S/N 16664 - CURRENT JAN 2005 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00774821 1 SPINDLE SINGLE WHEEL

2 00756489 1 HUB W/ CUPS & STUBS

3 00756492 1 DUST CAP

4 00752177 5 BOLT, STUD 1/2-20 NF X 1-7/8

5 00778108 1 SEAL PROTECTOR

6 00756014 5 ROTOR

7 00756490 1 NUT SLOTTED THIN 1 NF PLC

8 00756493 1 WASHER

9 00026200 1 PIN-COTTER 5/32 X 1-1/2

10 00750434 1 BEARING CONE INSIDE

11 00756576 1 BEARING CUP OUTSIDE

12 0371242102 1 BEARING CONE

13 00756577 1 BEARING CUP INSIDE

14 00003500 1 ZERK FITTING 1/8 STRAIGHT

SE15-4A Master Parts Book (Aug-06)

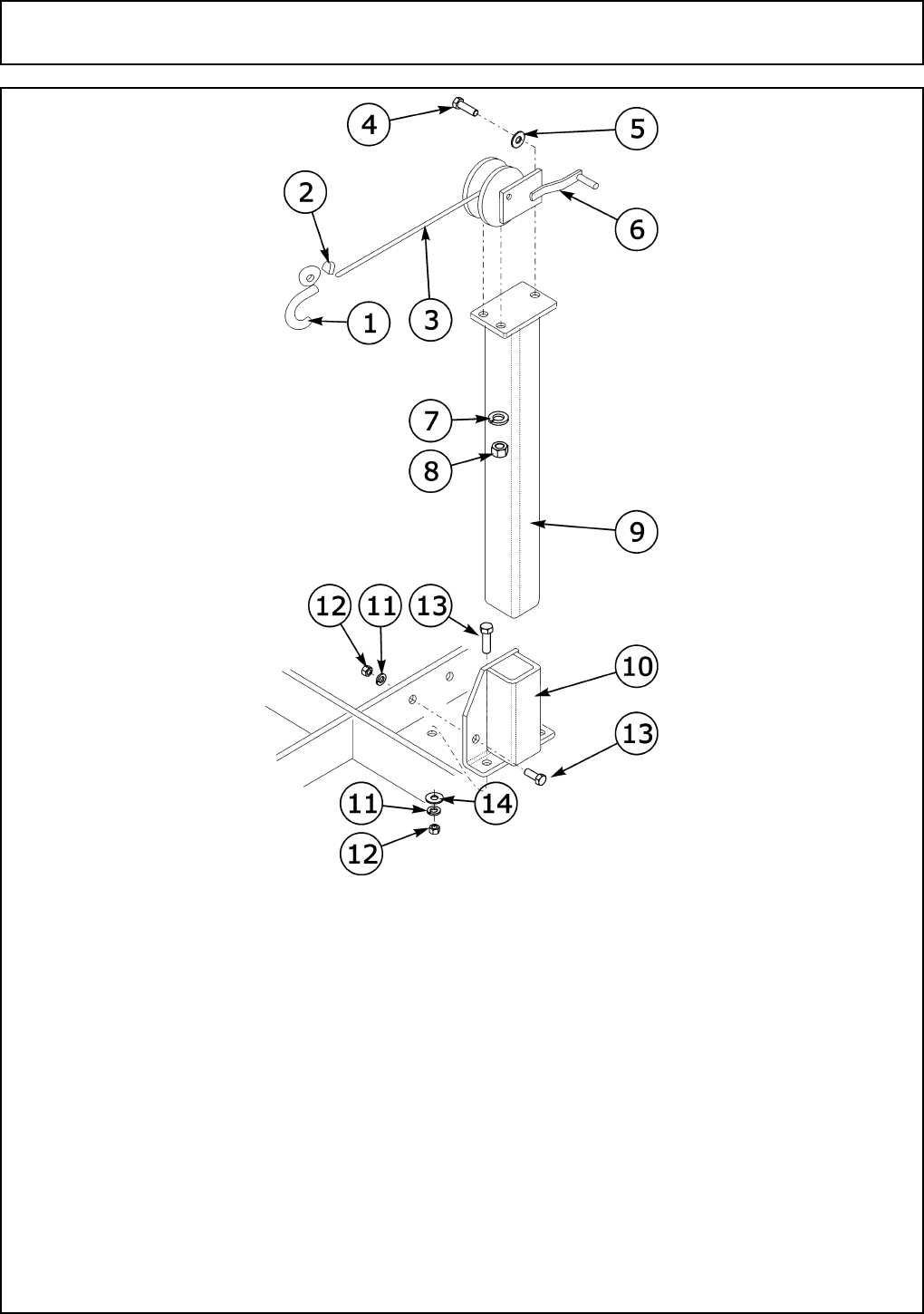

WINCH AND STAND ASSEMBLY S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 7061 1 HOOK

2 7062 1 CLIP-1/4 WIRE ROPE

3 7063 1 CABLE

4 00011400 3 HHCS 3/8 NC 1 PL5

5 00011100 3 FLATWASHER 3/8 PL STD

6 7091 1 BRAKE WINCH

7 03101646 3 LOCKWASHER,3/8,MEDIUM-ZP

8 00013901 3 NUT HEX 3/8 NC PL

9 8422 1 WINCH TUBE ASSEMBLY

10 8421 1 WINCH STAND BRACKET

11 00010300 2 LOCKWASHER 5/8 PL STD

12 00010400 2 NUT 5/8 NC HEX PL

13 02675800 2 HHCS 5/8-11UNC 1-1/2 PL5

14 00001400 2 FLATWASHER 5/8 PL STD

SE15-4A Master Parts Book (Aug-06)

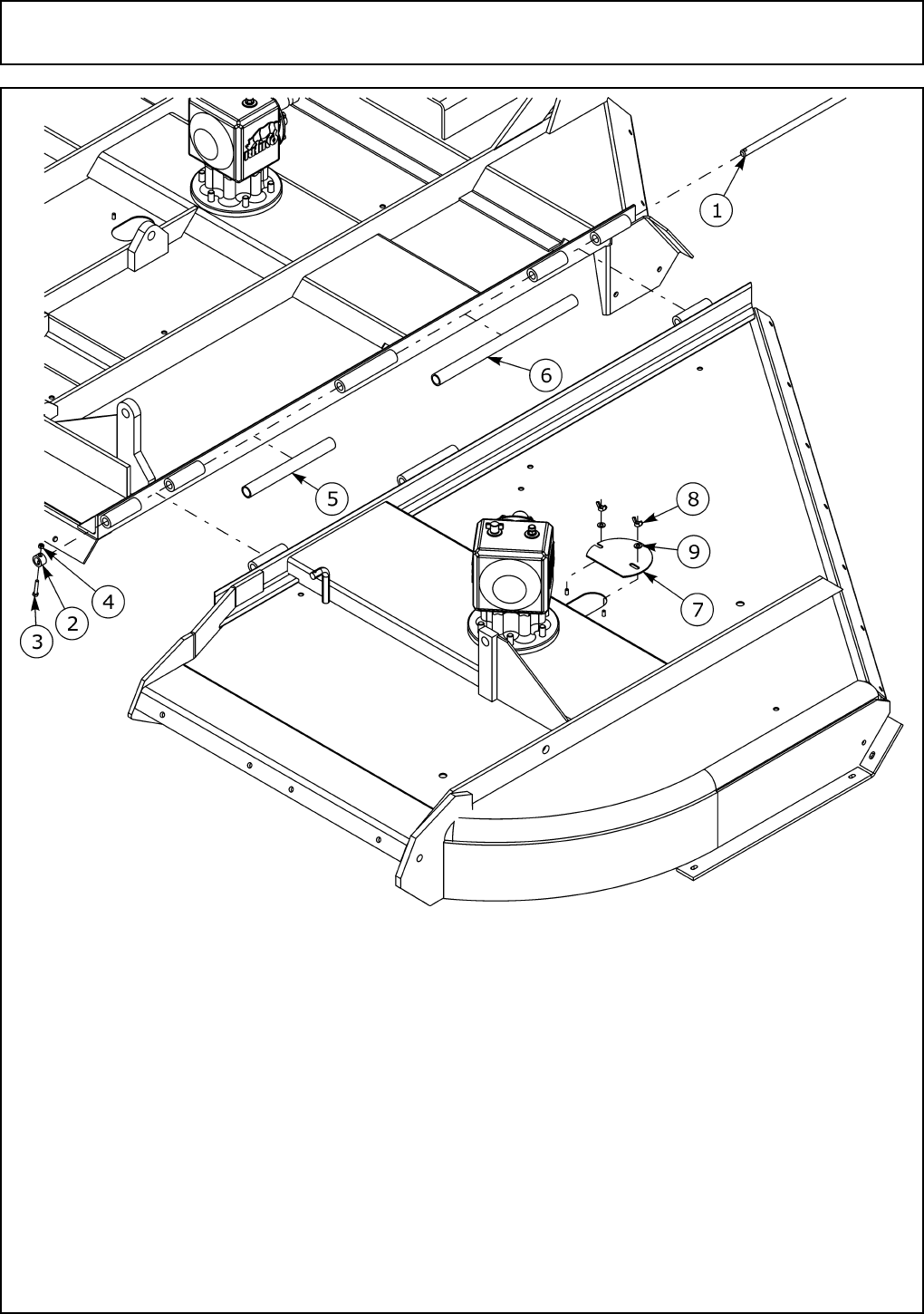

WING ATTACHMENT S/N 14812 - CURRENT AUG 2002 - CURRENT

ITEM PART NO. QTY. DESCRIPTION

1 00777185 2 HINGE ROD

2 00777186 4 HINGE ROD CAP

3 00021900 4 HEXB 5/16 NC 1-3/4 PL5

4 00750940 4 NUT TOPLOCK 5/16 NC PLB

5 0656261000 2 SPACER,SHORT HINGE

6 00774173 2 SPACER LONG HINGE

7 5710121 3 COVER PLATE

8 5F5180 6 NUT 5/16 NC WING

9 00023500 6 FLATWASHER,5/16,TYPE AW,ZP

SE15-4A Master Parts Book (Aug-06)

LIMITED WARRANTY

1. LIMITED WARRANTIES

1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal

purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”)

that the goods purchased are free from defects in material or workmanship.

1.02.Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be

defective under normal use and service due to defects in material or workmanship.

1.03.This limited warranty does not apply to any part of the goods which has been subjected to improper or abnormal use,

negligence, alteration, modification, or accident, damaged due to lack of maintenance or use of wrong fuel, oil, or

lubricants, or which has served its normal life. This limited warranty does not apply to any part of any internal

combustion engine, or expendable items such as blades, shields, guards, or pneumatic tires except as specifically found

in your Operator’s Manual.

1.04.Except as provided herein, no employee, agent, Dealer, or other person is authorized to give any warranties of any

nature on behalf of Manufacturer.

2. REMEDIES AND PROCEDURES.

2.01.This limited warranty is not effective unless the Purchaser returns the Registration and Warranty Form to Manufacturer

within 30 days of purchase.

2.02.Purchaser claims must be made in writing to the Authorized Dealer (“Dealer”) from whom Purchaser purchased the

goods or an approved Authorized Dealer (“Dealer”) within 30 days after Purchaser learns of the facts on which the

claim is based.

2.03.Purchaser is responsible for returning the goods in question to the Dealer.

2.04.If after examining the goods and/or parts in question, Manufacturer finds them to be defective under normal use and

service due to defects in material or workmanship, Manufacturer will:

(a) Repair or replace the defective goods or part(s) or

(b) Reimburse Purchaser for the cost of the part(s) and reasonable labor charges (as determined by Manufacturer)

if Purchaser paid for the repair and/or replacement prior to the final determination of applicability of the warranty

by Manufacturer.

The choice of remedy shall belong to Manufacturer.

2.05.Purchaser is responsible for any labor charges exceeding a reasonable amount as determined by Manufacturer and

for returning the goods to the Dealer, whether or not the claim is approved. Purchaser is responsible for the trans-

portation cost for the goods or part(s) from the Dealer to the designated factory.

3. LIMITATION OF LIABILITY.

3.01.MANUFACTURER DISCLAIMS ANY EXPRESS (EXCEPT AS SET FORTH HEREIN) AND IMPLIED WARRANTIES

WITH RESPECT TO THE GOODS INCLUDING, BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE.

3.02.MANUFACTURER MAKES NO WARRANTY AS TO THE DESIGN, CAPABILITY, CAPACITY, OR SUITABILITY FOR

USE OF THE GOODS.

3.03.EXCEPT AS PROVIDED HEREIN, MANUFACTURER SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO

PURCHASER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE

CAUSED OR ALLEGED TO BE CAUSED DIRECTLY OR INDIRECTLY BY THE GOODS INCLUDING, BUT NOT

LIMITED TO, ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES RESULTING FROM

THE USE OR OPERATION OF THE GOODS OR ANY BREACH OF THIS WARRANTY. NOT WITHSTANDING THE

ABOVE LIMITATIONS AND WARRANTIES, MANUFACTURER’S LIABILITY HEREUNDER FOR DAMAGES

INCURRED BY PURCHASER OR OTHERS SHALL NOT EXCEED THE PRICE OF THE GOODS.

3.04.NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS WARRANTY OR TRANSACTIONS UNDER

THIS WARRANTY MAY BE BROUGHT MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION HAS

OCCURRED.

4. MISCELLANEOUS.

4.01.Proper Venue for any lawsuits arising from or related to this limited warranty shall be only in Guadalupe County,

Texas.

4.02.Manufacturer may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall

be deemed to be a waiver of any other term.

4.03.If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the

invalidity of such provision shall not invalidate any other provisions herein.

4.04.Applicable law may provide rights and benefits to purchaser in addition to those provided herein.

KEEP FOR YOUR RECORDS

ATTENTION: Purchaser should fill in the blanks below for his reference when buying repair parts and/or for proper machine

identification when applying for warranty.

Servis-Rhino Implement Model _______________________________ Serial Number ________________________________

Date Purchased __________________________________________ Dealer ______________________________________

ATTENTION:

READ YOUR OPERATOR'S MANUAL

SERVIS-RHINO

1020 S. Sangamon Ave.

Gibson City, IL 60936

800-446-5158

Email: parts@servis-rhino.com

RHINO®

TO THE OWNER/OPERATOR/DEALER

To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and

the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily

find the information you need.

The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety

requirements of tractor operators:

REQUIRED OF THE OWNER:

1. Provide a Roll-Over-Protective Structure that meets the requirements of this Standard; and

2. Provide Seatbelts that meet the requirements of this paragraph of this Standard and SAE J4C; and

3. Ensure that each employee uses such Seatbelt while the tractor is moving; and

4. Ensure that each employee tightens the Seatbelt sufficiently to confine the employee to the protected

area provided by the ROPS.

REQUIRED OF THE OPERATOR

1. Securely fasten seatbelt if the tractor has a ROPS.

2. Where possible, avoid operating the tractor near ditches, embankments, and holes.

3. Reduce speed when turning, crossing slopes, and on rough, slick, or muddy surfaces.

4. Stay off slopes too steep for safe operation.

5. Watch where you are going - especially at row ends, on roads, and around trees.

6. Do not permit others to ride.

7. Operate the tractor smoothly - no jerky turns, starts, or stops.

8. Hitch only to the drawbar and hitch points recommended by the tractor manufacturer.

9. When the tractor is stopped, set brakes securely and use park lock, if available.

Keep children away from danger all day, every day...

Equip tractors with rollover protection (ROPS) and keep all machinery

guards in place...

Please work, drive, play and live each day with care and concern for

your safety and that of your family and fellow citizens.

Printed U.S.A.

SE10-4A/SE15-4A PL 08-06 P/N 00777391MB

Servis Rhino Lawn Mower 14812 Users Manual SE15 4A SE10 4A.p65

!! Servis-Rhino-21 Servis Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

SE10-4A to the manual 419b6a70-1218-4b78-bff2-be0d40a64ce2

Navigation menu

Versions of this User Manual:

Views

Navigation
