S3601CO N

OWNER’S GUIDE

PRO

STEAM POCKET® MOP

WWW.SHARKCLEAN.COM

S3601CO_N_11_IB_E_130304_4.indd 1 13-03-04 2:53 PM

2

TOLL FREE: 1-8 0 0 -79 8 -7398

WHEN USING YOUR SHARK®

STEAM MOP, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS

BE FOLLOWED, INCLUDING THE

FOLLOWING:

READ ALL INSTRUCTIONS

BEFORE USING YOUR STEAM

MOP.

DANGER OF SCALDING.

Please use caution when using

the steam mop. The steam emitted

from the steam mop is very hot.

POLARIZED PLUG:

This appliance has a polarized plug

(one blade is wider than the other).

As a safety feature, this plug will

fit into a polarized outlet only one

way. If the plug does not fit fully

into the outlet, reverse the plug. If it

still does not fit, contact a qualified

electrician. Do not attempt to

defeat this safety feature.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR INJURY:

1. Use the system only for its

intended use.

2. DO NOT use outdoors.

3. DO NOT leave the appliance

unattended when plugged in. Always

unplug the power cord from the

electrical outlet when not in use and

before servicing.

4. DO NOT allow to be sued as a toy.

DO NOT allow the appliance to be

used by children. Close attention

is necessary when used by or near

children, pets or plants.

5. Use only as described in this manual.

6. Use only manufacturer’s

recommended accessories.

7. DO NOT operate this appliance if

it is not working as it should, with

a damaged plug or cord, if the unit

has been dropped, damaged, left

outdoors, or dropped in water.

To avoid the risk of fire, do not

disassemble or attempt to repair the

appliance on your own. Return the

appliance to EURO-PRO Operating

LLC for examination and repair.

Incorrect re-assembly or repair can

cause a risk of electrical shock or

injury to persons when the appliance

is used.

8. To protect against a risk of electric

shock, DO NOT immerse the steam

mop into water or any other liquids.

9. DO NOT handle plug or steam mop

with wet hands or operate appliance

without shoes.

IMPORTANT SAFETY INSTRUCTIONS

For Household Use Only

S3601CO_N_11_IB_E_130304_4.indd 2 13-03-04 2:53 PM

3

www.sharkclean.com

10. DO NOT pull or carry by power cord,

use power cord as handle, close a

door on the power cord, or pull the

power cord around sharp edges or

corners. Keep power cord away from

heated surfaces.

11. DO NOT unplug by pulling on

power cord. To unplug, grasp the

plug not the power cord. Do not

use extension cords or outlets

with inadequate current carrying

capacity.

12. DO NOT put any objects into

openings. Do not use with any

opening that is blocked.

13. DO NOT put hands or feet under the

steam mop. Unit gets very hot.

14. Use ON LY on flat, horizontal

surfaces. Do not use on walls,

counters or windows.

15. DO NOT use on leather, wax polished

furniture or floors, synthetic fabrics,

velvet or other delicate, steam

sensitive materials.

16. DO NOT add cleaning solutions,

scented perfumes, oils or any other

chemicals to the water used in this

appliance as this may damage the

unit or make it unsafe for use. If

you live in a hard water area, we

recommend using distilled water in

your steam mop.

17. When in use, NEVER turn the

appliance over or on its side. NEVER

DIRECT STEAM TOWARDS PEOPLE,

ANIMALS OR PLANTS.

18. NEVER LEAVE THE STEAM MOP IN

ONE SPOT ON ANY SURFACE FOR

ANY PERIOD OF TIME WHEN THE

CLEANING PAD IS ATTACHED AS

THIS WILL DAMAGE YOUR FLOORS.

19. Carefully remove the cleaning

pad immediately after you have

unplugged and allowed the steam

mop to cool.

20. When cleaning the steam mop,

unplug the power cord from the

electrical outlet and clean with a dry

or damp cloth. Do not pour water or

use alcohol, benzene or paint thinner

on the unit.

21. Extreme caution should be exercised

when using this appliance to clean

stairs.

22. Never use steam mop without the

cleaning pad attached.

23. Keep your work area well lit.

24. Store steam mop indoors in a cool,

dry place.

25. To avoid circuit overload, do not

operate another appliance on the

same socket (circuit) as the steam

cleaner.

26. DO NOT run appliance over the

power cord. If an extension cord is

absolutely necessary, an extension

cord rated a minimum of 15 ampere,

14 gage cord should be used.

Cords rated for less amperage may

overheat. Care should be taken to

arrange cord so that it cannot be

pulled or tripped over.

27 Always unplug and allow the steam

mop to cool before removing or

changing mop heads.

WARNING: Your steam mop is

designed to clean hard floor surfaces

that will withstand high heat. Do not

use on unsealed wood or unglazed

ceramic floors. On surfaces that

have been treated with wax or some

no wax floors, the sheen may be

removed by the heat and steam

action. It is always recommended to

test an isolated area of the surface to

be cleaned before proceeding. We

also recommend that you check the

use and care instructions from the

floor manufacturer.

SAVE THESE

INSTRUCTIONS

S3601CO_N_11_IB_E_130304_4.indd 3 13-03-04 2:53 PM

TOLL FREE: 1-8 0 0 -79 8 -7398

This manual covers model number:

S3601CO N 11

TECHNICAL SPECIFICATIONS

Voltage: 120V., 60Hz.

Power: 1550 Watts

Water Capacity: 500ml (16.9 oz.)

Euro-Pro, Shark and Navigator are trademarks of Euro-Pro Operating LLC.

All other brand names may be trademarks of their respective owners.

S3601CO_N_11_IB_E_130304_4.indd 4 13-03-04 2:53 PM

1

www.sharkclean.com

Contents

Getting Started ......................................................................2

Using Your Steam Mop .......................................................5

Using Your Carpet Glider ...................................................9

Care of Your Steam Mop ....................................................10

Troubleshooting Guide .......................................................12

Warranty ...................................................................................15

Thank you for

purchasing

the Shark® Pro

Steam Pocket®

Mop.

S3601CO_N_11_IB_E_130304_4.indd 1 13-03-04 2:53 PM

2

TOLL FREE: 1-8 0 0 -79 8 -7398

Getting Started

When assembling your steam mop there

may be a little water in or around the

water tank. This is because we test all

our steam mops 100% before you buy

them, so you get a quality Shark® Pro

Steam Pocket® Mop.

h Quick Release Swivel Cord Wrap

i Cord Clips

j Water Tank Cap

k Water Tank

l ON/Standby Switch

m Mop Head Release Button

*Phillips or flat head screwdriver can be

used. Screwdriver not included.

k

l

j

a All-Purpose Mop Head (1),

XL Mop Head (1) and

Triangle Mop Head (1)

b Steam Mop Body

c Mop Handle

d Two-Sided Cleaning Pads for the

All-Purpose Mop Head (2),

XL Mop Head (1) and

Triangle Mop Head (1)

e (1) 6mm x 54mm Large Screw*

f Filling Flask

g Carpet Glider

c

a

e

d

g

b

f

m

h

i

S3601CO_N_11_IB_E_130304_4.indd 2 13-03-04 2:53 PM

3

www.sharkclean.com

IMPORTANT: First things first, always

make sure the mop is UNPLUGGED

from the wall when not in use. Never

fill the mop, attach the mop head,

change or remove the cleaning

pad when the mop is plugged into

the wall. To prolong the life of your

Shark® Pro Steam Pocket® Mop, we

recommend using distilled water.

Make sure you only add water to the

tank. Chemicals or cleaning solution

may damage the appliance and could

be unsafe for you and your family.

ASSEMBLE

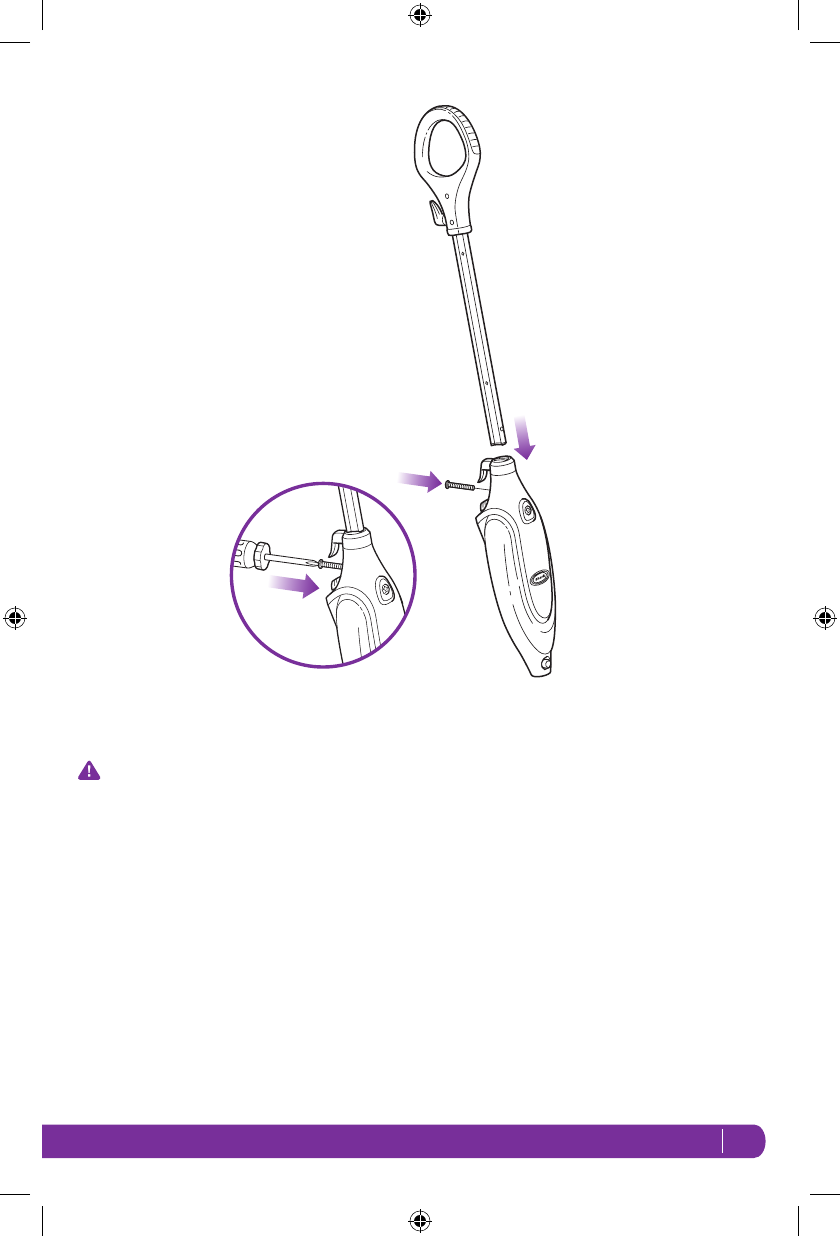

1 Insert the Mop handle end labeled

“Front” into the steam mop body.

Make sure it is inserted past the

line printed on the pole. Secure the

assembled handle and pole by using

the large screw and a Phillips or a flat

head screwdriver (screwdriver not

included). (fig. 1)

fig. 1

S3601CO_N_11_IB_E_130304_4.indd 3 13-03-04 2:53 PM

4

TOLL FREE: 1-8 0 0 -79 8 -7398

Getting Started - cont’d

IMPORTANT: Don’t use on unsealed

wood or unglazed ceramic floors.

On surfaces that have been treated

with wax or some no wax floors,

the sheen may be removed by

the heat and steam action. It is

always recommended to test an

isolated area of the surface to be

cleaned before proceeding. We

recommend that you check the use

and care instructions from the floor

manufacturer.

2 Use the lavender loop on the side of

the cleaning pad to slide mop head

into pad pocket. Then secure the

quick fasteners on the top of the

pocket to lock in place. (fig. 2)

3 Snap the mop head into the mop

body until you hear it latch into

place. (fig. 3)

4 Turn the water tank cap counter

clockwise and remove from the tank.

(fig. 4)

Use the filling flask and pour water

into the tank. Please don’t overfill.

Replace the cap on the water tank.

(fig. 5)

fig. 2

fig. 3

fig. 4

fig. 5

S3601CO_N_11_IB_E_130304_4.indd 4 13-03-04 2:53 PM

5

www.sharkclean.com

IMPORTANT: Your Steam Mop needs

water to make steam! Never use your

steam mop without water in the tank.

Sweep or vacuum your floors prior to

cleaning with your Steam Mop.

Visit www.sharkclean.com for other

great quick cleaning products to

complement your Steam Mop, such as

the Shark® Navigator (model NV350).

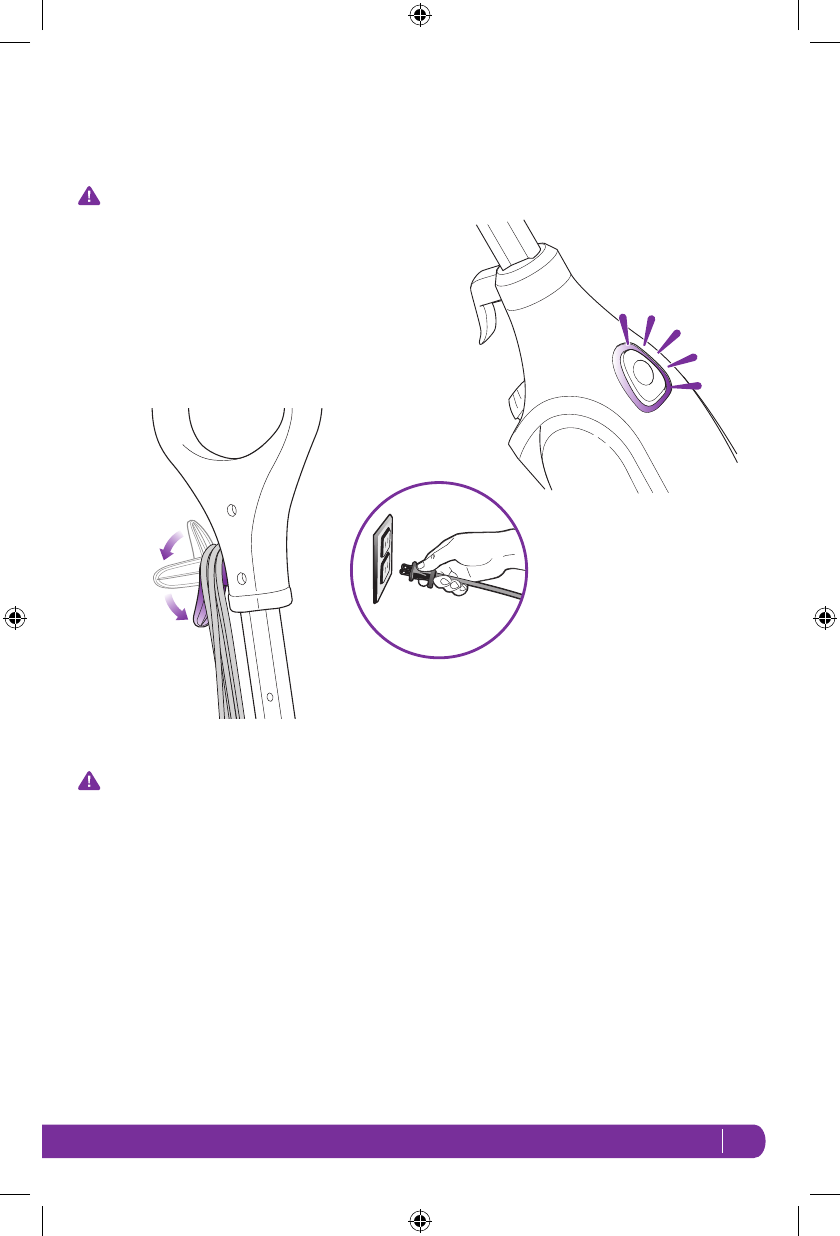

1 Pull and twist the quick release cord

holder to unwrap the power cord

completely. Plug into an electrical

outlet. (fig. 6)

2 The ON/STANDBY switch will flash

blue. If the light does not turn on,

reference the troubleshooting section

on page 12. (fig. 7)

IMPORTANT: Make sure you don’t

use the mop without attaching a

cleaning pad and adding water to the

tank first. When you are using the

mop for the first time, it might take

longer than the normal 30 seconds

to start steaming.

Using Your Steam Mop

fig. 6

fig. 7

S3601CO_N_11_IB_E_130304_4.indd 5 13-03-04 2:53 PM

6

TOLL FREE: 1-8 0 0 -79 8 -7398

Using Your Steam Mop - cont’d

fig. 8

fig. 10

fig. 9

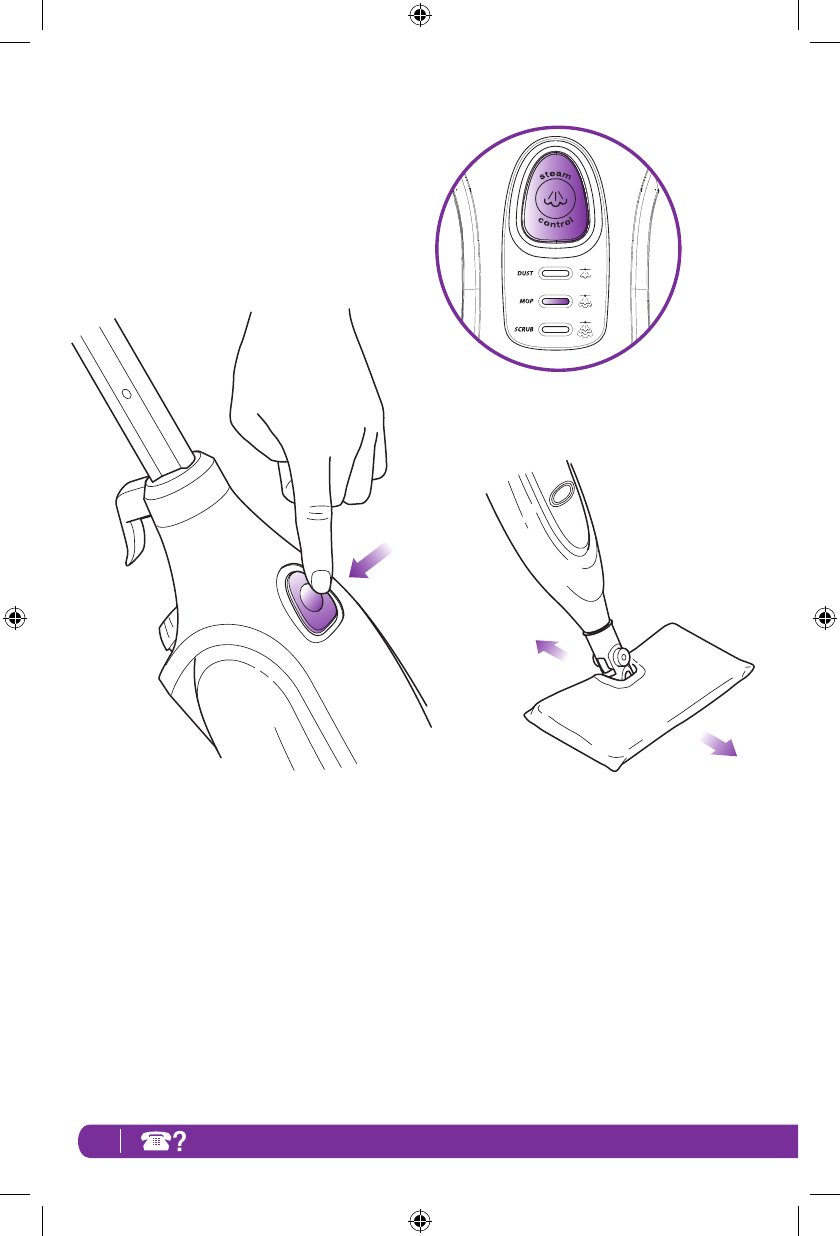

3 Press the ON/STANDBY switch once

for dust setting (DUST lighted setting

indicator will illuminate). DUST setting

is light steam for a quick dusting and

best dry time. (fig. 8)

Press the ON/STANDBY switch a

second time to activate the MOP

setting. MOP setting is for normal,

everyday steam cleaning. (fig. 9)

Press the ON/STANDBY switch a third

time to activate the SCRUB setting.

SCRUB setting is for heavy cleaning

and will leave floors damp.

To better understand which steam

setting to use for your cleaning task,

turn to page 7.

4 Clean your floors with a forward and

backward motion. (fig. 10)

Press the ON/STANDBY switch until

the light flashes to stop the steam.

S3601CO_N_11_IB_E_130304_4.indd 6 13-03-04 2:53 PM

7

www.sharkclean.com

Setting Ideal for These Surfaces Recommended Usage

Laminate

Bamboo

Hardwood

Marble

Light Cleaning and Dusting

Loosen and Lift Light Dirt

Sanitize Floors

Hardwood

Marble

Tile

Stone

Tile

Stone

Linoleum

Carpet

(with Carpet Glider)

Basic, everyday cleaning

Remove spots and smaller messes

Clean moderate and heavily-

trafficked areas

Sanitize floors

Tough cleaning and removal of

stuck-on messes and stains

Deep clean heavily-trafficked areas

Cut through heavy dirt and grime

Sanitize floors

Freshen area rugs and carpets

The Shark® Pro Steam Pocket® Mop has three unique steam settings so

you can use the perfect amount of steam for the cleaning task at hand.

See below for tips on when to use each setting.

DUST

MOP

SCRUB

S3601CO_N_11_IB_E_130304_4.indd 7 13-03-04 2:53 PM

8

TOLL FREE: 1-8 0 0 -79 8 -7398

Using Your Steam Mop - cont’d

5 When one side of the cleaning pad

gets dirty, just flip the mop head and

you can quickly start using the other

side. (fig. 11)

6 When the water tank is empty, the

steam mop will stop producing

steam. You can refill the water tank

at any time as long as the mop is

unplugged from the outlet. Follow

the instructions from page 4. This

applies to switching the mop heads

or cleaning pad as well.

NOTE: Please wait 2-3 minutes for

the Steam Mop to cool off before

removing the mop head or the

cleaning pad. Never leave the steam

mop with a damp/wet cleaning pad

on any floor.

fig. 11

S3601CO_N_11_IB_E_130304_4.indd 8 13-03-04 2:53 PM

9

www.sharkclean.com

Using Your Carpet Glider

THE CARPET GLIDER

1 The Carpet Glider can be used with

the all-purpose head to lightly steam

your carpet and area rugs. Just place

the mop head with the cleaning

pad attached on top of the glider.

The recommended steam setting is

SCRUB when using the carpet glider.

(fig. 12)

2 Move the steam mop back and

forth across a section of the carpet.

The steam mop won’t clean your

carpeting or areas rugs, but it’s great

for grooming and freshening.

(fig. 13)

fig. 12

fig. 13

The Steam Mop is great for

grooming and freshening

though it won’t clean your

carpet or area rugs.

S3601CO_N_11_IB_E_130304_4.indd 9 13-03-04 2:53 PM

10

TOLL FREE: 1-8 0 0 -79 8 -7398

2 Empty the water tank before

storage. Remove the water tank cap

and empty the tank over a sink.

Replace the water cap. (fig. 15)

3 To store the Shark® Pro Steam

Pocket® Mop hanging up, first

remove the head (after it has cooled

and the steam has been released)

then hang on a large hook. (fig. 16)

AFTER USE AND STORAGE

1 When you have finished using the

steam mop, press the ON/STANDBY

switch until the LED light turns

flashing BLUE. This stops the unit

from steaming. Unplug the cord from

the outlet and place the mop into the

upright position. Let the unit cool for

2-3 minutes.

Remove the cleaning pad by

releasing the quick fasteners and

using the lavender loop on the side

of the pocket, avoiding contact with

the hot pad or dirt. (fig. 14)

Care of Your Steam Mop

fig. 14

fig. 15

fig. 16

S3601CO_N_11_IB_E_130304_4.indd 10 13-03-04 2:53 PM

11

www.sharkclean.com

CARE OF YOUR CLEANING PAD

1 We recommend washing your

cleaning pad separately from other

fabrics to avoid picking up lint. Only

use liquid detergent (no powder

detergent). Don’t use any fabric

softeners or bleach. Line dry or dry

on a low dryer setting. (fig. 17)

2 If there are loose threads on the

cleaning pad carefully cut the thread

with scissors. Don’t pull on them or

cut at the base. (fig. 18)

DECALCIFYING YOUR STEAM MOP

Calcium and mineral deposits can

build up and impact the performance

of your steam mop over time.

To extend the life of your product

we recommend that you use

distilled water or Shark®’s

Water Filtration Bottle.

Visit www.SharkClean.com to order.

fig. 17 fig. 18

To order additional parts and

accessories, feel free to contact

us at www.SharkClean.com or

call 1-800-798-7398.

S3601CO_N_11_IB_E_130304_4.indd 11 13-03-04 2:53 PM

12

TOLL FREE: 1-8 0 0 -79 8 -7398

Troubleshooting Guide

PROBLEM POSSIBLE REASONS & SOLUTIONS

The Pro Steam

Pocket

®

Mop will not

turn-on.

Your Steam Mop should be securely plugged into an electrical

outlet only.

Check your fuse or breaker.

If your unit still does not work, call Customer Care at 1-800-798-7398.

The unit will not make

steam.

Is there water in the water tank? If not, add water to your Steam

Mop following instructions on page 4.

If the unit still doesn’t make steam, follow the decalcification

instructions on page 11.

Cannot select steam

setting/flashing blue

light remains on.

If you have already plugged in your unit, unplug and try a different

outlet. This may reset the standby mode.

Add water to the tank and press the ON/Standby button to select

a steam setting.

If your unit still does not work, call Customer Care at 1-800-798-7398.

The Pro Steam

Pocket

®

Mop leaves

water on the floor.

Check to see if your cleaning pad is soaked through. We

recommend you unplug the Steam Mop and change the cleaning

pad.

Make sure the cleaning pad is attached correctly.

The Pro Steam

Pocket

®

Mop left a

white spot on the

floor.

Do not leave your Steam Mop on the floor with a damp or wet

cleaning pad.

If you’re using tap water we recommend switching to distilled

water.

Make sure the cap is securely on the water tank.

There is a square

block in my water

tank.

Shark® provides in-tank water treatment media to help reduce

scale build-up caused by hard water. The square you are seeing

is the water treatment packet that will help minimize the build-

up and calcification to extend the life of your mop. Shark®

recommends you use distilled water to prevent hard water scaling

to ensure the longevity and durability of your mop.

Floors are cloudy,

streaky or spotty

after steaming.

The cleaning pad might be dirty. Flip or change the cleaning pad.

If you washed the cleaning pad with powder detergent, then it

may be damaged and require replacement. Replacement pads are

available at www.sharkclean.com.

You might have left the mop in the same spot for too long.

Do you have hard water? If you do, you might want to switch to

distilled water.

This might be leftover from past cleaners used on the floor

surface. Use the Steam Mop a few more times and see if the

leftover cloudiness is removed. If this does not work, we suggest

rinsing the floor with water, letting it dry, and then steam mopping

again with a clean pad. One or more rinses generally removes the

residue. A more stubborn case may require you to rinse the floor

with a mix of one part vinegar and two parts water.

The Pro Steam

Pocket

®

Mop is hard

to push.

Make sure the cleaning pad is attached correctly.

Check to see if the cleaning pad is excessively dirty. If so, replace

the cleaning pad.

S3601CO_N_11_IB_E_130304_4.indd 12 13-03-04 2:53 PM

13

www.sharkclean.com

Notes

S3601CO_N_11_IB_E_130304_4.indd 13 13-03-04 2:53 PM

14

TOLL FREE: 1-8 0 0 -79 8 -7398

Notes

S3601CO_N_11_IB_E_130304_4.indd 14 13-03-04 2:53 PM

15

www.sharkclean.com

Product Registration

Please visit www.sharkclean.com or call 1-800-798-7398 to register your new Shark®

product within ten (10) days of purchase. You will be asked to provide the store name,

date of purchase and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product

safety notification. By registering you acknowledge to have read and understood the

instructions for use, and warnings set forth in the accompanying instructions.

ONE (1) YEAR LIMITED WARRANTY

EURO-PRO Operating LLC warrants this product to be free from defects in material

and workmanship for a period of one (1) year from the date of the original purchase,

when utilized for normal household use, subject to the following conditions,

exclusions and exceptions.

If your appliance fails to operate properly while in use under normal household

conditions within the warranty period, return the complete appliance and accessories,

freight prepaid. For Customer Service support, call 1 (800) 798-7398 or visit our

website www.sharkclean.com.

If the appliance is found to be defective in material or workmanship, EURO-PRO

Operating LLC will repair or replace it free of charge. Proof of purchase date and

$ 19.95 to cover the cost of return shipping and handling must be included. *

The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair

or replacement of the unit at our option. This warranty does not cover normal wear

of parts and does not apply to any unit that has been tampered with or used for

commercial purposes. This limited warranty does not cover damage caused by

misuse, abuse, negligent handling or damage due to faulty packaging or mishandling

in transit. This warranty does not cover damage or defects caused by or resulting

from damages from shipping or repairs, service or alterations to the product or any of

its parts, which have been performed by a repair person not authorized by EURO-

PRO Operating LLC.

This warranty is extended to the original purchaser of the unit and excludes all other

legal and/or conventional warranties. The responsibility of EURO-PRO Operating LLC

warranty if any, is limited to the specific obligations expressly assumed by it under

the terms of the limited warranty. In no event is EURO-PRO Operating LLC liable

for incidental or consequential damages of any nature whatsoever. Some states/

provinces do not permit the exclusion or limitation of incidental or consequential

damages, so the above may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights

which vary from state to state or province to province.

*Important: Carefully pack item to avoid damage in shipping. Be sure to include

proof of purchase date and to attach tag to item before packing with your name,

complete address and phone number with a note giving purchase information,

model number and what you believe is the problem with the item. We recommend

you insure the package (as damage in shipping is not covered by your warranty).

Mark the outside of your package “ATTENTION CUSTOMER SERVICE”. We are

constantly striving to improve our products, therefore the specifications contained

herein are subject to change without notice.

S3601CO_N_11_IB_E_130304_4.indd 15 13-03-04 2:53 PM

U.S.: EURO-PRO Operating LLC

Newton, MA 02459

Canada: EURO-PRO Operating LLC

4400 Bois Franc

Ville St. Laurent, Québec H4S 1A7

1-800-798-7398

www.sharkclean.com

COPYRIGHT© EURO-PRO OPERATING LLC 2013

Euro-Pro, Shark and Navigator are trademarks of Euro-Pro Operating LLC.

All other brand names may be trademarks of their respective owners.

PRINTED IN CHINA

S3601CO.N.E.130304.4

Illustrations may differ from actual product.

S3601CO_N_11_IB_E_130304_4.indd 16 13-03-04 2:53 PM
