Users Manual
OVER THE RANGE
MICROWAVE OVEN
Read all instructions carefully before using the oven.
OPERATION MANUAL
MODELS
R-1600
R-1601
R-1602
TO PHONE:
DIAL 1-800-BE-SHARP (237-4277) for :
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFORMATION
DIAL 1-800-642-2122 for :
ACCESSORIES and COOKBOOK
DIAL (201)529-8703 for :
COOKING ASSISTANCE
TO WRITE:
For cooking and operation questions:
Susan Edwards/Test Kitchen
Sharp Electronics Corporation
Sharp Plaza, Box 650
Mahwah, NJ 07430-2135
For service problems, warranty information, missing items and other assistance:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive
Romeoville, IL 60446-1091
Please provide the following information when you write or call: model number, serial number, date of purchase,
your complete mailing address (including zip code), your daytime telephone number (including area code) and
description of the problem.
TO ACCESS INTERNET:
www.sharp-usa.com
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.
MODEL NUMBER ________________________ SERIAL NUMBER ______________
DATE OF PURCHASE ______________________
DEALER ____________________________ TELEPHONE ________________
SERVICER ___________________________ TELEPHONE ________________
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper with
the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
FOR CUSTOMER ASSISTANCE
1
CONTENTS
For Customer Assistance.... Inside Front Cover
Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy ............ Inside Front Cover
Contents...................................................... 1
Consumer Limited Warranty ..................... 2
Product Information Card.......................... 2
Important Safety Instructions ................... 3
Unpacking Instructions ............................. 4
Optional Accessories ................................ 4
Grounding Instructions ............................. 4
Information You Need to Know................. 5-7
About Your Oven ...................................... 5
About Food ............................................... 5
About Microwave Cooking ........................ 6
About Safety ............................................. 6
About Utensils and Coverings .................. 7
About Children and the Microwave ........... 7

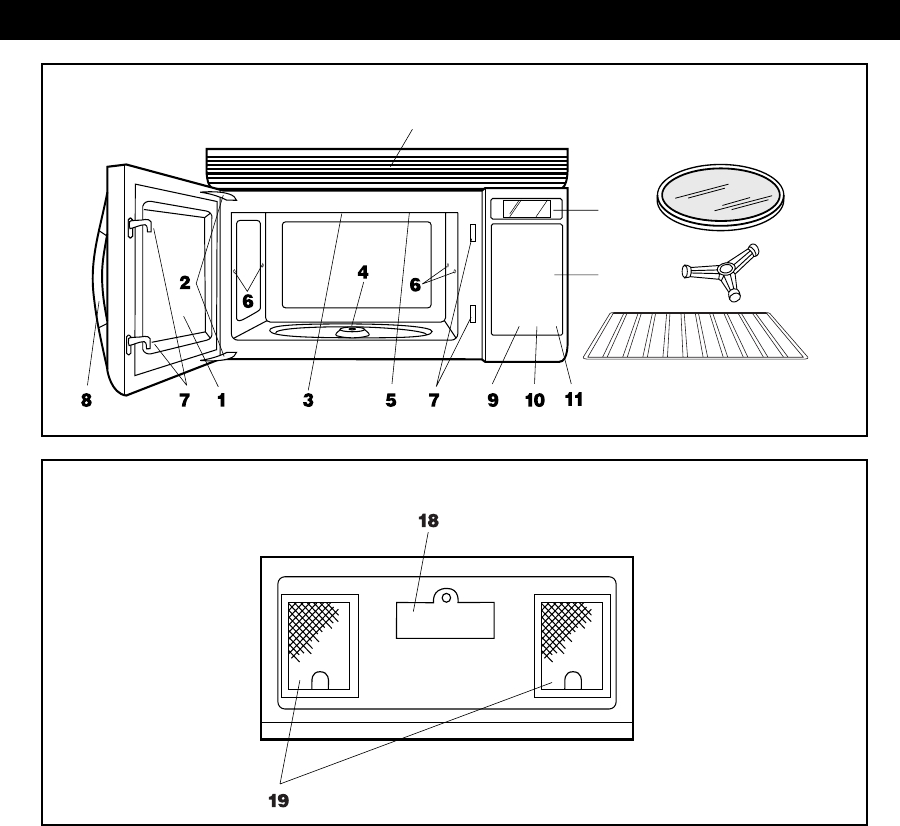

Part Names ................................................. 8

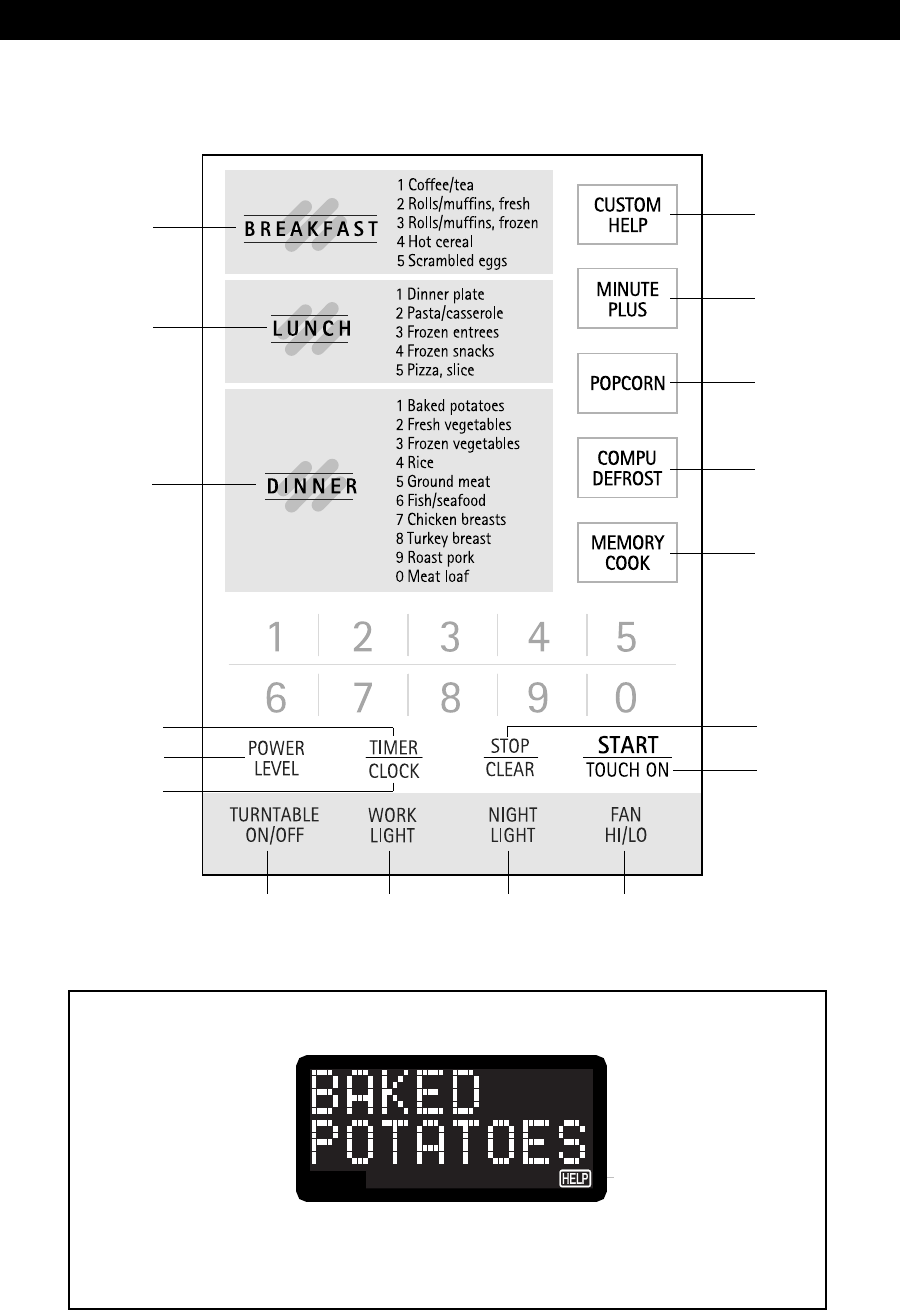

Touch-Control Panel .................................. 9
Before Operating........................................ 10
To Set the Clock ....................................... 10
Stop/Clear ................................................. 10
Manual Operation ....................................... 10-11
Time Cooking............................................ 10
To Set Power Level .................................. 10-11
Turntable On/Off ....................................... 11
Special Features......................................... 12-16
Breakfast/Lunch/Dinner ............................ 12
Breakfast Chart ......................................... 12
Lunch Chart .............................................. 13
Dinner Chart ............................................. 14
INTERACTIVE COOKING SYSTEM
The Interactive Cooking System with 2-line, 16 digit display offers step-by-step instructions for using
the oven, from setting the clock to programming each feature. It also includes Custom Help for
instructions on using Child Lock, Audible Signal Elimination and Auto Start. There is a choice of
English, Spanish or French and a choice of U.S. Customary Unit-pound or Metric-kilograms. Touch
CUSTOM HELP and follow the directions displayed or check page 18.
CompuDefrost ........................................... 15
CompuDefrost Chart ................................. 15
Manual Defrost.......................................... 16
Popcorn .................................................... 16
Other Convenient Features ....................... 17-19
Multiple Sequence Cooking ...................... 17
More or Less Time Adjustment ................. 17
Memory Cook............................................ 17
Custom Help ............................................. 18
1. Child Lock ............................................ 18
2. Audible Signal Elimination ................... 18
3. Auto Start ............................................. 18
4. & 5. Language/Weight Selection .......... 18
Kitchen Timer............................................ 18
Touch On .................................................. 19
Minute Plus ............................................... 19
Demonstration Mode ................................ 19
Help .......................................................... 19
Work Light ................................................. 19
Night Light ................................................. 19
Fan ............................................................ 19
Reheating Chart ......................................... 20
Fish and Seafood Cooking Chart ............. 20
Service Call Check ..................................... 21
THE ULTIMATE ACCESSORY ................... 21
Specifications ............................................. 22
Cookbook Order Form ............................... 22
Cleaning and Care...................................... 23
Replacing Parts .......................................... 24
Guia Auto-Touch................... Parte Interior de la
Cubierta Trasera
Auto-Touch Guide........................... Back Cover
2
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the “Product”), when shipped in its original container, will be free from defective workmanship and
materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the
period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to misuse, abnormal service or handling, or which has been altered or modified in design or
construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted
to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE
OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
above on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall
be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for
the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities
of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any
way responsible, for any damages or defects in the Product which were caused by repairs or attempted
repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way
responsible for any incidental or consequential economic or property damage. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product Model Number
& Description:
Warranty Period for
this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
R-1600, R-1601 and R-1602 Home Use Carousel Microwave Oven.
(Be sure to have this information available when you need service for
your Product.)
One (1) year parts and labor in-home service. For in-home service, the
servicer will come to the unit’s location. If it is necessary to remove
the unit for repair, the servicer will reinstall the unit at no extra charge,
provided it was installed according to Sharp’s Installation Instructions.
The warranty period continues for an additional six (6) years, for a total
of seven (7) years, with respect to the magnetron tube in the
Product for parts only. Labor and the servicer trip charge are not pro-
vided free of charge for this additional period.
Non-functional accessories, turntable and light bulbs.
From a Sharp Authorized Servicer located In the United States.
Be sure to have Proof of Purchase available. To find the location
of the nearest Sharp Authorized Servicer, call Sharp toll free at
1-800-BE-SHARP (1-800-237-4277).
PRODUCT INFORMATION CARD
The product information card which is on the inside of the microwave oven carton should be completed within
ten days of purchase and returned. We will keep it on file and help you access the information in case of
loss, damage or theft. This will also enable us to contact you in the unlikely event that any adjustments or
modifications are ever required for your oven. Save proof of purchase as it is needed should your oven ever
require warranty service.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharp-usa.com.
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
3
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific “PRECAU-
TIONS TO AVOID POSSIBLE EXPO-
SURE TO EXCESSIVE MICROWAVE
ENERGY” on inside front cover.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
“GROUNDING INSTRUCTIONS” on
page 4 and INSTALLATION INSTRUC-
TIONS.
4. Install or locate this appliance only in ac-
cordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers —for example, closed
glass jars — may explode and should not be
heated in this oven.
6. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this appli-
ance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Sharp Authorized Servicer for examination,
repair or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store or use this appliance outdoors.
Do not use this product near water—for
example, near a kitchen sink, in a wet base-
ment or near a swimming pool, and the like.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or
counter.
15. See door surface cleaning instructions on
page 23.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance if paper, plastic or other com-
bustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should
ignite, keep oven door closed, turn
oven off and disconnect the power
cord or shut off power at the fuse or
circuit breaker panel.
d. Do not use the cavity for storage pur-
poses. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
17. Clean ventilation openings and grease filters
frequently—Grease should not be allowed to
accumulate on ventilation openings, hood
(louver) or grease filters.
18. Use care when cleaning the louver and the
grease filters. Corrosive cleaning agents,
such as lye-based oven cleaners, may dam-
age the louver and the grease filters.
19. When flaming food under the hood, turn the
fan on.
20. This appliance is suitable for use above both
gas and electric cooking equipment 36"
wide or less.
4
Unpacking and Examining Your Oven
Carefully remove oven from carton. SAVE THE CARTON AS IT MAY MAKE
INSTALLATION EASIER.
Remove:
1. all packing materials from inside the oven cavity; however, DO NOT RE-
MOVE THE WAVEGUIDE COVER, which is located on the ceiling in the
oven cavity. Check to see that there are Installation Instructions, Wall Tem-
plate, Top Template and RK-230 Charcoal Filter, which is used when recir-
culating is chosen. Read enclosures and SAVE the Operation Manual.
2. the feature sticker from the outside of the door, if there is one.
Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces,
broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not
operate the oven and contact your dealer or SHARP AUTHORIZED SERVICER.
See Installation Instructions for more details.
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.
It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of
electric shock by providing an escape wire for the electric current.
WARNING – Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
Check Installation Instructions for proper location for the power supply.
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected
electrical supply. It is recommended that a separate circuit serving only the oven be
provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall
receptacle that is properly installed and grounded. DO NOT UNDER ANY CIRCUM-
STANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.
Notes: 1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or
service person.
2. Neither Sharp nor the dealer can accept any liability for damage to the oven or personal injury resulting
from failure to observe the correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave
oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check
position and signal of receiving antenna.
UNPACKING INSTRUCTIONS
GROUNDING INSTRUCTIONS
Two optional accessories are available for this oven.
1. Charcoal Filter (RK-230). The enclosed one is required when hood exhaust is recirculated. See Charcoal
Filter on page 22. To order filter replacement, if dealer does not stock this item, it can be ordered by calling
1-800-642-2122.
2. Filler Panel Kit. For use when the oven is installed in a 36-inch or 42-inch wide opening. The metal filler panels
come in pairs, each either 3 or 6 inches wide. White, almond and black are available.
To purchase contact: Modern-Aire Manufacturing Corporation
7319 Lankershim Blvd.
North Hollywood, CA 91605
Phone: (818) 765-9870 or (213) 875-1350 Fax: (818) 765-4916
OPTIONAL ACCESSORIES
5
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
This Operation Manual is valuable: read it carefully and
always save it for reference.
A good microwave cookbook is a valuable asset.
Check it for microwave cooking principles, techniques,
hints and recipes. See page 21 and 22 for ordering
the Ultimate Accessory, the SHARP CAROUSEL
MICROWAVE COOKBOOK.
NEVER use the oven without the turntable and support
nor turn the turntable over so that a large dish could be
placed in the oven. The turntable will turn both clock-
wise and counterclockwise. See page 11 for complete
instructions.
ALWAYS have food in the oven when it is on to absorb
the microwave energy.
When using the oven at power levels below 100%, you
may hear the magnetron cycling on and off. It is normal
for the exterior of the oven to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking.
Room humidity and the moisture in food will influence
the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much con-
densation as uncovered ones. Ventilation openings
must not be blocked.
The oven is for food preparation only. It should not be
used to dry clothes or newspapers.
Your oven is rated 1000 watts by using the IEC-705-
1988 method. In using recipes or package directions,
check food a minute or two before the minimum time
and add time accordingly.
Eggs, sausages,
fruits &
vegetables
Popcorn
Baby food
General
ABOUT FOOD
• Puncture egg yolks before cooking
to prevent “explosion”.
• Pierce skins of potatoes, apples,
squash, hot dogs and sausages so
that steam escapes.
• Use specially bagged popcorn for the
microwave oven.
• Listen while popping corn for the
popping to slow to 1 or 2 seconds or
use special POPCORN pad.
• Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
• Put nipples on bottles after heating
and shake thoroughly. “Wrist” test
before feeding.
• Cut baked goods with filling after
heating to release steam and avoid
burns.
• Stir liquids briskly before and after
heating to avoid “eruption”.
• Use deep bowl, when cooking liquids
or cereals, to prevent boilovers.
• Cook eggs in shells.
• Reheat whole eggs.
• Pop popcorn in regular brown bags
or glass bowls.
• Exceed maximum time on popcorn
package.
• Heat disposable bottles.
• Heat bottles with nipples on.
• Heat baby food in original jars.
• Heat or cook in closed glass jars or
air tight containers.
• Can in the microwave as harmful
bacteria may not be destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet papers.
DO DON’T
FOOD
6
ABOUT MICROWAVE COOKING
•Arrange food carefully. Place thickest areas towards
outside of dish.
•Watch cooking time. Cook for the shortest amount
of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.
•Cover foods while cooking. Check recipe or cook-
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent
spattering and help foods to cook evenly.
•Shield with small flat pieces of aluminum foil any
thin areas of meat or poultry to prevent overcooking
before dense, thick areas are cooked thoroughly.
•Stir foods from outside to center of dish once or twice
during cooking, if possible.
•Turn foods over once during microwaving to
speed cooking of such foods as chicken and ham-
burgers. Large items like roasts must be turned over
at least once.
INFORMATION YOU NEED TO KNOW
•Rearrange foods such as meatballs halfway
through cooking both from top to bottom and from
the center of the dish to the outside.
•Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which allows
the food to finish cooking without overcooking.
•Check for doneness. Look for signs indicating that
cooking temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fish is opaque and flakes easily with a fork.
•ALWAYS use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
•Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge of
a dish's covering and carefully open popcorn and
oven cooking bags away from the face.
•Stay near the oven while it's in use and check
cooking progress frequently so that there is no
chance of overcooking food.
•NEVER use the cavity for storing cookbooks or
other items.
•Select, store and handle food carefully to preserve
its high quality and minimize the spread of
foodborne bacteria.
•Keep waveguide cover clean. Food residue can
cause arcing and/or fires.
•Use care when removing items from the oven so
that the utensil, your clothes or accessories do not
touch the safety door latches.
ABOUT SAFETY
•Check foods to see that they are cooked to
the United States Department of Agriculture's
recommended temperatures.
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER
leave the thermometer in the food during cooking,
unless it is approved for microwave oven use.
... for fresh pork, ground meat,
boneless white poultry, fish,
seafood, egg dishes and frozen
prepared food.
... for leftover, ready-to-reheat
refrigerated, and deli and carry-
out “fresh” food.
... white meat of poultry.
... dark meat of poultry.
160°F
TEMP FOOD
165°F
170°F
180°F
7
INFORMATION YOU NEED TO KNOW
ABOUT UTENSILS AND COVERINGS
The following coverings are ideal:
• Paper towels are good for covering foods for re-
heating and absorbing fat while cooking bacon.
• Wax paper can be used for cooking and
reheating.
• Plastic wrap that is specially marked for micro-
wave use can be used for cooking and reheat-
ing. DO NOT allow plastic wrap to touch food.
Vent so steam can escape.
• Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten
cooking.
• Oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.
How to use aluminum foil in your microwave
oven:
• Small flat pieces of aluminum foil placed
smoothly on the food can be used to shield
areas that are either defrosting or cooking too
quickly.
• Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe
suggestions.
ACCESSORIES There are many microwave accesso-
ries available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A micro-
wave-safe thermometer will assist you in determining
correct doneness and assure you that foods have
been cooked to safe temperatures. Sharp is not
responsible for any damage to the oven when acces-
sories are used.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they
may be extra hot.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is not
a toy. See page 18 for Child Lock feature.
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used success-
fully in your new microwave oven. Make sure the
utensil does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking
and reheating:
• glass ceramic (Pyroceram®), such as
Corningware®.
• heat-resistant glass (Pyrex®)
• microwave-safe plastics
• paper plates
• microwave-safe pottery, stoneware and
porcelain
• browning dish (Do not exceed recommended
preheating time. Follow manufacturer's
directions.)
These items can be used for short time reheat-
ing of foods that have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which
becomes very hot should not be used.
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room.
The child must be able to reach the oven comfortably;
if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
8
PART NAMES
1Oven door with see-through window
2Door hinges
3Waveguide cover
DO NOT REMOVE.
4Turntable motor shaft
5Oven light
It will light when oven is operating or door is open.
6Rack holders
7Safety door latches
The oven will not operate unless the door is
securely closed.
8Handle
9Work light pad
Press the WORK LIGHT pad to turn light on or off.
10 Night light pad
Press the NIGHT LIGHT pad to turn light on or off.
This setting assures enough light to move about in
a darkened kitchen.
11 Fan pad
Press the FAN HI/LO pad to turn on the fan.
Press again for low speed. Press a third time
to turn the fan off.
12 Auto-Touch control panel
13 Time display: Digital display, 99 minutes, 99
seconds
14 Ventilation openings
15 Removable turntable
The turntable will rotate clockwise or counter-
clockwise. Only remove for cleaning.
16 Removable turntable support
First, carefully place the turntable support in
the motor shaft in the center of the oven floor.
Then, place the turntable on the turntable
support securely.
17 Rack for 2-level cooking/reheating
18 Light cover
19 Grease filters
BOTTOM VIEW
12
13
14
15
16
17
(Front of Microwave)
(Rear of Microwave)
FRONT VIEW
9
R-1600 / R-1601 / R-1602
Number next to the control panel illustration indicates page on which there are a feature
description and usage information.
TOUCH CONTROL PANEL
The two-line, Interactive Display spells out operating steps and shows cooking hints.
When HELP is lighted in the display, touch the CUSTOM HELP pad to read
a specific hint which may assist you.
Indicators
VISUAL DISPLAY
12
12, 14
10
18
19
18
19
16
15
17
10
11 24 24 19
10
DEFROST COOK
SENSOR
10
This is a 12 hour clock. If you attempt to enter an
incorrect clock time, will appear in the display.
Touch the Stop/Clear pad and re-enter the time.
•If the electrical power supply to your microwave
oven should be interrupted, the display will inter-
mittently show
SHARP SIMPLY THE BEST
. PRESS CLEAR AND PRESS CLOCK
after
the power is reinstated. If this occurs during cook-
ing, the program will be erased. The time of day will
also be erased. Simply touch STOP/CLEAR pad and
reset the clock for the correct time of day.
NOTE:
Your oven can be programmed with the
door open except for START/TOUCH ON and
MINUTE PLUS.
ERROR
•Before operating your new microwave oven make
sure you read and understand this operation
manual completely.
•Before the oven can be used, follow these
procedures:
1. Plug in the oven. Close the door. The oven display
will show
SHARP SIMPLY THE BEST PRESS
. CLEAR AND PRESS CLOCK
.
2. Touch the Stop/Clear pad.
will appear.
3. Set clock.
:
BEFORE OPERATING
Touch the Stop/Clear pad to:
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
TO SET THE CLOCK
•Suppose you want to enter the correct time of day
12:30 (A.M. or P.M.).
PROCEDURE DISPLAY
1
2
Stop/Clear
Touch TIMER/CLOCK pad.
Enter the correct time of
day by touching thenumbers in sequence.
1 3 0
TIMER
CLOCK
Press number 2.
TO SET
CLOCK
PRESS
2
2
2
12:30
MANUAL OPERATION
Your oven can be programmed for 99 minutes 99
seconds (99.99). Always enter the seconds after the
minutes, even if they are both zeros.
•Suppose you want to cook for 5 minutes at 100%.
TIME COOKING
PROCEDURE DISPLAY
1
2
Touch START/TOUCH ON pad.
Enter cooking time.
5 0 0
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time
5.00
5.00
APPROXIMATE
PERCENTAGE
OF POWER
COMMON WORDS
FOR
POWER LEVELS
TOUCH POWER
LEVEL PAD ONCE
THEN TOUCH
Power Level 100% High
9 90%
8 80%
7 70% Medium High
6 60%
5 50% Medium
4 40%
3 30% Med Low/Defrost
2 20%
1 10% Low
00%
START
TOUCH ON
COOK
3
Touch TIMER/CLOCK pad again.
TIMER
CLOCK
12:30
which is recommended for foods such as cheese, milk
and long slow cooking of meats. Consult cookbook or
recipes for specific recommendations.
11
For most cooking, the turntable should be on; however
the turntable can be turned off so that it does not rotate
when extra large dishes, such as the popular 13 x 9 x 2
glass utility casserole, are used. The casserole should
be placed on the turntable so that it is level.
•Suppose you want to cook lasagna in a 13 x 9 x 2
casserole for 45 minutes on 40% power.
TURNTABLE ON/OFF
PROCEDURE DISPLAY
1
Touch TURNTABLE ON/OFF pad and note
TURNTABLE OFF in the display.
Enter cooking time.
2
4 5 0 0
3
Touch POWER LEVEL pad.
Enter number 4 for power level.
4
4
Touch START/TOUCH ON pad.
NOTE:
The door can be opened for checking food and the turn-
table will stay in the off position. After checking, close
door and touch START/TOUCH ON.
The turntable will stay off for one minute after door is
opened when time-of-day appears in the display. It is
possible to reprogram the oven during that minute with-
out touching the TURNTABLE ON/OFF pad. The dis-
play indicates when the turntable is off.
All special features can only be used with the turntable
on. When the turntable is set in the off position, only
manual operation can be used.
When cooking large quantities of food which cannot
be stirred, it is best to use a lower power level such as
40 or 50%. You may speed cooking for large amounts
by programming 5 to 10 minutes on 100% power (HIGH)
followed by the desired time on lower power. See page
17 for how to program multiple sequences. You may
wish to reverse a large casserole once during cooking;
simply open door, reposition casserole, close door and
touch START/TOUCH ON.
The Rack allows several foods to be cooked or reheated
at one time. However, for the best cooking and reheat-
ing, use
the turntable on and the automatic features.
When using the Rack, set time and power level manu-
ally. Allow plenty of space around and between the
dishes. Pay close attention to the cooking/reheating
progress. Reposition the foods and reverse them from
rack to turntable at least once during any cooking or
reheating time. Using a lower power level will assist in
better cooking/reheating uniformity.
AVOID:
• Storing the Rack in the oven when not in use.
• Popping popcorn on the Rack
• Using any browning dish on the Rack
• Using special features with the Rack. Special fea-
tures are designed to be used with foods only on the
revolving turntable.
• Cooking directly on the Rack—use microwave safe
cookware.
PROCEDURE DISPLAY
1
3
2
Touch POWER LEVEL pad.
Enter power level.
Touch START/TOUCH ON pad.
Enter defrosting time.
3
•Suppose you want to defrost for 5 minutes at 30%.
5.00
30
PERCENT
5.00
COOK
POWER
LEVEL
TURNTABLE
ON/OFF
TURN-
TABLE
OFF
45.00
40
PERCENT
TURNTABLE OFF
POWER
LEVEL
START
TOUCH ON
45.00
TURNTABLE OFF COOK
5 0 0
MANUAL OPERATION
START
TOUCH ON
TURNTABLE OFF
12
BREAKFAST/LUNCH/ DINNER will automatically
compute the correct cooking time and microwave power
level for foods shown in the chart below.
•Suppose you want to use BREAKFAST to reheat 3
regular size fresh muffins.
BREAKFAST/LUNCH/DINNER
PROCEDURE DISPLAY
1
Touch BREAKFAST pad.
Touch number 4 for
Hot cereal.
2
NOTE:
1. BREAKFAST/LUNCH/ DINNER can be programmed
with More or Less Time Adjustment. See page 17.
More or less food than the quantity listed in the charts
should be cooked following the guidelines in any
microwave cookbook.
2. Each food has a cooking hint. Touch CUSTOM HELP
after step 2 above.
3. Should you attempt to enter more or less than the
allowed amount, an error message will appear in
the display.
2
3
Enter number.
4
Touch START/TOUCH ON pad.
After cooking, the display will
indicate
3
SPECIAL FEATURES
BREAKFAST
SELECT
FOOD
NUMBER
HEAT
FRESH
ROLLS/
MUFFINS
3 ROLLS
MUFFINS
PRESS
START
START
TOUCH ON
END
BREAKFAST CHART
FOOD AMOUNT PROCEDURE
2. Rolls/muffins, fresh
3. Rolls/muffins, frozen
4. Hot cereal
5. Scrambled eggs
Use this setting to heat COLD TAP WATER to temperature somewhat
below the boiling point. Stir liquid briskly before and after heating to avoid
“eruption”. Then add the instant coffee or tea bag. Stir again.
Use this setting to warm rolls, muffins, biscuits, bagels etc. Large items
should be considered as 2 or 3 regular size. Arrange on plate with paper
towel; cover with another towel.
Use individual packets or bulk cereal in your favorite variety: oatmeal, oat
bran, cream of wheat, farina or wheatena.
Follow package directions for the correct amount of water or milk. To pre-
vent boilovers, it is very important to choose a large container because
microwave cooking of cereal causes high boiling. Stir half way through for
3 to 4 servings if you wish. Stir after cooking.
For each egg, use 1 teaspoon of butter or margarine and 1 tablespoon of
milk. Place butter or margarine in dish, measuring cup or casserole large
enough for the egg to expand. Mix egg and milk together.
Pour onto butter or margarine in dish. Place in oven and program. When
audible signals are heard, stir egg mixture moving the cooked portion to
the center of the dish and uncooked portion to the outside. After cooking,
stir and let stand, covered, until set.
Note that eggs will be slightly undercooked when removed from the oven.
1 - 4
cups
1. Coffee/tea
1 - 8
1 - 8
1 - 6
servings
1 - 9
eggs
ENTER
NUMBER
OF ROLLS
MUFFINS
.30
13
SPECIAL FEATURES
To reheat precooked foods from the refrigerator place meaty portions and
bulky vegetables to outside of plate. Cut large items like baked potatoes in
smaller pieces. Flatten dense foods such as mashed potatoes. Cover with
wax paper or plastic wrap. ONE PLATE ONLY.
After cooking, check that food is very hot throughout and that the bottom
center of the plate is very hot. If not, continue heating using time and power
level. Allow to stand, covered, 1 to 2 minutes.
Touch LUNCH and then touch number 1 once for a regular amount of food:
approximately 4 oz sliced meat or poultry, 1/2 cup potato or rice and 1/2 cup
of vegetables or equivalent.
Touch LUNCH and then touch number 1 twice for a larger amount of food on
a dinner plate.
Touch LUNCH and then touch number 1 three times for a smaller amount of
food on a dinner plate.
Use this setting to reheat refrigerated, canned or homemade pasta with
sauce or a prepared casserole with cooked ingredients. For pasta without
sauce double the quantity per setting. For example, measure 2 cups of
cooked noodles and program for 1 cup. Cover with lid or plastic wrap. After
cooking, let stand, covered, 2 to 3 minutes.
Use this setting for frozen convenience foods. It will give satisfactory results
for most brands. You may wish to try several and choose your favorite. Re-
move package from outer wrapping and follow package directions for cover-
ing. After cooking, let stand, covered for 1 to 3 minutes.
Touch LUNCH and then touch number 3 once for packages weighing 6-8 oz.
Touch LUNCH and then touch number 3 twice for packages weighing 9-11 oz.
Touch LUNCH and then touch number 3 three times for packages weighing
12-14 oz.
Touch LUNCH and then touch number 3 four times for packages weighing
15-17 oz.
Can use frozen microwave pizza. Follow package directions for placing pizza
on special crisping susceptor.
For other snacks remove from outer package. Follow package directions for
how to wrap or cover.
Use this setting to reheat refrigerated leftover pizza 1 slice is approximately
1/8th of a 12-inch pizza or 1/12th of a 16-inch pizza. If possible, place on
paper towel on a microwave-safe rack.
LUNCH CHART
FOOD AMOUNT PROCEDURE
1. Dinner
plate
1 Regular
1 Large
1 Small
2. Pasta/
casserole
3. Frozen
entrees
4. Frozen
snacks
5. Pizza, slice
6 - 8 oz
9 - 11 oz
12 - 14 oz
15 - 17 oz
1 - 6 cups
3 - 6 oz
1 - 4
REGULAR
LARGE
SMALL
14
DINNER CHART
FOOD AMOUNT PROCEDURE
4. Rice Place rice into a deep casserole and add double quantity of water.
Cover with lid or plastic wrap. To enter amount, at Procedure 3 above,
touch 4 for 1/2 cup increments up to 2 cups. After cooking, stir, cover
and let stand 3 to 5 minutes or until all liquid has been absorbed.
Use this setting to cook ground beef or turkey as patties or in a casse-
role to be added to other ingredients. Place patties on a microwave-
safe rack and cover with wax paper. Place ground meat in a casserole
and cover with wax paper or plastic wrap. When oven stops,
is displayed. Turn patties over or stir
meat in casserole to break up large
pieces. Re-cover and touch START/TOUCH ON. After cooking, let
stand, covered, for 2 to 3 minutes.
.5 - 2.0 cups
.3 - 2.0 lb
5. Ground meat
Rice Water Size of casserole
.5 cup 1 cup 1.5 quart
1 cup 2 cups 2 quart
1.5 cups 3 cups 2.5 or 3 quart
2 cups 4 cups 3 quart or larger
SPECIAL FEATURES
Arrange in ring around shallow glass dish (roll fillet with edges under-
neath). Cover with vented plastic wrap. After cooking, let stand, cov-
ered for 3 minutes.
6. Fish/seafood .3 - 2.0 lb
Arrange boneless chicken breasts in glass dish or microwave safe
rack. Cover with vented plastic wrap. After cooking, let stand, covered,
3-5 minutes. Chicken breasts should be 160°F.
7. Chicken breasts .5 - 6.0 lb
Arrange turkey breast with bone n glass dish or microwave safe rack.
Cover with vented plastic wrap. After cooking, let stand, covered, 3-5
minutes. Turkey breast should be 170°F.
8. Turkey breast 3.0 - 6.0 lb
Boneless pork loin is recommended because it cooks evenly. Place on
a microwave-safe rack. Cover with vented plastic wrap. At signal, turn
over. Shield with small, flat pieces of aluminum foil, any areas that are
cooking too rapidly. Re-cover. After cooking, remove from oven, cover
with foil and allow to stand 10 minutes. Internal temperature should
be 160°F.
9. Roast pork 2.0 - 3.5 lb
Use your favorite recipe. Mix well and place in microwave-safe loaf
dish. Cover with wax paper or vented plastic wrap. Enter weight of
meat used in the recipe. After cooking, allow to stand, covered, for 5
minutes. Drain and serve.
0. Meat loaf 1.0 - 2.0 lb
2. Fresh vegetables
3. Frozen vegetables
Pierce. Place on paper-towel-lined turntable. After cooking, remove
from oven, wrap in aluminum foil and let stand 5 to 10 minutes.
For beans, carrots, corn and peas, add 1 tablespoon of water per
cup. For broccoli, Brussels sprouts, cabbage and cauliflower, cook
immediately after washing with no additional water. If you like tender-
crisp vegetables, double or triple measured quantity per setting. For
example, use 2 cups or 3 cups of zucchini but touch number 1 when
entering amount. After cooking, remove from oven, stir, cover and let
stand 3 to 5 minutes before serving.
Cover with lid or plastic wrap. After cooking, stir and let stand,
covered, for 3 minutes.
1 - 6 med.1. Baked potatoes
1 - 6 cups
1 - 6 cups
TURN
FOOD
OVER OR STIR
15
CompuDefrost automatically defrosts foods from the
chart below.
•Suppose you want to defrost a 2.0 pound steak.
COMPU DEFROST
PROCEDURE DISPLAY
1
Touch COMPU
DEFROST pad once,
then repeat 2 more times for Steak/chops or fish.
2
Enter weight by touching the number pads 2
and 0. (Ex: 2.0 lb steak.)
3
Touch START/TOUCH ON pad.
2 0
4
After the 1st stage, open the door. Turn steak
over and shield any warm portions.
Close the door.
After the 2nd stage, open the door. Shield any
warm portions. Close the door.
5
6
After defrost cycle ends, cover and let stand
as indicated in chart below.
NOTE:
1. CompuDefrost can be programmed with More or
Less Time Adjustment. See page 17.
2. Each food has a defrosting hint. Touch CUSTOM
HELP after step 2 above.
3. Should you attempt to enter more or less than the
allowed amount, an error message will appear in
the display.
4. To defrost other food or foods above or below the
weights allowed on the chart below, use time and
30% power. See Manual Defrost on page 16.
SPECIAL FEATURES
The oven will stop and directions will be
displayed. Follow the indicated message.
Touch START/TOUCH ON pad.
FOOD AMOUNT
COMPU DEFROST CHART
PROCEDURE
Remove any thawed pieces after each stage. Let stand, covered, for 5 to
10 minutes.
1. Ground meat .5 - 3.0 lb
After each stage, rearrange and if there are warm or thawed portions, shield
with small flat pieces of aluminum foil. Remove any meat or fish that is
almost defrosted. Let stand, covered, for 10 to 20 minutes.
2. Steak, chops
or fish .5 - 4.0 lb
After each stage, rearrange pieces or remove portions should they be-
come warm or thawed. Let stand, covered, for 10 to 20 minutes.
3. Chicken pieces .5 - 3.0 lb
After audible signal, stir if possible. At end, stir well and let stand, covered,
for 5 to 10 minutes.
5. Casserole 2 - 6 cups
Start defrosting with fat side down. After each stage, turn roast over and
shield the warm portions with aluminum foil. Let stand, covered, for 30 to
60 minutes.
4. Roast 2.0 - 4.0 lb
After audible signal, stir if possible. At end, stir well and let stand, covered,
for 5 to 10 minutes.
6. Soup 1 - 6 cups
NOTE:
Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue
thawing. Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth
strips of aluminum foil to cover edges and thinner sections of the food.
COMPU
DEFROST
STEAKS
CHOPS
OR FISH
x 2
ENTER
WEIGHT
IN
POUNDS
2.0
POUNDS
PRESS
START
START
TOUCH ON
5.40
4.30
3.00
START
TOUCH ON
START
TOUCH ON
Touch START/TOUCH ON pad.
16
SPECIAL FEATURES
MANUAL DEFROST
If the food that you wish to defrost is not listed on the
CompuDefrost Chart or is above or below the limits in
the “Amount” column on the CompuDefrost Chart, you
need to defrost manually.
You can defrost any frozen food, either raw or previ-
ously cooked, by using Power Level 3. Follow the ex-
act 3-step procedure found under Time Cooking on
page 10. Estimate defrosting time and press 3 for 30%
when you select the power level.
For either raw or previously cooked frozen food the rule
of thumb is approximately 4 minutes per pound. For
example, defrost 4 minutes for 1 pound of frozen spa-
ghetti sauce.
Always stop the oven periodically to remove or sepa-
rate the portions that are defrosted. If food is not
defrosted at the end of the estimated defrosting
time, program the oven in 1 minute increments on
Power Level 3 until totally defrosted.
When using plastic containers from the freezer, defrost
only long enough to remove from the plastic in order to
place in a microwave-safe dish.
•Suppose you want to pop a 3.5 oz bag of light
microwave popcorn.
POPCORN
x 2
NOTE:
1. To use POPCORN pad, touch within 1 minute after
cooking, opening and closing the door or touching
the STOP/CLEAR pad.
2. POPCORN can be programmed with More or Less
Time Adjustment. See page 17.
Popcorn allows you to pop several sizes of microwave
popcorn by touching the popcorn pad.
Touch POPCORN pad twice for
AMOUNT PROCEDURE
Only 1 package
at the time. Use only popcorn packaged for microwave oven use. Try several brands to decide
which you like the best. Fresh popcorn works best so purchase only the amount used
in a week or two. Do not try to pop unpopped kernels.
Touch POPCORN once Touch START/TOUCH ON pad.
Touch POPCORN twice Touch START/TOUCH ON pad.
Touch POPCORN three times Touch START/TOUCH ON pad.
Touch POPCORN four times Touch START/TOUCH ON pad.
3.5 oz bag
3.0 or 3.5 oz bag (Light)
1.75 oz bag
1.5 or 1.75 oz bag (Light)
PROCEDURE
FOR
LIGHT
REGULAR
Touch START/TOUCH ON.
FOR
REGULAR
FOR
LIGHT
REGULAR
FOR
SNACK
FOR
LIGHT
SNACK
POPCORN
17
OTHER CONVENIENT FEATURES
Your oven can be programmed for up to 4 automatic
cooking sequences, switching from one power level
setting to another automatically.
Sometimes cooking directions tell you to start on one
power level and then change to a different power
level. Your oven can do this automatically.
•Suppose you want to cook roast beef for 5 minutes
at 100% and then continue to cook for 30 minutes
at 50%.
MULTIPLE SEQUENCE
COOKING
PROCEDURE
1
Then enter second
cooking time.
Touch POWER LEVEL
and number 5 pad for
50% power.
2
First enter cooking time.
Then touch POWER
LEVEL pad twice for
100% power.
NOTE:
1. If POWER LEVEL pad is touched twice,
be displayed.
2. If 100% is selected as the final sequence, it is not
necessary to touch the POWER LEVEL pad.
3. If you wish to know power level, simply touch the
POWER LEVEL pad. As long as your finger is
touching the POWER LEVEL pad, the power level
will be displayed.
500
x 2
3000
5
Touch START/
TOUCH ON pad.
3
Should you discover that you like any of the Breakfast/
Lunch/Dinner, CompuDefrost or Popcorn settings
slightly more done, touch the Power Level pad once
after touching your choice of pads. The display will show
. Touch START/TOUCH ON pad.
MORE OR LESS TIME
ADJUSTMENT
START
TOUCH ON
POWER
LEVEL
POWER
LEVEL
HIGH
POWER
MORE PRESS
START
Should you discover that you like any of the Breakfast/
Lunch/Dinner, CompuDefrost or Popcorn settings
slightly less done, touch the Power Level pad twice
after touching your choice of pad. The display will show
. Touch START/TOUCH ON pad.
LESS PRESS
START
MEMORY COOK
TO SET MEMORY COOK
Memory Cook allows you to set 1 set of cooking in-
structions in memory for quick recall.
•Suppose you want to program into Memory Cook
your favorite cooking instructions for Nachos:
1 minute and 45 seconds at 70% power.
Enter cooking time.
PROCEDURE DISPLAY
1
2
3
4
Touch POWER LEVEL pad.
Enter number 7 for power level.
Touch MEMORY COOK pad.
TO SET
PRESS
MEMORY
COOK
1.45
ENTER COOKING
TIME
Touch MEMORY COOK pad again.
145
70
PERCENT
7
PRESS
MEMORY
COOK
The display will show.
TO SET
PROGRAM
IN
MEMORY
5
Touch MEMORY COOK pad.
1.45
Note: It is neccessary to touch MEMORY
COOK twice to enter the new program.
TO USE MEMORY COOK
•Suppose you want to cook Nachos with Memory
Cook.
PROCEDURE DISPLAY
1
Touch MEMORY
COOK pad.
70
PERCENT
1.45
PRESS
START
MEMORY
COOK
MEMORY
COOK
POWER
LEVEL
MEMORY
COOK
MEMORY
COOK
Touch START/
TOUCH ON pad.
2
START
TOUCH ON
18
CUSTOM HELP
Custom Help provides 5 features which make using
your oven easy because specific instructions are
provided in the Interactive Display.
1. CHILD LOCK
The Child Lock prevents unwanted oven operation
such as by small children. The oven can be set so
that the control panel is deactivated or locked. To
set, touch CUSTOM HELP, the number 1 and START/
TOUCH ON. Should a pad be touched,
will appear in the display.
To cancel, touch CUSTOM HELP and STOP/CLEAR.
2. AUDIBLE SIGNAL ELIMINATION
If you wish to have the oven operate with no audible
signals, touch CUSTOM HELP, the number 2 and
STOP/CLEAR.
To cancel and restore the audible signal, touch CUS-
TOM HELP, the number 2 and START/TOUCH ON.
3. AUTO START
If you wish to program your oven to begin cooking
automatically at a designated time of day, follow this
procedure:
•Suppose you want to start cooking a stew for
20 minutes on 50% at 4:30. Before setting, check
to make sure the clock is set correctly.
PROCEDURE
1
Touch the number.
2
Touch CUSTOM
HELP pad.
Enter the start time.
3
430
3
Touch TIMER/
CLOCK pad.
4
Enter cooking
program.
5
2 0 0 0
Touch START/
TOUCH ON pad.
6
NOTE:
1. Auto Start can be used for manual cooking or
Breakfast/Lunch/Dinner, Popcorn and Memory Cook,
if clock is set.
OTHER CONVENIENT FEATURES
LANGUAGE STANDARD
OF WEIGHT
NUMBER DISPLAY
Once English LB ENGLISH Lb
Twice English KG ENGLISH KG
3 times Spanish LB ESPANOL Lb
4 times Spanish KG ESPANOL KG
5 times French LB FRANC. Lb
6 times French KG FRANC. KG
2. If the oven door is opened after programming
Auto Start, it is necessary to touch the START/
TOUCH ON pad for Auto Start time to appear in the
readout so that the oven will automatically begin pro-
grammed cooking at the chosen Auto Start time.
3. Be sure to choose foods that can be left in the oven
safely until the Auto Start time.
4. If you wish to know the time of day, simply touch the
TIMER/CLOCK pad. As long as your finger is touching
the pad, the time of day will be displayed.
4. & 5. LANGUAGE / WEIGHT SELECTION
The oven comes set for English and U.S. Customary
Unit-pounds. To change, touch CUSTOM HELP and
the number 4. Continue to touch the number 4 until
your choice is selected from the table below. Then,
touch START/TOUCH ON.
Touch number 4 for language and standard of weight.
5
CHILD
LOCK
CUSTOM
HELP
TIMER
CLOCK
POWER
LEVEL
START
TOUCH ON
•Suppose you want to time a 3 minute long distance
phone call.
KITCHEN TIMER
Touch TIMER/CLOCK pad. The
Kitchen Timer will count down.
Enter time.
PROCEDURE DISPLAY
1
2
3
4
After the Kitchen Timer cycle
ends, the display will indicate
the following message.
03 0
Touch TIMER/CLOCK
pad. Press number 1.
1
TO SET KITCHEN
TIMER
PRESS 1 ENTER
TIME
3.00
TIMER
PRESS
TIMER
TIMER IS
FINISHED
TIMER
CLOCK
TIMER
CLOCK
19
OTHER CONVENIENT FEATURES
HELP
Each setting of CompuCook, CompuDefrost, Snacks
& Reheat, Breakfast and Popcorn has a cooking hint.
If you wish to check, touch CUSTOM HELP whenever
HELP is lighted in the Interactive Display.
Minute Plus allows you to cook for a minute at 100%
by simply touching the MINUTE PLUS pad. You can
also extend cooking time in multiples of 1 minute by
repeatedly touching the MINUTE PLUS pad during
manual cooking.
•Suppose you want to heat a cup of soup for one
minute.
MINUTE PLUS
PROCEDURE
Touch MINUTE PLUS pad.
NOTE:
1. To use MINUTE PLUS, touch pad within 1 minute
after cooking, closing the door, touching the STOP/
CLEAR pad or during cooking.
2. Minute Plus cannot be used with Special Features.
Touch On allows you to cook at 100% power by
touching the START/TOUCH ON continuously.
Touch On is ideal for melting cheese, bringing milk to
just below boiling etc. The maximum cooking time is
3 minutes.
•Suppose you want to melt cheese on toast.
TOUCH ON
NOTE:
1. Note time it takes for frequently used foods and
program that time in the future.
2. Touch TOUCH ON pad within 1 minute after cook-
ing, opening and closing the door or touching the
STOP/CLEAR pad.
3. TOUCH ON can only be used 3 times in a row. If
more times are needed, open and close door or touch
STOP/CLEAR.
PROCEDURE
1
When the cheese is melted to desired degree,
remove finger from START/ TOUCH ON pad.
Oven stops immediately.
2
Continuously touch START/
TOUCH ON pad. The cooking
time will begin counting up.
START
TOUCH ON
To demonstrate, touch TIMER/CLOCK, the number 0
and touch START/TOUCH ON and hold for 3 seconds.
will appear in the display. Cooking opera-
tions and specific special features can now
be demonstrated with no power in the oven. For
example, touch STOP/CLEAR and touch MINUTE
PLUS, and the display will show and count
down quickly to .
DEMONSTRATION MODE
To cancel, touch TIMER/CLOCK, then the number 0
and STOP/CLEAR. If easier, unplug the oven from the
electrical outlet and replug.
WORK LIGHT
Touch Work Light one time to turn on and again to turn
the light off.
MINUTE
PLUS
DEMO
ON
END
DEMO
ON
FAN
The fan will automatically start when heat rises from
range surface units or burners. This protects the micro-
wave oven from excessive temperature rise. The fan
will stay on until the temperature decreases. It cannot
be turned off manually during this time.
For other uses, select either HI or LO speed.
NIGHT LIGHT
xxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxx xxxxxxxxx
xxxxxxxxxxxxx xxxxxxxx
20
REHEATING CHART
FOOD STARTING
TEMPERATURE PROCEDURE
Meat
(Chicken pieces, chops,
hamburgers, meat loaf
slices)
1 serving
2 servings
Meat Slices
(Beef, ham, pork, turkey)
1 or more servings
Stirrable Casseroles and
Main Dishes
1 serving
2 servings
4-6 servings
Nonstirrable Casseroles
and Main Dishes
1 serving
2 servings
4-6 servings
Vegetables
1 serving
2 servings
Baked Potato
1
2
Pie
1 slice
2 slices
Refrigerated
Refrigerated
MICROWAVE
TIME
MED.-HIGH (70%)
1 - 2 min.
2 - 4 min.
Cover loosely with plastic wrap.
Room temp.
Refrigerated
MED. (50%)
1 - 1 3/4 min. per serving
1 1/2 - 2 1/2 min. per serving
Cover with gravy or wax paper.
Check after 30 sec. per serving.
Refrigerated
Refrigerated
Refrigerated
HIGH (100%)
1 3/4 - 3 1/2 min.
3 3/4 - 5 min.
6 1/2 - 7 1/2 min.
Cover with plastic wrap and stir
after half the time.
Refrigerated
Refrigerated
Refrigerated
MED. (50%)
4 1/2 - 7 1/2 min.
7 1/2 - 11 min.
12 - 15 min.
Cover with wax paper.
Refrigerated
Refrigerated
HIGH (100%)
3/4 - 1 1/4 min.
1 1/2 - 2 min.
Cover. Stir after half the time.
Refrigerated
Refrigerated
HIGH (100%)
1 - 2 1/2 min.
2 1/2 - 3 min.
Cut potato lengthwise and then
several times crosswise. Cover
with wax paper.
Refrigerated
Refrigerated
HIGH (100%)
30 - 45 sec.
1 - 1 1/2 min.
Place on microwave-safe dish.
Do not cover.
After reheating, food should be very hot (165°F). If possible, stir food, cover and allow to stand two to three
minutes before serving.
CUT COOKING
PREPARATION STANDING
TIME
Pie plate or casserole.
Cover with plastic wrap.
Pie plate or casserole.
Cover with plastic wrap.
Turn over halfway through
cooking time.
Pie plate or casserole.
Cover with plastic wrap.
Turn over halfway through
cooking time.
MICROWAVE
TIME
MED.-HIGH (70%)
4 - 6 min. per lb 3 min.
FISH AND SEAFOOD COOKING CHART
FILLETS
MED.-HIGH (70%)
5 - 7 min. per lb 3 min.STEAKS
MED.-HIGH (70%)
4 - 6 min. per lb 1 - 2 min.SHRIMP &
SCALLOPS
21
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute at HIGH 100%.
A
Does the oven light come on? YES _______ NO _______
B
Does the cooling fan work? YES _______ NO _______
(Put your hand on the louver above the Interactive Display.)
C
Does the turntable rotate? YES _______ NO _______
(It is normal for the turntable to turn in either direction unless
the display indicates .)
D
Is the water in the oven warm? YES _______ NO _______
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER.
A microwave oven should never be serviced by a “do-it-yourself” repair person.
NOTE:
If time appearing in the display is counting down very rapidly, check Demonstration Mode on page 19
and cancel.
SERVICE CALL CHECK
TURN-
TABLE
OFF
TO ORDER
Simply call this toll-free number : 1-800-642-2122.
Please have your credit card ready.
If you prefer to order by mail, complete and return the
order form on page 22. Please include check or money
order (payable to Sharp Accessories & Supplies
Center) for $6.00 plus $4.25 shipping & handling and
tax, if applicable, per book.
SATISFACTION GUARANTEED
You must be completely satisfied with the Sharp
Carousel Microwave Cookbook. If, within 14 days, you
are dissatisfied for any reason, simply return the book
and we'll gladly refund your $6.00 plus tax.
✪
Great recipes
✪
Reliable microwave
reference guide
✪
Many color photos
✪
Step-by-step in-
structions
✪
Nutritional
information for
each recipe
✪
Durable wipe-clean
soft cover with 128
8 1/2 x 11 pages
✪
Helpful tips and
special techniques
(SOLAMENTE ESCRITO EN INGLES!)
CAROUSEL MICROWAVE
COOKBOOK
THE ULTIMATE ACCESSORY
22
Cut along this line.
PERSONAL RECIPES AND NOTES
I have enclosed a check made payable to Sharp Accessories & Supplies Center.
Please bill my VISA MASTERCARD AMERICAN EXPRESS
Acct. No. _______________________________________ Expiration date _____ / _____
Signature_________________________________________________________________
(All credit card orders must be signed.)
Name ______________________________________________________________________________
Address ____________________________________________________________________________
City ____________________________________ State ____________ Zip ______________________
Daytime Phone No. ( ) ___________________________________________________________
Please send me ______ cookbooks at $10.25 each $ ________
Illinois sales tax, (if applicable) per book $.44 no. of books _____________ $ ________
Other tax, (if applicable) no. of books _____________ $ ________
TOTAL ORDER AMOUNT $ ________
Price is subject to change without notice.
COOKBOOK ORDER FORM
Mail to: SHARP Accessories & Supplies Center
2130 Townline Road
Peoria, Illinois 61615–1560
SPECIFICATIONS
★The International Electrotechnical Commission’s standardized method for measuring output wattage. This
test method is widely recognized.
In compliance with standards set by:
FCC – Federal Communications Commission Authorized.
DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,
Subchapter J.
– This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
AC Line Voltage:
AC Power Required:
Output Power:
Frequency:
Outside Dimensions (not including handle):
Cavity Dimensions:
Oven Capacity:
Cooking Uniformity:
Weight:
Work/Night Light:
R-1600 / R-1601 / R-1602
Single phase 120V, 60Hz, AC only
1700W 14.3 amps.
950W★(IEC-705—1988, Amendment 2-1993 Test Procedure)
2450 MHz
2915/16”(W) x 16 3/8”(H) x 151/4”(D)
201/4”(W) x 83/16”(H) x 141/2”(D)
1.4 Cu.Ft.
Turntable / Stirrer Fan System
Approx. (net) 55 lb, (gross) 60 lb
2 bulbs 30w each (incandescent light bulbs)
23
Exterior
The outside surface is precoated steel and plastic. Clean
the outside with mild soap and water; rinse and dry with
a soft cloth. Do not use any type of household or abra-
sive cleaner.
Door
Wipe the window on both sides with a damp cloth to
remove any spills or spatters. Metal parts will be easier
to maintain if wiped frequently with a damp cloth. Avoid
the use of spray and other harsh cleaners as they may
stain, streak or dull the door surface.
Touch Control Panel
Care should be taken in cleaning the touch control
panel. If the control panel becomes soiled, open the
oven door before cleaning. Wipe the panel with a cloth
dampened slightly with water only. Dry with a soft cloth.
Do not scrub or use any sort of chemical cleaners. Close
door and touch STOP/CLEAR.
Interior
Cleaning is easy because little heat is generated to the
interior surfaces; therefore, there is no baking and set-
ting of spills or spattering. To clean the interior surfaces,
wipe with a soft cloth and warm water. DO NOT USE
ABRASIVE OR HARSH CLEANERS OR SCOURING
PADS. For heavier soil, use baking soda or a mild soap;
rinse thoroughly with hot water. Rack can be cleaned
with xxxxxxxxxxxxxxxxxxxxxxxxxxx
Waveguide Cover
The waveguide cover is located on the ceiling in the
oven cavity. It is made from mica so requires special
care. Keep the waveguide cover clean to assure good
oven performance. Carefully wipe with a damp cloth
any food spatters from the surface of the cover imme-
diately after they occur. Built-up splashes may over-
heat and cause smoke or possibly catch fire. DO NOT
REMOVE THE WAVEGUIDE COVER.
Odor Removal
Occasionally, a cooking odor may remain in the oven.
To remove, combine 1 cup water, grated peel and juice
of 1 lemon and several whole cloves in a 2-cup glass
measuring cup. Boil for several minutes using 100%
power. Allow to set in oven until cool. Wipe interior with
a soft cloth.
CLEANING AND CARE
Turntable Turntable Support
Turntable/Turntable Support
The turntable and turntable support can be removed
for easy cleaning. Wash them in mild, sudsy water; for
stubborn stains use a mild cleanser and non-abrasive
scouring sponge as described above. They are also
dishwasher-proof. Use upper rack of dishwasher. The
turntable motor shaft is not sealed, so excess water or
spills should be wiped up immediately.
Grease Filters
Filters should be cleaned at least once a month. Never
operate the fan or oven without the filters in place.
1. Pull down slightly on the tab toward the front of the
oven and remove the filter. Repeat for the other filter.
2. Soak the filters in a sink or dish pan filled with
hot water and detergent. DO NOT use ammonia or
other alkali; they will react with the filter material and
darken it.
3. Agitate and scrub with a brush to remove embed-
ded dirt.
4. Rinse thoroughly and shake dry.
5. Replace by fitting the filter back into the opening.
Grease filter Tab
24
CHARCOAL FILTER
Charcoal Filter, Sharp Part number RK-230 which en-
closed with your oven is used for nonvented, recircu-
lated installation. The filter should be changed every 6
to 12 months depending on use.
1. Disconnect power to the oven at the circuit breaker
panel or by unplugging.
2. Remove the louver mounting screw from the top
center of the louver and push down carefully on the
tab at each end of the louver to disengage it. (See
illustration.)
3. Pull the louver away from the unit.
4. Change the charcoal filter.
5. Carefully push the louver back into place and re-
place the screw removed in step 2.
OVEN LIGHT
Remove the louver per instructions 1-3 above and
charcoal filter, if used.
1. Open light cover located behind filter mounting by
carefully pulling up on the front edge. Light cover Screw Light bulbs
REPLACING PARTS
WORK LIGHT AND NIGHT LIGHT
1. To replace light bulbs, first disconnect power to the
oven at the circuit breaker panel or by unplugging.
2. To release cover, remove the screw on the light cover.
(See illustration.)
3. Replace light bulbs with Sharp Part number
RLMPTA071WRE0 available from your Sharp
Authorized Servicer or parts distributor or equiva-
lent of 30 watt bulb, available at most hardware
stores or lighting centers. DO NOT USE A BULB
LARGER THAN 30 WATTS.
4. Close light cover and secure with screw removed in
step 2.
CAUTION: Light cover may become very hot. Do not
touch glass when light is on.
Oven light
Hood louver
Charcoal filter
Screw
2. Remove old light bulb and replace only with Sharp
Part number RLMPTA071WRE0 available from your
Sharp Authorized Servicer or parts distributor or
equivalent of 30 watt bulb, available at most
hardware stores or lighting centers. DO NOT USE
BULB LARGER THAN 30 WATTS.
3. Replace the oven light cover by carefully pushing
into place. Replace the charcoal filter, if used. Push
the louver back into place and replace the louver
mounting screw.
POPCORN
Toque el botón MINUTE PLUS para un minuto
al 100% de energía o para añadir un minuto
cuando cocine en el modo manual. Continúe
tocándolo para añadir más minutos.
MINUTO EXTRA
Pulse la tecla START/TOUCH ON y manténgala
presionada para cocinar a un 100% del nivel de
energia. Al retirar el dedo del botón, el horno se
detendrá instantáneamente.
COCCION MANUAL
MINUTE
PLUS
START
TOUCH ON
TO SET MEMORY COOK
1. Touch MEMORY COOK pad once and
one more time to enter cooking time.
(Ex: touch number 1, 4 and 5 for 1minute
45 seconds.)
2. Touch POWER LEVEL and number pad
for desired setting. (Ex: touch number 7
for 70%.)
3. Touch MEMORY COOK pad.
MEMORY COOK MEMORY
COOK
POWER
LEVEL
145
7
MEMORY
COOK
TO USE MEMORY COOK
1. Touch MEMORY COOK pad. The stored
settings will show on display.
2. Touch START/TOUCH ON pad.
MEMORY
COOK
START
TOUCH ON
NUMERO ALIMENTOS CANTIDAD
1. Plato principal 1 plato de comida
Reg., grande, chico
2. Pasta/casserole 1 a 6 tazas
3. Platos congelado 6 a 17 onzas
4. Refrigerios congelado 3 a 6 onzas
5. Pizza 1 a 4
TABLA LUNCH
TABLA DINNER
NUMERO ALIMENTOS CANTIDAD
1. Papas Asada 1 a 6 med.
2. Vedura fresca 1 a 6 tazas
3. Vedura congelada 1 a 6 tazas
4. Arroz ,5 a 2,0 tazas
5. Carne molida ,3 a 2,0 libras
6. Filetes/chuletas, pescado ,3 a 2,0 libras
7. Pechugas de pollo ,5 a 6,0 libras
8. Pechuga de pavo 3,0 a 6,0 libras
9. Asado 2,0 a 3,5 libras
0. Torta de carne 1,0 a 2,0 libras
COMPU DEFROST
1. Toque el botón COMPU DEFROST una
vez. Tóquelo 2 beces más para filete.
2. Toque los botones 2 y 0 .
(Ej.: filete de 2.0 libras)
3. Toque el botón START/TOUCH ON.
Cuando el microondas se para
direcciones serán enseñadas. Sigve el
mens je indicado.
COMPU DEFROST CHART
FIJACION DEL RELOJ
Si en la pantalla aparece
SHARP SIMPLY THE BEST
PRESS CLEAR AND PRESS CLOCK
pulse primero
STOP/CLEAR.
1. Pulse la tecla TIMER/CLOCK.
2. Toque el botón 2 .
2. Programar la hora correcta pulsando los
números en orden. (Ej.: 12:30)
3. Pulse nuevamente la tecla TIMER/
CLOCK.
BREAKFAST/LUNCH/DINNER
OPERACION MANUAL
1. Toque el botón BREAKFAST.
2. Toque el botón del número de la comida
deseada. (Ej.: toque el botón 2 para
panecillo fresco.)
3. Toque el botón de cantidad de piezas.
(Ej.: toque el botón 3 para tres panecillos
frescos.)
4. Toque el botón START/TOUCH ON.
TABLA COMPU DEFROST
TABLA BREAKFAST
NUMERO ALIMENTOS CANTIDAD
1. Café/té 1 a 4 tazas
2. Panecillo, freso 1 a 8
3. Panecillo, congelado 1 a 8
4. Cereal caliente 1 a 6 servidas
5. Huevos revueltos 1 a 9 huevos
NUMERO ALIMENTOS CANTIDAD
1. Carne molida .5 a 3.0 libras
2. Filetes, chuletas, pescado .5 a 4.0 libras
3. Piezas de pollo .5 a 3.0 libras
4. Asar 2.0 a 4.0 libras
5. Cacerola 2 a 6 tazas
6. Sopa 1 a 6 tazas
Para mayor informacion y precauciones de seguridad, consulte el Manual de Operaciones
GUIA AUTO-TOUCHMD
Cocinando con energia alta
1. Programe el tiempo para cocinar tocando
los botones numéricos. (ej.: 1 min. 30 seg.)
2. Pulse START/TOUCH ON.
Cocinando con energia variable
1. Después del paso 1 anterior, pulse la tecla
POWER LEVEL.
2. Escoja el nivel de energía. (ej.: 50%)
3. Pulse START/TOUCH ON.
Carousel® y Auto-Touch® son marcas registradas de Sharp Corporation.
1 2 3 0
2
TIMER
CLOCK
TIMER
CLOCK
2
3
BREAKFAST
START
TOUCH ON
5
2 0
2
START
TOUCH ON
POWER
LEVEL
START
TOUCH ON
COMPU
DEFROST
START
TOUCH ON
130
START
TOUCH ON
POPCORN
1. Toque el botón POPCORN una vez para
un pqte. normal de maíz palomero dos
veces para un pqte. normal ligero, 3 veces
para un pqte. tamaño botana y 4 veces para
uno tamaño botana ligero.
2. Toque el botón START/TOUCH ON.
Touch MINUTE PLUS for one minute at 100%
power or to add a minute during manual
cooking. Continue to touch for additional minutes.
MINUTE PLUS
Continuously touch START/TOUCH ON for
100% power cooking. Remove finger and oven
will stop instantly.
TOUCH ON
COMPU DEFROST
1. Touch COMPU DEFROST pad once.
Then touch number 2 for steak.
2. Touch number pads 2 and 0.
(Ex: 2.0 lb steak)
3. Touch START/TOUCH ON.
The oven will stop and directions will be
displayed. Follow the indicated message.
COMPU DEFROST CHART
®
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, NJ 07430-2135
TINSEB210MRR0
Printed in USA
For more complete information and safety precautions, refer to your Operation Manual.
SET CLOCK
If
SHARP SIMPLY THE BEST PRESS CLEAR AND PRESS
CLOCK
is in display, first touch STOP/CLEAR.
1. Touch TIMER/CLOCK pad.
2. Press number 2 to set the clock.
3. Enter correct time of the day by touching
numbers in sequence (Ex: 12:30)
4. Touch TIMER/CLOCK pad again.
BREAKFAST/LUNCH/DINNER
MANUAL OPERATION
AUTO-TOUCH® GUIDE
1. Touch BREAKFAST pad.
2. Touch desired food number. (Ex: touch
number 2 for Rolls/muffins, fresh.)
3. Touch number pad for quantity. (Ex: touch
number 3 for three fresh rolls.)
4. Touch START/TOUCH ON pad.
High Power Cooking
1. Enter cooking time by touching number
pads. (Ex: 1 min. 30 sec.)
2. Touch START/TOUCH ON pad.
Variable Power Cooking
1. After Step 1 above, touch
POWER LEVEL pad.
2. Select power level. (Ex: 50%)
3. Touch START/TOUCH ON pad.
COMPU DEFROST CHART
SETTING FOOD AMOUNT
1. Dinner plate 1 plate
Reg., Large, Small
2. Pasta/casserole 1 - 6 cups
3. Frozen entrees 6 - 17 oz
4. Frozen snacks 3 - 6 oz
5. Pizza, slice 1 - 4
1230
5
2
3
BREAKFAST CHART
SETTING FOOD AMOUNT
1. Coffee/tea 1 - 4 cups
2. Rolls/muffins, fresh 1 - 8
3. Rolls/muffins, frozen 1 - 8
4. Hot cereal 1 - 6 servings
5. Scrambled eggs 1 - 9 eggs
2 0
SETTING FOOD AMOUNT
1. Ground meat .5 - 3.0 lb
2. Steak, chops or fish .5 - 4.0 lb
3. Chicken pieces .5 - 3.0 lb
4. Roast 2.0 - 4.0 lb
5. Casserole 2 - 6 cups
6. Soup 1 - 6 cups
POPCORN
1. Touch POPCORN pad once for regular
size, twice for light regular size, 3 times
for snack size and 4 times for light
snack size.
2. Touch START/TOUCH ON pad.
2
2
Carousel® and Auto-Touch® are registered trademarks of Sharp Corporation.
TIMER
CLOCK
BREAKFAST
START
TOUCH ON
LUNCH CHART
DINNER CHART
SETTING FOOD AMOUNT
1. Baked potatoes 1 - 6 med.
2. Fresh vegetables 1 - 6 cups
3. Frozen vegetables 1 - 6 cups
4. Rice .5 - 2.0 cups
5. Ground meat .3 - 2.0 lb
6. Fish/seafood .3 - 2.0 lb
7. Chicken breasts .5 - 6.0 lb
8. Turkey breast 3.0 - 6.0 lb
9. Roast pork 2.0 - 3.5 lb
0. Meat loaf 1.0 - 2.0 lb
START
TOUCH ON
POPCORN
TIMER
CLOCK START
TOUCH ON
POWER
LEVEL
START
TOUCH ON
COMPU
DEFROST
START
TOUCH ON
130
MINUTE
PLUS
START
TOUCH ON
TO SET MEMORY COOK
1. Touch MEMORY COOK pad once and
one more time to enter cooking time.
(Ex: touch number 1, 4 and 5 for 1minute
45 seconds.)
2. Touch POWER LEVEL and number pad
for desired setting. (Ex: touch number 7
for 70%.)
3. Touch MEMORY COOK pad.
MEMORY COOK MEMORY
COOK
POWER
LEVEL
145
7
MEMORY
COOK
TO USE MEMORY COOK
1. Touch MEMORY COOK pad. The stored
settings will show on display.
2. Touch START/TOUCH ON pad.
MEMORY
COOK
START
TOUCH ON
