SH-01F
INSTRUCTION MANUAL
’13.ɜ (1st Edition)
13ɜ SM***ȁ
1
’13.ɜ
Introduction
Thank you for purchasing “SH-01F”.
Be sure to read this manual before and during use to ensure proper operation.
For details on other optional parts nP. 83 “Introduction of
options and related devices”
Checking operation method
Quick Start Guide (Basic package)
(in Japanese only)
This guide describes operations of basic functions.
User’s Manual (App of the handset)
(in Japanese only)
This manual describes detailed guidance and
operations of functions.
In the home screen, [R]/[Instruction Manual]
To display help: [z]/[ུͺίς͈ঀ̞̥̹] (How to
use this app)
User’s Manual (in PDF format)
This manual describes detailed guidance and
operations of functions.
Download from the DOCOMO website
(http://www.nttdocomo.co.jp/english/support/trouble/
manual/download/index.html)
ɦThe URL and contents of this manual are subject to
change without prior notice.
The screens and illustrations in this manual are shown as
examples. The actual screens and illustrations may differ.
The explanations in this manual are based on the case when
the home app is docomo LIVE UX. If you change the home
app, operation procedures etc. may be different from the
explanations of this manual.
Note that “SH-01F” is referred to as “handset” in this manual.
This manual refers to microSD Card, microSDHC Card or
microSDXC Card as “microSD Card” or “microSD”.
Reproduction of this manual in part or in whole is prohibited.
The contents of this manual are subject to change without
prior notice.
Basic package
SH-01F
(includes warranty)
Quick Start Guide
(in Japanese only)
Notes on usage
(in Japanese only)
4Contents/Precautions
Before use, read these “Precautions” carefully and use your
handset properly.
Keep this manual in a safe place for future reference.
These precautions contain information intended to prevent bodily
injury to the user and to surrounding people, as well as damage
to property, and must be observed at all times.

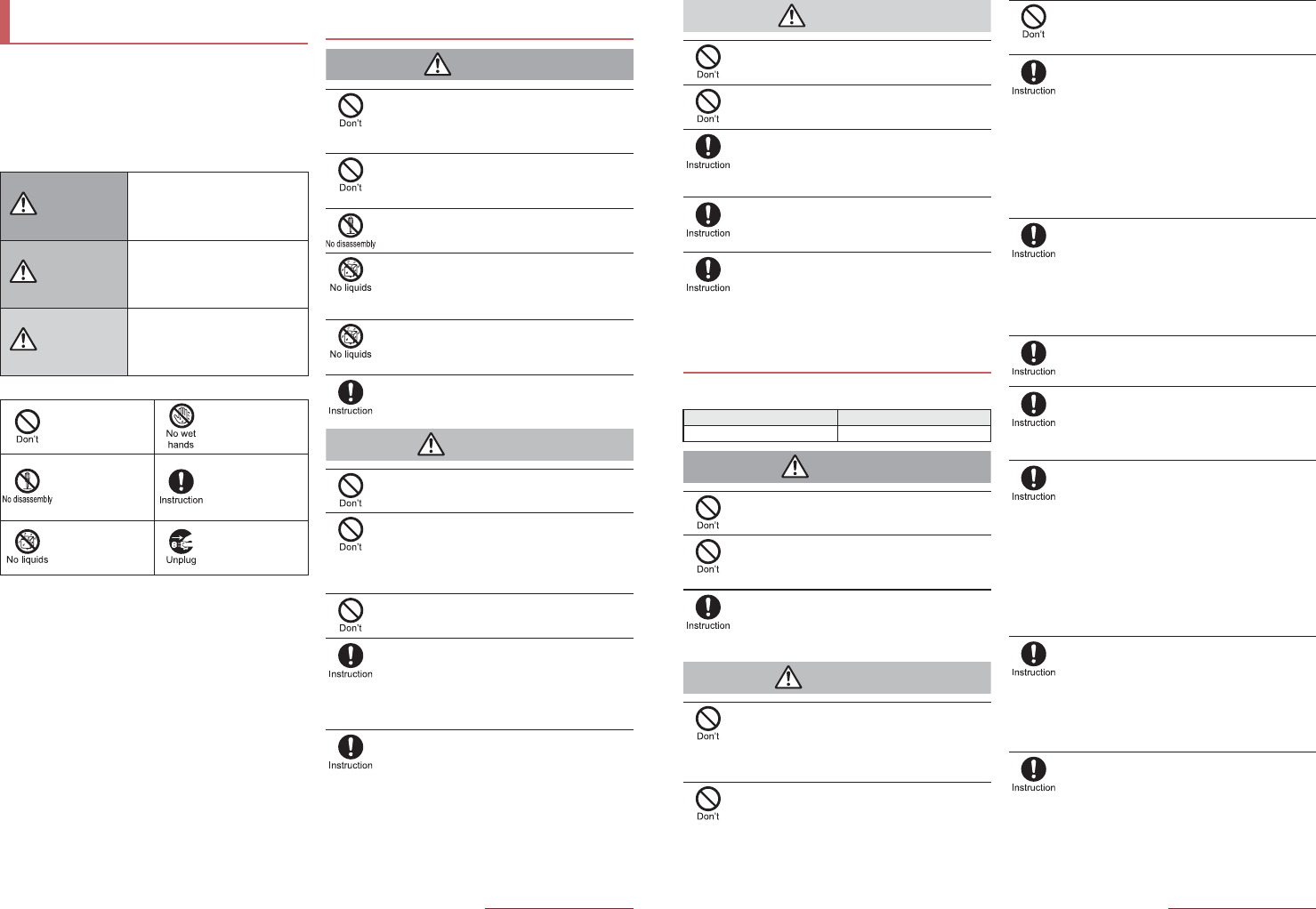

The following symbols indicate the different degrees of injury
or damage that may occur if information provided is not
observed and the handset is used improperly.
The following symbols indicate specific directions.
“Precautions” is explained in the following six sections.
Handling the handset, adapters and docomo mini UIM card
(general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4
Handling the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5
Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6
Handling docomo mini UIM card . . . . . . . . . . . . . . . . . . . . . . P. 7
Handling near electronic medical equipment . . . . . . . . . . . . P. 7
Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7
Precautions (ALWAYS FOLLOW
THESE DIRECTIONS)
Danger
This symbol indicates that
“death or serious bodily injury
may directly and immediately
result from improper use”.
Warning
This symbol indicates that
“death or serious bodily injury
may result from improper use”.
Caution
This symbol indicates that
“minor injury and/or property
damage may result from
improper use”.
Indicates a
prohibited action.
Indicates not to
handle the device
with wet hands.
Indicates not to
disassemble the
device.
Indicates that
instructions
specified are
compulsory (must
be followed).
Indicates not to use
the device near
water or get it wet.
Indicates that the
power cord must be
unplugged from the
outlet.
Handling the handset, adapters and docomo
mini UIM card (general)
Danger
Do not use, store or leave the equipment in
locations subject to high temperatures (near a fire
or heating unit, in a kotatsu, under direct sunlight,
inside a vehicle on a hot day, etc.).
May cause fires, burns or bodily injury.
Do not place the equipment inside cooking
appliances such as microwave ovens or pressure
cookers.
May cause fires, burns, bodily injury or electric shock.
Do not attempt to disassemble or modify the
equipment.
May cause fires, burns, bodily injury or electric shock.
Do not get the equipment wet with water, drinking
water, pet urine, sweat, etc.
May cause fires, burns, bodily injury or electric shock.
Refer to the following for details on waterproofness.
nP. 10 “Waterproof”
Do not allow liquids (water, drinking water, pet
urine, sweat, etc.) to get inside the charger terminal
or external connector terminal.
May cause fires, burns, bodily injury or electric shock.
Use only optional parts specified by NTT DOCOMO
for use with the handset.
May cause fires, burns, bodily injury or electric shock.
Warning
Do not subject the equipment to strong force or
impacts or throw it.
May cause fires, burns, bodily injury or electric shock.
Do not allow conductive materials (such as metal
objects and pencil lead) to come into contact with
the charger terminal, external connector terminal or
earphone/microphone terminal. In addition, do not
insert such objects.
May cause fires, burns, bodily injury or electric shock.
Do not cover or wrap the equipment with bedding
etc. when using or charging.
May cause fires or burns.
Be sure to turn off the handset and not to charge
the battery in locations such as gas stations where
flammable gas is generated.
May cause a gas explosion or fire.
To use Osaifu-Keitai in locations such as gas stations, be
sure to turn off the power in advance (If NFC/Osaifu-Keitai
lock is set, disable the lock before turning off the power).
If you notice anything unusual, such as an unusual
odor, overheating, discoloration or deformation
during use, charging or storage, immediately follow
the instructions below.
Unplug the power plug from the outlet or
cigarette lighter socket.
Turn off the handset.
May cause fires, burns, bodily injury or electric shock.
5Contents/Precautions
The following is the type of the internal battery built into the
handset.
Caution
Do not leave the equipment on unstable surfaces,
such as on a wobbly table or sloped surface.
May fall and cause injury.
Do not store the equipment in locations that are
subject to humidity, dust or high temperatures.
May cause fires, burns or electric shock.
If being used by a child, have a guardian teach him/
her the proper handling procedures. In addition,
check that the child is using the equipment as
directed.
May result in bodily injury etc.
Keep the equipment out of the reach of young
children.
A young child may swallow the equipment or suffer bodily
injury etc.
Be very careful when using the handset connected
to adapters repeatedly or for long periods of time.
The handset or adapters may become warm if you watch TV
etc. for a long time while charging.
Touching high temperature areas for a prolonged period of
time may cause skin irritations, itchiness or low-temperature
burns in some people.
Handling the handset

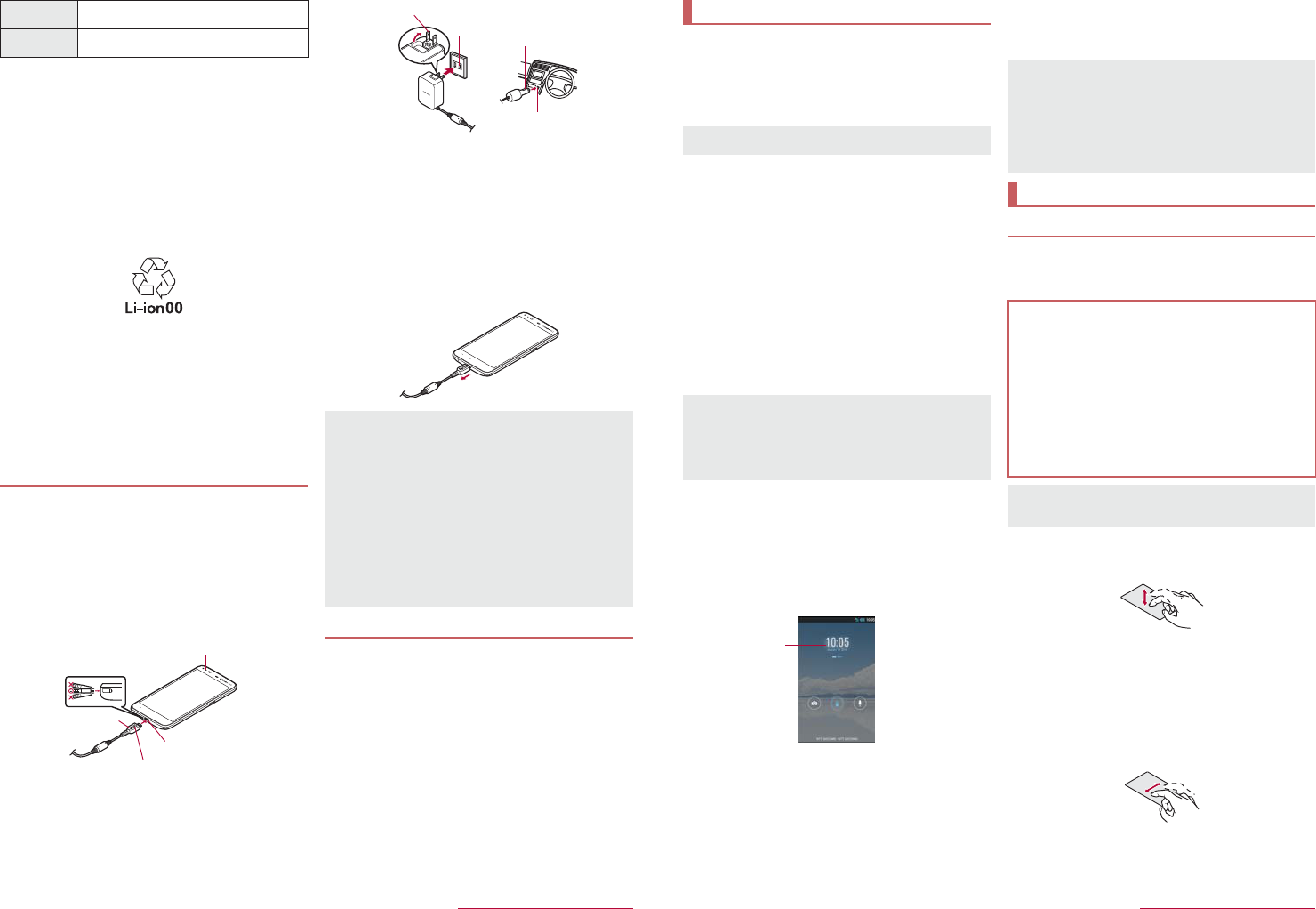

Label Battery type
Li-ion00 Lithium-ion
Danger
Do not throw the handset into a fire.
The internal battery may catch fire, explode, overheat or
leak.
Do not puncture, hit with a hammer or step on the
handset.
The internal battery may catch fire, explode, overheat or
leak.
If the battery fluid etc. comes into contact with your
eyes, do not rub your eyes but immediately rinse
your eyes with clean water. Then seek prompt
medical treatment.
May result in loss of eyesight.
Warning
Do not point the illuminated light directly at
someone’s eyes. Especially when you shoot still
pictures or videos of young children, keep 1 m or
more distance from them.
Do not use Mobile light near people’s faces. Eyesight may
be temporarily affected leading to accidents.
Do not allow water or other liquids, metal,
flammable material or other foreign objects to enter
the docomo mini UIM card slot or microSD Card
slot on the handset.
May cause fires, burns, bodily injury or electric shock.
Do not shine the light at anyone driving a car or
other vehicles.
May prevent a driver from driving safely and cause a traffic
accident.
Turn off the handset in areas where the use of
mobile phones is prohibited, such as in aircraft or
hospitals.
May interfere with the operation of electronic devices and
electronic medical equipment.
Follow the instructions given by the respective medical
facilities regarding the use of mobile phones on their
premises.
Actions such as using a mobile phone aboard aircraft are
prohibited and punishable by law.
However, follow the instructions on use of the handset given
by the airline if the handset can be used aboard aircraft by
setting the handset not to emit radio wave etc.
Keep the handset away from the ears during a call
in which hands-free is set or while the ringtone is
ringing.
When you attach the earphone/microphone etc. to
the handset to play games, music, etc., do not
make the volume too loud.
Excessively high volume may damage your hearing.
Also, it may prevent you from hearing ambient sounds and
cause an accident.
If you have a weak heart, take extra precautions
when setting functions such as the vibrator and
ringtone volume for incoming calls.
May have harmful effects on your heart.
If you are using electronic medical equipment,
contact the respective manufacturer or dealer to
check whether the operation of the equipment is
affected by signals.
May interfere with the operation of electronic medical
equipment etc.
Turn off the handset near high-precision electronic
devices or devices that use weak electronic
signals.
May interfere with the operation of electronic devices.
Take particular care with the following devices
Hearing aids, implanted cardiac pacemakers, implanted
cardioverter-defibrillators or other electronic medical
equipment. Fire alarms, automatic doors, and other
equipment controlled by electronic signals. If you use an
implanted cardiac pacemaker, implanted
cardioverter-defibrillator or other electronic medical
equipment, contact the respective manufacturer or dealer to
check whether the operation of the equipment is affected by
signals.
If the display part or camera lens is damaged, be
careful of broken glass and the exposed inside of
the handset.
Tape is pasted on the back of the display while the surface
of the display is covered by a protective film and the surface
of the camera lens is covered by a plastic panel so as to
minimize the possibility of glass scattering. However,
touching the broken or exposed parts may cause bodily
injury.
If the internal battery leaks or emits an unusual
odor, immediately stop using the handset and
move it away from any naked flames or fire.
The battery fluid is flammable and could ignite, causing a
fire or explosion.
6Contents/Precautions
Caution
Do not swing the handset by its antenna, strap, etc.
May hit you or others around you, resulting in an accident
such as bodily injury.
Do not use a damaged handset.
May cause fires, burns, bodily injury or electric shock.
For using a motion sensor and geomagnetic
sensor, check the safety around, hold the handset
and do not swing them more than necessary.
May cause injury etc.
If the display is broken and the liquid crystal then
leaks, do not get the liquid on your skin (face,
hands, etc.).
May result in loss of eyesight or harm to your skin.
If the liquid comes into contact with your eyes or mouth,
immediately rinse your eyes or mouth with clean water and
see a doctor.
If the liquid comes into contact with your skin or clothes,
immediately wipe it off with alcohol, and wash with water
and soap.
The surface of the display is covered with a
protective film for ensuring the security
(shatterproof property of reinforced glass panel)
against any damages caused by the handset being
dropped or receiving a strong impact etc. Do not
remove the film forcibly or damage it.
Using the handset with the film removed may cause bodily
injury if the display gets damaged.
Do not dispose of the handset in ordinary garbage.
May cause fires or damage to the environment. Take the
unnecessary handset to a sales outlet such as a docomo
Shop or follow the instructions by a local institution that
handles used handsets.
If you use the handset in a vehicle, contact the
vehicle manufacturer or dealer to check whether
the operation of the vehicle is affected by signals.
May interfere with the operation of electronic equipment in
some vehicle models. In this case, stop using the handset.
Use of the handset may cause skin irritations such
as itchiness, rashes or eczema in some people. If
this occurs, immediately stop using the handset
and seek medical treatment.
For details on materials of each part nP. 7 “Material list”
Look at the display in a well-lit place, keeping a
certain distance from the screen.
Otherwise, eyesight may be weakened.
If the battery fluid etc. leaks, do not get the liquid on
your skin (face, hands, etc.).
May result in loss of eyesight or harm to your skin.
If the liquid comes into contact with your eyes, mouth, skin
or clothes, immediately rinse them with clean water.
If the liquid etc. comes into contact with your eyes or mouth,
see a doctor immediately after rinsing your eyes or mouth.
Handling adapters
Warning
Do not use if the cord of the adapter is damaged.
May cause fires, burns or electric shock.
Never use the AC adapter in humid locations such
as a bathroom.
May cause fires, burns or electric shock.
The DC adapter should only be used in negative
grounded vehicles. Never use it in positive
grounded vehicles.
May cause fires, burns or electric shock.
Do not touch adapters if you hear thunder.
May cause electric shock.
Take care not to short-circuit the charger terminal
when connected to an outlet or cigarette lighter
socket. Also, take care not to allow any part of your
body (hands, fingers, etc.) to come into contact
with the charger terminal.
May cause fires, burns or electric shock.
Do not place heavy objects on the cord of the
adapter.
May cause fires, burns or electric shock.
When plugging/unplugging an AC adapter into/from
the outlet, do not allow metallic straps or other
metallic objects to come into contact with the
prongs of the plug.
May cause fires, burns or electric shock.
Do not apply excessive force on an adapter by
moving it up/down or to the left/right with the
adapter connected to the handset.
May cause fires, burns, bodily injury or electric shock.
Never try to charge the battery when the handset is
wet.
The adapter is not waterproof. May cause electric shock,
short circuit, etc. and lead to a malfunction, fires or burns.
Do not handle the cord or charger terminal of the
adapters or outlet with wet hands.
May cause fires, burns or electric shock.
Always use the specified power supply and
voltage.
When using overseas, use the AC adapter that is
available overseas.
Using the incorrect voltage may cause fires, burns or
electric shock.
AC adapter: 100V AC
DC adapter: 12/24V DC (for negative grounded vehicles
only)
AC adapter available overseas: 100 to 240V AC (Connect
only with a household AC outlet)
If the fuse in the DC adapter blows, always replace
it with a fuse of the specified type.
May cause fires, burns or electric shock. Refer to the
respective manuals for information on the correct fuse
specifications.
Wipe off any dust on the power plug.
May cause fires, burns or electric shock.
Fully plug the AC adapter into the outlet.
May cause fires, burns or electric shock.
Always grasp the adapters when unplugging the
power plug from the outlet or cigarette lighter
socket. Do not forcibly pull by the cord of the
adapter.
May cause fires, burns or electric shock.
7Contents/Precautions
Handset
SH-01F is waterproof, however, do not allow water to get
inside the handset and do not allow optional parts to get
wet.
The adapter and docomo mini UIM card are not waterproof. Do not
use in humid or steamy areas such as bathrooms and avoid exposing
to rain and other forms of moisture. If they are carried close to the
skin, perspiration may cause internal components to corrode and
result in malfunction. Note that if a problem is found to be due to
moisture, the handset and parts are not covered by warranty and in
some cases may be irreparable. Even when repairs are possible,
repair charges will be incurred, since the damage is not covered by
warranty.
Clean only with a soft and dry cloth (such as the type used
for eyeglasses).
ƦForceful rubbing of the LCD with a dry cloth may scratch its surface.
ƦNote also that LCD coating may stain if moisture or soiling is left on
the surface for a long period.
ƦNever use chemicals such as alcohol, thinners, benzene or
detergents, as these agents may erase the printing or cause
discoloration.
Occasionally clean terminals with a dry cotton swab etc.
Dirty terminals may result in poor connections and loss of power or
insufficient battery charge. Keep the terminals clean with a dry cotton
swab etc.
Be careful with the terminals while cleaning them.
Do not place the equipment near an air conditioning vent.
Condensation formed due to rapid changes in temperature may
cause internal corrosion and lead to a malfunction.
Do not apply excessive force on the handset etc. when
using it.
Carrying the handset in a tightly packed bag or sitting on the handset
in your pocket may cause damage to the display, internal
components, etc. or result in a malfunction.
When plugging/unplugging an adapter into/from
the handset, plug/unplug the adapter horizontally
and straightly, not applying excessive force on it.
May cause fires, burns, bodily injury or electric shock.
Unplug the power plug from the outlet or cigarette
lighter socket when not using for a long time.
May cause fires, burns or electric shock.
Should water or other liquids enter the equipment,
remove the power plug from the outlet or cigarette
lighter socket immediately.
May cause fires, burns or electric shock.
Always unplug the power plug from the outlet or
cigarette lighter socket before cleaning the
equipment.
May cause fires, burns or electric shock.
Handling docomo mini UIM card
Caution
Be careful with the cutting surface when removing
the docomo mini UIM card.
May cause bodily injury.
Handling near electronic medical equipment
Warning
If you have electronic medical equipment such as
an implanted cardiac pacemaker or an implanted
cardioverter-defibrillator, always carry or use your
handset at least 15 cm away from your implant.
Electromagnetic signals may have harmful effects on the
operation of the electronic medical equipment.
Patients receiving medical treatment away from a
hospital or medical facility (e.g. home treatment)
who are using electronic medical equipment other
than implanted cardiac pacemakers or implanted
cardioverter-defibrillators should consult the
respective manufacturers for information regarding
the effects of signals on the equipment.
Electromagnetic signals may have harmful effects on the
operation of the electronic medical equipment.
If there is any chance that the distance between the
handset and a person closest to you may get
shorter than 15 cm such as when you cannot freely
move around, set the handset not to emit radio
wave in advance (by setting Airplane mode, turning
the power off, etc.).
Somebody nearby may be equipped with electronic medical
equipment such as an implanted cardiac pacemaker or an
implanted cardioverter-defibrillator. Electromagnetic signals
may have harmful effects on the operation of the electronic
medical equipment.
Follow the instructions given by the respective
medical facilities regarding the use of the handset
on their premises.
Material list
Part Material/Surface treatment
Display side Reinforced glass/Shatterproof
sheet of surface
Surrounding area of display side PA resin/UV coating for
surface
Back PC + ABS resin/UV coating for
surface
docomo mini UIM card slot SUS/Ni plating
microSD Card slot SUS/Ni plating
docomo mini UIM card/microSD
Card slot cover
PC resin/UV coating for
surface
Gasket of docomo mini UIM card/
microSD Card slot cover Silicon rubber
IMEI tray PP
Surrounding area of earphone/
microphone terminal Aluminum/Anodizing
Power key Aluminum/Anodizing
Camera panel Acrylic resin/Printing on the
back
Decoration of camera Aluminum/Anodizing
Mobile light PC resin
Mobacas/TV antenna Brass/Trivalent Cr plating,
SUS
External connector terminal SUS/Sn plating, Copper alloy/
Gold plating
Handling precautions
General notes
8Contents/Precautions
Keeping an external connector device plugged into the external
connector terminal or earphone/microphone terminal may cause
damage to the connector or result in a malfunction.
Do not rub or scratch the display with metal etc.
May scratch it and cause malfunction or damage.
Read the respective manuals or user’s guides supplied with
the optional parts carefully.
Do not forcefully press the surface of the touch panel or
operate with a pointed object such as a fingernail, ballpoint
pen or pin.
May damage the touch panel.
Avoid using the handset in extremely high or low
temperatures.
Use the handset within the range of a temperature between 5°C and
35°C and a humidity between 45% and 85%.
Using the handset close to land-line phones, TVs, radios,
etc. may have harmful effects on the operation of such
equipment. Move as far away as possible from such items
before use.
Keep a separate memo noting information stored on the
handset.
DOCOMO shall not be liable for any loss of content.
Do not drop or otherwise subject the handset to severe
impact.
May damage the handset or cause a malfunction.
When connecting an external connector device to the
external connector terminal or earphone/microphone
terminal, do not put it in obliquely and do not pull it while it
is plugged in.
May damage the handset or cause a malfunction.
The handset becomes warm during use or charging but this
is not a malfunction.
Do not leave the camera in direct sunlight.
May cause discoloration or burn-in of pixels.
Use the handset with the docomo mini UIM card/microSD
Card slot cover closed.
Dust, water, etc. may get inside and cause a malfunction.
While using a microSD Card, do not remove the card or turn
off the handset.
May cause data loss or a malfunction.
Never place a magnetic card near the handset.
The stored magnetic data in cash cards, credit cards, telephone
cards, floppy disks, etc. may be erased.
Never place magnetized items near the handset.
Putting highly magnetized items closer may cause an error.
The handset has a function to judge whether a proper
internal battery is used. Do not replace the internal battery
by yourself.
When an improper internal battery is used, you cannot
charge the battery.
DOCOMO shall not be liable for any accident or malfunction
arising from using an improper internal battery.
The internal battery is a consumable product.
Though the battery life varies with use, change the battery if the
battery life is extremely short even after being fully charged. For
details on replacing the internal battery, contact the number listed in
“Repairs” (in Japanese only) on the last page or a repair counter that
DOCOMO specifies.
Charge battery in areas where ambient temperature is
between 5°C and 35°C.
The battery life depends on the usage and deterioration of
the battery.
Avoid the following situations when the handset is stored.
Storage with the internal battery fully charged (immediately after
charging is completed)
Storage with no battery level (cannot turn the main body on)
May lower the performance or shorten the usable life of the internal
battery.
Approximately 40% is recommended as the proper battery level for
storage.
The surface of the handset uses the aluminum material.
Note that dent and abrasion are easily remained as
aluminum is a soft material.
Charge the battery in areas where the ambient temperature
is between 5°C and 35°C.
Do not charge the internal battery in the following locations.
Areas with high humidity or dust, or in areas exposed to frequent
vibrations
Close to land-line phones, TVs, radios, etc.
Adapters may become warm during charging but this is not
a malfunction.
Do not use the DC adapter to charge the battery when the
car engine is not running.
May cause the car battery to run down.
When using an outlet with a feature to prevent the plug from
being removed accidentally, follow the instructions in the
outlet user’s guide.
Do not subject to strong force or impacts. Also, do not
deform the charger terminals.
May cause a malfunction.
Do not apply unnecessary force when inserting/removing
the docomo mini UIM card.
Customer is responsible for malfunctions arising from
inserting docomo mini UIM card into a different IC card
reader/writer etc.
Always keep IC area clean.
Clean only with a soft and dry cloth (such as the type used
for eyeglasses).
Keep a separate memo and note information stored on the
docomo mini UIM card.
DOCOMO shall not be liable for any loss of content.
To protect the environment, please take any unneeded
docomo mini UIM cards to a sales outlet such as a docomo
Shop.
Do not damage, touch haphazardly or short-circuit the IC.
May cause data loss or a malfunction.
Do not drop or otherwise subject the docomo mini UIM card
to severe impact.
May cause a malfunction.
Never bend the docomo mini UIM card or place heavy
objects on it.
May cause a malfunction.
Do not insert the docomo mini UIM card to the handset with
a label or sticker attached on the card.
May cause a malfunction.
The handset supports the security function that meets the
Bluetooth specification for security during communication
using Bluetooth functions. However, the security may not
be sufficient depending on the configuration etc. Take care
of the security while making communication using
Bluetooth function.
Even if any leak of data or information occurs while making
communication using Bluetooth function, DOCOMO shall
not be liable for any loss of content.
Notes about the handset
Notes about adapters
Notes about docomo mini UIM card
Notes on using Bluetooth function
9Contents/Precautions
Radio frequencies
In the home screen, [R]/[Settings]/[Device info]/
[Authentication] to confirm the radio frequencies the
Bluetooth function of the handset uses. The followings are
the descriptions:
ӱ2.4: This radio equipment uses the 2400 MHz band.
ӲFH: The modulation system is the FH-SS system.
ӳ1: The estimated coverage distance is 10 m or less.
ӴXX: Another modulation system is used.
ӵ4: The estimated coverage distance is 40 m or less.
Ӷ: All radio frequencies between 2400 MHz and 2483.5
MHz are used and the frequencies for mobile object identifiers
shall not be avoided.
Cautions on using Bluetooth devices
Bluetooth operates at radio frequencies assigned to the
in-house radio stations for a mobile object identifier that
have to be licensed and is used in production lines of a
factory, specific unlicensed low power radio stations, and
amateur radio stations (hereafter, referred to as “another
radio station”) in addition to industrial, scientific and
medical devices or home electric appliances such as
microwave ovens.
1. Before using the handset, make sure that “another radio
station” is not operating nearby.
2. If radio interference between the handset and “another
radio station” occurs, avoid interference by moving
immediately to another place or “turning off the power”.
3. Contact the number listed in “General Inquiries” on the
last page for further details.
Wireless LAN (WLAN) uses radio waves to communicate
information. Therefore, it has an advantage of freely
connecting to the LAN within the service area. On the other
hand, if security setting is not set, it is possible for a
malicious third party to intercept the communication
contents or hack. It is recommended to set security setting
at your own risk and judgement.
Wireless LAN
Do not use wireless LAN near magnetic devices such as electric
appliances or AV/OA devices or in radio waves.
ƦMagnetism or radio waves may increase noises or disable
communications (especially when using a microwave oven).
ƦWhen used near TV, radio, etc., reception interference may occur
or channels on the TV screen may be disturbed.
ƦIf there are multiple wireless LAN access points nearby and the
same channel is used, search may not work correctly.
Radio frequencies
In the home screen, [R]/[Settings]/[Device info]/
[Authentication] to confirm the radio frequencies the
WLAN-installed devices use. The followings are the
descriptions:
ӱ2.4: This radio equipment uses the 2400 MHz band.
ӲDS: The modulation system is the DS-SS system.
ӳOF: The modulation system is the OFDM system.
Ӵ4: The estimated coverage distance is 40 m or less.
ӵ: All radio frequencies between 2400 MHz
and 2483.5 MHz are used and the frequencies for mobile object
identifiers shall be avoided.
Available channels for the handset’s wireless LAN are between 1 and
13. Note that other channel access points cannot be connected.
Available channels may vary depending on the country.
For use in an aircraft, contact the airline beforehand.
Cautions on using 2.4 GHz devices
WLAN-installed devices operate at radio frequencies
assigned to the in-house radio stations for a mobile object
identifier (radio stations requiring a license) used in
production lines of a factory, specific unlicensed low power
radio stations (radio stations requiring no license), and
amateur radio stations (radio stations requiring a license) in
addition to industrial, scientific and medical devices or
home electric appliances such as microwave ovens.
1. Before using this device, make sure that the in-house
radio stations for a mobile object identifier, specific
unlicensed low power radio stations and amateur radio
stations are not operating nearby.
2. If the device causes harmful radio interference to the
in-house radio stations for a mobile object identifier,
immediately change the radio frequency or stop use, and
contact the number listed in “General Inquiries” on the
last page for crosstalk avoidance, etc. (e.g. partition
setup).
3. If the device causes radio interference to specific
unlicensed low power radio stations for a mobile object
identifier or amateur radio stations, contact the number
listed in “General Inquiries” on the last page for further
details.
Cautions on using 5 GHz devices
In the 5 GHz frequency band, three bands of 5.2 GHz/5.3
GHz/5.6 GHz band (W52/W53/W56) are available.
Ʀ
W52 (5.2 GHz band/36, 40, 44, 48 ch)
Ʀ
W53 (5.3 GHz band/52, 56, 60, 64 ch)
Ʀ
W56 (5.6 GHz band/100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140 ch)
Using 5.2 GHz/5.3 GHz band wireless LAN (W52/W53)
outdoors is prohibited by the Radio Law.
The FeliCa reader/writer function of the handset uses weak
radio waves whose handling does not require a license of
radio station.
The frequency in use is the 13.56 MHz band. When another
reader/writer is being used nearby, keep enough distance
from it. Make sure that there is no radio station using the
same frequency band in the nearby area.
The FM transmitter function of the handset uses weak radio
waves requiring no licenses for radio stations.
It uses 77.4 to 85.0 MHz frequency band. To avoid adversely
affecting surrounding FM radio users, do not set the same
frequency band as an FM broadcasting station in your area
for using.
Notes about wireless LAN (WLAN)
ӱġ Ӳġ ӳġ Ӵġ ӵġ
Ӷġ
ӱġ Ӳġ ӳġ Ӵġ
ӵġ
FeliCa reader/writer
FM transmitter
10 Contents/Precautions
Never use the handset that is modified. Using a modified
device violates the Radio Law and/or the
Telecommunications Business Law.
The handset has acquired the certification of conformity with technical
regulations for the specified radio station based on the Radio Law and
authentication of conformity with technical regulations for the handset
based on the Telecommunications Business Law, and the “Technical
Conformity Mark ” can be displayed on the electronic nameplate of
the handset as a proof. You can see it by operating as follows.
In the home screen, [R]/[Settings]/[Device info]/[Authentication]
If the screws of the handset are removed and a modification is given
to the inside, the certification of conformity with technical regulations
etc. will become invalid. Never use the handset without the valid
certification etc. Doing so violates the Radio Law and/or the
Telecommunications Business Law.
Be careful when using the handset while driving a motor
vehicle.
Using a mobile phone in hand while driving is regarded as a
punishable act.
However, the punishment has no application in some cases such as
when rescuing sick and injured people or maintaining public safety.
Use the FeliCa reader/writer function only in Japan.
The FeliCa reader/writer function of the handset conforms to the
domestic radio wave standards. Using the function overseas may
result in punishment.
Use the FM transmitter only in Japan.
The FM transmitter of the handset is compliant with radio wave
standards and is authorized for use only in Japan. Using the function
overseas may result in punishment.
Never change the basic software improperly.
This may be regarded as a conversion of software and repairs may be
refused.
Be careful not to connect the handset to a PC using Micro
USB Cable 01 (sold separately) in areas where the use of
mobile phones is prohibited.
Power may automatically turn on.
SH-01F is waterproof to IPX5*1 and IPX7*2 standards if the
docomo mini UIM card/microSD Card slot cover is securely
closed.
*1 IPX5 means that phone keeps functioning after being subjected
to a jet flow (approximately 12.5 liters/min) discharged from a
nozzle (inner diameter: 6.3 mm), from all directions
(approximately 3 m from the handset) for 3 minutes or more.
*2 IPX7 means that SH-01F phone keeps functioning after it is
slowly submerged to depth of 1 m in static tap water at room
temperature, left there for approximately 30 minutes and then
taken out.
You can call without using an umbrella in the rain (for rainfall of
approximately 20 mm per hour).
You can rinse off dirt from the handset. Wash the handset with
low-pressure water flow (6 liters/min or lower and tap water at
room temperature (between 5°C and 35°C)), holding it
approximately 10 cm below faucet or shower head. Wash by
using only your hands, not a brush or sponge, with the docomo
mini UIM card/microSD Card slot cover held in position. Drain the
handset before use (nP. 11 “Draining water when the handset
gets wet”).
You can use the handset at a poolside. Do not throw water in a
swimming pool on the handset or soak the handset in the water
of a swimming pool.
To maintain waterproof performance, check the followings.
Securely close the docomo mini UIM card/microSD Card slot
cover. Be careful not to apply excessive force on the rubber
gasket when opening and closing it.
Make sure that the docomo mini UIM card/microSD Card slot
cover is completely closed without floating.
To maintain waterproof performance, the handset has the
docomo mini UIM card/microSD Card slot cover that allows you
to close securely. May cause injuries to your nails or fingers if
you try to open it forcibly.
For details on how to open/close the docomo mini UIM card/
microSD Card slot cover nP. 13 “Inserting docomo mini UIM
card”
When your hands or the handset is wet, do not open/close the
docomo mini UIM card/microSD Card slot cover.
Close the docomo mini UIM card/microSD Card slot cover
securely. Even a fine obstacle (one hair, one grain of sand, tiny
fiber, etc.) put between contact surfaces may allow water to get
inside.
If the handset gets wet with water or other liquids with the
docomo mini UIM card/microSD Card slot cover opened, the
liquid may get inside causing electric shocks or malfunction. Stop
using the handset, turn off the power and contact a repair
counter that DOCOMO specifies.
The rubber gaskets of contact surfaces between the main body
and docomo mini UIM card/microSD Card slot cover play an
important role in maintaining waterproof performance. Do not
remove or scratch them. Also, prevent dust from adhering to
them.
If a rubber gasket is damaged or deformed, replace it at a repair
counter that DOCOMO specifies.
Do not insert a pointed object through the docomo mini UIM card/
microSD Card slot cover gaps. It may cause damage to the
rubber gasket and allow water to get inside.
Do not use the handset underwater (including key operations).
May cause malfunction.
Do not apply water flow stronger than allowed (over 6 liters/min).
May cause malfunction though SH-01F provides waterproof
performance of IPX5.
Do not let the handset get wet with liquids other than water at
room temperature (between 5°C and 35°C) or do not soak the
handset in the liquids. If you let the handset get wet with liquids
other than water at room temperature or soak the handset in the
liquids, stop using the handset and wash it with water at room
temperature.
Do not wash the handset in a washing machine etc.
To prevent condensation, do not bring the handset from a cold
place to a warm place without letting the handset warmed to
room temperature.
Never soak the handset in hot spring water or water containing
soap, detergent or bath powder.
Do not soak the handset in hot water, use it in a sauna or apply
hot air (from a hair dryer etc.) to it.
Do not soak the handset in seawater.
Do not put the handset directly on sand/dirt.
Do not leave the handset wet. In cold places, water may freeze
and cause malfunction.
Caution
Waterproof
What you can do with waterproof of SH-01F
Things to keep in mind
To maintain waterproof performance, replacement of parts is
recommended every 2 years regardless of whether the
handset appears normal or abnormal. DOCOMO replaces the
parts as a chargeable service. Bring the handset to a repair
counter that DOCOMO specifies.
Precautions
13 Before Using the Handset

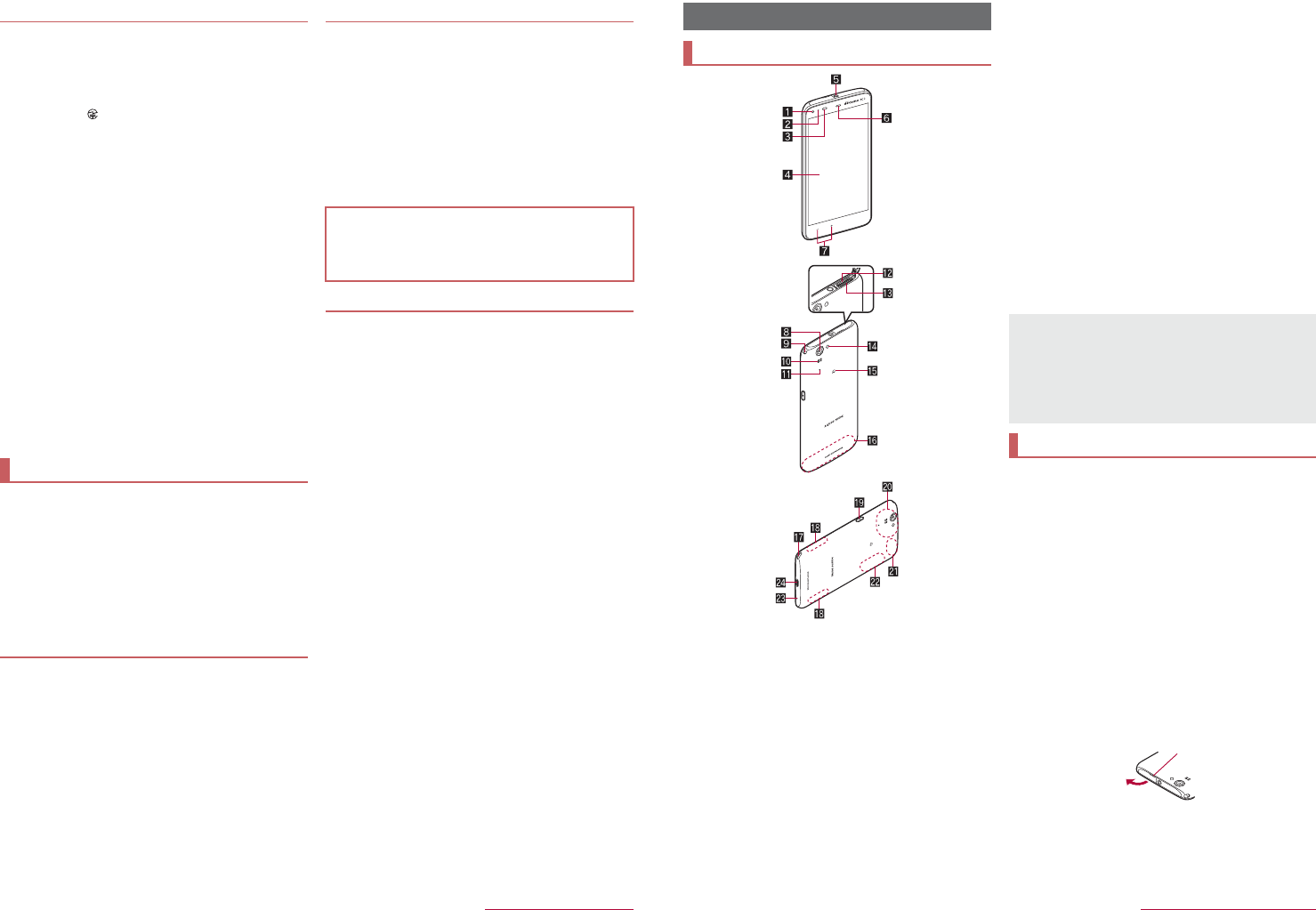

1In-camera
2Incoming/Charging lamp
3Proximity sensor/Brightness sensor*1
The proximity sensor detects the distance to the face and
prevents inadvertent operation of touch panel during a call.
The brightness sensor detects the brightness of the
surrounding area and adjusts the brightness of the backlight.
4Display/Touch panel
5Earphone/Microphone terminal
6Earpiece
7x/y: Volume UP/DOWN key
Adjusts the volume in each function.
8Out-camera
9Mobacas/TV antenna
aSpeaker
Ringtone, music, etc. can be heard from here.
The other party’s voice can be heard from here during a
hands-free call.
bOut-microphone
Use as a sub microphone when recording videos.
Use to measure ambient noises for communicating by making
your voices sound clear when using Noise suppression.
cmicroSD Card slot
ddocomo mini UIM card slot
eMobile light
fa mark
IC card is contained (It cannot be removed).
gFOMA/Xi antenna*2
hStrap hole
iGrip sensor
jH: Power key
Use to turn the power on/off, etc.
Use to turn the display on/off.
kFM transmitter antenna*2
lGPS antenna*2, FOMA/Xi sub antenna*2
mWi-Fi/Bluetooth antenna*2
nMouthpiece/Microphone
oExternal connector terminal
*1 Do not cover the sensor area with your hand or paste a sticker
etc. on the sensor area. The sensor may not work properly.
*2 The antenna is built into the main body. Covering the antenna
area with your hand may influence the quality.
A docomo mini UIM card is an IC card that records personal
information, such as phone numbers.
You cannot make a call and use functions such as packet
communication etc. without inserting a docomo mini UIM card.
You cannot use the docomo mini UIM card with devices other
than compatible ones and may not be able to use a part of the
website and data when you change from the UIM.
In Japan, you cannot call to the emergency number (110, 119 or
118) without inserting a docomo mini UIM card.
A docomo mini UIM card has a security code called PIN code
(nP. 68 “PIN code”).
The handset supports only docomo mini UIM card. Change the
UIM at a docomo Shop.
Before inserting or removing the docomo mini UIM card, turn off
the power. Hold the handset securely with your hand.
ɡInserting docomo mini UIM card
1Open the docomo mini UIM card/microSD Card
slot cover
:Hook the tip of a finger into the slot to open.
2Hold the docomo mini UIM card with the IC
(gold) side turned down and insert it slowly into
the docomo mini UIM card slot
:Push it slowly towards inside until a click is heard.
Before Using the Handset
Part names and functions
Earphone/Microphone terminal
For details on the corresponding earphone/microphone, refer to
the following website.
(http://k-tai.sharp.co.jp/support/d/sh-01f/peripherals.html#!/
earphone_support) (in Japanese only)
Out-microphone
When using functions which support the out-microphone, do not
cover the hole of the out-microphone.
docomo mini UIM card
Slot
15 Before Using the Handset
For details on the battery life nP. 89 “Package”
ɡInternal battery usable life
Internal battery is a consumable product. Battery life per charge
is gradually reduced every time the battery is charged.
When battery life per charge is reduced to about half of the
default time, this means that the internal battery is approaching
the end of its usable life. In this case, it is recommended to
replace the battery as soon as possible. For details on replacing
the internal battery, contact the number listed in “Repairs” (in
Japanese only) on the last page or a repair counter that
DOCOMO specifies.
If you watch TV etc. while charging for a long time, the usable life
of the internal battery may become shorter than estimated.
ɡAC adapter and DC adapter
