Sharp Flat Panel Television Lc 32Sh130K Users Manual Operation GB
2015-01-23
: Sharp Sharp-Sharp-Flat-Panel-Television-Lc-32Sh130K-Users-Manual-284695 sharp-sharp-flat-panel-television-lc-32sh130k-users-manual-284695 sharp pdf
Open the PDF directly: View PDF
.
Page Count: 32
LC-32SH130K
LCD COLOUR TELEVISION OPERATION MANUAL
ENGLISH
50201858
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
SHARP CORPORATION
http://www.sharp-eu.com
English - 1 -
Contents
Features ............................................................................................ 2
Dear SHARP customer ...................................................................... 2
Introduction ........................................................................................ 2
Preparation ........................................................................................ 2
Important safety precautions ............................................................. 3
Safety Precautions ............................................................................ 4
Connection to a Television Distribution System (Cable TV etc.)
from Tuner .................................................................................... 4
Package Contents ............................................................................. 5
Environmental Information ................................................................ 5
Repair Information ......................................................................... 5
Remote Control Buttons .................................................................... 6
LCD TV and Operating Buttons ......................................................... 7
Viewing the Connections - Back Connectors .................................... 7
Viewing the Connections - Side Connectors ..................................... 8
Power Connection ............................................................................. 8
Aerial Connection .......................................................................... 8
Using USB Inputs .............................................................................. 8
Connecting to a DVD Player via HDMI .............................................. 9
Connecting to a DVD Player via Component Sockets (YPbPr) or
Scart Cable ........................................................................................ 9
Connecting the LCD TV to a PC ........................................................ 9
Using Side AV Connectors .............................................................. 10
Remote Control Handset ................................................................. 10
Inserting Batteries ........................................................................ 10
Switching On/Off .............................................................................. 10
To Switch the TV On .................................................................... 10
To Switch the TV to Standby ........................................................ 10
To Switch the TV Off .................................................................... 10
Input Selection ................................................................................. 10
Basic Operations ............................................................................. 10
Operation with the Buttons on the TV .......................................... 10
Volume Setting ......................................................................... 10
Programme Selection .............................................................. 10
Viewing Main Menu .................................................................. 10
AV Mode .................................................................................. 10
Operation with the Remote Control ............................................. 10
Volume Setting ......................................................................... 10
Programme Selection (Previous or Next Programme) 10
Programme Selection (Direct Access) ..................................... 10
Viewing Electronic Programme Guide (EPG) .................................. 11
Recording via EPG Screen .......................................................... 11
Programme Options..................................................................... 11
First Time Installation....................................................................... 12
Installation ....................................................................................... 13
Automatic Channel Scan (Retune) Menu Operation 13
Manual Tuning ................................................................................ 13
Digital Manual Search.................................................................. 13
Analogue Manual Search ............................................................ 13
Analogue Fine Tune..................................................................... 13
Clear Service List (*) .................................................................... 13
Managing Stations: Channel List ..................................................... 13
Operating the Channel List .......................................................... 14
Moving a Channel ........................................................................ 14
Deleting a Channel ...................................................................... 14
Renaming a Channel ................................................................... 14
Locking a Channel ....................................................................... 14
Managing Stations: Favourites ........................................................ 14
Button Functions .......................................................................... 14
Managing Stations: Sorting Channel List ........................................ 14
On-Screen Information .................................................................... 14
Media Playback Using Media Browser ............................................ 15
Viewing Videos via USB ............................................................. 15
Viewing Photos via USB .............................................................. 15
Slideshow Options ....................................................................... 15
Playing Music via USB ................................................................ 15
Recordings Library....................................................................... 16
Media Browser Settings ............................................................... 16
Timeshift Recording ........................................................................ 16
Instant Recording ............................................................................ 16
Watching Recorded Programmes .................................................. 17
Changing Image Size: Picture Formats ........................................... 17
Conguring Picture Settings ............................................................ 18
Operating Picture Settings Menu Items ....................................... 18
Picture Settings Menu Items ........................................................ 18
PC Picture Settings...................................................................... 18
Conguring Sound Settings ............................................................. 19
Operating Sound Settings Menu Items ........................................ 19
Sound Settings Menu Items......................................................... 19
Conguring Your TV’s Settings ........................................................ 19
Operating Settings Menu Items ................................................... 19
Settings Menu Items .................................................................... 19
Using a Conditional Access Module ................................................ 19
Viewing Conditional Access Menu (*) .......................................... 19
Conguring Language Preferences ................................................. 20
Language Settings ....................................................................... 20
Parental Control............................................................................... 20
Parental Settings Menu Operation .............................................. 20
Timers .............................................................................................. 21
Setting Sleep Timer ..................................................................... 21
Setting Programme Timers .......................................................... 21
Adding a Timer ......................................................................... 21
Editing a Timer ......................................................................... 21
Deleting a Timer ....................................................................... 21
Recording Conguration .................................................................. 21
Conguring Date/Time Settings ....................................................... 21
Conguring Source Settings ............................................................ 22
Conguring Other Settings .............................................................. 22
Operation ..................................................................................... 22
Other Features ................................................................................ 22
Teletext ............................................................................................ 23
Tips .................................................................................................. 23
Appendix A: PC Input Typical Display Modes .................................. 24
Appendix B: AV and HDMI Signal Compatibility (Input Signal
Types) .............................................................................................. 24
Appendix C: Supported DVI Resolutions......................................... 25
Appendix D: Supported File Formats for USB Mode ....................... 25
Appendix E: Software Upgrade ....................................................... 26
Specications .................................................................................. 27
Dimensional Drawings ..................................................................... 28
End of life disposal .......................................................................... 29

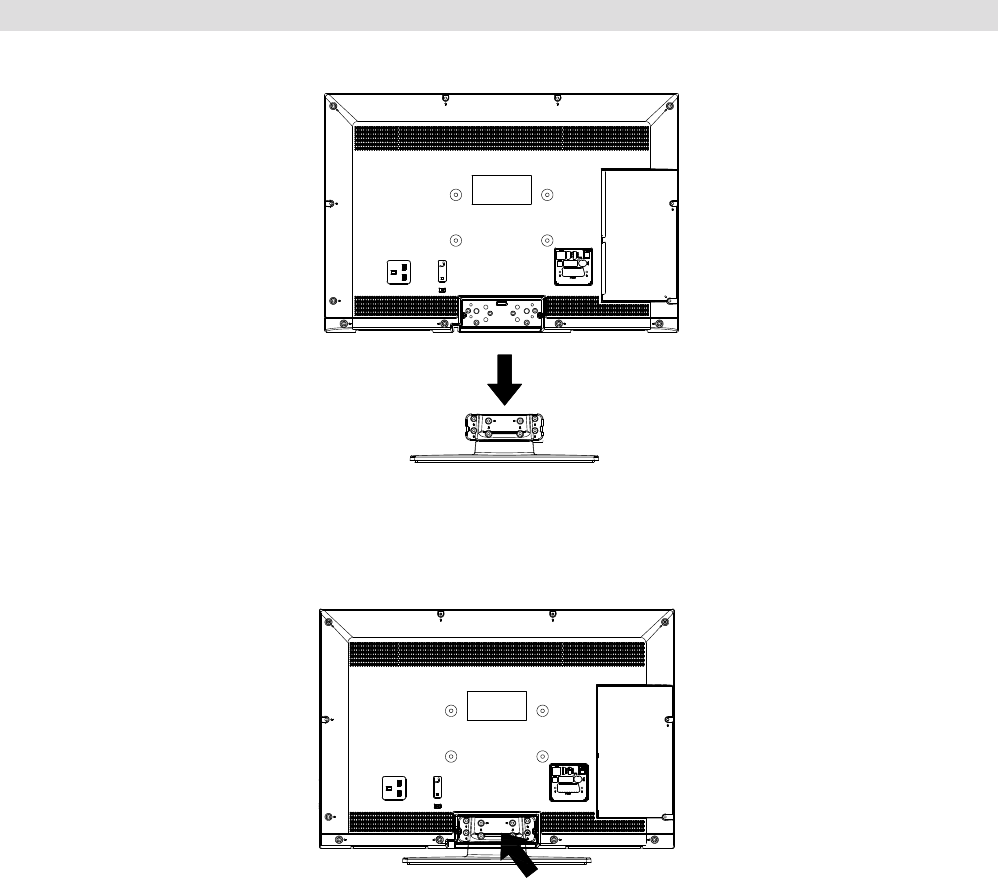

Detachable Stand Uninstallation Method ........................................ 30
Screw Dimensions ........................................................................... 31
English - 2 -
Features
Remote controlled colour LCD TV.•
Fully integrated Terrestrial digital TV (DVB-T - MPEG2) •
HDMI connectors for digital video and audio. This connection is also •
designed to accept high denition signals.
USB input.•
Programme recording•
Programme timeshifting•
1000 programmes (analogue+digital).•
OSD menu system.•
Integrated tuner MPEG2 compatible.•
Scart socket for external devices (such as video, video games, audio •
set, etc.).
Stereo sound system. (German+Nicam)•
Teletext, fastext, TOP text.•
Headphone connection.•
Automatic programming system.•
Forward or backward manual tuning.•
Sleep timer / Child lock.•
Automatic sound mute when no transmission.•
NTSC playback. •
AVL (Automatic Volume Limiting).•
Auto power down.•
PLL (Frequency Search).•
PC input. •
Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.•
Game Mode •
The illustrations and the OSD in this operation manual are for •
explanation purposes and may vary slightly from the actual
operations.
The examples used throughout this manual are based on the LC-•
32SH130K model.
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product.
To ensure safety and many years of trouble-free operation of your
product, please read Important safety precautions carefully before
using this product.
Introduction
Please read the corresponding instructions of this handbook prior
to the rst usage of the device, even when the usage of electronic
devices is familiar to you. Please take notice of the chapter SAFETY
PRECAUTIONS. Carefully keep the handbook as future reference.
When selling the device or giving it away, provide these direction for
use.
Thank you for choosing this product. This manual will guide you for
the proper operation of your TV. Before operating the TV, please
read this manual thoroughly. Please do keep this manual in a
safe place for future references.
This device is intended to receive and display TV programs.
The different connection options make an additional expansion of the
reception and display sources possible (receiver, DVD player, DVD
recorder, VCR, PC etc.). This device is only suitable for the operation
in dry interiors. This appliance is intended solely for private domestic
use and may not be used for industrial and commercial purposes. We
exclude liability in principle, if the device is not used as intended, or
unauthorized modications have been made. To operate your LCD TV
in extreme ambient conditions may cause the damage of the device.
Preparation
For ventilation, leave a free space of at least 10 cm all around the set.
To prevent any fault and unsafe situations, please do not place any
objects on top of the set. Use this device in moderate climates.
10 cm
10 cm
10 cm
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is tted with a non-rewireable (moulded)
plug incorporating a 5A fuse. Should the fuse need to be replaced, a
BSI or ASTA approved BS 1362 fuse marked
ASA
or and of the same
rating as above, which is also indicated on the pin face of the plug,
must be used.
Always ret the fuse cover after replacing the fuse. Never use the plug
without the fuse cover tted.
In the unlikely event of the socket outlet in your home not being
compatible with the plug supplied, cut off the mains plug and t an
appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug
destroyed immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere
into a 13A socket outlet, as a serious electric shock may occur.
To t an appropriate plug to the mains lead, follow the instructions
below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with the
following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this product may not
correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the plug terminal •
which is marked N or coloured black.
The wire which is coloured brown must be connected to the plug •
terminal which is marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the
earth terminal in your three pin plug.
Before replacing the plug cover make sure that:
If the new tted plug contains a fuse, its value is the same as that •
removed from the cut-off plug.
The cord grip is clamped over the sheath of the mains lead, and not •
simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
English - 3 -
Important safety precautions
Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid •
cleaners or aerosol cleaners.
Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical cloth to clean it. Chemicals may •
cause damage or cracks in the cabinet of the TV.
Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet •
basement.
Do not place vases or any other water-lled containers on this product. The water may spill onto the product causing re or electric shock.•
Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious •
personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold
with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware
recommended by the manufacturer.
When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven •
oor surface can cause the product to fall from the cart.
Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and •
openings since insufcient ventilation can cause overheating and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in
installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer’s instructions are followed.
The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impact applied. If the LCD panel •
is broken, be careful not to be injured by broken glass.
Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products •
(including ampliers).
To prevent re, never place any type of candle or naked ames on the top or near the TV set.•
To prevent re or shock hazard, do not place the AC cord under the TV set or other heavy items.•
Headphones—Do not set the volume at a high level. Hearing experts advise against extended listening at high volume •
levels.
Do not display a still picture for a long time, as this could cause an afterimage to remain.•
There is power consumption always if main plug is connected.•
Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. •
Request a qualied person to perform servicing.
The LCD panel is a very high technology product, giving you ne picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a xed point of blue,
green or red. This is within product specications and does not constitute a fault.
Precautions when transporting the TV
When transporting the TV, never carry it by holding onto the speakers. Be sure to always carry the TV by two people holding it with two
hands—one hand on each side of the TV.
WARNING
To prevent the spread of re, keep candles or other open ames away from this product
at all times.
English - 4 -
Safety Precautions
Read the following recommended safety precautions carefully
for your safety.
Power Source
The TV set should be operated only from a 220-240V AC, 50Hz
outlet. Ensure that you select the correct voltage setting for your
convenience.
Power Cord
Do not place the set, a piece of furniture, etc. on the power cord (mains
lead) or pinch the cord. Handle the power cord by the plug. Do not
unplug the appliance by pulling from the power cord and never touch
the power cord with wet hands as this could cause a short circuit or
electric shock. Never make a knot in the cord or tie it with other cords.
The power cords should be placed in such a way that they are not
likely to be stepped on. A damaged power cord can cause re or give
you an electric shock. When it is damaged and needs to be replaced,
it should be done by qualied personnel.
Moisture and Water
Do not use this device in a humid and damp place (avoid
the bathroom, the sink in the kitchen, and near the
washing machine). Do not expose this device to rain or
water, as this may be dangerous and do not place objects
lled with liquids, such as ower vases, on top. Avoid from
dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualied personnel before operating
it any further.
Cleaning
Before cleaning, unplug the TV set from the wall outlet.
Do not use liquid or aerosol cleaners. Use soft and dry
cloth.
Ventilation
The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation. To prevent overheating,
these openings must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to open ames and
sources of intense heat such as an electric heater. Ensure
that no open ame sources, such as lighted candles, are
placed on top of the TV. Batteries should not be exposed
to excessive heat such as sunshine, re or the like.
Lightning
In case of storm and lightning or when going on holiday,
disconnect the power cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that the service
technician has used replacement parts, which are specied by the
manufacturer or have the same specications as the original one.
Unauthorized substitutions may result in re, electrical shock or other
hazards.
Servicing
Please refer all servicing to qualied personnel. Do
not remove the cover yourself as this may result in an
electric shock.
Waste Disposal
Packaging and packaging aids are recyclable and should principally •
be recycled. Packaging materials, such as a foil bag should be kept
away from children
Batteries, including those which are heavy metal free, should not be •
disposed of with household waste. Please dispose of used batteries
in an environmentally friendly manner. Find out about the legal
regulations which apply in your area.
Do not try to recharge batteries, there is a danger of explosion. •
Replace batteries only with the same or equivalent type.
This symbol on the product or on its packaging means that your
electrical and electronic device should be disposed at the
end of its service life separately from your household
wastes. There are separate collection systems for recycling
in the EU. For more information, please contact the local
authority or the dealer where you purchased the
product.
Disconnecting the Device
The mains plug is used to disconnect the TV set from the mains and
therefore it must remain readily operable.
Headphone Volume
Excessive sound pressure from earphones and headphones
can cause hearing loss.
Installation
To prevent injury, this device must be securely attached to the wall in
accordance with the installation instructions when mounted to the wall
(if the option is available).
LCD Screen
The LCD panel is a very high technology product with about a million
thin lm transistors, giving you ne picture details. Occasionally, a few
non-active pixels may appear on the screen as a xed blue, green
or red point. Please note that this does not affect the performance of
your product.
Warning! Do not leave your TV in standby or operating mode when
you leave your house.
Connection to a Television Distribution System (Cable
TV etc.) from Tuner
Device connected to the protective earthing of the building installation
through the mains connection or through other apparatus with a
connection to protective earthing-and to a television distribution
system using coaxial cable, may in some circumstances create a re
hazard.
Connection to a cable distribution system has therefore to be provided
through a device providing electrical isolation below a certain frequency
range (galvanic isolator, see EN 60728-11).
Note:The HDMI connection between PC and TV may cause radio
interference in which case it is recommended to use VGA(DSUB-15)
connection.
The Standby Off/On button doesn´t separate this device completely
from mains. Moreover the device consumes power in the standby
operation. In order to separate the device completely from mains, the
mains plug has to be pulled from the mains socket. Because of that
the device should be set up in a way, that an unobstructed access to
mains socket is guaranteed, so that in case of emergency the mains
plug can be pulled immediately. To exclude the danger of re, the power
cord should principally be separated from the mains socket prior to a
longer period of non-usage, i.e. during vacations.
“HDMI, the HDMI logo and High-Definition •
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.”
Manufactured under license from Dolby •
Laboratories.
English - 5 -
The “HD TV 1080p” Logo is a trademark of EICTA.•
The DVB logo is the registered trademark of the •
Digital Video Broadcasting—DVB—project.
Electrical device not in the hands of children
Never let children use any electrical device unsupervised. Children
cannot always recognise possible dangers. Batteries / accumulators
can be life threatening when swallowed. Store batteries out of the reach
of small children. In case of swallowing a battery medical aid has to be
sought immediately. Also keep the packaging foils away from children
as there is danger of suffocation.
Package Contents
SLEEP
SCREEN
PRESETS
LANG.
F A V
EPG SWAP
SOURCE
C
DISP.
SEARCH
MODE
INFO
CH V
Remote Control
LCD TV
Batteries: 2 X AAA
Instruction Book
Quick Guide
1 X Component Video Connection Cable
Note: You should check the accessories after purchasing. Make sure
that each accessory is included.
As the manufacturer’s specication supports communication on cable
lengths shall be smaller than 3m.
Environmental Information
This television is designed to consume less energy to save •
environment.
You not only help to save the environment but also you can save
money by reducing electricity bills thanks to the energy efciency
feauture of this TV. To reduce energy consumption, you should take
the following steps:
You can use Power Save Mode setting, located in the Other Settings •
menu. If you set Power Save Mode as On, the TV will switch to
energy-saving mode and luminance level of TV set will be decreased
to optimum level. Note that some picture settings will be unavailable
to be changed when the TV is in Power Save Mode.
When the TV is not used, please switch off at the rear rocker switch •
to further reduce power consumption.
Disconnect the TV from the mains socket when it will not be used •
for prolonged periods.
When the TV is left in stand-by it consumes a small amount of power •
switching off at the rear rocker switch or disconnect the TV from the
mains will make further energy savings. Note activating the “Power
Save Mode” saves on an annual bases more energy than switching
off the mains when the TV is not used, to save most energy it is highly
recommended that “Power Save Mode” is switch on.
Repair Information
Please refer all servicing to qualied personnel. Only qualied personnel
must repair the TV. Please contact your local dealer, where you have
purchased this TV for further information.
English - 6 -
Remote Control Buttons
Standby1.
Image size / Zooms videos (in Media Browser video mode)2.
Sleep Timer3.
Mono / Stereo - Dual I-II / Currrent Language (*) (in DVB 4.
channels)
Favourite Mode Selection (in DVB channels)5.
Numeric buttons6.
Electronic programme guide (in DVB channels)7.
No function8.
Media Browser9.
Navigation buttons (Up/Down/Left/Right)10.
No function11.
Recordings Library12.
Programme Down / Page up - Programme Up / Page down13.
Mute14.
Programme recording15.
Pause (in Media Browser mode) / Timeshift recording 16.
Rapid reverse (in Media Browser mode)17.
Play (in Media Browser mode)18.
Red button19.
Green button / List Schedule (in EPG) / Tag / Untag All (in 20.
favourite list) / Play-Slideshow (in Media Browser) / Loop-Shufe
(in Media Browser)
Picture mode selection / Changes picture mode (in Media 21.
Browser video mode)
No function22.
Teletext / Mix (in TXT mode)23.
Subtitle on-off (in DVB channels)24.
Previous programme25.
AV / Source selection26.
Menu on-off27.
Okay (Conrm) / Hold (in TXT mode) / Edit Channel List28.
Exit / Return / Index page (in TXT mode)29.
No function30.
Info / Reveal (in TXT mode)31.
Volume Up / Down32.
No function33.
No function34.
Rapid advance (in Media Browser mode)35.
Stop (in Media Browser mode)36.
Blue button / Edit Channel List / Filter (In Favourite List&EPG) 37.
Yellow button / Timeline Schedule (in EPG)38.
SLEEP
SCREEN
PRESETS
LANG.
FAV
EPG SWAP
SOURCE
C
DISP.
SEARCH
MODE
INFO
CH V
English - 7 -
LCD TV and Operating Buttons
FRONT and REAR VIEW
Control buttons VIEW
Control Buttons
1. Standby/On button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons
Note: Press “ ” and
buttons at the same time to view
main menu.
Viewing the Connections - Back Connectors
SPDIF
SCART
VGA
Coax.OUT
1
2
HDMI 2: HDMI Input1.
HDMI 1: HDMI Input2.
HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of displaying High Denition pictures
from devices such as a High Denition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or
Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI
connection.
RF Input3. connects to an aerial antenna system.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate
antenna cable, as shown in the illustration in the following pages.
SCART 4. input or output for external devices. Connect the SCART cable between SCART socket on TV and SCART socket on your external
device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. Note: S-VHS signal is supported
via the scart socket.
PC Input5. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
SPDIF Coaxial Out6. outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input
English - 8 -
Viewing the Connections - Side Connectors
CI Slot1. is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more
information, see “Conditional Access” section.
USB Inputs2. .
Note that programme recording feature is available via these USB inputs. You can connect external hard disk drives to
this input.
Video Input3. is used for connecting video signals of external devices.Connect the video
cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.
Audio Inputs4. are used for connecting audio signals of external devices. Connect the audio cable between the AUDIO
INPUTS on the TV and the AUDIO OUTPUT jacks on your device. Note: If you connect a device to the TV via the VIDEO
INPUT, you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.
Component Video Input (YPbPr)5. is used for connecting component video.
You can connect the component video and audio sockets with a device that has component output. To do this, you
must use the supplied component video connection cable for enabling connection. First, plug single jack of the cable
to the TV’s YPbPr socket (side). Afterwards, insert your component cable’s (not supplied) connectors into the plural
part of the Component video connection cable. Colours of the connected jacks should match.
Headphone6. jack is used for connecting an external headphone to the system. Connect to the HEADPHONE jack to
listen to the TV from headphones (optional).
7. , switch is used for turning the TV on or off.
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to •
the mains socket outlet.
Aerial Connection
Connect the aerial ,cable TV plug to the AERIAL INPUT socket located at the rear of the TV.•
SPDIF
SCART
VGA
Coax.OUT
1
2
Using USB Inputs
USB Connection
You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play •
les stored in a USB drive or record programmes.
2.5” and 3.5” inch (hdd with external power supply) external hard disk drives are supported.•
To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to •
enable recording feature. Otherwise, recording feature will not be available.
IMPORTANT !
You may back up your les before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will •
not be responsible for any le damage or dataloss.
It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this •
TV.
IMPORTANT: The TV supports only FAT32 disk formatting. NTFS format is not supported. If you connect a USB disk with NTFS format, the TV
will ask you to format the content. See the section, “Format Disk” in the following pages for more information on disk formatting.
Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case.
USB Disk Connection
• Plug your USB device to the USB input of the TV.
Note: Plug or unplug your USB disk while the TV is switched off.
Note: If you are going to connect a USB hard disk drive to the TV set, USB connection cable used between the disk drive and the TV should
have a USB logo and should be as short as possible.
Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more le capacity, you can experience problems with the formatting process.
In such a case, you should format the disk with your personal computer and the formatted disk type should be FAT32.
SIDE VIEW USB MEMORY
5Vdc
Max:500mA
USB
CAUTION !
English - 9 -
Quickly plugging and unplugging USB devices, is a very hazardous •
operation. Especially, do not repeatedly quickly plug and unplug
the drive. This may cause physical damage to the USB player and
especially the USB device itself.
Do not pull out USB module while playing or recording a le.•
Programme Recording
To record a programme, you should rst connect a USB disk to your
TV while the TV is switched off. You should then switch on the TV to
enable recording feature.
IMPORTANT: When using a new USB hard disk drive, it is recommended
that you rst format the disk using your TV’s “Format Disk” option.
To use the recording function a USB 2.0 certied device of at least •
1GB should be used, If the connected USB device is not USB 2.0 an
error message will be displayed.
Recorded programmes are saved into the connected USB disk in .TS •
format (MPEG-2 transport stream). If desirable, you can back up /
copy these saved recordings into a personal computer.
Note: It is possible that recorded broadcasts in .TS format may not be
supported by your media playback software. In such a case, you should
install an appropriate media playback software to your computer.
An hour of the recordings stored occupies approximately 2 GB of •
space.
For more information on recording programmes, see sections •
“Instant Recording”, “Timeshifting”, “Electronic Programme Guide”,
“Recordings Library” or “Recording Timers” in the following parts.
Recorded programmes are split into 1GB partitions. Names of the •
stored recordings’ last three digits indicates this: Such as 4801-000.
ts , 4801-001.ts.
Recorded programmes are stored in the following directory of the •
connected USB disk: \DVR\RECS. All recordings are indicated with
a number (such as 4801-000.ts). A text (txt) le is created for each
recording. This text le includes information such as broadcaster,
programme, and recording time.
If the writing speed of the connected USB disk is not sufcient, •
recording may fail and timeshifting feaute may not be available.
Recordings of HD programmes can occupy bigger size on the •
USB disk depending on the broadcast’s resolution. For this reason
it is recommended to use USB hard disk drives for recording HD
programmes.
Do not plug out the USB/HDD during the recording. This may harm •
the connected USB/HDD.
Only two partitions on a HDD unit can be supported.•
Some stream packets may not be recorded because of signal •
problems, so sometimes video may freezes during playback.
Record, Play, Pause, Display (for PlayListDialog) keys could not •
be used when teletext is ON. If a recording starts from timer when
teletext is ON, teletext is automatically turned off. Also teletext usage
is disabled when there is ongoing recording or playback.
If the recording time of an event is longer than the memory capacity,
the following message will appear on the screen: “There is not enough
space for ‘event’ but it will be recorded until the drive is full”.
Connecting to a DVD Player via HDMI
Please refer to your DVD player’s instruction book for additional
information. Power off both the TV and the device before making
any connections.
Note: Not all cables shown in the illustration are supplied.
If your DVD player has an • HDMI socket, you can connect via HDMI for
better video and audio quality.
SPDIF
SCART
VGA
Coax.OUT
1
2
External device
(not supplied)
HDMI Cable
When you connect to DVD player as illustrated above, switch to the •
connected HDMI source. See, Input Selection section for more
information on changing sources.
Connecting to a DVD Player via Component
Sockets (YPbPr) or Scart Cable
If you want to connect a DVD player to your LCD TV, you can use
connectors of the TV set. DVD players may have different connectors.
Please refer to your DVD player’s instruction book for additional
information. Power off both the TV and the device before making any
connections.
Note: Cables shown in the illustration are not supplied.
If your DVD player has an HDMI socket, you can connect via HDMI. •
When you connect to DVD player as illustrated below, switch to HDMI
source. See, “Input Selection” section.
You may also connect through the scart socket. Use a SCART cable •
as shown below.
Note: These two methods of connection perform the same function
but in different levels of quality. It is not necessary to connect by all
three methods.
HDMI
inputs
Scart sockets
DVD Player
Scart Cable
(not supplied)
HDMI Cable
(not supplied)
HDMI
SCART
Some DVD players are connected through • COMPONENT SOCKETS
(YPbPr). In this case, you must use the supplied Component video
connection cable for enabling connection. First, plug single jack of
the cable to the TV’s YPbPr socket (side). Afterwards, insert your
component cable’s (not supplied) connectors into the plural part of the
Component video connection cable (see illustration below). Colours
of the connected jacks should match.
To enable audio connection, use the • VGA/Component Audio cable.
First, plug single jack of the cable to the TV. Afterwards, insert your
DVD player’s audio cable’s connectors into the plural part of the VGA/
Component audio connection cable (see illustration below). Colours
of the connected jacks should match.
Side AV Input
Audio Cable
(Not supplied)
Side Video/Audio
Connection Cable
(Supplied)
SIDE AV
YPbPr
Side view
DVD Player
Connection Cable
(supplied)
YPbPr Video Cable
(Not supplied)
When the connection is made, switch to • YPbPr source. See, Input
selection section.Note: To connect YPb Pr device, you should use supplied
component (YPbPr) connection cable.
English - 10 -
Note: If you switch on your TV via CH / CH buttons on the remote
control or on the TV set, the programme that you were watching last
will be reselected.
By either method the TV will switch on.
To Switch the TV to Standby
To s w i t c h t h e T V t o l o w p o w e r s t a n d b y p r e s s t h e
“ ” button on the remote control or right hand side of the TV.
Note: When the TV is switched to standby mode, standby LED can blink
to indicate that features such as Standby Search, Over Air Download
or Timer is active.
To Switch the TV Off
Switch the “• ” button on the bottom right hand side under the
screen to position 2 as illustrated, to isolate the TV from the
mains, the LED will go out.
If the TV will not be used for a long period i.e. holidays, then unplug •
the power cord from the mains socket.
Input Selection
Once you have connected external systems to your TV, you can switch
to different input sources. Press “SOURCE” button on your remote
control consecutively for directly changing sources.
Basic Operations
You can operate your TV using both the remote control and onset
buttons.
Operation with the Buttons on the TV
Volume Setting
Press “• ” button to decrease volume or “ ” button to
increase volume, so a volume level scale (slider) will be displayed
on the screen.
Programme Selection
Press “• P/CH +” button to select the next programme or “P/CH -” button
to select the previous programme.
Viewing Main Menu
Press “• ” / “ ” buttons at the same time to view main menu.
In the Main menu select sub-menu using “P/CH -” or “P/CH +” buttons
and enter the sub-menu using “ ” or “ ” buttons. To learn
the usage of the menus, refer to the menu system sections.
AV Mode
Press the “• TV/AV” button in the control panel on the TV to switch
between AV modes.
Operation with the Remote Control
The remote control of your TV is designed to control all the functions of •
the model you selected. The functions will be described in accordance
with the menu system of your TV.
Volume Setting
Press “• V+” button to increase the volume. Press “V-” button to
decrease the volume. A volume level scale (slider) will be displayed
on the screen.
Connecting the LCD TV to a PC
For displaying your computer’s screen image on your LCD TV, you
can connect your computer to the TV set. Power off both computer
and display before making any connections. Use 15-pin D-sub display
cable to connect a PC to the LCD TV. When the connection is made,
switch to PC source. See “Input selection” section. Set the resolution
that suits your viewing requirements. Resolution information can be
found in the appendix parts.
.
PC Input
(back)
Side AV Input
PC VGA Cable
(Not supplied)
PC Audio Cable
(Not supplied)
Or
Using Side AV Connectors
You can connect a range of optional equipment to your LCD TV.
For connecting a camcorder, connect to the VIDEO IN socket and the •
AUDIO SOCKETS. For selecting the related source, see the section
“Input selection” in the following parts.
To listen the TV sound from headphones, connect to the HEADPHONE •
jack of theTV.
Camera
AVCable
(notsupplied)
Headphone
Remote Control Handset
Inserting Batteries
Remove the battery cover located on the back of the handset by •
gently pulling backwards from the indicated part.
Insert two • AAA/R3 or equivalent type batteries inside. Observe the
correct polarity (+/-) when inserting batteries and replace the battery
cover.
Note: Remove the battery from remote control handset when it is not
to be used for a long period. Otherwise it can be damaged due to any
leakage of batteries. Remote range is approximately 7m/23ft.
Switching On/Off
To Switch the TV On
Connect the power cord to the 220-240V AC 50 Hz.
Switch the “• ” button on the bottom right hand side under the
screen to position “|” so the TV will switch to standby mode. Then
the standby LED lights up.
To switch on the TV from standby mode either:•
Press the “• ” button, CH / CH or a numeric button on the remote
control.
Press the “• ” or +/- button on the TV.
The TV will then switch on.•
English - 11 -
Programme Selection (Previous or Next Programme)
Press “CH• ” button to select the previous programme.
Press “CH• ” button to select the next programme.
Programme Selection (Direct Access)
Press numeric buttons on the remote control to select programmes •
between 0 and 9. The TV will switch to the selected programme. To
select programmes between, press the numeric buttons consecutively.
When the pressing time is due for the second numeric button, only the
rst digit programme will be displayed. Press directly the programme
number to reselect single digit programmes.
Viewing Electronic Programme Guide (EPG)
You can view the electronic programme guide (EPG) to view information
about available programmes.To view the EPG menu please press EPG
button on the remote control.
Press “• ”/“ ” buttons to navigate through channels.
Press “• ”/“ ” buttons to navigate through the programme list.
EPG menu displays available information on all channels.•
Please note that event information is updated automatically. If there •
are no event information data available for channels, EPG will be
displayed with blanks.
Up/Down/Left/Right: Navigate.
OK (Options): views/records or sets timer for future programs.
INFO (Event Details): Displays the programmes in detail.
Green button: Programme schedule will be listed
Yellow button: Display EPG data in accordane with timeline schedule
Blue button (Filter): Views ltering options.
(RECORD): the TV will start to record the selected progamme. You
can press again to stop the recording.
Up/Down/Left/Right: Navigate.
Red button (Prev Time Slice): Displays the programmes of previous
time slice.
Green button (Next Time Slice): Displays the programmes of the
next time slice.
Yellow button (Prev Day): Displays the programmes of previous day.
Blue button (Next day): Displays the programmes of the next day.
Numeric buttons (Jump): Jumps to the preferred channel directly
via numeric buttons.
OK (Options): views/records or sets timer for future programs.
Text button (Filter): Views ltering options.
INFO (Details): Displays the programmes in detail.
(RECORD): the TV will start to record the selected progamme. You
can press again to stop the recording.
Red button (Prev Day): Displays the programmes of previous day.
Green button (Next day): Displays the programmes of the next day.
Yellow button (Zoom): Expands programme information.
Blue button (Filter): Views ltering options.
INFO (Details): Displays the programmes in detail.
Numeric buttons (Jump): Jumps to the preferred channel directly
via numeric buttons.
OK (Options): views/records or sets timer for future programs.
Text (Search): Displays “Guide Search” menu.
SUBTTL: Press SUBTITLE button to view Select Genre menu.
Using this feature, you can search the programme guide database in
accordance with the genre. Info available in the programme guide will
be searched and results matching your criteria will be listed.
SWAP (Now) : Shows the current programme.
Recording via EPG Screen
IMPORTANT: To record a programme, you should rst connect a USB
disk to your TV while the TV is switched off. You should then switch
on the TV to enable recording feature. Otherwise, recording feature
will not be available.
(RECORD): the TV will start to record the selected progamme. You
can press again to stop the recording.
Note: Switching to a different broadcast or source is not available
during the recording.
/ : Page left / Page right.
Programme Options
In EPG menu, press the OK button to enter the “Event Options”
menu.
Select Channel
In EPG menu, using this option, you can switch to the selected
channel.
Record / Delete Record Timer
IMPORTANT: To record a programme, you should rst connect a USB
disk to your TV while the TV is switched off. You should then switch
on the TV to enable recording feature. Otherwise, recording feature
will not be available.
After you have selected a programme in EPG menu, press the • OK
button and and Options screen will be displayed. Select “Record”
option and press the OK button. After this operation, a recording
becomes set to the selected programme.
To cancel an already set recording, highlight that programme and •
press the OK button and select the option “Delete Rec. Timer”. The
recording will be cancelled.
Note: You cannot switch to any other channel or source while there is
an active recording on the current channel.
Set Timer / Delete Timer
After you have selected a programme in EPG menu, press the OK
button and and Options screen will be displayed. Select “Set Timer
on Event” option and press OK button. You can set a timer for future
programmes.
English - 12 -
To cancel an already set reminder, highlight that programme and press
the OK button. Then select “Delete Timer” option. The timer will be
cancelled.
Note: It is not possible to record or set timer for two or more individual
events at the same time interval.
First Time Installation
IMPORTANT: Ensure that the aerial is connected before switching
on the TV for the rst time installation.
When the TV is operated for the rst time, installation wizard will •
guide you through the process. First, language selection screen will
be displayed:
Use “• ” or “ ” buttons to select your language and press OK button
to set selected language and continue.
After selecting the language, “• Welcome!” screen will be displayed,
requiring you to set Country,Teletext Language and Scan
Encrypted options.
By pressing “• ” or “ ” button, select the country you want to set and
press “ ” button to highlight Teletext Language option. Use “ ” or
“ ” button to select desired Teletext Language.
Press “• ” button after setting Teletext Language option. Scan
Encrypted will be then highlighted. You can set Scan Encrypted as
Yes if you want to scan coded stations.Afterwards select the desired
Teletext Language.
Press • OK button on the remote control to continue and the following
message will be displayed on the screen:
To select the “Yes” or “No” option, highlight the item by using “ ” or “
” buttons and press OK button.
Afterwards, the following OSD will be displayed on the screen and the
digital television will search for digital terrestrial TV broadcasts.
Note: You can press “MENU” button to cancel.
IMPORTANT!
If you are located at a TV regional border or are able to receive
broadcasts from more than one transmitter the “Choose Region” OSD
will be displayed after the digital channels have been scanned.
To prevent poor quality pictures or unwanted regional variation from
being stored in your main channel list you MUST! select your preferred
regional options for each level where available, move the cursor to
each option and press the Left/right arrow keys to view the available
regions/transmitters.
The example below shows “UK” “England” “North West” have been
selected as the regional options, after OK is pressed they can only
be changed if “First time installation” is repeated. Received regional
variations from the non selected region/transmitters will be stored
from preset 800.
After all the available stations have been stored a channel list will be
shown based on the broadcaster LCN press OK to accept this channel
order and start viewing or use the Edit functions to change the order
or delete unwanted channels.
Press • OK button to quit channel list and watch TV.
English - 13 -
Installation
Press “MENU” button on the remote control and select Installation
by using “ ” or “ ” button. Press OK button and the following menu
screen will be displayed.
Select Automatic Channel Scan (Retune) by using “”/“ ” button
and press OK button. Automatic Channel Scan (Retune) options will
be displayed. You can select Digital Aerial, Analogue or Digital Aerial-
Analogue tuning using “ ”/“ ” and OK buttons.
Automatic Channel Scan (Retune) Menu Operation
Digital: Searches and stores aerial DVB stations.
Analogue: Searches and stores analogue stations.
Full: Searches and stores both analogue and aerial DVB stations.
Whenever you select an automatic search type and press • OK button,
a conrmation screen will appear on the screen. To start installation
process, select Yes, to cancel select No by using .“ ” or “ ” and
OK button.
After auto channel scan type is set and selected and conrmed, •
installation process will start and progress bar will move along. Press
“MENU” button to cancel process. In such a case, located channels
are not stored.
Manual Tuning
HINT: This feature can be used for direct broadcast entry.
Select • Manual Channel Scan from the Installation menu by using
“”/“ ” and OK buttons. Manual Scan options screen will be
displayed.
Select the desired • Search Type using “ ” or “ ” button. Manual
search options will change accordingly. Use “ ”/“ ” button to highlight
an item and then press “ ” or “ ” button to set an option. You can
press “MENU” button to cancel.
Digital Manual Search
In manual channel scan, the number of the multiplex or frequency are
entered manually and only that multiplex or frequency are searched
for the channels. After selecting search type as Digital Aerial, you can
enter the multiplex or frequency number using the numeric buttons and
press OK button to search.
Analogue Manual Search
After selecting search type as analogue, you can use “ ”/“ ” button to
highlight an item and then press “ ” or “ ” button to set an option.
Enter the channel number or frequency using the numeric buttons. You
can then press OK button to search. When the channel is located, any
new channels that are not on the list will be stored.
Analogue Fine Tune
Select • Analogue Fine Tune from the Installation menu by using “ ”
or “ ” and OK buttons. Analogue ne tune screen will be displayed.
Analogue Fine Tune feature will not be available if there are no
analogue channels, digital channels and external sources stored.
Press • OK button to proceed. Use “ ” or “ ” button to set Fine Tune.
When nished, press OK button again.
Clear Service List (*)
(*) This setting is visible only when the Country option is set to Denmark,
Sweden, Norway or Finland.
Use this setting to clear channels stored. Press “ ” or “ ” button
to select Clear Service List and then press OK. The following OSD
message will be displayed on the screen:
Press OK to cancel. Select Yes by pressing “ ” or “ ” button and press
OK to delete all of the channels.
Managing Stations: Channel List
The TV sorts all stored stations in the Channel List. You can edit this
channel list, set favourites or set active stations to be listed by using
the Channel List options.
Press • “MENU” button to view main menu. Select Channel List item
by using “ ” or “ ” button. Press OK to view menu contents.
Select Edit Channel List to manage all stored channels. Use “ ” or “
” and OK buttons to select Edit Channel List.
English - 14 -
Operating the Channel List
Press “• ” or “ ” button to select the channel that will be processed.
Press “ ” or “ ” button to select a function on Channel List menu.
Use CH• /CH buttons to move page up or down.
Press • BLUE button to view ltering options.
Press • “MENU” button to exit.
Moving a Channel
First select the desired channel. Select Move option in the channel •
list and press OK button.
Edit Number screen will be displayed. Enter the desired channel •
number by using the numeric buttons on the remote control. If there
is a previously stored channel on that number, a warning screen
will be displayed. Select Yes if you want to move the channel and
press OK.
Press • OK button to process. Selected channel is now moved.
Deleting a Channel
You can press GREEN button to tag/untag all channels; YELLOW
button to tag/untag channel.
Select the channel that you want to delete and select • Delete option.
Press OK button to continue.
A warning screen will appear. Select • YES to delete, select No to
cancel. Press OK button to continue.
Renaming a Channel
Select the channel that you want to rename and select • Edit Name
option. Press OK button to continue.
Pressing “• ” or “ ” button moves to the previous/next character.
Pressing “ ” or “ ” button toggles the current character, i.e., ‘b’
character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric
buttons ‘0...9’ replaces the highlighted character with the characters
printed above the button one by one as the button is pressed.
When nished, press • OK button to save. Press “MENU” to cancel.
Locking a Channel
You can press GREEN button to tag/untag all channels; YELLOW
button to tag/untag a single channel.
Select the channel that you want to lock and select • Lock option.
Press OK button to continue.
You will be asked to enter parental control PIN. Default PIN is set as •
0000. Enter the PIN number.
Press • OK button when the desired channel is highlighted to lock/
unlock the channel. Lock symbol will be displayed next to the selected
channel.
Managing Stations: Favourites
You can create a list of favourite programmes.
Press • “MENU” button to view main menu. Select Channel List item
by using “ ” or “ ” button. Press OK to view menu contents.
Select • Favourites to manage favourite list. Use “ ”/“ ” and OK
buttons to select Favourites.
You can set various channels as favourites so that only the favourite •
channels are navigated.
Select a channel by using “• ” or “ ” button. Press OK button to
add selected channel to favourites list. Press OK button again to
remove.
Button Functions
OK• : Add/remove a station.
YELLOW• : Tag/untag a channel.
GREEN• : Tag/untag all channels.
BLUE• : Displays ltering options.
Managing Stations: Sorting Channel List
You can select broadcasts to be listed in the channel list. To display
specific types of broadcast, you should use Active channel list
setting.
Select Active channel list from the Channel list menu by using “ ” or
“ ” button. Press OK button to continue.
You can select a broadcast type option from the list by using “ ” /“
” and OK buttons.
On-Screen Information
You can press “INFO” button to display on-screen information.
Details of the station and current programme will be displayed on the
information banner.
The information banner gives information on the channel selected and
the programmes on it. The name of the channel is displayed, along with
its channel list number. Hint: Not all channels broadcast the programme
data. If the name and time of the programme are not available, then
information banner will be displayed with blanks.
If the selected channel is locked, you must enter the correct four-digit
numeric code to view the channel (default code is 0000). “Enter PIN”
will be displayed on the screen in such a case:
English - 15 -
Media Playback Using Media Browser
If the USB stick is not recognized after power off/on or First Time
Installation, rst, plug the USB device out and power off/on the TV set.
Plug the USB device in again.
To display Media Browser window, press either “MENU” button on the
remote control and then select Media Browser by pressing “ ” or “
” button. Press OK button to continue. Media Browser menu options
will be displayed.
Also, when you plug USB devices, media browser screen will be
displayed automatically:
You can play music, picture and video les from the connected USB
memory stick. Use “ ” or “ ” button to select Videos, Photos, Music,
Recording Library or Settings.
Viewing Videos via USB
When you select Videos from the main options, available video les will
be ltered and listed on this screen. You can use “ ” or “ ” button to
select a video le and press OK button to play a video. If you select a
subtitle le and press OK button, you can select or deselect that subtitle
le. The following menu will be displayed while playing a video le:
Jump (Numeric buttons):The TV will jump to the le starting with the
letter you input via the numeric buttons on your remote control.
Play This (OK button) : Plays the selected le.
Up/Down: Navigate.
Play ( button) : Plays all media les starting with the selected
one.
Lang (Play Preview): Displays selected file in a small preview
screen.
RED button: Sorts les by name.
YELLOW button: Toggles viewing style.
GREEN button: Activates Loop/Shufe functions.
BLUE button: Changes media type.
Play ( button): Starts the video playback.
Stop ( button): Stops the video playback.
Pause ( button): Pause the video playback.
Rewind ( button): Goes backward.
Forward ( button): Goes forward.
Subtitle/Audio (LANG. button): Sets subtitle/Audio.
Jump (GREEN button): Jumps to time. Use numeric buttons to type the
desired time and press GREEN button again to proceed.
Yellow: Opens subtitle time correction menu
Press SWAP button to switch back to previous menu.
Viewing Photos via USB
When you select Photos from the main options, available image les
will be ltered and listed on this screen.
Jump (Numeric buttons): Jump to selected le using the numeric
buttons.
OK: Views the selected picture in full screen.
Up/Down: Navigate.
Slideshow ( button): Starts the slideshow using all images.
GREEN button: Views images in thumbnails.
RED button: Sorts les by date.
YELLOW button: Toggles viewing style.
BLUE button: Changes media type.
Slideshow Options
Pause ( button): Pauses the slideshow.
Continue ( button): Continues the slideshow.
Loop/Shufe(GREEN button): Press once to disable Loop. Press
again to disable both Loop and Shufe. Press once more to enable
only Shufe. Press again to enable all. You can follow the disabled
functions with the change of the icons.
Previous/Next (Left/Right buttons): Jumps to previous or next le
on slideshow.
Rotate (Up/Down buttons): Rotates the image using up/down
buttons.
RETURN: Back to le list.
INFO: Displays help screen.
Playing Music via USB
When you select Music from the main options, available audio les will
be ltered and listed on this screen.
English - 16 -
Up/Down: Navigate.
Play ( button): Plays all media les starting with the selected one.
Stop ( button): Stops playback.
Pause ( button): Pauses the selected playback.
RED: Sorts les by Title,Artist or Album.
Loop/Shufe(GREEN button): Press once to disable Loop. Press
again to disable both Loop and Shufe. Press once more to enable
only Shufe. Press again to enable all. You can follow the disabled
functions with the change of the icons.
0..9 (Numeric buttons): The TV will jump to the le starting with the
letter you input via the numeric buttons on your remote control.
Play This (OK button): Plays the selected le.
Previous/Next (Left/Right buttons): Jumps to previous or next le
to play.
YELLOW: Toggles viewing style.
BLUE: Changes media type.
Recordings Library
IMPORTANT: To view recordings library, you should rst connect a USB
disk to your TV while the TV is switched off. You should then switch
on the TV to enable recording feature. Otherwise, recording feature
will not be available.
To view the list of recordings, select “Recordings Library” and press
the OK button. Recordings Library will then be displayed with available
recordings.
All the recordings are kept in a list in the recordings library.
RED button (Delete): Erases the selected recording.
GREEN button (Edit): Makes changes on the selected recording.
BLUE button (Sort): Changes the order of the recordings. You can
select from a wide range of sorting options.
OK button: Activates play options menu:
• Play from start: Plays the recording from the beginning.
• Resume: Recommences the recordings.
• Play from offset: Species a playing point.
Note: Viewing main menu and menu items will not ve available during
the playback.
(Resume): Recommences the recordings.
INFO (Details): Displays the short extended programmes in detail.
Media Browser Settings
You can set your Media Browser preferences by using the Settings
dialog. Press “ ” or “ ” button to highlight an item and use “ ” or “
” button to set.
View Style: Sets default browsing mode.
Music FF/FR Speed: Sets forwarding/advancing speed.
Slide Show Interval: Sets slide show interval time.
Show Subtitle: Sets subtitle enabling preference.
Subtitle Position: Sets subtitle position as up or down.
Subtitle Font Size: Sets subtitle font size (max. 54pt).
Timeshift Recording
IMPORTANT: To record a programme, you should rst connect a USB
disk to your TV while the TV is switched off. You should then switch
on the TV to enable recording feature. Otherwise, recording feature
will not be available.
Press • (PAUSE) button while watching a broadcast for switching to
timeshifting mode.
In timeshifting mode, the programme is paused and simultaneously •
recorded to the connected USB disk (*). Press (PLAY) button again
to watch the paused programme from the stopped moment.
This playback is performed in x1 playback speed. You will see the •
timeshift gap between the real and the timeshifted programme in
the info bar.
Use • / (PREVIOUS/NEXT) buttons to move forward or
backward on timeshift playback. When the timeshift is reached,
timeshifting mode will be quitted and you will switch back to watching
normal broadcast.
Press • (STOP) button to quit timeshifting mode.
(*) Continuous time shift recording’s duration depends on your
connected USB disk’s le size and dened Max. Timeshift in the
Recordings Conguration menu. See the section, “Recordings” for
more information on setting Max. Timeshift.
Note: Switching to a different broadcast or source; and viewing main
menu are not available during the timeshifting.
Instant Recording
IMPORTANT: To record a programme, you should rst connect a USB
disk to your TV while the TV is switched off. You should then switch
on the TV to enable recording feature. Otherwise, recording feature
will not be available.
Press • (RECORD) button to start recording an event instantly while
watching a programme. The following OSD appears on the screen:
Record OSD will then be displayed for a short time and the current •
event will be recorded.
You can press • (RECORD) button on the remote control again to
record the next event on the EPG. In this case, OSD will display the
programmed events for recording.
English - 17 -
Press (STOP) button to cancel instant recording. The following OSD
will be displayed:
Select Yes by using “ ” or “ ” / OK buttons to cancel instant
recording.
Note: Switching to a different broadcast or source; and viewing Media
Browser are not available during the recording.
Watching Recorded Programmes
In the main menu, use “ ” or “ ” buttons to select Media Browser.
Highlight Recordings Library item by using “ ” or “ ” button and press
OK button to enter. Recordings Library will then be displayed.
IMPORTANT: To view recordings library, you should rst connect a USB
disk to your TV while the TV is switched off. You should then switch
on the TV to enable recording feature. Otherwise, recording feature
will not be available.
Select a recorded item from the list (if previously recorded) by using
“ ” / “ ” button. Press OK button to view Play Options. Select an
option by using “ ” / “ ” or OK buttons.
Available playback options:
Play from start: Plays the recording from the beginning.•
Resume: Recommences the recordings.•
Play from offset: Species a playing point.•
Note: Viewing main menu and menu items will not be available during
the playback.
Press (STOP) button to stop a playback and return to return to
Recordings Library.
Slow Forward
If you press (PAUSE) button while watching recorded programmes,
slow forward feature will be available. You can use button to slow
forward. Pressing button consecutively will change slow forwarding
speed.
Changing Image Size: Picture Formats
You can change the aspect ratio (image size) of the TV for viewing •
the picture in different zoom modes.
Press • “SCREEN” button repeatedly to change the image size.
Available zoom modes are listed below.
Auto
When AUTO is selected, the aspect ratio of the screen is adjusted by
the information provided by the selected source (if available).
The format being displayed in AUTO mode is completely independent
of WSS information which could be included in the broadcast signal
or the signal from an external device.
Note: Auto mode only will be available in HDMI, YPbPr and DTV
sources.
16:9
This uniformly stretches the left and right sides of a normal picture (4:3
aspect ratio) to ll the wide TV screen.
For 16:9 aspect ratio pictures that have been squeezed into a normal •
picture (4:3 aspect ratio), use the 16:9 mode to restore the picture
to its original shape.
Subtitle
This zooms up the wide picture (16:9 aspect ratio) with subtitles to
the full screen.
Note: You can shift to screen up or down by pressing “ ” / “ ” buttons
while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or
Subtitle.
14:9
This zooms up the wide picture (14:9 aspect ratio) to the upper and
lower limits of the screen.
14:9 Zoom
This option zooms to the 14:9 picture.
English - 18 -
4:3
Use to view a normal picture (4:3 aspect ratio) as this is its original
size.
Panoramic
This stretches the left and right sides of a normal picture (4:3 aspect
ratio) to ll the screen, without making the picture appear unnatural.
The top and bottom of the picture are slightly cut off.
Cinema
This zooms up the wide picture (16:9 aspect ratio) to the full screen.
ConguringPictureSettings
You can use different picture settings in detail.
Press “MENU” button and select the Picture icon by using “ ” or “ ”
button. Press OK button to view Picture Settings menu.
Operating Picture Settings Menu Items
Press “• ” or “ ” button to highlight a menu item.
Use “• ” or “ ” button to set an item.
Press • “MENU” button to exit.
Picture Settings Menu Items
Mode: For your viewing requirements, you can set the related
mode option. Picture mode can be set to one of these options:
Cinema,Game,Dynamic and Natural.
Contrast: Sets the lightness and darkness values of the screen.
Brightness: Sets the brightness value for the screen.
Sharpness: Sets the sharpness value for the objects displayed on
the screen.
Colour: Sets the colour value, adjusting the colors.
Colour Shift: Adjust the desired colour tone.
Colour Temp: Sets the desired colour tone.
Setting Cool option gives white colours a slight blue stress.
For normal colours, select Normal option.
Setting Warm option gives white colours a slight red stress.
Noise Reduction: If the broadcast signal is weak and the picture
is noisy, use Noise Reduction setting to reduce the noise amount.
Noise Reduction can be set to one of these options: Low, Medium,
High or Off.
Game Mode: When Game Mode is set to On, specic game mode
settings, which are optimized for better video quality, will be loaded.
Note: When Game Mode is on, some items in the Picture Settings
menu will be unavailable to be set.
Picture Zoom:Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom,
4:3, Panoramic or Cinema.
Reset: Resets the picture settings to factory default settings.
While in VGA (PC) mode, some items in Picture menu will be
unavailable. Instead, VGA mode settings will be added to the Picture
Settings while in PC mode.
PC Picture Settings
For adjusting PC picture items, do the following:
Press “ ” or “ ” button to select Picture icon. Picture menu appears
on the screen.
Contrast, Brightness, Colour, Colour Temp and Picture Zoom
settings in this menu are identical to settings dened in TV picture
menu under “Main Menu System”.
Sound,Settings and Source settings are identical to the settings explained
in main menu system.
PC Position: Select this to display PC position menu items.
Autoposition: Automatically optimizes the display. Press OK to
optimize.
H Position: This item shifts the image horizontally to right hand side
or left hand side of the screen.
V Position: This item shifts the image vertically towards the top or
bottom of the screen.
Dot Clock: Dot Clock adjustments correct the interference that appear
as vertical banding in dot intensive presentations like spreadsheets or
paragraphs or text in smaller fonts.
Phase: Depending on the resolution and scan frequency that you input
to the TV set, you may see a hazy or noisy picture on the screen. In
such a case you can use this item to get a clear picture by trial and
error method.
English - 19 -
ConguringSoundSettings
Sound settings can be configured according to your personal
preferences.
Press “MENU” button and select the rst icon by using “ ” or “ ”
button. Press OK button to view Sound Settings menu.
Operating Sound Settings Menu Items
Press “• ” or “ ” button to highlight a menu item.
Use “• ” or “ ” button to set an item.
Press • “MENU” button to exit.
Sound Settings Menu Items
Volume: Adjusts volume level.
Equalizer: Press OK button to view equalizer sub-menu.
In equalizer menu, the preset can be changed to Music, Movie,
Speech, Flat, Classic and User. Press the “MENU” button to return
to the previous menu.
Note: Equalizer menu settings can be changed manually only when
the Equalizer Mode is in User.
Balance: This setting is used for emphasizing left or right speaker
balance.
Headphone: Sets headphone volume.
AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain
xed output level between programmes (For instance, volume level of
advertisements tend to be louder than programmes).
Dynamic Bass: Dynamic Bass is used to increase bass effect of the
TV set.
Digital Out: Sets digital out audio type.
ConguringYourTV’sSettings
Detailed settings can be configured to suit your personal
preferences.
Press “MENU” button and select Settings ikon by using “ ” or “ ”
button. Press OK button to view Settings menu.
Operating Settings Menu Items
Press “• ” or “ ” button to highlight a menu item.
Press • OK button to select an item.
Press • “MENU” button to exit.
Settings Menu Items
Conditional Access: Controls conditional access modules when
available.
Language: Congures language settings.
Parental: Congures parental settings.
Timers: Sets timers for selected programmes.
Date/Time: Sets date and time.
Sources: Enables or disables selected source options.
Other Settings: Displays other setting options of the TV set.
Using a Conditional Access Module
IMPORTANT: Insert or remove the CI module only when the TV is
SWITCHED OFF.
In order to watch certain digital channels, a conditional access module •
(CAM) can be necessary. This module must be inserted in the CI slot
of your TV.
Obtain the Conditional Access Module (CAM) and the viewing card •
by subscribing to a pay channel company, then insert those to the
TV using the following procedure.
Insert the CAM and then the viewing card to the slot that is located •
in the terminal cover at the rear side of the TV.
The CAM should be correctly inserted, it is impossible to insert fully if •
reversed. The CAM or the TV terminal may be damaged if the CAM
is forcefully inserted.
Connect the TV to the mains supply, switch on and then wait for few
moments until the card is activated.
When no module is inserted, “• No Common Interface module
detected” message appears on the screen.
Refer to the module instruction manual for details of the settings.•
Viewing Conditional Access Menu (*)
(*) These menu settings may change depending on the service
provider.
Press “MENU” button and select the icon by using “ ” or “ ” button.
Press OK button to view Settings menu. Use “ ” or “ ” button to
highlight Conditional Access and press OK to view menu items.
English - 20 -
ConguringLanguagePreferences
You can operate the TV’s language settings using this menu.
Press “MENU” button and select the fth icon by using “ ” or “ ”
button. Press OK button to view Settings menu. Use “ ” or “ ” button
to highlight Language and press OK to continue:
Use “” or “ ” button to set an item. Settings are stored
automatically.
Menu: displays the system language.
Preferred
These settings will be used if available. Otherwise the current settings
will be used.
Audio• : Sets the preferred audio language.
Subtitle• : Sets the subtitle language. Selected language will be seen
in subtitles.
Teletext• : Sets teletext language.
Guide• : Sets the preferred Guide language.
Current (*)
(*) These settings can be changed if only the broadcaster supports.
Otherwise, settings will not be available to be changed.
Audio: Changes the audio language for the current channel.
Subtitle• : Sets the subtitle language for the current channel.
Note: If the Country option is set to Denmark, Sweden, Norway or
Finland, the Language Settings menu will function as described
below:
Language Settings
In the conguration menu, highlight the Language Settings item by
pressing “ ” or “ ” buttons. Press OK and Language Settings submenu
will be displayed on the screen:
Use “ ” or “ ” buttons to highlight the menu item that will be adjusted
and then press “ ” or “ ” button to set.
Notes:
System Language determines the on-screen menu language.•
Audio Language is used for selecting the soundtrack of a channels.•
Primary settings are the rst priority when multiple choices are •
available on a broadcast. Secondary settings are the alternatives
when the rst options are not available.
Parental Control
To prohibit viewing of certain programmes, channels and menus can
be locked by using the parental control system.
This function enables or disables the menu protection system and
allows the PIN code to be changed.
Press “MENU” button and select the icon by using “ ” or “ ” button.
Press OK button to view Settings menu. Use “ ” or “ ” button to
highlight Parental and press OK to continue:
To display parental lock menu options, PIN number should be entered.
Factory default PIN number is 0000. After coding the correct PIN
number, parental settings menu will be displayed:
Parental Settings Menu Operation
Select an item by using “• ” or “ ” button.
Use “• ” or “ ” button to set an item.
Press• OK button to view more options.
Menu Lock: Menu lock setting enables or disables the menu access.
You can disable access to the installation menu or the whole menu
system.
Maturity Lock (optional): When set, this option gets the maturity
information from the broadcast and if this maturity level is disabled,
disables access to the broadcast.
Child Lock (optional): When Child Lock is set, the TV can only be
controlled by the remote control. In this case the control panel buttons
will not work, except for the Standby Off/On button. When Child Lock
is activated you are able to switch the TV into Standby mode with the
Standby Off/On button. To switch the TV on again, you need the remote
control. Hence, if one of those buttons is pressed, Child Lock Is On will
be displayed on the screen when the menu screen is not visible.
Set PIN: Denes a new PIN number. Use numeric buttons to enter a
new pin number. You will need to code your new pin a second time for
verication purposes.
IMPORTANT: The factory default pin number is 0000, if you change
the pin number make sure you write it down and keep it safe.
English - 21 -
Timers
To view Timers menu, press “MENU” button and select Channel List
icon by using “ ” or “ ” button. Press OK button to view Channel
List menu. Use “ ” or “ ” button to highlight Timers and press OK
to continue:
Setting Sleep Timer
This setting is used for setting the TV to turn off after a certain time.
Highlight Sleep Timer by using “• ” or “ ” button.
Use “• ” or “ ” button to set. The timer can be programmed between
Off and 2.00 hours (120 minutes) in steps of 30 minutes.
Setting Programme Timers
You can set programme timers for a particular programme using this
feature.
Press “ ” button to set timers on an event. Programme timer function
buttons will be displayed on the screen.
Adding a Timer
Press • YELLOW button on the remote control to add a timer. The
following menu appears on the screen:
Network Type: This feature is unavailable to be set.
Timer Type: You can select timer type as Record or Timer.
Channel: Changes channel by using “ ” or “ ”.
Record Type: This item is unavailable to be set.
Date: Enter a date using the numeric buttons.
Start: Enter a starting time using the numeric buttons.
End: Enter an ending time using the numeric buttons.
Duration: Displays duration between the starting and ending time.
Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use “
” or “ ” buttons to select an option.
Change/Delete: Sets the change/delete permission.
Playback: Sets the playback permission and parental settings.
Press • GREEN button to save the timer. Press RED button to
cancel.
Editing a Timer
Select the timer you want to edit by pressing “• ” or “ ” button.
Press • GREEN button. Edit Timer menu screen will be displayed.
When nished with editing, press • GREEN button to save. You can
press “MENU” button to cancel.
Deleting a Timer
Select the timer you want to delete by pressing “• ” or “ ” button.
Press • RED button.
Select • YES by using “ ” or “ ” buttons to delete the timer. Select
NO to cancel.
RecordingConguration
Select Recording Conguration item in the Settings menu to congure
recording settings. The following menu is displayed for recording
conguration.
The following options are available for adjustments:
Start Early (*)
You set recording timer’s starting time to start earlier by using this
setting.
(*) Available only for EU country options.
End Late (*)
You set recording timer’s end time to end later by using this settings.
(*) Available only for EU country options.
Max Timeshift
This setting allows you to set the maximum time allowed for timeshifting.
Duration options are approximate and can change accordingly,
depending on the broadcast received.
Format Disk
IMPORTANT: Note that ALL the data stored on the USB disk will be
lost and then the disk format will be converted to FAT32 if you activate
this feature.
•If you want to delete all les on the connected USB hard disk drive or
memory stick, you can use Format Disk option.
• Also, if your USB disk malfunctions, you can try formatting the
USB disk. In most cases formatting the USB disk will restore normal
operation; however, ALL the data stored on the USB disk will be lost
in such a case.
• Press OK button while the Format Disk option is highlighted. A menu
will appear on the screen, requiring you to enter a pin number. If you
have not changed the pin number, the factory default is 0000. After you
enter the pin, a pop-up menu appears on the screen to ensure that the
hard disk should be formatted, select “YES” and press OK to format
the hard disk. Select “NO” and press OK to cancel. Ensure you back
up important recordings before you format the USB disk unit.
Hard Disk Info
To view the details about the USB disk, highlight Hard Disk Info by
using “ ” or “ ” key and press OK. USB disk information will be
displayed:
ConguringDate/TimeSettings
Select Date/Time in the Settings menu to congure Date/Time settings.
Press OK button.
Use “• ” or “ ” buttons to highlight Date/Time.
Date,Time,Time Settings Mode and Time Zone Setting will be
available.
Use “ ” or “ ” buttons to highlight the Time Settings Mode. Time
Settings Mode is set using “ ” or “ ” buttons. It can be set to AUTO or
MANUAL.
When AUTO is selected, Date/Time and Time Zone options will not be
available to be set. If MANUAL option is selected as the Time Zone can
be altered:
• By pressing “ ” or “ ” buttons select Time Zone.
Use “ ” or “ ” buttons to change the Time Zone between GMT-12 or
GMT+12. Date/Time on the top of the menu list will then change according
to the selected Time Zone.
Changes are automatically stored. Press • “MENU” to exit.
English - 22 -
ConguringSourceSettings
You can enables or disable selected source options. The TV will not switch
to the disabled source options when “SOURCE” button is pressed.
Select • Sources in the Settings menu and press OK button.
Press“• ” or “ ” buttons to select a source.
Use “• ” or “ ” button to enable or disable the selected source.
Changes are automatically stored.
ConguringOtherSettings
To view general conguration preferences, select Other Settings in the
Settings menu and press OK button.
Operation
Press “• ” or “ ” buttons to select an item.
Use “• ” or “ ” button to set an option.
Press• OK button to view a sub-menu.
Menu Timeout: Changes timeout duration for menu screens.
Scan Encrypted: When this setting is on, search process will locate
the encrypted channels as well. If it is set as Off, encrypted channels
will not be located in automatic search or manual search.
Backlight (optional): This setting controls the backlight level and it
can be set to Auto, Maximum, Minimum and Medium.
Power Save Mode: Use “ ” or “ ” button to select Power Save
Mode.Press “ ” or “ ” button to set Power Save Mode as On or Off.
See the section, “Environmental Information” in this manual for further
information on Power Save Mode.
Note : Backlight function will be invisible if Power Save Mode is set
to on.
Blue Background: Activates or deactivates blue background system
when the signal is weak or absent.
Software Upgrade: To ensure that your TV always has the most update
information, you can use this setting. In order for the proper operation,
please ensure that the TV is set to standby mode.
You can enable or disable automatic upgrade by setting Automatic
Scanning option.
You can manually search for new software by selecting Scan for
upgrade.
Hard of Hearing: If the broadcaster enables any special signal
concerning the audio, you can set this setting as On to receive such
signals.
Audio Description: Audio description refers to an additional narration
track for blind and visually impaired viewers of visual media, including
television and movies. The description narrator talks through the
presentation, describing what is happening on the screen during the
natural pauses in the audio (and sometimes during dialogue, if deemed
necessary). You can use this feature, only if the broadcaster supports
that additional narration track.
Auto TV Off: You can set the timeout value of auto off feature.After
the timeout value is reached and the Tv is not operated for selected
time , the TV will go off.
Standby Search (optional):
Use “ ” or “ ” button to select Standby Search and then press “
” or “ ” button to set this setting as On or Off. If you change Standby
Search to Off, this function will be unavailable.To use Standby search
please make sure that you select Standby Search as On.
If the Standby Search is set to On, when the TV is in standby mode,
available broadcasts will be searched. If the TV locates any new or
missing broadcasts, a menu screen will be displayed, asking you
whether or not to execute these changes.
Other Features
Displaying TV Information: Programme Number, Programme Name,
Sound Indicator, time, teletext, channel type and resolution information
is displayed on the screen when a new programme is entered or “INFO”
button is pressed.
Mute Function: Press “ ” button to disable sound. Mute indicator will
be displayed in the upper side of the screen. To cancel mute, there
are two alternatives; the rst one is pressing the “ ” button and the
second one is increasing the volume level.
Picture Mode Selection: By pressing PRESETS button, you can
change Picture Mode settings in accordance with your viewing
requirements. Available options are Dynamic, Natural and Cinema.
Displaying Subtitles: Press LANG button to select subtitle language
and press SUBTITLE button to activate or deactivate subtitles.
Selected subtitle language may not be stored when you change
channels.
To omit this, you should set the Preferred Subtitle Language option in
the Language Settings menu to the desired language. This enables
the TV to switch to the preferred subtitle language when the channel
is changed.
English - 23 -
Teletext
The teletext system transmits information such as news, sports and
weather on your TV. Note that if the signal degrades, for example in
poor/adverse weather conditions, some text errors may occur or the
teletext mode may be aborted.
Teletext function buttons are listed below:
“ ” Teletext / Mix : Activates teletext mode when pressed once.
Press again to place the teletext screen over the programme (mix).
Pressing again will quit the teletext mode.
“RETURN” Index: Selects the teletext index page.
“INFO” Reveal: Shows hidden information (e.g. solutions of games).
“OK” Hold: Holds a text page when convenient. Press again to
resume.
“ ”/“ ” Subcode Pages : Selects subcode pages if available when
the teletext is activated.
P+ / P- and numbers (0-9): Press to select a page.
Note: Most TV stations use code 100 for their index pages.
Coloured Buttons (RED/GREEN/YELLOW/BLUE)
Your TV supports both FASTEXT and TOP text systems. When these
systems are available, the pages are divided into groups or topics.
When FASTEXT system is available, sections in a teletext page will
become colour-coded and can be selected by pressing the coloured
buttons. Press a coloured button that corresponds to with your needs.
The coloured writings will appear, showing you which coloured buttons
to use when TOP text transmission is present. Pressing “ ” or “ ”
commands will request the next or previous page respec tively.
Tips
Screen Care: Clean the screen with a slightly damp, soft cloth. Do not
use abrasive solvents as they may damage the coating layer of the TV
screen. For your safety, unplug the mains plug when cleaning the set.
When moving the TV, hold it properly from the bottom part.
Image Persistence: Please note that ghosting may occur while
displaying a persistent image.LCD TVs’ image persistence may
disappear after a short time. Try turning off the TV for a while.
To avoid this, do not leave the screen in still picture for extended
periods.
No Power: If your TV system has no power, please check the main
power cable and connection to the mains socket outlet.
Poor Picture: Have you selected the correct TV system? Is your TV
set or house aerial located too close to a non-earthed audio equipment
or neon lights, etc.? Mountains or high buildings can cause double
pictures or ghost images. Sometimes you can improve the picture
quality by changing the direction of the aerial. Is the picture or teletext
unrecognisable? Check if you have entered the correct frequency.
Please retune the channels. The picture quality may degrade when
two peripherals are connected to the TV at the same time. In such a
case, disconnect one of the peripherals.
No Picture: Is the aerial connected properly? Are the plugs connected
tightly to the aerial socket? Is the aerial cable damaged? Are suitable
plugs used to connect the aerial? If you are in doubt, consult your dealer.
No Picture means that your TV is not receiving a transmission. Have
you selected the correct button on the remote control? Try once more.
Also make sure the correct input source has been selected.
Sound: You can not hear any sound. Did you perhaps interrupt the
sound, pressing the button? Sound is coming from only one of the
speakers. Is the balance set to one extreme? See Sound Menu.
Remote Control: Your TV no longer responds to the remote control.
Perhaps the batteries are exhausted. If so you can still use the local
buttons on the TV.
Input Sources: If you cannot select an input source, it is possible that
no device is connected. Check the AV cables and connections if you
have tried to connect a device.
Recording Unavailable: To record a programme, you should rst
connect a USB disk to your TV while the TV is switched off. You
should then switch on the TV to enable recording feature. Otherwise,
recording feature will not be available. If you cannot perform recording,
try switching off the TV and then re-inserting the USB device while the
TV is switched off.
USB Is too Slow: If “USB is too slow” message is displayed on the
screen while starting a recording, try restarting the recording. If you still
get the same error, it is possible that your USB disk does not meet the
speed requirements. Try connecting another USB disk.
Picture Breakup: If whilst watching DTV you experience picture
or sound disruptions then please retune your TV using “First Time
Installation” and make sure you select the correct region/transmitter
when prompted by the “Choose Region” on screen message. Please
note regional selection can only be made if “First time Installation” is
used.
TV Switches Randomly to Standby: The TV by default will switch back
to standby after 4 hours if the TV remote is not used, this is most likely
to occur if you are you are using an external set-top box as a signal
source or you are out of the TV room. This power saving feature can
be switched off or the activation time extended or reduced via the menu
“Settings-> Other Settings -> Auto TV OFF”. The TV will also return to
stand-by if the aerial signal is lost for more than 5 minutes.
Dark Picture: When the TV is first switched on the back lights
brightness is reduced, this is normal operation and the brightness will
increase to the running level within a few minutes. Please note when
“Backlight” is set to “Auto” the backlight brightness will change with
picture content.
English - 24 -
Appendix A: PC Input Typical Display Modes
The display has a maximum resolution of 1360 x 768. The following
table is an illustration of some of the typical video display modes. Your
TV may not support different resolutions. Supported resolution modes
are listed below. If you switch your PC to an unsupported mode, a
warning OSD will appear on the screen.
Index
Resolution
Frequency
1
640x400 70 Hz
2
640x480 60 Hz
3
640x480 75 Hz
4
800x600 60 Hz
5
800x600 75 Hz
6
1024x768 60 Hz
7
1024x768 70 Hz
8
1024x768 75 Hz
9
1152x864 75 Hz
10
1280x768 60 Hz
11
1280x1024 60 Hz
12
1360x768 60 Hz
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types)
Source
Supported Signals
Available
EXT
(SCART)
PAL 50/60 O
NTSC 60 O
RGB 50 O
RGB 60 O
Side AV
PAL 50/60 O
NTSC 60 O
YPbPr
480I 60Hz O
480P 60Hz O
576I 50Hz O
576P 50Hz O
720P 50Hz O
720P 60Hz O
1080I 50Hz O
1080I 60Hz O
1080P 50Hz O
1080P 60Hz O
HDMI1
HDMI2
480I 60Hz O
480P 60Hz O
576I 50Hz O
576P 50Hz O
720P 50Hz O
720P 60Hz O
1080I 50Hz O
1080I 60Hz O
1080P 50Hz O
1080P 60Hz O
1080P 24 HZ O
(X: Not Available, O: Available)
In some cases a signal on the LCD TV may not be displayed properly. The
problem may be an inconsistency with standards from the source equipment
(DVD, Set-top box, etc. ). If you do experience such a problem please contact
your dealer and also the manufacturer of the source equipment.
English - 25 -
Appendix C: Supported DVI Resolutions
When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution
information.
24Hz
25Hz
30Hz
50Hz
60Hz
480i
þ
480p
þ
576i
þ
576p
þ
720p
þ þ
1080i
þ þ
1080p
þþþþ þ
Appendix D: Supported File Formats for USB Mode
Supported Players
Player
Stream
Video Decoder (MSVD)
Audio Decoder (MSAD)
Audio
MP3 None MP3
Audio
WAV/AIFF None-- LPCM
MPEG1 Program
Stream
MPEG-1 MPEG1 MP3, AC-3 and PCM
MPEG2 Program
Stream
MPEG-2 MPEG2 MP3, AC-3 and PCM
AVI (Xvid)
XVID MPEG2 MP3, AC-3 and PCM
English - 26 -
Appendix E: Software Upgrade
• Your TV is capable of nding and updating new software upgrades over broadcast channels.
• For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to
auto search and update all available channels.
1) Software upgrade search via user interface
• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software
Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download
completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.
2) 3.AM search and upgrade mode
• If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software
upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.
Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is nished successfully. During
reboot TV makes nal initializations. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes
later TV restarts with new software activated.
• If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still
can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the
service personnel to x the problem for you.
Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause your TV not to re-open again and
can only be xed by service personnel.
Products
Battery
Information for Users on Disposal of old Equipment and
Batteries
[European Union only]
These symbols indicate that equipment with these symbols should not
be disposed of as general household waste. If you want to dispose
of the product or battery, please consider the collection systems or
facilities for appropriate recycling.
Notice: The sign Pb below the symbol for batteries indicates that this
battery contains lead.
English - 27 -
Digital
Reception
MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Prole 1
for UKObject carousel support compliant with ISO/IEC 135818-6 and UK DTT prole
Frequency range: 474-850 MHz for UK models
170-862 MHz for EU models
Transmission standard: DVB-T. MPEG-2
Demodulation: COFDM with 2K/8K FFT mode
FEC: all DVB modes
Video: MP@ML, PAL, 4:3/16:9
Audio: MPEG Layer I&II 32/44.148kHz.
Specications
TV BROADCASTING
PAL/SECAM B/G D/K K’ I/I’ L/L’
RECEIVING CHANNELS
VHF (BAND I/III)
UHF (BAND U)
HYPERBAND
NUMBER OF PRESET CHANNELS
1000
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
220-240V AC, 50Hz.
AUDIO
German + Nicam Stereo
AUDIO OUTPUT POWER (WRMS.) (10% THD)
2 x 6
POWER CONSUMPTION (W)
150 W (max)
< 0,5 W (Standby)
PANEL
16:9 display, 32” (80 cm) Screen Size
DIMENSIONS (mm)
DxLxH (With foot): 205,5 x 776,5 x 558
Weight (Kg): 11,55
DxLxH (Without foot): 87 x 776,5 x 524
Weight (Kg): 9,95
English - 28 -
Dimensional Drawings
English - 29 -
End of life disposal
English - 30 -
Detachable Stand Uninstallation Method
To install the TV on the wall, rst of all, foot assembly should be removed. Unscrew the 4 screws that attach the foot assembly to the panel
and remove the foot assembly from the panel.
English - 31 -
Screw Dimensions
L
D
Model D L Item Number VESA Installation of the Screw
LC-19LE510E
LC-19LE510K
Ø4 30 4
75 x 75 (W x H)
To the wall
M4 18 4 To the product
LC-22LE510E
LC-22LE510K
LC-22DV510E
LC-22DV510K
Ø4 30 4
75 x 75 (W x H)
To the wall
M4 18 4 To the product
LC-24LE510E
LC-24LE510K
LC-24DV510E
LC-24DV510K
Ø4 30 4
75 x 75 (W x H)
To the wall
M4 18 4 To the product
LC-32LE510E
LC-32LE530E
Ø4 30 8
200 x 100 (W x H)
To the wall
M4 18 4 To the product
LC-40LE510E
LC-40LE530E
Ø4 30 8
400 x 400 (W x H)
To the wall
M8 30 4 To the product
LC-32SH130E
LC-32SH130K
LC-32SH340E
Ø4 30 8
200 x 100 (W x H)
To the wall
M6 30 4 To the product
LC-40SH340E
LC-40SH340K
Ø4 30 8
400 x 400 (W x H)
To the wall
M6 30 4 To the product
