ShenZhen Fujikam Industry Development BOX Cloud BOX User Manual 1 Installation

ShenZhen Fujikam Industry Development Co., Ltd Cloud BOX 1 Installation

User Manual

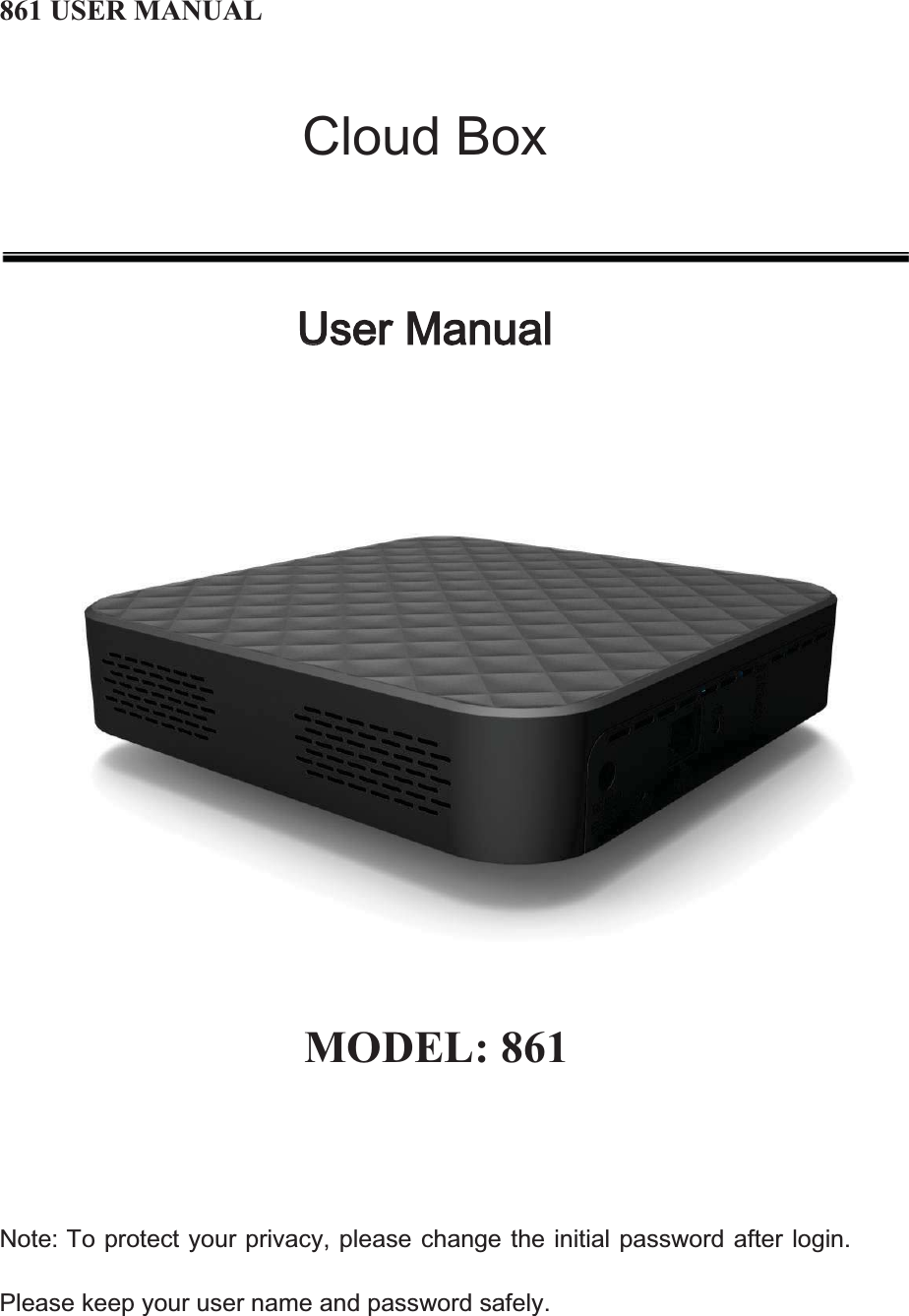

861 USER MANUAL&ORXG%R[88VHU0DQXDO MODEL: 861 1RWH7RSURWHFW\RXUSULYDF\SOHDVHFKDQJHWKHLQLWLDOSDVVZRUGDIWHUORJLQ3OHDVHNHHS\RXUXVHUQDPHDQGSDVVZRUGVDIHO\

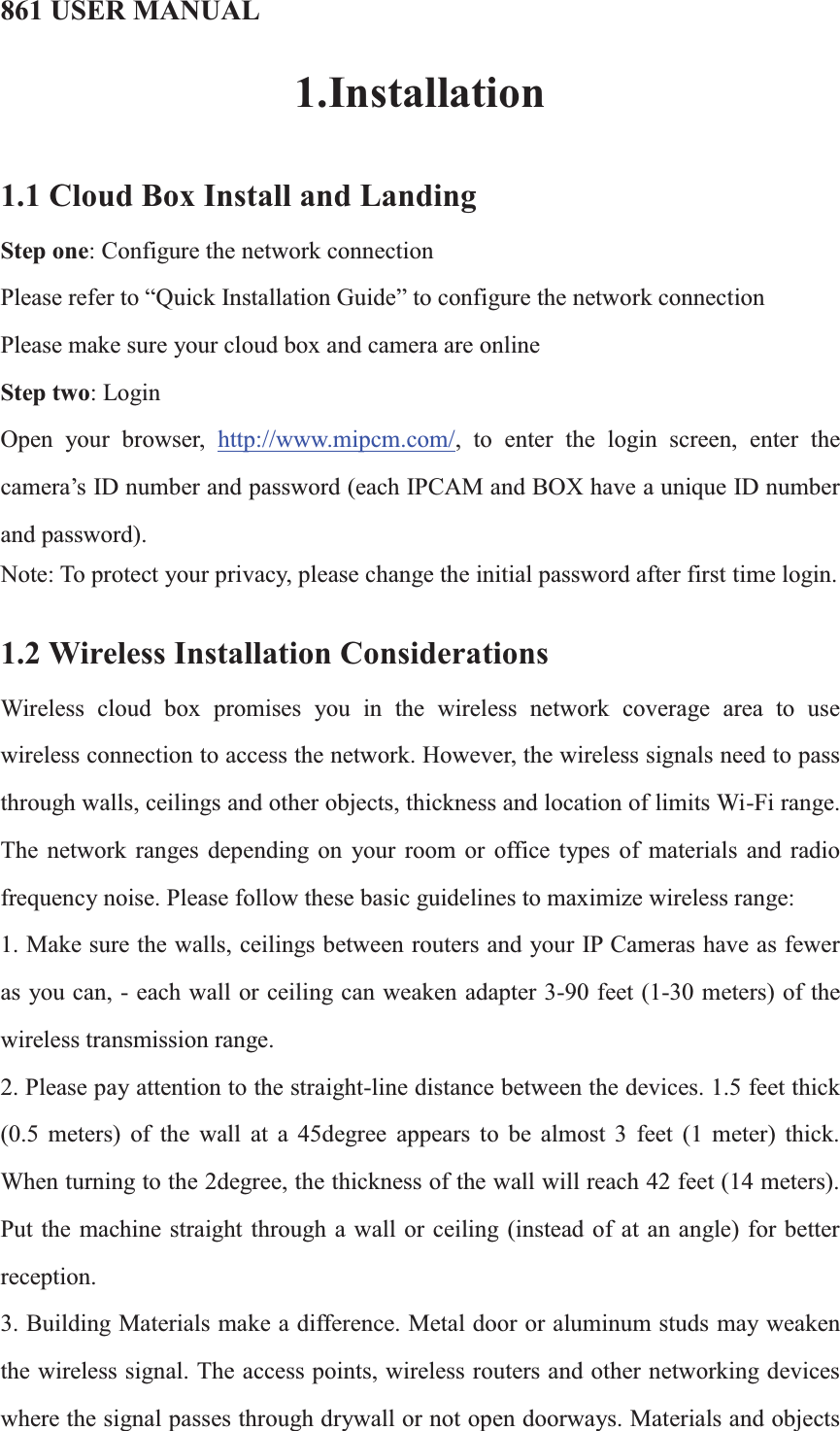

861 USER MANUAL1.Installation1.1 Cloud Box Install and LandingStep one: Configure the network connectionPlease refer to “Quick Installation Guide”to configure the network connectionPlease make sure your cloud box and camera are onlineStep two: LoginOpen your browser, http://www.mipcm.com/, to enter the login screen, enter the camera’s ID number and password (each IPCAM and BOX have a unique ID number and password).Note: To protect your privacy, please change the initial password after first time login.1.2 Wireless Installation ConsiderationsWireless cloud box promises you in the wireless network coverage area to use wireless connection to access the network. However, the wireless signals need to pass through walls, ceilings and other objects, thickness and location of limits Wi-Fi range. The network ranges depending on your room or office types of materials and radio frequency noise. Please follow these basic guidelines to maximize wireless range: 1. Make sure the walls, ceilings between routers and your IP Cameras have as fewer as you can, - each wall or ceiling can weaken adapter 3-90 feet (1-30 meters) of the wireless transmission range.2. Please pay attention to the straight-line distance between the devices. 1.5 feet thick (0.5 meters) of the wall at a 45degree appears to be almost 3 feet (1 meter) thick. When turning to the 2degree, the thickness of the wall will reach 42 feet (14 meters). Put the machine straight through a wall or ceiling (instead of at an angle) for better reception. 3. Building Materials make a difference. Metal door or aluminum studs may weaken the wireless signal. The access points, wireless routers and other networking devices where the signal passes through drywall or not open doorways. Materials and objects

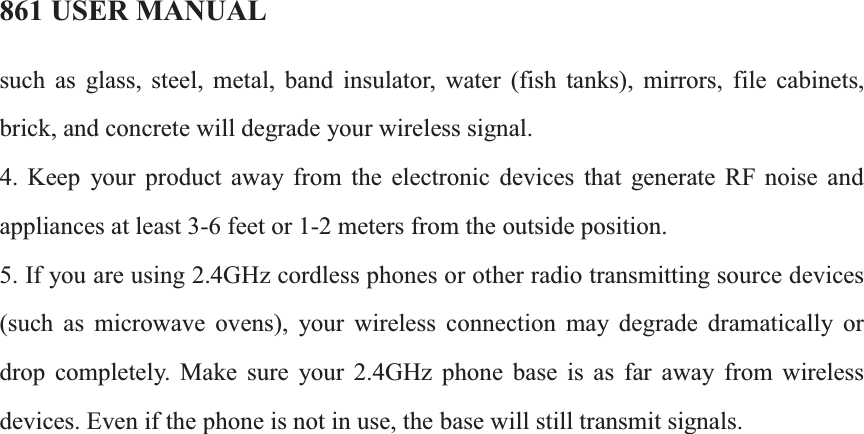

861 USER MANUALsuch as glass, steel, metal, band insulator, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal. 4. Keep your product away from the electronic devices that generate RF noise and appliances at least 3-6 feet or 1-2 meters from the outside position. 5. If you are using 2.4GHz cordless phones or other radio transmitting source devices (such as microwave ovens), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from wireless devices. Even if the phone is not in use, the base will still transmit signals.

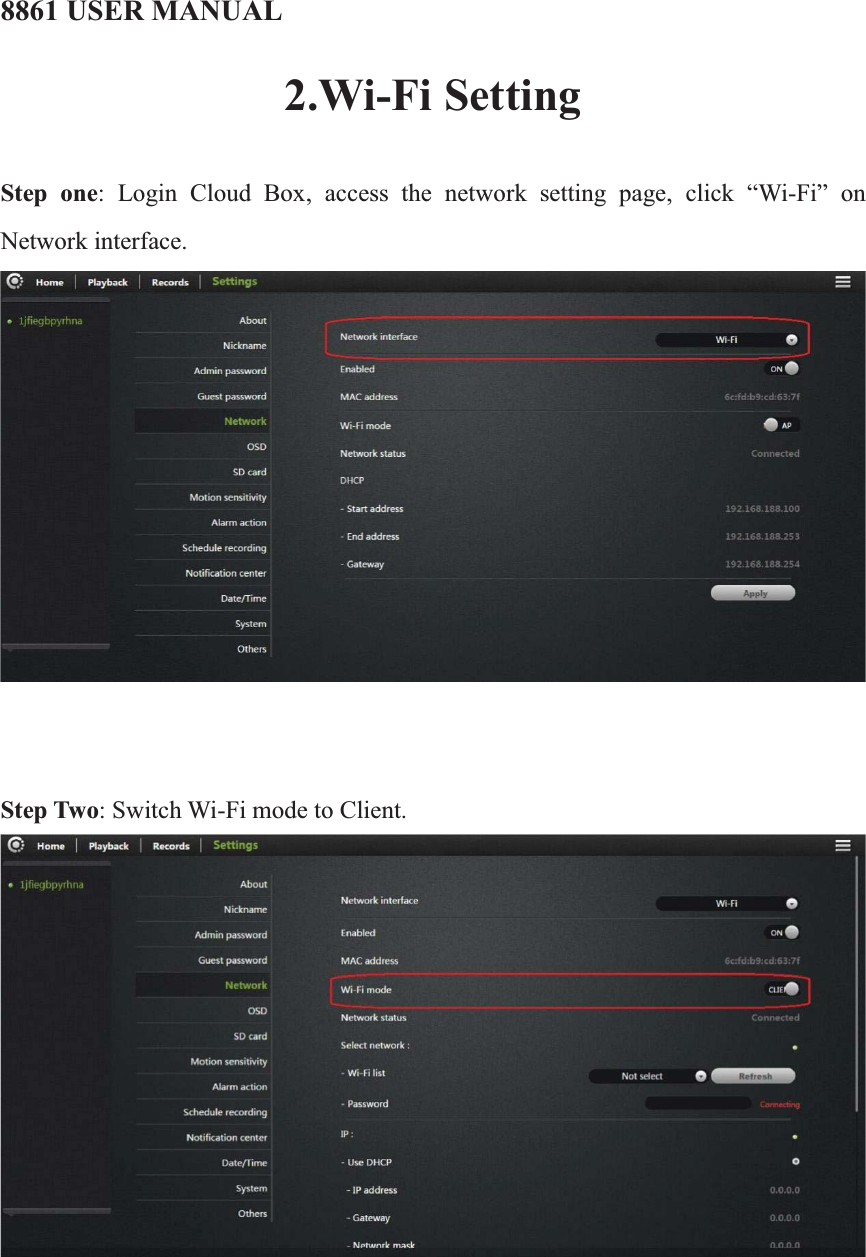

8861 USER MANUAL2.Wi-Fi SettingStep one: Login Cloud Box, access the network setting page, click “Wi-Fi” on Network interface. Step Two: Switch Wi-Fi mode to Client.

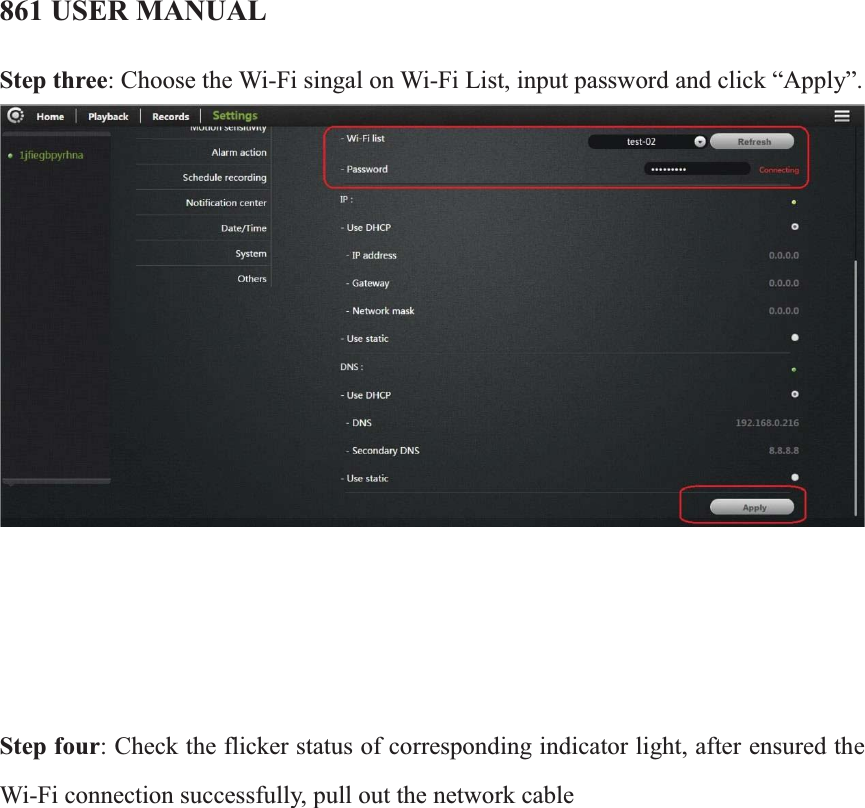

861 USER MANUALStep three: Choose the Wi-Fi singal on Wi-Fi List, input password and click “Apply”. Step four: Check the flicker status of corresponding indicator light, after ensured the Wi-Fi connection successfully, pull out the network cable

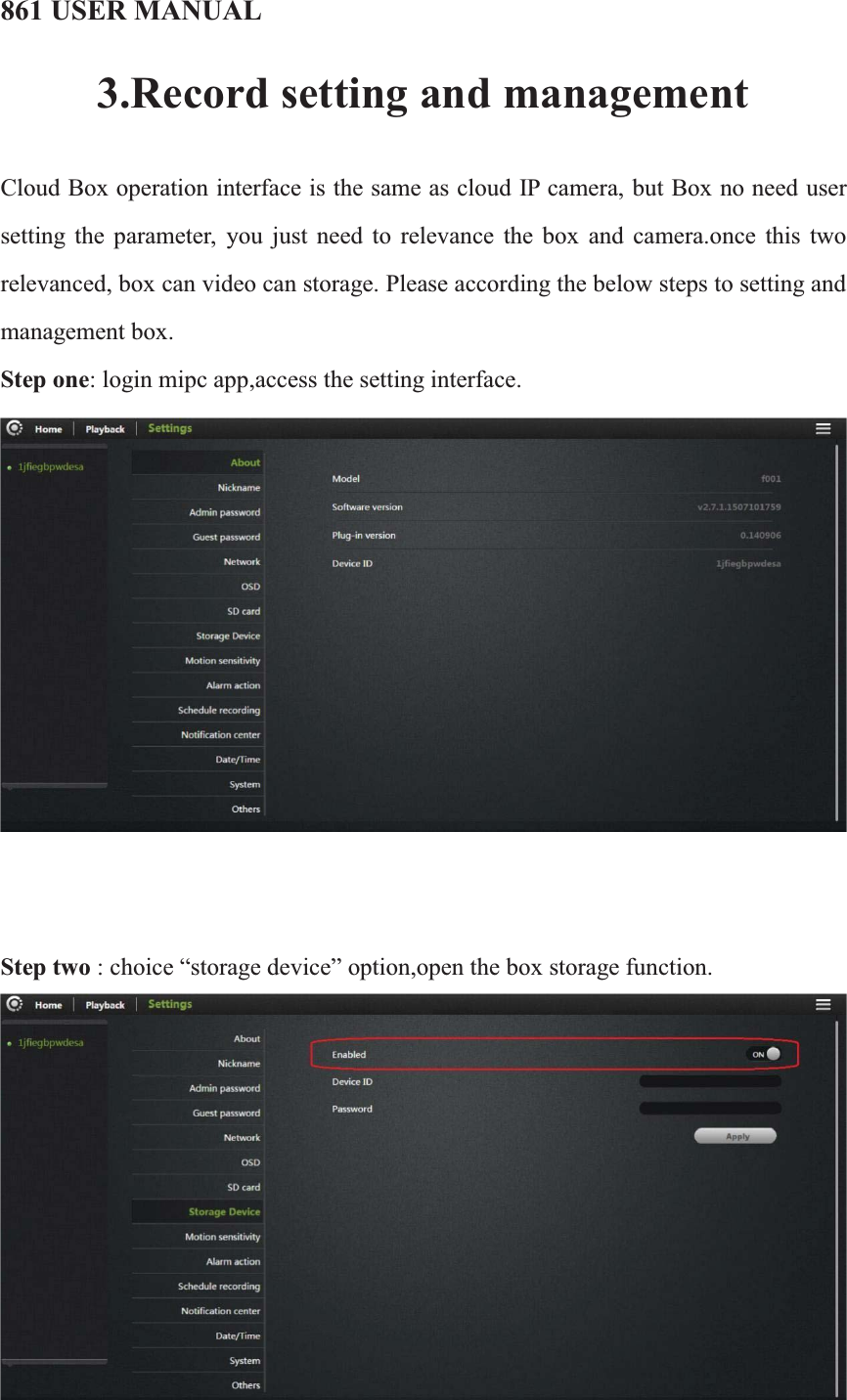

861 USER MANUAL3.Record setting and managementCloud Box operation interface is the same as cloud IP camera, but Box no need user setting the parameter, you just need to relevance the box and camera.once this two relevanced, box can video can storage. Please according the below steps to setting and management box.Step one: login mipc app,access the setting interface. Step two :choice “storage device” option,open the box storage function.

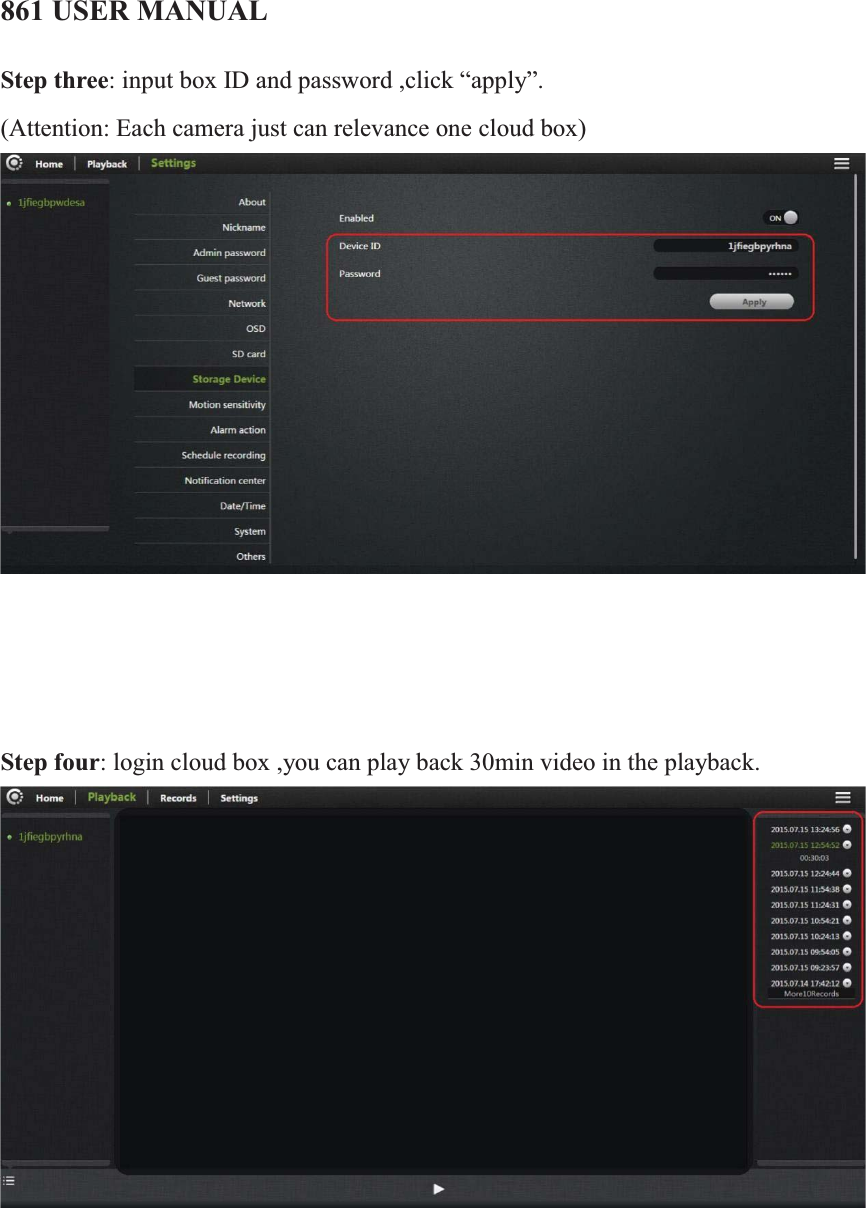

861 USER MANUALStep three:input box ID and password ,click “apply”.(Attention: Each camera just can relevance one cloud box) Step four: login cloud box ,you can play back 30min video in the playback.

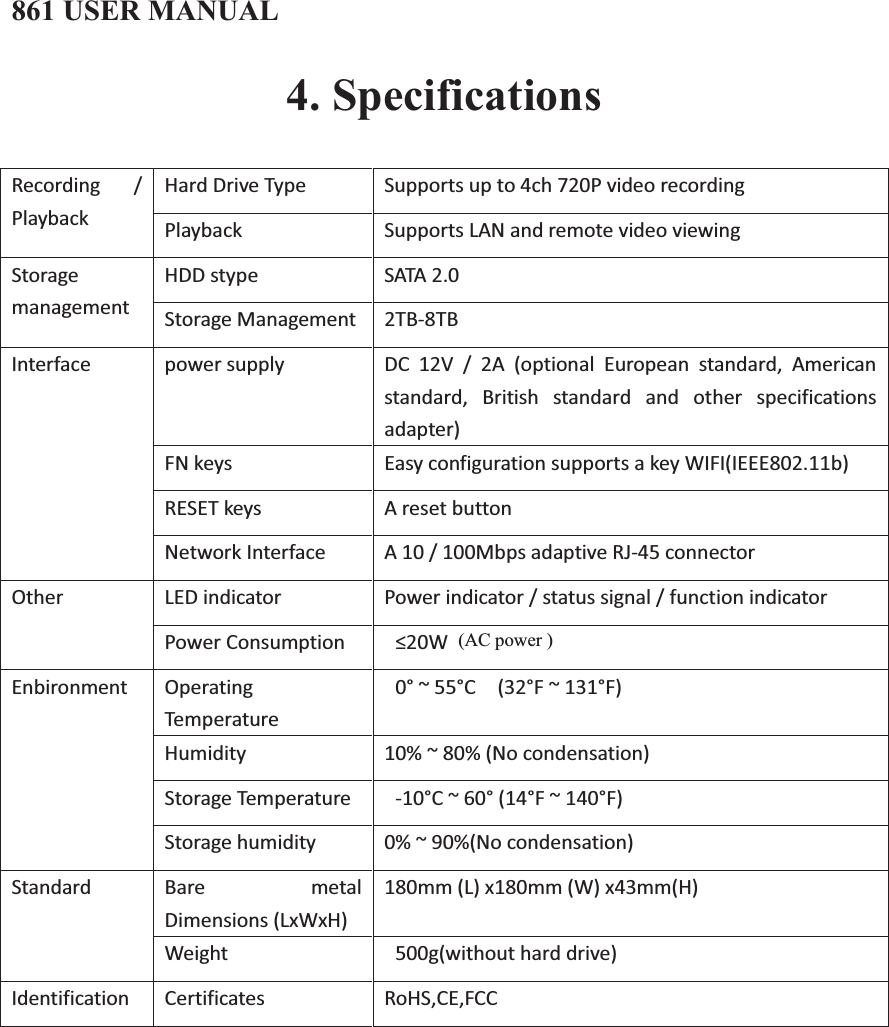

861 USER MANUAL4. SpecificationsRecording / Playback Hard Drive Type Supports up to 4ch 720P video recording Playback Supports LAN and remote video viewing Storage management HDD stype SATA 2.0 Storage Management 2TB-8TB Interface power supply DC 12V / 2A (optional European standard, American standard, British standard and other specifications adapter) FN keys Easy configuration supports a key WIFI(IEEE802.11b) RESET keys A reset button Network Interface A 10 / 100Mbps adaptive RJ-45 connector Other LED indicator Power indicator / status signal / function indicator Power Consumption ≤20W Enbironment Operating Temperature 0° ~ 55°C (32°F ~ 131°F) Humidity 10% ~ 80% (No condensation) Storage Temperature -10°C ~ 60° (14°F ~ 140°F) Storage humidity 0% ~ 90%(No condensation) Standard Bare metal Dimensions (LxWxH) 180mm (L) x180mm (W) x43mm(H) Weight 500g(without hard drive) Identification Certificates RoHS,CE,FCC (AC power )

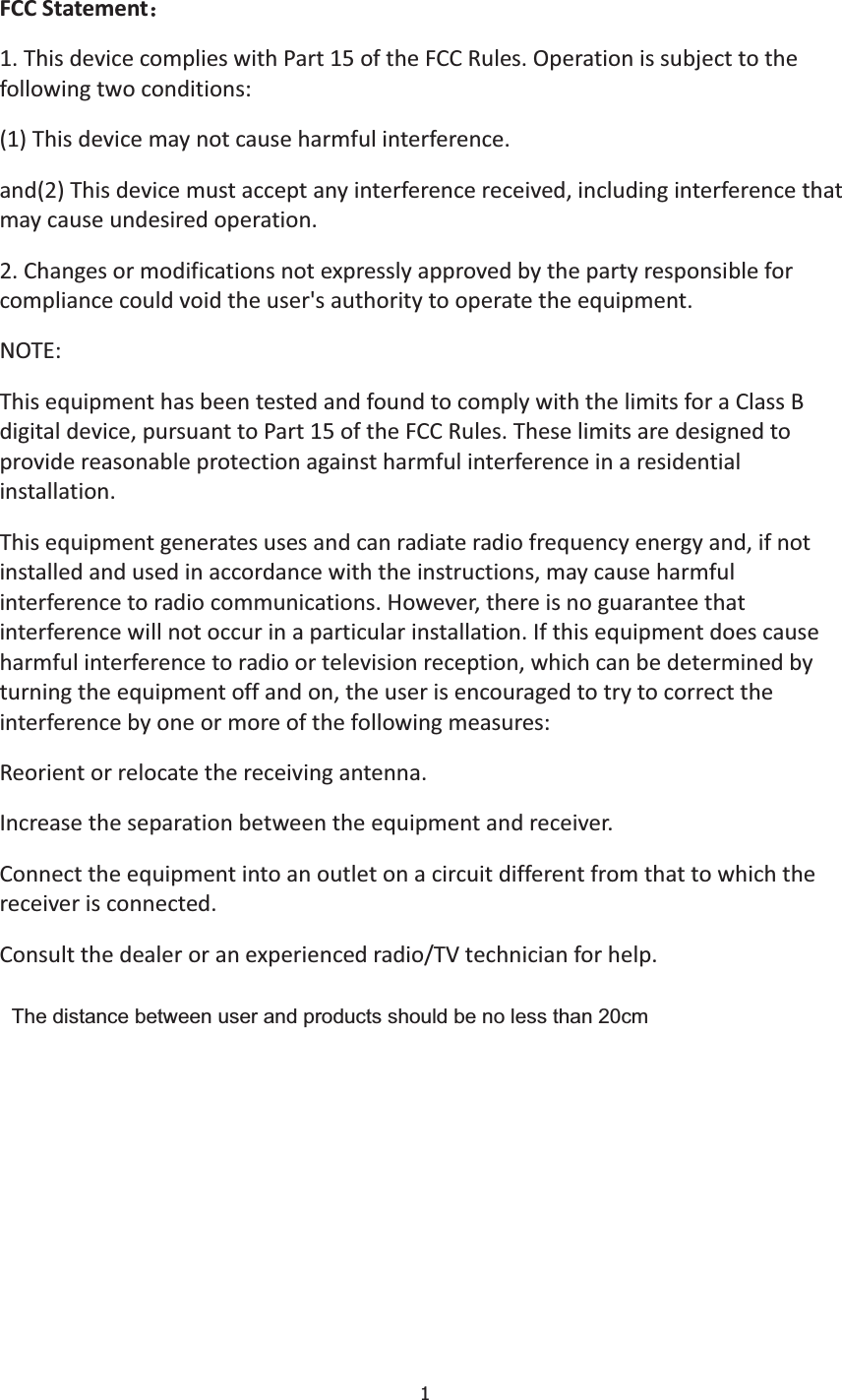

1FCCStatement˖1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference.and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:Reorientorrelocatethereceivingantenna.Increasetheseparationbetweentheequipmentandreceiver.Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.Consultthedealeroranexperiencedradio/TVtechnicianforhelp.The distance between user and products should be no less than 20cm
