ShenZhen Fujikam Industry Development BOX Cloud BOX User Manual 1 Installation

ShenZhen Fujikam Industry Development Co., Ltd Cloud BOX 1 Installation

User Manual

861 USER MANUAL
&ORXG%R[
8
8VHU0DQXDO
MODEL: 861
1RWH7RSURWHFW\RXUSULYDF\SOHDVHFKDQJHWKHLQLWLDOSDVVZRUGDIWHUORJLQ
3OHDVHNHHS\RXUXVHUQDPHDQGSDVVZRUGVDIHO\
861 USER MANUAL
1.Installation
1.1 Cloud Box Install and Landing
Step one: Configure the network connection
Please refer to “Quick Installation Guide”to configure the network connection
Please make sure your cloud box and camera are online
Step two: Login
Open your browser, http://www.mipcm.com/, to enter the login screen, enter the
camera’s ID number and password (each IPCAM and BOX have a unique ID number
and password).
Note: To protect your privacy, please change the initial password after first time login.
1.2 Wireless Installation Considerations
Wireless cloud box promises you in the wireless network coverage area to use
wireless connection to access the network. However, the wireless signals need to pass
through walls, ceilings and other objects, thickness and location of limits Wi-Fi range.
The network ranges depending on your room or office types of materials and radio
frequency noise. Please follow these basic guidelines to maximize wireless range:
1. Make sure the walls, ceilings between routers and your IP Cameras have as fewer
as you can, - each wall or ceiling can weaken adapter 3-90 feet (1-30 meters) of the
wireless transmission range.
2. Please pay attention to the straight-line distance between the devices. 1.5 feet thick
(0.5 meters) of the wall at a 45degree appears to be almost 3 feet (1 meter) thick.
When turning to the 2degree, the thickness of the wall will reach 42 feet (14 meters).
Put the machine straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building Materials make a difference. Metal door or aluminum studs may weaken
the wireless signal. The access points, wireless routers and other networking devices
where the signal passes through drywall or not open doorways. Materials and objects
861 USER MANUAL
such as glass, steel, metal, band insulator, water (fish tanks), mirrors, file cabinets,
brick, and concrete will degrade your wireless signal.
4. Keep your product away from the electronic devices that generate RF noise and
appliances at least 3-6 feet or 1-2 meters from the outside position.
5. If you are using 2.4GHz cordless phones or other radio transmitting source devices
(such as microwave ovens), your wireless connection may degrade dramatically or
drop completely. Make sure your 2.4GHz phone base is as far away from wireless
devices. Even if the phone is not in use, the base will still transmit signals.
8861 USER MANUAL
2.Wi-Fi Setting

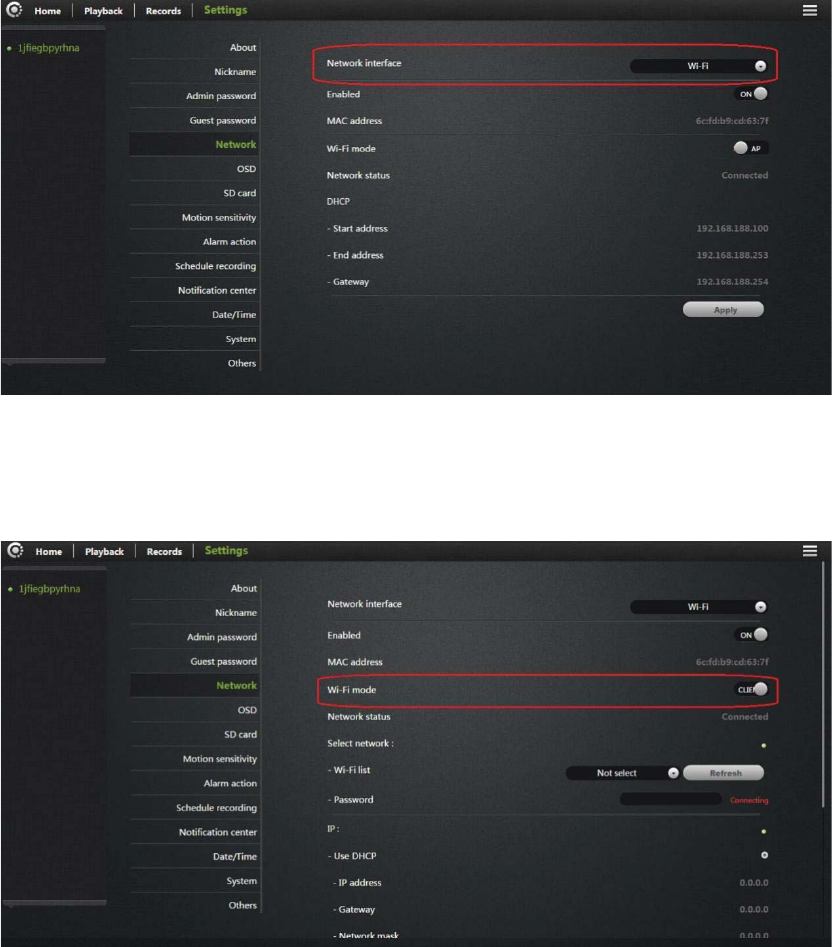

Step one: Login Cloud Box, access the network setting page, click “Wi-Fi” on
Network interface.
Step Two: Switch Wi-Fi mode to Client.
861 USER MANUAL

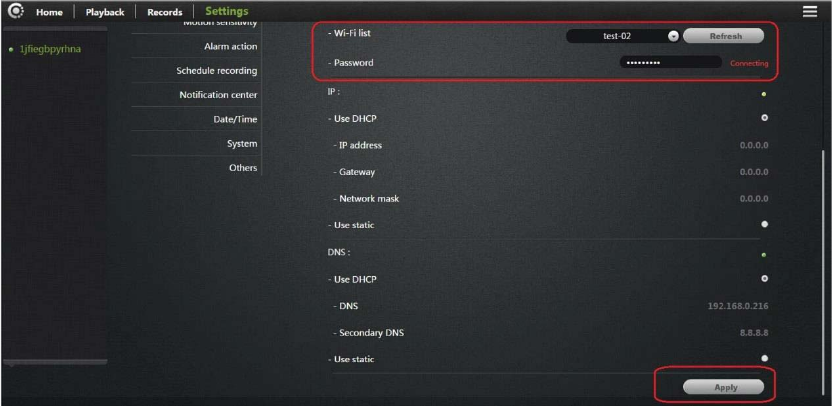

Step three: Choose the Wi-Fi singal on Wi-Fi List, input password and click “Apply”.
Step four: Check the flicker status of corresponding indicator light, after ensured the
Wi-Fi connection successfully, pull out the network cable
861 USER MANUAL
3.Record setting and management
Cloud Box operation interface is the same as cloud IP camera, but Box no need user
setting the parameter, you just need to relevance the box and camera.once this two
relevanced, box can video can storage. Please according the below steps to setting and
management box.

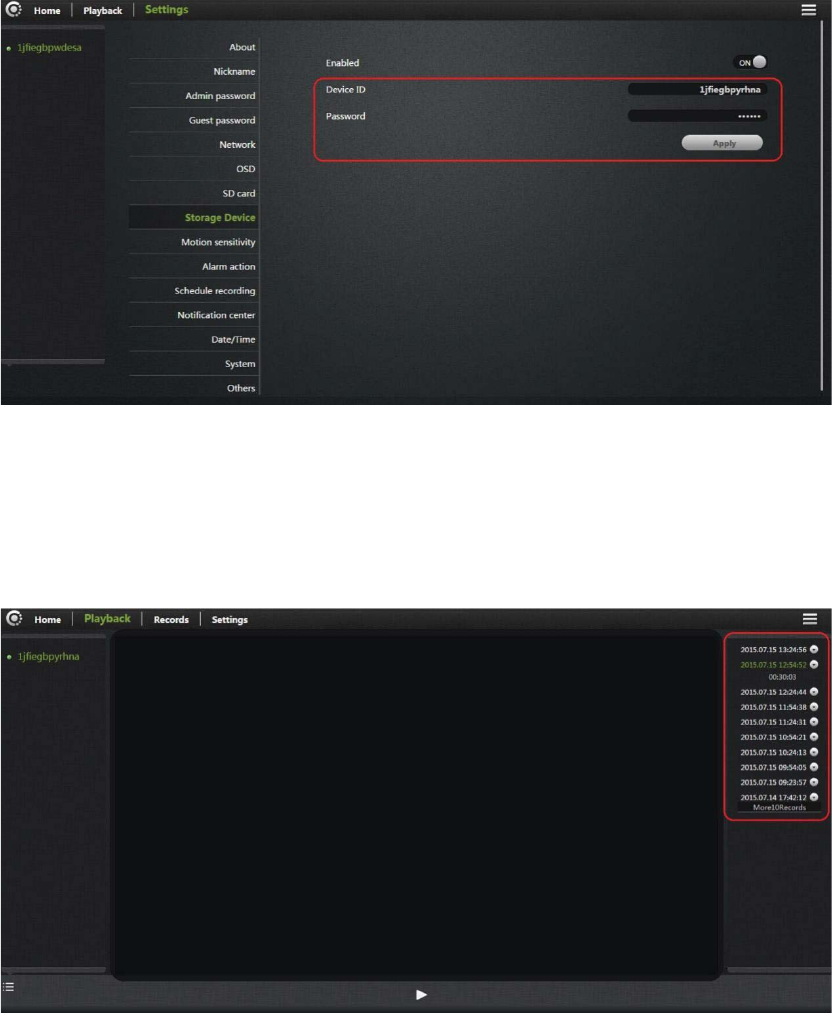

Step one: login mipc app,access the setting interface.
Step two :choice “storage device” option,open the box storage function.
861 USER MANUAL
Step three:input box ID and password ,click “apply”.
(Attention: Each camera just can relevance one cloud box)
Step four: login cloud box ,you can play back 30min video in the playback.
861 USER MANUAL
4. Specifications
Recording /
Playback
Hard Drive Type
Supports up to 4ch 720P video recording
Playback
Supports LAN and remote video viewing
Storage
management
HDD stype
SATA 2.0
Storage Management
2TB-8TB
Interface
DC 12V / 2A (optional European standard, American
standard, British standard and other specifications
adapter)
Easy configuration supports a key WIFI(IEEE802.11b)
A reset button
A 10 / 100Mbps adaptive RJ-45 connector
Other
Power indicator / status signal / function indicator
≤20W
Enbironment
0° ~ 55°C (32°F ~ 131°F)
10% ~ 80% (No condensation)
Storage Temperature
-10°C ~ 60° (14°F ~ 140°F)
0% ~ 90%(No condensation)
Standard
Bare metal
Dimensions (LxWxH)
180mm (L) x180mm (W) x43mm(H)
500g(without hard drive)
Identification
Certificates
RoHS,CE,FCC
(AC power )
1
FCCStatement
˖
1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference.
and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.
2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
NOTE:
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentandreceiver.
Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
The distance between user and products should be no less than 20cm
