ShenZhen Megastek Electronics MDKYGPS201612 GPS ankle tracker User Manual

ShenZhen Megastek Electronics Co. Ltd. GPS ankle tracker

User Manual

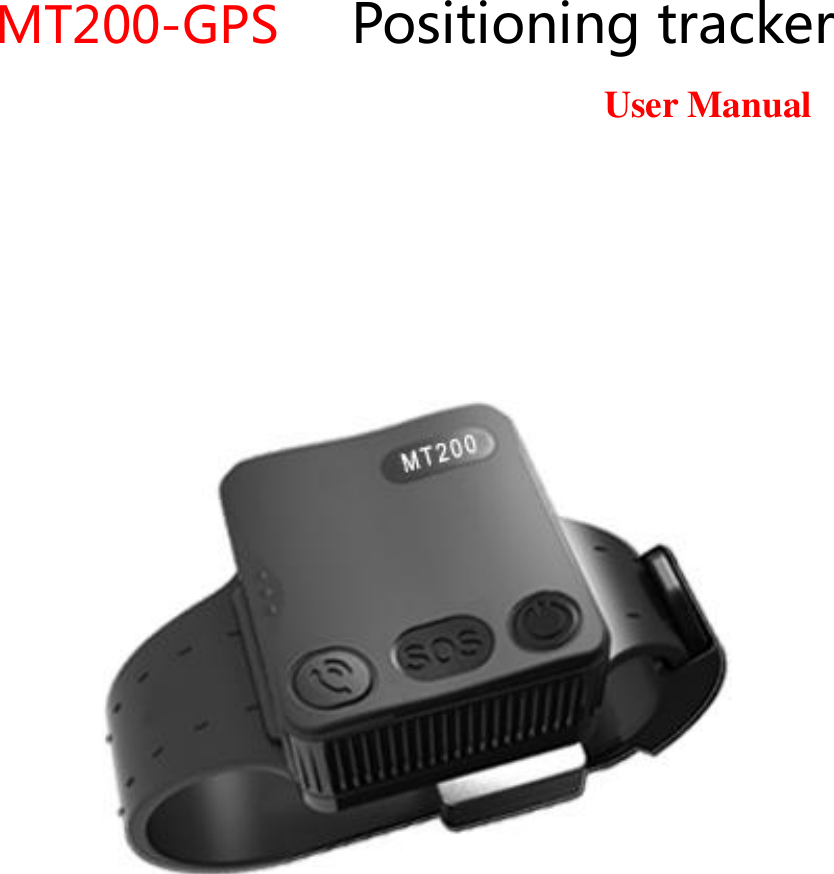

MT200-GPS Positioning tracker User Manual

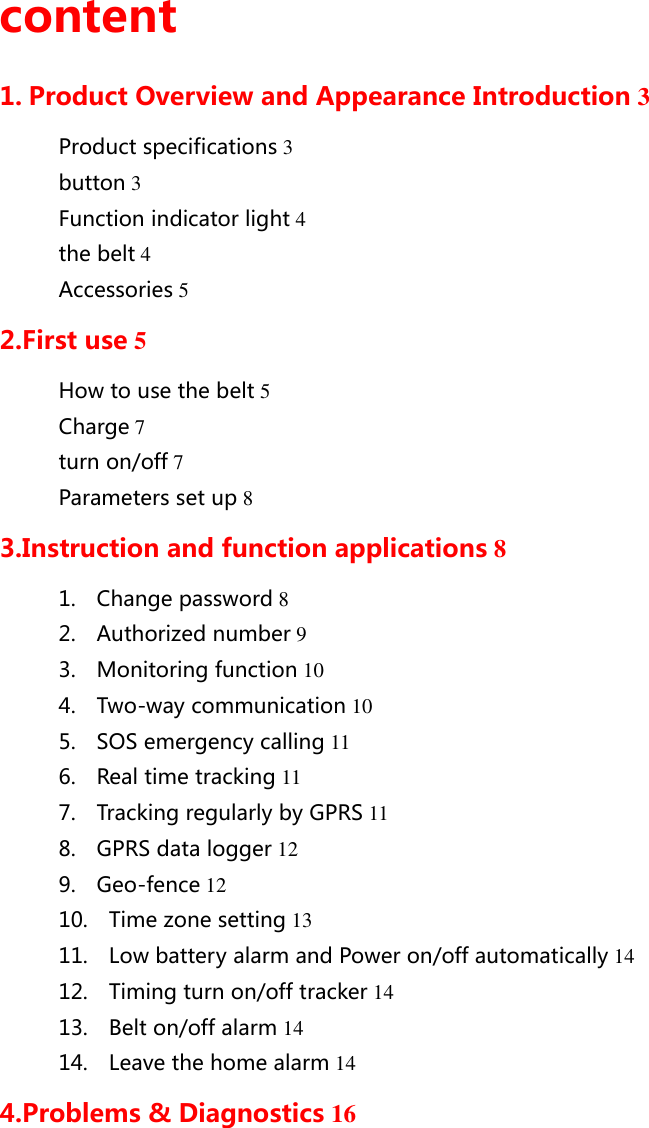

content 1. Product Overview and Appearance Introduction 3 Product specifications 3 button 3 Function indicator light 4 the belt 4 Accessories 5 2.First use 5 How to use the belt 5 Charge 7 turn on/off 7 Parameters set up 8 3.Instruction and function applications 8 1. Change password 8 2. Authorized number 9 3. Monitoring function 10 4. Two-way communication 10 5. SOS emergency calling 11 6. Real time tracking 11 7. Tracking regularly by GPRS 11 8. GPRS data logger 12 9. Geo-fence 12 10. Time zone setting 13 11. Low battery alarm and Power on/off automatically 14 12. Timing turn on/off tracker 14 13. Belt on/off alarm 14 14. Leave the home alarm 14 4.Problems & Diagnostics 16

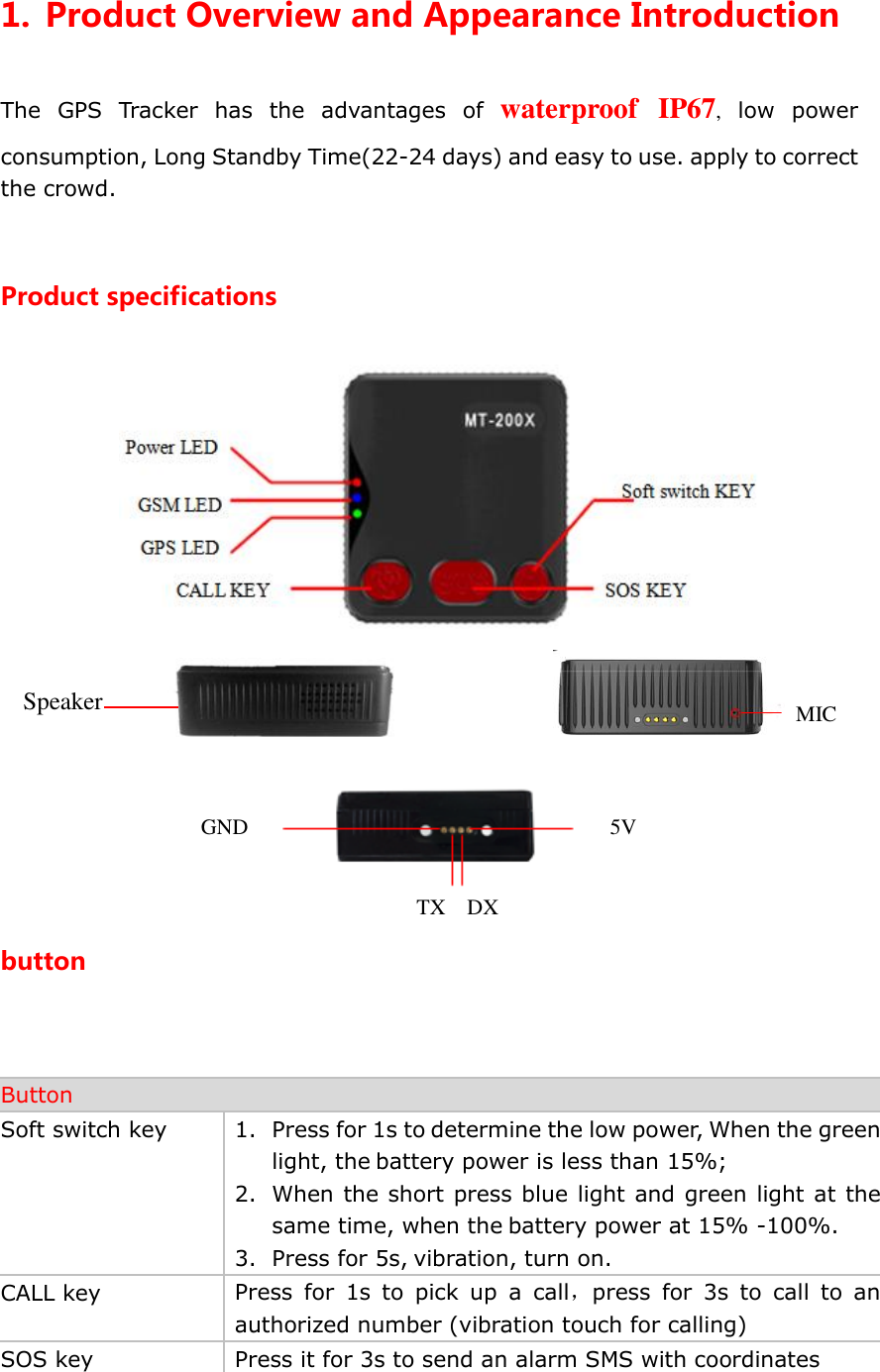

1. Product Overview and Appearance Introduction The GPS Tracker has the advantages of waterproof IP67, low power consumption, Long Standby Time(22-24 days) and easy to use. apply to correct the crowd. Product specifications button Button Soft switch key 1. Press for 1s to determine the low power, When the green light, the battery power is less than 15%; 2. When the short press blue light and green light at the same time, when the battery power at 15% -100%. 3. Press for 5s, vibration, turn on. CALL key Press for 1s to pick up a call，press for 3s to call to an authorized number (vibration touch for calling) SOS key Press it for 3s to send an alarm SMS with coordinates MIC Speaker 5V TX DX GND

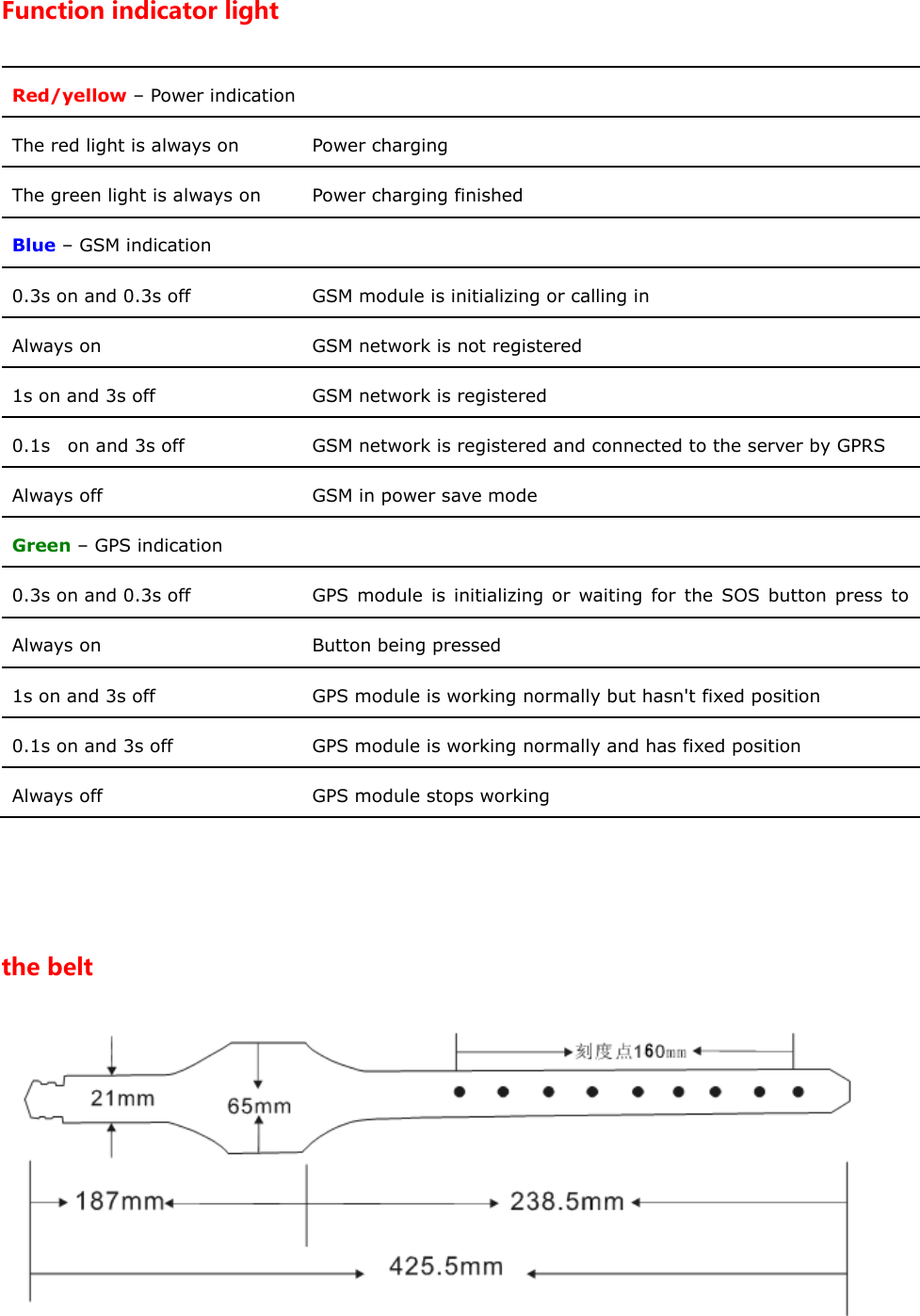

Function indicator light Red/yellow – Power indication The red light is always on Power charging The green light is always on Power charging finished Blue – GSM indication 0.3s on and 0.3s off GSM module is initializing or calling in Always on GSM network is not registered 1s on and 3s off GSM network is registered 0.1s on and 3s off GSM network is registered and connected to the server by GPRS Always off GSM in power save mode Green – GPS indication 0.3s on and 0.3s off GPS module is initializing or waiting for the SOS button press to confirm the calling in number as the authorized number Always on Button being pressed 1s on and 3s off GPS module is working normally but hasn't fixed position 0.1s on and 3s off GPS module is working normally and has fixed position Always off GPS module stops working the belt

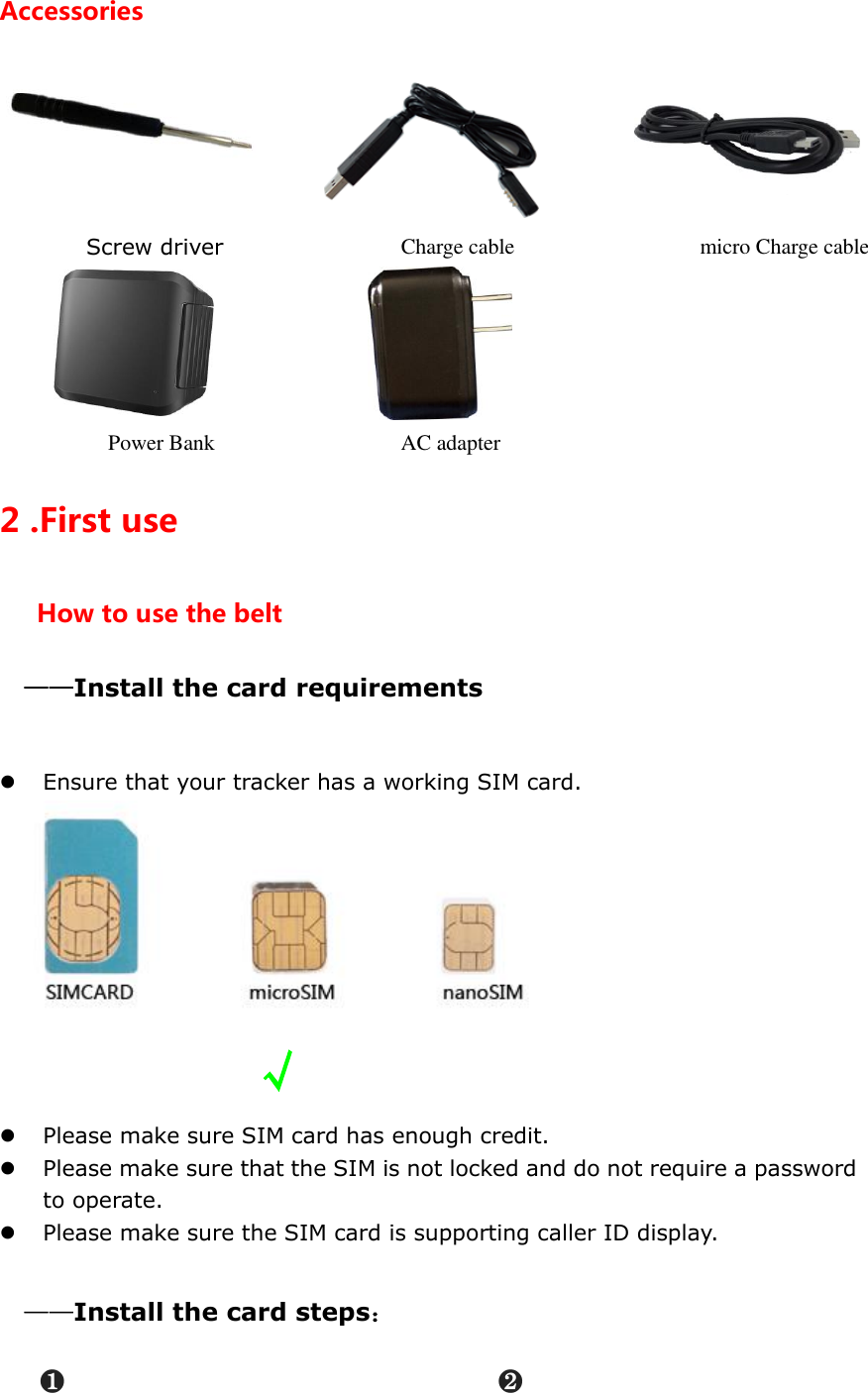

Accessories Screw driver Charge cable micro Charge cable Power Bank AC adapter 2 .First use How to use the belt ——Install the card requirements  Ensure that your tracker has a working SIM card. √  Please make sure SIM card has enough credit.  Please make sure that the SIM is not locked and do not require a password to operate.  Please make sure the SIM card is supporting caller ID display. ——Install the card steps： ❶ ❷

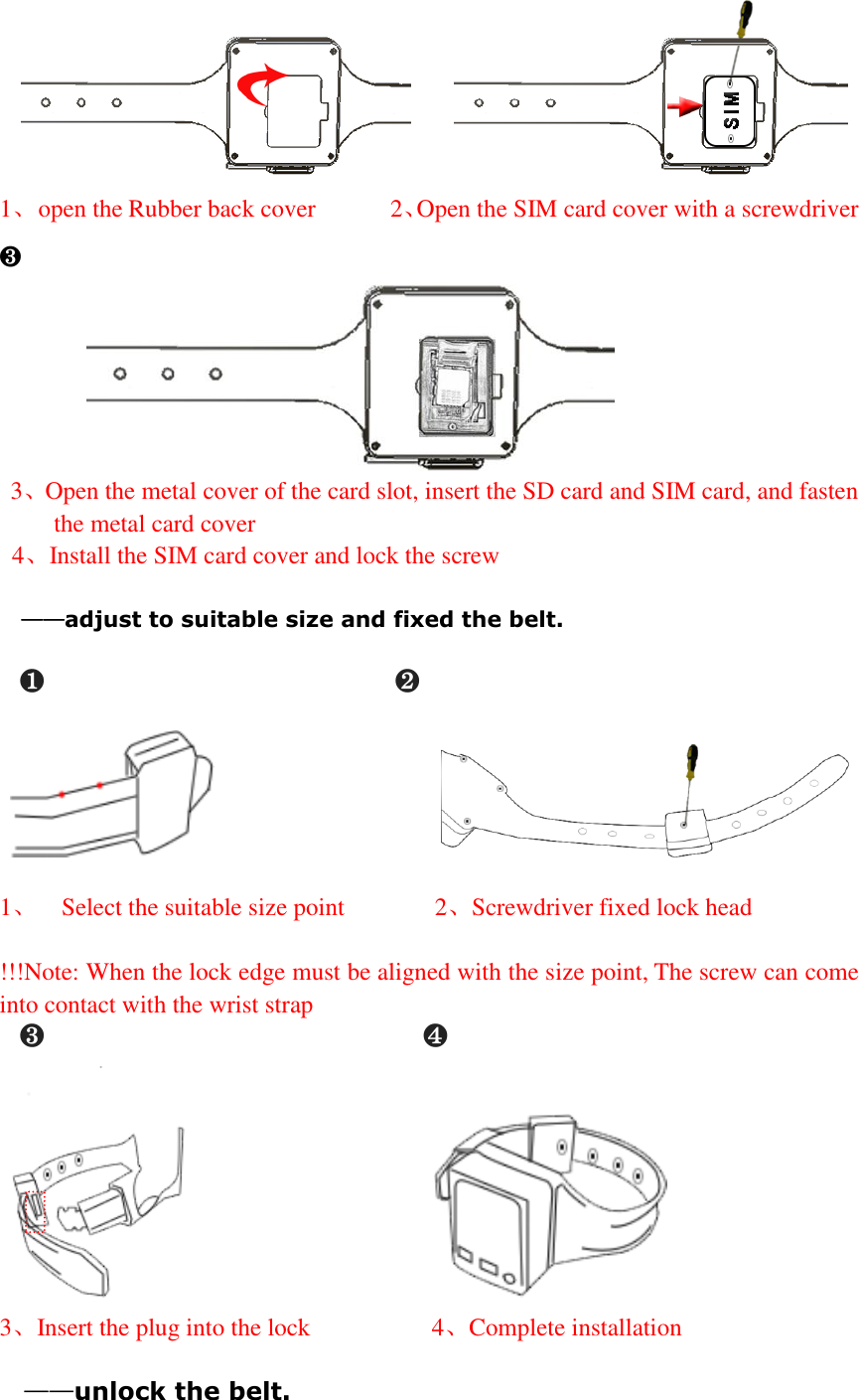

1、 open the Rubber back cover 2、Open the SIM card cover with a screwdriver ❸ 3、Open the metal cover of the card slot, insert the SD card and SIM card, and fasten the metal card cover 4、Install the SIM card cover and lock the screw ——adjust to suitable size and fixed the belt. ❶ ❷ 1、 Select the suitable size point 2、Screwdriver fixed lock head !!!Note: When the lock edge must be aligned with the size point, The screw can come into contact with the wrist strap ❸ ❹ 3、Insert the plug into the lock 4、Complete installation ——unlock the belt.

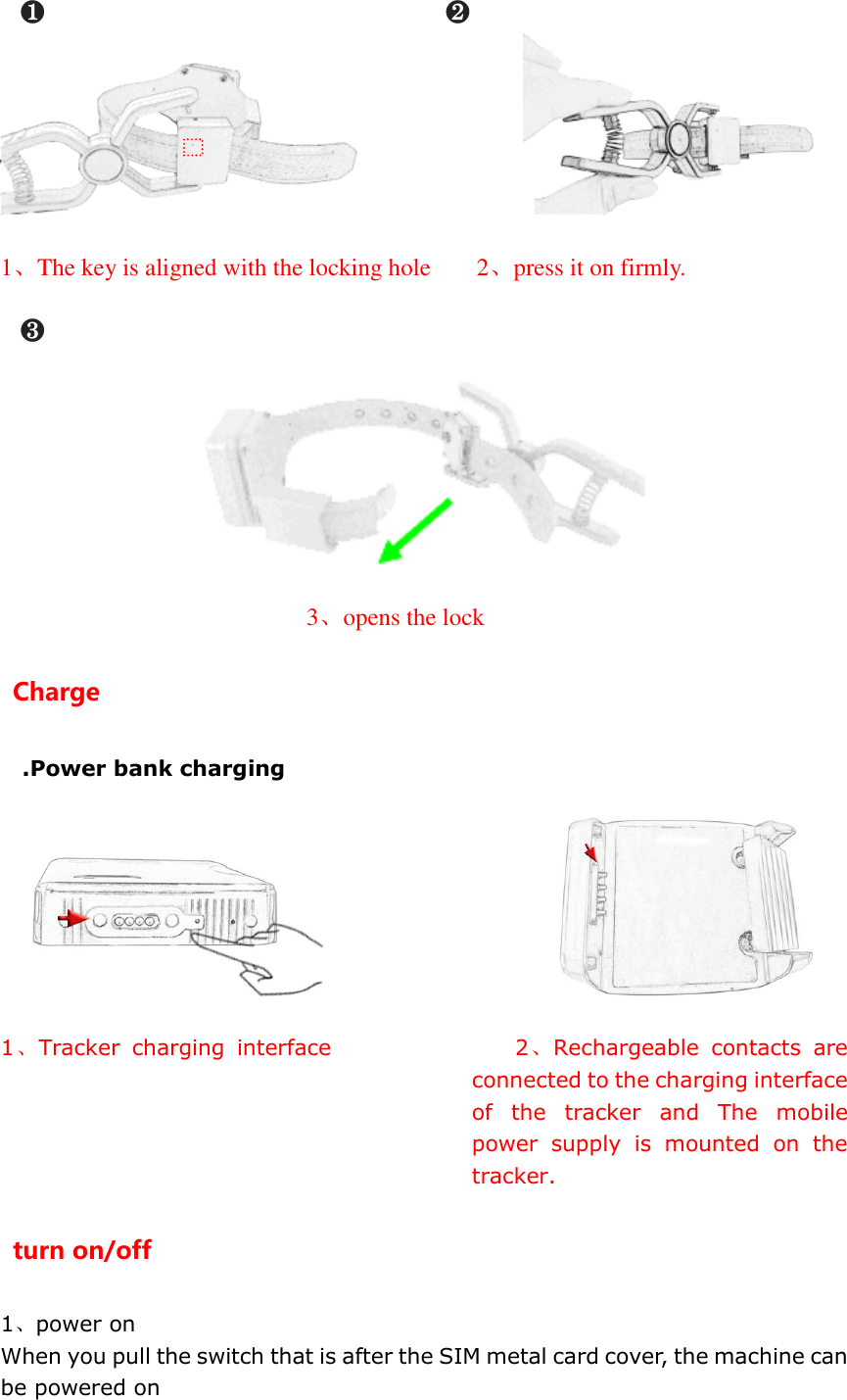

❶ ❷ 1、The key is aligned with the locking hole 2、press it on firmly. ❸ 3、opens the lock Charge .Power bank charging 1、Tracker charging interface 2、Rechargeable contacts are connected to the charging interface of the tracker and The mobile power supply is mounted on the tracker. turn on/off 1、power on When you pull the switch that is after the SIM metal card cover, the machine can be powered on

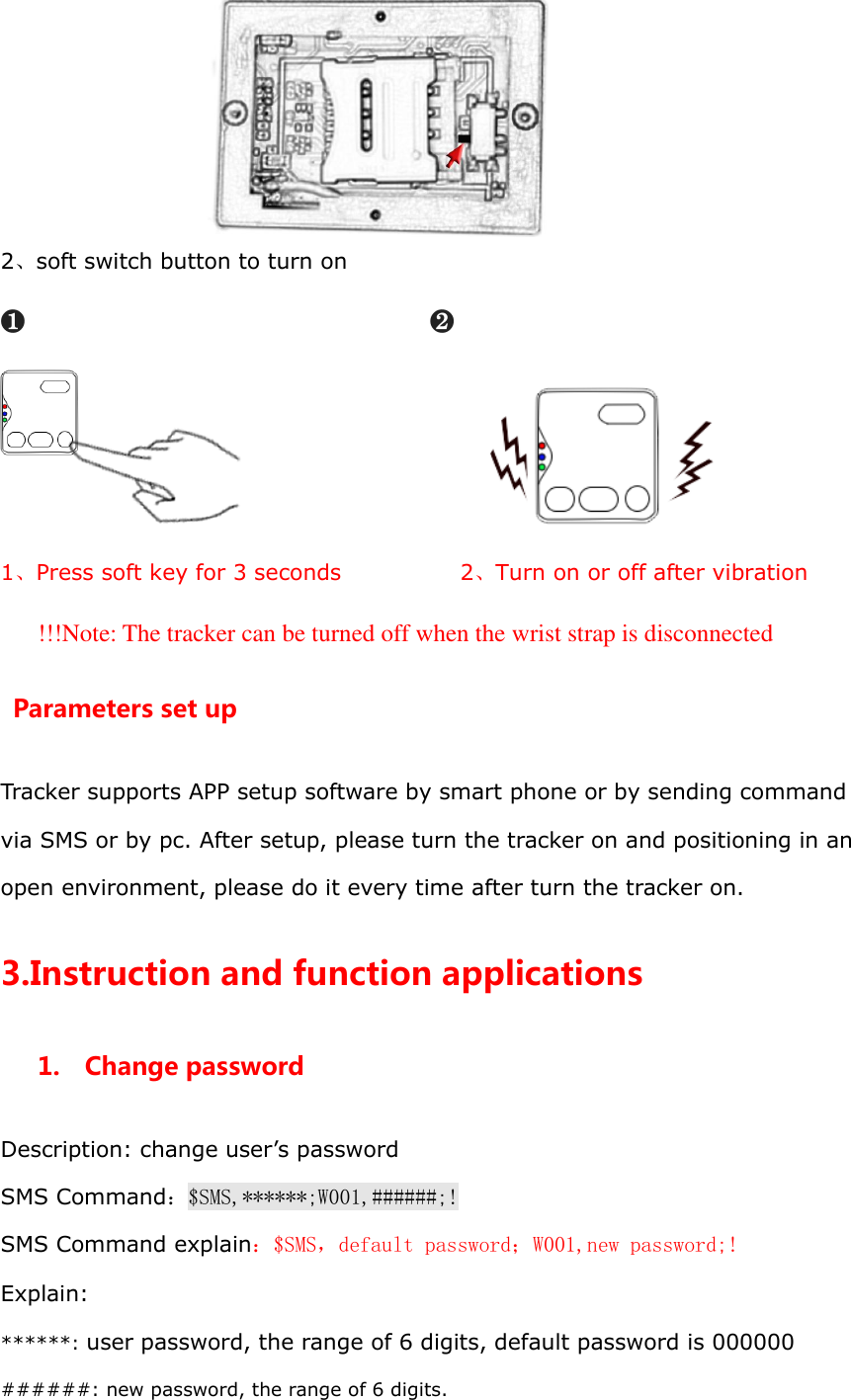

2、soft switch button to turn on ❶ ❷ 1、Press soft key for 3 seconds 2、Turn on or off after vibration !!!Note: The tracker can be turned off when the wrist strap is disconnected Parameters set up Tracker supports APP setup software by smart phone or by sending command via SMS or by pc. After setup, please turn the tracker on and positioning in an open environment, please do it every time after turn the tracker on. 3.Instruction and function applications 1. Change password Description: change user’s password SMS Command：$SMS,******;W001,######;! SMS Command explain：$SMS，default password；W001,new password;! Explain: ******: user password, the range of 6 digits, default password is 000000 ######: new password, the range of 6 digits.

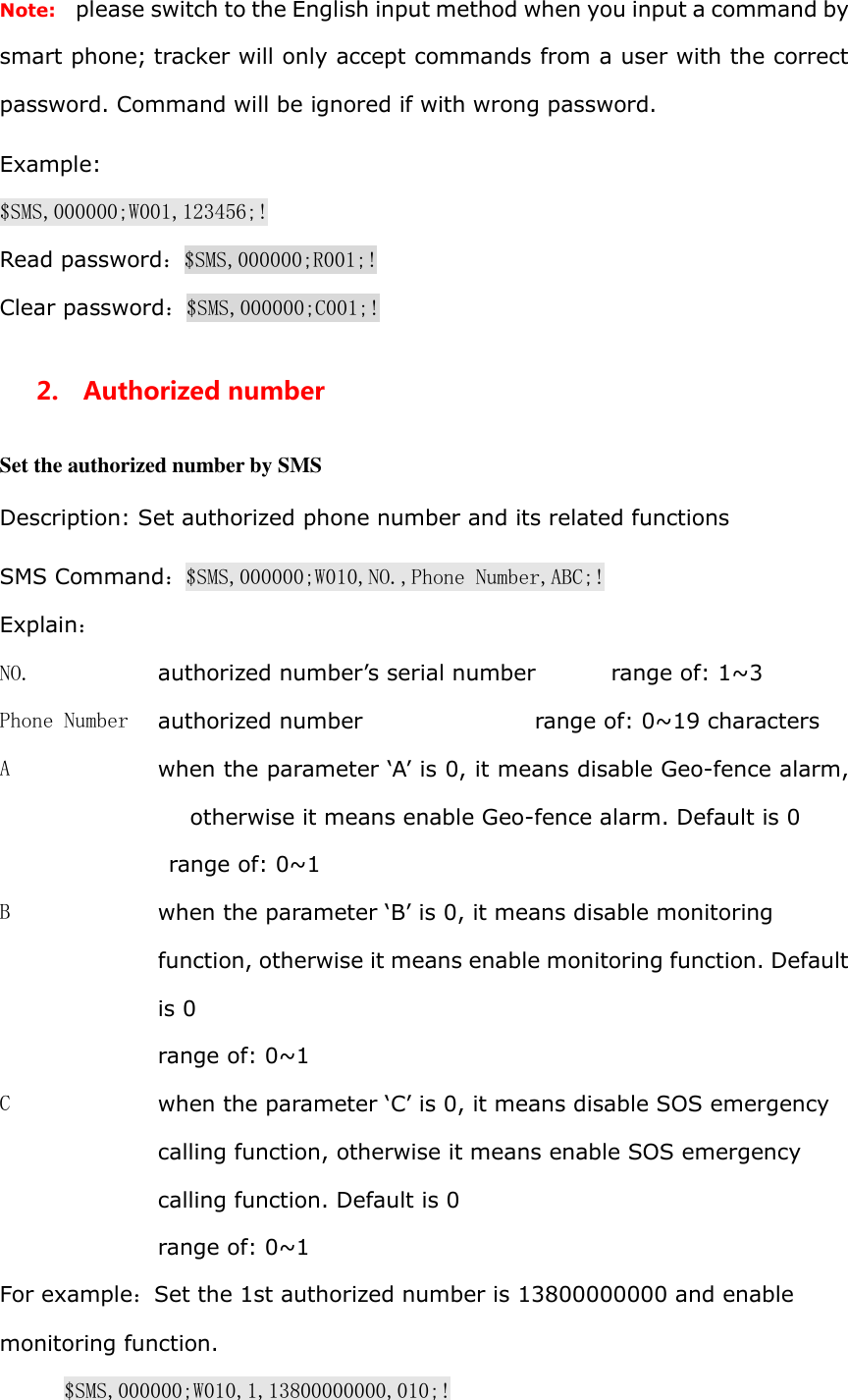

Note: please switch to the English input method when you input a command by smart phone; tracker will only accept commands from a user with the correct password. Command will be ignored if with wrong password. Example: $SMS,000000;W001,123456;! Read password：$SMS,000000;R001;! Clear password：$SMS,000000;C001;! 2. Authorized number Set the authorized number by SMS Description: Set authorized phone number and its related functions SMS Command：$SMS,000000;W010,NO.,Phone Number,ABC;! Explain： NO. authorized number’s serial number range of: 1~3 Phone Number authorized number range of: 0~19 characters A when the parameter ‘A’ is 0, it means disable Geo-fence alarm, otherwise it means enable Geo-fence alarm. Default is 0 range of: 0~1 B when the parameter ‘B’ is 0, it means disable monitoring function, otherwise it means enable monitoring function. Default is 0 range of: 0~1 C when the parameter ‘C’ is 0, it means disable SOS emergency calling function, otherwise it means enable SOS emergency calling function. Default is 0 range of: 0~1 For example：Set the 1st authorized number is 13800000000 and enable monitoring function. $SMS,000000;W010,1,13800000000,010;!

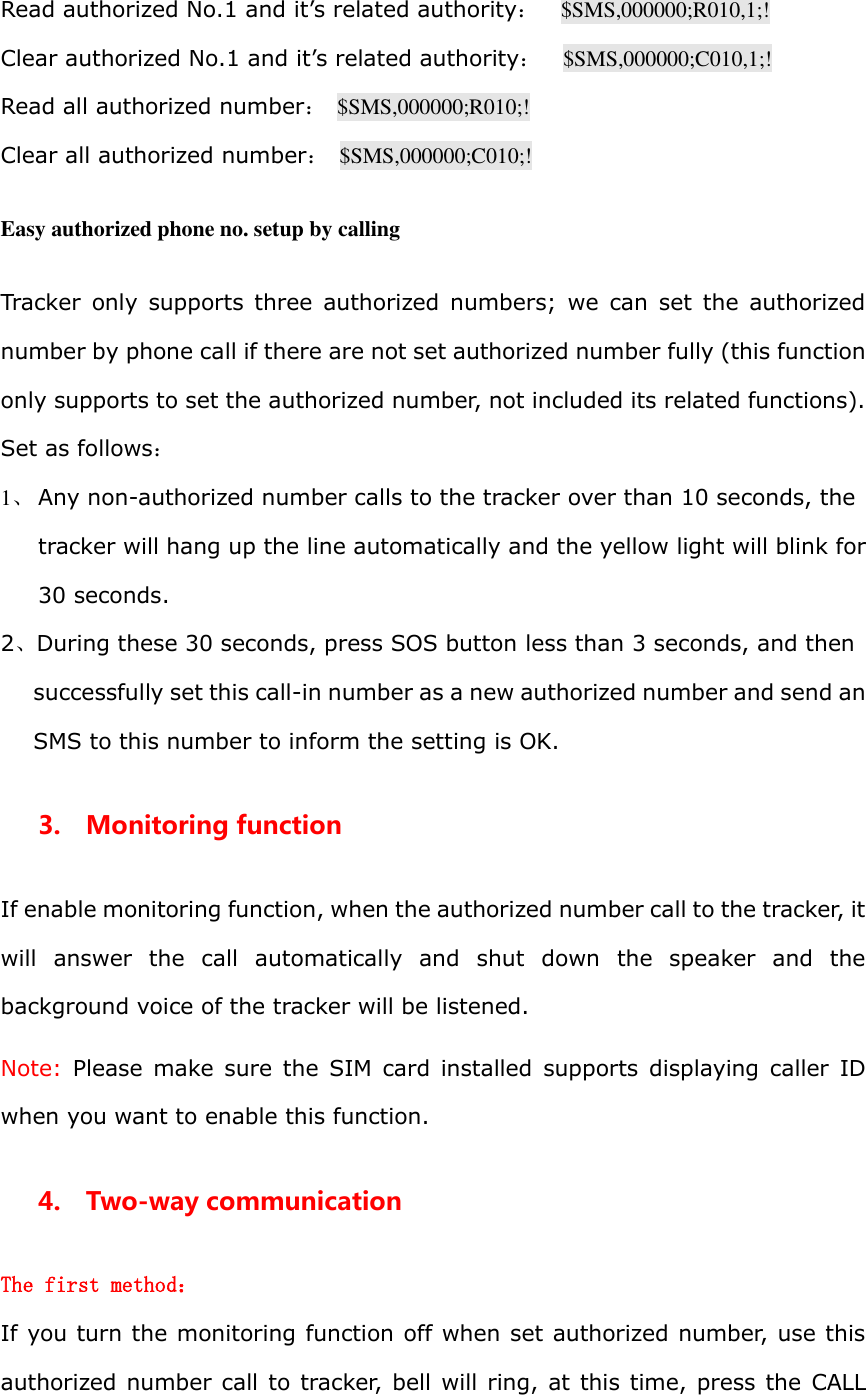

Read authorized No.1 and it’s related authority： $SMS,000000;R010,1;! Clear authorized No.1 and it’s related authority： $SMS,000000;C010,1;! Read all authorized number： $SMS,000000;R010;! Clear all authorized number： $SMS,000000;C010;! Easy authorized phone no. setup by calling Tracker only supports three authorized numbers; we can set the authorized number by phone call if there are not set authorized number fully (this function only supports to set the authorized number, not included its related functions). Set as follows： 1、 Any non-authorized number calls to the tracker over than 10 seconds, the tracker will hang up the line automatically and the yellow light will blink for 30 seconds. 2、During these 30 seconds, press SOS button less than 3 seconds, and then successfully set this call-in number as a new authorized number and send an SMS to this number to inform the setting is OK. 3. Monitoring function If enable monitoring function, when the authorized number call to the tracker, it will answer the call automatically and shut down the speaker and the background voice of the tracker will be listened. Note: Please make sure the SIM card installed supports displaying caller ID when you want to enable this function. 4. Two-way communication The first method： If you turn the monitoring function off when set authorized number, use this authorized number call to tracker, bell will ring, at this time, press the CALL

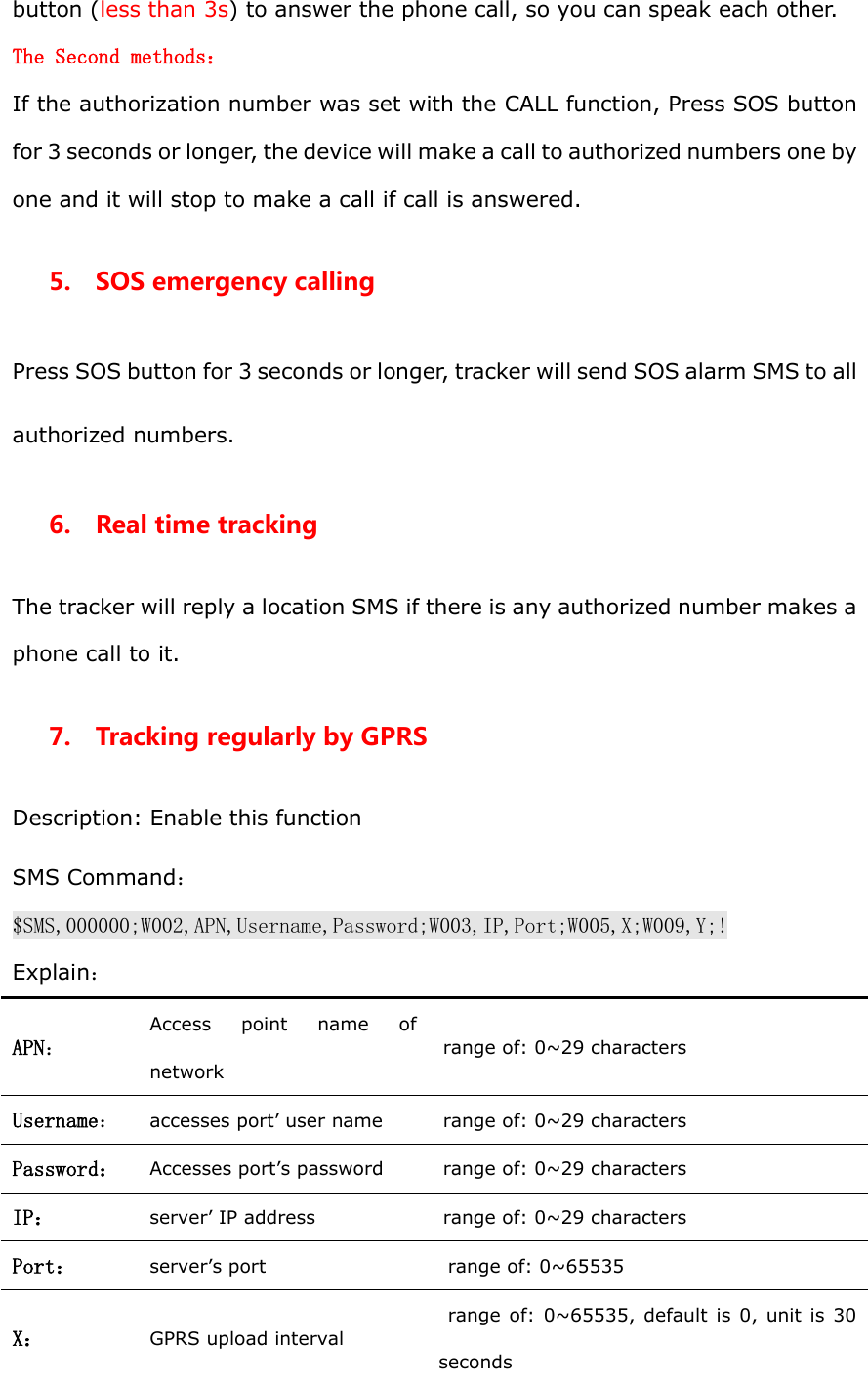

button (less than 3s) to answer the phone call, so you can speak each other. The Second methods： If the authorization number was set with the CALL function, Press SOS button for 3 seconds or longer, the device will make a call to authorized numbers one by one and it will stop to make a call if call is answered. 5. SOS emergency calling Press SOS button for 3 seconds or longer, tracker will send SOS alarm SMS to all authorized numbers. 6. Real time tracking The tracker will reply a location SMS if there is any authorized number makes a phone call to it. 7. Tracking regularly by GPRS Description: Enable this function SMS Command：$SMS,000000;W002,APN,Username,Password;W003,IP,Port;W005,X;W009,Y;! Explain： APN： Access point name of network range of: 0~29 characters Username： accesses port’ user name range of: 0~29 characters Password： Accesses port’s password range of: 0~29 characters IP： server’ IP address range of: 0~29 characters Port： server’s port range of: 0~65535 X： GPRS upload interval range of: 0~65535, default is 0, unit is 30 seconds

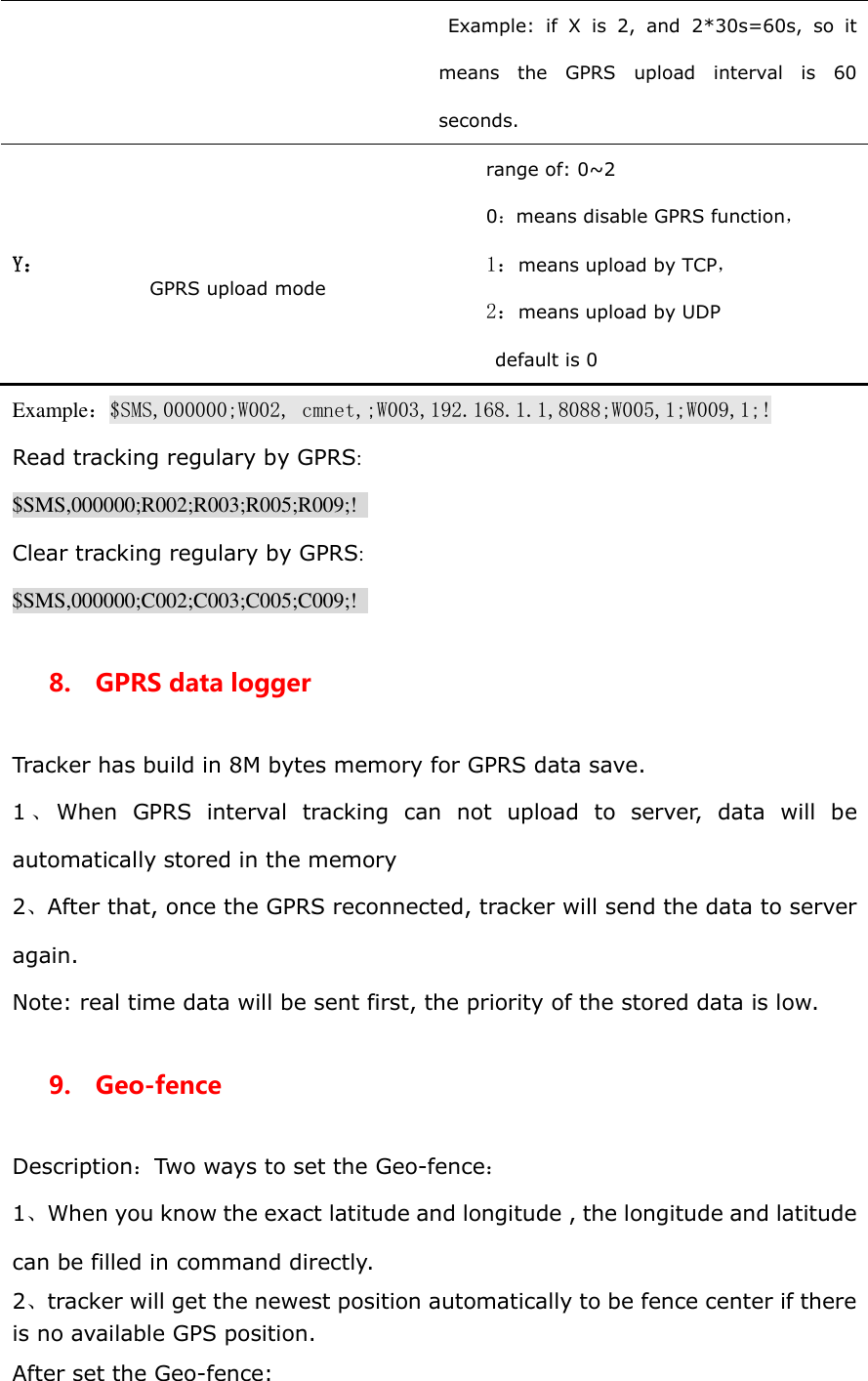

Example: if X is 2, and 2*30s=60s, so it means the GPRS upload interval is 60 seconds. Y： GPRS upload mode range of: 0~2 0：means disable GPRS function， 1：means upload by TCP， 2：means upload by UDP default is 0 Example：$SMS,000000;W002, cmnet,;W003,192.168.1.1,8088;W005,1;W009,1;! Read tracking regulary by GPRS: $SMS,000000;R002;R003;R005;R009;! Clear tracking regulary by GPRS: $SMS,000000;C002;C003;C005;C009;! 8. GPRS data logger Tracker has build in 8M bytes memory for GPRS data save. 1、When GPRS interval tracking can not upload to server, data will be automatically stored in the memory 2、After that, once the GPRS reconnected, tracker will send the data to server again. Note: real time data will be sent first, the priority of the stored data is low. 9. Geo-fence Description：Two ways to set the Geo-fence： 1、When you know the exact latitude and longitude , the longitude and latitude can be filled in command directly. 2、tracker will get the newest position automatically to be fence center if there is no available GPS position. After set the Geo-fence:

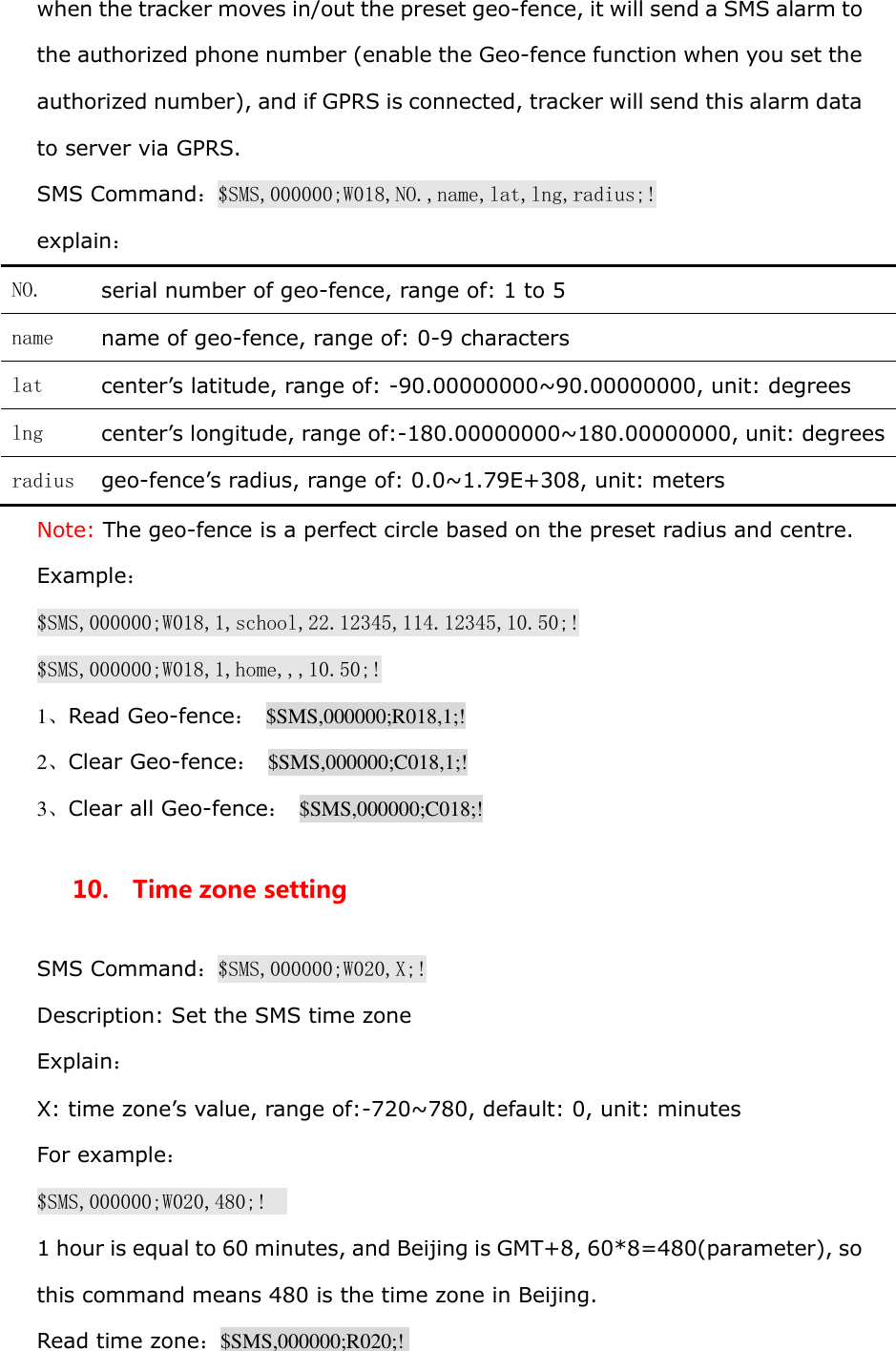

when the tracker moves in/out the preset geo-fence, it will send a SMS alarm to the authorized phone number (enable the Geo-fence function when you set the authorized number), and if GPRS is connected, tracker will send this alarm data to server via GPRS. SMS Command：$SMS,000000;W018,NO.,name,lat,lng,radius;! explain： NO. serial number of geo-fence, range of: 1 to 5 name name of geo-fence, range of: 0-9 characters lat center’s latitude, range of: -90.00000000~90.00000000, unit: degrees lng center’s longitude, range of:-180.00000000~180.00000000, unit: degrees radius geo-fence’s radius, range of: 0.0~1.79E+308, unit: meters Note: The geo-fence is a perfect circle based on the preset radius and centre. Example： $SMS,000000;W018,1,school,22.12345,114.12345,10.50;! $SMS,000000;W018,1,home,,,10.50;! 1、Read Geo-fence： $SMS,000000;R018,1;! 2、Clear Geo-fence： $SMS,000000;C018,1;! 3、Clear all Geo-fence： $SMS,000000;C018;! 10. Time zone setting SMS Command：$SMS,000000;W020,X;! Description: Set the SMS time zone Explain： X: time zone’s value, range of:-720~780, default: 0, unit: minutes For example： $SMS,000000;W020,480;! 1 hour is equal to 60 minutes, and Beijing is GMT+8, 60*8=480(parameter), so this command means 480 is the time zone in Beijing. Read time zone：$SMS,000000;R020;!

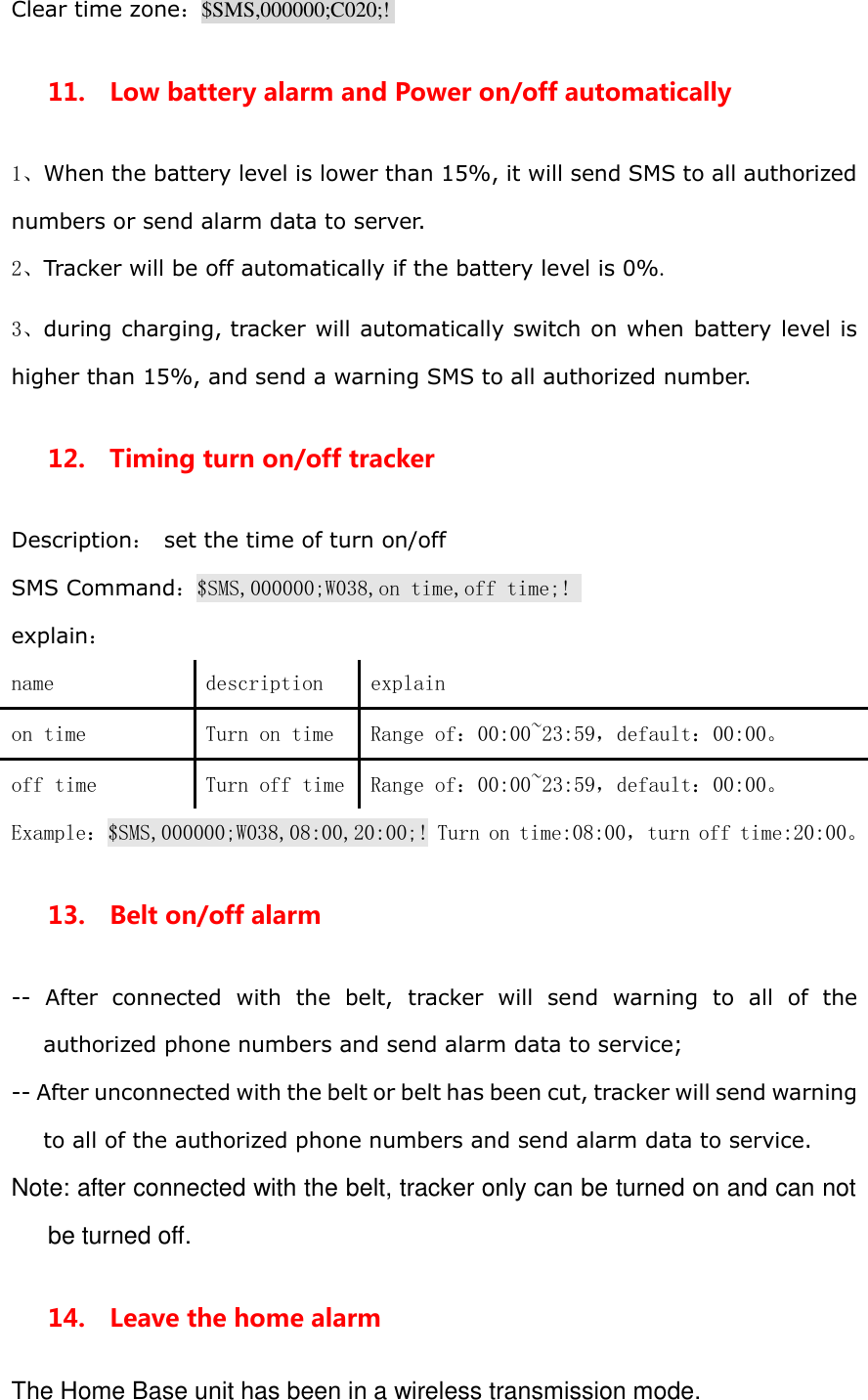

Clear time zone：$SMS,000000;C020;! 11. Low battery alarm and Power on/off automatically 1、When the battery level is lower than 15%, it will send SMS to all authorized numbers or send alarm data to server. 2、Tracker will be off automatically if the battery level is 0%. 3、during charging, tracker will automatically switch on when battery level is higher than 15%, and send a warning SMS to all authorized number. 12. Timing turn on/off tracker Description： set the time of turn on/off SMS Command：$SMS,000000;W038,on time,off time;! explain： name description explain on time Turn on time Range of：00:00~23:59，default：00:00。 off time Turn off time Range of：00:00~23:59，default：00:00。 Example：$SMS,000000;W038,08:00,20:00;! Turn on time:08:00，turn off time:20:00。 13. Belt on/off alarm -- After connected with the belt, tracker will send warning to all of the authorized phone numbers and send alarm data to service; -- After unconnected with the belt or belt has been cut, tracker will send warning to all of the authorized phone numbers and send alarm data to service. Note: after connected with the belt, tracker only can be turned on and can not be turned off. 14. Leave the home alarm The Home Base unit has been in a wireless transmission mode.

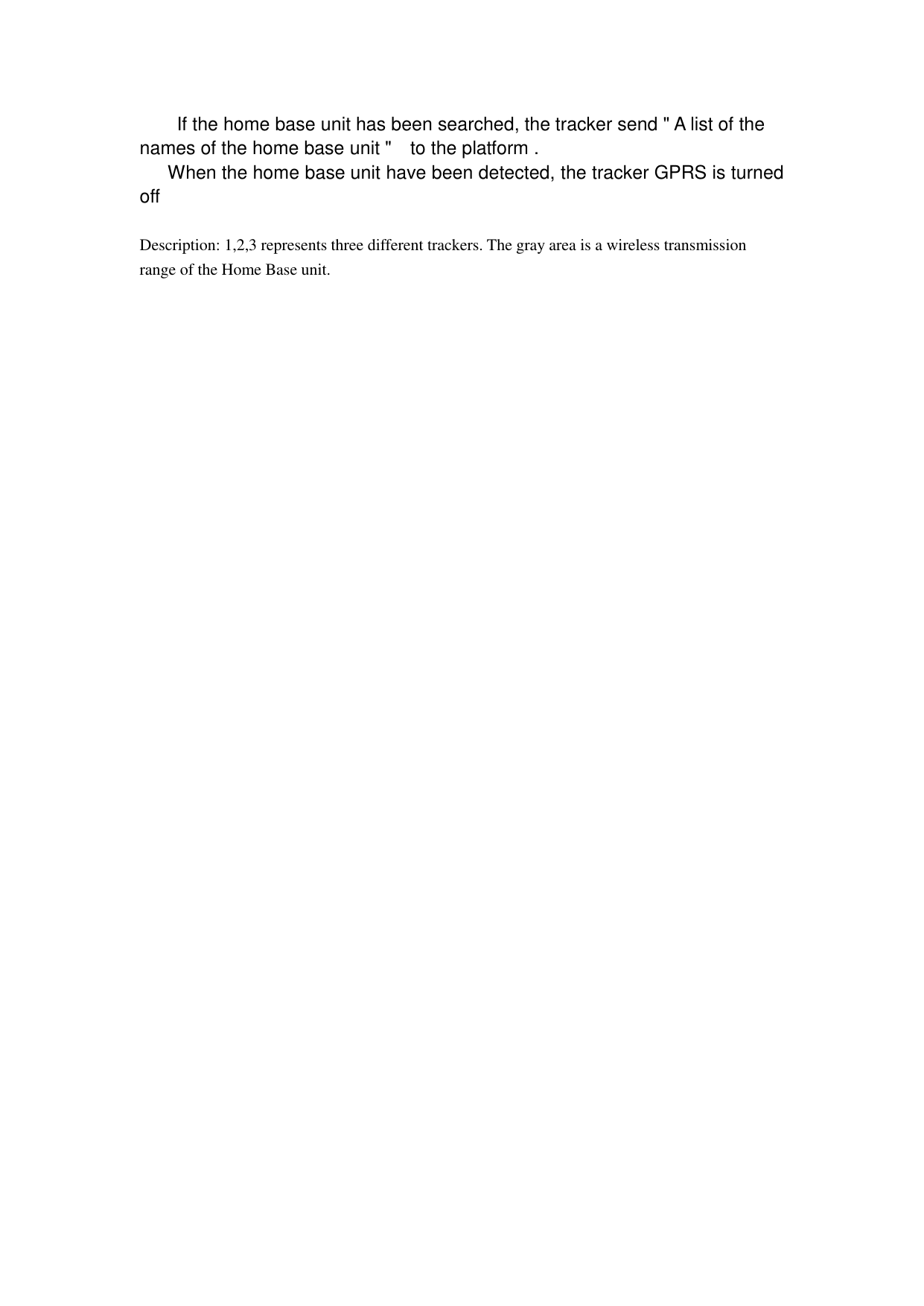

If the home base unit has been searched, the tracker send " A list of the names of the home base unit " to the platform . When the home base unit have been detected, the tracker GPRS is turned off Description: 1,2,3 represents three different trackers. The gray area is a wireless transmission range of the Home Base unit.

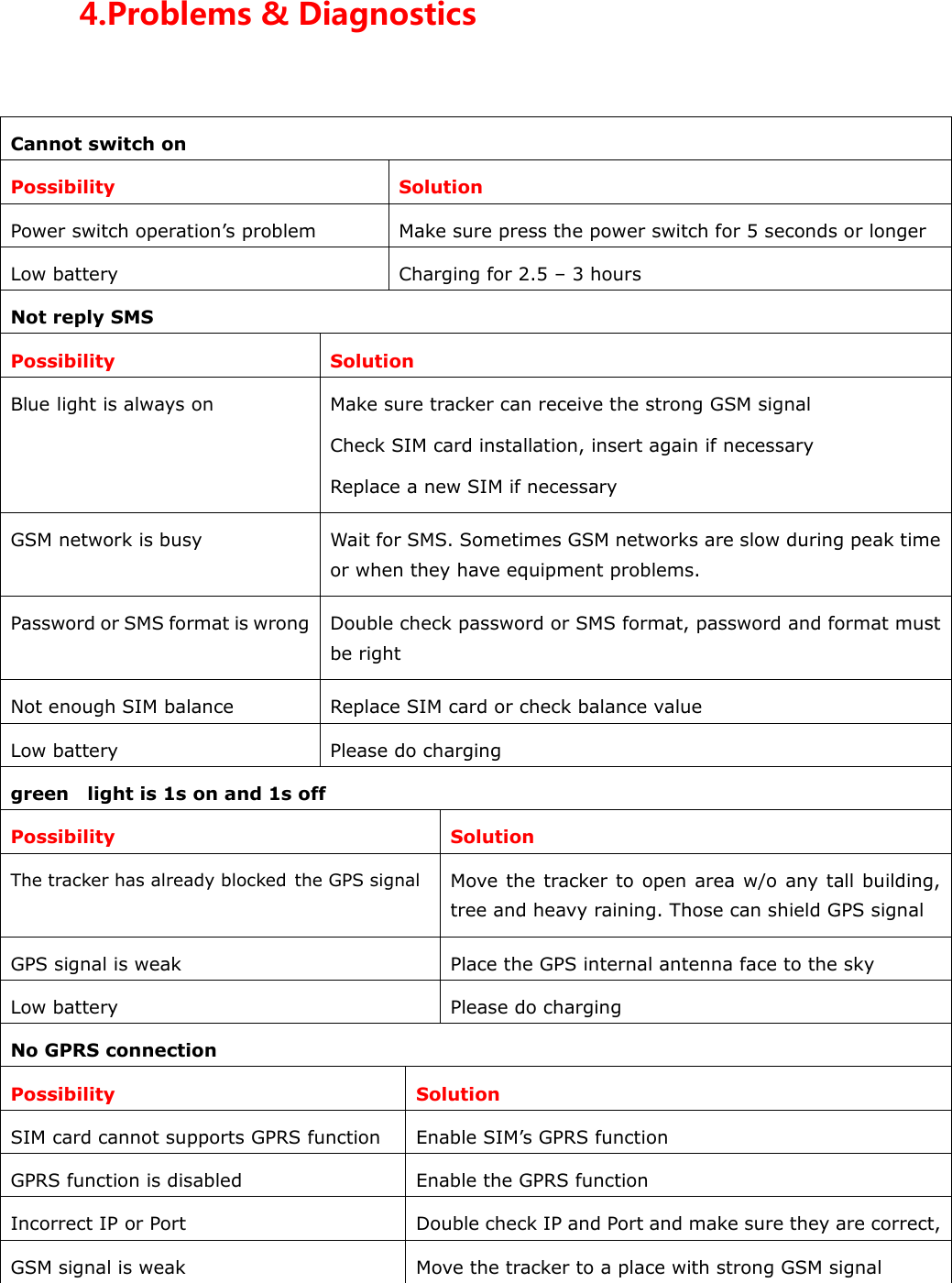

4.Problems & Diagnostics Cannot switch on Possibility Solution Power switch operation’s problem Make sure press the power switch for 5 seconds or longer Low battery Charging for 2.5 – 3 hours Not reply SMS Possibility Solution Blue light is always on Make sure tracker can receive the strong GSM signal Check SIM card installation, insert again if necessary Replace a new SIM if necessary GSM network is busy Wait for SMS. Sometimes GSM networks are slow during peak time or when they have equipment problems. Password or SMS format is wrong Double check password or SMS format, password and format must be right Not enough SIM balance Replace SIM card or check balance value Low battery Please do charging green light is 1s on and 1s off Possibility Solution The tracker has already blocked the GPS signal Move the tracker to open area w/o any tall building, tree and heavy raining. Those can shield GPS signal GPS signal is weak Place the GPS internal antenna face to the sky Low battery Please do charging No GPRS connection Possibility Solution SIM card cannot supports GPRS function Enable SIM’s GPRS function GPRS function is disabled Enable the GPRS function Incorrect IP or Port Double check IP and Port and make sure they are correct, then restart the tracker GSM signal is weak Move the tracker to a place with strong GSM signal

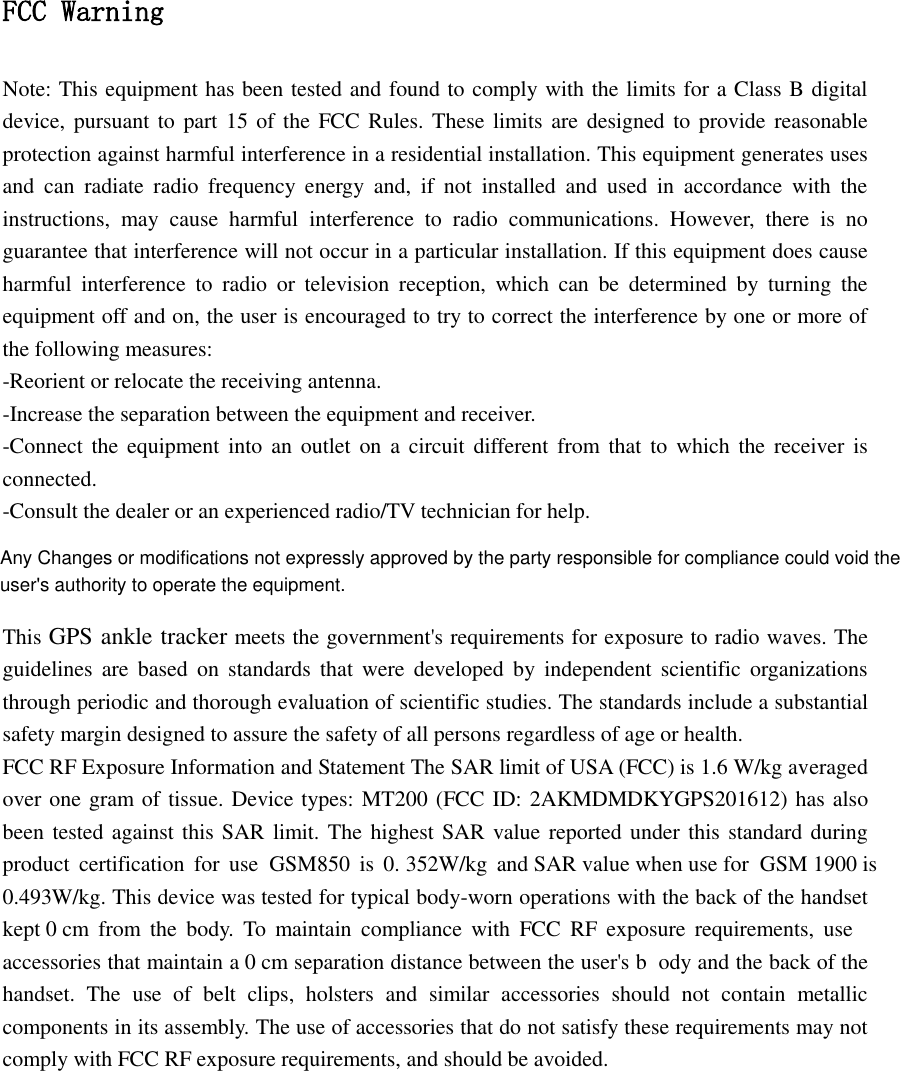

FCC Warning Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This GPS ankle tracker meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: MT200 (FCC ID: 2AKMDMDKYGPS201612) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certifi 3520.493W/kg. This device was tested for typical body-worn operations with the back of the handset ody and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. kept 0 cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0 cm separation distance between the user's bcation for use GSM850 is 0. W/kg and SAR value when use for GSM 1900 is Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
