ShenZhen Megastek Electronics MT-70 GPS Personal Tracker User Manual GPS

ShenZhen Megastek Electronics Co. Ltd. GPS Personal Tracker GPS

User Manual

GPS Vehicle and personal location tracker _______________________________________ ___ User manual
1Contents 1. ................................................................................................................................................... 2 Product overview2. ................................................................................................................................................... 3 Safety instruction3. ................................................................................................................................. 3 Specification and parameters4. ........................................................................................................................................................ 4 Getting started4.1 Hardware and accessories..............................................................................................................................4 4.2 View............................................................................................................................................................... 5 4.3 ....................................................................................................................................5 Function key and port4.4 First use..........................................................................................................................................................7 5. ................................................................................................................................................... 7 Change password6. ................................................................................................................................................ 8 Authorized number6.1 Set the authorized number by SMS................................................................................................................8 6.2 Easy authorized phone no. setup by calling...................................................................................................8 6.3 Monitoring function....................................................................................................................................... 9 6.4 Two-way communication...............................................................................................................................9 6.5 Real time tracking..........................................................................................................................................9 7. .......................................................................................................................................... 9 SOS emergency calling8. .................................................................................................................................. 9 Tracking regularly by GPRS9. ................................................................................................................................................. 10 GPRS data logger10. ................................................................................................................................................. 10 Auto APN setting11. .............................................................................................................................. 10 Three kinds of tracking mode12. ............................................................................................................................................................. 11 Geo-fence13. ................................................................................................................................................. 11 Time zone setting14. ................................................................................................................................................ 12 Low battery alarm15. .......................................................................................................................... 12 LED indication for battery level16. .................................................................................................................................. 12 Power on/off automatically17. ........................................................................................................................................................ 12 Timer Switch18. ............................................................................................................................................ 12 APP for smart phone19. ................................................................................................................ 13 GPS tracking and monitoring platform20. ...................................................................................................................................... 14 Problems & Diagnostics
2 1. Product overview Welcome to purchasing our product! The vehicle and personal location tracker has the advantages of low power, 15 days standby without charging, small size, easy to use and supports two-way communication. It is specially applies for elderly/kid tracking, personnel management, assert tracking, vehicle positioning, etc. Tracker has built-in terminals of GPS (global positioning system) module and GSM communication module, which used for getting location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map; If your mobile phone is smart phone and opened with GPRS service, it is more convenient to see location of the tracker on smart phone by setting the SMS location format to be Google Link. At the same time, the GPRS data can be sent to the Internet server, which can realize the checking, monitoring and managing of the tracker on computer. The tracker supports three working modes: personal mode, smart mode, vehicle mode.  Please use personal mode if you want to tracking up to 15 hours standby time in an empty environment  Please use smart mode if you want to track less than 14 hours or in crowded environment (with many building around)  Please use vehicle mode when it working in the car, connect MINI USB cable with tracker and the car so it can track long time and keep in mind that it is better to hide it on a place with good GPS signal (example: under the windshield) The tracker supports the following features: ◆Easy authorized phone number setup by calling ◆Real time tracking ◆Two-way communication ◆Remote monitoring ◆SOS emergency calling ◆Tracking regularly by GPRS ◆GPRS data logger ◆Auto APN setting ◆3 kinds of tracking mode

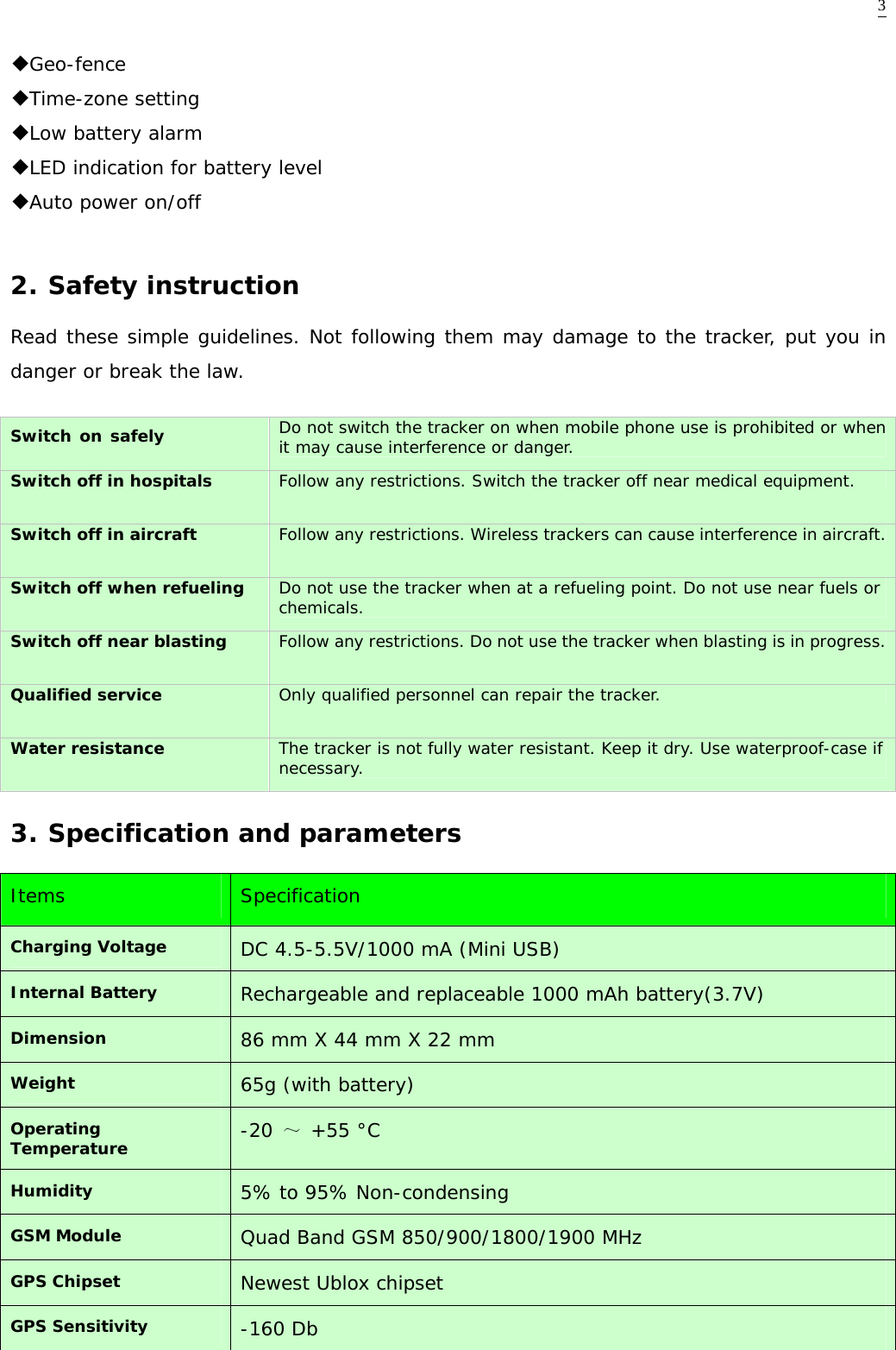

3◆Geo-fence ◆Time-zone setting ◆Low battery alarm ◆LED indication for battery level ◆Auto power on/off 2. Safety instruction Read these simple guidelines. Not following them may damage to the tracker, put you in danger or break the law. Switch on safely Do not switch the tracker on when mobile phone use is prohibited or when it may cause interference or danger. Switch off in hospitals Follow any restrictions. Switch the tracker off near medical equipment. Switch off in aircraft Follow any restrictions. Wireless trackers can cause interference in aircraft. Switch off when refueling Do not use the tracker when at a refueling point. Do not use near fuels or chemicals. Switch off near blasting Follow any restrictions. Do not use the tracker when blasting is in progress. Qualified service Only qualified personnel can repair the tracker. Water resistance The tracker is not fully water resistant. Keep it dry. Use waterproof-case if necessary. 3. Specification and parameters Items Specification Charging Voltage DC 4.5-5.5V/1000 mA (Mini USB) Internal Battery Rechargeable and replaceable 1000 mAh battery(3.7V) Dimension 86 mm X 44 mm X 22 mm Weight 65g (with battery) Operating Temperature -20 ～ +55 °C Humidity 5% to 95% Non-condensing GSM Module Quad Band GSM 850/900/1800/1900 MHz GPS Chipset Newest Ublox chipset GPS Sensitivity -160 Db

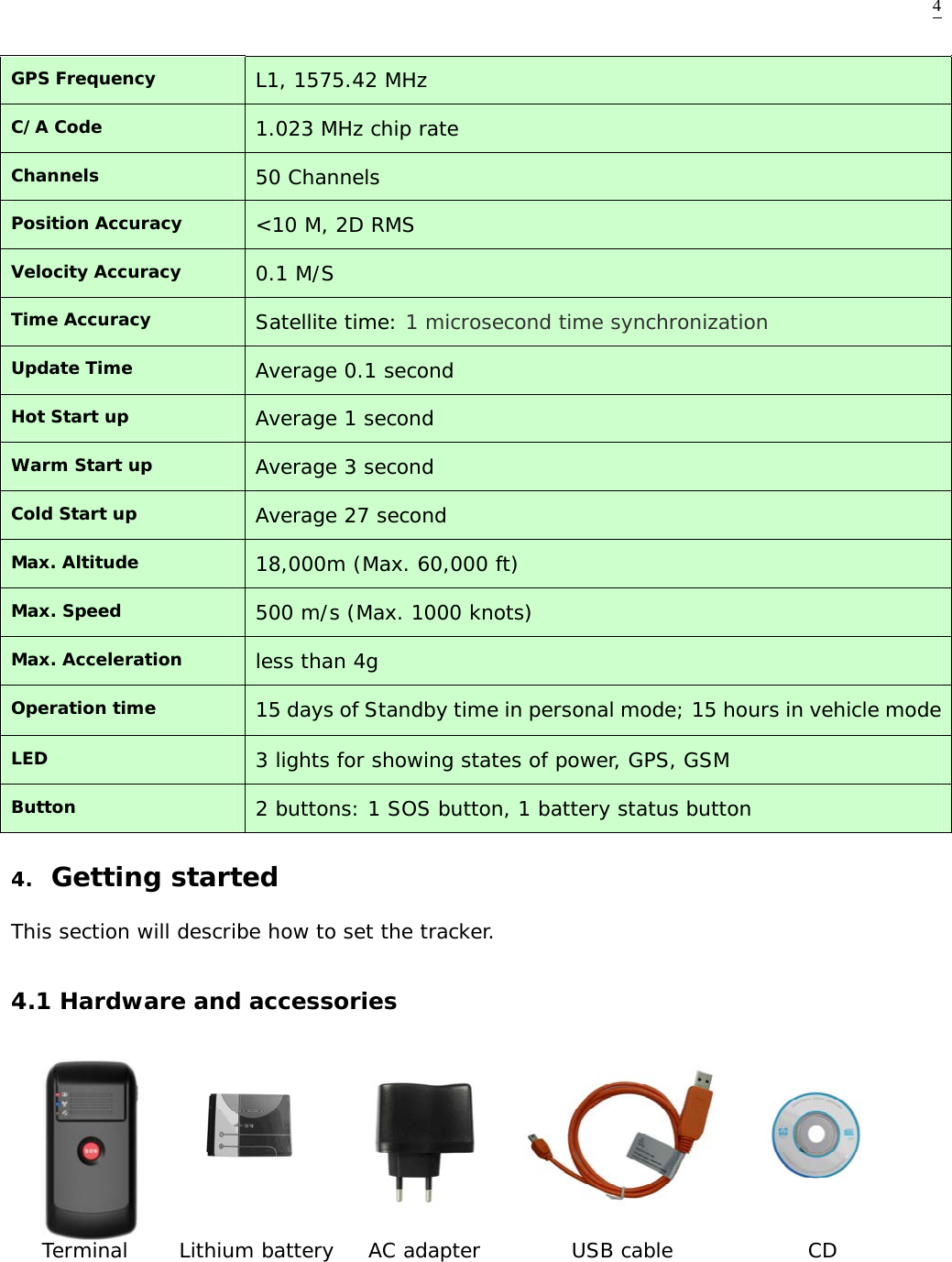

4GPS Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels 50 Channels Position Accuracy <10 M, 2D RMS Velocity Accuracy 0.1 M/S Time Accuracy Satellite time: 1 microsecond time synchronization Update Time Average 0.1 second Hot Start up Average 1 second Warm Start up Average 3 second Cold Start up Average 27 second Max. Altitude 18,000m (Max. 60,000 ft) Max. Speed 500 m/s (Max. 1000 knots) Max. Acceleration less than 4g Operation time 15 days of Standby time in personal mode; 15 hours in vehicle mode LED 3 lights for showing states of power, GPS, GSM Button 2 buttons: 1 SOS button, 1 battery status button 4. Getting started This section will describe how to set the tracker. 4.1 Hardware and accessories Lithium battery AC adapter Terminal USB cable CD
54.2 View Front view Side view Back view 4.3 Function key and port GSM LED Power switch Power LED Battery checking button and Hang rope hole GPS LED Speaker SOS button Microphone Mini USB port Red – Power indication Always On Power charging Always OFF Power charging completed or no connection Blue – GSM indication 0.3S On and 0.3S Off GSM module is initializing or calling in Always On GSM module cannot be registered 1S On and 3S Off GSM module is registered 0.1S On and 3 S Off GSM module is registered network and GPRS

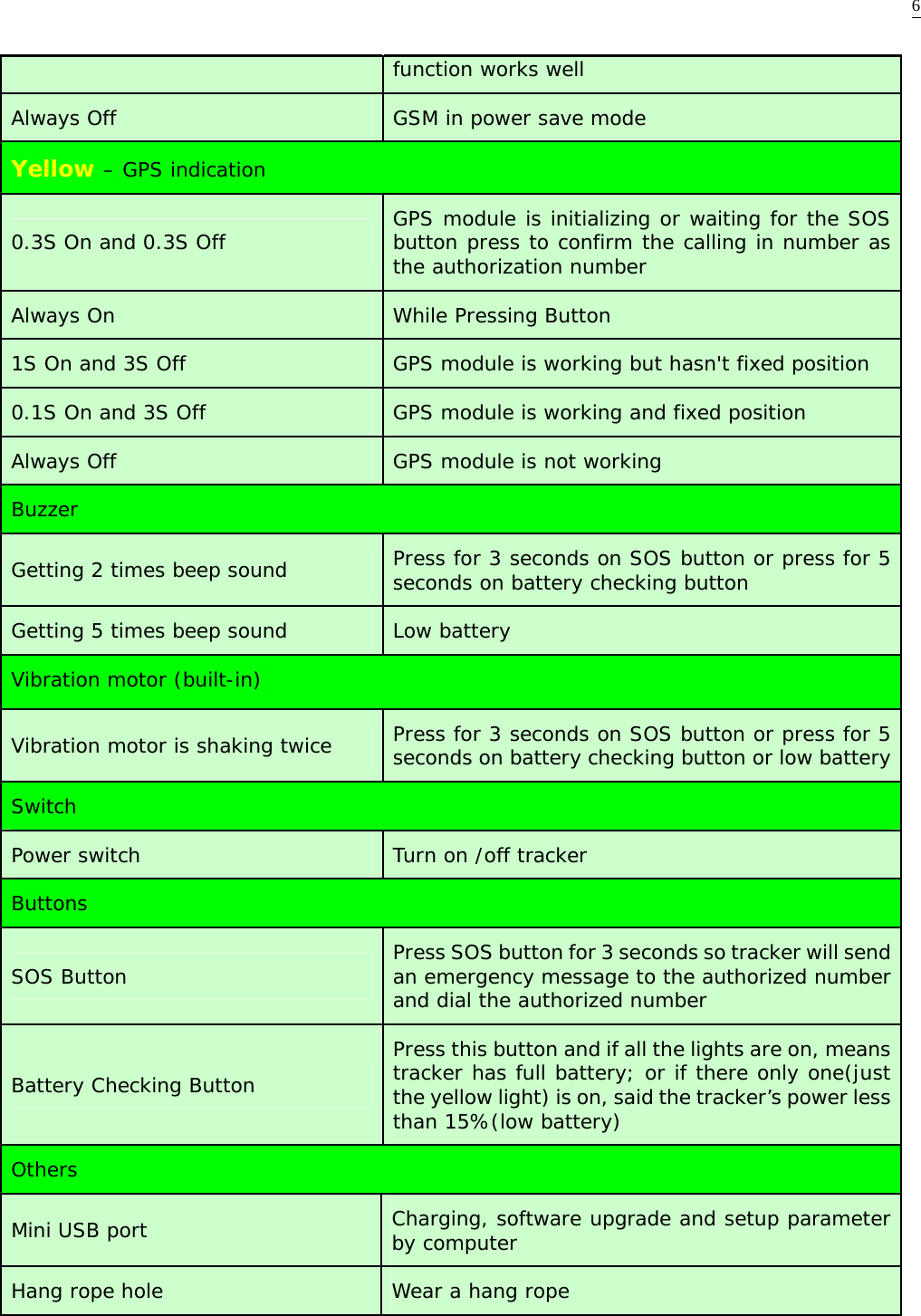

6function works well Always Off GSM in power save mode Yellow – GPS indication 0.3S On and 0.3S Off GPS module is initializing or waiting for the SOS button press to confirm the calling in number as the authorization number Always On While Pressing Button 1S On and 3S Off GPS module is working but hasn't fixed position 0.1S On and 3S Off GPS module is working and fixed position Always Off GPS module is not working Buzzer Getting 2 times beep sound Press for 3 seconds on SOS button or press for 5 seconds on battery checking button Getting 5 times beep sound Low battery Vibration motor (built-in) Vibration motor is shaking twice Press for 3 seconds on SOS button or press for 5 seconds on battery checking button or low battery Switch Power switch Turn on /off tracker Buttons SOS Button Press SOS button for 3 seconds so tracker will send an emergency message to the authorized number and dial the authorized number Battery Checking Button Press this button and if all the lights are on, means tracker has full battery; or if there only one(just the yellow light) is on, said the tracker’s power less than 15%(low battery) Others Mini USB port Charging, software upgrade and setup parameter by computer Hang rope hole Wear a hang rope
74.4 First use Please read this manual before using the tracker. 4.4.1 Ensure that your tracker has a working SIM card installed. - Tracker supports Micro SIM card and standard SIM card (please according actual situation to judge). - Check the SIM card has not run out of credit money (Test the SIM card in a phone to make sure it can send and receive SMS). - Check the lock code of the SIM card is turned off. - If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the tracker, please make sure the SIM card installed supports displaying caller ID. 4.4.2 Use AC adapter charge for at least 3 hours or charge via USB port with computer. - During charging, please turn the tracker off (otherwise it will make the charging time longer). During charging, the Red Led is always on and after recharged, Red Led is always off. 4.4.3 Slide up the power switch to ON (switch on) and set the parameter. If set the parameter via SMS, please make sure the GSM is registered before sending SMS. And then positioning in an empty environment, please do it every time after turn the tracker on. (Advantages: 1. renew machine for time, it is advantageous to the LBS location; 2. more power saving). 5. Change password SMS Command: $SMS,******;W001,######;! Description: change user’s password Explain: ******: user password, the range of 6 digits, default password is 000000. （Note: please switch to English input method when you editing command by phone; Device will only accept commands from a user with the correct password. Command will be ignored if with wrong password.） ######: new password, the range of 6 digits. Example: $SMS,000000;W001,123456;!
8Read password： $SMS,000000;R001;! Clear password： $SMS,000000;C001;! 6. Authorized number 6.1 Set the authorized number by SMS SMS Command: $SMS,000000;W010,NO.,Phone Number,ABC;! Description: Set authorized number and related functions. Explain: NO.: authorized number’s serial number, range of: 1~3. Phone Number: authorized number, range of: 0~19 characters. A: switch for Geo-fence function, range of: 0~1(0 means disable this function, 1 means enable this function), default is 0. B: switch for monitoring function, range of: 0~1(0 means disable this function, 1 means enable this function), default is 0. C: switch for SOS emergency calling, range of: 0~1(0 means disable this function, 1 means enable this function), default is 0. For example: Set the 1st authorized number is 13800000000 and just enable monitoring function. $SMS,000000;W010,1,13800000000,010;! Read authorized No.1 and it’s related authority： $SMS,000000;R010,1;! Clear authorized No.1 and it’s related authority： $SMS,000000;C010,1;! Read all authorized number： $SMS,000000;R010;! Clear all authorized number： $SMS,000000;C010;! 6.2 Easy authorized phone no. setup by calling Tracker only supports three authorized numbers. We can set the authorized number by phone call if authorized number is not full (Disable all functions). Set as follows: Any non-authorization number calls to the tracker over than 10 seconds, the tracker will cut off the line automatically and the Yellow Led will blink for 30 seconds. During this 30 second blinking, press SOS button less than 3 seconds, and then it set this call in number as a new
9authorization number and send SMS to that number to confirm the setting OK. 6.3 Monitoring function If enable this function, when the authorization number call in to the device, it will connect to the call and shut down the speaker, then the background voice of the device will be listened. (Note: Please make sure the SIM card installed supports displaying caller ID.) 6.4 Two-way communication If you turn the monitoring function off when set authorized number, use this authorized number call to tracker, bell will ring, at this time, press the SOS button (less than 3s) to answer the phone call, so you can speak each other. Press SOS button also can make a phone call to authorized number (see “SOS emergency calling”). 6.5 Real time tracking The tracker will reply a location message by SMS if any authorized number makes a phone call to it. 7. SOS emergency calling Press SOS button for 3 seconds or longer, the device will send SOS alarm to all authorization numbers by SMS. If the authorization number was set with the SOS emergency calling function, the device will make a call to authorized numbers one by one and it will stop to make a call if call is answered. 8. Tracking regularly by GPRS SMS Command: $SMS,000000;W002,APN,Username,Password;W003,IP,Port;W004,ID;W005,X;W009,Y;! Description: Enable this function. Explain: APN: server access port’s name, range of: 0~29 characters. Username: access port’ user name, range of: 0~29 characters. Password: access port’s password, range of: 0~29 characters. IP: server’ IP address, range of: 0~29 characters. Port: server’s port, range of: 0~65535. ID: tracker ID, range of: 0~15 characters. X: GPRS upload interval, range of: 0~65535, default is 0, unit is 30 seconds.
10（example: if X is 2 means 2*30 and interval as 60 seconds） Y: GPRS upload mode, range of: 0~2, default is 0. （0 means disable GPRS function, 1 means TCP connect, 2 means UDP connect） Example: $SMS,000000;W002, cmnet,,;W003,192.168.1.1,8088;W005,1;W009,1;! Read tracking regulary by GPRS: $SMS,000000;R002;R003;R005;R009;! Clear tracking regulary by GPRS: $SMS,000000;C002;C003;C005;C009;! 9. GPRS data logger Tracker has build in 8M bytes memory for GPRS data save, when GPRS interval tracking can not upload to server, data will automatically stored in the memory. After that, once the GPRS connected, tracker will send the data to server again. (Note: real time data will be sending first, the priority of the stored data is low.) 10. Auto APN setting The APN list can be configured before delivery (default is China APN). When insert SIM card, tracker will automatically acquire APN in the APN list. If user already set APN, then the tracker will not acquire APN automatically. 11. Three kinds of tracking mode SMS Command: $SMS,000000;W016,X;! Description: there are three kinds of mode: personal mode, smart mode, vehicle mode. Explain: X: tracker’s work mode. Range of: 0~2 (0 means personal mode, 1 means smart mode, 2 means vehicle mode). Default: 1.  Personal mode: When there are new data or alarms, GPS turns on the positioning function automatically. No matter the positioning succeeds or fails, GPS turns off the positioning function automatically, and upload new data or send out alert message.  Smart mode: GPS always turn on when device is move; otherwise only when there are new data or alarms, GPS turns on the positioning function automatically. No matter the positioning succeeds or fails, GPS turns off the positioning function automatically, and upload new data or send out alert message.  Vehicle mode: GPS always turn on whether tracker move or not. Example: $SMS,000000;W016,1;!
11Read device mode: $SMS,000000;W016,1;! Clear device mode: $SMS,000000;W016,1;! 12. Geo-fence SMS Command: $SMS,000000;W018,NO.,name,lat,lng,radius;! Description: tracker will get the newest position automatically to be fence center if there is no available GPS position. Turn geo-fence alarm on, when the tracker moves in/out the preset geo-fence, it will send a SMS alarm to the authorized phone number (enable the Geo-fence function when you set the authorized number), and if GPRS is connected, tracker will send this alarm data to server via GPRS. Explain: NO.: the serial number for geo-fence must be 1 to 5. name: name of geo-fence, range of: 0-9 characters. lat: center latitude, range of: -90.00000000~90.00000000, unit: degrees. lng: center longitude, range of:-180.00000000~180.00000000, unit: degrees. Radius: geo-fence radius, range of: 0.0~1.79E+308, unit: meters. （Note: according to Preset longitude and latitude as the center of the circle, with the preset radius, we can define a circle.） Example: $SMS,000000;W018,1,school,22.12345,114.12345,100;! $SMS,000000;W018,1,home,,,100;! Read Geo-fence： $SMS,000000;R018,1;! Clear Geo-fence： $SMS,000000;C018,1;! Clear all Geo-fence： $SMS,000000;C018;! 13. Time zone setting SMS Command：$SMS,000000;W020,X;! Description: Set the SMS time zone Explain: X: time zone’s value, range of:-720~780, default: 0, unit：minutes. (Example: 1 hour = 60 minutes, time zone+ 8 = 480 minutes) For example:
12$SMS,000000;W020,480;! Read time zone： $SMS,000000;R020;! Clear time zone： $SMS,000000;C020;! 14. Low battery alarm When the battery level is lower than 15%, it will send SMS to all authorization numbers or send alarm data to server. 15. LED indication for battery level We can judge the battery level by LED indication when pressing the battery checking button. If there are three lights on (means the power level range is 50%~100%), or two lights on (means the power level range is 15%~49%), or just one light on (means the power level range is 0%~14%). 16. Power on/off automatically Tracker will be off automatically if the power level is 0%; during charging, tracker will automatically be switch on when power level is higher than 15%, and send a ‘Power ON’ warming message to each authorized number. 17. Timer Switch SMS Command:$SMS,000000;W038,on time,off time;! Description: set the timer switch Explain: on time: timing boot time, range of:00:00~23:59,default: 00:00. off time: timing shutdown time, range of:00:00~23:59,default: 00:00. For example: $SMS,000000;W038,08:00,20:00;! This command means to boot up at 08:00 and shutdown at 20:00. 18. APP for smart phone
13a) Software of setup by smart phone Only for android system b) Software of tracking by smart phoneSupport android & iOS system 19. GPS tracking and monitoring platformUserName: Guest Password: 666666 Website: http://hk.gpstotrack.com/gps
1420. Problems & DiagnosticsCannot Switch On Possibility Solution Power switch operation’s problem Slide to the ON side Low battery Charging for 2.5 – 3 hours Not Sending SMS Possibility Solution Blue LED always On Make sure tracker can receive the strong GSM signal Check SIM card installation, insert again if necessary Replace a new SIM if necessary GSM connection congested Wait for SMS. Some GSM networks slow down during peak time or when they have equipment problems. Wrong password and SMS format Double check password or SMS format, password and format must be right Not enough SIM balance Replace SIM or Check balance value Low battery Charging tracker Yellow Led 1S On and 1S Off Possibility Solution Tracker’s position has been covered Place the tracker to open area w/o any tall building, tree and heavy raining. Those can be as shielding to the GPS signal GPS signal is weak Place the GPS internal antenna face to the sky Low battery Charging tracker No GPRS connection Possibility Solution SIM cannot support GPRS Enable SIM’s GPRS function GPRS function is disabled Enable the GPRS function Incorrect IP and Port Double check IP and Port, then restart the tracker GSM signal is weak Move the tracker to a place with strong GSM signal
FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:‐Reorient or relocate the receiving antenna.‐Increase the separation between the equipment and receiver.‐Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.‐Consult the dealer or an experienced radio/TV technician for help.To assure continued compliance, any changes or modifications not expressly approved by theparty.Responsible for compliance could void the user’s authority to operate this equipment. (Exampleuse only shielded interface cables when connecting to computer or peripheral devices).This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.The SAR limit adopted by USA and Canada is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The highest SAR value reported to the Federal Communications Commission (FCC) and the Industry Canada (IC) for this device type when it is properly worn on the body is 1.197W/kg(SAR1‐g). The device complies with the RF specifications when the device is used at adistance of 0 mm from your body. Ensure that the device accessories such as a device case and adevice holster are not composed of metal components. Keep your device 0 mm away from your body to meet the requirement earlier mentioned.This device was tested for typical body‐worn operations. To comply with RF exposurerequirements, a minimum separation distance of 0 mm must be maintained the user’s body , including the antenna. Third‐party belt‐clips, holsters, and similar accessories used by this device should not contain any metallic components. Body‐worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
