婴儿监护器简易说明手册

Baby Monitor Operating Instructions

使用前请仔细阅读本说明书

以确保安全和正确使用

并请妥善保管以供日后参考

Please read the user manual carefully

before you use for your safety and correct

operation, and please keep it

properly for reference in future.

135x90mm 封面

135x90mm 内页

FCC Statement

Radiation Exposure Statement

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician

for help.

To assure continued compliance, any changes or

modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this

equipment. (Example- use only shielded interface cables

when connecting to computer or peripheral devices).

set forth for an uncontrolled environment and it also complies

with Part 15 of the FCC RF Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired operation.

The camera should be installed and operated with a

minimum distance of 20 centimeters between the radiator

and your body.

This device complies with FCC radiation exposure limits

135x90mm 内页

Declaration of Conformity

Hereby,Shinwa Industries(China) Ltd. declares that this

device is in compliance with the essential requirements and

other relevant provisions of Directive 1999/5/EC.

The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modifications could void the user authority

to operate the equipment.

Caution!

135x90mm 内页

The product can not be used as a children's toy.

Keep the product out of reach from children.

The cable may cause potential safety hazard to children.

Use only approved accessories and batteries. Do not

connect incompatible products.

Your device is not water-resistant.keep it dry.

Follow any restrictions. switch the device off in aircraft,

near medical equipment, fuel, chemicals, or blasting

areas.

All wireless devices may be susceptible to interference,

which could affect performance.

Power adaptor warning: “Use only provided power

adaptor

Caution: Risk of explosion if battery is replaced by an

incorrect type. Dispose of used batteries according to

the instructions

Do not dispose of electrical products in the general

waste and ensure the used product or batteries are

disposed safely according to your local authority and

regulations.

Please do not use the product for illegal monitoring or

recording. Our company will not undertake any relative

legal liability that caused by illegal use.

WARNING:

135x90mm 内页

勿将本产品作为儿童玩具玩耍。

请保持一定距离或放置儿童不易拿取到的地方。

电线可能会对儿童带来潜在的安全隐患。

本产品不防水，请保持干燥。

请遵守限制使用的规定：在医院/加油站/飞机/化学品易

燃易爆品周围请保持关机。

请使用原装适配器和电池。

废旧电池的处理及产品报废处理请遵守当地法律法规。

请勿将本品用于非法监控或录像。由非法使用引发的法

律问题，本司不负任何责任！

警告:

Contencs

摄像端

监控端

如何开关机

如何注册/注销

如何充电

电池如何安装拆除

Micro Sd卡如何安装拆除

按键说明

135x90mm 内页

Camera

Receiver

Power on/off

Recharge

Installed and remove the batteries

Place/Remove Micro SD card

Operate instruction

135x90mm 内页

Operating Instructions

The care for children from family is the most

considerate for every family. Shinwa baby monitor is

designed specially for your children. It will give you

unlimited free space and let you take care of your

children’s every action. It supports the function of video

recording (AVI), which can record children’s every funny

action in their happy growth. It will help your children

grow-up under your protection in a comfortable

environment without any influence by any interference.

2.4GHz wireless digital signal transmission, with 2.4”

colorful LCD, portable and small, easy to carry;

Microphone equipped inside of camera, which help you

hear your children’s voice, it can monitor multiple

images simultaneously and play music（e.g. lullaby）

by remote control.

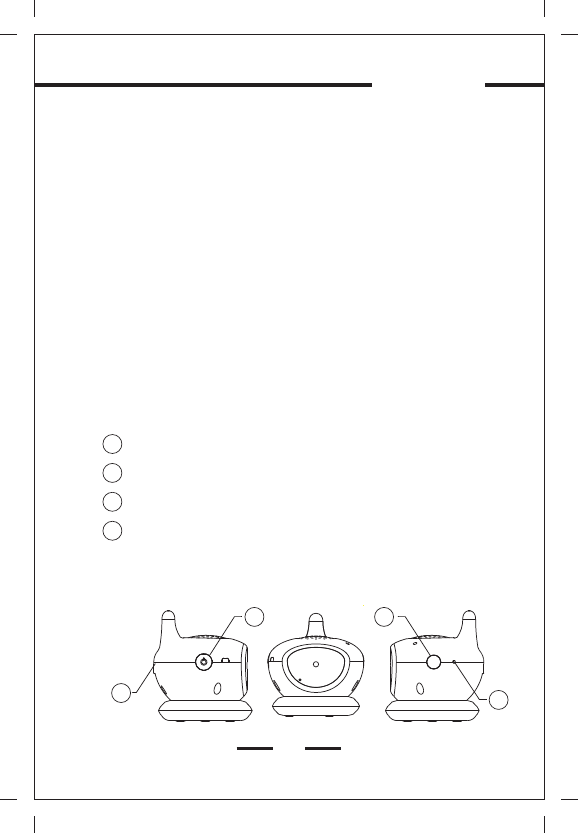

Baby Monitor

Power Switch

USB port

Reset

Camera

03 0 4

0201

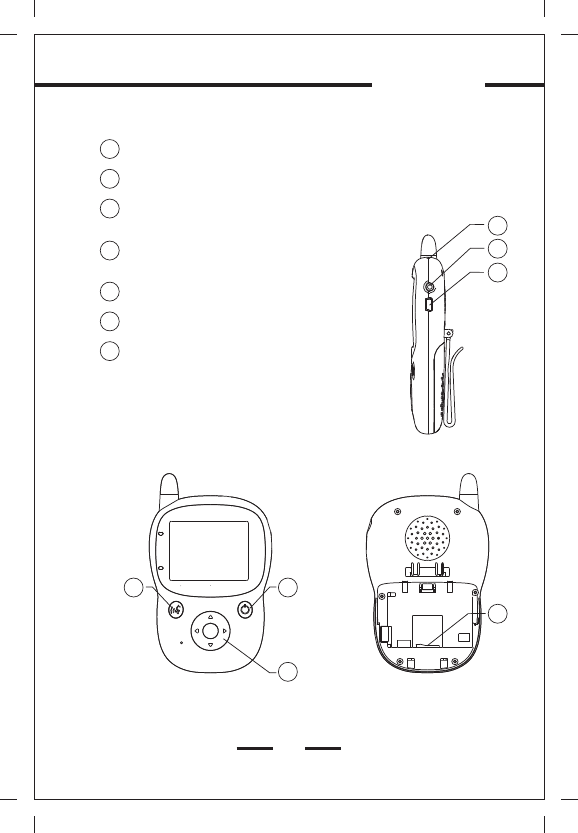

Baby Monitor

Operating Instructions

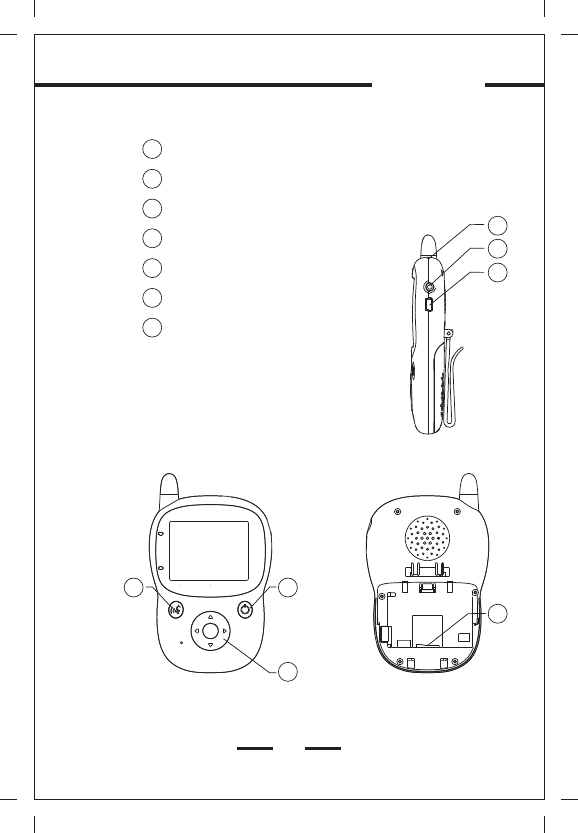

Receiver

VOX/Delete

Power/ESC

Five direction key

(up/down/left/right/OK)

Micro SD card slot

(on the underside of the battery)

USB port

Earphone jack

Reset

135x90mm 内页

01 0 2

Baby Monitor

Operating Instructions

Ⅱ. Power on/off

Camera: Press the switch to power ON/OFF. When

the power indicator LED is green, the product is ready to

be operated. If the LED doesn’t light please replace the

battery or recharge.

Receiver: Press the Power switch to Power on/off. When

the power indicator LED is blue means the receiver is

now ready to operate, if not, please replace the batteries

or recharge the receiver. The first time to power on, you

should to register the camera to the receiver successfully.

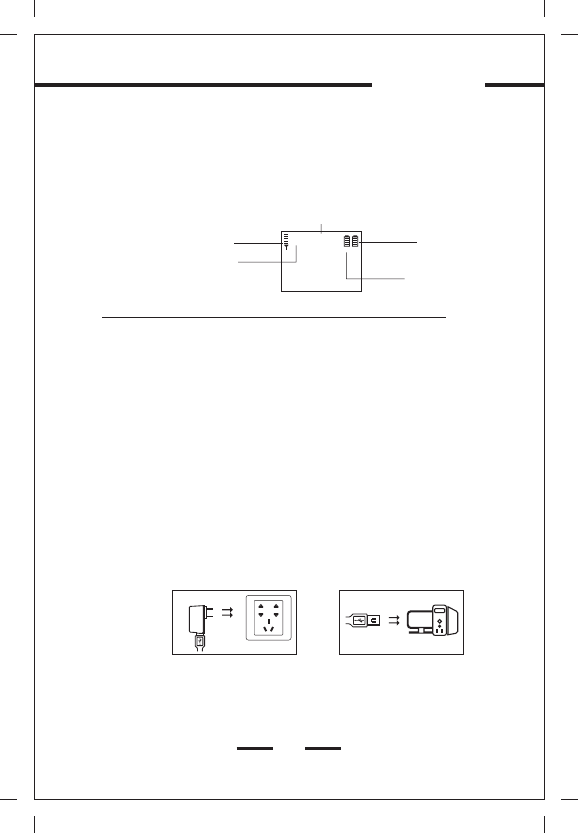

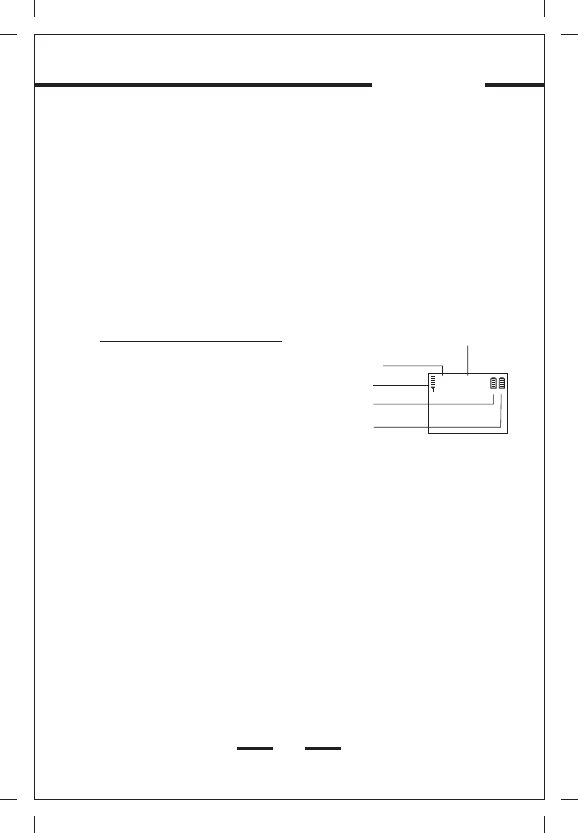

Ch1

Intensity of the single

Battery capacity of the camera

Battery capacity of the receiver

Ⅲ.Register/Logout

Video monitoring status:

Press “Ok” button of the receiver, choose “setting” and

then choose “register”. Select the transmission number

and press “OK”, there will be the register information

from the transmitter camera. Press “OK” to turn to the

key on the transmitter camera and hold for seconds. The

transmitter camera has been register success, there will

be hint on the receiver interface. If failed please repeat

this process or check the capacity of the battery.

Logout: Turn on the transmitter. Press “OK” button of the

indication of two-way communication:

Channel of the camera

A+

135x90mm 内页

Baby Monitor

Operating Instructions

receiver, choose “setting” and choose “logout” item,

select the number of the camera and press “OK” to

logout the camera.

Ⅳ.Recharge

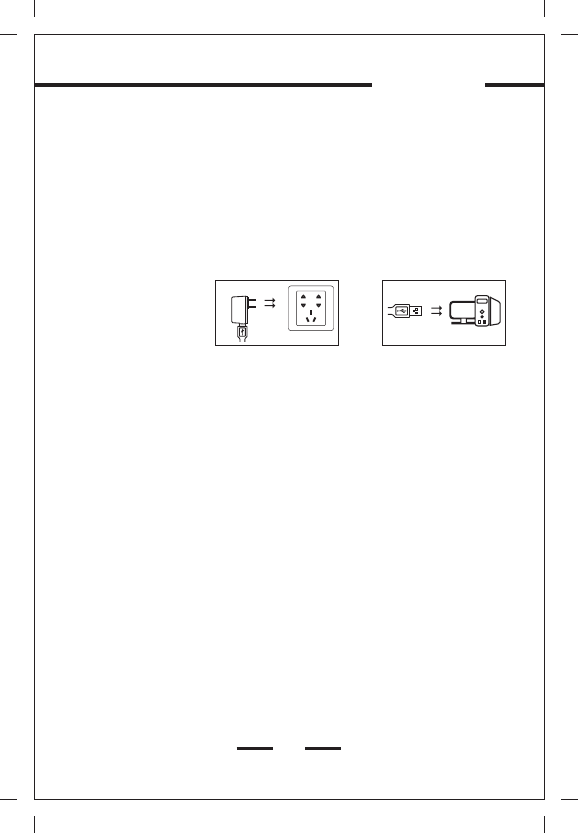

Recharge through the USB port by two methods as follows:

1. Recharge with a power adapter plug.

2. Recharge through a USB cable connected with computer

Method 1 Method 2

Ⅴ.Installed and remove the batteries

Install: open the receiver’s battery compartment on

the rear side. Insert the battery, paying attention to

correct polarity. Close the battery compartment again.

Remove: turn off the receiver. Open the battery

compartment. Take off the battery. Close the battery

compartment again.

Ⅵ.Place/Remove Micro SD card

Place: (Receiver side can extend storage with

Micro SD card up to 4G.)

Shut down the monitor, open the battery cover and

remove the battery, then put the Micro SD card face up

into the Micro SD card slot; When the card is locked,

you can hear the click.

Remove: Shut down the monitor, open the battery

cover and remove the battery. Then gently press the

Micro SD card, and it will pop up from the slot.

135x90mm 内页

Baby Monitor

Operating Instructions

Ⅶ.Operate instruction

1.Camera side button instruction

Power switch: Power on/off, the indicator LED will

light.

side with receiver side, when registering the indicator

LED will flicker. You can loose the button when it is

registered successfully.

Reset button: Press this button will reset system.

2.Receiver side button instruction

Reset button: Reset system in any case when press

this button.

The functions of other buttons are different when in

different status. Detailed instructions are as follows:

Under the video monitoring status:

(1)Up/Down: Used to change channels by different

sequence. When changed channel, it will display the

number of current channel (CH1, CH2, CH3, CH4 or 4

images viewing). The receiver can maximum register 4

cameras at the same time.

Channel changes as below:

4 registered cameras: Ch1 Ch2 Ch3 Ch4

images

Ch1 Ch2 Ch3

images

Ch1 Ch2

images

Ch1 Ch1

3 registered cameras:

2 registered cameras:

1 registered cameras:

135x90mm 内页

Baby Monitor

Operating Instructions

(2)Left/Right: To adjust the volume, and status

displayed with icons.

(3)OK: Only by pressing this button can open the menu,

and the video keep in active status when the menu is

opened. The menu will be closed when there is no operation

within 5 seconds or by pressing Power/ESC button.

(4)Power/ESC: Shut down the menu when press this

button.

(5)Speak/Delete: To open or close the

voice transmission from the monitor to the camera.

Under the menu status:

(1)

(2)

the settings.

(3)OK: To select, confirm and enter.

(4)Power/ESC: Press this button to cancel or return,

press and hold on for a few seconds to power on or off.

(5)Speak/Delete: When operating the video files, it can

be used to delete files; Otherwise used to open or close

the voice transmission.

Up/Down: To change channels.

Left/Right: To move to the left and right or change

The menu is active during the period of validity,

and you can operate as follows:

Zoom in/out function: Press the OK button can enter

it. And then use the left/right button to select one from 5

different areas of the screen, then press the OK button

to execute.

Images move function: Press the OK button to enter

it. And then use the left/right/up/down button to move

the image to corresponding direction. It can be used

135x90mm 内页

Baby Monitor

Operating Instructions

only when the image is under zoom in status.

Record function: Press OK button to start or stop

recording, also can press Power/ESC button to stop

recording and exit the menu at the same time.

Playback function: Press the OK button can enter the

submenu and display the files list, and the list is arrayed

by the found date. Use the Up/Down button to select file,

use the Speak/Delete button to delete file; Press the

OK button can play or suspend, press Power/ESC

button can return to the video monitoring interface.

Lullaby, press OK button to enter the lullaby interface,

Select the lullaby tracks, then press OK button to play

the lullaby selected and exit to the main menu

meanwhile. There is a playing indication on the lullaby

menu. Stop playing by pressing OK button under playing

condition.

System setting function: Press OK button to enter,

use Up/Down button to select and then use OK button to

confirm. Press Power/ESC button can cancel or return.

System Settings:

Video store location: Micro SD card or local disk

PC link: Connect to the PC through a USB cable, it can

be used like a USB disk, then your can operate the

video files you recorded.

Power saving: Set the auto power saving time.

Language setting: Set the language.

Backlight: Set the brightness of the LCD display.

Voice trigger control : on/off

135x90mm 内页

Baby Monitor

Operating Instructions

135x90mm 内页

Movement trigger control: on/off

Camera setting: Set the parameter for the camera of

each channel. Such as the brightness, contrast,

saturation, frame rate and night-vision control.

Capacity: View the capacity of internal storage and

external Micro SD card.

Version: View the version of the software.

Default: Restore the default settings.

Standby and hibernation mode:

Enter the hibernation mode: When the hibernation

time you set in the Power saving mode of system setting,

it will enter the hibernation mode automatically and

shut down the audio, video and LCD.

Exit the hibernation mode: When press anyone

button of the monitor or the camera side is warning, it will

exit the hibernation mode automatically. Then warning

can be triggered by voice trigger function or movement

sensitive function.

Voice trigger function

Under working situation of voice trigger function, the

receiver will shock when the voice reach a certain range

that detected by the camera.

Movement trigger function

Under working situation of movement sensitivity

function, the receiver will shock when the movement

reach a certain range that detected by the camera.

Baby Monitor

Operating Instructions

135x90mm 内页

Night vision function

In dark surroundings, pictures can be viewed clearly by

turning on night vision function automatically or manually.

Setting of night vision: under setting menu, select the

camera channel needed, select auto, on or off when you

see the night vision control bar.

“auto” means the camera perceive the light degree

through sensor type and the night vision automatically on or

off when the surrounding is dark or bright.

“on” means on the night vision directly;

“off” means off the night vision directly;

135x90mm 内页

婴儿监护器简易说明手册 Baby Monitor

每个家庭都希望给予孩子最为周到的照顾，本品是一款

专门为您的家庭设计的既优秀又可爱的幼儿监护产品。她简

化了复杂的操作，给您无限的自由空间，使您在享受舒适生

活的同时对孩子的每一个行为都了如指掌。这款产品支持录

像功能，可以记录孩子们愉快的成长过程。孩子们在舒适的

环境中不会受到任何干扰，在您的保护下茁壮成长。

本品采用2.4GHz无线数字信号发射；2.4英寸彩色L CD显示

屏；体积小便于携带，摄像端内设麦克风，随时随地帮助您

聆听孩子的声音；摄像端和监控端可以独立使用；监控端可

同时监控4个摄像端；可将声音及视频录制成A VI格式输出；

具有双向通话功能，并可远程控制播放音乐。

摄像端( CAM ERA )

电源键

对码键

USB接口

复位键

03 0 4

0201

婴儿监护器简易说明手册 Baby Monitor

监控端( REC EIV ER)

通话键/删除键

五向功能键(上/下/左/右/OK键)

POWER/ESC键

USB接口

Micro SD卡插口(位于电池底部)

耳机接口

复位键

135x90mm 内页

01 0 2

婴儿监护器简易说明手册 Baby Monitor

二、如何开关机：

摄像端：按电源键开、关机；开机成功红色指示灯亮、

若无反应请充电或更换电池。

监控端：长按电源键开、关机；开机后显示视频主界面，

进入视频监控状态；初次开机需要待摄像注册成功才可

显示监控画面。开机成功蓝色指示灯亮、若无反应请充

电或更换电池。

视频监控状态：

注：当系统出现按键功能失效或死机时，可按复位键进行复位。

三、如何注册/注销：

打开菜单、进入 “系统设置”项，选择“注册”子菜单项，

选择需注册的摄像端号，按“OK”键弹出注册摄像端信息，

再按 “OK”键确定进入注册状态；此时按住摄像端的对码

键，进行对码，注册成功监控端有提示成功，若失败可

以重复此过程再试或确认电量情况再试。

注销：在监控端开机状态下，打开菜单、进入 “ 系统设

置”项，选择“注册”子菜单项，选择需注销的摄像端号，

按“OK” 键弹出注销摄像端信息，再按 “O K” 键确定执

行注销。

四、如何充电：

摄像端与监控端充电时从US B接口接入

方式一：通过电源适配器充电

方式二：通过USB线连接电脑充电

五、电池如何安装拆除：

安装：打开电池盖，按正负指示放置电池，扣好盖。

拆除：关机，打开电池盖取出电池，扣好盖。

方式一方式二

摄像端通道指示

信号强度指示

摄像端电量指示

监控端电量指示

Ch1

A+

双向通话指示

135x90mm 内页

婴儿监护器简易说明手册 Baby Monitor

六、Mi cro S D卡如何安装拆除：

安装：监控端扩充存储可外接Mic ro SD卡，目前支持最

大4G。打开电池盖、取出电池、将Mi cro S D卡正面插入

M i c r o S D卡槽、听到咔嚓锁住声音即可。

拆除：打开电池盖、取出电池、轻压Micro SD会从卡槽

中弹出、即可将Mi cro S D卡从Mi cro S D卡槽取出。

七、按键说明

（一）、摄像端按键说明：

电源键：开、关机，开机成功有电源指示灯亮。

对码键：按住此键启动对码、对码过程中绿色指示灯闪

烁、对码成功即可松开。

复位键：系统复位。

（二）、监控端按键操作说明：

复位键：系统复位，任何状态下都可对系统进行复位处

理。其余键的功能依据所处状态情况，功能定义有区别，

具体说明如下：

在视频监控状态下

1、上、下键：用于切换通道，向上或向下顺序切换通道。

切换通道之后，显示当前通道号（Ch1或C h 2或C h 3或C h 4

或四画面显示）本品监控端最大支持同时注册4个摄像端。

上键切换通道举例：

如果有四个摄像端：C h1 Ch 2 Ch3 C h4

如果只注册三个摄像端：Ch 1 Ch2 C h3

如果只有一个摄像端：Ch1 四画面 Ch 1

2、左、右键：用于调节音量，有音量增、减图标显示。

3、OK键：按此键弹出菜单，其它任何情况下都不出菜单。

菜单出现的时候，图像保持活动状态。5秒没有操作菜单

会自动消隐或短按PO WER /ES C键关闭菜单。菜单有效期间

本机处于菜单状态。

4、POWER/ESC键：短按此键关闭菜单,长按开、关机

5、通话键/删除键：用于启动、关闭监控端往摄像端通话

四画面

135x90mm 内页

婴儿监护器简易说明手册 Baby Monitor

键停止同时消隐菜单。

：回放功能，按OK键进入播放子界面，显示文件列表。

上、下键选择文件，文件按新到旧排列。按通话键/删除

键可删除选中的文件。OK键为播放或者暂停，POWER/ESC

键退出，回到视频监控界面。

：睡眠曲，按OK键进入，选择睡眠曲目再按OK键启动睡

眠曲播放同时退回到主菜单，并且睡眠曲菜单上有播放标识。

当在播放状态下按OK键可控制播放停止。

：系统设置，按OK键进入，上、下键选择，OK键确认

执行；POWER/E SC键取消或退回。

系统设置项有：

存储位置设置：本机或者Mi cro S D卡。

连接电脑：先用USB线连接好电脑，再执行此功能。相

当于U盘，可操作录制的视频文件

节电模式：

语言设置

背光（LCD亮度调节）

声控控制：开/关

动作识别控制：开/关

POWER/ESC

在菜单状态下

1、上、下键：用于移动选择菜单项。

2、左、右键：用于向左、向右移动或改变设置值。

3、OK键：用于选择确认执行。

4、POWER/ESC键：短按此键用于取消或返回功能。

5、通话键/删除键，在操作视频文件时可做删除功能，其

它用于启动关闭通话。

菜单有效期间本机处于菜单状态，界面的菜单功能操作说明：

：放大功能，按OK键进入后使用左、右键顺序选

择监控画面区域（五个区域），OK键执行放大。

：平移功能，按OK键进入后上、下、左、右键移动图像。

(监控画面放大后,此菜单才有效)

：录像功能，按OK键启动录像、暂停录像；也可按

135x90mm 内页

婴儿监护器简易说明手册 Baby Monitor

待机/休眠状态

休眠进入：系统设置中的节电时间到达休眠时间后，进

入休眠状态，会关闭音视频，关闭LC D。

休眠退出：发射端报警或按监控端的任意键；报警是由

于声控或动作识别的功能引发。

声控功能

在监控端声控打开的情况下，当摄像端检测到声音达到

一定幅度时，监控端会有震动提示。

动作识别功能

在监控端动作识别打开的情况下，当摄像端检测到有动

作时，动作达到一定程度，监控端会有震动提示。

摄像头设置：设置各通道的摄像头参数（亮度/对比度/

饱和度/帧率/红外夜视控制）

容量显示：包括本机容量与扩展Mi cro S D卡容量信息

版本信息：包括监控端、摄像端与厂家信息

恢复出厂设置

夜视功能

当环境光较暗时，可自动或人为手动开启红外夜视，让

视频清晰可见。

夜视功能设置：在设置菜单下，进入到摄像头控制子菜

单项，选择需控制的摄像头通道，可看到红外开关控制

栏，可设置成自动、开或关。

“自动”就是摄像端通过感光器件感知环境光亮程度，

光线较暗时自动开启或光线亮时关闭红外夜视；

“开”就是直接控制红外夜视开启；

“关”就是直接控制红外夜视关闭。

135x90mm 封底

abnormal condition solution

can not power on

1, ple ase r ech arg e, sw it ch on a fte r

ch arg ed.

2, che ck th e res et bu tto n

video interface

not available after

power on

1,make sure the camera has enough

power and correctly registered

2,switch to the registered camera

channel or register the camera with the

existing channel

Receiving distance

shortened

1,supply power by adapter or recharge

2,reselect position of the receiver and

camera.

3,keep away from other electrical

equipments.

squealing during

working

Enlarge the distance between the

camera and receiver

can not hear the voice

from the camera

1,turn up the volume of receiver

2,exit playing “lullaby”

Micro SD card

nonrecognition Use branded SD card that less than 4GMicro

system halted Please press the reset button

异常情况解决办法

无法开机 1、请充电，电量足再开机

2、检查复位键

开机看不到视频界面

1、确保摄像头有电，并正确注册

2、切换到已注册摄像头的通道，或者在

此通道上注册摄像头

接收距离变短

1、使用适配器供电或充电

2、重新选择监控端和摄像端位置

3、尽量远离其它电器

工作中出现啸叫加大监控端、摄像端之间的距离

听不到摄像头端的声音 1、主机声音调大

2、退出“催眠曲” 播放

Micro S D卡不识别建议使用4G以内的正规品牌 S D卡Micro

意外死机请按复位键复位

Shinwa BM-6018AS 2.4GHz Baby Monitor Camera User Manual

Shinwa Industries (China) Ltd. 2.4GHz Baby Monitor Camera Users Manual

User Manual

Navigation menu

Namespaces

Views

Navigation
