Wireless SMART1+™ RemoteOperating InstructionsP/N 1123159 Rev. A

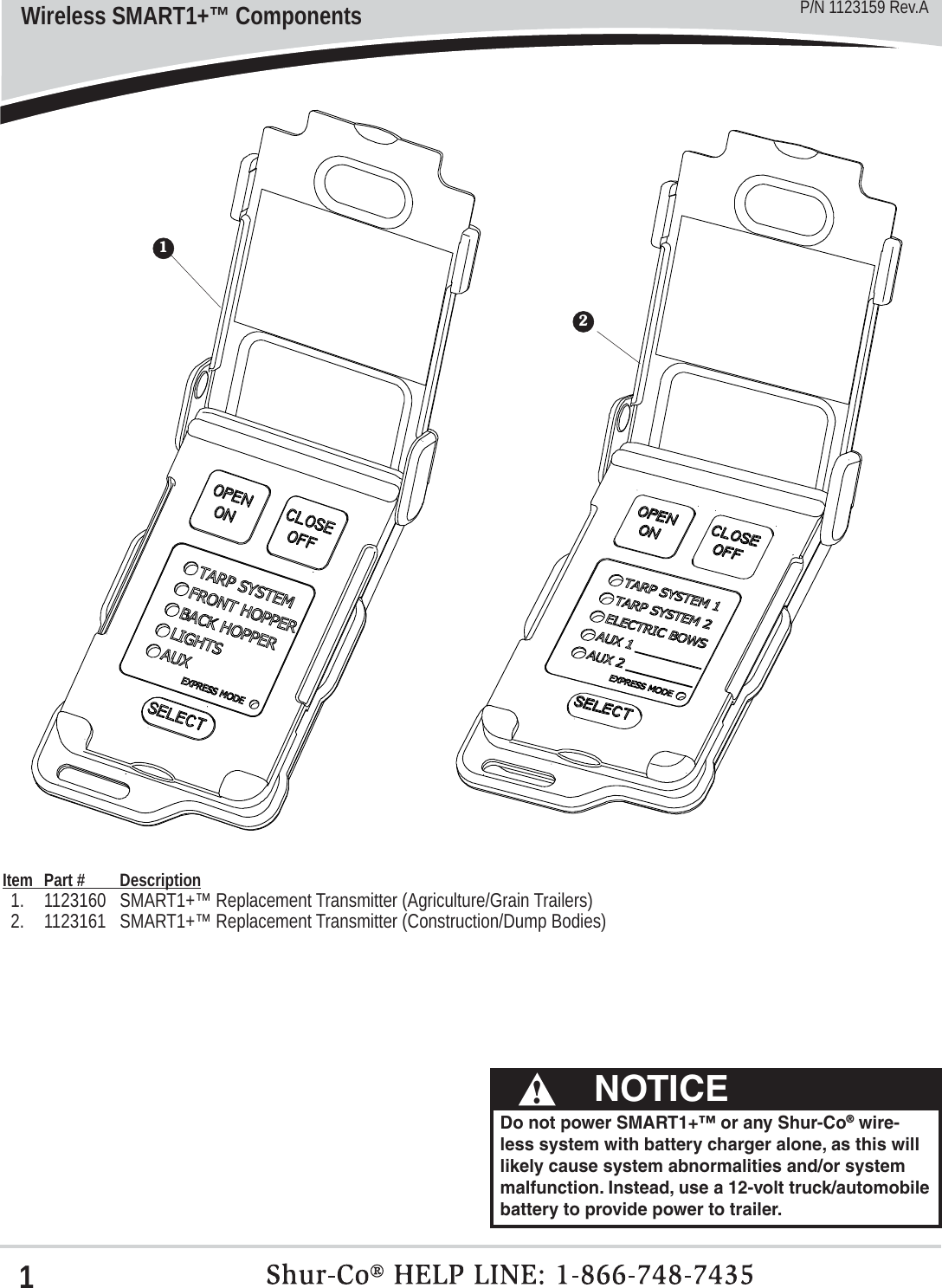

P/N 1123159 Rev.AWireless SMART1+™ ComponentsItem Part # Description 1. 1123160 SMART1+™ Replacement Transmitter (Agriculture/Grain Trailers) 2. 1123161 SMART1+™ Replacement Transmitter (Construction/Dump Bodies)11NOTICEDo not power SMART1+™ or any Shur-Co® wire-less system with battery charger alone, as this will likely cause system abnormalities and/or system malfunction. Instead, use a 12-volt truck/automobile battery to provide power to trailer.!2

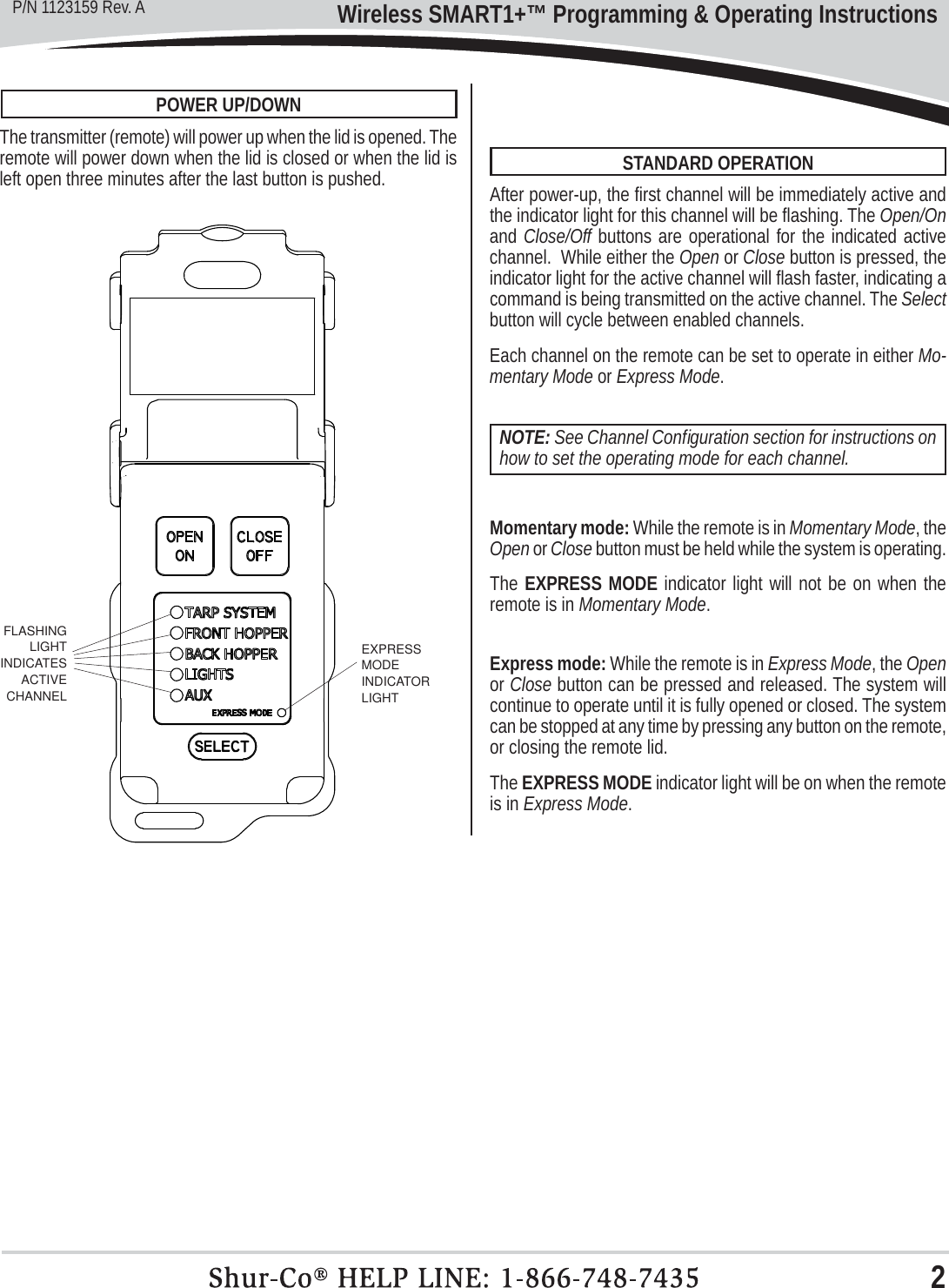

Wireless SMART1+™ Programming & Operating InstructionsP/N 1123159 Rev. A2The transmitter (remote) will power up when the lid is opened. The remote will power down when the lid is closed or when the lid is left open three minutes after the last button is pushed.POWER UP/DOWNAfter power-up, the ﬁ rst channel will be immediately active and the indicator light for this channel will be ﬂ ashing. The Open/On and Close/Off buttons are operational for the indicated active channel. While either the Open or Close button is pressed, the indicator light for the active channel will ﬂ ash faster, indicating a command is being transmitted on the active channel. The Select button will cycle between enabled channels.Each channel on the remote can be set to operate in either Mo-mentary Mode or Express Mode.STANDARD OPERATIONFLASHINGLIGHTINDICATESACTIVECHANNELNOTE: See Channel Conﬁ guration section for instructions on how to set the operating mode for each channel.Momentary mode: While the remote is in Momentary Mode, the Open or Close button must be held while the system is operating.The EXPRESS MODE indicator light will not be on when the remote is in Momentary Mode.Express mode: While the remote is in Express Mode, the Open or Close button can be pressed and released. The system will continue to operate until it is fully opened or closed. The system can be stopped at any time by pressing any button on the remote, or closing the remote lid.The EXPRESS MODE indicator light will be on when the remote is in Express Mode.EXPRESS MODE INDICATOR LIGHT

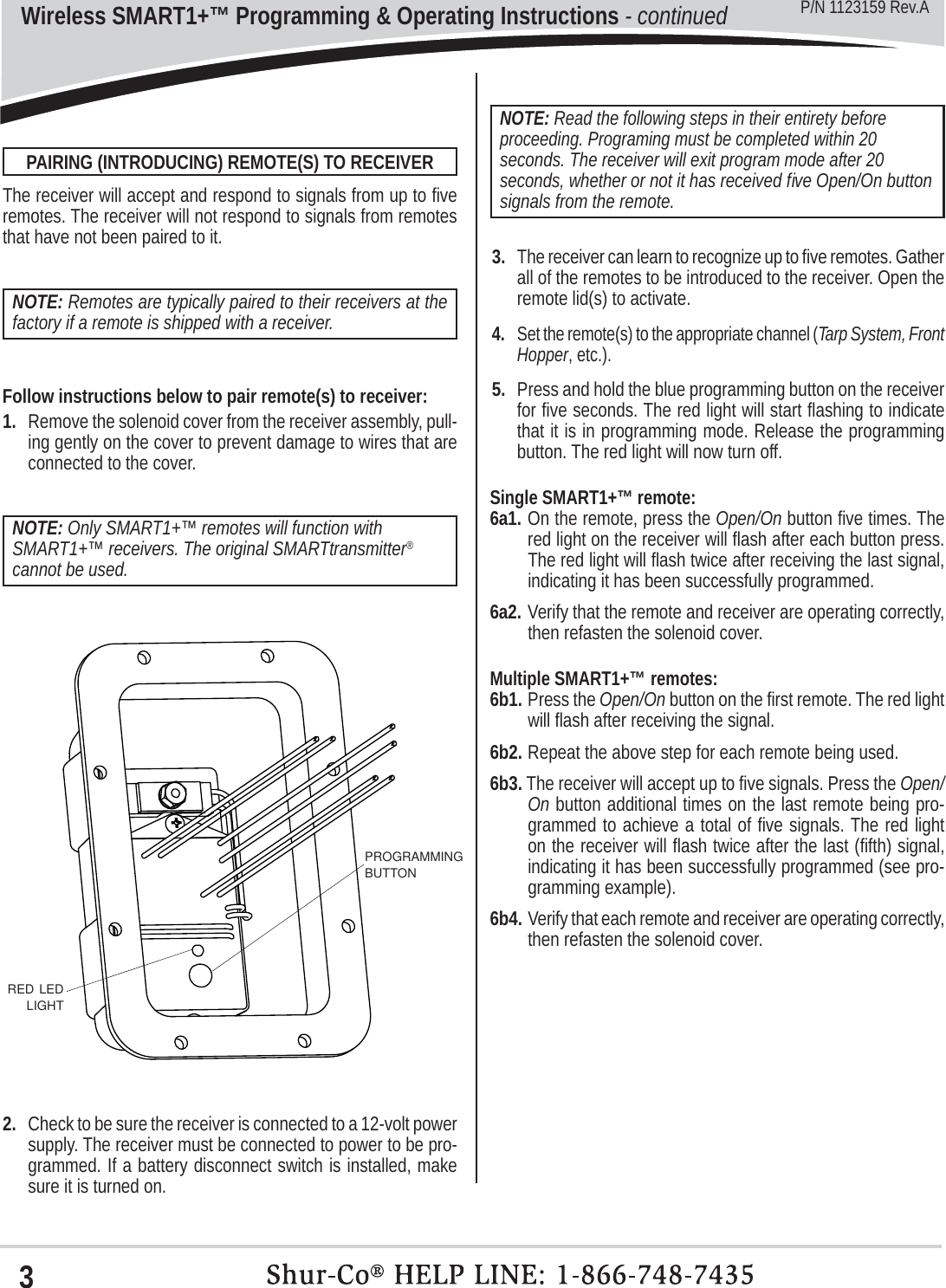

P/N 1123159 Rev.AWireless SMART1+™ Programming & Operating Instructions - continued3The receiver will accept and respond to signals from up to ﬁ ve remotes. The receiver will not respond to signals from remotes that have not been paired to it.NOTE: Only SMART1+™ remotes will function with SMART1+™ receivers. The original SMARTtransmitter® cannot be used.PAIRING (INTRODUCING) REMOTE(S) TO RECEIVER2. Check to be sure the receiver is connected to a 12-volt power supply. The receiver must be connected to power to be pro-grammed. If a battery disconnect switch is installed, make sure it is turned on.1. Remove the solenoid cover from the receiver assembly, pull-ing gently on the cover to prevent damage to wires that are connected to the cover.Follow instructions below to pair remote(s) to receiver:RED LED LIGHTPROGRAMMING BUTTONNOTE: Remotes are typically paired to their receivers at the factory if a remote is shipped with a receiver.Single SMART1+™ remote:6a1. On the remote, press the Open/On button ﬁ ve times. The red light on the receiver will ﬂ ash after each button press. The red light will ﬂ ash twice after receiving the last signal, indicating it has been successfully programmed.6a2. Verify that the remote and receiver are operating correctly, then refasten the solenoid cover.NOTE: Read the following steps in their entirety before proceeding. Programing must be completed within 20 seconds. The receiver will exit program mode after 20 seconds, whether or not it has received ﬁ ve Open/On button signals from the remote.3. The receiver can learn to recognize up to ﬁ ve remotes. Gather all of the remotes to be introduced to the receiver. Open the remote lid(s) to activate.4. Set the remote(s) to the appropriate channel (Tarp System, Front Hopper, etc.).5. Press and hold the blue programming button on the receiver for ﬁ ve seconds. The red light will start ﬂ ashing to indicate that it is in programming mode. Release the programming button. The red light will now turn off.Multiple SMART1+™ remotes:6b1. Press the Open/On button on the ﬁ rst remote. The red light will ﬂ ash after receiving the signal.6b2. Repeat the above step for each remote being used.6b3. The receiver will accept up to ﬁ ve signals. Press the Open/On button additional times on the last remote being pro-grammed to achieve a total of ﬁ ve signals. The red light on the receiver will ﬂ ash twice after the last (ﬁ fth) signal, indicating it has been successfully programmed (see pro-gramming example).6b4. Verify that each remote and receiver are operating correctly, then refasten the solenoid cover.

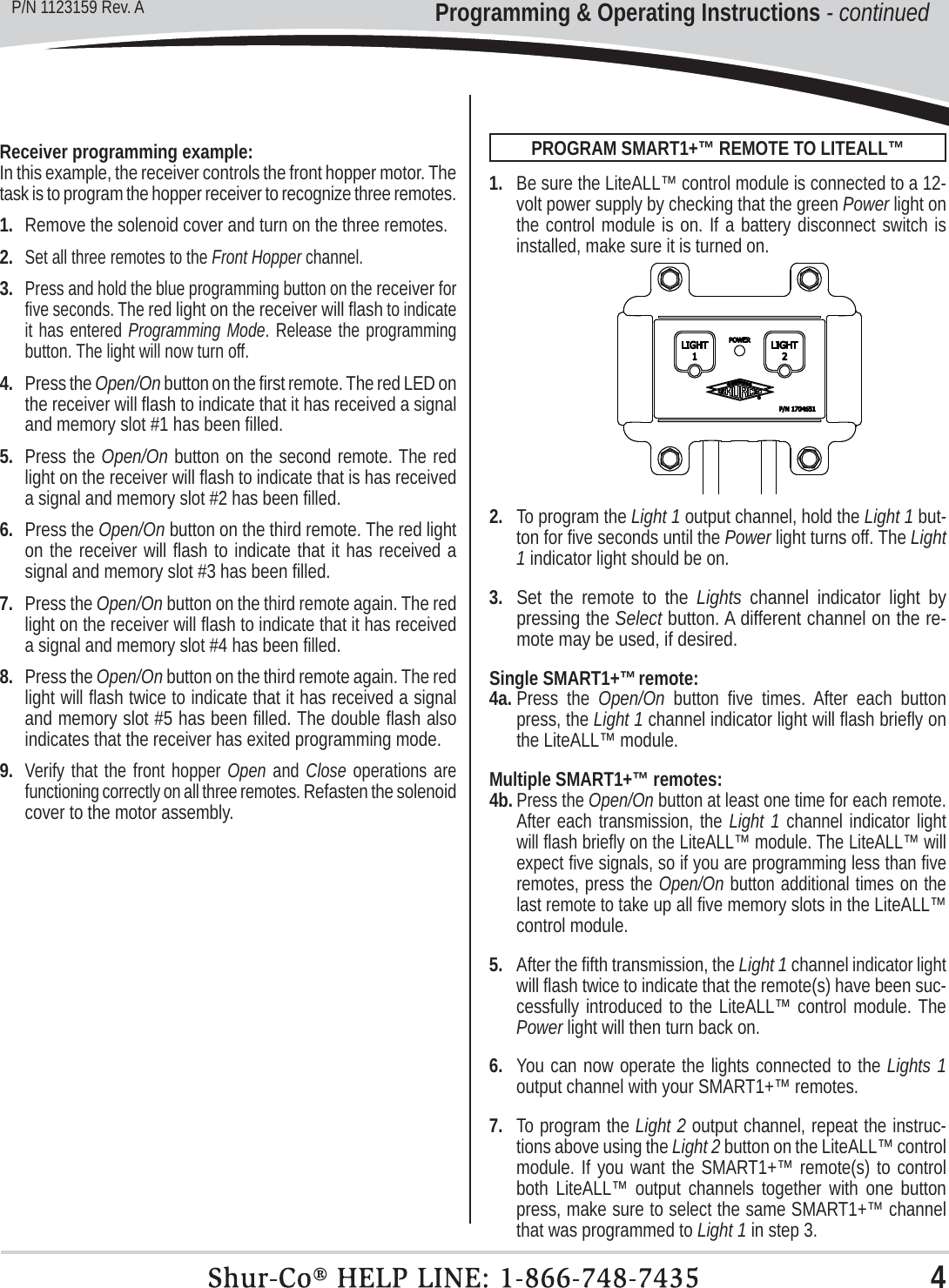

P/N 1123159 Rev. A4Programming & Operating Instructions - continuedReceiver programming example:In this example, the receiver controls the front hopper motor. The task is to program the hopper receiver to recognize three remotes.1. Remove the solenoid cover and turn on the three remotes.2. Set all three remotes to the Front Hopper channel.3. Press and hold the blue programming button on the receiver for ﬁ ve seconds. The red light on the receiver will ﬂ ash to indicate it has entered Programming Mode. Release the programming button. The light will now turn off.4. Press the Open/On button on the ﬁ rst remote. The red LED on the receiver will ﬂ ash to indicate that it has received a signal and memory slot #1 has been ﬁ lled. 5. Press the Open/On button on the second remote. The red light on the receiver will ﬂ ash to indicate that is has received a signal and memory slot #2 has been ﬁ lled.6. Press the Open/On button on the third remote. The red light on the receiver will ﬂ ash to indicate that it has received a signal and memory slot #3 has been ﬁ lled.7. Press the Open/On button on the third remote again. The red light on the receiver will ﬂ ash to indicate that it has received a signal and memory slot #4 has been ﬁ lled.8. Press the Open/On button on the third remote again. The red light will ﬂ ash twice to indicate that it has received a signal and memory slot #5 has been ﬁ lled. The double ﬂ ash also indicates that the receiver has exited programming mode.9. Verify that the front hopper Open and Close operations are functioning correctly on all three remotes. Refasten the solenoid cover to the motor assembly.1. Be sure the LiteALL™ control module is connected to a 12-volt power supply by checking that the green Power light on the control module is on. If a battery disconnect switch is installed, make sure it is turned on.PROGRAM SMART1+™ REMOTE TO LITEALL™2. To program the Light 1 output channel, hold the Light 1 but-ton for ﬁ ve seconds until the Power light turns off. The Light 1 indicator light should be on.3. Set the remote to the Lights channel indicator light by pressing the Select button. A different channel on the re-mote may be used, if desired.Single SMART1+™ remote:4a. Press the Open/On button ﬁ ve times. After each button press, the Light 1 channel indicator light will ﬂ ash brieﬂ y on the LiteALL™ module.Multiple SMART1+™ remotes: 4b. Press the Open/On button at least one time for each remote. After each transmission, the Light 1 channel indicator light will ﬂ ash brieﬂ y on the LiteALL™ module. The LiteALL™ will expect ﬁ ve signals, so if you are programming less than ﬁ ve remotes, press the Open/On button additional times on the last remote to take up all ﬁ ve memory slots in the LiteALL™ control module.5. After the ﬁ fth transmission, the Light 1 channel indicator light will ﬂ ash twice to indicate that the remote(s) have been suc-cessfully introduced to the LiteALL™ control module. The Power light will then turn back on.6. You can now operate the lights connected to the Lights 1 output channel with your SMART1+™ remotes.7. To program the Light 2 output channel, repeat the instruc-tions above using the Light 2 button on the LiteALL™ control module. If you want the SMART1+™ remote(s) to control both LiteALL™ output channels together with one button press, make sure to select the same SMART1+™ channel that was programmed to Light 1 in step 3.

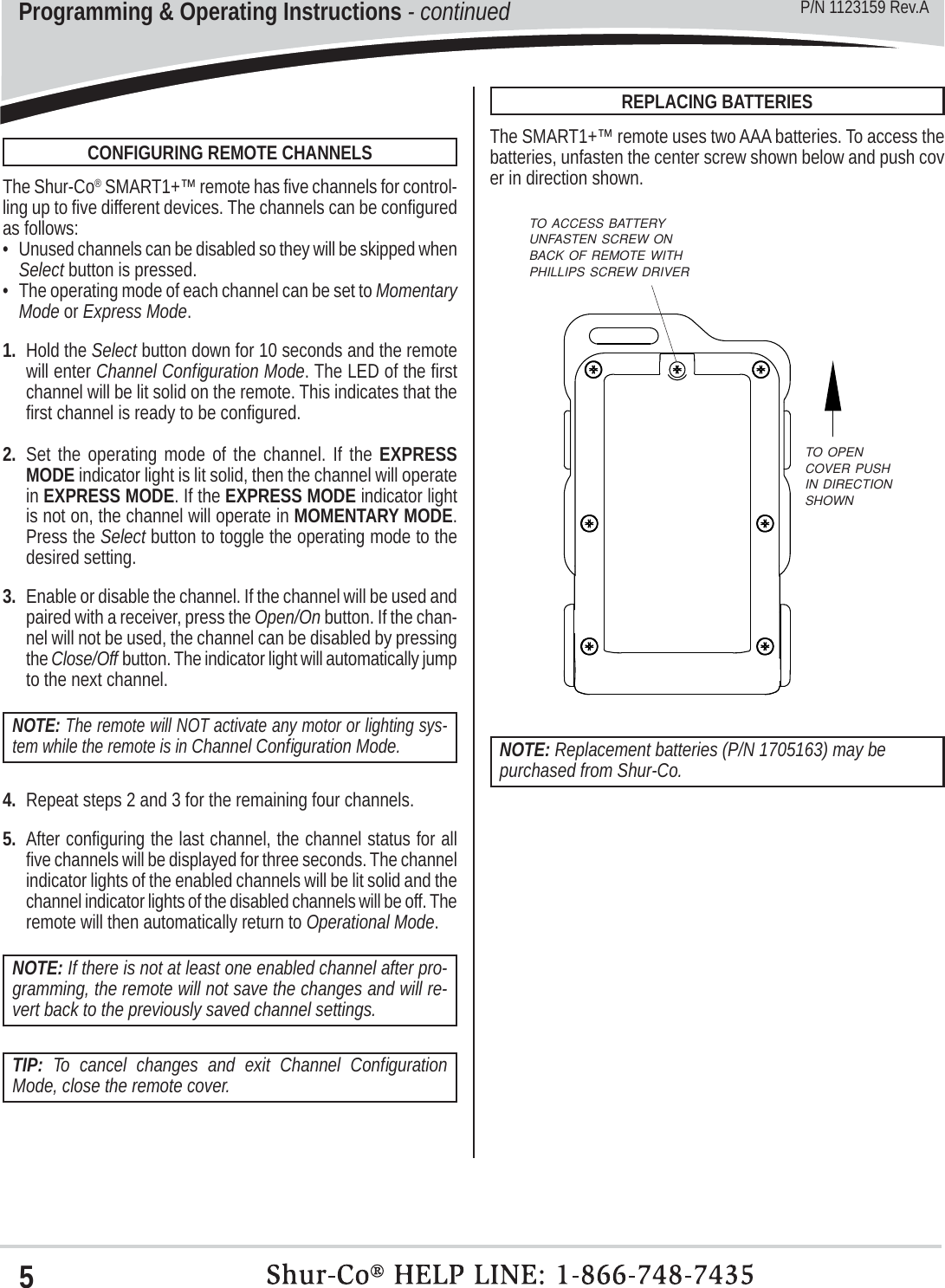

P/N 1123159 Rev.AProgramming & Operating Instructions - continuedThe Shur-Co® SMART1+™ remote has ﬁ ve channels for control-ling up to ﬁ ve different devices. The channels can be conﬁ gured as follows:• Unused channels can be disabled so they will be skipped when Select button is pressed.• The operating mode of each channel can be set to Momentary Mode or Express Mode.1. Hold the Select button down for 10 seconds and the remote will enter Channel Conﬁ guration Mode. The LED of the ﬁ rst channel will be lit solid on the remote. This indicates that the ﬁ rst channel is ready to be conﬁ gured.2. Set the operating mode of the channel. If the EXPRESS MODE indicator light is lit solid, then the channel will operate in EXPRESS MODE. If the EXPRESS MODE indicator light is not on, the channel will operate in MOMENTARY MODE. Press the Select button to toggle the operating mode to the desired setting.3. Enable or disable the channel. If the channel will be used and paired with a receiver, press the Open/On button. If the chan-nel will not be used, the channel can be disabled by pressing the Close/Off button. The indicator light will automatically jump to the next channel.NOTE: If there is not at least one enabled channel after pro-gramming, the remote will not save the changes and will re-vert back to the previously saved channel settings.TIP: To cancel changes and exit Channel Conﬁ guration Mode, close the remote cover.NOTE: The remote will NOT activate any motor or lighting sys-tem while the remote is in Channel Conﬁ guration Mode.CONFIGURING REMOTE CHANNELS54. Repeat steps 2 and 3 for the remaining four channels.5. After conﬁ guring the last channel, the channel status for all ﬁ ve channels will be displayed for three seconds. The channel indicator lights of the enabled channels will be lit solid and the channel indicator lights of the disabled channels will be off. The remote will then automatically return to Operational Mode.TO ACCESS BATTERY UNFASTEN SCREW ON BACK OF REMOTE WITH PHILLIPS SCREW DRIVERREPLACING BATTERIESNOTE: Replacement batteries (P/N 1705163) may be purchased from Shur-Co.The SMART1+™ remote uses two AAA batteries. To access the batteries, unfasten the center screw shown below and push cov er in direction shown.TO OPEN COVER PUSH IN DIRECTION SHOWN

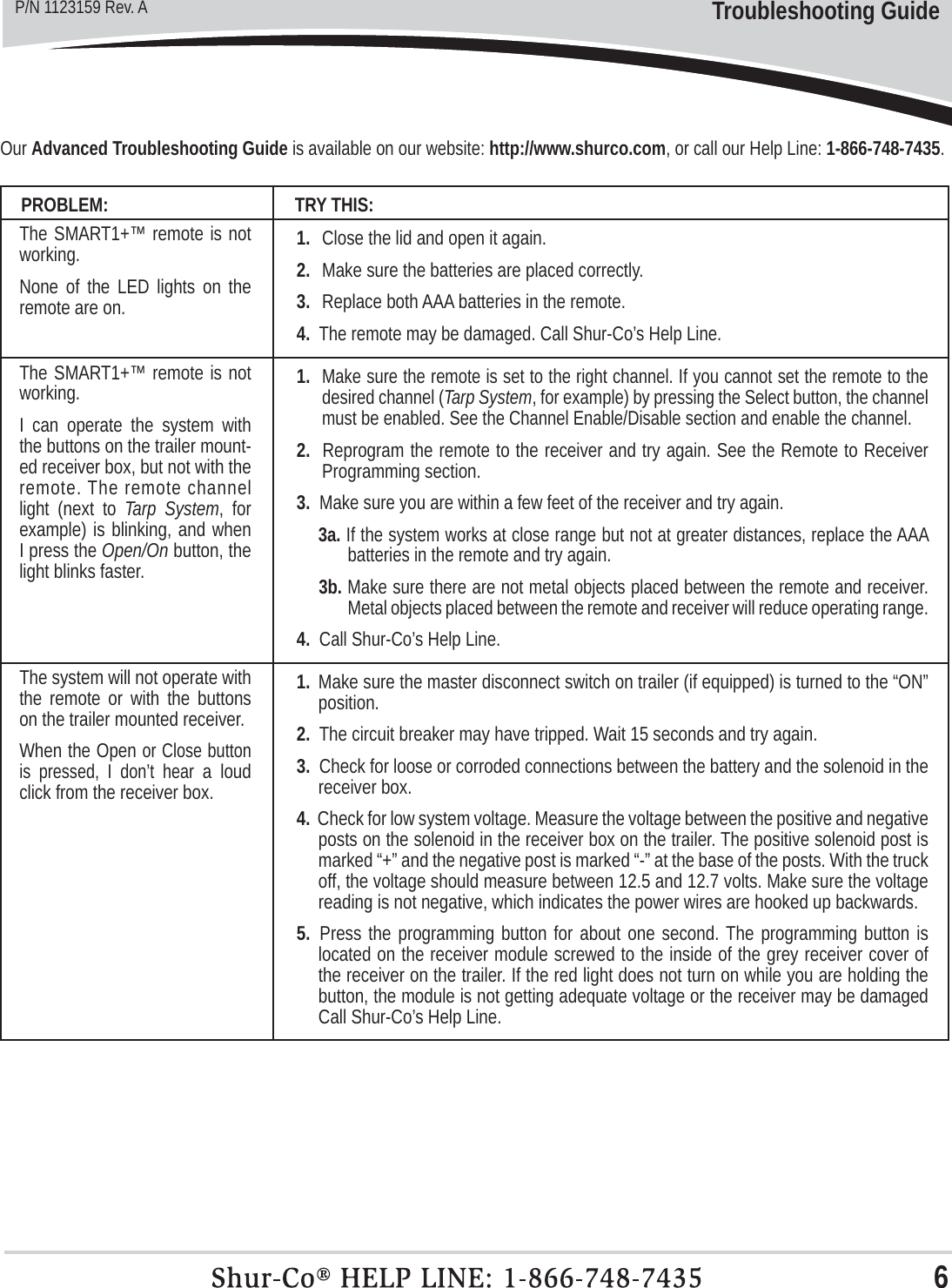

P/N 1123159 Rev. A6Troubleshooting GuideOur Advanced Troubleshooting Guide is available on our website: http://www.shurco.com, or call our Help Line: 1-866-748-7435.PROBLEM: TRY THIS:The SMART1+™ remote is not working.None of the LED lights on the remote are on.1. Close the lid and open it again.2. Make sure the batteries are placed correctly.3. Replace both AAA batteries in the remote.4. The remote may be damaged. Call Shur-Co’s Help Line.The SMART1+™ remote is not working.I can operate the system with the buttons on the trailer mount-ed receiver box, but not with the remote. The remote channel light (next to Tarp System, for example) is blinking, and when I press the Open/On button, the light blinks faster.1. Make sure the remote is set to the right channel. If you cannot set the remote to the desired channel (Tarp System, for example) by pressing the Select button, the channel must be enabled. See the Channel Enable/Disable section and enable the channel.2. Reprogram the remote to the receiver and try again. See the Remote to Receiver Programming section.3. Make sure you are within a few feet of the receiver and try again. 3a. If the system works at close range but not at greater distances, replace the AAA batteries in the remote and try again. 3b. Make sure there are not metal objects placed between the remote and receiver. Metal objects placed between the remote and receiver will reduce operating range.4. Call Shur-Co’s Help Line.The system will not operate with the remote or with the buttons on the trailer mounted receiver.When the Open or Close button is pressed, I don’t hear a loud click from the receiver box.1. Make sure the master disconnect switch on trailer (if equipped) is turned to the “ON” position.2. The circuit breaker may have tripped. Wait 15 seconds and try again.3. Check for loose or corroded connections between the battery and the solenoid in the receiver box.4. Check for low system voltage. Measure the voltage between the positive and negative posts on the solenoid in the receiver box on the trailer. The positive solenoid post is marked “+” and the negative post is marked “-” at the base of the posts. With the truck off, the voltage should measure between 12.5 and 12.7 volts. Make sure the voltage reading is not negative, which indicates the power wires are hooked up backwards.5. Press the programming button for about one second. The programming button is located on the receiver module screwed to the inside of the grey receiver cover of the receiver on the trailer. If the red light does not turn on while you are holding the button, the module is not getting adequate voltage or the receiver may be damaged Call Shur-Co’s Help Line.

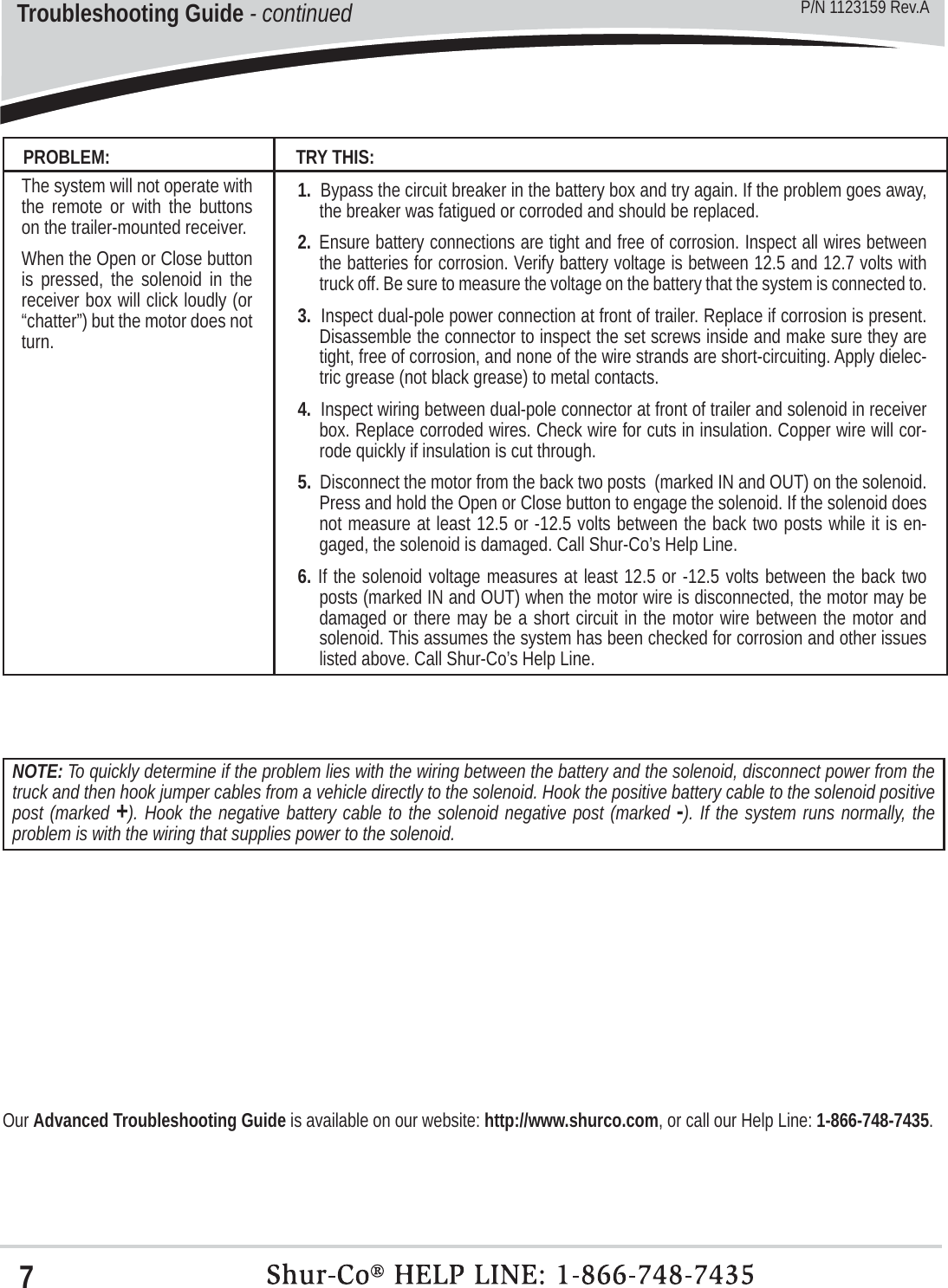

P/N 1123159 Rev.A7PROBLEM: TRY THIS:The system will not operate with the remote or with the buttons on the trailer-mounted receiver.When the Open or Close button is pressed, the solenoid in the receiver box will click loudly (or “chatter”) but the motor does not turn.1. Bypass the circuit breaker in the battery box and try again. If the problem goes away, the breaker was fatigued or corroded and should be replaced.2. Ensure battery connections are tight and free of corrosion. Inspect all wires between the batteries for corrosion. Verify battery voltage is between 12.5 and 12.7 volts with truck off. Be sure to measure the voltage on the battery that the system is connected to.3. Inspect dual-pole power connection at front of trailer. Replace if corrosion is present. Disassemble the connector to inspect the set screws inside and make sure they are tight, free of corrosion, and none of the wire strands are short-circuiting. Apply dielec-tric grease (not black grease) to metal contacts.4. Inspect wiring between dual-pole connector at front of trailer and solenoid in receiver box. Replace corroded wires. Check wire for cuts in insulation. Copper wire will cor-rode quickly if insulation is cut through.5. Disconnect the motor from the back two posts (marked IN and OUT) on the solenoid. Press and hold the Open or Close button to engage the solenoid. If the solenoid does not measure at least 12.5 or -12.5 volts between the back two posts while it is en-gaged, the solenoid is damaged. Call Shur-Co’s Help Line.6. If the solenoid voltage measures at least 12.5 or -12.5 volts between the back two posts (marked IN and OUT) when the motor wire is disconnected, the motor may be damaged or there may be a short circuit in the motor wire between the motor and solenoid. This assumes the system has been checked for corrosion and other issues listed above. Call Shur-Co’s Help Line.Our Advanced Troubleshooting Guide is available on our website: http://www.shurco.com, or call our Help Line: 1-866-748-7435.Troubleshooting Guide - continuedNOTE: To quickly determine if the problem lies with the wiring between the battery and the solenoid, disconnect power from the truck and then hook jumper cables from a vehicle directly to the solenoid. Hook the positive battery cable to the solenoid positive post (marked +). Hook the negative battery cable to the solenoid negative post (marked -). If the system runs normally, the problem is with the wiring that supplies power to the solenoid.
