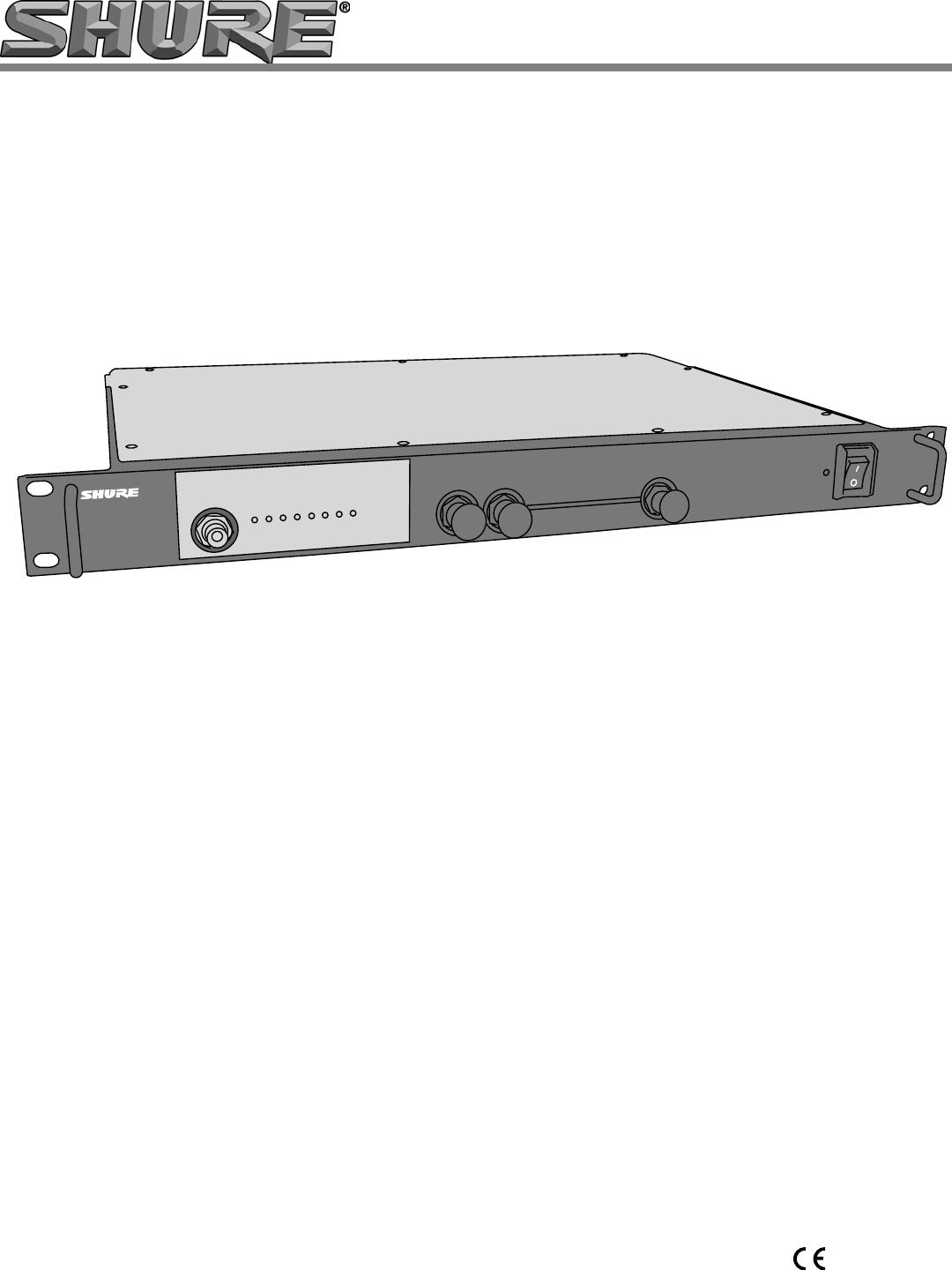

DESCRIPTION
The Shure PA821 Antenna Combiners actively combine antenna out-
puts from up to eight PSM wireless transmitters to a single antenna, im-
proving RF performance and reducing rack clutter.
INSTALLATION
Set the power switch on the front panel to Off before installing. Connect
the unit to an AC power source using the supplied power cable. Switch the
power On to use the device. The power light will illuminate. Power the unit
Off when not in use or before disconnecting the unit from the AC power
source.
8-TO-1 COMBINING:
1. Using the supplied BNC-BNC cables, connect the ANTENNA OUT-
PUT of each transmitter to the ANTENNA INPUTS of the PA821
(Figure 2).
2. Attach an antenna to the MAIN OUT of PA821. For wideband appli-
cations, use PA805WB directional antenna (Figure 1).
3. Connect the PA821 to a power outlet using one of the supplied
power cables. The PA821 contains a universal power supply to oper-
ate anywhere in the world.

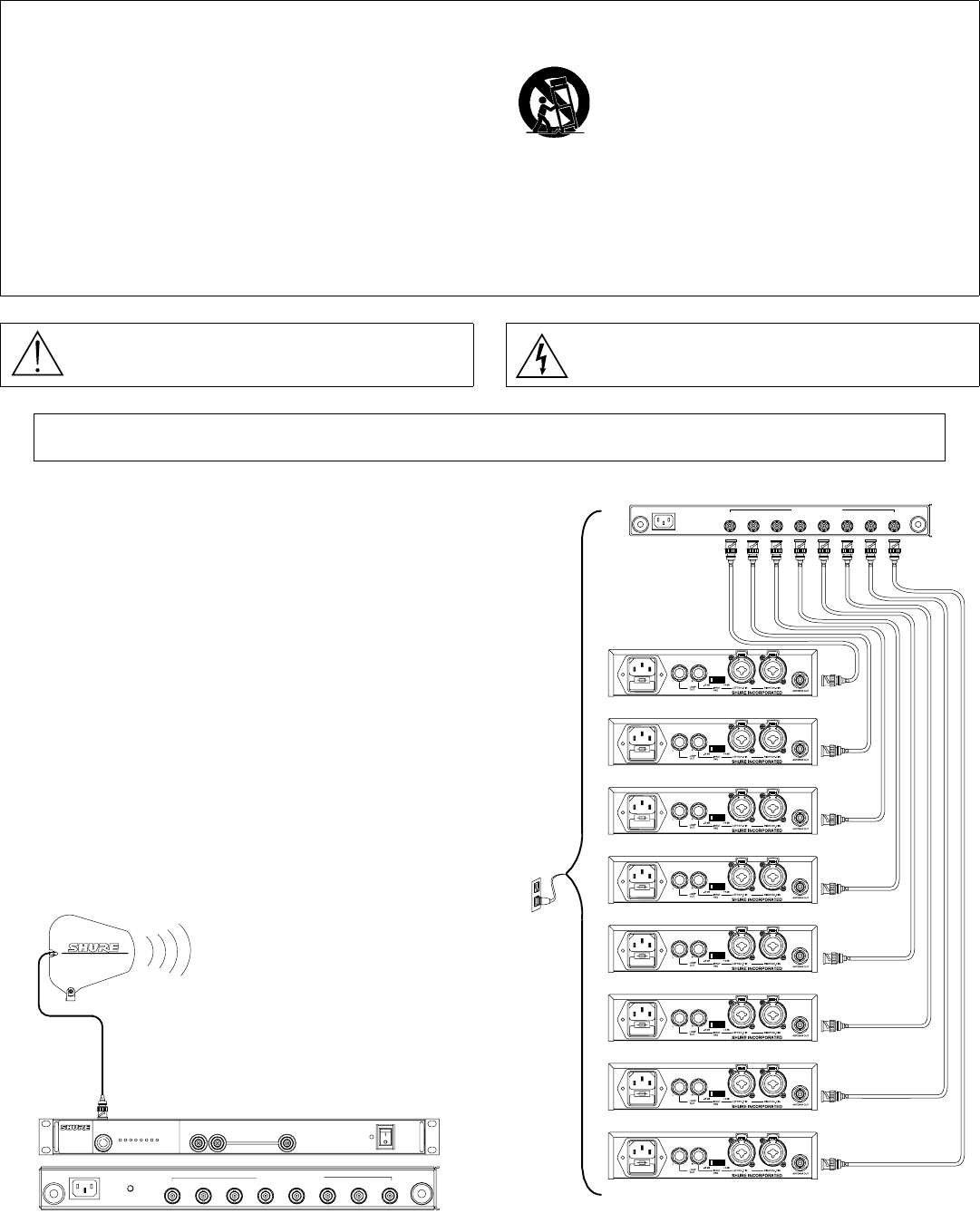

FIGURE 1 FIGURE 2
! IMPORTANT SAFETY INSTRUCTIONS !
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manu-
facturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wider blade or
the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of
time.
14. REFER all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been
dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects
filled with liquids, such as vases, on the apparatus.
USE only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk
of electric shock is present within this unit.
WARNING:
Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. The
safety certifications do not apply when the operating voltage is changed from the factory setting.
87654321
ANTENNA COMBINER
SHURE INCO RPORATE D RF ANTENNA INPUTS
MADE IN USA
POWER
12345678
®
PA821
PA821
87654
RF ANTENNA INPUTS
PA821ANT ENNA COMBINER
SHURE INCORPORATED
MADE IN USA
321
50W BNC
AC
POWER
PSM Transmitters
2
ENGLISH
FOR MORE THAN 8 TANSMITTERS:
1. Using the supplied BNC-BNC cables, connect the ANTENNA OUT-
PUT of each transmitter to the ANTENNA INPUTS of the PA821.
2. Use the 1 ft. jumper BNC-BNC cable to connect the MAIN OUT-
PUT of the PA821 to the A IN of the EXPANSION PORT.
3. Connect another ANTENNA OUTPUT (from a ninth PSM trans-
mitter, second PA821 or other antenna port) to the B IN of the
EXPANSION PORT.
4. Attach an antenna to the A + B OUT of the EXPANSION PORT.
For wideband applications, use the PA805WB directional antenna.
See Figure 3.

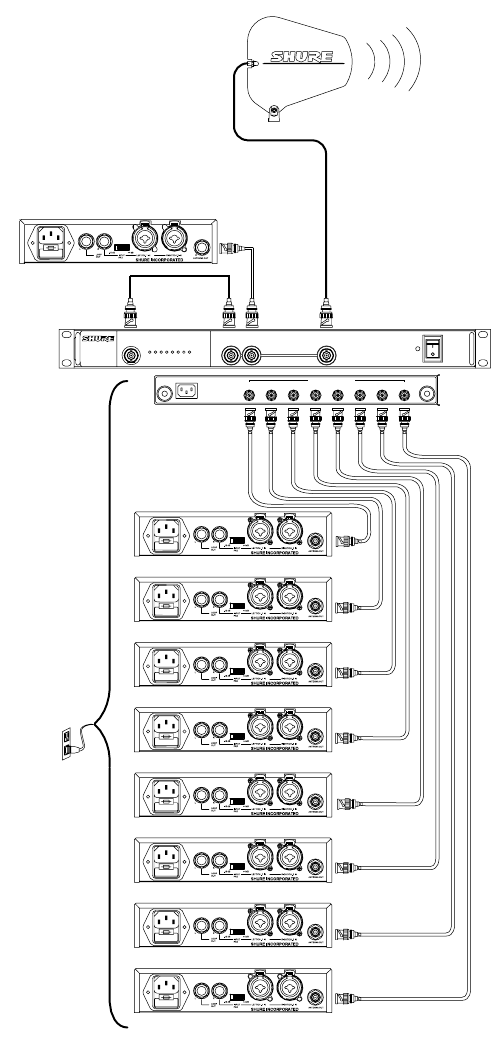

FIGURE 3
SPECIFICATIONS
RF Carrier Frequency Range
470-870 MHz (470-806 MHz in U.S.A. and Canada)
System Gain
+0/-5 dB
Output Port Isolation
Greater than 55 dB
Third Order Intercept Point (3 OIP)
Greater than 25 dBm
Input AC Line Voltage
100-240 Vac, 50/60 Hz
Maximum Input Line VA
100 VA
Maximum Current Drain
0.42-1.0 Amperes
(Amperes = 100 VA/Input AC Line Voltage)
Maximum RF Input Power
24 dBm (250 mW)
Impedance
50 W nominal
Operating Temperature Range
0° F (-18° C) to +135° F (+57° C)
NOTE: Electrical safety approval is based on a maximum
ambient temperature of 35°C.
Overall Dimensions
43.4 mm high x 398.8 mm wide x331.5 mm deep
(1 11/16 in. H x 15 11/16 in. W x 13 1/2 in. D)
Net Weight
4.53 Kg (10 lbs unpackaged, without power and RF cables)
Input/Output Connector Type
BNC-type 8 input, 1 output ACTIVE
2 Inputs, 1 output EXPANSION PORT
FURNISHED ACCESSORIES
(8) 2 ft. Coaxial Cable (RG58/U) ...................................... UA802
1 ft Jumper..................................................................... 95E2035
120 VAC Power Line Cord............................................. 95A8389
230 VAC Power Line Cord............................................. 95A8247
240 VAC Power Line Cord (U.K.) .................................. 95A8713
OPTIONAL ACCESSORIES
Wideband Unidirectional Antenna (470-870 MHz) ...... PA805WB
10 ft. Coaxial Cable (RG-58/U) .........................................PA725
25 ft. Coaxial Cable (RG-8/U)........................................... UA825
50 ft. Coaxial Cable (RG-8/U)........................................... UA850
12345678
EXPANSION PORT
POWER
87654
RF ANTENNA INPUT S
PA821ANTENNACOMBINER
SHURE INCORPORATED
MADE IN USA
321
A+B OUT
AIN BIN
MAIN OUT INPUT SIGNAL
50 OHMS ACTIVE COMBINER
®
BNC
PA805WB
PA821
AC POWER
50W BNC
PSM Transmitters
3
ENGLISH
