Model PA821A Antenna Combiner
Guide de l’utilisateur du répartiteur d’antenne PSM®
Bedienungsanleitung für die Antennenweiche PSM®
Guía del usuario del combinador de antenas PSM®
Guida d’uso del combinatore di antenne PSM®
PSM® アンテナコンバイナ ユーザーガイド
PSM® 天线合并器用户指南
PSM® 天線合併器用戶指南
PSM
® Antenna Combiner 사용자 설명서
27A15837(Rev. 1) Printed in U.S.A.
©2011 Shure Incorporated N108
PA821A
User Guide
3

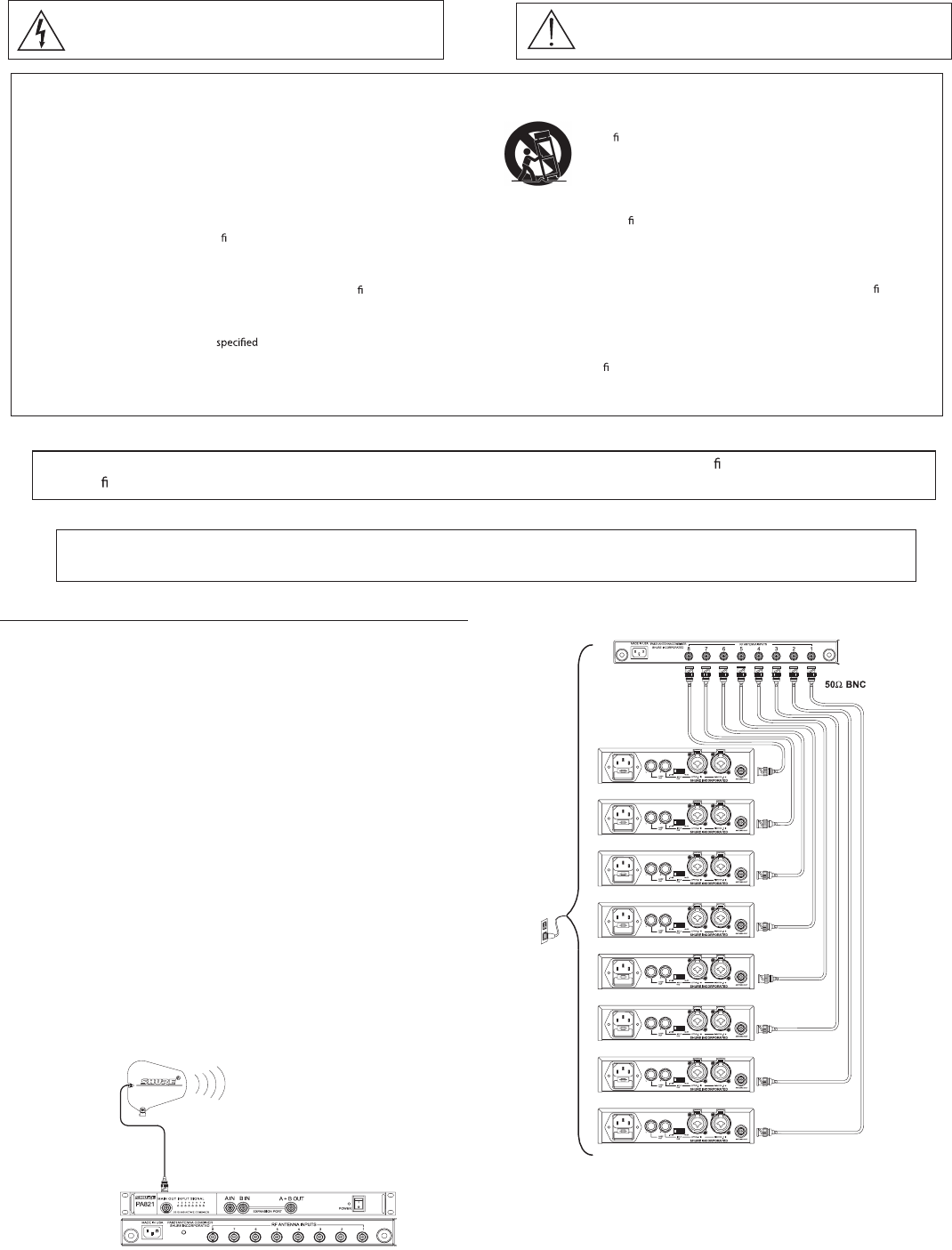

! IMPORTANT SAFETY INSTRUCTIONS !
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manu-
facturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including ampli ers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not t into your out-
let, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories by the manufacturer.
12.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of
time.
14. REFER all servicing to quali ed service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been
dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects lled
with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet
with a protective earthing connection.
19. To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture.
20. Do not attempt to modify this product. Doing so could result in personal injury
and/or product failure.
USE only with a cart, stand, tripod, bracket, or table
speci ed by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.
DESCRIPTION
The Shure PA821A Antenna Combiners actively combine antenna
outputs from up to eight PSM wireless transmitters to a single antenna,
improving RF performance and reducing rack clutter.
INSTALLATION
Set the power switch on the front panel to OFF before installing. Connect
the unit to an AC power source using the supplied power cable. Switch
the power ON to use the device. The power light will illuminate. Power the
unit OFF when not in use or before disconnecting the unit from the AC
power source.
8-TO-1 COMBINING:
1. Using the supplied BNC-BNC cables, connect the Antenna Output
of each transmitter to the ANTENNA INPUTS of the PA821A
(Figure 2).
2. Attach an antenna to the MAIN Out of PA821A. For wideband
applications, use PA805SWB directional antenna (Figure 1).
3. Connect the PA821A to a power outlet using one of the supplied
power cables. The PA821A contains a universal power supply to
operate anywhere in the world.
NOTE: When the PA821A is powered on, the input signal indicators
(1-8) on the front panel will illuminate if an active transmitter is con-
nected to the corresponding input (1-8) on the back panel (Figure 1).
WARNING:
Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to quali ed service personnel. The
safety certi cations do not apply when the operating voltage is changed from the factory setting.
WARNING: This product contains a chemical known to the State of California to cause cancer and birth
defects or other reproductive harm.
PSM Transmitters
AC
POWER
FIGURE 2
FIGURE 1
4
FOR MORE THAN 8 TRANSMITTERS
1. Using the supplied BNC-BNC cables, connect the Antenna Output
of each transmitter to the Antenna Inputs of the PA821A.
2. Use the 1 ft. jumper BNC-BNC cable to connect the MAIN Output
of the PA821A to the A IN of the Expansion Port.
3. Connect another Antenna Output (from a ninth PSM transmitter,
second PA821A or other antenna port) to the B IN of the
Expansion Port.
4. Attach an antenna to the A + B OUT of the Expansion Port. For
wideband applications, use the PA805-SWB directional antenna,
Figure 3.
FIGURE 3
FURNISHED ACCESSORIES
(8) 2 ft. Coaxial Cable (RG58C/U) UA802
1 ft. jumper 95J2035
120 VAC Power Line Cord 95A8389
230 VAC Power Line Cord 95A8247
240 VAC Power Line Cord (U.K.) 95A8713
OPTIONAL ACCESSORIES
Wideband Unidirectional Antenna (470-952 MHz) PA805SWB
10 ft. Coaxial Cable (RG-8X/U) PA725
25 ft. Coaxial Cable (RG-8X/U) UA825
50 ft. Coaxial Cable (RG-8X/U) UA850
AC Power
PSM Transmitters
50Ω BNC
LICENSING
Changes or modifications not expressly approved by Shure Incorporated
could void your authority to operate the equipment. Licensing of Shure
wireless microphone equipment is the user’s responsibility, and licensability
depends on the user’s classification and application, and on the selected
frequency. Shure strongly urges the user to contact the appropriate
telecommunications authority concerning proper licensing, and before
choosing and ordering frequencies.
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL
ENTERTAINMENT AND SIMILAR APPLICATIONS.
NOTE
THIS EQUIPMENT MAY BE CAPABLE OF OPERATING ON SOME FREQUEN-
CIES NOT AUTHORIZED IN YOUR REGION. PLEASE CONTACT YOUR
NATIONAL AUTHORITY TO OBTAIN INFORMATION ON AUTHORIZED FRE-
QUENCIES FOR WIRELESS MICROPHONE PRODUCTS IN YOUR REGION.
Licensing: Note that a ministerial license to operate this equipment may
be required in certain areas. Consult your national authority for possible
requirements.
SPECIFICATIONS
RF Carrier Frequency Range 470-952 MHz
System Gain +0/-5 dB
Input AC Line Voltage 100-240 Vac, 50/60 Hz
Maximum Input Line Power 70W
Maximum Current Drain 0.42-1.5 Amperes
(Amperes = 150 VA/Input AC Line Voltage)
Maximum RF Input Power 24 dBm (250 mW) per channel
Input Signal Indicator
Threshold +4 dBm (2.5 mW), +2 dBm (1.6 mW) typical
Impedance 50 Ω nominal
Operating Temperature
Range 0° F (-18° C) to +145° F (+63° C)
NOTE: Electrical safety approval is based on a maximum ambient
temperature of 30°C.
Overall Dimensions 43.4 mm high x 398.8 mm wide x331.5 mm
deep (1 11/16 in. H x 15 11/16 in. W
x 13 1/2 in. D)
Net Weight 4.53 Kg
(10 lbs unpackaged, without power and
RF cables)
Input/Output Connector Type BNC-type 8 input, 1 output ACTIVE
2 inputs, 1 output EXPANSION PORT
CERTIFICATIONS
PA821A: Certified to FCC Part 74 (FCC ID No. DD4PA821A).
Certified in Canada by IC to RSS-123 AND RSS-102 (Certification No. IC:
616A-PA821A). UL LISTED to UL6500 (2nd Edition) and cUL LISTED
to CAN/CSA E60065-00. Meets the Essential Requirements of the Eu-
ropean R&TTE Directive 99/5/EC, eligible to bear CE mark. Meets EMC
requirements of EN 301 489 Parts 1 and 9 and is GS-Certified to EN
60065 (6th Edition). Conforms to Australian EMC requirements, eligible to
bear C-Tick mark (N108).
150VA max
