UR1M Micro Bodypack Transmitter
Addendum
27A12268 (Rev. 1) Printed in U.S.A.
©2008 Shure Incorporated
Specications:
The following specications apply to
the UR1M micro bodypack only.
Features:
Same audio performance as UR1•
Rapid two-way infrared (IR) data transmission•
User-adjustable RF output level (10 mW or 50 mW)•
Operates with three types of primary batteries: alkaline, lithium or •
NiMH
Audio signal is input through a TA4F connector (UR1M) or a LEMO •
connector (UR1MLEMO3)
Selectable battery metering by battery type•
Audio metering on UR1M transmitter•
Frequency Range
Band Range
G1 470-530 MHz
H4, H4E 518-578 MHz
J5 578-608, 614-638 MHz
J5E 578-638 MHz
L3, L3E 638-698 MHz
Q5 740-814 MHz
Q6 740-752 MHz
Q9 740-806 MHz
Q10A 740-787 MHz
R9 790-865 MHz
R16, R18 794-806 MHz
A24 779-788, 797-806 MHz
JBX 806-810 MHz
X1 944-952 MHz
RF Carrier Frequency Range
470-865, 944-952 MHz depending on region
Working Range
150 m (500 ft.), under typical conditions 500 m
(1600 ft.) line-of-sight, outdoors for a single
system
NOTE: Actual working range depends on RF signal absorption, reec-
tion and interference
RF Power Output
Selectable 10 mW or 50 mW depending on region
Power Requirements:
Two 1.5V AAA alkaline, lithium primary, and NiMH batteries
Current Drain:
130 mA max. at 3V (normal RF power setting)
200 mA max. at 3V (high RF power setting)
Gain Adjustment Range
–20 to +35 dB
Battery Life (Typical):
Alkaline: 6 hours (normal RF power)
4 hours (high RF power)
Lithium primary: 9 hours (normal RF power)
7 hours (high RF power)
NiMH 1000 mAH: 6 hours (normal RF power)
4 hours (high RF power)
Select Battery Type:
Set the micro bodypack transmitter switch to on
Press enterkey, then scroll using button to select battery type. Press
enterkey to conrm.
Note: For the most accurate battery metering and performance, make
sure to select the correct battery type.

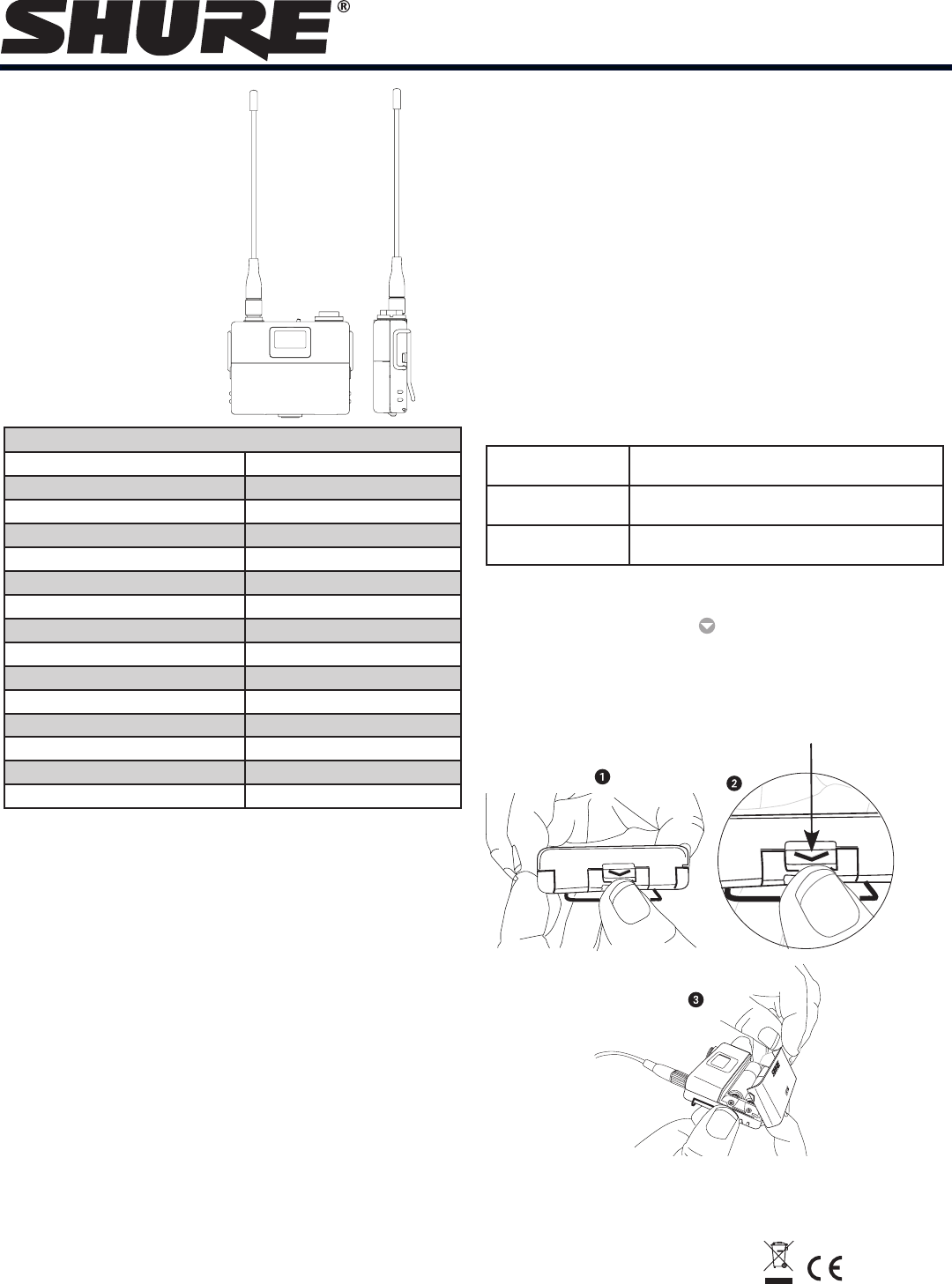

To open the micro bodypack transmitter, see illustrations below:
Slide arrow down
Transmitter LCD Interface and Controls:
For additional information on the LCD Interface and controls, see UHF-R
User Guide.
UR1M
2
Overall Dimensions
49 mm L x 60 mm W x 17 mm D (1.9 x 2.38 x 0.66 in.)
Net Weight
62 g (2.2 oz.) without batteries

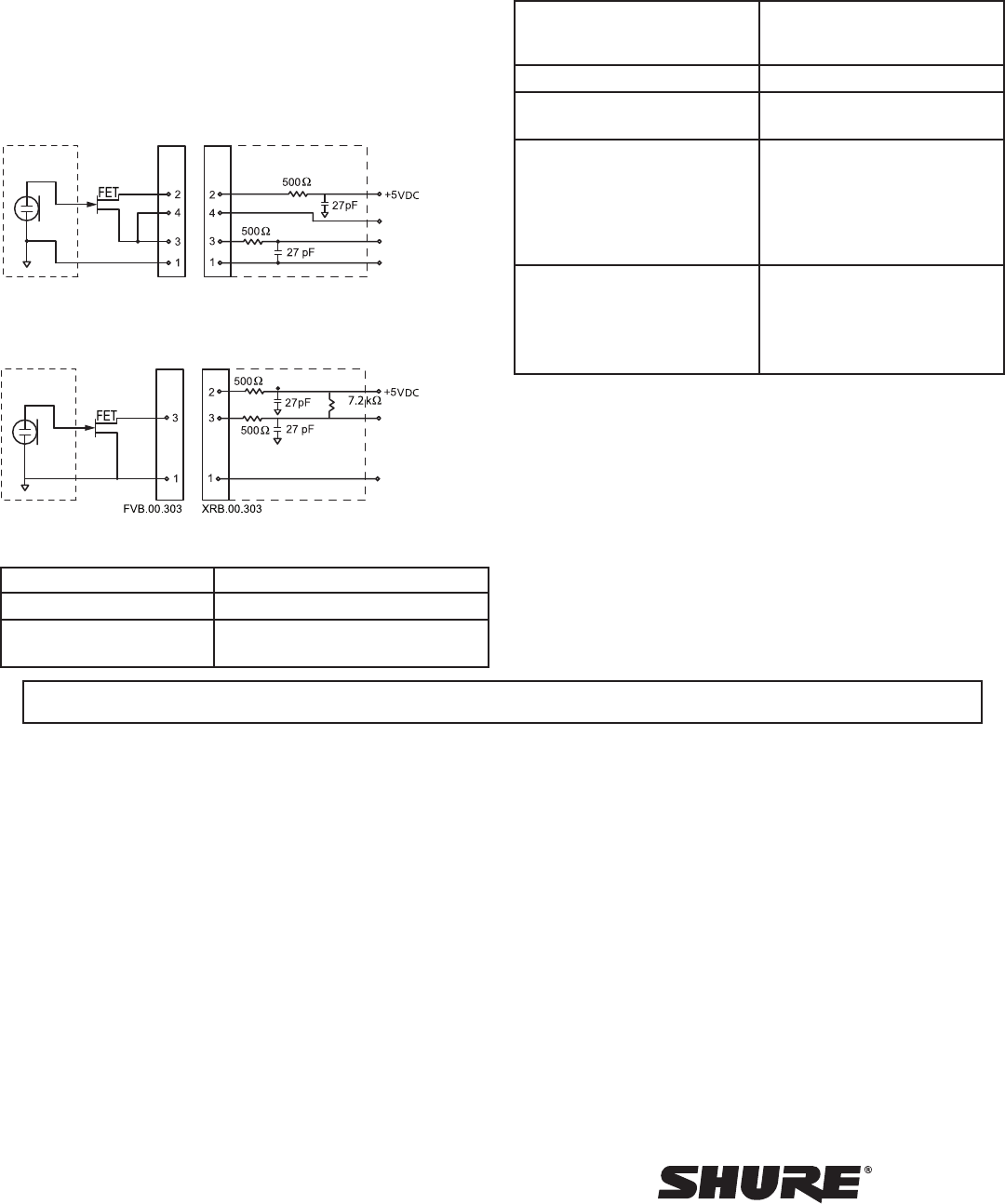

Wiring
TA4F Connector
Microphone Element TA4F
Connector
TA4M
Connector
UR1M MIC JACK BOARD
NOTE: LAVALIER MIC TIES PINS 3 AND 4 TOGETHER—GUITAR CABLE DOES NOT.
Active Load
Audio
Ground
LEMO Connector
Connector
Connector
UR1M LEMO BOARD
Audio
Ground
Microphone Element
UR1M Transmitter RF Output:
Connector: SMA
Actual Impedance: 50 Ω
Pin Assignments: Shell = Ground
Center = Signal
UR1M Transmitter Audio Input:
Connector: 4-Pin male mini connector (TA4M)
3-Pin female mini connector (LEMO
XRB.00.303)
Input Conguration: Unbalanced, active
Maximum Input Level:
(1 kHz, 1% THD)
+5 dBu (sensitivity 0 dB)
+15 dBu (sensitivity –10 dB)
TA4M Connector Pin
Assignments:
Pin 1: Ground
Pin 2: +5 VDC bias
Pin 3: Audio, 200 kΩ
Pin 4: Tied through active load (on
main board) to ground.
(On instrument adapter cable, Pin
4 oats)
LEMO Connector Pin
Assignments:
Pin 1: Ground
Pin 2: +5 VDC bias
Pin 3: Audio
(8.2 kΩ between pin 2 and 3, internal
to UR1M)
REPLACEMENT PARTS AND ACCESSORIES
Furnished Accessories
Antenna, 470-530 MHz.....................................................................UA700
Antenna, 518-578 MHz.....................................................................UA710
Antenna, 578-698 MHz ....................................................................UA720
Antenna, 740-865 MHz ....................................................................UA730
Antenna, 944-952 MHz ....................................................................UA740
Optional Accessories
Bodypack Pouch (Black) ............................................................. WA581B
Bodypack Pouch (White) ............................................................. WA581W
3-Pin mini Lemo conversion kit........................................................WA335
3-Pin mini Lemo plug for Lavalier ....................................................WA336
Assembly Tool for WA336................................................................WA337
Note
To fully interact with the Receiver, it is recommended to upgrade the UR4 rmware to 1.50 or higher and Shure Wireless Workbench to 5.0
Certication:
UR1M: Type Accepted under FCC Parts 74 (FCC ID: DD4UR1MA, DD4UR1MB, DD4UR1MC, DD4UR1MD, DD4UR1MF, DD4UR1MG). Certied by IC in Canada
under RSS-123 and RSS-102 (IC: 616A-UR1MA, 616A-UR1MB, 616A-UR1MC-616A, 616A-UR1MD). Meets the essential requirements of the European R&TTE
Directive 99/5/EC (ETSI EN 300-422 Parts 1 & 2, EN 301 489 Parts 1 & 9) and is eligible to carry the CE marking.
The “EU Declaration of Conformity” can be obtained from Shure Inc. or any of its European representatives. For contact information please visit www.shure.com
LICENSING INFORMATION:
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements.
Changes or modications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless micro-
phone equipment is the user’s responsibility, and licensability depends on the user’s classication and application, and on the selected frequency. Shure strongly
urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
Information to User:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Operation of this device is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
Note: EMC conformance testing is based on the use of supplied and recommended cable types.
The use of other cable types may degrade EMC performance.
