Shuttle X50V5 Shuttle XPC User Manual

Shuttle Inc. Shuttle XPC Users Manual

Users Manual

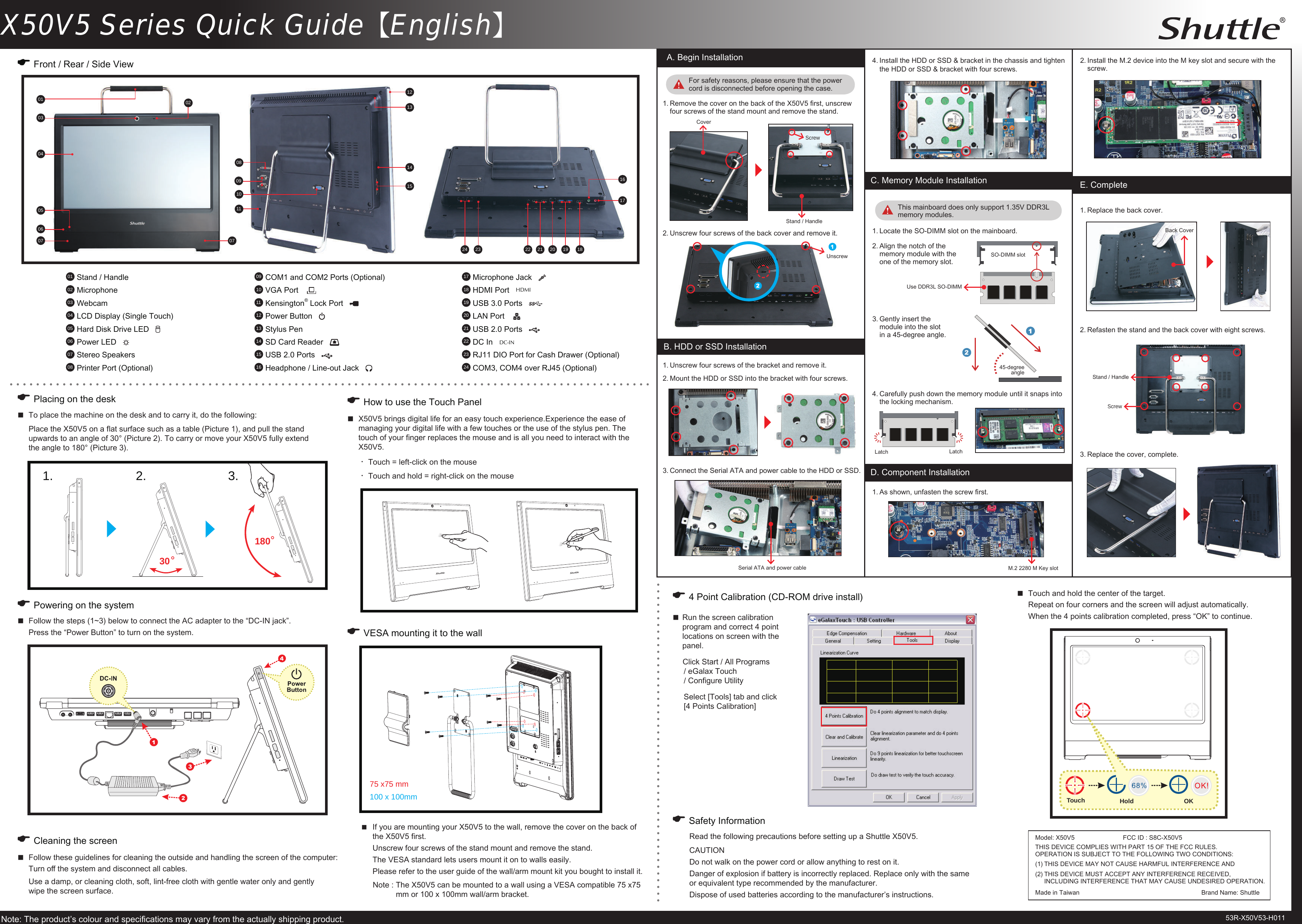

X50V5 Series Quick Guide【English】2.  Refasten the stand and the back cover with eight screws.  To place the machine on the desk and to carry it, do the following:  Place the X50V5 on a at surface such as a table (Picture 1), and pull the stand    upwards to an angle of 30° (Picture 2). To carry or move your X50V5 fully extend    the angle to 180° (Picture 3).E VESA mounting it to the wallE Placing on the deskE Front / Rear / Side View  Run the screen calibration program and correct 4 point  locations on screen with the panel.Click Start / All Programs   / eGalax Touch   / Congure Utility Select [Tools] tab and click   [4 Points Calibration]E How to use the Touch Panel E 4 Point Calibration (CD-ROM drive install)  X50V5 brings digital life for an easy touch experience.Experience the ease of    managing your digital life with a few touches or the use of the stylus pen. The    touch of your nger replaces the mouse and is all you need to interact with the    X50V5.  Touch and hold the center of the target.   Repeat on four corners and the screen will adjust automatically.  When the 4 points calibration completed, press “OK” to continue.E Cleaning the screen Follow these guidelines for cleaning the outside and handling the screen of the computer:  Turn o the system and disconnect all cables.  Use a damp, or cleaning cloth, soft, lint-free cloth with gentle water only and gently    wipe the screen surface.・Touch = left-click on the mouse・Touch and hold = right-click on the mouse  Follow the steps (1~3) below to connect the AC adapter to the “DC-IN jack”.  Press the “Power Button” to turn on the system.E Powering on the system01  Stand / Handle02  Microphone03  Webcam04  LCD Display (Single Touch)05  Hard Disk Drive LED   06  Power LED   07  Stereo Speakers08  Printer Port (Optional) Note :  The X50V5 can be mounted to a wall using a VESA compatible 75 x75 mm or 100 x 100mm wall/arm bracket.  If you are mounting your X50V5 to the wall, remove the cover on the back of    the X50V5 rst.   Unscrew four screws of the stand mount and remove the stand.  The VESA standard lets users mount it on to walls easily.  Please refer to the user guide of the wall/arm mount kit you bought to install it.Note: The product’s colour and specications may vary from the actually shipping product.E Safety InformationRead the following precautions before setting up a Shuttle X50V5.CAUTIONDo not walk on the power cord or allow anything to rest on it. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.A. Begin Installation1.  Remove the cover on the back of the X50V5 rst, unscrew four screws of the stand mount and remove the stand.For safety reasons, please ensure that the power cord is disconnected before opening the case.Latch LatchB. HDD or SSD Installation1.  Unscrew four screws of the bracket and remove it.2.  Mount the HDD or SSD into the bracket with four screws.1.  Replace the back cover.E. Complete2.  Unscrew four screws of the back cover and remove it.3.  Replace the cover, complete.CoverScrew4.  Carefully push down the memory module until it snaps into the locking mechanism.Back CoverScrewStand / HandleStand / Handle020403050713140775 x75 mm100 x 100mm060908121011151617181922 2021232409  COM1 and COM2 Ports (Optional) 10  VGA Port    11  Kensington® Lock Port     12  Power Button   13  Stylus Pen14  SD Card Reader   15  USB 2.0 Ports   16  Headphone / Line-out Jack   17  Microphone Jack   18  HDMI Port   HDMI19  USB 3.0 Ports     20  LAN Port    21  USB 2.0 Ports   22  DC In   DC-IN  23  RJ11 DIO Port for Cash Drawer (Optional)24  COM3, COM4 over RJ45 (Optional)011.  Locate the SO-DIMM slot on the mainboard.3.  Gently insert the module into the slot in a 45-degree angle.SO-DIMM slot4.  Install the HDD or SSD & bracket in the chassis and tighten the HDD or SSD & bracket with four screws.C. Memory Module Installation2.  Align the notch of the memory module with the one of the memory slot.45-degree angle3.  Connect the Serial ATA and power cable to the HDD or SSD.Serial ATA and power cableUse DDR3L SO-DIMM1803.2.1.3053R-X50V53-H011UnscrewThis mainboard does only support 1.35V DDR3L memory modules.D. Component Installation1.  As shown, unfasten the screw rst.2.  Install the M.2 device into the M key slot and secure with the screw.M.2 2280 M Key slotHold OKTouchModel: X50V5  FCC ID : S8C-X50V5THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.  OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:  (1)  THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND(2)  THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,  INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.Made in Taiwan    Brand Name: Shuttle
