Sichuan Changhong Electronic Component M06USA1 WLAN 802.11/b/g/n module User Manual

Sichuan Changhong Electronic Component Co., Ltd. WLAN 802.11/b/g/n module Users Manual

15_WIFI-2-M06USA1 UserMan,r1

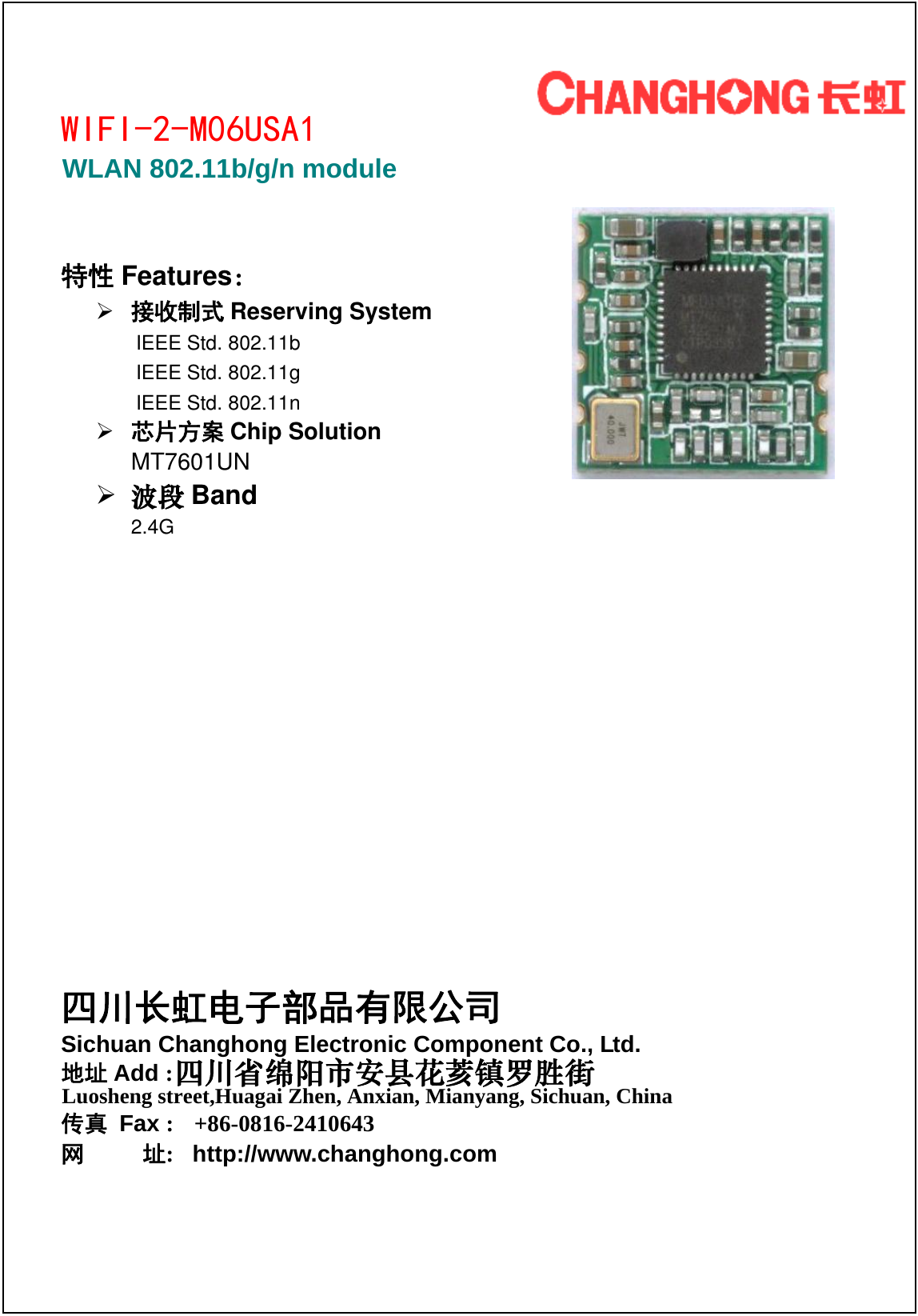

WIFI-2-M06USA1 特性 Features：  接收制式 Reserving System IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n  芯片方案 Chip Solution MT7601UN  波段 Band 2.4G 四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., Ltd. 地址 Add :传真 Fax : +86-0816-2410643网 址: http://www.changhong.com 四川省绵阳市安县花荄镇罗胜街 Luosheng street,Huagai Zhen, Anxian, Mianyang, Sichuan, ChinaWLAN 802.11b/g/n module

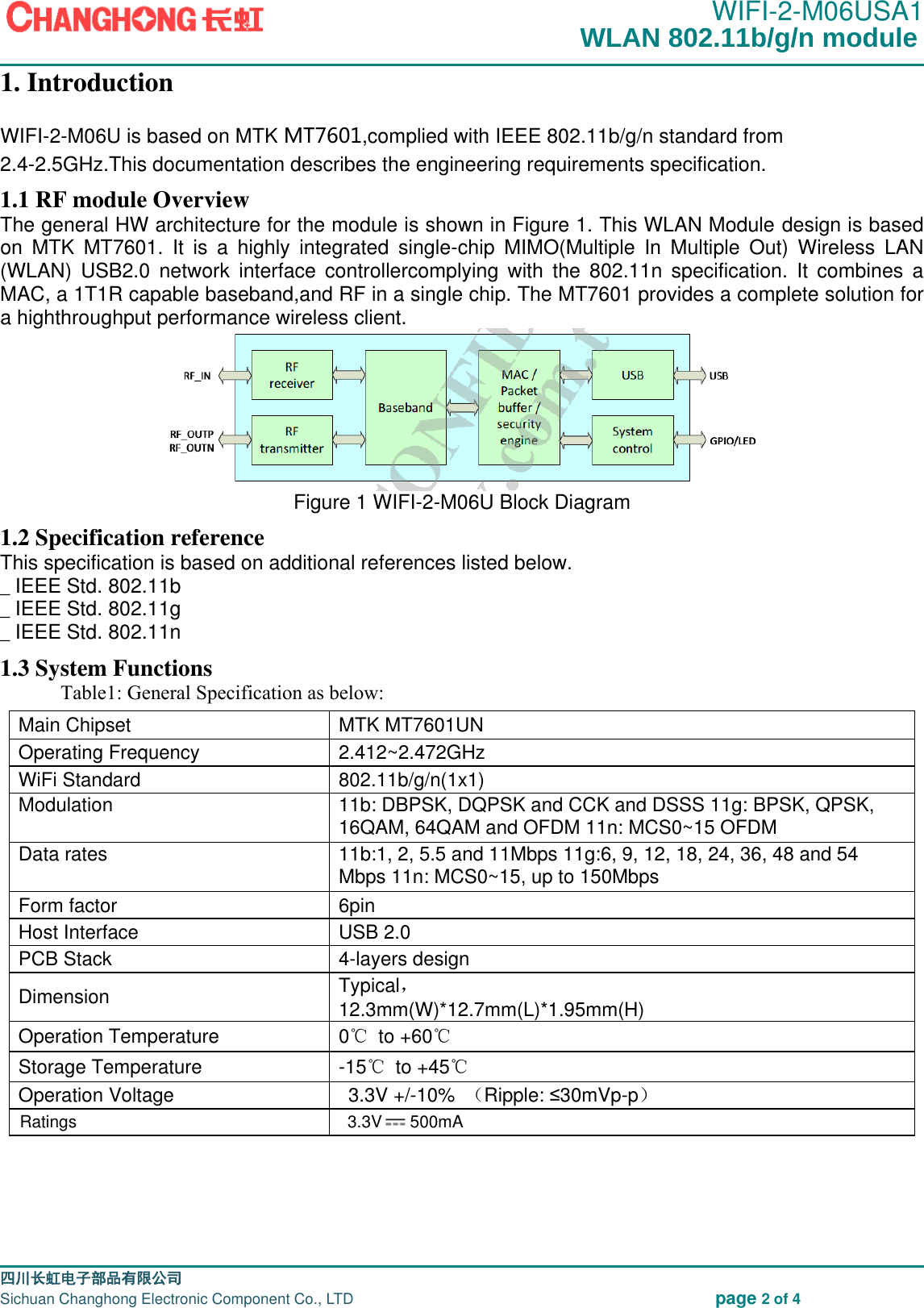

WIFI-2-M06USA1 四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., LTD page 2 of 4 1. Introduction WIFI-2-M06U is based on MTK MT7601,complied with IEEE 802.11b/g/n standard fr om 2.4-2.5GHz.This documentation describes the engineering requirements specification. 1.1 RF module Overview The general HW architecture for the module is shown in Figure 1. This WLAN Module design is based on MTK MT7601. It is a highly integrated single-chip MIMO(Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controllercomplying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband,and RF in a single chip. The MT7601 provides a complete solution for a highthroughput performance wireless client. Figure 1 WIFI-2-M06U Block Diagram 1.2 Specification reference This specification is based on additional references listed below. _ IEEE Std. 802.11b _ IEEE Std. 802.11g _ IEEE Std. 802.11n 1.3 System Functions Table1: General Specification as below: Main Chipset MTK MT7601UN Operating Frequency 2.412~2.472GHz WiFi Standard 802.11b/g/n(1x1) Modulation 11b: DBPSK, DQPSK and CCK and DSSS 11g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: MCS0~15 OFDM Data rates 11b:1, 2, 5.5 and 11Mbps 11g:6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n: MCS0~15, up to 150Mbps Form factor 6pin Host Interface USB 2.0 PCB Stack 4-layers design Dimension Typical， 12.3mm(W)*12.7mm(L)*1.95mm(H) Operation Temperature 0℃ to +60℃ Storage Temperature -15℃ to +45℃ Operation Voltage 3.3V +/-10% （Ripple: ≤30mVp-p） Ratings 3.3V 500mAWLAN 802.11b/g/n module

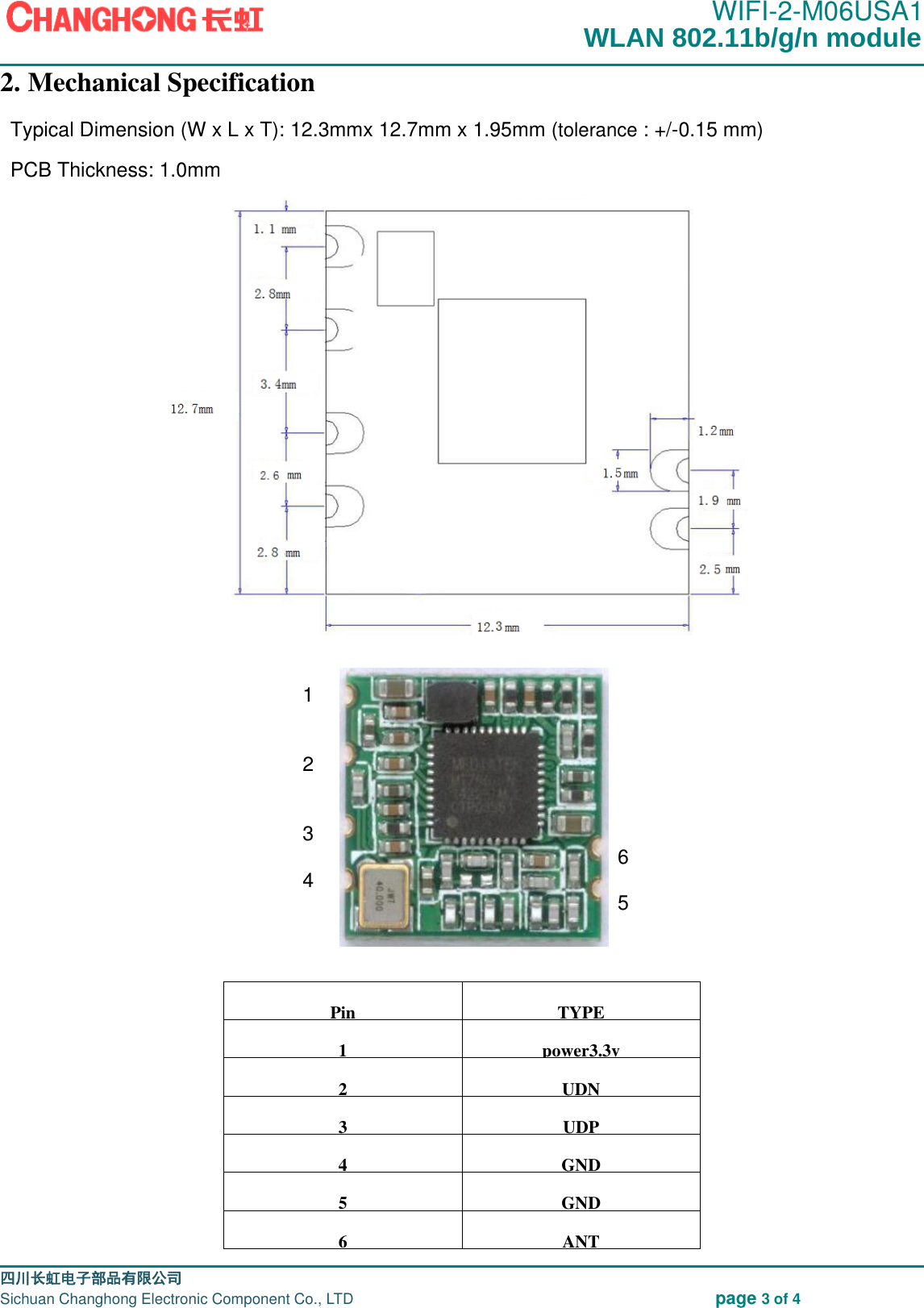

WIFI-2-M06USA1 四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., LTD page 3 of 4 2. Mechanical Specification Typical Dimension (W x L x T): 12.3mmx 12.7mm x 1.95mm (tolerance : +/-0.15 mm) PCB Thickness: 1.0mm 1 2 3 6 4 5 Pin TYPE 1 power3.3v 2 UDN 3 UDP 4 GND 5 GND 6 ANT WLAN 802.11b/g/n module

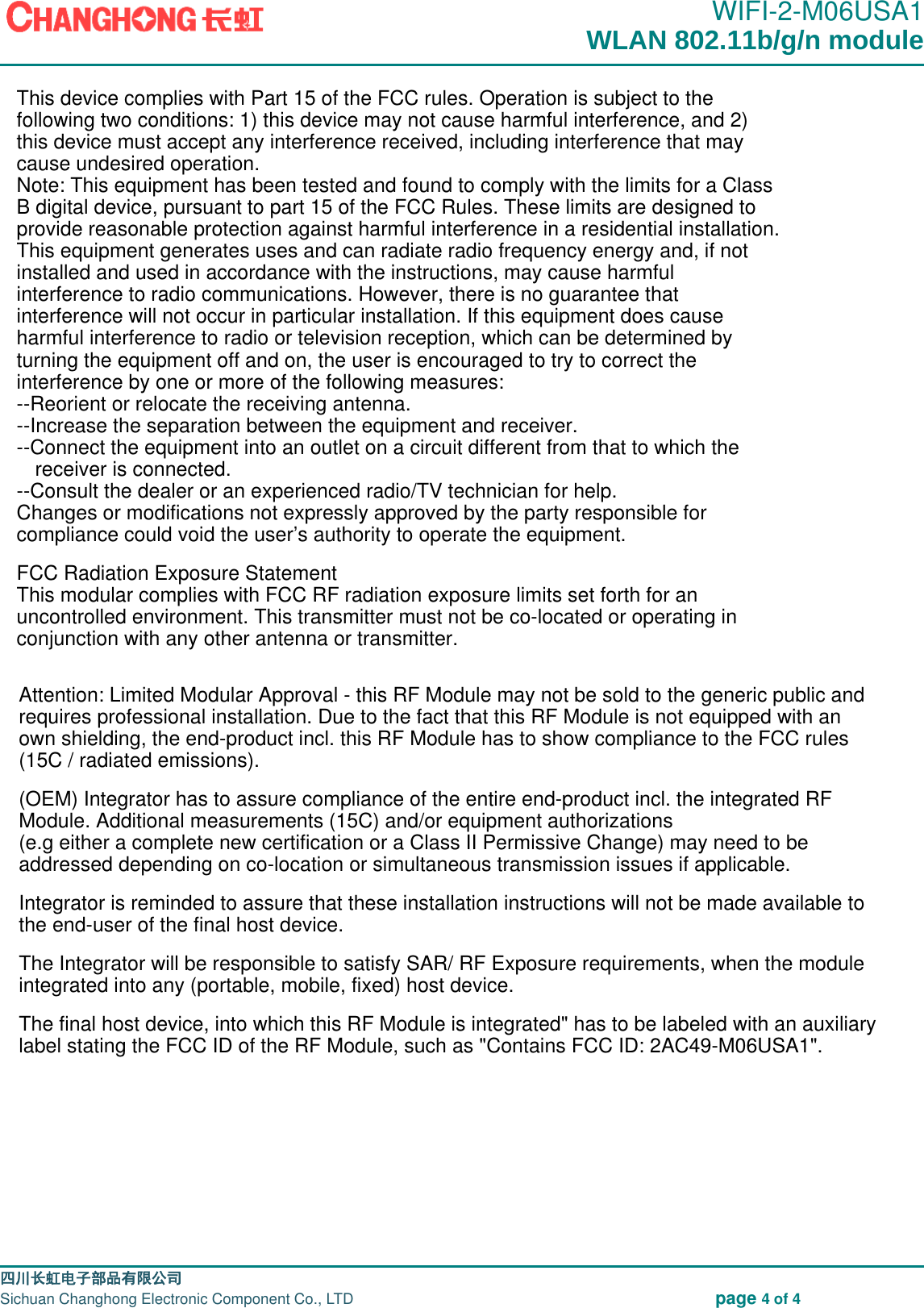

WIFI-2-M06USA1 四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., LTD page 4 of 4 WLAN 802.11b/g/n module This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC Radiation Exposure StatementThis modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Attention: Limited Modular Approval - this RF Module may not be sold to the generic public andrequires professional installation. Due to the fact that this RF Module is not equipped with anown shielding, the end-product incl. this RF Module has to show compliance to the FCC rules (15C / radiated emissions).(OEM) Integrator has to assure compliance of the entire end-product incl. the integrated RF Module. Additional measurements (15C) and/or equipment authorizations(e.g either a complete new certification or a Class II Permissive Change) may need to be addressed depending on co-location or simultaneous transmission issues if applicable.Integrator is reminded to assure that these installation instructions will not be made available to the end-user of the final host device. The Integrator will be responsible to satisfy SAR/ RF Exposure requirements, when the module integrated into any (portable, mobile, fixed) host device. The final host device, into which this RF Module is integrated" has to be labeled with an auxiliary label stating the FCC ID of the RF Module, such as "Contains FCC ID: 2AC49-M06USA1".
