Sick RFU620 UHF RFID read / write device User Manual BARFU62xen 8015928 20130808 Draft

Sick AG UHF RFID read / write device BARFU62xen 8015928 20130808 Draft

user manual

6XEMHFWWRFKDQJHZLWKRXWQRWLFHSICK AGWaldkirchGermanywww.sick.com 5 ) 8   ;   _  6 , & . 1

RFU62x

Correct use

The RFU620 interrogator (standard device) is an intelligent

SICK-IDpro sensor from the RFU62x product family.

,WLVXVHGIRUWKHDXWRPDWLFÀ[HGLGHQWLÀFDWLRQRIZLUH-

less-based data carriers on moving or stationary objects and

their management.

As a compact reading and writing unit, the RFU620 has an

integrated antenna. It processes all standard passive tran-

sponders in accordance with ISO-/IEC-18000-6C and EPC-

global UHF C1G2 in the regional UHF carrier frequency range.

Thanks to its intelligent process logic it can be used either as

a stand-alone solution or as part of a group in a network.

The RFU620 sends the read results to a higher-level comput-

er for further processing via its host interface. Or it receives

commands for data carrier management (write, read, etc.) via

this interface.

Correct use also includes compliance with all information

in these operating instructions and the supplementary 

RFU62x RFID Interrogator (UHF) Technical Information, No.

8015930.

The RFU62x product family consists of 3 version series which

are distinguished by their functionality (including type of data

interface) and the design of the electrical connection:

 Ethernet version (RFU620-101xx), with heating for ambi-

ent temperatures as low as –40°C

 Serial version (RFU620-104xx)

 PoE version (RFU620-105xx), PoE = Power-over-Ethernet

Each series contains variants for regional assignment (place-

holder xx above, see type label on the device) of the operating

license and the carrier frequency range (for an overview -

see ´7HFKQLFDOVSHFLÀFDWLRQVH[FHUSWµSDJH).

In this document, the RFU620 interrogator is simply referred

to as the "RFU620", unless a clear distinction needs to be

made between variants.

About this document

These operating instructions apply to all variants of the

RFU620. They allow you to commission the RFU620 quickly

and easily in an ambient temperature range from 0°C to

+50°C and to achieve initial read results with transponders.

They describe the commissioning process for an application

with DQ RFU620, starting with its default setting. Device vari-

ant RFU620-10100 (Ethernet version, regional assignment:

Europe) is used as the basis for the examples given. The

CDB620 connection module is used, for example, for the

industrial-standard signal distribution of the RFU620. With

the exception of the electrical connection, other variants are

commissioned in the same way.

Supplementary and other applicable documents

More detailed information about mounting and electrical

installation as a stand-alone device is available in the

RFU62x RFID Interrogator (UHF) Technical Information, No.

8015930. This describes and presents:

 Optional mounting accessories (brackets)

 Measures for electrical installation of the RFU620-

101xx in an ambient temperature range from 0°C to

–40°C

 The suppression of ground potential equalization currents

in applications with widely distributed systems

 Pin assignments and lead color assignments of cables

 Electrical wiring plans for the CDB620-001 connection

module, based on the RFU620

 Reference list and license texts for open source software

XVHGLQWKHÀUPZDUH

2SHUDWLQJWKH5)8LQDÀHOGEXVZLWKOLQHWRSRORJ\

The optional incorporation of the RFU620 in the PROFIBUS

DP, PROFINET IO or EtherCAT®ÀHOGEXVLVGHVFULEHGLQWKHUHO-

evant  operating instructions for the CDF600-21xx, -2200

RUÀHOGEXVPRGXOH- see “Sources for obtaining

DGGLWLRQDOLQIRUPDWLRQSDJHµ

,QIRUPDWLRQDERXWFRQÀJXUDWLRQFDQEHIRXQGLQWKHRQOLQH

KHOSIXQFWLRQRIWKH623$6(7FRQÀJXUDWLRQVRIWZDUH

The listed documents are available in PDF format on the SICK

product pages on the Internet: ZZZP\VLFNFRPHQUIX[

&') and &')

In order to view PDF documents on a PC, PDF visualization

software is required, e.g. Acrobat Reader (http://get.adobe.

com/reader).

Safety information

 This chapter concerns the safety of commissioning

personnel as well as operators of the system in which the

RFU620 is integrated.

 Read these instructions carefully before commissioning

the RFU620 in order to familiarize yourself with the

device and its functions. The operating instructions are

considered a part of the device and must be kept in an ac-

cessible location in the immediate vicinity of the RFU620

at all times!

 )RUFRXQWU\VSHFLÀFSDUWLFXODUVWRFRQVLGHUZKHQRSHUDWLQJ

the RFU620, - see ´2SHUDWLRQDOUHVWULFWLRQVSDJHµ

aDANGER

Health hazard as a result of high-frequency electromagnet-

ic radiation!

The RFU620-10x00 (region: Europe) is designed for operation

in accordance with ETSI EN 302208. During operation, the

human exposure regulations covered by EN 50364 must be

observed.

>,QRUGHUWROLPLWKXPDQH[SRVXUHWRHOHFWURPDJQHWLFÀHOGV

suitable safety distances must be maintained during both

short-term and long-term work in the radiation range of the

antenna.

Minimum distances to be maintained between the anten-

na and the human body:

10 cm during long-term transmission and max. radiation

power of the antenna of 250 mW (24 dBm) as per ETSI.

The RFU620-10x01UHJLRQ86$&DQDGDVDWLVÀHVWKHOLPLW

values of the FCC for exposure to radiation in an uncontrolled

environment.

>During operation, a safety distance of at least 20 cm must

be maintained between the antenna and the human body.

 The following requirements must be met if the IP 67

enclosure rating is to be maintained during operation

(otherwise, the device will no longer meet the conditions

IRUDQ\VSHFLÀHG,3HQFORVXUHUDWLQJ

 The side cover of the USB socket/Micro-SD card slot

must be screwed tight to the device

 The SICK cables plugged into the M12 connections

must be screwed tight

 Electrical connections that are not being used (RFU620-

101[[PXVWEHÀWWHGZLWKSURWHFWLYHFDSVSOXJVWKDW

are screwed tight (as in the delivery condition)

The RFU620 must only be used for a short period without

a cover in order to insert or remove the memory card or

use the USB interface temporarily. During this time, protect

the device against moisture and dust.

 Opening the screws of the RFU620 housing will invalidate

any warranty claims against SICK AG. For further warranty

provisions, see the General Terms and Conditions of

SICK AG, e.g. on the delivery note of the RFU620.

 Data integrity:

SICK AG uses standardized data interfaces, such as stan-

dard IP technology, in its products. The emphasis here is

on the availability of products and their features. SICK AG

DOZD\VDVVXPHVWKDWWKHLQWHJULW\DQGWKHFRQÀGHQWLDOLW\RI

the data and rights which are affected by the use of these

products will be ensured by the customer. In all cases, ap-

propriate security measures, such as network separation,

ÀUHZDOOVYLUXVSURWHFWLRQDQGSDWFKPDQDJHPHQWPXVW

be taken by the customer on the basis of the situation in

question.

&RPPLVVLRQLQJDQGFRQÀJXUDWLRQ

Scope of delivery

 RFU620 in the version ordered (functionality/design of the

connection, regional assignment). Electrical connections

ÀWWHGZLWKSURWHFWLYHFDSVSOXJV5)8[[:LWKRXW

connecting cables (RFU620-101xx, -105xx) and brackets.

 Printed operating instructions:

Europe/USA/Canada: English (No. 8015928) and German

(No. 8015927)

Other language versions may be available in PDF format

on the RFU620 product page on the Internet:

ZZZP\VLFNFRPHQUIX[.

Step 1: Mounting and alignment

Equipment required

 2 x M6 or 4 x M5 screws for mounting the RFU620 on a

mounting device (bracket) provided by the customer. Screw

length is dependent on the mounting base (wall thickness

of the bracket).

When using an optional SICK bracket, the screws for

mounting the RFU620 on the bracket are included in the

scope of delivery of the bracket.

Mounting requirements

 The permissible ambient conditions for operating the

RFU620 must be observed, e.g. assigned region, ambient

temperature, ground potential (- see “Technical spec

LÀFDWLRQVH[FHUSWSDJHµ and “Step 2: Electrical

LQVWDOODWLRQSDJHµ)

 The device must be mounted using all 2 M6 or 4 M5

threaded mounting holes provided (- see ´'HYLFHOD\RXWµ

page 3).

 6WDEOHPRXQWLQJGHYLFHZLWKVXIÀFLHQWORDGEHDULQJFDSDFL-

ty and suitable dimensions for the RFU620.

Weight approx. 780 g (without cables).

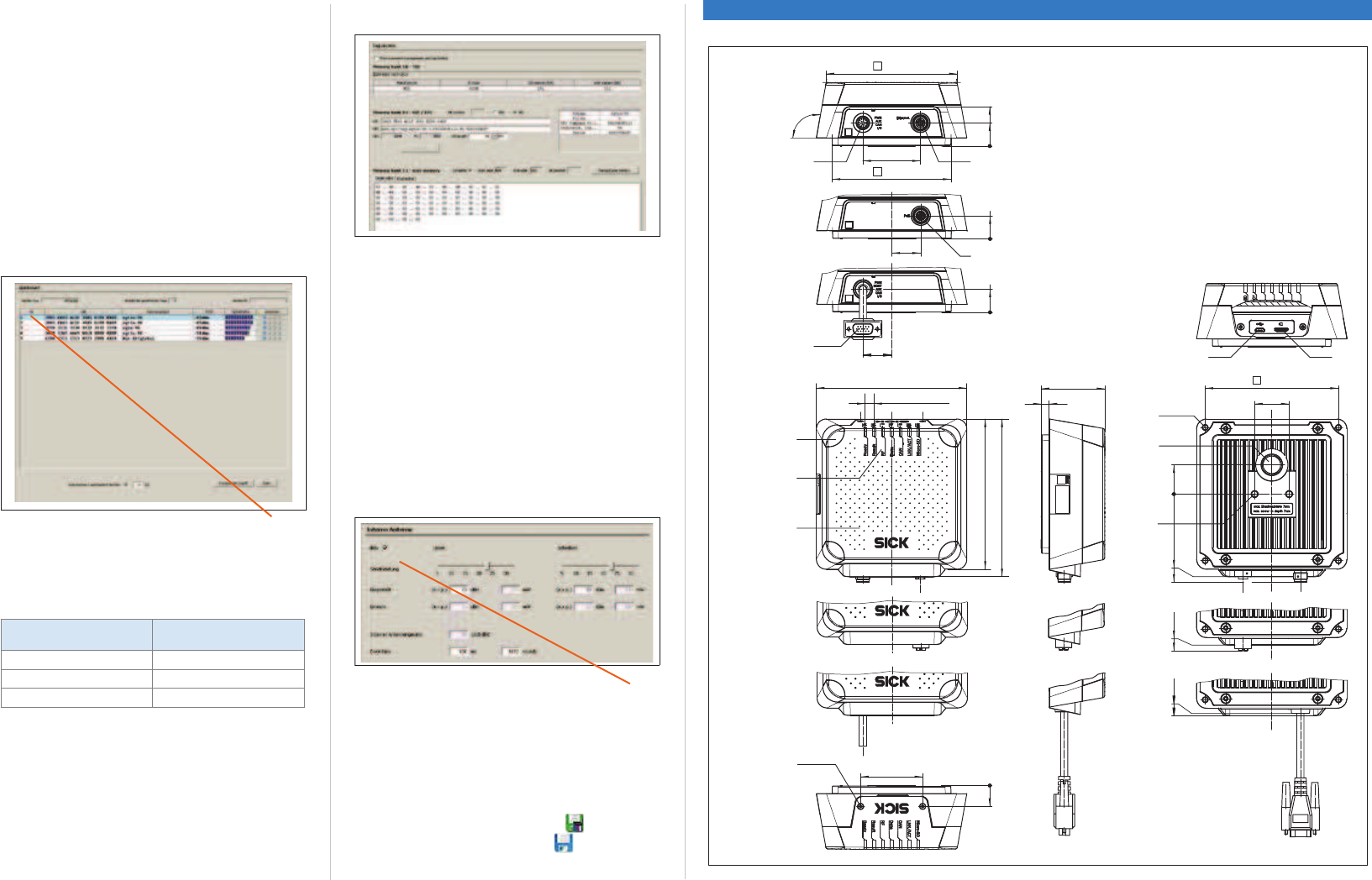

Dimension drawing - see ´'HYLFHOD\RXWµSDJH

 No electrically conductive material between transponder

and RFU620.

Mounting the RFU620

1. Select a suitable mounting location for the RFU620.

The mounting location and position depend on the anten-

QDÀHOGRIWKH5)8DQGWKHWUDQVSRQGHUVXVHG

Optional: Attach the SICK mounting accessories ordered

separately (mounting kit 1, 2, 3, 4 or 5) to the RFU620;

see "Mounting" chapter in the  RFU62x RFID Interroga

tor (UHF) Technical Information, No. 8015930.

RFID interrogator (UHF)

with internal antenna

Mid range

RFU620-101xx

RFU620-104xx

RFU620-105xx

2 3 ( 5 $7 , 1 *  , 1 6 7 5 8 & 7 , 2 1 6

5 ) 8   ;   _  6 , & . 6XEMHFWWRFKDQJHZLWKRXWQRWLFHSICK AGWaldkirchGermanywww.sick.com2

Otherwise, mount the RFU620 on the bracket provided

by the customer using the 2 or 4 screws. Screw the M6

screws max. 7 mm, M5 max. 9 mm into the threaded

mounting holes (- see ´'HYLFHOD\RXWSDJHµ).

2. Align the surface of the integrated antenna of the RFU620

(front face) to the data carrier on the object. While doing

so, take into account the shape, alignment, and dimen-

VLRQVRIWKHDQWHQQDÀHOG- VHHÀJXUHEHORZ). Avoid as

far as possible any large metal surfaces positioned to the

front. If this is not possible, do not mount the antenna

plane parallel with the surface.

e. g. 10°

Metal surface

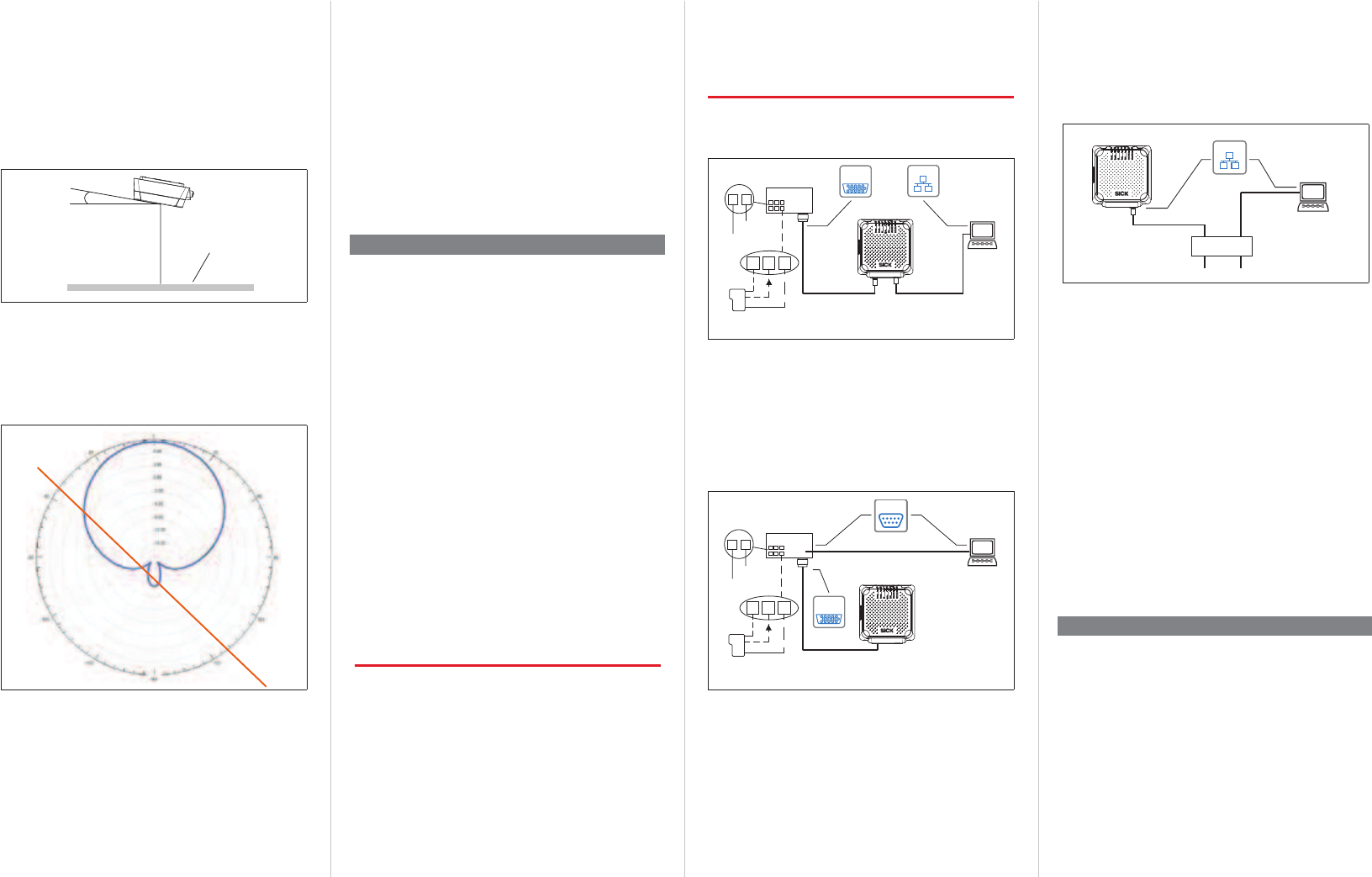

Selecting the approach angle of the RFU620 in the case of a large

metal surface on the front

3. Ensure that there are no objects (including personnel)

between the RFU620 and the transponder during the write

RUUHDGSURFHVV7KHVHZLOODEVRUEUHÁHFWWKHJHQHUDWHG

8+)ÀHOGDQGWKHUHE\UHGXFHWKHVFDQQLQJUDQJH

6FDQQLQJUDQJHRIWKHUHDGZULWHÀHOGRQWKH5)8

Radiation pattern: measured RHCP (dBic) antenna gain of the RFU620

at 886.5 MHz (RHCP = Right Hand Circular Polarized)

7KH8+)ÀHOGLVLQÁXHQFHGE\LWVHQYLURQPHQWPDNLQJLW

impossible to provide a "clear" demarcation of the scanning

UDQJH$SSOLFDWLRQVSHFLÀFUHÁHFWLRQVFDQUHVXOWLQERWK

overreaches and "holes". In addition to the read results, the

RFU620 can also output diagnostic data, which gives an

indication of the write and read quality. This data can be used

when setting up the system in order to achieve optimum read

results.

Another key factor in determining the scanning range is the

quality of the transponder (antenna gain, integrated tran-

 If the cable insulation is damaged, disconnect the power

supply immediately and have the damage repaired.

>See the "Electrical installation" chapter in the

RFU62x RFID Interrogator (UHF) Technical Information, No.

8015930 on the product page on the Internet: ZZZP\V

LFNFRPHQUIX[ for measures for eliminating hazards.

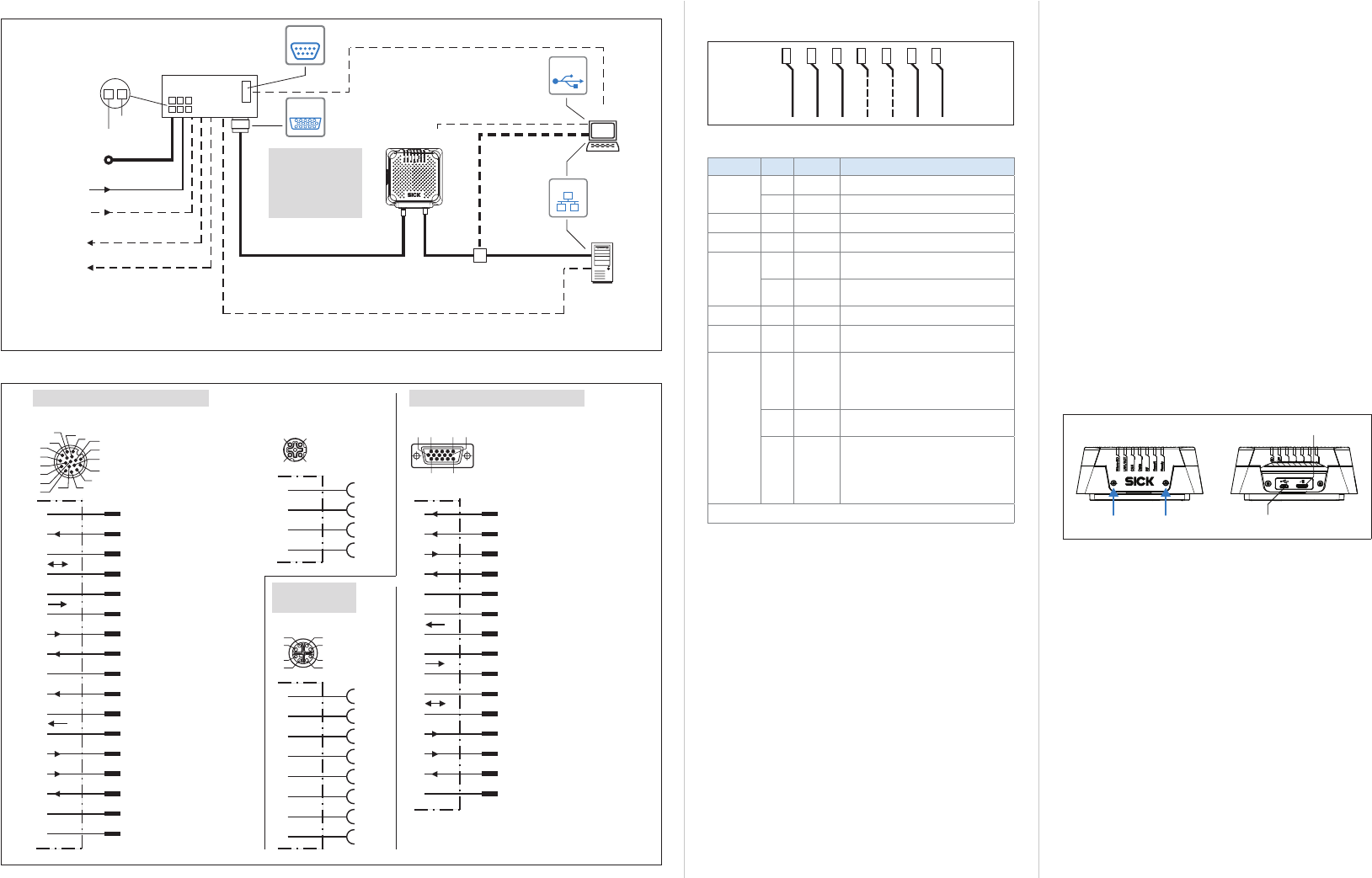

Connecting the RFU620 depending on the model

a. Ethernet version

Connection module

CDB620-001

SOPASSOPAS

RFU620-101xx

DC 12 V ... 30

GND

Configuration

Diagnostics

“Power/...” “Ethernet”

e.g. cable

no. 2055419 (2 m)

e.g. cable

no. 6034414 (2 m)

SerialSerial

...

11 10 12

Reading

trigger

SGND

Sens 1

EthernetEthernet

Electrical connection of the RFU620-101xx for commissioning

1. Connect the communication interface (e.g. Ethernet) of the

RFU620-101xx directly to the PC.

2. Connect the 17-pin M12 male connector ("Power/AUX/

CAN/I/0") via a suitable adapter cable (e.g. No. 2055419,

2 m) to the 15-pin D-Sub-HD female connector of the

CDB620.

b. Serial version

Connection module

CDB620-001 SOPASSOPAS

DC 12 V ... 30

GND

Configuration

Diagnostics

“Power/HOST/AUX/CAN/I0”

SerialSerial

...

RFU620-104xx

11 10 12

Reading

trigger

SGND

Sens 1

e.g. cable no. 2014054 (2 m)

AUX

SerialSerial

Electrical connection of the RFU620-104xx for commissioning

1. Connect the 15-pin D-Sub-HD male connector of the

RFU620-104xx connecting cable to the corresponding

female connector on the CDB620.

In order to maintain enclosure rating IP 65 for the connect-

ing cable of the device when using an optional extension

cable (e.g. No. 2043413, 2 m), use the optional rubber

seal (No. 4038847) between the male connector and the

female connector of the 15-pin D-Sub-HD connection and

screw the connection in place.

2. Connect the serial AUX interface (RS-232) of the

RFU620-104xx to the PC. To do so, connect the internal

VSRQGHU,&DQGDVVRFLDWHGVHQVLWLYLW\UHÁHFWHGHQHUJ\DQG

the object itself (plastic, wood, metal). The radiation pattern

shown for the antenna of the RFU620 was produced for

example purposes in a reproducible environment (absorber

chamber) and can therefore only be used as the basis for

VSHFLÀFDSSOLFDWLRQVWRDFHUWDLQH[WHQW

CDB620 connection module

>Mount the CDB620 connection module in the vicinity of

the RFU620. If you are using the serial data interfaces (RS-

232), we recommend a max. distance of 5 m.

Mount the CDB620 in such a way that the device remains

accessible at all times. See  &'%&RQQHFWLRQ

Module Operating Instructions (No. 8012119), which are

supplied in printed form with the device.

Step 2: Electrical installation

 7KHHOHFWULFDOLQVWDOODWLRQPXVWRQO\EHSHUIRUPHGE\

HOHFWULFDOO\TXDOLÀHGSHUVRQV.

 6WDQGDUGVDIHW\UHTXLUHPHQWVPXVWEHPHWZKHQZRUNLQJ

LQHOHFWULFDOV\VWHPV

 Electrical connections between the RFU620 and other

devices may only be created or disconnected when there

is no power to the system. Otherwise, the devices may be

damaged.

 When using connecting/extension cables with an open

end, make sure that bare wire ends are not touching (risk

of short-circuit when the supply voltage is switched on).

Take appropriate measures to isolate the wires.

 Wire cross-sections in the supply cable from the custom-

er's power system should be designed in accordance with

the applicable standards.

If the supply voltage for the RFU620 (10 V DC to 30 V, 20

V DC to 30 V when using the integrated heating, 48 V DC

or 57 V DC with the PoE version) is not supplied via the

optional CDB620 connection module, the RFU620 must

be protected by a separate slow-blow fuse with a rating of

0.8 A at the start of the supply circuit.

 All circuits connected to the RFU620 must be designed as

SELV circuits. The power supply/power supply unit must

satisfy the requirements of SELV in accordance with the

currently applicable EN 60950-1. (SELV = Safety Extra Low

Voltage)

aDANGER

Risk of injury/risk of damage due to electrical current!

The RFU620 is designed to be operated in a system with pro-

fessional grounding of all connected devices and mounting

surfaces to the same ground potential.

Incorrect grounding of the RFU620 can result in equipotential

bonding currents between the RFU620 and other grounded

devices in the system. This can lead to hazardous voltages

being applied to metal housing, cause devices to malfunction

or sustain irreparable damage and damage the cable shield

as a result of a heat increase, causing cables to set alight.

 Ensure that the ground potential is the same at all ground-

ing points.

9-pin D-Sub "AUX" male connector of the CDB620 with

a null-modem cable (e.g. No. 2014054, 2 m) to the PC

(9-pin D-Sub male connector).

If the PC does not have an RS-232 interface, use an

additional suitable adapter cable with integrated RS-232

<> USB converter (e.g. No. 6042499, 1.5 m).

c. PoE version

„PoE“

SOPASSOPAS

Configuration

Diagnostics

e.g. cable

no. 6049728 (2 m)

RFU620-105xx

PoE Switch

...

DC 48/57 V

PSE

EthernetEthernet

Electrical connection of the RFU620-105xx for commissioning

>Connect the 8-pin M12 female connector via a suitable

cable (e.g. No. 6049728, 2 m) to the PoE switch.

d. General information

1. If necessary, connect a read pulse sensor, such as a

photoelectric switch, to the "Sens 1" switching input

of the RFU620 via the CDB620. Does not apply to

RFU620-105xx. See the "Electrical installation" chapter of

the  RFU62x RFID Interrogator (UHF) Technical Informa

tion, No. 8015930.

2. Supply power to the RFU620.

RFU620-101xx/-104xx: 10 to 30 V DC,

RFU620-101xx: when used in the low-temperature range

below –25°C: 20 to 30 V DC

RFU620-105xx: 48 V/57 V DC according to PoE technol-

ogy. After successful initialization, the "Device Ready"

LED lights up green. The power supply via a power supply

unit must be capable of buffering a brief power failure of

20 ms.

3. Turn on the PC and start Windows.

6WHS&RQÀJXUDWLRQZLWK3&

,QFDVHRIHUURUWKH623$6(7FRQÀJXUDWLRQVRIWZDUHLVXVHG

by default to adjust the RFU620 parameters to the applica-

tion and to the diagnostics.

a. ,QVWDOOLQJDQGVWDUWLQJWKHFRQÀJXUDWLRQVRIWZDUH

1. Download and install the latest version of the SOPAS ET

FRQÀJXUDWLRQVRIWZDUHDVZHOODVFXUUHQWGHYLFHGHVFULS-

WLRQÀOHVVGGIURPWKHRQOLQHSURGXFWSDJHIRUWKH

software: ZZZP\VLFNFRPHQ623$6B(7by following

the instructions provided there. In this case, select the

"Complete" option as suggested by the install wizard.

Administrator rights may be required on the PC to install

the software.

2. Start the "SOPAS ET" program option after completing the

installation. Path: Start > Programs > SICK > SOPAS ET

Engineering Tool > SOPAS.

6XEMHFWWRFKDQJHZLWKRXWQRWLFHSICK AGWaldkirchGermanywww.sick.com 5 ) 8   ;   _  6 , & . 3

3. Establish a connection between SOPAS ET and RFU620 via

the wizard which opens automatically. In order to do this,

select the desired communication interface for searching

in the connection wizard. (Default Ethernet address: IP

address: 192.168.0.1, Subnet mask: 255.255.255.0)

SOPAS ET establishes communication with the RFU620

DQGORDGVWKHDVVRFLDWHGGHYLFHGHVFULSWLRQÀOHIRUWKH

RFU620. The QUICKSTART tab opens.

b. Detecting a transponder in Quickstart mode

1. Bring one or more standards-compliant UHF transponders

into the working area of the RFU620 antenna. The UII/EPC

of the individual transponders must be different so that

multiple transponders can be detected.

2. In SOPAS ET, in the QUICKSTART tab, click the START button.

SOPAS ET generates an automatic reading cycle and

lists the detected transponders one after another in the

Quickstart window.

SOPAS ET: Display of several detected transponders in the QUICKSTART

window

,QWKHGHIDXOWFRQÀJXUDWLRQWKHEOXHOLJKWRXWSXWRIWKH

process feedback LEDs (5) in the corners of the RFU620

DQWHQQDFRYHULQGLFDWHVZKHWKHUD8+)ÀHOGLVSUHVHQWDQG

transponders have been detected.

Light output of the LEDs

in Quickstart mode

Meaning

Lights up with medium intensity 8+)ÀHOGSUHVHQW

+LJKLQWHQVLW\VORZÁDVKLQJ WUDQVSRQGHULQÀHOG

+LJKLQWHQVLW\UDSLGÁDVKLQJ RUPRUHWUDQVSRQGHUVLQÀHOG

Important!

The automatic triggering in Quickstart mode is intended for

(initial) commissioning and not for permanent use when

operating the RFU620 under real conditions.

c. Accessing the data on a transponder

1. In order to access the memory area of a transponder, in

QUICKSTART click the STOP button.

2. Mark the desired transponder (click it with the mouse).

3. Click the TRANSPONDER ACCESS button.

The TAG ACCESS tab now displays the content of the select-

ed transponder.

SOPAS ET: TAG ACCESS display window

Important!

7KH7,'7DJ,GHQWLÀHURIWKHWUDQVSRQGHUFDQQRWEH

changed.

d. &RQWLQXLQJWKHFRQÀJXUDWLRQSURFHVV

1. In the SOPAS ET navigation tree on the left, edit the

required RFU620 tabs for the application using the addi-

tional entries under PARAMETERS.

7KHVHLQFOXGHDQWHQQDFRQÀJXUDWLRQÀOWHUIXQFWLRQV

transponder processing, object trigger control (e.g. via

"Sensor 1" switching input), data processing, data output,

interfaces, function of the switching inputs and outputs,

and the possible use of an optional Micro-SD memory

card.

2. On the ANTENNA CONFIGURATION tab, the transmitting power

for the antenna can be set using sliders.

&RQÀJXUDWLRQ: Example setting for the internal antenna

RFU620 default setting:

Transmitting power: 15 dBm (30 mW)

3. 7HVWDQGLIQHFHVVDU\PRGLI\WKHVSHFLÀHGVHWWLQJVZKHQ

operating the system under real conditions.

e. &RPSOHWLQJWKHFRQÀJXUDWLRQSURFHVV

>3HUPDQHQWO\VDYHWKHHQWLUHFRQÀJXUDWLRQRQFHLWKDVEHHQ

successfully tested:

Parameter set in the RFU620: Click the button

&RQÀJXUDWLRQÀOHRQWKH3&&OLFNWKH button.

Device description

Device layout

71.9

76.9

69.7

71.9

55.3

RFU620-101xx

RFU620-104xx

RFU620-105xx

RFU620-104xx

25.5

71.9

76.7

116

20.1

113.9

103.3

20.1

34.4

100°

All dimensions in mm

18.1

130.8

137.4

130.8

6 x 7.7 (= 46.2)

“Power/AUX/CAN/I/O” connection

(17-pin M12 plug, A-coded)

2 “Ethernet” connection (4-pin M12 socket, D-coded)

3 “PoE” connection (8-pin M12 socket, X-coded)

4 ”Power/HOST/AUX/CAN/I/O” connection

(15-pin D-Sub HD plug, cable 0.9 m)

5 4 x LED multi-color (Process Feedback)

6 7 x LED (status indicators)

7 Cover with integrated antenna

8 2 x screws (Torx T8), captive, for lateral cover

9 USB socket, type Micro-B

ß Slot for micro SD card

à 4 x threaded mounting holes M5, 9 mm deep, alternatively

for mounting the RFU620

á Pressure compensation valve (ventilation element)

â 2 x threaded mounting holes M6, 7 mm deep, or mounting

the RFU620

Lateral

cover

opened

6XEMHFWWRFKDQJHZLWKRXWQRWLFHSICK AGWaldkirchGermanywww.sick.com 5 ) 8   ;   _  6 , & . 4

Other functions on request.

7KHÀUVWWLPHDSDUDPHWHUVHWLVVWRUHGZHUHFRPPHQGWKDW

an empty memory card is used (if necessary, check and de-

lete the contents of the card on the PC using a card reader).

The memory card is not included in the scope of delivery.

To ensure that the memory card functions reliably, only use

types approved by SICK (see  5),'3URGXFW,QIRUPDWLRQ

No. 8016267). The memory card has no write protection that

can be activated.

Inserting the memory card

>To avoid damaging the memory card, make sure there is

no power to the RFU620 when you insert or remove it.

The card slot (- see ß in ´'HYLFHRYHUYLHZSDJHµ) can

be accessed on the RFU620 behind the folding plastic cover.

Maintaining the IP 67 enclosure rating: - see ´6DIHW\LQIRU

PDWLRQµSDJH

1. 7XUQR˸WKHVXSSO\YROWDJHWRWKH5)8

2. To open the cover, unscrew both screws.

3. Making sure it is in the correct position (with the contacts

pointing to the rear and down, see the symbol on the card

slot), insert the memory card into the card slot until it locks

into place.

4. Screw the cover back on.

5. Turn on the supply voltage to the RFU620.

Micro USB socketScrews, Torx T8

Slot for micro SD card

6. Once it is switched on, the RFU620 automatically detects

the presence of a memory card and, depending on the

card's content, behaves as follows:

 If the card is empty or if it contains a parameter set

that cannot be interpreted by the RFU620, the RFU620

saves its currently valid internal parameter set to the

FDUGSURYLGHGWKHUHLVVXIÀFLHQWVWRUDJHVSDFHDQG

starts with the internal parameter set.

 If the card contains a parameter set that can be

interpreted by the RFU620, the RFU620 temporarily

overwrites the currently valid internal parameter set

with this external parameter set. When switched off,

this internal parameter set is lost.

If necessary, the "Save permanently" command in

SOPAS ET can be used to save the temporary parameter

set permanently in the RFU620. The objective is for the

internal parameter set and the parameter set saved

externally to always be identical.

Status displays

Optical status indicators

Ready

LNK/

ACT

Micro-SD

Data

sult

6WDWXVLQGLFDWRUVRQWKHÀUVWGLVSOD\OHYHO

Display LED Color Status

Ready

OGreen Device ready

ORed Hardware fault

Result OGreen Read or write successful

RF OGreen 8+)ÀHOGVZLWFKHGRQ

Data

OGreen Data receipt at the serial host

interface

OYellow Data output at the serial host

interface

CAN OGreen 'DWDWUDIÀFYLD&$1EXV

LNK/

ACT OGreen 'DWDWUDIÀFYLD(WKHUQHW

Mi-

cro-SD OGreen Micro-SD card inserted and ready for

operation.

If the LED lights up, however, this

does not indicate that the RFU620 is

accessing the card!

ORed Micro-SD card inserted, cannot,

however, be read or is defective

OOrange The use of the Micro-SD card in

connection with a device function

KDVEHHQPDQXDOO\FRQÀJXUHGZLWK

SOPAS ET on the "SD card required"

tab. The SD card is not, however,

ready for operation.

3R(YHUVLRQ/('VKDYHQRIXQFWLRQ

O = illuminated; Ö ÁDVKLQJ

2YHUYLHZRIDOOLQWHUIDFHVDQGFRQQHFWLRQRSWLRQV

”Ethernet” (HOST 2)

put 2

(e.g. encoder

)

put 1

(e.g.

external reading trigger)

Output

(e.g. indicat

or lamp)

Output

RFU620-101xx

e.g. cable

no. 2055419 (2 m)

“Serial RS-232/RS-422/485” (HOST 1), alternatively to Ethernet HOST port

CDB620-001

SerialSerial

e.g. cable

no. 6034414 (2 m)

Configuration

Diagnostics

SOPASSOPAS

SerialSerial

“Power/AUX/CAN/I/O”

(AUX 1, HOST 1)

(no. 1042256)

...

DC 12 V ... 30 V*)

GND

HOST

Further data

processing

e.g. cable no. 2014054 (2 m)

“Serial RS-232” (AUX 1), alternatively to Ethernet AUX port

“Ethernet” (AUX 2)

DC 12 V ... 30

V*)

puts/outputs = digital

*) RFU62x-101xx: DC 20 V ... 30 V if the in

tegrated heating is used. **) e.g. cable no. 6036106 (2 m).

dditional external inputs/outputs via

CMC600 parame

ter cloning module

“USB” (AUX 3)**),

alternatively to Ethernet AUX port

Reading result

“Ethernet”

For block diagrams

RFU620-104xx

RFU620-105xx

see Technical

Information RFU62x

(Nr. 8015930)

EthernetEthernet

USBUSB

Ethernet version

RFU620-101xx

2YHUYLHZRISLQDVVLJQPHQWV

RFU620-101xx (Ethernet version)

“Power/AUX/CAN/I/0” connection

RFU620-104xx (serial version)

“Power/HOST/AUX/CAN/I/0” connection

CAN L

CAN H

TD+ (RS-422/485), HOST

TD– (RS-422/485),

TxD (RS-232), HOST

DC 10 V ... 30 V*)

TxD (RS-232), AUX

RxD (RS-232), AUX

RD+ (RS-422/485), HOST

GND

RD– (RS-422/485),

RxD (RS-232), HOST

Result 1 (switching output 1)

N.c.

Result 2 (switching output 2)

Sensor 2 (switching output 2)

Sensor 1 (switching input 1)

SensGND

M12 plug,

A-coded

CAN L

CAN H

TD+ (RS-422/485), HOST

TD– (RS-422/485),

TxD (RS-232), HOST

DC 10 V ... 30 V

TxD (RS-232), AUX

RxD (RS-232), AUX

RD+ (RS-422/485), HOST

GND

RD– (RS-422/485),

RxD (RS-232), HOST

Result 1 (switching output 1)

Result 2 (switching output 2)

Sensor 2 (switching input 2)

Sensor 1 (switching input 1)

SensGND

D-Sub HD plug

1TD+

TD–

RD+

RD–

“Ethernet” connection

M12 socket,

D-coded

3 2

1TD+

RD+

TD–

RD–

5PoE–

PoE+

PoE–

PoE+

RFU620-105xx

(PoE version)

“PoE” connection

M12 socket,

X-coded

6110

11 15

*) DC 20 V ... 30 V

if the integrated

heating is used

413

Micro-SD memory card (optional accessory)

Function

The RFU620 can execute the following functions on the plug-

in memory card:

 Automatic, additional storage of the last parameter set

to be permanently stored internally after a change on an

external medium (cloning function), if available. This is

performed within the scope of the recommended safety

concept for the parameter sets of IDpro devices. The func-

tion is used, among other things, to conveniently transfer

the parameter set to an exchange unit of the same type in

the event of an error.

Optional external media include a memory card which can

be plugged into the device or the CMC600 parameter stor-

age module, which can be used in the optional connection

module, e.g. CDB620-001 or CDM420-0001.

 &RQWLQXRXVUHFRUGLQJRIGLDJQRVWLFUHDGGDWDDIWHUWKHÀUVW

manual start, e.g. via SOPAS ET. Recording is resumed af-

ter a RFU620 restart when the function is set permanently.

5 ) 8   ;   _  6 , & . 6XEMHFWWRFKDQJHZLWKRXWQRWLFHSICK AGWaldkirchGermanywww.sick.com5

NOTE

Risk of data loss or irreparable damage to the memory

card!

The "Micro-SD" (6) LED lights up green when a memory card

which is ready for operation is inserted into the RFU620.

In this status, the RFU620 can either read data from the

card or write data to the card. Access to the card itself is not

signaled by the RFU620 (compare electronic camera with

memory card).

The "Micro-SD" (6) LED lights up orange when, for example,

a function which requires a memory card has been started

manually with SOPAS ET and the card is not ready for

operation (e.g. not inserted, contacts contaminated or no free

storage space).

>To avoid damaging the memory card, make sure there is

no power to the RFU620 when you insert or remove it.

>If parameter values are changed with the "permanent"

RSWLRQLQWKH5)8XVLQJWKH623$6(7FRQÀJXUDWLRQ

software while the memory card is inserted or if functions

are started which access the memory card (e.g. logging of

data), do not remove the memory card and do not switch

off the supply voltage.

>In order to remove the memory card in a controlled

manner while working with SOPAS ET when the RFU620

is switched on, select the REMOVE CARD function under

ANALYSIS TOOLS/MICROSD CARDDQGZDLWIRUFRQÀUPDWLRQ

from SOPAS ET.

7HFKQLFDOVSHFLÀFDWLRQVH[FHUSW

Model name 5)8[[[

5HJLRQDODVVLJQ-

PHQW

0RGHOGHSHQGHQWVHH7DEOH

)LUPZDUHYHUVLRQ 0RGHOGHSHQGHQWVHH7DEOH

&DUULHUIUHTXHQF\ 0RGHOGHSHQGHQWVHH7DEOH

7UDQVPLWWLQJ

SRZHU

1 internal antenna, adjustable:

ETSI: Max. 24 dBm, P:(53

)&&0D[G%PP:(,53

,QWHUQDODQWHQQD Circularly polarized.

Axial ratio typically 2 dB (ETSI),

3 dB (FCC)

Opening angle 100° (ETSI), 100° (FCC)

Front-to-back ratio typically

> 7 dB (ETSI), > 7 dB (FCC)

3URWRFRODLU

LQWHUIDFH

EPCglobal UHF Class 1 Generation 2

ISO/IEC 18000-6C

6FDQQLQJUDQJH Typically up to 1 m (depending on the tran-

sponder used and ambient conditions)

6HULDO

56

5)8[[[[RQO\

HOST (0.3 kBd ... 115.2 kBd)

for data output

6HULDO56 5)8[[[[RQO\

$8;N%GIRUFRQÀJXUDWLRQ

86% $8;86%IRUFRQÀJXUDWLRQ

&$1 5)8[[[[RQO\

CAN (CANopen®), 20 KBit/s ... 1 MBit/s.

Max. bus length 30 m

(WKHUQHW 5)8[[[[RQO\

HOST (TCP/IP, PROFINET IO, Ethernet-IP)

AUX (TCP/IP)

10/100 MBit/s, Services: DHCP, NTP, HTTP

)LHOGEXV

352),%86'3

5)8[[[[RQO\

HOST via external CDF600-21xx module

)LHOGEXV

352),1(7,2

5)8[[[[RQO\

HOST via external CDF600-2200 module

)LHOGEXV

(WKHU&$7®

5)8[[[[RQO\

HOST via external CDF600-0300 module

(Gateway mode)

'LJLWDO

VZLWFKLQJLQSXWV

5)8[[[[RQO\

2 x physical, 2 x additional external via option-

al CMC600 module in the CDB620/CDM420-

0001 connection module

Vin = max. 30 V, Iin = max. 5 mA

Opto-decoupled, reverse polarity protected.

Adjustable debounce time

'LJLWDO

VZLWFKLQJRXWSXWV

5)8[[[[RQO\

2 x physical, 2 x additional external via option-

al CMC600 module in the CDB620/CDM420-

0001 connection module

Vout = VS – 1.5 V, IoutP$

Short-circuit protected, temperature protected,

not electrically isolated from the supply

voltage

Model name 5)8[[[

(OHFWULFDO

FRQQHFWLRQV

5)8[[

1 x 17-pin M12 male connector, 1 x 4-pin M12

female connector

5)8[[

1 x cable, 0.9 m with 15-pin D-Sub-HD male

connector

5)8[[

1 x 8-pin M12 female connector

$OO:

1 x 5-pin USB female connector, type Micro-B

1 x 8-pin Micro-SD card slot

2SWLFDOLQGLFDWRUV 7 x RGB LED (status indicator) on front top/

side

4 x RGB LED (process feedback),

Function/color can be adjusted via SOPAS ET

3DUDPHWULFGDWD

EDFNXS

Optional: Via plug-in Micro-SD card or

externally via CMC600 module in the

CDB620/CDM420-0001 connection module

6XSSO\YROWDJH All voltages: As per SELV in accordance with

currently applicable EN 60950-1

5)8[[[[10 V ... 30 V DC

5)8[[20 V ... 30 V DC when using

the integrated heating (from –25°C)

5)8[[48 V/57 V DC according to

PoE technology

3RZHUFRQVXPS-

WLRQ

Operation:

$OO: Typically 8 W (with switching outputs

without load and full transmitting power)

5)8[[Also typically 8 W for heating

from –25°C

Readiness (standby):

$OO: Typically 3 W

+RXVLQJZHLJKW Aluminum/approx. 780 g

6DIHW\ EN 60950-1: 2006-04/A11: 2009-03/

A1: 2010-03/A12: 2011-02

(OHFWULFDO

SURWHFWLRQFODVV

III according to EN 61140: 2006-08

(QFORVXUHUDWLQJ IP 67, according to EN 60529: 1991-10/A2:

2000-02

07%) 23 years

5DGLRHTXLSPHQW

W\SHDSSURYDO

0RGHOGHSHQGHQWVHH7DEOH

(0& Radiated emission: EN 61000-6-3: 2007 +

A1: 2011

Electromagnetic immunity: EN 61000-6-2:

2005-08

9LEUDWLRQUHVLV-

WDQFH

6KRFNUHVLVWDQFH

EN 60068-2-6: 2008-02

EN 60068-2-27: 2009-05

$PELHQW

WHPSHUDWXUH

5)8[[

Operation: –40°C ... +50°C

5)8[[[[

Operation: –25°C ... +50°C

$OOStorage: –40°C ... +70°C

3HUPLVVLEOHUHOD-

WLYHDLUKXPLGLW\

0% ... 90%, non-condensing

7LPH NTP - Network Time Protocol/none

(53 (TXLYDOHQWUDdiated power.

(,53 (TXLYDOHQWLVRWURSLFUDGLDWHGSRZHU.

Table 1

)RUIXUWKHUWHFKQLFDOVSHFLÀFDWLRQVVHHWKHOnline data sheet

on the product page on the Internet

(ZZZP\VLFNFRPHQUIX[).

Warnings

NOTE

Operational restrictions

:KHQGHOLYHUHGWKHIUHTXHQF\EDQGRIWKH5)8LVFRQÀJ-

ured in such a way that it can be operated in the following as-

signed regions without interfering with protected frequencies

(such as mobile communications):

 RFU620-10xLQ the Europe region

 RFU620-10xLQWKH USA/Canada region

The operation of the same RFU620 in other regions can

interfere with protected frequencies.

>Only use the RFU620 in the region for which it has been

approved.

>When reselling the RFU620, inform the buyer of the region-

al assignment.

 France: The RFU620 must not be operated within a 20 km

radius of 13 military zones.

 Lithuania: In Lithuania there may be restrictions (extent

not currently known).

 Russia: Only licensed operation is possible in Russia.

 USA: This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2)

this device must accept any interference received, includ-

ing interference that may cause undesired operation. To

comply with FCC Part 15 rules in the United States, the

system must be professionally installed to ensure compli-

DQFHZLWKWKH3DUWFHUWLÀFDWLRQ,WLVWKHUHVSRQVLELOLW\

of the operator and professional installer to ensure that

RQO\FHUWLÀHGV\VWHPVDUHGHSOR\HGLQWKH8QLWHG6WDWHV

The use of the system in any other combination (such as

co-located antennas transmitting the same information)

is expressly forbidden. This equipment complies with FCC

radiation exposure limits set forth for an uncontrolled envi-

ronment. This equipment should be installed and operated

with a minimum distance of 20 cm between the radiator

and your body.

 USA/Canada: This Class A digital apparatus complies with

&DQDGLDQ,&(6&KDQJHVRUPRGLÀFDWLRQVQRWH[SUHVV-

ly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful

interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference in which case the user will be required to

correct the interference at his own expense.

'HYLFHRYHUYLHZ

Regional assignment Radio equipment type

approval

)LUPZDUH Carrier frequency range 7UDQVPLWWLQJSRZHU

of the internal antenna

Device

designation

Part no.

Europe ETSI EN 302 208 V.1.4.1 From

V.1.40

865.6 ... 867.6 MHz 0D[P:(53 RFU620-10100

RFU620-10400

RFU620-10500

1062599

1062600

1062601

USA/Canada FCC Part 15.247 From

V.1.40

902.75 ... 927.25 MHz 0D[P:(,53 RFU620-10101

RFU620-10401

RFU620-10501

1062602

1062603

1062604

(53 (TXLYDOHQW5DGLDWHG3RZHU

(,53 (TXLYDOHQW,VRWURSLF5DGLDWHG3RZHU

Table 2

6XEMHFWWRFKDQJHZLWKRXWQRWLFHSICK AGWaldkirchGermanywww.sick.com 5 ) 8   ;   _  6 , & . 6

ɛ07B0ɛ3ULQWHGLQ*HUPDQ\ɛ$OOULJKWVUHVHUYHGɛ6XEMHFWWRFKDQJHZLWKRXWQRWLFH

 Canada: Cet appareil numérique de la classe A est con-

forme à la norme NMB-003 du Canada. Le présent appa-

reil est conforme aux CNR d’Industrie Canada applicables

aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil

ne doit pas produire de brouillage, et (2) l’utilisateur de

l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre

le fonctionnement.

Maintenance and care

The RFU620 does not contain any components that require

maintenance.

>If it is dirty (e.g. metal dust), clean the antenna cover (7)

(plastic) carefully using a soft, damp cloth (with a mild

cleaning agent) in order to achieve the full read and write

speed.

Transport and storage

Transport and store the RFU620 (here RFU620- 101xx (Eth-

ernet version)) in its original packaging with protective plugs

and caps completely screwed on. Do not store outdoors. To

ensure that any residual moisture present can escape, do not

store the device in airtight containers. Do not expose to any

aggressive substances.

Storage conditions: Dry, dust-free, no direct sunlight, as little

vibration as possible, storage temperature –40°C... +70°C,

relative air humidity max. 90% (non-condensing).

Repair

Repair work on the RFU620 may only be performed by quali-

ÀHGDQGDXWKRUL]HGVHUYLFHSHUVRQQHOIURP6,&.$*

Disassembly and disposal

Any RFU620 which can no longer be used at the end of the

product life cycle must be disposed of in an environmentally

friendly manner in accordance with the respective applicable

FRXQWU\VSHFLÀFZDVWHGLVSRVDOUHJXODWLRQV7KH5)8

is electronic waste and must under no circumstances be

disposed of with general waste! SICK AG is not currently able

to take back devices that can no longer be used.

Sources for obtaining additional informa-

tion

Additional information about the RFU620, its optional

DFFHVVRULHVDQGÀHOGEXVPRGXOHVFDQEHIRXQGLQHOHFWURQLF

format on the following product pages on the Internet:

RFU620 interrogator

ZZZP\VLFNFRPHQUIX[

 'HWDLOHGWHFKQLFDOVSHFLÀFDWLRQVRQOLQHGDWDVKHHW

 EC declaration of conformity

 Dimensional drawing and 3D CAD dimension models in

various electronic formats

 Compatible accessories (including transponders, cables,

brackets, trigger sensors)

 RFU62x RFID Interrogator (UHF) Operating Instructions in

English (No. 8015928) and German (No. 8015927), in

other languages if required

 RFU62x RFID Interrogator (UHF) Technical Information in

English (No. 8015930) and German (No. 8015929)

 Ordering information in the RFID product information in

English (No. 8016267) and German (No. 8016266)

 Publications dealing with accessories

Function modules for the RFU620 interrogator

ZZZVLFNFRPVRIWZDUH

 Function modules for communication between a SIMATIC

controller (S7-300/S7-400) and the RFU620.

Function modules for other controllers on request.

&')[[352),%86'3ÀHOGEXVPRGXOH

ZZZP\VLFNFRPHQFGI

 CDF600-21xx PROFIBUS DP Fieldbus Module Operating

Instructions in English (No. 8015335) and German (No.

8015334), in other languages if required

&')352),1(7,2ÀHOGEXVPRGXOH

ZZZP\VLFNFRPHQFGI

 CDF600-2200 PROFINET IO Fieldbus Module Operating

Instructions in English (No. 8015922) and German (No.

8015921), in other languages if required

CDF600-0300 EtherCAT®ÀHOGEXVPRGXOH

ZZZP\VLFNFRPHQFGI

 CDF600-0300 EtherCAT® Fieldbus Module Operating

Instructions in English (No. 8013919) and German (No.

8013918), in other languages if required

Documents on request

 Overview of RFU620 command strings

Support is also available from your sales partner:

ZZZVLFNFRPZRUOGZLGH

EtherCAT®

"EtherCAT® is a registered trademark and patented technolo-

gy, licensed by Beckhoff Automation GmbH, Germany."

([FOXVLRQRIOLDELOLW\

7KHÀUPZDUHRIWKH5)8ZDVGHYHORSHGXVLQJRSHQ

source software. The user is exclusively responsible for any

PRGLÀFDWLRQVPDGHWRRSHQVRXUFHFRPSRQHQWV$OOZDUUDQW\

claims shall be invalidated in this case. The following exclu-

sion of liability applies to the GPL components in relation to

the rights holders:

This program is distributed in the hope that it will be of use,

but with no guarantee of this; neither is there any implied

guarantee of marketability or suitability for a particular pur-

pose. For details, see the GNU General Public License.

With regard to the other open source components, we

refer you to the exclusions of liability of the rights holders

contained in the license texts.

/LVWRIVRIWZDUHOLFHQVHVDQGOLFHQVHWH[WV

,QWKH5)8SURGXFW6,&.XVHVXQPRGLÀHGRSHQVRXUFH

software and, insofar as required and permitted in accor-

GDQFHZLWKWKHUHOHYDQWOLFHQVHFRQGLWLRQVPRGLÀHGRSHQ

source software.

7KHÀUPZDUHRIWKH5)8LVWKHUHIRUHVXEMHFWWRWKHFRS\-

rights listed below.

The associated license texts that relate to the license over-

view provided below can be found in the RFU62x RFID Interro

gator (UHF) Technical Information, No. 8015930. This can be

downloaded from the RFU62x product page on the Internet:

ZZZP\VLFNFRPHQUIX[

1. NCURSES – 5.7- License:

2. NET-SNMP - 5.7.1:

2.1 Part 1: CMU/UCD copyright notice: (BSD like)

Derivate Work, 1996, 1998 - 2000

of Carlifornia

2.2 Part 2: Networks Associates Technology, Inc copyright notice

(BSD)

2.3 Part 3: Cambridge Broadband Ltd. copyright notice (BSD)

Broadband Ltd.

2.4 Part 4: Sun Microsystems, Inc. copyright notice (BSD)

Santa Clara, California 95054, U.S.A.

2.5 Part 5: Sparta, Inc copyright notice (BSD)

2.6 Part 6: Cisco/BUPTNIC copyright notice (BSD)

Center of Beijing University of Posts and Telecommunications.

2.7 Part 7: Fabasoft R&D Software GmbH & Co KG copyright notice

(BSD)

2.8 Part 8: Apple Inc. copyright notice (BSD)

2.9 Part 9: ScienceLogic, LLC copyright notice (BSD)

3. Z-Lib 1.2.3:

4. e2fsprogs-1.41.11 (UUID-license based on BSD 3-clause license):

5. Dropbear – 0.52.tar.bz2:

Mihnea Stoenescu

5.1 ,PSRUWFRGHLQNH\LPSRUWFLVPRGLÀHGIURP3X77<¶VLPSRUWFOL-

- Portions copyright Robert de Bath, Joris van Rantwijk, Delian

Delchev, Andreas Schultz, Jeroen Massar, Wez Furlong, Nicolas

Barry, Justin Bradford, and CORE SDI S.A.

6. OpenSSH – 5.1p1:

6.1 Cryptographic attack detector for ssh - source code: Copyright (c)

1998 CORE SDI S.A., Buenos Aires, Argentina.

University of California.

6.4 Remaining components of the software are provided under a

standard 2-term BSD licence with the following names as copy-

right holders: Markus Friedl, Theo de Raadt, Niels Provos, Dug

Song, Aaron Campbell, Damien Miller, Kevin Steves, Daniel Kou-

ULO:HVOH\*ULIÀQ3HU$OODQVVRQ1LOV1RUGPDQ6LPRQ:LONLQVRQ

Portable OpenSSH additionally includes code from the following

Lindstrom, Tim Rice, Andre Lucas, Chris Adams, Corinna

Vinschen, Cray Inc., Denis Parker , Gert Doering, Jakob Schlyter,

Jason Downs, Juha Yrjölä, Michael Stone, Networks Associates

Technology, Inc., Solar Designer, Todd C. Miller, Wayne Schroeder,

William Jones, Darren Tucker, Sun Microsystems, The SCO

Group, Daniel Walsh

6.5 Portable OpenSSH contains the following additional licenses:

b) Compatibility code (openbsd-compat): Some code is

licensed under a 3-term BSD license, to the following copy-

right holders: Todd C. Miller, Theo de Raadt, Damien Miller,

Eric P. Allma, The Regents of the University of California,

Constantin S. Svintsoff

c) Some code is licensed under an ISC-style license, to the

following copyright holders: Internet Software Consortium:

Todd C. Miller, Reyk Floeter, Chad Mynhier

d) Some code is licensed under a MIT-style license to the

following copyright holders: Free Software Foundation, Inc.

7. GNU GENERAL PUBLIC LICENSE (Version 2, June 1991): Copyright

Fifth Floor, Boston, MA 02110-1301 USA

Foundation, Inc.

Inc.

tion, Inc.

Inc.

Foundation, Inc.

Software Foundation, Inc.

tion, Inc.

8. libstdc++:

GNU LESSER GENERAL PUBLIC LICENSE (Version 3, 29 June 2007):

9. Glibc 2.8:

9.1 GNU LESSER GENERAL PUBLIC LICENSE (Version 3, 29 June

<http://fsf.org/>

9.2 GNU GENERAL PUBLIC LICENSE (Version 3, 29 June 2007):

fsf.org/>

10. libusb:

This library is free software; you can redistribute it and/or

modify it under the terms of the GNU Lesser General Public

License as published by the Free Software Foundation; either

version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful,

but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR

PURPOSE. See the GNU Lesser General Public License for

more details.

You should have received a copy of the GNU Lesser General

Public License along with this library; if not, write to the Free

Software Foundation, Inc., 51 Franklin Street, Fifth Floor,

Boston, MA 02110-1301 USA

10.2 darwin backend for libusb 1.0

sourceforge.net>

Source codes

The source codes licensed under GPL and LGPL can be

ordered from the responsible SICK national representative.

Contact data: ZZZVLFNFRPZRUOGZLGH

Sick RFU620 UHF RFID read / write device User Manual BARFU62xen 8015928 20130808 Draft

Sick AG UHF RFID read / write device BARFU62xen 8015928 20130808 Draft

user manual

Navigation menu

Namespaces

Views

Navigation
