Siemens Transportation Systems TIA User Manual User manuel
Siemens Transportation Systems User manuel
user manual
Siemens Transportation Systems exclusive property
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE
Ed/Rév : 0002/00
Traduction : EN
Mémo : 624480
Date : 08/02/2002
Projet / Project Arborescence / Technical number
NYL
Canarsie Line CBTC System
Contract S-32701
CBTC/1350/DS/10
Type de document / Type of document
CATALOG CUT SHEET
TITRE / TITLE
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
Mots clés descripteurs / Descriptors
Rédacteur / Author Nombre de pages / Number of pages
G. LEDOUX 9
APPROBATION / APPROVAL
Nom / Name Fonction / Function Date / Date Signature / Signature
Prepared by
G. LEDOUX
Checked by
M. GOUVEA
V. POUZOL
Authorized by:
D. GRIMBERT
E&SW Architecture Designer
Hardware Quality Engineer
Hardware Technical Supervisor
Siemens MTI Project Manager
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 2 / 9 -
Siemens Transportation Systems exclusive property
SUIVI D’EVOLUTIONS / REVISION RECORDS
Edition / Révision
Version number
Date
Date
§ concernés
Affected §
Modification
Change
Justification
Justification
00/00
01/00
02/00
07/09/01
09/11/01
08/02/02
All
All
Annexe
Minor form
corrections
First issue
FCC information
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 3 / 9 -
Siemens Transportation Systems exclusive property
TABLE OF CONTENTS
1. ENVIRONMENT CLASSIFICATION ..................................................................................... 4
2. PRODUCT FUNCTION.......................................................................................................... 4
3. PRODUCT INSTALLATION CONSTRAINTS ....................................................................... 4
4. ELECTRICAL INTERFACE................................................................................................... 4
5. MECHANICAL INTERFACE ................................................................................................. 4
6. ILLUSTRATIONS ..................................................................................................................5
7. RAMS .................................................................................................................................... 6
8. ENVIRONMENTAL CHARACTERISTICS ............................................................................ 6
9. EMI / EMC ............................................................................................................................. 6
10. GLOSSARY........................................................................................................................... 7
11. REFERENCES ......................................................................................................................7
ANNEXE A : FCC INFORMATION ................................................................................................ 8
END OF DOCUMENT .................................................................................................................... 9
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 4 / 9 -
Siemens Transportation Systems exclusive property
1. ENVIRONMENT CLASSIFICATION
Environment Classification
Vehicle Interior
Vehicle body Mounted
Vehicle Truck Mounted ;
Wayside Outdoors
Wayside Equipment cases and Relay Rooms
Computer Rooms
2. PRODUCT FUNCTION
TIA receives signals from the transponders installed on the track. Theses data are processed
by the carborne controller computer unit to verify and update the localization of the train.
3. PRODUCT INSTALLATION CONSTRAINTS
Location on the train – The TIA is secured to the center of the first truck of A1-car.
Positioning and mounting on the truck with reference to the TOR:
8 Nominal height: 5.5"
8 Maximum height: 5.82"
8 Minimum height: 1.98"
4. ELECTRICAL INTERFACE
Input Yes
Output Yes
Protection None
The TIA is linked to the OBCU by one specific shielded cable, made of 4 twisted shielded pairs
featuring a 50 Ohms impedance at 10 MHz.
The cable is connected to the TIA to a Leatton Veam socket type: CIR
07R20.11P.F80.T100.V0 by means of a plug type CIRG06SB 18-20.11S.F80.T100.V0.
5. MECHANICAL INTERFACE
The transponder consist of a rectangular box, mechanically attached to the truck by means of
4 screws (3/8" grade 5) with a tied torque of 15 to 16 N.M (20.3 to 21.7 FT_LBF)..
The weight of a TIA is approximately 13 pounds.
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 5 / 9 -
Siemens Transportation Systems exclusive property
6. ILLUSTRATIONS

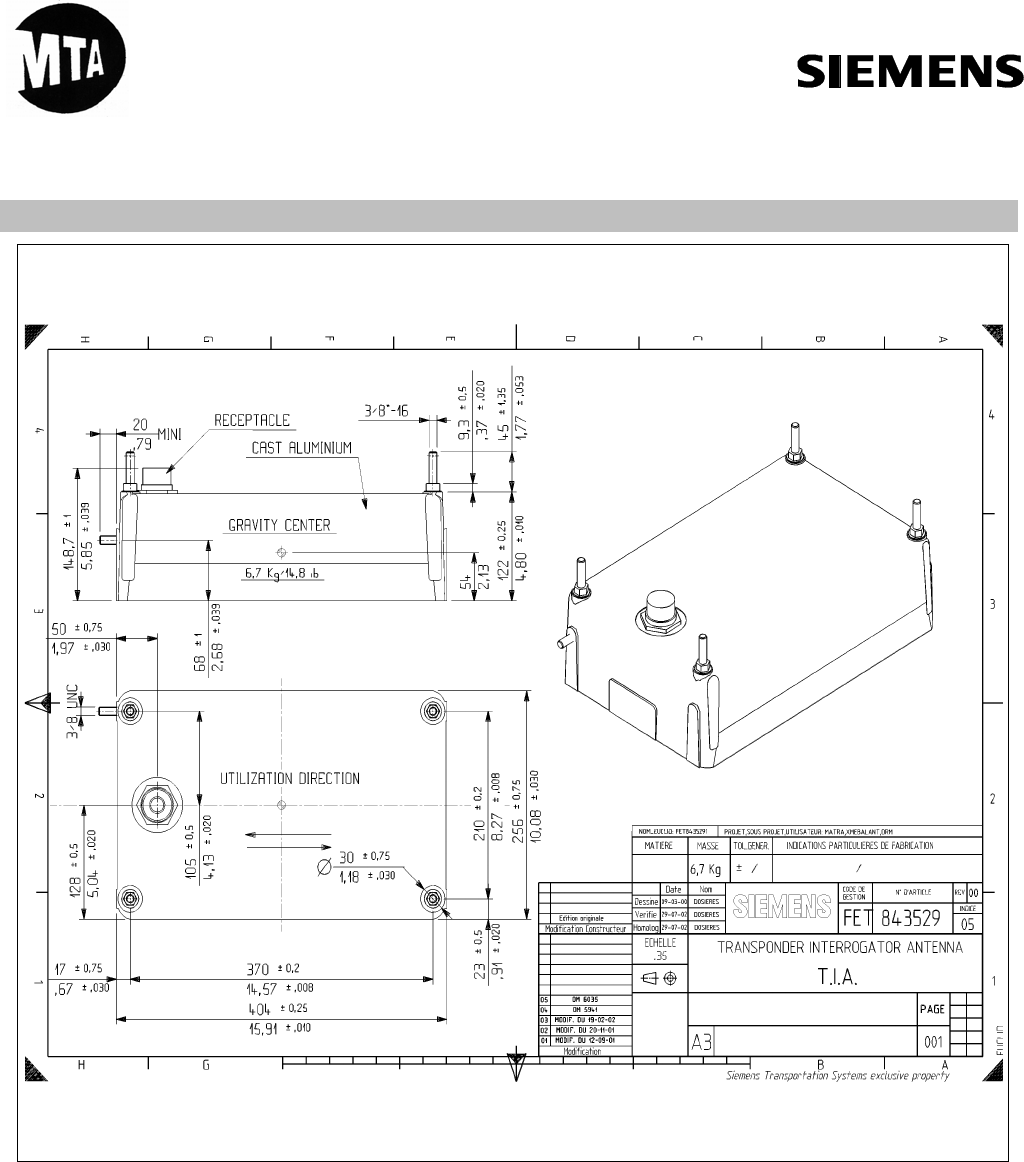

TIA Mechanical interface drawing
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 6 / 9 -
Siemens Transportation Systems exclusive property
7. RAMS
Characteristic Qualification standard
or equivalent
Applied Level (when
relevant)
MTBF UTE C80 810 2 339 290 h
Electrical Insulation 500 V AC
8. ENVIRONMENTAL CHARACTERISTICS
Characteristic Qualification standard
or equivalent
Applied Level (when
relevant)
Operating ambient
temperature
MIL-STD-810F -25°C / +70°C
Storage temperature MIL-STD-810F -40°C / +85°C
Shock (temperature) N/A
Humidity (non
condensing)
MIL-STD-810F 95%
Sinusoidal vibration N/A
Random vibration EN 61373
Shock EN 61373 30 g / 18 ms
Salt Fog MIL-STD-810F
Sand EN 60529 IP65
Rain EN 60529 IP65
Dust / Metallic Dust EN 60529 IP65
9. EMI / EMC
Characteristic Qualification standard
or equivalent
Applied Level (when
relevant)
Operating Frequencies 128 kHz and 9,984 MHz
Emission EN 50121-3-2
Immunity EN 50121-3-2
FCC Part 15
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 7 / 9 -
Siemens Transportation Systems exclusive property
10. GLOSSARY
CBTC Communication Based Train
Control
CC Carborne Controller
EMC ElectroMagnetic Compatibility
EMI ElectroMagnetic Induction
IP Degree of Protection
N/A Not Applicable
OBCU On Board Computing Unit
TIA Transponder Interrogator
Antenna
TOR Top Of Rail
11. REFERENCES
Canarsie Line CBTC System Contract S-32701
MIL-STD-810F
EN 50121-3
EN 60529
EN 61373
UTE C80 810
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 8 / 9 -
Siemens Transportation Systems exclusive property
ANNEXE A : FCC INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
In accordance with FCC requirements, changes or modifications not expressly approved by
Siemens Transportation Systems could void the user's authority to operate this product.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
New York City Transit
Réf. : DEL/NYL/39.1354.01/GLE/GLE Ed/Rév :0002/00 Trad.: EN
Mémo : 624480 Date : 08/02/2002
TRANSPONDER INTERROGATOR ANTENNAE
(TIA)
- 9 / 9 -
Siemens Transportation Systems exclusive property
END OF DOCUMENT
