Siemens ELN1V1 Industrial WLAN Access Point User Manual SCALANCE W760 W720

Siemens AG Industrial WLAN Access Point SCALANCE W760 W720

Contents

Operating Instructions

SCALANCE W760/W720
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SIMATIC NET
Industrial Wireless LAN
SCALANCE W760/W720
Operating Instructions
03/2015
C79000
-G8976-C322-05
Information on the Internet
1
Introduction
2
Description
3
Mounting
4
Connection
5
Technical data
6

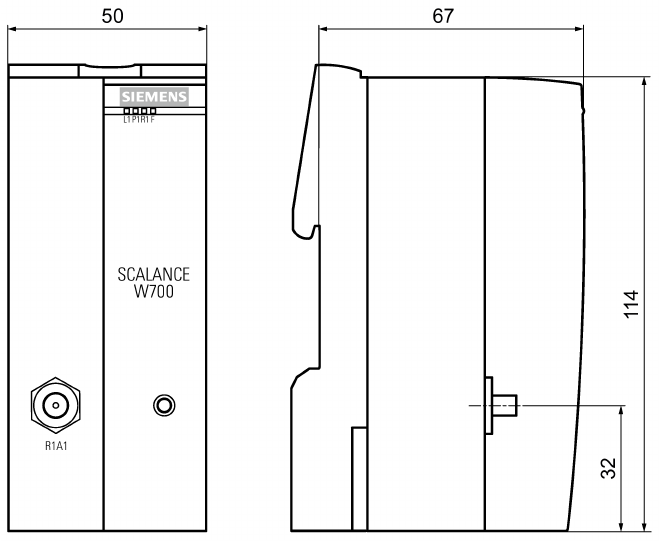

Dimension drawings
7
Approvals
8
Siemens AG
Division Process Industries and Drives
Postfach 48 48
9
0026 NÜRNBERG
GERMANY
C79000-G8976-C322-05
Ⓟ
05/2016 Subject to change
Copyright © Siemens AG 2014 - 2015.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 3
Contents
1 Information on the Internet ...................................................................................................................... 5
2 Introduction ............................................................................................................................................. 7
2.1 Information on the Operating Instructions ................................................................................ 7
2.2 Structure of the type designation .............................................................................................. 8
2.3 Security information .................................................................................................................. 8
3 Description .............................................................................................................................................. 9

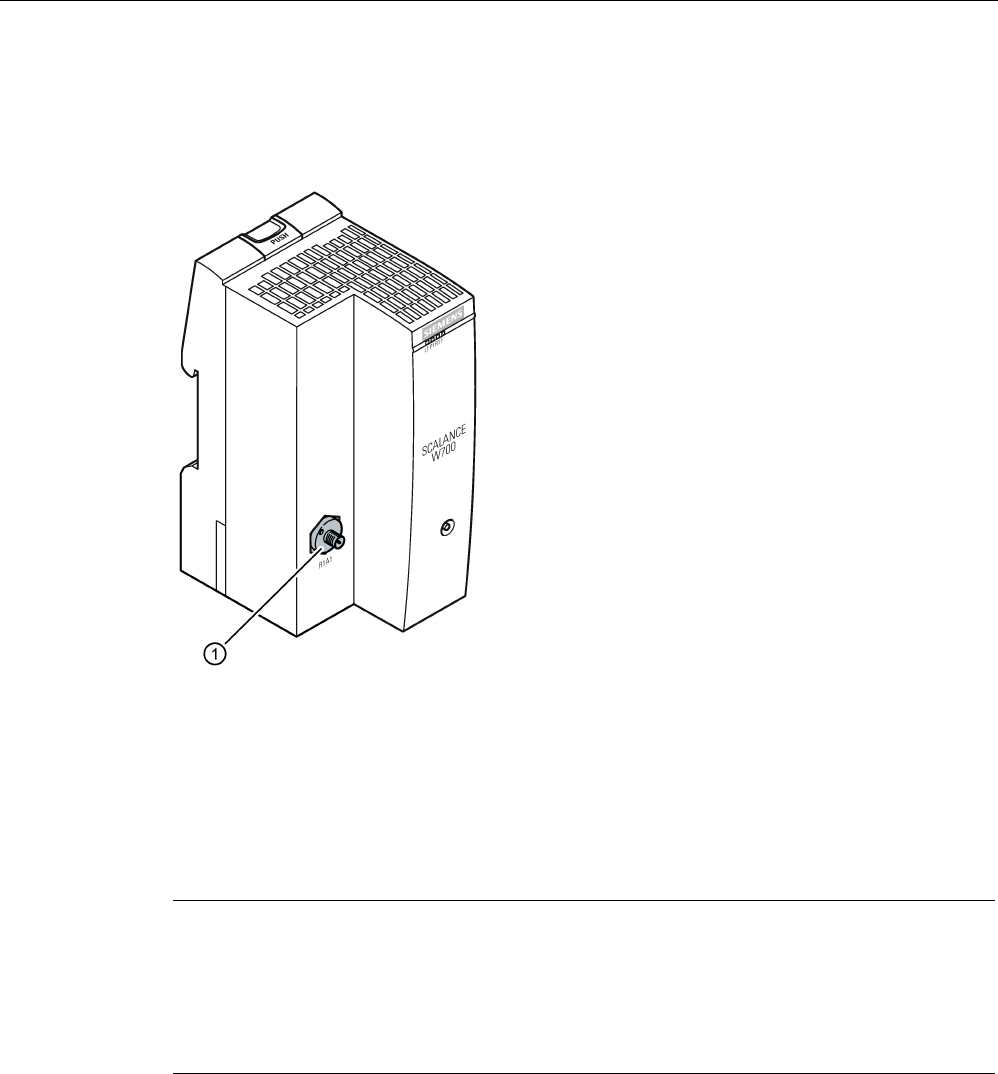

3.1 Components of the product ...................................................................................................... 9

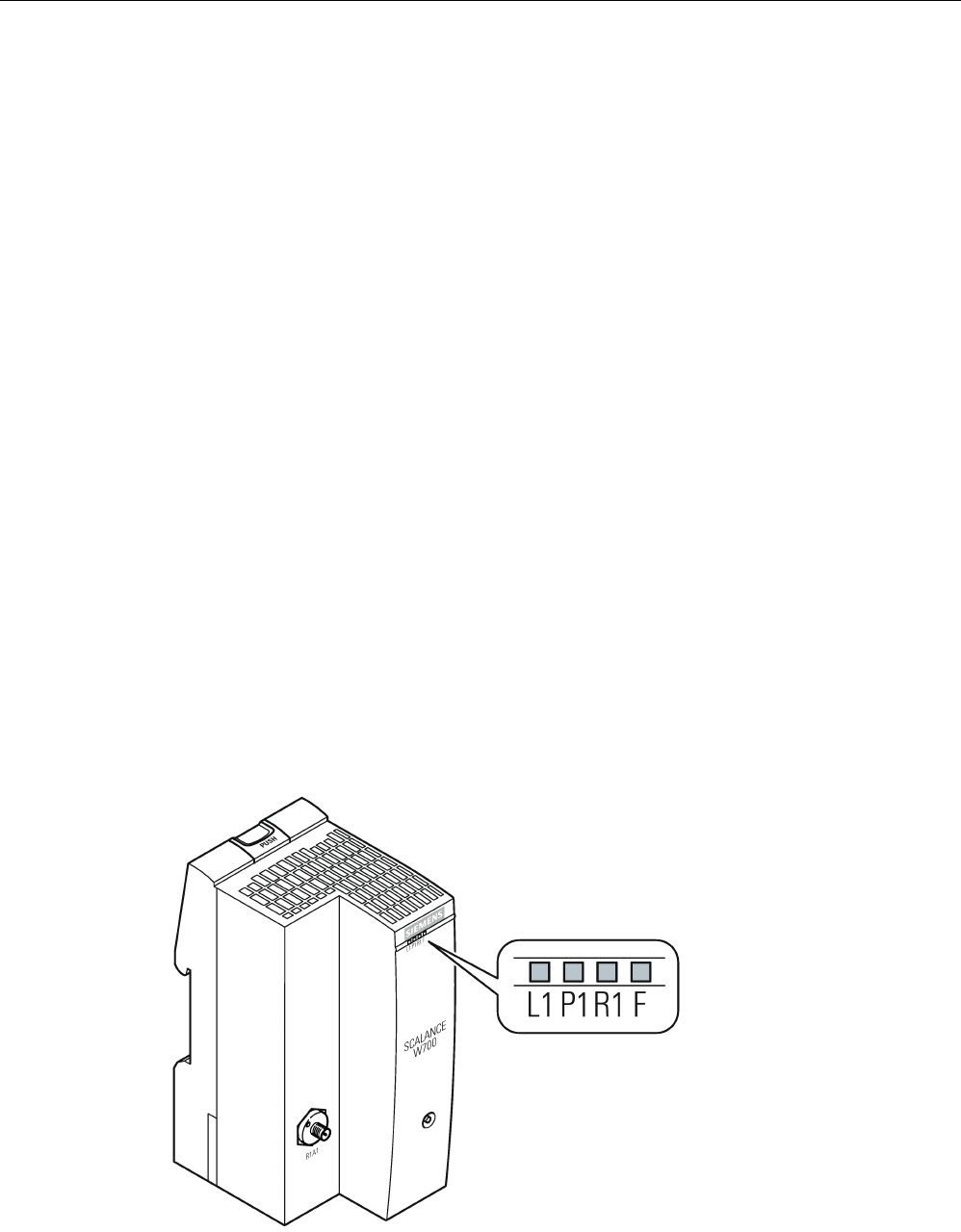

3.2 LED display ............................................................................................................................... 9

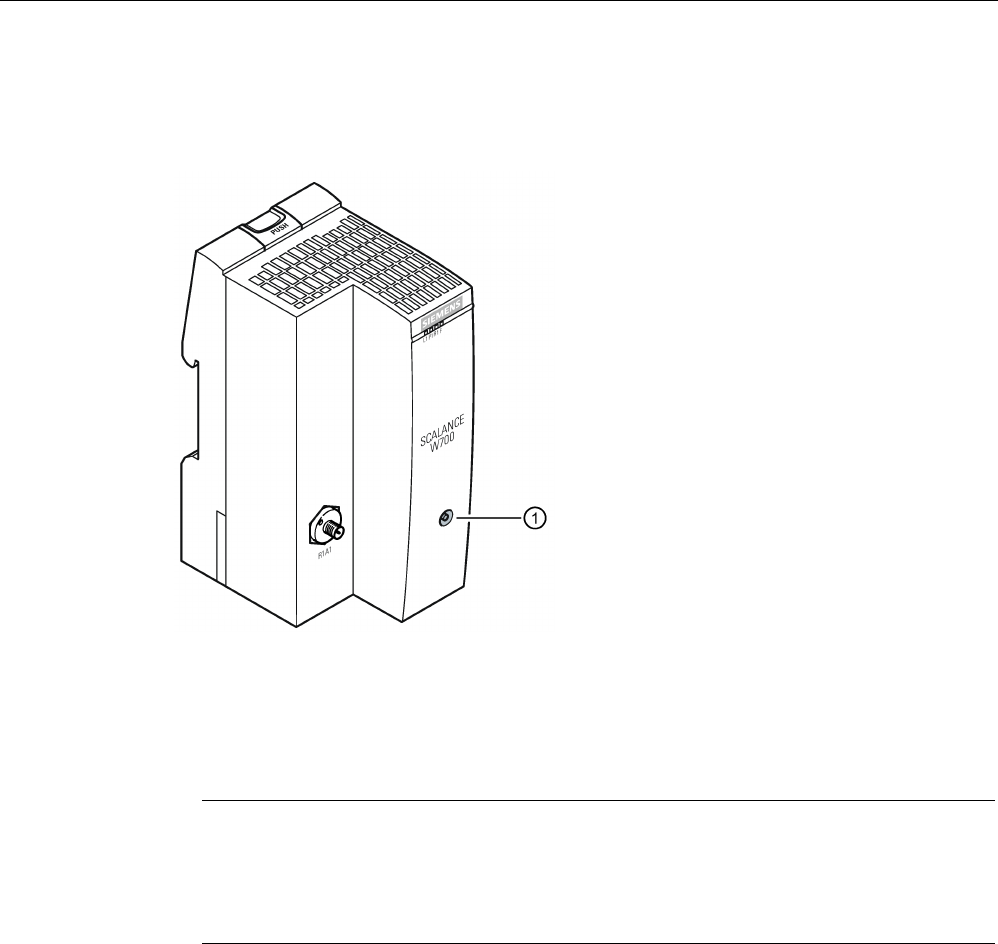

3.3 Reset button ............................................................................................................................ 11
4 Mounting ............................................................................................................................................... 13
4.1 Installing on a DIN rail / removing ........................................................................................... 14
5 Connection ........................................................................................................................................... 15
5.1 Lightning protection, power supply and grounding ................................................................. 15

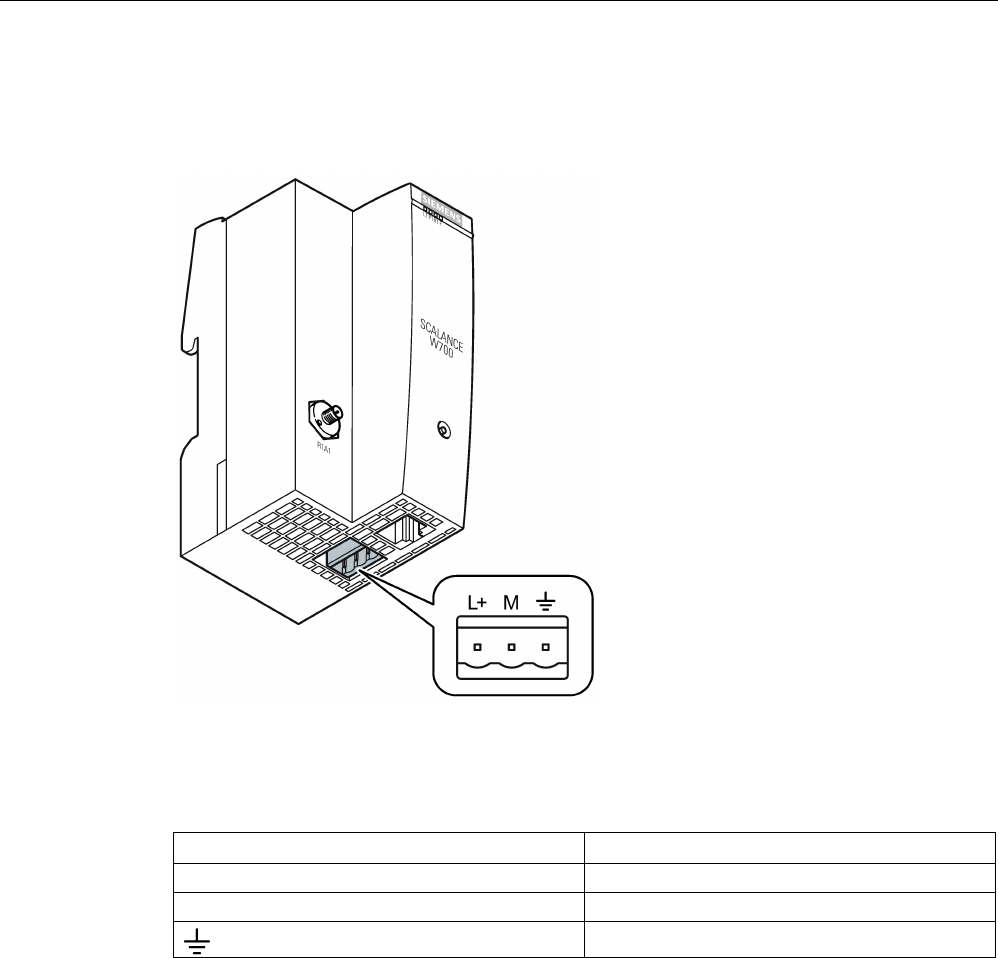

5.2 Power supply .......................................................................................................................... 19

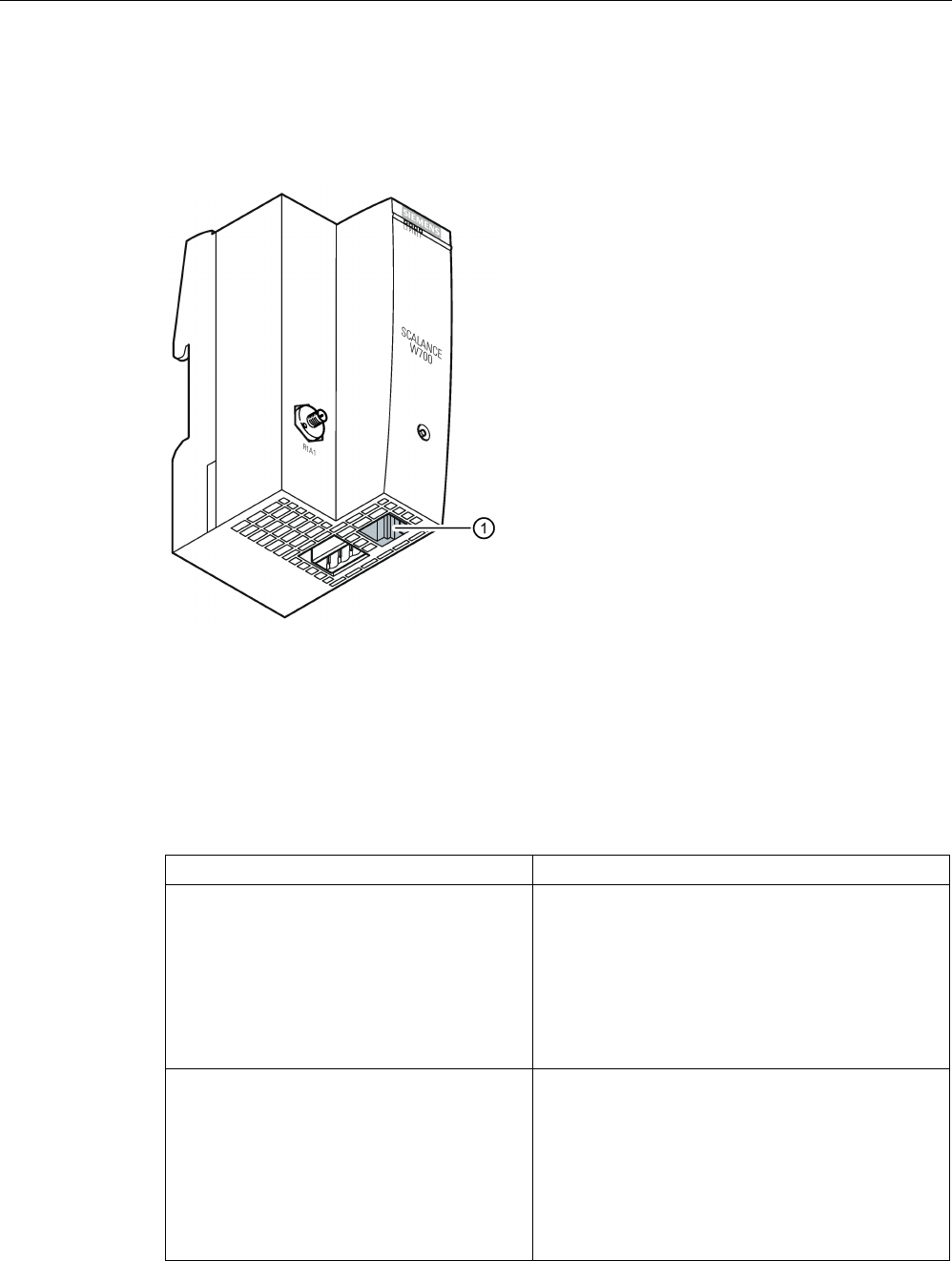

5.3 Ethernet .................................................................................................................................. 20
5.4 Suitable cables for power supply and Ethernet ...................................................................... 20
5.5 Antenna connector .................................................................................................................. 21
5.6 Suitable antenna cables and antennas ................................................................................... 22
6 Technical data ...................................................................................................................................... 25
6.1 Technical specifications W761/W722/W721 RJ-45 ................................................................ 25
7 Dimension drawings .............................................................................................................................. 27
8 Approvals .............................................................................................................................................. 29
Index..................................................................................................................................................... 31
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 5

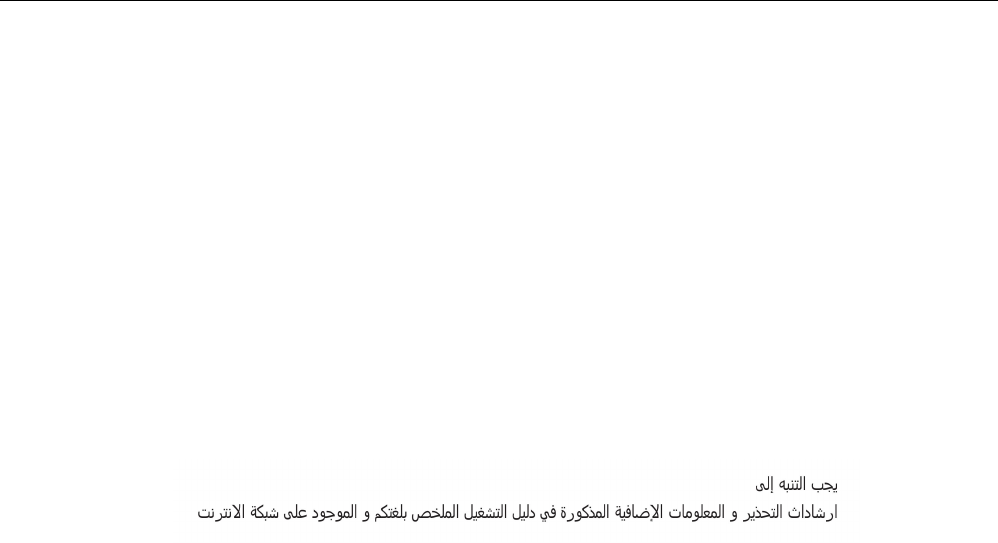

Information on the Internet
1
Bitte beachten Sie die Warnhinweise und zusätzlichen Informationen in der
Kompaktbetriebsanleitung in Ihrer Sprache im Internet:
http://support.automation.siemens.com/ww/view/at/10806097
http://support.automation.siemens.com/ww/view/ch/10806097
http://support.automation.siemens.com/ww/view/de/10806097
http://support.automation.siemens.com/ww/view/li/10806097
http://support.automation.siemens.com/ww/view/lu/10806097
Please observe the warnings and additional information in the compact operating
instructions in your language in the Internet:
http://support.automation.siemens.com/ww/view/au/10806097
http://support.automation.siemens.com/ww/view/ca/10806097
http://support.automation.siemens.com/ww/view/gb/10806097
http://support.automation.siemens.com/ww/view/ie/10806097
http://support.automation.siemens.com/ww/view/us/10806097
http://support.automation.siemens.com/ww/view/za/10806097
Veuillez tenir compte des avertissements et informations supplémentaires de la notice de
service dans votre langue sur Internet:
http://support.automation.siemens.com/ww/view/be/10806097
http://support.automation.siemens.com/ww/view/ch/10806097
http://support.automation.siemens.com/ww/view/fr/10806097
http://support.automation.siemens.com/ww/view/lu/10806097
Si prega di tenere conto delle avvertenze e ulteriori informazioni nell’istruzione operativa
compatta nella relativa lingua in Internet:
http://support.automation.siemens.com/ww/view/it/10806097
Se ruega tener en cuenta las advertencias y las informaciones complementarias contenidas
en las instrucciones de servicio (resumen) en español en Internet:
http://support.automation.siemens.com/ww/view/cl/10806097
http://support.automation.siemens.com/ww/view/es/10806097
Dbejte prosím na výstražné pokyny a doplňkové informace v kompaktním návodu k obsluze
ve vašem jazyce na internetu:
http://support.automation.siemens.com/ww/view/cz/10806097
Vær venligst opmærksom på de advarselsanvisninger og ekstra informationer der findes på
dit sprog i kompaktdriftsvejledningen på internettet:
http://support.automation.siemens.com/ww/view/dk/10806097
Noudata lyhyen käyttöoppaan sisältämiä varoituksia ja huomio sen muutkin tiedot. Oman
kielisesi käyttöoppaan löydät internetistä osoitteesta:
http://support.automation.siemens.com/ww/view/fi/10806097
Λάβετε υπόψη τις υποδείξεις προειδοποίησης και τις πρόσθετες πληροφορίες των
συνοπτικών οδηγιών χρήσης που παρέχονται στη γλώσσα σας στο Διαδίκτυο:
http://support.automation.siemens.com/ww/view/gr/10806097
请注意互联网上精编版操作说明相应语言版本中的警告提示和附加信息：
http://support.automation.siemens.com/ww/view/cn/10806097
Information on the Internet
SCALANCE W760/W720
6 Operating Instructions, 03/2015, C79000-G8976-C322-05
http://support.automation.siemens.com/ww/view/hk/10806097
http://support.automation.siemens.com/ww/view/sg/10806097
Kérjük, vegye figyelembe az interneten található, az Ön anyanyelvén íródott kompakt
használati útmutatóban található figyelmeztetéseket és további információkat:
http://support.automation.siemens.com/ww/view/hu/10806097
Skoðið vel viðvaranir og aðrar upplýsingar í notkunarleiðbeiningunum á ykkar tungumáli á
internetinu:
http://support.automation.siemens.com/ww/view/is/10806097
インターネットサイトにある各言語の注意事項および追加情報を参照してください:
http://support.automation.siemens.com/ww/view/jp/10806097
사이트에 있는 귀하의 언어로 된 콤팩트 사용 설명서에 명시된 경고 지침 및 추가 정보를
준수하십시오:
http://support.automation.siemens.com/ww/view/kr/10806097
http://support.automation.siemens.com/ww/view/kw/10806097
Neem goed nota van de waarschuwingen en extra informatie in de compacte
gebruiksaanwijzing in uw taal op internet:
http://support.automation.siemens.com/ww/view/be/10806097
http://support.automation.siemens.com/ww/view/nl/10806097
Vennligst følg advarslene og annen informasjon i den kompakte bruksanvisningen, som du
finner på ditt språk på internett:
http://support.automation.siemens.com/ww/view/no/10806097
Proszę zwrócić uwagę na ostrzeżenia oraz dodatkowe informacje w kompaktowej instrukcji
obsługi, dostępnej w odpowiednim języku w internecie:
http://support.automation.siemens.com/ww/view/po/10806097
Observera varningshänvisningarna och extrainformationerna i kompaktbruksanvisningen
som finns på ditt språk på internet:
http://support.automation.siemens.com/ww/view/se/10806097
İnternette kendi dilinizdeki kompakt işletim kılavuzunda yer alan uyarı notlarına ve ek
bilgilere lütfen dikkat edin:
http://support.automation.siemens.com/ww/view/tr/10806097
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 7
Introduction
2
2.1
Information on the Operating Instructions
Validity of the Operating Instructions
These operating instructions cover the following products:
Article no. of the RoW version
Article no. of the US version
Access point
SCALANCE W761-1 RJ-45
6GK5761-1FC00-0AA0
6GK5761-1FC00-0AB0
Ethernet client modules
SCALANCE W722-1 RJ-45
(iFeatures)
6GK5722-1FC00-0AA0 6GK5722-1FC00-0AB0
SCALANCE W721-1 RJ-45
6GK5721-1FC00-0AA0
6GK5721-1FC00-0AB0
These operating instructions apply to the following software version:
● SCALANCE W760/W720 with firmware as of Version 5.2
Purpose of the Operating Instructions
Using the Operating Instructions, you will be able to install and connect the SCALANCE
W760/W720 correctly. The configuration and the integration of the device in a WLAN are not
described in these instructions.
Documentation on the accompanying CD
You will find detailed information about configuration in the SCALANCE W700 configuration
manuals on the accompanying SIMATIC NET IWLAN CD under the file name:
PH_SCALANCE-W760-W720-WBM_76.pdf and PH_SCALANCE-W760-W720-CLI_76.pdf
Note
Make sure that you read the explanations and instructions in the
README.txt file
License conditions
Note
Open source software
Read the license conditions for open source software carefully before using the product.
You will find license conditions in the following documents on the supplied data medium:
● DOC_License_74.pdf
● DOC_LicenseScalanceW_76.htm
Introduction
2.2 Structure of the type designation
SCALANCE W760/W720
8 Operating Instructions, 03/2015, C79000-G8976-C322-05
2.2

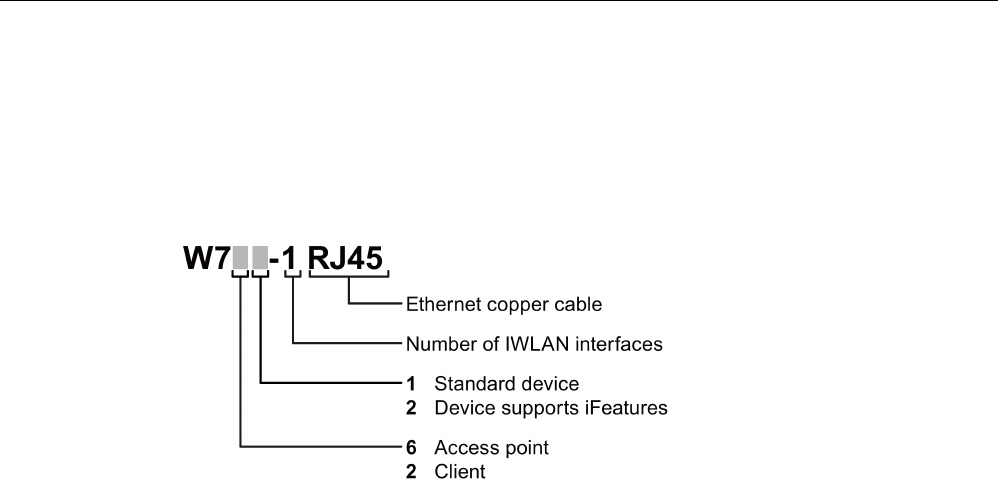

Structure of the type designation
The type designation of the device is made up of several parts that have the following
meaning:
2.3
Security information
Siemens provides automation and drive products with industrial security functions that
support the secure operation of plants or machines. They are an important component in a
holistic industrial security concept. With this in mind, our products undergo continuous
development. We therefore recommend that you keep yourself informed with respect to our
product updates. Please find further information and newsletters on this subject at:
http://support.automation.siemens.com.
To ensure the secure operation of a plant or machine it is also necessary to take suitable
preventive action (e.g. cell protection concept) and to integrate the automation and drive
components into a state-of-the-art holistic industrial security concept for the entire plant or
machine. Any third-party products that may be in use must also be taken into account.
Please find further information at: http://www.siemens.com/industrialsecurity
Description
3.1 Components of the product
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 9
Description
3
3.1
Components of the product
The following components are supplied with the product:
● SCALANCE W761 or SCALANCE W722 or SCALANCE W721
● 1 protective cap for the antenna socket
● 1 connector for the power supply
● SIMATIC NET Industrial Wireless LAN CD
Please check that the consignment you have received is complete. If the consignment is
incomplete, contact your supplier or your local Siemens office.
3.2
LED display
Information on operating status and data transfer
On the front of the housing, several LEDs provide information on the operating status of the
device:
Description
3.2 LED display
SCALANCE W760/W720
10 Operating Instructions, 03/2015, C79000-G8976-C322-05
LED
Color
Meaning
L1
Green
Power supply L1.
P1 Green There is a connection via the Ethernet interface (Link).
Green and yel-
low flashing
alternately
Data transfer via the Ethernet interface.
R1 Green
SCALANCE W760 in access point mode:
The WLAN interface is initialized and ready for operation.
SCALANCE W760 in client mode or SCALANCE W720:
There is a connection via the WLAN interface.
Green and yel-
low flashing
alternately
Data transfer over the WLAN interface.
Green
flashing briefly
SCALANCE W760 in access point mode:
With 802.11h, the channel is scanned for one minute for primary users
before the channel can be used for data traffic.
SCALANCE W760 in client mode or SCALANCE W720:
The client waits for the MAC address due to the setting "Automatic" for
the "MAC mode" parameter and is connected to no access point.
Green
flashing 3 x
short, 1 x long
SCALANCE W760 in client mode or SCALANCE W720:
The client waits for the MAC address due to the setting "Automatic" for
the "MAC mode" parameter and is connected to an access point.
F
Red
An error occurred during operation with the device.
Red
R1 flashing yel-
low at the same
time
A primary user was detected on all enabled channels.
(only when DFS is enabled or according to IEEE 802.11h)
P1
R1
Flashing yellow "Flashing" enabled using SIMATIC NET Primary Setup Tool (PST).
Note
Primary user (radar) on all enabled channels (only when DFS is enabled)
If the device detects a primary user (for example radar signals) on all enabled channels of
the WLAN interface, the LED F
is lit and
R1
flashes. No data traffic is then possible for the
next 30 minutes. After this time, the device runs the scan again and c
hecks whether a
primary user still exists. If no primary user is detected, data traffic is possible again.
The wait time of 30 minutes is necessary due to legal requirements and cannot be shortened
even by restarting the device.
Description
3.3 Reset button
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 11
3.3
Reset button
The reset button (position ①) is on the front of the housing:
Functions of the reset button
The reset button has the following functions:
● Restart of the device
Note
If you make changes to the configuration and restart immediately afterwards with the
reset button, the changes may be lost. If you restart the device using the WBM (menu
command "System > Restart") or using the CLI (command "restart" in the
Privileged
EXEC Modus), the configuration changes are always retained.
● Loading new firmware
● Restoring the default parameters (factory defaults)
You will find more detailed information in the configuration manual SCALANCE W760/W720
WBM.
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 13
Mounting
4
CAUTION
Minimum distance to antennas
Fit the device so that there is a minimum clearance of 20 cm between antennas and
persons.
WARNING
If a device is operated in an ambient temperature of more than 50 °C, the temperature of
the device housing may be higher than 70 °C. The device must therefore be installed so
that it is only accessible to service personnel or users that are aware of the reason for
restricted access and the required safety measures at an ambient temperature higher than
50 °C.
WARNING
When used in hazardous environments corresponding to Class I, Division 2 or Class I,
Zone 2, the device must be installed in a cabinet or a suitable enclosure.
General notes on use according to ATEX and IECEx
WARNING
To comply with EC Directive 94/9 (ATEX95) or the conditions of IECEx, this enclosure or
cabinet must meet the requirements of at least IP54 in compliance with EN 60529.
Mounting
4.1 Installing on a DIN rail / removing
SCALANCE W760/W720
14 Operating Instructions, 03/2015, C79000-G8976-C322-05
4.1
Installing on a DIN rail / removing
Procedure for installation
Follow the steps below to fit the SCALANCE W760/W720 to a DIN rail:
1. Place the device on the upper edge of the DIN rail as shown in the figure.
2. Press the device against the DIN rail until the DIN rail slider catch locks in place.
Procedure when removing
Follow the steps below to remove the SCALANCE W760/W720 from a DIN rail:
1. Press the release button on the top of the device to release the DIN rail catch.
2. Tilt the SCALANCE W760/W720 forward and remove the device from the DIN rail.
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 15
Connection
5
5.1
Lightning protection, power supply and grounding
Lightning protection
WARNING
Danger due to lightning strikes
Antennas installed outdoors must be within the area covered by a lightning protection
system. Make sure that all conducting systems entering from outdoors can be protected by
a lightning protection potential equalization system.
When implementing your lightning protection concept, make sure you adhere to the VDE
0182 or IEC 62305 standard.
Suitable lightning protectors are available in the range of accessories of SIMATIC NET
Industrial WLAN:
● Lightning protector LP798-1N (order no. 6GK5798-2LP00-2AA6)
● Lightning protector LP798-2N (order no. 6GK5798-2LP10-2AA6)
Connection
5.1 Lightning protection, power supply and grounding
SCALANCE W760/W720
16 Operating Instructions, 03/2015, C79000-G8976-C322-05
Note
We recommend that you use the maintenance
-free lightning protector LP798-2N.
Exception: When there is also DC power supplied via the antenna
cable. In this case, only
the lightning protector LP798
-1N can be used.
WARNING
Danger due to lightning strikes
Installing this lightning protector between an antenna and a SCALANCE W700 is not
adequate protection against a lightning strike. The LP798-1N lightening protector only
works within the framework of a comprehensive lightning protection concept. If you have
questions, ask a qualified specialist company.
Note
The requirements of EN61000
-4-5, surge immunity tests on power supply lines,
are met only
when a Blitzductor is used with 24 VDC:
BVT AVD 24
type no. 918 422
Manufacturer: DEHN+SÖHNE GmbH+Co.KG, Hans
Dehn Str. 1, Postfach 1640, D -
92306 Neumarkt, Germany
Supply voltage
WARNING
Safety extra low voltage
The equipment is designed for operation with Safety Extra-Low Voltage (SELV) by a
Limited Power Source (LPS).
This means that only SELV / LPS (Limited Power Source) complying with IEC 60950-1 / EN
60950-1 / VDE 0805-1 must be connected to the power supply terminals or the power
supply unit for the equipment power supply must comply with NEC Class 2, as described by
the National Electrical Code (r) (ANSI / NFPA 70).
If the equipment is connected to a redundant power supply (two separate power supplies),
both must meet these requirements.
WARNING
Transient overvoltages
Take measures to prevent transient voltage surges of more than 40% of the rated voltage.
This is the case if you only operate devices with SELV (safety extra-low voltage).
Connection
5.1 Lightning protection, power supply and grounding
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 17
Grounding
WARNING
Danger to life from overvoltage, fire hazard
When using outdoor antennas, the shared or even grounded pin of the circuit must be
connected to the shield of the coaxial cable and with all touchable conductive parts and
circuits. Otherwise, in the event of a fault there may be illegally high voltages on touchable
parts.
NOTICE
Damage to the device due to potential differences
To fully eliminate the influence of electromagnetic interference, the device must be
grounded. There must be no potential difference between the following parts, otherwise the
device or other connected device could be severely damaged:
• Grounding pin of the SCALANCE W700 and the ground potential of the antenna.
• Grounding pin of the SCALANCE W700 and the ground potential of a device connected
over Ethernet.
• Grounding pin of the SCALANCE W700 and the shield contact of the connected
Ethernet cable.
Connect both grounds to the same foundation earth or use an equipotential bonding cable.
WARNING
EXPLOSION HAZARD
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION
2 OR ZONE 2.
WARNING
EXPLOSION HAZARD
DO NOT OPEN WHEN ENERGIZED.
General notes on use according to ATEX and IECEx
WARNING
EXPLOSION HAZARD
DO NOT CONNECT OR DISCONNECT EQUIPMENT WHEN A FLAMMABLE OR
COMBUSTIBLE ATMOSPHERE IS PRESENT.
Connection
5.1 Lightning protection, power supply and grounding
SCALANCE W760/W720
18 Operating Instructions, 03/2015, C79000-G8976-C322-05
General notes on use in hazardous areas according to UL-HazLoc
WARNING
EXPLOSION HAZARD
DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS AREA IS KNOWN TO BE
NON-HAZARDOUS.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or non-
hazardous locations only.
This equipment is suitable for use in Class I, Zone 2, Group IIC or non-hazardous locations
only.
Connection
5.2 Power supply
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 19
5.2
Power supply
The power is supplied to the SCALANCE W760/W720 via the three-pin socket.
Socket
The three-pin socket has the following pin assignment:
Pin
Assignment
L+
+24 VDC
M
Ground
Grounding
Connection
5.3 Ethernet
SCALANCE W760/W720
20 Operating Instructions, 03/2015, C79000-G8976-C322-05
5.3
Ethernet
The SCALANCE W760/W720 has two Ethernet interfaces located on the underside of the
device (position ①).
5.4
Suitable cables for power supply and Ethernet
Cable specification
The following table lists the requirements for a cable depending on the application.
Application
Specification
Direct 24 VDC supply • Round cable cross-section with
6 to 8 mm diameter.
Two-wire cable with 0.5 to 1.5 mm2 cross-section
per wire.
• Permitted tensile load at least
100 N.
• UL listing: Type PLTC or ITC
Ethernet 1. IE FC TP standard cable GP 2 x 2 (type A)
Order no.: 6XV1 840-2AH10
2. IE TP torsion cable 2 x 2 (type C)
Order no.: 6XV1 870-2F
3. IE FC TP trailing cable 2 x 2 (type C)
Order no.: 6XV1 840 3AH10
UL listing: Type PLTC or ITC (the three named types
have this approval)
Connection
5.5 Antenna connector
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 21
5.5
Antenna connector
The SCALANCE W760/W720 has an antenna connector R1 A1 of the type R-SMA located
on the front of the device (position ①).
Procedure
Follow the steps below to connect a cable for an external antenna to a SCALANCE
W760/720:
1. Insert the connector on the antenna cable into the R-SMA socket R1 A1 (position ①) and
tighten the retainer nut on the socket (key size SW8, tightening torque 0.6 Nm).
Note
Cabinet installation
When
installing the SCALANCE W760/720 in a cabinet, you need to use a detached
antenna. Suitable connecting cables for a connection between SCALANCE W760/720 and a
detached antenna are available from SIMATIC NET. You will find detailed information in the
follow
ing section.
Connection
5.6 Suitable antenna cables and antennas
SCALANCE W760/W720
22 Operating Instructions, 03/2015, C79000-G8976-C322-05
5.6
Suitable antenna cables and antennas
N-Connect/R-SMA connecting cable
To connect an antenna with an N-Connector, the following cables are suitable:
Length
Order number
0.3 m
1 m
2 m
5 m
10 m
6XV1875-5CE30
6XV1875-5CH10
6XV1875-5CH20
6XV1875-5CH50
6XV1875-5CN10
Suitable antennas
Note
When you select an antenna, keep in mind the national approvals for your device.
Type
Properties
Order number
ANT792-6MN Omni antenna, mast/wall mounting, 6 dBi
2.4 GHz, N-Connect female
6GK5 792-6MN00-0AA6
ANT793-6MN Omni antenna, mast/wall mounting, 5 dBi
5 GHz, N-Connect female
6GK5 793-6MN00-0AA6
ANT793-8DJ Directional antenna, mast/wall mounting,
18 dBi
5 GHz, 2 x N-Connect female
6GK5 793-8DJ00-0AA0
ANT793-8DK Directional antenna, mast/wall mounting,
23 dBi
5 GHz, 2 x N-Connect female
6GK5 793-8DK00-0AA0
ANT793-8DP Directional antenna, mast/wall mounting,
13 / 13.5 dBi
4.9 GHz and 5 GHz, N-Connect female
6GK5793-8DP00-0AA0
ANT795-6DC Wide angle antenna, mast/
wall mounting, 9 dBi
2.4 GHz and 5 GHz, N-Connect female
6GK5 795-6DC00-0AA0
ANT793-6DG Wide angle antenna, mast/
wall mounting, 9 dBi
5 GHz, 2 x N-Connect female
6GK5 793-6DG00-0AA0
ANT795-6MN Omni antenna, mounted on roof/vehicle,
6/8 dBi
2.4 GHz and 5 GHz, N-Connect female
6GK5 795-6MN10-0AA6
ANT795-4MC Omnidirectional antenna, 3/5 dBi, 2.4 GHz
and 5 GHz, IP65, N-Connect male for
direct installation on the device, straight
connector.
6GK5 795-4MC00-0AA3
Connection
5.6 Suitable antenna cables and antennas
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 23
ANT795-4MD Omnidirectional antenna, 3/5 dBi, 2.4 GHz
and 5 GHz, IP65, N-Connect male for
direct installation on the device, 90° con-
nector.
6GK5 795-4MD00-0AA3
ANT795-4MA Omni antenna, directly on the device, 3/5
dBi
2.4 GHz and 5 GHz, IP30, R-SMA con-
nector male for direct mounting on the
device, connector angle adjustable 0° to
180°.
6GK5 795-4MA00-0AA3
ANT792-4DN RCoax helical antenna, circular polariza-
tion, 4 dBi, 2.4 GHz, N-connect female.
6GK5 792-4DN00-0AA6
ANT793-4MN RCoax λ5/8 antenna with vertical polariza-
tion, 6 dBi, 5 GHz, N-connect female.
6GK5 793-4MN00-0AA6
ANT795-4MX
Omni Antenna, 2/2,5 dBi, 2,4 GHz and
5GHz, IP69K, N-Connect male
6GK5795-4MX00-0AA0
ANT795-6MP
Omni Antenna 5/7 dBi, 2,4 GHz and 5GHz,
IP67, N-Connect female
6GK5795-6MP00-0AA0
ANT896-6MM
Omni Antenna for Mobile Wireless, WLAN
and GPS, WLAN: 6/7 dBi, 2,4 GHz and
5GHz, IP68, IP69 K, QMA-
Connect female,
Port 2
6GK5896-6MM00-0AA0
ANT793-8DL
Directional Antenna, 5 GHz, 14dBi, IP66,
2xN-Connect female
6GK5793-8DL00-0AA0
IWLAN RCoax cable 2.4
GHz PE 1/2"
Omni antenna, 0 dBi
2.400 - 2.485 GHz, N-Connect female.
6XV1875-2A
IWLAN RCoax cable 5
GHz PE 1/2"
Omni antenna, 0 dBi
5.150 - 5.875 GHz, N-Connect female.
6XV1875-2D
NOTICE
ANT795-4MA
The ANT795-4MA antenna has degree of protection IP30 and is therefore suitable for dry
environments.
Note
ANT793-8DJ
The antenna ANT793
-8DJ may only be used with the antenna cable 6XV1875-5CH50 (5 m
length) or 6XV1875
-5CN10 (10 m length). Other antenna cables are not permitted.
Notice for USA/Canada
Only one antenna per device can be used (connected to R1A1, R1A2 or R2A1, R2A2).
Connection
5.6 Suitable antenna cables and antennas
SCALANCE W760/W720
24 Operating Instructions, 03/2015, C79000-G8976-C322-05
Note
ANT793-8DK
The antenna ANT793
-8DK may only be used with the antenna cable 6XV1875-
5CN10 (10 m
length). Other antenna
cables are not permitted.
Notice for USA/Canada
Only one antenna per device can be used (connected to R1A1, R1A2 or R2A1, R2A2).
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 25
Technical data
6
6.1
Technical specifications W761/W722/W721 RJ-45
The following technical specifications apply to the following devices:
● SCALANCE W761-1 RJ-45
● SCALANCE W722-1 RJ-45
● SCALANCE W721-1 RJ-45
Note
You will find detailed information on the transmit power and receiver sensitivity in the
document "Performance data 802.11 abgn SCALANCE W760/W720" on the supplied data
medium (REF_W760
-RadioInterface.pdf).
SCALANCE W761/W722/W721
Data transfer
Ethernet transfer rate
10 / 100 Mbps
Wireless transmission rate
1 ... 150 Mbps
Wireless standards supported IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Attachment to Industrial Ethernet
Quantity
1
Design
RJ-45 jack
Properties
Half duplex/full duplex, autocrossover, autonegotiation, autosensing, floating
Permitted cable lengths (Ethernet)
(Alternative combinations per length range)
0 ... 55 m • Max. 55 m IE TP Torsion Cable with IE FC RJ45 Plug 180
• Max. 45 m IE TP Torsion Cable with IE FC RJ45 + 10 m TP Cord via
IE FC RJ45 Outlet
0 ... 85 m • Max. 85 m IE FC TP Marine/Trailing/Flexible/FRNC/Festoon/Food Cable with
IE FC RJ45 Plug 180
• Max. 75 m IE FC TP Marine/Trailing/Flexible/FRNC/Festoon/Food Cable +
10 m TP Cord via IE FC RJ45 Outlet
0 ... 100 m • Max. 100 m IE FC TP Standard Cable with IE FC RJ45 Plug 180
• Max. 90 m IE FC TP Standard Cable + 10 m TP Cord via IE FC RJ45 Outlet
Technical data
6.1 Technical specifications W761/W722/W721 RJ-45
SCALANCE W760/W720
26 Operating Instructions, 03/2015, C79000-G8976-C322-05
SCALANCE W761/W722/W721
Wireless interface
Antenna connector
Quantity
1
Design
R-SMA female
Impedance
50 Ω nominal
Frequency range 2412 ... 2480 MHz
4920 ... 5875 MHz
Electrical data
Power supply
Supply voltage
24 VDC Safe Extra Low Voltage (SELV)
Permitted range
19.2 to 28.8 VDC
Design
Terminal block, 3 terminals
Fusing
2.5 A / 24 VDC
Current consumption
Typical
150 mA
Power loss at 24 VDC
Typical
3.6 W
Permitted ambient conditions
Ambient temperature During operation with the rack in-
stalled horizontally
0 ℃ to +55 ℃
During operation with the rack in-
stalled vertically
0 ℃ to +55 ℃
During storage
-40 ℃ to +85 ℃
During transportation
-40 ℃ to +85 ℃
Relative humidity
During operation
≤ 95% at 25 °C, no condensation
Operating altitude During operation ≤ 2,000 m above sea level at max. 55 °C
ambient temperature
Contaminant concentration According to IEC 60721
Design, dimensions and weight
Degree of protection
IP20
Weight
130 g
Dimensions (W x H x D)
50 x 114 x 74 mm
Installation options
Installation on a DIN rail
Mean time between failure (MTBF)
at 40 °C ambient temperature
106.51 years
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 27
Dimension drawings
7
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 29
Approvals
8
You will find the approvals of the products in the reference work "Approvals SCALANCE
W700 802.11n" on the Internet pages of Siemens Industry Online Support:
● Using the search function:
support.automation.siemens.com (http://support.automation.siemens.com/WW/view/en)
Enter the entry ID of the relevant manual as the search item.
● In the navigation panel on the left-hand side in the area "Industrial Communication":
Industrial communication
(http://support.automation.siemens.com/WW/view/en/10805878/133300)
Go to the required product group and make the following settings:
"Entry list" tab, Entry type "Manuals / Operating Instructions"
You will find the documentation for the SIMATIC NET products relevant here on the data
storage medium that ships with some products:
● Product CD / product DVD
● SIMATIC NET Manual Collection
● SIMATIC NET IWLAN CD
SCALANCE W760/W720
Operating Instructions, 03/2015, C79000-G8976-C322-05 31
Index
A
Antenna
Connector, 21
Antennas
Specification, 22
Article numbers, 7
C
Cables
Specification, 20, 22
Connectors, 9
D
Dimension drawing, 27
Documentation on the CD, 7
E
Ethernet interface, 20
G
Grounding, 15
I
Installation
DIN rail, 14
Interfaces, 25
L
LED display, 9
Lightning protection, 15
Loading firmware, 11
P
Primary user (radar), 9
Protective cap, 9
R
Reset button, 11
Resetting the device, 11
Restart of the device, 11
S
Safety extra low voltage, 16
Scope of delivery, 9
Supply voltage, 16
T
Technical specifications, 25
Type designation, 8
Index
SCALANCE W760/W720
32 Operating Instructions, 03/2015, C79000-G8976-C322-05
