Siemens MD720-3 GSM/GPRS Modem User Manual SINAUT MD720 3

Siemens AG GSM/GPRS Modem SINAUT MD720 3

Manual

Preface, Contents
Introduction 1
Inserting the SIM card 2
Connecting the device and
switching on the device 3
SINAUT MD720-3 in Terminal
Mode 4
SINAUT MD720-3 in OPC Mode 5
Service function 6
Technical Data 7
Glossary
SIMATIC NET
GPRS/GSM-Modem
SINAUT MD720-3
System manual
C79000-G8976-C211
Edition 02/2006
2
Safety Guidelines
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
!
Danger
indicates that death or severe personal injury will result if proper precautions are not taken.
!
Warning
indicates that death or severe personal injury may result if proper precautions are not taken.
!
Caution
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
Caution
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
Notice
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The device/system may only be set up and used in conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by qualified personnel. Within the context of the safety notes
in this documentation qualified persons are defined as persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with established safety practices and standards.
Prescribed Usage
Note the following:
!
Warning
This device may only be used for the applications described in the catalog or the technical description and only in
connection with devices or components from other manufacturers which have been approved or recommended
by Siemens. Correct, reliable operation of the product requires proper transport, storage, positioning and
assembly as well as careful operation and maintenance.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Automation and Drives
Postfach 48 48
90437 NÜRNBERG
DEUTSCHLAND
Order No.: C79000-G8976-C211
Edition 02/2006
Copyright © Siemens AG 2006
Technical data subject to change
SINAUT MD720-3
C79000-G8976-C211 3
General
The product SINAUT MD720-3 complies with European standard EN60950, 05.2003,
Safety of Information Technology Equipment.
Read the installation instructions carefully before using the device.
Keep the device away from children, especially small children.
The device must not be installed or operated outdoors or at damp locations.
Do not operate the device if the connecting leads or the device itself are damaged.

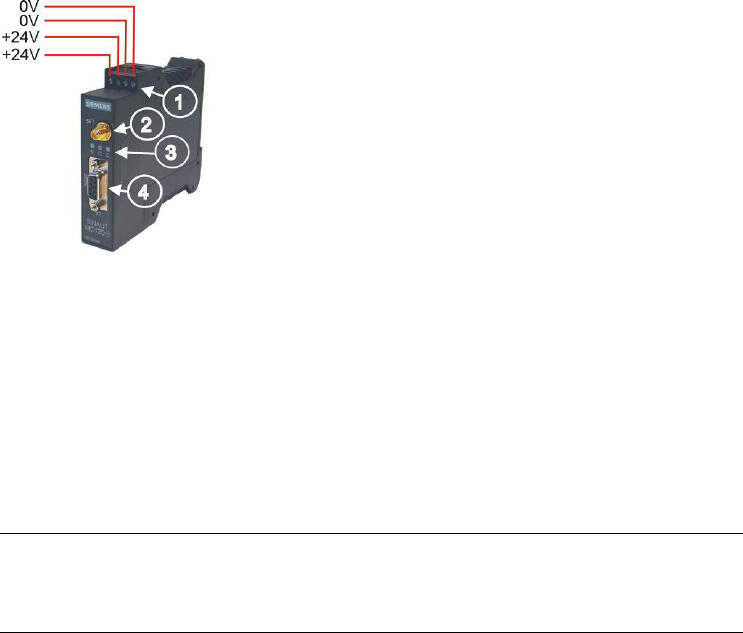

External power supply
Use only an external power supply which also complies with EN60950. The output
voltage of the external power supply must not exceed 30VDC. The output of the
external power supply must be short-circuit proof.
!
Warning
The power supply unit to supply the SINAUT MD720-3 must comply with NEC Class 2
circuits as outlined in the National Electrical Code (ANSI/NFPA 70) only.
When connecting to a battery or accumulator, make sure that an all-pole circuit-
breaker (main battery switch) with sufficient selectivity and a fuse with sufficient
selectivity are provided between the device and the battery or accumulator.
Please pay regard to section 7 Technical Data of the system manual, as well as the
installation and utilisation regulations of the respective manufacturers of the power
supply, the battery or the accumulator.

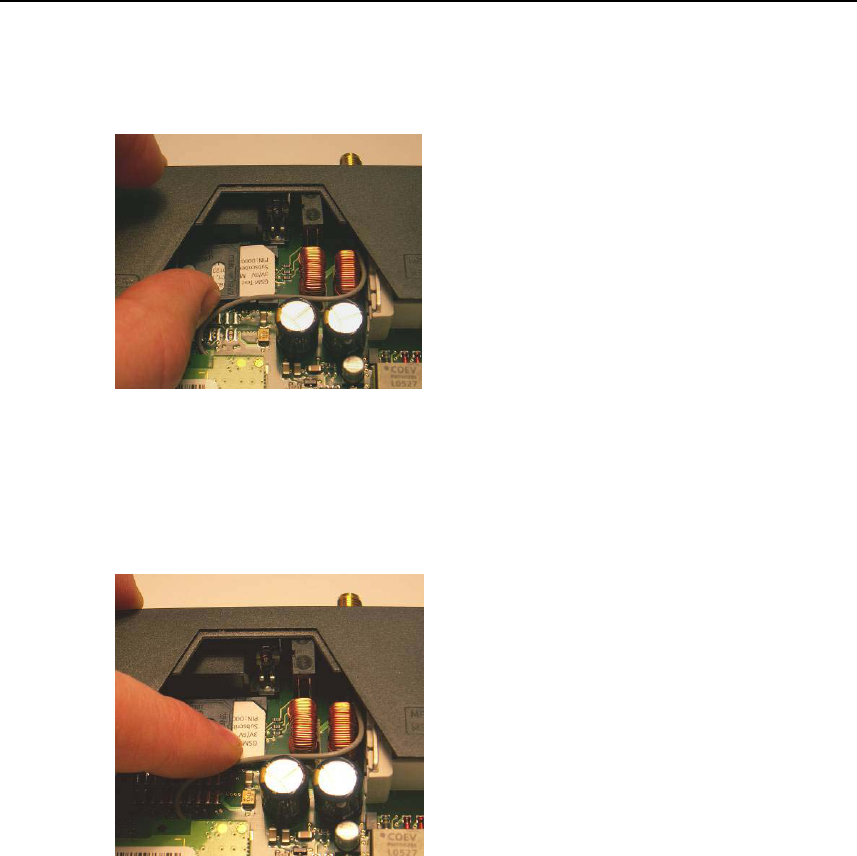

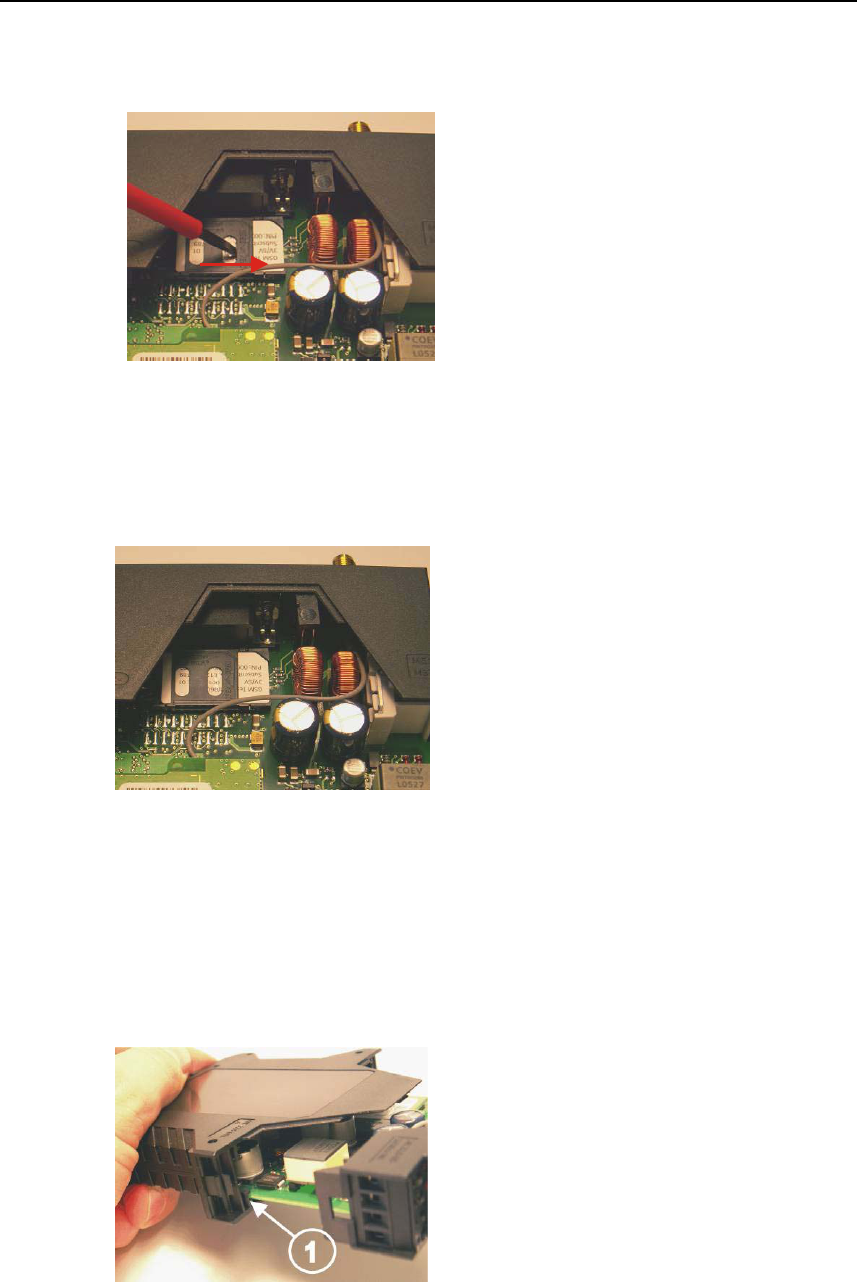

SIM card

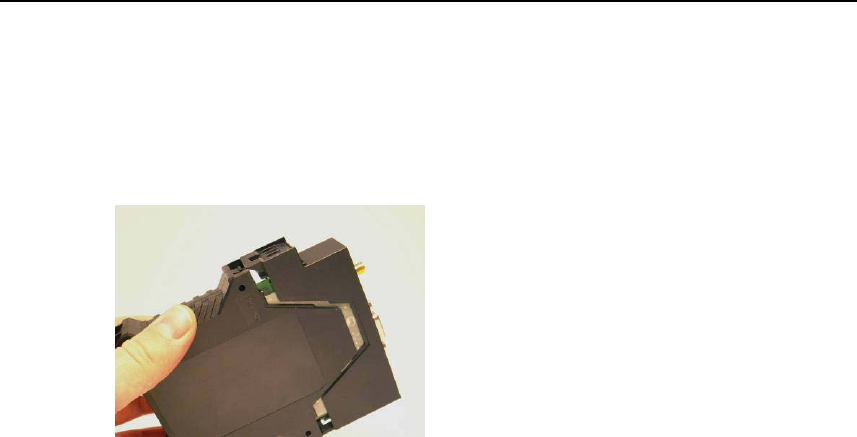

To install the SIM card the device must be opened. Before opening the device,
disconnect it from the supply voltage. Static charges can damage the device when it is
open. Discharge the electric static of your body before opening the device. To do so,
touch an earthed surface, e.g. the metal casing of the switch cabinet. Please pay
regard to section 2 Inserting the SIM card of this system manual.
Handling cables
Never pull a cable connector out of a socket by its cable, but pull on the connector
itself. Cable connectors with screw fasteners (D-Sub) must always be screwed on
tightly. Do not lay the cable over sharp corners and edges without edge protection. If
necessary, provide sufficient strain relief for the cables.
For safety reasons, make sure that the bending radius of the cables is observed.
SINAUT MD720-3
4 C79000-G8976-C211
Failure to observe the bending radius of the antenna cable results in the deterioration
of the system's transmission and reception properties. The minimum bending radius
static must not fall below 5 times the cable diameter and dynamic below 15 times the
cable diameter.
Radio device
!
Warning
Never use the device in places where the operation of radio devices is prohibited. The
device contains a radio transmitter which could in certain circumstances impair the
functionality of electronic medical devices such as hearing aids or pacemakers. You
can obtain advice from your physician or the manufacturer of such devices. To
prevent data carriers from being demagnetised, do not keep disks, credit cards or
other magnetic data carriers near the device.
Installing antennas
!
Warning
The emission limits as recommended by the Commission on Radiological Protection
(13/14 September 2001) must be observed.
Installing an external antenna
When installing an antenna outdoors it is essential that the antenna is fitted correctly
by a qualified person. Lightning Protection Standard VDE V 0185 Sections 1 to 4, in its
current version, and further standards must be observed.
Lightning protection category for buildings
For outdoor installation, the antenna may be fitted only within the lightning protection
zones O/E or 1. These lightning protection zones are prescribed by the lightning
protection spherical radius.
SINAUT MD720-3
C79000-G8976-C211 5
The EMV lightning protection zone concept
The EMV lightning protection zone concept is to be observed. To avoid large induction
loops a lightning protection equipotential bonding is to be used. If the antenna or
antenna cable is installed near to the lightning protection system, the minimum
distances to the lightning protection system must be observed. If this is not possible,
insulated installation as described in VDE V 0185 Sections 1 to 4, in its current
version, is essential.
FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer / installer or an experienced radio/TV technician for help.
FCC Part 15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
FCC Part 15.21
Modifications not expressly approved by this company could void the user's authority
to operate the equipment.
This device contains 900 MHz GSM and 1800 DCS functions that are not operational in U.S.
territories.
SINAUT MD720-3
6 C79000-G8976-C211
Installation by qualified personnel only
You may only use the SINAUT MD720-3 with an antenna of the SINAUT MD720-3
accessory program.
The installation of the SINAUT MD720-3 and the antenna as well as servicing is to be
performed by qualified technical personnel only. When servicing the antenna, or
working at distances closer than those listed below, ensure the transmitter has been
disabled.
RF Exposure mobile
!
Warning !
Typically, the antenna connected to the transmitter is an omni-directional antenna with
0dB gain. Using this antenna the total composite power in PCS mode is smaller than 1
watt ERP.
The internal / external antennas used for this mobile transmitter must provide a
separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter."
!
Warning !
This is a class A equipment. This equipment can disturb other electric equipment in
living areas; in this case the operator can be demanded to carry out appropriate
measures.
Caution
Please note that data packets exchanged for setting up connections, reconnecting,
connect attempts (e.g. Server switched off, wrong destination address, etc.) as well as
keeping the connection alive are also subject to charge.
Preface
Purpose of this documentation
This documentation will support you on your way to successful application of
SINAUT MD720-3. It will introduce you to the topic in clear and
straightforward steps and provide you with an overview of the hardware of
the SINAUT MD720-3 GSM/GPRS modem. This documentation will help you
during installation and commissioning of SINAUT GSM/GPRS modem and
explains the diagnostics and service options available.
Validity of the documentation
This manual relates to the following product versions
• GPRS/GSM modem MD720-3 hardware release 3.x
SIMATIC Technical Support
You can contact Technical Support for all A&D products
• Phone: +49 (0) 180 5050 222
• Fax: +49 (0) 180 5050 223
You will find further information on our Technical Support on the Web at
http://www.siemens.com/automation/service
Service & Support on the Internet
In addition to our documentation services, you can also make use of all our
knowledge on the Internet:
http://www.siemens.com/automation/service&support
Here, you will find:
• Up-to-date product information (Updates), FAQs (Frequently Asked
Questions), Downloads, Tips and Tricks.
• The Newsletter keeps you constantly up to date with the latest
information on the products you use.
• The Knowledge Manager will find the documents you need.
• In the Forum, users and specialists exchange information and
experience.
• You can find your local contact for Automation & Drives in our contacts
database.
• You will find information on local service, repairs, spares and much more
under the rubric "Service".
• You will find the latest version of this documentation under the entry ID
2549543.
SINAUT MD720-3
C79000-G8976-C211 7
Preface
Do you still have questions relating to the use of the products described in
the manual? If so, then please talk to your local Siemens contact.
You will find the addresses in the following sources:
• On the Internet at: http://www.siemens.com/automation/partner
• On the Internet at http://www.siemens.com/simatic-net specifically for
SIMATIC NET products
• In the catalog CA 01
• In the catalog IK PI specifically for SIMATIC NET products
SIMATIC training center
To familiarize you with the systems and products, we offer a range of
courses. Please contact your regional training center or the central training
center in
D-90327 Nuernberg.
Phone: +49 (911) 895-3200
http://www.sitrain.com
SIMATIC NET training center
For courses specifically on products from SIMATIC NET, please contact:
SIEMENS AG
Siemens AG, A&D Informations- und Trainings-Center
Dynamostr. 4
D-68165 Mannheim
Phone: +49 (621) 4 56-23 77
Fax: +49 (621) 4 56-32 68
SINAUT MD720-3
8 C79000-G8976-C211
Contents
1 Introduction................................................................................................................... 11
2 Inserting the SIM card .................................................................................................. 13
3 Connecting the device and switching on the device................................................ 21
4 SINAUT MD720-3 in Terminal Mode............................................................................ 25
4.1 Terminal mode activation................................................................................... 25
4.2 Operating requirements: GPRS subscriber contract ......................................... 26
4.3 Functions of the LEDs in Terminal Mode .......................................................... 26
4.4 Terminal mode operation................................................................................... 27
4.5 Entering AT commands ..................................................................................... 28
4.6 Use AT commands ............................................................................................ 30
4.7 Supported AT commands in Terminal Mode..................................................... 32
5 SINAUT MD720-3 in OPC Mode................................................................................... 53
5.1 OPC Mode activation......................................................................................... 54
5.2 Functions of the LEDs in OPC Mode................................................................. 55
5.3 PIN in OPC-Mode .............................................................................................. 56
5.4 Log in to SINAUT MICRO SC............................................................................ 58
6 Service functions.......................................................................................................... 59
6.1 Switching between Terminal mode and OPC Mode.......................................... 59
6.2 Getting the current settings and values ............................................................. 61
6.3 Service mode to download a new firmware....................................................... 62
6.4 Load factory defaults ......................................................................................... 66
7 Technical Data .............................................................................................................. 67
8 Glossary ........................................................................................................................69
SINAUT MD720-3
C79000-G8976-C211 9
Contents
SINAUT MD720-3
10 C79000-G8976-C211
Introduction 1
The SINAUT MD720-3 has two different operation modes:
Terminal Mode
OPC Mode
The functional range and the functionality of the device are different in both modes.
The change between OPC Mode and Terminal Mode (refer to page 25 or page 54)
forces a restart of the device.
Terminal mode
The SINAUT MD720-3 establishes radio data connections via a GSM network
(Global System for Mobile Communication).
• using modem connections via CSD (Circuit Switched Data),
• by sending SMS (Short Message Service).
Notice
You will find further information about the Terminal Mode and its use in
combination with TIM devices of the SINAUT ST7 system in the system manual of
the SINAUT ST7.
SINAUT MD720-3
C79000-G8976-C211 11
Introduction
OPC-Modus
The SINAUT MD720-3 transmits data over via a GSM radio network (Global
System for Mobile Communication).
using GPRS (General Packet Radio Service) between S7-200 devices and an
OPC server SINAUT MICRO SC,
using SMS from a S7-200-device to any remote station, which can receive
SMS.
Therefore the SINAUT MD720-3 will be configured by program building blocks of
the connected PLC. The SINAUT MD720-3 establishes autonomous the radio data
connection via GPRS between a S7-200 device and the OPC server SINAUT
MICRO SC.
Notice
You will find information about the OPC Mode in the system manual of the SINAUT
MICRO SC, entry ID 22547968.
SINAUT MD720-3
12 C79000-G8976-C211
Inserting the SIM card 2
Notice
• The device must be switched off when you insert or change the SIM card.
• A plug-in SIM card (3 V) is used.
To insert the SIM card proceed as follows:
1. Make sure that the device is disconnected from the supply voltage.
2. The SINAUT MD720-3 must be opened to insert the SIM card.

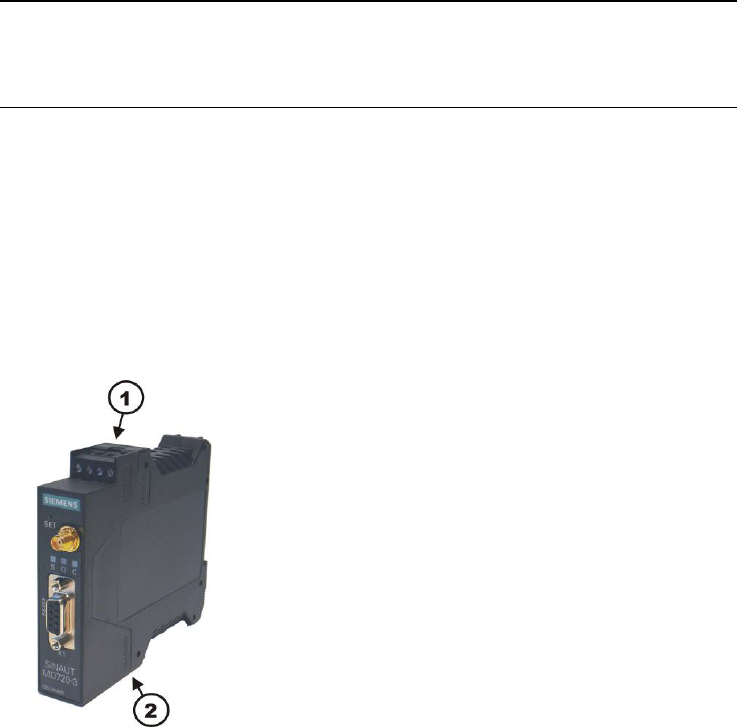

The housing is fastened by two clamps, one on top of the housing and one
on the bottom side (see figure 2-1).
1 - Clamp
2 - Clamp
figure 2-1
SINAUT MD720-3
C79000-G8976-C211 13
Inserting the SIM card

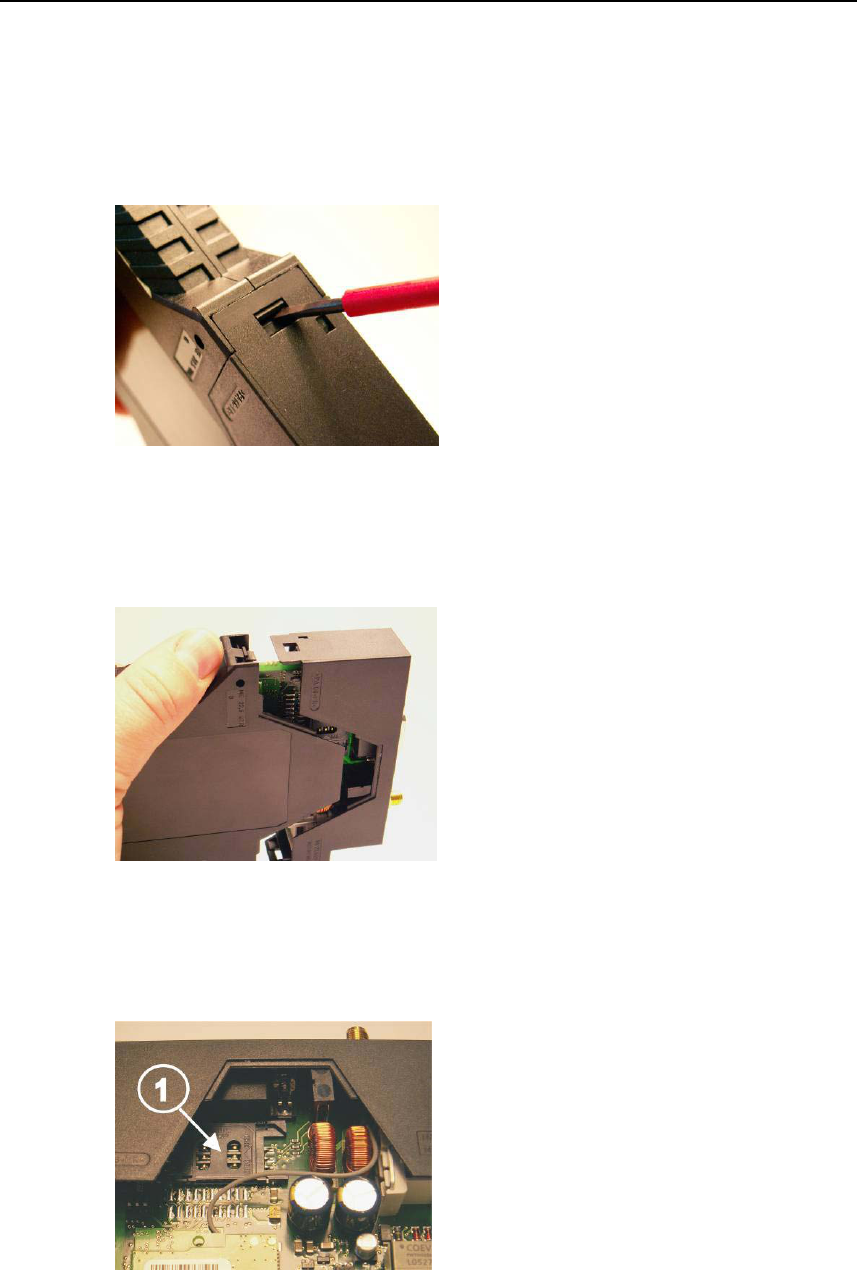

3. With a suitable object press one of the clamps cautiously (see figure 2-2)
so that the catch opens.
figure 2-2
4. Remove the rear section of the housing (see figure 2-3).
figure 2-3
5. The SIM card holder is visible on the motherboard. (see figure 2-4).
1 - SIM card holder
figure 2-4
SINAUT MD720-3
14 C79000-G8976-C211
Inserting the SIM card

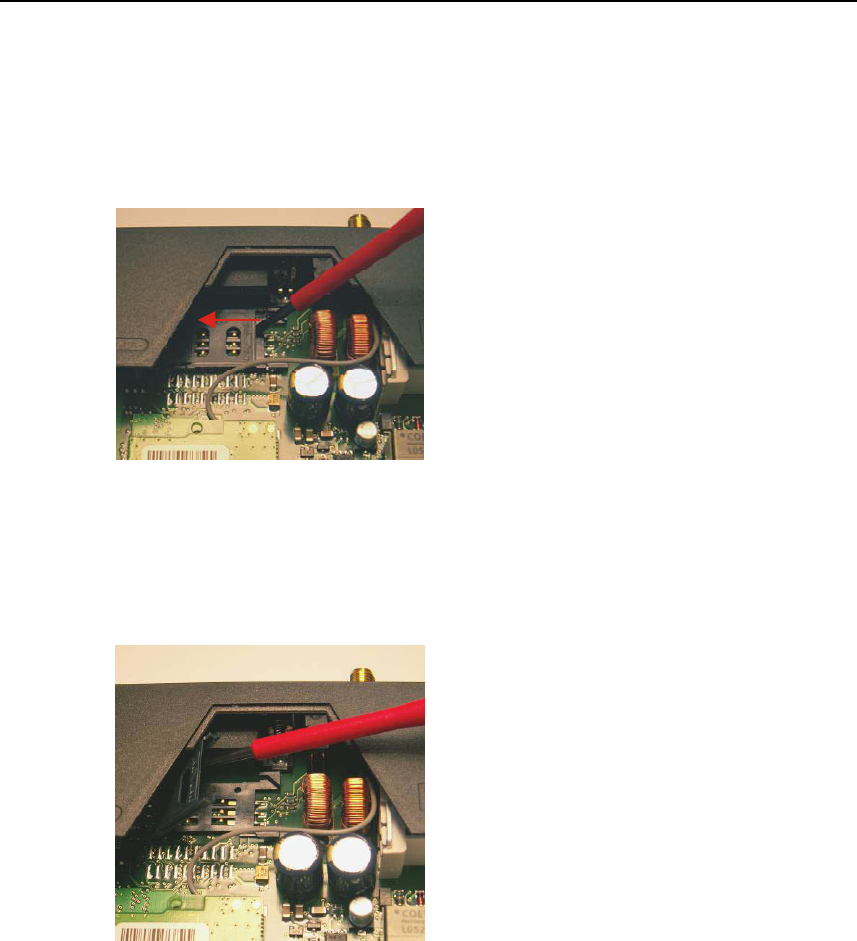

6. With a suitable object open the flap of the SIM card holder by moving it
cautiously about 2 mm to the left - in the direction of the arrow (see red
arrow in figure 2-5) so that it can be raised.
figure 2-5

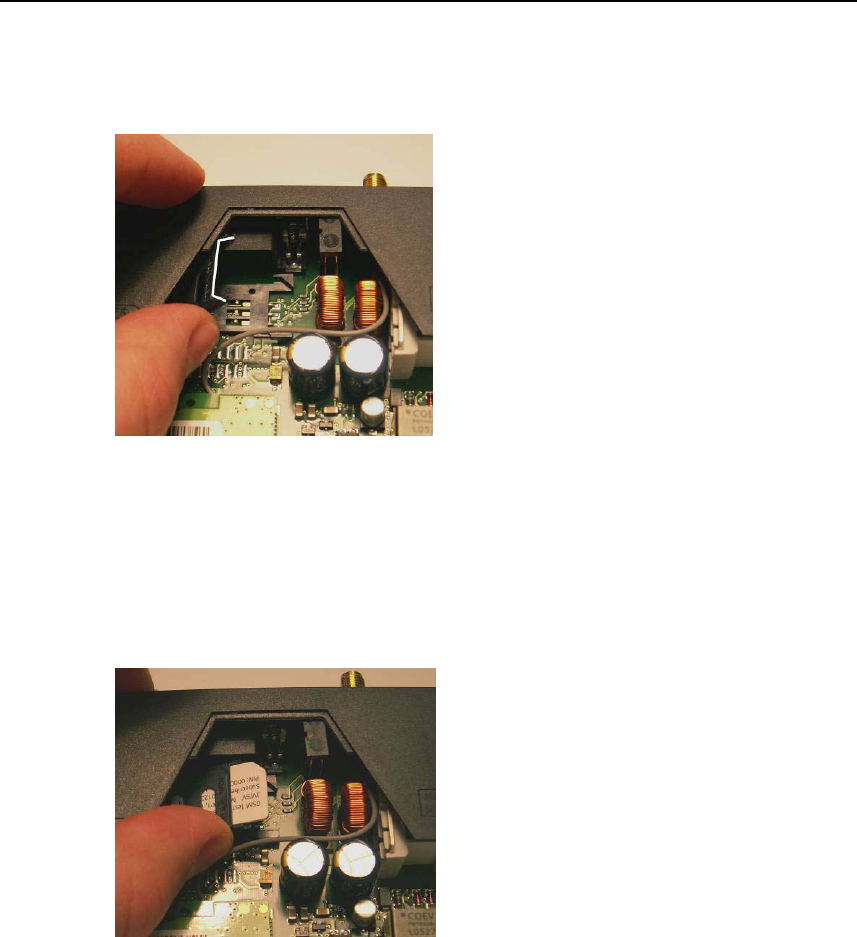

7. Raise the flap of the SIM card holder so that you can insert the SIM card.
(see figure 2-6).
figure 2-6
In figure 2-7, the compartment into which you can insert the SIM card is
emphasized in white.
SINAUT MD720-3
C79000-G8976-C211 15
Inserting the SIM card
figure 2-7
8. Slide the SIM card into the flap of the SIM card holder, with the gold-
coloured microchip pointing down. The flap has a groove for this purpose.
The notched corner of the SIM card has to point towards the front of the
device (see figure 2-8).
figure 2-8
9. Slide the SIM card down into the flap as far as possible (see figure 2-9).
SINAUT MD720-3
16 C79000-G8976-C211
Inserting the SIM card
figure 2-9
10. Lower the flap paying attention to the notched corner of the SIM card (see
figure 2-10).
figure 2-10
11. With your fingernail or a suitable object move the flap about 2 mm to the
right (in the direction of the arrow, see figure 2-11) until you can feel it click
into place.
SINAUT MD720-3
C79000-G8976-C211 17
Inserting the SIM card
figure 2-11
12. Now the SIM card holder is locked into position (see figure 2-12).
g parts:
e th motherboard into the rails on top and bottom inside the rear
section of the housing. Close the housing by slightly pressing both housing
parts together so that the clamps on the upper and lower part of the
housing engage (see figure 2-13).
figure 2-12
13. Finally re-attach both housin
Slid e
figure 2-13
1 - SIM card holder
SINAUT MD720-3
18 C79000-G8976-C211
Inserting the SIM card
14. The housing is locked when both clamps have clicked shut (siehe figure 2-
14).
figure 2-14
SINAUT MD720-3
C79000-G8976-C211 19
Inserting the SIM card
SINAUT MD720-3
20 C79000-G8976-C211
Connecting the device and switching on
the device 3
Connectors and LEDs
1 - Connectors for supply voltage
24 V DC voltage (nominal)
2 - Antenna
3 - LEDs: S (Status)
Q (Quality)
C (Connect)
4 - X1 (RS232)
For connection of the application
OR
or the service PC
figure 3-1
Antenna
The antenna connector – SMA socket - is situated on the upper part of the front.
Impedance: approx. 50 Ohm
Caution
Please use only antennas of the SINAUT MD720-3 accessory program. Other
antennas may disturb the product characteristics and may even cause defects.
Connectors for current supply
The screw terminals on the top of the device are for connecting the current supply:
24 V DC voltage (nominal), Ityp. 260mA@24V. (Please also refer to chapter 7
Technical Data.) Both screw terminals to the left (24 V) are internally connected,
see figure 3-1.
SINAUT MD720-3
C79000-G8976-C211 21
Connecting the device and switching on the device
SINAUT MD720-3
22 C79000-G8976-C211
.
Switching on
The devices switches on as soon as the operating voltage is supplied.
Functions of the LEDs
The SINAUT MD720-3 has three LEDs, which are used to indicate the device
status. The function of the LEDs is different in terminal and OPC Mode. You will
find the explanation of the function
● in Terminal Mode on page 26 and
● in OPC Mode on page 53.

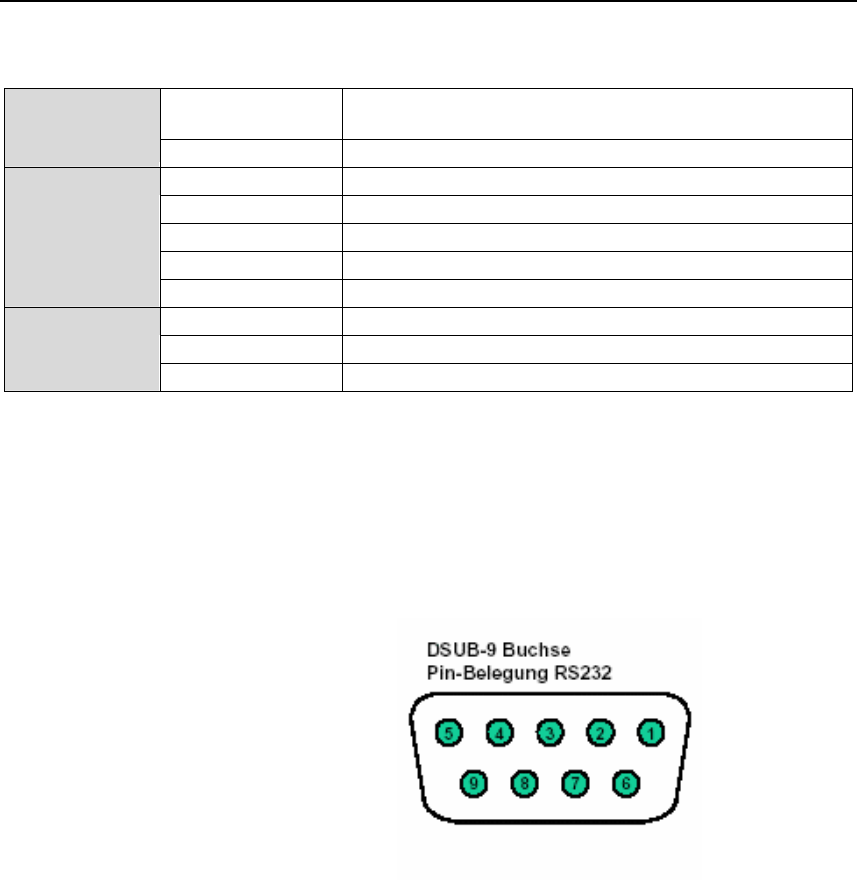

Serial interface X1
For data transmission:
Connect the application (e.g. machine, vending machine, sensor, computer) with
the interface X1 of the SINAUT MD720-3. To connect, use a RS-232 cable.
If the application has a different interface, e.g. CAN, PPI cable or a different
industry bus, a commercially available interface converter can be connected
between it and the SINAUT MD720-3.
OR
For configuration and service:
Connect the service PC via its serial interface (COM port). To connect, use a RS-
232 cable.
Connecting the device and switching on the device
SINAUT MD720-3
C79000-G8976-C211 23

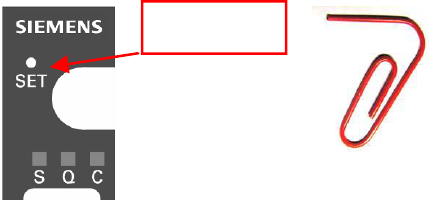

The SET button
By pushing the SET button for a certain period of time, you can configure the
device or activate different service modes.
Pushing the SET button LED Status Function
while connecting the supply
voltage
The LEDs start to light
up in sequence
signalling the boot
sequence
Switch between the
operating modes
Terminal Mode OPC
Mode
during operation for less
than 2 seconds
The LED „S“ (Status)
begins to light
Dump of current
settings and values
during operation for 2-4
seconds
The LED „Q“ (Quality)
begins to light
Service mode to
download a new
firmware
during operation for more
than 4 seconds
Die LED „C“
(Connect) begins to
light
Load factory settings
Top-hat rail mounting
The SINAUT MD720-3 is suitable for top-hat rail mounting on DIN EN 50022 rails.
A corresponding bracket can be found at the rear of the device.
Connecting the device and switching on the device
SINAUT MD720-3
24 C79000-G8976-C211
SINAUT MD720-3 in Terminal Mode 4
In the Terminal Mode the SINAUT MD720-3 operates like a GSM modem, which is
controlled by AT commands.
Supported are
• incomming and outgoing GSM data connections with 9600 bps with modems
being connected to the GSM network, the ISDN or the analogue telephone
network,
• sending of SMS (Short Message Service).
4.1 Terminal mode activation
Terminal mode is the factory default setting
The SINAUT MD720-3 supports two fundamental operation modes:
• Terminal Mode,
• OPC Mode.
The SINAUT MD720-3 is delivered by the factory with activated Terminal Mode.
Switching from OPC Mode into the Terminal Mode
If it is necessary to switch a manually the SINAUT MD720-3 from OPC Mode into
the Terminal Mode, you will find the instructions for this in the chapter Switching
between Terminal mode and OPC Mode on page 59.
SINAUT MD720-3
C79000-G8976-C211 25
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
26 C79000-G8976-C211
4.2 Operating requirements: GPRS subscriber contract
To use the SINAUT MD720-3 in Terminal Mode it is required:
• SIM card of a GSM network operator including CSD data service 9600 Bit/s
and a telephone number for data calls,
• Availability of a GSM network.
4.3 Functions of the LEDs in Terminal Mode
The device has 3 LEDs, which indicates the current operation status:
S (Status) Q (Quality) C (Connect)
LED Status Meaning
Fast lighting in sequence Boot procedure
Synchronous slow blinking Service mode
Slow lighting in sequence Update
S, Q, C
combined
Synchronous fast blinking Error
Blinks slowly Device waiting for PIN input
S (Status)
Blinks fast PIN error / SIM error
Blinks slowly Booking into GSM network
1x intermittent blinking Field strength not sufficient
2x intermittent blinking Field strength sufficient
3x intermittent blinking Field strength medium
ON permanently Field strength high
Q (Quality)
OFF Waiting for PIN input
C (Connect) Blinks Terminal mode active
Blinks slowly: 1 x per second
Blinks fast : 4 x per second
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 27
4.4 Terminal mode operation
To operate the device the PIN (PIN = Personel Identification Number) of the
inserted SIM card must be known. In the Terminal Mode the PIN is not stored in
the SINAUT MD720-3. The PIN must be set again everytime the device is turned-
on.
● The PIN is set by AT commands.
Control by the application
Usually the application or the application software, which you execute on a
connected computer, will control the SINAUT MD720-3. So wit, the commands to
establish or to disconnect a data connection via the GSM network, are given by the
application to the device. For this purpose the application and the device
communicates using AT commands, like other types of modems. The sending of
SMS is handled in the same way.
Direct control using AT command
You can also enter manually AT commands to control the SINAUT MD720-3. In
this case use any terminal program (Refer to Working with a terminal program,
page 28.)
Or you write your own communication program which is adapted specially to your
purposes.
Enter the PIN first
Please enter the PIN first before any other AT commands. Until a PIN has been
entered most AT commands will be answered with ERROR.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
28 C79000-G8976-C211
4.5 Entering AT commands
The SINAUT MD720-3 is controlled by AT commands, which are entered either by
the connected application or manualley bya terminal program.
Working with a terminal program
To be able to control the device directly via AT commands, use a terminal program,
e.g. HyperTerminal.
Note the following settings:
Make the connection: COM port to which the device is connected
Speed: 9600 Bit/s
Data bits: 8
Parity: No
Stop bits: 1
Duplex: Full
PIN in Terminal-Mode
Enter the PIN
If the LED S blinks slowly (1 time per second), the SINAUT MD720-3 waits for a
PIN entry.
In Terminal-Mode the PIN need to be entered using the AT command AT+CPIN.
Example:
Command: at+cpin="0000“
Response: OK
The number of permitted trial to enter the PIN is limited by the SIM card.
Normally three attempts are allowed, i.e. you may enter two times back-to-back a
wrong PIN, at the third attempt the right PIN must be entered, otherwise the SIM
will be blocked. In this case the SIM card can only be unblocked by entering the
PUK.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 29
The LED S (status) blinks fast
If the modem blinks fast (4 times per second), either the SIM card was not detected
correctly or the SIM card is PUK-blocked, because a wrong PIN has been entered
too often.
Please check, if the SIM card is inserted correctly (see chapter 2 Inserting the SIM
card).
Please check, if the SIM card is PUK-blocked. Insert the SIM card into a common
mobile phone. The mobile phone will display, if the SIM card is PUK-blocked. If the
SIM card is PUK-blocked, please enter the PUK and then a PIN. You can use a
common mobile phone to do this.
Before you enter again the SIM card into the SINAUT MD720-3, please investigate
why the SIM card has been PUK-blocked: Which PIN have you entered or which
PIN has your application sent to the SINAUT MD720-3?
Changing the SIM card
If you change the SIM card, please do not forget to update also the PIN number in
your application.
If you use a lot of SIM cards it can be helpful to set all PINs to the same PIN
number. You can do this i.e. by using a mobile phone. Please observe the security
requirements of your organization.
PIN-less SIM cards
The device operates also with SIM cards, which PIN check is deactivated. In this
case the PIN check is skipped and the device will immediately try to attach the
GSM network.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
30 C79000-G8976-C211
4.6 Use AT commands
Syntax
The AT command language is a standard for controlling modems. It is line-
orientated. Each command line begins with AT (for ATtention), followed by the
actual command, and ends with (Enter key).
Example: ATD444444¬
means: dial (D for Dial) 444444
There are only two exceptions to this rule:
The command +++ to switch to Command Phase (see below) and the
command A/ with which the last command line is repeated.
Command phase, Transparent phase
The device accepts AT commands only when it is in Command Phase.
It is in Command Phase,
• when there is no active connection,
• when the sequence Pause +++ has been entered during a connection.
The device does not accept AT commands when it is in Transparent Phase.
It is in Transparent Phase,
• when there is an active connection,
• when the device has been switched to Command Mode during an active
connection with +++ and then switched back to Transparent Mode with ATO.
Enabling/disabling local echo
To see your entries on the screen, you may have to enable the local data echo. To do
so, enter the following command: ATE1
To disable the local data echo, enter the following command: ATE0
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 31
Enter the PIN
Command: at+cpin="0000“
Response: OK
Network-Status request
Command: at+creg?
Response: +CREG: 0,1
Firmware Version request
Command: ati3
Response: SIE3171 SINAUT MD720-3 T.1.0.10 01.12.2005
CSD call outgoing:
Command: atd0123456789
Response: CONNECT
CSD call incoming:
Response: RING
Command: ata
Response:CONNECT
Sending SMS:
Command: at+cmgf=1
Response: OK
Command: at+cmgs="phonenumber",145
Command: >Text of the SMS max. 160 characters; End and sending with
mit Strg-Z
Response: +CMGS: 251
OK
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
32 C79000-G8976-C211
4.7 Supported AT commands in Terminal Mode
All AT commands being not listed below, will be answered with OK by the device,
but the command will not be executed.
+++ Switch from data mode to command mode
Execute command
Command: +++
Response: This command is only available during data calls. The +++ characters sequence causes
to cancel de data flow over the AT interface and switch to command mode. This allows to
enter AT commands while maintaining the data connection to the remote device.
Parameter: -
Notice: To return to data mode, use the ATO command
Line does not need to end with terminating character, i.e. <CR><LF>
A/ Repeat previous command line
Executive command
Command: A/
Response: Depend on the previous command
Parameter: -
Notice: Line does not need to end with terminating character, i.e. <CR><LF>
ATA Answer a call
Executive command
Command: ATA
Response: CONNECT[<text>] Data Connexion established
OK Voice Connexion established or if
cancellation of the command
NO CARRIER Response if no connection
Parameter: -
Notice: See ATX for setup of the CONNECT message.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 33
ATD Mobile originated Call to dial a number
Executive command
Command: ATD[<n>]
Response: The connection cannot be established:
NO DIALTONE
BUSY
NO CARRIER
NO ANSWER
Data connection successfully connected:
CONNECT[<text>]
Parameter: <n>:
String of dialing digits and optionally V.25ter modifiers (dialing digits): 0-9, * , #,
+, A, B, C
Notice: -
ATE Local Echo On/Off
Executive command
Command: ATE[<value>]
Response: OK
Parameter: <value> :
0 Local Echo off
1 Local Echo on <Default>
Notice: This setting determines whether or not the device echoes characters received from
application during command state
ATH Disconnect existing connection
Executive command
Command: ATH
Response: OK
Parameter: -
Notice: On this command, all calls in progress are ended
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
34 C79000-G8976-C211
ATI Request identification information
Read command
Command: ATI[<value>]
Response: <text> (depends on <value>)
OK
Parameter: <value> :
none: Product name and Firmware Version
0: Product name
1: Product name and Firmware Version
3: Product name and Firmware Version
Notice: <text> may take more than one line
ATO Switch from command mode to data mode
Executive command
Command: ATO[n]
Response: Device returns to data mode from command mode:
CONNECT <text>
If connection is not successfully resumed
NO CARRIER
Parameter: <n> 0 switch from command mode to data mode
Notice: ATO corresponds to the +++ escape sequence.
ATQ Set result code presentation mode
Executive command
Command: ATQ[<n>]
Response: OK (if <n> = 0)
Nothing (if <n> = 1)
Parameter: <n>
0: result codes transmitted by TA <Default>
1: no result code transmitted by TA
Notice: Specifies whether or not the device transmits any result code to the application.
Information text transmitted in response is not affected by this setting.
ATS0? Shows Automatic answering settings
Read command
Command: ATS0?
Response: <n>
OK
Parameter: See ATS0=<n>
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 35
ATS0 Configures Automatic answering
Executive command
Command: ATS0=<n>
Response: OK
Parameter: <n>:
0: automatic answering deactivated <Default>
1-255: number of rings before automatically answering
Notice: -
ATV Set result code format mode
Executive command
Command: ATV[<value>]
Response: 0 When numeric mode is activated
OK When verbose mode is activated
Parameter: <value> :
0 Information <text><CR><LF>
Result Code (short format): <numeric code><CR>
1 Information <CR><LF><text><CR><LF>
Result Code (long format): <CR><LF><verbose code><CR>
<Default>
Notice: This parameter setting determines the contents of the header and trailer transmitted with
result codes and information responses
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
36 C79000-G8976-C211
ATX Set CONNECT result code Format und Call monitoring
Executive command
Command: ATX[<value>]
Response: OK
Parameter: <value>:
0 : CONNECT result code only returned, dial tone and busy detection are both
disabled <Default>
1 : CONNECT<text> result code only returned, dial tone and busy detection are
both disabled
2 : same as 1
3 : same as 1
4 : same as 1
Notice: Result codes numeric or verbose:
OK 0 Command executed, no error, Restart executed
CONNECT 1 Connection established
RING 2 Ring detected
NO CARRIER 3 Connection not established or interrupted
ERROR 4 Command not valid
NO DIALTONE 6 No dialtone, dialling not possible, wrong mode
BUSY 7 Remote station busy
CONNECT 2400/RLP 1 Connect at 2400 bps and Radio Link Protocol
CONNECT 4800/RLP 1 Connect at 4800 bps and Radio Link Protocol
CONNECT 9600/RLP 1 Connect at 9600 bps and Radio Link Protocol
AT&C AT&C Set circuit Data Carrier Detect (DCD) function mode
Executive command
Command: AT&C[<value>]
Response: OK
Parameter: <value>
0 : DCD line is always ON
1 : DCD line is ON in the presence of data carrier only. <Default>
Notice: -
AT&D Set circuit Data Terminal Ready (DTR) function mode
Executive command
Command: AT&D[<value>]
Response: OK
Parameter: <value>:
0: Device ignores status on DTR. <Default>
2: ON->OFF on DTR: Disconnect call, change to command mode. During state
DTR = OFF is auto-answer off.
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 37
AT&F Restore manufactory configuration
Executive command
Command: AT&F
Response: OK
Parameter: <value>:
0: Restore parameters to manufactory values
Notice: Restore configuration of manufacturer.
AT&W Save stored profile
Executive command
Command: AT&W<n>
Response: OK
Parameter: <n>
Ohne Speicherung in Profil 0
0 Speicherung in Profil 0
Notice: This commands saves the current configuration in a non volatile memory.
See also AT&V.
AT&V Display current configuration
Executive command
Command: AT&V[<value>]
Response: ACTIVE PROFILE:
<current configuration>
OK
Parameter: <value>:
0: only active profile
Notice: The configuration is a text string on multiple lines as shown in the example below. As it is
dependant on the manufactory and user setup, it is impossible to list the exact number of
information given
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
38 C79000-G8976-C211
AT+CPIN Enter PIN
Test
Command: AT+CPIN=?
Response: OK
Read command
Command: AT+CPIN?
Response: +CPIN: <code>
Executive command
Command: AT+CPIN=<pin> [,<newpin>]
Response: OK
Parameter: <code>:
Values reserved by this device:
READY Device is not pending for any password
SIM PIN Device is waiting SIM PIN to be given
SIM PUK Device is waiting SIM PUK to be given. Also, a second pin, <newpin>, is
used to replace the old pin in the SIM and should thus be supplied
SIM PIN2 Device is waiting SIM PIN2 to be given (this <code> is recommended to
be returned only when the last executed command resulted in PIN2
authentication failure (i.e. +CME ERROR: 17); if PIN2 is not entered right
after the failure, it is recommended that ME does not block its operation)
SIM PUK2 Device is waiting SIM PUK2 to be given (this <code> is recommended to
be returned only when the last executed command resulted in PUK2
authentication failure (i.e. +CME ERROR: 18); if PUK2 and new PIN2 are
not entered right after the failure, it is recommended that ME does not
block its operation). Also, a second pin, <newpin>, is used to replace the
old pin in the SIM and should thus be supplied
PH-NET PIN ME is waiting personalization password to be given
<pin>, <newpin>:
string type value (8 characters max.)
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 39
AT+CSQ Check Signal Quality
Test
Command: AT+CSQ=?
Response: +CSQ: (list of supported <rssi>s),(list of supported <ber>s)
OK
Response:
Command: AT+CSQ
Response: +CSQ: <rssi>,<ber>
OK
Parameter: <rssi>:
0 -113 dBm or less
1 -111 dBm
2...30 -109... -53 dBm
31 -51 dBm or greater
99 not known or not detectable
<ber> (in percent)
0...7 as RXQUAL values in the table in GSM 05.08 [20] subclause 8.2.4
99 not known or not detectable
Notice: The read command (AT+CSQ?) returns an error.
AT+CGSN Request product serial number identification (IMEI) identical to GSN
Test
Command: AT+CGSN=?
Response: OK
Read command
Command: AT+CGSN
Response: <sn> (identification text for determination of the individual device)
OK
Parameter: -
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
40 C79000-G8976-C211
AT+CGDCONT Define PDP context
Test
Command: AT+CGDCONT=?
Response: +CGDCONT: (Bereich unterstützter <cid>s), <PDP_type>,,,(Liste unterstützter
<d_comp>s), (Liste unterstützter <h_comp>s)
Read command
Command: AT+CGDCONT=?
Response: +CGDCONT: <cid>, <PDP_type>, <APN>,<PDP_addr>, <d_comp>, <h_comp>
Executive command
Command: +CGDCONT=<cid> ,<PDP_type> ,<APN> ,<PDP_addr> ,<d_comp> ,<h_comp>
Response: OK
Parameter: <PDP_type>: Packet Data Protocol type
A string parameter which specifies the type of packet data protocol. Only IP Internet
Protocol - IETF STD 5) is supported.
<APN>: Access Point Name
A string parameter which is a logical name that is used to select the GGSN or the
external packet data network.
<PDP_address>:
A string parameter that identifies the MT in the address space applicable to the PDP. As
only IP is currently supported, it shall be an IP address.
If the value is null (“0.0.0.0” or 0), then a value may be provided by the TE during the PDP
startup procedure or, failing that, a dynamic address will be requested.
The read form of the command will continue to return the null string even if an address
has been allocated during the PDP startup procedure. The allocated address may be
read using the +CGPADDR command.
<d_comp>:
A numeric parameter that controls PDP data compression.
0: off (default and only value supported)
<h_comp>:
A numeric parameter that controls PDP header compression
0: off (default and only value supported)
<pd1>, … <pdN>:
Zero to N string parameters whose meanings are specific to the <PDP_type>
Notice: The set command specifies PDP context parameter values for a PDP context
identified by the (local) context identification parameter, <cid>. The number of
PDP contexts that may be in a defined state at the same time is given by the
range returned by the test command.
A special form of the set command, +CGDCONT= <cid> causes the values for context
number <cid> to become undefined.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 41
AT+CGATT GPRS Attach or Detach
Test
Command: AT+CGATT=?
Response: +CGATT: <state>
Read command
Command: AT+CGATT?
Response: +CGATT: (list of supported <state>s)
Executive command
Command: +CGATT=<state>
Response: OK
Parameter: <state>
Indicates the state of GPRS attachment
0: detached
1: attached
Notice: -
AT+CIMI Request international subscriber identity
Test
Command: AT+CIMI=?
Response: OK
Read command
Command: AT+CIMI
Response: <IMSI> (International Mobile Subscriber Identify)
OK
Parameter: -
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
42 C79000-G8976-C211
AT+CPAS Phone activity status
Test
Command: AT+CPAS=?
Response: +CPAS: (list of supported <pas>s)
OK
Read command
Command: AT+CPAS
Response: +CPAS: <pas>
OK
Parameter: <pas>:
0 ready (device allows commands from application)
1 unavailable (device does not allow commands from application)
2 unknown (device is not guaranteed to respond to instructions)
3 ringing (device is ready for commands from application, but the
ringer is active)
4 call in progress (device is ready for commands from application, but a call
is in progress)
Notice: -
AT+CPMS Preferred Message Storage
Test
Command: AT+CPMS=?
Response: +CPMS: (list of supported <mem>s)
OK
Read command
Command: AT+CPMS?
Response: +CPMS: <mem>,<used>,<total>
OK
Executive command
Command: AT+CPMS?
Response: +CPMS: <used>,<total>
OK
Parameter: -
Notice: Executive command selects memory storage <mem> to be used for reading, writing, etc.
Example:
AT+CPMS=? +CPMS: ("ME","SM","MT")
OK
AT+CPMS? +CPMS: "ME",0,100
OK
AT+CPMS="ME" +CPMS: 0,100
OK
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 43
AT+CNUM Subscriber number
Test
Command: AT+CNUM=?
Response: OK
Executive command
Command: AT+CNUM
Response: +CNUM: [<alpha1>],<number1>,<type1>[,<speed>,<service>[,<itc>]]
[<CR><LF>+CNUM: [<alpha2>],<number2>,<type2>[,<speed>,<service>
[,<itc>]]
[...]]
OK
Parameter: <alpha>:
optional alphanumeric string associated with <number>; used character set should be the
one selected with command Select TE Character Set +CSCS
<number>:
string type phone number of format specified by <type>
<type>:
type of address octet in integer format (refer GSM 04.08 [8] subclause 10.5.4.7)
<speed>:
<service>:
service related to the phone number
0: asynchronous modem
1: synchronous modem
2: PAD Access (asynchronous)
3: Packet Access (synchronous)
4: voice
5: fax
also all other values below 128 are reserved by the present document
<itc>:
information transfer capability
0: 3.1kHz
1: UDI
Notice: Action command returns the MSISDNs related to the subscriber (this information can be
stored in the SIM or in the ME)
The Read Command (AT+CNUM?) returns an error
Example:
AT+CNUM +CNUM: "TEL","0612345678",129
+CNUM: "","",255
+CNUM: "","",255
+CNUM: "","",255
OK
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
44 C79000-G8976-C211
AT+CBST Select bearer service type
Read command
Command: AT+CBST=?
Response: +CBST: (list of supported <speed>s),(list of supported <name>s),(list of sup-
ported <ce>s)
OK
Executive command
Command: AT+CBST=[<speed> [,<name>[,<ce>]]]
Response: OK
Parameter: <speed>:
4 2400 bps (V.22bis)
6 4800 bps (V.32)
7 9600 bps (V.32) <Default>
68 2400 bps (V.110 or X.31 flag stuffing)
70 4800 bps (V.110 or X.31 flag stuffing)
71 9600 bps (V.110 or X.31 flag stuffing)
<name>:
0 data circuit asynchronous (UDI or 3.1 kHz modem) <Default>
1 data circuit synchronous (UDI or 3.1 kHz modem)
<ce>:
0 transparent
1 non-transparent <Default>
Notice: Set command selects the bearer service <name> with data rate <speed>, and
the connection element <ce> to be used when data calls are originated.
AT+CMGD Delete a SMS
Test
Command: AT+CMGD=?
Response: +CMS ERROR: <err>
Read command
Command: AT+CMGD?
Response: +CMS ERROR: <err>
Executive command
Command: +CMGD=<index>
Response: OK or +CMS ERROR: <err>
Parameter: <index>
1 – n Memory location on the SIM card; n depends on the memory capacity of the
SIM card
<err> Error code
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 45
AT+CMGF Select SMS message format
Test
Command: AT+CMGF=?
Response: +CMGF: (list of supported <mode>s)
OK
Read command
Command: AT+CMGF?
Response: +CMGF: <mode>
OK
Executive command
Command: AT+CMGF=[<mode>]
Response: OK
Parameter: <mode>:
0 PDU mode <Default>
1 Text mode
Notice: -
AT+
CMGL
List SMS messages from preferred store
Test
Command: AT+CMGL=?
Response: +CMGL: (list of supported <stat>s)
OK
Executive command
Command: AT+CMGL[=<stat>]
Response: if PDU mode (+CMGF=0) and command successful:
[+CMGL: <index>,<stat>,[<alpha>],<length><CR><LF><pdu>
[<CR><LF>+CMGL:<index>,<stat>,[<alpha>],<length><CR><LF><pdu>
[...]]]
OK
Parameter: -
Notice: Execution command returns messages with status value <stat> from preferred message
storage <mem1> . Entire data units <pdu> are returned.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
46 C79000-G8976-C211
AT+CMGR Read SMS message
Test
Command: AT+CMGR=?
Response: OK
Executive command
Command: AT+CMGR=<index>
Response: if PDU mode (+CMGF=0) and command successful:
+CMGR: <stat>,[<alpha>],<length><CR><LF><pdu>
OK
Parameter: -
Notice: Execution command returns message with location value <index> from preferred
message storage <mem1>. Status of the message and entire message data unit <pdu> is
returned. If status of the message is 'received unread', status in the storage changes to
'received read'.
AT+CMGS Send SMS message
Test
Command: AT+CMGS=?
Response: OK
Executive command
Command: if PDU mode (+CMGF=0):
AT+CMGS=<length><CR>
PDU is given<ctrl-Z/ESC>
Response: if PDU mode (+CMGF=0) and sending successful:
+CMGS: <mr>[,<ackpdu>]
OK
Parameter: -
Notice: <length> must indicate the number of octets coded in the TP layer data unit to be given
(i.e. SMSC address octets are excluded)
• the device shall send a four character sequence <CR><LF><greater_than><space>
(IRA 13, 10, 62, 32) after command line is terminated with <CR>; after that PDU can
be given from application to the device
• the DCD signal shall be in ON state while PDU is given
• the echoing of given characters back from the device is controlled by V.25ter echo
command E
• the PDU shall be hexadecimal format (similarly as specified for <pdu>) and given in
one line; the device converts this coding into the actual octets of PDU
• when the length octet of the SMSC address (given in the PDU) equals zero, the
SMSC address set with command Service Centre Address +CSCA is used; in this
case the SMSC Type-of-Address octet shall not be present in the PDU, i.e. TPDU
starts right after SMSC length octet
• sending can be cancelled by giving <ESC> character (IRA 27)
• <ctrl-Z> (IRA 26) must be used to indicate the ending of PDU
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 47
AT+CREG Network registration
Test
Command: AT+CREG=?
Response: +CREG: (list of supported <n>s)
OK
Read command
Command: AT+CREG?
Response: +CREG: <n>,<stat>[,<lac>,<ci>]
OK
Executive command
Command: AT+CREG=<n>
Response: OK
Parameter: <n>:
0: disable network registration unsolicited result code
1: enable network registration unsolicited result code +CREG: <stat>
2: enable network registration and location information unsolicited result code
+CREG: <stat>[,<lac>,<ci>]
<stat>:
0: not registered, ME is not currently searching a new operator to register to
1: registered, home network
2: not registered, but ME is currently searching a new operator to register to
3: registration denied
4: unknown
5: registered, roaming
<lac>:
string type; two byte location area code in hexadecimal format (e.g. "00C3" equals 195 in
decimal)
<ci>:
string type; two byte cell ID in hexadecimal format
Notice: Executive command controls the presentation of an unsolicited result code
+CREG: <stat> when <n>=1 and there is a change in the device network
registration status, or code +CREG: <stat>[,<lac>,<ci>] when <n>=2 and there
is a change of the network cell.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
48 C79000-G8976-C211
AT+CSCA SMS service center address
Test
Command: AT+CSCA=?
Response: OK
Read command
Command: AT+CSCA?
Response: +CSCA: <sca>,<tosca>
OK
Executive command
Command: AT+CSCA=<sca>[,<tosca>]
Response: OK
Parameter: <sca>
“Phone number SMS-ServiceCenters”
<tosca>
129, 145
Notice: Executive command updates the SMSC address, through which mobile
originated SMs are transmitted. In text mode, setting is used by send and write
commands. In PDU mode, setting is used by the same commands, but only
when the length of the SMSC address coded into <pdu> parameter equals zero.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 49
AT+CSMP Set SMS text mode parameters
Test
Command: AT+CSMP=?
Response: +CSMP: (list of <fo>),(list of <vp>),(list of <pid>),(list of <dcs>)
OK
Read command
Command: AT+CSMP?
Response: +CSMP: <fo>,<vp>,<pid>,<dcs>
OK
Executive command
Command: AT+CSMP=[<fo>[,<vp>[,<pid>[,<dcs>]]]]
Response: OK
Parameter: <fo>
17
<vp>
Determines the period of time the SMS will be stored in the SMS ServiceCenter:
71 6 hours
167 24 hours
173 7 days
255 63 weeks
<pid>
0
<dcs>
0
Notice: In the composite AT command AT+CMGF=1+CSMP=17,0,0,0+CSCA="
+AAAAAAAAAAA" the value 0 for <vp> will be accepted, but 0 will be replaced by the
value 71.
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
50 C79000-G8976-C211
AT+CRC Set Cellular Result Codes for incoming call indication
Test
Command: AT+CRC=?
Response: +CRC: (list of supported <mode>)
OK
Read command
Command: AT+CRC?
Response: +CRC:<mode>
OK
Executive command
Command: AT+CRC=[<mode>]
Response: OK
Parameter: <mode>:
0: disable extended format <Default>
1: enable extended format
Notice: When enabled, an incoming call is indicated with
+CRING: <type> with, <type> : FAX or VOICE
AT+IPR Set fixed local rate
Test
Command: AT+IPR=?
Response: +IPR: (list of supported auto-detectable <rate>s), (list of supported fixed-only
<rate>s)
Read command
Command: AT+IPR?
Response: +IPR: <rate> OK
Executive command
Command: AT+IPR=<rate>
Response: OK
Parameter: <rate> bit rate per second
1200
2400
4800
9600 <Default>
14400
19200
28800
38400
57600
Notice: -
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
C79000-G8976-C211 51
Composed AT-Befehle
The initialisation strings below are accepted by the SINAUT MD720-3. The reaction
to the seperate commands correspondingly.
TIM device
ATE0S0=1&D2+CBST=71,0,1;+CRC=1;&W+IPR=19200
S7-2xx-device
ATE0S0=0+IPR=9600
Other initialisation strings
AT+CMGF=1+CSMP=17,0,0,0+CSCA="+AAAAAAAAAAA"
AT+CMGS="+BBBBBBBBBB",145
SINAUT MD720-3 in Terminal Mode
SINAUT MD720-3
52 C79000-G8976-C211
SINAUT MD720-3 in OPC Mode 5
GPRS modem
In the OPC Mode the SINAUT MD720-3 is configured by program building blocks
of the connected S7-200 PLC. The SINAUT MD720-3 establishes autonomous the
radio data connection via GPRS between the connected S7-200 device and the
OPC server SINAUT MICRO SC.
SMS-Adapter
In addition also in OPC Mode the connected S7-200 device can send messages by
SMS:
● directly to other subscribers of the SMS service, or
● through gateways to fax machines.
To send a SMS, the GPRS connection to the OPC server SINAUT MICRO SC will
be interrupted.
GSM-Modem
Also the SINAUT MD720-3 in OPC Mode can answer service data calls from
analog modems, ISDN modems or GSM modems.
Notive
You can find details about these functions in the system manual of the OPC server
SINAUT MICRO SC.
SINAUT MD720-3
C79000-G8976-C211 53
SINAUT MD720-3 in OPC Mode
SINAUT MD720-3
54 C79000-G8976-C211
5.1 OPC Mode activation
Terminal mode is factory default setting
The SINAUT MD720-3 supports two fundamental operating modes:
● Terminal mode
● OPC Mode.
The SINAUT MD720-3 will be delivered by the factory with activated Terminal
Mode.
Automatic activation by the PLC
Operating the SINAUT MD720-3 in OPC Mode combined with S7-200 devices, the
OPC Mode will be activated by the program building blocks automatically during
the initialisation.
Manual activation
If in exceptional cases a manual activation of the OPC Mode is necessary, you will
find instructions on page 59.
SINAUT MD720-3 in OPC Mode
5.2 Functions of the LEDs in OPC Mode
The device is equipped with 3 LEDs which indicate the status:
S (Status) Q (Quality) C (Connect)
LED Status Meaning
Fast lighting in sequence Boot procedure
Synchronous slow blinking Service mode
Slow lighting in sequence Update
S, Q, C
combined
Synchronous fast blinking Error
Blinks slowly Device waiting for PIN input
Blinks fast PIN error / SIM error
OFF No GPRS attach
S (Status)
ON GPRS attach
Blinks slowly Booking into GSM network
1x intermittent blinking Field strength not sufficient
2x intermittent blinking Field strength sufficient
3x intermittent blinking Field strength medium
ON permanently Field strength high
Q (Quality)
OFF Waiting for PIN input
OFF No connection to MICRO SC
Blinks slowly Trying to connect MICRO SC
ON Connected to MICRO SC
C (Connect)
Blinks synchronously to
data stream
Data transfer
Blinks slowly: 1 x per second
Blinks fast : 4 x per second
SINAUT MD720-3
C79000-G8976-C211 55
SINAUT MD720-3 in OPC Mode
SINAUT MD720-3
56 C79000-G8976-C211
5.3 PIN in OPC-Mode
Enter the PIN
If the LED “S” blinks slowly (1 time per second), the SINAUT MD720-3 waits for a
PIN entry.
In OPC-Mode the PIN is sent by the connected PLC to the SINAUT MD720-3.
Therefore you need to enter the PIN in the data module of your SPS program with
reference to the program module WDC_INIT (See System manual SINAUT MICRO
SC). Please check if the PLC and the SINAUT MD720-3 are connected together.
The LED S (Status) blinks fast
If the LED S blinks fast (4 times per second), either the SIM card was not detected
or he SIM card is PUK-blocked, because the a wrong PIN has been entered too
often.
1. Please check, if the SIM card has been inserted correctly into the device (refer
to chapter 2 Inserting the SIM card).
2. Please check, if the SIM card is PUK-blocked. Insert the SIM card into a
common mobile phone. The mobile phone will display, if the SIM card is PUK-
blocked. If the SIM card is PUK-blocked, please enter the PUK and then a PIN.
You can use a common mobile phone to do this.
3. Before you enter again the SIM card into the SINAUT MD720-3, please
investigate why the SIM card has been PUK-blocked: Which PIN have you
entered into your PLC program?
4. Please check and eventually reset the parameter SIMSTATE of the SINAUT
MD720-3.
Check and reset the parameter SIMSTATE
The parameter SIMSTATE will be displayed when you press the SET button (refer
to 6.2 Getting the current settings and values):
SIMSTATE=SIM_OK Ready for operation
SIMSTATE=SIM_ERROR Wrong PIN; one wrong PIN entry
SIMSTATE=SIM_PROBLEM Wrong PIN; two wrong PIN entries or no SIM
detected
SINAUT MD720-3 in OPC Mode
In case of SIMSTATE=SIM_ERROR or SIMSTATE=SIM_PROBLEM please
proceed as follows:
1. Please make sure, that the correct PIN is entered into the PLC program
module.
2. Push the SET button until the factory default settings has been loaded
(Attention, all settings will be reset)
or
Enter the following AT commands:
AT^PARSTART
AT^PARCSE
AT^PAREND
3. Afterwards the device will perform a restart and is ready of operation again.
Changing the SIM card
If you change the SIM card, please do not forget to update also the PIN number in
your application.
If you use a lot of SIM cards it can be helpful to set all PINs to the same PIN
number. You can do this i.e. by using a mobile phone. Please observe the security
requirements of your organization.
PIN-less SIM cards
The device operates also with SIM cards, which PIN check is deactivated. In this
case the PIN check is skipped and the device will immediately try to attach the
GSM network.
SINAUT MD720-3
C79000-G8976-C211 57
SINAUT MD720-3 in OPC Mode
SINAUT MD720-3
58 C79000-G8976-C211
5.4 Log in to SINAUT MICRO SC
After the SINAUT MG720-3 is switched on and configured by the control or after a
connection is broken off the SINAUT MD720-3 starts at once to connect itself with
the OPC Server SIANAUT MICRO SC, if the SINAUT MD720-3 is in OPC mode.
If the trial of the SINAUT MD720-3 to connect with the OPC Server SIANAUT
MICRO SC does not succeed it will start another trial according to the following
scheme:
After switching on: 3 trials in succession
After about 3 minutes of waiting: 3 trials in succession
After about 5 minutes of waiting: 3 trials in succession
After about 15 minutes of waiting: 3 trials in succession
After about 30 minutes of waiting: 3 trials in succession
After about 60 minutes of waiting: 3 trials in succession
Always after each 60 minutes: 3 trials in succession
Service functions 6
6.1 Switching between Terminal mode and OPC Mode
The SINAUT MD720-3 is delivered by the factory with activated Terminal Mode.
Operated in combination with a S7-200 the OPC Mode of the SINAUT MD720-3
will be activated by program building blocks of the connected S7-200 PLC during
the initialisation.
Manual switching
There are the following two methods to switch the SINAUT MD720-3 manually from
the Terminal Mode into the OPC Mode and vice versa.
Method 1:
paper clip
SET button
figure 6-1
Push the SET button while you are connecting SINAUT MD720-3 to the supply
voltage, until the LEDs shows a fast lighting in sequence. The SINAUT MD720-3
changes the operating mode and keeps this new mode permanently until you
change it again.
SINAUT MD720-3
C79000-G8976-C211 59
Service function
SINAUT MD720-3
60 C79000-G8976-C211
Method 2:
Change the operating mode by AT commads. Enter threfore the following
commands:
+++
Activates the AT command interface and interrupts the data transfer.
AT^PARSTART<CR>
Activates the AT configuration
AT^PARSET=”TERMINAL”,”MODE”,”SUPERVISED” <CR>
Selects the Terminal Mode, or
AT^PARSET=”TERMINAL”,”MODE”,” DISABLE ”<CR>
Selects the OPC Mode.
AT^PAREND<CR>
Deactivates the AT configuration and forces a restart of the SINAUT
MD720-3.
The device restarts in the selected new operating mode.
Service function
SINAUT MD720-3
C79000-G8976-C211 61
6.2 Getting the current settings and values
Connect your PC to the interface X1 and start a terminal software, e.g.
HyperTerminal. Select the used COM interface of the PC and configure the
character format and the baudrate to the same settings as the X1 interface of the
SINAUT MD720-3.
By factory default the SINAUT MD720-3 has the following settings:
Baudrate 9600
Character format 8N1
When you push the SET button (less than 2 secunds) the currect IP confuguration
of the SINAUT MD720-3 is shown by the terminal software.
Assigned-IP: Assigned IP address (OPC Mode)
Remote-Host:217.6.61.22 IP address of the OPC servers (OPC Mode)
Destination-Port:20030 Port address of the OPC server (OPC Mode)
Source-Port:26863 Own port address (OPC Mode)
Remote-Host2: Reserved
Destination-Port2:26862 Reserved
Source-Port2:RANDOM Reserved
Server-Mode:TSC Reserved
Server-Line:LL Reserved
Server-Username:st User name at the OPC server (OPC Mode)
Server-Username2:G21 Reserved
Dial-Up:GPRS Reserved
System-Time:1894 System time since last restart
Terminal-Mode:DISABLE Active mode: Terminal mode or OPC Mode
Provider: GSM operator
NetID: ID of the GSM operator
APN: APN of the GPRS network
Quality:99 Receive quality (CSQ- value)
COM-Control:DTR Reserved
COM-Baudrate:9600 Baudrate on X1 interface
COM-Format:8E1 Character format on X1 interface
Service function
SINAUT MD720-3
62 C79000-G8976-C211
6.3 Service mode to download a new firmware
When the service mode is active you can update the firmware of SINAUT MD720-
3.
The firmware contains the fundamental programming of the SINAUT MD720-3. If
the manufacturer has produced new firmware, for example to equip the device with
new functions, then this can be loaded into the SINAUT MD720-3.
You can find the latest firmware in the internet on the pages of des Siemens
Service & Support (see Foreword).
To update the firmware please proceed as follows.
Switch on the service mode and connect the device to a PC
1. Push the SET button for 2 up to 4 seconds while the SINAUT MD720-3 is in
operation. The device switches into the service mode.
2. Connect a PC to the interface X1 of the SINAUT MD720-3.
Installation of the modem driver
For the communication with the SINAUT MD720-3 in service mode you need to
install a modem driver.
1. Open the Control Panel in the Start Menu.
2. Using Windows XP open the category die Kategorie Printers and Other
Hardware or switch to the Classic View.
3. Open the Phone and Modem Options.
4. Select Add in the register Modems.
5. Please follow the Hardware-Wizard.
6. Select Don’t detect my modem; I will select it from a list and click Next.
7. Select from the manufacturer list Standard Modem Types the Standard 19200
bps Modem and click Next.
8. Select the COM-Port of your computer, the SINAUT MD720-3 is connected to
and click Next.
9. Wait until the modem installation has been finished and click Finish.
10. In the Phone and Modem Options menu the Standard 19200 bps Modem is
listed now.
Service function
SINAUT MD720-3
C79000-G8976-C211 63
11. Open the tab Modems, select the Standard 19200 bps modem and click
Properties.
12. Select the tab Modems again and set the maximum speed to 57600. Then
click OK twice.
13. Click Start, Control Panel. In the Control Panel window (classical view) double-
click System, then select the tab Hardware.
14. Click the Device Manager button. In the Device Manager window beneath the
item Modems double-click the Standard Modem 19200.
15. In the Properties window of this modem select the Modem tab. Set the speed
to 57600. Close the window.
Installation of a Network Connection
The communication with the SINAUT MD720-3 in service mode is made via a
network connection.
1. Open the Control Panel in the Start menu.
2. Using Windows XP open the category Network and Internet Connections.
3. Select Create a connection to the network at your workplace and follow the
New Connection Wizard.
4. Select Dial-up connection and click Next.
5. From the shown list select the Modem – Standard 19200 bps Modem being
installed before and click Next.
6. Enter a name for the new connection, e.g. Service-MD720 and click Next.
7. Enter the phone number *98# and click Sie Next.
8. Finish the installation wizard by clicking Finish.
9. Open the Start Menu and select the new connection (e.g. Service-MD720) in
the menu Connect to.
10. Open Properties, select the Modem – Standard 19200 bps Modem and click
Configure.
11. Choose tke Maximum speed 9600 bps. Enable the hardware flow control and
disable the other options.
12. Click two times OK to close the Modem Configuration and Properties.
Service function
SINAUT MD720-3
64 C79000-G8976-C211
Setup the Local Service Connection
When the modem driver and the network connection are installed and the SINAUT
MD720-3 is connected to the COM-Port of the PC, the service connection can be
established.
1. Open the Start Menu and select the new connection (e.g. Service-MD720) in
the menu Connect to.
2. Enter the user name (default: service) and the password (default: service) and
click Dial.
3. The connection will be established. After the connection is established an Icon
appears in the Windows taskbar.
4. In the Start Menu click All Programs, Accessories, Command Prompt.
5. Enter the following command line: C:\WINDOWS>ftp 192.168.0.8
Pess Enter.
6. You will be asked for a User name (default: service) and a password (default:
service). Enter both and observe capital or small characters.
7. If the connection is establihsed successfully the message „230 User logged in“
appears and the prompt changes to Ftp>.
Service function
SINAUT MD720-3
C79000-G8976-C211 65
Upload a new firmware into the SINAUT MD720-3
When the service connection is established, you can start to upload the new
firmware.
1. With Notepad (belongs to Windows) create a file with the name !cmdfile. The
file name must not have any extension (e.g.: .txt). The first line in this file is:
STORE FirmwareName.BIN
Instead of „FirmewareName.BIN“ write the name of the new firmware file.
2. At the Ftp>-prompt enter: put FirmwareName.BIN
Press Enter. Instead of „FirmewareName.BIN“ write the name of the new
firmware file.
3. Then at the Ftp>-prompt enter: put !cmdfile
Press Enter.
After the firmware file and the !cmdfile file are successfully uploaded the
SINAUT MD720-3 will start to install the new firmware. This process can last
up to 10 minutes. After this the SINAUT MD720-3 restarts. Then the SINAUT
MD720-3 is ready again.
Release the local service connection
Release the local service connection, if you do not need it anymore.
1. At the Ftp>-prompt enter: quit
Then press Enter.
2. Then also tear-down the network connection to the device. To do so right-click
the icon in the Windows task bar.
Service function
SINAUT MD720-3
66 C79000-G8976-C211
6.4 Load factory defaults
By pushing the SET button for more than 5 seconds till the LED “C” begins to light
up, the configuration of the SINAUT MD720-3 will be reset to factory default
settings.

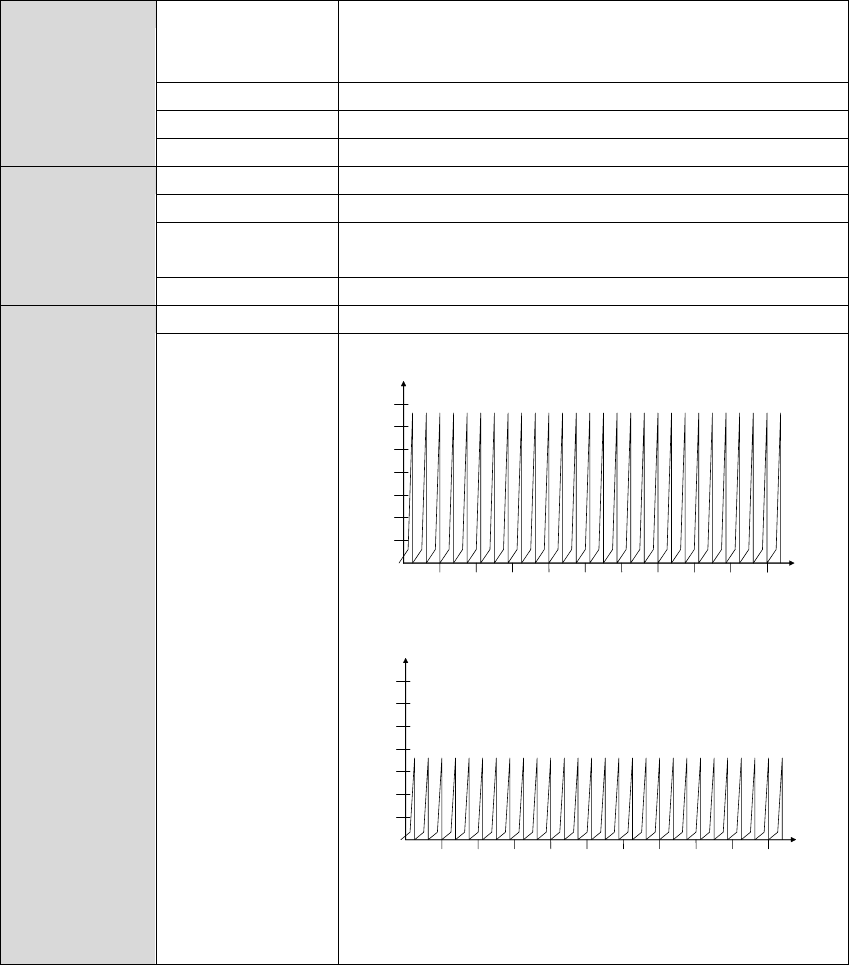

Technical Data 7
Function GPRS connections to SINAUT MICRO SC
GSM data calls (CSD 9.600 bps) MTC
SMS sending
Standard RS-232 (V.24 / V.28), connector: SUB-D9 female
Default speed 9600 bps
Interface X1
Control AT commands
GSM module GPRS / CSD / Quad band
GPRS Up to 2 uplinks / up to 4 downlinks (max. 5 Slots)
Transmit power GSM 850 MHz (max. 2W), GSM 900 MHz (max. 2W),
DCS 1800 MHz (max. 1W), PCS 1900 MHz (max. 1W)
Air interface
Antenna connector SMA / 50 Ohm
Supply voltage 12 - 30 VDC (24 VDC nominal)
Power supply
Supply current
1000
200
400
600
800
1200
1400
[mA]
[ms]
10 20 30 40 50 7060 80 90 100
I
Burst
bei 12V
1000
200
400
600
800
1200
1400
[mA]
[ms]
10 20 30 40 50 7060 80 90 100
IBurst bei 24V
In 430mA at 12V (IBurst 1,3A),
In 165mA beati 24V (IBurst 0,8A),
4,62ms Burst repetetion rate
SINAUT MD720-3
C79000-G8976-C211 67
Technical Data
Temperature range Operation: –20°C bis +60°C
Storage: –25°C bis +85°C
Ambient
conditions
Humidity 0-95 %, not condensing
Construction Top-hat rail housing
Material Synthetic material
Protection catagory IP40
Dimensions 114 mm x 22,5 mm x 99 mm (L x W x H)
Mechanics
Weight Approx. 150g
CE Yes
R&TTE Yes
Approvals
EMV / ESD EN 55024, EN 55022 Class A, EN 61000-6-2
SINAUT MD720-3
68 C79000-G8976-C211
Interface X1
Signals
(Signal direction DTE) SUB-D9 socket, Pin assignment
RS232
Pin1 DCD Output
Pin2 RXD Output
Pin3 TXD Input
Pin4 DTR Input
Pin5 GND Signal ground
Pin6 DSR Output
Pin7 RTS Input
Pin8 CTS Output
Pin9 RI Output
Glossary 8
GSM
Global System for
Mobile
Communication
Global standard for wireless telephony, data and fax transmission and
transmission of text messages (SMS). GSM based networks are
available in a lot of countries world-wide, with high coverage in Europe,
China, Latin America as wellas in regions of the USA, Africa and
Russia. Depending on the used frequencies you distinguish PCS
850MHz, GSM 900MHz, DCS 1800MHz und PCS 1900MHz networks.
CSD
Circuit Switched Data
GSM Service for wireless data transmission at 9600 bps full duplex.
Connections can be established to other GSM devices, to analogue
modems or to ISDN modems in wired networks. The connections can
be initialized at both sides. Only dial-up connections are supported.
GPRS
General Packet Radio
Service
GSM service for IP-based data transmission. Over GPRS network
connections are established, either to the internet or to private
networks.. Data are transmitted using the internet protocols TCP/IP or
UDP/IP.
OPC OPC covers a series of specification for data exchange in automation
technologies between control devices, sensors etc. and control
systems (see www.opcfoundation.org).
Protocol, transmission
protocol Devices which communicate with one another must use the same rules
for this communication. They must "speak the same language". Such
rules and standards are collectively referred to as a protocol or
transmission protocol. Often used protocols are, for example, TCP/IP
and PPP.
COM-Port The term "COM port" (communications port) is used to describe a serial
interface (V.24, RS-232) on a Windows PC. Application programs use
COM ports for data transmission to various devices such as modems,
PCs, terminals etc.
SINAUT MD720-3
C79000-G8976-C211 69
Glossary
SINAUT MD720-3
70 C79000-G8976-C211

Navigation menu
