SIMATIC NET
Industrial Wireless LAN
Approvals SCALANCE W700
802.11n
Reference Manual
10/2015
C79000
-G8976-C392-03
Approvals for SCALANCE
W780 / W740 802.11n
1
Approvals for SCALANCE
W788C / W786C 802.11n
2
Approvals for SCALANCE
W760 / W720 / W770 / W730
802.11n
3
Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
C79000-G8976-C392-03
Ⓟ
05/2016 Subject to change
Copyright © Siemens AG 2014 - 2015.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 3
Table of contents
1 Approvals for SCALANCE W780 / W740 802.11n ................................................................................... 5
1.1 General approvals ..................................................................................................................... 7
1.2 National approvals .................................................................................................................. 21
2 Approvals for SCALANCE W788C / W786C 802.11n ............................................................................ 37
2.1 General approvals ................................................................................................................... 38
2.2 National approvals .................................................................................................................. 50
3 Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n ......................................................... 67
3.1 General approvals ................................................................................................................... 68
3.2 National approvals .................................................................................................................. 78
Index..................................................................................................................................................... 91
Table of contents
Approvals SCALANCE W700 802.11n
4 Reference Manual, 10/2015, C79000-G8976-C392-03
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 5
Approvals for SCALANCE W780 / W740 802.11n
1
Note
Issued approvals on the type plate of the device
The specified approvals apply only when the corresponding mark is printed on the product.
You can check which of the following approvals have been granted for your product by the
markings on the type plate.
Range of validity
The approvals listed in this section apply to the following products:
Article number of the RoW
version:
Article number of the US
version:
Access point
SCALANCE W786-1 RJ-45
6GK5 786-1FC00-0AA0
6GK5 786-1FC00-0AB0
Dual access points
SCALANCE W786-2 RJ-45
6GK5 786-2FC00-0AA0
6GK5 786-2FC00-0AB0
SCALANCE W786-2IA RJ-45
6GK5 786-2HC00-0AA0
6GK5 786-2HC00-0AB0
SCALANCE W786-2 SFP
6GK5 786-2FE00-0AA0
6GK5 786-2FE00-0AB0
Article number of the RoW
version:
Article number of the US
version:
Access points
SCALANCE W788-1 RJ-45
6GK5788-1FC00-0AA0
6GK5788-1FC00-0AB0
SCALANCE W788-1 M12
6GK5788-1GD00-0AA0
6GK5788-1GD00-0AB0
Dual access points
SCALANCE W788-2 RJ-45
6GK5788-2FC00-0AA0
6GK5788-2FC00-0AB0
SCALANCE W788-2 M12
6GK5788-2GD00-0AA0
6GK5788-2GD00-0AB0
SCALANCE W788-2 M12 EEC
6GK5788-2GD00-0TA0
6GK5788-2GD00-0TB0
Ethernet client modules
SCALANCE W748-1 RJ-45
6GK5748-1FC00-0AA0
6GK5748-1FC00-0AB0
SCALANCE W748-1 M12
6GK5748-1GD00-0AA0
6GK5748-1GD00-0AB0
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
6 Reference Manual, 10/2015, C79000-G8976-C392-03
Abbreviations used
Some approvals apply only to certain devices or series. In such situations, the designations
of the products are shortened to avoid having to list all the type designations. The following
table shows how the abbreviations relate to the product variants.
Product group
The designation . . .
stands for . . .
Product name
Access points (IP30 and IP65) W788-x SCALANCE W788-1 M12
SCALANCE W788-2 M12
SCALANCE W788-2 M12 EEC
SCALANCE W788-1 RJ-45
SCALANCE W788-2 RJ-45
Access points (IP65) W786-x SCALANCE W786-1 RJ-45
SCALANCE W786-2 RJ-45
SCALANCE W786-2IA RJ-45
SCALANCE W786-2 SFP
SCALANCE W without W786-x W7x8 SCALANCE W788-1 RJ-45
SCALANCE W788-1 M12
SCALANCE W788-2 RJ-45
SCALANCE W788-2 M12
SCALANCE W788-2 M12 EEC
SCALANCE W748-1 RJ-45
SCALANCE W748-1 M12
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 7
1.1
General approvals
CE conformity
The products
SIMATIC NET SCALANCE W786-1 RJ45
SIMATIC NET SCALANCE W786-2 RJ45
SIMATIC NET SCALANCE W786-2IA RJ45
SIMATIC NET SCALANCE W786-2 SFP
SIMATIC NET SCALANCE W788-1 RJ-45
SIMATIC NET SCALANCE W788-2 RJ-45
SIMATIC NET SCALANCE W788-1 M12
SIMATIC NET SCALANCE W788-2 M12
SIMATIC NET SCALANCE W748-2 M12 EEC
SIMATIC NET SCALANCE W748-1 RJ-45
SIMATIC NET SCALANCE W748-1 M12
in the version put into circulation by Siemens AG conform to the regulations of the following
European directive:
● 99/5/EC
Directive of the European Parliament and of the Council on radio equipment and
telecommunications terminal equipment and the mutual recognition of their conformity.
Conformity with the basic requirement of the directive is attested by adherence to the
following standards:
● EN 60950-1 +A1 + A2 + A11 + A12
Information technology equipment - Safety - Part 1: General requirements
● EN 301489-1 V1.9.2
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 1 : Common technical requirements
(V1.9.2).
● EN 301489-17 V2.2.1
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 17: Specific conditions for 2.4 GHz
broadband transmission systems and 5 GHz high performance RLAN equipment
● EN 300328 V1.8.1
Electromagnetic Compatibility and Radio Spectrum Matters (ERM); — Broadband
transmission systems — Data transmission equipment operating in the 2.4 GHz ISM
band and using spread spectrum modulation techniques — Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
● EN 301893 V1.7.1
Broadband Radio Access Networks (BRAN) - 5 GHz high performance RLAN -
Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
8 Reference Manual, 10/2015, C79000-G8976-C392-03
● EN 62311
Assessment of electronic and electrical equipment related to human exposure restrictions
for electro-magnetic fields (0 Hz – 300 GHz)
● 1999/519/EC
Council recommendation on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz)
Devices connected to the system must meet the relevant safety regulations.

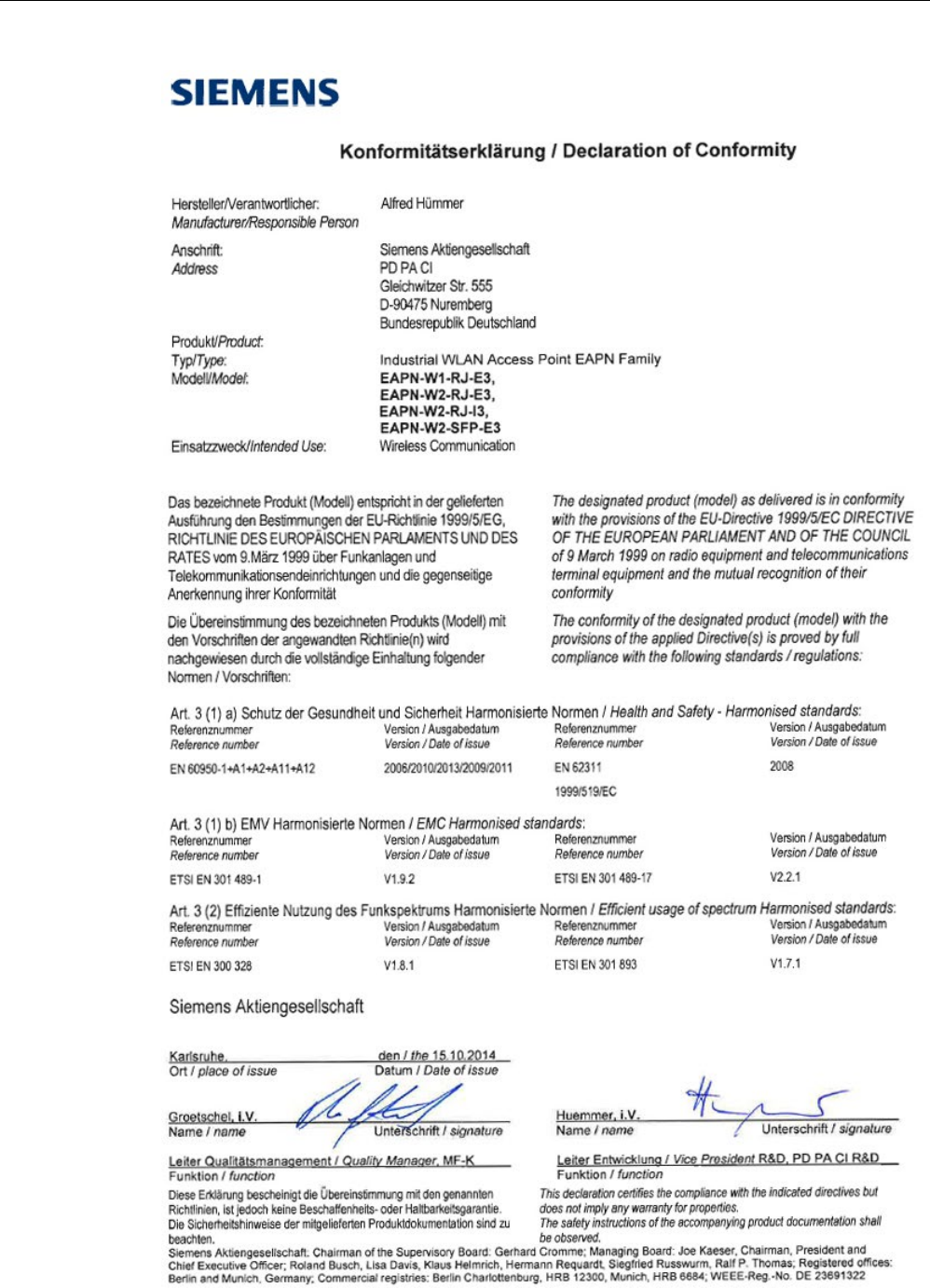

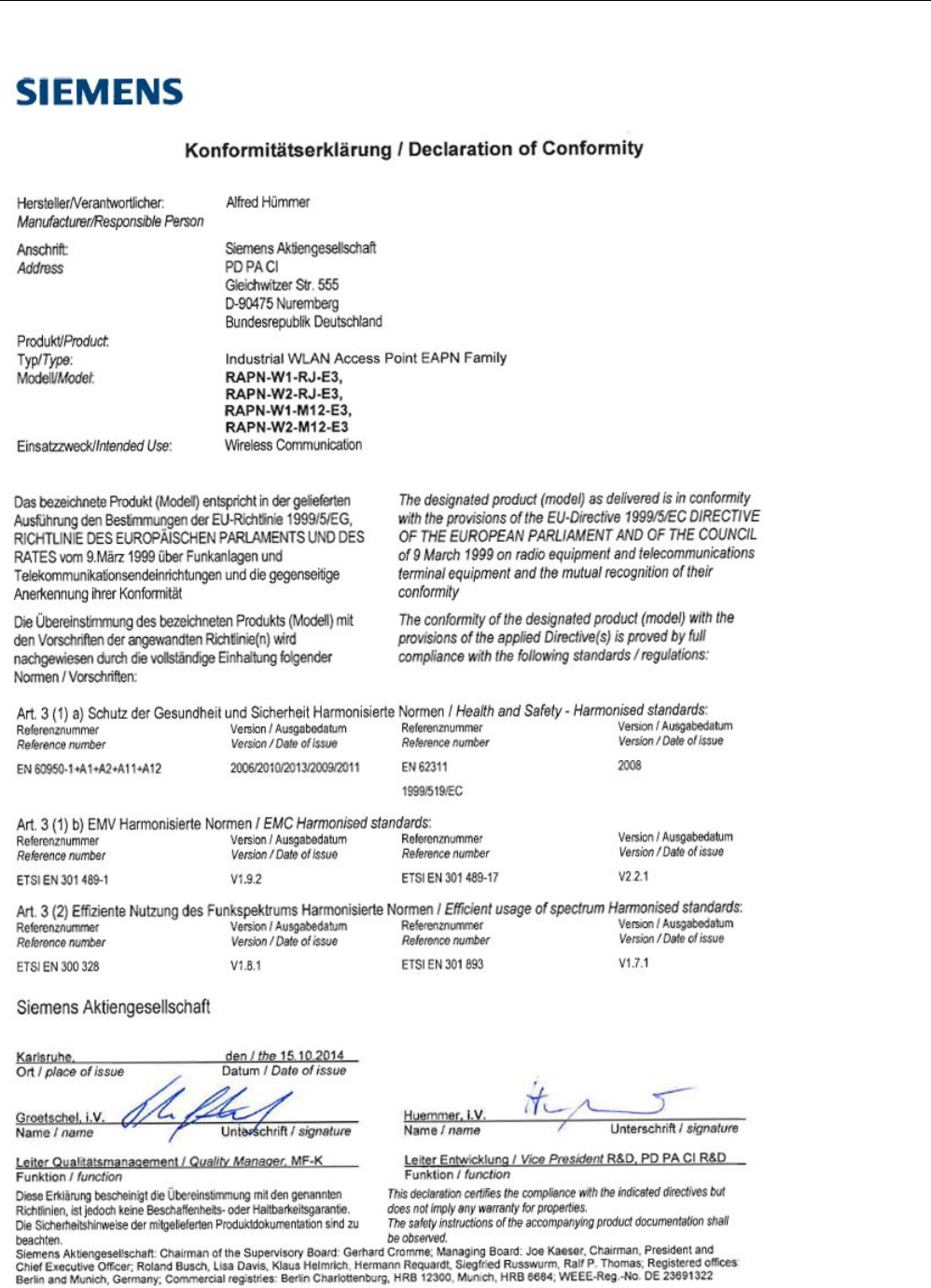

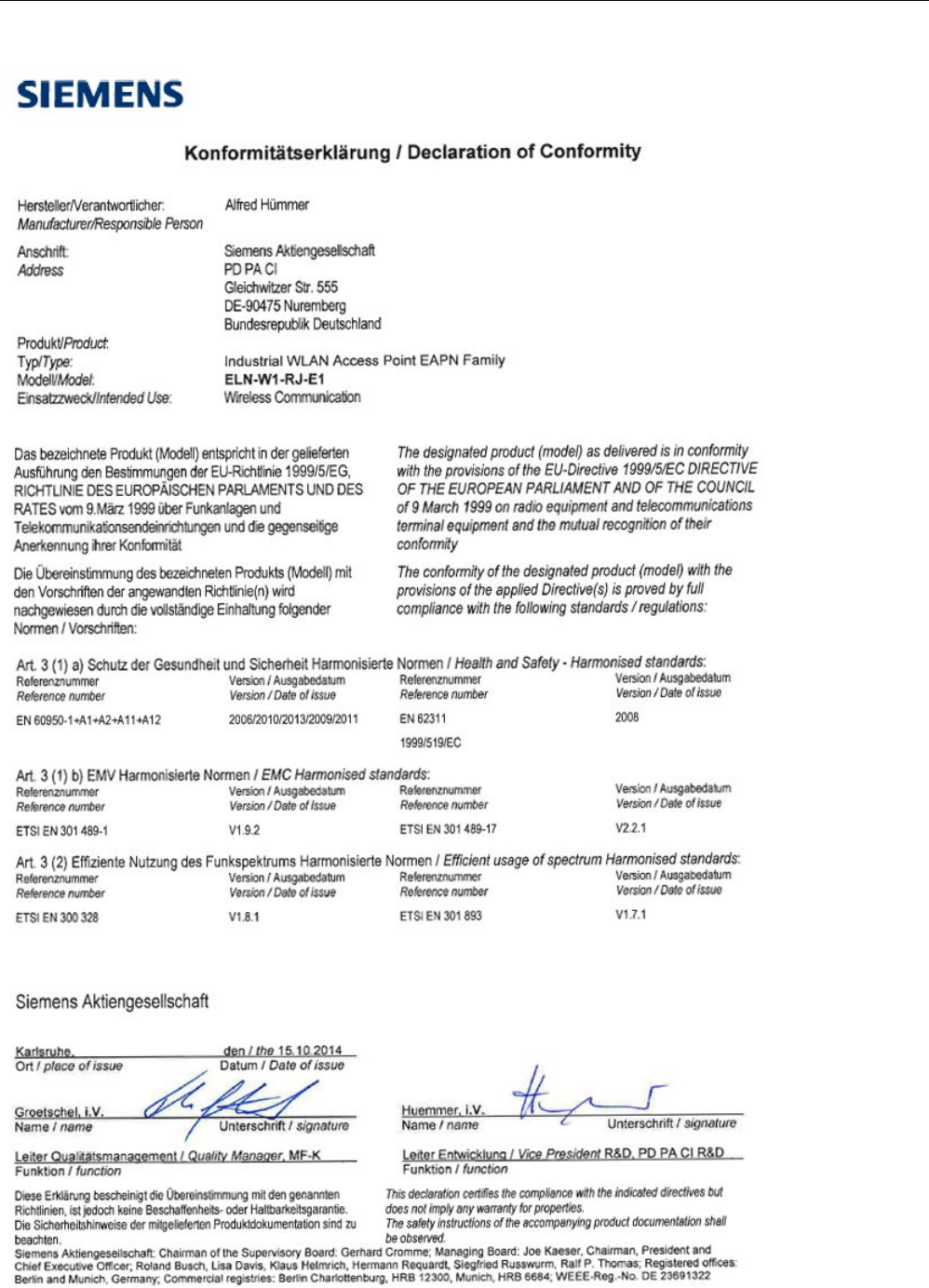

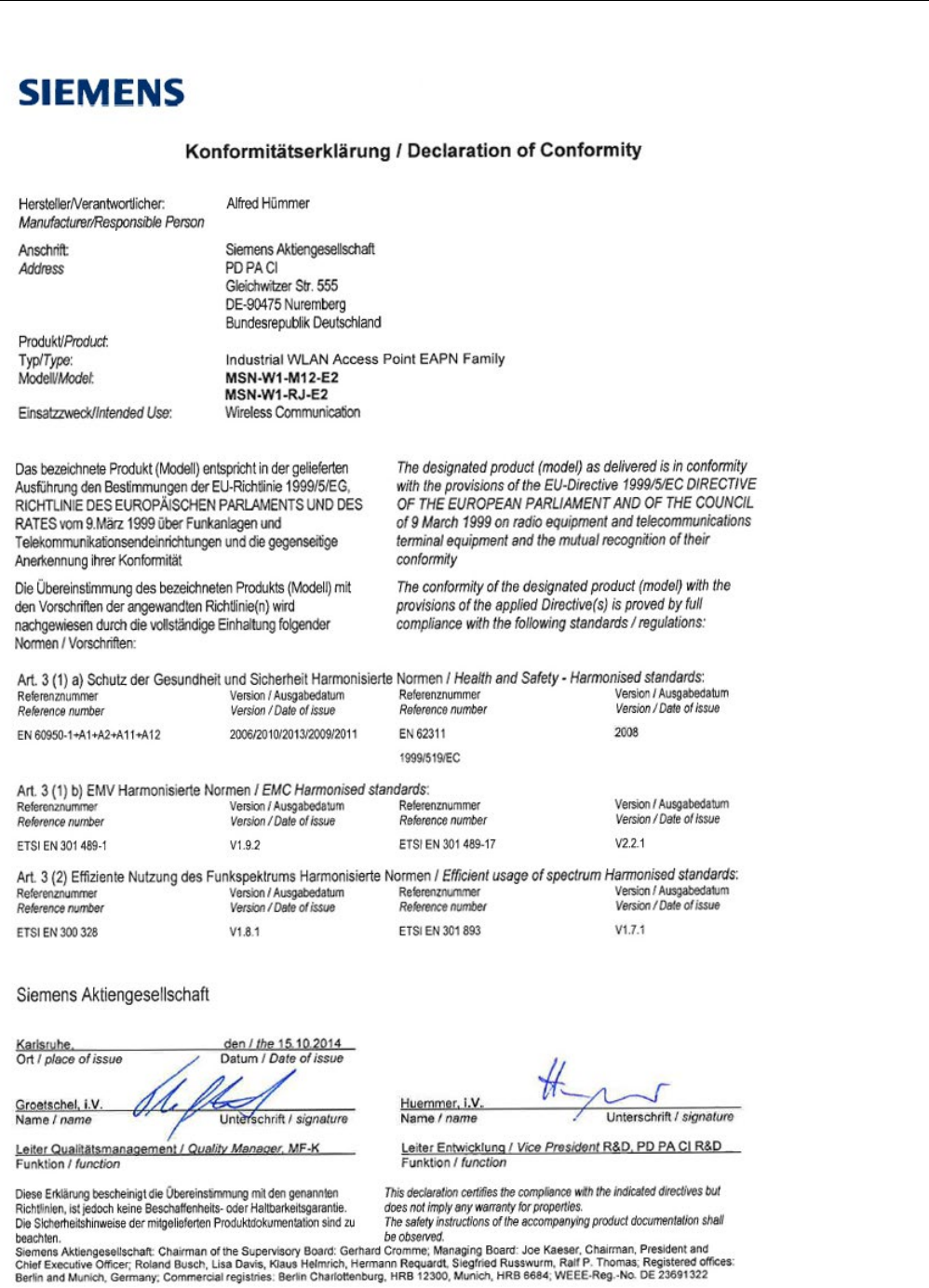

The EC Declaration of Conformity is available for the responsible authorities according to the
above-mentioned EC Directive at the following address:
Siemens Aktiengesellschaft
Division Process Industries and Drives
Postfach 4848
D-90026 Nürnberg
This declaration certifies compliance with the directives named above, but does not
guarantee any specific properties.
Note
The specified approvals apply only when the corresponding mark is printed on the product.
Certification ID
The following tables show the product names and the corresponding certification ID:
Type
Number and type of
the Ethernet interfaces
Number of inter-
nal antennas
Number of R-SMA
sockets for external
antennas
Certification ID
Order number
Order number US variant
W786-1 RJ-45
1 x RJ-45 - 3
EAPN-W1-RJ-E3
6GK5 786-1FC00-0AA0
6GK5 786-1FC00-0AB0
W786-2 RJ-45
1 x RJ-45 - 6
EAPN-W2-RJ-E3
6GK5 786-2FC00-0AA0
6GK5 786-2FC00-0AB0
W786-2IA RJ-45
1 x RJ-45 2 -
EAPN-W2-RJ-I3
6GK5 786-2HC00-0AA0
6GK5 786-2HC00-0AB0
W786-2 SFP
2 x SFP - 6
EAPN-W2-SFP-E3
6GK5 786-2FE00-0AA0
6GK5 786-2FE00-0AB0
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 9
Type
Certification ID
Order number:
Order number US variant:
W788-1 RJ-45
RAPN-W1-RJ-E3
6GK 5788-1FC00-0AA0
6GK 5788-1FC00-0AB0
W788-2 RJ-45
RAPN-W2-RJ-E3
6GK5 788-2FC00-0AA0
6GK5 788-2FC00-0AB0
W788-1 M12
RAPN-W1-M12-E3
6GK5 788-1GD00-0AA0
6GK5 788-1GD00-0AB0
W788-2 M12
RAPN-W2-M12-E3
6GK5 788-2GD00-0AA0
6GK5 788-2GD00-0AB0
W788-2 M12 EEC
RAPN-W2-M12-E3
6GK5 788-2GD00-0TA0
6GK5 788-2GD00-0TB0
W748-1 RJ-45
RAPN-W1-RJ-E3
6GK5 748-1FC00-0AA0
6GK5 748-1FC00-0AB0
W748-1 M12
RAPN-W1-M12-E3
6GK5 748-1GD00-0AA0
6GK5 748-1GD00-0AB0
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
10 Reference Manual, 10/2015, C79000-G8976-C392-03
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 11
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
12 Reference Manual, 10/2015, C79000-G8976-C392-03
ATEX (explosion protection directive)
WARNING
When using SIMATIC NET products in hazardous area zone 2, make absolutely sure that
the associated conditions in the following document are adhered to:
"SIMATIC NET Product Information Use of subasseblies/modules in a Zone 2 Hazardous
Area".
You will find this document
• on the data medium that ships with some devices.
• on the Internet pages of Siemens Industry Online Support
(http://support.automation.siemens.com/ww).
Enter the document identification number C234 as the search term.
SIMATIC NET products meet the requirements of the EC directive:94/9/EC "Equipment and
Protective Devices for Use in Potentially Explosive Atmospheres".
ATEX classification:
II 3 G Ex nA IIC T4 Gc
KEMA 07ATEX0145 X
The products meet the requirements of the following standards:
● EN 60079-15 (electrical apparatus for potentially explosive atmospheres; Type of
protection "n")
● EN 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)
You will find the current versions of the standards in the currently valid ATEX certificates.
IECEx
The SIMATIC NET products meet the requirements of explosion protection according to
IECEx.
IECEx classification:
Ex nA IIC T4 Gc
DEK 14.0025X
The products meet the requirements of the following standards:
● IEC 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of
protection "n")
● IEC 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)
You will find the current versions of the standards in the currently valid IECEx certificates.
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 13
FM
The product meets the requirements of the standards:
● Factory Mutual Approval Standard Class Number 3611
● FM Hazardous (Classified) Location Electrical Equipment:
Non Incendive / Class I / Division 2 / Groups A,B,C,D / T4 and
Non Incendive / Class I / Zone 2 / Group IIC / T4
cULus Approval for Information Technology Equipment
cULus Listed I. T. E.
Underwriters Laboratories Inc. complying with
● UL 60950-1 (Information Technology Equipment)
● CSA C22.2 No. 60950-1-03
Report no. E115352
Note
Only devices of the SCALANCE W786
-x series have this approval.
cULus Approval Hazardous Location
cULus Listed I. T. E. FOR HAZ. LOC.
Underwriters Laboratories Inc. complying with
● UL 60950-1 (Information Technology Equipment)
● ANSI/ISA 12.12.01-2007
● CSA C22.2 No. 213-M1987
Approved for use in
Cl. 1, Div. 2, GP A, B, C, D T4
Cl. 1, Zone 2, GP IIC T4
Report no. E240480
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
14 Reference Manual, 10/2015, C79000-G8976-C392-03
FCC approval
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
___________________________________________________________________________
Notice
Changes or modifications made to this equipment not expressly approved by SIEMENS may
void the FCC authorization to operate this equipment.
___________________________________________________________________________
IEEE 802.11b or g operation of this product in the USA is firmware-limited to channels 1
through 11.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
___________________________________________________________________________
Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body.
___________________________________________________________________________
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. Professional Installation Notice:
To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in the
United States. The use of the system in any other combination (such as co-located antennas
transmitting the same information) is expressly forbidden.
___________________________________________________________________________
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 15
Notice
For use of DFS channels
● Use of the RCoax Cable Antenna 6XV1875-2D is not permitted in channels which
require dynamic frequency selection (DFS).
● Any installation of either a master or a client device within 35 km of a TDWR (Terminal
Doppler Weather Radar) location shall be separated by at least 30 MHz (center-to-center)
from the TDWR operating frequency.
These devices shall be registered in the industry sponsored WISPA database,
http://udia.spectrumbridge.com/udia/home.aspx
(http://udia.spectrumbridge.com/udia/home.aspx)
When you open this link, you get the following choices:
– "Search" opens a window with TDWR locations and frequencies.
– "User Signup" allows you to register as user of the database.
– After registering you can Logon and register your WLAN location. Please fill in all
required information.
For more information with respect to WISPA database and TWDR locations please consult
FCC publication KDB 443999 D01.
___________________________________________________________________________
NEMA TS2
The product meets the requirements of the standard
NEMA TS2 (Traffic Controller Assemblies with NTCIP Requirements)
SCALANCE W788-2 M12 EEC
6GK5788-2GD00-0TA0
6G
K5788-2GD00-0TB0
RSS-247 of Industry Canada for SCALANCE W786-x
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 267AA-MPCIE1V1) has been approved by Industry Canada to
operate with the antenna types listed in section 6.8 with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not included in
this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
16 Reference Manual, 10/2015, C79000-G8976-C392-03
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
Users should also be cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars
could cause interference and/or damage to LE-LAN devices.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
RSS-247 of Industry Canada for SCALANCE W7x8
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 267AA-MPCIE1V1) has been approved by Industry Canada to
operate with the antenna types listed in section 5.4 with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not included in
this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
Users should also be cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars
could cause interference and/or damage to LE-LAN devices.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 17
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Note for USA, Canada, Puerto Rico, Peru, Bahamas, Ecuador and Columbia
When operating the SCALANCE W700 with DFS (Dynamic Frequence Selection), the
IWLAN RCoax Cable 5 GHz (order number 6XV1875-2D) may not be used in the countries
listed above.
Approvals in Argentina
Devices of the SCALANCE W786-x series are approved in Argentina under the following
certification numbers:
Certification ID
Certification number
EAPN-W1-RJ-E3
CNC: C-11549
EAPN-W2-RJ-E3 CNC: C-11536
EAPN-W2-RJ-I3
CNC: C-11564
EAPN-W2-SFP-E3 CNC: C-11547
Devices of the SCALANCE W788-x series are approved in Argentina under the following
certification numbers:
Certification ID
Certification number
RAPN-W1-RJ-E3
CNC: C-11541
RAPN-W2-RJ-E3
CNC: C-11502
RAPN-W1-M12-E3
CNC: C-11546
RAPN-W2-M12-E3
CNC: C-11548

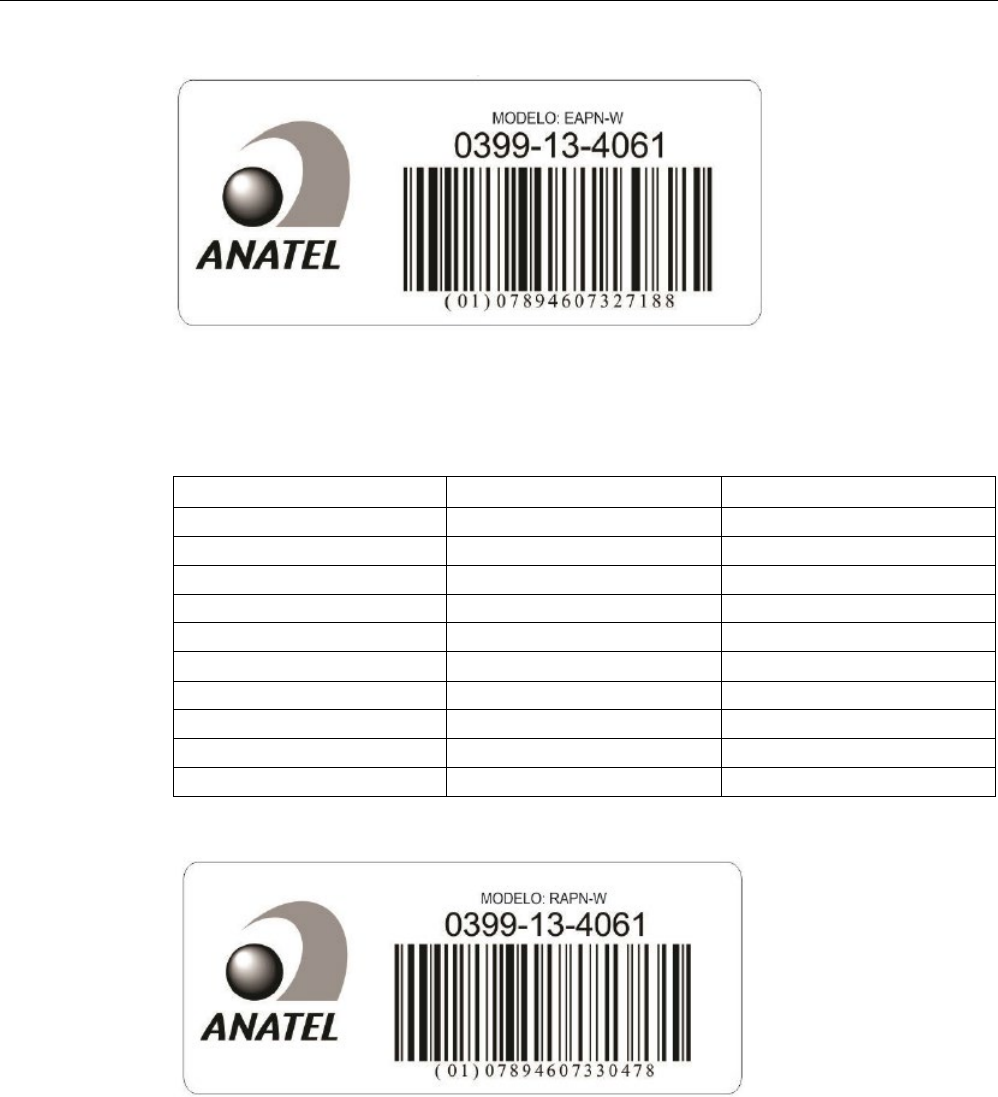

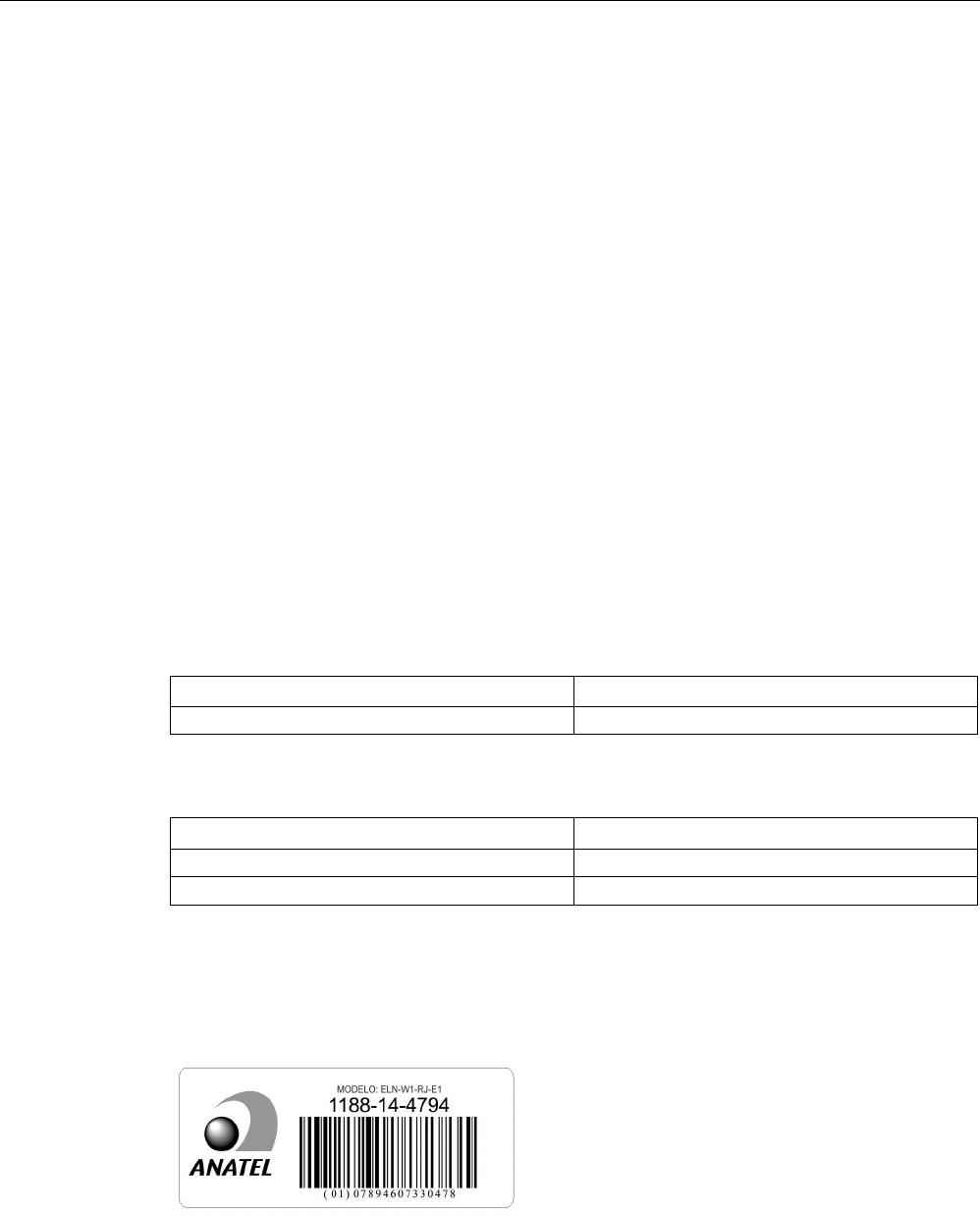

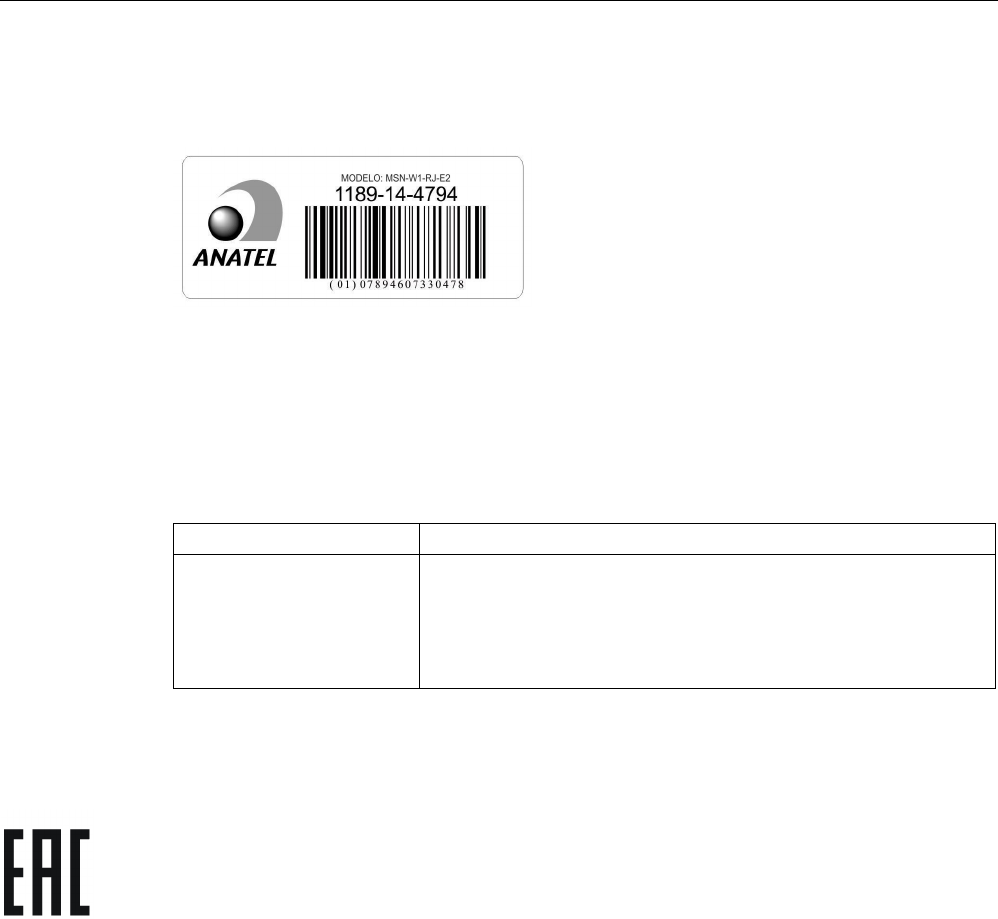

Approval in Brazil
From the SCALANCE W786-x series, the following devices are approved for Brazil:
Type
Order number
EAPN number
W786-1 RJ-45
6GK5 786-1FC00-0AA0
EAPN-W1-RJ-E3
W786-2 RJ-45
6GK5 786-2FC00-0AA0
EAPN-W2-RJ-E3
W786C-2 RJ-45
6GK5 786-2FC00-1AA0
EAPN-W2-RJ-E3
W786-2IA RJ-45
6GK5 786-2HC00-0AA0
EAPN-W2-RJ-I3
W786C-2IA RJ-45
6GK5 786-2HC00-1AA0
EAPN-W2-RJ-I3
W786-2 SFP
6GK5 786-2FE00-0AA0
EAPN-W2-SFP-E3
The listed devices are approved in Brazil under the following certification numbers:
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
18 Reference Manual, 10/2015, C79000-G8976-C392-03
Este equipamento opera em caráter secundário, isto, ist é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência
a sistemas operando em caráter primário.
From the SCALANCE W7x8 series, the following devices are approved for Brazil:
Type
Order number
RAPN number
W788-1 RJ-45
6GK 5788-1FC00-0AA0
RAPN-W1-RJ-E3
W788-2 RJ-45
6GK5 788-2FC00-0AA0
RAPN-W2-RJ-E3
W788-1 M12
6GK5 788-1GD00-0AA0
RAPN-W1-M12-E3
W788-2 M12
6GK5 788-2GD00-0AA0
RAPN-W2-M12-E3
W788-2 M12 EEC
6GK5 788-2GD00-0TA0
RAPN-W2-M12-E3
W748-1 RJ-45 6GK5 748-1FC00-0AA0 RAPN-W1-RJ-E3
W748-1 M12
6GK5 748-1GD00-0AA0
RAPN-W1-M12-E3
W788C-2 RJ-45
6GK 5788-2FC00-1AA0
RAPN-W2-RJ-E3
W788C-2 M12
6GK5 788-2GD00-1AA0
RAPN-W2-M12-E3
W788C-2 M12 EEC
6GK5788-2GD00-1TA0
RAPN-W2-M12-E3
The listed devices are approved in Brazil under the following certification numbers:
Este equipamento opera em caráter secundário, isto, ist é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência
a sistemas operando em caráter primário.
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 19
KCC Statement (Republic of Korea)
사용자안내문(제5조제1항제1호관련)
기 종 별
사 용 자 안 내 문
A 급 기기급 기기
(업무용 방송통신기기)
이 기기는 업무용(A 급)으로 전자파적합등록을 한(A 급)으로
전자파적합등록을 한
기기이오니 판매자 또는 사용자는 이 점을
주의하시기 바라며, 가정외의 지역에서 사용하는
것을 목적으로 합니다.
"당해 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음"
Approval for Mexico
The WLAN modules included in the devices have the following certification number:
RCPSIMP12-0751
Approval for Oman
Devices of the SCALANCE W786-x series are approved in Oman under the following
certification numbers:
OMAN-TRA
R/1773/14
D090258
Devices of the SCALANCE W788-x series are approved in Oman under the following
certification numbers:
OMAN-TRA
R/1772/14
D090258
NCC Warning Statement (Taiwan)
Article 12
Without permission, any company, firm or user shall not alter the frequency, increase the
power, or change the characteristics and functions of the original design of the certified lower
power frequency electric machinery.
Article 14
The application of low power frequency electric machineries shall not affect the navigation
safety nor interfere a legal communication, if an interference is found, the service will be
suspended until improvement is made and the interference no longer exists.
Approvals for SCALANCE W780 / W740 802.11n
1.1 General approvals
Approvals SCALANCE W700 802.11n
20 Reference Manual, 10/2015, C79000-G8976-C392-03
Marking for the customs union
EAC (Eurasian Conformity)
Customs union of Russia, Belarus and Kazakhstan
Declaration of the conformity according to the technical regulations of the customs union
(TR CU)
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 21
1.2
National approvals
The following table lists the countries in which the SCALANCE W700 product is approved.
The diamond symbol (♦) identifies all countries for which there was no approval at the time
these operating instructions were written.
The current status of the approvals can be found on the Internet at the following address:
http://www.siemens.com/funkzulassungen
Column
Meaning
Country
Country
Mode IEEE 802.11 standard and the TPC and / or DFS functionality, where required
CH
Channel
MHz Frequency
PWR (EIRP)
Maximum permitted effective isotropic radiated power
Use
Permitted use indoors and / or outdoors
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
22 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Andorra
Belgium
Bosnia and Her-
zegovina
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Croatia
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Macedonia
Monaco
Montenegro
Netherlands
Norway
Austria
Poland
Portugal
Romania
San Marino
Sweden
Switzerland
Serbia
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
Vatican
Cyprus
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 23
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Egypt 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
Angola 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Argentina 11g 11n 1
-
13
2412
-
2472
1000 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
50 mW Indoor + outdoor
52
-
64
5260
-
5320
250 mW Indoor + outdoor
100
-
120
5500
-
5600
250 mW Indoor + outdoor
132
-
140
5660
-
5700
250 mW Indoor + outdoor
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Australia
New Zealand
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
24 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Bahrain 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Belarus 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TCP
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
TCP + DFS
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 25
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Brazil 11g 11n 1
-
13
2412
-
2472
4000 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
100
-
140
5500
-
5700
1000 mW Indoor + outdoor
149
-
165
5745
-
5825
4000 mW Indoor + outdoor
Chile 11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor only
149
-
165
5745
-
5825
100 mW Indoor only
China 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Ivory Coast 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
26 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Guatemala 11g 11n 1 2412 100 mW Indoor + outdoor
11g 11n 2
-
10
2417
-
2457
200 mW Indoor + outdoor
11g 11n
11
2462
100 mW
Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Hong Kong 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
India 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 27
Country
Mode
CH
MHz
PWR
(EIRP)
Use
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
200 mW Indoor only
Indonesia ♦ 11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
-
13
2462
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
400 mW Indoor + outdoor
Japan
11g 11n 1
-
13
2412
-
2472
200 mW Indoor + outdoor
11a
TPC
8
-
16
5040
-
5080
200 mW Indoor + outdoor
11a 11n 36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
140
5500
-
5700
200 mW Indoor + outdoor
11a
TPC
184
-
196
4920
-
4980
200 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
28 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Kazakhstan 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor only
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Qatar 11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n 149
-
165
5745
-
5825
100 mW Indoor only
Colombia 11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11 2462 100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Korea 11g 11n 1
-
13
2412
-
2472
400 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 29
Country
Mode
CH
MHz
PWR
(EIRP)
Use
11a 11n
TPC
149
-
161
5745
-
5805
400 mW Indoor + outdoor
Kuwait 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
Macau 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
100 mW Indoor + outdoor
Madagascar 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
30 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Malaysia 11g 11n 1
-
13
2412
-
2472
200 mW Indoor + outdoor
11a 11n
DFS + TPC
56
-
64
5280
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Morocco ♦
(only with
SCALANCE
W786-2IA RJ-45)
11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
Mexico 11g 11n 1
-
11
2412
-
2462
500 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
1000 mW Indoor + outdoor
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Mozambique 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 31
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Oman 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Pakistan 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
100 mW Indoor + outdoor
Russia 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
100 mW Indoor + outdoor
Saudi Arabia 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
32 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
South Africa
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Singapore
Philippines
11b 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Taiwan 11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11 2462 100 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 33
Country
Mode
CH
MHz
PWR
(EIRP)
Use
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Thailand 11g 11n
1
-
11
2412
-
2462
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
34 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Ukraine
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
100
-
116
5500
-
5580
200 mW Indoor + outdoor
132
-
136
5660
-
5680
200 mW Indoor + outdoor
Uruguay 11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
2462
100 mW
Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Venezuela 11g 11n 1
-
13
2412
-
2472
1000 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 35
Country
Mode
CH
MHz
PWR
(EIRP)
Use
11a 11n
DFS + TPC
52
-
64
5260
-
5320
1000 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
4000 mW Indoor + outdoor
United Arab Emir-
ates
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor only
132
-
140
5660
-
5700
1000 mW Indoor only
Bahamas
Ecuador
Canada
Peru
Puerto Rico
USA
11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
2462
100 mW
Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals for SCALANCE W780 / W740 802.11n
1.2 National approvals
Approvals SCALANCE W700 802.11n
36 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Vietnam 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 37
Approvals for SCALANCE W788C / W786C 802.11n
2
Note
Issued approvals on the type plate of the device
The specified approvals apply only when the corresponding mark is printed on the product.
You can check which of the following approvals have been granted for your product by the
markings on the type plate.
Range of validity
The approvals listed in this section apply to the following products:
Article number
SCALANCE W786C-2 RJ-45 6GK5 786-2FC00-1AA0
SCALANCE W786C-2IA RJ-45
6GK5 786-2HC00-1AA0
SCALANCE W786C-2 SFP 6GK5 786-2FE00-1AA0
Article number
SCALANCE W788C-2 RJ-45
6GK5 788-2FC00-1AA0
SCALANCE W788C-2 M12
6GK5 788-2GD00-1AA0
SCALANCE W788C-2 M12 EEC
6GK5788-2GD00-1TA0
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
38 Reference Manual, 10/2015, C79000-G8976-C392-03
2.1
General approvals
CE conformity
The products
SIMATIC NET SCALANCE W786C-2 RJ45
SIMATIC NET SCALANCE W786C-2IA RJ45
SIMATIC NET SCALANCE W786-2 SFP
SIMATIC NET SCALANCE W788C-2 RJ-45
SIMATIC NET SCALANCE W788C-2 M12
SIMATIC NET SCALANCE W788C-2 M12 EEC
in the version put into circulation by Siemens AG conform to the regulations of the following
European directive:
● 99/5/EC
Directive of the European Parliament and of the Council on radio equipment and
telecommunications terminal equipment and the mutual recognition of their conformity.
Conformity with the basic requirement of the directive is attested by adherence to the
following standards:
● EN 60950-1 A1 + A2 + A11 + A12
Information technology equipment - Safety - Part 1: General requirements
● EN 301489-1 V1.9.2
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 1 : Common technical requirements
(V1.9.2).
● EN 301489-17 V2.2.1
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 17: Specific conditions for 2.4 GHz
broadband transmission systems and 5 GHz high performance RLAN equipment
● EN 300328 V1.8.1
Electromagnetic Compatibility and Radio Spectrum Matters (ERM); — Broadband
transmission systems — Data transmission equipment operating in the 2.4 GHz ISM
band and using spread spectrum modulation techniques — Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
● EN 301893 V1.7.1
Broadband Radio Access Networks (BRAN) - 5 GHz high performance RLAN -
Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
● EN 62311
Assessment of electronic and electrical equipment related to human exposure restrictions
for electro-magnetic fields (0 Hz – 300 GHz)
● 1999/519/EC
Council recommendation on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz)
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 39
Devices connected to the system must meet the relevant safety regulations.
The EC Declaration of Conformity is available for the responsible authorities according to the
above-mentioned EC Directive at the following address:
Siemens Aktiengesellschaft
Division Process Industries and Drives
Postfach 4848
D-90026 Nürnberg
This declaration certifies compliance with the directives named above, but does not
guarantee any specific properties.
Note
The specified approvals apply only when the corresponding mark is printed on the product.
Certification ID
The following tables show the product names and the corresponding certification ID:
Type
Number and type of
the Ethernet interfaces
Number of inter-
nal antennas
Number of R-SMA
sockets for external
antennas
Certification ID
Order number
Order number US variant
W786C-2 RJ-45
1 x RJ-45 - 6
EAPN-W2-RJ-E3
6GK5 786-2FC00-1AA0
W786C-2IA RJ-45
1 x RJ-45 2 -
EAPN-W2-RJ-I3
6GK5 786-2HC00-1AA0
W786-2 SFP
2 x SFP - 6
EAPN-W2-SFP-E3
6GK5 786-2FE00-1AA0
Type
Certification ID
Order number:
W788C-2 RJ-45
RAPN-W2-RJ-E3
6GK 5788-2FC00-1AA0
W788C-2 M12
RAPN-W2-M12-E3
6GK5 788-2GD00-1AA0
W788C-2 M12 EEC
RAPN-W2-M12-E3
6GK5788-2GD00-1TA0
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
40 Reference Manual, 10/2015, C79000-G8976-C392-03
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 41
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
42 Reference Manual, 10/2015, C79000-G8976-C392-03
ATEX (explosion protection directive)
WARNING
When using SIMATIC NET products in hazardous area zone 2, make absolutely sure that
the associated conditions in the following document are adhered to:
"SIMATIC NET Product Information Use of subasseblies/modules in a Zone 2 Hazardous
Area".
You will find this document
• on the data medium that ships with some devices.
• on the Internet pages of Siemens Industry Online Support
(http://support.automation.siemens.com/ww).
Enter the document identification number C234 as the search term.
SIMATIC NET products meet the requirements of the EC directive:94/9/EC "Equipment and
Protective Devices for Use in Potentially Explosive Atmospheres".
ATEX classification:
II 3 G Ex nA IIC T4 Gc
KEMA 07ATEX0145 X
The products meet the requirements of the following standards:
● EN 60079-15 (electrical apparatus for potentially explosive atmospheres; Type of
protection "n")
● EN 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)
You will find the current versions of the standards in the currently valid ATEX certificates.
IECEx
The SIMATIC NET products meet the requirements of explosion protection according to
IECEx.
IECEx classification:
Ex nA IIC T4 Gc
DEK 14.0025X
The products meet the requirements of the following standards:
● IEC 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of
protection "n")
● IEC 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)
You will find the current versions of the standards in the currently valid IECEx certificates.
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 43
FM
The product meets the requirements of the standards:
● Factory Mutual Approval Standard Class Number 3611
● FM Hazardous (Classified) Location Electrical Equipment:
Non Incendive / Class I / Division 2 / Groups A,B,C,D / T4 and
Non Incendive / Class I / Zone 2 / Group IIC / T4
cULus Approval Hazardous Location
cULus Listed I. T. E. FOR HAZ. LOC.
Underwriters Laboratories Inc. complying with
● UL 60950-1 (Information Technology Equipment)
● ANSI/ISA 12.12.01-2007
● CSA C22.2 No. 213-M1987
Approved for use in
Cl. 1, Div. 2, GP A, B, C, D T4
Cl. 1, Zone 2, GP IIC T4
Report no. E240480
FCC approval
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
___________________________________________________________________________
Notice
Changes or modifications made to this equipment not expressly approved by SIEMENS may
void the FCC authorization to operate this equipment.
___________________________________________________________________________
IEEE 802.11b or g operation of this product in the USA is firmware-limited to channels 1
through 11.
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
44 Reference Manual, 10/2015, C79000-G8976-C392-03
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
___________________________________________________________________________
Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body.
___________________________________________________________________________
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. Professional Installation Notice:
To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in the
United States. The use of the system in any other combination (such as co-located antennas
transmitting the same information) is expressly forbidden.
___________________________________________________________________________
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 45
Notice
For use of DFS channels
● Use of the RCoax Cable Antenna 6XV1875-2D is not permitted in channels which
require dynamic frequency selection (DFS).
● Any installation of either a master or a client device within 35 km of a TDWR (Terminal
Doppler Weather Radar) location shall be separated by at least 30 MHz (center-to-center)
from the TDWR operating frequency.
These devices shall be registered in the industry sponsored WISPA database,
http://udia.spectrumbridge.com/udia/home.aspx
(http://udia.spectrumbridge.com/udia/home.aspx)
When you open this link, you get the following choices:
– "Search" opens a window with TDWR locations and frequencies.
– "User Signup" allows you to register as user of the database.
– After registering you can Logon and register your WLAN location. Please fill in all
required information.
For more information with respect to WISPA database and TWDR locations please consult
FCC publication KDB 443999 D01.
___________________________________________________________________________
NEMA TS2
The product meets the requirements of the standard
NEMA TS2 (Traffic Controller Assemblies with NTCIP Requirements)
SCALANCE W788C-2 M12 EEC
6GK5788-2GD00-1TA0
RSS-247 of Industry Canada for SCALANCE W786-x
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 267AA-MPCIE1V1) has been approved by Industry Canada to
operate with the antenna types listed in section 6.8 with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not included in
this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
46 Reference Manual, 10/2015, C79000-G8976-C392-03
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
Users should also be cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars
could cause interference and/or damage to LE-LAN devices.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
RSS-247 of Industry Canada for SCALANCE W7x8
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 267AA-MPCIE1V1) has been approved by Industry Canada to
operate with the antenna types listed in section 5.4 with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not included in
this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
Users should also be cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars
could cause interference and/or damage to LE-LAN devices.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 47
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Note for USA, Canada, Puerto Rico, Peru, Bahamas, Ecuador and Columbia
When operating the SCALANCE W700 with DFS (Dynamic Frequence Selection), the
IWLAN RCoax Cable 5 GHz (order number 6XV1875-2D) may not be used in the countries
listed above.
Approvals in Argentina
Devices of the SCALANCE W786-x series are approved in Argentina under the following
certification numbers:
Certification ID
Certification number
EAPN-W1-RJ-E3
CNC: C-11549
EAPN-W2-RJ-E3 CNC: C-11536
EAPN-W2-RJ-I3
CNC: C-11564
EAPN-W2-SFP-E3 CNC: C-11547
Devices of the SCALANCE W788-x series are approved in Argentina under the following
certification numbers:
Certification ID
Certification number
RAPN-W1-RJ-E3
CNC: C-11541
RAPN-W2-RJ-E3
CNC: C-11502
RAPN-W1-M12-E3
CNC: C-11546
RAPN-W2-M12-E3
CNC: C-11548
Approval in Brazil
From the SCALANCE W786-x series, the following devices are approved for Brazil:
Type
Order number
EAPN number
W786-1 RJ-45
6GK5 786-1FC00-0AA0
EAPN-W1-RJ-E3
W786-2 RJ-45
6GK5 786-2FC00-0AA0
EAPN-W2-RJ-E3
W786C-2 RJ-45
6GK5 786-2FC00-1AA0
EAPN-W2-RJ-E3
W786-2IA RJ-45
6GK5 786-2HC00-0AA0
EAPN-W2-RJ-I3
W786C-2IA RJ-45
6GK5 786-2HC00-1AA0
EAPN-W2-RJ-I3
W786-2 SFP
6GK5 786-2FE00-0AA0
EAPN-W2-SFP-E3
The listed devices are approved in Brazil under the following certification numbers:
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
48 Reference Manual, 10/2015, C79000-G8976-C392-03
Este equipamento opera em caráter secundário, isto, ist é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência
a sistemas operando em caráter primário.
From the SCALANCE W7x8 series, the following devices are approved for Brazil:
Type
Order number
RAPN number
W788-1 RJ-45
6GK 5788-1FC00-0AA0
RAPN-W1-RJ-E3
W788-2 RJ-45
6GK5 788-2FC00-0AA0
RAPN-W2-RJ-E3
W788-1 M12
6GK5 788-1GD00-0AA0
RAPN-W1-M12-E3
W788-2 M12
6GK5 788-2GD00-0AA0
RAPN-W2-M12-E3
W788-2 M12 EEC
6GK5 788-2GD00-0TA0
RAPN-W2-M12-E3
W748-1 RJ-45 6GK5 748-1FC00-0AA0 RAPN-W1-RJ-E3
W748-1 M12
6GK5 748-1GD00-0AA0
RAPN-W1-M12-E3
W788C-2 RJ-45
6GK 5788-2FC00-1AA0
RAPN-W2-RJ-E3
W788C-2 M12
6GK5 788-2GD00-1AA0
RAPN-W2-M12-E3
W788C-2 M12 EEC
6GK5788-2GD00-1TA0
RAPN-W2-M12-E3
The listed devices are approved in Brazil under the following certification numbers:
Este equipamento opera em caráter secundário, isto, ist é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência
a sistemas operando em caráter primário.
Approval for Mexico
The WLAN modules included in the devices have the following certification number:
RCPSIMP12-0751
Approvals for SCALANCE W788C / W786C 802.11n
2.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 49
Approval for Oman
Devices of the SCALANCE W786-x series are approved in Oman under the following
certification numbers:
OMAN-TRA
R/1773/14
D090258
Devices of the SCALANCE W788-x series are approved in Oman under the following
certification numbers:
OMAN-TRA
R/1772/14
D090258
Marking for the customs union
EAC (Eurasian Conformity)
Customs union of Russia, Belarus and Kazakhstan
Declaration of the conformity according to the technical regulations of the customs union
(TR CU)
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
50 Reference Manual, 10/2015, C79000-G8976-C392-03
2.2
National approvals
The national approval of the controller-based access points depends on the controller on
which they are operated. The controllers are available in the following country-specific
versions:
● Version for the USA and Canada (NAM)
Article no. 6GK5 711-0XC00-1AB0
These countries are indicated in the table (NAM).
● Version for the Japan (JP)
Article no. 6GK5 711-0XC00-1AD0
● Version for countries outside Japan and NAM (RoW)
Article no. 6GK5 711-0XC00-1AA0
The diamond symbol (♦) identifies all countries for which there was no approval at the time
these operating instructions were written.
The current status of the approvals can be found on the Internet at the following address:
http://www.siemens.com/funkzulassungen
Column
Meaning
Country
Country
Mode IEEE 802.11 standard and the TPC and / or DFS functionality, where required
CH
Channel
MHz
Frequency
PWR (EIRP)
Maximum permitted effective isotropic radiated power
Use
Permitted use indoors and / or outdoors
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 51
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Andorra
Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Croatia
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Macedonia
Monaco
Montenegro
Netherlands
Norway
Austria
Poland
Portugal
Romania
San Marino
Sweden
Switzerland
Serbia
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
Vatican
Cyprus
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Egypt 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
52 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Angola 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Argentina 11g 11n 1
-
13
2412
-
2472
1000 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
50 mW Indoor + outdoor
52
-
64
5260
-
5320
250 mW Indoor + outdoor
100
-
120
5500
-
5600
250 mW Indoor + outdoor
132
-
140
5660
-
5700
250 mW Indoor + outdoor
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Australia
New Zealand
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 53
Country
Mode
CH
MHz
PWR
(EIRP)
Use
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Bahrain 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Belarus 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TCP
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
TCP + DFS
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Brazil 11g 11n 1
-
13
2412
-
2472
4000 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
100
-
140
5500
-
5700
1000 mW Indoor + outdoor
149
-
165
5745
-
5825
4000 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
54 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Chile 11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor only
149
-
165
5745
-
5825
100 mW Indoor only
China 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Ivory Coast 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 55
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Guatemala 11g 11n
1
-
11
2412
-
2462
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Hong Kong 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
56 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
India 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
200 mW Indoor only
Indonesia ♦ 11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
-
13
2462
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
400 mW Indoor + outdoor
Japan
11g 11n 1
-
13
2412
-
2472
200 mW Indoor + outdoor
11a
TPC
8
5040
200 mW Indoor + outdoor
12
5060
16
5080
11a 11n 36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
140
5500
-
5799
200 mW Indoor + outdoor
11a
TPC
184
-
196
4920
-
4980
200 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 57
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Qatar 11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n 149
-
165
5745
-
5825
100 mW Indoor only
Kazakhstan 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor only
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Colombia (NAM) 11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11 2462 100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Korea
11g 11n 1
-
13
2412
-
2472
400 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
400 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
58 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Kuwait 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
Macau 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
100 mW Indoor + outdoor
Madagascar 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Malaysia 11g 11n 1
-
13
2412
-
2472
200 mW Indoor + outdoor
11h 11n
DFS + TPC
56
-
64
5280
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 59
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Mexico (NAM) 11g 11n 1
-
11
2412
-
2462
500 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5180
-
5320
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Mozambique 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Oman 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Pakistan 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
100 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
60 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Russia 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
100 mW Indoor + outdoor
Saudi Arabia 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 61
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Singapore
Philippines ♦
11b 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
South Africa
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Taiwan ♦
11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
2462
100 mW
Indoor + outdoor
11a 11n
TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
165
5500
-
5825
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
62 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Thailand 11g 11n
1
-
11
2412
-
2462
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Ukraine
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
100
-
116
5500
-
5580
200 mW Indoor + outdoor
132
-
136
5660
-
5680
200 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 63
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Uruguay 11g 1
-
11
2412
-
2462
100 mW
-
200 mW
Indoor + outdoor
11a 36
-
48
5180
-
5240
200 mW Indoor only
11a 149
-
165
5745
-
5825
400 mW Indoor + outdoor
11n 11g 1
-
11
2412
-
2462
100 mW
-
200 mW
Indoor + outdoor
11a 11n 36
-
48
5180
-
5240
200 mW Indoor only
11a 11n 149
-
165
5745
-
5825
400 mW Indoor + outdoor
Venezuela 11g 11n 1
-
13
2412
-
2472
1000 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
1000 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
4000 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
64 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
United Arab Emir-
ates
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor only
132
-
140
5660
-
5700
1000 mW Indoor only
Bahamas (NAM)
Ecuador
Canada (NAM)
Peru
Puerto Rico (NAM)
USA (NAM)
11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
2462
100 mW
Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 65
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Vietnam 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals for SCALANCE W788C / W786C 802.11n
2.2 National approvals
Approvals SCALANCE W700 802.11n
66 Reference Manual, 10/2015, C79000-G8976-C392-03
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 67
Approvals for SCALANCE W760 / W720 / W770 /
W730 802.11n
3
Note
Issued approvals on the type plate of the device
The specified approvals apply only when the corresponding mark is printed on the product.
You can check which of the following approvals have been granted for your product by the
markings on the type plate.
Range of validity
The approvals listed in this section apply to the following products:
Article number Article number of the US
version
Access point
SCALANCE W761-1 RJ-45
6GK5761-1FC00-0AA0
6GK5761-1FC00-0AB0
Ethernet client modules
SCALANCE W722-1 RJ-45
(iFeatures)
6GK5722-1FC00-0AA0 6GK5722-1FC00-0AB0
SCALANCE W721-1 RJ-45
6GK5721-1FC00-0AA0
6GK5721-1FC00-0AB0
Article number Article number of the US
version
Access points
SCALANCE W774-1 RJ-45
6GK5774-1FX00-0AA0
6GK5774-1FX00-0AB0
SCALANCE W774-1 M12 EEC
6GK5774-1FY00-0TA0
6GK5774-1FY00-0TB0
Ethernet client module
SCALANCE W734-1 RJ-45
6GK5734-1FX00-0AA0
6GK5734-1FX00-0AB0
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
68 Reference Manual, 10/2015, C79000-G8976-C392-03
3.1
General approvals
CE conformity
The products
SIMATIC NET SCALANCE W761-1 RJ-45
SIMATIC NET SCALANCE W722-1 RJ-45
SIMATIC NET SCALANCE W721-1 RJ-45
SIMATIC NET SCALANCE W774-1 RJ-45
SIMATIC NET SCALANCE W774-1 M12 EEC
SIMATIC NET SCALANCE W734-1 RJ-45
in the version put into circulation by Siemens AG conform to the regulations of the following
European directives:
● 99/5/EC
Directive of the European Parliament and of the Council on radio equipment and
telecommunications terminal equipment and the mutual recognition of their conformity.
Conformity with the basic requirement of the directive is attested by adherence to the
following standards:
● EN 60950-1 +A1 + A2 + A11 + A12
Information technology equipment - Safety - Part 1: General requirements
● EN 301489-1 V1.9.2
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 1 : Common technical requirements
(V1.9.2).
● EN 301489-17 V2.2.1
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 17: Specific conditions for 2.4 GHz
broadband transmission systems and 5 GHz high performance RLAN equipment
● EN 300328 V1.8.1
Electromagnetic Compatibility and Radio Spectrum Matters (ERM); — Broadband
transmission systems — Data transmission equipment operating in the 2.4 GHz ISM
band and using spread spectrum modulation techniques — Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
● EN 301893 V1.7.1
Broadband Radio Access Networks (BRAN) - 5 GHz high performance RLAN -
Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
● EN 62311
Assessment of electronic and electrical equipment related to human exposure restrictions
for electro-magnetic fields (0 Hz – 300 GHz)
● 1999/519/EC
Council recommendation on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz)
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 69
Devices connected to the system must meet the relevant safety regulations.
The EC Declaration of Conformity is available for the responsible authorities according to the
above-mentioned EC Directive at the following address:
Siemens Aktiengesellschaft
Division Process Industries and Drives
Postfach 4848
D-90026 Nürnberg
This declaration certifies compliance with the directives named above, but does not
guarantee any specific properties.
Note
The specified approvals apply only when the cor
responding mark is printed on the product.
Certification ID
The following table shows the product names and the corresponding certification ID:
Type
Certification ID
Order number
Order number US variant
W761-1 RJ-45
ELN-W1-RJ-E1
6GK5761-1FC00-0AA0
6GK5761-1FC00-0AB0
W722-1 RJ-45
ELN-W1-RJ-E1
6GK5722-1FC00-0AA0
6GK5722-1FC00-0AB0
W721-1 RJ-45
ELN-W1-RJ-E1
6GK5721-1FC00-0AA0
6GK5721-1FC00-0AB0
W774-1 RJ-45
MSN-W1-RJ-E2
6GK5774-1FX00-0AA0
6GK5774-1FX00-0AB0
W774-1 M12 EEC
MSN-W1-M12-E2
6GK5774-1FY00-0TA0
6GK5774-1FY00-0TB0
W734-1 RJ-45
MSN-W1-RJ-E2
6GK5734-1FX00-0AA0
6GK5734-1FX00-0AB0
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
70 Reference Manual, 10/2015, C79000-G8976-C392-03
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 71
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
72 Reference Manual, 10/2015, C79000-G8976-C392-03
ATEX (explosion protection directive)
WARNING
When using SIMATIC NET products in hazardous area zone 2, make absolutely sure that
the associated conditions in the following document are adhered to:
"SIMATIC NET Product Information Use of subasseblies/modules in a Zone 2 Hazardous
Area".
You will find this document
• on the data medium that ships with some devices.
• on the Internet pages of Siemens Industry Online Support
(http://support.automation.siemens.com/ww).
Enter the document identification number C234 as the search term.
SIMATIC NET products meet the requirements of the EC directive:94/9/EC "Equipment and
Protective Devices for Use in Potentially Explosive Atmospheres".
ATEX classification:
II 3 G Ex nA IIC T4 Gc
KEMA 07ATEX0145 X
The products meet the requirements of the following standards:
● EN 60079-15 (electrical apparatus for potentially explosive atmospheres; Type of
protection "n")
● EN 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)
You will find the current versions of the standards in the currently valid ATEX certificates.
IECEx
The SIMATIC NET products meet the requirements of explosion protection according to
IECEx.
IECEx classification:
Ex nA IIC T4 Gc
DEK 14.0025X
The products meet the requirements of the following standards:
● IEC 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of
protection "n")
● IEC 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)
You will find the current versions of the standards in the currently valid IECEx certificates.
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 73
FM
The product meets the requirements of the standards:
● Factory Mutual Approval Standard Class Number 3611
● FM Hazardous (Classified) Location Electrical Equipment:
Non Incendive / Class I / Division 2 / Groups A,B,C,D / T4 and
Non Incendive / Class I / Zone 2 / Group IIC / T4
cULus Approval Hazardous Location
cULus Listed I. T. E. FOR HAZ. LOC.
Underwriters Laboratories Inc. complying with
● UL 60950-1 (Information Technology Equipment)
● ANSI/ISA 12.12.01-2007
● CSA C22.2 No. 213-M1987
Approved for use in
Cl. 1, Div. 2, GP A, B, C, D T4
Cl. 1, Zone 2, GP IIC T4
Report no. E240480
FCC approval
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
___________________________________________________________________________
Notice
Changes or modifications made to this equipment not expressly approved by SIEMENS may
void the FCC authorization to operate this equipment.
___________________________________________________________________________
IEEE 802.11b or g operation of this product in the USA is firmware-limited to channels 1
through 11.
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
74 Reference Manual, 10/2015, C79000-G8976-C392-03
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
___________________________________________________________________________
Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body.
___________________________________________________________________________
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. Professional Installation Notice:
To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in the
United States. The use of the system in any other combination (such as co-located antennas
transmitting the same information) is expressly forbidden.
___________________________________________________________________________
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 75
Notice
For use of DFS channels
● Use of the RCoax Cable Antenna 6XV1875-2D is not permitted in channels which
require dynamic frequency selection (DFS).
● Any installation of either a master or a client device within 35 km of a TDWR (Terminal
Doppler Weather Radar) location shall be separated by at least 30 MHz (center-to-center)
from the TDWR operating frequency.
These devices shall be registered in the industry sponsored WISPA database,
http://udia.spectrumbridge.com/udia/home.aspx
(http://udia.spectrumbridge.com/udia/home.aspx)
When you open this link, you get the following choices:
– "Search" opens a window with TDWR locations and frequencies.
– "User Signup" allows you to register as user of the database.
– After registering you can Logon and register your WLAN location. Please fill in all
required information.
For more information with respect to WISPA database and TWDR locations please consult
FCC publication KDB 443999 D01.
___________________________________________________________________________
CSA Information Technology Equipment
CSA Certification Mark
Canadian Standard Association CSA C22.2 No. 60950-1-03
RSS-247 of Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 267AA-ELN1V1 for W760/W720 802.11n and IC: 267AA-MSN1V1
for W770/W730 802.11n) has been approved by Industry Canada to operate with the
antenna types listed in section 5.6 with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly prohibited for use with
this device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
76 Reference Manual, 10/2015, C79000-G8976-C392-03
That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
Users should also be cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars
could cause interference and/or damage to LE-LAN devices.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
C-Tick
The product meets the requirements of the AS/NZS 2064 standard (Class A).
Approvals for Argentina
Devices of the SCALANCE W760/W720 series are approved in Argentina under the
following certification number:
Certification ID
Certification number
ELN-W1-RJ-E1
CNC: C-13172
Devices of the SCALANCE W770/W730 series are approved in Argentina under the
following certification numbers:
Certification ID
Certification number
MSN-W1-RJ-E2
CNC: C-13164
MSN-W1-M12-E2
CNC: C-13163
Approval for Brazil
Devices of the SCALANCE W760/W720 series are approved in Brazil under the following
certification numbers:
Este equipamento opera em caráter secundário, isto, ist é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência
a sistemas operando em caráter primário.
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.1 General approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 77
Devices of the SCALANCE W770/W730 series are approved in Brazil under the following
certification numbers:
Este equipamento opera em caráter secundário, isto, ist é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência
a sistemas operando em caráter primário.
KCC Statement (Republic of Korea)
사용자안내문(제5조제1항제1호관련)
기 종 별
사 용 자 안 내 문
A 급 기기급 기기
(업무용 방송통신기기)
이 기기는 업무용(A 급)으로 전자파적합등록을 한(A 급)으로
전자파적합등록을 한
기기이오니 판매자 또는 사용자는 이 점을
주의하시기 바라며, 가정외의 지역에서 사용하는
것을 목적으로 합니다.
"당해 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음"
Marking for the customs union
EAC (Eurasian Conformity)
Customs union of Russia, Belarus and Kazakhstan
Declaration of the conformity according to the technical regulations of the customs union
(TR CU)
Railway approval for the SCALANCE W774-1 M12 EEC
The SCALANCE W774-1 M12 EEC device meets the requirements of the railway standard
EN 50155:2007 "Railway Applications - Electronic equipment used on rolling stock".
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
78 Reference Manual, 10/2015, C79000-G8976-C392-03
3.2
National approvals
The following table lists the countries in which the SCALANCE W700 product is approved.
The diamond symbol (♦) identifies all countries for which there was no approval at the time
these operating instructions were written.
The current status of the approvals can be found on the Internet at the following address:
http://www.siemens.com/funkzulassungen
Column
Meaning
Country
Country
Mode IEEE 802.11 standard and the TPC and / or DFS functionality, where required
CH
Channel
MHz Frequency
PWR (EIRP)
Maximum permitted effective isotropic radiated power
Use
Permitted use indoors and / or outdoors
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 79
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Andorra
Belgium
Bosnia and Her-
zegovina
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Croatia
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Macedonia
Monaco
Montenegro
Netherlands
Norway
Austria
Poland
Portugal
Romania
San Marino
Sweden
Switzerland
Serbia
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
Vatican
Cyprus
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
80 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Egypt 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
Angola 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Argentina 11g 11n 1
-
13
2412
-
2472
1000 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
50 mW Indoor + outdoor
52
-
64
5260
-
5320
250 mW Indoor + outdoor
100
-
120
5500
-
5600
250 mW Indoor + outdoor
132
-
140
5660
-
5700
250 mW Indoor + outdoor
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 81
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Australia
New Zealand
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Bahrain 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Belarus 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TCP
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
TCP + DFS
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
82 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Brazil 11g 11n 1
-
13
2412
-
2472
4000 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
100
-
140
5500
-
5700
1000 mW Indoor + outdoor
149
-
165
5745
-
5825
4000 mW Indoor + outdoor
Chile
11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor only
11a 11n
DFS+TPC
52
-
64
5260
-
5320
100 mW Indoor only
149
-
165
5745
-
5825
100 mW Indoor only
China 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Ivory Coast 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 83
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Guatemala 11g 11n
1
-
11
2412
-
2462
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Hong Kong 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
84 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
India 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
200 mW Indoor only
Indonesia ♦ 11g 11n
1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
400 mW Indoor + outdoor
Japan
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a
TPC
8
-
16
5040
-
5080
200 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
140
5500
-
5700
200 mW Indoor + outdoor
11a
TPC
184
-
196
4920
-
4980
200 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 85
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Kazakhstan 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Qatar 11g 11n 1
-
13
2412
-
2472
100 mW Indoor only
11a 11n 149
-
165
5745
-
5825
100 mW Indoor only
Korea
11g 11n 1
-
13
2412
-
2472
400 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
400 mW Indoor + outdoor
Kuwait 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor + outdoor
Macau 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
161
5745
-
5805
100 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
86 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Madagascar 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Malaysia 11g 11n 1
-
13
2412
-
2472
200 mW Indoor + outdoor
11a 11n
DFS + TPC
56
-
64
5280
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Mexico 11g 11n
1
-
11
2412
-
2462
100 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
1000 mW Indoor only
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Pakistan 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
100 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 87
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Russia 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
100 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
100 mW Indoor + outdoor
132
-
140
5660
-
5700
100 mW Indoor + outdoor
Saudi Arabia 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
112
5500
-
5560
200 mW Indoor + outdoor
116
-
140
5580
-
5700
200 mW Indoor + outdoor
Singapore
Philippines
11b 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor + outdoor
11a 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor + outdoor
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
1000 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
88 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
South Africa
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS+TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Taiwan ♦
11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
2462
100 mW
Indoor + outdoor
11a 11n
DFS+TPC
52
-
64
5260
-
5320
400 mW Indoor only
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Venezuela 11g 11n 1
-
13
2412
-
2472
1000 mW Indoor + outdoor
11a 11n TPC 36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS+TPC
52
-
64
5260
-
5320
1000 mW Indoor only
11a 11n TPC 149
-
165
5745
-
5825
4000 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 89
Country
Mode
CH
MHz
PWR
(EIRP)
Use
United Arab Emir-
ates
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS+TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor only
132
-
140
5660
-
5700
1000 mW Indoor only
Bahamas
Canada
Colombia
Peru
Puerto Rico
Thailand
USA
Uruguay
11g 11n
1
-
11
2412
-
2462
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS + TPC
52
-
64
5260
-
5320
400 mW Indoor + outdoor
100
-
116
5500
-
5580
400 mW Indoor + outdoor
132
-
140
5660
-
5700
400 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals for SCALANCE W760 / W720 / W770 / W730 802.11n
3.2 National approvals
Approvals SCALANCE W700 802.11n
90 Reference Manual, 10/2015, C79000-G8976-C392-03
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Vietnam 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11a 11n
DFS+TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals SCALANCE W700 802.11n
Reference Manual, 10/2015, C79000-G8976-C392-03 91
Index
A
Approvals, 7, 38, 68
C
CE conformity, 68
N
National approvals, 21, 50, 78
Index
Approvals SCALANCE W700 802.11n
92 Reference Manual, 10/2015, C79000-G8976-C392-03

Navigation menu
