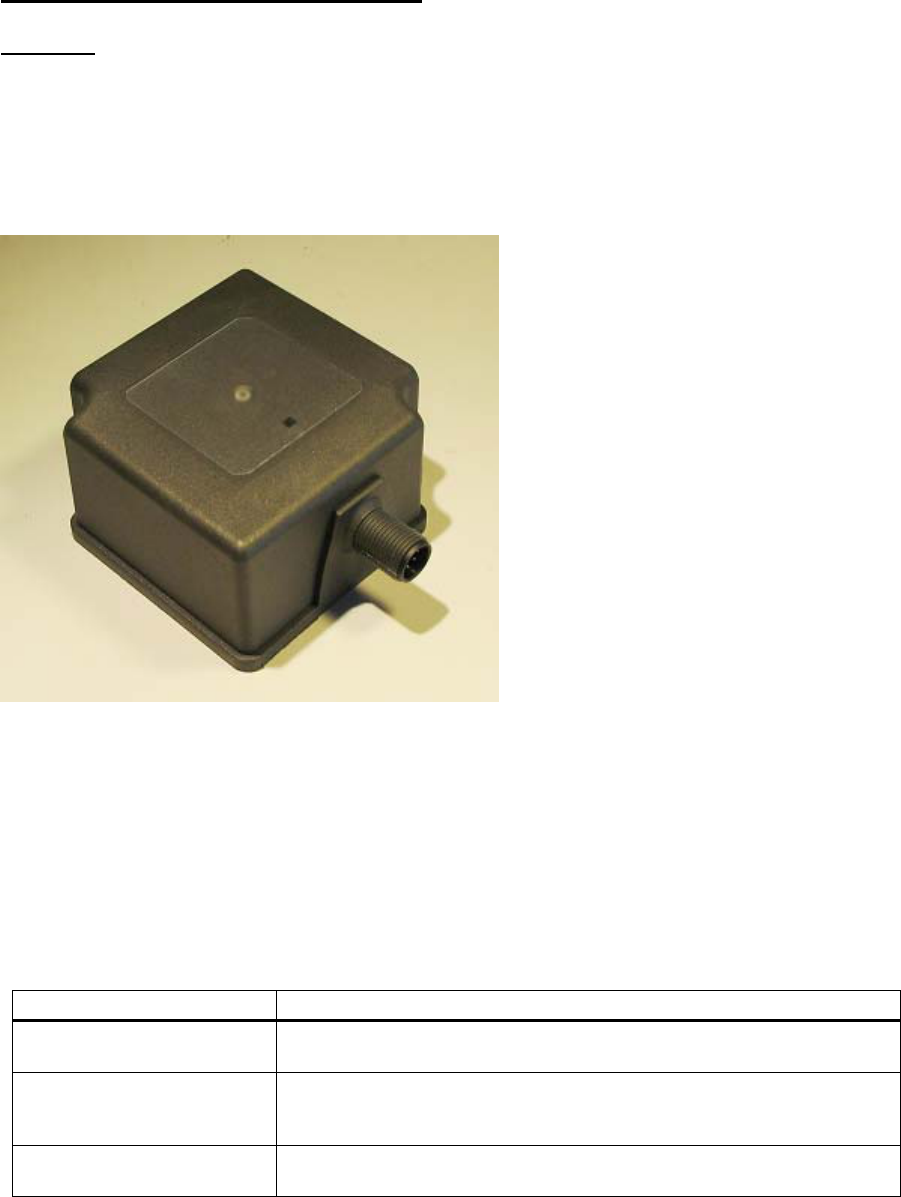

Technical Data RF260R – Short Form
Remarks: The RF260R manual does not yet exist, even in German language. The
RF260R manual, once completed, will contain detailed information about field-data,
range for certain tags, information about how to implement the RF260R in a production
site with communication modules. This detailed information may not be much relevant
for RF260R FCC approval.
Below given are short system overview and technical data which are required in order to
run the RF260R for testing and to check the reader’s function.
RF200 System overview
SIMATIC RF200 is an inductive identification system, based on the standard ISO 15693,
which was specially designed for industrial production for controlling and optimization
material flow.
Contrary to SIMATIC RF300, SIMATIC RF200 is designed for RFID applications for
lower demands on performance (data volume, data transfer speed, diagnostics).
SIMATIC RF200 is a low-price RFID system.
Component Description
Communications Modules Integration of an RFID Identification system is achieved by a
communications module.
Reader The reader achieves the communication with the tag and provides the tag
with energy by the reader’s magnetic field. The reader also interfaces to
various modules (i.e. SIMATIC S7 via ASM 475).
Tag The RFID-tag stores all data relevant for production and is used as a
substitute for optical barcode-tags.
Overview of System Components compatible with RF260R
System components
Communications modules • ASM 456
• ASM 475 (S7 300/ ET 200M)
• RF160C
• RF170C
• RF180C
• RF182C
Tags • MDS D100
• MDS D200
• MDS D124
• MDS D139
• MDS D160
• MDS D324
• MDS D421
• MDS D424
• MDS D428
• MDS D460
Technical Data RF260R (short form)
Inductive interface (magnetic field) to transponder
(tag). Carrier frequency for energy / data
13,56 MHz
Antenna Integrated loop
Interface to communications module RS422
Baud rate 19200, 57600, 115200 Baud
Functions Initialize tag, read tag, write on tag, get status data,
antenna on/off, read tag serial number
DC-Voltage (nominal) 24 V DC
Display elements 2-color-LED
(operating voltage, presence, error)
Connector M12 (8-pin.)
Housing
• Dimensions (in mm)
• Color
• Material
• 75 x 75 x 41 (without M12 device connector)
• anthracite
• PA6.6-GF35 (Ultramid A3WG7)
Fixing 2 Screws, M5 type
Degree of protection to EN 60529
IP67
Weight 200 g
Current consumption 40mA

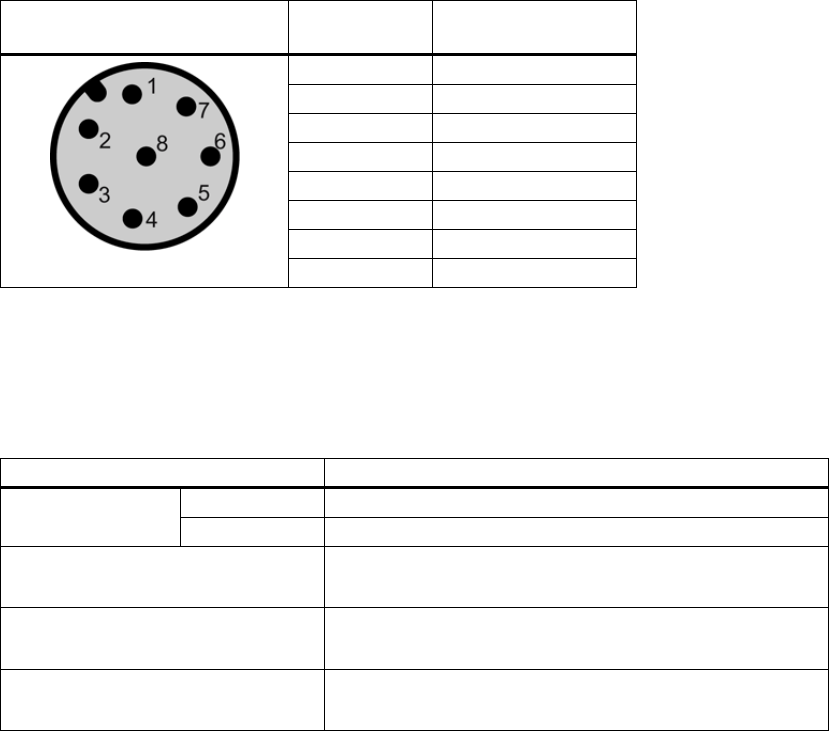

Pin assignment RF260R (RS422 interface)
M12 connector (male) Pin No.
M12 plug
Pin
1 +24V
2 -TX
3 0V (GND)
4 +TX
5 +RX
6 -RX
7 Not used (free)
8 PE / shield
LED indicator (display elements) RF260R
LED colour Meaning
flashing Operating voltage available, reader NOT initialized green
Permanently on Operating voltage available. Reader initialized.
yellow Tag in field (tag presence)
red (flashing) Errors according to error code table.
red (permanently on) Fatal error
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.

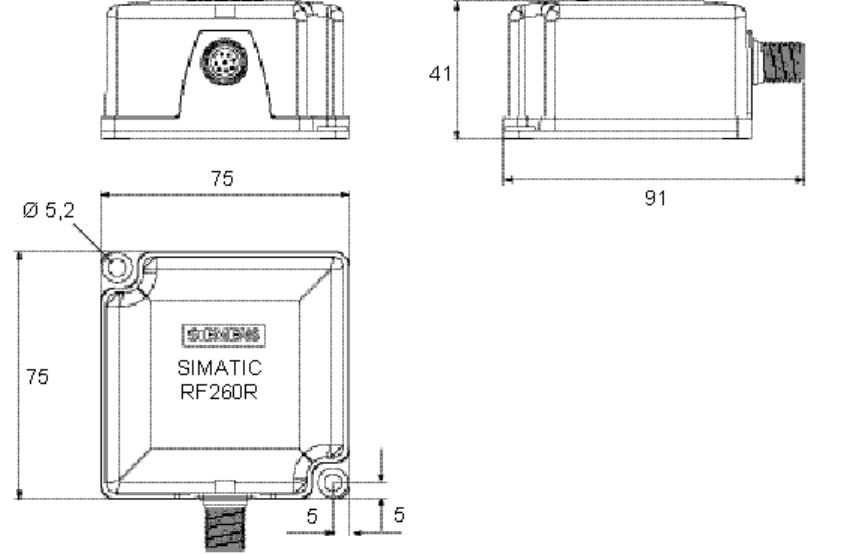

RF260R housing and dimensions
