Siemens RF290R RF-Long-Range Reader with external Antenna User Manual SIMATIC RF200
Siemens AG RF-Long-Range Reader with external Antenna SIMATIC RF200
Siemens >
User Manual
SIMATIC Ident
System Manual · 03/2013
SIMATIC RF200
RFID SYSTEMS
Answers for industry.
SIMATIC RF200
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
SIMATIC Ident
RFID systems
SIMATIC RF200
System Manual
03/2013
J31069-D0227-U001-A7-7618
Introduction
1
Safety notes
2
System overview
3
RF200 system planning
4
Readers
5
Antennas
6
Accessories
7
System integration
8
System diagnostics
9
Appendix
A
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
Order number: J31069-D0227-U001
Ⓟ 03/2013 Technical data subject to change
Copyright © Siemens AG 2010 - 2013.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 3
Table of contents
1 Introduction................................................................................................................................................ 7
2 Safety notes............................................................................................................................................... 9
3 System overview...................................................................................................................................... 11

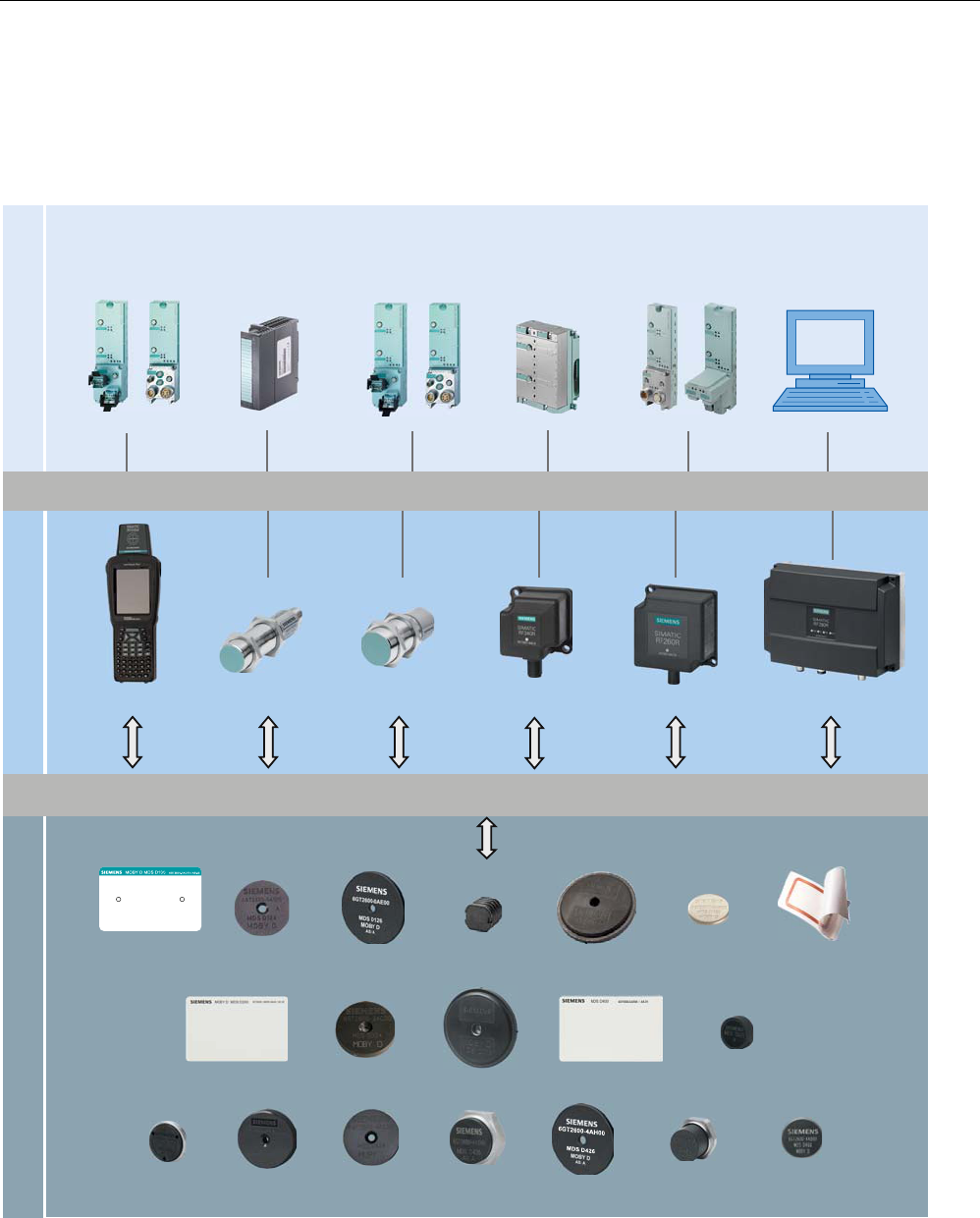

3.1 RFID components and their function ...........................................................................................12
3.2 Overview of transponders ............................................................................................................14
4 RF200 system planning ........................................................................................................................... 17
4.1 Fundamentals of application planning .........................................................................................17
4.1.1 Selection criteria for SIMATIC RF200 components.....................................................................17
4.1.2 Transmission window and read/write distance ............................................................................17
4.1.3 Width of the transmission window................................................................................................20
4.1.4 Permissible directions of motion of the transponder....................................................................21
4.1.5 Operation in static and dynamic mode ........................................................................................21
4.1.6 Dwell time of the transponder ......................................................................................................22

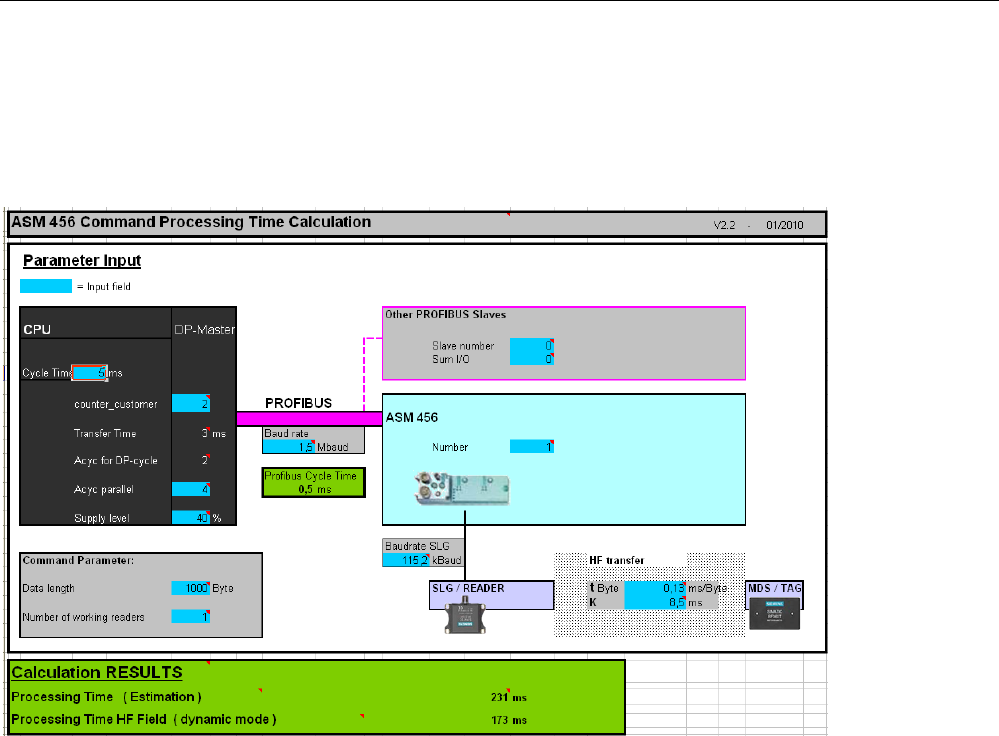

4.1.7 Communication between communication module, reader and transponder ...............................23

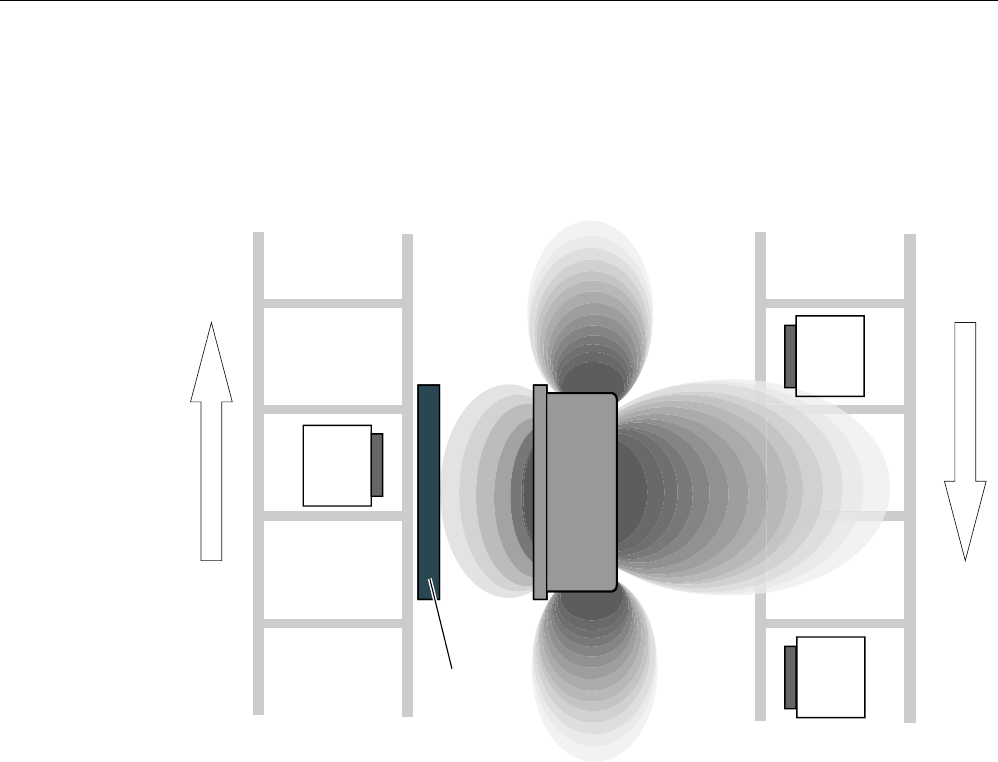

4.1.8 Impact of secondary fields ...........................................................................................................26
4.2 Field data of transponders and readers.......................................................................................28
4.2.1 Field data .....................................................................................................................................28
4.2.2 Minimum clearances ....................................................................................................................32
4.3 Installation guidelines...................................................................................................................34
4.3.1 Overview ......................................................................................................................................34
4.3.2 Reduction of interference due to metal........................................................................................34
4.3.3 Effects of metal on different transponders and readers...............................................................37
4.3.4 Impact of metal on the transmission window ...............................................................................37
4.3.4.1 RF210R........................................................................................................................................38
4.3.4.2 RF220R........................................................................................................................................40
4.3.4.3 RF240R........................................................................................................................................42
4.3.4.4 RF260R........................................................................................................................................44
4.3.4.5 RF290R........................................................................................................................................47
4.3.5 Installation and connection of 2 to 6 antennas with one reader ..................................................51
4.3.5.1 Installation options with the antenna splitter (2-4 antennas) .......................................................52
4.3.5.2 Antenna installation......................................................................................................................55

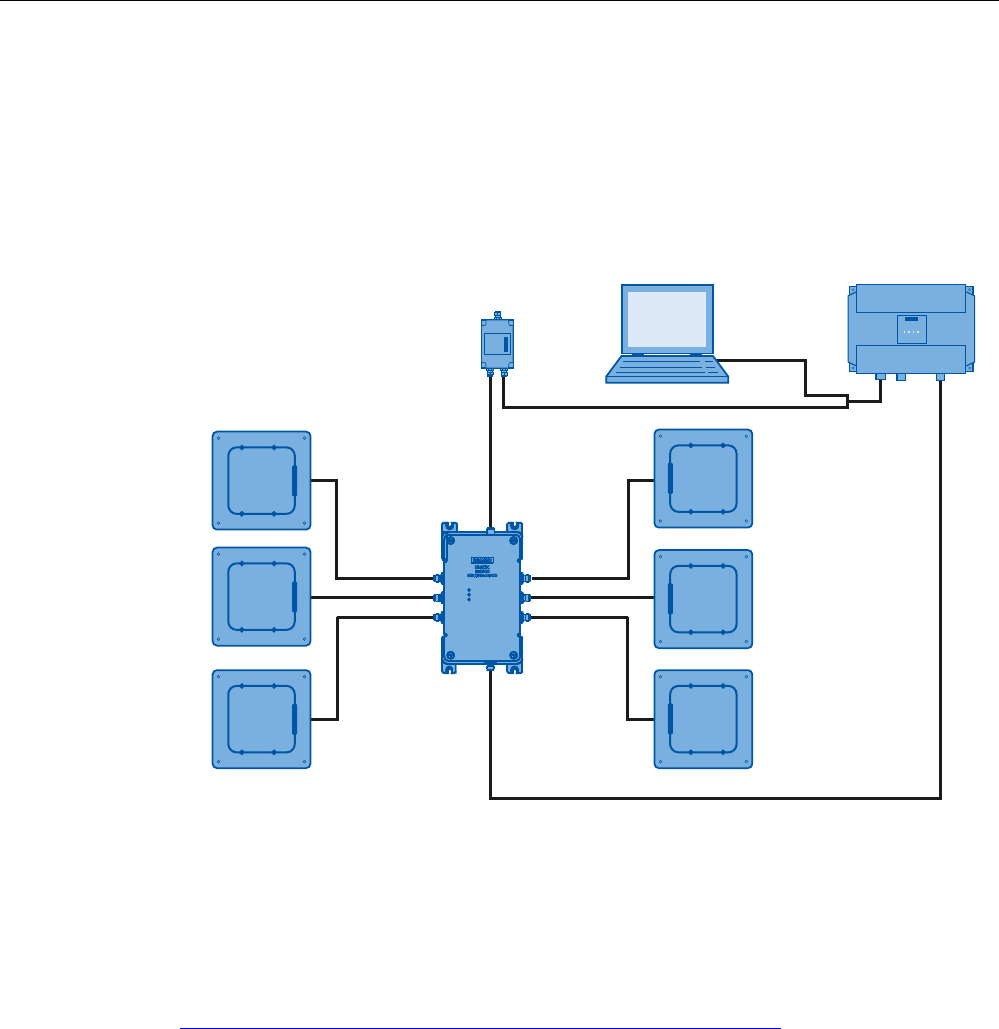

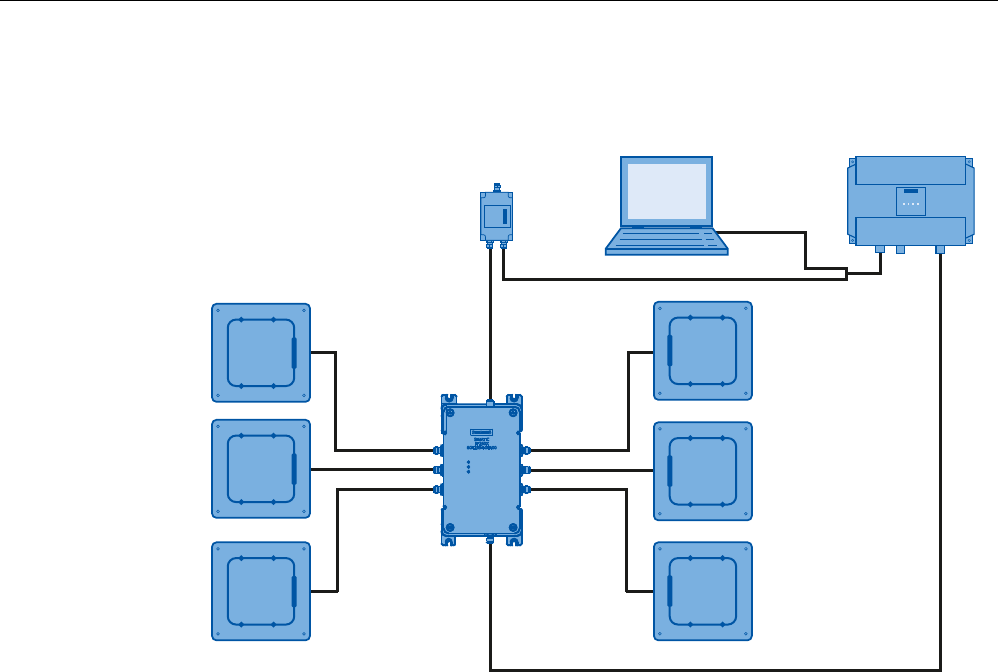

4.3.5.3 Installation options with the antenna multiplexer (2-6 antennas).................................................59
4.4 Further information.......................................................................................................................59
5 Readers................................................................................................................................................... 61
5.1 SIMATIC RF210R ........................................................................................................................61

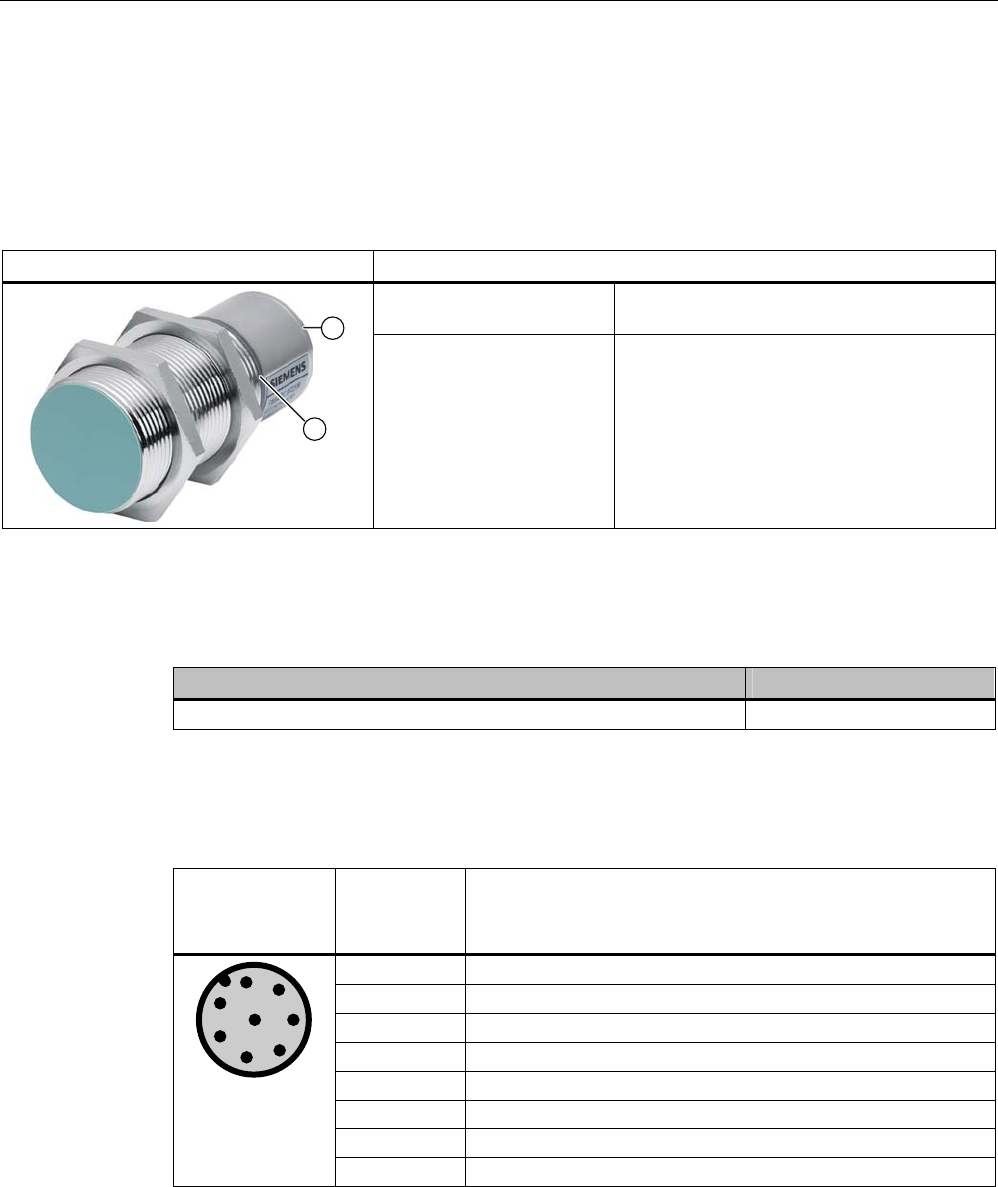

5.1.1 Features.......................................................................................................................................61
5.1.2 RF210R ordering data .................................................................................................................61
5.1.3 Pin assignment RF210R with RS422 interface............................................................................62
5.1.4 Display elements of the RF210R reader......................................................................................62
5.1.5 Minimum distance between RF210R readers..............................................................................63
5.1.6 Technical specifications of the RF210R reader...........................................................................64
Table of contents
SIMATIC RF200
4 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.1.7 FCC information .......................................................................................................................... 65
5.1.8 Dimension drawing...................................................................................................................... 65
5.2 SIMATIC RF220R ....................................................................................................................... 66
5.2.1 Features ...................................................................................................................................... 66
5.2.2 RF220R ordering data................................................................................................................. 66
5.2.3 RF220R pin assignment with RS422 interface ........................................................................... 66
5.2.4 Display elements of the RF220R reader..................................................................................... 67
5.2.5 Minimum distance between RF220R readers............................................................................. 67
5.2.6 Technical specifications of the RF220R reader .......................................................................... 68
5.2.7 FCC information .......................................................................................................................... 69
5.2.8 Dimension drawing...................................................................................................................... 70
5.3 SIMATIC RF240R ....................................................................................................................... 71
5.3.1 Features ...................................................................................................................................... 71
5.3.2 RF240R ordering data................................................................................................................. 71
5.3.3 Pin assignment RF240R ............................................................................................................. 71
5.3.4 Display elements of the RF240R reader..................................................................................... 72
5.3.5 Minimum distance between several RF240R readers ................................................................ 72
5.3.6 Technical specifications of the RF240R reader .......................................................................... 73
5.3.7 FCC information .......................................................................................................................... 74
5.3.8 Dimension drawing...................................................................................................................... 75
5.4 SIMATIC RF260R ....................................................................................................................... 76
5.4.1 Features ...................................................................................................................................... 76
5.4.2 Ordering data for RF260R........................................................................................................... 76
5.4.3 Pin assignment RF260R ............................................................................................................. 76
5.4.4 Display elements of the RF260R reader..................................................................................... 77
5.4.5 Minimum distance between several RF260R ............................................................................. 77
5.4.6 Technical data of the RF260R reader......................................................................................... 78
5.4.7 FCC information .......................................................................................................................... 79
5.4.8 Dimension drawing...................................................................................................................... 80
5.5 SIMATIC RF290R ....................................................................................................................... 81
5.5.1 Features ...................................................................................................................................... 81
5.5.2 Ordering data RF290R................................................................................................................ 81
5.5.3 Pin assignment RF290R ............................................................................................................. 82
5.5.4 Display elements of the RF290R reader..................................................................................... 84
5.5.5 Installing the RF290R reader ...................................................................................................... 85

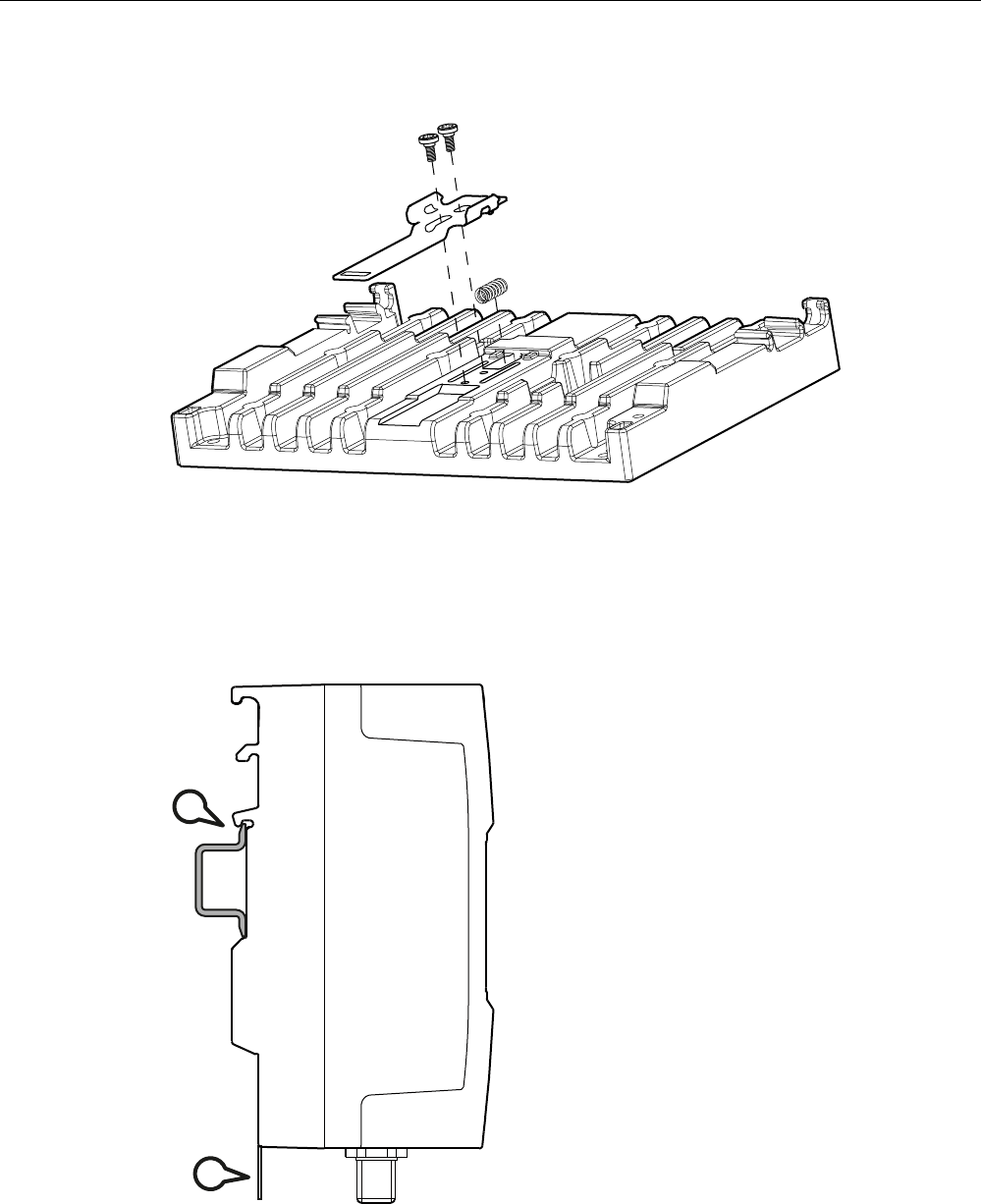

5.5.5.1 Wall mounting ............................................................................................................................. 85
5.5.5.2 Installing on the S7-300 standard rail ......................................................................................... 86
5.5.5.3 Installation on a DIN rail.............................................................................................................. 86
5.5.6 Technical specifications of the RF290R reader .......................................................................... 88
5.5.7 FCC information .......................................................................................................................... 89
5.5.8 Note on the use of the RF290R as a replacement for SLG D10 / SLG D10S............................ 90

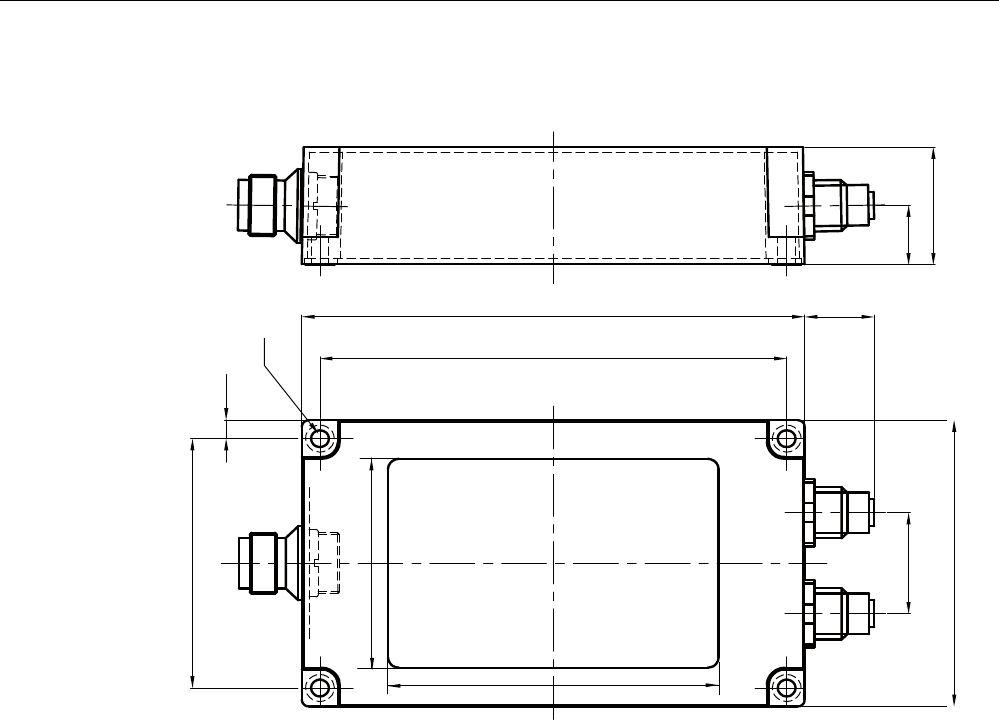

5.5.9 Dimension drawing...................................................................................................................... 91
6 Antennas ................................................................................................................................................. 93
6.1 ANT D5........................................................................................................................................ 93
6.1.1 Features ...................................................................................................................................... 93
6.1.2 Ordering data .............................................................................................................................. 93
6.1.3 Transmission window.................................................................................................................. 94

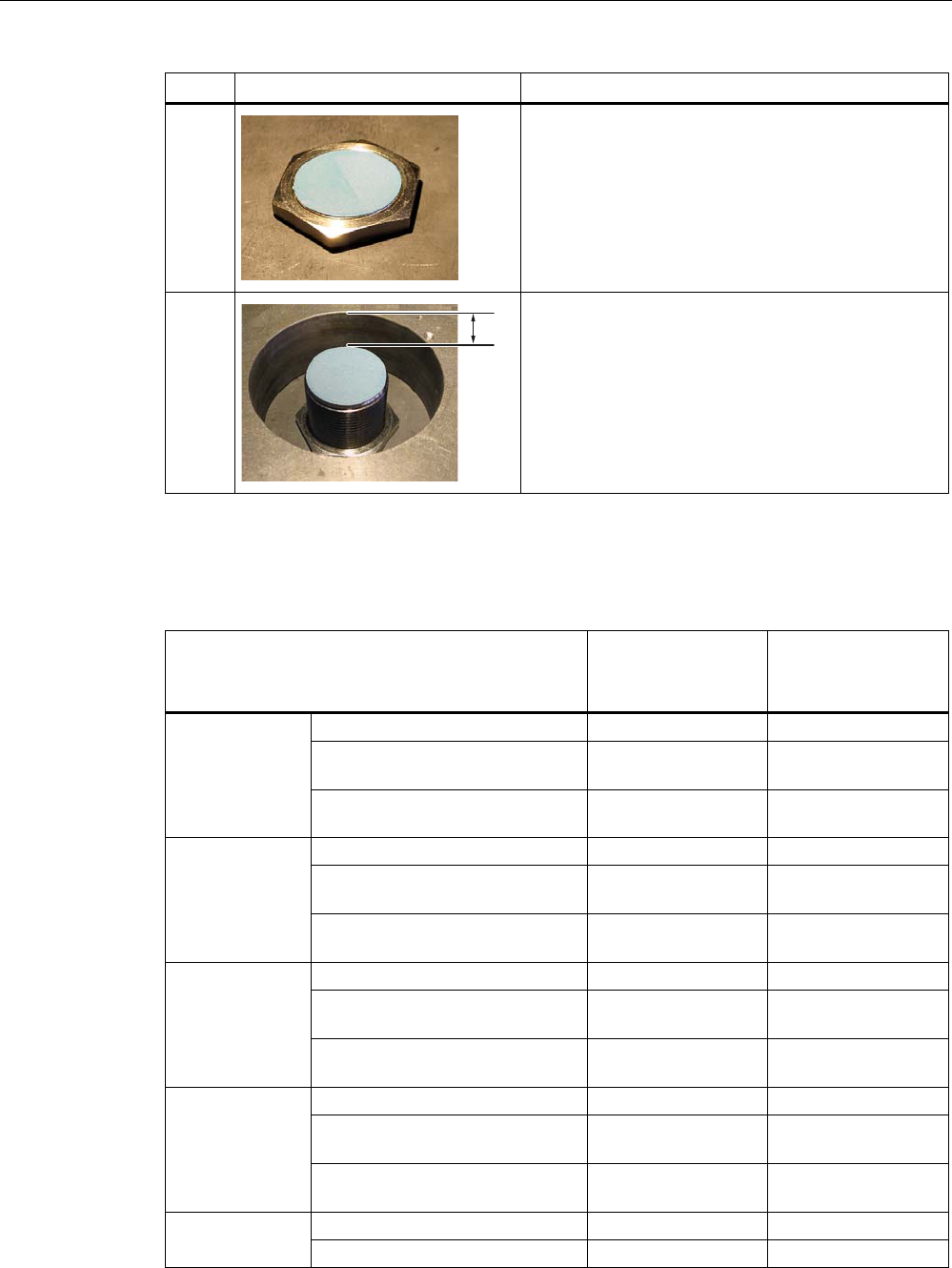

6.1.4 Flush-mounted in metal............................................................................................................... 95
6.1.5 Minimum spacing ........................................................................................................................ 95
Table of contents
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 5
6.1.6 Technical data..............................................................................................................................97
6.1.7 Dimension drawing ......................................................................................................................98
6.2 ANT D6 ........................................................................................................................................99
6.2.1 Features.......................................................................................................................................99
6.2.2 Ordering data ...............................................................................................................................99
6.2.3 Transmission window.................................................................................................................100
6.2.4 Metal-free area...........................................................................................................................101
6.2.5 Minimum spacing .......................................................................................................................101
6.2.6 Technical data............................................................................................................................102
6.2.7 Dimensional diagram .................................................................................................................103
6.3 ANT D10 ....................................................................................................................................104
6.3.1 Features.....................................................................................................................................104
6.3.2 Ordering data .............................................................................................................................104
6.3.3 Transmission window.................................................................................................................105
6.3.4 Metal-free area...........................................................................................................................106
6.3.5 Minimum spacing .......................................................................................................................107
6.3.6 Technical data............................................................................................................................108
6.3.7 Dimensional diagram .................................................................................................................109
7 Accessories ........................................................................................................................................... 111

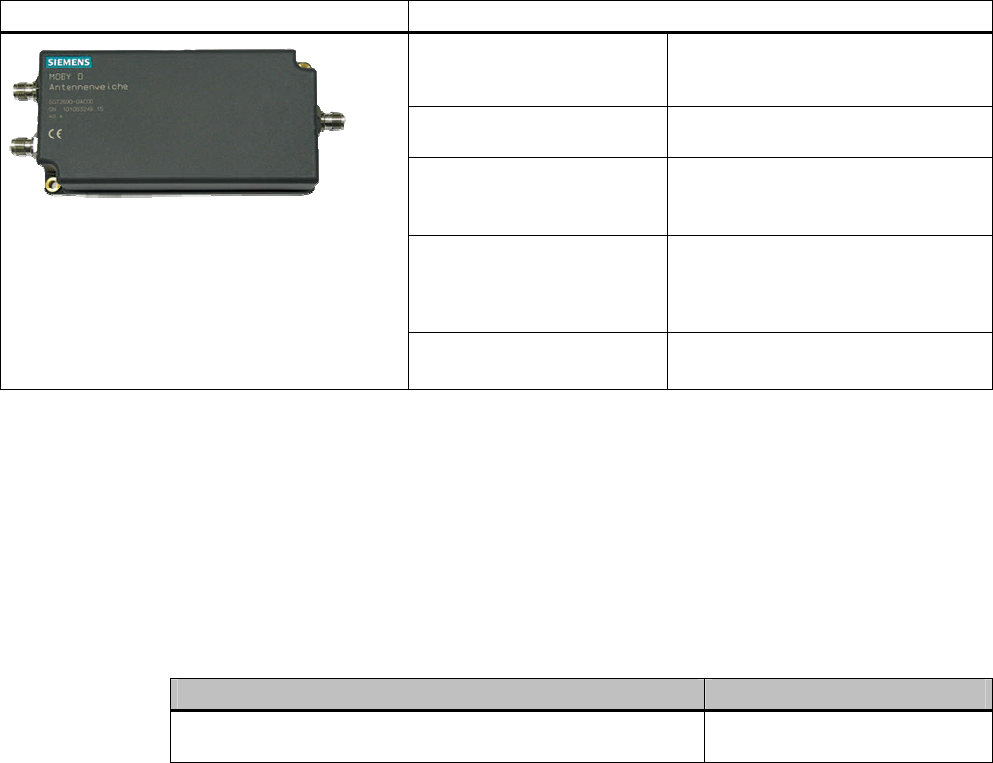

7.1 Antenna splitter ..........................................................................................................................111

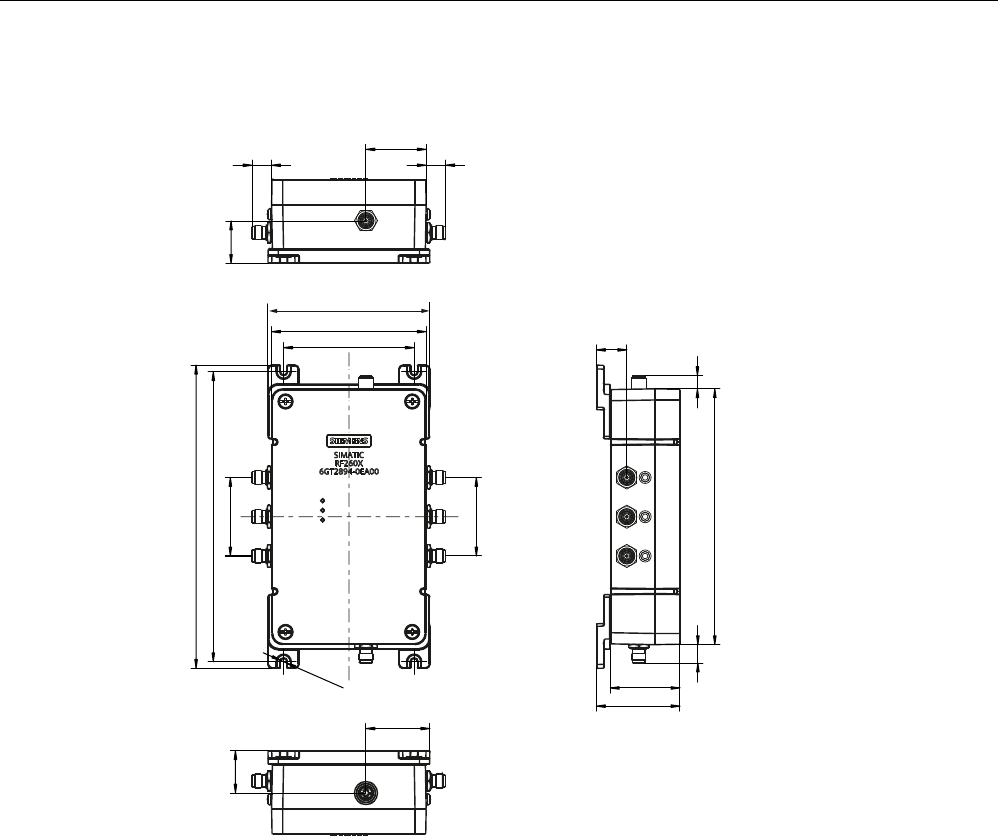

7.2 Antenna multiplexer SIMATIC RF260X .....................................................................................113
7.2.1 Characteristics ...........................................................................................................................113
7.2.2 Ordering data .............................................................................................................................113
7.2.3 Description .................................................................................................................................114
7.2.4 Principle of operation .................................................................................................................114
7.2.5 Connectors.................................................................................................................................115
7.2.6 Configuration..............................................................................................................................116
7.2.7 Parameterization........................................................................................................................117
7.2.8 RF260X commands ...................................................................................................................118
7.2.9 Technical specifications .............................................................................................................119
7.2.10 Dimensional drawing..................................................................................................................120

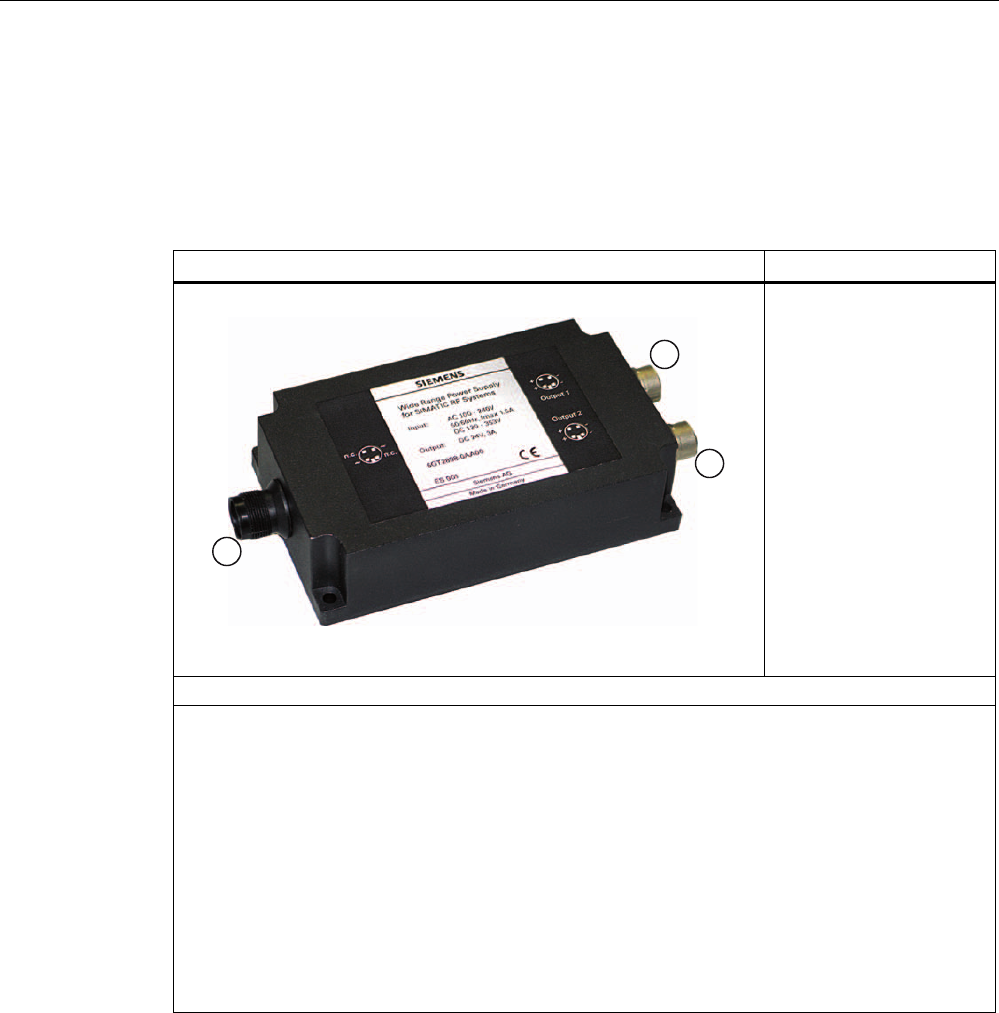

7.3 Wide-range power supply unit for SIMATIC RF systems ..........................................................121
7.3.1 Features.....................................................................................................................................121
7.3.2 Scope of supply .........................................................................................................................122
7.3.3 Ordering data .............................................................................................................................122
7.3.4 Safety Information......................................................................................................................122
7.3.5 Connecting.................................................................................................................................123
7.3.6 Technical specifications .............................................................................................................124
7.3.7 Pin assignment of DC outputs and mains connection ...............................................................126
7.3.8 Dimension drawing ....................................................................................................................127
7.3.9 Certificates and approvals .........................................................................................................128
8 System integration................................................................................................................................. 129
9 System diagnostics................................................................................................................................ 131
9.1 Error codes of the RF200 readers .............................................................................................131
9.2 Diagnostic functions...................................................................................................................132
9.2.1 Reader diagnostics with SLG STATUS .....................................................................................132
9.2.2 Transponder diagnostics with MDS STATUS............................................................................134
Table of contents
SIMATIC RF200
6 System Manual, 03/2013, J31069-D0227-U001-A7-7618
A Appendix................................................................................................................................................ 135
A.1 Certificates and approvals......................................................................................................... 135

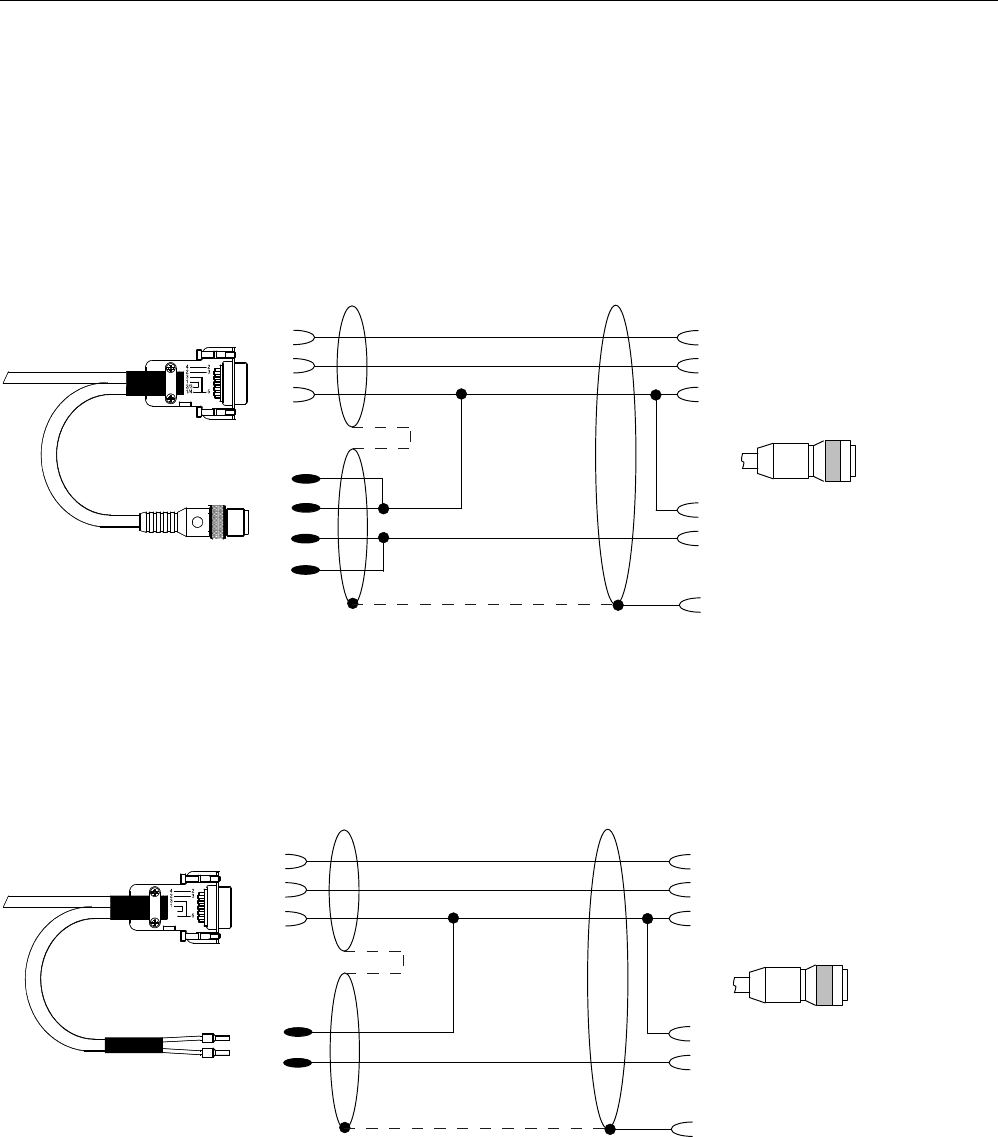

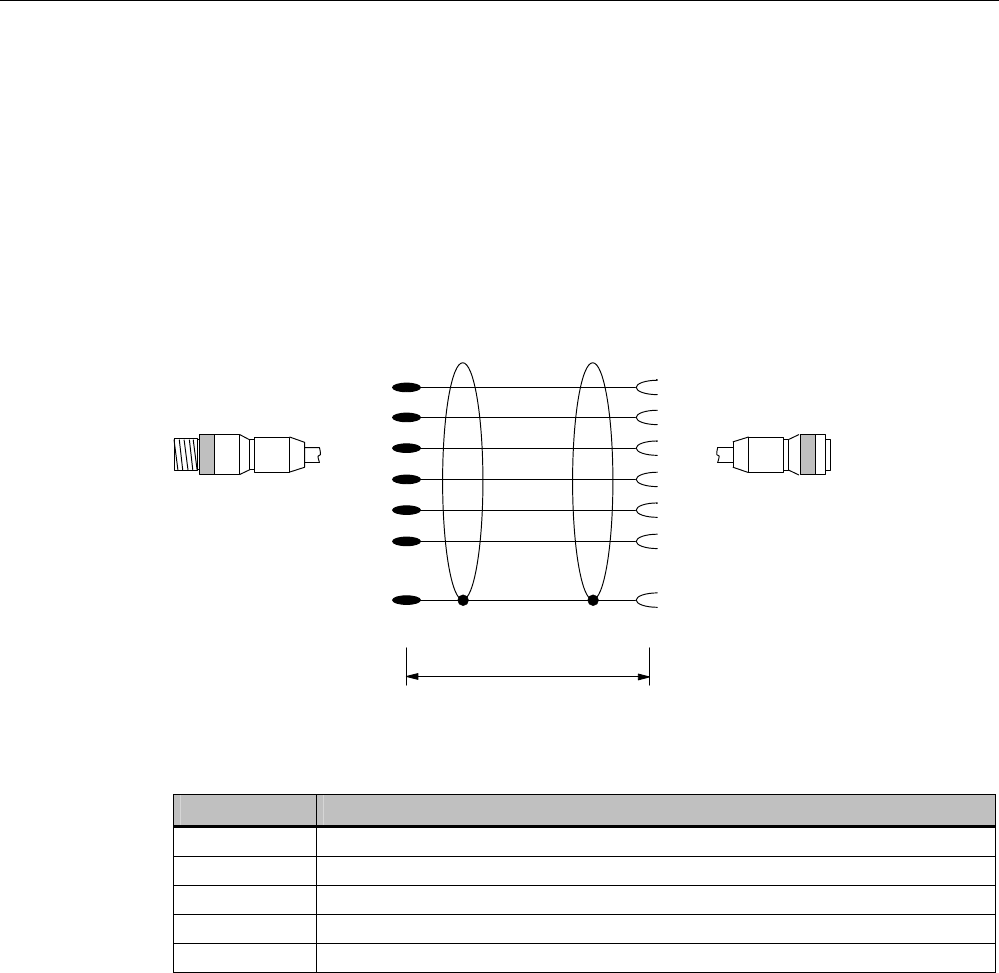

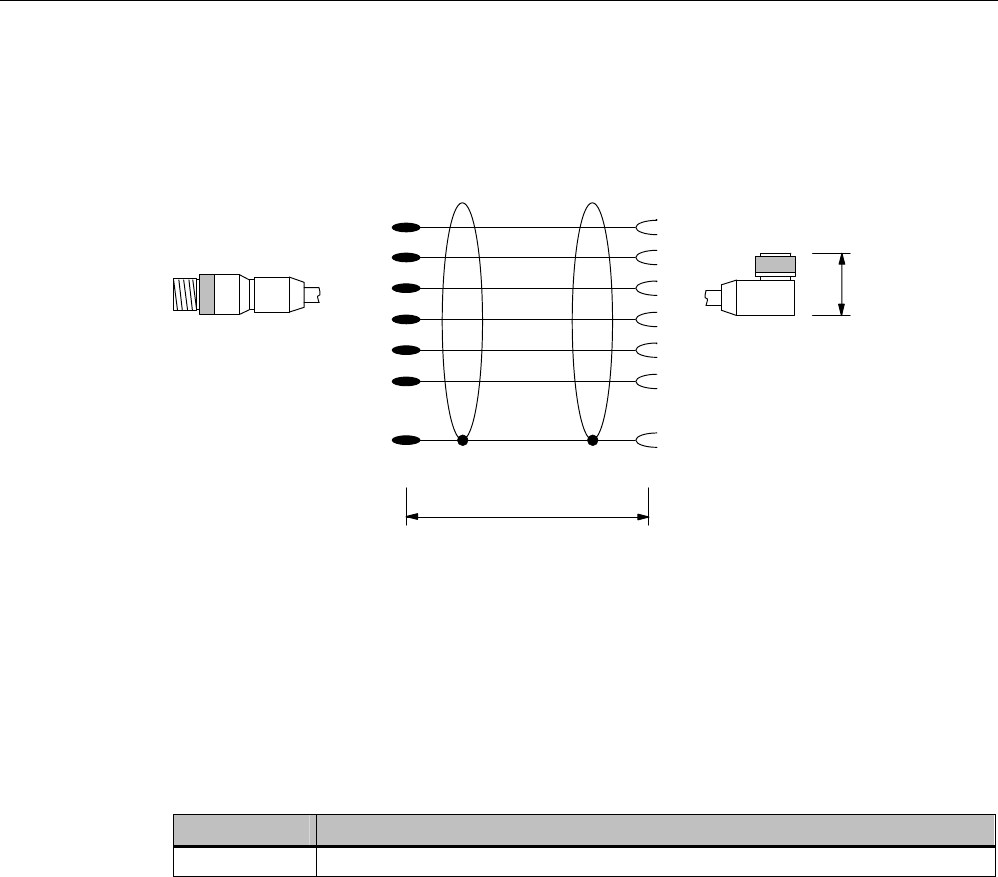

A.2 Connecting cable ...................................................................................................................... 137
A.2.1 Reader RF2xxR (RS422) with ASM 456/RF170C/RF180C...................................................... 137
A.2.2 Reader RF2xxR (RS-422) with ASM 475 ................................................................................. 139
A.2.3 Reader RF240R/RF260R/RF290R (RS232) with PC ............................................................... 140
A.3 Ordering data ............................................................................................................................ 141
A.4 Service & Support ..................................................................................................................... 148
Glossary ................................................................................................................................................ 151
Index...................................................................................................................................................... 157
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 7
Introduction 1
Scope of validity of this document
This documentation is valid for all supplied variants of the SIMATIC RF200 system and
describes the system delivered as of March 2013.
Registered trademarks
SIMATIC ® is a registered trademark of the Siemens AG.
Further information
You will find more detailed information in MOBY D System Manual
(http://support.automation.siemens.com/WW/view/en/13628689/0/en), Function Manual FB
45 (http://support.automation.siemens.com/WW/view/en/21738808) or in RF300 system
manual (http://support.automation.siemens.com/WW/view/en/21738946).
History
The following issues of the SIMATIC RF200 system manual have been published:
Output Note
03/2011 First edition
05/2011 Expansion of the documentation with the addition of the device variant RF260R with
RS-232 interface
09/2011 Expansion of the documentation with the device variant RF240R
03/2013 Expansion of the documentation with the device variant RF290R
Introduction
SIMATIC RF200
8 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 9
Safety notes 2
SIMATIC RFID products comply with the salient safety specifications to IEC, VDE, EN, UL
and CSA. If you have questions about the validity of the installation in the planned
environment, please contact your service representative.
NOTICE
Alterations to the devices are not permitted.
Failure to observe this requirement shall constitute a revocation of the radio equipment
approval, CE approval and manufacturer's warranty.
Repairs
Repairs may only be carried out by authorized qualified personnel.
WARNING
Unauthorized opening of and improper repairs to the device may result in substantial
damage to equipment or risk of personal injury to the user.
System expansion
Only install system expansion devices designed for this device. If you install other upgrades,
you may damage the system or violate the safety requirements and regulations for radio
frequency interference suppression. Contact your technical support team or your sales outlet
to find out which system upgrades are suitable for installation.
NOTICE
If you cause system defects by installing or exchanging system expansion devices, the
warranty becomes void.
Safety notes
SIMATIC RF200
10 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 11
System overview 3
SIMATIC RF200 is an inductive identification system that is compatible with the ISO 15693
standard and was specially designed for use in industrial production for the control and
optimization of material flows.
In contrast to SIMATIC RF300, SIMATIC RF200 is intended for RFID applications where
performance requirements are not very high, for example with regard to data volume,
transfer rate or diagnostics options. SIMATIC RF200 is characterized by particularly
favorable prices.
System overview

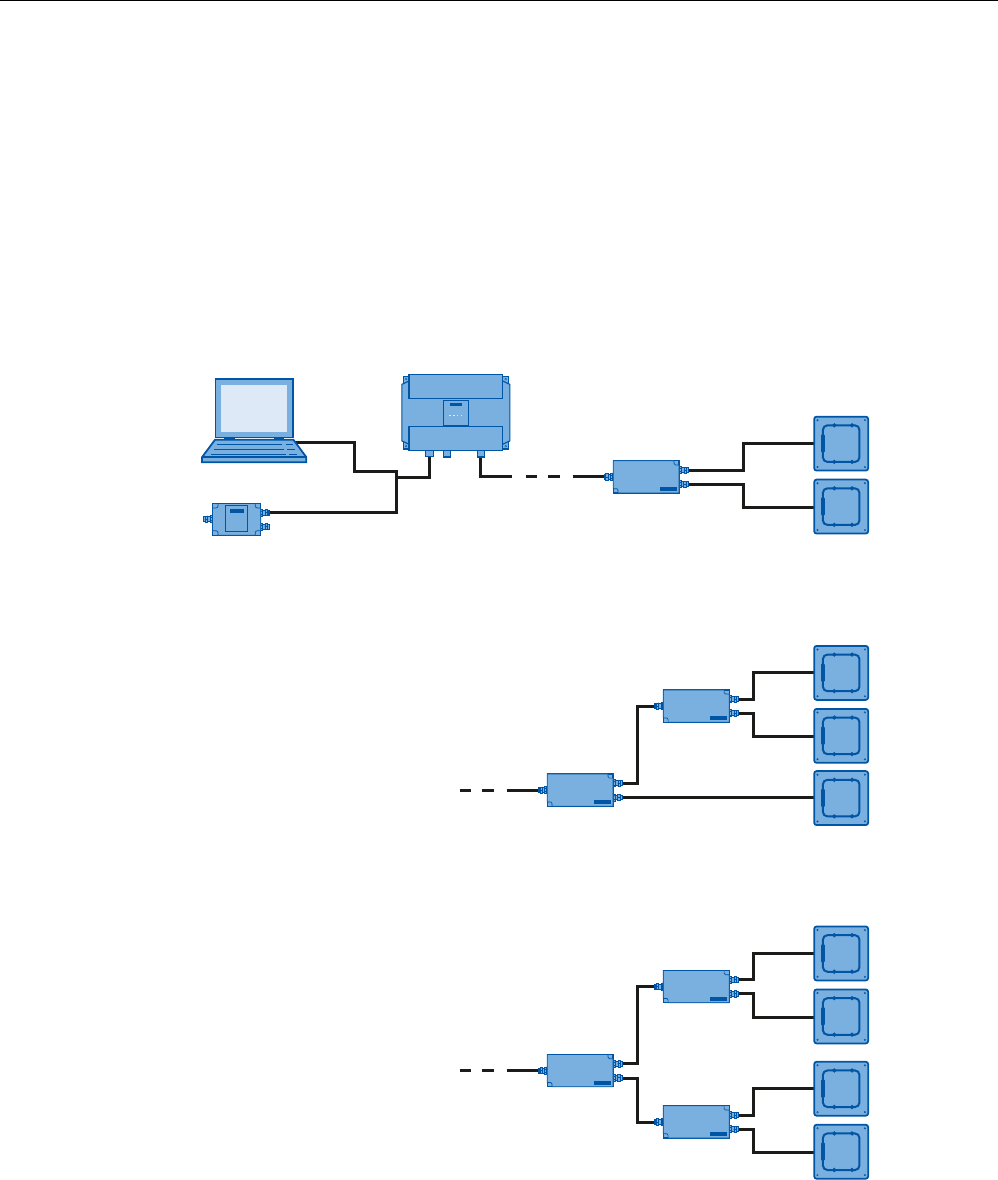

3.1 RFID components and their function
SIMATIC RF200
12 System Manual, 03/2013, J31069-D0227-U001-A7-7618
3.1 RFID components and their function
RF200 system components
5HDGHUV &RPPXQLFDWLRQVPRGXOHV
3RZHUDQGGDWDWUDQVPLVVLRQ0+],62
6HULDODV\QFKURQRXVLQWHUIDFH56DQG56RQO\ZLWK5)55)55)5
3&LQWHUIDFH
WKLUGSDUW\3/&
$60IRU
6,0$7,&6
5)&IRU
(7SUR
$60bIRU
352),%86'3
'39
5)&5)&
IRU352),1(7,2
7&3,3
7UDQVSRQGHUV
5)&IRU
352),%86'3
'3ತ9
0'6'
0'6' 0'6'
0'6'
0'6'
0'6'
0'6'
0'6'
0'6'0'6'
0'6' 0'6'0'6' 0'6'
0'6'
5)55)5 5)5
5)0 5)5 5)5
0'6'
0'6'
0'6'
0'6'
0'6'

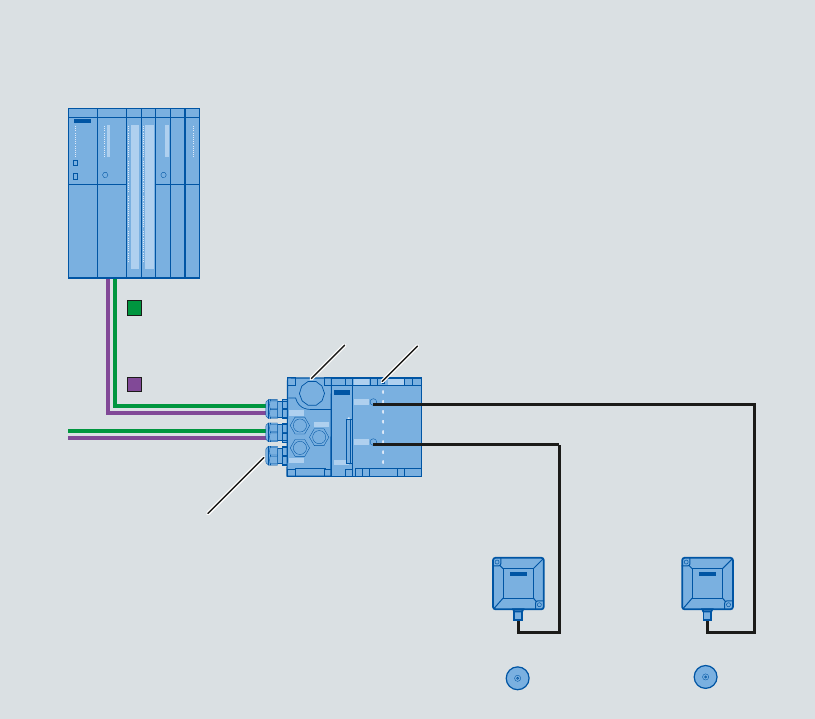

Figure 3-1 RF200 system overview
System overview
3.1 RFID components and their function
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 13
Table 3- 1 Possible reader-transponder combinations
Tags RF210R RF220R RF240R RF260R RF290R RF310M
MDS D100 -- ○ ○ ✓ ✓ ✓
MDS D124 ✓ ✓ ✓ ✓ ✓ ✓
MDS D126 -- ✓ ✓ ✓ ✓ ✓
MDS D127 ✓ -- -- -- -- --
MDS D139 1) -- ○ ○ ✓ ✓ ✓
MDS D160 2) ✓ ✓ ✓ ✓ ✓ ✓
MDS D165 -- ○ ○ ✓ ✓ ✓
MDS D200 -- ○ ○ ✓ ✓ ✓
MDS D261 -- ○ ○ ✓ ✓ ✓
MDS D324 ✓ ✓ ✓ ✓ ✓ ✓
MDS D339 -- ○ ○ ✓ ✓ ✓
MDS D400 -- -- ○ ✓ ✓ ✓
MDS D421 ✓ ○ -- -- -- --
MDS D422 ✓ ✓ ○ -- -- --
MDS D423 -- -- ✓ ✓ -- ✓
MDS D424 ✓ ✓ ✓ ✓ ✓ ✓
MDS D425 ✓ ✓ ✓ -- -- ✓
MDS D426 -- ✓ ✓ ✓ ✓ ✓
MDS D428 ✓ ✓ ✓ ✓ ○ ✓
MDS D460 ✓ ✓ ✓ ✓ ○ / ✓ 3) ✓
1) Only with the order number 6GT2600-0AA10
2) Only with the order number 6GT2600-0AB10
3) Combination recommended only in conjunction with ANT D5.
✓ Combination possible
-- Combination not possible
○ Combination possible, but not recommended
For further information about the SIMATIC RF310M mobile reader, please refer to the
SIMATIC RF310M Operating Instructions
(http://support.automation.siemens.com/WW/view/en/40959516).
System overview
3.2 Overview of transponders
SIMATIC RF200
14 System Manual, 03/2013, J31069-D0227-U001-A7-7618
3.2 Overview of transponders
Overview of typical areas of application of ISO transponders for RF200
Transponder Area of application
MDS D100 From simple identification such as electronic barcode replacement or supplementation, through
warehouse and distribution logistics, right up to product identification. With this transponder, the maximum
ranges are achieved in combination with the SIMATIC RF260R reader.
MDS D124 Application areas in factory automation (e.g. small paintshops to 180°C).
MDS D126 Compact and rugged ISO transponder; suitable for identification of transport units in production-related
logistics; can also be deployed in harsh conditions.
MDS D127 Very compact data carrier that can be screwed into areas where precise positioning is necessary. e.g. tool
identification.
MDS D139 1) Applications in production automation with high temperature demands (up to +220 °C).
Typical application areas:
• Paintshops and their preparatory treatments
• Primer coat, electrolytic dip area, cataphoresis with the associated drying furnaces
• Top coat area with drying furnaces
• Washing areas at temperatures > 85 °C
• Other applications with higher temperatures
MDS D160 2) Typical applications are, for example:
• Rented work clothing
• Hotel laundry
• Surgical textiles
• Hospital clothing
• Dirt collection mats
• Clothing for nursing homes/hostels
• Assembly lines with very small workpiece holders
MDS D165 Smart label (self-adhesive label)
From simple identification such as electronic barcode replacement/supplementation, through warehouse
and distribution logistics, right up to product identification
MDS D200 From simple identification such as electronic barcode replacement/supplementation, through warehouse
and distribution logistics, right up to product identification.
MDS D261 Smart label (self-adhesive label)
The design of the transponder (self-adhesive label) permits a variety of designs in order to ensure
optimum dimensioning for the widest variety of applications.
From simple identification such as electronic barcode replacement/supplementation, through warehouse
and distribution logistics, right up to product identification.
MDS D324 Production and distribution logistics as well as in assembly and production lines
MDS D339 Applications in production automation with high temperature demands (up to +220 °C).
For typical areas of application, see "MDS D139".
MDS D400 Simple identification such as electronic barcode replacement/supplements, from warehouse and
distribution logistics right through to product identification.
System overview
3.2 Overview of transponders
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 15
Transponder Area of application
MDS D421 The MDS D421 is designed for tool coding according to DIN 69873.
It can be used wherever small data carriers and exact positioning are required, e.g. tool identification,
workpiece holders
MDS D422 Identification of metallic workpiece holders, workpieces or containers
MDS D423 Identification of metallic workpiece holders, workpieces or containers, production automation
MDS D424 Production and distribution logistics as well as in assembly and production lines
MDS D425 Compact and rugged ISO transponder; suitable for screw mounting.
Use in assembly and production lines in the powertrain sector; ideal for mounting on motors, gearboxes,
and workpiece holders
MDS D426 Compact and rugged ISO transponder; suitable for identification of transport units in production-related
logistics; can also be deployed in harsh conditions
MDS D428 Compact and rugged ISO transponder; suitable for screw mounting
Use in assembly and production lines in the powertrain sector
MDS D460 Assembly lines with very small workpiece holders
1) Only with the MLFB 6GT2600-0AA10
2) Only with the MLFB 6GT2600-0AB10
Overview of the memory sizes of the ISO transponders for RF200
Transponder Memory size
MDS D1xx 112 bytes of EEPROM
MDS D2xx 256 bytes of EEPROM
MDS D3xx 992 bytes of EEPROM
MDS D4xx 2000 bytes FRAM
See also
MOBY D System Manual
(http://support.automation.siemens.com/WW/view/en/13628689/0/en)
Individual documentation for MOBY D tags
(http://support.automation.siemens.com/WW/view/en/10805828/133300)
System overview
3.2 Overview of transponders
SIMATIC RF200
16 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 17
RF200 system planning 4
4.1 Fundamentals of application planning
4.1.1 Selection criteria for SIMATIC RF200 components
Assess your application according to the following criteria, in order to choose the right
SIMATIC RF200 components:
● Static or dynamic data transfer
● Data volume to be transferred
● Speed in case of dynamic transfer
● Ambient conditions such as relative humidity, temperature, chemical impacts, etc.
4.1.2 Transmission window and read/write distance
The reader generates an inductive alternating field. The field is strongest close to the reader;
however, a read/write distance of "zero" between reader and transponder is not
recommended.
The strength of the field decreases in proportion to the distance from the reader. The
distribution of the field depends on the structure and geometry of the antennas in the reader
and transponder
A prerequisite for the function of the transponder is a minimum field strength at the
transponder, which is still barely achieved at distance Sg from the reader.
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
18 System Manual, 03/2013, J31069-D0227-U001-A7-7618

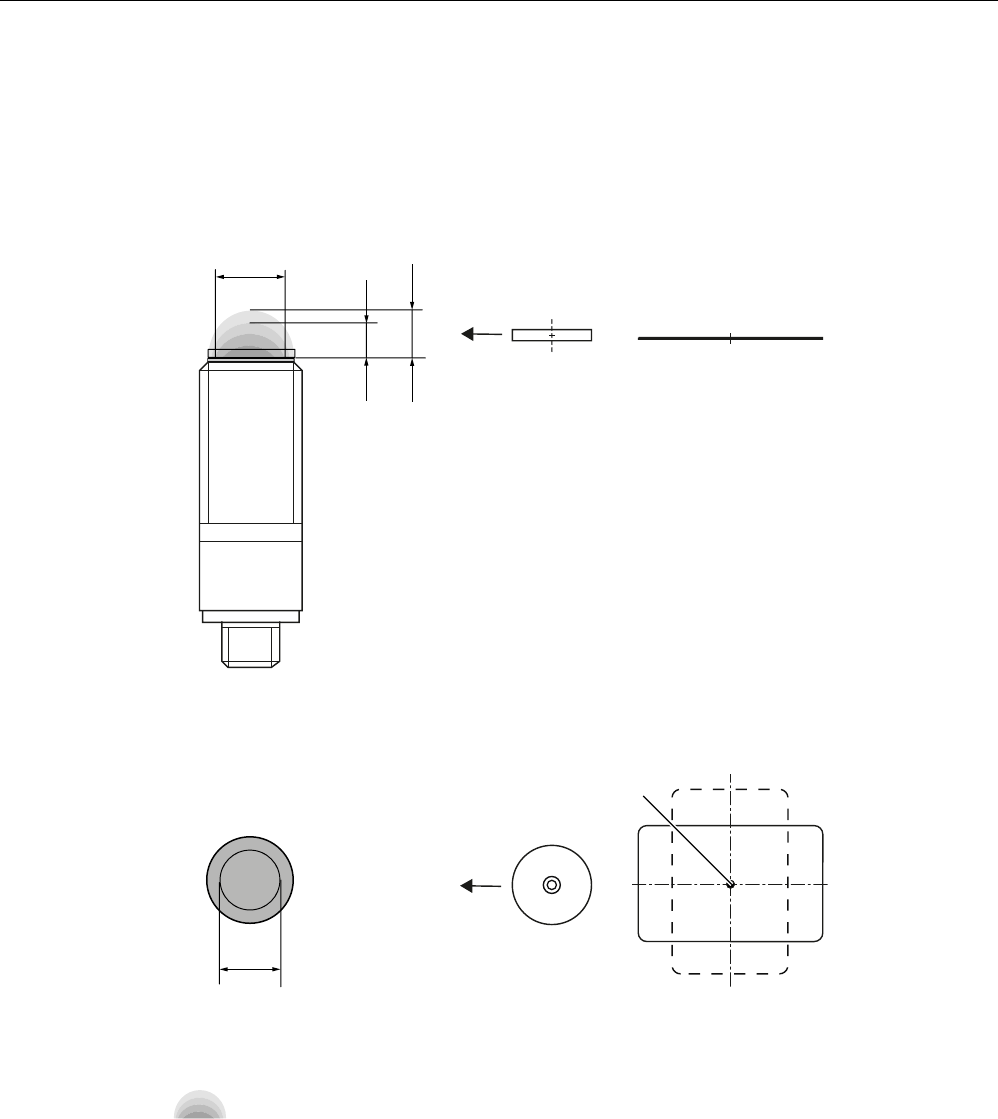

The picture below shows the transmission window of the SIMATIC RF210R and
SIMATIC RF220R readers between transponder and reader:
7RSYLHZ
6LGHYLHZ
7UDQVPLVVLRQZLQGRZ
/
7UDQVSRQGHU
63
7UDQVSRQGHU
6
J
6
D
/
Sa Operating distance between transponder and reader
Sg Limit distance (maximum clear distance between upper surface of the reader and the
transponder, at which the transmission can still function under normal conditions)
L Diameter of a transmission window
SP Intersection of the axes of symmetry of the transponder
Figure 4-1 RF210R/RF220R transmission window
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 19

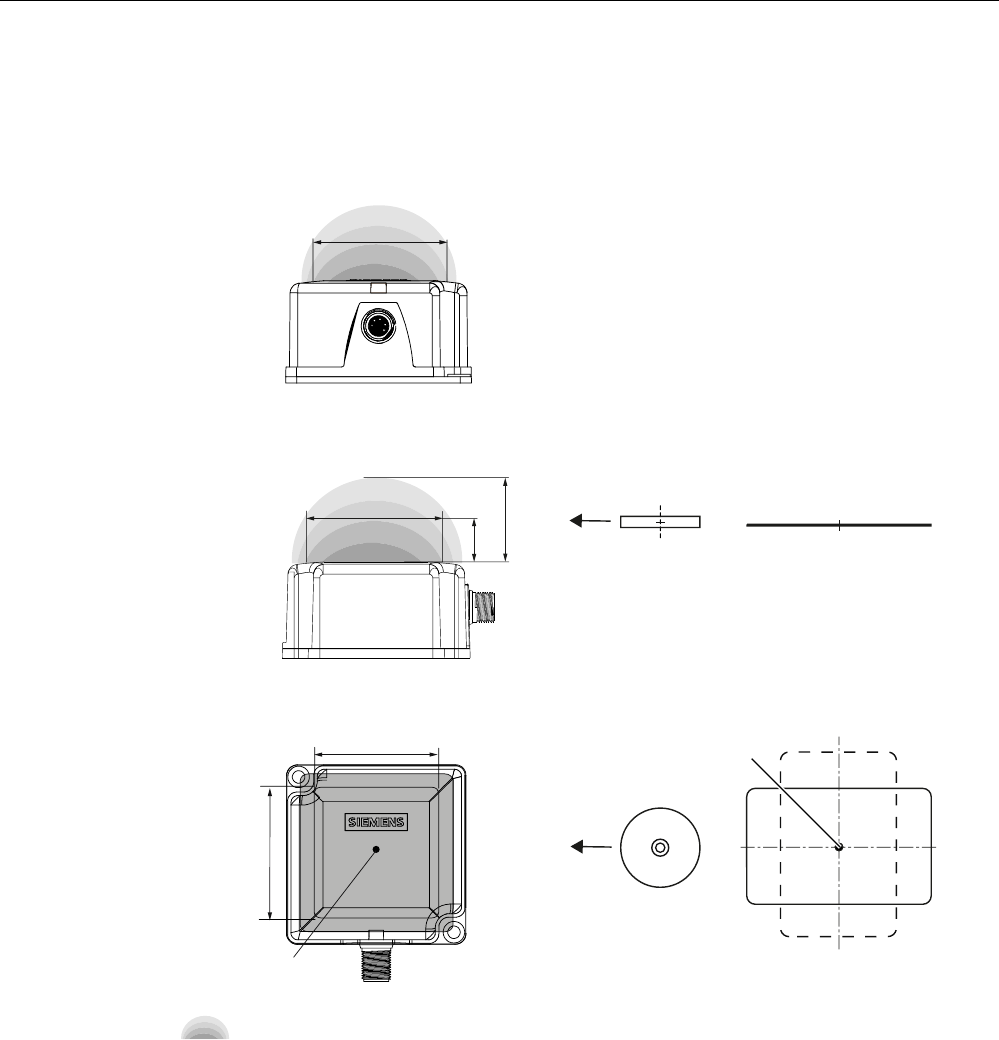

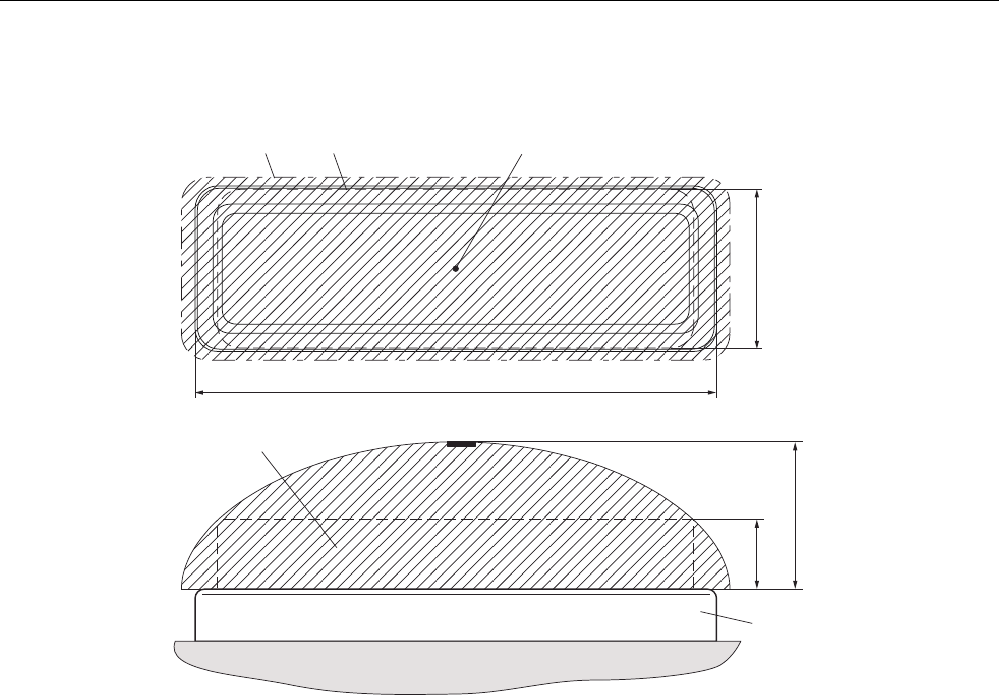

The figure below shows the transmission window of the SIMATIC RF240R and SIMATIC
RF260R readers between transponder and reader:
7UDQVSRQGHU
63
7RSYLHZ
7UDQVPLVVLRQZLQGRZ
6LGHYLHZ
)URQWYLHZ
7UDQVSRQGHU
0
/
/
/
/6
J
6
D
Sa Operating distance between transponder and reader
Sg Limit distance (maximum clear distance between upper surface of the reader and the
transponder, at which the transmission can still function under normal conditions)
L Length of a transmission window
M Field centerpoint
Figure 4-2 RF240R/RF260R transmission window
The transponder can be used as soon as the intersection (SP) of the transponder enters the
area of the transmission window.
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
20 System Manual, 03/2013, J31069-D0227-U001-A7-7618
From the diagrams above, it can also be seen that operation is possible within the area
between Sa and Sg. The active operating area reduces as the distance increases, and
shrinks to a single point at distance Sg. Only static mode should thus be used in the area
between Sa and Sg.
4.1.3 Width of the transmission window
Determining the width of the transmission window
The following approximation formula can be used for practical applications:
% y/
B: Width of the transmission window
L: Length of the transmission window
Tracking tolerances
The width of the transmission window (B) is particularly important for the mechanical tracking
tolerance. The formula for the dwell time is valid without restriction when B is observed.
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 21
4.1.4 Permissible directions of motion of the transponder
Detection area and direction of motion of the transponder
The transponder and reader have no polarization axis, i.e. the transponder can come in from
any direction, assume any position as parallel as possible to the reader, and cross the
transmission window. The figure below shows the active area for various directions of
transponder motion:
RU RU
%
%
%/
/
/
Transmission window
Direction of motion of the transponder
Detection area L x W
Figure 4-3 Detection areas of the reader for different directions of transponder motion
4.1.5 Operation in static and dynamic mode
Operation in static mode
If working in static mode, the transponder can be operated up to the limit distance (Sg). The
transponder must then be positioned exactly over the reader:
7UDQVPLVVLRQ
ZLQGRZ
7UDQVSRQGHU
5HDGHU
6
J
Figure 4-4 Operation in static mode
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
22 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Note
Note that in a metallic environment the values for the limit distance are reduced.
Operation in dynamic mode
When working in dynamic mode, the transponder moves past the reader. The transponder
can be used as soon as the intersection (SP) of the transponder enters the circle of the
transmission window. In dynamic mode, the operating distance (Sa) is of primary importance.
[Operating distances, see Chapter Field data of transponders and readers (Page 28)]
7UDQVPLVVLRQ
ZLQGRZ
7UDQVSRQGHU
7UDQVSRQGHU
3ODQYLHZ
63
63
Figure 4-5 Operation in dynamic mode
4.1.6 Dwell time of the transponder
The dwell time is the time in which the transponder remains within the transmission window
of a reader. The reader can exchange data with the transponder during this time.
The dwell time is calculated thus:
0,8 [ ]
[/]
Tag
v
L m
tv m s
⋅
=
tV: Dwell time of the transponder
L: Length of the transmission window
vTag: Speed of the transponder (tag) in dynamic mode
0,8: Constant factor used to compensate for temperature impacts and production
tolerances
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 23
The dwell time can be of any duration in static mode. The dwell time must be sufficiently long
to allow communication with the transponder.
The dwell time is defined by the system environment in dynamic mode. The volume of data
to be transferred must be matched to the dwell time or vice versa. In general:
K
v
tt≥
tV:: Dwell time of the data memory within the field of the reader
tK: Communication time between transponder and communication module
4.1.7 Communication between communication module, reader and transponder
Communication between the communication module, reader and transponder takes place
asynchronously through the RS422 interface. Depending on the communication module
(ASM) used, transfer rates of 19200 baud, 57600 baud or 115200 baud can be selected.
Calculation of the communication time for interference-free transfer
The communication time for fault-free data transfer is calculated as follows:
=+ ⋅tKtn
KByte
(n >1)
If the transmission is interrupted briefly due to external interference, the reader automatically
continues the command.
Calculation of the maximum amount of user data
The maximum amount of user data is calculated as follows:
tk: Communication time between communication module, reader and transponder
tv: Dwell time
n: Amount of user data in bytes
nmax: Max. amount of user data in bytes in dynamic mode
tbyte: Transmission time for 1 byte
K
: Constant; the constant is an internal system time. This contains the time for power
buildup on the transponder and for command transfer
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
24 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Time constants K and tbyte
Table 4- 1 Typical communication time on the serial interface when operating with presence check
Read Write
All MDS MDS D1xx/D3xx MDS D2xx MDS D4xx
Transfer rate
[baud]
K
[ms]
tbyte
[ms]
K
[ms]
tbyte
[ms]
K
[ms]
tbyte
[ms]
K
[ms]
tbyte
[ms]
19200 35 1.08 41 2.66 50 8.1 35 1.08
57600 34 0.59 28 2.28 33 7.7 34 0.59
115200 26 0.56 26 2.17 31 7.6 26 0.56
Table 4- 2 Typical command duration on the air interface for operation without presence check
TAG type Command K [ms] Tbyte [ms]
All MDS Read 20 0.55
EEPROM (MDS D1xx/D3xx) Write 27 2.2
EEPROM (MDS D2xx) Write 19 7.5
FRAM (MDS D4xx) Write 27 0.55
In dynamic mode, the values for K and tbyte are independent of the transmission speed. The
communication time only includes the processing time between the reader and the
transponder and the internal system processing time of these components. The
communication times between the communication module and the reader do not have to be
taken into account because the command for reading or writing is already active when the
transponder enters the transmission field of the reader.
The values shown above must be used when calculating the maximum quantity of user data
in dynamic mode. They are applicable for both writing and reading.
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 25
Calculation tool
User-friendly calculation tools are available for the communication modules ASM 456,
RF170C, and RF180C to determine data transfer times. The calculation tools can be found
on the DVD "RFID Systems Software & Documentation", order number 6GT2080-2AA20.
Figure 4-6 Calculation tool interface
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
26 System Manual, 03/2013, J31069-D0227-U001-A7-7618

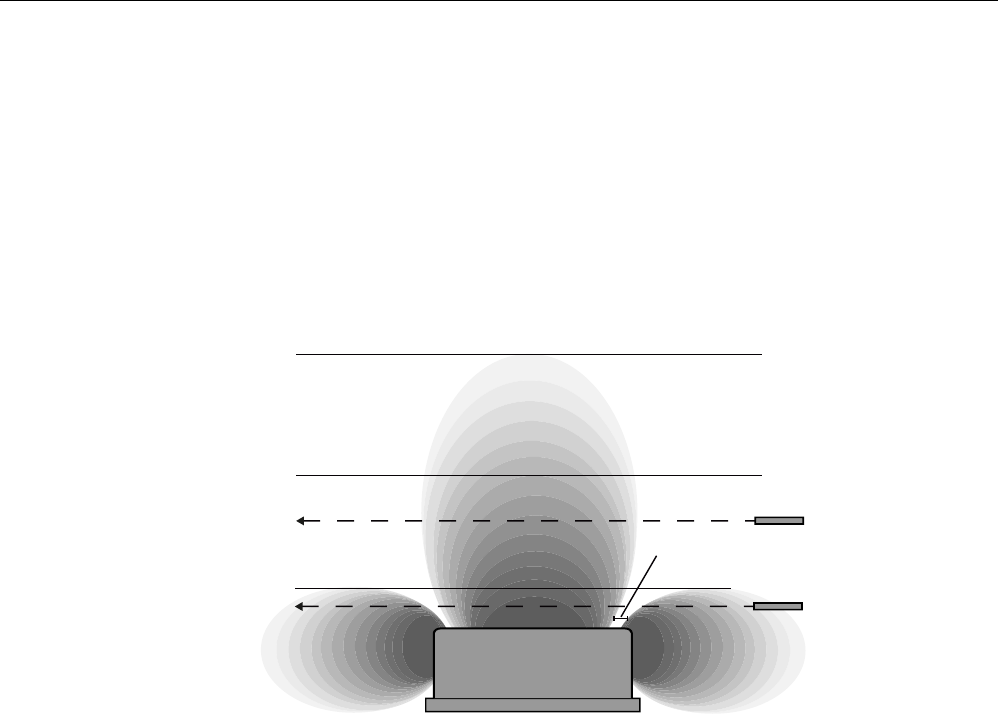

4.1.8 Impact of secondary fields
Secondary fields in the range from 0 mm to 30% of the limit distance (Sg) generally always
exist.
They should only be used during configuration in exceptional cases, however, since the
read/write distances are very limited. Exact details of the secondary field geometry cannot be
given, since these values depend heavily on the operating distance and the application.
When working in dynamic mode, remember that during the transition from the secondary
field to the main field the presence of the tag is lost temporarily. It is therefore advisable to
select a distance > 30% of Sg.
$SSUR[6
5HDGHUV
*DSLQILHOG
'LUHFWLRQRIWDJPRYHPHQW
6
DPD[
6
J
J
'LUHFWLRQRIWDJPRYHPHQW
7DJ
7DJ
Figure 4-7 Gap in the field resulting from secondary fields
RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 27
Secondary fields without shielding

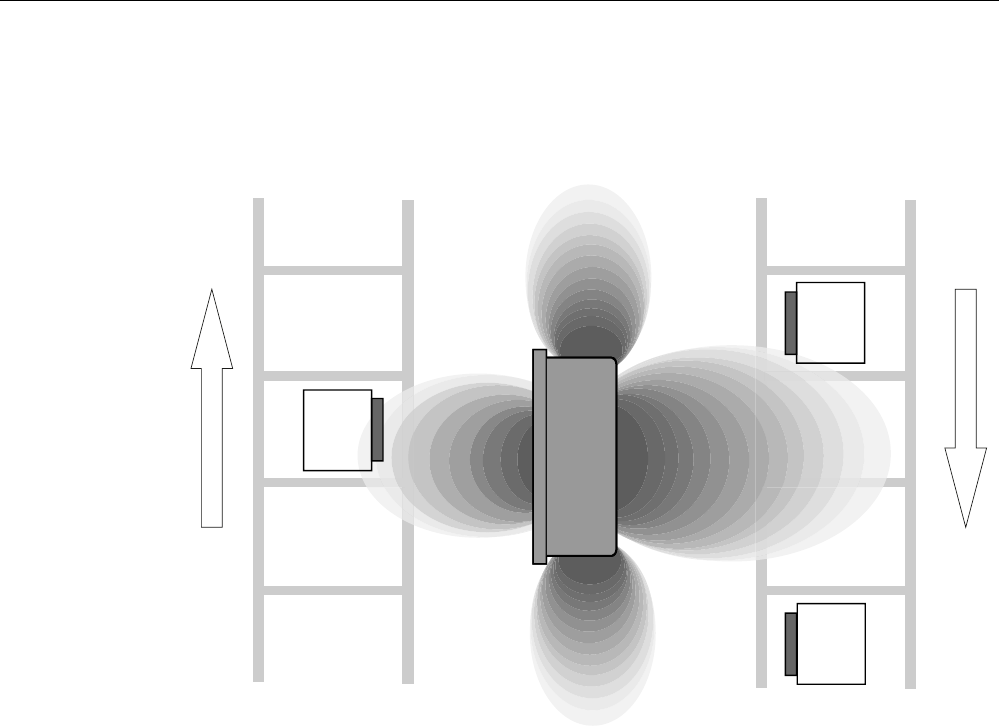

The following graphic shows typical primary and secondary fields, if no shielding measures
are taken.
7DJ
6HFRQGDU\
ILHOG
0DLQILHOG
5HDGHUV
7DJ
7DJ
&RQYH\RUGLUHFWLRQ
)¸UGHUULFKWXQJ
Figure 4-8 Secondary field without shielding
In this arrangement, the reader can also read tags via the secondary field. Shielding is
required in order to prevent unwanted reading via the secondary field, as shown and
described in the following.
RF200 system planning
4.2 Field data of transponders and readers
SIMATIC RF200
28 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Secondary fields with shielding
The following graphic shows typical primary and secondary fields, with metal shielding this
time.
The metal shielding prevents the reader from detecting tags via the secondary field.
5HDGHUV
6HFRQGDU\
ILHOG
0DLQILHOG
0HWDOVKLHOGLQJ
&RQYH\RUGLUHFWLRQ
&RQYH\RUGLUHFWLRQ
7DJ
7DJ
7DJ
Figure 4-9 Secondary field with shielding
4.2 Field data of transponders and readers
4.2.1 Field data
The limit distances (Sg) and operating distances (Sa) along with the length of the
transmission window for each reader-transponder combination are listed in the tables below.
RF200 system planning
4.2 Field data of transponders and readers
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 29
Table 4- 3 SIMATIC RF210R field data
Length of the
transmission window (L)
Operating distance (Sa) Limit distance (Sg)
MDS D124 25 1 ... 18 20
MDS D127 1) 5 0 ... 2 2
MDS D160 20 1 ... 10 12
MDS D324 20 1 ... 8 9
MDS D421 5 0 ... 3 4
MDS D422 8 1 ... 9 10
MDS D424 24 1 ... 16 18
MDS D425 14 1 ... 7 8
MDS D428 20 1 ... 10 11
MDS D460 8 1 … 8 9
1) The transponder is only suitable for static mode.
All dimensions in mm.
Table 4- 4 SIMATIC RF220R field data
Length of the
transmission window (L)
Operating distance (Sa) Limit distance (Sg)
MDS D124 35 1 ... 28 31
MDS D126 45 2 ... 30 35
MDS D160 20 1 ... 20 22
MDS D324 30 2 ... 21 25
MDS D422 18 1 ... 12 14
MDS D424 30 2 ... 25 29
MDS D425 20 1 ... 12 14
MDS D426 35 2 ... 18 20
MDS D428 25 1 ... 18 21
MDS D460 25 1 ... 18 20
All dimensions in mm.
RF200 system planning
4.2 Field data of transponders and readers
SIMATIC RF200
30 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Table 4- 5 SIMATIC RF240R field data
Length of the
transmission window (L)
Operating distance (Sa) Limit distance (Sg)
MDS D124 80 2 ... 53 60
MDS D126 80 2 ... 57 65
MDS D160 50 1 ... 33 37
MDS D324 55 1 ... 36 40
MDS D422 25 1 ... 12 15
MDS D423 40 2 ... 35 40
MDS D424 75 1 ... 47 53
MDS D425 35 1 ... 17 19
MDS D426 60 2 ... 33 40
MDS D428 50 1 ... 30 34
MDS D460 50 1 ... 30 34
All dimensions in mm.
Table 4- 6 SIMATIC RF260R field data
Length of the
transmission window (L)
Operating distance (Sa) Limit distance (Sg)
MDS D100 120 2 ... 110 130
MDS D124 60 2 ... 80 85
MDS D126 110 2 ... 75 100
MDS D139 120 2 ... 80 110
MDS D160 60 2 ... 40 45
MDS D165 120 2 ... 120 135
MDS D200 120 2 ... 100 120
MDS D261 80 2 ... 75 90
MDS D324 80 2 ... 60 70
MDS D339 90 2 ... 68 77
MDS D400 120 2 ... 110 140
MDS D423 45 2 ... 40 45
MDS D424 80 2 ... 60 70
MDS D426 70 2 ... 50 60
MDS D428 50 2 ... 40 45
MDS D460 50 2 ... 40 45
All dimensions in mm.
RF200 system planning
4.2 Field data of transponders and readers
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 31
Table 4- 7 Filed data SIMATIC RF290R, with ANT D5
Length of the
transmission window (L)
Operating distance (Sa) Limit distance (Sg)
MDS D100 320 0 ... 400 500
MDS D124 300 0 ... 200 280
MDS D126 320 0 ... 350 400
MDS D139 320 0 ... 400 500
MDS D160 300 0 ... 130 180
MDS D165 320 0 ... 350 450
MDS D200 320 0 ... 400 500
MDS D261 320 0 ... 300 400
MDS D324 300 0 ... 200 280
MDS D339 320 0 ... 300 380
MDS D400 320 0 ... 400 500
MDS D424 300 0 ... 200 280
MDS D426 320 0 ... 300 350
MDS D460 300 0 ... 120 160
All dimensions in mm.
Table 4- 8 Field data SIMATIC RF290R, with ANT D6
Length of the transmission
window (L)
X direction Y direction
Operating distance (Sa) Limit distance (Sg)
MDS D100 520 420 0 ... 550 650
MDS D124 500 400 0 ... 220 300
MDS D126 520 420 0 ... 400 500
MDS D139 520 420 0 ... 500 600
MDS D160 500 400 0 ... 130 180
MDS D165 520 420 0 ... 400 500
MDS D200 520 420 0 ... 500 600
MDS D261 520 420 0 ... 350 450
MDS D324 500 400 0 ... 200 280
MDS D339 520 420 0 ... 400 480
MDS D400 520 420 0 ... 500 650
MDS D424 500 400 0 ... 220 300
MDS D426 520 420 0 ... 350 400
All dimensions in mm.
RF200 system planning
4.2 Field data of transponders and readers
SIMATIC RF200
32 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Table 4- 9 Field data SIMATIC RF290R, with ANT D10
Length of the transmission
window (L)
X direction Y direction
Operating distance (Sa) Limit distance (Sg)
MDS D100 1050 350 0 ... 500 600
MDS D124 1000 300 0 ... 200 280
MDS D126 1050 350 0 ... 400 500
MDS D139 1050 350 0 ... 450 550
MDS D160 1000 300 0 ... 130 180
MDS D165 1050 350 0 ... 350 450
MDS D200 1050 350 0 ... 450 550
MDS D261 1050 350 0 ... 350 450
MDS D324 1000 300 0 ... 200 280
MDS D339 1050 350 0 ... 300 380
MDS D400 1050 350 0 ... 400 500
MDS D424 1000 300 0 ... 200 280
MDS D426 1050 350 0 ... 350 400
All dimensions in mm.
4.2.2 Minimum clearances

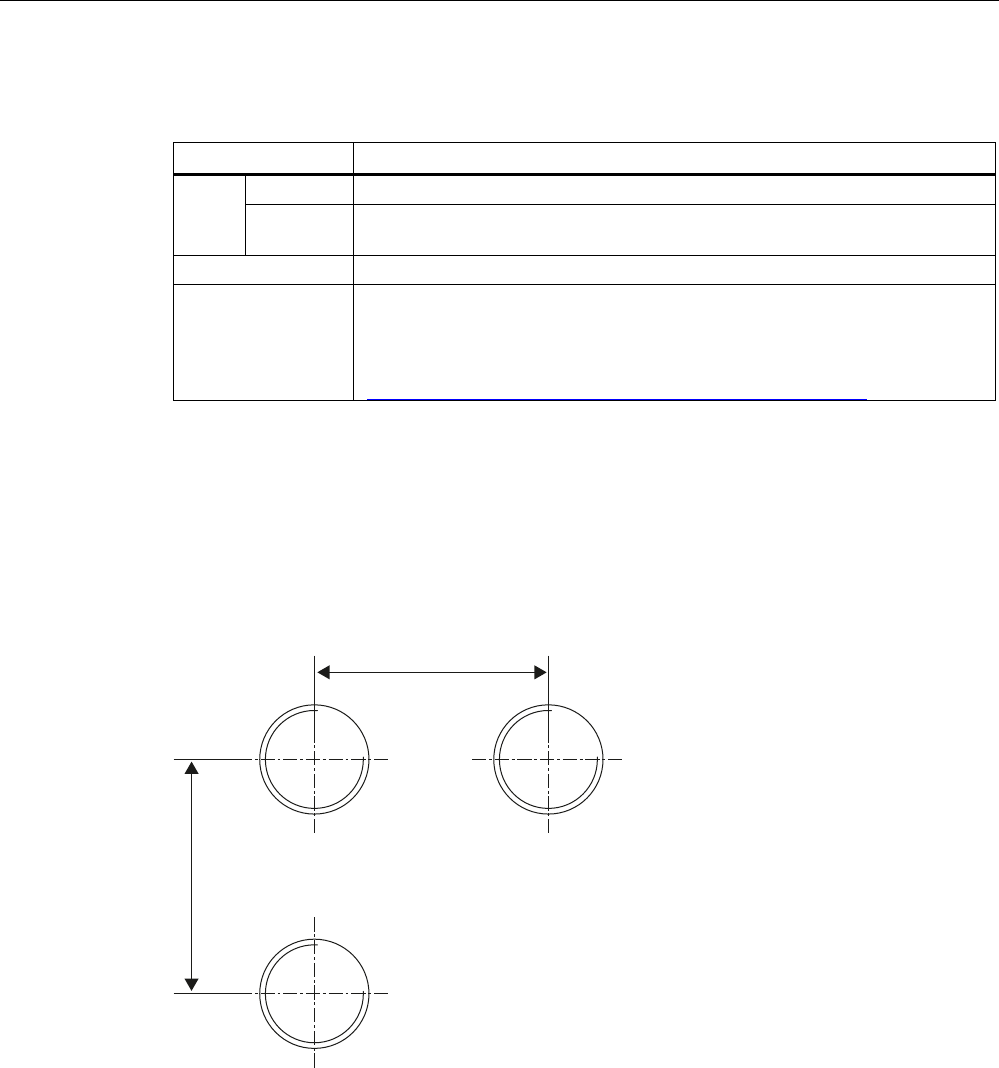

Minimum distance from transponder to transponder
The specified distances refer to a metal-free environment. For a metallic environment, the
specified minimum distances must be multiplied by a factor of 1.5.
Table 4- 10 Minimum clearances for transponder
RF290R 1) RF210R RF220R RF240R RF260R
D5 D6 D10
MDS D100 - - - ≥ 240 ≥ 1000 ≥ 1500 ≥ 2000
MDS D124 ≥ 25 ≥ 40 ≥ 90 ≥ 180 ≥ 800 ≥ 1200 ≥ 1800
MDS D126 - ≥ 50 ≥ 100 ≥ 180 ≥ 1000 ≥ 1500 ≥ 2000
MDS D127 ≥ 15 - - - - - -
MDS D139 - - - ≥ 200 ≥ 1000 ≥ 1500 ≥ 2000
MDS D160 ≥ 20 ≥ 25 ≥ 70 ≥ 150 ≥ 800 ≥ 1200 ≥ 1800
MDS D165 - - - ≥ 240 ≥ 1000 ≥ 1500 ≥ 2000
MDS D200 - - - ≥ 240 ≥ 1000 ≥ 1500 ≥ 2000
MDS D261 - - - ≥ 200 ≥ 1000 ≥ 1500 ≥ 2000
MDS D324 ≥ 25 ≥ 40 ≥ 90 ≥ 180 ≥ 800 ≥ 1200 ≥ 1800
MDS D339 - - - ≥ 200 ≥ 1000 ≥ 1500 ≥ 2000
RF200 system planning
4.2 Field data of transponders and readers
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 33
RF290R 1) RF210R RF220R RF240R RF260R
D5 D6 D10
MDS D400 - - - ≥ 240 ≥ 1000 ≥ 1500 ≥ 2000
MDS D421 ≥ 10 - - - - - -
MDS D422 ≥ 15 ≥ 20 ≥ 50 - - - -
MDS D423 - - ≥ 80 ≥ 160 - - -
MDS D424 ≥ 25 ≥ 40 ≥ 90 ≥ 180 ≥ 800 ≥ 1200 ≥ 1800
MDS D425 ≥ 20 ≥ 25 ≥ 75 - - - -
MDS D426 - ≥ 50 ≥ 90 ≥ 180 ≥ 800 ≥ 1200 ≥ 1800
MDS D428 ≥ 25 ≥ 25 ≥ 75 ≥ 150 - - -
MDS D460 ≥ 20 ≥ 25 ≥ 70 ≥ 150 ≥ 800 - -
1) Depends on the connected antenna (ANT D5, D6 or D10).
All values are in mm, relative to the operating distance (Sa) between reader and transponder, and
between transponder edge and transponder edge

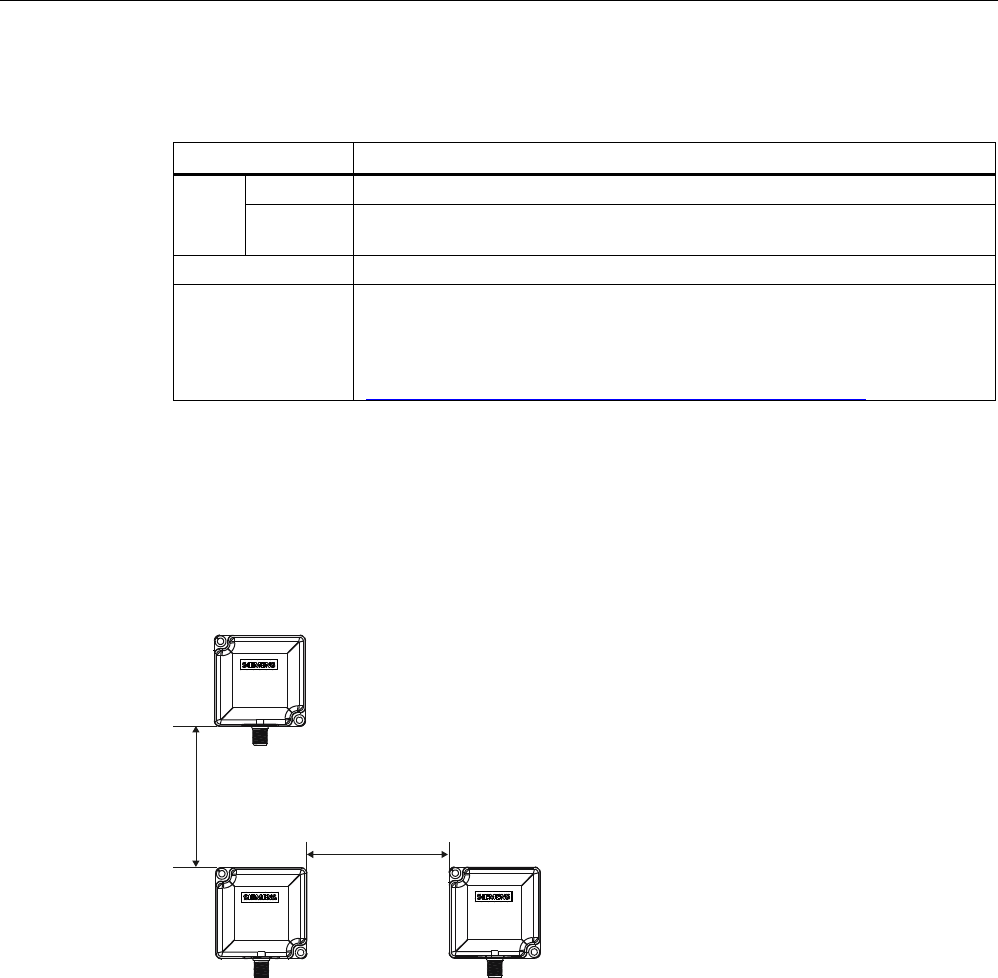

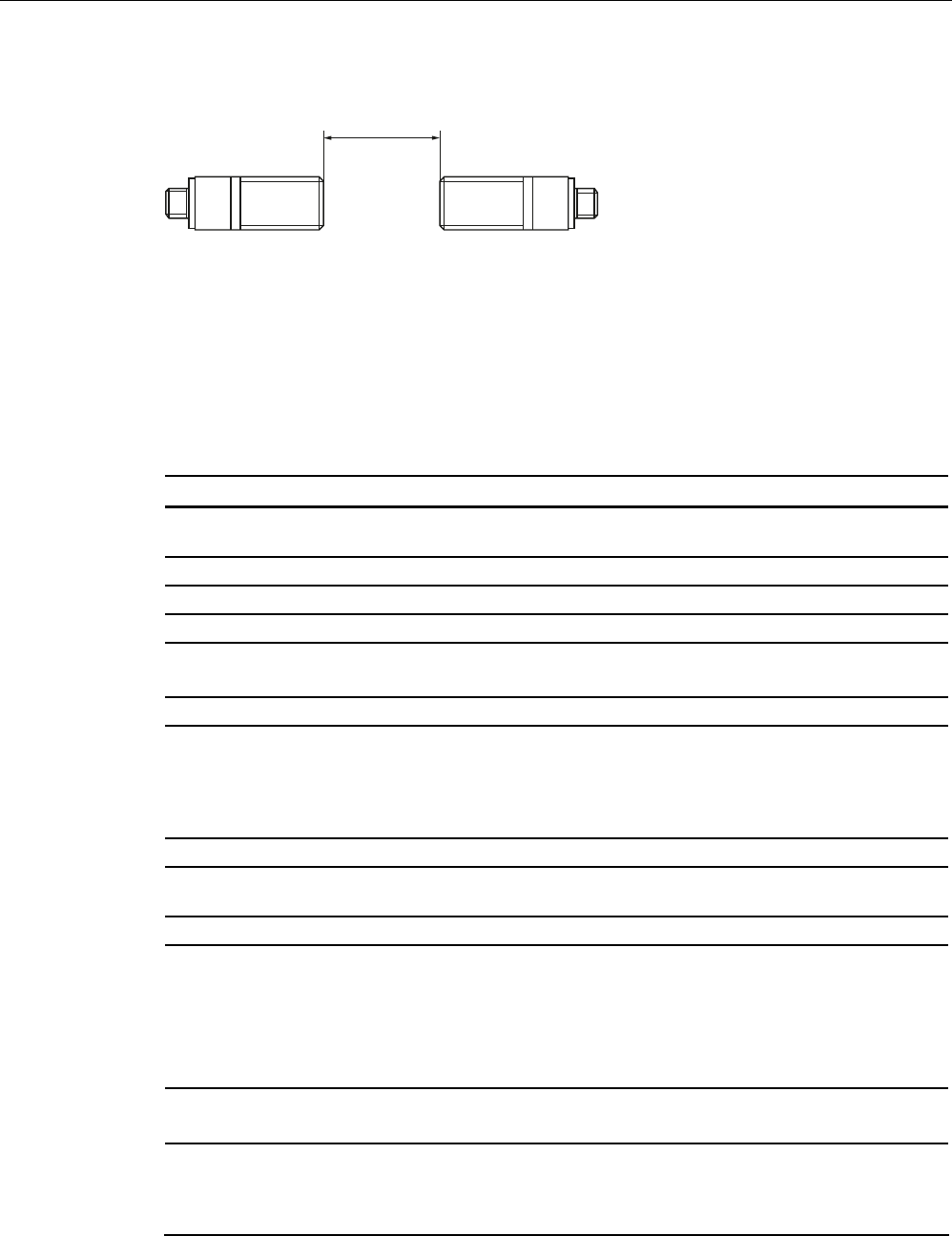

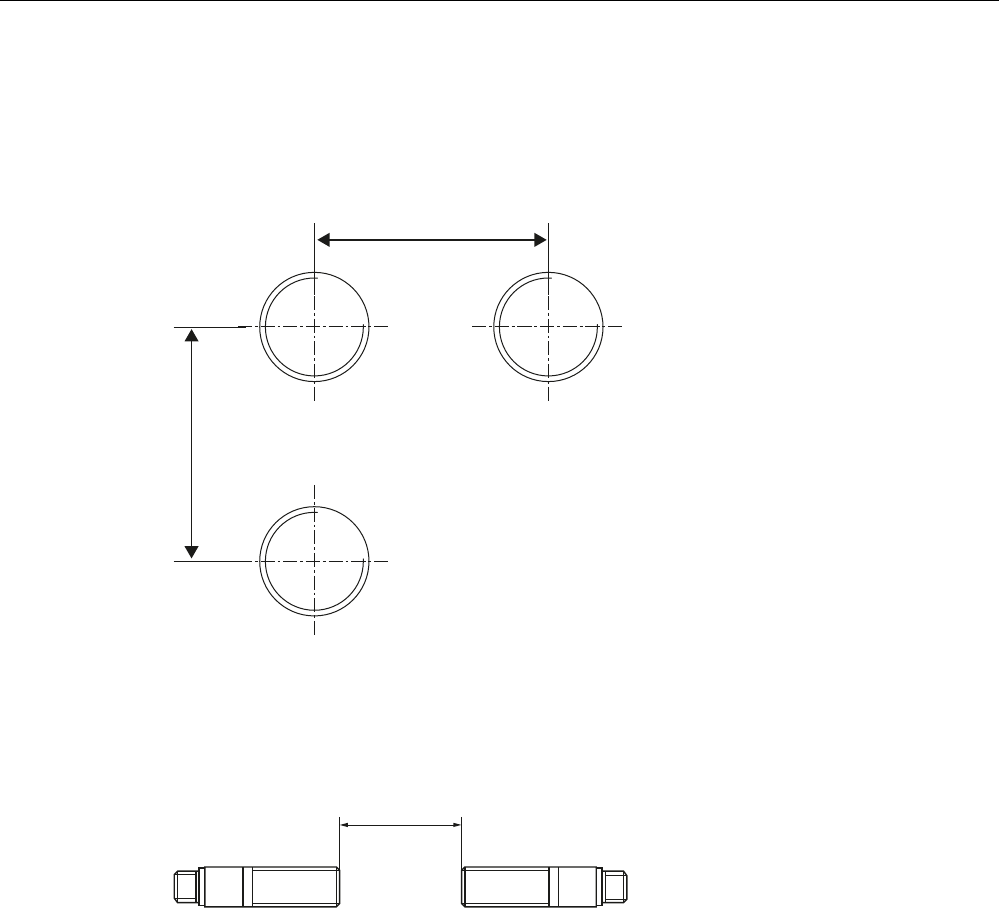

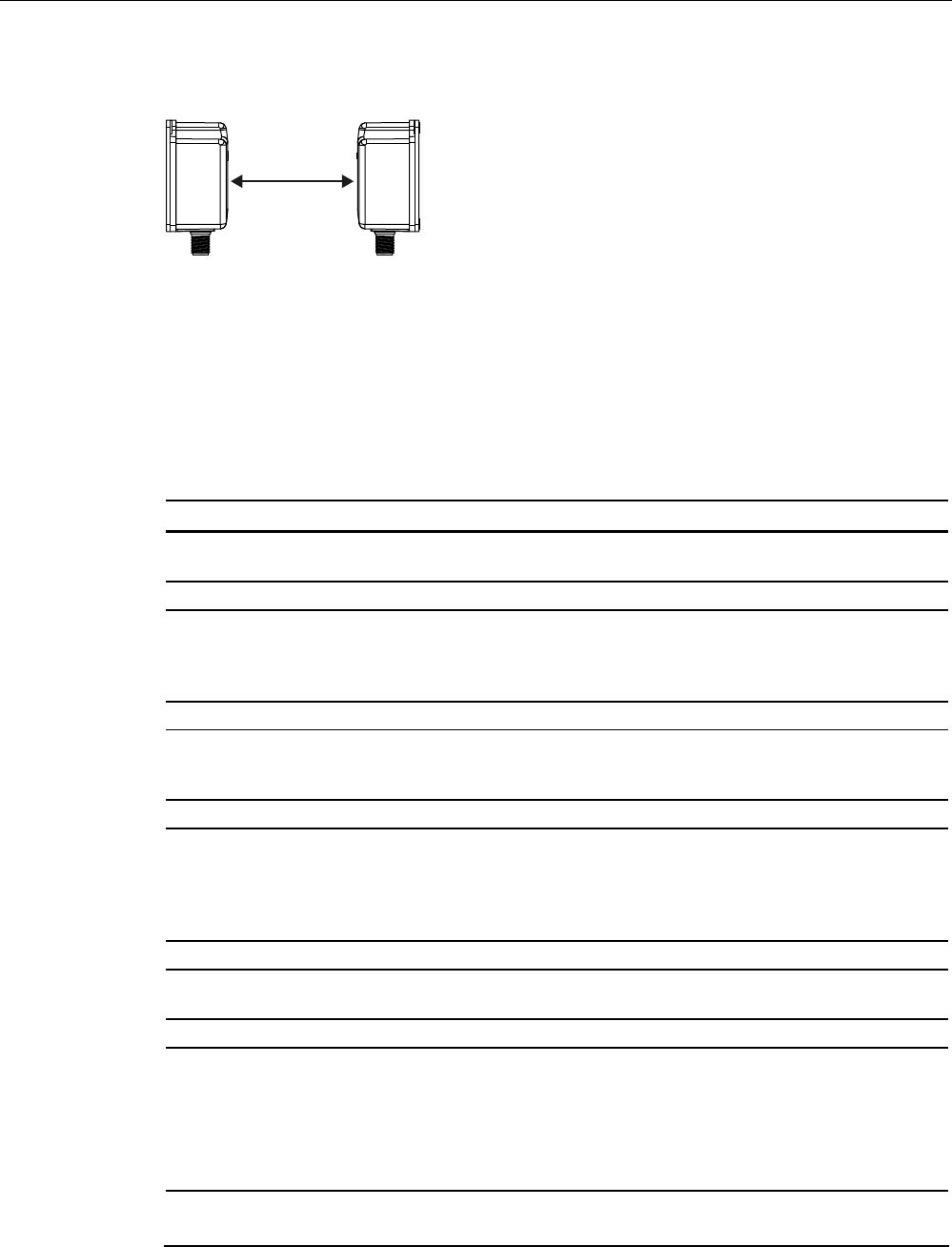

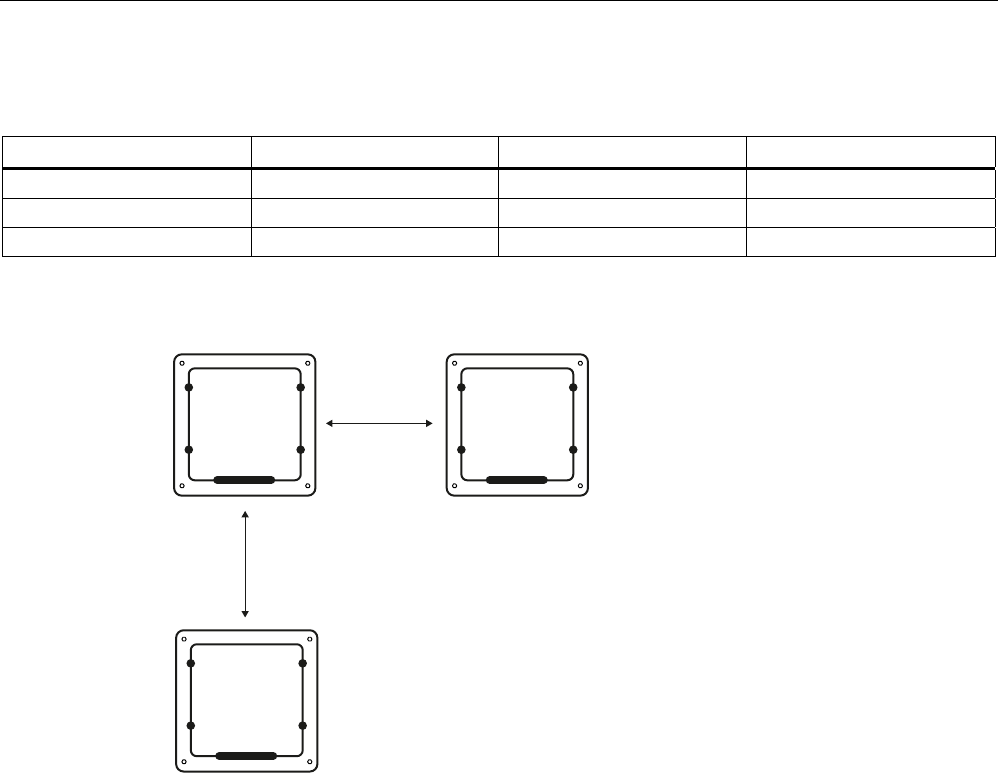

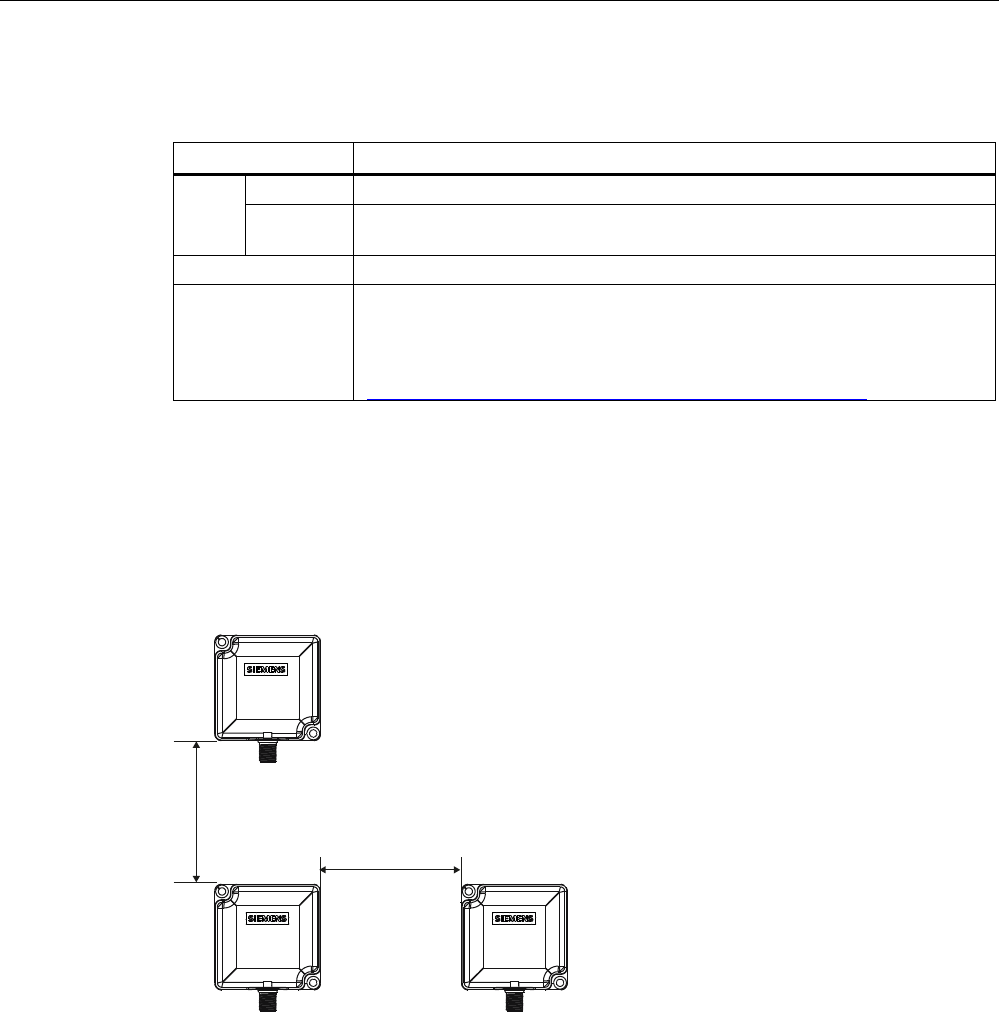

Minimum distance from reader to reader
Table 4- 11 Minimum distances to readers or antennas
RF210R to
RF210R
RF220R to
RF220R
RF240R to
RF240R
RF260R to
RF260R
ANT Dx to ANT Dx
with RF290R
ANT D5: ≥ 2000 mm
ANT D6: ≥ 2000 mm
≥ 60 mm ≥ 100 mm ≥ 120 mm ≥ 150 mm
ANT D10: ≥ 2000 mm
All values are in mm
Note
Effect on inductive fields by not maintaining the minimum distances of the readers
If the values fall below those specified in the "Minimum distance from reader to reader" table,
there is a risk of the function being affected by inductive fields. In this case, the data transfer
time would increase unpredictably or a command would be aborted with an error.
Adherence to the values specified in the "Minimum distance from reader to reader" table is
therefore essential.
If the specified minimum distance cannot be complied with due to the physical configuration,

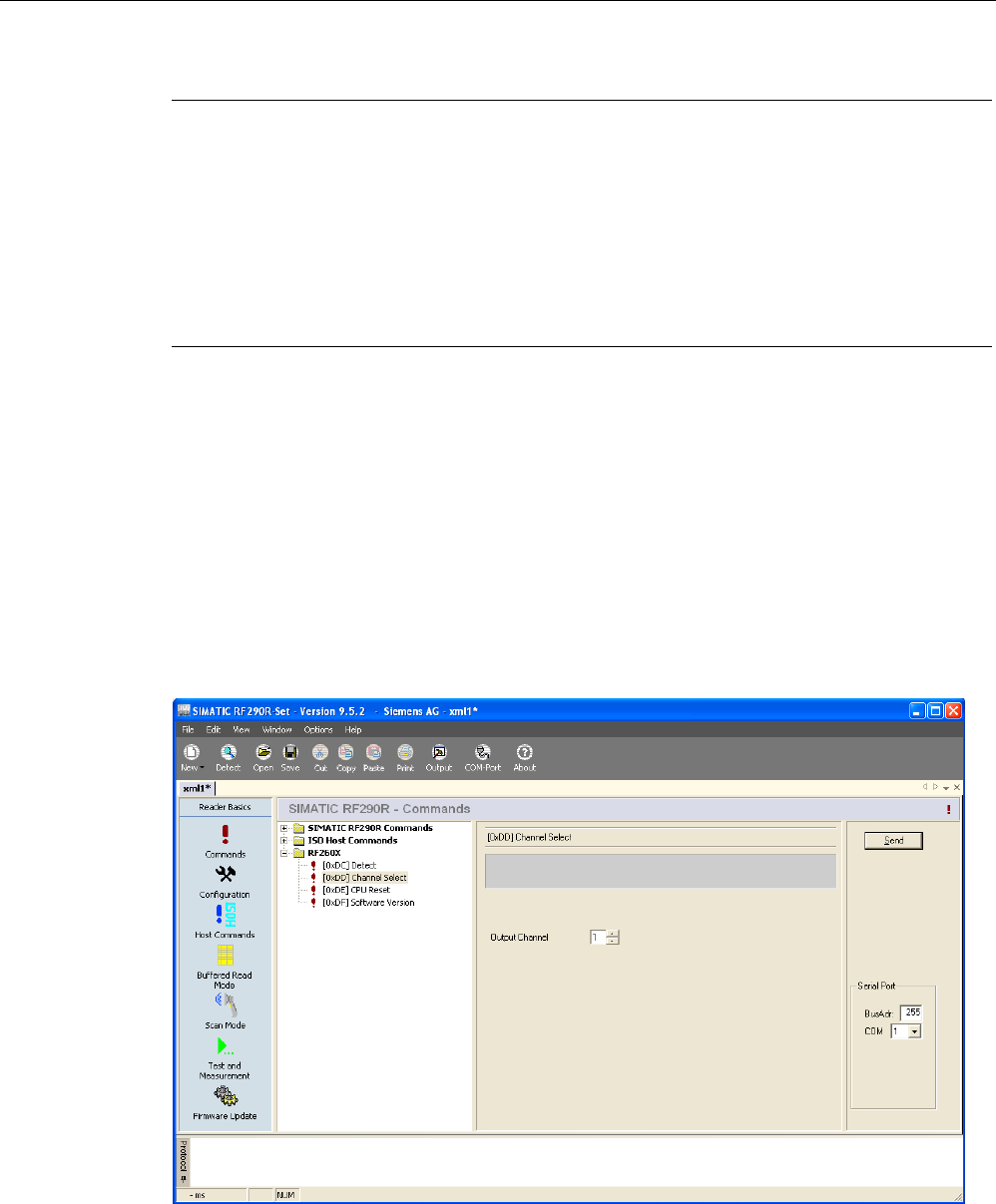

the SET-ANT command can be used to activate and deactivate the HF field of the reader.
The application software must be used to ensure that only one reader is active (antenna is
switched on) at a time.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
34 System Manual, 03/2013, J31069-D0227-U001-A7-7618
4.3 Installation guidelines
4.3.1 Overview
The transponder and reader complete with their antennas are inductive devices. Any type of
metal in the vicinity of these devices affects their functionality. Some points need to be
considered during planning and installation if the values described in the "Field data
(Page 28)" section are to retain their validity:
● Minimum spacing between two readers or their antennas
● Minimum distance between two adjacent data memories
● Metal-free area for flush-mounting of readers or their antennas and transponders in metal
● Mounting of multiple readers or their antennas on metal frames or racks
The following sections describe the impact on the operation of the RFID system when
mounted in the vicinity of metal.
4.3.2 Reduction of interference due to metal

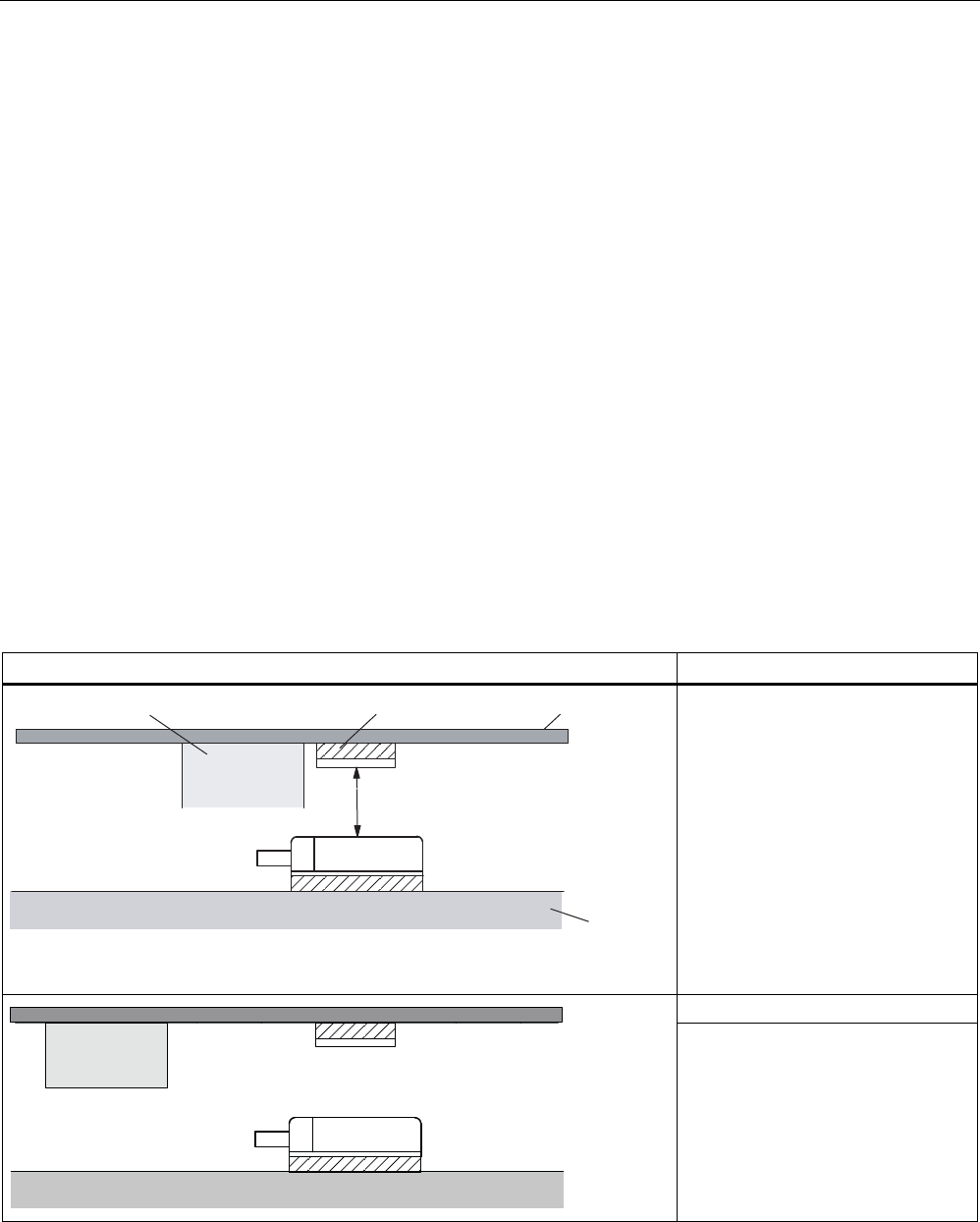

Interference due to metal rack Problem
6KHHW0HWDOUDFN
6D
1RQPHWDOOLFVSDFHU
0HWDO
7UDQVSRQGHU
5HDGHUV
A metal rack is located above the
transmission window of the reader.
This affects the entire field. In
particular, the transmission window
between reader and transponder is
reduced.
Remedy:
7UDQVSRQGHU
5HDGHU
The transmission window is no
longer affected if the transponder is
mounted differently.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 35

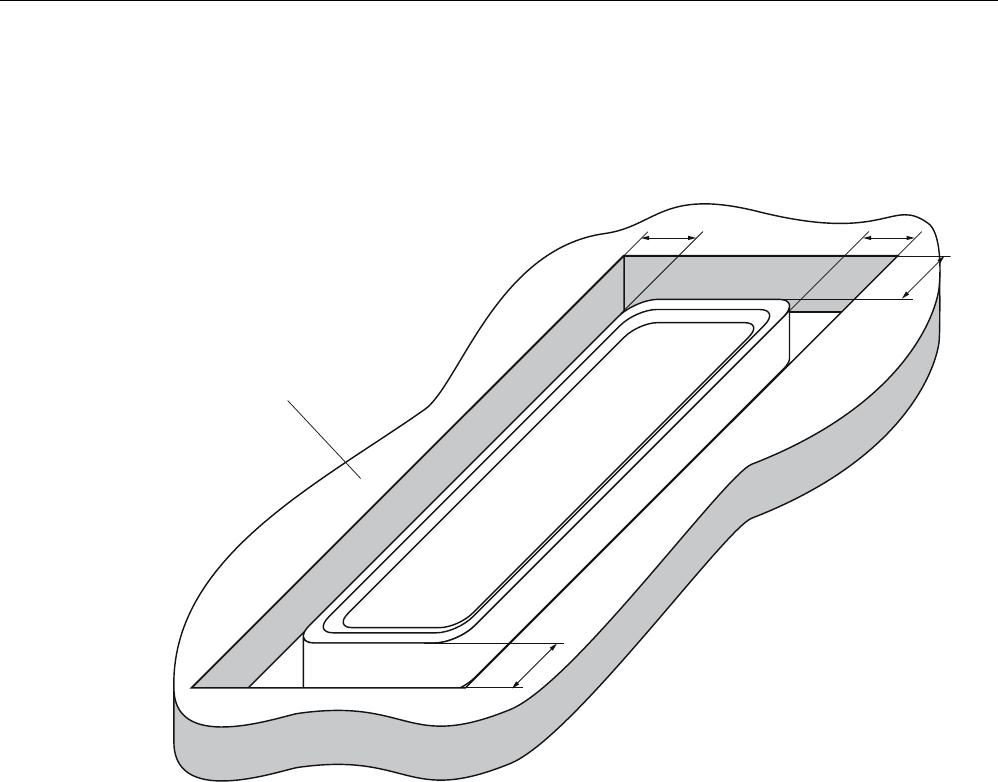

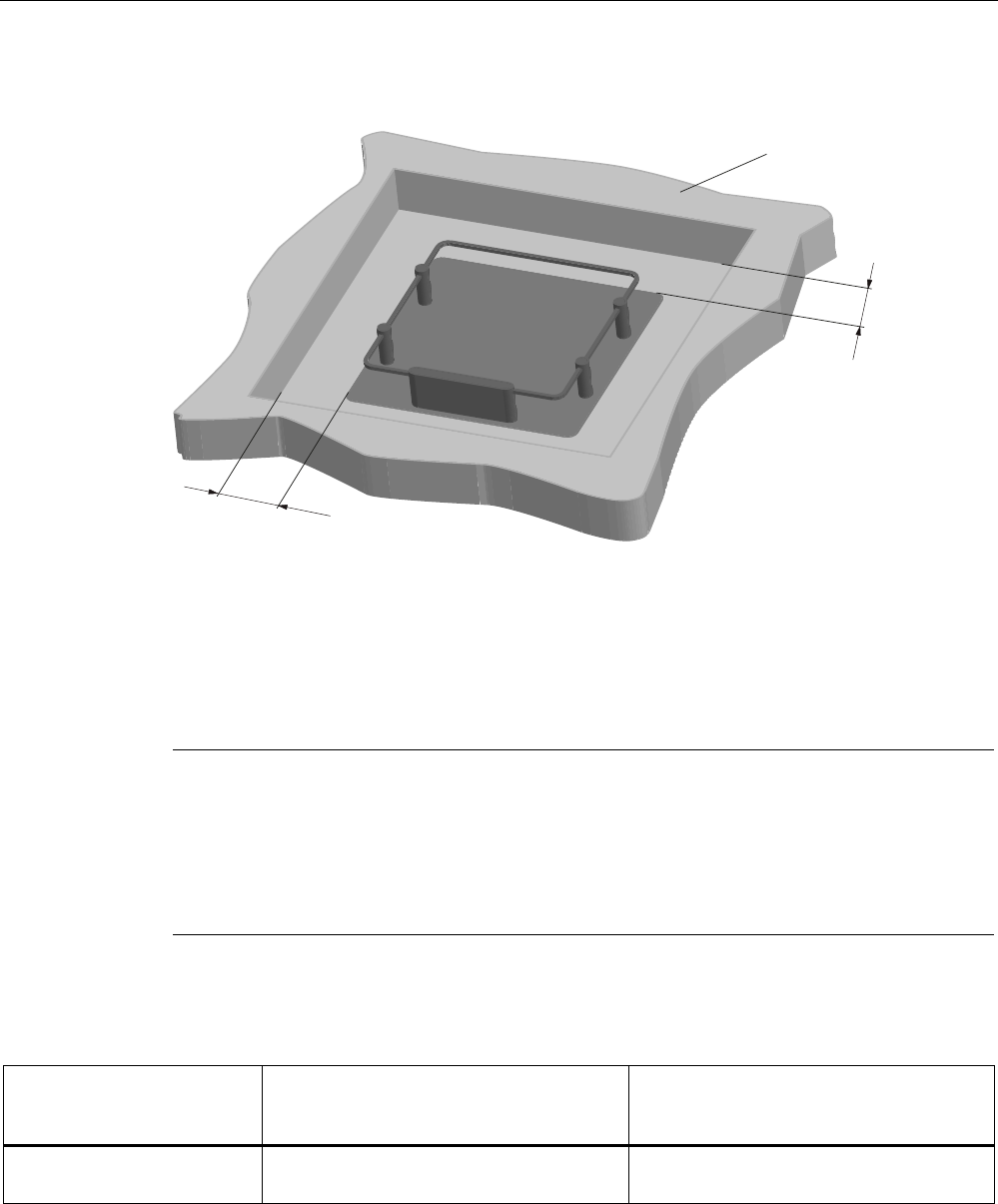

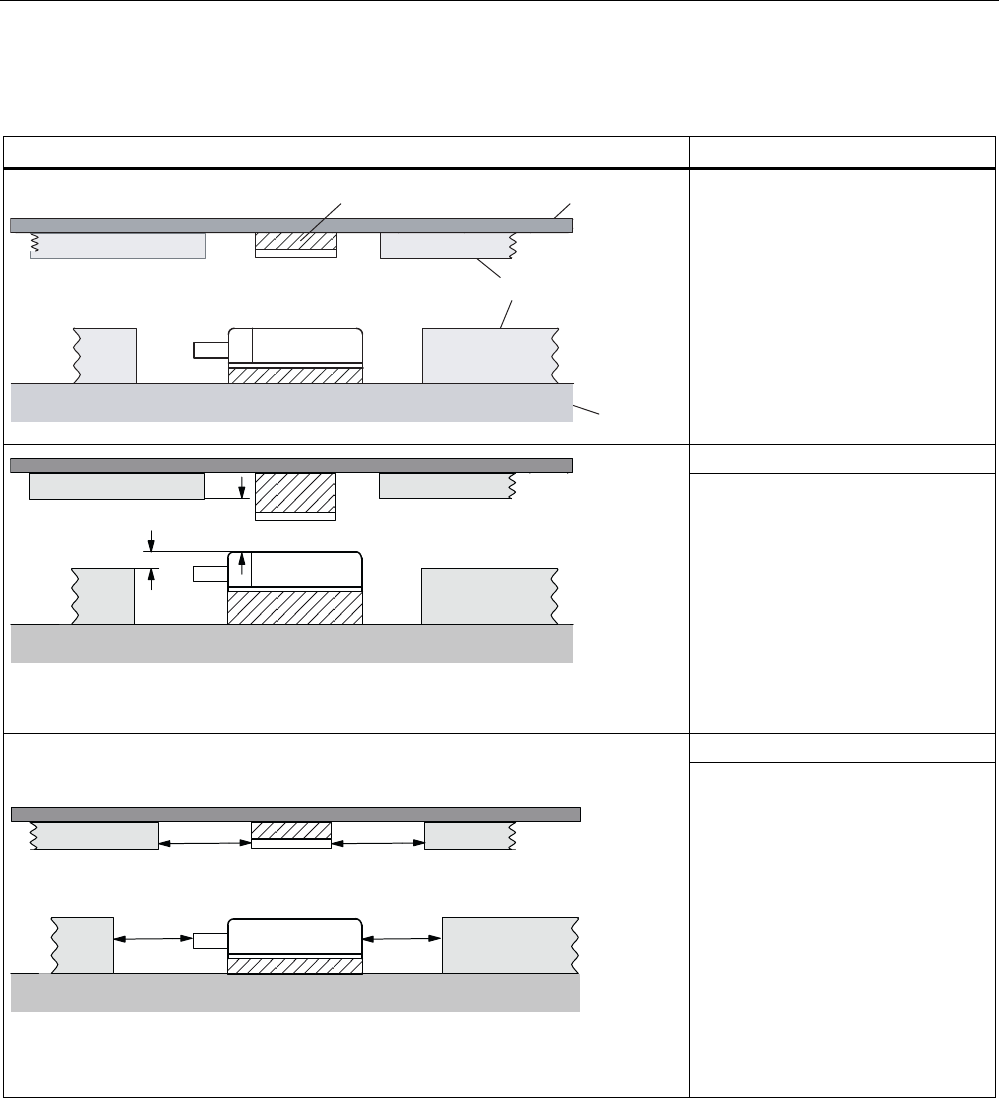

Flush-mounting
Flush-mounting of transponders and readers Problem
1RQPHWDOOLFVSDFHU 6KHHW
0HWDO
0HWDO
5HDGHUV
Flush-mounting of transponders and
readers is possible in principle.
However, the size of the
transmission window is significantly
reduced. The following measures
can be used to counteract the
reduction of the window:
Remedy:
PP [!PP
5HDGHU
Enlargement of the non-metallic
spacer below the transponder
and/or reader.
The transponder and/or reader are
10 to 20 mm higher than the metal
surround.
(The value x ≥ 100 mm is valid, for
example, for RF260R. It indicates
that, for a distance x ≥ 100 mm, the
reader can no longer be significantly
affected by metal.)
Remedy:
DD
E
E5HDGHU
Increase the non-metallic distance
a, b.
The following rule of thumb can be
used:
• Increase a, b by a factor of 2 to 3
over the values specified for
metal-free areas
• Increasing a, b has a greater
effect for readers or
transponders with a large limit
distance than for readers or
transponders with a small limit
distance.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
36 System Manual, 03/2013, J31069-D0227-U001-A7-7618

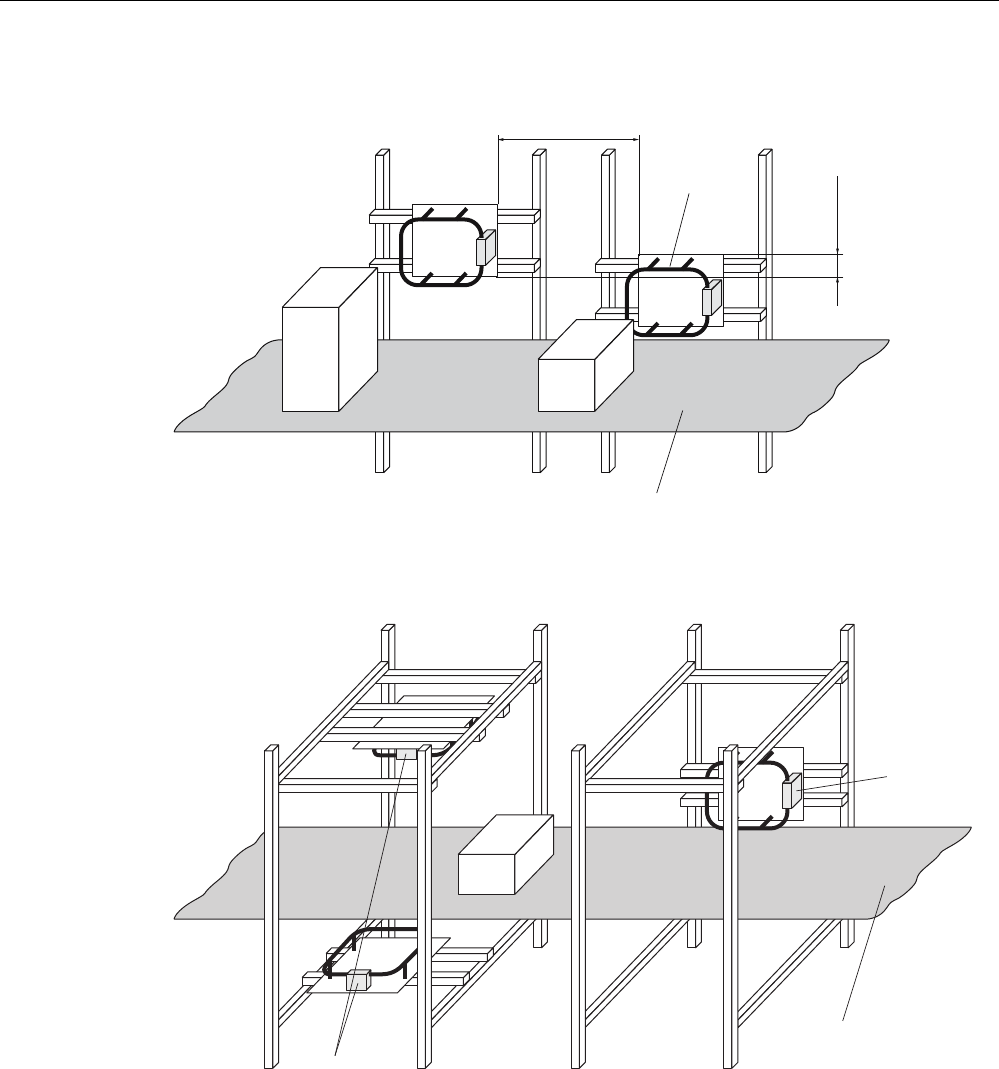

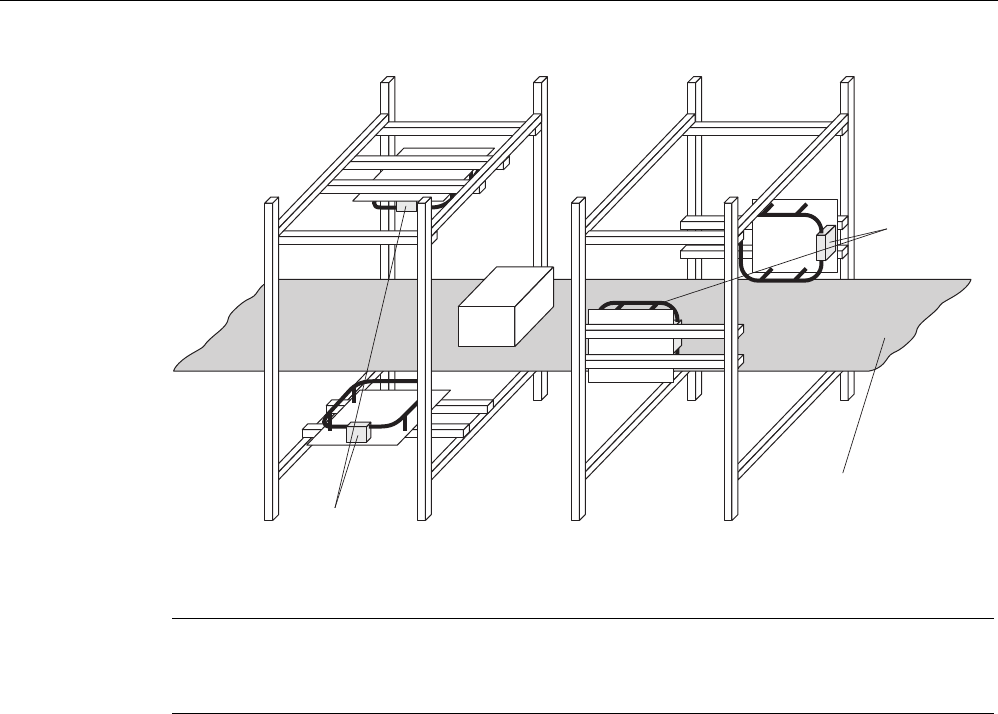

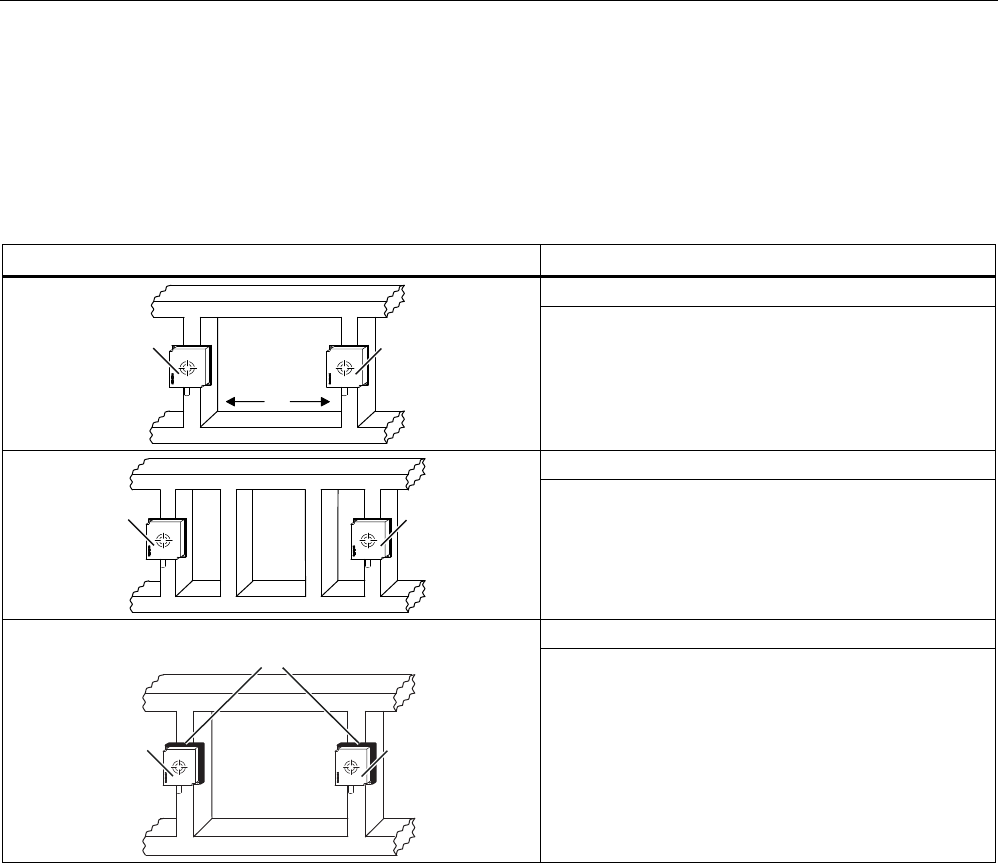

Mounting of several readers on metal frames or racks
Any reader mounted on metal couples part of the field to the metal frame. There is normally
no interaction as long as the minimum distance D and metal-free areas a, b are maintained.
However, interaction may take place if an iron frame is positioned unfavorably. Longer data
transfer times or sporadic error messages at the communication module are the result.
Mounting of several readers on metal racks Problem: Interaction between readers
Remedy
'
5HDGHU 5HDGHU
Increase the distance D between the two readers.
Remedy
5HDGHU 5HDGHU
Introduce one or more iron struts in order to short-
circuit the stray fields.
Remedy
1RQPHWDOOLF
VSDFHU
5HDGHU 5HDGHU
Insert a non-metallic spacer of 20 to 40 millimeter
thickness between the reader and the iron frame. This
will significantly reduce the induction of stray fields on
the rack:
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 37
4.3.3 Effects of metal on different transponders and readers
Mounting different transponders and readers on metal or flush-mounting
Certain conditions have to be observed when mounting the transponders and readers on
metal or flush-mounting. For more information, please refer to the descriptions of the
individual transponders and readers in the relevant section.
4.3.4 Impact of metal on the transmission window
In general, the following points should be considered when mounting RFID components:
● Direct mounting on metal is allowed only in the case of specially approved transponders.
● Flush-mounting of the components in metal reduces the field data; a test is
recommended in critical applications.
● When working inside the transmission window, it should be ensured that no metal rail (or
similar part) intersects the transmission field.
The metal rail would affect the field data.
The impact of metal on the field data (Sg, Sa, L) is shown in a table in this section. The
values in the table describe the reduction of the field data in % with reference to non-metal
(100% means no impact).
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
38 System Manual, 03/2013, J31069-D0227-U001-A7-7618
4.3.4.1 RF210R
The RF210R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
The following table shows the different arrangements for the reader with and without a
metallic environment:
Case Diagram Description
a)
Reader metal-free
b)
Reader on metal,
distance from metal ≥ 12 mm
c)
Reader in metal,
flush against M18 nut

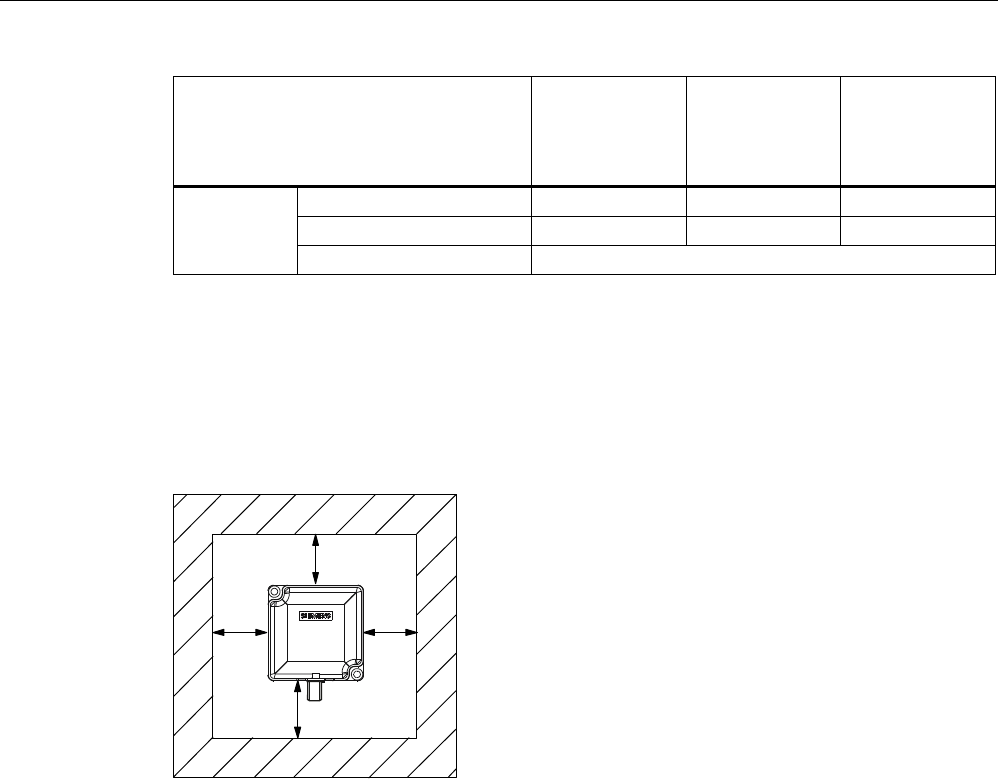

d)
D
Reader in metal,
all around
To avoid any impact on the field data, in Case d, the distance a should be ≥ 10 mm.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 39
Table 4- 12 Reduction of field data by metal: Transponder and RF210R
Transponder Reader without direct
metal influence
(Case a, b and d)
Reader flush-mounted in
metal
(Case c)
Metal-free 100 82
on metal,
distance 25 mm
90 90
MDS D124
flush-mounted in metal;
distance all round 25 mm
85 80
Metal-free not envisaged
On metal not envisaged
MDS D127
flush-mounted in metal 100 75
Metal-free 100 95
on metal,
distance 25 mm
100 95
MDS D160
flush-mounted in metal;
distance all round 25 mm
100 95
Metal-free 100 90
on metal,
distance 25 mm
90 90
MDS D324
flush-mounted in metal;
distance all round 25 mm
80 90
Metal-free 100 90 MDS D421
flush-mounted in metal 75 50
Metal-free 100 80 MDS D422
flush-mounted in metal 90 40
Metal-free 100 60
on metal,
distance 25 mm
95 75
MDS D424
flush-mounted in metal;
distance all round 25 mm
80 70
Metal-free 100 85
Screwed onto metal 100 85
MDS D425
flush-mounted in metal;
distance all round 25 mm
90 70
Metal-free 100 90
On metal 100 80
MDS D428
flush-mounted in metal;
distance all round 25 mm
90 80
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
40 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Transponder Reader without direct
metal influence
(Case a, b and d)
Reader flush-mounted in
metal
(Case c)
Metal-free 100 90
on metal,
distance 25 mm
100 90
MDS D460
flush-mounted in metal;
distance all round 25 mm
90 90
The values in the table describe the reduction in field data. All values are percentages relative to non
metal (100% means no influence).
4.3.4.2 RF220R
The RF220R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
The following table shows the different arrangements for the reader with and without a
metallic environment:
Case Diagram Description
a)
Reader metal-free
b)
Reader on metal,
distance from metal ≥ 12 mm
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 41

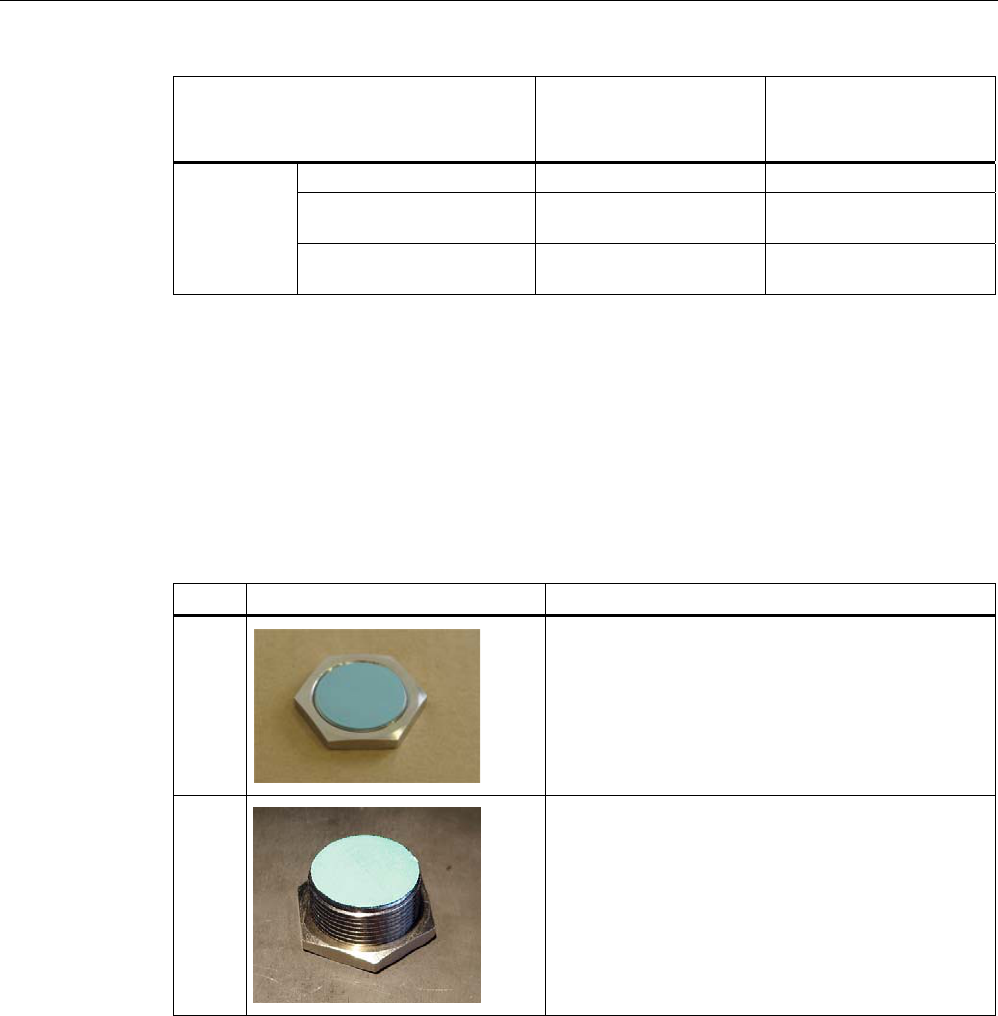

Case Diagram Description
c)
Reader in metal,
flush against M30 nut
d)
D
Reader in metal,
all round
To avoid any impact on the field data, in Case d, the distance a should be ≥ 15 mm.
Table 4- 13 Reduction of field data by metal: Transponder and RF220R
Transponder Reader without direct
metal influence
(Case a, b and d)
Reader flush-
mounted in metal
(Case c)
Metal-free 100 94
on metal,
distance 25 mm
97 89
MDS D124
tag flush-mounted in metal;
distance all round 25 mm
86 83
Metal-free 100 75
on metal,
distance 25 mm
85 70
MDS D126
flush-mounted in metal;
distance all round 25 mm
80 65
Metal-free 100 89
on metal,
distance 25 mm
100 89
MDS D160
flush-mounted in metal;
distance all round 25 mm
100 89
Metal-free 100 90
on metal,
distance 25 mm
97 86
MDS D324
flush-mounted in metal;
distance all round 25 mm
93 86
Metal-free 100 90 MDS D422
flush-mounted in metal 85 85
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
42 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Transponder Reader without direct
metal influence
(Case a, b and d)
Reader flush-
mounted in metal
(Case c)
Metal-free 100 93
on metal,
distance 25 mm
96 89
MDS D424
flush-mounted in metal;
distance all round 25 mm
86 82
Metal-free 100 90
Screwed onto metal 100 75
MDS D425
flush-mounted in metal;
distance all round 25 mm
95 75
Metal-free 100 90
on metal,
distance 25 mm
90 75
MDS D426
flush-mounted in metal;
distance all round 25 mm
80 70
Metal-free 100 94
On metal 100 94
MDS D428
flush-mounted in metal;
distance all round 25 mm
94 94
Metal-free 100 92
on metal,
distance 25 mm
100 92
MDS D460
flush-mounted in metal;
distance all round 25 mm
100 92
The values in the table describe the reduction in field data. All values are percentages relative to non
metal (100% means no influence).

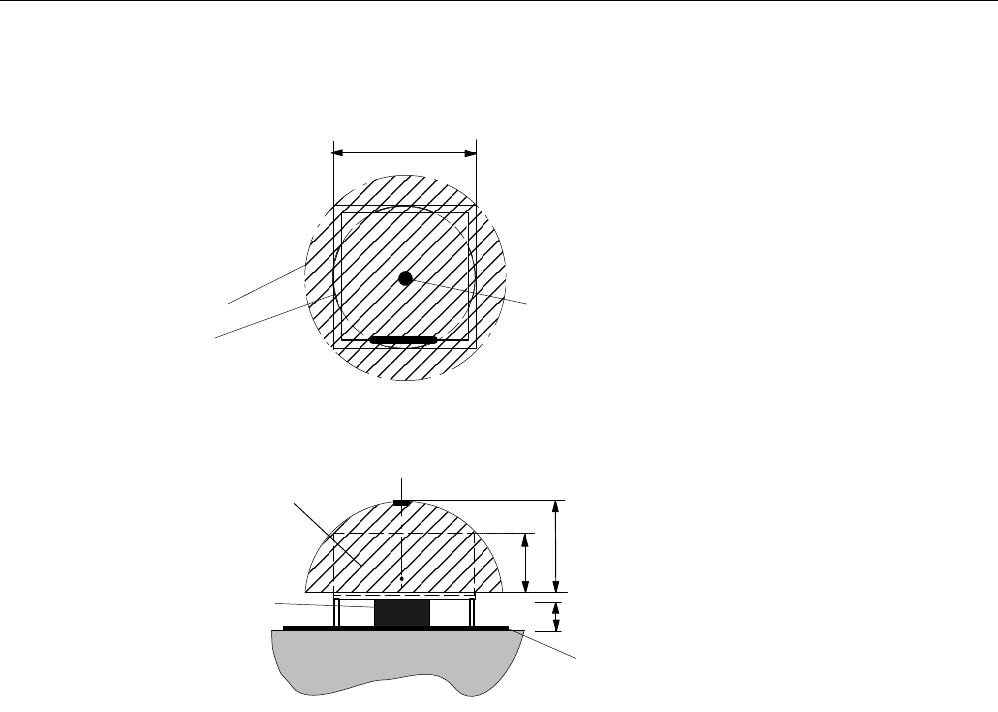

4.3.4.3 RF240R
The RF240R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
6,0$7,&
D
D
DD
5)5
Figure 4-10 Metal-free space RF240R
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 43
To avoid any impact on the field data, the distance a should be ≥ 20 mm.
Table 4- 14 Reduction of field data by metal: Transponder and RF240R
Transponder Reader without
direct metal
influence
Reader on metal
(metal plate)
Reader flush-
mounted in metal
(all round 20
mm)
without metal 100 85 75
on metal, distance 25 mm 90 80 75
MDS D124
flush-mounted in metal;
distance all round 25 mm
85 70 65
without metal 100 80 70
on metal, distance 25 mm 80 75 60
MDS D126
flush-mounted in metal;
distance all round 25 mm
70 55 55
without metal 100 90 80
on metal, distance 25 mm 90 85 80
MDS D160
flush-mounted in metal not envisaged
without metal 100 90 80
on metal, distance 25 mm 95 85 80
MDS D324
flush-mounted in metal;
distance all round 25 mm
90 75 70
without metal 100 90 85 MDS D422
flush-mounted in metal 90 60 40
without metal not envisaged
On metal 100 90 85
MDS D423
flush-mounted in metal;
distance all round 10 mm
185 75 70
without metal 100 85 80
on metal, distance 25 mm 90 80 75
MDS D424
flush-mounted in metal;
distance all round 25 mm
80 70 65
without metal 100 90 85
on metal, distance 25 mm 95 85 80
MDS D425
flush-mounted in metal;
distance all round 25 mm
90 75 70
without metal 100 80 70
on metal, distance 25 mm 90 80 70
MDS D426
flush-mounted in metal;
distance all round 25 mm
85 65 60
without metal 100 90 85
On metal 95 85 83
MDS D428
flush-mounted in metal;
distance all round 25 mm
90 80 70
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
44 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Transponder Reader without
direct metal
influence
Reader on metal
(metal plate)
Reader flush-
mounted in metal
(all round 20
mm)
without metal 100 90 80
on metal, distance 25 mm 90 85 80
MDS D460
flush-mounted in metal not envisaged
The values in the table describe the reduction in field data. All values are percentages
relative to non metal (100% means no influence).
4.3.4.4 RF260R
The RF260R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
6,0$7,&
D
D
DD
5)5

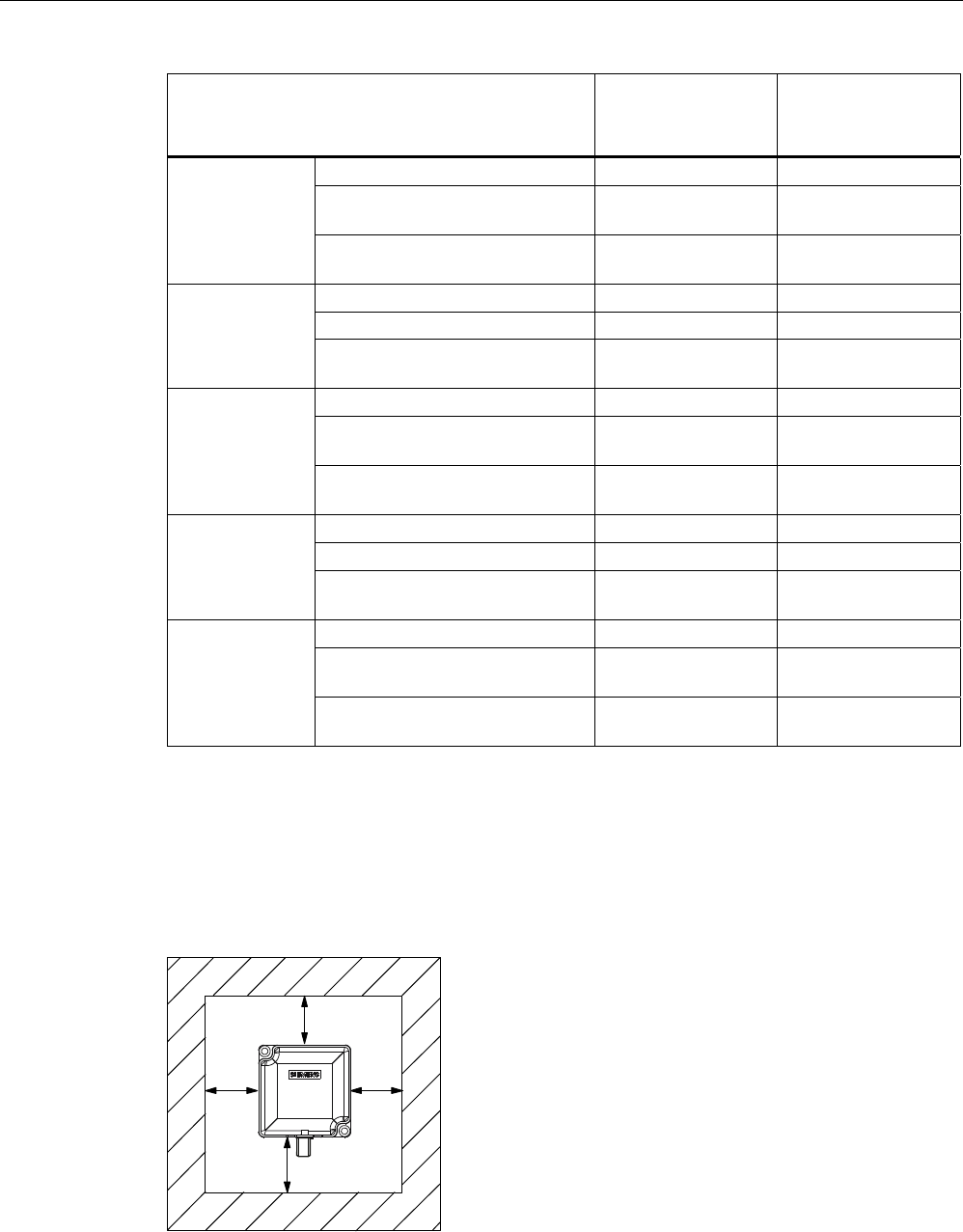

Figure 4-11 Metal-free space for RF260R
To avoid any impact on the field data, the distance a should be ≥ 20 mm.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 45
Table 4- 15 Reduction of field data by metal: Transponder and RF260R
Transponder Reader
without direct
metal
influence
Reader on
metal
(metal plate)
Reader flush-
mounted in metal
(all round 20 mm)
without metal 100 85 65
on metal, distance 20 mm 70 65 50
MDS D100
flush-mounted in metal;
distance all round 20 mm
65 50 40
without metal 100 93 75
on metal, distance 25 mm 95 85 70
MDS D124
flush-mounted in metal;
distance all round 25 mm
78 75 65
without metal 100 85 73
on metal, distance 25 mm 75 68 60
MDS D126
flush-mounted in metal;
distance all round 25 mm
55 53 40
without metal 100 90 75
on metal, distance 30 mm 95 90 75
MDS D139
flush-mounted in metal not envisaged
without metal 100 90 75
on metal, distance 25 mm 90 80 80
MDS D160
flush-mounted in metal not envisaged
without metal 100 85 65
on metal, distance 20 mm 65 60 45
MDS D165
flush-mounted in metal;
distance all round 20 mm
55 50 40
without metal 100 85 70
on metal, distance 20 mm 70 65 50
MDS D200
flush-mounted in metal,
distance all round 20 mm
55 50 45
without metal 100 85 70
on metal, distance 20 mm 80 70 60
MDS D261
flush-mounted in metal;
distance all round 20 mm
75 65 50
without metal 100 90 75
on metal, distance 25 mm 90 80 70
MDS D324
flush-mounted in metal;
distance all round 25 mm
70 65 55
without metal 100 90 75
on metal, distance 30 mm 95 90 75
MDS D339
flush-mounted in metal not envisaged
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
46 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Transponder Reader
without direct
metal
influence
Reader on
metal
(metal plate)
Reader flush-
mounted in metal
(all round 20 mm)
without metal 100 85 70
on metal, distance 20 mm 70 65 50
MDS D400
flush-mounted in metal;
distance all round 20 mm
55 50 45
without metal not envisaged
On metal 100 90 80
MDS D423
flush-mounted in metal;
distance all round 10 mm
75 65 60
without metal 100 90 80
on metal, distance 25 mm 90 80 70
MDS D424
flush-mounted in metal;
distance all round 25 mm
60 60 50
without metal 100 100 73
on metal, distance 25 mm 88 85 68
MDS D426
flush-mounted in metal;
distance all round 25 mm
65 55 55
without metal 100 90 90
On metal 90 90 85
MDS D428
flush-mounted in metal;
distance all round 25 mm
80 75 65
without metal 100 95 90
on metal, distance 25 mm 90 85 80
MDS D460
flush-mounted in metal not envisaged
The values in the table describe the reduction in field data. All values are percentages relative to non
metal (100% means no influence).
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 47
4.3.4.5 RF290R
The RF290R reader is operated with the external antennas ANT D5, D6 and D10. The
antennas can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
D
D
DD

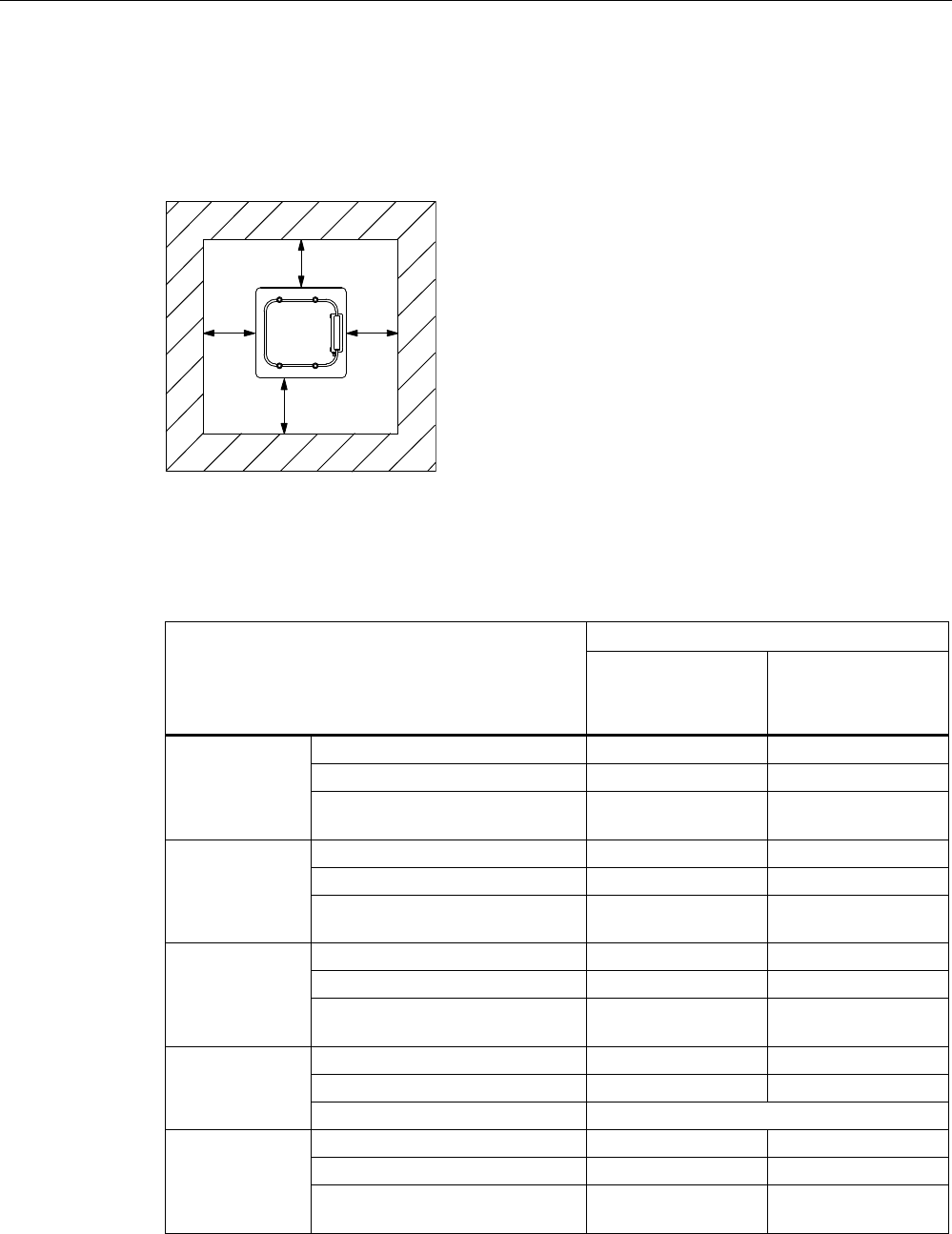

Figure 4-12 Metal-free space for ANT D5
To avoid any impact on the field data, the distance a should be ≥ 150 or 200 mm.
Table 4- 16 Reduction of field data by metal: Transponder and RF290R with ANT D5
RF290R with ANT D5
Transponder
Antenna on metal
(metal plate)
Antenna flush-
mounted in metal
(all round 150 mm)
without metal 100 95
on metal, distance 20 mm 65 60
MDS D100
flush-mounted in metal;
distance all round 20 mm
45 40
without metal 100 95
on metal, distance 25 mm 85 80
MDS D124
flush-mounted in metal;
distance all round 25 mm
65 60
without metal 100 95
on metal, distance 25 mm 70 65
MDS D126
flush-mounted in metal;
distance all round 25 mm
55 50
without metal 100 95
on metal, distance 30 mm 90 85
MDS D139
flush-mounted in metal not envisaged
without metal 100 95
on metal, distance 25 mm 70 65
MDS D160
flush-mounted in metal;
distance all round 25 mm
25 20
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
48 System Manual, 03/2013, J31069-D0227-U001-A7-7618
RF290R with ANT D5 Transponder
Antenna on metal
(metal plate)
Antenna flush-
mounted in metal
(all round 150 mm)
without metal 100 95
on metal, distance 20 mm 65 60
MDS D165
flush-mounted in metal;
distance all round 20 mm
45 40
without metal 100 95
on metal, distance 20 mm 65 60
MDS D200
flush-mounted in metal;
distance all round 20 mm
45 40
without metal 100 95
on metal, distance 20 mm 65 60
MDS D261
flush-mounted in metal;
distance all round 20 mm
50 45
without metal 100 95
on metal, distance 25 mm 75 70
MDS D324
flush-mounted in metal not envisaged
without metal 100 95
on metal, distance 30 mm 90 85
MDS D339
flush-mounted in metal not envisaged
without metal 100 95
on metal, distance 20 mm 65 60
MDS D400
flush-mounted in metal;
distance all round 20 mm
45 40
without metal 100 95
on metal, distance 25 mm 75 70
MDS D424
flush-mounted in metal not envisaged
without metal 100 95
on metal, distance 25 mm 70 65
MDS D426
flush-mounted in metal;
distance all round 25 mm
50 45
without metal 100 95
on metal, distance 25 mm 70 65
MDS D460
flush-mounted in metal not envisaged
The values in the table describe the reduction in field data. All values are percentages relative to non
metal (100% means no influence).
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 49
Table 4- 17 Reduction of field data by metal: Transponder and RF290R with ANT D6
RF290R with ANT D6
Transponder
Antenna on metal
(metal plate)
Antenna flush-
mounted in metal
(all round 200 mm)
without metal 100 95 MDS D100
on metal, distance 20 mm 65 60
without metal 100 95 MDS D124
on metal, distance 25 mm 80 75
without metal 100 95 MDS D126
on metal, distance 25 mm 65 60
without metal 100 90 MDS D139
on metal, distance 30 mm 80 70
without metal 100 90 MDS D160
on metal, distance 25 mm 60 55
without metal 100 95 MDS D165
on metal, distance 20 mm 50 45
without metal 100 95 MDS D200
on metal, distance 20 mm 65 60
without metal 100 95 MDS D261
on metal, distance 20 mm 50 45
without metal 100 95 MDS D324
on metal, distance 25 mm 75 70
without metal 100 90 MDS D339
on metal, distance 30 mm 80 70
without metal 100 95 MDS D400
on metal, distance 20 mm 60 55
without metal 100 95 MDS D424
on metal, distance 25 mm 75 70
without metal 100 95 MDS D426
on metal, distance 25 mm 65 60
The values in the table describe the reduction in field data. All values are percentages relative to non
metal (100% means no influence).
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
50 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Table 4- 18 Reduction of field data by metal: Transponder and RF290R with ANT D10
RF290R with ANT D10
Transponder
Antenna on metal
(metal plate)
Antenna flush-
mounted in metal
(all round 200 mm)
without metal 100 95 MDS D100
on metal, distance 20 mm 50 40
without metal 100 90 MDS D124
on metal, distance 25 mm 70 60
without metal 100 95 MDS D126
on metal, distance 25 mm 65 60
without metal 100 90 MDS D139
on metal, distance 30 mm 80 70
without metal 100 90 MDS D160
on metal, distance 25 mm 60 55
without metal 100 90 MDS D165
on metal, distance 20 mm 40 30
without metal 100 95 MDS D200
on metal, distance 20 mm 50 40
without metal 100 90 MDS D261
on metal, distance 20 mm 40 30
without metal 100 90 MDS D324
on metal, distance 25 mm 70 60
without metal 100 90 MDS D339
on metal, distance 30 mm 80 70
without metal 100 95 MDS D400
on metal, distance 20 mm 50 40
without metal 100 90 MDS D424
on metal, distance 25 mm 70 60
without metal 100 95 MDS D426
on metal, distance 25 mm 70 65
The values in the table describe the reduction in field data. All values are percentages relative to non
metal (100% means no influence).
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 51
4.3.5 Installation and connection of 2 to 6 antennas with one reader
If several antennas need to be operated on one reader, this can be achieved by using the
antenna splitter or the antenna multiplexer RF260X.
Note that the antenna splitter is a purely passive device that splits the power at the input to
two outputs and therefore halves it. This is possible both in PC mode (RS-232) and CM
mode (RS-422). You can cascade the antenna splitters in such a way that up to 4 antennas
can be connected at the same time.

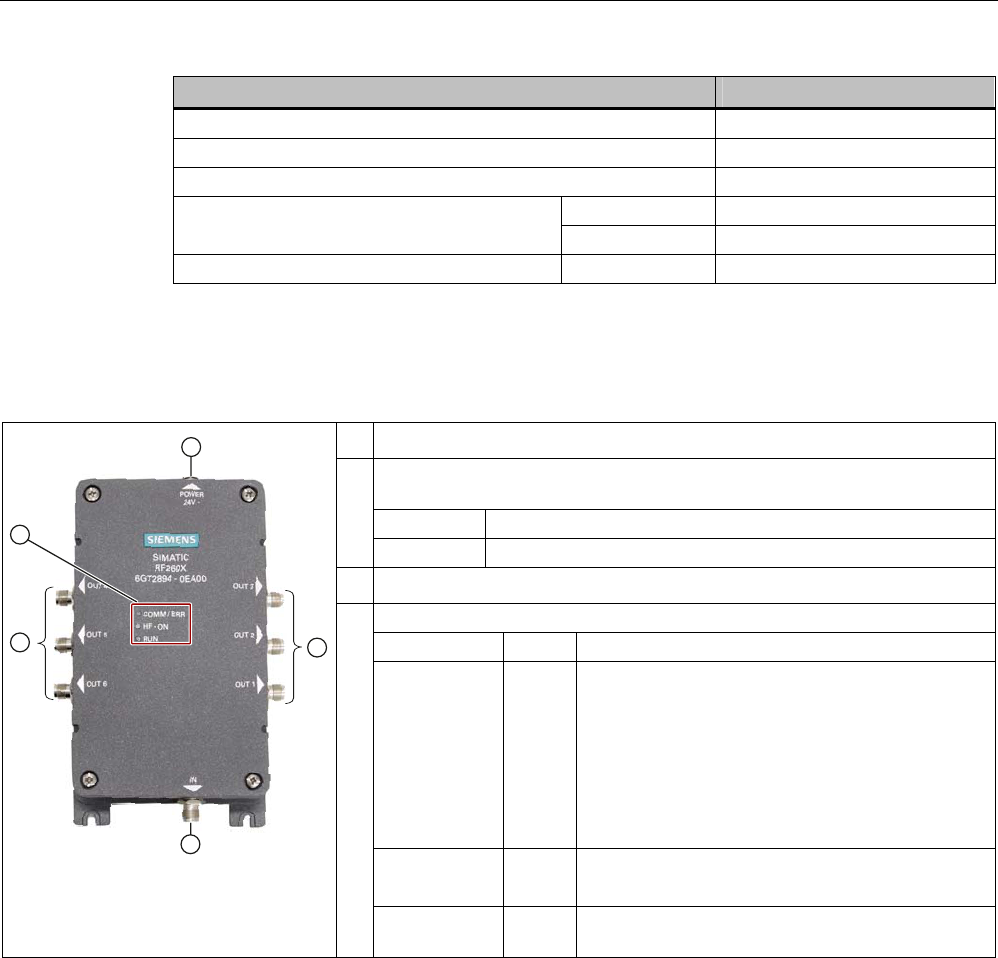

The antenna multiplexer RF260X works only in PC mode (RS-232) in time division multiplex
mode. This means that each antenna operates with full power for a certain time before the
device moves on automatically to the next antenna. The antenna multiplexer normally
operates in scan mode or buffered read mode which add the information about the antenna
number to the reply of the transponder. With the antenna multiplexer, you can connect up to
6 antennas.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
52 System Manual, 03/2013, J31069-D0227-U001-A7-7618
4.3.5.1 Installation options with the antenna splitter (2-4 antennas)
Possible configurations of the antennas
The antenna installations described here have been designed for reading smartlabels
(transponders) on goods on conveyor belts, conveyor systems or pallets.
A prerequisite is that there are no magnetically conducting materials (e.g. metal) in the
vicinity of the antenna or the label.
3*3&
:LGHUDQJHSRZHUVXSSO\XQLW
&RQILJXUDWLRQZLWKDQWHQQDVJDWH
$QWHQQD
VSOLWWHU
&RQILJXUDWLRQZLWKDQWHQQDV&DUUDQJHPHQW
&RQILJXUDWLRQZLWKDQWHQQDVWXQQHO
$QWHQQDV
$17'''
5)5
Figure 4-13 Possible configuration of RF290R with ANT D5/D6/D10
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 53
Installation examples
$17'
&RQYH\RUEHOW
PLQPP
PLQPP
Figure 4-14 Installation example with 2 ANT D6 (portal)
$17'
$17'
&RQYH\RUEHOW
Figure 4-15 Installation example with ANT D6 (C arrangement)
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
54 System Manual, 03/2013, J31069-D0227-U001-A7-7618
$17'
$17'
&RQYH\RUEHOW
Figure 4-16 Installation example with ANT D6 (tunnel)
Note
The minimum spacings between the antennas for operation with only one reader may be
less than the distances described because this configuration has the same phase.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 55
4.3.5.2 Antenna installation
Configuring instructions
The antenna installation described below enables detection of transponders moving
horizontally through the installation. Depending on the installation (antennas exactly opposite
each other or offset in parallel), the label is aligned in parallel with the antennas or arbitrarily.
The size of the sensing range depends on the label alignment:
Note
Remember that the entire acquisition range of the antenna is larger than the transmission
window in which the transponder is normally configured. This means there can be label
alignments where even labels outside the transmission window will be identified. Labels
aligned in parallel with the antennas, for example, can also be detected at larger distances
beside or outside the antenna range.
For this reason, goods with labels must not be stored within a distance of up to 0.5 m from
the installation. If this cannot be complied with, the antennas must be shielded.
To achieve three-dimensional detection of the labels in the sensing range, the following
requirements must be met:
• The gate width must be less than or equal to 800 mm.
• The antenna size of the labels should be at least the size of an ISO card (85 mm x 54
mm).
• The distance from label to label must be greater than 100 mm. The distance from label to
label can be reduced if the gate width is correspondingly reduced. This applies especially
for distances under 50 mm.
• There should be no more than 16 labels within the sensing range of the antennas at the
same time.
The number of labels can be increased if the gate width is correspondingly reduced and
the maximum speed suitably adapted.
• The maximum speed of the labels must not exceed 1 m/s. (This depends on the number
and alignment of the labels, the number of data blocks to be processed, the data protocol
required and the label type).
• To the front and sides of the antenna, there must be a distance of more than 150 mm to
metal parts.
• There must be no interference to the write/read device from other electrical equipment in
the surrounding area.
Note
The RF290R reader is not capable of multitag operation in the CM mode.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
56 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Required components
For installation with
● 2 antennas (gate)
● 3 antennas (C arrangement)
● 4 antennas (tunnel)
the following components are required:
Table 4- 19 Components required for setting up with 2, 3 or 4 antennas
Number for installation
with
2 ant. 3 ant. 4 ant.
Component Order number
1 1 1 Basic device:
RF290R (↔ CM or PC)
RF290R: 6GT2821-0AC12
optionally:
ASM 475: 6GT2002-0GA10
ASM 456: 6GT2002-0ED00
RF170C: 6GT2002-0HD00
RF180C: 6GT2002-0JD00
RF182C: 6GT2002-0JD10
2 3 4 Antenna ANT D5 / D6 / D10 optionally:
ANT D5: 6GT2698-5AA10
ANT D6: 6GT2698-5AB00
ANT D10: 6GT2698-5AF00
2 3 4 With ANT D6 if required:
cover
6GT2698-5AD00
1 2 3 Antenna splitter 6GT2603-0AC00
1 1 1 MOBY wide-range power supply unit
for SIMATIC RF systems
(for PC mode only)
EU: 6GT2898-0AA00
UK: 6GT2898-0AA10
US: 6GT2898-0AA20
1 1 1 24 V connecting cable, length 5 m
(for PC mode only)
6GT2491-1HH50
1 1 1 Connecting cable:
RF290R ↔ PC
or
RF290R ↔ CM
6GT2891-4KH ...
optionally:
6GT2891-4F ...
6GT2891-4EH ...
Installation information
The cables on the antennas and the antenna splitter are 3.3 m or 10.5 m long. The
write/read device must be installed in the vicinity of the antennas. If there are greater
distances between the write/read device and the antennas, the antenna cable can be
increased by 7.2 m with the extension (6GT2 691-0DH72). This results in shorter ranges.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 57
Metal-free space
To guarantee perfect functioning of the individual installation versions, all larger metal parts
in the vicinity of the antennas must be removed.
E
E
E
F

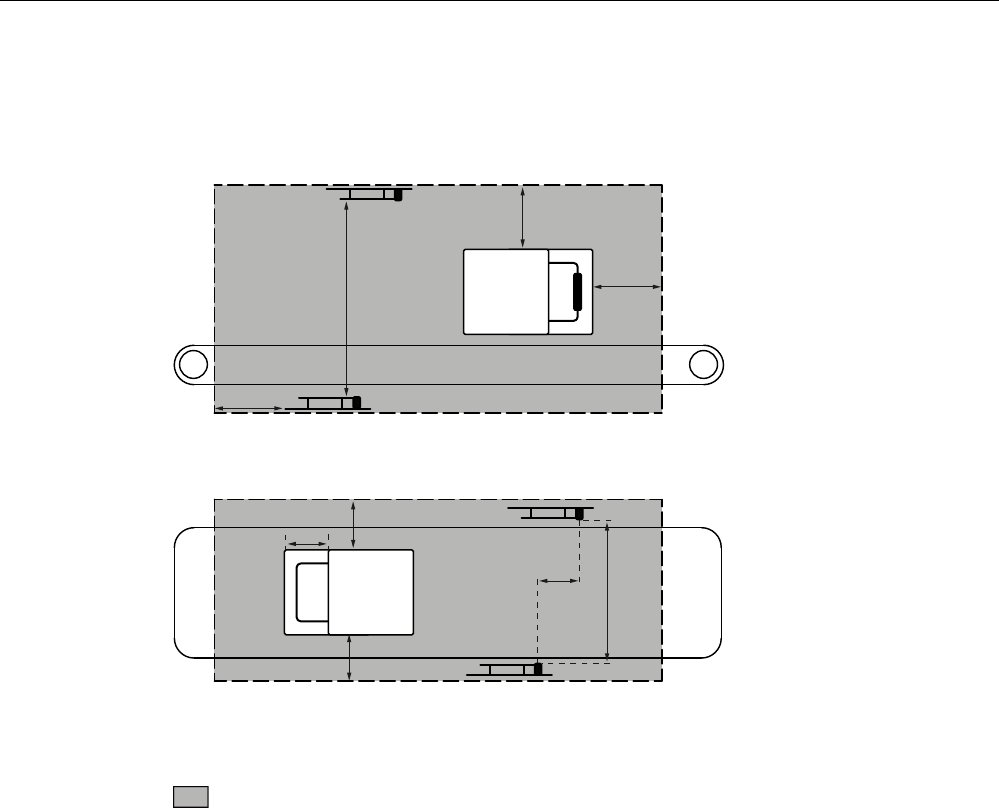

Figure 4-17 Metal-free space, side view (based on the example of a tunnel arrangement on a
conveyor belt)
D
DF
E
E
a approx. half antenna length
b min. 100 mm
c max. 600 mm
Metal-free space
Figure 4-18 Metal-free space, view from above (based on the example of a tunnel arrangement on a
conveyor belt)
Metal in the vicinity of the antennas
If metal in the vicinity of the antennas cannot be avoided, the following must be noted:
● There must be a minimum allround gap of 100 mm between the antenna and metal.
Serious loss of sensing range must be expected above 50 mm. There is no discernible
influence at distances greater than 150 mm from the metal.
● The influence of the metal depends heavily on its size and shape. Thin metal rods have
less influence on the magnetic field than large surfaces.
● Larger metal surfaces (edge length > 50 mm) in parallel with the antennas or labels result
in a short-circuit of the magnetic lines of force. As a result, the labels cannot be read.
● Metal parts under the conveyor belt change the direction of the magnetic lines of force.
Serious loss of sensing range must be expected as a result. Horizontally aligned labels
cannot be read in such cases.
● The metal parts must not form closed loops or circuits. If necessary, these must be
electrically interrupted at one point.
RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
58 System Manual, 03/2013, J31069-D0227-U001-A7-7618
● The metal parts in the immediate vicinity of the antenna must be grounded in a mesh with
a good HF connection.
● Since the write/read device is installed in a metal housing, and the antennas can couple
into the cables to the write/read device, it must be installed at a distance of at least 500
mm from the antennas.
Notes on installing and laying the antenna cable
To suppress possible interference, an EMC hinged ferrite choke must be fitted to the
antenna cables (as well as the antenna cable between the reader and the antenna splitter).
The coaxial cable must be wound tightly at least four times through the EMC ring core. The
maximum distance between the connecting plug for the reader or the antenna splitter and
the ring core must be 100 mm.
The antenna cable must always be run vertically from the antennas. A minimum distance of
200 mm to the antennas must be observed as the cables continue. Otherwise, performance
losses must be expected.
There must be a distance of at least 300 mm between antenna cables and parallel power
cables.
Unrequired cable length must be secured in a bundle with a diameter of 100 to 150 mm.
If the standard antenna cable is too short, it can be increased by 7.20 m with the extension.
Slight range losses must be expected here.
To achieve optimal read ranges, the antenna cable should not be shortened or lengthened.
RF200 system planning
4.4 Further information
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 59
4.3.5.3 Installation options with the antenna multiplexer (2-6 antennas)
You can operate up to six antennas on one reader via the multiplexer.
The data is processed sequentially.
Antenna switchover is performed in time-multiplex mode, so by connecting several antennas
together, the processing time / activation time per antenna is lengthened accordingly.
$QWHQQD $QWHQQD $QWHQQD
$QWHQQD $QWHQQD $QWHQQD
3*3&
:LGHUDQJHSRZHUVXSSO\XQLW
9'&
56
FRQQHFWLQJFDEOH
5);
5)5
56
Figure 4-19 Configuration example of the antenna multiplexer with ANT D5
4.4 Further information
Further information on "Fundamentals of application planning" and "EMC" can be found in
MOBY D System Manual
(http://support.automation.siemens.com/WW/view/en/13628689/0/en).
RF200 system planning
4.4 Further information
SIMATIC RF200
60 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 61
Readers 5
NOTICE
Pulling and plugging readers
Pull or plug the reader only when the power supply is turned off
If this is not observed, under certain conditions, the reader will not start up correctly and
communication with a transponder will not be possible.
Note
IO-Link variants of the RF200 readers
The IO-Link variants of the readers are not included in the system manual. You will find
these in the "SIMATIC RF200 IO-Link
(http://support.automation.siemens.com/WW/view/en/43906324)" operating instructions.
5.1 SIMATIC RF210R

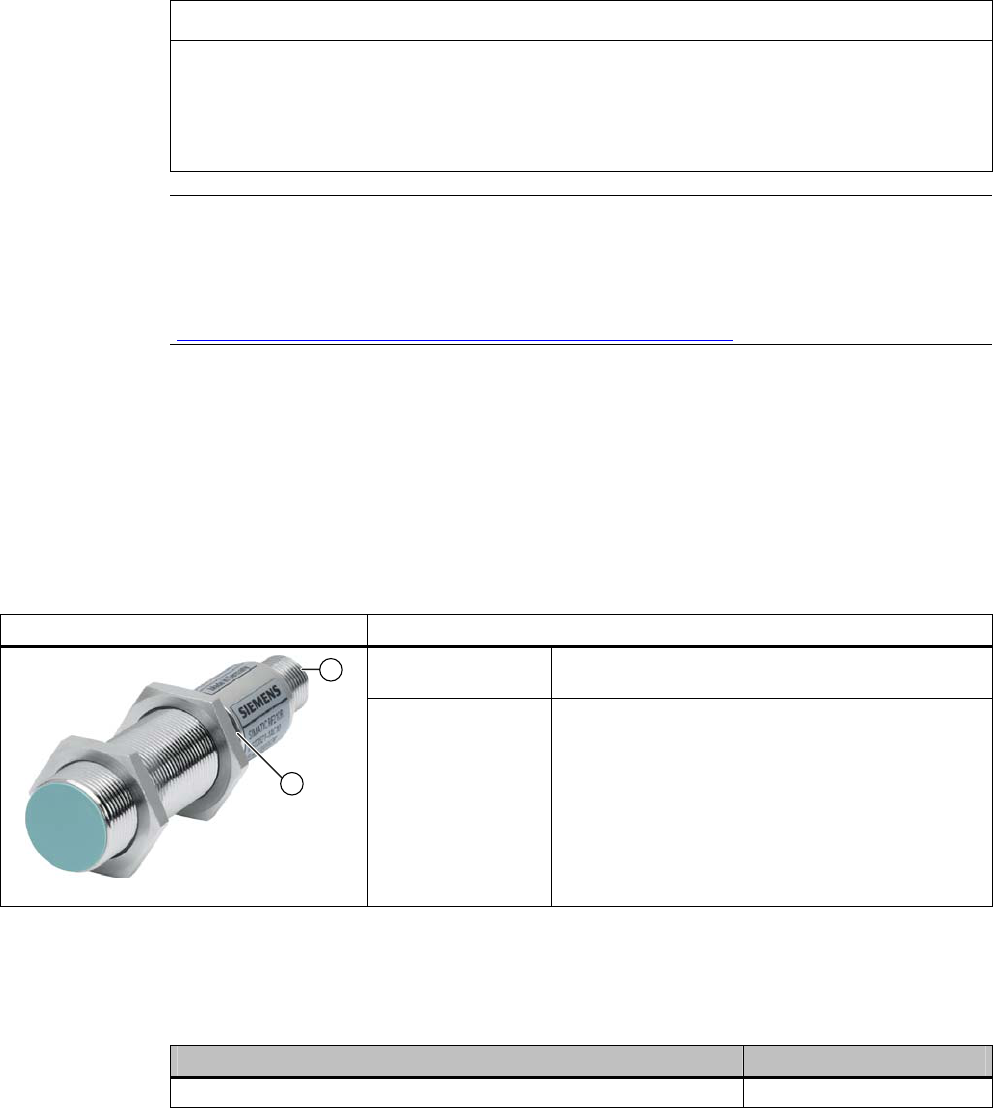

5.1.1 Features
SIMATIC RF210R Characteristics
Field of application Identification tasks on assembly lines in harsh
industrial environments
Design ① RS422 interface
② Status display
5.1.2 RF210R ordering data
Order Number
RF210R with RS422 interface (3964R) 6GT2821-1AC10
Readers
5.1 SIMATIC RF210R
SIMATIC RF200
62 System Manual, 03/2013, J31069-D0227-U001-A7-7618

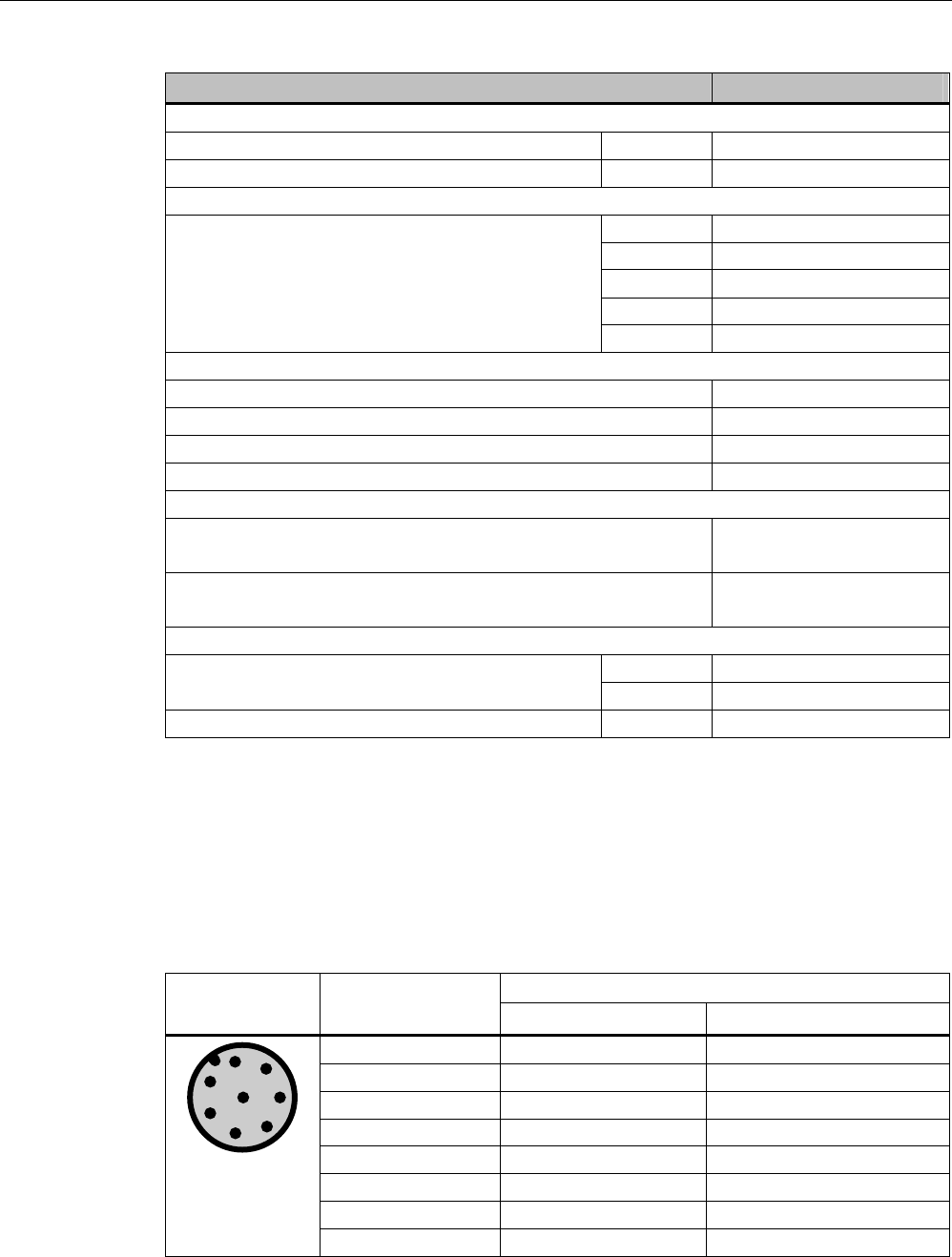

5.1.3 Pin assignment RF210R with RS422 interface
Pin Pin
Device end
8-pin M12
Assignment
1 + 24 V
2 - Transmit
3 0 V
4 + Transmit
5 + Receive
6 - Receive
7 Unassigned
8 Ground (shield)
5.1.4 Display elements of the RF210R reader
Color Meaning
flashing Operating voltage present, reader not initialized or antenna switched off green
permanentl
y lit
Operating voltage present, reader initialized and antenna switched on
yellow1) Transponder present
flashing red Error has occurred, the type of flashing corresponds to the error code in the
table in the section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1 = 2") is set (see Product information
"SIMATIC RF200 command set"
(http://support.automation.siemens.com/WW/view/en/44864850)).
1) Only in the "with presence" mode.
Readers
5.1 SIMATIC RF210R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 63
5.1.5 Minimum distance between RF210R readers
RF210R side by side
'
'
D ≥ 60 mm
Figure 5-1 Minimum distance between RF210R readers
RF210R face to face
'
D ≥ 100 mm
Figure 5-2 Face-to-face distance between two RF210Rs
Readers
5.1 SIMATIC RF210R
SIMATIC RF200
64 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.1.6 Technical specifications of the RF210R reader
Technical specifications
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface to the communications module RS-422 (3964R protocol)
Baud rate 19200, 57600, 115200 baud
Cable length reader ↔ communications module max. 1000 m
(shielded cable)
Read/write distances of reader See section Field data (Page 28)
Maximum data transmission rate
reader ↔ transponder (tag)
• Read
• Write
• approx. 1.5 KBps
• approx. 1.5 KBps
Power supply 24 VDC
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin)
Housing
• Dimensions (L × ∅)
• Color
• Material
• 83 × 18 mm (incl. 8-pin connector sleeve
and plastic cap)
• Silver
• Brass, nickel-plated
Securing 2 metal M18 × 1 hexagonal nuts;
Thickness: 4 mm, tightening torque ≤ 20 Nm
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +70 ℃
• -25 ℃ ... +80 ℃
Degree of protection to EN 60529
Shock to EN 60 721-3-7 Class 7 M2
Vibration to EN 60 721-3-7 Class 7 M2
IP67
50 g
20 g
Weight approx. 65 g (incl. two M18 nuts)
Approvals Radio to R&TTE directives EN 300 330,
EN 301489, CE, FCC, UL/CSA
Current consumption typ. 50 mA
Readers
5.1 SIMATIC RF210R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 65
5.1.7 FCC information
Siemens SIMATIC RF210R (MLFB 6GT2821-1AC10) FCC ID: NXW-RF210R
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes :
(1) il ne doit pas produire de brouillage, et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

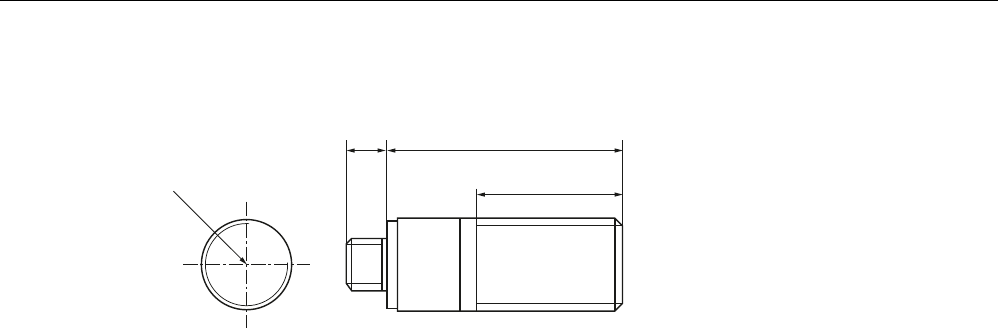

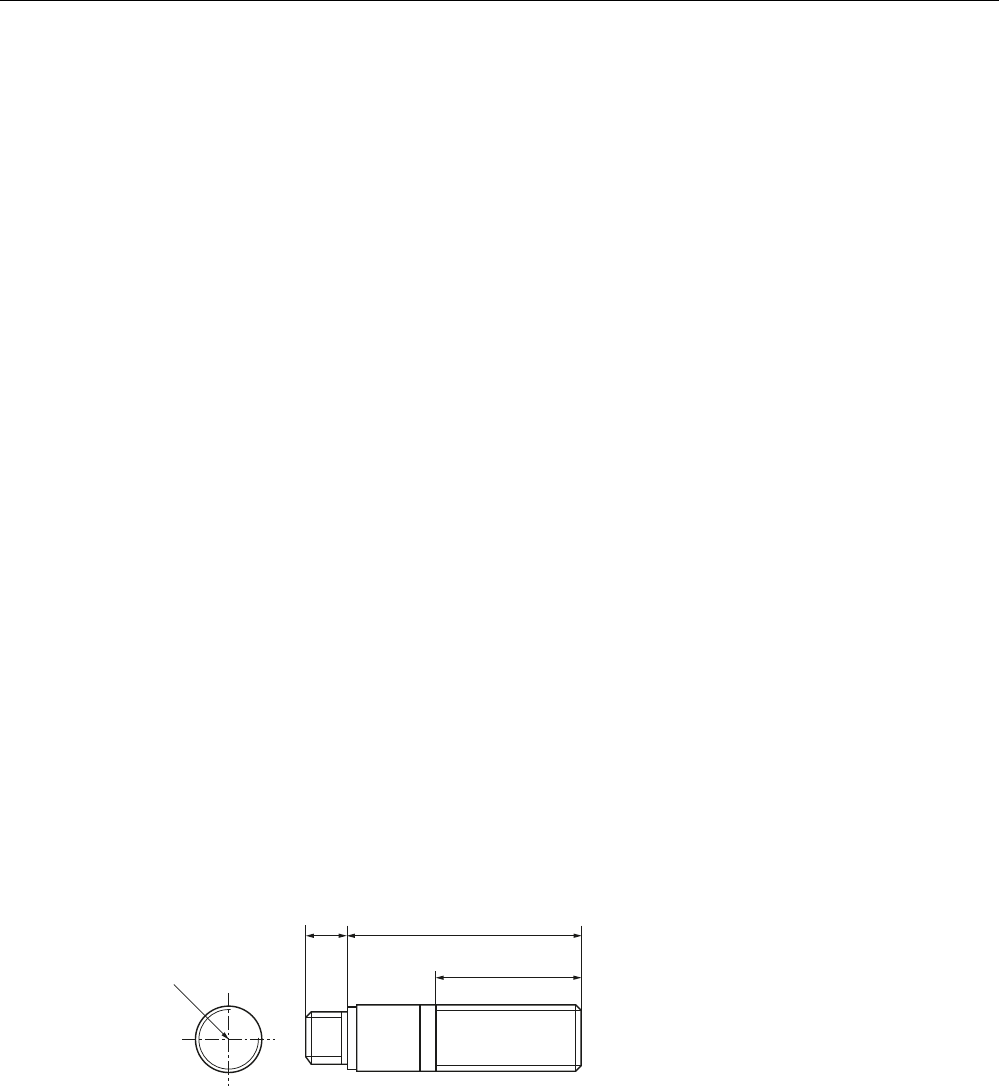

5.1.8 Dimension drawing
º
Figure 5-3 RF210R dimension drawing
Dimensions in mm
Readers
5.2 SIMATIC RF220R
SIMATIC RF200
66 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.2 SIMATIC RF220R
5.2.1 Features
SIMATIC RF220R Characteristics
Field of application Identification tasks on assembly lines in harsh
industrial environments
Design ① RS422 interface
② Status display
5.2.2 RF220R ordering data
Order Number
RF220R with RS422 interface 6GT2821-2AC10
5.2.3 RF220R pin assignment with RS422 interface
Pin Pin
Device end 8-
pin M12
Assignment
1 + 24 V
2 - Transmit
3 0 V
4 + Transmit
5 + Receive
6 - Receive
7 Unassigned
8 Ground (shield)
Readers
5.2 SIMATIC RF220R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 67
5.2.4 Display elements of the RF220R reader
Color Meaning
flashing Operating voltage present, reader not initialized or antenna switched off green
permanentl
y lit
Operating voltage present, reader initialized and antenna switched on
yellow1) Transponder present
flashing red Error has occurred, the type of flashing corresponds to the error code in the
table in the section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1 = 2") is set (see Product information
"SIMATIC RF200 command set"
(http://support.automation.siemens.com/WW/view/en/44864850)).
1) Only in the "with presence" mode.
5.2.5 Minimum distance between RF220R readers
RF220R side by side
'
'
D ≥ 100 mm
Figure 5-4 Minimum distance between RF220R readers
Readers
5.2 SIMATIC RF220R
SIMATIC RF200
68 System Manual, 03/2013, J31069-D0227-U001-A7-7618
RF220R face to face
'
D ≥ 150 mm
Figure 5-5 Face-to-face distance between two RF220Rs
5.2.6 Technical specifications of the RF220R reader
Technical specifications
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface to the communications module RS-422 (3964R protocol)
Baud rate 19200, 57600, 115200 baud
Cable length reader ↔ communications module max. 1000 m
(shielded cable)
Read/write distances of reader See section Field data (Page 28)
Maximum data transmission rate
reader ↔ transponder (tag)
• Read
• Write
• approx. 1.5 KBps
• approx. 1.5 KBps
Power supply 24 VDC
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin)
Housing
• Dimensions (L × ∅)
• Color
• Material
• 83 × 30 mm (incl. 8-pin connector sleeve
and plastic cap)
• Silver
• Brass, nickel-plated
Securing 2 metal M30 × 1.5 hexagonal nuts;
Thickness: 5 mm, tightening torque ≤ 40 Nm
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +70 ℃
• -25 ℃ ... +80 ℃
Readers
5.2 SIMATIC RF220R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 69
Technical specifications
Degree of protection to EN 60529
Shock to EN 60 721-3-7 Class 7 M2
Vibration to EN 60 721-3-7 Class 7 M2
IP67
50 g
20 g
Weight approx. 140 g (incl. two M30 nuts)
Approvals Radio to R&TTE directives EN 300 330,
EN 301489, CE, FCC, UL/CSA
Current consumption typ. 50 mA
5.2.7 FCC information
Siemens SIMATIC RF220R (MLFB 6GT2821-2AC10) FCC ID: NXW-RF220R
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes :
(1) il ne doit pas produire de brouillage, et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.2 SIMATIC RF220R
SIMATIC RF200
70 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.2.8 Dimension drawing
º
Figure 5-6 RF220R dimension drawing
Dimensions in mm
Readers
5.3 SIMATIC RF240R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 71
5.3 SIMATIC RF240R
5.3.1 Features
SIMATIC RF240R Characteristics
Field of application Identification tasks on assembly lines in harsh
industrial environments
①
Depending on the device variant:
:RS-422 or RS-232 interface
Design
②Status indicator
5.3.2 RF240R ordering data
Order number
RF240R with RS-422 interface (3964R) 6GT2821-4AC10
RF240R with RS-232 interface (3964R) 6GT2821-4AC11
5.3.3 Pin assignment RF240R
Interface assignment
Pin Pin
Device end 8-
pin M12
RS-422 RS-232
1 +24 V +24 V
2 - Transmit RXD
3 0 V 0 V
4 + Transmit TXD
5 + Receive Unassigned
6 - Receive Unassigned
7 Unassigned Unassigned
8 Ground (shield) Ground (shield)
Readers
5.3 SIMATIC RF240R
SIMATIC RF200
72 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.3.4 Display elements of the RF240R reader
Color Meaning
flashing Operating voltage present, reader not initialized or antenna switched off green
permanentl
y lit
Operating voltage present, reader initialized and antenna switched on
yellow1) Transponder present
flashing red Error has occurred, the type of flashing corresponds to the error code in the
table in the section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1 = 2") is set (see Product information
"SIMATIC RF200 command set"
(http://support.automation.siemens.com/WW/view/en/44864850)).
1) Only in the "with presence" mode.
5.3.5 Minimum distance between several RF240R readers
RF240R readers side by side
'
'
6,0$7,&
5)5
6,0$7,&
5)5
6,0$7,&
5)5
D ≥ 120 mm (with 2 readers)
D ≥ 200 mm (with more than 2 readers)
Figure 5-7 Minimum distance between several RF240R readers
Readers
5.3 SIMATIC RF240R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 73
RF240R face-to-face
'
D ≥ 400 mm
Figure 5-8 Face-of-face distance between two RF240R readers
5.3.6 Technical specifications of the RF240R reader
Technical specifications
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface
• Communications module
• PC
• RS-422 (3964R protocol)
• RS-232 (3964R protocol)
Baud rate 19200, 57600, 115200 baud
Cable length reader ↔ communications module RS-422: max. 1000 m
RS-232: Max. 30 m
(shielded cable)
Read/write distances of reader See section Field data (Page 28)
Maximum data transmission rate
reader ↔ transponder (tag)
• Read
• Write
• approx. 1.5 KBps
• approx. 1.5 KBps
Power supply 24 VDC
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin)
Housing
• Dimensions (L × W × H)
• Color
• Material
• 50 × 50 × 30 mm (without M12 device
connector)
• Anthracite
• Plastic PA 6.6
Securing 2 x M5 screws
Tightening torque ≤ 1.5 Nm
Readers
5.3 SIMATIC RF240R
SIMATIC RF200
74 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Technical specifications
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +70 ℃
• -25 ℃ ... +80 ℃
Degree of protection to EN 60529
Shock to EN 60 721-3-7 Class 7 M2
Vibration to EN 60 721-3-7 Class 7 M2
IP67
50 g
20 g
Weight Approx. 60 g
Approvals Radio to R&TTE directives EN 300 330,
EN 301489, CE, FCC, UL/CSA
Current consumption typ. 25 mA
5.3.7 FCC information
Siemens SIMATIC RF240R (MLFB 6GT2821-4AC10) FCC ID : NXW-RF240R
Siemens SIMATIC RF240R (MLFB 6GT2821-4AC11) FCC ID : NXW-RF240R
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes :
(1) il ne doit pas produire de brouillage, et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.3 SIMATIC RF240R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 75

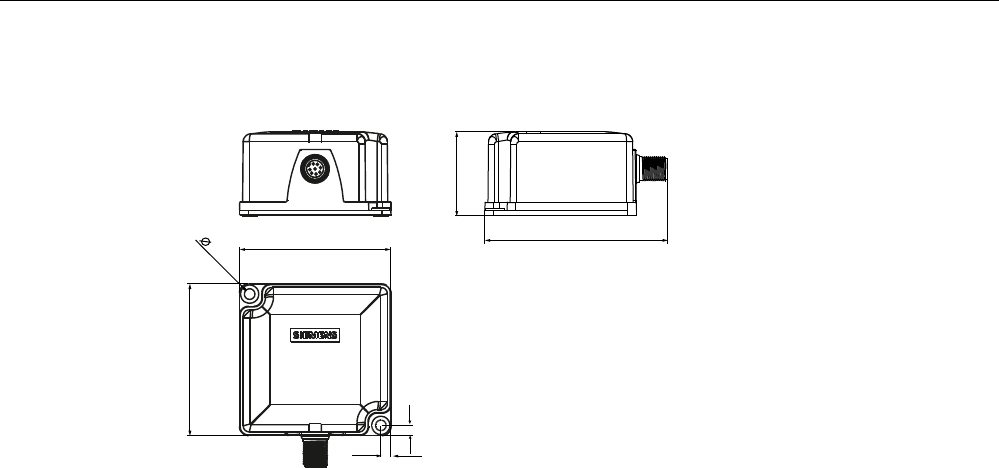

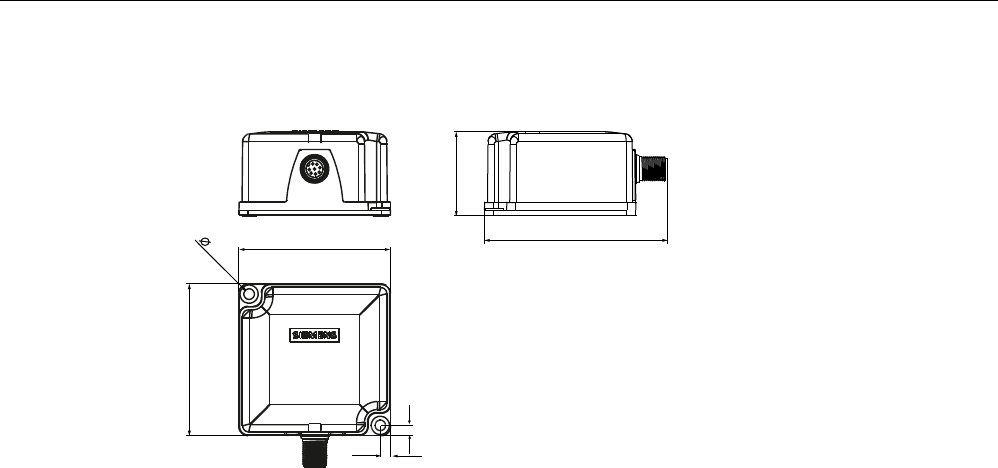

5.3.8 Dimension drawing
6,0$7,&
5)5
Figure 5-9 Dimension drawing RF240R
Dimensions in mm
Readers
5.4 SIMATIC RF260R
SIMATIC RF200
76 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.4 SIMATIC RF260R
5.4.1 Features
SIMATIC RF260R Characteristics
Field of application Identification tasks on assembly lines in harsh
industrial environments
①
Depending on the device variant:
RS-422 or RS-232 interface
Design
②Status indicator
5.4.2 Ordering data for RF260R
Order number
RF260R with RS-422 interface (3964R) 6GT2821-6AC10
RF260R with RS-232 interface (3964R) 6GT2821-6AC11
5.4.3 Pin assignment RF260R
Interface assignment Pin Pin
Device end 8-
pin M12
RS-422 RS-232
1 +24 V +24 V
2 - Transmit RXD
3 0 V 0 V
4 + Transmit TXD
5 + Receive Unassigned
6 - Receive Unassigned
7 Unassigned Unassigned
8 Ground (shield) Ground (shield)
Readers
5.4 SIMATIC RF260R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 77
5.4.4 Display elements of the RF260R reader
Color Meaning
flashing Operating voltage present, reader not initialized or antenna switched off green
permanentl
y lit
Operating voltage present, reader initialized and antenna switched on
yellow1) Transponder present
flashing red Error has occurred, the type of flashing corresponds to the error code in the
table in the section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1 = 2") is set (see Product information
"SIMATIC RF200 command set"
(http://support.automation.siemens.com/WW/view/en/44864850)).
1) Only in the "with presence" mode.
5.4.5 Minimum distance between several RF260R
RF260R side by side
'
'
6,0$7,&
5)5
6,0$7,&
5)5
6,0$7,&
5)5
D ≥ 150 mm (with 2 readers)
D ≥ 250 mm (with more than 2 readers)
Figure 5-10 Minimum distance between several RF260R
Readers
5.4 SIMATIC RF260R
SIMATIC RF200
78 System Manual, 03/2013, J31069-D0227-U001-A7-7618
RF260R face to face
'
D ≥ 500 mm
Figure 5-11 Face-to-face distance between two RF260R
5.4.6 Technical data of the RF260R reader
Technical specifications
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface
• Communications module
• PC
• RS-422 (3964R protocol)
• RS-232 (3964R protocol)
Baud rate 19200, 57600, 115200 baud
Cable length reader ↔ communications module RS-422: max. 1000 m
RS-232: Max. 30 m
(shielded cable)
Read/write distances of reader See section Field data (Page 28)
Maximum data transmission rate
reader ↔ transponder (tag)
• Read
• Write
• approx. 1.5 KBps
• approx. 1.5 KBps
Power supply 24 VDC
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin)
Housing
• Dimensions (L × W × H)
• Color
• Material
• 75 × 75 × 41 mm (without M12 device
connector)
• Anthracite
• Plastic PA 6.6
Securing 2 x M5 screws
Tightening torque ≤ 1.5 Nm
Readers
5.4 SIMATIC RF260R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 79
Technical specifications
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +70 ℃
• -25 ℃ ... +80 ℃
Degree of protection to EN 60529
Shock to EN 60 721-3-7 Class 7 M2
Vibration to EN 60 721-3-7 Class 7 M2
IP67
50 g
20 g
Weight Approx. 200 g
Approvals Radio to R&TTE directives EN 300 330,
EN 301489, CE, FCC, UL/CSA
Current consumption typ. 50 mA
5.4.7 FCC information
Siemens SIMATIC RF260R (MLFB 6GT2821-6AC10) FCC ID: NXW-RF260R
Siemens SIMATIC RF260R (MLFB 6GT2821-6AC11) FCC ID: NXW-RF260R
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes :
(1) il ne doit pas produire de brouillage, et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.4 SIMATIC RF260R
SIMATIC RF200
80 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.4.8 Dimension drawing
6,0$7,&
5)5
Figure 5-12 Dimension drawing RF260R
Dimensions in mm
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 81
5.5 SIMATIC RF290R

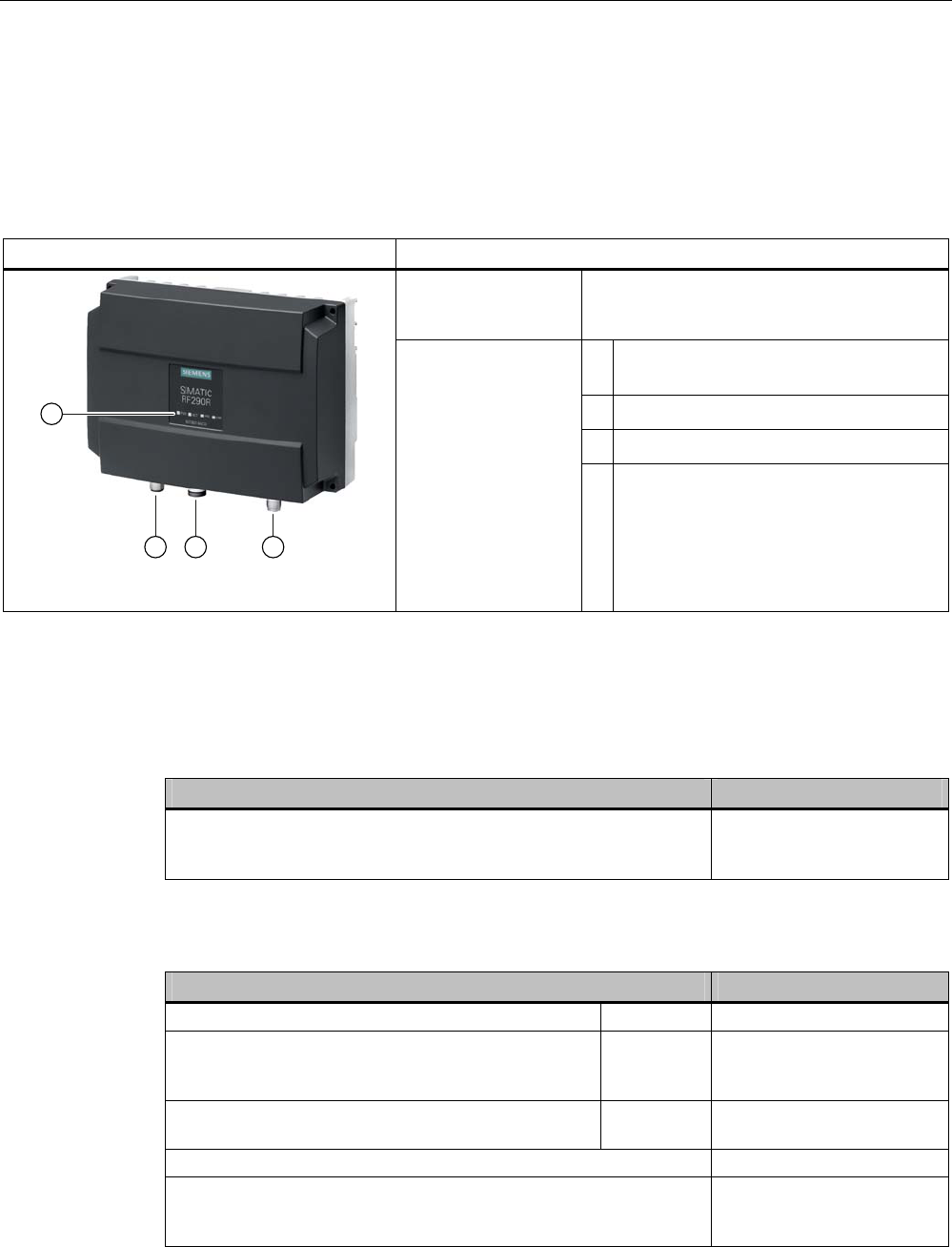

5.5.1 Features

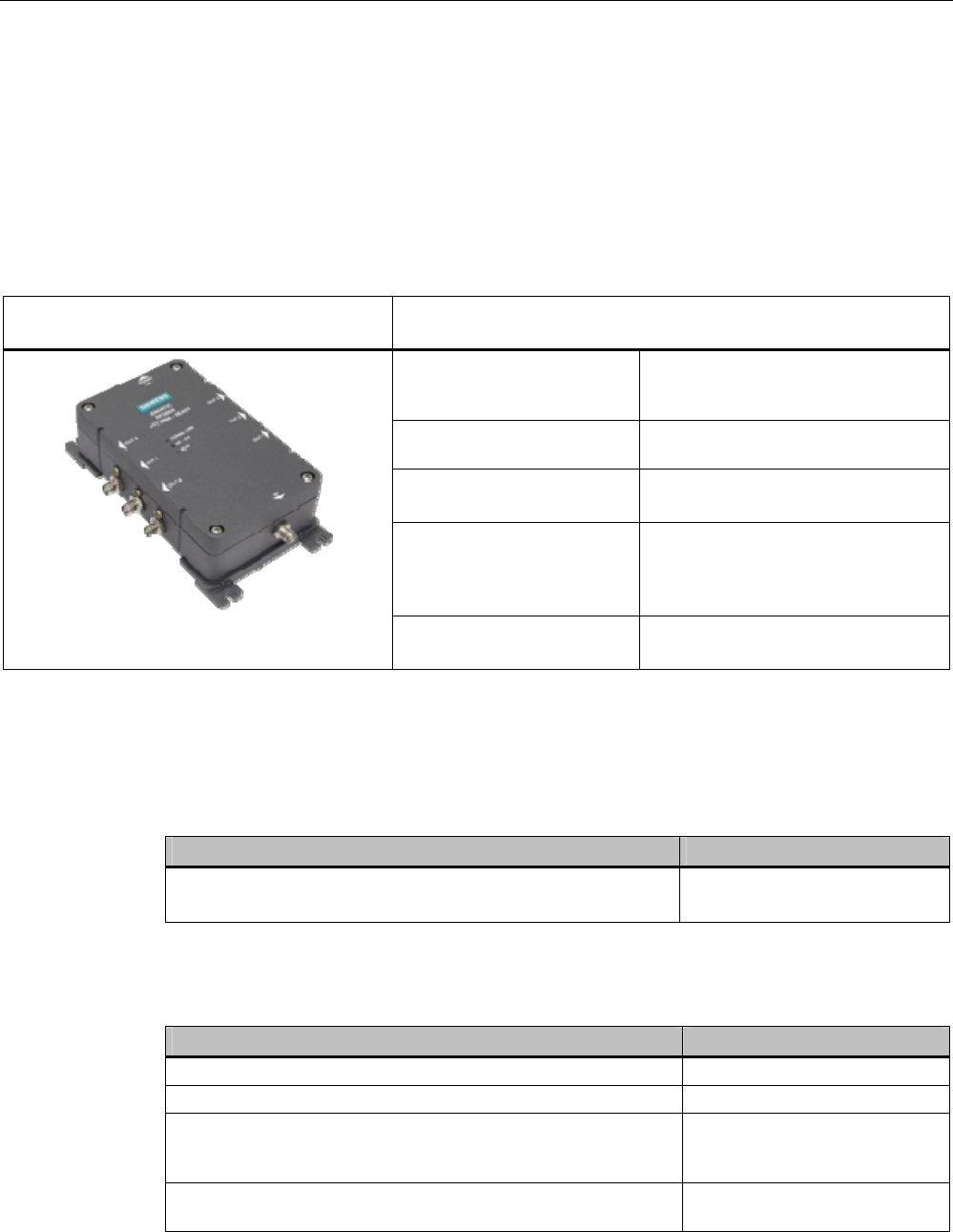

SIMATIC RF290R Characteristics
Area of application Identification tasks in production control and in
intra-logistics, e.g. skid identification, container
management, HF gates (F&B)
①
RS-422/RS-232 interface,
24 V power supply
②Digital I/O
③External antenna
Structure
④Operating display, 4 LEDs:
• Power (PWR)
• Active (ACT)
• Present (PRE)
• Error (ERR)
5.5.2 Ordering data RF290R
Table 5- 1 Ordering data RF290R
Order number
RF290R
with RS-232 interface for PC mode and RS-422 interface for CM
mode
6GT2821-0AC12
Table 5- 2 Ordering data - accessories - RF290R
Order number
24 V connecting cable 5 m 6GT2491-1HH50
RS-232 connecting cable, with 4-pin M12 connector for
24 V for connection to the wide-range power supply
unit
5 m 6GT2891-4KH50
RS-232 connecting cable with open cable ends for 24
V
5 m 6GT2891-4KH50-0AX0
Adapter for mounting on a DIN rail (pack of 3) 6GK5798-8ML00-0AB3
Wide-range power supply unit for SIMATIC RF-systems
(100 - 240 VAC / 24 VDC / 3 A)
with 2 m connecting cable with country-specific plug
EU: 6GT2898-0AA00
UK: 6GT2898-0AA10
US: 6GT2898-0AA20
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
82 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Order number
Connecting cables
Reader ↔ ASM 475 2 m 6GT2891-4EH20
5 m 6GT2891-4EH50
Connecting / extension cable
2 m 6GT2891-4FH20
5 m 6GT2891-4FH50
10 m 6GT2891-4FN10
20 m 6GT2891-4FN20
Reader ↔ CM/ASM
for RF200 / RF300 / RF600 / MV400
or extension cable MOBY U/D
50 m 6GT2891-4FN50
Antennas
Antenna ANT D5 6GT2698-5AA10
Antenna ANT D6 6GT2698-5AB00
Covering hood for ANT D6 6GT2690-0AD00
Antenna ANT D10 6GT2698-5AF00
Accessories for connecting multiple antennas to SIMATIC RF290R
Antenna multiplexer
incl. one antenna connecting cable 0.4 m
6GT2894-0EA00
Antenna splitter
incl. one antenna connecting cable 3.3 m
6GT2690-0AC00
Antenna cables
3.3 m 6GT2691-0CH33 Antenna cable
10.5 m 6GT2691-0CN10
Antenna cable extension 7.2 m 6GT2691-0DH72
5.5.3 Pin assignment RF290R
RS422/RS232
Table 5- 3 Pin assignment of the RS-422/RS 232 interface
Interface assignment
Pin Pin
Device end 8-pin M12 RS-422 RS-232
1 +24 V +24 V
2 - Transmit RXD
3 0 V 0 V
4 + Transmit TXD
5 + Receive not used
6 - Receive not used
7 not used not used
8 Ground (shield) Ground (shield)
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 83
Digital I/O
only possible in PC mode (RS-232)

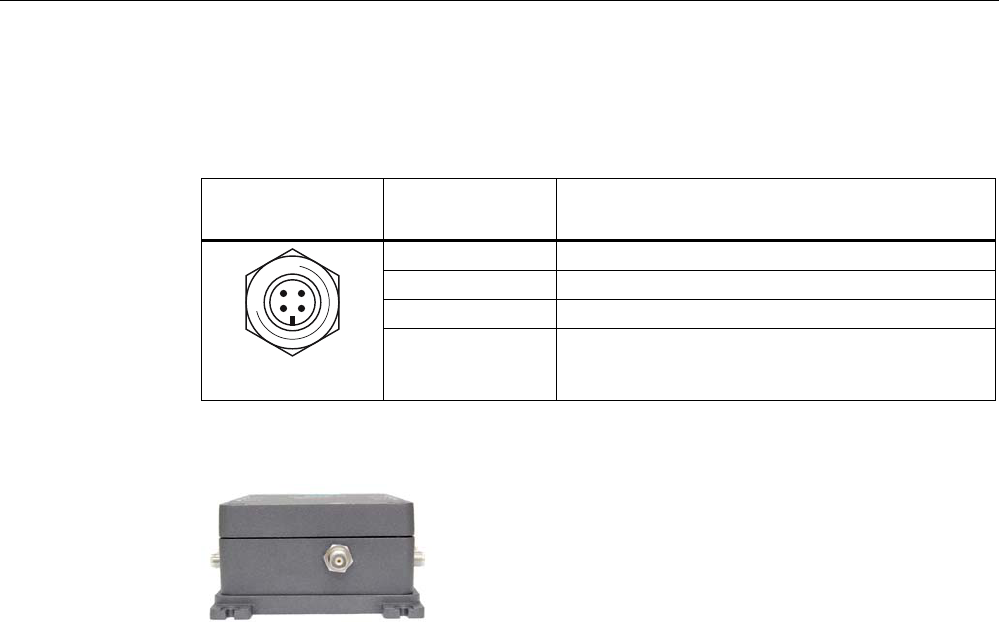

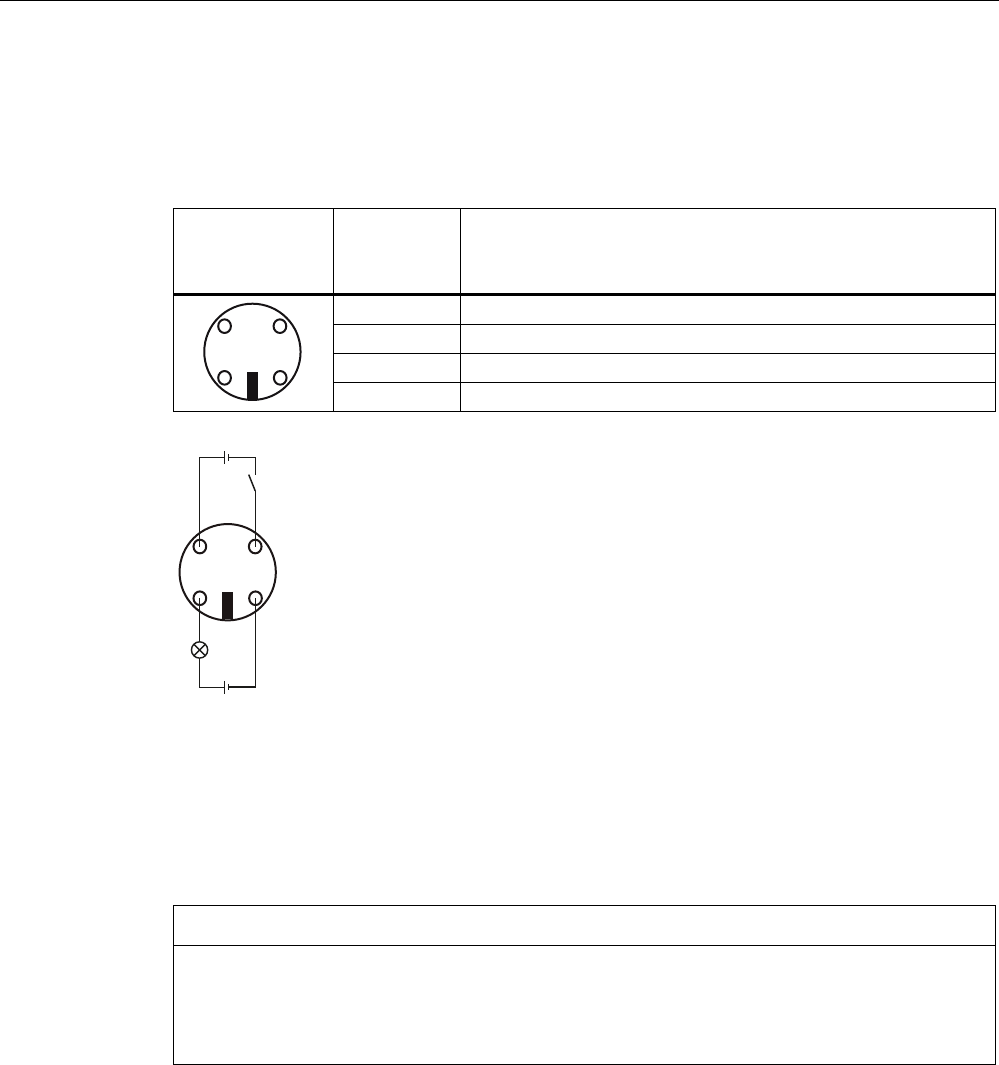

Table 5- 4 Pin assignment of the digital I/O interface
Pin Pin
Device end 4-
pin M12
Socket assignment
1 DO - relay contact COM (Common)
2 DO - relay contact NO (Normaly Open, NO contact)
3 DI - switched input, +24 V
4 DI - ground, 0 V
24 VDC
24 VDC
Figure 5-13 Pin assignment of the power supply connector
Digital input (DI):
The opto-coupler input is electrically isolated from the reader electronics. The external 24 V
must be connected to the DI according to the circuit diagram. Make sure that the polarity of
the 24 V is correct. The current is limited to < 10 mA by the integrated resistor.
NOTICE
Reader may be damaged
If you exceed the maximum permitted supply voltage, the reader may be damaged. Make
sure that the input voltage does not exceed the maximum permitted supply voltage of the
reader.
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
84 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Digital output (DO):
At the relay output, a NO contact is available. The output is electrically isolated from the
reader electronics and therefore needs to be supplied externally.
NOTICE
Reader may be damaged
If you exceed the maximum permitted voltage of 24 V / 1 A at the relay output, the reader
may be damaged. Make sure that the voltage does not exceed 24 V.
The output is intended only for switching resistive loads. If it is used to switch inductive
loads, the reader may be damaged. Make sure that if inductive loads occur, the relay
contacts are protected by an external suppressor circuit.
5.5.4 Display elements of the RF290R reader
LED Meaning
flashing CM mode:
Operating voltage present, reader not initialized or antenna switched off
PWR
permanentl
y lit
CM mode:
Operating voltage present, reader initialized and antenna switched on
PC mode:
Supply voltage applied
ACT Communication on the data line
PRE Presence of a transponder in the antenna field
ERR CM mode:
flashing: The type of flashing corresponds to the error code in the table in the
section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1 = 2") is set (see product information
"SIMATIC RF200 command set
(http://support.automation.siemens.com/WW/view/en/44864850)").
PC mode:
permanently lit: Error when connecting the antenna or the interference level in
the antenna environment is too high
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 85
5.5.5 Installing the RF290R reader
5.5.5.1 Wall mounting
Use the holes in the housing to screw the device to the wall or onto a horizontal surface. The
position of the drill holes is shown in the following figure:

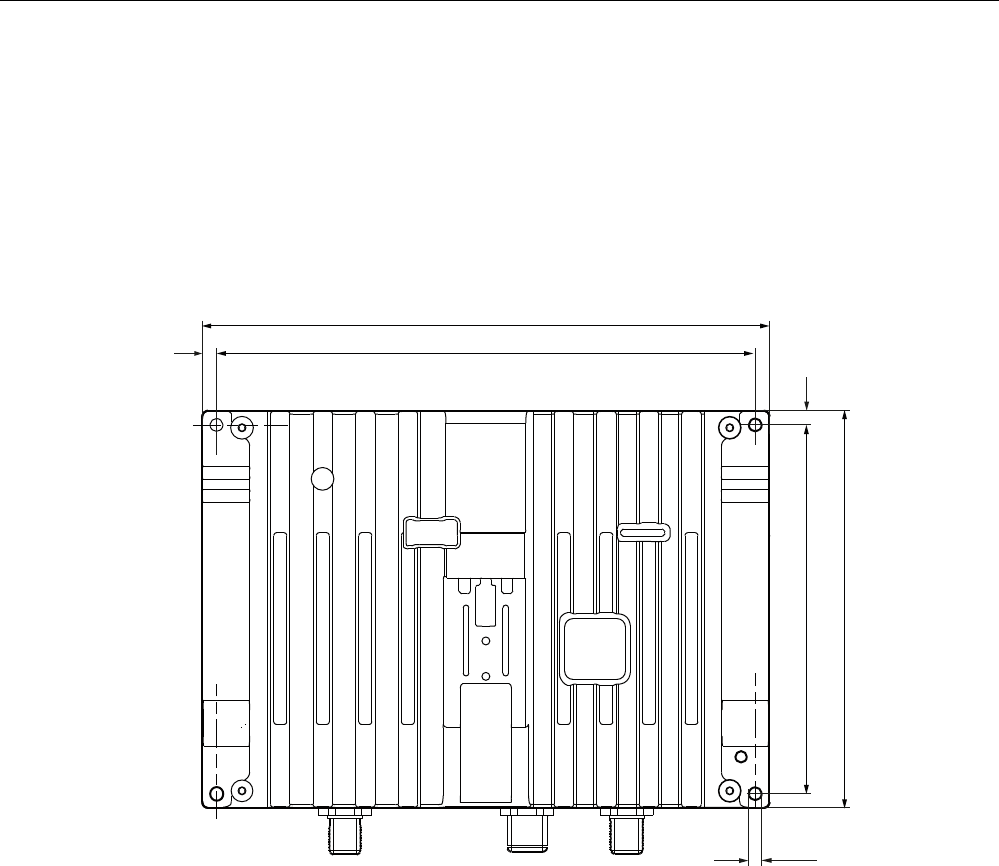

Figure 5-14 Drilling pattern for the RF290R (dimensions in mm)
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
86 System Manual, 03/2013, J31069-D0227-U001-A7-7618

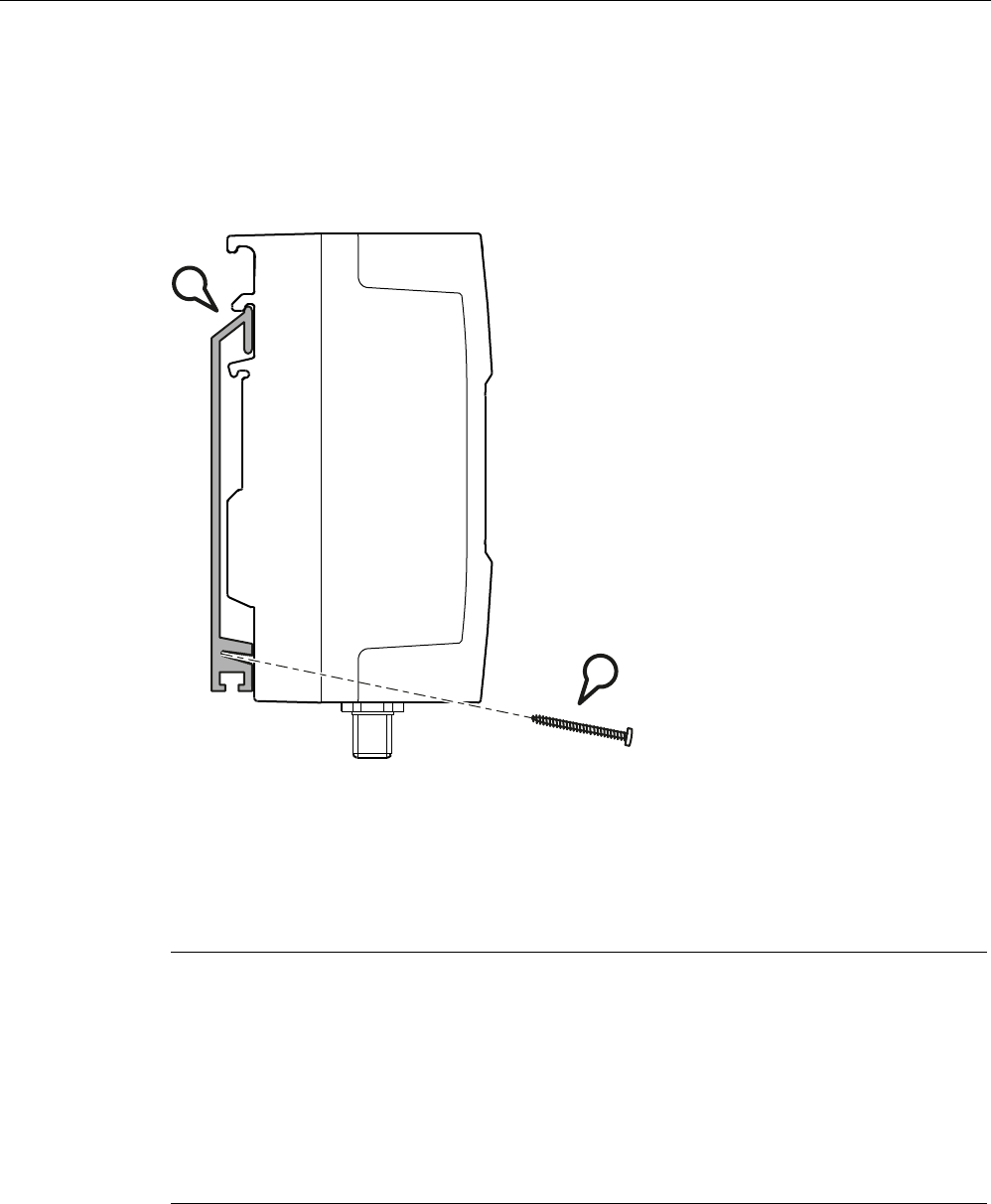

5.5.5.2 Installing on the S7-300 standard rail
Follow the steps below to mount the RF290R reader on a vertical S7-300 standard rail:
1. Place the device on the upper edge of the S7-300 standard rail (position A).
2. Screw the device to the rail with the supplied screws (position B).
B
A
Figure 5-15 Installing the RF290R reader on the S7-300 standard rail
5.5.5.3 Installation on a DIN rail
The RF290R reader is suitable for installation on 35 mm rails that comply with DIN EN
50022.
Note
The adapter for mounting on a DIN rail does not ship with the RF290R
The adapter for mounting on a DIN rail does not ship with the product. You can obtain a pack
of three with the following order number: 6GK5798-8ML00-0AB3.
The mounting fittings consist of the following parts:
• 1 DIN rail slider
• 1 spring
• 2 screws
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 87
Fit the adapter to the rear of the device as shown in the following figure:
Figure 5-16 Mounting the DIN rail adapter
Follow the steps below to mount the RF290R reader on a DIN rail:
1. Place the device on the upper edge of the DIN rail (position A).
2. Pull the spring-mounted DIN rail slider (position B) down and press the device against the
DIN rail until it locks in place.
A
B
Figure 5-17 Mounting the RF290R reader on a DIN rail
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
88 System Manual, 03/2013, J31069-D0227-U001-A7-7618
5.5.6 Technical specifications of the RF290R reader
Technical specifications
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Transponders supported Transponder to ISO 15693
Interface
• Communications module
• PC
RS-422 (3964R protocol)
RS-232
Baud rate 19200, 57600, 115200 baud
Cable length reader ↔ communications module RS-422: max. 1000 m
RS-232: Max. 30 m
(shielded cable)
Transmit power up to 5 W
Multitag only in PC mode (RS-232)
Read/write distances of reader See sectionField data (Page 28)
Maximum data transmission rate
reader ↔ transponder (tag)
• Read
• Write
• approx. 1.5 KBps
• approx. 1.5 KBps
Power supply 24 VDC
Display elements 4 LEDs
(Power, Active, Presence, Error)
Digital input / output
• Digital input
• Digital output
(only available in PC mode, RS-232)
• 1 x opto-coupler 24 V
• 1 x relay 24 V / 1 A
Connection
• Power supply/data line
• Digital IN/OUT
• Antennas
• M12, 8-pin, male
• M12, 4-pin, female
• TNC, female
Housing
• Dimensions (L × W × H)
• Color
• Material
• 200 × 140 × 80 mm (without device
connector)
• Silver/anthracite
• Aluminum die-casting
Securing M4 screws
Tightening torque ≤ 1.5 Nm
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +55 ℃
• -25 ℃ ... +85 ℃
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 89
Technical specifications
Degree of protection to EN 60529
Shock-resistant to EN 60 721-3-7, Class 7 M2
Vibration-resistant to EN 60 721-3-7, Class 7 M2
IP65
30 g
2 g
Weight Approx. 1.8 kg
Approvals Radio to R&TTE guidelines EN 300 330,
EN 301489, CE
FCC, IC (as of 04/2013)
Current consumption typ. 400 mA
5.5.7 FCC information
Siemens SIMATIC RF290R (MLFB 6GT2821-0AC12) FCC ID: NXW-RF290R
This device complies with Part 15 of the FCC Rules and with Industry Canada license-
exempt RSS standard(s) (ICES). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage.
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
90 System Manual, 03/2013, J31069-D0227-U001-A7-7618
If the antenna is detachable, require the following two conditions:
(1) To reduce potential radio interference to other users, the antenna type should be chosen
that the radiated power is not more than that permitted for successful communication.
(2) This device has been designed to operate with the antennas listed below. Antennas not
included in this list are strictly prohibited for use with this device. The required antenna
impedance is 50 Ω.
Si l'antenne est amovible, demandez les deux conditions suivantes :
(1) Afin de réduire le risque d'interférence aux autres utilisateurs, il faut choisir le type
d'antenne et son gain de façon à ce que la puissance rayonnée ne soit pas supérieure au
niveau requis pour l'obtention d'une communication satisfaisante.
(2) Ce dispositif a été conçu pour fonctionner avec les antennes énumérées ci-dessous. Les
antennes non incluses dans cette liste sont strictement interdites pour l'exploitation de ce
dispositif. L'impédance d'antenne requise est 50 Ω.
5.5.8 Note on the use of the RF290R as a replacement for SLG D10 / SLG D10S
The RF290R reader is the successor to the MOBY D readers SLG D10 / SLG D10S
rounding off the RF200 family; it is operated with external antennas. The following features
distinguish the RF290R from the SLG models:
Table 5- 5 Differences between the RF290R readers and SLG D10 / SLG D10S
Properties SLG D10/SLG D10S Properties RF290R
Two devices with different interfaces RS-232/RS-422 interface and PC/CM
functionality in one device
M 12, 4-pin male connector for the power supply
9-pin D-sub male connector for connection to the
various communications modules
M12, 8-pin male connector for the power supply
and for direct connection to the various
communications modules 1)
no digital I/O M12, 4-pin female connector for digital I/O (can
only be used in PC mode)
no operating display via LEDs operating display by four LEDs
Maximum transmit power of 10 W Maximum transmit power of 5 W
One securing option Different securing options
Standard protocol in ISO host mode (in PC
mode)
Advanced protocol in ISO host mode (in PC
mode) 2)
Amplitude Shift Keying (ASK) and Frequency
Shift Keying (FSK) modes possible
Amplitude Shift Keying (ASK) mode possible
Support of "ICode1" and "TagIt" and ISO 15693-
compatible transponders
Support of ISO 15693-compatible transponders
The total memory for "repeat_command" is
limited to 32 kB
The total memory for "repeat_command" is
limited to 16 kB
1) The RF290R reader connectors are compatible with the SLG D10 if a Y connecting cable is used
(6GT2891-4KH50, 6GT2891-4KH50-0AX0).
2) In ISO host mode (in PC mode), a program adaptation is necessary
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 91
5.5.9 Dimension drawing
6,0$7,&
5)5
Figure 5-18 Dimensional drawing RF290R (dimensions in mm)
Readers
5.5 SIMATIC RF290R
SIMATIC RF200
92 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 93
Antennas 6
6.1 ANT D5
6.1.1 Features
ANT D5 Characteristics
Area of application Storage, logistics and distribution
Writing/reading distance up to 500 mm (depending on the transponder)
Connecting cable 3.3 m
Readers that can be
connected
RF290R
Degree of protection IP65
6.1.2 Ordering data
Table 6- 1 Ordering data of ANT D5
Antenna Order no.
ANT D5
(incl. one antenna connecting cable 3.3 m)
6GT2698-5AA10
Table 6- 2 Ordering data of ANT D5 accessories
Accessories Order no.
Antenna splitter
(incl. one antenna connecting cable 3.3 m)
6GT2690-0AC00
Antenna multiplexer
(incl. one antenna connecting cable 0.4 m)
6GT2894-0EA00
Length 3.3 m 6GT2691-0CH33 Antenna cable
Length 10.5 m 6GT2691-0CN10
Antenna extension cable, length 7.2 m 6GT2691-0DH72
Antennas
6.1 ANT D5
SIMATIC RF200
94 System Manual, 03/2013, J31069-D0227-U001-A7-7618

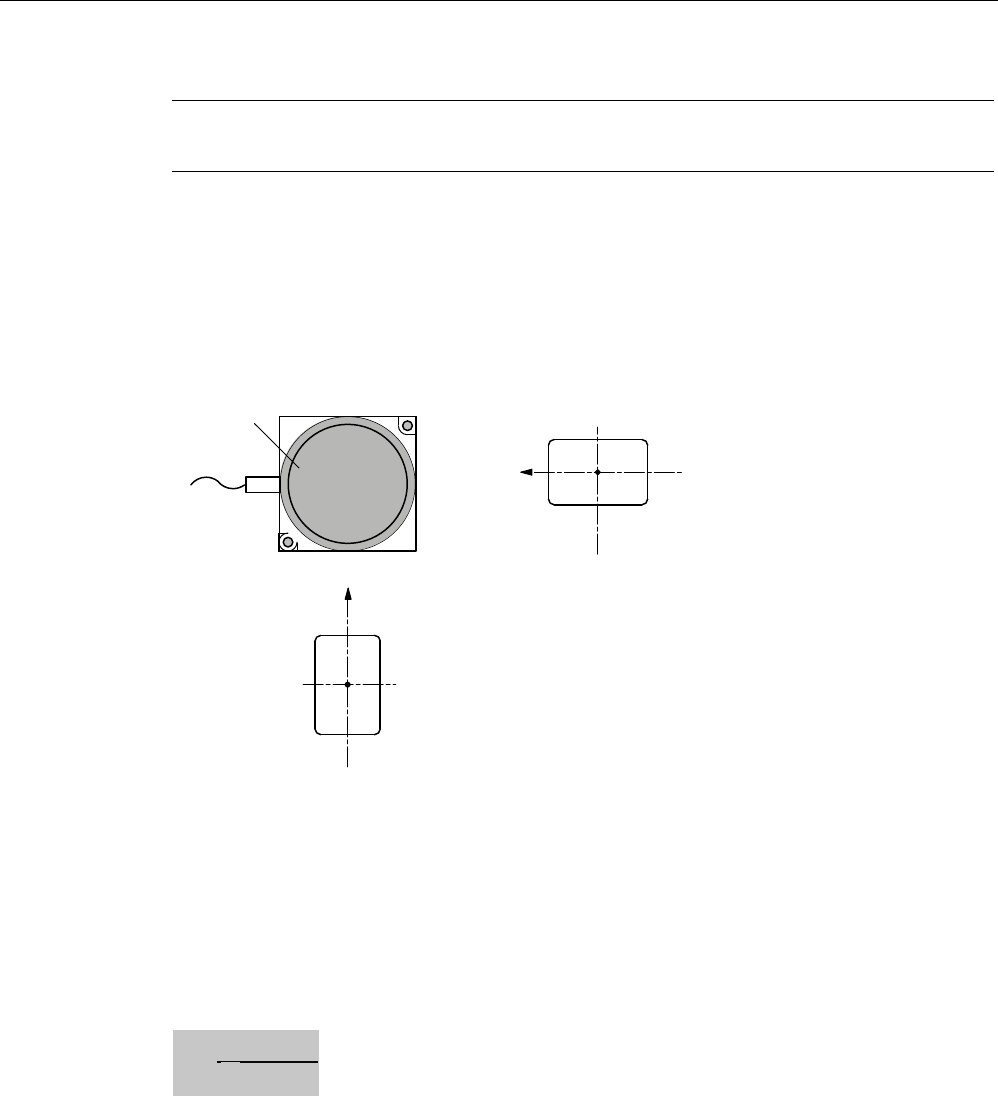

6.1.3 Transmission window
6LGHYLHZ
7UDQVPLVVLRQZLQGRZ
7RSYLHZ
0HWDOSDQHO
$W6
DPLQ
WKHWUDQVPLVVLRQZLQGRZLVH[WHQGHG
6
DPLQ
6
DPD[
6
D
/
G
$17'
6
J
6
J
PP
Ld Length of the transmission window (= 300 mm)
Sa Operating distance between antenna and transponder
Sg Limit distance (maximum clear distance between upper surface of the reader and the antenna,
at which the transmission can still function under normal conditions)
Figure 6-1 Transmission window for ANT D5
Antennas
6.1 ANT D5
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 95
6.1.4 Flush-mounted in metal
0HWDO
D
D
a = 150 mm
Figure 6-2 Metal-free area for ANT D5
6.1.5 Minimum spacing
Note
Extension of the data transmission time if distance values are undershot
If the distance values specified in the tables are undershot, it is possible that the inductive
fields will be affected. In this case, the data transmission time can increase unpredictably or
a command is aborted with an error.
For this reason, please observe the values in the tables.
Minimum distances from transponder to transponder (without multitag mode)
MDS D100 / MDS D126 / MDS D139 /
MDS D165 / MDS D200 / MDS D261 /
MDS D339 / MDS D400 / MDS D426
MDS D124 / MDS D160 / MDS D324 /
MDS D424 / MDS D428 / MDS D460
RF290R
≥ 1 m ≥ 0.8 m
Antennas
6.1 ANT D5
SIMATIC RF200
96 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Minimum distances from antenna to antenna
RF290R with ANT D5 RF290R with ANT D6 RF290R with ANT D10
RF290R with ANT D5 ≥ 2 m ≥ 2 m ≥ 2 m
RF290R with ANT D6 ≥ 2 m ≥ 2 m ≥ 2 m
RF290R with ANT D10 ≥ 2 m ≥ 2 m ≥ 2 m
Definition of distance D
'LVWDQFH'ุP
'
'
Figure 6-3 Distance D: ANT D5
Antennas
6.1 ANT D5
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 97
6.1.6 Technical data
Technical specifications
Max. write/read distance
ANT to MDS (Sg)
500 mm
Dimensions (L x W x H) 380 x 380 x 110 mm
Color gray/black
Material Aluminum/plastic
Plug connection 1-pin TNC connector
Max. power 10 W
(FCC/IC: 4 W)
Antenna cable length 3.3 m
Shock resistant according to EN 60721-3-7
Class 7M2
Total shock response spectrum Type II
30 g
Vibration according to EN 60721-3-7 Class
7M2
1 g (9 to 200 Hz) / 1.5 g (200 to 500 Hz)
Attachment of the antenna 4 M6 or alternatively M8 screws
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +55 ℃
• -25 ℃ ... +70 ℃
MTBF 10 7 hours
Degree of protection according to EN 60529 IP65 (UL: for indoor use only)
Weight, approx. 1.2 kg
Approvals CE
FCC, IC (as of 04/2013)
Antennas
6.1 ANT D5
SIMATIC RF200
98 System Manual, 03/2013, J31069-D0227-U001-A7-7618
6.1.7 Dimension drawing
0WKUHDGHGVRFNHW
ෘ

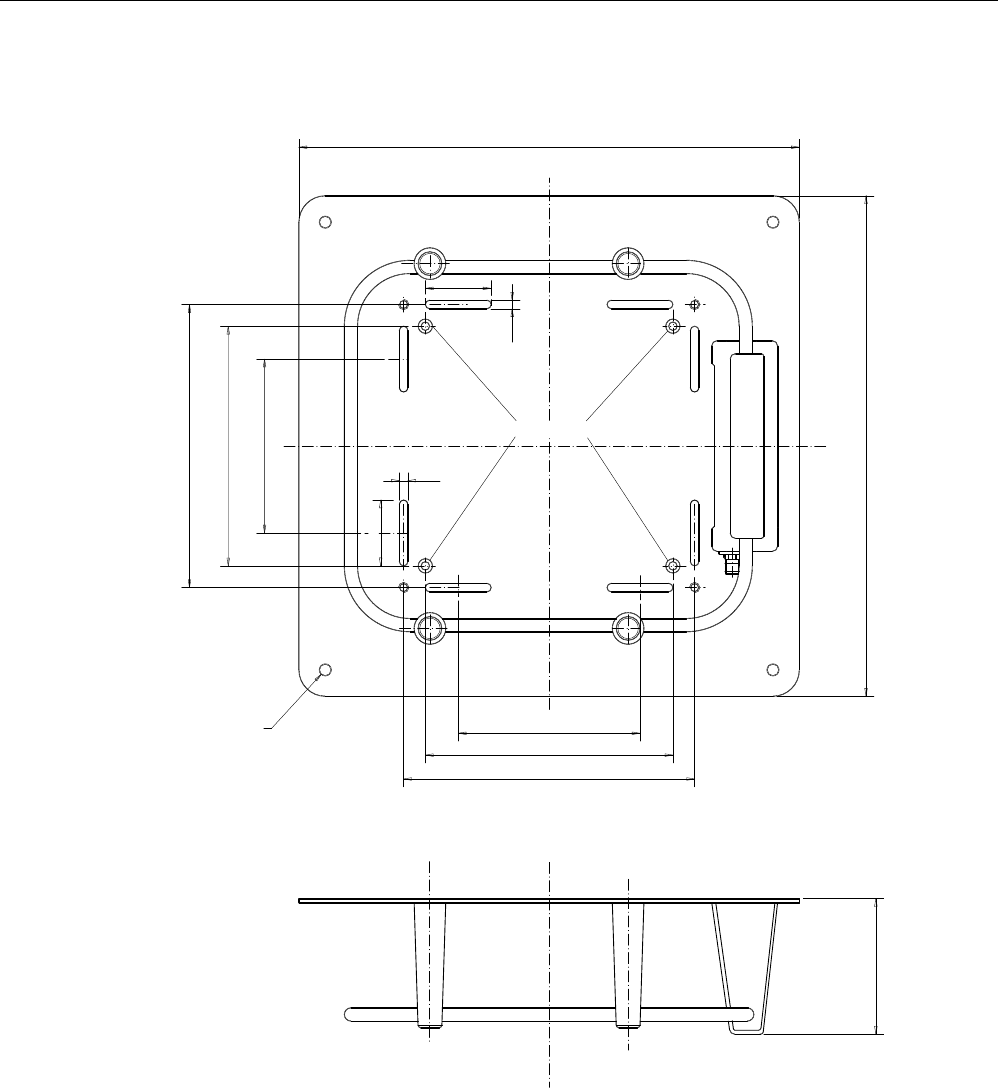

Figure 6-4 Dimension drawing for ANT D5
Antennas
6.2 ANT D6
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 99

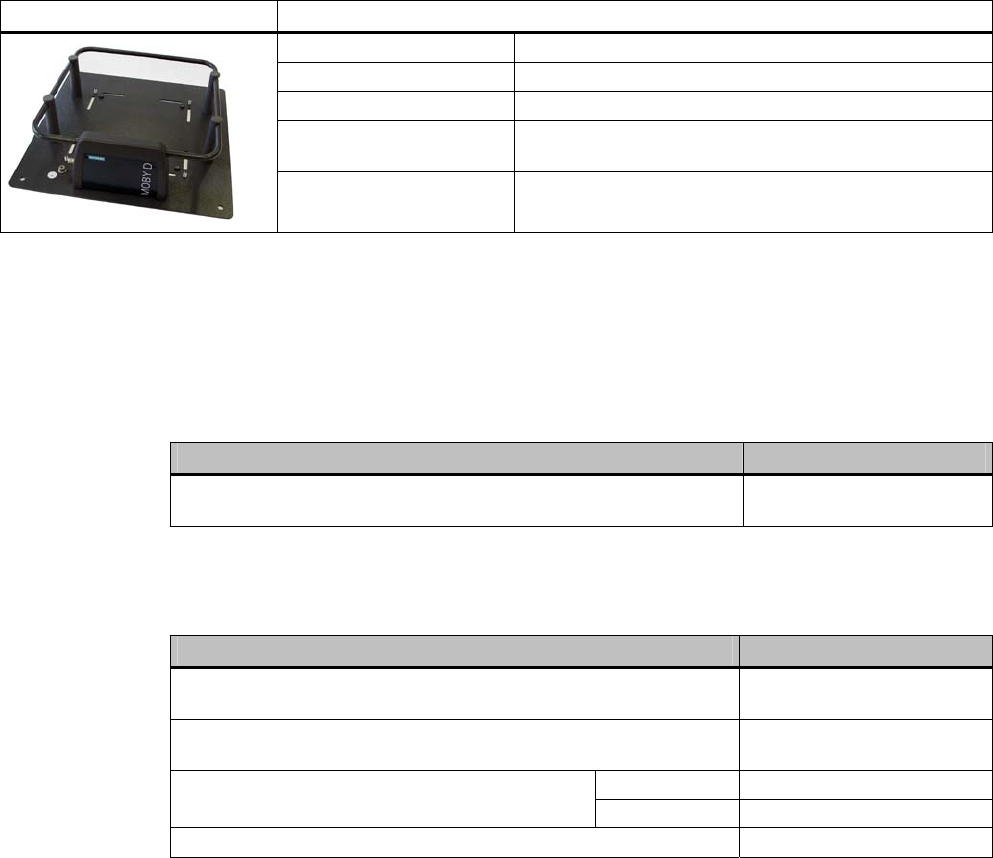

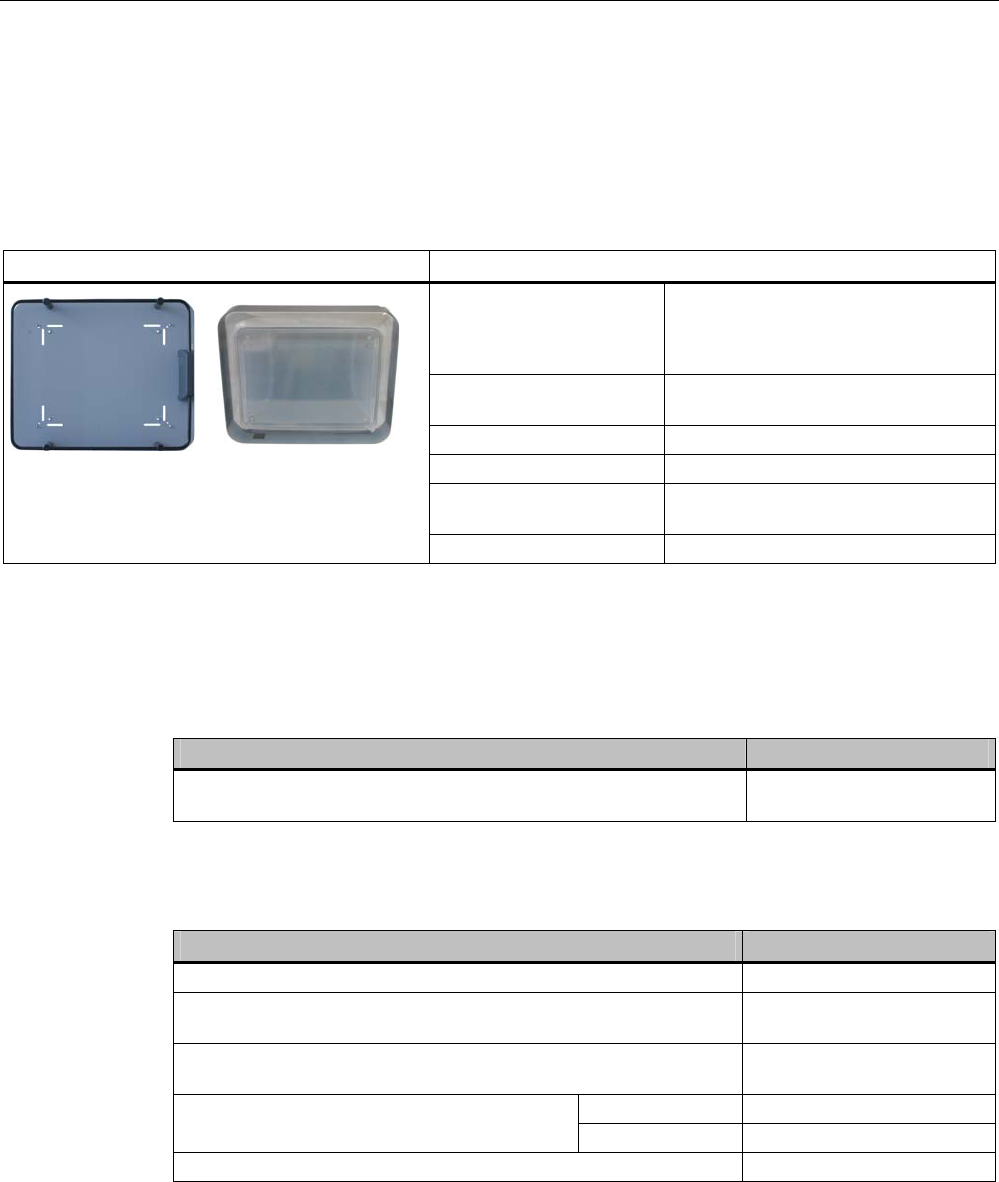

6.2 ANT D6
6.2.1 Features
ANT D6 Characteristics
Area of application • Storage, logistics and distribution
• Suitable for high-speed applications
with large writing/reading distance
Writing/reading distance up to 650 mm (depending on the
transponder)
Connecting cable 3.3 m; included in scope of supply
Cover Available as accessory
Readers that can be
connected
RF290R
$17' &RYHULQJKRRG
Degree of protection IP65 (also without cover)
6.2.2 Ordering data
Table 6- 3 ANT D6 ordering data
Antenna Order no.
ANT D6
(without cover, incl. one antenna connecting cable 3.3 m)
6GT2698-5AB00
Table 6- 4 Ordering data for ANT D6 accessories
Accessories Order no.
Covering hood for ANT D6 6GT2690-0AD00
Antenna splitter
(incl. one antenna connecting cable 3.3 m)
6GT2690-0AC00
Antenna multiplexer
(incl. one antenna connecting cable 0.4 m)
6GT2894-0EA00
Length 3.3 m 6GT2691-0CH33 Antenna cable
Length 10.5 m 6GT2691-0CN10
Antenna extension cable, length 7.2 m 6GT2691-0DH72
Antennas
6.2 ANT D6
SIMATIC RF200
100 System Manual, 03/2013, J31069-D0227-U001-A7-7618
6.2.3 Transmission window
7UDQVPLVVLRQ
ZLQGRZ
)RU6DPLQWKHWUDQVPLVVLRQZLQGRZLVH[WHQGHG
3ODQYLHZ
6LGHYLHZ
6DPLQ
6DPD[
/\
6D
6J
6J
/[
$17'
Lx = 520 mm
Ly = 420 mm

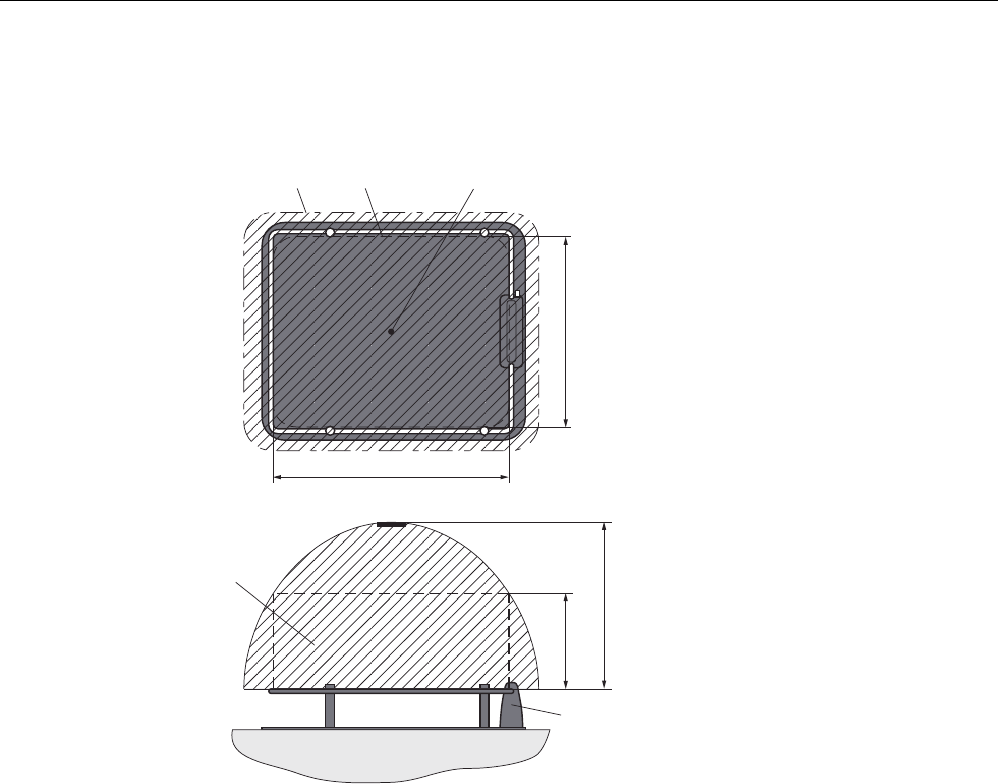

Figure 6-5 Transmission window for ANT D6
Antennas
6.2 ANT D6
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 101
6.2.4 Metal-free area
Flush-mounted in metal
D PP
0HWDO
DD
DD

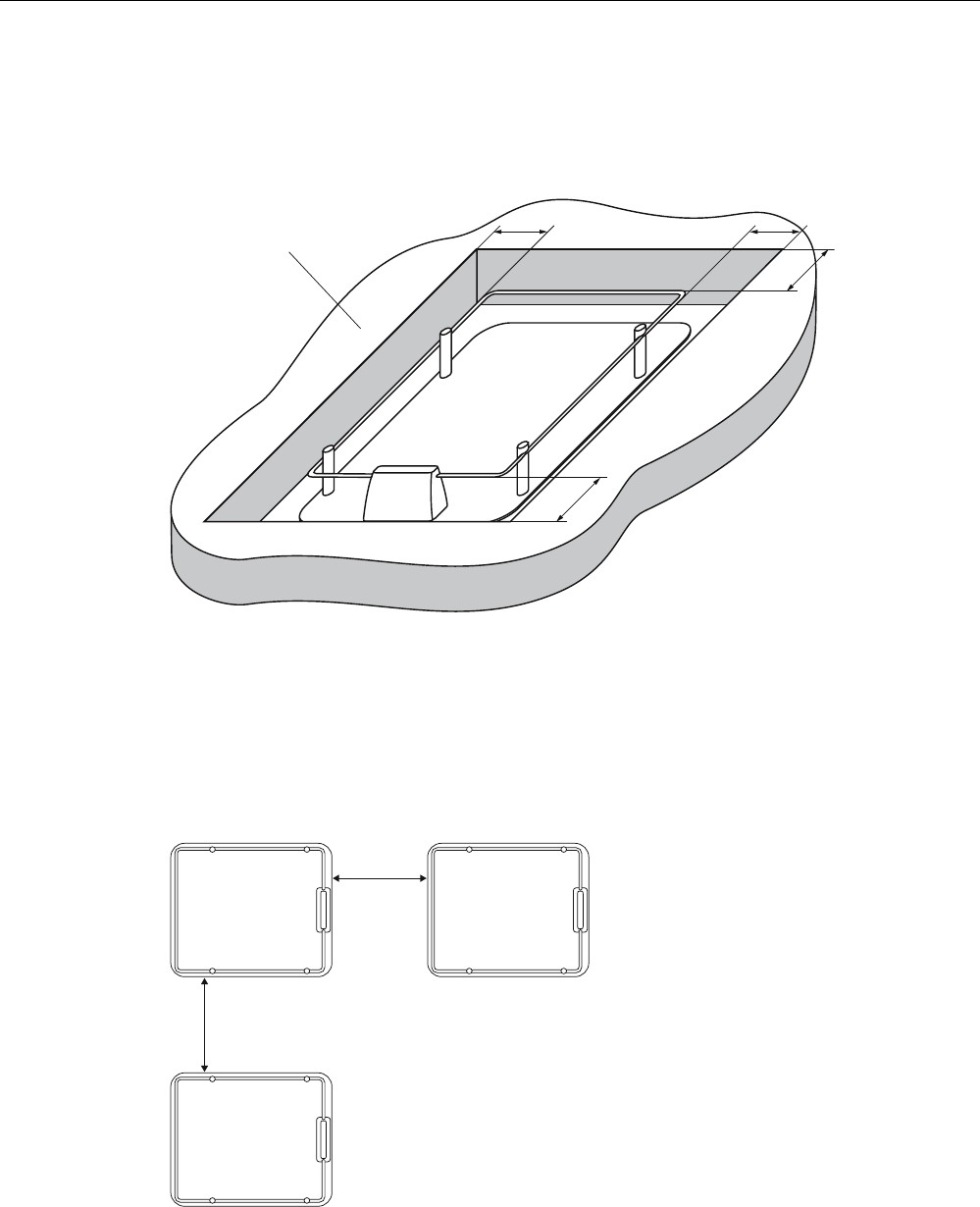

Figure 6-6 Metal-free area for ANT D6
6.2.5 Minimum spacing
Definition of distance D
'
'
'LVWDQFH'ุP
Figure 6-7 Distance D: ANT D6
Antennas
6.2 ANT D6
SIMATIC RF200
102 System Manual, 03/2013, J31069-D0227-U001-A7-7618
6.2.6 Technical data
Technical specifications
Max. write/read distance
ANT to MDS (Sg)
650 mm
Dimensions (L x W x H) 580 x 480 x 110 mm
(without cover)
Color gray/black
Material Aluminum/plastic
Plug connection 1-pin TNC connector
Max. power 10 W
(FCC/IC: 2.5 W)
Antenna cable length 3.3 m
Shock resistant according to EN 60721-3-7
Class 7M2
Total shock response spectrum Type II
30 g
Vibration according to EN 60721-3-7 Class
7M2
1 g (9 to 200 Hz) / 1.5 g (200 to 500 Hz)
Attachment of the antenna 4 x M6 screws
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +55 ℃
• -25 ℃ ... +70 ℃
MTBF 3 x 10 5 hours
Degree of protection according to EN 60529 IP65 (UL: for indoor use only)
Weight, approx. 3.3 kg
Approvals CE
FCC, IC (as of 04/2013)
Antennas
6.2 ANT D6
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 103

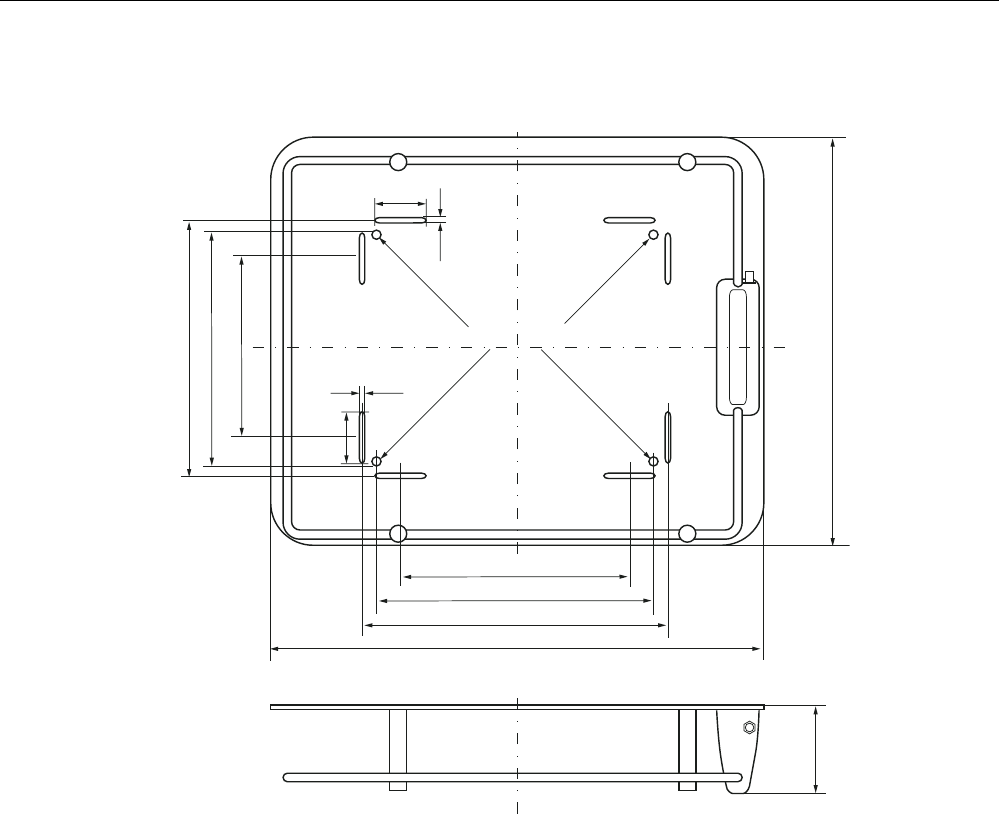

6.2.7 Dimensional diagram
0WKUHDGHGEXVK
Figure 6-8 Dimension drawing for ANT D6
Antennas
6.3 ANT D10
SIMATIC RF200
104 System Manual, 03/2013, J31069-D0227-U001-A7-7618

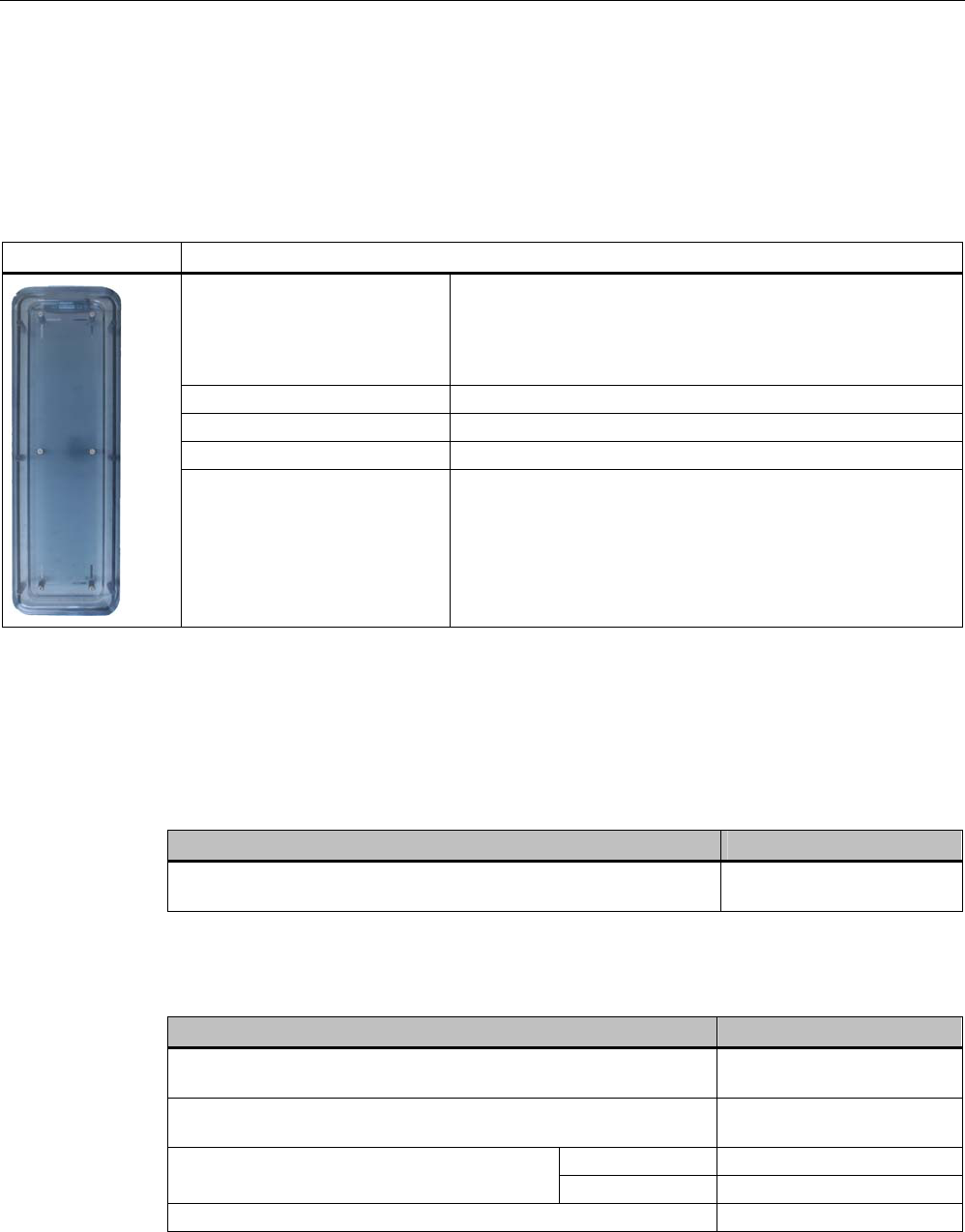

6.3 ANT D10
6.3.1 Features
ANT D10 Characteristics
Area of application • Storage, logistics and distribution, e.g. clothing industry,
laundries
• Particularly when small MDS are used (e.g. MDS D124,
MDS D160) and when there is a long transmission field
Writing/reading distance up to 480 mm (depending on the transponder)
Connecting cable 3.3 m; included in scope of supply
Cover Included in scope of supply
Readers that can be connected
RF290R
6.3.2 Ordering data
Table 6- 5 Ordering data of ANT D10
Antenna Order no.
ANT D10
(incl. cover and one antenna connecting cable 3.3 m)
6GT2698-5AF00
Table 6- 6 Ordering data of ANT D10 accessories
Accessories Order no.
Antenna splitter
(incl. one antenna connecting cable 3.3 m)
6GT2690-0AC00
Antenna multiplexer
(incl. one antenna connecting cable 0.4 m)
6GT2894-0EA00
Length 3.3 m 6GT2691-0CH33 Antenna cable
Length 10.5 m 6GT2691-0CN10
Antenna extension cable, length 7.2 m 6GT2691-0DH72
Antennas
6.3 ANT D10
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 105
6.3.3 Transmission window
7UDQVPLVVLRQZLQGRZ
)RU6
DPLQ
WKHWUDQVPLVVLRQZLQGRZLVH[WHQGHG
3ODQYLHZ
6LGHYLHZ
$17'ZLWKFRYHU
6
DPLQ
6
DPD[
/
\
6
D
6
J
/
[
6
J
Lx 1050 mm
Ly 350 mm
Figure 6-9 Transmission window for ANT D10
Antennas
6.3 ANT D10
SIMATIC RF200
106 System Manual, 03/2013, J31069-D0227-U001-A7-7618
6.3.4 Metal-free area
Flush-mounted in metal
DD
DD
0HWDO
D PP
Figure 6-10 Metal-free area for ANT D10
When installing in the vicinity of metal, observe the instructions in the Section Auto-Hotspot.
Antennas
6.3 ANT D10
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 107
6.3.5 Minimum spacing
Definition of distance D
'LVWDQFH'ุP
'
'
Figure 6-11 Distance D: ANT D10
Antennas
6.3 ANT D10
SIMATIC RF200
108 System Manual, 03/2013, J31069-D0227-U001-A7-7618
6.3.6 Technical data
Technical specifications
Max. write/read distance
ANT to MDS (Sg)
480 mm
Dimensions (L x W x H) 1150 x 365 x 115 mm
(with cover)
Color gray/black
Material Aluminum/plastic
Plug connection 1-pin TNC connector
Max. power 10 W
(FCC/IC: 2.5 W)
Antenna cable length 3.3 m
Shock resistant according to EN 60721-3-7
Class 7M2
Total shock response spectrum Type II
30 g
Vibration according to EN 60721-3-7 Class
7M2
1 g (9 to 200 Hz) / 1.5 g (200 to 500 Hz)
Attachment of the antenna 4 x M6 screws
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +55 ℃
• -25 ℃ ... +70 ℃
MTBF 3 x 10 5 hours
Degree of protection according to EN 60529 IP65 (UL: for indoor use only)
Weight, approx. 10 kg
(with cover)
Approvals CE
FCC, IC (as of 04/2013)
Antennas
6.3 ANT D10
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 109

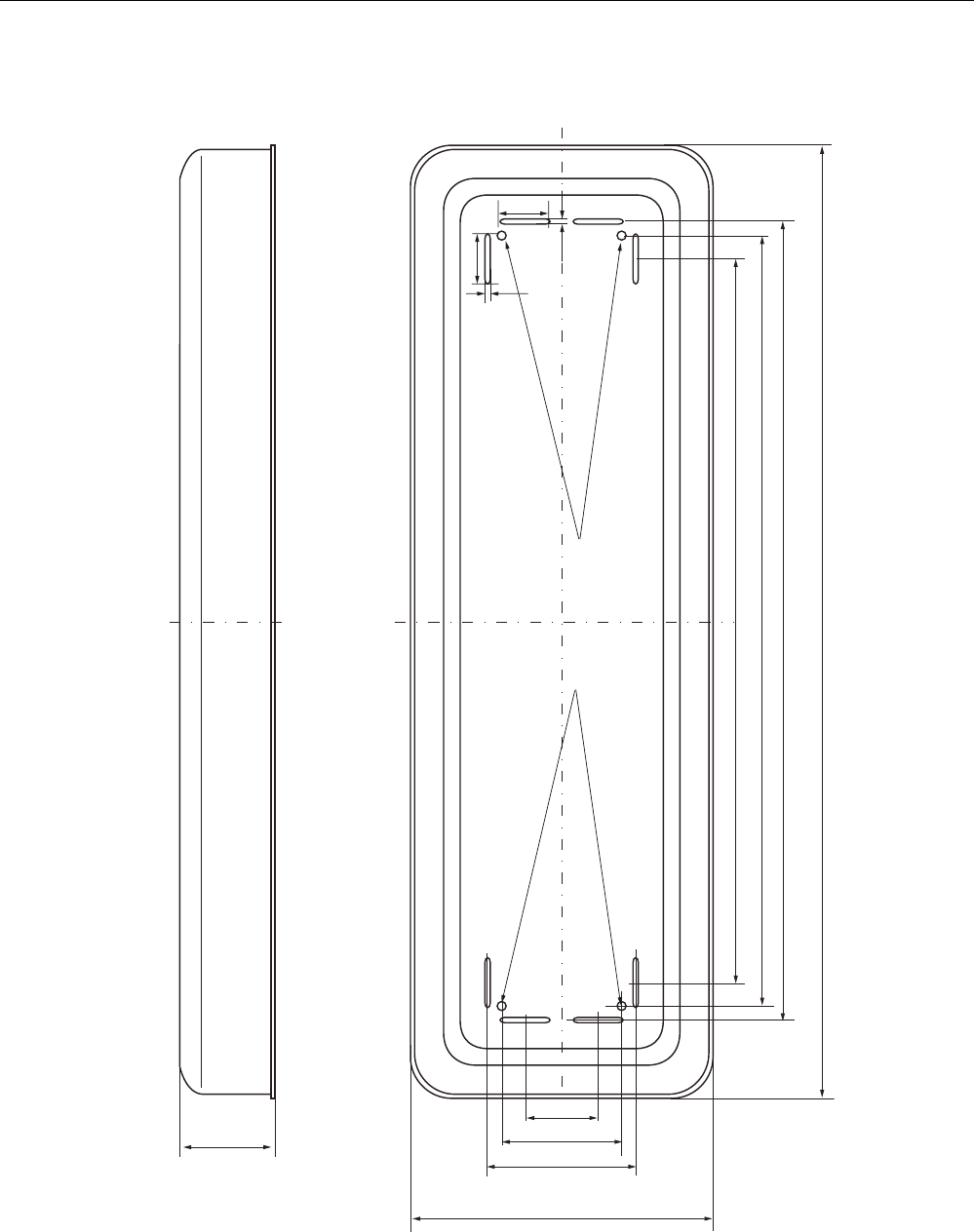

6.3.7 Dimensional diagram
*HZLQGHEXFKVH0
02%<'
Figure 6-12 Dimension drawing for ANT D10
Antennas
6.3 ANT D10
SIMATIC RF200
110 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 111
Accessories 7
7.1 Antenna splitter
Area of application
Antenna splitter Characteristics
Area of application Designed for distributed mounting of
antennas in warehouses, logistics and
distribution
Readers that can be
connected
RF290R
Number of antennas that can
be connected
max. 4
(by cascading)
Connectable antennas • ANT D5
• ANT D6
• ANT D10
Degree of protection IP65
The antenna splitter is a power distributor with electrical isolation between the input (IN) and
the two outputs (OUT1, OUT2). At the operating frequency of 13.56 MHz, the impedance at
all inputs and outputs is 50 ohms.
The device is used to connect 2 to 4 antennas to a reader. Gate, C and tunnel arrangements
are therefore possible (see section "Configuration options").
Ordering data
Table 7- 1 Ordering data for the antenna splitter
Order number
Antenna splitter
(incl. one antenna connecting cable 3.3 m)
6GT2690-0AC00
Accessories
7.1 Antenna splitter
SIMATIC RF200
112 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Table 7- 2 Ordering data - accessories - antenna splitter
Order number
Length 3.3 m 6GT2691-0CH33 Antenna cable
Length 10.5 m 6GT2691-0CN10
Antenna cable extension Length 7.2 m 6GT2691-0DH72
Technical specifications
Table 7- 3 Technical specifications for antenna splitter
Technical specifications
Max. input power 10 W
Transmission frequency 13.56 MHz
Power supply None
Housing dimensions (L x W x H) 160 x 80 x 40 mm
(without connector)
Color Anthracite
Material Plastic PA 12
Connector (inputs and outputs) TNC connector
Securing 2 x M5 screws
Ambient temperature
• During operation
• During transportation and storage
• -25 ℃ ... +65 ℃
• -25 ℃ ... +75 ℃
MTBF 3.0 x 10 5 hours
Degree of protection according to EN 60529 IP65 (UL: for indoor use only)
Shock resistant according to EN 60721-3-7
Class 7M2
Total shock response spectrum Type II
30 g
Vibration according to EN 60721-3-7 Class 7M2 1 g (9 ... 200 Hz) /
1.5 g (200 ... 500 Hz)
Weight, approx. 400 g
Approval CE
UL
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 113
7.2 Antenna multiplexer SIMATIC RF260X
7.2.1 Characteristics
The SIMATIC RF260X antenna multiplexer can be used to operate up to six antennas on
one reader.
SIMATIC RF260X
antenna multiplexer
Characteristics
Area of application Designed for distributed mounting of
antennas in warehouses, logistics and
distribution
Readers that can be
connected
RF290R
Number of antennas that can
be connected
maximum of 6
Connectable antennas • ANT D5
• ANT D6
• ANT D10
Degree of protection IP65
7.2.2 Ordering data
Table 7- 4 SIMATIC RF260X ordering data
Order number
SIMATIC RF260X
Antenna multiplexer incl. antenna connecting cable 0.4 m
6GT2894-0EA00
Table 7- 5 SIMATIC RF260X accessories ordering data
Order number
24 V connecting cable, 5 m 6GT2491-1HH50
RF290R 6GT2821-0AC12
Wide-range power supply unit for SIMATIC RF-systems
(100 - 240 V AC / 24 V DC / 3 A)
with 2 m connecting cable with country-specific plug
EU: 6GT2898-0AA00
UK: 6GT2898-0AA10
US: 6GT2898-0AA20
RS-232 connecting cable, with 4-pin M12 connector for 24 V for
connection to the wide-range power supply unit, 5 m
6GT2891-4KH50
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
114 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Order number
ANT D5 incl. antenna connecting cable (3.3 m) 6GT2698-5AA10
ANT D6 incl. antenna connecting cable (3.3 m) 6GT2698-5AB00
ANT D10 incl. antenna connecting cable (3.3 m) 6GT2698-5AF00
3.3 m 6GT2691-0CH33 Antenna cable
10.5 m 6GT2691-0CN10
Antenna cable extension 7.2 m 6GT2691-0DH72
7.2.3 Description
① 24 V DC power supply
Antenna connections OUT 1 to OUT 6
with LEDs
Color Status LED
②
Yellow Lit when the corresponding antenna output is active.
③ SLG antenna connection "IN"
LEDs
LED Color Status LED
COMM / ERR Red • Flashes when the RF260X receives a signal
from the SLG. (Only with commands, directly
on the RF260X)
• Lit when the multiplexer has detected an error
on the output
(e.g. non-terminated antenna cable, defective
antenna cable)
HF - ON Green Lit when an HF signal is applied to the "IN" socket
③
④
RUN Green Flashes when the RF260X is in the normal
operating state.
7.2.4 Principle of operation
You can operate up to six antennas on one reader by using the multiplexer RF260X. The
data is processed sequentially.
Antenna switchover is performed in time-multiplex mode, so by connecting several antennas
together, the processing time / activation time per antenna is lengthened accordingly.
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 115

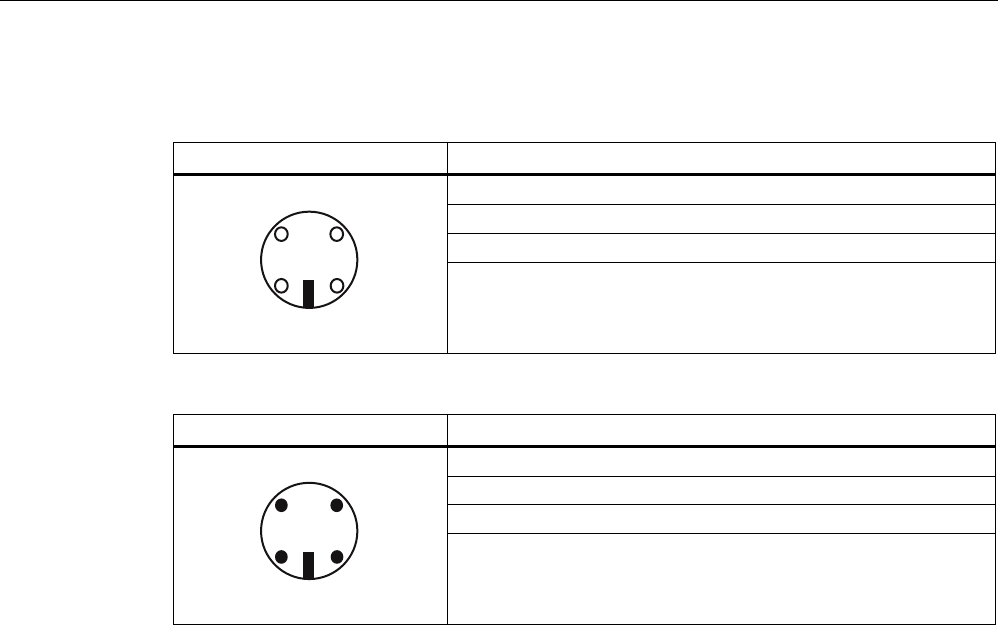

7.2.5 Connectors
● Power supply
Pin Pin, casing side
4-pin M12
Assignment
RF260X
1 Ground (0 V)
2 + 24 V
3 + 24 V
3ODQYLHZ
4 Ground (0 V)
● Reader connector ③
Figure 7-1 Reader connector
If a longer antenna cable is required between the RF290R and SIMATIC RF260X
multiplexer, a 7.2 m long cable (e.g. 6GT2691-0DH72) must be used to extend it, see
Ordering data (Page 113).
The excess length must then be rolled up bifilar and fastened to minimize interference
from external sources.
● Antenna outputs ② (OUT 1 to OUT 3 / OUT 4 to OUT 6)
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
116 System Manual, 03/2013, J31069-D0227-U001-A7-7618
7.2.6 Configuration
$QWHQQD $QWHQQD $QWHQQD
$QWHQQD $QWHQQD $QWHQQD
3*3&
:LGHUDQJHSRZHUVXSSO\XQLW
9'&
56
FRQQHFWLQJFDEOH
5);
5)5
56
Figure 7-2 Configuration example with ANT D5
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 117
7.2.7 Parameterization
Parameter settings can be performed using the tool "RF290R-Set" (V9.5.2).
This tool is primarily used for parameterization and commissioning, and is not designed for
productive operation.
The relevant parameters of the RF260X can be set in the "Configuration" menu under
"SystemParameters > CFG15: Antenna Multiplexing" ①

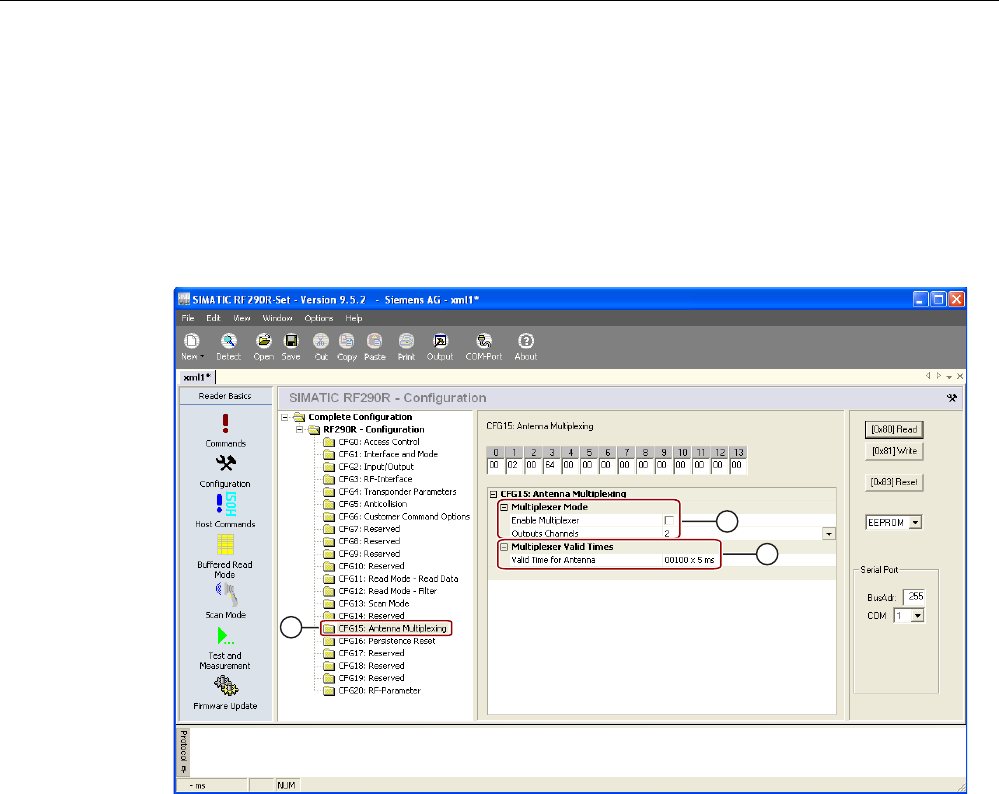

Figure 7-3 Menu "Configuration" MOBYDSet"
● For operation with RF260X, you need to activate the "Multiplexing" function ②.
● The number of occupied channels must be specified under "Number of Output Channels"
②.
● In "Multiplexer Valid Times" ③, the maximum time available for the antenna to read a
transponder is entered. Following this time, the device switches to the next antenna
automatically. If the read was successful, the time may be significantly shorter than
specified here.
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
118 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Note
Changing the parameter assignment
• Note that if you change the parameter settings of the reader or the RF260X in scanner
mode, this may lead to frame collisions. These collisions result when the frame is sent
while a transponder is present.
• The "Transponder response time" (setting: "CFG2: COM interface") during operation of
the RF260X must be higher than the total delay time for all the connected antennas
(CFG15: MUX-VALD-TIME × Number of Output Channels ≤ Transponder Response
Time)
7.2.8 RF260X commands
Using the tool "RF290R-Set" (V9.5.2), certain commands can also be sent to the RF260X. In
the "Commands" menu under "RF260X", the following commands can be sent:
● Detect (detection of the RF260X by the reader)
● Channel Select (set to a static channel)
● CPU-Reset (restart the RF260X software)
● Software Version (read out software and hardware versions)
Figure 7-4 Sending commands from the "RF290R-Set" tool
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 119
7.2.9 Technical specifications
Technical specifications
Max. write/read distance
ANT ↔ Transponder (Sg)
See manual for the relevant antenna
Number of channels
• Input channels
• Output channels
• 1
• 6
Impedance 50 ohm
Power supply 24 V (± 10 %)
Current consumption max. 200 mA
Dimensions (L x W x H) 240 x 150 x 70 mm
Length of the connecting cable 0.4 m
Color Anthracite
Material Aluminum die-casting
Plug-in connections • Power supply: Four-pole M12 / 4 pole round
connector
• Reader antenna connector: Single-pole TNC
socket
• Antenna connections: 6 x TNC socket
Max. power (reader input, or per antenna) 8 W
Shock resistant according to EN 60721-3-7
Class 7M2
Total shock response spectrum Type II
1 g
Vibration according to EN 60721-3-7 Class 7M2 1.5 g (5 to 500 Hz)
Securing 4 M5 screws
Tightening torque
(at room temperature)
≤ 5 Nm
Ambient temperature
• During operation
• During transportation and storage
• -20 ℃ ... +55 ℃
• -25 ℃ ... +70 ℃
MTBF 2.5 x 10 6 hours
Degree of protection according to EN 60529 IP65
Weight, approx. 1.8 kg
Approvals CE / FCC / IC
Accessories
7.2 Antenna multiplexer SIMATIC RF260X
SIMATIC RF200
120 System Manual, 03/2013, J31069-D0227-U001-A7-7618
7.2.10 Dimensional drawing
WLPHV
ෘ
Figure 7-5 RF260X dimension drawing
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 121
7.3 Wide-range power supply unit for SIMATIC RF systems
7.3.1 Features
Wide-range power supply unit for SIMATIC RF systems
① DC output 1
② DC output 2
③ Network connector
Characteristics
• Wide-range input ③ for use worldwide
• Dimensions without mains cable: 175 x 85 x 35 mm
• Dimensions including mains cable: 250 x 85 x 35 mm
• CE-compliant (EU and UK versions)
• UL-certified for US and Canada (US version)
• Mechanically and electrically rugged design
• Secondary side ①, ②: 24 VDC / 3 A
• Short-circuit and no-load stability
• Suitable for frame mounting
• 3 versions for use in the EU, UK, US
Description
The wide-range power supply unit for SIMATIC RF systems is a universal compact power
supply and provides the user with an efficient, cost-saving solution for many different mid-
range power supply tasks.
The primary switched power supply is designed for use on single-phase AC systems. The
two DC outputs (sockets) are connected in parallel and protected by a built-in current limiting
circuit against overload and short-circuits.
The device is vacuum-cast and prepared for Safety Class 2 applications. The EU and UK
versions satisfy the low-voltage guideline as well as the current EU standards for CE
conformity. Furthermore, the US version has been UL-certified for the US and Canada.
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
122 System Manual, 03/2013, J31069-D0227-U001-A7-7618
7.3.2 Scope of supply
● Wide-range power supply unit for SIMATIC RF systems
● 2 m mains cable (country-specific)
● Protective cover for flange outlet
● Operating Instructions
7.3.3 Ordering data
Table 7- 6 Ordering data for wide-range power supply unit
Order number
Wide-range power supply unit for SIMATIC RF systems (100 -
240 VAC / 24 VDC / 3 A) with 2 m connecting cable with country-
specific plug
EU: 6GT2898-0AA00
UK: 6GT2898-0AA10
US: 6GT2898-0AA20
24 V-connecting cable, length 5 m 6GT2491-1HH50
7.3.4 Safety Information
WARNING
Danger to life
It is not permitted to open the device or to modify the device.
The following must also be taken into account:
• Failure to observe this requirement shall constitute a revocation of the CE approval, UL
certification for the US and Canada as well as the manufacturer's warranty.
• For installation of the power supply, compliance with the DIN/VDE requirements or the
country-specific regulations is essential.
• The field of application of the power supply unit is limited to "Information technology
equipment" within the scope of validity of the EN 60950/VDE 0805 standard.
• When the equipment is installed, it must be ensured that the mains socket outlet is
freely accessible.
• The housing can reach a temperature of +25 °C during operation without any adverse
consequences. It must, however, be ensured that the power supply is covered in the
case of a housing temperature of more than +25°C to protect persons from contact with
the hot housing. Adequate ventilation of the power supply must be maintained under
these conditions.
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 123
Note
Area of application of the wide-range power supply unit
The wide-range power supply unit may only be used for SIMATIC products in the specifically
described area of application and for the documented purpose.
If the wide-range power supply unit for SIMATIC RF systems is used for an end product
other than one from the SIMATIC RF family, the following must be taken into account:
● The electric strength test of the end product is to be based upon a maximum working
voltage of: Transition from primary to SELV: 353 VDC, 620 Vpk
● The following secondary output circuits are SELV (low voltage; SELV = Safety Extra Low
Voltage): all
● The following secondary output circuits are at non-hazardous energy levels: all
● The power supply terminals and/or connectors are suitable for field wiring if terminals are
provided.
● The maximum investigated branch circuit rating is: 20 A
● The investigated pollution degree is: 2
WARNING
Liability
If the wide-range power supply unit for SIMATIC RF systems is connected to an end
product other than one from the SIMATIC RF family, the end user is responsible and liable
for operation of the system or end product that includes the wide-range power supply unit
for SIMATIC RF systems.
7.3.5 Connecting
● There are three different (country-specific) mains cables for the EU, UK and US.
The appropriate mains cable must be connected to the primary input of the power supply.
Note
It is only permissible to insert or remove the mains cable when the power supply is de-
energized.
● The wide-range power supply unit has total insulation (Safety Class 2), IP65
● It can be mounted using four fixing holes.
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
124 System Manual, 03/2013, J31069-D0227-U001-A7-7618
7.3.6 Technical specifications
General technical specifications
Insulation stability (prim./sec.) Uins p/s 3.3 kVAC
Insulation resistance Rins >1 GΩ
Leakage current Ileak U
in = 230 VAC, f = 50 Hz < 200 µA
Safety class (SELV) Designed for installation in devices of Safety Class 2
Mains buffering th U
in = 230 VAC ≥ 50 ms
Ambient temperature -25 ℃ ... +55 ℃
Surface temperature Module top, center max. 96 ℃
Storage temperature -40 ℃ ... +85 ℃
Self-heating on full-load max. 45 K
Interference immunity
ESD
HF fields
Burst
Surge
HF injection
Mains quality test
EN 61000-4-2,
4-3 to 4-6, 4-11
Air discharge: 15 kV
10 V/m
symmetrical: 2
symmetrical: 1
10 Vrms
Cooling Free convection
Dimensions L x W x H 175 mm x 85 mm x 35 mm
Weight 720 g
Housing / casting UL 94-V0
Power supply class according to CSA Level 3
Degree of protection IP65
MTBF in years 255
Technical specifications - input
Rated input voltage Uin EN 60950 / UL 60950 100 to 240 VAC
120 to 353 VDC
Input frequency fin 50/60 Hz
Radio interference level EN 55011/B
Switching frequency fsw approx. 70 kHz typ.
Length of cable 2 m
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 125
Technical specifications - output
Output voltage tolerance ∆Uout U
in = 230 VAC U
out nom ≤ +2 %/-1 %
Overvoltage protection Uout nom +20 % typ.
Noise ∆ULF U
in = min., BW: 1 MHz ≤ 1 % Uout
Noise ∆UHF U
in = min., BW: 20 MHz ≤ 2 % Uout
Regulation
• Line regulation
• Load regulation
• Uin = min./max.
• Iout = 10...90...10 %
• ≤ 1,0 %
• ≤ 1,0 %
Short-circuit current Imax I
nom = 4 A (+50 °C) 105 ... 130 % Inom
Settling time tR load variations Iout = 10 ... 90 ... 10 % < 5 ms
Temperature coefficient ε TA = -25 °C to +70 °C 0.01 %/K
Overload behavior Pover Constant current
Short-circuit protection/
No-load response
Continuous/no-load stability
Derating TA > +50 °C to +70 °C max. 2 %/K
Connector type
M12, 4-pin;
two sockets
Technical specifications - initial configurations
Input Outputs U1 = U2 ILoad = I1 + I2 Efficiency (%) Remarks
110 VAC 24 VDC 0 A No-load stability
110 VAC 24 VDC 3 A ≥ 88
220 VAC 24 VDC 0 A No-load stability
220 VAC 24 VDC 3 A ≥ 90
Technical specifications - standards complied with
Designation Standard Values
Electrical safety EN 60950 / UL 60950 / CAN/CSA 22.2 950, 3 Edition
Conducted interference EN 61000-6-3
EN 55011
Class B
Emission EN 61000-6-3
EN 55011
Class B
All values are measured at full-load and at an ambient temperature of +25 ℃ (unless
specified otherwise).
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
126 System Manual, 03/2013, J31069-D0227-U001-A7-7618
7.3.7 Pin assignment of DC outputs and mains connection
DC outputs Assignment
(1) Ground (0V)
(2) +24 V DC
(3) +24 V DC
(4) Ground (0V)
Mains connection Assignment
(1) 100 to 240 V AC
(2) n.c.
(3) 100 to 240 V AC
(4) n.c.
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 127
7.3.8 Dimension drawing
s
s
s
Figure 7-6 Dimension drawing wide-range power supply unit for SIMATIC RF systems (all
dimensions in mm)
Accessories
7.3 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF200
128 System Manual, 03/2013, J31069-D0227-U001-A7-7618
7.3.9 Certificates and approvals
Table 7- 7 Wide-range power supply unit for SIMATIC RF systems 6GT2898-0AA00 - Europe,
6GT2898-0AA10 - UK
Certificate Description
CE approval to
2004/108/EC EMC
73/23/EEC LVD
Table 7- 8 Wide-range power supply unit for SIMATIC RF systems 6GT2898-0AA20 - USA
Standard
This product is UL-certified for the US and Canada.
It meets the following safety standards:
UL 60950-1 - Information Technology Equipment Safety - Part 1:
General Requirements
CSA C22.2 No. 60950 -1 - Safety of Information Technology
Equipment
UL Report E 205089
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 129
System integration 8
The communication modules (interface modules) are links between the RFID components
(reader and transponder) and the higher-level controllers (e.g. SIMATIC S7), or PCs or
computers.
SIMATIC
RF170C
5HDGHU 5HDGHU
7DJV0'6
PROFIBUS or
PROFINET/Industrial Ethernet
Master module
SIMATIC S7
PROFINET/
Industrial Ethernet
or
Interface
module
ET 200pro
9IRU
(7SUR5)&
DQGUHDGHU
PROFIBUS
Figure 8-1 Configuration example
Interfacing to the controller
The readers are connected to the controller via the following interface or communications
modules:
● ASM 456
● ASM 475
● RF160C
System integration
SIMATIC RF200
130 System Manual, 03/2013, J31069-D0227-U001-A7-7618
● RF170C
● RF180C
● RF182C
● RFID 181EIP
Function blocks, interface modules/communication modules and readers
Function blocks are used for integration into the SIMATIC. They are used to transfer the
input parameters to the reader using the "init_run"(RESET) command.
Interface modules/communication modules and function blocks
The following table shows the most important features of the interface
modules/communication modules, as well as the compatible function blocks.
When assigning parameters (HW Config) to the communications and interface modules,
MOBY U/D/RF200/RF300/RF600 must be selected.
Table 8- 1 Overview of interface modules/communication modules
ASM/
communications
module
Interfaces to the
application (PLC)
Interfaces to the reader Function blocks Reader connections
ASM 456 PROFIBUS DP-V1 2 x 8-pin connector socket,
M12
FB 45 2 (parallel)

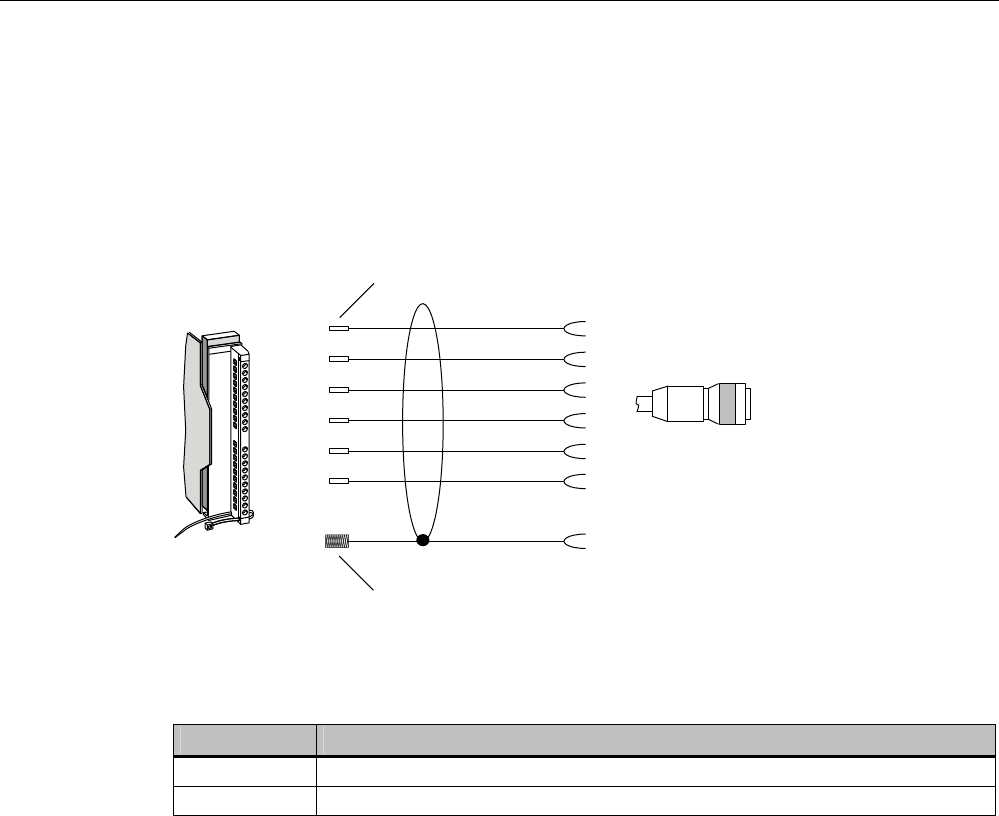

ASM 475 S7-300 (central),
ET200M (PROFIBUS)
Via screw terminals in front
connector
FB 45 2 (parallel)
RF160C PROFIBUS DP-V0 2 x 8-pin connector socket,
M12
FC 44 2 (parallel)
RF170C PROFIBUS DP-V1
PROFINET IO
2 x 8-pin connector socket,
M12
FB 45 2 (parallel)
RF180C PROFINET IO 2 x 8-pin connector socket,
M12
FB 45 2 (parallel)
RF182C TCP/IP 2 x 8-pin connector socket,
M12
__ 2 (parallel)
RFID 181EIP Ethernet/IP 2 x 8-pin connector socket,
M12
__ 2 (parallel)
You will find more information on the communications modules in the relevant manuals
(http://support.automation.siemens.com/WW/view/en/10805849). For more detailed
information on the ASM 475, refer to the RF300 system manual.
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 131
System diagnostics 9
9.1 Error codes of the RF200 readers
Note
Validity of the error codes
The following error codes apply only to RF200 readers with an S-422 interface (CM mode)
You can determine the error code in two ways:
● directly on the reader/CM by counting the flashing pattern of the red error LED
● Through the FB45 variable "error_MOBY".
Table 9- 1 Error codes of the RF200 readers
Flashing of
red LED on
reader
Error code
(hexa-
decimal)
Description
00 00 no error
02 01 Presence error, possible causes:
• The active command was not carried out completely
• The transponder left the antenna field while the command was
being processed - communication disruption between reader and
transponder
05 05 Parameterization error, possible causes:
• Unknown command
• Incorrect parameter
• Function not allowed
06 06 Air interface faulty
12 0C The transponder memory cannot be written, possible cause:
Hardware fault (memory faulty)
13 0D Error in the specified memory address (access attempted to non-
existent or non-accessible memory areas).
19 13 Buffer overflow: Insufficient buffer available in the reader for saving
the command
20 14 Major system fault (hardware fault)
21 15 Parameter assignment error: faulty parameter in RESET command
24 18 Only a RESET command is permitted
25 19 Previous command is still active
28 1C Antenna is already switched off/Antenna is already switched on
System diagnostics
9.2 Diagnostic functions
SIMATIC RF200
132 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Flashing of
red LED on
reader
Error code
(hexa-
decimal)
Description
30 1E Incorrect number of characters in frame
- 1F Running command cancelled by "RESET" command
Note
Error message when memory area is protected
For transponders with a locked or protected memory area, different error messages can
occur following a write command depending on the data carrier type, e.g. MDS D1xx (NXP),
D3xx (Infineon), D4xx (Fujitsu): Error 01, 0C
9.2 Diagnostic functions
Further information on RFID diagnostic options can be found in Function Manual FB 45
(http://support.automation.siemens.com/WW/view/en/21738808).
9.2.1 Reader diagnostics with SLG STATUS
The SLG STATUS command can be used to scan the status and diagnostics data of the
reader.
SLG STATUS (mode 01), corresponds to UDT 110
Name Type Possible values Comment
hardware char (31 to 38 hex)
31 hex
32 hex
33 hex
34 hex
Type of hardware
= RF260R
= RF210/220R
= RF240R
= RF290R
hardware_version word
0 to FF hex
0 to FF hex
HW version (reserved)
= Version (high byte)
= Version (low byte)
loader_version word
0 to FF hex
0 to FF hex
Bootstrap loader version: e.g. 3130 (=version
1.0)
= Version (high byte)
= Version (low byte)
firmware char 0 to FF hex FW version : 33 (ASCII : 3 = RF2x0R)
firmware_version word
0 to FF hex
0 to FF hex
Firmware version: e.g. 3130 (=version 1.0)
= Version (high byte)
= Version (low byte)
System diagnostics
9.2 Diagnostic functions
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 133
Name Type Possible values Comment
driver char
31 hex
Type of driver
3964R
driver_version word
0 to FF hex
0 to FF hex
Driver version: e.g. 3132 (=version 1.2)
= Version (high byte)
= Version (low byte)
interface byte
01 hex
02 hex
Interface type
= RS-422
= RS-232
baud byte
01 hex
03 hex
05 hex
Baud rate
= 19.2 kBd
= 57.6 kBd
= 115.2 kBd
multitag_SLG byte
01 hex
Number of transponders (multitag/bulk) that can
be processed in the antenna field
= Single tag mode
field_ON_time_SLG byte 01 hex
ISO transponder (non-specific)
status_ant byte
01 hex
02 hex
Status of antenna
= Antenna is on
= antenna is off
MDS_control byte
00 hex
01 hex
Presence status
= Operation without presence message
= Operation with presence message
Note
Unassigned fields in the UDT are not listed here.
System diagnostics
9.2 Diagnostic functions
SIMATIC RF200
134 System Manual, 03/2013, J31069-D0227-U001-A7-7618
9.2.2 Transponder diagnostics with MDS STATUS
The MDS STATUS command can be used to scan the status data of the transponder that is
located within the antenna field.
MDS STATUS for ISO transponder (mode 03) corresponds to UDT 230
Table 9- 2 MDS STATUS for ISO mode
Name Type Possible values Comment
UID array[1…8] byte
000000000
0000000 hex to
FFFFFFFF
FFFFFFFF hex
Unique identifier
=8 byte UID, MSB first
MDS_type byte
01 hex
03 hex
04 hex
05 hex
06 hex
07 hex
Tag type (chip manufacturer, designation)
= ISO general (non-specific or unknown)
= my-d (Infineon), MDS D3xx
= MB89R118 (Fujitsu), MDS D4xx
= I-Code SLI (NXP), MDS D1xx
= Tag-it HFI (Texas Instruments), MDS D2xx
= LRI2K (ST)
IC_version byte 0 to FF hex Chip version
size word 0 to FF hex Memory size in bytes
Depending on tag type, e.g. my-d: 992 bytes
lock_state byte 0 to FF hex –not used with RF200
block_size byte 0 to FF hex Block size of the transponder
Depending on tag type, e.g. my-d: 4 bytes
nr_of_blocks byte 0 to FF hex Number of blocks
Depending on tag type, e.g. my-d: 248
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 135
Appendix A
A.1 Certificates and approvals
Certificate Description
Conformity with R&TTE directive
Notes on CE marking
The following applies to the system described in this documentation:
The CE marking on a device is indicative of the corresponding approval:
DIN ISO 9001 certificate
The quality assurance system for the entire product process (development, production, and
marketing) at Siemens fulfills the requirements of ISO 9001 (corresponds to EN29001:
1987).
This has been certified by DQS (the German society for the certification of quality
management systems).
EQ-Net certificate no.: 1323-01
Certifications for the United States, Canada, and Australia
Safety
One of the following markings on a device is indicative of the corresponding approval:
Underwriters Laboratories (UL) per UL 60950 (I.T.E) or per UL 508 (IND.CONT.EQ)
Underwriters Laboratories (UL) according to Canadian standard C22.2 No. 60950
(I.T.E) or C22.2 No. 142 (IND.CONT.EQ)
Underwriters Laboratories (UL) according to standard UL 60950, Report E11 5352 and
Canadian standard C22.2 No. 60950 (I.T.E) or UL508 and C22.2 No. 142
(IND.CONT.EQ)
UL recognition mark
Appendix
A.1 Certificates and approvals
SIMATIC RF200
136 System Manual, 03/2013, J31069-D0227-U001-A7-7618
One of the following markings on a device is indicative of the corresponding approval:
Canadian Standard Association (CSA) per Standard C22.2. No. 60950 (LR 81690) or
per C22.2 No. 142 (LR 63533)
Canadian Standard Association (CSA) per American Standard UL 60950 (LR 81690) or
per UL 508 (LR 63533)
EMC
USA
Federal Communications
Commission
Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Shielded Cables Shielded cables must be used with this equipment to maintain compliance
with FCC regulations.
Modifications Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
Conditions of Operations This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CANADA
Canadian Notice This Class A digital apparatus complies with Canadian ICES-003.
AUSTRALIA
This product meets the requirements of the AS/NZS 3548 Norm.
Appendix
A.2 Connecting cable
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 137
A.2 Connecting cable
A.2.1 Reader RF2xxR (RS422) with ASM 456/RF170C/RF180C
Connecting cable with straight connector
0FRQQHFWRU
PDOH
5HDGHUVLGH
&0VLGH
/
Figure A-1 Connecting cable between ASM 456, RF170C, RF180C and reader RF2xxR (RS-422)
Table A- 1 Ordering data
Length L Order number
2 m 6GT2891-4FH20
5 m 6GT2891-4FH50
10 m 6GT2891-4FN10
20 m 6GT2891-4FN20
50 m 6GT2891-4FN50
Appendix
A.2 Connecting cable
SIMATIC RF200
138 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Connecting cable with angled connector
0FRQQHFWRU
PDOH
5HDGHUVLGH
&0VLGH
/
K
Figure A-2 Connecting cable between ASM 456, RF170C, RF180C and reader RF2xxR (RS-422)
with angled connector
The angled connector has a height of h = 29 mm. Remember that due to the construction,
the distance between the edge of the connector and the edge of the reader housing is
higher.
The distance between the edge of the connector and the edge of the housing is as follows:
RF210R/RF220R = 33 mm, RF240R/RF260R = 36 mm and RF290R = 37 mm.
Table A- 2 Ordering data
Length L Order number
2 m 6GT2891-4JH20
Appendix
A.2 Connecting cable
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 139
A.2.2 Reader RF2xxR (RS-422) with ASM 475
Reader connection system
The connecting cable has a length of 2 m (standard) and 5 m. Extensions up to 1000 m are
possible with the 6GT2891-4F… plug-in cables.
&DEOHZLWKHQGVOHHYHV
*UD\
SLQN
\HOOR
Z
EURZQ
ZKLWH
VKLHOG
&DEOHVKLHOGH[SRVHG
$
60VLGH 5HDGHUVLGH
JUHHQ
6/*FRQQHFWRU
VRFNHW
0SLQ
Figure A-3 Connecting cable between the ASM 475 and RF2xx reader (RS-422)
Table A- 3 Ordering data
Length L Order number
2 m 6GT2891-4EH20
5 m 6GT2891-4EH50
Appendix
A.2 Connecting cable
SIMATIC RF200
140 System Manual, 03/2013, J31069-D0227-U001-A7-7618
A.2.3 Reader RF240R/RF260R/RF290R (RS232) with PC
With 4-pin power supply connector
The connecting cable (6GT2891-4KH50) is 5 m long.
Special feature of the cable: additional branch for the power supply.
5HDGHUVLGH
SLQ
0PDOH
'VXESLQ3&
VRFNHW
Figure A-4 Connecting cable between PC and RF240R/RF260R/RF290R (RS-232) with 4-pin power supply connector
Suitable power supply unit: e.g. wide-range power supply unit
With open ends for the power supply
R(
R(
5HDGHUVLGH'VXESLQ3&
VRFNHW
JUD\
EURZQ
0
3
Figure A-5 Connecting cable between PC and RF240R/RF260R/RF290R (RS-232) with open ends for the power supply
Appendix
A.3 Ordering data
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 141
Table A- 4 Ordering data connecting cable
Order number
Connecting cable RS-232 with M12 male connector (4-pin), 5 m 6GT2891-4KH50
Connecting cable RS-232 with open ends (5 m) 6GT2891-4KH50-0AX0
A.3 Ordering data
RF200 components
Table A- 5 RF200 reader
Readers Description Order number
RF210R • With RS422 interface (3964R)
• IP67
• Operating temperature: -25 ℃ ... +70 ℃
• Dimensions (L x Ø): 83 x 18 mm
• with integrated antenna
6GT2821-1AC10
RF220R • With RS422 interface (3964R)
• IP67
• Operating temperature: -25 ℃ ... +70 ℃
• Dimensions (L x Ø): 83 x 30 mm
• with integrated antenna
6GT2821-2AC10
RF240R • With RS422 interface (3964R)
• IP67
• Operating temperature: -20 ℃ ... +70 ℃
• Dimensions (L x W x H): 50 x 50 x 30 mm
• with integrated antenna
6GT2821-4AC10
RF240R • With RS-232 interface (3964R)
• IP67
• Operating temperature: -20 ℃ ... +70 ℃
• Dimensions (L x W x H): 50 x 50 x 30 mm
• with integrated antenna
6GT2821-4AC11
RF260R • With RS422 interface (3964R)
• IP67
• Operating temperature: -20 ℃ ... +70 ℃
• Dimensions (L x W x H): 75 x 75 x 41 mm
• with integrated antenna
6GT 2821-6AC10
Appendix
A.3 Ordering data
SIMATIC RF200
142 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Readers Description Order number
RF260R • With RS-232 interface (3964R)
• IP67
• Operating temperature: -20 ℃ ... +70 ℃
• Dimensions (L x W x H): 75 x 75 x 41 mm
• with integrated antenna
6GT2821-6AC11
RF290R • With RS-232 interface and
RS-422 interface (3964R)
• IP65
• Operating temperature: -20 ℃ ... +55 ℃
• Dimensions (L x W x H): 200 x 140 x 80 mm
• Long-range reader with the option of connecting external antennas
6GT2821-0AC12
Table A- 6 ISO transponder
ISO transponder Description Order number
MDS D100 • IP68
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +80 ℃
• Dimensions (L x W x H): 85.6 (±0.2) x 54 (±0.2) x 0.9 (±0.05) mm
• ISO card
6GT2600-0AD10
MDS D124 • IP67
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +125 ℃
• Dimensions (Ø x H): 27 (±0.2) x 4 (±0.2) mm
6GT2600-0AC10
MDS D126 • IP68
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 50 x 3.6 mm
• Round design with mounting hole
6GT2600-0AE00
MDS D127 • IP68
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +125 ℃
• Dimensions (Ø x H): M6 x 5 (±0.2) mm
6GT2600-0AF00
MDS D139 • IP68
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature range: up to +200 °C/+220 °C [heat-resistant
(r/w)]
• Dimensions (Ø x H): 85 (±0.5) x 15 (-1.0) mm
6GT2600-0AA10
Appendix
A.3 Ordering data
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 143
ISO transponder Description Order number
MDS D160 • IP68 (24 hours, 2 m, +20 °C)
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature: -25 ℃ ... +70 ℃
• Dimensions (Ø x H): 16 (±0.2) x 3.0 (±0.2) mm
• Laundry tag for cyclical applications (r/w)
6GT2600-0AB10
MDS D165 • IP65
• Memory size: 112 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (L x W): 86 x 54 mm
• Smartlabel (PET) in credit card format
6GT2600-1AB00-0AX0
MDS D200 • IP67
• Memory size: 256 bytes of EEPROM
• Operating temperature range: -20 ℃ ... +60 ℃
• Dimensions (L x W x H): 86 x 54 x 0.8 mm
• Credit card format
6GT2600-1AD00-0AX0
MDS D261 • IP65
• Memory size: 256 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (L x W): 55 x 55 mm
• Smartlabel (PET), small design
6GT2600-1AA01-0AX0
MDS D324 • IP67
• Memory size: 992 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +125 ℃
• Dimensions (Ø x H): 27 (±0.2) x 4 (±0.2) mm
6GT2600-3AC00
MDS D339 • IP68
• Memory size: 992 bytes of EEPROM user memory
• Operating temperature range: -25 ℃ ... +220 ℃
• Dimensions (Ø x H): 85 (±0.5) x 15 (-1.0) mm
6GT2600-3AA10
MDS D400 • IP67
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ...+60 ℃
• Dimensions (L x W x H) 85.6 (±0.3) × 54 (±0.2) × 0.8 (±0.05) mm
6GT2600-4AD00
MDS D421 • IP67/x9K
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 10 x 4.5 mm
6GT2600-4AE00
Appendix
A.3 Ordering data
SIMATIC RF200
144 System Manual, 03/2013, J31069-D0227-U001-A7-7618
ISO transponder Description Order number
MDS D422 • IP68
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): M20 x 6 (±0.2) mm
• Can be screwed into metal (flush-mounted)
6GT2600-4AF00
MDS D423 • IP68
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 30 (+0.2/-0.5) x 8 (-0.5) mm
6GT2600-4AA00
MDS D424 • IP67
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +125 ℃
• Dimensions (Ø x H): 27 (±0.2) x 4 (±0.2) mm
6GT2600-4AC00
MDS D425 • IP68; IP x9K
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 24 X 10 mm; M6 thread
• Screw transponder
6GT2600-4AG00
MDS D426 • IP68
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 50 x 3.6 mm
• Round design with mounting hole
6GT2600-4AH00
MDS D428 • IP68; IP x9K
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 18(±1) x 20(±1) mm (without thread); thread M8
6GT2600-4AK00
MDS D460 • IP68
• Memory size: 2000 bytes of FRAM user memory
• Operating temperature range: -25 ℃ ... +85 ℃
• Dimensions (Ø x H): 16 (±0.2) x 3.0 (±0.2) mm
6GT2600-4AB00
Appendix
A.3 Ordering data
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 145
Table A- 7 Communication modules/interface modules
ASM/
communications
module
Description Order number
ASM 456 ASM 456 for PROFIBUS DP V1
max. 2 readers can be connected
6GT2002-0ED00
ASM 475 ASM 475 for SIMATIC S7
max. 2 x RF2xxR readers with RS-422 can be connected at the same time
without front connector
6GT2002-0GA10
RF160C Communications module RF160C for PROFIBUS DP V0
max. 2 readers can be connected
6GT2002-0EF00
RF170C communications module 6GT2002-0HD00 RF170C
RF170C connecting block 6GT2002-1HD00
RF180C communications module
max. 2 SLGs or readers can be connected
6GT2002-0JD00
Connecting block M12, 7/8'' (5-pin) 6GT2002-1JD00
Connecting block M12, 7/8'' (4-pin) 6GT2002-4JD00
RF180C
Push-pull connecting block, RJ-45 6GT2002-2JD00
RF182C communication module
Max. 2 SLGs or readers can be connected
6GT2002-0JD10
Connecting block M12, 7/8'' (5-pin) 6GT2002-1JD00
Connecting block M12, 7/8'' (4-pin) 6GT2002-4JD00
RF182C
Push-pull connecting block, RJ-45 6GT2002-2JD00
RF182C communications module
max. 2 SLGs or readers can be connected
6GT2002-0JD20
Connecting block M12, 7/8'' (5-pin) 6GT2002-1JD00
Connecting block M12, 7/8'' (4-pin) 6GT2002-4JD00
RFID 181EIP
Push-pull connecting block, RJ-45 6GT2002-2JD00
Table A- 8 Antennas
Antennas Description Order number
ANT D5 incl. one antenna connecting cable 3.3 m 6GT2698-5AA10
ANT D6 incl. one antenna connecting cable 3.3 m 6GT2698-5AB00
ANT D10 incl. one antenna connecting cable 3.3 m 6GT2698-5AF00
Appendix
A.3 Ordering data
SIMATIC RF200
146 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Accessories
Table A- 9 Reader accessories
ISO transponder Accessories Order number
RF290R Adapter for mounting on a DIN rail
(pack of 3)
6GK5798-8ML00-0AB3
Table A- 10 ISO transponder accessories
ISO transponder Accessories Order number
Spacers 6GT2190-0AA00
Fixing pocket 6GT2190-0AB00
MDS D100
Securing pocket
(cannot be mounted directly on metal)
6GT2390-0AA00
Spacer (Ø x H): 85 x 30 mm 6GT2690-0AA00 MDS D139
Quick change holder (Ø x H): 22 x 48 mm 6GT2690-0AH00
MDS D124 / D324 /
D424
Spacer (Ø x H): 35 x 15 mm 6GT2690-0AK00
MDS D126 / D426 Spacer (Ø x H): 60 x 30 mm 6GT2690-0AL00
MDS D160 Spacer (Ø x H): 20 x 15 mm 6GT2690-0AG00
Table A- 11 Antenna accessories
Antennas Accessories Order number
Antenna splitter
(incl. one antenna connecting cable 3.3 m)
6GT2690-0AC00
Antenna multiplexer SIMATIC RF260X
(incl. one antenna connecting cable 0.4 m)
6GT2894-0EA00
3.3 m 6GT2691-0CH33 Antenna cable
10.5 m 6GT2691-0CN10
ANT D5 / ANT D6 /
ANT D10
Antenna cable extension 7.2 m 6GT2691-0DH72
ANT D6 Cover 6GT2690-0AD00
Table A- 12 Accessories - connecting cable RF200 reader ↔ PC
Connecting cable Accessories Order number
Connecting cable RS-232
with M12 male connector (4-pin), 5 m
6GT2891-4KH50 RF240R / RF260R /
RF290R (RS-232)
and PC Connecting cable RS-232
with open ends, 5 m
6GT2891-4KH50-0AX0
Appendix
A.3 Ordering data
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 147
Table A- 13 Accessories - connecting cable communications module/ASM ↔ reader
Connecting cables Description
Length
Order number
2 m 6GT2891-4FH20
5 m 6GT2891-4FH50
10 m 6GT2891-4FN10
20 m 6GT2891-4FN20
ASM 456 / RF160C /
RF170C / RF180C
and RF2xxR reader
(RS-422)
50 m 6GT2891-4FN50
ASM 456 / RF160C /
RF170C / RF180C
and RF2xxR reader
(RS-422) with angled
connector
2 m 6GT2891-4JH20
2 m 6GT2891-4EH20 ASM 475
and RF2xxR reader
(RS-422)
5 m 6GT2891-4EH50
Table A- 14 RFID accessories, general
RFID general Order number
DVD "RFID Systems Software & Documentation" 6GT2080-2AA20
Wide-range power supply unit for SIMATIC RF-systems
(100 - 240 VAC / 24 VDC / 3 A)
with 2 m connecting cable with country-specific plug
EU: 6GT2898-0AA00
UK: 6GT2898-0AA10
US: 6GT2898-0AA20
24 V connecting cable, 5 m 6GT2491-1HH50
Appendix
A.4 Service & Support
SIMATIC RF200
148 System Manual, 03/2013, J31069-D0227-U001-A7-7618
A.4 Service & Support
Contacts
If you have any further questions on the use of our products, please contact one of our
representatives at your local Siemens office.
The addresses are found on the following pages:
● On the Internet (http://www.siemens.com/automation/partner)
● In Catalog CA 01
● In Catalog ID 10 specifically for industrial communication / industrial identification systems
Technical Support
You can contact Technical Support for SIPLUS HCS systems as follows:
● Phone: + 49 (0) 911 895 5900
● E-mail (mailto:technical-assistance@siemens.com)
● Internet: Online support request form: (http://www.siemens.com/automation/support-
request)
Service & support for industrial automation and drive technologies
You can find various services on the Support homepage
(http://www.siemens.com/automation/service&support) of IA/DT on the Internet.
There you will find the following information, for example:
● Our newsletter containing up-to-date information on your products.
● Relevant documentation for your application, which you can access via the search
function in "Product Support".
● A forum for global information exchange by users and specialists.
● Your local contact for IA/DT on site.
● Information about on-site service, repairs, and spare parts. Much more can be found
under "Our service offer".
RFID homepage
For general information about our identification systems, visit RFID homepage
(http://www.siemens.com/ident/rfid).
Technical documentation on the Internet
A guide to the technical documentation for the various products and systems is available on
the Internet:
SIMATIC Guide manuals (http://www.siemens.com/simatic-tech-doku-portal)
Appendix
A.4 Service & Support
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 149
Online catalog and ordering system
The online catalog and the online ordering system can also be found on the Industry Mall
Homepage (http://www.siemens.com/industrymall).
Training center
We offer appropriate courses to get you started. Please contact your local training center or
the central training center in
D-90327 Nuremberg.
Phone: +49 (0) 180 523 56 11
(€ 0.14 /min. from the German landline network, deviating mobile communications prices are
possible)
For information about courses, see the SITRAIN homepage (http://www.sitrain.com).
Appendix
A.4 Service & Support
SIMATIC RF200
150 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 151
Glossary
Automation system (AS)
A programmable logical controller (PLC) of the SIMATIC S7 system, comprising a central
controller, a CPU and various I/O modules.
Battery-free data storage unit
Mobile data storage units which operate without batteries. Power is supplied to the data
storage unit across an electromagnetic alternating field.
Byte
A group of eight bits forms a byte
CE marking
Communauté Européenne (product mark of the European Union)
Communication modules
Communication modules ensure the integration of the MOBY and SIMATIC RF identification
systems into SIMATIC, SINUMERIK, SIMOTION, PROFIBUS, PROFINET and TCP/IP.
Once supplied with the corresponding parameters and data, they handle data
communication. They then make the corresponding results and data available.
Corresponding software blocks (FBs/FCs for SIMATIC) guarantee simple and quick
integration into the application.
Data transmission rate
Unit of measurement for the volume of data transmitted within a unit of time, e.g. bytes/s
Detection area
Area with minimum field strength containing the transmission window, as well as the areas in
which the field strength is no longer sufficient for data exchange.
Dwell time
The dwell time is the time in which the transponder dwells within the transmission window of
a read/write device. The read/write device can exchange data with the transponder during
this time.
Glossary
SIMATIC RF200
152 System Manual, 03/2013, J31069-D0227-U001-A7-7618
Dynamic mode
In dynamic mode, the data carrier moves past the read/write device at a traversing rate
which depends on the configuration. Various checking mechanisms (listen-in check, CRC,
ECC, etc.) ensure error-free data transfer even under extreme environmental conditions. A
serial connection (up to 1000 m) is used to connect the read/write device directly to an
interface module, PC, or any other system.
Electromagnetic compatibility
Electromagnetic compatibility is the ability of an electrical or electronic device to operate
satisfactorily in an electromagnetic environment without affecting or interfering with the
environment over and above certain limits.
EMC Directive
Guidelines for electromagnetic compatibility This guideline relates to any electrical or
electronic equipment, plant or system containing electric or electronic components.
Equipotential bonding
Potential differences between different parts of a plant can arise due to the different design
of the plant components and different voltage levels. It is necessary to compensate for these
differences by equipotential bonding: this is done by combining the equipotential bonding
conductors of power components and non-power components on a centralized equalizing
conductor.
ESD Directive
Directive for handling ESDs.
Frequency hopping
Frequency hopping technique Automatic search for free channels.
In frequency hopping, data packets are transferred between the communication partners on
constantly changing carrier frequencies. This makes it possible to react to interference from
devices transmitting signals in the same frequency range. If an attempt to send a data
packet is unsuccessful, the packet can be transmitted again on a different carrier frequency.
Interface modules (ASM)
See communication modules
Limit distance
The limit distance (Sg) is the maximum clear distance between the upper surface of the
read/write device and the transponder at which transmission still functions under normal
conditions.
Glossary
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 153
Lx
Length of a transmission window in the x direction
Ly
Length of a transmission window in the y direction
M
Centerpoint of a field of a transmission window
Metal-free area
Distance/area which must be maintained between the transponder and metal in order to
prevent interference during data transfer between the transponder and read/write device.
Mobile data storage units (MDS)
See transponder
Multi-tag capability
Multi-tag capability means the ability to use several read/write devices which communicate
simultaneously with different data carriers.
Programmable logic controller (PLC)
The programmable logic controllers (PLC) of the SIMATIC S5 system consist of a central
controller, one or more CPUs, and various other modules (e.g. I/O modules).
Read/write devices (SLG)
See readers
Read/write distance
See transmission distance
Readers
Readers ensure fast, secure data transfer between mobile data storage units and higher-
level systems (PLCs, PCs, etc.). The data, energy included, are transmitted inductively
across an electromagnetic alternating field or by radio. This principle enables contact-free
data transmission, ensures high industrial compatibility and works reliably in the presence of
contamination or through non-metallic materials.
Glossary
SIMATIC RF200
154 System Manual, 03/2013, J31069-D0227-U001-A7-7618
RFID systems
SIMATIC RF identification systems control and optimize material flow and production
sequences. They identify reliably, quickly and economically, use non-contact data
communication technology, and store data directly on the product. They are also resistant to
contamination.
Sa
Operating distance between transponder and reader
Secondary fields
The strength of the secondary fields, which exist in addition to the transmission window, is
usually lower than that of the transmission window and depends on the metallic environment.
Secondary fields should not be used in configuring.
Sg
See limit distance
Static mode
In static mode the transponder is positioned at a fixed distance (maximum: limit distance)
exactly above the read/write device.
Tag
See transponder
Telegram cycles
The transfer of a read or write command takes place in three cycles, known as message
frame cycles. 1 or 2 bytes of user data can be transferred with each command. The
acknowledgement transfer (status or read data) takes place in 3 further cycles.
Transmission distance
Distance between communication module (read/write device) and transponder (mobile data
storage unit)
Transmission window
Area in which reliable data exchange between transponder and read/write device is possible
due to a particular minimum field strength.
Glossary
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 155
Transponder
An invented word from transmitter and responder. Transponders are used on the product,
the product carrier, the object, or its transport or packaging unit, and contain production and
manufacturing data, i.e. all application-specific data. They follow the product through
assembly lines, transfer and production lines and are used to control material flow.
Because of their wireless design, transponders can be used, if necessary, at individual work
locations or manufacturing stations, where their data can be read and updated.
Transponders consist predominantly of logic, FRAM and/or EEPROM.
If a transponder moves into the transmission window of the reader, the necessary power for
all of the circuit components is generated and monitored by the power supply unit. The
pulse-coded information is prepared in such a way that it can be processed further as pure
digital signals. The handling of data, including check routines, is performed by the logic,
which also manages the various memories.
Glossary
SIMATIC RF200
156 System Manual, 03/2013, J31069-D0227-U001-A7-7618
SIMATIC RF200
System Manual, 03/2013, J31069-D0227-U001-A7-7618 157
Index
A
Accessories
SIMATIC RF260X antenna multiplexer, 113
Wide-range power supply unit, 121
ANT D10
Definition of distance D, 96
Dimensions, 109
Transmission window, 105
ANT D5
Definition of distance D, 96
ANT D6
Definition of distance D, 101
Antenna
ANT D10, 104
ANT D5, 93
ANT D6, 99
Antenna splitter, 111
Application Planning
SIMATIC RF200, 17
Approvals, 135
ASM 475
Assignment for connecting cable, 139
Pin assignment, 139
C
Certificates, 135
Communication modules, 129
Communication time
Calculation, 23
Contacts, 148
Courses, 149
D
Detection area, 21
Diagnostic functions
Transponder, 134
Direction of motion
Transponder, 21
Display elements
Reader RF290R, 84
RF210R reader, 62
RF220R reader, 67
RF240R reader, 72
RF260R reader, 77
Dwell time
Transponder, 22
Dynamic mode, 22
Dwell time of the transponder, 23
E
EMC Guidelines, 136
F
Field data
RF210R, 29
RF220R, 29
RF240R, 30
RF260R, 30
RF290R, 31
Flush-mounting
of transponders and readers, 35
I
Installation
Several readers, 36
Installation guidelines, 34
Interface modules, 129
M
Metal
Influence on the transmission window, 37
Metal-free space
Reader RF290R, 47
RF210R reader, 38
RF220R reader, 40
RF240R reader, 42
RF260R reader, 44
Minimum distance
Antenna to antenna, 33
Reader to reader, 33
Transponder to transponder, 32
MOBY antenna splitter
Technical specifications, 112
Index
SIMATIC RF200
158 System Manual, 03/2013, J31069-D0227-U001-A7-7618
O
Ordering data, 141
Accessories, 146
Antenna multiplexer SIMATIC RF260X, 113
Antenna splitter, 111
Antennas, 145
Interface modules/communication Modules, 145
Readers, 141
Transponder, 142
Wide-range power supply unit, 122
R
Reader RF290R
Metal-free space, 47
Reader SIMATIC RF240R, 71
Reader SIMATIC RF290R, 81
Readers
Mounting, 36
Reducing interference due to metal, 34
RF210R reader
Metal-free space, 38
RF220R reader
Metal-free space, 40
RF240R reader
Metal-free space, 42
RF260R reader
Metal-free space, 44
S
Selection criteria
SIMATIC RF200 components, 17
SIMATIC RF210R reader, 61
SIMATIC RF220R reader, 66
SIMATIC RF260R reader, 76
SIMATIC RF260X, 113
SIMATIC RF260X antenna multiplexer, 113
Static mode, 21
Dwell time of the transponder, 23
System diagnostics
MDS status, 134
T
Technical documentation
On the Internet, 148
Technical Support, 148
Tracking
Tolerance, 20
Tracking tolerances, 20
Training, 149
Transmission window
Impact of metal, 37
Width, 20
Transponder
Detection area, 21
Directions of motion, 21
Dwell time, 22
Mounting on metal, 37
U
User data
Calculate maximum number, 23
Calculation, 23
W
Wide-range power supply unit, 121
www.siemens.com/automation
subject to change
J31069-D0227-U001-A7-7618
© Siemens AG 2013
SIEMENS AG
Industry Sector
Sensors and Communication
Postfach 4848
90026 NÜRNBERG
DEUTSCHLAND
www.siemens.com/ident
Get more Information
