Siemens RF350R01 RFID System User Manual SIMATIC RF300

Siemens AG RFID System SIMATIC RF300

Users Manual 2 of 4

Readers
5.2 SIMATIC RF310R with IQ-Sense interface
SIMATIC RF300
100 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04

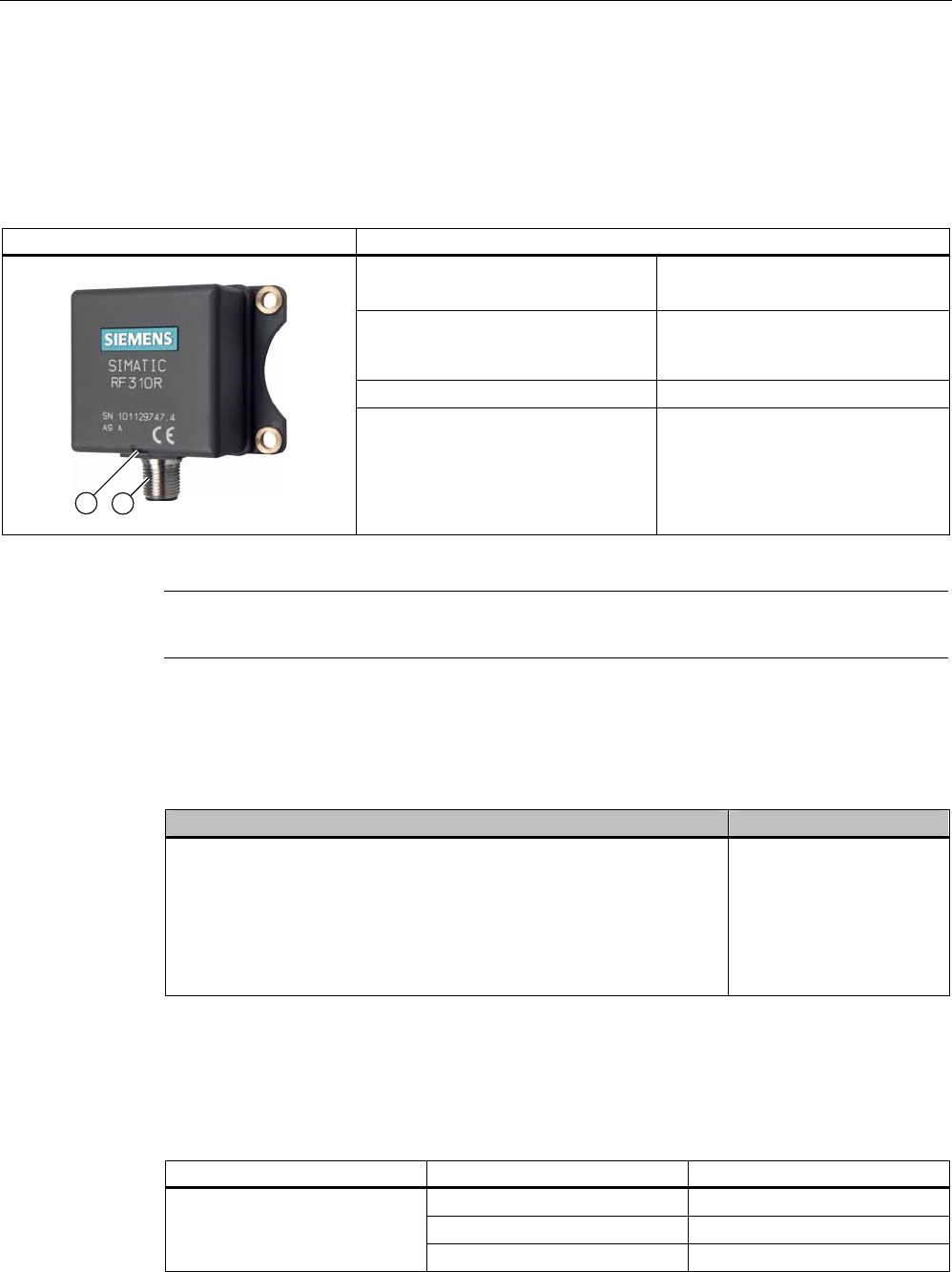

5.2 SIMATIC RF310R with IQ-Sense interface
5.2.1 Features
RF310R with IQ-Sense Characteristics
Design ① IQ-Sense interface
② Status display
Field of application Identification tasks on small
assembly lines in harsh industrial
environments
Read/write distance to transponder Max. 35 mm


Data transmission rate Read: approx. 50 bytes/s
Write: approx. 40 bytes/s
Note
SIMATIC RF310R with IQ-Sense interface is not suitable for combining with ISO tags.
5.2.2 Ordering data of RF310R with IQ-Sense interface
RF310R Order number
With IQ-Sense interface
IP67
Operating temperature: -25 °C to +70 °C
Dimensions: 55 x 75 x 30 (L x W x H, in mm)
with integrated antenna
Max. limit distance: 35 mm (depending on transponder)
6GT2801-0AA00
5.2.3 Pin assignment of RF310R IQ-Sense interface
Table 5- 1 Pin assignment of RF310R with IQ-Sense interface
Pin Pin, device end, 4-pin M12 Assignment
1 IQ-Sense
2 Not assigned
3 IQ-Sense
Readers
5.2 SIMATIC RF310R with IQ-Sense interface
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 101
Pin Pin, device end, 4-pin M12 Assignment
4 Not connected
5.2.4 Display elements of the RF310R reader with IQ-Sense interface
Color Meaning
Green Operating voltage available
yellow Transponder present
Red Error occurred (see FC35 documentation, Section "Error messages and
troubleshooting", Subsection "Error messages, error_MOBY")
5.2.5 Ensuring reliable data exchange
The "center point" of the transponder must be situated within the transmission window.

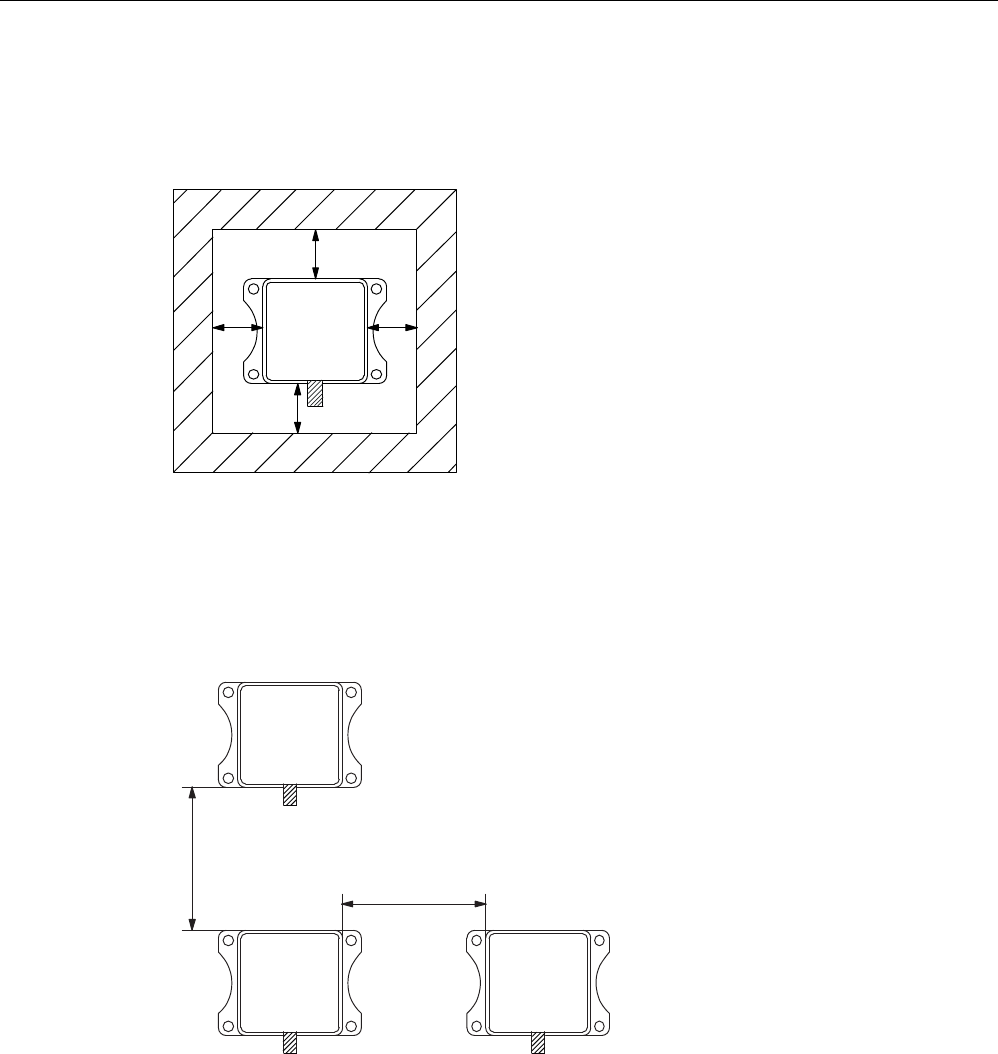

5.2.6 Metal-free area
The RF310R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
D
D
DD
6,0$7,&
5)5

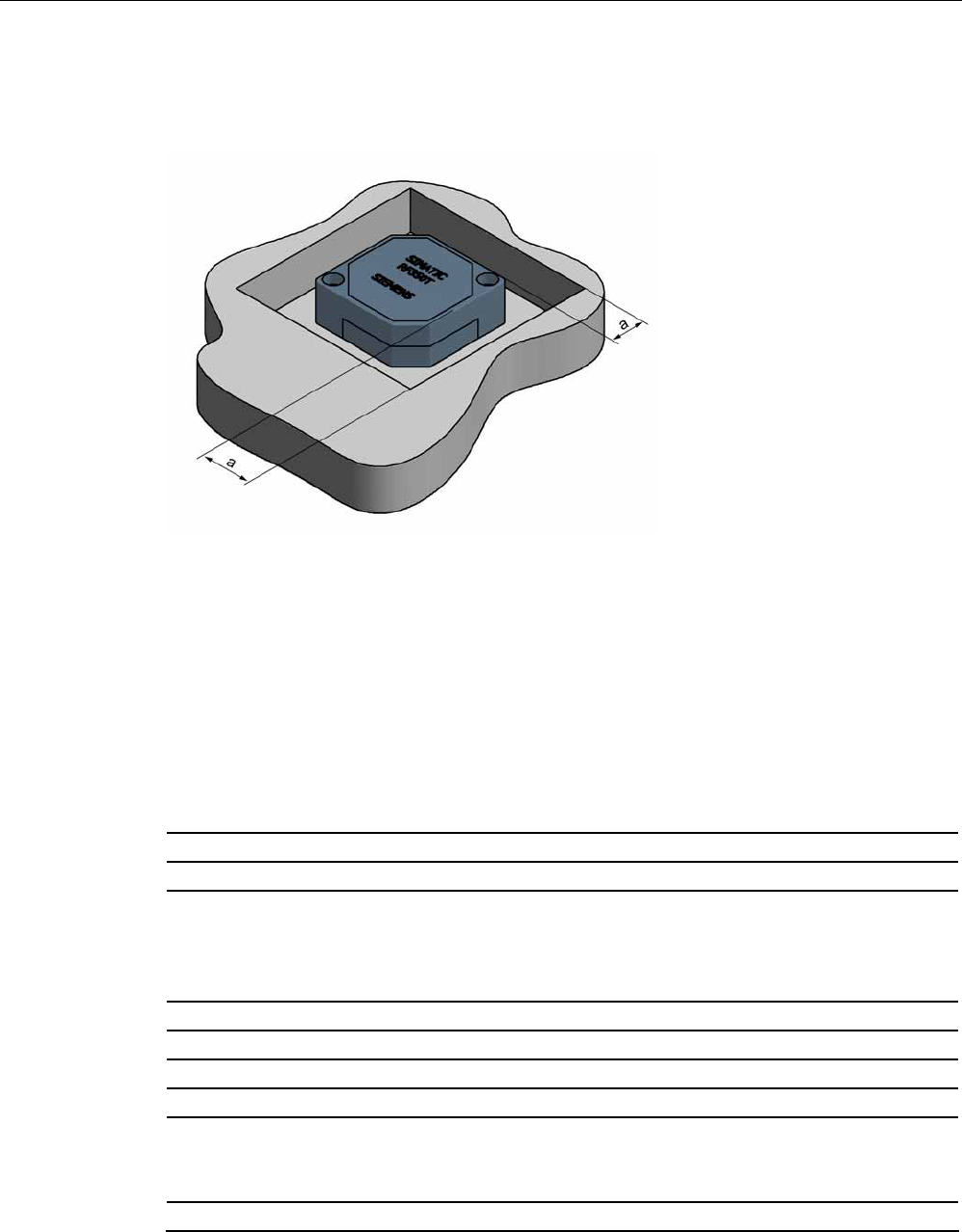

Figure 5-1 Metal-free area for RF310R
To avoid any impact on the field data, the distance a should be ≥ 20 mm.
Readers
5.2 SIMATIC RF310R with IQ-Sense interface
SIMATIC RF300
102 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04

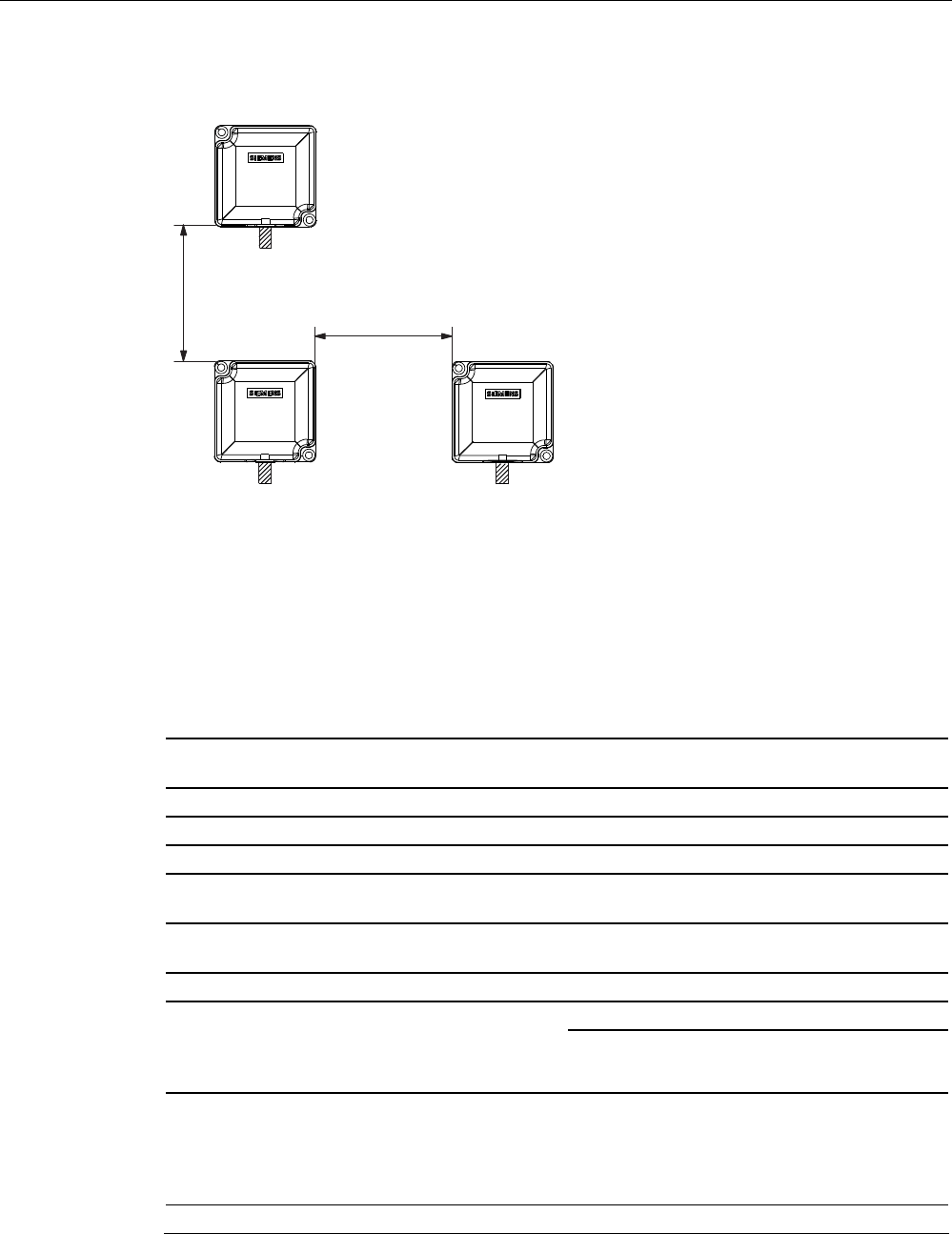

5.2.7 Minimum distance between RF310R readers
'D
'E
5)5
6,0$7,&
5)5
6,0$7,&
5)5
6,0$7,&
Da ≥ 100 mm
Db ≥ 100 mm
Figure 5-2 Minimum distance between RF310R readers
5.2.8 Technical data for RF310R reader with IQ-Sense interface
Table 5- 2 Technical specifications for RF310R reader with IQ-Sense interface
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Interface to SIMATIC S7-300
Required master module
RFID channels (RF310R)
Mixed operation with other profiles
IQ-Sense, 2-wire non-polarized
8-IQ-Sense (6ES7 338-7XF00-0AB0)
max. 2 per master module,
max. 4 Opto-BEROs, 1x SIMATIC RF310R
Cable length reader - communication module Max. 50 m (unshielded cable)
Read/write distances of reader See Chapter Field data of RF300 transponders
(Page 41)
Minimum distance between two RF310R readers ≥ 100 mm
Data transfer rate for read/write device
Reading
Writing
Approx. 50 byte/s
Approx. 40 byte/s
Passing speed
Reading
Writing
Approx. 0.8 m/s (2 bytes)
Approx. 0.8 m/s (2 bytes)
Function Read, write, initialize transponder
Multi-tag No
Power supply via IQ-Sense master module 24 V DC
Readers
5.2 SIMATIC RF310R with IQ-Sense interface
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 103
Display elements 2-color LED (operating voltage,
presence, error)
Plug-in connector M12 (4-pin)
Enclosure
Dimensions (in mm)
Color
Material
55 x 75 x 30 (without M12 enclosure connector)
Anthracite
Plastic PA 12
Fixing 4 x M5 screws
Ambient temperature
during operation
during transport and storage
-25°C to +70°C
-40°C to +85°C
Degree of protection to EN 60529
Shock to EN 60721-3-7 Class 7 M2
Vibration to EN 60721-3-7 Class 7 M2
IP67
50 g
20 g
Weight Approx. 150 g
MTBF (Mean Time Between Failures) in years 153.5
Approvals Radio to R&TTE guidelines EN 300 330,
EN 301 489, CE, FCC, UL/CSA
Current consumption Typ. 40 mA
5.2.9 FCC information
Siemens SIMATIC RF300 with IQ-Sense interface
FCC ID: NXW-RF310R-IQ
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.3 SIMATIC RF310R with RS422 interface
SIMATIC RF300
104 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04

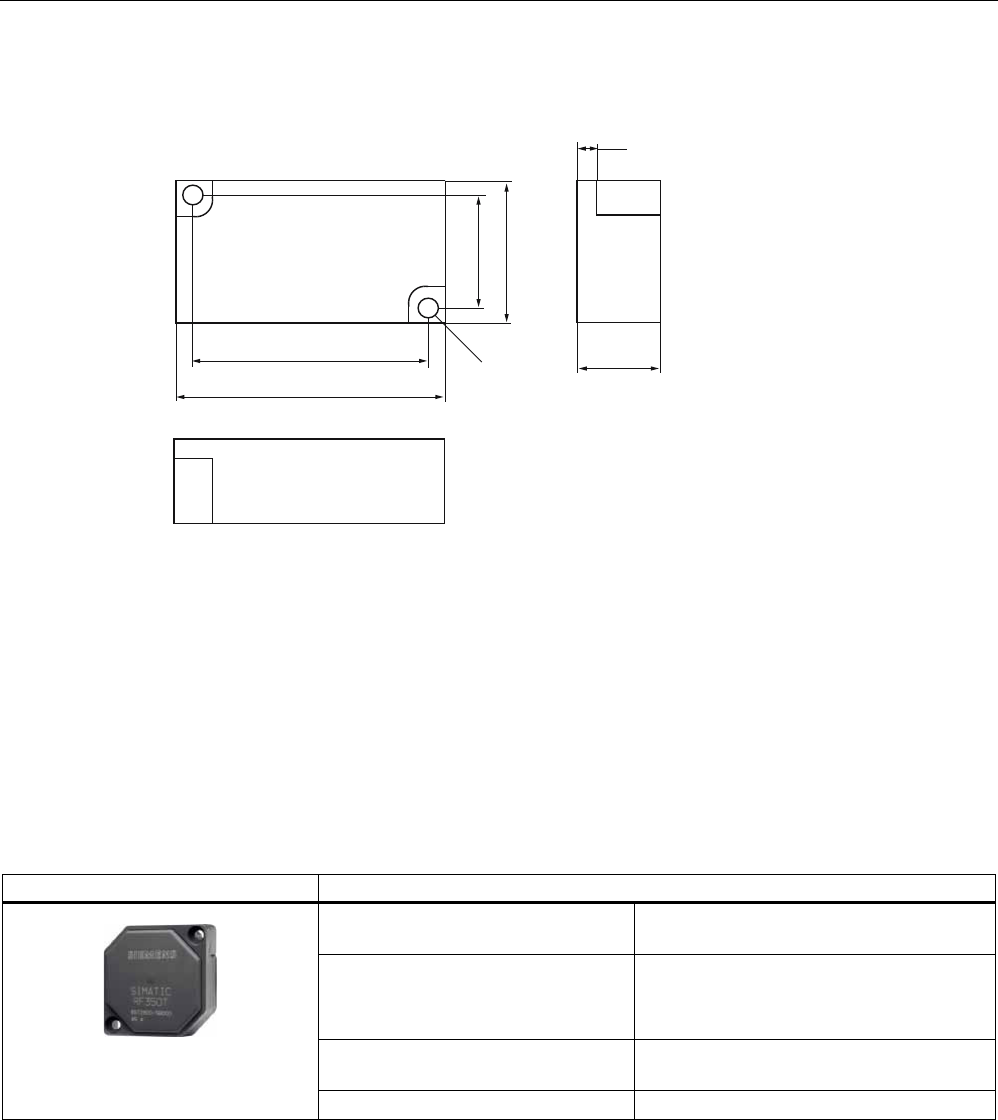

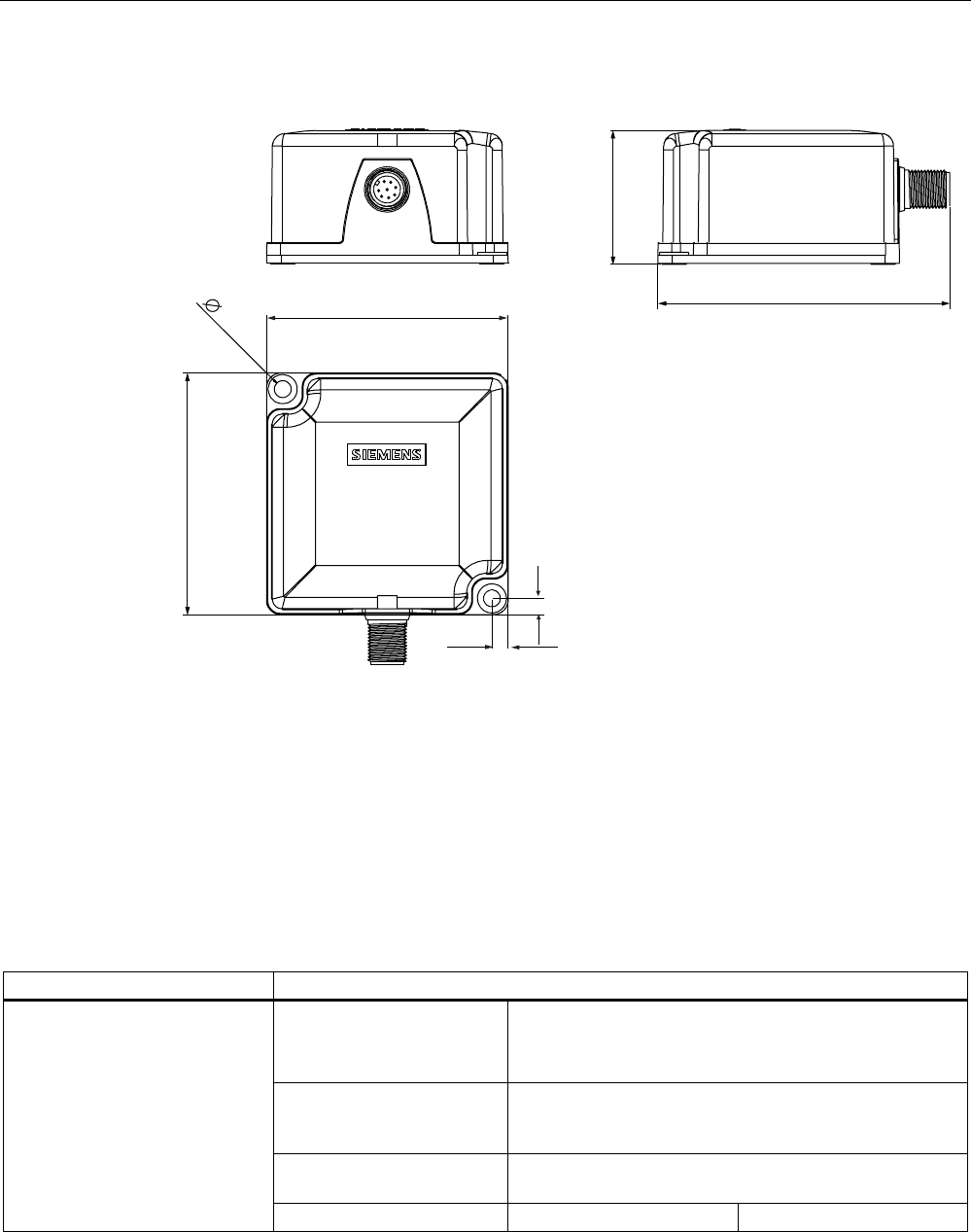

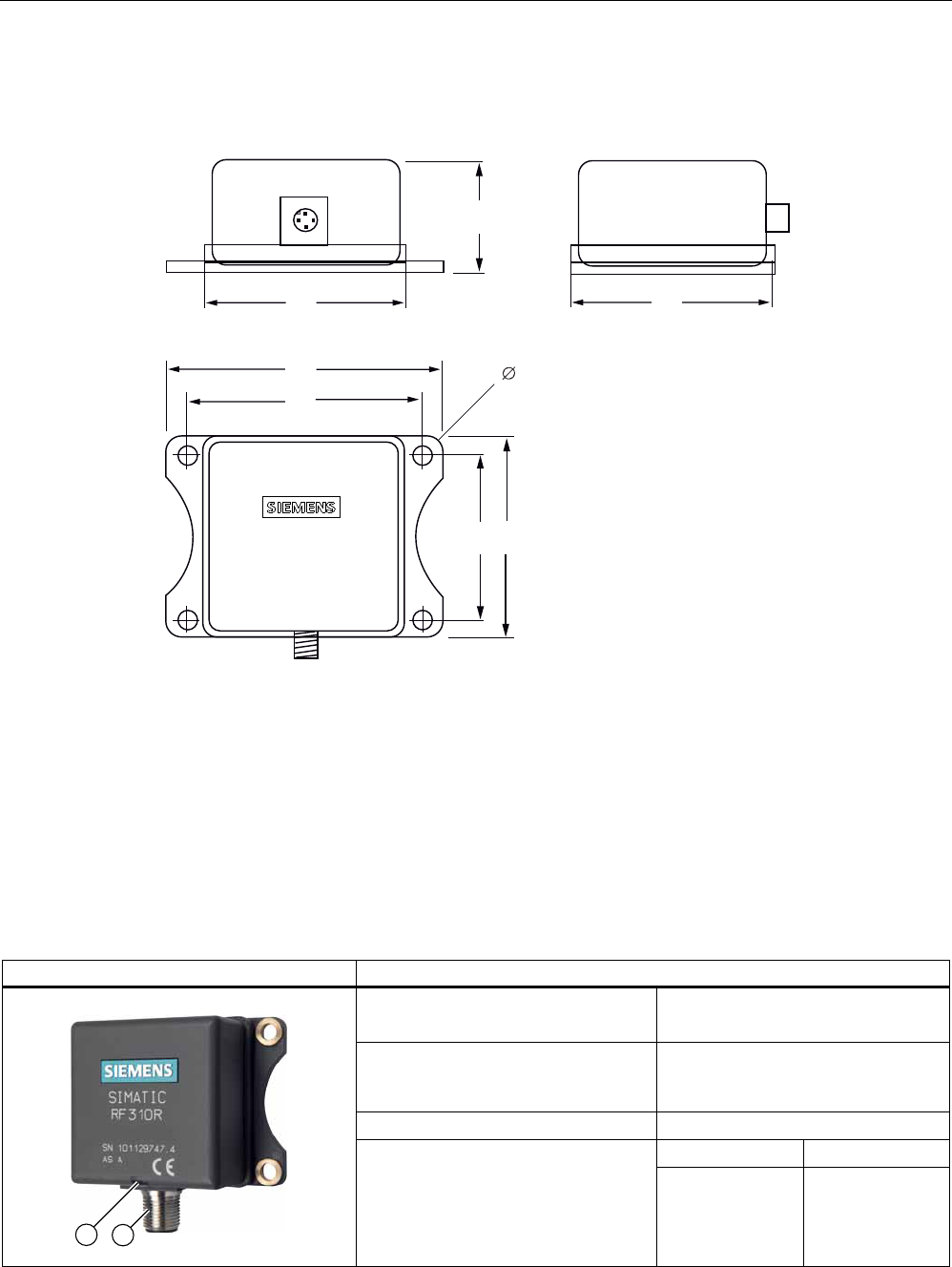

5.2.10 Dimension drawing

 





6,0$7,&
5)5
Figure 5-3 Dimension drawing for RF310R
Dimensions in mm
5.3 SIMATIC RF310R with RS422 interface
5.3.1 Features
RF310R with RS422 Characteristics
Design ① RS422 interface
② Status display
Field of application Identification tasks on small
assembly lines in harsh industrial
environments
Read/write distance to transponder Max. 90 mm
RF300 tags ISO tags


Data transmission rate
Read
write
Approx. 8000
byte/s
Approx. 8000
byte/s
Approx. 600
byte/s
Approx. 400
byte/s
Readers
5.3 SIMATIC RF310R with RS422 interface
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 105
5.3.2 Ordering data for RF310R with RS422 interface
RF310R Order number
With RS422 interface (3964R)
IP 67
Operating temperature: -25 °C to +70 °C
Dimensions: 55 x 75 x 30 (L x W x H, in mm)
with integrated antenna
Max. limit distance: 35 mm (depending on transponder)
6GT2801-1AB10

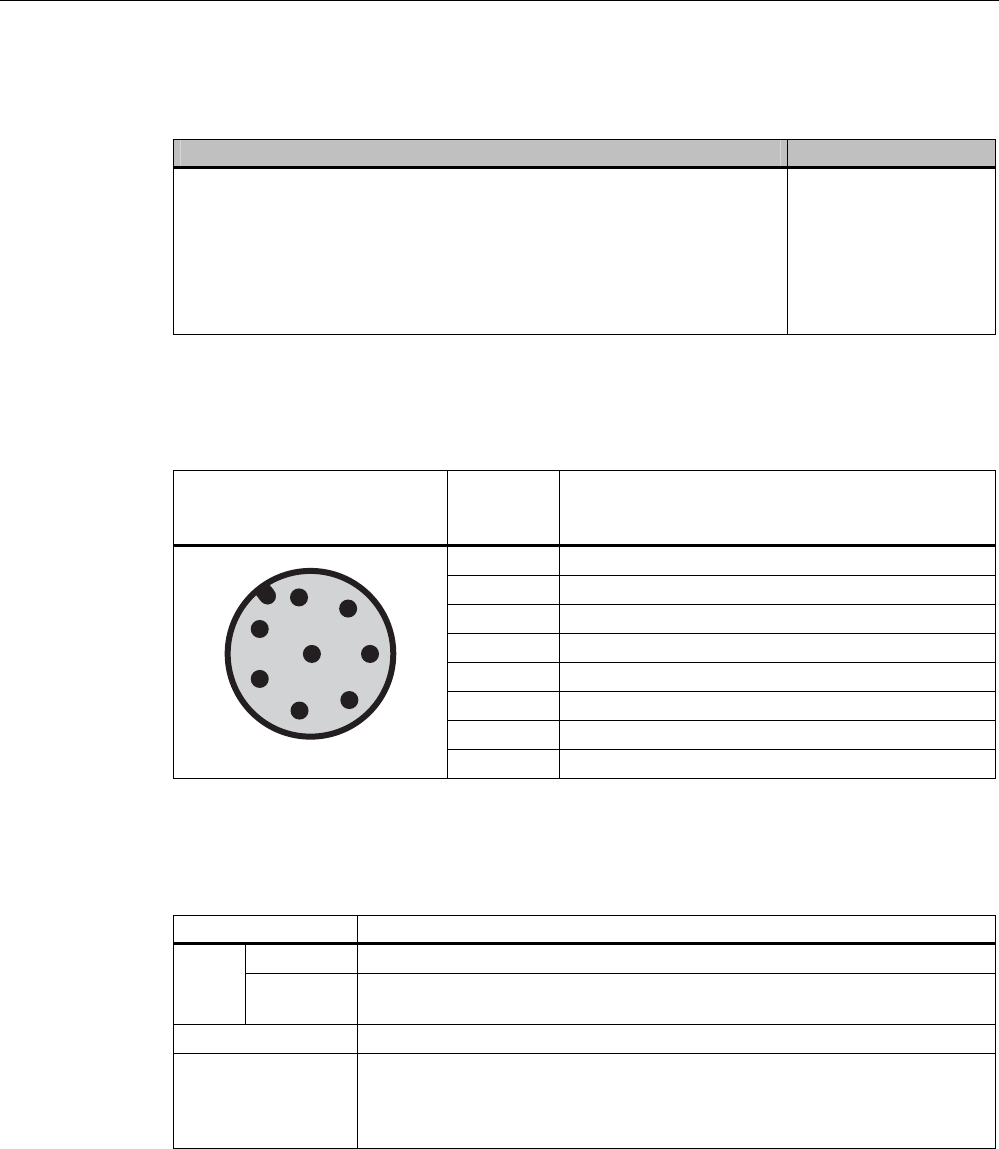

5.3.3 Pin assignment of RF310R RS422 interface
Pin Pin
Device end
8-pin M12
Assignment
1 + 24 V
2 - Transmit
3 0 V
4 + Transmit
5 + Receive
6 - Receive
7 Free
8 Earth (shield)
5.3.4 Display elements of the RF310R reader with RS422 interface
Color Meaning
Flashing Operating voltage present, reader not initialized or antenna switched off Green
Permanentl
y on
Operating voltage present, reader initialized and antenna switched on
Yellow1) Transponder present
Flashing red Error has occurred, the type of flashing corresponds to the error code in the
table in Section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1", see FC45 / FB45 documentation,
Section "Input parameters") is set.
1) Only in the "with presence" mode.
5.3.5 Ensuring reliable data exchange
The "center point" of the transponder must be situated within the transmission window.
Readers
5.3 SIMATIC RF310R with RS422 interface
SIMATIC RF300
106 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04

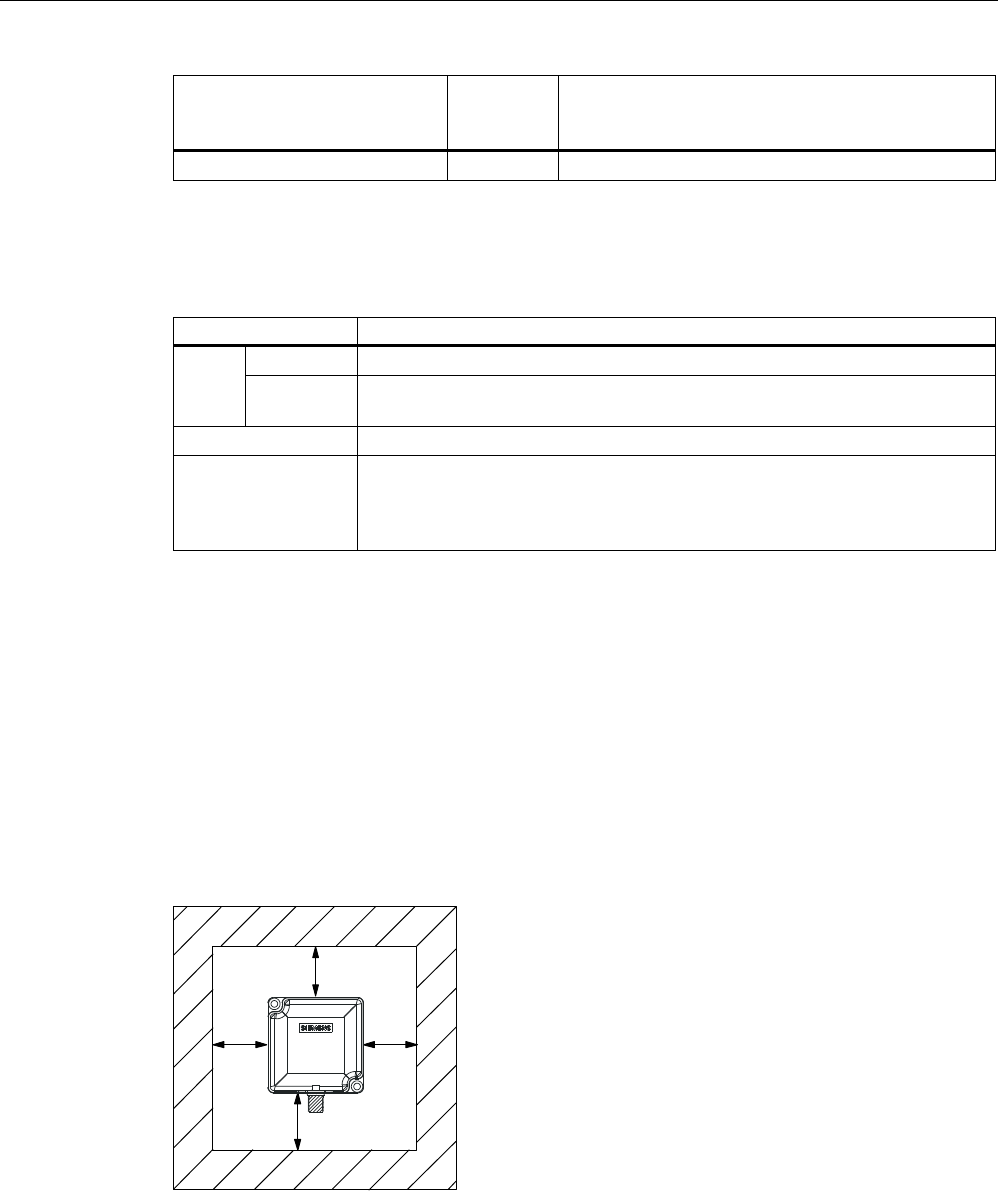

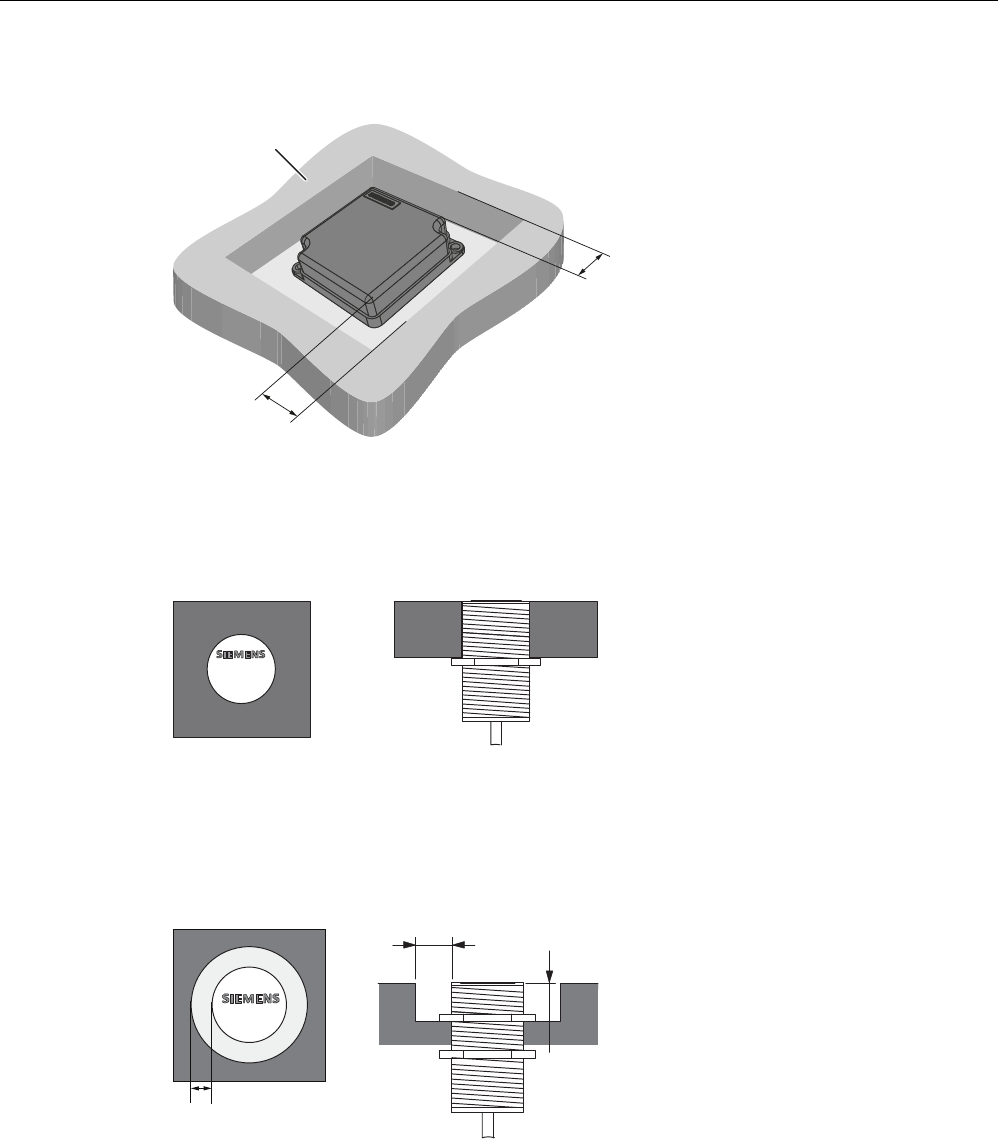

5.3.6 Metal-free area
The RF310R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
D
D
DD
6,0$7,&
5)5
Figure 5-4 Metal-free area for RF310R
To avoid any impact on the field data, the distance a should be ≥ 20 mm.

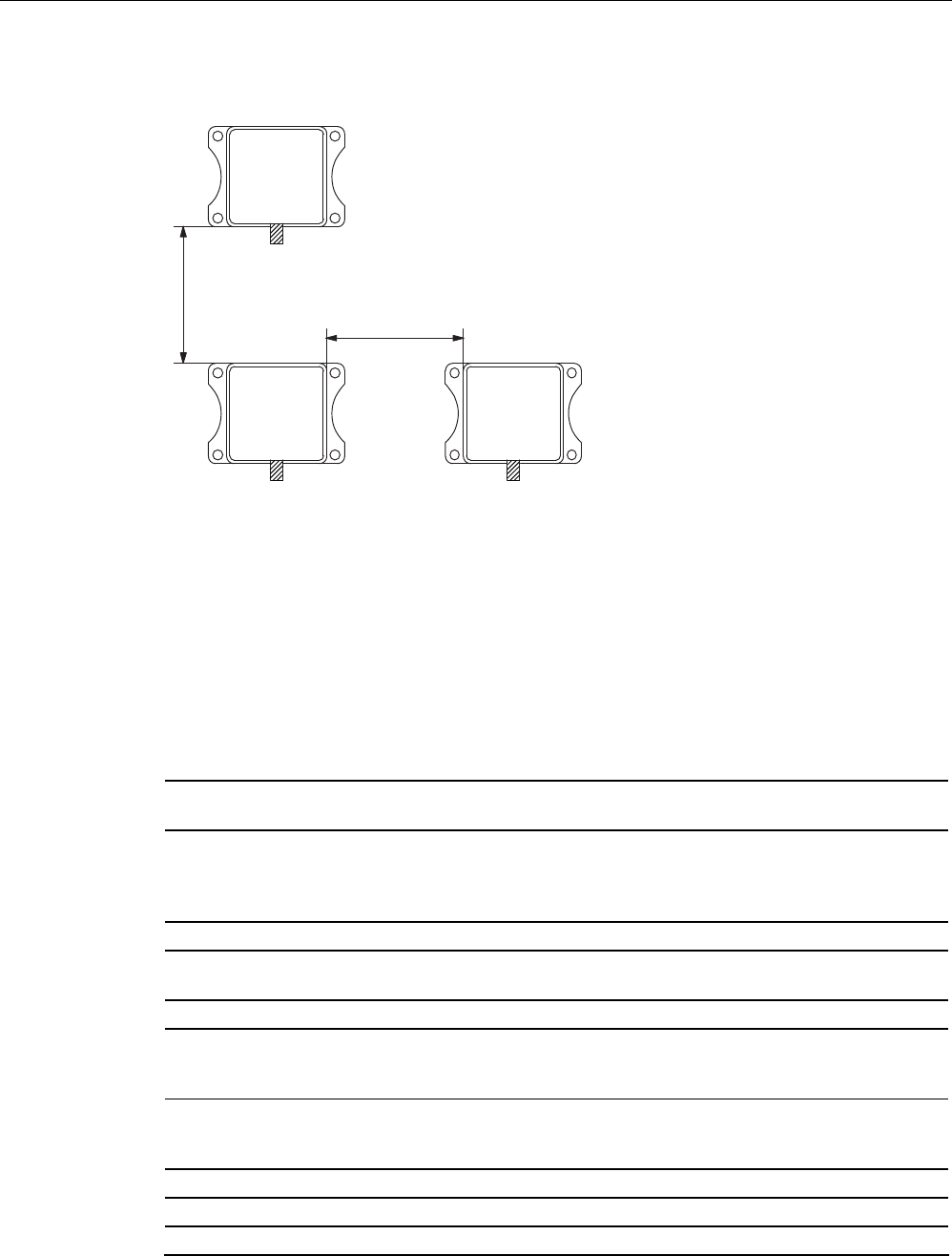

5.3.7 Minimum distance between RF310R readers
'D
'E
5)5
6,0$7,&
5)5
6,0$7,&
5)5
6,0$7,&
Da ≥ 100 mm
Db ≥ 200 mm
Figure 5-5 Minimum distance between RF310R readers
Readers
5.3 SIMATIC RF310R with RS422 interface
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 107
5.3.8 Technical specifications of the RF310R reader with RS422 interface
Table 5- 3 Technical specifications of the RF310R reader with RS422 interface
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface to the communication module RS422 (3964R protocol)
Baud rate 19200 baud, 57600 baud, 115200 baud
Cable length reader - communication module Data cable length max. 1000 m
(shielded cable)
Read/write distances of reader See Chapter Field data of RF300 transponders
(Page 41)
Minimum distance between two RF310R readers ≥ 100 mm or ≥ 200 mm
RF300 tags
ISO tags Maximum data transmission range, reader -
transponder (tag)
Read
write
Approx. 8000 bytes/s
Approx. 8000 bytes/s
Approx. 600 bytes/s
Approx. 400 bytes/s
Functions Initialize/read/write transponder
Scan status and diagnostics information
Switch antenna on/off
Repeat command
Scan transponder serial numbers
Power supply 24 V DC
Display elements 2-color LED (operating voltage,
presence, error)
Plug-in connector M12 (8-pin)
Enclosure
Dimensions (in mm)
Color
Material
55 x 75 x 30 (without M12 plug connector)
Anthracite
Plastic PA 12
Fixing 4 x M5 screws
Ambient temperature
during operation
during transport and storage
-25 °C to +70 °C
-40 °C to +85 °C
Degree of protection to EN 60529
Shock to EN 60721-3-7 Class 7 M2
Vibration to EN 60721-3-7 Class 7
IP67
50 g
20g
Weight Approx. 170 g
MTBF (Mean Time Between Failures) in years 169.9
Approvals Radio to R&TTE guidelines EN 300 330,
EN 301 489, CE, FCC, UL/CSA
Current consumption Typ. 50 mA
Readers
5.3 SIMATIC RF310R with RS422 interface
SIMATIC RF300
108 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
5.3.9 FCC information
Siemens SIMATIC RF310R with RS422 interface
FCC ID: NXW-RF310R
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

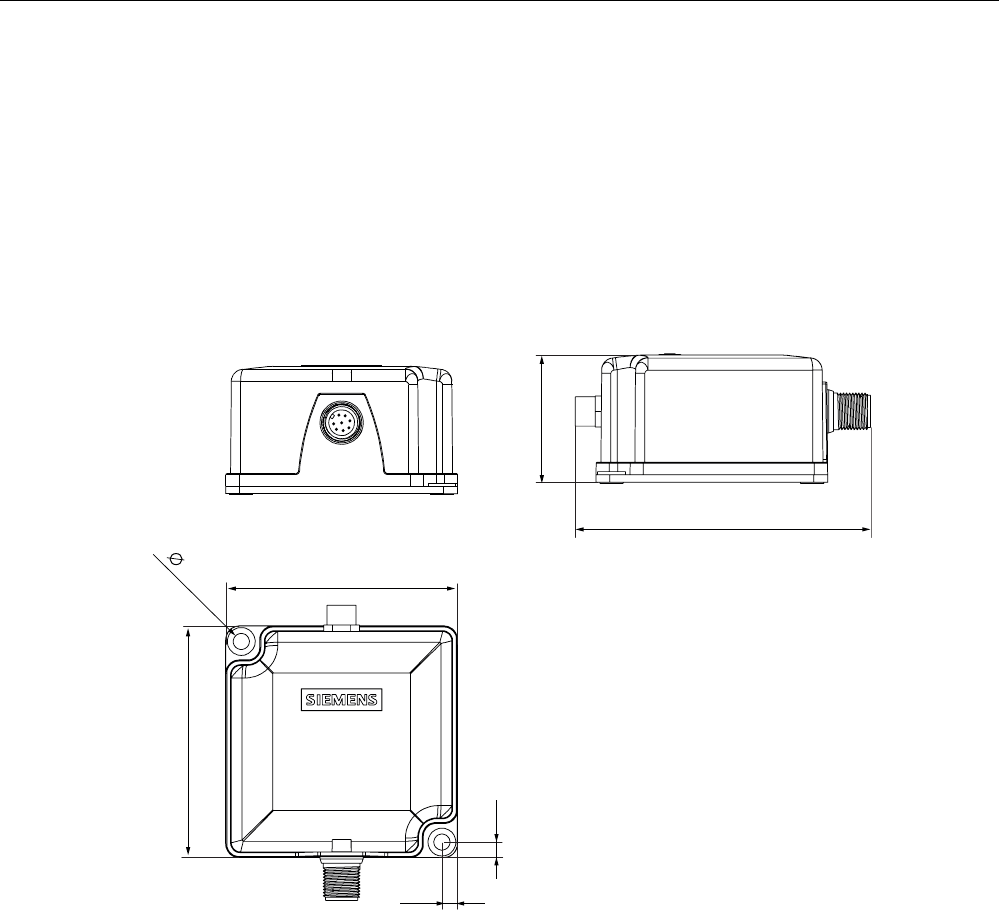

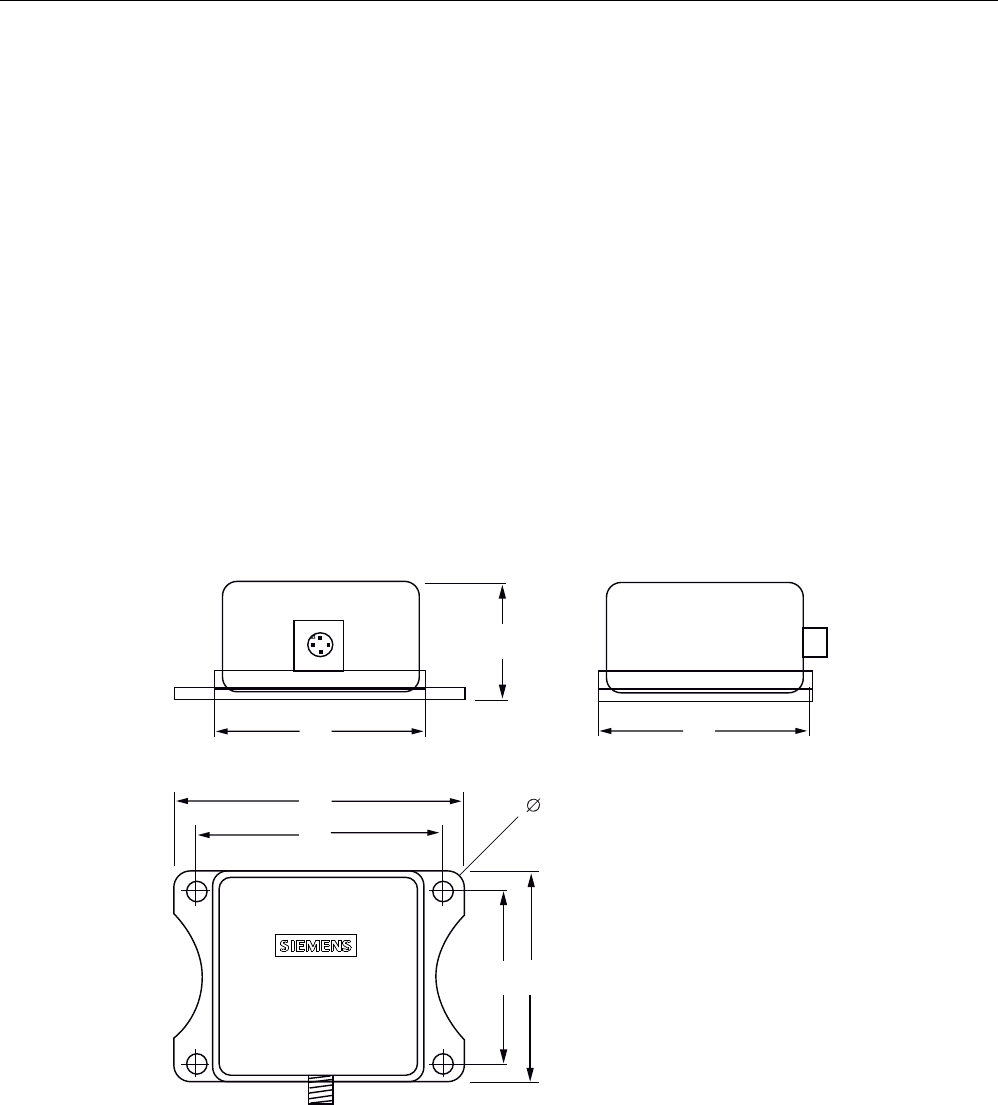

5.3.10 Dimension drawing

 





6,0$7,&
5)5
Figure 5-6 Dimension drawing for RF310R
Dimensions in mm
Readers
5.4 SIMATIC RF340R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 109
5.4 SIMATIC RF340R
5.4.1 Features
RF340R Characteristics
Design ① RS422 interface
② Status display
Field of application Identification tasks on assembly lines in harsh
industrial environments
Read/write distance to
transponder
Max. 65 mm
RF300 tags ISO tags
 
Data transmission rate
Read
Write
approx. 8000
byte/s
approx. 8000
byte/s
5.4.2 Ordering data for RF340R
RF340R Order number
With RS422 interface (3964R)
IP 67
Operating temperature -25 °C … +70 °C
Dimensions 75 x 91 x 41 (L x W x H in mm)
with integrated antenna
Max. limit distance: 65 mm (depending on transponder)
6GT2801-2AB10

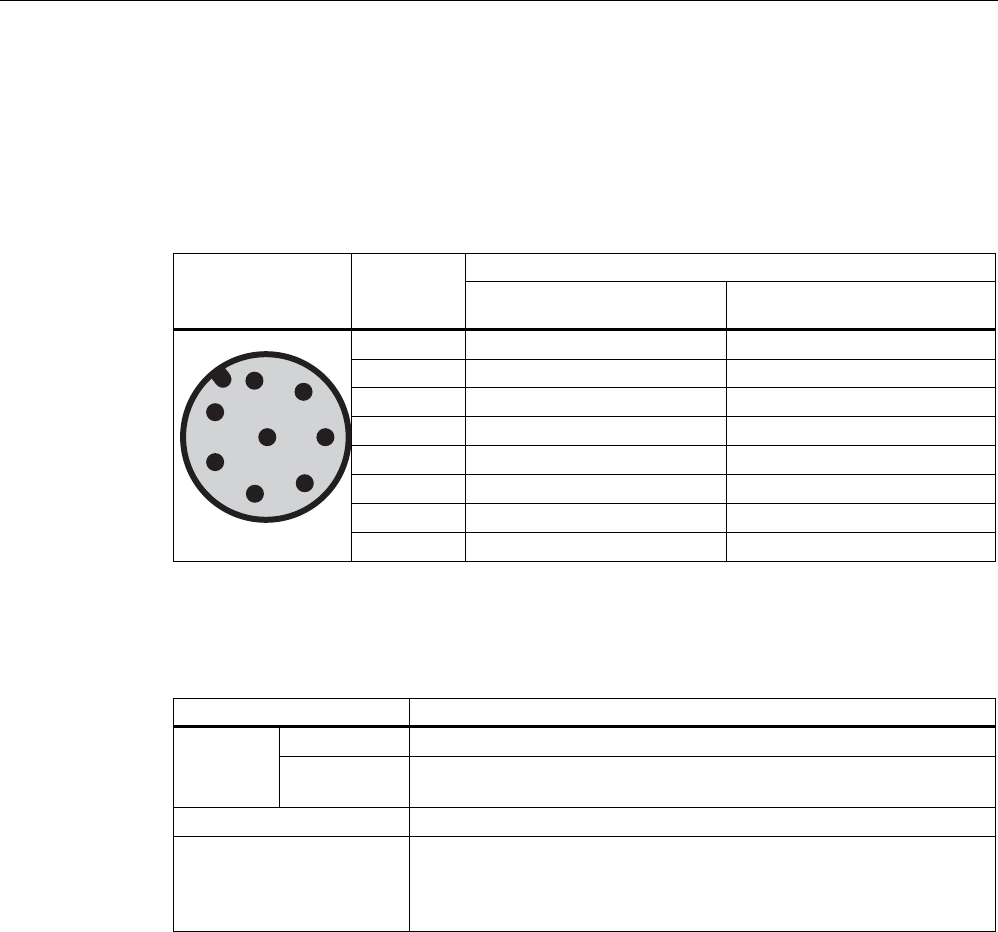

5.4.3 Pin assignment of RF340R RS422 interface
Pin Pin
Device end
8-pin M12
Assignment
1 + 24 V
2 - Transmit
3 0 V
4 + Transmit
5 + Receive
6 - Receive
7 Free
Readers
5.4 SIMATIC RF340R
SIMATIC RF300
110 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
Pin Pin
Device end
8-pin M12
Assignment
8 Earth (shield)
5.4.4 Display elements of the RF340R reader
Color Meaning
Flashing Operating voltage present, reader not initialized or antenna switched off Green
Permanentl
y on
Operating voltage present, reader initialized and antenna switched on
Yellow1) Transponder present
Flashing red Error has occurred, the type of flashing corresponds to the error code in the
table in Section "Error codes". The optical error display is only reset if the
corresponding reset parameter ("option_1", see FC45 / FB45 documentation,
Section "Input parameters") is set.
1) Only in the "with presence" mode.
5.4.5 Ensuring reliable data exchange
The "center point" of the transponder must be situated within the transmission window.
5.4.6 Metal-free area
The RF340R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
6,0$7,&
D
D
DD
5)5

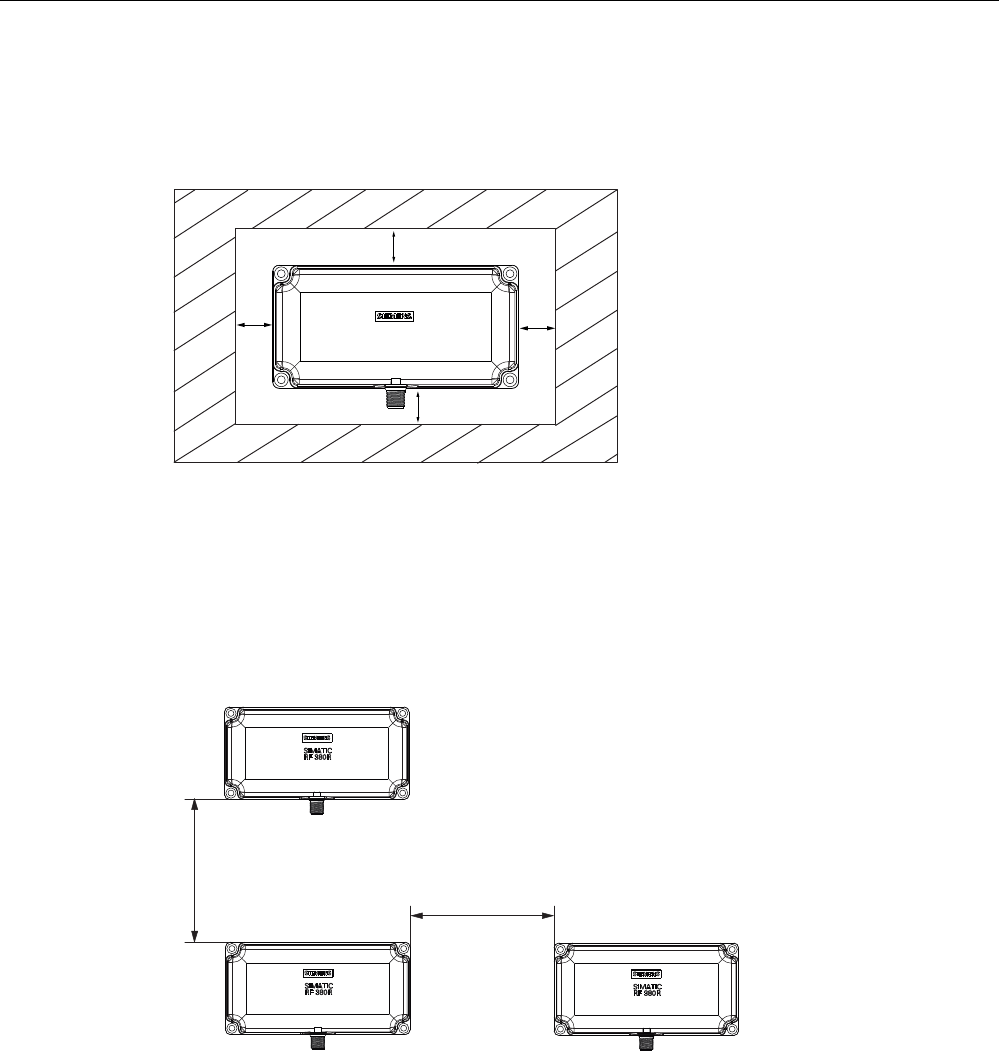

Figure 5-7 Metal-free area for RF340R
To avoid any impact on the field data, the distance a should be ≥ 20 mm.
Readers
5.4 SIMATIC RF340R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 111
5.4.7 Minimum distance between RF340R readers
'
D
'
E
5)5
5)5 5)5
Da ≥ 100 mm
Db ≥ 250 mm
Figure 5-8 Minimum distance between RF340R readers
5.4.8 Technical data of the RF340R reader
Table 5- 4 Technical specifications of the RF340R reader
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface to the communication module RS422 (3964R protocol)
Baud rate 19200 baud, 57600 baud, 115200 baud
Cable length reader - communication module Data cable length max. 1000 m
(shielded cable)
Read/write distances of reader See Chapter Field data of RF300 transponders
(Page 41)
Minimum distance between two RF340R readers ≥ 100 mm or ≥ 250 mm
RF300 tags ISO tags Maximum data transfer rate
reader - transponder (tag)
Reading
Writing
Approx. 8000 byte/s
Approx. 8000 byte/s
Functions Initialize/read/write transponder
Scan status and diagnostics information
Switch antenna on/off
Repeat command
Scan transponder serial numbers
Power supply 24 V DC
Readers
5.4 SIMATIC RF340R
SIMATIC RF300
112 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin)
Enclosure
Dimensions (in mm)
Color
Material
75 x 75 x 40 (without M12 device connector)
Anthracite
Plastic PA 12
Fixing 2 x M5 screws
Ambient temperature
during operation
during transport and storage
-25 °C to +70 °C
-40 °C to +85 °C
Degree of protection to EN 60529
Shock to EN 60721-3-7 Class 7 M2
Vibration to EN 60721-3-7 Class 7 M2
IP67
50 g
20 g
Weight Approx. 250 g
MTBF (Mean Time Between Failures) in years 140
Approvals Radio to R&TTE guidelines EN 300 330,
EN 301 489, CE, FCC, UL/CSA
Current consumption Typ. 100 mA
5.4.9 FCC information
Siemens SIMATIC RF340R (MLFB 6GT2801-2AA10) FCC ID: NXW-RF340R
Siemens SIMATIC RF340R (MLFB 6GT2801-2AB10) FCC ID: NXW-RF340R01
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 113
5.4.10 Dimension drawing





6,0$7,&
5)5
Figure 5-9 Dimension drawing for RF340R
Dimensions in mm
5.5 SIMATIC RF350R

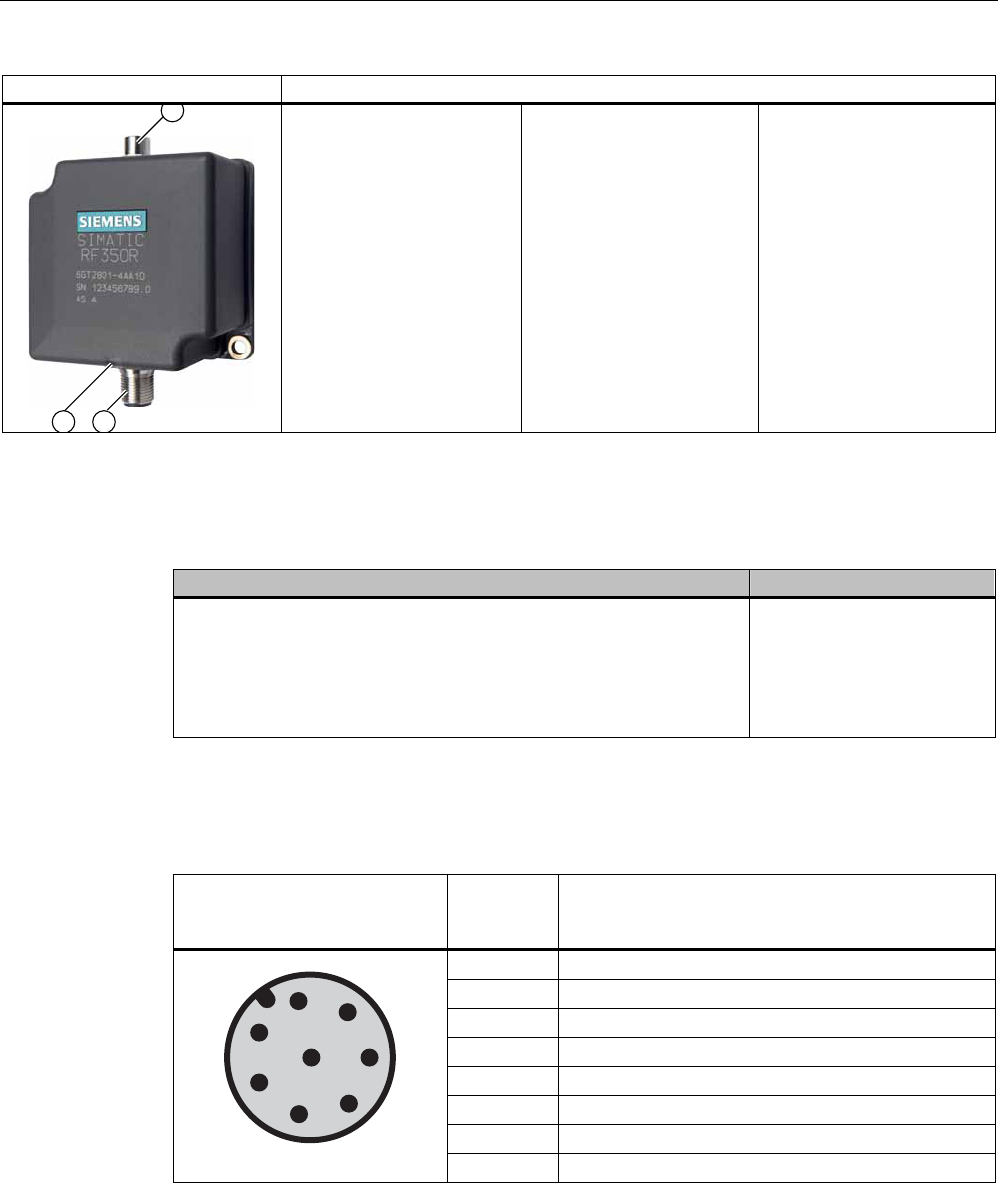

5.5.1 Features
RF350R Characteristics
Design ① Antenna connection
② RS422 interface
③ Status display
Field of application Identification tasks in assembly lines in harsh industrial
environments; for external antennas
(ANT 1, ANT 18, ANT 30)
Read/write distance to
transponder
Max. 60 mm
Data transmission rate RF300 tags ISO tags
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
114 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
RF350R Characteristics


Read
Write
Read: approx. 8000
byte/s
Write: approx. 8000
byte/s
5.5.2 Ordering data for RF350R
RF350R Order number
With RS422 interface (3964R)
IP65
Operating temperature: -25 °C … +70 °C
Dimensions: 75 x 96 x 41 (L x W x H, in mm)
For pluggable antennas ANT 1, ANT 12, ANT 18, ANT 30
6GT2801-4AB10

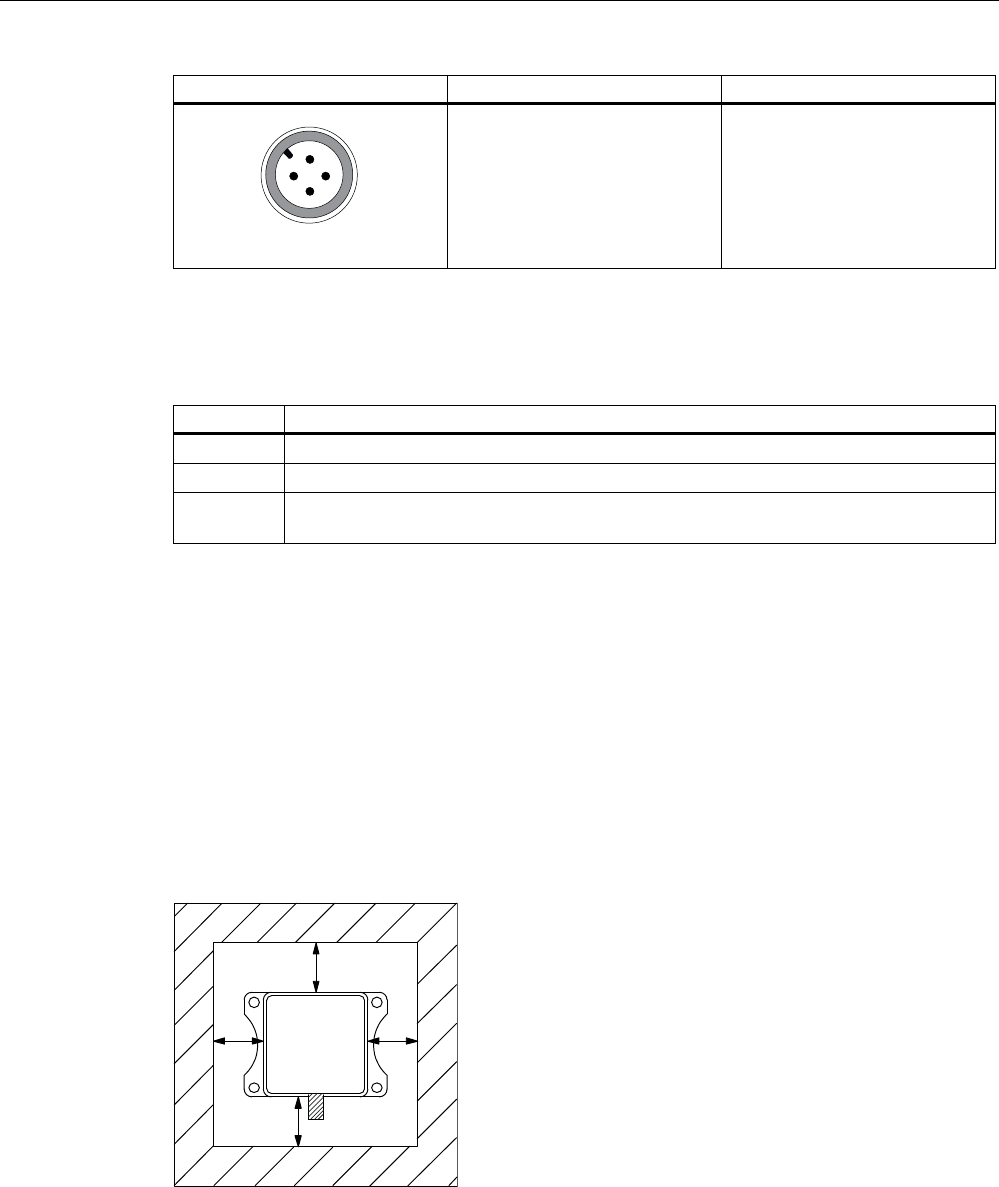

5.5.3 Pin assignment of RF350R RS422 interface
Pin Pin
Device end
8-pin M12
Assignment
1 + 24 V
2 - Transmit
3 0 V
4 + Transmit
5 + Receive
6 - Receive
7 Free
8 Earth (shield)
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 115
5.5.4 Display elements of the RF350R reader
Color Meaning
Flashing Operating voltage present, reader not initialized or antenna switched offGreen
Permanently
on
Operating voltage present, reader initialized and antenna switched on
Yellow1) Transponder present
Flashing red Error has occurred, the type of flashing corresponds to the error code in
the table in Section "Error codes". The optical error display is only reset
if the corresponding reset parameter ("option_1", see FC45 / FB45
documentation, Section "Input parameters") is set.
1) Only in the "with presence" mode.
5.5.5 Ensuring reliable data exchange
The "center point" of the transponder must be situated within the transmission window.
5.5.6 Metal-free area
The RF350R reader does not have an internal antenna. Operation is not affected by
mounting on metal or flush-mounting in metal. For information about the metal-free area
required by the external antennas, refer to the corresponding section of the chapter
Antennas (Page 118).
5.5.7 Technical data of the RF350R reader
Table 5- 5 Technical specifications of the RF350R reader
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna External, antennas ANT 1, ANT 12, ANT 18 or
ANT 30
Interface to the communication module RS422 (3964R protocol)
Baud rate 19200 baud, 57600 baud, 115200 baud
Cable length reader - communication module Data cable length max. 1000 m
(shielded cable)
Read/write distances of reader See Chapter Field data of RF300 transponders
(Page 41)
Minimum distance between two antennas See Chapter Minimum clearances (Page 47)
RF300 tags ISO tags Maximum data transfer rate
reader - transponder (tag)
Reading
Writing
Approx. 8000 byte/s
Approx. 8000 byte/s
@ Werte
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
116 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
Functions Initialize/read/write transponder
Scan status and diagnostics information
Switch antenna on/off
Repeat command
Scan transponder serial numbers
Power supply 24 V DC
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin); M8 (4-pin) for antenna
Enclosure
Dimensions (in mm)
Color
Material
75 x 75 x 40 (without M12 device connector)
Anthracite
Plastic PA 12
Fixing 2 x M5 screws
Ambient temperature
During operation
Transport and storage
-25 °C to +70 °C
-40 °C to +85 °C
Degree of protection to EN 60529
Shock to EN 60721-3-7 Class 7 M2
Vibration to EN 60721-3-7 Class 7 M2
IP65
50 g
20 g
Weight 250 g
MTBF (Mean Time Between Failures) in years 140
Approvals Radio to R&TTE guidelines EN 300 330,
EN 301 489, CE, FCC, UL/CSA
Current consumption Typ. 100 mA
5.5.8 FCC information
Siemens SIMATIC RF350R (MLFB 6GT2801-2AA10) FCC ID: NXW-RF350R
Siemens SIMATIC RF350R (MLFB 6GT2801-2AB10) FCC ID: NXW-RF350R01
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 117







6,0$7,&
5)5

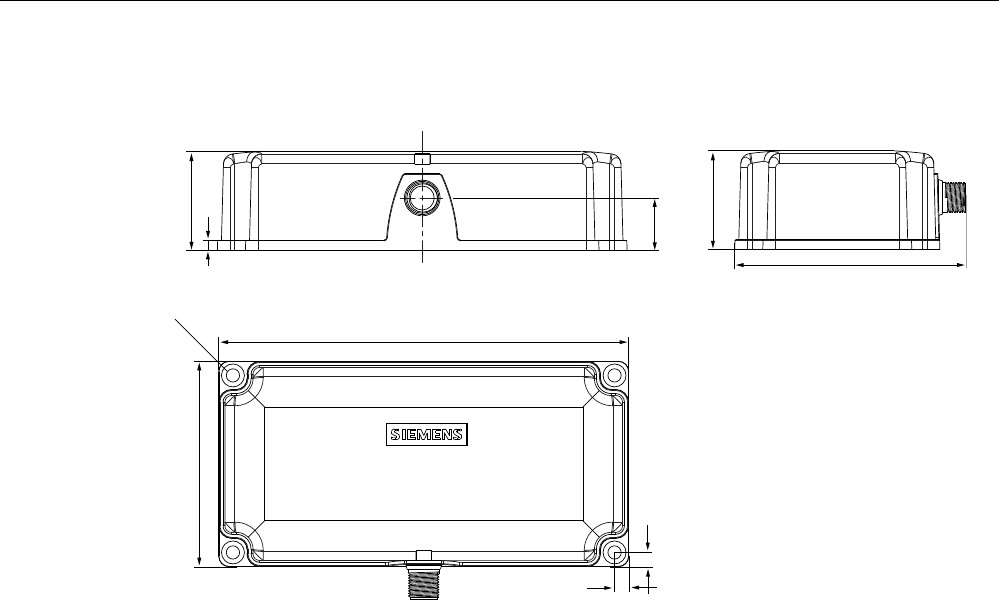

Figure 5-10 RF350R dimension drawing
Dimensions in mm
5.5.9 Dimension drawing
To comply with FCC Part 15 Rules in the United States, the system must be professionally installed to ensure
compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to
ensure that only certified systems are deployed in the United States. The use of the system in any other
combination (such as colocated antennas transmitting the same information) is expressly forbidden.
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
118 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
5.5.10 Antennas
5.5.10.1 Features

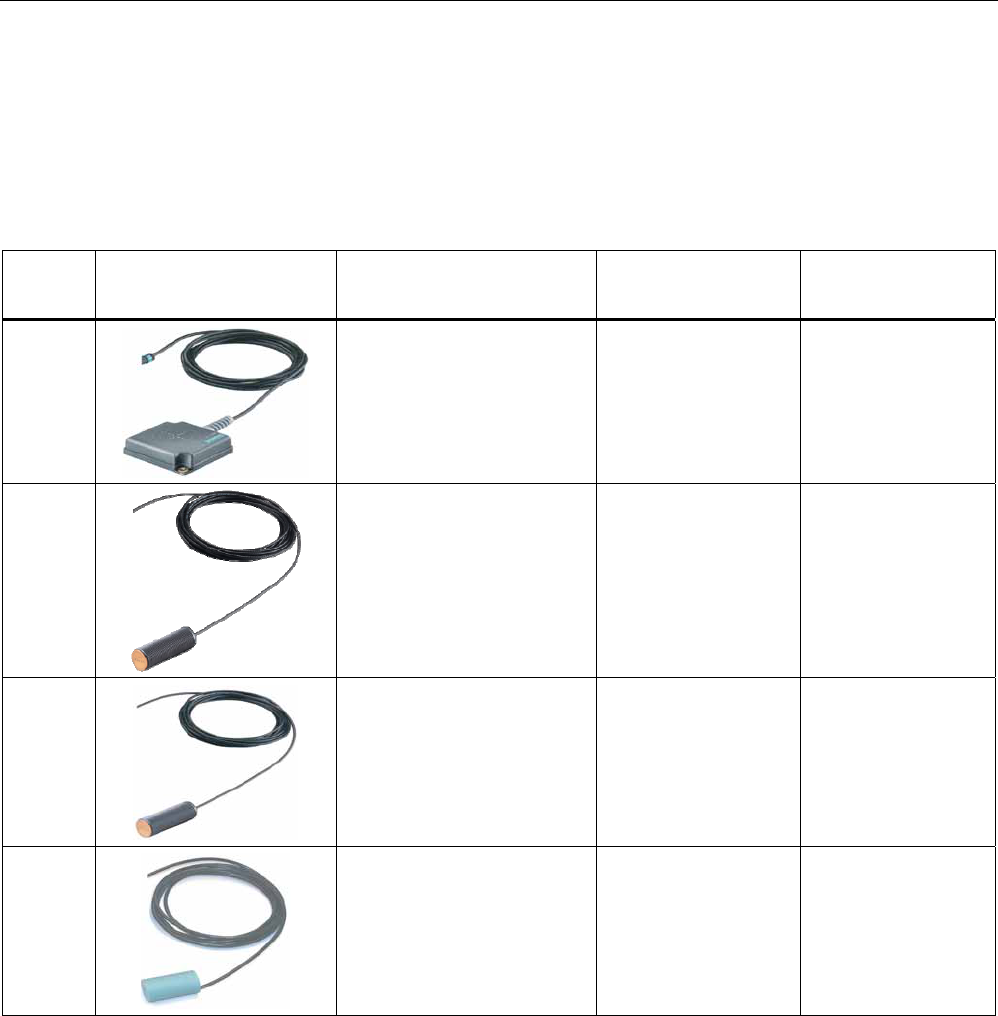

For the RF350R reader, you can use the following pluggable antennas:
Antenna Product photo Limit distance Sg
in mm 1)
Dimensions
(L x B x H)
in mm
Suitable for dynamic
operation
ANT 1
to 60 75 x 75 x 20 Yes
ANT 12
M12 x 1.0 x 40
(∅ x thread x L)
@ <--> Schreibweise
wie bei den anderen
Antennen? Klammer?
ANT 18
to 13 Ø M18 x 50 No
ANT 30
to 22 Ø M30 x 58 No
1) Depending on the transponder used
ANT 1
The ANT 1 is an antenna in the mid performance range and can be used to the customer's
advantage in production and assembly lines due to its manageable housing shape. The
antenna dimensions make it possible to read/write large quantities of data dynamically
from/to the tag during operation. The antenna cable can be connected at the reader end.
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 119
ANT 12
The ANT 12 is primarily envisaged for tool identification applications. The very small size of
the antenna means that highly exact positioning is possible using the plastic nuts included in
the scope of delivery. The antenna cable can be connected at the SLG end. Communication
with the data storage unit is only possible with the MDS D421 in static mode.
ANT 18
The ANT 18 is designed for use in small assembly lines. Due to its small, compact
construction, the antenna can be easily positioned for any application using two plastic nuts
(included in the package). The antenna cable can be connected at the reader end. Data
communication is only possible with the RF320T and RF340T tags in static mode.
ANT 30
The ANT 30 is designed for use in small assembly lines. In comparison to ANT 18, the
maximum write/read distance is approximately 60 % larger. Due to its compact construction,
the antenna can be easily positioned for any application using two plastic nuts (included in
the package). The antenna cable can be connected at the reader end. With the RF320T,
RF340T and RF350T tags, communication with the data storage unit is only possible in static
mode.
5.5.10.2 Ordering data for antennas
Antenna Order number
ANT 1 6GT2398-1CB00
ANT 12 6GT2 398-1CC00
ANT 18 6GT2398-1CA00
ANT 30 6GT2398-1CD00
5.5.10.3 Ensuring reliable data exchange
The "center point" of the transponder must be situated within the transmission window.
5.5.10.4 Metal-free area
The antennas ANT 1, ANT 12, ANT 18 and ANT 30 can be flush-mounted on metal. Please
allow for a possible reduction in the field data values. During installation, maintain the
minimum distances (a and b) on/flush with the metal.
NOTICE
Reduction of range if the metal-free space is not maintained
At values lower than a and b, the field data changes significantly, resulting in a reduction in
the limit distance and operating distance. Therefore, during installation, maintain the
minimum distances (a and b) on/flush with the metal.
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
120 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
Metal-free space for flush-mounted installation of ANT 1
0HWDO
D
D
a = 40 mm
Figure 5-11 Metal-free area for ANT 1
Flush-mounting of ANT 12
02%<(
$17
Figure 5-12 Metal-free area for ANT 12
The ANT 12 can be flush-mounted in metal.

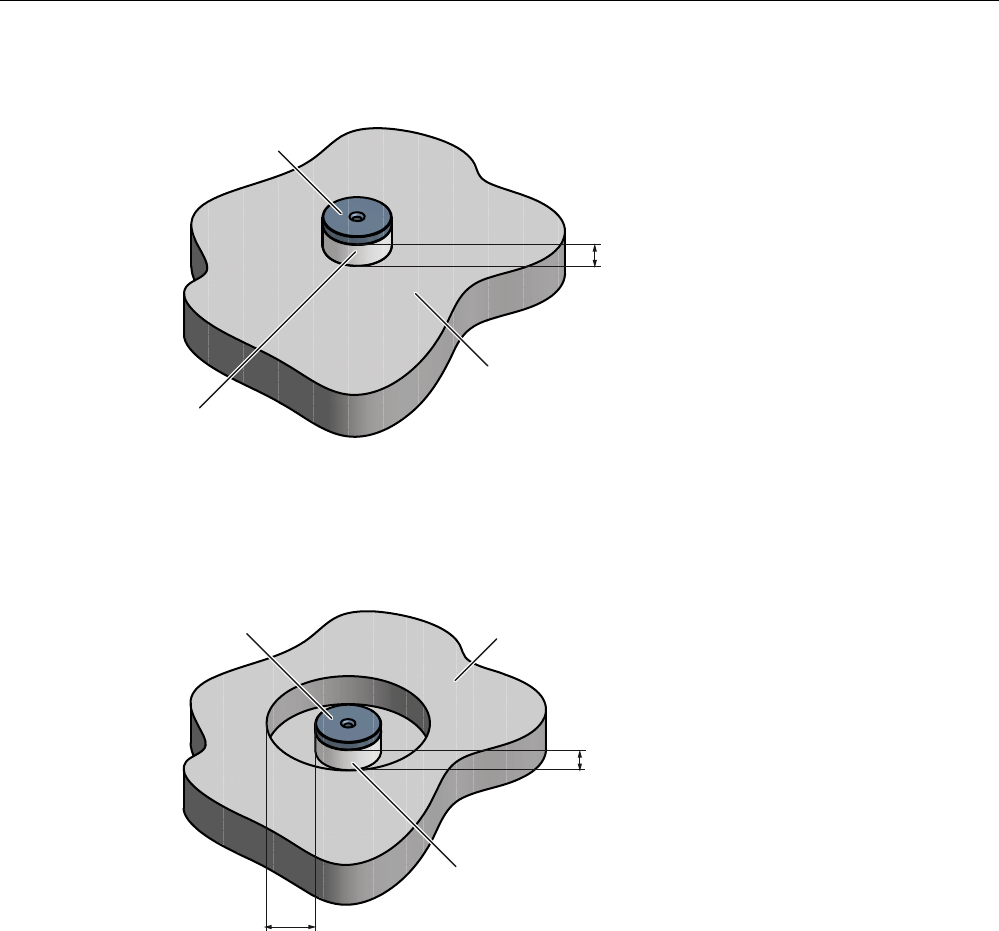

Metal-free space for flush-mounted installation of ANT 18
E
D
D
$17
a = 10 mm
b = 10 mm
Figure 5-13 Metal-free area for ANT 18
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 121
Metal-free space for flush-mounted installation of ANT 30
E
D
D
$17
a = 20 mm
b = 20 mm
Figure 5-14 Metal-free area for ANT 30
5.5.10.5 Minimum distance between antennas
Minimum distance for ANT 1
$
17
$17
$17
'D
'E
Da ≥ 100 mm
Db ≥ 250 mm
Figure 5-15 Minimum distance for ANT 1
The reader electronics can be mounted directly alongside each other.
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
122 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04

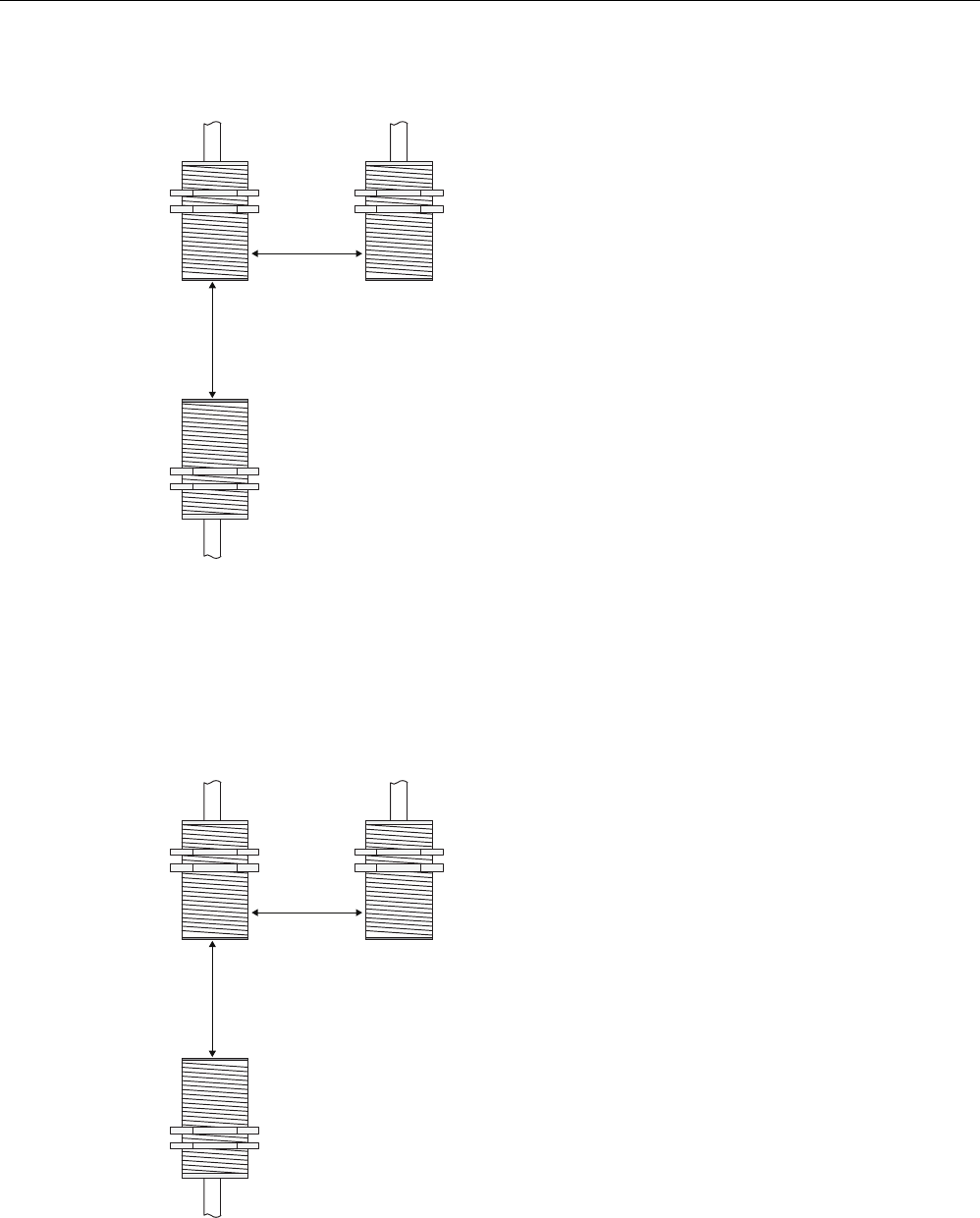

Minimum distance for ANT 12
'
D
'
E
Da > 80 mm
Db > 80 mm
Figure 5-16 Minimum distance for ANT 12

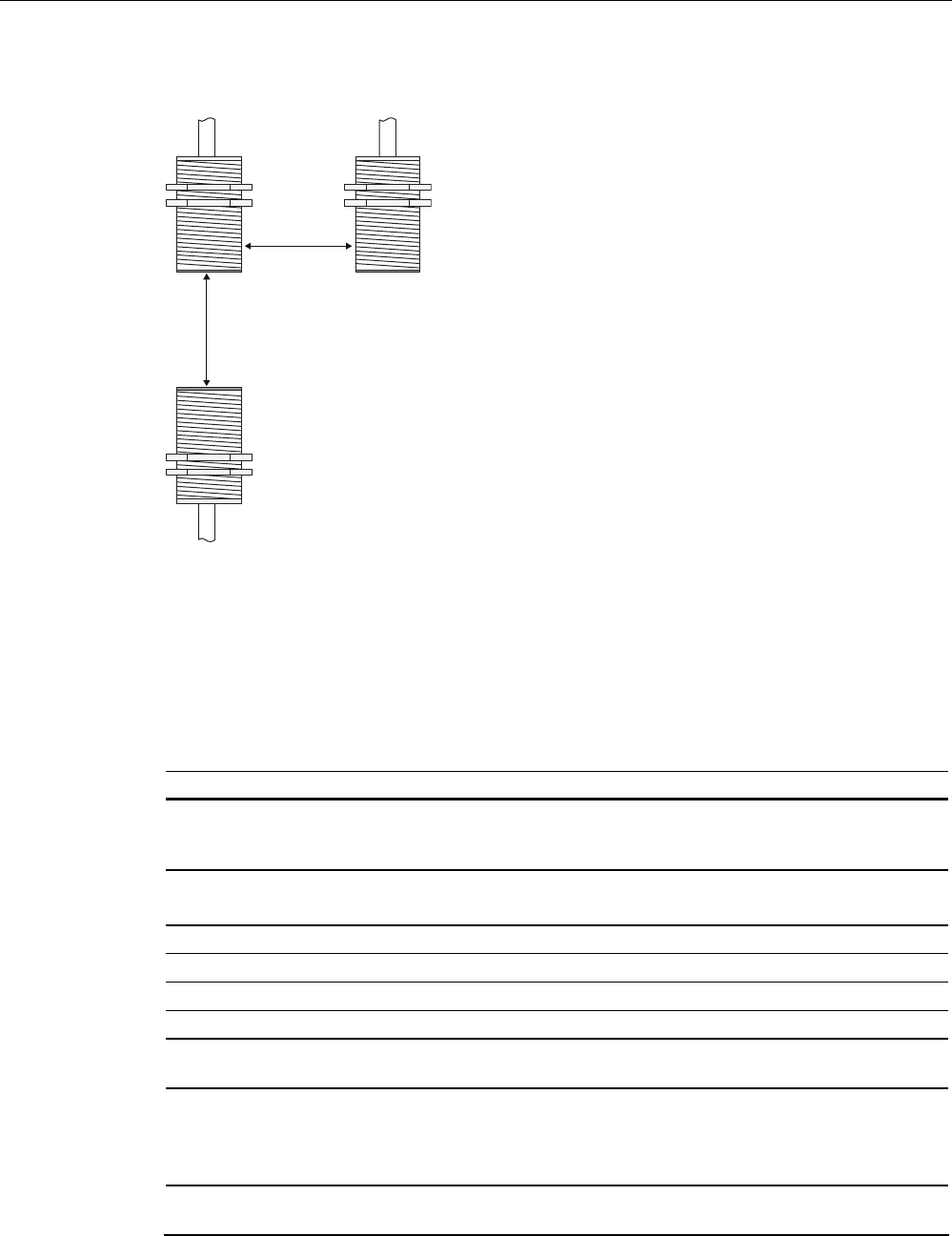

Minimum distance for ANT 18
'
D
'
E
Da ≥ 100 mm
Db ≥ 200 mm
Figure 5-17 Minimum distance for ANT 18
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 123
Minimum distance for ANT 30
'
D
'
E
Da ≥ 100 mm
Db ≥ 250 mm
Figure 5-18 Minimum distance for ANT 30
5.5.10.6 Technical data for antennas
Table 5- 6 Technical data for antennas ANT 1, ANT 12, ANT 18 and ANT 30
ANT 1 ANT 12 ANT 18 ANT 30
Read/write distance
antenna to transponder (Sg)
max
100 mm 5 mm 15 mm 22 mm
Enclosure dimensions in
mm
75 x 75 x 20
(L x W x H)
M18 x 1.0 x 55
(∅ x thread x L)
M18 x 1.0 x 55
(Ø x thread x L)
M30 x 1.5 x 58
(Ø x thread x L)
Color Anthracite Pale turquoise
Material Plastic PA 12 Plastic Crastin
Plug connection 4-pin (pins on antenna side)
Antenna cable lengths 3 m
Degree of protection to EN
60529
IP67 IP67 (front)
Shock-resistant acc. to
EN 60721-3-7, Class 7M2
Vibration-resistant to
EN 60721-3-7, Class 7M2
50 g 1)
20 g ( 3 to 500 Hz) 1)
Attachment of the antenna 2 x M5 screws 2 plastic nuts
M12 x 1.0
2 plastic nuts
M18 x 1.0
2 plastic nuts
M30 x 1.5
Readers
5.5 SIMATIC RF350R
SIMATIC RF300
124 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
ANT 1 ANT 12 ANT 18 ANT 30
Ambient temperature
During operation
Transport and storage
-25 °C to +70 °C
-40 °C to +85 °C
MTBF (at +40 °C) 2.5 x 105 hours
Approx. weight 80 g 45 g 120 g 150 g
1) Warning: The values for shock and vibration are maximum values and must not be applied
continuously.

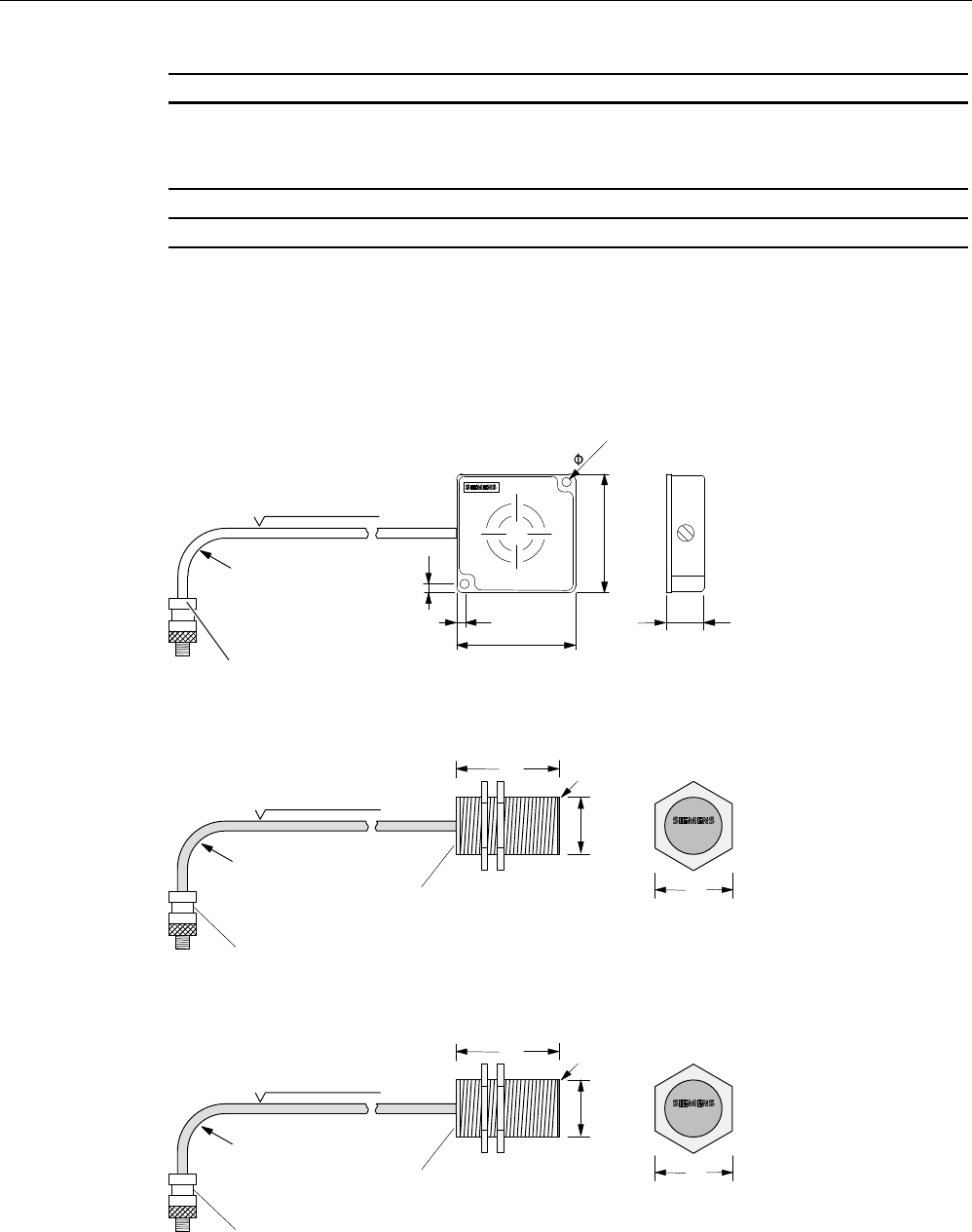

5.5.10.7 Dimension drawings for antennas
All dimensions in mm
&DEOHOHQJWKP
0LQLPXPEHQGLQJ
UDGLXV
$17FDQEHFRQQHFWHG
DWUHDGHUHQG
20 mm




Figure 5-19 Dimension drawing for ANT 1
&DEOHOHQJWKP
0LQLPXPEHQGLQJ
UDGLXV
$17FDQEHFRQQHFWHG
DWUHDGHUHQG
$QWHQQD
KHDG 6LGHYLHZRI
DQWHQQDKHDG
)LQHWKUHDGSLWFK

$QWHQQD
HQG
$17
PP
0


Figure 5-20 Dimension drawing for ANT 12
&DEOHOHQJWKP
0LQLPXPEHQGLQJ
UDGLXV
$17FDQEHFRQQHFWHG
DWUHDGHUHQG
$QWHQQD
KHDG 6LGHYLHZRI
DQWHQQDKHDG
)LQHWKUHDG
SLWFK
$QWHQQD
HQG
$17
PP
0


Figure 5-21 Dimension drawing for ANT 18
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 125
&DEOHOHQJWKP
0LQLPXPEHQGLQJ
UDGLXV
$17FDQEHFRQQHFWHG
DWUHDGHUHQG
$QWHQQD
KHDG 6LGHYLHZRI
DQWHQQDKHDG
$QWHQQD
HQG
)LQHWKUHDG
SLWFK
PP 

$17
0
Figure 5-22 Dimension drawing for ANT 30

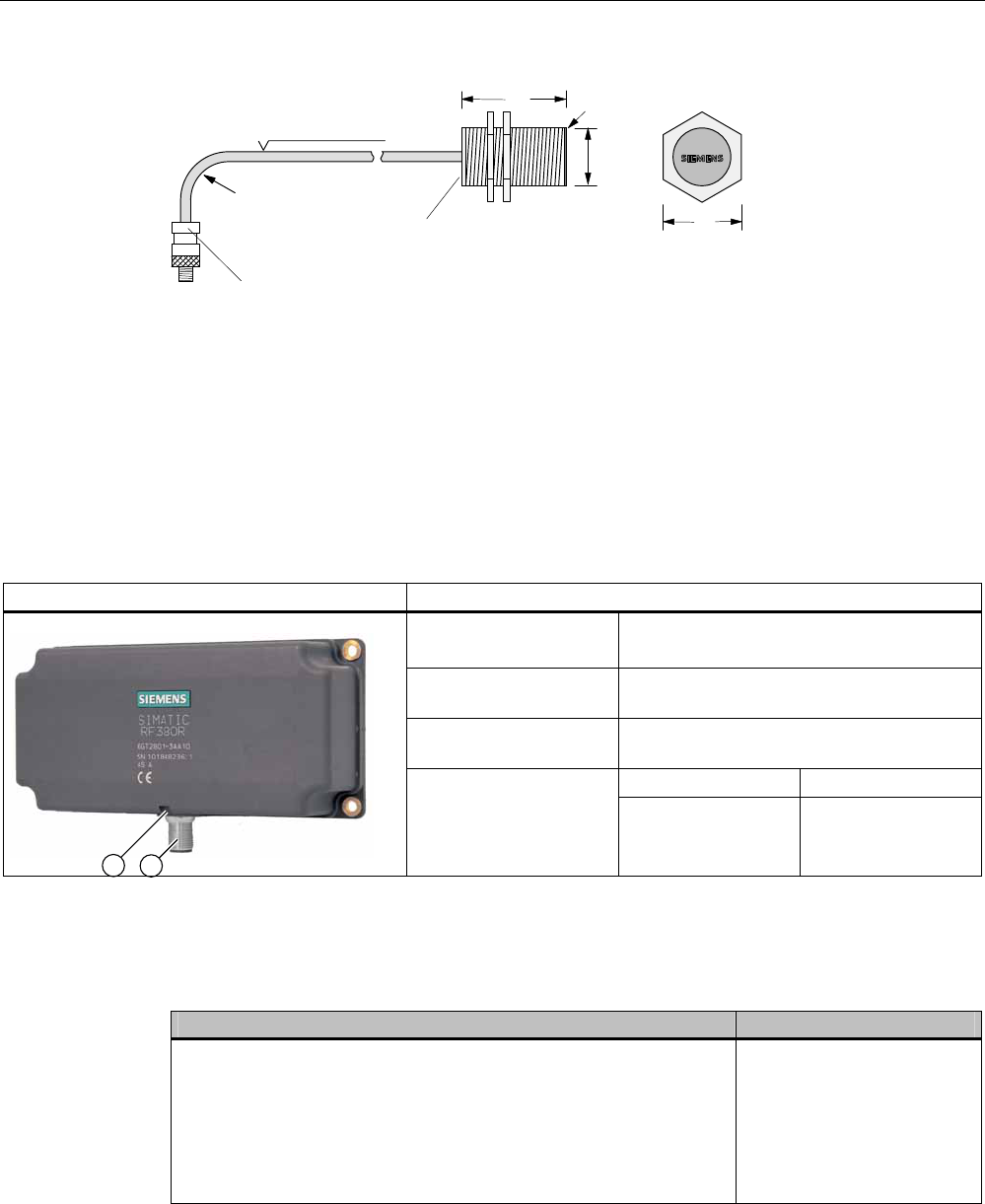

5.6 SIMATIC RF380R
5.6.1 Features
RF380R Characteristics
Design ① RS232 or RS422 interface
② Status display
Field of application Identification tasks on assembly lines in
harsh industrial environments
Read/write distance to
transponder
Max. 210 mm
RF300 tags ISO tags


Data transmission rate
Read
write
Approx. 8000 byte/s
Approx. 8000 byte/s
Approx. 600 byte/s
Approx. 400 byte/s
5.6.2 RF380R ordering data
RF380R Order number
With RS422 interface (3964R)
IP67
Operating temperature: -25 °C … +70 °C
Dimensions: 160 x 96 x 40 (L x W x H, in mm)
with integrated antenna
max. limit distance 150 mm (dependent on transponder)
6GT2801-3AB10
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
126 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
5.6.3 Pin assignment of RF380R RS232/RS422 interface
You can connect the RF380R reader to a higher-level system via the internal RS422
interface or via the RS232 interface. After connection, the interface module automatically
detects which interface has been used.
Note correct assignment of the pins here:
Assignment
Pin Pin
Device end
8-pin M12 RS232 RS422
1 + 24 V + 24 V
2 RXD - Transmit
3 0 V 0 V
4 TXD + Transmit
5 NC + Receive
6 NC - Receive
7 not used not used
8 Earth (shield) Earth (shield)
5.6.4 Display elements of the RF380R reader
Color Meaning
Flashing Operating voltage present, reader not initialized or antenna switched offGreen
Permanently
on
Operating voltage present, reader initialized and antenna switched on
Yellow1) Transponder present
Flashing red Error has occurred, the type of flashing corresponds to the error code in
the table in Section "Error codes". The optical error display is only reset
if the corresponding reset parameter ("option_1", see FC45 / FB45
documentation, Section "Input parameters") is set.
1) Only in the "with presence" mode.
5.6.5 Ensuring reliable data exchange
The "center point" of the transponder must be situated within the transmission window.
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 127
5.6.6 Metal-free area
The RF380R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.
D
D
D
D
6,0$7,&
5)5
Figure 5-23 Metal-free area for RF380R
To avoid any impact on the field data, the distance a should be ≥ 20 mm.
5.6.7 Minimum distance between RF380R readers
'D
'E
Da ≥ 400 mm
Db ≥ 400 mm
Figure 5-24 Minimum distance between RF380R readers
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
128 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
5.6.8 Technical specifications of the RF380R reader
Table 5- 7 Technical specifications of the RF380R reader
Inductive interface to the transponder
Transmission frequency for power/data
13.56 MHz
Antenna integrated
Interface to the communication module RS232 or RS422 (3964R protocol)
Baud rate 19200 baud, 57600 baud, 115200 baud
Cable length reader - communication module RS422 data cable length: max. 1000 m
RS232 data cable length: Max. 30 m
Read/write distances of reader See Chapter Field data of RF300 transponders
(Page 41)
Minimum distance between two RF380R readers ≥ 500 mm
RF300 tags
ISO tags Maximum data transmission range
reader - transponder (tag)
Read
write
Approx. 8000 byte/s
Approx. 8000 byte/s
Approx. 600 byte/s
Approx. 400 byte/s
Functions Initialize/read/write transponder
Scan status and diagnostics information
Switch antenna on/off
Repeat command
Scan transponder serial numbers
Power supply 24 V DC
Display elements 2-color LED
(operating voltage, presence, error)
Plug connector M12 (8-pin)
Enclosure
Dimensions (in mm)
Color
Material
160 x 80 x 40 (without M12 plug connector)
Anthracite
Plastic PA 12
Fixing 4 x M5 screws
Ambient temperature
During operation
Transport and storage
-25 °C to +70 °C
-40 °C to +85 °C
Degree of protection to EN 60529 IP67
Shock to EN 60 721-3-7 Class 7 M2
Vibration to EN 60 721-3-7 Class 7 M2
50 g
20 g
Weight Approx. 600 g
MTBF (Mean Time Between Failures) in years 109 years
Approvals Radio to R&TTE guidelines EN 300 330,
EN 301 489, CE, FCC, UL/CSA
Current consumption Typ. 160 mA
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 129
5.6.9 FCC information
Siemens SIMATIC RF380R (MLFB 6GT2801-3AA10) FCC ID: NXW-RF380R
Siemens SIMATIC RF380R (MLFB 6GT2801-3AB10) FCC ID: NXW-RF380R01
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
5.6.10 Use of the reader in hazardous areas
The TÜV SÜD Automotive GmbH as approved test center as well as the TÜV SÜD Product
Service GmbH as certification center, identification number 0123, as per Article 9 of the
Directive of the European Council of 23 March 1994 (94/9/EC), has confirmed the
compliance with the essential health and safety requirements relating to the design and
construction of equipment and protective systems intended for use in hazardous areas as
per Annex II of the Directive. The essential health and safety requirements are satisfied in
accordance with the following standards:
Document Title
EN 60079-0: 2006
Electrical equipment for hazardous gas atmospheres -
Part 0: General requirements
EN 60079-15: 2005 Electrical equipment for hazardous gas atmospheres -
Part 15: Design, testing and identification of electrical equipment
with type of protection "n"
DIN VDE 0848-5: 2001
(in parts)
Safety in electrical, magnetic and electromagnetic fields -
Part 5: Explosion protection
ZLS SK 107.1 Central office of the states for safety; test components
Identification
The identification of the electrical equipment as an enclosed unit is:
II 3G Ex nC IIB T5
-25 °C to +70 °C
Um = 30 V DC
The equipment is assigned the following references:
XXXYYYZZZ [= serial number, is assigned during production]
TPS 09 ATEX 1 459 X [= certificate number]
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
130 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
"No use of the equipment in the vicinity of processes generating high charges"
"Do not disconnect plug on load"
5.6.11 Use of the reader in hazardous areas for gases
Temperature class delineation for gases
The temperature class of the reader for hazardous areas depends on the ambient
temperature range:
Ambient temperature range Temperature class
-25 °C to +70 °C T5
WARNING
Ignitions of gas-air mixtures
When using the RF380R reader, check to ensure that the temperature class is observed in
respect of the requirements of the area of application
Non-compliance with the permitted temperature ranges while using the reader can lead to
ignitions of gas-air mixtures.
5.6.12 Installation and operating conditions for the hazardous area
a) The connector on the RF380R must be grounded via its supply line.
b) Use of the equipment in the vicinity of processes generating high charges is not allowed.
c) The plug of the RF380R must not be disconnected in a hazardous atmosphere or under
load.
d) The supply line for the RF380R is not part of this certificate. The supply line must exhibit a
sufficient temperature resistance.
e) The equipment must be mechanically protected when installed.
Readers
5.6 SIMATIC RF380R
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 131
5.6.13 Dimension drawing


 



6,0$7,&
5)5
Figure 5-25 Dimension drawing RF380R
Dimensions in mm
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 133
RF300 transponder 6
6.1 Overview of RF300 tags
Characteristics of the RF300 tags
The RF300 tags (RF3xxT) stand out particularly for their extremely fast data exchange with
the RF300 readers (RF3xxR). With the exception of the RF320T transponder, all of the
RF300 tags have 8 to 64 KB of FRAM memory, which has an almost unlimited capacity for
read/write actions.
RF300 tags
The following RF300 tags can be used at any time with RF300:
● RF320T
● RF340T
● RF350T
● RF360T
● RF370T
● RF380T
RF300 transponder
6.2 Memory configuration of the RF300 tags
SIMATIC RF300
134 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
6.2 Memory configuration of the RF300 tags
5)7
5)7
5)7
5)7
5)7
5)7
E\WHV
8,'UHDGRQO\
E\WHV
8VHUDUHD
UHDGZULWH
)5$0
8VHUDUHD
UHDGZULWH
((3520
273
QRWZLWK
,46HQVH
0D[b
EORFNVRI
E\WHVHDFK
5)7.%
5)7.%
5)7.%
5)7.%
5)7.%
5)7.%

))



)))
)))
))
))
))&
)()&
))&

))
))&
))
))
1) Physically identical memory When the OTP area is used, the corresponding user area (FF00-FF13) can no longer
be modified (read only).

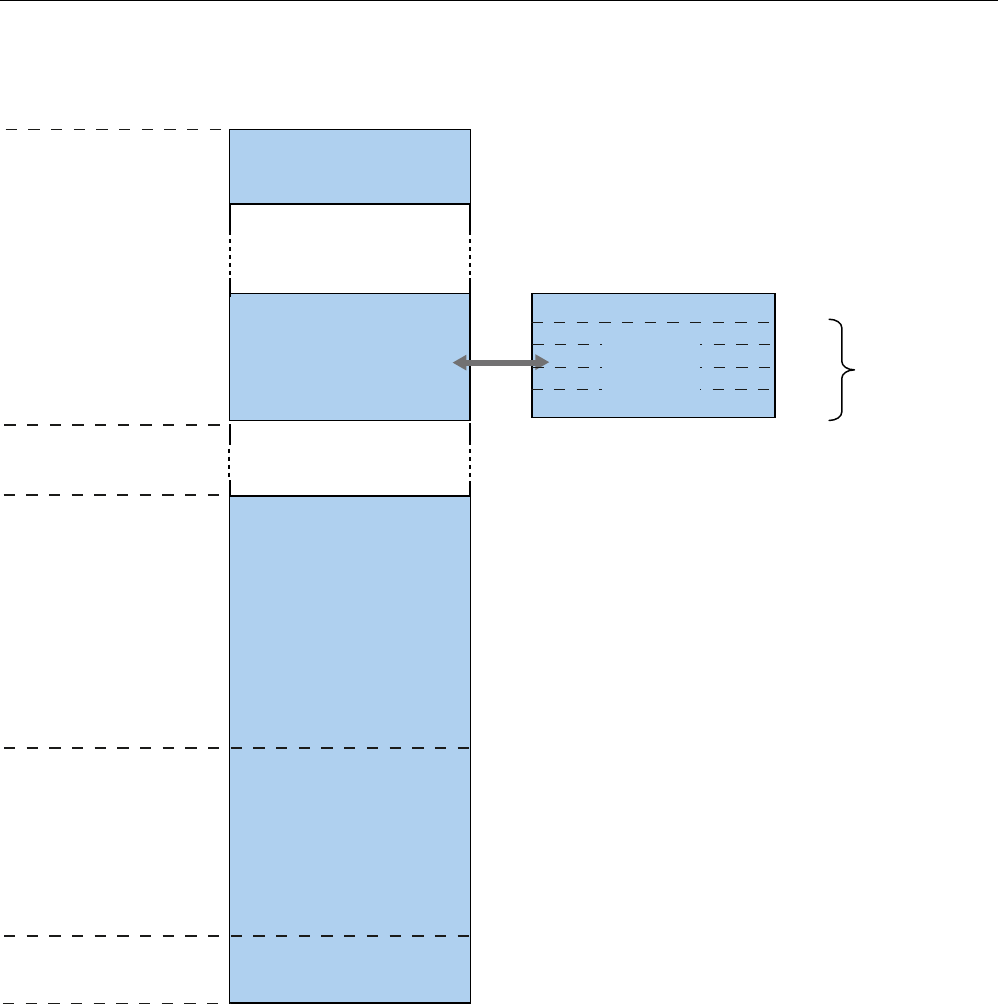

Figure 6-1 Memory configuration of the RF300 tags
RF300 transponder
6.2 Memory configuration of the RF300 tags
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 135
EEPROM area
The memory configuration of an RF300 tag always comprises an EEPROM memory that has
20 bytes for user data (read/write) and a 4 byte unique serial number (UID, read only). For
reasons of standardization, the UID is transferred as an 8 byte value through a read
command to address FFF0 with a length of 8. The unused 4 high bytes are filled with zeros.
Note
The EEPROM user memory (address FF00-FF13, or FF80-FF90) requires significantly more
time for writing (approx. 11 ms/byte) than the high-speed FRAM memory. For time-critical
applications with a write function, it is therefore recommended that FRAM tags are used (e.g.
RF340T, RF350T, RF360T, RF370T, RF380T).
FRAM area
Depending on the tag type, high-speed FRAM memory is available. (8 KB, 32 KB, 64 KB).
This area does not exist for the RF320T.
In the case of RF3xxT tags with FRAM memory, the data carrier initialization command
(INIT) is only effective on this memory area but not on the EEPROM area (FF00-FF13).
OTP area
The EEPROM memory area (address FF00-FF13) can also be used as a so-called "OTP"
memory (One Time Programmable). The 5 block addresses FF80, FF84, FF88, FF8C and
FF90 are used for this purpose. A write command to this block address with a valid length (4,
8, 12, 16, 20 depending on the block address) protects the written data from subsequent
overwriting.
Note
The OTP area cannot be used for the IQ-Sense reader variant.
Note
Seamless use of the OTP area
When the OTP area is used, it must be ensured that the blocks are used starting from Block
0 consecutively.
Examples:
3 blocks (with write command), Block 0, 1, 2 (FF80, length = 12): valid
2 blocks (consecutive), Block 0 (FF80, length =4), Block 1 (FF84, length = 4): valid
2 blocks (consecutive), Block 0 (FF80, length =4), Block 2 (FF88, length = 4): Invalid
1 Block, Block 4 (FF90, length = 4): Invalid
RF300 transponder
6.3 SIMATIC RF320T
SIMATIC RF300
136 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
NOTICE
Use of the OTP area is not reversible.
If you use the OPT area, you cannot undo it, because the OPT area can only be written to
once.
6.3 SIMATIC RF320T
6.3.1 Features
RF320T Characteristics
Field of application Identification tasks on small assembly lines in harsh
industrial environments
Memory Read-only area (4 bytes UID)
User data area (20 bytes)
Read/write range See Section Field data of RF300 transponders
(Page 41)
Mounting on metal Not possible: Recommended distance from metal
≥ 20 mm

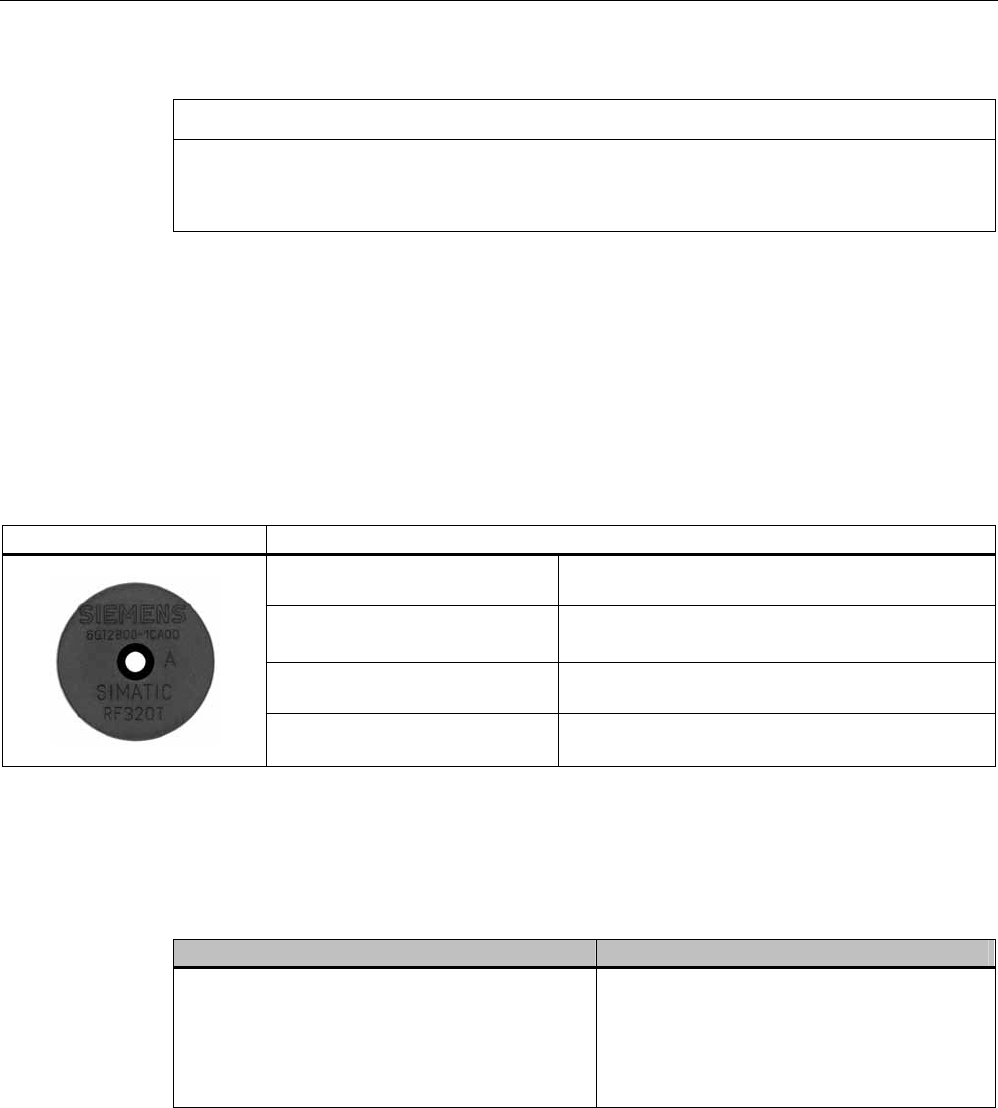

6.3.2 Ordering data
Table 6- 1 Ordering data RF320T
RF320T Order number
Button
Memory size: 20 byte EEPROM
IP67
Operating temperature: -25 °C to +85 °C
Dimensions: Ø = 27 mm x 4 mm
6GT2800-1CA00
6.3.3 Mounting on metal
Mounting of RF320T on metal
Direct mounting of the RF320T on metal is not allowed.
RF300 transponder
6.3 SIMATIC RF320T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 137
The following figures show the minimum distance between the RF320T and metal:
1RQPHWDO
0HWDO
'DWDPHPRU\
K
h > 20 mm
Figure 6-2 Mounting of an RF320T on metal with spacer
Flush-mounting of RF320T in metal
D
'DWDPHPRU\ 0HWDO
1RQPHWDO
K
h > 20 mm
a > 20 mm
Figure 6-3 Flush-mounting of RF320T in metal with spacer
At lower values, the field data change significantly, resulting in a reduced range.
RF300 transponder
6.3 SIMATIC RF320T
SIMATIC RF300
138 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
6.3.4 Technical data
Table 6- 2 Technical data for RF320T
Memory size 20 bytes EEPROM (r/w), 4 bytes UID (ro)
Memory organization Byte-oriented access, write protection possible
in 4-byte blocks
MTBF (Mean Time Between Failures) in years 1800
Read cycles Unlimited
Write cycles, min. 50 000
at ≤ 40 °C, typical > 100 000
Data retention time > 10 years (at < +40 °C)
Read/write distance Dependent on the reader used
[see Chapter Field data of RF300 transponders
(Page 41) ]
Energy source Inductive power transmission
Shock/vibration-resistant to EN 60721-3-7, Class 7
M3
100 g/20 g
Torsion and bending load Not permissible
Fixing Adhesive/M3 screws
Recommended spacing from metal > 20 mm
Degree of protection to EN 60529 IP67/IPX9K
Housing
Dimensions
Color/material
Button
Ø 27 mm x 4 mm
Black/epoxy resin
Ambient temperature
Operation
Transport and storage
-25 to +85 °C
-40 to +125 °C
Weight Approx. 5 g
Note
All the technical data listed are typical data and are applicable for an ambient temperature
between 0 and +50 °C and a metal-free environment.
RF300 transponder
6.4 SIMATIC RF340T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 139

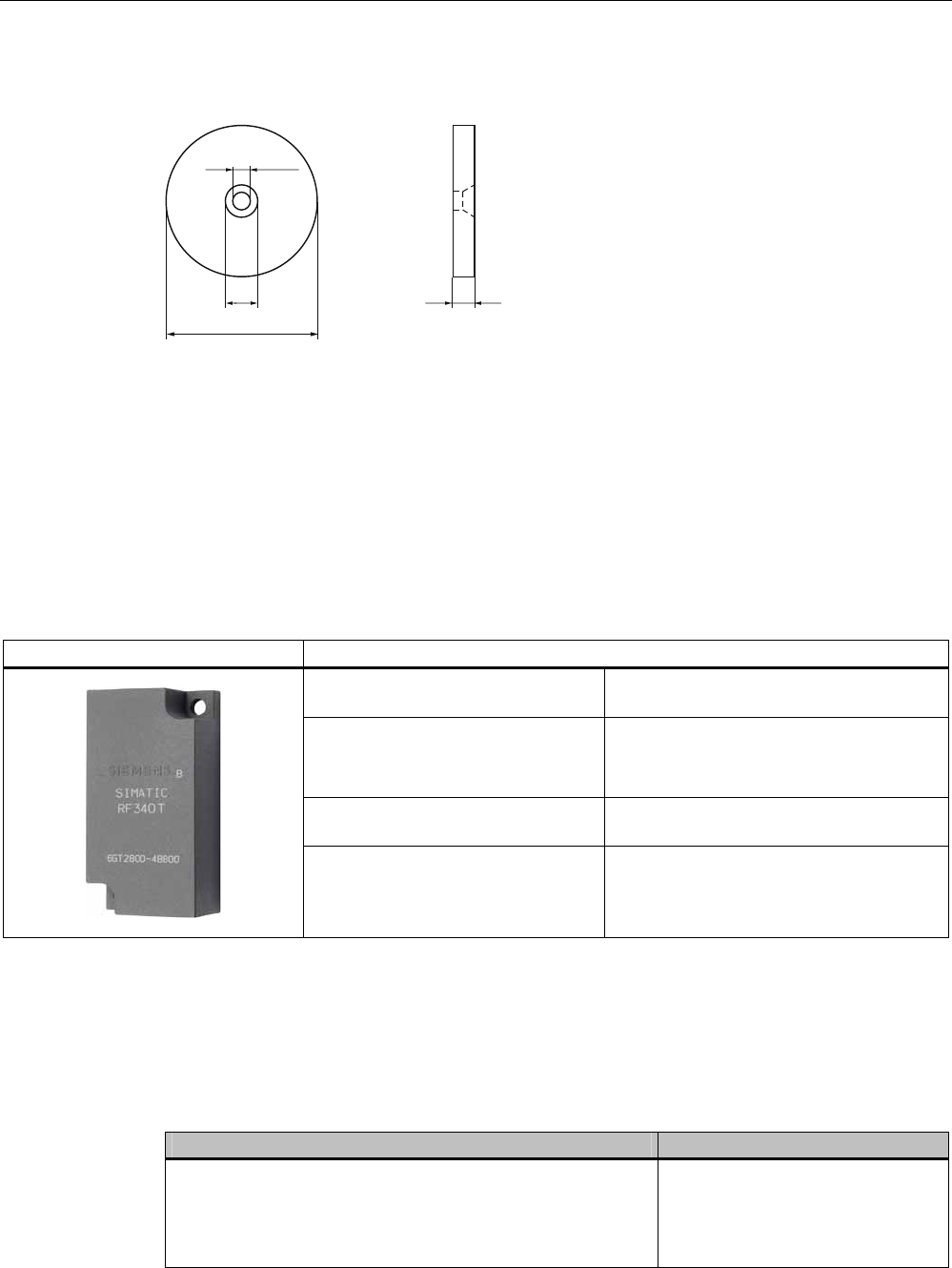

6.3.5 Dimension drawing




Figure 6-4 RF320T dimension drawing
Dimensions in mm
6.4 SIMATIC RF340T
6.4.1 Features
RF340T Characteristics
Field of application Identification tasks on small assembly lines
in harsh industrial environments
Memory Read-only area (4 bytes UID)
Read/write memory (8 KB)
OTP 1) memory (20 bytes)
Read/write range See Section Field data of RF300
transponders (Page 41)
Mounting on metal Direct mounting on metal is possible.
1) OTP: (One Time Programmable)
6.4.2 Ordering data
Table 6- 3 Ordering data RF340T
RF340T Order number
IP68
Memory size: 8 KB FRAM
Operating temperature: -25 °C to +85 °C
Dimensions: 48 x 25 x 15 (L x W x H, in mm)
6GT2800-4BB00
RF300 transponder
6.4 SIMATIC RF340T
SIMATIC RF300
140 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
6.4.3 Mounting on metal
Direct mounting of the RF340T on metal is permitted.
Mounting of RF340T on metal
0HWDO
Figure 6-5 Mounting of RF340T on metal
Flush-mounting of RF340T in metal:
D
D
0HWDO
Figure 6-6 Flush-mounting of RF340T in metal
The standard value for a is ≥ 20 mm. At lower values, the field data change significantly,
resulting in a reduction in the range.
RF300 transponder
6.4 SIMATIC RF340T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 141
6.4.4 Technical specifications
Table 6- 4 Technical specifications for RF340T
Memory size 8 KB
Memory organization Blocks of 8 bits/byte-by-byte
Memory configuration
Serial number (UID)
Application memory
OPT memory
4 bytes (fixed code)
8189 bytes r/w
20-byte OTP 1) memory
Storage technology FRAM / EEPROM
MTBF (Mean Time Between Failures) in years 1200
Write cycles, at +40 °C Virtually unlimited (>1010)
Read cycles Virtually unlimited (>1010)
Data transmission time
Read
Write
With RS422 reader:
Approx. 0.13 ms/byte
approx. 0.13 ms/byte
With IQ-Sense reader:
Approx. 20 ms/byte
approx. 25 ms/byte
Data retention > 10 years
Read/write distance Dependent on the reader used [see Chapter
Field data of RF300 transponders (Page 41)]
Multitag capability max. 4 transponders
Recommended spacing from metal can be directly mounted on metal
Power supply Inductive, without battery
Degree of protection to EN 60529
Shock to EN 60721-3-7
Vibration to EN 60721-3-7
Torsion and bending load
IP68/IPX9K
50 g
20 g
Not permitted permanently
Enclosure dimensions
Color
Material
Fixing
48 x 25 x 15 mm (L x W x H)
Anthracite
PA12
2 screws (M3)
Ambient temperature
Operation
Storage and transport
-25°C to +85°C
-40°C to +85°C
Weight Approx. 25 g
1) OTP: One Time Programmable
RF300 transponder
6.5 SIMATIC RF350T
SIMATIC RF300
142 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
6.4.5 Dimension drawing





6,(0(16
6,0$7,&
5)7

Figure 6-7 RF340T dimension drawing
Dimensions in mm
6.5 SIMATIC RF350T
6.5.1 Features
RF350T Characteristics
Field of application Identification tasks on small assembly lines
in harsh industrial environments
Memory Read-only area (4 bytes UID)
Read/write memory (32 KB)
OTP 1) memory (20 bytes)
Read/write range See Section Field data of RF300
transponders (Page 41)
Mounting on metal Direct mounting on metal is possible.
1) OTP: One Time Programmable
RF300 transponder
6.5 SIMATIC RF350T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 143
6.5.2 Ordering data
Table 6- 5 Ordering data RF350T
RF350T Order number
IP68
Memory size: 32 KB FRAM (read/write) and 4 byte EEPROM (read
only)
Operating temperature: -25 °C … +85 °C
Dimensions: 50 x 50 x 20 (L x W x H, in mm)
6GT2800-5BD00
6.5.3 Mounting on metal
Direct mounting of the RF350T on metal is permitted.

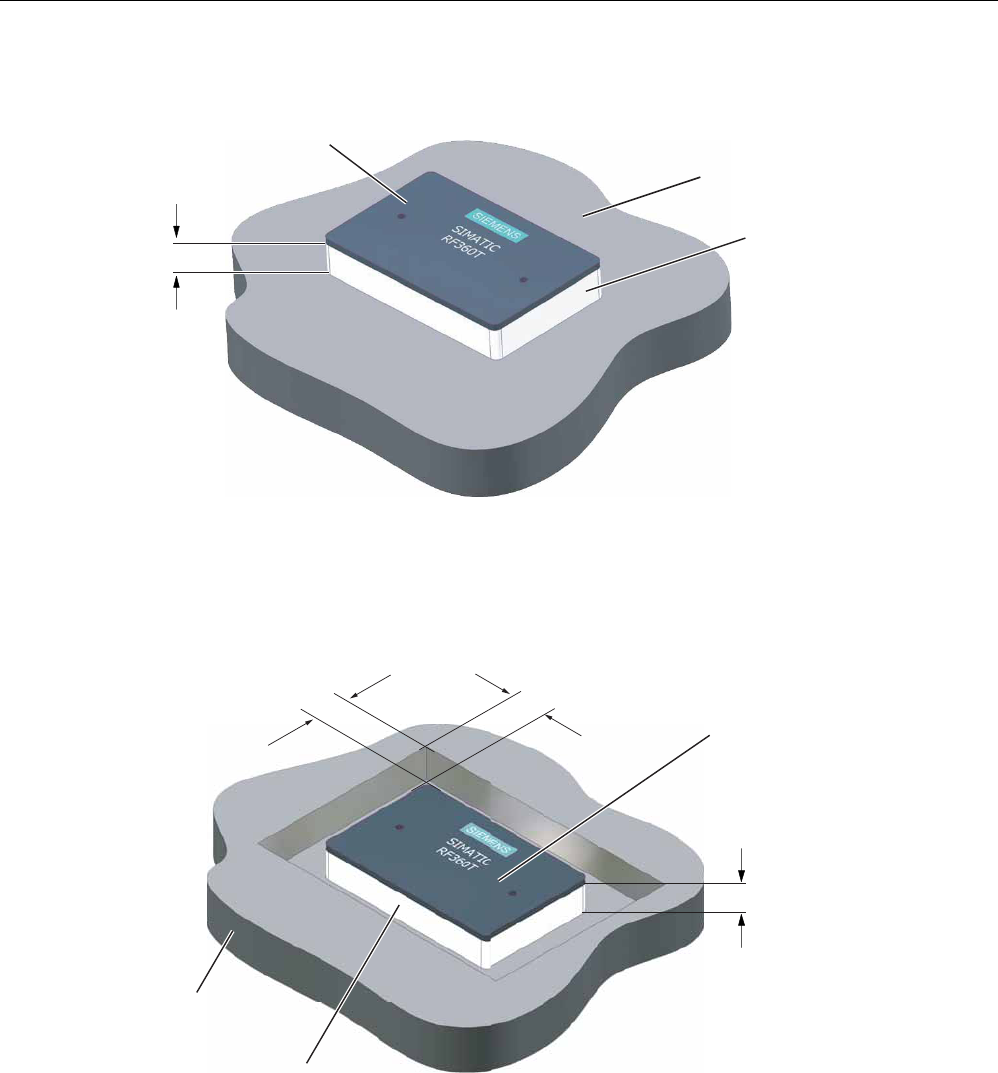

Mounting of RF350T on metal
Figure 6-8 Mounting of RF350T on metal
RF300 transponder
6.5 SIMATIC RF350T
SIMATIC RF300
144 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
Flush-mounting of RF350T in metal:
Figure 6-9 RF350T flush-mounted in metal
The standard value for a is ≥ 20 mm. At lower values, the field data change significantly,
resulting in a reduction in the range.
6.5.4 Technical data
Table 6- 6 Technical specifications for RF350T
Memory size 32 KB
Memory organization Blocks of 8 bits/byte-by-byte
Memory configuration
Serial number (UID)
Application memory
OTP 1) memory
4 bytes (fixed code)
32765 bytes r/w
20 bytes
Storage technology FRAM / EEPROM
MTBF (Mean Time Between Failures) in years 1200
Write cycles, at +40 °C Virtually unlimited (>1010)
Read cycles Virtually unlimited (>1010)
Data transmission time
Read
Write
With RS422 reader:
Approx. 0.13 ms/byte
approx. 0.13 ms/byte
With IQ-Sense reader:
Approx. 20 ms/byte
approx. 25 ms/byte
Data retention > 10 years
RF300 transponder
6.5 SIMATIC RF350T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 145
Read/write distance Dependent on the reader used
[see Chapter Field data of RF300 transponders
(Page 41)]
Multitag capability max. 4 transponders
Recommended spacing from metal can be directly mounted on metal
Power supply Inductive, without battery
Degree of protection to EN 60529
Shock to EN 60721-3-7
Vibration to EN 60721-3-7
Torsion and bending load
IP68
50 g
20 g
Not permitted permanently
Enclosure dimensions
Color
Material
Fixing
50 x 50 x 20 mm (L x W x H)
Anthracite
PA12
2 screws M4
Ambient temperature
Operation
Transport and storage
-25 °C to +85 °C
-40 °C to +85 °C
Weight Approx. 25 g
1) OTP: One Time Programmable
RF300 transponder
6.5 SIMATIC RF350T
SIMATIC RF300
146 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
6.5.5 Dimension drawing







7KHWUDQVSRQGHUFDQEHPRXQWHGDVVKRZQZLWK
WKHIL[LQJIUDPH
,QVWDOODWLRQGLDJUDP
)L[LQJIUDPH
7UDQVSRQGHU

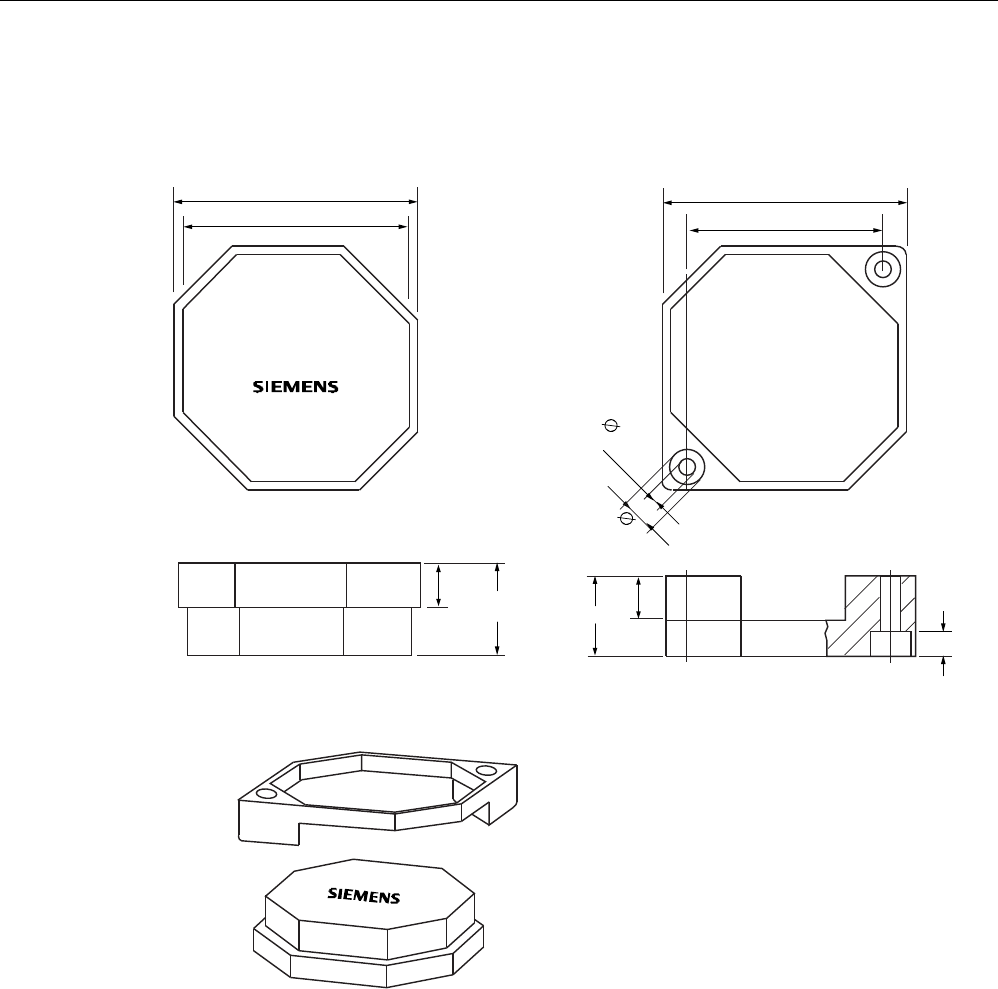

Figure 6-10 RF350T dimension drawing
Dimensions in mm
RF300 transponder
6.6 SIMATIC RF360T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 147
6.6 SIMATIC RF360T
6.6.1 Features
RF360T Characteristics
Field of application Identification tasks on small assembly lines
in harsh industrial environments
Memory Read-only area (4 bytes UID)
Read/write memory (8 KB)
OTP 1) memory (20 bytes)
Read/write range Refer to SectionField data of RF300
transponders (Page 41)
Mounting on metal Not possible; recommended distance from
metal ≥ 20 mm
1) OTP. One Time Programmable
6.6.2 Ordering data

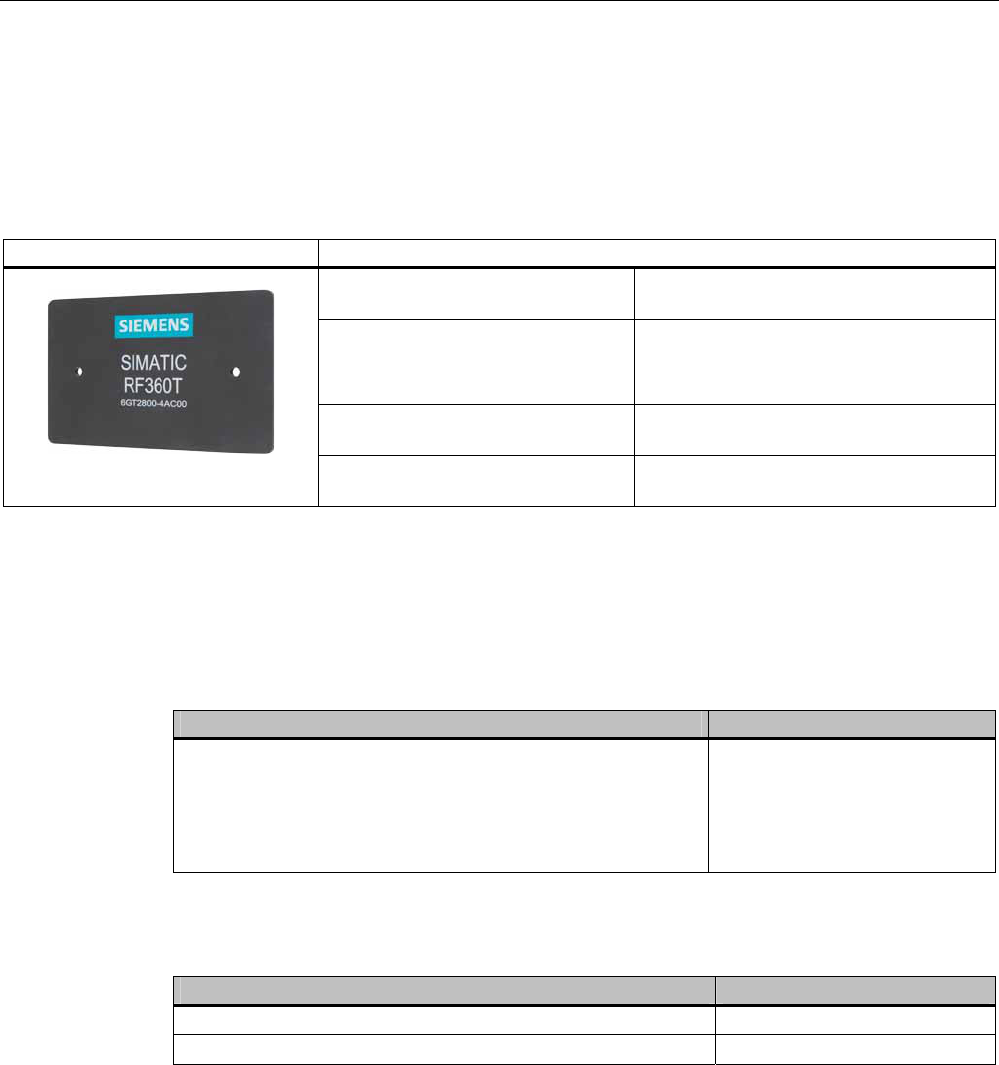

Table 6- 7 Ordering data RF360T
RF360T Order number
IP67
Memory size: 8 KB FRAM (read/write) and 4 byte EEPROM
(read only)
Operating temperature: -25 °C … +75 °C
Dimensions: 85.8 x 54.8 x 2.5 (L x W x H, in mm)
6GT2800-4AC00
Table 6- 8 Ordering data for RF360T accessories
RF360T accessories Order number
Spacers 6GT2190-0AA00
Fixing pocket 6GT2190-0AB00
6.6.3 Mounting on metal
Direct mounting of the RF360T on metal is not allowed. A distance ≥ 20 mm is
recommended. This can be achieved using the spacer 6GT2190-0AA00 in combination with
the fixing pocket 6GT2190-0AB00.
RF300 transponder
6.6 SIMATIC RF360T
SIMATIC RF300
148 System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04
Mounting of RF360T on metal
K
0HWDO
1RQPHWDO
'DWDVWRUDJHXQLW
Figure 6-11 Mounting of RF360T with spacer
The standard value for h is ≥ 20 mm.
Flush-mounting of RF360T in metal:
1RQPHWDO
0HWDO
D
D
'DWDVWRUDJHXQLW
K
Figure 6-12 Flush-mounting of RF360T with spacer
The standard value for a is ≥ 20 mm. At lower values, the field data change significantly,
resulting in a reduction in the range.
RF300 transponder
6.6 SIMATIC RF360T
SIMATIC RF300
System Manual, 11/2009 - Zwischenstand 17.09.2009, A5E01642529-04 149
Dimensions of spacer and fixing pocket for RF360T







6,(0(16







/XJV
+ROGLQJNQREV
)L[LQJSRFNHW*7$%
)L[LQJEUDFNHW
'LPHQVLRQVNHWFK
6SDFHUV*7$$
0DWHULDO3$
'DWDPHPRU\
7KHWUDQVSRQGHULVLQVHUWHGLQWRWKH
IL[LQJSRFNHW7KHHDUVDUHPRYHGE\
rDQGLQVHUWHGLQWRWKHVSDFHU7KH
IL[LQJSRFNHW
PXVWEHDOLJQHGVXFKWKDWLW
FRYHUVWKHWUDQVSRQGHUVHH)LJXUH
/RFNLQJLVDXWRPDWLF
5HDVVHPEO\LQVWUXFWLRQV
7KHIL[LQJSRFNHWLVDWWDFKHGWRDQRQPHWDO
EDVHE\WKHHDUV7KLVFDQEH
DFKLHYHGZLWK
6FUHZVLQWKHKROHVSURYLGHG
5LYHWVLQWKHKROHVSURYLGHG
1DLOVWKURXJKWKHKROHV
7DFNVWKURXJKWKHSODVWLFRIWKHHDUV
3XVKLQJLQWRWKHVSDFHUV
7KHHDUVFDQEHPRYHGWKURXJK
XSWRr
7KHWUDQVSRQGHULV
LQVHUWHGLQWRWKH
IL[LQJSRFNHW

/RFNLQJLV
FDUULHGRXWXVLQJ
WKH
KROGLQJNQREVLQ
WKHIL[LQJ
SRFNHW
6SDFHUV
)L[LQJSRFNHW
7UDQVSRQGHUZLWKIL[LQJSRFNHW 7UDQVSRQGHUZLWKIL[LQJSRFNHWDQG
VSDFHUFRQQHFWHGWRJHWKHU
7KHVSDFHUFDQEHGLUHFWO\PRXQWHGRQPHWDO,QFRPELQDWLRQZLWKWKH
IL[LQJSRFNHWDQRQPHWDOGLVWDQFHRIPPUHVXOWVEHWZHHQWKHWUDQVSRQGHUDQGPHWDO
0RXQWLQJ
:LWKRUVFUHZV0
:LWKUXEEHUVRQWKHKROGLQJFOLSVHJRQPHVKER[HV
:LWKFDEOHWLHVRQWKHKROGLQJFOLSVHJRQPHVKER[HV

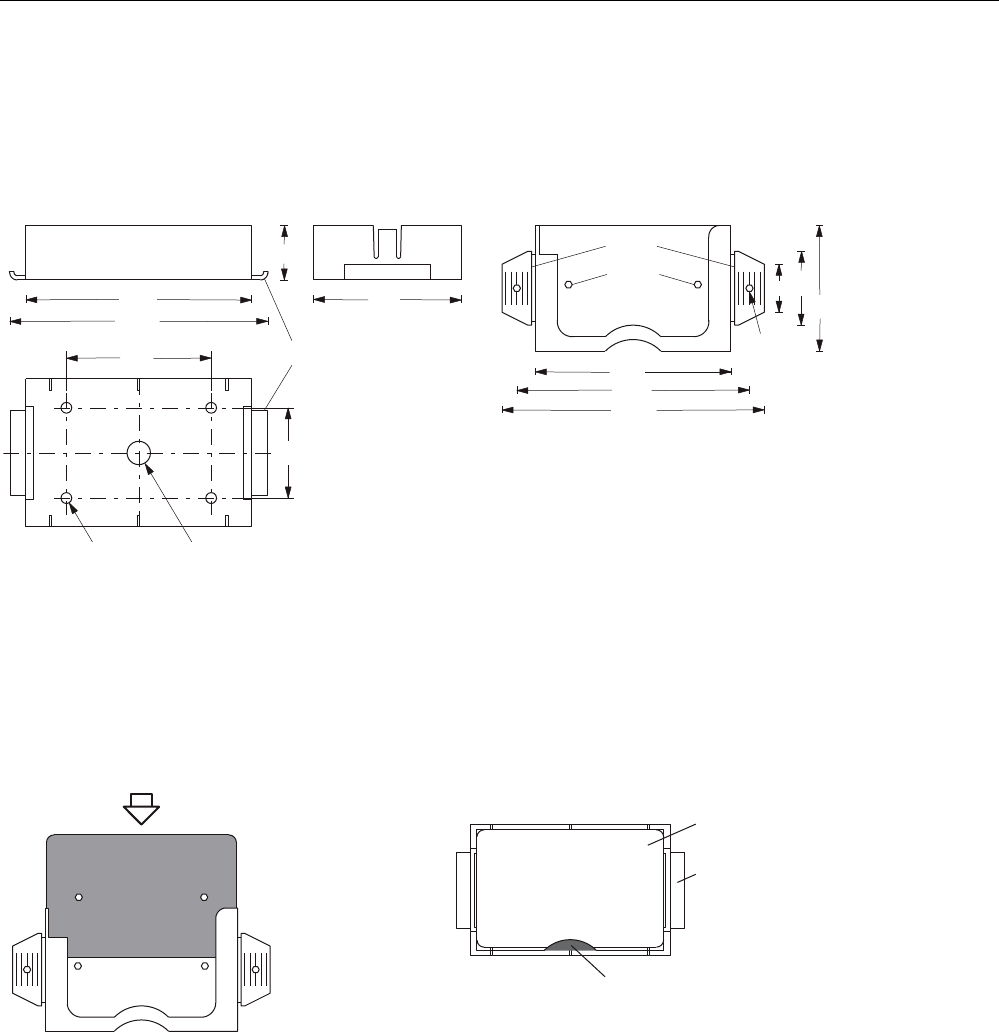

Figure 6-13 Dimensions of spacer and fixing pocket for RF360T

Navigation menu
