Siemens RF660 RFID reader User Manual

Siemens AG RFID reader

Contents

User manual

Introduction
1
Safety Information
2
System overview
3
RF600 system planning
4
RF660R reader
5
Antennas
6
Transponder/tags
7
Accessories
8
Appendix
A
SIMATIC RF600
RFID systems
RF600
System Manual
09/2005 Edition, J31069 D0171-U001-
A
0-7618
Safety Guidelines
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
Danger
indicates that death or severe personal injury will result if proper precautions are not taken.
Warning
indicates that death or severe personal injury may result if proper precautions are not taken.
Caution
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
Caution
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
Notice
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The device/system may only be set up and used in conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by qualified personnel. Within the context of the safety notes
in this documentation qualified persons are defined as persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with established safety practices and standards.
Prescribed Usage
Note the following:
Warning
This device may only be used for the applications described in the catalog or the technical description and only in
connection with devices or components from other manufacturers which have been approved or recommended by
Siemens. Correct, reliable operation of the product requires proper transport, storage, positioning and assembly
as well as careful operation and maintenance.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Automation and Drives
Postfach 48 48
90437 NÜRNBERG
GERMANY
Order No.:
Edition 09/2005
Copyright © Siemens AG 2005.
Technical data subject to change
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, iii
Table of contents
1 Introduction............................................................................................................................................. 1-1
1.1 Preface....................................................................................................................................... 1-1
1.2 Navigating in the system manual............................................................................................... 1-3
2 Safety Information................................................................................................................................... 2-1
2.1 General safety instructions ........................................................................................................ 2-1
3 System overview..................................................................................................................................... 3-1
3.1 RF System SIMATIC RF600...................................................................................................... 3-1
3.1.1 Application areas of RF600........................................................................................................ 3-2
3.1.2 Features..................................................................................................................................... 3-3
4 RF600 system planning .......................................................................................................................... 4-1
4.1 Overview .................................................................................................................................... 4-1
4.2 Antenna configurations .............................................................................................................. 4-2

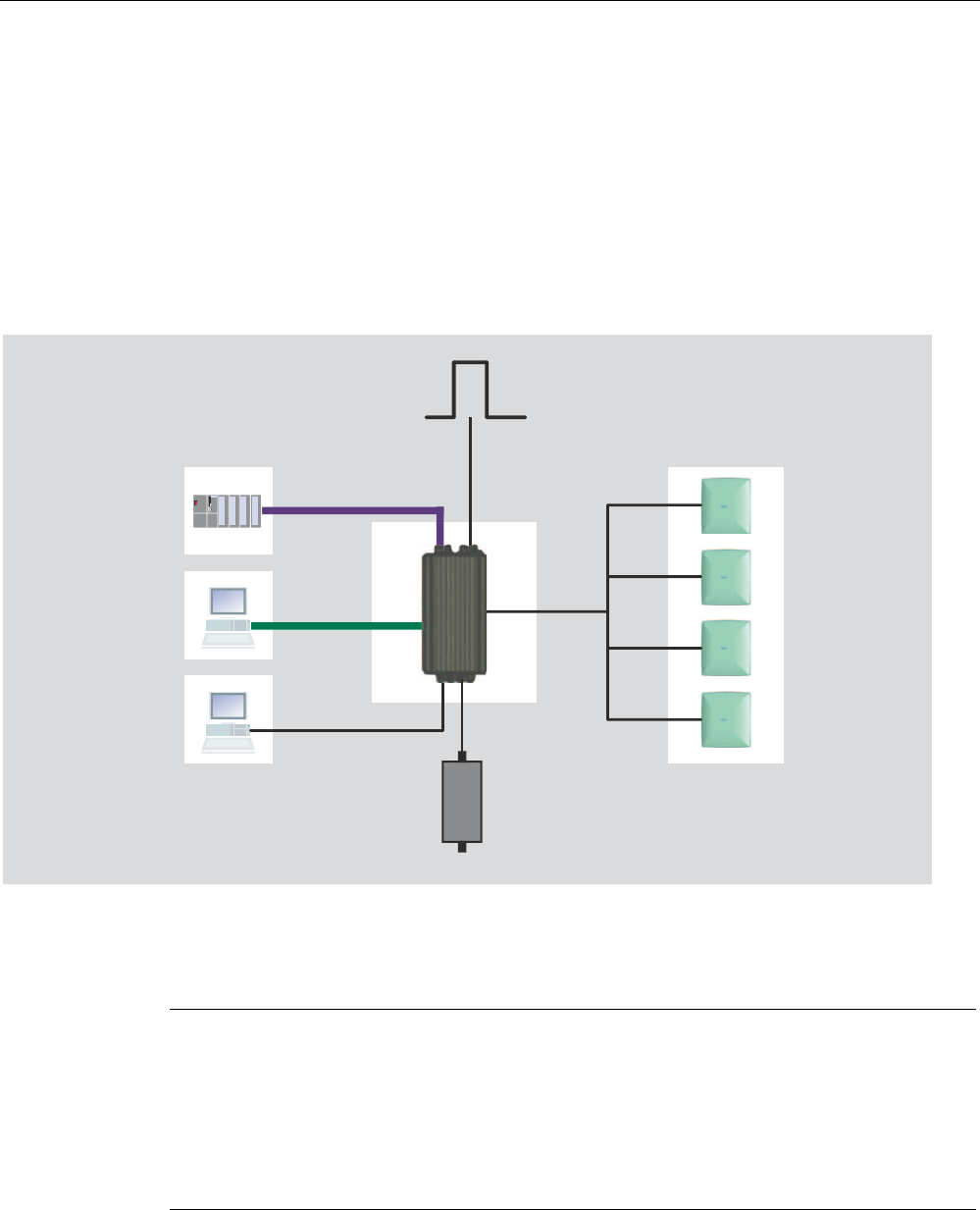

4.2.1 Antenna configuration example ................................................................................................. 4-2
4.2.2 Possibilities and application areas for antenna configurations.................................................. 4-3

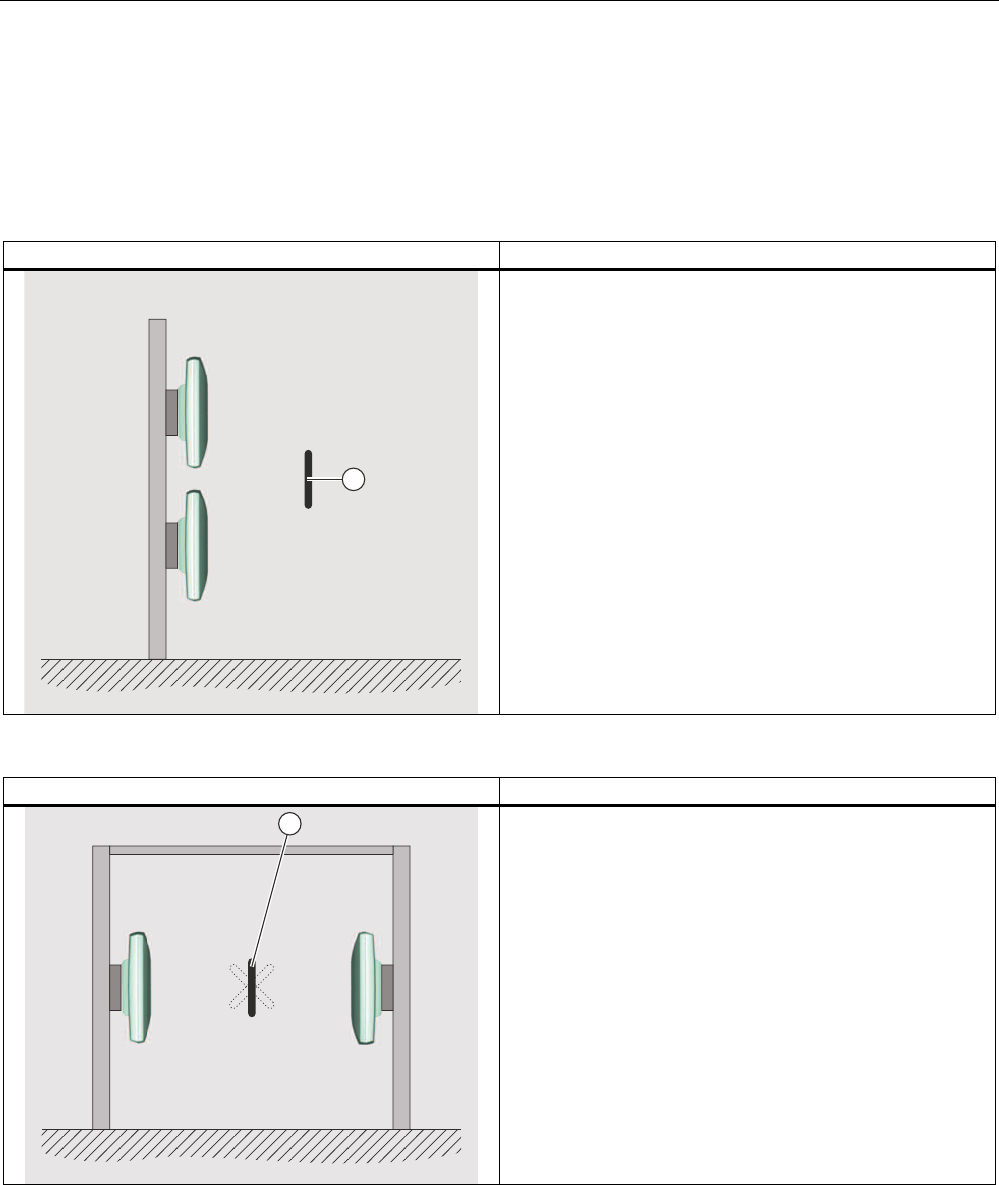

4.2.3 Tag orientation in space............................................................................................................. 4-6

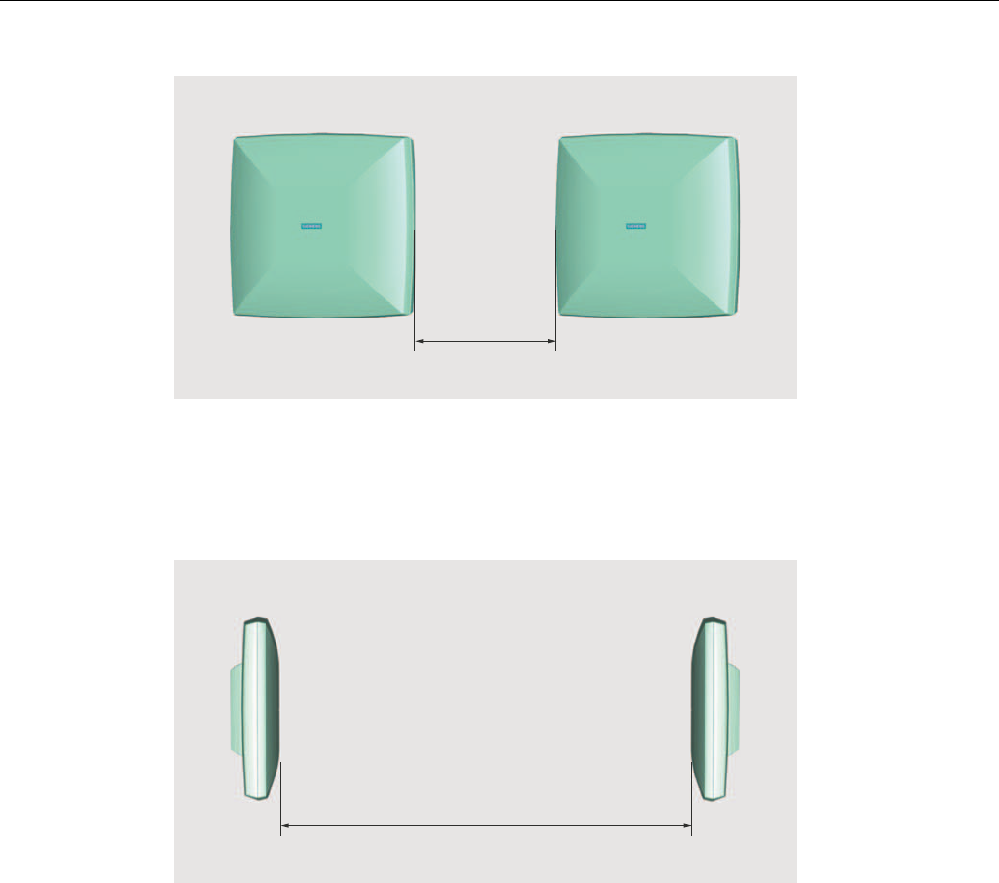

4.2.4 Specified minimum and maximum spacing of antennas ........................................................... 4-7
4.2.5 Mutual interference of readers (antennas)................................................................................. 4-9
4.2.6 Reading range ......................................................................................................................... 4-10

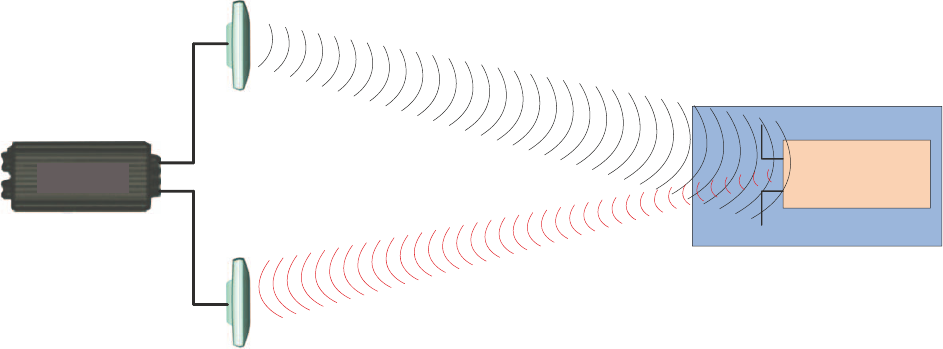

4.2.7 Increasing the probability of identification for tags - Antenna switching .................................. 4-11
4.3 Environmental conditions for transponders ............................................................................. 4-12
4.3.1 Basic rules................................................................................................................................ 4-12
4.4 The response of electromagnetic waves in the UHF band...................................................... 4-13
4.4.1 The effect of reflections and interference ................................................................................ 4-13
4.4.2 Influence of metals................................................................................................................... 4-14
4.4.3 Influence of liquids and non-metallic substances .................................................................... 4-15
4.5 Regulations applicable to frequency bands ............................................................................. 4-16
4.5.1 Regulations for UHF frequency bands in Europe .................................................................... 4-16
4.5.2 Regulations for UHF frequency bands in the USA .................................................................. 4-18
4.6 Guidelines for electromagnetic compatibility (EMC)................................................................ 4-19
4.6.1 Overview .................................................................................................................................. 4-19
4.6.2 What does EMC mean?........................................................................................................... 4-20
4.6.3 Basic rules................................................................................................................................ 4-20

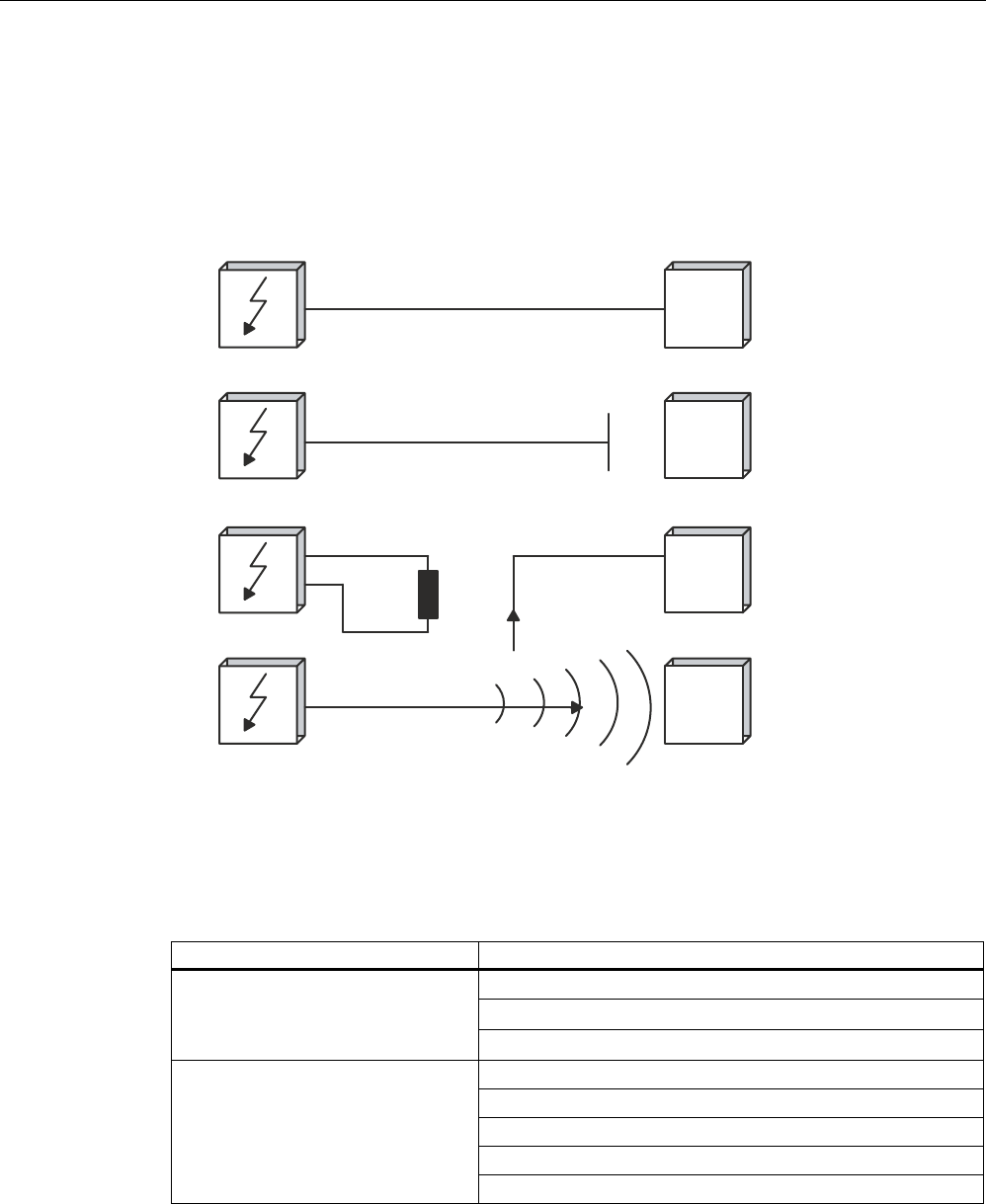

4.6.4 Propagation of electromagnetic interference ........................................................................... 4-23
4.6.5 Prevention of interference sources .......................................................................................... 4-27

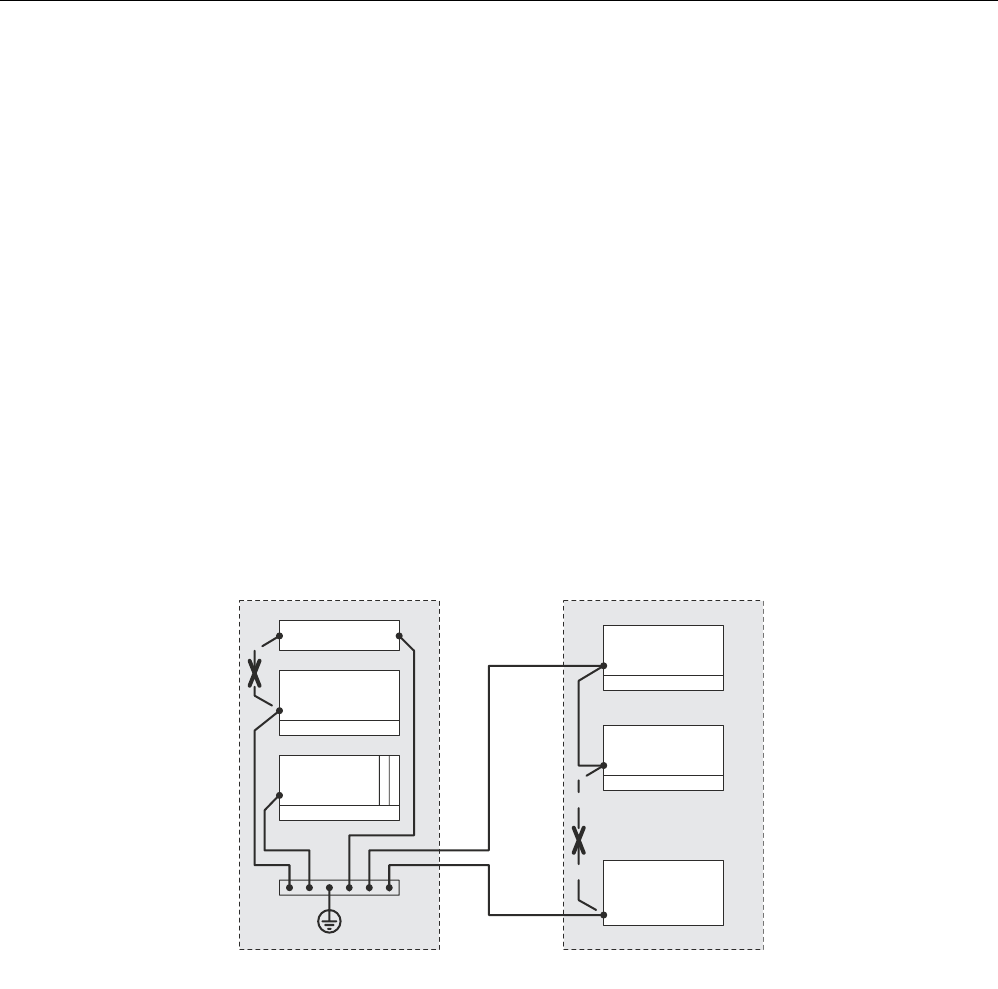

4.6.6 Equipotential bonding .............................................................................................................. 4-28

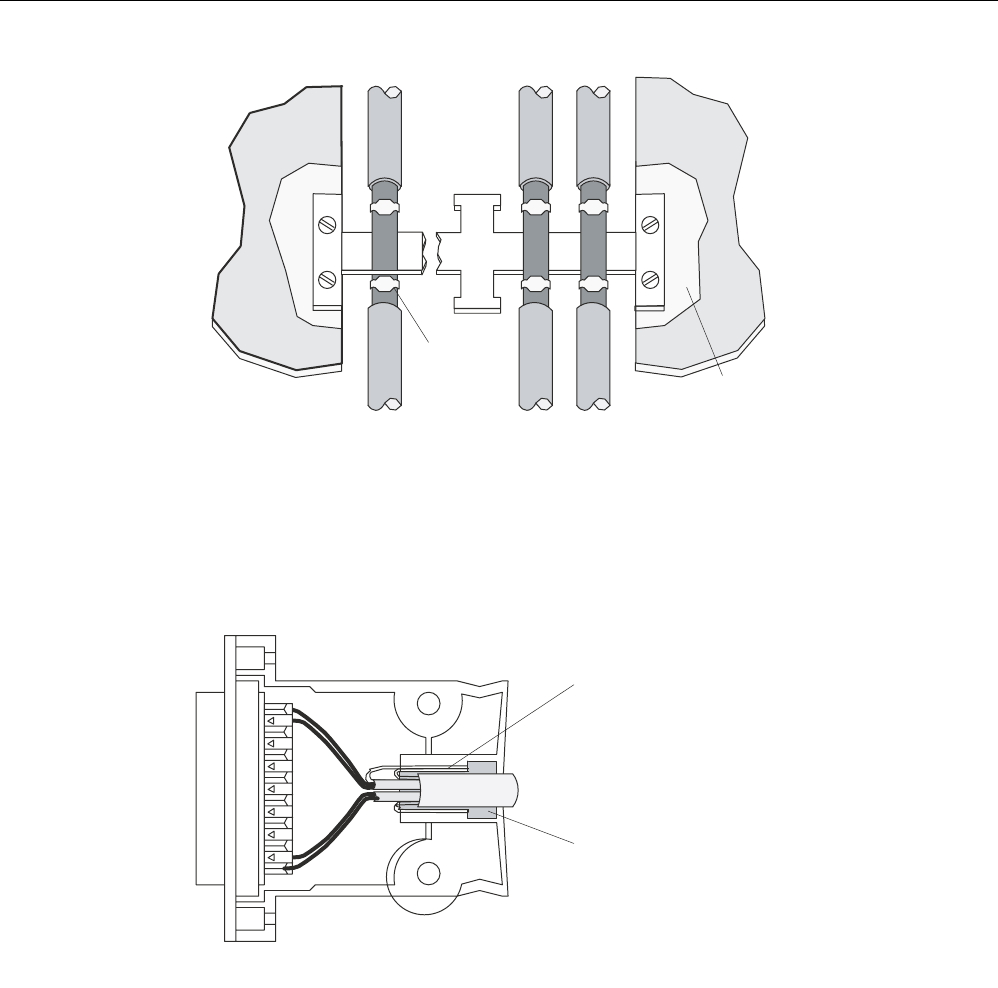

4.6.7 Cable shielding......................................................................................................................... 4-29
5 RF660R reader....................................................................................................................................... 5-1
5.1 Description ................................................................................................................................. 5-1
5.1.1 Ordering data ............................................................................................................................. 5-2
Table of contents
RF600
iv System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,

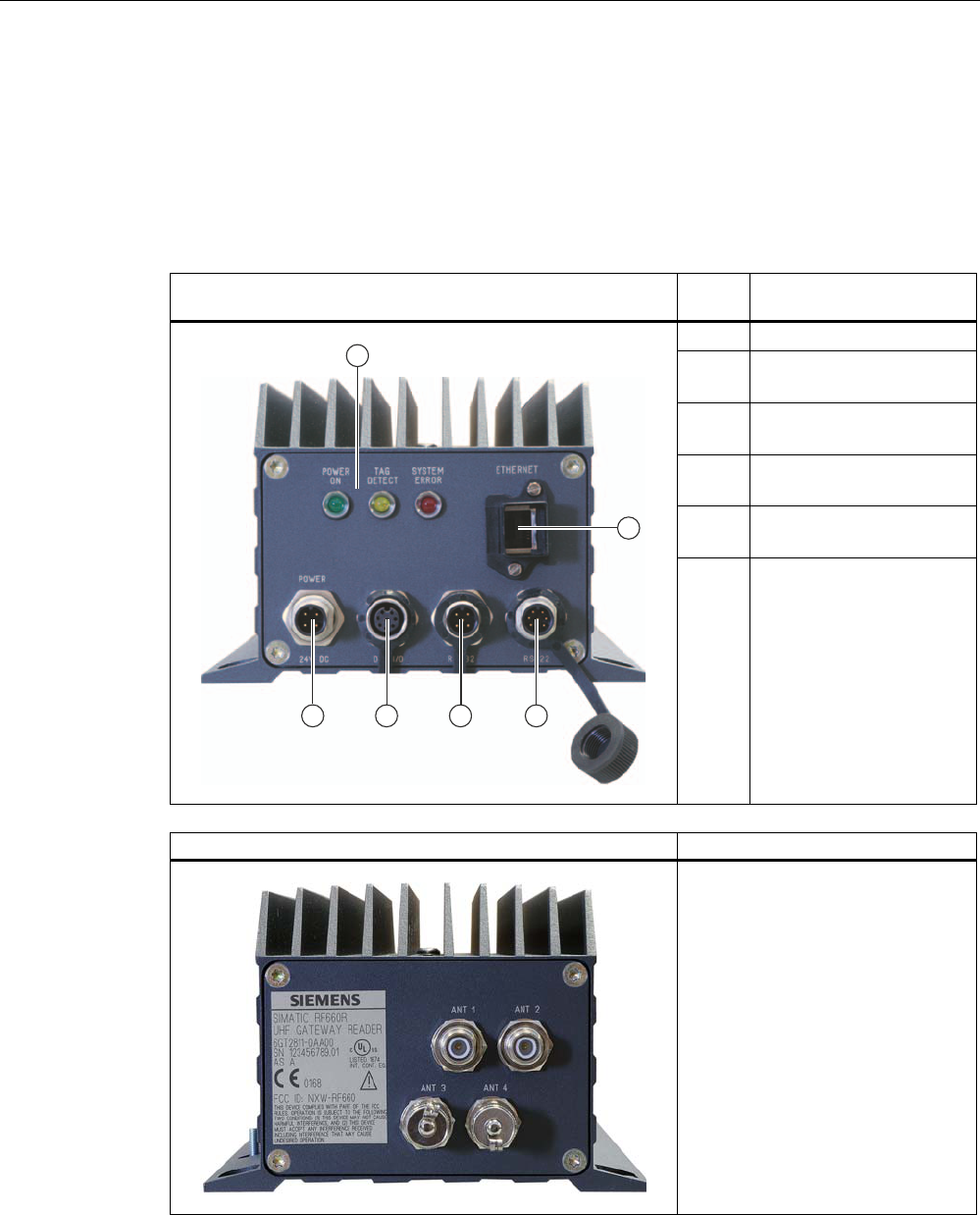

5.1.2 Design of the RF660R reader ....................................................................................................5-3

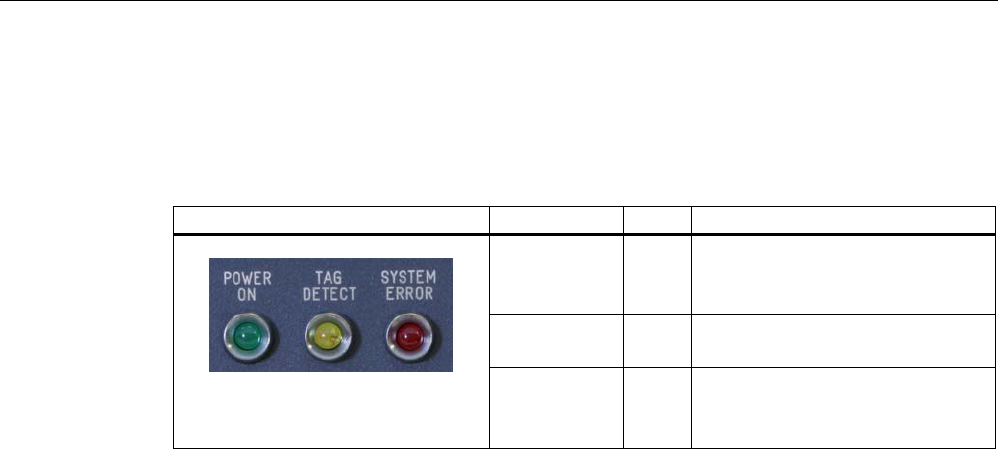

5.1.3 Status displays ........................................................................................................................... 5-4

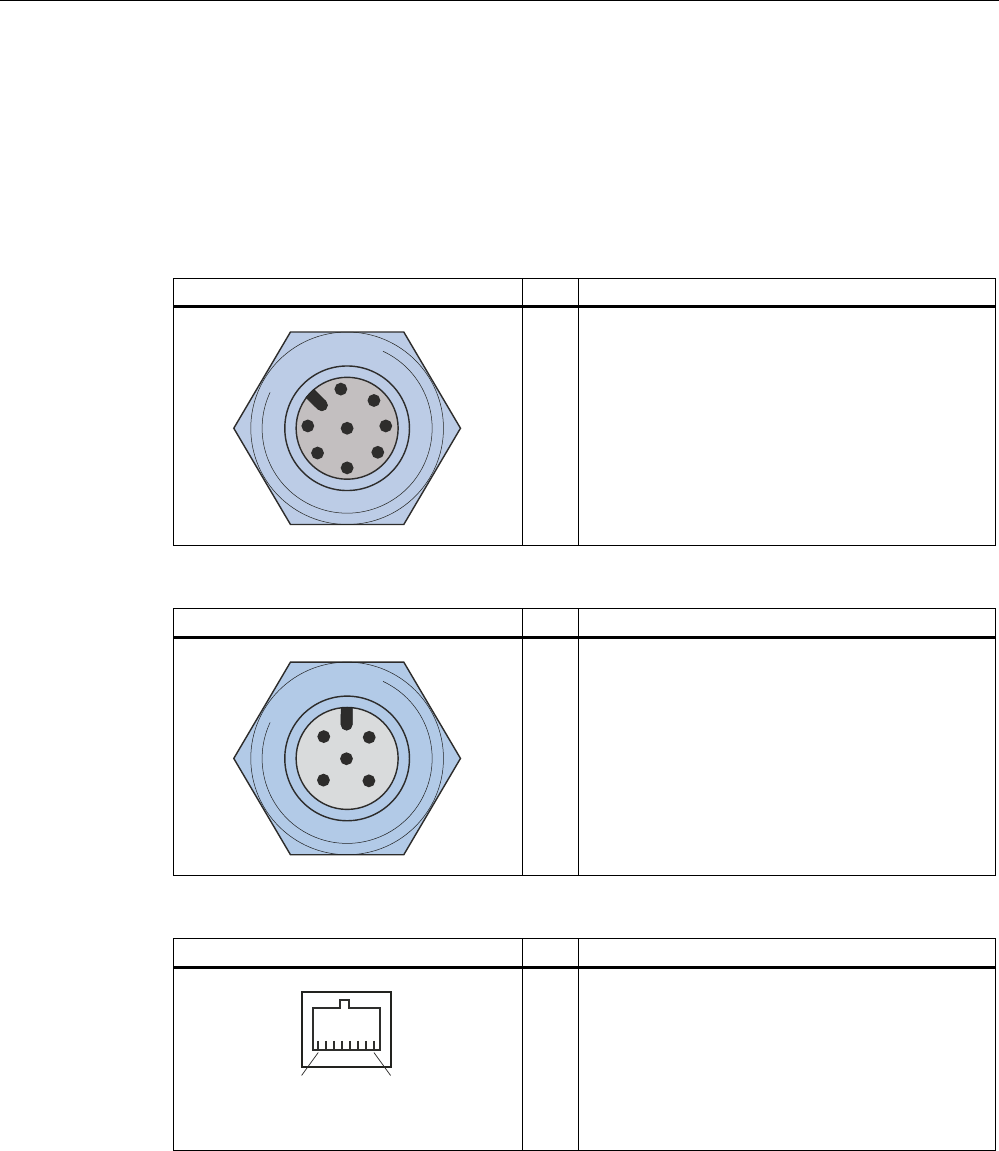

5.1.4 Pin assignment of the serial interfaces ...................................................................................... 5-5

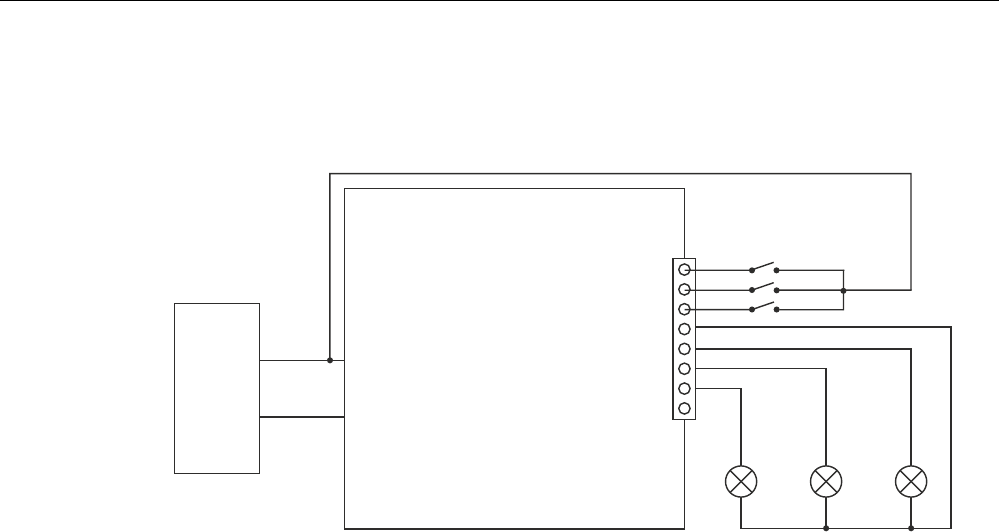

5.1.5 Pin assignment and connections of the digital I/O interface...................................................... 5-6
5.1.6 Power supply.............................................................................................................................. 5-8

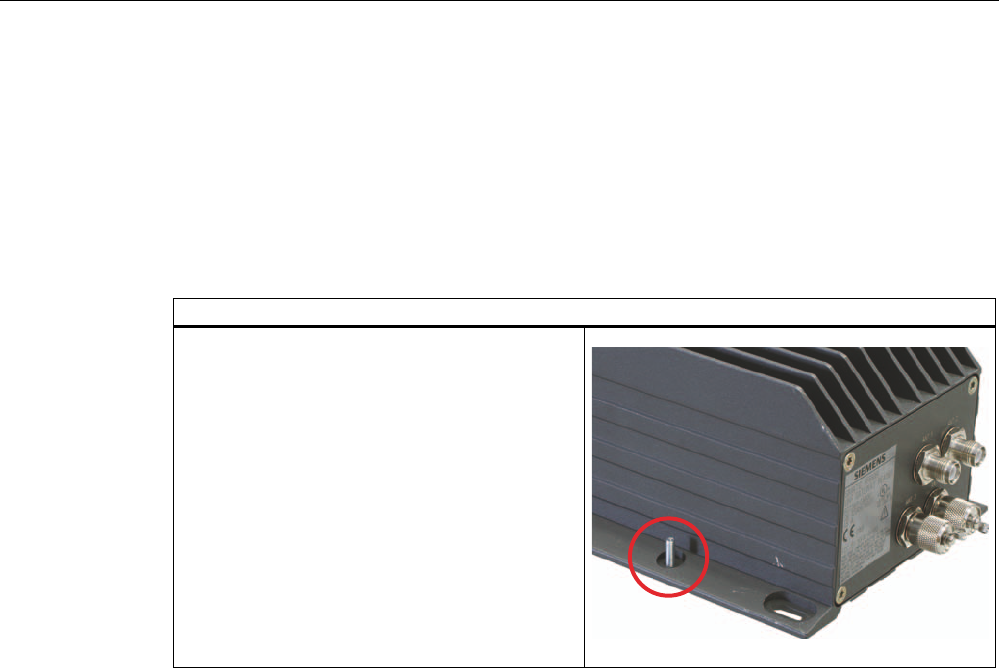

5.1.7 Grounding connection................................................................................................................ 5-9
5.2 5-10
5.3 Installation /Mounting ............................................................................................................... 5-10
5.3.1 Mounting/Installation ................................................................................................................ 5-10
5.4 Configuration/integration.......................................................................................................... 5-10
5.4.1 Configuration............................................................................................................................ 5-10
5.4.2 Transmission protocols ............................................................................................................ 5-12
5.5 Maintenance and service ......................................................................................................... 5-13
5.6 Technical specifications ........................................................................................................... 5-14
5.6.1 Technical specifications of RF660R......................................................................................... 5-14

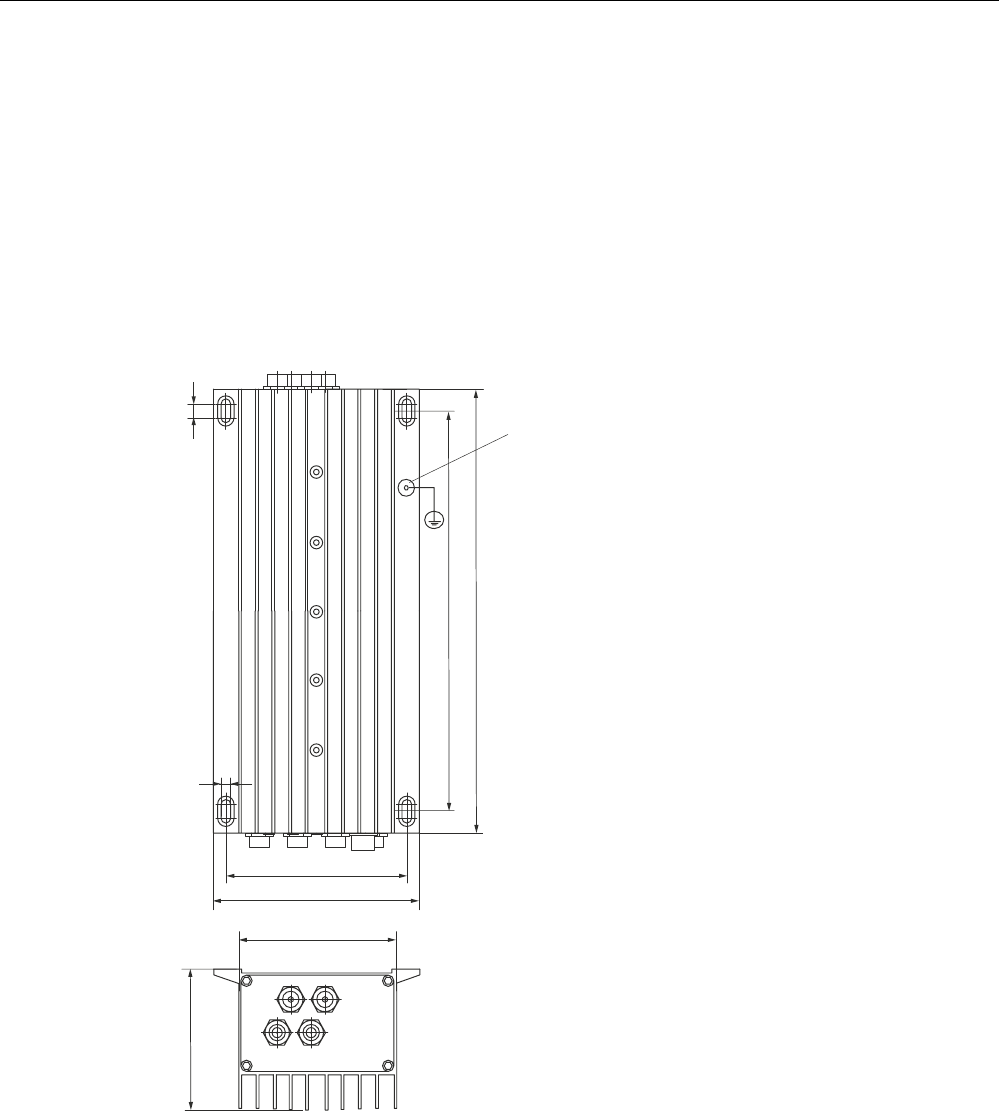

5.7 Dimension drawings................................................................................................................. 5-17
5.7.1 Dimension drawings................................................................................................................. 5-17
5.8 Certificates and approvals........................................................................................................ 5-18
5.8.1 FCC information ....................................................................................................................... 5-18
5.8.2 Compliance distance for RF Exposure .................................................................................... 5-18
6 Antennas ................................................................................................................................................ 6-1
6.1 RF660A antenna ........................................................................................................................ 6-1
6.1.1 RF660A description.................................................................................................................... 6-1
6.1.2 Application Planning................................................................................................................... 6-4

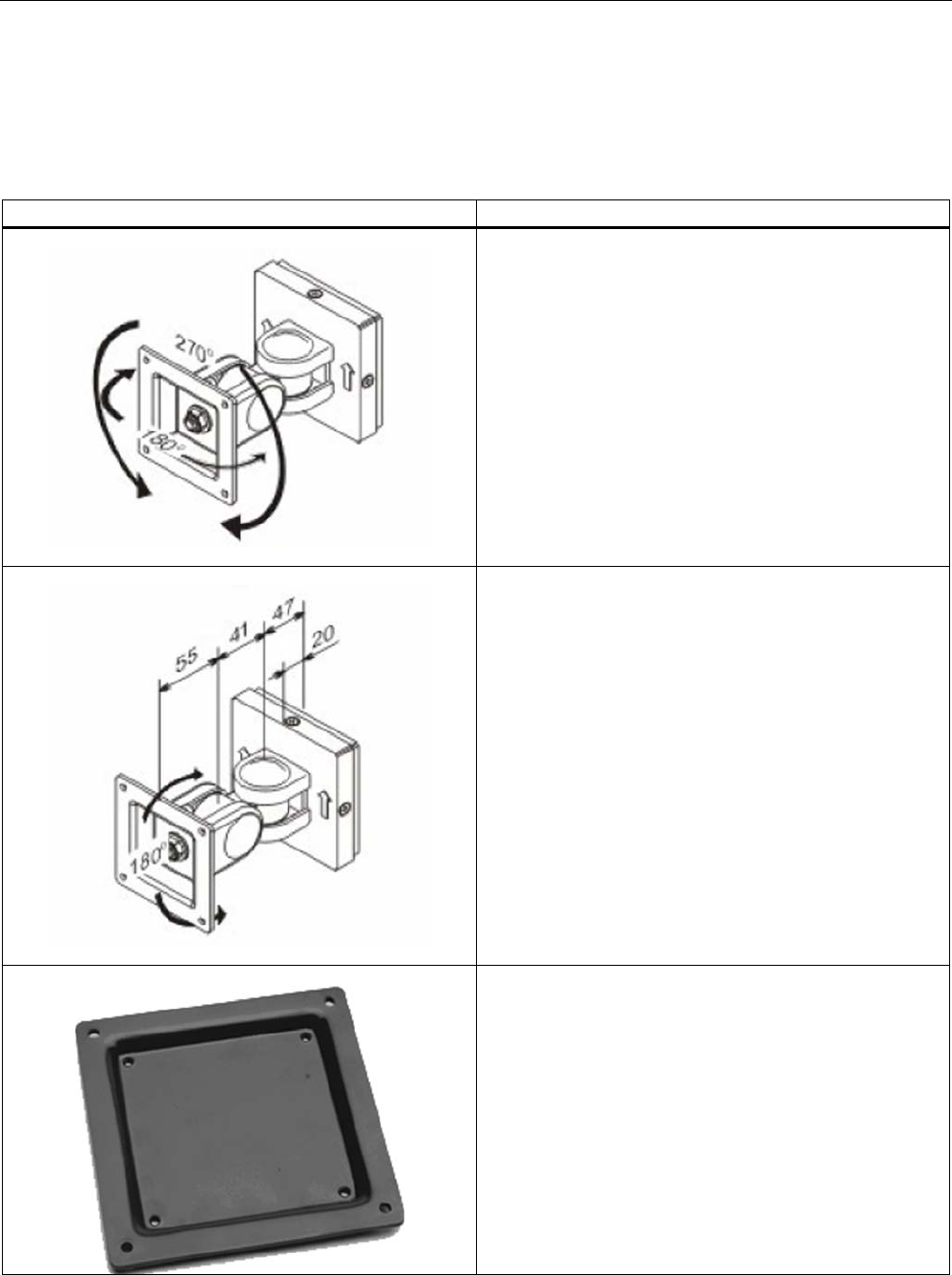

6.1.3 Installation /Mounting ................................................................................................................. 6-6
6.1.4 Connecting an antenna to a reader ........................................................................................... 6-9
6.1.5 Technical specifications ........................................................................................................... 6-10
7 Transponder/tags.................................................................................................................................... 7-1
7.1 Mode of operation of transponders ............................................................................................ 7-1
7.2 Transponder classes and generations....................................................................................... 7-2

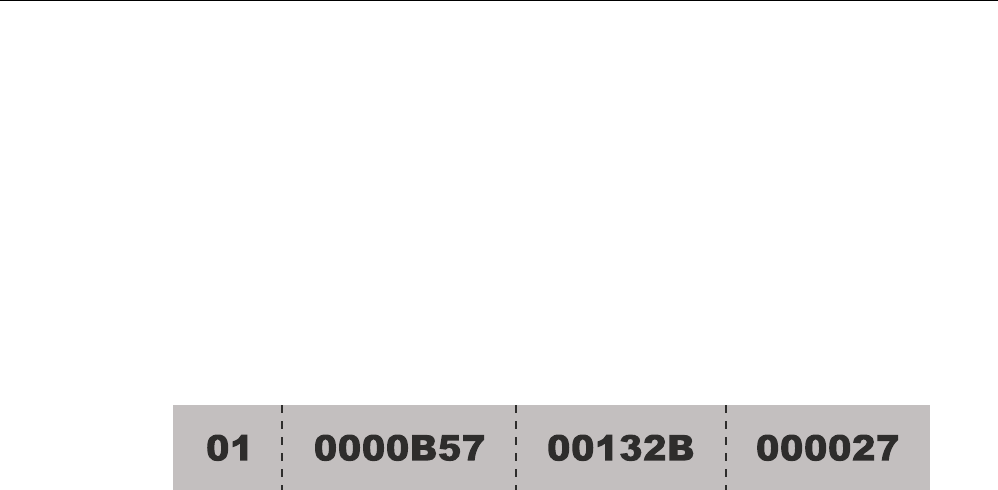

7.3 Electronic Product Code (EPC) ................................................................................................. 7-4
8 Accessories ............................................................................................................................................ 8-1

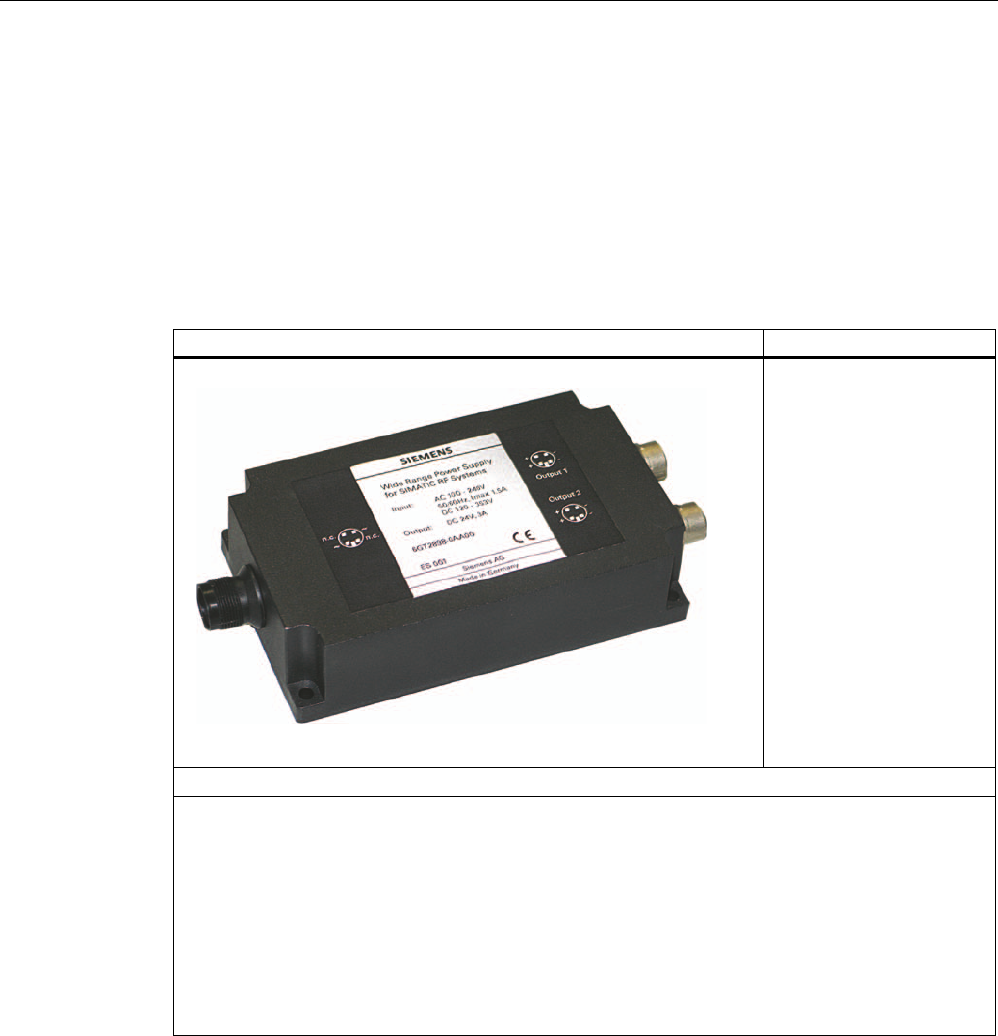

8.1 Wide-range power supply unit for SIMATIC RF systems .......................................................... 8-2
8.1.1 Features ..................................................................................................................................... 8-2
8.1.2 Scope of supply.......................................................................................................................... 8-4
8.1.3 Ordering data ............................................................................................................................. 8-4
8.1.4 Safety Information ...................................................................................................................... 8-4
8.1.5 Connecting ................................................................................................................................. 8-5
8.1.6 Technical specifications ............................................................................................................. 8-6
8.1.7 Modification possibilities............................................................................................................. 8-8
8.1.8 Pin assignment of DC outputs and mains connection ............................................................... 8-8
8.1.9 Dimension drawing..................................................................................................................... 8-9
A.1 Certificates and approvals..........................................................................................................A-1
A.2 Service and support ...................................................................................................................A-4
A.3 Contact partners.........................................................................................................................A-5
A.4 Training ......................................................................................................................................A-5
Table of contents
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, v
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 1-1
Introduction 1
1.1 Preface
Purpose of this document
This system manual contains the information needed to plan and configure the system.
It is intended both for programming and testing/debugging personnel who commission the
system themselves and connect it with other units (automation systems, further
programming devices), as well as for service and maintenance personnel who install
expansions or carry out fault/error analyses.
Where this documentation is valid
This documentation is valid for all supplied variations of the SIMATIC RF600 system and
describes the state of delivery as of September 2005.
Conventions
The following terms/abbreviations are used synonymously in this document:
Reader, read/write device, write/read device
Tag, transponder, mobile data memory, data carrier, SmartLabel
Communication module, interface module
History
Edition Remarks
09/2005 First Edition
Declaration of conformity
The EC declaration of conformity and the corresponding documentation are made available
to authorities in accordance with EC directives. Your sales representative can provide these
on request.
Introduction
1.1 Preface
RF600
1-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Observance of installation guidelines
The installation guidelines and safety instructions given in this documentation must be
followed during commissioning and operation.
Introduction
1.2 Navigating in the system manual
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 1-3
1.2 Navigating in the system manual
Structure of contents Contents
Table of Contents Organization of the documentation, including the index of pages and chapters
Introduction Purpose, layout and description of the important topics.
Safety Information Refers to all the valid technical safety aspects which have to be adhered to while installing,
commissioning and operating the product/system and with reference to statutory
regulations.

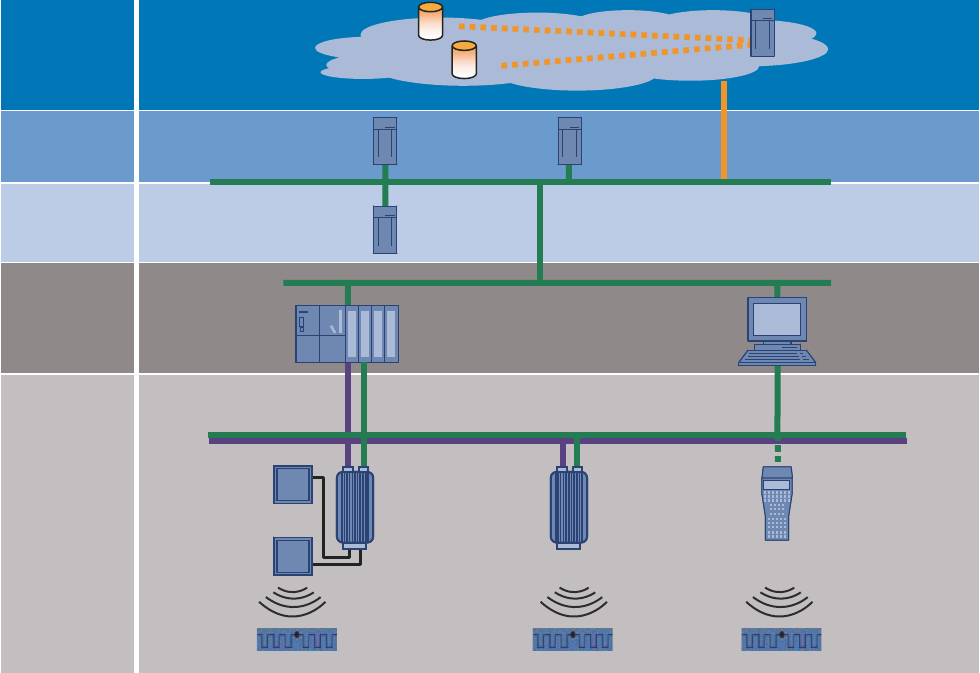

System overview Overview of all RF identification systems, system overview of SIMATIC RF600
RFID system planning Information about possible applications of SIMATIC RF600, support for application
planning, tools for finding suitable SIMATIC RF600 components.
Readers Description of readers which can be used for SIMATIC RF600
Antennas Description of antennas which can be used for SIMATIC RF600
Transponders Description of transponders which can be used for SIMATIC RF600
Appendix Service and support, contact partners, training centers
List of abbreviations List of all abbreviations used in the document
Introduction
1.2 Navigating in the system manual
RF600
1-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 2-1
Safety Information 2
2.1 General safety instructions
Caution
Please observe the safety instructions on the back cover of this documentation.
SIMATIC RFID products comply with the salient safety specifications to IEC, EN, UL and
CSA. If you have questions about the admissibility of the installation in the designated
environment, please contact your service representative.
Caution
Alterations to the devices are not permitted.
Failure to observe this requirement shall constitute a revocation of the radio equipment
approval, CE approval and manufacturer's warranty.
Repairs
Repairs may only be carried out by authorized qualified personnel.
Warning
Unauthorized opening of and improper repairs to the device may result in substantial
damage to equipment or risk of personal injury to the user.
Safety Information
2.1 General safety instructions
RF600
2-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
System expansion
Only install system expansion devices designed for this device. If you install other upgrades,
you may damage the system or violate the safety requirements and regulations for radio
frequency interference suppression. Contact your technical support team or your sales outlet
to find out which system upgrades are suitable for installation.
Caution
If you cause system defects by installing or exchanging system expansion devices, the
warranty becomes void.
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 3-1
System overview 3
3.1 RF System SIMATIC RF600
SIMATIC RF600 is an identification system that operates in the UHF range. UHF technology
supports large write/read distances with passive tags.

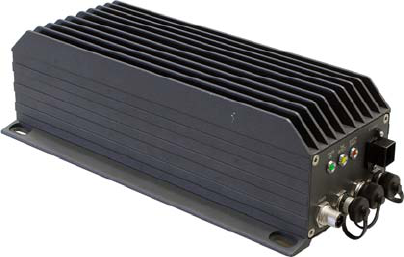

The SIMATIC RF660-R read/write devices (readers), fitted for example on the gate of a
warehouse, automatically record every movement of goods, and signal these to the host
systems. The data are filtered and compressed there by data management software in order,
for example, to generate the receiving department transaction for the ERP system. At the
same time, the delivery can be automatically checked for correctness and completeness
prior to storage by means of the electronic delivery list.
,QWHUQHW
:/$1
(WKHUQHW
352),%86 (WKHUQHW
5),'
'DWD
DFTXLVLWLRQ
OHYHO
(53
(QWHUSULVH
5HVRXUFH3ODQQLQJ
b6&0b
6XSSO\&KDLQ
0DQDJHPHQW
0(6
0DQXIDFWXULQJ
([HFXWLRQ6\VWHP
6,0$7,&,7
)UDPHZRUN
5)5UHDGHU
ZLWKVHSDUDWH
DQWHQQDV
5)5UHDGHU
ZLWKLQWHJUDO
DQWHQQD
DYDLODEOHVRRQ
0RELOH
ZULWHUHDGGHYLFH
DYDLODEOHVRRQ
7DJ
6,0$7,&6
WKURXJKRSWLRQDO
LQWHUIDFHPRGXOH
DYDLODEOHVRRQ
5),'
GHYLFHGDWD
PDQDJHPHQW
2EMHFWQDPHVHUYLFH
(3&GDWDRIWKH
PDQXIDFWXUHU
(3&*OREDO
,QWHJUDWLRQ
(53OHYHO
0(6OHYHO
3/&3&
OHYHO
Figure 3-1 System overview of SIMATIC RF600
System overview
3.1 RF System SIMATIC RF600
RF600
3-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
3.1.1 Application areas of RF600
RFID (radio frequency identification) permits interruption-free tracking and documentation of
all delivered, stocked and shipped goods in the incoming goods, warehouse, production
logistics and distribution departments. A small data medium - referred to as SmartLabel or
tag - is adhered to every item, package or palette, and contains all important information.
The data medium receives the power it requires via an antenna which is also used for data
transmission.
Equipped with a rugged casing to the high IP 65 degree of protection and suitable for use
over a wide range of temperatures, the reader is also a match for the demands of harsh
industrial conditions in, for example, warehouses or on loading ramps.
System overview
3.1 RF System SIMATIC RF600
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 3-3
3.1.2 Features
The RF600 identification system has the following performance features:
RFID system RF600
Type Contactless RFID (Radio Frequency
IDentification) system in the UHF band
Transmission frequency 865-868 MHz (Europe)
902-928 MHz (USA)
Read/write distance Europe: < 3.5 m
USA: < 4 m
Data carrier/tags
Memory Up to 2048 bits
Type Smart Labels
Container tag (available soon)
Heat-resistant data medium (available soon)
Standards EPCglobal Class 1, Gen 2
ISO 18000-6B
Software
Data Manager PC software for
Configuration and diagnostics
Interfacing to IT systems
Configuration software PC software for parameterizing the RF660R
reader
System requirements Windows XP
with Net Framework 1.1
System overview
3.1 RF System SIMATIC RF600
RF600
3-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-1
RF600 system planning 4
4.1 Overview
You should observe the following criteria for implementation planning:
Antenna configurations
Environmental conditions for transponders
The response of electromagnetic waves in the UHF band
EMC directives
RF600 system planning
4.2 Antenna configurations
RF600
4-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.2 Antenna configurations
4.2.1 Antenna configuration example

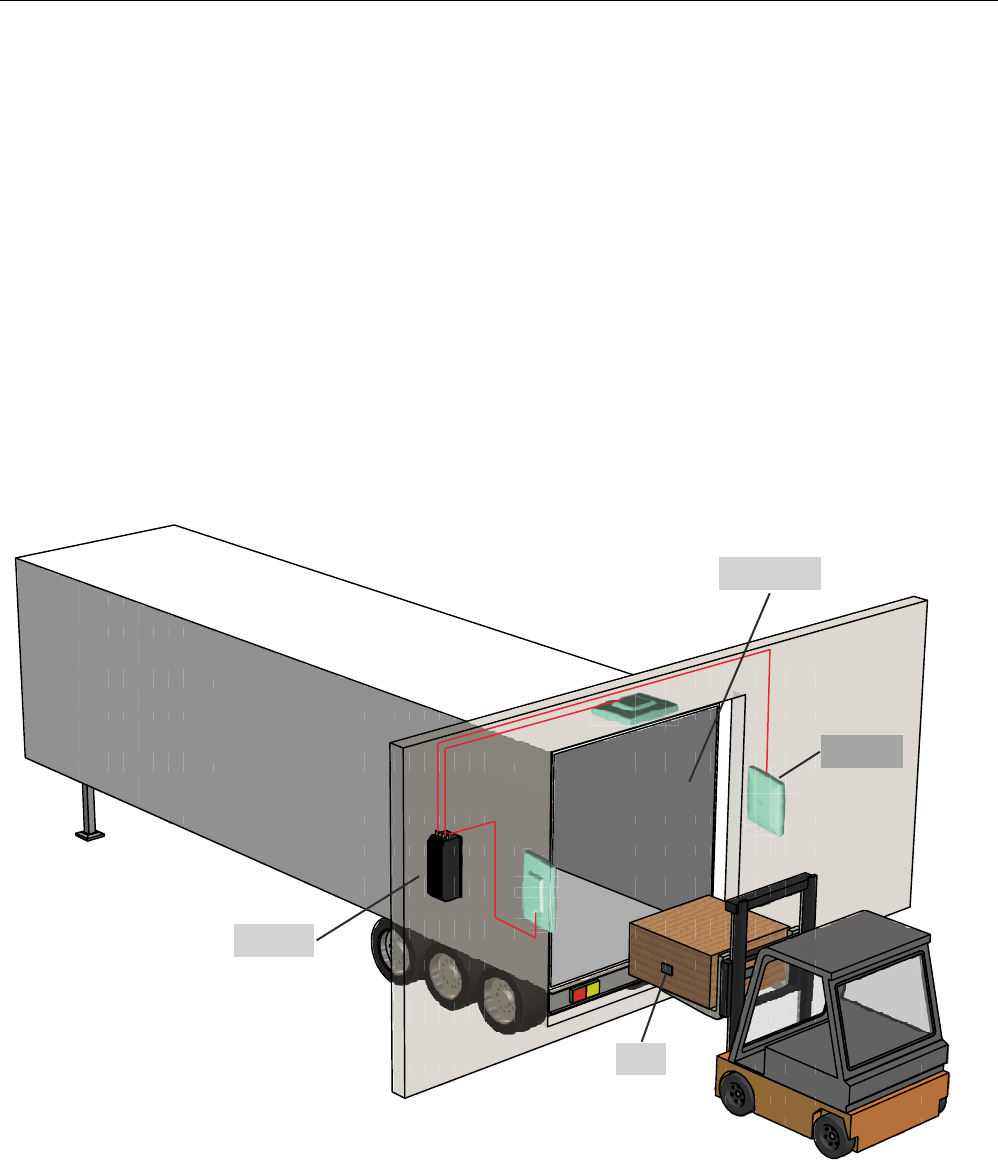

The following diagram shows an example of a portal configuration. The antenna are
positioned at the height at which the tags are expected which are to be identified. The
maximum width of the portal that is recommended for reliable operation is 4 m.
The diagram shows a configuration with two antennas. Up to four antennas can be used
depending on the local conditions.
5HDGHU
$QWHQQH
7DJ
/DGHUDPSH
Figure 4-1 Typical gate configuration
RF600 system planning
4.2 Antenna configurations
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-3
4.2.2 Possibilities and application areas for antenna configurations
Some basic antenna configurations and possible fields of application are shown below.
Antenna configuration 1: Description/ application areas
This arrangement of antennas is appropriate when the tags
to be read are only located on one side of the items to be
identified, e.g. when palettes are to be identified on which
the tags to be read must be on a prespecified side.
① Tag
Antenna configuration 2: Description/ application areas
Preferred application: In the identification of goods in
loading portals. The tag is located in the field of radiation of
two antennas; for reliable tag reading, the height of the tag
above floor level must therefore be known with reasonable
accuracy.
① Tag
RF600 system planning
4.2 Antenna configurations
RF600
4-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,

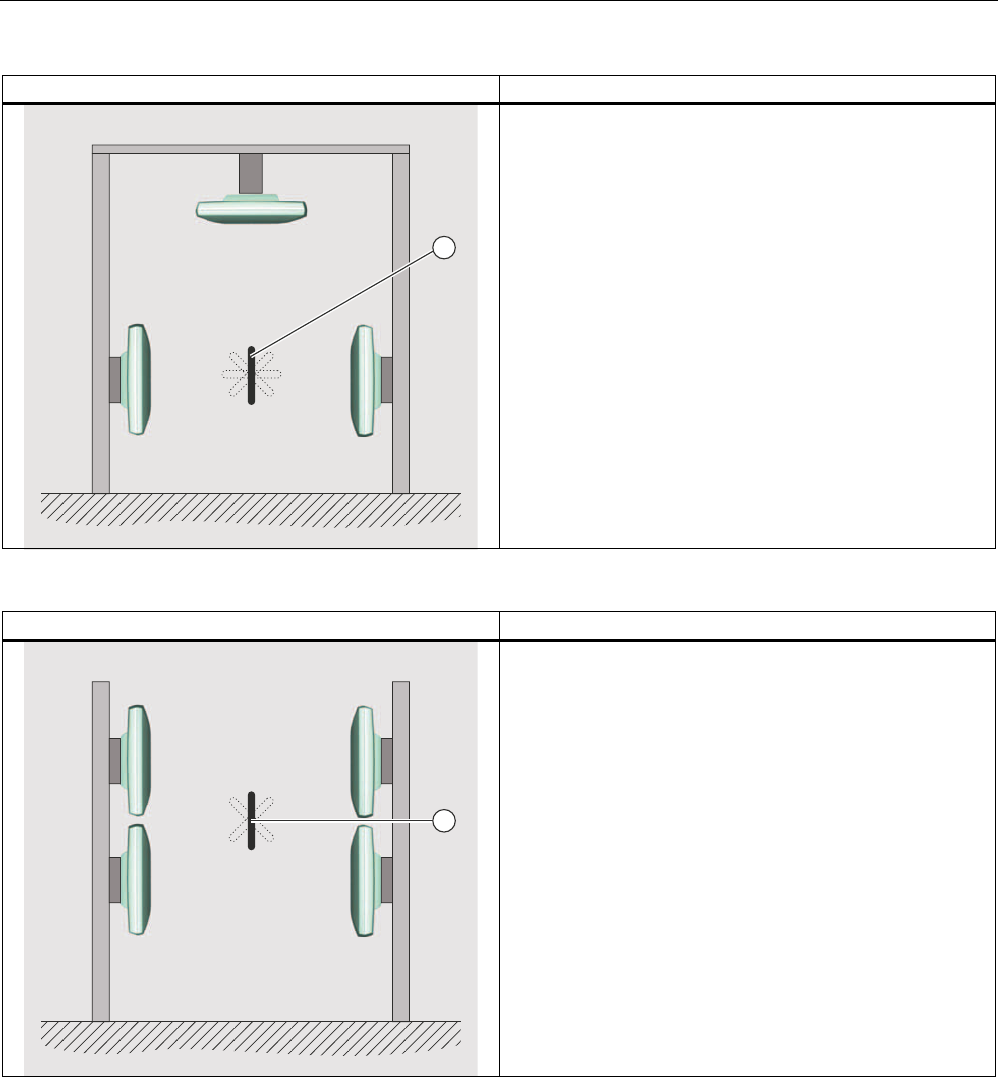

Antenna configuration 3: Description/ application areas
Preferred application: In the identification of goods in
loading portals. Similar to configuration 2, but with additional
reading reliability when the tag is at an angle to the vertical.
① Tag
Antenna configuration 4: Description/ application areas
Preferred application: In the identification of goods in
loading portals. The tag is located in the field of radiation of
all four antennas, so the tag position can vary more than in
configuration 2 for reliable tag identification.
① Tag
RF600 system planning
4.2 Antenna configurations
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-5

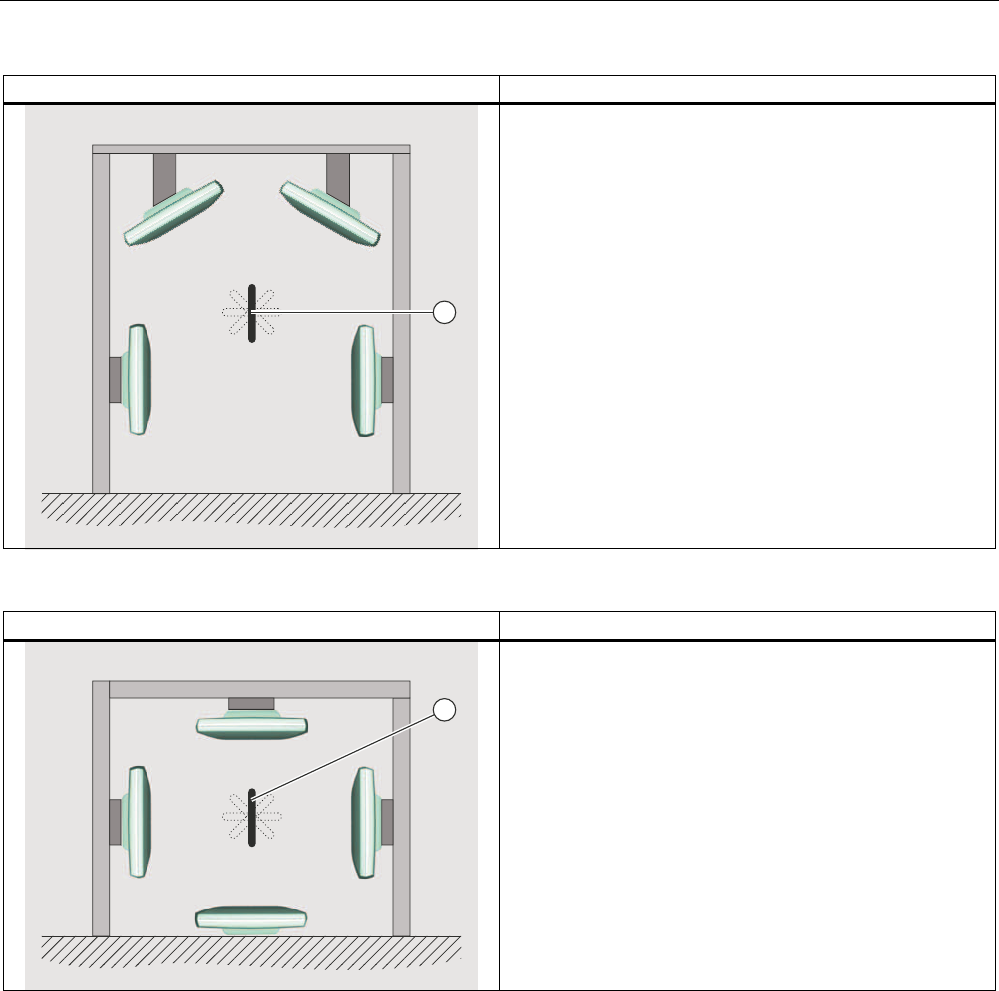

Antenna configuration 5: Description/ application areas
Preferred application: In the identification of goods in
loading portals. Similar to configuration 4, but the reliability
of tag identification is improved as a result of the four
antennas at separate locations, so the tag position is not
critical.
① Tag
Antenna configuration 6: Description/ application areas
This tunnel configuration is suitable for conveyor belt
applications. The goods with the tags to be read are moving
forwards on a conveyor belt but the alignment of the tags
relative to the antennas is not clearly defined. One of the
antenna is located on the floor and radiates vertically
upwards in the direction of the conveyor belt. A relatively
high reading reliability is achieved due to the use of four
antennas.
① Tag
RF600 system planning
4.2 Antenna configurations
RF600
4-6 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.2.3 Tag orientation in space
The alignment of the tag antenna to the antenna of the reader affects the reading range. For
maximum performance and to achieve the maximum reading range, the tag antenna should
therefore be aligned in parallel with the reader antenna:

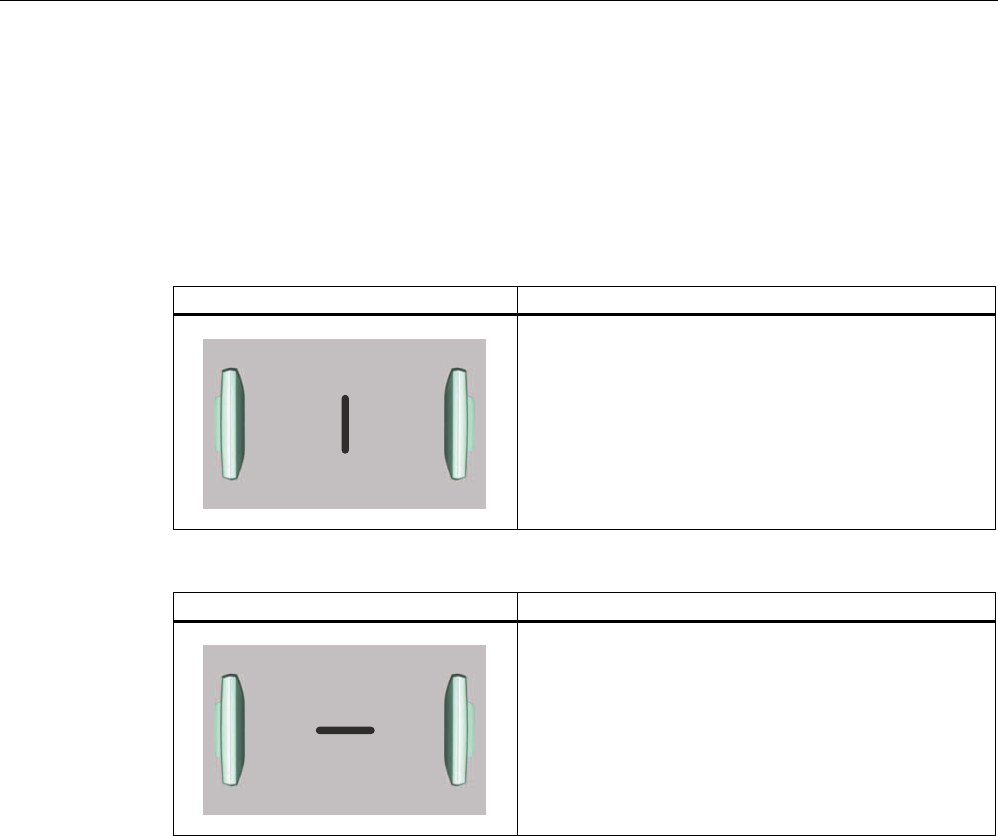

Parallel tag alignment Large reading range
Maximum probability of identification of tags.
Perpendicular tag alignment Minimal reading range
Minimum probability of identification of tags.
RF600 system planning
4.2 Antenna configurations
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-7
4.2.4 Specified minimum and maximum spacing of antennas
Specified minimum spacing of antennas

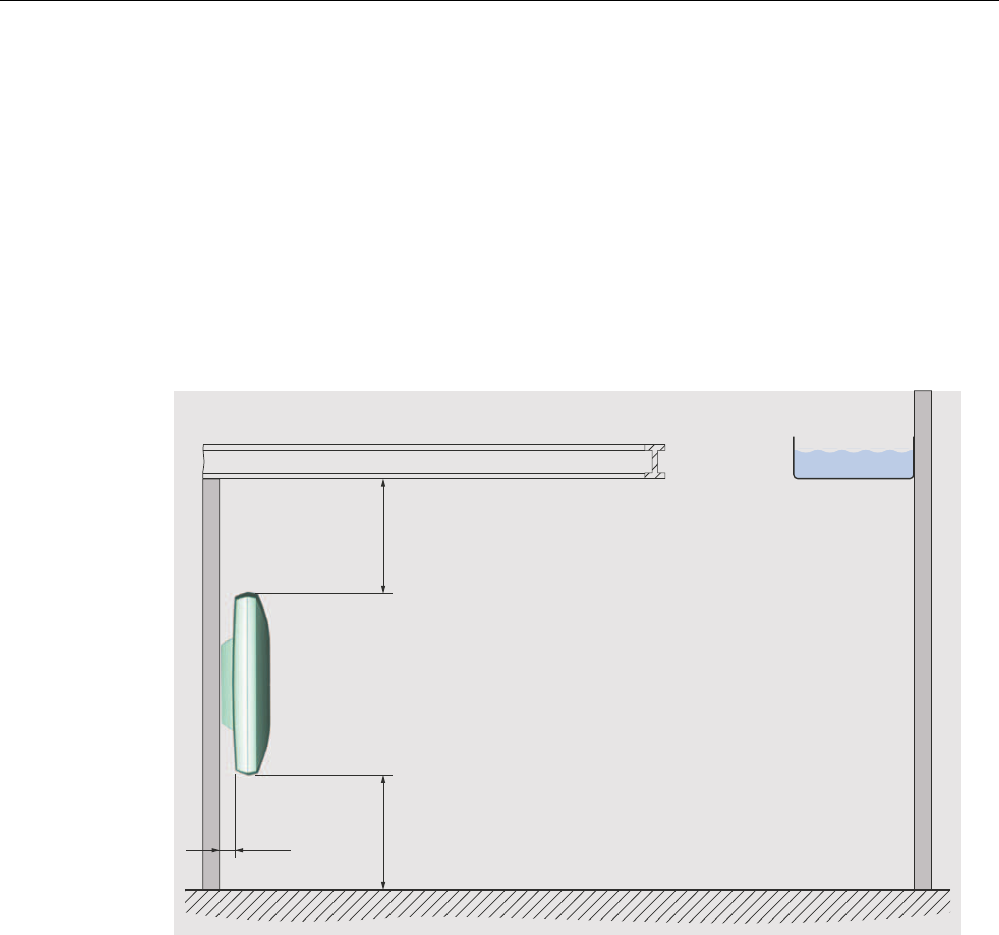

The following diagram shows the specified minimum and maximum spacings for mounting
antennas:
A minimum spacing of 50 cm is necessary between the antenna and liquids or metals.
The distance between the antenna and the floor should also be at least 50 cm.
PLQ
FP
PLQ
FP
ุ
0HWDOUDFN /LTXLG
Figure 4-2 Distance to the environment
The distance between two antennas mounted alongside each other or one above the other
should be at least 20 to 50 cm.
RF600 system planning
4.2 Antenna configurations
RF600
4-8 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
FP
Figure 4-3 Antennas mounted adjacently horizontally or vertically
For a portal configuration, the distance between two antennas that are connected to the
same reader is up to 3.5 m (in Europe) or 4 m (in the USA).
(XURSH PD[P
86$ PD[P
Figure 4-4 Portal configuration
RF600 system planning
4.2 Antenna configurations
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-9
4.2.5 Mutual interference of readers (antennas)
Using more than one reader
When several RFID readers are used, there is a danger that RFID tags can also be read by
other readers. It must be ensured that the tag can only be identified by the appropriate
reader.
Technical faults between readers can then only occur when they transmit on the same
channel, i.e. in the same frequency range of a frequency band.
To prevent this, the RF660R reader uses the "Listen before talk" technique in Europe or
frequency hopping between many different channels in the USA.
RF600 system planning
4.2 Antenna configurations
RF600
4-10 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.2.6 Reading range
The reading range between the reader (antenna) and the transponder is affected by the
following factors:
The reading range depends on Description
Transmit power of the reader The higher the transmit power of the reader, the larger the
reading range.
Tag size and type The larger the tag antenna, the larger the power input area
and therefore the larger the reading range.
Absorption factor of the materials The higher the absorption of the surrounding material, the
smaller the reading range.
Antenna amplification The bigger the antenna amplification, the larger the reading
range.
Production quality of the tag The better the tag has been matched to the operating
frequencies during manufacturing, the greater the reading
range
Reflection characteristics of the
environment
In a multiple-reflection environment, the reading range can
be significantly higher than in a low-reflection environment.
.
RF600 system planning
4.2 Antenna configurations
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-11
4.2.7 Increasing the probability of identification for tags - Antenna switching
To achieve a high probability of reading tags, the antenna switching function has been
implemented in the RF600R reader:
At a given time, the system transmits on one antenna and receives on the other antennas.
As long as the antenna is receiving signals from further tags, the system continues to
transmit on the same transmit antenna until all responding tags have been identified.
Subsequently, or if no tags respond, the system activates another antenna as the transmit
antenna. After all the antenna have transmitted at least once, or when the settling time is
excessively long, the reader activates frequency hopping (in the USA) or channel selection
(in Europe).
Cycle 1 Cycle 2 Cycle 3
$17
7; 5;
5;
$17
$17
$17
5; 5;
7;
$17
$17
$17
5; 7;
5;
$17
$17
Antenna 1 transmits
Antenna 2 and 3 receive
Antenna 2 transmits
Antenna 1 and 3 receive
Antenna 3 transmits
Antenna 1 and 2 receive
RF600 system planning
4.3 Environmental conditions for transponders
RF600
4-12 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.3 Environmental conditions for transponders
4.3.1 Basic rules
The transponder must not be placed directly on metal surfaces or on containers of liquid. For
physical reasons, a minimum distance must be maintained between the tag antenna and
conductive material. A minimum distance of 5 cm is recommended. The tag function is
improved with greater distances (between 5 and 20 cm).
The best performance is achieved when the tag is mounted on a non-conductive material
such as plastic or wood.
Exception:
Tags that are designed for direct mounting on metal.
RF600 system planning
4.4 The response of electromagnetic waves in the UHF band
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-13
4.4 The response of electromagnetic waves in the UHF band
4.4.1 The effect of reflections and interference
Reflections and interference
Electromagnetic waves in the UHF band behave and propagate in a similar manner to light
waves, that is they are reflected from large objects such as ceilings, floors, walls and
windows and interfere with each other. Due to the nature of electromagnetic waves,
interference can lead to wave amplification which can produce an increased reading range.
In the worst case, interference can also result in waves being extinguished which causes
holes in reader coverage.
Reflections can also be beneficial when they cause electromagnetic waves to be routed
around objects to a certain extent (deflection). This can increase the reading probability.
Due to these electromagnetic characteristics, it is extremely difficult in the multiple-reflection
environment that is usually found in the real environment on site, to determine propagation
paths and field strengths for a particular location.
Reducing the effect of reflections/interference on tag identification
Reducing the transmit power:
To reduce interference to a minimum, we recommend that the transmit power of the
reader is reduced until it is sufficient for an identification rate of 100 %
Increasing the number of antennas to 3 or 4:
More antennas in a suitable antenna configuration can prevent gap in reader coverage
RF600 system planning
4.4 The response of electromagnetic waves in the UHF band
RF600
4-14 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.4.2 Influence of metals
Metal can have an effect on the electromagnetic field depending on the arrangement or
environment. The effect ranges from a hardly determinable influence through to total
blocking of communication. The term metal in this context also includes metallized materials
that are either coated with metal or shot through with metal to such an extent that UHF
radiation cannot penetrate or only to a minimal extent.
The effect of metal on the electromagnetic field can be prevented as follows:
Do not mount tags on metal
Ensure there are no metallic objects at close range to the antenna
Ensure there are no metallic objects in the propagation field of the antenna and
transponder
Tags mounted directly onto metal
In general, tags must not be mounted directly onto metallic surfaces. Due to the nature of the
magnetic field, a minimum distance must be maintained between the tag antenna and
conductive materials.
The minimum distance to metal must be greater than 5 cm. The larger the distance, the
better the function of the transponder.
Exception:
Tags that are designed for direct mounting on metal.
RF600 system planning
4.4 The response of electromagnetic waves in the UHF band
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-15
4.4.3 Influence of liquids and non-metallic substances
Non-metallic substances can also affect the propagation of electromagnetic waves.
When non-metallic substances or objects are located in the propagation field that can absorb
UHF radiation, these can alter the antenna field depending on their size and distance and
can even extinguish the field entirely.
The high-frequency damping effect of water and materials with a water content, ice and
carbon is high. Electromagnetic energy is partly reflected and absorbed.
Liquids and petroleum-based oils have low HF damping. Electromagnetic waves penetrate
the liquid and are only slightly weakened.
RF600 system planning
4.5 Regulations applicable to frequency bands
RF600
4-16 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.5 Regulations applicable to frequency bands
4.5.1 Regulations for UHF frequency bands in Europe
Regulations for frequency bands according to EN 302 208
ETSI (European Telecommunications Standards Institute)
Specifications of European standard EN 302 208:
UHF band: 865 to 868 MHz
Radiant power: max. 2 W (ERP)
Channel bandwidth: 200 kHz
Number of channels: 15
Listen before talk
bN+]
0+] 0+]
FKDQQHOV
WR:(53
RF600 system planning
4.5 Regulations applicable to frequency bands
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-17

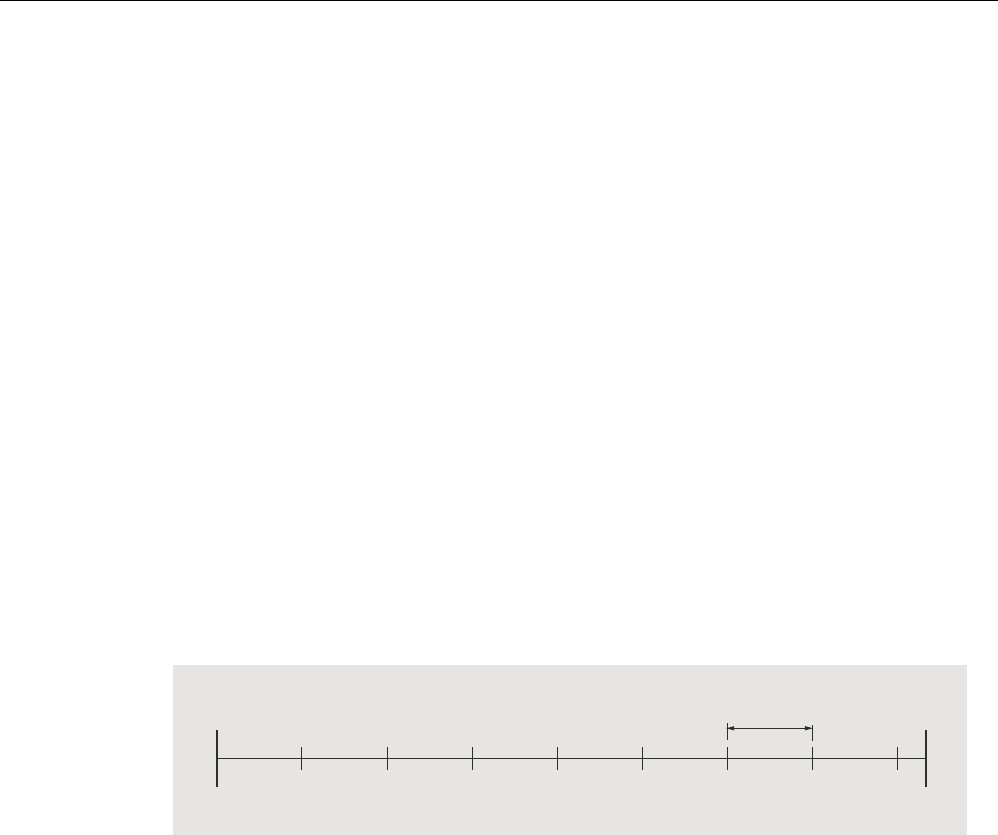

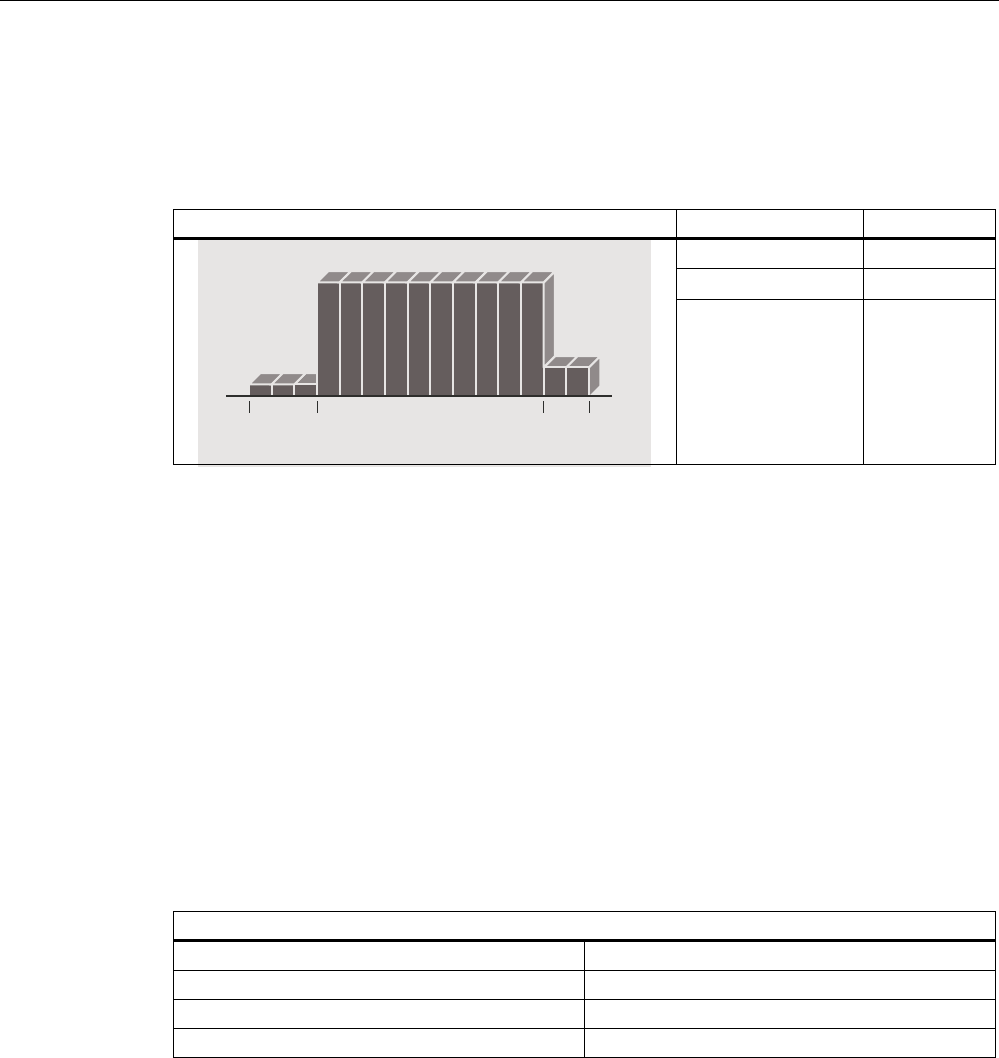

Channel assignment
The UHF band from 865 to 868 MHz is subdivided into three sub bands:
Sub bands Frequency range Output
865.0 to 865.5 MHz 0.1 W ERP
865.6 to 867.6 MHz 2,0 W ERP
:
:
:
0+]

0+]

0+]

0+]

867.6 to 868.0 MHz 0,5 W ERP
Listen before talk
With this technique, the reader checks whether a channel is assigned before transmission to
prevent collisions. The reader will only transmit when a channel is free. The reader can
transmit for up to ?? seconds on this channel and must then pause for at least ?? seconds or
jump immediately to an unassigned channel on which it can transmit for a further ??
seconds.
Regulations for frequency bands according to EN 300 220 (short range device)
For those countries in which the RFID directive according to EN 302 208 has not yet been
implemented, this alternative exists which is based on the older "Short range device"
directive:
EN 300 220 (short range device)
Frequency range 865.6 to 868 MHz
Number of channels 12
Transmit power Max. 0.5 W ERP
Duty cycle (frequency assignment period) 10 % (6 min./h)
RF600 system planning
4.5 Regulations applicable to frequency bands
RF600
4-18 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.5.2 Regulations for UHF frequency bands in the USA
USA
FCC (Federal Communications Commission)
UHF band: 902 to 928 MHz
Radiant power: max. 4 W (EIRP)
Number of channels: 50
Frequency hopping
bN+]
0+] 0+]
FKDQQHOV
WR:(53
PD[:ZLWKG%DQWHQQD
Frequency hopping
This technique should prevent mutual interference between readers. The reader changes its
transmission channel in a random or programmed sequence (FHSS - Frequency Hopping
Spread Spectrum). The 50 available channels mean that the probability is low that two
readers will be operating on the same frequency
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-19
4.6 Guidelines for electromagnetic compatibility (EMC)
4.6.1 Overview
These EMC Guidelines answer the following questions:
Why are EMC guidelines necessary?
What types of external interference have an impact on the system?
How can interference be prevented?
How can interference be eliminated?
Which standards relate to EMC?
Examples of interference-free plant design
The description is intended for "qualified personnel":
Project engineers and planners who plan system configurations with RFID modules and
have to observe the necessary guidelines.
Fitters and service engineers who install the connecting cables in accordance with this
description or who can rectify defects in this area in the event of interference.
Warning
Failure to observe notices drawn to the reader's attention can result in dangerous
conditions in the plant or the destruction of individual components or the entire plant.
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
4-20 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.6.2 What does EMC mean?
The increasing use of electrical and electronic devices is accompanied by:
Higher component density
More switched power electronics
Increasing switching rates
Lower power consumption of components due to steeper switching edges
The higher the degree of automation, the greater the risk of interaction between devices.
Electromagnetic compatibility (EMC) is the ability of an electrical or electronic device to
operate satisfactorily in an electromagnetic environment without affecting or interfering with
the environment over and above certain limits.
EMC can be broken down into three different areas:
Intrinsic immunity to interference:
immunity to internal electrical disturbance
Immunity to ambient interference:
immunity to external electromagnetic disturbance
Degree of interference emission:
emission of interference and its effect on the electrical environment
All three areas are considered when testing an electrical device.
The RFID modules are tested for conformity with the limit values required by the CE and
RTTE guidelines. Since the RFID modules are merely components of an overall system, and
sources of interference can arise as a result of combining different components, certain
guidelines have to be followed when setting up a plant.
EMC measures usually consist of a complete package of measures, all of which need to be
implemented in order to ensure that the plant is immune to interference.
Note
The plant manufacturer is responsible for the observance of the EMC guidelines; the plant
operator is responsible for radio interference suppression in the overall plant.
All measures taken when setting up the plant prevent expensive retrospective modifications
and interference suppression measures.
The salient national specifications and regulations must be observed. They are not covered
in this document.
4.6.3 Basic rules
It is often sufficient to follow a few elementary rules in order to ensure electromagnetic
compatiblity (EMC). The following rules must be observed:
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-21
Shielding by enclosure
Protect the device against external interference by installing it in a cabinet or housing.
The housing or enclosure must be connected to the chassis ground.
Use metal plates to shield the device against electromagnetic fields.
Use metal connector housings to shield data conductors.
Wide-area ground connection
Bond all passive metal parts to chassis ground, ensuring large-area and low-HF-
impedance contact.
Establish a large-area connection between the passive metal parts and the central
grounding point.

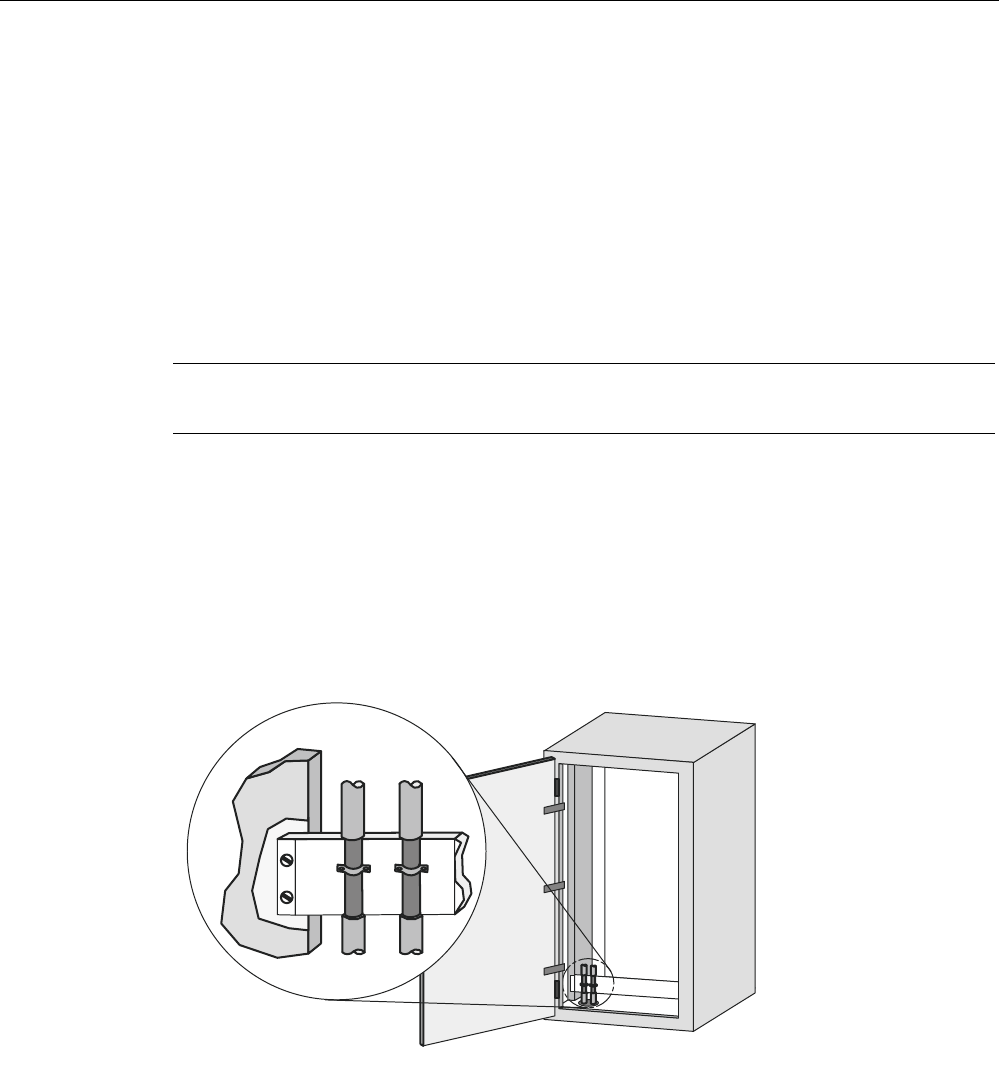

Don't forget to include the shielding bus in the chassis ground system. That means the
actual shielding busbars must be connected to ground by large-area contact.
Aluminium parts are not suitable for ground connections.
Plan the cable installation
Break the cabling down into cable groups and install these separately.
Always route high-voltage and signal cables through separated ducts or in separate
bundles.
Feed the cabling into the cabinet from one side only and, if possible, on one level only.
Route the signal cables as close as possible to chassis surfaces.
Twist the feed and return conductors of separately installed cables.
Cable routing of HF cables:
Avoid installing cables in parallel over long distances and maintain minimum distances
between the cables (at least 25 cm)
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
4-22 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Shielding for the cables
Shield the data cables and connect the shield at both ends.
Shield the analog cables and connect the shield at one end, e.g. on the drive unit.
Always apply large-area connections between the cable shields and the shielding bus at
the cabinet inlet and make the contact with clamps.
Feed the connected shield through to the module without interruption.
Use braided shields, not foil shields.
Line and signal filter
Use only line filters with metal housings
Connect the filter housing to the cabinet chassis using a large-area low-HF-impedance
connection.
Never fix the filter housing to a painted surface.
Fix the filter at the control cabinet inlet or in the direction of the source.
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-23
4.6.4 Propagation of electromagnetic interference
Three components have to be present for interference to occur in a system:
Interference source
Coupling path
Interference sink
HJFRQQHFWLQJFDEOH
,QWHUIHUHQFH
VRXUFH
GHYLFHHPLWWLQJ
LQWHUIHUHQFH
&RXSOLQJSDWK
HJGULYHXQLW HJUHDGHU
,QWHUIHUHQFHVLQN
GHYLFHDIIHFWHG
E\LQWHUIHUHQFH
Figure 4-5 Propagation of interference
If one of the components is missing, e.g. the coupling path between the interference source
and the interference sink, the interference sink is unaffected, even if the interference source
is transmitting a high level of noise.
The EMC measures are applied to all three components, in order to prevent malfunctions
due to interference. When setting up a plant, the manufacturer must take all possible
measures in order to prevent the occurrence of interference sources:
Only devices fulfilling limit class A of VDE 0871 may be used in a plant.
Interference suppression measures must be introduced on all interference-emitting
devices. This includes all coils and windings.
The design of the system must be such that mutual interference between individual
components is precluded or kept as small as possible.
Information and tips for plant design are given in the following sections.
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
4-24 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Interference sources
In order to achieve a high level of electromagnetic compatibility and thus a very low level of
disturbance in a plant, it is necessary to recognize the most frequent interference sources.
These must then be eliminated by appropriate measures.
Table 4-1 Interference sources: origin and effect
Interference source Interference results from Effect on the interference sink
Contacts System disturbances Contactors,
electronic valves Coils Magnetic field
Collector Electrical field Electrical motor
Winding Magnetic field
Contacts Electrical field Electric welding device
Transformer Magnetic field, system disturbance,
transient currents
Power supply unit, switched-
mode
Circuit Electrical and magnetic field, system
disturbance
High-frequency appliances Circuit Electromagnetic field
Transmitter
(e.g. service radio)
Antenna Electromagnetic field
Ground or reference potential
difference
Voltage difference Transient currents
Operator Static charge Electrical discharge currents, electrical
field
Power cable Current flow Electrical and magnetic field, system
disturbance
High-voltage cable Voltage difference Electrical field
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-25
What interference can affect RFID?
Interference source Cause Remedy
Switched-mode power supply Interference emitted from the
current infeed
Replace the power supply
Cable is inadequately
shielded
Better cable shielding Interference injected through
the cables connected in
series The reader is not connected
to ground.
Ground the reader
caused by another reader Change the operating mode of the
reader.
Position the antennas further
apart.
Erect suitable damping materials
between the antennas.
Reduce the power of the readers.
HF interference over the
antennas
External sources of
interference that use or
transmit on the same
frequency range.
Use the frequency hopping technique
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
4-26 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Coupling paths
A coupling path has to be present before the disturbance emitted by the interference source
can affect the system. There are four ways in which interference can be coupled in:
,
1
7
(
5
)
(
5
(
1
&
(
6
,
1
.
,
1
7
(
5
)
(
5
(
1
&
(
6
2
8
5
&
(
*DOYDQLFFRXSOLQJSDWK
&DSDFLWLYHFRXSOLQJSDWK
,QGXFWLYHFRXSOLQJSDWK
5DGLDWLRQFRXSOLQJ
5),'
$60RU
UHDGHU
ZULWHU
5),'
$60RU
UHDGHU
ZULWHU
5),'
$60RU
UHDGHU
ZULWHU
5),'
$60RU
UHDGHU
ZULWHU
Figure 4-6 Ways in which interference can be coupled in
When RFID modules are used, different components in the overall system can act as a
coupling path:
Table 4-2 Causes of coupling paths
Coupling path Invoked by
Incorrect or inappropriate installation
Missing or incorrectly connected shield
Conductors and cables
Inappropriate physical arrangement of cables
Missing or incorrectly wired equalizing conductor
Missing or incorrect earthing
Inappropriate physical arrangement
Components not mounted securely
Control cabinet or housing
Unfavorable cabinet configuration
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-27
4.6.5 Prevention of interference sources
A high level of immunity to interference can be achieved by avoiding interference sources.
All switched inductances are a frequent source of interference in plants.
Suppression of inductance
Relays, contactors, etc. generate interference voltages and must therefore be suppressed
using one of the circuits below.
Even with small relays, interference voltages of up to 800 V occur on 24 V coils, and
interference voltages of several kV occur on 230 V coils when the coil is switched. The use
of freewheeling diodes or RC circuits prevents interference voltages and thus stray
interference on conductors installed parallel to the coil conductor.
9DOYHV
%UDNHV
5HOD\FRLOV
&RQWDFWRUV

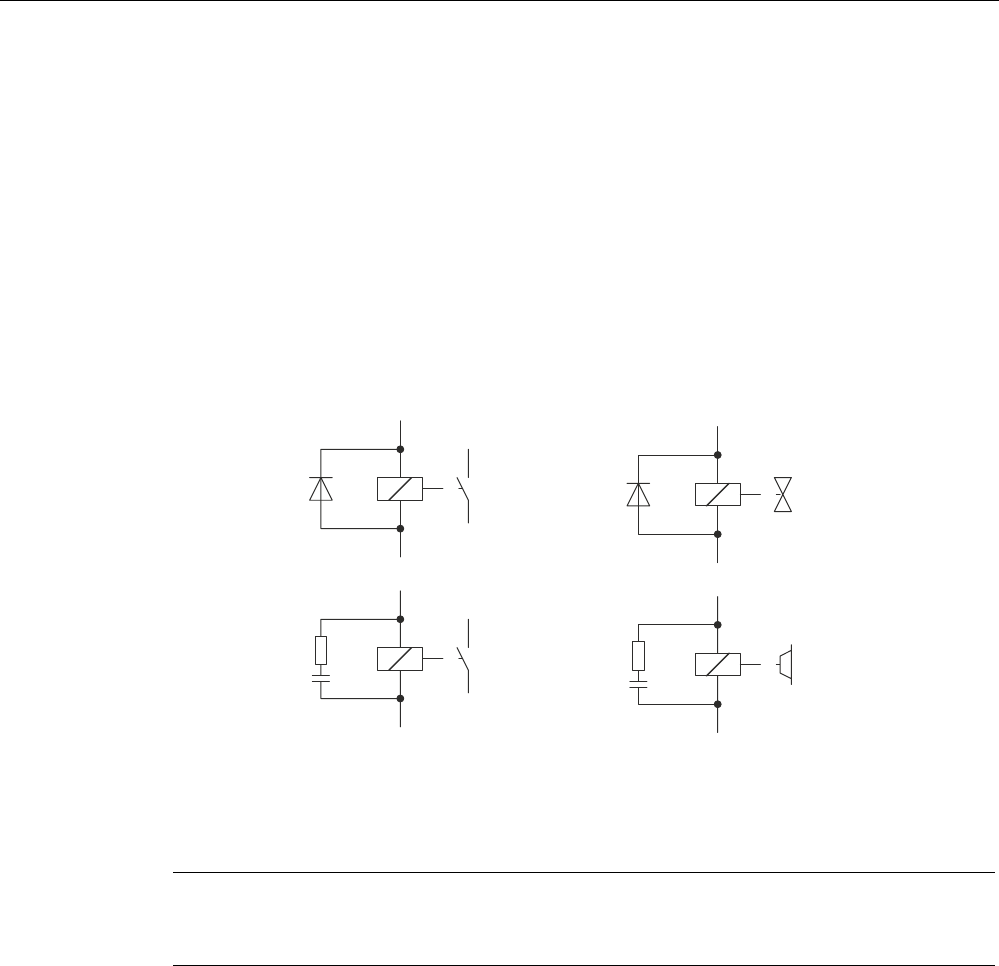

Figure 4-7 Suppression of inductance
Note
All coils in the cabinet should be suppressed. The valves and motor brakes are frequently
forgotten. Fluorescent lamps in the control cabinet should be tested in particular.
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
4-28 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
4.6.6 Equipotential bonding
Potential differences between different parts of a plant can arise due to the different design
of the plant components and different voltage levels. If the plant components are connected
across signal cables, transient currents flow across the signal cables. These transient
currents can corrupt the signals.
Proper equipotential bonding is thus essential.
The equipotential bonding conductor must have a sufficiently large cross section (at least
10 mm2).
The distance between the signal cable and the associated equipotential bonding
conductor must be as small as possible (antenna effect).
A fine-strand conductor must be used (better high-frequency conductivity).
When connecting the equipotential bonding conductors to the centralized equipotential
bonding strip, the power components and non-power components must be combined.
3RZHUVXSSO\
3/&
(8
(8
(8
'ULYH
,QFRUUHFW
,QFRUUHFW
&DELQHW &DELQHW
Figure 4-8 Equipotential bonding
The better the equipotential bonding in a plant, the smaller the chance of interference due to
fluctuations in potential.
Equipotential bonding should not be confused with protective earthing of a plant. Protective
earthing prevents the occurrence of excessive contact voltages in the event of device faults.
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 4-29
4.6.7 Cable shielding
Signal cables must be shielded in order to prevent coupling of interference.
The best shielding is achieved by installing the cables in steel tubes. However, this is only
necessary if the signal cable is routed through an environment prone to particular
interference. It is usually adequate to use cables with braided shields. In either case,
however, correct connection is vital for effective shielding.
Note
An unconnected or incorrectly connected shield has no shielding effect.
As a rule:
For analog signal cables, the shield should be connected at one end on the receiver side
For digital signals, the shield should be connected to the enclosure at both ends
Since interference signals are frequently within the HF range (> 10 kHz), a large-area HF-
proof shield contact is necessary
Figure 4-9 Cable shielding
The shielding bus should be connected to the control cabinet enclosure in a manner allowing
good conductance (large-area contact) and must be situated as close as possible to the
cable inlet. The cable insulation must be removed and the cable clamped to the shielding
bus (high-frequency clamp) or secured using cable ties. Care should be taken to ensure that
the connection allows good conductance.
RF600 system planning
4.6 Guidelines for electromagnetic compatibility (EMC)
RF600
4-30 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Cable tie
5HPRYHSDLQW
Figure 4-10 Connection of shielding bus
The shielding bus must be connected to the PE busbar.
If shielded cables have to be interrupted, the shield must be continued via the corresponding
connector housing. Only suitable connectors may be used for this purpose.
6KLHOGWXUQHGXSVLGHGRZQ
WKURXJKrDQG
FRQQHFWHGWRFRQQHFWRU
KRXVLQJ
5XEEHUVOHHYH
Figure 4-11 Interruption of shielded cables
If intermediate connectors, which do not have a suitable shield connection, are used, the
shield must be continued by fixing cable clamps at the point of interruption. This ensures a
large-area, HF-conducting contact.
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-1
RF660R reader 5
5.1 Description
SIMATIC RF660R is a stationary reader for connecting up to 4 external antennas. A rugged
housing with high IP65 degree of protection means that the device is a universal and reliable
partner in harsh production environments, on conveyor systems, in warehouses, or directly
at the loading gate.
Figure 5-1 RF660R reader
Highlights
The tags are read in accordance with the requirements of the EPCglobal Class 1,
Gen 1/2 and ISO/IEC 18000-6B standards
Supports low-cost SmartLabels as well as reusable, rugged data media
High reading speed: many tags can be read simultaneously (mass recording), rapidly
moving tags are reliably recorded
Suitable for the 865 to 868 MHz UHF bands in Europe and the 902 to 928 MHz UHF
band in North America
Up to 4 antennas can be connected and configured in operating mode
Readers and antennas to the high IP65 degree of protection
Can be used for a high temperature range
Antenna switching for high reading probability
Flexible system integration:
Serial (RS 232)
SIMATIC integration (RS 422 over communication module; available soon)
Ethernet (TCP/IP)
RF660R reader
5.1 Description
RF600
5-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
5.1.1 Ordering data
Description Machine-Readable Product Code
SIMATIC RF660R
RF660R reader
5.1 Description
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-3
5.1.2 Design of the RF660R reader
Item
No.
Description
(1) Status LED
(2) Industrial Ethernet
(RJ45 connector)
(3) RS 422 interface
(8-pin M12 connector)
(4) RS 232 interface
(5-pin M12 connector)
(5) Digital I/O
(8-pin M12 connector)
(6) Power, 24 V DC;
(4-pin M12 connector)
Description
4 antenna connections
ANT 1 to ANT 4 (RTNC connector)
RF660R reader
5.1 Description
RF600
5-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
5.1.3 Status displays
Status displays LEDs Color Meaning
Power on Green Power supply ON
(also lit for
undervoltage/overvoltage)
Tag Detect Yellow LED is lit as soon as any tag is in
the field
System Error Red Reader is not active.
Rebooting is necessary (operating
voltage Off → On.)
RF660R reader
5.1 Description
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-5
5.1.4 Pin assignment of the serial interfaces
RS 422 connector Pin Meaning
1
2
3
4
5
6
7
8
GND
not connected
RS422_RX_PLUS
RS422_RX_MINUS
RS422_TX_MINUS
RS422_TX_PLUS
GND
housing
RS 232 connector Pin Meaning
1
2
3
4
5
6
7
8
GND
RS232_TX
GND
RS232_RX
GND
not connected
not connected
not connected
Industrial Ethernet Pin Meaning

1
2
3
4
5
6
7
8
Transmit Data (+)
Transmit Data (-)
Receive Data (+)
Terminated
Terminated
Receive Data (-)
Terminated
Terminated
RF660R reader
5.1 Description
RF600
5-6 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,

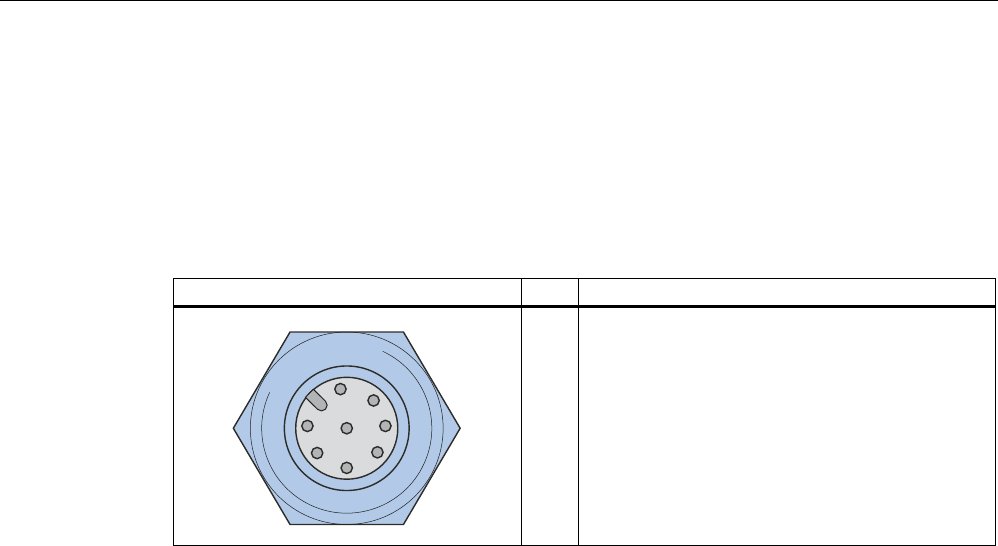

5.1.5 Pin assignment and connections of the digital I/O interface
Pin assignment
Digital I/O socket Pin Meaning
1
2
3
4
5
6
7
8
Input USER_IN (0)
Input USER_IN (1)
Input USER_IN (2)
GND (IN)
Output USER_OUT (0)
Output USER_OUT (1)
Output USER_OUT (2)
Housing
RF660R reader
5.1 Description
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-7
Connections
9
5)5
'LJLWDO,2
3LQ86(5B,1B
3LQ86(5B,1B
3LQ86(5B,1B
3LQ86(5B287B
3LQ86(5B287B
3LQ86(5B287B
3LQ*1'
9
9
1HW]WHLO
3LQ*HK¦XVH
9HU
EUDXFKHU
9HU
EUDXFKHU
9HU
EUDXFKHU
Figure 5-2 Connections for digital I/O
Output USER_OUT (0), (1), (2):
(1) These are high-side switches that switch Vcc (+24V) at low resistance ('active high').
(2) Each output is rated for 0.5 A current and is electronically protected.
(3) The 0 V rail is Pin 4 (GND).
(4) Each pin of the 8-pin connector can carry a load of up to 2 A, this means that three digital
outputs can be operated simultaneously with up to 0.5 A.
RF660R reader
5.1 Description
RF600
5-8 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,

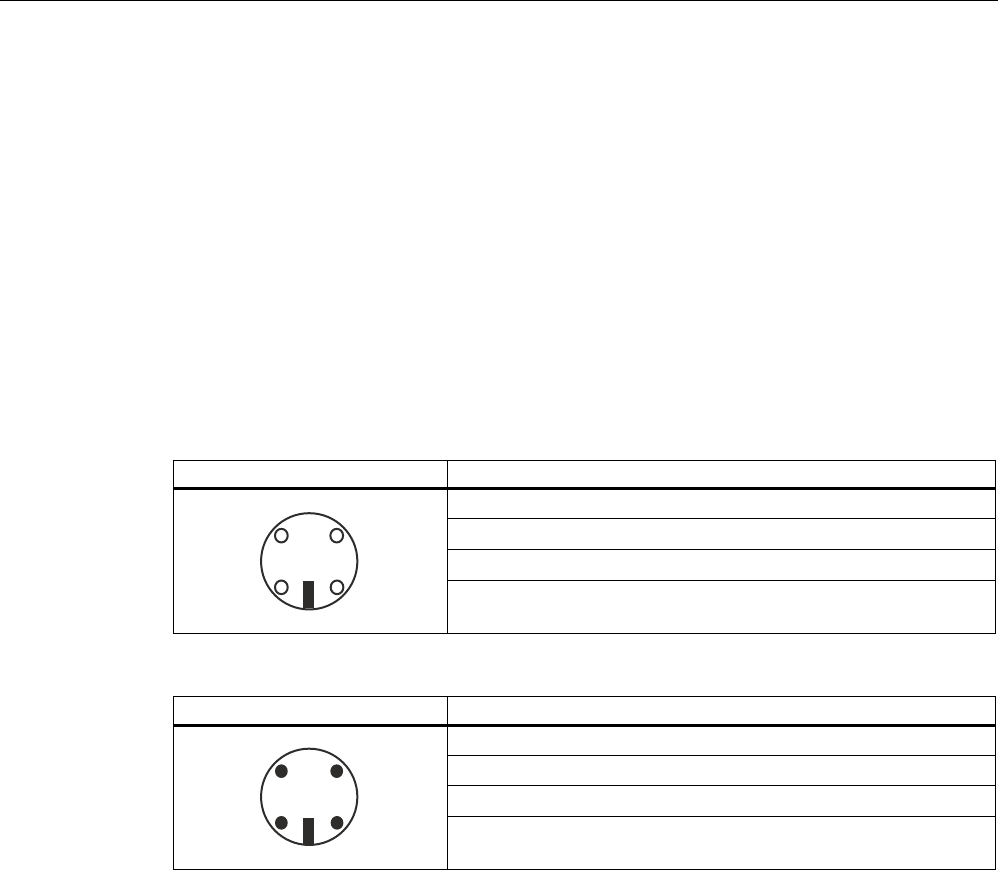

5.1.6 Power supply
Pin assignment of the power connections
Power connector Pin Meaning
1
2
3
4
Ground (0V)
+24 V
+24 V
Ground (0V)
RF660R reader
5.1 Description
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-9
5.1.7 Grounding connection
A low-impedance earth connection ensures that interference signals generated, for example,
by external power supply cables or signal cables are safely discharged to earth.
Required tool for protective earth terminal: TORX T20 screwdriver
Ground connection/protective earth terminal
The protective earth terminal (M4 threads) (1) on
the device (large surface, large-area contact) has
to be connected with the protective earth
conductor of the plant or the cabinet in which the
reader is to be installed.
The minimum conductor cross-section may not
be less than 2.5 mm2.
RF660R reader
5.2
RF600
5-10 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
5.2
5.3 Installation /Mounting
5.3.1 Mounting/Installation
Mounting/installing the device

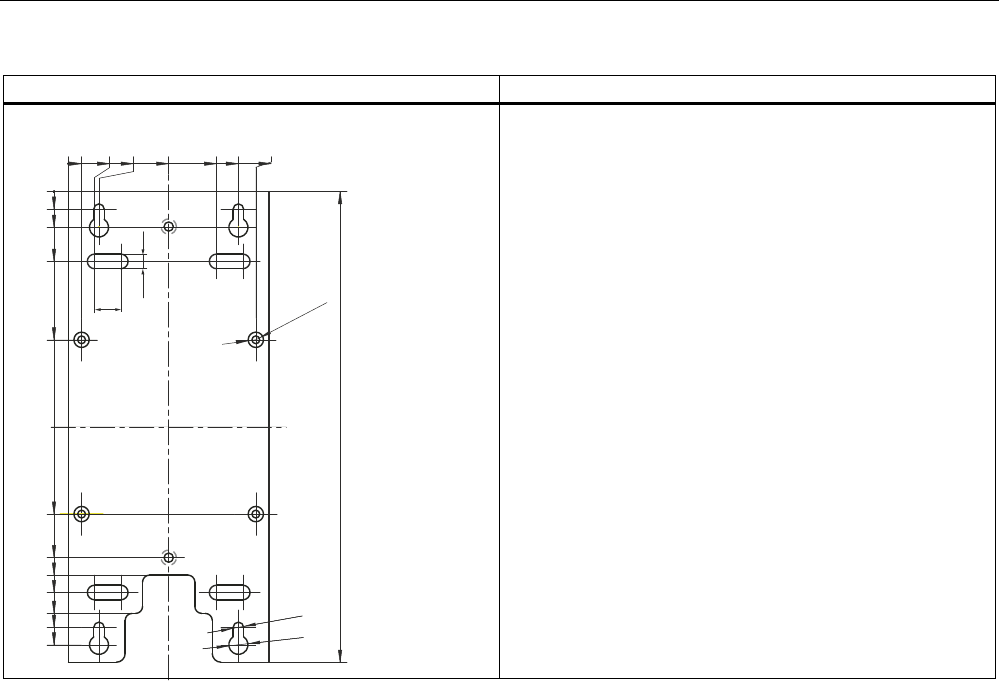

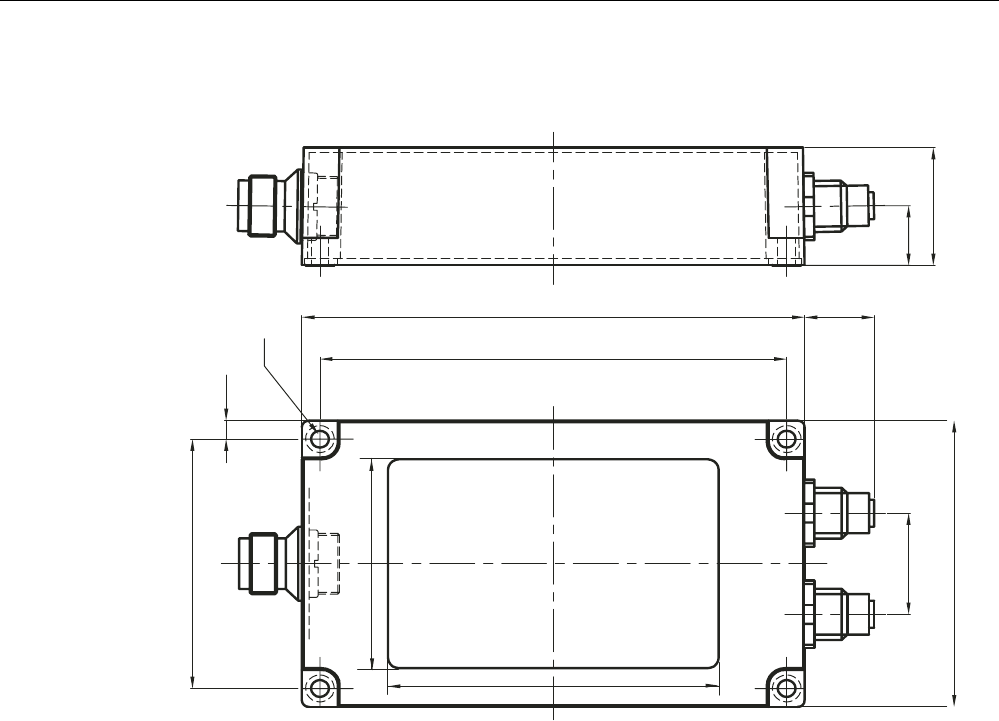

The positions of the fixing holes for the device are shown in the "Dimension drawing"
section.
Examples of mounting types
Material Hole diameter Fixing
Concrete
8 mm diameter
60 mm depth
Rawlplug: 8 mm diameter, 50 mm length
Screws: 4 mm diameter, 50 mm length
Plasterboard
(min. 13 mm thick)
14 mm diameter Tilting rawlplug: 4 mm diameter, 50 mm length
Metal
(min. 2 mm thick)
5 mm diameter
M4 metal screws: 4 mm diameter,
15 mm length
Warning
Ensure that the wall or ceiling can hold four times the total weight of the device.
5.4 Configuration/integration
5.4.1 Configuration
Three communication interfaces are available for integrating the device into system
environments/networks:
RF660R reader
5.4 Configuration/integration
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-11
Ethernet
RS 422 and
RS 232
The communication interfaces transfer the data to IT, ERP and SCM systems on SIMATIC
PLCs or PCs (also used for configuration and diagnostics).
Simple process controls (e.g. a traffic signal) can be directly implemented using the
read/write device via three digital inputs and outputs with 24 V each.
5),'GHYLFHGDWD
PDQDJHPHQW
6,0$7,&6
WKURXJKRSWLRQDO
LQWHUIDFHPRGXOH
3&LQWHUIDFLQJ
IRUFRQILJXUDWLRQ
DQGGLDJQRVWLFV
$QWHQQD
6,0$7,&5)$
5XJJHGKRXVLQJZLWK
KLJK,3GHJUHHRI
SURWHFWLRQ
8SWRDQWHQQDVRQ
RQH5)5UHDGHU
3URFHVVFRQWURO
[GLJLWDOLQSXW9
[GLJLWDORXWSXW9
$
3RZHUVXSSO\
5HDGHUV
6,0$7,&5)5
8SWRP
IRUHDFKDQWHQQD
b9$&
9'&
56b
56b
(WKHUQHW7&3,3
Figure 5-3 Configuration overview of the RF660R reader
Note
Maximum cable lengths for the RS232 interface
The maximum cable lengths for reliable, fault-free data transfer are as follows:
Transfer rate 115.2 kbit/s: Maximum cable length: 10 m
Transfer rate 57,6 kbit/s: Maximum cable length: 20 m
RF660R reader
5.4 Configuration/integration
RF600
5-12 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
5.4.2 Transmission protocols
Transmission protocols
The following transmission protocols are available: 3964R protocol and TCP/IP.
RS232 communication
XML protocol
Transmission rates 115200 bps
Start bits 1
Data bits 8
Parity Odd
Stop bits 1
RS422 communication
3964R protocol
Transmission rate 9600, 19200, 38400, 57600, 115200 bps
(autobauding)
Start bits 1
Data bits 8
Parity Odd
Stop bits 1
Ethernet communication
The Ethernet interface offers automatic selection between 10BaseT and 100BaseTX.
Shielded Twisted-Pair patch cables with standard RJ45 connectors are recommended for a
reliable connection.
RF660R reader
5.5 Maintenance and service
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-13
5.5 Maintenance and service
RF660R reader
5.6 Technical specifications
RF600
5-14 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
5.6 Technical specifications
5.6.1 Technical specifications of RF660R
Table 5-1 Technical specifications of RF660R
General Technical Specifications
Weight 3.7 kg (with cover 3.8 kg)
Dimensions (L x W x H) in mm 320 x 145 x 100 without connections
Material Aluminum
Frequencies
European frequency range 865 ... 868 MHz (10 subchannels LBT at 2 W ERP, 15
subchannels LBT at 0.1 W ERP)
North American frequency range 902 ... 928 MHz (50 channels, frequency hopping)
Frequency accuracy max.± 10ppm
Channel spacing Channel spacing (FHSS), 200 kHz > FHSS> 500 kHz
Modulation methods DSB Modulation & SSB Modulation
Encoding, Manchester or Pulse Interval (PIE)
Identification rate 99.5 % at maximum reading distance and with a receiver
data transfer rate of 80 Kbyte/s.
RF660R reader
5.6 Technical specifications
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-15
Transmission and reading characteristics
Max. reads/s EPC Generation 2 ISO 18000-6B
Europe - Single Tag
Note:
The LBT and frequency channel schedule can affect this
value
Up to 100 reads/s as part of
the collision arbitration cycle
Up to 100 tips, single tag
only
> 50 as part of the collision
arbitration cycle
USA - Single Tag
Note:
The rate of frequency hopping can affect this value
Up to 600 reads/s as part of
the collision arbitration cycle
Up to 120 tips, single tag
only
> 50 as part of the collision
arbitration cycle
Bulk Read Capacity EPC Generation 2 ISO 18000-6B
Max. number of tags max. 1000 max. 75
Europe Up to 500 tags/s Up to 45 tags/s
USA Up to 1000 tags/s Up to 75 tags/s
Data Transmission Rate EPC Generation 2 ISO 18000-6B
Reading (incl. TCP/IP) tag-to-reader link frequency 320 kbps at 3 m
80 kbps at 5 m
40 kbps at 5 m
160 kbps at 3 m
40 kbps at 5 m
Reading (incl. TCP/IP) reader-to-tag mean data transfer rate 128 kbps at 3 m
53,3 kbps at 5 m
26,7 kbps at 5 m
40 kbps at 5 m
Time required to program an individual EPC tag with a 96-bit
ID using WRITE
min. 110 to 130 ms Up to 60 ms
Time required to program an individual EPC tag with a 96-bit
ID using BLOCK_WRITE or WRITE4BYTE
22 to 25 ms approx. 25 ms
Identification rate (%) EPC Generation 2 ISO 18000-6B
Single tag under ideal conditions > 99,9 % > 99,9 %
Single tag under normal conditions 99,5 % 99,5 %
Transfer capacity Europe USA
Range 0.1 to 2 W ERP 0.4 to 4 W EIRP
Reading distance Europe USA
Antennas mounted on opposing sides max. 10 m (with 2 x 2
antennas)
max. 10 m (with 2 x 2
antennas)
Antennas mounted on the same side max. 5 m (with 2 antennas) max. 5 m (with 2 antennas)
Data transmission rate of reader
Read
Write
Approx. bytes/s
Approx. bytes/s
Object speed
Read
Write
Approx. m/s (byte)
Approx. m/s (byte)
RF660R reader
5.6 Technical specifications
RF600
5-16 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Approvals Radio to R&TTE- guidelines EN 300 330, EN 301 489
?????
CE, EMC, FCC, cULus
IEC60950, including US and Canadian variants of it
FCC CFR47 Part 15.247
ETSI EN 302-208
Degree of protection acc. to EN 60529 (IP65)
Mechanical Environmental Conditions
Shock EN 60 721-3-7, Class 7 M2
Total shock response spectrum Type II
Vibration EN 60 721-3-7, Class 7 M2
Climatic Conditions
Ambient temperature in operation -25 °C to +55 °C
Ambient temperature for transport and storage -40 °C to +85 °C
Electromagnetic compatibility
Status displays on the device
Power On Green LED
Tag Presence Yellow LED
Error Red LED
Interfaces
Antenna connections 4x RTNC connector
Output values:
4 W with 4 dB cable attenuation and
6 dB antenna amplification.
Minimum output voltage: 100 mW
Max. independently operating antenna channels 2
Ethernet 10BaseT or 100BaseTx 1x RJ45 connection
according to IEEE 802.3 and ISO 8802-3
RS422 1x connector (8-pin M12). Bit rate between 2400 and
115200 bps. For integration in SIMATIC
RS232 1x connector (5-pin M12). Bit rate between 2400 and
115200 bps.
Digital inputs 3x sockets (8-pin M12).
Digital outputs (short-circuit proof) 3x sockets (8-pin M12)
Power supply: 24 V; 1 A
Fuse: 24 V; 0.5 A
Power supply 24 V DC (4-pin M12) 20 to 30 V (2.2 A)
RF660R reader
5.7 Dimension drawings
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-17
5.7 Dimension drawings
5.7.1 Dimension drawings






(UGXQJVDQVFKOXVV
$OOH0D¡DQJDEHQLQPP

Figure 5-4 Dimension drawing of the reader
RF660R reader
5.8 Certificates and approvals
RF600
5-18 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
5.8 Certificates and approvals
5.8.1 FCC information
Siemens SIMATIC RF660R
FCC ID: NXW-RF660
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
5.8.2 Compliance distance for RF Exposure
The Transmitter is within the Health Canada and FCC limits for General
Population/Uncontrolled Exposure to electromagnetic waves at a minimum operating
distance of 23 cm. The installation design shall thus be such as to maintain a minimum
distance of 23 cm between the antennas and users or other persons.
RF660R reader
5.8 Certificates and approvals
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 5-19
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 6-1
Antennas 6
6.1 RF660A antenna
6.1.1 RF660A description
The RF660A is a stationary antenna, specially designed for the RF660R reader.
The antenna is available in two different frequency ranges that have been specified for the
regions of Europe and USA.
Frequency range
The antenna for Europe operate in the frequency range of 865 to 868 MHz
The antenna for the USA operate in the frequency range of 902 to 928 MHz

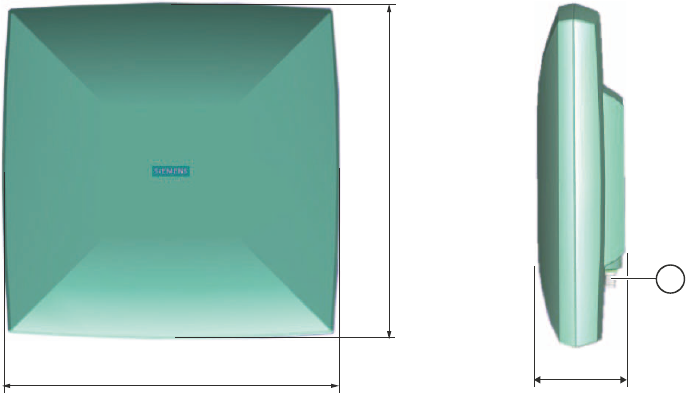

Design of the RF660A
The antenna is installed in a rectangular plastic housing.
PP
PP
Front view
PP
Side view
① RTNC connection
Antennas
6.1 RF660A antenna
RF600
6-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Radiating/receiving characteristic
The characteristic curve is shown for horizontal alignment and for a frequency of 865 MHz.
The radiating/receiving angle of the antenna is defined by the angle between the two 3dB
points.
3KL r


     





G%
G%G%
*HZLQQLQG%
:LQNHO
LQ*UDG

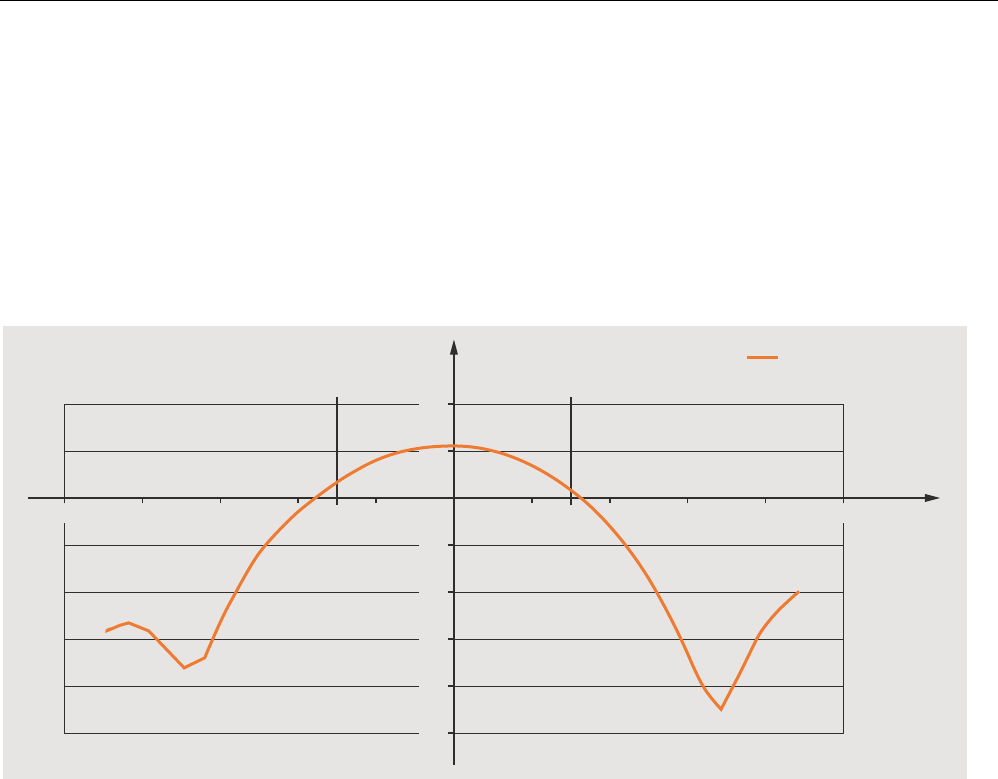

Figure 6-1 Effective range of radiation (at 865 MHz, horizontal alignment)
Antennas
6.1 RF660A antenna
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 6-3
Ordering data
Description Machine-Readable Product Code
RF660A for Europe 6GT2 810-0AA00
RF660A for USA 6GT2 810-0AA01
Antennas
6.1 RF660A antenna
RF600
6-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
6.1.2 Application Planning
Specified minimum spacing of antennas
The following diagram shows the specified minimum and maximum spacings for mounting
antennas:
A minimum spacing of 50 cm is necessary between the antenna and liquids or metals.
The distance between the antenna and the floor should also be at least 50 cm.
PLQ
FP
PLQ
FP
ุ
0HWDOUDFN /LTXLG
Figure 6-2 Distance to the environment
The distance between two antennas mounted alongside each other or one above the other
should be at least 20 to 50 cm.
Antennas
6.1 RF660A antenna
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 6-5
FP
Figure 6-3 Antennas mounted adjacently horizontally or vertically
For a portal configuration, the distance between two antennas that are connected to the
same reader is up to 3.5 m (in Europe) or 4 m (in the USA).
(XURSH PD[P
86$ PD[P
Figure 6-4 Portal configuration
Antennas
6.1 RF660A antenna
RF600
6-6 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
6.1.3 Installation /Mounting
The RF660A antenna can be fixed to any firm support.
Mounting types
Two systems are available for fixing the antenna:
Rigid fixing with VESA 100 x 100
Flexible fixing with VESA 75 x 75
Fixing with VESA 100 x 100
Rigid fixing with an antenna adapter plate is suitable for:
Wall mounting on solid foundations
Mast mounting

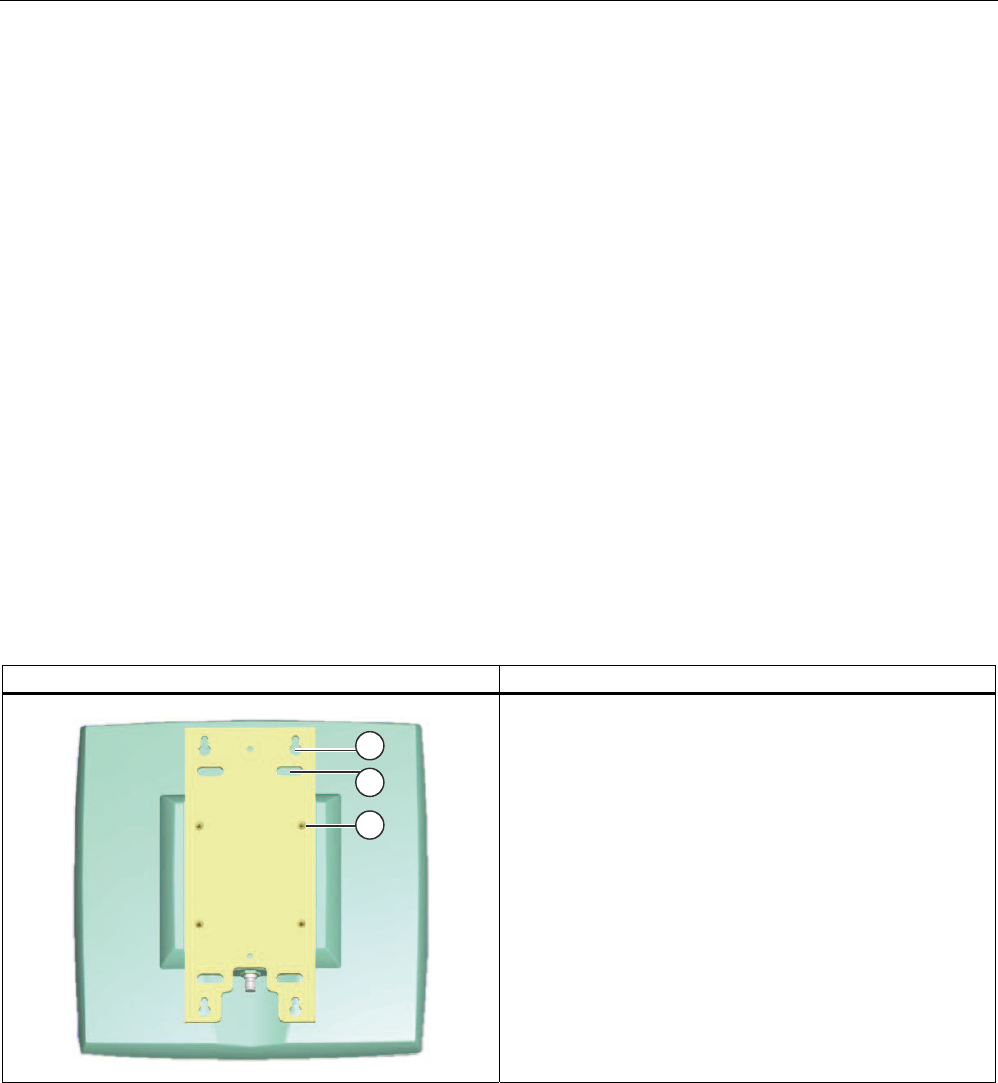

Antenna with antenna adapter plate Description
① Keyhole for wall mounting (4 x)
① Elongated hole for mast mounting (4 x)
③ Standardized VESA fixing holes (4 x)
Antennas
6.1 RF660A antenna
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 6-7
Antenna with antenna adapter plate Description

























Dimensions for fixing holes
All dimensions in mm
Antennas
6.1 RF660A antenna
RF600
6-8 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
Fixing with VESA 75 x 75
Flexible mounting is possible using the VESA 75 x 75 mounting set.
VESA 75 x 75 mounting set Description
Swivel range of wall mounting
Distances for wall mounting
VESA adapter plate
from VESA 75 x 75
to VESA 100 x 100
Antennas
6.1 RF660A antenna
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 6-9
VESA 75 x 75 mounting set Description
6.1.4 Connecting an antenna to a reader
Connecting an RF660A
Preassembled standard cables in lengths of 10 m and 20 m with the optimal impedance are
available for connection.
The cable between antenna and reader can be up to 20 m in length.
Notice
Only use original Siemens antenna cables
Figure 6-5 Rear of antenna with RTNC connection
When less than four antennas are used, we recommend that the antennas are connected to
the reader as follows.
Number of antennas Connections on the reader
2 antennas ANT 1, ANT 2
3 antennas ANT 1, ANT 2, ANT 3
Antennas
6.1 RF660A antenna
RF600
6-10 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
6.1.5 Technical specifications
RF660A antenna 865-868 RF660A antenna 902-928
Frequency range 865-868 MHz 902-928 MHz
Impedance 50 Ohm nominal 50 Ohm nominal
Antenna amplification 5-7 dBil > 6 dBic
VSWR 2:1 max. 2:1 max.
Polarization RH circular RH circular
Radiating/receiving angle 55°-60° 60° - 75°
Connector RTNC RTNC
Degree of protection IP 65 IP 65
Permissible ambient temperature -25° C to +75° C -25° C to +75° C
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 7-1
Transponder/tags 7
7.1 Mode of operation of transponders
The tag/transponder mainly comprises a microchip with an integral memory and a dipole
antenna.
The principle of operation of a passive RFID transponder is as follows:
Diversion of some of the high-frequency energy emitted by the reader to supply power to
the integral chip
Commands received from reader
Responses are transmitted to the reader antenna by modulating the reflected radio
waves (backscatter technique)
5HIOHFWHGDQGPRGXODWHG
ZDYHIURPWDJWUDQVSRQGHU
5)5
5HD
$QWHQQD
$QWHQQD
0LFURFKLSZLWK
LQWHJUDWHG
0HPRU\
(OHFWURPDJQHWLFZDYHV
IURPUHDGHUDQWHQQD
7UDQVSRQGHU
$QWHQQD
Figure 7-1 Mode of operation of transponders
The transmission ranges achieved vary in accordance with the size of the tag and the
corresponding dipole antenna. In general the following rule applies: The smaller the tag and
therefore the antenna, the shorter the range.
Transponder/tags
RF600
7-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
7.2 Transponder classes and generations
The transponder classes are distinguished by the different communication protocols used
between the reader and transponder. Transponder classes are mostly mutually incompatible.
The following transponder classes are supported by the RF 600 system:
EPC Global Class 1, 1b with full EPC Global Profile
EPC Global Class 1, Generation 2 with full EPC Global Profile
ISO 18000-6B with full ISO profile
EPC Global
EPC Global groups tags into the following classes and generations:
EPC class Definition Programming Supported
by RF 600
Class 0 Passive read-only tags Programming by the
manufacturer
No
Class 1 Passive single-write tags Programming by the customer
(cannot be reprogrammed)
Yes
Class 2 Passive rewritable tags
Class 3 Semi-passive tags
Class 4 Active tags
Freely programmable No
Characteristic Generation 1 Generation 2
Frequency 860-930 MHz 860-960 MHz
Memory capacity 64 or 96 bits 96-256 bits
Can be programmed on site Yes Yes
Programming Class 0: Read-only
Class 1: written once; read
many times
Yes
Other characteristics _ Reading is faster and more reliable
than for Generation 1.
Enhanced compliance with global
standards.
Transponder/tags
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 7-3
ISO 18000-6
Specification of the transponder/tags in accordance with ISO 18000-6 refers to
implementation of the air-interface protocol. There are two versions: ISO 18000-6 Type A
and ISO 18000-6 Type B.
Type B Type A
Frequency range 860 to 960 MHz 860 to 960 MHz
Transmission procedure Bi-phase modulation and Manchester
encoding
Pulse Interval Encoding (PIE)
Anti-collision techniques Adaptive binary tree technique ALOHA technique
Protocol Reader talks first Reader talks first
Supported by RF 600 Yes No
Transponder/tags
RF600
7-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
7.3 Electronic Product Code (EPC)
The Electronic Product Code (EPC) supports the unique identification of objects (e.g. retail
items, logistical items or transport containers). This makes extremely accurate identification
possible. In practical use, the EPC is stored on a transponder (tag) and scanned by the
reader.
Different EPC versions exist from 64 to 204 bits. The structure of a 96-bit EPC is shown
below :
+HDGHU (3&0DQDJHU 2EMHFW&ODVV 6HULDO1XPEHU
ELWV
(3&9HUVLRQ
ELWV ELWV ELWV
+HUVWHOOHU 3URGXNW HLQGHXWLJH6HULHQQXPPHU
Header: This identifies the EPC identification number that follows with regard to length,
type, structure and version of the EPC
EPC manager number: This identifies the company/corporation.
Object class: Corresponds to the article number.
Serial number: Consecutive number of the article
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 8-1
Accessories 8
Accessories Order No.
Antenna cable Up to 20 m
Cable RS 422: Up to 50 m
RS 232: Up to 10 m
Ethernet: Up to 20 m
Mounting set Yes, 2 different types
Further accessories Documentation on CD-ROM
Wide-range power supply unit for
SIMATIC RF systems
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
8-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
8.1 Wide-range power supply unit for SIMATIC RF systems
8.1.1 Features
Wide-range power supply unit for RF systems



(1) DC output 1
(2) DC output 2
(3) Mains connection
Features
Wide-range input for use worldwide
Dimensions without mains cable: 175 x 85 x 35 mm
Dimensions including mains cable: 250 x 85 x 35 mm
CE compatible
Mechanically and electrically rugged design
Secondary side: 24V DC / 3A
Short-circuit and no-load stability
Suitable for frame mounting
3 designs for use in the EU, UK, USA
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 8-3
Description
The wide-range power supply unit for SIMATIC RF systems is a universal compact power
supply and provides the user with an efficient, cost-saving solution for many different mid-
range power supply tasks.
The primary switched power supply is designed for use on single-phase AC systems. The
two DC outputs (sockets) are connected in parallel and protected by a built-in current limiting
circuit against overload and short-circuits.
The device is vacuum cast, prepared for applications of Safety Class 2 and satisfies the low-
voltage guideline as well as the current EU standards for CE compliance.
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
8-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
8.1.2 Scope of supply
Wide-range power supply unit for SIMATIC RF systems
2 m mains cable (country-specific)
Protective cover for flange outlet
Operating instructions
8.1.3 Ordering data
Wide-range power supply unit for SIMATIC RF systems
(100 - 240 V AC / 24 V DC / 3 A)
with 2 m connecting cable with country-specific plug
EU: 6GT2 898-0AA00
UK: 6GT2 898-0AA10
US: 6GT2 898-0AA20
24 V-connecting cable, length 5 m 6GT2 491-1HH50
8.1.4 Safety Information
Warning
Danger to life
It is not permitted to open the device or to modify the device.
The following must also be taken into account:
Failure to observe this requirement shall constitute a revocation of the CE approval and
manufacturer's warranty.
For installation of the power supply, compliance with the DIN/VDE requirements or the
country-specific regulations is essential.
The field of application of the power supply is limited to "Information technology in
electrical office equipment" within the scope of validity of the EN 60950/VDE 0805
standard.
When the equipment is installed, it must be ensured that the mains socket outlet is freely
accessible. The housing can reach a temperature of +25 °C without any adverse
consequences. It must, however, be ensured that the power supply is covered in the case
of an ambient temperature of more than +25°C to protect persons from contact with the
hot housing. Adequate ventilation of the power supply must be maintained under these
conditions.
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 8-5
8.1.5 Connecting
There are three different (country-specific) mains cables for the EU, UK and US.
The appropriate mains cable must be connected to the primary input of the power supply.
The wide-range power supply unit has total insulation (Safety Class 2)
Can be mounted using four fixing holes
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
8-6 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
8.1.6 Technical specifications
Table 8-1 General technical specifications
Insulation stability (prim./sec.) Uins p/s 3.3 kVAC
Insulation resistance Rins >1 GΩ
Leakage current Ileak U
in= 230 VAC, f = 50 Hz < 200 µA
Safety class (SELV) Designed for installation in devices of Safety Class 2
Mains buffering th U
in= 230 VAC ≥50 ms
Ambient temperature -25 °C to +55 °C
Surface temperature Module top, centrally max. 96 °C
Storage temperature -40 °C to +85 °C
Self-heating on full-load max. 45 K
Interference immunity
ESD
HF fields
Burst
Surge
HF injection
Mains quality test
EN 61000-4-2,
4-3 up to 4-6, 4-11
Air discharge: 15 kV
10 V/m
symmetrical: 2
Symmetrical: 1
10 Vrms
Cooling Free convection
Dimensions L x W x H tbd x 85.0 x 35.0 mm
Weight 720 g
Housing / casting UL 94-V0
Power supply class according to CSA Level 3
Table 8-2 Technical specifications for the input
Rated input voltage Uin EN 60950 / UL 60950 100 to 240 V AC
120 to 353 VDC
Input voltage range Uin 94 to 264 V AC
120 to 375 VDC
(UL: 353 VDC)
Input frequency fin 50/60 Hz
Radio interference level EN 55011/B
Switching frequency fsw approx. 70 kHz typ.
Length of cable 2 m
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 8-7
Table 8-3 Technical specifications of the output
Output voltage tolerance ∆Uout U
in= 230 VAC U
outnom ≤ +2 %/-1 %
Overvoltage protection Uout nom +20 % typ.
Noise ∆ULF U
in= min., BW: 1 MHz ≤ 1 % Uout
Noise ∆UHF U
in= min., BW: 20 MHz ≤ 2 % Uout
Line Regulation
Load Regulation
Uin= min./max.
Iout= 10...90...10 %
≤ 1,0 %
≤ 1,0 %
Short-circuit current Imax I
nom = 4 A (+50°C) 105 up to 130 % Inom
Settling time tR load variations Iout= 10...90...10 % < 5 ms
Temperature coefficient ε TA= -25 °C to +70 °C 0.01 %/K
Overload behavior Pover Constant current
Short-circuit protection/
No-load response
Continuous/no-load
stability
Derating TA> +50 °C to +70 °C max. 2 %/K
Connector type Flanged connector
Fa. Binder,
Order No.:09-3431-90-04
4 pins
Table 8-4 Output configurations
Input Outputs
U1 = U2
ILoad =
I1 + I2
Efficiency
(%)
Remarks
110 V AC 24 V DC 0A No-load stability
110 V AC 24 V DC 3A ≥ 88
220 V AC 24 V DC 0A No-load stability
220 V AC 24 V DC 3A ≥ 90
Table 8-5 Compliance with standards
Name Standard Values
Electrical safety EN 60950 / UL 60950 / CAN/CSA 22.2 950, 3 Edition
Conducted interference EN 61000-6-3
EN 55011
Class B
Emitted interference EN 61000-6-3
EN 55011
Class B
All values are measured at full-load and at an ambient temperature of 25 °C (unless
specified otherwise).
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
8-8 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
8.1.7 Modification possibilities
Output voltages
Insulation strength up to 4 kVAC
Heatsink
DIN rail mounting
8.1.8 Pin assignment of DC outputs and mains connection
DC outputs Assignment
(1) Ground (0V)
(2) +24 V DC
(3) +24 V DC
(4) Ground (0V)
Mains connection Assignment
(1) 100 to 240 V AC
(2) n.c.
(3) 100 to 240 V AC
(4) n.c.
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, 8-9
8.1.9 Dimension drawing

s



s
s





Units of measurement:
All dimensions in mm
Accessories
8.1 Wide-range power supply unit for SIMATIC RF systems
RF600
8-10 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, A-1
Appendix A
A.1 Certificates and approvals
Notes on CE marking
The following applies to the system described in this documentation:
The CE marking on a device is indicative of the corresponding approval:
DIN ISO 9001 certificate
The quality assurance system for the entire product process (development, production, and
marketing) at Siemens fulfills the requirements of ISO 9001 (corresponds to EN29001:
1987).
This has been certified by DQS (the German society for the certification of quality
management systems.)
EQ-Net certificate no.: 1323-01
Certification for the USA, Canada and Australia
Safety
Appendix
A.1 Certificates and approvals
RF600
A-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
One of the following markings on a device is indicative of the corresponding approval:
Underwriters Laboratories (UL) to UL 60950 Standard (I.T.E), or to UL508
(IND.CONT.EQ)
Underwriters Laboratories (UL) according to Canadian standard C22.2 No. 60950
(I.T.E) or C22.2 No. 142 (IND.CONT.EQ)
Underwriters Laboratories (UL) according to standard UL 60950, Report E11 5352 and
Canadian standard C22.2 No. 60950 (I.T.E) or UL508 and C22.2 No. 142
(IND.CONT.EQ)
UL recognition mark
Canadian Standard Association (CSA) per Standard C22.2. No. 60950 (LR 81690) or
per C22.2 No. 142 (LR 63533)
Canadian Standard Association (CSA) per American Standard UL 60950 (LR 81690) or
per UL 508 (LR 63533)
Appendix
A.1 Certificates and approvals
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, A-3
EMC
USA
Federal Communications
Commission
Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Shielded Cables Shielded cables must be used with this equipment to maintain compliance
with FCC regulations.
Modifications Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
Conditions of Operations This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CANADA
Canadian Notice This Class B digital apparatus complies with Canadian ICES-003.
Avis Canadien Cet appareil numérique de la classe b est conforme à la norme NMB-003
du Canada.
AUSTRALIA
This product meets the requirements of the AS/NZS 3548 Norm.
Appendix
A.2 Service and support
RF600
A-4 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
A.2 Service and support
Technical support
You can reach the technical support team for all A&D projects at
Telephone: +49 (0) 180 5050 222
Fax: +49 (0) 180 5050 223
Internet
Visit our site on the Internet at:
http://www.siemens.com/automation/service&support
You can send a support query to:
http://www.siemens.de/automation/support-request
You can find the latest general information about our identification systems on the
Internet at:
http://www.siemens.de/simatic-sensors
The online catalog and the online ordering system is available at:
http://mall.automation.siemens.com/
Appendix
A.3 Contact partners
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, A-5
A.3 Contact partners
If you have any further questions on the use of our products, please contact one of our
representatives at your local Siemens office.
The addresses are found on the following pages:
On the Internet at: http://www.siemens.com/automation/partner
In catalog CA 01
In Catalog FS 10 specially for factory automation sensors
A.4 Training
Training center
We offer appropriate courses to get you started. Please contact your regional Training
Center, or the central Training Center in D-90327 Nuremberg.
Telephone: +49 (911) 895-3200
http://www.sitrain.com
Appendix
A.4 Training
RF600
A-6 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
RF600
System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618, Index-1
Index
A
Accessories of the RF660R reader, 8-1
Antenna configuration, 4-2
Approvals, A-1
C
Cable
Shielding, 4-29
Certificates, A-1
Classes, 7-2
Configuration, 5-10
Antennas, 4-2
Contact partners, A-5
Coupling paths, 4-26
D
Design of the RF660R reader, 5-3
Dimensions
RF660R reader, 5-17
E
Electromagnetic compatibility
Coupling paths, 4-26
Electromagnetic interference, 4-23
Electromagnetic waves
UHF range, 4-13
EMC Directives, A-3
EMC Guidelines
Avoiding interference, 4-27
Basic rules, 4-20
Cable shielding, 4-29
Definition, 4-20
Equipotential bonding, 4-28
Overview, 4-19
Propagation of electromagnetic interference, 4-23
Equipotential bonding, 4-28
G
Gate configuration
Application areas, 4-3
Arrangement of antenna, 4-3
Generations, 7-2
I
Identification system
Performance Features, 3-3
UHF range, 3-1
Influence of
Interference, 4-13
Liquids, 4-15
Metals, 4-14
Non-metallic substances, 4-15
reflections, 4-13
Interfaces, 5-10
Digital, 5-6
Serial, 5-5
Interference, 4-13
Interference sources
Electromagnetic, 4-24
M
Main applications
RF600, 3-2
Minimum distances
For antennas, 4-7, 6-4
Mounting types of the RF660R reader, 5-10
P
Performance Features
RF600, 3-3
Portal configuration
Application example, 4-2
Power supply, 5-8
Index
RF600
Index-2 System Manual, 09/2005 Edition, J31069 D0171-U001-A0-7618,
R
Reading range
Dependency of the, 4-10
reflections, 4-13
Regulations applicable to UHF frequency bands
Europe, 4-16
USA, 4-18
RF600
Main applications, 3-2
Performance Features, 3-3
System requirements, 3-3
RF660A antenna
Design, 6-1
Mounting types, 6-6
Ordering data, 6-3
Radiating/receiving characteristic, 6-2
Technical specifications, 6-10
RF660R reader
Accessories, 8-1
Configuration, 5-10
Design, 5-3
Dimensions, 5-17
Examples of mounting types, 5-10
FCC information, 5-18
Interfaces, 5-5, 5-6, 5-10
Power supply, 5-8
Status displays, 5-4
Technical specifications, 5-14
Transmission protocols, 5-12
S
Safety Information, 2-1
Service, A-4
Shielding, 4-29
Status LEDS of the RF660R reader, 5-4
Support, A-4
System overview
SIMATIC RF600, 3-1
System requirements
RF600, 3-3
T
Technical specifications
RF660A antenna, 6-10
RF660R reader, 5-14
Training center, A-5
Transmission protocols, 5-12
Transponder
Classes, 7-2
Generations, 7-2
how it works, 7-1
Improving detection, 4-13
W
Wide-range power supply unit
Safety Information, 8-4
Technical specifications, 8-6
