SINAMICS
Configuration Manual · 04/2012
SIMOTICS T-1FW3 complete torque motors
SINAMICS S120
s
SIMOTICS T-1FW3 complete torque
motors
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
_
_________________
_
SINAMICS S120
SIMOTICS T-1FW3
complete torque motors
Configuration Manual
(PKTS), 04/2012
6SN1197-0AD70-0BP6
Preface
Motor description
1
Configuration
2
Mechanical properties
of the motors
3
Technical specifications
and characteristic curves
4
Motor components
5
Connection system
6
Assembly
7
Appendix
A
Legal information
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the relevant information is not taken into account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
Order number: 6SN1197-0AD70-0BP6
Ⓟ 04/2012 Technical data subject to change
Copyright © Siemens AG 2011, 2012.
All rights reserved
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 3
Preface
Motor documentation
The motor documentation is organized in the following categories:
● General documentation e.g. catalogs
● Manufacturer/service documentation e.g. Operating Instructions and Configuration
Manuals
More information
Information on the following topics is available under the link:
● Ordering documentation/overview of documentation
● Additional links to download documents
● Using documentation online (find and search in manuals/information)
http://www.siemens.com/motioncontrol/docu
Please send any questions about the technical documentation (e.g. suggestions for
improvement, corrections) to the following e-mail address:
docu.motioncontrol@siemens.com
My Documentation Manager
The following link provides information on how to create your own individual documentation
based on Siemens content, and adapt it for your own machine documentation:
http://www.siemens.com/mdm
Training
The following link provides information on SITRAIN - training from Siemens for products,
systems and automation engineering solutions:
http://siemens.com/sitrain
Technical Support
For technical support telephone numbers for different countries, go to:
http://www.siemens.com/automation/service&support
Preface
SIMOTICS T-1FW3 complete torque motors
4 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Internet addresses for drive technology
Internet address for motors: http://www.siemens.com/motors
Internet address for products: http://www.siemens.com/motioncontrol
Internet address for SINAMICS: http://www.siemens.com/sinamics
Target group
This documentation addresses project planners and project engineers as well as machine
manufacturers and commissioning engineers.
Benefits
The Configuration Manual supports you when selecting motors, calculating the drive
components, selecting the required accessories as well as when selecting line and motor-
side power options.
Standard scope
The scope of the functionality described in this document can differ from the scope of the
functionality of the drive that is actually supplied.
● Other functions not described in this documentation might be able to be executed in the
drive. However, no claim can be made regarding the availability of these functions when
the equipment is first supplied or in the event of servicing.
● The documentation can also contain descriptions of functions that are not available in a
particular product version of the drive. The functionalities of the supplied drive should only
be taken from the ordering documentation.
● Extensions or changes made by the machine manufacturer are documented by the
machine manufacturer.
For reasons of clarity, this documentation does not contain all of the detailed information on
all of the product types. This documentation cannot take into consideration every
conceivable type of installation, operation and service/maintenance.

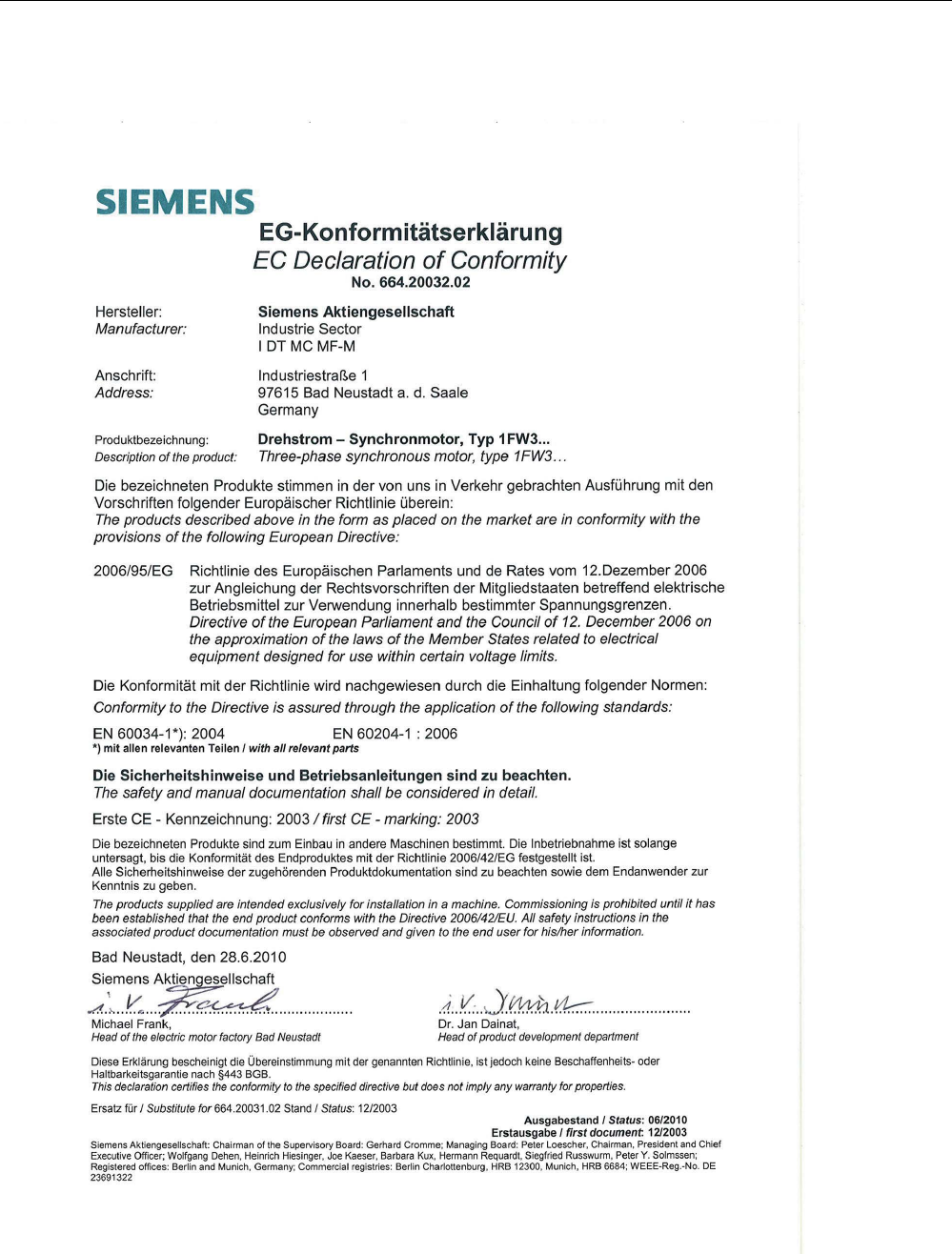

EC Declarations of Conformity
The EC Declaration of Conformity for the EMC Directive can be found on the Internet at
http://support.automation.siemens.com
There – as a search term – enter the number 15257461 or contact your local Siemens office.
Preface
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 5
Danger and warning information
DANGER
Commissioning is absolutely prohibited until it has been completely ensured that the
machine, in which the components described here are to be installed, is in full compliance
with the provisions of the EC Machinery Directive.
Only appropriately qualified personnel may commission the SINAMICS units and the
motors.
This personnel must carefully observe the technical customer documentation associated
with this product and be knowledgeable about and carefully observe the danger and
warnings.
Operation of electrical equipment and motors inevitably involves electrical circuits with
dangerous voltages. All of the work carried out on the electrical machine or system must be
carried out while it is in a no-voltage condition.
When the machine or system is operated, hazardous axis movements can occur.
Notes regarding operation with residual current protective devices (FI, RCD) see the
"Manual" of the converter that is being used.
In combination with the drive system, the motors are generally approved for operation on
TN and TT line supply systems with grounded neutral and on IT line supply systems.
When connected to IT line supply systems, when a first fault occurs between an active part
and ground, this must be signaled using appropriate monitoring equipment. In accordance
with IEC 60364-4-41, it is recommended that the first fault is removed as quickly as is
practically possible.
In systems with a grounded external conductor, an isolating transformer with grounded
neutral (secondary side) must be connected between the line supply and the drive system
to protect the motor insulation from excessive stress.
DANGER
There is a risk of shock due to the residual voltages at the motor terminals!
When the power supply voltage is switched-off, active parts of the motor can have a charge
of more than 60 μC. In addition, at open-circuit cable ends – e.g. when a connector is
withdrawn – even after the power has been disconnected, a voltage of more than 60 V is
present for 1 s. This is the reason that you must apply the appropriate measures to provide
protection against residual voltages!
Preface
SIMOTICS T-1FW3 complete torque motors
6 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
WARNING
For 1FW3 motors, voltages are present at the motor terminals when the rotor is rotating
(as a result of the permanent magnets). The voltage can be as high as 1000 V depending
on the type of motor.
The equipment and motors must be transported, stored, installed, mounted, operated,
serviced, and maintained properly in order to ensure that they function correctly and safely.
In the case of special versions of the drive units and motors, the information and data
provided in the catalogs and quotations also apply.
In addition to the danger and warning information/instructions in the technical customer
documentation supplied, the applicable domestic, local and plant-specific regulations and
requirements must be carefully taken into account.
CAUTION
The motors can have surface temperatures of over +100 °C.
For this reason, temperature-sensitive components (e.g. cables or electronic components)
must not come into contact with or be attached to the motor.
When connecting the cables, ensure that they
– are not damaged
– are not subject to tensile stress
– cannot be touched by rotating components.
CAUTION
Motors should be connected in accordance with the operating instructions. They must not
be connected directly to the three-phase supply because this will damage them.
SINAMICS units and synchronous motors are subject to a voltage test during routine
testing. While the electrical equipment of industrial machines is being subjected to a voltage
test in accordance with EN 60204-1, Section 19.4, all SINAMICS drive unit connections
must be disconnected/withdrawn in order to avoid damaging the SINAMICS drive units.
CAUTION
Motors with DRIVE-CLiQ interface have an electronic rating plate which contains motor and
encoder-specific data. This is the reason that encoder modules with DRIVE-CLiQ interface
or mounted Sensor Module may only be operated on the original motor - and may not be
mounted onto other motors or replaced by a Sensor Module from other motors.
The DRIVE-CLiQ interface has direct contact to components that can be damaged/
destroyed by electrostatic discharge (ESDS). Neither hands nor tools that could be
electrostatically charged should come into contact with the connections.
Preface
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 7
Note
When operational and in dry operating rooms, SINAMICS units with synchronous motors
fulfill the Low-Voltage Directive.
In the configurations specified in the associated EC Declaration of Conformity, SINAMICS
units with synchronous motors fulfill the EMC Directive.
ESDS instructions and electromagnetic fields
CAUTION
An electrostatic-sensitive device (ESDS) is an individual component, integrated circuit, or
module that can be damaged by electrostatic fields or discharges.
ESDS regulations for handling boards and equipment:
When handling components that can be destroyed by electrostatic discharge, it must be
ensured that personnel, the workstation and packaging are well grounded!
Personnel in ESD zones with conductive floors may only touch electronic components if
they are
– grounded through an ESDS bracelet and
– wearing ESDS shoes or ESDS shoe grounding strips.
Electronic boards may only be touched when absolutely necessary.
Electronic boards may not be brought into contact with plastics and articles of clothing
manufactured from man-made fibers.
Electronic boards may only be placed on conductive surfaces (table with ESDS surface,
conductive ESDS foam rubber, ESDS packing bag, ESDS transport containers).
Electronic boards may not be brought close to data terminals, monitors or television sets.
Minimum clearance to screens > 10 cm).
Measurements may only be carried-out on electronic boards and modules if
– the measuring instrument is grounded (e.g. via a protective conductor) or
– before making measurements with a potential-free measuring device, the measuring head
is briefly discharged (e.g. by touching an unpainted blank piece of metal on the control
cabinet).
Preface
SIMOTICS T-1FW3 complete torque motors
8 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
DANGER
It may be dangerous for people to remain in the immediate proximity of the product –
especially for those with pacemakers, implants or similar – due to electric, magnetic and
electromagnetic fields (EMF) occurring as a consequence of operation.
The machine/system operator and the people present near the product must observe the
relevant guidelines and standards! These are, for example, in the European Economic Area
(EEA) the Electromagnetic Fields Directive 2004/40/EC and the standards EN 12198-1 to
12198-3 and in the Federal Republic of Germany the Employer's Liability Insurance
Association Regulations for the Prevention of Industrial Accidents BGV 11, with the relevant
rule BGR 11 "Electromagnetic Fields".
Then a risk assessment must be carried out for every workplace, activities for reducing
dangers and exposure for people decided upon and implemented, as well as determining
and observing exposure and danger areas.
Information regarding third-party products
NOTICE
This document contains recommendations relating to third-party products. This involves
third-party products whose fundamental suitability is familiar to us. It goes without saying
that equivalent products from other manufacturers may be used. Our recommendations are
to be seen as helpful information, not as requirements or regulations. We cannot accept
any liability for the quality and properties/features of third-party products.
Preface
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 9
Environmental compatibility
● Environmental aspects during development
When selecting supplier parts, environmental compatibility was an essential criteria.
Special emphasis was placed on reducing the envelope dimensions, mass and type
variety of metal and plastic parts.
Effects of paint-wetting impairment substances can be excluded (PWIS test)
● Environmental aspects during production
Supplier parts and the products are predominantly transported in re-usable packing.
Transport for hazardous materials is not required.
The packing materials themselves essentially comprises paperboard containers that are
in compliance with the Packaging Directive 94/62/EC.
Energy consumption during production was optimized.
Production has low emission levels.
● Environmental aspects for disposal
Motors must be disposed of carefully taking into account domestic and local regulations
in the normal recycling process or by returning to the manufacturer.
The following must be taken into account when disposing of the motor:
Oil according to the regulations for disposing of old oil (e.g. gear oil when a gearbox is
mounted)
Not mixed with solvents, cold cleaning agents of remains of paint
Components that are to be recycled should be separated according to:
– Electronics scrap (e.g. encoder electronics, sensor modules)
– Iron to be recycled
– Aluminum
– Non-ferrous metal (gearwheels, motor windings)
Preface
SIMOTICS T-1FW3 complete torque motors
10 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Residual risks of power drive systems
When carrying out a risk assessment of the machine in accordance with the EU Machinery
Directive, the machine manufacturer must as a minimum consider the following residual risks
associated with the control and drive components of a power drive system (PDS).
1. Unintentional movements of driven machine components during commissioning,
operation, maintenance, and repairs caused by, for example:
– Hardware defects and/or software errors in the sensors, controllers, actuators, and
connection technology
– Response times of the controller and drive
– Operating and/or ambient conditions not within the scope of the specification
– Parameterization, programming, cabling, and installation errors
– Use of radio devices / cellular phones in the immediate vicinity of the controller
– External influences / damage
2. Exceptional temperatures as well as emissions of light, noise, particles, or gas caused by,
for example:
– Component malfunctions
– Software errors
– Operating and/or ambient conditions not within the scope of the specification
– External influences / damage
3. Hazardous shock voltages caused by, for example:
– Component malfunctions
– Influence of electrostatic charging
– Induction of voltages in moving motors
– Operating and/or ambient conditions not within the scope of the specification
– Condensation / conductive contamination
– External influences / damage
4. Electrical, magnetic and electromagnetic fields generated in operation that can pose a
risk to people with a pacemaker, implants or metal replacement joints, etc. if they are too
close.
5. Release of environmental pollutants or emissions as a result of improper operation of the
system and/or failure to dispose of components safely and correctly.
More extensive information concerning the residual risks associated with the PDS is
provided in the relevant chapters of the technical user documentation.
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 11
Table of contents
Preface ...................................................................................................................................................... 3
1 Motor description ..................................................................................................................................... 15
1.1 Properties.....................................................................................................................................15
1.2 Torque overview ..........................................................................................................................19
1.3 Technical features........................................................................................................................20
1.4 Technical specifications ...............................................................................................................21
1.5 Rating plate data..........................................................................................................................27
1.6 Order number...............................................................................................................................28
2 Configuration ........................................................................................................................................... 31
2.1 Configuration software .................................................................................................................31
2.1.1 Configuration tool SIZER for SIEMENS Drives ...........................................................................31
2.1.2 STARTER drive/commissioning software....................................................................................33
2.2 Procedure when engineering.......................................................................................................34
2.2.1 1. Clarification of the type of drive ...............................................................................................35
2.2.2 2. Definition of supplementary conditions and integration into an automation system................36
2.2.3 3. Definition of load cycle, calculation of max. load torque, definition of motor...........................37
3 Mechanical properties of the motors........................................................................................................ 45
3.1 Cooling.........................................................................................................................................45
3.1.1 Cooling circuit...............................................................................................................................45
3.1.2 Engineering the cooling circuit.....................................................................................................48
3.1.3 Cooling water ...............................................................................................................................52
3.1.4 Cooling water connection.............................................................................................................54
3.2 Shaft versions ..............................................................................................................................54
3.3 Degree of protection ....................................................................................................................55
3.4 Bearing version ............................................................................................................................56
3.5 Radial and axial forces.................................................................................................................59
3.5.1 Hollow shaft..................................................................................................................................60
3.5.2 Plug-on shaft................................................................................................................................63
3.5.3 Solid shaft ....................................................................................................................................67
3.6 Balancing process........................................................................................................................71
3.7 Vibration severity grade ...............................................................................................................72
3.8 Noise emission.............................................................................................................................72
3.9 Gear ratio .....................................................................................................................................73
3.10 Paint finish....................................................................................................................................73
Table of contents
SIMOTICS T-1FW3 complete torque motors
12 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4 Technical specifications and characteristic curves................................................................................... 75
4.1 Torque-speed characteristic........................................................................................................ 81
4.1.1 Shaft height 150 .......................................................................................................................... 82
4.1.2 Shaft height 200, Standard ....................................................................................................... 112
4.1.3 Shaft height 200, High Speed ................................................................................................... 148
4.1.4 Shaft height 280, Standard ....................................................................................................... 172
4.1.5 Shaft height 280, High Speed ................................................................................................... 188
4.2 Dimension drawings.................................................................................................................. 204
4.2.1 Hollow shaft............................................................................................................................... 206
4.2.2 Encoderless .............................................................................................................................. 209
4.2.3 Plug-on shaft ............................................................................................................................. 212
4.2.4 Solid shaft.................................................................................................................................. 215
5 Motor components................................................................................................................................. 217
5.1 Thermal motor protection.......................................................................................................... 217
5.2 Encoders ................................................................................................................................... 220
5.2.1 Encoder connection for motors with DRIVE-CLiQ interface ..................................................... 222
5.2.2 Encoder connection for motors without DRIVE-CLiQ interface ................................................ 222
5.2.3 Incremental encoder sin/cos 1Vpp............................................................................................ 223
5.2.4 Absolute encoders .................................................................................................................... 226
5.2.5 Multi-pole resolver..................................................................................................................... 228
5.2.6 Encoder with belt drive.............................................................................................................. 229
5.2.7 Coaxial encoder mounting ........................................................................................................ 231
5.2.8 Motor version without encoder.................................................................................................. 231
5.3 Braking resistors (armature short-circuit braking)..................................................................... 231
5.3.1 Function description .................................................................................................................. 231
5.3.2 Dimensioning of braking resistors............................................................................................. 234
6 Connection system ................................................................................................................................ 239
6.1 SINAMICS drive I/O .................................................................................................................. 239
6.2 Line connection ......................................................................................................................... 240
6.3 Signal connection...................................................................................................................... 243
6.4 Rotating the connector at the motor.......................................................................................... 244
6.5 Connecting-up information........................................................................................................ 245
6.6 Routing cables in a damp environment..................................................................................... 248
7 Assembly............................................................................................................................................... 249
7.1 Warning and danger information when mounting ..................................................................... 249
7.2 Overview of the mounting options............................................................................................. 250
7.3 Plug-on installation.................................................................................................................... 253
7.3.1 Siemens torque arm.................................................................................................................. 255
7.3.2 Shaft-side clamping element..................................................................................................... 261
7.3.2.1 Plug-on shaft with option +Q30................................................................................................. 264
7.3.2.2 Hollow shaft with option +Q30 .................................................................................................. 268
7.3.2.3 Hollow shaft, inner clamping element ....................................................................................... 270
Table of contents
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 13
7.4 Coupling mounting .....................................................................................................................273
7.5 No bearings at the DE................................................................................................................274
7.6 Natural frequency when mounted..............................................................................................276
7.7 Vibration resistance ...................................................................................................................276
7.8 Heavy Duty (Z option L03).........................................................................................................278
A Appendix................................................................................................................................................ 281
A.1 Description of terms ...................................................................................................................281
A.2 Conformity certificates ...............................................................................................................285
A.3 References.................................................................................................................................286
Index...................................................................................................................................................... 287
Table of contents
SIMOTICS T-1FW3 complete torque motors
14 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 15
Motor description 1
1.1 Properties
Overview
The 1FW3 series was developed as direct drive. This direct drive is a compact drive unit
where the mechanical motor power is transferred directly to the driven machine without any
mechanical transmission elements. 1FW3 complete torque motors are water-cooled, high-
pole (slow running) permanent-magnet-excited synchronous motors. The operating
characteristics are comparable to those of regular synchronous motors.
The range includes 3 outer diameters with various shaft lengths. For shaft heights 150 and
200, the stator and rotor have a flange with centering edges and tapped holes at the DE that
allow them to be integrated into a machine.
The complete torque motor 1FW3 can be ordered with various shaft versions:
● Hollow shaft
● Plug-on shaft with integrated shaft centering
● Solid shaft
These allow highly flexible design and maintenance concepts to be implemented. 1FW3
torque motors can be combined with the SINAMICS S120 drive system to create a powerful,
high-performance system. The integrated encoder systems for speed and position control
can be selected according to the application.
Motor description
1.1 Properties
SIMOTICS T-1FW3 complete torque motors
16 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6

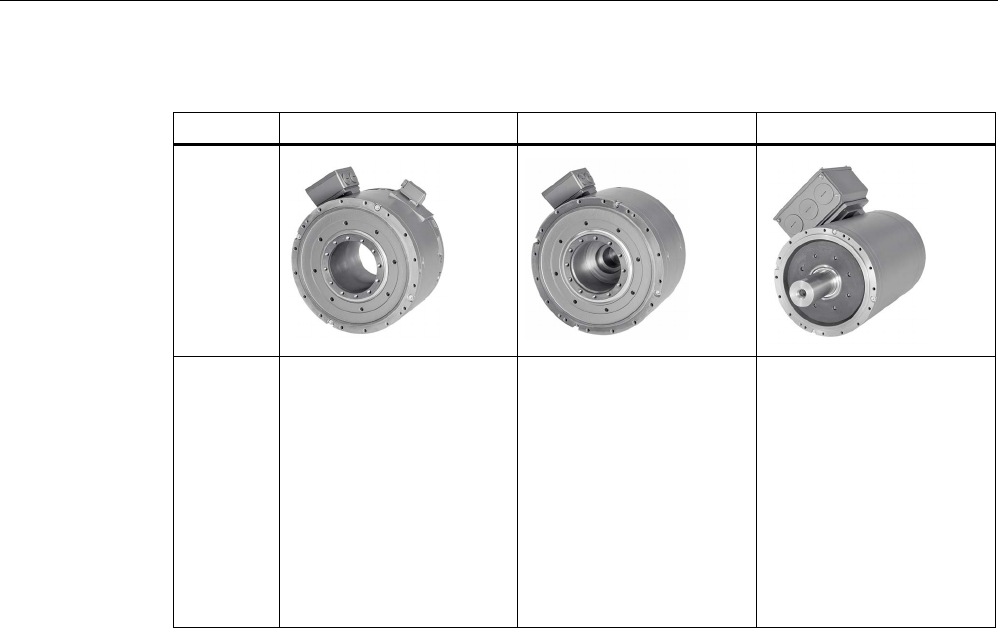

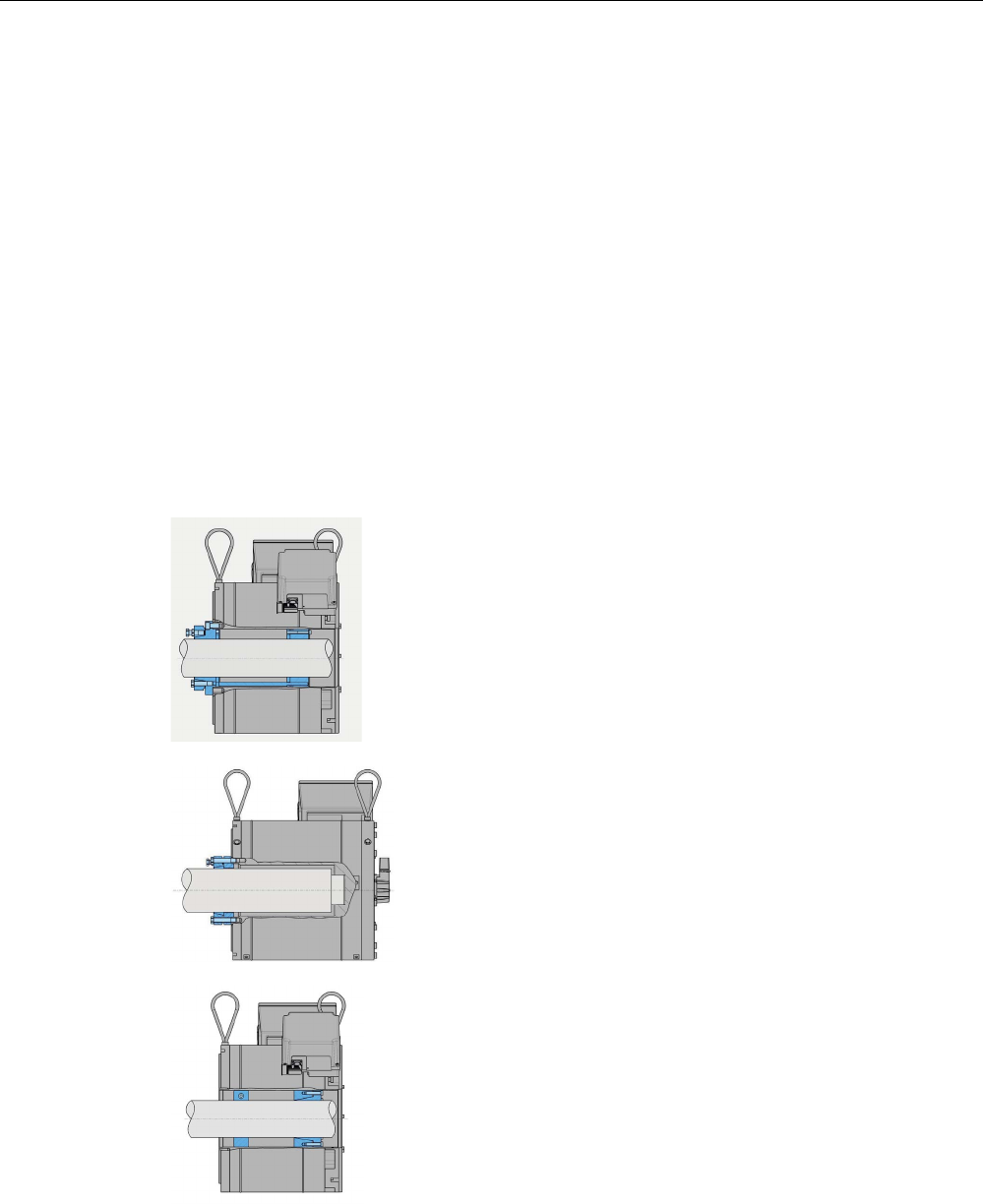

Table 1- 1 Shaft versions
Versions Hollow shaft Plug-on shaft Solid shaft
Photo-
graph
Advan-
tages
continuously hollow
shafts can be used for
feeding coolant/heating
media, measuring
cables, etc.
motors with various
lengths can be
connected to the
machine shaft
simple and quick
installation as a result of
the integrated shaft
adapter with centering
simpler clamping
element
simple encoder
replacement
"classic" motor
installation
simplest overall solution
simple replacement of a
geared motor without
having to change the
connection to the
machine
simple encoder
replacement
Use and highlights
● High torque for a compact design and low envelope dimensions
● Optimized mechatronic solution
– High degree of stiffness
– High speeds possible
– Innovative machine concepts are possible
– Increased productivity and quality
● The optimum version for any application
– Wide power range from 3 to 380 kW
– Rated torques from 100 to 7000 Nm
– Rated speeds from 150 to 1200 rpm
– Hollow shaft, plug-on shaft or solid shaft
– Different encoder types for speed control and precision positioning
● Outstanding performance characteristics
– Maximum speeds of up to 1800 rpm
– Excellent rotational accuracy
– High dynamic response (short acceleration times)
Motor description
1.1 Properties
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 17
● The ideal motor for energy-saving solutions
● Simple encoder replacement without requiring any readjustment for plug-on and solid
shafts
Field of applications
● Main extruder drives
● Worm drives for injection molding machines
● Roll drive
● Winder
● Cross lapper
● Pull-roll drives for foil drawing machines
● Stretch, calender, casting and cooling rolls
● Dynamic positioning tasks, e.g. rotary tables, clocked conveyor belts
● Replacing hydraulic motors
● Roll drives in paper machines
● Cross-cutter drives for continuous material webs, e.g. paper, textiles, metal sheet
● Wire-drawing machines
● Chippers
Overview of the special Heavy Duty version
In many machining processes in the industrial environment, the tools and machining
equipment are subjected to extreme mechanical stresses. This is the case in metal forming
for example, but also in machining processes in which extremely high forces must be
applied.
Also the trend towards greater productivity and more refined products requiring the use of
more complex machining techniques demands the use of state-of-the-art but also extremely
rugged drive systems and automation technology.

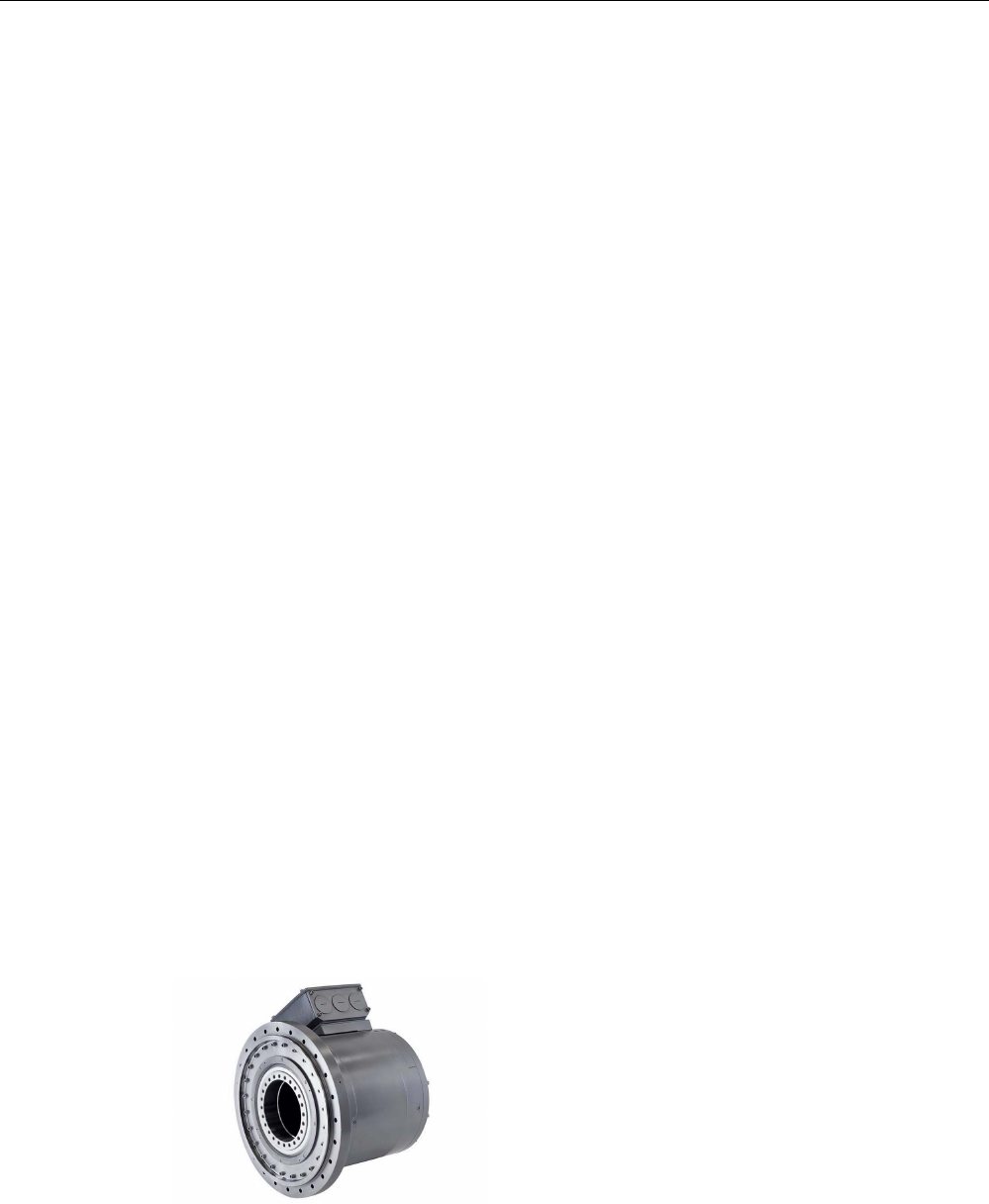

Figure 1-1 Complete 1FW3 Heavy Duty torque motor
Motor description
1.1 Properties
SIMOTICS T-1FW3 complete torque motors
18 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Siemens is offering, with the complete 1FW3 Heavy Duty torque motor, a direct drive that
addresses the following requirements.
The powerful, permanent-magnet synchronous motor is characterized on the one hand by its
high dynamic response and precision. On the other hand, the motor has a mechanically
rugged design, enabling it to resist shocks in the range of up to 10 g without any difficulty.
The 1FW3 Heavy Duty torque motor is ideally suited to following the motion profiles with high
demands on the dynamic performance of higher-level motion controllers even under harsh
operating conditions.
In contrast to motor/gearbox combinations, the complete 1FW3 Heavy Duty torque motor is
characterized not only by its enhanced ruggedness, but also by its compactness. These
characteristics make it particularly suitable as a main drive in servo presses.
The Heavy Duty version is defined by specifying option +L03. At the present time, only shaft
height 280 is available. For an additional mechanical description, refer to the Chapter
"Heavy Duty" in the Installation chapter.
Complete 1FW3 Heavy Duty torque motor – brief overview of its strengths
● High precision true running characteristics and outstanding dynamic performance
● 200% overload capability
Easy to integrate
● in the mechanical system
● in the SINAMICS S120 drive system (DRIVE-CLiQ interface)
Complete 1FW3 Heavy Duty torque motor – brief overview of the technology
Rated speed:* up to 600 rpm (maximum speed up to 1,000 rpm)
Rated torque:* up to 6600 Nm (maximum torque up to 11,400 Nm)
* depending on the version and type
Complete 1FW3 Heavy Duty torque motor – typical applications
Especially rugged direct drive for use in harsh environments, e.g. in servo presses
Motor description
1.2 Torque overview
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 19

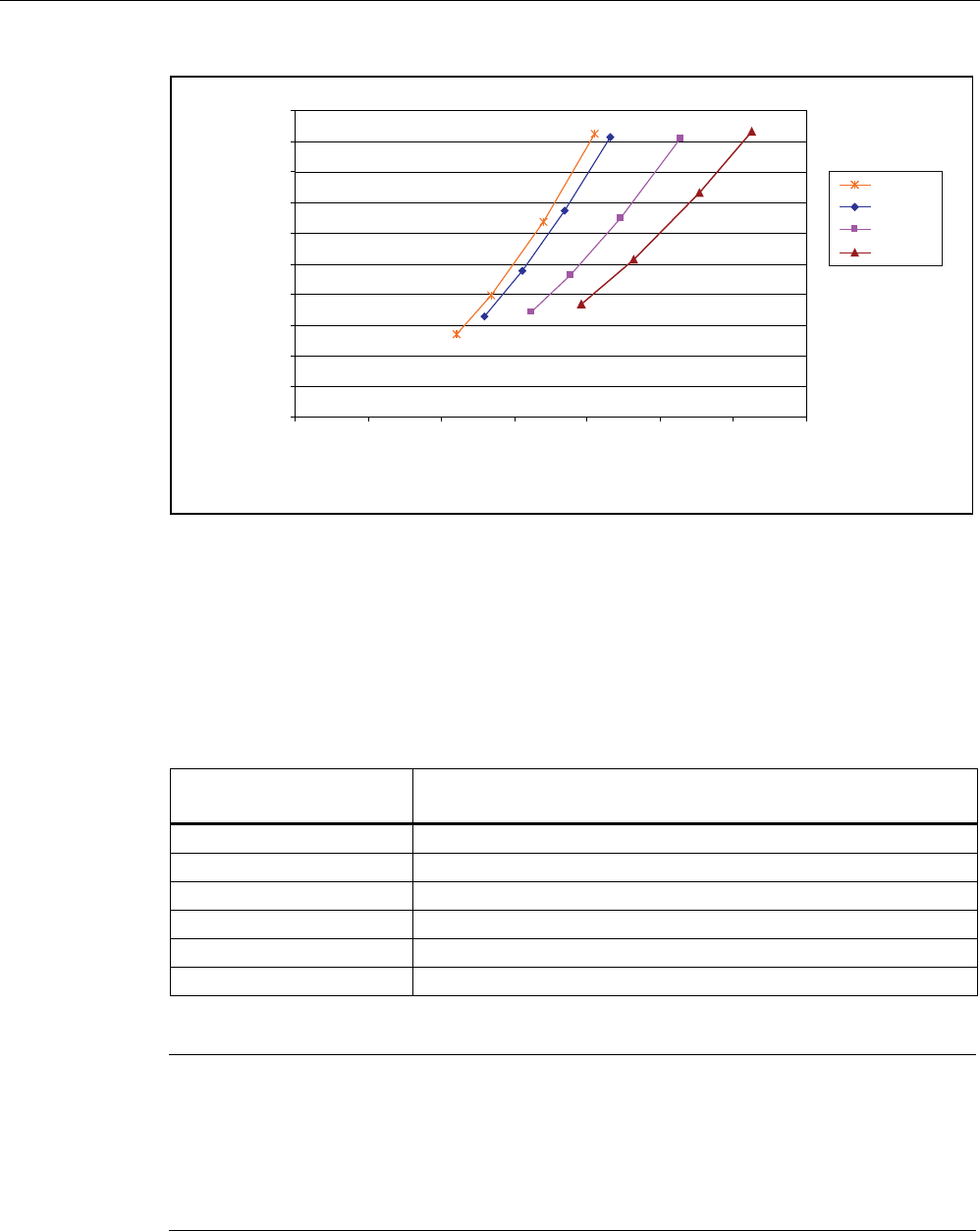

1.2 Torque overview
5DWHGWRUTXH01.>1P@
1P
1P
1P
1P
1P
):[
):[[
):[[
):[[
):[[

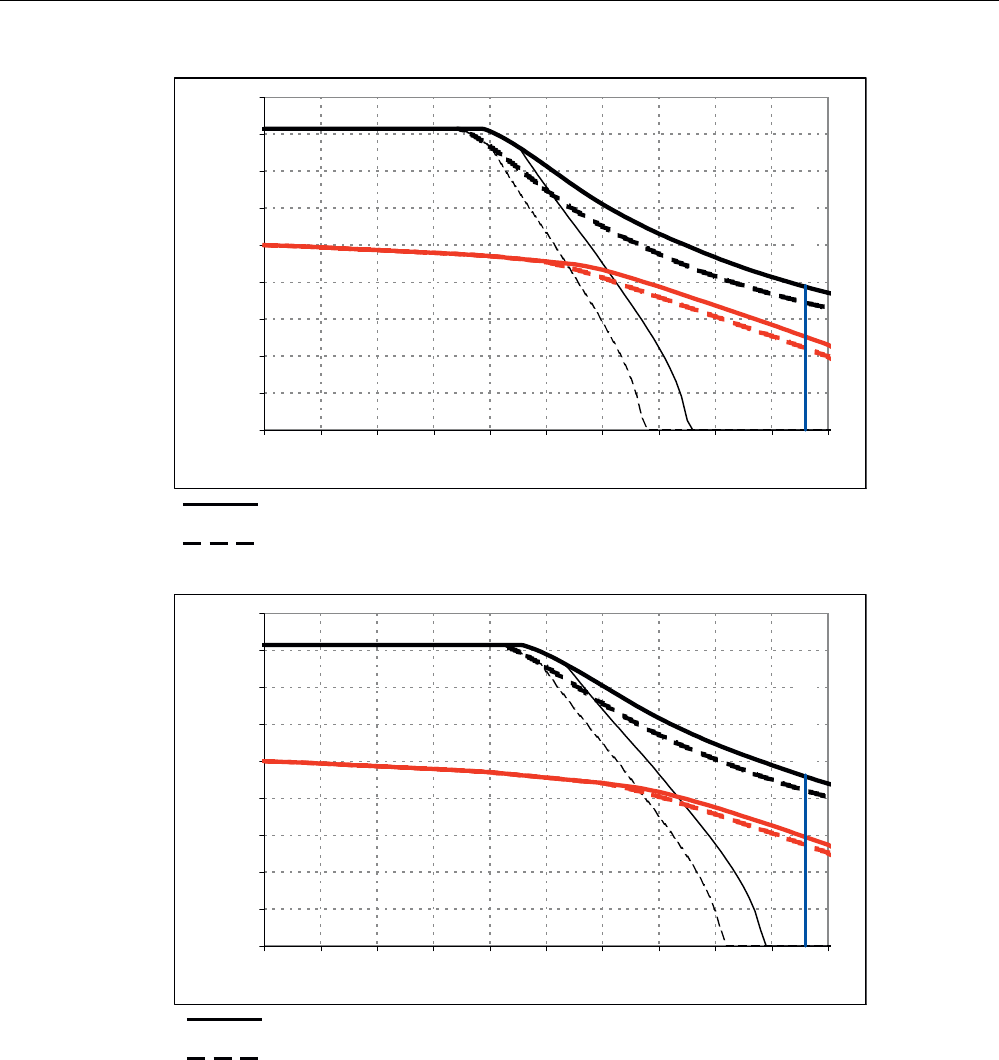

Figure 1-2 Torque overview, 1FW3
Motor description
1.3 Technical features
SIMOTICS T-1FW3 complete torque motors
20 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
1.3 Technical features
Table 1- 2 Technical features
Motor type Permanent-magnet synchronous motor
Magnet material Rare-earth magnetic material
Stator winding insulation
(acc. to EN 60034-1; IEC 60034-1)
Temperature class 155 (F) for a winding temperature rise of
∆T
= 100 K for
a cooling water intake temperature of +30 °C.
Installation altitude (to IEC 60034-1) For an installation altitude > 1000 m above sea level, the relevant data in
the drive converter documentation must be carefully observed (secondary
conditions/limitations).

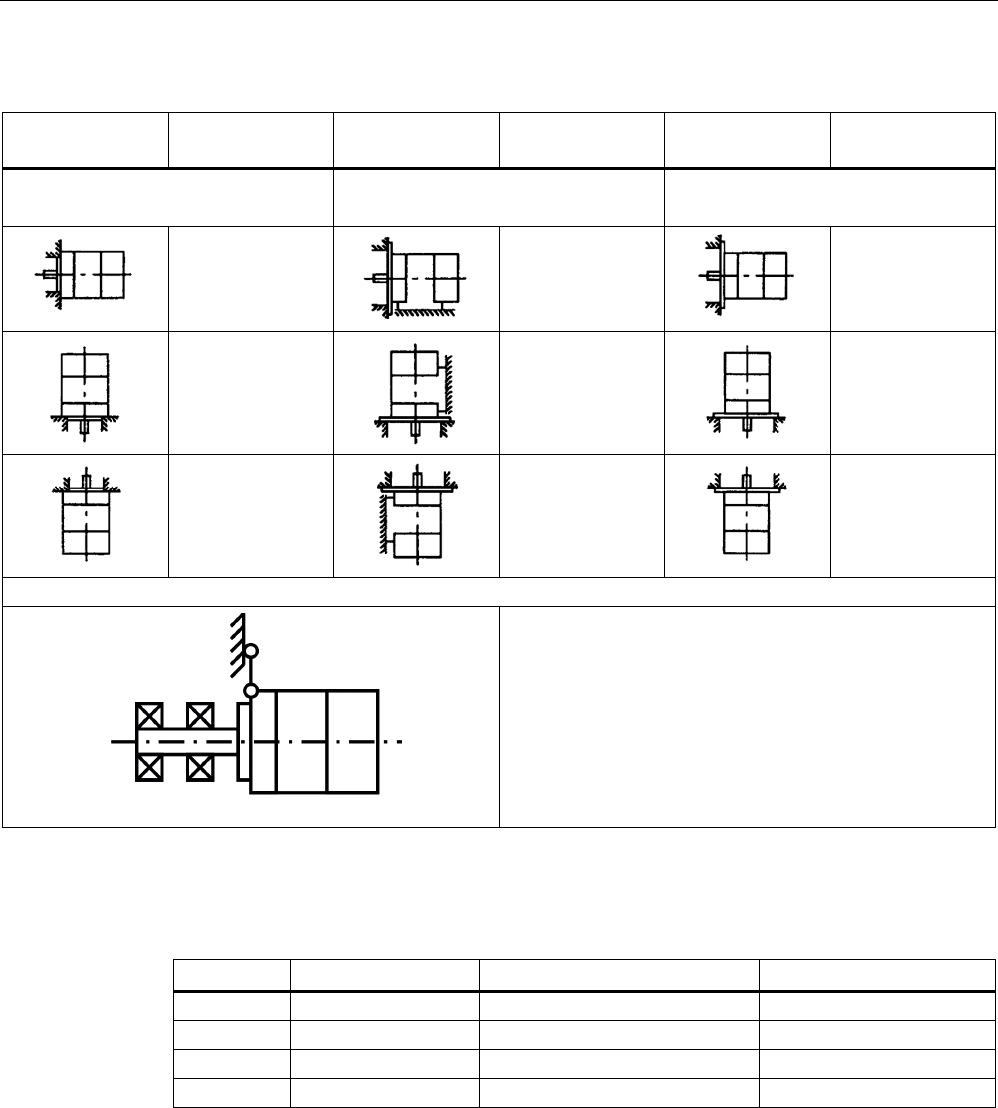

Type of construction (acc. to EN 60034-7;
IEC 60034-7)
Shaft height 150: IM B14, IM V18, IM V19
shaft height 200: IM B14, IM V18, IM V19
shaft height 280: IM B35, IM B5, IM V1, IM V3, IM V15, IM V35
Degree of protection (acc. to EN 60034-5;
IEC 60034-5)
Hollow shaft: IP54
plug-on shaft: IP55, SH 280 IP54
solid shaft: IP55
Cooling (acc. to EN 60034-6; IEC 60034-6) Water cooling
Thermal motor protection
(acc. to EN 60034–11; IEC 60034-11)
KTY 84 temperature sensor in stator winding
Paint finish Anthracite (RAL 7016)
2nd Rating plate Enclosed separately
Shaft version
(acc. to DIN 748-3; IEC 60072-1)
Hollow shaft, plug-on shaft, solid shaft
Details see Chapter "Shaft version" and Chapter "Dimension drawings"
Shaft and flange accuracy
(acc. to DIN 42955; IEC 60072-1)
Tolerance class N (at normal running temperature)
Vibration severity (acc. to EN 60034-14;
IEC 60034-14)
Grade A is observed up to rated speed.
Sound pressure level
(acc. to DIN EN ISO 1680)
Max. 73 dB(A) at 4 kHz rated pulse frequency at the nominal operating point
Bearing version Roller bearings with permanent grease lubrication (bearing change interval
= 20000h)
Built-in encoder systems for motors without
DRIVE-CLiQ interface
Incremental encoder, sin/cos 1 Vpp, 2048 S/R1) with C and D tracks,
encoder IC2048S/R1)), belt-mounted
Absolute encoder 2048 S/R1) singleturn, 4096 revolutions multiturn, with
EnDat interface, encoder AM2048S/R1)), belt-mounted or coaxially
mounted at NDE
Multi-pole resolver, belt mounted
Built-in encoder systems for motors with
DRIVE-CLiQ interface
Belt-mounted
Incremental encoder, 22-bit (resolution 4194304, internal encoder 2048
S/R 1)) + commutation position, 11-bit, encoder IC22DQ
Absolute encoder 22 bit singleturn (resolution 4194304, in the encoder
2048 S/R 1)) + 12 bit multiturn (traversing range 4096 revolutions),
encoder AM22DQ
Resolver 15 bit (resolution 32768, internal, multi-pole), encoder R15DQ
Built-in encoder systems for motors with
DRIVE-CLiQ interface
Coaxially mounted at NDE
Absolute encoder 24 bit singleturn (resolution 16777216), encoder
AS24DQI
Absolute encoder 24 bit singleturn (resolution 16777216), + 12 bit
multiturn (traversing range 4096 revolutions), encoder AM24DQI
Motor description
1.4 Technical specifications
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 21
Connection Terminal box for power cable
Connector for encoder signals and KTY 84
Options PTC thermistor motor protection using 3 integrated temperature sensors
for shutdown
Version with/without encoder
Shaft cover at NDE for the hollow shaft version
Regreasing system
Special paint finish
Non-standard rated speeds (an inquiry is required)
Natural cooling on request
Special grease lubrication for low speeds
Heavy-Duty version in shaft height 280
1) S/R = Signals/Revolution
1.4 Technical specifications
The data in the following tables refer to operation with an ALM (Active Line Module) and a
600 V DC link voltage. The specified efficiency η is a typical value, theoretically determined
and which has its optimum in the continuous operation range.
Table 1- 3 Technical data, 1FW315⃞
nN M
N I
N P
N η M
max I
max n
max mech. Motor type
[rpm] [Nm] [A] [kW] [%] [Nm] [A] [rpm]
1FW3150-1⃞H 300 100 8.0 3.1 89 200 17 1700
1FW3150-1⃞L 500 100 12 5.2 90 200 26 1700
1FW3150-1⃞P 750 100 18 7.9 90 200 41 1700
1FW3152-1⃞H 300 200 14 6.3 92 400 35 1700
1FW3152-1⃞L 500 200 22 10.5 92 400 53 1700
1FW3152-1⃞P 750 200 32.5 15.7 93 400 79 1700
1FW3154-1⃞H 300 300 20.5 9.4 93 600 49 1700
1FW3154-1⃞L 500 300 32 15.7 93 600 75 1700
1FW3154-1⃞P 750 300 47.5 23.6 93 600 113 1700
1FW3155-1⃞H 300 400 28 12.6 94 800 67 1700
1FW3155-1⃞L 500 400 43 20.9 94 800 103 1700
1FW3155-1⃞P 750 400 64 31.4 94 800 153 1700
1FW3156-1⃞H 300 500 34 15.7 94 1000 81 1700
1FW3156-1⃞L 500 500 53 26.2 94 1000 126 1700
1FW3156-1⃞P 750 500 76 39.3 94 1000 183 1700
Motor description
1.4 Technical specifications
SIMOTICS T-1FW3 complete torque motors
22 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 1- 4 Technical data, 1FW320⃞ Standard
nN M
N I
N P
N η M
max I
max n
max mech. Motor type
[rpm] [Nm] [A] [kW] [%] [Nm] [A] [rpm]
1FW3201-1⃞E 150 300 13 4.7 91 555 28 1000
1FW3201-1⃞H 300 300 23 9.4 92 555 50 1000
1FW3201-1⃞L 500 300 37 15.7 92 555 82 1000
1FW3202-1⃞E 150 500 21 7.9 93 925 47 1000
1FW3202-1⃞H 300 500 37 15.7 94 925 81 1000
1FW3202-1⃞L 500 500 59 26.2 94 925 131 1000
1FW3203-1⃞E 150 750 30 11.8 94 1390 69 1000
1FW3203-1⃞H 300 750 59 23.6 95 1390 132 1000
1FW3203-1⃞L 500 750 92 39.3 95 1390 204 1000
1FW3204-1⃞E 150 1000 40 15.7 94 1850 90 1000
1FW3204-1⃞H 300 1000 74 31.4 95 1850 163 1000
1FW3204-1⃞L 500 1000 118 52.3 95 1850 260 1000
1FW3206-1⃞E 150 1500 65 23.6 94 2775 145 1000
1FW3206-1⃞H 300 1500 118 47.1 95 2775 256 1000
1FW3206-1⃞L 500 1400 169 73.3 95 2775 399 1000
1FW3208-1⃞E 150 2000 84 31.4 94 3700 187 1000
1FW3208-1⃞H 300 2000 153 62.8 94 3700 340 1000
1FW3208-1⃞L 500 1850 226 96.8 94 3700 533 1000
Table 1- 5 Technical data, 1FW320⃞ High Speed
nN M
N I
N P
N η M
max I
max n
max mech. Motor type
[rpm] [Nm] [A] [kW] [%] [Nm] [A] [rpm]
1FW3201-3⃞P 800 245 37 20.5 91 500 80 1800
1FW3201-3⃞S 1200 230 50 29.0 91 500 114 1800
1FW3202-3⃞P 800 470 69 39.5 93 860 133 1800
1FW3202-3⃞S 1200 440 92 55 93 860 190 1800
1FW3203-3⃞P 800 680 96 57 94 1210 182 1800
1FW3203-3⃞S 1200 630 131 79 94 1210 265 1800
1FW3204-3⃞P 800 930 137 78 95 1700 265 1800
1FW3204-3⃞S 1200 860 191 108 95 1700 400 1800
1FW3206-3⃞P 800 1360 192 114 95 2400 365 1800
1FW3206-3⃞S 1200 1210 270 152 95 2400 570 1800
1FW3208-3⃞P 800 1900 270 159 95 3300 500 1800
1FW3208-3⃞S 1200 1700 385 215 95 3300 800 1800
Motor description
1.4 Technical specifications
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 23
Table 1- 6 Technical data 1FW328⃞ Standard
nN M
N I
N P
N η M
max I
max n
max mech. Motor type
[rpm] [Nm] [A] [kW] [%] [Nm] [A] [rpm]
1FW3281-2⃞E 150 2500 82 39.0 94 4050 145 1000
1FW3281-2⃞G 250 2450 126 64.0 95 4050 226 1000
1FW3283-2⃞E 150 3500 115 55.0 95 5700 203 1000
1FW3283-2⃞G 250 3450 176 90.0 96 5700 316 1000
1FW3285-2⃞E 150 5000 160 79.0 95 8150 284 1000
1FW3285-2⃞G 250 4950 244 130.0 96 8150 436 1000
1FW3287-2⃞E 150 7000 230 110.0 96 11400 406 1000
1FW3287-2⃞G 250 6900 352 181.0 96 11400 632 1000
Table 1- 7 Technical data 1FW328⃞ High Speed
nN M
N I
N P
N η M
max I
max n
max mech. Motor type
[rpm] [Nm] [A] [kW] [%] [Nm] [A] [rpm]
1FW3281-3⃞J 400 2350 188 98.0 96 4050 352 1000
1FW3281-3⃞M 600 2200 256 138.0 96 4050 512 1000
1FW3283-3⃞J 400 3300 275 138.0 96 5700 516 1000
1FW3283-3⃞M 600 3100 357 195.0 96 5700 712 1000
1FW3285-3⃞J 400 4700 376 197.0 96 8150 709 1000
1FW3285-3⃞M 600 4400 469 276.0 97 8150 942 1000
1FW3287-3⃞J 400 6600 504 276.0 97 11400 946 1000
1FW3287-3⃞M 600 6050 696 380.0 97 11400 1424 1000
Motor Module
The rated motor current (IN) is used as a basis to dimension the appropriate Motor Modules
for the 1FW3 motors. If the full motor stall torque is required, the Motor Modules must be
dimensioned according to the motor stall current (I0).
If the motor is temporarily operated at operating points above the S1 characteristic, the
current drawn by the motors at these points must be taken into account and the appropriate
Motor Module configured.
Note
Configuration tool
The SIZER for SIEMENS Drives engineering tool supports you when dimensioning and
configuring the drive system (see the Chapter "Engineering").
The engineering tool supports you here (see Chapter "Engineering").
Motor description
1.4 Technical specifications
SIMOTICS T-1FW3 complete torque motors
24 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Format of the MLFB for Motor Modules
7(
%RRNVL]H
6/
&KDVVLV
Suitable Motor Module
Table 1- 8 Assignment: Motor type - Motor Module
Motor type Rated current /
stall current
IN [A] / I0 [A]
Order designation (MLFB)
SINAMICS S120 Motor Modules
Rated current
Motor Module
IN [A]
Line supply voltage of 400 V 3 AC, Active Line Module (Vmot = 425 V) *)
1FW315⃞
1FW3150-1⃞H 7.2 / 7.3 6SL312⃞-⃞TE21-0AA3 9
1FW3150-1⃞L 11 / 11.5 6SL312⃞-⃞TE21-8AA3 18
1FW3150-1⃞P 17 / 17.5 6SL312⃞-⃞TE21-8AA3 18
1FW3152-1⃞H 14 / 15 6SL312⃞-⃞TE21-8AA3 18
1FW3152-1⃞L 22 / 22.5 6SL312⃞-1TE23-0AA3 30
1FW3152-1⃞P 32.5 / 33.5 6SL312⃞-1TE24-5AA3 45
1FW3154-1⃞H 20.5 / 21.5 6SL312⃞-1TE23-0AA3 30
1FW3154-1⃞L 32 / 33 6SL312⃞-1TE24-5AA3 45
1FW3154-1⃞P 47.5 / 49 6SL312⃞-1TE26-0AA3 60
1FW3155-1⃞H 28 / 29 6SL312⃞-1TE23-0AA3 30
1FW3155-1⃞L 43 / 45 6SL312⃞-1TE26-0AA3 60
1FW3155-1⃞P 64 / 67 6SL312⃞-1TE28-5AA3 85
1FW3156-1⃞H 34 / 35 6SL312⃞-1TE24-5AA3 45
1FW3156-1⃞L 53 / 55 6SL312⃞-1TE26-0AA3 60
1FW3156-1⃞P 76 / 80 6SL312⃞-1TE28-5AA3 85
1FW320⃞ Standard
1FW3201-1⃞E 13 / 13 6SL312⃞-⃞TE21-8AA3 18
1FW3201-1⃞H 23 / 24 6SL312⃞-1TE23-0AA3 30
1FW3201-1⃞L 37 / 38 6SL312⃞-1TE24-5AA3 45
1FW3202-1⃞E 21 / 22 6SL312⃞-1TE23-0AA3 30
1FW3202-1⃞H 37 / 39 6SL312⃞-1TE24-5AA3 45
1FW3202-1⃞L 59 / 62 6SL312⃞-1TE26-0AA3 60
1FW3203-1⃞E 30 / 32 6SL312⃞-1TE23-0AA3 30
1FW3203-1⃞H 59 / 62 6SL312⃞-1TE26-0AA3 60
1FW3203-1⃞L 92 / 100 6SL312⃞-1TE31-3AA3 132
1FW3204-1⃞E 40 / 42 6SL312⃞-1TE24-5AA3 45
1FW3204-1⃞H 74 / 77 6SL312⃞-1TE28-5AA3 85
1FW3204-1⃞L 118 / 129 6SL312⃞-1TE31-3AA3 132
Motor description
1.4 Technical specifications
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 25
Motor type Rated current /
stall current
IN [A] / I0 [A]
Order designation (MLFB)
SINAMICS S120 Motor Modules
Rated current
Motor Module
IN [A]
Line supply voltage of 400 V 3 AC, Active Line Module (Vmot = 425 V) *)
1FW3206-1⃞E 65 / 68 6SL312⃞-1TE28-5AA3 85
1FW3206-1⃞H 118 / 121 6SL312⃞-1TE31-3AA3 132
1FW3206-1⃞L 169 / 189 6SL312⃞-1TE32-0AA3 200
1FW3208-1⃞E 84 / 88 6SL312⃞-1TE28-5AA3 85
1FW3208-1⃞H 153 / 160 6SL312⃞-1TE32-0AA3 200
1FW3208-1⃞L 226 / 256 6SL3320-1TE32-6AA3 260
1FW320⃞ High Speed
1FW3201-3⃞P 37 / 38 6SL312⃞-1TE24-5AA3 45
1FW3201-3⃞S 50 / 54 6SL312⃞-1TE26-0AA3 60
1FW3202-3⃞P 69 / 72 6SL312⃞-1TE28-5AA3 85
1FW3202-3⃞S 92 / 102 6SL312⃞-1TE31-3AA3 132
1FW3203-3⃞P 96 / 102 6SL312⃞-1TE31-3AA3 132
1FW3203-3⃞S 131 / 149 6SL312⃞-1TE31-3AA3 132
1FW3204-3⃞P 137 / 145 6SL312⃞-1TE32-0AA4 200
1FW3204-3⃞S 191 / 220 6SL312⃞-1TE32-0AA4 200
1FW3206-3⃞P 192 / 210 6SL312⃞-1TE32-0AA4 200
1FW3206-3⃞S 270 / 330 6SL3320-1TE33-1AA3 310
1FW3208-3⃞P 270 / 295 6SL3320-1TE33-1AA3 310
1FW3208-3⃞S 385 /470 6SL3320-1TE35-0AA3 490
1FW328⃞ Standard
1FW3281-2⃞E 82 / 84 6SL312⃞-1TE28-5AA3 85
1FW3281-2⃞G 126 / 131 6SL312⃞-1TE31-3AA3 132
1FW3283-2⃞E 115 / 116 6SL312⃞-1TE31-3AA3 132
1FW3283-2⃞G 176 / 181 6SL312⃞-1TE32-0AA3 200
1FW3285-2⃞E 160 / 163 6SL312⃞-1TE32-0AA3 200
1FW3285-2⃞G 244 / 251 6SL3320-1TE32-6AA0 260
1FW3287-2⃞E 230 / 234 6SL3320-1TE32-6AA0 260
1FW3287-2⃞G 352 / 365 6SL3320-1TE33-8AA0 380
1FW328⃞ High Speed
1FW3281-3⃞J 188 / 200 6SL312⃞-1TE32-0AA3 200
1FW3281-3⃞M 256 / 291 6SL3320-1TE33-1AA0 310
1FW3283-3⃞J 275 / 292 6SL3320-1TE33-1AA0 310
1FW3283-3⃞M 357 / 402 6SL3320-1TE33-8AA0 380
1FW3285-3⃞J 376 / 400 6SL3320-1TE33-8AA0 380
1FW3285-3⃞M 469 / 532 6SL3320-1TE35-0AA0 490
1FW3287-3⃞J 504 / 534 6SL3320-1TE36-1AA0 605
1FW3287-3⃞M 696 / 787 6SL3320-1TE37-5AA0 745
*) Other supply voltages can also be configured in SIZER.
Motor description
1.4 Technical specifications
SIMOTICS T-1FW3 complete torque motors
26 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Note
Sound pressure level when reducing the pulse frequency
When the pulse frequency is reduced, a significantly higher sound pressure level can occur.
Motor description
1.5 Rating plate data
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 27
1.5 Rating plate data
The rating plate refers to the technical data of the motor.
0DGHLQ*HUPDQ\
6LHPHQV$*,QGXVWULHVWU'%DG1HXVWDGW
.7<
1P
PNJ
a0RW ):6*$$
1R<)%
0
5HVROYHUS
51
,
,8
Q
Q
,3 (1
&
0
1,1
PD[
1
1
$
$ 9
PLQ
PLQ
86
1P
=;
9
9
9
1P
,8
Q
0
1,1
11
$ 9
PLQ
1P
,8
Q
0
1,1
11
$ 9
PLQ
,0%
1
:$7(5&22/,1* OPLQ PD[EDU PD[r&
7K&O)

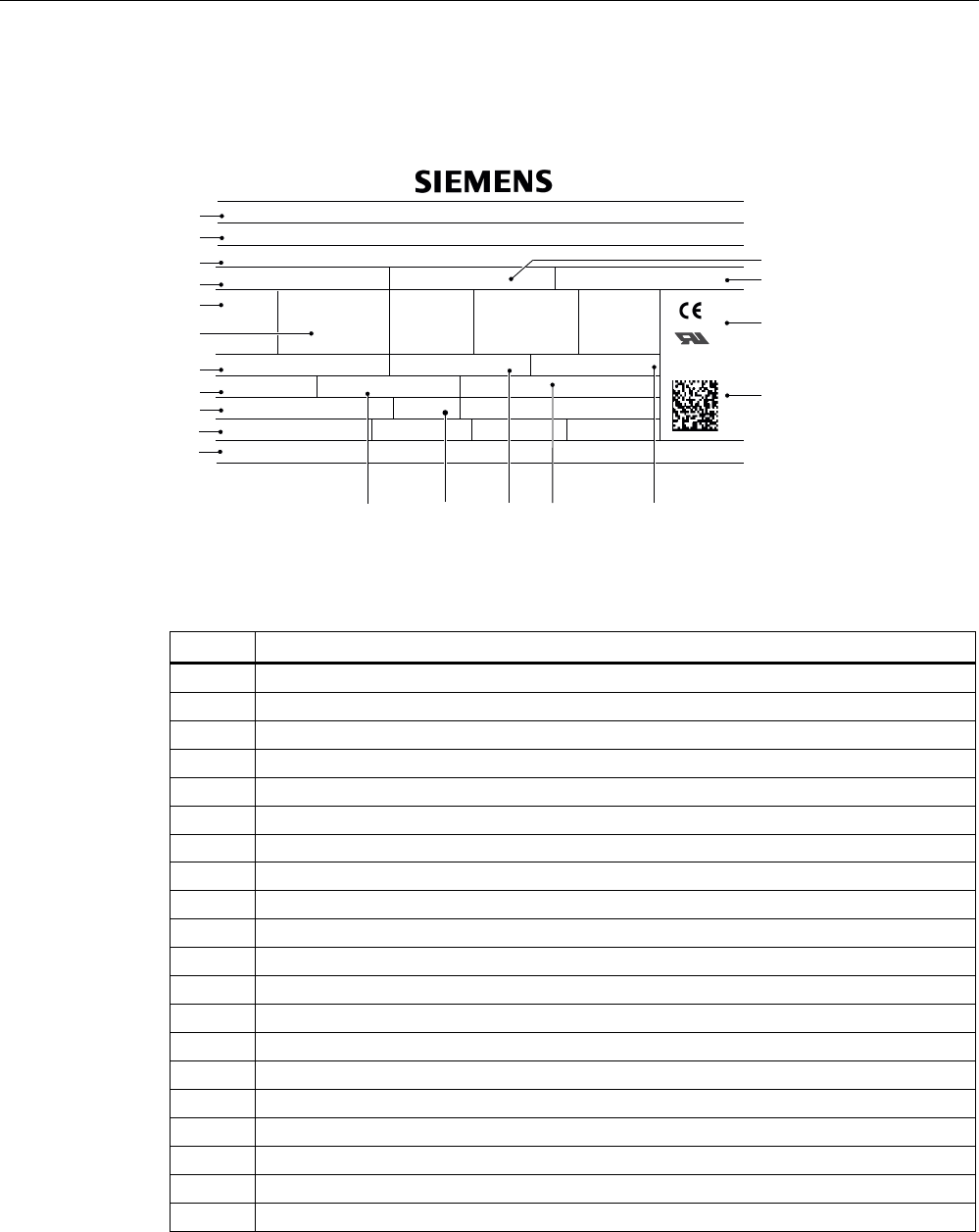

Figure 1-3 Schematic layout of the rating plate
Table 1- 9 Description of the rating plate data
Position Description / Technical specifications
1 Motor type: Synchronous motor, complete torque motor, order number
2 Additional information
3 Ident. No., production number
4 Static torque [Nm]
5 Output voltages [V]
6 Motor technical data
7 Temperature class
8 Motor version
9 Code, encoder type
10 Technical data of the cooling
11 Production address
12 Motor weight [kg]
13 Supplement to item 9 (encoder type)
14 Degree of protection
15 ID, temperature sensor
16 Type of construction
17 2D code
18 Standards and regulations, approximations
19 Max. permissible speed (inverter) [rpm]
20 Stall current [A]
Motor description
1.6 Order number
SIMOTICS T-1FW3 complete torque motors
28 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6

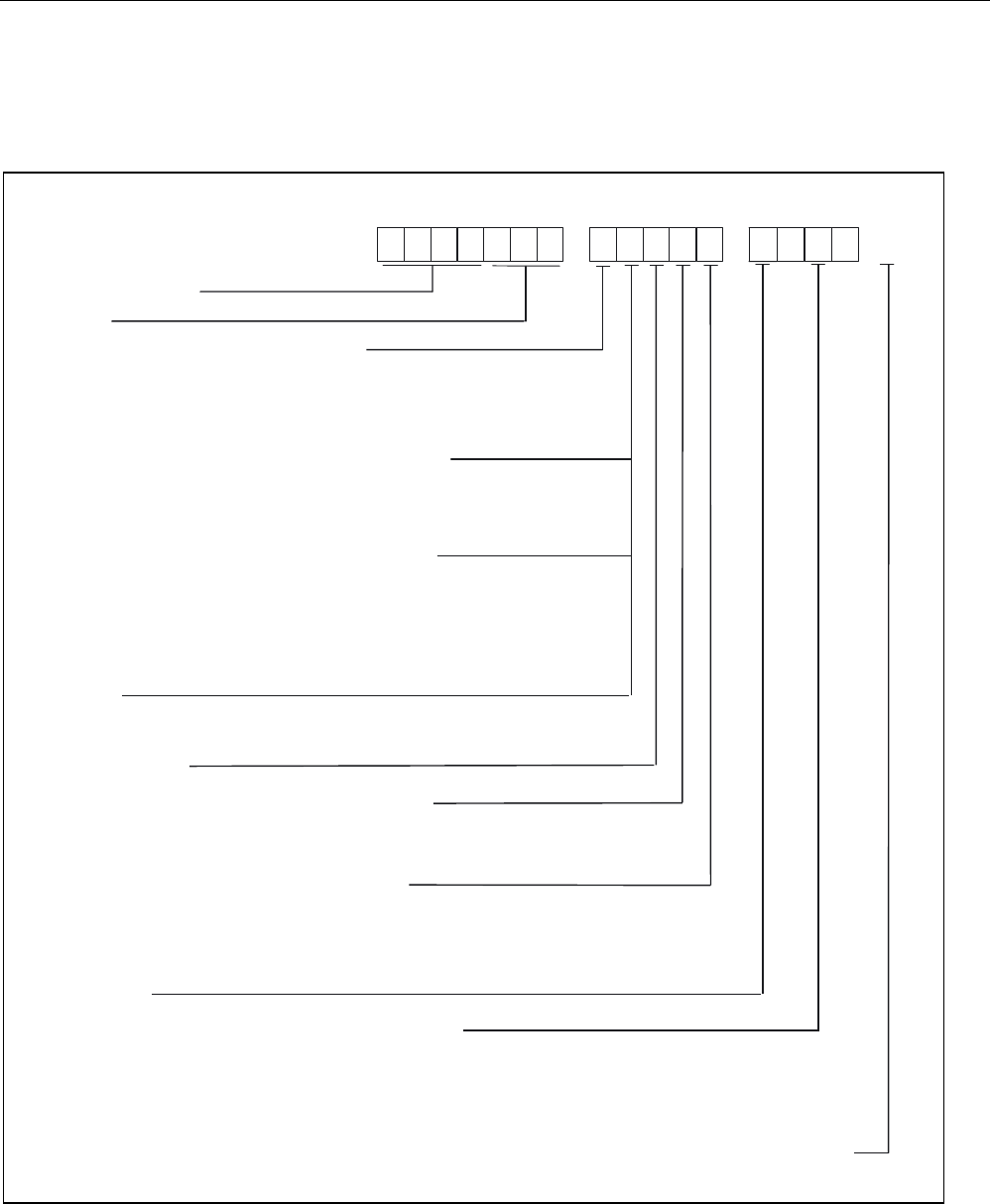

1.6 Order number
Q USP
Q USP
Q USP
Q USP
Q USP
Q USP
Q USPIRU6+
Q USPIRU6+
Q USP
(
*
+
-
/
0
3
3
6
(QFRGHUPRXQWLQJ
,0%IRUVKDIWKHLJKWVDQG
,0%IRUVKDIWKHLJKW
,0%IRUVKDIWKHLJKW+HDY\'XW\
,0%IRUVKDIWKHLJKW6WDQGDUGIRUSOXJRQVKDIW
7\SHRI
FRQVWUXFWLRQ
&DEOHRXWOHWULJKW
&DEOHRXWOHWOHIW
FDEOHRXWOHWDW1'(
FDEOHRXWOHWDW'(
WHUPLQDOER[
&RPSOHWHWRUTXHPRWRU
6KDIWKHLJKW
[ VKDIWKHLJKW
[ VKDIWKHLJKW
[ VKDIWKHLJKW
$GGLWLRQDOGDWDRSWLRQV
(QFRGHUV\VWHPVIRUPRWRUVZLWKRXW'5,9(&/L4LQWHUIDFH
$ ,QFUHPHQWDOHQFRGHUVVLQFRV9SSHQFRGHUPRXQWLQJ
( $EVROXWHHQFRGHUPXOWLWXUQ(Q'DWSXOVHVUHYHQFRGHUPRXQWLQJ RU
6 0XOWLSROHUHVROYHUHQFRGHUPRXQWLQJ
5DWHGVSHHG
(QFRGHUV\VWHPVIRUPRWRUVZLWK'5,9(&/L4LQWHUIDFH
% $EVROXWHHQFRGHUELWVLQJOHWXUQHQFRGHUPRXQWLQJ
& $EVROXWHHQFRGHUELWPXOWLWXUQHQFRGHUPRXQWLQJ
' ,QFUHPHQWDOHQFRGHUELWHQFRGHUPRXQWLQJ
) $EVROXWHHQFRGHUELWVLQJOHWXUQELWPXOWLWXUQHQFRGHUPRXQWLQJ
8 5HVROYHUELWHQFRGHUPRXQWLQJ
ZLWKRXWHQFRGHU
: HQFRGHUOHVVWKSRVLWLRQRIWKH2UGHU1R
:LQGLQJYHUVLRQ
IRU6+IRUQ1 (+/3
IRU6+IRUQ1 (+/
IRU6+IRUQ1 (*
IRU6+IRUQ1 36DQG6+IRUQ1 -0
$ KROORZVKDIW
& KROORZVKDIWZLWKLQQHUULQJFODPSLQJHOHPHQW
) VROLGVKDIWZLWKNH\ZD\IXOONH\EDODQFHG
+ bVROLGVKDIWZLWKNH\ZD\KDOINH\EDODQFHG
0 VROLGVKDIWSODLQ
3 VWXEVKDIW
6 SOXJRQVKDIW
6KDIWYHUVLRQ
FRD[LDOHQFRGHUPRXQWLQJDW1'(
EHOWPRXQWHGHQFRGHU
$=
ದದ
):
Motor description
1.6 Order number
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 29
Order codes
When ordering a complete torque motor with options, -Z should be added to the order
number. The order code should also be specified for each additional required option.
Order codes must not be repeated in plain text in the order.
Table 1- 10 List of order codes
Order code Designation
A11 Motor protection using PTC thermistors
K40 Regreasing system
L03 Heavy-duty version
Q30 Clamping elements
T20 Shaft cover at NDE
T32 Siemens torque arm
V07 Special grease for low speeds
X01 Paint finish, matt black RAL9005 paint finish
X02 Paint finish, cream white RAL9001
X03 Paint finish, reseda green RAL 6011
X04 Paint finish, pebble gray RAL 7032
X05 Paint finish, sky blue RAL 5015
X06 Paint finish, light ivory RAL 1015
X08 Paint finish, white aluminum, RAL 9006
X13 Paint finish, pastel blue RAL 5024
X18 Paint finish, papyrus white RAL 9018
X22 Paint finish, gray white RAL 9002
X28 Paint finish, azure blue RAL 9009
X29 Paint finish, mouse gray RAL 7005
X30 Paint finish, ivory RAL 1014
X31 Paint finish, brilliant blue RAL 5007
X32 Paint finish, pale green RAL 6021
X36 Paint finish, traffic white RAL 9016
X53 Paint finish, light gray RAL 7035
Note
Note that not every theoretical combination is possible in practice.
Motor description
1.6 Order number
SIMOTICS T-1FW3 complete torque motors
30 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 31
Configuration 2
2.1 Configuration software
2.1.1 Configuration tool SIZER for SIEMENS Drives
Overview
Figure 2-1 SIZER for SIEMENS Drives
The user-friendly configuration of the SINAMICS drive family is carried out using the
configuration tool SIZER for SIEMENS Drives. It provides support for the technical planning
of the hardware and firmware components required for a drive task. SIZER for SIEMENS
Drives covers the full range of operations required to configure a complete drive system,
from simple single drives to complex multi-axis applications.
SIZER for SIEMENS Drives supports all the configuration steps in a single workflow:
● Configuring the power supply
● Designing the motor and gearbox, including calculation of mechanical transmission
elements
● Configuring the drive components
● Compiling the required accessories
● Selection of the line-side and motor-side power options
When SIZER for SIEMENS Drives was being designed, particular importance was placed on
a high degree of usability and a holistic, function-based approach to the drive application.
The extensive user navigation makes it easy to use the tool. Status information keeps you
continually informed about how engineering is progressing.
Configuration
2.1 Configuration software
SIMOTICS T-1FW3 complete torque motors
32 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
The SIZER for SIEMENS Drives user interface is available in German and English. The drive
configuration is saved in a project. In the project, the components and functions used are
displayed in a hierarchical tree structure. The project view permits the configuration of drive
systems and the copying/inserting/modifying of drives already configured.
The configuration process produces the following results:
● Parts list of components required (Export to Excel)
● Technical specifications of the system
● Characteristics
● Comments on system reactions
● Location diagram of drive and control components and dimension drawings
These results are displayed in a results tree and can be reused for documentation purposes.
User support is provided by technological online help, which provides the following
information:
● Detailed technical data
● Information about the drive systems and their components
● Decision-making criteria for the selection of components.
Table 2- 1 Order number for SIZER for SIEMENS Drives
Configuration tool Order number (MLFB) of the DVD
SIZER for SIEMENS Drives
German/English
6SL3070-0AA00-0AG0
Minimum system requirements
● PC or PG with Pentium™ III 800 MHz (recommended > 1 GHz)
● 512 MB RAM (1 GB recommended)
● At least 4.1 GB free hard disk space
● In addition, 100 MB free hard disk space on the Windows system drive
● Screen resolution 1024 × 768 pixels (1280 x 1024 pixels recommended)
● Windows™ 7 Professional (32 bit), 7 Ultimate (32 bit), XP Prof SP2, XP Home SP2,
XP 64 bit SP2, Vista Business
● Microsoft Internet Explorer 5.5 SP2
Configuration
2.1 Configuration software
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 33
2.1.2 STARTER drive/commissioning software
The STARTER commissioning tool provides
● Commissioning
● Optimization
● Diagnostics
Table 2- 2 Order number for STARTER
Commissioning tool Order number (MLFB) of the DVD
STARTER
German, English, French, Italian, Spanish
6SL3072-0AA00-0AG0
Minimum system requirements
● Hardware
– PG or PC with Pentium III min. 800 MHz (recommended > 1 GHz)
– 512 MB RAM (1 GB recommended)
– Screen resolution 1024 × 768 pixels, 16-bit color depth
– Free hard disk memory: min. 2 GB;
● Software
– Microsoft Windows 2000 SP4
– Microsoft Windows Server 2003 SP1 and SP2 (PCS7)
– Microsoft Windows XP Professional SP2 and SP3
– Microsoft Windows VISTA Business SP1 *)
– Microsoft Windows VISTA Ultimate SP1 *)
– Microsoft Internet Explorer V6.0 or higher
*) DCC cannot be used.
STARTER can be used on these operating systems only if it does not include the
DCC option.
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
34 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
2.2 Procedure when engineering
Motion Control
Servo drives are optimized for motion control applications. They execute linear or rotary
movements within a defined movement cycle. All movements should be optimized in terms
of time.
As a result of these considerations, servo drives must meet the following requirements:
● High dynamic response, i.e., short rise times
● Capable of overload, i.e. a high reserve for accelerating
● Wide control range, i.e. high resolution for precise positioning
General procedure when engineering
The function description of the machine provides the basis when engineering the drive
application. The definition of the components is based on physical interdependencies and is
usually carried-out as follows:
Step Description of the engineering activity
1. The type of drive/infeed type is clarified
2. Definition of supplementary conditions and integration into an automation
system
See following
sections
3. The load is defined, the max. load torque is calculated, the motor selected
4. The SINAMICS Motor Module is selected
5. Steps 3 and 4 are repeated for additional axes
6. The required DC link power is calculated and the SINAMICS Line Module is
selected
7. The line-side options (main switch, fuses, line filters, etc.) are selected
8. Specification of the required control performance and selection of the
Control Unit, definition of component cabling
9. Additional system components are defined and selected
10. The current demand of the 24 V DC supply for the components is calculated
and the power supplies (SITOP devices, control supply modules) specified
11. The components for the connection system are selected
See
Catalog
12. Design of the components of the drive line-up
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 35
2.2.1 1. Clarification of the type of drive
The motor is selected on the basis of the required torque, which is defined by the application,
e.g. traveling drives, hoisting drives, test stands, centrifuges, paper and rolling mill drives,
feed drives or main spindle drives. Gear units to convert motion or to adapt the motor speed
and motor torque to the load conditions must also be considered.
As well as the load torque, which is determined by the application, the following mechanical
data are among those required to calculate the torque to be provided by the motor:
● Masses moved
● Diameter of the drive wheel/diameter
● Leadscrew pitch, gear ratios
● Frictional resistance
● Mechanical efficiency
● Traversing paths
● Maximum velocity
● Maximum acceleration and maximum deceleration
● Cycle time
You must decide whether synchronous or induction motors are to be used.
Synchronous motors are the best choice if it is important to have low envelope dimensions,
low rotor moment of inertia and therefore maximum dynamic response. These motors are
operated in control type "servo". For additional applications, the 1FW3 can also be operated
in the "Vector" control mode.
The following factors are especially important when engineering a drive application:
● The line system configuration, when using specific types of motor and/or line filters on
IT systems (non-grounded systems)
● The ambient temperatures and the installation altitude of the motors and drive
components.
The motor-specific limiting characteristics provide the basis for defining the motors.
These define the torque or power characteristic versus the speed and take into account the
motor limits based on the DC-link voltage of the power or motor module. The DC-link
voltage, in turn, is dependent on the supply voltage and, with multi-motor drives, on the type
of the line module.
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
36 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6

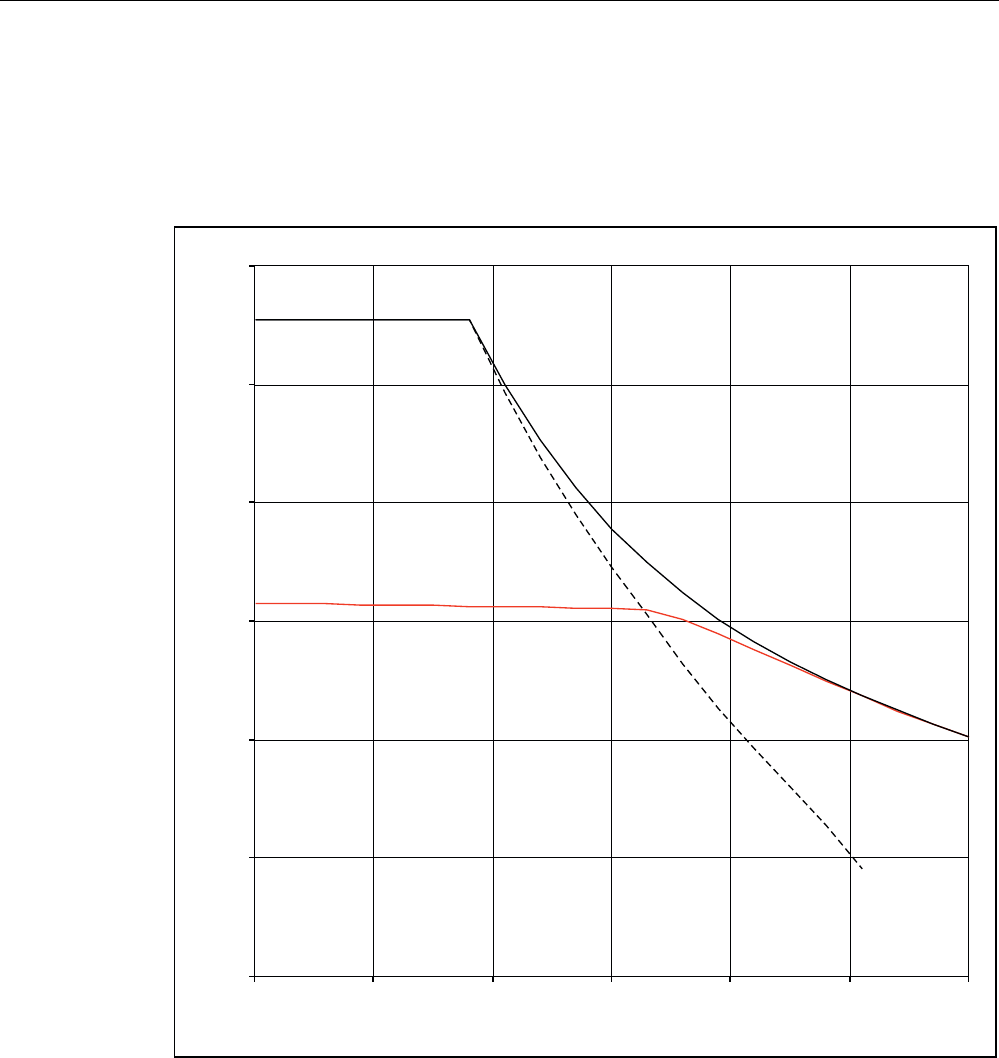

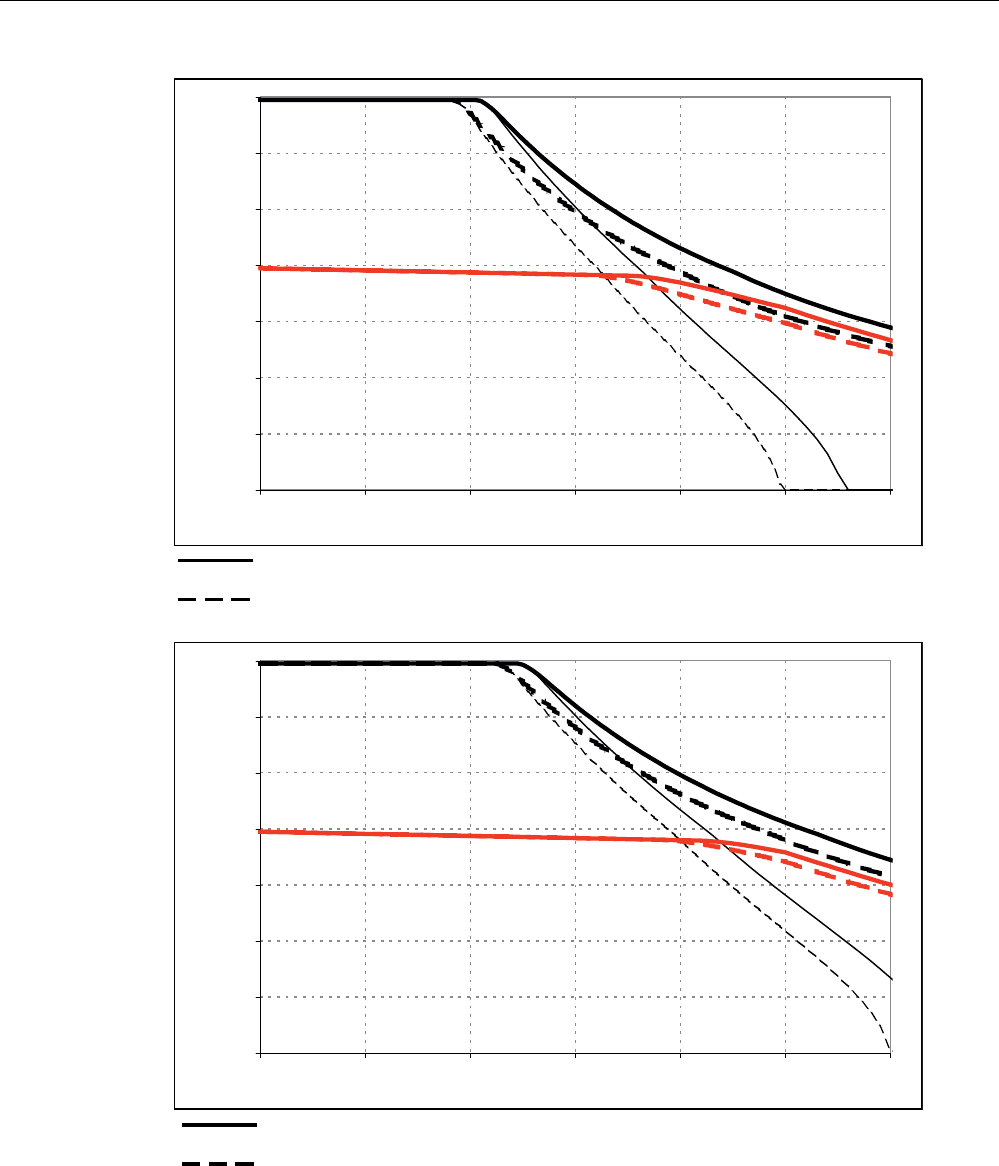

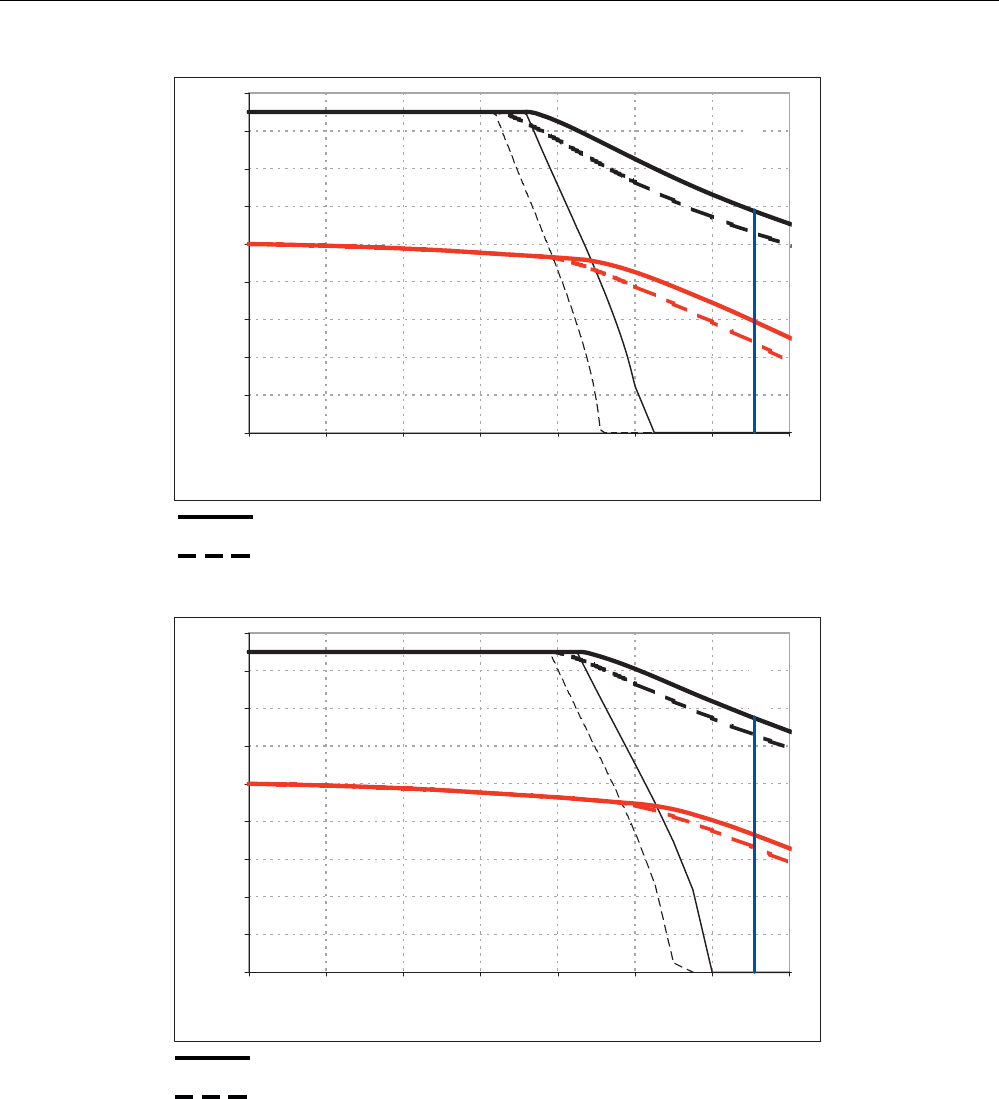

Figure 2-2 Limit curves for synchronous motors
2.2.2 2. Definition of supplementary conditions and integration into an automation
system
You must decide whether synchronous or induction motors are to be used.
Synchronous motors are the best choice if it is important to have low envelope dimensions,
low rotor moment of inertia and therefore maximum dynamic response.
Induction motors can be used to increase maximum speeds in the field weakening range.
Induction motors for higher power ratings are also available.
You should also specify whether the drives are to be operated as single-axis drives or in a
group as multi-axis drives.
The following factors are especially important when engineering a drive application:
● The type of line supply, when using specific types of motor and/or line filters on IT line
supply systems (non-grounded systems)
● The utilization of the motor in accordance with rated values for winding temperatures of
60 K or 100 K
● The ambient temperatures and the installation altitude of the motors and drive
components.
Other supplementary conditions apply when integrating the drives into an automation
environment such as SIMATIC or SIMOTION.
For motion control and technology functions (e.g. positioning), as well as for synchronous
functions, the corresponding automation system, e.g. SIMOTION D, is used.
The drives are interfaced to the higher-level automation system via PROFIBUS.
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 37
2.2.3 3. Definition of load cycle, calculation of max. load torque, definition of motor
The motor-specific limiting curves are used as basis when selecting a motor.
These define the torque characteristic with respect to speed and take into account the motor
limits based on the line supply voltage and the function of the infeed.
Q>USP@
0>1P@
6.
SINAMICS ALM 400 V line supply (600 V DC link voltage)

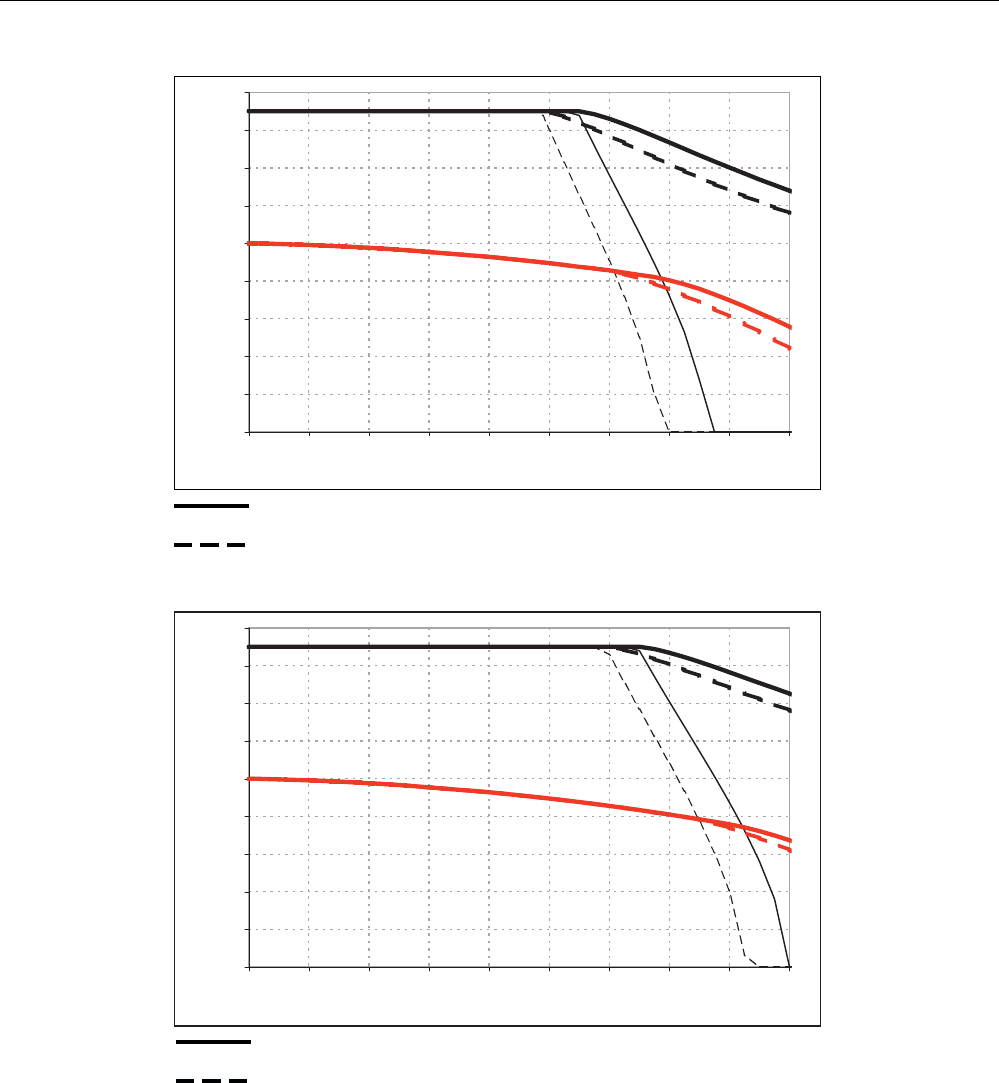

Figure 2-3 Limiting characteristics for synchronous motors 1FW3201-1☐E☐
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
38 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
The motor is selected on the basis of the load specified by the application. Different
characteristics must be used for different loads.
The following operating scenarios have been defined:
● Load duty cycles with constant on period
● Load duty cycles with varying on period
● Duty cycle, variable
The objective is to identify characteristic torque and speed operating points, which can be
used as a basis for selecting the motor depending on the load.
Once the operating scenario has been defined and specified, the maximum motor torque is
calculated. Generally, the maximum motor torque is required when accelerating. The load
torque and the torque required to accelerate the motor are added.
The maximum motor torque is then verified using the motor limiting curves.
The following criteria must be taken into account when the motor is selected:
● The dynamic limits must be observed, that is, all speed-torque points of the load must lie
below the relevant limiting curve.
● The thermal limits must be observed, that is, in the case of synchronous motors, the RMS
motor torque at the average motor speed resulting from the load duty cycle must lie
below the S1 curve (continuous duty).
● In the case of synchronous motors, note that the maximum permissible motor torque is
reduced at higher speeds as a result of the voltage limiting curve. A clearance of 10%
from the voltage limiting characteristic should also be observed to safeguard against
voltage fluctuations.
Load duty cycles with constant on period
For load duty cycles with constant on time, specific requirements are placed on the torque
characteristic as a function of the speed
e.g. M = constant, M ~ n2, M ~ n or P = constant.
These drives typically operate at a specific operating point. and are dimensioned for a base
load. The base load torque must lie on or below the S1 curve.
In the event of transient overloads (e.g. during acceleration), an overload must be taken into
account. For synchronous motors, the peak torque must lie below the voltage limiting
characteristic.
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 39
Q>USP@
0>1P@
6.
$3
$3
$3
SINAMICS ALM 400 V line supply (600 V DC link voltage)
AP 1 Operate for e.g. 1 min
AP 2 Continuous operation (S1) for x h (with water cooling)
AP 3 Continuous operation (S1) for x h (without water cooling)

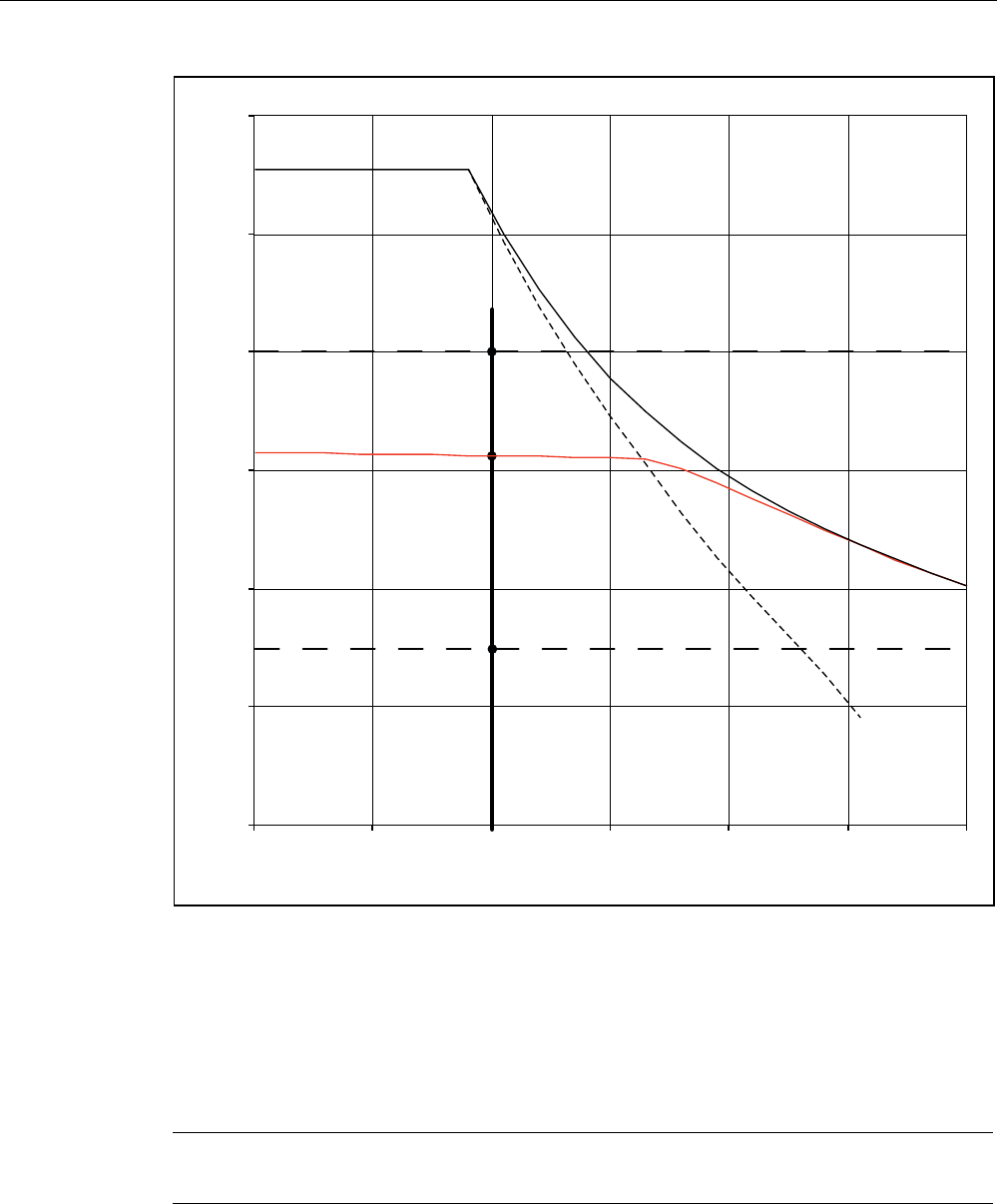

Figure 2-4 Selecting motors for load examples with constant on time 1FW3201-☐E☐
Note
Free convection must be possible for operation without water cooling.
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
40 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Load duty cycles with varying on period
As well as continuous duty (S1), standard intermittent duty types (S3) are also defined for
load duty cycles with varying on periods. This involves operation that comprises a sequence
of similar load cycles, each of which comprises a time with constant load and an off period.

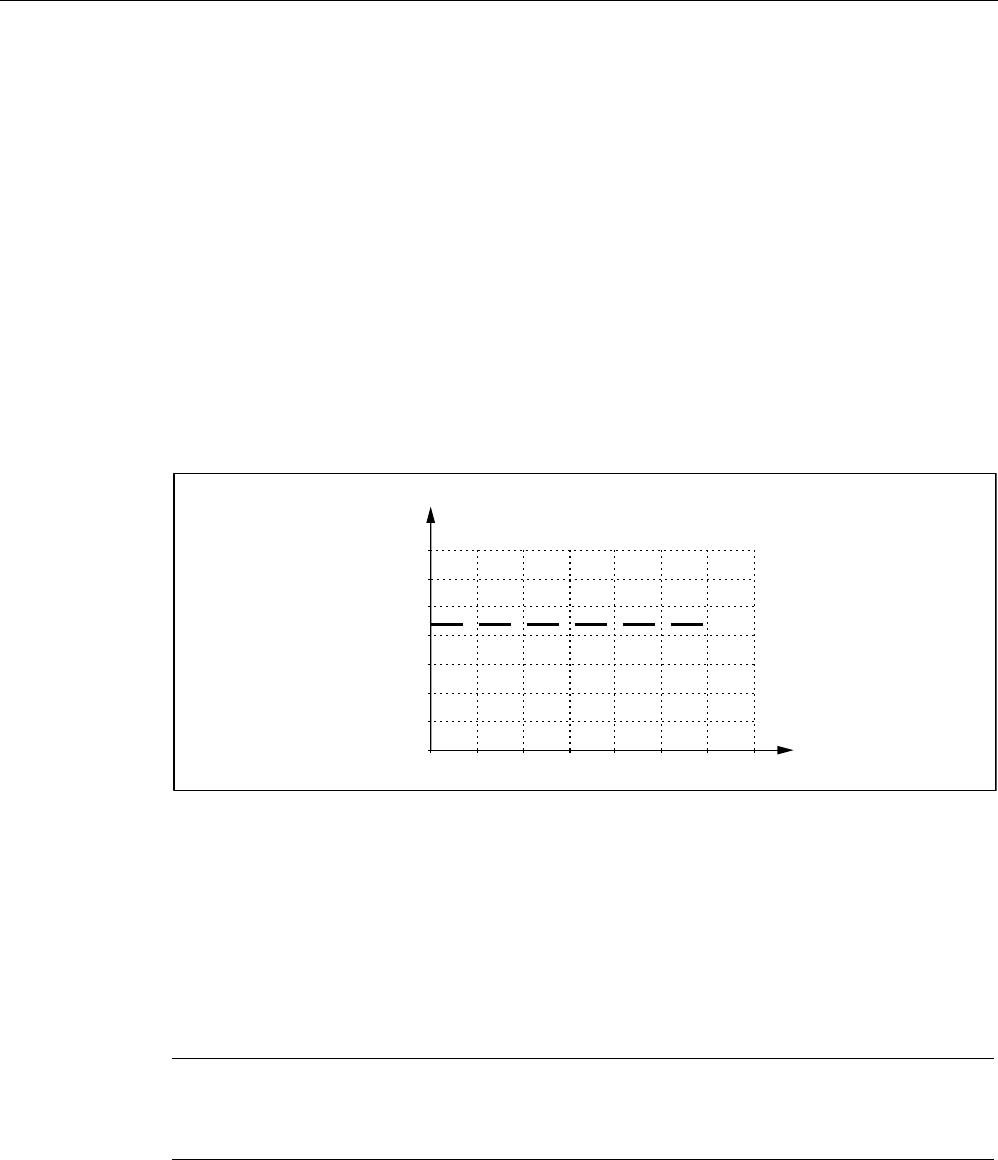

Figure 2-5 S1 duty (continuous operation)
Figure 2-6 S3 duty (intermittent operation without influencing starting)

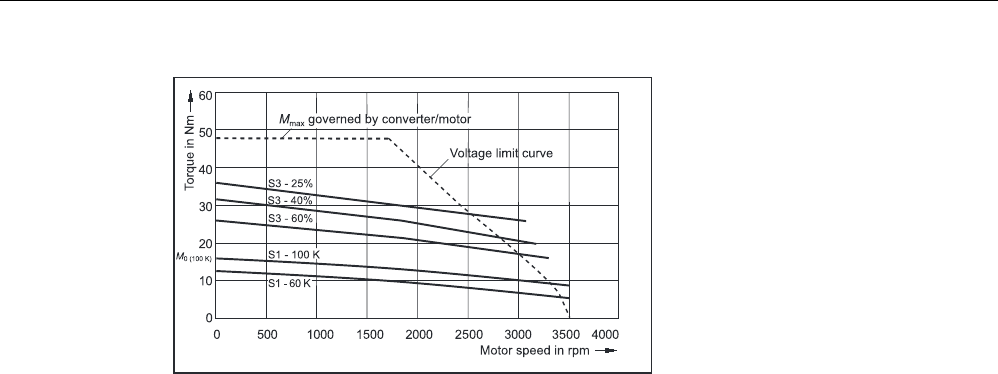

The load torque must lie below the corresponding thermal limiting characteristic of the motor.
An overload must be taken into consideration for load duty cycles with varying on times.
Note
For duty cycles in the field weakening range, the SIZER for SIEMENS Drives engineering
tool must be used. The following formulas can be used for duty cycles outside the field
weakening range.
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 41
M =
M
∑ 2 t Δ • L
T
0RWHII
0RWL
T
L
0RWN(
0RWN$
0RWPHGLXP
t
nn
n
•
2
+
=
Q>USP@
0>1P@
6.
$3
$3
SINAMICS ALM 400 V line supply (600 V DC link voltage)
AP 1 = 400 Nm at 100 rpm
AP 2 = 0 Nm at 0 rpm

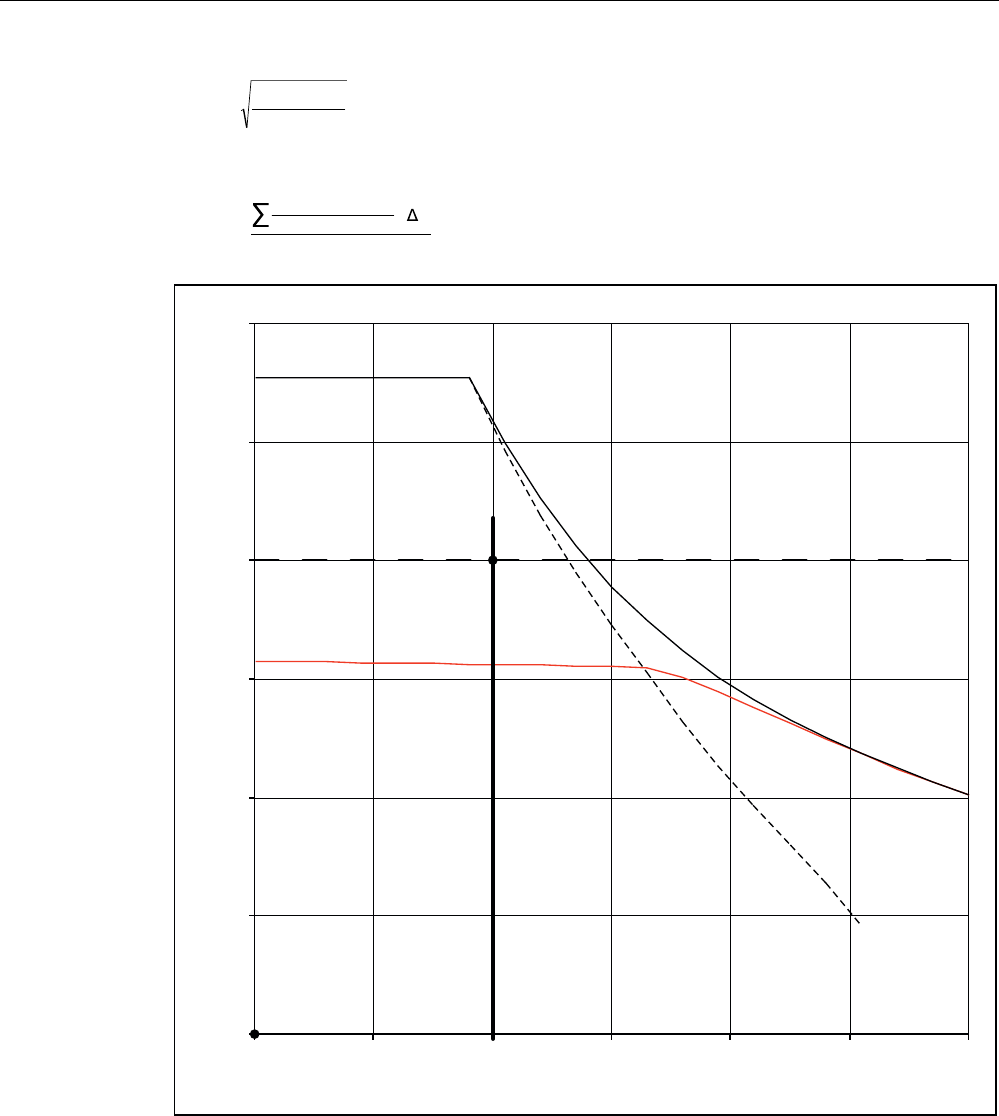

Figure 2-7 Selecting motors for load duty cycles with different on time 1FW3201-☐E☐
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
42 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Note
A holding torque may be required when the motor is stationary. This holding torque must be
taken into consideration for Mrms. The reason could be that self-locking gearboxes are not
used.
Duty cycle, variable
A load duty cycle defines the characteristics of the motor speed and the torque with respect
to time.
6SHHG
7RUTXH

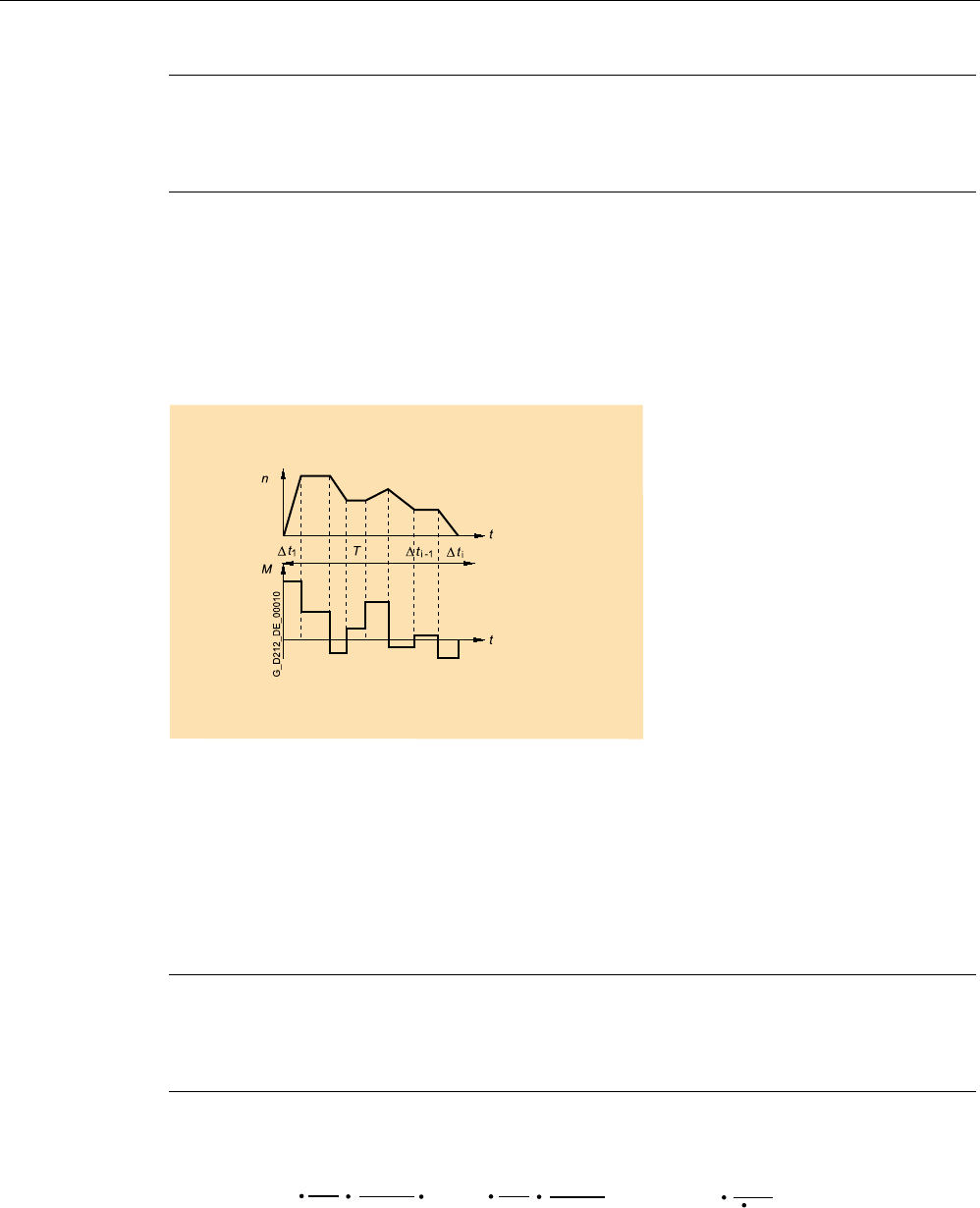

Figure 2-8 Example of a load duty cycle
A load torque is specified for each time period. In addition to the load torque, the average
load moment of inertia and motor moment of inertia must be taken into account for
acceleration. It may be necessary to take into account a frictional torque that opposes the
direction of motion.
The gear ratio and gear efficiency must be taken into account when calculating the load
and/or accelerating torque to be provided by the motor.
Note
For duty cycles in the field weakening range, the SIZER for SIEMENS Drives engineering
tool must be used. The following formulas can be used for duty cycles outside the field
weakening range.
For the motor torque in a time slice Δ
t
i the following applies:
˂
˂
M
0RWUPV
J
0
J
*
n
ORDGL
t
L
iJ
ORDG
M
ORDGL
M
5
i
*
˂
˂
n
/DVWL
t
L
č
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 43
Calculation of the motor speed
n= n • i
PRWL ORDGL
Calculating the rms torque
M =
M
∑
2
t Δ •
L
T
PRWUPV
PRWL
Calculating the average motor speed
T
L
0RWN(
0RWN$
0RWPHGLXP
t
nn
n
•
2
+
=
JM Motor moment of inertia
JG Gearbox moment of inertia
Jload Load moment of inertia
nLoad Load speed
i Gear ratio
ηG Gearbox efficiency
Mload Load torque
MR Frictional torque
T Cycle time, clock cycle time
A;E Initial value, final value in time slice Δ
t
i
te On period
Δ
t
i Time interval
The rms torque Mmot, rms must, for nmot, average, lie below the S1 curve.
The maximum torque Mmax is required when the drive is accelerating and for synchronous
motors must lie below the voltage limiting curve/Mmax characteristic.
In summary, the motor is selected as follows:
Configuration
2.2 Procedure when engineering
SIMOTICS T-1FW3 complete torque motors
44 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Q>USP@
0>1P@
6.
$3
Q0RWPLWWHO
00RWHII
SINAMICS ALM 400 V line supply (600 V DC link voltage)

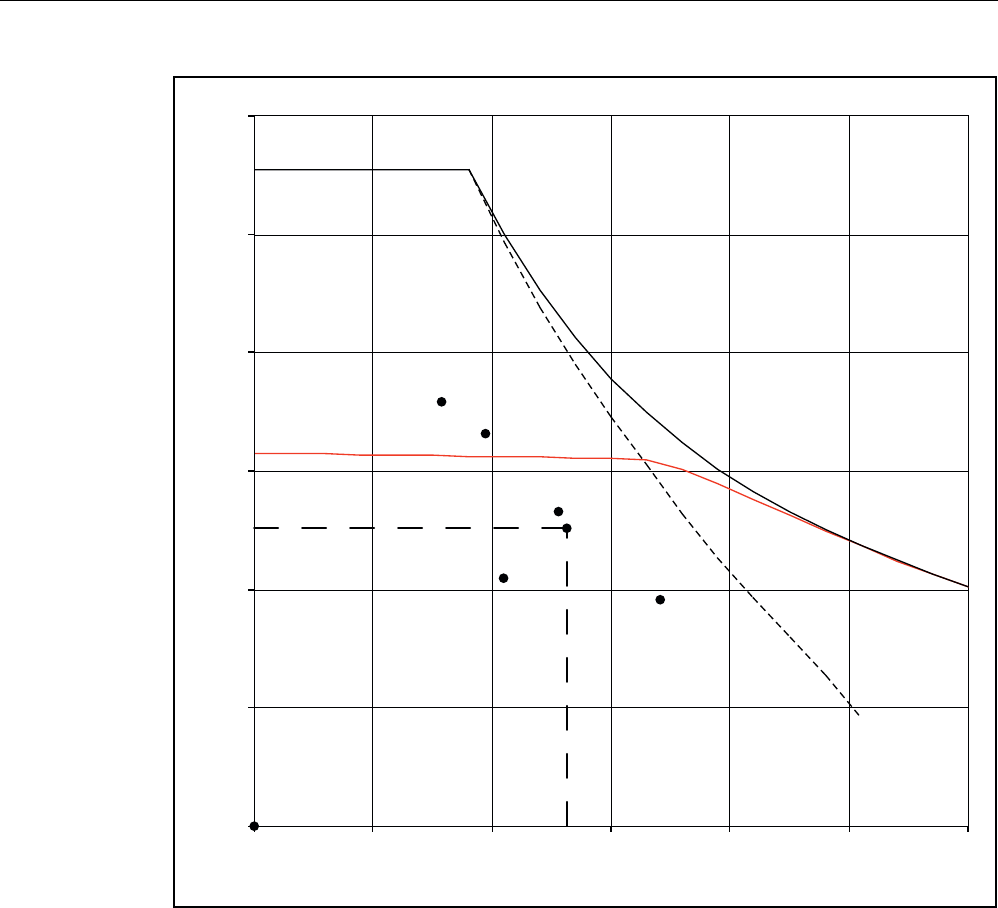

Figure 2-9 Selecting motors according to the load duty cycle for motor 1FW3201-☐E☐
Motor selection
By making the appropriate iterations, a motor can now be selected that precisely fulfills the
operating conditions and application
In a second step, a check is made as to whether the thermal limits are maintained. To do
this, the motor current at the base load must be calculated. When engineering a drive
according to the load duty cycle with a constant on period with overload, the overload current
based on the required overload torque must be calculated. The calculation rules for this
purpose depend on the type of motor used (synchronous motor, induction motor) and the
operating scenario (duty cycles with constant or with different switch-on duration).
Finally, the other motor features must be defined This is realized by appropriately configuring
the motor options.
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 45
Mechanical properties of the motors 3
3.1 Cooling
WARNING
The equipment must be safely disconnected from the supply before any installation or
service work is carried out on cooling water circuit components.
Only qualified personnel may design, install and commission the cooling circuit.
3.1.1 Cooling circuit
The electrochemical processes that take place in a cooling system must be minimized by
choosing the right materials. For this reason, mixed installations, i.e. a combination of
different materials, such as copper, brass, iron, or halogenated plastic (PVC hoses and
seals), should not be used or limited to the absolutely essential minimum.
A differentiation is made between 3 different cooling circuits:
● Closed cooling circuit
● Semi-open cooling circuit
● Open cooling circuit
Table 3- 1 Description of the various cooling circuits
Definition Description
Closed cooling circuit The pressure equalizing tank is closed (oxygen cannot enter the system)
and has a pressure relief valve. The cooling water is only routed in the
motors and converters as well as the components that have to be cooled.
Semi-open cooling circuit Oxygen can only enter the cooling system through the pressure
equalization tank, otherwise the same as "closed cooling circuit".
Open cooling circuit
(tower system)
The cooling water is cooled in a tower. In this case, there is intensive
oxygen contact.
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
46 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Note
Cooling circuits
Only closed and semi-open cooling circuits are permissible for motors. Converter systems
must be connected before the motors in the cooling circuit.
&RPSUHVVRU
FRROLQJXQLW
ILOWHU
IORZPHWHU
SUHVVXUHUHOLHIYDOYHIORZUHJXODWLQJYDOYH
SXPS
FRROLQJZDWHUWDQN
WHPSHUDWXUHVHQVRUFRROLQJZDWHU
&RPSRQHQWVDUHQRWDEVROXWHO\QHFHVVDU\
&RROLQJXQLW
):
0DFKLQH
,QWDNH
5HWXUQ
):
0DFKLQH

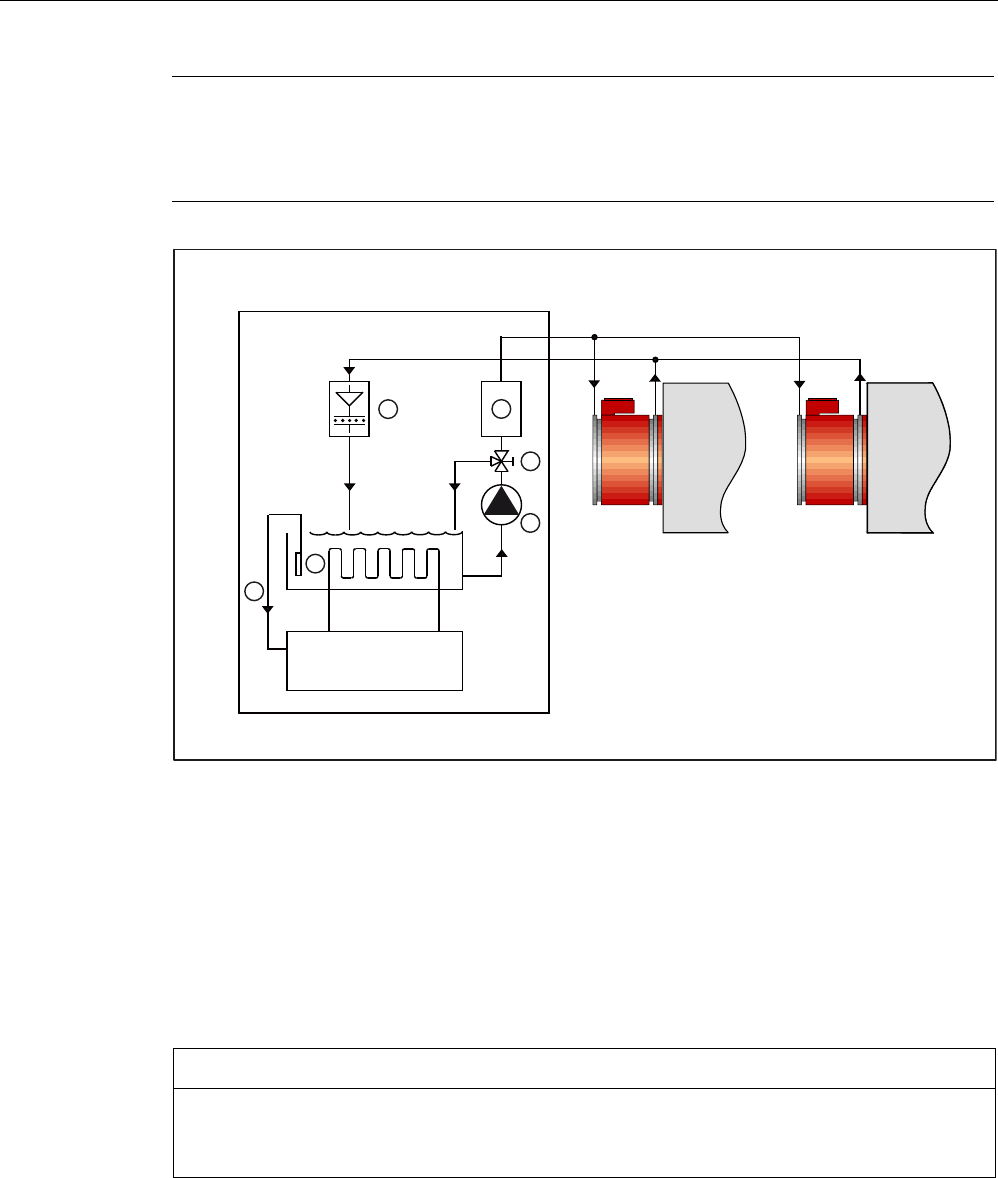

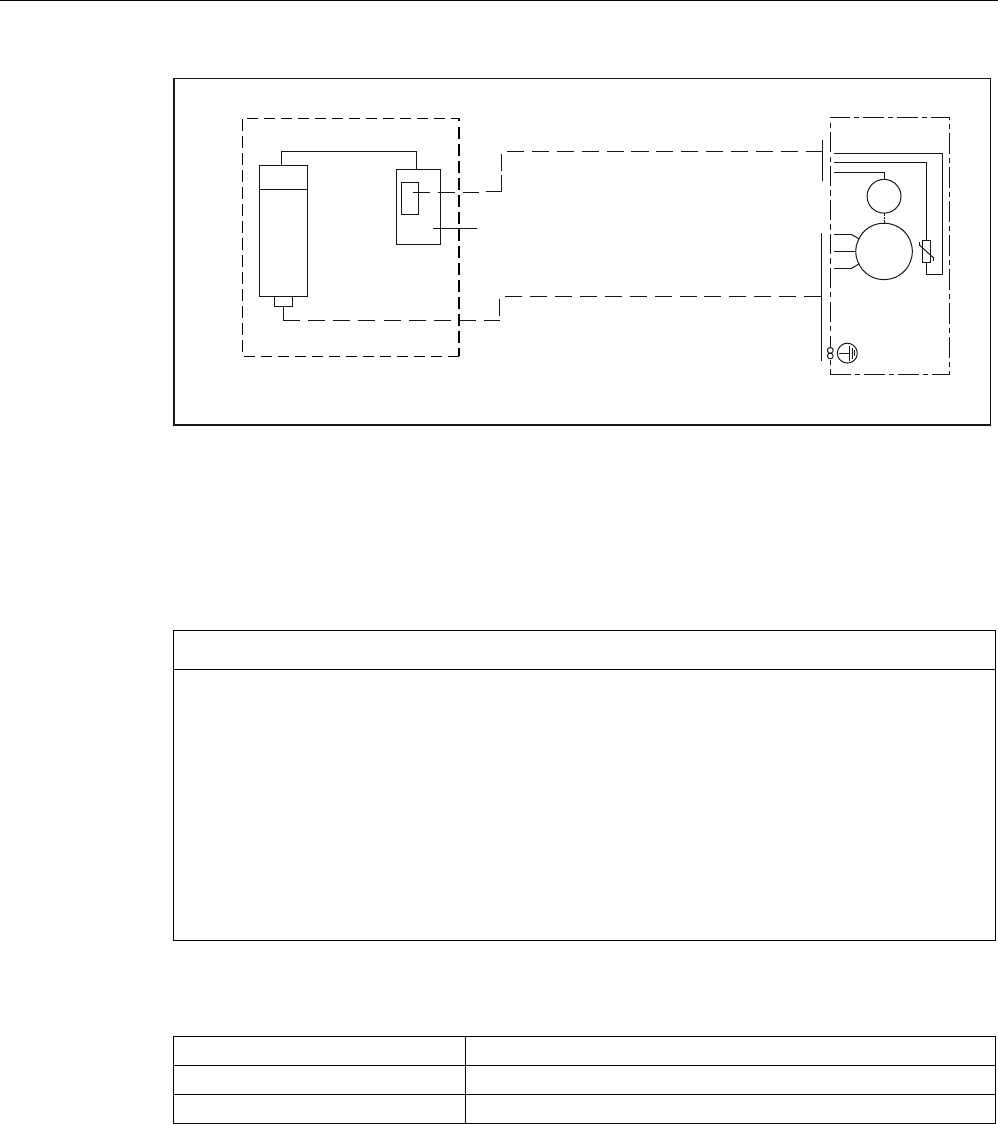

Figure 3-1 Example of a semi-open cooling circuit
Equipotential bonding
All components in the cooling system (motor, heat exchanger, piping system, pump,
pressure equalization tank, etc.) must be connected to an equipotential bonding system. This
is implemented using a copper bar or finely stranded copper cable with the appropriate cable
cross-sections.
NOTICE
Under no circumstances may the cooling water pipes come into contact with live
components. There must always be an isolating clearance of > 13 mm! The pipes must be
securely mounted and checked for leaks.
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 47
Materials used in the motor cooling circuit
The materials used in the cooling circuit must be coordinated with the materials in the motor.
Materials used in the motor (cooling jacket material): E355 AR (1.0580), DD11 (1.0332)
Materials and components in the cooling circuit
The following table lists a wide variety of materials and components which may or may not
be used in a cooling circuit.
Table 3- 2 Materials and components of a cooling circuit
Material Used as Description
Zinc Pipes, valves and
fittings
Use is not permitted.
Brass Pipes, valves and
fittings
Can be used in closed circuits with inhibitor.
Copper Pipes, valves and
fittings
Can be used only in closed circuits with inhibitors in which the
heat sink and copper component are separated (e.g. connection
hose on units).
Common steel (e.g. St37) Pipes Permissible in closed circuits and semi-open circuits with
inhibitors or Antifrogen N, check for oxide formation, inspection
window recommended.
Cast steel, cast iron Pipes, motors Closed circuit and use of strainers and flushback filters. Fe
separator for stainless heat sink.
High-alloy steel, Group 1 (V2A) Pipes, valves and
fittings
Can be used for drinking or municipal water with a chloride
content up to < 250 ppm, suitable according to definition in
Section "Cooling water definition".
High-alloy steel, Group 2 (V4A) Pipes, valves and
fittings
Can be used for drinking or municipal water with a chloride
content up to < 500 ppm, suitable according to definition in
Section "Cooling water definition".
ABS (AcrylnitrileButadieneStyrene) Pipes, valves and
fittings
Suitable according to the definition in Section "Cooling water
definition". Suitable for mixing with inhibitor and/or biocide as
well as Antifrogen N.
Installation comprising different
materials (mixed installation)
Pipes, valves and
fittings
Use is not permitted.
PVC Pipes, valves,
fittings and hoses
Use is not permitted.
Hoses Reduce the use of hoses to a minimum (device connection).
Must not be used as the main pipe for the whole system.
Recommendation: EPDM hoses with an electrical
resistance > 109 Ω (e.g. Semperflex FKD supplied from Semperit
or DEMITTEL; from PE/EPD, supplied from Telle).
Gaskets Pipes, valves and
fittings
Use of FPM (Viton), AFM34, EPDM is recommended.
Hose connections Transition
Hose - pipe
Secure with clips conforming to DIN 2817, available e.g. from
Telle.
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
48 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
The following recommendation applies in order to achieve an optimum motor heatsink
(enclosure) lifetime:
● Engineer a closed cooling circuit with cooling unit manufactured out of stainless steel that
dissipates the heat through a water-water heat exchanger.
● All other components such as cooling circuit cables and fittings manufactured out of ABS,
stainless steel or general construction steel.
Cooling system manufacturers
BKW Kälte-Wärme-Versorgungstechnik GmbH http://www.bkw-kuema.de
DELTATHERM Hirmer GmbH http://www.deltatherm.de
Glen Dimplex Deutschland GmbH http://www.riedel-cooling.com
Helmut Schimpke und Team Industriekühlanlagen
GmbH + Co. KG
http://www.schimpke.org
Hydac System GmbH http://www.hydac.com
Hyfra Industriekühlanlagen GmbH http://www.hyfra.de
KKT Kraus Kälte- und Klimatechnik GmbH http://www.kkt-kraus.de
Pfannenberg GmbH http://www.pfannenberg.com
Rittal GmbH & Co. KG http://www.rittal.de
Note
It goes without saying that equivalent products from other manufacturers may be used. Our
recommendations are to be seen as helpful information, not as requirements or regulations.
We cannot accept any liability for the quality and properties/features of third-party products.
3.1.2 Engineering the cooling circuit
Pressure
The operating pressure must be set according to the flow conditions in the supply and return
lines of the cooling circuit. The required cooling water flow rate per time unit must be set
according to the technical data of the equipment and motors.
The maximum permissible pressure with respect to atmosphere in the heat sink and thus in
the cooling circuit must not exceed 0.6 MPa (6 bar) If a pump that can achieve a higher
pressure is used, suitable measures must be provided on the system side (e.g. safety valve
p ≤ 0.6 MPa, pressure control etc.) to ensure that the maximum pressure is not exceeded.
The lowest possible differential pressure between the cooling water in the supply and return
lines should be selected to allow pumps with a flat characteristic to be used.
An additional flushback filter should be used in the circuit in order to help prevent blockages
and corrosion. This allows any material deposits to be flushed out in operation.
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 49
Pressure equalization
If various components are connected up in the cooling circuit, it may be necessary to provide
pressure equalization.
Note
Reactor elements must be fitted at the cooling water outlet of the motor or the relevant
component!
Avoiding cavitation
During uninterrupted duty, the pressure drop by a converter or motor must not exceed
0.2 MPa (2 bar). Otherwise, the high flow rate results in damage due to cavitation and/or
abrasion.
Connecting motors in series
For the following reasons, connecting motors in series can only be conditionally
recommended:
● The required flow rates of the motors must be approximately the same (< a factor of 2)
● An increase in the cooling water temperature can result in having to derate the second or
third motor if the maximum cooling water inlet temperature is exceeded.
Cooling water inlet temperature
Note
The cooling water inlet temperature must be selected so that condensation does not form on
the surface of the motor: Tcooling > Tambient - 5 K.
Cooling water temperatures which are lower than the ambient temperature tend to result in
increased water condensation. The difference between the cooling water inlet temperature
and the ambient temperature should therefore not exceed a maximum of 5 K (Kelvin).
Furthermore, the inflow of cooling water must be interrupted when the motor is idle for
prolonged periods.
The motors are designed for operation up to a cooling water inlet temperature of +30 °C, as
long as all of the specified motor data is maintained. If the cooling water inlet temperature
deviates from this, the continuous torque will change (see the table titled "Derating factors").
Table 3- 3 Derating factors
Cooling water inlet temperature ≤ 30 °C 35 °C 40 °C 45 °C
Derating factor 1.00 0.97 0.95 0.92
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
50 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Cooling powers to be dissipated and the cooling flow rate
The values specified in the table "Cooling power to be dissipated" refer to a cooling-water
temperature of +30 °C and S1 duty.
The cooling power to be dissipated [kW] specified in the table refers to the highest power
loss to be dissipated for the particular shaft height for a maximum temperature difference
between cooling water intake/cooling water discharge of 10 K.
Table 3- 4 Cooling power to be dissipated
Motor type Cooling power to be dissipated
at nN [kW]
Pressure loss
[bar]
Cooling flow rate [l/min]
SH 150 Standard
1FW3150-1 1.4 0.1 2.0
1FW3152-1 1.6 0.1 3.0
1FW3154-1 2.3 0.2 4.5
1FW3155-1 2.7 0.1 5.5
1FW3156-1 3.4 0.2 7.0
SH 200 Standard
1FW3201-1 1.7 0.1 3.0
1FW3202-1 2.3 0.2 4.0
1FW3203-1 3.4 0.1 5.0
1FW3204-1 3.9 0.1 6.0
1FW3206-1 5.5 0.3 8.0
1FW3208-1 8.4 0.6 10.0
SH 200 High Speed
1FW3201-3 2.9 0.2 3.5
1FW3202-3 4.2 0.4 5.0
1FW3203-3 5.4 0.1 6.5
1FW3204-3 6.7 0.2 8.0
1FW3206-3 8.8 0.5 10.5
1FW3208-3 10.9 1.0 13.0
SH 280 Standard
1FW3281-2 7.9 0.5 11.0
1FW3283-2 9.0 0.7 13.0
1FW3285-2 12.8 0.7 16.0
1FW3287-2 15.7 0.8 20.0
SH 280 High Speed
1FW3281-3 7.4 0.5 11.0
1FW3283-3 10.3 0.7 13.0
1FW3285-3 12.6 0.7 16.0
1FW3287-3 15.8 0.8 20.0
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 51

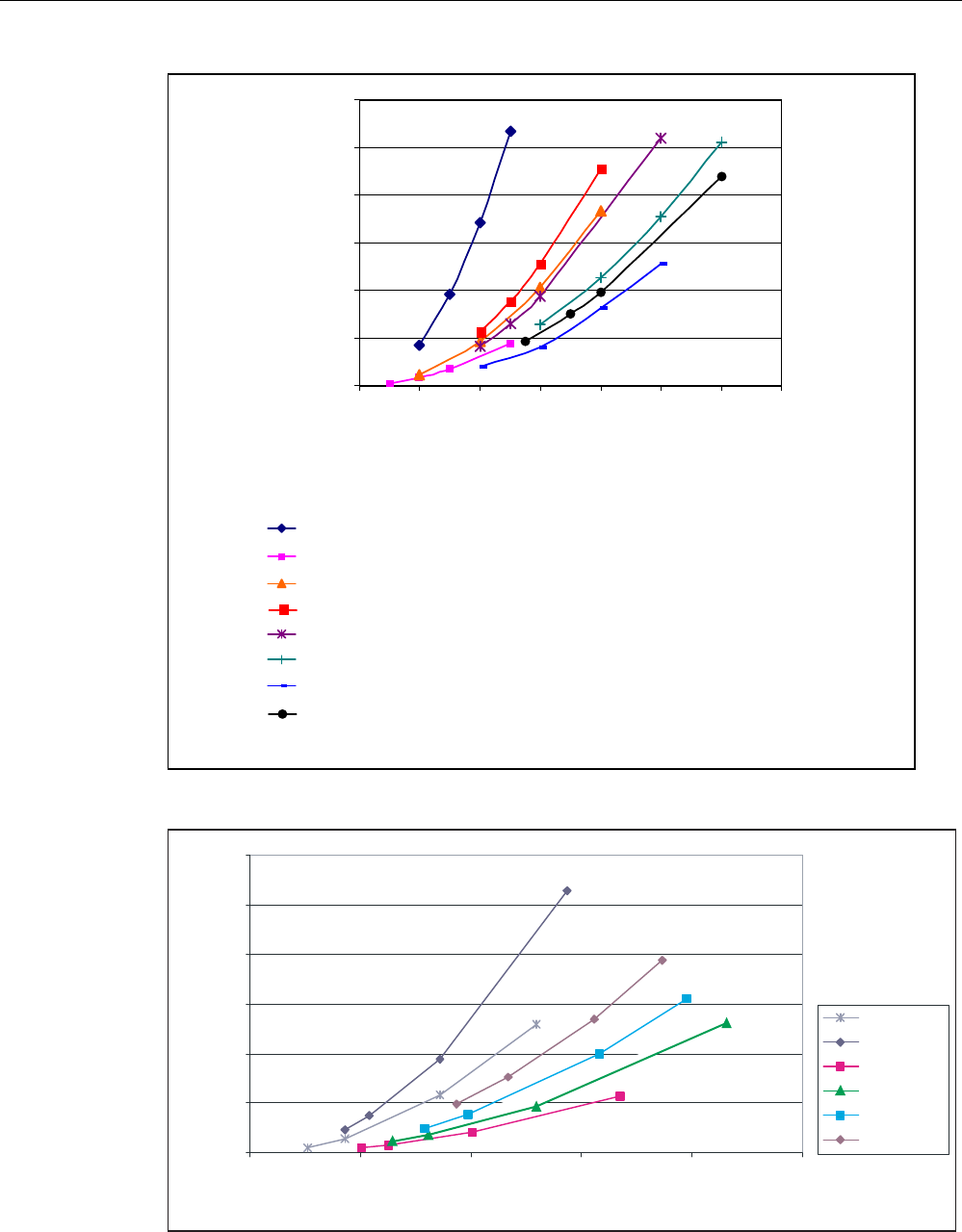

):VROLGVKDIWSOXJRQVKDIWKROORZVKDIW
):VROLGVKDIW
):SOXJRQVKDIWKROORZVKDIW
):VROLGVKDIW
):SOXJRQVKDIWKROORZVKDIW
):SOXJRQVKDIWKROORZVKDIW
):VROLGVKDIW
):SOXJRQVKDIWKROORZVKDIW
):VROLGVKDIW
)ORZUDWH>OPLQ@
'XUFKIOXVVPHQJH>OPLQ@
'HFUHDVHLQSUHVVXUH>DWP@
'UXFNDEIDOO>EDU@
Figure 3-2 Flow rate for SH 150
'XUFKIOXVVPHQJH>OPLQ@
'UXFNDEIDOO>EDU@
):
):
):
):
):
):
'HFUHDVHLQSUHVVXUH>DWP@
)ORZUDWH>OPLQ@
Figure 3-3 Flow rate for SH 200
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
52 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
1FW3281
1FW3283
1FW3285
1FW3287
'XUFKIOXVVPHQJH>OPLQ@
)ORZUDWH>OPLQ@
'UXFNDEIDOO>EDU@
'HFUHDVHLQSUHVVXUH>DWP@
1FW3281
1FW3283
1FW3285
1FW3287
Figure 3-4 Flow rate for SH 280
3.1.3 Cooling water
Table 3- 5 Cooling water specification
Quality of the water used as coolant for motors with aluminum,
stainless steel tubes + cast iron or steel jacket
Chloride ions < 40 ppm, can be achieved by adding deionized water.
Sulfate ions < 50 ppm
Nitrate ions < 50 ppm
pH value 6 ... 9 (for aluminum 6 ... 8)
Electrical conductivity < 500 μS/cm
Total hardness < 170 ppm
Note
It is recommended to use deionized water with reduced conductivity (5 ... 10 µS/cm) (if
required, ask the water utility for the values). According to 98/83/EC, drinking water may
contain up to 2500 ppm of chloride!
Manufacturers of chemical additives can provide support when analyzing the water that is
available on the plant side.
Mechanical properties of the motors
3.1 Cooling
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 53
Table 3- 6 Cooling water quality
Coolant quality
Cooling water According to the table "Specifications for cooling water"
Corrosion protection 0.2 to 0.25 % inhibitor, Nalco TRAC100 (previously 0GE056) 1)
Anti-freeze protection When required, 20 - 30 % Antifrogen N (from the Clariant
Company) 2)
Dissolved solids < 340 ppm
Size of particles in the coolant < 100 μm
1) The inhibitor is not required if it ensured that the concentration of Antifrogen N is > 20%.
2) Derating is not required for an anti-freeze protection concentration < 30%.
Biocide
Closed cooling circuits with soft water are susceptible to microbes. The risk of corrosion
caused by microbes is virtually non-existent in chlorinated drinking water systems.
Antifrogen N has a biocidal effect even at the minimum required concentration of > 20 %.
No strain of bacteria can survive if >20 % Antifrogen N is added.
The suitability of a biocide depends on the type of microbe. The following types of microbes
are encountered in practice:
● Slime-forming bacteria
● Corrosive bacteria
● Iron-depositing bacteria
At least one water analysis per annum is recommended to determine the number of bacterial
colonies. Suitable biocides are available from the manufacturer Nalco for example. The
manufacturer's recommendations must be followed regarding the concentration and
compatibility with any inhibitor used.
NOTICE
Biocides and Antifrogen N must not be mixed.
There are other manufacturers of chemical additives in the market. Equivalent products from
other manufacturers may be used. The suitability must be checked by testing.
Mechanical properties of the motors
3.2 Shaft versions
SIMOTICS T-1FW3 complete torque motors
54 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Manufacturers of chemical additives
Tyforop Chemie GmbH http://www.tyfo.de
Clariant Produkte Deutschland GmbH http://www.antifrogen.de
Cimcool Industrial Products http://www.cimcool.net
FUCHS PETROLUB AG http://www.fuchs-oil.com
Hebro chemie GmbH http://www.hebro-chemie.de
HOUGHTON Deutschland GmbH http://www.houghton.com
Nalco Deutschland GmbH http://www.nalco.com
Schweitzer-Chemie GmbH http://www.schweitzer-chemie.de
NOTICE
It goes without saying that equivalent products from other manufacturers may be used. Our
recommendations are to be seen as helpful information, not as requirements or regulations.
We cannot accept any liability for the quality and properties/features of third-party products.
3.1.4 Cooling water connection
The motor is connected to the cooling circuit using two female threads. These are located on
the side of the motor. The intake and discharge connections can be selected as required.
Recommendation: Inlet at NDE
The units should be connected with hoses to provide mechanical decoupling (refer to the
table "Materials and components of a cooling circuit").
Cooling water connection
for 1FW315x and 1FW320x G 1/2"
for 1FW328x G 1"
3.2 Shaft versions
The complete torque motor 1FW3 can be ordered with 3 different shaft versions:
● Hollow shaft
● Plug-on shaft
● Solid shaft
The DE shaft end is cylindrical in accordance with DIN 748-3 (IEC 60072-1).
Mechanical properties of the motors
3.3 Degree of protection
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 55
Table 3- 7 Hollow shaft
Frame size Flange centering edge di [mm]
1FW315x 153 H7
1FW320x 153 H7
1FW328x 250 H7
Table 3- 8 Plug-on shaft
Frame size Flange centering edge di [mm] Support di [mm]
1FW315x 153 H7 70 H6
1FW320x 153 H7 85 H6
1FW328x 250 H7 110 H7 and 180 H7
Table 3- 9 Solid shaft
Frame size Shaft length l [mm] Shaft diameter d [mm]
1FW315x 140 65 m6
1FW320x 170 90 m6
The shaft version "solid shaft" can be ordered with a plain shaft end or with keyway
(according to DIN 6885-1).
Note
Shaft cover at NDE for the "hollow shaft" version
If the hollow through-shaft is not used by the customer and must be sealed at the NDE for
touch protection reasons, the motor can be supplied with a shaft cover at the NDE. Ordering
options: Order code T20.
See the dimension drawings for further details.
Direction of rotation
The positive direction of rotation is clockwise when viewing the drive end (flange side).
3.3 Degree of protection
The degree of protection designation in accordance with EN 60034-5 (IEC 60034-5) is
described using the letters IP and two digits.
IP = International Protection
1st digit = protection against ingress of foreign bodies
2nd digit = protection against harmful ingress of water
Mechanical properties of the motors
3.4 Bearing version
SIMOTICS T-1FW3 complete torque motors
56 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Since coolants used for machine tools and transfer machines usually contain oil, are able to
creep, and may also be corrosive, protection against water alone is insufficient. The motors
must be protected by suitable covers.
Attention must be paid to providing suitable sealing of the motor shaft for the selected
degree of protection for the motor.
Table 3- 10 Degree of protection of the 1FW3 complete torque motors
Shaft version
Motor
Hollow shaft Plug-on shaft Solid shaft
1FW315x IP54 IP55 IP55
1FW320x standard IP54 IP55 IP55
1FW320x High Speed - IP55 IP55
1FW328x standard IP54 IP54 -
1FW328x High Speed IP54 IP54 -
3.4 Bearing version
The bearings of the complete torque motors are greased for life and designed for a minimum
ambient temperature range in operation of -15 °C.
Table 3- 11 Bearing designation and bearing properties for the normal version with standard bearings
SH 150 SH 200 SH 280
Hollow shaft DE (fixed bearing) 61838 61838 61864
Hollow shaft NDE (floating bearing) 61832 61832 61856
Plug-on shaft DE (fixed bearing) 61838 61838 61864
Plug-on shaft NDE (floating bearing) 6213 6020 6230
Solid shaft DE (fixed bearing) 6215 6220 ---
Solid shaft NDE (floating bearing) 6213 6020 ---
Possible mounting positions Horizontal and vertical Horizontal and vertical Horizontal and vertical
Bearing change interval with permanent
grease lubrication, horizontal mounting
position
20000 h at max. 40 °C
ambient temperature
20000 h at max. 40 °C
ambient temperature
---
Regreasing Option +K40
See table "Bearings with
regreasing system"
Option +K40
See table "Bearings with
regreasing system"
Regreasing in the
standard
See table "Bearings with
regreasing system"
Special versions
Special versions for increased radial and axial forces on request.
Mechanical properties of the motors
3.4 Bearing version
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 57
Typical applications: General machine construction.
Note
Bearings without regreasing system
For bearings without regreasing system (SH 150 and SH 200), we recommend that the
bearings are replaced after approx. 20000 operating hours for an ambient temperatures up
to a maximum of 40 °C, or after 5 years (after delivery) at the latest.
The bearing lifetime is reduced by 50 % when motors are mounted vertically. This is the
reason that we recommend that a regreasing system is used when motors are mounted
vertically.
Regreasing system (option for 1FW315x and 1FW320x, standard for 1FW328x)
If required, 1FW3 complete torque motors can be equipped with a re-lubricating device with
a lubricating nipple M8 x 1 to DIN 71412-A for the DE and NDE bearings. This increases the
bearing change interval in accordance with the table "Bearings with regreasing system" if the
regreasing intervals are maintained and the ambient temperature 40 °C is not exceeded.
Ordering options: Order code K40
The re-lubricating device cannot be retrofitted!
Table 3- 12 Bearings with regreasing system (for 1FW315x, 1FW320x and 1FW328x-1, optional)
Quantity of grease for each
regreasing [g] 1)
Motor Bearing change
interval with
regreasing [h]
Regreasing
intervals [h]
DE NDE
1FW315x hollow shaft 40000 10000 26 - 30 16 - 20
1FW315x plug-on shaft 60000 10000 26 - 30 14 - 18
1FW315x solid shaft 60000 10000 17 - 21 14 - 18
1FW320x hollow shaft 40000 10000 26 - 30 16 - 20
1FW320x plug-on shaft 60000 10000 26 - 30 19 - 23
1FW320x solid shaft 60000 10000 35 - 39 19 - 23
1FW328x-1 and 1FW328x-2 nN
= 150/200 hollow shaft
40000 10000 76 - 80 56 - 60
1FW328x-1 and 1FW328x-3 nN
= 400 hollow shaft
40000 6500 76 - 80 56 - 60
1FW328x-3 nN = 600 hollow
shaft
24000 4000 76 - 80 56 - 60
1FW328x-2/3 plug-on shaft 40000 8000 76 - 80 116 - 120
1 ) Bearing grease designation: Klüberquiet BQH 72-102, Klüber Lubrication Munich KG, Internet:
www.klueber.com
Mechanical properties of the motors
3.4 Bearing version
SIMOTICS T-1FW3 complete torque motors
58 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
NOTICE
Vertical mounting position
The regreasing interval is reduced to 50% and therefore the bearing replacement interval
when motors are mounted vertically.
Re-lubricating should be carried out manually using a grease gun (not a hydraulic gun). The
grease quantities must be observed. Bearings should be re-lubricated at a low speed if it is
not dangerous for persons. The recommended re-lubricating intervals relate to normal loads:
● Operation at speeds in accordance with the rating plate data
● Precision-balanced operation
● Use of the specified roller bearing greases
Option, special grease for low speeds +V07 (for 1FW315x and 1FW320x)
Hollow shaft version:
For motors with hollow shaft, we recommend for effective speeds up to 25 rpm that the
special LGHB2 grease is ordered with option +V07.
Solid shaft version and plug-on shaft:
For motors with solid shaft and plug-shaft, in order to achieve the bearing change interval,
we recommend for effective speeds up to 500 rpm that the special LGHB2 grease is ordered
with option +V07.
Special versions
Unfavorable factors (e.g. effects of mounting/installation, speeds, special modes of operation
or high mechanical loads) may require special measures. Contact your local Siemens office,
specifying the prevailing general conditions.
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 59
3.5 Radial and axial forces

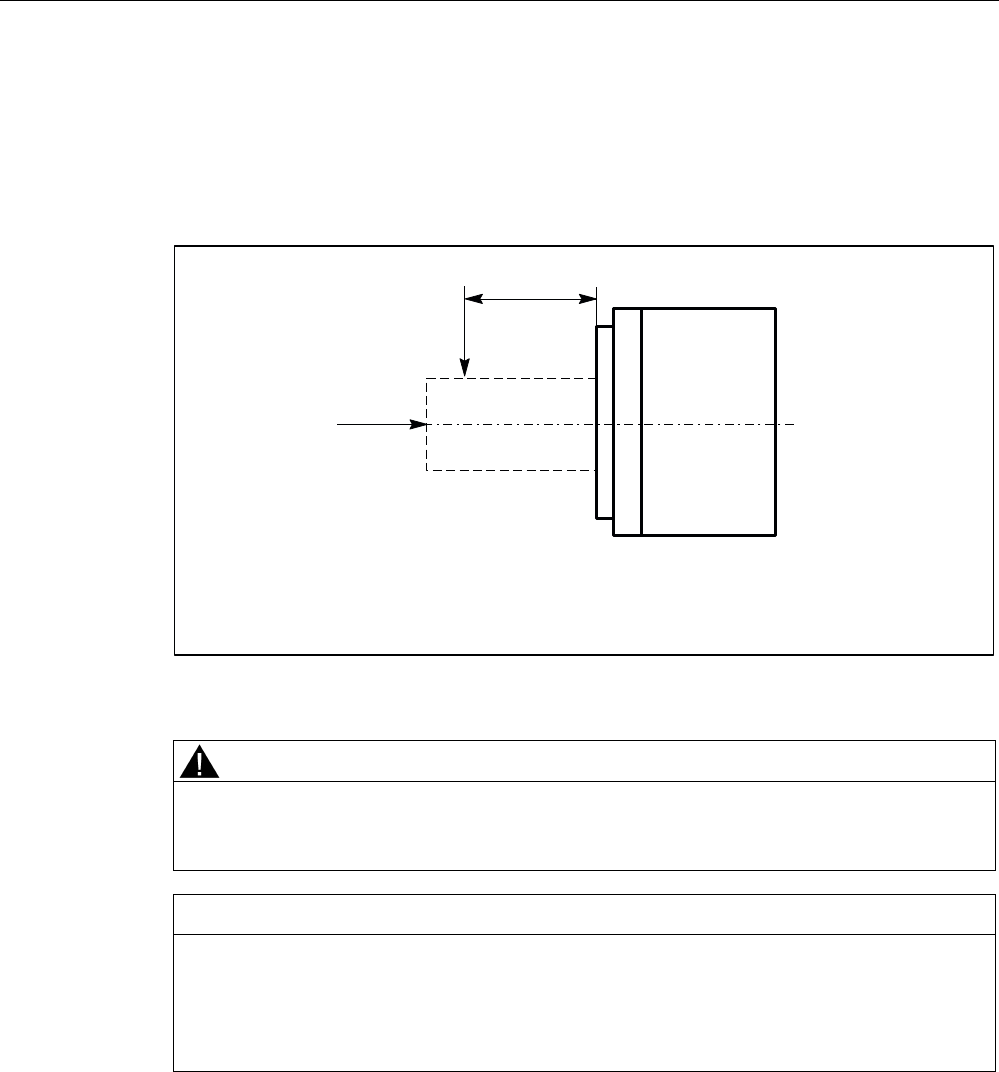

Point of application of radial forces FR at the torque motor
● for average operating speeds
● for a nominal bearing change interval of 20000 h
0D¡;
$EVWDQG]ZLVFKHQGHP$QJULIIVSXQNWGHU.UDIW)XQGGHU:HOOHQVFKXOWHUGHV7RUTXHPRWRUV
'LPHQVLRQ;
'LVWDQFHEHWZHHQWKHSRLQWRIDSSOLFDWLRQRIWKHIRUFH)DQGWKHVKDIWVKRXOGHURIWKHWRUTXHPRWRU
WRUTXHPRWRU
):
5
5
5
>1@)
;>PP@
$
>1@)
Figure 3-5 Point of application of radial force FR and axial force FA
CAUTION
If you use mechanical transmission elements that subject the shaft end to a radial force,
you must ensure that the maximum limit values specified in the radial force diagrams are
not exceeded.
NOTICE
When the axial force diagram is used, the maximum permissible radial force must be noted.
The axial force diagram is valid for x < 100 mm.
When the bearing is designed, the motor operating speed must be rounded-off according to
the next-higher speed curve.
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
60 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
3.5.1 Hollow shaft

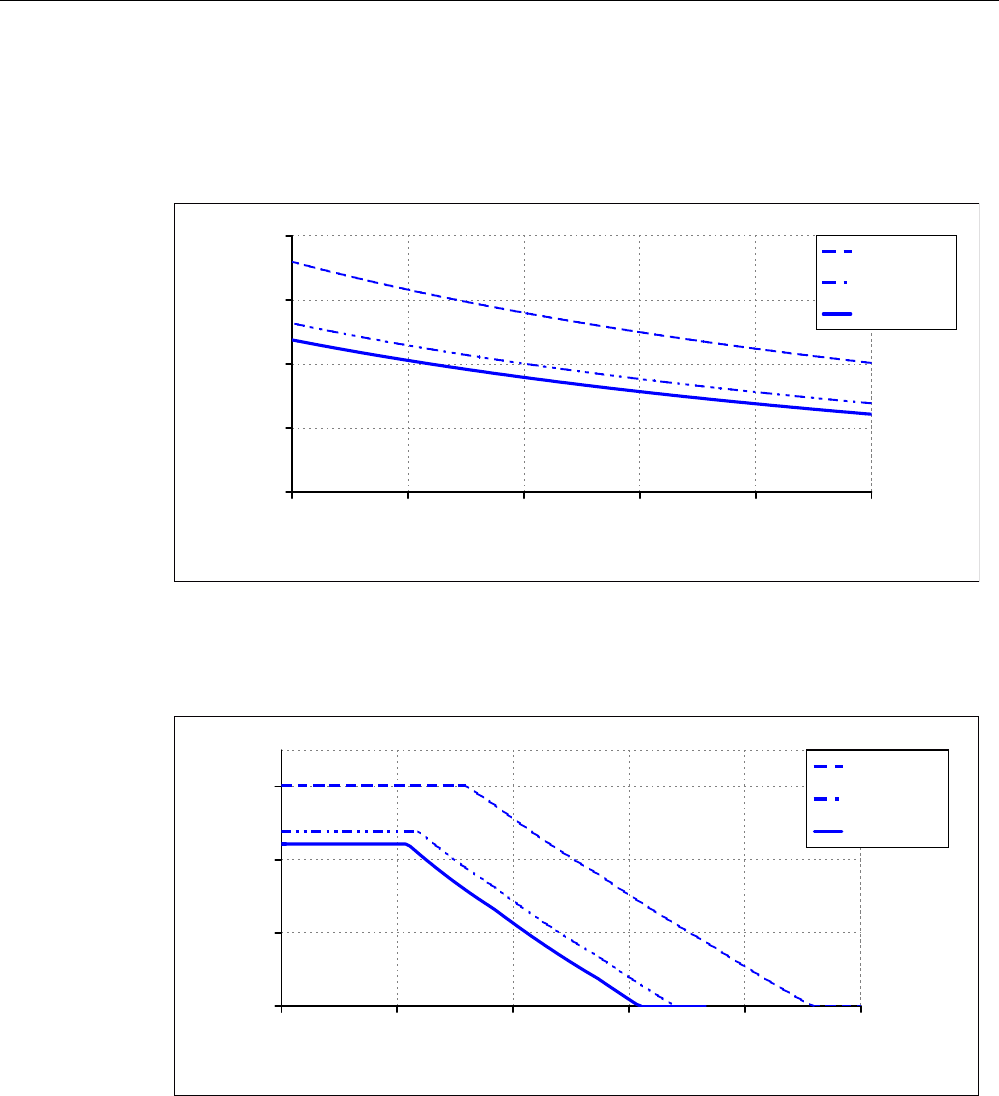

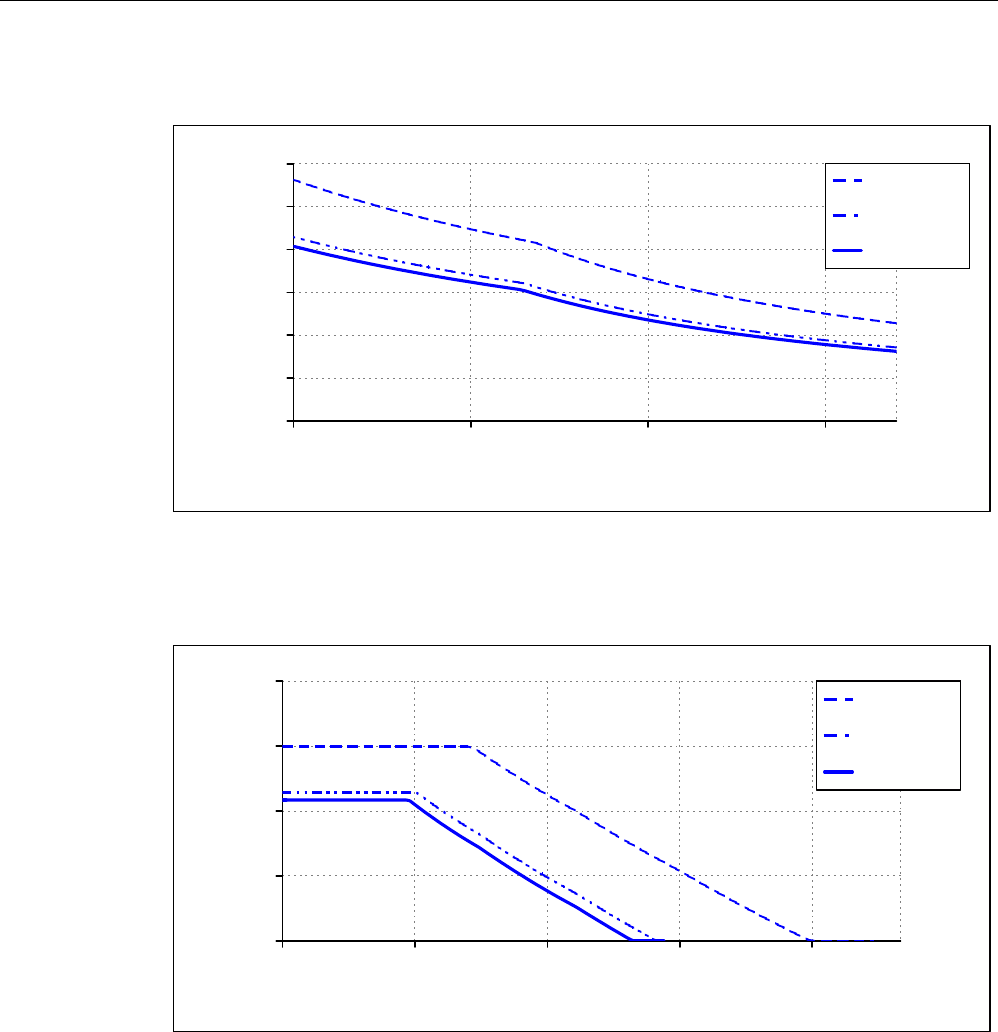

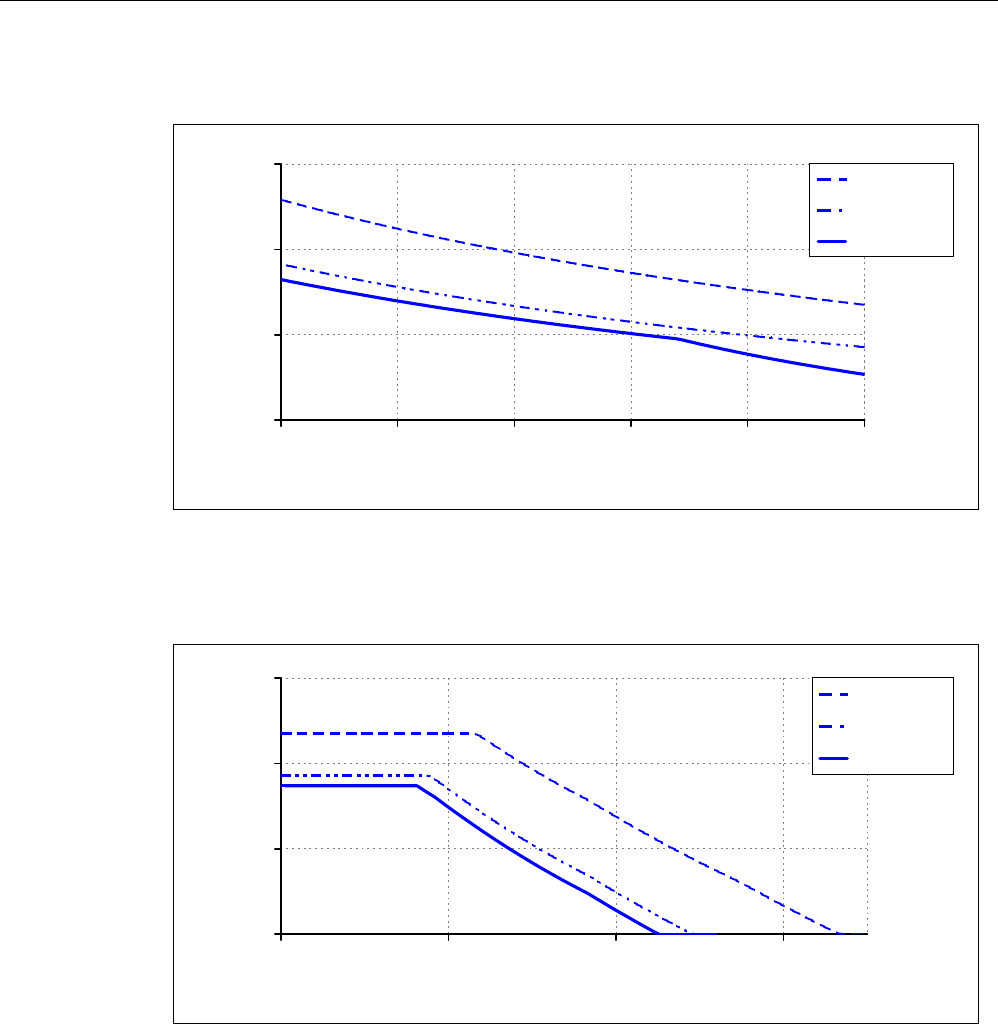

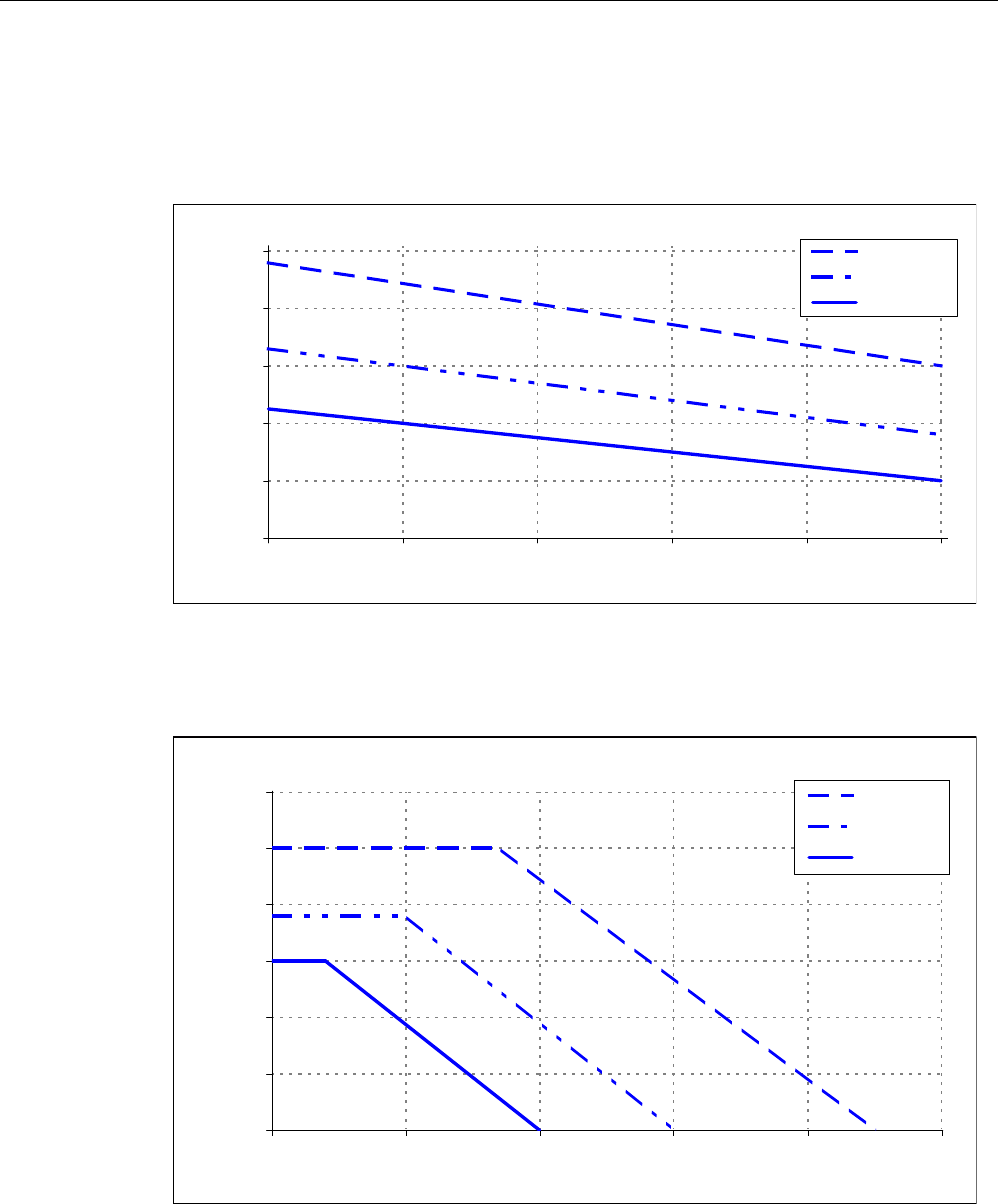

Radial force diagram for 1FW315❑ hollow shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
Figure 3-6 Radial force diagram for 1FW315❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW315❑ hollow shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
Figure 3-7 Permissible axial force as a function of radial force for 1FW315❑
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 61

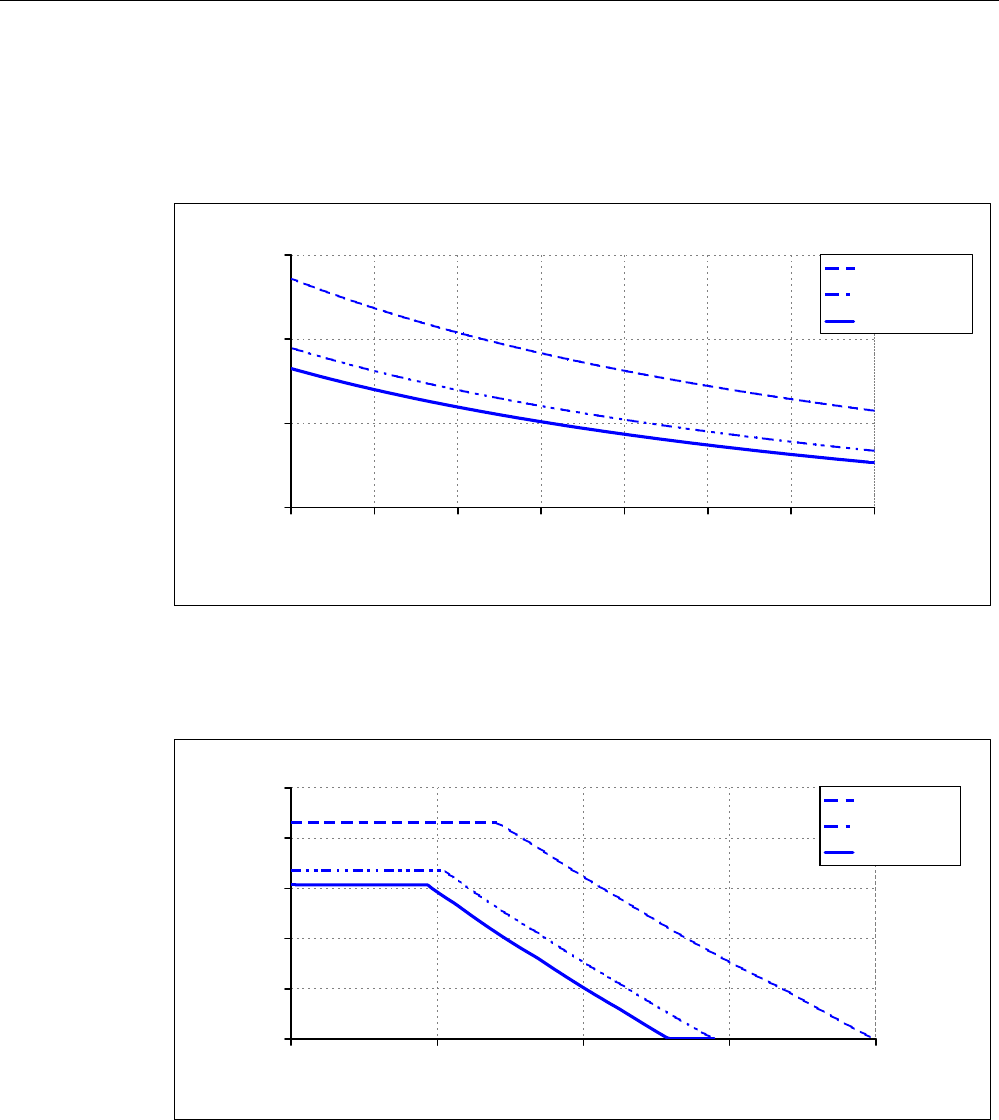

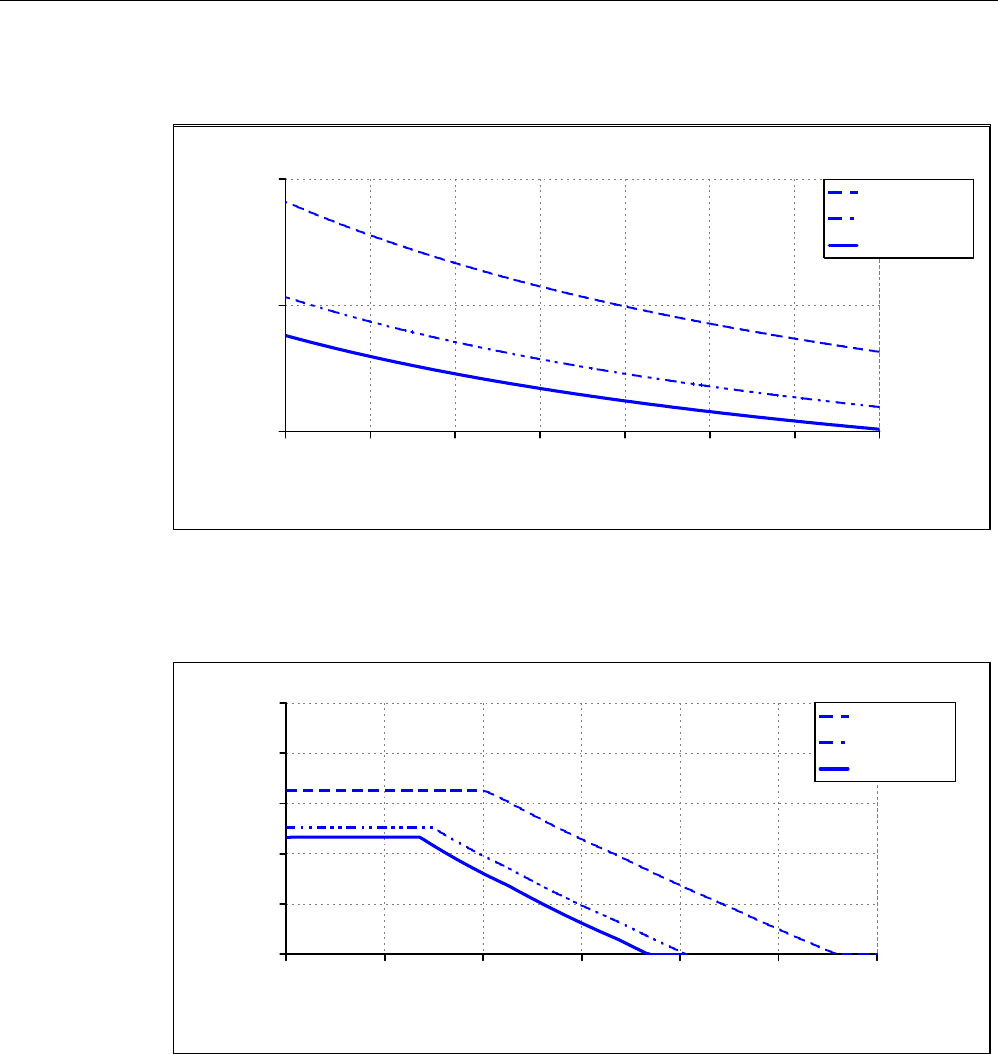

Radial force diagram for 1FW320❑ hollow shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
Figure 3-8 Radial force diagram for 1FW320❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW320❑ hollow shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
0 1000 2000 3000 4000 5000 6000
Figure 3-9 Permissible axial force as a function of radial force for 1FW320❑
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
62 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Radial force diagram for 1FW328❑ hollow shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
Figure 3-10 Radial force diagram for 1FW328❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW328❑ hollow shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
600 1/min
400 1/min
250 1/min
Figure 3-11 Permissible axial force as a function of radial force for 1FW328❑
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 63

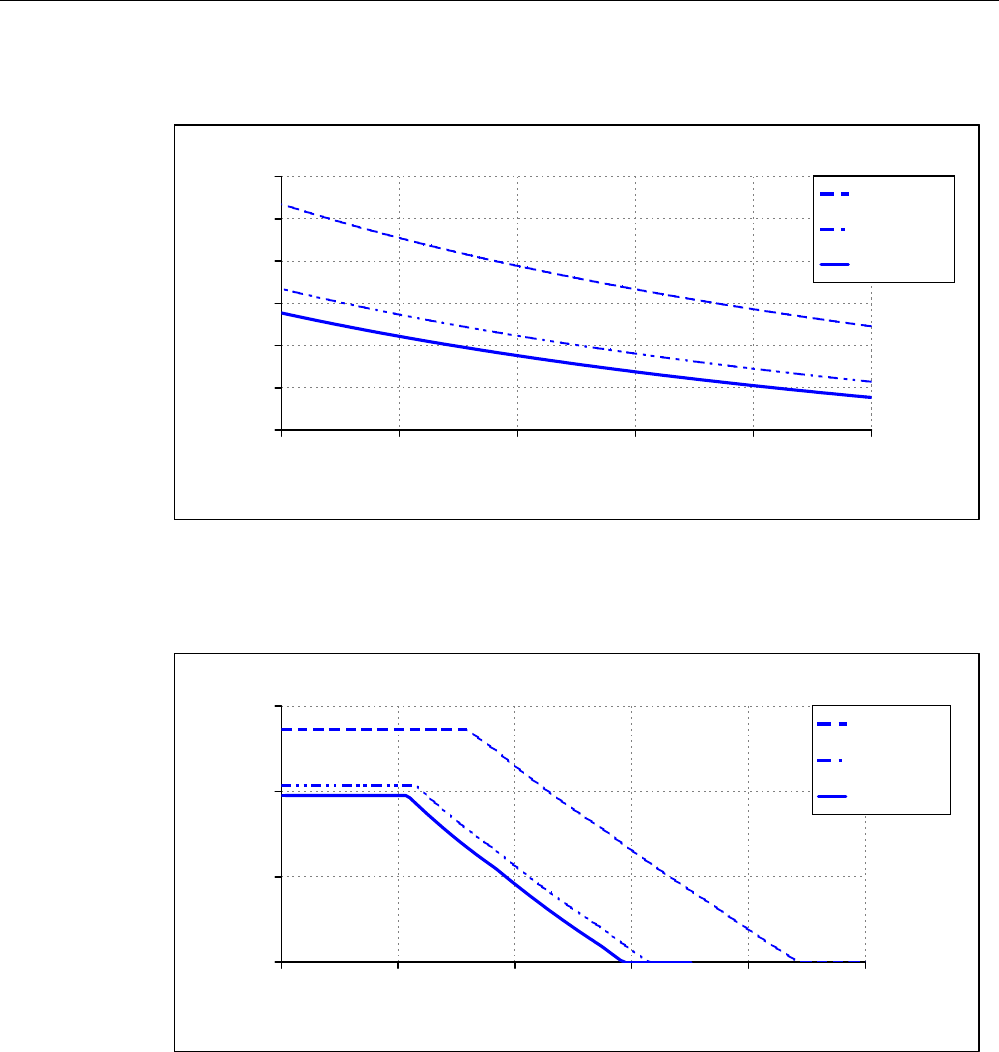

3.5.2 Plug-on shaft
Radial force diagram, 1FW315❑ plug-on shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
0 20 40 60 80 100
PLQ
PLQ
PLQ
Figure 3-12 Radial force diagram for 1FW315❑, with nominal bearing change interval of 20000 h
Axial force diagram 1FW315❑ plug-on shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
0 2000 4000 6000 8000 10000
Figure 3-13 Permissible axial force as a function of radial force for 1FW315❑ (20000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
64 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Radial force diagram, 1FW315❑ plug-on shaft
5DGLDOIRUFH>1@
&OHDUDQFH[>PP@
PLQ
PLQ
PLQ
02
0406080100
Figure 3-14 Radial force diagram for 1FW315❑, with nominal bearing change interval of 60000 h
Axial force diagram 1FW315❑ plug-on shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
0 2000 4000 6000
Figure 3-15 Permissible axial force as a function of radial force for 1FW315❑ (60000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 65
Radial force diagram 1FW320❑ plug-on shaft
PLQ
PLQ
PLQ
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
0 20 40 60 80 100
Figure 3-16 Radial force diagram for 1FW320❑, with nominal bearing change interval of 20000 h
Axial force diagram 1FW320❑ plug-on shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
0 2000 4000 6000 8000 10000
Figure 3-17 Permissible axial force as a function of radial force for 1FW320❑ (20000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
66 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Radial force diagram 1FW320❑ plug-on shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
0 20 40 60 80 100
Figure 3-18 Radial force diagram for 1FW320❑, with nominal bearing change interval of 60000 h
Axial force diagram 1FW320❑ plug-on shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
0 1000 2000 3000 4000 5000 6000 7000
PLQ
PLQ
PLQ
Figure 3-19 Permissible axial force as a function of radial force for 1FW320❑ (60000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 67
3.5.3 Solid shaft
Radial force diagram for 1FW315❑, solid shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
PLQ
PLQ
PLQ
Figure 3-20 Radial force diagram for 1FW315❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW315❑, solid shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
0 2000 4000 6000 8000
PLQ
PLQ
PLQ
Figure 3-21 Permissible axial force as a function of radial force for 1FW315❑ (20000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
68 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Radial force diagram for 1FW315❑, solid shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
0 20 40 60 80 100 120 140
PLQ
PLQ
PLQ
Figure 3-22 Radial force diagram for 1FW315❑, with nominal bearing change interval of 60000 h
Axial force diagram for 1FW315❑, solid shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
0 1000 2000 3000 4000 5000 6000
PLQ
PLQ
PLQ
Figure 3-23 Permissible axial force as a function of radial force for 1FW315❑ (60000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 69
Radial force diagram for 1FW320❑, solid shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
0 50 100 150
PLQ
PLQ
PLQ
Figure 3-24 Radial force diagram for 1FW320❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW320❑, solid shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
0 4000 8000 12000 16000
PLQ
PLQ
PLQ
Figure 3-25 Permissible axial force as a function of radial force for 1FW320❑ (20000 h)
Mechanical properties of the motors
3.5 Radial and axial forces
SIMOTICS T-1FW3 complete torque motors
70 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Radial force diagram for 1FW320❑, solid shaft
&OHDUDQFH[>PP@
5DGLDOIRUFH>1@
0 50 100 150
PLQ
PLQ
PLQ
Figure 3-26 Radial force diagram for 1FW320❑, with nominal bearing change interval of 60000 h
Axial force diagram for 1FW320❑, solid shaft
$[LDOIRUFH>1@
5DGLDOIRUFH>1@
0 3000 6000 9000 12000
PLQ
PLQ
PLQ
Figure 3-27 Permissible axial force as a function of radial force for 1FW320❑ (60000 h)
Mechanical properties of the motors
3.6 Balancing process
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 71
3.6 Balancing process
Requirements placed on the process when balancing mounted components - especially belt pulleys
In addition to the balance quality of the motor, the vibration quality of motors with mounted
belt pulleys and coupling is essentially determined by the balance quality of the mounted
component.
If the motor and mounted component are separately balanced before they are assembled,
then the process used to balance the belt pulley or coupling must be adapted to the motor
balancing type.
For synchronous motors, a differentiation should be made between the following balancing
types:
● Half-key balancing (an "H" is stamped on the shaft face)
● Full-key balancing (an "F" is stamped on the shaft face)
● Smooth shaft end (no keyway)
The balancing type is coded in the order designation.
Table 3- 13 Requirements placed on the balancing process as a function of the motor balancing type
Balancing equipment/
Process step
Motor
Half key balanced
Motor
Full key balanced
Motor
with plain shaft end
Auxiliary shaft to balance
the mounted component
Auxiliary shaft with
keyway
Keyway with the same
dimensions as in the
motor shaft end
Auxiliary shaft half key
balanced
Auxiliary shaft with
keyway
Slot design with the
exception of the slot
width (as the motor) can
be freely selected
Auxiliary shaft full key
balanced
Auxiliary shaft without
keyway
If required, use a tapered
auxiliary shaft
Balance quality of the auxiliary shaft ≤ 10 % of the required balance quality of the
component to be mounted to the motor
Attaching the mounted
component
to the auxiliary shaft for
balancing
Attached using a key
Key design, dimensions
and materials the same
as at the motor shaft end
Attached using a key
Key design, dimensions
and material the same as
used for the full key
balancing of the auxiliary
shaft
Attach the component as
far as possible without
any play,
e.g. using a light press fit
on the tapered shaft
Position the mounted
component on the auxiliary
shaft
Select a position between
the mounted component
and the key of the
auxiliary shaft so that it is
the same when mounted
on the actual motor
No special requirements
Balance the mounted
component
Two-plane balancing is recommended - i.e. balancing in two planes at both sides of the
mounted components at right angles to the axis of rotation
Mechanical properties of the motors
3.7 Vibration severity grade
SIMOTICS T-1FW3 complete torque motors
72 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Special requirements
If special requirements are placed on the smooth running operation of the machine, we
recommend that the motor together with the output components is completely balanced. In
this case, balancing should be carried out in two planes of the output component.

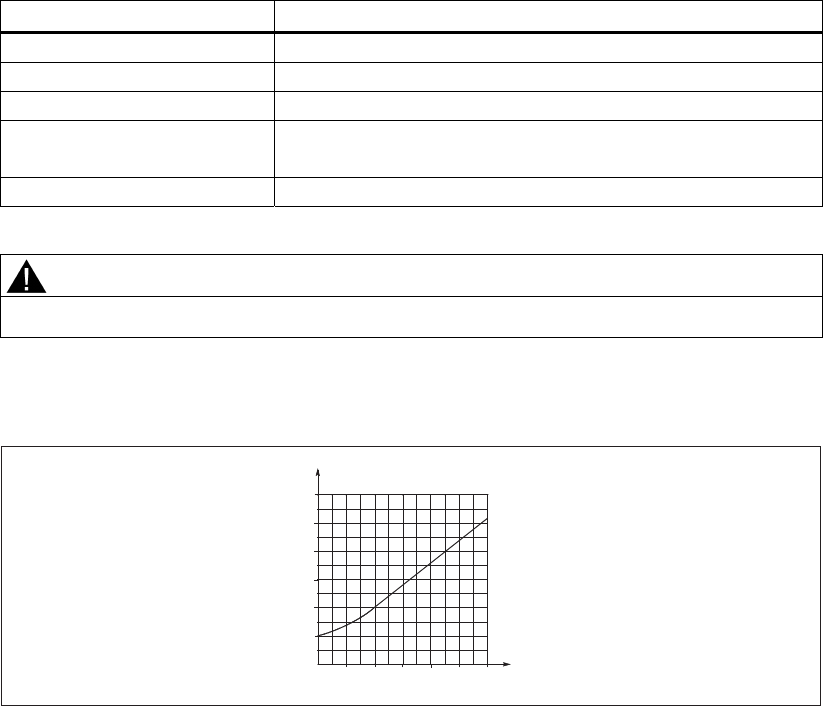

3.7 Vibration severity grade
The motors conform to vibration severity grade A in accordance with EN 60034-14
(IEC 60034-14).
The specified values refer to the motor only. The vibration behavior as a result of the
mounting can result in increased values at the motor.
The vibration severity grade is maintained up to the rated speed (nN).
Q>USP@
6HYHULW\JUDGH$
UPVSHUP >PPV@
Y
Figure 3-28 Vibration severity grade
3.8 Noise emission
When operated in the approved speed range, 1FW3 motors can reach the following
measuring-surface sound-pressure level Lp(A):
Max. 73 dB(A) at 4 kHz rated pulse frequency at the nominal operating point
Note
Sound pressure level when reducing the pulse frequency
When the pulse frequency is reduced, a significantly higher sound pressure level can occur.
The motors are certified for a wide range of installation and operating conditions. These
conditions, such as rigid or vibration-isolated foundation design, influence noise emission,
sometimes significantly.
Mechanical properties of the motors
3.9 Gear ratio
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 73
3.9 Gear ratio
For the "hollow shaft" version, the encoder can be driven by a toothed belt. Order
designation (MLFB) 11th position = 5 or 7. The gear ratio is in accordance with the table
"Gear ratio".
Table 3- 14 Ratio
Shaft height
i
Remarks
1FW315⃞ -3.5
1FW320⃞ -3.5
1FW328⃞ -5

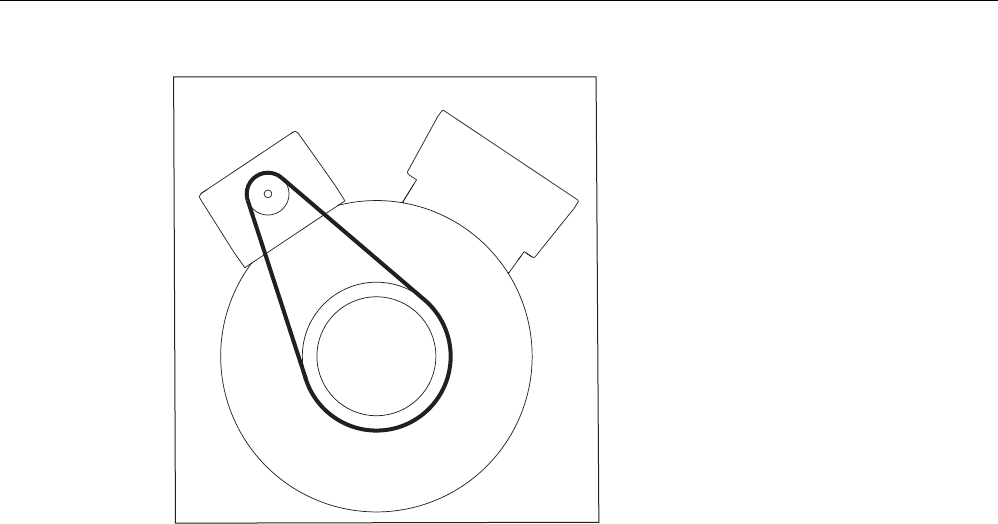

The encoders are connected to the motor shaft through a
belt drive (toothed belts). The sign for the gear ratio is
negative due to the reverse direction of rotation of the
encoder with respect to the motor.
Toothed belt lifetime: max. 20000 h.
3.10 Paint finish
The 1FW3 complete torque motors are shipped with an anthracite paint finish (similar to
RAL 7016).
Option: Special paint finish.
Mechanical properties of the motors
3.10 Paint finish
SIMOTICS T-1FW3 complete torque motors
74 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 75
Technical specifications and characteristic curves 4
Permissible operating range
The permissible operating range is limited by thermal, mechanical, and electromagnetic
boundaries.
Permissible winding temperature range
The temperature rise of the motor is caused by the losses generated in the motor (current-
dependent losses, no-load losses, friction losses). Utilizing the insulation system according
to temperature class 155 (F) has a limiting effect.
Torque characteristics of motor
The maximum permissible torque depends on the permissible winding overtemperature
(100 K) and, in turn, on the mode. To adhere to the temperature limits, the torque must be
reduced as the speed increases, starting from static torque M0.
The characteristics refer to continuous duty S1 (100 K).
WARNING
Continuous duty in the area above the S1 characteristic curve is not thermally permitted for
the motor.
The speed range is affected by:
● The maximum permissible speed (mechanical) nmax mech (centrifugal forces on the rotor,
bearing lifetime), or
● The maximum permissible speed on the converter nmax Inv (output frequency, voltage
strength of the converter and/or motor)
Technical specifications and characteristic curves
SIMOTICS T-1FW3 complete torque motors
76 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Winding versions
A number of winding versions (armature circuit versions) for different rated speeds nN are
possible within one motor frame size.
Table 4- 1 Code letter for the winding version
Rated speed nN
[rpm]
Winding version
(10th position of the Order No.)
150 E
250 G
300 H
400 J
500 L
600 M
750 P for SH 150
800 P for SH 200
1200 S
Maximum converter output voltage
The maximum converter output voltages differ according to the converter type and line
supply voltage.
Table 4- 2 Maximum converter output voltages
Supply
voltage
DC link voltage Output voltage
Converter type Infeed
module
Vline V
DC link V
mot
ALM 400 V 600 V 425 V
ALM 480 V 720 V 510 V
SLM 400 V 528 V 380 V
SINAMICS S120
3-ph. 380 - 480 V AC
SLM 480 V 634 V 460 V
Torque limit when operating on a SINAMICS S120 with field weakening
The SINAMICS S120 converter injects a field weakening current, which means that the
motor can operate above the voltage limiting characteristic. The method used by the
converter to inject the field weakening current has a significant influence on the curve
characteristic.
The characteristics shown apply to operation on a SINAMICS S120 converter.
Field weakening operation is always active for a SINAMICS S120 converter.
The shape of the characteristics in field weakening mode depends on the position of the
voltage limiting characteristic. Therefore, an appropriate torque-speed characteristic is
assigned in the field-weakening range for each converter output voltage.
Technical specifications and characteristic curves
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 77
0D[
/LPLW
9ROWDJHOLPLWLQJFKDUDFWHULVWLF
)LHOGZHDNHQLQJ
9ROWDJHOLPLWLQJFKDUDFWHULVWLF
/LPLWHGE\'&OLQNYROWDJH
&RQWLQXRXVGXW\
Q>USP@
PD[LQY
1.
6.
.
0>1P@
Q1
0
0
0
0
Q
Figure 4-1 Torque characteristic of a synchronous motor operating on a SINAMICS drive system
with field weakening (example characteristic)
The permissible speed range has been limited to nmax Inv.
Torque limit when operating on a SINAMICS S120 without field weakening
It is possible to deactivate the field weakening function with the SINAMICS S120 drive
system. This therefore reduces the operating range that is available.
The shape of the voltage limiting characteristic is determined by the winding version and the
magnitude of the converter output voltage.
The voltage induced in the motor winding increases as the speed increases. The difference
between the DC link voltage of the converter and the induced motor voltage can be used to
apply the current.
For converters without field weakening option, this limits the magnitude of the current that
can be impressed. This causes the torque to drop off quickly at high speeds. All operating
points that can be achieved with the motor lie to the left of the voltage limiting characteristic
that is shown in the diagram.
Technical specifications and characteristic curves
SIMOTICS T-1FW3 complete torque motors
78 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
The characteristic curve is plotted for each winding version in a separate data sheet
(see Chapter "Speed-torque characteristics"). The speed-torque characteristics for different
converter output voltages are then assigned to each data sheet.
Note
The voltage limit characteristic of a motor with 600 rpm rated speed lies far above that of the
same motor type with 200 rpm. However, for the same torque, this motor requires a
significantly higher current.
For this reason, you should select the rated speed such that it does not lie too far above the
maximum speed required for the application.
The size (rating) of the converter module (output current) can be minimized in this fashion
Offset of the voltage limit characteristic
NOTICE
A offset of the voltage limiting characteristic can only used in the case of approximately
linear limiting characteristic curves. The voltage limiting characteristic can be offset only if
the condition Vmot, new > ViN is fulfilled.
The induced voltage UiN can be taken from the motor rating plate or calculated according to
the following formula: UiN = kE ∙ nN / 1000
In order to identify the limits of the motor for a converter output voltage (Umot) other than
380 V, 425 V, 460 V or 510 V, the relevant voltage limiting characteristic curve must be
shifted (offset) for the particular new output voltage (Umot, new).
The degree of offset is obtained as follows:
For an output voltage of Vmot, new, an offset is obtained along the X axis (speed) by a factor of:
Vmot, new = new converter output voltage
8
PRWQHZ
8
PRW
Vmot = drive converter output voltage from the characteristic curve for
380 V, 425 V, 460 V or 510 V
Technical specifications and characteristic curves
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 79
Calculating the new limit torque with the new limiting characteristic
Q1
9ROWDJHOLPLWLQJFKDUDFWHULVWLFIRU80RW
1HZYROWDJHOLPLWLQJFKDUDFWHULVWLFIRU80RWQHZ
0OLPLW
0OLPLWQHZ
3 Q
3 Q
Q>PLQ@
0>1P@
3
3
P1 Intersection of the voltage limiting characteristic on the x axis; calculate speed n1.
N
8
Q>PLQ@
0RW
(
P2 Intersection of the new voltage limiting characteristic on the x axis; calculate speed n2
ವ
8
8
Q>USP@ Q
PRWQHZ
0RW
P3 At nN draw a line vertically upwards, up to the voltage limiting characteristic. This point
of intersection is P3. On the left-hand side, read off Mlimit.
P4 In order to determine P4, Mlimit, new must first be calculated.
ವ
0
OLPLWQHZ
0OLPLW
8
0RWQHZ
8
L1
8
0RW
8
L1
P4 is the intersection of Mlimit, new and nN. The new voltage limiting characteristic is obtained
by connecting P2 and P4.
Example of offset of voltage limiting characteristic curve without field weakening
Motor 1FW3201-1❑L
nN = 500 rpm
kE = 520 V/1000 rpm
Umot, new should be 290 V; in the example, the calculation is made with UMot = 425 V
It first must be checked as to whether the condition UMot, new > UiN is fulfilled.
UiN = kE ∙ nN/1000; UiN = 520 ∙ 500/1000 = 260 V → condition Umot, new > UiN is fulfilled.
Technical specifications and characteristic curves
SIMOTICS T-1FW3 complete torque motors
80 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
&DOFXODWLRQ3
&DOFXODWLRQ3
&DOFXODWLRQ3
&DOFXODWLRQ3
5HDGRII0
OLPLW
DWQ
1
USPDQG9DSSUR[1P
0
OLPLWQHZ
ವ
ವ
PLQ
PLQ
Q
Q
1P
ವ
Enter and connect points P2 and P4. This line is the new voltage limiting characteristic for
Vmot, new = 290 V.
Tolerance data
The characteristic data listed in the data sheets are nominal values that are subject to
natural scatter.
Table 4- 3 Tolerance data in the motor list data
Motor list data Typ. value Guaranteed value
Stall current I0 ± 3 % ± 7,5 %
Electrical time constant Tel ± 5 % ± 10 %
Torque constant kT ± 3 % ± 7,5 %
Voltage constant kE ± 3 % ± 7,5 %
Winding resistance Rph ± 5 % ± 10 %
Moment of inertia Jmot ± 2 % ± 10 %
Effects of temperature and parameter scatter on the characteristic
The torque-speed characteristics specified in the following chapter relate to the nominal
values at operating temperature.
Speed limits nmax Inv
The speed is limited by the mechanical limit speed nmax mech (centrifugal forces at the rotor,
bearing service life) or the electrical limit speed nmax Inv.
CAUTION
When the machine is running (with shaft operated by motor or separately driven) at speeds
higher than nmax Inv, a voltage in excess of the maximum permissible converter voltage
might be induced in the winding. This can cause irreparable damage to the converter.
Operation is not permissible above the speed nmax Inv without protective measures or other
additional measures. Siemens AG accepts no liability for any damage occurring as a result
of failing to observe the danger warning.
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 81
Converter type Max. permissible voltage at the converter Uperm. inv
SINAMICS S120, 380-480 V 3AC 820 V
The following formula can be used to determine the maximum permissible speed nmax Inv up
to which the system can be operated without restrictions.
8 >9@
ವ
ವ
N
Q >9@
(
PD[,QY
>USP@
3HUP,QY
USP
kE = voltage constant (see Chapter "Speed-torque characteristics").
The SINAMICS S120 drive system calculates this value automatically.
When the converter is functioning properly, the voltage that occurs at the motor terminals in
field-weakening mode can be limited by generating a voltage in phase opposition to the
induced voltage.
4.1 Torque-speed characteristic
The voltages and currents specified in the data sheets are rms values. Other rated speeds
on request.
The specified rated data refer to Vline rms = 400 V, Active Line Module, DC link voltage,
600 V DC.
Note
Operation without water cooling
Complete torque motors 1FW3 can be operated without water cooling if the torque is
appropriately reduced and the thermal losses can be adequately dissipated. The reduction
factor depends on the shaft height, length and speed and can be provided when requested.
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
82 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.1.1 Shaft height 150
Table 4- 4 1FW3150, rated speed 300 rpm
Configuration data Code Unit 1FW3150-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 100
Rated power (100 K) PN (100 K) kW 3.1
Rated current (100 K) IN (100 K) A 8.0
Static torque (100 K) M0 (100 K) Nm 105
Stall current (100 K) I0 (100 K) A 7.3
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax Inv rpm 630
Maximum torque Mmax Nm 200
Maximum current Imax A 17.0
Motor data
Number of poles 2p -- 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT Nm/A 14.4
Voltage constant (at 20 °C) kE V/1000 rpm 915
Winding resistance (at 20 °C) Rph Ω 3.95
Rotating field inductance LD mH 110
Electrical time constant Tel ms 27.5
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 6.8
Moment of inertia Jmot kgm
2 0.12
Shaft torsional stiffness ct Nm/rad 3.13E+07
Weight m kg 87
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 3.4
Moment of inertia Jmot kgm
2 0.06
Shaft torsional stiffness ct Nm/rad 1.13E+06
Weight m kg 102
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 8.0
Moment of inertia Jmot kgm
2 0.14
Shaft torsional stiffness ct Nm/rad 4.17E+07
Weight m kg 102
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 83

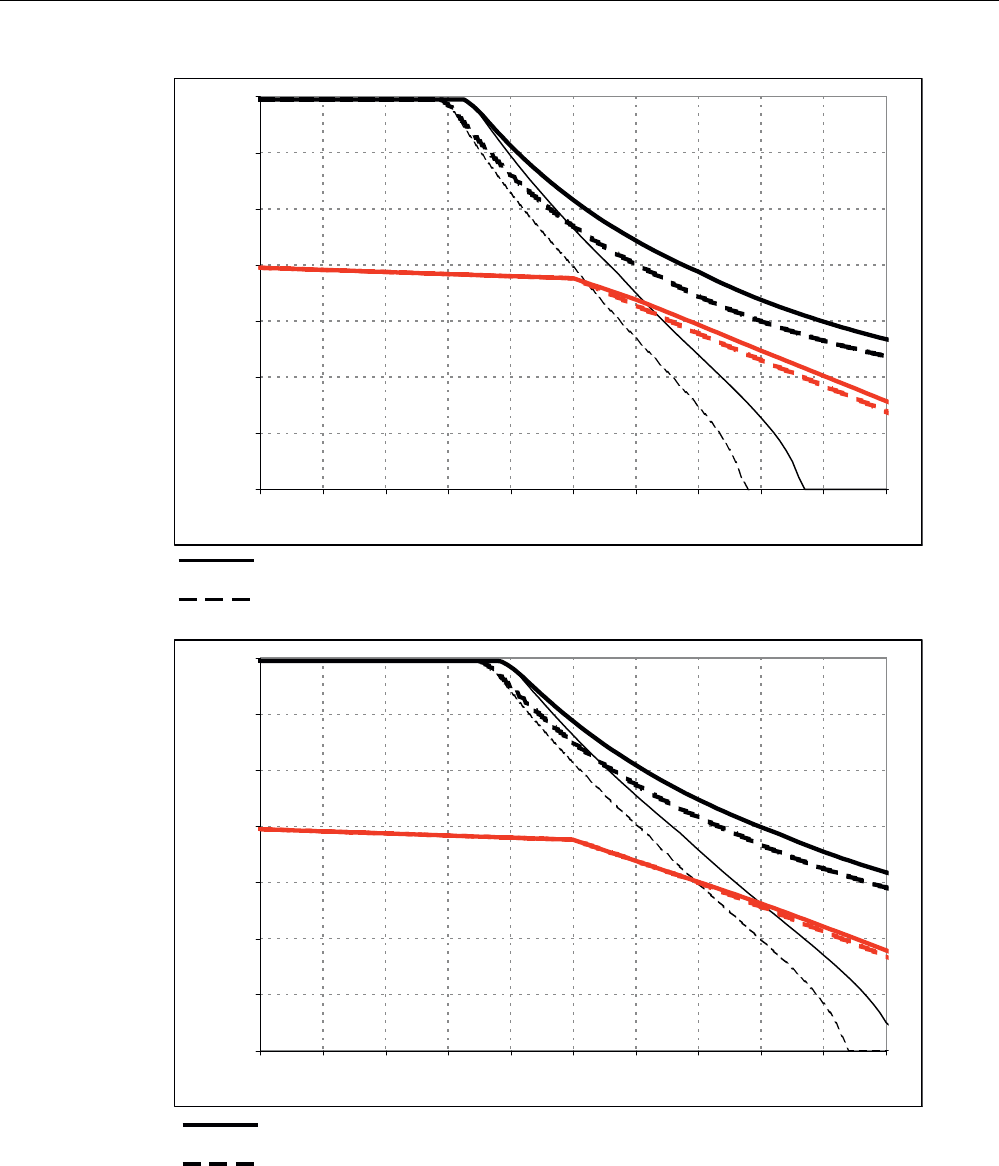

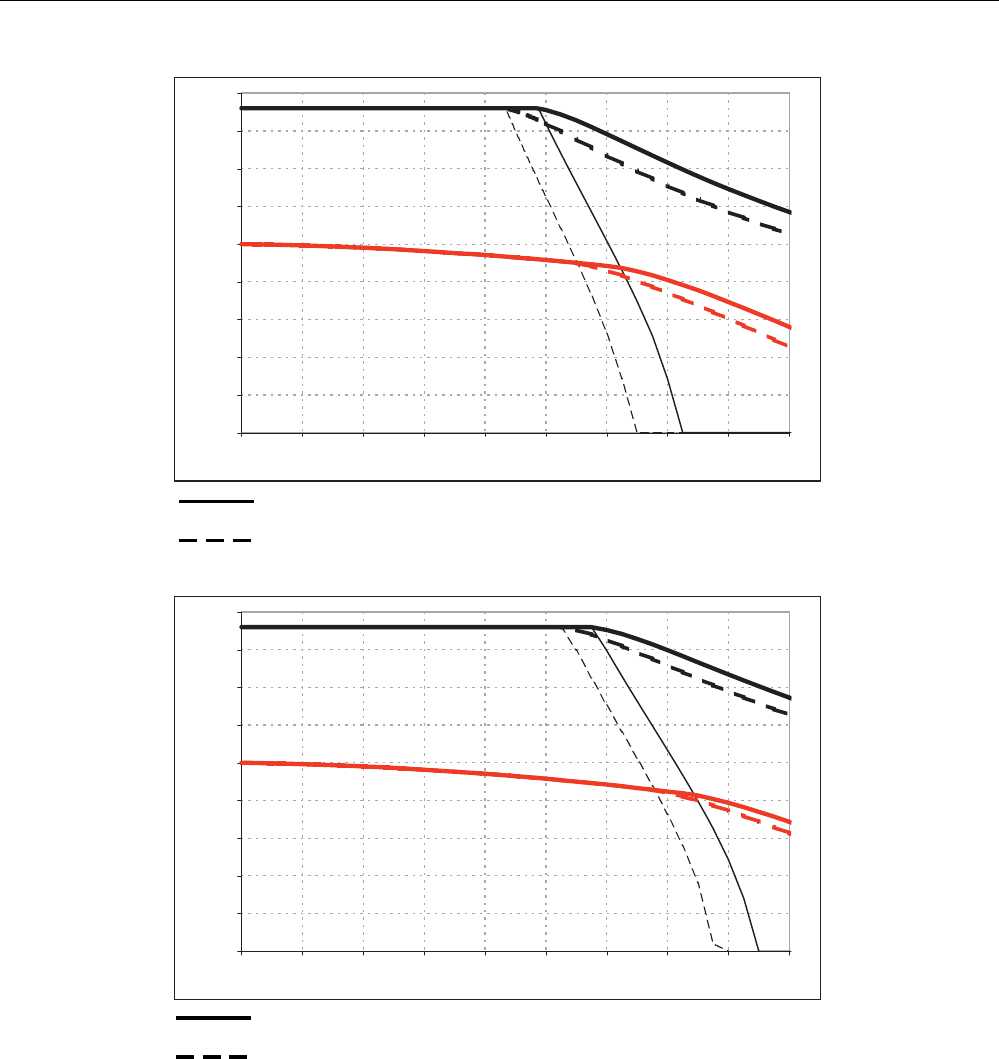

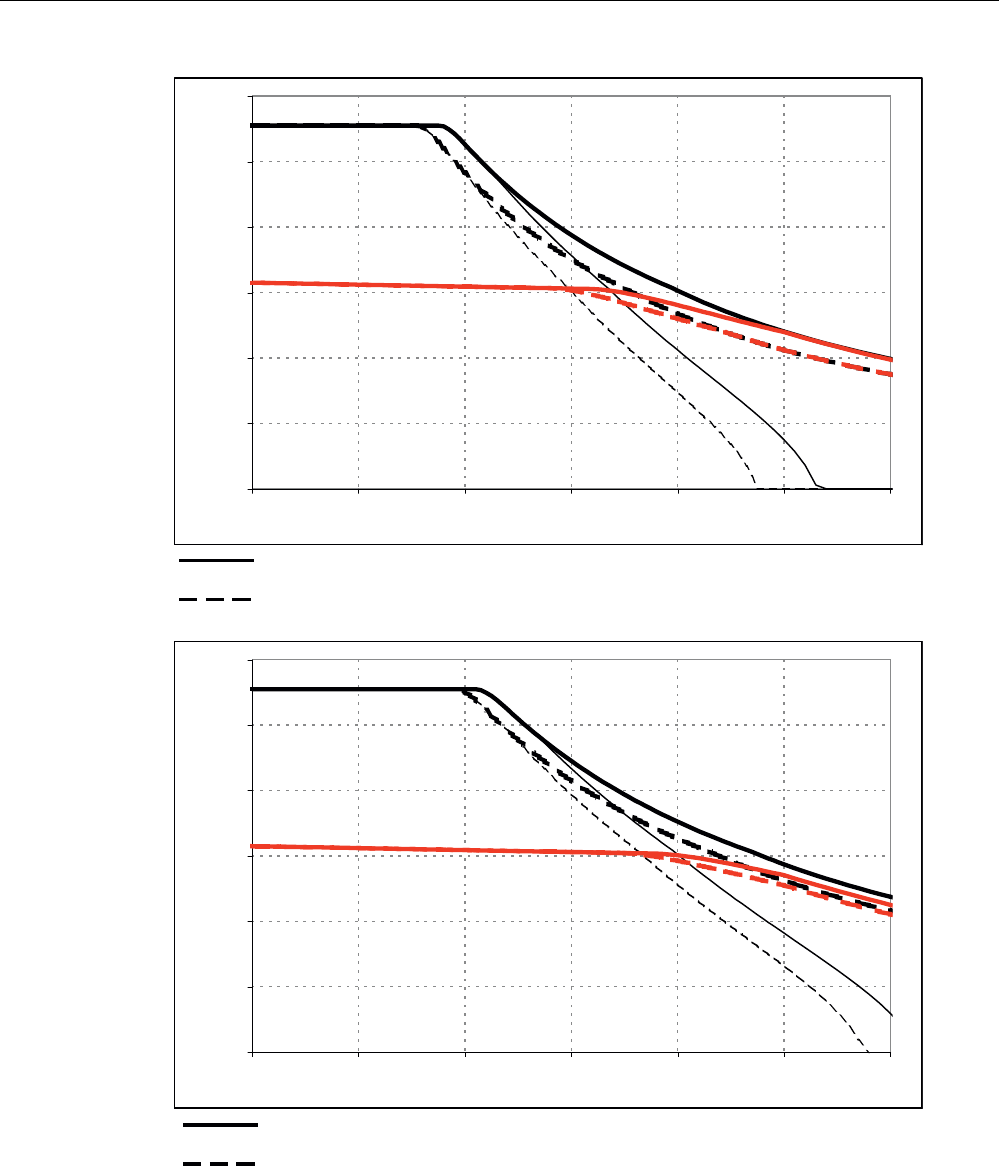

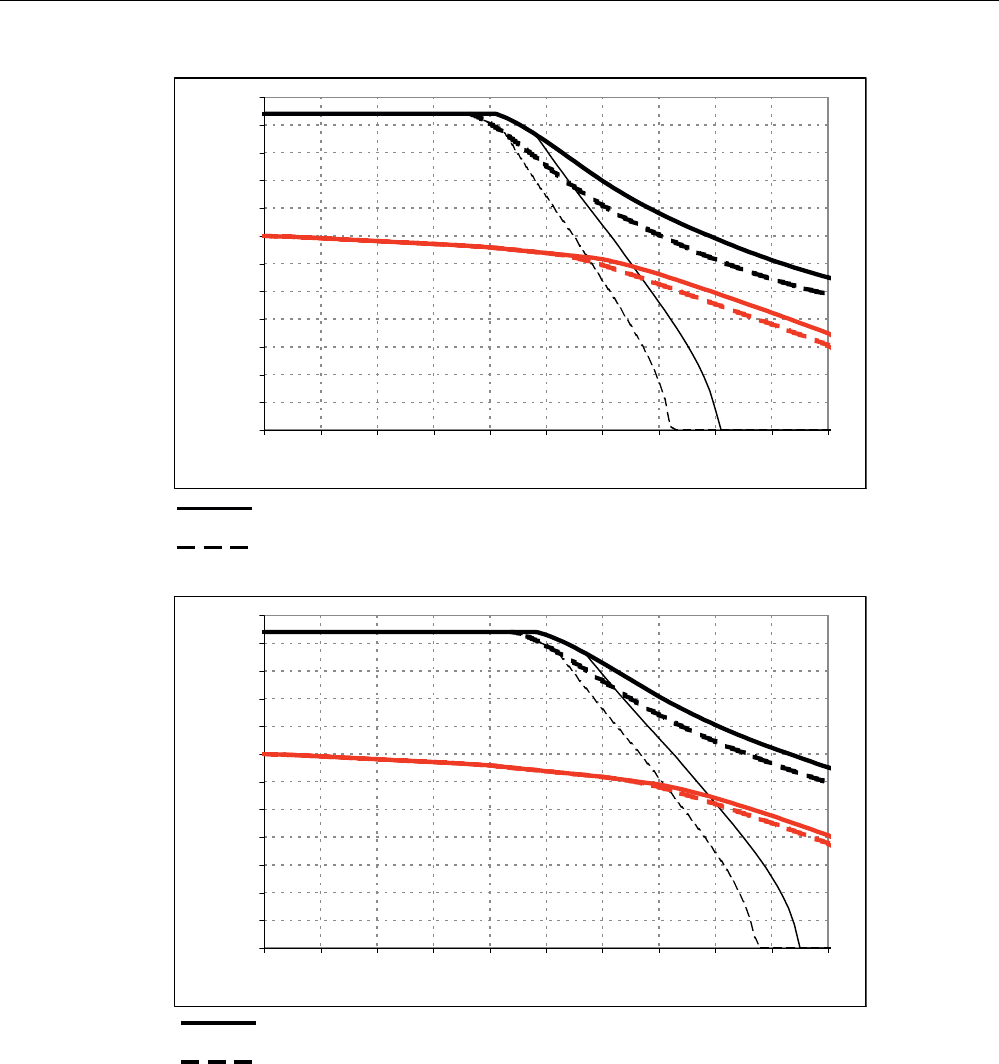

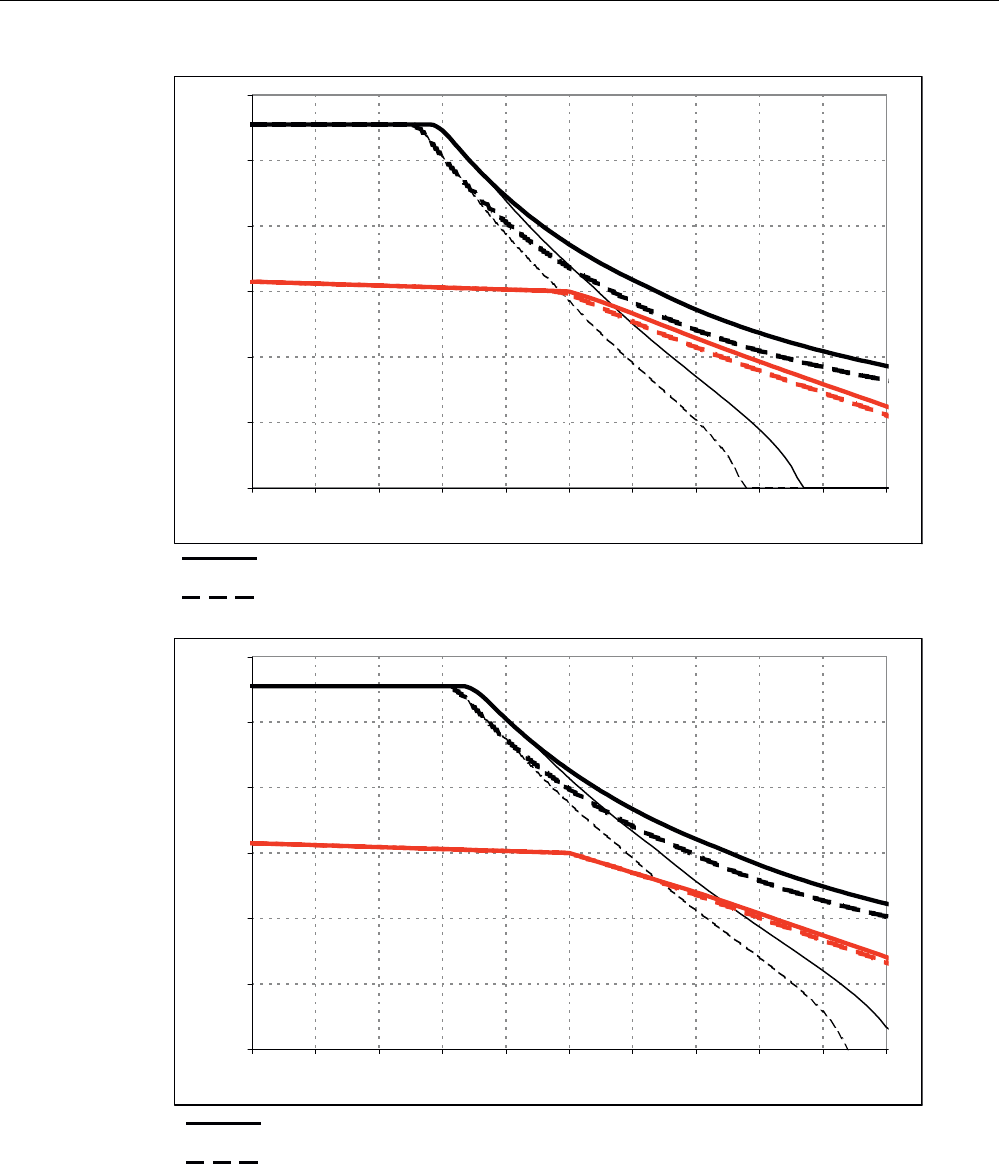

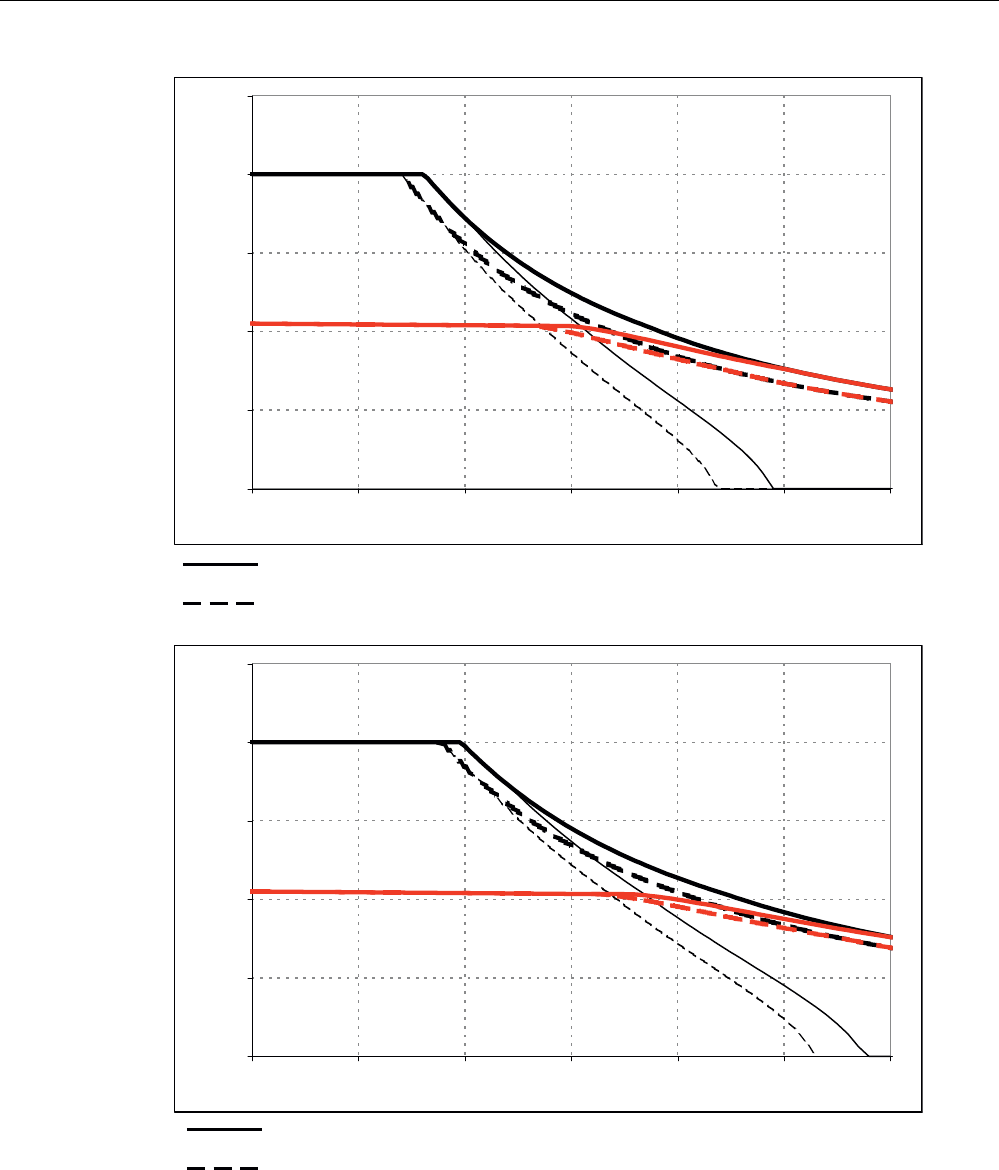

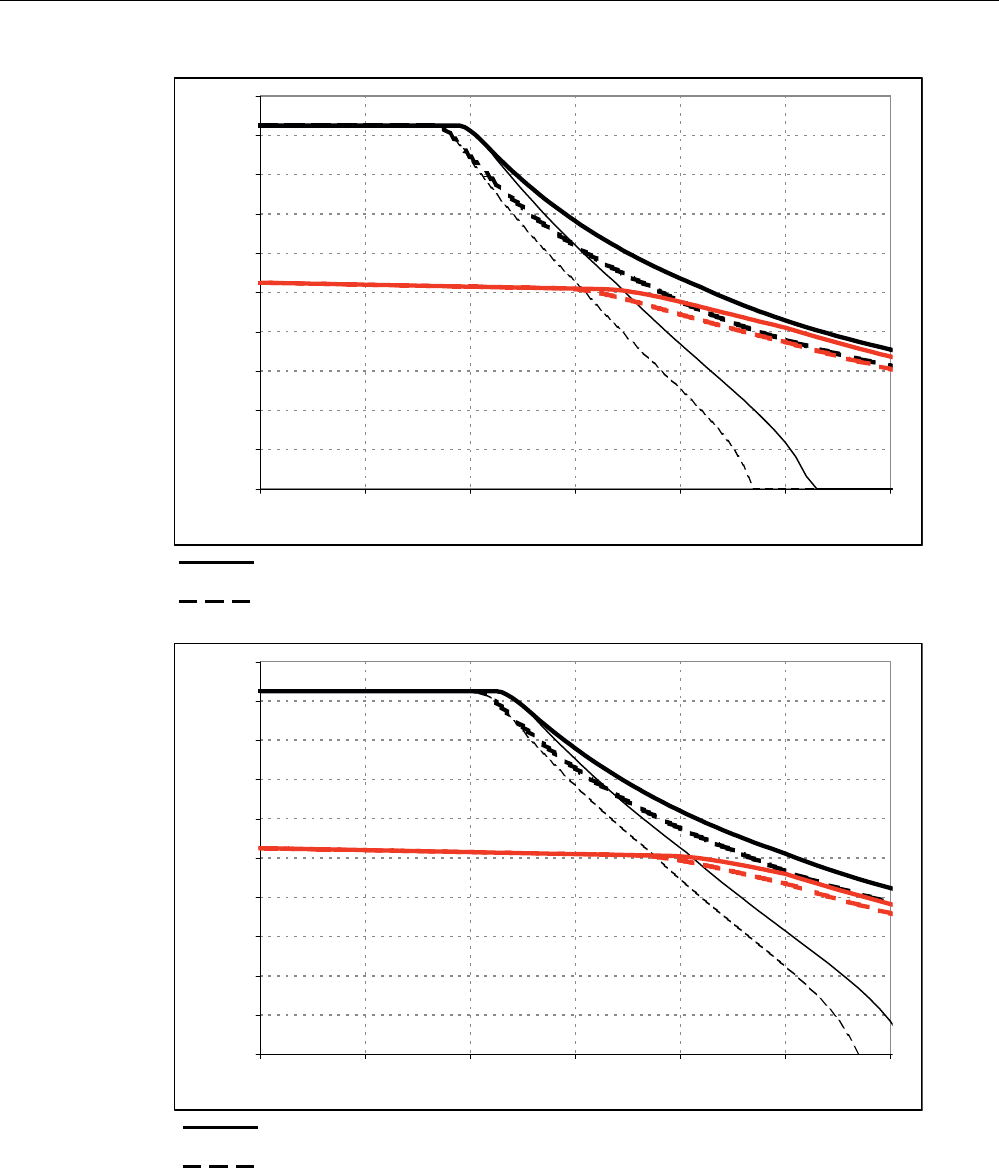

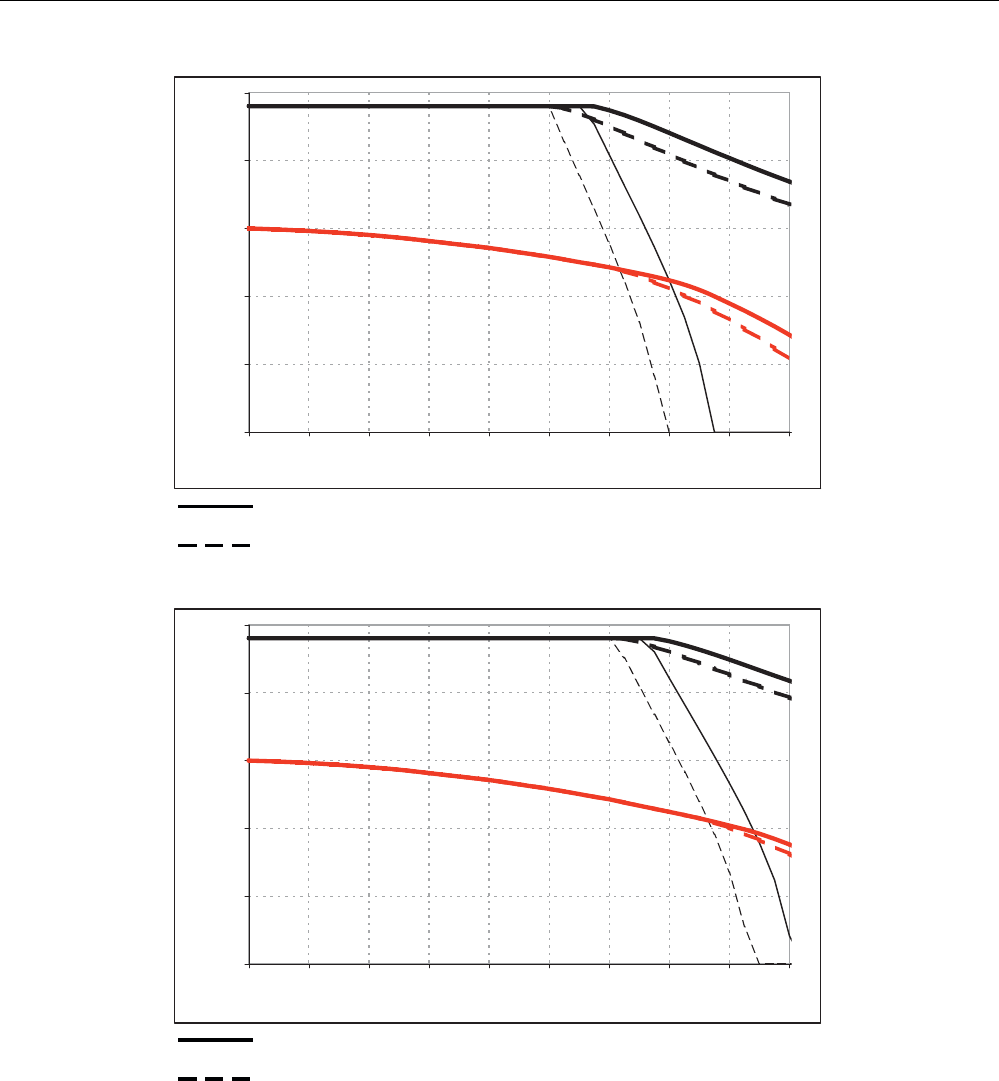

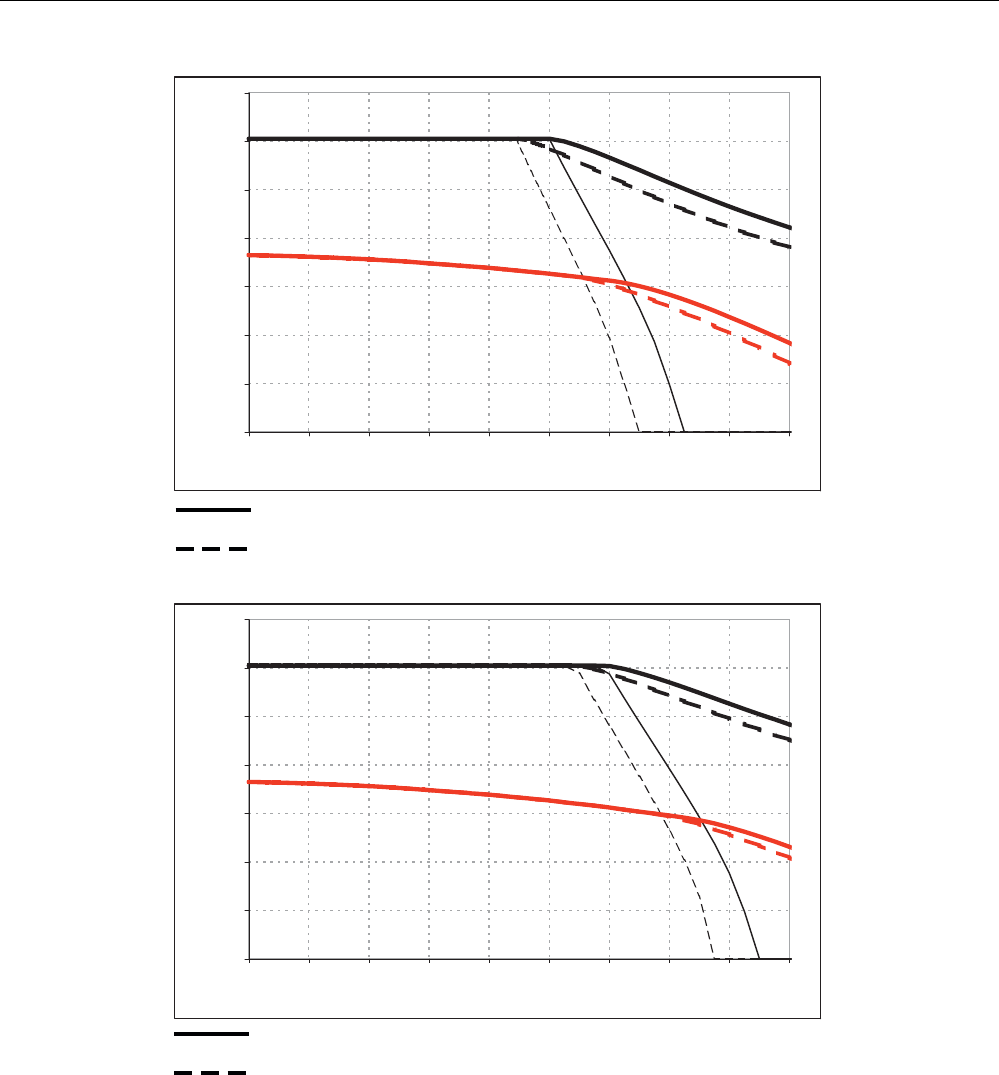

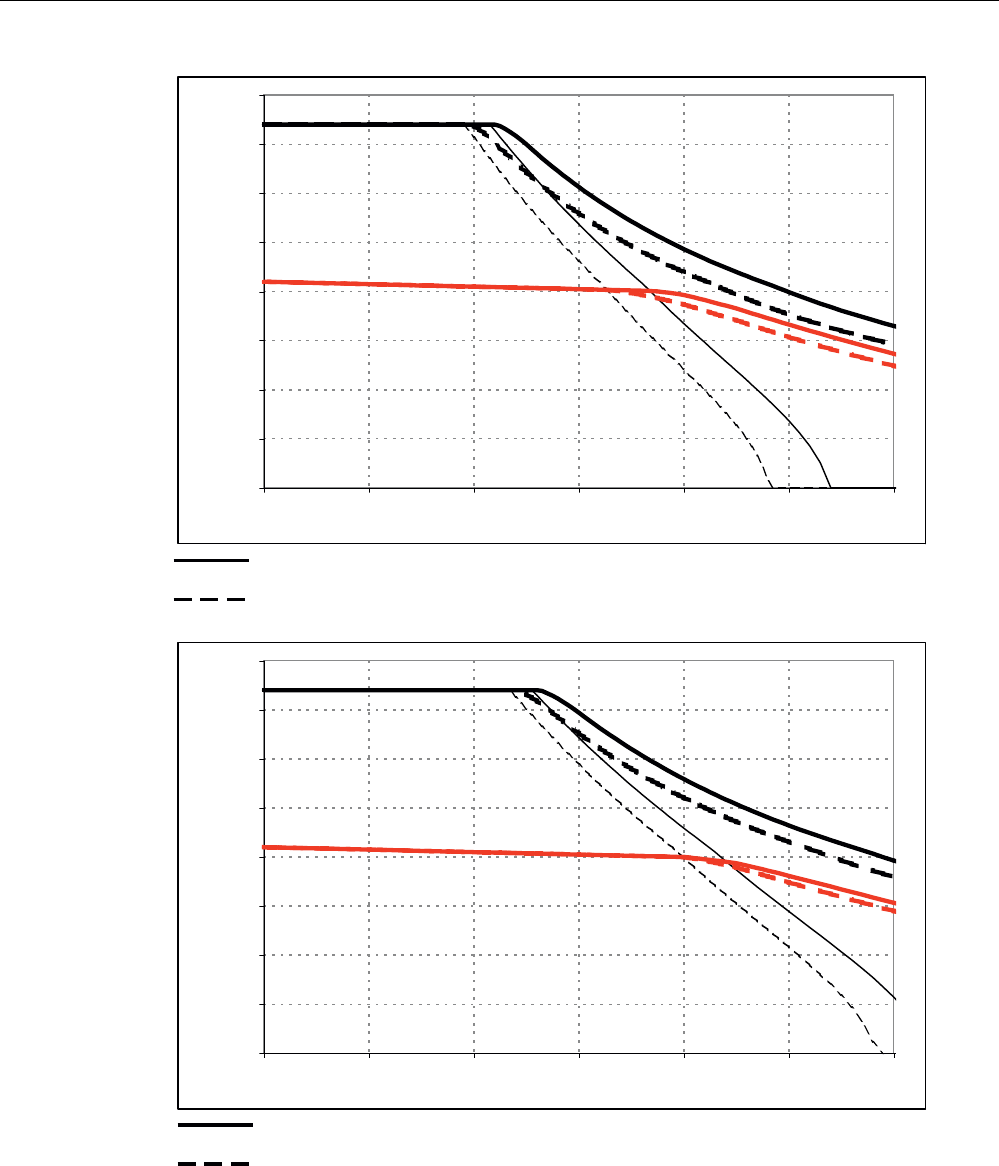

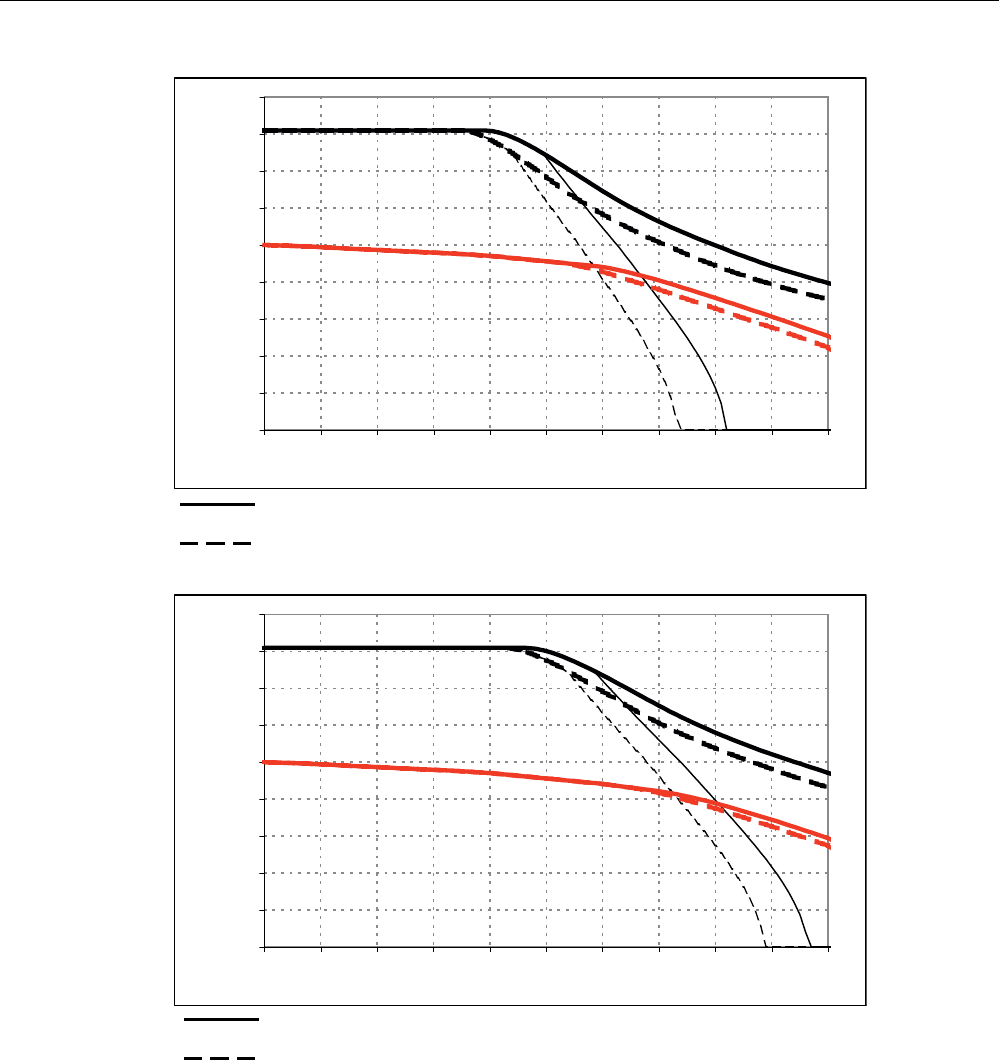

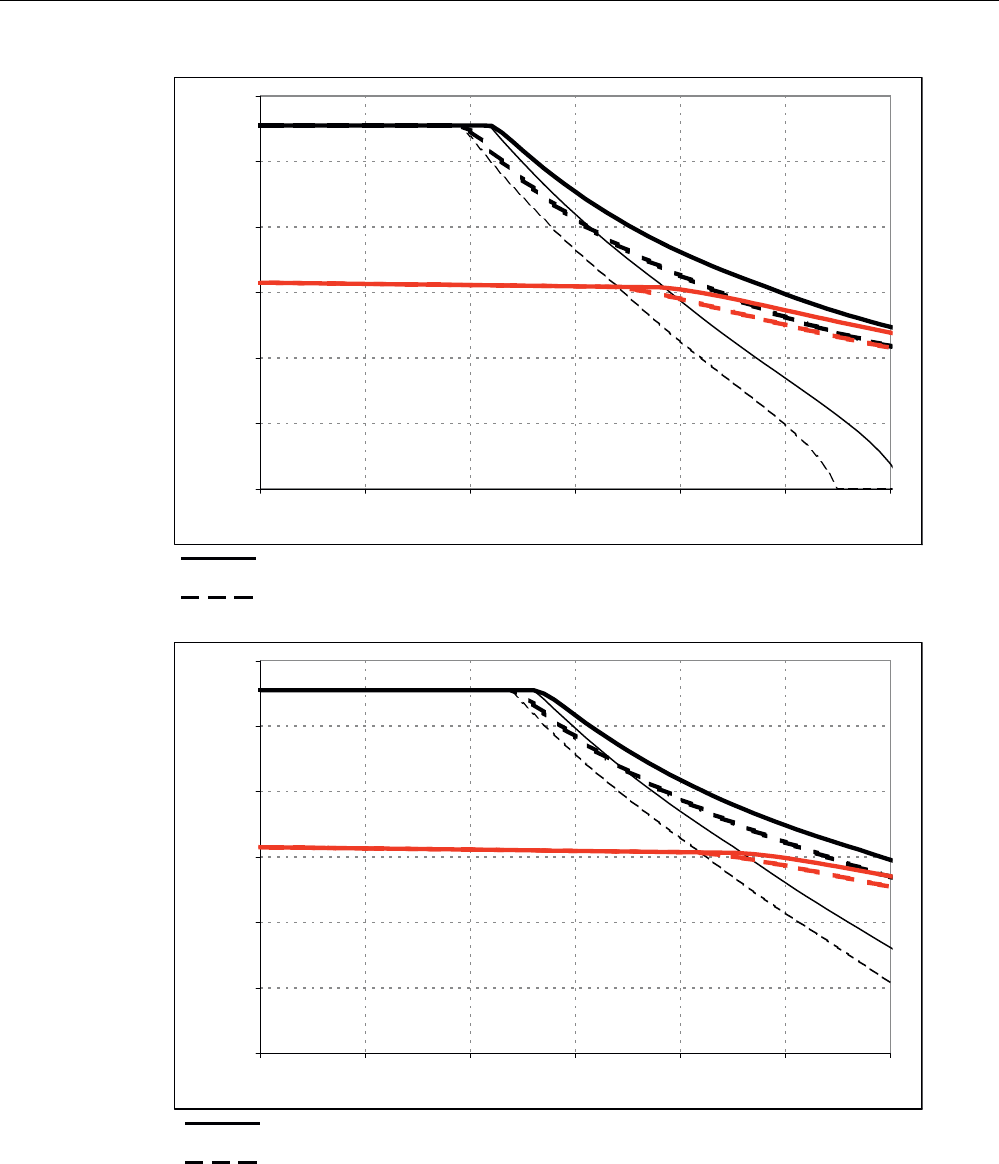

6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
0BPD[
6.
Q>USP@
0>1P@
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
):+
):+
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
84 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 5 1FW3150, rated speed 500 rpm
Configuration data Code Unit 1FW3150-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 100
Rated power (100 K) PN (100 K) kW 5.2
Rated current (100 K) IN (100 K) A 12.0
Static torque (100 K) M0 (100 K) Nm 105
Stall current (100 K) I0 (100 K) A 11.5
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 960
Maximum torque Mmax Nm 200
Maximum current Imax A 26.0
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT Nm/A 9.4
Voltage constant (at 20 °C) kE V/1000 rpm 600
Winding resistance (at 20 °C) Rph Ω 1.68
Rotating field inductance LD mH 47
Electrical time constant Tel ms 28.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 6.8
Moment of inertia Jmot kgm
2 0.12
Shaft torsional stiffness ct Nm/rad 3.13E+07
Weight m kg 87
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 3.4
Moment of inertia Jmot kgm
2 0.06
Shaft torsional stiffness ct Nm/rad 1.13E+06
Weight m kg 102
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 8.0
Moment of inertia Jmot kgm
2 0.14
Shaft torsional stiffness ct Nm/rad 4.17E+07
Weight m kg 102
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 85

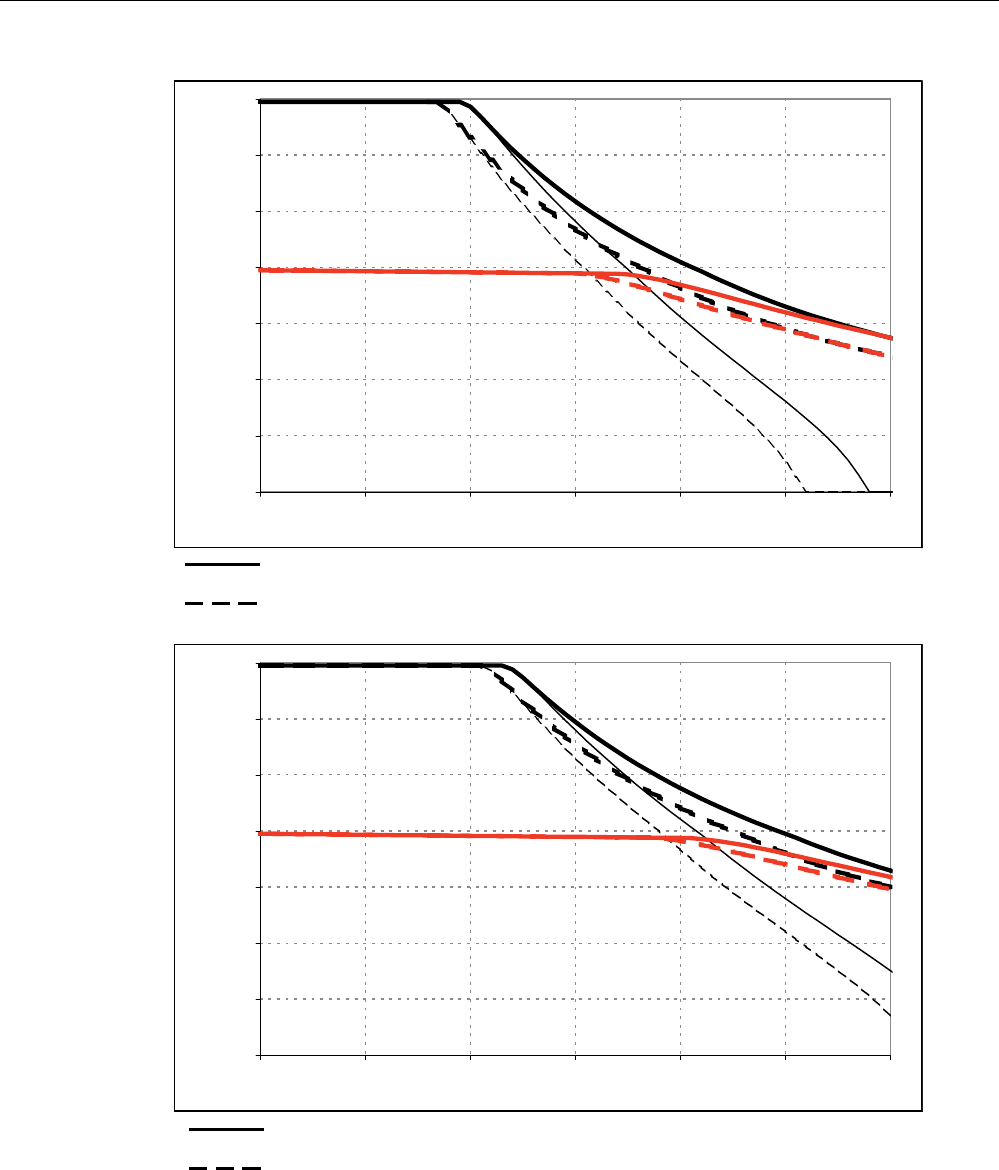

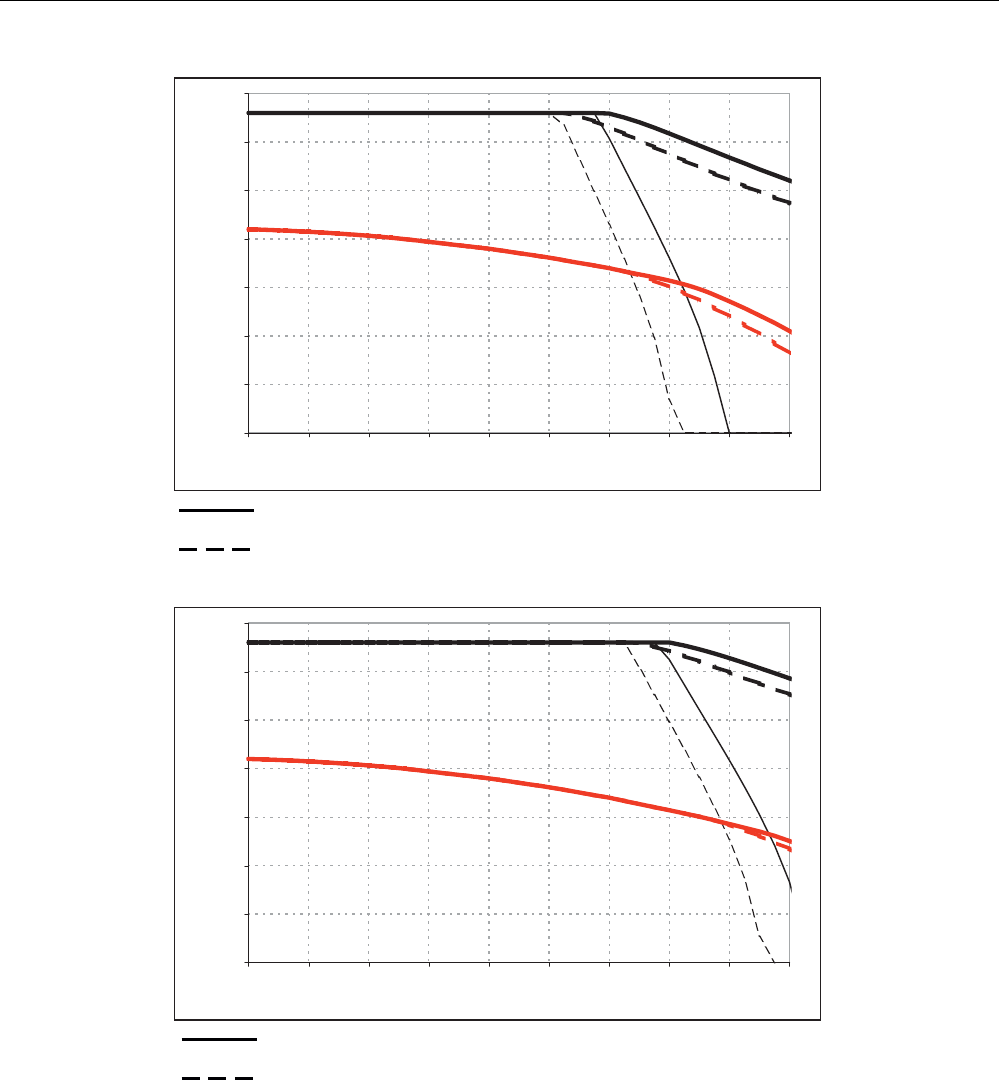

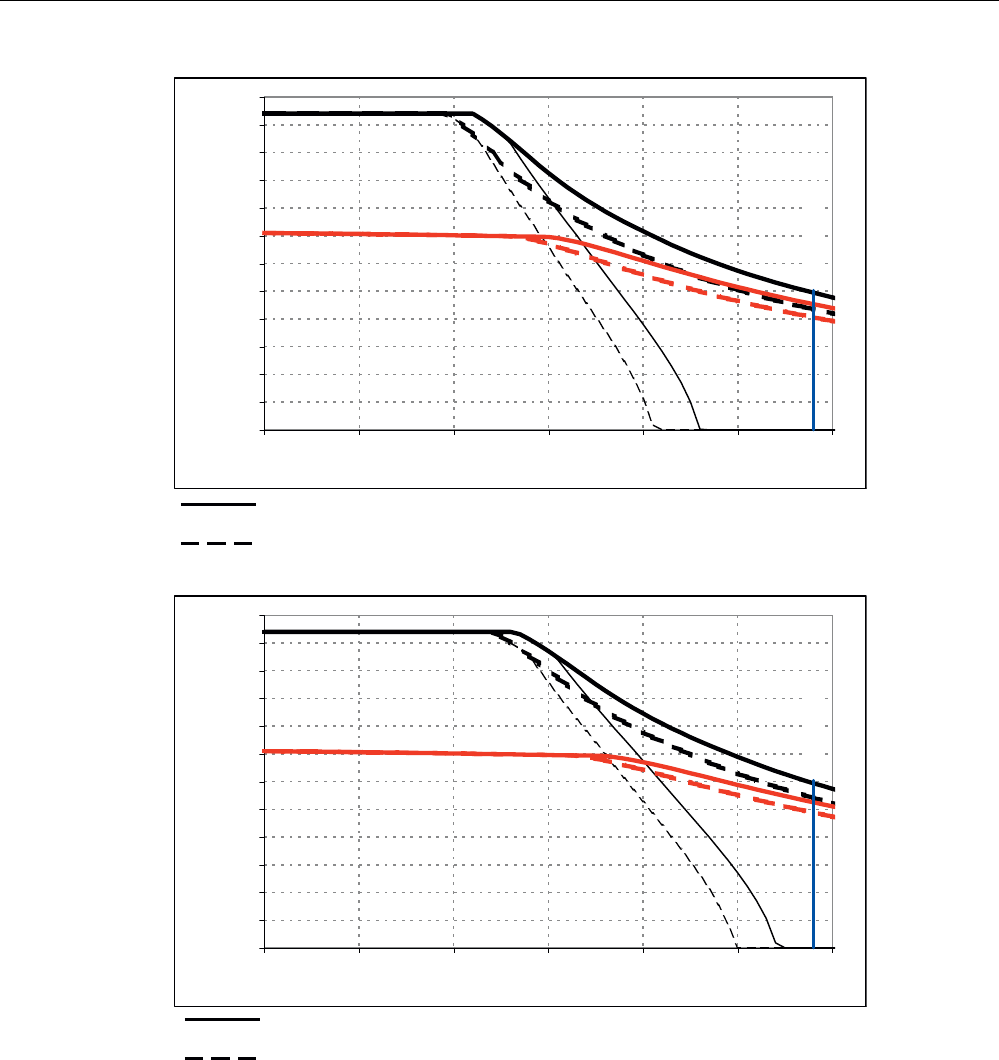

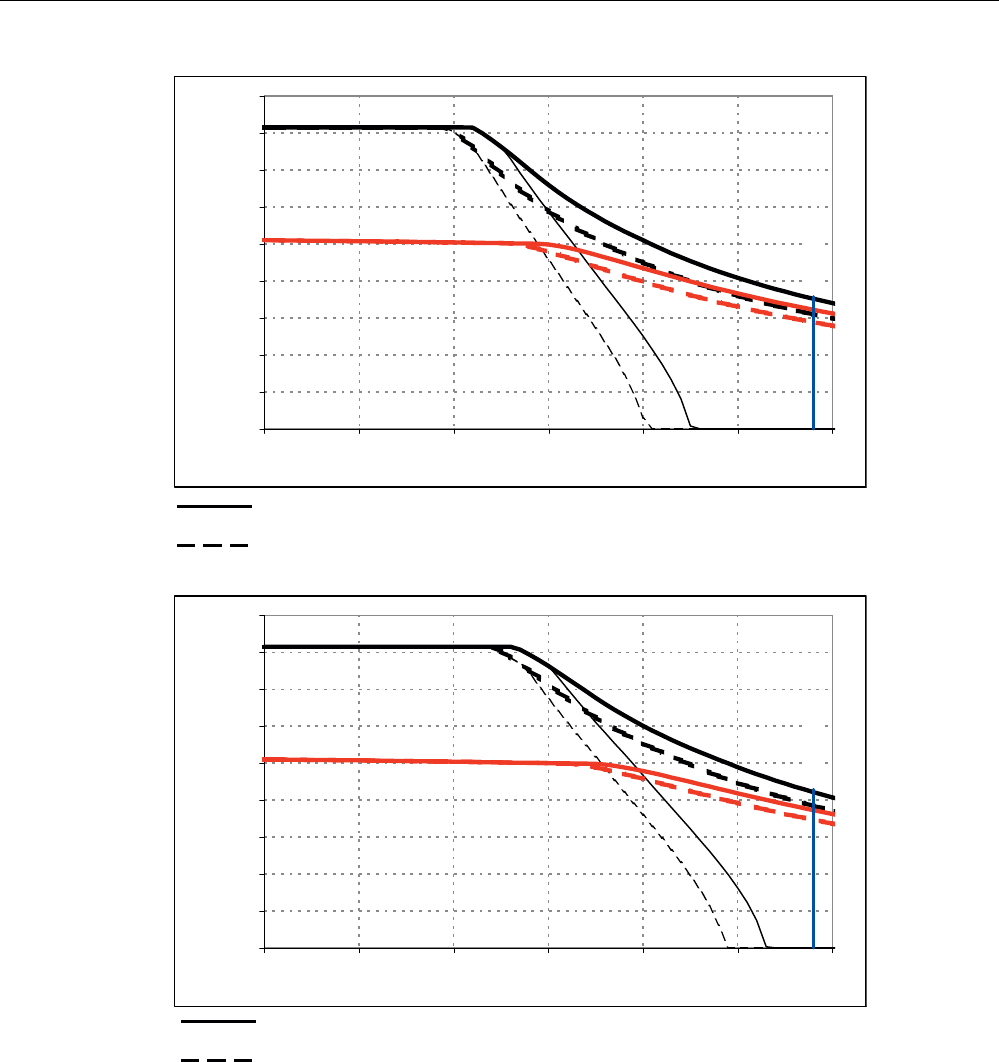

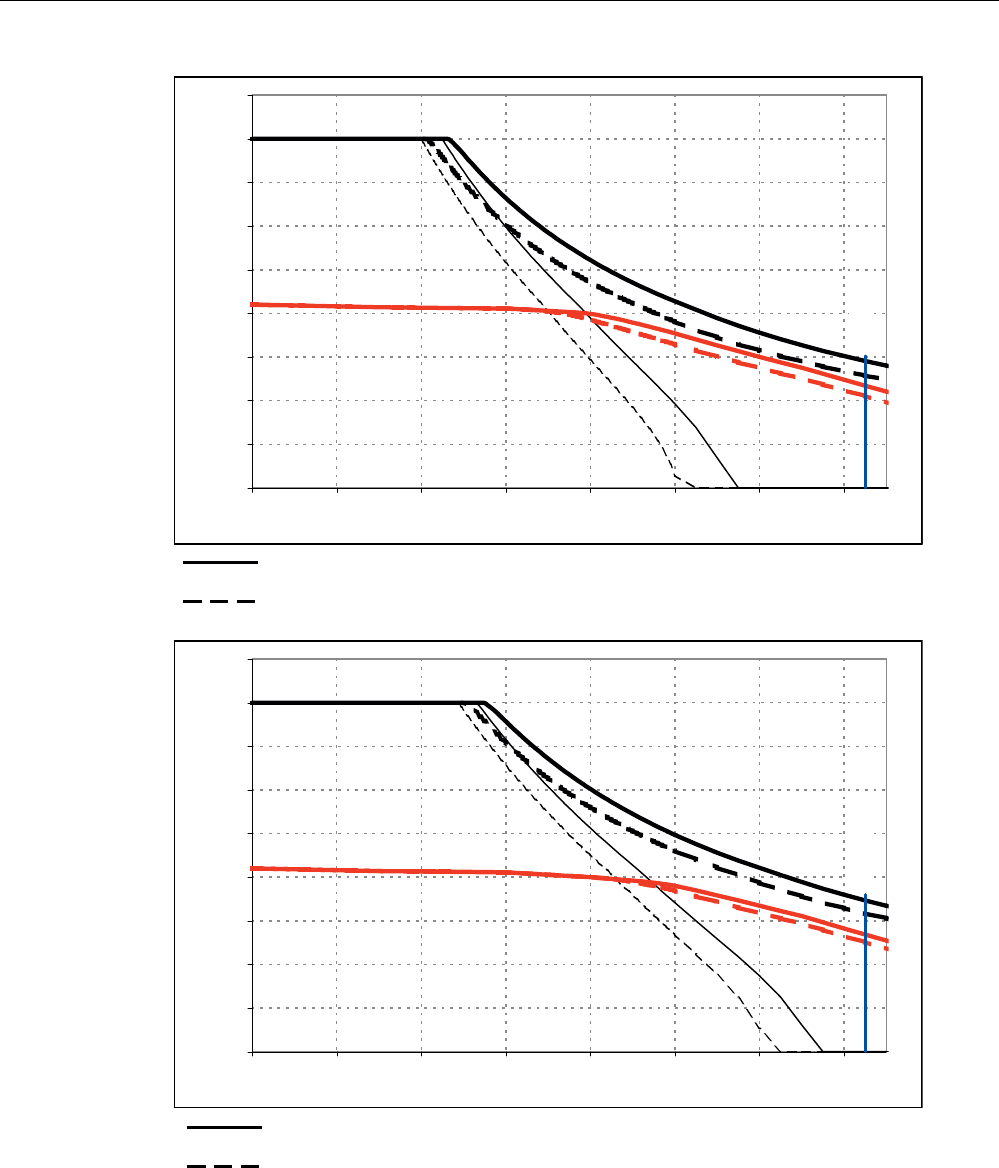

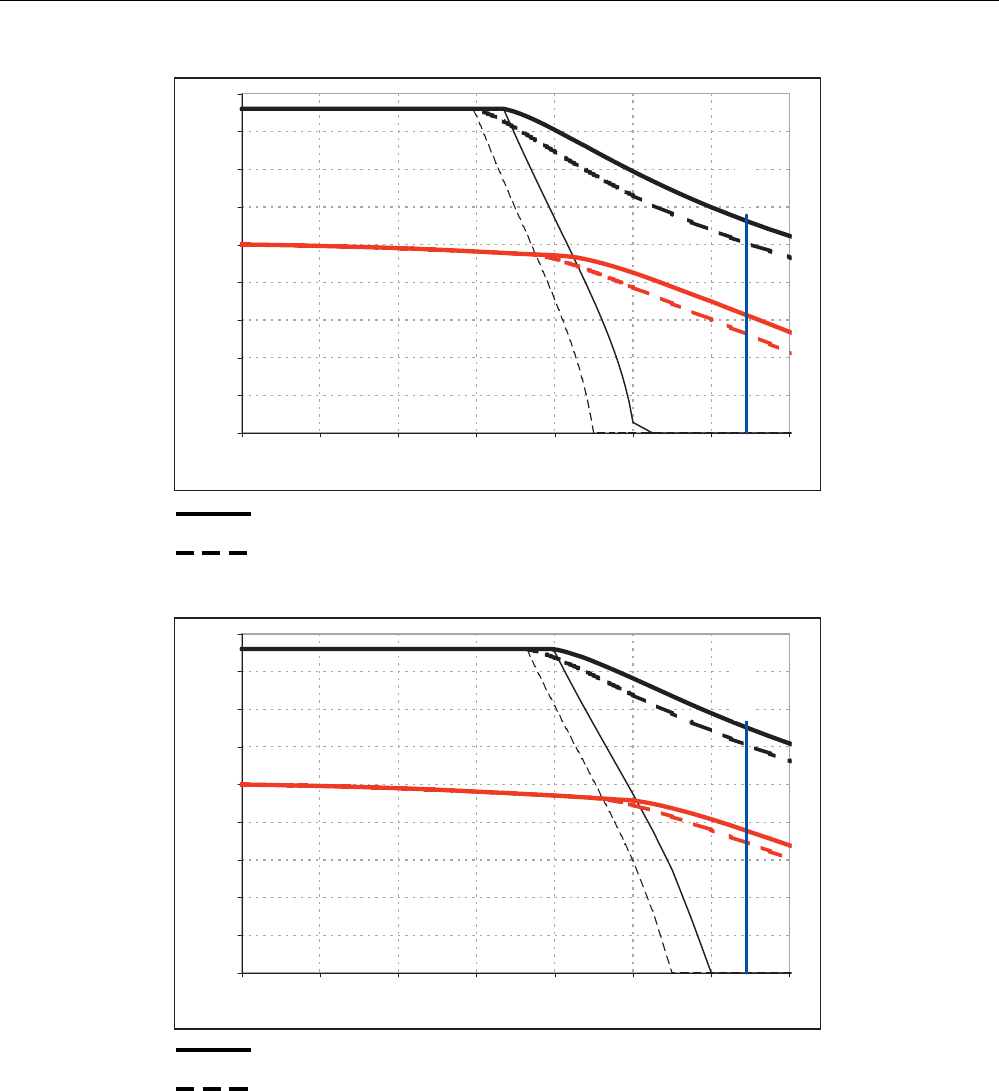

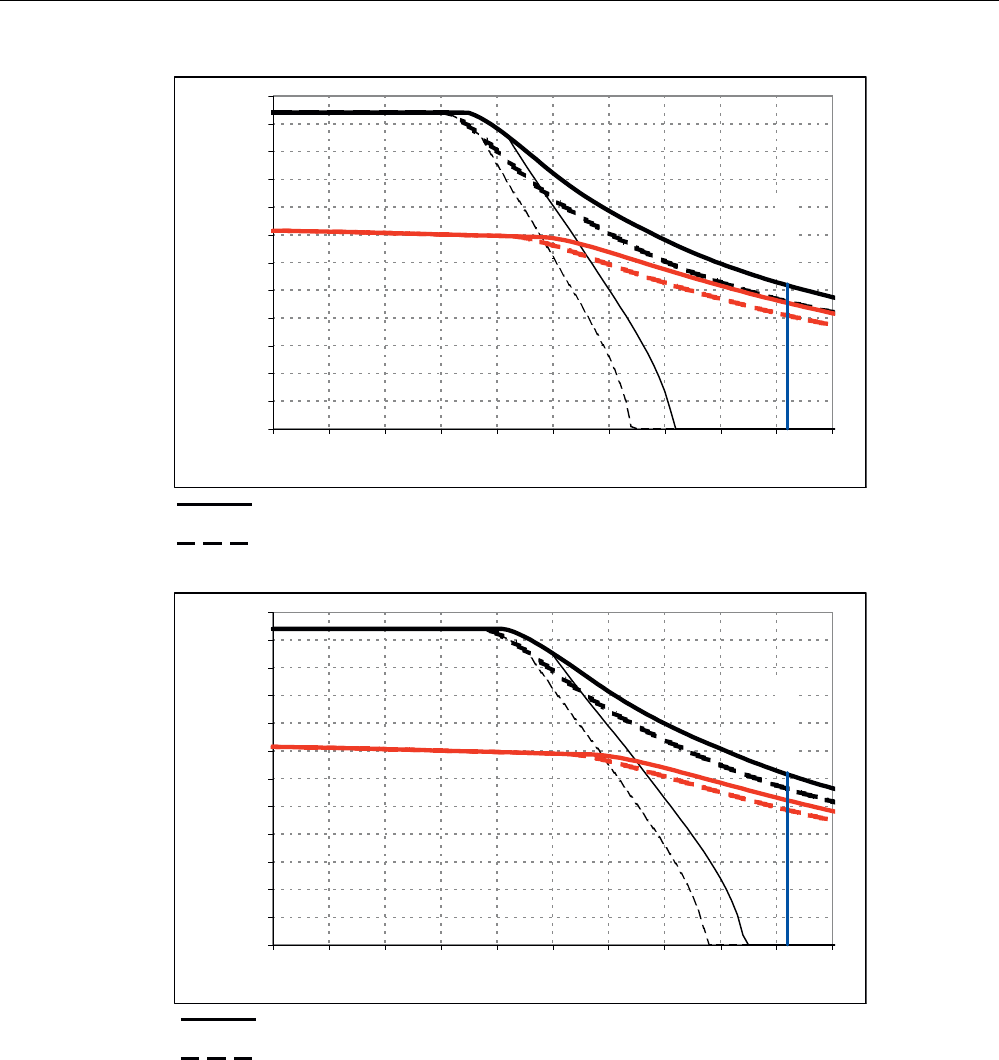

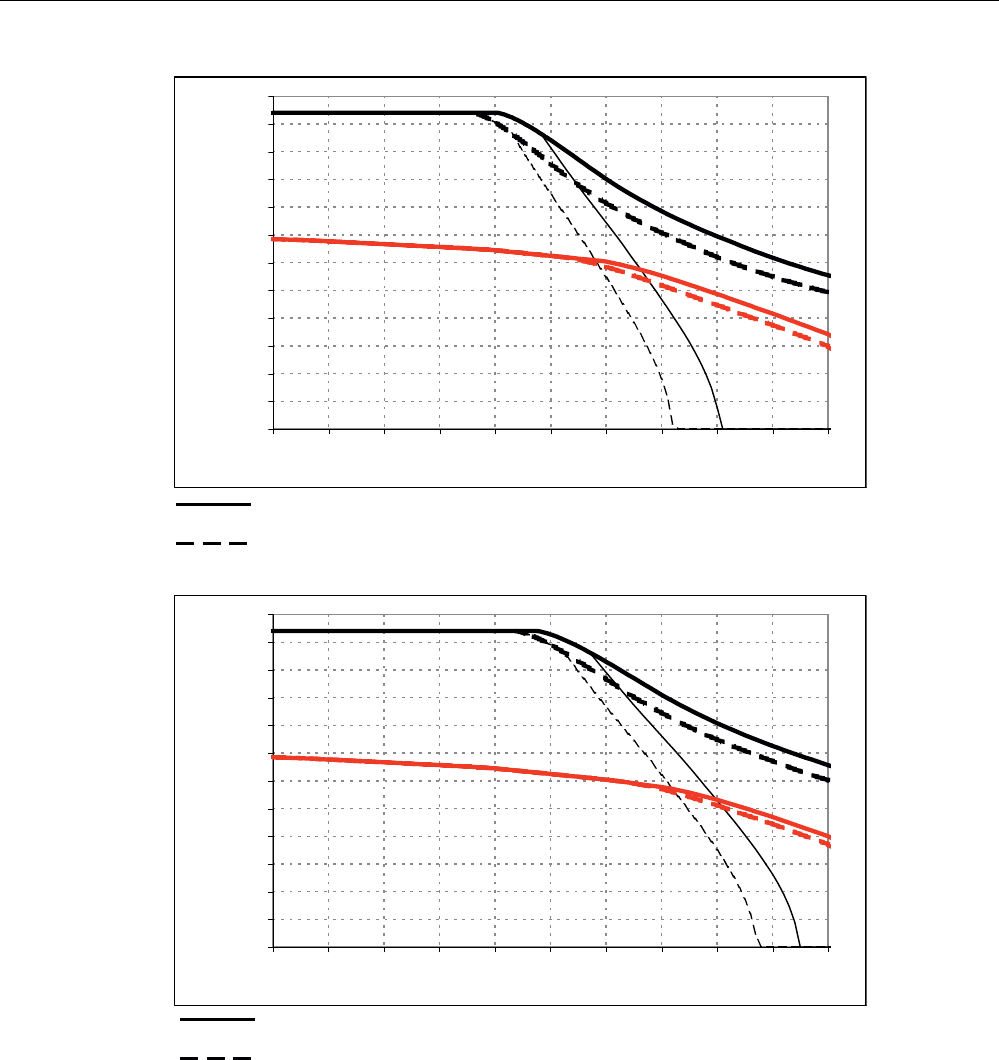

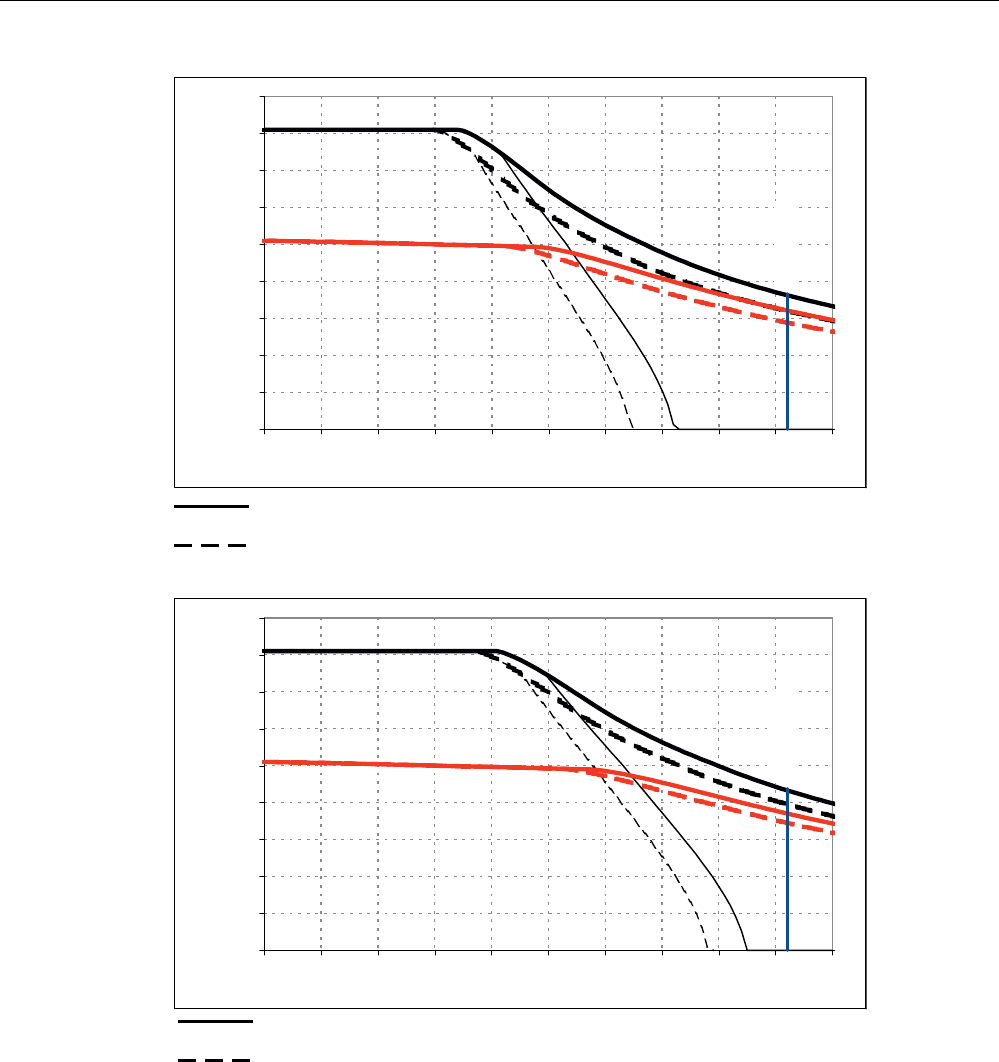

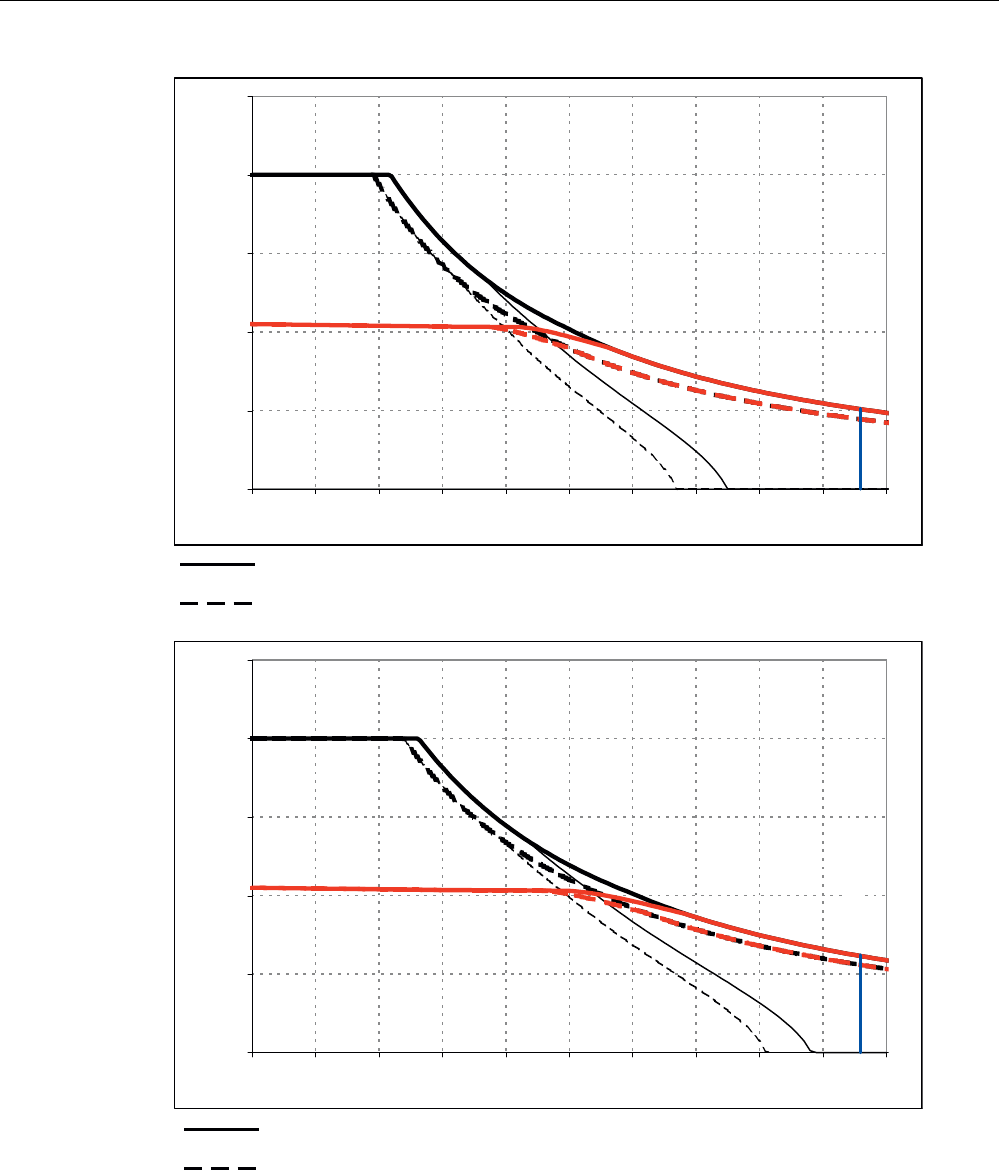

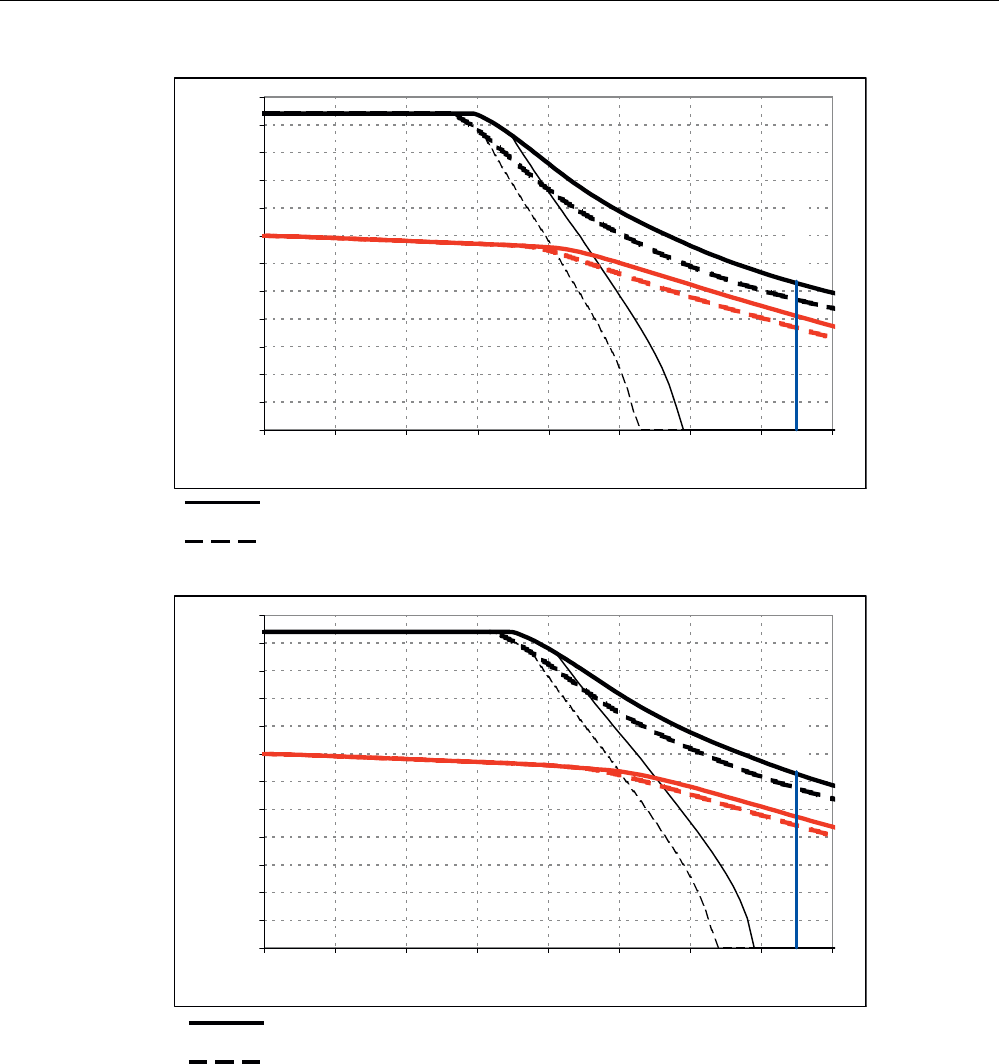

6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
):/
QBPD[B,QY
Q>USP@
0>1P@
):/
QBPD[B,QY
Q>USP@
0>1P@
0BPD[
6.
0BPD[
6.
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
86 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 6 1FW3150, rated speed 750 rpm
Configuration data Code Unit 1FW3150-1☐P
Rated speed nN rpm 750
Rated torque (100 K) MN (100 K) Nm 100
Rated power (100 K) PN (100 K) kW 7.9
Rated current (100 K) IN (100 K) A 18.0
Static torque (100 K) M0 (100 K) Nm 105
Stall current (100 K) I0 (100 K) A 17.5
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 1470
Maximum torque Mmax Nm 200
Maximum current Imax A 41.0
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant kT Nm/A 6.1
Voltage constant (at 20 °C) kE V/1000 rpm 393
Winding resistance (at 20 °C) Rph Ω 0.75
Rotating field inductance LD mH 21
Electrical time constant Tel ms 28.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 7.3
Moment of inertia Jmot kgm
2 0.12
Shaft torsional stiffness ct Nm/rad 3.13E+07
Weight m kg 87
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.6
Moment of inertia Jmot kgm
2 0.06
Shaft torsional stiffness ct Nm/rad 1.13E+06
Weight m kg 102
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 8.5
Moment of inertia Jmot kgm
2 0.14
Shaft torsional stiffness ct Nm/rad 3.14E+07
Weight m kg 102
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 87

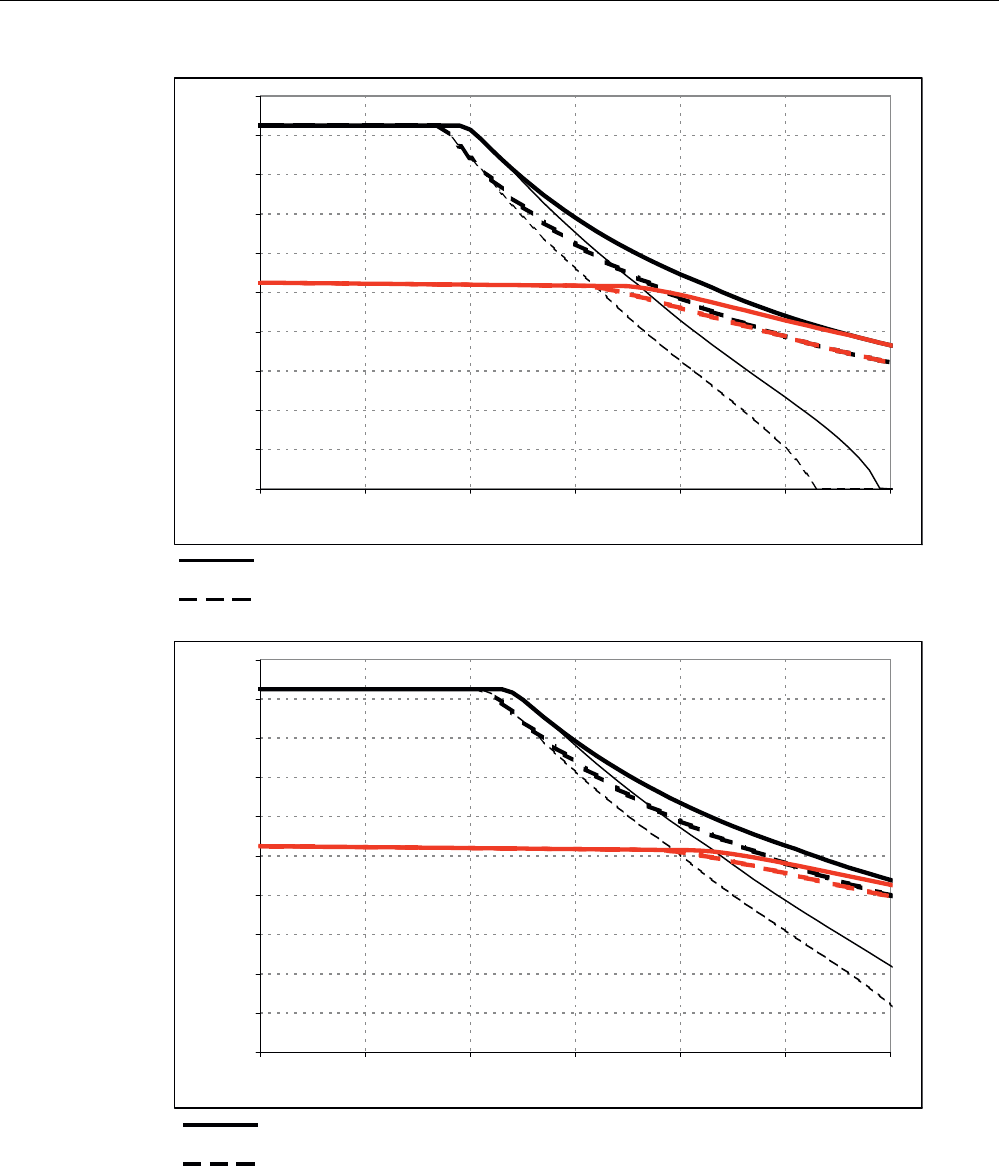

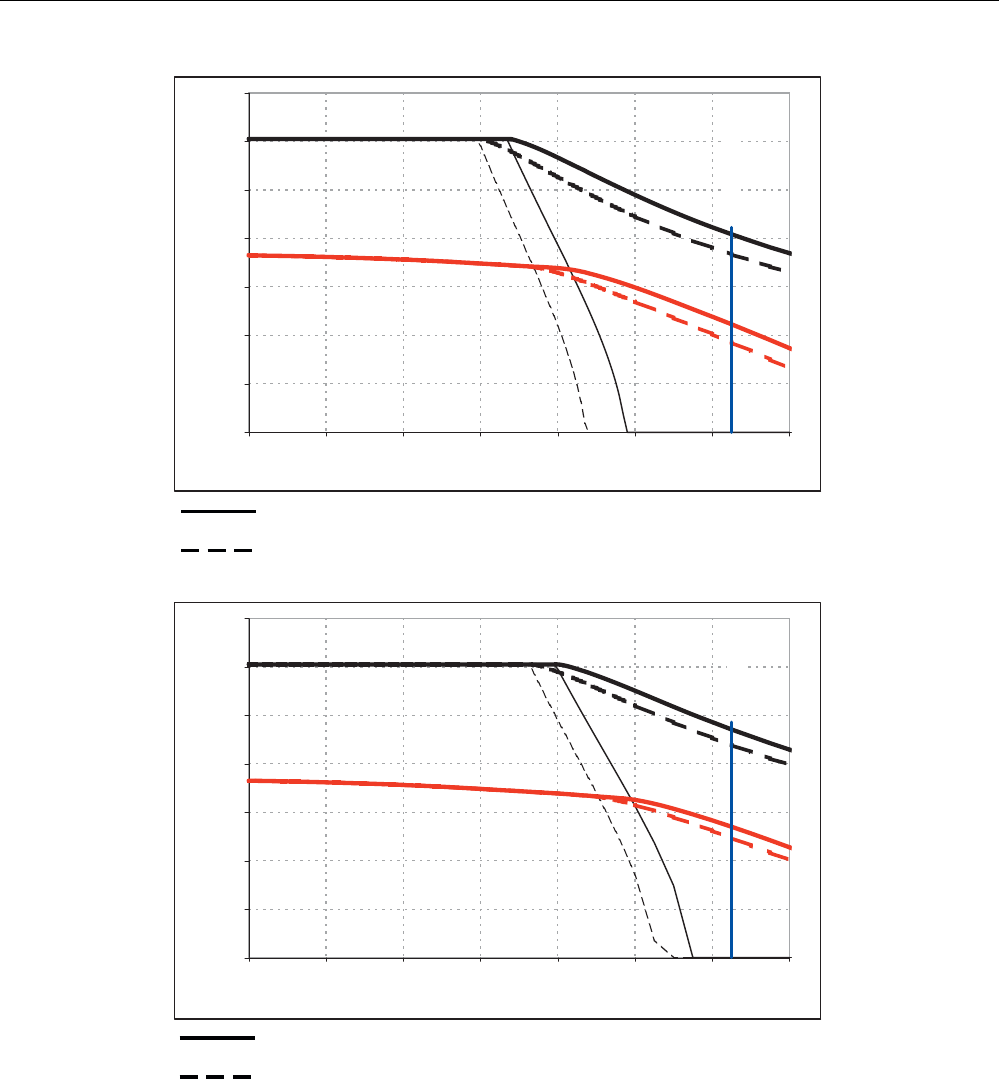

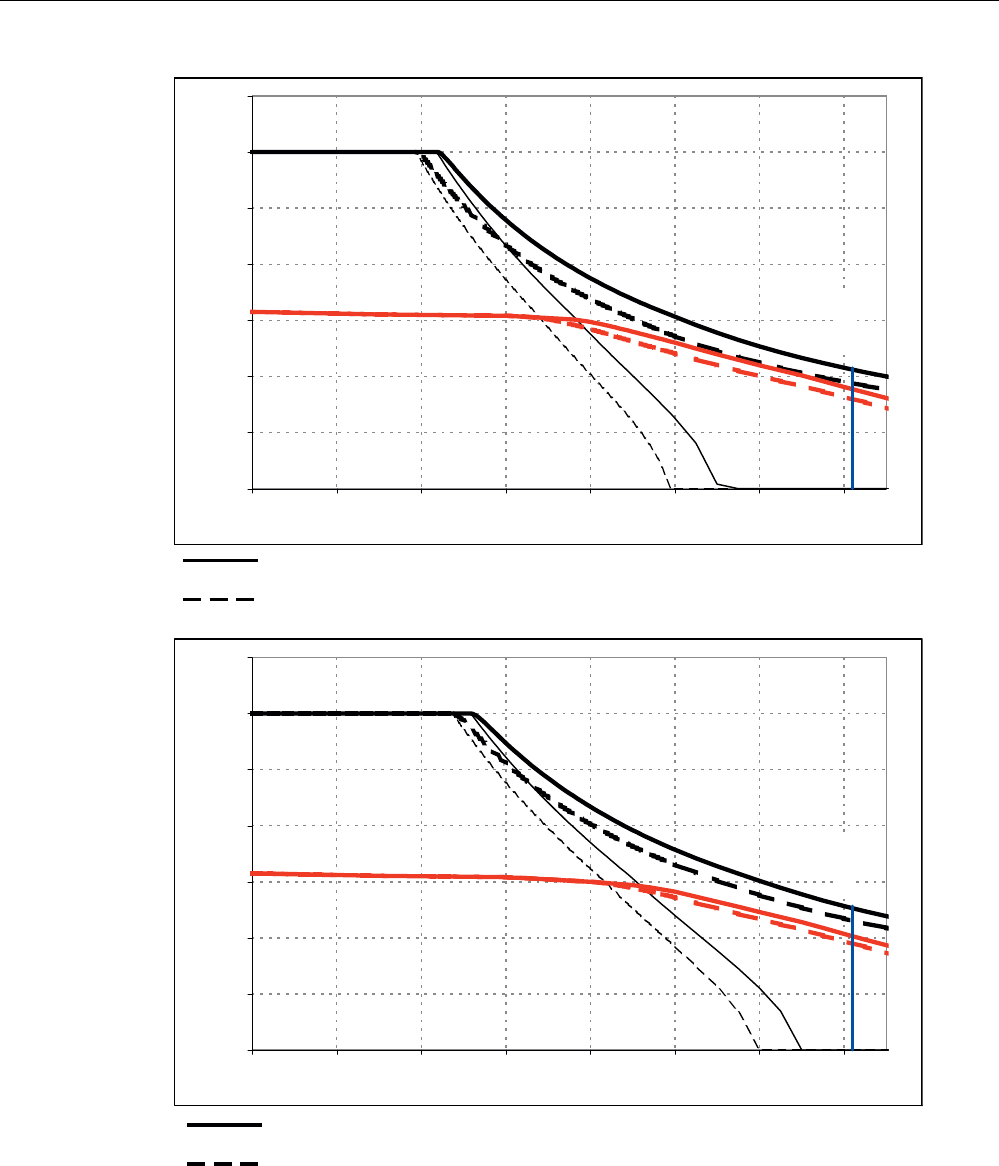

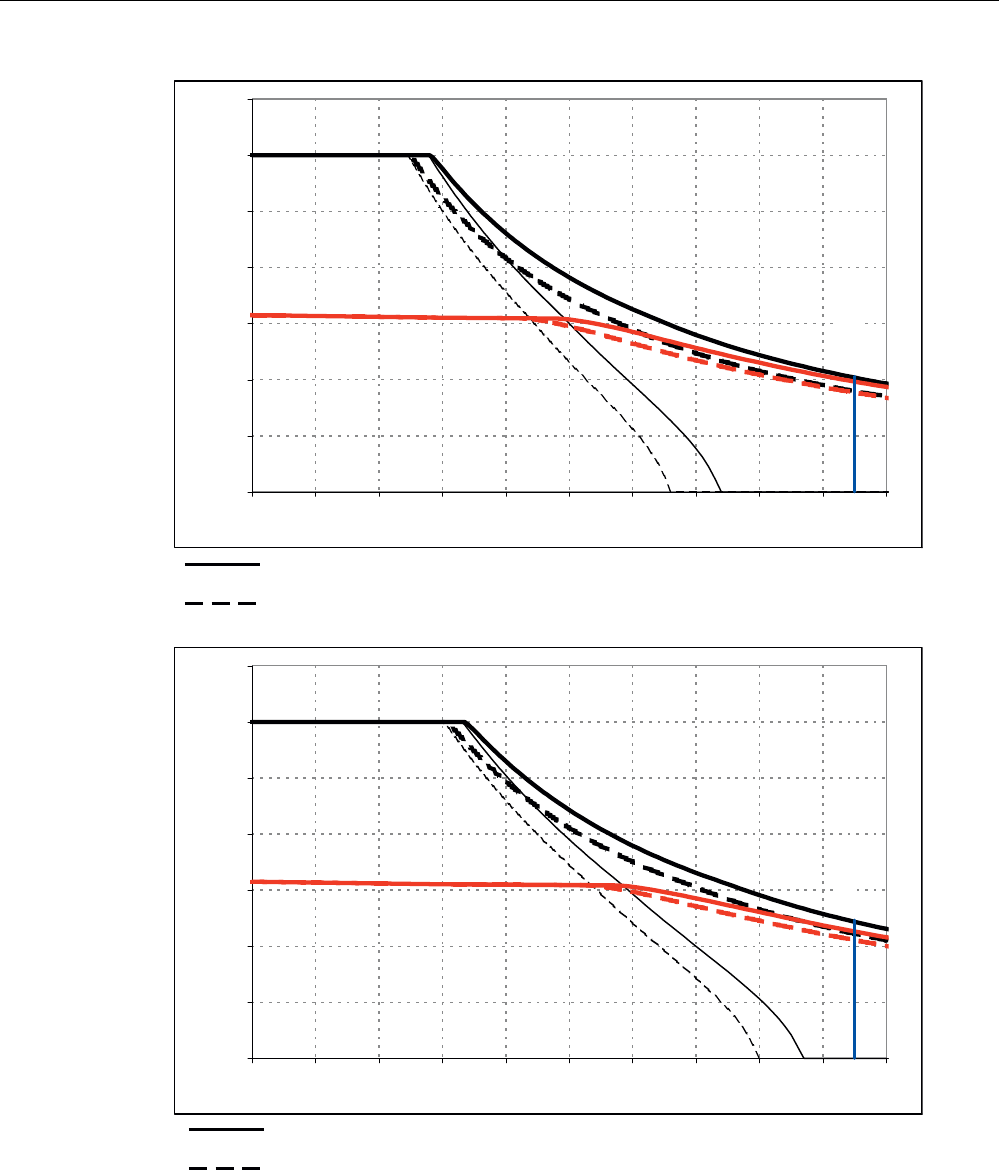

6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9

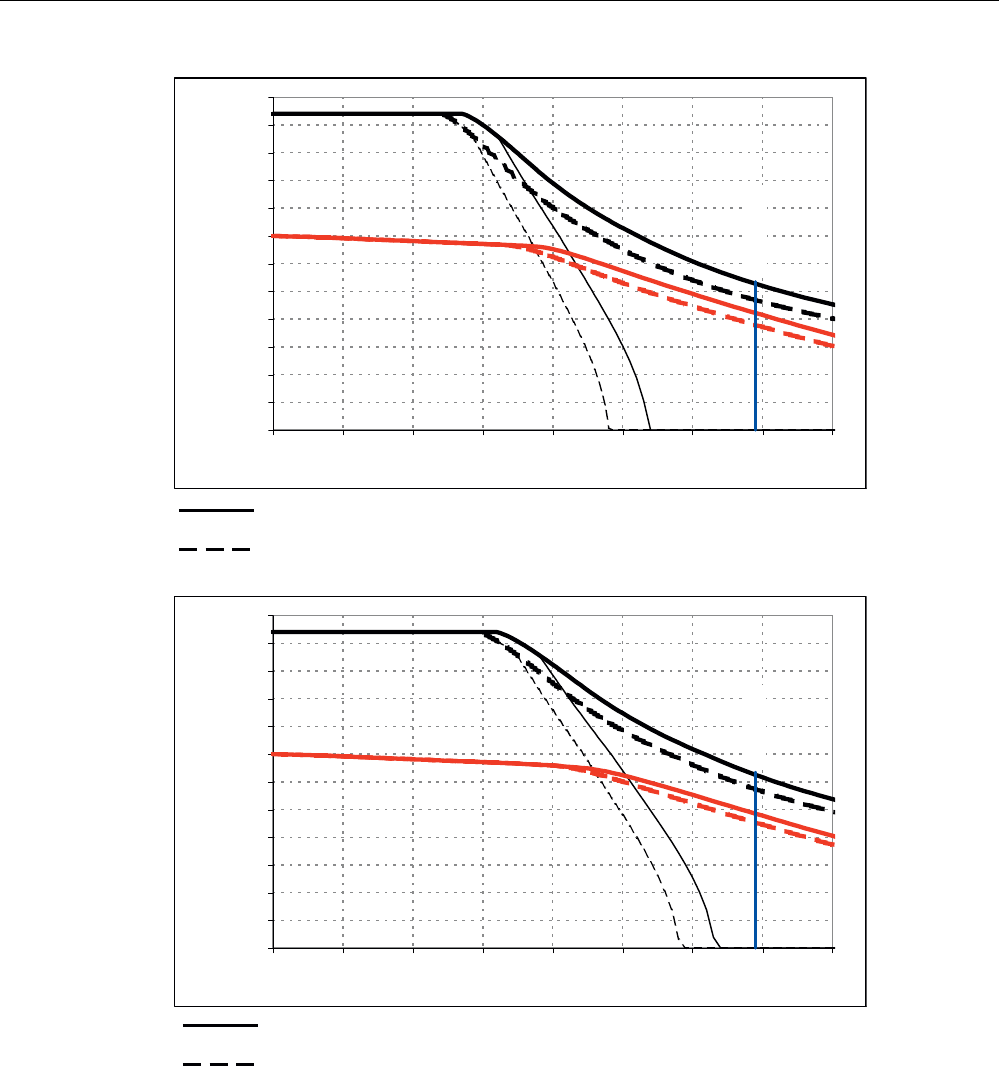

):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
88 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 7 1FW3152, rated speed 300 rpm
Configuration data Code Unit 1FW3152-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 200
Rated power (100 K) PN (100 K) kW 6.3
Rated current (100 K) IN (100 K) A 14
Static torque (100 K) M0 (100 K) Nm 210
Stall current (100 K) I0 (100 K) A 15.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 630
Maximum torque Mmax Nm 400
Maximum current Imax A 35.0
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 14.4
Voltage constant (at 20 °C) kE V/1000 rpm 915
Winding resistance (at 20 °C) Rph Ω 1.47
Rotating field inductance LD mH 49
Electrical time constant Tel ms 33.5
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.4
Moment of inertia Jmot kgm
2 0.16
Shaft torsional stiffness ct Nm/rad 2.17E+07
Weight m kg 108
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.09
Shaft torsional stiffness ct Nm/rad 1.1E+06
Weight m kg 121
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 4.3
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 2.92E+07
Weight m kg 124
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 89
):+

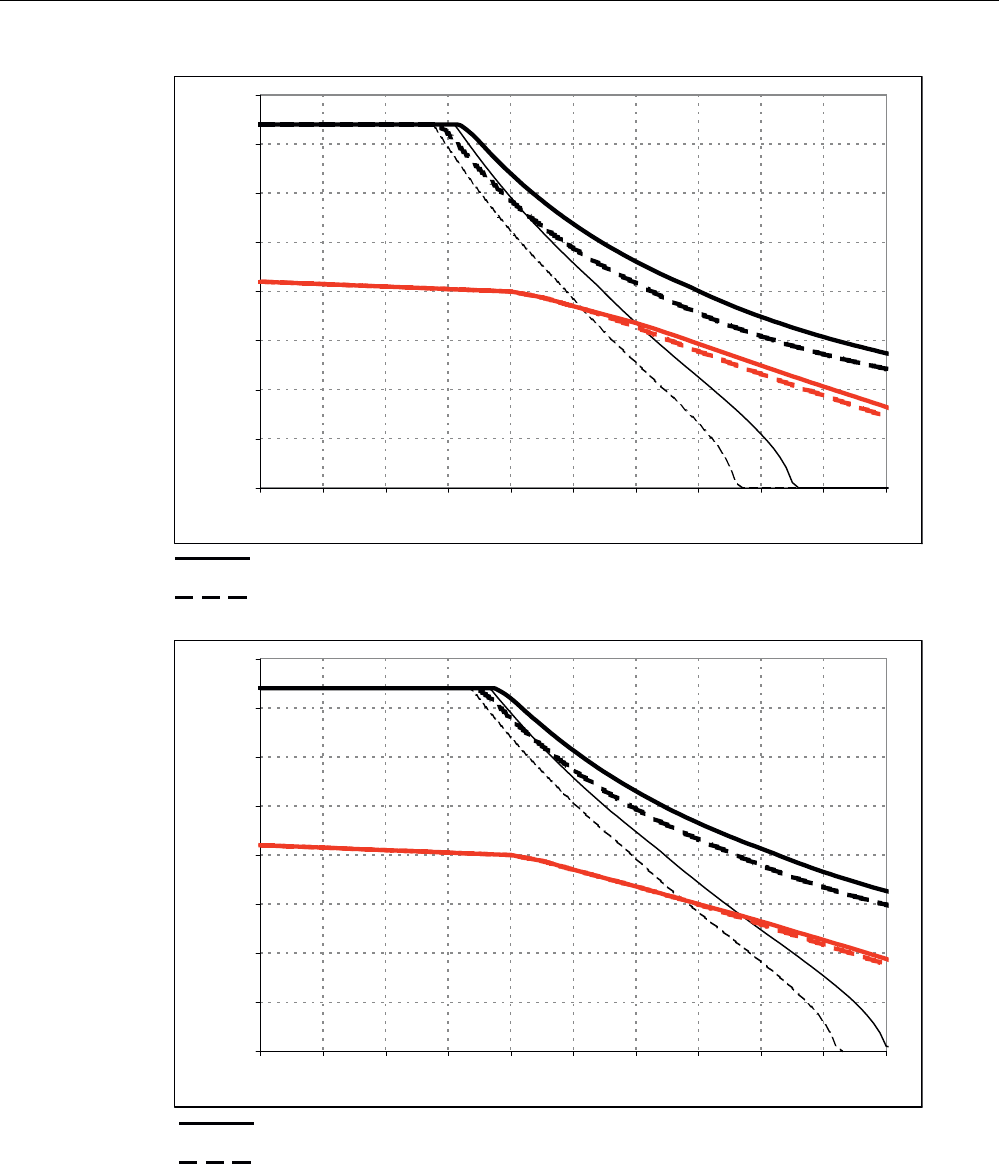

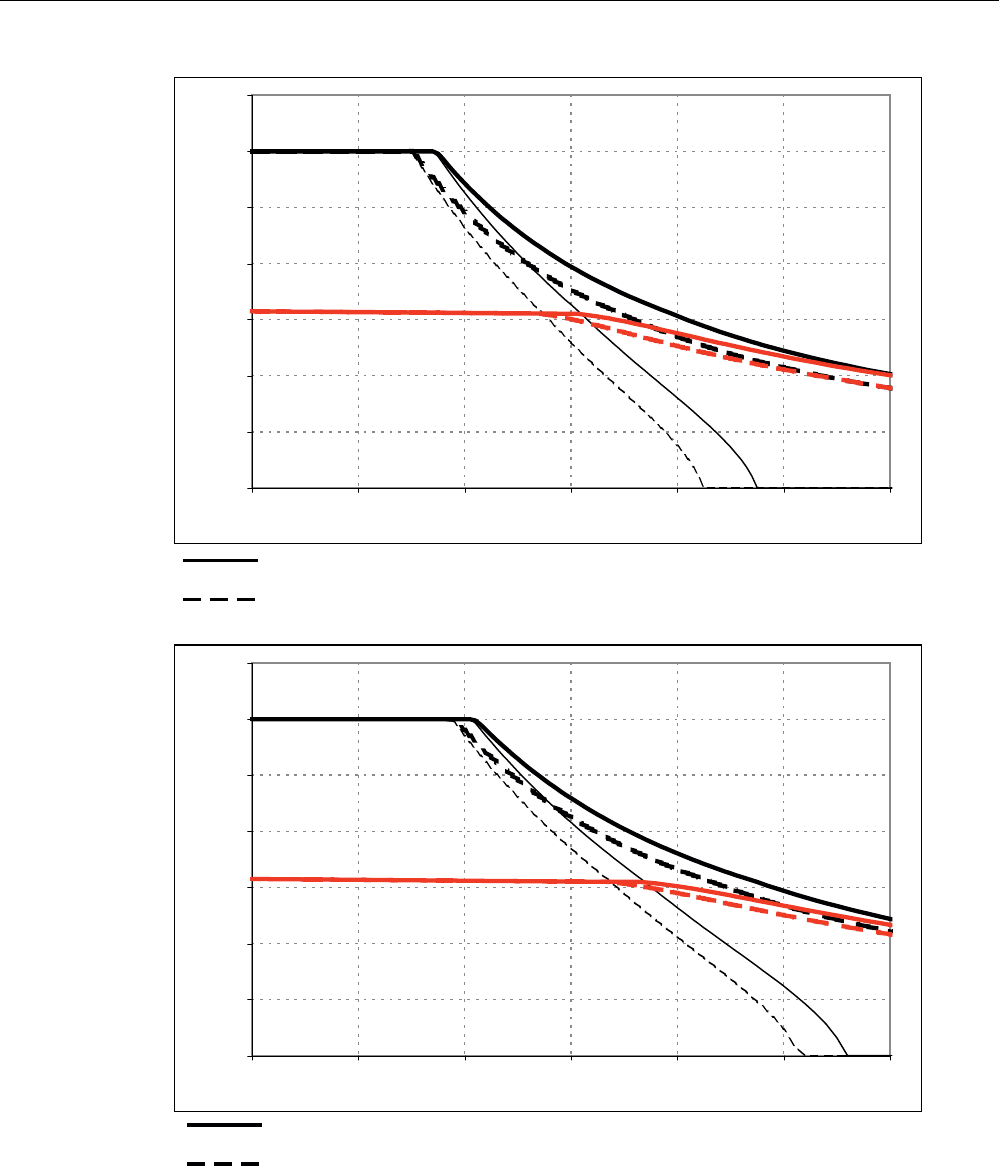

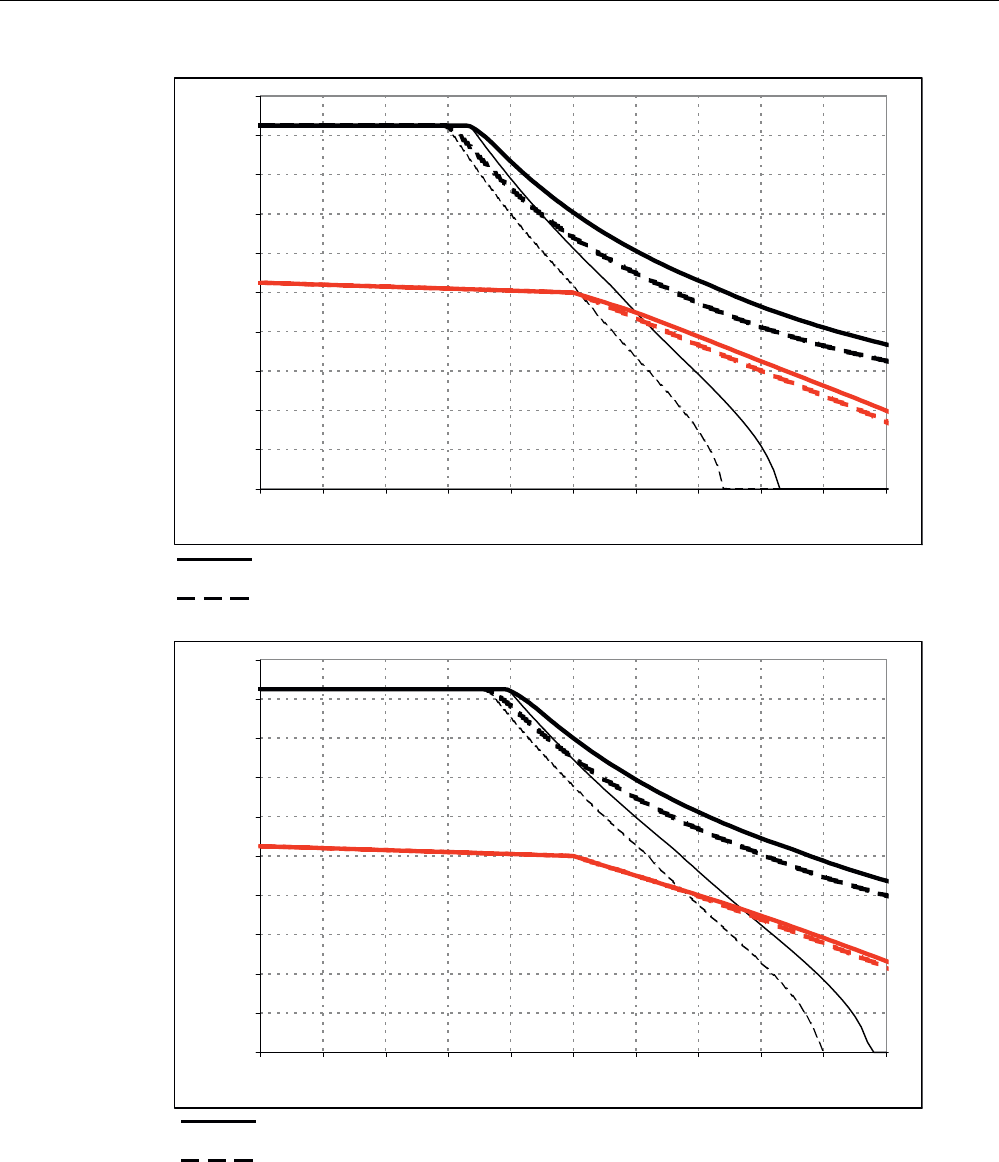

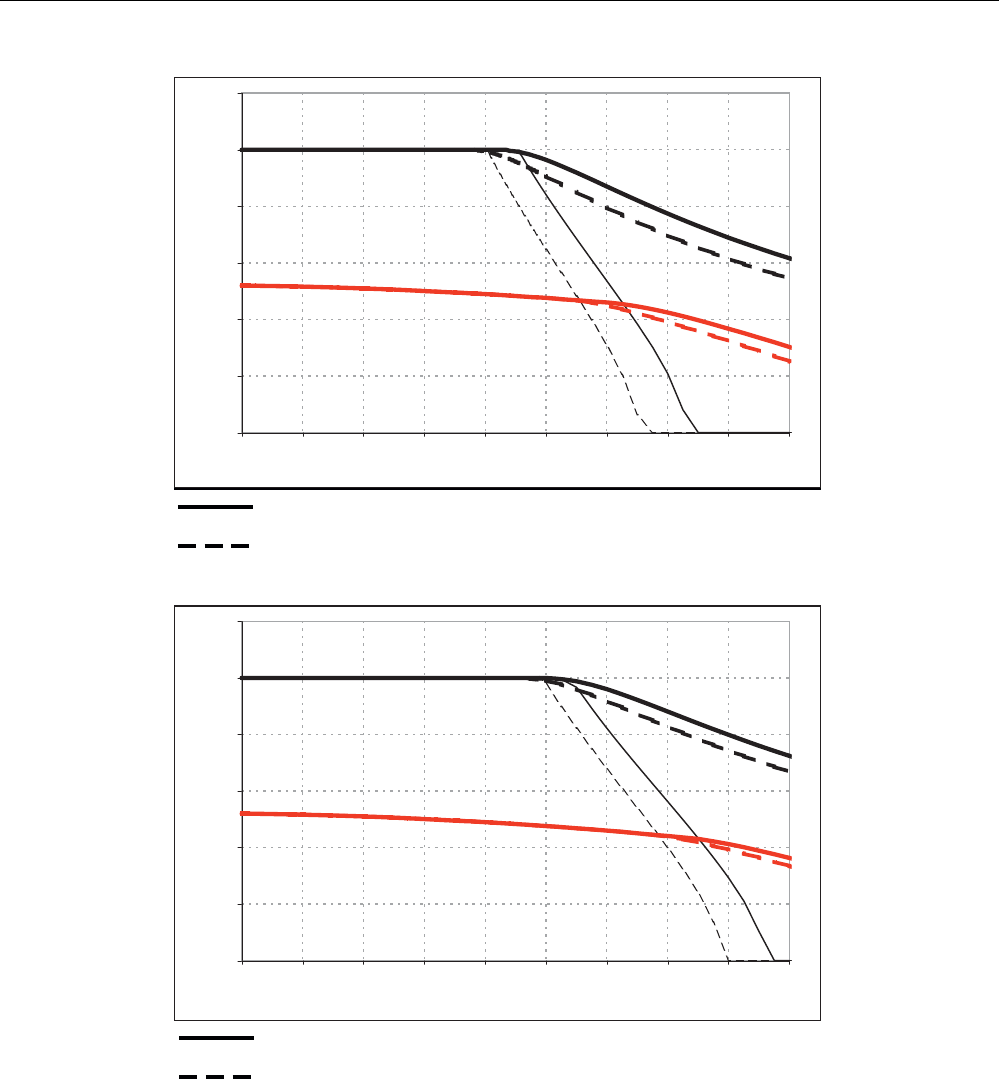

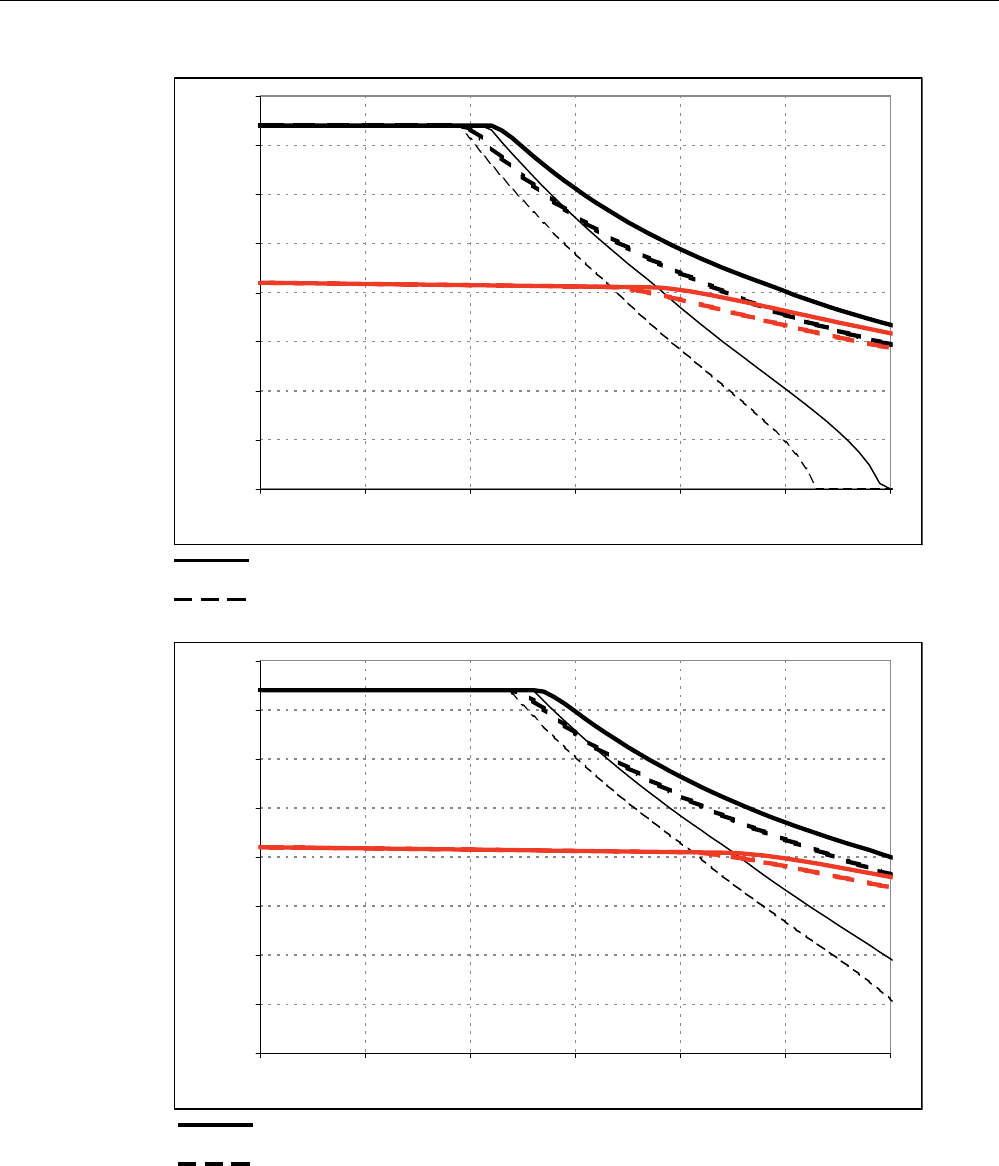

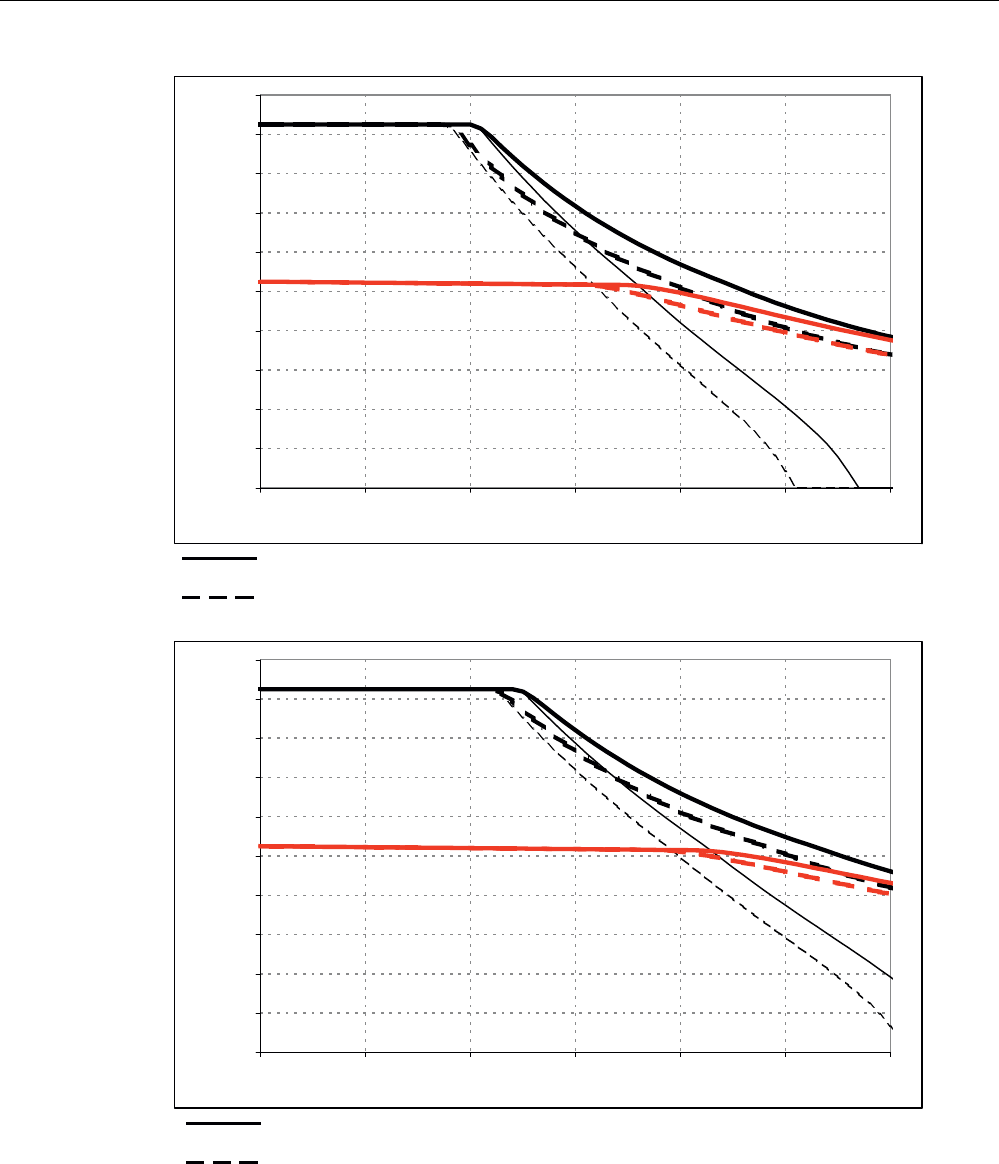

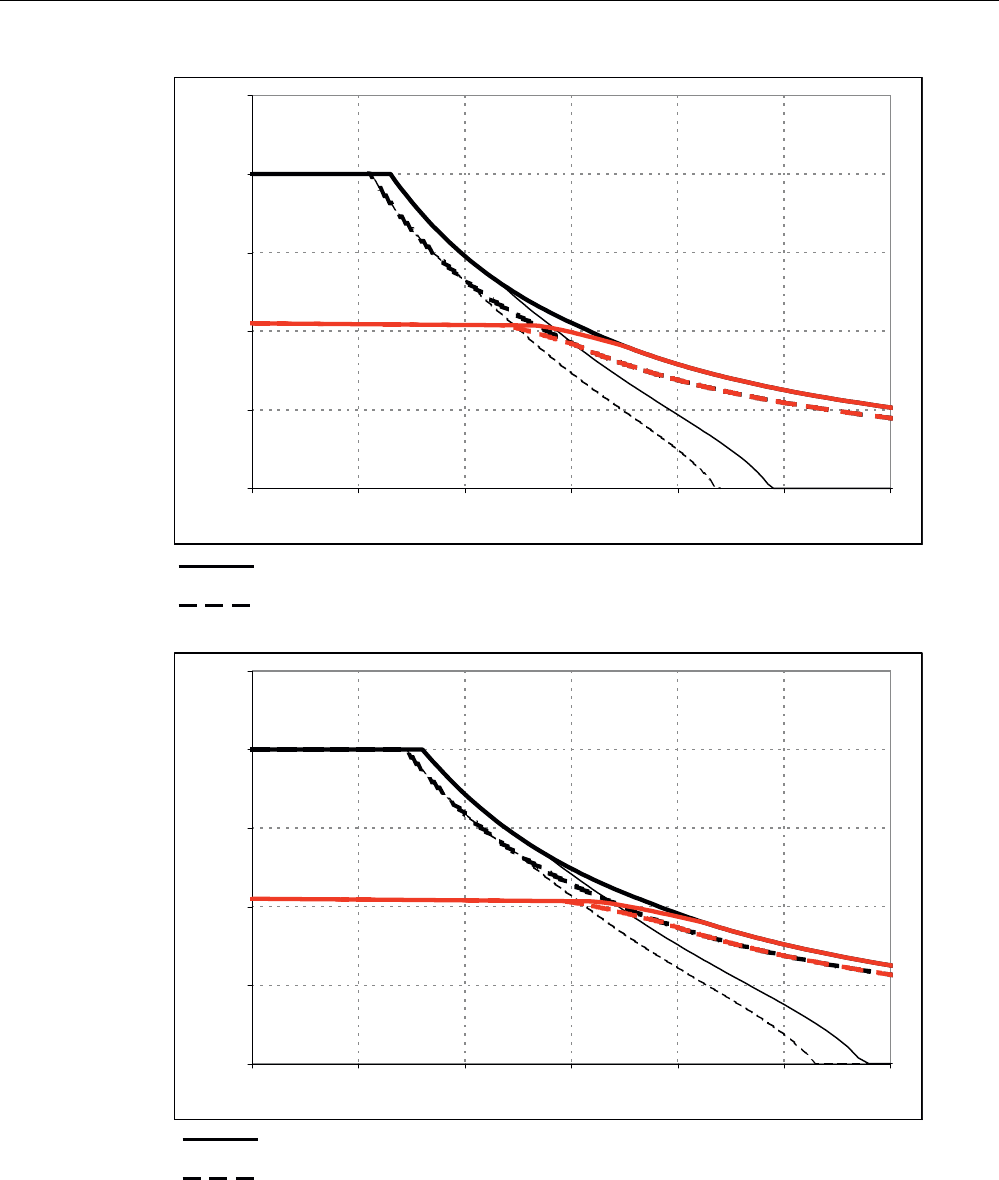

0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
90 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 8 1FW3152, rated speed 500 rpm
Configuration data Code Unit 1FW3152-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 200
Rated power (100 K) PN (100 K) kW 10.5
Rated current (100 K) IN (100 K) A 22.0
Static torque (100 K) M0 (100 K) Nm 210
Stall current (100 K) I0 (100 K) A 22.5
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 960
Maximum torque Mmax Nm 400
Maximum current Imax A 53
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 9.4
Voltage constant (at 20 °C) kE V/1000 rpm 600
Winding resistance (at 20 °C) Rph Ω 0.62
Rotating field inductance LD mH 21
Electrical time constant Tel ms 34.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.4
Moment of inertia Jmot kgm
2 0.16
Shaft torsional stiffness ct Nm/rad 2.17E+07
Weight m kg 108
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.09
Shaft torsional stiffness ct Nm/rad 1.1E+06
Weight m kg 121
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 4.2
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 2.92E+07
Weight m kg 124
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 91
):/

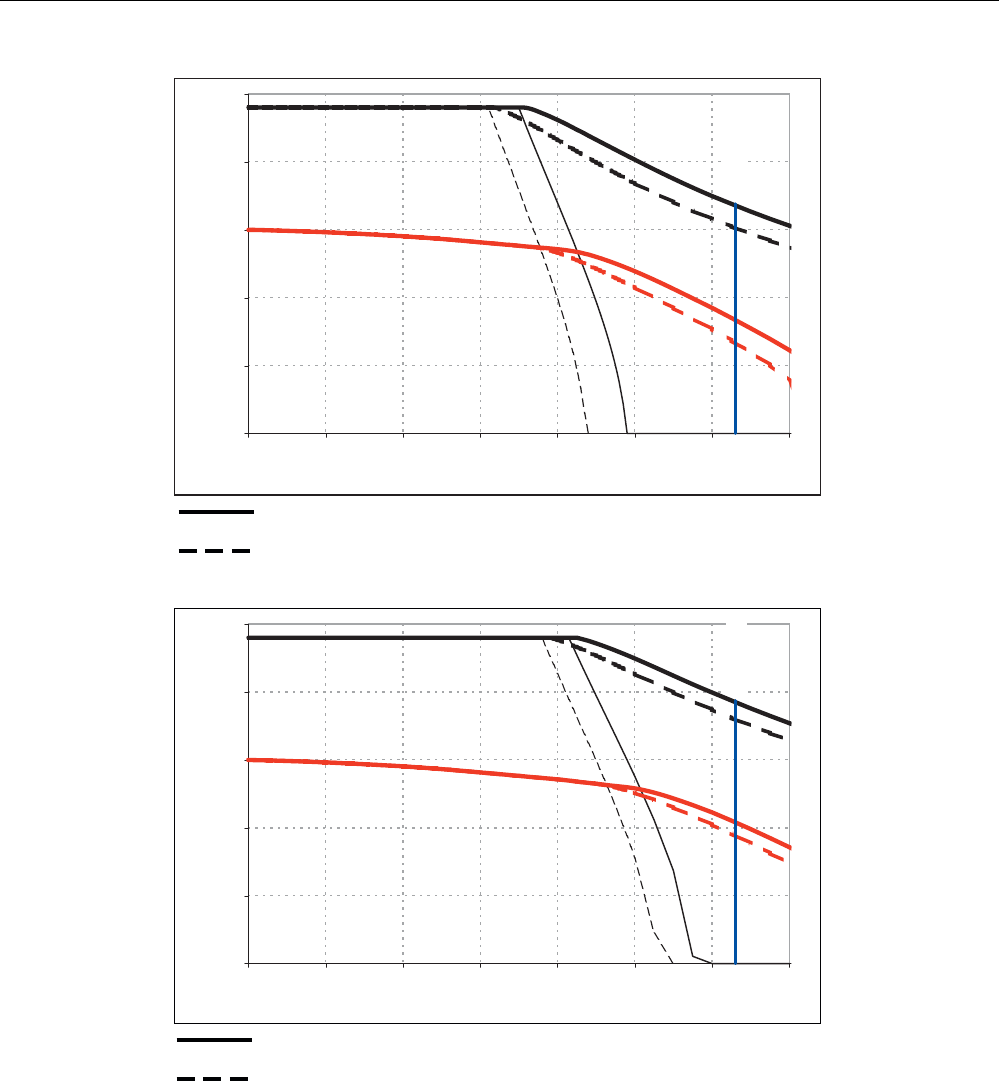

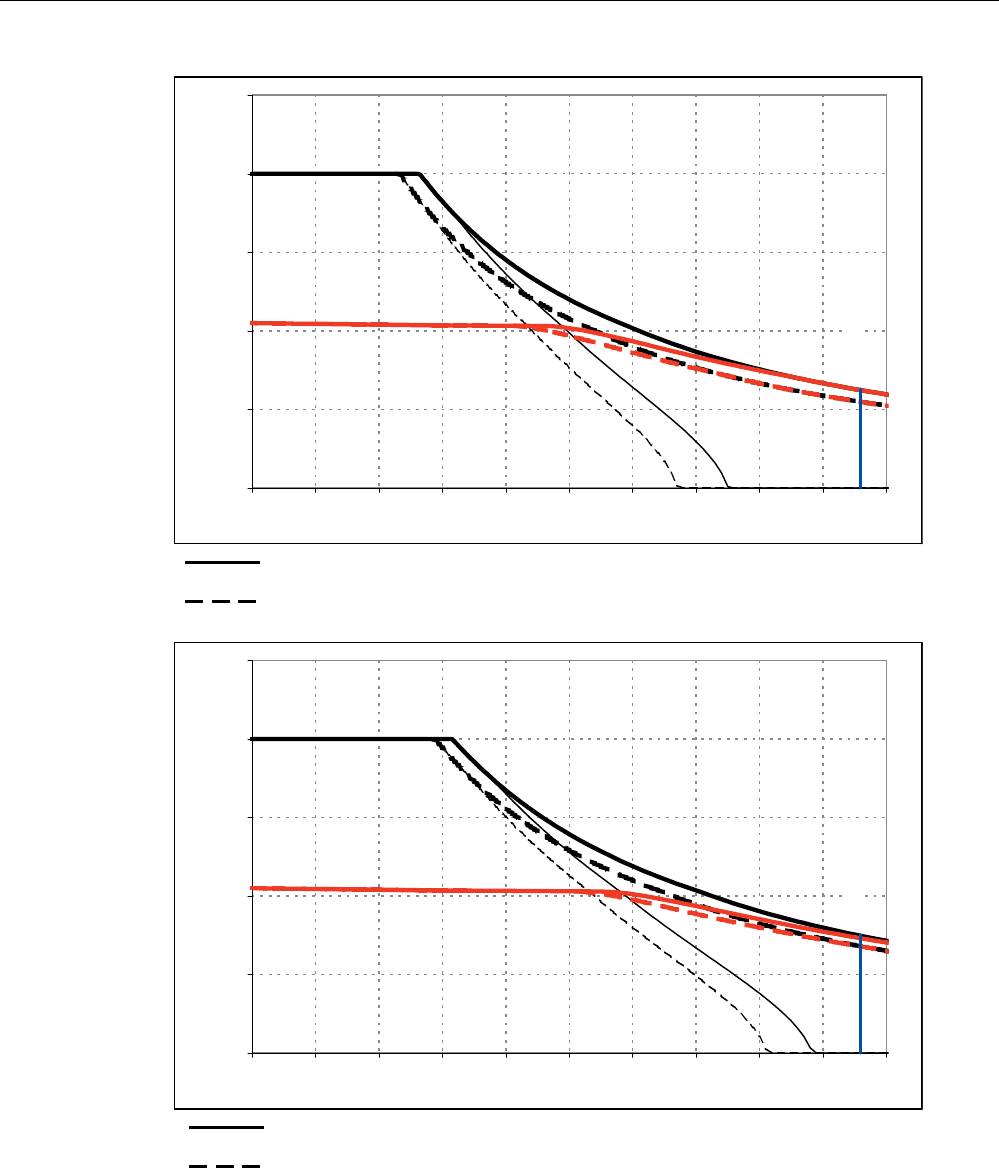

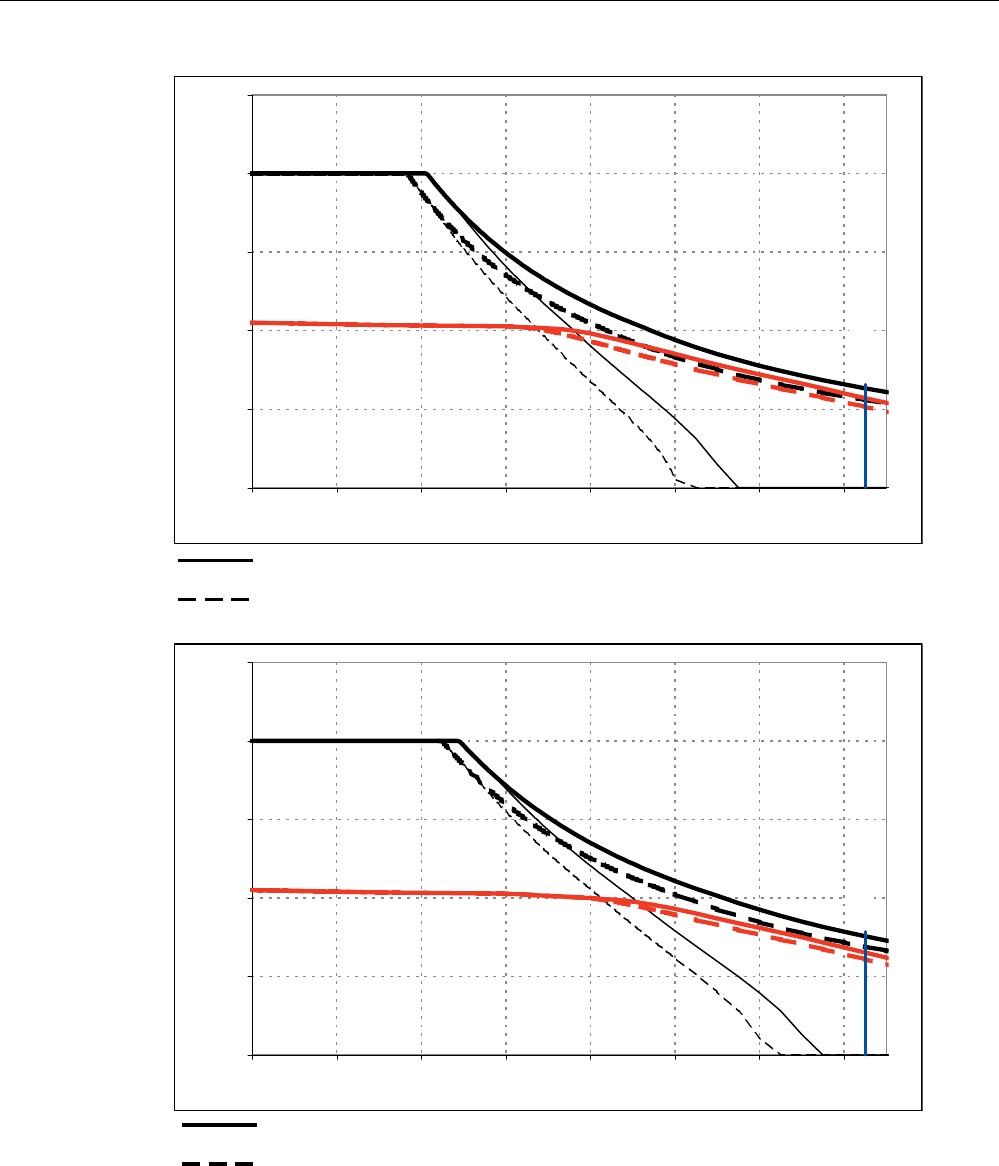

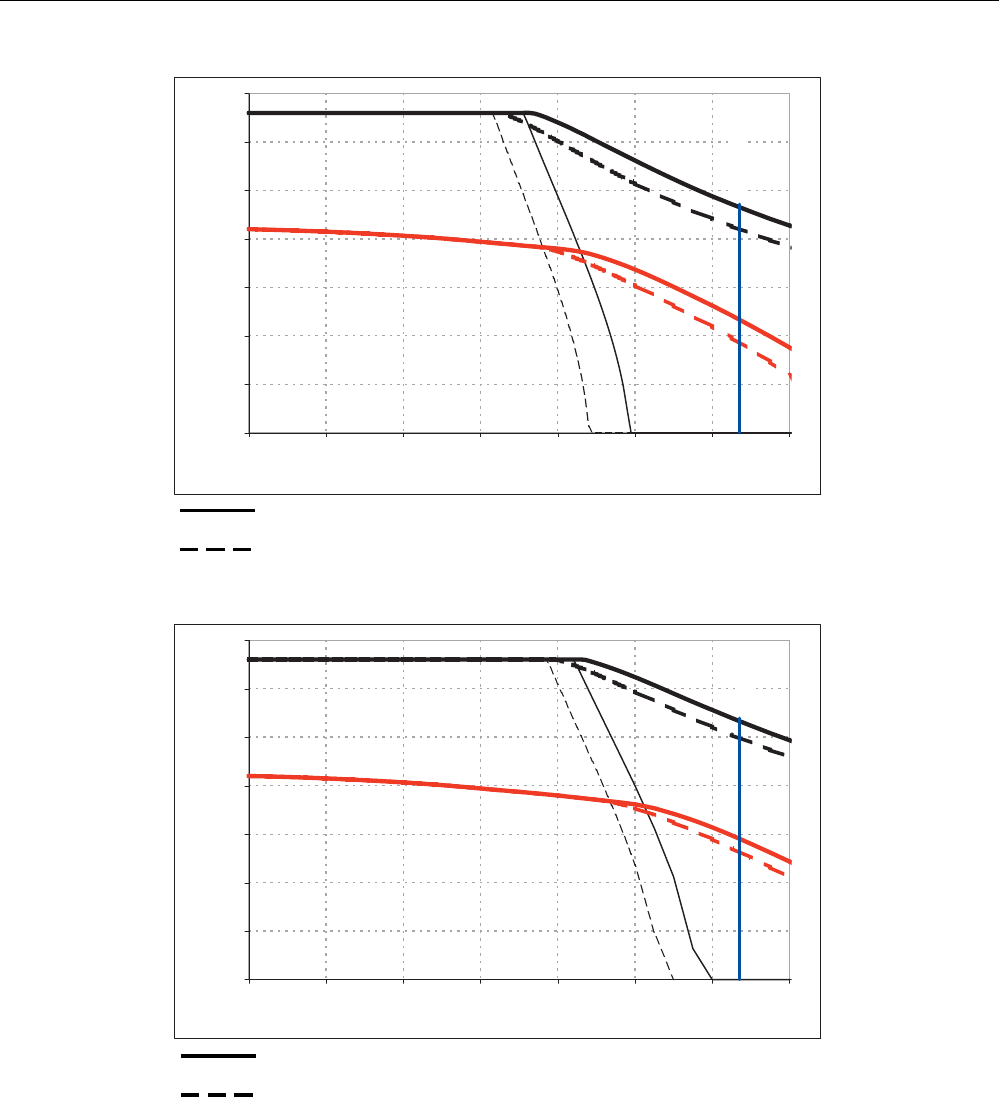

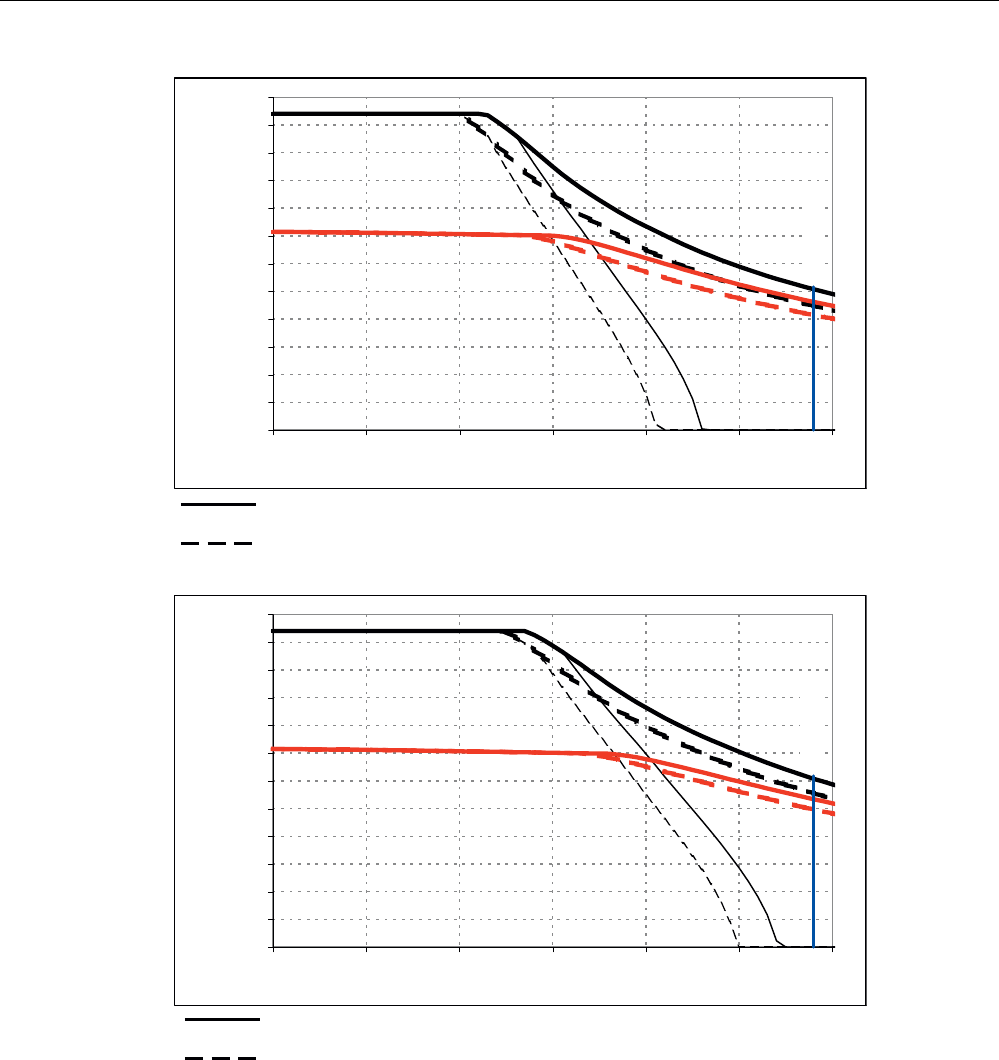

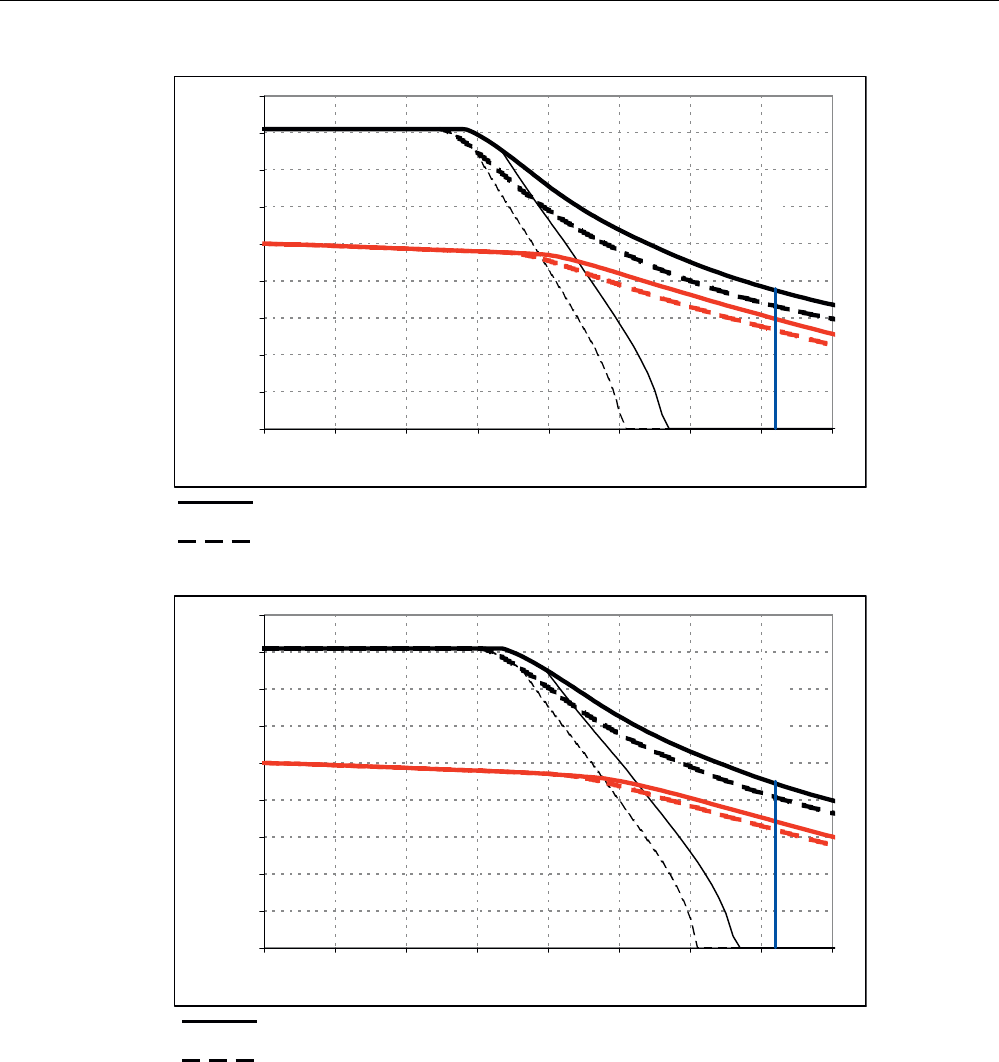

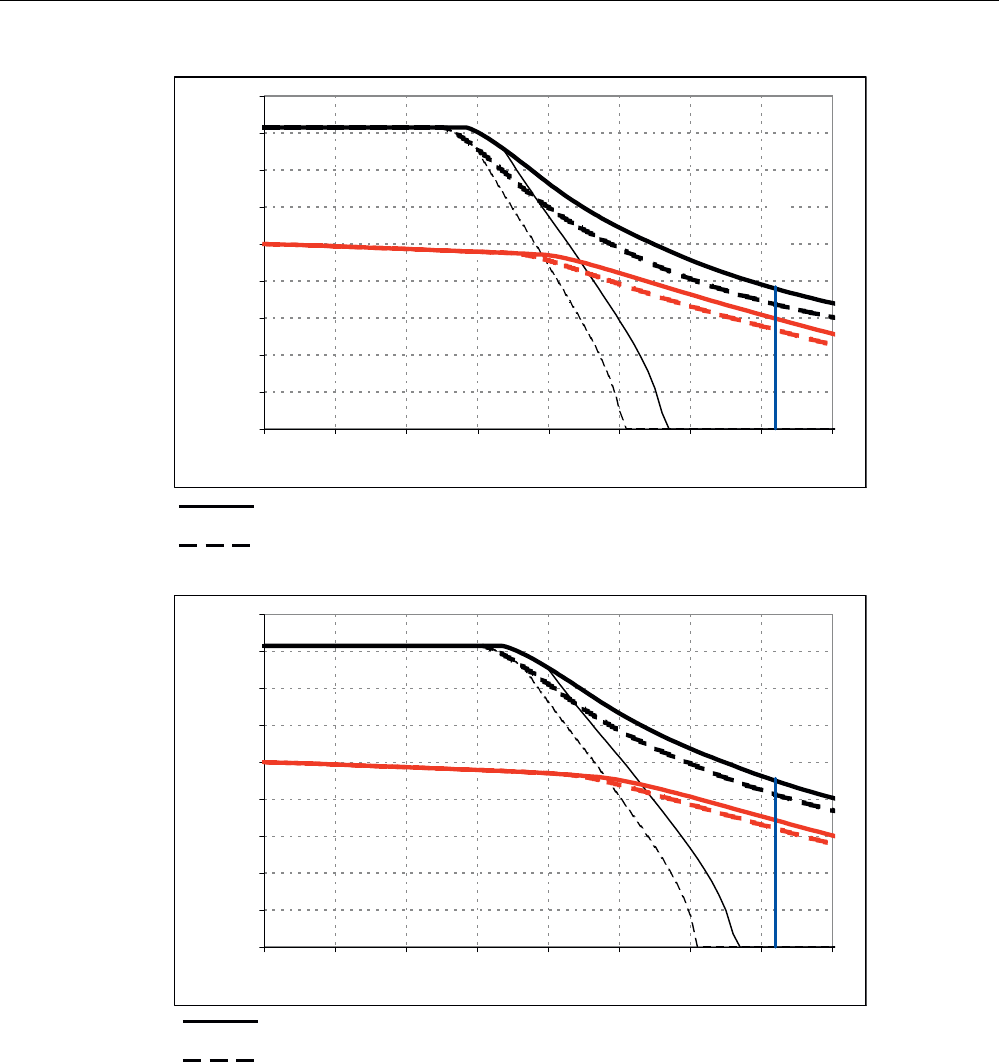

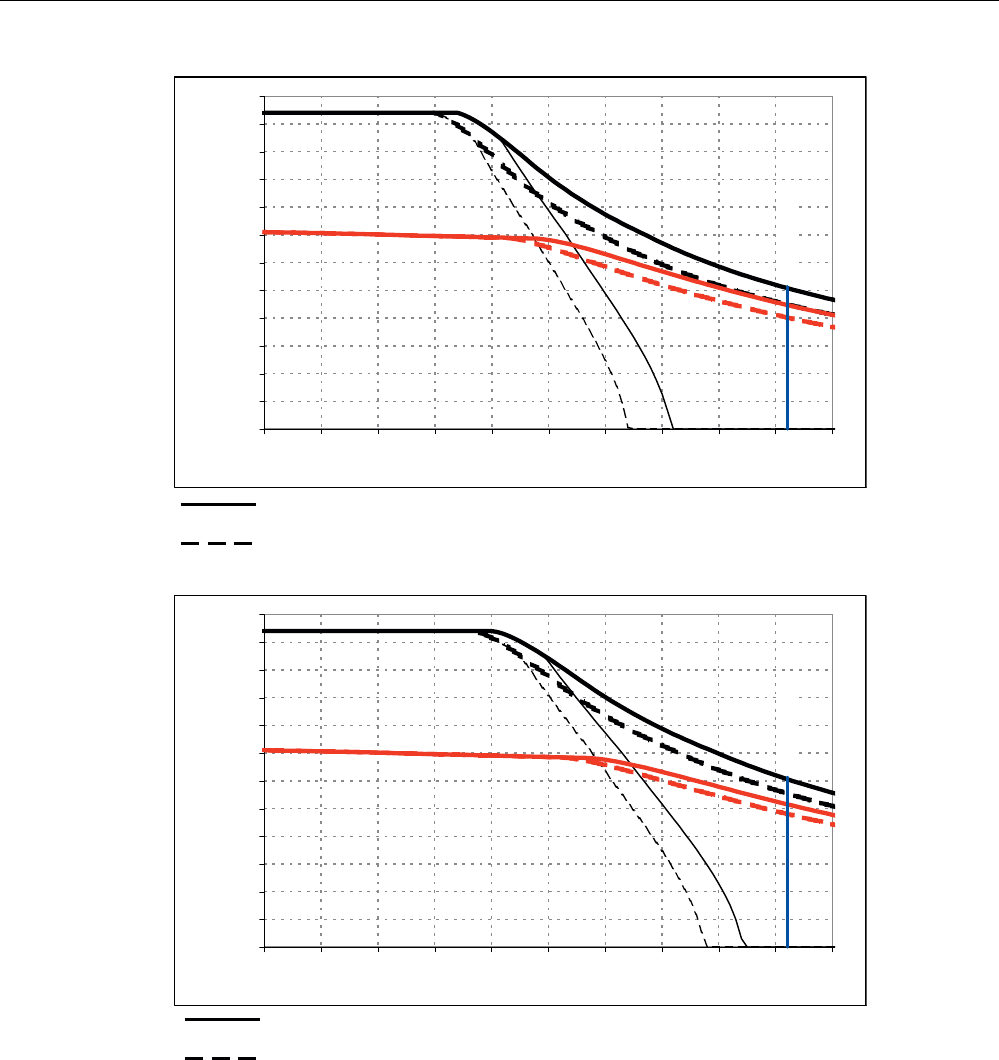

0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):/
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
92 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 9 1FW3152, rated speed 750 rpm
Configuration data Code Unit 1FW3152-1☐P
Rated speed nN rpm 750
Rated torque (100 K) MN (100 K) Nm 200
Rated power (100 K) PN (100 K) kW 15.7
Rated current (100 K) IN (100 K) A 32.5
Static torque (100 K) M0 (100 K) Nm 210
Stall current (100 K) I0 (100 K) A 33.5
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 1450
Maximum torque Mmax Nm 400
Maximum current Imax A 79
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 6.3
Voltage constant (at 20 °C) kE V/1000 rpm 399
Winding resistance (at 20 °C) Rph Ω 0.28
Rotating field inductance LD mH 9.5
Electrical time constant Tel ms 33.5
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.4
Moment of inertia Jmot kgm
2 0.16
Shaft torsional stiffness ct Nm/rad 2.17E+07
Weight m kg 108
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.09
Shaft torsional stiffness ct Nm/rad 1.1E+06
Weight m kg 121
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 4.2
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 2.92E+07
Weight m kg 124
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 93

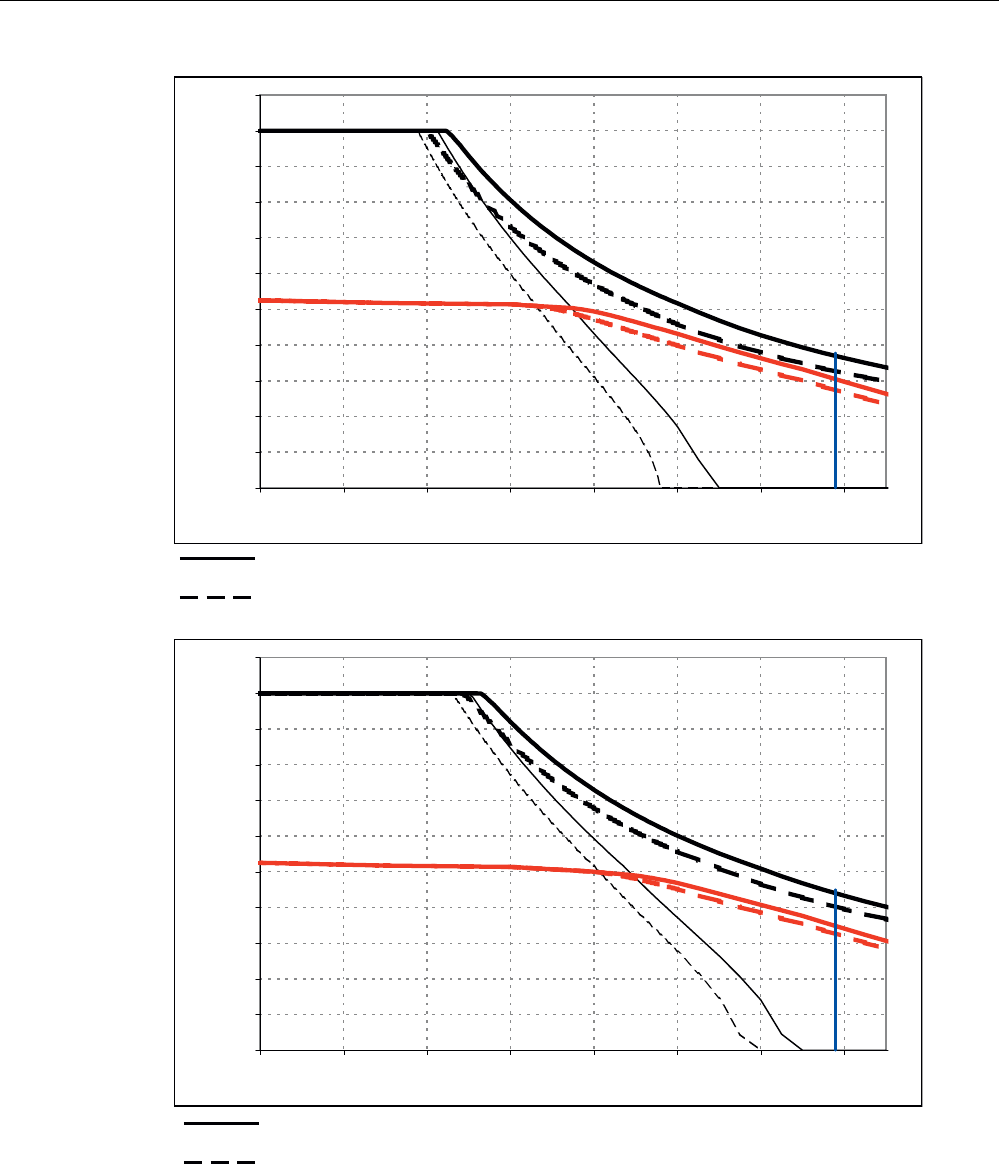

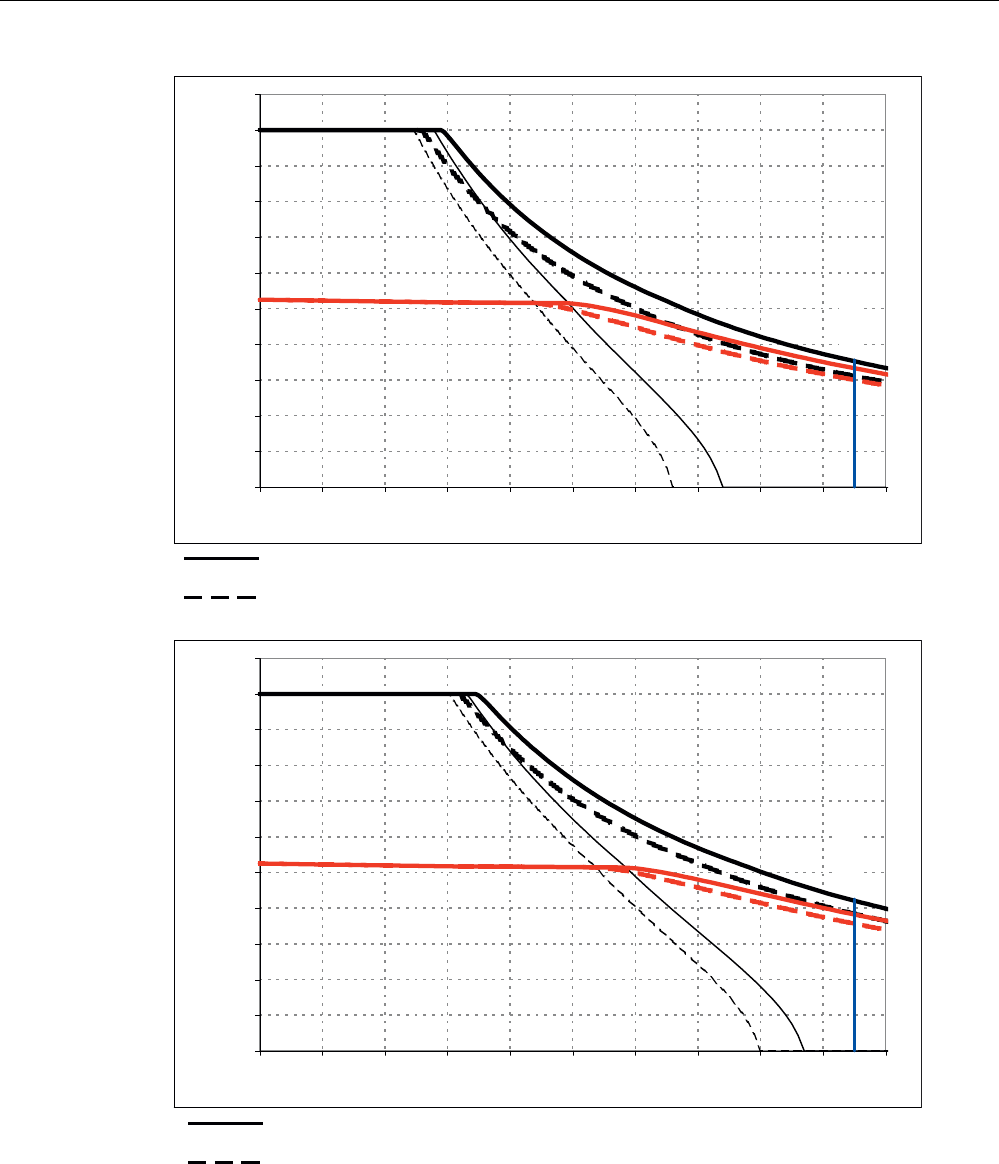

):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
94 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 10 1FW3154, rated speed 300 rpm
Configuration data Code Unit 1FW3154-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 300
Rated power (100 K) PN (100 K) kW 9.4
Rated current (100 K) IN (100 K) A 20.5
Static torque (100 K) M0 (100 K) Nm 315
Stall current (100 K) I0 (100 K) A 21.5
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 610
Maximum torque Mmax Nm 600
Maximum current Imax A 49.0
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 14.8
Voltage constant (at 20 °C) kE V/1000 rpm 945
Winding resistance (at 20 °C) Rph Ω 0.92
Rotating field inductance LD mH 33
Electrical time constant Tel ms 36.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.5
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 1.66E+07
Weight m kg 129
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.13
Shaft torsional stiffness ct Nm/rad 9.10E+05
Weight m kg 143
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.2
Moment of inertia Jmot kgm
2 0.25
Shaft torsional stiffness ct Nm/rad 2.24E+07
Weight m kg 143
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 95
):+

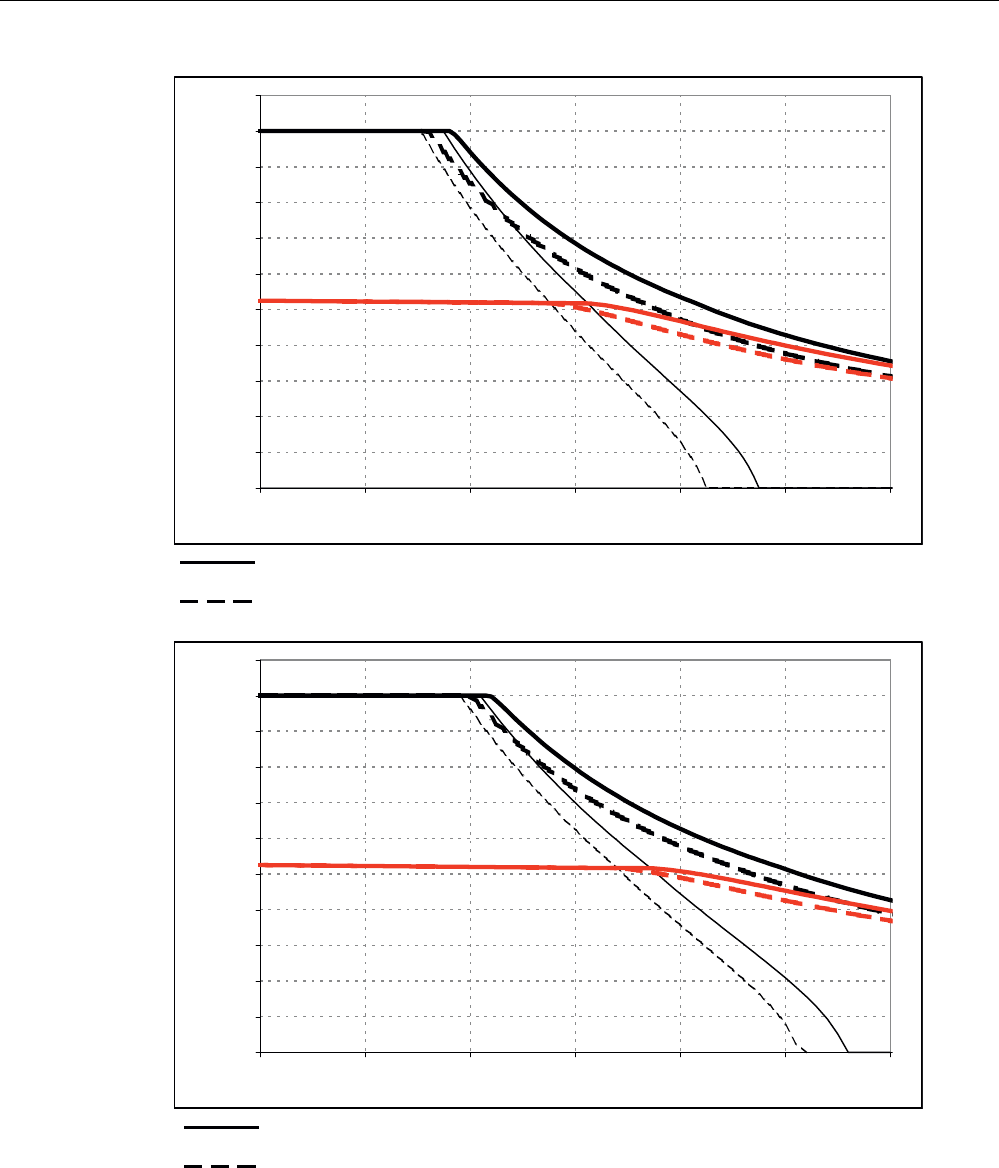

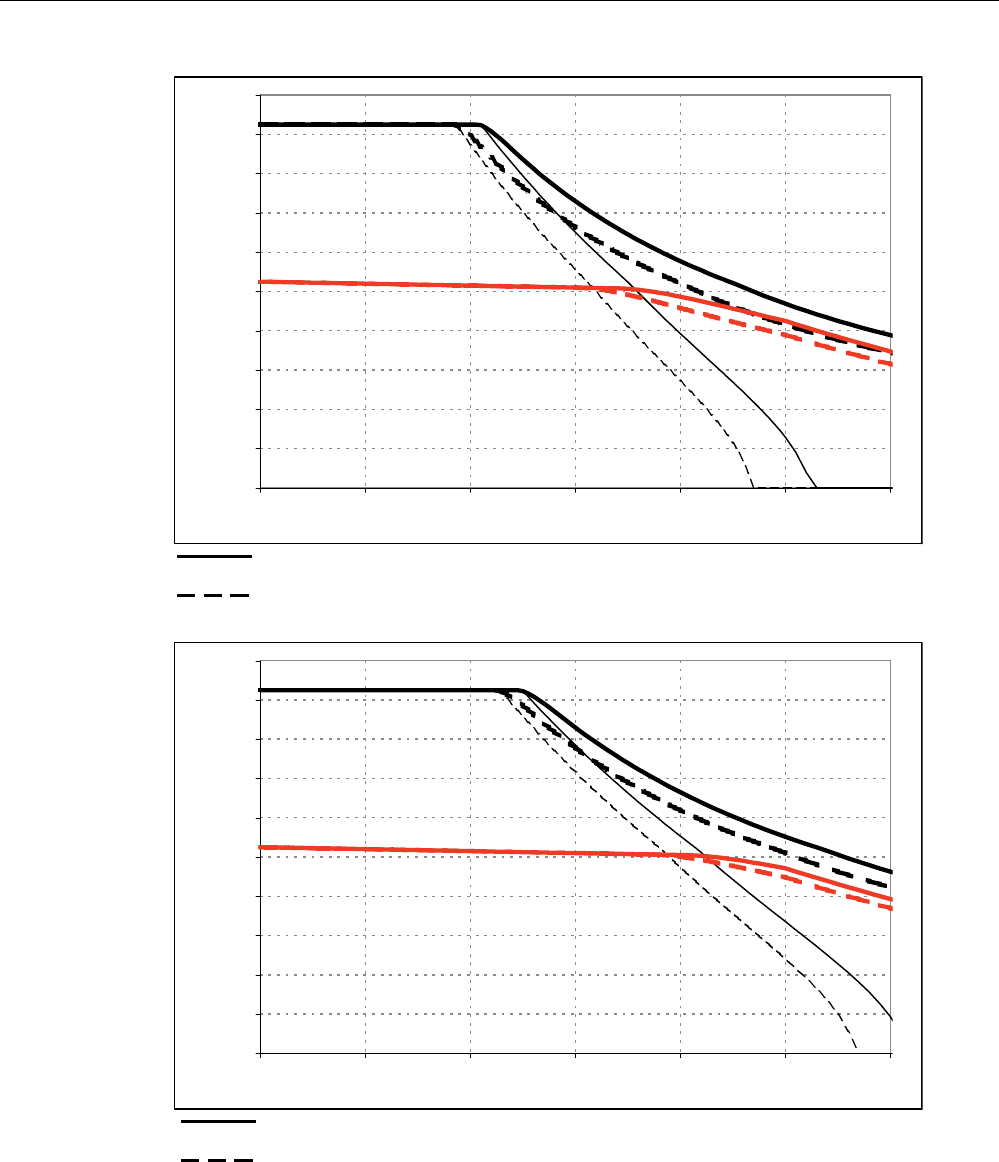

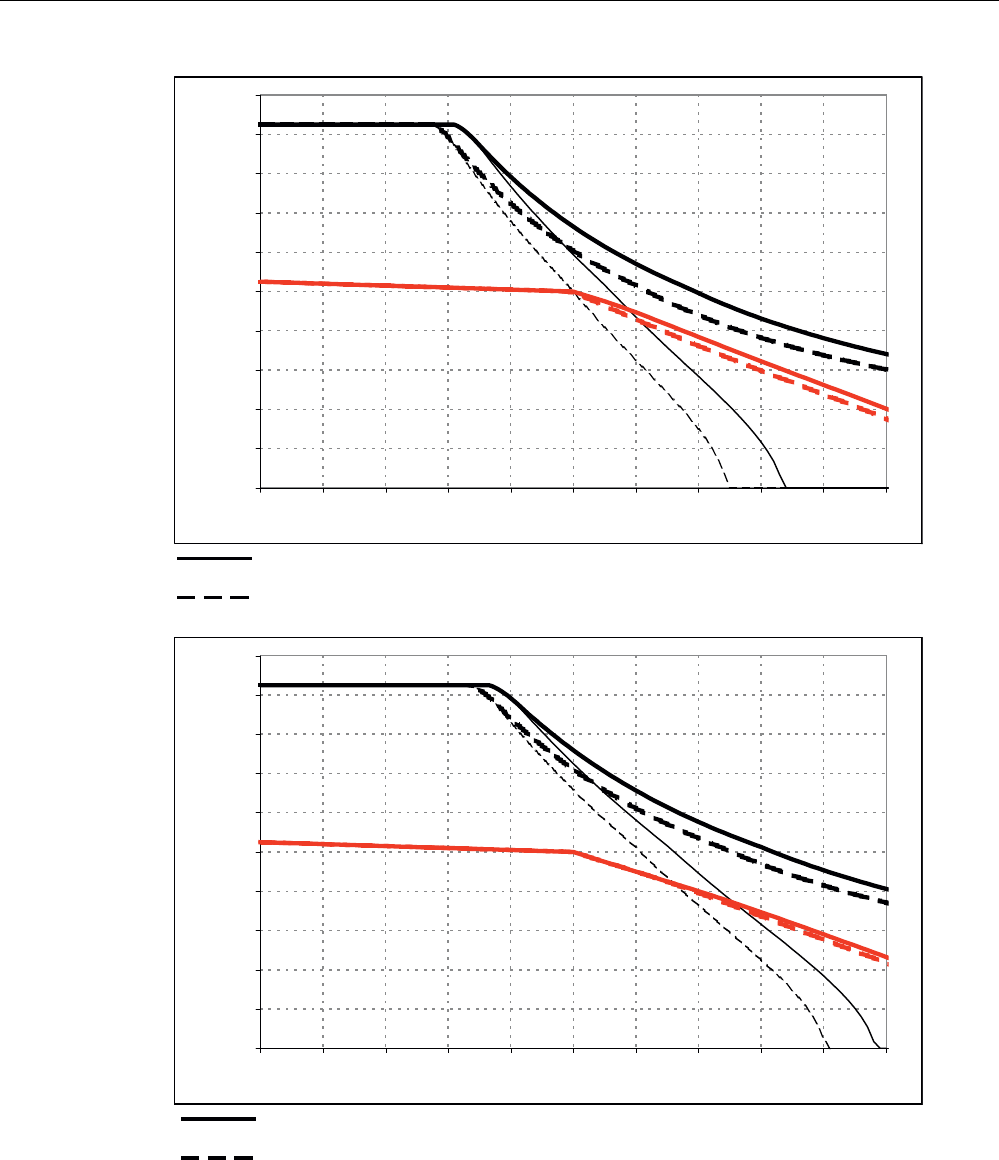

0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
96 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 11 1FW3154, rated speed 500 rpm
Configuration data Code Unit 1FW3154-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 300
Rated power (100 K) PN (100 K) kW 15.7
Rated current (100 K) IN (100 K) A 32.0
Static torque (100 K) M0 (100 K) Nm 315
Stall current (100 K) I0 (100 K) A 33.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 950
Maximum torque Mmax Nm 600
Maximum current Imax A 75
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 9.6
Voltage constant (at 20 °C) kE V/1000 rpm 610
Winding resistance (at 20 °C) Rph Ω 0.39
Rotating field inductance LD mH 14.0
Electrical time constant Tel ms 36.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.5
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 1.66E+07
Weight m kg 129
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.13
Shaft torsional stiffness ct Nm/rad 9.10E+05
Weight m kg 143
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.2
Moment of inertia Jmot kgm
2 0.25
Shaft torsional stiffness ct Nm/rad 2.24E+07
Weight m kg 143
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 97
):/

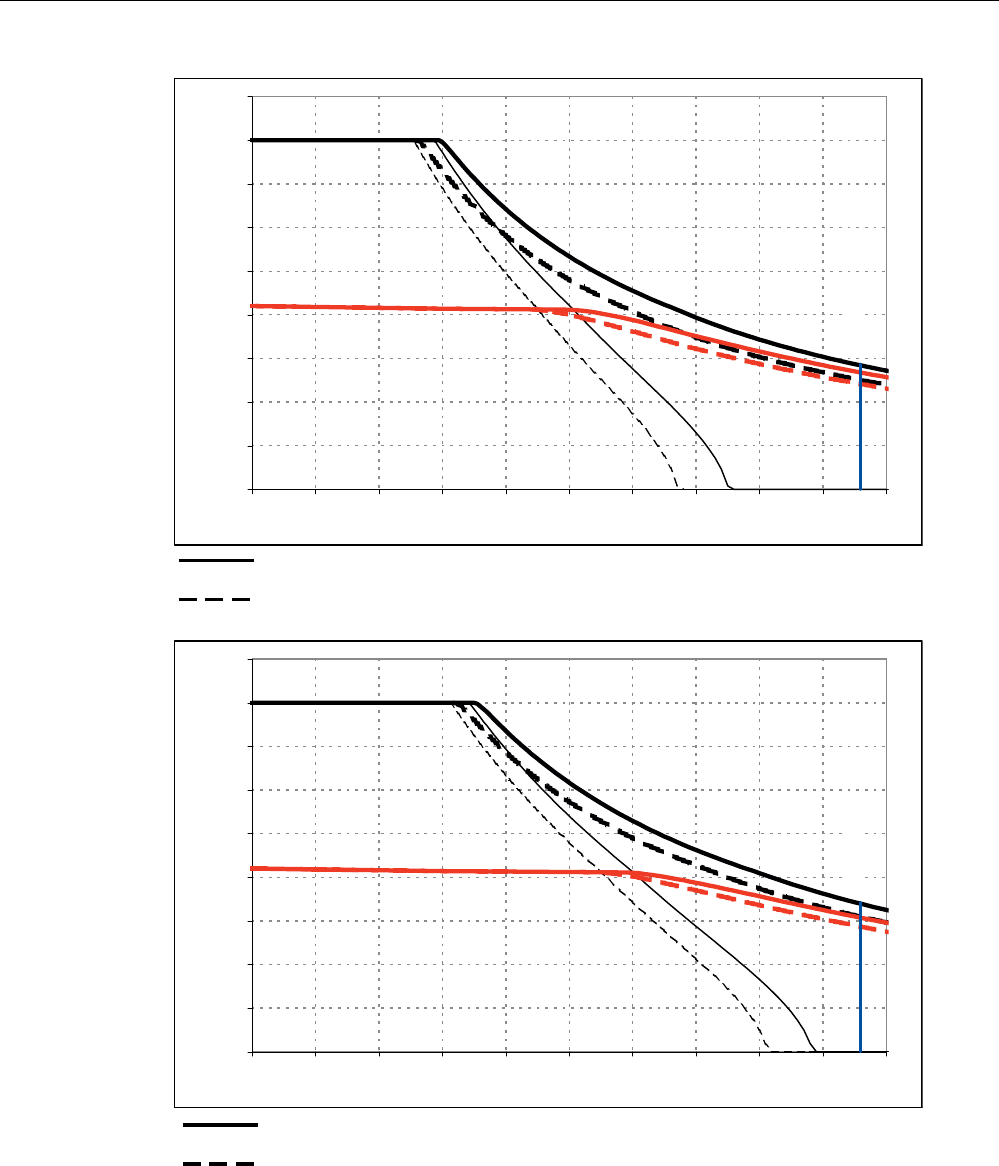

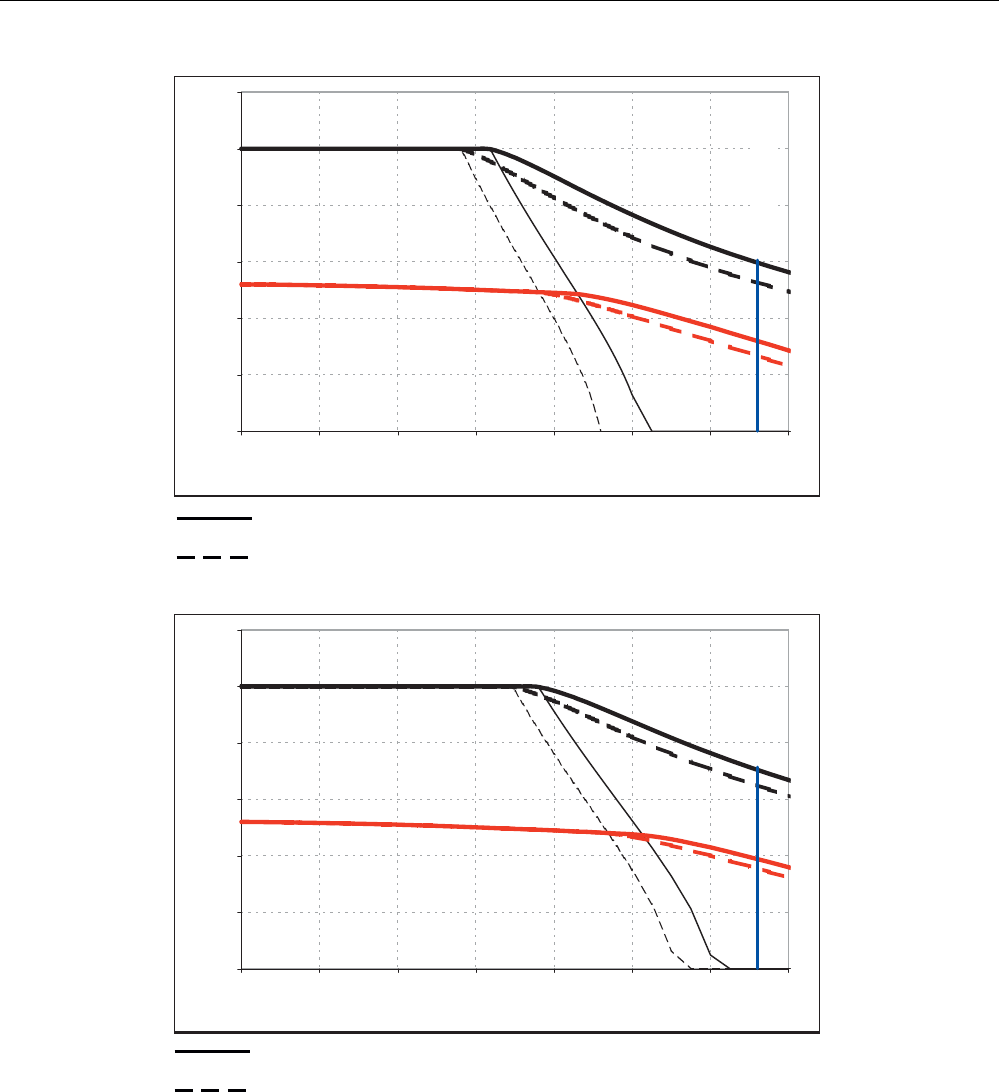

0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):/
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
98 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 12 1FW3154, rated speed 750 rpm
Configuration data Code Unit 1FW3154-1☐P
Rated speed nN rpm 750
Rated torque (100 K) MN (100 K) Nm 300
Rated power (100 K) PN (100 K) kW 23.5
Rated current (100 K) IN (100 K) A 47.5
Static torque (100 K) M0 (100 K) Nm 315
Stall current (100 K) I0 (100 K) A 49.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 1420
Maximum torque Mmax Nm 600
Maximum current Imax A 113
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 6.4
Voltage constant (at 20 °C) kE V/1000 rpm 407
Winding resistance (at 20 °C) Rph Ω 0.171
Rotating field inductance LD mH 6.0
Electrical time constant Tel ms 35.5
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.5
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 1.66E+07
Weight m kg 129
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.13
Shaft torsional stiffness ct Nm/rad 9.10E+05
Weight m kg 143
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.2
Moment of inertia Jmot kgm
2 0.25
Shaft torsional stiffness ct Nm/rad 2.24E+07
Weight m kg 143
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 99
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
100 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 13 1FW3155, rated speed 300 rpm
Configuration data Code Unit 1FW3155-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 400
Rated power (100 K) PN (100 K) kW 12.6
Rated current (100 K) IN (100 K) A 28.0
Static torque (100 K) M0 (100 K) Nm 420
Stall current (100 K) I0 (100 K) A 29.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 630
Maximum torque Mmax Nm 800
Maximum current Imax A 67
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT Nm/A 14.4
Voltage constant (at 20 °C) kE V/1000 rpm 915
Winding resistance (at 20 °C) Rph Ω 0.61
Rotating field inductance LD mH 24
Electrical time constant Tel ms 39.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.1
Moment of inertia Jmot kgm
2 0.24
Shaft torsional stiffness ct Nm/rad 1.40E+07
Weight m kg 150
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.17
Shaft torsional stiffness ct Nm/rad 8.30E+05
Weight m kg 164
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.6
Moment of inertia Jmot kgm
2 0.29
Shaft torsional stiffness ct Nm/rad 1.84E+07
Weight m kg 163
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 101
):+

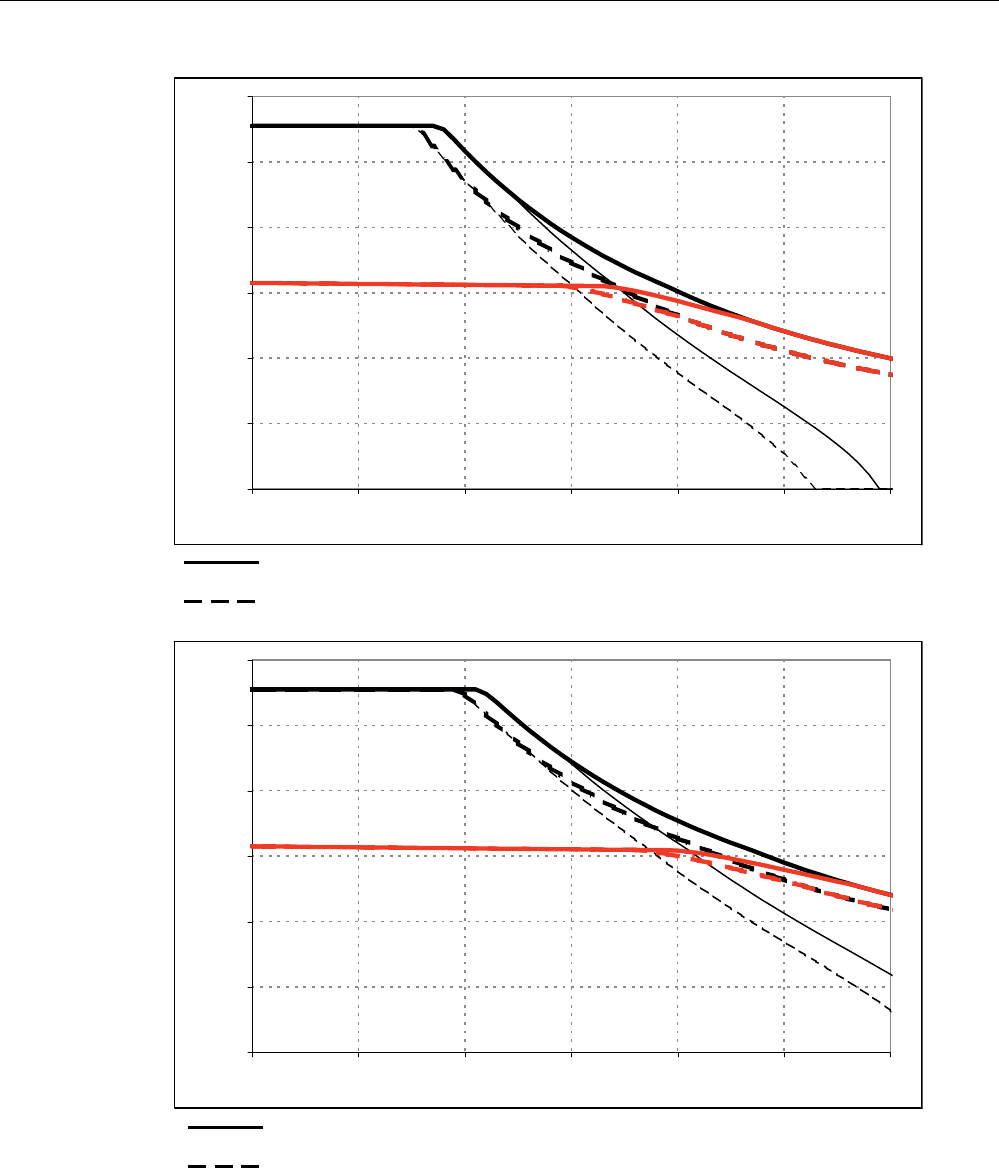

0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
102 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 14 1FW3155, rated speed 500 rpm
Configuration data Code Unit 1FW3155-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 400
Rated power (100 K) PN (100 K) kW 21.0
Rated current (100 K) IN (100 K) A 43.0
Static torque (100 K) M0 (100 K) Nm 420
Stall current (100 K) I0 (100 K) A 45.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 960
Maximum torque Mmax Nm 800
Maximum current Imax A 103
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT Nm/A 9.4
Voltage constant (at 20 °C) kE V/1000 rpm 600
Winding resistance (at 20 °C) Rph Ω 0.265
Rotating field inductance LD mH 10.0
Electrical time constant Tel ms 38.0
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.2
Moment of inertia Jmot kgm
2 0.24
Shaft torsional stiffness ct Nm/rad 1.40E+07
Weight m kg 150
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.17
Shaft torsional stiffness ct Nm/rad 8.30E+05
Weight m kg 164
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.6
Moment of inertia Jmot kgm
2 0.29
Shaft torsional stiffness ct Nm/rad 1.84E+07
Weight m kg 163
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 103
):/
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):/
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
104 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 15 1FW3155, rated speed 750 rpm
Configuration data Code Unit 1FW3155-1☐P
Rated speed nN rpm 750
Rated torque (100 K) MN (100 K) Nm 400
Rated power (100 K) PN (100 K) kW 31.5
Rated current (100 K) IN (100 K) A 64
Static torque (100 K) M0 (100 K) Nm 420
Stall current (100 K) I0 (100 K) A 67
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 1450
Maximum torque Mmax Nm 800
Maximum current Imax A 153
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT Nm/A 6.3
Voltage constant (at 20 °C) kE V/1000 rpm 399
Winding resistance (at 20 °C) Rph Ω 0.112
Rotating field inductance LD mH 4.4
Electrical time constant Tel ms 39.5
Thermal time constant Tth min 4.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.0
Moment of inertia Jmot kgm
2 0.24
Shaft torsional stiffness ct Nm/rad 1.40E+07
Weight m kg 150
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.17
Shaft torsional stiffness ct Nm/rad 8.30E+05
Weight m kg 164
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.5
Moment of inertia Jmot kgm
2 0.29
Shaft torsional stiffness ct Nm/rad 1.84E+07
Weight m kg 163
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 105
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
106 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 16 1FW3156, rated speed 300 rpm
Configuration data Code Unit 1FW3156-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 15.7
Rated current (100 K) IN (100 K) A 34.0
Static torque (100 K) M0 (100 K) Nm 525
Stall current (100 K) I0 (100 K) A 35.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 610
Maximum torque Mmax Nm 1000
Maximum current Imax A 81
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 14.9
Voltage constant (at 20 °C) kE V/1000 rpm 945
Winding resistance (at 20 °C) Rph Ω 0.5
Rotating field inductance LD mH 20
Electrical time constant Tel ms 39.5
Thermal time constant Tth min 5.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.28
Shaft torsional stiffness ct Nm/rad 1.13E+07
Weight m kg 171
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 7.60E+05
Weight m kg 187
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.3
Moment of inertia Jmot kgm
2 0.34
Shaft torsional stiffness ct Nm/rad 1.55E+07
Weight m kg 184
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 107
):+

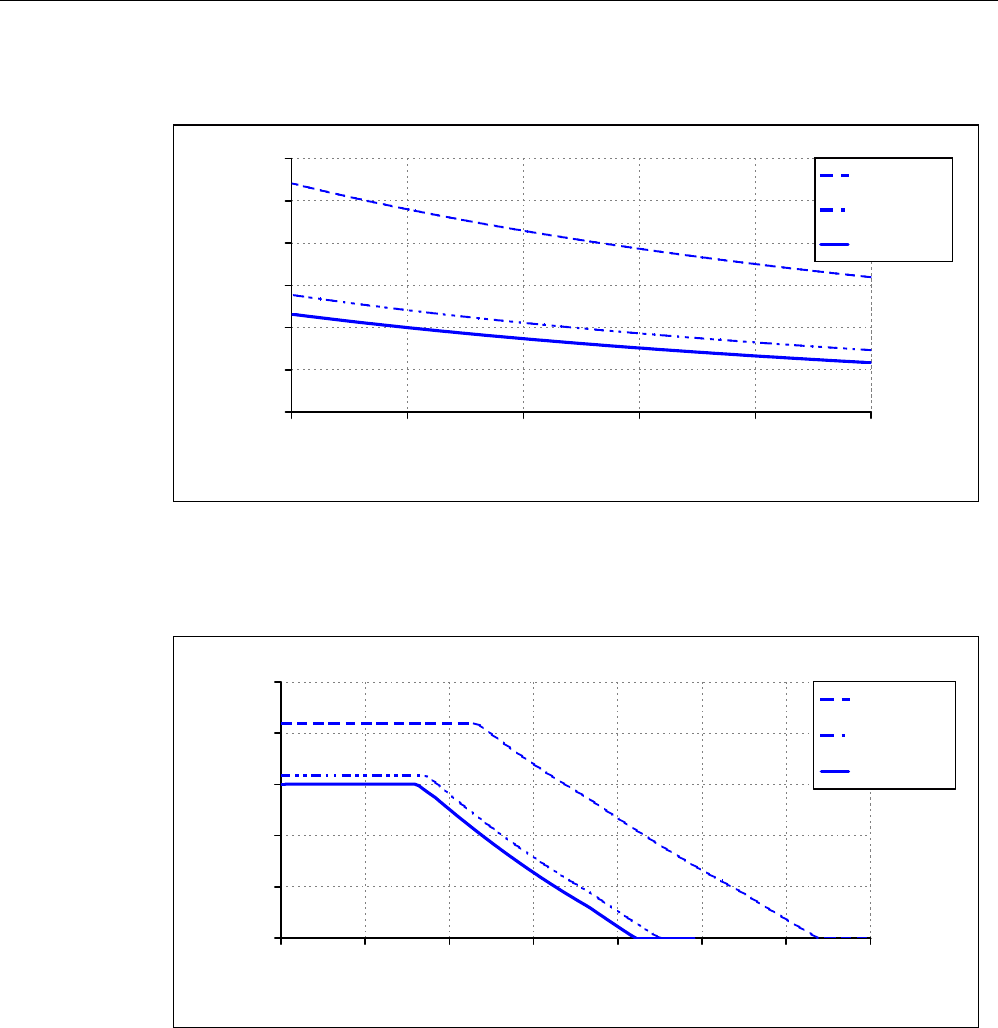

0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
108 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 17 1FW3156, rated speed 500 rpm
Configuration data Code Unit 1FW3156-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 26.0
Rated current (100 K) IN (100 K) A 53
Static torque (100 K) M0 (100 K) Nm 525
Stall current (100 K) I0 (100 K) A 55
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 950
Maximum torque Mmax Nm 1000
Maximum current Imax A 126
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 9.6
Voltage constant (at 20 °C) kE V/1000 rpm 610
Winding resistance (at 20 °C) Rph Ω 0.215
Rotating field inductance LD mH 8.5
Electrical time constant Tel ms 40.0
Thermal time constant Tth min 5.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.28
Shaft torsional stiffness ct Nm/rad 1.13E+07
Weight m kg 171
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 7.60E+05
Weight m kg 187
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 0.34
Shaft torsional stiffness ct Nm/rad 1.55E+07
Weight m kg 184
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 109
):/
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):/
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
110 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 18 1FW3156, rated speed 750 rpm
Configuration data Code Unit 1FW3156-1☐P
Rated speed nN rpm 750
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 39.5
Rated current (100 K) IN (100 K) A 76
Static torque (100 K) M0 (100 K) Nm 525
Stall current (100 K) I0 (100 K) A 80
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1700
Max. permissible speed (converter) nmax 830 V rpm 1380
Maximum torque Mmax Nm 1000
Maximum current Imax A 183
Motor data
Number of poles 2p 14
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 6.6
Voltage constant (at 20 °C) kE V/1000 rpm 419
Winding resistance (at 20 °C) Rph Ω 0.098
Rotating field inductance LD mH 3.9
Electrical time constant Tel ms 40.0
Thermal time constant Tth min 5.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.28
Shaft torsional stiffness ct Nm/rad 1.13E+07
Weight m kg 171
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 0.2
Shaft torsional stiffness ct Nm/rad 7.60E+05
Weight m kg 187
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.3
Moment of inertia Jmot kgm
2 0.34
Shaft torsional stiffness ct Nm/rad 1.55E+07
Weight m kg 184
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 111
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):3
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
112 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.1.2 Shaft height 200, Standard
Table 4- 19 1FW3201, rated speed 150 rpm
Configuration data Code Unit 1FW3201-1☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 300
Rated power (100 K) PN (100 K) kW 4.7
Rated current (100 K) IN (100 K) A 13.0
Static torque (100 K) M0 (100 K) Nm 315
Stall current (100 K) I0 (100 K) A 13.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 380
Maximum torque Mmax Nm 555
Maximum current Imax A 28.0
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 24.0
Voltage constant (at 20 °C) kE V/1000 rpm 1520
Winding resistance (at 20 °C) Rph Ω 1.89
Rotating field inductance LD mH 50
Electrical time constant Tel ms 27.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.2
Moment of inertia Jmot kgm
2 0.22
Shaft torsional stiffness ct Nm/rad 3.73E+07
Weight m kg 127
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.3
Moment of inertia Jmot kgm
2 0.23
Shaft torsional stiffness ct Nm/rad 3.48E+06
Weight m kg 179
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.7
Moment of inertia Jmot kgm
2 0.27
Shaft torsional stiffness ct Nm/rad 4.90E+07
Weight m kg 171
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 113
):(
0BPD[
6.
Q>USP@
0>1P@
):(
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
114 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 20 1FW3201, rated speed 300 rpm
Configuration data Code Unit 1FW3201-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 300
Rated power (100 K) PN (100 K) kW 9.4
Rated current (100 K) IN (100 K) A 23.0
Static torque (100 K) M0 (100 K) Nm 315
Stall current (100 K) I0 (100 K) A 24.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 680
Maximum torque Mmax Nm 555
Maximum current Imax A 50
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 13.3
Voltage constant (at 20 °C) kE V/1000 rpm 845
Winding resistance (at 20 °C) Rph Ω 0.57
Rotating field inductance LD mH 15.0
Electrical time constant Tel ms 26.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.1
Moment of inertia Jmot kgm
2 0.22
Shaft torsional stiffness ct Nm/rad 3.73E+07
Weight m kg 127
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.2
Moment of inertia Jmot kgm
2 0.23
Shaft torsional stiffness ct Nm/rad 3.48E+06
Weight m kg 179
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.6
Moment of inertia Jmot kgm
2 0.27
Shaft torsional stiffness ct Nm/rad 4.90E+07
Weight m kg 171
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 115
):+
0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
116 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 21 1FW3201, rated speed 500 rpm
Configuration data Code Unit 1FW3201-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 15.7
Rated current (100 K) IN (100 K) A 37.0
Static torque (100 K) M0 (100 K) Nm 315
Stall current (100 K) I0 (100 K) A 38.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1110
Maximum torque Mmax Nm 555
Maximum current Imax A 82
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT (100 K) Nm/A 8.2
Voltage constant (at 20 °C) kE V/1000 rpm 520
Winding resistance (at 20 °C) Rph Ω 0.225
Rotating field inductance LD mH 6.0
Electrical time constant Tel ms 26.5
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.2
Moment of inertia Jmot kgm
2 0.22
Shaft torsional stiffness ct Nm/rad 3.73E+07
Weight m kg 127
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.3
Moment of inertia Jmot kgm
2 0.23
Shaft torsional stiffness ct Nm/rad 3.48E+06
Weight m kg 179
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.7
Moment of inertia Jmot kgm
2 0.27
Shaft torsional stiffness ct Nm/rad 4.90E+07
Weight m kg 171
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 117
):/
0BPD[
6.
Q>USP@
0>1P@
):/
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
118 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 22 1FW3202, rated speed 150 rpm
Configuration data Code Unit 1FW3202-1☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 7.9
Rated current (100 K) IN (100 K) A 21.0
Static torque (100 K) M0 (100 K) Nm 525
Stall current (100 K) I0 (100 K) A 22.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 380
Maximum torque Mmax Nm 925
Maximum current Imax A 47.0
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 24.0
Voltage constant (at 20 °C) kE V/1000 rpm 1520
Winding resistance (at 20 °C) Rph Ω 0.94
Rotating field inductance LD mH 29
Electrical time constant Tel ms 31.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.8
Moment of inertia Jmot kgm
2 0.36
Shaft torsional stiffness ct Nm/rad 2.74E+07
Weight m kg 156
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 0.35
Shaft torsional stiffness ct Nm/rad 3.28E+06
Weight m kg 215
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.39
Shaft torsional stiffness ct Nm/rad 4.05E+07
Weight m kg 200
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 119
):(
0BPD[
6.
Q>USP@
0>1P@
):(
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
120 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 23 1FW3202, rated speed 300 rpm
Configuration data Code Unit 1FW3202-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 15.7
Rated current (100 K) IN (100 K) A 37.0
Static torque (100 K) M0 (100 K) Nm 525
Stall current (100 K) I0 (100 K) A 39.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 670
Maximum torque Mmax Nm 925
Maximum current Imax A 81
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 13.5
Voltage constant (at 20 °C) kE V/1000 rpm 855
Winding resistance (at 20 °C) Rph Ω 0.285
Rotating field inductance LD mH 9.0
Electrical time constant Tel ms 31.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 0.36
Shaft torsional stiffness ct Nm/rad 2.74E+07
Weight m kg 156
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.35
Shaft torsional stiffness ct Nm/rad 3.28E+06
Weight m kg 215
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.8
Moment of inertia Jmot kgm
2 0.39
Shaft torsional stiffness ct Nm/rad 4.05E+07
Weight m kg 200
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 121
):+
0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
122 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 24 1FW3202, rated speed 500 rpm
Configuration data Code Unit 1FW3202-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 500
Rated power (100 K) PN (100 K) kW 26.0
Rated current (100 K) IN (100 K) A 59
Static torque (100 K) M0 (100 K) Nm 525
Stall current (100 K) I0 (100 K) A 62
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1070
Maximum torque Mmax Nm 925
Maximum current Imax A 131
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 8.5
Voltage constant (at 20 °C) kE V/1000 rpm 540
Winding resistance (at 20 °C) Rph Ω 0.117
Rotating field inductance LD mH 3.5
Electrical time constant Tel ms 30.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 0.36
Shaft torsional stiffness ct Nm/rad 2.74E+07
Weight m kg 156
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 0.35
Shaft torsional stiffness ct Nm/rad 3.28E+06
Weight m kg 215
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 0.39
Shaft torsional stiffness ct Nm/rad 4.05E+07
Weight m kg 200
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 123
):/
0BPD[
6.
Q>USP@
0>1P@
):/
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
124 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 25 1FW3203, rated speed 150 rpm
Configuration data Code Unit 1FW3203-1☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 750
Rated power (100 K) PN (100 K) kW 11.8
Rated current (100 K) IN (100 K) A 31.0
Static torque (100 K) M0 (100 K) Nm 790
Stall current (100 K) I0 (100 K) A 32.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 370
Maximum torque Mmax Nm 1390
Maximum current Imax A 69
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 24.5
Voltage constant (at 20 °C) kE V/1000 rpm 1555
Winding resistance (at 20 °C) Rph Ω 0.64
Rotating field inductance LD mH 20
Electrical time constant Tel ms 31.5
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.49
Shaft torsional stiffness ct Nm/rad 2.16E+07
Weight m kg 182
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.46
Shaft torsional stiffness ct Nm/rad 3.11E+06
Weight m kg 240
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 0.52
Shaft torsional stiffness ct Nm/rad 3.44E+07
Weight m kg 225
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 125
):(
0BPD[
6.
Q>USP@
0>1P@
):(
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
126 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 26 1FW3203, rated speed 300 rpm
Configuration data Code Unit 1FW3203-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 750
Rated power (100 K) PN (100 K) kW 23.5
Rated current (100 K) IN (100 K) A 59
Static torque (100 K) M0 (100 K) Nm 790
Stall current (100 K) I0 (100 K) A 62
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 710
Maximum torque Mmax Nm 1390
Maximum current Imax A 132
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 12.7
Voltage constant (at 20 °C) kE V/1000 rpm 810
Winding resistance (at 20 °C) Rph Ω 0.162
Rotating field inductance LD mH 5.0
Electrical time constant Tel ms 32.0
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.49
Shaft torsional stiffness ct Nm/rad 2.16E+07
Weight m kg 182
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.46
Shaft torsional stiffness ct Nm/rad 3.11E+06
Weight m kg 240
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.52
Shaft torsional stiffness ct Nm/rad 3.44E+07
Weight m kg 225
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 127
):+
0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
128 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 27 1FW3203, rated speed 500 rpm
Configuration data Code Unit 1FW3203-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 750
Rated power (100 K) PN (100 K) kW 39.5
Rated current (100 K) IN (100 K) A 92
Static torque (100 K) M0 (100 K) Nm 790
Stall current (100 K) I0 (100 K) A 100
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1110
Maximum torque Mmax Nm 1390
Maximum current Imax A 205
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 8.2
Voltage constant (at 20 °C) kE V/1000 rpm 520
Winding resistance (at 20 °C) Rph Ω 0.07
Rotating field inductance LD mH 2.2
Electrical time constant Tel ms 31.5
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.49
Shaft torsional stiffness ct Nm/rad 2.16E+07
Weight m kg 182
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.46
Shaft torsional stiffness ct Nm/rad 3.11E+06
Weight m kg 240
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.52
Shaft torsional stiffness ct Nm/rad 3.44E+07
Weight m kg 225
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 129
):/
0BPD[
6.
Q>USP@
0>1P@
):/
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
130 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 28 1FW3204, rated speed 150 rpm
Configuration data Code Unit 1FW3204-1☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 1000
Rated power (100 K) PN (100 K) kW 15.7
Rated current (100 K) IN (100 K) A 40.0
Static torque (100 K) M0 (100 K) Nm 1050
Stall current (100 K) I0 (100 K) A 42.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 360
Maximum torque Mmax Nm 1850
Maximum current Imax A 90
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 25
Voltage constant (at 20 °C) kE V/1000 rpm 1585
Winding resistance (at 20 °C) Rph Ω 0.44
Rotating field inductance LD mH 15.0
Electrical time constant Tel ms 34.0
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.7
Shaft torsional stiffness ct Nm/rad 1.64E+07
Weight m kg 225
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 0.61
Shaft torsional stiffness ct Nm/rad 2.88E+06
Weight m kg 285
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 0.7
Shaft torsional stiffness ct Nm/rad 3.00E+07
Weight m kg 275
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 131
):(
0BPD[
6.
Q>USP@
0>1P@
):(
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
132 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 29 1FW3204, rated speed 300 rpm
Configuration data Code Unit 1FW3204-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 1000
Rated power (100 K) PN (100 K) kW 31.5
Rated current (100 K) IN (100 K) A 74
Static torque (100 K) M0 (100 K) Nm 1050
Stall current (100 K) I0 (100 K) A 77
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 670
Maximum torque Mmax Nm 1850
Maximum current Imax A 163
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 13.5
Voltage constant (at 20 °C) kE V/1000 rpm 855
Winding resistance (at 20 °C) Rph Ω 0.125
Rotating field inductance LD mH 4.2
Electrical time constant Tel ms 33.5
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.7
Shaft torsional stiffness ct Nm/rad 1.64E+07
Weight m kg 225
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 0.61
Shaft torsional stiffness ct Nm/rad 2.88E+06
Weight m kg 285
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.7
Shaft torsional stiffness ct Nm/rad 3.00E+07
Weight m kg 275
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 133
):+
0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
134 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 30 1FW3204, rated speed 500 rpm
Configuration data Code Unit 1FW3204-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 1000
Rated power (100 K) PN (100 K) kW 52
Rated current (100 K) IN (100 K) A 118
Static torque (100 K) M0 (100 K) Nm 1050
Stall current (100 K) I0 (100 K) A 129
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1060
Maximum torque Mmax Nm 1850
Maximum current Imax A 260
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 8.5
Voltage constant (at 20 °C) kE V/1000 rpm 545
Winding resistance (at 20 °C) Rph Ω 0.049
Rotating field inductance LD mH 1.7
Electrical time constant Tel ms 34.5
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.7
Shaft torsional stiffness ct Nm/rad 1.64E+07
Weight m kg 225
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.2
Moment of inertia Jmot kgm
2 0.61
Shaft torsional stiffness ct Nm/rad 2.88E+06
Weight m kg 285
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.7
Shaft torsional stiffness ct Nm/rad 3.00E+07
Weight m kg 275
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 135
):/
0BPD[
6.
Q>USP@
0>1P@
):/
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
136 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 31 1FW3206, rated speed 150 rpm
Configuration data Code Unit 1FW3206-1☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 1500
Rated power (100 K) PN (100 K) kW 23.5
Rated current (100 K) IN (100 K) A 65
Static torque (100 K) M0 (100 K) Nm 1575
Stall current (100 K) I0 (100 K) A 68
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 390
Maximum torque Mmax Nm 2775
Maximum current Imax A 145
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 23.0
Voltage constant (at 20 °C) kE V/1000 rpm 1465
Winding resistance (at 20 °C) Rph Ω 0.255
Rotating field inductance LD mH 9.0
Electrical time constant Tel ms 35.0
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.97
Shaft torsional stiffness ct Nm/rad 1.24E+07
Weight m kg 280
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.2
Moment of inertia Jmot kgm
2 0.97
Shaft torsional stiffness ct Nm/rad 1.24E+07
Weight m kg 345
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.94
Shaft torsional stiffness ct Nm/rad 2.65E+07
Weight m kg 330
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 137
):(
0BPD[
6.
Q>USP@
0>1P@
):(
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
138 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 32 1FW3206, rated speed 300 rpm
Configuration data Code Unit 1FW3206-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 1500
Rated power (100 K) PN (100 K) kW 47.0
Rated current (100 K) IN (100 K) A 118
Static torque (100 K) M0 (100 K) Nm 1575
Stall current (100 K) I0 (100 K) A 121
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 700
Maximum torque Mmax Nm 2775
Maximum current Imax A 255
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 12.8
Voltage constant (at 20 °C) kE V/1000 rpm 820
Winding resistance (at 20 °C) Rph Ω 0.076
Rotating field inductance LD mH 2.7
Electrical time constant Tel ms 35.5
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 0.97
Shaft torsional stiffness ct Nm/rad 1.24E+07
Weight m kg 280
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.2
Moment of inertia Jmot kgm
2 0.84
Shaft torsional stiffness ct Nm/rad 1.24E+07
Weight m kg 345
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 0.94
Shaft torsional stiffness ct Nm/rad 2.65E+07
Weight m kg 330
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 139
):+
0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
140 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 33 1FW3206, rated speed 500 rpm
Configuration data Code Unit 1FW3206-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 1400
Rated power (100 K) PN (100 K) kW 73
Rated current (100 K) IN (100 K) A 169
Static torque (100 K) M0 (100 K) Nm 1575
Stall current (100 K) I0 (100 K) A 189
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1090
Maximum torque Mmax Nm 2775
Maximum current Imax A 400
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 8.3
Voltage constant (at 20 °C) kE V/1000 rpm 530
Winding resistance (at 20 °C) Rph Ω 0.032
Rotating field inductance LD mH 1.1
Electrical time constant Tel ms 34.5
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 0.97
Shaft torsional stiffness ct Nm/rad 1.24E+07
Weight m kg 280
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.2
Moment of inertia Jmot kgm
2 0.84
Shaft torsional stiffness ct Nm/rad 2.62E+06
Weight m kg 345
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 0.94
Shaft torsional stiffness ct Nm/rad 2.65E+07
Weight m kg 330
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 141
):/
0BPD[
6.
Q>USP@
0>1P@
):/
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
142 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 34 1FW3208, rated speed 150 rpm
Configuration data Code Unit 1FW3208-1☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 2000
Rated power (100 K) PN (100 K) kW 31.5
Rated current (100 K) IN (100 K) A 84
Static torque (100 K) M0 (100 K) Nm 2100
Stall current (100 K) I0 (100 K) A 88
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 380
Maximum torque Mmax Nm 3700
Maximum current Imax A 187
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 24.0
Voltage constant (at 20 °C) kE V/1000 rpm 1515
Winding resistance (at 20 °C) Rph Ω 0.197
Rotating field inductance LD mH 7.0
Electrical time constant Tel ms 35.0
Thermal time constant Tth min 20
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 1.31
Shaft torsional stiffness ct Nm/rad 9.55E+06
Weight m kg 350
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.2
Moment of inertia Jmot kgm
2 1.11
Shaft torsional stiffness ct Nm/rad 2.35E+06
Weight m kg 415
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 1.24
Shaft torsional stiffness ct Nm/rad 2.17E+07
Weight m kg 400
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 143
):(
0BPD[
6.
Q>USP@
0>1P@
):(
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
144 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 35 1FW3208, rated speed 300 rpm
Configuration data Code Unit 1FW3208-1☐H
Rated speed nN rpm 300
Rated torque (100 K) MN (100 K) Nm 2000
Rated power (100 K) PN (100 K) kW 63
Rated current (100 K) IN (100 K) A 153
Static torque (100 K) M0 (100 K) Nm 2100
Stall current (100 K) I0 (100 K) A 160
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 690
Maximum torque Mmax Nm 3700
Maximum current Imax A 340
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 13.1
Voltage constant (at 20 °C) kE V/1000 rpm 835
Winding resistance (at 20 °C) Rph Ω 0.056
Rotating field inductance LD mH 2.0
Electrical time constant Tel ms 35.5
Thermal time constant Tth min 20
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 1.31
Shaft torsional stiffness ct Nm/rad 9.55E+06
Weight m kg 350
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.1
Moment of inertia Jmot kgm
2 1.11
Shaft torsional stiffness ct Nm/rad 2.35E+06
Weight m kg 415
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.2
Moment of inertia Jmot kgm
2 1.24
Shaft torsional stiffness ct Nm/rad 2.17E+07
Weight m kg 400
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 145
):+
0BPD[
6.
Q>USP@
0>1P@
):+
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
146 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 36 1FW3208, rated speed 500 rpm
Configuration data Code Unit 1FW3208-1☐L
Rated speed nN rpm 500
Rated torque (100 K) MN (100 K) Nm 1850
Rated power (100 K) PN (100 K) kW 97
Rated current (100 K) IN (100 K) A 225
Static torque (100 K) M0 (100 K) Nm 2100
Stall current (100 K) I0 (100 K) A 255
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1100
Maximum torque Mmax Nm 3700
Maximum current Imax A 530
Motor data
Number of poles 2p 28
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -3.5
Torque constant (100 K) kT(100 K) Nm/A 8.2
Voltage constant (at 20 °C) kE V/1000 rpm 525
Winding resistance (at 20 °C) Rph Ω 0.027
Rotating field inductance LD mH 0.9
Electrical time constant Tel ms 33.5
Thermal time constant Tth min 20
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 1.31
Shaft torsional stiffness ct Nm/rad 9.55E+06
Weight m kg 350
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.3
Moment of inertia Jmot kgm
2 1.11
Shaft torsional stiffness ct Nm/rad 2.35E+06
Weight m kg 415
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.5
Moment of inertia Jmot kgm
2 1.24
Shaft torsional stiffness ct Nm/rad 2.17E+07
Weight m kg 400
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 147
):/
0BPD[
6.
Q>USP@
0>1P@
):/
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
148 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.1.3 Shaft height 200, High Speed
Table 4- 37 1FW3201, rated speed 800 rpm
Configuration data Code Unit 1FW3201-3☐P
Rated speed nN rpm 800
Rated torque (100 K) MN (100 K) Nm 245
Rated power (100 K) PN (100 K) kW 20.5
Rated current (100 K) IN (100 K) A 37.0
Static torque (100 K) M0 (100 K) Nm 260
Stall current (100 K) I0 (100 K) A 38.0
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1320
Maximum torque Mmax Nm 500
Maximum current Imax A 80
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 6.8
Voltage constant (at 20 °C) kE V/1000 rpm 437
Winding resistance (at 20 °C) Rph Ω 0.285
Rotating field inductance LD mH 4.1
Electrical time constant Tel ms 14.4
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 4.0
Moment of inertia Jmot kgm
2 0.22
Shaft torsional stiffness ct Nm/rad 3.48E+06
Weight m kg 176
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 5.0
Moment of inertia Jmot kgm
2 0.27
Shaft torsional stiffness ct Nm/rad 4.90E+07
Weight m kg 159
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 149
QBPD[B,QY
QBPD[B,QY
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
1FW3201-3.P
1FW3201-3.P
0
100
200
300
400
500
600
0
100
200
300
400
500
600
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Q>USP@
Q>USP@
0>1P@
0>1P@
0BPD[
6.
0BPD[
6.
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
150 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 38 1FW3201, rated speed 1200 rpm
Configuration data Code Unit 1FW3201-3☐S
Rated speed nN rpm 1200
Rated torque (100 K) MN (100 K) Nm 230
Rated power (100 K) PN (100 K) kW 29
Rated current (100 K) IN (100 K) A 50
Static torque (100 K) M0 (100 K) Nm 260
Stall current (100 K) I0 (100 K) A 54
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1890
Maximum torque Mmax Nm 500
Maximum current Imax A 114
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 4.8
Voltage constant (at 20 °C) kE V/1000 rpm 306
Winding resistance (at 20 °C) Rph Ω 0.14
Rotating field inductance LD mH 2.1
Electrical time constant Tel ms 15.3
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 4.0
Moment of inertia Jmot kgm
2 0.22
Shaft torsional stiffness ct Nm/rad 3.48E+06
Weight m kg 176
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 5.0
Moment of inertia Jmot kgm
2 0.27
Shaft torsional stiffness ct Nm/rad 4.90E+07
Weight m kg 159
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 151
1FW3201-3.S
0
100
200
300
400
500
600
1FW3201-3.S
0
100
200
300
400
500
600
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
152 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 39 1FW3202, rated speed 800 rpm
Configuration data Code Unit 1FW3202-3☐P
Rated speed nN rpm 800
Rated torque (100 K) MN (100 K) Nm 470
Rated power (100 K) PN (100 K) kW 39.5
Rated current (100 K) IN (100 K) A 69
Static torque (100 K) M0 (100 K) Nm 500
Stall current (100 K) I0 (100 K) A 72
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1290
Maximum torque Mmax Nm 860
Maximum current Imax A 133
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 7
Voltage constant (at 20 °C) kE V/1000 rpm 447
Winding resistance (at 20 °C) Rph Ω 0.126
Rotating field inductance LD mH 2.3
Electrical time constant Tel ms 18.2
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.6
Moment of inertia Jmot kgm
2 0.34
Shaft torsional stiffness ct Nm/rad 3.28E+06
Weight m kg 205
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.1
Moment of inertia Jmot kgm
2 0.4
Shaft torsional stiffness ct Nm/rad 4.05E+07
Weight m kg 188
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 153
):3
):3
Q>USP@
Q>USP@
0BPD[
6.
QBPD[B,QY
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
QBPD[B,QY
0BPD[
6.
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
154 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 40 1FW3202, rated speed 1200 rpm
Configuration data Code Unit 1FW3202-3☐S
Rated speed nN rpm 1200
Rated torque (100 K) MN (100 K) Nm 440
Rated power (100 K) PN (100 K) kW 55
Rated current (100 K) IN (100 K) A 92
Static torque (100 K) M0 (100 K) Nm 500
Stall current (100 K) I0 (100 K) A 102
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1850
Maximum torque Mmax Nm 860
Maximum current Imax A 190
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 4.9
Voltage constant (at 20 °C) kE V/1000 rpm 313
Winding resistance (at 20 °C) Rph Ω 0.062
Rotating field inductance LD mH 1.1
Electrical time constant Tel ms 18.1
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.6
Moment of inertia Jmot kgm
2 0.34
Shaft torsional stiffness ct Nm/rad 3.28E+06
Weight m kg 205
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.1
Moment of inertia Jmot kgm
2 0.4
Shaft torsional stiffness ct Nm/rad 4.05E+07
Weight m kg 188
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 155
):6
):6
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
0BPD[
6.
Q>USP@
0>1P@
Q>USP@
0>1P@
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
156 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 41 1FW3203, rated speed 800 rpm
Configuration data Code Unit 1FW3203-3☐P
Rated speed nN rpm 800
Rated torque (100 K) MN (100 K) Nm 680
Rated power (100 K) PN (100 K) kW 57
Rated current (100 K) IN (100 K) A 96
Static torque (100 K) M0 (100 K) Nm 730
Stall current (100 K) I0 (100 K) A 102
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1250
Maximum torque Mmax Nm 1210
Maximum current Imax A 182
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 7.2
Voltage constant (at 20 °C) kE V/1000 rpm 460
Winding resistance (at 20 °C) Rph Ω 0.084
Rotating field inductance LD mH 1.65
Electrical time constant Tel ms 19.8
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.2
Moment of inertia Jmot kgm
2 0.45
Shaft torsional stiffness ct Nm/rad 3.11E+06
Weight m kg 235
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.5
Moment of inertia Jmot kgm
2 0.52
Shaft torsional stiffness ct Nm/rad 3.44E+07
Weight m kg 215
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 157
):3
):3
QBPD[B,QY
QBPD[B,QY
Q>USP@
0>1P@
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
0BPD[
6.
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
158 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 42 1FW3203, rated speed 1200 rpm
Configuration data Code Unit 1FW3203-3☐S
Rated speed nN rpm 1200
Rated torque (100 K) MN (100 K) Nm 630
Rated power (100 K) PN (100 K) kW 79
Rated current (100 K) IN (100 K) A 131
Static torque (100 K) M0 (100 K) Nm 730
Stall current (100 K) I0 (100 K) A 149
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1840
Maximum torque Mmax Nm 1210
Maximum current Imax A 265
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 4.9
Voltage constant (at 20 °C) kE V/1000 rpm 314
Winding resistance (at 20 °C) Rph Ω 0.038
Rotating field inductance LD mH 0.75
Electrical time constant Tel ms 20
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 2.1
Moment of inertia Jmot kgm
2 0.45
Shaft torsional stiffness ct Nm/rad 3.11E+06
Weight m kg 235
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.5
Moment of inertia Jmot kgm
2 0.52
Shaft torsional stiffness ct Nm/rad 3.44E+07
Weight m kg 215
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 159
):6
):6
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
0BPD[
6.
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Q>USP@
Q>USP@
0>1P@
0>1P@
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
160 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 43 1FW3204, rated speed 800 rpm
Configuration data Code Unit 1FW3204-3☐P
Rated speed nN rpm 800
Rated torque (100 K) MN (100 K) Nm 930
Rated power (100 K) PN (100 K) kW 78
Rated current (100 K) IN (100 K) A 137
Static torque (100 K) M0 (100 K) Nm 1000
Stall current (100 K) I0 (100 K) A 145
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1310
Maximum torque Mmax Nm 1700
Maximum current Imax A 265
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 6.9
Voltage constant (at 20 °C) kE V/1000 rpm 441
Winding resistance (at 20 °C) Rph Ω 0.0465
Rotating field inductance LD mH 1.05
Electrical time constant Tel ms 22.5
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.8
Moment of inertia Jmot kgm
2 0.61
Shaft torsional stiffness ct Nm/rad 2.88E+06
Weight m kg 285
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2
Moment of inertia Jmot kgm
2 0.69
Shaft torsional stiffness ct Nm/rad 3.00E+07
Weight m kg 260
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 161
):3
):3
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
QBPD[B,QY
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
QBPD[B,QY
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
162 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 44 1FW3204, rated speed 1200 rpm
Configuration data Code Unit 1FW3204-3☐S
Rated speed nN rpm 1200
Rated torque (100 K) MN (100 K) Nm 860
Rated power (100 K) PN (100 K) kW 108
Rated current (100 K) IN (100 K) A 191
Static torque (100 K) M0 (100 K) Nm 1000
Stall current (100 K) I0 (100 K) A 220
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1970
Maximum torque Mmax Nm 1700
Maximum current Imax A 400
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 4.6
Voltage constant (at 20 °C) kE V/1000 rpm 294
Winding resistance (at 20 °C) Rph Ω 0.021
Rotating field inductance LD mH 0.46
Electrical time constant Tel ms 22
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.8
Moment of inertia Jmot kgm
2 0.61
Shaft torsional stiffness ct Nm/rad 2.88E+06
Weight m kg 285
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.1
Moment of inertia Jmot kgm
2 0.69
Shaft torsional stiffness ct Nm/rad 3.00E+07
Weight m kg 260
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 163
):6
):6
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Q>USP@
0>1P@
0BPD[
6.
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
164 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 45 1FW3206, rated speed 800 rpm
Configuration data Code Unit 1FW3206-3☐P
Rated speed nN rpm 800
Rated torque (100 K) MN (100 K) Nm 1360
Rated power (100 K) PN (100 K) kW 114
Rated current (100 K) IN (100 K) A 192
Static torque (100 K) M0 (100 K) Nm 1500
Stall current (100 K) I0 (100 K) A 210
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1260
Maximum torque Mmax Nm 2400
Maximum current Imax A 365
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 7.2
Voltage constant (at 20 °C) kE V/1000 rpm 460
Winding resistance (at 20 °C) Rph Ω 0.0325
Rotating field inductance LD mH 0.8
Electrical time constant Tel ms 24
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.83
Shaft torsional stiffness ct Nm/rad 2.62E+06
Weight m kg 370
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.8
Moment of inertia Jmot kgm
2 0.94
Shaft torsional stiffness ct Nm/rad 2.65E+07
Weight m kg 340
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 165
):3
):3
QBPD[B,QY
QBPD[B,QY
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
166 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 46 1FW3206, rated speed 1200 rpm
Configuration data Code Unit 1FW3206-3☐S
Rated speed nN rpm 1200
Rated torque (100 K) MN (100 K) Nm 1210
Rated power (100 K) PN (100 K) kW 152
Rated current (100 K) IN (100 K) A 270
Static torque (100 K) M0 (100 K) Nm 1500
Stall current (100 K) I0 (100 K) A 330
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1980
Maximum torque Mmax Nm 2400
Maximum current Imax A 570
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 4.55
Voltage constant (at 20 °C) kE V/1000 rpm 292
Winding resistance (at 20 °C) Rph Ω 0.0131
Rotating field inductance LD mH 0.32
Electrical time constant Tel ms 24
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 0.83
Shaft torsional stiffness ct Nm/rad 2.62E+06
Weight m kg 370
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.8
Moment of inertia Jmot kgm
2 0.94
Shaft torsional stiffness ct Nm/rad 2.65E+0.7
Weight m kg 370
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 167
):6
):6
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
Q>USP@
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
168 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 47 1FW3208, rated speed 800 rpm
Configuration data Code Unit 1FW3208-3☐P
Rated speed nN rpm 800
Rated torque (100 K) MN (100 K) Nm 1900
Rated power (100 K) PN (100 K) kW 159
Rated current (100 K) IN (100 K) A 270
Static torque (100 K) M0 (100 K) Nm 2100
Stall current (100 K) I0 (100 K) A 295
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 1270
Maximum torque Mmax Nm 3300
Maximum current Imax A 500
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 7.1
Voltage constant (at 20 °C) kE V/1000 rpm 456
Winding resistance (at 20 °C) Rph Ω 0.0215
Rotating field inductance LD mH 0.55
Electrical time constant Tel ms 25.5
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 1.11
Shaft torsional stiffness ct Nm/rad 2.35E+06
Weight m kg 445
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 1.24
Shaft torsional stiffness ct Nm/rad 2.17E+0.6
Weight m kg 410
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 169
):3
):3
Q>USP@
Q>USP@
0BPD[
6.
QBPD[B,QY
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
QBPD[B,QY
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
170 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 48 1FW3208, rated speed 1200 rpm
Configuration data Code Unit 1FW3208-3☐S
Rated speed nN rpm 1200
Rated torque (100 K) MN (100 K) Nm 1700
Rated power (100 K) PN (100 K) kW 215
Rated current (100 K) IN (100 K) A 385
Static torque (100 K) M0 (100 K) Nm 2100
Stall current (100 K) I0 (100 K) A 470
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1800
Max. permissible speed (converter) nmax 830 V rpm 2050
Maximum torque Mmax Nm 3300
Maximum current Imax A 800
Motor data
Number of poles 2p 16
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -4
Torque constant (100 K) kT(100 K) Nm/A 4.45
Voltage constant (at 20 °C) kE V/1000 rpm 285
Winding resistance (at 20 °C) Rph Ω 0.0085
Rotating field inductance LD mH 0.22
Electrical time constant Tel ms 25.5
Thermal time constant Tth min 10
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms ---
Moment of inertia Jmot kgm
2 ---
Shaft torsional stiffness ct Nm/rad ---
Weight m kg ---
Mechanical data: Solid shaft version
Mechanical time constant Tmech ms 1.4
Moment of inertia Jmot kgm
2 1.11
Shaft torsional stiffness ct Nm/rad 2.35E+06
Weight m kg 445
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.6
Moment of inertia Jmot kgm
2 1.24
Shaft torsional stiffness ct Nm/rad 2.17E+0.6
Weight m kg 410
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 171
1FW3208-3.S
1FW3208-3.S
Q>USP@
Q>USP@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
0BPD[
6.
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
0BPD[
6.
0>1P@
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
172 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.1.4 Shaft height 280, Standard
Table 4- 49 1FW3281, rated speed 150 rpm
Configuration data Code Unit 1FW3281-2☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 2500
Rated power (100 K) PN (100 K) kW 39.5
Rated current (100 K) IN (100 K) A 82
Static torque (100 K) M0 (100 K) Nm 2550
Stall current (100 K) I0 (100 K) A 84
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 290
Maximum torque Mmax Nm 4050
Maximum current Imax A 145
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 30.5
Voltage constant (at 20 °C) kE V/1000 rpm 1945
Winding resistance (at 20 °C) Rph Ω 0.255
Rotating field inductance LD mH 9.5
Electrical time constant Tel ms 38.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.1
Moment of inertia Jmot kgm
2 3.8
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 600
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.0
Moment of inertia Jmot kgm
2 3.6
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 660
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 173
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
174 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 50 1FW3281, rated speed 250 rpm
Configuration data Code Unit 1FW3281-2☐G
Rated speed nN rpm 250
Rated torque (100 K) MN (100 K) Nm 2450
Rated power (100 K) PN (100 K) kW 64
Rated current (100 K) IN (100 K) A 126
Static torque (100 K) M0 (100 K) Nm 2550
Stall current (100 K) I0 (100 K) A 131
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 460
Maximum torque Mmax Nm 4050
Maximum current Imax A 225
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 19.5
Voltage constant (at 20 °C) kE V/1000 rpm 1245
Winding resistance (at 20 °C) Rph Ω 0.104
Rotating field inductance LD mH 4.0
Electrical time constant Tel ms 38.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.1
Moment of inertia Jmot kgm
2 3.8
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 600
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.0
Moment of inertia Jmot kgm
2 3.6
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 660
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 175
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
176 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 51 1FW3283, rated speed 150 rpm
Configuration data Code Unit 1FW3283-2☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 3500
Rated power (100 K) PN (100 K) kW 55
Rated current (100 K) IN (100 K) A 115
Static torque (100 K) M0 (100 K) Nm 3550
Stall current (100 K) I0 (100 K) A 116
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 290
Maximum torque Mmax Nm 5700
Maximum current Imax A 205
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 30.5
Voltage constant (at 20 °C) kE V/1000 rpm 1955
Winding resistance (at 20 °C) Rph Ω 0.162
Rotating field inductance LD mH 7.0
Electrical time constant Tel ms 43.0
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.65
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 690
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.5
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 770
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 177
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
178 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 52 1FW3283, rated speed 250 rpm
Configuration data Code Unit 1FW3283-2☐G
Rated speed nN rpm 250
Rated torque (100 K) MN (100 K) Nm 3450
Rated power (100 K) PN (100 K) kW 90
Rated current (100 K) IN (100 K) A 176
Static torque (100 K) M0 (100 K) Nm 3550
Stall current (100 K) I0 (100 K) A 181
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 460
Maximum torque Mmax Nm 5700
Maximum current Imax A 315
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 19.6
Voltage constant (at 20 °C) kE V/1000 rpm 1255
Winding resistance (at 20 °C) Rph Ω 0.067
Rotating field inductance LD mH 2.9
Electrical time constant Tel ms 43.0
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.65
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 690
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.5
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 770
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 179
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
180 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 53 1FW3285, rated speed 150 rpm
Configuration data Code Unit 1FW3285-2☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 5000
Rated power (100 K) PN (100 K) kW 79
Rated current (100 K) IN (100 K) A 160
Static torque (100 K) M0 (100 K) Nm 5100
Stall current (100 K) I0 (100 K) A 163
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 290
Maximum torque Mmax Nm 8150
Maximum current Imax A 285
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 31.0
Voltage constant (at 20 °C) kE V/1000 rpm 1995
Winding resistance (at 20 °C) Rph Ω 0.107
Rotating field inductance LD mH 5.0
Electrical time constant Tel ms 47.5
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.0
Moment of inertia Jmot kgm
2 6.0
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 860
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 5.9
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 920
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 181
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
182 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 54 1FW3285, rated speed 250 rpm
Configuration data Code Unit 1FW3285-2☐G
Rated speed nN rpm 250
Rated torque (100 K) MN (100 K) Nm 4950
Rated power (100 K) PN (100 K) kW 130
Rated current (100 K) IN (100 K) A 245
Static torque (100 K) M0 (100 K) Nm 5100
Stall current (100 K) I0 (100 K) A 250
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 440
Maximum torque Mmax Nm 8150
Maximum current Imax A 435
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 20.5
Voltage constant (at 20 °C) kE V/1000 rpm 1295
Winding resistance (at 20 °C) Rph Ω 0.045
Rotating field inductance LD mH 2.2
Electrical time constant Tel ms 47.5
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.0
Moment of inertia Jmot kgm
2 6.0
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 860
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 5.9
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 920
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 183
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
184 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 55 1FW3287, rated speed 150 rpm
Configuration data Code Unit 1FW3287-2☐E
Rated speed nN rpm 150
Rated torque (100 K) MN (100 K) Nm 7000
Rated power (100 K) PN (100 K) kW 110
Rated current (100 K) IN (100 K) A 230
Static torque (100 K) M0 (100 K) Nm 7150
Stall current (100 K) I0 (100 K) A 235
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 290
Maximum torque Mmax Nm 11400
Maximum current Imax A 405
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 30.5
Voltage constant (at 20 °C) kE V/1000 rpm 1955
Winding resistance (at 20 °C) Rph Ω 0.068
Rotating field inductance LD mH 3.5
Electrical time constant Tel ms 51
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.8
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1030
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.7
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1120
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 185
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):(
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
186 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 56 1FW3287, rated speed 250 rpm
Configuration data Code Unit 1FW3287-2☐G
Rated speed nN rpm 250
Rated torque (100 K) MN (100 K) Nm 6900
Rated power (100 K) PN (100 K) kW 181
Rated current (100 K) IN (100 K) A 350
Static torque (100 K) M0 (100 K) Nm 7150
Stall current (100 K) I0 (100 K) A 365
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 460
Maximum torque Mmax Nm 11400
Maximum current Imax A 630
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 19.6
Voltage constant (at 20 °C) kE V/1000 rpm 1255
Winding resistance (at 20 °C) Rph Ω 0.028
Rotating field inductance LD mH 1.45
Electrical time constant Tel ms 51
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.8
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1030
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.7
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1120
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 187
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):*
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
188 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.1.5 Shaft height 280, High Speed
Table 4- 57 1FW3281, rated speed 400 rpm
Configuration data Code Unit 1FW3281-3☐J
Rated speed nN rpm 400
Rated torque (100 K) MN (100 K) Nm 2350
Rated power (100 K) PN (100 K) kW 98
Rated current (100 K) IN (100 K) A 188
Static torque (100 K) M0 (100 K) Nm 2500
Stall current (100 K) I0 (100 K) A 200
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 720
Maximum torque Mmax Nm 4050
Maximum current Imax A 350
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 12.5
Voltage constant (at 20 °C) kE V/1000 rpm 800
Winding resistance (at 20 °C) Rph Ω 0.0425
Rotating field inductance LD mH 1.65
Electrical time constant Tel ms 38.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.1
Moment of inertia Jmot kgm
2 3.8
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 600
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.0
Moment of inertia Jmot kgm
2 3.6
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 660
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 189
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
190 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 58 1FW3281, rated speed 600 rpm
Configuration data Code Unit 1FW3281-3☐M
Rated speed nN rpm 600
Rated torque (100 K) MN (100 K) Nm 2200
Rated power (100 K) PN (100 K) kW 138
Rated current (100 K) IN (100 K) A 255
Static torque (100 K) M0 (100 K) Nm 2500
Stall current (100 K) I0 (100 K) A 290
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1050
Maximum torque Mmax Nm 4050
Maximum current Imax A 510
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 8.6
Voltage constant (at 20 °C) kE V/1000 rpm 550
Winding resistance (at 20 °C) Rph Ω 0.02
Rotating field inductance LD mH 0.75
Electrical time constant Tel ms 38.0
Thermal time constant Tth min 10.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 3.1
Moment of inertia Jmot kgm
2 3.8
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 600
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 3.0
Moment of inertia Jmot kgm
2 3.6
Shaft torsional stiffness ct Nm/rad 1.32E+08
Weight m kg 660
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 191
):0
0BPD[
6.
Q>USP@
0>1P@
):0
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
192 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 59 1FW3283, rated speed 400 rpm
Configuration data Code Unit 1FW3283-3☐J
Rated speed nN rpm 400
Rated torque (100 K) MN (100 K) Nm 3300
Rated power (100 K) PN (100 K) kW 138
Rated current (100 K) IN (100 K) A 275
Static torque (100 K) M0 (100 K) Nm 3500
Stall current (100 K) I0 (100 K) A 290
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 750
Maximum torque Mmax Nm 5700
Maximum current Imax A 520
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 12.0
Voltage constant (at 20 °C) kE V/1000 rpm 765
Winding resistance (at 20 °C) Rph Ω 0.025
Rotating field inductance LD mH 1.1
Electrical time constant Tel ms 43.0
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.65
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 690
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.5
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 770
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 193
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
194 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 60 1FW3283, rated speed 600 rpm
Configuration data Code Unit 1FW3283-3☐M
Rated speed nN rpm 600
Rated torque (100 K) MN (100 K) Nm 3100
Rated power (100 K) PN (100 K) kW 195
Rated current (100 K) IN (100 K) A 355
Static torque (100 K) M0 (100 K) Nm 3500
Stall current (100 K) I0 (100 K) A 400
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1030
Maximum torque Mmax Nm 5700
Maximum current Imax A 710
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 8.7
Voltage constant (at 20 °C) kE V/1000 rpm 560
Winding resistance (at 20 °C) Rph Ω 0.0132
Rotating field inductance LD mH 0.55
Electrical time constant Tel ms 43.0
Thermal time constant Tth min 12.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.65
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 690
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 2.4
Moment of inertia Jmot kgm
2 4.5
Shaft torsional stiffness ct Nm/rad 1.08E+08
Weight m kg 770
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 195
):0
0BPD[
6.
Q>USP@
0>1P@
):0
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
196 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 61 1FW3285, rated speed 400 rpm
Configuration data Code Unit 1FW3285-3☐J
Rated speed nN rpm 400
Rated torque (100 K) MN (100 K) Nm 4700
Rated power (100 K) PN (100 K) kW 197
Rated current (100 K) IN (100 K) A 375
Static torque (100 K) M0 (100 K) Nm 5000
Stall current (100 K) I0 (100 K) A 400
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 720
Maximum torque Mmax Nm 8150
Maximum current Imax A 710
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 12.5
Voltage constant (at 20 °C) kE V/1000 rpm 800
Winding resistance (at 20 °C) Rph Ω 0.0171
Rotating field inductance LD mH 0.8
Electrical time constant Tel ms 47.5
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 2.0
Moment of inertia Jmot kgm
2 6.0
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 860
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 5.9
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 920
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 197
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
198 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 62 1FW3285, rated speed 600 rpm
Configuration data Code Unit 1FW3285-3☐M
Rated speed nN rpm 600
Rated torque (100 K) MN (100 K) Nm 4400
Rated power (100 K) PN (100 K) kW 275
Rated current (100 K) IN (100 K) A 470
Static torque (100 K) M0 (100 K) Nm 5000
Stall current (100 K) I0 (100 K) A 530
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 960
Maximum torque Mmax Nm 8150
Maximum current Imax A 940
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 9.4
Voltage constant (at 20 °C) kE V/1000 rpm 600
Winding resistance (at 20 °C) Rph Ω 0.0096
Rotating field inductance LD mH 0.46
Electrical time constant Tel ms 47.5
Thermal time constant Tth min 14.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 6.0
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 860
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.9
Moment of inertia Jmot kgm
2 5.9
Shaft torsional stiffness ct Nm/rad 8.47E+07
Weight m kg 920
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 199
):0
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):0
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
200 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 63 1FW3287, rated speed 400 rpm
Configuration data Code Unit 1FW3287-3☐J
Rated speed nN rpm 400
Rated torque (100 K) MN (100 K) Nm 6600
Rated power (100 K) PN (100 K) kW 275
Rated current (100 K) IN (100 K) A 500
Static torque (100 K) M0 (100 K) Nm 7000
Stall current (100 K) I0 (100 K) A 530
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 690
Maximum torque Mmax Nm 11400
Maximum current Imax A 950
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 13.1
Voltage constant (at 20 °C) kE V/1000 rpm 835
Winding resistance (at 20 °C) Rph Ω 0.0125
Rotating field inductance LD mH 0.65
Electrical time constant Tel ms 51
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.8
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1030
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.7
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1120
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 201
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
):-
0BPD[
6.
QBPD[B,QY
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
202 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 4- 64 1FW3287, rated speed 600 rpm
Configuration data Code Unit 1FW3287-3☐M
Rated speed nN rpm 600
Rated torque (100 K) MN (100 K) Nm 6050
Rated power (100 K) PN (100 K) kW 380
Rated current (100 K) IN (100 K) A 700
Static torque (100 K) M0 (100 K) Nm 6850
Stall current (100 K) I0 (100 K) A 790
Limiting data
Max. permissible speed (mech.) nmax mech. rpm 1000
Max. permissible speed (converter) nmax 830 V rpm 1030
Maximum torque Mmax Nm 11400
Maximum current Imax A 1420
Motor data
Number of poles 2p 20
Ratio of speed measurement
(belt-mounted encoder)
ienc -- -5
Torque constant (100 K) kT(100 K) Nm/A 8.7
Voltage constant (at 20 °C) kE V/1000 rpm 560
Winding resistance (at 20 °C) Rph Ω 0.0055
Rotating field inductance LD mH 0.29
Electrical time constant Tel ms 51
Thermal time constant Tth min 16.0
Mechanical data: Hollow-shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.8
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1030
Mechanical data: Plug-on shaft version
Mechanical time constant Tmech ms 1.7
Moment of inertia Jmot kgm
2 7.7
Shaft torsional stiffness ct Nm/rad 6.58E+07
Weight m kg 1120
The specified rated data are valid for a 600 V DC link voltage
Technical specifications and characteristic curves
4.1 Torque-speed characteristic
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 203
):0
0BPD[
6.
Q>USP@
0>1P@
):0
0BPD[
6.
Q>USP@
0>1P@
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/091HW]=ZLVFKHQNUHLVVSDQQXQJ9'&
6,1$0,&6%/06/09OLQH'&OLQNYROWDJH9
6,1$0,&6$/09OLQH'&OLQNYROWDJH9
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
6SDQQXQJVJUHQ]NHQQOLQLHQ
YROWDJHOLPLWLQJFKDUDFWHULVWLFV
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
204 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.2 Dimension drawings
CAD CREATOR
Thanks to its easy to understand interface, the CAD CREATOR allows you to find the
following quickly
● dimension drawings
● 2D/3D CAD data
and supports you when generating plant/system documentation regarding project-specific
information. The data for motors, drives and CNC controls is currently available in the online
version.
You can find further information on the Internet at: http://www.siemens.com/cadcreator
Motors
● 1FK7, 1FT7, 1FT6 synchronous motors
● 1FE1 built-in synchronous motors
● 1FW3 complete torque motors
● 1FW6 built-in torque motors
● 1FK7, 1FT7, 1FT6 geared motors
● 1PH8 synchronous/induction motors
● 1PH7, 1PH4, 1PL6, 1PM4, 1PM6 induction motors
● 2SP1 motor spindles
● 1FN3 linear motors
SINAMICS S120
● Control Units
● Power Modules (blocksize, chassis)
● Line Modules (booksize, chassis)
● Line-side components
● Motor Modules (booksize, chassis)
● DC link components
● Additional system components
● Load-side power components
● Encoder system connection
● MOTION-CONNECT connection system
SIMOTION
● SIMOTION D
● SIMOTION C
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 205
SINUMERIK solution line
● Control systems
● Operator components for CNC controls
How up-to-date are the dimension drawings
Note
Siemens AG reserves the right to change the dimensions of the motors as part of
mechanical design improvements without prior notice. This means that dimensions drawings
can go out-of-date. Up-to-date dimension drawings can be requested at no charge from your
local SIEMENS representative.
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
206 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.2.1 Hollow shaft
Figure 4-2 1FW315x hollow shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 207
Figure 4-3 1FW320x, hollow shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
208 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 4-4 1FW328x, hollow shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 209
4.2.2 Encoderless
Figure 4-5 1FW315x, without encoder
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
210 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 4-6 1FW320x, without encoder
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 211
Figure 4-7 1FW328x, without encoder
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
212 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
4.2.3 Plug-on shaft
Figure 4-8 1FW315x, plug-on shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 213
Figure 4-9 1FW320x, plug-on shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
214 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 4-10 1FW328x, plug-on shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 215
4.2.4 Solid shaft
Figure 4-11 1FW315x, solid shaft
Technical specifications and characteristic curves
4.2 Dimension drawings
SIMOTICS T-1FW3 complete torque motors
216 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 4-12 1FW320x, solid shaft
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 217
Motor components 5
5.1 Thermal motor protection
KTY 84 (PTC thermistor)
A temperature-dependent resistor is integrated as temperature sensor to monitor the motor
temperature.
Table 5- 1 Properties and technical data
Designation Description
Type KTY 84 (PTC thermistor)
Resistance when cold (20 °C) Approx. 580 Ω
Resistance when hot (100 °C) Approx. 1000 Ω
Standard temperature
thresholds for SINAMICS
Prewarning: 120 °C ±5 °C
Shutdown: 155 °C ±5 °C
Connection via signal cable
WARNING
The polarity must be carefully observed.
The resistance of the KTY 84 thermistor changes proportionally to the winding temperature
change (refer to the following Fig.).
5>N˖@
˽>r&@
X
, P$
'
Figure 5-1 Resistance characteristic of the KTY 84 as a function of the temperature
Motor components
5.1 Thermal motor protection
SIMOTICS T-1FW3 complete torque motors
218 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
The KTY 84 is evaluated in the converter whose closed-loop control takes into account the
temperature characteristic of the motor winding. When a fault occurs, an appropriate
message is output on the converter. When the motor temperature increases, a message
"Alarm motor overtemperature" is output; this must be externally evaluated. If this signal is
ignored, the drive converter shuts down with the appropriate fault message after a preset
time period or when the motor limiting temperature or the shutdown temperature is
exceeded.
CAUTION
The integrated temperature sensor KTY protects the complete torque motors against
overload conditions:
up to 2 • I0 and speed ≠ 0
There is no adequate protection for thermally critical load situations, e.g. a high overload at
motor standstill. This is the reason that, for example, a thermal overcurrent relay or a PTC
thermistor (optional) must be provided as additional protection.
If the maximum overload condition lasts longer than 4 s, then additional motor protection
must be provided.
The temperature sensor is designed so that the DIN/EN requirement for "protective
separation" is fulfilled.
WARNING
If the user carries-out an additional high-voltage test, then the ends of the temperature
sensor cables must be short-circuited before the test is carried-out! If the test voltage is
connected to a temperature sensor terminal, then it will be destroyed.
PTC thermistors (optional)
For special applications (e.g. when a load is applied with the motor stationary or for
extremely low speeds), the temperature of all of the three motor phases should be
additionally monitored using a PTC thermistor triplet.
Ordering options: order code A11.
Table 5- 2 Connection and evaluation of the PTC thermistor triplet
Standard 1FW315⃞ and 1FW320⃞ motors with DRIVE-CLiQ interface
and encoders (9. MLFB position) = D, F, U
The PTC thermistor must be evaluated using an
external tripping/evaluation unit (this is not included in
the scope of supply). This means that the sensor cable
is monitored for wire breakage and short-circuit by this
unit. The motor must be de-energized within 1 s when
the response temperature is exceeded.
The thermistor connections are located in the power
terminal box on the terminal block. A cable entry hole
M16 x 1.5 is provided in the terminal box to connect this
PTC thermistor.
The PTC thermistor is connected to the drive system via the
DRIVE-CLiQ cable. Evaluation of the PTC thermistor must be
activated in the SINAMICS (see references: /GH1/ SINAMICS
S120, Control Units and Additional System Components).
Motor components
5.1 Thermal motor protection
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 219
&DEOHJODQG
7HUPLQDO
Figure 5-2 Connection for 3x PTC
˽
˽
˽
˽
&RPSOHWHWRUTXHPRWRU):
:
9
.7<
&RQYHUWHU
37&
EURZQ
:KLWH
5
5
8
,QSXW
9$&
7KHUPLVWRUPRWRUSURWHFWLRQ51*:
9
3/&
2XWSXW
3XOVHVXSSUHV
VLRQRU
WRUTXHIUHH
0 1P
$
7
7
$
:KLWH
5HG
73
73
1RWHV
.7<
37&
3/&
(QVXUHFRUUHFWSRODULW\
3RODULW\QHXWUDO
7KHVKXWGRZQFLUFXLWYLDWKH3/&SURJUDPPDEOHORJLFFRQWUROOHUPXVWEHFDUHIXOO\FKHFNHGWR
HQVXUHWKDWLWFRUUHFWO\VKXWVGRZQEHIRUHWKHPRWRULVDFWXDOO\FRPPLVVLRQHG
Figure 5-3 Temperature monitoring connection
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
220 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 5- 3 Technical specifications for the PTC thermistor triplet
Designation Description
Type PTC thermistor triplet
Thermistor resistance (20°C) ≤ 750 Ω
Resistance when hot (180°C) ≥ 1710 Ω
Response temperature 180 °C
Connection Via external evaluation unit
Note:
The PTC thermistors do not have a linear characteristic and are, therefore, not suitable to determine
the instantaneous temperature. Characteristic to DIN VDE 0660 Part 303, DIN 44081, DIN 44082.
5.2 Encoders
CAUTION
Encoder replacement and adjustment
The encoders are adjusted in the factory for SIEMENS drive converters. Another encoder
adjustment may be required when operating the motor with a third-party converter.
If the encoder is incorrectly adjusted to the motor EMF, this can result in uncontrolled
motion.
When a belt-mounted encoder is replaced, the position of the encoder system with respect
to the motor EMF must be adjusted. Only qualified personnel may replace an encoder.
When replacing an absolute encoder it must be re-referenced.
When replacing a coaxially mounted encoder, the encoder system does not have to be
adjusted. The position with respect to the motor EMF is ensured using mechanical
components.
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 221
Encoder selection and identification in the order number (MLFB)
with/without DRIVE-CLiQ interface 9th position of the Order No. (MLFB) = see table
below
Table 5- 4 Letter code of the 9th position of the Order No. (MLFB)
Encoder type 9th position in
the MLFB
Motors without DRIVE-CLiQ interfaces
Incremental encoder, sin/cos 1 Vpp, 2048 S/R with C and D tracks, encoder
IC2048S/R, belt mounted
A
Absolute encoder 2048 S/R singleturn, 4096 revolutions multiturn, with EnDat
interface, encoder AM2048S/R, belt mounted or coaxially mounted at NDE
E
Multi-pole resolver (p = x), belt mounted S
Motors with DRIVE-CLiQ interfaces
Absolute encoder 24 bit singleturn (resolution 16777216), encoder AS24DQI B
Absolute encoder 24 bit singleturn (resolution 16777216) + 12 bit multiturn
(traversing range 4096 revolutions), encoder AM24DQI
C
Incremental encoder, 22-bit (resolution 4194304, internal 2048 S/R) + commutation
position, 11 bit, encoder IC22DQ, belt-mounted
D
Absolute encoder 22 bit singleturn (resolution 4194304, internal 2048 S/R) + 12 bit
multiturn (traversing range 4096 revolutions), encoder AM22DQ, belt-mounted
F
Resolver 15-bit (resolution 32.768, internal, multi-pole), R15DQ encoder, belt
mounted
U
Belt-mounted encoder 11th position of the Order No. (MLFB) = 6
15th position of the Order No. (MLFB) = M or S
Coaxial encoder mounting 11th position of the Order No. (MLFB) = 7
15th position of the Order No. (MLFB) = A or C
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
222 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
5.2.1 Encoder connection for motors with DRIVE-CLiQ interface
For motors with a DRIVE-CLiQ interface, the analog encoder signal is internally converted to
a digital signal. There is no further conversion of the encoder signal in the drive system
required. Motors with DRIVE-CLiQ interface simplify commissioning and diagnostics, as the
motor and encoder system are identified automatically.
CAUTION
The DRIVE-CLiQ encoder contains motor and encoder-specific data as well as an
electronic type plate. This is the reason that this may only be operated on the original motor
- and may not be mounted onto other motors or replaced by the DRIVE-CLiQ encoder from
other motors.
The DRIVE-CLiQ encoder interface has direct contact to components that can be
damaged/destroyed by electrostatic discharge (ESD). The precautionary ESD measures
listed in the preface should be carefully observed.
Cables
For all encoder types (incremental encoder, absolute value encoder and Resolver) the same
DRIVE-CLiQ cables can be used between the motor and converter:
Table 5- 5 Pre-assembled cable
6FX ☐ 002 - ☐DC☐☐ - ☐☐☐ 0
↓
↓
5 MOTION-
CONNECTⓇ500
8 MOTION-
CONNECTⓇ800
↓↓↓
Length
Max. cable length 100 m
Max. cable length 50 m
Only prefabricated cables from Siemens (MOTION-CONNECT) may be used.
For other technical data and length code, refer to Catalog, Chapter "MOTION-CONNECT
connection system".
5.2.2 Encoder connection for motors without DRIVE-CLiQ interface
For motors without an integrated DRIVE-CLiQ interface, the analog encoder signal in the
drive system is converted into a digital signal. For these motors as well as external encoders,
the encoder signals must be connected to SINAMICS S120 via Sensor Modules.
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 223
5.2.3 Incremental encoder sin/cos 1Vpp
Description
This encoder senses relative movements and does not supply absolute position information.
In combination with an evaluation logic, a zero point can be determined using the integrated
reference mark, which can be used to calculate the absolute position.
The encoder outputs sine and cosine signals. These can be interpolated using evaluation
logic (usually 2048x) and the direction of rotation can be determined. In the version with
DRIVE-CLiQ interface, this evaluation logic is already integrated in the encoder.
Function and technical data
● Angular measuring system for the commutation
● Speed actual value sensing
● Indirect incremental measuring system for the position control loop
● One zero pulse (reference mark) per revolution
Table 5- 6 Technical data for incremental encoders
Encoder type 9th position
in the order
number
Operating
voltage
Max. current
drain
A-B track: Resolution
incremental
(sin/cos periods per
revolution)
C-D track:
Rotor/commutation
position (sin/cos
periods per revolution)
Angular
error
without DRIVE-CLiQ interface
Incremental encoder sin/cos
1 Vpp, 2048 S/R with C and D
tracks
A 5 V ± 5 % 140 mA 2048 S/R (1 Vpp) 1 S/R (1 Vpp) ± 40 "
with DRIVE-CLiQ interface
Incremental encoder 22 bit
resolution 4.194.304, internal
2048 S/R) + commutation
position 11 bit
D 24 V 180 mA 4.194.304
(=22 bit)
2048 (=11 bit) ± 40 "
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
224 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
$
%
5
&
'
5
Ǿ
Ǿ
Ǿ
Ǿ
Ǿ
Ǿ
rHO rPHFK
rHOsrHO
rHO
rPHFK
rHO
8>9@
8>9@
rHO
Figure 5-4 Signal sequence and assignment for encoder IC2048S/R without DRIVE-CLiQ interface
for a positive direction of rotation
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 225
Connection pin assignment for 17-pin flange socket with pin contacts
Table 5- 7 Connection pin assignment, 17-pin flange socket
PIN No. Signal
1 A
2 A*
3 R
4 D*
5 C
6 C*
7 M encoder
8 +1R1
9 –1R2
10 P encoder
11 B
12 B*
13 R*
14 D
15 M sense
16 P sense
17 Not connected
When viewing the plug-in side (pins)
Cables
Table 5- 8 Pre-assembled cable
6FX ☐ 002 - 2CA31 - ☐☐☐ 0
↓
↓
5 MOTION-
CONNECTⓇ500
8 MOTION-
CONNECTⓇ800
↓↓↓
Length
Max. cable length 100 m
Mating connector: 6FX2003-0SU17 (socket)
For other technical data and length code, refer to catalog, Chapter "MOTION-CONNECT
connection system"
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
226 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
5.2.4 Absolute encoders
Description, multiturn absolute encoder
This encoder outputs an absolute angular position between 0° and 360° in the specified
resolution. An internal measuring gearbox enables it to differentiate between 4096 rotations.
Description, absolute value singleturn
This encoder outputs an absolute angular position between 0° and 360° in the specified
resolution. In contrast to the multi-turn absolute encoder, it has no measuring gearbox and
can therefore only supply the position value within one revolution.
Function and technical data
● Angular measuring system for the commutation
● Speed actual value sensing
● For single-turn encoders: Indirect measuring system for absolute position determination
within a traversing range of 1 revolution
● For multi-turn encoders: Indirect measuring system for determining the absolute position
within a traversing range of 4096 revolutions
Table 5- 9 Technical specifications, absolute encoder
Encoder type 9th position in
the order
number
Operating
voltage
Max. current
drain
Absolute
resolution
(singleturn)
Traversing-
range
(multiturn)
A-B track:
Resolution
incremental
(sin/cos periods per
revolution)
Angular
error
without DRIVE-CLiQ interface
Absolute encoder 2048
S/R, (4096 revolutions,
multi-turn, with EnDat
interface 2.1
E 5 V ±5 % 200 mA --- 4096
(=12 bit)
2048 S/R (1 Vpp) ±40"
with DRIVE-CLiQ interface
Absolute encoder,
single-turn, 24 bit
B 24 V 110 mA 16.777.216
(=24 bit)
--- --- ±40"
Absolute encoder
24 bit + 12 bit multiturn
C 24 V 110 mA 16.777.216
(=24 bit)
4096
(=12 bit)
--- ±40"
Absolute encoder
singleturn 22 bit +
12 bit multiturn
F 5 V ±5 % 200 mA 4.194.304
(=22 bit)
4096
(=12 bit)
--- ±40"
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 227
Connection pin assignment for 17-pin flange socket with pin contacts
Table 5- 10 Connection pin assignment, 17-pin flange socket
PIN No. Signal
1 A
2 A*
3 Data
4 Not connected
5 Clock
6 not connected
7 M encoder
8 +1R1
9 –1R2
10 P encoder
11 B
12 B*
13 Data*
14 Clock*
15 M sense
16 P sense
17 not connected
When viewing the plug-in side (pins)
Cables
Table 5- 11 Pre-assembled cable
6FX ☐ 002 - 2EQ10 - ☐☐☐ 0
↓
↓
5 MOTION-
CONNECTⓇ500
8 MOTION-
CONNECTⓇ800
↓↓↓
Length
Max. cable length 100 m
Mating connector: 6FX2003-0SU17 (socket)
For other technical data and length code, refer to catalog, Chapter "MOTION-CONNECT
connection system"
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
228 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
5.2.5 Multi-pole resolver
Description
The number of sine and cosine periods per revolution corresponds to the number of pole
pairs of the resolver. Resolvers can detect relative motion. The absolute position within one
resolver output signal period can be determined.
Function and technical data
● Angular measuring system for the commutation
● Speed actual value sensing
● Indirect incremental measuring system for the position control loop
Table 5- 12 Technical specifications, resolvers
Properties 8-pole
(for SH 200)
4-pole
(for SH 150 and SH 280)
Excitation voltage + 5 Vrms to + 13 Vrms
Excitation frequency 4 kHz to 10 kHz
Current consumption < 80 mArms
Angular error, peak-to-peak (mech.) < 4 ' < 10 '
Electrical transformation ratio 0.5
8
6LQXVRLGDOWUDFN
8
&RVLQXVRLGDOWUDFN
D DUFWDQ 8
6LQXVRLGDOWUDFN
8
&RVLQXVRLGDOWUDFN
Figure 5-5 Output signals, resolver
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 229
Connection pin assignment for 12-pin flange socket with pin contacts
Table 5- 13 Connection pin assignment, 12-pin flange socket
PIN No. Signal
1 S2
2 S4
3 not connected
4 not connected
5 not connected
6 not connected
7 R2
8 +1R1
9 –1R2
10 R1
11 S1
12 S3
When viewing the plug-in side (pins)
Cables
Table 5- 14 Pre-assembled cable
6FX ☐ 002 - 2CF02 - ☐☐☐ 0
↓
↓
5 MOTION-
CONNECTⓇ500
8 MOTION-
CONNECTⓇ800
↓↓↓
Length
Max. cable length 150 m
Mating connector: 6FX2003-0SU12 (socket)
For other technical data and length code, refer to catalog, Chapter "MOTION-CONNECT
connection system"
5.2.6 Encoder with belt drive
The encoder in the encoder box (on the stator side) is coupled via a belt. This means, for
example, the hollow shaft can be used to route media. Gear ratio, refer to Chapter
"Mechanical properties of the motors".
NOTICE
Only qualified personnel may replace a belt. To do this, a device is required to measure the
belt tension.
Motor components
5.2 Encoders
SIMOTICS T-1FW3 complete torque motors
230 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 5-6 Encoder with belt drive
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 231
5.2.7 Coaxial encoder mounting
Coaxial encoder mounting is available for high dynamic requirements and the highest
precision. The encoder module can be easily replaced without requiring readjustment.
Figure 5-7 Coaxial encoder mounting
5.2.8 Motor version without encoder
The cable gland and the terminal in the terminal box are used to connect the KTY
temperature sensor as well as the replacement KTY temperature sensor.
5.3 Braking resistors (armature short-circuit braking)
5.3.1 Function description
For transistor PWM converters, when the DC link voltage values are exceeded or if the
electronics fails, then electrical braking is no longer possible. If the drive which is coasting
down, can represent a potential hazard, then the motor can be braked by short-circuiting the
armature. Armature short-circuit braking should be initiated at the latest by the limit switch in
the traversing range of the feed axis.
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
232 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
The friction of the mechanical system and the switching times of the contactors must be
taken into account when determining the distance that the feed axis takes to come to a
complete stop. In order to avoid mechanical damage, mechanical stops should be located at
the end of the absolute traversing range.
For servomotors with integrated holding brake, the holding brake can be simultaneously
applied to create an additional braking torque – however, with some delay.
CAUTION
The converter pulses must first be canceled and this actually implemented before an
armature short-circuit contactor is closed or opened. This prevents the contactor contacts
from burning and eroding and destroying the converter.
WARNING
The drive must always be operationally braked using the setpoint input. For additional
information, refer to the Converter Configuration Manual.
The optimum braking torque of the servomotor in regenerative operation can be obtained
using armature short-circuit with a matching external resistor circuit.
Possible ordering address: http://www.frizlen.com
Note
It goes without saying that equivalent products from other manufacturers may be used. Our
recommendations should be considered as such. We cannot accept any liability for the
quality and properties/features of third-party products.
0
a
6,1$0,&6
5
EU
89:
Figure 5-8 Circuit (schematic) with brake resistors
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 233
Ordering address
Frizlen GmbH & Co. KG
Gottlieb-Daimler-Str. 61, 71711 Murr
Germany
Phone: +49 (0) 7144 / 8100 - 0
Fax: +49 (0) 7144 / 2076 - 30
E-mail: info@frizlen.com
Internet at: www.frizlen.com
Note
We cannot accept any liability for the quality and properties/features of third-party products.
Rating
The ratings of the resistors must match the particular I2t load capability. The resistors can be
dimensioned so that a surface temperature of 300 °C can occur briefly (max. 500 ms). In
order to prevent the resistors from being destroyed, braking from the rated speed can occur
max. every 2 minutes. Other braking cycles must be specified when ordering the resistors.
The external moment of inertia and the intrinsic motor moment of inertia are decisive when
dimensioning these resistors.
The kinetic energy must be specified when ordering in order to determine the resistor rating.
ವ
˭
ವ
ವವ
: NLQHWLFHQHUJ\>:V@
- 0RPHQWRILQHUWLD>NJP
@
˶ $QJXODUVSHHG>V
@
Q 6SHHG>USP@
-
: ˶
˶ Q
Calculating the braking time
W
%
%UDNLQJWLPH>V@
Q RSHUDWLQJVSHHG>USP@
%UDNLQJWLPH
-
WRW
-
PRW
-
H[WHUQDO
-
WRW
ವQ
W
%
ವ0
%
-
WRW
PRPHQWRILQHUWLD>NJP
@
-
PRW
PRWRUPRPHQWRILQHUWLD>NJP
@
-
H[WHUQDO
H[WHUQDOPRPHQWRILQHUWLD>NJP
@
0
%
DYHUDJHEUDNLQJWRUTXH>1P@
0RPHQWRILQHUWLD
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
234 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
NOTICE
When determining the run-on distance, the friction (taken into account as allowance in MB)
of the mechanical transmission elements and the switching delay times of the contactors
must be taken into consideration. In order to prevent mechanical damage, mechanical end
stops should be provided at the end of the absolute traversing range of the machine axes.
0
EURSW
0
EUUPV
Q
1
0
EU
0
EURSW
0
EUUPV
Q
1
0
EU
,
EUUPV
Q
1
,
EU
Q
1
Q
1
Q
1
,EUUPV
,EU
ZLWKH[WHUQDOEUDNLQJUHVLVWRU ZLWKRXWH[WHUQDOEUDNLQJUHVLVWRU
6SHHGQ
6SHHGQ
6SHHGQ
6SHHGQ
6SHHGQ
&RDVWLQJGRZQWLPHW &RDVWLQJGRZQWLPHW
6SHHGQ
Figure 5-9 Armature short-circuit braking
5.3.2 Dimensioning of braking resistors
The correct dimensioning ensures an optimum braking time. The braking torques which are
obtained are also listed in the tables. The data apply for braking from the rated speed. If the
motor brakes from another speed, then the braking time cannot be linearly reduced.
However, longer braking times cannot occur if the speed at the start of braking is less than
the rated speed.
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 235
The data in the following table is calculated for rated values according to the data sheet. The
variance during production as well as iron saturation have not been taken into account here.
Higher currents and torques can occur than those calculated as a result of the saturation.
The ratings of the resistors must match the particular I2t load capability.
Dynamic braking
Table 5- 15 Dynamic braking 1FW3, SH 150 Standard
Average braking torque
Mbr rms [Nm]
rms braking current
Ibr rms [A]
Motor type External
braking
resistor
Ropt [Ω]
without external
braking resistor
with external
braking resistor
Max.
braking torque
Mbr max [Nm] without external
braking resistor
with external
braking resistor
Standard
1FW3150-1⃞H 11 21.5 32.5 40.5 5.3 4.75
1FW3150-1⃞L 8.3 17.8 34.5 42.5 8.6 7.7
1FW3150-1⃞P 5.5 14.8 35.5 44.0 13.5 12.1
1FW3152-1⃞H 5.0 46.5 75 93 12.2 11.0
1FW3152-1⃞L 3.7 37.5 80 99 20.0 17.9
1FW3152-1⃞P 2.4 32.0 85 105 32.0 28.5
1FW3154-1⃞H 3.3 73 122 151 19.3 17.3
1FW3154-1⃞L 2.4 60 130 161 32.0 28.5
1FW3154-1⃞P 1.6 50 137 170 51.0 45.0
1FW3155-1⃞H 2.3 97 164 205 27.0 24.0
1FW3155-1⃞L 1.7 77 173 215 43.5 39.0
1FW3155-1⃞P 1.1 66 188 235 71 64.0
1FW3156-1⃞H 2.0 119 205 255 32.5 29.5
1FW3156-1⃞L 1.4 96 215 270 54 48.0
1FW3156-1⃞P 0.97 84 240 295 85 76.0
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
236 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 5- 16 Dynamic braking 1FW3, SH 200 Standard and High Speed
Average braking torque
Mbr rms [Nm]
rms braking current
Ibr rms [A]
Motor type External
braking
resistor
Ropt [Ω]
without external
braking resistor
with external
braking resistor
Max.
braking torque
Mbr max [Nm] without external
braking resistor
with external
braking resistor
Standard
1FW3201-1⃞E 4.4 76 106 132 10.4 9.4
1FW3201-1⃞H 3.2 54 110 136 19.5 17.5
1FW3201-1⃞L 2.2 39 109 135 31.5 28.0
1FW3202-1⃞E 2.5 133 196 245 19.1 17.3
1FW3202-1⃞H 1.8 94 205 255 36.0 32.0
1FW3202-1⃞L 1.2 69 205 255 57.0 52.0
1FW3203-1⃞E 1.8 192 290 355 27.5 25.0
1FW3203-1⃞H 1.0 141 310 390 58.0 52.0
1FW3203-1⃞L 0.77 101 310 385 89.0 80
1FW3204-1⃞E 1.3 265 410 510 38.5 35.0
1FW3204-1⃞H 0.82 200 450 560 78.0 70.0
1FW3204-1⃞L 0.57 144 455 560 126 113
1FW3206-1⃞E 0.76 400 610 760 62.0 56.0
1FW3206-1⃞H 0.54 270 630 780 115 103
1FW3206-1⃞L 0.37 215 670 830 190 170
1FW3208-1⃞E 0.58 550 850 1060 83 75
1FW3208-1⃞H 0.38 395 910 1130 164 147
1FW3208-1⃞L 0.31 255 790 980 225 200
High Speed
1FW3201-3⃞P 1.1 118 205 255 70 64
1FW3201-3⃞S 0.97 84 195 240 95 86
1FW3202-3⃞P 0.67 194 390 485 130 117
1FW3202-3⃞S 0.52 151 390 485 186 167
1FW3203-3⃞P 0.49 270 570 710 186 166
1FW3203-3⃞S 0.36 205 570 710 270 245
1FW3204-3⃞P 0.31 365 830 1030 280 255
1FW3204-3⃞S 0.22 280 830 1030 425 380
1FW3206-3⃞P 0.24 510 1210 1500 395 350
1FW3206-3⃞S 0.15 385 1210 1500 620 560
1FW3208-3⃞P 0.17 670 1670 2100 550 495
1FW3208-3⃞S 0.1 520 1670 2100 880 790
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 237
Table 5- 17 Dynamic braking 1FW3, SH 280 Standard and High Speed
Average braking torque
Mbr rms [Nm]
rms braking current
Ibr rms [A]
Motor type Braking
resistor
external
Ropt [Ω]
without external
braking resistor
with external
braking resistor
Max. braking
torque
Mbr rms [Nm] without external
braking resistor
with external
braking resistor
Standard
1FW3281-2⃞E 0.63 850 1230 1520 94 85
1FW3281-2⃞G 0.5 640 1230 1530 148 133
1FW3283-2⃞E 0.48 1120 1720 2150 131 118
1FW3283-2⃞G 0.37 840 1720 2150 205 184
1FW3285-2⃞E 0.36 1520 2450 3050 184 166
1FW3285-2⃞G 0.28 1120 2450 3050 285 255
1FW3287-2⃞E 0.25 2050 3450 4250 265 235
1FW3287-2⃞G 0.19 1500 3450 4300 410 370
High Speed
1FW3281-3⃞J 0.36 480 1230 1530 230 205
1FW3281-3⃞M 0.26 360 1220 1520 335 300
1FW3283-3⃞J 0.24 620 1710 2150 335 300
1FW3283-3⃞M 0.2 460 1710 2100 460 410
1FW3285-3⃞J 0.18 830 2450 3050 465 415
1FW3285-3⃞M 0.16 630 2500 3100 620 550
1FW3287-3⃞J 0.14 1090 3450 4250 610 550
1FW3287-3⃞M 0.098 830 3450 4300 930 830
Motor components
5.3 Braking resistors (armature short-circuit braking)
SIMOTICS T-1FW3 complete torque motors
238 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 239
Connection system 6
6.1 SINAMICS drive I/O
'5,9(&/L4
7HUPLQDO0RGXOHV
2SWLRQ%RDUGV
0RWRUVZLWK
'5,9(&/L4
LQWHUIDFH 0RWRUVZLWKRXW
'5,9(&/L4
LQWHUIDFH
6HQVRU
0RGXOH
027,21&211(&7SRZHUFDEOH
027,21&211(&7VLJQDOFDEOH
'5,9(&/L4
'5,9(&/L4027,21&211(&7
)URPOHIWWRULJKW
&RQWURO8QLW
6PDUW/LQHRGHU$FWLYH/LQH0RGXOH
'RXEOH0RWRU0RGXOH
6LQJOH0RWRU0RGXOH
*B30B(1BD
Figure 6-1 SINAMICS S120 system overview
WARNING
Before carrying out any work on the motor, please ensure that it is powered-down and the
system is locked-out so that the motor cannot re-start!
The motors may not be connected to the line supply.
The complete torque motors can be operated in a 4-quadrant drive system. They can be
connected to either a regulated or non-regulated infeed unit.
Note
The encoders are adjusted in the factory for SIEMENS drive converters. Another encoder
adjustment may be required when operating the motor with a third-party converter.
Connection system
6.2 Line connection
SIMOTICS T-1FW3 complete torque motors
240 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
6.2 Line connection
CAUTION
Carefully observe the current which the motor draws for your particular application!
Adequately dimension the connecting cables according to IEC 60204-1 (see table
"Cable cross section and current-carrying capacity").
0RWRU (QGVOHHYHVLQDFFRUGDQFHZLWK',1
8
9
:
/
/
/
Figure 6-2 Power cable
Terminal box connection
The type designation of the mounted terminal box as well as details for connecting-up the
line feeder cables can be taken from Table "Cable cross-sections (Cu) and outer diameter of
the connecting cables in the standard version". A circuit diagram to connected-up the motor
winding is provided in the terminal box when the motors are shipped.
:
8 9 8
9
:
<FLUFXLWVXSSO\YROWDJH99
0RWRU
7HUPLQDOER[
Figure 6-3 Circuit diagram
Connection system
6.2 Line connection
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 241
*.
*.
*.
;%
;%
8
9
:
:9
8
8 :
9 8 :
9
8 :
9
*.
8 9 :
Figure 6-4 Terminal assignment in the terminal boxes
Connection system
6.2 Line connection
SIMOTICS T-1FW3 complete torque motors
242 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 6- 1 Description of the diagram "Terminal assignment in the terminal box"
No. Description No. Description
1 M5 connecting studs 6 Connecting bar 3 x M12
2 M10 connecting studs 7 Grounding screw M12 max. 120 mm2
3 M4 grounding screw 8 M16 connecting studs
4 M6 grounding screw 9 M16 grounding studs
5 M10 grounding studs
Table 6- 2 Cable cross-sections (Cu) and outer diameter of the connecting cables in the standard version
Shaft height Rated current
IN
Terminal
box type
Terminal
stud
Thread for cable
gland
Max.
connectable
cross-section
Cable diameter
IN ≤ 50 A GK 230 ∅ 5 mm 2 x M32 x 1.5 2 x 16 mm2 11 ... 24 mm
50 A < IN ≤ 105 A GK 420 ∅ 10 mm 2 x M40 x 1.5 2 x 35 mm2 19 ... 31 mm
105 A < IN ≤ 260 A GK 630 ∅ 10 mm 2 x M50 x 1.5 2 x 50 mm2 27 ... 38 mm
150
IN ≤ 260 A GK 603 1) ∅ 5 mm
∅ 10 mm
2 x M63 x 1.5 2 x 50 mm2 11 ... 38 mm
IN ≤ 50 A GK 230 ∅ 5 mm 2 x M32 x 1.5 2 x 16 mm2 11 ... 24 mm
50 A < IN ≤ 105 A GK 420 ∅ 10 mm 2 x M40 x 1.5 2 x 35 mm2 19 ... 31 mm
105 A < IN ≤ 260 A GK 630 ∅ 10 mm 2 x M50 x 1.5 2 x 50 mm2 27 ... 38 mm
260 A < IN ≤ 480 A 1XB7700 ∅ 12 mm 3 x M75 x 1.5 3 x 120 mm2 41 ... 56 mm
200
IN ≤ 260 A GK 603 1) ∅ 5 mm
∅ 10 mm
2 x M63 x 1.5 2 x 50 mm2 11 ... 38 mm
IN ≤ 450 A 1XB7700 ∅ 12 mm 3 x M75 x 1.5 3 x 120 mm2 41 ... 56 mm
280 450 A < IN ≤ 800 A 1XB7712 ∅ 16 mm 4 x M75 x 1.5 4 x 120 mm2 41 ... 56 mm
1) Terminal box with removable front plate (option)
Note
MOTION-CONNECT 500 power cables are available up to a cross-section of 120 mm² and
MOTION-CONNECT 800PLUS up to 50 mm2.
The listed cables are UL and/or CSA approved.
The approvals can be taken from the current catalog in Chapter "MOTION-CONNECT
connection system".
Connection system
6.3 Signal connection
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 243
6.3 Signal connection
DRIVE-CLiQ is the preferred method for connecting the encoder systems to SINAMICS.
Motors with a DRIVE-CLiQ interface can be ordered for this purpose. Motors with a DRIVE-
CLiQ interface can be directly connected to the associated motor module via the available
MOTION-CONNECT DRIVE-CLiQ cables. The MOTION-CONNECT DRIVE-CLiQ cable is
connected to the motor in degree of protection IP67. The DRIVE-CLiQ interface supplies
power to the motor encoder via the integrated 24 VDC supply and transfers the motor
encoder and temperature signals and the electronic type plate data, e.g. a unique identifi-
cation number, rating data (voltage, current, torque) to the control unit. The MOTION-
CONNECT DRIVE-CLiQ cable is used universally for connecting the various encoder types.
These motors simplify commissioning and diagnostics, as the motor and encoder type are
identified automatically.
Motors with DRIVE-CLiQ interfaces
Motors with DRIVE-CLiQ interfaces can be connected to the associated Motor Module
directly via the MOTION-CONNECT DRIVE-CLiQ cables available. This means that data are
transferred directly to the control unit.
3RZHUFDEOH
0RWRU
6,1$0,&66
&RQWUROFDELQHW
0RWRU
0RGXOH
'5,9(&/L4
˽
(
0
a
Figure 6-5 Connecting encoders using the DRIVE-CLiQ interface
Motors without DRIVE-CLiQ interfaces
If a motor is not equipped with a DRIVE-CLiQ interface, the speed encoder and temperature
sensor are connected via a signal connector.
Motors that are not equipped with DRIVE-CLiQ require a Cabinet-Mounted Sensor Module
(SMC) when operated with SINAMICS S120. The motor is connected to the SMC via a
signal line. The SMC is connected to the Motor Module via a MOTION-CONNECT DRIVE-
CLiQ cable.
Connection system
6.4 Rotating the connector at the motor
SIMOTICS T-1FW3 complete torque motors
244 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
3RZHUFDEOH
6LJQDOFDEOH
0RWRU
&RQWUROFDELQHW
(
0
a
6,1$0,&66
'5,9(&/L4
˽
0RWRU
0RGXOH
6HQVRU0RGXOH&DELQHW60&
Figure 6-6 Connecting encoders without DRIVE-CLiQ interface
6.4 Rotating the connector at the motor
Signal connector and integrated Sensor Module can be rotated to a limited extent.
NOTICE
When rotating the connector, the following must be observed
It is not permissible that the specified rotation range is exceeded.
In order to guarantee the degree of protection, max. 10 revolutions are permissible.
Do not exceed the max. torque when rotating, refer to the table "Rotating torques".
Connectors should be rotated using the matching mating connector located on the
connector thread.
Connecting cables must be secured against tension and bending.
The motor connectors must then be secured so that they cannot rotate.
It is not permissible to subject the connector to continuous force.
Table 6- 3 Maximum rotating torques that occur
Connector Max. rotating torques that occur [Nm]
Signal connector 8
Integrated Sensor Module 8
Signal cable
The manufacturer mounts the plug-in connection for the signal cable (at the encoder terminal
box). When inserting the connector, the coding grove must be inserted aligned in the socket
connecter and the union nut must be tightened by hand to the end stop.
Connection system
6.5 Connecting-up information
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 245
6.5 Connecting-up information
Pre-assembled cables offer many advantages over cables assembled by customers
themselves. In addition to being sure that they will work perfectly and the high quality, there
are also cost benefits.
Use the power and signal cables from the MOTION CONNECT family. The maximum cable
lengths should be carefully observed. Technical data of the cables, refer to Catalog, Chapter
"MOTION-CONNECT connection system".
Apply the EMC installation guideline of the converter manufacturer. For Siemens converters,
this is available under Order No. 6FC5297-⃞AD30-0AP⃞.
Cable installation
● Shielded power and signal cables must be used.
● In exceptional cases, it is possible to use twisted motor cables or three-core cables with
additional ground conductor. Only remove insulation from the cable ends so that the
insulation completely extends up to the cable lug, to the terminal, or end sleeve.
● Protruding wire ends must be avoided.
● The connecting cables should be freely arranged in the terminal box so that the protective
conductor has an overlength and the cable conductor insulation cannot be damaged.
Connecting cables should be appropriately strain relieved.
● The cable lug size must be adapted to the dimensions of the terminal board connections
and the cross section of the line supply cable.
● Take measures to ensure that connecting cables cannot rotate, are not subject to strain
and pushing force and also provide anti-kink protection. It is not permissible to subject
cables to continuous force.
● Take special care that the required minimum air clearances are actually maintained:
Table 6- 4 Minimum air clearance
Max. terminal voltage < 600 V < 1000 V
Minimum air clearance 5.5 mm 8 mm
● The screwed electrical connections must be tightened with the specified tightening
torques:
Table 6- 5 Tightening torques
Thread Ø M4 M5 M6 M8 M10 M12 M16
Tightening
torque (Nm)
0.8 ... 1.2 1.8 ... 2.5 2.7 ... 4 5.5 ... 8 9 ... 13 14 ... 20 27 ... 40
Connection system
6.5 Connecting-up information
SIMOTICS T-1FW3 complete torque motors
246 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Note
In order to avoid disturbing effects (e.g. as a result of EMC), the signal cables must be
routed separately away from power cables.
Internal potential bonding (for 1FW315⃞ and 1FW320⃞)
The potential bonding between the grounding terminal in the box enclosure and the motor
housing is established through the terminal box retaining bolts. The contact locations below
the heads of the bolts are bare and are protected against corrosion.
The standard screws that are used to connect the terminal box cover to the terminal box are
sufficient as potential bonding between the terminal box cover and the terminal box
enclosure.
Outer protective conductor or potential bonding conductor
Note
For 1FW328⃞ and for 1FW3204-3* / 1FW3206-3* / 1FW3208-3*, there is an additional
connection point on the frame to connect an outer protective conductor or potential bonding
conductor.
(For shaft height 1FW315⃞ and 1FW320-1* this is not required.)
Connect-up the ground conductor
The grounding conductor cross-section must be compliance with the appropriate
installation/erection regulations, e.g. acc. to IEC/EN 60204-1.
For motors with a rated power > 100 kW, the ground conductor must be additionally
connected to the motor frame. A threaded hole is provided for the ground conductor at the
designated connection point. This is suitable for connecting stranded conductors with cable
lugs or straps with an appropriately terminated conductor end.
Please note the following when connecting-up:
● The connecting surface must be bare and must be protected against corrosion using a
suitable substance, e.g. using acid-free Vaseline
● Spring washer and normal washer must be located under the head of the screw
● The minimum screw-in depth and tightening torque of the clamping screw must be
maintained (refer to the Table )
Table 6- 6 Screw-in depth and tightening torque
Screw Minimum screw-in depth Tightening torque
M10 x 30 15 mm 28 - 42 Nm
Connection system
6.5 Connecting-up information
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 247
After connecting-up, the following should be checked/tested
● The inside of the terminal box must be clean and free of any cable pieces
● All of the terminal screws must be tight
● The minimum air clearances must be maintained
● The cable glands must be reliably sealed
● Unused cable glands must be closed and the plugs must be tightly screwed in place
● All of the sealing surfaces must be in a perfect condition
Current-carrying capacity for power and signal cables
The current-carrying capacity of PVC/PUR-insulated copper cables is specified for routing
types B1, B2 and C under continuous operating conditions in the table with reference to an
ambient air temperature of 40 °C. For other ambient temperatures, the values must be
corrected by the factors from the "Derating factors" table.
Table 6- 7 Cable cross section and current-carrying capacity
Cross section Current-carrying capacity rms; AC 50/60 Hz or DC for routing type
[mm2] B1 [A] B2 [A] C [A]
Electronics (according to EN 60204-1)
0,20 - 4,3 4,4
0,50 - 7,5 7,5
0,75 - 9 9,5
Power (according to EN 60204-1)
0,75 8,6 8,5 9,8
1,00 10,3 10,1 11,7
1,50 13,5 13,1 15,2
2,50 18,3 17,4 21
4 24 23 28
6 31 30 36
10 44 40 50
16 59 54 66
25 77 70 84
35 96 86 104
50 117 103 125
70 149 130 160
95 180 165 194
120 208 179 225
Connection system
6.6 Routing cables in a damp environment
SIMOTICS T-1FW3 complete torque motors
248 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Cross section Current-carrying capacity rms; AC 50/60 Hz or DC for routing type
[mm2] B1 [A] B2 [A] C [A]
Power (according to IEC 60364-5-52)
150 - - 259 1)
185 - - 296 1)
> 185 Values must be taken from the standard
1) Extrapolated values
Table 6- 8 Derating factors for power and signal cables
Ambient air temperature [°C] Derating factor according to EN 60204-1 Table D1
30 1,15
35 1,08
40 1,00
45 0,91
50 0,82
55 0,71
60 0,58
6.6 Routing cables in a damp environment
NOTICE
If the motor is mounted in a humid environment, the power and signal cables must be
routed as shown in the following figure.
6,(0(16
6,(0(16
6,(0(16
6,(0(16
6,(0(16
6,(0(16
ULFKWLJ SHUPLWWHG QLFKWHUODXEW QRWSHUPLWWHG
Figure 6-7 Principle of cable routing in a wet/moist environment
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 249
Assembly 7
7.1 Warning and danger information when mounting
DANGER
Torque motors are equipped with strong magnets. This is the reason that when the motors
are open there are strong magnetic fields and high magnetic forces of attraction.
It is not permissible that personnel with heart pacemakers or metal implants work on an
opened motor.
Keep clocks/watches and magnetic data mediums (e.g. floppy disks, credit cards, etc.),
away from these motors.
WARNING
These motors are electrically operated. When electrical equipment is operated, certain
parts of these motors are at hazardous voltage levels. If this motor is not correctly
handled/operated, this can result in death or severe bodily injury as well as significant
material damage.
Please carefully observe the warning information in this chapter and on the product itself.
● Only qualified personnel are permitted to carry-out installation/mounting and repair work
on this motor.
● When transporting, use the cable slings provided
● All work on the motor should be undertaken with the system in a no-voltage condition
● The motor should be connected-up according to the circuit diagram provided
● In the motor terminal box, it must be ensured that the connecting cables are connected
so that there is electrical isolation between the cables and the terminal box cover
● It must be ensured that the terminal box is sealed
● It is not permissible to use cables with insulation that is either defective or damaged
● Only spare parts, certified by the manufacturer, may be used
● Check that they match the conditions at the installation location (e.g. temperatures,
installation altitude)
● It is prohibited that the motors are used in hazardous zones and areas
● Thoroughly remove all anti-corrosion agents from the connecting flange (use
commercially available solvents)
● The drive-out elements should be rotated by hand. If there is a grinding noise, the cause
must be rectified or the manufacturer contacted.
Assembly
7.2 Overview of the mounting options
SIMOTICS T-1FW3 complete torque motors
250 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.2 Overview of the mounting options
Torque motors are generally used as direct drives, i.e. without any intermediate gearbox or
belts. The principle difference between mounting motors for conventional drives and for
direct drives can be seen from the following diagram.
*HDUER[
&RQYHQWLRQDOPRWRU
):
&XVWRPHUV
PDFKLQH
&XVWRPHUV
PDFKLQH
&RQYHQWLRQDOGULYH
V\VWHPZLWKFRPSOHWH
PRWRUDQGJHDUER[
'LUHFWGULYHV\VWHPZLWK
WRUTXHPRWRU
Figure 7-1 Comparison between conventional and direct drive systems
The following must be observed when mounting
The torque motors are complete motors equipped with deep-groove ball bearings.
NOTICE
Under no circumstances may the max. permissible axial and radial forces be exceeded.
Under no circumstances may the bearings of the customer's machine over-determine the
motor bearings. If the bearings are over-determined, this can result in immediate bearing
damage or the bearing change interval will be significantly reduced.
Assembly
7.2 Overview of the mounting options
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 251
0DVFKLQHPDFKLQH
Figure 7-2 Over-determined bearings of a shaft (to be avoided)
Mounting the motor frame to the machine on the customer's side
The following possibilities are available for mounting the motor frame of the complete torque
motor 1FW3 to the machine on the customer's side:
1. Flange-mounting for 1FW3 motors (SH 150, SH 200, SH 280)
2. Foot and flange-mounting for 1FW3 motors (SH 280)
Assembly
7.2 Overview of the mounting options
SIMOTICS T-1FW3 complete torque motors
252 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Table 7- 1 Types of construction
Type of
construction
Designation Type of
construction
Designation Type of
construction
Designation
1FW315⃞ / 1FW320⃞
1FW328⃞
Standard
1FW328⃞-⃞⃞⃞⃞5
Heavy Duty
IM B14
IM B35
IM B5
IM V18
IM V15
IM V1
IM V19
IM V35
IM V3
1FW315 / 1FW320 / 1FW328
Plug-on mounting with torque arm
(not standardized)
Table 7- 2 Mounting the motor frame
Shaft height Type of construction Holes at the DE housing flange Pitch circle diameter
150 IM B14, IM V18/19 12 x M10 295 mm
200 IM B14, IM V18/19 16 x M10 380 mm
280 IM B35, IM V15/35 24 x ∅ 13 mm 532 mm
280 IM B5, IM V1/3 24 x ∅ 17.5 mm 650 mm
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 253
Rotor connected to the drive shaft
The rotor of the 1FW3 motor can be connected as follows to the drive shaft on the
customer's side:
Table 7- 3 Rotor connected to the drive shaft
Shaft
height
Threaded hole at the rotor DE (face side) Tensioning elements in the inner
diameter of the rotor
150 12 x M12, 24 mm deep, pitch circle diameter 170 mm Inside diameter, 153 mm H7
200 12 x M12, 24 mm deep, pitch circle diameter 170 mm Inside diameter, 153 mm H7
280 24 x M16, 34 mm deep, pitch circle diameter 280 mm Inside diameter, 250 mm H7
NOTICE
The permissible clamping range must be carefully observed! The permissible surface
pressure must not be exceeded!
A stable foundation design and precise motor alignment are prerequisites for smooth,
vibration-free operation.
The following mounting notes must be carefully observed:
● Especially for high-speed motors with flange mounting, it is important that the mounting is
stiff in order to locate any resonant frequency as high as possible so that it remains
above the maximum rotational frequency.
● Thin sheets (shims) can be placed under the motor mounting feet to align the motor and
to avoid mechanically stressing the motor. The number of shims used should be kept to a
minimum.
● In order to securely mount the motors and reliably and safely transfer the drive torque,
bolts with property class 8.8 acc. to ISO 898-1 should be used.
7.3 Plug-on installation
NOTICE
Installation using the plug-on principle
When installing the motor using the plug-on principle (motor on the shaft, enclosure
supported with a torque arm), the weight of the motor results in an additional load. This
must be taken into account when designing the bearings and shaft. Information on the
motor weight is provided in the data sheets or dimension drawings.
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
254 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 7-3 De-coupling the stator from the machine base using a torque arm (schematic representation)
● For the plug-on mounting, the motor weight is solely supported by the shaft extension of
the driven machine. The mounting to the motor frame cannot accept any cantilever forces
and therefore does not support the motor. This must be taken into account when
dimensioning the shaft extension and the machine bearings.
● The natural bending frequency can be shifted as a result of the lower stiffness of the
mounting to the motor frame. Operation at a rotational frequency in the range of the
natural bending frequency should be avoided.
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 255
7.3.1 Siemens torque arm
Option T32
In Chapter "Overview of the mounting options", it was explained that it is not permissible that
the customer's machine bearings over-determine the bearing of a shaft.
One possible solution is the Siemens torque arm.
Advantage: Torque arms ensure a torsionally-rigid motor connection in a radial direction and
balance axial tolerances and misalignments.
Figure 7-4 Schematic representation of the Siemens torque arm
When designing the mounting, it must be ensured that a possible (thermal) expansion of the
shaft extension remains in a range less than 0.1 mm.
Further, before mounting, the motor should only be placed on supporting prisms. This rules
out that the mounting flange of the Siemens torque arm is subject to inadmissibly high
cantilever forces.
Note
The Siemens torque arm is available as standard for shaft height 200, and for shaft heights
150 and 280, is available on request.
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
256 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Influence of the torque arm on the speed control loop
By connecting the stator through a flexible element, with respect to the machine foundation,
the stator represents an additional system that can oscillate (see Fig A), in addition to the
two mass system comprising the load and rotor (see Fig. B).
5RWRU
/RDG
6WDWRU
0DFKLQHEDVH
%$
The influence of the Siemens torque arm is shown qualitatively in the following diagram. The
two-mass oscillating system comprising motor and load still dominates the system response;
however, coupling the stator through the Siemens torque arm is manifested in the form of
additional resonance effects, which must be dampened by the closed-loop control.
0DVVRVFLOODWLQJV\VWHP
6WDWRUPDFKLQHEDVH)LJ$
$PSOLWXGH
)UHTXHQF\>+]@
0DVVRVFLOODWLQJV\VWHP
/RDGದURWRU)LJ%
Figure 7-5 Speed control loop – influence of the Siemens torque arm
Table 7- 4 Resonant frequency, stator coupling
Motor Resonant frequency to be expected [Hz] Note
1FW3201 340
1FW3202 310
1FW3203 290
1FW3204 260
1FW3206 240
1FW3208 220
Depending on the particular application,
the resonant frequency can be up to
20% higher.
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 257
Mounting sequence, Siemens torque arm with clamping element
1. Check the rotor and prepare the shaft seat:
5HOHDVHFODPSLQJVFUHZVJUHHQ
)RUGLVDVVHPEO\WKHUHOHDVHVFUHZVUHPDLQ
WLJKWHQHGDVRULJLQDOO\VKLSSHG
&ODPSLQJVHDWIUHHRIOXEULFDQWV
DQGDQ\RWKHUVXEVWDQFHVWKDW
FRXOGUHGXFHIULFWLRQ
$SSO\DVVHPEO\
SDVWHHJ0RO\NRWWR
WKHFHQWHULQJVHDW
Figure 7-6 As delivered state and preparations for mounting
2. Axially slide the motor onto the customer's flange:
● The motor is slid onto the shaft extension and is in the correct axial position when the
torque arm is located on the machine-side flange. The motor is not axially positioned on
the shaft side.
● Tighten the clamping screws of the ring clamping element according to the mounting
instructions "Mounting sequence, clamping elements, option +Q30" in Chapter "Shaft-
side clamping element".
● You can rotate the motor using the shaft extension so that you can easily access the
screws.
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
258 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
[ZLQGRZWRWLJKWHQ
WKHVFUHZV
Figure 7-7 Pre-mounting
3. Check the gap in the clamping element, and if required, measure the motor alignment
(run out):
● The gap between the two clamping element parts must be able to be identified around
the complete circumference.
● In order to achieve a higher smooth running quality, you can check the alignment of the
motor to the machine at the surface shown. If the deviation is too high, then alignment is
possible by tightening the clamping screws.
● For further information on checking, see the mounting instructions "Mounting sequence,
clamping elements of option +Q30" in Chapter "Shaft-side clamping element".
7UXHUXQQLQJPHDVXUHPHQW
WRWKHPDFKLQHD[LV
*DS
Figure 7-8 Check
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 259
4. Mounting the Siemens torque arm:
After successfully carrying out steps 1 – 3, screw the Siemens torque arm to the machine.
7LJKWHQ[0
Figure 7-9 Final mounting
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
260 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 7-10 Siemens torque arm
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 261
7.3.2 Shaft-side clamping element
Various mounting options using clamping elements are shown in this Chapter.
Siemens AG in cooperation with RINGSPANN GmbH has developed various clamping
system solutions to ensure secure, friction-locked connection of torque motors to cylindrical
machine shafts - with the following objectives.
● Safely and reliably transmitting the torque
● Precisely centering the torque motor on the machine shaft
● Avoid inadmissible deformation to the torque motor components
● No stress caused by different temperature changes in the torque motor and in the
machine shaft
● Simple mounting
● Simple disassembly, even after longer periods of operation
Mounting using suitable clamping elements is explained in the following.
Hollow shaft with option, clamping element and centering part
1FW3x-xxxxx-xxAx +Q30
See Chapter "Hollow shaft with option +Q30"
Plug-on shaft with clamping element
1FW3x-xxxxx-xxSx +Q30
See Chapter "Plug-on shaft with option +Q30"
Hollow shaft with inner clamping element from the Ringspann
company
1FW315-xxxxx-xxCx
1FW320-xxxxx-xxCx
For details, see Chapter "Hollow shaft, inner clamping
element"
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
262 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Mounting sequence, clamping elements of option +Q30
6KDIWVKRXOGHU 6KDIWH[WHQVLRQ
&ODPSLQJVFUHZ
/RFNQXW
5HOHDVHVFUHZ
7DSHUHGVOHHYH
7DSHUHGULQJ
1. Using the clamping element (possibly with centering sleeve), mount the motor at the
intended position on the shaft extension.
2. Using screws (3) clamp the tapered ring (2) onto the tapered sleeve (1). Initially tighten all
screws diagonally so that they are hand tight (5 to 8 Nm).
3. Then tighten all of the screws (3) one after the other diagonally using a torque wrench.
When doing this, the screw may only be tightened through a maximum of ¼ of a turn.
With the torque wrench set to a torque of 127 Nm, repeat this procedure until none of the
screws turns any further. Then check that the motor runs true.
4. Then check the gap between the tapered sleeve (1) and tapered ring (2) and between the
tapered sleeve (1) and the release screw (4). There must be a minimum gap of 0.1 mm
around the complete circumference. If this minimum gap does not exist, then there is the
risk that the clamping element will not fulfill its function (excessively low joint
interference).
Causes could be: for hollow shaft extensions: excessively low wall thickness or
excessively small diameter of the clamping seat.
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 263
Options to optimize the smooth running characteristics of the mounting
The true running can be checked during procedures 2 and 3. The motor can be aligned by
specifically tightening the screws (3). If the clamping screw (3) is over-proportionally
tightened, then at this position the motor is lifted off from the shaft extension.
If, after tightening to the final torque, the true running check indicates an excessively high
deviation, then all of the clamping screws (3) should be released and tightening procedures
2 and 3 should be repeated, checking the true running and specifically tightening the
clamping screws (3).
Disassembly
If, when disassembling the clamping element, after removing the clamping screws (3) the
tapered ring (2) cannot be released, then proceed as follows:
1. Release the nut (5) and turn this until it comes into contact with the head of the release
screw (4).
2. Rotate the release screws (4) in the tapered ring (2) until they are in contact with the
tapered sleeve (1).
3. Screw in the release screws (4) one after the another through ¼ of a turn until the
tapered ring is released.
If the motor cannot be released from the shaft extension, for an appropriate shaft extension
design, using the release screws, it is possible to press the tapered ring until it comes into
contact with the shaft shoulder. The motor is pressed from the shaft extension by turning the
release screws further (4).
When re-using the clamping element, the release screws must be screwed back in and
secured using the nuts (5).
Support
If certain requirements exist, e.g.
● different diameter
● restricted mounting space
● thermal insulation
● electrical installation
regarding the shaft-side connection of the motor, RINGSPANN GmbH is more than willing to
provide support when selecting a suitable clamping system for your particular application.
Contact:
RINGSPANN GmbH Telephone: +49 (0) 6172 275 0
Schaberberg 30-34 Internet: http://www.ringspann.de
D-61348 Bad Homburg
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
264 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.3.2.1 Plug-on shaft with option +Q30
Available for the motors 1FW315x, 1FW320x and 1FW328x with plug-on shaft (15th position
of the order number = S)
Support at the DE with the seat integrated in order to facilitate centered mounting.
When the shaft journal is implemented according to dimension drawings
510.31315.01/510.33320.01/510.31396.01, then it is also possible to disassemble using
release screws.
Figure 7-11 Plug-on shaft clamping element
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 265
Figure 7-12 Dimension drawing, mounting plug-on motor 1FW315
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
266 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 7-13 Dimension drawing, mounting plug-on motor 1FW320
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 267
Figure 7-14 Dimension drawing, mounting plug-on motor 1FW328
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
268 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.3.2.2 Hollow shaft with option +Q30
1FW315x-xxxxx-xxAx
1FW320x-xxxxx-xxAx
● Harmonized clamping system
● For hollow shafts through which hot or cold media are routed
● Can be combined with a coaxially mounted encoder
● Axial mounting space is required at the DE
● Mounted only from the DE or alternatively, in two parts from DE/NDE
● Torque transmission to the customer shaft (h8 fit) via a flanged clamping element at
the DE
● Supported at the NDE using an aluminum ring to guarantee centered mounting and to
prevent any inadmissible wobbling motion.
Figure 7-15 Outer clamping system
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 269
Figure 7-16 Dimension drawing hollow shaft with clamping element
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
270 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.3.2.3 Hollow shaft, inner clamping element
1FW315x-xxxxx-xxCx
1FW320x-xxxxx-xxCx
Figure 7-17 Inner clamping system
● Available for 1FW315x and 1FW320x with special shaft (15th position of the MLFB = C)
● RINGSPANN RTM 134.1
● Torque transmission to the customer shaft (h8 fit) via the clamping element located in the
hollow shaft NDE
● Supported at the DE using an aluminum ring to guarantee centered mounting and to
prevent any inadmissible wobbling motion
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 271
● Compact mounting at the machine is possible as no axial mounting space is required at
the DE and the device is completely mounted from the NDE.
● Cannot be combined with a coaxially mounted encoder
2QHFODPSLQJVHWVXIILFLHQW 7ZRFODPSLQJVHWVDUHUHTXLUHGWRWUDQVPLW
WKHWRUTXH
):ಹ):
):ಹ):
):ಹ):
):ಹ):
Figure 7-18 Clamping sets required to transmit the torque
Technical Support RINGSPANN GmbH
RINGSPANN GmbH is more than welcome to support you when selecting a suitable
clamping system for your application.
RINGSPANN GmbH Telephone: +49 (0) 6172 275 0
Schaberberg 30-34 Internet: http://www.ringspann.de
D-61348 Bad Homburg
Assembly
7.3 Plug-on installation
SIMOTICS T-1FW3 complete torque motors
272 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Figure 7-19 Dimension drawing hollow shaft clamping element
Assembly
7.4 Coupling mounting
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 273
7.4 Coupling mounting
Advantage: Simple design, a standard motor can be used.
Disadvantage: As a result of its function, a coupling must be elastic and therefore has a
negative impact on the positive characteristics and features of a directly driven load. The
stiffness in the mechanical drive train is reduced.
CAUTION
If you use mechanical transmission elements which subject the shaft end to a radial force,
the maximum limit values specified in the radial force diagrams must not be exceeded.
Figure 7-20 De-coupling the machine shaft from the motor shaft using a coupling
Assembly
7.5 No bearings at the DE
SIMOTICS T-1FW3 complete torque motors
274 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.5 No bearings at the DE
1FW3xxx-xxxxx-xxx3
Properties
● Stiff rotor and stator mounting for the hollow shaft version
● Only a few mounting components are required
● Provides a possibility of mounting bearing modules to absorb increased process forces
● Not available for plug-on and solid shaft versions (15th position of the MLFB) "M" and "S"
NOTICE
Radial overdetermination of the remaining bearing at the NDE must be avoided; this
must be verified by making the appropriate calculation
Axial temperature expansion of the machine shaft must be limited as specified in
dimension drawing 609.30284.01
Installation conditions must be maintained, refer to the dimension drawing No.
609.30284.01, no bearings at the DE
If you have any questions regarding the limitations and constraints, please contact the
Siemens Service Center.
Mounting examples
1 The manufacturer must be contacted (if necessary, over-determination)
2 For bearing module with increased radial/axial force load
Figure 7-21 Mounting examples for motors with no bearings at the DE
Assembly
7.5 No bearings at the DE
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 275
Figure 7-22 Dimension drawing, no bearings at the DE
Assembly
7.6 Natural frequency when mounted
SIMOTICS T-1FW3 complete torque motors
276 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.6 Natural frequency when mounted
The motor is an oscillating system with a design-dependent natural frequency, which is
higher than the specified maximum speed.
When the motor is mounted onto a machine, a new system, which is capable of vibration, is
created with modified natural frequencies. These can lie within the motor speed range.
This can result in undesirable vibrations in the mechanical drive transmission.
NOTICE
Motors must be carefully mounted on adequately stiff foundations or bedplates. Additional
elasticities of the foundation/bedplates can cause resonance effects of the natural
frequency at the operating speed and, therefore, result in inadmissibly high vibration
values.
The magnitude of the natural frequency when the motor is mounted depends on various
factors and can be influenced by the following points:
● Mechanical transmission elements (gearboxes, belts, couplings, pinions, etc.)
● Stiffness of the machine design to which the motor is mounted
● Stiffness of the motor in the area around the foot or customer flange
● Motor weight
● Machine weight and the weight of the mechanical system in the vicinity of the motor
● Damping properties of the motor and the driven machine
● Installation type/position (IM B14, IM V18/19, IM B35)
● Motor weight distribution, i.e. length, shaft height
7.7 Vibration resistance
The on-site system vibration behavior depends on factors such as the output elements,
mounting situation, alignment, installation, and external vibration and can increase the level
of vibration at the motor.
Under certain circumstances, the rotor may have to be completely balanced with the output
element.
To ensure problem-free operation and a long service life, the vibration values specified to
ISO 10816 must not be exceeded at the defined measuring points on the motor.
Assembly
7.7 Vibration resistance
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 277
Table 7- 5 Max. permissible radial vibration values 1)
Vibration frequency Vibration values
< 6.3 Hz Vibration amplitude s ≤ 0.16 mm
6.3 - 250 Hz Vibration velocity vrms ≤ 4.5 mm/s
> 250 Hz Vibration acceleration a ≤ 10 m/s2
Table 7- 6 Max. permissible axial vibration values1)
Vibration velocity Vibration acceleration
vrms = 4.5 mm/s apeak = 2.25 m/s2
1) Both values must be maintained simultaneously
Figure 7-23 Max. permissible vibration velocity, taking into account the vibration displacement and
vibration acceleration
To measure the vibration velocity, the measuring equipment must fulfill the requirements of
ISO 2954. The vibration acceleration must be measured as a peak value in the time range in
a frequency band of 10 to 2000 Hz.
If appreciable vibration excitation in excess of 2000 Hz (e.g. gear teeth meshing frequencies)
can be expected, the measurement range must be adapted accordingly. This does not alter
the maximum permissible values.
Assembly
7.8 Heavy Duty (Z option L03)
SIMOTICS T-1FW3 complete torque motors
278 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
7.8 Heavy Duty (Z option L03)
Heavy Duty is the version for increased shock loads.
Valid for the following complete torque motors
ದದ
ದ
2YHUDOOOHQJWK
(QFRGHU
3
)$
:=
=/
&
Type of construction: IM B5
Shock load
Table 7- 7 Shock load
Vibration acceleration apeak
Max. permissible radial shock load 100 m/s2
Max. permissible axial shock load 50 m/s2
The vibration acceleration must be measured as a peak value in the time range in a
frequency band of 0 to 2000 Hz. The measurement must be made at the DE flange
(based on DIN ISO 10816). If vibration excitation exceeding 2000 Hz (e.g. gear meshing
frequencies) can be expected, the measurement range must be adapted accordingly.
This does not alter the maximum permissible values.
Mounting
A flange is used for mounting.
Table 7- 8 Flange mounting
Description
Bolt ISO 898-11) M16
Washer ISO 7092 ISO 7092-16-300 HV (d2 = 30)
Tightening torque 300 Nm
1) Bolts of property class 10.9 or higher must be used
Assembly
7.8 Heavy Duty (Z option L03)
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 279
NOTICE
Bolt locking
Bolts must be locked as a result of vibration and shock loads.
Shaft adaptation
The motor must be precisely aligned in order to avoid distortion or over-determining the
bearings. For the shaft adaptation, it must be ensured that in operation the motor shaft is not
subject to any additional axial shock load. A rigid connection between the motor and
customer shaft is not permitted. The shaft adaptation must be designed so that there are no
axial forces (straight gearing with splined shaft) and the appropriate play.
Connecting-up notes
There must be a good metallic connection between the motor and the customer's machine
(enclosure and shaft) in order to avoid rotor-ground currents. You should contact the
manufacturer if this cannot be guaranteed.
Shielded power and signal cables must be used.
Bearing lifetime and regreasing interval
The bearings are equipped with a regreasing device. The values specified in the following
table are valid for ambient conditions, according to Chapter "Bearing versions".
Fixed bearings at DE: 61864
Floating bearings at NDE: 6230
Table 7- 9 Regreasing intervals
Motor type nN [rpm] Bearing lifetime
with lubrication
[h]
Regreasing
interval [h]
Grease quantity
1) DE [g]
Grease quantity
1) NDE [g]
1FW328x-2/3 150 / 250 /
400 / 600
20000 4000 80 120
1) Bearing grease designation: Klüberquiet BQH 72-102, Klüber Lubrication Munich KG, Internet:
www.klueber.com
Assembly
7.8 Heavy Duty (Z option L03)
SIMOTICS T-1FW3 complete torque motors
280 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Dimension drawing
Figure 7-24 1FW3 Heavy Duty
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 281
Appendix A
A.1 Description of terms
Braking resistance Ropt
Ropt corresponds to the optimum resistance value per phase that is switched in series
external to the motor winding for the armature short-circuit braking function.
Braking torque Mbr rms
Mbr rms corresponds to the average braking torque for armature short-circuit braking that is
achieved through the upstream braking resistor Ropt.
Cyclic inductance LD
The cyclic inductance is the sum of the air gap inductance and leakage inductance relative to
the single-strand equivalent circuit diagram. It consists of the self-inductance of a phase and
the coupled inductance to other phases.
DE
Drive end
Efficiency ηopt
Maximum achievable efficiency along the S1 characteristic or below the S1 characteristic
without field weakening current.
Electrical time constant Tel
Quotient obtained from the rotating field inductance and winding resistance. Tel = LD/Rph
Maximum current Imax, RMS
This current limit is only determined by the magnetic circuit. Even if this is briefly exceeded, it
can result in an irreversible de-magnetization of the magnetic material. Specification of the
RMS value of a sinusoidal current.
Maximum permissible speed at converter nmax Inv
The maximum permissible speed during operation on a converter is nmax Inv. This is
calculated by means of the voltage induced in the motor and the voltage strength of the
converter.
Appendix
A.1 Description of terms
SIMOTICS T-1FW3 complete torque motors
282 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Maximum permissible speed (mechanical) nmax.
The maximum mechanically permissible speed is nmax mech. It is defined by the centrifugal
forces and frictional forces in the bearing.
Maximum speed nmax
The maximum permissible operating speed nmax is the lesser of the maximum mechanically
permissible speed and the maximum permissible speed at the converter.
Maximum torque Mmax
Torque that is generated at the maximum permissible current.
The maximum torque is briefly available for high-speed operations (dynamic response to
quickly changing loads).
The maximum torque is limited by the closed-loop control parameters. If the current is
increased, then the rotor will be de-magnetized.
Mechanical time constant Tmech
The mechanical time constant is obtained from the tangent at a theoretical ramp-up function
through the origin.
Tmech = 3 ∙ Rph ∙ Jmot/kT2 [s]
Jmot = Servomotor moment of inertia [kgm2]
Rph = Phase resistance of the stator winding [Ohm]
kT = Torque constant [Nm/A]
Moment of inertia Jmot
Moment of inertia of rotating motor parts.
NDE
Non-drive end
Number of poles 2p
Number of magnetic north and south poles on the rotor. p is the number of pole pairs.
Rated current IN
RMS motor phase current for generating the particular rated torque. Specification of the
RMS value of a sinusoidal current.
Appendix
A.1 Description of terms
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 283
Rated speed nN
The characteristic speed range for the motor is defined in the speed-torque diagram by the
rated speed.
Rated torque MN
Thermally permissible continuous torque in S1 duty at the rated motor speed.
Shaft torsional stiffness cT
This specifies the shaft torsional stiffness from the center of the rotor laminated core to the
center of the shaft end.
Static current I0
Motor phase current for generating the particular static torque. Specification of the RMS
value of a sinusoidal current.
Static torque M0
Thermal limit torque at motor standstill corresponding to a utilization according to 100 K.
At n = 0, this can be output for an unlimited length of time. M0 is always greater than the
rated torque MN.
Thermal time constant Tth
Defines the increase in the motor frame temperature when the motor load is suddenly
increased (step function) to the permissible S1 torque. The motor has reached 63% of its
final temperature after Tth.
Torque constant kT (value for a 100 K average winding temperature rise)
Quotient obtained from the static torque and static current.
Calculation: kT = M0, 100K / I0, 100K
Note
This constant is not applicable when configuring the necessary rated and acceleration
currents (motor losses!).
The steady-state load and the frictional torques must also be included in the calculation.
Appendix
A.1 Description of terms
SIMOTICS T-1FW3 complete torque motors
284 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
Voltage constant kE (value at 20 °C rotor temperature)
Value of the induced motor voltage at a speed of 1000 rpm and a rotor temperature of 20 °C.
The phase-to-phase RMS motor terminal voltage is specified.
Winding resistance Rph at 20 °C winding temperature
The resistance of a phase at a winding temperature of 20 °C is specified. The winding has a
star circuit configuration.
Appendix
A.2 Conformity certificates
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 285
A.2 Conformity certificates
Appendix
A.3 References
SIMOTICS T-1FW3 complete torque motors
286 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
A.3 References
Overview of publications of planning manuals
An updated overview of publications is available in a number of languages on the Internet at:
www.siemens.com/motioncontrol
Select "Support" → "Technical Documentation" → "Ordering Documentation" → "Printed
Documentation".
Catalogs
Order code Catalog name
NC 61 SINUMERIK & SINAMICS
NC 60 SINUMERIK & SIMODRIVE
PM 21 SIMOTION & SINAMICS
Electronic Documentation
Order code DOC ON CD
CD1 The SINUMERIK System
(includes all SINUMERIK 840D/810D and SIMODRIVE 611D)
CD2 The SINAMICS System
SIMOTICS T-1FW3 complete torque motors
Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6 287
Index
A
Additional information, 29
Armature short-circuit braking, 231, 235
Axial force diagrams, 59
B
Balancing process, 71
Bearing version, 56
Brake resistors, 231
C
CAD CREATOR, 204
Configuring, 31
Conformity certificates, 285
D
Danger and warning information, 5
Degree of protection, 56
Dimension drawings
Encoderless, 210
Heavy Duty, 278
Hollow shaft, 206
Plug-on shaft, 212
Solid shaft, 215
Disposal, 9
Dynamic braking, 235
E
Electrical connections, 239
Environmental compatibility, 9
ESDS instructions, 7
H
Hotline, 3
I
Installation, 249
K
KTY 84, 217
M
Motor Module, 24
N
Natural frequency when mounted, 276
O
Options, 29
Order codes, 29
Order number, 28
P
Paint finish, 73
Power connection, 240
Procedure when engineering, 34
PTC thermistors, 218
R
Radial force diagrams, 59
Rating plate, 27
Resolver, 228
Index
SIMOTICS T-1FW3 complete torque motors
288 Configuration Manual, (PKTS), 04/2012, 6SN1197-0AD70-0BP6
S
Shaft versions, 54
Signal connection, 243
SIZER for SIEMENS Drives, 31
Speed-torque diagrams
1FW3150-1xH, 82
1FW3150-1xL, 84
1FW3150-1xP, 86
1FW3152-1xH, 88
1FW3152-1xL, 90
1FW3152-1xP, 92
1FW3154-1xH, 94
1FW3154-1xL, 96
1FW3154-1xP, 98
1FW3155-1xH, 100
1FW3155-1xL, 102
1FW3155-1xP, 104
1FW3156-1xH, 106
1FW3156-1xL, 108
1FW3156-1xP, 110
1FW3201-1xE, 112
1FW3201-1xH, 114
1FW3201-1xL, 116
1FW3201-3xP, 148
1FW3201-3xS, 150
1FW3202-1xE, 118
1FW3202-1xH, 120
1FW3202-1xL, 122
1FW3202-3xP, 152, 156
1FW3202-3xS, 154
1FW3203-1xE, 124
1FW3203-1xH, 126
1FW3203-1xL, 128
1FW3203-3xS, 158
1FW3204-1xE, 130
1FW3204-1xH, 132
1FW3204-1xL, 134
1FW3204-3xP, 160
1FW3204-3xS, 162
1FW3206-1xE, 136
1FW3206-1xH, 138
1FW3206-1xL, 140
1FW3206-3xP, 164
1FW3206-3xS, 166
1FW3208-1xE, 142
1FW3208-1xH, 144
1FW3208-1xL, 146
1FW3208-3xP, 168
1FW3208-3xS, 170
1FW3281-2xE, 172
1FW3281-2xG, 174
1FW3281-3xJ, 188
1FW3281-3xM, 190
1FW3283-2xE, 176
1FW3283-2xG, 178
1FW3283-3xJ, 192
1FW3283-3xM, 194
1FW3285-2xE, 180
1FW3285-2xG, 182
1FW3285-3xJ, 196
1FW3285-3xM, 198
1FW3287-2xE, 184
1FW3287-2xG, 186
1FW3287-3xJ, 200
1FW3287-3xM, 202
STARTER, 33
T
Technical features, 20
Technical Support, 3
terminal box, 240
Thermal motor protection
PTC thermistors, 218
Third-party products, 8
Torque characteristics, 75
Training, 3
V
Vibration strength, 276
W
Water cooling, 45
